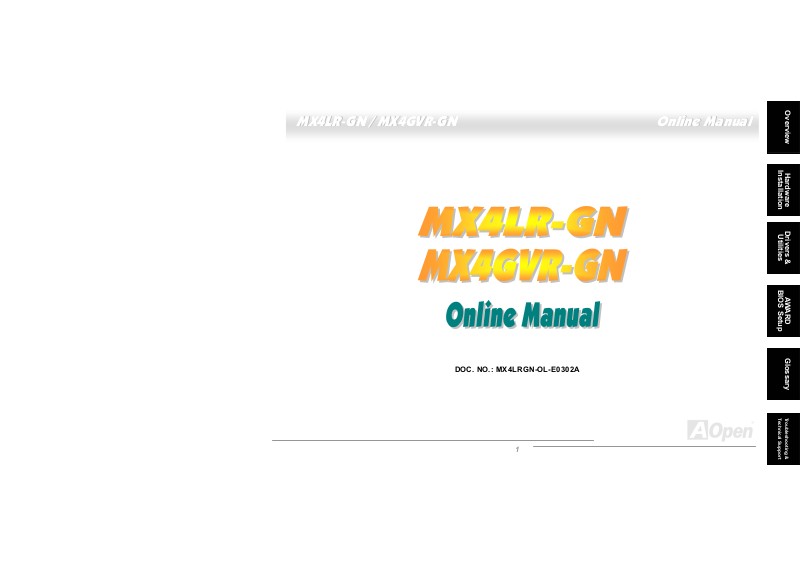

AOpen MX4GVRGN User Manual

Download

Page 1

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

DOC. NO.: MX4LRGN-OL-E0302A

Overview

Installation

Hardware

Drivers &

Utilities

BIOS Setup

AWARD

Glossary

Troubleshooting &

Technical Support

Page 2

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

all

WWhhaatt’’ss iinn tthhiiss mmaannuuaall

MX4LR-GN/MX4GVR-GN .............................................................................................................17

What’s in this manual ...................................................................................................................................................... 2

You Must Notice .............................................................................................................................................................. 8

Before You Start..............................................................................................................................................................9

Overview ....................................................................................................................................................................... 10

Feature Highlight........................................................................................................................................................... 11

Quick Installation Procedure .........................................................................................................................................14

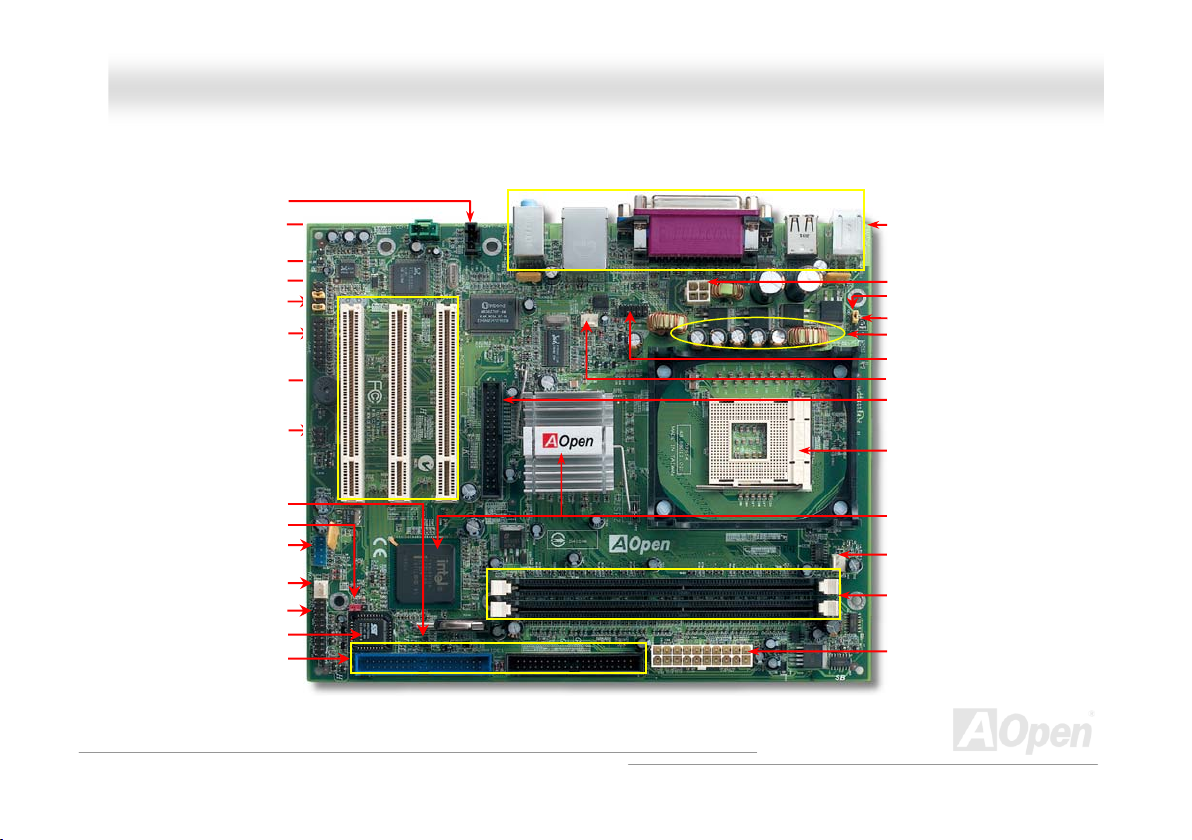

Motherboard Map .......................................................................................................................................................... 15

Block Diagram ............................................................................................................................................................... 16

Hardware Installation................................................................................................................ 17

About “Optional” and “Upgrade Optional”…................................................................................................................... 18

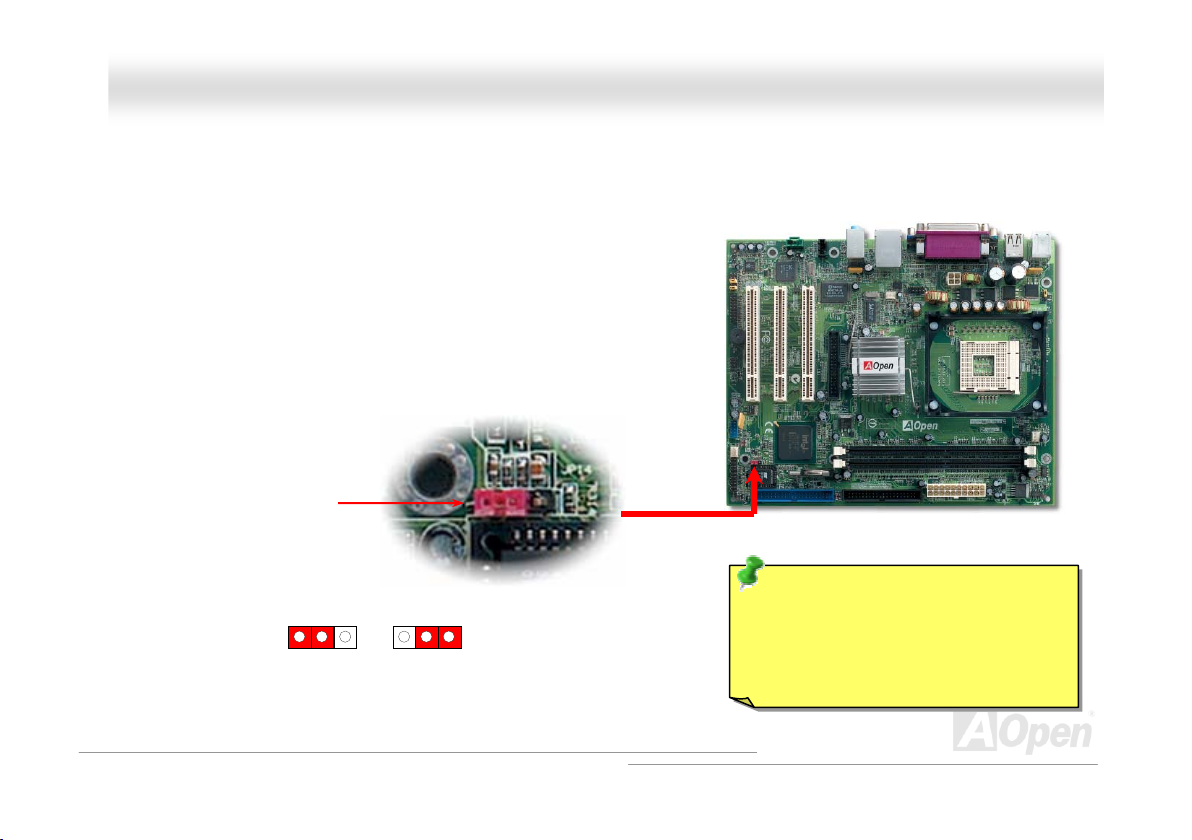

JP14 Clear CMOS Data ................................................................................................................................................ 19

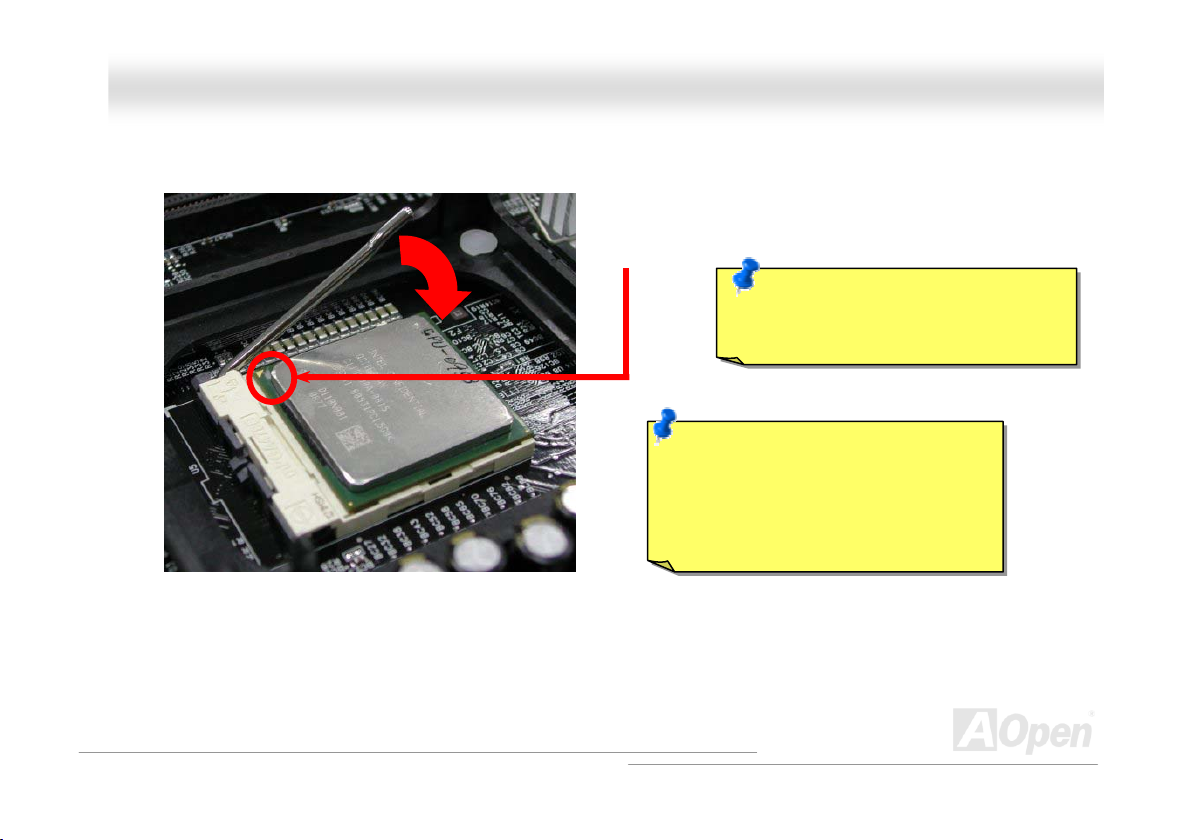

CPU Installation ............................................................................................................................................................ 20

CPU Jumper-less Design ..............................................................................................................................................23

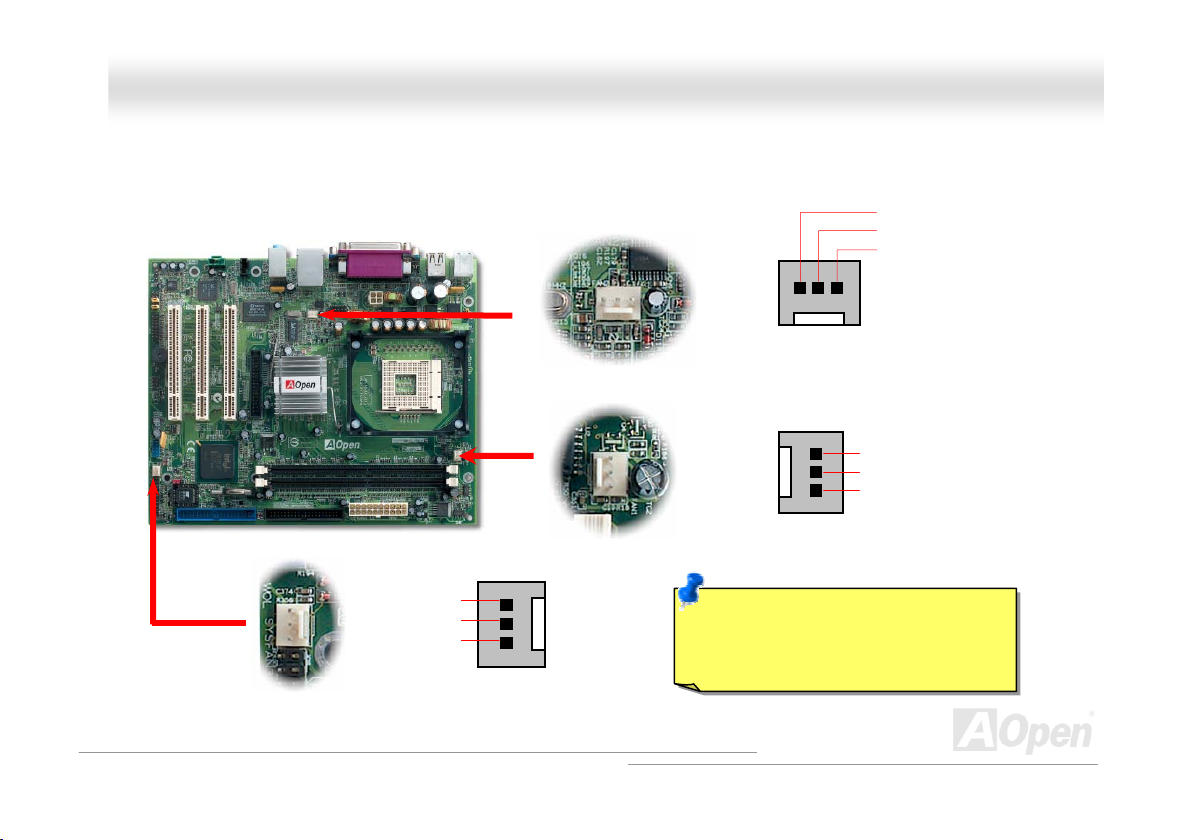

CPU and System Fan Connector (with H/W Monitoring) ............................................................................................... 27

JP28 Keyboard/Mouse Wake-up Enable/Disable Jumper .............................................................................................. 28

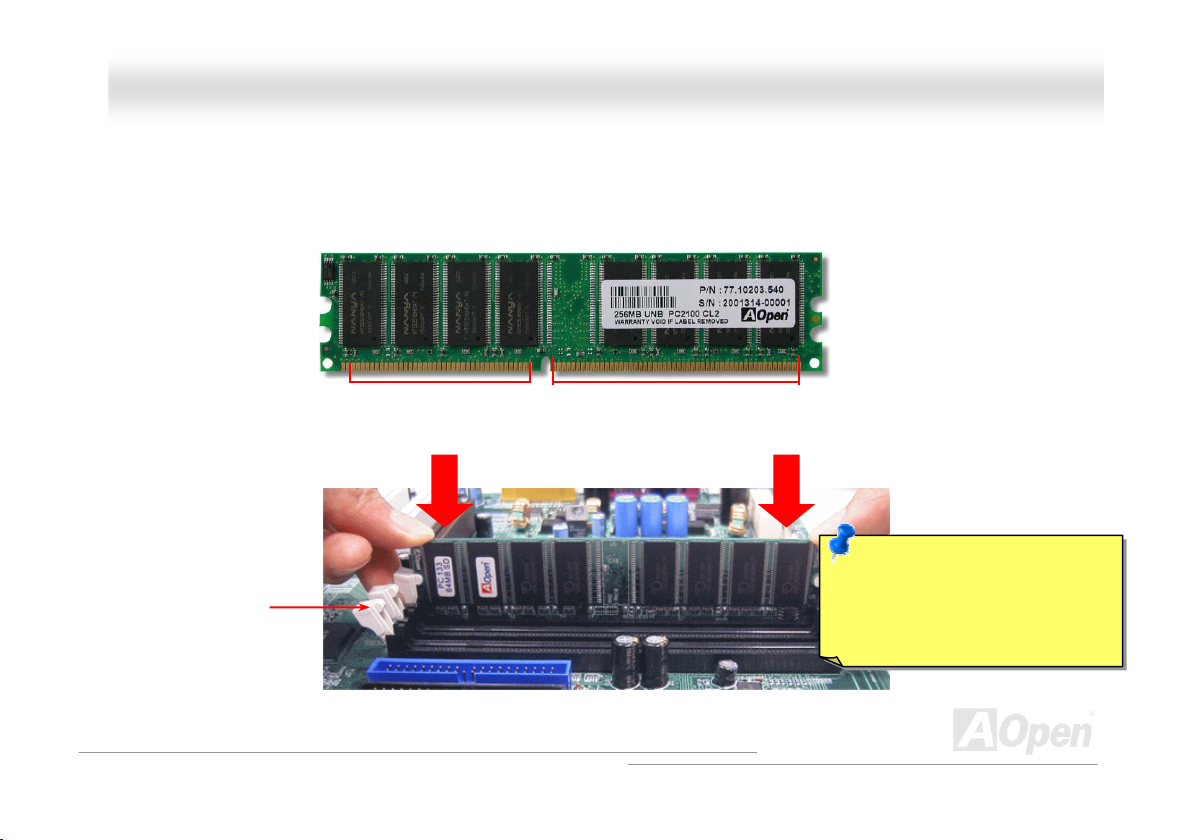

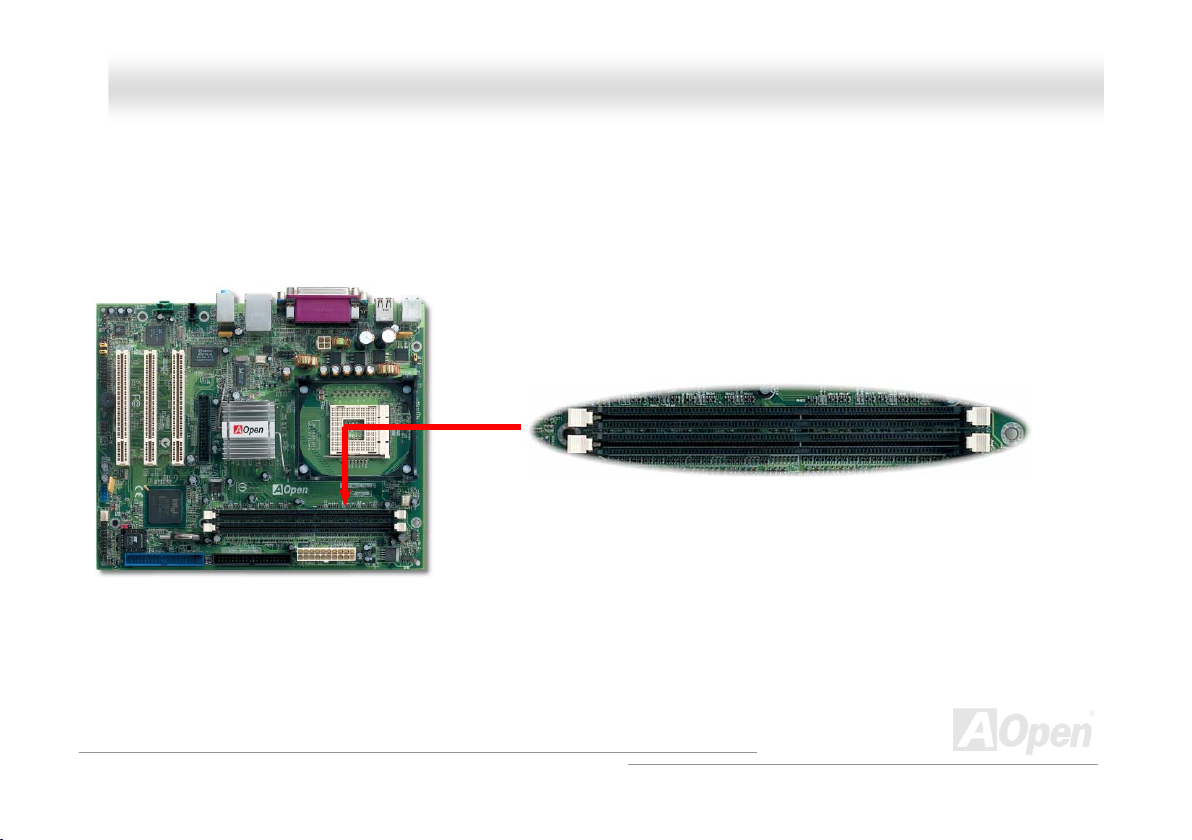

DIMM Sockets ............................................................................................................................................................... 29

Page 3

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

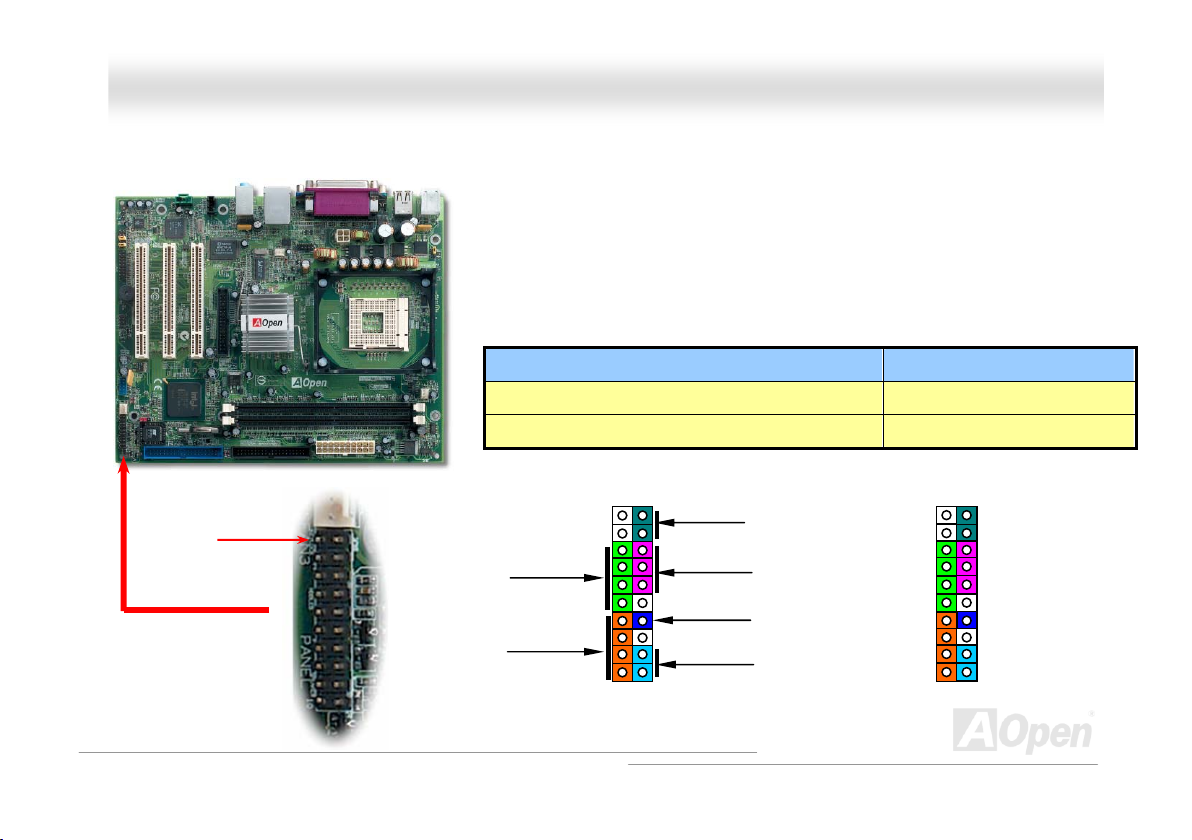

Front Panel Connector ..................................................................................................................................................31

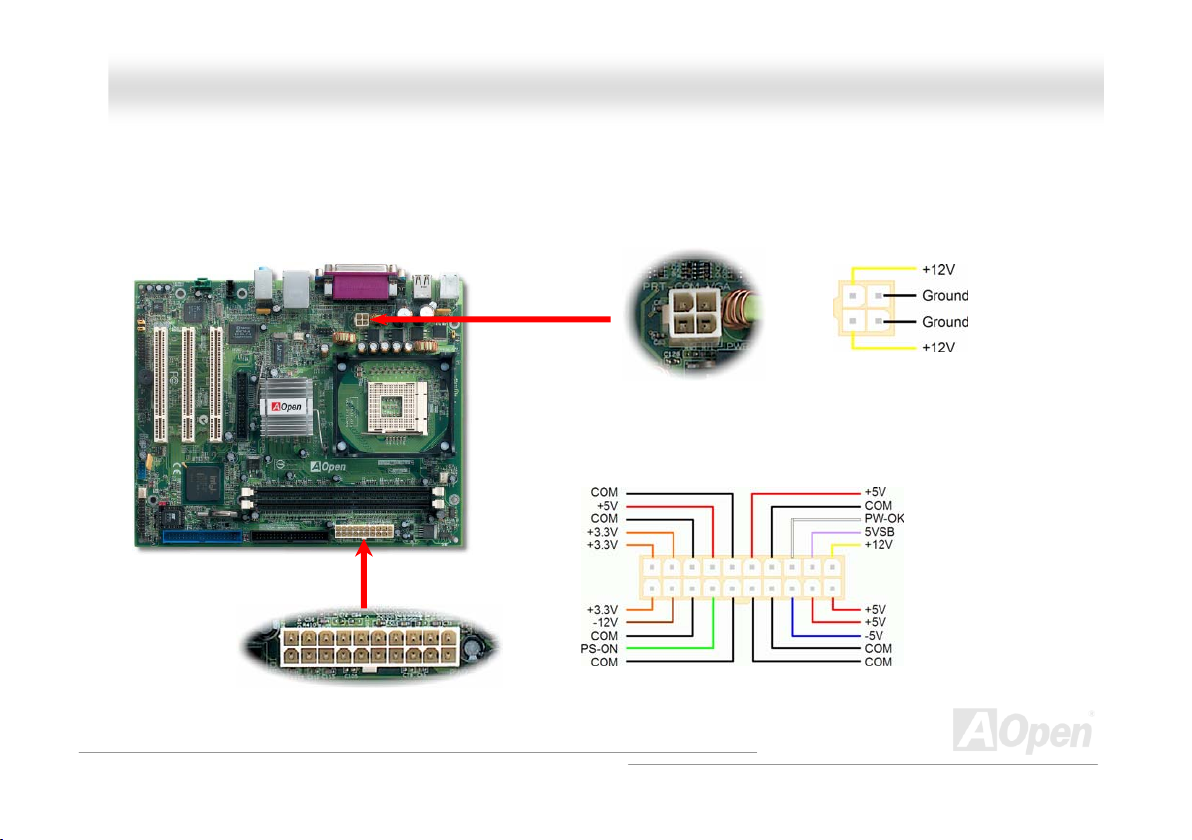

ATX Power Connector...................................................................................................................................................32

AC Power Auto Recovery .............................................................................................................................................. 33

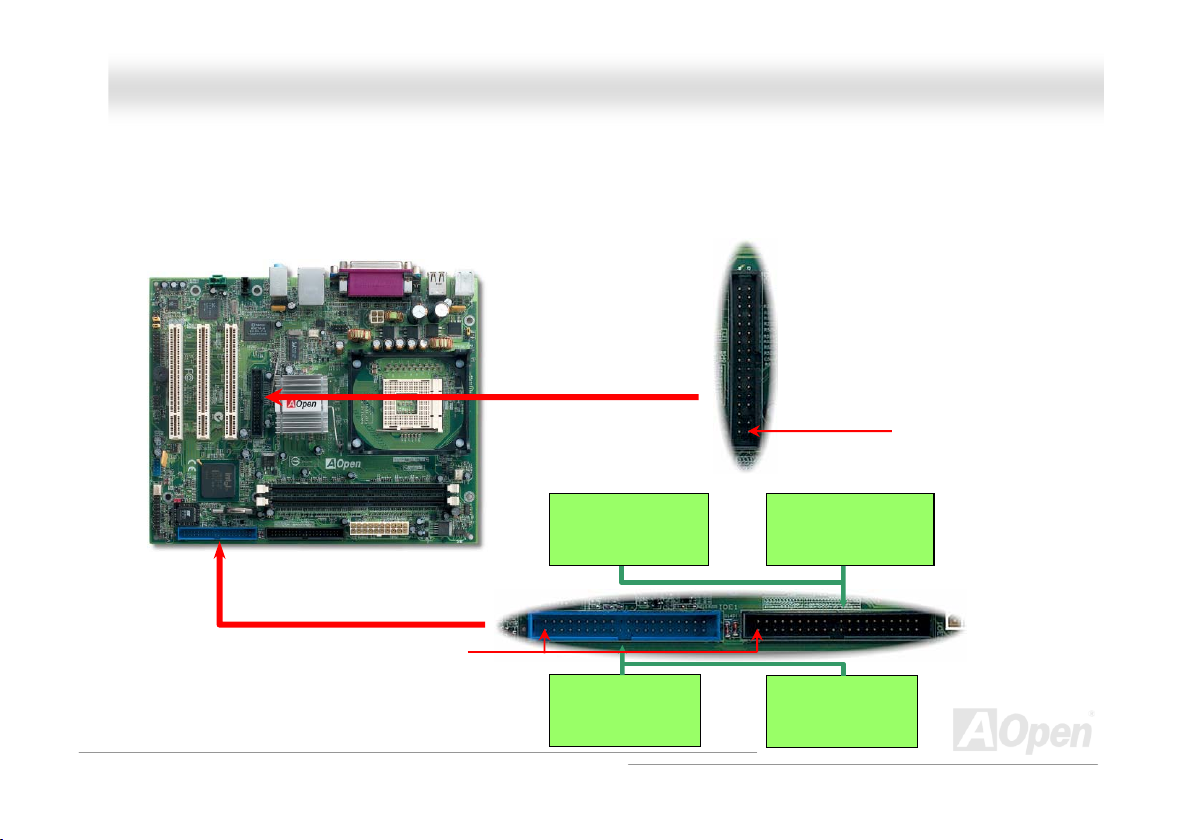

IDE and Floppy Connector ............................................................................................................................................ 34

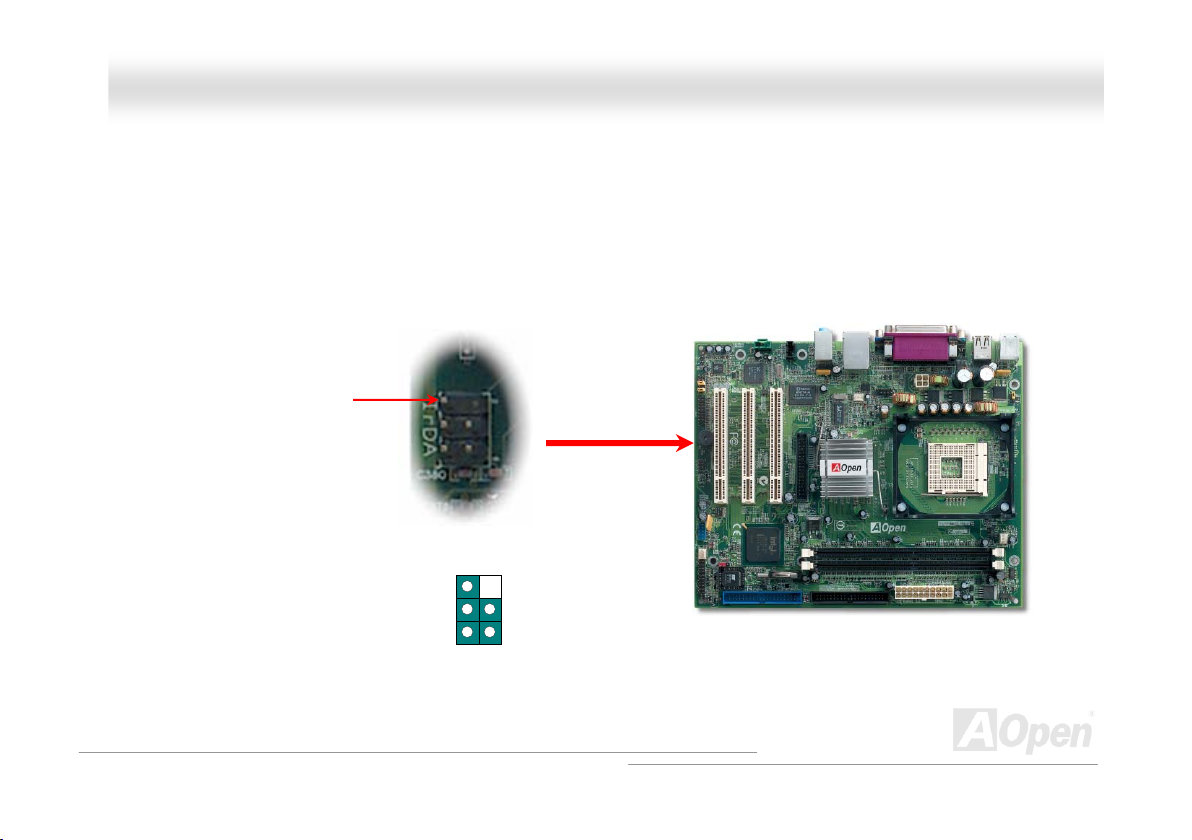

IrDA Connector .............................................................................................................................................................36

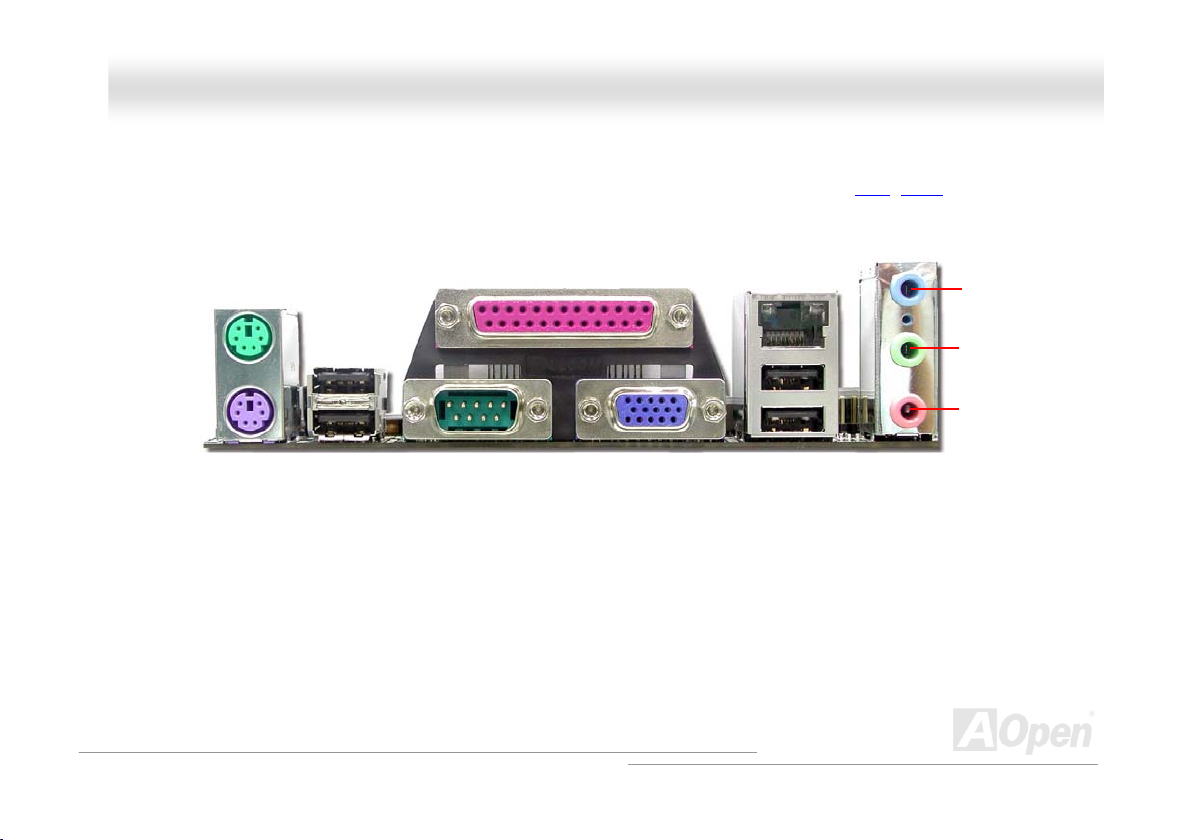

Color Coded Back Panel ...............................................................................................................................................37

Support 10/100 Mbps LAN onboard ..............................................................................................................................38

COM2 Connector ..........................................................................................................................................................39

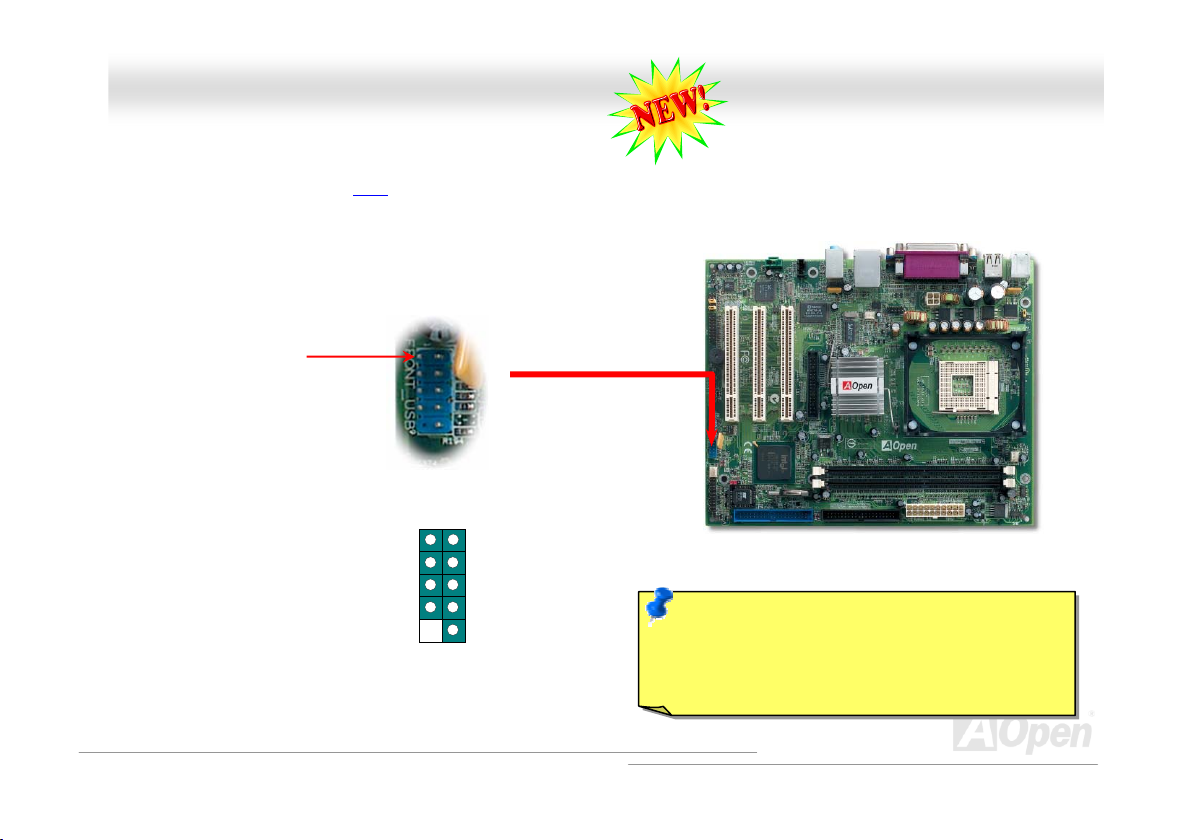

Support Front USB 2.0 Connector................................................................................................................................. 40

Case Open Connector................................................................................................................................................... 41

CD Audio Connector ..................................................................................................................................................... 42

AUX-IN Connector......................................................................................................................................................... 43

Front Audio Connector .................................................................................................................................................. 44

Battery-less and Long Life Design................................................................................................................................. 45

CPU Over-current Protection......................................................................................................................................... 46

Hardware Monitoring..................................................................................................................................................... 47

Resettable Fuse ............................................................................................................................................................48

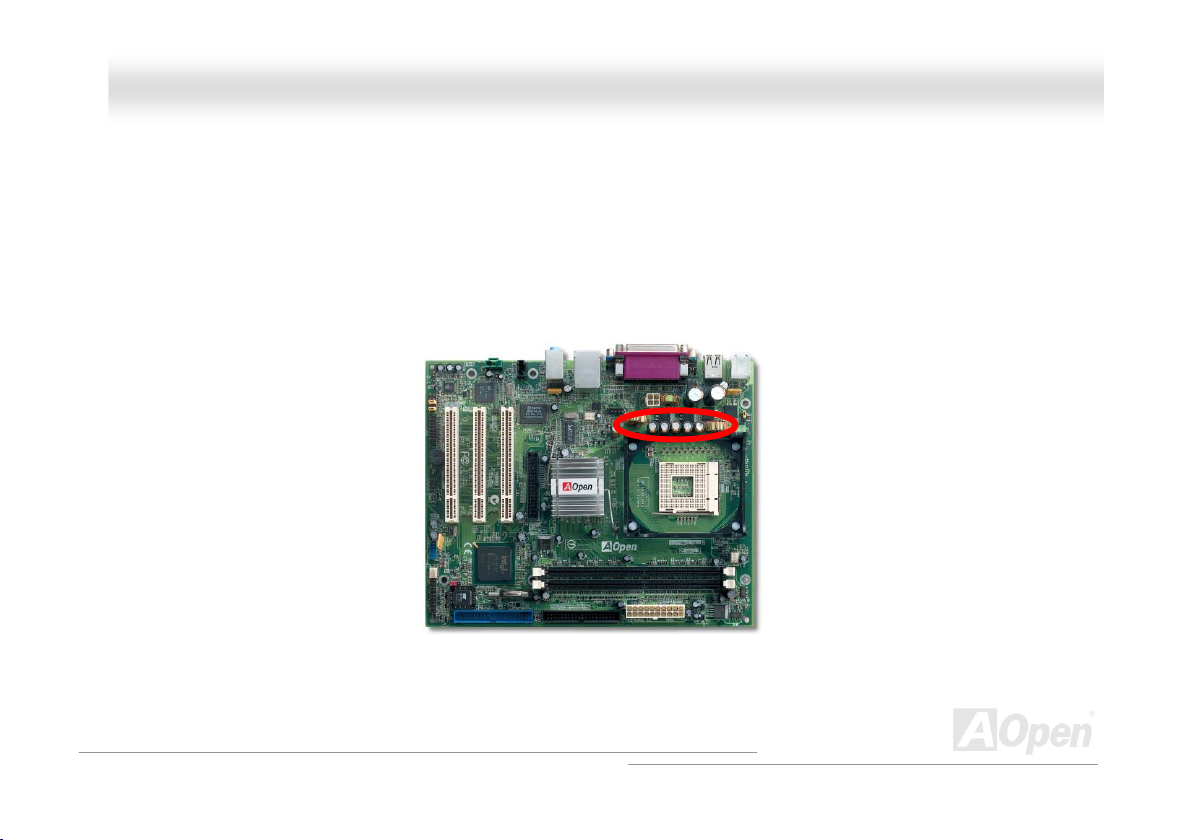

2200µF Low ESR Capacitor .......................................................................................................................................... 49

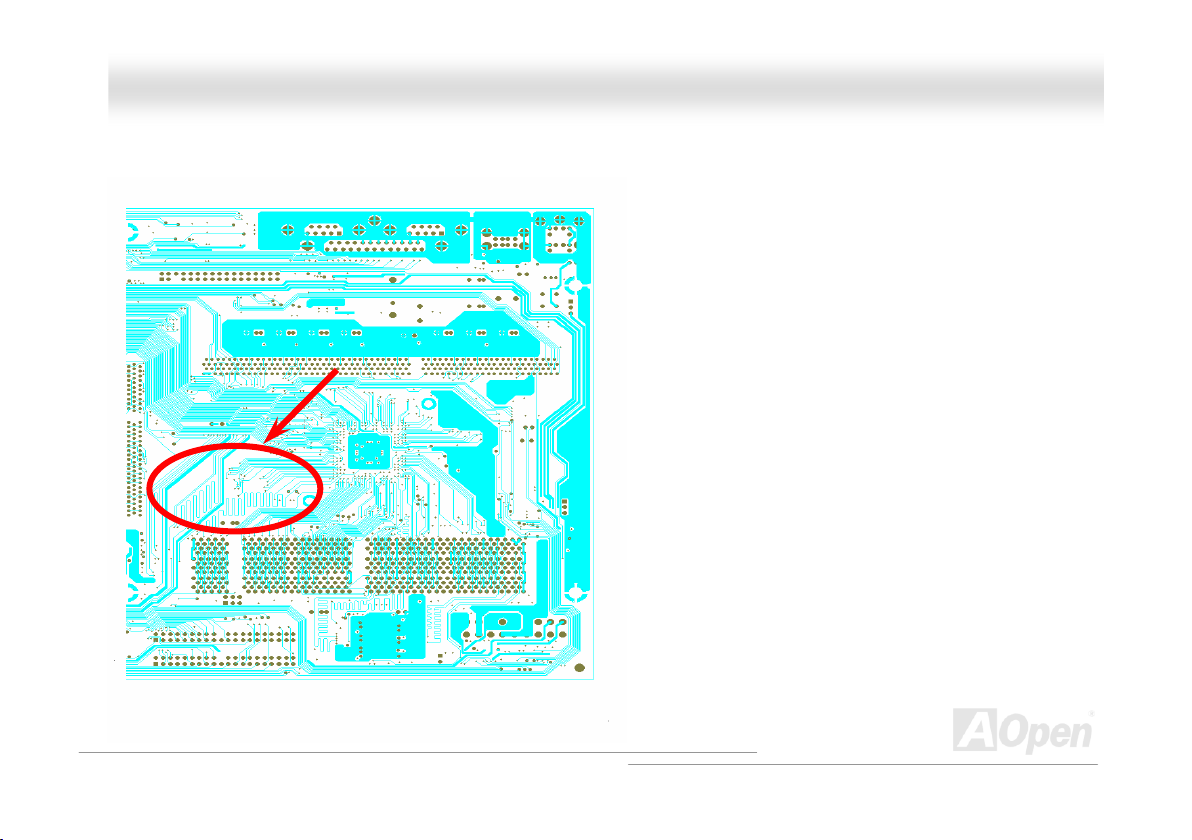

Layout (Frequency Isolation Wall) ................................................................................................................................. 50

Page 4

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

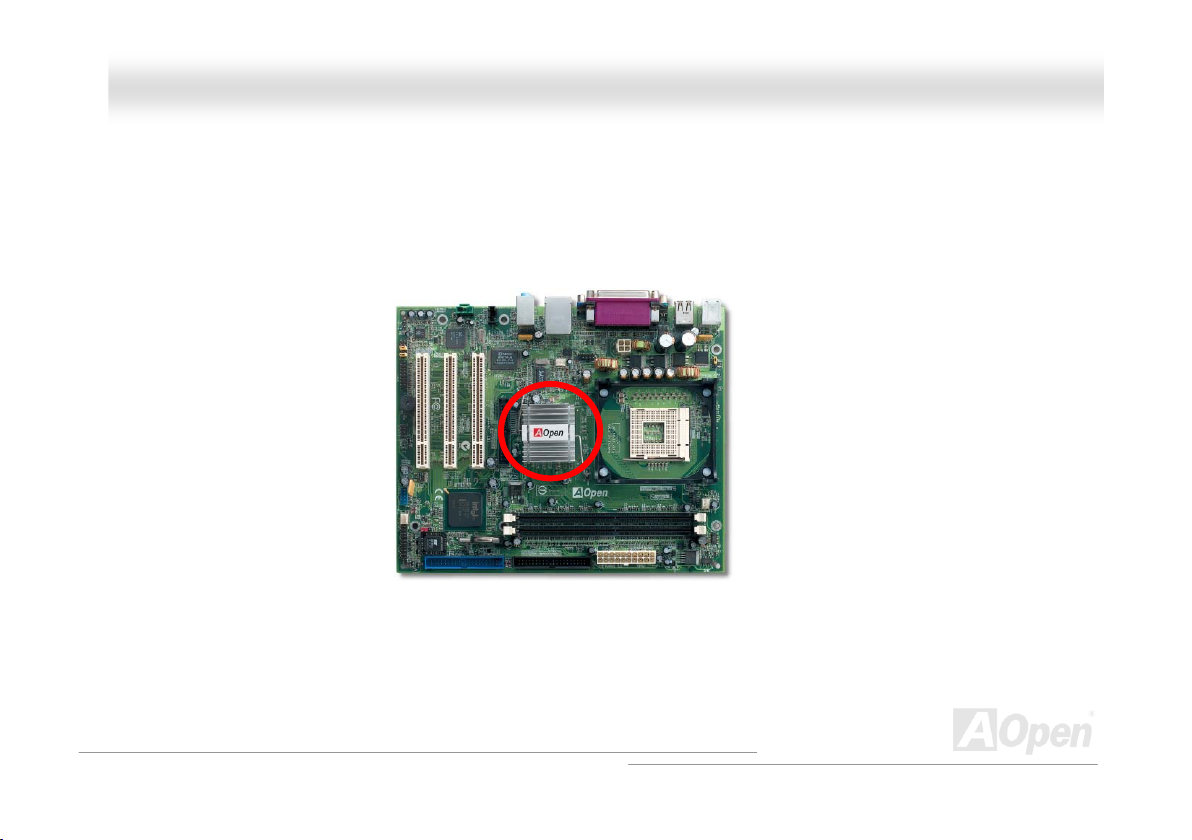

Enlarged Aluminum Heatsink ........................................................................................................................................ 51

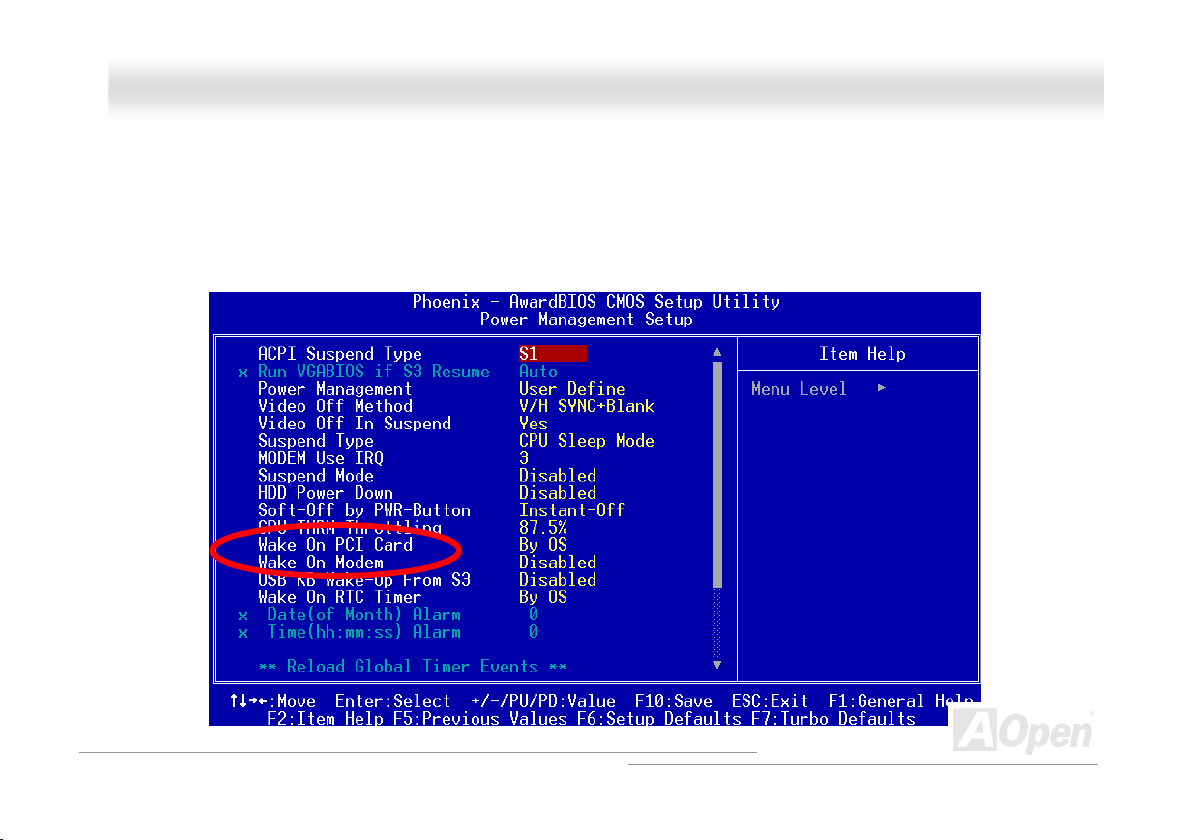

Wake On Modem / Wake On LAN / Wake On PCI Card ................................................................................................ 52

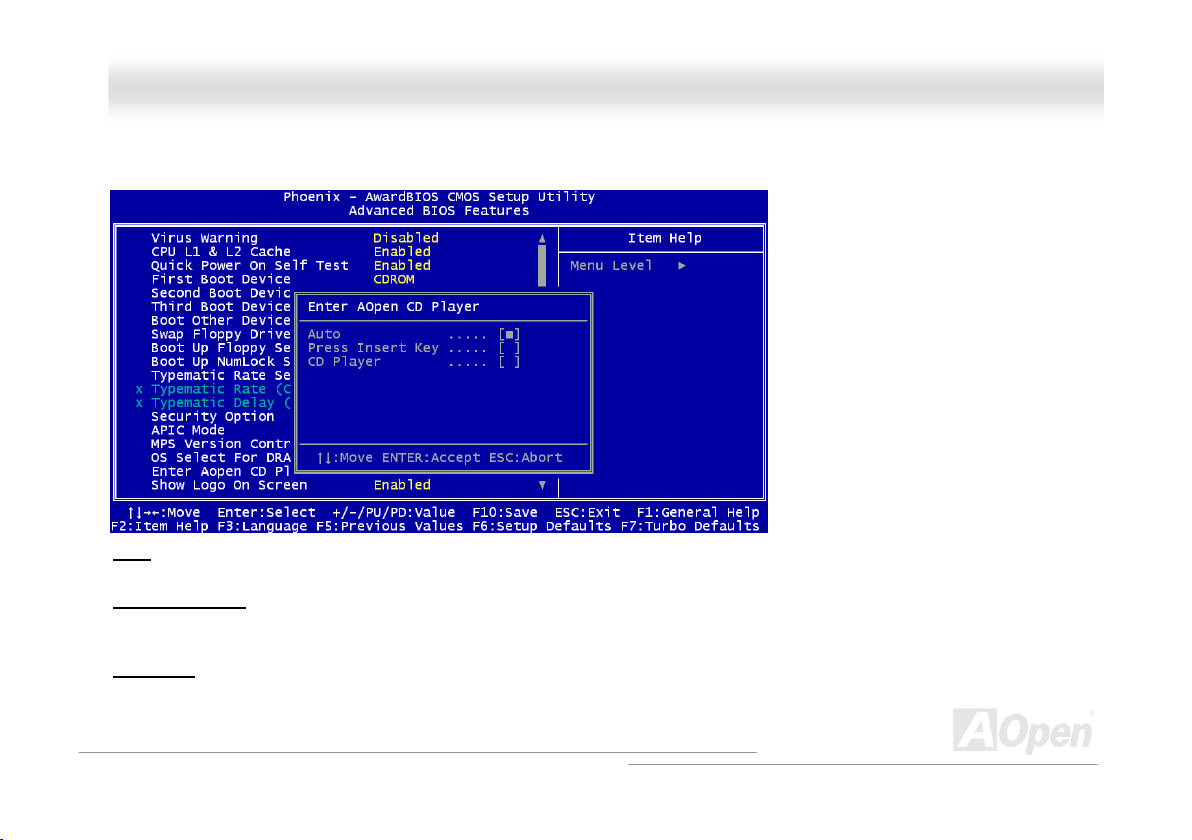

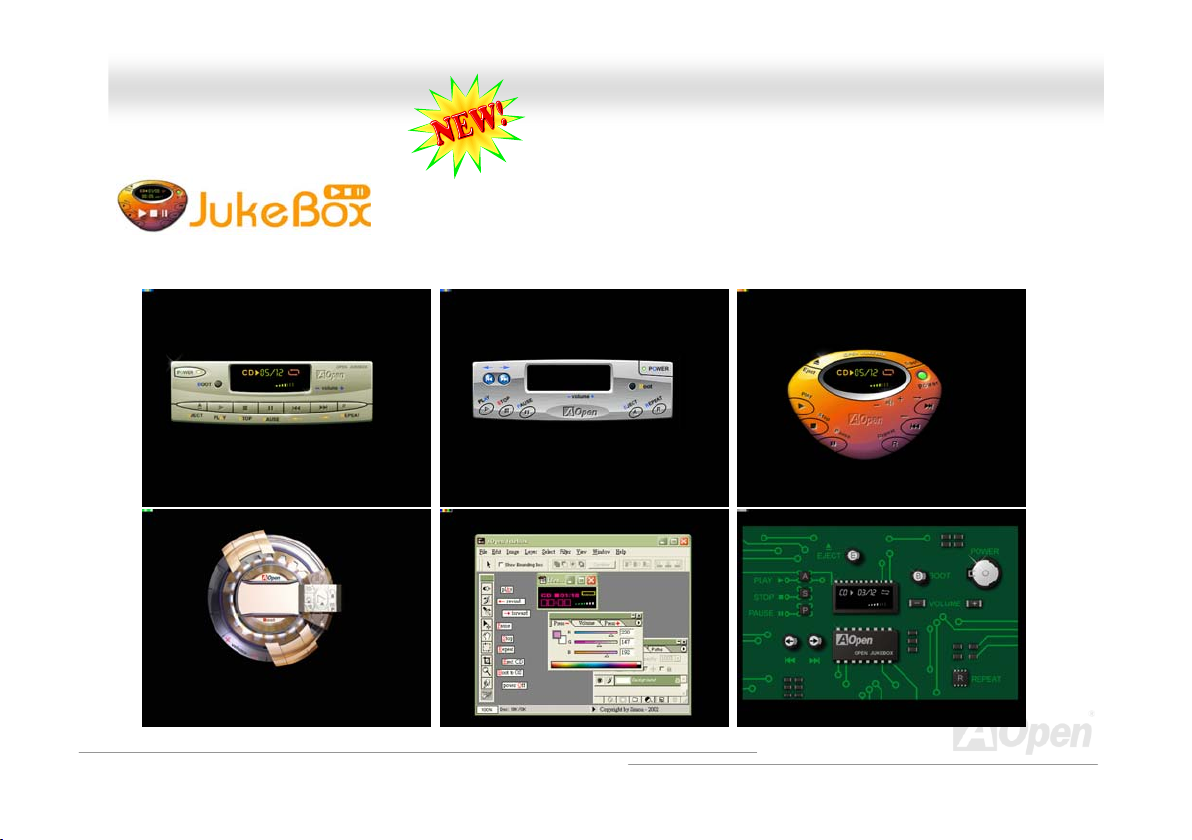

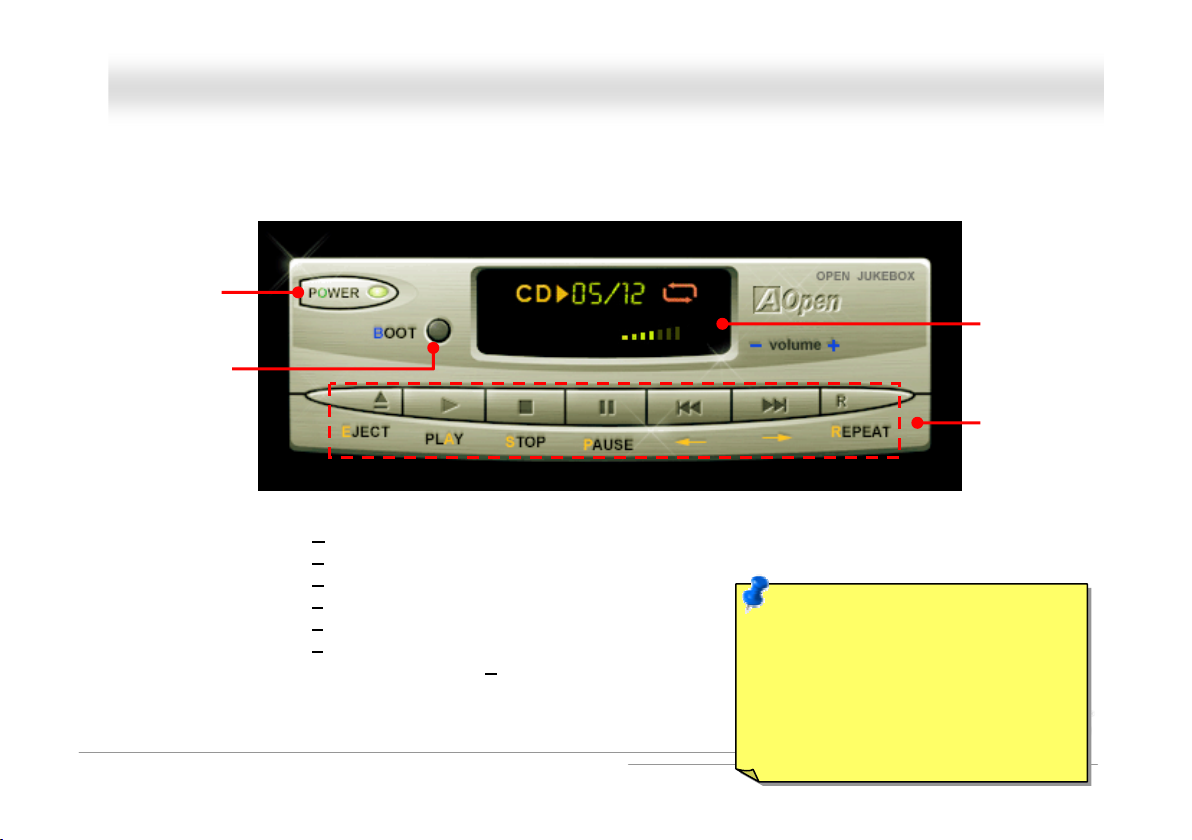

Open JukeBox Player.................................................................................................................................................... 53

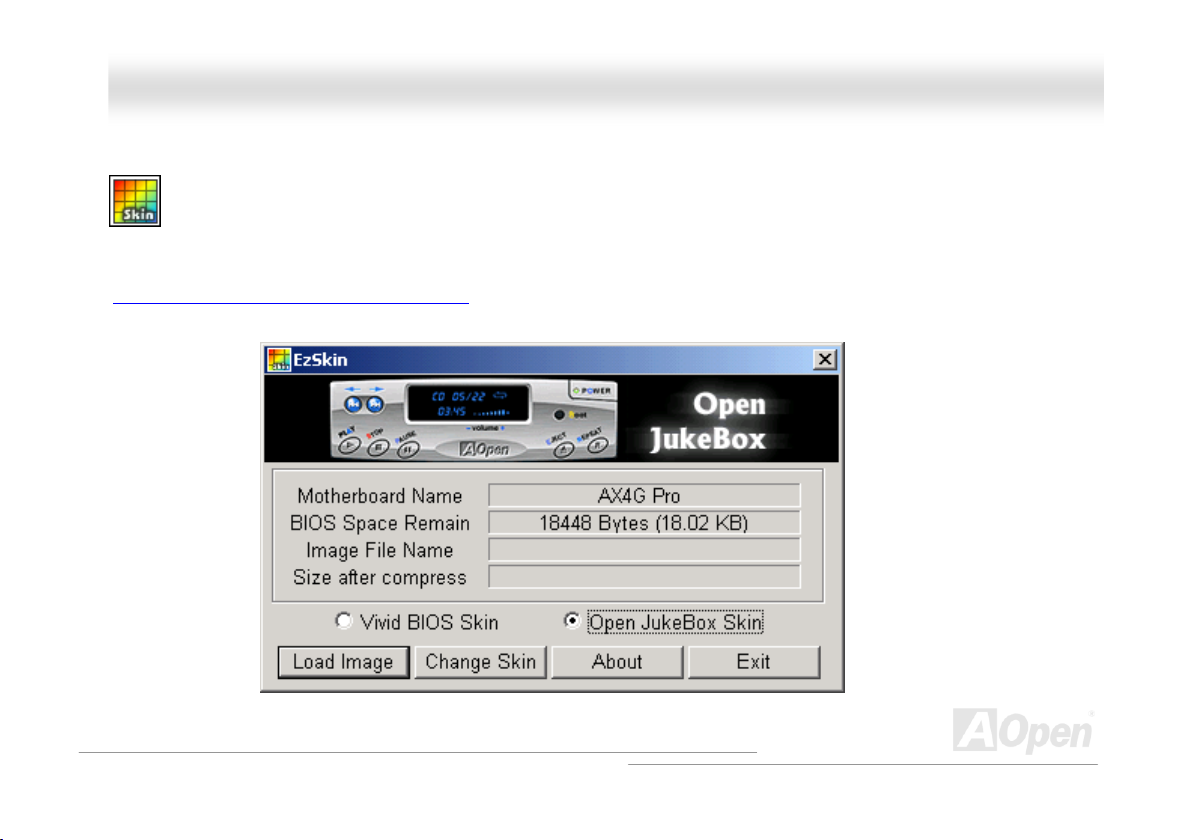

Vivid BIOS technology...................................................................................................................................................57

Driver and Utility .......................................................................................................................58

Auto-run Menu from Bonus CD Disc ............................................................................................................................. 58

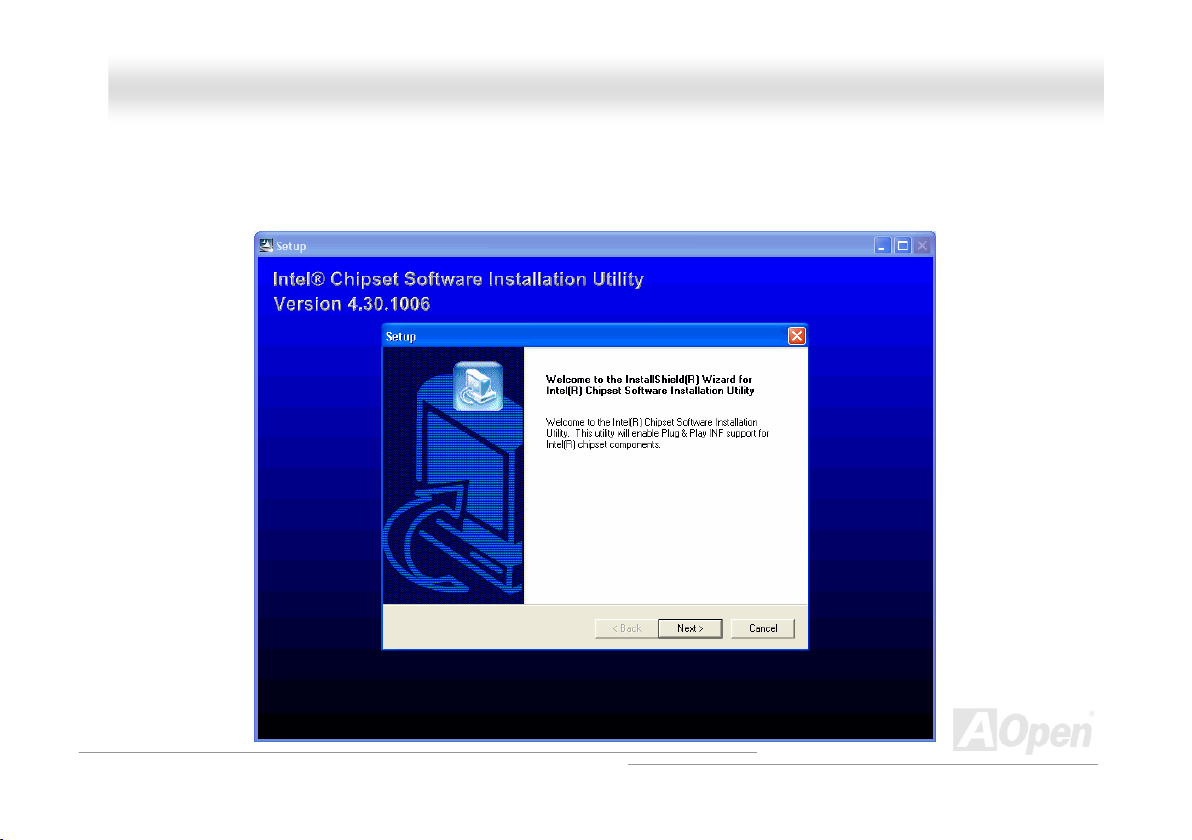

Installing Intel® Chipset Software Installation Utility...................................................................................................... 59

Intel VGA driver............................................................................................................................................................. 60

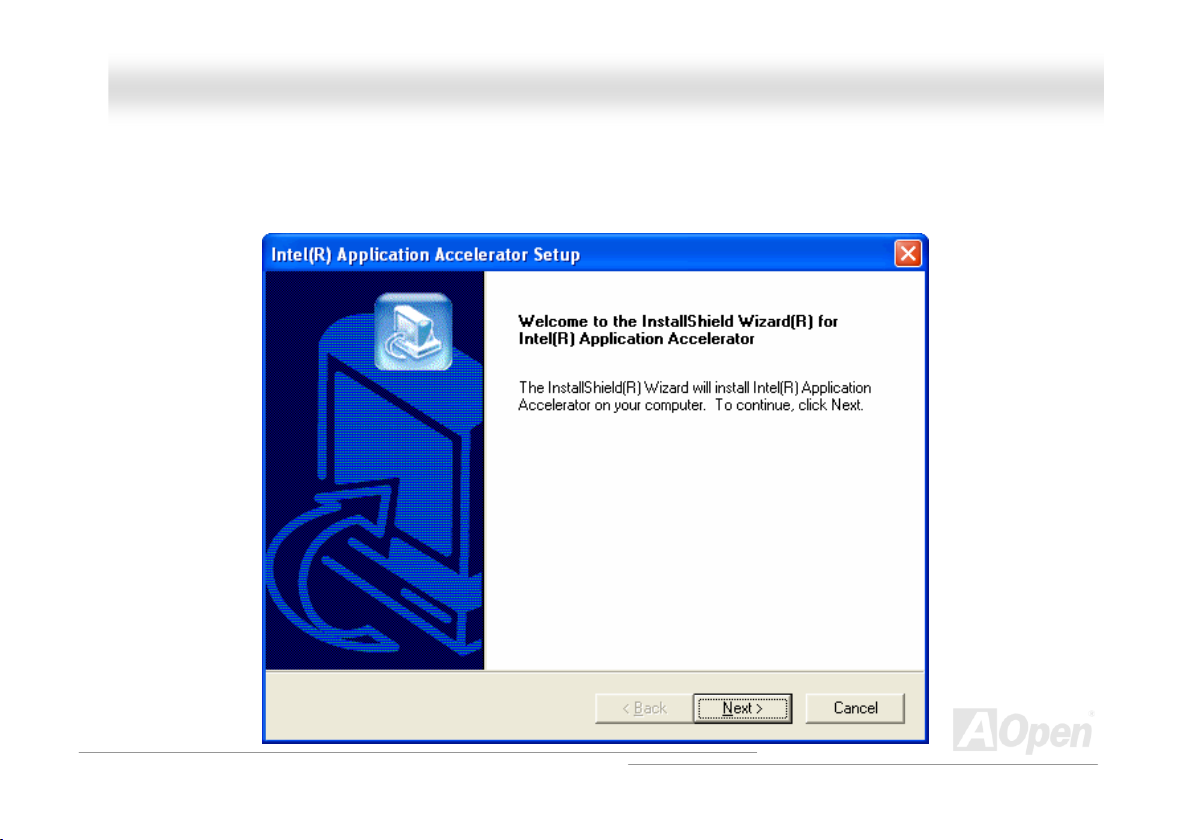

Installing Intel IAA Driver ............................................................................................................................................... 61

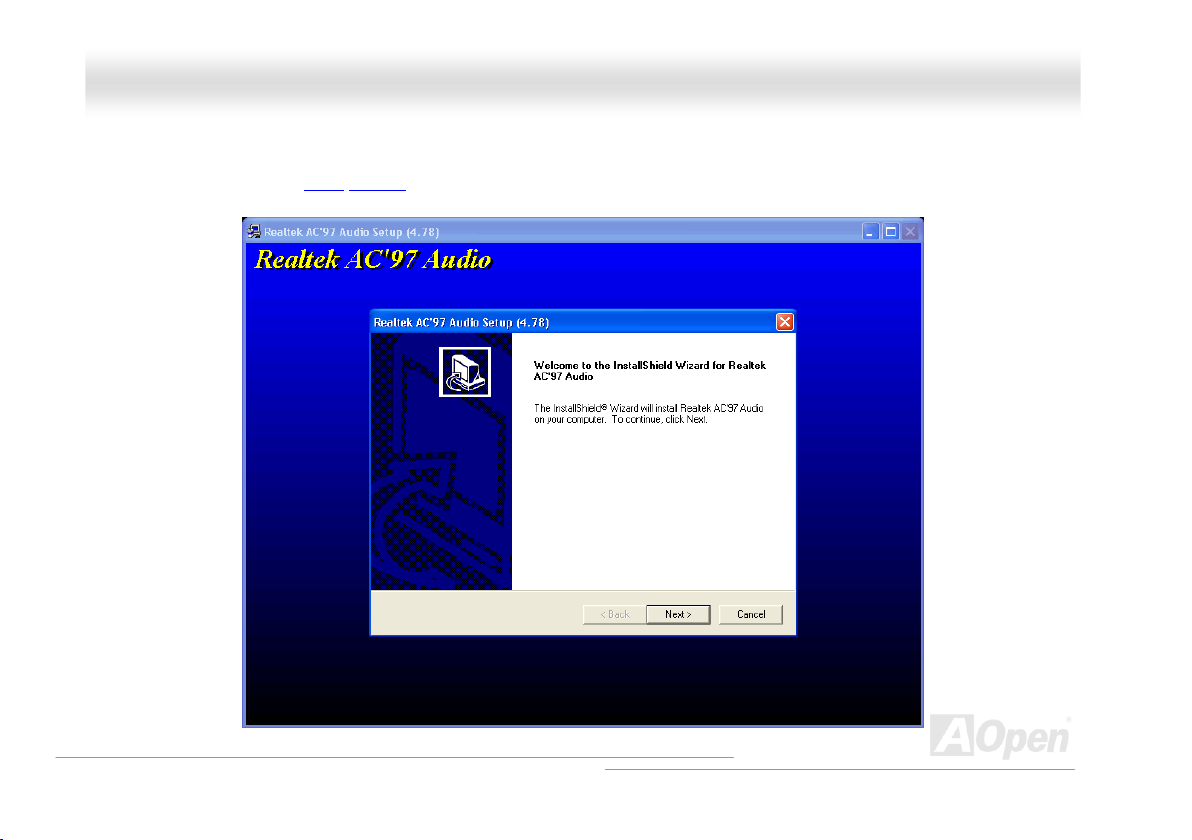

Installing Onboard Sound Driver ...................................................................................................................................62

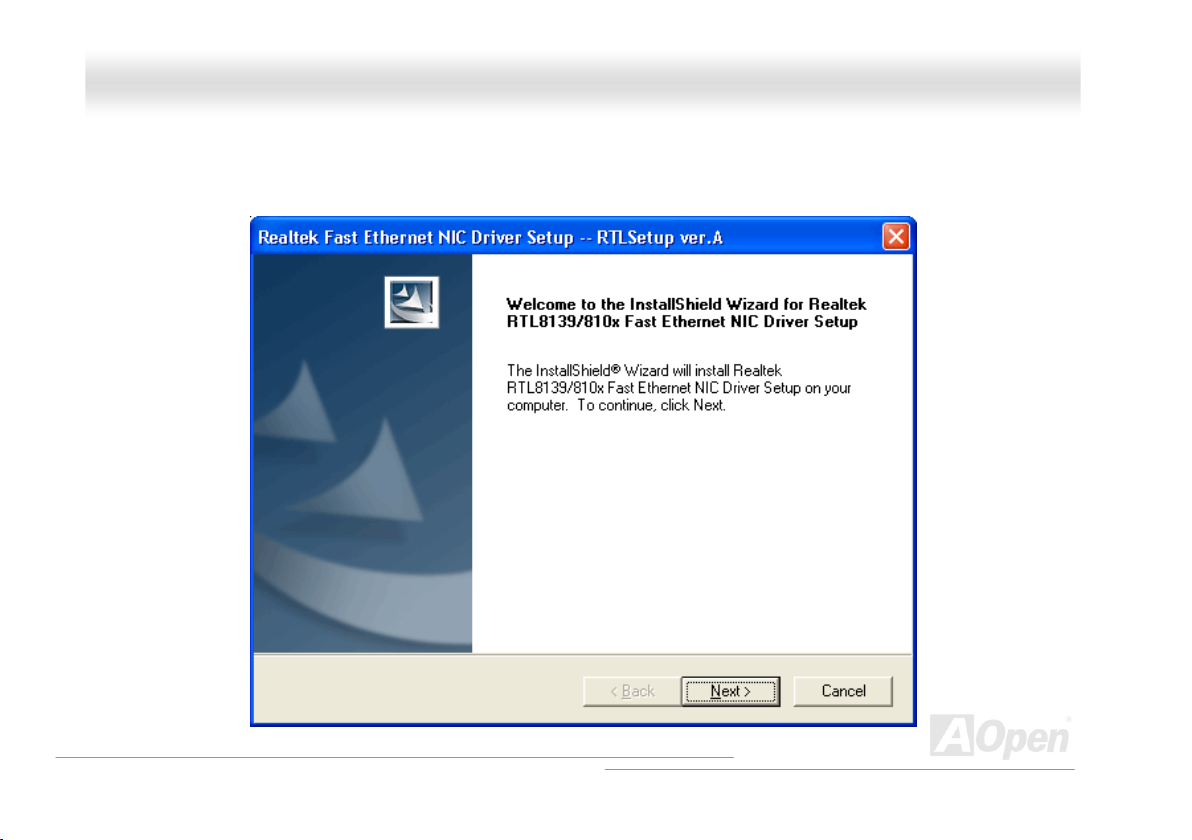

Installing LAN Driver ..................................................................................................................................................... 63

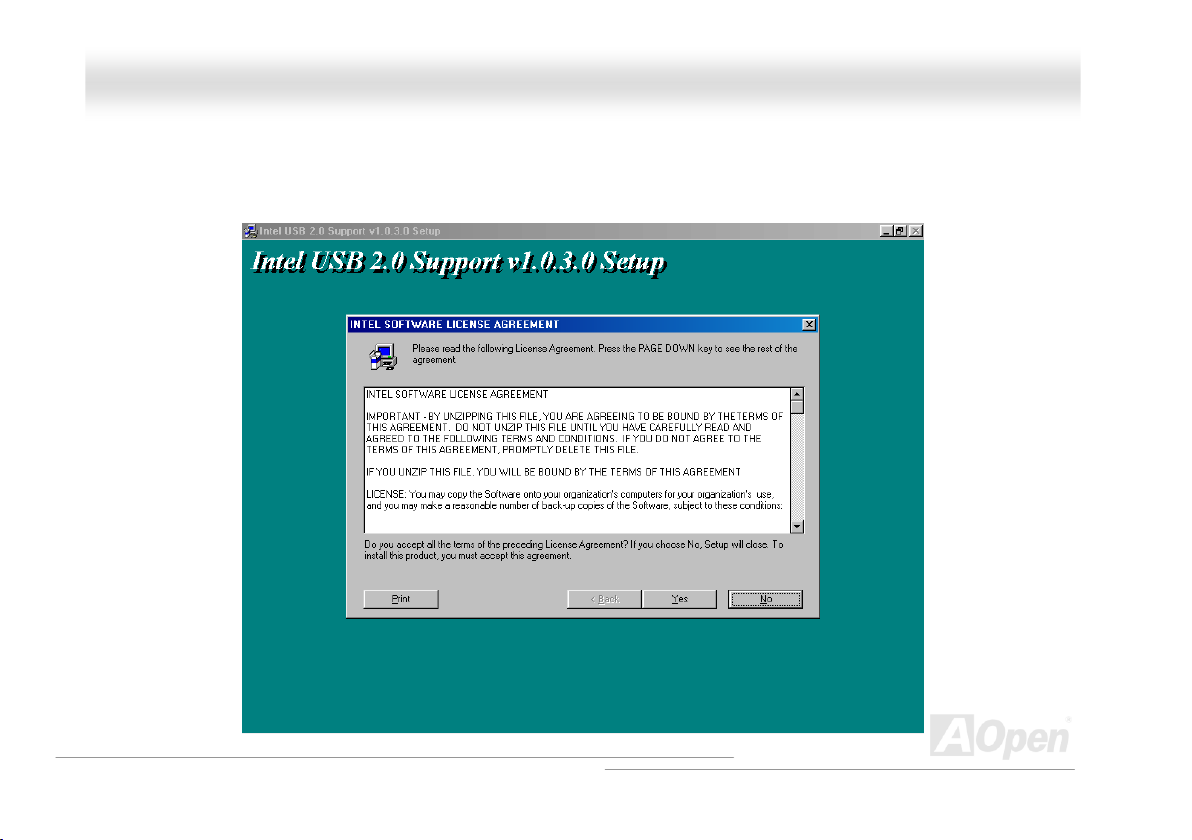

Installing USB 2.0 Driver ............................................................................................................................................... 67

ACPI Suspend to Hard Drive......................................................................................................................................... 72

ACPI Suspend to RAM (STR)........................................................................................................................................ 76

AWARD BIOS..............................................................................................................................78

How To Use Award™ BIOS Setup Program................................................................................................................... 79

How To Enter BIOS Setup ............................................................................................................................................. 81

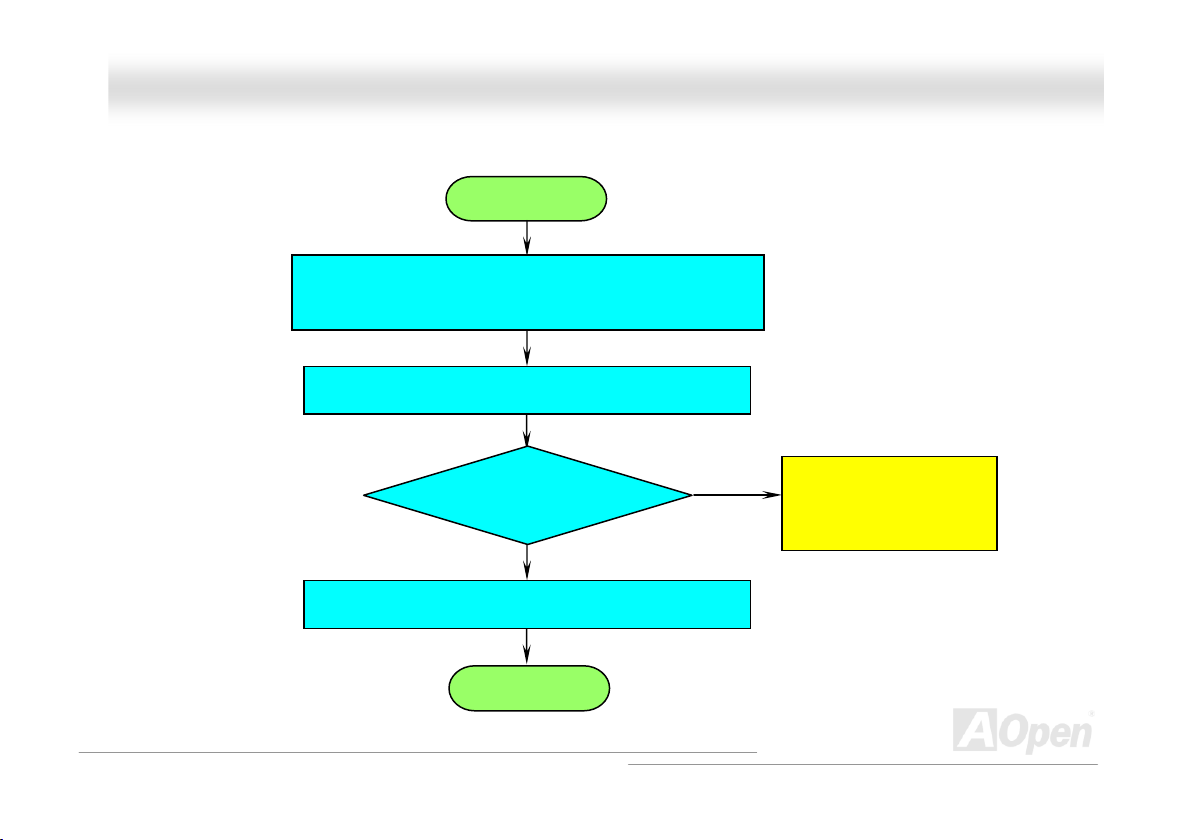

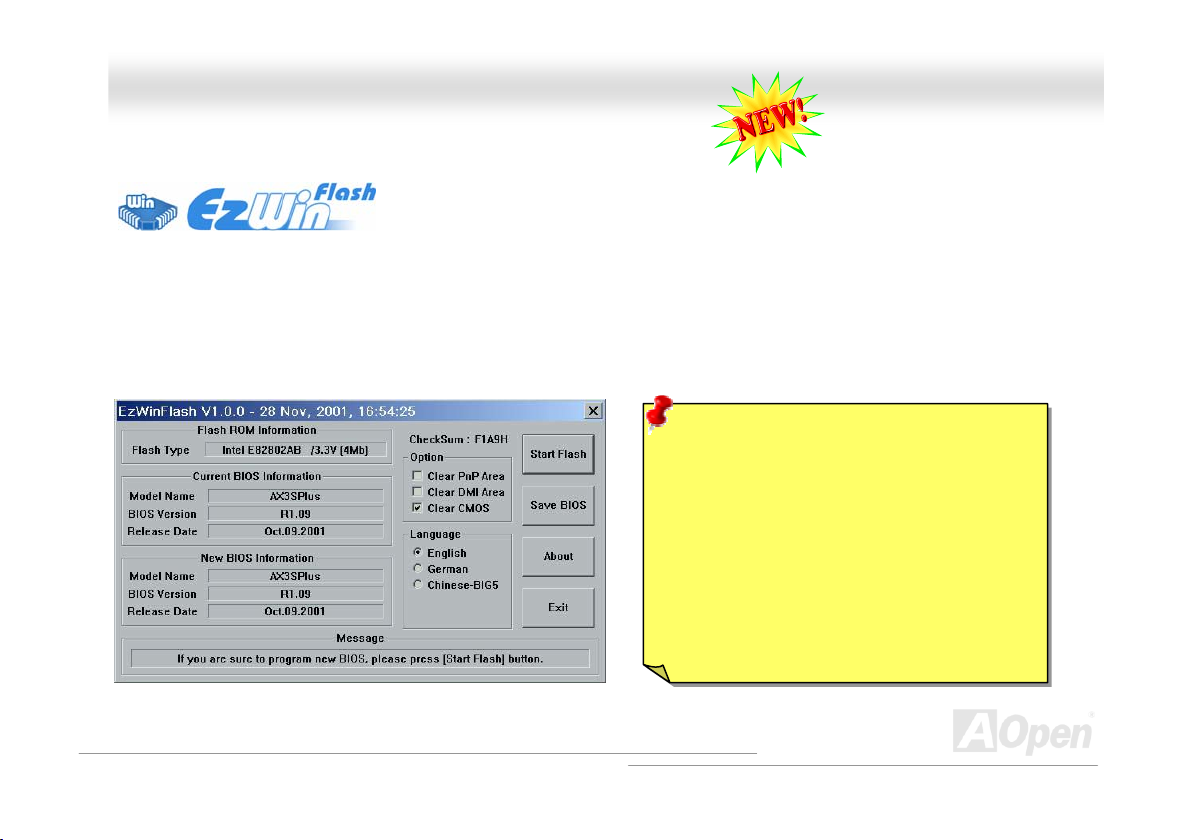

BIOS Upgrade under Windows environment .................................................................................................................82

Glossary ....................................................................................................................................84

Page 5

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

AC97 CODEC ............................................................................................................................................................... 84

ACPI (Advanced Configuration & Power Interface) ....................................................................................................... 84

ACR (Advanced Communication Riser).........................................................................................................................84

AGP (Accelerated Graphic Port).................................................................................................................................... 85

AMR (Audio/Modem Riser)............................................................................................................................................ 85

ATA (AT Attachment) .....................................................................................................................................................85

BIOS (Basic Input/Output System) ................................................................................................................................86

Bluetooth....................................................................................................................................................................... 86

CNR (Communication and Networking Riser)................................................................................................................ 87

DDR (Double Data Rate) RAM ...................................................................................................................................... 87

ECC (Error Checking and Correction) ........................................................................................................................... 87

EEPROM (Electronic Erasable Programmable ROM) .................................................................................................... 87

EPROM (Erasable Programmable ROM)....................................................................................................................... 88

EV6 Bus ........................................................................................................................................................................ 88

FCC DoC (Declaration of Conformity) ...........................................................................................................................88

FC-PGA (Flip Chip-Pin Grid Array) ................................................................................................................................ 88

FC-PGA2 (Flip Chip-Pin Grid Array) .............................................................................................................................. 88

Flash ROM .................................................................................................................................................................... 89

Hyper Threading ........................................................................................................................................................... 89

all

Page 6

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

IEEE 1394.....................................................................................................................................................................89

Parity Bit .......................................................................................................................................................................90

PCI (Peripheral Component Interface) Bus ...................................................................................................................90

PDF Format................................................................................................................................................................... 90

PnP (Plug and Play) ...................................................................................................................................................... 90

POST (Power-On Self Test) ..........................................................................................................................................91

PSB (Processor System Bus) Clock .............................................................................................................................. 91

RDRAM (Rambus Dynamic Random Access Memory) .................................................................................................. 91

RIMM (Rambus Inline Memory Module) ........................................................................................................................91

SDRAM (Synchronous DRAM) ...................................................................................................................................... 92

SATA (Serial ATA) ......................................................................................................................................................... 92

SMBus (System Management Bus) ............................................................................................................................... 92

SPD (Serial Presence Detect) ....................................................................................................................................... 92

USB 2.0 (Universal Serial Bus) .....................................................................................................................................93

VCM (Virtual Channel Memory)..................................................................................................................................... 93

Wireless LAN – 802.11b ................................................................................................................................................ 93

ZIP file........................................................................................................................................................................... 94

Troubleshooting......................................................................................................................... 95

Technical Support .....................................................................................................................99

all

Page 7

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

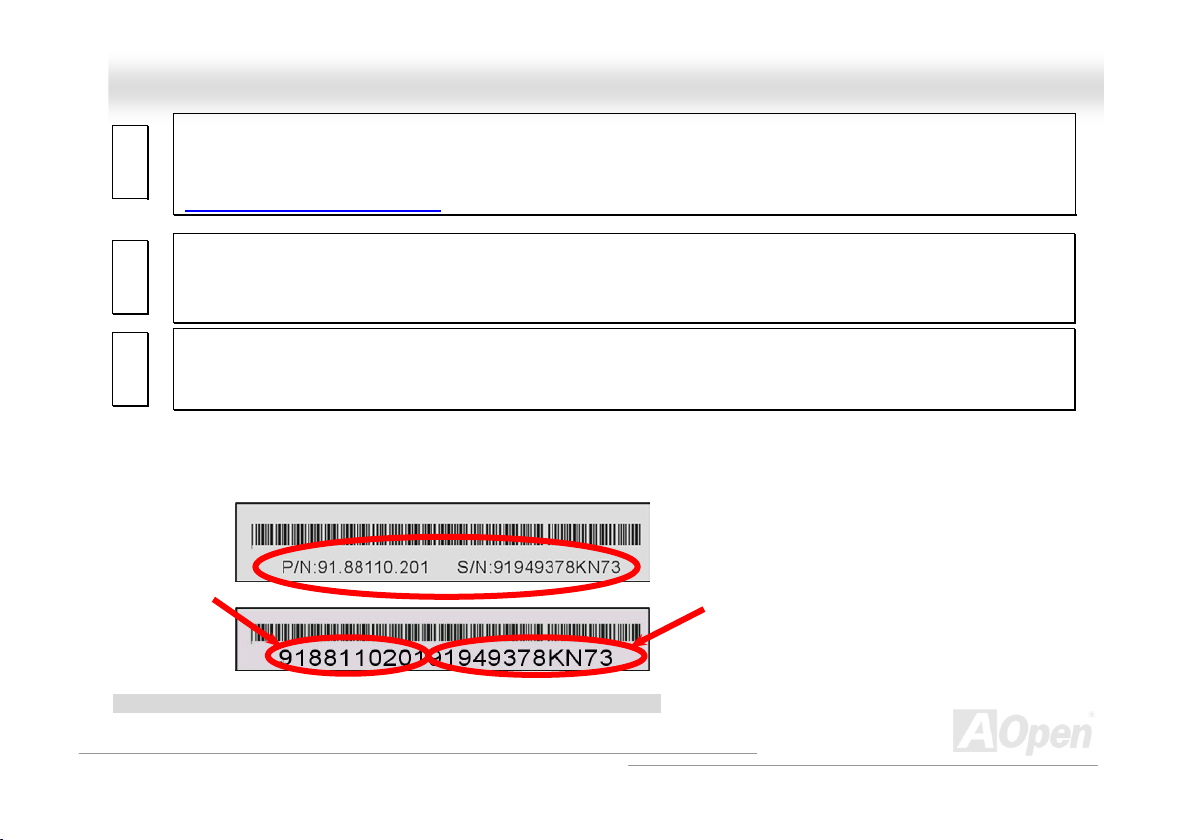

Product Registration ...............................................................................................................102

How to Contact Us .................................................................................................................. 103

all

Page 8

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

YYoouu MMuusstt NNoottiiccee

Adobe, the Adobe logo, Acrobat is trademarks of Adobe Systems Incorporated.

AMD, the AMD logo, Athlon and Duron are trademarks of Advanced Micro Devices, Inc.

Intel, the Intel logo, Intel Celeron, Pentium II, Pentium III are trademarks of Intel Corporation.

Microsoft, Windows, and Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

All product and brand names used on this manual are used for identification purposes only and may be the registered trademarks of their respective owners.

All of the specifications and information contained in this manual are subject to change without notice. AOpen reserves the right to revise this publication and to make reasonable changes. AOpen assumes no responsibility for any errors or inaccuracies that may appear in this manual, including the products and software described in it.

This documentation is protected by copyright law. All rights are reserved. No part of this document may be used or reproduced in any form or by any means, or stored in a database or retrieval system without prior written permission from AOpen Corporation. Copyright

Page 9

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

BBeeffoorree YYoouu SSttaarrtt

This Online Manual will introduce to the user how this product is installed. All useful information will be described in later

chapters. Please keep this manual carefully for future upgrades or system configuration changes. This Online Manual is saved

in PDF format

get free download from Adobe web site

Although this Online Manual is optimized for screen viewing, it is still capable for hardcopy printing, you can print it by A4 paper

size and set 2 pages per A4 sheet on your printer. To do so, choose File > Page Setup and follow the instruction of your printer

driver.

Thanks for the help of saving our earth.

, we recommend using Adobe Acrobat Reader 5.0 for online viewing, it is included in Bonus CD disc or you can

Page 10

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

OOvveerrvviieeww

Thank you for choosing AOpen MX4LR-GN / MX4GVR-GN motherboard. The MX4LR-GN is Intel® Socket 478 motherboard (M/B)

based on the ATX form factor featuring the Intel

high performance chipset built in the M/B, the MX4LR-GN motherboard can support Intel

Front Side Bus (FSB)

Intel 845GL / 845GV

SDRAM DIMM modules and the maximum memory size can be up to 2 GB. The onboard IDE controller supports Ultra DMA

33/66/100 mode and the transfer rate up to 100MB/s.The MX4LR-GN / MX4GVR-GN integrates Intel

revolutionary graphics architecture and proven reliability

MX4LR-GN / MX4GVR-GN has an AC97 CODEC

providing high performance and magic surround stereo sou

let people enjoy working with it. Now, let’s enjoy all features

AOpen MX4LR-GN / MX4GVR-GN motherboard.

845GL chipset, and the MX4GVR-GN is based on Intel® 845GV chipset. As

clock, and the MX4GVR-GN supports 533 MHz FSB. According to different customer’s requirements, the

chipset memory interface supports DDR266 SDRAM devices with densities of 64, 128, 256, 512Mb DDR

. Besides, the

t onboard,

chipse

d to

fro

Socket 478 Pentium® 4 and 400 MHz

Extreme Graphics with

Page 11

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

all

FFeeaattuurree HHiigghhlliigghhtt

CPU

rts Intel® Socket 478 Pentium® 4 1.4GHz~3.06GHz+ with 400MHz Front Side Bus (FSB)

Suppo (MX4GVR-GN supports 533MHz

) desig Socket 478 technology.

FSB

ned for

Chipset

With the In

and proven reliability of the Intel 845GL / 845GV chipset. With its highly scalable design, the new 845GL / 845GV chipset offers

an ideal Multiplexed Intel DVO Port for Intel

845GV chipset's I/O Controller Hub (ICH4) features USB controllers supporting six USB 2.0 ports. With support for AC’97 audio

and the ability to make the most of soft audio/modem technology, the Intel

innovative new form factors.

tel® 845GL / 845GV chipset, Intel delivers a discrete graphics solution with all the performance, innovative features

Pentium® 4 processor platforms. And the smart integration in the Intel 845GL /

845GL / 845GV chipset delivers an ideal solution for

xpansion Slots

Provides three 32-bit/ . The PCI local bus throughput can be up to 132MB/s and all the three PCI slots are master

slots with arbitration

33MHz PCI

and decoding for all integrated functions and LPC bus.

Memory

Provides tw DIMM sockets that support up to 2GB of PC-266 compliant DDR SDRAM (Synchronous

Dynamic Random Access Memory).You may install 64, 128, 256, 512Mb DDR SDRAM DIMM modules into each socket.

o 184-pin DDR SDRAM

Page 12

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

all

Ultra DMA 33/66/100 Bus Master IDE

Comes with an on-board PCI Bus Master IDE controller with two connectors that supports four IDE devices in two channels,

supports Ultra DMA 33/66/100, PIO Modes 3 and

4 and Bus Master IDE DMA Mode 5, and supports Enhanced IDE devices.

On-board AC’97 Sound

M sound chip. This on-board audio includes a complete audio recording and playback

X4LR-GN / MX4GVR-GN use the AC97

system.

1MHz

Provides “1MHz Stepping Frequency Adjustment” function in the BIOS. This magic function allows you adjust FSB

from 100~255 by 1MHz stepping adjustment, and le

Stepping Frequency Adjustment

frequency

ts your system can get maximum performance.

Watch Dog ABS

ncludes AOpen “Watch Dog ABS” function that can auto-reset default settings in 4.8 seconds when you fail to system

overclocking.

Six USB 2.

Provides four ports, one USB

0 Ports

2.0 connector for USB interface devices, such as mouse, keyboard, modem, scanner, etc.

Page 13

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

all

Power Management/Plug and Play

otection Supports the power management function that confirms to the power-saving standards of the U.S. Environmental Pr

Agency (EPA) Energy S

making the system much user-friendlier.

tar program. It also offers Plug-and-Play

, which helps save users from configuration problems, thus

Hardware Monitoring Management

Supports CPU or system fans status, temperature and voltage monitoring and alert, through the on-board hardware monitor

module.

Enhanced ACPI

Fully implement the ACPI standard for Windows® 98/ME/2000/XP series compatibility, and supports Soft-Off, STR (Suspend to

RAM, S3

), STD (Suspend to Disk, S4) features.

Super Multi-I/O

Provides two high-speed UART compatible seria ports and one parallel port with EPP and ECP capabilities. UART can also be

directed from COM1 to the Infrared Module for the

wireless connections.

Page 14

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

all

QQuuiicckk IInnssttaallllaattiioonn PPrroocceedduurree

This page gives you a quick procedure on how to install your system. Follow each step accordingly.

1. Installing CPU and Fan

2. Installing System Memory (DIMM)

3. Connecting Front Panel Cable

4. Connecting IDE and Floppy Cable

5. Connecting ATX Power Cable

6. Connecting Back Panel Cable

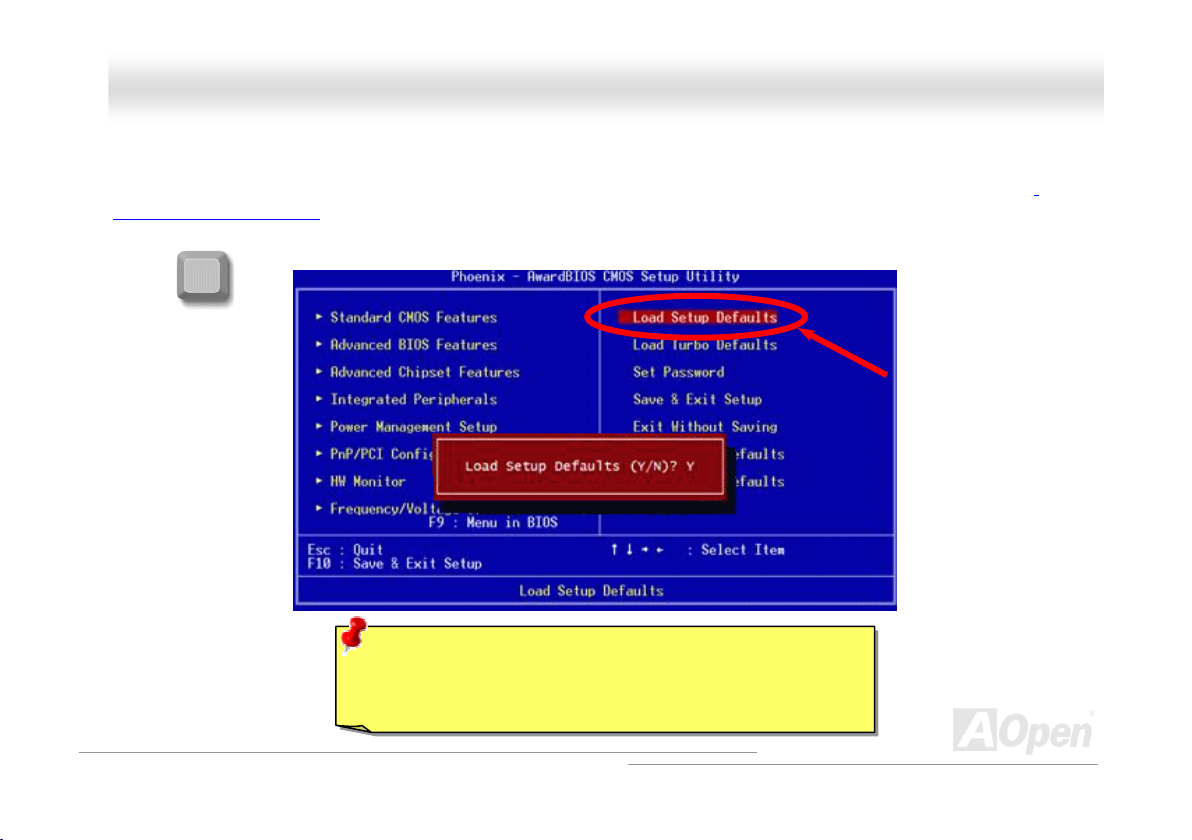

7. Power-on and Load BIOS Setup Default

Reboot

Installing Operating System (such as Windows XP)

Installing Driver and Utility

10.

Page 15

MMXX44LLRR--GGNN // MMXX44GGV

CD-IN Connector

AUX-IN Connector

Onboard AC’97 CODEC

Realtek RTL8101L LAN Chip

Front Audio Connector

Game Port Connector

32-bit PCI Expansion Slot x3

IrDA Connector

Case Open Connector

JP14 CMOS Clear Jumper

USB 2.0 Connector

SYSFAN3 Connector

Front Panel Connector

4Mbit Flash ROM BIOS

ATA 66/100 IDE Connector x2

RR--GGNN OOnnlliinnee MMaannuua

Motherboard Map

PC99 Colored Back Panel

in 12V. ATX Power Connector

JP28 Mouse/Keyboard Wakeup

Resettable Fuse

2200μF Low ESR Capacitors

COM2 Connector SYSFAN2 Connector

FDD Connector

478-pin CPU socket with Voltage and Frequency Auto-detection that supports Intel

1.4~2.4GHz+ CPU

Intel 845GL chipset

CPUFan1 Connector

184-pin DIMMx2 supports DDR266 (Max. to 2GB)

ATX Power Connector

PS. Here we use MX4LR-GN motherboard as illustration.

Pentium® 4

Page 16

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

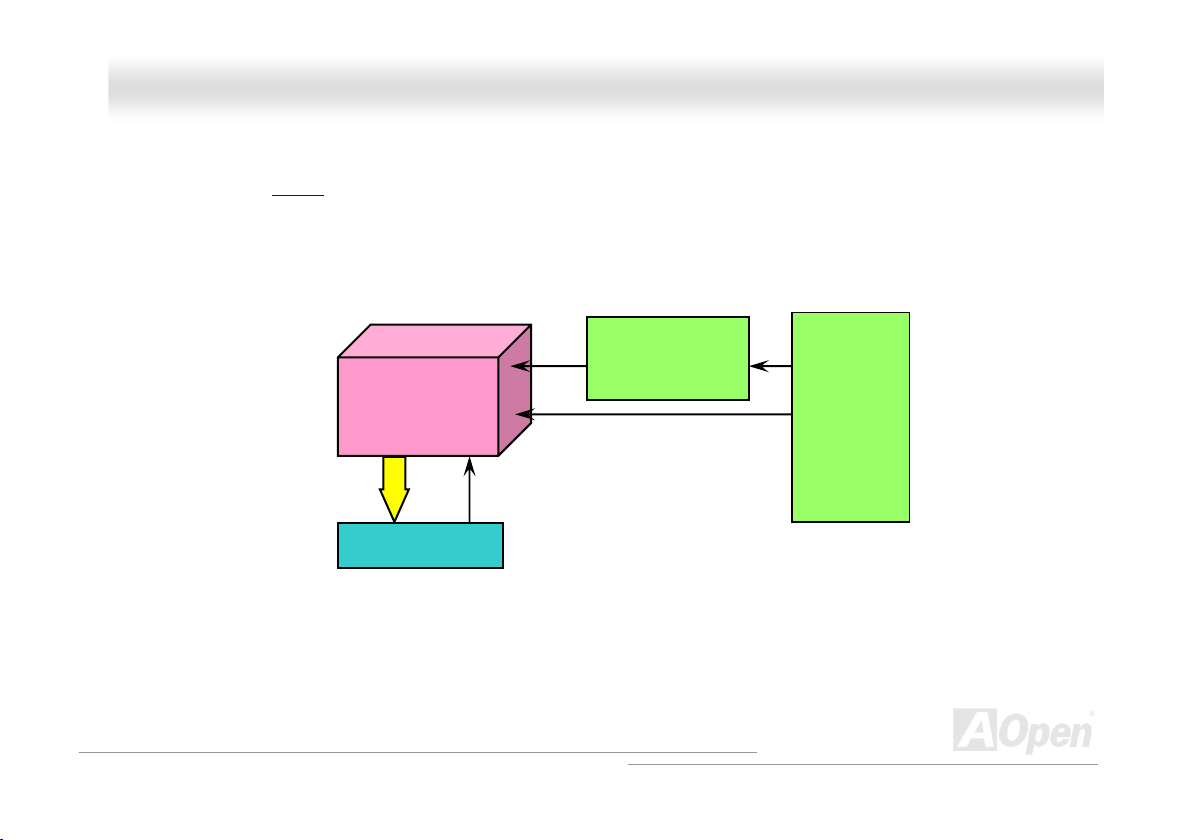

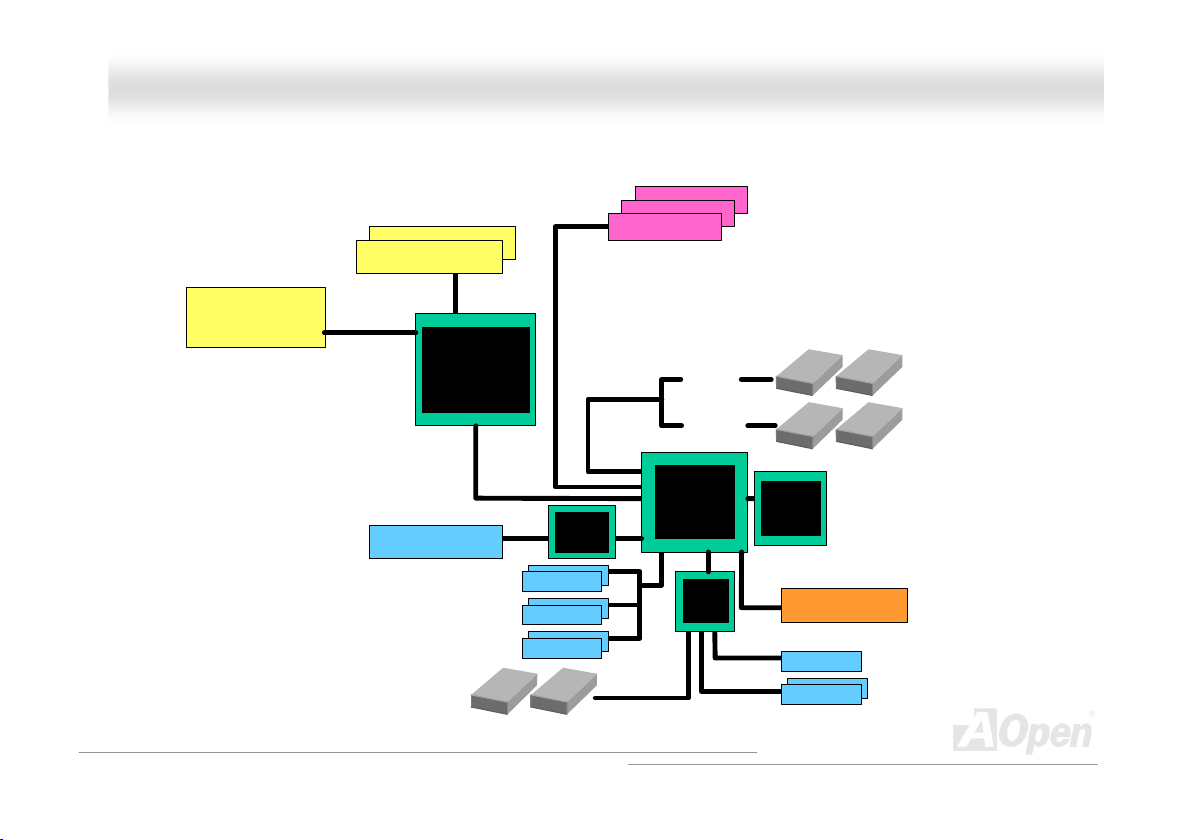

BBlloocckk DDiiaaggrraamm

Socket 478

Intel Pentium 4

CPU

400MHz /533MHz

System Bus

LAN connect Component

Floppy Disk Drive x2

PC-266 DDR SDRAM

Up to 2GB

DIMM Socket x2

Intel

845GL MCH

845 GV GMCH

USB2.0

Connector x6

PCI Bus

RealTek

RTL8101L

1stUSB Port

2ndUSB Port

3rdUSB Port

32-bit PCI Slot x3

ATA

33/66100

Primary

Channel

Secondary

Channel

Intel ICH4

Low Pin

Count Super

I/O

RealTek

AC97

CODEC

4Mbit Flash EEPROM

Parallel Port

Serial Port x2

IDE Dr ive x4

Page 17

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

HHaarrddwwaarree IInnssttaallllaattiioonn

This chapter describes jumpers, connectors and hardware devices of this motherboard.

Note: Electrostatic discharge (ESD) can damage your processor, disk drives, expansion boards, and

other components. Always observe the following precautions before you install a system component.

1. Do not remove a component from its protective packaging until you are ready to install it.

2. Wear a wrist ground strap and attach it to a metal part of the system unit before handling a

component. If a wrist strap is not available, maintain contact with the system unit throughout any

procedure requiring ESD protection.

Page 18

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

AAbboouutt ““OOppttiioonnaall”” aanndd ““UUppggrraaddee OOppttiioonnaall””……

When you read this online manual and start to assemble your computer system, you may find some of functions are called

“Optional”, and some are called “Upgrade Optional”. Though all AOpen motherboards include many amazing and powerful

features, in some situations, these powerful features are not used to every user. Hence, we changed some key features as

“Optional” for you to choose. Some optional functions that can be upgraded by users, we call them “Upgrade Optional”. As for

those optional functions that can’t be upgraded by ourselves, we call them “Optional”. If needed, you can contact our local

distributors or resellers for purchasing “Upgrade Optional” components, and again you can visit AOpen official web site:

www.aopen.com

for more detail information.

Page 19

(

)

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

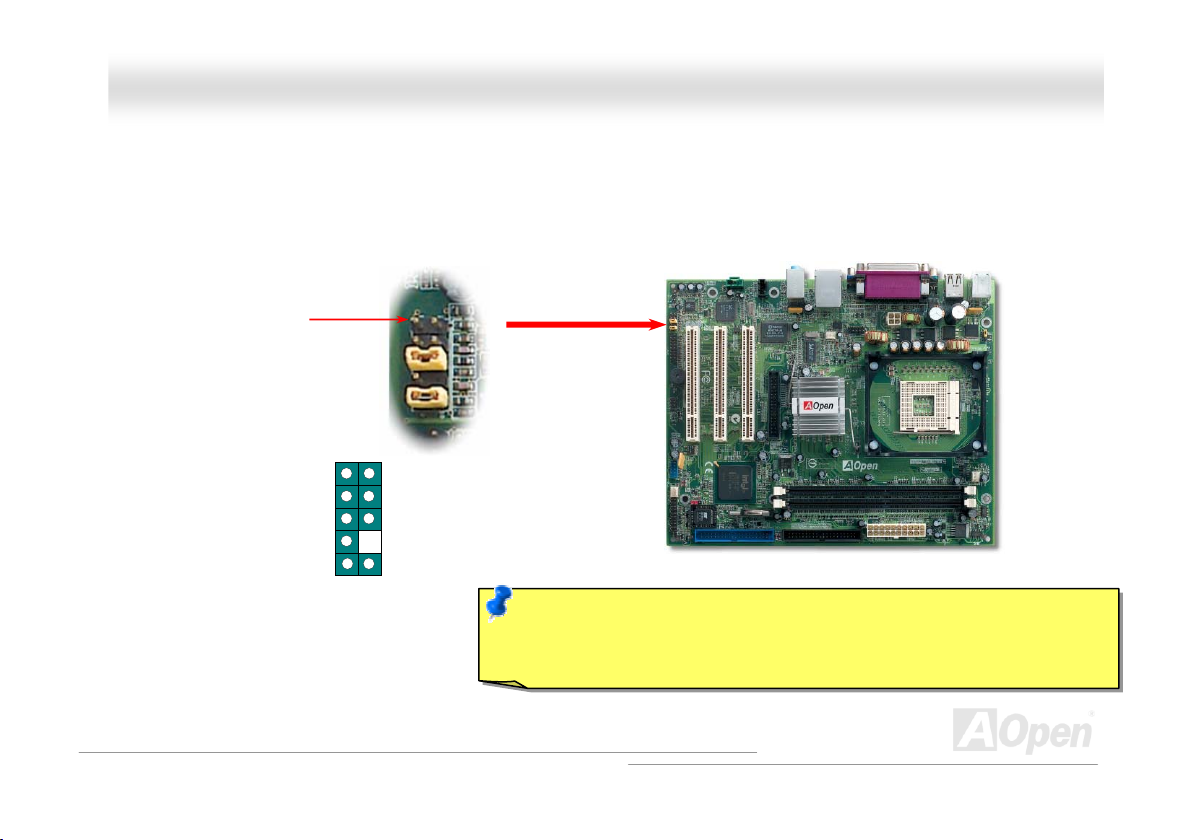

JJPP1144 CClleeaarr CCMMOOSS DDaattaa

You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below.

1. Turn off the system and unplug the AC power.

2. Remove ATX power cable from connector PWR2.

3. Locate JP14 and short pins 2-3 for a few seconds.

4. Return JP14 to its normal setting by shorting pins 1 & pin2.

5. Connect ATX power cable back to connector PWR2.

Pin 1

Normal

default

Clear

CMOS

Tip: When should I Clear CMOS?

1. Boot fail because of overclocking…

2. Forget password…

3. Troubleshooting…

Page 20

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

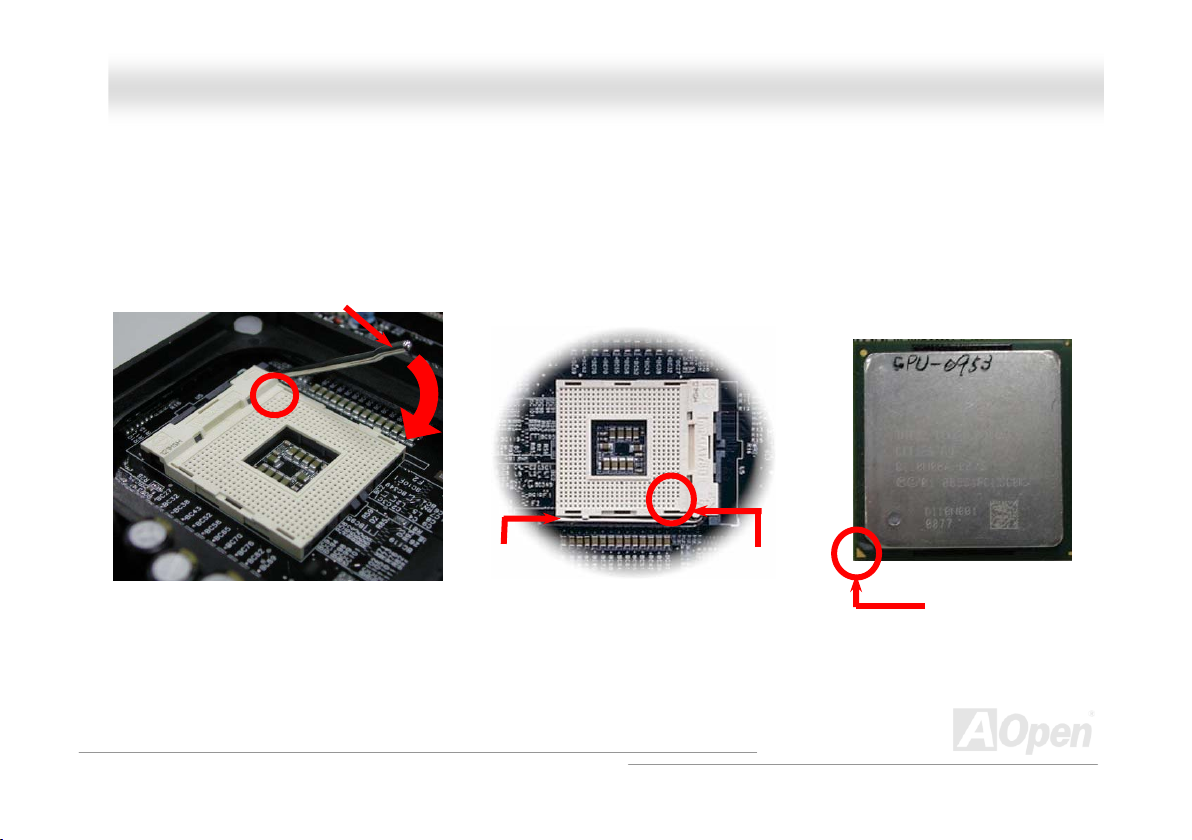

CCPPUU IInnssttaallllaattioonn

This motherboard supports Intel® Pentium 4 Socket 478 series CPU. Be careful of CPU orientation when you plug it into CPU

socket.

1. Pull up the CPU socket lever and

up to 90-degree angle.

2. Locate Pin 1 in the socket and look for a cut edge on the CPU upper interface. Match Pin 1 and cut edge, then insert the CPU into the socket.

Note: These pictures are for example only, it may not exactly be the same motherboard.

CPU socket

Lever

CPU pin 1 and

cut edge

CPU cut edge

Page 21

MMXX44LLR

Note: This picture is for example only, it may not exactly be the same motherboard.

3. Press down the CPU socket lever and finish CPU installation.

--GGNN

// MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

CPU cut edge

Note: This socket supports

Micro-FC-PGA2 package CPU, which

is the latest CPU package developed

by Intel. Other forms of CPU package

are impossible to be fitted in.

Note: If you do not match the CPU

socket Pin 1 and CPU cut edge well, it

damage the CPU.

Page 22

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

CCPPUU FFaann IInnssttaallllaattiioonn

This motherboard comes with a retention module attached on the CPU socket when shipped, we strongly recommend you to

install AOpen special designed CPU Fan as shown below on the retention module for better heat dissipation. Please install the

CPU Fan correctly as the following pictures shown.

1. Gently put the CPU Fan down on the

retention module with clips aligning correctly to the four corners.

2. Pressing down the four clips with force one by one on the retention module.

Clip

Page 23

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

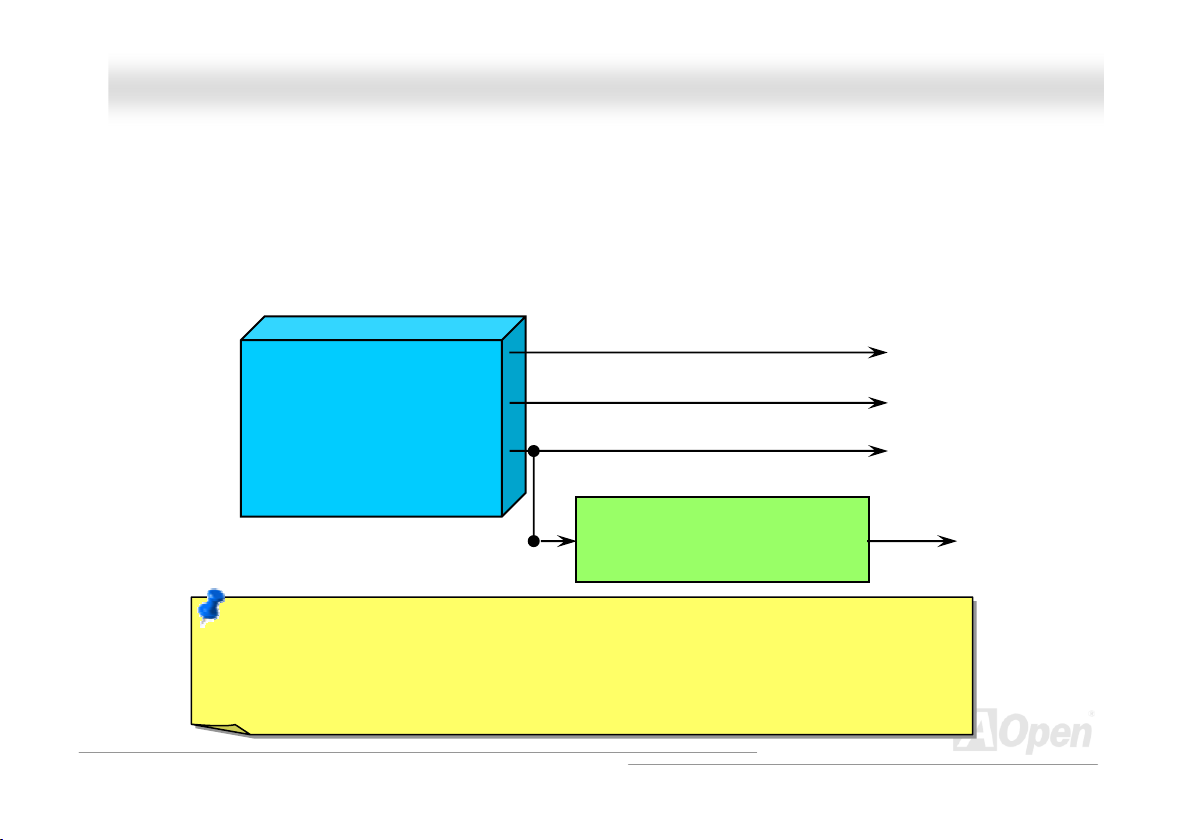

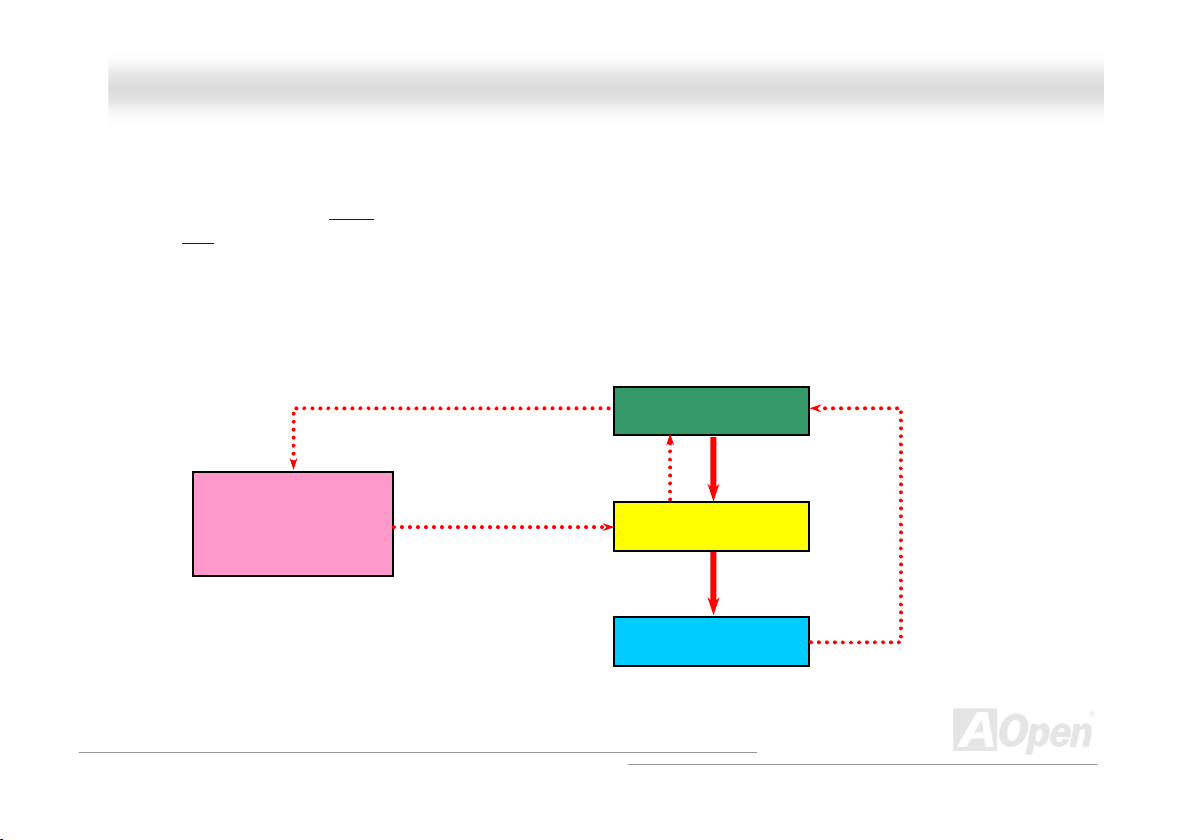

CCPPUU JJuummppeerr--lleessss DDeessiiggnn

CPU VID signal and SMbus clock generator provide CPU voltage auto-detection and allows the user to set the CPU frequency

through the BIOS setup, therefore no jumpers or switches are used. The disadvantages of the Pentium based jumper-less

designs are eliminated. There will be no worry of wrong CPU voltage detection.

CPU VID signal

(Automatically generates CPU voltage)

Intel® Socket 478

Pentium 4 CPU

Power Regulator

CPU voltage

Clock Generator

CPU Freq. Ratio

BIOS

Controlled

Circuit

Page 24

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

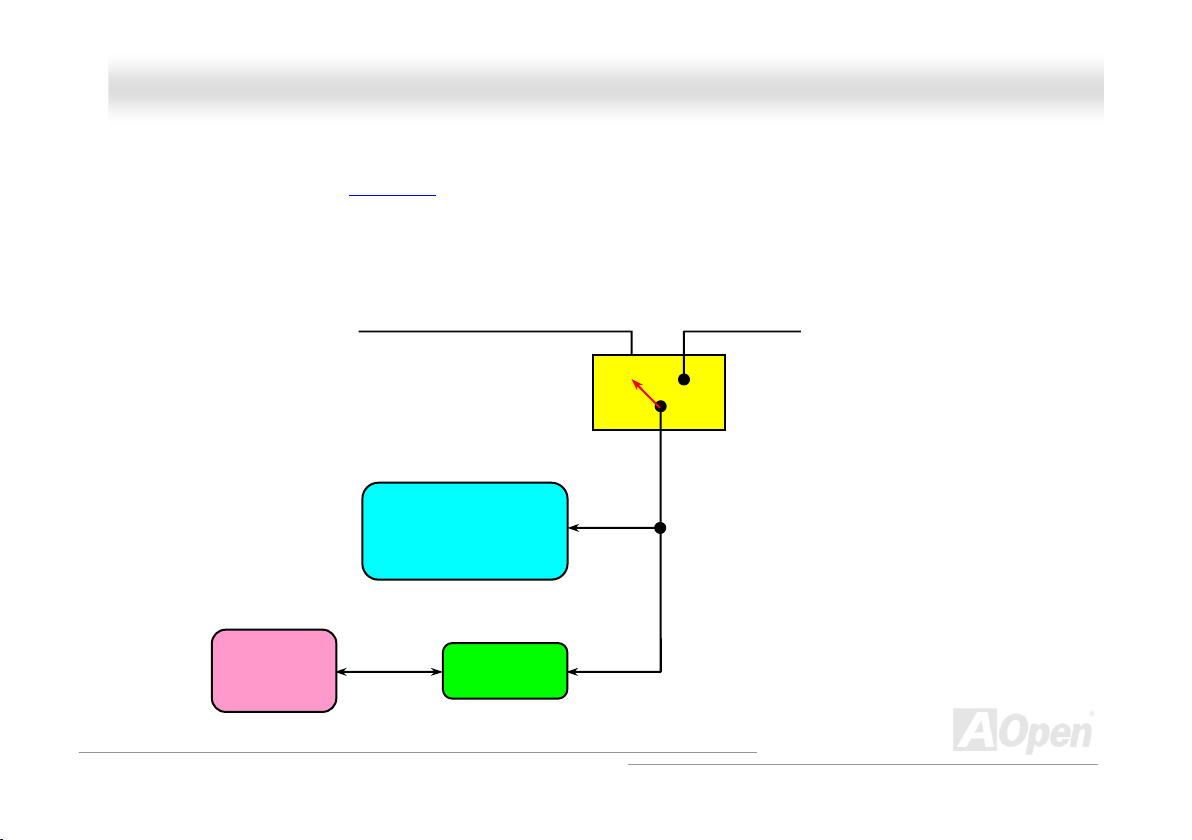

AAOOppeenn ““WWaattcchh DDoogg AABBSS””

With this motherboard, AOpen provides a very special, useful feature for overclockers. When you power-on the system, the

BIOS will check last system POST

the CPU FSB

the system to reboot in five seconds. Then, BIOS will detect the CPU’s default frequency and POST again. With this special

feature, you can easily overclock your system to get higher system performance, and without removing the cover of system

housing to set the jumper to clear CMOS data when your system hanged.

frequency by user’s setting that stored in the BIOS. If system failed in BIOS POST, the “Watch Dog ABS” will reset

AOpen

Watch Dog

status. If it succeeded, the BIOS will enable “Watch Dog ABS” function immediately, and set

Enable/Disable Signal

from BIOS

Countdown about

5 seconds if fails

in POST

Reset Signal

Clock Generator

BIOS

CPU ID Signal

CPU

Page 25

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

SSeettttiinngg CCPPUU FFrreeqquueennccyy

BIOS Setup > Frequency/Voltage Control > CPU Clock Setting

This motherboard is CPU jumper-less design, you can set CPU frequency through the BIOS setup, and no jumpers or switches

are needed.

CPU Ratio 8x, 9x, 10x,…22x, 23x, 24x

CPU FSB 100~255MHz

Home

Tip: If your system hangs or fails to boot because of

overclocking, simply use <Home> key to restore the

default setting or you can wait the AOpen “Watch Dog

Timer” reset the system after five seconds and system

will auto-detect hardware again.

Page 26

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

Core Frequency = CPU FSB Clock * CPU Ratio

PCI Clock = CPU FSB Clock / Clock Ratio

EV6 Bus Speed = CPU external bus clock x 2

Warning: Intel®845GL chipset supports maximum

400MHz (100MHz x 4) system bus and 66MHz AGP

clock; Intel

(133MHz x 4) system bus and 66MHz AGP clock,

higher clock setting may cause serious system damage.

845GV chipset supports maximum 533Hz

Warning: To avoid possible CPU damage caused by

overheating, an automatic shutdown of system had been

especially designed on this motherboard. System would

be automatically power off when this motherboard with

implementation of THERMTRIP circuit detected a CPU

erature above 135 degree.

tem

MX4LR-GN(100MHz x 4)

CPU

Celeron 1.7G 1700MHz 100MHz 400MHz 17x

Celeron 1.8G 1800MHz 100MHz 400MHz 18x

Celeron 2.0G 2000MHz 100MHz 400MHz 20x

Pentium 4 1.6G 1600MHz 100MHz 400MHz 16x

Pentium 4 1.7G 1700MHz 100MHz 400MHz 17x

Pentium 4 1.8G 1800MHz 100MHz 400MHz 18x

Pentium 4 1.9G 1900MHz 100MHz 400MHz 19x

Pentium 4 2.0G 2000MHz 100MHz 400MHz 20x

Pentium 4 2.2G 2200MHz 100MHz 400MHz 22x

Pentium 4 2.4G 2400MHz 100MHz 400MHz 24x

CPU

Pentium 4 2.4G 2400MHz 133MHz 533MHz 18x

Pentium 4 2.53G 2530MHz 133MHz 533MHz 19x

Pentium 4 2.66G 2660MHz 133MHz 533MHz 20x

Pentium 4 2.80G 2800MHz 133MHz 533MHz 21x

Pentium 4 3.06G 3060MHz 133MHz 533MHz 23x

CPU Core

Frequency

MX4GVR-GN(133MHz x 4)

CPU Core

Frequenc

FSB Clock

System

Bus

System

Bus

Ratio

Page 27

MMXX44LLRR--GGN

// MMXX44GGVVRR--GGN

OOnnlliinnee MMaannuua

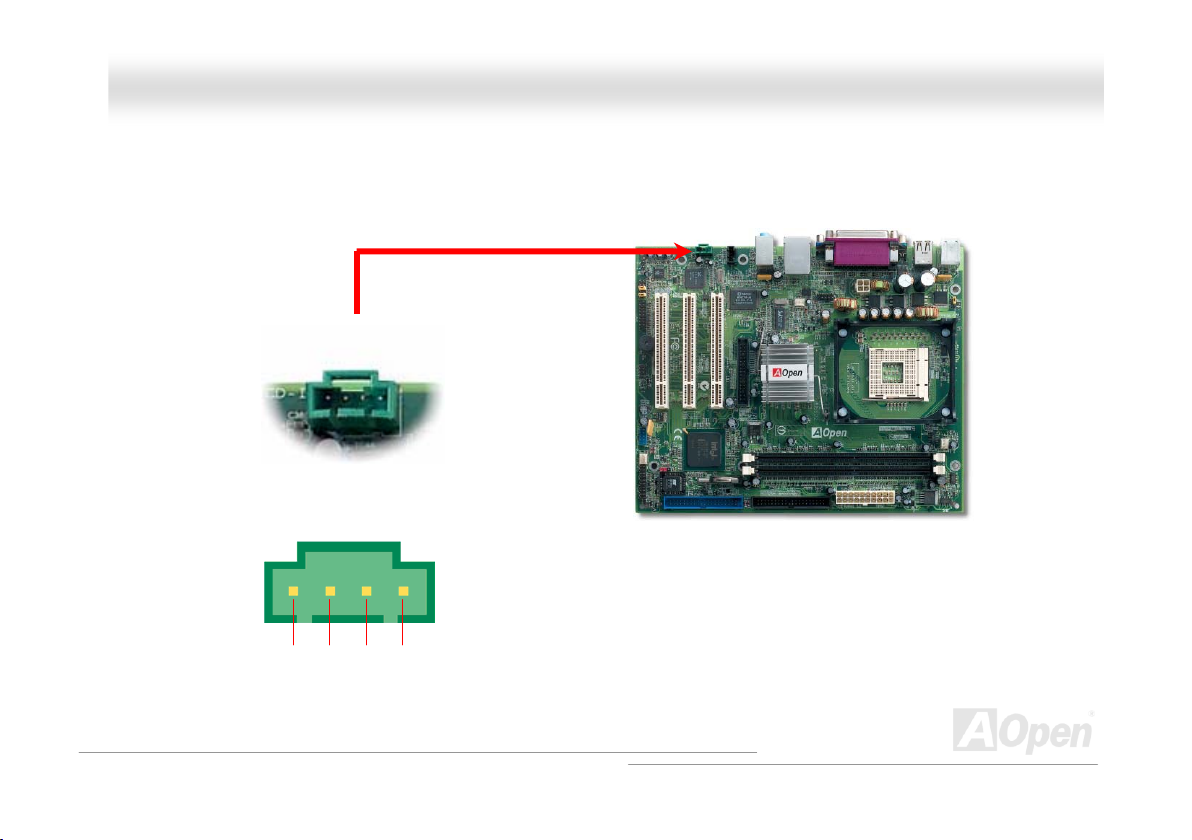

CCPPUU aanndd SSyysstteemm FFaann CCoonnnneeccttoorr ((wwiitthh HH//WW MMoonniittoorriinngg))

Plug in the CPU fan cable to the 3-pin CPU FAN connector. If you have chassis fan, you can also plug it on System Fan (FAN2)

or FAN3 (AUX Fan) connector.

SYSFAN3 Connector

GND

+12V

SENSOR

SYSFAN2 Connector

CPUFAN1 Connector

Note: Some CPU fans do not have

sensor pin, so that cannot support

hardware monitoring function.

GND +12V SENSOR

Page 28

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

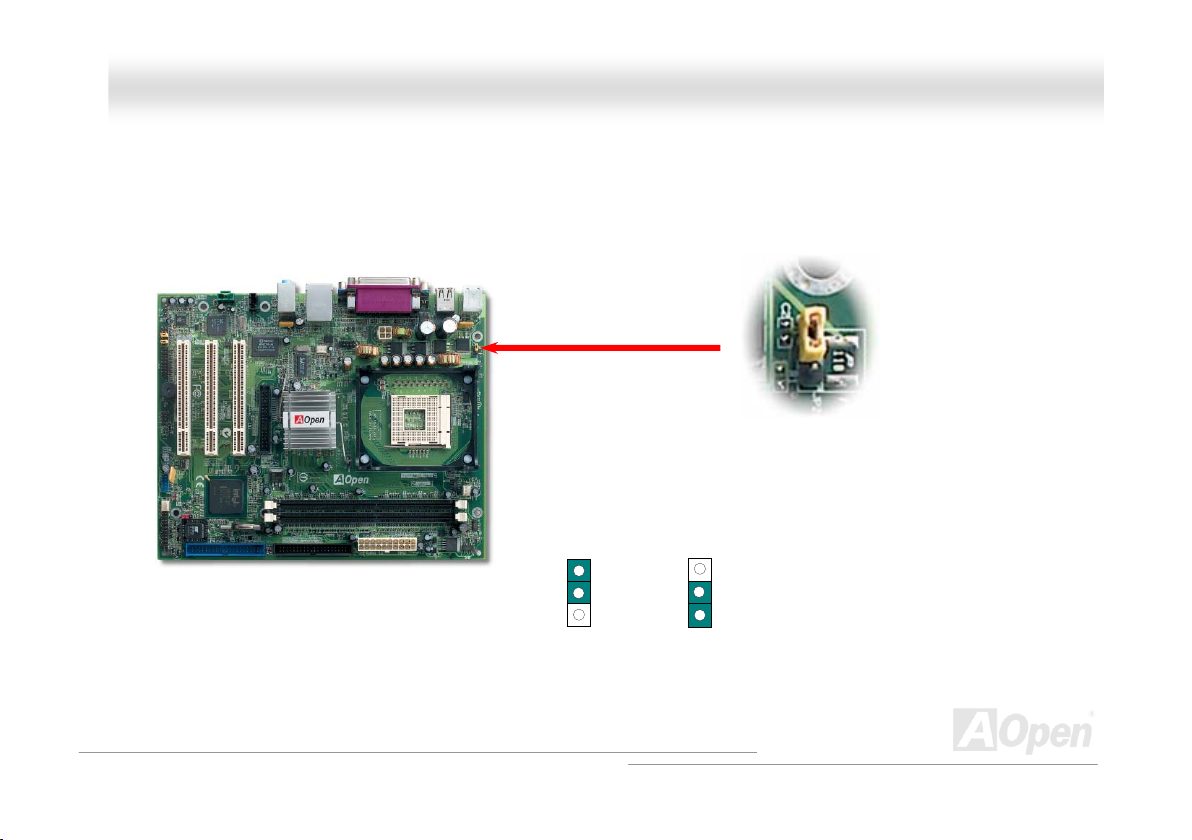

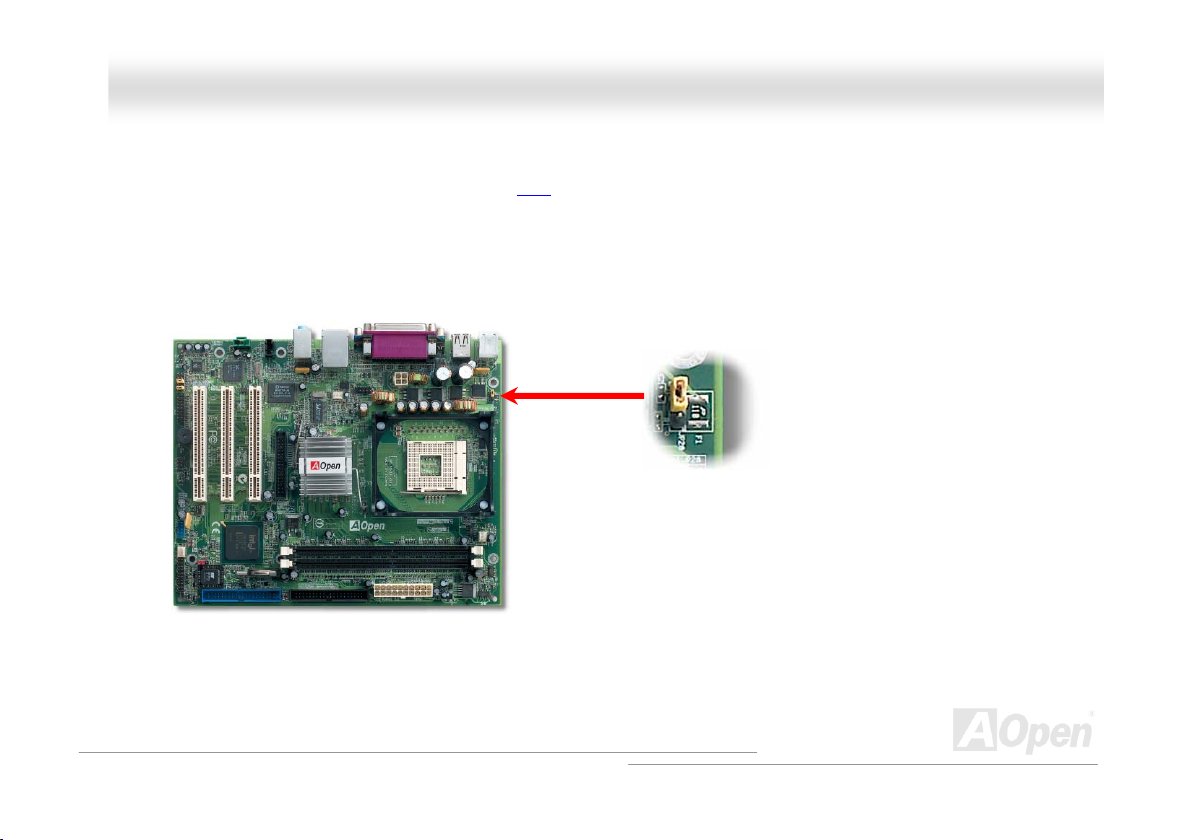

JJPP2288 KKeeyybbooaarrdd//MMoouussee WWaakkee--uupp EEnnaabbllee//DDiissaabbllee JJuummppeerr

This motherboard provides keyboard / mouse wake-up function. You can use JP28 to enable or disable this function, which

could resume your system from suspend mode with keyboard or mouse installed. The factory default setting is set to

“Disable”(1-2), and you may enable this function by setting the jumper to 2-3.

Disable

(Default)

Enable

JP28

KB/Mouse Wake-up

Page 29

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

DDIIMMMM SSoocckkeettss

This motherboard has two 184-pin DDR DIMM sockets that allow you to install PC266 memory up to 2GB. Both ECC and

Non-ECC DDR SDRAM are supported, but you can’t install them both on DIMM. Otherwise, it will cause serious damage on

memory sockets or SDRAM module.

DIMM1

DIMM2

Page 30

MMXX44LLRR--GGNN // MMX

44GGVVRR--GGNN OOnnlliinnee MMaannuua

HHooww ttoo IInnssttaallll MMeemmooryy MMoodduulleess

Please follow the procedure as shown below to finish memory installation.

1. Make sure the DIMM module’s pin face down and match the socket’s size as depicted below.

2. Insert the module straight down to the DIMM slot with both hands and press down firmly until the DIMM module is securely

in place.

3. Repeat step 2 to finish additional DIMM modules installation.

Ta b

52 pins40 pins

Note: The tabs of the DIMM slot

will close-up to hold the DIMM in

place when the DIMM touches

the slot’s bottom.

Page 31

)

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

FFrroonntt PPaanneell CCoonnnneeccttoorr

Pin 1

Attach the power LED, Keylock, speaker, power and reset switch connectors to

the corresponding pins. If you enable “Suspend Mode” item in BIOS Setup, the

ACPI & Power LED will keep flashing while the system is in suspend mode.

Locate the power switch cable from your ATX housing. It is 2-pin female

connector from the housing front panel. Plug this connector to the soft-power

switch connector marked SPWR.

Suspend Type ACPI LED

Power on Suspend (S2) or Suspend to RAM (S3) Flashing for every second

Suspend to Disk (S4) The LED will be turned off

+5V

GND

5VSB

SPWR

ACPI LE D-

GND

ACPILED

ACPI_B

GND

RESET

GND

IDE LED

Spea ker

SPWR

IDE LED

ACPI & PWR LED

ACPI LED (BLUE

Reset

IDE LED

SPEAKER

Page 32

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

AATTXX PPoowweerr CCoonnnneeccttoorr

This motherboard comes with a 20-pin and 4-pin ATX power connector. Make sure you plug in the right direction. We strongly

recommend you to connect the 4-pin 12V ATX connector before connecting the 20-pin ATX power connector and use standard

power supply specially designed for Pentium 4 system.

4-Pin 12V ATX Power Connector

20-Pin Power Connector

Page 33

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

AC PPoowweerr AAuuttoo RReeccoovveerryy

A traditional ATX system should remain at power off stage when AC power resumes from power failure. This design is

inconvenient for a network server or workstation, without an UPS, that needs to keep power-on. This motherboard implements

an AC Power Auto Recovery function to solve this problem.

Page 34

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

IIDDEE aanndd FFllooppppyy CCoonnnneeccttoorr

Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDC and IDE connector. The blue connector is IDE1 for

clear identification. Be careful of the pin1 orientation. Wrong orientation may cause system damage.

FDD Connector

IDE 1 (Primary)

Pin 1

Secondary Slave

(4th)

Primary Master

(1st)

Secondary Master

(3rd)

Primary Slave

(2nd)

Pin 1

IDE 2 (Secondary)

ATA 33/66/100

IDE Connector

Page 35

66/100 is required

MMXX44LLRR--GGNN

IDE1 is also known as the primary channel and IDE2 as the secondary channel. Each channel supports two IDE devices that

make a total of four devices. In order to work together, the two devices on each channel must be set differently to Master and

Slave mode. Either one can be the hard disk or the CDROM. The setting as master or slave mode depends on the jumper on

your IDE device, so please refer to your hard disk and CDROM manual accordingly.

This motherboard supports ATA33, ATA 66 or ATA100 IDE devices. Following table lists the transfer rate of IDE PIO and DMA

modes. The IDE bus is 16-bit, which means every transfer is two bytes.

Mode Clock Period Clock

PIO mode 0 30ns 20 600ns (1/600ns) x 2byte = 3.3MB/s

PIO mode 1 30ns 13 383ns (1/383ns) x 2byte = 5.2MB/s

PIO mode 2 30ns 8 240ns (1/240ns) x 2byte = 8.3MB/s

PIO mode 3 30ns 6 180ns (1/180ns) x 2byte = 11.1MB/s

PIO mode 4 30ns 4 120ns (1/120ns) x 2byte = 16.6MB/s

DMA mode 0 30ns 16 480ns (1/480ns) x 2byte = 4.16MB/s

DMA mode 1 30ns 5 150ns (1/150ns) x 2byte = 13.3MB/s

DMA mode 2 30ns 4 120ns (1/120ns) x 2byte = 16.6MB/s

ATA 33 30ns 4 120ns (1/120ns) x 2byte x2 = 33MB/s

ATA 66 30ns 2 60ns (1/60ns) x 2byte x2 = 66MB/s

ATA100 20ns 2 40ns (1/40ns) x 2byte x2 = 100MB/s

Warning: The specification of the IDE cable is a maximum of 46cm (18 inches);

make sure your cable does not exceed this length.

/ MMXX4

GGVVRR--GGNN OOnnlliinnee MMaannuua

Tip:

Count

Cycle Time Data Transfer Rate

1. For better signal quality,

it is recommended to set

the far end side device

to master mode and

follow the suggested

sequence to install your

new device. Please refer

to above diagram

2. To achieve the best

performance of Ultra

DMA 66/100 hard disks,

a special 80-wires IDE

cable for Ultra DMA

Page 36

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

IIrrDDAA CCoonnnneeccttoorr

The IrDA connector can be configured to support wireless infrared module, with this module and application software such as

Laplink or Windows 95 Direct Cable Connection, the user can transfer files to or from laptops, notebooks, PDA devices and

printers. This connector supports HPSIR (115.2Kbps, 2 meters) and ASK-IR (56Kbps).

Install the infrared module onto the IrDA connector and enable the infrared function from BIOS Setup, UART Mode, make sure

to have the correct orientation when you plug in the IrDA connector.

Pin 1

+5V

IR_TX

IrDA Connector

KEY GND IR_RX

Page 37

VGA

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

CCoolloorr CCooddeedd BBaacckk PPaanneell

The onboard I/O devices are PS/2 Keyboard, PS/2 Mouse, serial ports COM1 and VGA, Printer, USB, AC97 sound and game

port. The view angle of drawing shown here is the back panel of the housing.

PS/2 Keyboard: For standard keyboard, which use a PS/2 plug. PS/2 Mouse: For PC-Mouse, which use a PS/2 plug. USB Port: Available for connecting USB devices. Parallel Port: To connect with SPP/ECP/EPP printer. COM1 Port: To connect with pointing devices, modem or others serial devices. VGA Connector: To connect with PC monitor. Speaker Out: To External Speaker, Earphone or Amplifier. Line-In: Comes from the signal sources, such as CD/Tape player. MIC-In: From Microphone. LAN Port: Available for 10/100 LAN connection.

PS/2 Mouse

Connector

PS/2

board

USB2.0

Ports

SPP/EPP/ECP Parallel Port

COM 1 Port

Port

LAN Port

Line-In

Spea ker Ou t

MIC-In

USB 2.0 Ports

Page 38

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

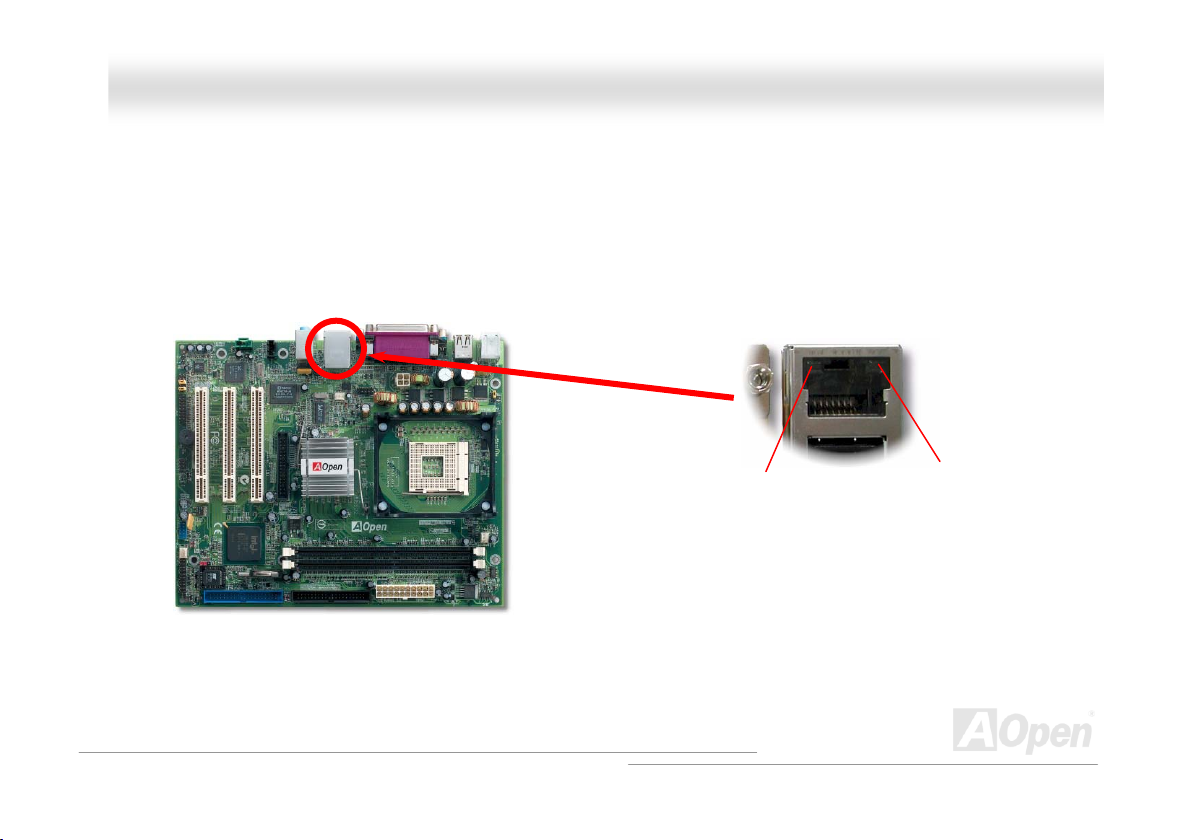

SSuuppppoorrtt 1100//110000 MMbbppss LLAANN oonnbbooaarrdd

The South Bridge ICH4 includes a fast Ethernet controller on chip. On the strength of Realtek 8101L LAN controller on board,

which is a highly-integrated Platform LAN Connect device, it provides 10/100M bps Ethernet for office and home use, the

Ethernet RJ45 connector is located on top of USB connectors. The orange LED indicates the link mode, it lights when linking

to network. The green LED indicates the transfer mode, and it lights when data is transferring. To enable or disable this

function, you may simply adjust it through BIOS.

Green/Transfer

Orange/Link

Page 39

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

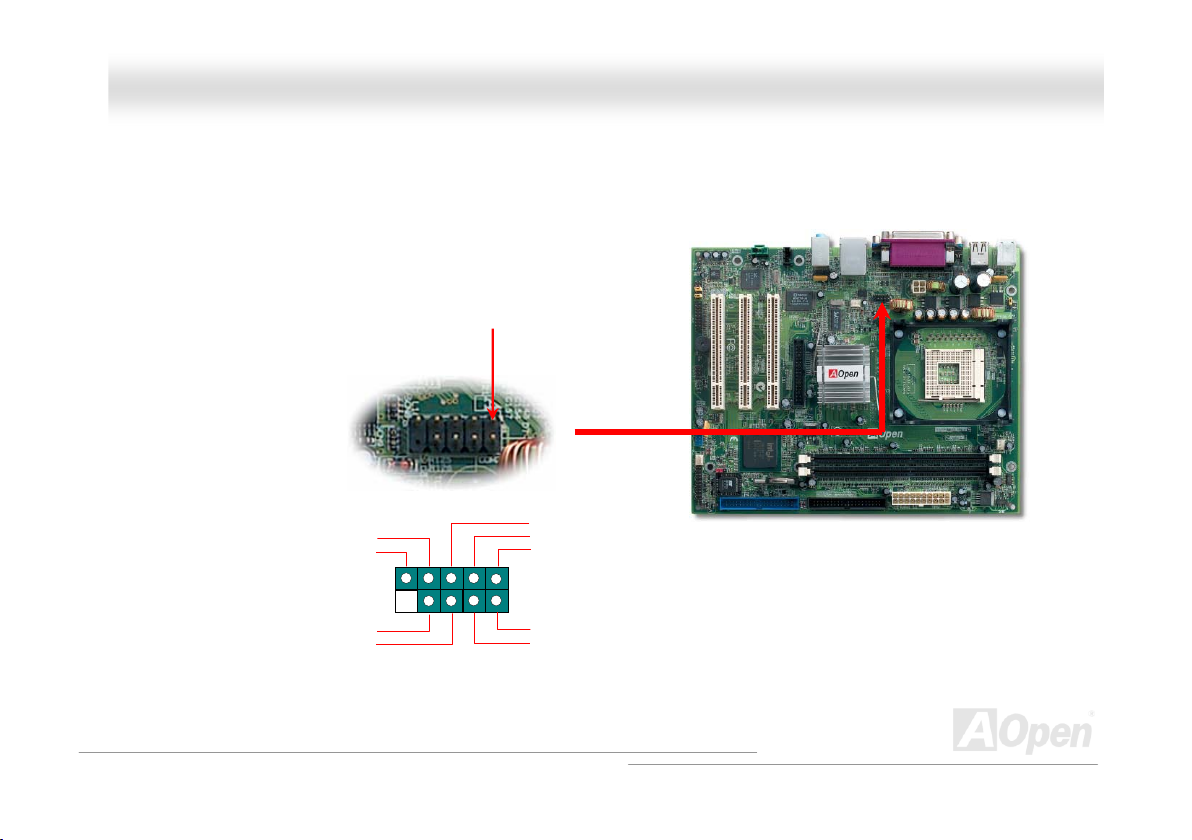

CCOOMM22 CCoonnnneeccttoorr

This motherboard provides two serial ports. One of them is on back panel connector, and the other is on the upper left of board.

With proper cable, you can connect it to the back panel of chassis.

Pin 1

RI#

RTS#

DSR#

CTS#

GND SOUT DOD#

SIN DTR#

Page 40

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN

OOnnlliinnee MMaannuua

SSuuppppoorrtt FFrroonntt UUSSBB 22..00 CCoonnnneeccttoorr

This motherboard provides six USB 2.0 connectors to connect USB devices, such as mouse, keyboard, modem, printer, etc.

There are four connectors on the back panel. You can use proper cables to connect the Front USB connector to USB modules

or front panel of chassis.

Pin 1

USB 2.0 Connector

+5V

SBD2-

SBD2+

GND

KEY

USB 2.0 Connector

+5V SBD3SBD3+ GND NC

Note: Please note that if you would like to use

USB devices (Example: keyboard, mouse etc.)

under DOS environment, you must install driver

comes with the devices to make it work.

Page 41

Pin 1

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

CCaassee OOppeenn CCoonnnneeccttoorr

The “CASE OPEN” header provides chassis intrusion-monitoring function. To make this function works, you have to enable it in

the system BIOS, connect this header to a sensor somewhere on the chassis. So, whenever the sensor is triggered by lights or

the opening of the chassis, the system will send out beep sound to inform you. Please be informed that this useful function only

applies to advanced chassis, you may purchase an extra sensor, attach it on your chassis, and make a good use of this

function.

Sensor

GND

Page 42

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

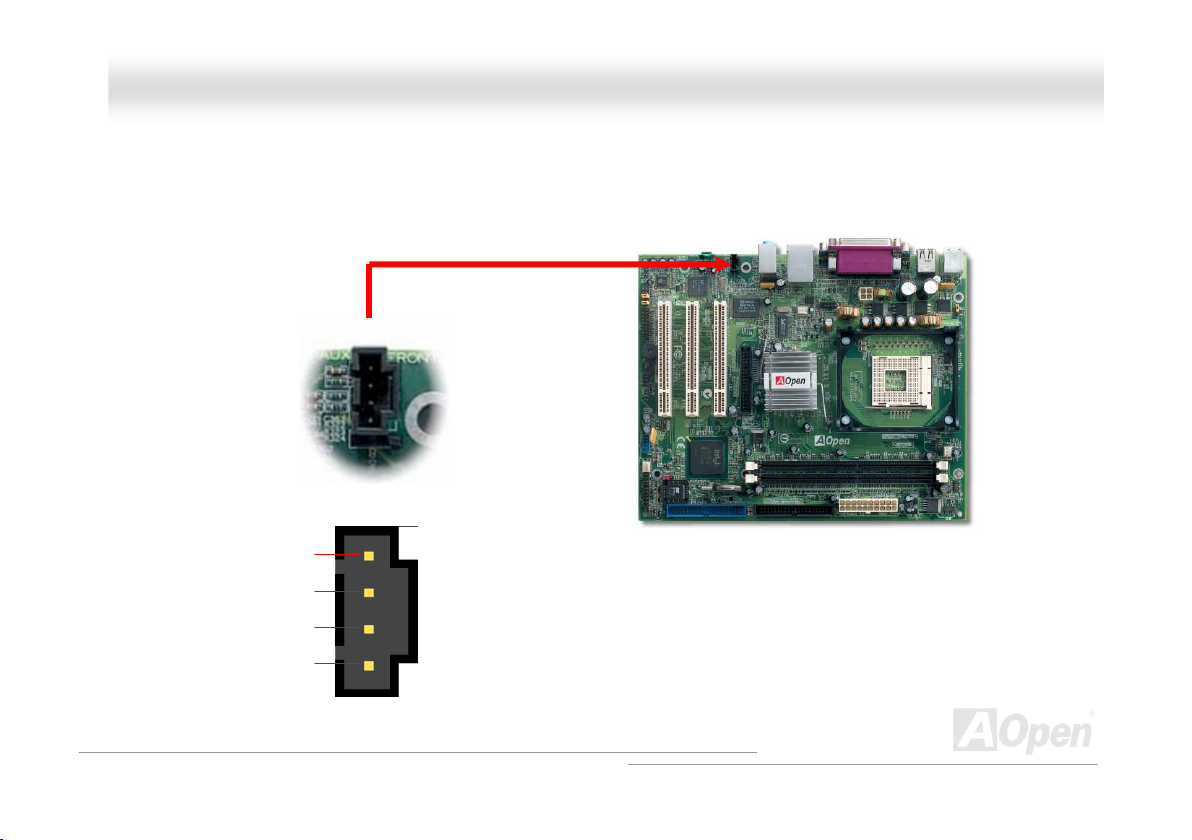

CCDD AAuuddiioo CCoonnnneeccttoorr

This connector is used to connect CD Audio cable from CDROM or DVD drive to onboard sound.

GND

CD-IN Connector

Page 43

MMXX44L

RR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

AAUUXX--IINN CCoonnnneeccttoorr

This connector is used to connect MPEG Audio cable from MPEG card to onboard sound.

AUX-IN Connector

LRGNDGND

Page 44

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

FFrroonntt AAuuddiioo CCoonnnneeccttoorr

If the housing has been designed with an audio port on the front panel, you’ll be able to connect onboard audio to front panel

through this connector. By the way, please remove 5-6 and 9-10 jumper caps from the Front Audio Connector before

connecting the cable. Please do not remove these 5-6 and 9-10 yellow jumper caps if there’s no audio port on the front

panel.

Pin 1

AUD_MIC AUD_MIC_BIAS AUD_FPOUT_R

AUD_FPOUT_L

Front Audio Connector

AUD_GND AUD_VCC AUD_RET_R KEY AUD_RET_L

Note: Please remove the jumper cap from the Front Panel Audio Connector

before you connect the cable. Do not remove this yellow jumper cap if

housin

without an audio port on the front panel.

Page 45

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

BBaatttteerryy--lleessss aanndd LLoonngg LLiiffee DDeessiiggn n

This Motherboard implements Flash ROM and a special circuit that allows you to save your current CPU and CMOS Setup

configurations without the need of a battery. The RTC (real time clock) can also keep running as long as the power cord is

plugged. If you lose your CMOS data by accident, you can just reload the CMOS configurations from Flash ROM and the system

will recover as usual.

Flash

ROM

ATX Stand-by Power Battery

Auto Switch

Auto switching to ATX standby power

RTC

(Real Time Clock)

00:00:00

CMOS

Backup by EEPROM

as long as AC power line is plugged.

This smart design increases battery

life if you still plug battery on

motherboard.

Page 46

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

CCPPUU OOvveerr--ccuurrrreenntt PPrrootteeccttiioonn

Over Current Protection has been popularly implemented on ATX 3.3V/5V/12V switching power supply for a while. However,

new generation CPU is able to use regulator of different voltages to transfer 12V to CPU voltage (for example, to 2.0V). This

motherboard is with switching regulator onboard that supports CPU over-current protection, and it applies to 3.3V/5V/12V power

supply for providing full line over-current protection.

ATX Switching Power Supply

Note: Although we have implemented protection circuit try to prevent any human operating

mistake, there is still certain risk that CPU, memory, HDD, add-on cards installed on this

motherboard may be damaged because of component failure, human operating error or unknown

nature reason. AOpen cannot guaranty the protection circuit will always work perfectly.

12V (Protected by power supply)

3.3V (Protected by power supply)

5V (Protected by power supply)

Onboard Power Regulator

(Over-Current Protection)

CPU Core Voltage

Page 47

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

HHaarrddwwaarree MMoonniittoorriinngg

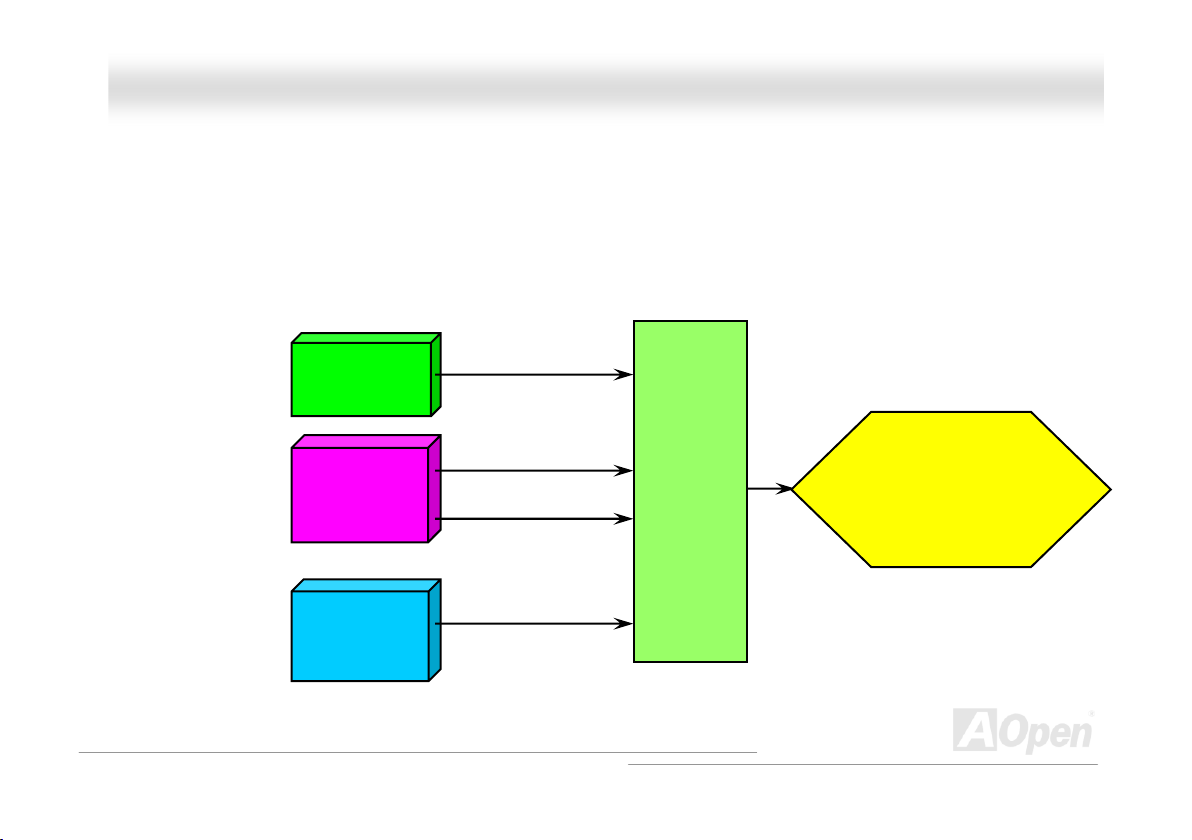

This motherboard implements a hardware monitoring system. As you turn on your system, this smart design will continue to

monitor your system’s working voltage, fan status and CPU temperature. If any of these systems’ status goes wrong, there will

be an alarm through the chassis external speaker or buzzer of motherboard (if existed) to warn the user.

Fan

CPU

Power

Fan Speed

AOpen H/W Monitoring

Utility

CPU Temperature

CPU Voltage

System Voltage

Detection

Circuit

Page 48

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

RReesseettttaabbllee FFuussee

Traditional motherboard has fuse for Keyboard and USB port to prevent over-current or shortage. These fuses are soldered

onboard that when it is broken (function as protecting the motherboard), user still cannot replace it and the motherboard is still

malfunctioning.

With expensive Resettable Fuse, the motherboard can be resumed back to normal function after the fuse had done its

protection job.

Resettable Fuse

Page 49

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

2222000

The quality of low ESR capacitor (Low Equivalent Series Resistance) during high frequency operation is very important for the

stability of CPU power. The idea of where to put these capacitors is another know-how that requires experience and detail

calculation.

Not only that, MX4LR-GN / MX4GVR-GN implements 2200μF capacitors, which is much larger than normal capacitor (1000 and 1500μf) and it provides better stability for CPU power.

FF LLooww EESSRR CCaappaacciittoorr

Page 50

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

LLaayoouutt ((FFrreeqquueennccyy IIssoollaattiioonn WWaallll))

Note: This diagram for example only, it may not be exactly the same as this motherboard.

For high frequency operation, especially overclocking,

layout is the most important factor to make sure

chipset and CPU working in stable condition. The

layout of this motherboard implements AOpen’s

unique design called “ Frequency Isolation Wall”.

Separating each critical portion of motherboard into

regions where each region operates in a same or

similar frequency range to avoid cross talk and

frequency interference between each region’s

operations and condition. The trace length and route

must be calculated carefully. For example, the clock

trace must be equal length (not necessarily as short

as possible) so that clock skew will be controlled

within few a pico second (1/10

Sec)

Page 51

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

EEnnllaarrggeedd AAlluummiinnuumm HHeeaattssiinnkk

Cool down CPU and Chipset is important for system reliability. Enlarged aluminum heat sink provides better heat consumption

especially when you are trying to over clocking the CPU.

Page 52

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

WWaakkee OOnn MMooddeemm // WWaakkee OOnn LLAANN // WWaakkee OOnn PPCCII CCaarrdd

motherboard implements special circuit to support Wake On Modem, Wake On LAN and Wake On PCI Card.

TThhiiss

Green PC suspend mode does not really turn off the system power supply, it can be triggered by Modem, LAN or Other PCI

Cards and resume back to active. If you have an external Modem card and want to use this wake-up feature, Please enable the

“Wake On Modem” item. For an internal modem, LAN and other PCI cards, please enable the “Wake On PCI Card” item.

Page 53

MMXX44LLRR--GGNN // MMXX44GGV

RR--GGNN

OOnnlliinnee MMaannuua

OOppeenn JJuukkeeBBooxx PPllaayyeerr

without any hassle of entering Windows operation system.

Here we are pleased to provide you a brand-new powerful interface—Open JukeBox.

Without any cost you can have your PC turn into a fashionable CD player! This latest Open

JukeBox motherboard aims at helping you directly operate your CD player on the PC

Page 54

play

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN

OOnnlliinnee MMaannuua

How Your Open JukeBox Works

The operation of Open JukeBox Player is the same as other CD players. By pressing specific keys on the keyboard you will find

playing Open JukeBox Player couldn’t be easier than the traditional CD Players. Below is the function description of respective

buttons.

Power-Off Button

Operation System

Boot to

Power: Pressing O Boot: Pressing B Play: Pressing A Stop: Pressing S Pause: Pressing P Eject: Pressing E Repeat: Like other CD Players, pressing R Vol ume +/ -: Pressing + or – to adjust the volume of playing music.

Rewind/Forward Å / Æ: Pressing arrow keys, to rewind or forward the music.

, to directly power off your computer with no hassle of entering Windows Operation System.

, to intelligently boot to Windows Operation System for you. , to start playing CD music. , to stop the music playing. , to pause the music playing temporarily. , to eject CD tray for you to change CD disc.

, to shift the repeat mode.

Note: Though some of the latest

version of Windows support “Digital

udio” through IDE bus. However, in

order to use Open Jukebox player,

which is driven under BIOS, it is a

MUST to insert audio cable to CD-IN

connector on the motherboard.

Dis

Function Key

Screen

Page 55

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

Your Open JukeBox Settings in BIOS

There are three Open JukeBox settings in BIOS as follows.

Auto

: The default setting is “Auto” with which the Open JukeBox will automatically check the CD player every time you power

on. The Open JukeBox will automatically be launched when it detects a music CD in your CD player.

Press Insert Key

you of pressing “Ins” key on your keyboard to start Open JukeBox Player; otherwise the system will launch the Windows

Operation System.

CD Player

pressing B on your keyboard the Windows Operation System will be launched.

: Choosing this setting will allow a reminder message popped up on the screen during BIOS POST. It reminds

: Choosing this setting allows the system to launch Open JukeBox Player every time you power on. However, by

Page 56

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

Your Open JukeBox EzSkin

Except these powerful functions above, Open JukeBox Player is also equipped with another fancy feature for you to

change its “skin”. You can download as many skins as you want from AOpen Website, and changing them whenever

you want by using this useful utility – EzSkin – which may also be downloaded from our website.

Even more, you may design your own skins with innovative idea and sharing them to users around the world by uploading to our website. For further technical information, we welcome you to visit our website at

http://english.aopen.com.tw/tech/download/skin

Page 57

MMXX44LLRR--GGNN // MMXX44GGVVRR-

GGNN

OOnnlliinnee MMaannuua

VViivviidd BBIIOOSS tteecchhnnoollooggyy

developed VividBIOS to experience the lively vivid colorful POST screen!

Unlike earlier graphic POST screen, which could occupy the whole screen and mask text information during POST, AOpen

VividBIOS deals with graphics and texts separately, and makes them running simultaneously during POST. With this innovative

design, VividBios now brings you a beautiful and sleek 256 colors screen without missing any important information shown on

POST screen.

In addition, the limited space of BIOS ROM is another big issue. When all of the traditional BIOS can only show

space-consuming and uncompressed Bitmap, AOpen has considerately tuned the BIOS to next generation, to recognize the

smaller-sized GIF format and even dynamic-showing GIF animation.

Vivid BIOS shares the same fundamental technology with Open JukeBox CD Player, you may use the same EzSkin utility to

change your Vivid BIOS screen or to download your favorite Open JukeBox skin. If you see this little logo your model name on the BIOS download page, http://english.aopen.com.tw/tech/download/skin

motherboard supports this innovative feature!

Have you been fed up with the conservative and immutable POST screen? Let’s rule out

the tradition idea that POST screen are stiff and frigid, and let AOpen show you the newly

shown beside

, it is assured that your

Page 58

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

DDrriivveerr aanndd UUttiilliittyy

There are motherboard drivers and utilities included in AOpen Bonus CD disc. You don’t need to install all of them in order to

boot your system. But after you finish the hardware installation, you have to install your operation system first (such as Windows

2000/XP) before you can install any drivers or utilities. Please refer to your operation system’s installation guide.

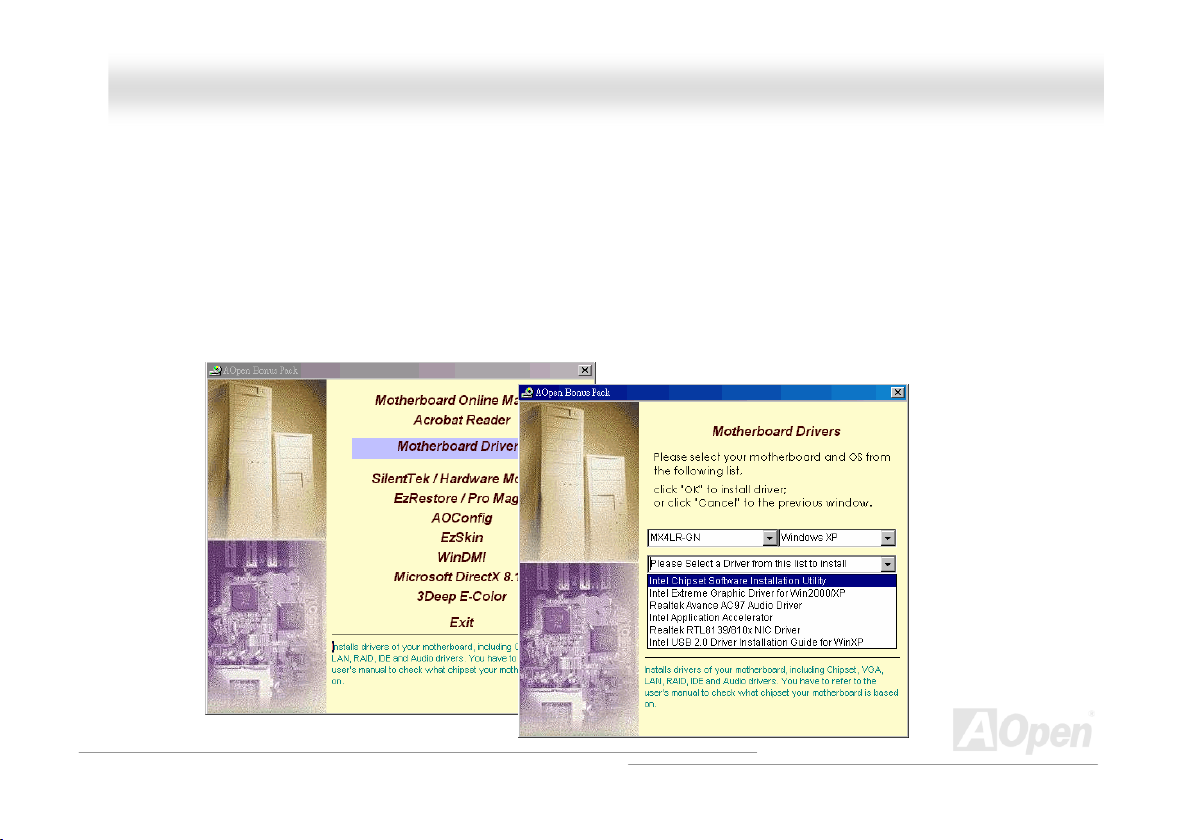

AAuuttoo--rruunn MMeennuu ffrroomm BBoonnuuss CCDD DDiisscc

You can use the auto-run menu of Bonus CD disc. Choose the utility and driver and select model name.

Page 59

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

IInnssttaalllliinngg IInntteell®® CChhiippsseett SSooffttwwaarree IInnssttaallllaattiioonn UUttiilliittyy

Windows 95/98 cannot recognize this chipset, because it was released before the Intel 845GL / 845GV chipset. You can install

the Intel INF Update Utility from the Bonus Pack CD disc auto-run menu to eliminate the “?” marks.

Page 60

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

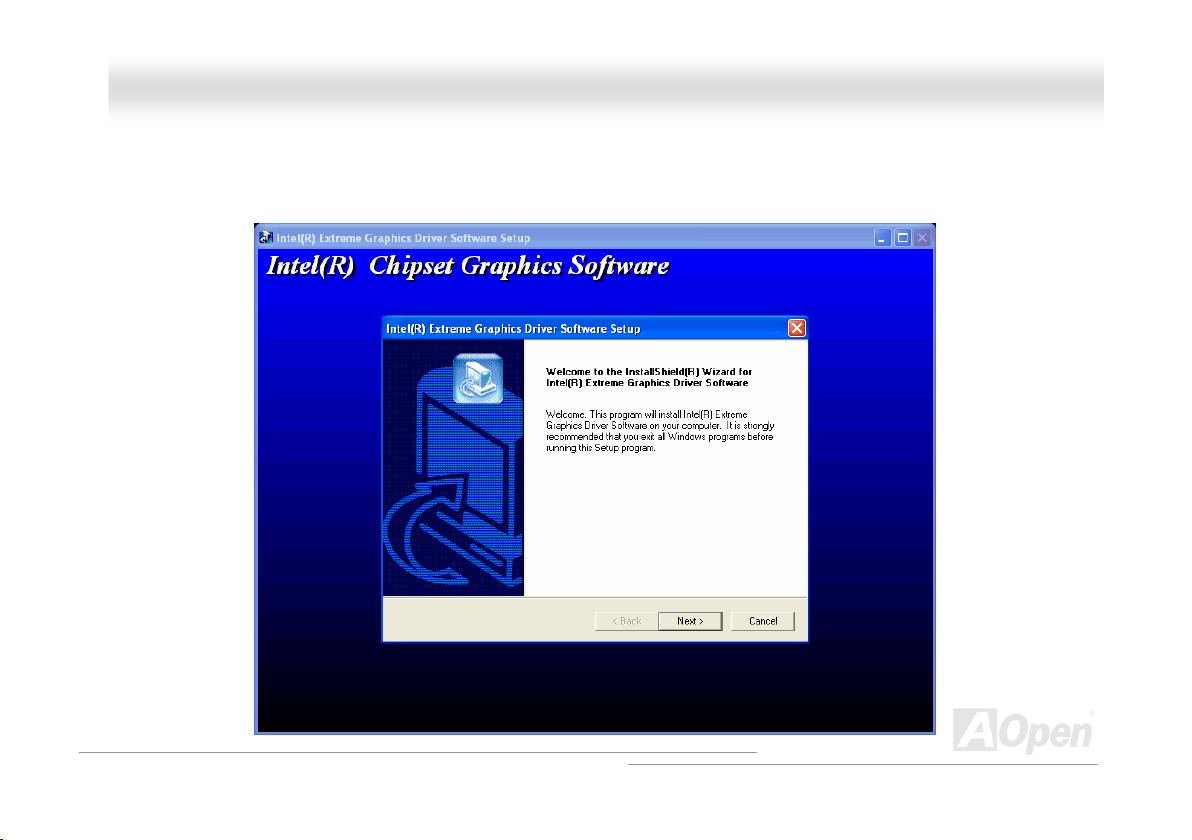

IInntteell VVGGAA ddrriivveerr

You can install Intel VGA Driver to get the best graphics function of the chipset. You can find it in the AOpen Bonus Pack CD

disc.

Page 61

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

IInnssttaalllliinngg IInntteell IIAAAA DDrriivveerr

You can install Intel IAA Driver to increase the performance of software applications and reduce PC boot times. You can find it in

the AOpen Bonus Pack CD disc.

Page 62

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

IInnssttaalllliinngg OOnnbbooaarrdd SSoouunndd DDrriivveerr

This motherboard comes with AC97 CODEC. You can find the audio driver from the Bonus Pack CD disc auto-run menu.

Page 63

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

IInnssttaalllliinngg LLAANN DDrriivveerr

This motherboard integrates Realtek 10/100Mbps PCI LAN Chip. You can find LAN driver from the Bonus Pack CD disc auto-run menu.

Page 64

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

Installing Windows 95 (Golden version), Win95A, OSR2, Windows NT v4.0 driver for Realtek RTL8139 PCI Fast Ethernet adapter.

[Windows 95 (Golden version), Win95A and OSR2]

Installing driver procedure on Microsoft Windows 95:

----------------------------------------------------------------------

1. Ask you to select which driver you want to install, select "Driver from disk provided by hardware manufacturer".

2. Specify the setup file pathname

[CD-ROM]:\Driver\LAN\RTL8100\Windows\95\WIN95A (for Windows 95 and Win95A) or

[CD-ROM]:\Driver\LAN\RTL8100\Windows\95\W95OSR2 (for Windows 95 OSR2).

3. Windows 95 will appear some messages to insert Windows 95 system disk to complete setup step.

4. Windows 95 will finish the other installation procedure automatically, then you restart the system.

[Windows NT 3.5, 3.51 & 4.0]

Installing driver procedure on Microsoft Windows NT:

----------------------------------------------------------------------

When you are in Windows NT:

1. In the Main group of NT, select the "Control Panel" icon.

all

Page 65

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

2. In the Control Panel window, choose the "Network" icon.

3. In the Network Settings dialog box, choose the "Add Adapter" button. The Add Network Adapter dialog box appears.

4. In the list of network cards, select "<other> Requires disk from manufacturer", and then press <Enter> button.

5. Enter drive and pathname

[CD-ROM]:\Driver\LAN\RTL8100\Windows\NT (for NT 4.0) which is the path where the setup file OEMSETUP.INF is located, and then

choose the OK button.

6. The screen will appear "Select Line Speed" dialog box which is provide by RTL8139.SYS driver. The default value is "auto" so that the

RTL8139 PCI Fast Ethernet adapter and its driver RTL8139.SYS will auto-detect the line speed, 10 Mb or 100Mb, while the RTL8139.SYS

is loading. The other values, "10" or "100", are only used when you want to forced RTL8139 PCI Fast Ethernet adapter to 10Mb or 100Mb.

7. The screen will appear "Input EthernetID" dialog box which is provided by RTL8139.SYS driver. This option is only required when you

have more than one Realtek RTL8139 PCI Fast Ethernet adapters on this computer. Select "SKIP" if only one adapter is installed on this

computer.

8. "Bus Location" display in next screen. Your machine contains more than one hardware bus, please select the Bus Type and Bus number

on which your network adapter card is installed.

9. NT will then perform the binding process. If any additional network software options were installed, you may be prompted for specific

information for these packages.

10. Restarting your system you will acquire network service.

NOTES:

----------

* Installing Multiple LAN Adapters:

all

Page 66

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

Enter Windows NT and follow above setup procedure step 2,in the "Network Settings" dialog box, choose the "Configure.." button. The

"Input Ethernet ID" dialog box appears and input adapter's Ethernet ID. Last step to select OK and close NETWORK SETUP. Select SKIP if

only one adapter is installed on this computer.

all

Page 67

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

IInnssttaalllliinngg UUSSBB 22..00 DDrriivveerr

This motherboard has six USB 2.0 ports. You can find USB driver from the Bonus Pack CD disc auto-run menu.

Page 68

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

Windows 2000 Installation Guide

**********************************************************

Installing Driver in Existing Windows 2000 System

***********************************************************

After enabling the USB 2.0 controller and rebooting your system, Windows 2000 setup will show a "New Hardware Found" dialog box.

Under Windows 2000, "Universal Serial Bus (USB) Controller" will be displayed.

1. Choose "Search for a suitable driver for my device (Recommended)". from the list, and then press "Enter".

2. Choose "Specify a location." and then press "Next"

3. Insert the Bonus CD in CD-ROM.

4. Type "[CD-ROM]:\Driver\Intel\USB2.0\Win2000" in the text box that appears. Press " OK ".

5. Click on "Next." A message informing you that Windows has found "Intel PCI to USB Enhanced Host Controller A1" should appear.

6. Click on "Next," and then on "Finish."

********************************************

Confirming Windows 2000 Installation

********************************************

all

Page 69

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

1. From Windows 2000, open the Control Panel from "My Computer" followed by the System icon.

2. Choose the "Hardware" tab, and then click the "Device Manager" tab.

3. Click the "+" in front of "Universal Serial Bus controllers". "Intel PCI to USB Enhanced Host Controller A1" should appear.

Windows XP Installation Guide

*********************************************************

Installing Driver in Existing Windows XP System

*********************************************************

After enabling the USB 2.0, Windows XP setup will show a "Found New Hardware" dialog box. Under Windows XP, "Universal Serial Bus

(USB) Controller" will be displayed.

1. Click on "Next," and from the generated list box, choose "Install from a list or special location (Advanced)", click "Next"

2. Click on "Next," and from the generated choices, choose "Include this location in the search:"

3. Insert the Bonus CD in CD-ROM.

4. Type "[CD-ROM]:\Driver\Intel\USB2.0\WinXP" in the text box that appears.

5. Click on "Next." A message informing you that Windows XP has found "Intel PCI to USB Enhanced Host Controller A1" should appear.

6. When the New Hardware Wizard has finished installing the USB driver, click on "Finish"

all

Page 70

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

******************************************

Confirming Windows XP Installation

******************************************

1. Tools/Folder Options/View. Change below item:

2. Enable "Display the full path in the title bat".

3. Enable "Show Hidden files and folders".

4. Disable "Hide extensions of known files types".

5. Disable "Hide protected operating system files (Recommended)".

6. Check USB driver version from My Computer, Local Disk C:, Show the content of this drive, Windows directory, Show the content

of this drive, System32 directory, Show the content of this drive, Drivers directory, Show the content of this drive, View, details.

1. USBEHCI.SYS - 3/20/2002.

2. USBPORT.SYS - 8/17/2001.

3. USBHUB.SYS - 8/17/2001.

So, new 3616 driver does not install complete. [Install by manual]

1. Disable Windows File Protection (WFP)

1. Start button/run/Regedit.

2. Set HKEY_LOCAL_MACHINE\Software\Microsoft\Windows NT\CurrentVersion\Winlogon\SFCDisable = 1

all

Page 71

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

2. Copy all USB files from CD to HDD.

1. Copy all test drivers to %windir%\driver cache\i386.

2. Copy all test drivers to %windir%\system32\dllcache You need to copy file to this directory first. Otherwise,

Windows XP will replace file from this directory to system32\drivers.

3. Copy all test drivers to %windir%\system32\drivers.

3. Check USB driver version again.

1. USBEHCI.SYS - 3/20/2002.

2. USBPORT.SYS - 3/20/2001.

3. USBHUB.SYS - 3/20/2001.

Test USB20 HDD with restart for 10 times. The USB 20 HDD can detection with any problem for all 10 times.

all

Page 72

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

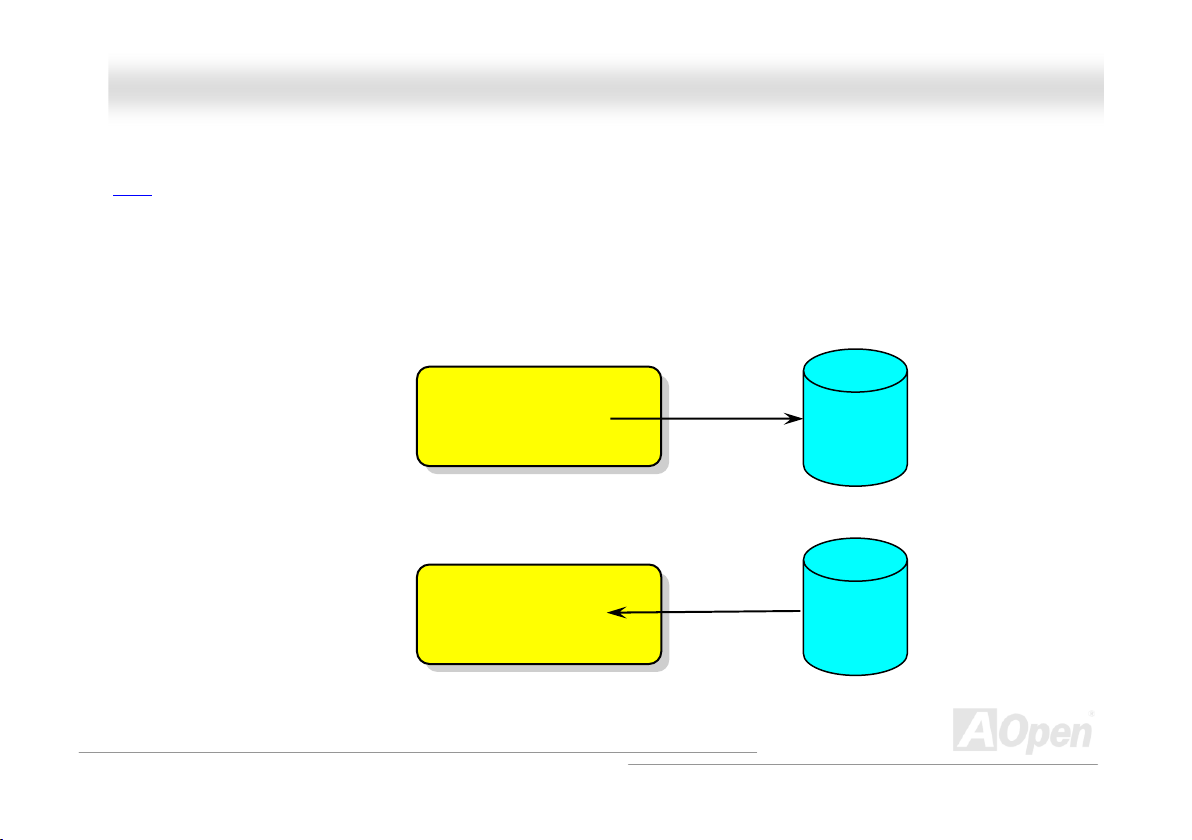

AACCPPII SSuussppeenndd ttoo HHaarrdd DDrriivvee

ACPI Suspend to Hard Drive is basically controlled by Windows operation system. It saves your current work (system status,

memory and screen image) into hard disk, and then the system can be totally power off. Next time, when power is on, you can

resume your original work directly from hard disk within few seconds without go through the Windows booting process and run

your application again. If your memory is 64MB, normally, you need to reserve at least 64MB HDD space to save your memory

image.

When go into Suspend:

When power-on next time:

System Image &

Status

System Image &

Status

Save into

Restore within

seconds

Hard Disk

Page 73

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

all

System Requirement

1. AOZVHDD.EXE 1.30b or later.

2. Delete config.sys and autoexec.bat.

Fresh installation of Windows 98 on a new system

1. Execute "Setup.exe /p j" to install Windows 98

2. After Windows 98's installation is complete, go to the Control Panel > Power Management.

a. Set Power Schemes > System Standby to "Never".

b. Click on "Hibernate" and select "Enable Hibernate Support" then "Apply".

c. Click on the "Advanced" tab, you'll see "Hibernate" on "Power Buttons". Note that this option will only be seen after step

b mentioned above has been completed; otherwise only "Standby" and "Shutdown" will be shown. Select "Hibernate" and

"Apply".

3. Clean boot into DOS and run AOZVHDD utility.

a. If you assign the whole disk to your Win 98 system (FAT 16 or FAT 32), please run "aozvhdd /c /file". Please remember

sufficient free space has to be reserved in the disk, e.g. if you have 64 MB DRAM and 16 MB VGA card installed, the

system needs at least 80 MB free space. The utility will locate the space automatically.

b. If you assign an individual partition for Win 98, please run "aozvhdd /c /partition". Of course, the system needs to

provide unformatted an empty partition.

4. Reboot system.

5. You've already implemented ACPI Suspend to-Hard Drive. Click "Start > Shut Down > Standby" then the screen will go off

immediately. And 1 minute or so will be taken for the system to save what's in the memory to the hard drive; the larger the

Page 74

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

memory size the longer this process will take

Changing from APM to ACPI (Windows 98 only)

1. Run "Regedit.exe"

a. Go through the following path

HKEY_LOCAL_MACHINE

SOFTWARE

MICROSOFT

WINDOWS

CURRENT VERSION

DETECT

b. Select "ADD Binary" and name it as "ACPIOPTION".

c. Right click and select Modify, add "01" after "0000" to make it "0000 01".

d. Save changes.

2. Select "Add New Hardware" under Control Panel. Allow Windows 98 to detect new hardware. (It will find "ACPI BIOS" and

remove "Plug and Play BIOS")

3. Reboot system.

4. Clean boot into DOS and run "AOZVHDD.EXE /C /File"

all

Page 75

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

Changing from ACPI to APM

1. Run "Regedit.exe"

a. Go through the following path

HKEY_LOCAL_MACHINE

SOFTWARE

MICROSOFT

WINDOWS

CURRENT VERSION

DETECT

ACPI OPTION

b. Right click and select "Modify, change "01" to "02" to make it "0000 02".

c. Save changes.

2. Select "Add New Hardware" under Control Panel. Allow Windows 98 to detect new hardware. (It will find "Plug and Play

BIOS" and remove "ACPI BIOS")

3. Reboot system.

4. Run "Add New Hardware" again and it will find "Advanced Power Management Resource".

5. Click "OK"

Tip: Currently we found only ATI 3D Rage Pro AGP card would support

ACPI suspend to disk. Please refer to AOpen web site for latest update

Tip: "02" means Windows 98 is ACPI acknowledged

but the ACPI function is disabled.

Page 76

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

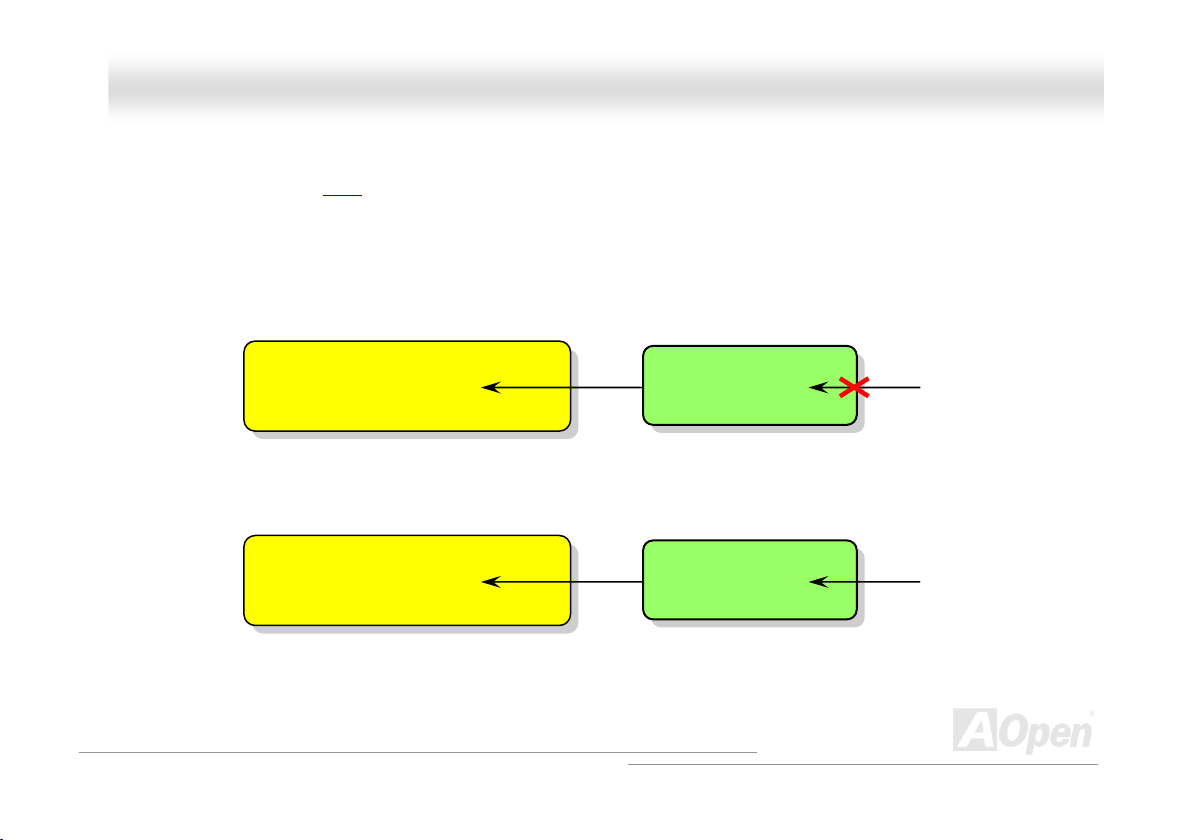

AACCPPII SSuussppeenndd ttoo RRAAMM ((SSTTRR))

This motherboard supports ACPI Suspend to RAM function. With this function, you can resume your original work directly from

DRAM without going through the Windows 98 booting process and run your application again. Suspend to DRAM saves your

current work in the system memory, it is faster than Suspend to Hard Drive but requires power supplied to DRAM, while

Suspend to Hard Drive requires no power.

When go into Suspend:

When power-on next time:

System Image & Status in the

DRAM

Backup by 3.3V

Power

DRAM

Power back to work

Other System

Devices

Power loss

Other System

Devices

Power back to work

Page 77

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

To implement ACPI Suspend to DRAM, please follow the procedures as below:

System Requirement

1. An ACPI OS is required. Currently, except Windows 95 and Windows NT, all other Windows Systems support ACPI.

2. The Intel

Chipset Software Installation Utility must have been installed properly.

Procedures

1. Changed the following BIOS settings.

BIOS Setup > Power Management Setup > ACPI Function: Enabled

BIOS Setup > Power Management Setup > ACPI Suspend Type: S3.

2. Go to Control Panel > Power Management. Set “Power Buttons” to “Standby”.

3. Press power button or standby button to wake up the system.

all

Page 78

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

AAWWAARRDD BBIIOOSS

System parameters can be modified by going into BIOS Setup menu, this menu allows you to configure the system parameters

and save the configuration into the 128 bytes CMOS area, (normally in the RTC chip or in the main chipset).

The AwardBIOS™ that installed in the Flash ROM

BIOS provides critical low-level support for standard devices such as hard disk drives, serial and parallel ports.

Most BIOS setting of MX4LR-GN / MX4GVR-GN had been optimized by AOpen’s R&D engineering team. But, the default setting

of BIOS still can’t fine-tune the chipset controlling entire system. Hence, the rest of this chapter is intended to guide you through

the process of configuring your system using setup.

To enter to BIOS setup menu

, press <Del> when POST (Power-On Self Test) screen is shown on your monitor.

of the motherboard is a custom version of an industry standard BIOS. The

Note: Because the BIOS code is the most often

changed part of the motherboard design, the BIOS

information contained in this manual may be

different with actual BIOS that come with your

motherboard.

Page 79

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

HHooww TToo UUssee AAwwaarrdd™™ BBIIOOSS SSeettuupp PPrrooggrraamm

Generally, you can use the arrow keys to highlight items that you want to choose, then press <Enter> key to select, and use the

<Page Up> and <Page Down> key to change setting value. You also can press <F1> key for help and press <Esc> key to quit Award™ BIOS setup program. The following table provides details about how to use keyboard in the Award BIOS setup

program. By the way, all products of AOpen also provides a special function in the BIOS setup, you can press <F3> key

selecting preferred menu language to display.

Key Description

Page Up or + Changing setting to next value or increase the value.

Page Down or - Changing setting to previous value or decrease value.

Enter Select the item.

Esc 1. In main menu: Quit and don’t save any change.

2. In sub menu: Exit current menu to main menu.

Up Arrow Highlight previous item.

Down Arrow Highlight next item.

Left Arrow Move the light bar to left side of menu.

Right Arrow Move the light bar to right side of menu.

F1 Get menu or item help description.

F5 Load previous setting value from CMOS.

Page 80

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

Key Description

F6 Load fail-save setting value from CMOS.

F7 Load turbo setting value from CMOS.

F10 Save changed setting and exit setup program.

Page 81

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

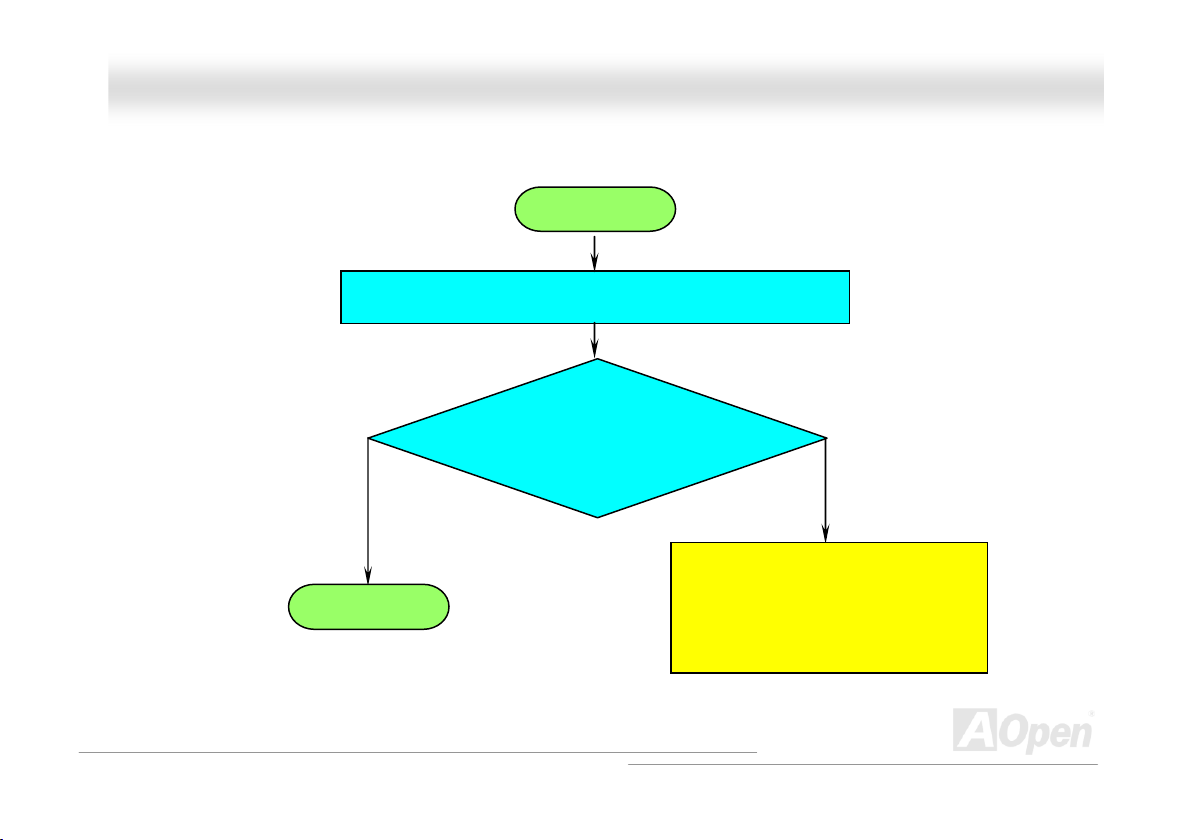

HHooww TToo EEnntteerr BBIIOOSS SSeettuupp

After you finish the setting of jumpers and connect correct cables. Power on and enter the BIOS Setup, press <Del> during

POST (Power-On Self Test). Choose "Load Setup Defaults" for recommended optimal performance.

Del

Warning: Please avoid of using "Load Turbo Defaults", unless

you are sure your system components (CPU, DRAM, HDD, etc.)

are good enough for turbo setting.

Page 82

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

BBIIOOSS UUppggrraaddee uunnddeerr WWiinnddoowwss eennvviirroonnmmeenntt

With outstanding R&D ability of AOpen, we now bring you a whole new BIOS Flash wizard

---- EzWinFlash. With an eye to users convenience, EzWinFlash combines the BIOS binary

code and flash module together, so the only thing you have to do is just clicking on the

utility you downloaded from web and let it helps you complete the flash process automatically. EzWinFlash detects your

motherboard and checks the BIOS version cleverly to prevent your system from any possible failure. Moreover, EzWinFlash has

been taken into consideration to go with any windows platform you might be using, no matter if you’re using Windows 95/98,

98SE/ME, NT4.0/2000, or even the latest Windows XP.

In the meanwhile, in order to provide a much more user-friendly operating environment, AOpen EzWinFlash is natively designed

to have multi-language function to provide easier way for users’ usage in changing BIOS setting.

Note: The model name on this BIOS picture is for reference only. It may not be the exact model name.

Caution: By updating your motherboard, you

are taking a risk of BIOS flash failure. If your

motherboard is working stable, and there are

no major bugs that had been fixed by a latter

BIOS revision, we recommend that you DO

NOT try to upgrade your BIOS.

If you intent on upgrading, PLEASE BE SURE

to get the right BIOS revision for the right

motherboard model to avoid any possibility

failure.

Page 83

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

You may accomplish BIOS upgrade procedure with EZWinFlash by the following steps, and it’s STRONGLY RECOMMMANDED

to close all the applications before you start the upgrading.

1. Download the new version of BIOS package zip file from AOpen official web site. (ex: http://www.aopen.com)

2. Unzip the download BIOS package (ex: WMX4LRGN102.ZIP) with WinZip (http://www.winzip.com) in Windows

environment.

3. Save the unzipped files into a folder, for example, WMX4LR102.EXE & WMX4LR102.BIN.

4. Double click on the WMX4LRGN102.ZIP, EZWinFlash will detect the model name and BIOS version of your

motherboard. If you had got the wrong BIOS, you will not be allowed to proceed with the flash steps.

5. You may select preferred language in the main menu, then click [Start Flash] to start the BIOS upgrade procedure.

6. EZWinFlash will complete all the process automatically, and a dialogue box will pop up to ask you to restart Windows.

You may click [YES] to reboot Windows.

7. Press <Del> at POST to enter BIOS setup, choose "Load Setup Defaults", then “Save & Exit Setup”. Done!

It is strongly recommended NOT to turn off the power or run any application during FLASH PROCESS.

Warning: The new BIOS upgrade will

permanently replace your original

BIOS’s settings when flashing. You

may need to reconfigure your BIOS

setting so that your system can go

Page 84

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

all

GGlloossssaarryy

AACC9977 CCOODDEECC

Basically, AC97 CODEC is the standard structure of PCI sound card. As we know, computer is digital-based, but music is based

on analog-based. Therefore, there must be a process to turn digital into analog during the last stage processing of sound in

computer. Hence, the component on sound card that play this important task is what we called CODEC.

Audio CODEC 97 (briefly called AC97) is the specification regulated by Intel, and it’s about the structure of audio conversion.

The special place about CODEC is that it is separated from sound card (CODEC is an independent chipset). Therefore, PCI

sound card could possess with 90db and do other application process as well. We called CODEC that meets this structure AC97

CODEC.

AACCPPII ((AAddvvaanncceedd CCoonnffiigguurraattiioonn && PPoowweerr IInntteerrffaaccee))

ACPI is the power management specification of PC97 (1997). It intends to save more power by taking full control of power

management to operating system and bypass

to operating system (such as Windows 98). This is a bit similar as the

power switch to control the power state transition.

AACCRR ((AAddvvaanncceedd CCoommmmuunniiccaattiioonn RRiisseerr))

Building on the PC motherboard riser architecture, ACR slot is backward compatible with AMR but beyond the limitation of it.

The ACR specification is designed to support modem, audio, Local Area Network (LAN) and Digital Subscriber Line (DSL).

. The chipset or super I/O chip needs to provide standard register interface

BIOS

PnP

Page 85

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

all

AAGGPP ((AAcccceelleerraatteedd GGrraapphhiicc PPoorrtt))

The main function of AGP simply put is to tell monitor what screen information had to be shown, a visual transmission device

actually. With the rapid developing of AGP card, we can see that it had been developed from single colorful AGP card to 2D and

3D graphic. AGP supports only memory read/write operation and single-master single-slave one-to-one only. Though AGP and

PCI share the same algorithm of 32-bit, its frequencies are 66MHz and 33MHz respectively. AGP interface had been

developed from 2X to 8x.

1X AGP, data transfer rate is 66MHz x 4byte x 1 = 264MB/s

2X AGP, data transfer rate is 66MHz x 4byte x 2 = 528MB/s

4X AGP, data transfer rate is 66MHz x 4byte x 4 = 1056MB/s.

8X AGP, data transfer rate is 66MHz x 4byte x 8 = 2112MB/s.

AAMMRR ((AAuuddiioo//MMooddeemm RRiisseerr))

The CODEC circuit of AC97 sound/modem solution can be put on motherboard or put on a riser card (AMR card) that connects

to motherboard through AMR connector.

AATTAA ((AATT AAttttaacchhmmeenntt))

Before talking about ATA (AT Attachment), we must understand DMA (Direct Memory Access), which allows devices to skip the

CPU devices and access memory directly. DMA specification could not only eliminate the workload of CPU, but also accelerate

the transmission of data. DMA begins with a data transfer rate of 16.6MB/Sec, but afterward developed to new data rate of

33.3MB/Sec, which is twice the data rate and we called it Ultra DMA. ATA details power and data signals between the drive

and integrated drive controller and the computer's motherboard. Two drives (master and slave) are supported. The ATA

specification allows the drive to connect directly to the ISA bus on the computer. ATA transfer rate then had been developed to

133MHz/Sec and would come out with fastest rate later (please refer to

Serial ATA

Page 86

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

DMA, data transfer rate is 16.6MHz/s.

Ultra DMA, data transfer rate is 16.6MHz x 2 = 33MB/s.

ATA/66 , data transfer rate is 16.6MHz x 4 = 66MB/s.

ATA/100, data transfer rate is 16.6MHz x 6 = 100MB/s.

ATA/133, data transfer rate is 16.6MHz x 8 = 133MB/s.

(ATA/133 uses both rising edge and falling edge as ATA/66 but clock cycle time is reduced to 30ns.)

BBIIOOSS ((BBaassiicc IInnppuutt//OOuuttppuutt SSyysstteemm))

BIOS, is a set of assembly routine/program that reside in EPROM or Flash ROM. BIOS controls Input/output devices and other

hardware devices of motherboard. In general, to provide hardware independent portability, operation system and drivers is

required to access BIOS without directly access hardware devices.

BBlluueettooootth

Bluetooth is a wireless transferring technology that enables short-range wireless connections between desktop and laptop

computers, personal digital assistants (PDAs), cellular phones, printers, scanners, digital cameras and even home

appliances. The principle of Bluetooth (a chipset) is to transfer information and voices at the frequency of ISM Band. Every

Bluetooth technology devices do come with a standard address for you to connect one-to-one or one-to-seven (to form a

Pico-net), with transferring range up to 10 meters (100 meters to follow), using low power radio. Bluetooth do not only possess

high transfer rate of 1MB/s, it also could be encrypted with pin code. With hopping rate of 1600 hops per second, it’s difficult to

be intercepted and are less interrupted by electromagnetic wave.

all

Page 87

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

all

CCNNRR ((CCoommmmuunniiccaattiioonn aanndd NNeettwwoorrkkiinngg RRiisseerr))

The CNR specification provides the PC industry the opportunity to deliver a flexible and cost reduced method of implementing

LAN, home networking, DSL, USB, wireless, audio and modem subsystems widely used in today's "connected PCs". The CNR

specification is an open industry specification and is supported by OEMs, IHV card manufacturers, silicon supplier and

Microsoft.

DDDDRR ((DDoouubbllee DDaattaa RRaattee)) RRAAMM

DDR RAM utilizes the existing SDRAM (For ex, PC-100, PC-133) infrastructure and technology while doubling the nominal

bandwidth available to systems in an easy to design and simple to adopt way. Based on FSB frequency, DDR RAM on the

market are DDR200, DDR266 and DDR333 with more coming around soon.

DDR200, transfer bandwidth up to 200x64/8=1600MB/s (PC1600) DDR266, transfer bandwidth up to 266x64/8=2100MB/s (PC2100) DDR333, transfer bandwidth up to 333x64/8=2700MB/s (PC2700) DDR400, transfer bandwidth up to 400x64/8=3200MB/s (PC3200)

EECCCC ((EErrrroorr CChheecckkiinngg aanndd CCoorrrreeccttiioonn))

The ECC mode needs 8 ECC bits for 64-bit data. Each time memory is accessed; ECC bits are updated and checked by a

special algorithm. The ECC algorithm has the ability to detect double-bit error and automatically correct single-bit error while

parity mode can only detect single-bit error.

EEEEPPRROOMM ((EElleeccttrroonniicc EErraassaabbllee PPrrooggrraammmmaabbllee RROOMM))

Also known as E2PROM. Both EEPROM and Flash ROM can be re-programmed by electronic signals, but the interface

technology is different. Size of EEPROM is much smaller than flash ROM.

Page 88

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

EEPPRROOMM ((EErraassaabbllee PPrrooggrraammmmaabbllee RROOMM))

Traditional motherboard stores BIOS code in EPROM. EPROM can only be erased by ultra-violet (UV) light. If BIOS has to be

upgraded, you need to remove EPROM from motherboard, clear by UV light, re-program, and then insert back.

EEVV66 BBuuss

EV6 Bus is the technology of Alpha processor from Digital Equipment Corporation. EV6 bus uses both rising and falling clock

edge to transfer data, similar as DDR RAM or ATA/66 IDE bus.

EV6 Bus Speed = CPU external bus clock x 2.

200 MHz EV6 bus, 200MHz = 100 MHz external bus clock x 2

FFCCCC DDooCC ((DDeeccllaarraattiioonn ooff CCoonnffoorrmmiittyy))

The DoC is component certification standard of FCC EMI regulations. This standard allows DIY component (such as

motherboard) to apply DoC label separately without a shielding of housing.

all

FFCC--PPGGAA ((FFlliipp CChhiipp--PPiinn GGrriidd AArrrraayy))

FC means Flip Chip, FC-PGA is a package of Intel for Pentium III for 0.18µm process CPU, which can be plugged into SKT370

socket.

FFCC--PPGGAA22 ((FFlliipp CChhiipp--PPiinn GGrriidd AArrrraayy))

After FC-PGA, FC-PGA2 is the package for 0.13µm process CPU developed by Intel, which can be plugged into SKT423/478

socket as well.

Page 89

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

FFllaasshh RROOMM

Flash ROM can be re-programmed by electronic signals. It is easier for BIOS to upgrade by a flash utility, but it is also easier to

be infected by virus. Because of increase of new functions, BIOS size is increased from 64KB to 512KB (4M bit).

HHyyppeerr TThhrreeaaddiinngg

Hyper-Threading technology is an innovative design from Intel that enables multi-threaded software applications to process

threads in parallel within each processor resulting in increased utilization of processor execution resources. As a result, an

average improvement of ~40% in CPU resource utilization yields higher processing throughput.

IIEEEEEE 11339944

IEEE 1394, which also called Firewire, is a serial data transfer protocol and interconnection system. The main feature of the

Firewire that assures its adoption for the digital video and audio (A/V) consumer application is its low cost. Fire wire interface is

capable of supporting various high-end digital A/V applications, such as consumer A/V device control and signal routing, Digital

Video (DV) editing, home networking, and more than 32 channels of digital mixing. Gone are those days of expensive video

capture cards. Firewire allows for video capture from both newer DV camcorders with Firewire ports and older analog

equipment using A/V to Firewire converters.

The advantages of the IEEE1394:

High data transfer rate – Start from 400 Mbps, (with 800/1600/3200 Mbps coming soon), which is about 30 times faster than

USB 1.1.

Supports up to 63 devices (16 - daisy chained) with cable length up to about 4.5 m (14 feet).

Hot-pluggable (like USB). No need to turn of your device to connect or disconnect, and you don't need to reboot your PC. Also,

it is a plug-and-play bus.

all

Page 90

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

IEEE1394 is very easy to connect (Like USB1.1/2/0).

PPaarriittyy BBiitt

The parity mode uses 1 parity bit for each byte, normally it is even parity mode, that is, each time the memory data is updated,

parity bit will be adjusted to have even count "1" for each byte. When next time, if memory is read with odd number of "1", the

parity error is occurred and this is called single bit error detection.

PPCCII ((PPeerriipphheerraall CCoommppoonneenntt IInntteerrffaaccee)) BBuuss

Developed by Intel, Peripheral Component Interconnect (PCI) is a local bus standard. A bus is a channel used to transfer data to

(input) and from (output) a computer and to or from a peripheral device. Most PCs have a PCI bus usually implemented at

32-bits providing a 33 MHz clock speed with a throughput rate of 133 MBps.

PPDDFF FFoorrmmaatt

With PDF file, it is easy to do universal document exchange. Virtually any document may be converted in Portable Document

Format (PDF). Contents in PDF documents are exactly the same as the original file, including fonts and graphics, and they can

be distributed by e-mail or stored on the World Wide Web, an intranet, a file system, or a CD-ROM for other users to view on

any platforms. You may download Acrobat Reader in order to read PDF file from its website (

PPnnPP ((PPlluugg aanndd PPllaayy))

Oversimplified, Plug-and-Play automatically tells the software (device drivers) where to find various pieces of hardware (devices)

such as modems, network cards, sound cards, etc. Plug-and-Play's task is to match up physical devices with the software

(device drivers) that operates them and to establish channels of communication between each physical device and its driver.

www.adobe.com

all

Page 91

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

PPOOSSTT ((PPoowweerr--OOnn SSeellff TTeesstt))

The BIOS self-test procedure after power-on, sometimes, it is the first or the second screen shown on your monitor during

system boot.

PPSSBB ((PPrroocceessssoorr SSyysstteemm BBuuss)) CClloocckk

PSB Clock means the external bus clock of CPU.

CPU internal clock = CPU PSB Clock x CPU Clock Ratio

RRDDRRAAMM ((RRaammbbuuss DDyynnaammiicc RRaannddoomm AAcccceessss MMeemmoorryy))

A DRAM technology developed by Rambus Corporation*, to achieve high speed of memory through the use of multiple channels

in parallel by 16-bits. Basically, RDRAM uses new structure of Multibank, which is quite different from FPM, EDO, SDRAM.

Using different memory module as well, RDRAM uses “RIMM” with transfer rate of 600/700/800MHz, providing bandwidth as

high to 1.6GB.

RRIIMMMM ((RRaammbbuuss IInnlliinnee MMeemmoorryy MMoodduullee))

184-pin memory module that supports RDRAM memory technology. A RIMM memory module may contain up to maximum of 16

RDRAM devices.

all

Page 92

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

all

SSDDRRAAMM ((SSyynncchhrroonnoouuss DDRRAAMM))

SDRAM is one of the DRAM technologies that allow DRAM to use the same clock as the CPU host bus (EDO and FPM are

asynchronous and do not have clock signal). It is similar as PBSRAM to use burst mode transfer. SDRAM comes in 64-bit

168-pin DIMM and operates at 3.3V, and have been gradually replaced by DDR RAM.

SSAATTAA ((SSeerriiaall AATTAA))

The Serial ATA specification is designed to overcome speed limitations while enabling the storage interface to scale with the

growing media rate demands of PC platforms. Serial ATA is to replace parallel

systems and drivers, adding performance headroom for years to come. It is developed with data transfer rate of 150

Mbytes/second, and 300M/bs, 600M/bs to come. It reduces voltage and pins count requirements and can be implemented with

thin and easy to route cables.

SSMMBBuuss ((SSyysstteemm MMaannaaggeemmeenntt BBuuss))

SMBus is also called I2C bus. It is a two-wire bus developed for component communication (especially for semiconductor IC).

For example, set clock of clock generator for jumper-less motherboard. The data transfer rate of SMBus is only 100Kbit/s, it

allows one host to communicate with CPU and many masters and slaves to send/receive message.

SSPPDD ((SSeerriiaall PPrreesseennccee DDeetteecctt))

SPD is a small ROM or EEPROM device resided on the DIMM or RIMM. SPD stores memory module information such as DRAM

timing and chip parameters. SPD can be used by

with the compatibility with existing operating

ATA

to decide best timing for this DIMM or RIMM.

BIOS

Page 93

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

all

UUSSBB 22..00 ((UUnniivveerrssaall SSeerriiaall BBuuss))

A Universal Serial Bus (USB) is an external bus (an interconnect) standard that supports data transfer rates of 12 Mbps. A single

USB port can be used to connect up to 127 peripheral devices, such as mouse, modems and keyboards. Introduced in 1996,

USB has completed replaced serial and parallel ports. It also supports plug-and-play installations and hot plugging

Plug-and-play is the ability to add and remove devices to a computer while the computer is running and have the operating

system automatically recognize the change. USB 2.0, which supports data transfer rates of 480 Mbps, has been widely used in

motherboard these days.

VVCCMM ((VViirrttuuaall CChhaannnneell MMeemmoorryy))

NEC’s Virtual Channel Memory (VCM) is a new DRAM core architecture that dramatically improves the memory system’s ability

to service multimedia requirements. VCM increases memory bus efficiency and performance of any DRAM technology by

providing a set of fast static registers between the memory core and I/O pins. Using VCM technology results in reduced data

access latency and reduced power consumption.

WWiirreelleessss LLAANN –– 880022..1111bb

802.11 is a specification developed by IEEE and Wireless LAN technology, which is an interface between a wireless client and a

base station or between two wireless clients.

802.11 family includes the following specifications and with more coming:

802.11 = 1 or 2 Mbps transmission in the 2.4 GHz band, using either frequency hopping spread spectrum (FHSS) or direct

sequence spread spectrum (DSSS)).

802.11a = 54 Mbps in the 5GHz band, using orthogonal frequency division multiplexing)

802.11b (11 Mbps transmission in the 2.4 GHz band, using direct sequence spread spectrum (DSSS).

Page 94

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

all

ZZIIPP ffiillee

A compressed file format to reduce file size. To unzip file, run shareware PKUNZIP (http://www.pkware.com/) for DOS and other

operating system or WINZIP (

http://www.winzip.com/

) for windows environment.

Page 95

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

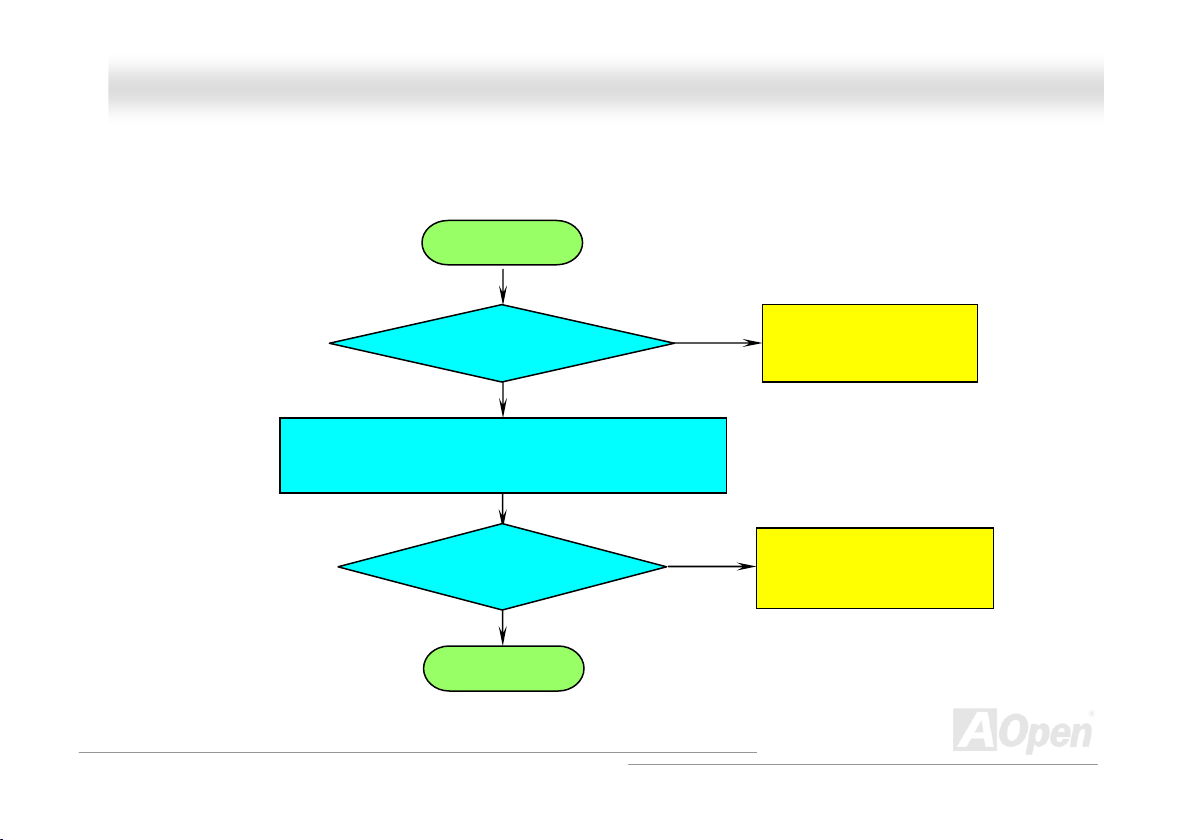

TTrroouubblleesshhoooottiinngg

If you encounter any trouble to boot you system, follow the procedures accordingly to resolve the problem.

Turn off the power and unplug the AC power cable, then remove all of the

add-on cards and cables, including VGA, IDE, FDD, COM1, COM2 and

Make sure if all jumper settings are correct.

Clear CMOS

Start

printer.

Page 96

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

Yes No

Install the VGA card. Then connect your monitor and keyboard.

supply and CPU fan work

Continue

Turn on the power

and check if the power

properly.

The problem is probably caused by

power supply or motherboard failure.

Please contact your reseller or local

distributor for repairing.

Page 97

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

Press <Ctrl> and <Alt> key at the same time, hold

them and then press <Del> to reboot the system.

Continue

Check if there is display?

Yes

Check if the system

reboots?

Yes

Perhaps your VGA card

or monitor is defective.

It is very possible that your

keyboard is defective.

Page 98

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

During system rebooting, press <Del> to enter BIOS

setup. Choose “Load Setup Default”.

Turn off the system and re-connect IDE cable.

Re-install the operating system such as Windows 98.

Continue

Check if the system can

reboot successfully?

Yes

End

The problem should be

caused by the IDE

cable or HDD itself.

Page 99

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

TTeecchhnniiccaall SSuuppppoorrtt

Dear Customer,

Thanks for choosing AOpen products. To provide the best and fastest service to our customer is our first priority. However, we

receive numerous emails and phone-calls worldwide everyday, it is very hard for us to serve everyone on time. We recommend

you follow the procedures below and seek help before contact us. With your help, we can then continue to provide the best

quality service to more customers.

Thanks very much for your understanding!

AOpen Technical Supporting Team

Online Manual: To download manual, please log on and then select your preferred language. Under “Type” directory,

choose “Manuals” to go to our manual database. You can also find the manual and EIG in AOpen Bonus Pack.

http://club.aopen.com.tw/downloads

Test Report: We recommend you to choose board/card/device from the compatibility test reports for assembling

your PC. It may prevent incompatibility problems.

http://english.aopen.com.tw/tech/report/default.htm

FAQ: Here we list problems that users often encounter and FAQ (Frequently Asked Questions). You may be able to

find a solution to your problem.

http://club.aopen.com.tw/faq/

Download Software: After log on and having language selected, you may get the latest updated BIOS/utility and

drivers you need under “Type” directory. In most case, newer versions of drivers and BIOS have solved earlier bugs

or compatibility problems.

http://club.aopen.com.tw/downloads

Page 100

MMXX44LLRR--GGNN // MMXX44GGVVRR--GGNN OOnnlliinnee MMaannuua

PPaarrtt NNuummbbeerr aanndd SSeerriiaall NNuummbbeerr

The Part Number and Serial number are printed on bar code label. You can find this bar code label on the outside packing, or on

component side of PCB. For example:

P/N: 91.88110.201 is part number, S/N: 91949378KN73 is serial number.

eForum: AOpen eForum is provided to discuss our products with other users, in which your problem probably had

been discussed before or will be answered. After log on, you may select your preferred language under

“Multi-language”.

http://club.aopen.com.tw/forum/

Contact Distributors/Resellers: We sell our products through resellers and integrators. They should know your

system configuration very well and should be able to solve your problem efficiently and provide important reference

for you.

serial number and BIOS version are also very helpful.

Part No.

Serial No.

100
