AOpen MX3SP User Manual

Specifications and Main Features

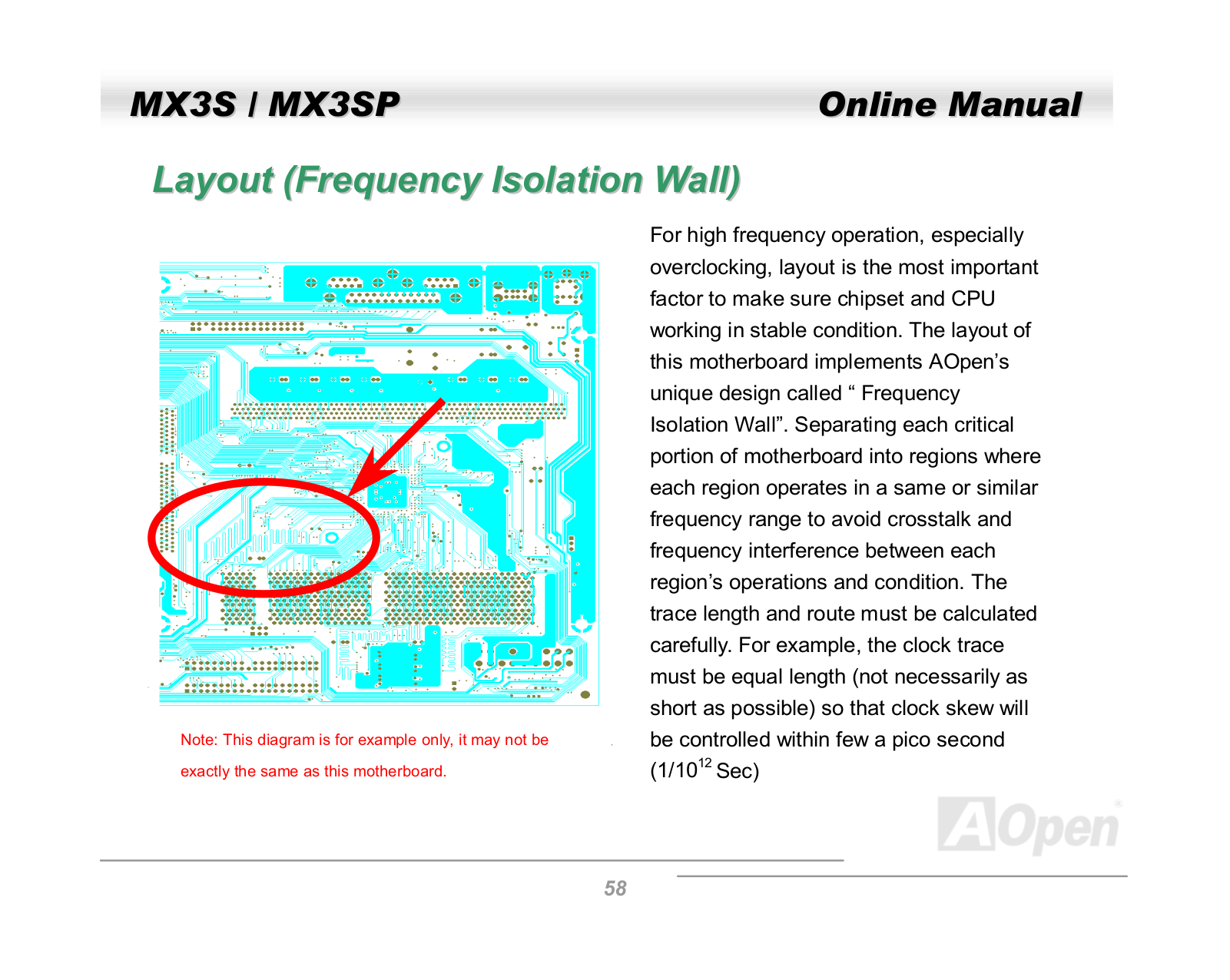

  • MX3S | MX3SP

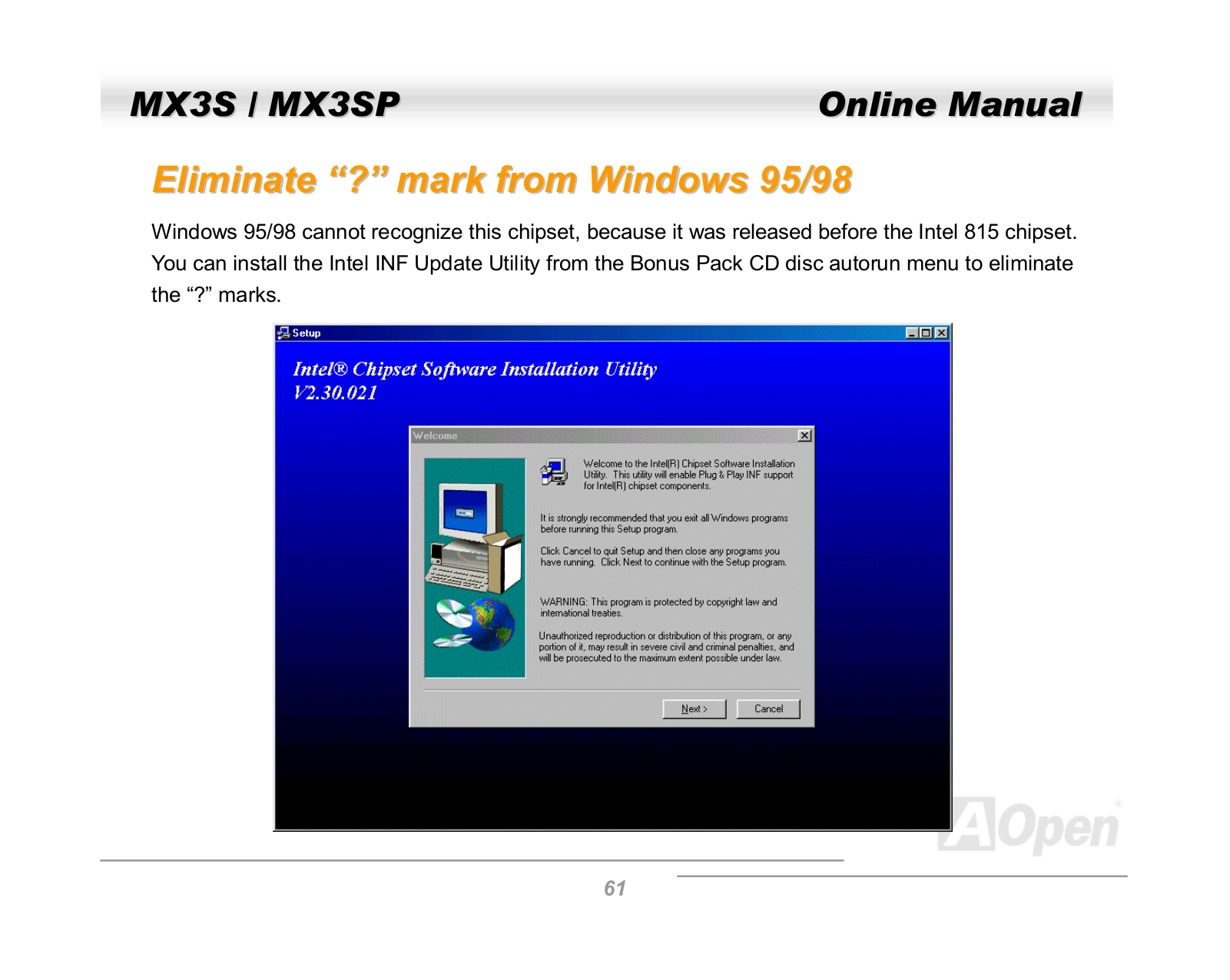

  • Intel Integrated Chipset: Intel i815E/I815EP
  • Psb Clock: 133MHZ.
  • Memory Support:

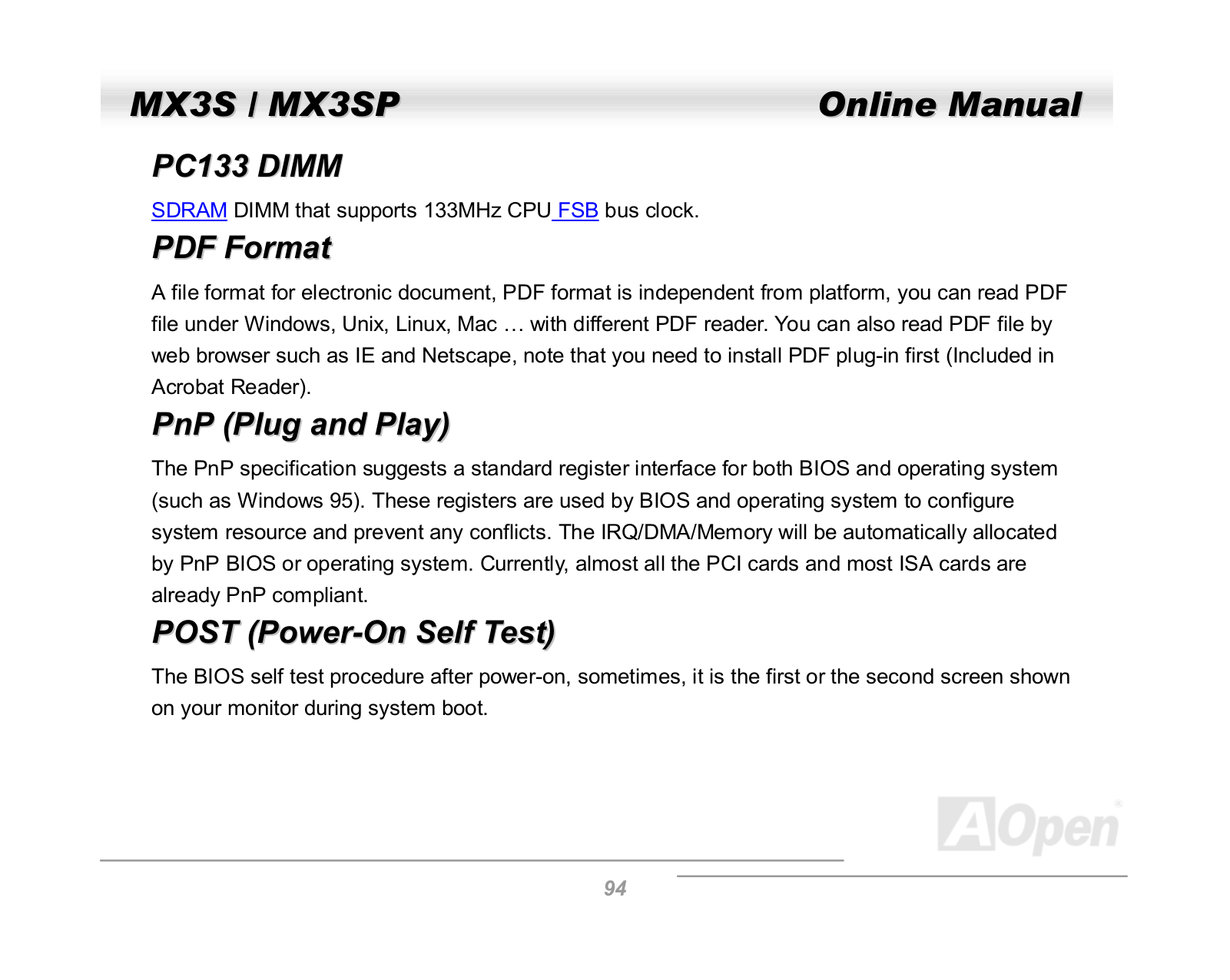

  • PC133 DIMM x2 (for SDRAM Supported upto 512MB)
  • Socket: Socket 370
  • Pentium III x(from 500E – 667) AND Celeron 300A TO 1GHZ
  • CPU Jumper Free Design with Automatic Voltage Sensing Feature
  • Expansion Ports Includes,

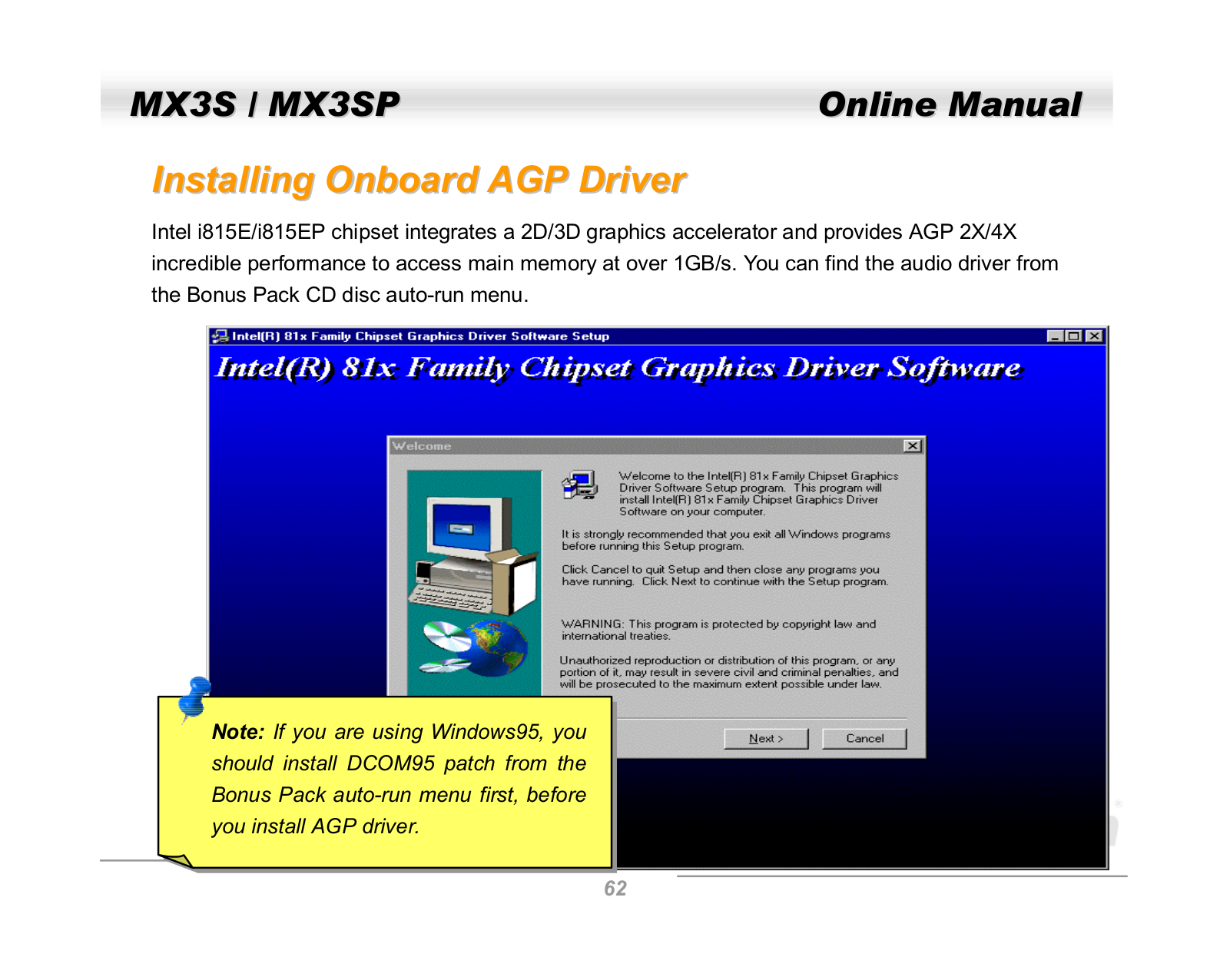

  • 1x AGP (Integrated 4x accelerated Graphic Port)
  • 5 PCIE slots (FSB Jumper Configurable)
  • Connectors:
  • 20 pin ATX power source connector
  • Up to four IDE connectors (Primary and Secondary)
  • Audio and USB connectors for Front panel

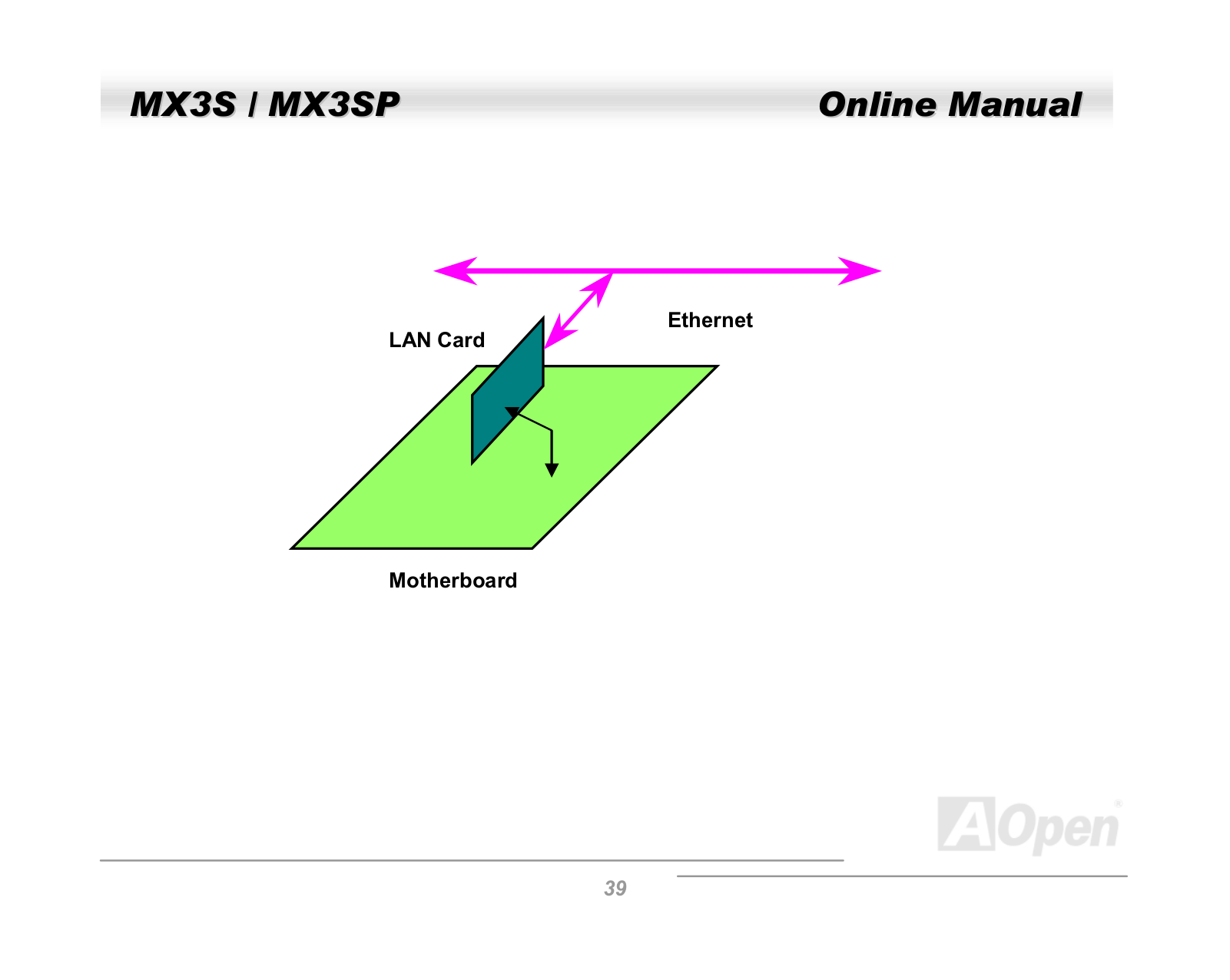

  • Wake on LAN/Wake on Modem connectors
  • Audio :

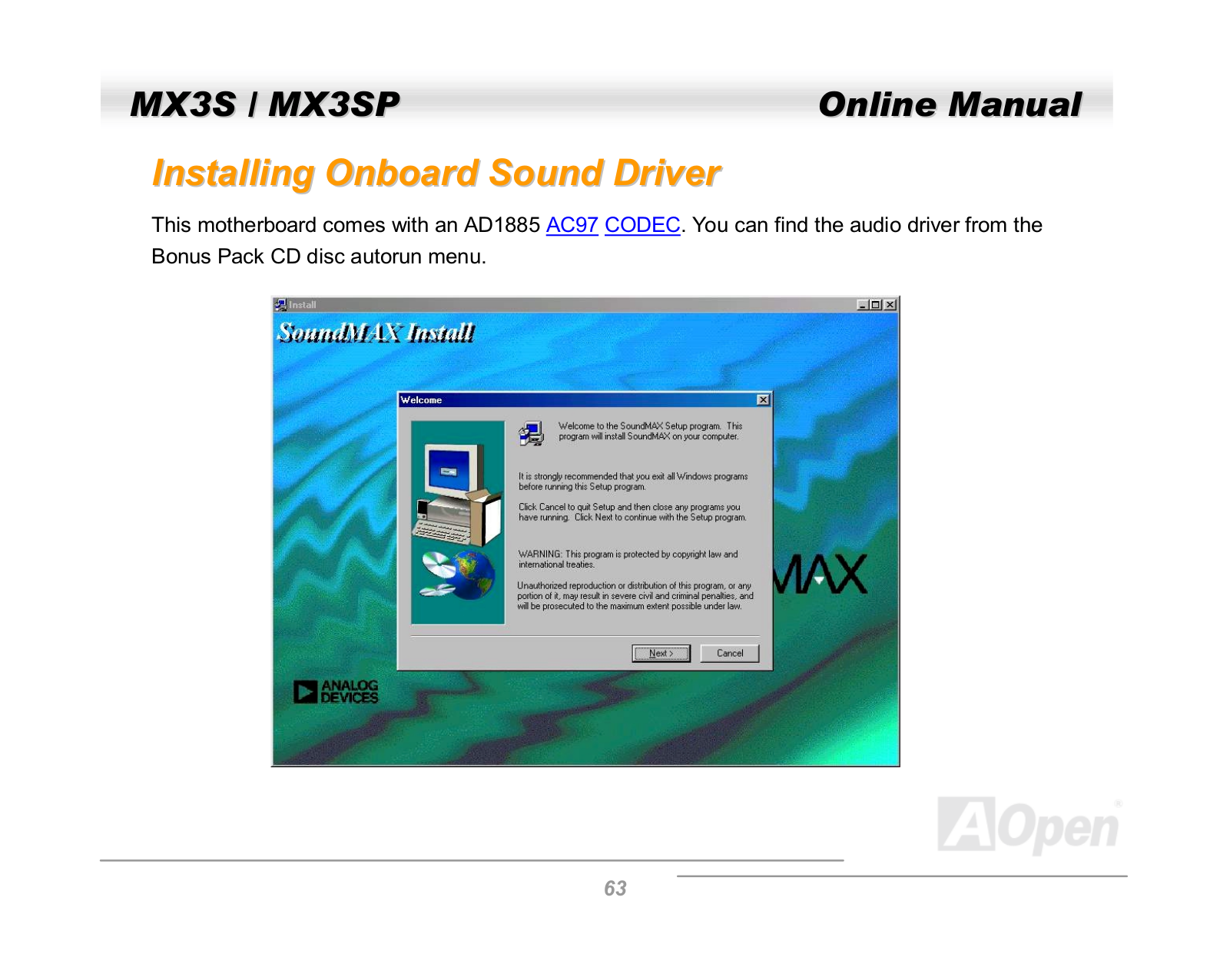

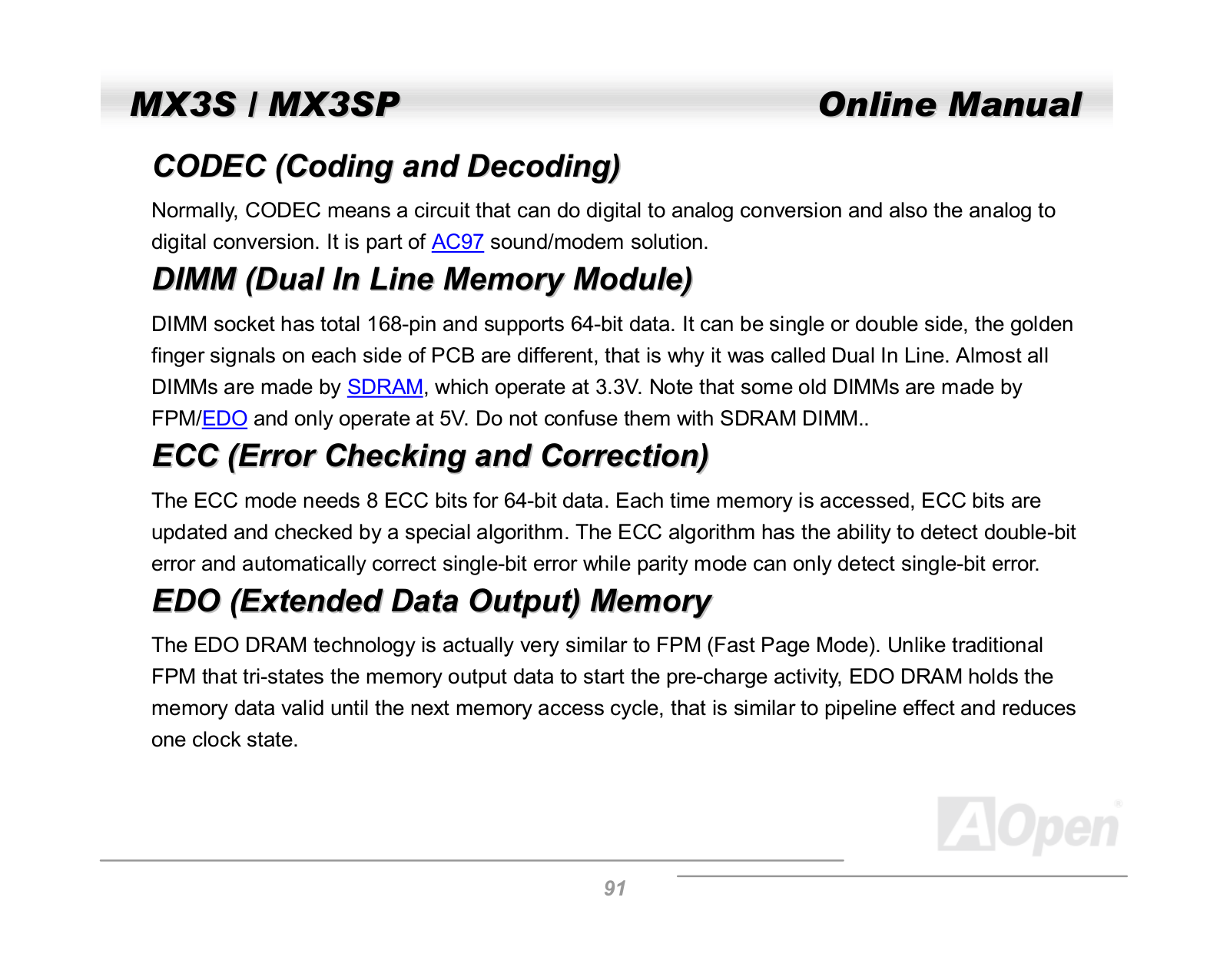

  • Support for AC97 Audio Codec.
  • Front Panel Audio connectors
  • Modem audio connections.
  • Back Panel I/O:
  • Keyboard and mouse PS/2
  • Serial Ports includes: COM1,COM2
  • USB Ports: 4 (2 situated in the back and other 2 on the Front Panel)

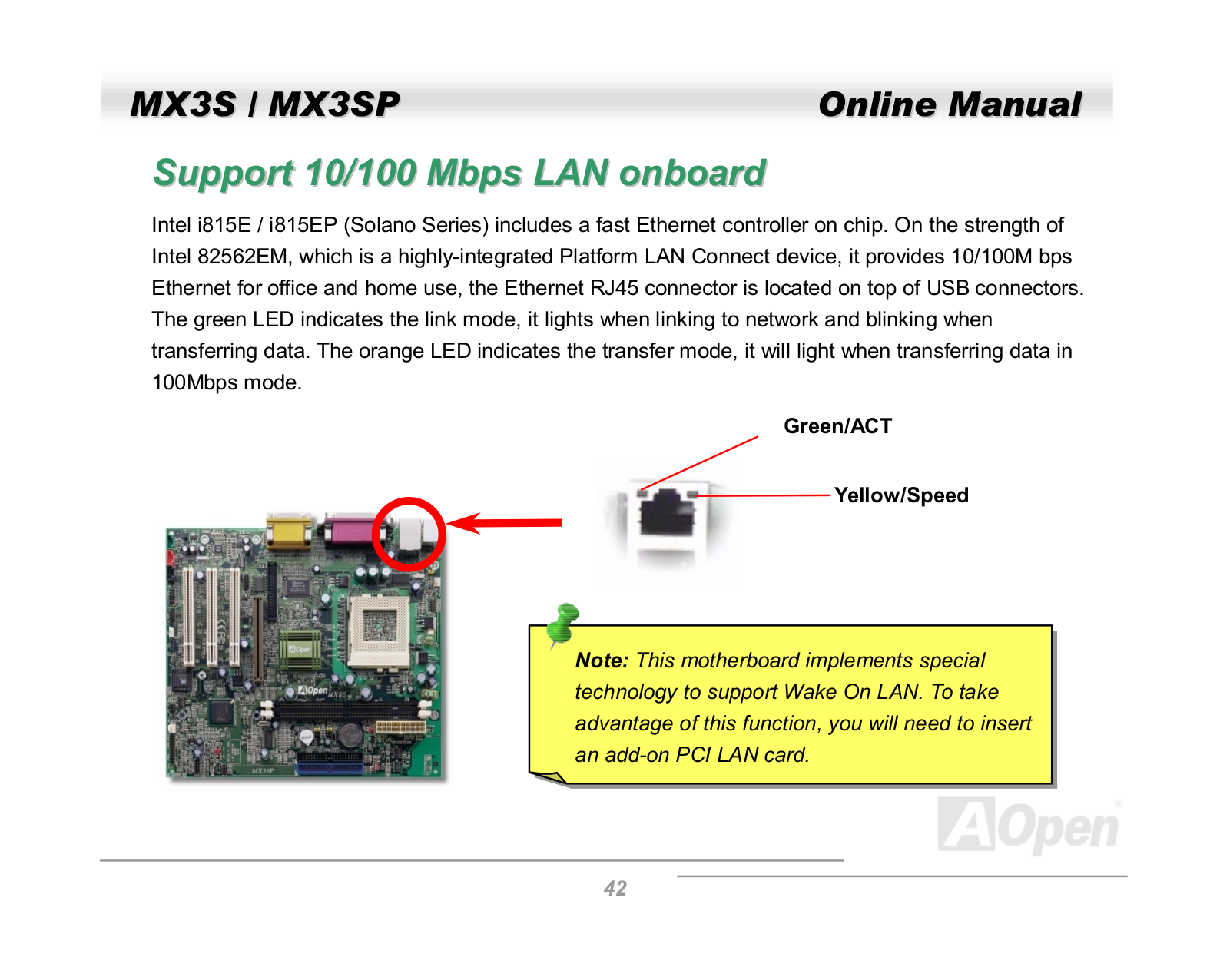

  • Ethernet or RJ-45 Connector
  • Parallel Port
  • Graphics Array Port (VGA) MX3S and com2 (Mx3sp)

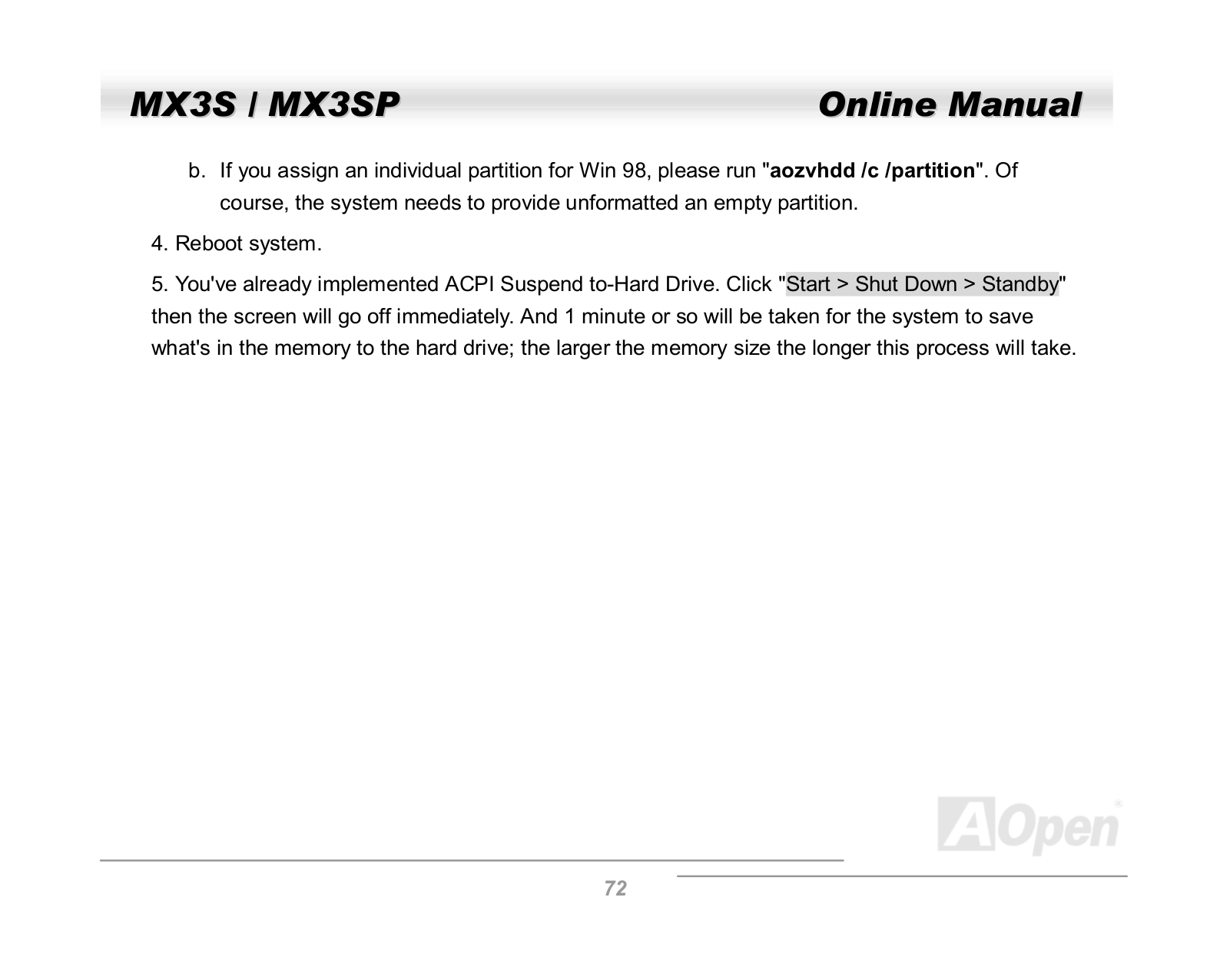

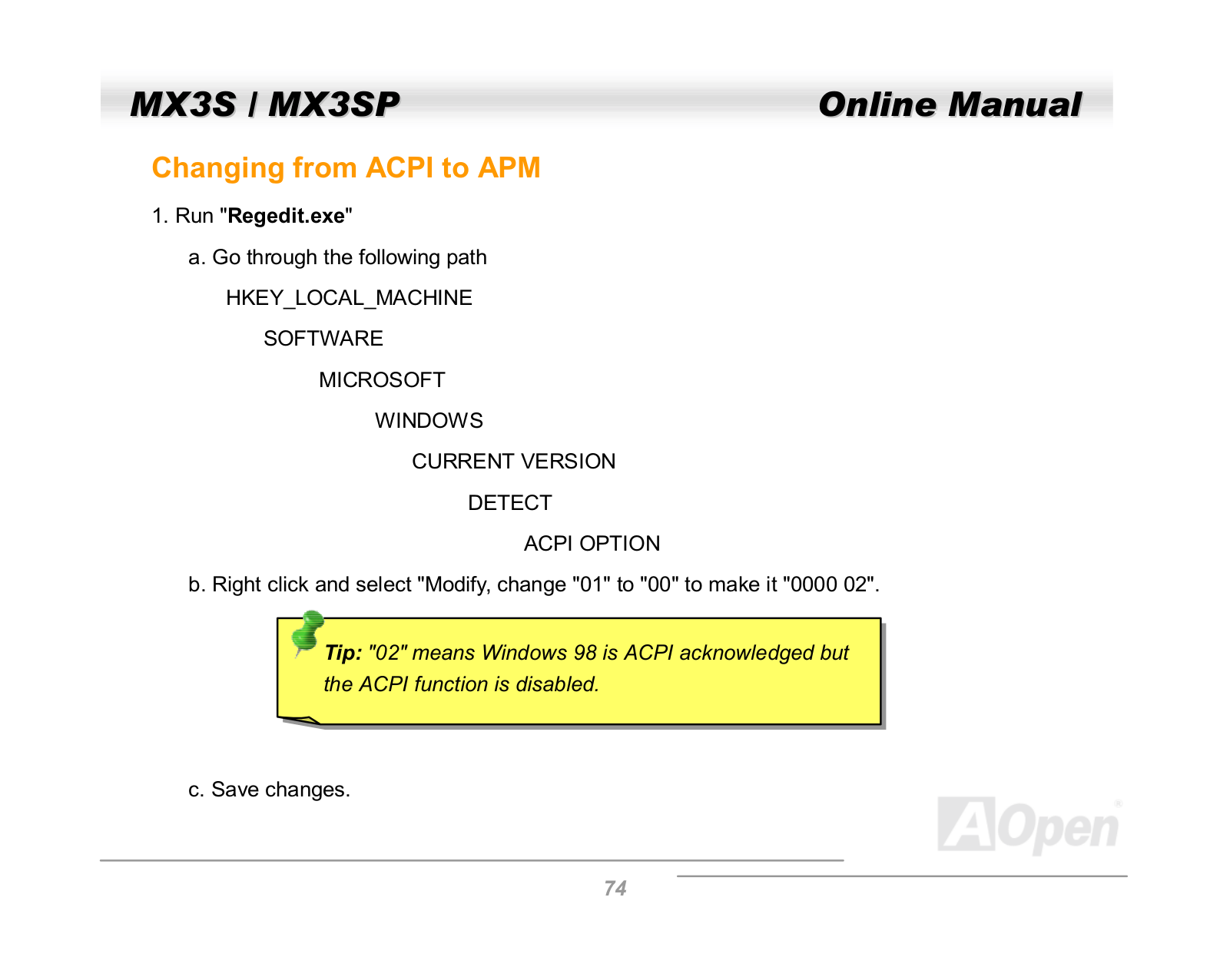

  • Power:
  • Auto Recovery upon Restoration of AC Power Supply to the Device

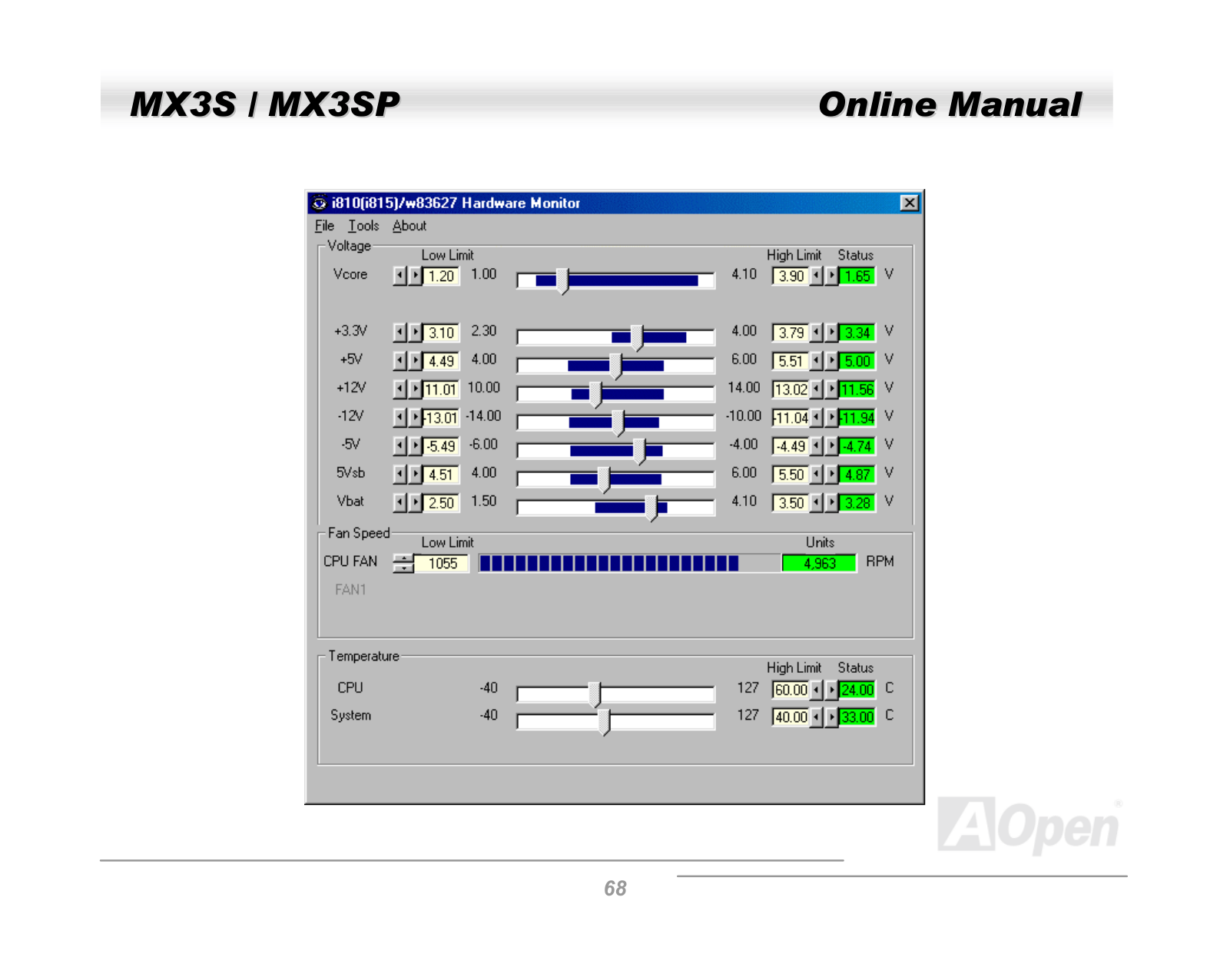

  • System and cpu fan monitoring connectors

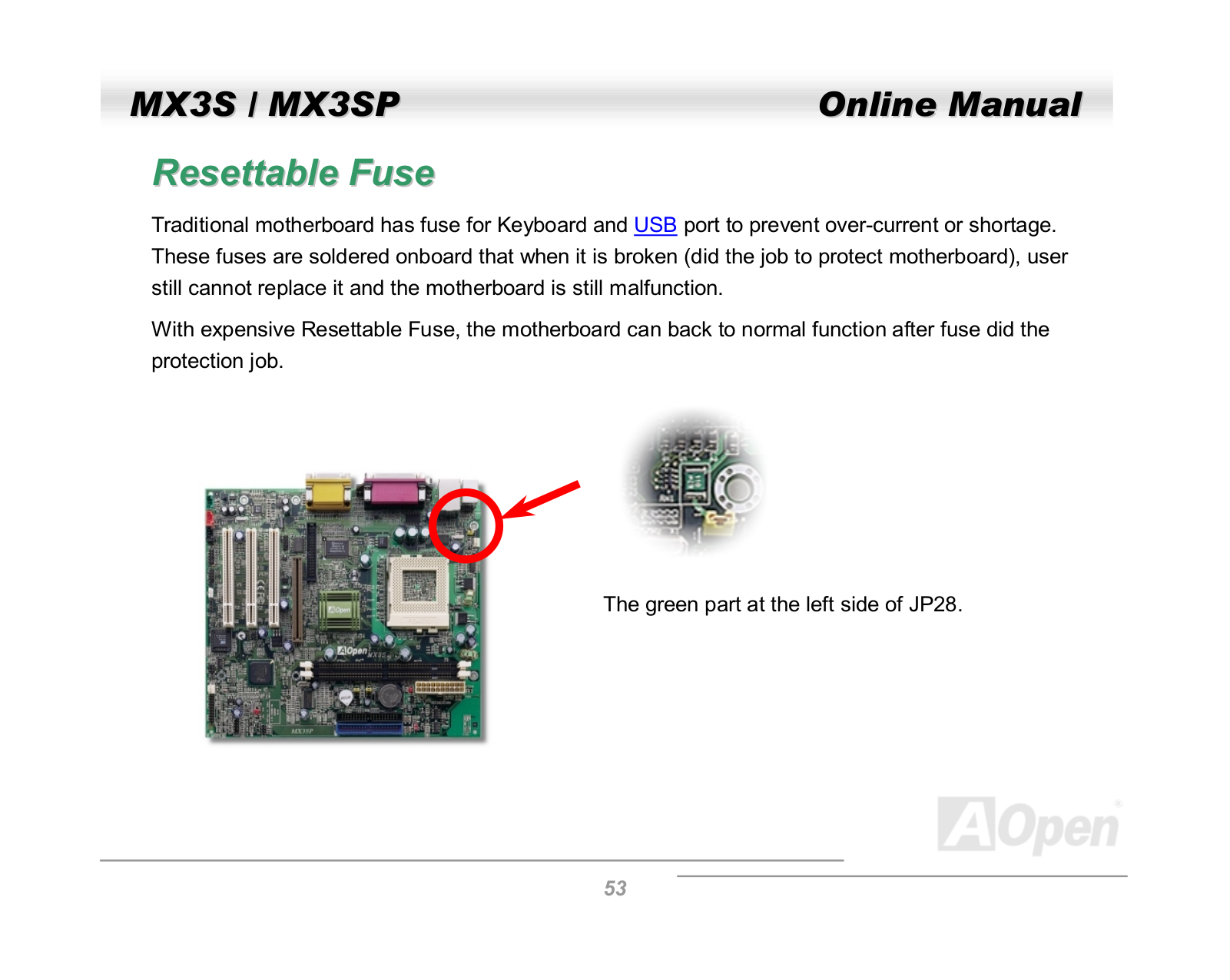

  • Over current cut-off protection
  • Design with No Battery, Enhanced Longevity Features and E2PROM.

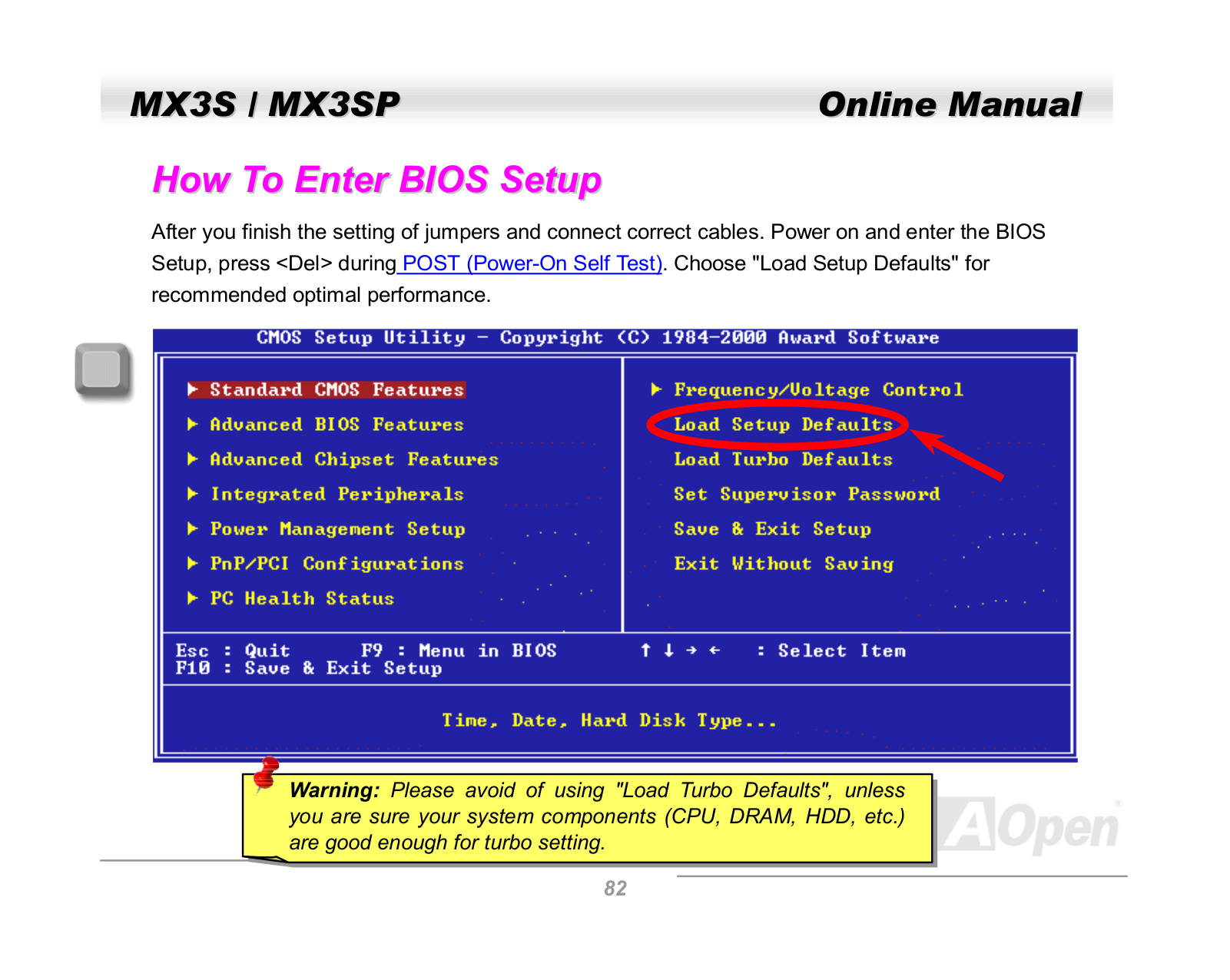

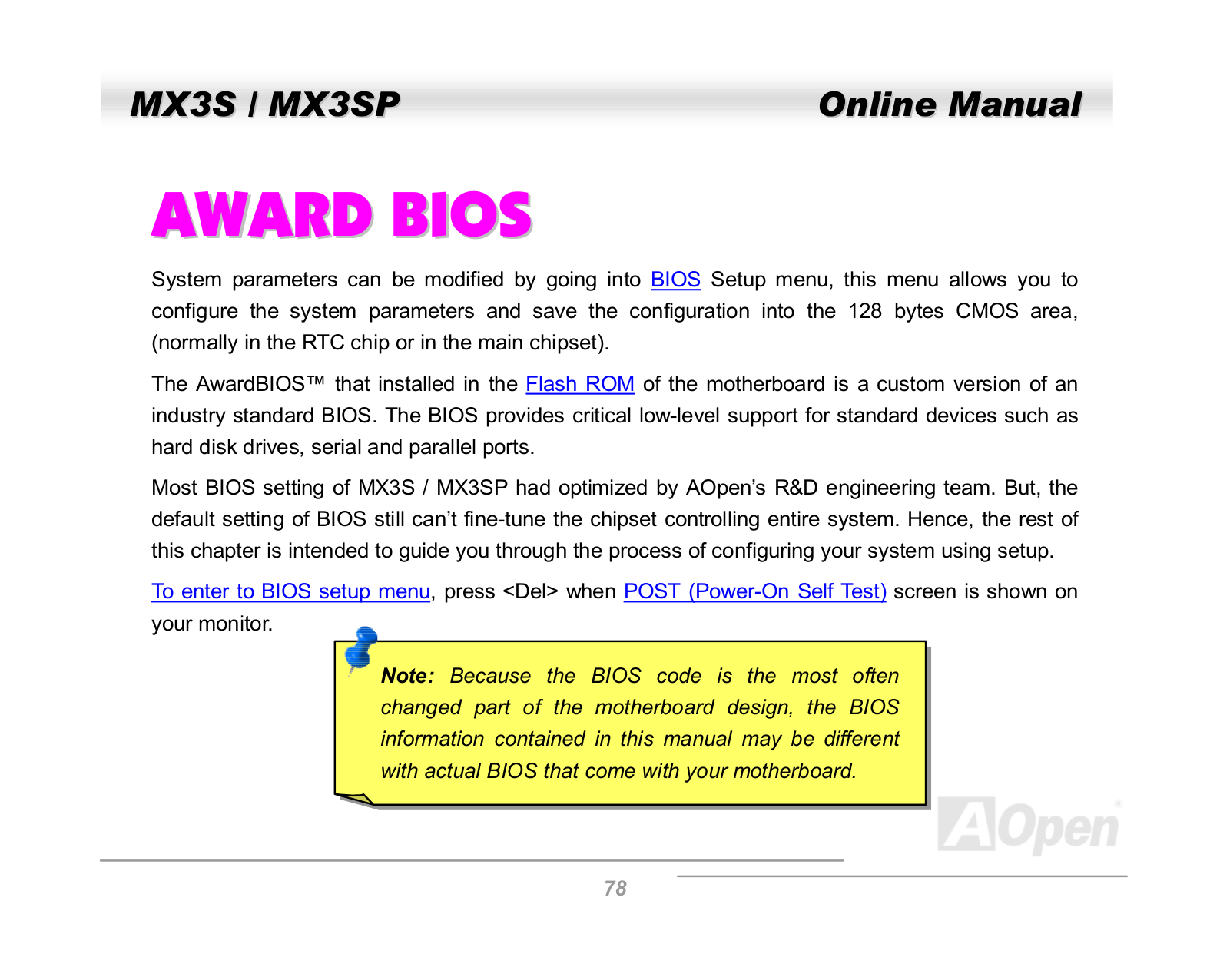

  • BIOS: Virus Protection, Flash BIOS, and Multilingual capabilities.
  • Hardware Monitoring: Power LED, RAM Power LED, and Blinking LED for system instrumentation.

Frequently Asked Questions

Q1: Specify the CPU classes maintained by MX3S/MX3SP motherboards?

A1: MX3S/MX3SP motherboards accept a wider array of Intel Celeron 300A ~ 700 and Pentium III 500E ~ 1.0GHz level processors.The MX3S/MX3SP accept a wider array of Intel Celeron processor 300A until 700 and Intel Pentium III 500E until 1G.

Q2: The motherboard comes with how many USB ports?

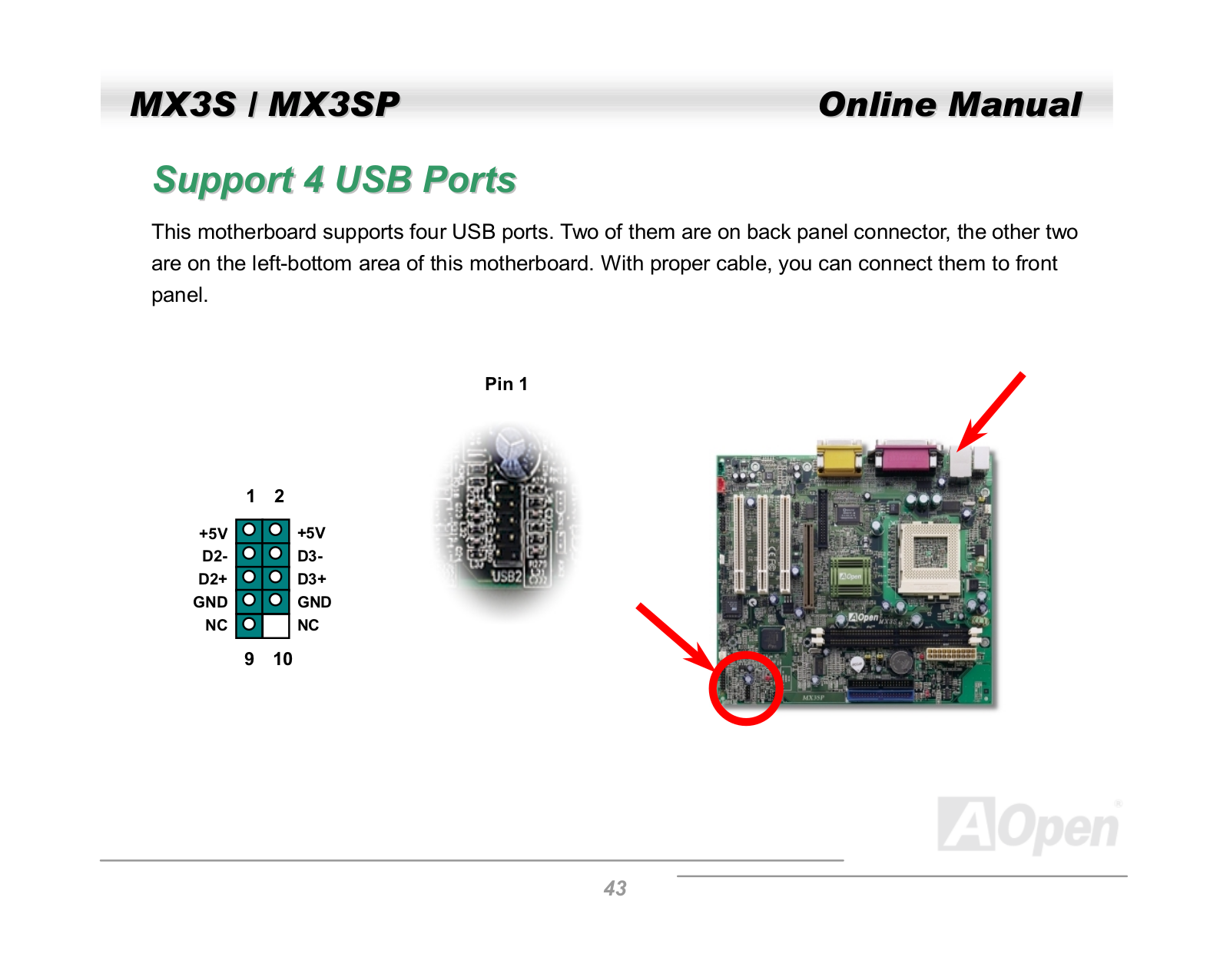

A2: The motherboard comes with 4 USB ports, 2 mounted at the rear of the case, and 2 through headers on the board for front panel attachment.

Q3: What kind of memory does mmory content of the motherboard exude?

A3: The motherboard is compatible with a maximum of 512MB SDRAM PC133 DIMM RAM that would expend into two slots on the board.

Q4: Does the device have Walk on LAN or Walk on Modem function features?

A4: Yes, in the case of the MBs MX3S/MX3SP there are both Walk on LAN (WOL) and Walk on Modem (WOM) function features.

Q5: Is a CMOS battery needed for the motherboard to work?

A5: There is no need as the motherboard is built without a battery and has an EEPROM that saves the CMOS configurations.

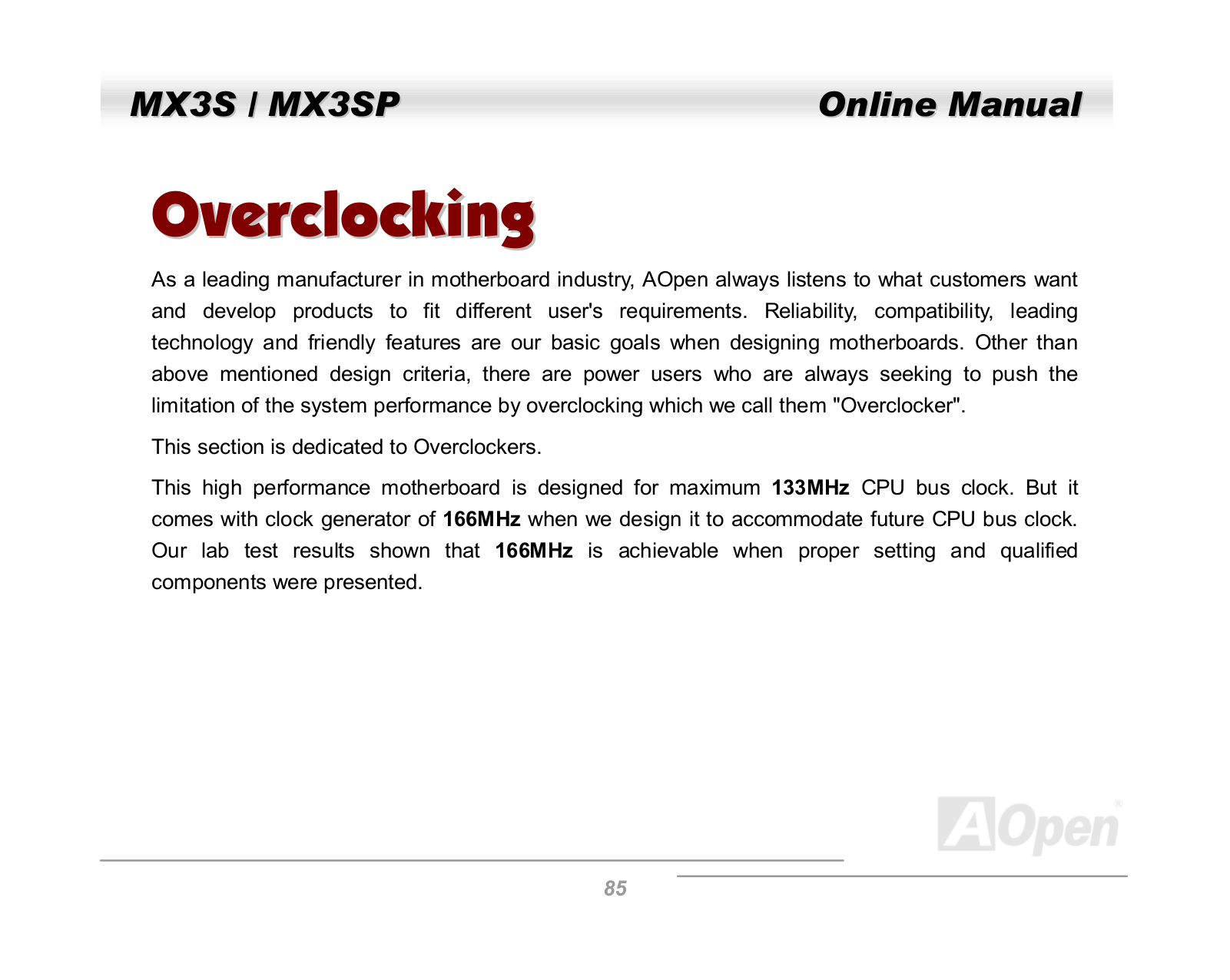

Q6: Is there a limit to the bus speed this motherboard can support?

A6: The FSB clock speed is limited to a maximum of 133 MHz.

Q7: Is it necessary to adjust the frequency switch on the motherboard? In that case, what is the setting of the switch?

A7: Setting it to best fit the Intel standard based on the selection made in the BIOS setup will do.
