MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

MK86-N / MK86-L / MK86-1394

DOC. NO.: MK86L-OL-E0310A

OOnnlliinnee MMaannuuaal

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

WWhhaatt’’ss iinn tthhiiss mmaannuuaall

MK86-N / MK86-L / MK86-1394...........................................................................................................1

What’s in this manual......................................................................................................................................................2

You Must Notice..............................................................................................................................................................8

Before You Start..............................................................................................................................................................9

Overview.......................................................................................................................................................................10

MK86-N / MK86-L / MK86-1394 Comparison Table.......................................................................................................11

Feature Highligh t ...........................................................................................................................................................12

Quick Installation Pr ocedu re .........................................................................................................................................16

Motherboard Map..........................................................................................................................................................17

Block Diagram...............................................................................................................................................................18

Hardware Instal lation................................................................................................................19

About “Manufacturer Upgrade Optional” and “User Upgrade Optional”…......................................................................20

CPU Installation ............................................................................................................................................................21

AOpen Overheat Protection (O.H.P.) Technology..........................................................................................................2 3

CPU Over-current Prot ectio n.........................................................................................................................................24

Full-range Adjustable CPU Core Voltage.......................................................................................................................25

Setting CPU Frequency.................................................................................................................................................26

Supported CPU Frequency ...........................................................................................................................................27

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

AOpen “Watch Dog ABS” ..............................................................................................................................................28

CPU and Housing Fan Connector (with H/W Monitoring) ..............................................................................................29

DIMM Sockets...............................................................................................................................................................3 0

ATX Power Connector...................................................................................................................................................32

AC Power Auto Reco very..............................................................................................................................................32

IDE and Floppy Connector............................................................................................................................................ 33

ATA/133 Supported .......................................................................................................................................................35

Serial ATA Supported (With RAID Function)..................................................................................................................36

Connecting Serial ATA Disk...........................................................................................................................................37

Front Panel Connector ..................................................................................................................................................39

IrDA Connector .............................................................................................................................................................4 0

AGP (Accelerated Graphic Port) 8X Expansion Slot......................................................................................................41

10/100/1000 Mbps LAN onboard ...................................................................................................................................42

Support eight USB 2.0 connectors ................................................................................................................................43

Color Coded Back Panel...............................................................................................................................................44

Super 5.1 Channel Audio Effect....................................................................................................................................45

Front Audio Connector ..................................................................................................................................................46

S/PDIF (Sony/Phili ps Digital In terfac e) Co nnect or .........................................................................................................4 7

Case Open Connector...................................................................................................................................................4 8

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

CD Audio Connector .....................................................................................................................................................49

AUX-IN Connector.........................................................................................................................................................50

WOL (Wake on LAN).....................................................................................................................................................51

IEEE 1394 Connector (for MK86-1394) ......................................................................................................................... 52

JP14 Clear CMOS D ata Jumpe r....................................................................................................................................53

JP28 KB/Mouse Wake -up J ump er.................................................................................................................................54

STBY LED.....................................................................................................................................................................55

AGP Protection Technology and AGP LED....................................................................................................................56

Battery-less and Long Life Design.................................................................................................................................57

Resetable Fuse .............................................................................................................................................................58

2200μF Low ESR Capacito r .........................................................................................................................................59

RAID Introduction......................................................................................................................61

What’s RAID? ................................................................................................................................................................6 1

What are the RAID l evels ? ............................................................................................................................................62

HDD Capacity of RAID Levels.......................................................................................................................................66

PHOENIX-AWARD BIO S..............................................................................................................67

How To Use Phoenix-Award™ BIOS Setup Program ....................................................................................................68

How To Enter BIOS Setup.............................................................................................................................................69

BIOS Upgrade under Windows environment .................................................................................................................70

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

Open JukeBox Player....................................................................................................................................................72

Vivid BIOS technology ...................................................................................................................................................76

Driver and Utility .......................................................................................................................77

Auto-run Menu from Bonus CD .....................................................................................................................................77

Installing VIA 4 in 1 Driver.............................................................................................................................................7 8

Installing Audio Driver ...................................................................................................................................................79

Installing USB2.0 Driver ................................................................................................................................................80

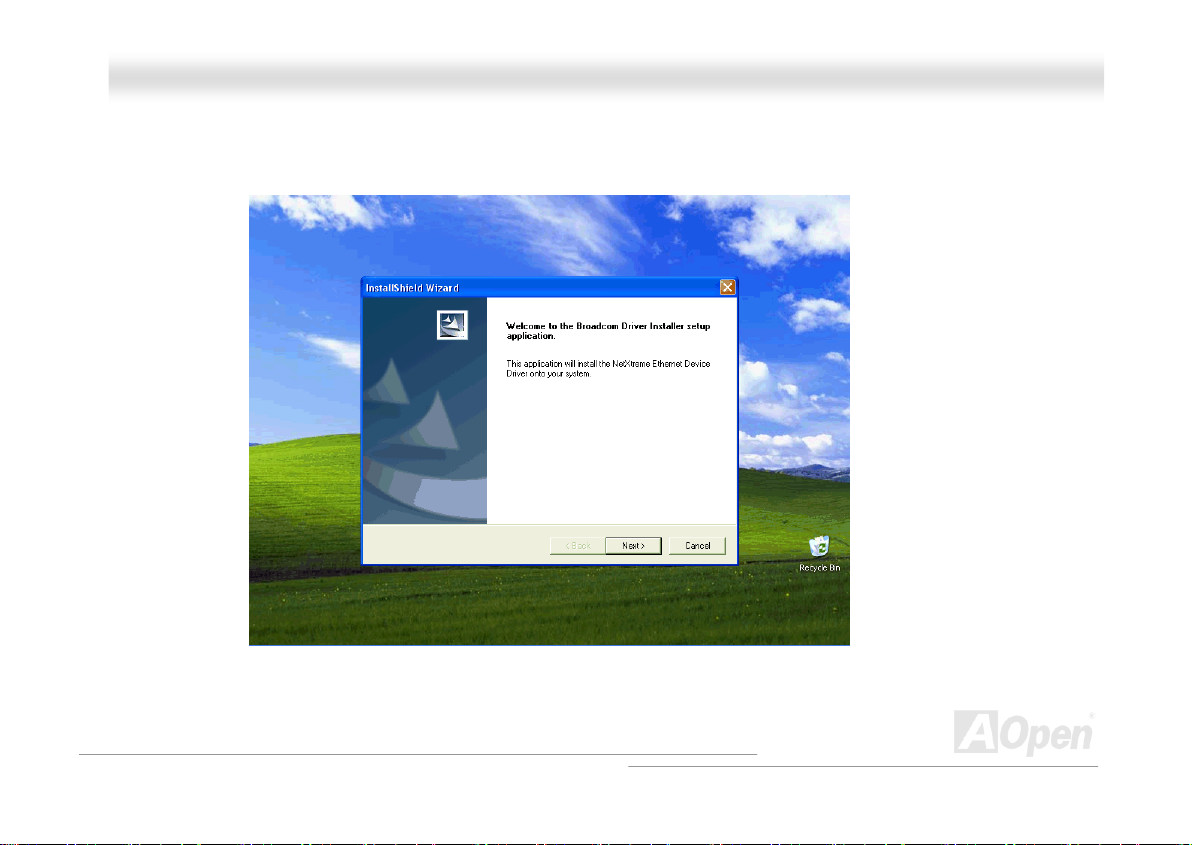

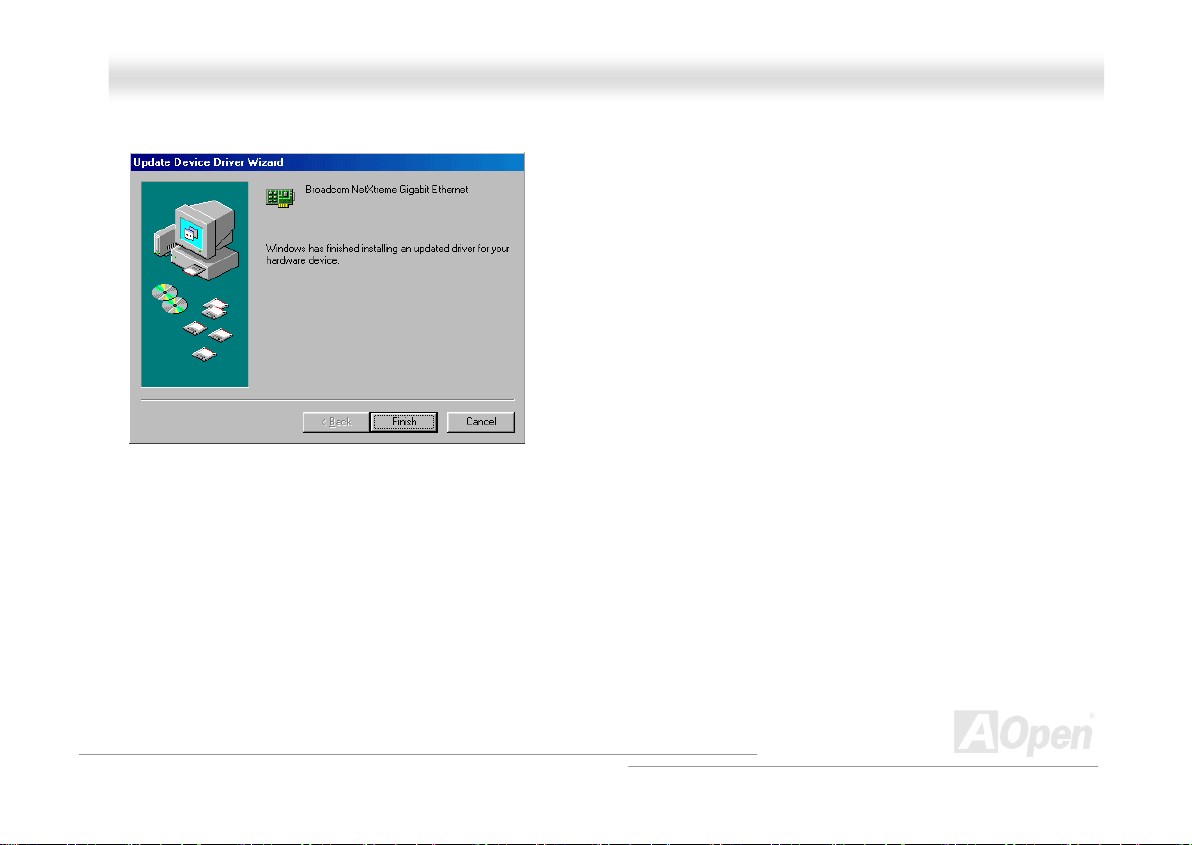

Installing LAN Driv er (for MK86-L ) ................................................................................................................................81

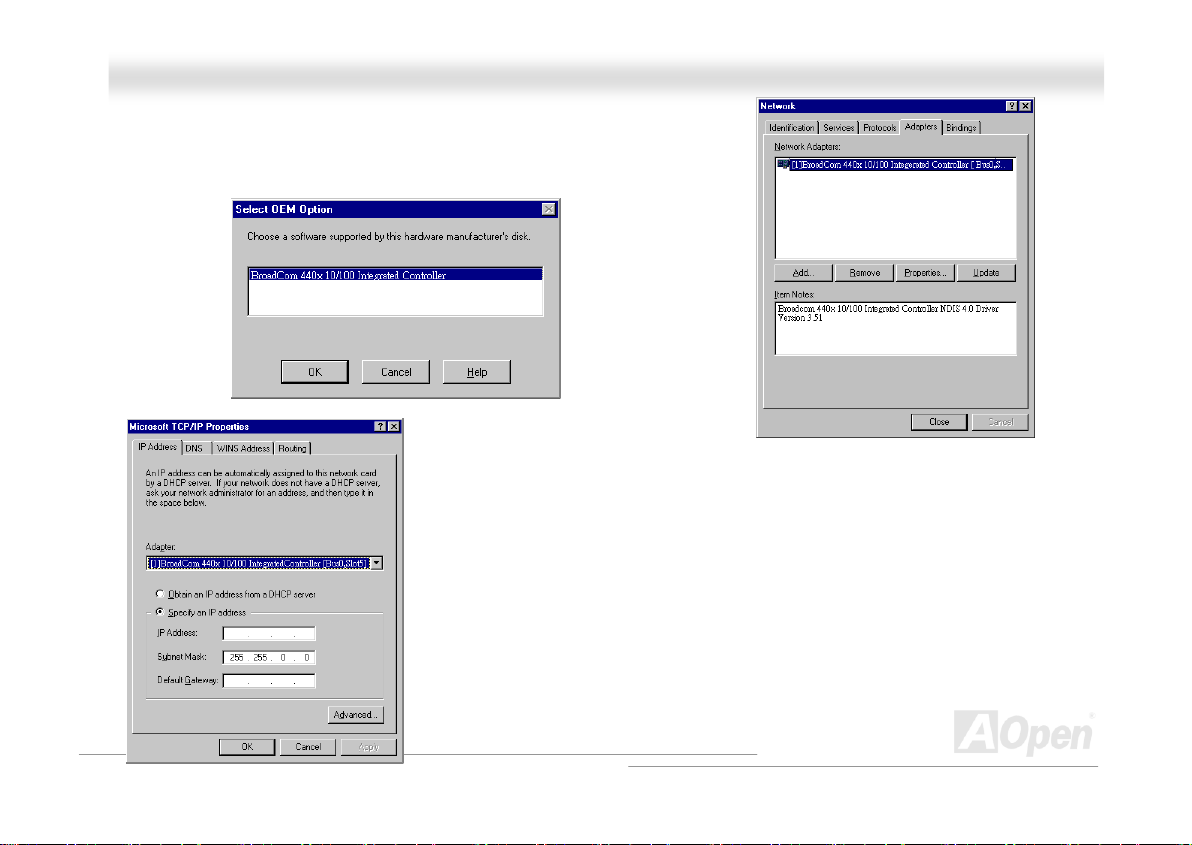

Installing LAN Driver (for MK86-N and MK86-1394)......................................................................................................87

Installing VIA Serial ATA RAID Driver ............................................................................................................................93

AOConfig Utility .............................................................................................................................................................94

The noise is gone!! ---- SilentTek ..................................................................................................................................96

EzClock.........................................................................................................................................................................99

Glossar y ..................................................................................................................................103

AC97 CODEC .............................................................................................................................................................103

ACPI (Advanced Configurat ion & Power I nterf ace) .....................................................................................................103

ACR (Advanced C ommuni cati on Rise r) ....................................................................................................................... 103

AGP (Accelerated Graphic Port)..................................................................................................................................104

AMR (Audio/Modem Riser) .......................................................................................................................................... 104

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

ATA (AT Attachment)...................................................................................................................................................104

BIOS (Basic Input/Output System).............................................................................................................................. 105

Bluetooth.....................................................................................................................................................................105

CNR (Communication and Networking Riser)..............................................................................................................10 6

DDR (Double Data Rate) RAM....................................................................................................................................106

ECC (Error Checking and Corre ction) ......................................................................................................................... 106

EEPROM (Electronic Erasabl e Prog rammabl e ROM)..................................................................................................10 7

EPROM (Erasable Program mabl e ROM) .....................................................................................................................107

EV6 Bus...................................................................................................................................................................... 107

FCC DoC (Declarati on of C onfo rmity ) .........................................................................................................................1 07

FC-PGA (Flip Chip-Pin Grid Array)..............................................................................................................................108

FC-PGA2 (Flip Chip-Pin Grid Array)............................................................................................................................108

Flash ROM..................................................................................................................................................................108

Hyper Threading .........................................................................................................................................................1 08

IEEE 1394 ...................................................................................................................................................................108

Parity Bit .....................................................................................................................................................................109

PCI (Peripheral Component Interface) Bus .................................................................................................................109

PDF Format................................................................................................................................................................. 110

PnP (Plug and Play).................................................................................................................................................... 110

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

POST (Power-On Self Test) ........................................................................................................................................ 110

PSB (Processor Syst em Bus ) Cloc k............................................................................................................................ 110

RDRAM (Rambus Dynamic Random Access Memory).................................................................................................111

RIMM (Rambus Inline Memory Module) .......................................................................................................................111

SDRAM (Synchronous DRAM).....................................................................................................................................111

SATA (Serial ATA) ........................................................................................................................................................111

SMBus (System Management Bus)............................................................................................................................. 112

SPD (Serial Presen ce Det ect).....................................................................................................................................112

USB 2.0 (Universal Se rial Bus) ...................................................................................................................................112

VCM (Virtual Channel Memory)................................................................................................................................... 112

Wireless LAN – 802. 11b.............................................................................................................................................. 113

ZIP file......................................................................................................................................................................... 113

Troubleshooting.......................................................................................................................114

Technical Support ...................................................................................................................118

Product Registr ation ...............................................................................................................121

How to Contact Us ..................................................................................................................122

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

YYoouu MMuusstt NNoottiiccee

Adobe, the Adobe logo, Acrobat is trademarks of Adobe Systems Incorporated. AMD, the AMD logo, Athlon and Duron are trademarks of Advanced Micro Devices, Inc. Intel, the Intel logo, Intel Celeron, Pentium II, Pentium III, Pentium 4 are trademarks of Intel Corporation. Microsoft, Windows, and Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United

States and/or other countries. All product and brand names used on this manual are used for identification purposes only and may be the registered

trademarks of their respective owners.

All of the specifications and information contained in this manual are subject to change without notice. AOpen reserves the right to revise this publication and to make reasonable changes. AOpen assumes no responsibility for any errors or inaccuracies that may appear in this manual, including the products and software described in it.

This documentation is protected by copyright law. All rights are reserved. No part of this document may be used or reproduced in any form or by any means, or stored in a database or retrieval system without prior written permission from AOpen Corporation. Copyright

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

BBeeffoorree YYoouu SSttaarrtt

This Online Manual will introduce to the user how this product is installed. All useful information will be described in later chapters. Please keep this manual carefully for future upgrades or system configuration changes. This Online Manual is saved in PDF format get free download from Adobe web site

Although this Online Manual is optimized for screen viewing, it is still capable for hardcopy printing, you can print it by A4 paper size and set 2 pages per A4 sheet on your printer. To do so, choose File > Page Setup and follow the instruction of your printer driver.

Thanks for the help of saving our earth.

, we recommend using Adobe Acrobat Reader 5.0 for online viewing, it is included in Bonus CD disc or you can

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

OOvveerrvviieeww

Thank you for choosing AOpen MK86-N / MK86-L / MK86-1394. The MK86-N / MK86-L / MK86-1394 is AMD® Socket 754 motherboard (M/B) based on the micro ATX form factor featuring the VIA K8T800 chipset the M/B, the MK86-N / MK86-L / MK86-1394 comes with AMD side bus. In the AGP performance, it has one AGP slot and supports AGP 8X/4X mode and pipelined spilt-transaction long burst transfer up to 2.1GB/sec. With memory controller built in the Athlon 64 processor, DDR400(PC3200)

DDR266(PC2100)

up to 2GB. The on-board IDE controller supports Ultra DMA 66/100/133 mode and the transfer rate up to 133MB/s. MK86-N / MK86-L / MK86-1394 also has two Serial ATA connectors and they aim to provide you an even faster transfer rate of 150 Mbytes/second. Beside, MK86-N / MK86-L / MK86-1394 has an AC97

CODEC

supports 5.1 channels, providing high performance and magic surround stereo sound to let people enjoy working with it. More than that, this motherboard supports USB 2.0 480Mbps and IEEE1394 data transfer rate up to 400Mbps. Now, enjoy all features from AOpen MK86-N / MK86-L / MK86-1394.

Realtek ALC655 chipset onboard and

Socket 754 Athlon 64 processor and 200MHz QDR CPU front

DDR RAM can be applied to the MK86-N / MK86-L / MK86-1394 and DDR400 maximum memory size can be

function with a fancy speed of up to

(for MK86-1394) provided

. As high performance chipset built in

, DDR333(PC2700) and

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944 CCoommppaarriissoonn TTaabbllee

Following we list different functions in those three models. “V” represents those functions that the model equips with and “X” represents functions that model doesn’t have. Please always refer to this page to see the functions of your model.

IEEE 1394 Function IEEE 1394 Connector 10/100Mbps LAN Gigabits LAN

MK86-N MK86-L MK86-1394

X X V X X V

V V V

X V X

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

FFeeaattuurree HHiigghhlliigghhtt

CPU

Supports AMD® Socket 754 Athlon 64 CPU with 800MHz Hyper Transport Bus.

Chipset

The K8T800 North Bridge is a high performance and energy efficient solution for the implementation of desktop PC systems with Hyper Transport CPU host interface based on AMD Athlon 64 processors. The K8T800 chipset provides support for AMD Athlon 64 processors via the Hyper Transport Bus and South Bridge VT8237 chipset via the V-Link Host Controller. The V-Link Host Controller in the North Bridge connects it to the South Bridge and provides superior performance between the CPU / DRAM subsystem, V-Link bus and AGP 8X graphics controller bus with pipelined, burst and concurrent operation. The South Bridge VT8237 integrates PCI controller, networking MAC, IDE controller, two-channel Serial ATA (with RAID function) controller and four ports USB 2.0 controller.

Ultra DMA 66/100/133 Bus Master IDE

Comes with an on-board PCI Bus Master IDE controller with two connectors that supports four IDE devices in two channels, supports Ultra DMA 66/100/133, PIO Modes 3 and 4 and Bus Master IDE DMA Mode 4, and supports Enhanced IDE devices.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

LAN Port

For MK86-L, on the strength of BCM5705 controller on board, which is a highly integrated Platform LAN Connect device, it provides 10/100/1000Mbps Ethernet for office and home use. For MK86-N and MK86-1394, with BCM4401 network controller on boards, it provides 10/100Mbps Ethernet for office and home use.

Serial ATA

This motherboard comes with an integrated SATA controller in VIA VT8237, aiming to provide you an even faster transfer rate of 150 Mbytes/second. The SATA connectors (port 1 and port 2) provided by VIA VT8237 support RAID 0, RIAD 1, RAID 0+1 and JBOD mode.

Expansion Slots

Including three 32-bit/33MHz PCI and one AGP 8X slots. The PCI local bus throughput can be up to 132MB/s. The Accelerated

Graphics Port (AGP) specification provides a new level of video display sophistication and speed. The AGP video cards support

data transfer rate up to 2.1GB/s. As MK86-N / MK86-L / MK86-1394 includes one AGP expansion slot for a bus mastering AGP graphic card for AD and SBA signaling, MK86-N / MK86-L / MK86-1394 can support 133MHz 4X/8X mode. MK86-N / MK86-L / MK86-1394 also support three master PCI slots for arbitration and decoding functions.

Watch Dog ABS

Includes AOpen “Watch Dog ABS” function that can auto-reset system in few seconds when you fail the system overclocking.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

Memory

With memory controller built in the AMD Athlon 64 processors, which is a brand new design in AMD Athlon 64 CPUs, MK86-N / MK86-L / MK86-1394 can support Double-Data-Rate (DDR) RAM between the RAM and the data buffers at 400/333/266/200 MHz. The four banks of DDR RAM can be composed of an arbitrary mixture of 64, 128, 256, 512,1024MB DDR RAM and support DDR400/DDR333/266 maximum up to 2GB.

. The DDR RAM interface allows zero wait state bursting

On-board AC97 Sound

MK86-N / MK86-L / MK86-1394 uses the AC97 CODEC RealTek ALC655 chip, which supports high quality of 5.1 Channel audio effects. This on-board audio includes a complete audio recording and playback system.

IEEE 1394 (for MK86-1394)

This motherboard comes with great function of IEEE1394 which has transfer data rate up to 400Mbps.

Eight USB 2.0 Connectors

Provides four USB ports for USB interface devices, such as mouse, keyboard, modem, scanner, etc. The new USB 2.0, with fancy speed up to 480Mbps, is 40 times faster than the traditional ones. Except for the speed increase, USB 2.0 supports old USB 1.0/1.1 software and peripherals, offering impressive and even better compatibility to customers.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

1MHz Stepping CPU Frequency Adjustment

Provides “1MHz Stepping CPU Frequency Adjustment” function in the BIOS. This magic function allows you to adjust CPU FSB frequency from 200~232MHz by 1MHz stepping, and lets your system get maximum performance.

Power Management/Plug and Play

MK86-N / MK86-L / MK86-1394 support power management function that confirms to the power-saving standards of the U.S. Environmental Protection Agency (EPA) Energy Star program. It also offers Plug-and-Play configuration problems, thus making the system much more user-friendly.

, which helps saving users from

Hardware Monitoring Management

Supports CPU or system fans status, temperature, voltage monitoring and alert through on-board hardware monitor module and AOpen Hardware Monitoring Utility.

Enhanced ACPI

Fully implement the ACPI standard for Windows® 95/98/ME/NT/2000/XP series compatibility, and supports Soft-Off, STR (Suspend to RAM, S3), STD (Suspend to Disk, S4), WOM (Wake On Modem), WOL (Wake On LAN) features.

Super Multi-I/O

MK86-N / MK86-L / MK86-1394 provide two high-speed UART compatible serial ports and one parallel port with EPP and ECP capabilities. UART2 can also be directed from COM2 to the Infrared Module for the wireless connections.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

QQuuiicckk IInnssttaallllaattiioonn PPrroocceedduurree

This page gives you a quick procedure on how to install your system. Follow each step accordingly.

1. Installing CPU and Fan

2. Installing System Memory (DIMM)

3. Connecting Front Panel Cable

4. Connecting IDE and Floppy Cable

5. Connecting A TX Power Cable

6. Connecting Back Panel Cable

7. Power-on and Load BIOS Setup Default

8. Setting CPU Frequency

9. Reboot

10. Installing Operating System (such as Windows XP)

11. Installing Driver and Utility

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

CD-IN Connector

AUX-IN Connector

Front Audio Connector

S/PDIF Connector

AGP 8x Slot

FDD Connector

WOL Connector

32-bit PCI Expansion Slot x3

JP14 Clear CMOS Jum SYSFAN2 Connector

USB 2.0 Connector

IEEE 1394 Connector x2

(for MK86-1394)

Case Open Connector

Front Panel Connector

Serial A TA connector x2

OOnnlliinnee MMaannuuaal

Motherboard Map

Colored Back Panel JP28 Keyboard/Mouse

Wakeup Jumper

CPUFAN Connector

IrDA Connector 754-pin CPU Socket with

Voltage and Frequency Auto-Detection that supports

AthlonTM 64

AMD 184-pin DIMMx2 supports

DDR400/DDR333/DDR266 max up to 2GB

VIA® Apollo K8T800 Chipset and VT8237 SB

2200μF Low ESR Capacitors

IDE Connector x 2

(ATA/66/ 100/ 133 suppo rted) SYSFAN1 Connector 4-pin 12V ATX Power Connector

ATX Power Connector

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

BBlloocckk DDiiaaggrraamm

DDR400/DDR333/266 RAM

to 2GB

DDR SDRAM Socket x3

800 MHz Hyper

Socket 754

AMD Athlon 64

CPU

AGP 8X Slot

Transport Bus

LAN connect Component

AGP Bus

Floppy Disk Drive x2

VIA K8T800

V-Link Bus

BCM4401 (for MK86-N & MK86-

BCM5707 (for MK86-L)

1394)

1stUSB Port

2ndUSB Port

3rdUSB Port

4th USB Port

USB connector x8

PCI Bus

ATA

66/100/133

32-bit PCI Slot x3

Primary Channel

Secondary

Channel

VT8237

Serial ATA

AC’97 Link

IDE Drive x4

Serial ATA Devices x2

Audio CODEC

4MBit Flash EEPROM

Parallel Port

Serial Port x2

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

HHaarrddwwaarree IInnssttaallllaattiioonn

This chapter describes jumpers, connectors and hardware devices of this motherboard.

Note: Electrostatic discharge (ESD) can damage your processor, disk drives, expansion boards, and other components. Always observe the following precautions before you install a system component.

1. Do not remove a component from its protective packaging until you are ready to install it.

2. Wear a wrist ground strap and attach it to a metal part of the system unit before handling a component. If a wrist strap is not available, maintain contact with the system unit throughout any procedures requiring ESD protection.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

AAbboouutt ““MMaannuuffaaccttuurreerr UUppggrraaddee OOppttiioonnaall”” aanndd ““UUsseerr UUppg OOppttiioonnaall””……

When you read this online manual and start to assemble your computer system, you may find some of functions are called “Manufacturer Upgrade Optional”, and some are called “User Upgrade Optional”. Though all AOpen motherboards include many amazing and powerful features, in some situations, these powerful features are not used to every user. Hence, we changed some key features as “Manufacturer Upgrade Optional” for you to choose. Some optional functions that can be upgraded by users, we call them “User Upgrade Optional”. As for those optional functions that can’t be upgraded by ourselves, we call them “Manufacturer Upgrade Optional”. If needed, you can contact our local distributors or resellers for purchasing “User Upgrade Optional” components, and again you can visit AOpen official web site: http://english.aopen.com.tw/

grraaddee

for more detail information.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

CCPPUU IInnssttaallllaattiioonn

This motherboard supports AMD® Athlon 64 Socket 754 CPU. Be careful of CPU orientation when you plug it into CPU socket (with CPU Overheat Protection function implemented, the system will be automatically power off when the temperature of CPU reached 97 degree).

1. Pull up the CPU socket lever and up to 90-degree angle.

2. Locate Pin 1 in the socket and look for a black dot or cut edge on the CPU upper interface. Match Pin 1 and cut edge, then insert the CPU into the socket.

CPU pin 1

and cut edge

CPU socket

Lever

Note: This picture is for example only; it may not exactly be the same motherboard.

CPU cut edge

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

3. Press down the CPU socket lever and finish CPU installation.

Note: This picture is for example only; it may not exactly be the same motherboard.

CPU cut edge

Note: If you do not match the CPU socket Pin 1 and CPU cut edge well, it ma

OOnnlliinnee MMaannuuaal

damage the CPU.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

AAOOppeenn OOvveerrhheeaatt PPrrootteeccttiioonn ((OO..HH..PP..)) TTeecchhnnoollooggyy

With AMD platform substantially keeps increasing the speed of its CPU, it inevitably led to the annoying problem of high CPU operation temperature at the same time. In order to prevent

accidental failure of CPU fan, which could cause the burning down of the Athlon 64 CPU, we, AOpen, have meticulously developed a new technology, named, O.H.P. (Overheat Protection) Technology to protect them. Thanks to the intelligent monitoring design of AOpen O.H.P. technology, user can now finally set their mind at ease even when fan failed to work without fearing the possible damage of CPU.

Under the circumstances that CPU fan is running properly, Athlon 64 temperature should be way below the highest

temperature limit of 97℃. However, if CPU fan accidentally becomes malfunction or improperly installed, the CPU temperature would rocket abruptly, and you may find your system hang up or crying over the smoking CPU if you haven’t installed AOpen O.H.P. previously. With AOpen O.H.P. technology applied, the specific thermal detection pins on Athlon 64 CPU would sense voltage difference when

processor is overheated with fan failed, and the overheat protection system would immediately send out a signal to abort your system by cutting CPU electricity before any damage is done. Unlike other manufacturers who use BIOS or software to control the power supply of CPU, AOpen O.H.P. Technology is purely hardware-controlled the minute after system boot-up, and occupies no system resource. We are pleasant to phase in this practical function on all AOpen AMD series motherboards to protect customer’s valuable hardware and personal data.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

CCPPUU OOvveerr--ccuurrrreenntt PPrrootteeccttiioonn

Over Current Protection has been popularly implemented on ATX 3.3V/5V/12V switching power supply for a while. However, new generation CPU is able to use regulator of different voltages to transfer 12V to CPU voltage (for example, to 2.0V). This motherboard is with switching regulator onboard that supports CPU over-current protection, and it applies to 3.3V/5V/12V power supply for providing full line over-current protection.

ATX Switching Power Supply

Note: Although we have implemented protection circuit try to prevent any human operating mistake, there is still certain risk that CPU, memory, HDD, add-on cards installed on this motherboard may be damaged because of component failure, human operating error or unknown nature reason. AOpen cannot guaranty the protection circuit will always work perfectly.

12V (Protected by power supply)

3.3V (Protected by power supply)

5V (Protected by power supply)

Onboard Power Regulator

(Over-Current Protection)

CPU Core Voltage

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

FFuullll--rraannggee AAddjjuussttaabbllee CCPPUU CCoorree VVoollttaaggee

This function is dedicated to overclockers. The CPU core voltage of this motherboard is adjustable 0.8V to 1.55V by 0.025V stepping. But this motherboard can also automatically detect CPU VID signal and generates proper CPU core voltage.

BIOS Setup > Frequency/Voltage Control > CPU Voltage Setting

Warning: Higher CPU core voltage may be

able to increase CPU speed for overclocking, but you may damage the CPU or reduce the CPU lifecycle.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

SSeettttiinngg CCPPUU FFrreeqquueennccyy

This motherboard is CPU jumper-less design, you can set CPU frequency through the BIOS setup, and no jumpers or switches are needed.

BIOS Setup > Frequency/Voltage Control > CPU Speed Setting

CPU Ratio CPU Clock

(By manual Adjustment)

Warning: VIA® Apollo K8T800 chipset supports 200MHz system clock and 66MHz AGP clock, higher clock setting may cause serious system damage.

Home

From 8x to 50x step 1x (auto-detection) 200~232MHz by 1MHz stepping adjustment technology

Warning: If you have adjusted CPU ratio on your current CPU, and planed to replace a new CPU, please use <Home> key or Clear CMOS to restore the default setting when changing a new CPU.

Tip: If your system hangs or fails to boot because of overclocking, simply use <Home> key to restore the default setting or you can wait the AOpen “Watch Dog ABS” reset the system after five seconds and system will auto-detect hardware again.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

SSuuppppoorrtteedd CCPPUU FFrreeqquueennccyy

Core Frequency = CPU Bus Clock * CPU Ratio PCI Clock = CPU Bus Clock / Clock Ratio

AGP Clock = PCI Clock x 2

CPU

Athlon 64 3000+ 1.6GHz 200MHz 8x Athlon 64 3200+ 2.0GHz 200MHz 10x Athlon 64 3400+ 2.2GHz 200MHz 11x

Note: With CPU speed changing rapidly, there might be fastest CPU on the market by the time you received this installation guide. This table is kindly for your references only.

Note: This motherboard support CPU auto-detection function. Therefore you don’t need to setup the CPU frequency manually.

CPU Core Frequency

System Clock

Ratio

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

AAOOppeenn ““WWaattcchh DDoogg AABBSS””

CPU FSB system to reboot in five seconds. Then, BIOS will detect the CPU’s default frequency and POST again. With this special feature, you can easily overclock your system to get higher system performance without removing the cover of system housing, and be able to set the jumper to clear CMOS data when your system hanged.

frequency by user’s setting that stored in the BIOS. If system failed in BIOS POST, the “Watch Dog ABS” will reset the

Enable/Disable Signal

AOpen

Watch Dog ABS

With this motherboard, AOpen provides a very special, useful feature for overclockers. When you power-on the system, the BIOS will check last system POST succeeded, the BIOS will enable “Watch Dog ABS” function immediately, and set the

from BIOS

BIOS

Reset Signal

Clock Generator

Countdown about 5 seconds if fails in POST

CPU

status. If it

CPU ID Signal

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

CCPPUU aanndd HHoouussiinngg FFaann CCoonnnneeccttoorr ((wwiitthh HH//WW MMoonniittoorriinngg)

Plug in the CPU fan cable to the 3-pin CPUFAN connector. If you have chassis fan, you can also plug it on SYSFAN1 or SYSFAN2 connector.

SYSFAN2 Connector

CPUFAN Connector

SYSFAN1 Connector

GND

+12V

SENSOR

GND

+12V

SENSOR

Note: Some CPU fans do not have sensor pin, so that they cannot support fan monitoring.

)

GND

+12V

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

DDIIMMMM SSoocckkeettss

This motherboard has two 184-pin DDR DIMM sockets that allow you to install DDR266/333/400 memory up to 2GB. Non-ECC DDR RAM is supported; otherwise it will cause serious damage on memory sockets or RAM module.

Warning: This motherboard supports DDR RAM.

DIMM 1

DIMM 2

Please do not install the SDRAM on the DDR RAM sockets; otherwise it will cause serious damage on memory sockets or SDRAM module.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

HHooww ttoo IInnssttaallll MMeemmoorryy MMoodduulleess

Please follow the procedure as shown below to finish memory installation.

1. Make sure the DIMM module’s pin face down and match the socket’s size as depicted below.

2. Insert the module straight down to the DIMM slot with both hands and press down firmly until the DIMM module is securely

in place.

3. Repeat step 2 to finish additional DIMM modules installation.

Pin 1

Tab

Key

52 pins 40 pins

Note: The tabs of the DIMM slot will close-up to hold the DIMM in place when the DIMM touches the slot’s bottom.

Pin 1

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

AATTXX PPoowweerr CCoonnnneeccttoorr

This motherboard comes with a 20-pin and 4-pin ATX power connector. Make sure you plug in the right direction.

AACC PPoowweerr AAuuttoo RReeccoovveerryy

A traditional ATX system should remain at power off stage when AC power resumes from power failure. This design is inconvenient for a network server or workstation, without an UPS, that needs to keep power-on. This motherboard implements an AC Power Auto Recovery function to solve this problem.

+12V +12V Ground Ground

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

IIDDEE aanndd FFllooppppyy CCoonnnneeccttoorr

Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDC connector. Be careful of the pin1 orientation. Wrong orientation may cause system damage.

Pin 1

FDD Connector

Primary

Slave (2nd)

Pin 1

Secondary Slave (4th)

Primary

Master (1st)

IDE1 (Primary)

IDE2 (Secondary)

Secondary

Master (3rd)

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

IDE1 is also known as the primary channel, IDE2 is known as the secondary channel. Each channel supports two IDE devices that make a total of four devices. In order to work together, the two devices on each channel must be set differently to Master and Slave mode. Either one can be the hard disk or the CDROM. The setting as master or slave mode depends on the jumper on your IDE device, so please refer to your hard disk and CDROM manual accordingly.

Warning: The specification of the IDE cable is a maximum of 46cm (18 inches); make sure your cable does not exceed this length.

Tip:

1. For better signal quality, it is recommended to set the far end side device to master mode and follow the suggested sequence to install your new device. Please refer to above diagram

2. To achieve the best performance of Ultra DMA 66/100/133 hard disks, a special 80-wires IDE cable for Ultra DMA 66/100/133 is required.

OOnnlliinnee MMaannuuaal

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

AATTAA//113333 SSuuppppoorrtteedd

This motherboard supports ATA66, ATA100 or ATA133 IDE devices. Following table lists the transfer rate of IDE PIO and DMA modes. The IDE bus is 16-bit, which means every transfer is two bytes. As the hard drive industry introduces faster and higher capacity hard drives, the current Ultra ATA/100 interface causes a data bottleneck between the drive and the host computer. To avoid this problem, hard disk manufacturers have introduced the new Ultra ATA-133 interface technology. traditional ATA/100, ATA/133 has up to 33 percent increase in interface speed with transfer rate of 133MB/s. ATA/133 performance is ideal for new operating systems, such as Window XP, that demand more storage space and faster data transfer rates from more responsive computing experiences. To make good use of this new technology and enjoy its best performance, we recommend you to pair your system with a hard disk equipped with ATA/133 technology so that your system's need for speeding on this motherboard can be satisfied.

Mode Clock Period Clock Count Cycle Time Data Transfer Rate

PIO mode 0 30ns 20 600ns (1/600ns) x 2byte = 3.3MB/s PIO mode 1 30ns 13 383ns (1/383ns) x 2byte = 5.2MB/s PIO mode 2 30ns 8 240ns (1/240ns) x 2byte = 8.3MB/s PIO mode 3 30ns 6 180ns (1/180ns) x 2byte = 11.1MB/s PIO mode 4 30ns 4 120ns (1/120ns) x 2byte = 16.6MB/s DMA mode 0 30ns 16 480ns (1/480ns) x 2byte = 4.16MB/s DMA mode 1 30ns 5 150ns (1/150ns) x 2byte = 13.3MB/s DMA mode 2 30ns 4 120ns (1/120ns) x 2byte = 16.6MB/s ATA33 30ns 4 120ns (1/120ns) x 2byte x 2 = 33MB/s ATA66 30ns 2 60ns (1/60ns) x 2byte x 2 = 66MB/s ATA100 20ns 2 40ns (1/40ns) x 2byte x 2 = 100MB/s ATA133 15ns 2 30ns (1/30ns) x 2byte x 2 = 133MB/s

Compared to

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

SSeerriiaall AATTAA SSuuppppoorrtteedd ((WWiitthh RRAAIIDD FFuunnccttiioonn))

The traditional parallel ATA specification has defined the standard storage interface for PCs with its original speed of just 3 Mbytes/second since the protocol was introduced in the 1980s. And the latest generation of the interface, Ultra ATA-133, has been developed further with a burst data transfer rate of 133 Mbytes/second. However, while ATA has enjoyed an illustrious track record, the specification is now showing its age and imposes some serious design issues on today’s developers, including a 5-volt signaling requirement, high pin count, and serious cabling headaches.

The Serial ATA specification is designed to overcome these design limitations while enabling the storage interface to scale with the growing media rate demands of PC platforms. Serial ATA is to replace parallel ATA with the compatibility with existing operating systems and drivers, adding performance headroom for years to come. It reduces voltage and pins count requirements and can be implemented with thin and easy to route cables.

SATA port 2

SATA port 1

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

CCoonnnneeccttiinngg SSeerriiaall AATTAA DDiisskk

To connect a Serial ATA disk, you have to have a 7-pin Serial ATA cable. Connect two ends of the Serial ATA cable to the Serial ATA header on the motherboard and the disk. Like every other traditional disk, you also have to connect a power cable. Please note that it is a jumper free implement; you don’t need to set jumpers to define a master or slave disk. When connecting two Serial ATA disks, the system will automatically take the one connected to “Serial ATA 1” header as a master disk.

Note: This picture is for example only; it may not be exactly the same motherboard.

Serial AT A Cable

Parallel ATA Serial ATA

Comparison between Parallel ATA and Serial ATA

Bandwidth 100/133 MB/Secs 150/300/600 MB/Secs Volts 5V 250mV Pins 40 7 Length Limitation 18 inch (45.72cm) 1 meter (100cm) Cable Wide Thin Ventilation Bad Good Peer-to-Peer No Yes

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

AAddjjuussttiinngg YYoouurr HHaarrdd DDiisskk

Except its original 2 sets of parallel IDE, this motherboard does come with the support for the latest Serial ATA hard disk. If you are unable to find your newly installed Serial ATA hard disks on your operating system after you have had installed them on, the problem mainly lies in the BIOS setting. You may simply adjust BIOS settings to have them work properly.

After having properly installed your hard disks, you may directly get into the BIOS setting screen for adjustment. You ma y simply press “Integrated Peripherals Æ On-Chip IDE Device Æ VIA-OnChip IDE DeviceÆOnChip SATA” to either enable or disable SATA interface.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

FFrroonntt PPaanneell CCoonnnneeccttoorr

Pin 1

Power Switch

Attach the power LED, speaker, power and reset switch connectors to the corresponding pins. If you enable “Suspend Mode” item in BIOS Setup, the ACPI & Power LED will keep flashing while the system is in suspend mode.

Locate the power switch cable from your ATX housing. It is 2-pin female connector from the housing front panel. Plug this connector to the soft-power switch connector marked SPWR.

Suspend Type ACPI LE D

Power on Suspend (S1) Blinking between green and red Suspend to RAM (S3) or Suspend to Disk (S4) Blinking between green and red

NC NC GND RESET GND

SPEAKER NC GND +5V +5V

ACPI & Power LED

SPEAKERIDE LED

RESET

ACPILED

GND

ACPILED-

GND

SPWR

1 NC NC

+5V LED LED

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

IIrrDDAA CCoonnnneeccttoorr

The IrDA connector can be configured to support wireless infrared module, with this module and application software such as Laplink or Windows 95 Direct Cable Connection, the user can transfer files to or from laptops, notebooks, PDA devices and printers. This connector supports HPSIR (115.2Kbps, 2 meters) and ASK-IR (56Kbps).

Install the infrared module onto the IrDA connector and enable the infrared function from BIOS Setup, UART2 Mode, make sure to have the correct orientation when you plug in the IrDA connector.

Pin 1

IR_TX

IrDA Connector

+5V

KEY GND IR_RX

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

AAGGPP ((AAcccceelleerraatteedd GGrraapphhiicc PPoorrtt)) 88XX EExxppaannssiioonn SSlloott

The MK86-N / MK86-L / MK86-1394 provide an AGP 8X slot. The AGP 8X is a bus interface targeted for high-performance 3D graphic. AGP supports only memory read/write operation and single-master single-slave one-to-one only. AGP uses both rising and falling edge of the 66MHz clock, for 4X AGP, the data transfer rate is 66MHz x 4bytes x 4 = 1056MB/s. AGP is now moving to AGP 8X mode, which is 66MHz x 4bytes x 8 =2.1GB/s, This AGP expansion slot is for 1.5V-1.6V AGP card only.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

1100//110000//11000000 MMbbppss LLAANN oonnbbooaarrd

The South Bridge VT8237 includes a fast Ethernet controller on chip. For MK86-L, on the strength of Broadcom BCM5705 LAN controller on board, which is a highly integrated Platform LAN Connect device, it provides 10/100/1000M bps Ethernet for office and home use. For MK86-N and MK86-1394, the Broadcom BCM4401 LAN controller provides 10/100M bps Ethernet. The Ethernet RJ45 connector is located on top of USB connectors. The right-hand side LED indicates the link mode, it blinks in green whenever linking to network. The left-hand side LED indicates the Connecting mode, and it lights in orange when 100Mbps LAN is connected (never lights while 10Mbps is connected), but lights in green when Gigabits LAN is connected. To enable or disable this function, you may simply adjust it through BIOS.

Connecting (Left)

Green (Gigabit)

Orange (100Mbps)

Linking (Right)

Green

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

Note: Please note that if you would like to use

USB devices (Example: keyboard, mouse etc.) under DOS environment, you must install driver that comes with the devices to make it work.

SSuuppppoorrtt eeiigghhtt UUSSBB 22..00 ccoonnnneeccttoorrss

This motherboard provides eight USB ports to connect USB devices, such as mouse, keyboard, modem, printer, etc. There are six connectors on the PC99 back panel. You can use proper cables to connect the other USB connectors to the USB modules or front panel of chassis. Please note that USB 2.0, with fancy speed up to 480Mbps, is 40 times faster than the traditional ones. Except for the speed increase, USB 2.0 supports old USB 1.0/1.1 software and peripherals, offering impressive and even better compatibility to customers.

Pin 1

SBD2-

SBD2+

+5V

GND

KEY

+5V SBD3SBD3+ GND NC

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

CCoolloorr CCooddeedd BBaacckk PPaanneell

The onboard I/O devices are PS/2 Keyboard, PS/2 Mouse, serial ports COM1 and COM2, RJ45 LAN Jack, Printer, USB, AC97 sound. The view angle of drawing shown here is the back panel of the housing.

PS/2 Keyboard: For standard keyboard, which uses a PS/2 plug. PS/2 Mouse: For PC-M ouse, wh ich u ses a P S/2 pl ug. USB Port: Available for connecting USB devices. Parallel Port: To connect with SPP/ECP/EPP printer. COM1/COM2 Port: To connect with pointing devices, modem or others serial devices. RJ-45 LAN connector: To connect Ethernet for home or office use. Speaker Out: To External Speaker, Earphone or Amplifier. Line-In: Comes from the signal sources, such as CD/Tape player. MIC-In: From Microphone.

PS/2 Mouse

Connector

PS/2 Keyboard

Connector

USB Port

(2.0)

SPP/EPP/ECP

COM 1 Port

Parallel Port

COM2 Port

RJ45 LAN Jack

USB Port

(2.0)

Line-In

Speaker Out

MIC-In

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

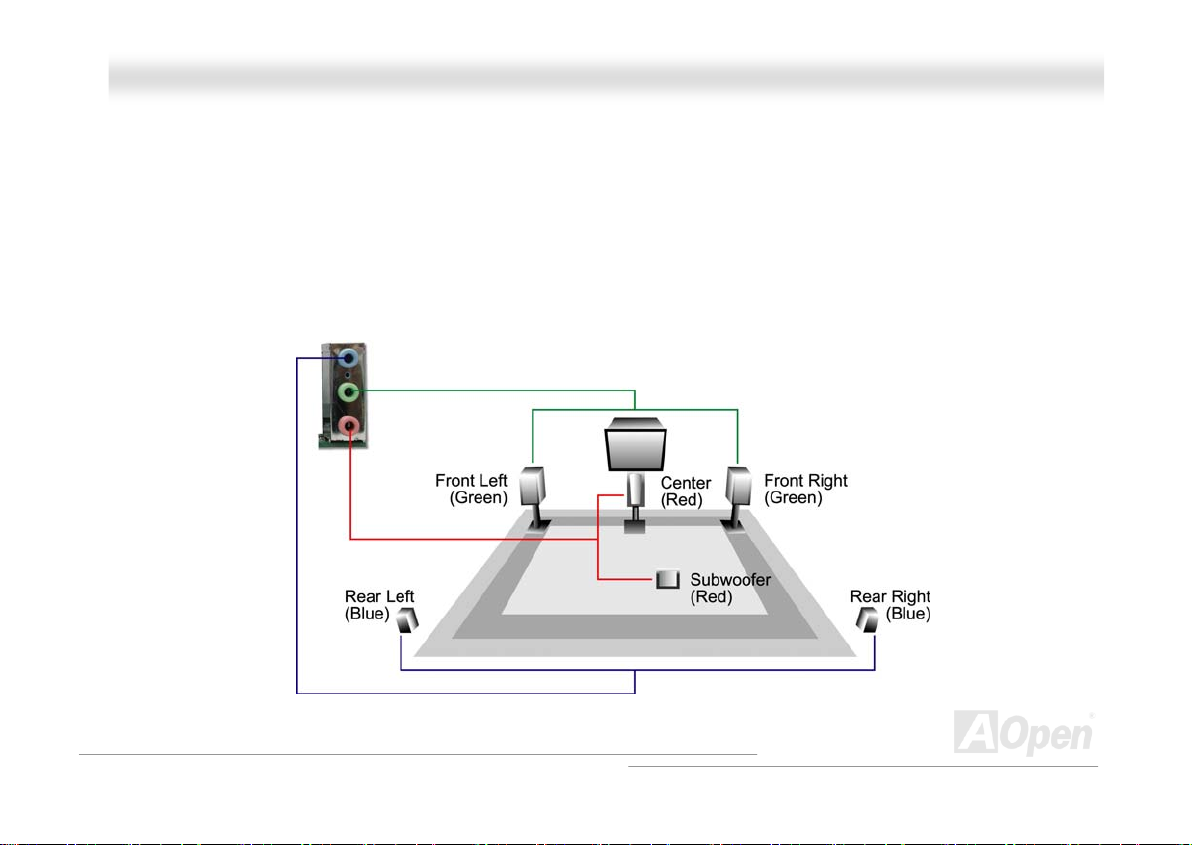

SSuuppeerr 55..11 CChhaannnneell AAuuddiioo EEffffeecctt

This motherboard comes with an ALC655 CODEC, which supports high quality of 5.1 Channel audio effects, bringing you a brand new audio experience. On the strength of the innovative design of ALC655, you're able to use standard line-jacks for surround audio output without connecting any external module. To apply this function, you have to install the audio driver in the Bonus Pack CD as well as an audio application supporting 5.1 Channel. Picture bellow represents the standard location of all speakers in 5.1 Channel sound tracks. Please connect the plug of your front speakers to the green “Speaker out” port, rear speakers’ plug to the blue “Line in” port and both of the center and subwoofer speakers to the red “MIC in” port.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

FFrroonntt AAuuddiioo CCoonnnneeccttoorr

If the housing has been designed with an audio port on the front panel, you’ll be able to connect onboard audio to front panel through this connector. By the way, please remove 5-6 and 9-10 jumper caps from the Front Audio Connector before connecting the cable. Please do not remove these 5-6 and 9-10 yellow jumper caps if there’s no audio port on the front panel.

AUD_MIC AUD_MIC_BIAS AUD_FPOUT_R

AUD_FPOUT_L

Pin 1

AUD_GND AUD_VCC AUD_RET_R KEY AUD_RET_L

Pin 1

Connector

S/PDIF

5 SPDIFIN

GND

SPDIFOUT

OOnnlliinnee MMaannuuaal

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

SS//PPDDIIFF ((SSoonnyy//PPhhiilliippss DDiiggiittaall IInntteerrffaaccee)) CCoonnnneeccttoor

S/PDIF (Sony/Philips Digital Interface) is a newest audio transfer file format, which provides impressive audio quality through optical fiber and allows you to enjoy digital audio instead of analog audio. Through a specific audio cable, you can connect the S/PDIF connector to other end of the S/PDIF audio module, which bears S/PDIF digital output. Normally there are two S/PDIF outputs as shown, one for RCA connector, the most common one used for consumer audio products, and the other for optical connector with better audio quality. Same as outputs, you can also connect RCA or optical audio products to input connectors on the module and have the voice or music come out from your computer. However, you must have a S/PDIF supported speaker/amplifier/decoder with S/PDIF digital input/output to connect to the S/PDIF digital input/output to make the most out of this function.

(RCA)

S/PDIF OUT

S/PDIF IN

S/PDIF OUT

S/PDIF IN

(Optical)

S/PDIF Module

(User Upgrade Optional)

S/PDIF Cable

+5V

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

CCaassee OOppeenn CCoonnnneeccttoorr

The “CASE OPEN” header provides chassis intrusion-monitoring function. To make this function work, you have to enable it in the system BIOS, connect this header to a sensor somewhere on the chassis. So, whenever the sensor is being triggered by light or opening of the chassis, the system will send out beep sound to inform you. Please be informed that this useful function only applies to advanced chassis, you may purchase an extra sensor, attach it on your chassis, and make a good use of this function.

Pin 1

Case Open

Sensor Connector

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

CCDD AAuuddiioo CCoonnnneeccttoorr

This connector is used to connect CD Audio cable from CD-ROM or DVD drive to onboard sound.

GND

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

AAUUXX--IINN CCoonnnneeccttoorr

This connector is used to connect MPEG Audio cable from MPEG card to onboard sound.

GND

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

WWOOLL ((WWaakkee oonn LLAANN))

This feature is very similar as Wake On Modem, but it goes through local area network. To use Wake On LAN function, you must have a network card with a chipset supporting this feature, and connect a cable from LAN card to motherboard WOL connector. The system identification information (probably IP address) is stored on network card and because there is a lot of traffic on the Ethernet, you need to install network management software, such as ADM, for the checking of how to wake up the system. Note that, at least 600mA ATX standby current is required to support the LAN card for this function.

WWOOLL CCoonnnneeccttoorr

+5VSB GND LID

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

IIEEEEEE 11339944 CCoonnnneeccttoorr ((ffoorr MMKK8866--11339944))

This motherboard comes with IEEE 1394 connector onboard. The IEEE 1394 provides data transfer rate up to 400Mb/s, and USB just has 12Mb/s. Hence, the IEEE 1394 interface can connect with the devices that need high data transferring performance such

as digital camera, scanner or others IEEE 1394 devices. Please use the proper cable to connect with devices.

IEEE 1394

Port 1

IEEE 1394

Port 2

Pin 1

1 2

TPA+

GND

TPB+

+12V(Fused)

9 10

TPAGND TPB+12V(Fused) SHIED GND

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

JJPP1144 CClleeaarr CCMMOOSS DDaattaa JJuummppeerr

You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedures below.

1. Turn off the system and unplug the AC power.

2. Remove ATX power cable from connector PWR2.

3. Locate JP14 and short pins 2-3 for a few seconds.

4. Return JP14 to its normal setting by shorting pin 1 & pin 2.

5. Connect ATX power cable back to connector PWR2.

Normal

(default)

Pin 1

Clear

CMOS

Tip: When should I Clear CMOS?

1. Boot fail because of overclocking…

2. Forget password…

3. Troubleshooting…

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

JJPP2288 KKBB//MMoouussee WWaakkee--uupp JJuummppeerr

This motherboard provides keyboard / mouse wake-up function. You can use JP28 to enable or disable this function, which could resume your system from suspend mode with keyboard or mouse installed. The factory default setting is set to “Disable” (1-2), and you may enable this function by setting the jumper to pin2-3.

Pin 1

JP28 KB/Mouse

Wake-up Jumper

1 1

Disable

(Default)

Enable

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

SSTTBBYY LLEEDD

STBY LED is AOpen’s considerate design that aims at providing you friendly system information. The STBY LED will light up when power is provided to the motherboard. This is a convenient indication for you to check the system power status in many circumstances such as power on/off, stand-by mode and RAM power status during Suspend to RAM mode.

System

Power LED

Warning: Do not install or remove the DIMM module or others devices when the STBY LED lights on.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

AAGGPP PPrrootteeccttiioonn TTeecchhnnoollooggyy aanndd AAGGPP LLEEDD

With the outstanding R&D ability of AOpen and its specially developed circuit, this model implements a blend new technology to protect your motherboard from being damaged by over-voltaging of AGP card. When AGP Protection Technology is implemented, this motherboard will automatically detect the voltage of AGP card and prevent your chipsets from being burnt out. Please note that if you install a AGP card with 3.3V, which is not supported, the AGP LED on the motherboard will light up to warn you the possible damage of the exceeding voltage. You may contact your AGP card vendor for further support.

AGP LED

Warning: It is strongly recommended not to install a 3.3V AGP card, which is not supported. When you do so, the AGP LED on the motherboard will light up to warn you the possible damage.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

BBaatttteerryy--lleessss aanndd LLoonngg LLiiffee DDeessiiggnn

This Motherboard implements Flash ROM and a special circuit that allows you to save your current CPU and CMOS Setup configurations without using the battery. The RTC (real time clock) can also keep running as long as the power cord is plugged. If you lose your CMOS data by accident, you can just reload the CMOS configurations from Flash ROM and the system will recover as usual.

ATX Stand-by Power

Battery

Flash

ROM

(Real Time Clock)

Auto Sw it ch

RTC

00:00:00

CMOS

Auto switching to ATX standby power as long as AC power line is plugged. This smart design can increases battery life if you still had battery plugged on motherboard.

Backup by EEPROM

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

RReesseettaabbllee FFuussee

Traditional motherboard has fuse for Keyboard and USB port to prevent over-current or shortage. These fuses are soldered onboard that user cannot replace it when it is damaged (did the job to protect motherboard), and the motherboard remains malfunction.

With expensive Resetable Fuse, the motherboard can resume back to normal function after fuse had done its protection job.

Resetable

Fuse

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

2222000

The quality of low ESR capacitor (Low Equivalent Series Resistance) during high frequency operation is very important for the stability of CPU power. The idea of where to put these capacitors is another know-how that requires experience and detail calculation.

Not only that, this motherboard implements 2200μF capacitor, which is much larger than normal capacitor (1000 or 1500μF) and it provides better stability for CPU power.

LLooww EESSRR CCaappaacciittoorr

OOnnlliinnee MMaannuuaal

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

The power circuit of the CPU core voltage must be checked to ensure system stability for high speed CPUs (such as the new Pentium III, or when overclocking). A typical CPU core voltage is 2.0V, so a good design should control voltage between 1.860V and 2.140V. That is, the transient must be below 280mV. Below is a timing diagram captured by a Digital Storage Scope, it shows the voltage transient is only 143mv even when maximum 60 current is applied.

Note: This diagram for example only; it may not exactly be the same motherboard.

OOnnlliinnee MMaannuuaal

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

RRAAIIDD IInnttrroodduuccttiioonn

WWhhaatt’’ss RRAAIIDD??

Two major challenges facing the storage industry today are keeping pace with the increasing performance demands of computer systems by improving disk I/O throughput and providing data accessibility in the face of hard disk failures.

The idea of RAID (Redundant Array of Independent Disks) was first introduced by David A. Patterson, Garth Gibson and Randy H. Katz at the University California at Berkeley in 1988. RAID is a purpose of storing the same data in different places on multiple hard disks and improves storage subsystem performance. The advantage of RAID is to provide better throughput performance and/or data fault tolerance. Better performance is accomplished by sharing the workload in parallel among multiple physical hard drives. Fault-tolerance is achieved through data redundant operation where if one (or more) drive fails or has a sector failure, a mirrored copy of the data can be found on another drive(s).

A RAID appears to the operating system to be a single logical hard disk. The RAID controller manages how the data is stored and accessed across the physical and logical arrays. The RAID controller help users to ensure that the operating system only sees the logical drives and users do not need to worry about managing the complicated schema.

For optimal performance results, select identical hard drives to install in disk arrays. The drives’ matched performance allows the array to function better as a single drive.

Warning: The Serial ATA RAID function can be supported under Windows XP and Windows .Net environments.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

WWhhaatt aarree tthhee RRAAIIDD lleevveellss??

SSttrriippiinngg // SSppaann ((RRAAIIDD 00))

RAID level 0, which is the fastest drive array you can have, is a performance-oriented disk mapping method. The data in this array gets written across a stripe or different disks for a faster transfer. This technique has striping but no redundancy of data. It offers the best performance but no fault-tolerance. Reads and writes sector of data interleaved between multiple drives. When any disk member fails, it affects the entire array. Performance is better than a single drive since the workload is balanced between the array members. This array type is for high performance systems. Identical drives are recommended for performance as well as data storage efficiency. The disk array data capacity is equal to the number of members times the smallest member capacity. For example, one 40GB and one 60GB drives will form an 80GB (40GBx2) disk array.

Block 1 Block 2 Block 3 Block 4

Striping

Block 1 Block 3 Block 5 Block 7

Block 5 Block 6

Block 7 Block 8

Block 2 Block 4 Block 6 Block 8

Logical Drive

Physical Disks

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

MMiirrrroorriinngg ((RRAAIIDD 11))

RAID level 1 uses at least two duplicate hard drives and store the exact same blocks of information between them. This is the slowest form of fault tolerance because the data has to be replicated onto two disks at the same time. However, this is the simplest way to provide high reliability.

If one of the mirrored drives suffers a mechanical failure or does not respond, the remaining drive will continue to serve and provide correct data. If one drive has a physical sector error, the mirrored drive will continue to function.

Due to redundancy, the drive capacity of the array is half the total drive capacity. For example, two 40GB drives that have a combined capacity of 80GB would have 40GB of usable storage. With drives of different capacities, there may be unused capacity on the larger drive. RAID 1 increases cost as it takes twice as much hard drives to build our arrays.

Block 1 Block 2 Block 3 Block 4 Block 5

Block 6 Block 7 Block 8

Logical Drive

Block 1 Block 2 Block 3 Block 4 Block 5

Block 6

Mirroring

Block 7 Block 8

Block 1 Block 2 Block 3 Block 4 Block 5

Block 6 Block 7 Block 8

Physical Disks

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

Striping

Block 1 Block 3 Block 5 Block 7

Block 2 Block 4 Block 6 Block 8

Physical Disks

Mirroring

Block 1 Block 3 Block 5 Block 7

Block 2 Block 4 Block 6 Block 8

Physical Disks

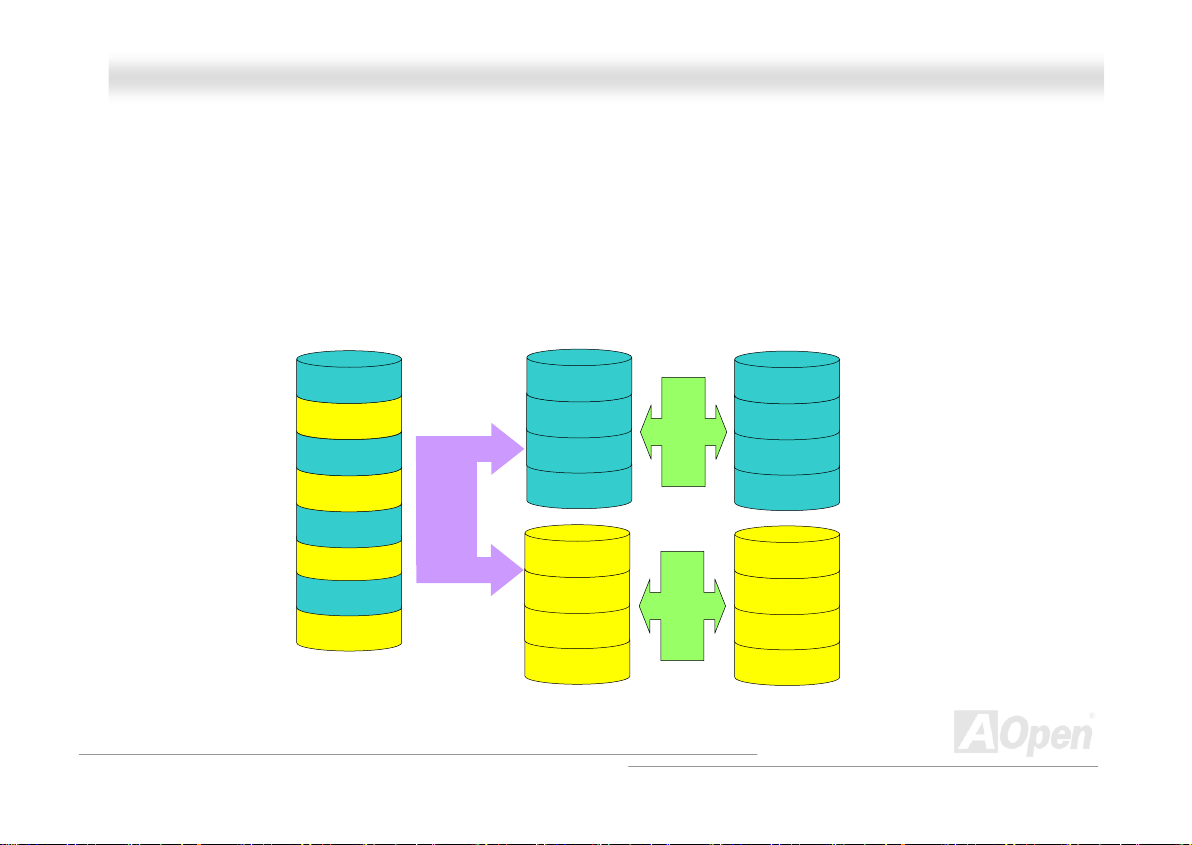

SSttrriippiinngg wwiitthh MMiirrrroorriinngg ((RRAAIIDD 00++11))

As the name would suggest, RAID 0+1 is striping and mirroring combined. This RAID combines the best of both RAID 0 and RAID 1. It takes a Disk stripe using two disks, and mirrors it to another set of disks for fault tolerance. Data is stripped across several disks, each disk has partner with exactly the same data on it. You get the benefits of fast data access as in RAID 0, with the fault tolerance of RAID 1. This configuration provides optimal speed and reliability. You need double the number of disks as a RAID 0, half for each side of the mirror. At least 4 hard disks are needed while performing RAID 0+1. There are other RAID configurations in addition to those described here, but these are the types most commonly used in the industry.

Block 1 Block 2 Block 3 Block 4 Block 5

Block 6 Block 7 Block 8

Logical Drive

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

JJBBOODD ((JJuusstt aa BBuunncchh ooff DDiisskkss))

JBOD combines multiple drives into one larger logical one, which is recognized by the operating system as a single drive. Although it doesn’t provide data integrity advantages as RAID levels 0 and 1 have, it can be very helpful for users dealing with extremely large file sizes such as animation or digital editing files.

Block 1 Block 2 Block 3 Block 4 Block 5

Block 6 Block 7 Block 8

Block 1 Block 2 Block 3 Block 4

Block 5

Block 6

Block 7

Block 8

Physical Disks

Block 1 Block 2 Block 3 Block 4 Block 5

Block 6 Block 7 Block 8

Block 1 Block 2

Striping

Block 3 Block 4 Block 5

Block 6 Block 7 Block 8

Logical Drive

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

HHDDDD CCaappaacciittyy ooff RRAAIIDD LLeevveellss

SSttrriippiinngg // SSppaann ((RRAAIIDD 00)) S

Physical Disks 40 GB

MMiirrrroorriinngg ((RRAAIIDD 11))

Physical Disks 40 GB

Logical Drive 80 GB

Logical Drive 40 GB

Physical Disks 40GB

Sttrriippiinngg wwiitthh MMiirrrroorriinngg ((RRAAIIDD 00 ++11))

Striping

Physical Disks 40 GB

Mirroring

Logical Drive 80 GB

Physical Disks 40 GB

Striping

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

PPHHOOEENNIIXX--AAWWAARRDD BBIIOOSS

System parameters can be modified by going into BIOS Setup menu, this menu allows you to configure the system parameters and save the configuration into the 128 bytes CMOS area, (normally in the RTC chip or in the main chipset).

The Phoenix-Award BIOS™ that installed in the Flash ROM BIOS. The BIOS provides critical low-level support for standard devices such as hard disk drives, serial and parallel ports.

AOpen’s R&D engineering team had optimized most BIOS setting of this motherboard. But, the default setting of BIOS still can’t fine-tune the chipset controlling entire system. Hence, the rest of this chapter is intended to guide you through the process of configuring your system using setup.

Currently there are two kinds of beep sound when system fails to boot at POST. The first type of beep sound consists of a single long beep and two short beeps, indicating a video error has failed BIOS from initializing video screen for displaying any additional information. The 2 occurred. You may look over the indicated error according to different beep significances.

To enter to BIOS setup menu, press <Del> when POST (Power-On Self Test)

type of beep sound is a single long beep that beeping repeatedly, signaling a DRAM error has

Note: Because the BIOS code is the most often changed part of the motherboard design, the BIOS information contained in this manual may be different with actual BIOS that come with your motherboard.

of the motherboard is a custom version of an industry standard

screen is shown on your monitor.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

HHooww TToo UUssee PPhhooeenniixx--AAwwaarrdd™™ BBIIOOSS SSeettuupp PPrrooggrraamm

Generally, you can use the arrow keys to highlight items that you want to choose, then press <Enter> key to select, and use the <Page Up> and <Page Down> key to change setting value. You also can press <F1> key for help and press <Esc> key to quit

Phoenix-Award™ BIOS setup program. The following table provides details about how to use keyboard in the Phoenix-Award BIOS setup program. By the way, all products of AOpen also provides a special function in the BIOS setup, you can press <F3>

key selecting preferred menu language to display.

Key Description

Page Up or + Changing setting to next value or increase the value. Page Down or - Changing setting to previous value or decrease value. Enter Select the item. Esc 1. In main menu: Quit and don’t save any change.

2. In sub menu: Exit current menu to main menu. Up Arrow Highlight previous item. Down Arrow Highlight next item. Left Arrow Move the light bar to left side of menu. Right Arrow Move the light bar to right side of menu. F6 Load Setup Default setting value from CMOS. F7 Load turbo setting value from CMOS. F10 Save changed setting and exit setup program.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

HHooww TToo EEnntteerr BBIIOOSS SSeettuupp

After you finish the setting of jumpers and connect correct cables. Power on and enter the BIOS Setup, press <Del> during

POST (Power-On Self Test). Choose "Load Setup Defaults" for recommended optimal performance.

Del

Warning: Please avoid of using "Load Turbo Defaults", unless you are sure your system components (CPU, SDRAM, HDD, etc.) are good enough for turbo setting.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

BBIIOOSS UUppggrraaddee uunnddeerr WWiinnddoowwss eennvviirroonnmmeenntt

With outstanding R&D ability of AOpen, we now bring you a whole new BIOS Flash wizard ---- EzWinFlash. With an eye to users convenience, EzWinFlash combines the

BIOS binary code and flash module together, so the only thing you have to do is just clicking on the utility you downloaded from web and let it helps you complete the flash process automatically. EzWinFlash detects your motherboard and checks the BIOS version cleverly to prevent your system from any possible failure. Moreover, EzWinFlash has been taken into consideration to go with any windows platform you might be using, no matter if you’re using Windows 95/98, 98SE/ME, NT4.0/2000, or even the latest Windows XP.

In the meanwhile, in order to provide a much more user-friendly operating environment, AOpen EzWinFlash is natively designed to have multi-language function to provide easier way for users’ usage in changing BIOS setting.

Note: The model name on this BIOS picture is for reference only. It may not be the exact model name.

Caution: By updating your motherboard, you are taking a risk of BIOS flash failure. If your motherboard is working stable, and there are no major bugs that had been fixed by a latter BIOS revision, we recommend that you DO NOT try to upgrade your BIOS.

If you intent on upgrading, PLEASE BE SURE to get the right BIOS revision for the right motherboard model in order to avoid any

ossibility failure.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

You may accomplish BIOS upgrade procedure with EzWinFlash by the following steps, and it’s STRONGLY RECOMMENDED to close all the applications before you start the upgrading.

1. Download the new version of BIOS package zip file from AOpen official web site. (ex: http://english.aopen.com.tw/

2. Unzip the download BIOS package (ex: WMK86L102.ZIP) with WinZip (http://www.winzip.com environment.

3. Save the unzipped files into a folder, for example, WMK86L102.EXE & WMK86L102.BIN.

4. Double click on the WMK86L102.EXE, EzWinFlash will detect the model name and BIOS version of your motherboard. If you had got the wrong BIOS, you will not be allowed to proceed with the flash steps.

5. You may select preferred language in the main menu, then click [Start Flash] to start the BIOS upgrade procedure.

6. EzWinFlash will complete all the process automatically, and a dialogue box will pop up to ask you to restart Windows. You may click [YES] to reboot Windows.

7. Press <Del> at POST to enter BIOS setup, choose "Load Setup Defaults", then “Save & Exit Setup”. Done!

It is strongly recommended NOT to turn off the power or run any application during FLASH PROCESS.

Warning: The new BIOS upgrade will permanently replace your original BIOS’s settings when flashing. You may need to reconfigure your BIOS setting so that your system can go back to work as normal.

OOnnlliinnee MMaannuuaal

)

) in Windows

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

OOppeenn JJuukkeeBBooxx PPllaayyeerr

Here we are pleased to provide you a brand-new powerful interface—Open JukeBox. Without any cost you can have your PC turn into a fashionable CD player! This latest Open JukeBox motherboard aims at helping you directly operate your CD player on the PC without any hassle of entering Windows operation system.

play

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

How Your Open JukeBox Works

The operation of Open JukeBox Player is the same as other CD players. By pressing specific keys on the keyboard you will find playing Open JukeBox Player couldn’t be easier than the traditional CD Players. Below is the function description of respective buttons.

Power-Off Button

Operation System

Boot to

Power: Pressing O Boot: Pressing B Play: Pressing A Stop: Pressing S Pause: Pressing P Eject: Pressing E Repeat: Like other CD Players, pressing R Volume +/-: Pressing + or – to adjust the volume of playing music.

Rewind/Forward Å / Æ: Pressing arrow keys, to rewind or forward the music.

, to directly power off your computer with no hassle of entering Windows Operation System. , to intelligently boot to Windows Operation System for you.

, to start playing CD music. , to stop the music playing. , to pause the music playing temporarily. , to eject CD tray for you to change CD disc.

, to shift the repeat mode.

Note: Though some of the latest

version of Windows support “Digital

udio” through IDE bus. However, in order to use Open Jukebox player, which is driven under BIOS, it is a MUST to insert audio cable to CD-IN connector on the motherboard.

Dis

Function Key

Screen

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

Your Open JukeBox Settings in BIOS

There are three Open JukeBox settings in BIOS as follows.

Auto

: The default setting is “Auto” with which the Open JukeBox will automatically check the CD player every time you power

on. The Open JukeBox will automatically be launched when it detects a music CD in your CD player.

Press Insert Key

you of pressing “Ins” key on your keyboard to start Open JukeBox Player; otherwise the system will launch the Windows Operation System.

CD Player

pressing B on your keyboard the Windows Operation System will be launched.

: Choosing this setting will allow a reminder message popped up on the screen during BIOS POST. It reminds

: Choosing this setting allows the system to launch Open JukeBox Player every time you power on. However, by

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

Your Open JukeBox EzSkin

Except these powerful functions above, Open JukeBox Player is also equipped with another fancy feature for you to change its

“skin”. You can download as many skins as you want from AOpen Website, and changing them whenever you want by using this useful utility – EzSkin – which may also be downloaded from our website.

Even more, you may design your own skins with innovative idea and sharing them to users around the world by uploading to our website. For further technical information, we welcome you to visit our website at

http://english.aopen.com.tw/tech/download/skin

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

VViivviidd BBIIOOSS tteecchhnnoollooggyy

Unlike earlier graphic POST screen which could occupy the whole screen and mask text information during POST, AOpen VividBIOS deals with graphics and texts separately, and makes them running simultaneously during POST. With this innovative design, VividBios now brings you a beautiful and sleek 256 colors screen without missing any important information shown on POST screen.

In addition, the limited space of BIOS ROM is another big issue. When all of the traditional BIOS can only show space-consuming and uncompressed Bitmap, AOpen has considerately tuned the BIOS to next generation, to recognize the smaller-sized GIF format and even dynamic-showing GIF animation.

Vivid BIOS shares the same fundamental technology with Open JukeBox CD Player, you may use the same EzSkin utility to

change your Vivid BIOS screen or to download your favorite Open JukeBox skin. If you see this little logo your model name on the BIOS download page, http://english.aopen.com.tw/tech/download/skin motherboard supports this innovative feature!

Have you been fed up with the conservative and immutable POST screen? Let’s rule out the tradition idea that POST screen are stiff and frigid, and let AOpen show you the newly developed VividBIOS to experience the lively vivid colorful POST screen!

shown beside

it is assured that your

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

DDrriivveerr aanndd UUttiilliittyy

There are motherboard drivers and utilities included in AOpen Bonus CD. You don’t need to install all of them in order to boot your system. But after you finish the hardware installation, you have to install your operation system first (such as Windows XP) before you can install any drivers or utilities. Please refer to your operation system’s installation guide.

AAuuttoo--rruunn MMeennuu ffrroomm BBoonnuuss CCDD

You can use the auto-run menu of Bonus CD. Choose the utility and driver and select model name.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

IInnssttaalllliinngg VVIIAA 44 iinn 11 DDrriivveerr

You can install the VIA 4 in 1 driver (IDE Bus master (For Windows NT use), VIA ATAPI Vendor Support Driver, VIA AGP, IRQ Routing Driver (For Windows 98 use), VIA Registry (INF) Driver) from the Bonus Pack CD auto-run menu.

Warning: To take advantage of ATA133, it is a must to install the latest version of VIA 4in1 driver in the Bonus CD. For Windows2000, it cannot support ATA133 even after installing the latest version of VIA 4-in-1 driver until the new release of Service-Pack 3 from Microsoft.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

IInnssttaalllliinngg AAuuddiioo DDrriivveerr

This motherboard comes with RealTek ALC655 AC97 CODEC and the sound controller is in VIA South Bridge chipset. You can find the audio driver from the Bonus Pack CD auto-run menu.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

IInnssttaalllliinngg UUSSBB22..00 DDrriivveerr

This motherboard comes with USB2.0 function. You can install USB2.0 Driver under Windows 98SE, Windows ME, Windows 2000 and Windows XP from the Bonus Pack CD auto-run menu.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

IInnssttaalllliinngg LLAANN DDrriivveerr ((ffoorr MMKK8866--LL))

This motherboard comes with BCM5705 controller on board, which is a highly-integrated Platform LAN connect device providing 10/100/1000 Mbps Ethernet for office and home use.

Windows 98 / ME installation guide

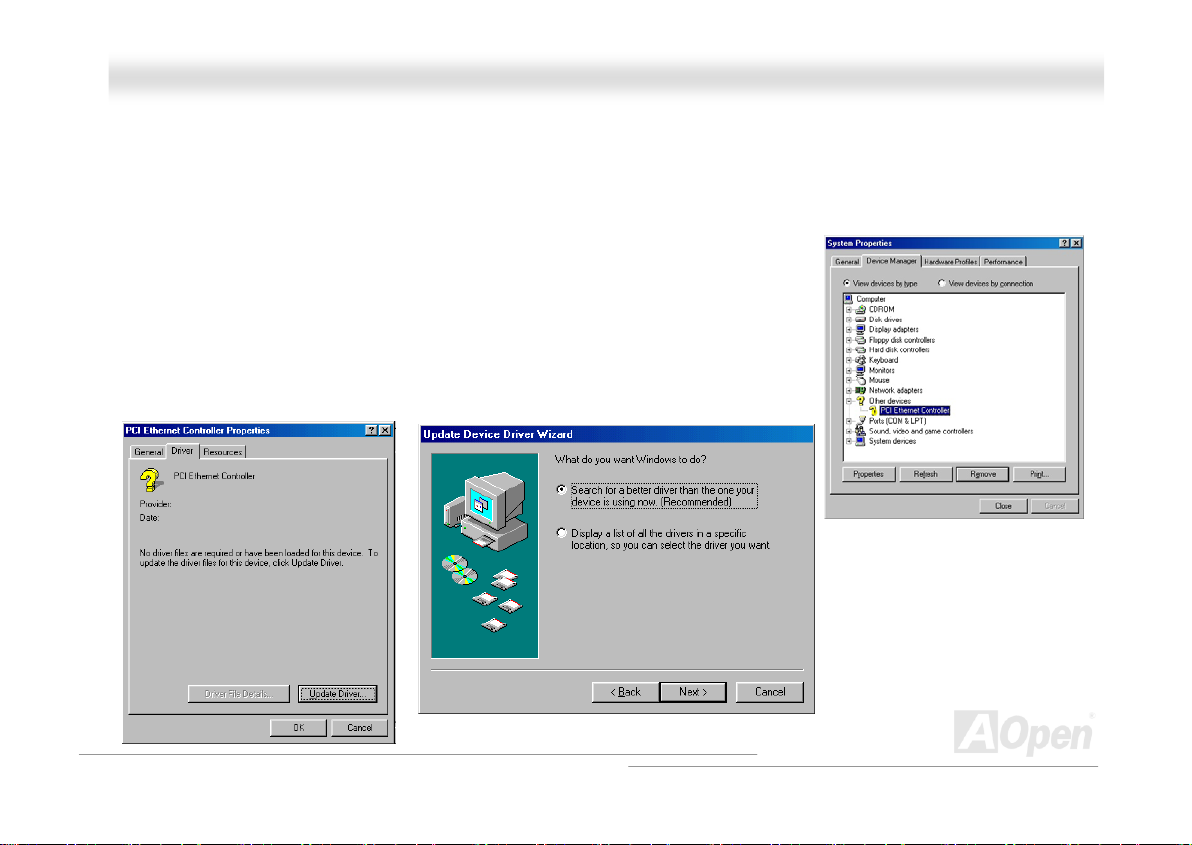

1. Open the Device Manager and check if there is a "PCI Ethernet Controller" in "Other

devices".

2. Insert the supplied "Bonus CD". Click "PCI Ethernet Controller" -> "Driver" -> "Update

Driver" and Select "Install the software automatically (Recommended) "And then Click "Next".

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

3. When prompted, insert the media to be searched into your

CD-ROM drive, type the path to the driver, and select OK. Example: e:\Driver\Lan\BCM5705\Win98MENT (Where "e:\Driver\Lan\BCM5705\Win98MENT" is the designation of the driver on your system).

4. In the Driver Files Search Results window, verify the correct path

to the driver software is shown, and then click Next. The OS will request you to insert the Bonus CD into CD-ROM Drive

5. Type the path of the BroadCom Ethernet driver and select "OK".

Example: e:\Driver\Lan\BCM5705\Win98MENT (Where "e:\Driver\Lan\BCM5705\Win98MENT" is the designation of the "b57w2k.sys " on your Bonus CD.)

OOnnlliinnee MMaannuuaal

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

6. BroadCom Ethernet driver installation is finished.

OOnnlliinnee MMaannuuaal

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

Windows 2000 / XP installation guide

For Windows 2000 / XP users, you can install the LAN driver form the Bonus Pack CD auto-run menu.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

Windows NT installation guide

1. Please make sure your Windows NT system is upgraded with Service Pack 4 or later.

2. Start your Windows NT system and log in. You must have System Administrator

privileges to install the driver software.

3. Open the Control Panel. In the Control Panel, double-click the Network icon. When

Network window opens, select Adapters tab.

4. Click "Add" to install a new adapter. All previously installed drivers will be listed

under Network Adapters.

5. When the Select Network Adapter window opens, click "Have Disk".

When prompted, insert the driver installation media, or choose a location to install the driver from. Type the path to the driver, and click "OK". For example, to install the adapter driver software for Windows NT, type D:\Driver\Lan\BCM5705\Win98MENT in the Insert Disk location box

OOnnlliinnee MMaannuuaal

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

(where "d:\Driver\Lan\BCM5705\Win98MENT" is the designation of the Lan driver on Bonus CD).

6. With "Gigabit Ethernet Controller" highlighted in the Select OEM Option window,

click "OK". When the adapter files are installed, the Network window will display newly installed adapter.

7. Click "Close", then the Microsoft TCP/IP Properties window appears. Configure the TCP/IP protocol and click "OK". When prompted to restart your computer, click "Yes".

OOnnlliinnee MMaannuuaal

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

IInnssttaalllliinngg LLAANN DDrriivveerr ((ffoorr MMKK8866--NN aanndd MMKK8866--11339944))

This motherboard comes with BCM4401 controller on board, which is a highly integrated Platform LAN connecting device providing 10/100 Mbps Ethernet for office and home use.

Windows 98 / ME installation guide

1. Open the Device Manager and check if there is a "PCI Ethernet Controller" in "Other

devices".

2. Insert the supplied "Bonus CD". Click "PCI Ethernet Controller" -> "Driver" -> "Update

Driver" and Select "Install the software automatically (Recommended) "And then Click "Next".

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

3. When prompted, insert the media to be searched into your

CD-ROM drive, type the path to the driver, and select OK. Example: e:\Driver\Lan\BCM4401\Win98MENT (Where "e:\Driver\Lan\BCM4401\Win98MENT" is the designation of the driver on your system).

4. In the Driver Files Search Results window, verify the correct path

to the driver software is shown, and then click Next. The OS will request you to insert the Bonus CD into CD-ROM Drive

5. Type the path of the BroadCom Ethernet driver and select

"OK". Example: e:\Driver\Lan\BCM4401\Win98MENT (Where "e:\Driver\Lan\BCM4401\Win98MENT" is the designation of the "bcm4sbe5.sys" on your Bonus CD.)

OOnnlliinnee MMaannuuaal

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

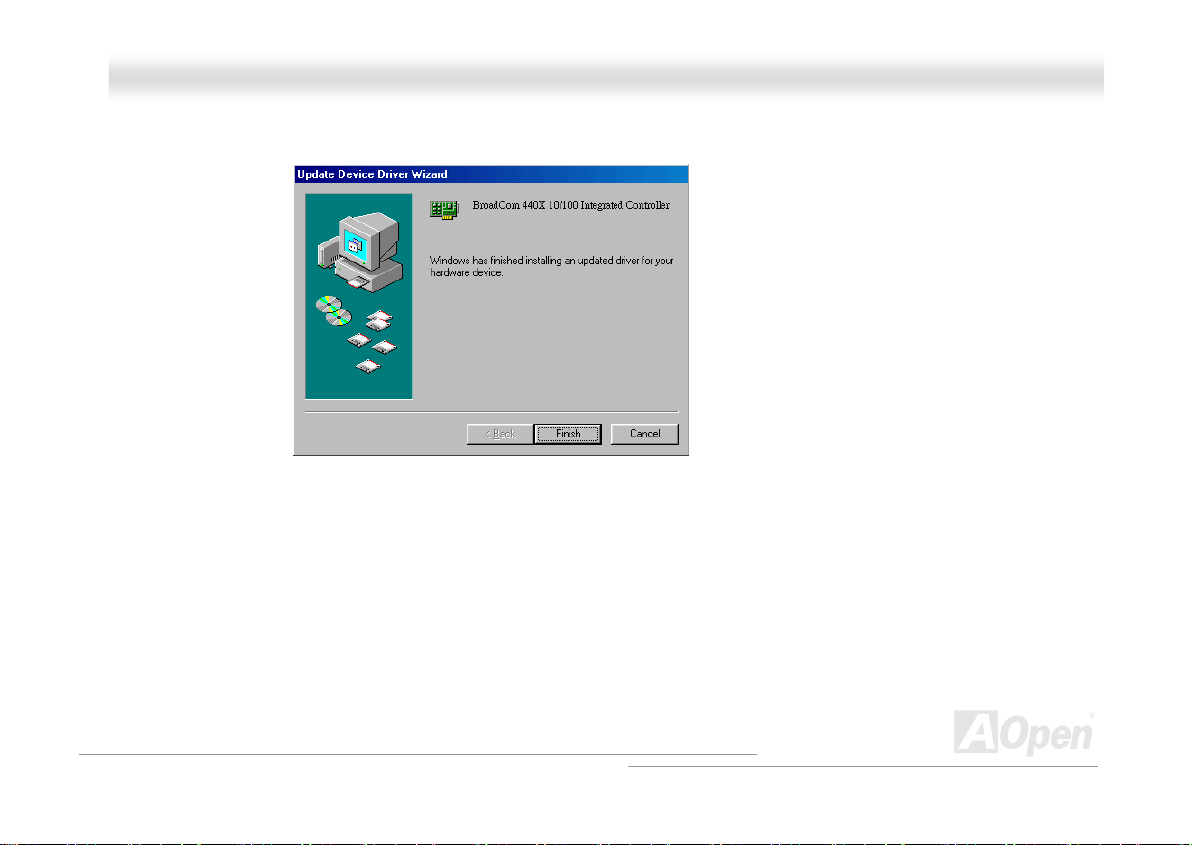

6. BroadCom Ethernet driver installation is finished.

OOnnlliinnee MMaannuuaal

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

Windows 2000 / XP installation guide

For Windows 2000 / XP users, you can install the LAN driver form the Bonus Pack CD auto-run menu.

OOnnlliinnee MMaannuuaal

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

Windows NT installation guide

1. Please make sure your Windows NT system is upgraded with Service Pack 4 or later.

2. Start your Windows NT system and log in. You must have System Administrator

privileges to install the driver software.

3. Open the Control Panel. In the Control Panel, double-click the Network icon. When

Network window opens, select Adapters tab.

4. Click "Add" to install a new adapter. All previously installed drivers will be listed under

Network Adapters.

5. When the Select Network

Adapter window opens, click "Have Disk". When prompted, insert the driver installation media, or choose a location to install the driver from. Type the path to the driver, and click "OK". For example, to install the adapter driver software for Windows NT, type D:\Driver\Lan\BCM4401\Win98MENT in the Insert Disk location box (where "d:\Driver\Lan\BCM4401\Win98MENT" is the designation of the Lan driver on Bonus CD).

OOnnlliinnee MMaannuuaal

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

6. With "Gigabit Ethernet Controller" highlighted in the Select OEM Option window,

click "OK". When the adapter files are installed, the Network window will display newly installed adapter.

7. Click "Close", then the Microsoft TCP/IP Properties window appears. Configure the TCP/IP protocol and click "OK". When prompted to restart your computer, click "Yes".

OOnnlliinnee MMaannuuaal

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

IInnssttaalllliinngg VVIIAA SSeerriiaall AATTAA RRAAIIDD DDrriivveerr

This Motherboard has two SATA ports, which is provided by the south bridge VIA VT8237. The two ports support RAID 0 and RAID 1. You can install the SATA RAID driver from the Bonus Pack CD auto-run menu.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

AAOOCCoonnffiigg UUttiilliittyy

system and hardware such as motherboard, CPU, memory, PCI devices and IDE devices. The powerful utility also displays the version of BIOS and firmware for your convenience of maintenance.

Moreover, AOconfig allows users to save information in *.BMP or *.TXT format which users may collect the system information in detail and send them to AOpen directly for technical support or further diagnosis of system problem.

Open always dedicated to provide users a much friendlier computer environment. We now bring you a comprehensive system detective utility. AOconfig is a Windows based utility with user-friendly interface that allows users to obtain information of the operation

1. The system page shows the detail information of the motherboard, the operating system, the processor, and BIOS version.

2. The PCI device page shows the configurations of all PCI devices installed on your motherboard.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

NOTE: AOconfig can be used in Windows 98SE/ME, NT4.0/2000, or even the latest Windows XP. Please be

informed that AOconfig can only be operated in a system equipped with an AOpen motherboard. Meanwhile, all applications must be closed before starting AOconfig.

3. This page presents the IDE devices information, such as the serial number, the manufacturer, the firmware version, and capacity.

4. From this page, users may obtain the technical support information of AOpen.

Moreover, detailed information could be saved in .bmp or .txt format.

OOnnlliinnee MMaannuuaal

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

TThhee nnooiissee iiss ggoonnee!!!! -------- SSiilleennttTTeekk

As the clock of CPU keeps rocketing higher and higher, it inevitably brings higher heat and system temperature in a relative way. The way we deal with this heat problem, however, is to spare no effort to add one fan after another to protect our pampered system, expecting these

fans could cool down our machine as much as it could. But at the same time, we believe that same amount of users are affected terribly while working with their PC by the irritating

noises of these fans. As a matter of fact, we do not have to get our fans running at such a high speed in most cases; on the contrary, we discovered that having your fans running at appropriate time and speed could not only reduce the noise, but also

consume the least power the system needed, so as to prevent over-wasting of energy resource.

Today, AOpen Motherboard is honored to bring you a new overall solution, SilentTek, to have your system quiet. To collocate with hardware circuit, BIOS and the utility under Windows, SilentTek combined “Hardware-Status Monitoring”, “Overheat Warning” and “Fan Speed Control” with user-friendly interfaces to provide you a perfect balance between noises, system performance and stability.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

The first image you have here is the Voltage Status page. You can find current status of all voltages and set your expected margins of warning level.

You may check your system voltage from the indicating bar here.

In “Temp/Fan/Case” page, you may get aware of the current temperature of CPU and the heat inside chassis, plus checking if fans are running properly.

Of course, you may set your defaulted lowest margin for your fans and the SilentTek would also pop up a message box and alarm you when the fan is rotating slower than this specified speed.

You may set the highest margin of your CPU and system temperature as default, and SilentTek would pop up a message box and alert you with alarm when the temperature goes beyond the specified margin.

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

The following page is surely the most important part of this utility. You may control the rotation speed of specific fans that you have got the options inside in this page.

CD-ROM Rotation Speed Control: by enabling the CD-ROM Rotation Speed Control, you can adjust the rotation speed of your CD-ROM. When you set the speed to high level, the CD-ROM will work at its fastest speed and it will run at basic required speed while you set the value to low speed.

1. Smart FAN Control: This is the default setting of SilentTek and can be used for any branded computer housing. With a special algorithm developed by AOpen, the fan speed is automatically adjusted by the factors of CPU and ambient temperature. Ease-of-use and trouble free at your service.

2. Fixed FAN Control: Under this setting, a desired fan speed is set fixed when operating.

3. Multiple Level Control: This is the most versatile setting that allows you to set fan speed in relation to temperature. You may find that this setting fits you best.

4. AOpen Recommend Setting: This setting is designed specifically for AOpen housing. A series of lab tests were conducted under the real world scenario to determine optimum fan speed to reduce noise level within CPU working condition and temperature. Most of the time, the fan would remain still when CPU is not fully utilized.

Note: Due to hundreds different brands of fan on the market, inaccuracy may happen in some cases when you

had your rotation speed adjusted. It is still under the criterion and please rest assured that it won’t cause any problem to your system.

OOnnlliinnee MMaannuuaal

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

EEzzCClloocckk

performance, however, it’s absolutely not an easy task for an amateur to adjust the setting value. On most traditional motherboards, you have to get into BIOS screen for the frequency and reboot the system again and again. But from now on, you don’t have to surfer the boring stuffs anymore.

With brand-new and user-friendly EzClock that AOpen specially designs for his users, you can adjust those important values as you please and think of suitable. This tailor-made EzClock allows you to set the voltage and frequency of CPU, VGA, PCI and memory under Windows environment as well as in BIOS setting page; even better, those settings will be displayed realtime. Having this handy EzClock, you can monitor the system when you’re fine-tuning the performance of your system. It provides you detailed and necessary information. Now let’s take a look how it works on utility, BIOS and POST.

Have you ever thought how great it would be if you can adjust the frequency setting on your motherboard under Windows environment and be a real master of your system? Everybody knows that the ratio and frequency setting are key factors to influence the system

MMKK8866--NN // MMKK8866--LL // MMKK8866--11339944

OOnnlliinnee MMaannuuaal

How You Adjust the Settings in EzClock Utility

In EzClock utility, you can adjust CPU Front Side Bus (FSB), the voltage and frequency of VGA, AGP, PCI and DRAM. Besides, the CPU related information such as CPU voltage, temperature and CPUFAN rotation speed will also be displayed on this utility.

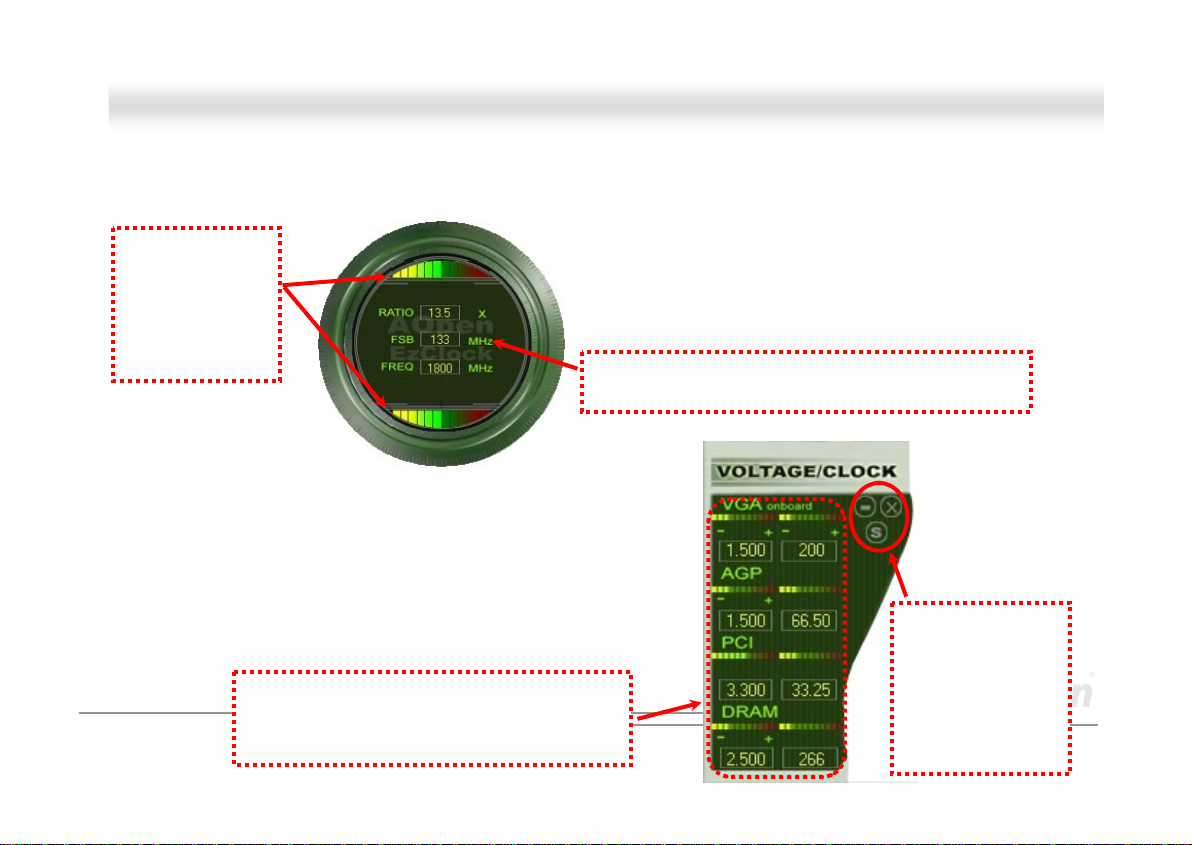

CPU Color Bars:

The color bar will light on and show different colors as values change. On default values, it will show green.

On the right part of the panel is the section that you adjust the settings of VGA, AGP, PCI and memo ry. To adjust the voltage and clock frequency of those installments, you can press “-“ or “+” on corresponding items. The color parts represent the situation of values. The higher value you set, the light on the color bar goes to right and turns red. After finishing those value settings, you can press “S” button on the upper right hand corner to save changes to CMOS.

VGA, AGP, PCI and DRAM Voltage / Clock Area:

Pressing “_” and “+” buttons, you can adjust the voltage and clock frequency values of onboard VGA, AGP, PCI and DRAM.

On the left circle area shows Ratio, FSB and frequency information about CPU. When the values are set to factory default, the light on the top and bottom of the circle will show green and it will vary as you change these CPU settings.

CPU Ratio, FSB and frequency displaying area: You can adjust CPU FSB here by entering preferred value.

Control buttons:

“_” button allows you to minimize the utility and “X” button to close the utility.

100

Pressing “S” button you can save the changes to CMOS.

AOpen MK86L User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

MK86-N / MK86-L / MK86-1394

Motherboard Map

IrDA Connector
