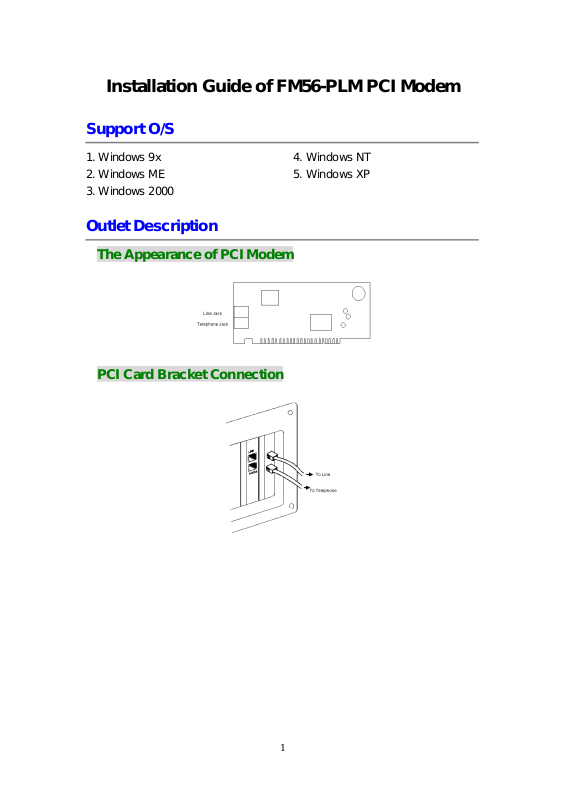

Inst all atio n Guid e of FM56-PLM PCI Mo dem
Suppo r t O/S
1. Windows 9x
2. Windows ME
3. Windows 2000
Outlet Descript ion
The Appearance of PCI Modem
PCI Card Br acket Connect i o n
4. Windows NT
5. Windows XP
1
Hardw are Inst allation
1. Turn off the computer. No power must be applied to your computer when
you install the internal modem, or the computer could be damaged.
2. Make sure you can freely access the back of the personal computer.
Remove the computer cover.
3. Select any available PCI slot into which you can
install the internal modem.
4. Unscrew and remove the slot cover.
5. Hold the internal modem above the slot you have
selected, and carefully slide the modem into the
slot, applying even pressure to both ends of the
modem. Stop inserting the modem when its
gold-plated edge connector is aligned and fully
seated into the base of the computer.
6. Use the screw that was holding the slot cover to
secure the modem in the slot.
7. Use the cover-mounting screws to secure the computer cover. This
completes the hardware installation of your modem.
8. Locate an available RJ-11 modular jack telephone outlet.
9. Take one end of the modular cord supplied with the modem and plug it into
the LINE modular jack on the back of modem.
10.Plug the other end of the modular cord into the modular jack on the wall
outlet.
11.Connect the telephone's modular cord into the PHONE jack on the back of
your modem. (An active telephone line and telephone set are needed if you
need to use a telephone with your modem.)
12.Lift your telephone's handset and listen for a dial tone.
2
Softw are Installatio n
Installation Procedures for Windo w s 9x
1. Restart PC after inserting the PCI modem into the PCI slot of PC. When
Windows detects the modem, the message "This wizard searches for new
drivers for: PCI Communication Device" is displayed. Click Next.
2. To search for the best drivers for your device, click Next.
3. Insert the driver CD and specify the location: F:\Drivers\FM56-PLM\Win9x
(F is your CD-ROM drive.) and then click Next.
3
4. Windows will show the message ”Windows driver file search for the device
“AOpen PCI Modem Enumerator” and show the location of driver. Click
Next
5. Click Finish to complete the installation procedures.
4
Installation Procedures for Wind ows ME
1. Restart PC after inserting the PCI modem into the PCI slot of PC. When
Windows detects the modem, the message "Windows has found the
following new hardware: PCI Communication Device" is displayed. Select
“Automatic search for a better driver” or ”Specify the location of the driver”.
Insert the driver CD and then click Nex t . If you select ”Specify the location
of the driver”. The path of driver is F:\Drivers\FM56-PLM\WinME. (F is
your CD-ROM drive.)
2. Select AOpen PCI Modem whose location is
F:\DRIVERS\FM56-PLM\WINME (F is your CD-ROM drive.) and then
click OK.
3. Windows has finishe d installing the new device. Click Finis h to complete
installation.
5
Installation Procedures for Windo ws 2000
1. Restart PC after inserting the PCI modem into the PCI slot of PC. When
Windows detects the modem, the wizard will help you to install the new
device. Click Next to begin installation.
2. Select “Search for a suitable driver for my device”. Then click Next .
3. Select “CD-ROM drives” or “Specify a location”. Then insert the driver CD
and click Next. If you select “Specify a location” only, and you will need to
indicate the path: F:\Drivers\FM56-PLM\Win2K_XP. (F is your CD-ROM
drive.)
6
4. Wizard will find the correct driver for the new device. Then click Next .
5. Read the Digital Signature and then click Yes.
6. Windows will copy the file and finish installing the s oftware. Click Finish to
complete installation.
7
Installation Procedures for Win do w s NT
1. Insert driver CD and then double click Setup icon from the path:
F:\Drivers\FM56-PLM\WinNT. (F is your CD-ROM drive.)
2. You will see the Modem Board Installation Wizard and then click Next.
3. Wizard will install the modem driver of AOpen FM56-PLM Controllerless
PCI Modem. Click Next to go into next step.
8
4. Click Finish to complete installation.
9
10
Installation Procedures for Wind ows XP
1. Restart PC after inserting the PCI modem into the PCI slot of PC.
2. Then insert driver CD into your CD-ROM drive. When detects modem,
Windows will install the driver and finish the installation procedures
automatically.
3. You can see the new device in Device Manager. Highlight this new device
and click right button of mouse. Select Properties item to update the
driver.
4. Click Update Dr i v er to update the driver.
11
5. Select “Install from a list or specific location” and then click Nex t .
6. Select “Don’t search. I will choose the driver to install.” Then click Next.
7. Click Have Disk to select the new driver.
12
8. Insert driver CD into your CD-ROM drive. Click Browse to indicate the
location: E:\Driver\FM56-PLM\Win2K_XP (E is your CD-ROM drive.) and
then click OK.
9. Select the model named AOpen FM56-PLM Controllerless PCI Modem
and then click Next .
10. Click Continu e Anyway to continue this installation.
13
11. Click Finish to complete update procedures.
