AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaal
AX4SG Max
DOC. NO.: AX4SGMAX-OL-E0307D
l
1
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
WWhhaatt’’ss iinn tthhiiss mmaannuuaall
AX4SG Max ................................................................................................................................................. 1
What’s in this manual .................................................................................................................................................................... 2
You Must Notice ............................................................................................................................................................................ 9
Before You Start .......................................................................................................................................................................... 10
Overview ..................................................................................................................................................................................... 11
Feature Highlight ......................................................................................................................................................................... 12
Quick Installation Procedure ....................................................................................................................................................... 17
Motherboard Map ........................................................................................................................................................................ 18
Block Diagram ............................................................................................................................................................................. 19
Hardware Installation ............................................................................................................................ 20
About “User Upgrade Optional” and “Manufacture Upgrade Optional”… ................................................................................... 21
JP14 Clear CMOS Data .............................................................................................................................................................. 22
CPU Installation........................................................................................................................................................................... 23
CPU Fan Installation ................................................................................................................................................................... 25
CPU Over-current Protection ...................................................................................................................................................... 27
AOpen “Watch Dog ABS”............................................................................................................................................................ 29
Full-range Adjustable CPU Core Voltage.................................................................................................................................... 30
CPU and System Fan Connector (with H/W Monitoring) ............................................................................................................ 32
2
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
JP28 Keyboard/Mouse Wake-up Jumper.................................................................................................................................... 33
DIMM Sockets ............................................................................................................................................................................. 34
AC Power Auto Recovery............................................................................................................................................................ 36
IDE and Floppy Connector .......................................................................................................................................................... 37
Serial ATA Supported .................................................................................................................................................................. 39
Connecting Serial ATA Disk......................................................................................................................................................... 40
Support RAID 0 and RAID 1........................................................................................................................................................ 43
Front Panel Connector ................................................................................................................................................................ 44
AGP (Accelerated Graphic Port) 8X Expansion Slot................................................................................................................... 45
AGP Protection Technology and AGP LED ................................................................................................................................. 46
WOL (Wake on LAN)................................................................................................................................................................... 47
IrDA Connector............................................................................................................................................................................ 49
Support 10/100/1000 Mbps LAN onboard................................................................................................................................... 50
Support USB 2.0 Ports ................................................................................................................................................................ 51
IEEE 1394 Connectors................................................................................................................................................................ 52
COM2 Connector ........................................................................................................................................................................ 53
Game Port Bracket Supported .................................................................................................................................................... 54
Color Coded Back Panel ............................................................................................................................................................. 55
S/PDIF (Sony/Philips Digital Interface) Connector...................................................................................................................... 56
3
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
Super 5.1 Channel Audio Effect .................................................................................................................................................. 57
Front Audio Connector ................................................................................................................................................................ 58
Die-Hard BIOS II ......................................................................................................................................................................... 59
JP15/JP16 Dr. Voice Language Select Jumpers......................................................................................................................... 60
JP2 Speaker Output Jumper ....................................................................................................................................................... 61
CD Audio Connector.................................................................................................................................................................... 62
AUX-IN Connector....................................................................................................................................................................... 63
Case Open Connector................................................................................................................................................................. 64
STBY LED (Standby LED)........................................................................................................................................................... 65
Resetable Fuse ........................................................................................................................................................................... 66
Enlarged Aluminum Heatsink ...................................................................................................................................................... 67
Low ESR Capacitor ..................................................................................................................................................................... 68
V4 Power Engine......................................................................................................................................................................... 69
The noise is gone!! ---- SilentTek................................................................................................................................................. 71
EzClock ....................................................................................................................................................................................... 74
Hyper Threading Technology ...................................................................................................................................................... 78
AOConfig Utility ........................................................................................................................................................................... 80
RAID Introduction ..................................................................................................................................82
What’s RAID?.............................................................................................................................................................................. 82
4
AAXX44SSGG MMaaxx OOn
What are the RAID levels? .......................................................................................................................................................... 83
HDD Capacity of RAID Levels..................................................................................................................................................... 86
Serial ATA RAID for Intel ICH5R.................................................................................................................................................. 87
Serial ATA RAID for Silicon Image 3112A ................................................................................................................................... 89
Phoenix-AWARD BIOS ............................................................................................................................ 94
How To Use Phoenix-Award™ BIOS Setup Program ................................................................................................................. 95
How To Enter BIOS Setup........................................................................................................................................................... 96
WinBIOS Utility............................................................................................................................................................................ 97
BIOS Upgrade under Windows environment .............................................................................................................................. 99
Vivid BIOS technology............................................................................................................................................................... 101
Driver and Utility..................................................................................................................................102
Auto-run Menu from Bonus CD ................................................................................................................................................. 102
Installing Intel® Chipset Software Installation Utility................................................................................................................... 103
Installing Intel Extreme Graphic Driver...................................................................................................................................... 104
Installing Onboard Sound Driver ............................................................................................................................................... 105
Installing Intel Application Accelerator RAID Edition Driver in Windows 2000/XP .................................................................... 106
Installing LAN Driver in Windows 2000/XP ............................................................................................................................... 107
Install LAN Driver in Windows NT 4.0 ........................................................................................................................................111
Installing USB 2.0 Driver ........................................................................................................................................................... 114
nlliinnee MMaannuuaall
5
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
Installing Silicon Image SiI3112A SATA Raid Driver.................................................................................................................. 126
Glossary ...............................................................................................................................................133
AC97 CODEC ........................................................................................................................................................................... 133
ACPI (Advanced Configuration & Power Interface)................................................................................................................... 133
ACR (Advanced Communication Riser) .................................................................................................................................... 133
AGP (Accelerated Graphic Port) ............................................................................................................................................... 134
AMR (Audio/Modem Riser) ....................................................................................................................................................... 134
ATA (AT Attachment) ................................................................................................................................................................. 134
BIOS (Basic Input/Output System)............................................................................................................................................ 135
Bluetooth ................................................................................................................................................................................... 135
CNR (Communication and Networking Riser)........................................................................................................................... 136
DDR (Double Data Rate) RAM.................................................................................................................................................. 136
ECC (Error Checking and Correction)....................................................................................................................................... 136
EEPROM (Electronic Erasable Programmable ROM) .............................................................................................................. 136
EPROM (Erasable Programmable ROM).................................................................................................................................. 137
EV6 Bus .................................................................................................................................................................................... 137
FCC DoC (Declaration of Conformity)....................................................................................................................................... 137
FC-PGA (Flip Chip-Pin Grid Array)............................................................................................................................................ 137
FC-PGA2 (Flip Chip-Pin Grid Array).......................................................................................................................................... 137
6
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
Flash ROM ................................................................................................................................................................................ 138
Hyper Threading........................................................................................................................................................................ 138
IEEE 1394 ................................................................................................................................................................................. 138
Parity Bit .................................................................................................................................................................................... 139
PCI (Peripheral Component Interface) Bus............................................................................................................................... 139
PDF Format............................................................................................................................................................................... 139
PnP (Plug and Play) .................................................................................................................................................................. 139
POST (Power-On Self Test) ...................................................................................................................................................... 140
PSB (Processor System Bus) Clock ......................................................................................................................................... 140
RDRAM (Rambus Dynamic Random Access Memory) ............................................................................................................ 140
RIMM (Rambus Inline Memory Module).................................................................................................................................... 140
SDRAM (Synchronous DRAM) ................................................................................................................................................. 140
SATA (Serial ATA)...................................................................................................................................................................... 141
SMBus (System Management Bus) .......................................................................................................................................... 141
SPD (Serial Presence Detect)................................................................................................................................................... 141
USB 2.0 (Universal Serial Bus) ................................................................................................................................................. 141
VCM (Virtual Channel Memory) ................................................................................................................................................ 142
Wireless LAN – 802.11b............................................................................................................................................................ 142
ZIP file ....................................................................................................................................................................................... 142
7
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
Troubleshooting ................................................................................................................................... 143
Technical Support ................................................................................................................................147
Product Registration............................................................................................................................ 151
How to Contact Us............................................................................................................................... 152
8
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
YYoouu MMuusstt NNoottiiccee
Adobe, the Adobe logo, Acrobat is trademarks of Adobe Systems Incorporated.
AMD, the AMD logo, Athlon and Duron are trademarks of Advanced Micro Devices, Inc.
Intel, the Intel logo, Intel Celeron, Pentium II, Pentium III and Pentium 4 are trademarks of Intel Corporation.
Microsoft, Windows, and Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or
other countries.
All product and brand names used on this manual are used for identification purposes only and may be the registered trademarks of their
respective owners.
All of the specifications and information contained in this manual are subject to change without notice. AOpen reserves the right to revise
this publication and to make reasonable changes. AOpen assumes no responsibility for any errors or inaccuracies that may appear in this
manual, including the products and software described in it.
This documentation is protected by copyright law. All rights are reserved.
No part of this document may be used or reproduced in any form or by any means, or stored in a database or retrieval system
without prior written permission from AOpen Corporation.
Copyright
©
1996-2003, AOpen Inc. All Rights Reserved.
9
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
BBeeffoorree YYoouu SSttaarrtt
This Online Manual will introduce to the user how this product is installed. All useful information will be described in later chapters. Please
keep this manual carefully for future upgrades or system configuration changes. This Online Manual is saved in PDF format
recommend using Adobe Acrobat Reader 5.0 for online viewing, it is included in Bonus CD or you can get free download from Adobe web
site.
Although this Online Manual is optimized for screen viewing, it is still capable for hardcopy printing, you can print it by A4 paper size and set
2 pages per A4 sheet on your printer. To do so, choose File > Page Setup and follow the instruction of your printer driver.
Thanks for the help of saving our earth.
, we
10
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
OOvveerrvviieeww
Thank you for choosing AOpen AX4SG Max motherboard. AX4SG Max is Intel® Socket 478 motherboard (M/B) based on the ATX form
factor featuring the Intel 865-G chipsets
®
Pentium
additional intelligence to systems. In the AGP
long burst transfer up to 2112MB/sec.The slot also support ADD card. According to different customer’s requirements, this motherboard
supports DDR266
Serial ATA
PCI slots provided on this board and two IEEE1394
A total of 6 USB 2.0
on the board give you the best use of all USB devices with the
fancy speed up to 480Mbps. More than that, on the strength of
integrated BCM LAN controller on board, which is a highly
integrated Platform LAN Connect devices, it provides
10/100/1000M bps Ethernet for office and home use. Besides,
AX4SG Max has S/PDIF connector and an AC97 CODEC
RealTek ALC650 chipset onboard, providing high performance
and magic surround stereo sound to let people enjoy working
with it. Now, let’s enjoy all features from AOpen AX4SG Max
motherboard.
4 1.6GHz~3.06GHz. It supports 400/533/800MHz Front Side Bus (FSB) clock and Hyper-Threading Technology which brings
. As high performance chipset built in the M/B, AX4SG Max motherboard supports Intel® Socket 478
performance, it has one AGP slot to support AGP 8X/4X mode and pipelined spilt-transaction
, DDR333 and DDR400 RAM up to 4GB maximum. The onboard IDE controller supports Ultra DMA 33/66/100 mode,
150 MB/s and IDE Raid 0, Raid 1 mode. There are 6
connectors.
ports on the back panel and one connector
11
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
FFeeaattuurree HHiigghhlliigghhtt
CPU
Supports Intel® Socket 478 Pentium® 4 (Northwood) 1.6GHz~3.06GHz+ with 400/533/800MHz Front Side Bus (FSB) designed for Socket
478 technology.
Chipset
Intel 865 is a Graphics Memory Controller Hub (GMCH) designed for use with the Pentium 4 processor with 512-KB L2 cache on 0.13
micron processor. It provides CPU, DDR, AGP, Hub, CSA Interfaces and integrated graphics with display interfaces. The CPU interface
supports Pentium 4 processor subset of the Extended Mode of the Scalable Bus Protocol. The GMCH memory interface supports one up to
two channels of DDR, and the AGP interface supports 0.8/1.5V signaling with 8X/4X data transfers and 8X/4X AGP Fast Writes. The
integrated graphics controller provides 3D, 2D, and display capabilities while using a portion of system memory for graphics memory (UMA)
to provide a cost effective, high performance graphics solution. The Intel 865 platform supports the fifth generation I/O Controller Hub
(ICH5R).
The ICH5R integrates an Ultra ATA 100 controller, two Serial ATA host controllers, one EHCI host controller and four UHCI host controllers
supporting eight external USB 2.0 ports, LPC interface controller; flash BIOS interface controller, PCI interface controller, AC’97 digital
controller, integrated LAN controller, an ASF controller and a hub interface for communication with the 865 GMCH.
Memory
12
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
With Intel 865 chipset, this motherboard can support dual channel Double-Data-Rate (DDR) RAM. The dual channel mode allows chipsets
to get data in 128 bit and zero wait state bursting between the RAM. The data transfer at 266/333/400MHz. The four slots of DDR RAM can
be composed of an arbitrary mixture of 64, 128, 256, 512 MB or 1GB DDR RAM and maximum up to 4GB.

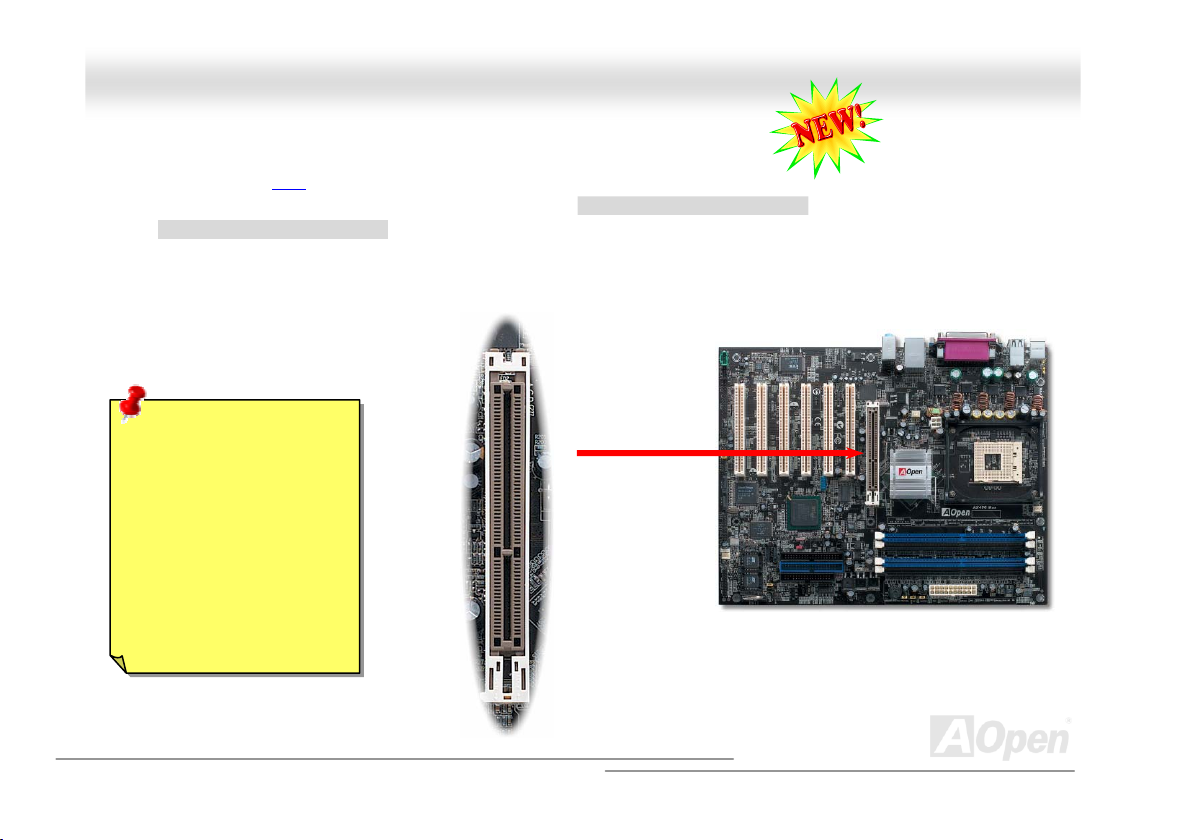

Expansion Slots
Including six 32-bit/33MHz PCI and one AGP 8X/4X slots. The PCI local bus throughput can be up to 132MB/s. Of six PCI slots provided,
all of them are master PCI slots with arbitration and decoding for all integrated functions and LPC bus. AX4SG Max motherboard includes
one AGP expansion slot for a bus mastering AGP graphic card. The
video display sophistication and speed. The AGP video cards support data transfer rate up to 2112MB/s. Or you may have ADD card cabled
to this AGP slot to provide high-speed digital connection for digital displays.
Accelerated Graphics Port (AGP)
specification provides a new level of
AGP Protection Technology
With AGP Protection Technology implemented, this motherboard will automatically detect the voltage of AGP card and prevent your
chipsets from being burnt out.
Hyper-Threading Technology
Support Hyper-Threading Technology which brings additional intelligence to systems so that multiple tasks received from the processor can
be managed and prioritized more effectively.
Watch Dog ABS
Includes AOpen “Watch Dog ABS” function that can auto-reset system in 4.8 seconds when you fail the system overclocking.
13
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
1MHz Stepping CPU Frequency Adjustment
Provides “1MHz Stepping CPU Frequency Adjustment” function in the BIOS. This magic function allows you to adjust CPU FSB frequency
from 100~400MHz by 1MHz stepping adjustment, and helps your system get maximum performance.
LAN Port
On the strength of BCM5705, a fourth-generation triple-speed 10/100/100 base-T Ethernet LAN Controller solution for high-performance
network applications, this motherboard provides 10/100/1000 Mbps Ethernet for office and home use.
Ultra DMA 33/66/100 Bus IDE
Comes with an on-board PCI Bus Master IDE controller with two connectors that support four IDE devices in two channels, supports Ultra
DMA 33/66/100, PIO Modes 3 and 4 and Bus Master IDE DMA Mode 5, and supports Enhanced IDE devices.
Serial ATA
Integrated in ICH5R that contains independent DMA operation on two ports, the SATA controllers are completely software transparent with
the IDE interface, while providing a lower pin count and higher performance. The ICH5R SATA interface supports data transfer rates up to
150MB/s.In this motherboard the SATA interfaces support RAID 0 and RAID 1 modes.
On-board AC’97 Sound
AX4SG Max uses RealTek AC97 CODEC RealTek ALC650 sound chip. This on-board audio includes a complete audio recording and
playback system.
14
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
Eight USB 2.0 Ports
Provides six ports on the back panel and one USB 2.0 connector on the board, providing a total of eight USB 2.0 interface to connect
devices such as mouse, keyboard, modem, scanner, etc.
Dr. Voice II
The Dr. Voice II can identify what kind of problems had occurred in the operating system. It provides four kinds language versions.
S/PDIF Connector
S/PDIF (Sony/Philips Digital Interface) is the newest audio transfer file format, which provides impressive quality through optical fiber and
allows you to enjoy digital audio instead of analog audio.
Power Management/Plug and Play
Supports the power management function which confirms to the power-saving standards of the U.S. Environmental Protection Agency (EPA)
Energy Star program. It also offers
user-friendlier.
Plug-and-Play
, which helps save users from configuration problems, thus making the system much
Hardware Monitoring Management
Supports CPU or system fans status, temperature and voltage monitoring and alert, through the on-board hardware monitor module.
15
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
SilentTek
Combines “Hardware-Status Monitoring”, “Overheat Warning” and “Fan Speed Control” with user-friendly interfaces to provide a perfect
balance among noises, system performance and stability.
Enhanced ACPI
Fully implement the ACPI standard for Windows® 98/ME/2000/XP series compatibility, and supports Soft-Off, STR (Suspend to RAM, S3),
STD (Suspend to Disk, S4) and S5 features.
16
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
QQuuiicckk IInnssttaallllaattiioonn PPrroocceedduurree
This page gives you a quick procedure on how to install your system. Follow each step accordingly.
1. Installing CPU and Fan
2. Installing System Memory (DIMM)
3. Connecting Front Panel Cable
4. Connecting IDE and Floppy Cable
5. Connecting ATX Power Cable
6. Connecting Back Panel Cable
7. Power-on and Load BIOS Setup Default
8. Setting CPU Frequency
9.
Reboot
Installing Operating System (such as Windows XP)
10.
Installing Driver and Utility
11.
17
pp
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
Motherboard Map
AC’97 CODEC
AUX-IN Connector
CD-IN Connector
COM2 Connector
Game Port Connector
32-bit PCI Expansion Slot x6
Resetable Fuse
IrDA Connector
Front Audio Connector
S/PDIF Connector
USB 2.0 Connector
SATA Port x 4
JP14 CMOS Clear Jumper
IEEE1394 Connector x 2
Wake on LAN Connector
SYSFAN3 Connector
Front Panel Connector
Die-hard BIOS
JP24 BIOS Rescue Jumper
Case Open Connector
18
Colored Back Panel
JP28 Keyboard/Mouse
Wakeup Jumper
SYS Connector FAN2
Low ESR Capacitors
AGP 8x Expansion Slot
su
CPUFAN1 connector
Intel 865-G Chipset that
supports 533/800MHz FSB,
DDR 400 and AGP 8X
184-pin DIMMx4 support
DDR400/333/266 SDRAM
maximum up to 4GB
ATX Power Connector
JP2 Speaker Output Connector
JP15/JP16 Dr. Voice II
Language Select Jumper
ATA66/100 IDE Connector x2
FDD Connector
4-pin 12V. ATX Power Connector
orts ADD card
478-pin CPU socket (Northwood)
with Voltage and Frequency
Auto-detection that supports Intel
Pentium® 4 1.6~3.06GHz+ CPU
®
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
BBlloocckk DDiiaaggrraamm
Socket 478
Intel Pentium 4
CPU
AGP 8X Slot
VGA onboard
LAN connect Component
DDR400/333/266 Dual Channel
RAM Up to 4GB
32-bit PCI Slot x6
DIMM Socket x4
533/800MHz
System Bus
AGP bus
Gigabit
BCM5705
Floppy Disk Drive x2
Intel
865-G
USB Port x8
PCI Bus
USB Port
USB Port
USB Port
USB Port
4Serial ATA Ports
150MB/s
ATA 66/100
SATA 1
SATA 2
SATA 3
SATA 4
Primary
Channel
Secondary
Channel
ICH5R
RealTek
AC97
CODEC
4Mbit Flash EEPROM
4Mbit Flash EEPROM
Parallel Port
Serial Port x2
IEEE1394 x2
IEEE1394 x2
IDE Drive x4
19
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
HHaarrddwwaarree IInnssttaallllaattiioonn
This chapter describes jumpers, connectors and hardware devices of this motherboard.
Note: Electrostatic discharge (ESD) can damage your processor, disk drives, expansion boards, and other
components. Always observe the following precautions before you install a system component.
1. Do not remove a component from its protective packaging until you are ready to install it.
2. Wear a wrist ground strap and attach it to a metal part of the system unit before handling a component. If
a wrist strap is not available, maintain contact with the system unit throughout any procedure requiring
ESD protection.
20
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
AAbboouutt ““UUsseerr UUppggrraaddee OOppttiioonnaall”” aanndd ““MMaannuuffaaccttuurree UUppggrraaddee OOppttiioonnaall””……
When you read this online manual and start to assemble your computer system, you may notice that some of the functions are marked as
“User Upgrade Optional” or “Manufacture Upgrade Optional”. Although all of AOpen’s motherboards have included many amazing and
powerful features, sometimes not every user is familiar with these powerful features. As a result of this we define features that can be
upgraded by users as “User Upgrade Optional”. You can upgrade these functions by purchasing additional devices. As for functions that
cannot be upgraded by users, we define them as “Manufacture Upgrade Optional”. If need be, you can contact our local distributors or
resellers to purchase “Manufacture Upgrade Optional” components, and again you are also welcome to visit our official website at
english.aopen.com.tw
for detail information.
21
(
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
JJPP1144 CClleeaarr CCMMOOSS DDaattaa
You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below.
1. Turn off the system and unplug the AC power.
2. Remove ATX power cable from connector PWR2.
3. Locate JP14 and short pins 2-3 for a few seconds.
4. Return JP14 to its normal setting by shorting pin1 & pin2.
5. Connect ATX power cable back to connector PWR2.
Pin 1
1
Normal
default)
1
Clear CMOS
Tip: When should I Clear CMOS?
1. Boot fails because of overclocking…
2. Forget password…
3. Troubleshooting…
22
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
CCPPUU IInnssttaallllaattiioonn
This motherboard supports Intel® Pentium 4 Socket 478 series CPU (Northwood). Be careful of CPU orientation when you plug it into CPU
socket.
1. Pull up the CPU socket lever and
up to 90-degree angle.
2. Locate Pin 1 in the socket and look for mark on the CPU upper interface.
Match Pin 1 and cut edge, then insert the CPU into the socket.
Note: Those pictures are for example only; they may not look the same with the motherboard you purchased.
CPU socket
Lever
CPU pin 1 and
cut edge
CPU cut edge
23
y
AAXX44SSGG M
3. Press down the CPU socket lever and finish CPU
Note: This picture is for example only; it may not look the same with the motherboard you purchased.
M
installation.
aaxx
OOnnlliinnee MMaannuuaall
CPU cut edge
Note: If you do not match the CPU
socket Pin 1 and CPU cut edge well, you
ma
damage the CPU.
Note: This socket supports
Micro-FC-PGA2 package CPU, which is
the latest CPU package developed by
Intel. Other forms of CPU package are
impossible to be fitted in.
24
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
CCPPUU FFaann IInnssttaallllaattiioonn
This motherboard comes with a retention module attached on the CPU socket when shipped, we strongly recommend you to install AOpen
special designed CPU Fan as shown below on the retention module for better heat dissipation. Please install the CPU Fan correctly as the
following pictures shown.
1. Gently put the CPU Fan down on the
retention module with clips aligning correctly
to the four corners.
Note: The picture above may look different from the product you purchased.
2. Pressing down the four clips with force one by one
on the retention module.
Clip
25
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
CCPPUU JJuummppeerr--lleessss DDeessiiggnn
CPU VID signal and SMbus clock generator provide CPU voltage auto-detection and allows the user to set the CPU frequency through the
BIOS setup, therefore no jumpers or switches are used. The disadvantages of the Pentium based jumper-less designs are eliminated.
There will be no worry of wrong CPU voltage detection.
CPU VID signal
(Automatically generates CPU voltage)
Intel® Socket 478
Power Regulator
Pentium 4
CPU voltage
Clock Generator
CPU Freq. Ratio
BIOS
Controlled
Circuit
26
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
CCPPUU OOvveerr--ccuurrrreenntt PPrrootteeccttiioonn
The Over Current Protection is a popular implementation on ATX 3.3V/5V/12V switching power supply. However, the new generation CPU
uses different voltage with a regulator to transfer 12V to CPU voltage (for example, 2.0V), and thus makes 5V over current protection
useless. This motherboard is with switching regulator onboard supporting CPU over-current protection; in conjunction with 3.3V/5V/12V
power supply provide the full line over-current protection.
ATX Switching Power Supply
Note: Although we have implemented protection circuit try to prevent any human operating mistake,
there is still certain risk that CPU, memory, HDD, add-on cards installed on this motherboard may be
damaged because of component failure, human operating error or unknown nature reason. AOpen
cannot guaranty the protection circuit will always work perfectly.
12V (Protected by power supply)
3.3V (Protected by power supply)
5V (Protected by power supply)
Onboard Power Regulator
(Over-Current Protection)
CPU Core Voltage
27
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
BBaatttteerryy--lleessss aanndd LLoonngg LLiiffee DDeessiiggn
This Motherboard implements a Flash ROM
Setup configurations. The RTC (real time clock) can also keep running as long as the power cord is plugged. If you lose your CMOS data
by accident, you can just reload the CMOS configurations from Flash ROM and the system will recover as usual.
and a special circuit that provide you no batter power consumption of current CPU and CMOS
ATX Stand-by Power
n
Battery
Flash ROM
(Real Time Clock)
Auto Switch
RTC
00:00:00
CMOS
Auto switch to ATX standby
power as long as AC power line
is plugged. This smart design
increases battery life if you still
plug battery on motherboard.
Backup by EEPROM
28
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
AAOOppeenn ““WWaattcchh DDoogg AABBSS””
user’s settings stored in the BIOS. If system failed in BIOS POST, the “Watch Dog Timer” will reset the system to reboot in five seconds.
Then, BIOS will detect the CPU’s default frequency and POST again. With this special feature, you can easily overclock your system to get
a higher system performance without removing the system housing and save the hassle from setting the jumper to clear CMOS data when
system hangs.
AOpen
Watch Dog ABS
Enable/Disable Signal from
AOpen provides a special and useful feature on this motherboard for overclockers. When you
power-on the system, the BIOS will check last system POST
enable “Watch Dog ABS” function immediately, and set the CPU FSB frequency according to
BIOS
BIOS
Reset Signal
Clock Generator
Countdown about
5 seconds if fails
in POST
CPU
status. If it succeeded, the BIOS will
CPU ID Signal
29
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
FFuullll--rraannggee AAddjjuussttaabbllee CCPPUU CCoorree VVoollttaaggee
This function is dedicated to overclockers and supports Adjustable CPU Core Voltage from 1.10V to 1.85V. However, this motherboard can
also automatically detect CPU VID signal and generates proper CPU core voltage.
SSeettttiinngg CCPPUU FFrreeqquueennccyy
BIOS Setup > Frequency/Voltage Control > CPU Bus Frequency
This motherboard is CPU jumper-less design, you can set CPU frequency in BIOS; no jumpers or switches are needed. The default setting
is "table select mode". You can adjust the FSB from "CPU Host/RAM/PCI Clock" for overclocking.
Core Frequency = CPU FSB Clock * CPU Ratio
PCI Clock = CPU FSB Clock / Clock Ratio
AGP Clock = PCI Clock x 2
CPU Ratio 8x, 10x… 21x, 22x, 23x, 24x
CPU FSB (By BIOS table) 100-400MHz
30
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
Northwood CPU
Pentium 4 1.6G 1600MHz 100MHz 400MHz 16x
Pentium 4 1.6G 1600MHz 133MHz 533MHz 12x
Pentium 4 1.7G 1700MHz 133MHz 533MHz 13x
Pentium 4 1.8G 1800MHz 100MHz 400MHz 18x
Pentium 4 2.0G 2000MHz 100MHz 400MHz 20x
Pentium 4 2.2G 2200MHz 100MHz 400MHz 22x
Pentium 4 2.2G 2200MHz 133MHz 533MHz 16x
Pentium 4 2.26G 2260MHz 133MHz 533MHz 17x
Pentium 4 2.4G 2400MHz 100MHz 400MHz 24x
Pentium 4 2.4G 2400MHz 133MHz 533MHz 18x
CPU Core
Frequency
FSB
Clock
System
Bus
Ratio
Note: Intel 865-G chipset don’t support
Willamette or Celeron processors.
Northwood processor would detect the
clock ratio automatically, you may not be
able to adjust the clock ratio in B IOS
manually.
Pentium 4 2.53G 2530MHz 133MHz 533MHz 19x
Pentium 4 2.6G 2600MHz 200MHz 800MHz 13x
Pentium 4 2.66G 2660MHz 133MHz 533MHz 20x
Pentium 4 2.8G 2800MHz 133MHz 533MHz 21x
Pentium 4 2.8G 2800MHz 200MHz 800MHz 14x
Pentium 4 3.06G 3000MHz 200MHz 800MHz 15x
Warning: Intel 865-G chipset supports
maximum 800MHz (200MHz*4) system bus
and 66MHz AGP clock; higher clock setting
may cause serious system damage.
Pentium 4 3.20G 3200MHz 200MHz 800MHz 16x
31
r
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
CCPPUU aanndd SSyysstteemm FFaann CCoonnnneeccttoorr ((wwiitthh HH//WW MMoonniittoorriinngg))
Plug in the CPU fan cable to the 3-pin CPUFAN1 connector. If you have chassis fan, you can also plug it on SYSFAN2 or SYSFAN3
connector.
SYSFAN2 Connecto
SYSFAN3 Connector
CPUFAN1 Connector
GND
+12V
SENSOR
Note: Some CPU fans do not have
sensor pin, so that they cannot support
hardware monitoring function.
32
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
JJPP2288 KKeeyybbooaarrdd//MMoouussee WWaakkee--uupp JJuummppeerr
This motherboard provides PS2 keyboard / mouse wake-up function. You can use JP28 to enable or disable this function, which could
resume your system from suspend mode with keyboard or mouse. The factory default setting is set to “Disable” (1-2), and you may enable
this function by setting the jumper to 2-3.
Pin 1
1 1
Disable
(Default)
Enable
33
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
DDIIMMMM SSoocckkeettss
This motherboard has four 184-pin DDR DIMM sockets that allow you to install 128-bit dual channel DDR400, DDR333 or DDR266 memory
up to 4GB. Only non-ECC DDR RAM is supported. Please install suitable modules; otherwise serious damage may occur on memory
sockets or you RAM modules. Please note that when you install DDR333 memory module and have your CPU FSB set at 800MHz,
the memory can only run with the speed of DDR320. It is limitation of Intel. For other limitation of CPU types, please see the table
below.
Warning: This motherboard supports DDR RAM. Please do
not install the SDRAM on the DDR RAM sockets; otherwise it
will cause serious damage on memory sockets or SDRAM
module.
Item
CPU FSB 400MHz V X X
CPU FSB 533MHz V V X
CPU FSB 800MHz V
DDR266 DDR333 DDR400
⊙
Note: To run dual channel speed, you have to use
the same type memory modules installed on two
DIMMs. If you install two different sized modules,
the system can only run single channel mode and
with the speed of that lower memory module.
V
DIMMA1
DIMMA2
DIMMB1
DIMMB2
34
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
HHooww ttoo IInnssttaallll MMeemmoorryy MMoodduulleess
Please follow the procedure as shown below to finish memory installation.
1. Make sure the DIMM module’s pin face down and match the socket’s size as depicted below.
2. Insert the module straight down to the DIMM slot with both hands and press down firmly until the DIMM module is securely in place.
3. Repeat step 2 to finish additional DIMM modules installation.
Note: These images are for example only; they may not be exactly the same as the motherboard you purchased.
Ta b
Key
Note: Please pay attention to
the Blue slots. To run dual
channel speed, you should
insert the RAM in the slot of
DIMM A1 and DIMM B1 or
DIMM A2 and DIMM B2.
Please don't use the
different frequency DIMM on
dual channel
52 pins40 pins
Note: The tabs of the DIMM slot
will close-up to hold the DIMM in
place when the DIMM touches the
slot’s bottom.
Pin 1
35
AATTXX PPoowweerr CCoonnnneeccttoor
This motherboard comes with a 20-pin and 4-pin ATX power connector. Make sure you plug in the right direction. We strongly recommend
you to connect the 4-pin 12V ATX connector before connecting the 20-pin ATX power connector and use standard power supply specially
designed for Pentium 4 system.
SG
AAXX44S
G MMaaxx OOnnlliinnee MMaannuuaall
r
AACC PPoowweerr AAuuttoo RReeccoovveerryy
A traditional ATX system should remain at power off stage when AC power resumes from power failure. This design is inconvenient for a
network server or workstation, without an UPS, that needs to keep power-on. This motherboard implements an AC Power Auto Recovery
function to solve this problem.
36
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
IIDDEE aanndd FFllooppppyy CCoonnnneeccttoorr
Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDD and IDE connector. Be careful of the pin1 orientation. Wrong
orientation may cause system damage.
Secondary
Slave (4th)
Secondary
Master (3rd)
Pin 1
FDD Connector
Pin 1
Primary
Slave (2nd)
ATA 66/100 IDE
Connector
IDE 2 (Secondary)
IDE 1 (Primary)
Primary
Master (1st)
37
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
IDE1 is also known as the primary channel and IDE2 as the secondary channel. Each channel supports two IDE devices that make a total
of four devices. In order to work together, the two devices on each channel must be set differently to Master and Slave mode. Either one
can be the hard disk or the CDROM. The setting as master or slave mode depends on the jumper on your IDE device, so please refer to
your hard disk and CDROM manual accordingly.
Tip:
1. For better signal quality, it is recommended to set the far end side device to
master mode and follow the suggested sequence to install your new device.
Please refer to above diagram
2. To achieve the best performance of Ultra DMA 66/100 hard disks, a special
80-wires IDE cable for Ultra DMA 66/100 is required.
Warning: The specification of the IDE cable is a maximum of 46cm (18 inches);
make sure your cable does not exceed this length.
38
AAXX44SSGG MMaaxx
OOnnlliinnee MMaannuuaall
SSeerriiaall AATTAA SSuuppppoorrtteedd
The traditional parallel ATA specification has defined the standard storage interface for PCs with its original speed of just 3 Mbytes/second
since the protocol was introduced in the 1980s. And the latest generation of the interface, Ultra ATA-133, has been developed further with a
burst data transfer rate of 133 Mbytes/second. However, while ATA has enjoyed an illustrious track record, the specification is now showing
its age and imposes some serious design issues on today’s developers, including a 5-volt signaling requirement, high pin count, and
serious cabling headaches.
The Serial ATA specification is designed to overcome these design limitations while enabling the storage interface to scale with the growing
media rate demands of PC platforms. Serial ATA is to replace parallel ATA with the compatibility with existing operating systems and drivers,
adding performance headroom for years to come. It reduces voltage and pins count requirements and can be implemented with thin and
easy to route cables.
SATA port 1 (ICH5R)
SATA port 4 (Sil 3112)
Serial ATA Ports
SATA port 3 (Sil 3112)
SATA port 2 (ICH5R)
39
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
CCoonnnneeccttiinngg SSeerriiaall AATTAA DDiisskk
To connect a Serial ATA disk, you have to have a 7-pin serial ATA cable. Connect two ends of the serial ATA cable to the serial ATA header
on the motherboard and the disk. Like every other traditional disk, you also have to connect a power cable. Please be noted that it is a
jumper free implement; you don’t need to set jumpers to define a master or slave disk. When serial ATA hard disks are installed on serial
ATA ports, the one connected on Port 0(SATA 1) will be set as the first boot device automatically. Please be noted that it doesn’t support
Hot-Plug in function.
Item Parallel ATA Serial ATA
Bandwidth 100/133 MB/Sec 150/300/600 MB/Sec
Vol ts 5V 250mV
Pins 40 7
Length Limitation 18 inch (45.72cm) 1 meter (100cm)
Cable Wide Thin
Ventilation Bad Good
Peer-to-Peer No Yes
Comparison between Parallel ATA and Serial ATA
40
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
AAddjjuussttiinngg YYoouurr HHaarrdd DDiisskk
Except its original 2 sets of parallel IDE, this motherboard does come with the support for the latest Serial ATA hard disk. If you are unable
to find your newly installed Serial ATA hard disks on your operating system after you have had installed them on, the problem mainly lies in
the BIOS setting. You may simply adjust BIOS settings to have them work properly.
After having properly installed your hard disks, you may directly get into the BIOS setting screen for adjustment. You may simply press
“Integrated Peripherals Æ On-Chip IDE Device Æ On-Chip Serial ATA” to choose your preferable mode. If you have no intention of
changing its setting, the default would be Auto.
41
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
If you intend to change the default setting, simply press Enter for a list of selection:
1. Disabled: You may choose this item if you’re sure that only traditional IDE hard
disks had been installed on your system. Disabling this item may also cancel the
detection to Serial ATA hard disk during POST, which theoretically, could speed up
your boot-up timing for a little bit; however, please remember to re-adjust the
settings here if you intend to use Serial ATA hard disk later.
2. Auto: This is the default setting upon receipt of the motherboard. Basically, if your
system functions properly, it’s not necessary to change it. The system will
automatically recognize the first hard disk on IDE1 as the first boot device.
Note: Please be informed that when you are using Windows98/ME with six hard disks fully installed, Auto mode is not able to function
properly, it’s just because Windows98/Me is not able to energize Enhanced Mode to detect all hard disks.
3. Combined Mode: If you have had installed traditional IDE hard disks and Serial ATA hard disks at the same time, then you may
choose this Combined Mode. Under this mode, you may randomly choose either IDE hard disks or Serial ATA had disk as your first
boot device. But please be aware that Serial ATA will exist with IDE in a mapping way, which also means it will occupy one of the IDE
Channel and left you with one IDE Channel only.
4. Enhanced Mode: If you are using the latest operating system (say, Windows XP, Windows.NET Server), it is highly recommended to
select Enhanced Mode. The system would be able to detect all six devices (traditional IDE x4, Serial ATA x 2) completely and functions
perfectly under this mode. But please be noted that it is defaulted with using traditional IDE as the first boot device.
Note: From our practical lab tests, we found no obvious problem or mistakes happened under Windows2000 operating system, but,
however, it is not within the regulation recommended by Intel.
5. SATA Only: You may select this SATA Only mode if you have had installed Serial ATA hard disks only. It also allows you to select
booting sequence from Port0 (SerialATA1) or Port1 (SerialATA2).
42
AAXX44SSGG MMaaxx
OOnnlliinnee MMaannuuaall
SSuuppppoorrtt RRAAIIDD 00 aanndd RRAAIIDD 11
With Intel ICH5R chipset and Silicon Image Sil3112A onboard, this motherboard provides a cost-effective, high performance stripping
(RAID 0) and mirroring (RAID 1) solution. With stripping, identical drives can read and write data in parallel to increase performance.
Mirroring increase read performance through load balancing and elevator seeking while creating a complete backup of your files. When
supporting RAID 0 or RAID 1, you should connect SATA hard driver disks to SATA Header 1and 2. You can set in BIOS which mode you
want to support.
43
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
FFrroonntt PPaanneell CCoonnnneeccttoorr
Pin1
Attach the power LED, Keylock, speaker, power and reset switch connectors to the
corresponding pins. If you enable “Suspend Mode” item in BIOS Setup, the ACPI &
Power LED will keep flashing while the system is in suspend mode.
Locate the power switch cable from your ATX housing. It is 2-pin female connector
from the housing front panel. Plug this connector to the soft-power switch connector
marked SPWR.
Suspend Type ACPI LED
Power on Suspend (S1) or Suspend to RAM (S3) Flashing for every second
Suspend to Disk (S4) The LED will be turned off
NC
NC
+5V
IDE LED
IDE LED
+5V
+5V
GND
NC
1
5VSB
SPWR
ACPI LED-
GND
ACPILED
NC
ACPI_B
GND
RESET
GND
IDE LED
Speaker
1
SPWR
ACPI & PWR LED
ACPI LED (BLUE)
Reset
SPEAKER
44
AAXX44SSGG MMaaxx
O
O
nnlliinnee MMaannuuaall
AAGGPP ((AAcccceelleerraatteedd GGrraapphhiicc PPoorrtt)) 88XX EExxppaannssiioonn SSlloott
AX4SG Max provides an AGP 8x slot. The AGP 8X is a bus interface targeted for high-performance 3D graphic. AGP uses both rising and
falling edge of the 66MHz clock, for 4X AGP, the data transfer rate is 66MHz x 4bytes x 4 = 1056MB/s. AGP is now moving to AGP 8x mode,
which is 66MHz x 4bytes x 8 =2.1GB/s. This AGP slot could automatically become an AGP slot or a Multiplexed Intel DVO Output
depending on what kind of cards inserted, like AGP, or ADD (AGP Digital Display) cards. With ADD card cabled to this slot, Multiplexed Intel
DVO output could provide high-speed digital connection for digital displays or TV-OUT functionality. You can also adjust AGP voltage in
BIOS within a rage from 1.5V to 1.7V.
Warning: It is strongly
recommended not to adjust
voltage/clock of AGP/PCI
when connecting any SATA
service. It is because when
the voltage/clock for
AGP/PCI is adjusted, the
clock for SATA couldn’t
keep 100MHz, and the
45
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
AAGGPP PPrrootteeccttiioonn TTeecchhnnoollooggyy aanndd AAGGPP LLEEDD
With the outstanding R&D ability of AOpen and its specially developed circuit, this motherboard implements a blend new technology to
protect your motherboard from being damaged by over-voltaging of AGP card. When AGP Protection Technology is implemented, this
motherboard will automatically detect the voltage of AGP card and prevent your chipsets from being burnt out. Please note that if you install
a AGP card with 3.3V, which is not supported by Intel 865 chipset, the AGP LED on the motherboard will light up to warn you the possible
damage of the exceeding voltage. You may contact your AGP card vendor for further support.

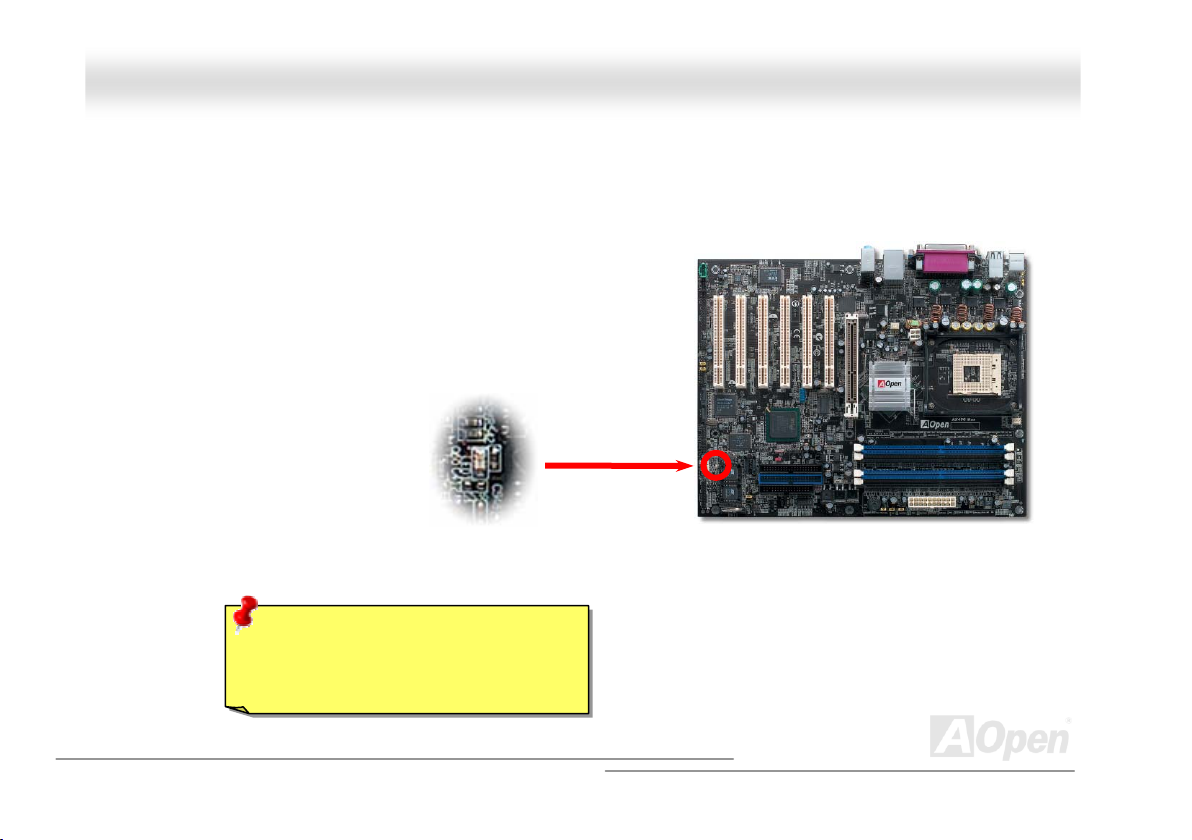

AGP LED
Warning: It is strongly recommended not to
install a 3.3V AGP card, which is not
supported by Intel 865 chipset. When you do
so, the AGP LED on the motherboard will light
up to warn you the possible damage.
46
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
WWOOLL ((WWaakkee oonn LLAANN))
To use Wake on LAN function, you must have a network card with chipset that supports this feature, and connect a cable from LAN card to
motherboard WOL connector. The system identification information (probably IP address) is stored on network card and because there is a
lot of traffic on the Ethernet, you need to install network management software, such as ADM, for the checking of how to wake up the
system. Note that, at least 600mA ATX standby current is required to support the LAN card for this function.
+5VSB
GND
LID
WOL Connector
47
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
WOL Connector
(Motherboard Side)
Note: This picture is for example only, it may not exactly be the same motherboard.
WOL Connector
(Ethernet Card Side)
48
r
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
IIrrDDAA CCoonnnneeccttoorr
The IrDA connector can be configured to support wireless infrared module, with this module and application software such as Laplink or
Windows 98 Direct Cable Connection, the user can transfer files to or from laptops, notebooks, PDA devices and printers. This connector
supports HPSIR (115.2Kbps, 2 meters) and ASK-IR (56Kbps).
Install the infrared module onto the IrDA connector and enable the infrared function from BIOS Setup, UART Mode, make sure to have the
correct orientation when you plug in the IrDA connector.
Pin 1
IrDA Connecto
1
NC
+5V
IR_TX
KEY
GND
IR_RX
49
AAXX44SSGG MMaaxx
OOnnlliinnee MMaannuuaall
SSuuppppoorrtt 1100//110000//11000000 MMbbppss LLAANN oonnbbooaarrdd
On the strength of BCM5705, a fourth-generation triple-speed 10/100/100 base-T Ethernet LAN Controller solution for high-performance
network applications, this motherboard provides 10/100/1000M bps Ethernet for office and home use. The Ethernet RJ45 connector is
located on top of USB connectors. The right hand side LED indicates link mode, it lights in orange whenever linking to network. The left
hand side LED indicates the transfer mode and it lights in green when data is transferring in 100Mbps (never lights while in 10Mbps), but
lights in orange when transferring in Gigabit’s mode. To enable or disable this function, you may simply adjust it through BIOS.
Transferring (Left)
Green 100Mbps
Orange Gigabit
Linking (Right)
Orange
50
AAXX44SSGG MMaaxx
OOnnlliinnee MMaannuuaall
SSuuppppoorrtt UUSSBB 22..00 PPoorrttss
This motherboard provides eight USB 2.0 ports to connect USB devices such as mouse, keyboard, modem, printer, etc. There is one USB
connector on the board for you to connect two USB devices and six other ports on the back panel. You can use proper cables to connect
USB devices from back panel or connect the front USB connector to the front panel of chassis.
Compared to traditional USB 1.0/1.1 with the speed of 12Mbps, USB 2.0 has a fancy speed up to 480Mbps which is 40 times faster than
the traditional one. Except for the speed increase, USB 2.0 supports old USB 1.0/1.1 software and peripherals, offering impressive and
even better compatibility to customers. On this motherboard, all eight ports support USB 2.0 function.
SBD6+
1
+5V
SBD6-
GND
KEY
USB 2.0 Connector
Note: Please note that if you would like to use
USB devices (Example: keyboard, mouse etc.)
under DOS environment, you must install driver
that comes with the devices to make it work.
+5V
SBD7SBD7+
GND
NC
Pin 1
51
AAXX44SSGG MMaaxx
OOnnlliinnee MMaannuuaall
IIEEEEEE 11339944 CCoonnnneeccttoorrss
With IEEE1394 MAC Embedded in Intel ICH5R (with AGERE FW323), the IEEE 1394 provides data transfer rate up to 400Mb/s, and USB
1.0/1.1 just has 12Mbps. Hence, the IEEE 1394 interface can connect with the devices that need high data transferring performance, such
as digital camera, scanner or others IEEE 1394 devices. Please use the proper cable to connect with devices.
SHIED GND
+12V (Fused)
10 9
+12V (Fused)
TPB-
GND
TPA-
Warning: Please be noted that
Hot-Plug in is not allowed on
IEEE 1394 header, because it
will burn the IC of the controller
and damage the motherboard.
TPB+
GND
TPA+
2 1
Pin 1
Pin 1
IEEE 1394
Port 1 & 2
52
r
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
CCOOMM22 CCoonnnneeccttoorr
This motherboard provides two serial ports. One of them is on back panel connector, and the other is on the upper left of board. With proper
cable, you can connect it to the back panel of chassis.
Pin 1
1 2
DCD#
SOUT
GND
RI#
RTS#
COM2 Connecto
SIN
DTR#
DSR#
CTS#
53
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
GGaammee PPoorrtt BBrraacckkeett SSuuppppoorrtteedd
This motherboard comes with a game port (Joystick-Midi) for you to connect any midi devices or joysticks. To use this function you have to
have a joystick module and connect it with a game port cable to this port on the motherboard.
Note: This picture is for example only; it may not exactly look the same with the motherboard you purchased.
Joystick Module
(User Upgrade Optional)
Pin1
Game Port Connector
1
+5V
JAB1
JACX
GND
GND
JACY
JAB2
+5V
+5V
JBB1
JBCX
MIDI_TXD
JBCY
JBB2
MIDI_RXD
KEY
54
r
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
CCoolloorr CCooddeedd BBaacckk PPaaneell
The onboard I/O devices are PS/2 Keyboard, PS/2 Mouse, RJ-45 LAN Connector, COM1, VGA port, Printer, USB, AC97 sound and game
ports. The view angle of drawing shown here is from the back panel of the housing.
PS/2 Mouse
Connecto
PS/2 Keyboard
PS/2 Keyboard: For standard keyboard, which use a PS/2 plug.
PS/2 Mouse: For PC-Mouse, which use a PS/2 plug.
USB Port: Available for connecting USB devices.
Parallel Port: To connect with SPP/ECP/EPP printer.
COM1 Port: To connect with pointing devices, modem or others serial devices.
RJ-45 LAN connector To connect Ethernet for home or office use.
VGA Connector: To connect with PC monitor.
Speaker Out: To External Speaker, Earphone or Amplifier.
Line-In: Comes from the signal sources, such as CD/Tape player.
MIC-In: From Microphone.
Connector
USB 2.0
Ports
COM 1 Port
n
SPP/EPP/ECP
Parallel Port
VGA Port
RJ-45 LAN
Connector
USB 2.0 Ports
Line-In
Speaker Out
MIC-In
55
AAXX44SSGG MMaaxx
O
O
nnlliinnee MMaannuuaall
SS//PPDDIIFF ((SSoonnyy//PPhhiilliippss DDiiggiittaall IInntteerrffaaccee)) CCoonnnneeccttoorr
S/PDIF (Sony/Philips Digital Interface) is a latest audio transfer file format that provides impressive quality through optical fiber and allows
you to enjoy digital audio instead of analog. Normally there are two S/PDIF outputs as shown, one for RCA connector, the most common
one used for consumer audio products, and the other for optical connector with a even better audio quality. Through a specific audio cable,
you can connect the S/PDIF connector to a S/PDIF audio module bearing S/PDIF digital output. However, you must have a S/PDIF
supported speaker with S/PDIF digital input to make the most of this function.
S/PDIF OUT
S/PDIF OUT
S/PDIF IN
S/PDIF IN
(Optical)
S/PDIF Module
(User Upgrade Optional)
S/PDIF Cable
Pin 1
S/PDIF Connector
1
5
+5V
NC
SPDIFOUT
GND
SPDIFIN
56
AAXX44SSGG MMaaxx
OOnnlliinnee MMaannuuaall
SSuuppeerr 55..11 CChhaannnneell AAuuddiioo EEffffeecctt
This motherboard comes with an ALC650E CODEC, which supports high quality of 5.1 Channel audio effects, bringing you a brand new
audio experience. On the strength of the innovative design of ALC650, you're able to use standard line-jacks for surround audio output
without connecting any external module. To apply this function, you have to install the audio driver in the Bonus Pack CD as well as an
audio application supporting 5.1 Channel. Picture bellow represents the standard location of all speakers in 5.1 Channel sound tracks.
Please connect the plug of your front speakers to the green “Speaker out” port, rear speakers’ plug to the blue “Line in” port and both of the
center and subwoofer speakers to the red “MIC in” port.
57
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
FFrroonntt AAuuddiioo CCoonnnneeccttoorr
If the housing has been designed with an audio port on the front panel, you’ll be able to connect onboard audio to front panel through this
connector. By the way, please remove the jumper cap from the Front Audio Connector before you connect the cable. Do not remove this
yellow jumper cap if your housing doesn’t have an audio port on the front panel.
Pin 1
AUD_MIC
AUD_MIC_BIAS
AUD_FPOUT_R
AUD_FPOUT_L
1
AUD_GND
AUD_VCC
AUD_RET_R
NC
KEY
AUD_RET_L
Note: Please remove the jumper cap from the front audio connector before you
connect the cable. Do not remove this yellow jumper cap if your housing doesn’t
have an audio port on the front panel.
Front Audio Connector
58
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
DDiiee--HHaarrdd BBIIOOSS IIII
Inherited DieHard BIOS, the steps of rescuing your crashed BIOS 1 back to life is the same. First step is to set JP24 to Pin2-3 to boot up
the system with BIOS 2. After that, please set the JP24 back to Pin1-2, go to AOpen website to get your BIOS version suited for your
motherboard, and have it downloaded. There are two kinds of ways to flash the BIOS 1; you may flash it under Window environment with
EZWinflash or under DOS system. To flash under Window environment is easy; you may just download the BIOS version and implement it
with EZWinflash. For Flashing BIOS under DOS system, please unzip the BIOS version after downloading from website, and execute it
under DOS. These two versions of BIOS have been provided on our website for your downloading. DieHard BIOS II is further enhanced
with data saving function. In addition to read-only ROM, DieHard BIOS II allows you to turn your second ROM into a Read-and-write ROM
with larger space provided. You may download fancy skins from our website (http://download.aopen.com.tw/downloads
JukeBox, JukeBox FM or VividBIOS by adjusting JP25 to Pin2-3 (No Protection).
JP24
1
Normal Rescue ROM
Note: Please be noted that you will not be able to
use the second BIOS ROM for boot-up after setting
JP25 to Pin 2-3 for the purpose of saving skins of
JukeBox, JukeBox FM or VividBIOS.
) to apply them on
1
Pin1
JP24
59
p
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
JJPP1155//JJPP1166 DDrr.. VVooiiccee LLaanngguuaaggee SSeelleecctt JJuummppeerrss
Dr. Voice is a great feature of AX4SGMax, which can identify the problems you may encounter in the operating system. It can
clearly “tell you” whether the problem is caused from components or improper installation such as CPU, memory module, VGA,
PCI add-on card, FDD, HDD or keyboard. Dr. Voice provides four language versions: English, German, Japanese and Chinese.
You can select your preferred language by JP15 & JP16 jumpers. However, you may also set JP2 to choose making out voices
from buzzer or speaker.
JP15
Pin1
Dr. Voice Language
Select Jum
Pin1
er
Japanese
Chinese
German
English
(Default)
JP16
JP15
JP16
Pin1 Pin1
60
(
)
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
JJPP22 SSppeeaakkeerr OOuuttppuutt JJuummppeerr
This motherboard comes with another considerate option that allows you to turn off the voice from buzzer and speaker. You can choose not
to be bothered by the warning made from Dr. Voice when it detects any error in operating system. You may also set JP2 to choose sending
out voices from buzzer or speaker.
Pin 1
JP2 Speaker Output Jumper
1
Buzzer
default
1
Speaker
61
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
CCDD AAuuddiioo CCoonnnneeccttoorr
This connector is used to connect CD Audio cable from CDROM or DVD drive to onboard sound.
CD-IN Connector
L
GND
GND
R
Note: Though some of the latest versions of Windows
support “Digital Audio” through IDE bus. However, in
order to use Open Jukebox player, which is driven under
BIOS, it is a MUST to connect audio cable to CD-IN
connector on the motherboard.
62
AAXX44SSGG MMa
a
xx OOnnlliinnee MMaannuuaall
AAUUXX--IINN CCoonnnneeccttoorr
This connector is used to connect MPEG Audio cable from MPEG card to onboard sound.
L
GND
GND
R
AUX-IN Connector
63
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
CCaassee OOppeenn CCoonnnneeccttoorr
The “CASE OPEN” header provides chassis intrusion-monitoring function. To make this function works, you have to enable it in the system
BIOS, connect this header to a sensor somewhere on the chassis. So, whenever the sensor is triggered by lights or by the opening of the
chassis, the system will beep to inform you. Please be informed that this useful function only applies to advanced chassis, you may
purchase an extra sensor, attach it on your chassis, and make a good use of this function.
1
GND
Sensor
Pin 1
Case Open Connector
64
AAXX44SSGG M
M
aaxx
OOnnlliinnee MMaannuuaall
SSTTBBYY LLEEDD ((SSttaannddbbyy LLEEDD))
STBY LED is AOpen’s considerate design that we aim at providing you friendly system information. The STBY LED will light up when power
is provided to the motherboard. This is a convenient indication for you to check the system power status in many circumstances such as
power on/off, stand-by mode and RAM power status during Suspend to RAM mode.
Warning: Do not install or remove the
DIMM module or others devices when the
STBY LED lights on.
STBY LED
65
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
RReesseettaabbllee FFuussee
Traditional motherboard uses fuses to prevent Keyboard and USB port from over-current or shortage. These fuses are soldered onboard
that when it is broken (function to protect motherboard), user cannot replace them and result in malfunction of motherboard.
With expensive Resetable Fuse, the motherboard can be resumed back to normal function even after the fuse had done its protection job.
Resetable Fuse
66
AAXX44SSG
G
MMaaxx OOnnlliinnee MMaannuuaall
EEnnllaarrggeedd AAlluummiinnuumm HHeeaattssiinnkk
Cool down CPU and Chipset are important for system reliability. Enlarged aluminum heat sink provides better heat consumption especially
when you are trying to over-clock the CPU.
67
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
LLooww EESSRR CCaappaacciittoorr
The quality of low ESR capacitor (Low Equivalent Series Resistance) during high frequency operation is very important for the stability of
CPU power. The idea of where to put these capacitors is another know-how that requires experience and detail calculation.
Not only that, AX4SG Max implements 3300μF capacitors, which is much larger than normal capacitor (1000 & 1500μF) and it provides
better stability for CPU power.
68
AAXX44SSGG MMaaxx
OOnnlliinnee MMaannuuaall
VV44 PPoowweerr EEnnggiinnee
While the market are flooded with low quality, cost-down power materials on motherboard by treacherous manufacturers that subsequently
cause the stability of your system, unknown system crashing, overheating of your motherboard, we, AOpen have decided to maintain our
long-lasting reputation of refined manufacturer by keep providing solid materials on our products.
As if V6 engine gives more horsepower to your car driving on the road, so as motherboard needed to have stronger and more robust power
to protect your system. Adopted 4 parelelled PWM (Pulse Width Modulation) controller channels in 4-phase form, this motherboard provide
optimized power density, transient response and thermal performance for satisfying the increasing high CPU temperature. And one thing for
sure, 4-phase PWM controller would definitely be better for 3-phase PWM controller as the same theory of 3000c.c car would certainly be
better than 2000c.c car. Therefore, It is a must for motherboard these days to get prepared with stronger, more stable power.
If we take 60W power consumption shared by 3-phase PWM controller for example, testings shows that it transmits higher temperature to
its surrounding components and thus increasing the temperature of motherbaord, which is very frustrating for CPU overclocking or for
system stability concern at high loading. However, with 4-phase PWM controller implemented, voltage are averagely shared in 4-phase
PWM controller and transmit less temperature onto the board and thus cool down motherboard temperature, so as to protect your system.
69
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
Comprison Transient of 3-phase and 4-phase PWM
As test report shows, while most of the motherboards on the market are powered by 3-phase PWM controller, this motherboard does
comes with 4-phase PWM controller providing stronger power, and could lower down the temperature of motherboard from 15℃ to 30℃.
-phase
4
3-phase Vcore tolerance of - 126 mv
Vcore tolerance of - 116 mv
顯示桌面.scf
3-Phase PWM
4-Phase PWM
Transient difference between 3-phas and 4-phase PWM
70
AAXX44SSGG MMaaxx
OOnnlliinnee MMaannuuaall
TThhee nnooiissee iiss ggoonnee!!!! -------- SSiilleennttTTeekk
As the clock of CPU keeps rocketing higher and higher, it inevitably brings higher heat and
system temperature in a relative way. The way we deal with this heat problem, however, is to
spare no effort to add one fan after another to protect our pampered system, expecting these
fans could cool down our machine as much as they could.
But at the same time, we believe that same users are affected terribly by the irritating noises of these fans while working with
their PC. As a matter of fact, we do not have to get our fans running at such a high speed in most cases; on the contrary, we
discovered that having your fans running
at appropriate time and speed not only
reduces the noise, but also consumes the
least power the system needs, so as to
prevent over-wasting of energy resource.
Today, AOpen Motherboard is honored to
bring you a new overall solution, SilentTek,
to make your system quiet. To collocate
with hardware circuit, BIOS and the utility
under Windows, SilentTek combined
“Hardware-Status Monitoring”, “Overheat
Warning” and “Fan Speed Control” with
user-friendly interfaces to provide you a
perfect balance among noises, system
performance and stability.
71
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
The first image you have here is the Voltage Status
page. You can find current status of all voltages and set
your expected margins of warning level.
You may check your
system voltage from the
indicating bar here.
In “Temp/Fan/Case” page, you may get aware of the
current temperature of CPU and the heat inside chassis.
Also, you can check if fans are running properly.
Of course, you may set your
defaulted lowest margin for
your fans and SilentTek would
also pop up a message box to
alarm you when the fan is
rotating slower than this
specified speed.
You may set the highest
margin of your CPU and
system temperature as
default, and SilentTek would
pop up a message box to alert
you with alarm when the
temperature goes beyond the
specified margin.
72
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
The following page is surely the most important part of this utility. You may control the rotation speed of specific fans that you have got the
options inside in this page.
CD-ROM Rotation Speed Control: by enabling the CD-ROM
Rotation Speed Control, you can adjust the rotation speed of your
CD-ROM. When you set the speed to high level, the CD-ROM will
work at its fastest speed and it will run at basic required speed
while you set the value to low speed.
1. Smart FAN Control: This is the default setting of
SilentTek and can be used for any branded computer
housing. With a special algorithm developed by AOpen,
the fan speed is automatically adjusted by the factors of
CPU and ambient temperature. Ease-of-use and trouble
free at your service.
2. Fixed FAN Control: Under this setting, a desired fan
speed is set fixed when operating.
3. Multiple Level Control: This is the most versatile
setting that allows you to set fan speed in relation to
temperature. You may find that this setting fits you best.
4. AOpen Recommend Setting: This setting is designed
specifically for AOpen housing. A series of lab tests were
conducted under the real world scenario to determine
optimum fan speed to reduce noise level within CPU
working condition and temperature. Most of the time, the
fan would remain still when CPU is not fully utilized.
Note: Due to hundreds different brands of fan on the
market, inaccuracy may happen in some cases when you
had your rotation speed adjusted. It is still under the
criterion and please rest assured that it won’t cause any
problem to your system.
73
AAXX44SSG
G
MMaaxx
OOnnlliinnee MMaannuuaall
EEzzCClloocckk
Have you ever thought how great it would be if you can adjust the frequency setting on your motherboard under Windows environment
and be a real master of your system? Everybody knows that the ratio and frequency setting are key factors to influence the system
performance, however, it’s absolutely not an easy task for an amateur to adjust the setting value. On most traditional motherboards, you
have to get into BIOS screen for the frequency and
reboot the system again and again. But from now on,
you don’t have to surfer the boring stuffs anymore.
With brand-new and user-friendly EzClock that
AOpen specially designs for his users, you can adjust
those important values as you please and think of
suitable. This tailor-made EzClock allows you to set
the voltage and frequency of CPU, VGA, PCI and
memory under Windows environment as well as in
BIOS setting page; even better, those settings will be
displayed realtime. Having this handy EzClock, you
can monitor the system when you’re fine-tuning the
performance of your system. It provides you detailed
and necessary information. Now let’s take a look how
it works on utility, BIOS and POST.
74
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
How You Adjust the Settings in EzClock Utility
In EzClock utility, you can adjust CPU Front Side Bus (FSB), the voltage and frequency of VGA, AGP, PCI and DRAM. Besides, the
CPU related information such as CPU voltage, temperature and CPUFAN rotation speed will also be displayed on this utility.
CPU Color Bars:
The color bar will
light on and show
different colors as
values change. On
default values, it
will show green.
On the right part of the panel is the section that you adjust the settings of
VGA, AGP, PCI and memory. To adjust the voltage and clock frequency of
those installments, you can press “-“ or “+” on corresponding items. The
color parts represent the situation of values. The higher value you set, the
light on the color bar goes to right and turns red. After finishing those value
settings, you can press “S” button on the upper right hand corner to save
changes to CMOS.
VGA, AGP, PCI and DRAM Voltage / Clock Area:
Pressing “_” and “+” buttons, you can adjust the
voltage and clock frequency values of onboard
VGA, AGP, PCI and DRAM.
On the left circle area shows Ratio, FSB and frequency information
about CPU. When the values are set to factory default, the light on
the top and bottom of the circle will show green and it will vary as you
change these CPU settings.
CPU Ratio, FSB and frequency displaying area:
You can adjust CPU FSB here by entering preferred value.
75
Control buttons:
“_” button allows you
to minimize the utility
and “X” button to close
the utility. Pressing
“Apply” button you can
save the changes to
CMOS.
p
AAXX44SSGG MMa
On the bottom rectangular panel represents CPU fan speed, CPU voltage and CPU temperature. The three color bars on the right hand
side will light on according to operation temperature. Please refer to the picture shown above.
CPU Color Bars:
The color bars will light on
according to CPU operation
erature.
tem
ax
x OOnnlliinnee MMaannuuaall
CPU Fan, Voltage and Temperature:
representing CPU fan speed, CPU
voltage and CPU temperature in
Celsius and Fahrenheit degrees.
How You Adjust the Settings in BIOS
Apart from EzClock utility, the voltage and frequency values of CPU, PCI and memory can also be adjusted on BIOS page. By pressing
“+”, “-“, “PgUp” or “PgDn” keys, you can
adjust the frequency values of CPU Bus,
PCI Bus and DRAM.
Also, the same keys help you adjust the
voltage of CPU and DDR settings. Some
values may change while you adjust the
settings. You can press “F10” to save the
changes you’ve made.
Function Keys
Description
76
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
How Your Boot Screen Looks Like
After you finish setting BIOS, these setting values will
be displayed on the boot screen like the shown
picture here.
Every time you boot your system, both default and
current settings will pop up on the screen. Your
personal settings that had been adjusted earlier will
be highlighted; thus, you can have clear idea how
your system functions and monitor your system more
easily.
Current values of
your system
Default settings of this
motherboard
77
The highlighted setting
value you manually adjust
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
HHyyppeerr TThhrreeaaddiinngg TTeecchhnnoollooggyy
What is Hyper-Threading?
Hyper-Threading technology is an innovative design from Intel that enables multi-threaded software applications to process threads in
parallel within each processor resulting in increased utilization of processor execution resources. As a result, an average improvement of
~40% in CPU resource utilization yields higher processing throughput.
How Hyper-Threading Works
A form of simultaneous multi-threading technology (SMT), Hyper-Threading technology allows multiple threads of software applications to
be run simultaneously on one processor by
duplicating the architectural state on each
processor while the same processor execution
resources is shared. The figure below
represents how a Hyper-Threading based
processor differentiates a traditional
multiprocessor. The left-hand configuration
shows a traditional multiprocessor system with
two physical processors. Each processor has its
own independent execution resources and
architectural state. The right-hand configuration
represents an Intel Hyper-Threading technology
based processor. You can see that the
architectural state for each processor is
duplicated, while the execution resources is
shared.
78
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
For multiprocessor-capable software applications, the Hyper-Threading based processor is considered two separate logical processors on
which the software applications can
run without modification. Also, each
logical processor responds to
interrupts independently. The first
logical processor can track one
software thread, while the second
logical processor tracks another
software thread simultaneously.
Because the two threads share the
same execution resources, the second
thread can use resources that would
be otherwise idle if only one thread
was executing. This results in an
increased utilization of the execution
resources within each physical
processor.
The figure below represents how
Hyper-Threading saves time when it
works. With two logical processors available on every single physical processor, multi-threaded applications can now take advantage of
thread-level parallelism on each physical processor for additional performance. As software applications continue to be optimized to take
greater advantage of processor parallelism, Hyper-Threading technology provides an additional boost for newer capabilities and the
growing needs of today’s users.
79
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
AAOOCCoonnffiigg UUttiilliittyy
AOpen always dedicated to provide users a much friendly computer environment. We now
bring you a comprehensive system detection utility. AOConfig is a Windows based utility with
user-friendly interface that allows users to obtain information of the operation system and
hardware such as motherboard, CPU, memory, PCI devices and IDE devices. The powerful utility also displays the version of BIOS and
firmware for your convenience of maintenance.
Moreover, AOConfig allows users to save information in *.BMP or *.TXT format which users may collect the system information in detail and
send them to AOpen directly for technical support or for further diagnose of system problems.
1. The system page shows the
detailed information of the
motherboard, operating
system, processor, and
BIOS version.
2. The PCI device page shows
the configurations of all PCI
devices installed in your
motherboard.
80
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
3. This page presents the IDE
device information, such as
serial number, manufacturer,
firmware version, and capacity.
4. From this page, users can
obtain the technical support
information of AOpen. Moreover,
detailed information could be
saved in .bmp or .txt format.
NOTE:
AOConfig can be used under Windows 98SE/ME, NT4.0/2000, or Windows XP. Please also note that AOConfig can
only be operated in a system equipped with an AOpen motherboard. Before running AOConfig, all applications must
be closed.
81
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
RRAAIIDD IInnttrroodduuccttiioonn
WWhhaatt’’ss RRAAIIDD??
Two major challenges facing the storage industry today are keeping pace with the increasing performance demands of computer systems
by improving disk I/O throughput and providing data accessibility in the face of hard disk failures.
The idea of RAID (Redundant Array of Independent Disks) was first introduced by David A. Patterson, Garth Gibson and Randy H. Katz at
the University California at Berkeley in 1988. RAID is a purpose of storing the same data in different places on multiple hard disks and
improves storage subsystem performance. The advantage of RAID is to provide better throughput performance and/or data fault tolerance.
Better performance is accomplished by sharing the workload in parallel among multiple physical hard drives. Fault-tolerance is achieved
through data redundant operation where if one (or more) drive fails or has a sector failure, a mirrored copy of the data can be found on
another drive(s).
A RAID appears to the operating system to be a single logical hard disk. The RAID controller manages how the data is stored and
accessed across the physical and logical arrays. The RAID controller help users to ensure that the operating system only sees the logical
drives and users do not need to worry about managing the complicated schema.
For optimal performance results, select identical hard drives to install in disk arrays. The drives’ matched performance allows the array to
function better as a single drive.
Warning: The Serial ATA RAID function
can be supported under Windows XP and
Windows .Net environments.
82
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
WWhhaatt aarree tthhee RRAAIIDD lleevveellss??
SSttrriippiinngg // SSppaann ((RRAAIIDD 00))
RAID level 0, which is the fastest drive array you can have, is a performance-oriented disk mapping method. The data in this array gets
written across a stripe or different disks for a faster transfer. This technique has striping but no redundancy of data. It offers the best
performance but no fault-tolerance. Reads and writes sector of data interleaved between multiple drives. When any disk member fails, it
affects the entire array. Performance is better than a single drive since the workload is balanced between the array members. This array
type is for high performance systems. Identical drives are recommended for performance as well as data storage efficiency. The disk array
data capacity is equal to the number of members times the smallest member capacity. For example, one 40GB and one 60GB drives will
form an 80GB (40GBx2) disk array.
Block 1
Block 2
Block 3
Block 4
Striping
Block 1
Block 3
Block 5
Block 7
Block 5
Block 6
Block 7
Block 8
Block 2
Block 4
Block 6
Block 8
Logical Drive
83
Physical Disks
AAXX44S
S
GG MMaaxx
OOnnlliinnee MMaannuuaall
MMiirrrroorriinngg ((RRAAIIDD 11))
RAID level 1 uses at least two duplicate hard drives and store the exact same
blocks of information between them. This is the slowest form of fault
tolerance because the data has to be replicated onto two disks at the same
time. However, this is the simplest way to provide high reliability.
If one of the mirrored drives suffers a mechanical failure or does not respond,
the remaining drive will continue to serve and provide correct data. If one
drive has a physical sector error, the mirrored drive will continue to function.
Due to redundancy, the drive capacity of the array is half the total drive
capacity. For example, two 40GB drives that have a combined capacity of
80GB would have 40GB of usable storage. With drives of different capacities,
there may be unused capacity on the larger drive. RAID 1 increases cost as it
takes twice as much hard drives to build our arrays.
Block 1
Block 2
Block 3
Block 4
Block 5
Block 6
Block 7
Block 8
Logical Drive
Block 1
Block 2
Block 3
Block 4
Block 5
Block 6
Mirroring
Block 7
Block 8
Block 1
Block 2
Block 3
Block 4
Block 5
Block 6
Block 7
Block 8
84
Physical Disks
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
SSttrriippiinngg wwiitthh MMiirrrroorriinngg ((RRAAIIDD 00++11))
As the name would suggest, RAID 0+1 is striping and mirroring combined. This RAID combines the best of both RAID 0 and RAID 1. It
takes a Disk stripe using two disks, and mirrors it to another set of disks for fault tolerance. Data is stripped across several disks, each disk
has partner with exactly the same data on it. You get the benefits of fast data access as in RAID 0, with the fault tolerance of RAID 1. This
configuration provides optimal speed and reliability. You need double the number of disks as a RAID 0, half for each side of the mirror. At
least 4 hard disks are needed while performing RAID 0+1. There is other RAID configurations in addition to those described here, but these
are the types most commonly used in the industry.
Block 1
Block 2
Block 3
Block 4
Block 5
Block 6
Block 7
Block 8
Logical Drive
Block 1
Block 3
Striping
Block 5
Block 7
Block 2
Block 4
Block 6
Block 8
Physical Disks
Mirroring
Mirroring
Physical Disks
Block 1
Block 3
Block 5
Block 7
Block 2
Block 4
Block 6
Block 8
85
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
HHDDDD CCaappaacciittyy ooff RRAAIIDD LLeevveellss
SSttrriippiinngg // SSppaann ((RRAAIIDD 00)) SSttrriippiinngg wwiitthh MMiirrrroorriinngg ((RRAAIIDD 00 ++11))
Physical Disks
40 GB
MMiirrrroorriinngg ((RRAAIIDD 11))
Physical Disks
40 GB
Physical Disks
40 GB
Physical Disks
40 GB
Logical Drive
80 GB
Logical Drive
40 GB
Striping
Physical Disks 40GB
Physical Disks 40GB
Striping
Physical Disks 40 GB
Mirroring
Physical Disks 40 GB
Logical Drive
80 GB
86
AAXX44SSGG MMaaxx OOn
nlliinnee MMaannuuaall
SSeerriiaall AATTAA RRAAIIDD ffoorr IInntteell IICCHH55RR
With the latest chipsets implemented, Intel ICH5R provides RAID 0, 1 function in Windows 2000/XP for the Serial ATA hard disks. You may
follow the steps shown below to setup your disk array.
AArroouussee RRAAIIDD ffuunnccttiioonn iinn BBIIOOSS
After having properly installed your Serial ATA hard disks, you may directly get into the BIOS setting screen for adjustment. You may simply
press “Integrated Peripherals Æ On-Chip IDE Device Æ On-Chip Serial ATA” to choose Enhanced mode. In ord er to utilize Serial ATA
function, please select RAID in SATA Mode. Finally, do save the changes and exit BIOS setup screen.
87
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
RRAAIIDD CCoonnffiigguurraattiioonn UUttiilliittyy
In order to make sure your system can recognize and operate Serial ATA RAID device smoothly, we have to enter RAID Configuration Utility
to do some configuration. After finishing the BIOS setup and reboot, you will see [Press CTRL + I to enter configuration Utility] about half
way through the boot up. Please press these two buttons simultaneously. When you enter you will be presented with a screen as shown
below:
1. Create RAID Volume:
This section allows users to choose the strip
size and disk volume of RAID.
2. Delete RAID Volume:
This section allows users to delete the volume of
RAID. Please be noted that deleting a volume
will destroy volume data and cause any member
disks to become available as non-RAID disks.
3. Reset Disks to Non-RAID:
Users can remove any internal RAID structures
from all RAID disks, including disks with working
volume. Select “Yes” will cause all data on any
disk to be lost.
88
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
SSeerriiaall AATTAA RRAAIIDD ffoorr SSiilliiccoonn IImmaaggee 33111122AA
Silicon Image’s SATARaidTM provides Serial ATA Software RAID including Striping and Mirroring to enhance the industry’s first proven
PCI-to-SATA host controller product.
Standard with SATARaid software is a Graphical User Interface (GUI) that provides easy-to-use configurations for the different RAID
Sets supported.
IInnssttaalllliinngg DDrriivveerrss aanndd SSAATTAARRaaiidd GGUUII iinn WWiinnddoowwss 9988SSEE//MMEE//22000000//NNTT//XXPP
The driver is located on the provided floppy disk. Insert the floppy disk into the floppy disk drive and click Browse. Most floppy disk
drives are configured as [A:]. Choose the [A:] drive in your browser and the Si3112r.inf file for the SiI 3112. Select the file and click
Open.
For Windows NT system, please select the file Oemsetup.inf and click Open. The next window allows you to select which driver to install.
Select SiI 3112 Raid Controller and click on OK.
For Windows 98/ME, please use the driver installation files (siI3112r.sys) on the provided floppy disk if necessary.
Now, a window verifying that the new Driver for the board has been properly installed. Click Finish.
It is always good to restart the computer after an installation. When asked to do so, click yes.
To install SATARaid, use Windows InstallShield by performing the following:
1. After computer restarts, insert CD in disk drive.
2. Double-click on Install SATARaid.exe.
3. Follow on-screen instructions to complete installation.
Note: Do NOT install in the Start Up folder. Choose the Default folder (normally Accessories or Administrative Tools or something
similar).
89
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
90
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
CCrreeaattiinngg aanndd DDeelleettiinngg RRaaiidd SSeetts
Creating and Deleting RAID Sets is a function set in the BIOS and please press <CRTL-S> or F4 to enter RAID utility during boot.
Creating RAID Sets
1. Select “Create RAID Set”.
2. Choose either a “Striped” or “Mirrored” RAID Set.
3. Select if you want the utility to Auto Configure the RAID Set or if you want to manually configure the RAID Set.
For Striped Sets, you can change the chunk size. For Mirrored Sets, you assign which is the Source and Target drives, as well as if you
want Disk Copy.
The utility will ask “Are You Sure?” before completing the configuration.
Deleting RAID Sets
1. To remove one or more RAID sets, select “Delete RAID Set”.
2. Select desired set and press Y when asked “Are You Sure?”
s
91
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
CCrreeaattiinngg aanndd NNaammiinngg PPaarrttiittiioonnss
The creating and naming of partitions is something done within the Windows operating system. Windows XP/2000 and Windows NT
both use the Disk Management window to start this work. And Windows 98/ME uses FDISK to realize this function.
Windows XP/2000
SECTION 1: System listing of all formatted and available disks/RAID Sets.
SECTION 2: Report of physical connection of disks/RAID Sets.
SECTION 3: Report of partition status, disk letter, and volume name.
Windows NT
Button 1: opens the Disk Administrator Volumes window which lists the
recognizable Volumes, their capacity, free space, type of format, etc.
Button 2: opens the Disk Configuration window (shown above), detailing
all disks (or RAID Sets), partitions, and allows the user to format and
name each partition and volume.
Section 1: reports the size of each disk (or RAID Set).
Section 2: reports on each partition, and allows the user to format or
delete partitions.
92
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
UUssiinngg SSiilliiccoonn IImmaaggee SSAATTAARRaaiidd GGUUII
The SATARaid GUI offers the user the ability to easily monitor your RAID Set. To launch the GUI, simply double-click on the icon located in
the bottom right hand corner of the Desktop.
93
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
PPhhooeenniixx--AAWWAARRDD BBIIOOSS
System parameters can be modified by going into BIOS Setup menu, this menu allows you to configure the system parameters and save
the configuration into the 128 bytes CMOS area, (normally in the RTC chip or in the main chipset).
Phoenix-Award BIOS™ installed in the Flash ROM
provides critical low-level support for standard devices such as hard disk drives, serial and parallel ports.
Most BIOS settings of AX4SG Max have been optimized by AOpen’s R&D engineering team. But, the default setting of BIOS still can’t
fine-tune the chipset controlling entire system. Therefore, the rest of this chapter intends to guide you the process of configuring your
system setup.
To enter to BIOS setup menu, press <Del> when POST (Power-On Self Test)
Note: Because the BIOS code is the most often
changed part of the motherboard design, the BIOS
information contained in this manual may be different
with actual BIOS that come with your motherboard.
of the motherboard is a custom version of an industry standard BIOS. The BIOS
screen is shown on your monitor.
94
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
HHooww TToo UUssee PPhhooeenniixx--AAwwaarrdd™™ BBIIOOSS SSeettuupp PPrrooggrraamm
Generally, you can use arrow keys to highlight items that you want to choose, then press <Enter> key to select, and use the <Page Up>
and <Page Down> key to change setting values. You can press <Esc> key to quit Phoenix-Award™ BIOS setup program. The following
table provides details about how to use keyboard in the Phoenix-Award BIOS setup program. Alternatively, it's strongly recommended to
install AOpen’s newest WinBIOS Utility to get more detailed description, further powerful functions and advanced setting of BIOS.
Page Up or + Changing setting to next value or increase the value.
Page Down or - Changing setting to previous value or decrease value.
Enter Select the item.
Esc 1. In main menu: Quit and don’t save any change.
Up Arrow Highlight previous item.
Down Arrow Highlight next item.
Left Arrow Move the light bar to left side of menu.
Right Arrow Move the light bar to right side of menu.
F6 Load fail-save setting value from CMOS.
F7 Load turbo setting value from CMOS.
F10 Save changed setting and exit setup program.
Key Description
2. In sub menu: Exit current menu to main menu.
95
AAXX44SSGG MMaaxx
OOnnlliinnee MMaannuuaall
HHooww TToo EEnntteerr BBIIOOSS SSeettuupp
After you finish jumper settings and connect correct cables, power on and enter the BIOS Setup. Press <Del> during POST (Power-On Self
Test) and choose "Load Setup Defaults" for recommended optimal performance.
Del
Warning: Please avoid of using "Load Turbo Defaults", unless you
are sure your system components (CPU, DRAM, HDD, etc.) are
good enough for turbo setting.
96
AAXX44SSGG MMaaxx
OOnnlliinnee MMaannuuaall
WWiinnBBIIOOSS UUttiilliittyy
good timing during POST (Power-On-Self-Test) screen to get
into the BIOS, which is inconvenient and clumsy. From now on,
AOpen provides an easier way to configure your BIOS. WinBIOS
is a customized utility for running exclusively on AOpen
motherboards, which allows you to setup your BIOS under
Windows environment. Designed with traditional-BIOS-alike
interface, you may adjust BIOS parameter with clear descriptions
for each item.
WinBIOS is natively designed with multi-language support. There
are various widely-use languages provided on our website for
your downloading, which also helps to prevent wrong settings
caused by misunderstanding of the languages. The only thing
you have to do is to visit our official website and download your
respective language pack (of few KB size), then double-click on it to activate the support with your chosen language.
Moreover, with high scalability, either for newly bought motherboard or the latest BIOS version with new function, you don’t have
to re-install the whole program again and again. All you have to do is to grab the latest profile from our website, simply
double-click on it as well to support the latest version of your BIOS. You don’t have to spend any extra effort to have your
motherboard supported by WinBIOS.
In the past, users have to keep
punching the DEL key at a
97
A
A
XX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
Function keys:
It’s definitely easy to handle WinBIOS as if you’re using traditional
BIOS setting. Users can use the arrow keys such as
to move around the items in WinBIOS screen. And use ,
“+” or “-” to change the setting value if they are available. Press
get back to the previous screen. Furthermore, the hotkeys shown in the
table may help you and save your time. Some settings may not come
into effect until you reboot your system.
Caution: After updating your BIOS, please remember to update
WinBIOS profile as well. If the upgraded BIOS version is newer
than WinBIOS profile, WinBIOS will not be able to launch and a
dialog box with error message will pop up. This verification is
designed on purpose to protect your BIOS from damaged by
wrong profile version.
For the latest WinBIOS profile and language pack modules, you may
find them from AOpen official web site as shown below:
(http://english.aopen.com.tw/tech/download/WinBIOS/default.htm
Note: Due to BIOS versions are updated in an extremely fast speed, it's strongly recommended to download the latest BIOS
version and WinBIOS profile from our website upon receipt of the motherboard.
)
Hotkey Function Description
F1 Get help description.
F2 Item Help
F3 Changing menu language.
to
F5 Load previous setting
F6 Load setup default setting
F7 Load turbo setting
F10 Save changed setting and exit setup program.
F12 Full Screen / Normal Mode
98
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
BBIIOOSS UUppggrraaddee uunnddeerr WWiinnddoowwss eennvviirroonnmmeenntt
With outstanding R&D ability of AOpen, we now bring you a whole new BIOS Flash wizard ----
EzWinFlash. With an eye to users convenience, EzWinFlash combines the BIOS binary code
and flash module together, so the only thing you have to do is just clicking on the utility you downloaded from web and let it helps you
complete the flash process automatically. EzWinFlash detects your motherboard and checks the BIOS version cleverly to prevent your
system from any possible failure. Moreover, EzWinFlash has been taken into consideration to go with any windows platform you might be
using, no matter if you’re using Windows 95/98, 98SE/ME, NT4.0/2000, or Windows XP.
In the meanwhile, in order to provide a much more user-friendly operating environment, AOpen EzWinFlash is natively designed to have
multi-language function to provide easier way for users’ usage in changing BIOS setting.
Caution: By updating your motherboard,
you are taking a risk of BIOS flash failure. If
your motherboard is working stable, and
there are no major bugs that had been fixed
by a latter BIOS revision, we recommend
that you DO NOT try to upgrade your BIOS.
If you intent on upgrading, PLEASE BE
SURE to get the right BIOS revision for the
right motherboard model to avoid any
possibility failure.
99
AAXX44SSGG MMaaxx OOnnlliinnee MMaannuuaall
You may accomplish BIOS upgrade procedure with EzWinFlash by the following steps, and it’s STRONGLY RECOMMENDED to close all
the applications before you start the upgrading.
1. Download the new version of BIOS package zip
2. Unzip the download BIOS package (ex: WSGMAX102.ZIP) with WinZip (http://www.winzip.com
3. Save the unzipped files into a folder, for example, WSGMAX102.EXE & WSGMAX102.BIN.
4. Double click on the WSGMAX102.EXE; EzWinFlash will detect the model name and BIOS version of your motherboard. If you had
got the wrong BIOS, you will not be allowed to proceed with the flash steps.
5. You may select preferred language in the main menu, then click [Start Flash] to start the BIOS upgrade procedure.
6. EzWinFlash will complete all the process automatically, and a dialogue box will pop up to ask you to restart Windows. You may click
[YES] to reboot Windows.
7. Press <Del> at POST to enter BIOS setup; choose "Load Setup Defaults", then “Save & Exit Setup”. Done!
It is strongly recommended NOT to turn off the power or run any application during FLASH PROCESS.
Warning: The new BIOS upgrade will permanently replace your
original BIOS’s settings when flashing. You may need to reconfigure
your BIOS setting so that your system can go back to work as normal.
file from AOpen official web site. (ex: http://www.aopen.com)
) in Windows environment.
100
