AOpen AX45H8XMAX User Manual

Download

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

AX45H-8X Max

DOC. NO.: AX45H8XMAX-OL-E0212A

Overview

Installation

Hardware

Drivers &

Utilities

BIOS Setup

AWARD

Glossary

Troubleshooting &

Technical Support

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

WWhhaatt’’ss iinn tthhiiss mmaannuuaall

AX45H-8X Max.............................................................................................................................................1

What’s in this manual .................................................................................................................................................................... 2

You Must Notice ............................................................................................................................................................................ 6

Before You Start............................................................................................................................................................................ 7

Overview ....................................................................................................................................................................................... 8

Feature Highlight ........................................................................................................................................................................... 9

Quick Installation Procedure ....................................................................................................................................................... 14

Motherboard Map ........................................................................................................................................................................ 15

Block Diagram ............................................................................................................................................................................. 16

Hardware Installation ............................................................................................................................ 17

About “User Upgrade Optional” and “Manufacture Upgrade Optional”… ................................................................................... 18

CPU Installation........................................................................................................................................................................... 19

Hyper Threading Technology ...................................................................................................................................................... 22

Enlarged Aluminum Heatsink ...................................................................................................................................................... 24

Full-range Adjustable CPU Core Voltage.................................................................................................................................... 25

CPU and System Fan Connector (with H/W Monitoring) ............................................................................................................ 27

DIMM Sockets ............................................................................................................................................................................. 28

DDR 266(PC2100) and DDR 333(PC2700) ................................................................................................................................ 30

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

Front Panel Connector ................................................................................................................................................................ 31

ATX Power Connector................................................................................................................................................................. 32

AC Power Auto Recovery............................................................................................................................................................ 32

IDE and Floppy Connector .......................................................................................................................................................... 33

ATA/133 Supported ..................................................................................................................................................................... 35

IrDA Connector............................................................................................................................................................................ 36

Support AGP 8X (Accelerated Graphic Port) Expansion Slot ..................................................................................................... 37

WOM (Zero Voltage Wake on Modem) Connector...................................................................................................................... 38

WOM by External BOX Modem................................................................................................................................................... 39

WOM by Internal Modem Card.................................................................................................................................................... 40

WOL (Wake on LAN) Connector ................................................................................................................................................. 41

Support 10/100 Mbps LAN onboard............................................................................................................................................ 43

CNR (Communication and Network Riser) Expansion Slot......................................................................................................... 44

Support 2nd USB 2.0 Port ............................................................................................................................................................ 45

Colored Back Panel..................................................................................................................................................................... 46

Super 5.1 Channel Audio Effect .................................................................................................................................................. 47

Front Audio Connector ................................................................................................................................................................ 48

S/PDIF (Sony/Philips Digital Interface) Connector...................................................................................................................... 49

Dr. LED Connector (User Upgrade Optional).............................................................................................................................. 50

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

Onboard IEEE 1394 Connectors................................................................................................................................................. 52

Case Open Connector................................................................................................................................................................. 53

CD Audio Connector ................................................................................................................................................................... 54

AUX-IN Connector....................................................................................................................................................................... 55

Game Port Bracket Supported .................................................................................................................................................... 56

JP1 Buzzer and JP2 Speaker Enable/Disable Jumpers ............................................................................................................. 57

JP14 Clear CMOS Data .............................................................................................................................................................. 58

JP15/JP16 Dr. Voice Language Select Jumpers......................................................................................................................... 59

JP27 / JP28 Keyboard/Mouse Wake-up Jumper ........................................................................................................................ 60

JP29 DDR Voltage Jumper ......................................................................................................................................................... 61

STBY LED ................................................................................................................................................................................... 62

AGP Protection Technology and AGP LED ................................................................................................................................. 63

Battery-less and Long Life Design .............................................................................................................................................. 65

Over-current Protection ............................................................................................................................................................... 66

Hardware Monitoring ................................................................................................................................................................... 67

Resettable Fuse .......................................................................................................................................................................... 68

3300µF Low ESR Capacitor........................................................................................................................................................ 69

Phoenix-AWARD BIOS ............................................................................................................................ 71

About BIOS Function Description… ............................................................................................................................................ 72

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

How To Use Phoenix-Award™ BIOS Setup Program ................................................................................................................. 73

How To Enter BIOS Setup........................................................................................................................................................... 75

BIOS Upgrade under Windows environment .............................................................................................................................. 76

Vivid BIOS technology................................................................................................................................................................. 78

Driver and Utility....................................................................................................................................79

Auto-run Menu from Bonus CD ................................................................................................................................................... 79

Install IDE Driver ......................................................................................................................................................................... 80

Install USB2.0 Driver................................................................................................................................................................... 81

Installing LAN Driver.................................................................................................................................................................... 82

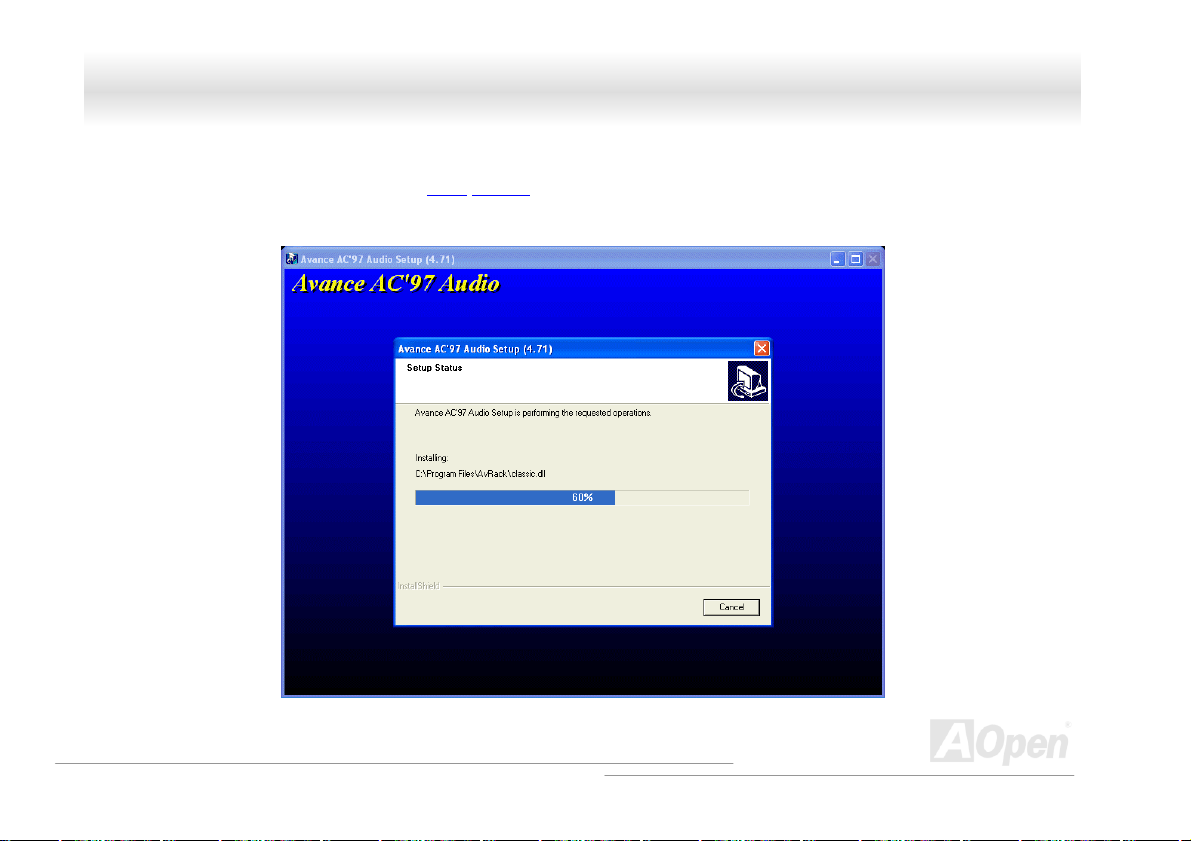

Installing Onboard Sound Driver ................................................................................................................................................. 85

Installing AGP Driver ................................................................................................................................................................... 86

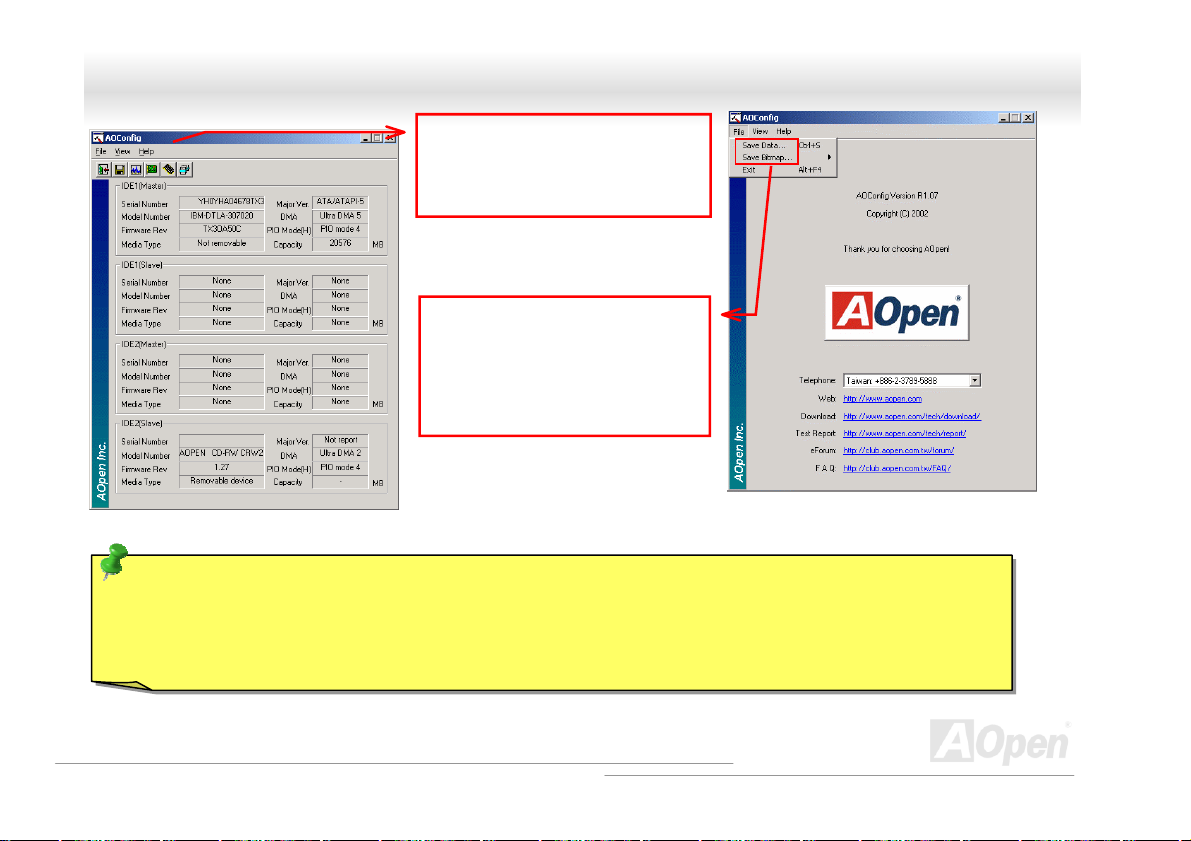

AOConfig Utility ........................................................................................................................................................................... 87

Installing Hardware Monitoring Utility .......................................................................................................................................... 89

Glossary .................................................................................................................................................90

Troubleshooting ................................................................................................................................... 101

Technical Support ................................................................................................................................ 105

Product Registration............................................................................................................................ 108

How to Contact Us............................................................................................................................... 109

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

YYoouu MMuusstt NNoottiiccee

Adobe, the Adobe logo, Acrobat is trademarks of Adobe Systems Incorporated.

AMD, the AMD logo, Athlon and Duron are trademarks of Advanced Micro Devices, Inc.

Intel, the Intel logo, Intel Celeron, Pentium II, Pentium III and Pentium 4 are trademarks of Intel Corporation.

Microsoft, Windows, and Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

All product and brand names used on this manual are used for identification purposes only and may be the registered trademarks of their respective owners.

All of the specifications and information contained in this manual are subject to change without notice. AOpen reserves the right to revise this publication and to make reasonable changes. AOpen assumes no responsibility for any errors or inaccuracies that may appear in this manual, including the products and software described in it.

This documentation is protected by copyright law. All rights are reserved. No part of this document may be used or reproduced in any form or by any means, or stored in a database or retrieval system without prior written permission from AOpen Corporation. Copyright

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

BBeeffoorree YYoouu SSttaarrtt

This Online Manual will introduce to the user how this product is installed. All useful information will be described in later chapters. Please

keep this manual carefully for future upgrades or system configuration changes. This Online Manual is saved in PDF format

recommend using Adobe Acrobat Reader 4.0 for online viewing, it is included in Bonus CD

site.

Although this Online Manual is optimized for screen viewing, it is still capable for hardcopy printing, you can print it by A4 paper size and set

2 pages per A4 sheet on your printer. To do so, choose File > Page Setup and follow the instruction of your printer driver.

Thanks for the help of saving our earth.

, we

or you can get free download from Adobe web

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

OOvveerrvviieeww

Thank you for choosing AOpen AX45H-8X Max motherboard. AX45H-8X Max is Intel® Socket 478 motherboard (M/B) based on the ATX

form factor featuring the SIS 648 chipset

Socket 478 Pentium

and supports AGP 8X mode and pipelined spilt-transaction long burst transfer up to 2112MB/sec. According to different customer’s

requirements, this motherboard supports DDR333 (PC2700) SDRAM up to 2GB maximum and DDR 266 (PC2100) SDRAM up to 3GB

maximum. The onboard IDE controller supports Ultra DMA

the Communication and Network Riser (CNR)

than that, on the strength of Realtek 8100BL LAN controller on board, which is a highly-integrated Platform LAN Connect device, it provides

10/100M bps Ethernet for office and home use. Besides, AX45H-8X Max has a S/PDIF connector and an AC97

providing high performance and magic surround stereo sound to let people enjoy working with it. Now,

let’s enjoy all features from AOpen AX45H-8X Max motherboard.

4 (Willamette / Northwood) and 533 MHz Front Side Bus (FSB) clock. In the AGP performance, it has one AGP slot

. As high performance chipset built in the M/B, AX45H-8X Max motherboard can support Intel®

33/66/100/133 mode. Further flexibility can be achieved by taking advantage of

card option that allows audio and modem configuration on a single baseboard design. More

CODEC chipset onboard,

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

FFeeaattuurree HHiigghhlliigghhtt

CPU

Supports Intel® Socket 478 Pentium® 4 (Willamette / Northwood) 1.4GHz~3.06GHz+ with 533MHz Front Side Bus (FSB) designed for

Socket 478 technology. The AX45H-8X Max motherboard supports Intel Hyper-Threading Technology.

Chipset

The motherboard is equipped with SIS 648 chipset. SIS 648 Host & Memory & AGP Controller integrates a high performance host interface

for Intel Pentium 4 processor, a high performance memory controller, a AGP interface. The SIS 648 Host Interface supports Intel Pentium

4 Series processors with FSB up to 133MHz. The host interface plays the role of processor transactions’ dispatcher. It dispatches

transactions to Memory, I/O interface and AGP bus. Transactions to different destinations can be dispatched concurrently in order to

maximum pipeline efficiency. The Memory controller can support DDR SDRAM. The memory controller also supports the Suspend to

RAM function by retaining the CKE# pins asserted in ACPI S3 state in which only AUX source deliver power. The AGP interface can

support external AGP slot with AGP 4X/8X capability and Fast Write Transactions.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

Expansion Slots

Including six 32-bit/33MHz PCI, one CNR and one AGP 4X/8X slots. The PCI local bus throughput can be up to 132MB/s. The

Communication & Nectworking Riser (CNR)

Accelerated Graphics Port (AGP)

support data transfer rate up to 2112MB/s. Of six PCI slots provided, except the first PCI slot is slave, all other five slots are master PCI

slots with arbitration and decoding for all integrated functions and LPC bus.

specification provides a new level of video display sophistication and speed. The AGP video cards

slot provided from AX45H-8X Max can support CNR interface for a Modem/Audio card. The

Memory

Provides three 184-pin DDR SDRAM DIMM sockets that support up to 2GB of PC2700(DDR333) and 3GB of PC2100(DDR266) compliant

SDRAM (Synchronous Dynamic Random Access Memory).

Watch Dog Timer

Includes AOpen “Watch Dog Timer” function that can auto-reset system in 4.8 seconds when you fail to system overclocking.

1MHz Stepping Frequency Adjustment

Provides “1MHz Stepping Frequency Adjustment” function in the BIOS. This magic function allows you to adjust CPU FSB frequency from

100~248MHz by 1MHz stepping adjustment, and helps your system get maximum performance.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

LAN Port

On the strength of Realtek 8100BL LAN controller on board, which is a highly-integrated Platform LAN Connect device, it provides 10/100

Mbps Ethernet for office and home use.

Ultra DMA 33/66/100/133 Bus Mater IDE

Comes with an on-board PCI Bus Master IDE controller with two connectors that support four IDE devices in two channels, supports Ultra

DMA 33/66/100/133, PIO Modes 3 and 4 and Bus Master IDE DMA Mode 5, and supports Enhanced IDE devices.

On-board AC’97 Sound

AX45H-8X Max uses RealTek ALC650 AC97 sound chip. This on-board audio includes a complete audio recording and playback system.

Six USB2.0 Ports

Provides four ports on the back panel and one connector with a total of six USB ports for USB2.0 interface devices, such as mouse,

keyboard, modem, scanner, etc.

Dr. LED (Upgrade Optional)

Dr. LED has 8 LEDs on this AX45H-8X Max M/B to easily show what kind of problems you may encounter.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

AGP Protection Technology

With AGP Protection Technology implemented, this motherboard will automatically detect the voltage of AGP card and prevent your

chipsets from being burnt out.

Dr. Voice

Dr. Voice provides 4 language versions (English, Chinese, Japanese and German) that can easily tell you the problem you may encounter.

You can also adjust the volume of Dr. Voice through speakers. Specially tailored made for users, we have defaulted the language versions

of Japanese market to Japanese only in order to save users from the hassle of setting jumpers, and thus making motherboard a real

jumper less design.

S/PDIF Connectors

S/PDIF (Sony/Philips Digital Interface) is the newest audio transfer file format, which provides impressive quality through optical fiber and

allows you to enjoy digital audio instead of analog audio.

On-board IEEE 1394 Connectors

Comes with two onboard IEEE 1394 (IEEE-1394a-2000) fully compliant cable ports at 100/200/400 Mbits/sec for you to connect IEEE 1394

devices, such as digital camera or other IEEE 1394 storage devices.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

Power Management/Plug and Play

Supports the power management function that confirms to the power-saving standards of the U.S. Environmental Protection Agency (EPA)

Energy Star program. It also offers Plug-and-Play

user-friendlier.

, which helps save users from configuration problems, thus making the system much

Hardware Monitoring Management

Supports CPU or system fans status, temperature and voltage monitoring and alert, through the on-board hardware monitor module.

Enhanced ACPI

Fully implement the ACPI standard for Windows® 98/ME/2000 series compatibility, and supports Soft-Off, STR (Suspend to RAM, S3), STD

(Suspend to Disk, S4) features.

Super Multi-I/O

Provides two high-speed UART compatible serial ports and one parallel port with EPP and ECP capabilities. UART can also be directed

from COM1 to the Infrared Module for the wireless connections.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

QQuuiicckk IInnssttaallllaattiioonn PPrroocceedduurree

This page gives you a quick procedure on how to install your system. Follow each step accordingly.

Installing CPU and Fan

Installing System Memory (DIMM)

Connecting Front Panel Cable

Connecting IDE and Floppy Cable

Connecting ATX Power Cable

Connecting Back Panel Cable

Power-on and Load BIOS Setup Default

Setting CPU Frequency

Reboot

10.

Installing Operating System (such as Windows XP)

11.

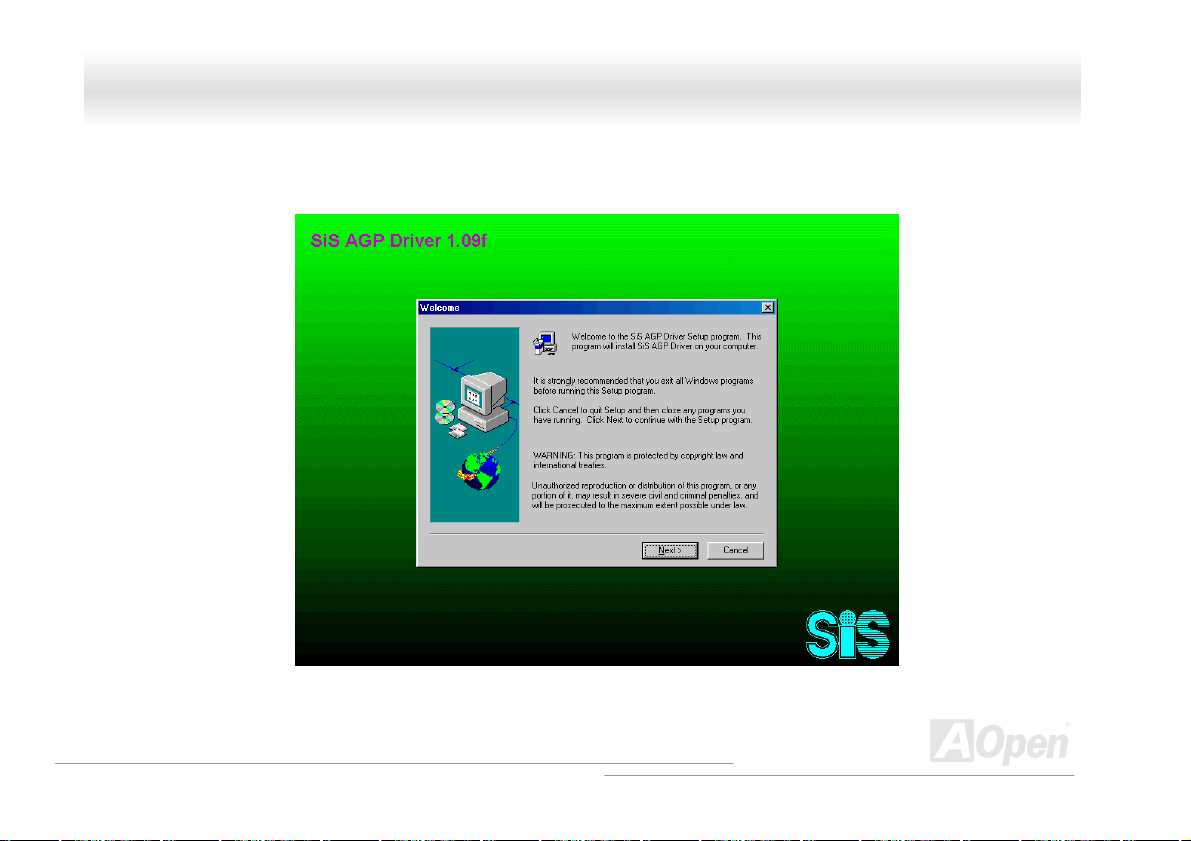

Installing Driver and Utility

ctor

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

27 USBLAN Wakeup Jumpe

Front Audio Connecto

JP15/16

JP2 Speaker Jumpe

CNR Expansion Slot

’

AUX-IN Connecto

JP1 Buzzer Jumpe

Dr. Voice Language

Select Jumpe

JST-MIDI Connecto

CD-IN Connecto

S/PDIF Connecto

32-bit PCI Expansion Slot x6

2nd USB2.0 Connectors

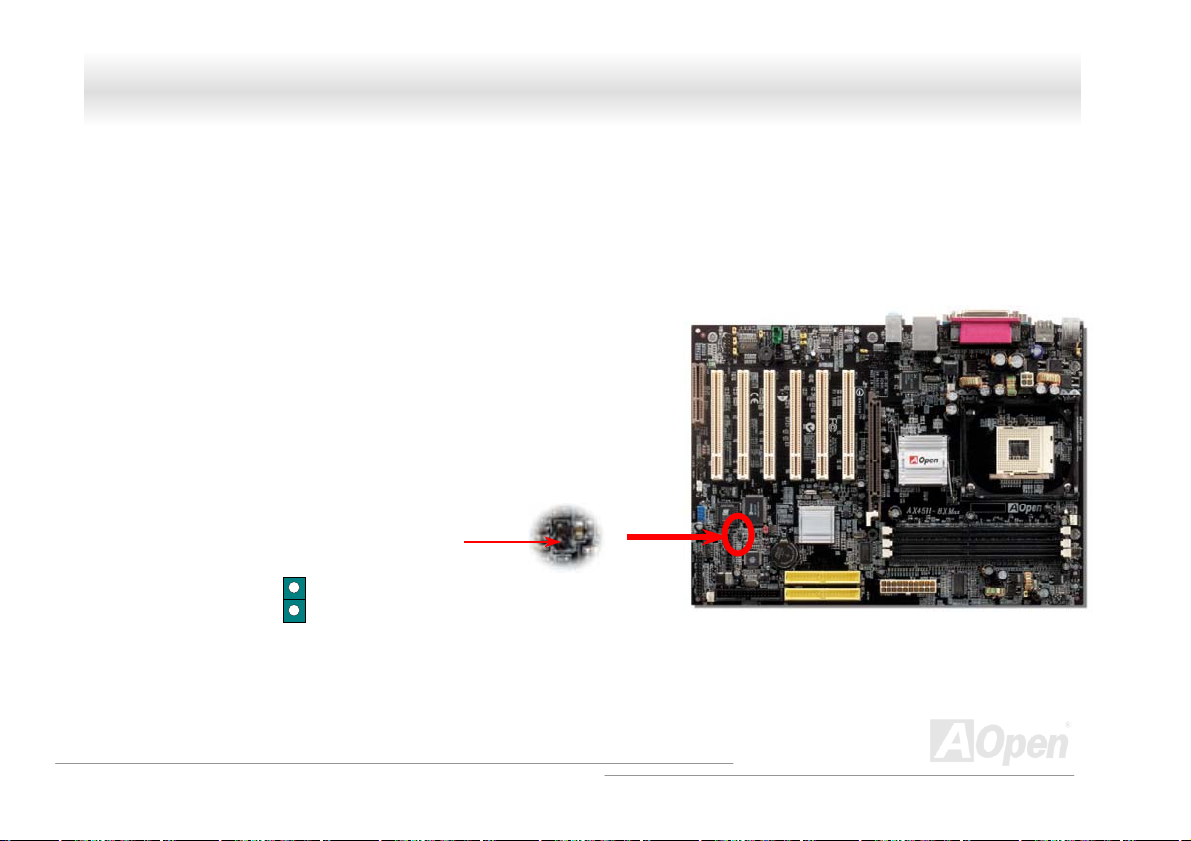

JP14 CMOS Clear Jumpe

Chassis Intrusion Detecto

IEEE 1394 Connector x2

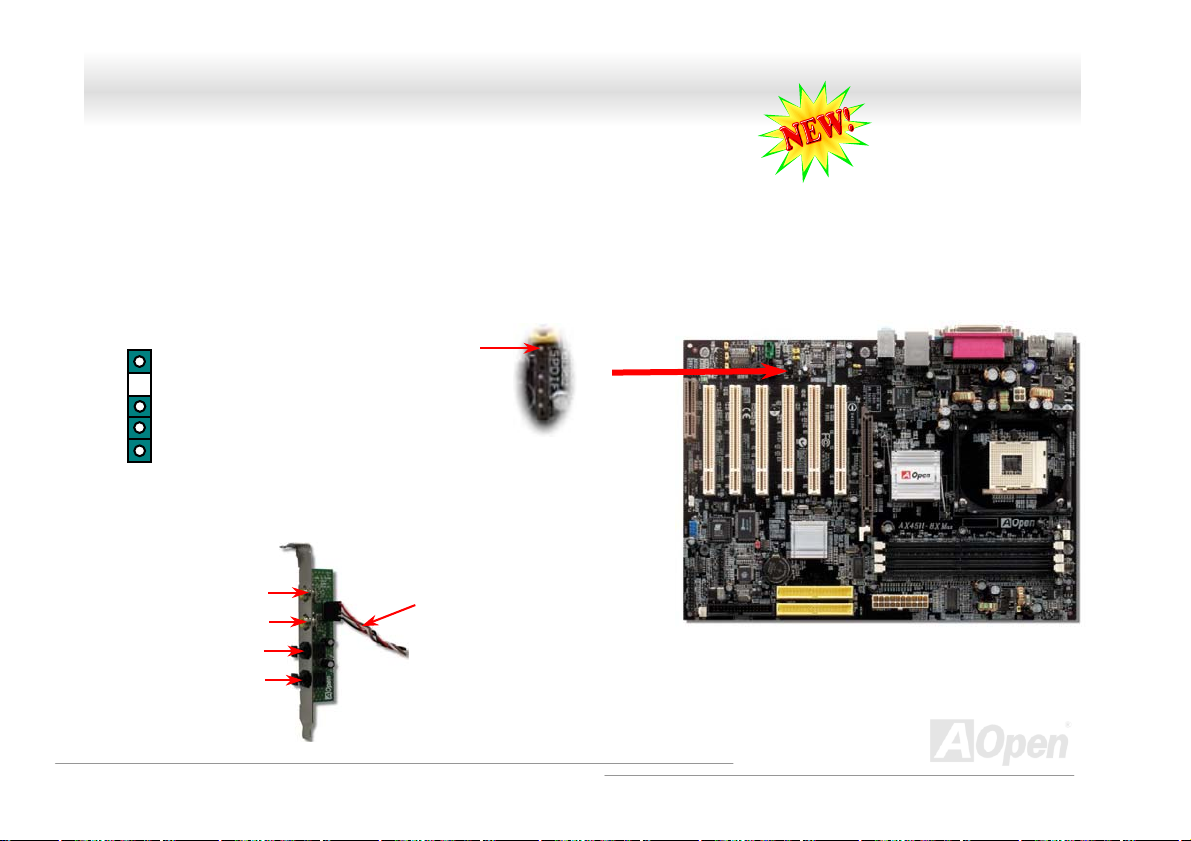

Dr. LED Connecto

WOM Connecto

WOL Connecto

IrDA Connecto

Front Panel Connecto

SYS-FAN3 Conne

FDD Connector

Motherboard Map

PC99 Colored Back Panel

JP28 Keyboard/Mouse Wakeup Jumpe

SYS-FAN2 Connector

4-pin 12V. ATX Power Connector 3300μF Low ESR Capacitors

GP 8x/4x Expansion Slot(1.5V)

478-pin CPU socket (Willamette/ Northwood) with Voltage and Frequency

uto-detection that supports

Pentium® 4

Intel

SIS 648/963 Chipset

CPU FAN connecto

184-pin DIMMx3 supports DDR 266/333 SDRAM maximum up to 3GB/2GB

TX Power Connecto

JP29 DDR Voltage Jumper

TA100/133 IDE Connector x2

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

BBlloocckk DDiiaaggrraamm

Socket 478

Intel Pentium 4

CPU(Willamet te

/Northwood)

1stIEEE1394

2ndIEEE 1394

AGP 8X Slot

DDR266/DDR333

DIMM Socket x3

533MHz System

Bus

LAN connect Component

AGERE

FW803

Floppy Disk Drive x2

SDRAM Up to

3GB/2GB

SIS 648

USB2.0 Ports

32-bit PCI Slot x6

PCI Bus

ATA

66/100/133

Realtek

RTL8100B L

1stUSB Port

2ndUSB Port

3rdUSB Port

Primary

Channel

Secondary

Channel

SIS 963

Winbond

W83697HF

RealTek

AC97

CODEC

AC Link

2Mbit Flash EEPROM

Parallel Port

Serial Port x2

IDE Drive x4

CNR Slot

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

HHaarrddwwaarree IInnssttaallllaattiioonn

This chapter describes jumpers, connectors and hardware devices of this motherboard.

Note: Electrostatic discharge (ESD) can damage your processor, disk drives, expansion boards, and other

components. Always observe the following precautions before you install a system component.

1. Do not remove a component from its protective packaging until you are ready to install it.

2. Wear a wrist ground strap and attach it to a metal part of the system unit before handling a component. If

a wrist strap is not available, maintain contact with the system unit throughout any procedure requiring

ESD protection.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

AAbboouutt ““UUsseerr UUppggrraaddee OOppttiioonnaall”” aanndd ““MMaannuuffaaccttuurree UUppggrraaddee OOppttiioonnaall””……

When you read this online manual and start to assemble your computer system, you may notice that some of the functions are marked as

“User Upgrade Optional” or “Manufacture Upgrade Optional”. Although all of AOpen’s motherboards have included many amazing and

powerful features, sometimes not every user is familiar with these powerful features. As a result of this we define features that can be

upgraded by users as “User Upgrade Optional”. You can upgrade these functions by purchasing additional devices. As for functions that

cannot be upgraded by users, we define them as “Manufacture Upgrade Optional”. If need be, you can contact our local distributors or

resellers to purchase “Manufacture Upgrade Optional” components, and again you are also welcome to visit our official website at

www.aopen.com

for detail information.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

CCPPUU IInnssttaallllaattiioonn

This motherboard supports Intel® Pentium 4 Socket 478 series CPU (Willamette / Northwood). Be careful of CPU orientation when you plug

it into CPU socket.

1. Pull up the CPU socket lever and

up to 90-degree angle.

2. Locate Pin 1 in the socket and look for mark on the CPU upper interface. Match Pin 1 and cut edge, then insert the CPU into the socket.

Note: Those pictures are for example only; they may not look the same with the motherboard you purchased.

CPU socket

Lever

CPU pin 1 and

cut edge

CPU cut edge

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

3. Press down the CPU socket lever and finish CPU installation.

Note: This picture is for example only; it may not look the same with the motherboard you purchased.

CPU cut edge

Note: If you do not match the CPU

socket Pin 1 and CPU cut edge well, you

damage the CPU.

Note: This socket supports

Micro-FC-PGA2 package CPU, which is

the latest CPU package developed by

Intel. Other forms of CPU package are

impossible to be fitted in.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

CCPPUU FFaann IInnssttaallllaattiioonn

This motherboard comes with a retention module attached on the CPU socket when shipped, we strongly recommend you to install AOpen

special designed CPU Fan as shown below on the retention module for better heat dissipation. Please install the CPU Fan correctly as the

following pictures shown.

1. Gently put the CPU Fan down on the

retention module with clips aligning correctly to the four corners.

2. Pressing down the four clips with force one by one on the retention module.

Clip

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

HHyyppeerr TThhrreeaaddiinngg TTeecchhnnoollooggyy

What is Hyper-Threading?

Hyper-Threading technology is an innovative design from Intel that enables multi-threaded software applications to process threads in parallel within each processor resulting in increased utilization of processor execution resources. As a result, an average improvement of ~40% in CPU resource utilization yields higher processing throughput.

How Hyper-Threading Works

A form of simultaneous multi-threading technology (SMT), Hyper-Threading technology allows multiple threads of software applications to

be run simultaneously on one processor by duplicating the architectural state on each processor while the same processor execution resources is shared. The figure below represents how a Hyper-Threading based processor differentiates a traditional multiprocessor. The left-hand configuration shows a traditional multiprocessor system with two physical processors. Each processor has its own independent execution resources and architectural state. The right-hand configuration represents an Intel Hyper-Threading technology based processor. You can see that the architectural state for each processor is duplicated, while the execution resources is shared.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

For multiprocessor-capable software

applications, the Hyper-Threading

based processor is considered two

separate logical processors on which

the software applications can run

without modification. Also, each logical

processor responds to interrupts

independently. The first logical

processor can track one software

thread, while the second logical

processor tracks another software

thread simultaneously. Because the

two threads share the same execution

resources, the second thread can use

resources that would be otherwise idle

if only one thread was executing. This

results in an increased utilization of the

execution resources within each

physical processor.

The figure below represents how Hyper-Threading saves time when it works. With two logical processors available on every single physical

processor, multi-threaded applications can now take advantage of thread-level parallelism on each physical processor for additional

performance. As software applications continue to be optimized to take greater advantage of processor parallelism, Hyper-Threading

technology provides an additional boost for newer capabilities and the growing needs of today’s users.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

EEnnllaarrggeedd AAlluummiinnuumm HHeeaattssiinnkk

Cool down CPU and Chipset are important for system reliability. Enlarged aluminum heat sink provides better heat consumption especially

when you are trying to over-clock the CPU.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

FFuullll--rraannggee AAddjjuussttaabbllee CCPPUU CCoorree VVoollttaaggee

This function is dedicated to overclockers and supports Adjustable CPU Core Voltage from 1.10V to 1.85V. However, this motherboard can

also automatically detects CPU VID signal and generates proper CPU core voltage.

SSeettttiinngg CCPPUU FFrreeqquueennccyy

BIOS Setup > Frequency/Voltage Control > CPU Clock Setting

This motherboard is CPU jumper-less design, you can set CPU frequency through the BIOS setup, and no jumpers or switches are needed.

The default setting is "table select mode". You can adjust the FSB from "CPU Speed Setting" for overclocking.

Core Frequency = CPU FSB Clock * CPU Ratio

PCI Clock = CPU FSB Clock / Clock Ratio

AGP Clock = PCI Clock x 2

CPU Ratio 8x, ……….30x

CPU FSB (By Manual)

(By Table)

100~248MHz by 1MHz stepping

100 and 133MHz

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

Northwood CPU

Pentium 4 1.6G 1600MHz 100MHz 400MHz 16x

Pentium 4 1.6G 1600MHz 133MHz 533MHz 12x

Pentium 4 1.7G 1700MHz 133MHz 533MHz 13x

Pentium 4 1.8G 1800MHz 100MHz 400MHz 18x

Pentium 4 2.0G 2000MHz 100MHz 400MHz 20x

Pentium 4 2.2G 2200MHz 100MHz 400MHz 22x

Pentium 4 2.2G 2200MHz 133MHz 533MHz 16x

Pentium 4 2.4G 2400MHz 100MHz 400MHz 24x

Pentium 4 2.4G 2400MHz 133MHz 533MHz 18x

Pentium 4 2.53G 2530MHz 133MHz 533MHz 19x

Pentium 4 2.66G 2660MHz 133MHz 533MHz 20x

Pentium 4 2.80G 2800MHz 133MHz 533MHz 21x

Pentium 4 3.06G 3060MHz 133MHz 533MHz 23x

CPU Core

Frequency

FSB Clock

System

Bus

Ratio

Willamette CPU

Pentium 4

1.5G

Pentium 4

1.6G

Pentium 4

1.7G

Pentium 4

1.8G

Pentium 4

1.9G

Pentium 4

2.0G

Celeron CPU

1.7G 1700MHz 100MHz 400MHz 17x

1.8G 1800MHz 100MHz 400MHz 18x

CPU Core

Frequency

1500MHz 100MHz 400MHz 15x

1600MHz 100MHz 400MHz 16x

1700MHz 100MHz 400MHz 17x

1800MHz 100MHz 400MHz 18x

1900MHz 100MHz 400MHz 19x

2000MHz 100MHz 400MHz 20x

CPU Core

Frequency

FSB

Clock

FSB

Clock

System

Bus

System

Bus

Warning: SIS 648 chipset supports maximum 400MHz (100MHz*4) /

533MHz (133MHz*4) system bus and 66MHz AGP clock; higher

clock settin

may cause serious system damage.

Note: Since the latest processor, Northwood,

would detect the clock ratio automatically,

you may not be able to adjust the clock ratio

in BIOS manually.

Ratio

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

CCPPUU aanndd SSyysstteemm FFaann CCoonnnneeccttoorr ((wwiitthh HH//WW MMoonniittoorriinngg))

Plug in the CPU fan cable to the 3-pin CPUFAN1 connector. If you have chassis fan, you can also plug it on SYSFAN2 or SYSFAN3

connector.

SYSFAN3 Connector

SYSFAN2 Connector

CPUFAN1 Connector

Note: Some CPU fans do not have

sensor pin, so that they cannot support

hardware monitoring function.

GND +12V SENSOR

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

DDIIMMMM SSoocckkeettss

This motherboard has three 184-pin DDR DIMM sockets that allow you to install PC2100 (DDR266) memory up to 3GB or PC2700

(DDR333) memory up to 2GB. Please note that when you install PC1600 or PC2100 DDR SDRAM, you can install them fully into 3 sockets;

however, when you install PC2700 DDR SDRAM, we suggest you to install DIMM1 and DIMM2 ONLY.

DIMM1 DIMM2 DIMM3

DIMM 1 V V

DIMM 2 V V

DIMM 3 V

PC2100/PC1600

DDR SDRAM

PC2700

DDR SDRAM

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

HHooww ttoo IInnssttaallll MMeemmoorryy MMoodduulleess

Please follow the procedure as shown below to finish memory installation.

1. Make sure the DIMM module’s pin face down and match the socket’s size as depicted below.

2. Insert the module straight down to the DIMM slot with both hands and press down firmly until the DIMM module is securely in place.

3. Repeat step 2 to finish additional DIMM modules installation.

Pin 1

Ta b

52 pins 40 pins

Pin 1

Note: The tabs of the DIMM slot

will close-up to hold the DIMM in

place when the DIMM touches the

slot’s bottom.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

DDDDRR 226666((PPCC22110000)) aanndd DDDDRR 333333((PPCC22770000))

DDR SDRAM utilizes the existing SDRAM infrastructure and technology while doubling the nominal bandwidth available to systems. To put

it in a simple way, DDR SDRAM is like data going along a two lane highway, while at the same time data in traditional SDRAM go along a

one way street. Therefore, it is a more advanced technology that provides a great overall improvement in system performance. DDR266

(PC2100) runs two times faster than the traditional PC133 SDRAM with the speed of Front Side Bus (FSB) up to 266MHz. (2x133=266).

And DDR333 (PC2700) is running at 333MHz FSB. Both PC2100 and PC2700 are a new naming standard for speed of DDR 266 and

DDR 333, representing their theoretical speeds of the RAM. The theoretical transfer rate of DDR 266 (PC2100) is 2.1GB/s and 2.7GB/s is

for DDR 333 (PC2700).

V+5V

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

FFrroonntt PPaanneell CCoonnnneeccttoorr

Pin 1

Attach the power LED, Keylock, speaker, power and reset switch connectors to th

corresponding pins. If you enable “Suspend Mode” item in BIOS Setup, the ACPI

Power LED will keep flashing while the system is in suspend mode.

Locate the power switch cable from your ATX housing. It is 2-pin female connecto

from the housing front panel. Plug this connector to the soft-power switch connecto

marked SPWR.

Suspend Type ACPI LED

Power on Suspend (S2) or Suspend to RAM (S3) Flashing for every second

Suspend to Disk (S4) The LED will be turned off

IDE LED

Speaker

SPWR

CPI & PWR

LED

CPI LED (BLUE)

Reset

SPEAKE

NC NC

+5 IDE LED IDE LED

GND

SPWR GND ACPI LED GND ACPILED NC ACPI_B GND RESET GND

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

AATTXX PPoowweerr CCoonnnneeccttoorr

This motherboard comes with a 20-pin and 4-pin ATX power connector. Make sure you plug in the right direction. We strongly recommend

you to connect the 4-pin 12V ATX connector before connecting the 20-pin ATX power connector and use standard power supply specially

designed for Pentium 4 system.

AACC PPoowweerr AAuuttoo RReeccoovveerryy

A traditional ATX system should remain at power off stage when AC power resumes from power failure. This design is inconvenient for a

network server or workstation, without an UPS, that needs to keep power-on. This motherboard implements an AC Power Auto Recovery

function to solve this problem.

Ground

12V

Ground

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

IIDDEE aanndd FFllooppppyy CCoonnnneeccttoorr

Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDD and IDE connector. Be careful of the pin1 orientation. Wrong

orientation may cause system damage.

Pin 1

FDD Connector

Pin 1

Secondary

Slave (4th)

Secondary

Slave (2nd)

ATA 66/100/133

IDE Connector

Secondary

Master (3rd)

IDE 2 (Secondary)

IDE 1 (Primary)

Primary

Master (1st)

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

IDE1 is also known as the primary channel and IDE2 as the secondary channel. Each channel supports two IDE devices that make a total

of four devices. In order to work together, the two devices on each channel must be set differently to Master and Slave mode. Either one

can be the hard disk or the CDROM. The setting as master or slave mode depends on the jumper on your IDE device, so please refer to

your hard disk and CDROM manual accordingly.

Tip:

1. For better signal quality, it is recommended to set the far end side device to

master mode and follow the suggested sequence to install your new device.

Please refer to above diagram

2. To achieve the best performance of Ultra DMA 66/100/133 hard disks, a special

Warning: The specification of the IDE cable is a maximum of 46cm (18 inches);

make sure your cable does not exceed this length.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

AATTAA//113333 SSuuppppoorrtteedd

This motherboard supports ATA6 6, ATA100 or ATA133 IDE devices. Following table lists the transfer rate of IDE PIO and DMA modes. The IDE bus is 16-bit, which means every transfer is two bytes. As the hard drive industry introduces faster and higher capacity hard drives, the current Ultra ATA/100 interface causes a data bottleneck between the drive and the host computer. To avoid this problem, hard disk manufactures have introduced the new Ultra ATA-133 interface technology. percent increase in interface speed with transfer rate of 133MB/s. ATA/133 performance is ideal for new operating systems, such as Window XP, that demand more storage space and faster data transfer rates from more responsive computing experiences.

To make good use of this new technology and enjoy its best performance, we recommend you to pair your system with a hard disk equipped with ATA/133 technology so that your system's need for speed on this motherboard can be satisfied.

Compared to traditional ATA/100, ATA/133 has up to 33

Mode Clock Period Clock Count Cycle Time Data Transfer Rate

PIO mode 0 30ns 20 600ns (1/600ns) x 2byte = 3.3MB/s

PIO mode 1 30ns 13 383ns (1/383ns) x 2byte = 5.2MB/s

PIO mode 2 30ns 8 240ns (1/240ns) x 2byte = 8.3MB/s

PIO mode 3 30ns 6 180ns (1/180ns) x 2byte = 11.1MB/s

PIO mode 4 30ns 4 120ns (1/120ns) x 2byte = 16.6MB/s

DMA mode 0 30ns 16 480ns (1/480ns) x 2byte = 4.16MB/s

DMA mode 1 30ns 5 150ns (1/150ns) x 2byte = 13.3MB/s

DMA mode 2 30ns 4 120ns (1/120ns) x 2byte = 16.6MB/s

ATA 66 30ns 2 60ns (1/60ns) x 2byte x2 = 66MB/s

ATA 100 20ns 2 40ns (1/40ns) x 2byte x2 = 100MB/s

ATA 133 15ns 2 30ns (1/30ns) x 2byte x2= 133MB/s

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

KEY GND IR_RX

Pin 1

IIrrDDAA CCoonnnneeccttoorr

The IrDA connector can be configured to support wireless infrared module, with this module and application software such as Laplink or

Windows 95 Direct Cable Connection, the user can transfer files to or from laptops, notebooks, PDA devices and printers. This connector

supports HPSIR (115.2Kbps, 2 meters) and ASK-IR (56Kbps).

Install the infrared module onto the IrDA connector and enable the infrared function from BIOS Setup, UART Mode, make sure to have the

correct orientation when you plug in the IrDA connector.

+5V

IR_TX

IIrrDDAA CCoonnnneeccttoorr

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

SSuuppppoorrtt AAGGPP 88XX ((AAcccceelleerraatteedd GGrraapphhiicc PPoorrtt)) EExxppaannssiioonn SSlloott

AX45H-8X Max provides an AGP 8x slot which is the latest AGP specification. The AGP 8x calls for the bus to operate at the basic AGP

66-MHz clock frequency and the bandwidth is 2.1Gbytes/s. It is a great improvement on the performance of 3D graphic. AGP supports

only memory read/write operation and single-master single-slave one-to-one only. AGP uses both rising and falling edge of the 66MHz

clock, for 2X AGP, the data transfer rate is 66MHz x 4bytes x 2 = 528MB/s and AGP 4x mode, 66MHz x 4bytes x 4 = 1056MB/s. Now the

transfer rate is 66MHz x 4bytes x 8 = 2112MB/s.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

WWOOMM ((ZZeerroo VVoollttaaggee WWaakkee oonn MMooddeemm)) CCoonnnneeccttoorr

TThhiiss mmootthheerrbbooaarrdd iimmpplleemmeennttss ssppeecciiaall cciirrccuuiitt ttoo ssuuppppoorrtt WWaakkee OOnn MMooddeemm;; bbootthh IInntteerrnnaall mmooddeemm ccaarrdd aanndd eexxtteerrnnaall bbooxx mmooddeemm aarree

ssuuppppoorrtteedd.. SSiinnccee IInntteerrnnaall mmooddeemm ccaarrdd ccoonnssuummeess nnoo ppoowweerr wwhheenn ssyysstteemm ppoowweerr iiss ooffff,, iitt iiss rreeccoommmmeennddeedd ttoo uussee aann iinntteerrnnaall mmooddeemm.. TToo uussee

iinntteerrnnaall mmooddeemm,, ccoonnnneecctt 44--ppiinn ccaabbllee ffrroomm RRIINNGG ccoonnnneeccttoorr ooff mmooddeemm ccaarrdd ttoo WWOOMM ccoonnnneeccttoorr oonn tthhee mmootthheerrbbooaarrdd.

+5VSB NC RIGND

WOM Connector

Pin 1

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

WWOOMM bbyy EExxtteerrnnaall BBOOXX MMooddeem

TTrraaddiittiioonnaall GGrreeeenn PPCC ssuussppeenndd mmooddee ddooeess nnoott rreeaallllyy ttuurrnn ooffff tthhee ssyysstteemm ppoowweerr ssuuppppllyy,, iitt uusseess eexxtteerrnnaall bbooxx mmooddeemm ttoo ttrriiggggeerr MMBB CCOOMM ppoorrtt

aanndd rreessuummee bbaacckk ttoo aaccttiivvee.

Note: This picture is for example only; it may not look exactly the same as the motherboard you purchased.

Serial Port (Modem

Side)

Pin 1

Serial Port

(Motherboard Side)

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

WWOOMM bbyy IInntteerrnnaall MMooddeemm CCaarrd

WWiitthh tthhee hheellpp ooff tthhee AATTXX ssoofftt ppoowweerr OOnn//OOffff,, iitt iiss ppoossssiibbllee ttoo hhaavvee aa ssyysstteemm ttoottaallllyy ppoowweerr ooffff,, aanndd wwaakkeeuupp ttoo aauuttoommaattiiccaallllyy aannsswweerr aa pphhoonnee

ccaallll aass aann aannsswweerriinngg mmaacchhiinnee oorr ttoo sseenndd//rreecceeiivvee aa ffaaxx.. YYoouu mmaayy iiddeennttiiffyy wwhheetthheerr oorr nnoott yyoouurr ssyysstteemm iiss iinn ttrruuee ppoowweerr ooffff mmooddee bbyy cchheecckkiinngg

ttoo sseeee iiff tthhee ffaann ooff yyoouurr ppoowweerr ssuuppppllyy iiss ooffff.. BBootthh aann eexxtteerrnnaall bbooxx mmooddeemm aanndd aann iinntteerrnnaall mmooddeemm ccaarrdd ccaann bbee uusseedd ttoo ssuuppppoorrtt MMooddeemm WWaakkee

UUpp,, bbuutt iiff yyoouu uussee aann eexxtteerrnnaall mmooddeemm,, yyoouu hhaavvee ttoo lleeaavvee yyoouurr bbooxx mmooddeemm oonn.

Note: This picture is for example only; it may not look exactly the same as the motherboard you purchased.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

WWOOLL ((WWaakkee oonn LLAANN)) CCoonnnneeccttoorr

To use Wake On LAN function, you must have a network card with chipset that supports this feature, and connect a cable from LAN card to

motherboard WOL connector. The system identification information (probably IP address) is stored on network card and because there is a

lot of traffic on the Ethernet, you need to install network management software, such as ADM, for the checking of how to wake up the

system. Note that, at least 600mA ATX standby current is required to support the LAN card for this function.

WOL connector

LID

GND

+5VSB

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

WOL Connector

(Motherboard Side)

Note: This picture is for example only; it may not exactly look the same with the motherboard you purchased.

WOL Connector

(Ethernet Card Side)

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

SSuuppppoorrtt 1100//110000 MMbbppss LLAANN oonnbbooaarrdd

The South Bridge SIS963 includes a fast Ethernet controller on chip. On the strength of Realtek 8100BL LAN controller on board, which is a

highly-integrated Platform LAN Connect device, it provides 10/100M bps Ethernet for office and home use, the Ethernet RJ45 connector is

located on top of USB connectors. The green LED indicates the link mode, it lights when linking to network and blinking when transferring

data. The orange LED indicates the transfer mode, and it lights when data is transferring in 100Mbps mode. To enable or disable this

function, you may simply adjust it through BIOS. To enable this LAN wakeup function, you have to set the “Wake on PCI Card” enable in

the BIOS “Power Management Setup” section.

Green/ACT

Orange/Speed

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

CCNNRR ((CCoommmmuunniiccaattiioonn aanndd NNeettwwoorrkk RRiisseerr)) EExxppaannssiioonn SSlloott

CNR is a riser card specification to replace the AMR (Audio/Modem Riser) that supports V.90 analog modem, multi-channel audio, and

phone-line based networking. Owing to CPU computing power getting stronger, the digital processing job can be implemented in main

chipset and share CPU power. The analogy conversion (CODEC

CNR card. This motherboard implements sound CODEC on board, but reserve CNR slot for the option of modem function. Note that you

can still use PCI modem card.

) circuit requires a different and separate circuit design, which is put on

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

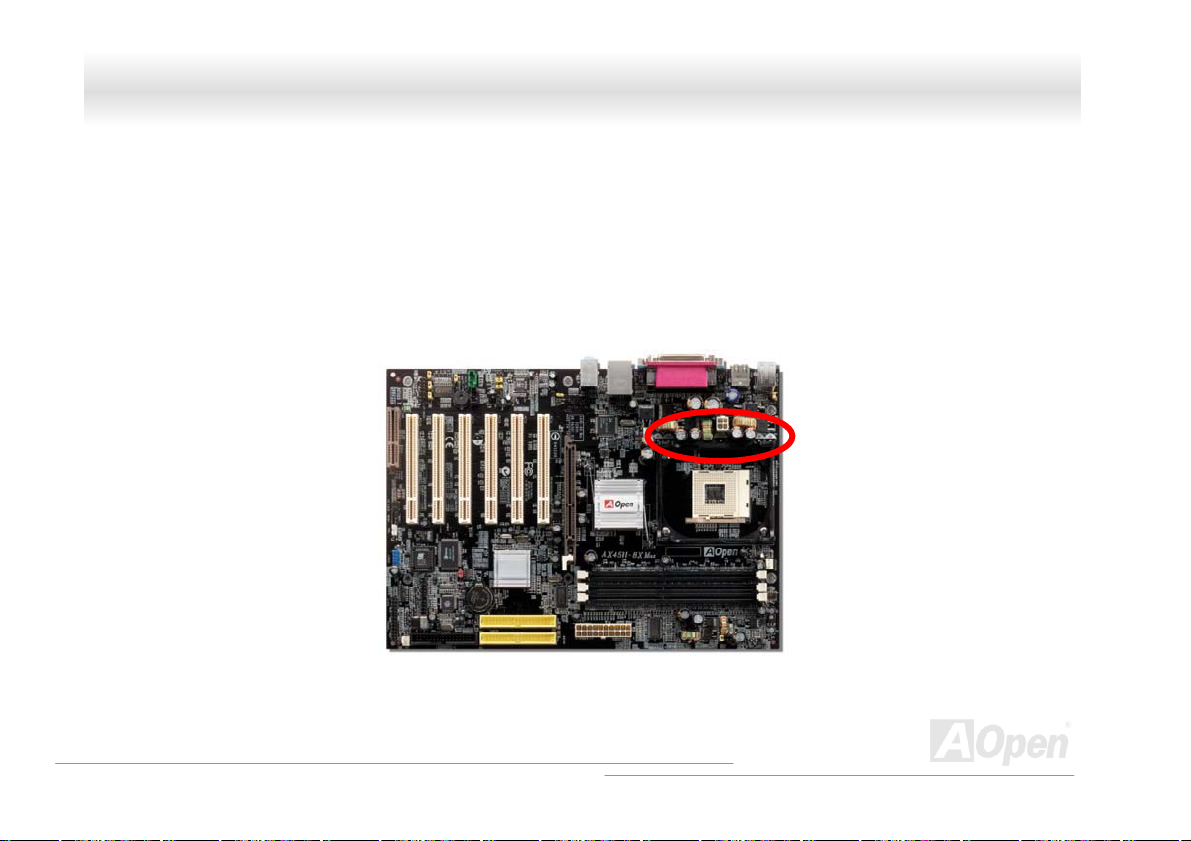

nnd

SSuuppppoorrtt 2

This motherboard provides six USB ports to connect USB devices such as mouse, keyboard, modem, printer, etc. There are four

connectors on the back panel. You can use proper cables to connect USB devices from back panel or connect USB2 header to the front

panel of chassis.

Compared to traditional USB 1.0/1.1 with the speed of 12Mbps, USB 2.0 has a fancy speed up to 480 Mbps which is 40 times faster than

the traditional one. Except for the speed increase, USB 2.0 supports old USB 1.0/1.1 software and peripherals, offering impressive and

even better compatibility to customers. On this motherboard, all six ports support USB 2.0 function.

+5V

SBD2-

SBD2+

GND

KEY

UUSSBB 22..00 PPoorrtt

+5V SBD3SBD3+ GND NC

Pin1

USB2.0 Connector

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

CCoolloorreedd BBaacckk PPaanneell

The onboard I/O devices are PS/2 Keyboard, PS/2 Mouse, RJ-45 LAN Connector, COM1 and COM2, Printer, USB, and AC97 sound. The

view angle of the drawing shown here is from the back panel of the housing.

PS/2 Keyboard: For standard keyboard, which is using a PS/2 plug. PS/2 Mouse: For PC-Mouse, which is using a PS/2 plug. USB2.0 Port: Available for connecting USB1.1/2.0 devices. Parallel Port: To connect with SPP/ECP/EPP printer. COM1/COM2 Port: To connect with pointing devices, modem or others serial devices. RJ-45 LAN connector To connect Ethernet for home or office use. VGA Connector: To connect with PC monitor. Speaker Out: To External Speaker, Earphone or Amplifier. Line-In: Comes from the signal sources, such as CD/Tape player. MIC-In: From Microphone.

PS/2 Mouse

Connecto

PS/2 Keyboard

Connector

USB Ports

COM 1 Port

SPP/EPP/ECP

Parallel Port

COM 2 Port

RJ-45 LAN Connector

USB Ports

LINE-IN

SPEAKER OUT

MIC-IN

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

SSuuppeerr 55..11 CChhaannnneell AAuuddiioo EEffffeecctt

This motherboard comes with an ALC650 Codec which supports high quality of 5.1 Channel audio effect, bringing you a brand new audio

experience. On the strength of the innovative design of ALC650, you're able to use standard line-jacks for surround audio output without

connecting any external module. To apply this function, you have to install the audio driver in the Bonus Pack CD as well as an audio

application supporting 5.1 Channel. Picture below represents the standard location of all speakers in 5.1 Channel sound track. Please

connect the plug of your front speakers to the green “Speaker out” port, rear speakers’ plug to the blue “Line in” port and both of the center

and subwoofer speakers to the red “MIC in” port.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

FFrroonntt AAuuddiioo CCoonnnneeccttoorr

If the housing has been designed with an audio port on the front panel, you’ll be able to connect onboard audio to front panel through this

connector. By the way, please remove the jumper cap from the Front Audio Connector before you connect the cable. Do not remove this

yellow jumper cap if your housing doesn’t have an audio port on the front panel.

Pin 1

FP_MIC

FP_VREF

PHONE_R

PHONE_L

FFrroonntt A CCoonnnneeccttoorr

GND +5V JS1

uuddiioo

Note: Please remove the jumper cap from the front audio connector before you

connect the cable. Do not remove this yellow jumper cap if your housing doesn’t

have an audio

ort on the front panel.

)

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

SS//PPDDIIFF ((SSoonnyy//PPhhiilliippss DDiiggiittaall IInntteerrffaaccee)) CCoonnnneeccttoorr

S/PDIF (Sony/Philips Digital Interface) is a latest audio transfer file format that provides impressive quality through optical fiber and allows

you to enjoy digital audio instead of analog. Normally there are two S/PDIF outputs as shown, one for RCA connector, the most common

one used for consumer audio products, and the other for optical connector with a even better audio quality. Through a specific audio cable,

you can connect the S/PDIF connector to a S/PDIF audio module bearing S/PDIF digital output. However, you must have a S/PDIF

supported speaker with S/PDIF digital input to make the most of this function.

+5V NC SPDIFOUT GND SPDIFIN

S/PDIF OUT (RCA)

S/PDIF IN (RCA

S/PDIF OUT (Optical)

S/PDIF IN (Optical)

(User Upgrade Optional)

Pin 1

S/PDIF

Connector

S/PDIF

S/PDIF Module

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

DDrr.. LLEEDD CCoonnnneeccttoorr ((UUsseerr UUppggrraaddee OOppttiioonnaall))

Connecting Dr. LED you can easily find the system problems that may occur while assembling. It can clearly indicate whether the problem

is caused from components or improper installation through the 8 LED lights of Dr. LED on the front panel. That is to say you can diagnose

your system status quickly.

1 2

3.3V

GND

5 6

Pin 1

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

Dr. LED is a CD disc storage box with 8 LEDs on its front panel, the size of Dr. LED is exactly the same as 5.25 in floppy drive, so that it

can be mount into normal 5.25 in drive bay of any housing.

The total 8 LEDs light up alternatively if the system fails in one of eight stages. Once the LED7 (latest LED) is lit, this indicates that the

system has completed its boot-up procedure.

The 8 LEDs indicate the following messages when lit:

LED 0 - Indicates that the CPU may have been installed incorrectly or is damaged.

LED 1 - Indicates that the memory may have been installed incorrectly or is damaged.

LED 2 - Indicates that the AGP may have been installed incorrectly or is damaged.

LED 3 - Indicates that the PCI card may have been installed incorrectly or is damaged.

LED 4 - Indicates that the floppy disk drive may have been installed incorrectly or is damaged.

LED 5 - Indicates that the HDD may have been installed incorrectly or is damaged.

LED 6 - Indicates that the keyboard may have been installed incorrectly or is damaged.

LED 7 - Indicates that the system is OK.

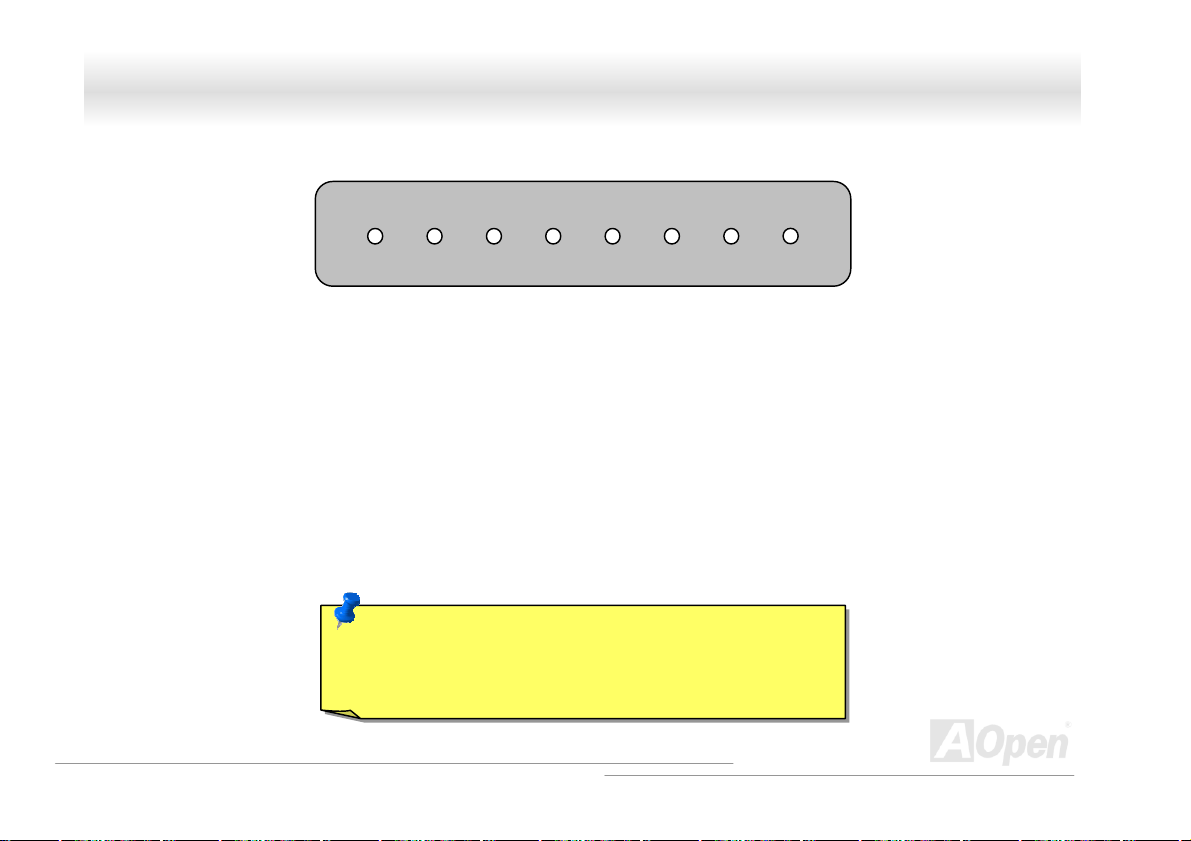

01234567

Boot O.K.

Floppy

HDDKB

PCI MemoryVideo CPU

Note: During POST (Power On Self Test) procedure, the Debug

LED will light on sequentially from LED0 to LED7 until the system

boot O.K

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

OOnnbbooaarrdd IIEEEEEE 11339944 CCoonnnneeccttoorrss

This motherboard has two IEEE 1394 connectors onboard. The IEEE 1394 provides data transfer rate up to 400Mb/s. Therefore the IEEE

1394 interface can connect with the devices that need high data transferring performance, such as digital camera, scanner or others IEEE

1394 devices. Please use the proper cable to connect with devices.

SHIED GND

+12V (Fused)

TPB-

GND

TPA-

+12V (Fused)

TPB+

GND

TPA+

2 1

Pin 1

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

CCaassee OOppeenn CCoonnnneeccttoorr

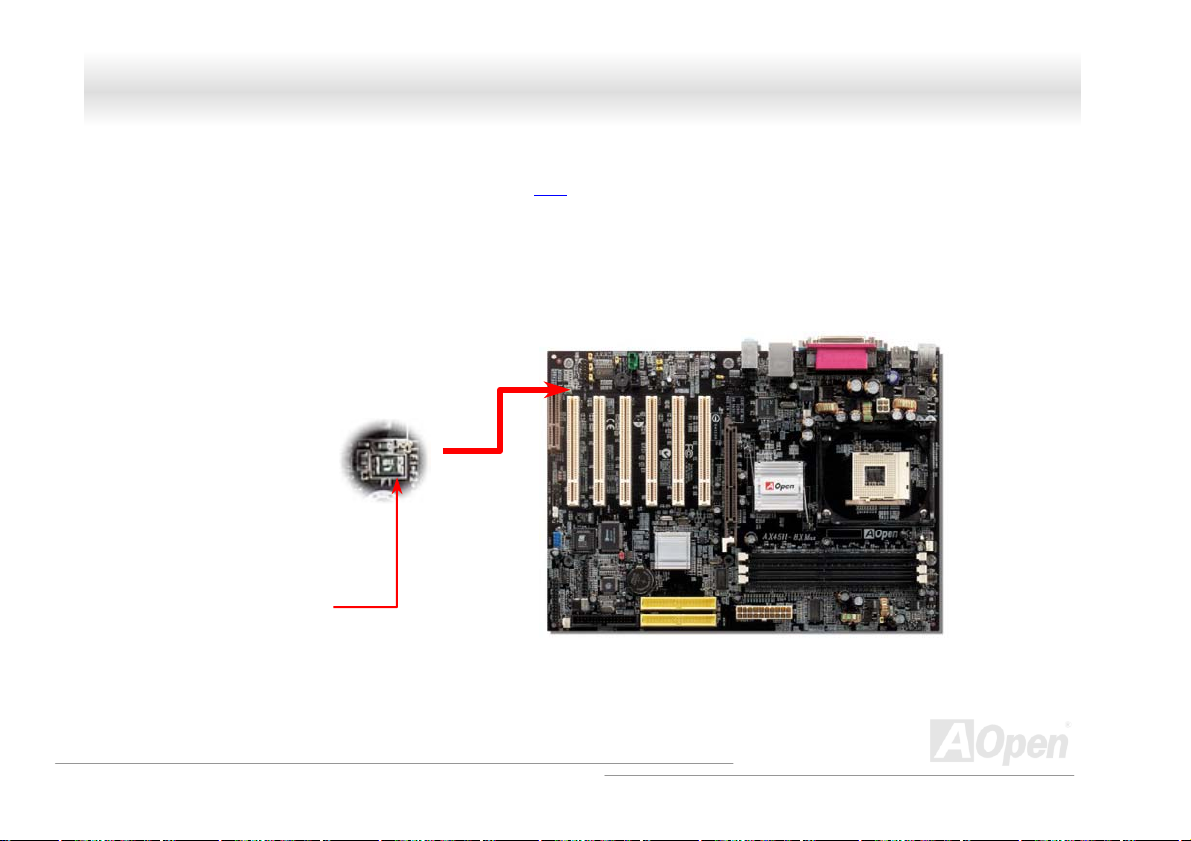

The “CASE OPEN” header provides chassis intrusion-monitoring function. To make this function works, you have to enable it in the system

BIOS, connect this header to a sensor somewhere on the chassis. So, whenever the sensor is triggered by lights or by the opening of the

chassis, the system will beep to inform you. Please be informed that this useful function only applies to advanced chassis, you may

purchase an extra sensor, attach it on your chassis, and make a good use of this function.

GND

Senso

Pin 1

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

CCDD AAuuddiioo CCoonnnneeccttoorr

This connector is used to connect CD Audio cable from CDROM or DVD drive to onboard sound.

CD-IN

GND

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

AAUUXX--IINN CCoonnnneeccttoorr

This GREEN connector is used to connect MPEG Audio cable from MPEG card to onboard sound.

GND

UUXX--IINN CCoonnnneeccttoorr

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

GGaammee PPoorrtt BBrraacckkeett SSuuppppoorrtteedd

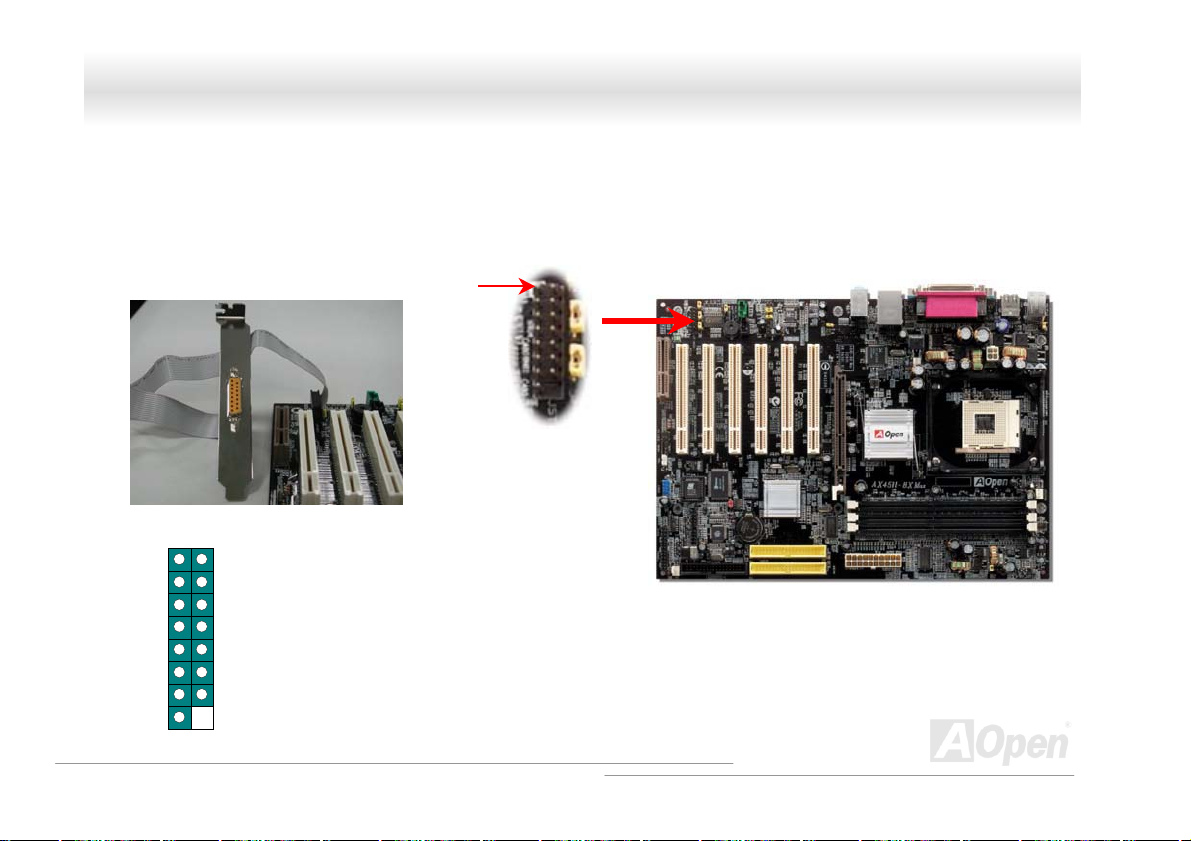

This motherboard comes with a game port (Joystick-Midi) for you to connect any midi devices or joysticks. To use this function you have to

have a joystick module and connect it with a game port cable to this port on the motherboard.

+5V

JAB1

JACX

GND GND

JAC

JAB2

+5V

Joystick Module

(User Upgrade Optional)

+5V JBB1 JBCX MIDI_TXD JBCY JBB2 MIDI_RXD KEY

Pin1

JST-MIDI Port

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

JJPP11 BBuuzzzzeerr aanndd JJPP22 SSppeeaakkeerr EEnnaabbllee//DDiissaabbllee JJuummppeerrss

This motherboard comes with another considerate option that allows you to turn off the voice from buzzer and speaker. You can choose not

to be bothered by the warning made from Dr. Voice when it detects any error in operating system. To disable this function, set JP1 and JP2

to pin 2-3 to stop both the buzzer and speaker from sending out voices.

Enable (Default)

1 1

Disable

JP1 (Buzzer)

JP2 (Speaker)

(

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

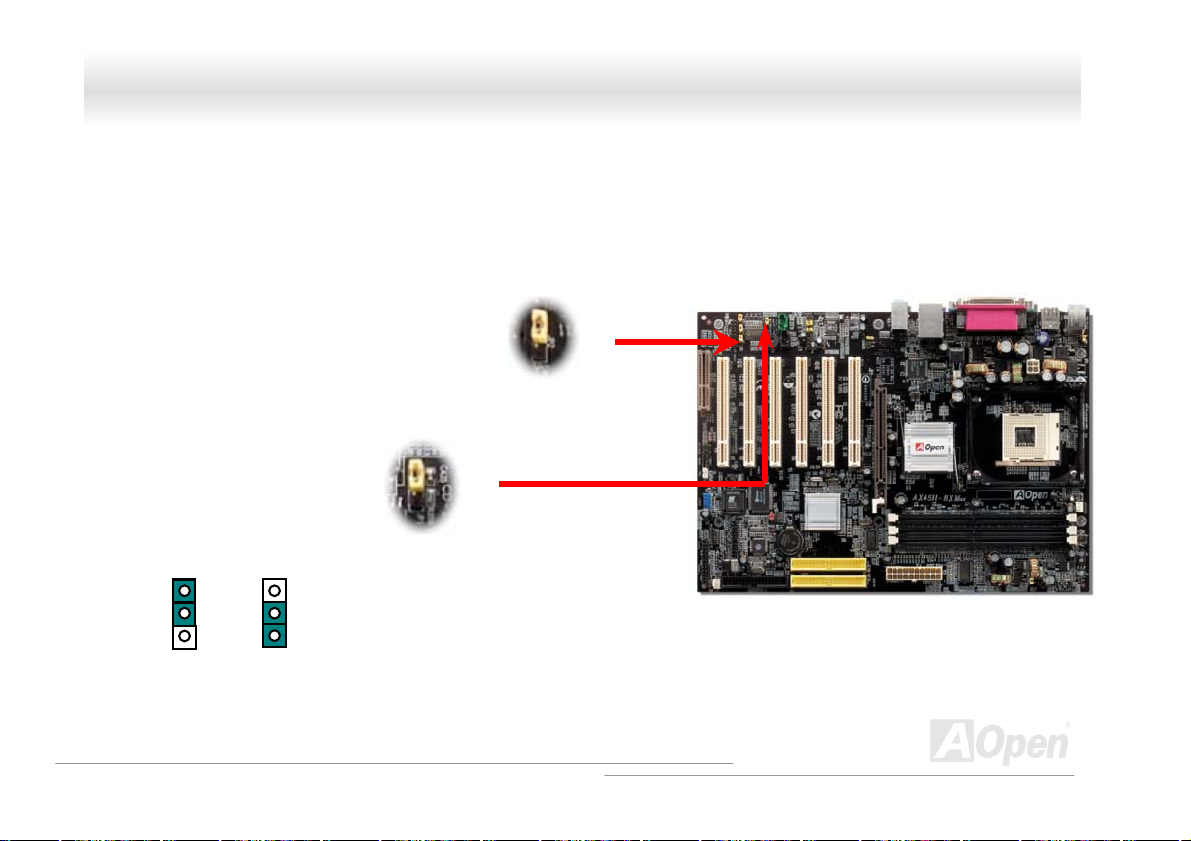

JJPP1144 CClleeaarr CCMMOOSS DDaattaa

You can clear CMOS to restore system default setting. To clear CMOS, follow the procedure below.

1. Turn off the system and unplug the AC power.

2. Remove ATX power cable from connector PWR2.

3. Locate JP14 and short pins 2-3 for a few seconds.

4. Return JP14 to its normal setting by shorting pin 1 & pin 2.

5. Connect ATX power cable back to connector PWR2.

Normal default)

Clear CMOS

Pin 1

Tip: When should I Clear CMOS?

1. Boot fail because of overclocking…

2. Forget password…

3. Troubleshooting…

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

JJPP1155//JJPP1166 DDrr.. VVooiiccee LLaanngguuaaggee SSeelleecctt JJuummppeerrss

Dr. Voice is a great feature of AX45H-8X Max, which can identify the problems you may encounter in the operating system. It can clearly

“tell you” whether the problem is caused from components or improper installation such as CPU, memory module, VGA, PCI add-on card,

FDD, HDD or keyboard. Dr. Voice provides four language versions: English, German, Japanese and Chinese. You can select your

preferred language by JP15 & JP16 jumpers. However, if you want to disable this function, you may also adjust both JP1 and JP2 and set

them to pin 2-3 to disable the buzzer and speaker from making out voices.

JP15

English (Default)

JP16

Chinese

JP16 Pin 1

Dr. Voice Language

Select Jumper

Japanese German

JP15 Pin 1

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

JJPP2277 // JJPP2288 KKeeyybbooaarrdd//MMoouussee WWaakkee--uupp JJuummppeerr

This motherboard provides USB and PS2 keyboard / mouse wake-up function. You can use JP27 / JP28 to enable or disable the resuming

of your system from suspend mode with any USB keyboard or mouse connected. JP28 controls 1

USB channel. The factory default setting is set to “Disable”(1-2), and you may enable this function by setting the jumper to 2-3. Please note

that you have to enable USB, PS2 keyboard and PS2 mouse settings in the “Power Management Setup” section in BIOS before you use

this function.

JP27 KB/Mouse

Wake-up

EEnnaabbllee

2nd USB Channel

Pin 1

DDiissaabbllee ((DDeeffaauulltt))

USB channel, and JP27 controls 2nd

USB Channel

Pin 1

JP28 KB/Mouse

Wake-up

1 1

Disable

(Default)

Enable

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

JJPP2299 DDDDRR VVoollttaaggee JJuummppeerr

TThhiiss mmootthheerrbbooaarrdd ssuuppppoorrttss aallll DDDDRR220000//226666//333333 DDDDRR SSDDRRAAMM iinn tthhee mmaarrkkeett,, tthheerreeffoorree yyoouu ddoonn’’tt nneeeedd ttoo aaddjjuusstt tthhiiss JJPP2299 mmeemmoorryy vvoollttaaggee

jjuummppeerr ffrroomm iittss ddeeffaauulltt sseettttiinngg aatt 22..55VV.. HHoowweevveerr,, iiff yyoouu wwiisshh ttoo uussee DDDDRR440000 SSDDRRAAMM wwhhiicchh rreeqquuiirreess hhiigghheerr vvoollttaaggee oonn tthhiiss mmootthheerrbbooaarrdd,,

yyoouu mmaayy hhaavvee ttoo aaddjjuusstt tthhee jjuummppeerr ttoo sseett aa ssuuiittaabbllee vvoollttaaggee ssuuppppllyy ffrroomm 22..55VV ttoo 22..6655VV.

22..55VV

Note: Since this motherboard

mainly supports DDR266/333

SDRAM, we don’t guarantee

that DDR400 SDRAM is

workable on this board.

2.55V

2.6V

2.65V

Pin 1

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

SSTTBBYY LLEEDD

STBY LED is AOpen’s considerate design that we aim at providing you friendly system information. The STBY LED will light up when power

is provided to the motherboard. This is a convenient indication for you to check the system power status in many circumstances such as

power on/off, stand-by mode and RAM power status during Suspend to RAM mode

Warning: Do not install or remove the

DIMM module or others devices when the

STBY LED lights on.

System

Power LED

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

AAGGPP PPrrootteeccttiioonn TTeecchhnnoollooggyy aanndd AAGGPP LLEEDD

WWiitthh tthhee oouuttssttaannddiinngg RR&&DD aabbiilliittyy ooff AAOOppeenn aanndd iittss ssppeecciiaallllyy ddeevveellooppeedd cciirrccuuiitt,, tthhiiss mmooddeell iimmpplleemmeennttss aa bblleenndd nneeww tteecchhnnoollooggyy ttoo pprrootteecctt

yyoouurr mmootthheerrbbooaarrdd ffrroomm bbeeiinngg ddaammaaggeedd bbyy oovveerr--vvoollttaaggiinngg ooff AAGGPP ccaarrdd.. WWhheenn AAGGPP PPrrootteeccttiioonn TTeecchhnnoollooggyy iiss iimmpplleemmeenntteedd,, tthhiiss mmootthheerrbbooaarrdd

wwiillll aauuttoommaattiiccaallllyy ddeetteecctt tthhee vvoollttaaggee ooff AAGGPP ccaarrdd aanndd pprreevveenntt yyoouurr cchhiippsseettss ffrroomm bbeeiinngg bbuurrnntt oouutt.. PPlleeaassee nnoottee tthhaatt iiff yyoouu iinnssttaallll aa AAGGPP ccaarrdd

wwiitthh 33..33VV,, wwhhiicchh iiss nnoott ssuuppppoorrtteedd bbyy SSIISS664488,, tthhee AAGGPP LLEEDD oonn tthhee mmootthheerrbbooaarrdd wwiillll lliigghhtt uupp ttoo wwaarrnn yyoouu tthhee ppoossssiibbllee ddaammaaggee ooff tthhee

eexxcceeeeddiinngg vvoollttaaggee.. YYoouu mmaayy ccoonnttaacctt yyoouurr AAGGPP ccaarrdd vveennddoorr ffoorr ffuurrtthheerr ssuuppppoorrtt..

Warning: It is strongly recommended not to

install a 3.3V AGP card, which is not

supported by SIS648. When you do so, the

GP LED on the motherboard will light up to

warn you the possible damage.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

AAOOppeenn ““WWaattcchh DDoogg TTiimmeerr””

you can easily overclock your system to get a higher system performance without removing the system housing and save the hassle from

setting the jumper to clear CMOS data when system hangs.

AOpen

Watch Dog Timer

AOpen provides a special and useful feature on this motherboard for overclockers. When you power-on

the system, the BIOS will check last system POST

Dog Timer” function immediately, and set the CPU FSB

the BIOS. If system failed in BIOS POST, the “Watch Dog Timer” will reset the system to reboot in five

seconds. Then, BIOS will detect the CPU’s default frequency and POST again. With this special feature,

Enable/Disable Signal from

BIOS

Countdown about

5 seconds if fails

in POST

Reset Signal

Clock Generator

status. If it succeeded, the BIOS will enable “Watch

frequency according to user’s settings stored in

BIOS

CPU ID Signal

CPU

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

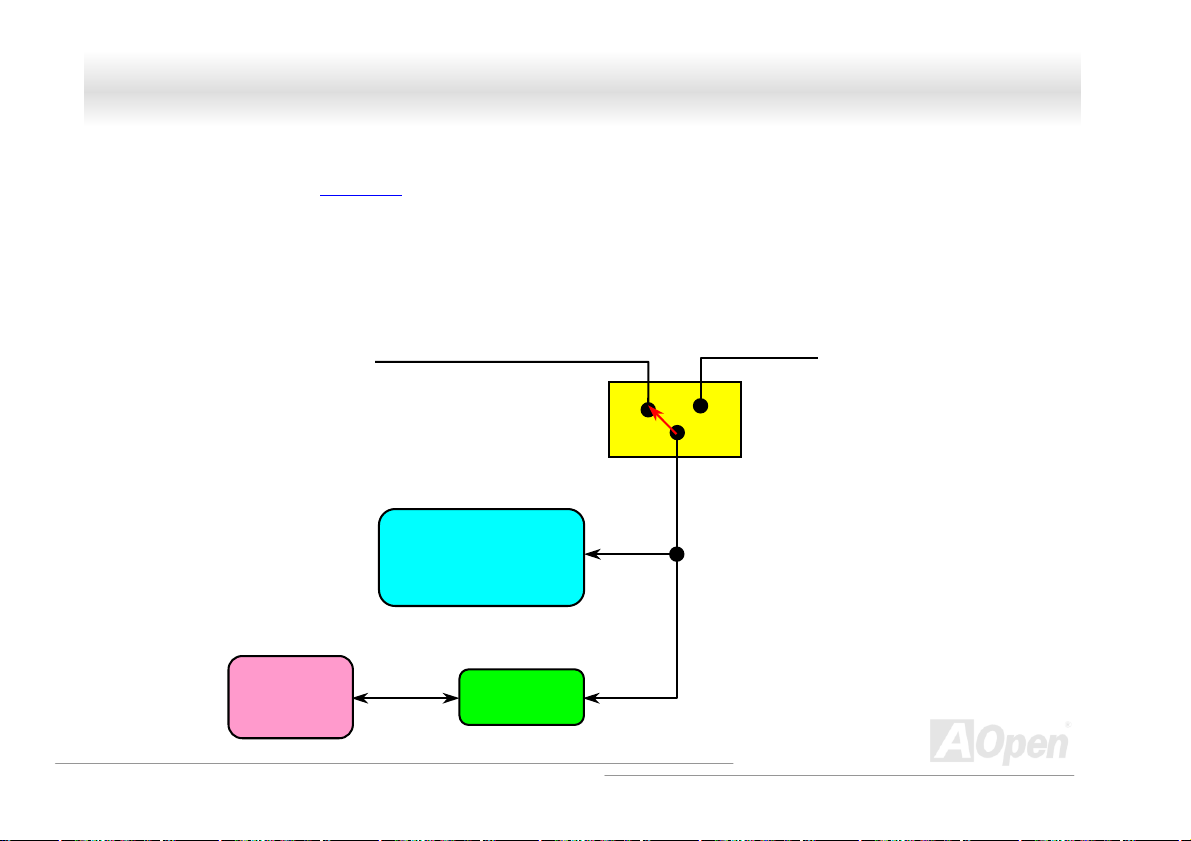

BBaatttteerryy--lleessss aanndd LLoonngg LLiiffee DDeessiiggnn

This Motherboard implements a Flash ROM and a special circuit that provide you no batter power consumption of current CPU and CMOS

Setup configurations. The RTC (real time clock) can also keep running as long as the power cord is plugged. If you lose your CMOS data

by accident, you can just reload the CMOS configurations from Flash ROM and the system will recover as usual.

ATX Stand-by Powe

Battery

Flash ROM

(Real Time Clock)

Auto Switch

RTC

00:00:00

CMOS

uto switching to ATX standby power as long as AC power line

battery on motherboard.

Backup by EEPROM

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

OOvveerr--ccuurrrreenntt PPrrootteeccttiioonn

The Over Current Protection is a popular implementation on ATX 3.3V/5V/12V switching power supply. However, the new generation CPU

uses different voltage with a regulator to transfer 12V to CPU voltage (for example, 2.0V), and thus makes 5V over current protection

useless. This motherboard is with switching regulator onboard supporting CPU over-current protection; in conjunction with 3.3V/5V/12V

power supply provide the full line over-current protection.

Note: Although we have implemented protection circuit and tried to prevent any human operating

mistake, certain risks might still happen when CPU, memory, HDD or add-on cards installed on this

motherboard is damaged due to component failure, human operating error or other unknown natural

reasons. AOpen cannot guarantee that the protection circuit will always work perfectly.

ATX Switching Powe

Supply

3.3V (Protected by power supply)

5V (Protected by power supply)

12V (Protected by power supply)

Onboard Power Regulato

Over-Current Protection Circuit

CPU Core Voltage

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

Fan

CPU

Powe

Fan Speed

Detection Circuit

CPU Temperature

CPU Voltage

System Voltage

AOpen H/W Monitoring

Utility

HHaarrddwwaarree MMoonniittoorriinngg

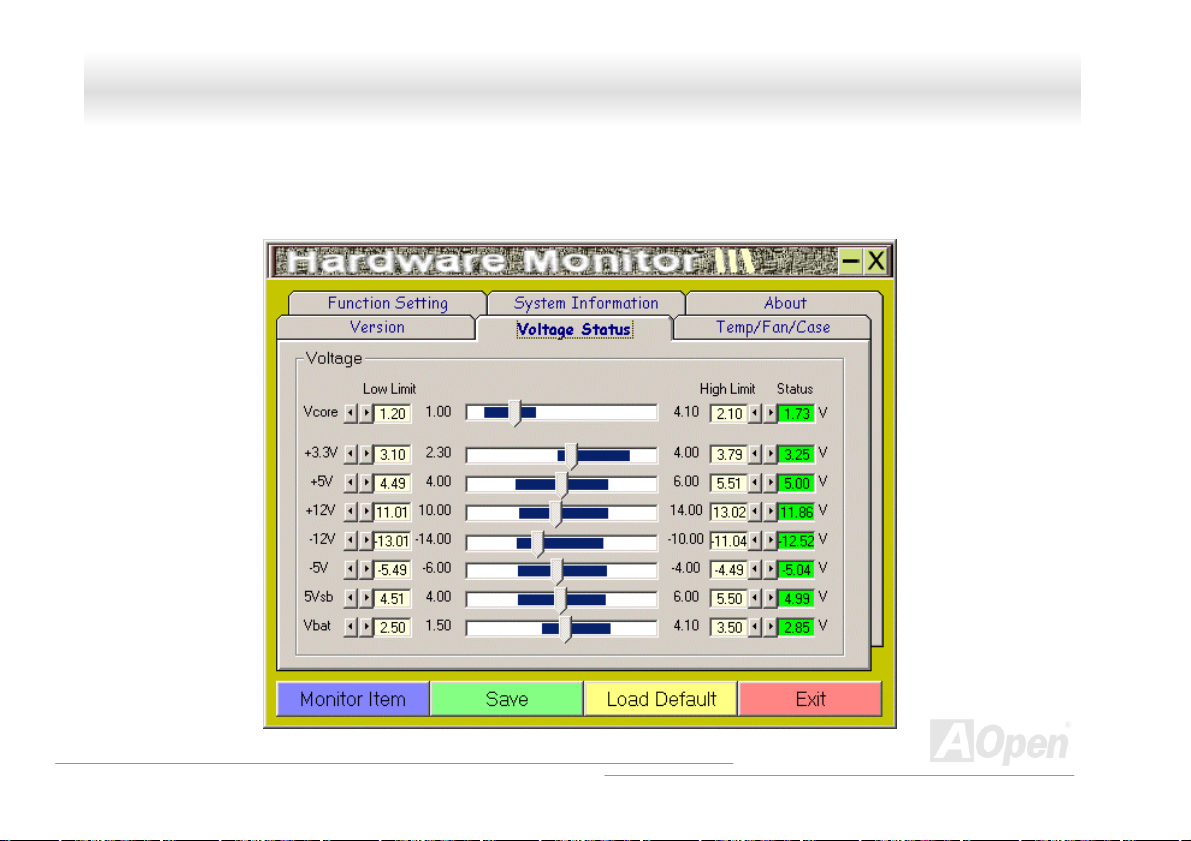

This motherboard implements a hardware monitoring system. As you turn on your system, this smart design will monitor your system’s

working voltage, fan status and CPU temperature. If any of those systems’ status goes wrong, there will be an alarm through the chassis

external speaker or buzzer of motherboard (if having this function and enabled) to warn the user.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

RReesseettttaabbllee FFuussee

Traditional motherboard uses fuses to prevent Keyboard and USB port from over-current or shortage. These fuses are soldered onboard

that when it is broken (function to protect motherboard), user cannot replace them and result in malfunction of motherboard.

With expensive Resettable Fuse, the motherboard can be resumed back to normal function even after the fuse had done its protection job.

Resettable

Fuse

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

3333000

The quality of low ESR capacitor (Low Equivalent Series Resistance) during high frequency operation is very important for the stability of

CPU power. The idea of where to put these capacitors is another know-how that requires experience and detail calculation.

Not only that, AX45H-8X Max implements 3300μF capacitors, which is much larger than normal capacitor (1000 & 1500μF) and it

provides better stability for CPU power.

FF LLooww EESSRR CCaappaacciittoorr

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

The power circuit of the CPU core voltage must be checked to ensure system stability for high speed CPUs (such as the new Pentium III, or

when overclocking). A typical CPU core voltage is 2.0V, so a good design should control voltage between 1.860V and 2.140V. That is, the

transient must be below 280mV. Below is a timing diagram captured by a Digital Storage Scope, it shows the voltage transient is only

143mv even when maximum 60A current is applied.

Note: This diagram for example only, it may not be exactly the same as the motherboard you purchased.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

PPhhooeenniixx--AAWWAARRDD BBIIOOSS

System parameters can be modified by going into BIOS Setup menu, this menu allows you to configure the system parameters and save

the configuration into the 128 bytes CMOS area, (normally in the RTC chip or in the main chipset).

Phoenix-Award BIOS™ installed in the Flash ROM

provides critical low-level support for standard devices such as hard disk drives, serial and parallel ports.

Most BIOS settings of this model have been optimized by AOpen’s R&D engineering team. But, the default setting of BIOS still can’t

fine-tune the chipset controlling entire system. Therefore, the rest of this chapter intends to guide you the process of configuring your

system setup.

To enter to BIOS setup menu

, press <Del> when POST (Power-On Self Test) screen is shown on your monitor.

Note: Because the BIOS code is the most often

changed part of the motherboard design, the BIOS

information contained in this manual may be different

with actual BIOS that come with your motherboard.

of the motherboard is a custom version of an industry standard BIOS. The BIOS

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

AAbboouutt BBIIOOSS FFuunnccttiioonn DDeessccrriippttiioonn……

AOpen always dedicates to give user a more friendly computer system. Now, we include all function descriptions of BIOS setup program

into the BIOS Flash ROM. When you select one function of BIOS setup program, the function description will appear at the right side of

screen. Therefore, you don’t need to read this manual while you change BIOS settings.

Item Function Description Window Menu Items Select Window

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

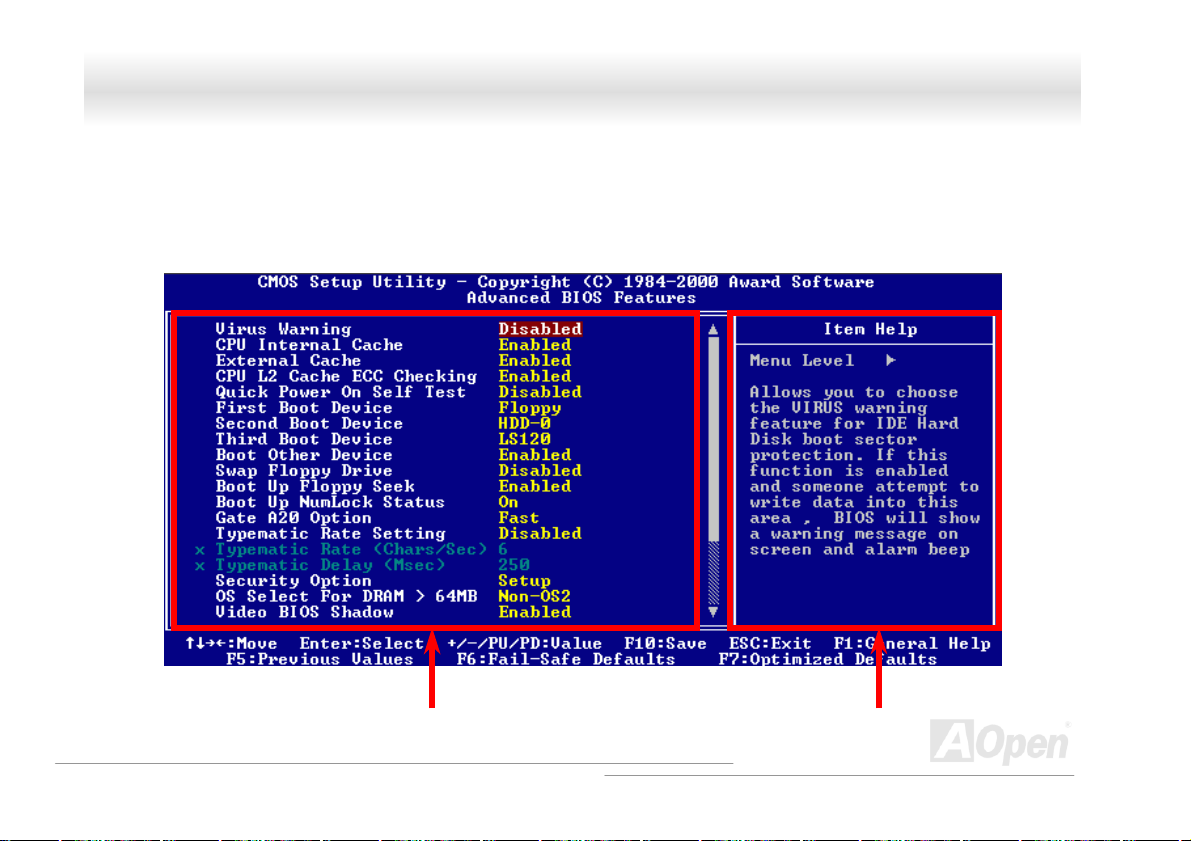

HHooww TToo UUssee PPhhooeenniixx--AAwwaarrdd™™ BBIIOOSS SSeettuupp PPrrooggrraamm

Generally, you can use arrow keys to highlight items that you want to choose, then press <Enter> key to select, and use the <Page Up>

and <Page Down> key to change setting values. You can also press <F1> key for help and press <Esc> key to quit Phoenix-Award™ BIOS setup program. The following table provides details about how to use keyboard in the Phoenix-Award BIOS setup program. By the way,

all products of AOpen also provide a special function in BIOS setup; you can press <F3> key selecting you preferred menu language.

Key Description

Page Up or + Changing setting to next value or increase the value.

Page Down or - Changing setting to previous value or decrease value.

Enter Select the item.

Esc 1. In main menu: Quit and don’t save any change.

2. In sub menu: Exit current menu to main menu.

Up Arrow Highlight previous item.

Down Arrow Highlight next item.

Left Arrow Move the light bar to left side of menu.

Right Arrow Move the light bar to right side of menu.

F1 Get menu or item help description.

F3 Changing menu language.

F5 Load previous setting value from CMOS.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

Key Description

F6 Load fail-save setting value from CMOS.

F7 Load turbo setting value from CMOS.

F10 Save changed setting and exit setup program.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

HHooww TToo EEnntteerr BBIIOOSS SSeettuupp

After you finish jumper settings and connect correct cables, power on and enter the BIOS Setup. Press <Del> during POST (Power-On Self

Te st ) and choose "Load Setup Defaults" for recommended optimal performance.

Del

Warning: Please avoid of using "Load Turbo Defaults", unless you

are sure your system components (CPU, DRAM, HDD, etc.) are

good enough for turbo setting.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

BBIIOOSS UUppggrraaddee uunnddeerr WWiinnddoowwss eennvviirroonnmmeenntt

With outstanding R&D ability of AOpen, we now bring you a whole new BIOS Flash wizard ----

EzWinFlash. With an eye to users convenience, EzWinFlash combines the BIOS binary code

and flash module together, so the only thing you have to do is just clicking on the utility you downloaded from web and let it helps you

complete the flash process automatically. EzWinFlash detects your motherboard and checks the BIOS version cleverly to prevent your

system from any possible failure. Moreover, EzWinFlash has been taken into consideration to go with any windows platform you might be

using, no matter if you’re using Windows 95/98, 98SE/ME, NT4.0/2000, or even the latest Windows XP.

In the meanwhile, in order to provide a much more user-friendly operating environment, AOpen EzWinFlash is natively designed to have

multi-language function to provide easier way for users’ usage in changing BIOS setting.

Caution: By updating your motherboard,

you are taking a risk of BIOS flash failure. If

your motherboard is working stable, and

there are no major bugs that had been fixed

by a latter BIOS revision, we recommend

that you DO NOT try to upgrade your BIOS.

If you intent on upgrading, PLEASE BE

SURE to get the right BIOS revision for the

right motherboard model to avoid any

ossibility failure.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

You may accomplish BIOS upgrade procedure with EzWinFlash by the following steps, and it’s STRONGLY RECOMMENDED to close all

the applications before you start the upgrading.

1. Download the new version of BIOS package zip

2. Unzip the download BIOS package (ex: WAX45H8XMAX102.ZIP) with WinZip (http://www.winzip.com

3. Save the unzipped files into a folder, for example, WAX45H8XMAX102.EXE & WAX45H8XMAX102.BIN.

4. Double click on the WAX45H8XMAX102.EXE, EzWinFlash will detect the model name and BIOS version of your motherboard. If you

had got the wrong BIOS, you will not be allowed to proceed with the flash steps.

5. You may select preferred language in the main menu, then click [Start Flash] to start the BIOS upgrade procedure.

6. EzWinFlash will complete all the process automatically, and a dialogue box will pop up to ask you to restart Windows. You may click

[YES] to reboot Windows.

7. Press <Del> at POST to enter BIOS setup

It is strongly recommended NOT to turn off the power or run any application during FLASH PROCESS.

Warning: The new BIOS upgrade will permanently replace your

original BIOS’s settings when flashing. You may need to reconfigure

your BIOS setting so that your system can go back to work as normal.

file from AOpen official web site. (ex: http://www.aopen.com)

) in Windows environment.

, choose "Load Setup Defaults", then “Save & Exit Setup”. Done!

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

VViivviidd BBIIOOSS tteecchhnnoollooggyy

Unlike earlier graphic POST screen which could occupy the whole screen and mask text information during POST, AOpen VividBIOS deals

with graphics and texts separately, and makes them running simultaneously during POST. With this innovative design, VividBios now brings

you a beautiful and sleek 256 colors screen without missing any important information shown on POST screen.

In addition, the limited space of BIOS ROM is another big issue. When all of the traditional BIOS can only show space-consuming and

uncompressed Bitmap, AOpen has considerately tuned the BIOS to next generation, to recognize the smaller-sized GIF format and even

dynamic-showing GIF animation.

Vivid BIOS shares the same fundamental technology with Open JukeBox CD Player, you may use the same EzSkin utility to change your

Vivid BIOS screen or to download your favorite Open JukeBox skin. If you see this little logo

BIOS download page, http://english.aopen.com.tw/tech/download/skin

Have you been fed up with the conservative and immutable POST screen? Let’s rule out the tradition

idea that POST screen are stiff and frigid, and let AOpen show you the newly developed VividBIOS to

experience the lively vivid colorful POST screen!

shown beside your model name on the

, it is assured that your motherboard supports this innovative feature!

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

DDrriivveerr aanndd UUttiilliittyy

There are motherboard drivers and utilities in AOpen Bonus CD. You don’t need to install all of them to boot your system. But after you

finish the hardware installation, you have to install your operation system first (such as Windows 98) before you install any drivers or utilities.

Please refer to your operation system’s installation guide.

AAuuttoo--rruunn MMeennuu ffrroomm BBoonnuuss CCDD

You can use the auto-run menu of Bonus CD. Choose the utility and driver and select model name.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

IInnssttaallll IIDDEE DDrriivveerr

To use IDE devices you have to install IDE driver from Bonus Pack CD.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

IInnssttaallll UUSSBB22..00 DDrriivveerr

In Bonus Pack CD, you can install USB2.0 driver from the following screen.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

IInnssttaalllliinngg LLAANN DDrriivveerr

You can download LAN Driver from the Bonus Pack CD and install it under Windows 95 (Golden version), Win95A, OSR2, Windows 98/98 SE, Windows 2000, Windows ME, Windows NT v4.0 driver for Realtek RTL8139 PCI Fast Ethernet adapter.

[Windows 95 (Golden version), Win95A and OSR2]

Installing driver procedure on Microsoft Windows 95 :

-----------------------------------------------------

1. Ask you to select which driver you want to install, select "Driver from disk provided by hardware manufacturer".

2. Specify the setup file pathname

[CD-ROM]:Driver\LAN\RTL8100\Windows\Win95\WIN95A (for Windows 95 and Win95A) or

[CD-ROM]:Driver\LAN\RTL8100\Windows\Win95 (for Windows 95 OSR2).

3. Windows 95 will appear some messages to insert Windows 95 system disk to complete setup step.

4. Windows 95 will finish the other installation procedure automatically, then you restart the system.

[Windows 98, Windows 98 SE, Windows2000, Windows ME, Windows XP]

Installing driver for Win98/Win98 SE/Windows2000/Windows ME/Windows XP :

-------------------------------------------------------------------

1. Ask you to select which driver you want to install, select "Driver from disk provided by hardware manufacturer".

2. Specify the setup file pathname

[CD-ROM]:Driver\LAN\RTL8100\Windows\WIN98 (for Windows 98/98 SE) or

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

[CD-ROM]:Driver\LAN\RTL8100\Windows\WIN2000 (for Windows 2000) or

[CD-ROM]:Driver\LAN\RTL8100\Windows\WINME (for Windows ME) or

[CD-ROM]:Driver\LAN\RTL8100\Windows\WinXP (for Windows XP)

3. Win98/Win98 SE/Windows2000/Windows ME will appear some messages to insert Win98/Win98 SE/Windows2000/Windows ME system disk to complete setup step.

4. Win98/Win98 SE/Windows2000/Windows ME will finish the other installation procedure automatically, then you restart the system.

[Windows NT 3.5, 3.51 & 4.0]

Installing driver procedure on Microsoft Windows NT :

-----------------------------------------------------

When you are in Windows NT :

1. In the Main group of NT, select the "Control Panel" icon.

2. In the Control Panel window, choose the "Network" icon.

3. In the Network Settings dialog box, choose the "Add Adapter" button. The Add Network Adapter dialog box appears.

4. In the list of network cards, select "<other> Requires disk from manufacturer", and then press <Enter> button.

5. Enter drive and pathname

[CD-ROM]:\Driver\LAN\RTL8100\Windows\WinNT4 (for NT 4.0) which is the path where the setup file OEMSETUP.INF is located, and then choose the OK button.

6. The screen will appear "Select Line Speed" dialog box which is provide by RTL8139.SYS driver. The default value is "auto" so that the

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

RTL8139 PCI Fast Ethernet adapter and its driver RTL8139.SYS will auto-detect the line speed, 10 Mb or 100Mb, while the RTL8139.SYS is loading. The other values, "10" or "100", are only used when you want to forced RTL8139 PCI Fast Ethernet adapter to 10Mb or 100Mb.

7. The screen will appear "Input EthernetID" dialog box which is provide by RTL8139.SYS driver. This option is only required when you

have more than one Realtek RTL8139 PCI Fast Ethernet adapters on this computer. Select "SKIP" if only one adapter is installed on this

computer.

8. "Bus Location" display in next screen. Your machine contains more than one hardware bus, please select the Bus Type and Bus number on which your network adapter card is installed.

9. NT will then perform the binding process. If any additional network software options were installed, you may be prompted for specific

information for these packages.

10. Restarting your system you will acquire network service.

NOTES:

* Installing Multiple LAN Adapters:

Enter Windows NT and follow above setup procedure step 2,in the "Network Settings" dialog box, choose the "Configure.." button.

The "Input Ethernet ID" dialog box appears and input adapter's Ethernet ID. Last step to select OK and close NETWORK SETUP.

Select SKIP if only one adapter is installed on this computer.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

IInnssttaalllliinngg OOnnbbooaarrdd SSoouunndd DDrriivveerr

This motherboard comes with RealTek ALC650 AC97 CODEC. This audio driver supports Windows 98SE and upper Windows OS; you can

find the audio driver from the Bonus Pack CD auto-run menu.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

IInnssttaalllliinngg AAGGPP DDrriivveerr

YYoouu ccaann ffiinndd AAGGPP ddrriivveerr ffrroomm tthhee BBoonnuuss PPaacckk CCDD aauuttoo--rruunn mmeennuu.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

AAOOCCoonnffiigg UUttiilliittyy

AOpen always dedicated to provide users a much friendly computer environment. We now bring you a comprehensive system detection

utility. AOConfig is a Windows based utility with user-friendly interface that allows users to obtain information of the operation system and

hardware such as motherboard, CPU, memory, PCI devices and IDE devices. The powerful utility also displays the version of BIOS and

firmware for your convenience of maintenance.

Moreover, AOConfig allows users to save information in *.BMP or *.TXT format which users may collect the system information in detail and

send them to AOpen directly for technical support or for further diagnose of system problems.

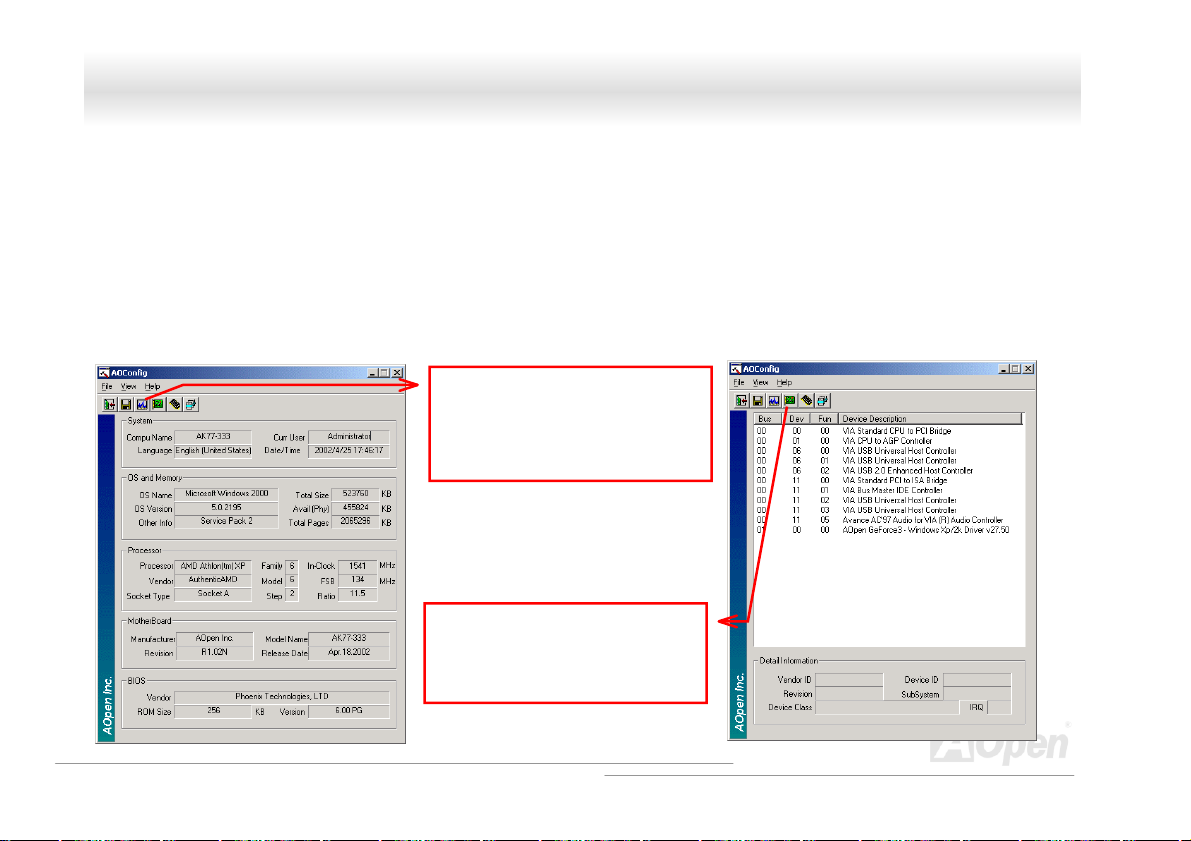

1. The system page shows the detailed information of the motherboard, operating system, processor, and BIOS version.

2. The PCI device page shows the configurations of all PCI devices installed in your motherboard.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

3. This page presents the IDE device information, such as serial number, manufacturer,

firmware version, and capacity.

4. From this page, users can obtain the technical support information of AOpen. Moreover,

detailed information could be saved in .bmp or .txt format.

NOTE:

AOConfig can be used under Windows 98SE/ME, NT4.0/2000, or even the latest Windows XP. Please also note that

AOConfig can only be operated in a system equipped with an AOpen motherboard. Before running AOConfig, all

applications must be closed.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

IInnssttaalllliinngg HHaarrddwwaarree MMoonniittoorriinngg UUttiilliittyy

You can install Hardware Monitoring Utility to monitor CPU temperature, fans and system voltage. The hardware monitoring function is

automatically implemented by BIOS and utility software. No hardware installation is needed.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

GGlloossssaarryy

AC97 CODEC

Basically, AC97 CODEC is the standard structure of PCI sound card. As we know, computer is digital-based, but music is based on

analog-based. Therefore, there must be a process to turn digital into analog during the last stage processing of sound in computer. Hence,

the component on sound card that play this important task is what we called CODEC.

Audio CODEC 97 (briefly called AC97) is the specification regulated by Intel, and it’s about the structure of audio conversion. The special

place about CODEC is that it is separated from sound card (CODEC is an independent chipset). Therefore, PCI sound card could possess

with 90db and do other application process as well. We called CODEC that meets this structure AC97 CODEC.

ACPI (Advanced Configuration & Power Interface)

ACPI is the power management specification of PC97 (1997). It intends to save more power by taking full control of power management to

operating system and bypass BIOS

Windows 98). This is a bit similar as the PnP

transition.

ACR (Advanced Communication Riser)

Building on the PC motherboard riser architecture, ACR slot is backward compatible with AMR but beyond the limitation of it. The ACR

specification is designed to support modem, audio, Local Area Network (LAN) and Digital Subscriber Line (DSL).

. The chipset or super I/O chip needs to provide standard register interface to operating system (such as

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

AGP (Accelerated Graphic Port)

The main function of AGP simply put is to tell monitor what screen information had to be shown, a visual transmission device actually. With

the rapid developing of AGP card, we can see that it had been developed from single colorful AGP card to 2D and 3D graphic. AGP

supports only memory read/write operation and single-master single-slave one-to-one only. Though AGP and PCI share the same algorithm

of 32-bit, its frequencies are 66MHz and 33MHz respectively. AGP interface had been developed from 2X to 8x.

1X AGP, data transfer rate is 66MHz x 4byte x 1 = 264MB/s

2X AGP, data transfer rate is 66MHz x 4byte x 2 = 528MB/s

4X AGP, data transfer rate is 66MHz x 4byte x 4 = 1056MB/s.

8X AGP, data transfer rate is 66MHz x 4byte x 8 = 2112MB/s.

AMR (Audio/Modem Riser)

The CODEC circuit of AC97 sound/modem solution can be put on motherboard or put on a riser card (AMR card) that connects to

motherboard through AMR connector.

ATA (AT Attachment)

Before talking about ATA (AT Attachment), we must understand DMA (Direct Memory Access), which allows devices to skip the CPU

devices and access memory directly. DMA specification could not only eliminate the workload of CPU, but also accelerate the transmission

of data. DMA begins with a data transfer rate of 16.6MB/Sec, but afterward developed to new data rate of 33.3MB/Sec, which is twice the

data rate and we called it Ultra DMA. ATA details power and data signals between the drive and integrated drive controller and the

computer's motherboard. Two drives (master and slave) are supported. The ATA specification allows the drive to connect directly to the ISA

bus on the computer. ATA transfer rate then had been developed to 133MHz/Sec and would come out with fastest rate later (please refer to

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

Serial ATA).

DMA, data transfer rate is 16.6MHz/s.

Ultra DMA, data transfer rate is 16.6MHz x 2 = 33MB/s.

ATA /6 6, data transfer rate is 16.6MHz x 4 = 66MB/s.

ATA /1 00 , data transfer rate is 16.6MHz x 6 = 100MB/s.

ATA /1 33 , data transfer rate is 16.6MHz x 8 = 133MB/s.

(ATA/133 uses both rising edge and falling edge as ATA/66 but clock cycle time is reduced to 30ns.)

BIOS (Basic Input/Output System)

BIOS, is a set of assembly routine/program that reside in EPROM

devices of motherboard. In general, to provide hardware independent portability, operation system and drivers is required to access BIOS

without directly access hardware devices.

BBlluueettooootth

Bluetooth is a wireless transferring technology that enables short-range wireless connections between desktop and laptop computers,

personal digital assistants (PDAs), cellular phones, printers, scanners, digital cameras and even home appliances. The principle of

Bluetooth (a chipset) is to transfer information and voices at the frequency of ISM Band. Every Bluetooth technology devices do come with

a standard address for you to connect one-to-one or one-to-seven (to form a Pico-net), with transferring range up to 10 meters (100 meters

to follow), using low power radio. Bluetooth do not only possess high transfer rate of 1MB/s, it also could be encrypted with pin code. With

hopping rate of 1600 hops per second, it’s difficult to be intercepted and are less interrupted by electromagnetic wave.

or Flash ROM. BIOS controls Input/output devices and other hardware

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

CNR (Communication and Networking Riser)

The CNR specification provides the PC industry the opportunity to deliver a flexible and cost reduced method of implementing LAN, home

networking, DSL, USB, wireless, audio and modem subsystems widely used in today's "connected PCs". The CNR specification is an open

industry specification and is supported by OEMs, IHV card manufacturers, silicon supplier and Microsoft.

DDR (Double Data Rate) RAM

DDR RAM utilizes the existing SDRAM

available to systems in an easy to design and simple to adopt way. Based on FSB frequency, DDR RAM on the market are DDR200,

DDR266 and DDR333 with more coming around soon.

DDR200, transfer bandwidth up to 200x64/8=1600MB/s (PC1600)

DDR266, transfer bandwidth up to 266x64/8=2100MB/s (PC2100)

DDR333, transfer bandwidth up to 333x64/8=2700MB/s (PC2700)

DDR400, transfer bandwidth up to 400x64/8=3200MB/s (PC3200)

ECC (Error Checking and Correction)

The ECC mode needs 8 ECC bits for 64-bit data. Each time memory is accessed; ECC bits are updated and checked by a special

algorithm. The ECC algorithm has the ability to detect double-bit error and automatically correct single-bit error while parity mode can only

detect single-bit error.

(For ex, PC-100, PC-133) infrastructure and technology while doubling the nominal bandwidth

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

EEPROM (Electronic Erasable Programmable ROM)

Also known as E2PROM. Both EEPROM and Flash ROM can be re-programmed by electronic signals, but the interface technology is

different. Size of EEPROM is much smaller than flash ROM.

EPROM (Erasable Programmable ROM)

Traditional motherboard stores BIOS code in EPROM. EPROM can only be erased by ultra-violet (UV) light. If BIOS has to be upgraded,

you need to remove EPROM from motherboard, clear by UV light, re-program, and then insert back.

EV6 Bus

EV6 Bus is the technology of Alpha processor from Digital Equipment Corporation. EV6 bus uses both rising and falling clock edge to

transfer data, similar as DDR RAM or ATA/66 IDE bus.

EV6 Bus Speed = CPU external bus clock x 2.

200 MHz EV6 bus, 200MHz = 100 MHz external bus clock x 2

FCC DoC (Declaration of Conformity)

The DoC is component certification standard of FCC EMI regulations. This standard allows DIY component (such as motherboard) to apply

DoC label separately without a shielding of housing.

FC-PGA (Flip Chip-Pin Grid Array)

FC means Flip Chip, FC-PGA is a package of Intel for Pentium III for 0.18µm process CPU, which can be plugged into SKT370 socket.

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

FFCC--PPGGAA22 ((FFlliipp CChhiipp--PPiinn GGrriidd AArrrraayy))

After FC-PGA, FC-PGA2 is the package for 0.13µm process CPU developed by Intel, which can be plugged into SKT423/478 socket as

well.

Flash ROM

Flash ROM can be re-programmed by electronic signals. It is easier for BIOS to upgrade by a flash utility, but it is also easier to be infected

by virus. Because of increase of new functions, BIOS size is increased from 64KB to 512KB (4M bit).

Hyper Threading

Hyper-Threading technology is an innovative design from Intel that enables multi-threaded software applications to process threads in

parallel within each processor resulting in increased utilization of processor execution resources. As a result, an average improvement of

~40% in CPU resource utilization yields higher processing throughput.

IEEE 1394

IEEE 1394, which also called Firewire, is a serial data transfer protocol and interconnection system. The main feature of the Firewire that

assures its adoption for the digital video and audio (A/V) consumer application is its low cost. Fire wire interface is capable of supporting

various high-end digital A/V applications, such as consumer A/V device control and signal routing, Digital Video (DV) editing, home

networking, and more than 32 channels of digital mixing. Gone are those days of expensive video capture cards. Firewire allows for video

capture from both newer DV camcorders with Firewire ports and older analog equipment using A/V to Firewire converters.

The advantages of the IEEE1394:

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

High data transfer rate – Start from 400 Mbps, (with 800/1600/3200 Mbps coming soon), which is about 30 times faster than USB 1.1.

Supports up to 63 devices (16 - daisy chained) with cable length up to about 4.5 m (14 feet).

Hot-pluggable (like USB). No need to turn of your device to connect or disconnect, and you don't need to reboot your PC. Also, it is a

plug-and-play bus.

IEEE1394 is very easy to connect (Like USB1.1/2/0).

Parity Bit

The parity mode uses 1 parity bit for each byte, normally it is even parity mode, that is, each time the memory data is updated, parity bit will

be adjusted to have even count "1" for each byte. When next time, if memory is read with odd number of "1", the parity error is occurred

and this is called single bit error detection.

PCI (Peripheral Component Interface) Bus

Developed by Intel, Peripheral Component Interconnect (PCI) is a local bus standard. A bus is a channel used to transfer data to (input) and

from (output) a computer and to or from a peripheral device. Most PCs have a PCI bus usually implemented at 32-bits providing a 33 MHz

clock speed with a throughput rate of 133 MBps.

PDF Format

With PDF file, it is easy to do universal document exchange. Virtually any document may be converted in Portable Document Format (PDF).

Contents in PDF documents are exactly the same as the original file, including fonts and graphics, and they can be distributed by e-mail or

stored on the World Wide Web, an intranet, a file system, or a CD-ROM for other users to view on any platforms. You may download

Acrobat Reader in order to read PDF file from its website (www.adobe.com

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

PnP (Plug and Play)

Oversimplified, Plug-and-Play automatically tells the software (device drivers) where to find various pieces of hardware (devices) such as

modems, network cards, sound cards, etc. Plug-and-Play's task is to match up physical devices with the software (device drivers) that

operates them and to establish channels of communication between each physical device and its driver.

POST (Power-On Self Test)

The BIOS self-test procedure after power-on, sometimes, it is the first or the second screen shown on your monitor during system boot.

PSB (Processor System Bus) Clock

PSB Clock means the external bus clock of CPU.

CPU internal clock = CPU PSB Clock x CPU Clock Ratio

RDRAM (Rambus Dynamic Random Access Memory)

A DRAM technology developed by Rambus Corporation*, to achieve high speed of memory through the use of multiple channels in parallel

by 16-bits. Basically, RDRAM uses new structure of Multibank, which is quite different from FPM, EDO, SDRAM. Using different memory

module as well, RDRAM uses “RIMM” with transfer rate of 600/700/800MHz, providing bandwidth as high to 1.6GB.

RIMM (Rambus Inline Memory Module)

184-pin memory module that supports RDRAM

memory technology. A RIMM memory module may contain up to maximum of 16 RDRAM

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

devices.

SDRAM (Synchronous DRAM)

SDRAM is one of the DRAM technologies that allow DRAM to use the same clock as the CPU host bus (EDO and FPM are asynchronous

and do not have clock signal). It is similar as PBSRAM to use burst mode transfer. SDRAM comes in 64-bit 168-pin DIMM and operates at

3.3V, and have been gradually replaced by DDR RAM.

SATA (Serial ATA)

The Serial ATA specification is designed to overcome speed limitations while enabling the storage interface to scale with the growing media

rate demands of PC platforms. Serial ATA is to replace parallel ATA

adding performance headroom for years to come. It is developed with data transfer rate of 150 Mbytes/second, and 300M/bs, 600M/bs to

come. It reduces voltage and pins count requirements and can be implemented with thin and easy to route cables.

SMBus (System Management Bus)

SMBus is also called I

set clock of clock generator for jumper-less motherboard. The data transfer rate of SMBus is only 100Kbit/s, it allows one host to

communicate with CPU and many masters and slaves to send/receive message.

SPD (Serial Presence Detect)

SPD is a small ROM or EEPROM

and chip parameters. SPD can be used by BIOS

C bus. It is a two-wire bus developed for component communication (especially for semiconductor IC). For example,

device resided on the DIMM or RIMM. SPD stores memory module information such as DRAM timing

to decide best timing for this DIMM or RIMM.

with the compatibility with existing operating systems and drivers,

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

USB 2.0 (Universal Serial Bus)

A Universal Serial Bus (USB) is an external bus (an interconnect) standard that supports data transfer rates of 12 Mbps. A single USB port

can be used to connect up to 127 peripheral devices, such as mouse, modems and keyboards. Introduced in 1996, USB has completed

replaced serial and parallel ports. It also supports plug-and-play installations and hot plugging Plug-and-play is the ability to add and

remove devices to a computer while the computer is running and have the operating system automatically recognize the change. USB 2.0,

which supports data transfer rates of 480 Mbps, has been widely used in motherboard these days.

VCM (Virtual Channel Memory)

NEC’s Virtual Channel Memory (VCM) is a new DRAM core architecture that dramatically improves the memory system’s ability to service

multimedia requirements. VCM increases memory bus efficiency and performance of any DRAM technology by providing a set of fast static

registers between the memory core and I/O pins. Using VCM technology results in reduced data access latency and reduced power

consumption.

WWiirreelleessss LLAANN –– 880022..1111b

802.11 is a specification developed by IEEE and Wireless LAN technology, which is an interface between a wireless client and a base

station or between two wireless clients.

802.11 family includes the following specifications and with more coming:

802.11 = 1 or 2 Mbps transmission in the 2.4 GHz band, using either frequency hopping spread spectrum (FHSS) or direct sequence

spread spectrum (DSSS)).

802.11a = 54 Mbps in the 5GHz band, using orthogonal frequency division multiplexing)

AAXX4455HH--88XX MMaaxx OOnnlliinnee MMaannuuaall

802.11b (11 Mbps transmission in the 2.4 GHz band, using direct sequence spread spectrum (DSSS).

ZIP file

A compressed file format to reduce file size. To unzip file, run shareware PKUNZIP (http://www.pkware.com/

system or WINZIP (http://www.winzip.com/

) for windows environment.

) for DOS and other operating

100

AOpen AX45H8XMAX User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

AX45H-8X Max

Chipset

Expansion Slots

Memory

Watch Dog Timer

1MHz Stepping Frequency Adjustment

Ultra DMA 33/66/100/133 Bus Mater IDE

On-board AC’97 Sound

Six USB2.0 Ports

Dr. LED (Upgrade Optional)

AGP Protection Technology

Dr. Voice

S/PDIF Connectors

On-board IEEE 1394 Connectors

Power Management/Plug and Play

Hardware Monitoring Management

Enhanced ACPI

Super Multi-I/O

Motherboard Map
