AOpen AX37DPRO User Manual
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
Overview
AX37D Plus / AX37D Pro
DOC. NO.: AX37DP-OL-E0103A
1
Installation
Hardware
Drivers &
Utilities
BIOS Setup
AWARD
Glossary
Troubleshooting &
Technical Support
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
WWhhaatt’’ss iinn tthhiiss mmaannuuaall
AX37D Plus / AX37D Pro ........................................................................................................................ 1
What’s in this manual......................................................................................................................................................2
You Must Notice..............................................................................................................................................................8
Before You Start..............................................................................................................................................................9
Overview.......................................................................................................................................................................10
Feature Highlight ........................................................................................................................................................... 11
Quick Installation Procedure .........................................................................................................................................15
Motherboard Map..........................................................................................................................................................16
Block Diagram ...............................................................................................................................................................17
Hard war e Ins tal lat ion ......................................................................................................................19
Clear CMOS Data .........................................................................................................................................................20
CPU Installation ............................................................................................................................................................21
JP23 FSB/PCI Clock Ratio............................................................................................................................................23
CPU Jumper-less Design ..............................................................................................................................................25
CPU and Housing Fan Connector (with H/W Monito ring) ..............................................................................................31
SDRAM Socket .............................................................................................................................................................32
System and RAM Power Indicate LED ..........................................................................................................................35

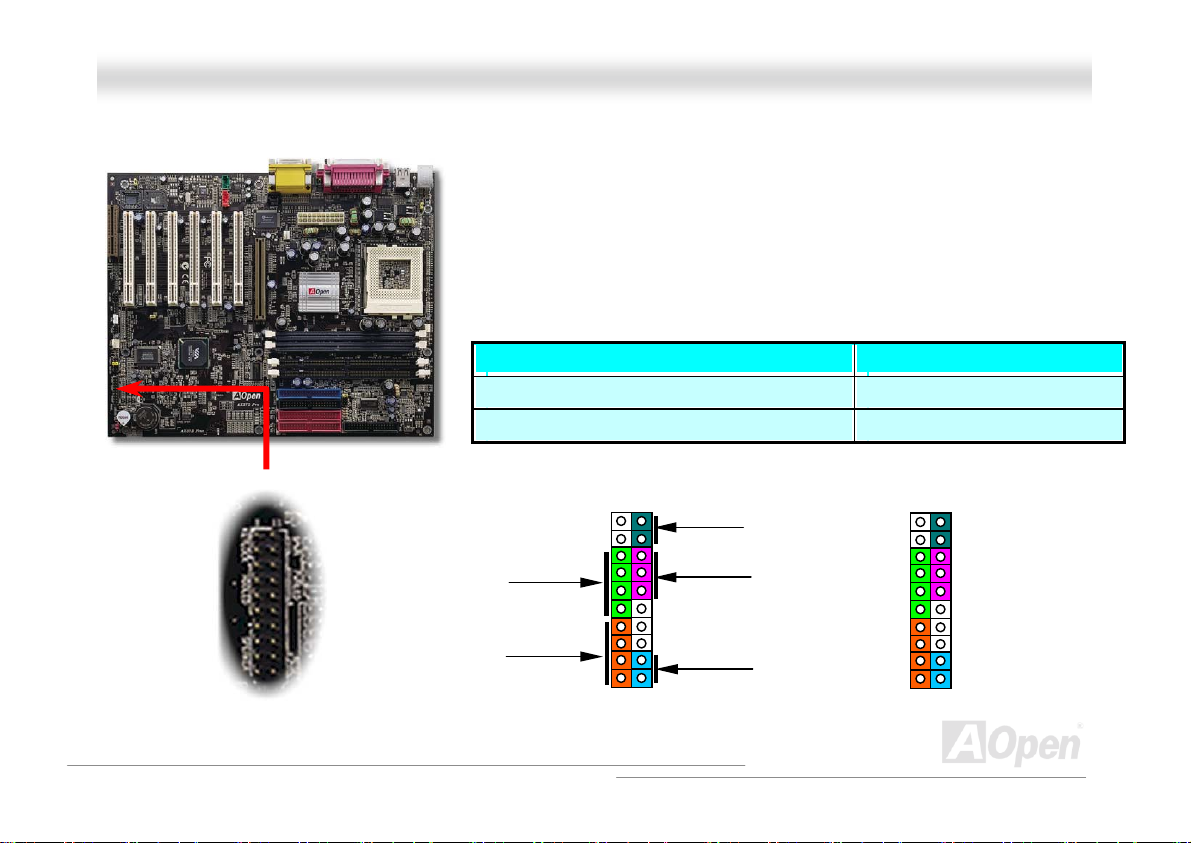

Front Panel Connector..................................................................................................................................................36
2
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
ATX Power Connector ...................................................................................................................................................37
AC Power Auto Recovery .............................................................................................................................................. 38
JP28 Keyboard Wake-up ..............................................................................................................................................38
IDE, Floppy and IDE RAID (AX37D Plus only) Connector.............................................................................................39
JP35 Enable/Disable Onboard IDE RAID Controller......................................................................................................41
IrDA Connector ............................................................................................................................................................. 42
WOM (Zero Voltage Wake on Modem) Connector.........................................................................................................43
WOL (Wake on LAN).....................................................................................................................................................46
AGP (Accelerated Graphic Port) Expans ion Slot...........................................................................................................48
CNR (Communication and Network Riser) Exp ansion Slot............................................................................................49
PC99 Color Coded Back Panel .....................................................................................................................................50
Support 2nd & 3rd USB Port ............................................................................................................................................51
Chassis Intrusion Sensor ..............................................................................................................................................52
CD Audio Connector .....................................................................................................................................................53

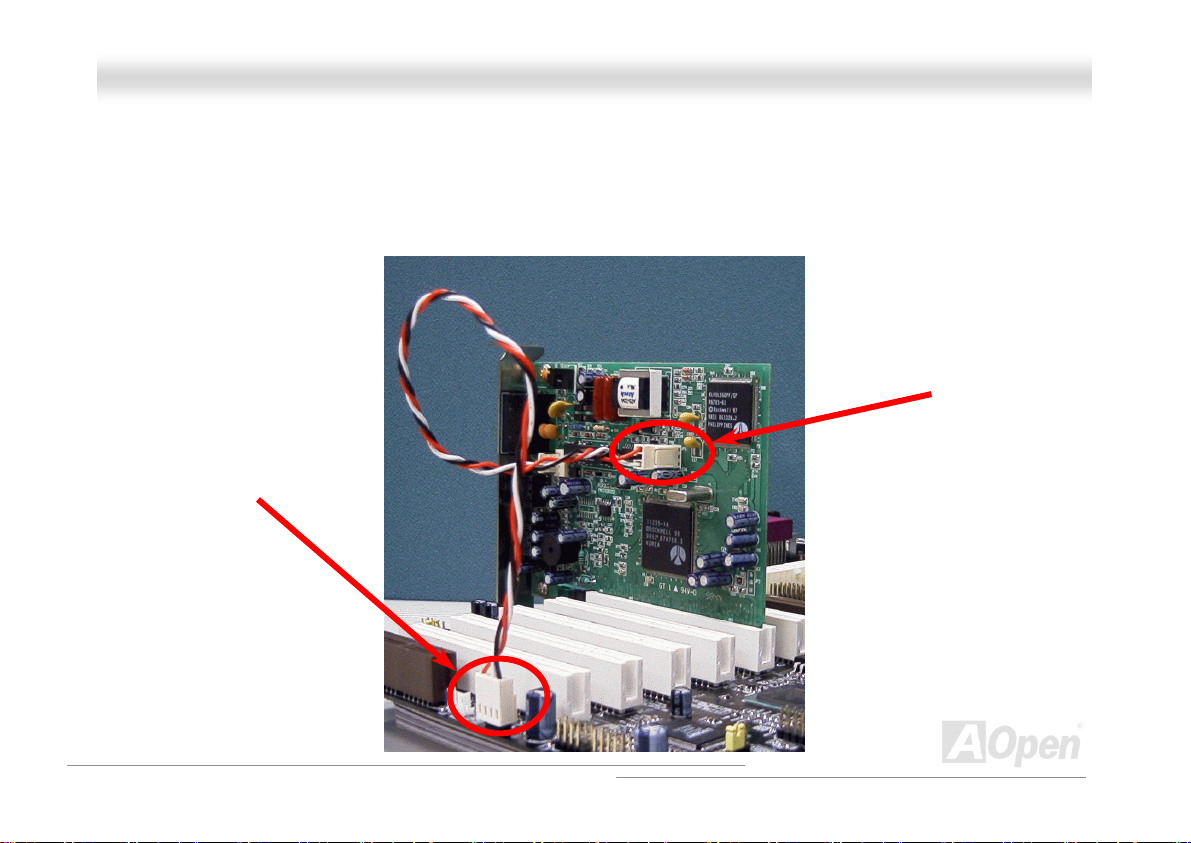

Modem Audio Connector ...............................................................................................................................................54
AUX-IN Connector ........................................................................................................................................................55
Front Audio ...................................................................................................................................................................56
Die-Hard BIOS (100% Virus Protection, Upgrad e Optional) ..........................................................................................57
Dr. LED Connector (Upgrade Optional).........................................................................................................................60
Battery-less and Long Life Design ................................................................................................................................62
3
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
Over-current Protect ion.................................................................................................................................................63
Hardware Monitoring.....................................................................................................................................................64
Resettable Fuse............................................................................................................................................................65
Year 2000 (Y2K)............................................................................................................................................................66
2200µf Low ESR Capacitor ...........................................................................................................................................68
Layout (Frequency Isolation Wall).................................................................................................................................70
Pure Aluminum Heatsink...............................................................................................................................................71
Driver and Utility .............................................................................................................................72

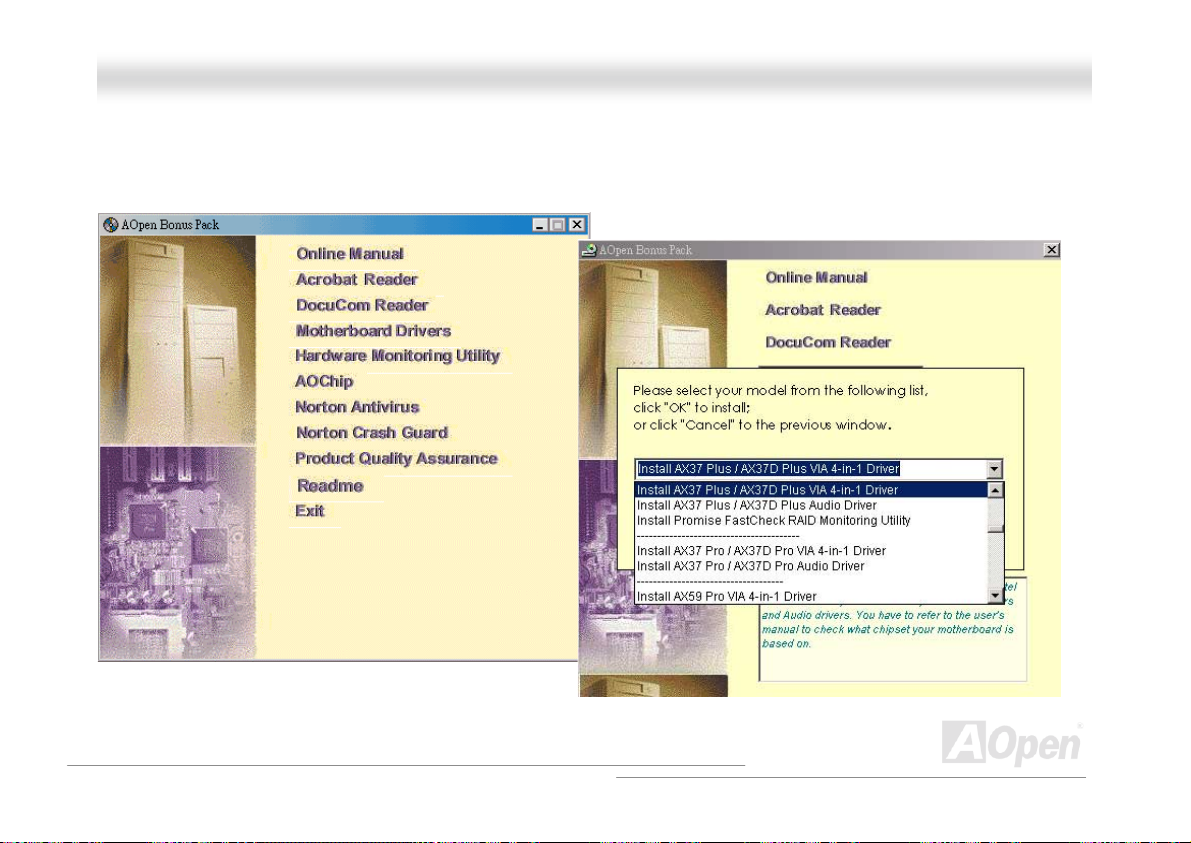

Auto-run Menu from Bonus CD Disc .............................................................................................................................73
Installing Windows 95 ...................................................................................................................................................74
Installing Windows 98 ...................................................................................................................................................75
Installing Windows® 98 SE, Windows® ME & Wi n dow s®2000 ........................................................................................ 76
Installing VIA 4 in 1 Driver .............................................................................................................................................77
Installing Onboard Sound Driver ................................................................................................................................... 78
Install Onboard IDE RAID Driver (AX37D Plus only).....................................................................................................79
Install FastCheck™ Monitorin g Utility (AX37 D Plus only)..............................................................................................79
Installing Hardware Monitorin g Utility............................................................................................................................80
ACPI Suspend to Hard Drive......................................................................................................................................... 81
ACPI Suspend to RAM (STR)........................................................................................................................................85
4
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
AWARD BIOS ....................................................................................................................................88
How To Use Award™ BIOS Setu p P rogra m ..................................................................................................................89
How To Enter BIOS Set up.............................................................................................................................................91
BIOS Upgrade ............................................................................................................................................................... 92
Overclocking....................................................................................................................................94
VGA Card & Hard Disk ..................................................................................................................................................95
Glossary...........................................................................................................................................9 6
AC97.............................................................................................................................................................................96
ACPI (Advanced Configuratio n & Power Interfac e) .......................................................................................................96
AGP (Accelerated Graphic Port) ...................................................................................................................................96
AMR (Audio/Modem Riser)............................................................................................................................................97
AOpen Bonus Pack CD.................................................................................................................................................97
APM (Advanced Power Management) ...........................................................................................................................97
ATA (AT Attachment).....................................................................................................................................................97
ATA/66 .......................................................................................................................................................................... 97
ATA/100 ........................................................................................................................................................................98
BIOS (Basic Input/Output Sys tem) ................................................................................................................................98
Bus Master IDE (DMA mode)........................................................................................................................................98
CNR (Communication and Networki ng Riser)................................................................................................................98
5
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
CODEC (Coding and Decoding)....................................................................................................................................99
DDR (Double Data Rate) SDRAM.................................................................................................................................99
DIMM (Dual In Line Memory Module)............................................................................................................................ 9 9
DMA (Direct Memory Acc ess) .......................................................................................................................................99
ECC (Error Checking and Correction) ......................................................................................................................... 1 00
EDO (Extended Data Output) Memory ........................................................................................................................ 100
EEPROM (Electronic Erasable Programmab le ROM) .................................................................................................. 100
EPROM (Erasable Programmabl e ROM) .................................................................................................................... 100
EV6 Bus......................................................................................................................................................................101
FCC DoC (Declaration of Conformity) .........................................................................................................................101
FC-PGA (Flip Chip-Pin Grid Array) ..............................................................................................................................101
Flash ROM..................................................................................................................................................................101
FSB (Front Side Bus) Clock ........................................................................................................................................102
I2C Bus ........................................................................................................................................................................ 102
IEEE 1394 ................................................................................................................................................................... 1 02
Parity Bit .....................................................................................................................................................................102
PBSRAM (Pipelined Burst S RAM)...............................................................................................................................103
PC-100 DIMM .............................................................................................................................................................103
PC-133 DIMM .............................................................................................................................................................103
PC-1600 or PC-2100 DDR SDRAM.............................................................................................................................103
6
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
PCI (Peripheral Component Interface) Bus .................................................................................................................103
PDF Format ................................................................................................................................................................104
PnP (Plug and Play)....................................................................................................................................................104
POST (Power-On Self Test)........................................................................................................................................104
RDRAM (Rambus DRAM) ...........................................................................................................................................104
RIMM (Rambus Inline Memory Module) ......................................................................................................................105
SDRAM (Synchronous DRAM)....................................................................................................................................105
Shadow E2PROM........................................................................................................................................................105
SIMM (Single In Li ne M emory Mod ule) ....................................................................................................................... 105
SMBus (System Management Bus).............................................................................................................................106
SPD (Serial Presence Detect ).....................................................................................................................................106
Ultra DMA ...................................................................................................................................................................106
USB (Universal Serial B us) .........................................................................................................................................107
VCM (Virtual Channel Memory)................................................................................................................................... 10 7
ZIP file ........................................................................................................................................................................107
Troubleshooting.............................................................................................................................108
Technical Support ......................................................................................................................... 1 1 2
Product Registration .....................................................................................................................11 5
7
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
YYoouu MMuusstt NNoottiiccee
Adobe, the Adobe logo, Acrobat is trademarks of Adobe Systems Incorporated.
AMD, the AMD logo, Athlon and Duron are trademarks of Advanced Micro Devices, Inc.
Intel, the Intel logo, Intel Celeron, Pentium II, Pentium III are trademarks of Intel Corporation.
Microsoft, Windows, and Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United
States and/or other countries.
All product and brand names used on this manual are used for identification purposes only and may be the registered trademarks
of their respective owners.
All of the specifications and information contained in this manual are subject to change without notice. AOpen reserves the right to
revise this publication and to make reasonable changes. AOpen assumes no responsibility for any errors or inaccuracies that may
appear in this manual, including the products and software described in it.
This documentation is protected by copyright law. All rights are reserved.
No part of this document may be used or reproduced in any form or by any means, or stored in a database or retrieval
system with ou t p r ior written permissi o n fr om AOpen Corporatio n.
Copyright
©
1996-2000, AOpen Inc. All Rights Reserved.
8
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
BBeeffoorree YYoouu SSttaarrtt
This Online Manual will introduce to the user how this product is installed. All useful information will be described in later chapters.
Please keep this manual carefully for future upgrades or system configuration changes. This Online Manual is saved in PDF format
we recommend using Adobe Acrobat Reader 4.0 for online viewing, it is included in Bonus CD disc
from Adobe web site
Although this Online Manual is optimized for screen viewing, it is still capable for hardcopy printing, you can print it by A4 paper
size and set 2 pages per A4 sheet on your printer. To do so, choose File > Page Setup and follow the instruction of your printer
driver.
Thanks for the help of saving our earth.
.
or you can get free download
,
9
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
OOvveerrvviieeww
Thank you for choosing AOpen AX37D Plus / AX37D Pro. The AX37D Plus / AX37D Pro is Intel® Socket 370 motherboard (M/B)
based on the ATX form factor featuring the VIA Apollo Pro266 chipset
Plus / AX37D Pro can support Intel
FSB (Front Side Bus)
spilt-transaction long burst transfer up to 1066MB/sec. With high bandwidth 266MB/s 8-bit V-Link Host Controller, PC1600
PC2100
addition, it has still added two 168-pin SDRAM
sockets that allow you to install PC100 or PC133
memory up to 2 GB either. The on-board IDE
controller supports Ultra DMA
the transfer rate up to 100MB/s. AX37D Plus with a
Promise
that provides high performance and fault tolerance.
Further flexibility can be achieved by taking
advantage of the Communication and Network
Riser (CNR) card option that allows audio and
modem configuration on a single baseboard design.
Besides, the AX37D Plus / AX37D Pro has an AD
1885 AC97
high performance and magic surround stereo sound
to let people enjoy working with it. Now, enjoy all
features from AOpen AX37D Plus / AX37D Pro.
DDR SDRAM can be applied to the AX37D Plus / AX37D Pro and the maximum memory size can be up to 2GB. In
®
®
Socket 370 series Pentium III® & Celeron™ 533MHz~1GHz+ processor and 66/100/133MHz
. In the AGP performance, it has one AGP slot and supports AGP 1X/2X/4X mode and pipelined
33/66/100 mode and
FastTrak™ 100 Lite IDE RAID controller
CODEC chipset onboard for provides
. As high performance chipset built in the M/B, the AX37D
and
10
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
FFeeaattuurree HHiigghhlliigghhtt
CPU
Supports Intel® Socket 370 Pentium III® & Celeron™ 533MHz~1GHz+ with 66/100/133MHz FSB (Front Side Bus) designed for
Socket technology.
Chipset
The VIA Apollo Pro266 consists of the VT8633 V-Link DDR Host system controller and the VT8233 highly integrated V-Link Client
PCI/LPC controller. The Host system controller provides superior performance between the CPU, SDRAM, AGP bus, and V-Link
interface with pipelined, burst, and concurrent operation. The VT8233 V-Link Client controller is a highly integrated PCI/LPC
controller. Its internal bus structure is based on 66MHz PCI bus that provides 2x bandwidth compare to previous generation
PCI/ISA bridge chips. The VT8233 integrated Client V-Link controller with 266MB/s bandwidth between Host/Client V-Link interface,
provides a V-Link-PCI and V-Link-LPC controller. Of six PCI slots provided, AX37D Plus supports four master PCI slots with
arbitration and decoding for all integrated functions and LPC bus, and two slave PCI slots; while AX37D Pro supports five master
PCI slots with arbitration and decoding functions also and one slave PCI slot.
Expansion Slots
Including six 32-bit/33MHz PCI, one CNR and one AGP 4X slots. The PCI local bus throughput can be up to 132MB/s. The
Communication & Nectworking Riser (CNR)
Modem/Audio card. The Accelerated Graphics Port (AGP)
speed. The AGP video cards support data transfer rate up to 1066MB/s. As AX37D Plus / A X37D Pro includes one AGP expansion
slot for a bus mastering AGP graphic card, For AD and SBA signaling, AX37D P lus / A X37D Pro can support 133MHz 2 X/4X mode.
slot provided from AX37D Plus / AX37D Pro can support CNR interface for a
specification provides a new level of video display sophistication and
11
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
Memory
With VIA Apollo Pro266 chipset, the AX37D Plus / AX37D Pro can support Double-Data-Rate (DDR) SDRAM. The DDR SDRAM
interface allows zero wait state bursting between the SDRAM and the data buffers at 66/100/133MHz. The four banks of DDR
SDRAM can be composed of an arbitrary mixture of 1M/2M4M/8M/16M/32M/64MxN SDRAM and maximum up to 2GB. In addition,
the AX37D Plus / AX37D Pro has still added two 168-pin SDRAM sockets that allow you to install PC100 or PC133 memory up to 2
GB either. The AX37D Plus / AX37D Pro allows SDRAM to run at either synchronous or pseudo-synchronous mode with the host
CPU bus frequency (66/100/133MHz).
Ultra DMA 33/66/100 Bus Mater IDE
Comes with an on-board PCI Bus Master IDE controller with two connectors that supports four IDE devices in two channels,
supports Ultra DMA
33/66/100, PIO Modes 3 and 4 and Bus Master IDE DMA Mode 4, and supports Enhanced IDE devices.
On-board ATA/100 IDE RAID (AX37D Plus Only)
1. Supports data striping (RAID 0) and mirroring (RAID 1). Provides dramatic increase in drive performance and/or fault tolerant
options. Offers performance customization and data rebuilds from the BIOS menu. Mirroring supports automatic background
rebuilds. Fault tolerance can be restored automatically without rebooting.
2. Supports up to four IDE drives which capacities are more than 8.4GB on the two IDE RAID connectors while still supporting
four IDE devices on the motherboard. The burst data transfer rates can up to 100MB/s from ATA/100 drives to boast overall
system performance.
3. Supports IDE Bus Master operation allows multi-tasking during disk drives transfer which increase CPU efficiency, then the
CPU is free to process task during IDE data transfer through PCI bus interface to/from system memory.
12
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
On-board AC97 Sound
AX37D Plus / AX37D Pro uses the AD 1885 AC97 CODEC chip. This on-board audio includes a complete audio recording and
playback system.
Six USB Connectors
Provides three ports, six USB connectors for USB interface devices, such as mouse, keyboard, m odem, scanner, etc. The onboard
USB Host controller is fully compliant with USB UHCI 1.1 specification that can fully compatible with low power mode and wake-up
specifi cation.
1MHz Stepping Frequency Adjustment
Provides “1MHz Stepping Frequency Adjustment” function in the BIOS. This magic function allows you adjust CPU FSB frequency
from 66~248 by 1MHz stepping, and lets your system can get maximum performance.
Watch Dog Timer
Includes AOpen “Watch Dog Timer” function that can auto-reset system in 4.8 seconds when you fail to system overclocking.
Die-Hard BIOS with external controller (Upgrade Optional)
The Die-Hard BIOS technology is a very effective hardware protection method that doesn’t involve any software or BIOS coding.
Hence, it is 100% virus free.
13
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
Dr. LED (Upgrade Optional)
The Dr. LED has 8 LEDs on the AX37D Plus / AX37D Pro can easily show what kind of problem you may encounter.
Power Management/Plug and Play
The AX37D Plus / AX37D Pro supports the power management function that confirms to t he power-saving standards of the U.S.
Environmental Protection Agency (EPA) Energy Star program. It also offers Plug-and-Play
configuration problems, thus making the system much more user-friendly.
, which helps save users from
Hardware Monitoring Management
Supports CPU or system fans status, temperature and voltage monitoring and alert, through the on-board hardware monitor module
and Aopen Hardware Monitoring Utility
.
Enhanced ACPI
Fully implement the ACPI standard for Windows® 95/98/ME/NT/2000 series compatibility, and supports Soft-Off, STR (Suspend to
RAM, S 3), STD (Suspend to Disk, S4), WOM (Wak e On Mo dem ) , W OL (Wake O n LA N) f eat ur es.
Super Multi-I/O
The AX37D Plus / AX37D Pro provides two high-speed UART compatible serial ports and one parallel port with EPP and ECP
capabilities. UART2 can also be directed from COM2 to the Infrared Module for the wireless connections.
14
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
QQuuiicckk IInnssttaallllaattiioonn PPrroocceedduurree
This page gives you a quick procedure on how to install your system. Follow each step accordingly.
Installing CPU and Fan
1.
Installing System Memory (DIMM)
2.
Connecting Front Panel Cable
3.
4.
Connecting IDE and Floppy Cable
5.
Connecting ATX Power Cable
6.
Connecting Back Panel Cable
7.
Power-on and Load BIOS Setup Default
8.
Setting CPU Frequency
9.
Reboot
10.
Install i ng O per ati ng S yst em (suc h as W indo ws 9 8)
11.
Installing Driver and Utility
15
p
r
r
r
r
r
r
(
y)
r
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
CD-IN Connector
Onboard AC97 CODEC
Die Hard BIOS with 100% Virus
Protection (Upgrade Optional)
JP30 Die Hard BIOS
Select Jumper
Green: AUX-IN Connector
Red: Modem-IN Connector
CNR Expansion Slot
32-bit PCI Expansion
2nd & 3rd USB Port
Dr. LED Connecto
WOM (Wake ON Modem)
WOL (Wake ON LAN)
Chassis Fan Connector
with H/W Monitoring
Front Audio Connector
Front Panel Connector
PROMISE® FastTrak 100™
Lite IDE RAID Controller
AX37D Plus Onl
CMOS Data Clear Jumpe
System & RAM Power
IDE RAID Controller Enable/
Chassis Intrusion Sensor
Slot x6
Connecto
Connecto
Connecto
IrDA Connecto
Indicate LED
Disable Jumper
Connecto
Motherboard Map
16
PC99 Colored Back
Panel
Resettable Fuse
Keyboard/Mouse
Select Jumper
Wake-u
2200μf Low ESR
Condensers
ATX Power Connector
AUX Fan Connector
AGP 4x Expansion Slot
370-pin CPU Socket with
Frequency/Voltage
Auto-detection supports
®
Intel
Pentium® III and
Celeron™ 533MHz~1GHz+
VIA® Apollo Pro266
Chipset with Pure
Aluminum Heatsink
CPU Fan Connector with
H/W Monitoring
184-pin DDR SDRAM Slot x2
support maximum up to 2GB
168-pin DIMM Slot x2
supports PC100/PC133 SDRA
maximum up to 2GB
FSB Select Jumper
ATA/33/66/100 IDE
Connector x2
ATA/100 IDE RAID
Connector x2 (AX37D Plus
Only)
FDD Connector
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
BBlloocckk DDiiaaggrraamm
Socket 370
Intel
Pentium III/Celeron
CPU
PC1600/PC2100 DDR
SDRAM Up to 2GB
DDR SDRAM Socket x2
66/100/133MHz
System Bus
AGP Bus
DDR V-Link
Host North 552
AGP 4X Slot
VT8633
BGA
USB connector x6
Floppy Disk Drive x2
PCI Bus
1stUSB Port
2ndUSB Port
3rdUSB Port
32-bit PCI Slot x6
Promise
FastTrak
100 IDE
RAID
Controller
ATA
33/66100
Primary
Channel
Secondary
Channel
Primary
Channel
Secondary
Channel
VT8233
V-Link Client
South 376
BGA
Supports ATA100 IDE RAID
0 and RAID 1 Solution
(AX37D Plus Only)
AC’97 Link
Audio CODEC
Modem CODEC
CNR Slot
2MBit Flash EEPROM
Parallel Port
Serial Port x2
IDE Drive x4
IDE Drive x4
17
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
(This page is intentionally left blank for notes)
18
p
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
HHaarrddwwaarree IInnssttaallllaattiioonn
This chapter describes jumpers, connectors and hardware devices of this motherboard.
Note: El ectrostatic discharge (ESD) can damage your processor, disk drives, expansion boards, and
other components. Always observe the following precautions before you install a system component.
1. Do not remove a component from its protective packaging until you are ready to install it.
2. Wear a wrist ground strap and attach it to a metal part of the system unit before handling a
component. If a wrist strap is not available, maintain contact with the system unit throughout any
rocedure requiring ESD protection.
19
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
CClleeaarr CCMMOOSS DDaattaa
You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below.
1. Turn off the system and unplug the AC power.
2. Remove ATX power cable from connector PWR2.
3. Locate JP14 and short pins 2-3 for a few seconds.
4. Return JP14 to its normal setting by shorting pins 1 & pin2.
5. Connect ATX power cable back to connector PWR2.
Pin 1
1
Normal Operation
(default)
1
Clear CMOS
Tip: W hen should I Clear CMOS?
1. Boot fa il bec aus e of ov e rcl ock in g…
2. Forget password…
3. Troubleshooting…
20
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
CCPPUU IInnssttaallllaattiioonn
This motherboard supports Intel® Pentium III® and Celeron Socket 370 series CPU. Be careful of CPU orientation when you plug
it into CPU socket.
1. Pull up the CPU socket lever and
up to 90-degree angle.
2. Locate Pin 1 in the socket and look for a black dot or cut edge on the
CPU upper interface. Match Pin 1 and cut edge, then insert the CPU into
the socket.
CPU pin 1
and cut edge
CPU socket
Lever
CPU cut edge
21
y
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
3. Press down the CPU socket lever and finish
CPU installation.
CPU cut edge
Note: If you do not match the CPU
socket Pin 1 and CPU cut edge well, it
ma
damage the CPU.
22
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
JJPP2233 FFSSBB//PPCCII CClloocckk RRaattiioo
This jumper is used to specify the relationship of PCI and FSB clock. Generally speaking, if you are not overclockers, we
recommend you to set at the default setting. By the way, this motherboard also provides “1MHz Stepping Adjustment” feature for
overclockers. You can adjust CPU FSB frequency via BIOS setup program. Based on the CPU type, the adjustment range has
three level: 66~90 (FSB=66MHz, such as Celeron™ 533), 100~127 (FSB=100, such as Pentium
such as P entium
range will be changed and following your JP23 setting.
®
III 800EB) MHz for your choosing. If you fix the CPU FSB frequency by JP23, the “1MHz Stepping Adjustment”
®
III 800E), 133~248 (FSB=133,
1 2
7 8
Auto (Default)
FSB=133
FSB=100
FSB=66
23
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
PCI Clock = CPU FSB Clock / Clock Ratio
AGP Clock = PCI Clock x 2
Clock Ra tio CPU (Host) PCI AGP Memory
2X 66MHz 33MHz 66 PCI x2 or x3
2X, overclocking 75MHz 37.5MHz 75MHz PCI x2 or x3
3X 100MHz 33MHz 66MHz PCI x2 or x3 or x4
3X, overclocking 112MHz 37.3MHz 74.6MHz PCI x2 or x3 o r x4
4X 133MHz 33MHz 66MHz PCI x3 or x4
4X, overclocking 155MHz 38.75MHz 77.5MHz PCI x3 or x4
Warning: VIA® Apollo Pro 266 chipset supports maximum
133MHz FSB and 66MHz AGP clock, higher clock setting may
cause serious system damage
24
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall

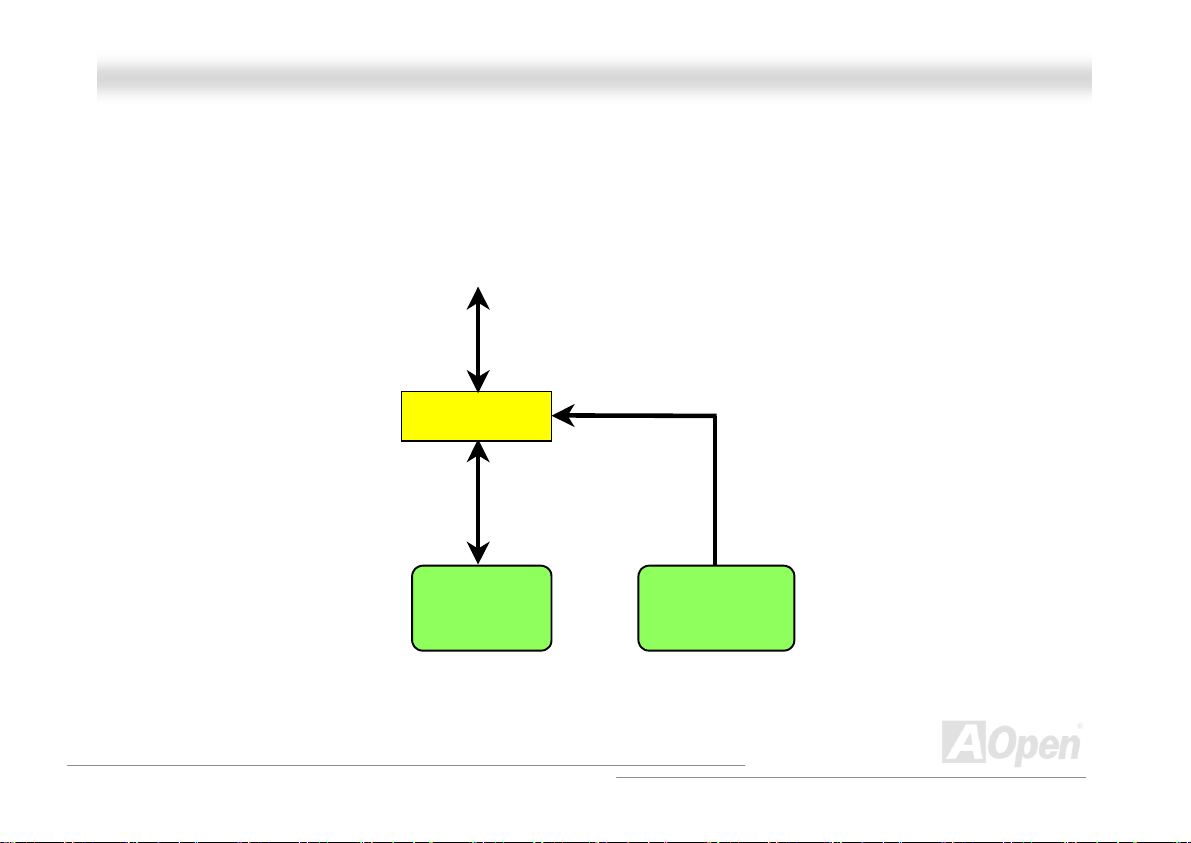

CCPPUU JJuummppeerr--lleessss DDeessiiggnn
CPU VID signal and SMbus clock generator provide CPU voltage auto-detection and allows the user to set the CPU frequency
through the BIOS setup
designs are eliminated. There will be no worry of wrong CPU voltage detection.
CPU VID signal
, therefore no jumpers or switches are used. The disadvantages of the Pentium based jumper-less

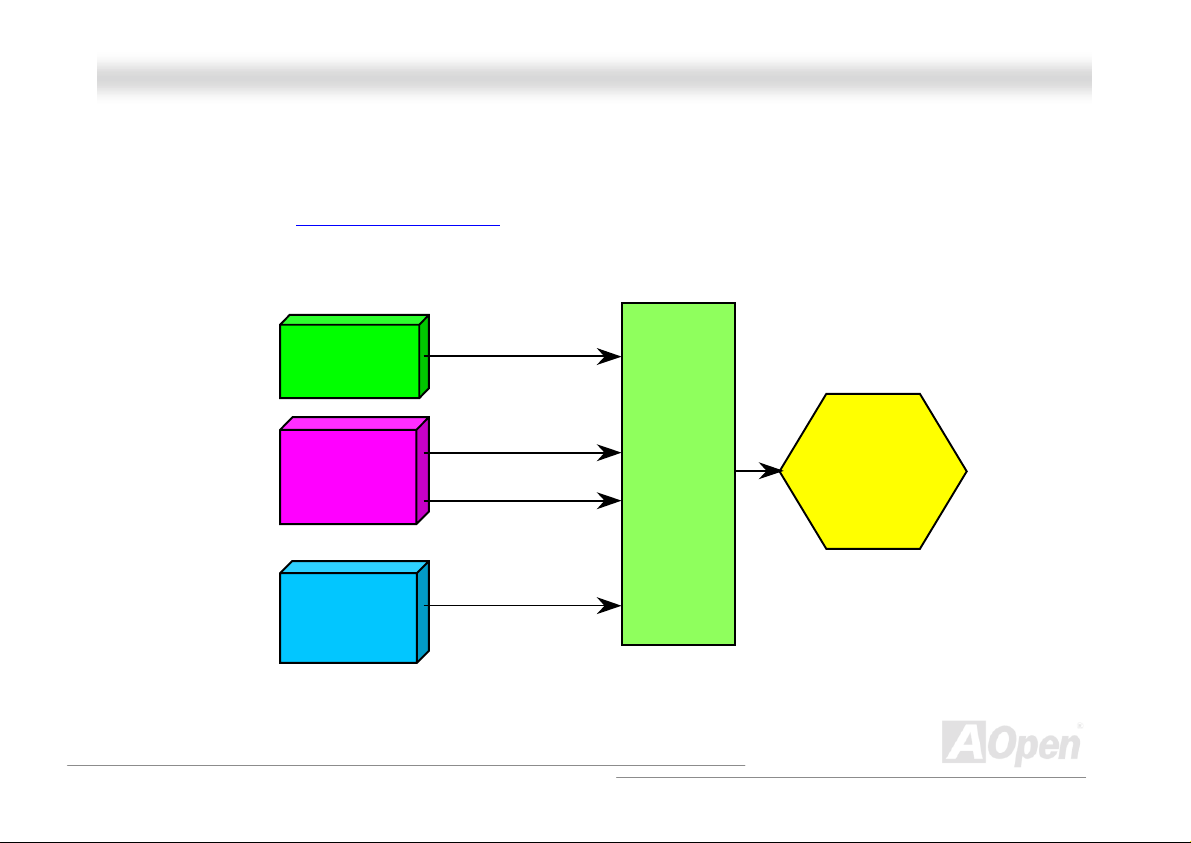

Intel® Socket 370
Pentium III &
Celero n CP U
Power Regulator
(Automatically generates CPU voltage)
CPU Freq. Ratio
CPU voltage
Clock
Generator
BIOS
Controlled
Circuit
25
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
FFuullll--rraannggee AAddjjuussttaabbllee CCPPUU CCoorree VVoollttaaggee
This function is dedicated to overclockers, AOpen works together with Fairchild to develop a speci al chip F M3540 that supports
Adjustable CPU Core Voltage from 1.3V to 3.5 by 0.05 stepping. But this motherboard can also automatically detect CPU VID
signal and generates proper CPU core voltage.
BIOS Setup > Frequency/Voltage Control > CPU Voltage Setting
Warning: Higher CPU core voltage may be
able to increase CPU speed for overclocking,
but you may damage the CPU or reduce the
CPU lifecycle
26
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
SSeettttiinngg CCPPUU FFrreeqquueennccy
This motherboard is CPU jumper-less design, you can set CPU frequency through the BIOS setup, and no jumpers or switches are
needed.
y
BIOS Setup > Frequency/Voltage Control > CPU Speed Setting
CPU Ratio
CPU FSB
(By BIOS Table)
CPU FS B
(By manual
Adjustment)
1.5x, 2x, 2.5x, 3x, 3.5x, 4x, 4.5x, 5x, 5.5x, 6x, 6.5x, 7x, 7.5x, and 8x
66.8, 75, 83.3, 100, 103, 105, 110, 112, 115, 120, 124, 133, 140, and 150
MHz.
66~248MHz by 1MHz stepping adjustment technology
Warning: VIA® Apollo Pro 266 chipset supports
maximum 133MHz FSB and 66MHz AGP clock,
higher clock setting may cause serious system
damage.
Tip: If your syst em hangs or fails to boot because
of overclocking, simply use <Home> key to
Home
restore the default setting (433MHz) or you can
wait the AOpen “Watch Dog Timer” reset the
system after five seconds and system will
auto-detect hardware again.
27
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
SSuuppppoorrtteedd CCPPUU FFrreeqquueennccyy
Core Frequency = CPU Bus Clock * CP U Ra tio
PCI Clock = CPU Bus Clock / Clock Ratio
AGP Clock = PCI Clock x 2
CPU
Celeron 300A 300MHz 66MHz 4.5x
Celeron 366 366MHz 66MHz 5.5x
Celeron 366 366MHz 66MHz 5.5x
Celeron 400 400MHz 66MHz 6x
Celeron 433 433MHz 66MHz 6.5
Celeron 466 466MHz 66MHz 7x
Celeron 500 500MHz 66MHz 7.5x
Celeron 533 533MHz 66MHz 8x
Celeron 566 566MHz 66MHz 8.5x
Celeron 600 600MHz 66MHz 9x
Celeron 667 667MHz 66MHz 10x
Celeron 700 700MHz 66MHz 10.5
Pentium III 500E 500MHz 100MHz 5x
Pentium III 600E 600MHz 100MHz 6x
CPU Core
Frequenc y
Note: This motherboard support CPU
auto-detection function. Hence, you
don’t need to setup the CPU frequency
manually.
FSB Clock Ratio
28
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
Pentium III 650E 650MHz 100MHz 6.5x
Pentium III 700E 700MHz 100MHz 7x
Pentium III 750E 750MHz 100MHz 7.5
Pentium III 800E 800MHz 100MHz 8x
Pentium III 850E 850MHz 100MHz 8.5x
Pentium III 533EB 533MHz 133MHz 4x
Pentium III 600EB 600MHz 133MHz 4.5x
Pentium III 667EB 667MHz 133MHz 5x
Pentium III 733EB 733MHz 133MHz 5.5
Pentium III 800EB 800MHz 133MHz 6x
Pentium III 866EB 866MHz 133MHz 6.5
Pentium III 933EB 933MHz 133MHz 7x
Pentium III 1000EB 1GHz 133MHz 7.5x
Warning: VIA® Apollo Pro 266 chipset supports maximum 133MHz
Bus and 66MHz AGP clock, higher clock setting may cause serious
system damage.
29
AAXX3377DD PPlluuss // AAXX3377DD PPrroo OOnnlliinnee MMaannuuaall
AAOOppeenn ““WWaattcchh DDoogg TTiimmeerr””
With this motherboard, AOpen provides a very special, useful feature for overclockers. When you power-on the system, the BIOS
will check last system POST
FSB
frequency by user’s setting that stored in the BIOS. If system failed in BIOS POST, the “Watch Dog Timer” will reset the
system to reboot in five seconds. Then, BIOS will detect the CPU’s default frequency and POST again. With this special feature,
you can easily overclock your system to get higher system performance, and without removing the cover of system housing to set
the jumper to clear CMOS data when your system hanged.
AOpen
Watch Dog
Timer
status. If it succeeded, the BIOS will enable “Watch Dog Timer” function immediately, and set the CPU
Enable/Disable Signal
from BIOS
Countdown about
5 seconds if fails
in POST
Reset Signal
Clock Generator
BIOS
CPU ID Signal
CPU
30
