AOpen AOR-411 User Manual

User Manual
AOR-411
Broadband Router with Print Server
Table of Contents
Note ..................................................................................................................... 4
Back Panel .......................................................................................................... 5
Front Panel ......................................................................................................... 5
Setup Diagram....................................................................................................6
Getting Started.................................................................................................... 7
Chapter 1 Quick Setup ................................................................................................... 14
Step 1) Time Zone............................................................................................. 14
Step 2) Broadband Type................................................................................... 15
1.1 Cable Modem .............................................................................................. 16
1.2 Fixed-IP xDSL............................................................................................. 17
1.3 PPPoE .......................................................................................................... 17
1.4 PPTP ............................................................................................................ 19
Chapter 2 General Settings............................................................................................ 21
2.1 System .......................................................................................................... 22
2.1.1 Time Zone.............................................................................................. 22
2.1.2 Password Settings ................................................................................. 23
2.1.3 Remote Management............................................................................ 24
2.2 WAN............................................................................................................. 26
2.2.1 Dynamic IP ............................................................................................ 27
2.2.2 Static IP Address................................................................................... 27
2.2.3 PPPoE (PPP over Ethernet)................................................................. 27
2.2.4 PPTP ...................................................................................................... 27
2.2.5 L2TP....................................................................................................... 27
2.2.6 Telstra Big Pond.................................................................................... 29
2.2.7 DNS ........................................................................................................ 29
2.2.8 DDNS...................................................................................................... 30
2.3 LAN .............................................................................................................. 31
2.4 NAT .............................................................................................................. 33
2.4.1 Port Forwarding ................................................................................... 34
2.4.2 Virtual Server........................................................................................ 35
2.4.3 Special Applications.............................................................................. 37
2.4.4 ALG Settings ......................................................................................... 39
2.5 Firewall ........................................................................................................ 40
2.5.1 Access Control....................................................................................... 41
2.5.2 URL Blocking........................................................................................ 45
2.5.3 Denial of Service (DoS)......................................................................... 45

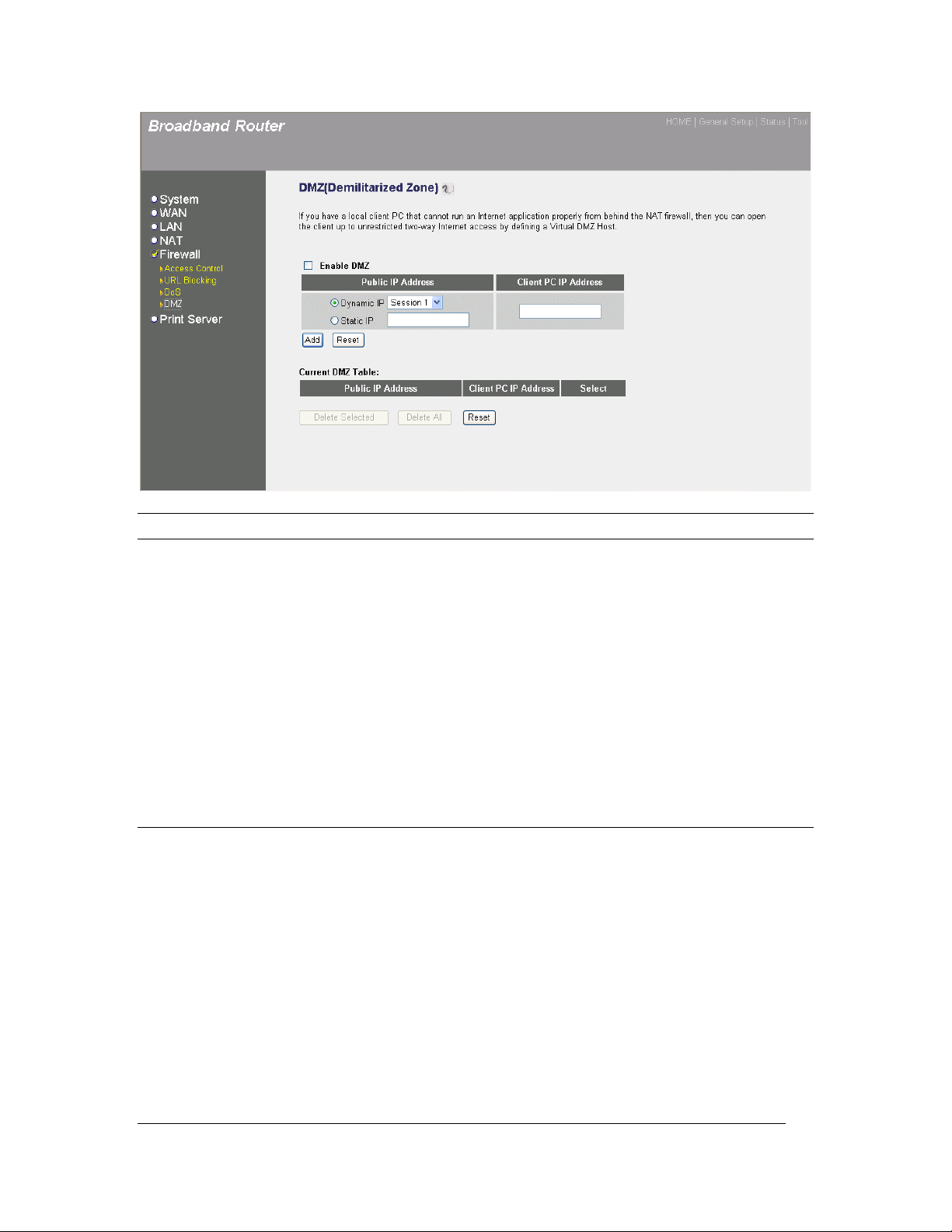

2.5.4 DMZ ....................................................................................................... 46
Chapter 3 Status.............................................................................................................. 47
3.1 Status and Information .............................................................................. 48
3.2 Internet Connection.................................................................................... 49
3.3 Device Status ............................................................................................... 49
2
3.7 Statistics ....................................................................................................... 54
4.3 Reset ............................................................................................................. 57
Chapter 5 ........................................................................................................................ 58
5.1 Install Print Server Network Driver ......................................................... 58
5.2 Add a Network Printer............................................................................... 61
Appendix A......................................................................................................................63
Glossary ........................................................................................................................... 64
3
Introduction
Congratulations on purchasing this Broadband Router. This Broadband Router is an IP Sharing Router that enables multiple users to share the Internet through an ADSL or cable modem. Simply configure your Internet connection settings in the Broadband Router and plug your PC to the LAN port and you're ready to share files and access to the Internet. As your network grows, you can connect another hub or switch to the router’s LAN ports, allowing you to easily expand your network. It provides a total solution for the Small to Medium-sized Business (SMB) and the Small Office/Home Office (SOHO) markets. This router provides two USB ports to connect with USB printers, providing an instant network as well as the flexibility to handle future expansion and speed.
Features
• High Internet Access throughput
• Allows multiple users to share a single Internet line
• Supports up to 253 users
• Provides two USB ports for connecting with USB printer
• Internet Access via Cable or xDSL modem
• Access Private LAN Servers from the Public Network
• Equipped with four LAN ports (10/100M) and one WAN port (10/100M)
• Supports DHCP (Server/Client) for easy setup
• Supports advanced features such as Special Applications, DMZ, Virtual Servers, Access
Control and Firewall.
• Allows you to monitor the router’s status such as DHCP Client Log, Security Log and Device/Connection Status
• Easy to use Web-based GUI for configuration and management purposes
• Remote Management allows configuration and upgrades from a remote site (over the
Internet)
Minimum Requirements
• One External xDSL (ADSL) or Cable modem with an Ethernet port (RJ-45)
• Network Interface Card (NIC) for each Personal Computer (PC)
• PCs with a Web-Browser (Internet Explorer 4.0 or higher, or Netscape Navigator 4.7 or
higher)
Package Content
• One Broadband router unit
• One Quick Installation Guide
• One User Manual CD
• One Power Adapter
• Accessories
Note
The WAN “idle timeout” auto-disconnect function may not work due to abnormal activities of some network application software, computer virus or hacker attacks from the Internet. For example, some software sends network packets to the Internet in the background, even when you are not using the Internet. So please turn off your computer when it is not in use. This function also may not work with some ISP. So please make sure this function works properly when you use it at the first time, especially when your ISP charges you by the time used.
4
Get to know the Broadband Router
Back Panel
The diagram (fig1.0) below shows the broadband router’s back panel. The router’s back panel is divided into three sections, LAN, WAN and Reset:
Figure 1.0
1) Local Area Network (LAN) The Broadband router’s four LAN ports are where you connect your LAN’s PCs, printer servers,
hubs and switches, etc.
2) Wide Area Network (WAN)
The WAN port is the segment connected to your xDSL or Cable modem and is linked to the Internet.
3) Reset
The Reset button allows you to do one of two things.
1) If problems occur with your router, press the router’s reset button with a pencil tip for
less than 4 seconds and the router will re-boot itself, keeping your original configurations.
2) If problems persist or you experience extreme problems or you forget your password,
press the reset button for longer than 4 seconds and the router will reset itself to the factory default settings (warning: your original configurations will be replaced with the factory default settings).
Front Panel
On the router’s front panel there are LED lights that inform you of the router’s current status. Below is an explanation of each LED and its description.
LED Light Status Description
PWR
ON Router’s power supply is on
USB1 Flash Data is transmitting OFF No data transmitted
5
USB2 Flash Data is transmitting OFF No data transmitted
WAN 10/100M ON WAN port 100Mbps is connected
Off WAN port 10Mbps is connected
WAN LNK/ACT ON
Flashing WAN port has Activity (ACT), data being sent
WAN is connected
No WAN connection
Off
LAN 10/100M ON LAN port 100Mbps is connected
(Port 1-4) Off LAN port 10Mbps is connected
LAN LNK/ACT ON
(Port 1-4)
LAN is connected
Off No LAN connection
Flashing LAN port has Activity (ACT), data being sent
Setup Diagram
Figure 1.2 below shows a typical setup for a Local Area Network (LAN).
Figure 1.2
6
Getting Started
This is a step-by-step instruction on how to start using the router and get connected to the Internet.
1) Setup your network as shown in the setup diagram above (fig 1.2).
You then need to set your LAN PC clients so that it can obtain an IP address automatically.
2)
All LAN clients require an IP address. Just like an address, it allows LAN clients to find one another. (If you have already configured your PC to obtain an IP automatically then proceed to step 3, page 11)
Configure your PC to obtain an IP address automatically
By default the broadband router’s DHCP is on, this means that you can obtain an IP address automatically once you’ve configured your PC to obtain an IP address automatically. This section will show you how to configure your PC’s so that it can obtain an IP address automatically for either Windows 95/98/Me, 2000 or NT operating systems. For other operating systems (Macintosh, Sun, etc.), follow the manufacturer’s instructions. The following is a step-by-step illustration on how to configure your PC to obtain an IP address automatically for 2a) Windows 95/98/Me, 2b) Windows XP, 2c) Windows 2000 and 2d)
Windows NT.
2a) Windows 95/98/Me
1: Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear.
2: Double-click Network icon. The Network window will appear.
3: Check your list of Network Components. If TCP/IP is not installed, click the Add button to install it. If TCP/IP is installed, go to step 6.
4: In the Network Component Type dialog box, select Protocol and click Add button.
5: In the Select Network Protocol dialog box, select Microsoft and TCP/IP and then click the
OK button to start installing the TCP/IP protocol. You may need your Windows CD to complete the installation.
6: After installing TCP/IP, go back to the Network dialog box. Select TCP/IP from the list of Network Components and then click the Properties button.
7: Check each of the tabs and verify the following settings:
• Bindings: Check Client for Microsoft Networks and File and printer sharing for Microsoft Networks.
• Gateway: All fields are blank.
• DNS Configuration: Select Disable DNS.
• WINS Configuration: Select Disable WINS Resolution.
•
IP Address: Select Obtain IP address automatically
.
7
8: Reboot the PC. Your PC will now obtain an IP address automatically from your Broadband Router’s DHCP server.
Note: Please make sure that the Broadband router’s DHCP server is the only DHCP server available on your LAN.
Once you’ve configured your PC to obtain an IP address automatically, please proceed to Step 3
2b) Windows XP
1: Click the Start button and select Settings, then click Network Connections. The Network
Connections window will appear.
2: Double-click Local Area Connection icon. The Local Area Connection window will appear.
3: Check your list of Network Components. You should see Internet Protocol [TCP/IP] on
your list. Select it and click the Properties button.
4: In the Internet Protocol (TCP/IP) Properties window, select Obtain an IP address
automatically and Obtain DNS server address automatically as shown on the following screen.
8
5: Click OK to confirm the setting. Your PC will now obtain an IP address automatically
from your Broadband Router’s DHCP server.
Note: Please make sure that the Broadband router’s DHCP server is the only DHCP server available on your LAN.
Once you’ve configured your PC to obtain an IP address automatically, please proceed to Step 3.
2c) Windows 2000
1: Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear.
2: Double-click Network and Dial-up Connections icon. In the Network and Dial-up
Connection window, double-click Local Area Connection icon. The Local Area Connection window will appear.
3: In the Local Area Connection window, click the Properties button.
4: Check your list of Network Components. You should see Internet Protocol [TCP/IP] on your list. Select it and click the Properties button.
5: In the Internet Protocol (TCP/IP) Properties window, select Obtain an IP address
9
automatically and Obtain DNS server address automatically as shown on the following screen.
6: Click OK to confirm the setting. Your PC will now obtain an IP address automatically
from your Broadband Router’s DHCP server.
Note: Please make sure that the Broadband router’s DHCP server is the only DHCP server available on your LAN.
Once you’ve configured your PC to obtain an IP address automatically, please proceed to Step 3.
2d) Windows NT
1: Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear.
2: Double-click Network icon. The Network window will appear. Select the Protocol tab from the Network window.
3: Check if the TCP/IP Protocol is on your list of Network Protocols. If TCP/IP is not installed, click the Add button to install it now. If TCP/IP is installed, go to step 5.
4: In the Select Network Protocol window, select the TCP/IP Protocol and click the Ok
10
button to start installing the TCP/IP protocol. You may need your Windows CD to complete the installation.
5: After you install TCP/IP, go back to the Network window. Select TCP/IP from the list of Network Protocols and then click the Properties button.
6: Check each of the tabs and verify the following settings:
• IP Address: Select Obtain an IP address from a DHCP server.
• DNS: Let all fields be blank.
• WINS: Let all fields be blank.
• Routing: Let all fields be blank.
7: Click OK to confirm the setting. Your PC will now obtain an IP address automatically from your Broadband Router’s DHCP server.
Note: Make sure that the Broadband router’s DHCP server is the only DHCP server available on your LAN.
Once you’ve configured your PC to obtain an IP address automatically, proceed to Step 3.
11
3) Once you have configured your PCs to obtain an IP address automatically, the router’s DHCP server will automatically give your LAN clients an IP address. By default the Broadband Router’s DHCP server is enabled so that you can obtain an IP address automatically. To see if you have obtained an IP address, see Appendix A.
Note: Make sure that the Broadband router’s DHCP server is the only DHCP server available on your LAN. If there is another DHCP on your network, you’ll need to switch one of the DHCP servers off. (To disable the Broadband router’s DHCP server see chapter 2 LAN Port.)
4) Once your PC has obtained an IP address from your router, enter the default IP address
192.168.2.1 (broadband router’s IP address) into your PC’s web browser and press <enter>.
5) The login screen below will appear. Enter the “User Name” and “Password” and then click <OK> to login.
Note: By default the user name is “admin” and the password is “1234”. For security reasons it is recommended that you change the password as soon as possible (in General setup/system/password, see chapter 2).
6) The HOME page screen below will appear. The Home Page is divided into four sections,
Quick Setup Wizard, General Setup, Status Information and Tools.
Quick Setup Wizard (Chapter 1)
If you only want to use the broadband router as an Internet Access device then you ONLY need to configure the screens in the Quick Setup Wizard section.
General Setup (Chapter 2) If you want to use more advanced features that the broadband router offers, you’ll need to configure the Quick Setup Wizard and the General Setup section. Alternatively, you can just configure the General Setup section, since the General Setup/WAN and the Quick Setup Wizard contain the same configurations.
12
Status Information (Chapter 3) The Status Information section is for you to monitor the router’s current status information only.
Tools (Chapter 4) If you want to Reset the router (because of problems) or save your configurations or upgrade the firmware then the Tools section is the place to do this.
Menu Description
Quick Setup Wizard (Chapter 1)
Select your Internet connection type and then input the configurations needed to connect to your Internet Service Provider (ISP).
General Setup (Chapter 2) This section contains configurations for the
Broadband router’s advance functions such as
Address Mapping, Virtual Server, Access Control, Hacker Attack Prevention, DMZ, Special applications and other functions to meet your LAN requirements.
Status Information (Chapter 3) In this section you can see the Broadband
router's system information, Internet Connection, Device Status, Security Log and DHCP client Log information.
Tools (Chapter 4)
This section contains the broadband router’s Tools - Tools include Configuration tools, Firmware upgrade and Reset. Configuration
13
tools allow you to Backup (save), Restore, or Restore to Factory Default configuration for your Broadband router. The Firmware upgrade tool allows you to upgrade your Broadband router's firmware. The RESET tool allows you to reset your Broadband router.
7) Click on Quick Setup Wizard (see chapter 1) to start configuring settings required by your ISP so that you can start accessing the Internet. The other sections (General Setup, Status Information and Tools) do not need to be configured unless you wish to implement/monitor more advanced features/information.
Select the section (Quick Setup Wizard, General Setup, Status Information and Tools) you wish to configure and proceed to the corresponding chapter. Use the selections on the web management’s top right hand page to navigate around the web-based management User Interface.
Chapter 1
Quick Setup
The Quick Setup section is designed to have you use the broadband router as quick as possible. In the Quick Setup you are required to fill in only the information necessary to access the Internet. Once you click on the Quick Setup Wizard in the HOME page, you should see the screen below.
Step 1) Time Zone
The Time Zone allows your router to base its time on the settings configured here. This will affect functions such as Log entries and Firewall settings.
14
Parameter Description
Set Time Zone Select the time zone of the country you are currently in.
The router will set its time based on your selection.
Time Server Address You can manually assign timeserver address if the
default timeserver doses not work.
Enable Daylight Savings The router can also take Daylight savings into account. If
you wish to use this function, you must check/tick the enable box to enable your daylight saving configuration (below).
Start Daylight Savings Time Select the period in which you wish to start daylight
Savings Time.
End Daylight Savings Time Select the period in which you wish to end daylight
Savings Time.
Click on NEXT to proceed to the next page (step 2) Broadband Type.
Step 2) Broadband Type
In this section you have to select one of four types of connections that you will be using to connect your broadband router’s WAN port to your ISP (see screen below).
Note: Different ISPs require different methods of connecting to the Internet. Please check with your ISP as to the type of connection it requires.
Menu Description
1.1 Cable Modem Your ISP will automatically give you an IP address.
15
1.2 Fixed-IP xDSL Your ISP has given you an IP address already.
1.3 PPPoE Your ISP requires you to use a Point-to-Point Protocol over
Ethernet (PPPoE) connection.
1.4 PPTP Your ISP requires you to use a Point-to-Point Tunneling Protocol
(PPTP) connection.
Click on one of the WAN type and then proceed to the manual’s relevant sub-section (1.1, 1.2,
1.3 or 1.4). Click on Back to return to the previous screen.
1.1 Cable Modem
Choose Cable Modem if your ISP automatically gives you an IP address. Some ISPs may also require that you fill in additional information such as Host Name and MAC address (see screen below).
Note: The Host Name and MAC address section is optional and you can skip this section if your ISP does not require these settings for you to connect to the Internet.
Parameters Description
Host Name If your ISP requires a Host Name, type in the host name
provided by your ISP, otherwise leave it blank if your ISP does not require a Host Name.
MAC Address Your ISP may require a particular MAC address in order for you
to connect to the Internet. This MAC address is the PC’s MAC address that your ISP had originally connected your Internet connection to. Type in this MAC address in this section or use the “Clone MAC Address” button to replace the WAN MAC address with the MAC address of that PC (you have to be using that PC for the Clone MAC Address button to work). To find out the PC’s MAC address see Appendix A. (See Glossary for an explanation on MAC address.)
16
Click <OK> when you finish the configuration above. Congratulations! You have completed the configuration for the Cable Modem connection. You can start using the router now, if you wish to use some of the advanced features supported by this router see chapter 2, 3, 4.
1.2 Fixed-IP xDSL
Select Fixed-IP xDSL if your ISP has given you a specific IP address for you to use. Your ISP should provide all the information required in this section.
Parameters Description
IP This is the IP address that your ISP has given you.
Gateway IP This is the ISP’s IP address gateway.
DNS This is the ISP’s DNS server IP address.
Subnet Mask
Enter the Subnet Mask provided by your ISP.
(e.g. 255.255.255.0)
Click <OK> when you have finished the configuration above. Congratulations! You have completed the configuration for the Fixed-IP x DSL connection. You can start using the router now, if you wish to use some of the advanced features supported by this router see chapter 2, 3,
4.
1.3 PPPoE
Select PPPoE if your ISP requires the PPPoE protocol to connect you to the Internet. Your ISP should provide all the information required in this section.
17
Parameter Description
User Name Enter the User Name provided by your ISP for the PPPoE
connection.
Password Enter the Password provided by your ISP for the PPPoE
connection.
Service Name This is optional. Enter the Service name should your ISP
requires it, otherwise leave it blank.
MTU This is optional. You can specify the maximum size of your
transmission packet to the Internet. Leave it as it is if you do not wish to set a maximum packet size.
Connection Type If you select “Continuous”, the router will always connect to the
ISP. If the WAN line breaks down and links again, the router will auto-reconnect to the ISP.
If you select “Connect On Demand”, the router will auto-connect
to the ISP when someone wants to use the Internet and keep connected until the WAN idle timeout. The router will close the WAN connection if the time period that no one is using the Internet exceeds the “Idle Time”.
If you select “Manual”, the router will connect to ISP only when
you click “Connect” manually from the Web user interface. The WAN connection will not disconnected due to the idle timeout. If the WAN line breaks down and later links again, the router will not auto-connect to the ISP.
Idle Time You can specify an idle time threshold (minutes) for the WAN
port. This means if no packets have been sent (no one using the Internet) during this specified period, the router will automatically disconnect the connection with your ISP.
18
Note: This “idle timeout” function may not work due to abnormal
activities of some network application software, computer virus or hacker attacks from the Internet. For example, some software sends network packets to the Internet in the background, even if you are not using the Internet. So please turn off your computer if it is not in use. This function also may not work with some ISP. So please make sure this function can work properly when you use this function at the first time, especially if your ISP charges you by the time used.
Click <OK> when you finish the configuration above. Congratulations! You have completed the configuration for the PPPoE connection. You can start using the router now, if you wish to use some of the advanced features supported by this router see chapter 2, 3, 4.
1.4 PPTP
Select PPTP if your ISP requires the PPTP protocol to connect you to the Internet. Your ISP should provide all the information required in this section.
Parameter Description
Obtain an IP address The ISP requires you to obtain an IP address by DHCP automatically before connecting to the PPTP server.
Use the following IP address The ISP gives you a static IP to be used to connect to the PPTP server.
IP Address This is the IP address that your ISP has given you to establish a PPTP connection.
Subnet Mask Enter the Subnet Mask provided by your ISP
(e.g. 255.255.255.0).
19
Gateway Enter the IP address of the ISP Gateway.
User ID Enter the User Name provided by your ISP for the PPTP
connection, sometimes called a Connection ID.
Password Enter the Password provided by your ISP for the PPTP
connection.
PPTP Gateway If your LAN has a PPTP gateway, enter that PPTP gateway IP
address here. If you do not have a PPTP gateway enter the ISP’s Gateway IP address above.
Connection ID This is the ID given by ISP. This is optional.
Connection Type If you select “Continuous”, the router will always connect to the
ISP. If the WAN line breaks down and links again, the router will auto-reconnect to the ISP.
If you select “Connect On Demand”, the router will auto-connect
to the ISP when someone wants to use the Internet and keep connected until the WAN idle timeout. The router will close the WAN connection if the time period that no one is using the Internet exceeds the “Idle Time”.
If you select “Manual”, the router will connect to ISP only when
you click “Connect” manually from the Web user interface. The WAN connection will not be disconnected due to the idle timeout. If the WAN line breaks down and later links again, the router will not auto-connect to the ISP.
Idle Time You can specify an idle time threshold (minutes) for the WAN
port. This means if no packets have been sent (no one using the Internet) throughout this specified period, then the router will automatically disconnect the connection with your ISP.
Note: This “idle timeout” function may not work due to abnormal
activities of some network application software, computer virus or hacker attacks from the Internet. For example, some software sends network packets to the Internet in the background, even if you are not using the Internet. So please turn off your computer when you are not using it. This function also may not work with some ISP. So please make sure this function can work properly when you use this function at the first time, especially if your ISP charges you by the time used.
Click <OK> when you have finished the configuration above. Congratulations! You have completed the configuration for the PPTP connection. You can start using the router now, if you wish to use some of the advanced features supported by this router see chapter 2, 3, 4.
20
Loading...
+ 46 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
