Page 1

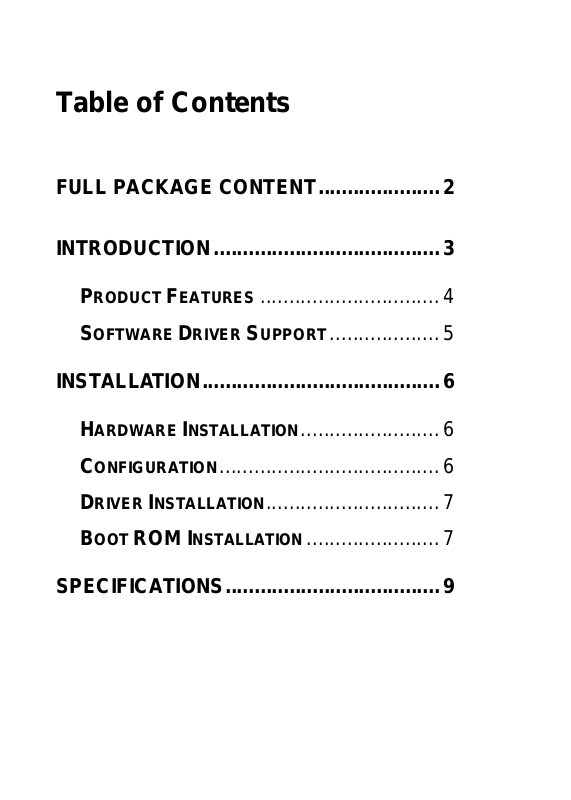

Table of Contents
FULL PACKAGE CONTENT.....................2
INTRODUCTION....................................... 3
PRODUCT FEATURES ...............................4
SOFTWARE DRIVER SUPPORT................... 5
INSTALLATION......................................... 6
HARDWARE INSTALLATION........................6
CONFIGURATION......................................6
DRIVER INSTALLATION.............................. 7
BOOT ROM INSTALLATION .......................7
SPECIFICATIONS.....................................9
Page 2
Full Package Content
The adapter package should contain the following
items:
l One 32-bit PCI Ethernet adapter
l This User’ s guide
l One 3.5” driver diskette
l One T-connector (for BNC port only)
Please inform your reseller immediately should
there be any incorrect, missing or damaged part.
Page 3
Introduction
This PCI Ethernet adapter is high performance
adapter compatible with version 2.1 of the PCI local
bus specification and support Plug and Play (PnP)
function, making it fully auto-configuration.
The adapter supports full-duplex mode. Full duplex
mode can be used to obtain throughput up to
20Mbps when the twisted-pair port connecting
through an Ethernet switching hub. This feature not
only increases the channel bandwidth from 10Mbps
to 20Mbps but also avoids the performancedegrading problem due to the characteristic of the
Ethernet CSMA/CD protocol.
The Ethernet adapter includes a complete set of
drivers for wide range of Network Operating
Systems. The optional BOOT ROM device allows
the diskless workstation to be connected to the
network.
Page 4
Product Features
l Meets PCI Local Bus specification, Rev.2.0
l Compliant to IEEE 802.3 10BASE-2 and
10BASE-T standards.
l Supports PCI Plug and Play configuration.
l Supports Full-Duplex Ethernet function to double
channel bandwidth.
l Automatic port selection between 10BASE-2
interface(BNC) and 10BASE-T interface(RJ-45)
l Support 100ohm STP/UTP cables using
Category 3, 4 or 5
l On-board socket for remote Boot ROM.
l LED Indicators
One LED on the bracket provides LINK
indicators.
State Description
On Normal data packet are received or Link
Off * When no twisted-pair connected
integrity pulse is detected
* No power source into hub
* Twisted-pair is faulty
* Non-10BASE-T device connected at
the other end of the twisted pair
* A twisted-pair wire that exceeds
recommended length
Page 5
Software Driver Support
l Diagnostic Program
l ODI
Novell Client Dos and OS/2, Novell Client 32 for
Dos, Netware sever 3.x, 4.x, 5.0
l NDIS 2.x, 3.x, 4.x, 5.0
Windows 2000, Windows 98, Windows 95
OSR2, Windows 95, Windows NT,
Microsoft WFW3.11, MS LAN, LANtastic,
OS/2 LAN server and client
l Packet Driver : FTP PC/TCP
l UNIX Driver : SCO UNIX
l Linux
Page 6
Installation
Hardware Installation
1. Turn OFF the computer, unplug the power
cord and open the computer case.
2. Select an available PCI expansion slot and
remove the expansion slot cover. Carefully
insert the adapter into the slot until it is fully
seated. Secure the adapter.
3. Replace the computer cover and connect the
network adapter. Reconnect the computer’ s
power cord and plug it into the power outlet.
Configuration
This Ethernet adapter is automatically configured
when you power on the computer. For certain
computers, however, you must modify BIOS by
entering CMOS SETUP utility to enable “PCI
Device” and map INTA to an appropriate address.
Please refer to the system documentation for
details on configuration the PCI SYSTEM BIOS.
Page 7
Driver Installation
Before you connect adapter to the network, you
have to install the network driver first. A HELP.EXE
file under root directory lists the information and
detailed installation procedure of all the available
driver.
Boot ROM Installation
The optional Boot ROM device allows you to
connect a diskless workstation to the network.
Perform the following steps to install your Boot
ROM device:
Note: Install the optional remote Boot ROM
before installing the card.
Note: Before handling the remote Boot ROM chip,
discharge any static electricity on your body by
touching a grounding surface such as the chassis
of the PC.
1. Align the notch and pins of the ROM chip with
notch and pinholes on the socket. Insert the
Boot ROM into the socket on the adapter until
it is firmly seated.
Page 8
2. Execute the SETUP.EXE file to enable the Boot
ROM function by selecting the appropriate Boot
ROM address from the setup menu.
3. Refer to the installation procedure provided by
Networking Operating System, Here lists the
reference subjects under two commonly used
Networking Operating Systems.
Microsoft LAN Manager:
Starting remote booting service
Novell Netware: DOSGEN
Page 9
Specifications
Standards
Wiring connector
Bus Interface
I/O address
IRQ Line
Operating
Temperature
Humidity
Emissions
IEEE802.3 10BASE-2,
IEEE802.3 10BASE-T
PCI Local Bus
Specification Rev.2.1
BNC and RJ-45
32-bit PCI bus
Automatically determined
by configuration space
INTA, being assigned by
the BIOS to free I/O
address
0 °C – 50 °C
(32 °F – 122 °F)
10% to 90%
non-condensing
FCC Class B
CE Mark

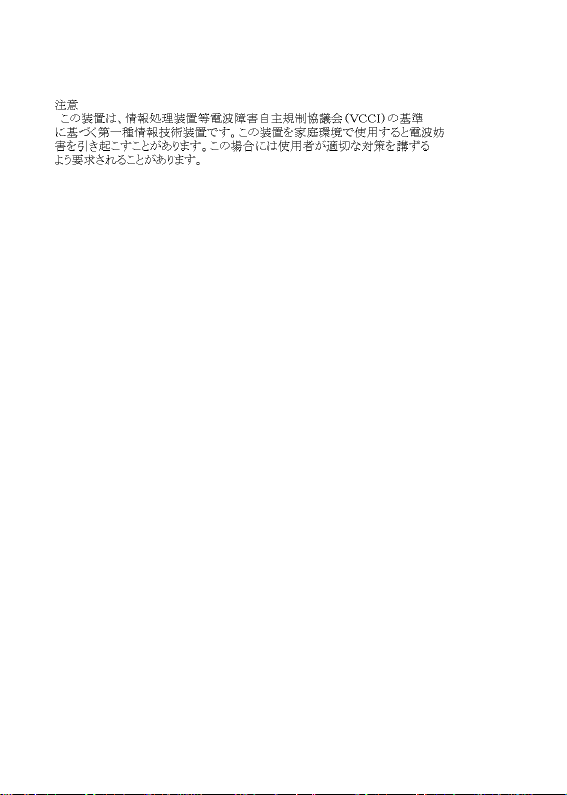

VCCI-II
Page 10
FCC Compliance Statement
This equipment has been tested and found to
comply with the regulations for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in a commercial
environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not
installed and used in accordance with this user’ s
guide, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful
interference, in which case the user will be required
to correct the interference at his own expense.
CE Mark Statement
This is a Class B product. In a domestic
environment, this product may cause radio
interference, in which case the user may be
required to take adequate measures.
Page 11
Copyright
Copyright© 2000 by AOpen. All rights reserved.
No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in any
form or by any means, whether electronic,
mechanical, photo copying, recording or otherwise,
without the prior written permission of the publisher.
