Introduction

Congratulations on purchasing this Wireless Broadband Router. This Wireless Broadband Router is a cost-effective IP Sharing Router that enables multiple users to share the Internet through an ADSL or cable modem. Simply configure your Internet connection settings in the Wireless Broadband Router and plug your PC to the LAN port and you're ready to share files and access the Internet. As your network grows, you can connect another hub or switch to the router’s LAN ports, allowing you to easily expand your network. The Wireless Broadband Router is embedded with a IEEE 802.11g/b access point that allows you to build up a wireless LAN. The Wireless Broadband Router provides a total solution for the Small and Medium-sized Business (SMB) and the Small Office/Home Office (SOHO) markets, giving you an instant network today, and the flexibility to handle tomorrow's expansion and speed.

Features

• High Internet Access throughput (50M)

• Allows multiple users to share a single Internet line

• Supports up to 253 users

• Internet Access via Cable or xDSL modem

• Accesses Private LAN Servers from the Public Network

• Equipped with four LAN ports (10/100M) and one WAN port (10/100M)

• Provides IEEE 802.11g/b wireless LAN access point

• Supports DHCP (Server/Client) for easy setup

• Supports advance features such as: Special Applications, DMZ, Virtual Servers, Access

Control, Firewall.

• Allows you to monitor the router’s status such as: DHCP Client Log, System Log, Security Log and Device/Connection Status

• Easy to use Web-based GUI for configuration and management purposes

• Remote Management allows configuration and upgrades from a remote site (over the

Internet)

Minimum Requirements

• One External xDSL (ADSL) or Cable modem with an Ethernet port (RJ-45)

• Network Interface Card (NIC) for each Personal Computer (PC)

• PCs with a Web-Browser (Internet Explorer 4.0 or higher, or Netscape Navigator 4.7 or

higher)

Package Content

• One 4-port Broadband router unit

• One Quick Installation Guide

• One User Manual CD

• One Power Adapter

• Accessories

Note

The WAN “idle timeout” auto-disconnect function may not work due to abnormal activities of some network application software, computer virus or hacker attacks from the Internet. For example, some software sends network packets to the Internet in the background, even when you are not using the Internet. So please turn off your computer when you are not using it. This function also may not work with some ISP. So please make sure this function can work properly when you use this function in the first time, especially your ISP charge you by time used.

Get to know the Broadband Router

Back Panel

The diagram (fig1.0) below shows the broadband router’s back panel. The router’s back panel is divided into three sections, LAN, WAN and Reset:

Figure 1.0

1) Local Area Network (LAN)

The Broadband router’s 4 LAN ports are where you connect your LAN’s PCs, printer servers,

hubs and switches etc.

2) Wide Area Network (WAN)

The WAN port is the segment connected to your xDSL or Cable modem and is linked to the Internet.

3) Reset

The Reset button allows you to do one of two things.

1) If problems occur with your router, press the router’s reset button with a pencil tip (for

less than 4 seconds) and the router will re-boot itself, keeping your original configurations.

2) If problems persist or you experience extreme problems or you forgot your password,

press the reset button for longer than 4 seconds and the router will reset itself to the factory default settings (warning: your original configurations will be replaced with the factory default settings).

Front Panel

On the router’s front panel there are LED lights that inform you of the router’s current status. Below is an explanation of each LED and its description.

LED Light Status Description

PWR ON Router’s power supply is on

WAN 10/100M ON WAN port 100Mbps is connected Off WAN port 10Mbps is connected WAN LNK/ACT ON WAN is connected Off No WAN connection Flashing WAN port has Activity (ACT), data being sent

LAN 10/100M ON LAN port 100Mbps is connected (Port 1-4) Off LAN port 10Mbps is connected LAN LNK/ACT ON LAN is connected (Port 1-4) Off No LAN connection

Flashing LAN port has Activity (ACT), data being sent

WLAN-G ON Wireless LAN has been activated Off Wireless LAN is disabled Flashing Wireless LAN has Activity (ACT) data being sent

Setup Diagram

Figure 1.2 below shows a typical setup for a Local Area Network (LAN).

Figure 1.2

Getting Started

This is a step-by-step instruction on how to start using the router and get connected to the Internet.

1) Setup your network as shown in the setup diagram above (fig 1.2).

2) You then need to set your LAN PC clients so that it can obtain an IP address automatically.

All LAN clients require an IP address. Just like an address, it allows LAN clients to find one another. (If you have already configured your PC to obtain an IP automatically then proceed to step 3, page 11)

Configure your PC to obtain an IP address automatically.

By default the broadband router’s DHCP is on. This means that you can obtain an IP address automatically once you’ve configured your PC to obtain an IP address automatically. This section will show you how to configure your PC’s so that it can obtain an IP address automatically for either Windows 95/98/Me, 2000 or NT operating systems. For other operating systems (Macintosh, Sun, etc.), follow the manufacturer’s instructions. The following is a step-by-step illustration on how to configure your PC to obtain an IP address automatically for 2a) Windows 95/98/Me, 2b) Windows XP, 2c) Windows 2000 and 2d)

Windows NT.

2a) Windows 95/98/Me

1: Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear.

2: Double-click Network icon. The Network window will appear.

3: Check your list of Network Components. If TCP/IP is not installed, click the Add button to install it now. If TCP/IP is installed, go to step 6.

4: In the Network Component Type dialog box, select Protocol and click Add button.

5: In the Select Network Protocol dialog box, select Microsoft and TCP/IP and then click the

OK button to start installing the TCP/IP protocol. You may need your Windows CD to complete the installation.

6: After installing TCP/IP, go back to the Network dialog box. Select TCP/IP from the list of Network Components and then click the Properties button.

7: Check each of the tabs and verify the following settings:

• Bindings: Check Client for Microsoft Networks and File and printer sharing for Microsoft Networks.

• Gateway: All fields are blank.

• DNS Configuration: Select Disable DNS.

• WINS Configuration: Select Disable WINS Resolution.

• IP Address: Select Obtain IP address automatically.

8: Reboot the PC. Your PC will now obtain an IP address automatically from your Broadband Router’s DHCP server.

Note: Please make sure that the Broadband router’s DHCP server is the only DHCP server

available on your LAN.

Once you’ve configured your PC to obtain an IP address automatically, please proceed to Step 3.

2b) Windows XP

1: Click the Start button and select Settings, then click Network Connections. The Network

Connections window will appear.

2: Double-click Local Area Connection icon. The Local Area Connection window will

appear.

3: Check your list of Network Components. You should see Internet Protocol [TCP/IP] on

your list. Select it and click the Properties button.

4: In the Internet Protocol (TCP/IP) Properties window, select Obtain an IP address

automatically and Obtain DNS server address automatically as shown on the following screen.

5: Click OK to confirm the setting. Your PC will now obtain an IP address automatically

from your Broadband Router’s DHCP server.

Note: Please make sure that the Broadband router’s DHCP server is the only DHCP server available on your LAN.

Once you’ve configured your PC to obtain an IP address automatically, please proceed to Step 3.

2c) Windows 2000

1: Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear.

2: Double-click Network and Dial-up Connections icon. In the Network and Dial-up

Connection window, double-click Local Area Connection icon. The Local Area Connection window will appear.

3: In the Local Area Connection window, click the Properties button.

4: Check your list of Network Components. You should see Internet Protocol [TCP/IP] on your list. Select it and click the Properties button.

5: In the Internet Protocol (TCP/IP) Properties window, select Obtain an IP address

automatically and Obtain DNS server address automatically as shown on the following screen.

6: Click OK to confirm the setting. Your PC will now obtain an IP address automatically

from your Broadband Router’s DHCP server.

Note: Please make sure that the Broadband router’s DHCP server is the only DHCP server available on your LAN.

Once you’ve configured your PC to obtain an IP address automatically, please proceed to Step 3.

2d) Windows NT

1: Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear.

2: Double-click Network icon. The Network window will appear. Select the Protocol tab from the Network window.

3: Check if the TCP/IP Protocol is on your list of Network Protocols. If TCP/IP is not installed, click the Add button to install it now. If TCP/IP is installed, go to step 5.

4: In the Select Network Protocol window, select the TCP/IP Protocol and click the Ok button to start installing the TCP/IP protocol. You may need your Windows CD to complete the installation.

5: After you install TCP/IP, go back to the Network window. Select TCP/IP from the list of Network Protocols and then click the Properties button.

6: Check each of the tabs and verify the following settings:

• IP Address: Select Obtain an IP address from a DHCP server.

• DNS: Let all fields be blank.

• WINS: Let all fields be blank.

• Routing: Let all fields be blank.

7: Click OK to confirm the setting. Your PC will now obtain an IP address automatically from your Broadband Router’s DHCP server.

Note: Please make sure that the Broadband router’s DHCP server is the only DHCP server available on your LAN.

Once you’ve configured your PC to obtain an IP address automatically, please proceed to Step 3.

3) Once you have configured your PCs to obtain an IP address automatically, the router’s DHCP server will automatically give your LAN clients an IP address. By default the Broadband Router’s DHCP server is enabled so that you can obtain an IP address automatically. To see if you have obtained an IP address, see Appendix A.

Note: Please make sure that the Broadband router’s DHCP server is the only DHCP server available on your LAN. If there is another DHCP on your network, then you’ll need to switch one of the DHCP servers off. (To disable the Broadband router’s DHCP server see chapter 2 LAN Port)

4) Once your PC has obtained an IP address from your router, enter the default IP address

192.168.2.1 (broadband router’s IP address) into your PC’s web browser and press <enter>.

5) The login screen below will appear. Enter the “User Name” and “Password” and then click <OK> to login.

Note: By default the user name is “admin” and the password is “1234”. For security reasons it is recommended that you change the password as soon as possible (in General setup/system/password, see chapter 2)

6) The HOME page screen below will appear. The Home Page is divided into four sections,

Quick Setup Wizard, General Setup, Status Information and Tools.

Quick Setup Wizard (Chapter 1)

If you only want to start using the broadband router as an Internet Access device then you ONLY need to configure the screens in the Quick Setup Wizard section.

General Setup (Chapter 2) If you want to use more advanced features that the broadband router has to offer, then you’ll need to configure the Quick Setup Wizard and the General Setup section. Alternatively, you can just configure the General Setup section, since the General Setup/WAN and the Quick Setup Wizard contain the same configurations.

Status Information (Chapter 3) The Status Information section is for you to monitor the router’s current status information only.

Tools (Chapter 4) If you want to Reset the router (because of problems) or save your configurations or upgrade the firmware then the Tools section is the place to do this.

Menu Description

Quick Setup Wizard (Chapter 1)

Select your Internet connection type and then input the configurations needed to connect to your Internet Service Provider (ISP).

General Setup (Chapter 2)

This section contains configurations for the Broadband router’s advanced functions such as

Address Mapping, Virtual Server, Access Control, Hacker Attack Prevention, DMZ, Special applications and other functions to meet your LAN requirements.

Status Information (Chapter 3) In this section you can see the Broadband

router's system information, Internet Connection, Device Status, System Log, Security Log and DHCP client information.

Tools (Chapter 4)

This section contains the broadband router’s Tools - Tools include Configuration tools, Firmware upgrade and Reset. Configuration tools allow you to Backup (save), Restore, or Restore to Factory Default configuration for your Broadband router. The Firmware upgrade tool

allows you to upgrade your Broadband router's firmware. The RESET tool allows you to reset your Broadband router.

Logout

Selecting logout will return you to the LOGIN page.

7) Click on Quick Setup Wizard (see chapter 1) to start configuring settings required by your ISP so that you can start accessing the Internet. The other sections (General Setup, Status Information and Tools) do not need to be configured unless you wish to implement/monitor more advanced features/information.

Select the section (Quick Setup Wizard, General Setup, Status Information and Tools) you wish to configure and proceed to the corresponding chapter. Use the selections on the web management’s top right hand page (see below) to navigate around the web-based management User Interface.

Chapter 1

Quick Setup

The Quick Setup section is designed to get you using the broadband router as quickly as possible. In the Quick Setup you are required to fill in only the information necessary to access the Internet. Once you click on the Quick Setup Wizard in the HOME page, you should see the screen below.

Step 1) Time Zone

The Time Zone allows your router to base its time on the settings configured here, this will affect functions such as Log entries and Firewall settings.

Parameter Description Set Time Zone Select the time zone of the country you are currently in.

The router will set its time based on your selection.

Time Server Address You can manually assign time server address if the

default time server dose not work.

Enable Daylight Savings The router can also take Daylight savings into account. If

you wish to use this function, you must check/tick the

enable box to enable your daylight saving configuration (below).

Start Daylight Savings Time Select the period in which you wish to start daylight

Savings Time.

End Daylight Savings Time Select the period in which you wish to end daylight

Savings Time.

Click on NEXT to proceed to the next page (step 2) Broadband Type.

Step 2) Broadband Type

In this section you have to select one of four types of connections that you will be using to connect your broadband router’s WAN port to your ISP (see screen below).

Note: Different ISP’s require different methods of connecting to the Internet, please check with your ISP as to the type of connection it requires.

Menu Description

1.1 Cable Modem

Your ISP will automatically give you an IP address

1.2 Fixed-IP xDSL Your ISP has given you an IP address already

1.3 PPPoE

Your ISP requires you to use a Point-to-Point Protocol over Ethernet (PPPoE) connection.

1.4 PPTP

Your ISP requires you to use a Point-to-Point Tunneling Protocol (PPTP) connection.

1.5 L2TP

Your ISP requires you to use a Layer Two Tunneling Protocol (L2TP) connection.

1.6 Telstra Big Pond

This Protocol only used for Australia’s ISP connection.

Click on one of the WAN type and then proceed to the manual’s relevant sub-section (1.1, 1.2,

1.3, 1.4, 1.5 or 1.6). Click on Back to return to the previous screen.

1.1 Cable Modem

Choose Cable Modem if your ISP will automatically give you an IP address. Some ISP’s may also require that you fill in additional information such as Host Name and MAC address (see screen below).

Note: The Host Name and MAC address section is optional and you can skip this section if your ISP does not require these settings for you to connect to the Internet.

Parameters Description Host Name If your ISP requires a Host Name, type in the host name

provided by your ISP, otherwise leave it blank if your ISP does not require a Host Name.

MAC Address

Your ISP may require a particular MAC address in order for you to connect to the Internet. This MAC address is the PC’s MAC address that your ISP had originally connected your Internet connection to. Type in this MAC address in this section or use the “Clone MAC Address” button to replace the WAN MAC address with the MAC address of that PC (you have to be using that PC for the Clone MAC Address button to work). To find out the PC’s MAC address see Appendix A. (see Glossary for an explanation on MAC address.)

Click <OK> when you have finished the configuration above. Congratulations! You have completed the configuration for the Cable Modem connection. You can start using the router now. If you wish to use some of the advanced features supported by this router, see chapter 2, 3, 4.

1.2 Fixed-IP xDSL

Select Fixed-IP xDSL if your ISP has given you a specific IP address for you to use. Your ISP should provide all the information required in this section.

Parameters Description

This is the IP address that your ISP has given you.

Gateway IP This is the ISP’s IP address gateway.

DNS

This is the ISP’s DNS server IP address.

Subnet Mask Enter the Subnet Mask provided by your ISP

(e.g. 255.255.255.0).

Click <OK> when you have finished the configuration above. Congratulations! You have completed the configuration for the Fixed-IP x DSL connection. You can start using the router now. If you wish to use some of the advanced features supported by this router, see chapter 2, 3,

1.3 PPPoE

Select PPPoE if your ISP requires the PPPoE protocol to connect you to the Internet. Your ISP should provide all the information required in this section.

Parameter Description

User Name

Enter the User Name provided by your ISP for the PPPoE connection.

Password

Enter the Password provided by your ISP for the PPPoE connection.

Service Name

This is optional. Enter the Service name should your ISP requires it, otherwise leave it blank.

MTU

This is optional. You can specify the maximum size of your transmission packet to the Internet. Leave it as it is if you do not wish to set a maximum packet size.

Connection Type

If you select “Connect On Demand”, the router will auto-connect

If you select “Manual”, the router will connect to ISP only when

If you select “Continuous”, the router will always connect to the ISP. If the WAN line breaks down and links again, the router will auto-reconnect to the ISP.

to the ISP when someone wants to use the Internet and keep connected until the WAN idle timeout. The router will close the WAN connection if the time period that no one is using the Internet exceeds the “Idle Time”.

you click “Connect” manually from the Web user interface. The WAN connection will not disconnect due to the idle timeout. If the WAN line breaks down and later links again, the router will not auto-connect to the ISP.

Idle Time

Note: This “idle timeout” function may not work due to abnormal

You can specify an idle time threshold (minutes) for the WAN port. This means if no packets have been sent (no one using the Internet) during this specified period, the router will automatically disconnect the connection with your ISP.

activities of some network application software, computer virus or hacker attacks from the Internet. For example, some software sends network packets to the Internet in the background, even when you are not using the Internet. So please turn off your computer when you are not using it. This function also may not work with some ISP. So please make sure this function can work properly when you use this function at the first time, especially if your ISP charge you by time used.

Click <OK> when you have finished the configuration above. Congratulations! You have completed the configuration for the PPPoE connection. You can start using the router now. If you wish to use some of the advanced features supported by this router, see chapter 2, 3, 4.

1.4 PPTP

Select PPTP if your ISP requires the PPTP protocol to connect you to the Internet. Your ISP should provide all the information required in this section.

Parameter Description

Obtain an IP address automatically

The ISP requires you to obtain an IP address by DHCP before connecting to the PPTP server.

Use the following IP address

The ISP give you a static IP to be used to connect to the PPTP server.

IP Address

establish a PPTP connection.

This is the IP address that your ISP has given you to

Subnet Mask

Enter the Subnet Mask provided by your ISP (e.g. 255.255.255.0).

Gateway

Enter the IP address of the ISP Gateway.

User ID

Enter the User Name provided by your ISP for the PPTP connection, sometimes called a Connection ID

Password

Enter the Password provided by your ISP for the PPTP connection.

PPTP Gateway

If your LAN has a PPTP gateway, then enter that PPTP gateway IP address here. If you do not have a PPTP gateway then enter the ISP’s Gateway IP address above.

Connection ID

This is the ID given by ISP. This is optional.

BEZEQ-ISRAEL Select this item if you are using the service provided by BEZEQ

in Israel.

Connection Type

If you select “Connect On Demand”, the router will auto-connect

If you select “Manual”, the router will connect to ISP only when

If you select “Continuous”, the router will always connect to the ISP. If the WAN line breaks down and links again, the router will auto-reconnect to the ISP.

to the ISP when someone want to use the Internet and keep connected until the WAN idle timeout. The router will close the WAN connection if the time period that no one is using the Internet exceeds the “Idle Time”.

you click “Connect” manually from the Web user interface. The WAN connection will not disconnected due to the idle timeout. If the WAN line breaks down and latter links again, the router will not auto-connect to the ISP.

Idle Time

Note: This “idle timeout” function may not work due to abnormal

You can specify an idle time threshold (minutes) for the WAN port. This means if no packets have been sent (no one using the Internet) throughout this specified period, then the router will automatically disconnect the connection with your ISP.

activities of some network application software, computer virus or hacker attacks from the Internet. For example, some software sends network packets to the Internet in the background, even when you are not using the Internet. So please turn off your computer when you are not using it. This function also may not work with some ISP. So please make sure this function can work properly when you use this function in the first time, especially your ISP charge you by time used.

Click <OK> when you have finished the configuration above. Congratulations! You have completed the configuration for the PPTP connection. You can start using the router now. If you wish to use some of the advanced features supported by this router, see chapter 2, 3, 4.

1.5 L2TP

Select L2TP if your ISP requires the L2TP protocol to connect you to the Internet. Your ISP should provide all the information required in this section.

Parameter Description

Obtain an IP address automatically

The ISP requires you to obtain an IP address by DHCP before connecting to the L2TP server.

MAC Address

Your ISP may require a particular MAC address in order for you to connect to the Internet. This MAC address is the PC's MAC address that your ISP had originally connected your Internet connection to. Type in this MAC address in this section or use the "Clone MAC Address" button to replace the WAN MAC address with the MAC address of that PC (you have to be using that PC for the Clone MAC Address button to work). To find out the PC's MAC address see Appendix A. (see Glossary for an explanation on MAC address.)

Use the following IP address

The ISP gives you a static IP to be used to connect to the L2TP server.

IP Address

establish a L2TP connection.

This is the IP address that your ISP has given you to

Subnet Mask

Enter the Subnet Mask provided by your ISP (e.g. 255.255.255.0)

Gateway

Enter the IP address of the ISP Gateway

User ID

Enter the User Name provided by your ISP for the PPTP connection. Sometimes called a Connection ID

Password

Enter the Password provided by your ISP for the PPTP connection

L2TP Gateway

If your LAN has a L2TP gateway, then enter that L2TP gateway IP address here. If you do not have a L2TP gateway then enter the ISP’s Gateway IP address above

MTU

This is optional. You can specify the maximum size of your transmission packet to the Internet. Leave it as it is if you to not wish to set a maximum packet size.

Connection Type

If you select “Connect On Demand”, the router will auto-connect

If you select “Manual”, the router will connect to ISP only when

If you select “Continuous”, the router will always connect to the ISP. If the WAN line breaks down and links again, the router will auto-reconnect to the ISP.

you click “Connect” manually from the Web user interface. The WAN connection will not disconnect due to the idle timeout. If the WAN line breaks down and latter links again, the router will not auto-connect to the ISP.

Idle Time Out

The WAN "idle timeout" auto-disconnect function may not work due to abnormal activities of some network application software, computer virus or hacker attacks from the Internet. For example, some software sends network packets to the Internet in the background, even when you are not using the Internet. This function also may not work with some ISP. So please make sure this function can work properly when you use this function in the first time, especially your ISP charge you by time used. Due to the many uncontrollable issues, we do not guarantee the WAN "idle timeout" auto-disconnect function will always work. In order to prevent from extra fee charged by ISP, please TURN OFF THE ROUTER WHEN YOU FINISHED USING THE INTERNET.

Click <OK> when you have finished the configuration above. Congratulations! You have completed the configuration for the L2TPP connection. You can start using the router now. If you wish to use some of the advanced features supported by this router, see chapter 2, 3, 4.

1.6 Telstra Big Pond

Select Telstra Big Pond if your ISP requires the Telstra Big Pond protocol to connect you to the Internet. Your ISP should provide all the information required in this section. Telstra Big Pond protocol is used by the ISP in Australia.

Parameter Description

User Name

Enter the User Name provided by your ISP for the Telstra Big Pond connection

Password

Enter the Password provided by your ISP for the Telstra Big Pond connection

User deside login server

Select if you want to assign the IP of Telstra Big Pond’s login

manually server manually.

Click <OK> when you have finished the configuration above. Congratulations! You have completed the configuration for the Telstra Big Pond connection. You can start using the router now. If you wish to use some of the advanced features supported by this router, see chapter 2, 3,

Chapter 2

General Settings

Once you click on the General Setup button at the Home Page, you should see the screen below.

If you have already configured the Quick Setup Wizard you do NOT need to configure anything in the General Setup screen for you to start using the Internet.

The General Setup contain advanced features that allow you to configure the router to meet your network’s needs such as Wireless, Address Mapping, Virtual Server, Access Control, Hacker

Attack Prevention, Special Applications, DMZ and other functions.

Below is a general description of what advanced functions are available for this broadband router.

Menu Description

2.1 System

This section allows you to set the Broadband router’s system Time Zone, Password and Remote Management Administrator.

2.2 WAN

This section allows you to select the connection method in order to establish a connection with your ISP (same as the Quick Setup Wizard section)

2.3 LAN

You can specify the LAN segment’s IP address, subnet Mask, enable/disable DHCP and select an IP range for your LAN

2.4 Wireless

You can setup the wireless LAN’s SSID, WEP key, MAC filtering.

2.5 NAT

You can configure the Address Mapping, Virtual Server and Special Applications functions in this section. This allows you to specify what user/packet can pass your router’s NAT.

2.6 Firewall

The Firewall section allows you to configure Access Control, Hacker Prevention and DMZ.

Select one of the above five General Setup selections and proceed to the manual’s relevant subsection.

2.1 System

The system screen allows you to specify a time zone, to change the system password and to specify a remote management user for the broadband router.

Parameters Description

System Settings

2.1.1 Time Zone

Select the time zone of the country you are currently in. The router will set its time based on your selection.

2.1.2 Password Settings

Allows you to select a password in order to access the web-based management website.

2.1.3 Remote Management

Select one of the above three system settings selections and proceed to the manual’s relevant sub-section.

You can specify a Host IP address that can perform remote management functions.

2.1.1 Time Zone

The Time Zone allows your router to reference or base its time on the settings configured here, which will affect functions such as Log entries and Firewall settings.

Parameter Description

Set Time Zone Select the time zone of the country you are currently in.

The router will set its time based on your selection.

Time Server Address The router default the “Time Server Address” is

“192.43.244.18”

Enable Daylight Savings The router can also take Daylight savings into account. If

you wish to use this function, you must check/tick the enable box to enable your daylight saving configuration (below).

Start Daylight Savings Time Select the period in which you wish to start daylight

Savings Time

End Daylight Savings Time

Select the period in which you wish to end daylight Savings Time

Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advanced sections or start using the router (with the advanced settings in place).

2.1.2 Password Settings

You can change the password required to log into the broadband router's system web-based management. By default, there is no password. So please assign a password to the Administrator as soon as possible, and store it in a safe place. Passwords can contain 0 to 12 alphanumeric characters, and are case sensitive.

Parameters Description Current Password Enter your current password for the remote management

administrator to login to your Broadband router.

Note: By default there is NO password.

New Password

Enter your new password.

Confirmed Password Enter your new password again for verification purposes.

Note: If you forget your password, you’ll have to reset the router to the factory default (No password) with the reset button (see router’s back panel).

Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advanced sections or start using the router (with the advanced settings in place).

2.1.3 Remote Management

The remote management function allows you to designate a host in the Internet the ability to configure the Broadband router from a remote site. Enter the designated host IP Address in the Host IP Address field.

Parameters Description Host Address This is the IP address of the host in the Internet that will have

management/configuration access to the Broadband router from a remote site. This means if you are at home and your home IP address has been designated the Remote Management host IP address for this router (located in your company office), then you are able to configure this router from your home. If the Host Address is left 0.0.0.0 this means anyone can access the router’s web-based configuration from a remote location, providing they know the password.

Click the Enabled box to enable the Remote Management function.

Note: When you want to access the web-based management from a remote site, you must enter the router’s WAN IP address (e.g. 10.0.0.1) into your web-browser followed by port number 8080, e.g. 10.0.0.1:8080 (see below). You’ll also need to know the password set in the Password Setting screen in order to access the router’s web-based management.

Port The port number of remote management web interface.

Enabled Select “Enabled” to enable the remote management function.

Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advanced sections or start using the router (with the advanced settings in place).

2.2 WAN

Use the WAN Settings screen if you have already configured the Quick Setup Wizard section and you would like to change your Internet connection type. The WAN Settings screen allows to specify the type of WAN port connect you want to establish with your ISP. The WAN settings offer the following selections for the router’s WAN port, Dynamic IP, Static IP Address, PPPoE, PPTP, L2TP, Telstra Big Pond, DNS and DDNS.

Parameters Description

2.2.1 Dynamic IP address Your ISP will automatically give you an IP address

2.2.2 Static IP address

Your ISP has given you an IP address already.

2.2.3 PPPoE Your ISP requires PPPoE connection.

2.2.4 PPTP Your ISP requires you to use a Point-to-Point Tunneling

Protocol (PPTP) connection

2.2.5 L2TP

Your ISP requires L2TP connection.

2.2.6 Telstra Big Pond

Your ISP requires Telstra Big Pond connection.

2.2.7 DNS You can specify a DNS server that you wish to use

2.2.8 DDNS You can specify a DDNS server that you wish to use and

configure the user name and password provided by you DDNS service provider.

Once you have made a selection, click <More Configuration> at the bottom of the screen and proceed to the manual’s relevant sub-section.

2.2.1 Dynamic IP

Choose the Dynamic IP selection if your ISP will automatically give you an IP address. Some ISP’s may also require that you fill in additional information such as Host Name, Domain Name and MAC address (see chapter 1 “Cable Modem” for more detail).

2.2.2 Static IP Address

Select Static IP address if your ISP has given you a specific IP address for you to use. Your ISP should provide all the information required in this section. (See chapter 1 “Fixed IP” for more detail)

2.2.3 PPPoE (PPP over Ethernet)

Select PPPoE if your ISP requires the PPPoE protocol to connect you to the Internet. Your ISP should provide all the information required in this section. (See chapter 1 “PPPoE” for more detail)

2.2.4 PPTP

Select PPTP if your ISP requires the PPTP protocol to connect you to the Internet. Your ISP should provide all the information required in this section. (See chapter 1 “PPTP” for more detail).

2.2.5 L2TP

Select L2TP if your ISP requires the L2TP protocol to connect you to the Internet. Your ISP should provide all the information required in this section.

Parameter Description

Obtain an IP address automatically

The ISP requires you to obtain an IP address by DHCP before connecting to the L2TP server.

Use the following IP address

L2TP server.

The ISP give you a static IP to be used to connect to the

IP Address

establish a L2TP connection.

This is the IP address that your ISP has given you to

Subnet Mask

Enter the Subnet Mask provided by your ISP (e.g. 255.255.255.0)

Gateway

Enter the IP address of the ISP Gateway

User ID

Enter the User Name provided by your ISP for the PPTP connection. Sometimes called a Connection ID

Password Enter the Password provided by your ISP for the PPTP

connection.

L2TP Gateway

If your LAN has a L2TP gateway, then enter that L2TP gateway IP address here. If you do not have a L2TP gateway then enter the ISP’s Gateway IP address above.

Connection Type

If you select “Connect On Demand”, the router will auto-connect

If you select “Manual”, the router will connect to ISP only when

If you select “Continuous”, the router will always connect to the ISP. If the WAN line breaks down and links again, the router will auto-reconnect to the ISP.

Idle Time Out

Note: This “idle timeout” function may not work due to abnormal

2.2.6 Telstra Big Pond

Parameter Description

User Name

Enter the User Name provided by your ISP for the Telstra Big Pond connection.

Password

Enter the Password provided by your ISP for the Telstra Big Pond connection.

User decide login server

Select if you want to assign the IP of Telstra Big Pond’s login

manually server manually.

2.2.7 DNS

A Domain Name System (DNS) server is like an index of IP addresses and Web addresses. If you type a Web address into your browser, such as www.router.com, a DNS server will find that name in its index and the matching IP address. Most ISPs provide a DNS server for speed and

convenience. If your Service Provider connects you to the Internet with dynamic IP settings, it is likely that the DNS server IP address is provided automatically. However, if there is a DNS server that you would rather use, you need to specify the IP address of that DNS server here.

Parameters Description

Domain Name Server (DNS) Server

This is the ISP’s DNS server IP address that they gave you; or you can specify your own preferred DNS server IP address

Secondary DNS Address (optional)

This is optional. You can enter another DNS server’s IP address as a backup. The secondary DNS will be used should the above DNS fail.

Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advanced sections or start using the router (with the advanced settings in place).

2.2.8 DDNS

DDNS allows you to map the static domain name to a dynamic IP address. You must get an account, password and your static domain name from the DDNS service providers. This router supports DynDNS and TZO.

Parameters Default Description

Enable/Disable

Disable Enable/Disable the DDNS function of this router.

Provider

Select a DDNS service provider.

Domain name

Your static domain name that uses DDNS.

Account/E-mail The account that your DDNS service provider

assigned to you.

Password/Key

The password you set for the DDNS service account above.

Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advanced sections or start using the router (with the advanced settings in place).

2.3 LAN

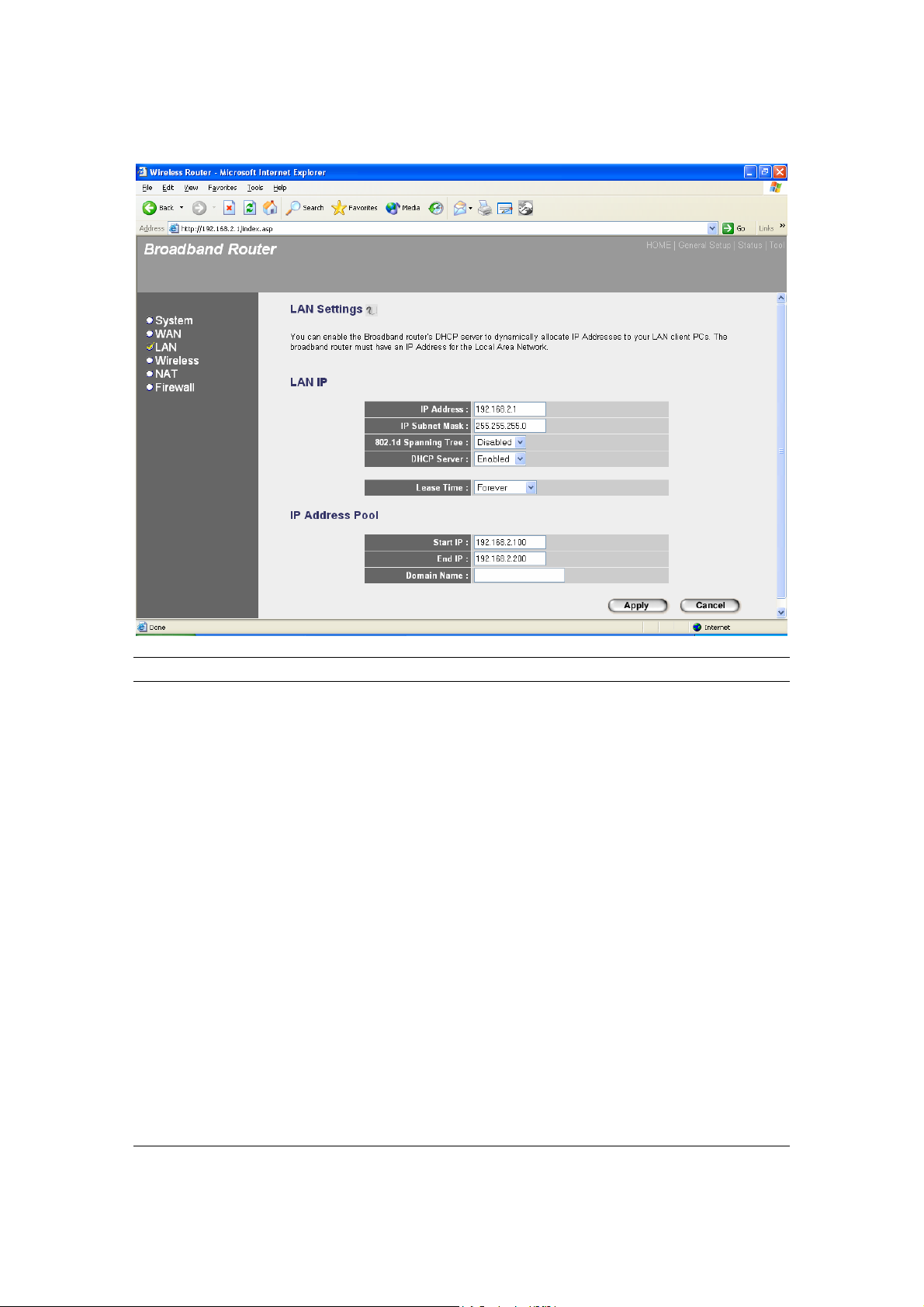

The LAN Port screen below allows you to specify a private IP address for your router’s LAN ports as well as a subnet mask for your LAN segment.

Parameters Default Description

LAN IP

IP address

192.168.2.1 This is the router’s LAN port IP address (Your LAN clients default gateway IP address).

IP Subnet Mask

255.255.255.0 Specify a Subnet Mask for your LAN segment.

802.1d Spanning Tree

Disabled If 802.1d Spanning Tree function is enabled, this

router will use the spanning tree protocol to prevent from network loop happened in the LAN ports.

DHCP Server

Enabled You can enable or disable the DHCP server. By

enabling the DHCP server the router will automatically give your LAN clients an IP address. If the DHCP is not enabled then you’ll have to manually set your LAN client’s IP addresses; make sure the LAN Client is in the same subnet as this broadband router if you want the router to be your LAN client’s default gateway

Lease Time

The DHCP when enabled will temporarily give

your LAN clients an IP address. In the Lease

Time setting you can specify the time period that the DHCP lends an IP address to your LAN clients. The DHCP will change your LAN client’s IP address when this time threshold period is reached

IP Address Pool

You can select a particular IP address range for your DHCP server to issue IP addresses to your LAN Clients.

Note: By default the IP range is from: Start IP

192.168.2.100 to End IP 192.168.2.199. If you

want your PC to have a static/fixed IP address then you’ll have to choose an IP address outside this IP address Pool

Domain Name

You can specify a Domain Name for your LAN.

Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advance sections or start using the router (with the advanced settings in place)

2.4 Wireless

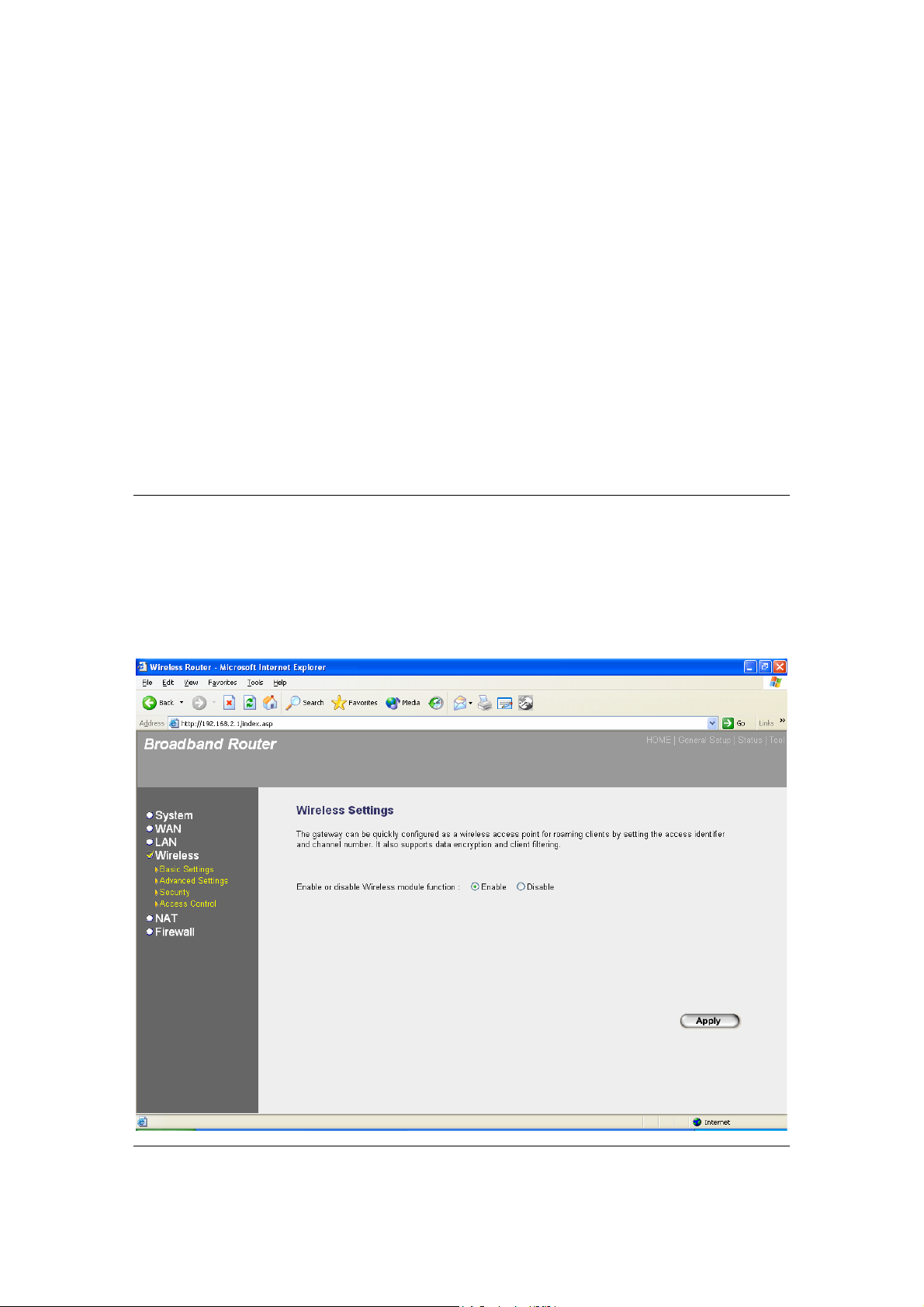

Wireless Access Point builds a wireless LAN and can let all PCs be equipped with IEEE 802.11b wireless network adaptor connecting to your Intranet. It supports WEP encryption to enhance the security of your wireless network.

Parameters Default Description

Enable or disable Enable

You can select to enable or disable the wireless

access point module of this router.

Wireless module function

Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advanced sections or start using the router (with the advanced settings in place).

2.4.1 Basic Settings

You can set parameters that are used for the wireless stations to connect to this router. The parameters include Mode, ESSID , Channel Number and Associated Client.

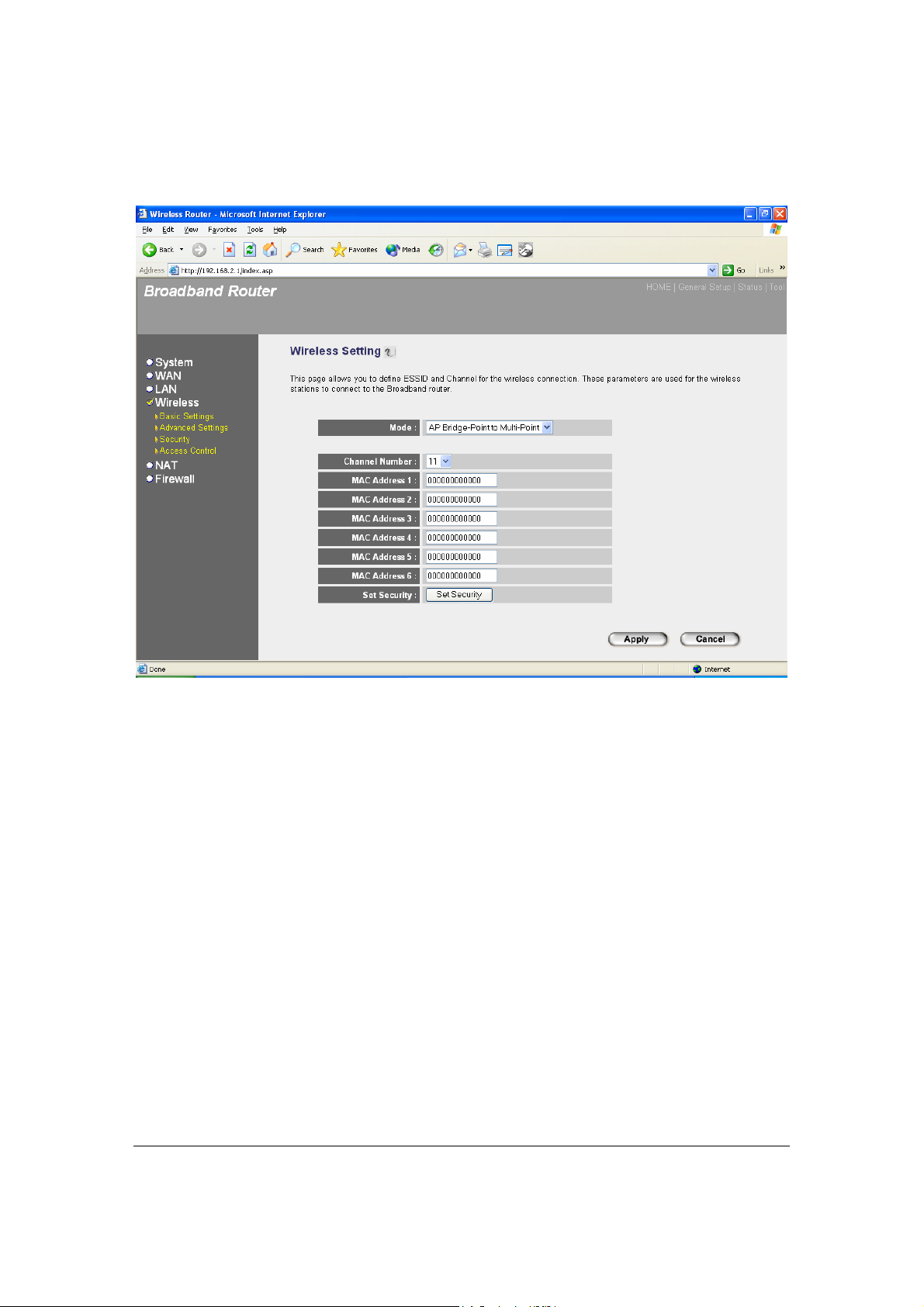

AP Mode setting Page

AP Bridge-Point to Point mode setting page

AP Bridge-Point to Multi-Point mode setting page

AP Bridge-WDS mode setting page

Parameters Default Description

Mode

It allows to set the AP to AP or WDS mode.

ESSID default

This is the name of the wireless LAN. All the

devices in the same wireless LAN should have the same ESSID.

Channel Number 11 The channel used by the wireless LAN. All

devices in the same wireless LAN should use the same channel.

Associated Clients

Click “Show Active Clients” button, then an “Active Wireless Client Table” will pop up. You can see the status of all active wireless stations that are connecting to the access point.

MAC address

If you want to bridge more than one networks together with wireless LAN, you have to set this access point to “AP Bridge-Point to Point mode”, “AP Bridge-Point to Multi-Point mode” or “AP Bridge-WDS mode”. You have to enter the MAC

addresses of other access points that join the bridging work.

Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advanced sections or start using the router (with the advanced settings in place).

2.4.2 Advanced Settings

You can set advanced wireless LAN parameters of this router. The parameters include Authentication Type, Fragment Threshold, RTS Threshold, Beacon Interval, Preamble Type… You should not change these parameters unless you know what effect the changes will have on this router.

Parameters Default Description

Authentication Type

There are two authentication types: "Open

System" and "Shared Key". When you select "Open System", wireless stations can associate with this wireless router without WEP encryption. When you select "Shared Key", you should also setup WEP key in the "Encryption" page and wireless stations should use WEP encryption in the authentication phase to associate with this wireless router. If you select "Both", the wireless

client can associate with this wireless router by using any one of these two authentication types.

Fragment Threshold

"Fragment Threshold" specifies the maximum

size of packet during the fragmentation of data to be transmitted. If you set this value too low, it will result in bad performance.

RTS Threshold When the packet size is smaller than the RTS

threshold, the wireless router will not use the RTS/CTS mechanism to send this packet.

Beacon Interval

The interval of time that this wireless router broadcast a beacon. Beacon is used to synchronize the wireless network.

DTIM Period

Determines the interval the Access Point will send its broadcast traffic.

Transmit Rate

The “Transmit Rate” is the rate this access point uses to transmit data packets. The access point will use the highest possible selected transmission rate to transmit the data packets.

Broadcast ESSID

If you enable “Broadcast ESSID”, every wireless station located within the coverage of this access point can discover this access point easily. If you are building a public wireless network, enabling this feature is recommended. Disabling “Broadcast ESSID” can provide better security.

Operating Rates Mode It allows to select the “Mixed Mode(11g/b)” or

“11g only mode”.

CTS Protection it is recommended to enable the protection

mechanism. This mechanism can decrease the

rate of data collision between 802.11b and

802.11g wireless stations. When the protection

mode is enabled, the throughput of the AP will

be a little lower due to many of frame traffic

should be transmitted.

Auto – Based on the status of the network and

automatically disable/enable protection mode.

Always – Always enable the protection mode.

None – Always disable the protection mode.

Transmit Burst Mode Transmit Burst enables the AP to deliver

the better throughput in the same period and environment.

Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advanced sections or start using the router.

2.4.3 Security

This Access Point provides complete wireless LAN security functions, include WEP, IEEE

802.11x, IEEE 802.11x with WEP, WPA with pre-shared key and WPA with RADIUS. With these security functions, you can prevent your wireless LAN from illegal access. Please make sure your wireless stations use the same security function.

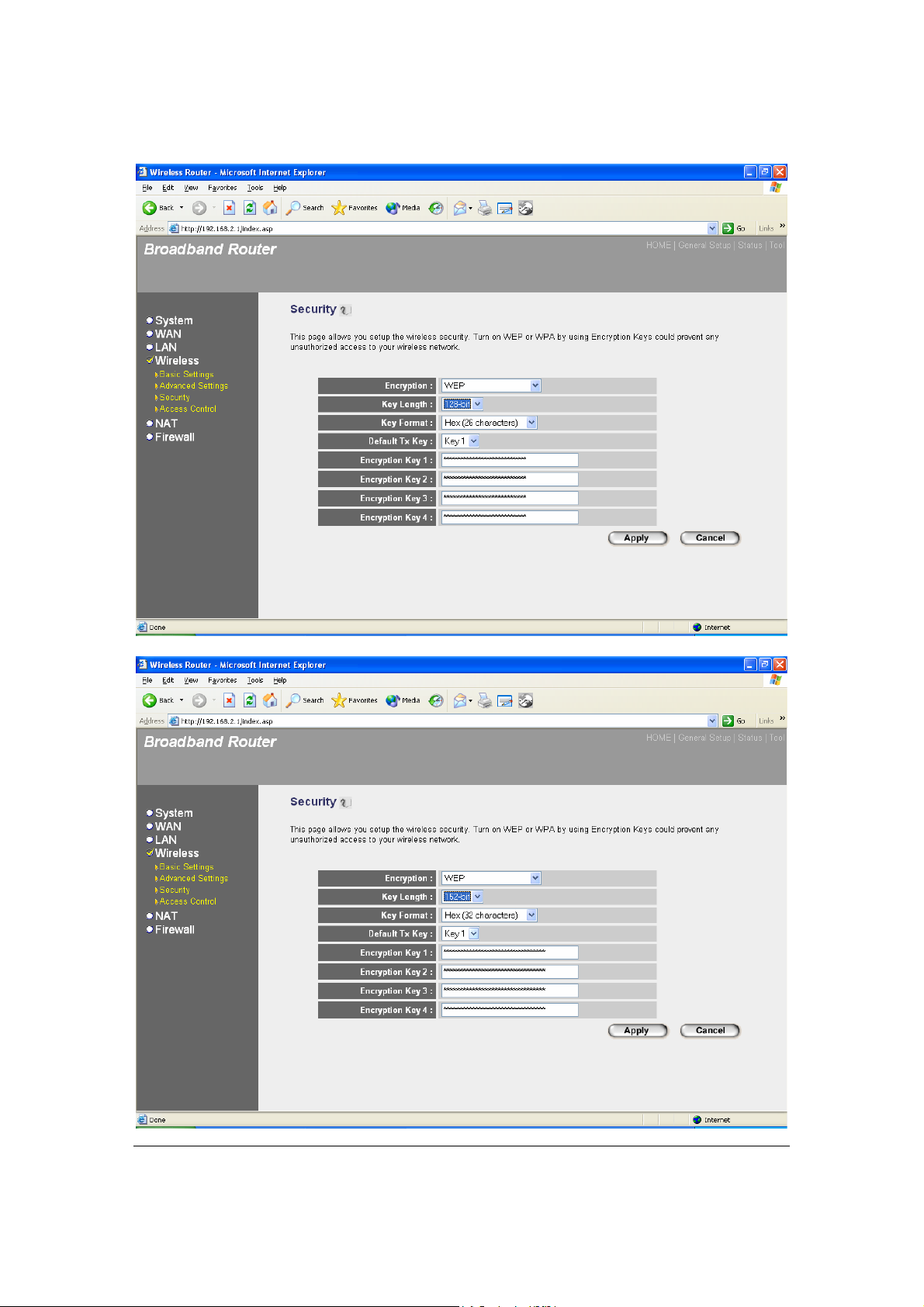

2.4.3.1 WEP

Parameters Default Description

WEP Mode Disabled

You can select the WEP key length for

encryption, 64-bit, 128-bit or 152-bit. Larger WEP key length will provide higher level of security, but the throughput will be lower. You

also can select Disabled to transmit data without encryption.

When you select 64-bit 128-bit or 152-bit WEP key, you have to enter WEP keys to encrypt data. You can generate the key by yourself and enter it. You also can enter a passphrase and let the router generate WEP key for you. In the 64-bit WEP mode, you can enter four WEP keys and select one of them as the default key. Then the router can receive any packets encrypted by one of the four keys.

Parameters Default Description

Key Format

Key Length You may disable or enable the WEP function

Key 1 - Key 4 The WEP keys are used to encrypt data

Default Key Select one of the four keys to encrypt your data.

You may select to select ASCII Characters

(alphanumeric format) or Hexadecimal Digits (in the "A-F", "a-f" and "0-9" range) to be the WEP Key. For example: ASCII Characters: guest Hexadecimal Digits: 12345abcde

from the setting item. The selections in the setting item are changed based on the key format.

transmitted in the wireless network. Fill the text box by following the rules below. 64-bit WEP: input 10-digit Hex values (in the "AF", "a-f" and "0-9" range) or 5-digit ASCII character as the encryption keys. 128-bit WEP: input 26-digit Hex values (in the "A-F", "a-f" and "0-9" range) or 13-digit ASCII characters as the encryption keys.

Only the key you select in the "Default key" will take effect.

Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advanced sections or start using the router (with the advance settings in place).

2.4.3.2 802.1x

IEEE 802.1x is an authentication protocol. Every user must use a valid account to login to this Access Point before accessing the wireless LAN. The authentication is processed by a RADIUS server. You can use an external RADIUS server or use the RADIUS server built-in with the Access Point. This mode only authenticates user by IEEE 802.1x, but it does not encrypt the data during communication.

Parameters Default Description

RADIUS Server IP address The IP address of external RADIUS server.

RADIUS Server Port The service port of the external RADIUS server.

RADIUS Server Password The password used by external RADIUS server.

Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advanced sections or start using the router (with the advanced settings in place).

2.4.3.3 802.1x WEP Static key

IEEE 802.1x is an authentication protocol. Every user must use a valid account to login to this Access Point before accessing the wireless LAN. The authentication is processed by a RADIUS server. You can use an external RADIUS server or use the RADIUS server built-in with the Access Point. This mode also uses WEP to encrypt the data during communication.

Parameters Default Description

Key Length You can select the 64-bit or 128-bit key to

encrypt transmitted data. Larger WEP key length will provide higher level of security, but the throughput will be lower. You also can select Disable to transmit data without encryption.

Key Format You may select ASCII Characters (alphanumeric

format) or Hexadecimal Digits (in the “A-F”, “a-f” and “0-9” range) to be the WEP Key. For example: ASCII Characters: guest Hexadecimal Digits: 12345abcde

Key 1 - Key 4 The WEP keys are used to encrypt data

transmitted in the wireless network. Fill the text box by following the rules below. 64-bit WEP: input 10-digit Hex values (in the “AF”, “a-f” and “0-9” range) or 5-digit ASCII character as the encryption keys. 128-bit WEP: input 26-digit Hex values (in the “A-F”, “a-f” and “0-9” range) or 13-digit ASCII characters as the encryption keys.

Default Key Select one of the four keys to encrypt your data.

Only the key you select in the “Default key” will take effect.

Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advanced sections or start using the router (with the advanced settings in place).

2.4.3.4 WPA Pre-shared key

Wi-Fi Protected Access (WPA) is an advanced security standard. You can use a pre-shared key to authenticate wireless stations and encrypt data during communication. It uses TKIP to change the encryption key frequently. This can highly improve security.

Parameters Default Description

TKIP TKIP can change the encryption key frequently

to enhance the wireless LAN security.

AES AES can change the encryption key frequently

to enhance the wireless LAN security.

Pre-shared Key Format You may select ASCII Characters (alphanumeric

format) or Hexadecimal Digits (in the “A-F”, “a-f” and “0-9” range) to be the Pre-shared Key. For example: ASCII Characters: iamguest Hexadecimal Digits: 12345abcde

Pre-shared Key The Pre-shared key is used to authenticate and

encrypt data transmitted in the wireless network. Fill the text box by following the rules below. Hex WEP: input 64-digit Hex values (in the “AF”, “a-f” and “0-9” range) or at least 8 character pass phrase as the pre-shared keys.

Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advanced sections or start using the router (with the advanced settings in place).

2.4.3.5 WPA Radius

Wi-Fi Protected Access (WPA) is an advanced security standard. You can use an external RADIUS server to authenticate wireless stations and provide the session key to encrypt data during communication. It uses TKIP to change the encryption key frequently. This can highly improve security.

Parameters Default Description

RADIUS Server IP address The IP address of external RADIUS server.

RADIUS Server Port The service port of the external RADIUS server.

RADIUS Server Password The password used by external RADIUS server.

Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advanced sections or start using the router (with the advanced settings in place).

2.4.4 Access Control

This wireless router provides MAC Address Control, which prevents the unauthorized MAC Addresses from accessing your wireless network.

Parameters Description

Enable wireless access control

Add MAC address into the list Fill in the "MAC Address" and "Comment" of the

wireless station to be added and then click "Add". Then this wireless station will be added to the "Current Access Control List" below. If you find any issue before adding it and want to retype again, just click "Clear" and both "MAC Address" and "Comment" fields will be cleared.

Remove MAC address from the list If you want to remove some MAC address from

the "Current Access Control List ", select the MAC addresses you want to remove in the list and then click "Delete Selected". If you want remove all MAC addresses from the table, just click "Delete All" button. Click "Reset" will clear your current selections.

Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advanced sections or start using the router (with the advanced settings in place).

2.5 NAT

Network Address Translation (NAT) allows multiple users at your local site to access the Internet through a single Public IP Address or multiple Public IP Addresses. NAT provides Firewall protection from hacker attacks and has the flexibility to allow you to map Private IP Addresses to Public IP Addresses for key services such as Websites and FTP.

Parameter Description

2.5.1 Port Forwarding You can have different services (e.g. email, FTP, Web

etc.) going to different service servers/clients in your LAN. The Port Forwarding allows you to re-direct a particular range of service port numbers (from the Internet/WAN Ports) to a particular LAN IP address.

2.5.2 Virtual Server

2.5.3 Special Applications Some applications require multiple connections, such as

You can have different services (e.g. email, FTP, Web etc.) going to different service servers/clients in your LAN. The Virtual Server allows you to re-direct a particular service port number (from the Internet/WAN Port) to a particular LAN IP address and its service port number.

Internet games, video conferencing, Internet telephony and others. In this section you can configure the router to support these types of applications.

2.5.4 UPnP Setting

It allows to Enable or Disable UPnP feature here. After you enable the UPnP feature, all client systems that support UPnP, like Windows XP, can discover this router automatically and access the Internet through this router without any configuration. The NAT Traversal function provided by UPnP can let applications that support UPnP smoothly connect to Internet sites without any incompatibility problem due to the NAPT port translation.

2.5.5 ALG Setting You can select special applications that need

“Application Layer Gateway” to support here.

Click on one of the three NAT selections and proceed to the manual's relevant sub-section.

2.5.1 Port Forwarding

The Port Forwarding allows you to re-direct a particular range of service port numbers (from the Internet/WAN Ports) to a particular LAN IP address. It helps you to host some servers behind the router NAT firewall.

Parameter Description

Enable Port Forwarding

Private IP This is the private IP of the server behind the

NAT firewall.

Note: You need to give your LAN PC clients a

fixed/static IP address for Port Forwarding to work properly.

Type This is the protocol type to be forwarded. You

can choose to forward “TCP” or “UDP” packets only or select “both” to forward both “TCP” and “UDP” packets.

Port Range The range of ports to be forward to the private IP.

Comment The description of this setting.

Add Port Forwarding into the table Fill in the "Private IP", “Type”, “Port Range” and

"Comment" of the setting to be added and then click "Add". Then this Port Forwarding setting will be added into the "Current Port Forwarding Table" below. If you find any typo before adding it and want to retype again, just click "Clear" and the fields will be cleared.

Remove Port Forwarding into the table If you want to remove some Port Forwarding

settings from the " Current Port Forwarding Table", select the Port Forwarding settings you want to remove in the table and then click "Delete Selected". If you want remove all Port Forwarding settings from the table, just click "Delete All" button. Click "Reset" will clear your current selections.

Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advanced sections or start using the router (with the advanced settings in place).

2.5.2 Virtual Server

Use the Virtual Server function when you want different servers/clients in your LAN to handle different service/Internet application type (e.g. Email, FTP, Web server etc.) from the Internet. Computers use numbers called port numbers to recognize a particular service/Internet application type. The Virtual Server allows you to re-direct a particular service port number (from the Internet/WAN Port) to a particular LAN private IP address and its service port number. (See Glossary for an explanation on Port number.)

Parameters Description

Enable Virtual Server

Enable Virtual Server.

Private IP

This is the LAN client/host IP address that the Public Port number packet will be sent to. Note: You need to give your LAN PC clients a fixed/static IP address for Virtual Server to work properly.

Private Port

This is the port number (of the above Private IP host) that the below Public Port number will be changed to when the packet enters your LAN (to the LAN Server/Client IP).

Type

Select the port number protocol type (TCP, UDP or both). If you are unsure, then leave it to the default both protocol.

Public Port

Enter the service (service/Internet application) port number from the Internet that will be re-directed to the above Private IP

address host in your LAN Note: Virtual Server function will have priority over the DMZ function if there is a conflict between the Virtual Server and the DMZ settings.

Comment

The description of this setting.

Add Virtual Server

Fill in the "Private IP", "Private Port", "Type", “Public Port” and "Comment" of the setting to be added and then click "Add". Then this Virtual Server setting will be added into the "Current Virtual Server Table" below. If you find any typo before adding it and want to retype again, just click "Clear" and the fields will be cleared.

Remove Virtual Server

If you want to remove some Virtual Server settings from the "Current Virtual Server Table", select the Virtual Server settings you want to remove in the table and then click "Delete Selected". If you want remove all Virtual Server settings from the table, just click "Delete All" button. Click "Reset" will clear your current selections.

Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advanced sections or start using the router (with the advanced settings in place).

Example: Virtual Server

The diagram below demonstrates one of the ways you can use the Virtual Server function. Use the Virtual Server when you want the web server located in your private LAN to be accessible to Internet users. The configuration below means that any request coming form the Internet to access your web server will be translated to your LAN’s web server (192.168.2.2). Note: For the virtual server to work properly Internet/remote users must know your global IP address. (For websites you will need to have a fixed/static global/public IP address.)

2.5.3 Special Applications

Some applications require multiple connections, such as Internet games, video conferencing, Internet telephony and others. In this section you can configure the router to support multiple connections for these types of applications.

Parameters Description

Enable Trigger Port Enable the Special Application function.

Trigger Port This is the out going (Outbound) range of port numbers for this

particular application.

Trigger Type Select whether the outbound port protocol is “TCP”, “UDP” or

both.

Public Port Enter the In-coming (Inbound) port or port range for this type of

application (e.g. 2300-2400, 47624)

Note: Individual port numbers are separated by a comma

(e.g. 47624, 5775, 6541 etc.). To input a port range use a “dash” to separate the two port number range (e.g. 2300-2400).

Public Type Select the Inbound port protocol type: “TCP”, “UDP” or both.

Comment

The description of this setting.

Popular applications This section lists the more popular applications that require

multiple connections. Select an application from the Popular Applications selection. Once you have selected an application, select a location (1-10) in the Copy to selection box and then click the Copy to button. This will automatically list the Public Ports required for this popular application in the location (1-10) you’d specified.

Add Special Application

If you want to add a popular application, select one “Popular

Fill in the "Trigger Port", "Trigger Type”, “Public Port”, "Public Type", "Public Port" and "Comment" of the setting to be added and then click "Add". Then this Special Application setting will be added into the "Current Trigger-Port Table" below. If you find any typo before adding it and want to retype again, just click "Clear" and the fields will be cleared.

Application” and then click “Add”.

Remove Special Application

If you want to remove some Special Application settings from the " Current Trigger-Port Table", select the Special Application settings you want to remove in the table and then click "Delete Selected". If you want to remove all Special Application settings from the table, just click "Delete All" button. Click "Reset" will clear your current selections.

Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advanced sections or start using the router (with the advanced settings in place).

Example: Special Applications If you need to run applications that require multiple connections, then specify the port (outbound) normally associated with that application in the "Trigger Port" field. Then select the protocol type (TCP or UDP) and enter the public ports associated with the trigger port to open them up for inbound traffic.

Example:

Trigger Port Trigger Type Public Port Public Type Comment

1 28800 UDP 2300-2400, 47624 TCP MSN Game Zone

2 6112 UDP 6112 UDP Battle.net

In the example above, when a user triggers port 28800 (outbound) for MSN Game Zone then the router will allow incoming packets for ports 2300-2400 and 47624 to be directed to that user. Note: Only one LAN client can use a particular special application at a time.

2.5.4 UPnP Settings

With UPnP, all PCs in you Intranet will discover this router automatically. So you do not have to do any configuration for your PC but to access the Internet through this router easily.

Parameters Default Description

UPnP Feature

Disable You can Enable or Disable UPnP feature here.

After you enable the UPnP feature, all client systems that support UPnP, like Windows XP, can discover this router automatically and access the Internet through this router without any configuration. The NAT Traversal function provided by UPnP can let applications that support UPnP smoothly connect to Internet sites without any incompatibility problem due to the NAPT port translation.

Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advanced sections or start using the router (with the advanced settings in place).

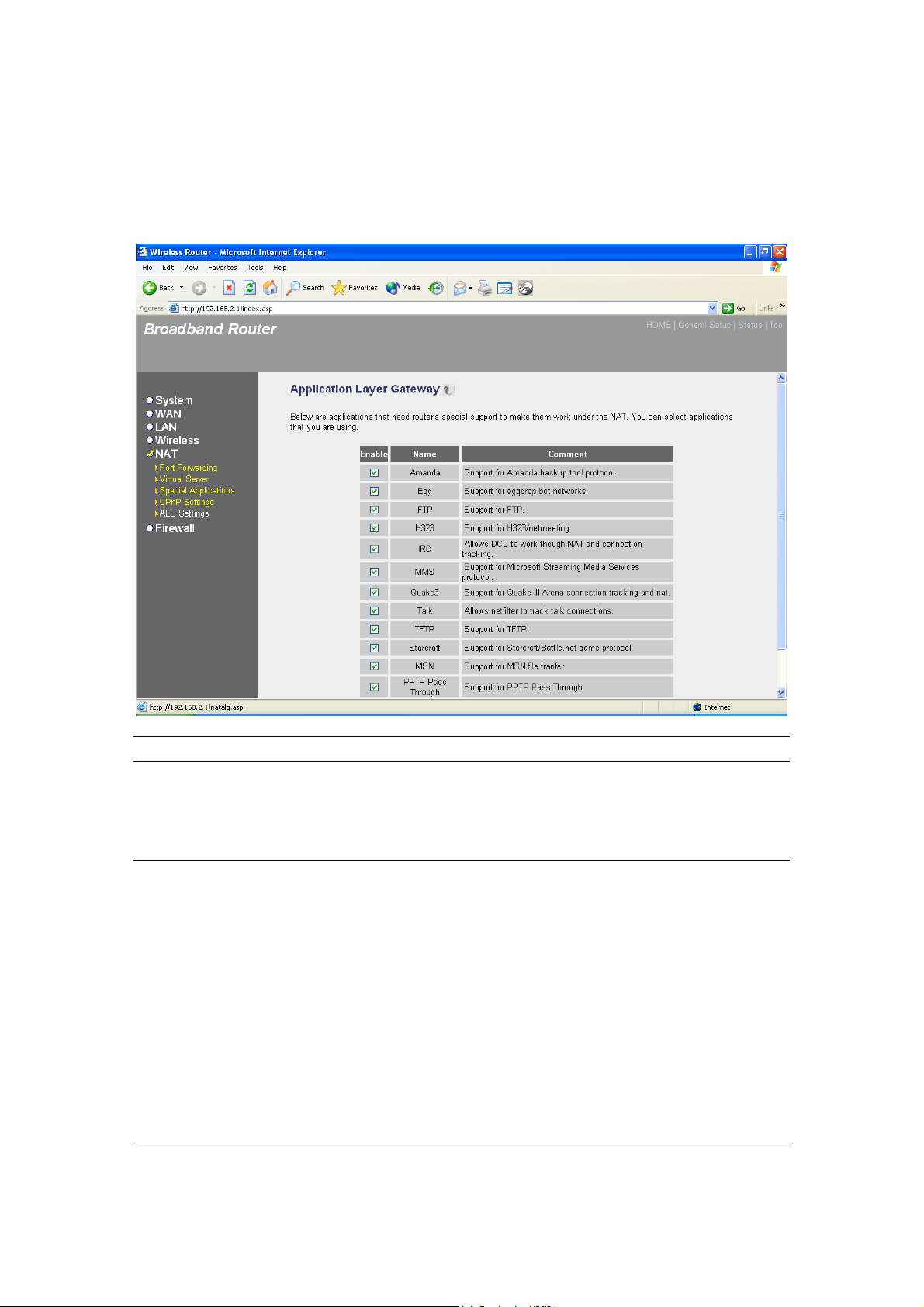

2.5.5 ALG Settings

You can select applications that need “Application Layer Gateway” to support.

Parameters Default Description

Enable

You can select to enable “Application Layer Gateway”, then the router will let that application correctly pass through the NAT gateway.

Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advanced sections or start using the router (with the advanced settings in place).

2.6 Firewall

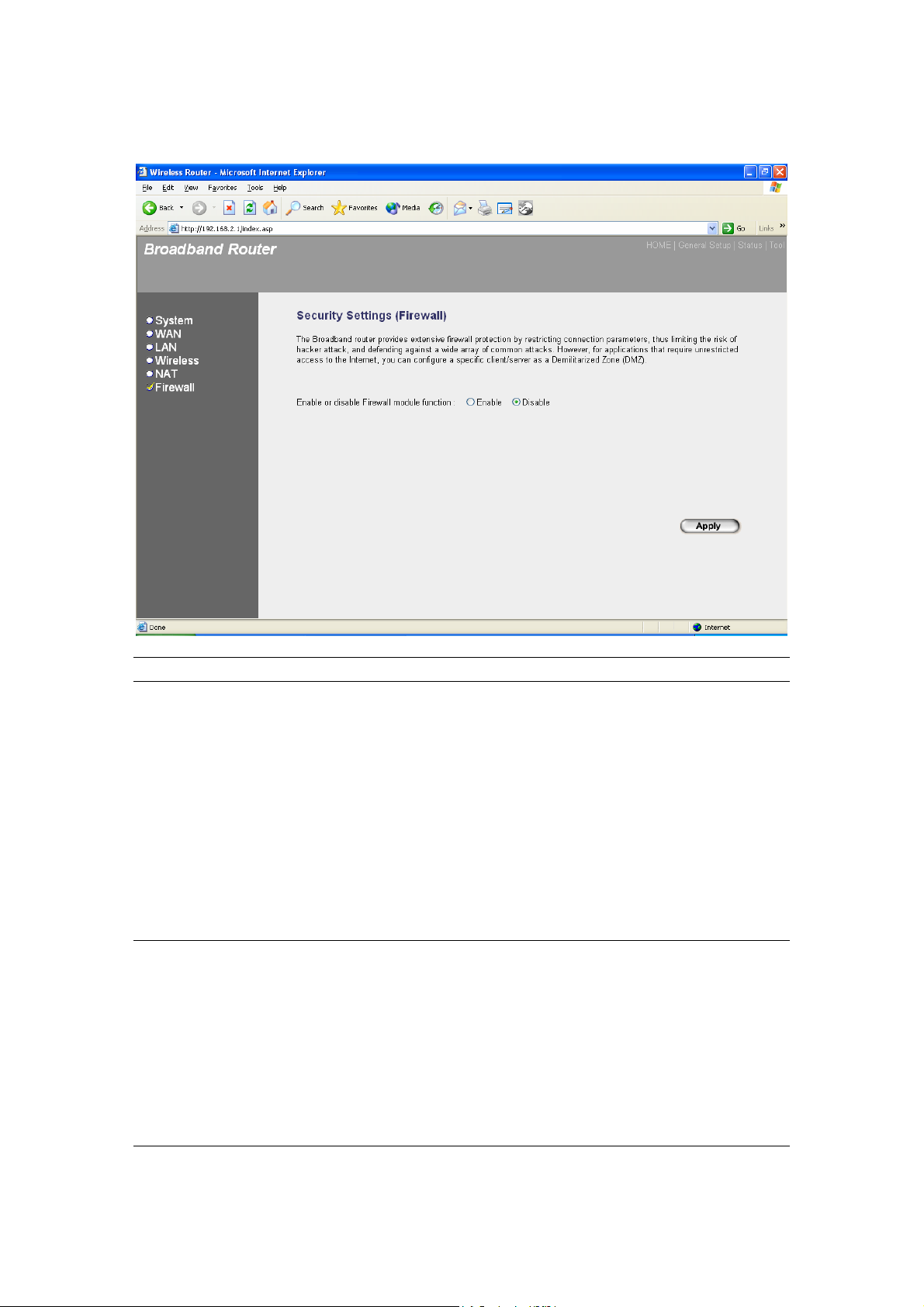

The Broadband router provides extensive firewall protection by restricting connection parameters, thus limiting the risk of hacker attack, and defending against a wide array of common Internet attacks. However, for applications that require unrestricted access to the Internet, you can configure a specific client/server as a Demilitarized Zone (DMZ).

Note: To enable the Firewall settings select Enable and click Apply.

Parameters Description

2.6.1 Access Control

Access Control allows you to specify which hosts users can or cannot have access to certain Internet applications.

2.6.2 URL Blocking

accessed by users.

URL Blocking allow you to specify which URLs can not be

2.6.3 Intrusion Detection

The Broadband router's firewall can block common hacker attacks and can log the attack activities.

2.6.4 DMZ

The DMZ function allows you to re-direct all packets going to your WAN port IP address to a particular IP address in your LAN.

Click on one of the firewall selections and proceed to the manual’s relevant sub-section.

2.6.1 Access Control

If you want to restrict users from accessing certain Internet applications/services (e.g. Internet websites, email, FTP etc.), then this is the place to set that configuration. Access Control allows users to define the traffic type permitted in your LAN. You can control which PC client can have access to these services.

Parameters Description

Filter client PCs by IP

Fill “IP Filtering Table” to filter PC clients by IP.

Add PC

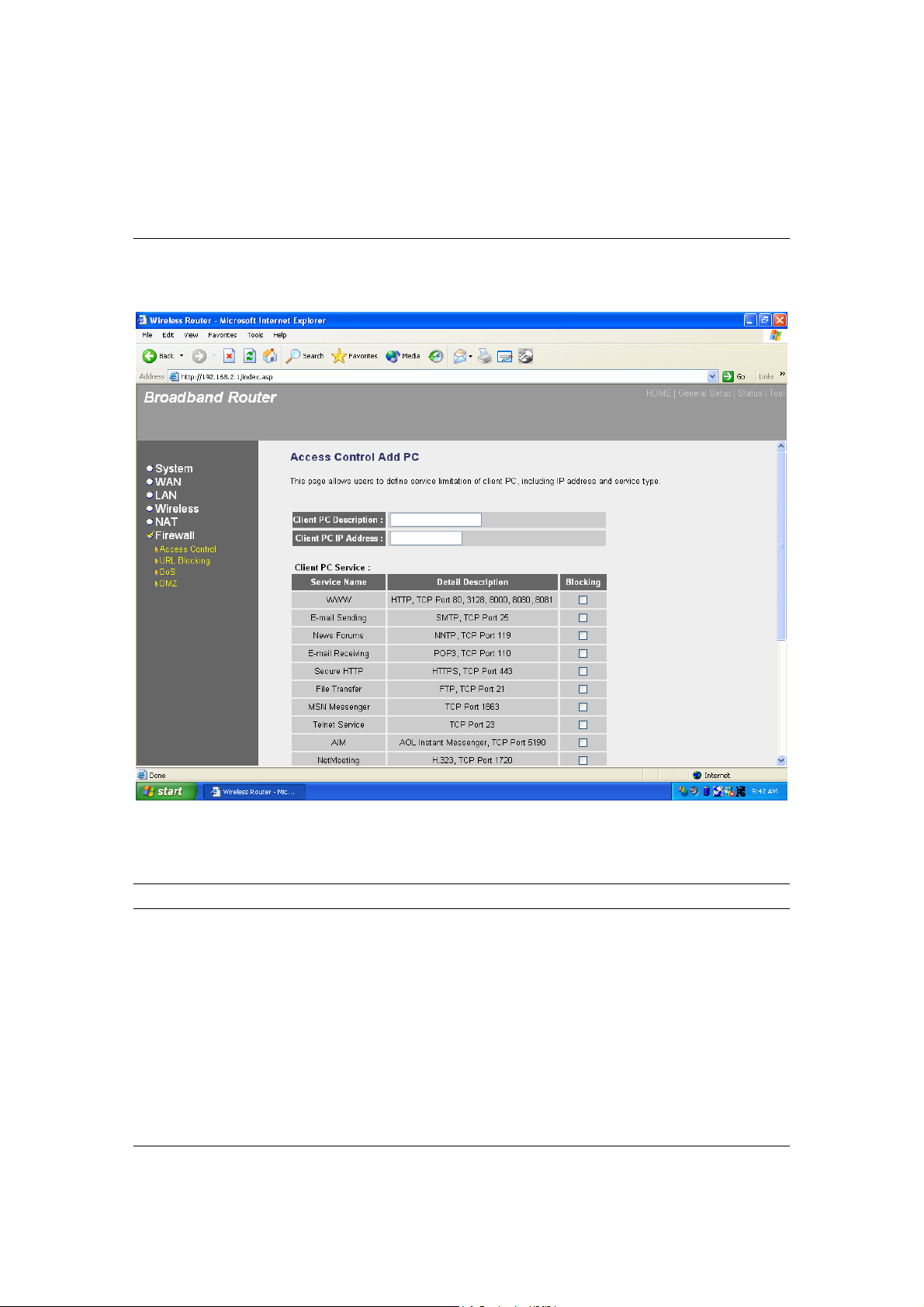

You can click Add PC to add an access control rule for users by IP addresses.

Remove PC

If you want to remove some PC from the "IP Filtering Table", select the PC you want to remove in the table and then click "Delete Selected". If you want remove all PCs from the table, just click "Delete All" button.

Filter client PC by MAC address

Check “Enable MAC Filtering” to enable MAC Filtering.

Add PC

Fill in “Client PC MAC Address” and “Comment” of the PC that is allowed to access the Internet, and then click “Add”. If you find any typo before adding it and want to retype again, just click "Reset" and the fields will be cleared.

Remove PC

If you want to remove some PC from the "MAC Filtering Table", select the PC you want to remove in the table and then click "Delete Selected". If you want to remove

all PCs from the table, just click "Delete All" button. If you want to clear the selection and re-select again, just click “Reset”.

You can now configure other advanced sections or start using the router (with the advanced settings in place).

Add PC

Parameters Description

Client PC Description

The description for this client PC rule.

Client PC IP Addresses

Enter the IP address that you wish to apply this Access Control rule. This is the user’s IP address(es) that you wish to setup an Access Control rule.

Note: You need to give your LAN PC clients a fixed/static IP address for the Access Control rule to work properly.

Client PC Service

You can block the clients from accessing some Internet services by checking the services you want to block.

Protocol

This allows you to select UDP, TCP or both protocol types you want to block.

Port Range

It can be assign up to five port ranges. The router will block clients from accessing Internet services that use these ports.

Apply Changes

Click “Apply Changes” to save the setting.

Reset

Click “Reset” to clear all fields.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can now configure other advanced sections or start using the router (with the advanced settings in place).

Example: Access Control

In the example below, LAN client A can only access websites that use Port 80. However, LAN client B is able to access websites and any other service that uses ports between 80 and 999.

2.6.2 URL Blocking

You can block access to some Websites from particular PCs by entering a full URL address or just keyword of the Website.

Parameters Description

Enable URL Blocking

Enable/disable URL Blocking.

Add URL Keyword Fill in “URL/Keyword” and then click “Add”. You can

enter the full URL address or the keyword of the website you want to block. If you find any typo before adding it and want to retype again, just click "Reset" and the field will be cleared.

Remove URL Keyword

If you want to remove some URL keyword from the "Current URL Blocking Table", select the URL keyword you want to remove in the table and then click "Delete Selected". If you want remove all URL keyword from the table, just click "Delete All" button. If you want to clear the selection and re-select again, just click “Reset”.

You can now configure other advanced sections or start using the router (with the advanced settings in place).

2.6.3 Denial of Service

The Broadband router's firewall can block common hacker attacks, including Denial of Service, Ping of Death, Port Scan and Sync Flood. If Internet attacks occur the router can log the events.

Parameters Description

Intrusion Detection Feature

Ping of Death

Protections from Ping of Death attack.

Discard Ping From WAN

The router’s WAN port will not respond to any Ping requests.

Port Scan

Protection the router from Port Scan.

Sync Flood Protection the router from Sync Flood attack.

Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other advanced sections or start using the router (with the advanced settings in place).

2.6.4 DMZ

If you have a local client PC that cannot run an Internet application (e.g. Games) properly from behind the NAT firewall, then you can open the client up to unrestricted two-way Internet access by defining a DMZ Host. The DMZ function allows you to re-direct all packets going to your WAN port IP address to a particular IP address in your LAN. The difference between the virtual server and the DMZ function is that the virtual server re-directs a particular service/Internet application (e.g. FTP, websites) to a particular LAN client/server, whereas DMZ re-directs all packets (regardless of services) going to your WAN IP address to a particular LAN client/server.

Parameters Description

Enable DMZ

Enable/disable DMZ

Note: If there is a conflict between the Virtual Server and the DMZ setting, then Virtual Server function will have priority over the DMZ function.

Public IP Address

The IP address of the WAN port or any other Public IP addresses given to you by your ISP.

Client PC IP Address

Input the IP address of a particular host in your LAN that will receive all the packets originally going to the WAN port/Public IP address above.

You can now configure other advanced sections or start using the router (with the advanced settings in place).

Note: You need to give your LAN PC clients a fixed/static IP address for DMZ to work properly.

Chapter 3

Status

The Status section allows you to monitor the current status of your router. You can use the Status page to monitor the connection status of the Broadband router's WAN/LAN interfaces, the current firmware and hardware version numbers, any illegal attempts to access your network, and information on all DHCP client PCs currently connected to your network.

Parameters Description

3.1 Status and Information

Shows the router’s system information.

3.2 Internet Connection

View the Broadband router’s current Internet connection status and other related information.

3.3 Device Status

View the Broadband router’s current setting status.

3.4 System Log View the Broadband router’s system log.

3.5 Security Log View any attempts that have been made to illegally gain access

to your network.

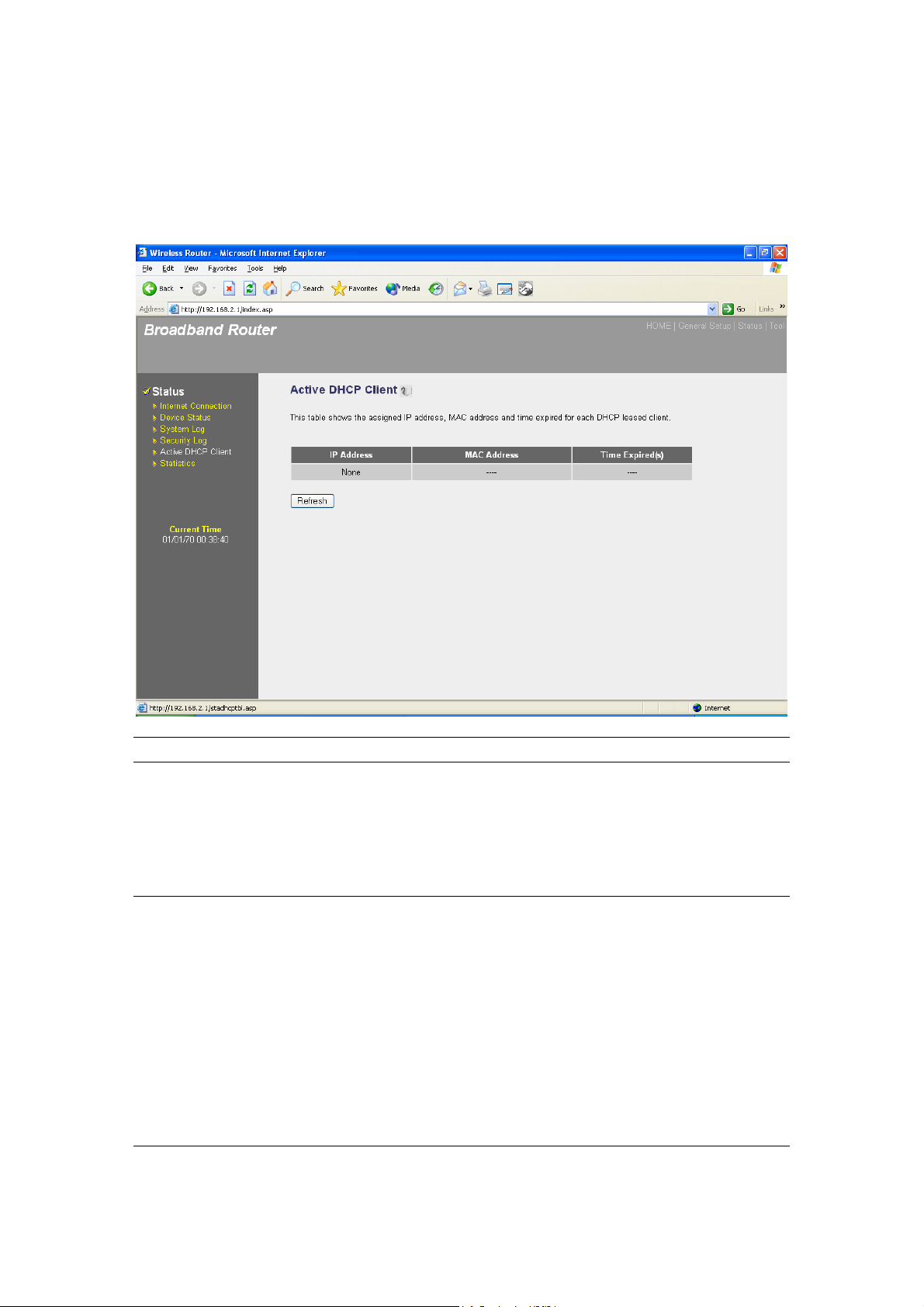

3.6 DHCP Client Table

View your LAN client's information that is currently linked to the Broadband router's DHCP server.

3.7 Statistics

Shows the statistics.

Select one of the above five Status selections and proceed to the manual’s relevant sub-section.

3.1 Status and Information

The Status and Information section allows you to view the router’s system information.

Parameters Description Information You can see the router’s system information such as the router’s

LAN MAC Address, WAN MAC Address, Hardware version, Serial Number, Boot code Version, Runtime code Version.

3.2 Internet Connection

View the Broadband router’s current Internet connection status and other related information.

Parameters Description

Internet Connection

Note: When the WAN port is a Dynamic IP connection, the

This page displays whether the WAN port is connected to a

Cable/DSL connection. It also displays the router’s WAN port, WAN IP address, Subnet Mask, and ISP Gateway as well as

the Primary DNS and Secondary DNS being used.

<Release> and <Renew> button will release the Broadband router’s WAN IP address and renew will get another IP address from the DHCP server. If the WAN port uses PPPoE, <Release> will disconnect the PPP session, and <Renew> will initialize another PPP session.

3.3 Device Status

View the Broadband router’s current configuration settings. The Device Status displays the configuration settings you’ve configured in the Quick Setup Wizard/General Setup section.

Parameters Description

Device Status

This page shows the Broadband router’s current device settings. This page displays the Broadband router’ LAN port’s current LAN

IP Address and Subnet Mask. It also shows whether the DHCP Server and Firewall functions are enabled/disabled. The firewall

status is shown enabled if the firewall is enabled (regardless of whether you’ve configured any of the firewall features).

3.4 System Log

View the operation log of the system.

Parameters Description

System Log

This page shows the current system log of the Broadband router. It displays any event occurred after system start up. At the bottom of the page, the system log can be saved <Save> to a local file for further processing or the system log can be cleared <Clear> or it can be refreshed <Refresh> to get the most updated situation. When the system is powered down, the system log will disappear if not saved to a local file.

3.5 Security Log

View any attempts that have been made to illegally gain access to your network.

Parameters Description

Security Log

This page shows the current security log of the Broadband router. It displays any illegal attempts to access your network. At the bottom of the page, the security log can be saved <Save> to a local file for further processing or the security log can be cleared <Clear> or it can be refreshed <Refresh> to get the most updated situation. When the system is powered down, the security log will disappear if not saved to a local file.

3.6 Active DHCP Client Table

View your LAN client's information that is currently linked to the Broadband router's DHCP server.

Parameters Description

DHCP Client Log

This page shows all DHCP clients (LAN PCs) currently connected to your network. The “Active DHCP Client Table” displays the IP address and the MAC address and Time Expired of each LAN Client. Use the Refresh button to get the most updated situation.

3.7 Statistics

View the statistics of packets sent and received on WAN, LAN and Wireless LAN.

Parameters Description

Statistics

Shows the counters of packets sent and received on WAN, LAN

and Wireless LAN.

Chapter 4

Tool

This page includes the basic configuration tools, such as Configuration Tools (save or restore configuration settings), Firmware Upgrade (upgrade system firmware) and Reset.

Parameters Description

4.1 Configuration Tools

You can save the router’s current configuration, restore the router’s saved configuration files and restore the router’s factory default settings.

4.2 Firmware Upgrade

This page allows you to upgrade the router’s firmware.

4.3 Reset

You can reset the router’s system should any problem exist.

Select one of the above three Tools Settings selection and proceed to the manual’s relevant sub-section.

4.1 Configuration Tools

The Configuration Tools screen allows you to save (Backup) the router’s current configuration setting. Saving the configuration settings provides an added protection and convenience should problems occur with the router and you have to reset to factory default. When you save the configuration setting (Backup) you can re-load the saved configuration into the router through the Restore selection. If extreme problems occur you can use the Restore to Factory Defaults selection, this will set all configurations to its original default settings (e.g. when you first purchased the router).

Parameters Description

Configuration Tools

Use the "Backup" tool to save the Broadband router’s current configuration to a file named "config.bin" on your PC. You can then use the "Restore" tool to restore the saved configuration to the Broadband router. Alternatively, you can use the "Restore to Factory Defaults" tool to force the Broadband router to perform a power reset and restore the original factory settings.

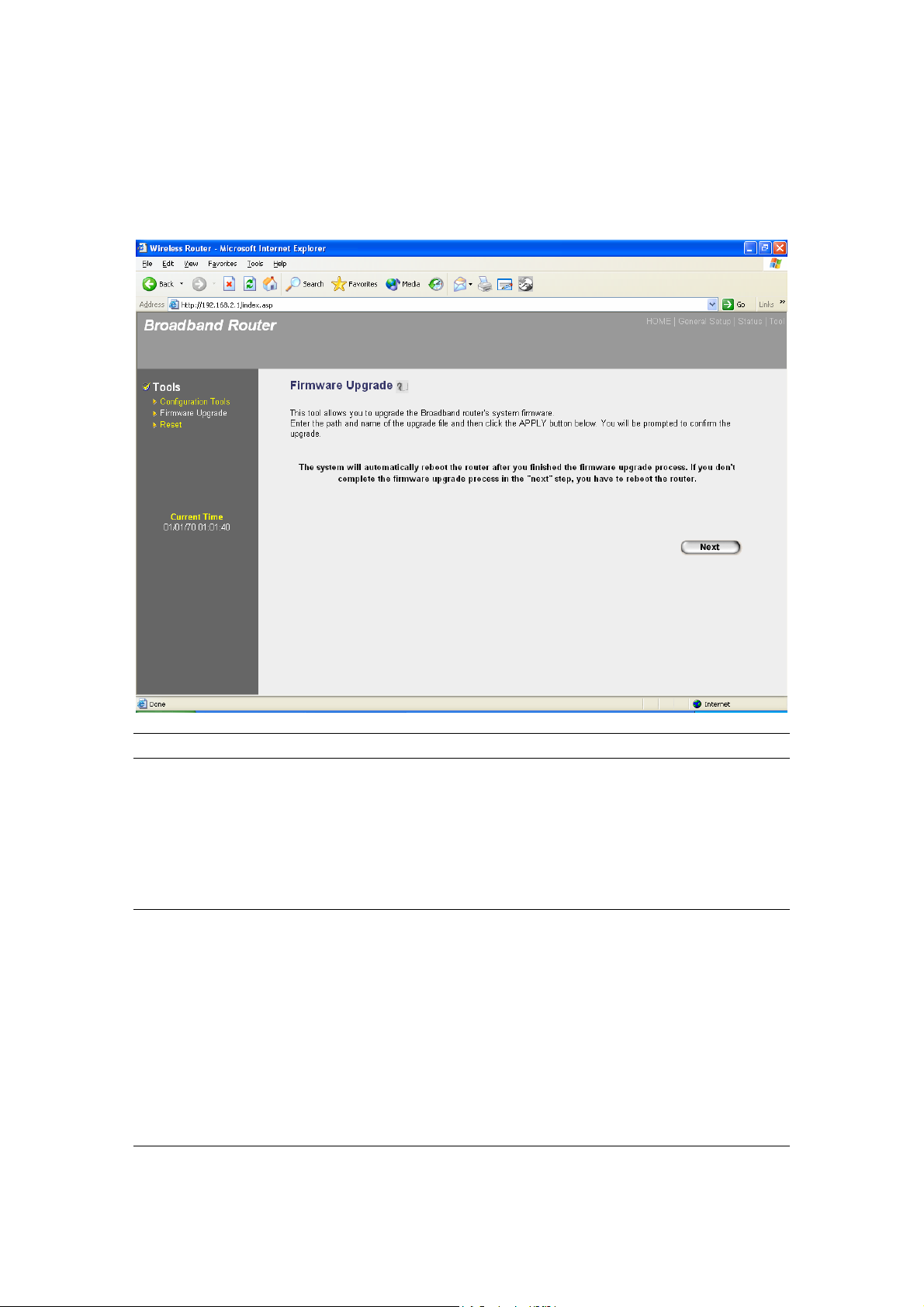

4.2 Firmware Upgrade

This page allows you to upgrade the router’s firmware.

Parameters Description

Firmware Upgrade

This tool allows you to upgrade the Broadband router’s system firmware. To upgrade the firmware of your Broadband router, you need to download the firmware file to your local hard disk, and enter that file name and path in the appropriate field on this page. You can also use the Browse button to find the firmware file on your PC.

Once you’ve selected the new firmware file, click <Apply> at the bottom of the screen to start the upgrade process. (You may have to wait a few minutes for the upgrade to complete.) Once the upgrade is complete you can start using the router.

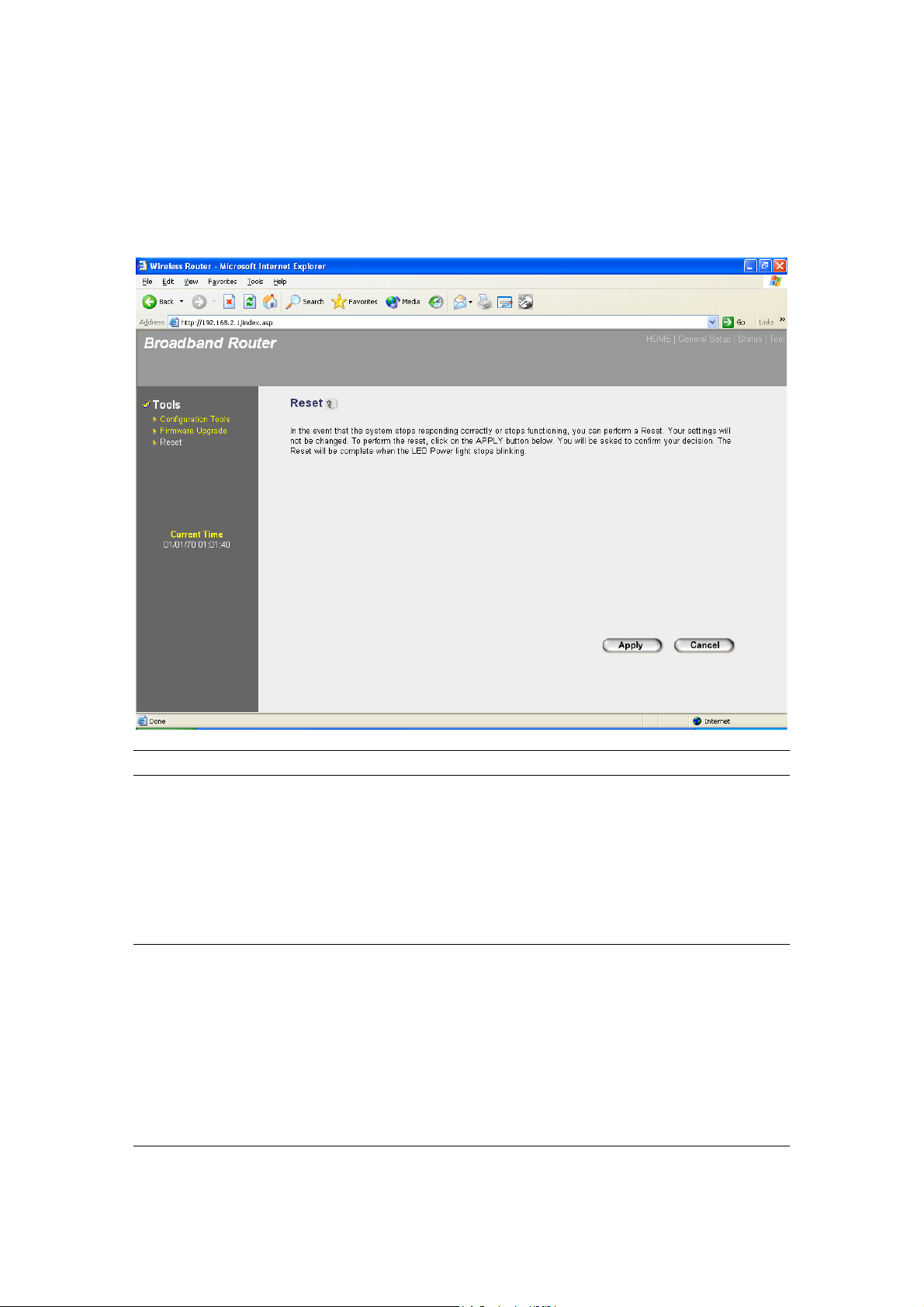

4.3 Reset

You can reset the router’s system should any problem exist. The reset function essentially re-boots your router’s system.

Parameters Description

Reset

In the event that the system stops responding correctly or in some way stops functioning, you can perform a reset. Your settings will not be changed. To perform the reset, click on the <APPLY> button. You will be asked to confirm your decision. The reset will be complete when the power light stops blinking. Once the reset process is complete you may start using the router again.

Appendix A

How to Manually find your PC’s IP and MAC address

1) In Window’s open the Command Prompt program

2) Type Ipconfig /all and <enter>

• Your PC’s IP address is the one entitled IP address (192.168.1.77)

• The router’s IP address is the one entitled Default Gateway (192.168.1.254)

• Your PC’s MAC Address is the one entitled Physical Address (00-50-FC-FE-02-DB)

Glossary

Default Gateway (Router): Every non-router IP device needs to configure a default gateway’s IP address. When the device sends out an IP packet, if the destination is not on the same network, the device has to send the packet to its default gateway, which will then send it out towards the destination.

DHCP: Dynamic Host Configuration Protocol. This protocol automatically gives every computer on your home network an IP address.

DNS Server IP Address: DNS stands for Domain Name System, which allows Internet servers to have a domain name (such as www.Broadbandrouter.com) and one or more IP addresses (such as 192.34.45.8). A DNS server keeps a database of Internet servers and their respective domain names and IP addresses, so that when a domain name is requested (as in typing "Broadbandrouter.com" into your Internet browser), the user is sent to the proper IP address. The DNS server IP address used by the computers on your home network is the location of the DNS server your ISP has assigned to you.

DSL Modem: DSL stands for Digital Subscriber Line. A DSL modem uses your existing phone lines to transmit data at high speeds.

Ethernet: A standard for computer networks. Ethernet networks are connected by special cables and hubs, and move data around at up to 10/100 million bits per second (Mbps).

Idle Timeout: Idle Timeout is designed so that after there is no traffic to the Internet for a preconfigured amount of time, the connection will automatically be disconnected.

IP Address and Network (Subnet) Mask: IP stands for Internet Protocol. An IP address consists of a series of four numbers separated by periods, that identifies a single, unique Internet computer host in an IP network. Example: 192.168.2.1. It consists of 2 portions: the IP network address, and the host identifier.

The IP address is a 32-bit binary pattern, which can be represented as four cascaded decimal numbers separated by “.”: aaa.aaa.aaa.aaa, where each “aaa” can be anything from 000 to 255, or as four cascaded binary numbers separated by “.”: bbbbbbbb.bbbbbbbb.bbbbbbbb.bbbbbbbb, where each “b” can either be 0 or 1. A network mask is also a 32-bit binary pattern, and consists of consecutive leading 1’s followed by consecutive trailing 0’s, such as

11111111.11111111.11111111.00000000. Therefore sometimes a network mask can also be described simply as “x” number of leading 1’s. When both are represented side by side in their binary forms, all bits in the IP address that correspond to 1’s in the network mask become part of the IP network address, and the remaining bits correspond to the host ID.

For example, if the IP address for a device is, in its binary form,

11011001.10110000.1001

11111111.11111111.11110000.00000000 It means the device’s network address is

11011001.10110000.1001

00000000.00000000.00000000.00000111 to route IP packets to their destination.

0000.00000111, and if its network mask is,

0000.00000000, and its host ID is, . This is a convenient and efficient method for routers

ISP Gateway Address: (see ISP for definition). The ISP Gateway Address is an IP address for the Internet router located at the ISP's office.

ISP: Internet Service Provider. An ISP is a business that provides connectivity to the Internet for individuals and other businesses or organizations.

LAN: Local Area Network. A LAN is a group of computers and devices connected together in a relatively small area (such as a house or an office). Your home network is considered a LAN.

MAC Address: MAC stands for Media Access Control. A MAC address is the hardware address of a device connected to a network. The MAC address is a unique identifier for a device with an Ethernet interface. It is comprised of two parts: 3 bytes of data that corresponds to the Manufacturer ID (unique for each manufacturer), plus 3 bytes that are often used as the product’s serial number.

NAT: Network Address Translation. This process allows all of the computers on your home network to use one IP address. Using the broadband router’s NATcapability, you can access the Internet from any computer on your home network without having to purchase more IP addresses from your ISP.

Port: Network Clients (LAN PC) uses port numbers to distinguish one network application/protocol over another. Below is a list of common applications and protocol/port numbers:

Application Protocol Port Number

Telnet TCP 23

FTP TCP 21

SMTP TCP 25

POP3 TCP 110

H.323 TCP 1720

SNMP UCP 161

SNMP Trap UDP 162

HTTP TCP 80

PPTP TCP 1723

PC Anywhere TCP 5631

PC Anywhere UDP 5632

PPPoE: Point-to-Point Protocol over Ethernet. Point-to-Point Protocol is a secure data transmission method originally created for dial-up connections; PPPoE is for Ethernet connections. PPPoE relies on two widely accepted standards, Ethernet and the Point-to-Point Protocol. It is a communications protocol for transmitting information over Ethernet between different manufacturers.

Protocol: A protocol is a set of rules for interaction agreed upon between multiple parties so that when they interface with each other based on such a protocol, the interpretation of their behavior is well defined and can be made objectively, without confusion or misunderstanding.

Router: A router is an intelligent network device that forwards packets between different networks based on network layer address information such as IP addresses.

Subnet Mask: A subnet mask, which may be a part of the TCP/IP information provided by your ISP, is a set of four numbers (e.g. 255.255.255.0) configured like an IP address. It is used to

create IP address numbers used only within a particular network (as opposed to valid IP address numbers recognized by the Internet, which must be assigned by InterNIC).

TCP/IP, UDP: Transmission Control Protocol/Internet Protocol (TCP/IP) and Unreliable Datagram Protocol (UDP). TCP/IP is the standard protocol for data transmission over the Internet. Both TCP and UDP are transport layer protocol. TCP performs proper error detection and error recovery, and thus is reliable. UDP on the other hand is not reliable. They both run on top of the IP (Internet Protocol), a network layer protocol.

WAN: Wide Area Network. A network that connects computers located in geographically separate areas (e.g. different buildings, cities, countries). The Internet is a wide area network.

Web-based management Graphical User Interface (GUI): Many devices support a graphical user interface that is based on the web browser. This means the user can use the familiar Netscape or Microsoft Internet Explorer to Control/configure or monitor the device being managed.

AOpen AOI-892 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
