AAKK7777--660000NN

AK77-600N

DOC. NO.: AK77600N-OL-E0307B

OOnnlliinnee MMaannuuaall

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

WWhhaatt’’ss iinn tthhiiss mmaannuuaall

AK77-600N ..................................................................................................................................... 1

What’s in this manual......................................................................................................................................................2

You Must Notice..............................................................................................................................................................8

Before You Start..............................................................................................................................................................9

Overview.......................................................................................................................................................................10

Feature Highligh t ........................................................................................................................................................... 11

Quick Installation Pr ocedu re .........................................................................................................................................15

Motherboard Map.......................................................................................................................................................... 16

Block Diagram...............................................................................................................................................................17

Hardware Instal lation................................................................................................................18

About “Manufacturer Upgrade Optional” and “User Upgrade Optional”…...................................................................... 1 9

CPU Installation ............................................................................................................................................................20

EzColor .........................................................................................................................................................................22

AOpen Overheat Protection (O.H.P.) Technology..........................................................................................................24

CPU Over-current Prot ectio n......................................................................................................................................... 25

Enlarged Aluminum Heatsink ........................................................................................................................................26

Full-range Adjustable CPU Core Voltage.......................................................................................................................27

Setting CPU Frequency.................................................................................................................................................28

AAKK7777--660000NN

Supported CPU Frequency ...........................................................................................................................................29

AOpen “Watch Dog ABS” ..............................................................................................................................................30

CPU and Housing Fan Connector (with H/W Monitoring) .............................................................................................. 31

DIMM Sockets...............................................................................................................................................................32

ATX Power Connector...................................................................................................................................................34

AC Power Auto Reco very..............................................................................................................................................34

IDE and Floppy Connector............................................................................................................................................35

ATA/133 Supported .......................................................................................................................................................37

Front Panel Connector ..................................................................................................................................................38

IrDA Connector .............................................................................................................................................................39

AGP (Accelerated Graphic Port) 8X Expansion Slot......................................................................................................40

WOM (Zero Voltage Wake on Modem) Connector.........................................................................................................41

WOL (Wake on LAN) Connector....................................................................................................................................44

10/100 Mbps LAN onboard............................................................................................................................................46

CNR (Communication and Network Riser) Expansion Slot............................................................................................ 4 7

Support Six USB 2.0 Port.............................................................................................................................................. 48

Color Coded Back Panel...............................................................................................................................................49

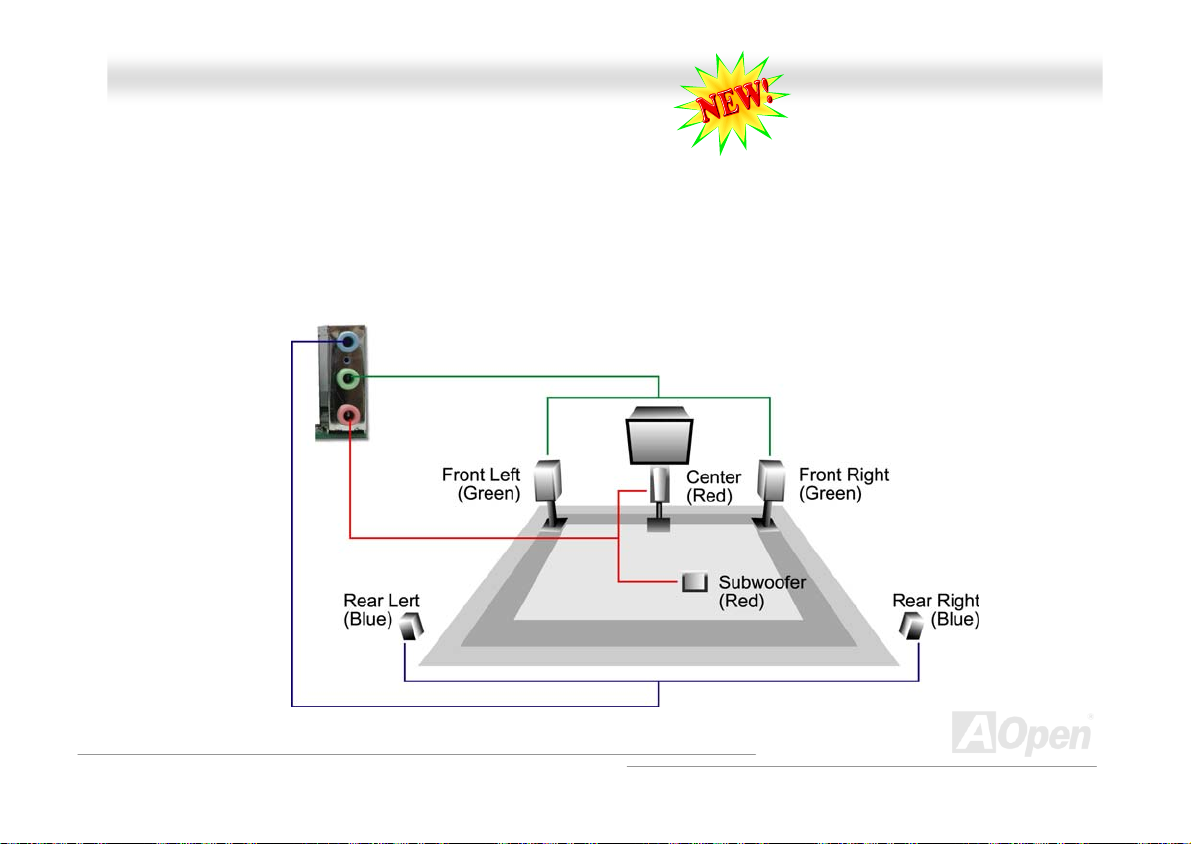

Super 5.1 Channel Audio Effect....................................................................................................................................50

Front Audio Connector ..................................................................................................................................................51

OOnnlliinnee MMaannuuaal

AAKK7777--660000NN

S/PDIF (Sony/Philips Di gital In terfac e) Con necto r......................................................................................................... 52

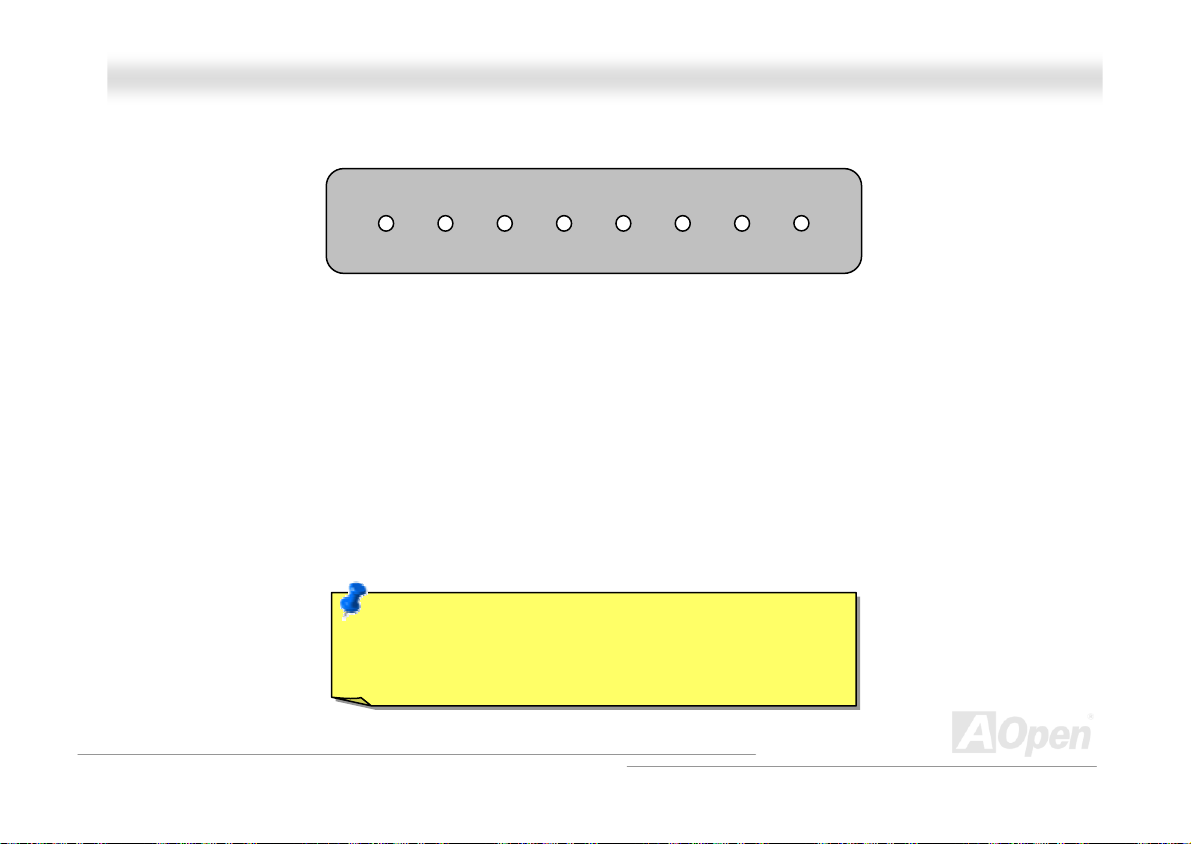

Dr. LED Connector (User Upgrade Optional).................................................................................................................53

Case Open Connector...................................................................................................................................................55

CD Audio Connector .....................................................................................................................................................56

AUX-IN Connector.........................................................................................................................................................57

Game Port Bracket Supported ......................................................................................................................................58

JP14 Clear CMOS D ata Jumpe r.................................................................................................................................... 59

JP20 K7 Host Clock Selec tion.......................................................................................................................................60

JP28 KB/Mouse Wake -up J ump er.................................................................................................................................61

STBY LED.....................................................................................................................................................................6 2

AGP Protection Technology and AGP LED....................................................................................................................63

Battery-less and Long Life Design.................................................................................................................................64

Resetable Fuse .............................................................................................................................................................65

2200μF

PHOENIX-AWARD BIO S..............................................................................................................68

How To Use Phoenix-Award™ BIOS Setup Program ....................................................................................................69

How To Enter BIOS Setup.............................................................................................................................................70

WinBIOS Utility .............................................................................................................................................................71

BIOS Upgrade under Windows environment .................................................................................................................73

Low ESR Capacitor.........................................................................................................................................66

OOnnlliinnee MMaannuuaal

AAKK7777--660000NN

Vivid BIOS technology................................................................................................................................................... 75

Driver and Utility .......................................................................................................................76

Auto-run Menu from Bonus CD .....................................................................................................................................76

Installing VIA 4 in 1 Driver.............................................................................................................................................77

Installing Audio Driver...................................................................................................................................................78

Installing USB2.0 Driver ................................................................................................................................................ 79

Installing LAN Dri ver .....................................................................................................................................................80

AOConfig Utility .............................................................................................................................................................83

The noise is gone!! ---- SilentTek ..................................................................................................................................85

EzClock.........................................................................................................................................................................8 8

Glossar y ....................................................................................................................................92

AC97 CODEC ...............................................................................................................................................................92

ACPI (Advanced Configurat ion & Power I nterf ace) .......................................................................................................92

ACR (Advanced C ommuni cati on Rise r) .........................................................................................................................92

AGP (Accelerated Graphic Port)....................................................................................................................................93

AMR (Audio/Modem Riser) ............................................................................................................................................93

ATA (AT Attachment).....................................................................................................................................................93

BIOS (Basic Input/Output System)................................................................................................................................94

Bluetooth ....................................................................................................................................................................... 94

OOnnlliinnee MMaannuuaal

AAKK7777--660000NN

CNR (Communication and Networking Riser)................................................................................................................95

DDR (Double Data Rate) RAM......................................................................................................................................95

ECC (Error Checking and Correctio n) ...........................................................................................................................96

EEPROM (Electronic Erasabl e Prog rammabl e ROM).................................................................................................... 96

EPROM (Erasable Program mabl e ROM) .......................................................................................................................96

EV6 Bus........................................................................................................................................................................96

FCC DoC (Declarati on of C onfo rmity ) ...........................................................................................................................97

FC-PGA (Flip Chip-Pin Grid Array)................................................................................................................................ 97

FC-PGA2 (Flip Chip-Pin Grid Array).............................................................................................................................. 97

Flash ROM....................................................................................................................................................................97

Hyper Threading ...........................................................................................................................................................97

IEEE 1394 .....................................................................................................................................................................98

Parity Bit .......................................................................................................................................................................98

PCI (Peripheral Component Interface) Bus ...................................................................................................................99

PDF Format...................................................................................................................................................................99

PnP (Plug and Play)......................................................................................................................................................99

POST (Power-On Self Test) ..........................................................................................................................................99

PSB (Processor Syst em Bus ) Cloc k............................................................................................................................100

RDRAM (Rambus Dynamic Random Access Me mory)................................................................................................100

OOnnlliinnee MMaannuuaal

AAKK7777--660000NN

RIMM (Rambus Inline Memory Module) ......................................................................................................................100

SDRAM (Synchronous DRAM)....................................................................................................................................100

SATA (Serial ATA) .......................................................................................................................................................101

SMBus (System Management Bus).............................................................................................................................101

SPD (Serial Presen ce Det ect).....................................................................................................................................101

USB 2.0 (Universal Se rial Bus) ...................................................................................................................................101

VCM (Virtual Channel Memory)................................................................................................................................... 10 2

Wireless LAN – 80 2.11b.............................................................................................................................................. 1 02

ZIP file.........................................................................................................................................................................102

Troubleshooting.......................................................................................................................103

Technical Support ...................................................................................................................107

Product Registr ation ...............................................................................................................110

How to Contact Us ..................................................................................................................111

OOnnlliinnee MMaannuuaal

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

YYoouu MMuusstt NNoottiiccee

Adobe, the Adobe logo, Acrobat is trademarks of Adobe Systems Incorporated. AMD, the AMD logo, Athlon and Duron are trademarks of Advanced Micro Devices, Inc. Intel, the Intel logo, Intel Celeron, Pentium II, Pentium III, Pentium 4 are trademarks of Intel Corporation. Microsoft, Windows, and Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United

States and/or other countries. All product and brand names used on this manual are used for identification purposes only and may be the registered

trademarks of their respective owners.

All of the specifications and information contained in this manual are subject to change without notice. AOpen reserves the right to revise this publication and to make reasonable changes. AOpen assumes no responsibility for any errors or inaccuracies that may appear in this manual, including the products and software described in it.

This documentation is protected by copyright law. All rights are reserved. No part of this document may be used or reproduced in any form or by any means, or stored in a database or retrieval system without prior written permission from AOpen Corporation. Copyright

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

BBeeffoorree YYoouu SSttaarrtt

This Online Manual will introduce to the user how this product is installed. All useful information will be described in later chapters. Please keep this manual carefully for future upgrades or system configuration changes. This Online Manual is saved in PDF format get free download from Adobe web site

Although this Online Manual is optimized for screen viewing, it is still capable for hardcopy printing, you can print it by A4 paper size and set 2 pages per A4 sheet on your printer. To do so, choose File > Page Setup and follow the instruction of your printer driver.

Thanks for the help of saving our earth.

, we recommend using Adobe Acrobat Reader 5.0 for online viewing, it is included in Bonus CD disc or you can

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

OOvveerrvviieeww

Thank you for choosing AOpen AK77-600N. The AK77-600N is AMD® Socket 462 motherboard (M/B) based on the ATX form factor featuring the VIA Apollo KT600 chipset Socket 462 series Athlon™ & Duron™ and AthlonXP™ processor (with CPU Overheat Protection circuit to Athlon™XP CPU only) and 200/266/333/400 MHz EV6 and pipelined spilt-transaction long burst transfer up to 2.1GB/sec. With high bandwidth 266/533MB/s 8-bit V-Link Host Controller, DDR400(PC3200) DDR400 maximum memory size can be up to 2GB and DDR333/266 up to 3GB. The on-board IDE controller supports Ultra DMA 66/100/133 mode and the transfer rate up to 133MB/s. Beside, AK77-600N has an AC97 CODEC onboard for provides high performance and magic surround stereo sound to let people enjoy working with it. More than that, this motherboard supports USB

2.0 function with a fancy speed of up to 480Mbps.

Now, enjoy all features from AOpen AK77-600N.

. As high performance chipset built in the M/B, the AK77-600N comes with AMD®

system bus. In the AGP performance, it has one AGP slot and supports AGP 8X/4X/2X mode

, DDR333(PC2700) and DDR266(PC2100) DDR RAM can be applied to the AK77-600N and

RealTek ALC650 chipset

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

FFeeaattuurree HHiigghhlliigghhtt

CPU

Supports AMD® Socket 462 series CPU with both 200/266/333/400 MHz EV6 Bus designed for Socket 462 technology. Athlon: 600MHz~1.4GHz Duron: 600MHz~1.2GHz AthlonXP: 1500+(1.33GHz)~3200+(2.2GHz)

Chipset

The VIA Apollo KT600 consists of the KT600 V-Link DDR Host system controller and the VT8235-CD highly integrated V-Link Client PCI/LPC controller. The Host system controller provides superior performance between the CPU, SDRAM, AGP bus, and V-Link interface with pipelined, burst, and concurrent operation. The VT8235-CD V-Link Client controller is a highly integrated PCI/LPC controller. Its internal bus structure is based on 66MHz PCI bus that provides 8x bandwidth compare to previous generation PCI/ISA bridge chips. The VT8235-CD integrated Client V-Link controller with 266/533MB/s bandwidth between Host/Client V-Link interface, providing a V-Link-PCI and V-Link-LPC controller.

Ultra DMA 66/100/133 Bus Master IDE

Comes with an on-board PCI Bus Master IDE controller with two connectors that supports four IDE devices in two channels, supports Ultra DMA 66/100/133, PIO Modes 3 and 4 and Bus Master IDE DMA Mode 4, and supports Enhanced IDE devices.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

LAN Port

On the strength of RealTek RTL8100BL controller on board, which is an highly-integrated Platform LAN Connect device, it provides 10/100 Mbps Ethernet for office and home use.

Expansion Slots

Including six 32-bit/33MHz PCI, one CNR and one AGP 8X slots. The PCI local bus throughput can be up to 132MB/s. The

Communication & Networking Riser (CNR)

The Accelerated Graphics Port (AGP) video cards support data transfer rate up to 2.1GB/s. As AK77-600N includes one AGP expansion slot for a bus mastering AGP graphic card, For AD and SBA signaling, AK77-600N can support 133MHz 2X/4X/8X mode. AK77-600N supports six master PCI slots for arbitration and decoding functions.

slot provided from AK77-600N can support CNR interface for a Modem/Audio card.

specification provides a new level of video display sophistication and speed. The AGP

Memory

With VIA Apollo KT600 chipset, the AK77-600N can support Double-Data-Rate (DDR) RAM. The DDR RAM interface allows zero wait state bursting between the RAM and the data buffers at 400/333/266/200 MHz. The six banks of DDR RAM can be composed of an arbitrary mixture of 64, 128, 256, 512,1024MB x N DDR RAM and support DDR400 maximum up to 2GB and DDR333/266 up to 3GB. The AK77-600N allows DDR RAM to run at either synchronous or pseudo-synchronous mode with the host CPU bus frequency (400/333/266/200MHz).

AAKK7777--660000NN

On-board AC97 Sound

AK77-600N uses the AC97 CODEC RealTek ALC650 chip, which supports high quality of 5.1 Channel audio effects. This on-board audio includes a complete audio recording and playback system.

Six USB 2.0 Connectors

Provides six USB ports for USB interface devices, such as mouse, keyboard, modem, scanner, etc. Please note that USB 2.0, with fancy speed up to 480Mbps, is 40 times faster than the traditional ones. Except for the speed increase, USB 2.0 supports old USB 1.0/1.1 software and peripherals, offering impressive and even better compatibility to customers.

1MHz Stepping CPU Frequency Adjustment

Provides “1MHz Stepping CPU Frequency Adjustment” function in the BIOS. This magic function allows you adjust CPU FSB frequency from 100~250MHz by 1MHz stepping, and lets your system can get maximum performance.

Watch Dog ABS

Includes AOpen “Watch Dog ABS” function that can auto-reset system in 4.8 seconds when you fail the system overclocking.

Dr. LED (User Upgrade Optional)

Dr. LED has 8 LEDs on AK77-600N, which can easily show what kind of problem you may encounter.

OOnnlliinnee MMaannuuaal

AAKK7777--660000NN

Power Management/Plug and Pla y

AK77-600N supports the power management function that confirms to the power-saving standards of the U.S. Environmental Protection Agency (EPA) Energy Star program. It also offers Plug-and-Play problems, thus making the system much more user-friendly.

Hardware Monitoring Management

Supports CPU or system fans status, temperature and voltage monitoring and alert, through the on-board hardware monitor module and AOpen Hardware Monitoring Utility.

Enhanced ACPI

Fully implement the ACPI standard for Windows® 95/98/ME/NT/2000/XP series compatibility, and supports Soft-Off, STR (Suspend to RAM, S3), STD (Suspend to Disk, S4), WOM (Wake On Modem), WOL (Wake On LAN) features.

Super Multi-I/O

AK77-600N provides two high-speed UART compatible serial ports and one parallel port with EPP and ECP capabilities. UART2 can also be directed from COM2 to the Infrared Module for the wireless connections.

, which helps saving users from configuration

OOnnlliinnee MMaannuuaal

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

QQuuiicckk IInnssttaallllaattiioonn PPrroocceedduurree

This page gives you a quick procedure on how to install your system. Follow each step accordingly.

1. Installing CPU and Fan

2. Installing System Memory (DIMM)

3. Connecting Front Panel Cable

4. Connecting IDE and Floppy Cable

5. Connecting A TX Power Cable

6. Connecting Back Panel Cable

7. Power-on and Load BIOS Setup Default

8. Setting CPU Frequency

9. Reboot

10. Installing Operating System (such as Windows XP)

11. Installing Driver and Utility

SYS

FAN

2 C

JP20 K7 Host Clock

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

Front Audio Connector

AC97 CODEC

AUX-IN Connector

S/PDIF Connector

CD-IN Connector

Case Open Connector

Phoenix Award 2Mbit Flash

32-bit PCI Expansion Slot x6

ROM BIOS

Game Port Connector

ansion Slot

CNR Ex

IrDA Connector

WOM Connector

USB 2.0 Connector

JP14 Clear CMOS Jum

Dr. LED Connector

(User Upgrade Optional)

WOL Connector

Front Panel Connector

onnector

Motherboard Map

Colored Back Panel

JP28 Keyboard/Mouse Wakeup Jumper

RealTek RTL8100BL ATX Power Connector

2200μF Low ESR Capacitors SYSFAN3 Connector

AGP 8x Slot 462-pin CPU Socket with

Voltage and Frequency Auto-Detection that supports

AthlonTM / DuronTM /

AMD and AthlonTMXP (with CPU Overheat Protection circuit to

XP CPU only)

Athlon CPUFAN1 Connector

VIA® Apollo KT600 Chipset and VT8235-CD SB

184-pin DIMMx3 supports DDR400 max. up to 2GB and DDR333/DDR266 max up to 3GB

umper

IDE Connector x 2 (ATA/66/100/133 supported)

FDD Connector

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

BBlloocckk DDiiaaggrraamm

Socket 462

AMD

Athlon/Duron/AthlonXP

CPU

AGP 8X Slot

DDR400 RAM Up to 2GB and

DDR SDRAM Socket x3

100/133/166/200

MHz System

Bus

AGP Bus

LAN connect Component

DDR333/266 Up to 3GB

VIA KT600

PCI Bus

RealTek RTL8100

1stUSB Port

2ndUSB Port

3rdUSB Port

USB connector x6

32-bit PCI Slot x6

ATA

66/100/133

Primary Channel

Secondary

Channel

VT8235-CD

IDE Drive x4

AC’97 Link

Audio CODEC

CNR Slot

2MBit Flash EEPROM

Parallel Port

Serial Port x2

Floppy Disk Driv e x2

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

HHaarrddwwaarree IInnssttaallllaattiioonn

This chapter describes jumpers, connectors and hardware devices of this motherboard.

Note: Electrostatic discharge (ESD) can damage your processor, disk drives, expansion boards, and other components. Always observe the following precautions before you install a system component.

1. Do not remove a component from its protective packaging until you are ready to install it.

2. Wear a wrist ground strap and attach it to a metal part of the system unit before handling a component. If a wrist strap is not available, maintain contact with the system unit throughout any procedures requiring ESD protection.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

AAbboouutt ““MMaannuuffaaccttuurreerr UUppggrraaddee OOppttiioonnaall”” aanndd ““UUsseerr UUppg OOppttiioonnaall””……

When you read this online manual and start to assemble your computer system, you may find some of functions are called “Manufacturer Upgrade Optional”, and some are called “User Upgrade Optional”. Though all AOpen motherboards include many amazing and powerful features, in some situations, these powerful features are not used to every user. Hence, we changed some key features as “Manufacturer Upgrade Optional” for you to choose. Some optional functions that can be upgraded by users, we call them “User Upgrade Optional”. As for those optional functions that can’t be upgraded by ourselves, we call them “Manufacturer Upgrade Optional”. If needed, you can contact our local distributors or resellers for purchasing “User Upgrade Optional” components, and again you can visit AOpen official web site: http://english.aopen.com.tw/

grraaddee

for more detail information.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

CCPPUU IInnssttaallllaattiioonn

This motherboard supports AMD® Athlon XP, Athlon and Duron Socket 462 series CPU. Be careful of CPU orientation when you plug it into CPU socket (with CPU Overheat Protection function implemented, the system will be automatically power off when the temperature of CPU reached 97 degree, but works on AthlonXP CPU only).

1. Pull up the CPU socket lever and up to 90-degree angle.

2. Locate Pin 1 in the socket and look for a black dot or cut edge on the CPU upper interface. Match Pin 1 and cut edge, then insert the CPU into the socket.

CPU socket

Lever

Note: This picture is for example only; it may not exactly be the same motherboard.

CPU pin 1

and cut edge

Black dot

and cut edge

AAKK7777--660000NN

3. Press down the CPU socket lever and finish CPU installation.

Note: This picture is for example only; it may not exactly be the same motherboard.

CPU cut edge

Note: If you do not match the CPU socket Pin 1 and CPU cut edge well, it ma

OOnnlliinnee MMaannuuaal

damage the CPU.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

EEzzCCoolloorr

Breaking through traditional outlook of motherboard, AOpen now brings you a new fresh look of motherboard! – EzColor! Fancy? You may think so, but actually it is a practical and useful feature for amateur or even power-users. Coming in specific

color for specific connector and module, components on motherboard are now born with their respective colors. Users may now easily recognize what jumper or cable should match with specific jumper or cable by COLOR, without having the trouble of holding user guide in one hand and connecting jumpers with the other hand.

And what makes this feature so great is that, even the easy-to-get-confused front panel connector is differentiated now with different light colors!

Electric Blue: Memory Modu

Brown: CNR Slot

Sand: PCI Master

Sky Blue: AGP Slot

Flame Red: ATX Power Connector

AAKK7777--660000NN

IDE LED

SPEAKER

Note: Colors setting varies on different motherboards, the color setting here applies only to AK77-600N

Power Switch

ACPI & Power LED

RESET

Black: IDE 2 Connector

OOnnlliinnee MMaannuuaal

Navy Blue: IDE 1 Connector

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

AAOOppeenn OOvveerrhheeaatt PPrrootteeccttiioonn ((OO..HH..PP..)) TTeecchhnnoollooggyy

With AMD platform substantially keeps increasing the speed of its CPU, it inevitably led to the

annoying problem of high CPU operation temperature at the same time. In order to prevent accidental failure of CPU fan, which could cause the burning down of the AthlonXP CPU, we, AOpen, have meticulously developed a new technology, named, O.H.P. (Overheat Protection) Technology to protect them. Thanks to the intelligent monitoring design of AOpen O.H.P. technology, user can now finally set their mind at ease even when fan failed to work without fearing the possible damage of CPU.

Under the circumstances that CPU fan is running properly, AthlonXP temperature should be way below the highest

temperature limit of 97℃. However, if CPU fan accidentally becomes malfunction or improperly installed, the CPU temperature would rocket abruptly, and you may find your system hang up or crying over the smoking CPU if you haven’t installed AOpen O.H.P. previously. With AOpen O.H.P. technology applied, the specific thermal detection pins on AthlonXP CPU would sense voltage difference when processor is overheated with fan failed, and the overheat protection system would immediately send out a signal to abort your system by cutting CPU electricity before any damage is done. Unlike other manufacturers who use BIOS or software to control the power supply of CPU, AOpen O.H.P. Technology is purely hardware-controlled the minute after system boot-up, and occupies no system resource. We are pleasant to phase in

this practical function on all AOpen AMD series motherboards to protect customer’s valuable hardware and personal data.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

CCPPUU OOvveerr--ccuurrrreenntt PPrrootteeccttiioonn

Over Current Protection has been popularly implemented on ATX 3.3V/5V/12V switching power supply for a while. However, new generation CPU is able to use regulator of different voltages to transfer 12V to CPU voltage (for example, to 2.0V). This motherboard is with switching regulator onboard that supports CPU over-current protection, and it applies to 3.3V/5V/12V power supply for providing full line over-current protection.

ATX Switching Power Supply

Note: Although we have implemented protection circuit try to prevent any human operating mistake, there is still certain risk that CPU, memory, HDD, add-on cards installed on this motherboard may be damaged because of component failure, human operating error or unknown nature reason. AOpen cannot guaranty the protection circuit will always work perfectly.

12V (Protected by power supply)

3.3V (Protected by power supply)

5V (Protected by power supply)

Onboard Power Regulator

(Over-Current Protection)

CPU Core Voltage

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

EEnnllaarrggeedd AAlluummiinnuumm HHeeaattssiinnkk

Cool down CPU and Chipset is important for system reliability. Enlarged aluminum heat sink provides better heat consumption especially when you are trying to over clocking the CPU.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

FFuullll--rraannggee AAddjjuussttaabbllee CCPPUU CCoorree VVoollttaaggee

This function is dedicated to overclockers. The CPU core voltage of this motherboard is adjustable 1.10V to 1.85V by 0.05V stepping. But this motherboard can also automatically detect CPU VID signal and generates proper CPU core voltage.

BIOS Setup > Frequency/Voltage Control > CPU Voltage Setting

Warning: Higher CPU core voltage may be

able to increase CPU speed for overclocking, but you may damage the CPU or reduce the CPU lifecycle.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

SSeettttiinngg CCPPUU FFrreeqquueennccyy

This motherboard is CPU jumper-less design, you can set CPU frequency through the BIOS setup, and no jumpers or switches are needed.

BIOS Setup > Frequency/Voltage Control > CPU Speed Setting

CPU Ratio CPU FSB

(By manual Adjustment)

Warning: VIA® Apollo KT600 chipset supports 200MHz FSB (with performance reaches maximum 400MHz EV6 system bus) and 66MHz AGP clock, higher clock setting may cause serious system damage.

Home

From 5x to 18x step 0.5x FSB=100, 100~129 by 1MHz stepping adjustment technology FSB=133, 130~160 by 1MHz stepping adjustment technology FSB=166, 161~191 by 1MHz stepping adjustment technology FSB=200, 200-250 by 1MHz stepping adjustment technology

Warnin g: Supposed you have had adjusted CPU

Speaker

ratio on your current CPU, and you plan to replace a new CPU. Please use <Home> key or Clear CMOS to restore the default setting when changing a new CPU, because the system will still implement the previous CPU setting on the new one.

Tip: If your system hangs or fails to boot because of overclocking, simply use <Home> key to restore the default setting or you can wait the AOpen “Watch Dog ABS” reset the system after five seconds and system will auto-detect hardware again.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

SSuuppppoorrtteedd CCPPUU FFrreeqquueennccyy

Core Frequency = CPU Bus Clock * CPU Ratio PCI Clock = CPU Bus Clock / Clock Ratio

AGP Clock = PCI Clock x 2 EV6 Bus Speed = CPU external bus clock x 2

CPU

Athlon 1.33G 1.33GHz 266MHz 10.0x Athlon 1.4G 1.4GHz 266MHz 10.5x AthlonXP 1500+ 1.3GHz 266MHz 10.0x AthlonXP 1600+ 1.4GHz 266MHz 10.5x AthlonXP 1700+ 1.46GHz 266MHz 11.0x AthlonXP 1800+ 1.53GHz 266MHz 11.5x AthlonXP 1900+ 1.6GHz 266MHz 12.0x AthlonXP 2000+ 1.667GHz 266MHz 12.5x AthlonXP 2100+ 1.73GHz 266MHz 13x AthlonXP 2200+ 1.80GHz 266MHz 13.5x AthlonXP 2400+ 2.0GHz 266MHz 15x AthlonXP 2500+ (Barton) 1.833GHz 333MHz 11x AthlonXP 2600+ 2.13GHz 266MHz 16x AthlonXP 2600+ 2.08GHz 333MHz 12.5x AthlonXP 2700+ 2.16GHz 333MHz 13x AthlonXP 2800+ (Barton) 2.083GHz 333MHz 12.5x AthlonXP 3000+ (Barton) 2.167GHz 333MHz 13x AthlonXP 3200+ (Barton) 2.2GHz 400MHz 11x

Note: With CPU speed changing rapidly, there might be fastest CPU on the market

by the time you received this installation guide. This table is kindly for your references only.

CPU Core Frequency

EV6 Bus Clock

Ratio

Note: This motherboard support CPU auto-detection function. Hence, you don’t need to setup the CPU frequency manually.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

AAOOppeenn ““WWaattcchh DDoogg AABBSS””

CPU FSB system to reboot in five seconds. Then, BIOS will detect the CPU’s default frequency and POST again. With this special feature, you can easily overclock your system to get higher system performance without removing the cover of system housing, and be able to set the jumper to clear CMOS data when your system hanged.

frequency by user’s setting that stored in the BIOS. If system failed in BIOS POST, the “Watch Dog ABS” will reset the

Enable/Disable Signal

AOpen

Watch Dog ABS

With this motherboard, AOpen provides a very special, useful feature for overclockers. When you power-on the system, the BIOS will check last system POST succeeded, the BIOS will enable “Watch Dog ABS” function immediately, and set the

from BIOS

BIOS

Reset Signal

Clock Generator

Countdown about 5 seconds if fails in POST

CPU

status. If it

CPU ID Signal

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

CCPPUU aanndd HHoouussiinngg FFaann CCoonnnneeccttoorr ((wwiitthh HH//WW MMoonniittoorriinngg)

Plug in the CPU fan cable to the 3-pin CPUFAN1 connector. If you have chassis fan, you can also plug it on SYSFAN2 (FAN2) or SYSFAN3 (FAN3) connector.

SYSFAN2 Connector

GND +12V SENSOR

Note: Some CPU fans do not have sensor pin, so that cannot support fan monitoring.

SYSFAN3 Connector

CPUFAN1 Connector

)

GND +12V

GND +12V SENSOR

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

DDIIMMMM SSoocckkeettss

This motherboard has three 184-pin DDR DIMM sockets that allow you to install DDR266/333 memory up to 3 GB and DDR400 memory up to 2GB. Non-ECC DDR RAM is supported. Otherwise, it will cause serious damage on memory sockets or RAM module. Newly implemented function, the Voltage of memory on this motherboard is adjustable from 2.5V to 2.8V for over clocking purpose.

Warning: This motherboard supports DDR RAM. Please do not install the SDRAM on the DDR RAM sockets; otherwise it will cause serious damage on memory sockets or SDRAM module.

Note: According to the standard DDR400 specification from JEDEC (Joint Electron Device Engineering Council), it is regulated that DDR400 supports only 2x DIMM on the memory module for a maximum 2GB capacity, and DDR333 supports up to 3x DIMM for a maximum of 3GB capacity. Please be noted that KT600 series motherboards follow this standard specification on memory as well.

DDR RAM

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

HHooww ttoo IInnssttaallll MMeemmoorryy MMoodduulleess

Please follow the procedure as shown below to finish memory installation.

1. Make sure the DIMM module’s pin face down and match the socket’s size as depicted below.

2. Insert the module straight down to the DIMM slot with both hands and press down firmly until the DIMM module is securely

in place.

3. Repeat step 2 to finish additional DIMM modules installation.

Pin 1

Tab

Key

52 pins 40 pins

Note: The tabs of the DIMM slot will close-up to hold the DIMM in place when the DIMM touches the slot’s bottom.

Pin 1

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

AATTXX PPoowweerr CCoonnnneeccttoorr

The ATX power supply uses 20-pin connector shown below. Make sure you plug in the right direction.

AACC PPoowweerr AAuuttoo RReeccoovveerryy

A traditional ATX system should remain at power off stage when AC power resumes from power failure. This design is inconvenient for a network server or workstation, without an UPS, that needs to keep power-on. This motherboard implements an AC Power Auto Recovery function to solve this problem.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

IIDDEE aanndd FFllooppppyy CCoonnnneeccttoorr

Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDC connector. Be careful of the pin1 orientation. Wrong orientation may cause system damage.

Pin 1

Secondary

Slave (4th)

Primary

Slave (2nd)

FDD Connector

Secondary

Master (3rd)

IDE2 (Secondary) IDE1 (Primary)

Primary

Master (1st)

AAKK7777--660000NN

IDE1 is also known as the primary channel, IDE2 is known as the secondary channel. Each channel supports two IDE devices that make a total of four devices. In order to work together, the two devices on each channel must be set differently to Master and Slave mode. Either one can be the hard disk or the CDROM. The setting as master or slave mode depends on the jumper on your IDE device, so please refer to your hard disk and CDROM manual accordingly.

Warning: The specification of the IDE cable is a maximum of 46cm (18 inches); make sure your cable does not exceed this length.

Tip:

1. For better signal quality, it is recommended to set the far end side device to master mode and follow the suggested sequence to install your new device. Please refer to above diagram

2. To achieve the best performance of Ultra DMA 66/100/133 hard disks, a special 80-wires IDE cable for Ultra DMA 66/100/133 is required.

OOnnlliinnee MMaannuuaal

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

AATTAA//113333 SSuuppppoorrtteedd

This motherboard supports ATA66, ATA100 or ATA133 IDE devices. Following table lists the transfer rate of IDE PIO and DMA modes. The IDE bus is 16-bit, which means every transfer is two bytes. As the hard drive industry introduces faster and higher capacity hard drives, the current Ultra ATA/100 interface causes a data bottleneck between the drive and the host computer. To avoid this problem, hard disk manufacturers have introduced the new Ultra ATA-133 interface technology. traditional ATA/100, ATA/133 has up to 33 percent increase in interface speed with transfer rate of 133MB/s. ATA/133 performance is ideal for new operating systems, such as Window XP, that demand more storage space and faster data transfer rates from more responsive computing experiences. To make good use of this new technology and enjoy its best performance, we recommend you to pair your system with a hard disk equipped with ATA/133 technology so that your system's need for speeding on this motherboard can be satisfied.

Mode Clock Period Clock Count Cycle Time Data Transfer Rate

PIO mode 0 30ns 20 600ns (1/600ns) x 2byte = 3.3MB/s PIO mode 1 30ns 13 383ns (1/383ns) x 2byte = 5.2MB/s PIO mode 2 30ns 8 240ns (1/240ns) x 2byte = 8.3MB/s PIO mode 3 30ns 6 180ns (1/180ns) x 2byte = 11.1MB/s PIO mode 4 30ns 4 120ns (1/120ns) x 2byte = 16.6MB/s DMA mode 0 30ns 16 480ns (1/480ns) x 2byte = 4.16MB/s DMA mode 1 30ns 5 150ns (1/150ns) x 2byte = 13.3MB/s DMA mode 2 30ns 4 120ns (1/120ns) x 2byte = 16.6MB/s ATA33 30ns 4 120ns (1/120ns) x 2byte x 2 = 33MB/s ATA66 30ns 2 60ns (1/60ns) x 2byte x 2 = 66MB/s ATA100 20ns 2 40ns (1/40ns) x 2byte x 2 = 100MB/s ATA133 15ns 2 30ns (1/30ns) x 2byte x 2 = 133MB/s

Compared to

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

FFrroonntt PPaanneell CCoonnnneeccttoorr

Attach the power LED, speaker, power and reset switch connectors to the corresponding pins. If you enable “Suspend Mode” item in BIOS Setup, the ACPI & Power LED will keep flashing while the system is in suspend mode.

Locate the power switch cable from your ATX housing. It is 2-pin female connector from the housing front panel. Plug this connector to the soft-power switch connector marked SPWR.

Suspend Type ACPI LE D

Power on Suspend (S1) Blinking between green and red Suspend to RAM (S3) or Suspend to Disk (S4) Blinking between green and red

NC NC

+5V

+5V +5V

GND

SPWR GND ACPILEDGND ACPILED+ NC NC GND RESET GND

IDE LED

SPEAKER

Power Switch

ACPI & Power LED

RESET

IDE LED IDE LED

SPEAKER

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

IIrrDDAA CCoonnnneeccttoorr

The IrDA connector can be configured to support wireless infrared module, with this module and application software such as Laplink or Windows 95 Direct Cable Connection, the user can transfer files to or from laptops, notebooks, PDA devices and printers. This connector supports HPSIR (115.2Kbps, 2 meters) and ASK-IR (56Kbps).

Install the infrared module onto the IrDA connector and enable the infrared function from BIOS Setup, UART2 Mode, make sure to have the correct orientation when you plug in the IrDA connector.

Pin 1

IR_TX

IrDA Connector

+5V

KEY GND IR_RX

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

AAGGPP ((AAcccceelleerraatteedd GGrraapphhiicc PPoorrtt)) 88XX EExxppaannssiioonn SSlloott

The AK77-600N provides an AGP 8x slot. The AGP 8x is a bus interface targeted for high-performance 3D graphic. AGP supports only memory read/write operation and single-master single-slave one-to-one only. AGP uses both rising and falling edge of the 66MHz clock, for 4X AGP, the data transfer rate is 66MHz x 4bytes x 4 = 1056MB/s. AGP is now moving to AGP 8x mode, which is 66MHz x 4bytes x 8 =2.1GB/s, This AGP expansion slot is for 1.5V-1.6V AGP card only.

Note: Please note that this motherboard only supports 1.5V 2X AGP Card.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

WWOOMM ((ZZeerroo VVoollttaaggee WWaakkee oonn MMooddeemm)) CCoonnnneeccttoorr

This motherboard implements special circuit to support Wake On Modem, both internal modem card and external box modem are supported. Since internal modem card consumes no power when system power is off, it is recommended to use an internal modem. To use internal modem, connect 4-pin cable from RING connector of modem card to the WOM connector on the motherboard.

WOM Connector

+5VSB

RI-

GND

AAKK7777--660000NN

WWOOMM bbyy EExxtteerrnnaall BBooxx MMooddeem

Traditional Green PC suspend mode does not really turn off the system power supply, it uses external box modem to trigger MB COM port and resume back to active.

Note: This picture is for example only; it may not exactly be the same motherboard.

Pin 1 Pin 1

OOnnlliinnee MMaannuuaal

Serial Port

(Modem Side)

Serial Port

(Motherboard Side)

)

AAKK7777--660000NN

WWOOMM bbyy IInntteerrnnaall MMooddeemm CCaarrd

With the help of the ATX soft power On/Off, it is possible to have a system totally power off, and wakeup to automatically answer a phone call as an answering machine or to send/receive a fax. You may identify whether or not your system is in true power off mode by checking to see if the fan of your power supply is off. Both an external box modem and an internal modem card can be used to support Modem Wake Up, but if you use an external modem, you have to leave your box modem on.

WOM Connector

(Motherboard Side)

Note: This picture is for example only; it may not exactly be the same motherboard.

OOnnlliinnee MMaannuuaal

WOM Connector

(Modem Card

Side

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

WWOOLL ((WWaakkee oonn LLAANN)) CCoonnnneeccttoorr

This feature is very similar as Wake On Modem, but it goes through local area network. To use Wake On LAN function, you must have a network card with chipset that supports this feature, and connect a cable from LAN card to motherboard WOL connector. The system identification information (probably IP address) is stored on network card and because there is a lot of traffic on the Ethernet, you need to install network management software, such as ADM, for the checking of how to wake up the system. Note that, at least 600mA ATX standby current is required to support the LAN card for this function.

+5VSB GND LID

AAKK7777--660000NN

WOL Connector

(Motherboard Side)

Note: This picture is for example only; it may not exactly be the same motherboard.

OOnnlliinnee MMaannuuaal

WOL Connector

(Ethernet Card Side)

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

1100//110000 MMbbppss LLAANN oonnbbooaarrd

The South Bridge VT8235-CD includes a fast Ethernet controller on chip. On the strength of RealTek RTL8100BL LAN controller on board, which is a highly-integrated Platform LAN Connect device, it provides 10/100M bps Ethernet for office and home use, the Ethernet RJ45 connector is located on top of USB connectors. The orange LED indicates the link mode, it lights when linking to network and blinking when transferring data. The green LED indicates the transfer mode, and it lights when data is transferring in 100Mbps mode. To enable or disable this function, you may simply adjust it through BIOS.

Green/Transfer

Orange/Link

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

CCNNRR ((CCoommmmuunniiccaattiioonn aanndd NNeettwwoorrkk RRiisseerr)) EExxppaannssiioonn SSllo

CNR is a riser card specification to replace the AMR (Audio/Modem Riser) that supports V.90 analog modem, multi-channel

audio, and phone-line based networking. Owing to CPU computing power getting stronger, the digital processing job can be implemented in main chipset and share CPU power. The analogy conversion (CODEC) circuit requires a different and separate circuit design, which is put on CNR card. This motherboard implements sound CODEC on board, but reserves CNR slot for the option of modem function. Note that you can still use PCI modem card. Please note that if you want to use CNR audio card on CNR slot, you must disable the sound output of CODEC from BIOS to prevent the CODEC from making out noises at the same time.

ott

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

SSuuppppoorrtt SSiixx UUSSBB 22..00 PPoorrtt

This motherboard provides six USB ports to connect USB devices, such as mouse, keyboard, modem, printer, etc. There are four connectors on the PC99 back panel. You can use proper cables to connect the other USB connectors to the USB modules or front panel of chassis. Please note that USB 2.0, with fancy speed up to 480Mbps, is 40 times faster than the traditional ones. Except for the speed increase, USB 2.0 supports old USB 1.0/1.1 software and peripherals, offering impressive and even better compatibility to customers.

SBD2-

SBD2+

Pin 1

+5V

GND

KEY

UUSSBB22 CCoonnnneeccttoorr

+5V SBD3SBD3+ GND NC

USB2 Connector

Note: Please note that if you would like to use USB devices (Example: keyboard, mouse etc.) under DOS environment, you must install driver that comes with the devices to make it work.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

CCoolloorr CCooddeedd BBaacckk PPaanneell

The onboard I/O devices are PS/2 Keyboard, PS/2 Mouse, serial ports COM1 and COM2, RJ45 LAN Jack, Printer, USB, AC97 sound. The view angle of drawing shown here is the back panel of the housing.

PS/2 Keyboard: For standard keyboard, which is using a PS/2 plug. PS/2 Mouse: For PC-Mouse, which is using a PS/2 plug. USB Port: Available for connecting USB devices. Parallel Port: To connect with SPP/ECP/EPP printer. COM1&2 Port: To connect with pointing devices, modem or others serial devices. RJ-45 LAN connector To connect Ethernet for home or office use. Speaker Out: To External Speaker, Earphone or Amplifier. Line-In: Comes from the signal sources, such as CD/Tape player. MIC-In: From Microphone.

PS/2 Mouse

Connector

PS/2 Keyboard

Connector

USB Port

(2.0)

SPP/EPP/ECP

Parallel Port

COM 1 Port COM 2 Por t

RJ45 LAN Jack

USB Port

(2.0)

Line-In

Speaker Out

MIC-In

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

SSuuppeerr 55..11 CChhaannnneell AAuuddiioo EEffffeecctt

This motherboard comes with an ALC650 CODEC, which supports high quality of 5.1 Channel audio effects, bringing you a brand new audio experience. On the strength of the innovative design of ALC650, you're able to use standard line-jacks for surround audio output without connecting any external module. To apply this function, you have to install the audio driver in the Bonus Pack CD as well as an audio application supporting 5.1 Channel. Picture bellow represents the standard location of all speakers in 5.1 Channel sound tracks. Please connect the plug of your front speakers to the green “Speaker out” port, rear speakers’ plug to the blue “Line in” port and both of the center and subwoofer speakers to the red “MIC in” port.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

FFrroonntt AAuuddiioo CCoonnnneeccttoorr

If the housing has been designed with an audio port on the front panel, you’ll be able to connect onboard audio to front panel through this connector. By the way, please remove 5-6 and 9-10 jumper caps from the Front Audio Connector before connecting the cable. Please do not remove these 5-6 and 9-10 yellow jumper caps if there’s no audio port on the front panel.

Pin 1

AUD_MIC AUD_MIC_BIAS AUD_FPOUT_R

AUD_FPOUT_L

AUD_GND AUD_VCC AUD_RET_R KEY AUD_RET_L

AAKK7777--660000NN

SS//PPDDIIFF ((SSoonnyy//PPhhiilliippss DDiiggiittaall IInntteerrffaaccee)) CCoonnnneeccttoor

S/PDIF (Sony/Philips Digital Interface) is a newest audio transfer file format, which provides impressive audio quality through optical fiber and allows you to enjoy digital audio instead of analog audio. Through a specific audio cable, you can connect the S/PDIF connector to other end of the S/PDIF audio module, which bears S/PDIF digital output. Normally there are two S/PDIF outputs as shown, one for RCA connector, the most common one used for consumer audio products, and the other for optical connector with better audio quality. Same as outputs, you can also connect RCA or optical audio products to input connectors on the module and have the voice or music come out from your computer. However, you must have a S/PDIF supported speaker/amplifier/decoder with S/PDIF digital input/output to connect to the S/PDIF digital input/output to make the most out of this function.

(RCA)

S/PDIF OUT

S/PDIF IN

S/PDIF OUT

S/PDIF IN

(Optical)

S/PDIF Module

(User Upgrade Optional)

S/PDIF Cable

Pin 1

S/PDIF

Connector

+5V NC S/PDIFOUT GND S/PDIFIN

OOnnlliinnee MMaannuuaal

Pin 1

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

DDrr.. LLEEDD CCoonnnneeccttoorr ((UUsseerr UUppggrraaddee OOppttiioonnaall))

In conjunction with Dr. LED (User Upgrade Optional), which can easily show what kind of problem you may incur on your system during assembly. It can clearly indicate whether there is a component issue or an installed issue by the 8 LEDs on the front panel of Dr. LED. This helps you quickly self-diagnose your system status.

3.3V KEY

GND

1 2

S1 S2 S3

5 6

AAKK7777--660000NN

Dr. LED is a CD disc storage box with 8 LEDs on its front panel, the size of Dr. LED is exactly the same as 5.25 in floppy drive, so that it can be mount into normal 5.25 in drive bay of any housing.

The total 8 LEDs light up alternatively if the system fails in one of eight stages. Once the LED7 (latest LED) is lit, this indicates that the system has completed its boot-up procedure. The 8 LEDs indicate the following messages when lit:

LED 0 - Indicates that the CPU may have been installed incorrectly or is damaged. LED 1 - Indicates that the memory may have been installed incorrectly or is damaged. LED 2 - Indicates that the AGP may have been installed incorrectly or is damaged. LED 3 - Indicates that the PCI card may have been installed incorrectly or is damaged. LED 4 - Indicates that the floppy disk drive may have been installed incorrectly or is damaged. LED 5 - Indicates that the HDD may have been installed incorrectly or is damaged. LED 6 - Indicates that the keyboard may have been installed incorrectly or is damaged. LED 7 - Indicates that the system is OK.

7 6 5 4 3 2 1 0

Boot O.K.

KB HDD Floppy CPUVideo MemoryPCI

OOnnlliinnee MMaannuuaal

Note: During POST (Power On Self Test) procedure, the Debug LED will light on sequentially from LED0 to LED7 until the system boot O.K

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

CCaassee OOppeenn CCoonnnneeccttoorr

The “CASE OPEN” header provides chassis intrusion-monitoring function. To make this function work, you have to enable it in the system BIOS, connect this header to a sensor somewhere on the chassis. So, whenever the sensor is being triggered by light or opening of the chassis, the system will send out beep sound to inform you. Please be informed that this useful function only applies to advanced chassis, you may purchase an extra sensor, attach it on your chassis, and make a good use of this function.

Pin 1

GND SENSOR

Case Open

Sensor Connector

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

CCDD AAuuddiioo CCoonnnneeccttoorr

This connector is used to connect CD Audio cable from CD-ROM or DVD drive to onboard sound.

R GND GND

CD-IN

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

AAUUXX--IINN CCoonnnneeccttoorr

This connector is used to connect MPEG Audio cable from MPEG card to onboard sound.

R GND GND

AUX-IN

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

+5V

JAB1

JACX

GND GND

JACY

JAB2

+5V

+5V JBB1 JBCX MIDI_TXD JBCY JBB2 MIDI_RXD KEY

GGaammee PPoorrtt BBrraacckkeett SSuuppppoorrtteedd

This motherboard comes with a game port (Joystick-Midi) for you to connect any midi devices or joysticks. To use this function you have to have a joystick module and connect it with a game port cable to this port on the motherboard.

Note: This picture is for example only; it may not exactly look the same with the motherboard you purchased.

Joystick Module

(User Upgrade Optional)

Pin1

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

(default)

Pin 1

Tip: When should I Clear CMOS?

1. Boot fail because of overclocking…

2. Forget password…

3. Troubleshooting…

JJPP1144 CClleeaarr CCMMOOSS DDaattaa JJuummppeerr

You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedures below.

1. Turn off the system and unplug the AC power.

2. Remove ATX power cable from connector PWR2.

3. Locate JP14 and short pins 2-3 for a few seconds.

4. Return JP14 to its normal setting by shorting pin 1 & pin 2.

5. Connect ATX power cable back to connector PWR2.

Clear CMOS

1 1

Normal Operation

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

JJPP2200 KK77 HHoosstt CClloocckk SSeelleeccttiioonn

This jumper is used to specify the relationship of PCI and FSB clock. Generally speaking, if you are not an over-clocker, we recommend you to set it to the default setting. Additionally, this motherboard also provides “1MHz Stepping CPU Adjustment” feature for overclockers to adjust CPU FSB frequency via BIOS setup program. Based on the CPU type, the adjustment range has four levels: 100~129, 130~160, 161~191 and 200-250MHz for your choosing. If you fix the CPU FSB frequency by JP20, the “1MHz Stepping CPU Adjustment” range will be changed and follow the JP20 setting.

Pin 1

JP20 K7 Host Clock

Select Jumper

1 2

FSB100 FSB133 FSB166 FSB200

(

)

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

JJPP2288 KKBB//MMoouussee WWaakkee--uupp JJuummppeerr

This motherboard provides keyboard / mouse wake-up function. You can use JP28 to enable or disable this function, which could resume your system from suspend mode with keyboard or mouse installed. The factory default setting is set to “Disable”(1-2), and you may enable this function by setting the jumper to pin2-3.

JP28 KB/Mouse

Wake-up Jumper

Disable

Default

Enable

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

SSTTBBYY LLEEDD

STBY LED is AOpen’s considerate design that aims at providing you friendly system information. The STBY LED will light up when power is provided to the motherboard. This is a convenient indication for you to check the system power status in many circumstances such as power on/off, stand-by mode and RAM power status during Suspend to RAM mode.

System

Power LED

Warning: Do not install or remove the DIMM module or others devices when the STBY LED lights on.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

AAGGPP PPrrootteeccttiioonn TTeecchhnnoollooggyy aanndd AAGGPP LLEEDD

WWiitthh tthhee oouuttssttaannddiinngg RR&&DD aabbiilliittyy ooff AAOOppeenn aanndd iittss s pprrootteecctt yyoouurr mmootthheerrbbooaarrdd

s mmootthheerrbbooaarrdd wwiillll aauuttoommaattiiccaallllyy ddeetteecctt tthhee vvoollttaaggee

tthhiis tthhaatt iiff yyoouu iinnssttaallll aa AAGGPP cca

ssssiibbllee ddaammaaggee ooff tthhee eexxcceeeeddiinngg vvoollttaaggee.. YYoouu mmaayy ccoon

ppo

ffrroomm bbeeiinngg ddaammaaggeedd bbyy oovveerr--vvoollttaaggiinngg ooff AAGGPP ccaarrdd..

rrdd wwiitthh 33..33VV,, wwhhiicchh iiss nnoott ssuuppppoorrtteedd,, tthhee AAGGPP LLEEDD o

sppeecciiaallllyy ddeevveellooppeedd cciirrccuuiitt,, tthhiiss mmooddeell iimmpplleemmeennttss

ooff AAGGPP ccaarrdd aanndd pprreevveenntt yyoouurr cchhiippsseettss ffrroomm bbeeiinngg b

nttaacctt yyoouurr AAGGPP ccaarrdd vveennddoorr ffoorr ffuurrtthheerr ssuuppppoorrtt..

aa bblleenndd nneeww tteecchhnnoollooggyy ttoo

WWhheenn AAGGPP PPrrootteeccttiioonn TTeecchhnnoollooggyy iiss iimmpplleemmeenntteedd,,

buurrnntt oouutt.. PPlleeaassee nnoottee

onn tthhee mmootthheerrbbooaarrdd wwiillll lliigghhtt uupp ttoo wwaarrnn yyoouu tthhee

AGP LED

Warning: It is strongly recommended not to install a 3.3V AGP card, which is not supported. When you do so, the AGP LED on the motherboard will light up to warn you the possible damage.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

Auto Sw it ch

RTC

CMOS

Battery

Auto switching to ATX standby power as long as AC power line is plugged. This smart design can increases battery life if you still had battery plugged on motherboard.

Backup by EEPROM

BBaatttteerryy--lleessss aanndd LLoonngg LLiiffee DDeessiiggnn

This Motherboard implements Flash ROM and a special circuit that allows you to save your current CPU and CMOS Setup configurations without using the battery. The RTC (real time clock) can also keep running as long as the power cord is plugged. If you lose your CMOS data by accident, you can just reload the CMOS configurations from Flash ROM and the system will recover as usual.

Flash

ROM

ATX Stand-by Power

(Real Time Clock)

00:00:00

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

RReesseettaabbllee FFuussee

Traditional motherboard has fuse for Keyboard and USB port to prevent over-current or shortage. These fuses are soldered onboard that user cannot replace it when it is damaged (did the job to protect motherboard), and the motherboard remains malfunction.

With expensive Resetable Fuse, the motherboard can resume back to normal function after fuse had done its protection job.

Resetable

Fuse

AAKK7777--660000NN

2222000

The quality of low ESR capacitor (Low Equivalent Series Resistance) during high frequency operation is very important for the stability of CPU power. The idea of where to put these capacitors is another know-how that requires experience and detail calculation.

Not only that, this motherboard implements 2200μF capacitor, which is much larger than normal capacitor (1000 or 1500μF) and it provides better stability for CPU power.

LLooww EESSRR CCaappaacciittoorr

OOnnlliinnee MMaannuuaal

AAKK7777--660000NN

The power circuit of the CPU core voltage must be checked to ensure system stability for high speed CPUs (such as the new Pentium III, or when overclocking). A typical CPU core voltage is 2.0V, so a good design should control voltage between 1.860V and 2.140V. That is, the transient must be below 280mV. Below is a timing diagram captured by a Digital Storage Scope, it shows the voltage transient is only 143mv even when maximum 60 current is applied.

Note: This diagram for example only; it may not exactly be the same motherboard.

OOnnlliinnee MMaannuuaal

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

PPHHOOEENNIIXX--AAWWAARRDD BBIIOOSS

System parameters can be modified by going into BIOS Setup menu, this menu allows you to configure the system parameters and save the configuration into the 128 bytes CMOS area, (normally in the RTC chip or in the main chipset).

The Phoenix-Award BIOS™ that installed in the Flash ROM BIOS. The BIOS provides critical low-level support for standard devices such as hard disk drives, serial and parallel ports.

Most BIOS setting of this motherboard had been optimized by AOpen’s R&D engineering team. But, the default setting of BIOS still can’t fine-tune the chipset controlling entire system. Hence, the rest of this chapter is intended to guide you through the process of configuring your system using setup.

Currently there are two kinds of beep sound when system fails to boot at POST. The first type of beep sound consists of a single long beep and two short beeps, indicating a video error has failed BIOS from initializing video screen for displaying any additional information. The 2 occurred. You may look over the indicated error according to different beep significances.

To enter to BIOS setup menu, press <Del> when POST (Power-On Self Test)

type of beep sound is a single long beep that beeping repeatedly, signaling a DRAM error has

Note: Because the BIOS code is the most often changed part of the motherboard design, the BIOS information contained in this manual may be different with actual BIOS that come with your motherboard.

of the motherboard is a custom version of an industry standard

screen is shown on your monitor.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

HHooww TToo UUssee PPhhooeenniixx--AAwwaarrdd™™ BBIIOOSS SSeettuupp PPrrooggrraamm

Generally, you can use the arrow keys to highlight items that you want to choose, then press <Enter> key to select, and use the <Page Up> and <Page Down> key to change setting value. You also can press <F1> key for help and press <Esc> key to quit

Phoenix-Award™ BIOS setup program. The following table provides details about how to use keyboard in the Phoenix-Award BIOS setup program. By the way, all products of AOpen also provides a special function in the BIOS setup, you can press <F3>

key selecting preferred menu language to display.

Key Description

Page Up or + Changing setting to next value or increase the value. Page Down or - Changing setting to previous value or decrease value. Enter Select the item. Esc 1. In main menu: Quit and don’t save any change.

2. In sub menu: Exit current menu to main menu. Up Arrow Highlight previous item. Down Arrow Highlight next item. Left Arrow Move the light bar to left side of menu. Right Arrow Move the light bar to right side of menu. F6 Load Setup Default setting value from CMOS. F7 Load turbo setting value from CMOS. F10 Save changed setting and exit setup program.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

HHooww TToo EEnntteerr BBIIOOSS SSeettuupp

After you finish the setting of jumpers and connect correct cables. Power on and enter the BIOS Setup, press <Del> during

POST (Power-On Self Test). Choose "Load Setup Defaults" for recommended optimal performance.

Del

Warning: Please avoid of using "Load Turbo Defaults", unless you are sure your system components (CPU, SDRAM, HDD, etc.) are good enough for turbo setting.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

WWiinnBBIIOOSS UUttiilliittyy

(Power-On-Self-Test) screen to get into the BIOS, which is inconvenient and clumsy. From now on, AOpen provides an easier way to configure your BIOS. WinBIOS is a customized utility for running exclusively on AOpen motherboards, which allows you to setup your BIOS under Windows environment. Designed with traditional-BIOS-alike interface, you may adjust BIOS parameter with clear descriptions for each item.

WinBIOS is natively designed with multi-language support. There are various widely-use languages provided on our website for your downloading, which also helps to prevent wrong settings caused by misunderstanding of the languages. The only thing you have to do is to visit our official website and download your respective language pack (of few KB size), then double-click on it to activate the support with your chosen language.

Moreover, with high scalability, either for newly bought motherboard or the latest BIOS version with new function, you don’t have to re-install the whole program again and again. All you have to do is to grab the latest profile from our website, simply double-click on it as well to support the latest version of your BIOS. You don’t have to spend any extra effort to have your motherboard supported by WinBIOS.

In the past, users have to keep punching the DEL key at a good timing during POST

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

Function keys:

It’s definitely easy to handle WinBIOS as if you’re using traditional BIOS setting. Users can use the arrow keys such as screen. And use , “+” or “-” to change the setting value if they are available. Press previous screen. Furthermore, the hotkeys shown in the table may help you and save your time. Some settings may not come into effect until you reboot your system.

Caution: After updating your BIOS, please remember to update WinBIOS profile as well. If the upgraded BIOS version is newer than WinBIOS profile, WinBIOS will not be able to launch and a dialog box with error message will pop up. This verification is designed on purpose to protect your BIOS from damaged by wrong profile version.

For the latest WinBIOS profile and language pack modules, you may find them from AOpen official web site as shown below:

(http://english.aopen.com.tw/tech/download/WinBIOS/default.htm

to move around the items in WinBIOS

to get back to the

Hotkey Function Description

F1 Get help description. F2 Item Help F3 Changing menu language. F5 Load previous setting F6 Load setup default setting F7 Load turbo setting F10 Save changed setting and exit setup program. F12 Full Screen / N ormal Mode

)

Note: Due to BIOS versions are updated in an extremely fast speed, it's strongly recommended to download the latest BIOS version and WinBIOS profile from our website upon receipt of the motherboard.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

BBIIOOSS UUppggrraaddee uunnddeerr WWiinnddoowwss eennvviirroonnmmeenntt

With outstanding R&D ability of AOpen, we now bring you a whole new BIOS Flash wizard

---- EzWinFlash. With an eye to users convenience, EzWinFlash combines the BIOS binary

code and flash module together, so the only thing you have to do is just clicking on the utility you downloaded from web and let it helps you complete the flash process automatically. EzWinFlash detects your motherboard and checks the BIOS version cleverly to prevent your system from any possible failure. Moreover, EzWinFlash has been taken into consideration to go with any windows platform you might be using, no matter if you’re using Windows 95/98, 98SE/ME, NT4.0/2000, or even the latest Windows XP.

In the meanwhile, in order to provide a much more user-friendly operating environment, AOpen EzWinFlash is natively designed to have multi-language function to provide easier way for users’ usage in changing BIOS setting.

Note: The model name on this BIOS picture is for reference only. It may not be the exact model name.

Caution: By updating your motherboard, you are taking a risk of BIOS flash failure. If your motherboard is working stable, and there are no major bugs that had been fixed by a latter BIOS revision, we recommend that you DO NOT try to upgrade your BIOS.

If you intent on upgrading, PLEASE BE SURE to get the right BIOS revision for the right motherboard model to avoid any possibility failure.

AAKK7777--660000NN

You may accomplish BIOS upgrade procedure with EzWinFlash by the following steps, and it’s STRONGLY RECOMMENDED to close all the applications before you start the upgrading.

1. Download the new version of BIOS package zip file from AOpen official web site. (ex: http://english.aopen.com.tw/

2. Unzip the download BIOS package (ex: WAK77600N102.ZIP) with WinZip (http://www.winzip.com environment.

3. Save the unzipped files into a folder, for example, WAK77600N102.EXE & WAK77600N102.BIN.

4. Double click on the WAK77600N102.EXE, EzWinFlash will detect the model name and BIOS version of your motherboard. If you had got the wrong BIOS, you will not be allowed to proceed with the flash steps.

5. You may select preferred language in the main menu, then click [Start Flash] to start the BIOS upgrade procedure.

6. EzWinFlash will complete all the process automatically, and a dialogue box will pop up to ask you to restart Windows. You may click [YES] to reboot Windows.

7. Press <Del> at POST to enter BIOS setup, choose "Load Setup Defaults", then “Save & Exit Setup”. Done!

It is strongly recommended NOT to turn off the power or run any application during FLASH PROCESS.

Warning: The new BIOS upgrade will permanently replace your original BIOS’s settings when flashing. You may need to reconfigure your BIOS setting so that your system can go back to work as normal.

OOnnlliinnee MMaannuuaal

)

) in Windows

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

VViivviidd BBIIOOSS tteecchhnnoollooggyy

Unlike earlier graphic POST screen which could occupy the whole screen and mask text information during POST, AOpen VividBIOS deals with graphics and texts separately, and makes them running simultaneously during POST. With this innovative design, VividBios now brings you a beautiful and sleek 256 colors screen without missing any important information shown on POST screen.

In addition, the limited space of BIOS ROM is another big issue. When all of the traditional BIOS can only show space-consuming and uncompressed Bitmap, AOpen has considerately tuned the BIOS to next generation, to recognize the smaller-sized GIF format and even dynamic-showing GIF animation.

You may use EzSkin utility to change your Vivid BIOS screen. If you see this little logo shown beside your model name on the BIOS download page, http://english.aopen.com.tw/tech/download/skin innovative feature!

Have you been fed up with the conservative and immutable POST screen? Let’s rule out the tradition idea that POST screen are stiff and frigid, and let AOpen show you the newly developed VividBIOS to experience the lively vivid colorful POST screen!

, it is assured that your motherboard supports this

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

DDrriivveerr aanndd UUttiilliittyy

There are motherboard drivers and utilities included in AOpen Bonus CD. You don’t need to install all of them in order to boot your system. But after you finish the hardware installation, you have to install your operation system first (such as Windows XP) before you can install any drivers or utilities. Please refer to your operation system’s installation guide.

AAuuttoo--rruunn MMeennuu ffrroomm BBoonnuuss CCDD

You can use the auto-run menu of Bonus CD. Choose the utility and driver and select model name.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

IInnssttaalllliinngg VVIIAA 44 iinn 11 DDrriivveerr

You can install the VIA 4 in 1 driver (IDE Bus master (For Windows NT use), VIA ATAPI Vendor Support Driver, VIA AGP, IRQ Routing Driver (For Windows 98 use), VIA Registry (INF) Driver) from the Bonus Pack CD auto-run menu.

Warning: To take advantage of ATA133, it is a must to install the latest version of VIA 4in1 driver in the Bonus CD. For Windows2000, it cannot supports ATA133 even after installing the latest version of VIA 4-in-1 driver until the new release of Service-Pack 3 from Microsoft.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

IInnssttaalllliinngg AAuuddiioo DDrriivveerr

This motherboard comes with RealTek ALC650 AC97 CODEC and the sound controller is in VIA South Bridge chipset. You can find the audio driver from the Bonus Pack CD auto-run menu.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

IInnssttaalllliinngg UUSSBB22..00 DDrriivveerr

This motherboard comes with USB2.0 function. You can install USB2.0 Driver under Windows 98SE, Windows ME, Windows 2000 and Windows XP from the Bonus Pack CD auto-run menu.

Note: After installing USB 2.0 driver under WinME, there would be a "green question mark" on "VIA USB 2.0 Enhanced Host Controller" item. Please rest assured that it is not an error message. You may just ignore it.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

IInnssttaalllliinngg LLAANN DDrriivveerr

This motherboard comes with RealTek RTL8100BL controller on board, which is a highly-integrated Platform LAN connect device providing 10/100 Mbps Ethernet for office and home use. For Windows 98, Windows ME, Windows 2000 and Windows XP, you can install the LAN driver form the Bonus Pack CD auto-run menu.

AAKK7777--660000NN

************************************************************************* Installing drivers on Windows 95: (Golden version, Win95A and OSR2) *************************************************************************

1. Ask you to select which driver you want to install, select "Driver from disk provided by hardware manufacturer".

2. Specify the setup file pathname [CD-ROM]:\Driver\LAN\RTL8100\Windows\95\WIN95A (for Windows 95 and Win95A) or [CD-ROM]:\Driver\LAN\RTL8100\Windows\95\W95OSR2 (for Windows 95 OSR2).

3. Windows 95 will appear some messages to insert Windows 95 system disk to complete setup step.

4. Windows 95 will finish the other installation procedure automatically, then you restart the system.

****************************************************************** Installing drivers on Windows NT: (Version 3.5, 3.51 & 4.0) ****************************************************************** When you are in Windows NT :

1. In the Main group of NT, select the "Control Panel" icon.

2. In the Control Panel window, choose the "Network" icon.

3. In the Network Settings dialog box, choose the "Add Adapter" button. The Add Network Adapter dialog box appears.

4. In the list of network cards, select "<other> Requires disk from manufacturer", and then press <Enter> button.

5. Enter drive and pathname

OOnnlliinnee MMaannuuaal

AAKK7777--660000NN

[CD-ROM]:\Driver\LAN\RTL8100\Windows\NT (for NT 4.0) which is the path where the setup file OEMSETUP.INF is located, and then choose the OK button.

6. The screen will appear "Select Line Speed" dialog box which is provided by RTL8139.SYS driver. The default value is "auto" so that the RTL8139 PCI Fast Ethernet adapter and its driver RTL8139.SYS will auto-detect the line speed, 10 Mb or 100Mb, while the RTL8139.SYS is loading. The other values, "10" or "100", are only used when you want to forced RTL8139 PCI Fast Ethernet adapter to 10Mb or 100Mb.

7. The screen will appear "Input Ethernet ID" dialog box which is provide by RTL8139.SYS driver. This option is only required when you have more than one Realtek RTL8139 PCI Fast Ethernet adapters on this computer. Select "SKIP" if only one adapter is installed on this computer.

8. "Bus Location" display in next screen. Your machine contains more than one hardware bus, please select the Bus Type and Bus number on which your network adapter card is installed.

9. NT will then perform the binding process. If any additional network software options were installed, you may be prompted for specific information for these packages.

10. Restarting your system you will acquire network service.

NOTES: * Installing Multiple LAN Adapters: Enter Windows NT and follow above setup procedure step 2, in the "Network Settings" dialog

box, choose the "Configure…" button. The "Input Ethernet ID" dialog box appears and input adapter's Ethernet ID. Then, select OK and close NETWORK SETUP. Select SKIP if only one adapter is installed on this computer.

OOnnlliinnee MMaannuuaal

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

AAOOCCoonnffiigg UUttiilliittyy

interface that allows users to obtain information of the operation system and hardware such as motherboard, CPU, memory, P CI devices and IDE devices. The powerful utility also displays the version of BIOS and firmware for your convenience of maintenance.

Moreover, AOconfig allows users to save information in *.BMP or *.TXT format which users may collect the system information in detail and send them to AOpen directly for technical support or further diagnosis of system problem.

AOpen always dedicated to provide users a much friendlier computer environment. We now bring

you a comprehensive system detective utility. AOconfig is a Windows based utility with user-friendly

1. The system page shows the detail information of the motherboard, the operating system, the processor, and BIOS version.

2. The PCI device page shows the configurations of all PCI devices installed on your motherboard.

AAKK7777--660000NN

NOTE: AOconfig can be used in Windows 98SE/ME, NT4.0/2000, or even the latest Windows XP. Please be informed that AOconfig can only be operated in a system equipped with an AOpen motherboard. Meanwhile, all applications must be closed before starting AOconfig.

3. This page presents the IDE devices information, such as the serial number, the manufacturer, the firmware version, and capacity.

4. From this page, users may obtain the technical support information of AOpen.

Moreover, detailed information

could be saved in .bmp or .txt

format.

OOnnlliinnee MMaannuuaal

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

TThhee nnooiissee iiss ggoonnee!!!! -------- SSiilleennttTTeekk

As the clock of CPU keeps rocketing higher and higher, it inevitably brings higher heat and system temperature in a relative way. The way we deal with this heat problem, however, is to spare no effort to add one fan after another to protect our pampered system, expecting these

fans could cool down our machine as much as it could. But at the same time, we believe that same amount of users are affected terribly while working with their PC by the irritating

noises of these fans. As a matter of fact, we do not have to get our fans running at such a high speed in most cases; on the contrary, we discovered that having your fans running at appropriate time and speed could not only reduce the noise, but also

consume the least power the system needed, so as to prevent over-wasting of energy resource.

Today, AOpen Motherboard is honored to bring you a new overall solution, SilentTek, to have your system quiet. To collocate with hardware circuit, BIOS and the utility under Windows, SilentTek combined “Hardware-Status Monitoring”, “Overheat Warning” and “Fan Speed Control” with user-friendly interfaces to provide you a perfect balance between noises, system performance and stability.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

The first image you have here is the Voltage Status page. You can find current status of all voltages and set your expected margins of warning level.

You may check your system voltage from the indicating bar here.

In “Temp/Fan/Case” page, you may get aware of the current temperature of CPU and the heat inside chassis, plus checking if fans are running properly.

Of course, you may set your defaulted lowest margin for your fans and the SilentTek would also pop up a message box and alarm you when the fan is rotating slower than this specified speed.

You may set the highest margin of your CPU and system temperature as default, and SilentTek would pop up a message box and alert you with alarm when the temperature goes beyond the specified margin.

AAKK7777--660000NN

The following page is surely the most important part of this utility. You may control the rotation speed of specific fans that you have got the options inside in this page.

CD-ROM Rotation Speed Control: by enabling the CD-ROM Rotation Speed Control, you can adjust the rotation speed of your CD-ROM. When you set the speed to high level, the CD-ROM will work at its fastest speed and it will run at basic required speed while you set the value to low speed.

1. Smart FAN Control: This is the default setting of SilentTek and can be used for any branded computer housing. With a special algorithm developed by AOpen, the fan speed is automatically adjusted by the factors of CPU and ambient temperature. Ease-of-use and trouble free at your service.

2. Fixed FAN Control: Under this setting, a desired fan speed is set fixed when operating.

3. Multiple Level Control: This is the most versatile setting that allows you to set fan speed in relation to temperature. You may find that this setting fits you best.

4. AOpen Recommend Setting: This setting is designed specifically for AOpen housing. A series of lab tests were conducted under the real world scenario to determine optimum fan speed to reduce noise level within CPU working condition and temperature. Most of the time, the fan would remain still when CPU is not fully utilized.

Note: Due to hundreds different brands of fan on the

market, inaccuracy may happen in some cases when you had your rotation speed adjusted. It is still under the criterion and please rest assured that it won’t cause any problem to your system.

OOnnlliinnee MMaannuuaal

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

EEzzCClloocckk

Have you ever thought how great it would be if you can adjust the frequency setting on your motherboard under Windows environment and be a real master of your system? Everybody knows that the ratio and frequency setting are key factors to influence the system performance, however, it’s absolutely not an easy task for an amateur to adjust the setting value. On most traditional motherboards, you have to get into BIOS screen for the frequency and reboot the system again and again. But from now on, you don’t have to surfer the boring stuffs anymore.

With brand-new and user-friendly EzClock that AOpen specially designs for his users, you can adjust those important values as you please and think of suitable. This tailor-made EzClock allows you to set the voltage and frequency of CPU, VGA, PCI and memory under Windows environment as well as in BIOS setting page; even better, those settings will be displayed realtime. Having this handy EzClock, you can monitor the system when you’re fine-tuning the performance of your system. It provides you detailed and necessary information. Now let’s take a look how it works on utility, BIOS and POST.

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

How You Adjust the Settings in EzClock Utility

In EzClock utility, you can adjust CPU Front Side Bus (FSB), the voltage and frequency of VGA, AGP, PCI and DRAM. Besides, the CPU related information such as CPU voltage, temperature and CPUFAN rotation speed will also be displayed on this utility.

CPU Color Bars:

The color bar will light on and show different colors as values change. On default values, it will show green.

On the right part of the panel is the section that you adjust the settings of VGA, AGP, PCI and memory. To adjust the voltage and clock frequency of those installments, you can press “-“ or “+” on corresponding items. The color parts represent the situation of values. The higher value you set, the light on the color bar goes to right and turns red. After finishing those value settings, you can press “S” button on the upper right hand corner to save changes to CMOS.

VGA, AGP, PCI and DRAM Voltage / Clock Area:

Pressing “_” and “+” buttons, you can adjust the voltage and clock frequency values of onboard VGA, AGP, PCI and DRAM.

On the left circle area shows Ratio, FSB and frequency information about CPU. When the values are set to factory default, the light on the top and bottom of the circle will show green and it will vary as you change these CPU settings.

CPU Ratio, FSB and frequency displaying area: You can adjust CPU FSB here by entering preferred value.

Control buttons:

“_” button allows you to minimize the utility and “X” button to close the utility. Pressing “S” button you can save the changes to CMOS.

AAKK7777--660000NN

On the bottom rectangular panel represents CPU fan speed, CPU voltage and CPU temperature. The three color bars on the right hand side will light on according to operation temperature. Please refer to the picture shown above.

CPU Color Bars: The color bars will light on according to CPU operation

erature.

tem

OOnnlliinnee MMaannuuaal

CPU Fan, Voltage and Temperature:

representing CPU fan speed, CPU voltage and CPU temperature in Celsius and Fahrenheit degrees.

How You Adjust the Settings in BIOS

Apart from EzClock utility, the voltage and frequency values of CPU, PCI and memory can also be adjusted on BIOS page. By pressing “+”, “-“, “PgUp” or “PgDn” keys, you can adjust the frequency values of CPU Bus, PCI Bus and DRAM.

Also, the same keys help you adjust the voltage of CPU and DDR settings. Some values may change while you adjust the settings. You can press “F10” to save the changes you’ve made.

Function Keys Description

AAKK7777--660000NN

How Your Boot Screen Looks Like

After you finish setting BIOS, these setting values will be displayed on the boot screen like the shown picture here.

Every time you boot your system, both default and current settings will pop up on the screen. Your personal settings that had been adjusted earlier will be highlighted; thus, you can have clear idea how your system functions and monitor your system more easily.

Current values of your system

NOTE: Due to BIOS versions are updated in an extremely fast speed, it's strongly recommended to download the latest version of EzClock from our website for best compatibility.

Default settings of this motherboard

OOnnlliinnee MMaannuuaal

The highlighted setting value you manually

AAKK7777--660000NN

OOnnlliinnee MMaannuuaal

GGlloossssaarryy

AACC9977 CCOODDEECC

Basically, AC97 CODEC is the standard structure of PCI sound card. As we know, computer is digital-based, but music is based on analog-based. Therefore, there must be a process to turn digital into analog during the last stage processing of sound in computer. Hence, the component on sound card that play this important task is what we called CODEC.

Audio CODEC 97 (briefly called AC97) is the specification regulated by Intel, and it’s about the structure of audio conversion. The special place about CODEC is that it is separated from sound card (CODEC is an independent chipset). Therefore, PCI sound card could possess with 90db and do other application process as well. We called CODEC that meets this structure AC97 CODEC.

AACCPPII ((AAddvvaanncceedd CCoonnffiigguurraattiioonn && PPo

ACPI is the power management specification of PC97 (1997). It intends to save more power by taking full control of power management to operating system and bypass BIOS to operating system (such as Windows 98). This is a bit similar as the PnP power switch to control the power state transition.

AACCRR ((AAddvvaanncceedd CCoommmmuunniiccaattiioonn RRiisseerr)

Building on the PC motherboard riser architecture, ACR slot is backward compatible with AMR but beyond the limitation of it. The ACR specification is designed to support modem, audio, Local Area Network (LAN) and Digital Subscriber Line (DSL).

owweerr IInntteerrffaaccee))

)

. The chipset or super I/O chip needs to provide standard register interface

AAKK7777--660000NN

AAGGPP ((AAcccceelleerraatteedd GGrraapphhiicc PPoorrtt)

The main function of AGP simply put is to tell monitor what screen information had to be shown, a visual transmission device actually. With the rapid developing of AGP card, we can see that it had been developed from single colorful AGP card to 2D and 3D graphic. AGP supports only memory read/write operation and single-master single-slave one-to-one only. Though AGP and PCI share the same algorithm of 32-bit, its frequencies are 66MHz and 33MHz respectively. AGP interface had been developed from 2X to 8x.

1X AGP, data transfer rate is 66MHz x 4byte x 1 = 264MB/s 2X AGP, data transfer rate is 66MHz x 4byte x 2 = 528MB/s 4X AGP, data transfer rate is 66MHz x 4byte x 4 = 1056MB/s. 8X AGP, data transfer rate is 66MHz x 4byte x 8 = 2112MB/s.

AAMMRR ((AAuuddiioo//MMooddeemm RRiisseerr)

The CODEC circuit of AC97 sound/modem solution can be put on motherboard or put on a riser card (AMR card) that connects to motherboard through AMR connector.

AATTAA ((AATT AAttttaacchhmmeenntt)

Before talking about ATA (AT Attachment), we must understand DMA (Direct Memory Access), which allows devices to skip the CPU devices and access memory directly. DMA specification could not only eliminate the workload of CPU, but also accelerate the transmission of data. DMA begins with a data transfer rate of 16.6MB/Sec, but afterward developed to new data rate of

33.3MB/Sec, which is twice the data rate and we called it Ultra DMA. ATA details power and data signals between the drive

)

OOnnlliinnee MMaannuuaal

AAKK7777--660000NN

and integrated drive controller and the computer's motherboard. Two drives (master and slave) are supported. The ATA specification allows the drive to connect directly to the ISA bus on the computer. ATA transfer rate then had been developed to 133MHz/Sec and would come out with fastest rate later (please refer to Serial ATA).

DMA, data transfer rate is 16.6MHz/s. Ultra DMA, data transfer rate is 16.6MHz x 2 = 33MB/s. ATA/66, data transfer rate is 16.6MHz x 4 = 66MB/s. ATA/100, data transfer rate is 16.6MHz x 6 = 100MB/s. ATA/133, data transfer rate is 16.6MHz x 8 = 133MB/s.

(ATA/133 uses both rising edge and falling edge as ATA/66 but clock cycle time is reduced to 30ns.)

BBIIOOSS ((BBaassiicc IInnppuutt//OOuuttppuutt SSyysstteemm)

BIOS, is a set of assembly routine/program that reside in EPROM or Flash ROM. BIOS controls Input/output devices and other hardware devices of motherboard. In general, to provide hardware independent portability, operation system and drivers is required to access BIOS without directly access hardware devices.

BBlluueettooootth

Bluetooth is a wireless transferring technology that enables short-range wireless connections between desktop and laptop computers, personal digital assistants (PDAs), cellular phones, printers, scanners, digital cameras and even home appliances. The principle of Bluetooth (a chipset) is to transfer information and voices at the frequency of ISM Band. Every Bluetooth technology devices do come with a standard address for you to connect one-to-one or one-to-seven (to form a Pico-net), with transferring range up to 10 meters (100 meters to follow), using low power radio. Bluetooth do not only possess

)

OOnnlliinnee MMaannuuaal

AAKK7777--660000NN

high transfer rate of 1MB/s, it also could be encrypted with pin code. With hopping rate of 1600 hops per second, it’s difficult to be intercepted and are less interrupted by electromagnetic wave.

CCNNRR ((CCoommmmuunniiccaattiioonn aanndd NNeettwwoorrkkiinngg RRiisseerr)

The CNR specification provides the PC industry the opportunity to deliver a flexible and cost reduced method of implementing LAN, home networking, DSL, USB, wireless, audio and modem subsystems widely used in today's "connected PCs". The CNR specification is an open industry specification and is supported by OEMs, IHV card manufacturers, silicon supplier and Microsoft.

DDDDRR ((DDoouubbllee DDaattaa RRaattee)) RRAAM

DDR RAM utilizes the existing SDRAM (For ex, PC-100, PC-133) infrastructure and technology while doubling the nominal bandwidth available to systems in an easy to design and simple to adopt way. Based on FSB frequency, DDR RAM on the market are DDR200, DDR266 and DDR333 with more coming around soon.

DDR200, transfer bandwidth up to 200x64/8=1600MB/s (PC1600) DDR266, transfer bandwidth up to 266x64/8=2100MB/s (PC2100) DDR333, transfer bandwidth up to 333x64/8=2700MB/s (PC2700) DDR400, transfer bandwidth up to 400x64/8=3200MB/s (PC3200)

)

OOnnlliinnee MMaannuuaal

AAKK7777--660000NN

EECCCC ((EErrrroorr CChheecckkiinngg aanndd CCoorrrreeccttiioonn))

The ECC mode needs 8 ECC bits for 64-bit data. Each time memory is accessed; ECC bits are updated and checked by a special algorithm. The ECC algorithm has the ability to detect double-bit error and automatically correct single-bit error while parity mode can only detect single-bit error.

EEEEPPRROOMM ((EElleeccttrroonniicc EErraassaabbllee PPrrooggrraammmmaabbllee RROOMM)

Also known as E2PROM. Both EEPROM and Flash ROM can be re-programmed by electronic signals, but the interface technology is different. Size of EEPROM is much smaller than flash ROM.

EEPPRROOMM ((EErraassaabbllee PPrrooggrraammmmaabbllee RROOMM)

Traditional motherboard stores BIOS code in EPROM. EPROM can only be erased by ultra-violet (UV) light. If BIOS has to be upgraded, you need to remove EPROM from motherboard, clear by UV light, re-program, and then insert back.

EEVV66 BBuus

EV6 Bus is the technology of Alpha processor from Digital Equipment Corporation. EV6 bus uses both rising and falling clock edge to transfer data, similar as DDR RAM or ATA/66 IDE bus. EV6 Bus Speed = CPU external bus clock x 2.

200 MHz EV6 bus, 200MHz = 100 MHz external bus clock x 2

)

OOnnlliinnee MMaannuuaal

AAKK7777--660000NN

FFCCCC DDooCC ((DDeeccllaarraattiioonn ooff CCoonnffoorrmmiittyy)

The DoC is component certification standard of FCC EMI regulations. This standard allows DIY component (such as motherboard) to apply DoC label separately without a shielding of housing.

)

OOnnlliinnee MMaannuuaal

)

FFCC--PPGGAA ((FFlliipp CChhiipp--PPiinn GGrriidd AArrrraayy)

FC means Flip Chip, FC-PGA is a package of Intel for Pentium III for 0.18µm process CPU, which can be plugged into SKT370 socket.

FFCC--PPGGAA22 ((FFlliipp CChhiipp--PPiinn GGrriidd AArrrraayy)

After FC-PGA, FC-PGA2 is the package for 0.13µm process CPU developed by Intel, which can be plugged into SKT423/478 socket as well.

FFllaasshh RROOM

Flash ROM can be re-programmed by electronic signals. It is easier for BIOS to upgrade by a flash utility, but it is also easier to be infected by virus. Because of increase of new functions, BIOS size is increased from 64KB to 512KB (4M bit).

HHyyppeerr TThhrreeaaddiinng

Hyper-Threading technology is an innovative design from Intel that enables multi-threaded software applications to process threads in parallel within each processor resulting in increased utilization of processor execution resources. As a result, an average improvement of ~40% in CPU resource utilization yields higher processing throughput.

)

AAKK7777--660000NN

IIEEEEEE 1133994

IEEE 1394, which also called Firewire, is a serial data transfer protocol and interconnection system. The main feature of the Firewire that assures its adoption for the digital video and audio (A/V) consumer application is its low cost. Fire wire interface is capable of supporting various high-end digital A/V applications, such as consumer A/V device control and signal routing, Digital Video (DV) editing, home networking, and more than 32 channels of digital mixing. Gone are those days of expensive video capture cards. Firewire allows for video capture from both newer DV camcorders with Firewire ports and older analog equipment using A/V to Firewire converters.

The advantages of the IEEE1394: High data transfer rate – Start from 400 Mbps, (with 800/1600/3200 Mbps coming soon), which is about 30 times faster than

USB 1.1. Supports up to 63 devices (16 - daisy chained) with cable length up to about 4.5 m (14 feet). Hot-pluggable (like USB). No need to turn of your device to connect or disconnect, and you don't need to reboot your PC. Also,

it is a plug-and-play bus. IEEE1394 is very easy to connect (Like USB1.1/2/0).

PPaarriittyy BBiit

The parity mode uses 1 parity bit for each byte, normally it is even parity mode, that is, each time the memory data is updated, parity bit will be adjusted to have even count "1" for each byte. When next time, if memory is read with odd number of "1", the parity error is occurred and this is called single bit error detection.

OOnnlliinnee MMaannuuaal

AAKK7777--660000NN

PPCCII ((PPeerriipphheerraall CCoommppoonneenntt IInntteerrffaaccee)) BBuus

Developed by Intel, Peripheral Component Interconnect (PCI) is a local bus standard. A bus is a channel used to transfer data to (input) and from (output) a computer and to or from a peripheral device. Most PCs have a PCI bus usually implemented at 32-bits providing a 33 MHz clock speed with a throughput rate of 133 MBps.

PPDDFF FFoorrmmaat

With PDF file, it is easy to do universal document exchange. Virtually any document may be converted in Portable Document Format (PDF). Contents in PDF documents are exactly the same as the original file, including fonts and graphics, and they can be distributed by e-mail or stored on the World Wide Web, an intranet, a file system, or a CD-ROM for other users to view on any platforms. You may download Acrobat Reader in order to read PDF file from its website (www.adobe.com

PPnnPP ((PPlluugg aanndd PPllaayy)

Oversimplified, Plug-and-Play automatically tells the software (device drivers) where to find various pieces of hardware (devices) such as modems, network cards, sound cards, etc. Plug-and-Play's task is to match up physical devices with the software (device drivers) that operates them and to establish channels of communication between each physical device and its driver.

PPOOSSTT ((PPoowweerr--OOnn SSeellff TTeesstt)

The BIOS self-test procedure after power-on, sometimes, it is the first or the second screen shown on your monitor during system boot.

)

OOnnlliinnee MMaannuuaal

AAKK7777--660000NN

PPSSBB ((PPrroocceessssoorr SSyysstteemm BBuuss)) CClloocck

PSB Clock means the external bus clock of CPU. CPU internal clock = CPU PSB Clock x CPU Clock Ratio

RRDDRRAAMM ((RRaammbbuuss DDyynnaammiicc RRaannddoomm AAcccceessss MMeemmoorryy)

A DRAM technology developed by Rambus Corporation*, to achieve high speed of memory through the use of multiple channels in parallel by 16-bits. Basically, RDRAM uses new structure of Multibank, which is quite different from FPM, EDO, SDRAM. Using different memory module as well, RDRAM uses “RIMM” with transfer rate of 600/700/800MHz, providing bandwidth as high to 1.6GB.

RRIIMMMM ((RRaammbbuuss IInnlliinnee MMeemmoorryy MMoodduullee)

184-pin memory module that supports RDRAM memory technology. A RIMM memory module may contain up to maximum of 16 RDRAM devices.

SSDDRRAAMM ((SSyynncchhrroonnoouuss DDRRAAMM))

SDRAM is one of the DRAM technologies that allow DRAM to use the same clock as the CPU host bus (EDO and FPM are asynchronous and do not have clock signal). It is similar as PBSRAM to use burst mode transfer. SDRAM comes in 64-bit 168-pin DIMM and operates at 3.3V, and have been gradually replaced by DDR RAM.

)

OOnnlliinnee MMaannuuaal

100

AOpen AK77600N User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

AK77-600N

Chipset

Ultra DMA 66/100/133 Bus Master IDE

LAN Port

Expansion Slots

Memory

On-board AC97 Sound

Six USB 2.0 Connectors

1MHz Stepping CPU Frequency Adjustment

Watch Dog ABS

Dr. LED (User Upgrade Optional)

Power Management/Plug and Pla y

Hardware Monitoring Management

Enhanced ACPI

Super Multi-I/O

Motherboard Map

IrDA Connector
