AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaal
Overview
l
AK77-333F / AK77-333FN
DOC. NO.: AK77333FN-OL-E0211A
1
Installation
Hardware
Drivers &
Utilities
BIOS Setup
AWARD
Glossary
Troubleshooting &
Technical Support
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
WWhhaatt’’ss iinn tthhiiss mmaannuuaall
AK77-333F / AK77-333FN.................................................................................................................... 1
What’s in this manual ...................................................................................................................................................... 2
You Must Notice .............................................................................................................................................................. 9
Before You Start............................................................................................................................................................ 10
Overview ....................................................................................................................................................................... 11
Feature Highlight........................................................................................................................................................... 12
Quick Installation Procedure .........................................................................................................................................16
Motherboard Map .......................................................................................................................................................... 17
Block Diagram............................................................................................................................................................... 18
Hardware Installation ................................................................................................................. 19
About “Manufacturer Upgrade Optional” and “User Upgrade Optional”…...................................................................... 20
JP14 Clear CMOS Data ................................................................................................................................................21
CPU Installation ............................................................................................................................................................22
AOpen Overheat Protection (O.H.P.) Technology.......................................................................................................... 24

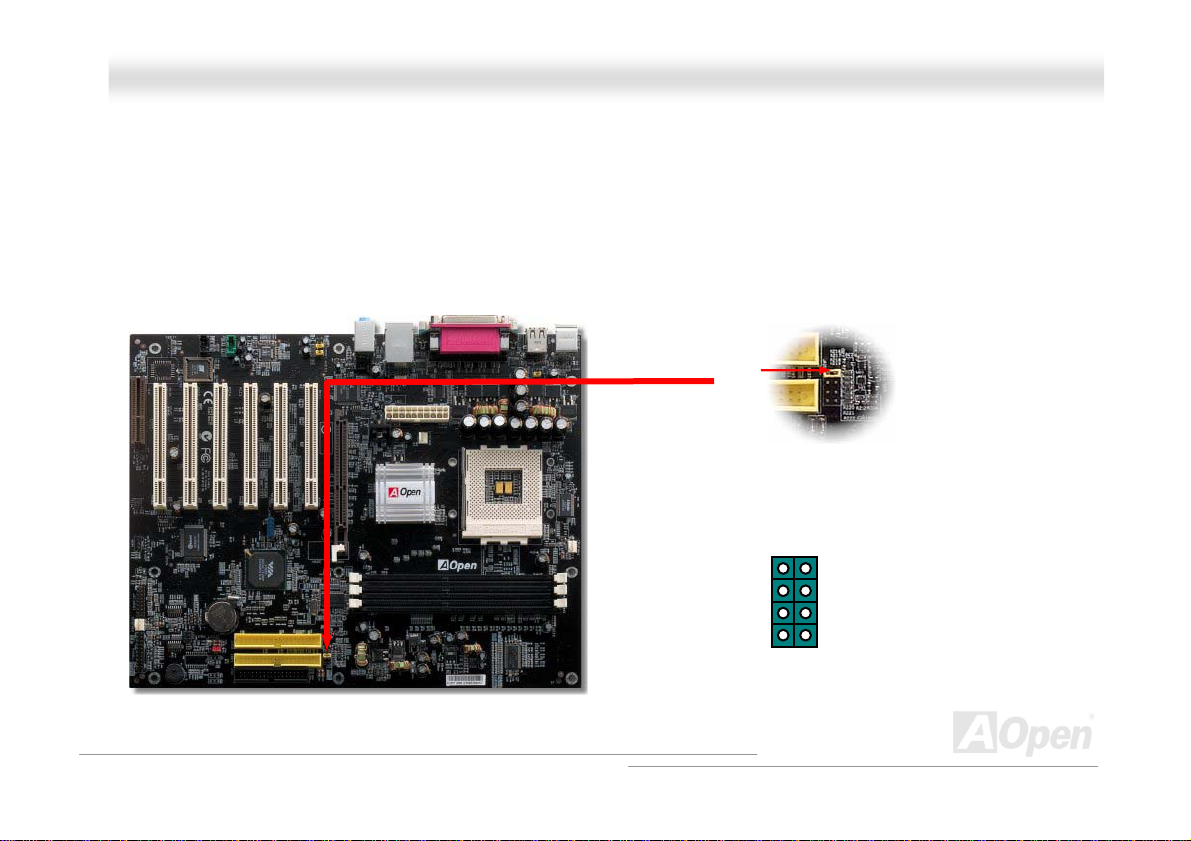

JP28 KB/Mouse Wake-up Enable/Disable Jumper ........................................................................................................ 25
CPU Jumper-less Design .............................................................................................................................................. 26

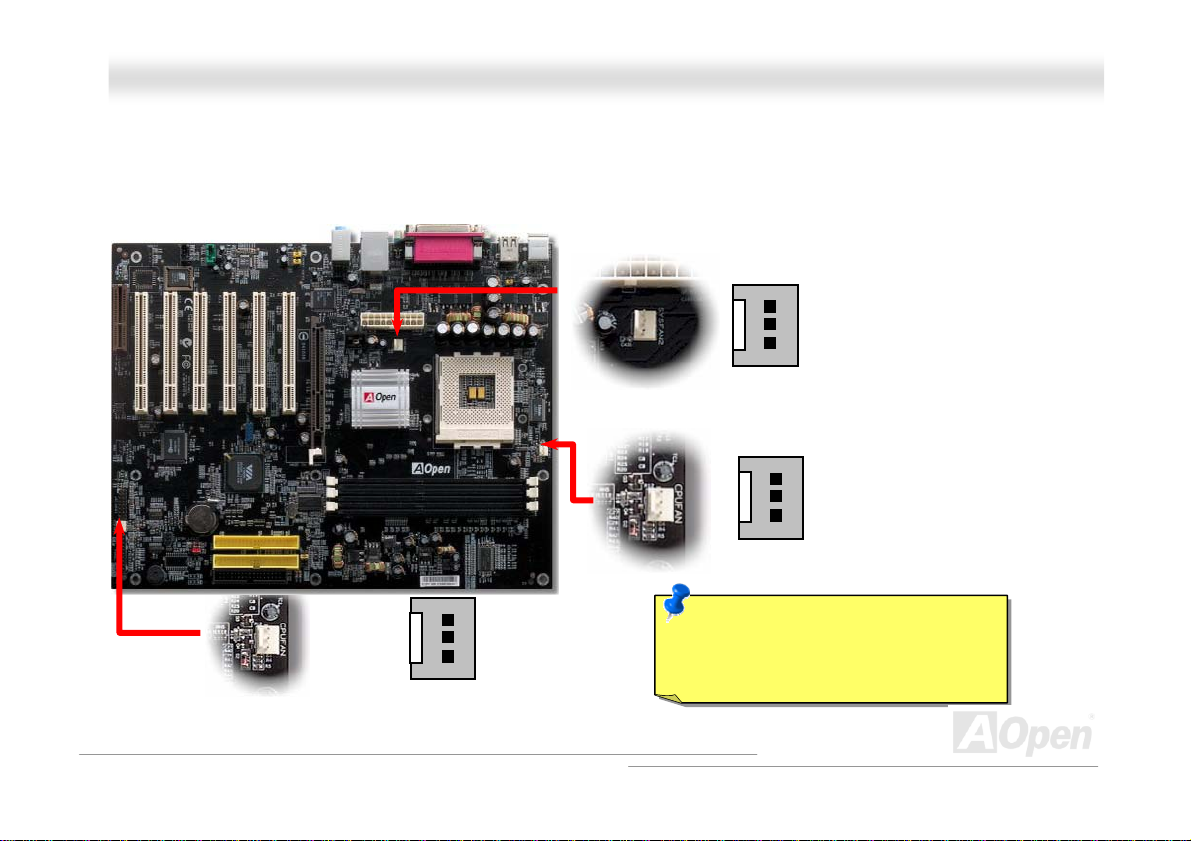

CPU and Housing Fan Connector (with H/W Monitoring) .............................................................................................. 31
JP20 K7 Host Clock Selection....................................................................................................................................... 32
2
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
DIMM Sockets ............................................................................................................................................................... 33
Front Panel Connector .................................................................................................................................................. 35
ATX Power Connector ................................................................................................................................................... 36
AC Power Auto Recovery .............................................................................................................................................. 36
STBY LED..................................................................................................................................................................... 37
IDE and Floppy Connector ............................................................................................................................................ 38
S/PDIF (Sony/Philips Digital Interface) Connector......................................................................................................... 40

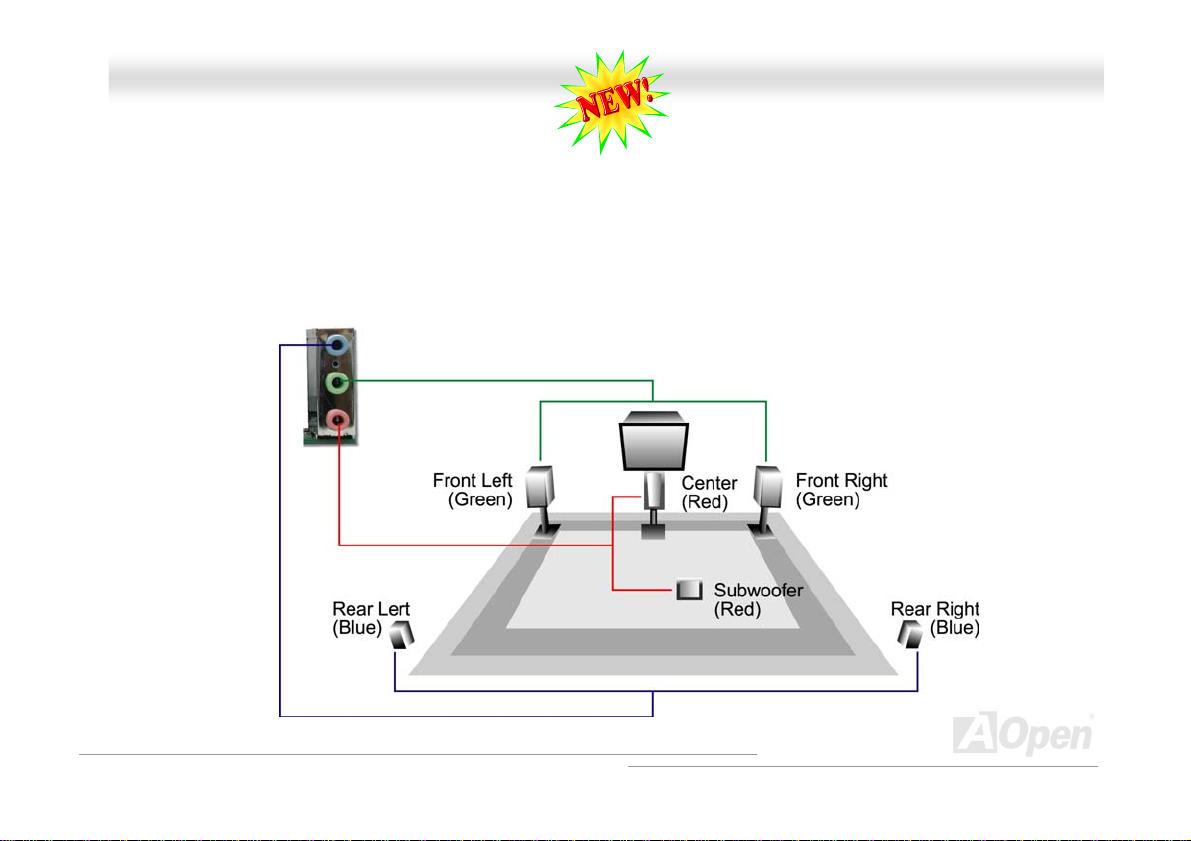

Super 5.1 Channel Audio Effect .................................................................................................................................... 41
IrDA Connector ............................................................................................................................................................. 42
WOM (Zero Voltage Wake on Modem) Connector......................................................................................................... 43
WOL (Wake on LAN)..................................................................................................................................................... 46
AGP (Accelerated Graphic Port) 4X Expansion Slot...................................................................................................... 48
AGP Protection Technology and AGP LED.................................................................................................................... 49
CNR (Communication and Network Riser) Expansion Slot............................................................................................ 50
PC99 Color Coded Back Panel ..................................................................................................................................... 51
Support Six USB 2.0 Port.............................................................................................................................................. 52
Support 10/100 Mbps LAN onboard (AK77-333FN only) ............................................................................................... 53
Chassis Intrusion Sensor ..............................................................................................................................................54
CD Audio Connector ..................................................................................................................................................... 55
3
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
AUX-IN Connector ........................................................................................................................................................ 56
Front Audio Connector ..................................................................................................................................................57
Battery-less and Long Life Design ................................................................................................................................ 58
CPU Over-current Protection ........................................................................................................................................ 59
AOConfig Utility............................................................................................................................................................. 60
Resetable Fuse ............................................................................................................................................................. 62

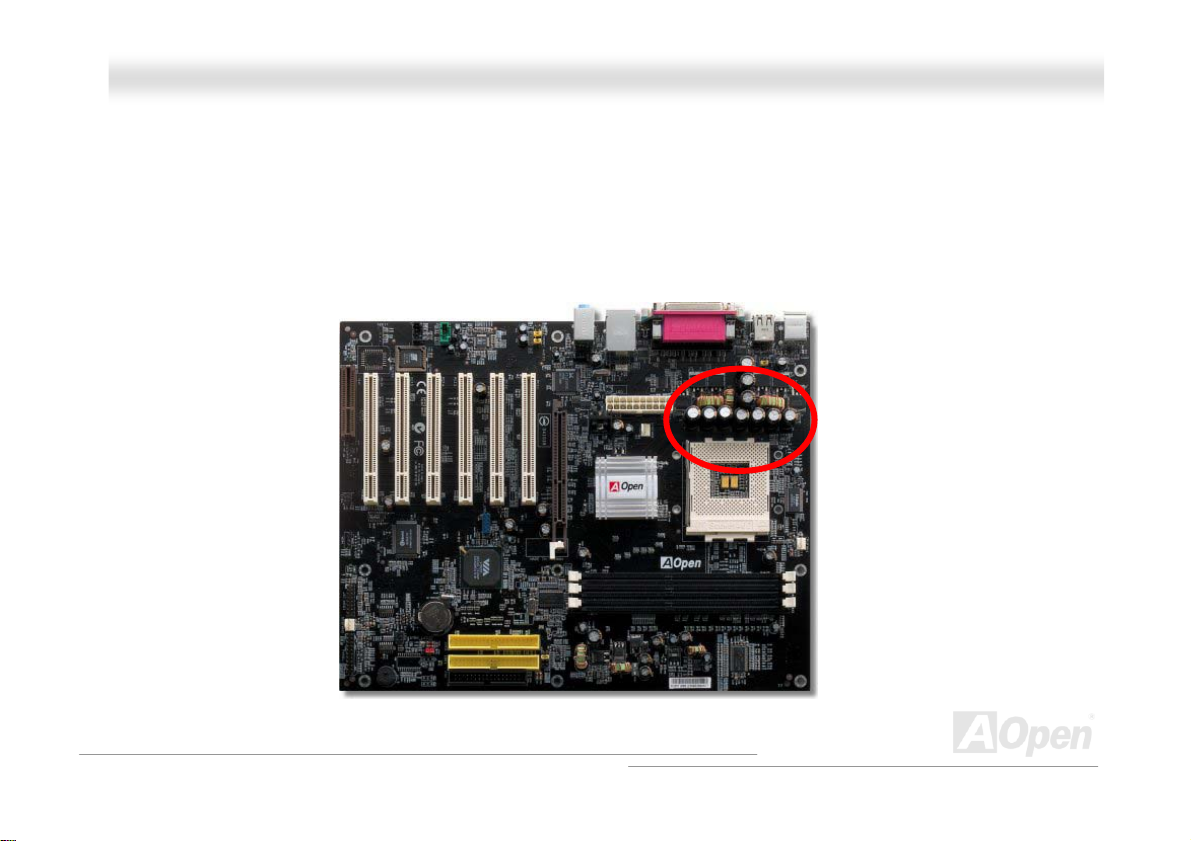

2200μF Low ESR Capacitor......................................................................................................................................... 63
Layout (Frequency Isolation Wall) ................................................................................................................................. 65

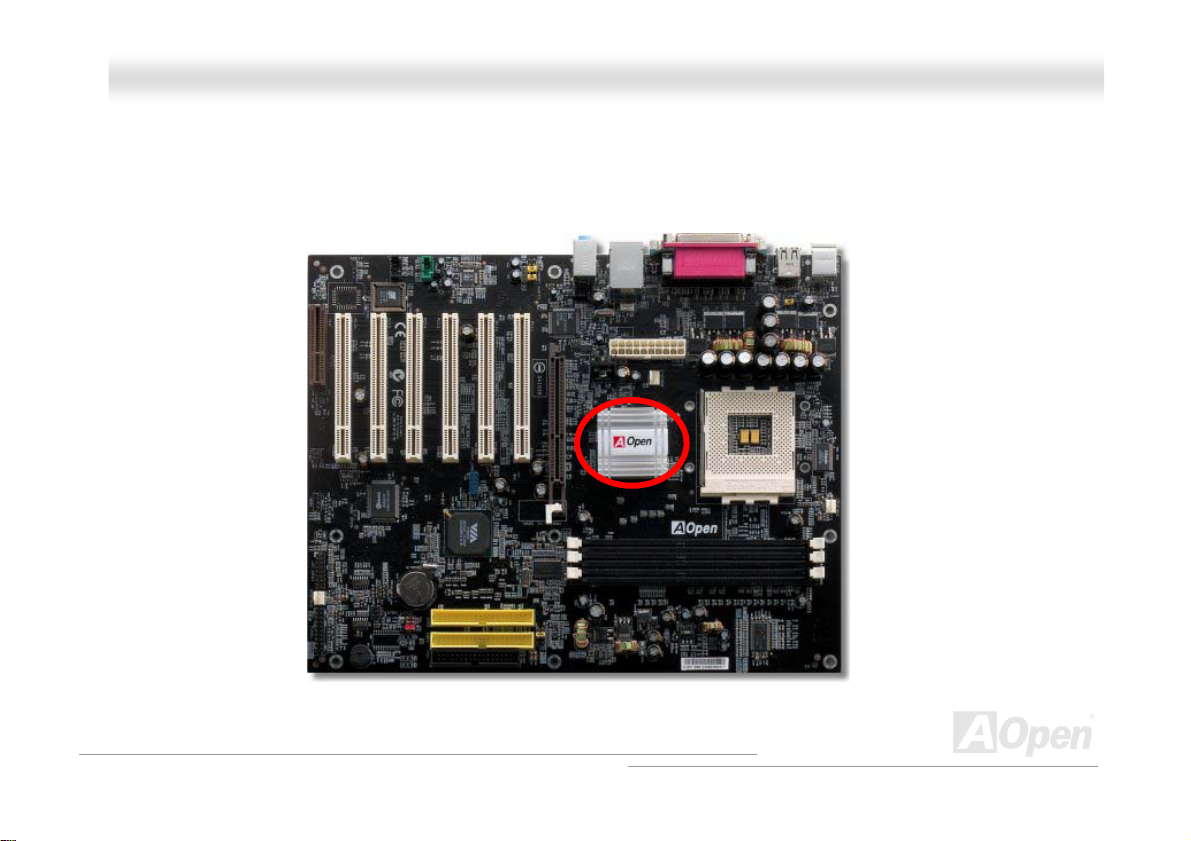

Enlarged Aluminum Heatsink ........................................................................................................................................ 66

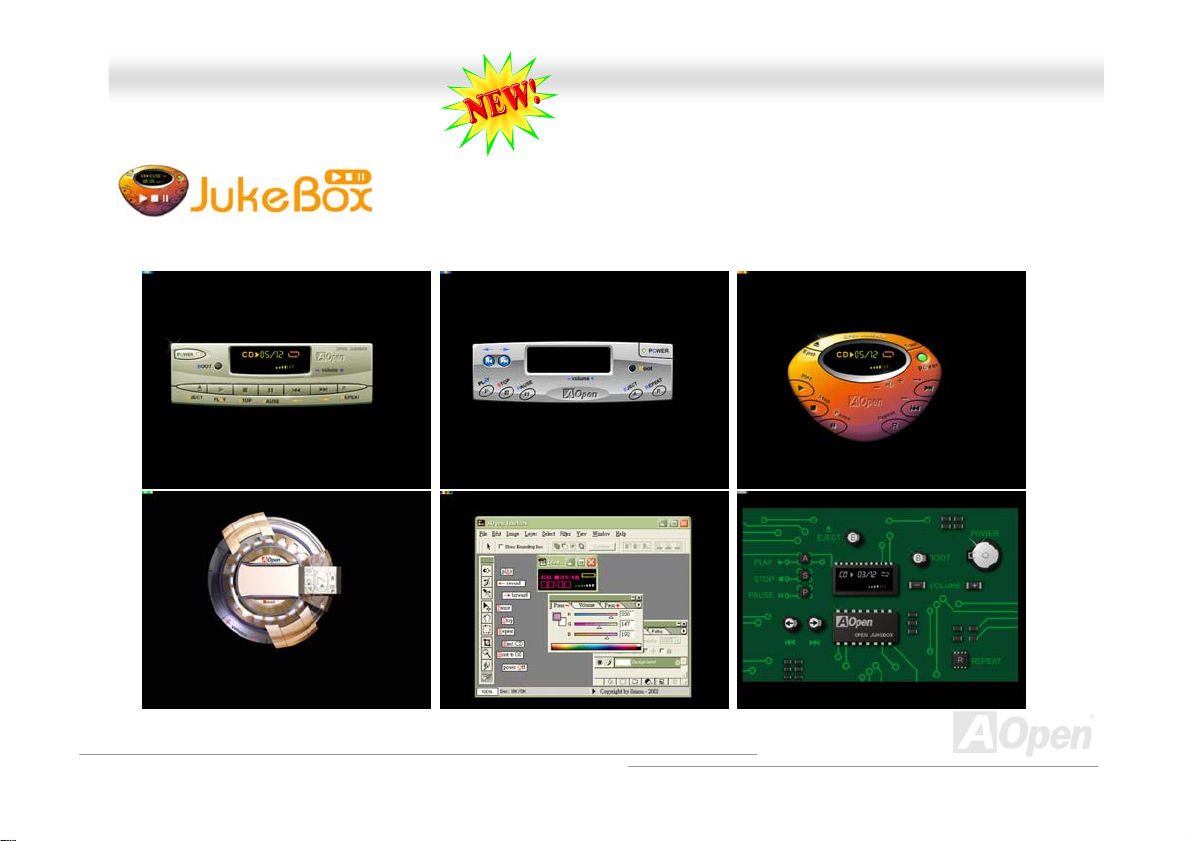

Open JukeBox Player.................................................................................................................................................... 67
Vivid BIOS technology................................................................................................................................................... 71
Driver and Utility ......................................................................................................................... 72
Auto-run Menu from Bonus CD Disc .............................................................................................................................73
Installing Windows 95 ................................................................................................................................................... 74
Installing Windows 98 ................................................................................................................................................... 75
Installing Windows® 98 SE, Windows® ME & Windows®2000/XP................................................................................... 76

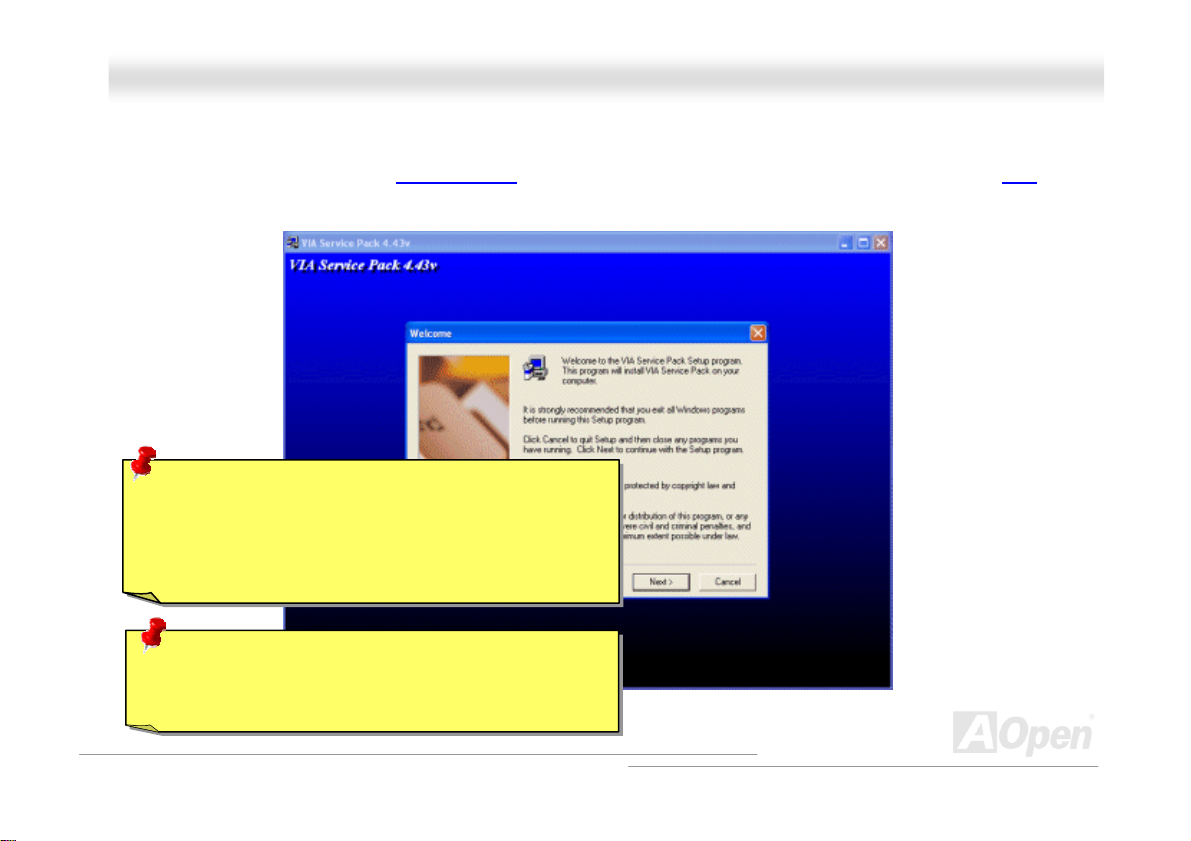

Installing VIA 4 in 1 Driver............................................................................................................................................. 77
Installing Onboard Sound Driver ................................................................................................................................... 78

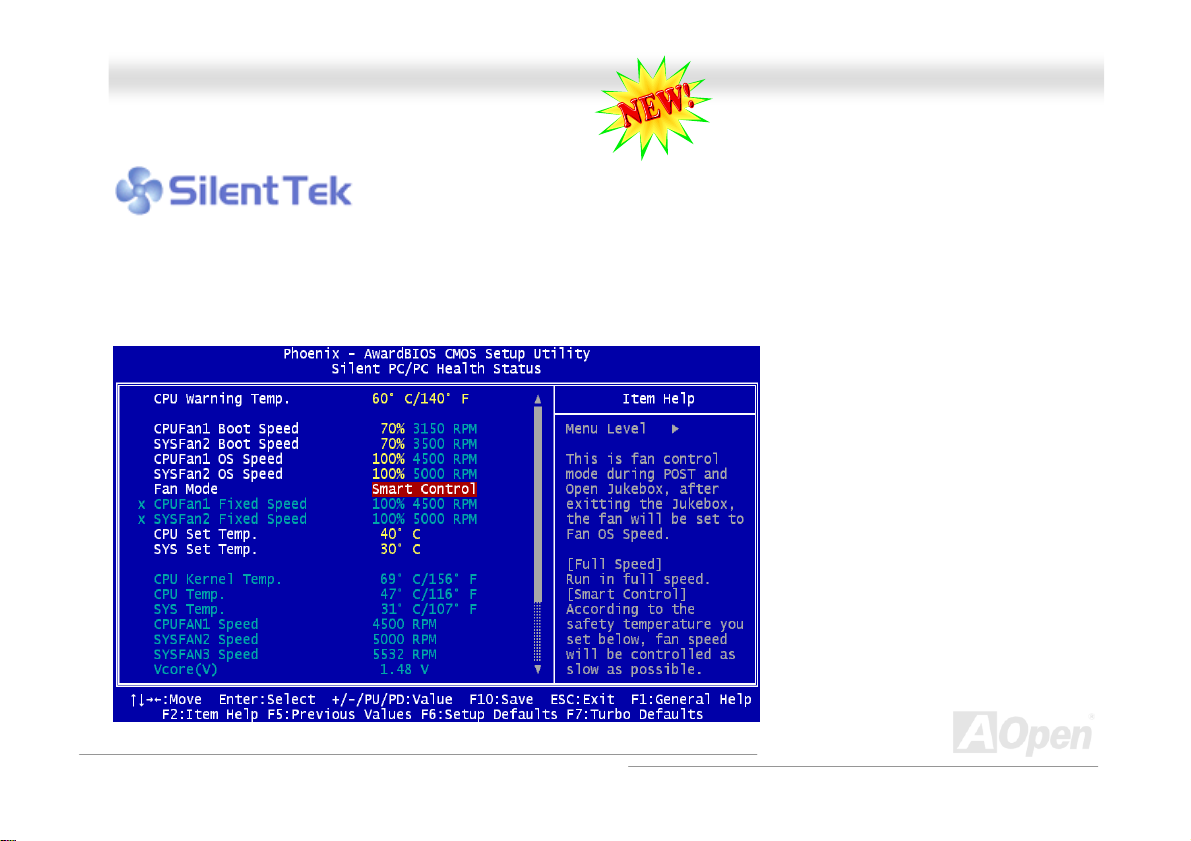

The noise is gone!! ---- SilentTek ..................................................................................................................................79
4
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
Installing USB2.0 Driver ................................................................................................................................................ 82
Installing LAN Driver (AK77-333FN only) ...................................................................................................................... 83
PHOENIX-AWARD BIOS................................................................................................................ 87
How To Use Phoenix Award™ BIOS Setup Program ..................................................................................................... 88
How To Enter BIOS Setup ............................................................................................................................................. 90

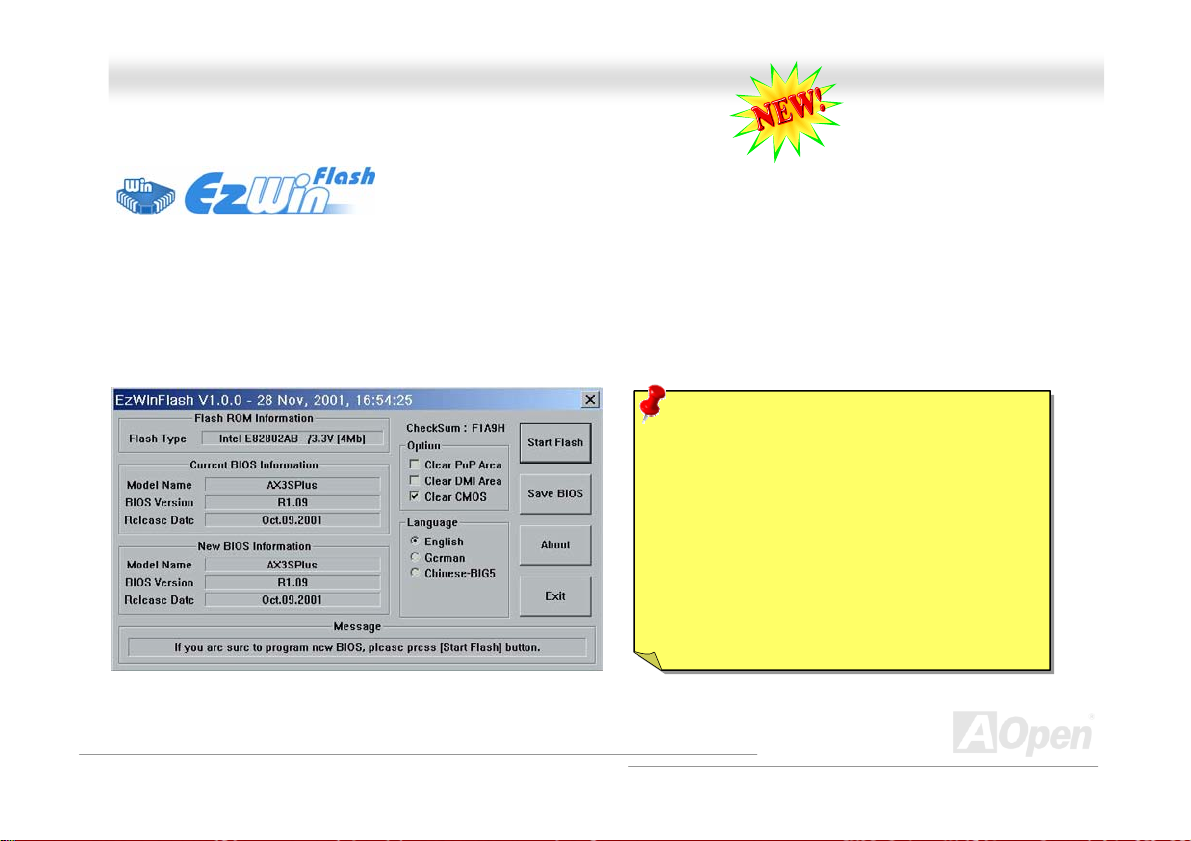

BIOS Upgrade under Windows environment ................................................................................................................. 91
Overclocking ................................................................................................................................ 93
VGA Card & Hard Disk.................................................................................................................................................. 94
Glossar y ....................................................................................................................................... 95
AC97............................................................................................................................................................................. 95
ACPI (Advanced Configuration & Power Interface) .......................................................................................................95
AGP (Accelerated Graphic Port) ................................................................................................................................... 95
AMR (Audio/Modem Riser)............................................................................................................................................ 96
AOpen Bonus Pack CD ................................................................................................................................................. 96
APM (Advanced Power Management)........................................................................................................................... 96
ATA (AT Attachment) ..................................................................................................................................................... 96
ATA/66 ..........................................................................................................................................................................96
ATA/100 ........................................................................................................................................................................ 97
ATA/133 ........................................................................................................................................................................ 97
5
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
BIOS (Basic Input/Output System) ................................................................................................................................ 97
Bus Master IDE (DMA mode) ........................................................................................................................................ 97
CNR (Communication and Networking Riser)................................................................................................................ 98
CODEC (Coding and Decoding).................................................................................................................................... 98
DDR (Double Data Rate) SDRAM ................................................................................................................................. 98
DIMM (Dual In Line Memory Module)............................................................................................................................ 98
DMA (Direct Memory Access) ....................................................................................................................................... 99
ECC (Error Checking and Correction) ........................................................................................................................... 99
EDO (Extended Data Output) Memory .......................................................................................................................... 99
EEPROM (Electronic Erasable Programmable ROM).................................................................................................... 99
EPROM (Erasable Programmable ROM) ...................................................................................................................... 99
EV6 Bus ...................................................................................................................................................................... 100
FCC DoC (Declaration of Conformity) ......................................................................................................................... 100
FC-PGA (Flip Chip-Pin Grid Array).............................................................................................................................. 100
Flash ROM .................................................................................................................................................................. 100
FSB (Front Side Bus) Clock ........................................................................................................................................101
I2C Bus........................................................................................................................................................................ 101
IEEE 1394................................................................................................................................................................... 101
Parity Bit ..................................................................................................................................................................... 102
6
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
PBSRAM (Pipelined Burst SRAM)............................................................................................................................... 102
PC-100 DIMM ............................................................................................................................................................. 102
PC-133 DIMM ............................................................................................................................................................. 102
PC-1600 / PC-2100/ PC-2700 / PC-3200 DDR DRAM ................................................................................................ 103
PCI (Peripheral Component Interface) Bus ................................................................................................................. 103
PDF Format................................................................................................................................................................. 103
PnP (Plug and Play) .................................................................................................................................................... 103
POST (Power-On Self Test) ........................................................................................................................................ 104
RDRAM (Rambus DRAM) ........................................................................................................................................... 104
RIMM (Rambus Inline Memory Module) ...................................................................................................................... 104
SDRAM (Synchronous DRAM) .................................................................................................................................... 104
Shadow E2PROM ........................................................................................................................................................ 105
SIMM (Single In Line Memory Module) ....................................................................................................................... 105
SMBus (System Management Bus) ............................................................................................................................. 105
SPD (Serial Presence Detect) ..................................................................................................................................... 105
Ultra DMA ................................................................................................................................................................... 106
USB (Universal Serial Bus) .........................................................................................................................................106
VCM (Virtual Channel Memory)................................................................................................................................... 107
ZIP file......................................................................................................................................................................... 107
7
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
Troubleshooting......................................................................................................................... 108
Technical Support ..................................................................................................................... 112
Product Registration ................................................................................................................. 115
How to Contact Us .................................................................................................................... 116
8
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
YYoouu MMuusstt NNoottiiccee
Adobe, the Adobe logo, and Acrobat are trademarks of Adobe Systems Incorporated.
AMD, the AMD logo, Athlon and Duron are trademarks of Advanced Micro Devices, Inc.
Intel, the Intel logo, Intel Celeron, Pentium II, Pentium III, Pentium 4 are trademarks of Intel Corporation.
Microsoft, Windows, and Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United
States and/or other countries.
All product and brand names used on this manual are used for identification purposes only and may be the registered
trademarks of their respective owners.
All of the specifications and information contained in this manual are subject to change without notice. AOpen reserves the right
to revise this publication and to make reasonable changes. AOpen assumes no responsibility for any errors or inaccuracies that
may appear in this manual, including the products and software described in it.
This documentation is protected by copyright law. All rights are reserved.
No part of this document may be used or reproduced in any form or by any means, or stored in a database or retrieval
system without prior written permission from AOpen Corporation.
Copyright
©
1996-2002, AOpen Inc. All Rights Reserved.
9
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
BBeeffoorree YYoouu SSttaarrtt
This Online Manual will introduce how this product is installed to the user. All useful information will be described in later
chapters. Please keep this manual carefully for future upgrades or system configuration changes. This Online Manual is saved
in PDF format
get free download from Adobe web site
Although this Online Manual is optimized for screen viewing, it is still capable for hardcopy printing, you can print it by A4 paper
size and set 2 pages per A4 sheet on your printer. To do so, choose File > Page Setup and follow the instruction of your printer
driver.
Thanks for the helping in saving our earth.
, we recommend using Adobe Acrobat Reader 4.0 for online viewing, it is included in Bonus CD disc or you can
.
10
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
OOvveerrvviieeww
Thanks for choosing AOpen AK77-333F / AK77-333FN. The AK77-333F / AK77-333FN is AMD® Socket 462 motherboard (M/B)
based on the ATX form factor featuring the VIA Apollo KT333 chipset
AK77-333F / AK77-333FN AMD
Protection circuit to Athlon™XP CPU only) and 200/266/333MHz EV6
and supports AGP /4X mode and pipelined spilt-transaction long burst transfer up to 1056MB/sec. With high bandwidth
200/266/333MB/s 8-bit V-Link Host Controller, DDR333(PC2700)
AK77-333F / AK77-333FN and the maximum memory size can
be up to 3GB. The on-board IDE controller supports Ultra DMA
66/100/133 mode and the transfer rate up to 133MB/s. Further
flexibility can be achieved by taking advantage of the
Communication and Network Riser (CNR)
allows audio and modem configuration on a single baseboard
design. More than that, on the strength of RealTek RTL8100BL
controller on board, which is an highly-integrated Platform LAN
Connect device, it provides 10/100M bps Ethernet for office and
home use (AK77-333FN only). Besides, the AK77-333F /
AK77-333FN has an AC97
onboard for providing high performance and magic surround
stereo sound to let people enjoy working with it. More than that,
this motherboard supports USB 2.0
of up to 480Mbps. Now, let’s enjoy all features from AOpen AK77-333F / AK77-333FN.
®
Socket 462 series Athlon™ & Duron™ and AthlonXP™ processor (with CPU Overheat
card option that
CODEC Realtek ALC650 chipset
function with a fancy speed
. As high performance chipset built in the M/B, the
system bus. In the AGP performance, it has one AGP slot
and DDR266(PC2100)DDR SDRAM can be applied to the
11
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
FFeeaattuurree HHiigghhlliigghhtt
CPU
Supports AMD® Socket 462 series CPU with 200/266/333 MHz EV6 Bus designed for Socket 462 technology.
Athlon: 600MHz~1.4GHz
Duron: 600MHz~1.3GHz
AthlonXP: 1500+(1.33GHz)~2800+(2.25GHz)
Chipset
The VIA Apollo KT333 consists of the KT333 V-Link DDR Host system controller and the VT8235 highly integrated V-Link Client
PCI/LPC controller. The Host system controller provides superior performance between the CPU, SDRAM, AGP bus, and V-Link
interface with pipelined, burst, and concurrent operation. The VT8235 V-Link Client controller is a highly integrated PCI/LPC
controller. Its internal bus structure is based on 66MHz PCI bus that provides 4x bandwidth compare to previous generation
PCI/ISA bridge chips. The VT8235 integrated Client V-Link controller with 200/266MB/s bandwidth between Host/Client V-Link
interface, providing a V-Link-PCI and V-Link-LPC controller.
Ultra DMA 66/100/133 Bus Master IDE
Comes with an on-board PCI Bus Master IDE controller with two connectors that supports four IDE devices in two channels,
supports Ultra DMA
66/100/133, PIO Modes 3 and 4 and Bus Master IDE DMA Mode 4, and supports Enhanced IDE devices.
12
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
Expansion Slots
Including six 32-bit/33MHz PCI, one CNR and one AGP 4X slots. The PCI local bus throughput can be up to 132MB/s. The
Communication & Nectworking Riser (CNR)
Modem/Audio card. The Accelerated Graphics Port (AGP)
speed. The AGP video cards support data transfer rate up to 1056MB/s. As AK77-333F / AK77-333FN includes one AGP
expansion slot for a bus mastering AGP graphic card, For AD and SBA signaling, AK77-333F / AK77-333FN can support
133MHz 2X/4X mode. Of six PCI slots provided, all of them support master PCI slots for arbitration and decoding functions.
slot provided from AK77-333F / AK77-333FN can support CNR interface for a
specification provides a new level of video display sophistication and
Memory
With VIA Apollo KT333 chipset, the AK77-333F / AK77-333FN can support Double-Data-Rate (DDR) RAM. The DDR RAM
interface allows zero wait state bursting between the RAM and the data buffers at 333/266/200 MHz. The six banks of DDR
RAM can be composed of an arbitrary mixture of 64, 128, 256, 512MB x N DDR RAM and maximum up to 3GB. The AK77-333F
/ AK77-333FN allows DDR RAM to run at either synchronous or pseudo-synchronous mode with the host CPU bus frequency
(333/266/200MHz).
LAN Port (AK77-333FN only)
On the strength of RealTek RTL8100BL controller on board, which is an highly-integrated Platform LAN Connect device, it
provides 10/100 Mbps Ethernet for office and home use.
On-board AC97 Sound
AK77-333F / AK77-333FN uses the AC97 CODEC RealTek ALC650 chip, which supports high quality of 5.1 Channel audio
effects. This on-board audio includes a complete audio recording and playback system.
13
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
Six USB 2.0 Connectors
Provides three ports, six USB connectors for USB interface devices, such as mouse, keyboard, modem, scanner, etc. Please be
noted that USB 2.0, with fancy speed up to 480Mbps, is 40 times faster than the traditional ones. Except for the speed increase,
USB 2.0 supports old USB 1.0/1.1 software and peripherals, offering impressive and even better compatibility to customers.
1MHz Stepping Frequency Adjustment
Provides “1MHz Stepping Frequency Adjustment” function in the BIOS. This magic function allows you to adjust CPU FSB
frequency from 100~191 by 1MHz stepping, and lets your system get maximum performance.
Watch Dog Timer
Includes AOpen “Watch Dog Timer” function that can auto-reset system in 4.8 seconds when you fail to system overclocking.
Power Management/Plug and Play
The AK77-333F / AK77-333FN supports the power management function that confirms to the power-saving standards of the U.S.
Environmental Protection Agency (EPA) Energy Star program. It also offers Plug-and-Play
configuration problems, thus making the system much more user-friendly.
, which helps saving users from
14
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
Hardware Monitoring Management
Supports CPU or system fans status, temperature and voltage monitoring and alert, through the on-board hardware monitor
module and AOpen Hardware Monitoring Utility
.
Enhanced ACPI
Fully implement the ACPI standard for Windows® 95/98/ME/NT/2000/XP series compatibility, and supports Soft-Off, STR
(Suspend to RAM, S3), STD (Suspend to Disk, S4), WOM (Wake On Modem), WOL (Wake On LAN) features.
Super Multi-I/O
The AK77-333F / AK77-333FN provides two high-speed UART compatible serial ports and one parallel port with EPP and ECP
capabilities. UART2 can also be directed from COM2 to the Infrared Module for the wireless connections.
15
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
QQuuiicckk IInnssttaallllaattiioonn PPrroocceedduurree
This page gives you a quick procedure on how to install your system. Follow each step accordingly.
1.
Installing CPU and Fan
2.
Installing System Memory (DIMM)
3.
Connecting Front Panel Cable
4.
Connecting IDE and Floppy Cable
5.
Connecting ATX Power Cable
6.
Connecting Back Panel Cable
7.

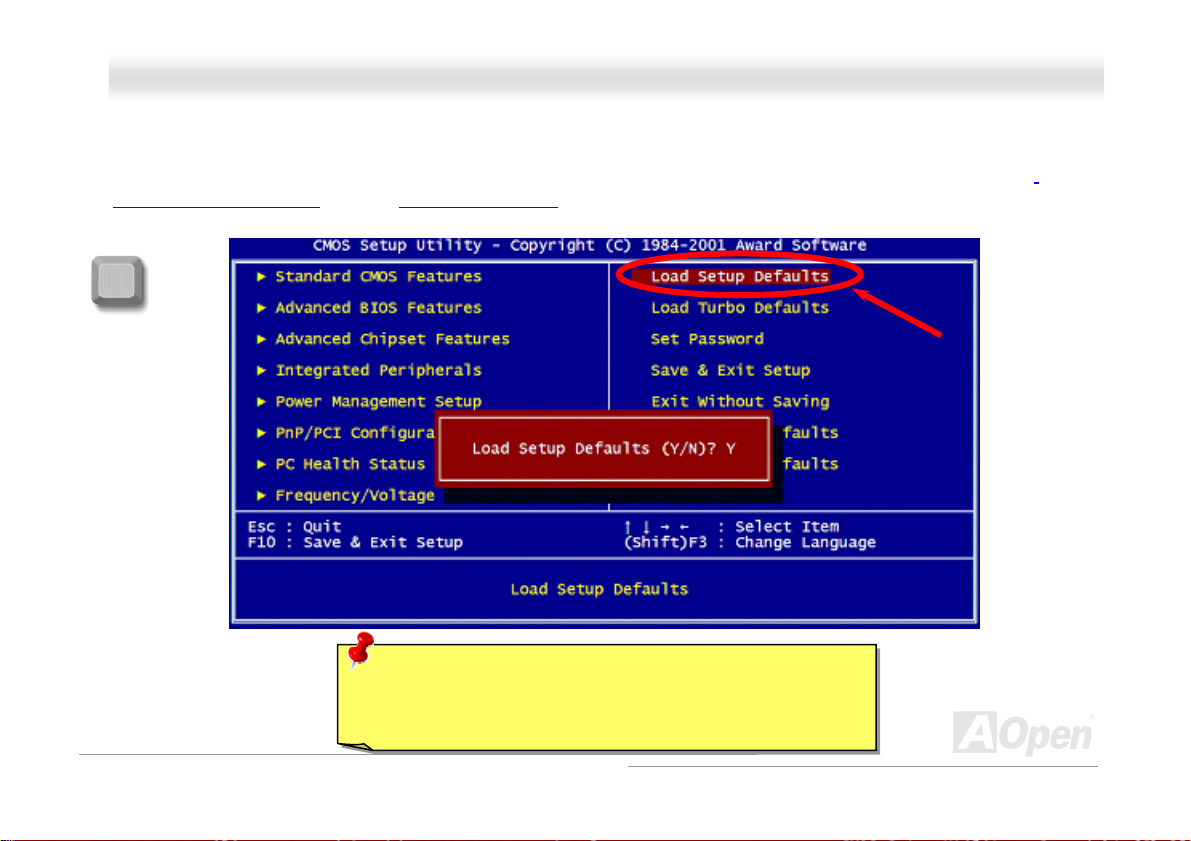

Power-on and Load BIOS Setup Default
8.
Setting CPU Frequency
9.
Reboot
10.
Installing Driver and Utility
16
L00BL81RT klT
R
j
)
JP20 K7 Host Clock
SYS
FAN 3 C
d
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
Front Audio Connector
AC97 CODEC
AUX-IN Connector
CD-IN Connector
S/PDIF Connector
2MbFlash Rom
CNR Expansion Slot
32-bit PCI Expansion Slot x6
n
2
WOM (Wake ON Modem)
JP14 CMOS Data Clear Jumper
IrDA Connector
USB 2.0 Port Connector
Chassis Intrusion
Sensor Connector
STBY LED
JST-MIDI
onnector
Front Panel Connector
FDD Connector
Motherboard Map
PC99 Colored Back Panel
Resetable Fuse
JP28 KB/Mouse Wakeup
Enable/Disable jumper
WOL (Wake ON LAN)
eea
(AK77-333FN only)
ATX Power Connec
2200μF Low ESR Capacitors
SYSFAN2 Connector
AGP 4x Expansion Slot
462-pin CPU Socket
Voltage and Frequency
Auto-Detection supports
TM TM TM
AMD
Athlon / Duron /
TM
XP (CPU Overheat
Athlon
Protection circuit to
TM
Athlon
XP CPU onl y)
ATTA NSI C AT XP 1
(Memory/AGP voltage
Ad
ustable Controller
VIA® Apollo KT333 Chipset
and VT8235 SB
CPUFAN1 Connector
with H/W Monitoring
184-pin DIMMx3 supports
DDR333/266/200
(Max. to 3B)
IDE Connector x 2
(ATA/66/100/133 supported)
Select Jumper
tor
17
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
BBlloocckk DDiiaaggrraamm
Socket 462
AMD
Athlon/Duron/AthlonXP
CPU
AGP 4X Slot
DDR SDRAM Socket x3
100/133/166
MHz S ystem
Bus
AGP Bus
LAN connect Component
PC1600/2100/2700
DDR RAM Up to 3GB
VIA KT333
(AK77-8XN only)
Floppy Disk Drive x2
PCI Bus
RealTek
RTL8100
1stUSB Port
2ndUSB Port
3rdUSB Port
USB connec tor x6
32-bit PCI Slot x6
ATA
66/100/133
BL
Prima ry
Channel
Secondary
Channel
VT8235
AC’97 Link
Modem CODEC
2MBit Flash EEPROM
Parallel Port
Serial Port x2
IDE D riv e x4
Audio CODE C
CNR Slot
18
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
HHaarrddwwaarree IInnssttaallllaattiioonn
This chapter describes jumpers, connectors and hardware devices of this motherboard.
Note: Electrostatic discharge (ESD) can damage your processor, disk drives, expansion boards,
and other components. Always observe the following precautions before you install a system
component.
1. Do not remove a component from its protective packaging until you are ready to install it.
2. Wear a wrist ground strap and attach it to a metal part of the system unit before handling a
component. If a wrist strap is not available, maintain contact with the system unit throughout
any procedures requiring ESD protection.
19
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
AAbboouutt ““MMaannuuffaaccttuurreerr UUppggrraaddee OOppttiioonnaall”” aanndd ““UUsseerr UUppggrraaddee
OOppttiioonnaall””……
When you read this online manual and start to assemble your computer system, you may find some of functions are called
“Manufacturer Upgrade Optional”, and some are called “User Upgrade Optional”. Though all AOpen motherboards include many
amazing and powerful features, in some situations, these powerful features are not used to every user. Hence, we changed
some key features as “Manufacturer Upgrade Optional” for you to choose. Some optional functions that can be upgraded by
users, we call them “User Upgrade Optional”. As for those optional functions that can’t be upgraded by ourselves, we call them
“Manufacturer Upgrade Optional”. If needed, you can contact our local distributors or resellers for purchasing “User Upgrade
Optional” components, and again you can visit AOpen official web site: http://english.aopen.com.tw/
for more detail information.
20
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall

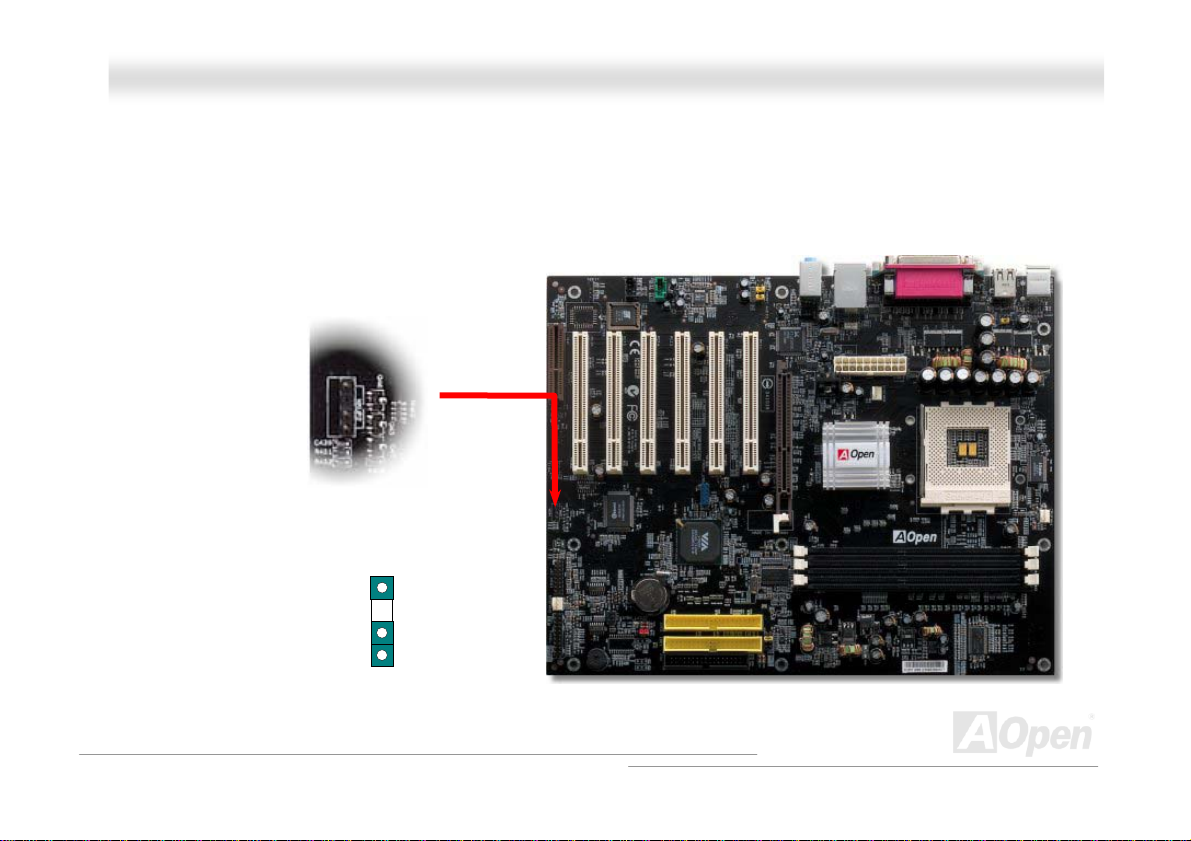

JJPP1144 CClleeaarr CCMMOOSS DDaattaa
You can clear CMOS to restore system default sett ing. To clear the CMOS, follow the procedures below.
1. Turn off the system and unplug the AC power.
2. Remove ATX power cable from connector PWR2.
3. Locate JP14 and short pins 2-3 f or a few sec onds.
4. Return JP14 to its normal s ett ing by s horti ng pin 1 & pi n 2.
5. Connect ATX power cable back to connector PWR2.
Clear CMOS
Pin 1
1 1
Normal Operation
(default)
Tip: When should I Clear CMOS ?
1. Boot fail because of ov ercl ock ing…
2. Forget password…
3. Troubleshooting…
21
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
CCPPUU IInnssttaallllaattiioonn
This motherboard supports AMD® Athlon and Duron Socket 462 series CPU. Be careful of CPU orientation when you plug it into
CPU socket (with CPU Overheat Protection function implemented, the system will be automatically power off when the
temperature of CPU reached 97 degree, but only works on AthlonXP CPU only).
1. Pull up the CPU socket lever and
up to 90-degree angle.
2. Locate Pin 1 in the socket and look for a black dot or cut edge on the
CPU upper interface. Match Pin 1 and cut edge, then insert the CPU into
the socket.
CPU socket
Lever
Note: This picture is for example only, it may not exactly be the same motherboard.
CPU pin 1
and cut edge
Black dot and
cut edge
22
y
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
3. Press down the CPU socket lever and finish
CPU installation.
Note: This picture is for example only, it may not exactly be the same motherboard.
CPU cut edge
Note: If you do not match the CPU
socket Pin 1 and CPU cut edge well, it
ma
damage the CPU.
23
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
AAOOppeenn OOvveerrhheeaatt PPrrootteeccttiioonn ((OO..HH..PP..)) TTeecchhnnoollooggyy
With AMD platform substantially keeps increasing the speed of its CPU, it inevitably led to the annoying problem of high CPU
operation temperature at the same time. In order to prevent accidental failure of CPU fan, which could cause the burning down
of the AthlonXP CPU, we, AOpen, have meticulously developed a new technology, named, O.H.P. (Overheat Protection)
Technology to protect them. Thanks to the intelligent monitoring design of AOpen O.H.P. technology, user can now finally set
their mind at ease even when fan failed to work without fearing the possible damage of CPU.
Under the circumstances that CPU fan is running properly, AthlonXP temperature should be way below the highest temperature
limit of 97℃. However, if CPU fan accidentally becomes
malfunction or improperly installed, the CPU temperature
would rocket abruptly, and you may find your system
hang up or crying over the smoking CPU if you haven’t
installed AOpen O.H.P. previously. With AOpen O.H.P.
technology applied, the specific thermal detection pins on
AthlonXP CPU would sense voltage difference when
processor is overheated with fan failed, and the overheat
protection system would immediately send out a signal to
abort your system by cutting CPU electricity before any
damage is done. Unlike other manufacturers who use
BIOS or software to control the power supply of CPU,
AOpen O.H.P. Technology is purely hardware-controlled
the minute after system boot-up, and occupies no system
resource. We are pleasant to phase in this practical
function on all AOpen AMD series motherboards to
protect customer’s valuable hardware and personal data.
24
(
)
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
JJPP2288 KKBB//MMoouussee WWaakkee--uupp EEnnaabbllee//DDiissaabbllee JJuummppeerr
This motherboard provides keyboard / mouse wake-up function. You can use JP28 to enable or disable this function, which
could resume your system from suspend mode with keyboard or mouse installed. The factory default setting is set to
“Disable”(1-2), and you may enable this function by setting the jumper to 2-3.
JP28 KB/Mouse
Wake-up Jumper
1
Disable
Default
Enable
25
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
AMD
CPU
CPU Freq. Ratio
CPU voltage
Clock Generator
BIOS
Controlled
Circuit
CCPPUU JJuummppeerr--lleessss DDeessiiggnn
CPU VID signal and SMbus clock generator provide CPU voltage auto-detection and allows the user to set the CPU frequency
through the BIOS setup
designs are eliminated. There will be no worry of wrong CPU voltage detection.
, therefore no jumpers or switches are used. The disadvantages of the Pentium based jumper-less
Socket 462
CPU VID signal
Power Regulator
(Automatically generates CPU voltage)
26
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
FFuullll--rraannggee AAddjjuussttaabbllee CCPPUU CCoorree VVoollttaaggee
This function is dedicated to overclockers. The CPU core voltage of this motherboard is adjustable 1.1V to 1.85V by 0.05V
stepping. But this motherboard can also automatically detect CPU VID signal and generates proper CPU core voltage.
BIOS Setup > Frequency/Voltage Control > CPU Voltage Setting
Warning: Higher CPU core voltage may be
able to increase CPU speed for overclocking,
but you may damage the CPU or reduce the
CPU lifecycle.
27
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
SSeettttiinngg CCPPUU FFrreeqquueennccy
This motherboard is CPU jumper-less design, you can set CPU frequency through the BIOS setup, and no jumpers or switches
are needed.
BIOS Setup > Frequency/Voltage Control > CPU Speed Setting
CPU Ratio
CPU FSB
(By manual Adjustment)
Warning: VIA® Apollo KT333 chipset supports
166MHz FSB (with performance reaches maximum
266MHz EV6 system bus) and 66MHz AGP clock,
higher clock setting may cause serious system
damage.
Home
From 5.5x to 16.5x step 0.5x; 17x to 18x step 1x
FSB=100, 100~129 by 1MHz stepping adjustment technology
FSB=133, 130~160 by 1MHz stepping adjustment technology
FSB=166, 161~191 by 1MHz stepping adjustment technology
Tip: If your system hangs or fails to boot because of
overclocking, simply use <Home> key to restore the
default setting or you can wait the AOpen “Watch Dog
Timer” reset the system after five seconds and system
will auto-detect hardware again.
y
Warning: Supposed you have had adjusted CPU
ratio on your current CPU, and you plan to replace a
new CPU. Please use <Home> key or Clear CMOS
to restore the default setting when changing a new
CPU, because the system will still implement the
previous CPU setting on the new one.
28
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
SSuuppppoorrtteedd CCPPUU FFrreeqquueennccyy
Core Frequency = CPU Bus Clock * CPU Ratio PCI Clock = CPU Bus Clock / Clock Ratio
AGP Clock = PCI Clock x 2 EV6 Bus Speed = CPU external bus clock x 2
CPU CPU Core Frequency EV6 Bus Clock Ratio
Athlon 1G 1GHz 200MHz 10.0x
Athlon 1.1G 1.1GHz 200MHz 11.0x
Athlon 1.2G 1.2GHz 200MHz 12.0x
Athlon 1.3G 1.3GHz 200MHz 13.0x
Athlon 1G 1GHz 266MHz 7.5x
Athlon 1.13G 1.13GHz 266MHz 8.5x
Athlon 1.2G 1.2GHz 266MHz 9.0x
Athlon 1.33G 1.33GHz 266MHz 10.0x
Athlon 1.4G 1.4GHz 266MHz 10.5x
AthlonXP 1500+ 1.3GHz 266MHz 10.0x
AthlonXP 1600+ 1.4GHz 266MHz 10.5x
AthlonXP 1700+ 1.46GHz 266MHz 11.0x
AthlonXP 1800+ 1.53GHz 266MHz 11.5x
AthlonXP 1900+ 1.6GHz 266MHz 12.0x
AthlonXP 2000+ 1.667GHz 266MHz 12.5x
AthlonXP 2100+ 1.73GHz 266MHz 13x
AthlonXP 2200+ 1.80GHz 266MHz 13.5x
AthlonXP 2400+ 2.0GHz 266MHz 15x
AthlonXP 2600+ 2.13GHz 266MHz 16x
AthlonXP 2700+ 2.16GHz 333MHz 13x
AthlonXP 2800+ 2.25GHz 333MHz 13.5x
Duron 800 800MHz 200MHz 8.0x
Duron 850 850MHz 200MHz 8.5x
Duron 900 900MHz 200MHz 9.0x
Duron 950 950MHz 200MHz 9.5x
Duron 1G 1GHz 200MHz 10.0x
Duron 1.1G 1.1GHz 200MHz 11.0x
Note: With CPU speed changing rapi dly, there might be fastest CPU on
the market by the time you received this installation guid e. This table is
kindly for your references only.
Note: This motherboard support
CPU auto-detection function.
Hence, you don’t need to setup
the CPU frequency manually.
Warning: To avoid poss ible CPU
damage caused by overheating,
CPU Overheat Protection circuit
had been especially designed on
this motherboard. System would
be automatically power off when
this motherboard detected a CPU
temperature above 97 degree.
29
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall

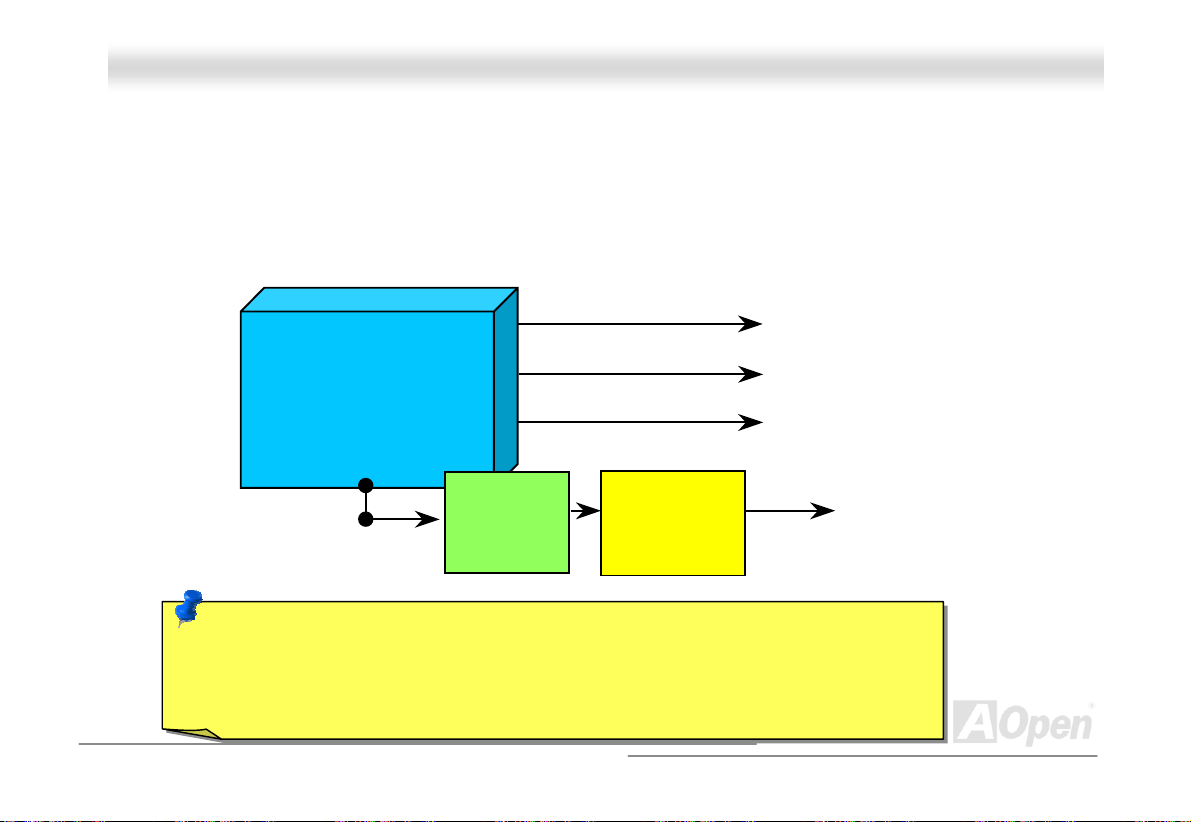

AAOOppeenn ““WWaattcchh DDoogg TTiimmeerr””
With this motherboard, AOpen provides a very special, useful feature for overclockers. When you
power-on the system, the BIOS will check last system POST
BIOS will enable “Watch Dog Timer” function immediately, and set the CPU FSB
user’s setting that stored in the BIOS. If system failed in BIOS POST, the “Watch Dog Timer” will
reset the system to reboot in five seconds. Then, BIOS will detect the CPU’s default frequency
and POST again. With this special feature, you can easily overclock your system to get higher system performance without
removing the cover of system housing, and be able to set the jumper to clear CMOS data when your system hanged.
AOpen
Watch Dog
Timer
Enable/Disable Signal
from BIOS
Countdown about
5 seconds if fails
in POST
Reset Signal
Clock Generator
status. If POST succeeded, the
frequency by
BIOS
CPU ID Signal
CPU
30
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
CCPPUU aanndd HHoouussiinngg FFaann CCoonnnneeccttoorr ((wwiitthh HH//WW MMoonniittoorriinngg))
Plug in the CPU fan cable to the 3-pin CPUFAN1 connector. If you have chassis fan, you can also plug it on SYSFAN2 (FAN2)
or SYSFAN3 (FAN3) connector.
SYSFAN3 Connector
GND
+12V
SENSOR
SYSFAN2 Connector
CPUFAN1 Connector
Note: Some CPU fans do not have
sensor pin, so that cannot support fan
monitoring.
GND
+12V
SENSOR
GND
+12V
SENSOR
31
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
JJPP2200 KK77 HHoosstt CClloocckk SSeelleeccttiioonn
This jumper is used to specify the relationship of PCI and FSB clock. Generally speaking, if you are not overclockers, we
recommend you to set it to the default setting. Additionally, this motherboard also provides “1MHz Stepping Adjustment”
feature for overclockers to adjust CPU FSB frequency via BIOS setup program. Based on the CPU type, the adjustment range
has three levels: 100~129, 130~160 and 161~191MHz for your choosing. If you fix the CPU FSB frequency by JP20, the “1MHz
Stepping Adjustment” range will be changed and following the JP20 setting.
Pin 1
JP20 CPU Type
Select Jumper
1 2
FSB100
FSB133
FSB166
FSB200
32
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
DDIIMMMM SSoocckkeettss
This motherboard has three 184-pin DDR DIMM sockets that allow you to install DDR200/266/333 memory up to 3 GB.
Non-ECC DDR RAM is supported. Otherwise, it will cause serious damage on memory sockets or RAM module. Newly
implemented function, the Voltage of memory on this motherboard is adjustable from 2.5V to 2.65V for over clocking purpose.
Warning: This motherboard supports DDR
RAM, please do not install the SDRAM on
the DDR RAM sockets. Otherwise, it will
cause serious damage on memory sockets
or RAM module.
DDR
RAM
33
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
HHooww ttoo IInnssttaallll MMeemmoorryy MMoodduulleess
Please follow the procedure as shown below to finish memory installation.
1. Make sure the DIMM module’s pin face down and match the socket’s size as depicted below.
2. Insert the module straight down to the DIMM slot with both hands and press down firmly until the DIMM module is securely
in place.
3. Repeat step 2 to finish additional DIMM modules installation.
Pin 1
Ta b
Key
52 pins 40 pins
Note: The tabs of the DIMM slot
will close-up to hold the DIMM
in place when the DIMM
touches the slot’s bottom.
Pin 1
34
e
(
)
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
FFrroonntt PPaanneell CCoonnnneeccttoorr
Attach the power LED, speaker, power and reset switch connectors to th
corresponding pins. If you enable “Suspend Mode” item in BIOS Setup, the ACPI
& Power LED will keep flashing while the system is in suspend m ode.
Locate the power switch cable from your ATX housing. It is 2-pin female
connector from the housing front panel. Plug this connector to the soft-power
switch connector mark ed SPW R.
Suspend Type ACP I L ED
Power on Suspend (S1) Blinking between green and red
Suspend to RAM (S3) or Suspend to Dis k (S4) Blinking between green and red
IDE LED
Speaker
1
SPWR
ACPI & PWR
LED
ACPI LED
Blue
Reset
SPEAKER
NC
NC
+5V
IDE LED
IDE LED
+5V
+5V
GND
NC
1
SPWR
GND
ACPI LED GND
ACPILED
NC
ACPI_B
GND
RESET
GND
35
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
AATTXX PPoowweerr CCoonnnneeccttoorr
The ATX power supply uses 20-pin connector shown below. Make sure you plug in the right direction.
AACC PPoowweerr AAuuttoo RReeccoovveerryy
A traditional ATX system should remain at power off stage when AC power resumes from power failure. This design is
inconvenient for a network server or workstation, without an UPS, that needs to keep power-on. This motherboard implements
an AC Power Auto Recovery function to solve this problem.
36
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
SSTTBBYY LLEEDD
Both STBY LED and BOOT LED are AOpen’s considerate designs that we aim at providing you friendly system information. The
STBY LED will light up when power is provided to the motherboard. This is a convenient indication for you to check the system
power status in many circumstances such as power on/off, stand-by mode and RAM power status during Suspend to RAM
mode.
System
Power LED
Warning: Do not install or remove the
DIMM module or others devices when
the STBY LED lights on.
37
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
IIDDEE aanndd FFllooppppyy CCoonnnneeccttoorr
Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDC connector. Be careful of the pin1 orientation. Wrong
orientation may cause system damage.
Secondary
Slave (1st)
Pin 1
Primary
Slave (3rd)
Pin 1
Secondary
Master (2nd)
IDE2 (Secondary)
IDE1 (Primary)
ATA 66/100/133
IDE Connector
Primary
Master (4th)
FDD
Connector
38
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
IDE1 is also known as the primary channel and IDE2 as the secondary channel. Each channel supports two IDE devices that
make a total of four devices. In order to work together, the two devices on each channel must be set differently to Master and
Slave mode. Either one can be the hard disk or the CDROM. The setting as master or slave mode depends on the jumper on
your IDE device, so please ref er to your hard dis k and CDROM manual acc ordingly.
This motherboard supports ATA66, ATA100 or ATA133 DE devices. Following table lists the transfer rate of IDE PIO and DMA
modes. The IDE bus is 16-bit , which means every transfer is t wo bytes.
Mode Clock Period Clock Count Cycle Time Data Transfer Rate
PIO mode 0 30ns 20 600ns (1/600ns) x 2byte = 3.3MB/s
PIO mode 1 30ns 13 383ns (1/383ns) x 2byte = 5.2MB/s
PIO mode 2 30ns 8 240ns (1/240ns) x 2byte = 8.3MB/s
PIO mode 3 30ns 6 180ns (1/180ns) x 2byte = 11.1MB/s
PIO mode 4 30ns 4 120ns (1/120ns) x 2byte = 16.6MB/s
DMA mode 0 30ns 16 480ns (1/480ns) x 2byte = 4.16MB/s
DMA mode 1 30ns 5 150ns (1/150ns) x 2byte = 13.3MB/s
DMA mode 2 30ns 4 120ns (1/120ns) x 2byte = 16.6MB/s
ATA33 30ns 4 120ns (1/120ns) x 2byte x 2 = 33MB/s
ATA66 30ns 2 60ns (1/60ns) x 2byte x 2 = 66MB/s
ATA100 20ns 2 40ns (1/40ns) x 2byte x 2 = 100MB/s
ATA133 15ns 2 30ns (1/30ns) x 2byte x 2 = 133MB/s
Warning: The specifica ti on of th e IDE ca ble is a m ax imu m of 4 6c m (18 i nc hes );
make sure your cable does not exc eed this lengt h.
Tip:
1. For better signal quality,
it is recommended to set
the far end side device
to master mode and
follow the suggested
sequence to install your
new device. Please refer
to above diagram
2. To achieve the best
performance of Ultra
DMA 66/100/133 hard
disks, a special 80-wires
IDE cable for Ultra DMA
1
1 i r
ir
.
39
r
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
r
SS//PPDDIIFF ((SSoonnyy//PPhhiilliippss DDiiggiittaall IInntteerrffaaccee)) CCoonnnneeccttoor
S/PDIF (Sony/Philips Digital Interface) is a newest audio transfer format, which provides impressive quality through optical fiber
and allows you to enjoy digital audio instead of analog audio. Normally there are two S/PDIF outputs as shown, one for RCA
connector, the most common one used for consumer audio products, and the other for optical connector with better audio quality.
Through a specific audio cable, you can connect the S/PDIF connector to other end of the S/PDIF audio module, which bears
S/PDIF digital output. However, you must have a S/PDIF supported speaker/amplifier/decoder with S/PDIF digital input to
connect to the S/PDIF digital output to make the most out of this function.
S/PDIF IN
S/PDIF IN
(Optical)
S/PDIF Module
(User Upgrade Optional)
S/PDIF
Pin 1
S/PDIF
Connecto
1
+5V
NC
S/PDIFOUT
GND
S/PDIFIN
40
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
SSuuppeerr 55..11 CChhaannnneell AAuuddiioo EEffffeecctt
This motherboard comes with an ALC650 CODEC, which supports high quality of 5.1 Channel audio effects, bringing you a
brand new audio experience. On the strength of the innovative design of ALC650, you're able to use standard line-jacks for
surround audio output without connecting any external module. To apply this function, you have to install the audio driver in the
Bonus Pack CD as well as an audio application supporting 5.1 Channel. Picture bellow represents the standard location of all
speakers in 5.1 Channel sound tracks. Please connect the plug of your front speakers to the green “Speaker out” port, rear
speakers’ plug to the blue “Line in” port and both of the center and subwoofer speakers to the red “MIC in” port.
41
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
IIrrDDAA CCoonnnneeccttoorr
The IrDA connector can be configured to support wireless infrared module, with this module and application software such as
Laplink or Windows 95 Direct Cable Connection, the user can transfer files to or from laptops, notebooks, PDA devices and
printers. This connector supports HPSIR (115.2Kbps, 2 meters) and ASK-IR (56Kbps).
Install the infrared module onto the IrDA connector and enable the infrared function from BIOS Setup, UART2 Mode, make sure
to have the correct orientation when you plug in the IrDA connector.
Pin 1
IR_TX
IrDA Connector
NC
+5V
KEY
GND
IR_RX
42
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
WWOOMM ((ZZeerroo VVoollttaaggee WWaakkee oonn MMooddeemm)) CCoonnnneeccttoorr
This motherboard implements special circuit to support Wake On Modem, both Internal modem card and external box modem
are supported. Since Internal modem card consumes no power when system power is off, it is recommended to use an internal
modem. To use internal modem, connect 4-pin cable from RING connector of modem card to the WOM connector on the
motherboard.
WOM Connector
+5VSB
NC
RI-
GND
43
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
WWOOMM bbyy EExxtteerrnnaall BBOOXX MMooddeem
Traditional Green PC suspend mode does not really turn off the system power supply, it uses external box modem to trigger MB
COM port and resume back to active.
Note: This picture is for example only, it may not exactly be the same motherboard.
Pin 1
Pin 1
m
Serial Port
(Modem Side)
Serial Port
(Motherboard Side)
44
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
WWOOMM bbyy IInntteerrnnaall MMooddeemm CCaarrd
With the help of the ATX soft power On/Off, it is possible to have a system totally power off, and wakeup to automatically answer
a phone call as an answering machine or to send/receive a fax. You may identify whether or not your system is in true power off
mode by checking to see if the fan of your power supply is off. Both an external box modem and an internal modem card can be
used to support Modem Wake Up, but if you use an external modem, you have to leave your box modem on.
WOM Connector
(Motherboard Side)
Note: This picture is for example only, it may not exactly be the same motherboard.
d
45
WOM Connector
(Modem Card Side)
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
WWOOLL ((WWaakkee oonn LLAANN))
This feature is very similar as Wake On Modem, but it goes through local area network. To use Wake On LAN function, you must
have a network card with chipset that supports this feature, and connect a cable from LAN card to motherboard WOL connector.
The system identification information (probably IP address) is stored on network card and because there is a lot of traffic on the
Ethernet, you need to install network management software, such as ADM, for the checking of how to wake up the system. Note
that, at least 600mA ATX standby current is required to support the LAN card for this function.
+5VSB
GND
LID
WWOOLL CCoonnnneeccttoorr
46
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
WOL Connector
(Motherboard Side)
Note: This picture is for example only, it may not exactly be the same motherboard.
WOL Connector
(Ethernet Card Side)
47
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
AAGGPP ((AAcccceelleerraatteedd GGrraapphhiicc PPoorrtt)) 44XX EExxppaannssiioonn SSlloott
The AK77-333F / AK77-333FN provides an AGP 4x slot. The AGP 8x is a bus interface targeted for high-performance 3D
graphic. AGP supports only memory read/write operation and single-master single-slave one-to-one only. AGP uses both rising
and falling edge of the 66MHz clock, for 4X AGP, the data transfer rate is 66MHz x 4bytes x 4 = 1056MB/s. This AGP expansion
slot is for 1.5V - 1.6V AGP card only.
48
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
AAGGPP PPrrootteeccttiioonn TTeecchhnnoollooggyy aanndd AAGGPP LLEEDD
WWiitthh tthhee oouuttssttaannddiinngg RR&&DD aabbiilliittyy ooff AAOOppeenn aanndd iittss ssppeecciiaallllyy ddeevveellooppeedd cciirrccuuiitt,, tthhiiss mmooddeell iimmpplleemmeennttss aa bblleenndd nneeww tteecchhnnoollooggyy ttoo
pprrootteecctt yyoouurr mmootthheerrbbooaarrdd ffrroomm bbeeiinngg ddaammaaggeedd bbyy oovveerr--vvoollttaaggiinngg ooff AAGGPP ccaarrdd.. WWhheenn AAGGPP PPrrootteeccttiioonn TTeecchhnnoollooggyy iiss iimmpplleemmeenntteedd,,
tthhiiss mmootthheerrbbooaarrdd wwiillll aauuttoommaattiiccaallllyy ddeetteecctt tthhee vvoollttaaggee ooff AAGGPP ccaarrdd aanndd pprreevveenntt yyoouurr cchhiippsseettss ffrroomm bbeeiinngg bbuurrnntt oouutt.. PPlleeaassee nnoottee
tthhaatt iiff yyoouu iinnssttaallll aa AAGGPP ccaarrdd wwiitthh 33..33VV,, wwhhiicchh iiss nnoott ssuuppppoorrtteedd,, tthhee AAGGPP LLEEDD oonn tthhee mmootthheerrbbooaarrdd wwiillll lliigghhtt uupp ttoo wwaarrnn yyoouu tthhee
ppoossssiibbllee ddaammaaggee ooff tthhee eexxcceeeeddiinngg vvoollttaaggee.. YYoouu mmaayy ccoonnttaacctt yyoouurr AAGGPP ccaarrdd vveennddoorr ffoorr ffuurrtthheerr ssuuppppoorrtt..
AGP LED
Warning: It is strongly recommended not
to install a 3.3V AGP card, which is not
supported. When you do so, the AGP LED
on the motherboard will light up to warn you
the possible damage.
49
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
CCNNRR ((CCoommmmuunniiccaattiioonn aanndd NNeettwwoorrkk RRiisseerr)) EExxppaannssiioonn SSlloott
CNR is a riser card specification to replace the AMR (Audio/Modem Riser) that supports V.90 analog modem, multi-channel
audio, and phone-line based networking. Owing to CPU computing power getting stronger, the digital processing job can be
implemented in main chipset and share CPU power. The analogy conversion (CODEC
circuit design, which is put on CNR card. This motherboard implements sound CODEC on board, but reserve CNR slot for the
option of modem function. Note that you can still use PCI modem card.
) circuit requires a different and separate
50
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
PPCC9999 CCoolloorr CCooddeedd BBaacckk PPaanneell
The onboard I/O devices are PS/2 Keyboard, PS/2 Mouse, serial ports COM1 and COM2, RJ45 LAN Jack (AK77-333FN only),
Printer, USB
PS/2 Keyboard: For standard keyboard, which is using a PS/2 plug.
PS/2 Mouse: For PC-Mouse, which is using a PS/2 plug.
USB Port: Available for connecting USB devices.
Parallel Port: To connect with SPP/ECP/EPP printer.
COM1 Port: To connect with pointing devices, modem or others serial devices.
Speaker Out: To External Speaker, Earphone or Amplifier.
Line-In: Comes from the signal sources, such as CD/Tape player.
MIC-In: From Microphone.
MIDI/Game Port: For 15-pin PC joystick, game pad or MIDI devices.
, AC97 sound and game port. The view angle of drawing shown here is the back panel of the housing.
PS/2 Mouse
Connector
PS/2 Keyboard
Connector
USB Port
(2.0)
COM 1 Port COM 2 Port
SPP/EPP/ECP
Parallel Port
RJ45 LAN Jack
(AK77-333FN only)
USB Port
(2.0)
Line-In
Speaker Out
MIC-In
51
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
SSuuppppoorrtt SSiixx UUSSBB 22..00 PPoorrtt
This motherboard provides six USB ports to connect USB devices, such as mouse, keyboard, modem, printer, etc. There are
four connectors on the PC99 back panel. You can use proper cables to connect the other USB connectors to the USB modules
or front panel of chassis. Please note that USB 2.0, with fancy speed up to 480Mbps, is 40 times faster than the traditional ones.
Except for the speed increase, USB 2.0 supports old USB 1.0/1.1 software and peripherals, offering impressive and even better
compatibility to customers.
Pin 1
USB2 Connector
1
+5V
SBD2-
SBD2+
GND
KEY
UUSSBB22 CCoonnnneeccttoorr
+5V
SBD3SBD3+
GND
NC
52
Note: Please note that if you would like to use
USB devices (Example: keyboard, mouse etc.)
under DOS environment, you must install driver
comes with the devices to make it work.
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
SSuuppppoorrtt 1100//110000 MMbbppss LLAANN oonnbbooaarrdd ((AAKK7777--333333FFNN oonnllyy)
The South Bridge VT8235 includes a fast Ethernet controller on chip. On the strength of RealTek RTL8100BL LAN controller on
board, which is a highly-integrated Platform LAN Connect device, it provides 10/100M bps Ethernet for office and home use, the
Ethernet RJ45 connector is located on top of USB connectors. The green LED indicates the link mode, it lights when linking to
network and blinking when transferring data. The orange LED indicates the transfer mode, and it lights when data is transferring
in 100Mbps mode. To enable or disable this function, you may simply adjust it through BIOS.
)
Green/ACT
Orange/Speed
53
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
CChhaassssiiss IInnttrruussiioonn SSeennssoorr
The “CASE OPEN” header provides chassis intrusion-monitoring function. To make this function works, you have to enable it in
the system BIOS, connect this header to a sensor somewhere on the chassis. So, whenever the sensor is being triggered by
light or opening of the chassis, the system will send out beep sound to inform you. Please be informed that this useful function
only applies to advanced chassis, you may purchase an extra sensor, attach it on your chassis, and make a good use of this
function.
Pin 1
SENSOR
1
GND
Case Open
Sensor Connector
54
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall

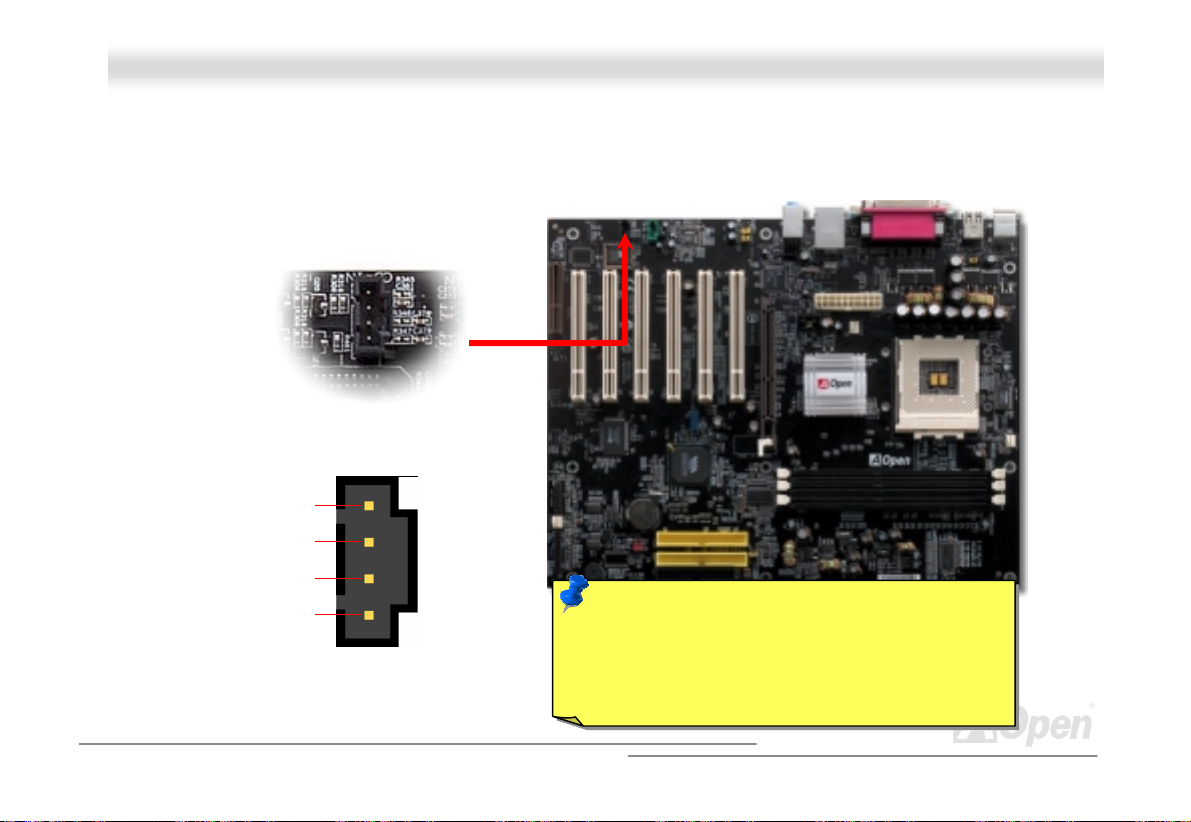

CD-IN
Note: Though some of the latest version of Windows
support “Digital Audio” through IDE bus. However, in
order to use Open Jukebox player, which is driven
under BIOS, it is a MUST to insert audio cable to
CD-IN connector on the motherboard.
CCDD AAuuddiioo CCoonnnneeccttoorr
This connector is used t o connec t CD Audio cable from CD-ROM or DVD drive to onboard s ound.
R
GND
GND
L
55
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
AAUUXX--IINN CCoonnnneeccttoorr
This connector is used to connect MPEG Audio cable from MPEG card to onboard sound.
R
GND
GND
L
AUX-IN
56
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
FFrroonntt AAuuddiioo CCoonnnneeccttoorr
If the housing has been designed with an audio port on the front panel, you’ll be able to connect onboard audio to front panel
through this connector. By the way, please remove 5-6 and 9-10 jumper caps from the Front Audio Connector before connecting
the cable. Please do not remove these 5-6 and 9-10 yellow jumper caps if there’s no audio port on the front panel.
Pin 1
AUD_MIC
AUD_MIC_BIAS
AUD_FPOUT_R
NC
AUD_FROUT_L
1 2
9 10
AUD_GND
AUD_VCC
AUD_RET_R
KEY
AUD_RET_L
57
A
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
BBaatttteerryy--lleessss aanndd LLoonngg LLiiffee DDeessiiggnn
This Motherboard implements Flash ROM and a special circuit that allows you to save your current CPU and CMOS Setup
configurations without using the battery. The RTC (real time clock) can also keep running as long as the power cord is plugged.
If you lose your CMOS data by accident, you can just reload the CMOS configurations from Flash ROM and the system will
recover as usual.
Flash
ROM
ATX Stand-by
(Real Time Clock)
00:00:00
Power
Auto Switch
RTC
CMOS
Battery
uto switching to ATX standby
power as long as AC power
line is plugged. This smart
design can increases battery
life if you still had battery
plugged on motherboard.
Backup by EEPROM
58
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
CCPPUU OOvveerr--ccuurrrreenntt PPrrootteeccttiioonn
Over Current Protection has been popularly implemented on ATX 3.3V/5V/12V switching power supply for a while. However,
new generation CPU is able to use regulator of different voltages to transfer 12V to CPU voltage (for example, to 2.0V). This
motherboard is with switching regulator onboard that supports CPU over-current protection, and it applies to 3.3V/5V/12V power
supply for providing full line over-c urrent prot ect ion.
Note: Although we have implemented protection circuit try to prevent any human operating
mistake, there is still certain risk that CPU, memory, HDD, add-on cards installed on this
motherboard may be damaged because of component failure, human operating error or unknown
nature reason. AOpen cannot guaranty the protection circuit will always work perfectly.
ATX Switching Power
Supply
Onboard
Power
Regulator
Over-Current
Protection
Circuit
5V (Protected by power supply)
3.3V (Protected by power supply)
12V (Protected by power supply)
CPU Core Voltage
59
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
AAOOCCoonnffiigg UUttiilliittyy
AOpen always dedicated to provide users a much friendlier computer environment. We now bring you a comprehensive system
detective utility. AOconfig is a Windows based utility with user-friendly interface that allows users to obtain information of the
operation system and hardware such as motherboard, CPU, memory, PCI devices and IDE devices. The powerful utility also
displays the version of BIOS and firmware for your convenience of maintenance.
Moreover, AOconfig allows users to save information in *.BMP or *.TXT format which users may collect the system information
in detail and send them to AOpen directly for technical support or further diagnosis of system problem.
1. The system page shows the
detail information of the
motherboard, the operating
system, the processor, and
BIOS version.
2. The PCI device page shows
the configurations of all PCI
devices installed on your
motherboard.
60
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
NOTE: AOconfig can be used in Windows 98SE/ME, NT4.0/2000, or even the latest Windows XP. Please be
informed that AOconfig can only be operated in a system equipped with an AOpen motherboard. Meanwhile, all
applications must be closed before starting AOconfig.
3. This page presents the IDE
devices information, such as
the serial number, the
manufacturer, the firmware
version, and capacity.
4. From this page, users may
obtain the technical support
information of AOpen.
Moreover, detailed information
could be saved in .bmp or .txt
format.
61
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall

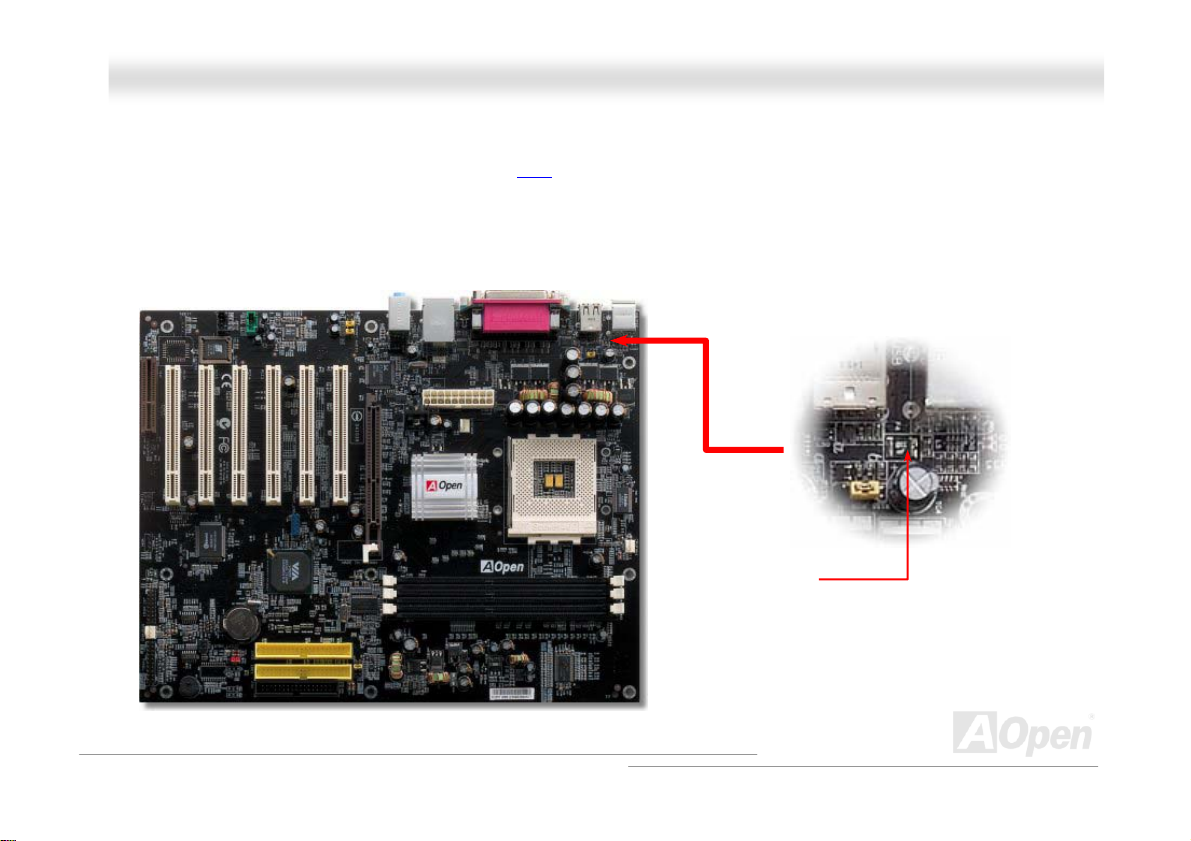

RReesseettaabbllee FFuussee
Traditional motherboard has fuse for Keyboard and USB port to prevent over-current or shortage. These fuses are soldered
onboard that user cannot replace it when it is damaged (did the job to protect motherboard), and the motherboard remains
malfunction.
With expensive Resetable Fuse, the motherboard can resume back to normal function after fuse had done its protection job.
Resetable
Fuse
62
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
0
μ
F
2222000
The quality of low ESR capacitor (Low Equivalent Series Resistance) during high frequency operation is very important for the
stability of CPU power. The idea of where to put these capacitors is another know-how that requires experience and detail
calculation.
Not only that, this motherboard implements 2200μF capacitor, which is much larger than normal capacitor (1000 or 1500μF)
and it provides better stability for CPU power.
μ
F
LLooww EESSRR CCaappaacciittoorr
63
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
The power circuit of the CPU core voltage must be checked to ensure system stability for high speed CPUs (such as the new
Pentium III, or when overclocking). A typical CPU core voltage is 2.0V, so a good design should control voltage between 1.860V
and 2.140V. That is, the transient must be below 280mV. Below is a timing diagram captured by a Digital Storage Scope, it
shows the voltage transient is only 143mv even when maximum 60 current is applied.
Note: This diagram for example only, it may not exactly be the same motherboard.
64
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
LLaayyoouutt ((FFrreeqquueennccyy IIssoollaattiioonn WWaallll))
Note: This diagram is for example only, it may not exactly be the same diagram of this motherboard.
For high frequency operation, especially overclocking,
layout is the most important factor to make sure
chipset and CPU working in stable condition. The
layout of this motherboard implements AOpen’s
unique design called “ Frequency Isolation Wall”.
Separating each critical portion of motherboard into
regions where each region operates in a same or
similar frequency range to avoid cross talk and
frequency interference between each region’s
operations and condition. The trace length and route
must be calculated carefully. For example, the clock
trace must be equal length (not necessarily as short
as possible) so that clock skew will be controlled
within few a pico second (1/10
12
Sec)
65
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
EEnnllaarrggeedd AAlluummiinnuumm HHeeaattssiinnkk
Cool down CPU and Chipset is important for system reliability. Enlarged aluminum heat sink provides better heat consumption
especially when you are trying to over clocking the CPU.
66
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
OOppeenn JJuukkeeBBooxx PPllaayyeerr
without any hassle of entering Windows operation system.
Here we are pleased to provide you a brand-new powerful interface—Open JukeBox.
Without any cost you can have your PC turn into a fashionable CD player! This latest Open
JukeBox motherboard aims at helping you directly operate your CD player on the PC
67
t
l
A
N
play
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
How Your Open JukeBox Works
The operation of Open JukeBox Player is the sam e as other CD players . B y pressi ng spec ific keys on t he keyboard you will find
playing Open JukeBox Player couldn’t be eas ier than t he tradi tional CD Players . Below is t he func ti on desc ript ion of res pect ive
buttons.
Power-Off Button
Operation System
Boot to
Power: Pressing O
Boot: Pressing B
Play: Pressing A
Stop: Pressing S
Pause: Pressing P
Eject: Pressing E
Repeat: Like ot her CD Players , pres s ing R
Volume +/-: Pressing + or – to adjust the volume of playing m us ic .
Rewind/Forward / : Pressing arrow keys, to rewind or forward the music .
, to directly power off your computer with no has sl e of ent ering Windows Operation System .
, to intelligently boot t o Windows Operation System for you.
, to start playing CD musi c.
, to stop the mus ic pl aying.
, to pause the music pl aying tem porari ly.
, to eject CD tray for you to c hange CD dis c .
, to shift the repeat m ode.
68
Note: Though some of the lates
version of Windows support “Digita
udio” through IDE bus. However, in
order to use Open Jukebox player,
which is driven under BIOS, it is a
MUST to insert audio cable to CD-I
connector on the motherboard.
Dis
Screen
Function Key
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
Your Open JukeBox Settings in BIOS
There are three Open JukeBox settings in BIOS as follows.
Auto
: The default setting is “Auto” with which the Open JukeBox will automatically check the CD player every time you power
on. The Open JukeBox will automatically be launched when it detects a music CD in your CD player.
Press Insert Key
you of pressing “Ins” key on your keyboard to start Open JukeBox Player; otherwise the system will launch the Windows
Operation System.
CD Player
pressing B on your keyboard the Windows Operation System will be launched.
: Choosing this setting will allow a reminder message popped up on the screen during BIOS POST. It reminds
: Choosing this setting allows the system to launch Open JukeBox Player every time you power on. However, by
69
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
Your Open JukeBox EzSkin
Except these powerful functions above, Open JukeBox Player is also equipped with another fancy feature for you to
change its “skin”. You can download as many skins as you want from AOpen Website, and changing them whenever
you want by using this useful utility – EzSkin – which may also be downloaded from our website.
Even more, you may design your own skins with innovative idea and sharing them to users around the world by uploading to our
website. For further technical information, we welcome you to visit our website at
http://english.aopen.com.tw/tech/download/skin
70
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
VViivviidd BBIIOOSS tteecchhnnoollooggyy
Unlike earlier graphic POST screen, which could occupy the whole screen and mask text information during POST, AOpen
VividBIOS deals with graphics and texts separately, and makes them running simultaneously during POST. With this innovative
design, VividBios now brings you a beautiful and sleek 256 colors screen without missing any important information shown on
POST screen.
In addition, the limited space of BIOS ROM is another big issue. When all of the traditional BIOS can only show
space-consuming and uncompressed Bitmap, AOpen has considerately tuned the BIOS to next generation, to recognize the
smaller-sized GIF format and even dynamic-showing GIF animation.
Vivid BIOS shares the same fundamental technology with Open JukeBox CD Player, you may use the same EzSkin utility to
change your Vivid BIOS screen or to download your favorite Open JukeBox skin. If you see this little logo
your model name on the BIOS download page, http://english.aopen.com.tw/tech/download/skin
motherboard supports this innovative feature!
Have you been fed up with the conservative and immutable POST screen? Let’s rule out
the tradition idea that POST screen are stiff and frigid, and let AOpen show you the newly
developed VividBIOS to experience the lively vivid colorful POST screen!
shown beside
, it is assured that your
71
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
DDrriivveerr aanndd UUttiilliittyy
There are motherboard drivers and utilities included in AOpen Bonus CD disc. You don’t need to install all of them in order to
boot your system. But after you finish the hardware installation, you have to install your operation system first (such as Windows
98) before you can install any drivers or utilities. Please refer to your operation system’s installation guide.
Note: Please follow recommended procedure
to install Windows 95
and Windows 98.
72
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
AAuuttoo--rruunn MMeennuu ffrroomm BBoonnuuss CCDD DDiisscc
You can use the auto-run menu of Bonus CD disc. Choose the utility and driver and select model name.
73
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
IInnssttaalllliinngg WWiinnddoowwss 9955
1. First, don’t install any add-on card except AGP card.
2. Install Windows 95 OSR2 v2.1, 1212 or 1214 version and later with USB support. Otherwise, you need to install
USBSUPP.EXE.
3. Install the VIA 4 in 1 driver
program.
4. Finally, Install other add-on cards and their drivers.
, which includes VIA AGP Vxd driver, VIA ATAPI Vendor Support driver and VIA registry (INF)
74
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
IInnssttaalllliinngg WWiinnddoowwss 9988
1. First, don’t install any add-on card except AGP card.
2. Enable USB Controller in BIOS Setup > Advanced Chipset Features > OnChip USB, to make BIOS fully capable of
controlling IRQ assignment.
3. Install Window 98 into your system.
4. Install the VIA 4 in 1 driver
registry (INF) program.
5. Finally, Install other add-on cards and their drivers.
, which includes VIA AGP Vxd driver, IRQ Routing, VIA ATAPI Vendor Support driver and VIA
75
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
®
®
IInnssttaalllliinngg WWiinnddoowws
If you are using Windows® 98 Second Edition, Windows® Millennium Edition or Windows® 2000/XP, you do not need to install
the 4-in-1 driver as the IRQ Routing Driver and the ACPI Registry are already incorporated into the operating system. Users with
Windows® 98 SE may update the VIA Registry INF and AGP drivers by installing them individually.
Please refer to VIA Technologies Inc.
http://www.via.com/
http://www.via.com/drivers/4in1420.exe
s
9988 SSEE,, WWiinnddoowws
for latest version of 4 in 1 driver:
®
®
s
MMEE && WWiinnddoowws
®
®
s
22000000//XXPP
76
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
IInnssttaalllliinngg VVIIAA 44 iinn 11 DDrriivveerr
You can install the VIA 4 in 1 driver (IDE Bus master (For Windows NT use), VIA ATAPI Vendor Support Driver, VIA AGP, IRQ
Routing Driver (For Windows 98 use), VIA Registry (INF) Driver) from the Bonus Pack CD disc auto-run menu.
Warning: To take advantage of ATA133, it is a must to
install the latest version of VIA 4in1 driver in the Bonus CD.
For Windows2000, it cannot supports ATA133 even after
installing the latest version of VIA 4-in-1 driver until the
-
Warning: If you want to uninstall the VIA AGP Vxd driver,
please remove the AGP card driver first. Otherwise, the
screen may go black at rebooting after the un-installation.
77
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
IInnssttaalllliinngg OOnnbbooaarrdd SSoouunndd DDrriivveerr
This motherboard comes with RealTek ALC650 AC97 CODEC and the sound controller is in VIA South Bridge chipset. You can
find the audio driver from the Bonus Pack CD disc auto-run menu.
78
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
TThhee nnooiissee iiss ggoonnee!!!! -------- SSiilleennttTTeekk
As the clock of CPU keeps rocketing higher and higher, it inevitably brings higher heat and
system temperature in a relative way. The way we deal with this heat problem, however, is to
spare no effort to add one fan after another to protect our pampered system, expecting these
fans could cool down our machine as much as it could.
But at the same time, we believe that same amount of users are affected terribly while working with their PC by the irritating
noises of these fans. As a matter of fact, we do not have to get our fans running at such a high speed in most cases; on the
contrary, we discovered that having your fans running at appropriate time and speed could not only reduce the noise, but also
consume the least power the system
needed, so as to prevent over-wasting
of energy resource.
Today, AOpen Motherboard is honored
to bring you a new overall solution,
SilentTek, to have your system quiet. To
collocate with hardware circuit, BIOS
and the utility under Windows,
SilentTek combined “Hardware-Status
Monitoring”, “Overheat Warning” and
“Fan Speed Control” with user-friendly
interfaces to provide you a perfect
balance between noises, system
performance and stability.
79
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
The first image you have here is the Voltage Status
page. You can find current status of all voltages and set
your expected margins of warning level.
You may check your
system voltage from the
indicating bar here.
In “Temp/Fan/Case” page, you may get aware of the
current temperature of CPU and the heat inside chassis,
plus checking if fans are running properly.
Of course, you may set your
defaulted lowest margin for
your fans and the SilentTek
would also pop up a message
box and alarm you when the
fan is rotating slower than this
specified speed.
You may set the highest
margin of your CPU and
system temperature as
default, and SilentTek would
pop up a message box and
alert you with alarm when the
temperature goes beyond the
specified margin.
80
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
The following page is sure to be the most important part of this utility, you may control the rotation speed of specific fans you got
with options inside in this page. Respectively illustrate as follow:
1. Smart FAN Control: This is the default setting of
SilentTek and can be used for any branded computer
housing. With a special algorithm developed by
AOpen, the fan speed is automatically adjusted by
the factors of CPU and ambient temperature.
Ease-of-use and trouble free at your service.
2. Fixed FAN Control: Under this setting, a desired fan
speed is set fixed when operating.
3. Multiple Level Control: This is the most versatile
setting that allows you to set fan speed in relation to
temperature. You may find this setting fits youbest.
4. AOpen Recommend Setting: This setting is
designed specifically for AOpen housing. A series of
lab tests were conducted under the real world
scenario to determine optimum fan speed to reduce
noise level within CPU working condition and
temperature. Most of the time, the fan would remain
Note: Due to there are hundreds different brands of fan
on the market, there might be some inaccuracy
occurred when you have had adjusted your rotation
speed; this is still under criterion and please assured
that it won’t cause any problem to y our system.
still when CPU is not fully utilized.
81
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
IInnssttaalllliinngg UUSSBB22..00 DDrriivveerr
This motherboard comes with USB2.0 function. You can install USB2.0 Driver under Windows 98SE, Windows ME, Windows
2000 and Windows XP from the Bonus Pack CD disc auto-run menu.
Note: After installing USB 2.0 driver under WinME, there would be a "green question
mark" on "VIA USB 2.0 Enhanced Host Controller" item. Please rest assured that it is
not an error message. You may just ignore it.
82
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
IInnssttaalllliinngg LLAANN DDrriivveerr ((AAKK7777--333333FFNN oonnllyy))
You can install LAN Driver for Win98, 98SE, 98ME, 2000 and XP with this InstallShield Wizard from the Bonus Pack CD disc
auto-run menu.
83
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
Introduction:
-------------
This document describes the procedure to install Windows 95 (Golden version), Win95A, OSR2, Windows NT v4.0 driver for
Realtek RTL8139 PCI Fast Ethernet adapter.
[Windows 95 (Golden version), Win95A and OSR2]
Installing driver procedure on Microsoft Windows 95 :
-----------------------------------------------------
1. Ask you to select which driver you want to install, select "Driver from disk provided by hardware manufacturer".
2. Specify the setup file pathname
[CD-ROM]:\Driver\LAN\RTL8100\Windows\95\WIN95A (for Windows 95 and Win95A) or
[CD-ROM]:\Driver\LAN\RTL8100\Windows\95\W95OSR2 (for Windows 95 OSR2).
3. Windows 95 will appear some messages to insert Windows 95 system disk to complete setup step.
4. Windows 95 will finish the other installation procedure automatically, then you restart the system.
[Windows NT 3.5, 3.51 & 4.0]
84
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
Installing driver procedure on Microsoft Windows NT :
-----------------------------------------------------
When you are in Windows NT :
1. In the Main group of NT, select the "Control Panel" icon.
2. In the Control Panel window, choose the "Network" icon.
3. In the Network Settings dialog box, choose the "Add Adapter" button.
The Add Network Adapter dialog box appears.
4. In the list of network cards, select "<other> Requires disk from manufacturer", and then press <Enter> button.
5. Enter drive and pathname
[CD-ROM]:\Driver\LAN\RTL8100\Windows\NT (for NT 4.0) which is the path where the setup file OEMSETUP.INF is located, and
then choose the OK button.
6. The screen will appear "Select Line Speed" dialog box which is provide by RTL8139.SYS driver. The default value is "auto" so
that the RTL8139 PCI Fast Ethernet adapter and its driver RTL8139.SYS will auto-detect the line speed, 10 Mb or 100Mb, while
the RTL8139.SYS is loading. The other values, "10" or "100", are only used when you want to forced RTL8139 PCI Fast
Ethernet adapter to 10Mb or 100Mb.
7. The screen will appear "Input EthernetID" dialog box which is provide by RTL8139.SYS driver. This option is only required
when you have more than one Realtek RTL8139 PCI Fast Ethernet adapters on this computer. Select "SKIP" if only one adapter
is installed on this computer.
85
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
8. "Bus Location" display in next screen. Your machine contains more than one hardware bus, please select the Bus Type and
Bus number on which your network adapter card is installed.
9. NT will then perform the binding process. If any additional network software options were installed, you may be prompted for
specific information for these packages.
10. Restarting your system you will acquire network service.
NOTES:
------
* Installing Multiple LAN Adapters:
Enter Windows NT and follow above setup procedure step 2,in the "Network Settings" dialog box, choose the "Configure.."
button. The "Input Ethernet ID" dialog box appears and input adapter's Ethernet ID. Last step to select OK and close NETWORK
SETUP. Select SKIP if only one adapter is installed on this computer.
86
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
PPHHOOEENNIIXX--AAWWAARRDD BBIIOOSS
System parameters can be modified by going into BIOS Setup menu, this menu allows you to configure the system parameters
and save the configuration into the 128 bytes CMOS area, (normally in the RTC chip or in the main chipset).
The Phoenix-Award BIOS™ that installed in the Flash ROM
BIOS. The BIOS provides critical low-level support for standard devices such as hard disk drives, serial and parallel ports.
Most BIOS setting of AK77-333F / AK77-333FN had been optimized by AOpen’s R&D engineering team. But, the default setting
of BIOS still can’t fine-tune the chipset controlling entire system. Hence, the rest of this chapter is intended to guide you through
the process of configuring your system using setup.
Currently there are two kinds of beep sound when system fails to boot at POST. The first type of beep sound consists of a single
long beep and two short beeps, indicating a video error has failed BIOS from initializing video screen for displaying any
additional information. The 2
occurred. You may look over the indicated error according to different beep significances.
To enter to BIOS setup menu
nd
type of beep sound is a single long beep that beeping repeatedly, signaling a DRAM error has
, press <Del> when POST (Power-On Self Test) screen is shown on your monitor.
Note: Because the BIOS code is the most often
changed part of the motherboard design, the BIOS
information contained in this manual may be
different with actual BIOS that come with your
motherboard.
of the motherboard is a custom version of an industry standard
87
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
HHooww TToo UUssee PPhhooeenniixx AAwwaarrdd™™ BBIIOOSS SSeettuupp PPrrooggrraamm
Generally, you can use the arrow keys to highlight items that you want to choose, then press <Enter> key to select, and use the
<Page Up> and <Page Down> key to change setting value. You also can press <F1> key for help and press <Esc> key to quit
Phoenix Award™ BIOS setup program. The following table provides details about how to use keyboard in the Phoenix Award
BIOS setup program. By the way, all products of AOpen also provides a special function in the BIOS setup, you can press <F3>
key selecting preferred menu language to display.
Key Description
Page Up or + Changing setting to next value or increase the value.
Page Down or - Changing setting to previous value or decrease value.
Enter Select the item.
Esc 1. In main menu: Quit and don’t save any change.
2. In sub menu: Exit current menu to main menu.
Up Arrow Highlight previous item.
Down Arrow Highlight next item.
Left Arrow Move the light bar to left side of menu.
Right Arrow Move the light bar to right side of menu.
F1 Get menu or item help description.
F3 Changing menu language.
F5 Load previous setting value from CMOS.
88
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
Key Description
F6 Load Setup Defaults setting value from CMOS.
F7 Load turbo setting value from CMOS.
F10 Save changed setting and exit setup program.
89
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
HHooww TToo EEnntteerr BBIIOOSS SSeettuupp
After you finish the setting of jumpers and connect correct cables. Power on and enter the BIOS Setup, press <Del> during
POST (Power-On Self Test). Choose "Load Setup Defaults" for recommended optimal performance.
Del
Warning: Please avoid of using "Load Turbo Defaults", unless
you are sure your system components (CPU, SDRAM, HDD,
etc.) are good enough for turbo setting.
90
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
BBIIOOSS UUppggrraaddee uunnddeerr WWiinnddoowwss eennvviirroonnmmeenntt
With outstanding R&D ability of AOpen, we now bring you a whole new BIOS Flash wizard
---- EzWinFlash. With an eye to users convenience, EzWinFlash combines the BIOS binary
code and flash module together, so the only thing you have to do is just clicking on the
utility you downloaded from web and let it helps you complete the flash process automatically. EzWinFlash detects your
motherboard and checks the BIOS version cleverly to prevent your system from any possible failure. Moreover, EzWinFlash has
been taken into consideration to go with any windows platform you might be using, no matter if you’re using Windows 95/98,
98SE/ME, NT4.0/2000, or even the latest Windows XP.
In the meanwhile, in order to provide a much more user-friendly operating environment, AOpen EzWinFlash is natively designed
to have multi-language function to provide easier way for users’ usage in changing BIOS setting.
Note: The model name on this BIOS picture is for reference only. It may not be the exact model name.
Caution: By updating your motherboard, you
are taking a risk of BIOS flash failure. If your
motherboard is working stable, and there are no
major bugs that had been fixed by a latter BIOS
revision, we recommend that you DO NOT try to
upgrade your BIOS.
If you intent on upgrading, PLEASE BE SURE to
get the right BIOS revision for the right
motherboard model to avoid any possibility
failure.
91
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
You may accomplish BIOS upgrade procedure with EzWinFlash by the following steps, and it’s STRONGLY RECOMMENDED to
close all the applications before you start the upgrading.
1. Download the new version of BIOS package zip file from AOpen official web site. (ex: http://english.aopen.com.tw/
2. Unzip the download BIOS package (ex: WAK77333FN02.ZIP) with WinZip (http://www.winzip.com
environment.
3. Save the unzipped files into a folder, for example, WAK77333FN02.EXE & WAK77333FN02.BIN.
4. Double click on the WAK77333FN02.EXE, EzWinFlash will detect the model name and BIOS version of your
motherboard. If you had got the wrong BIOS, you will not be allowed to proceed with the flash steps.
5. You may select preferred language in the main menu, then click [Start Flash] to start the BIOS upgrade procedure.
6. EzWinFlash will complete all the process automatically, and a dialogue box will pop up to ask you to restart Windows.
You may click [YES] to reboot Windows.
7. Press <Del> at POST to enter BIOS setup
It is strongly recommended NOT to turn off the power or run any application during FLASH PROCESS.
, choose "Load Setup Defaults", then “Save & Exit Setup”. Done!
Warning: The new BIOS upgrade will
permanently replace your original
BIOS’s settings when flashing. You
may need to reconfigure your BIOS
setting so that your system can go
back to work as normal.
) in Windows
)
92
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
OOvveerrcclloocckkiinngg
As a leading manufacturer in motherboard industry, AOpen always listens to what customers want and develop products to fit
different user's requirements. Reliability, compatibility, leading technology and friendly features are our basic goals when
designing motherboards. Other than above mentioned design criteria, there are power users who are always seeking to push
the limitation of the system performance by overclocking who we call them "Overclocker".
This section is dedicated to overclockers.
This high performance motherboard is designed for maximum 133MHz CPU bus clock. But it comes with clock generator of
248MHz when we design it to accommodate future CPU bus clock. Our lab test results shown that 166MHz is achievable when
proper setting and qualified components were presented, we feel quite comfortable overclocking to 166MHz. Not only that, this
motherboard has full-range (CPU core voltage) settings and an option to adjust CPU core voltage. The CPU clock ratio can be
up to 12.5x that supports almost all of Athlon / Duron / AthlonXP CPUs in the future and provides flexibility for overclockers. For
your reference, the following configurations are what we feel comfortable at 166MHz bus clock.
But not guaranty. ☺
Tip: Note that overclocking may
also cause thermal problem. Please
make sure that the cooling fan and
the heatsink were adequate to
dissipate excessive heat that's
generated by overclocking the CPU.
Warning: The design of this product follows CPU and chipset vendor's
design guideline. Any attempts to push beyond product specification are
not recommended and you are taking your own risk to damage your
system or important data. Before doing overclocking, you must make sure
your components are able to tolerate such abnormal setting, especially
CPU, SDRAM, hard disks, and AGP VGA cards.
93
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
VVGGAA CCaarrdd && HHaarrdd DDiisskk
VGA and HDD is key components for overclocking, for your reference, the following list are what have been successful
overclocked in our lab. Please note that AOpen can not guaranty they can be successful overclocked again. Please check the
Available Vendor List (AVL) by link to our official website.
VGA: http://english.aopen.com.tw/tech/report/overclk/mb/vga-oc.htm
HDD: http://english.aopen.com.tw/tech/report/overclk/mb/hdd-oc.htm
94
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
GGlloossssaarryy
AACC9977
Basically, AC97 specification separates sound/modem circuit to two parts, digital processor and a CODEC for analogy I/O they
are linked by AC97 link bus. Since digital processor can be put into motherboard main chipset, the cost of sound/modem
onboard solution can be reduced.
AACCPPII ((AAddvvaanncceedd CCoonnffiigguurraattiioonn && PPoowweerr IInntteerrffaaccee))
ACPI is the power management specification of PC97 (1997). It intends to save more power by taking full control of power
management to operating system and bypass BIOS
to operating system (such as Windows 98). This is a bit similar as the PnP
power switch to control the power state transition.
AAGGPP ((AAcccceelleerraatteedd GGrraapphhiicc PPoorrtt))
AGP is a bus interface targeted for high-performance 3D graphic. AGP supports only memory read/write operation and
single-master single-slave one-to-one only. AGP uses both rising and falling edge of the 66MHz clock, for 2X AGP, the data
transfer rate is 66MHz x 4byte x 2 = 528MB/s. AGP is now moving to 4X mode, 66MHz x 4byte x 4 = 1056MB/s. AOpen is the
first company to support 4X AGP motherboards by both AX6C (Intel 820) and MX64/AX64 (VIA 694x), started from Oct 1999.
. The chipset or super I/O chip needs to provide standard register interface
register interface. ACPI defines ATX momentary soft
95
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
AAMMRR ((AAuuddiioo//MMooddeemm RRiisseerr))
The CODEC circuit of AC97 sound/modem solution can be put on motherboard or put on a riser card (AMR card) that connects
to motherboard through AMR connector.
AAOOppeenn BBoonnuuss PPaacckk CCDD
A disc bundled with AOpen motherboard product, there are motherboard drivers, Acrobat Reader for PDF online manual and
other useful utilities.
AAPPMM ((AAddvvaanncceedd PPoowweerr MMaannaaggeemmeenntt))
Unlike ACPI, BIOS controls most APM power management functions. AOpen Suspend to Hard Drive is a good example of APM
power management.
AATTAA ((AATT AAttttaacchhmmeenntt))
ATA is the specification of diskette interface. In 80’s, many software and hardware manufacturers instituted the ATA specification
together. The AT is meaning International Business Machines Corporation (IBM) personal computer/AT’s bus structure.
AATTAA//6666
ATA/66 uses both rising edge and falling edge but doubles UDMA/33 transfer rate. The data transfer rate is 4 times of the PIO
mode 4 or DMA mode 2, 16.6MB/s x4 = 66MB/s. To use ATA/66, you need special ATA/66 IDE cable.
96
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
AATTAA//110000
ATA/100 is a new IDE specification under developing. ATA/100 uses both rising edge and falling edge as ATA/ 6 6 but clock cycle
time is reduced to 40ns. The data transfer rate is (1/40ns) x 2 bytes x 2 = 100MB/s. To use ATA/100, you need special 80-wire
IDE cable, the same as ATA/66.
AATTAA//113333
ATA/133 is a new IDE specification under developing. ATA/133 uses both rising edge and falling edge as ATA/ 6 6 but clock cycle
time is reduced to 30ns. The data transfer rate is (1/30ns) x 2 bytes x 2 = 133MB/s. To use ATA/133, you need special 80-wire
IDE cable, the same as ATA/66.
BBIIOOSS ((BBaassiicc IInnppuutt//OOuuttppuutt SSyysstteemm))
BIOS is a set of assembly routine/program that reside in EPROM or Flash ROM. BIOS controls Input/output devices and other
hardware devices of motherboard. In general, to provide hardware independent portability, operation system and drivers is
required to access BIOS without directly access hardware devices.
BBuuss MMaasstteerr IIDDEE ((DDMMAA mmooddee))
The traditional PIO (Programmable I/O) IDE requires the CPU to involve in all the activities of the IDE access including waiting
for the mechanical events. To reduce the workload of the CPU, the bus master IDE device transfers data from/to memory
without interrupting CPU, and releases CPU to operate concurrently while data is transferring between memory and IDE device.
You need the bus master IDE driver and the bus master IDE HDD to support bus master IDE mode.
97
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
CCNNRR ((CCoommmmuunniiccaattiioonn aanndd NNeettwwoorrkkiinngg RRiisseerr))
The CNR specification provides the PC industry the opportunity to deliver a flexible and cost reduced method of implementing
LAN, home networking, DSL, USB, wireless, audio and modem subsystems widely used in today's "connected PCs". The CNR
specification is an open industry specification and is supported by OEMs, IHV card manufacturers, silicon supplier and
Microsoft.
CCOODDEECC ((CCooddiinngg aanndd DDeeccooddiinngg))
Normally, CODEC means a circuit that can do digital to analog conversion and also the analog to digital conversion. It is part of
sound/modem solution.
AC97
DDDDRR ((DDoouubbllee DDaattaa RRaattee)) SSDDRRAAMM
DDR SDRAM utilizes the existing SDRAM infrastructure and technology while doubling the nominal bandwidth available to
systems in an easy to design and simple to adopt way. Initially a perfect solution for memory intensive server and workstation
applications, DDR low cost and low voltage will ultimately make it an ideal solution for all segments of the PC market, high
performance desktop and mobile PCs, Value PCs and even Internet Appliances and mobile devices.
DDIIMMMM ((DDuuaall IInn LLiinnee MMeemmoorryy MMoodduullee))
DIMM socket has total 168-pin and supports 64-bit data. It can be single or double side, the golden finger signals on each side
of PCB are different, and that is why it was called Dual In Line. Almost all DIMMs are made by SDRAM
Note that some old DIMMs are made by FPM/EDO
operates at 2.5V..
and only operate at 5V. Do not confuse them with SDRAM DIMM which
, which operate at 3.3V.
98
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
DDMMAA ((DDiirreecctt MMeemmoorryy AAcccceessss))
Channel for communications between the memory and surrounding devices.
EECCCC ((EErrrroorr CChheecckkiinngg aanndd CCoorrrreeccttiioonn))
The ECC mode needs 8 ECC bits for 64-bit data. Each time memory is accessed; ECC bits are updated and checked by a
special algorithm. The ECC algorithm has the ability to detect double-bit error and automatically correct single-bit error while
parity mode can only detect single-bit error.
EEDDOO ((EExxtteennddeedd DDaattaa OOuuttppuutt)) MMeemmoorryy
The EDO DRAM technology is actually very similar to FPM (Fast Page Mode). Unlike traditional FPM that tri-states the memory
output data to start the pre-charge activity, EDO DRAM holds the memory data valid until the next memory access cycle, that is
similar to pipeline effect and reduces one clock state.
EEEEPPRROOMM ((EElleeccttrroonniicc EErraassaabbllee PPrrooggrraammmmaabbllee RROOMM))
Also known as E2PROM. Both EEPROM and Flash ROM can be re-programmed by electronic signals, but the interface
technology is different. Size of EEPROM is much smaller than flash ROM.
EEPPRROOMM ((EErraassaabbllee PPrrooggrraammmmaabbllee RROOMM))
Traditional motherboard stores BIOS code in EPROM. EPROM can only be erased by ultra-violet (UV) light. If BIOS has to be
upgraded, you need to remove EPROM from motherboard, clear by UV light, re-program, and then insert back.
99
AAKK7777--333333FF // AAKK7777--333333FFNN OOnnlliinnee MMaannuuaall
EEVV66 BBuuss
EV6 Bus is the technology of Alpha processor from Digital Equipment Corporation. EV6 bus uses both rising and falling clock
edge to transfer data, similar as DDR SDRAM or ATA/66 IDE bus.
EV6 Bus Speed = CPU external bus clock x 2.
For example, 200 MHz EV6 bus is actually using 100 MHz external bus clock, but the equivalent speed is 200 MHz.
FFCCCC DDooCC ((DDeeccllaarraattiioonn ooff CCoonnffoorrmmiittyy))
The DoC is component certification standard of FCC EMI regulations. This standard allows DIY component (such as
motherboard) to apply DoC label separately without a shielding of housing.
FFCC--PPGGAA ((FFlliipp CChhiipp--PPiinn GGrriidd AArrrraayy))
FC means Flip Chip, FC-PGA is a package of Intel for Pentium III CPU. It can plug into SKT370 socket.
FFllaasshh RROOMM
Flash ROM can be re-programmed by electronic signals. It is easier for BIOS to upgrade by a flash utility, but it is also easier to
be infected by virus. Because of increase of new functions, BIOS size is increased from 64KB to 256KB (2M bit). AOpen AX5T is
the first board to implement 256KB (2Mbit) Flash ROM. Now flash ROM size is moving to 4M bit on AX6C (Intel 820) and MX3W
(Intel 810) motherboard. , AOpen motherboard uses EEPROM for jumper-less and battery-less design.
100
