AOpen AK76F400N User Manual

Download

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

AK76F-400N

DOC. NO.: AK76F400N-OL-E0309B

Overview

Installation

Hardware

Drivers &

Utilities

BIOS Setup

AWARD

Glossary

Troubleshooting &

Technical Support

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

WWhhaatt’’ss iinn tthhiiss mmaannuuaall

AK76F-400N............................................................................................................................................................................1

What’s in this manual.................................................................................................................................................................... 2

You Must Notice............................................................................................................................................................................8

Before You Start............................................................................................................................................................................9

Overview .....................................................................................................................................................................................10

Feature Highlight..........................................................................................................................................................................11

Quick Installation Procedure .......................................................................................................................................................14

Motherboard Map........................................................................................................................................................................15

Block Diagram.............................................................................................................................................................................16

Hardware Installation...........................................................................................................................................................17

About “Optional” and “Upgrade Optional”…................................................................................................................................18

JP14 Clear CMOS Data.............................................................................................................................................................. 19

CPU Installation...........................................................................................................................................................................20

JP30, 31, 32, 33 CPU Ratio Select Jumper................................................................................................................................ 22

CPU Jumper-less Design............................................................................................................................................................23

AOpen Overheat Protection (O.H.P.) Technology....................................................................................................................... 27

1MHz Stepping AGP/PCI Overclocking....................................................................................................................................... 28

CPU and System Fan Connector (with H/W Monitoring) ............................................................................................................29

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

JP27/JP28 Keyboard/Mouse Wake-up Enable/Disable Jumper................................................................................................. 30

DIMM Sockets.............................................................................................................................................................................31

Front Panel Connector................................................................................................................................................................ 33

ATX Power Connector.................................................................................................................................................................34

AC Power Auto Recovery............................................................................................................................................................34

IDE and Floppy Connector..........................................................................................................................................................35

S/PDIF (Sony/Philips Digital Interface) Connector......................................................................................................................37

Super 5.1 Channel Audio Effect..................................................................................................................................................38

IrDA Connector............................................................................................................................................................................39

AGP (Accelerated Graphic Port) Expansion Slot........................................................................................................................ 40

AGP Protection Technology ........................................................................................................................................................41

STBY LED...................................................................................................................................................................................42

WOM by External BOX Modem...................................................................................................................................................43

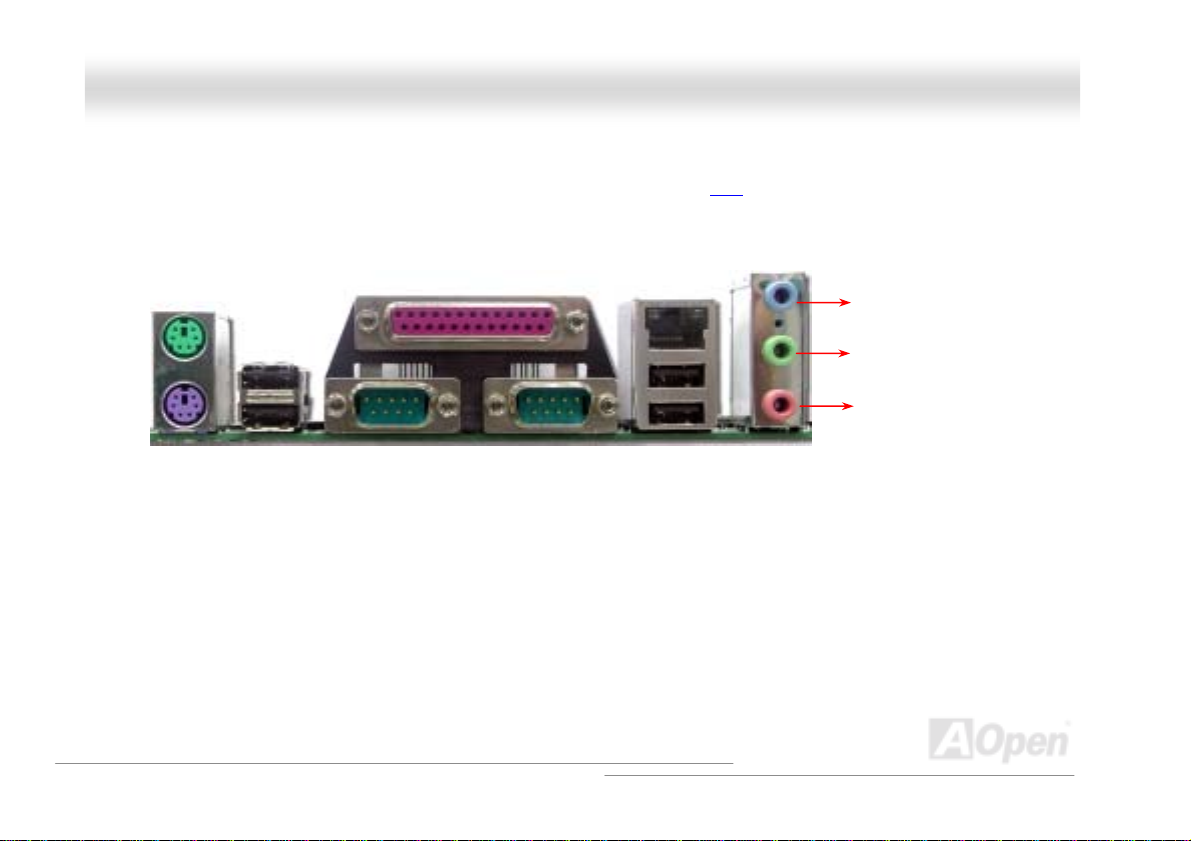

PC99 Color Coded Back Panel...................................................................................................................................................44

Support 10/100 Mbps LAN onboard............................................................................................................................................ 45

JP13 LAN Enable/Disable Jumper..............................................................................................................................................46

Support Six USB Connectors......................................................................................................................................................47

Chassis Intrusion Connector....................................................................................................................................................... 48

CD Audio Connector ................................................................................................................................................................... 49

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

AUX-IN Connector.......................................................................................................................................................................50

Front Audio Connector ................................................................................................................................................................51

Battery-less and Long Life Design ..............................................................................................................................................52

Over-current Protection...............................................................................................................................................................53

Resettable Fuse.......................................................................................................................................................................... 54

2200µF Low ESR Capacitor........................................................................................................................................................ 55

Layout (Frequency Isolation Wall)............................................................................................................................................... 56

Pure Aluminum Heatsink.............................................................................................................................................................57

Vivid BIOS technology.................................................................................................................................................................58

The noise is gone!! ---- SilentTeK................................................................................................................................................59

Driver and Utility ..................................................................................................................................................................62

Auto-run Menu from Bonus CD Disc...........................................................................................................................................63

AOConfig Utility...........................................................................................................................................................................64

Installing Onboard Sound Driver................................................................................................................................................. 66

Installing SiS AGP Driver............................................................................................................................................................. 67

PHOENIX-AWARD BIOS.......................................................................................................................................................68

About PHOENIX-AWARD BIOS Function Description…............................................................................................................ 69

How To Use Phoenix-Award™ BIOS Setup Program................................................................................................................. 70

How To Enter BIOS Setup........................................................................................................................................................... 72

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

BIOS Upgrade under Windows environment ..............................................................................................................................73

VGA Card & Hard Disk................................................................................................................................................................ 75

Glossary.................................................................................................................................................................................76

AC97 CODEC .............................................................................................................................................................................76

ACPI (Advanced Configuration & Power Interface) .................................................................................................................... 76

ACR (Advanced Communication Riser)......................................................................................................................................76

AGP (Accelerated Graphic Port)................................................................................................................................................. 77

AMR (Audio/Modem Riser) .........................................................................................................................................................77

ATA (AT Attachment)...................................................................................................................................................................77

BIOS (Basic Input/Output System).............................................................................................................................................. 78

Bluetooth..................................................................................................................................................................................... 78

CNR (Communication and Networking Riser)............................................................................................................................. 79

DDR (Double Data Rate) RAM.................................................................................................................................................... 79

ECC (Error Checking and Correction)......................................................................................................................................... 79

EEPROM (Electronic Erasable Programmable ROM) ................................................................................................................80

EPROM (Erasable Programmable ROM)....................................................................................................................................80

EV6 Bus ......................................................................................................................................................................................80

FCC DoC (Declaration of Conformity)......................................................................................................................................... 80

FC-PGA (Flip Chip-Pin Grid Array)..............................................................................................................................................80

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

FC-PGA2 (Flip Chip-Pin Grid Array) ...........................................................................................................................................81

Flash ROM.................................................................................................................................................................................. 81

Hyper Threading.......................................................................................................................................................................... 81

IEEE 1394................................................................................................................................................................................... 81

Parity Bit......................................................................................................................................................................................82

PCI (Peripheral Component Interface) Bus................................................................................................................................. 82

PDF Format................................................................................................................................................................................. 82

PnP (Plug and Play)....................................................................................................................................................................83

POST (Power-On Self Test)........................................................................................................................................................ 83

PSB (Processor System Bus) Clock ...........................................................................................................................................83

RDRAM (Rambus Dynamic Random Access Memory).............................................................................................................. 83

RIMM (Rambus Inline Memory Module)......................................................................................................................................84

SDRAM (Synchronous DRAM) ...................................................................................................................................................84

SATA (Serial ATA)........................................................................................................................................................................84

SMBus (System Management Bus)............................................................................................................................................ 84

SPD (Serial Presence Detect)..................................................................................................................................................... 85

USB 2.0 (Universal Serial Bus)................................................................................................................................................... 85

VCM (Virtual Channel Memory) ..................................................................................................................................................85

Wireless LAN – 802.11b..............................................................................................................................................................85

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

ZIP file......................................................................................................................................................................................... 86

Troubleshooting...................................................................................................................................................................87

Technical Support................................................................................................................................................................91

Product Registration............................................................................................................................................................94

How to Contact Us ...............................................................................................................................................................95

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

YYoouu MMuusstt NNoottiiccee

Adobe, the Adobe logo, Acrobat is trademarks of Adobe Systems Incorporated. AMD, the AMD logo, Athlon and Duron are trademarks of Advanced Micro Devices, Inc. Intel, the Intel logo, Intel Celeron, Pentium II, Pentium III are trademarks of Intel Corporation. Microsoft, Windows, and Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or

other countries. All product and brand names used on this manual are used for identification purposes only and may be the registered trade marks of their

respective owners.

All of the specifications and information contained in this manual are subject to change without notice. AOpen reserves the right to revise this publication and to make reasonable changes. AOpen assumes no responsibility for any errors or inaccuracies that may appear in this manual, including the products and software described in it.

This documentation is protected by copyright law. All rights are reserved. No part of this document may be used or reproduced in a ny form or by any means, or stored in a database or retrieval system without prior written permission from AOpen Corporation. Copyright

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

BBeeffoorree YYoouu SSttaarrtt

This Online Manual will introduce to the user how this product is installed. All useful information will be described in later chapters. Please keep this manual carefully for future upgrades or system configuration changes. This Online Manual is saved in PDF format recommend using Adobe Acrobat Reader 4.0 for online viewing, it is included in Bonus CD or you can get free download from Adobe web

site.

Although this Online Manual is optimized for screen viewing, it is still capable for hardcopy printing, you can print it by A4 paper size and set 2 pages per A4 sheet on your printer. To do so, choose File > Page Setup and follow the instruction of your printer driver.

Thanks for the help of saving our earth.

, we

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

OOvveerrvviieeww

Thank you for choosing AOpen AK76F-400N motherboard. The AK76F-400N is AMD® Socket 462 motherboard (M/B) based on the ATX form factor featuring the SIS 748 chipset Socket 462 series Athlon™ XP & Athlon™ & Duron™ processor with 266/333/400MHz EV6 one AGP slot and supports AGP 2X/4X/8X mode and pipelined spilt-transaction long burst transfer up to 2112MB/sec. With high bandwidth 200/266MB/s 8-bit Multi-threaded I/O Link Host Controller, DDR266(PC2100) applied to the AK76F-400N and the maximum memory size can be up to 3GB. The onboard IDE controller supports Ultra DMA 33/66/100/133 mode and the transfer rate up to 133MB/s. Besides, the AK76F-400N has an AC97 performance and magic surround stereo sound to let people enjoy working with it. Now, let’s enjoy all features from AOpen AK76F-400N motherboard.

. As high performance chipset built in the M/B, the AK76F-400N motherboard can support AMD®

system bus. In the AGP performance, it has

, DDR333(PC2700) and DDR400(PC3200) DDR RAM can be

CODEC chipset onboard providing high

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

FFeeaattuurree HHiigghhlliigghhtt

CPU

Supports AMD® Socket 462 series CPU with 200MHz, 266MHz, 333MHz and 400MHz EV6 Bus designed for Socket 462 technology. Athlon: 600MHz~1.4GHz Duron: 600MHz~1.3GHz AthlonXP: 1500

(1.33GHz)~3200+(2.2GHz)

Chipset

The motherboard is equipped with SIS 748 and SIS 963L chipset. SIS 748 chipset consists of host interface Controller and integrated high performance DDR RAM South-Bridge Masters Including IDE, USB, Audio, and Modem Controllers, which can strongly enhance the system performance.

Host system controller, which provide Dedicated High-Speed Data Paths connecting North-Bridge and Each

Expansion Slots

Including five 32-bit/33MHz PCI, and one AGP 2X/4X/8X slots. The PCI local bus throughput can be up to 132MB/s. The Accelerated

Graphics Port (AGP) specification provides a new level of video display sophistication and speed. The AGP video cards support data

transfer rate up to 2112MB/s. AK76F-400N motherboard includes one AGP expansion slot for a bus mastering AGP graphic card. For AD and SBA signaling, AK76F-400N motherboard can support 2X/4X/8X mode. Of five PCI slots provided, AK76F-400N supports all five master PCI slots with arbitration and decoding for all integrated functions and LPC bus.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

Memory

With SIS 748 chipset, the AK76F-400N can support Double-Data-Rate (DDR) RAM. The DDR RAM interface allows zero wait state bursting between the SDRAM and the data buffers at 33/66/100MHz. The six banks of DDR RAM can be composed of an arbitrary mixture of 16M/64M/128M/256M/512Mx1GB DDR RAM and maximum up to 3 GB.

Ultra DMA 33/66/100/133 Bus Ma ster IDE

Comes with an on-board PCI Bus Master IDE controller with two connectors that supports four IDE devices in two channels, supports Ultra

DMA 33/66/100/133, PIO Modes 3 and 4 and Bus Master IDE DMA Mode 5, and supports Enhanced IDE devices.

On-board AC’97 Sound

AK76F-400N uses the onboard AC'97 CODEC sound chip. This on-board audio includes a complete audio recording and playback system.

S/PDIF Connectors

S/PDIF (Sony/Philips Digital Interface) is a newest audio transfer file format, which provides impressive quality through optical fiber and allows you to enjoy digital audio instead of analog audio.

Six USB Connectors

Provides three ports, six USB connectors for USB interface devices, such as mouse, keyboard, modem, scanner, etc.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

1MHz Stepping Frequency Adjustment

Provides “1MHz Stepping Frequency Adjustment” function in the BIOS. This magic function allows you adjust CPU FSB frequency from 100~255 by 1MHz stepping, and lets your system can get maximum performance.

Watch Dog ABS Timer

Includes AOpen “Watch Dog ABS” function that can auto-reset default setting in 4.8 seconds when you fail to system overclocking.

Power Management/Plug and Play

Supports the power management function that confirms to the power-saving standards of the U.S. Environmental Protection Agency (EPA) Energy Star program. It also offers Plug-and-Play user-friendlier.

, which helps save users from configuration problems, thus making the system much

Hardware Monitoring Management

Supports CPU or system fans status, temperature and voltage monitoring and alert, through the on-board hardware monitor module.

Super Multi-I/O

Provides two high-speed UART compatible serial ports and one parallel port with EPP and ECP capabilities. UART can also be directed from COM1 to the Infrared Module for the wireless connections.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

QQuuiicckk IInnssttaallllaattiioonn PPrroocceedduurree

This page gives you a quick procedure on how to install your system. Follow each step accordingly.

1. Installing CPU and Fan

2. Installing System Memory (DIMM)

3. Connecting Front Panel Cable

4. Connecting IDE and Floppy Cable

5. Connecting ATX Power Cable

6. Connecting Back Panel Cable

7. Power-on and Load BIOS Setup Default

8. Setting CPU Frequency

9. Reboot

10. Installing Operating System (such as Windows 98)

11. Installing Driver and Utility

(

)

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

Motherboard Map

AC’97 CODEC

S/PDIF Connector

Joystick Connector

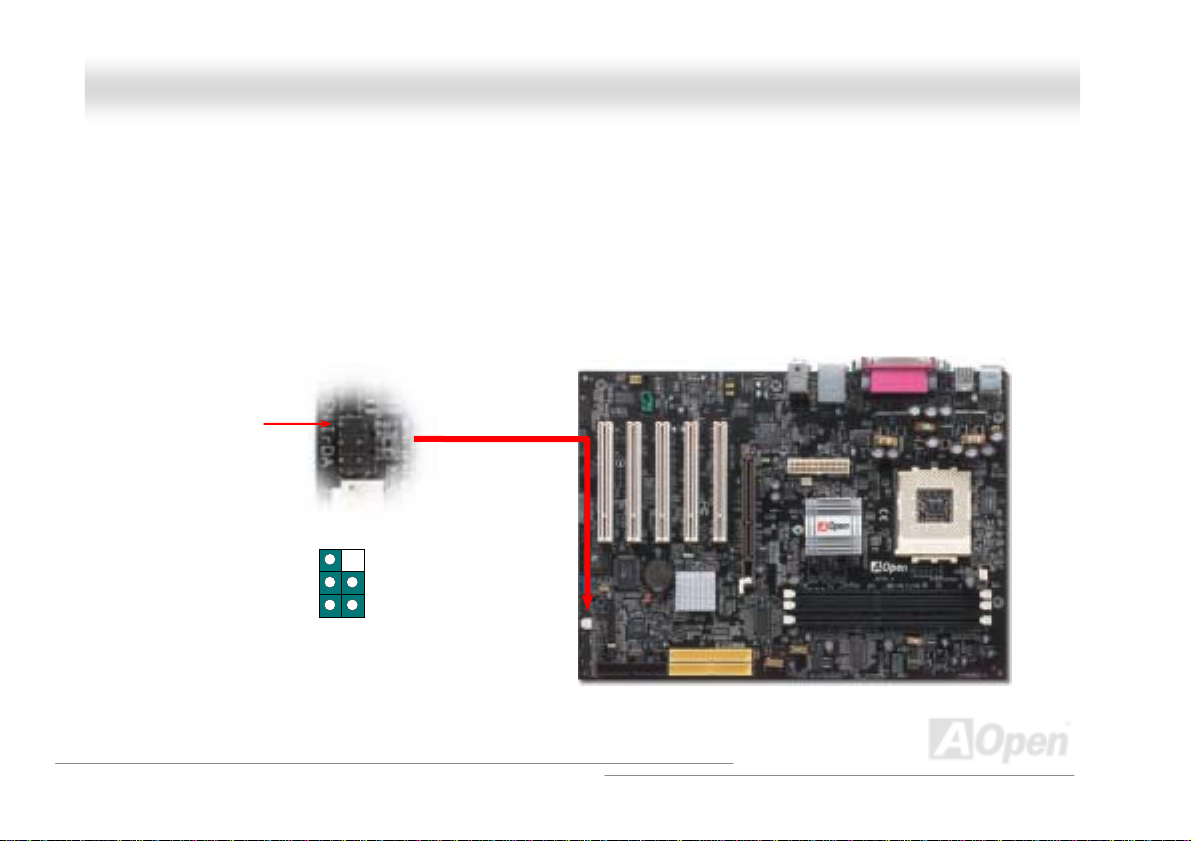

JP13 LAN Disable/Enable Jumper

CD-IN

AUX-IN

32-bit PCI Expansion Slot x5

Buzzer

South Bridge: SiS963 Chipset

SFAN2 Connector (H/W Monitor)

Flash ROM

JP14 CMOS Clear Jumper

orts the 3rd USB Connector

Case Open Connector

IrDA Connector

Front Panel Connector

FDD Connector

Front Audio Connector Ethernet Controller

PC99 Colored Back Panel

Resettable Fuse

JP27 Wakeup on KB/MS select Jumper ATX Power Connector JP28 Wakeup on KB/MS select Jumper

2200μF Low ESR Capacitors SYSFAN3 Connector

462-pin CPU Socket with Voltage and Frequency Auto-Detection that supports

AthlonTM / DuronTM / and

AMD

Athlon

XP ( with CPU Overheat Protection circuit to Athlon only)

CPUFAN1 Connector (H/W Monitor JP30~33 CPU Ratio Select Jumper

SIS 748 Chipset

184-pin DIMM supports DDR RAM DDR400 (DIMMx2 Max. to 2GB) DDR333 (DIMMx3 Max. to 3GB) DDR266 AGP 8x Expansion Slot

IDE Connector x2

DIMMx3 Max. to 3GB)

ATA66/100/133

XP CPU

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

BBlloocckk DDiiaaggrraamm

AthlonXP/Athlon/Duron

AGP 3.0 8X Mode

Socket 462

AMD CPU

Fast Write

Floppy Disk Drive x2

DDR400 (DIMMx2,

Max. to 2GB)

DDR333 (DIMMx3,

Max. to 3GB)

DDR266 (DIMMx3,

Max. to 3GB)

DIMM Socket x3

SIS 748

MuTIOL

SIS

963L

1stUSB Port

2ndUSB Port

3rdUSB Port

USB

Connector x6

32-bit PCI Slot x5

PCI Bus

ATA66/100/133 Dual IDE

RTL8100

Legacy Flash

ROM

Winbond W83697

AC Link

RealTek ALC650/

ALC202A

AC97

CODEC

Serial Port x2

IDE Drive x4

Parallel Port

Game/Midi

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

HHaarrddwwaarree IInnssttaallllaattiioonn

This chapter describes jumpers, connectors and hardware devices of this motherboard.

Note: Electrostatic discharge (ESD) can damage your processor, disk drives, expansion boards, and other components. Always observe the following precautions before you install a system component.

1. Do not remove a component from its protective packaging until you are ready to install it.

2. Wear a wrist ground strap and attach it to a metal part of the system unit before handling a component. If a wrist strap is not available, maintain contact with the system unit throughout any procedure requiring ESD protection.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

AAbboouutt ““OOppttiioonnaall”” aanndd ““UUppggrraaddee OOppttiioonnaall””……

When you read this online manual and start to assemble your computer system, you may find some of functions are called “Optional”, and some are called “Upgrade Optional”. Though all AOpen motherboards include many amazing and powerful fea tures, in some situations, these powerful features are not used to every user. Hence, we changed some key features as “Optional” for you to choose. Some optional functions that can be upgraded by users, we call them “Upgrade Optional”. As for those optional functions that can’t be upgraded by ourselves, we call them “Optional”. If needed, you can contact our local distributors or resellers for purchasing “Upgrade Optional” components, and again you can visit AOpen official web site: english.aopen.com.tw

for more detail information.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

JJPP1144 CClleeaarr CCMMOOSS DDaattaa

You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below.

1. Turn off the system and unplug the AC power.

2. Remove ATX power cable from connector PWR2.

3. Locate JP14 and short pins 2-3 for a few seconds.

4. Return JP14 to its normal setting by shorting pin 1 & pin 2.

5. Connect ATX power cable back to connector PWR2.

Pin 1

Normal Operation

(default)

Clear CMOS

Tip: When should I Clear CMOS?

1. Boot fail because of overclocking…

2. Forget password…

3. Troubleshooting…

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

CCPPUU IInnssttaallllaattiioonn

This motherboard supports AMD® Athlon and Duron Socket 462 series CPU. Be careful of CPU orientation when you plug it into CPU socket.

1. Pull up the CPU socket lever and up to 90-degree angle.

2. Locate Pin 1 in the socket and look for a black dot or cut edge on the CPU upper interface. Match Pin 1 and cut edge, then insert the CPU into the socket.

CPU socket

Lever

Note: These pictures are for example only, it may not exactly be the same motherboard.

CPU pin 1 and

cut edge

Black dot and

cut edge

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

3. Press down the CPU socket lever and finish CPU installation.

Note: This picture is for example only, it may not exactly be the same motherboard.

CPU cut edge

Note: If you do not match the CPU socket Pin 1 and CPU cut edge well, it ma

damage the CPU.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

JJPP3300,, 3311,, 3322,, 3333 CCPPUU RRaattiioo SSeelleecctt JJuummppeerr

This jumper is used to select CPU ration. The factory default setting is auto detection. Users do not have to adjust the jumper position if your CPU ration can be detected automatically by system.

JP33 JP32 JP31 JP30 JP33 JP32 JP31 JP30

5.0 2-3 1-2 2-3 2-3 12.0 2-3 2-3 1-2 2-3

5.5 2-3 1-2 2-3 1-2 12.5 2-3 2-3 1-2 1-2

6.0 2-3 1-2 1-2 2-3 13.0 2-3 1-2 2-3 2-3

6.5 2-3 1-2 1-2 1-2 13.5 2-3 1-2 2-3 1-2

7.0 1-2 2-3 2-3 2-3 14.0 2-3 1-2 1-2 2-3

7.5 1-2 2-3 2-3 1-2 15.0 1-2 2-3 2-3 2-3

8.0 1-2 2-3 1-2 2-3 16.0 1-2 2-3 1-2 2-3

8.5 1-2 2-3 1-2 1-2 16.5 1-2 2-3 1-2 1-2

9.0 1-2 1-2 2-3 2-3 17.0 1-2 1-2 2-3 2-3

9.5 1-2 1-2 2-3 1-2 18.0 1-2 1-2 2-3 1-2

10.0 1-2 1-2 1-2 2-3 19.0 2-3 2-3 2-3 1-2

10.5 1-2 1-2 1-2 1-2 20.0 2-3 2-3 1-2 1-2

11.0 2-3 2-3 2-3 2-3 21.0 2-3 1-2 1-2 1-2

11.5 2-3 2-3 2-3 1-2 22.0 1-2 2-3 2-3 1-2

1 1 1 1

JP30 JP31 JP32 JP33

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

AMD

CPU voltage

Clock Generator

CPU Freq. Ratio

BIOS

Controlled

Circuit

CCPPUU JJuummppeerr--lleessss DDeessiiggnn

CPU VID signal and SMbus clock generator provide CPU voltage auto-detection and allows the user to set the CPU frequency through the

BIOS setup

There will be no worry of wrong CPU voltage detection.

, therefore no jumpers or switches are used. The disadvantages of the Pentium based jumper-less designs are eliminated.

Socket A CPU

CPU VID signal

Power Regulator

(Automatically generates CPU voltage)

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

AAOOppeenn ““WWaattcchh DDoogg AABBSS””

to reboot in five seconds. Then, BIOS will detect the CPU’s default frequency and POST again. With this special feature, you can easily overclock your system to get higher system performance, and without removing the cover of system housing to set the jumper to clear CMOS data when your system hanged.

AOpen

Watch Dog ABS

Enable/Disable Signal from

With this motherboard, AOpen provides a very special, useful feature for overclockers. When you power-on the system, the BIOS will check last system POST enable “Watch Dog ABS” function immediately, and set the CPU FSB that stored in the BIOS. If system failed in BIOS POST, the “Watch Dog ABS” will reset the system

BIOS

Reset Signal

Clock Generator

Countdown about 5 seconds if fails in POST

CPU

status. If it succeeded, the BIOS will

frequency by user’s setting

CPU ID Signal

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

SSeettttiinngg CCPPUU CCoorree VVoollttaaggee

This motherboard supports CPU VID function. The CPU core voltage will be automatically detected.

SSeettttiinngg CCPPUU FFrreeqquueennccyy

BIOS Setup > Frequency/Voltage Control > CPU Clock Setting

This motherboard is CPU jumper-less design, you can set CPU frequency through the BIOS setup, and no jumpers or switches are needed.

Core Frequency = CPU FSB Clock * CPU Ratio PCI Clock = CPU FSB Clock / Clock Ratio

AGP Clock = PCI Clock x 2

CPU Ratio From 5.0x to 22.0x CPU FSB (By manual Adjustment)

Warning: SIS 748 Chipset supports maximum 400MHz system bus and 66MHz AGP clock; higher clock setting may cause serious system damage. Please be informed that SiS748 A0 Chipset does not support

FSB=100~255 by 1MHz stepping adjustment technology

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

CPU CPU Core Frequency EV6 Bus Clock Ratio

Athlon 1G 1GHz 266MHz 7.5x Athlon 1.13G 1.13GHz 266MHz 8.5x Athlon 1.2G 1.2GHz 266MHz 9.0x Athlon 1.33G 1.33GHz 266MHz 10.0x Athlon 1.4G 1.4GHz 266MHz 10.5x AthlonXP 1500+ 1.3GHz 266MHz 10.0x AthlonXP 1600+ 1.4GHz 266MHz 10.5x AthlonXP 1700+ 1.46GHz 266MHz 11.0x AthlonXP 1800+ 1.53GHz 266MHz 11.5x AthlonXP 1900+ 1.6GHz 266MHz 12.0x AthlonXP 2000+ 1.667GHz 266MHz 12.5x AthlonXP 2100+ 1.73GHz 266MHz 13x AthlonXP 2200+ 1.807GHz 266MHz 13.5x AthlonXP 2400+ 2.0GHz 266MHz 15x AthlonXP 2500+ (Barton) 2.0GHz 333MHz 11x AthlonXP 2600+ 2.13GHz 266MHz 16x AthlonXP 2700+ 2.16GHz 333MHz 13x AthlonXP 2800+ (Barton) 2.083GHz 333MHz 12.5x AthlonXP 3000+ (Barton) 2.167GHz 333MHz 13x AthlonXP 3200+ (Barton) 2.2GHz 400MHz 11x Duron 1G 1GHz 200MHz 10.0x Duron 1.1G 1.1GHz 200MHz 11.0x Duron 1.2G 1.2GHz 200MHz 12.0x Duron 1.3G 1.3GHz 200MHz 13.0x

Note: With CPU speed changing rapidly, there might be fastest CPU on the market by the time you

received this installation guide. This table is kindly for your references only.

Note: This motherboard support CPU auto-detection function. Hence, you don’t need to setup the CPU frequency manually.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

AAOOppeenn OOvveerrhheeaatt PPrrootteeccttiioonn ((OO..HH..PP..)) TTeecchhnnoollooggyy

With AMD platform substantially keeps increasing the speed of its CPU, it inevitably led to the annoying problem of high CPU operation temperature at the same time. In order to prevent accidental failure of CPU fan, which could cause the bur ning down of the Athl onXP CPU, we, AOpen, have meticulously developed a new technology, named, O.H.P. (Overheat Protection) Technology to protect them. Thanks to the intelligent monitoring design of AOpen O.H.P. technology, user can now finally set their mind at ease even when fan failed to work without fearing the possible damage of CPU,

Under the circumstances that CPU fan is running properly, AthlonXP temperature should be way below the highest

temperature limit of 97 ℃ . However, if CPU fan accidentally becomes malfunction or improperly installed, the CPU temperature would rocket abruptly, and you may find your system hang up or crying over the smoking CPU if you haven’t installed AOpen O.H.P. previously. With AOpen O.H.P. technology applied, the specific thermal detection pins on AthlonXP CPU would sense voltage difference when processor is overheated with fan failed, and the overheat protection system would immediately send out a signal to abort your system by cutting CPU electricity before any damage is done. Unlike other manufacturers who use BIOS or software to control the power supply of CPU, AOpen O.H.P. Technology is purely hardware-controlled the minute after system boot-up, and occupies no system resource. We are pleasant to phase in this practical function on all AOpen AMD series motherboards to protect

customer’s valuable hardware and personal data.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

11MMHHzz SStteeppppiinngg AAGGPP//PPCCII OOvveerrcclloocckkiinngg

For computer system, all components run with their fixed working frequencies; and all kinds of peripheral components frequencies run interactively with CPU system frequency in a regular basis. Overclocking, a must-do-thing preferred by people these days, is done basically by manually adjusting CPU FSB up above its standard rate through BIOS. AOpen provide sets of AGP/PCI frequencies for overclockers to manually overclock AGP/PCI frequency while taking care of the system stability at the same time. AGP/PCI and CPU FSB will function asynchronously. The available range of AGP frequency is from 66MHz to 96MHz and 33MHz to 48MHz for PCI frequency. With this solution given, there would be no hassle from AGP/PCI overclocking, and thus PCI frequency would no longer be the headache of overclocking anymore. Moreover, we provide sets of adjustable voltage setting of AGP card from 1.5V, 1.53V, 1.56V and 1.6V in BIOS.

Note：AGP frequency= PCI frequency X 2. The onboard sound device could be malfunction if PCI frequency is set too high.

Note:

The design of this product follows CPU and chipset vendor's design guideline. Any attempts to push beyond product specification are not recommended and you are taking your own risk to damage your system or important data. Before doing overclocking, you must make sure your components are able to tolerate such abnormal setting, especially CPU, DDR RAM, hard disks, and AGP cards.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

CCPPUU aanndd SSyysstteemm FFaann CCoonnnneeccttoorr ((wwiitthh HH//WW MMoonniittoorriinngg))

Plug in the CPU fan cable to the 3-pin CPUFAN1 connector. If you have chassis fan, you can also plug it on SYSFAN2 or SYSFAN3 connector.

GND +12V SENSOR

SYSFAN2 Connector

with Hardware Monitor

SYSFAN3 Connector

GND +12V NC

CPUFAN1 Connector

with Hardware Monitor

GND +12V SENSOR

Note: Some CPU fans do not have sensor pin, so that cannot support hardware monitoring function.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

JJPP2277//JJPP2288 KKeeyybbooaarrdd//MMoouussee WWaakkee--uupp EEnnaabbllee//DDiissaabbllee JJuummppeerr

This motherboard provides USB and PS2 keyboard / mouse wake-up function. You can use JP27 / JP28 to enable or disable the resuming of your system from suspend mode with any USB keyboard or mouse connected. JP28 controls the 1st USB/PS2 channel, and JP27 controls the 2nd USB channel. The factory default setting is set to “Disable”(1-2), and you may enable this function by setting the jumper to 2-3. Please note that you have to enable USB, PS2 keyboard and PS2 mouse settings in the “Power Management Setup” section in BIOS before you use this function. Please be informed that the 3rd USB channel does not support this function.

DDiissaabbllee ((DDeeffaauulltt))

KB/Mouse Wake-up

EEnnaabbllee

JP27

USB Channel

1st USB Channel

DDiissaabbllee ((DDeeffaauulltt))

JP28

KB/Mouse Wake-up

EEnnaabbllee

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

DDIIMMMM SSoocckkeettss

This motherboard has three 184-pin DDR DIMM sockets that allow you to install DDR266 (DIMMx3, Max. to 3GB), DDR333 (DIMMx3, Max. to 3GB) or DDR400 (DIMMx2, Max. to 2GB). Both ECC and Non-ECC DD R RAM are supported, but you can’t install them both on DIMM. Otherwise, it will cause serious damage on memory sockets or DDR RAM module. For customers’ convenience, we provide sets of adjustable voltage setting of DDR RAM from 2.55V, 2.60V, 2.65V and 2.70V in BIOS.

DIMM1 DIMM2 DIMM3

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

HHooww ttoo IInnssttaallll MMeemmoorryy MMoodduulleess

Please follow the procedure as shown below to finish memory installation.

1. Make sure the DIMM module’s pin face down and match the socket’s size as depicted below.

2. Insert the module straight down to the DIMM slot with both hands and press down firmly until the DIMM module is securely in place.

3. Repeat step 2 to finish additional DIMM modules installation.

Tab

40 pins 52 pins

Note: The tabs of the DIMM slot will close-up to hold the DIMM in place when the DIMM touches the slot’s bottom.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

FFrroonntt PPaanneell CCoonnnneeccttoorr

Pin 1

Attach the power LED, Keylock, speaker, power and reset switch connectors to the corresponding pins. If you enable “Suspend Mode” item in BIOS Setup, the ACPI & Power LED will keep flashing while the system is in suspend mode.

Locate the power switch cable from your ATX housing. It is 2-pin female connector from the housing front panel. Plug this connector to the soft-power switch connector marked SPWR.

Suspend Type ACPI LED

Power on Suspend (S2) or Suspend to RAM (S3) Flashing for every second

Suspend to Disk (S4) The LED will be turned off

IDE LED

Speaker

SPWR

ACPI & PWR LED

ACPI LED (BLUE)

Reset

SPEAKER

NC NC

+5V IDE LED IDE LED

+5V

GND

SPWR GND ACPI L ED GND ACPILED NC ACPI_B GND RESET GND

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

AATTXX PPoowweerr CCoonnnneeccttoorr

This motherboard comes with a 20-pin ATX power connector as shown below. Make sure you plug in the right direction.

AACC PPoowweerr AAuuttoo RReeccoovveerryy

A traditional ATX s ystem should remain at power off stage when AC power resumes from power failure. This design is inconvenient for a network server or workstation, without an UPS, that needs to keep power-on. This motherboard implements an AC Power Auto Recovery function to solve this problem.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

IIDDEE aanndd FFllooppppyy CCoonnnneeccttoorr

Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDC and IDE connector. Be careful of the pin1 orientation. Wrong orientation may cause system damage.

Pin 1

Secondary Slave (4th)

Pin 1

Slave (2nd)

Primary

Secondary

Master (3rd)

IDE 2 (Secondary) IDE 1 (Primary)

Primary

Master (1st)

ATA 33/66/100/133

IDE Connector

FDD Connector

66/100 is required

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

IDE1 is also known as the primary channel and IDE2 as the secondary channel. Each channel supports two IDE devices that make a total of four devices. In order to work together, the two devices on each channel must be set differently to Master and Slave mode. Either one can be the hard disk or the CDROM. The setting as master or slave mode depends on the jumper on your IDE device, so please refer to your hard disk and CDROM manual accordingly.

This motherboard supports ATA33 modes. The IDE bus is 16-bit, which means every transfer is two bytes.

Mode Clock Period Clock

PIO mode 0 30ns 20 600ns (1/600ns) x 2byte = 3.3MB/s PIO mode 1 30ns 13 383ns (1/383ns) x 2byte = 5.2MB/s PIO mode 2 30ns 8 240ns (1/240ns) x 2byte = 8.3MB/s PIO mode 3 30ns 6 180ns (1/180ns) x 2byte = 11.1MB/s PIO mode 4 30ns 4 120ns (1/120ns) x 2byte = 16.6MB/s DMA mode 0 30ns 16 480ns (1/480ns) x 2byte = 4.16MB/s DMA mode 1 30ns 5 150ns (1/150ns) x 2byte = 13.3MB/s DMA mode 2 30ns 4 120ns (1/120ns) x 2byte = 16.6MB/s UDMA 33 30ns 4 120ns (1/120ns) x 2byte x2 = 33MB/s UDMA 66 30ns 2 60ns (1/60ns) x 2byte x2 = 66MB/s UDMA100 20ns 2 40ns (1/40ns) x 2byte x2 = 100MB/s ATA 133 15ns 2 30ns (1/30ns) x 2byte x2= 133MB/s

Warning: The specification of the IDE cable is a maximum of 46cm (18 inches); make sure your cable does not exceed this length.

, ATA66, ATA100 or ATA133 IDE devices. Following table lists the transfer rate of IDE PIO and DMA

Count

Cycle Time Data Transfer Rate

Tip:

1. For better signal quality, it is recommended to set the far end side device to master mode and follow the suggested sequence to install your new device. Please refer to above diagram

2. To achieve the best performance of Ultra DMA 66/100 hard disks, a special 80-wires IDE cable for Ultra DMA

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

SS//PPDDIIFF ((SSoonnyy//PPhhiilliippss DDiiggiittaall IInntteerrffaaccee)) CCoonnnneeccttoorr

S/PDIF (Sony/Philips Digital Interface) is a newest audio transfer file format, which provides impressive quality through optical fiber and allows you to enjoy digital audio instead of analog audio. Normally there are two S/PDIF outputs as shown, one for RCA connector, the most common one used for consumer audio products, and the other for optical connector with better audio quality. Through a specific audio cable, you can connect the S/PDIF connector to other end of the S/PDIF audio module, which bears S/PDIF digital output. However, you must have a S/PDIF supported speaker with S/PDIF digital input to connect to the S/PDIF digital output to make the most out of this function.

(RCA)

S/PDIF OUT

S/PDIF IN

S/PDIF OUT

S/PDIF IN

(Optical)

S/PDIF Module

(User Upgrade Optional)

Audio Cable

Pin 1

S/PDIF Connector

+5VSB

NC S/PDIFOUT GND

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

SSuuppeerr 55..11 CChhaannnneell AAuuddiioo EEffffeecctt

This motherboard comes with an ALC650 Codec which supports high quality of 5.1 Channel audio effect, bringing you a brand new audio experience. On the strength of the innovative design of ALC650, you're able to use standard line-jacks for surround audio output without connecting any external module. To apply this function, you have to install the audio driver in the Bonus Pack CD as well as an audio application supporting 5.1 Channel. Picture below represents the standard location of all speakers in 5.1 Channel sound track. Please connect the plug of your front speakers to the green “Speaker out” port, rear speakers’ plug to the blue “Line in” port and both of the center and subwoofer speakers to the red “MIC in” port.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

IIrrDDAA CCoonnnneeccttoorr

The IrDA connector can be configured to support wireless infrared module, with this module and application software such as Laplink or Windows 95 Direct Cable Connection, the user can transfer files to or from laptops, notebooks, PDA devices and printers. This connector supports HPSIR (115.2Kbps, 2 meters) and ASK-IR (56Kbps).

Install the infrared module onto the IrDA connector and enable the infrared function from BIOS Setup, UART Mode, make sure to have the correct orientation when you plug in the IrDA connector.

Pin 1

+5V

IR_TX

IIrrDDAA CCoonnnneeccttoorr

KEY GND IR_RX

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

AAGGPP ((AAcccceelleerraatteedd GGrraapphhiicc PPoorrtt)) EExxppaannssiioonn SSlloott

The AK76F-400N provides an AGP 2X/4X/8X slot. The AGP 8X is a bus interface targeted for high-performance 3D graphics. AGP supports only memory read/write operation and single-master single-slave one-to-one only. AGP uses both rising and falling edge of the 66MHz clock, for 2X AGP, the data transfer rate is 66MHz x 4bytes x 2 = 528MB/s. AGP is now moving to AGP 8x mode, 66MHz x 4bytes x 8 = 2112MB/s. Please be noticed that the AGP expansion slot supports 1.5V AGP cards only. The system will be protected and not able to boot up if a 3.3V AGP card is installed. The AGP slot voltage can be adjusted to 1.50V, 1.53V, 1.56V and 1.60V.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

AAGGPP PPrrootteeccttiioonn TTeecchhnnoollooggyy

With the outstanding R&D ability of AOpen and its specially developed circuit, AK76F-400N implements a brand new technology to protect your motherboard from being damaged by over-voltaging of AGP card. When AGP Protection Technology is implemented, this motherboard will automatically detect the voltage of AGP card and prevent your chipsets from being burnt out. Please note that if you install an AGP card with 3.3V, which is not supported by the chipset, the AGPLED will light up to warn you the possible damage of the exceeding voltage. You may contact your AGP card vendor for further support.

AGP LED

Warning: It is strongly recommended not to install a 3.3V AGP card, which is not supported by the chipset. When you do so, the AGPLED will light up to warn you the possible

dama

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

SSTTBBYY LLEEDD

STBY LED is AOpen’s considerate designs that we aim at providing you friendly system information. The STBY LED will light up when power is provided to the motherboard. This is a convenient indication for you to check the system power status in many circumstances such as power on/off, stand-by mode and RAM power status during Suspend to RAM mode

Warning: Do not install or remove the DIMM module or others devices when the STBY LED lights on.

STBY LED

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

WWOOMM bbyy EExxtteerrnnaall BBOOXX MMooddeem

TTrraaddiittiioonnaall GGrreeeenn PPCC ssuussppeenndd mmooddee ddooeess nnoott rreeaallllyy ttuurrnn ooffff tthhee ssyysstteemm ppoowweerr ssuuppppllyy,, iitt uusseess eexxtteerrnnaall bbooxx mmooddeemm ttoo ttrriiggggeerr MMBB CCOOMM ppoorrtt aanndd rreessuummee bbaacckk ttoo aaccttiivvee..

Note: This picture is for example only; it may not exactly be the same motherboard.

Serial Port (Modem

Side)

Pin 1 Pin 1

Serial Port

(Motherboard Side)

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

PPCC9999 CCoolloorr CCooddeedd BBaacckk PPaanneell

The onboard I/O devices are PS/2 Keyboard, PS/2 Mouse, COM1 and COM2, Printer, USB, AC97 sound and game ports. The view angle of drawing shown here is from the back panel of the housing.

PS/2 Mouse

PS/2 Keyboard: For standard keyboard, which is using a PS/2 plug. PS/2 Mouse: For PC-Mouse, which is using a PS/2 plug. USB Port: Available for connecting USB devices. Parallel Port: To connect with SPP/ECP/EPP printer. COM1/COM2 Port: To connect with pointing devices, modem or others serial devices. Speaker Out: To External Speaker, Earphone or Amplifier. Line-In: Comes from the signal sources, such as CD/Tape player. MIC-In: From Microphone.

Connector

PS/2 Keyboard

Connector

USB

Connectors

COM 1 Port

SPP/EPP/ECP

Parallel Port

COM 2 Port

LAN Connectors

USB

Connectors

Line-In

Speaker Out

MIC-In

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

SSuuppppoorrtt 1100//110000 MMbbppss LLAANN oonnbbooaarrdd

On the strength of Realtek 8100BL LAN controller on board, which is a highly-integrated Platform LAN Connect device, it provide s 10/100M bps Ethernet for office and home use, the Ethernet RJ45 connector is located on top of USB connectors. The green LED indicates the link mode, it lights when linking to network and blinking when transferring data. The orange LED indicates the transfer mode, and it lights when data is transferring in 100Mbps mode. To enable or disable this function, you may simply adjust it through JP13 LAN Disable/Enable jumper.

Green/ACT

Orange/SPEED

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

JJPP1133 LLAANN EEnnaabbllee//DDiissaabbllee JJuummppeerr

JP13 is used to enable or disable onboard LAN. If you don’t want to enable the Onboard LAN, you should set this jumper to 2-3.

1 1

Enable

(Default)

Disable

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

SSuuppppoorrtt SSiixx UUSSBB CCoonnnneeccttoorrss

This motherboard provides six USB connectors to connect USB devices, such as mouse, keyboard, modem, printer, etc. There are two connectors on the PC99 back panel. You can use proper cable to connect other USB connectors to the back panel or front panel of chassis.

Pin 1

+5V

SBD2-

SBD2+

GND

KEY

USB2 Connector

+5V SBD3SBD3+ GND NC

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

CChhaassssiiss IInnttrruussiioonn CCoonnnneeccttoorr

The “CASE OPEN” header provides chassis intrusion-monitoring function. To make this function works, you have to enable it in the system BIOS, connect this header to a sensor somewhere on the chassis. So, whenever the sensor is triggered by lights or the opening of the chassis, the system will send out beep sound to inform you. Please be informed that this useful function only applies to advanced chassis, you may purchase an extra sensor, attach it on your chassis, and make a good use of this function.

SENSOR

GND

Chassis Intrusion

Connector

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

CCDD AAuuddiioo CCoonnnneeccttoorr

This connector is used to connect CD Audio cable from CDROM or DVD drive to onboard sound.

R GND GND L

CD-IN Connector

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

AAUUXX--IINN CCoonnnneeccttoorr

This connector is used to connect MPEG Audio cable from MPEG card to onboard sound.

R GND GND L

AUX-IN Connector

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

FFrroonntt AAuuddiioo CCoonnnneeccttoorr

If the housing has been designed with an audio port on the front panel, you’ll be able to connect onboard audio to front panel through this connector. By the way, please remove 5-6 and 9-10 jumper caps from the Front Audio Connector before connecting the cable. Please do not remove these 5-6 and 9-10 yellow jumper caps if there’s no audio port on the front panel.

Pin 1

1 2

AUD_MIC AUD_MIC_BIAS AUD_FPOUT_R

AUD_FROUT_L

9 10

AUD_GND AUD_VCC AUD_RET_R KEY AUD_RET_L

Note: Please remove the jumper cap from the Front Panel Audio Connector before you connect the cable. Do not remove this yellow jumper cap if housing without an audio

ort on the front panel.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

BBaatttteerryy--lleessss aanndd LLoonngg LLiiffee DDeessiiggnn

This Motherboard implements Flash ROM and a special circuit that allows you to save your current CPU and CMOS Setup configurations without the need of a battery. The RTC (real time clock) can also keep running as long as the power cord is plugged. If you lose your CMOS data by accident, you can just reload the CMOS configurations from Flash ROM and the system will recover as usual.

ATX Stand-by Power

Battery

Flash ROM

(Real Time Clock)

Auto Switch

RTC

00:00:00

CMOS

Auto switching to ATX standby power as long as AC power line is plugged. This smart design increases battery life if you still plug battery on motherboard.

Backup by EEPROM

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

OOvveerr--ccuurrrreenntt PPrrootteeccttiioonn

The Over Current Protection was very popular implemented on ATX 3.3V/5V/12V switching power supply. However, the new generation CPU uses different voltage that has regulator to transfer 5V to CPU voltage (for example, 2.0V), and makes 5V over current protection useless. This motherboard is with switching regulator onboard supports CPU over-current protection; in conjunction with 3.3V/5V/12V power supply provide the full line over-current protection.

Note: Although we have implemented protection circuit try to prevent any human operating mistake, there is still certain risk that CPU, memory, IDE, add-on cards installed on this motherboard may be damaged because of component failure, human operating error or unknown nature reason. AOpen

cannot guaranty the protection circuit will always work perfectly.

ATX Switching Power Supply

12V (Protected by power supply)

3.3V (Protected by power supply)

5V (Protected by power supply)

Onboard

Power

Regulator

Over-Current

Protection Circuit

CPU Core Voltage

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

RReesseettttaabbllee FFuussee

Traditional motherboard has fuse for Keyboard and USB port to prevent over-current or shortage. These fuses are soldered onboard that when it is broken (function as protecting the motherboard), user still cannot replace it and the motherboard is still malfunctioning.

With expensive Resettable Fuse, the motherboard can be resumed back to normal function after the fuse had done its protection job.

Resettable

Fuse

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

2222000

The quality of low ESR capacitor (Low Equivalent Series Resistance) during high frequency operation is very important for the stability of CPU power. The idea of where to put these capacitors is another know-how that requires experience and detail calculation.

Not only that, AK76F-400N implements 2200μF capacitors, which is much larger than normal capacitor (1000 & 1500μf) and it provides better stability for CPU power.

FF LLooww EESSRR CCaappaacciittoorr

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

LLaayyoouutt ((FFrreeqquueennccyy IIssoollaattiioonn WWaallll))

Note: This diagram for example only, it may not be exactly the same as this motherboard.

For high frequency operation, especially overclocking, layout is the most important factor to make sure chipset and CPU working in stable condition. The layout of this motherboard implements AOpen’s unique design called “ Frequency Isolation Wall”. Separating each critical portion of motherboard into regions where each region operates in a same or similar frequency range to avoid cross talk and frequency interference between each region’s operations and condition. The trace length and route must be calculated carefully. For example, the clock trace must be equal length (not necessarily as short as possible) so that clock skew will be controlled within few a pico second (1/10

Sec)

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

PPuurree AAlluummiinnuumm HHeeaattssiinnkk

Cool down CPU and Chipset is important for system reliability. Aluminum heat sink provides better heat consumption especially when you are trying to over clocking the CPU.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

VViivviidd BBIIOOSS tteecchhnnoollooggyy

Unlike earlier graphic POST screen which could occupy the whole screen and mask text information during POST, AOpen VividBIOS deals with graphics and texts separately, and makes them running simultaneously during POST. With this innovative design, VividBios now brings you a beautiful and sleek 256 colors screen without missing any important information shown on POST screen.

In addition, the limited space of BIOS ROM is another big issue. When all of the traditional BIOS can only show space-consuming and uncompressed Bitmap, AOpen has considerately tuned the BIOS to next generation, to recognize the smaller-sized GIF format and even dynamic-showing GIF animation.

Vivid BIOS shares the same fundamental technology with Open JukeBox CD Player, you may use the same EzSkin utility to

change your Vivid BIOS screen or to download your favorite Open JukeBox skin. If you see this little logo your model name on the BIOS download page, http://english.aopen.com.tw/tech/download/skin motherboard supports this innovative feature!

Have you been fed up with the conservative and immutable POST screen? Let’s rule out the tradition idea that POST screen are stiff and frigid, and let AOpen show you the newly developed VividBIOS to experience the lively vivid colorful POST screen!

shown beside

, it is assured that your

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

TThhee nnooiissee iiss ggoonnee!!!! -------- SSiilleennttTTeeKK

As the clock of CPU keeps rocketing higher and higher, it inevitably brings higher heat and system temperature in a relative way. The way we deal with this heat problem, however, is to spare no effort to add one fan after another to protect our pampered system, expecting these

fans could cool down our machine as much as they could. But at the same time, we believe that same users are affected terribly by the irritating noises of these fans while working with

their PC. As a matter of fact, we do not have to get our fans running at such a high speed in most cases; on the contrary, we

discovered that having your fans running at appropriate time and speed not only reduces the noise, but also consumes the least power the system needs, so as to prevent over-wasting of energy resource.

Today, AOpen Motherboard is honored to bring you a new overall solution, SilentTek, to make your system quiet. To collocate with hardware circuit, BIOS and the utility under Windows, SilentTek combined “Hardware-Status Monitoring”, “Overheat Warning” and “Fan Speed Control” with user-friendly interfaces to provide you a perfect balance among noises, system performance and stability.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

The first image you have here is the Voltage Status page. You can find current status of all voltages and set your expected margins of warning level.

You may check your system voltage from the indicating bar here.

In “Temp/Fan/Case” page, you may get aware of the current temperature of CPU and the heat inside chassis.

Of course, you may set your defaulted lowest margin for your fans and the SilentTek would also pop up a message box and alarm you when the fan is rotating slower than this specified speed.

You may set the highest margin of your CPU and system temperature as default, and SilentTek would pop up a message box and alert you with alarm when the temperature goes beyond the specified margin.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

The following page is sure to be the most important part of this utility, you may control the rotation speed of specific fans you got with options inside in this page. Respectively illustrate as follow:

1. Smart FAN Control: This is the default setting of this utility and also the most easy-to-set one, which can be applied to any housing. It can automatically adjust the fan speed by exerting algorithm similar to “Fuzzy Logic”. All you got to do is to set the margin of the temperature, and then SilentPC would judge automatically for your system, lifting or lowering the rotation speed.

2. Fix FAN Control: In this setting, you may set a fixed rotation speed for each fan you installed.

3. Multiple Control: This is the most unconstrained setting, which allows you to be on top of all details and set different rotation speed for different temperature.

4. AOpen Recommend Setting: This is the best setting to fit in with AOpen housing; SilentPC would keep your system under the least quiet situation, and would only lift the fan rotation speed for heat-dissipation when necessary. According to our practical testing, we found

Note: Due to the re are hundreds different brands of fan on the market, there might be some inaccuracy occurred when you have had adjusted your rotation speed; this is still under criterion and please assured that it won’t cause any problem to your system.

that in most cases, the fan would remain still when the CPU is not in full loading.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

DDrriivveerr aanndd UUttiilliittyy

There are motherboard drivers and utilities included in AOpen Bonus CD disc. You don’t need to install all of them in order to boot your system. But after you finish the hardware installation, you have to install your operation system first (such as Windows 98) before you can install any drivers or utilities. Please refer to your operation system’s installation guide.

Note: Please follow recommended procedure to install Windows 2000

and Windows XP.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

AAuuttoo--rruunn MMeennuu ffrroomm BBoonnuuss CCDD DDiisscc

You can use the auto-run menu of Bonus CD disc. Choose the utility and driver and select model name.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

AAOOCCoonnffiigg UUttiilliittyy

AOpen always dedicated to provide users a much friendly computer environment. We now bring you a comprehensive system detection utility. AOConfig is a Windows based utility with user-friendly interface that allows users to obtain information of the operation system and hardware such as motherboard, CPU, memory, PCI devices and IDE devices. The powerful utility also displays the version of BIOS and firmware for your convenience of maintenance.

Moreover, AOConfig allows users to save information in *.BMP or *.TXT format which users may collect the system information in detail and send them to AOpen directly for technical support or for further diagnose of system problems.

1. The system page shows the detailed information of the motherboard, operating system, processor, and BIOS version.

2. The PCI device page shows the configurations of all PCI devices installed in your motherboard.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

3. This page presents the IDE device information, such as serial number, manufacturer,

firmware version, and capacity.

4. From this page, users can obtain the technical support information of AOpen. Moreover,

detailed information could be saved in .bmp or .txt format.

NOTE:

AOConfig can be used under Windows 98SE/ME, NT4.0/2000, or even the latest Windows XP. Please also note that AOConfig can only be operated in a system equipped with an AOpen motherboard. Before running AOConfig, all applications must be closed.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

IInnssttaalllliinngg OOnnbbooaarrdd SSoouunndd DDrriivveerr

This motherboard comes with an AC97 CODEC. You can find the audio driver from the Bonus Pack CD disc auto-run menu.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

IInnssttaalllliinngg SSiiSS AAGGPP DDrriivveerr

This motherboard comes with an AGP driver. You can find the audio driver from the Bonus Pack CD disc auto-run menu.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

PPHHOOEENNIIXX--AAWWAARRDD BBIIOOSS

System parameters can be modified by going into BIOS Setup menu, this menu allows you to configure the system parameters and save the configuration into the 128 bytes CMOS area, (normally in the RTC chip or in the main chipset).

The Phoinix-AwardBIOS™ that installed in the Flash ROM provides critical low-level support for standard devices such as hard disk drives, serial and parallel ports.

Most BIOS setting had optimized by AOpen’s R&D engineering team. But, the default setting of BIOS still can’t fine-tune the chipset controlling entire system. Hence, the rest of this chapter is intended to guide you through the process of configuring your system using setup.

To enter to BIOS setup menu

, press <Del> when POST (Power-On Self Test) screen is shown on your monitor.

Note: Because the BIOS code is the most often changed part of the motherboard design, the BIOS information contained in this manual may be different with actual BIOS that come with your motherboard.

of the motherboard is a custom version of an industry standard BIOS. The BIOS

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

AAbboouutt PPHHOOEENNIIXX--AAWWAARRDD BBIIOOSS FFuunnccttiioonn DDeessccrriippttiioonn……

AOpen always dedicates to give users a more friendly computer system. Now, we include all function descriptions of BIOS setup program into the BIOS Flash ROM. When you select one function of BIOS setup program, the function description will appeared at right side of screen. Hence, you don’t need read this manual while you changing the BIOS setting.

Menu Items Select Window Item Function Description Window

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

HHooww TToo UUssee PPhhooeenniixx--AAwwaarrdd™™ BBIIOOSS SSeettuupp PPrrooggrraamm

Generally, you can use the arrow keys to highlight items that you want to choose, then press <Enter> key to select, and use the <Page Up> and <Page Down> key to change setting value. You also can press <F1> key for help and press <Esc> key to quit Phoinix-Award™ BIOS

setup program. The following table provides details about how to use keyboard in the Phoinix-Award$ BIOS setup program. By the way, all products of AOpen also provides a special function in the BIOS setup, you can press <F3> key selecting preferred menu language to

display.

Key Description

Page Up or + Changing setting to next value or increase the value. Page Down or - Changing setting to previous value or decrease value. Enter Select the item. Esc 1. In main menu: Quit and don’t save any change.

2. In sub menu: Exit current menu to main menu. Up Arrow Highlight previous item. Down Arrow Highlight next item. Left Arrow Move the light bar to left side of menu. Right Arrow Move the light bar to right side of menu. F1 Get menu or item help description. F3 Changing menu language. F5 Load previous setting value from CMOS.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

Key Description

F6 Load setup default setting value from CMOS. F7 Load turbo setting value from CMOS. F10 Save changed setting and exit setup program.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

HHooww TToo EEnntteerr BBIIOOSS SSeettuupp

After you finish the setting of jumpers and connect correct cables. Power on and enter the BIOS Setup, press <Del> during POST

(Power-On Self Test). Choose "Load Setup Defaults" for recommended optimal performance.

Del

Warning: Pleas e avoid of using "Load Turbo Defaults", unless you are sure your system components (CPU, DRAM, HDD, etc.) are good enough for turbo setting.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

BBIIOOSS UUppggrraaddee uunnddeerr WWiinnddoowwss eennvviirroonnmmeenntt

With outstanding R&D ability of AOpen, we now bring you a whole new BIOS Flash wizard ----

EzWinFlash. With an eye to users convenience, EzWinFlash combines the BIOS binary code and flash module together, so the only thing you have to do is just clicking on the utility you downloaded from web and let it helps you complete the flash process automatically. EzWinFlash detects your motherboard and checks the BIOS version cleverly to prevent your system from any possible failure. Moreover, EzWinFlash has been taken into consideration to go with any windows platform you might be using, no matter if you’re using Windows 95/98, 98SE/ME, NT4.0/2000, or even the latest Windows XP.

In the meanwhile, in order to provide a much more user-friendly operating environment, AOpen EZWinFlash is natively designed to have multi-language function to provide easier way for users’ usage in changing BIOS setting.

Note: The model name on this BIOS picture is for reference only. It may not be the exact model name.

Caution: By updating your motherboard, you are taking a risk of BIOS flash failure. If your motherboard is working stable, and there are no major bugs that had been fixed by a latter BIOS revision, we recommend that you DO NOT try to upgrade your BIOS.

If you intent on upgrading, PLEASE BE SURE to get the right BIOS revision for the right motherboard model to avoid any possibility failure.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

You may accomplish BIOS upgrade procedure with EZWinFlash by the following steps, and it’s STRONGLY RECOMMANDED to close all the applications before you start the upgrading.

1. Download the new version of BIOS package zip file from AOpen official web site. (ex: http://www.aopen.com)

2. Unzip the download BIOS package (ex: WAK76F400N102.ZIP) with WinZip (http://www.winzip.com) in Windows environment.

3. Save the unzipped files into a folder, for example, WAK76F400N102.EXE & WAK76F400N102.BIN.

4. Double click on the WAK76F400N102.EXE, EZWinFlash will detect the model name and BIOS version of your motherboard. If you had got the wrong BIOS, you will not be allowed to proceed with the flash steps.

5. You may select preferred language in the main menu, then click [Start Flash] to start the BIOS upgrade procedure.

6. EZWinFlash will complete all the process automatically, and a dialogue box will pop up to ask you to restart Windows. You may click [YES] to reboot Windows.

7. Press <Del> at POST to enter BIOS setup, choose "Load Setup Defaults", then “Save & Exit Setup”. Done!

It is strongly recommended NOT to turn off the power or run any application during FLASH PROCESS.

Warning: The new BIOS upgrade will permanently replace your original BIOS’s settings when flashing. You may need to reconfigure your BIOS setting so that your system can go back to work as normal.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

VVGGAA CCaarrdd && HHaarrdd DDiisskk

VGA and HDD is key components for overclocking, for your reference, the following list are what have been successful overclocked in our lab. Please note that AOpen can not guaranty they can be successful overclocked again. Please check the Available Vendor List (AV L) by link to our official website.

VGA: http://english.aopen.com.tw/tech/report/overclk/mb/vga-oc.htm HDD: http://english.aopen.com.tw/tech/report/overclk/mb/hdd-oc.htm

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

GGlloossssaarryy

AACC9977 CCOODDEECC

Basically, AC97 CODEC is the standard structure of PCI sound card. As we know, computer is digital-based, but music is based on analog-based. Therefore, there must be a process to turn digital into analog during the last stage processing of sound in computer. Hence, the component on sound card that play this important task is what we called CODEC.

Audio CODEC 97 (briefly called AC97) is the specification regulated by Intel, and it’s about the structure of audio conversion. The special place about CODEC is that it is separated from sound card (CODEC is an independent chipset). Therefore, PCI sound card could possess with 90db and do other application process as well. We called CODEC that meets this structure AC97 CODEC.

AACCPPII ((AAddvvaanncceedd CCoonnffiigguurraattiioonn && PPoowweerr IInntteerrffaaccee)

ACPI is the power management specification of PC97 (1997). It intends to save more power by taking full control of power management to operating system and bypass BIOS Windows 98). This is a bit similar as the PnP transition.

AACCRR ((AAddvvaanncceedd CCoommmmuunniiccaattiioonn RRiisseerr)

Building on the PC motherboard riser architecture, ACR slot is backward compatible with AMR but beyond the limitation of it. The ACR specification is designed to support modem, audio, Local Area Network (LAN) and Digital Subscriber Line (DSL).

)

. The chipset or super I/O chip needs to provide standard register interface to operating system (such as

)

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

)

AAGGPP ((AAcccceelleerraatteedd GGrraapphhiicc PPoorrtt)

The main function of AGP simply put is to tell monitor what screen information had to be shown, a visual transmission device actually. With the rapid developing of AGP card, we can see that it had been developed from single colorful AGP card to 2D and 3D grap hic. AGP supports only memory read/write operation and single-master single-slave one-to-one only. Though AGP and PCI share the same algorithm of 32-bit, its frequencies are 66MHz and 33MHz respectively. AGP interface had been developed from 2X to 8x.

1X AGP, data transfer rate is 66MHz x 4byte x 1 = 264MB/s 2X AGP, data transfer rate is 66MHz x 4byte x 2 = 528MB/s 4X AGP, data transfer rate is 66MHz x 4byte x 4 = 1056MB/s. 8X AGP, data transfer rate is 66MHz x 4byte x 8 = 2112MB/s.

AAMMRR ((AAuuddiioo//MMooddeemm RRiisseerr)

The CODEC circuit of AC97 sound/modem solution can be put on motherboard or put on a riser card (AMR card) that connects to motherboard through AMR connector.

)

AATTAA ((AATT AAttttaacchhmmeenntt)

Before talking about ATA (AT Attachment), we must understand DMA (Direct Memory Access), which allows devices to skip the CPU devices and access memory directly. DMA specification could not only eliminate the workload of CPU, but also accelerate the transmission of data. DMA begins with a data transfer rate of 16.6MB/Sec, but afterward developed to new data rate of 33.3MB/Sec, which is twice the data rate and we called it Ultra DMA. ATA details power and data signals between the drive and integrated drive controller and the computer's motherboard. Two drives (master and slave) are supported. The ATA specification allows the drive to connect directly to the ISA bus on the computer. ATA transfer rate then had be en developed to 133MHz/Sec and would come out with fastest rate later (please refer to

)

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

Serial ATA).

DMA, data transfer rate is 16.6MHz/s. Ultra DMA, data transfer rate is 16.6MHz x 2 = 33MB/s. ATA/66, data transfer rate is 16.6MHz x 4 = 66MB/s. ATA/100, data transfer rate is 16.6MHz x 6 = 100MB/s. ATA/133, data transfer rate is 16.6MHz x 8 = 133MB/s.

(ATA/133 uses both rising edge and falling edge as ATA/66 but clock cycle time is reduced to 30ns.)

)

BBIIOOSS ((BBaassiicc IInnppuutt//OOuuttppuutt SSyysstteemm)

BIOS, is a set of assembly routine/program that reside in EPROM or Flash ROM. BIOS controls Input/output devices and other hardware devices of motherboard. In general, to provide hardware independent portability, operation system and drivers is required to access BIOS without directly access hardware devices.

BBlluueettooootth

Bluetooth is a wireless transferring technology that enables short-range wireless connections between desktop and laptop computers, personal digital assistants (PDAs), cellular phones, printers, scanners, digital cameras and even home appliances. The principle of Bluetooth (a chipset) is to transfer information and voices at the frequency of ISM Band. Every Bluetooth technology devices do come with a standard address for you to connect one-to-one or one-to-seven (to form a Pico-net), with transferring range up to 10 meters (100 m eters to follow), using low power radio. Bluetooth do not only possess high transfer rate of 1MB/s, it also could be encrypt ed with pin code. With hopping rate of 1600 hops per second, it’s difficult to be intercepted and are less interrupted by electromagnetic wave.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

)

CCNNRR ((CCoommmmuunniiccaattiioonn aanndd NNeettwwoorrkkiinngg RRiisseerr)

The CNR specification provides the PC industry the opportunity to deliver a flexible and cost reduced method of implementing LAN, h ome networking, DSL, USB, wireless, audio and modem subsystems widely used in today's "connected PCs". The CNR specification is an open industry specification and is supported by OEMs, IHV card manufacturers, silicon supplier and Microsoft.

DDDDRR ((DDoouubbllee DDaattaa RRaattee)) RRAAM

DDR RAM utilizes the existing SDRAM (For ex, PC-100, PC-133) infrastructure and technology while doubling the nominal bandwidth available to systems in an easy to design and simple to adopt way. Based on FSB frequency, DDR RAM on the market are DDR200, DDR266 and DDR333 with more coming around soon.

DDR200, transfer bandwidth up to 200x64/8=1600MB/s (PC1600) DDR266, transfer bandwidth up to 266x64/8=2100MB/s (PC2100) DDR333, transfer bandwidth up to 333x64/8=2700MB/s (PC2700) DDR400, transfer bandwidth up to 400x64/8=3200MB/s (PC3200)

EECCCC ((EErrrroorr CChheecckkiinngg aanndd CCoorrrreeccttiioonn))

The ECC mode needs 8 ECC bits for 64-bit data. Each time memory is accessed; ECC bits are updated and checked by a special algorithm. The ECC algorithm has the ability to detect double-bit error and automatically correct single-bit error while parity mode can only detect single-bit error.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

)

EEEEPPRROOMM ((EElleeccttrroonniicc EErraassaabbllee PPrrooggrraammmmaabbllee RROOMM)

Also known as E2PROM. Both EEPROM and Flash ROM can be re-programmed by electronic signals, but the interface technology is different. Size of EEPROM is much smaller than flash ROM.

)

EEPPRROOMM ((EErraassaabbllee PPrrooggrraammmmaabbllee RROOMM)

Traditional motherboard stores BIOS code in EPROM. EPROM can only be erased by ultra-violet (UV) light. If BIOS has to be upgraded, you need to remove EPROM from motherboard, clear by UV light, re-program, and then insert back.

EEVV66 BBuus

EV6 Bus is the technology of Alpha processor from Digital Equipment Corporation. EV6 bus uses both rising and falling clock edge to transfer data, similar as DDR RAM or ATA/66 IDE bus. EV6 Bus Speed = CPU external bus clock x 2.

200 MHz EV6 bus, 200MHz = 100 MHz external bus clock x 2

FFCCCC DDooCC ((DDeeccllaarraattiioonn ooff CCoonnffoorrmmiittyy)

The DoC is component certification standard of FCC EMI regulations. This standard allows DIY component (such as motherboard) to apply DoC label separately without a shielding of housing.

)

FFCC--PPGGAA ((FFlliipp CChhiipp--PPiinn GGrriidd AArrrraayy)

FC means Flip Chip, FC-PGA is a package of Intel for Pentium III for 0.18µm process CPU, which can be plugged into SKT370 socket.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

)

FFCC--PPGGAA22 ((FFlliipp CChhiipp--PPiinn GGrriidd AArrrraayy)

After FC-PGA, FC-PGA2 is the package for 0.13µm process CPU developed by Intel, which can be plugged into SKT423/478 socket as well.

FFllaasshh RROOM

Flash ROM can be re-programmed by electronic signals. It is easier for BIOS to upgrade b y a flash utility, but it is also easier to be infected by virus. Because of increase of new functions, BIOS size is increased from 64KB to 512KB (4M bit).

HHyyppeerr TThhrreeaaddiinng

Hyper-Threading technology is an innovative design from Intel that enables multi-threaded software applications to process threads in parallel within each processor resulting in increased utilization of processor execution resources. As a result, an average improvement of ~40% in CPU resource utilization yields higher processing throughput.

IIEEEEEE 1133994

IEEE 1394, which also called Firewire, is a serial data transfer protocol and interconnection system. The main feature of the Firewire that assures its adoption for the digital video and audio (A/V) consumer application is its low cost. Fire wire interface is capable of supporting various high-end digital A/V applications, such as consumer A/V device control and signal routing, Digital Video (DV) editing, home networking, and more than 32 channels of digital mixing. Gone are those days of expensive video capture cards. Firewire allows for video capture from both newer DV camcorders with Firewire ports and older analog equipment using A/V to Firewire converters.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

The advantages of the IEEE1394: High data transfer rate – Start from 400 Mbps, (with 800/1600/3200 Mbps coming soon), which is about 30 times faster than USB 1.1. Supports up to 63 devices (16 - daisy chained) with cable length up to about 4.5 m (14 feet). Hot-pluggable (like USB). No need to turn of your device to connect or disconnect, and you don't need to reboot your PC. Also, it is a

plug-and-play bus. IEEE1394 is very easy to connect (Like USB1.1/2/0).

PPaarriittyy BBiit

The parity mode uses 1 parity bit for each byte, normally it is even parity mode, that is, each time the memory data is updated, parity bit will be adjusted to have even count "1" for each byte. When next time, if memory is read with odd number of "1", the parity error is occurred and this is called single bit error detection.

PPCCII ((PPeerriipphheerraall CCoommppoonneenntt IInntteerrffaaccee)) BBuus

Developed by Intel, Peripheral Component Interconnect (PCI) is a local bus standard. A bus is a channel used to transfer data to (input) and from (output) a computer and to or from a peripheral device. Most PCs have a PCI bus usually implemented at 32-bits providing a 33 MHz clock speed with a throughput rate of 133 MBps.

PPDDFF FFoorrmmaat

With PDF file, it is easy to do universal document exchange. Virtually any document may be converted in Portable Document Format (PDF). Contents in PDF documents are exactly the same as the original file, including fonts and graphics, and they can be distributed by e-mail or

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

stored on the World Wide Web, an intranet, a file system, or a CD-ROM for other users to view on any platforms. You may download Acrobat Reader in order to read PDF file from its website (www.adobe.com

)

PPnnPP ((PPlluugg aanndd PPllaayy)

Oversimplified, Plug-and-Play automatically tells the software (device drivers) where to find various pieces of hardware (devices) such as modems, network cards, sound cards, etc. Plug-and-Play's task is to match up physical devices with the software (device drivers) that operates them and to establish channels of communication between each physical device and its driver.

PPOOSSTT ((PPoowweerr--OOnn SSeellff TTeesstt)

The BIOS self-test procedure after power-on, sometimes, it is the first or the second screen shown on your monitor during system boot.

PPSSBB ((PPrroocceessssoorr SSyysstteemm BBuuss)) CClloocck

PSB Clock means the external bus clock of CPU. CPU internal clock = CPU PSB Clock x CPU Clock Ratio

RRDDRRAAMM ((RRaammbbuuss DDyynnaammiicc RRaannddoomm AAcccceessss MMeemmoorryy)

A DRAM technology developed by Rambus Corporation*, to achieve high speed of memory through the use of multiple channels in parallel by 16-bits. Basically, RDRAM uses new structure of Multibank, which is quite different from FPM, EDO, SDRAM. Using different memory module as well, RDRAM uses “RIMM” with transfer rate of 600/700/800MHz, providing bandwidth as high to 1.6GB.

)

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

)

RRIIMMMM ((RRaammbbuuss IInnlliinnee MMeemmoorryy MMoodduullee)

184-pin memory module that supports RDRAM memory technology. A RIMM memory module may contain up to maximum of 16 RDRAM devices.

SSDDRRAAMM ((SSyynncchhrroonnoouuss DDRRAAMM))

SDRAM is one of the DRAM technologies that allow DRAM to use the same clock as the CPU host bus (EDO and FPM are as ynchronous and do not have clock signal). It is similar as PBSRAM to use burst mode transfer. SDRAM comes in 64-bit 168-pin DIMM and operates at

3.3V, and have been gradually replaced by DDR RAM.

)

SSAATTAA ((SSeerriiaall AATTAA)

The Serial ATA specification is designed to overcome speed limitations while enabling the storage interface to scale with the growing media rate demands of PC platforms. Serial ATA is to replace parallel ATA adding performance headroom for years to come. It is developed with data transfer rate of 150 Mbytes/second, and 300M/bs, 600M/bs to come. It reduces voltage and pins count requirements and can be implemented with thin and easy to route cables.

SSMMBBuuss ((SSyysstteemm MMaannaaggeemmeenntt BBuuss)

SMBus is also called I2C bus. It is a two-wire bus developed for component communication (especially for semiconductor IC). For example, set clock of clock generator for jumper-less motherboard. The data transfer rate of SMBus is only 100Kbit/s, it allows one host to communicate with CPU and many masters and slaves to send/receive message.

with the compatibility with existing operating systems and drivers,

)

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

)

SSPPDD ((SSeerriiaall PPrreesseennccee DDeetteecctt)

SPD is a small ROM or EEPROM device resided on the DIMM or RIMM. SPD stores memory module information such as DRAM timing and chip parameters. SPD can be used by BIOS

UUSSBB 22..00 ((UUnniivveerrssaall SSeerriiaall BBuuss)

A Universal Serial Bus (USB) is an external bus (an interconnection) standard that supports data transfer rates of 12 Mbps. A single USB port can be used to connect up to 127 peripheral devices, such as mouse, modems and keyboards. Introduced in 1996, USB has completed replaced serial and parallel ports. It also supports plug-and-play installations and hot plugging Plug-and-play is the ability to add and remove devices to a computer while the computer is running and have the operating system automatically recognize the change. USB

2.0, which supports data transfer rates of 480 Mbps, has been widely used in motherboard these days.

VVCCMM ((VViirrttuuaall CChhaannnneell MMeemmoorryy)

NEC’s Virtual Channel Memory (VCM) is a new DRAM core architecture that dramatically improves the memory system’s ability to service multimedia requirements. VCM increases memory bus efficiency and performance of any DRAM technology by providing a set of fast static registers between the memory core and I/O pins. Using VCM technology results in reduced data access latency and reduced power consumption.

WWiirreelleessss LLAANN –– 880022..1111b

802.11 is a specification developed by IEEE and Wireless LAN technology, which is an interface between a wireless client and a base station or between two wireless clients.

802.11 family includes the following specifications and with more coming:

to decide best timing for this DIMM or RIMM.

)

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

802.11 = 1 or 2 Mbps transmission in the 2.4 GHz band, using either frequency hopping spread spectrum (FHSS) or direct sequence spread spectrum (DSSS)).

802.11a = 54 Mbps in the 5GHz band, using orthogonal frequency division multiplexing)

802.11b (11 Mbps transmission in the 2.4 GHz band, using direct sequence spread spectrum (DSSS).

ZZIIPP ffiille

A compressed file format to reduce file size. To unzip file, run shareware PKUNZIP (http://www.pkware.com/) for DOS and other operating system or WINZIP (http://www.winzip.com/

) for windows environment.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

TTrroouubblleesshhoooottiinngg

If you encounter any trouble to boot you system, follow the procedures accordingly to resolve the problem.

Start

Turn off the power and unplug the AC power cable, then remove all of the add-on

cards and cables, including VGA, IDE, FDD, COM1, COM2 and printer.

Make sure if all jumper settings are correct.

Clear CMOS

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

Continue

Install the VGA card. Then connect your monitor and keyboard.

Turn on the power

and check if the power

supply and CPU fan work

properly.

The problem is probably caused by

power supply or motherboard failure Please contact your reseller or local distributor for repairing.

NoYes

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

Press <Ctrl> and <Alt> key at the same time, hold them

and then press <Del> to reboot the system.

Continue

Check if there is display?

Yes

Check if the system

reboots?

Yes

Perhaps your VGA card

or monitor is defective.

It is very possible that your

keyboard is defective.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

During system rebooting, press <Del> to enter BIOS setup.

Choose “Load Setup Default”.

Turn off the system and re-connect IDE cable.

Re-install the operating system such as Windows 98.

Continue

Check if the system can

reboot successfully?

Yes

End

The problem should be

caused by the IDE cable or HDD itself.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

TTeecchhnniiccaall SSuuppppoorrtt

Dear Customer, Thanks for choosing AOpen products. To provide the best and fastest service to our customer is our first priority. However, we receive

numerous emails and phone-calls worldwide everyday, it is very hard for us to serve everyone on time. We recommend you follow the procedures below and seek help before contact us. With your help, we can then continue to provide the best quality service to more customers.

Thanks very much for your understanding! AOpen Technical Supporting Team

Online Manual: To download manual, please log on and then select your preferred language. Under “Type” directory, choose “Manuals” to go to our manual database. You can also find the manual and EIG in AOpen Bonus Pack.

http://club.aopen.com.tw/downloads

Test Report: We recommend you to choose board/card/device from the compatibility test reports for assembling your PC. It may prevent incompatibility problems.

http://english.aopen.com.tw/tech/report/default.htm

FAQ: Here we list problems that users often encounter and FAQ (Frequently Asked Questions). You may be able to find a solution to your problem.

http://club.aopen.com.tw/faq/

Download Software: After log on and having language selected, you may get the latest updated BIOS/utility and drivers you need under “Type” directory. In most case, newer versions of drivers and BIOS have solved earlier bugs or compatibility problems.

http://club.aopen.com.tw/downloads

Seria

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

PPaarrtt NNuummbbeerr aanndd SSeerriiaall NNuummbbeerr

The Part Number and Serial number are printed on bar code label. You can find this bar code label on the outside packing, or on component side of PCB. For example:

P/N: 91.88110.201 is part number, S/N: 91949378KN73 is serial number.

eForum: AOpen eForum is provided to discuss our products with other users, in which your problem probably had been

discussed before or will be answered. After log on, you may select your preferred language under “Multi-language”.

http://club.aopen.com.tw/forum/

Contact Distributors/Resellers: We sell our products through resellers and integrators. They should know your system configuration very well and should be able to solve your problem efficiently and provide important reference for you.

Contact Us: Please prepare detail system configuration and error symptom before contacting us. The part nu m be r, serial number and BIOS version are also very helpful.

Part No.

l No.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

MMooddeell nnaammee aanndd BBIIOOSS vveerrssiioonn

Model name and BIOS version can be found on upper left corner of first boot screen (POST screen). For example:

AK76F-400N is model name of motherboard; R1.20 is BIOS version.

AK76F-400N R1.20 May. 05.2003 AOpen Inc.

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

PPrroodduucctt RReeggiissttrraattiioonn

Thank you for choosing AOpen product. AOpen encourages you to spend few minut es in completing the following product registration. To register your product will ensure the high quality of services from AOpen. After the registration, you will:

• Have opportunities to play online slot machine and win a prize from AOpen by accumulating your bonuses for later prize

exchange.

• Be upgraded to gold membership of Club AOpen program.

• Receive email notification about product safety alerts. Its purpose is to alert consumers quickly and conveniently when products

contain technical issues.

• Receive email notification about latest product's announcements.

• Be able to personalize your AOpen web pages.

• Receive e-mail notification about latest BIOS/Driver/Software release information.

• Have opportunities to participate special product promotional programs.

• Enjoy higher service priority to receive technical assistance provided by AOpen specialists worldwide.

• Be able to join the discussions of web-based news groups.

AOpen makes sure that the information you provide is encrypted, so that it cannot be read or intercepted by other people or companies. Further, AOpen will not disclose any of information you submitted under any conditions. Please consult our online privacy policy information on our company policy.

Note: If registering products purchased from different dealers/retails and/or purchased on different dates, please submit a separate form for each product.

for further

AAKK7766FF--440000NN OOnnlliinnee MMaannuuaall

HHooww ttoo CCoonnttaacctt UUss

Please do not hesitate contact us if you have any problem about our products. Any opinion will be appreciated.

Pacific Rim AOpen Inc. Tel: 886-2-3789-5888 Fax: 886-2-3789-5899

China 艾爾鵬國際貿易(上海)有限公司 Tel: 86-21-6225-8622 Fax: 86-21-6225-7926

Web Site: english.aopen.com.tw E-mail: Send us email by going through the contact form below. English http://english.aopen.com.tw/tech/default.htm Japanese http://www.aopen.co.jp/tech/default.htm Chinese http://www.aopen.com.tw/tech/default.htm German http://www.aopencom.de/tech/default.htm Simplified Chinese http://www.aopen.com.cn/tech/default.htm

Europe AOpen Computer b.v. Tel: 31-73-645-9516 Email: Support@AOpen.NL

Germany AOpen Computer GmbH. Tel: 49-1805-559191 Fax: 49-2102-157799

America AOpen America Inc. Tel: 1-510-489-8928 Fax: 1-510-489-1998

Japan AOpen Japan Inc. Tel: 81-048-290-1800 Fax: 81-048-290-1820

AOpen AK76F400N User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
