AOpen AK73AV User Manual

Download

AAKK7733((AA))--VV // AAKK7733--VV

AK73(A)-V / AK73-V

DOC. NO. : AK73AV-OL-E0111B

OOnnlliinnee MMaannuuaal

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaal

WWhhaatt’’ss iinn tthhiiss mmaannuuaall

AK73(A)-V / AK73-V............................................................................................................................1

What’s in this manual ................................................................................................................................................................2

You Must Notice ........................................................................................................................................................................8

Before You Start........................................................................................................................................................................ 9

Overview ................................................................................................................................................................................. 10

Quick Installation Procedure....................................................................................................................................................15

Motherboard Map .................................................................................................................................................................... 16

Block Diagram .........................................................................................................................................................................17

Hard war e Ins tal lat ion..................................................................................................................18

JP14 Clear CMOS ...................................................................................................................................................................19

CPU Installation ....................................................................................................................................................................... 20

JP21 FSB/PCI Clock & Rat io................................................................................................................................................... 21

Setting CPU Frequency........................................................................................................................................................... 22

Supported CPU Frequency...................................................................................................................................................... 23

CPU Overheat Protecti on ........................................................................................................................................................ 25

CPU and Housing Fan Connector (With H/W Monitoring)........................................................................................................ 27

CPU Fan on North Brid ge........................................................................................................................................................ 28

DIMM Socket........................................................................................................................................................................... 29

AAKK7733((AA))--VV// AAKK7733--VV

Front Panel Connector ............................................................................................................................................................ 31

ATX Power Connector ............................................................................................................................................................. 33

AC Power Auto Recovery ........................................................................................................................................................ 34

IDE and Floppy Connector ...................................................................................................................................................... 35

IrDA Connector ........................................................................................................................................................................ 38

WOM (Zero Voltage Wake on Modem).................................................................................................................................... 39

WOL (Wake on LAN)............................................................................................................................................................... 42

AGP (Accelerated Graphic Port).............................................................................................................................................. 44

CNR (Communication and Network Riser)............................................................................................................................... 45

PC99 Color Coded Back Panel................................................................................................................................................ 46

Support 2

CD Audio Connector................................................................................................................................................................ 48

Modem Audio Connector ......................................................................................................................................................... 49

Video-Audio-IN Connector....................................................................................................................................................... 50

Front Panel Audio .................................................................................................................................................................... 51

Battery-less and Long Life Design ........................................................................................................................................... 52

Over-current Protection ........................................................................................................................................................... 53

Hardware Monitoring ...............................................................................................................................................................55

Resettable Fuse ...................................................................................................................................................................... 56

USB Port............................................................................................................................................................... 47

OOnnlliinnee MMaannuuaall

AK73(A)-V / AK73-V

AK73(A)-V / AK73-V Online Manual

Low ESR Capacitor ................................................................................................................................................................. 57

Layout (Frequency Isolation Wall) ........................................................................................................................................... 59

Driver and Utility..........................................................................................................................60

Autorun Menu from Bonus CD Disc......................................................................................................................................... 61

Installing Windows 95.............................................................................................................................................................. 62

Installing Windows 98.............................................................................................................................................................. 63

Installing Windows 98 SE, Windows ME & Windows2000........................................................................................................ 64

Installing VIA 4 in 1 Driver....................................................................................................................................................... 65

Installing Onboard Sound Driver.............................................................................................................................................. 66

Installing Hardware Monitoring Uti lity ...................................................................................................................................... 67

ACPI Suspend to Hard Drive................................................................................................................................................... 68

ACPI Suspend to RAM (STR).................................................................................................................................................. 73

AWARD BI OS ................................................................................................................................75

About BIOS Function Description….........................................................................................................................................76

How To Use Award™ BIOS Setup Pro gram............................................................................................................................. 77

How To Enter BIOS Setu p ....................................................................................................................................................... 79

BIOS Upgrade .........................................................................................................................................................................80

Overclocking ................................................................................................................................82

VGA Card & Hard Disk ............................................................................................................................................................83

Onli

ne Manua

AAKK7733((AA))--VV// AAKK7733--VV

Glossary ....................................................................................................................................... 8 4

AC97 .......................................................................................................................................................................................84

ACPI (Advanced Configuratio n & Power Interfac e) .................................................................................................................. 84

AGP (Accelerated Graphic Port).............................................................................................................................................. 84

AMR (Audio/Modem Riser)...................................................................................................................................................... 85

AOpen Bonus Pack CD ...........................................................................................................................................................85

APM (Advanced Power Management)..................................................................................................................................... 85

ATA (AT Attachment)................................................................................................................................................................ 85

ATA/66..................................................................................................................................................................................... 85

ATA/100 ................................................................................................................................................................................... 86

BIOS (Basic Input/Output Sys tem) .......................................................................................................................................... 86

Bus Master IDE (DMA mode)................................................................................................................................................... 86

CNR (Communication and Networki ng Riser).......................................................................................................................... 86

CODEC (Coding and Decoding) ..............................................................................................................................................87

DDR (Double Data Rated) SDRAM.......................................................................................................................................... 87

DIMM (Dual In Line Memory Module) ......................................................................................................................................87

DMA (Direct Memory Access) .................................................................................................................................................. 87

ECC (Error Checking and Correction)...................................................................................................................................... 88

EDO (Extended Data Output) Memory..................................................................................................................................... 88

OOnnlliinnee MMaannuuaall

AK73(A)-V / AK73-V

AK73(A)-V / AK73-V Online Manual

EEPROM (Electronic Erasable Programmab le ROM)..............................................................................................................88

EPROM (Erasable Programmabl e ROM)................................................................................................................................. 88

EV6 Bus .................................................................................................................................................................................. 89

FCC DoC (Declaration of Conformity)...................................................................................................................................... 89

FC-PGA (Flip Chip-Pin Grid Array) ..........................................................................................................................................89

Flash ROM ..............................................................................................................................................................................89

FSB (Front Side Bus) Clock ..................................................................................................................................................... 90

C Bus .................................................................................................................................................................................... 90

IEEE 1394 ...............................................................................................................................................................................90

Parity Bit..................................................................................................................................................................................91

PBSRAM (Pipelined Burst S RAM) ...........................................................................................................................................91

PC-100 DIMM .......................................................................................................................................................................... 91

PC-133 DIMM .......................................................................................................................................................................... 91

PC-1600 or PC-2100 DDR DRAM ...........................................................................................................................................92

PCI (Peripheral Component Interface) Bus.............................................................................................................................. 92

PDF Format............................................................................................................................................................................. 92

PnP (Plug and Play) ................................................................................................................................................................92

POST (Power-On Self Test) ..................................................................................................................................................... 93

RDRAM (Rambus DRAM)........................................................................................................................................................ 93

Onli

ne Manua

AAKK7733((AA))--VV// AAKK7733--VV

RIMM (Rambus Inline Memory Module)................................................................................................................................... 93

SDRAM (Synchronous DRAM) ................................................................................................................................................ 93

Shadow E

SIMM (Single In Li ne M emory Mod ule).................................................................................................................................... 94

SMBus (System Management Bus) .........................................................................................................................................94

SPD (Serial Presence Detect ) ................................................................................................................................................. 94

Ultra DMA ................................................................................................................................................................................ 95

USB (Universal Serial B us) ...................................................................................................................................................... 95

VCM (Virtual Channel Memory)............................................................................................................................................... 96

ZIP file..................................................................................................................................................................................... 96

Troubleshooting...........................................................................................................................97

Technical Support ......................................................................................................................101

Product Registration..................................................................................................................10 5

PROM .................................................................................................................................................................... 94

OOnnlliinnee MMaannuuaall

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaal

YYoouu MMuusstt NNoottiiccee

Adobe, the Adobe logo, Acrobat is trademarks of Adobe Systems Incorporated. AMD, the AMD logo, Athlon and Duron are trademarks of Advanced Micro Devices, Inc. Intel, the Intel logo, Intel Celeron, PentiumII, Pentium!!! are trademarks of Intel Corporation. Microsoft, Windows, and Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United

States and/or other countries. All product and brand names used on this manual are used for identification purposes only and may be the registered

trademarks of their respective owners.

All of the specifications and information contained in this manual are subject to change without notice. AOpen reserves the right to revise this publication and to make reasonable changes. AOpen assumes no responsibility for any errors or inaccuracies that may appear in this manual, including the products and software described in it.

This documentation is protected by copyright law. All rights are reserved. No part of this document may be used or reproduced in any form or by any means, or stored in a database or retrieval system without prior written permission from AOpen Corporation. Copyright

AAKK7733((AA))--VV // AAKK7733--VV OOnnlliinnee MMaannuuaall

BBeeffoorree YYoouu SSttaarrtt

This Online Manual will introduce to the user how this product is installed. All useful information will be described in later chapters. Please keep this manual carefully for future upgrades or system configuration changes. This Online Manual is saved in PDF format get free download from Adobe web site

Although this Online Manual is optimized for screen viewing, it is still capable for hardcopy printing, you can print it by A4 paper size and set 2 pages per A4 sheet on your printer. To do so, choose File > Page Setup and follow the instruction of your printer driver.

Thanks for the help of saving our earth.

, we recommend using Adobe Acrobat Reader 4.0 for online viewing, it is included in Bonus CD disc or you can

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

OOvveerrvviieeww

Thank you for choosing AOpen AK73(A)-V / AK73-V. The AK73(A)-V / AK73-V is AMD the ATX form factor featuring the VIA Apollo KT133A chipset AK73-V can support AMD performance, it has one AGP slot and supports AGP 1X/2X/4X mode and pipelined spilt-transaction long burst transfer up to 1066MB/sec. According to different customer’s requirements, SDRAM AK73(A)-V / AK73-V and the maximum memory size can be up to 1.5GB. The on-board IDE controller supports Ultra DMA 33/66/100 mode and the transfer rate up to 100MB/s. Further flexibility can be achieved by taking advantage of the

Communication and Network Riser (CNR)

Besides, the on-board AC97 and magic surround stereo sound to let people enjoy working with AK73(A)-V / AK73-V. Now, enjoy all features from AOpen AK73(A)-V / AK73-V.

Socket 462 motherboard (M/B) based on

Socket 462 series Athlon™ & Duron™ processor and 200/266MHz (EV6) system bus. In the AGP

card option that allows audio and modem configuration on a single baseboard design.

CODEC chip (Optional) provides high performance

. As high performance chipset built in the M/B, the AK73(A)-V /

and VCM (Virtual Channel Memory) can be applied to the

AAKK7733((AA))--VV // AAKK7733--VV OOnnlliinnee MMaannuuaall

About “Optional” and “Upgrade Optional”…

When you read this online manual and start to assemble your computer system, you may find some of functions are “Optional”, and some are “Upgrade Optional”. This is because all of AOpen motherboards include many amazing and powerful features; however, some of these are not frequently used on daily operation. Therefore, we define some key features as optional to meet different requirements. Functions that can be upgraded by users, we define them as “Upgrade Optional”. The other optional functions that may have been built on the motherboards and you cannot upgrade by yourself, we call them “Optional”. If needed, you can contact your local distributors or resellers to purchase “Upgrade Optional” components. Also you can visit AOpen official web site: www.aopen.com.tw <http://www.aopen.com.tw>

to get detailed information.

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

Feature Highlight

CPU

Supports AMD® Socket 462 Athlon® & Duron® 600MHz~1.4GHz with 200/266MHz EV6 system bus designed for Socket 462 technology.

Chipset

The VIA Apollo KT133/KT133A chip incorporated a VIA VT8363A north bridge is in charge of the host bus int erface and memory bus control. The memory bus control supports two and four-way interleaved of PC-100 and PC-133 SDRAM DIMM and VCM up to 1.5GB. The north bridge provides one 32bit PCI bus running at 33MHz.

Memory

The three 168-pin DIMM system memory sockets support up to 1.5GB of PC-100/133 compliant SDRAM (Synchronous Dynamic Random Access Memory), VCM 512MB SDRAM DIMM module into each socket.

Expansion Slots

Including five 32-bit/33MHz PCI slots, one CNR and one AGP slot. The PCI local bus throughput can be up to 132MB/s. The

CNR (Communication and Networking Riser)

Modem/Lan/Audio card.

(Virtual Channel Memory) and PC-100/PC-133 DIMMs. You can install 32, 64, 128, 256 and

slot provided from AK73(A)-V / AK73-V can support CNR interface for a

AAKK7733((AA))--VV // AAKK7733--VV OOnnlliinnee MMaannuuaall

Ultra DMA 33/66/100 Bus Master IDE

Comes with an on-board PCI Bus Master IDE controller with two connectors that supports four IDE devices in two channels, supports Ultra DMA 33/66/100 Bus Master IDE.

CPU Overheat Protection

Provides two ways to prevent CPU caused damage by overheat. You can enable/disable these two special functions by BIOS setup program. Please refer to page 32

for more information.

On-board AC97 Sound

AK73(A)-V / AK73-V uses AC97 sound chip. This on-board audio includes a complete audio recording and playback system.

Power Management/Plug and Play

The AK73(A)-V / AK73-V supports the power management function that confirms to the power-saving standards of the U.S. Environmental Protection Agency (EPA) Energy Star program. It also offers Plug-and-Play, which helps save users from configuration problems, thus making to system user-friendlier.

Hardware Monitoring Management

Supports CPU or system fans status, temperature and voltage monitoring and alert, through the on-board hardware monitor module and AOpen Hardware Monitoring Utility

AAKK7733((AA))--VV // AAKK7733--VV

Enhanced ACPI

Fully implement the ACPI standard for Windows® 95/98/ME/NT/2000 series compatibility, and supports Soft-Off, STR (Suspend to RAM, S3), STD (Suspend to Disk, S4), WOM (Wake On Modem), WOL (Wake On LAN) features.

Super Multi-I/O

The AK73(A)-V / AK73-V provides two high-speed UART compatible serial ports and one parallel port with EPP and ECP capabilities. UART2 can also be directed from COM2 to the Infrared Module for the wireless connections.

OOnnlliinnee MMaannuuaall

AAKK7733((AA))--VV // AAKK7733--VV OOnnlliinnee MMaannuuaall

QQuuiicckk IInnssttaallllaattiioonn PPrroocceedduurree

This page gives you a quick procedure on how to install your system. Follow each step accordingly.

1 Installing CPU and Fan 2 Installing System Memory (DIMM) 3 Connecting Front Panel Cable 4 Connecting IDE and Floppy Cable 5 Connecting ATX Power Cable 6 Connecting Back Panel Cable 7 Power-on and Load BIOS Setup Default 8 Setting CPU Frequency 9 Reboot 10 Installing Operating System (such as Windows 98) 11 Installing Driver and Utility

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

CD-IN Connecto

Onboard AC’97 CODEC

(Optional)

MODEM-CN Connecto

AUX-IN Connecto

Front Audio Connecto

CNR Slot

WOM Connecto

WOL Connecto

IrDA Connector

32-bit PCI slot x5

ort 2nd USB Port

2MB Flash ROM BIOS Front Panel Connecto

JP14 Clear

CMOS Jumper

Motherboard Map

Chassis Fan Connector with H/W Moni toring

PC99 Color coded Back Panel

Resettable Fuse Low ESR Capacitor

GP Slot

462-pin CPU socket supports

MD Athlon & Duron

600MHz~1.4GHz

CPU Fan Connector with H/W monitoring

TX Power Connector

VIA Apollo KT133A (AK73(A)-V or KT133 (AK73-V) chipset

PC-100/133 DIMM Slot x3 su

orts maximum up to 1.5GB

JP21 FSB Select Jumper

FDD Connector

TA33/66/100 IDE

Connector x2

16 17

AAKK7733((AA))--VV // AAKK7733--VV OOnnlliinnee MMaannuuaall

BBlloocckk DDiiaaggrraamm

200/266MHz FSB (EV6)

66MHz 1 x,2x and 4xmode

AGP Slot :1/2/4X

AC97

CODEC

USB PORT X2

USB Connector X2

AC97 Link

CNR

USB

33MHz

Socket A

VT8363A

VT686B

System

BIOS

64 BIT CPU Data BUS

Primary IDE

ATA 33/66/100

Secondary IDE

Floppy Interface

1 X Printer port 2 X Com port

I/O

PS2 KB/Mouse Hardware Monitoring MIDI/Game Ports

IDE 1 IDE 2

Floppy

SDRAM

(3 DIMM sock ets)

(3 DIMM sockets)

32BIT PCI Address/Data BUS

100/133 MHz SDRAM and VCM 100MHz Register SDRAM

5 * PCI Slots

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

HHaarrddwwaarree IInnssttaallllaattiioonn

This chapter describes jumpers, connectors and hardware devices of this motherboard.

Note: Electrostatic discharge (ESD) can damage your processor, disk drives, expansion boards, and other components. Always observe the following precautions before you install a system component.

1. Do not remove a component from its protective packaging until you are ready to install it.

2. Wear a wrist ground strap and attach it to a metal part of the system unit before handling a component. If a wrist strap is not available, maintain contact with the system unit throughout any procedure requiring ESD protection.

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

JJPP1144 CClleeaarr CCMMOOSS

Normal Operation

(Default)

Clear CMOS

You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below.

1. Turn off the system and unplug the AC power.

2. Remove ATX power cable from connector PWR2.

3. Locate JP14 and short pins 2-3 for a few seconds. . Return JP14 to its normal setting by shorting pin 1 & pin 2.

5. Connect ATX power cable back to connector PWR2.

Tip: W hen should I Clear CMOS?

1. Boot fa il bec aus e of ov e rcl ock in g…

2. Forget password…

3. Troubleshooting…

AK73(A)-V / AK73-V Online Manual

CCPPUU IInnssttaallllaattiioonn

This motherboard supports AMD Athlon & Duron Socket 462 CPU. Be careful of CPU orientation when you plug it into CPU socket.

1. Pull up the CPU socket lever and up to 90-degree angle.

2. Locate Pin 1 in the socket and look for a black dot or cut

edge on the CPU upper interface. Match Pin 1 and cut edge. Then insert the CPU into the socket.

3. Press down the CPU socket lever and finish CPU installation.

Note: If you do not match the CP socket Pin 1 and CPU cut edge well,

ou may damage the CPU.

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

JJPP2211 FFSSBB//PPCCII CClloocckk && RRaattiioo

This jumper is used to specify the relationship of PCI and FSB clock. Generally speaking, if you are not an overclocker, we recommend you to set at the default setting.

CPU Ratio SW1-1 SW1-2 SW1-3 SW1-4

5.5 6

6.5 7

7.5 8

8.5 9

9.5

10.5 11

11.5 12

12.5

CPU Default 0 0 0 0

－－＋－＋－＋－－＋＋－＋＋＋－－－－＋＋－－＋－＋－＋＋＋－＋－－＋＋＋－＋＋－＋＋＋＋＋＋＋－－－－＋－－－－＋－－＋＋－－

JP21 FSB Select Jumper

FSB=100MHz

(Default)

FSB=133MHz

Note: The CPU ratio adjustable function based on the CPU type. Please refer to the technical document for more detail information of overclocking.

AK73(A)-V / AK73-V Online Manual

SSeettttiinngg CCPPUU FFrreeqquueennccy

This motherboard is CPU jumper-less design, you can set CPU frequency through the BIOS setup, and no jumpers or switches are needed.

BIOS Setup > Frequency/Voltage Control > CPU Speed Setting

CPU Ratio CPU FSB

From 5.5x to 12.5x step 0.5x 100,102,104,106,107,108,109,110,111,112,113,114,115,116,118,

120,124,127,130,133,136,140,145,150,155,160,166

Home

Tip: If your system hangs or fails to boo because of overclock ing, simpl y use <Home> key to restore to the default setting.

AK73(A)-V / AK73-V Online Manual

SSuuppppoorrtteedd CCPPUU FFrreeqquueennccyy

Core Frequency = CPU FSB * CPU Ratio

EV6 Bus Clock = CPU FSB x 2 AGP Clock = PCI Clock x 2

CPU CPU Core Frequency EV6 Bus Clock Ratio

Duron 600 600MHz 200MHz 6.0x Duron 650 650MHz 200MHz 6.5x Duron 700 700MHz 200MHz 7.0x Duron 750 750MHz 200MHz 7.5x Duron 800 800MHz 200MHz 8.0x

Duron 850 850MHz 200MHz 8.5x Athlon 650 650MHz 200MHz 6.5x Athlon 750 750MHz 200MHz 7.5x Athlon 800 800MHz 200MHz 8.0x Athlon 850 850MHz 200MHz 8.5x Athlon 900 900MHz 200MHz 9.0x Athlon 950 950MHz 200MHz 9.5x

Athlon 1G 1GHz 200MHz 10.0x Athlon 1.1G 1.1GHz 200MHz 11.0x Athlon 1.2G 1.2GHz 200MHz 12.0x Athlon 1.3G 1.3GHz 200MHz 13.0x Athlon 1.4G 1.4GHz 200MHz 14.0x

Athlon 1G 1GHz 266MHz 7.5x

Athlon 1.13G 1.13GHz 266MHz 8.5x

Athlon 1.2G 1.2GHz 266MHz 9.0x

Athlon 1.33G 1.33GHz 266MHz 10.0x

Athlon 1.4G 1.4GHz 266MHz 10.5x

Warning: VIA Apollo KT133A chipset

supports up to maximum 133MHz(266MHz EV6 Bus), and KT133 chipset supports 100MHz(200MHz EV6 Bus) maximum. Both support 66MHz AGP clock; higher clock setting may cause serious system damage. Users should take their own risks for overclockin

AK73(A)-V / AK73-V Online Manual

CCPPUU JJuummppeerr--lleessss DDeessiiggn

CPU VID signal and SMbus clock generator provide CPU voltage auto-detection and allows the user to set the CPU frequency through the BIOS setup designs are eliminated. There will be no worry of wrong CPU voltage detection.

CPU VID signal

(Automatically generates CPU voltage)

, therefore no jumpers or switches are used. The disadvantages of the Pentium based jumper-less

AMD Socket A CPU

Power Regulator

CPU Frequency

CPU voltage

Clock

Generator

BIOS

Controlled

Circuit

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

CCPPUU OOvveerrhheeaatt PPrrootteeccttiioonn

Based on high CPU operating frequency, the AMD® Athlon™/Duron™ Socket 462 series CPU requires heatsink with cooling fan when it is powered up. AOpen provides two new features in an easy and user friendly BIOS setting to protect your CPU

investment, preventing CPU operati ng under overheat condition or CPU gets damaged by the high temperature if cooling fan fails or is under the designated speed (RPM).

AK73(A)-V / AK73-V Online Manual

If the "CPU Cooling Fan Malfunction Protection" function is enabled, BIOS will monitor CPU cooling fan speed immediately. If the cooling fan speed is lower than (500) RPM or failed, the system will shutdown automatically to protect CPU. You also can set the "CPU shutdown temperature" from 55 temperature is over setting value, the system will shutdown automatically, too.

There are situations where the system is shutdown automatically by these two CPU protection functions and you need to bring back the system to operating mode, just simply press the <F10> key c ontinuously while the system is doing POST (Power-On Self Test) to disable these two functions.

C to 70oC by 5oC stepping. When this function is enabled and BIOS detects CPU

Note: You must usin g 3-pin CPU cooler fan with this motherboard. Only 3-pin cooler fan has support hardware monitoring function.

Warning: Powering up the system without CPU heatsink and cooling fan will

ermanently damage the CPU in just a

few seconds.

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

CCPPUU aanndd HHoouussiinngg FFaann CCoonnnneeccttoorr ((WWiitthh HH//WW MMoonniittoorriinngg))

Plug in the CPU fan cable to the 3-pin CPUFAN connector. If you have housing fan, you can also plug it on FAN2 connector.

FAN2

GND

CPUFAN

GND +12V SENSOR

Note: Some CPU fans do not have sensor pin, so that cannot support fan monitoring. The Fan1 doesn’t suppor the H/W monitoring function.

+12V

AK73(A)-V / AK73-V Online Manual

Faann oonn NNoorrtthh BBrriiddggee

In order to provide a better effect of cooling and make the chipset work more stable, we especially design a fan on the north bridge. After locating the fan on the north bridge, plug the connector to the header marked FAN1 on the motherboard.

AAKK7733((AA))--VV // AAKK7733--VV

DDIIMMMM SSoocckkeet

AK73(A)-V motherboard has three 168-pin DIMM sockets that allow you to install PC100 or PC133 memory up to 1.5GB. It supports not only SDRAM

but also VCM and PC-100 Registered DRAM.

OOnnlliinnee MMaannuuaall

DIMM1 DIMM2 DIMM3

AK73(A)-V / AK73-V Online Manual

HHooww ttoo IInnssttaallll MMeemmoorryy MMoodduulleess

Please follow the procedure as shown below to finish memory installation.

1. Make sure the DIMM module’s pin face down and match the socket’s size as depicted below.

2. Insert the module straight down to the DIMM slot with both hands and press down firmly until the DIMM module is securely in place.

20 pins

88 pins60 pins

Tab

Note: The tabs of the DIMM slot will close-up to hold the DIMM in place when the DIMM touches the slot’s bottom.

3. Repeat step 2 to finish additional DIMM modules installation.

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

FFrroonntt PPaanneell CCoonnnneeccttoorr

IDE LED

+ +

Speaker

Attach the power LED, Keylock, speaker, and reset switch connectors to the corresponding pins. If you enable “Suspend Mode

” item in BIOS Setup, the ACPI & Power LED will keep flashing while

the system is in suspend mode. Locate the power switch cable from your ATX housing. It is 2-pin female connector from the

housing front panel. Plug this connector to the soft-power switch connector marked SPWR.

GND

+5 IDE LED IDE LED

GND

SPEAKER

SPWR

ACPI &

Power LED

Reset

SPWR GND ACPI & PWR LED GND +5V NC SLEEP BUTTON GND RESET GND

AK73(A)-V / AK73-V Online Manual

Suspend Type ACPI L E D

Power on Suspend (S1) or Suspend to RAM(S3 )

Suspend to Disk (S4) The LED will be turned off

Flashing for every second

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

AATTXX PPoowweerr CCoonnnneeccttoorr

The ATX power supply uses 20-pin connector shown below. Make sure you plug in the right direction.

+12V

5VSB

PW-OK

COM

+5V

COM

+5V

COM +3.3V +3.3V

+5V +5V

-5V COM COM COM PS-ON COM

-12V +3.3V

AK73(A)-V / AK73-V Online Manual

AACC PPoowweerr AAuuttoo RReeccoovveerryy

A traditional ATX system should remain at power off stage when AC power resumes from power failure. This design is inconvenient for a network server or workstation, without an UPS, that needs to keep power-on. This motherboard implements an AC Power Auto Recovery function to solve this problem. If BIOS Setup > Integrated Peripherals > AC PWR Auto Recovery is set to “On” the system will automatically power-on after AC power resumes.

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

IIDDEE aanndd FFllooppppyy CCoonnnneeccttoorr

Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDC and IDE connect or. The blue connector is IDE1 for clear identification. Be careful of the pin1 orientation. Wrong orientation may cause system damage.

Pin 1

FDD Connector

Secondary Slave (4th)

Pin 1

Primary

Slave (2nd)

TA 33/66/100

IDE Connector

Secondary

Master (3rd)

IDE1 (Primary)

IDE2 (Secondary)

Primary

Master (1st)

AK73(A)-V / AK73-V Online Manual

IDE1 is also known as the primary channel and IDE2 as the secondary channel. Each channel supports two IDE devices that make a total of four devices. In order to work together, the two devices on each channel must be set differently to Master and Slave mode. Either one can be the hard disk or the CDROM. The setting as master or slave mode depends on the jumper on your IDE device, so please refer to your hard disk and CDROM manual accordingly.

Warning: The specification of the IDE cable is a maximum of 46cm (18 inches), make sure your cable does not exceed this length.

Tip: For better signal quality, it is recommende to set the far end side device to master mode and follow the suggested sequence to install you new device. Please refer to above diagram on

revious page.

AAKK7733((AA))--VV // AAKK7733--VV

This motherboard supports ATA33, ATA66 or ATA100 IDE devices. Following table lists the transfer rate of IDE PIO and DMA modes. The IDE bus is 16-bit, which means every transfer is two bytes.

Mode Clock Period Clock

PIO mode 0 30ns 20 600ns (1/600ns) x 2byte = 3.3MB/s PIO mode 1 30ns 13 383ns (1/383ns) x 2byte = 5.2MB/s PIO mode 2 30ns 8 240ns (1/240ns) x 2byte = 8.3MB/s PIO mode 3 30ns 6 180ns (1/180ns) x 2byte = 11.1MB/s

PIO mode 4 30ns 4 120ns (1/120ns) x 2byte = 16.6MB/s DMA mode 0 30ns 16 480ns (1/480ns) x 2byte = 4.16MB/s DMA mode 1 30ns 5 150ns (1/150ns) x 2byte = 13.3MB/s DMA mode 2 30ns 4 120ns (1/120ns) x 2byte = 16.6MB/s

UDMA 33 30ns 4 120ns (1/120ns) x 2byte x2 = 33MB/s UDMA 66 30ns 2 60ns (1/60ns) x 2byte x2 = 66MB/s

UDMA100 20ns 2 40ns (1/40ns) x 2byte x2 = 100MB/s

Tip: To achieve the best performance of Ultra DMA 66/100 har disks, a special 80-wires IDE cable for Ultra DMA 66/100 is required.

Cycle Time Data Transfer Rate

Count

OOnnlliinnee MMaannuuaall

AK73(A)-V / AK73-V Online Manual

IIrrDDAA CCoonnnneeccttoorr

The IrDA connector can be configured to support wireless infrared module, with this module and application software such as Laplink or Windows 95 Direct Cable Connection, the user can transfer files to or from laptops, notebooks, PDA devices and printers. This connector supports HPSIR (115.2Kbps, 2 meters) and ASK-IR (56Kbps).

Install the infrared module onto the IrDA connector and enable the infrared function from BIOS Setup, UART2 Mode to have the correct orientation when you plug in the IrDA connector.

Pin 1

IR_TX

, make sure

KEY GND

IR_R

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

WWOOMM ((ZZeerroo VVoollttaaggee WWaakkee oonn MMooddeemm))

This motherboard implements special circuit to support Wake On Modem, both Internal modem card and external box modem are supported. Since Internal modem card consumes no power when system power is off, it is recommended to use an internal modem. To use internal modem, connect 4-pin cable from RING connector of modem card to the WOM connector on the motherboard.

Pin 1

+5V Standby NC RING GND

AK73(A)-V / AK73-V Online Manual

WWOOMM bbyy EExxtteerrnnaall BBOOXX MMooddeem

Traditional Green PC suspend mode does not really turn off the system power supply, it uses external box modem to trigger MB COM port and resume back to active.

Serial Port

(Modem Side)

Serial Port

(Motherboard Side)

AAKK7733((AA))--VV // AAKK7733--VV

WWOOMM bbyy IInntteerrnnaall MMooddeemm CCaarrd

With the help of the ATX soft power On/Off, it is possible to have a system totally power off, and wakeup to automatically answer a phone call as an answering machine or to send/receive a fax. You may identify whether or not your system is in true power off mode by checking to see if the fan of your power supply is off. Both an external box modem and an internal modem card can be used to support Modem Wake Up, but if you use an external modem, you have to leave your box modem on.

WOM Connector

(Motherboard Side)

OOnnlliinnee MMaannuuaall

WOM Connector

(Modem Card

Side)

AK73(A)-V / AK73-V Online Manual

WWOOLL ((WWaakkee oonn LLAANN))

This feature is very similar as Wake On Modem, but it goes through local area network. To use Wake On LAN function, you must have a network card with chipset that supports this feature, and connect a cable from LAN card to motherboard W OL connector. The system identification information (probably IP address) is stored on network card and because there is a lot of traffic on the Ethernet, you need to install network management software, such as ADM, for the checking of how to wake up the system. Note that, at least 600mA ATX standby current is required to support the LAN card for this function.

+5VSB

GND LID

AAKK7733((AA))--VV // AAKK7733--VV

WOL Connector

(Motherboard Side)

OOnnlliinnee MMaannuuaall

WOL Connector

(Ethernet Card Side)

AK73(A)-V / AK73-V Online Manual

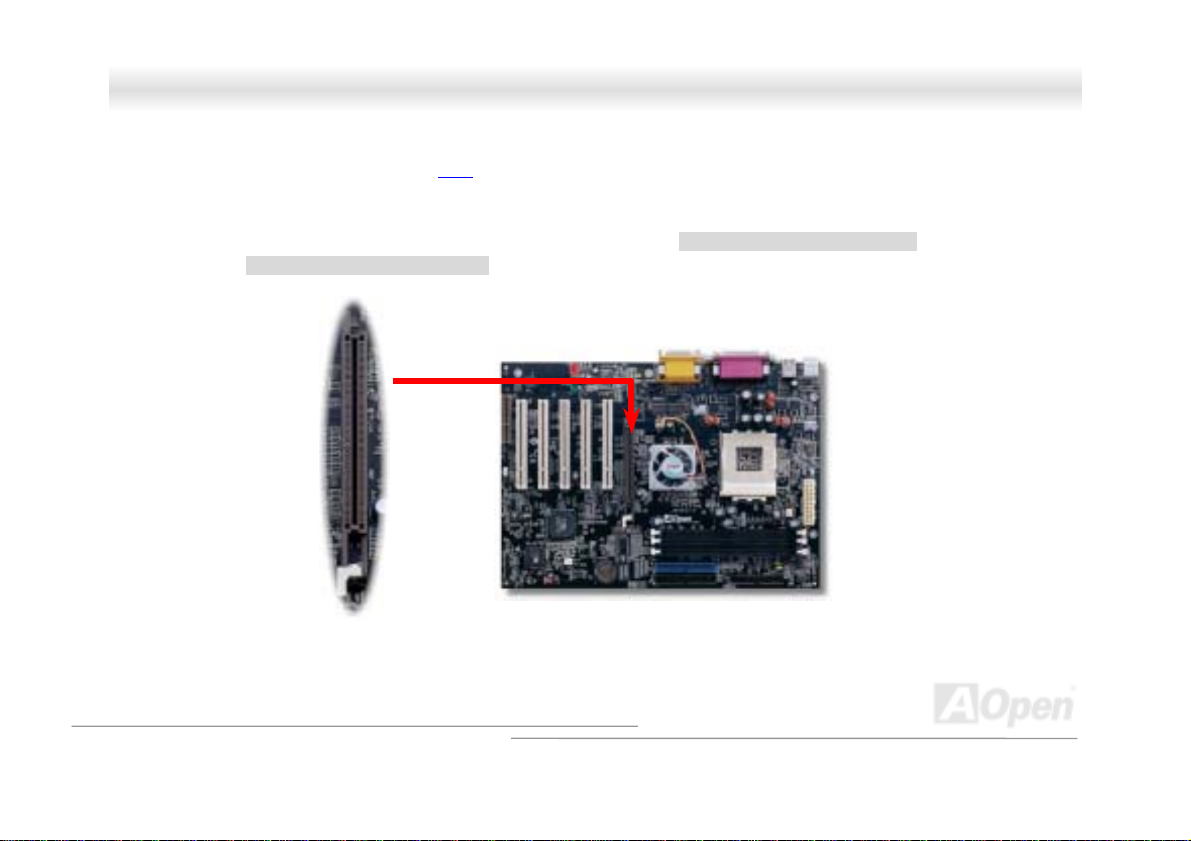

AAGGPP ((AAcccceelleerraatteedd GGrraapphhiicc PPoorrtt))

The AK73(A)-V / AK73A-V provides an AGP 4x slot. The AGP 4x is a bus interface targeted for high-performance 3D graphic. Recently, there are more memory modules on the AGP card. Hence, the AGP card needs more power to drive these chips. AGP supports only memory read/write operation and single-master single-slave one-to-one only. AGP uses both rising and falling edge of the 66MHz clock, for 2X AGP, the data transfer rate is 66MHz x 4bytes x 2 = 528MB/s. AGP is now moving to AGP 4x mode, 66MHz x 4bytes x 4 = 1056MB/s.

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

CCNNRR ((CCoommmmuunniiccaattiioonn aanndd NNeettwwoorrkk RRiisseerr))

CNR is a riser card specification to replace the AMR (Audio/Modem Riser) that supports V.90 analog modem, multi-channel

audio, and phone-line based networking. Owing to CPU computing power getting stronger, the digital processing job can be implemented in main chipset and share CPU power. The analogy conversion (CODEC circuit design, which is put on CNR card. This motherboard implements sound CODEC on board (can be disabled in BIOS), but reserve CNR slot for the option of modem function. Note that you can still use PCI modem card.

) circuit requires a different and separate

AK73(A)-V / AK73-V Online Manual

PPCC9999 CCoolloorr CCooddeedd BBaacckk PPaanneell

The onboard I/O devices are PS/2 Keyboard, PS/2 Mouse, serial ports COM1 and COM2, Printer, four USB, AC97 sound and Game port. The view angle of drawing shown here is from the back panel of the housing.

PS/2 Mouse

Connector

PS/2 Keyboard

Connector

PS/2 Keyboard: For standard keyboard, which is using a PS/2 plug. PS/2 Mo us e: For PC-Mo us e, whic h is us in g a PS/ 2 pl ug. USB Por t : Available for connecting USB devices. Parallel Port: To connect with SPP/ECP/EPP print er. COM1 Port: To connect with pointing devices, modem or others serial devices. Speaker Out: To External Speaker, Earphone or Amplifier. Line-In: Comes from the signal sources, such as CD/Tape player. MIC-In: From Microphone. MIDI/Game Port: Fo r 15-pin PC joystick, game pad or MIDI devices.

USB Port

SPP/EPP/ECP

Parallel Port

Game Port

COM 2 PortCOM 1 Port

MIC-In

Line-In

Speaker Out

AAKK7733((AA))--VV // AAKK7733--VV

nnd

SSuuppppoorrtt 2

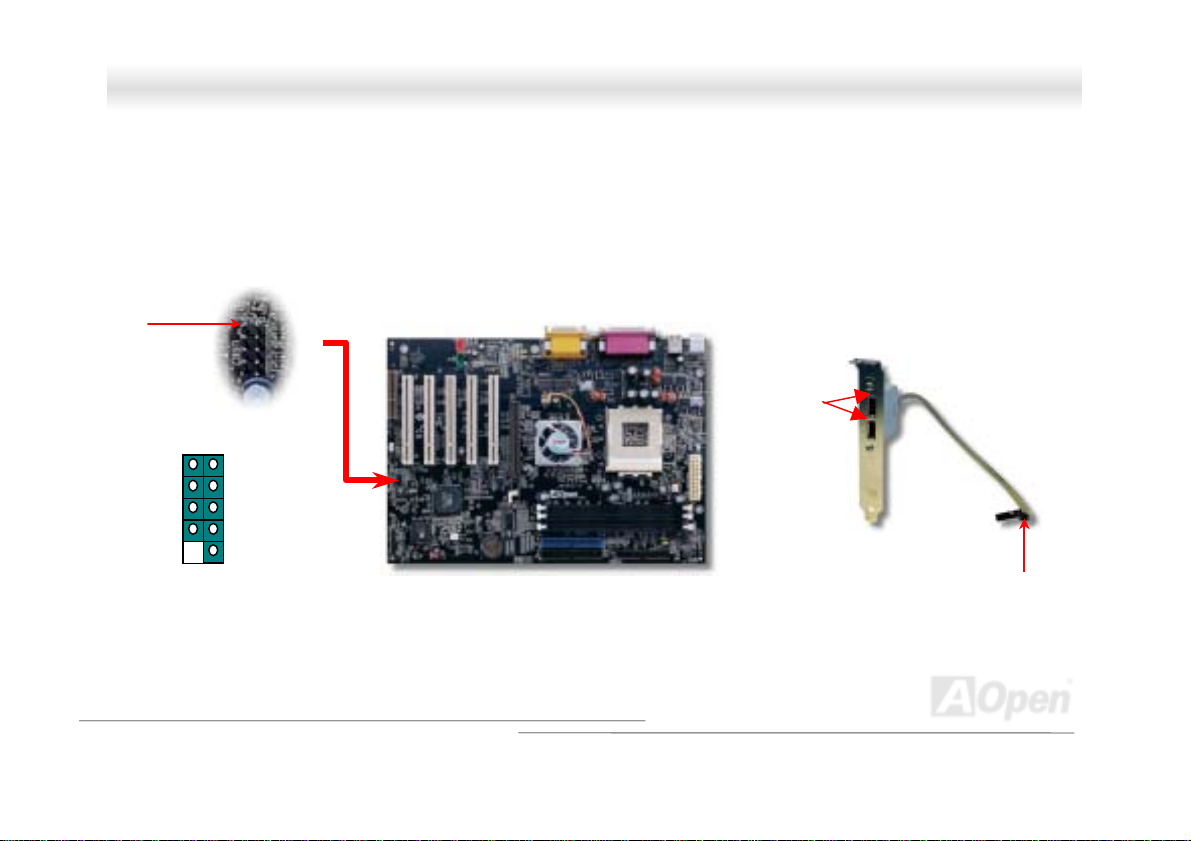

This motherboard can support up to four USB ports. Two of them are built on the back panel, and one USB header on the motherboard can provide two more ports by connecting a proper USB cable. After connecting the USB header, please screw the bracket on the other end of USB cable to the back housing. Thus you can take good advantage of these four USB compatible ports.

UUSSBB PPoorrtt

OOnnlliinnee MMaannuuaall

Pin 1

AC_USB-

AC_USB+

+5V

GND

1 2

9 10

+5V USBAGPUSBAGP+ GND NC

USB Por ts

Connect to USB header

AK73(A)-V / AK73-V Online Manual

CCDD AAuuddiioo CCoonnnneeccttoorr

This black connector is used to connect CD Audio cable from CDROM or DVD drive to onboard sound.

LRGND

CD-IN

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

MMooddeemm AAuuddiioo CCoonnnneeccttoorr

This connector is used to connect Mono In/Mic Out cable from internal modem card to onboard sound circuit. The pin 1-2 is Mono In, and the pin 3-4 is Mic Out. Please note that there is no standard for this kind of connector yet, only some internal modem cards implement this connector.

Mono-In (To Modem) GND GND

MIC-Out (From Modem)

MODEM-CN

AK73(A)-V / AK73-V Online Manual

VViiddeeoo--AAuuddiioo--IINN CCoonnnneeccttoorr

This green connector is used to connect MPEG Audio cable from MPEG card to onboard sound.

VIDEO_AUDIO_IN

L GND GND

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

FFrroonntt PPaanneell AAuuddiioo

If the housing has been design with an audio port on the front panel, you’ll be able to connect onboard audio to front panel through this connector.

Pin1

1 2

9 10

GND +5V RET_R

RET_L

MIC_IN2 MICBIAS2 FRONT_R

FRONT L

AK73(A)-V / AK73-V Online Manual

BBaatttteerryy--lleessss aanndd LLoonngg LLiiffee DDeessiiggnn

This Motherboard implements Flash ROM and a special circuit that allows you to save your current CPU and CMOS Setup configurations without the need of a battery. The RTC (real time clock) can also keep running as long as the power cord is plugged. If you lose your CMOS data by accident, you can just reload the CMOS configurations from Flash ROM will recover as usual.

ATX standby power

Flash

ROM

RTC real time clock

Aut o S witc h

00:00:00

CMOS

Backup by EEPROM

and the system

Battery

uto switching to ATX standby power as long as AC power line is plugged. This smart design increases battery life if you still plug battery on motherboard.

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

Power

Over-Current

Protection

Circuit

CPU Core Voltage

OOvveerr--ccuurrrreenntt PPrrootteeccttiioonn

The Over Current Protection was very popular implemented on ATX 3.3V/5V/12V switching power supply. However, the new generation CPU uses different voltage that has regulator to transfer 5V to CPU voltage (for example, 2.0V), and makes 5V over current protection useless. This motherboard is with switching regulator onboard supports CPU over-current protection; in conjunction with 3.3V/5V/12V power supply provide the full line over-current protection.

ATX Switching Power Supply

12V (Protected by power supply)

3.3V (Protected by power supply)

5V (Protected by power supply)

Onboard

Regulator

AK73(A)-V / AK73-V Online Manual

Note: Although we have implemented protection circuit try to preven

any human operating mistake, there is still certain risk that CPU, memory, HDD, add-on cards installed on this motherboard may be damaged because of component failure, human operating error o unknown nature reason. AOpen cannot guarantee that the

rotection circuit can always work perfectly.

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

Fan

CPU

Power

to warn the user.

Fan Speed

AOpen

HWMON

Utility

CPU Temperature

CPU Voltage

System Voltage

Detection

Circuit

HHaarrddwwaarree MMoonniittoorriinngg

This motherboard implements a hardware monitoring system. As you turn on your system, this smart design will continue to monitor your system’s working voltage, fan status and CPU temperature. If any of these systems’ status goes wrong, there will be an alarm through the AOpen Hardware Monitoring Utility

AK73(A)-V / AK73-V Online Manual

RReesseettttaabbllee FFuussee

Traditional motherboard has fuse for Keyboard and USB port to prevent over-current or shortage. These fuses are soldered onboard that when it is broken (did the job to protect motherboard), user still cannot replace it and the motherboard is still malfunction.

With expensive Resettable Fuse, the motherboard can back to normal function after fuse did the protection job.

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

LLooww EESSRR CCaappaacciittoorr

The quality of low ESR capacitor (Low Equivalent Series Resistance) is very important for the stability of CPU power especially during high frequency operation. The location of these capacitors requires well-experienced and precise calculation.

AK73(A)-V / AK73-V Online Manual

The power circuit of the CPU core voltage must be checked to ensure system stability for high speed CPUs (such as some new generation CPUs whose clock values are higher than 1 GHz, or when overclocking). A typical CPU core voltage is 2.0V, so a good design should control voltage between 1.860V and 2.140V. That is, the transient must be below 280mV. Below is a timing diagram captured by a Digital Storage Scope, it shows the voltage transient is only 143mv even when maximum 18A current is applied.

Note: This diagram for example only, it may not be exactly the same as the motherboard you purchased.

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

LLaayyoouutt ((FFrreeqquueennccyy IIssoollaattiioonn WWaallll))

Note: This diagram for example only, it may not be exactly the same as the motherboard you

For high frequency operation, especially overclocking, layout is the most important factor to make sure chipset and CPU working in stable condition. The layout of this motherboard implements AOpen’s unique design called “ Frequency Isolation Wall”. Separating each critical portion of motherboard into regions where each region operates in a same or similar frequency range to avoid cross talk and frequency interference between each region’s operations and condition. The trace length and route must be calculated carefully. For example, the clock trace must be equal length (not necessarily as short as possible) so that clock skew will be controlled within few a pico second (1/10

Sec)

AK73(A)-V / AK73-V Online Manual

DDrriivveerr aanndd UUttiilliittyy

There are motherboard drivers and utilities included in AOpen Bonus CD disc. You don’t need to install all of them in order to boot your system. But after you finish the hardware installation, you have to install your operation system first (such as Windows

98) before you can install any drivers or utilities. Please refer to your operation system’s installation guide.

Note: Please follow recommended procedure to install Windows 95

and Windows 98.

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

AAuuttoorruunn MMeennuu ffrroomm BBoonnuuss CCDD DDiisscc

You can use the autorun menu of Bonus CD disc. Choose the utility and driver and select model name.

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

IInnssttaalllliinngg WWiinnddoowwss 9955

1. First, don’t install any add-on card except AGP card.

2. Install Windows 95 OSR2 v2.1, 1212 or 1214 version and later with USB support. Otherwise, you need to install USBSUP P.EXE.

3. Install the VIA 4 in 1 driver program.

4. Finally, Install other add-on cards and their drivers.

, which includes VIA AGP Vxd driver, VIA ATAPI Vendor Support driver and VIA registry (INF)

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

IInnssttaalllliinngg WWiinnddoowwss 9988

1. First, don’t install any add-on card except AGP card.

2. Enable USB Controller in BIOS Setup > Advanced Chi pset Features > USB Controller, t o make BIOS fu lly capable of controlling IRQ assignment.

3. Install Window 98 into your system.

4. Install the VIA 4 in 1 driver registry (INF) program.

5. Finally, Install other add-on cards and their drivers.

, which includes VIA AGP Vxd driver, IRQ Routing, VIA ATAPI Vendor Support driver and VIA

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

IInnssttaalllliinngg WWiinnddoowwss 9988 SSEE,, WWiinnddoowwss MMEE && WWiinnddoowwss22000000

If you are using Windows® 98 Second Edition, Windows® Millennium Edition or Windows® 2000, you do not need to install the 4-in-1 driver as the IRQ Routing Driver and the ACPI Registry are already incorporated into the operating system. Users with Windows® 98 SE may update the VIA Registry INF and AGP drivers by installing them individually.

Please refer to VIA Technologies Inc.

http://www.via.com/

for latest version of 4 in 1 driver:

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

IInnssttaalllliinngg VVIIAA 44 iinn 11 DDrriivveerr

You can install the VIA 4 in 1 driver (IDE Bus master (For Windows NT use), VIA ATAPI Vendor Support Driver, VIA AGP, IRQ Routing Driver (For Windows 98 use), VIA Registry (INF) Driver) from the Bonus Pack CD disc Autorun menu.

Note: Installing this Bus Master IDE driver may cause Suspend to Hard Drive failure.

Warning: If you want to uninstall the VIA AGP Vxd driver, please remove the AGP card driver first. Otherwise, the screen may go black at rebooting after the un-installation.

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

IInnssttaalllliinngg OOnnbbooaarrdd SSoouunndd DDrriivveerr

This motherboard comes with RealTek ALC201 chip; you can find the audio driver from the Bonus Pack CD disc auto-run menu.

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

IInnssttaalllliinngg HHaarrddwwaarree MMoonniittoorriinngg UUttiilliittyy

You can install Hardware Monitoring Utility to monitor CPU temperature, fans and system voltage. The hardware monitoring function is automatically implemented by the BIOS and utility software. No hardware installation is needed.

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

AACCPPII SSuussppeenndd ttoo HHaarrdd DDrriivvee

ACPI Suspend to Hard Drive is basically controlled by Windows operation system. It sa ves your current work (system status,

memory and screen image) into hard disk, and then the system can be totally power off. Next time, when power is on, you can resume your original work directly from hard disk within few seconds without go through the Windows booting process and run your application again. If your memory is 64MB, normally, you need to reserve at least 64MB HDD space to save your memory image.

AAKK7733((AA))--VV // AAKK7733--VV

When go into Suspend:

OOnnlliinnee MMaannuuaall

System

Image &

Status

When power-on next time:

System

Image &

Status

Save into

Restore within seconds

Hard

Disk

Hard

Disk

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

System Requirement

1. AOZVHDD.E XE 1.30b or later.

2. Delete config.sys and autoexec.bat.

Fresh installation of Windows 98 on a new system

1. Execute "Setup.exe /p j" to install Windows 98

2. After Windows 98's installation is complete, go to the Control Panel > Power Management.

a. Set Power Schemes > System Standby to "Never". b. Click on "Hibernate" and select "Enable Hibernate Support" then "Apply". c. Click on the "Advanced" tab, you'll see "Hibernate" on "Power Buttons". Note that this option will only be seen after step

b mentioned above has been completed, otherwise only "Standby" and "Shutdown" will be shown. Select "Hibernate" and "Apply".

3. Clean boot into DOS and run AOZVHDD utility.

a. If you ass ign the wh ole disk to your W in 98 system (FAT 16 or FAT 32), plea se run "aoz vhdd /c /file ". Please remember

sufficient free space has to be reserved in the disk, e.g. if you have 64 MB DRAM and 16 MB VGA card installed, the system needs at least 80 MB free space. The utility will locate the space automatically.

b. If you assign an individual partition for Win 98, please run "aozvhdd /c /partition". Of course, the system needs to

provid e unf orm at te d an emp ty pa rt iti o n.

4. Reboot sys tem .

5. You've already implemented ACPI Suspend to-Hard Drive. Click "Start > Shut Down > Standby" then the screen will go off

immediately. And 1 minute or so will be taken for the system to save what's in the memory to the hard drive; the larger the memory size the longer this process will take.

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

Changing from APM to ACPI (Windows 98 only)

1. Run "Regedit.exe"

a. Go through the following path

HKEY_LOCAL_MACHINE

SOFTWARE

MICROSOFT

WINDOWS

CURRENT VERSION

DETECT b. Select "ADD Binary" and name it as "ACPIOPTION". c. Right click and select Modify, add "01" after "0000" to make it "0000 01". d. Save changes.

2. Select "Add New Hardware" under Control Panel. Allow Windows 98 to detect new hardware. (It will find "ACPI BI O S " and remove "Plug and Pla y BIOS")

3. Reboot sys tem .

4. Clean boot into DOS and run "AOZVHDD.EXE /C /File"

Changing from ACPI to APM

1. Run "Regedit.exe" a. Go through the following path

AAKK7733((AA))--VV // AAKK7733--VV

HKEY_LOCAL_MACHINE

SOFTWARE

MICROSOFT

WINDOWS

CURRENT VERSION

DETECT

ACPI OPTION

b. Right click and select "Modify, change "01" to "02" to make it "0000 02".

c. Save changes.

2. Select "Add New Hardware" under Control Panel. Allow Windows 98 to detect new hardware. (It will find "Plug and Play

BIOS" and remove "ACPI BIOS")

3. Reboot sys tem .

4. Run "Add New Hardware" again and it will find "Advanced Power Management Resource".

5. Click "OK ".

Tip: "02" means Windows 98 is ACPI acknowledged but the ACPI function is disabled.

Tip: Currently we found only ATI 3D Rage Pro AG card could support ACPI suspend to disk. Please refe to AOpen web site for latest update.

OOnnlliinnee MMaannuuaall

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

AACCPPII SSuussppeenndd ttoo RRAAMM ((SSTTRR))

This motherboard supports ACPI Suspend to RAM function. With this function, you can resume your original work directly from DRAM without going through the Windows 98 booting process and run your application again. Suspend to DRAM saves your current work in the system memory, it is faster than Suspend to Hard Drive but requires power supplied to DRAM, while Suspend to Hard Drive requires no power.

When go into Suspend:

System Image & Status

When power-on next time:

in the DRAM

ackup by 3 .3V

Other System

Devices

Power loss

System Image & Status

in the DRAM

Power back to

Other System

Devices

Power back to

AAKK7733((AA))--VV // AAKK7733--VV

To implement ACPI Suspend to DRAM, please follow the procedures as below:

OOnnlliinnee MMaannuuaall

System Requirement

1. An ACPI OS is required. Currently, except Windows 95 and Windows NT, all other Windows systems support ACPI.

2. The VIA 4 in 1 Driver must have been installed properly.

Procedures

1. Changed the following BIOS settings.

BIOS Setup > Power Management Setup > ACPI Function: Enabled

BIOS Setup > Power Management Setup > ACPI Suspend Type: S3.

2. Go to Control Panel > Power Management. Set “Power Buttons” to “Standby”.

3. Press power button or standby button to wake up the system.

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

AAWWAARRDD BBIIOOSS

System parameters can be modified by going into BIOS Setup m enu, th is menu a llows y ou to conf igur e the syst em param eters and save the configuration into the 128 bytes CMOS area, (normally in the RTC chip or in the mai n chipset).

The AwardBIOS™ that installed in the Flash RO M BIOS provides critical low-level support for standard devices such as hard disk drives, serial and parallel ports.

Most BIOS setting of AK73(A)-V/AK73-V had optimized by AOpen’s R&D engineering team. But, the default setting of BIOS still can’t fine-tune the chipset controlling entire system. Hence, the rest of this chapter is intended to guide you through the process of configuring your system using setup.

To enter to BIOS setup menu

, press <Del> when POST (Power-On Self Test) screen is shown on your monitor.

Note: Because the BIOS code is the most often changed part of the motherboard design, the BIOS information contained in this manual may be different with actual BIOS that come with your motherboard.

of the motherboard is a custom version of an industry standard BIOS. The

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

AAbboouutt BBIIOOSS FFuunnccttiioonn DDeessccrriippttiioonn……

AOpen always dedicates to give users a more friendly computer system. Now, we include all function descriptions of BIOS setup program into the BIOS Flash ROM. When you select one function of BIOS setup program, the function description will appeared at right side of screen. Hence, you don’t need read this manual while you changing the BIOS setting.

Menu Items Select Window

Item Function Description Window

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

HHooww TToo UUssee AAwwaarrdd™™ BBIIOOSS SSeettuupp PPrrooggrraamm

Generally, you can use the arrow keys to highlight items that you want to choose, then press <Enter> key to select, and use the <Page Up> and <Page Down> key to change setting value. You also can press <F1> key for help and press <Esc> key to quit Award™ BIOS setup program. The following table provides details about how to use keyboard in the Award™ BIOS setup program. By the way, all products of AOpen also provides a special function in the BIOS setup, you can press <F3> key selecting preferred menu language to display.

Key Description

Page Up or + Changing setting to next value or increase the value. Page Down or - Changing setting to previous value or decrease value. Enter Select the item. Esc 1. In main menu: Quit and don’t save any change.

2. In sub menu: Exit current menu to main menu.

Up Arrow Highlight previous item. Down Arrow Highlight next item. Left Arrow Move the light bar to left side of menu. Right Arrow Move the light bar to right side of menu. F1 Get menu or item help description. F3 Changing menu language. F5 Load previous setting value from CMOS.

77 78

AAKK7733((AA))--VV // AAKK7733--VV

Key Description

F6 Load fail-save setting value from CMOS. F7 Load turbo setting value from CMOS. F10 Save changed setting and exit setup program.

Note: A Open always dedicates to give users a more friendly computer system. Now, we include all function descriptions of BIOS setup program into the BIOS Flash ROM. When you select one function of BIOS setup program, the function description will appeared at right side of screen. Hence, you don’t need read this manual while you changing the BIOS setting.

OOnnlliinnee MMaannuuaall

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

HHooww TToo EEnntteerr BBIIOOSS SSeettuupp

After you finish the setting of jumpers and connect correct cables. Power on and enter the BIOS Setup, press <Del> during

POST (Power-On Self Test). Choose "Load Setup Defaults" for recommended optimal performance.

De l

Warning: Please avoid of using "Load Turbo Defaults", unless you are sure your system components (CPU, DRAM, HDD, etc.) are good enough for turbo setting.

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaal

BBIIOOSS UUppggrraaddee

By flashing your motherboard, you agree to accept the possibility of BIOS flash failure. If you motherboard is working and is stable, and there are no major bugs that were fixed by a latter BIOS revision, we recommend that you DO NOT try to upgrade your BIOS.

By doing so, you are taking a risk of BIOS flash failure. If you indeed intent on upgrading, PLEASE BE SURE to use the right BIOS revision for the right motherboard model.

AOpen Easy Flash is a little different than traditional flash method. The BIOS and you simply run a single commend to complete the flash process.

binary file and flash routine are linked together

Caution: AOpen Easy Flash BIOS programs are designed to be compatible with the Award BIOS. At the date of this note, AOpen Easy Flash BIOS programs are not available for AMI BIOS. AMI BIOS appears mostly only on old 486 boards and some early Pentium boards. Please be sure to view the README compressed inside the BIOS package before upgrading, and follow upgrade instructions carefully. This will minimize the chance of flash failures.

AAKK7733((AA))--VV // AAKK7733--VV

Below are the steps for easy flashing procedures: (applies for Award BIOS ONLY)

1. Download new BIOS upgrade zip For example, AK73AV102.ZIP.

2. Run shareware PKUNZIP (http://www.pkware.com/ binary BI OS f il e an d th e flas h uti li ty. Or Winzip (http://www.winzip.com/

3. Save the unzipped file into a bootable floppy disk. For example, AK73AV102.BIN & AK73AV102.EXE

4. Reboot the system to DOS mode without loading any memory handler (such as EMM386) or device driver. It needs around 520K free memory spaces.

5. Execute A:> AK73AV102 and the program will do the rest of it.

DO NOT turn off the power during FLASH PROCESS until you are asked to!!

6. Reboot system and press <Del> to enter BIOS setup

Warning: The new BIOS upgrade will permanently replace your original BIOS's settings and PnP information when flashing. You may need to reconfigure your BIOS setting and re-install Win95/Win98 as well as your add-on cards, so that your system can go back to work as normal.

file from AOpen's web site.

) which supports miscellaneous operation systems to extract the

) in Windows environment.

, Choose "Load Setup Defaults", then “Save & Exit Setup”. Done!

OOnnlliinnee MMaannuuaall

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaal

OOvveerrcclloocckkiinngg

As a leading manufacturer in motherboard industry, AOpen always listens to what customers want and develop products to fit different user's requirements. Reliability, compatibility, leading technology and friendly features are our basic goals when designing motherboards. Other than above mentioned design criteria, there are power users who are always seeking to push the limitation of the system performance by overclocking which we call them "Overclocker".

This section is dedicated to overclockers. Our lab test results shown that 166MHz is achievable when proper setting and qualified components were presented, we feel

quite comfortable overclocking to 166MHz. Not only that, this motherboard has full-range (CPU core voltage) settings and an option to adjust CPU core voltage. The CPU clock ratio can be up to 8x that supports almost all of AMD Athlon/Duron CPUs in the future and provides flexibility for overclockers. For your reference, the following configurations are what we feel comfortable at 166MHz bus clock.

But not guaranty. ☺

Tip: Note that overclocking may also cause thermal problem. Please make sure that the cooling fan and the heatsink were adequate to dissipate excessive heat that's generated by

Warning: The design of this product follows CPU and chipset vendor's design guideline. Any attempts to push beyond product specification are not recommended and you are taking your own risk to damage your system or important data. Before doing overclocking, you must make sure your components are able to tolerate such abnormal setting, especially CPU, DRAMs, hard disks, and AGP VGA cards.

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

VVGGAA CCaarrdd && HHaarrdd DDiisskk

VGA and HDD is key components for overclocking, for your reference, the following list are what have been successful overclocked in our lab. Please note that AOpen can not guaranty they can be successful overclocked again. Please check the Available Vendor List ( AVL) by link to our official website.

VGA: http://www.aopen.com.tw/tech/report/overclk/mb/vga-oc.htm HDD: http://www.aopen.com.tw/tech/report/overclk/mb/hdd-oc.htm

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaal

GGlloossssaarryy

AACC9977

Basically, AC97 specification separates sound/modem circuit to two parts, digital processor and a CODEC for analogy I/O they are linked by AC97 link bus. Since digital processor can be put into motherboard main chipset, the cost of sound/modem onboard solution can be reduced.

AACCPPII ((AAddvvaanncceedd CCoonnffiigguurraattiioonn && PPoowweerr IInntteerrffaaccee))

ACPI is the power management specification of PC97 (1997). It intends to save m ore power by taking full control of power management to operating system and bypass BIOS to operating system (such as Windows 98). This is a bit similar as the PnP power switch to control the power state transition.

AAGGPP ((AAcccceelleerraatteedd GGrraapphhiicc PPoorrtt))

AGP is a bus interface targeted for high-performance 3D graphic. AGP supports only memory read/write operation and single-master single-slave one-to-one only. AGP uses both rising and falling edge of the 66MHz clock, for 2X AGP, the data transfer rate is 66MHz x 4byte x 2 = 528MB/s. AGP is now moving to 4X mode, 66MHz x 4byte x 4 = 1056MB/s. AOpen is the first company to support 4X AGP motherboards by both AX6C (Intel 820) and MX64/AX64 (VIA 694x), started from Oct 1999.

. The chipset or super I/O chip needs to provide standard register interface

AAKK7733((AA))--VV // AAKK7733--VV

AAMMRR ((AAuuddiioo//MMooddeemm RRiisseerr))

The CODEC circuit of AC97 sound/modem solution can be put on motherboard or put on a riser card (AMR card) that connects to motherboard through AMR connector.

AAOOppeenn BBoonnuuss PPaacckk CCDD

A disc bundled with AOpen motherboard product; there are motherboard drivers, Acrobat Reader for PDF online manual and other us ef ul ut il iti es .

AAPPMM ((AAddvvaanncceedd PPoowweerr MMaannaaggeemmeenntt))

Unlike ACPI, BIOS controls most APM power management functions. AOpen Suspend to Hard Drive is a good example of APM power management.

AATTAA ((AATT AAttttaacchhmmeenntt))

ATA is the specification of diskette interface. In 80’s, many software and hardware manufacturers instituted the ATA specification together. The AT is meaning International Business Machines Corporation (IBM) personal computer/AT’s bus structure.

AATTAA//6666

ATA/ 66 uses both rising edge and falling edge but doubles UDMA/33 transfer rate. The data transfer rate is 4 times of the PIO mode 4 or DMA mode 2, 16.6MB/s x4 = 66MB/s. To use ATA/66, you need special ATA /66 IDE cable.

OOnnlliinnee MMaannuuaall

AAKK7733((AA))--VV // AAKK7733--VV

AATTAA//110000

ATA/ 100 is a new IDE specification under developing. ATA/100 uses both rising edge and falling edge as ATA/66 but clock cycle time is reduced to 40ns. The data transfer rate is (1/40ns) x 2 bytes x 2 = 100MB/s. To use ATA/100, you need special 80-wire IDE cab l e, t h e s ame as ATA/66.

BBIIOOSS ((BBaassiicc IInnppuutt//OOuuttppuutt SSyysstteemm))

BIOS is a set of assembly routine/program that reside in EPROM or Flash RO M. BIOS controls Input/output devices and other hardware devices of motherboard. In general, to provide hardware independent portability, operation system and drivers is required to access BIOS without directly access hardware devices.

BBuuss MMaasstteerr IIDDEE ((DDMMAA mmooddee))

The traditional PIO (Programmable I/O) IDE requires the CPU to involve in all the activities of the IDE access including waiting for the mechanical events. To reduce the workload of the CPU, the bus master IDE device transfers data from/to memory without interrupting CPU, and releases CPU to operate concurrently while data is transferring between memory and IDE device. You need the bus master IDE driver and the bus master IDE HDD to support bus master IDE mode.

CCNNRR ((CCoommmmuunniiccaattiioonn aanndd NNeettwwoorrkkiinngg RRiisseerr))

The CNR specification provides the PC industry the opportunity to deliver a flexible and cost reduced method of implementing LAN, home networking, DSL, USB, wireless, audio and modem subsystems widely used in today's "connected PCs". The CNR specification is an open industry specification and is supported by OEMs, IHV card manufacturers, silicon supplier and Microsoft.

OOnnlliinnee MMaannuuaal

AAKK7733((AA))--VV // AAKK7733--VV

CCOODDEECC ((CCooddiinngg aanndd DDeeccooddiinngg))

Normally, CODEC means a circuit that can do digital to analog conversion and also the analog to digital conversion. It is part of

AC97

sound/modem solution.

DDDDRR ((DDoouubbllee DDaattaa RRaatteedd)) SSDDRRAAMM

DDR SDRAM utilizes the existing DRAM infrastructure and technology while doubling the nominal bandwidth available to systems in an easy to design and simple to adopt way. Initially a perfect solution for memory intensive server and workstation applications, DDR low cost and low voltage will ultimately make it an ideal solution for all segments of the PC market, high performance desktop and mobile PCs, Value PCs and even Internet Appliances and mobile devices.

DDIIMMMM ((DDuuaall IInn LLiinnee MMeemmoorryy MMoodduullee))

DIMM socket has total 168-pin and supports 64-bit data. It can be single or double side, the golden finger signals on each side of PCB are different, and that is why it was called Dual In Line. Almost all DIMMs are made by SDRAM Note that some old DIMMs are made by FPM/EDO

DDMMAA ((DDiirreecctt MMeemmoorryy AAcccceessss))

Channel for communications between the memory and surrounding devices.

and only operate at 5V. Do not confuse them with SDRAM DIMM.

OOnnlliinnee MMaannuuaall

, which operate at 3.3V.

AAKK7733((AA))--VV // AAKK7733--VV

EECCCC ((EErrrroorr CChheecckkiinngg aanndd CCoorrrreeccttiioonn))

The ECC mode needs 8 ECC bits for 64-bit data. Each time memory is accessed; ECC bits are updated and checked by a special algorithm. The ECC algorithm has the ability to detect double-bit error and automatically correct single-bit error while parity mode can only detect single-bit error.

EEDDOO ((EExxtteennddeedd DDaattaa OOuuttppuutt)) MMeemmoorryy

The EDO DRAM technology is actually very similar to FPM (Fast Page Mode). Unlike traditional FPM that tri-states the memory output data to start the pre-charge activity, EDO DRAM holds the memory data valid until the next memory access cycle, that is similar to pipeline effect and reduces one clock state.

EEEEPPRROOMM ((EElleeccttrroonniicc EErraassaabbllee PPrrooggrraammmmaabbllee RROOMM))

Also known as E2PROM. Both EEPROM and Flash ROM can be re-programmed by electronic signals, but the interface technology is different. Size of EEPROM is much smaller than flash ROM.

EEPPRROOMM ((EErraassaabbllee PPrrooggrraammmmaabbllee RROOMM))

Traditional motherboard stores BIOS code in EPROM. EPROM can only be erased by ultra-violet (UV) light. If BIOS has to be upgraded, you need to remove EPROM from motherboard, clear by UV light, re-program, and then insert back.

OOnnlliinnee MMaannuuaal

AAKK7733((AA))--VV // AAKK7733--VV

EEVV66 BBuuss

EV6 Bus in the technology of Alpha processor from Digital Equipment Corporation. EV6 bus uses both rising and falling clock edge to transfer data, similar as DDR SDRAM or ATA/66 IDE bus. EV6 Bus Speed = CPU external bus clock x 2. For example, 200 MHz EV6 bus is actually using 100 MHz external bus clock, but the equivalent speed is 200 MHz.

FFCCCC DDooCC ((DDeeccllaarraattiioonn ooff CCoonnffoorrmmiittyy))

The DoC is component certification standard of FCC EMI regulations. This standard allows DIY component (such as motherboard) to apply DoC label separately without a shielding of housing.

FFCC--PPGGAA ((FFlliipp CChhiipp--PPiinn GGrriidd AArrrraayy))

FC means Flip Chip, FC-PGA is a new package of Intel for Pentium III CPU. It can plug into SKT370 socket, but require motherboard to add some signals on socket 370. That is, the motherboard needs to be redesigned. Intel is going to ship FC-PGA 370 CPU and phase out slot1 CPU.

FFllaasshh RROOMM

Flash ROM can be re-programmed by electronic signals. It is easier for BIOS to upgrade by a flash utility, but it is also easier to be infected by virus. Because of increase of new functions, BIOS size is increased from 64KB to 256KB (2M bit). AOpen AX5T is the first board to implement 256KB (2Mbit) Flash ROM. Now flash ROM size is moving to 4M bit on AX6C (Intel 820) and MX3W (Intel 810) motherboard. , AOpen motherboard uses EEPROM for jumper-less and battery-less design.

OOnnlliinnee MMaannuuaall

AAKK7733((AA))--VV // AAKK7733--VV

FFSSBB ((FFrroonntt SSiiddee BBuuss)) CClloocckk

FSB Clock means CPU external bus clock. CPU internal clock = CPU FSB Clock x CPU Clock Ratio

CC BBuuss

See SMBus.

IIEEEEEE 11339944

IEEE 1394 is a low-cost digital interface originated by Apple Computer as a desktop LAN and developed by the IEEE 1394 working group. The IEEE 1394 can transport data at 100, 200 or 400 Mbps. One of the solutions to connect digital television devices together at 200 Mbps. Serial Bus Management provides overall configuration control of the serial bus in the form of optimizing arbitration timing, guarantee of adequate electrical power for all devices on the bus, assignment of isochronous channel ID, and notification of errors. There are two type of IEEE 1394 data transfer: asynchronous and isochronous. Asynchronous transport is the traditional computer memory-mapped, load and store interface. Data requests are sent to a specific address and an acknowledgment is returned. In addition to an architecture that scales with silicon technology, IEEE 1394 features a unique isochronous data channel interface. Isochronous data channels provide guaranteed data transport at a pre-determined rate. This is especially important for time-critical multimedia data where just-in-time delivery eliminates the need for costly buffering.

OOnnlliinnee MMaannuuaal

AAKK7733((AA))--VV // AAKK7733--VV

PPaarriittyy BBiitt

The parity mode uses 1 parity bit for each byte, normally it is even parity mode, that is, each time the memory data is updated, parity bi t will be adjusted to have ev en count " 1" for ea ch byte. W hen next t ime, if m emory is r ead with odd numbe r of "1", th e parity error is occurred and this is called single bit error detection.

PPBBSSRRAAMM ((PPiippeelliinneedd BBuurrsstt SSRRAAMM))

For Socket 7 CPU, one burst data read requires four QWord (Quad-word, 4x16 = 64 bits). PBSRAM only needs one address decoding time and automatically sends the remaining QWords to CPU according to a predefined sequence. Normally, it is 3-1-1-1, total 6 clocks, which is faster than asynchronous SRAM. PBSRAM is often used on L2 (level 2) cache of Socket 7 CPU. Slot 1 and Socket 370 CPU do not need PBSRAM.

PPCC--110000 DDIIMMMM

SDRAM DIMM that supports 100MHz CPU FSB bus clock.

PPCC--113333 DDIIMMMM

SDRAM DIMM that supports 133MHz CPU FSB bus clock.

OOnnlliinnee MMaannuuaall

AAKK7733((AA))--VV // AAKK7733--VV

PPCC--11660000 oorr PPCC--22110000 DDDDRR DDRRAAMM

Based on FSB frequency, the DDR DRAM has 200MHz and 266MHz two type of working frequency. Because of DDR DRAM data bus is 64-bit, it provides data transfer bandwidth up to 200x64/8=1600MB/s, and 266x64/8=2100MB/s. Hence, the PC-1600 DDR DRAM is working with 100MHz and PC-2100 DDR DRAM is working with 133MHz FSB frequency.

PPCCII ((PPeerriipphheerraall CCoommppoonneenntt IInntteerrffaaccee)) BBuuss

Bus for the internal connection of peripheral devices, high-speed data channel between the computer and expansion card.

PPDDFF FFoorrmmaatt

A file format for electronic document, PDF format is independent from platform, you can read PDF file under Windows, Unix, Linux, Mac … with different PDF reader. You can also read PDF file by web browser such as IE and Netscape, note that you need to install PDF plug-in first (Included in Acrobat Reader).

PPnnPP ((PPlluugg aanndd PPllaayy))

The PnP specification suggests a standard register interface for both BIOS and operating system (such as W indows 95). These registers are used by BIOS and operating system to configure system resource and prevent any conflicts. PnP BIOS or operating system will automatically allocate the IRQ/DMA/Memory. Currently, almost all the PCI cards and most ISA cards are already PnP compliant.

OOnnlliinnee MMaannuuaal

AAKK7733((AA))--VV // AAKK7733--VV

PPOOSSTT ((PPoowweerr--OOnn SSeellff TTeesstt))

The BIOS self-test procedure after power-on, sometimes, it is the first or the second screen shown on your monitor during system boot.

RRDDRRAAMM ((RRaammbbuuss DDRRAAMM))

Rambus is a memory technology that uses large burst mode data transfer. Theoretically, the data transfer should be high than

. RDRAM is cascaded in channel operation. For Intel 820, only one RDRAM channel is supported, 16-bit data per

SDRAM

channel, and this channel may have maximum 32 RDRAM devices, no matter how many RIMM

RRIIMMMM ((RRaammbbuuss IInnlliinnee MMeemmoorryy MMoodduullee))

184-pin memory module that supports RDRAM memory technology. A RIMM memory module may contain up to maximum of 16 RDRAM devices.

SSDDRRAAMM ((SSyynncchhrroonnoouuss DDRRAAMM))

SDRAM is one of the DRAM technologies that allow DRAM to use the same clock as the CPU host bus (EDO and FPM are asynchronous and do not have clock signal). It is similar as PBSRAM 168-pin DIMM

and operates at 3.3V. AOpen is the first company to support dual-SDRAM DIMMs onboard (AP5V), from Q1 1996

to use burst mode transfer. SDRAM comes in 64-bit

OOnnlliinnee MMaannuuaall

sockets.

AAKK7733((AA))--VV // AAKK7733--VV

SShhaaddooww E

A memory space in Flash-ROM to simulate E2PROM operation, AOpen motherboard uses Shadow E2PROM fo r jum per -less and battery-less design

PPRROOMM

SSIIMMMM ((SSiinnggllee IInn LLiinnee MMeemmoorryy MMoodduullee))

SIMM socket is only 72-pin, and is only single side. The golden finger signals on each side of PCB are identical. That is why it was called Single In Line. SIMM is made by FPM or EDO current motherboard design.

SSMMBBuuss ((SSyysstteemm MMaannaaggeemmeenntt BBuuss))

SMBus is also called I2C bus. It is a two-wire bus developed for component communication (especially for semiconductor IC). For example, set clock of clock generator for jumper-less motherboard. The data transfer rate of SMBus is only 100Kbit/s, it allows one host to communicate with CPU and many masters and slaves to send/receive message.

SSPPDD ((SSeerriiaall PPrreesseennccee DDeetteecctt))

SPD is a small ROM or EEPROM device resided on the DIMM or RIMM . SP D stores m emory module information such as DRAM timing and chip parameters. SPD can be used by BIOS

DRAM and supports 32-bit data. SIMM had been phased out on

to decide best timing for this DIMM or RIMM.

OOnnlliinnee MMaannuuaal

AAKK7733((AA))--VV // AAKK7733--VV

UUllttrraa DDMMAA

Ultra DMA (or, more accurately, Ultra DMA/33) is a protocol for transferring data between a hard disk drive through the computer’s data path (or bus) to the computer’s random access memory (RAM). The Ultra DMA/33 protocol transfers data in burst mode at a rate of 33.3MB/s, twice as fast as the previous Direct Access Memory (DMA) developed as a proposed industry standard by the Quantum corporation, makes of hard disk drives, and Intel, makes of chipset that support computer bus technology. Ultra DMA support in your computer means that it will boot (start) and open new applications more quickly. It will help users of graphic-intensive and applications that require large amounts of access to data on the hard disk drive. Ultra DMA uses Cyclical Redundancy Checking (CRC), offering a new level of data protection. Ultra DMA uses the s am e 40 -pi n ID E int e rfac e c abl e as P IO a nd D MA.

16.6MB/s x2 = 33MB/s

16.6MB/s x4 = 66MB/s

16.6MB/s x6 = 100MB/s

UUSSBB ((UUnniivveerrssaall SSeerriiaall BBuuss))

USB is a 4-pin serial peripheral bus that is capable of cascading low/medium speed peripherals (less than 10Mbit/s) such as keyboard, mouse, joystick, scanner, printer and modem. With USB, the traditional complex cables from back panel of your PC can be elim i nat ed .

OOnnlliinnee MMaannuuaall

interface. Ultra DMA was

AAKK7733((AA))--VV // AAKK7733--VV

VVCCMM ((VViirrttuuaall CChhaannnneell MMeemmoorryy))

NEC’s Virtual Channel Memory (VCM) is a new DRAM core architecture that dramatically improves the memory system’s ability to service multimedia requirements. VCM increases memory bus efficiency and performance of any DRAM technology by providing a set of fast static registers between the memory core and I/O pins. Using VCM technology results in reduced data access latency and reduced power consumption.

ZZIIPP ffiillee

A compressed file format to reduce file size. To unzip file, run shareware PKUNZIP (http://www.pkware.com/) for DOS and other operating system or WINZIP (http://www.winzip.com/

) for windows environment.

OOnnlliinnee MMaannuuaal

AAKK7733((AA))--VV // AAKK7733--VV

OOnnlliinnee MMaannuuaall

TTrroouubblleesshhoooottiinngg

If you encounter any trouble to boot you system, follow the procedures accordingly to resolve the problem.

Turn off the power and unplug the AC power cable, then remove all of the

add-on cards and cables, including VGA, IDE, FDD, COM1, COM2 and printer.

Make sure if all jumper settings are correct.

Start

Clear CMOS

AAKK7733((AA))--VV // AAKK7733--VV

Install the VGA card. Then connect your monitor and keyboard.

Yes No

supply and CPU fan work

Continue

Turn on the power

and check if the power

properly.

The problem is probably caused by power supply or motherboard failure Please contact your reseller or local distributor for repairing.

OOnnlliinnee MMaannuuaal

AAKK7733((AA))--VV // AAKK7733--VV

Press <Ctrl> and <Alt> key at the same time, hold

them and then press <Del> to reboot the system.

Continue

Check if there is display?

Yes

Check if the system

reboots?

Yes

OOnnlliinnee MMaannuuaall

Perhaps your VGA card

or monitor is defective.

It is very possible that your

keyboard is defective.

AAKK7733((AA))--VV // AAKK7733--VV

During system rebooting, press <Del> to enter BIOS

setup. Choose “Load Setup Default”.

Turn off the system and re-connect IDE cable.

Re-install the operating system such as Windows 98.

Continue

Check if the system can

reboot successfully?

Yes

End

OOnnlliinnee MMaannuuaal

The problem should be

caused by the IDE cable or HDD itself.

100
