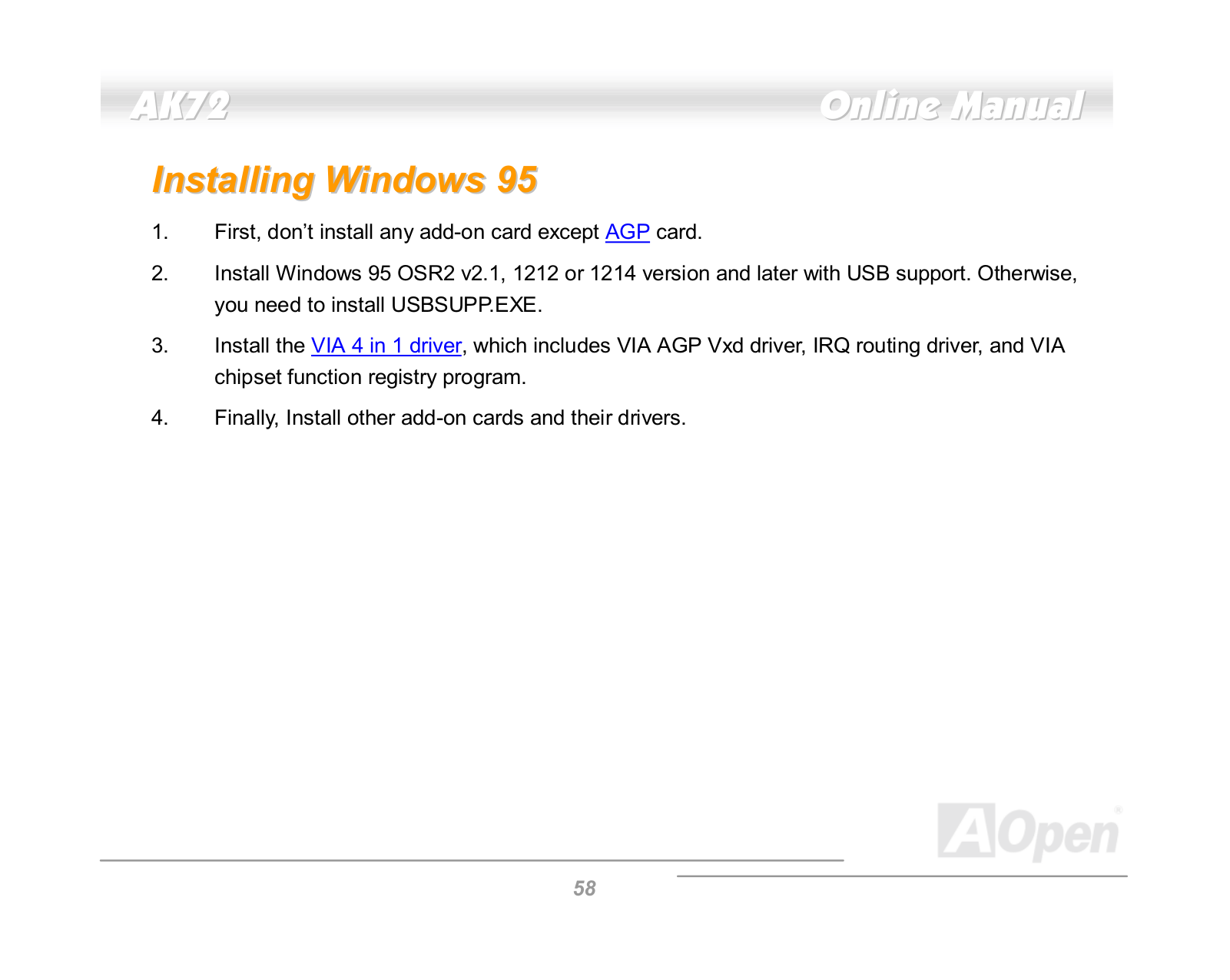

AOpen AK72 User Manual
Specifications and Main Features
- Model: AK72
- Benchmarked: AMD Athlon CPU (K7)
- Bus: Aggressive support of the 200/266mhz ev6 bus

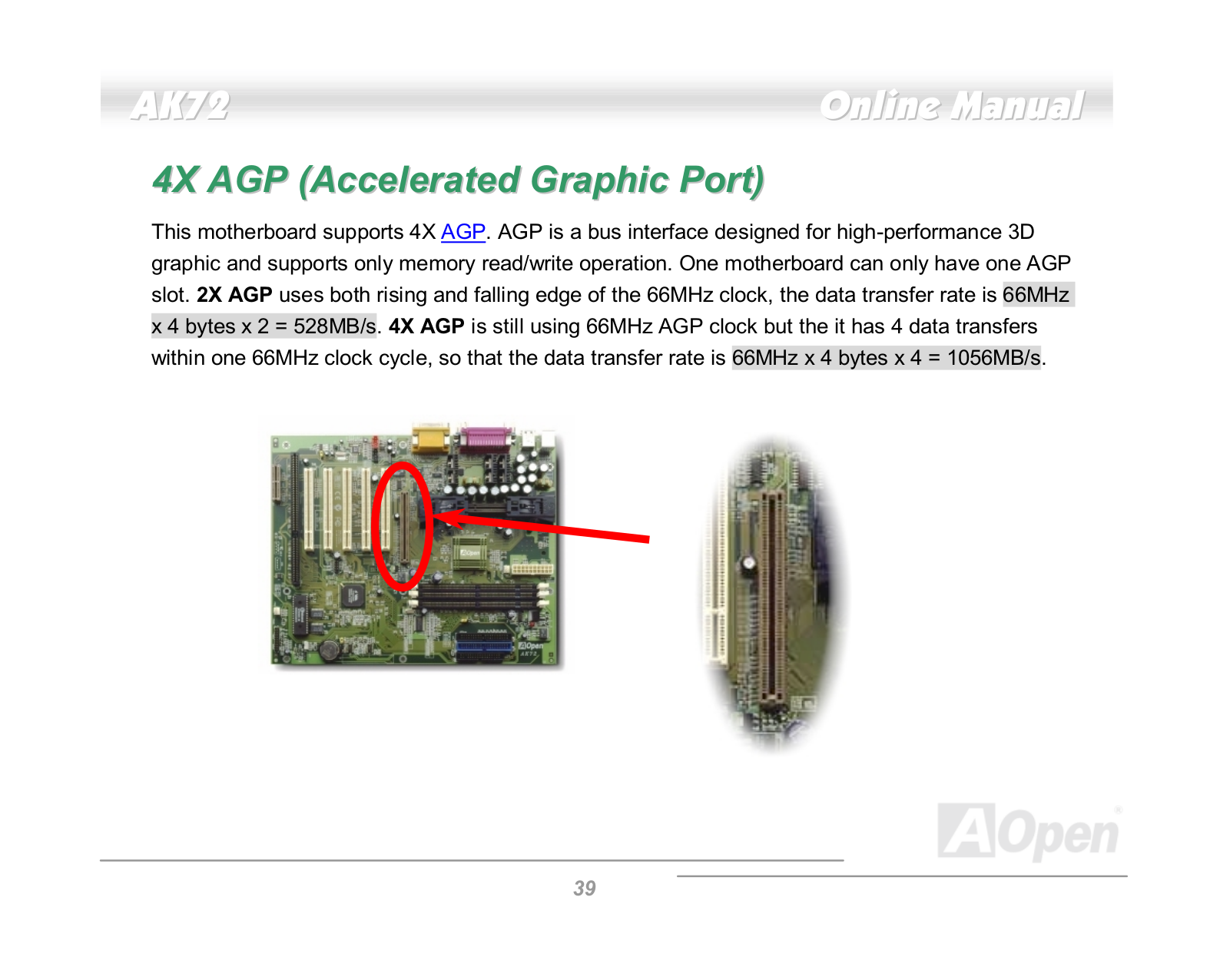

- Transmission Interface: 4x mode

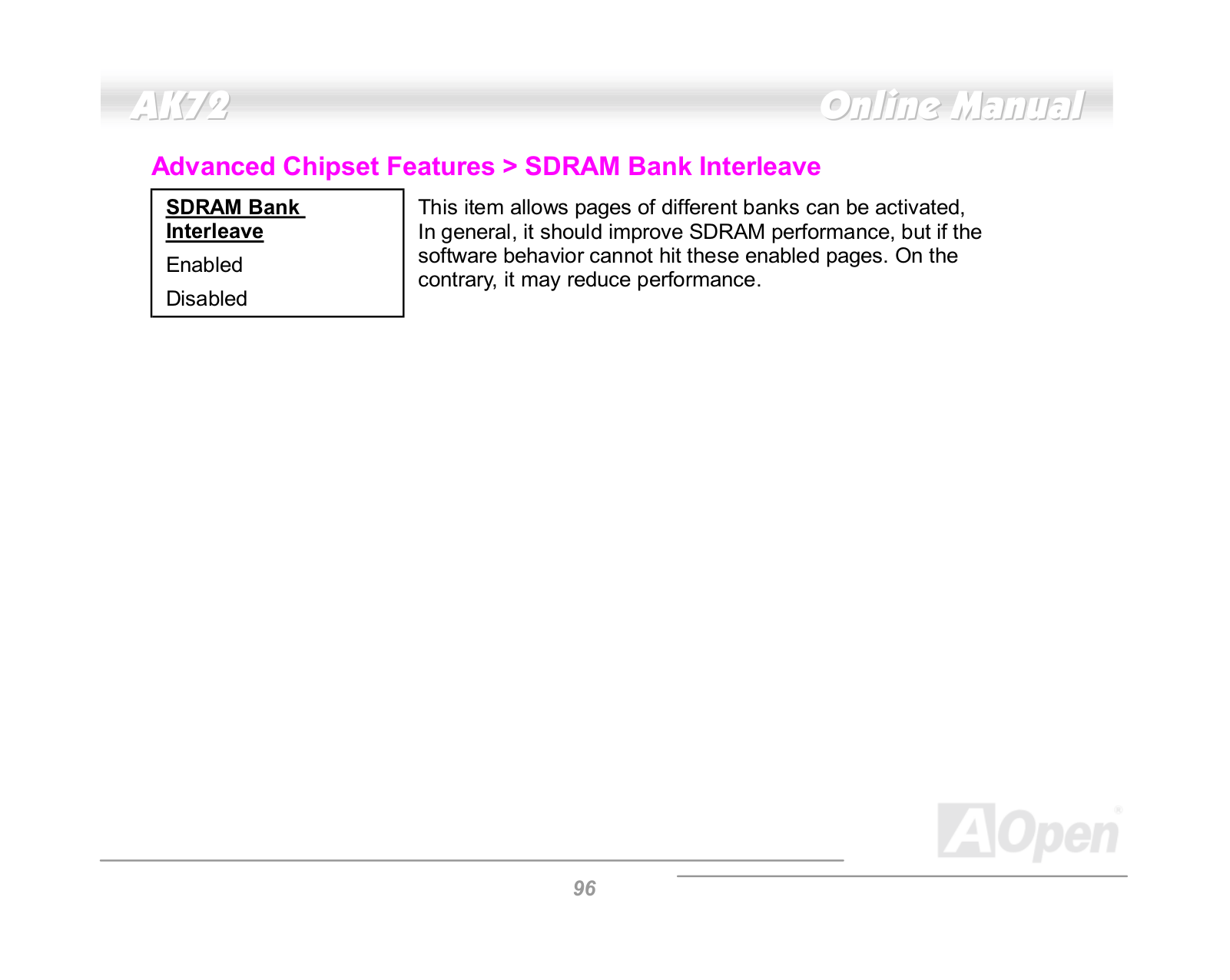

- Memory Systems: PC133 memory was supported and can take up to 1.5gb with the use of 3 by 168 pin dimm sockets
- Past A: Audio Codec: AC97 Audio Codec-inchip-set
- Dimensions :Standard ATX Form factor
- Electric Power: 20 pin atx electric power supply connector
- Peripheral Interfaces:
- PS/2 keyboard and mouse
- Two seeral ports (COM1 COM2)
- Printer port
- Four usb ports
- Audio IO (MIC , Line It, Speaker)
- Game Port
- Wake-On Features:
- Wake on modem WOM
- Wake on LAN WOL

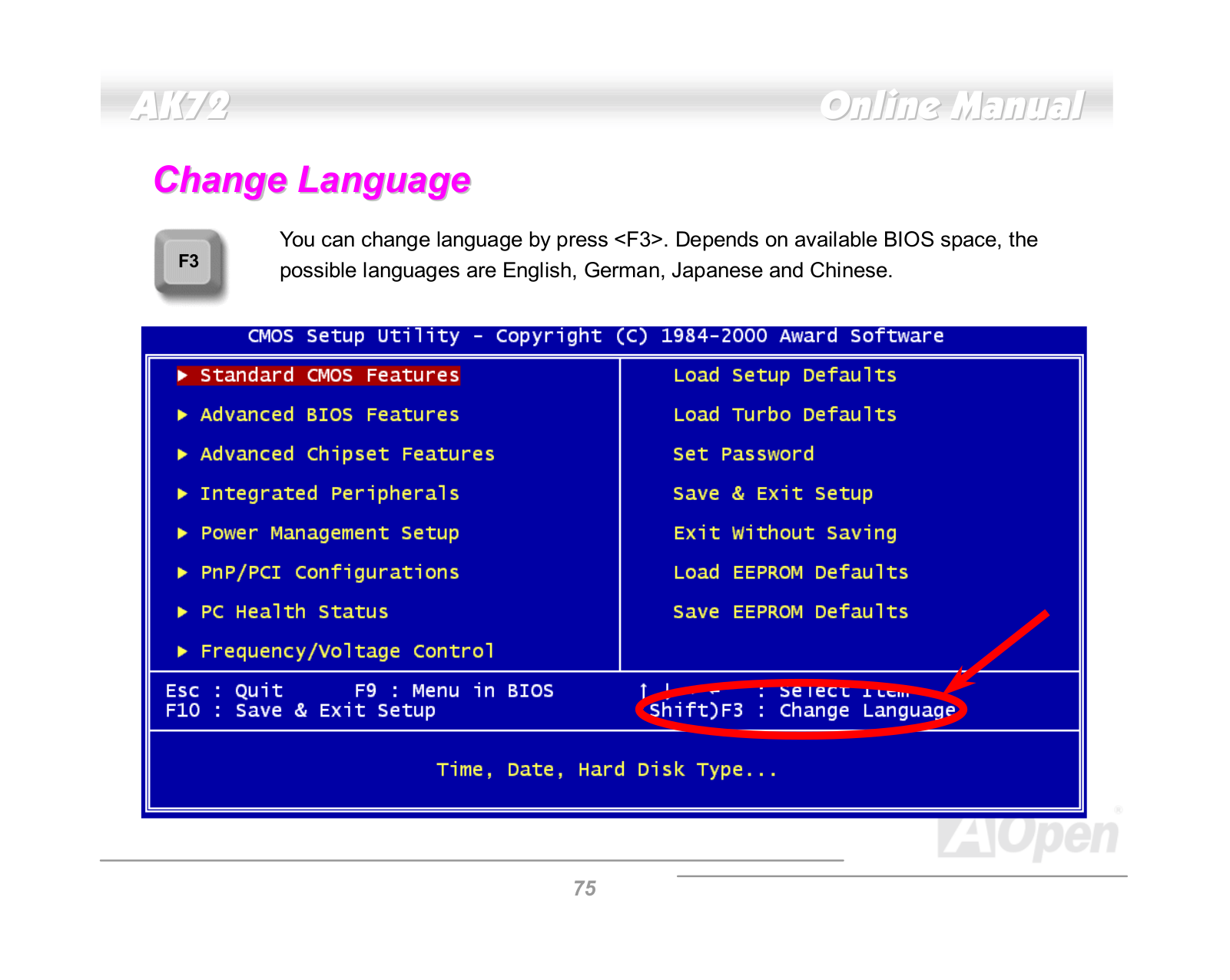

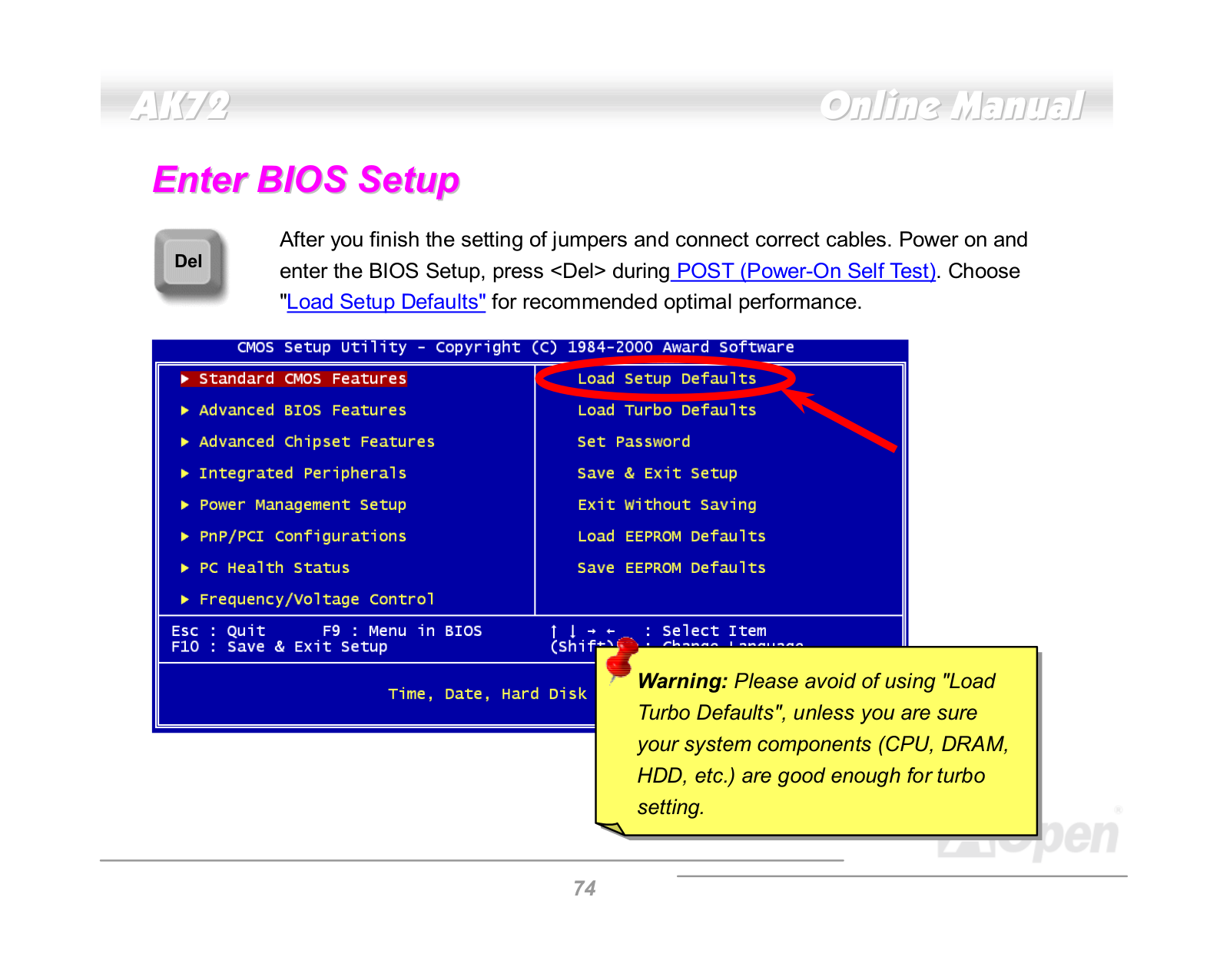

- Bios: Enables the automatic detection of the cpu voltage with a range of 1.3 to 3.5 adjustable cpu core voltage.
- Jumper-less Design: Freddy provides support while leaving bios settings for cpu frequency and voltage.
- Over-current Protection: Yes Over current protection is provided through an onboard switching regulator.

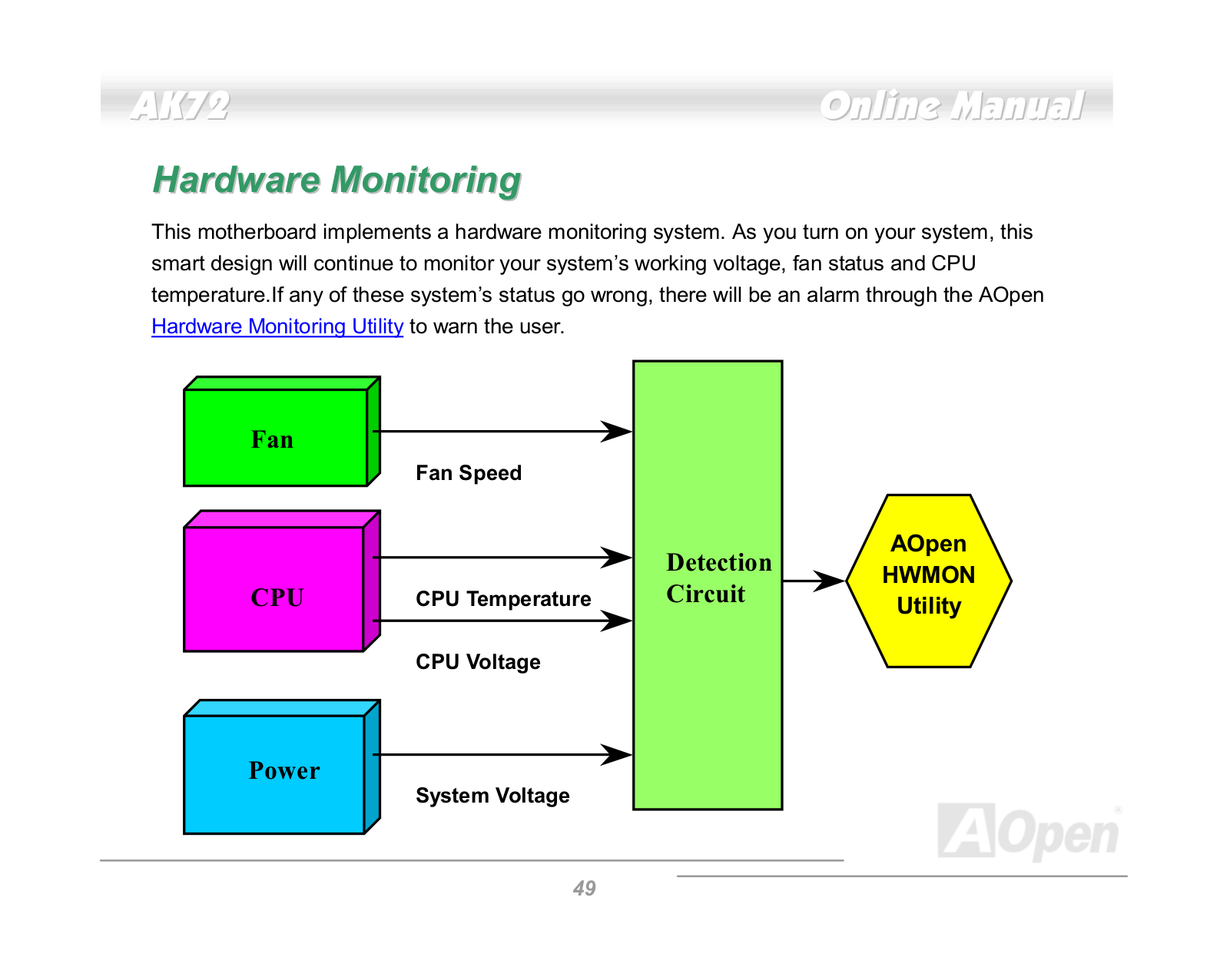

- Hardware Monitoring: Monitors the working voltage of the system, the status of the fan and the CPU temperature.
- Clear CMOS: Used JP14 jumpers for restoring the default settings.

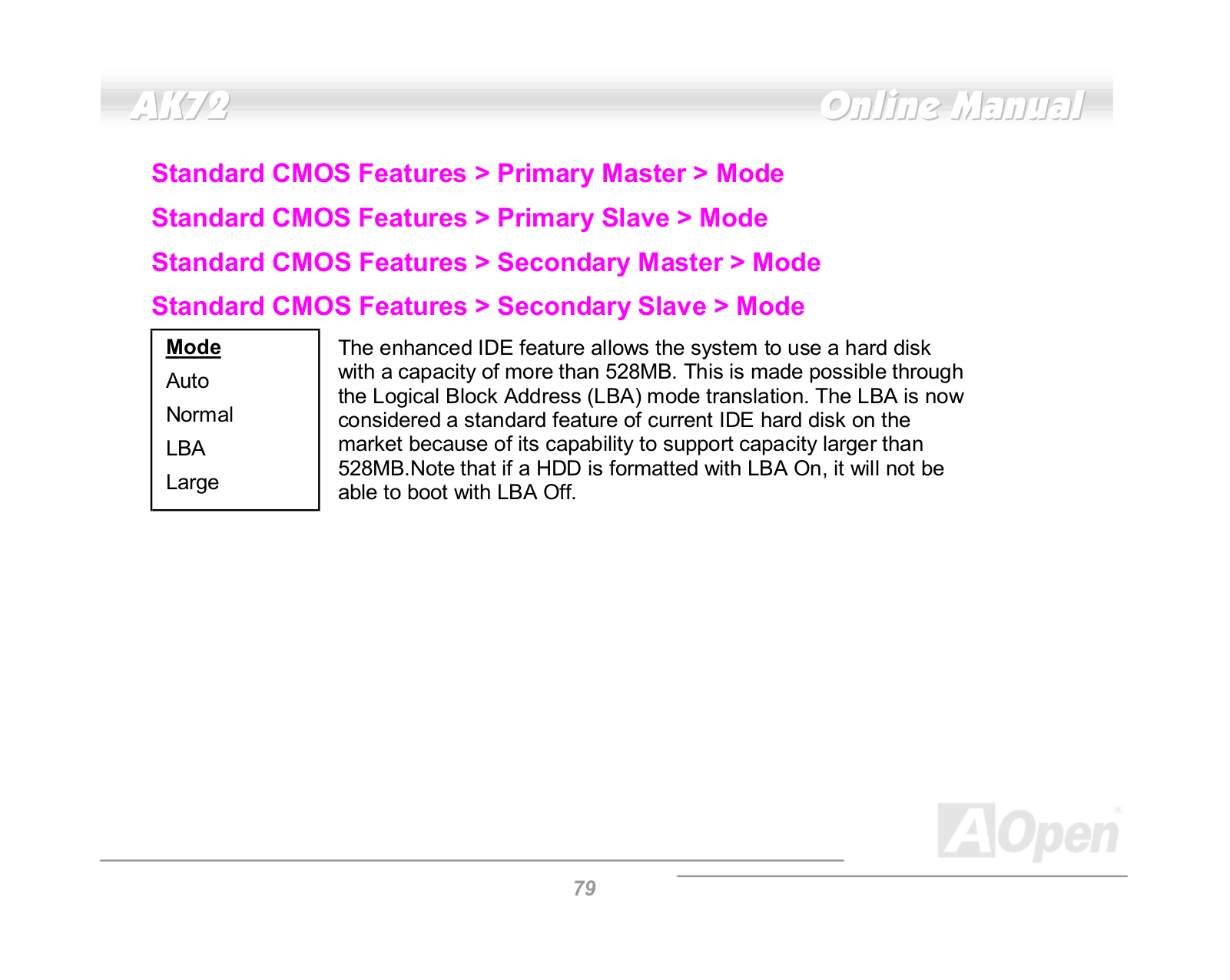

- Supports two ide channels ide1 and ide 2 with the ata/66 ide interface
- Recovery Function: With AC Power Auto Recovery if there is an AC failure the device will turn on automatically.
Frequently Asked Questions
Q: Which CPU can fit on the AK72 motherboard?
A: The AMD Athlon K7 is an example of a CPU that is compatible with the AK72 Motherboard.
Q: Does the AK72 motherboard have 1.5GB or more memory installed?
A: 1.5GB is the up toast for PC133 memory modules and the 3 available 168 require DIMM slots available on the Ak72 Motherboard.
Q: What is the highest bus speed that can be supported on the Former?
A: Two hundred or two sixty-six megahertz of the Ev6 bus rate is supported in this former motherboard.
Q: Is there a built-in sound card on the AK72 motherboard?
A: Yes, it comes with an onboard sound which is in the form of an AC97 Audio Codec.
Q: What is the method to reset the parameters of the cmos on the AK72?
A: - Turn off system
- Pull the AC power
- Short jp14 pins for a few seconds.
- Return the pins that shorted back to their normal settings.
Q: Does the motherboard AK 72 have an inbuilt gameport and a mouse?
A: Yes, it includes game ports and a mouse along with PS/2 peripherals for other serial ports and printers as well as USB.
Q: Are you able to configure the motherboard such that it turns itself on following a power outage?
A: Such configurations can be made in the BIOS settings by enabling AC Power Auto Recovery which automatically powers the system once AC power is restored.
Q: Is the monitoring of the hardware implemented in the AK72?
A: AK72 motherboard has an inbuilt support for hardware voltage, fan, and CPU temperature monitoring with alerts for deviation from the normal values for all of them.
