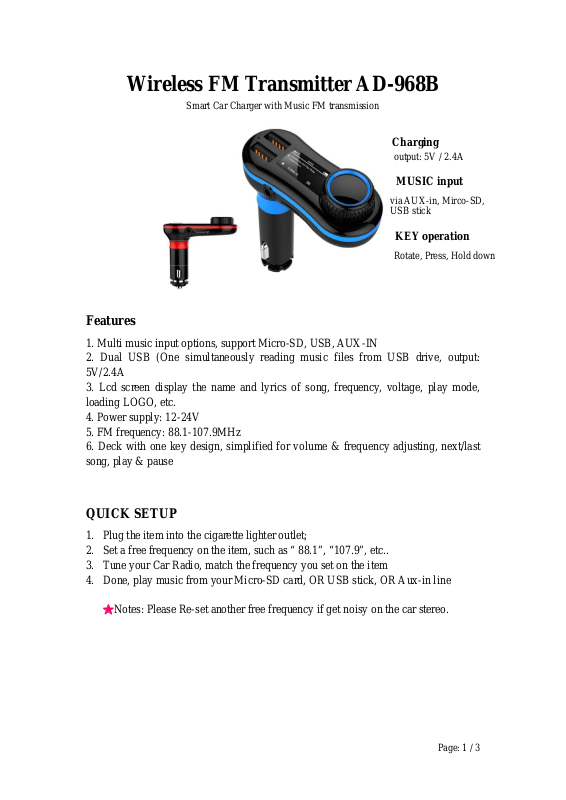

Page 1

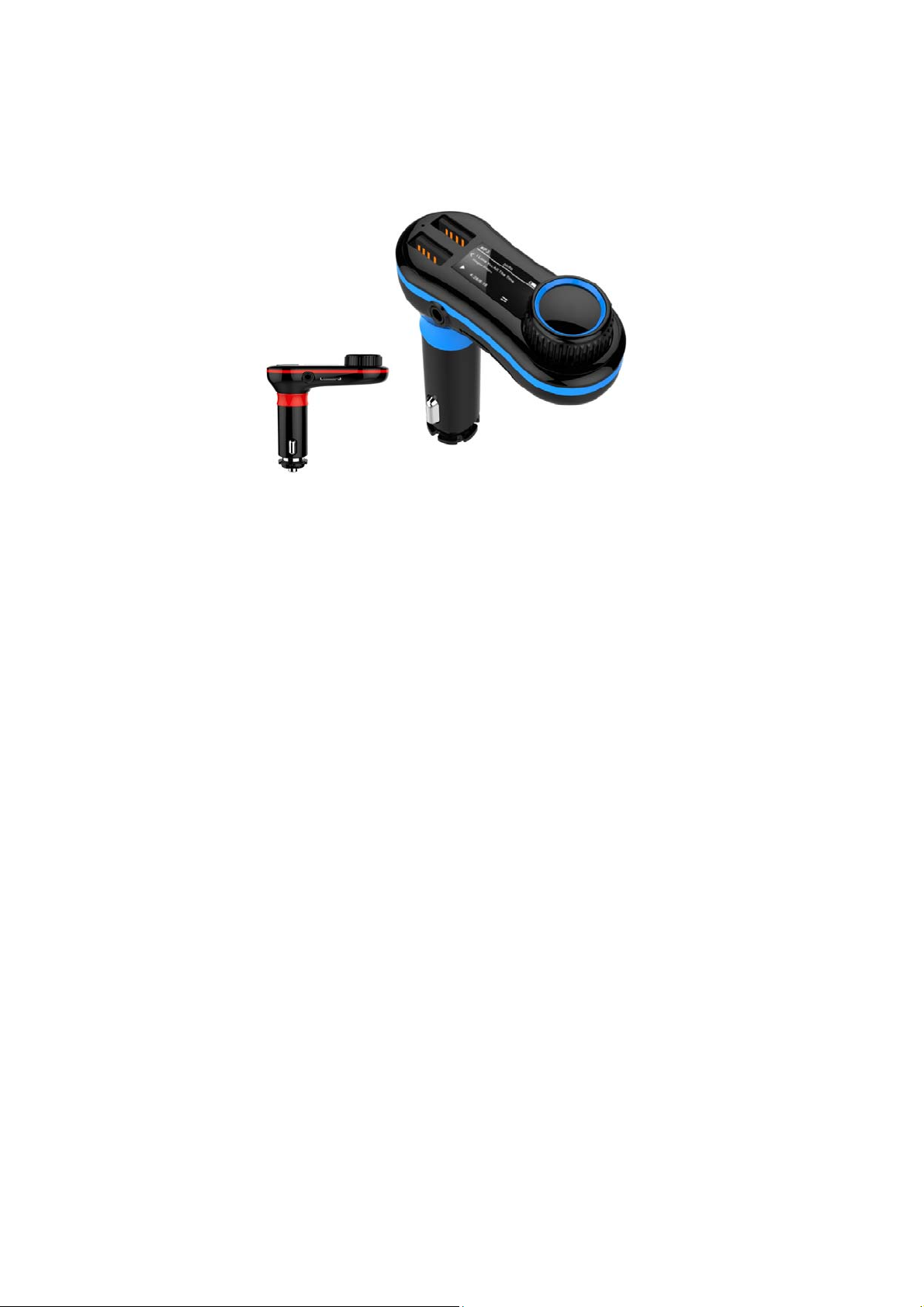

Wireless FM Transmitter AD-968B
Smart Car Charger with Music FM transmission
Features
1. Multi music input options, support Micro-SD, USB, AUX-IN
2. Dual USB (One simultaneously reading music files from USB drive, output:
5V/2.4A
3. Lcd screen display the name and lyrics of song, frequency, voltage, play mode,
loading LOGO, etc.
4. Power supply: 12-24V
5. FM frequency: 88.1-107.9MHz
6. Deck with one key design, simplified for volume & frequency adjusting, next/last
song, play & pause
ChargingA
output: 5V / 2.4A
MUSIC input
via AUX-in, Mirco-SD,
USB stick
KEY operation
Rotate, Press, Hold down
QUICK SETUP
1. Plug the item into the cigarette lighter outlet;
2. Set a free frequency on the item, such as “ 88.1”, “107.9”, etc..
3. Tune your Car Radio, match the frequency you set on the item
4. Done, play music from your Micro-SD card, OR USB stick, OR Aux-in line
★Notes: Please Re-set another free frequency if get noisy on the car stereo.
Page: 1 / 3
Page 2

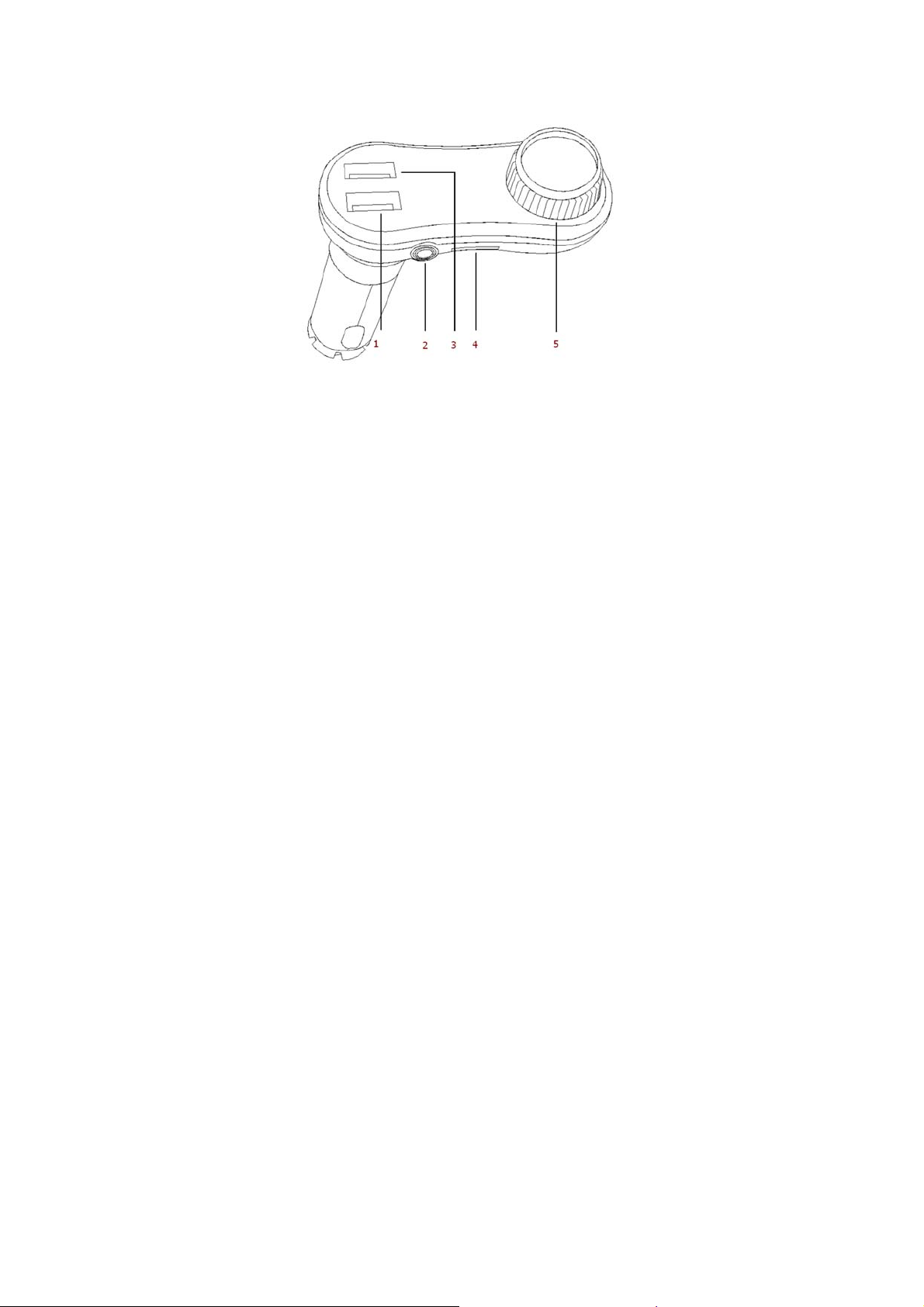

1. USB Outlet (for Charging only)
2. Aux-IN(3.5mm stereo, Cable not included)
3. USB Outlet (Both for charging & Reading music from USB memory sticker)
4. Micro-SD card slot
5. Operation Button/Knob
Frequency SET
1) Hold down the knob for 2 seconds, with the blinking digital frequency;
2) You can rotate the knob left to decrease frequency, and right to increase;
Operation KEY
Short Press: Play / Pause for music
Hold Down for 2 Seconds: 1) Micro-SD card, Aux-in, USB;
2) To activate frequency Change
Hold Left / Anti-Clockwise to the end: Volume Down
Hold Right / Clockwise to the end: Volume UP
Turn Left / Anti-Clockwise (short): Last Song
Turn Right / Clockwise (short): Next Song
Page: 2 / 3
Page 3
FCC Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: 1) this device may not cause harmful interference, and 2)
this device must accept any interference received, including interference that may
cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
FCC Radiation Exposure Statement
This modular complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Page: 3 / 3
