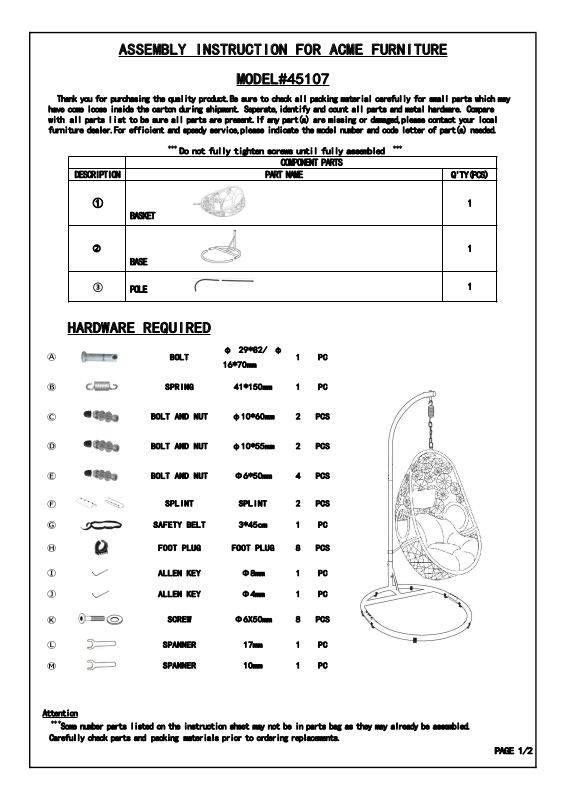

ASSEMBLY INSTRUCTION FOR ACME FURNITURE
COMPONENT PARTS
DESCRIPTION
PART NAME
Q'TY(PCS)
①
BASKET
1
BASE
1
③
POLE
1
Ⓐ
BOLT
φ 29*82/ φ
16*70mm
1
PCⒷSPRING
41*150mm
1
PCⒸBOLT AND NUT
φ10*60mm
2
PCSⒹBOLT AND NUT
φ10*55mm
2
PCSⒺBOLT AND NUT
Φ6*50mm
4
PCS
Ⓕ
SPLINT
SPLINT
2
PCS
Ⓖ
SAFETY BELT
3*45cm
1
PC
Ⓗ
FOOT PLUG
FOOT PLUG
8
PCS
Ⓘ
ALLEN KEY
Φ8mm
1
PC
Ⓙ
ALLEN KEY
Φ4mm
1
PC
Ⓚ
SCREW
Φ6X50mm
8
PCS
Ⓛ
SPANNER
17mm
1
PC
Ⓜ
SPANNER
10mm
1
PC
MODEL#45107
Thank you for purchasing the quality product.Be sure to check all packing material carefully for small parts which may
have come loose inside the carton during shipment. Seperate,identify and count all parts and metal hardware. Compare
with all parts list to be sure all parts are present.If any part(s) are missing or damaged,please contact your local
furniture dealer.For efficient and speedy service,please indicate the model number and code letter of part(s) needed.
✱✱✱
Do not fully tighten screws until fully assembled
✱✱✱
HARDWARE REQUIRED
Attention
✱✱✱
Carefully check parts and packing materials prior to ordering replacements.
Some number parts listed on the instruction sheet may not be in parts bag as they may already be assembled.
PAGE 1/2
Page 2
How to assemble:
M
L
KJL
J
I
I
H
GFE
D
C
B
J
G
K
H
F
E
PAGE 2/2
D
C
B
B
D
A
B
C
D
E
F
G
H
J
