AOC VP15, VP15S Service Manual

15" LCD Color Monitor HP VP15

Service

Horizontal Frequency

24- 63 kHz

TABLE OF CONTENTS

Description Page Description Page

Table Of Contents.......……..............................…........1

7. Schematic……………......................................17

Revision List.…........................................……......2

7.1 Main Board....……….......................................17

1. Monitor Specification..............................………........3

7.2 Power Board.….……....................................23

2. LCD Monitor Description…………………………….......4

7.3 Key Board.….……....................................25

3. Operation Instruction…………...............……...........5

8.PCB Layout..…….......................................26

3.1. General Instructions...........................…...........5

8.1. Main Board………........................................26

3.2. Control Button…………….…..............……...............5

8.2. Power Board….......................................28

3.3 Adjusting the Picture...........................…............6

8.3. Key Board………............….......................31

4. Input/Output Specification............……………............9

9. Maintainability……….......................................32

4.1. Input Signal Connector............………….................9

9.1. Equipments and Tools Requirement..............32

4.2. Factory Preset Display Modes......…..................10

9.2. Trouble Shooting………..............................33

4.3. Power Supply Requirements...............................10

10 White-Balance, Luminance adjustment…………....38

5. Panel Specification.....………………..................11

11. Mechanical Instructions……………..……...….......40

5.1. General Feature…….....………………..................11

12. Monitor Exploded View………..…………....….......46

5.2. Optical Characteristics………………………………12

13. BOM List (VP15)……..…………………………47

6. Block Diagram……...................…………................13

14. Different Parts List….............................................61

6.1 Software Flow Chart………………………………...13

15. BOM List (VP15S)……..…………………………107

6.2. Electrical Block Diagram……………..….......15

16. Different Parts List…..........................................122

SAFETY NOTICE

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS

AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC

EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

1

15" LCD Color Monitor HP VP15

Revision List

Version Date Revision History TPV Model Name

A00 Dec.-17-06 Initial release

A01 Apr.-03-07 Second release

A02 Jun.-18-07 Third release

A03 Jul.-30-07 Fourth release T57GMWMCH6HPAN

T56CMWMLH6HPAP

T56SMWMLH6HPAP

T56CMWMKH6HPAP

T56CMWMMH6HPAP

T56SMWMKH6HPAP

T56SMWMMH6HPAP

T57GMWMQH6HP8C

T57GMWMKH6HPAN

2

15" LCD Color Monitor HP VP15

1. Monitor Specification

3

15" LCD Color Monitor HP VP15

(

2. LCD Monitor Description

The LCD Monitor will contain main board, power board, and a key board which house the flat panel control logic,

brightness control logic and DDC.

The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips each

voltage.

Include adapter, inverter board)

Power Board

AC-IN

110V-240V

Monitor Block Diagram

CCFT Drive.

Main Board

Key board

Flat Panel and

CCFL backlight

RS232 Connector

For white balance

adjustment in

factory mode

Video signal, DDC

HOST Computer

4

15" LCD Color Monitor HP VP15

3. Operation Instructions

3.1 General Instructions

Press the power button to turn the monitor on or off. The other control buttons are located at front of the panel. By

changing these settings, the picture can be adjusted to your personal performance.

The power cord should be connected and insert to adaptor.

-

Connect the video cable from the monitor to the computer VGA card.

-

- Press the power button to turn on the monitor, the power indicator will light up to Green.

3.2 Control Button

5

15" LCD Color Monitor HP VP15

3.3 Adjust the Picture

6

15" LCD Color Monitor HP VP15

7

15" LCD Color Monitor HP VP15

8

15" LCD Color Monitor HP VP15

4. Input/Output Specification

4.1 Input Signal Connector

Pin Signal Pin Signal

1 Red Video 9 3.3/+5 V (from PC)

2 Green Video 10 Sync Ground

3 Blue Video 11 None

4 None 12 DDC Data

5 Ground (DDC Return) 13 Horizontal Sync

6 Red GND 14 Vertical Sync

7 Green GND 15 DDC Clock

8 Blue GND

VGA connector layout

PIN 1

PIN 11

PIN 5

9

15" LCD Color Monitor HP VP15

4.2 Factory Preset Display Modes

4.3 Power Supply Requirements

Parameter Range

AC Input Voltage 90 to 265V

AC Input Frequency 45 to 63 Hz

Inrush Current 50A MAX AT 220VAC and 30A AT 120VAC

Leakage Current 5 mA MAX at 120VAC

10

15" LCD Color Monitor HP VP15

5. Panel Specification

5.1 General Feature

Absolute Maximum Ratings

11

15" LCD Color Monitor HP VP15

5.2 Optical Characteristics

Ta=25℃，VCC=5.0V

12

15" LCD Color Monitor HP VP15

6. Block diagram

6. 1 Software Flow Chart

1

Y

2

N

3

4

5

N

Y

6

N

7

8

Y

9

10

N

11

12

Y

13

N

Y

14

15

Y

N

16

Y

17

18

N

19

Y

13

15" LCD Color Monitor HP VP15

REMARK:

1) MCU initialize.

2) Is the EEprom blank?

3) Program the EEprom by default values.

4) Get the PWM value of brightness from EEprom.

5) Is the power key pressed?

6) Clear all global flags.

7) Are the AUTO and SELECT keys pressed?

8) Enter factory mode.

9) Save the power key status into EEprom.

Turn on the LED and set it to green color.

Scalar initialize.

10) In standby mode?

11) Update the lifetime of back light.

12) Check the analog port, are they’re any signals coming?

13) Does the scalar send out an interrupt request?

14) Wake up the scalar.

15) Are there any signals coming from analog port?

16) Display "No connection Check Signal Cable" message. And go into standby mode after the message

disappear.

17) Program the scalar to be able to show the coming mode.

18) Process the OSD display.

19) Read the keyboard. Is the power key pressed?

14

15" LCD Color Monitor HP VP15

6.2 Electrical Block Diagram

6.2.1 Scalar Board

OSD Control

Interface (Keypad)

LCD Interface

Scalar TSUM16AWK

(Include: MCU, ADC, OSD etc)

D-SUB

Connector

EEPROM

24C02

SST25VF010A-33-4C-SAE

Crystal

14.318MHZ

EEPROM

15

15" LCD Color Monitor HP VP15

6.2.2 Inverter / Power Board

AC input

EMI filter

Bridge

Rectifier

and Filter

Start Circuit

PWM

Control IC

Transformer

Over

Voltage

Protect

Rectifier

diodes

CN902

12V

Feedback

Circuit

5V

Lamp

LC

Resonance

Transformer

MOSFET

Feedback

Circuit

Over

Voltage

PWM

Control IC

ON/OFF

Control

DIM

ON/OFF

16

15" LCD Color Monitor HP VP15

7. Schematic

7.1 Main Board

HP VP15 TSUM16AWK-LF SCHEMATIC

B3

+5V

GNDR

GNDG

SOG

GNDB

HSYNC

VSYN C

DDCA_SDA

DDCA_SCL

DET_VGA

DDC_WP

CLK+

CLKDDCD_SDA DDCD_SCL

DET_DVI

HPD_CTRL

RIN

GIN

BIN

R+

G+

R-

G-

B+

B-

XGA/SXGA

B4

RIN

GNDR

GIN GNDG SOG BIN

GNDB

HSYNC VSYN C DDCA_SDA DDCA_SCL

DET_VGA

DDC_WP R+ R-

G+

G-

B+

BCLK+ CLK-

DDCD_SDA DDCD_SCL

DET_DVI

HPD_CTRL

LVDS OUTPUT

VCC1. 8

VCC3. 3

VCC1. 8

Vcc3. 3

+5V

4.INPUT

VCC5V

B6

VCC5 V DGND

7.AUD IO

OUT-ROUT-R+ OUT-L+

OUT-L-

VOLUME

AUDI O_SD

OUT-ROUT-R+

OUT-L+

OUT-L-

VOLUME AUDI O_SD

PA[0.. 9]

B5

PA[0.. 9]

VLCD

VCC3.3

VCC1. 8 VCC5V

+5V

B2

VCC5V VCC1.8 +5V

VCC3 .3

DGND

3.POWER

on_BACKLIGHT

on_Panel

VCTRL

Adj_BACKLIGHT

VLCD

on_BACKLIGHT on_Panel

VCTRL

Adj_BACKLIGHT

5.SCALER

17

6.PANEL INTERFA CE

AOC (Top Victory) Electronics Co., Ltd.

Tit le

TOP

Size Document Num ber Rev

B

Wednesday , March 14, 2007

Date: Sheet

G2252-1-X-X-2-070313

of

1

F

7

15" LCD Color Monitor HP VP15

SOT-223

+5V +3V3

C701

0.1uF

U701 AIC 1117-33PY

3 2

VI VO

GND

1

C703

+

100uF/25V

C704

0.1uF

Modified by Cakor 8/18 2006

Reserved for 15'' panel power

CN701

CONN

+5V

R71410KΩ 1/10W

Q706 MMBT3906

2

BL_ON BL_ADJ

4 6 8

DGND

VCC5V

10

DGND

12

+3V3

R715

NC

R723 51KΩ 1/10W

C715

Cakor 9/28

NC

VCC5V7

DGND 4,5,6, 7

on_Panel5

C709

0.1uF

NC

+3V3

R716

DGND DGND

VCC5V

DGND VCC5V DGND

C710

+

100uF/25V

R717

10KΩ 1/10W

R725 4.7KΩ 1/10W

C718

0.1uF

1 3 5 7 9

11

C719

0.1uF

C711

NC

+5V

R708

10KΩ 1/10W

VLCD

+

FTD7 NC/FD Mark

R705 120 OHM

C708

Q704 AO3401

C717 10uF/50V

Cakor 8/9

NC

R710 NC

Q703

R712 4.7KΩ 1/10W

MMBT3904

VLCD 6

VCC5V

H1

9

123

R721

NC

R727

10KΩ 1/10W

678

5 4

+3V3

5 4

NC/TP

FTD8 NC/FD Mark

+5V

0Ω 1/10W

R722

R701

1KΩ 1/10W

R706 NC

Q701 MMBT39 04

H2

9

FTD9 NC/FD Mark

+5V

678

5 4

123

NC/TP

123

4.7KΩ 1/10W R707

R711

10KΩ 1/10W

5 4

on_BACKLIGHT 5

H3

678

9

5

678

9

5

4

123

NC/TP

123

Adj_BACKLI GHT 5

D701

MLL4148 Q702 PZT2907A

D702

LL4148

R704

100Ω 1/10W

VCC5V

VCC5V7

D704

C713

0.1uF

TO-252

U702

AIC1084-33PE

23

Vo2Vin

ADJ

1

SR24

+5V4,5

AOC (Top Victory) Electronics Co., Ltd.

Tit le

POWER

Size Document Number Rev

B

Wednesday , March 14, 2007

Date: Sheet

G2252-1-X-X-2-070313

R702

51Ω 1/10W

C702

+

4.7uF 50V

R703

2KΩ 1/10W

C712

+

100uF/25V

VCTRL 5

VCC1.8

VCC3. 3

C714

0.1uF

VCC1. 8 5

VCC3. 3 5

3

of

VCC3. 3 5

F

7

18

15" LCD Color Monitor HP VP15

CN405

1716

HSI

VSI

D408 MLL5232B 5.6V

25

R

26

G

27

B

29 28 8 15 6 7 14

+5V

16

11 3 19 22

18 17 10 9 2 1 13 12 5 4 21 20 23

clk+

24

clk-

1

RED+

6

RED-

2

GREEN+

7

GREEN-

3

BLUE+

8

BLUE-

4 9 5

VGA_CON

10

DB15

MLL5232B 5.6V

SCL_DVI SDA_DVI DVI5V HPD

DAT0+ DAT0DAT1+ DAT1DAT2+ DAT2-

DCLK+ DCLK-

2

PC5V

D406

FB409 120 OH M

D409 MLL5232B 5.6V

C460

R472

NC

3

D417 NC

C447

1

2

NC

C439

2

0.1uF

+5V

3

C448

NC

3

D403 BAV99

1

R471

NC

R458 NC

D426 NC

D418 NC

2

1

2

D414 NC

3

C449

NC

3

C440

0.1uF

D419 NC

1

D404 BAV99

1

NC C457

2

FB410 0Ω 1/10W

FB411 0Ω 1/10W

FB412 0Ω 1/10W

3

D405 BAV99

C441

2

0.1uF

R448

2.2KΩ 1/10W

DET_DVI 5

D415 NC

3

D420 NC

C450

2

1

NC

1

NC C458

3

C451

NC

R438

75Ω 1/10W

ESD_5V

R446 1KΩ 1/10W

C442

33pF

R455 NC R456 NC

D416 NC

D421 NC

1

2

75Ω 1/10W

R449

2.2KΩ 1/10W

C459

NC

3

D422 NC

C452

1

NC

R439

3

C453

2

NC

R440

75Ω 1/10W

R447 1KΩ 1/10W

C443

220pF

D411 MLL5232B 5.6V

DVI5V

C445

NC

D423 NC

3

C454

1

2

NC

R457 NC

R462 NC R463 NC R464 NC R465 NC R466 NC R467 NC

R468 NC R469 NC

D424 NC

1

R434 56Ω 1/10W

R435 56Ω 1/10W

R436 56Ω 1/10W

R437 470Ω 1/10W

R441 100Ω 1/10W

R442 100Ω 1/10W

R443 100Ω 1/10W

+5V

+5V 3,5

R444

10KΩ 1/10W

R445 100Ω 1/10W

D410 MLL5232B 5.6V

D412 MLL5232B 5.6V

Q408 NC

ESD_5V

R494 NC

FB413

120Ω

1 2

C432 0.047uF

C433 0.047uF

C434 0.047uF

C435 0.047uF

C436 0.047uF

C437 0.047uF

C438 0.047uF

SCL_VGA

SDA_VGA

B+ 5 B- 5 G+ 5 G- 5 R+ 5 R- 5

CLK+ 5 CLK- 5

DDCA_SDA5 DDCA_SCL5

HPD_CTRL 5

DDCD_SDA5 DDCD_SCL5

+5V

R470

10KΩ 1/10W

D425

MLL5232B 5.6V

RIN 5

GIN 5

BIN 5

SOG 5

GNDR 5

GNDG 5

GNDB 5

DET_VGA 5

HSYNC 5

VSYN C 5

R453 33Ω 1/10W R454 33Ω 1/10W

R450

R451

4.7KΩ 1/10W

4.7KΩ 1/ 10W

R459

NC

+5V

PC5V

1

2

D407 BAV70

3

C444

0.1uF

1 2 3 45

DDC_WP 5

C446

NC

1 2 3 45

DDC_WP 5

R460

NC

R452

10KΩ 1/10W

+5V

R461

NC

U404

8

A0

VCC

7

A1

WP

6

A2

SCL

VSSSDA

M24C02-WMN6TP

DVI5V

1

2

D413 NC

3

U405

8

A0

VCC

7

A1

WP

6

A2

SCL

VSSSDA

NC

R473

NC

AOC (Top Victory) Electronics Co., Ltd.

Tit le

INPUT

Size Doc ument Number Rev

B

Wednesday , March 14, 2007

Date: Sheet

G2252-1-X-X-2-070313

4

F

7

of

CN406

RGB GND

SYNC GND

DDC SDA

NC

11

12

13

14

15

HSYNC VSYN C

DDC SCL

HPD

1/3shield 2/4shield 0/5shield

clk shield

DAT0+

DAT0-

DAT1+

DAT1-

DAT2+

DAT2-

DAT3+

DAT3-

DAT4+

DAT4-

DAT5+

DAT5-

GND

32

31

19

15" LCD Color Monitor HP VP15

FB401

VCC1. 8 VDD C

120Ω

C403

4.7uF 50V

FB403

VCC3. 3

120Ω

VCC3.33

+5V 3, 4

R417 20 KOHM +-5% 1/10W

C429

0.1uF

10KΩ 1/10W

3.9KΩ 1/10W

D401

UDZS5.6B

VCC3.3

R413

R474

C430

0.1uF

+

C404

0.1uF

C408

10uF/50V

VCC3.3

R414

0Ω 1/10W

Q401 PMBS3906

R421 56Ω 1/10W

VCC3. 3

3.9KΩ 1/10W

D402

UDZS5.6B

C405

0.1uF

FB404

120Ω

FB406

120Ω

VDDP

+

R475

C406

0.1uF

C409

0.1uF

C414

0.1uF

C419

0.1uF

OUT-R+7 OUT-R-7

VCC3.33

C402

0.1uF

C411

C410

0.1uF

VDVI

C415

0.1uF

VMPLL

10KΩ 1/10W

LED_GRN/BLUE

C413

C412

0.1uF

VCC3.3

R408

R476 1KΩ 1/10W

R477 1KΩ 1/10W

LED_GRN/BLUE KEY_LEFT KEY_MENU POWER

OUT-R+ OUT-R-

AOC (Top Victory) Electronics Co., Ltd.

Title

Size Document Number Rev

C

Date: Sheet

120Ω

VCC3.33

R409

0Ω 1/10W

PMBS3906

Q403

R419 75Ω 1/10W

D427

NC

Add by Cakor 8/8 2006

CN403

2

1

4

3

6

5

8

7

10

9

12

11

14

13

16

15

CONN

SCALER

G2252-1-X-X-2-070313

Wednesday , March 14, 2007

VCC3.3

FB402

VCC3.3

AVDD

C407

0.1uF

FB405

120Ω

C416

0.1uF

LED_ORANGE

D428

NC

change KEY Function Select<->Left Menu<->Right

LED_ORANGE KEY_RIGH T KEY_SEL

OUT-L+ OUT-L-

VPLL

KEY_RIGH T

KEY_LEFT

KEY_MENU

KEY_SEL

OUT-L+ 7 OUT-L- 7

5

F

7

of

DDCA_SDA4 DDCA_SCL4

+5V

+

R404

10KΩ 1/10W

U406

+5V

3

VCC

NC

MAX810STRG

Reset Circuit

C417

220nF16V

C418 10uF/50V

RESET

GND

R489 NC

VCC3.3

VCC3. 3

2

1

R490

NC

R486 NC

R487

10KΩ 1/10W

RIN4

GNDR4

GIN4

GNDG4

SOG4

BIN4

GNDB4 HSYNC4 VSYNC4

R+4 R-4 G+4 G-4 B+4

B-4 CLK+4 CLK-4

DDCD_SDA4 DDCD_SCL4

AVDD

U402

1

CE#

VDD

2

SO

HOLD#

3

WP#

SCK

4 5

VSS SI

SST25VF010A-33-4C-SAE

WP

C421 22pF

C423 22pF

VCC3.3

R407 NC R410 NC

C420 0. 1uF

59 58 56 55 57 54 53 63 64 65 66

39 40 42 43 45 46 48 49 36 37

51

R403 390Ω 1/10W

0.1uF

62

C401

61

70

8

71

7

72

6

73

19

32

R496 0Ω 1/10W

X40 1

14.318MHz

33

R497 0Ω 1/10W

1 2

102 104

R415

R416

10KΩ 1/10W

U401

TSUM16AWK-LF

Modified by Cakor 8/11 2006

VDVI

RIN0P RIN0M GIN0P GIN0M SOGIN0 BIN0P BIN0M HSYNC0 VSYNC0 DDCA_SDA DDCA_SCL

NC NC NC NC NC NC NC NC NC NC

REXT

REFP

REFM

SDO SCZ SCK SDI

RST

XIN

XOU T

MODE [0] MODE [1]

VMPLL

VPLL

VDDP

VDDC

AVDD

44

50

AVDD_AD C

BYPASS

52344

AVDD_MPLL

GND

3896116

13

AVDD_PLL

GND

41

60

AVDD_AD C

LVDS

GND

47

67

14

95

103

VDDP

GND

12

68

97

115

117

VDDP

VDDC

NC/LVACKP/NC

NC/LVACKM/N C RA1P/LVA2P/ RA2 RA1N/LVA2M/RA3 RA2P/LVA1P/ RA4 RA2N/LVA1M/RA5 RA3P/LVA0P/ RA6 RA3N/LVA0M/RA7

GA3P/LVA3P/GA6 GA3N/LVA3M/GA7

RB1P/NC/RB2 RB1N/NC/RB3 RB2P/NC/RB4 RB2N/NC/RB5 RB3P/NC/RB6 RB3N/NC/RB7

GB1P/NC/GB2 GB1N/NC /GB3 GB2P/NC/GB4 GB2N/NC /GB5 GB3P/NC/GB6 GB3N/NC /GB7

CLKAP/LVB3P/LHSY NC CLKAN/LVB3M/LVSYN C

CLKBP/LVBCKP/LCK_OD D

CLKBN/LVBCKM/LDE

NC/LVB2P/N C NC/LVB2M/NC

BB1P/LVB1P/BB2

BB1N/LVB 1M/BB3

BB2P/LVB0P/BB4

BB2N/LVB 0M/BB5

BB3P/NC/BB6

BB3N/NC/ BB7

PWM2/GPIO_P24 GPIO_P27/PWM1

PWM1/GPIO_P25

GPIO_P00/SAR 1

GPIO_P01/SAR 2

GPIO_P02/SAR 3

PWM0/GPIO_P26

GPIO_P10/I 2C_MCL GPIO_P11/I2C_MDA

VCTRL

GPIO_P22 GPIO_P23 GPIO_P03

GPIO_P16 GPIO_P15

GPIO_P12

GPIO_P06 GPIO_P07

GPIO_P13 GPIO_P14

RSTN

NC NC NC NC

NC NC NC NC NC NC

NC NC NC NC NC NC NC NC NC

11

107 108 109 110 111 112 113 114

98 99 100 101 105 106

89 90 91 92 93 94

9 10 15 16 17 18

2 3 5 6 7 8

118 119 120 121 122 123 124 125 126 127 128 1

80 81 88 87 86 85 84 83 82

75 74 26

35 69 78 79

20 21

22 23 24 25

27 28 29 30 31

77 76

PA0 PA1 PA2 PA3 PA4 PA5 PA6 PA7

PA8 PA9

R488 100Ω 1/10W

R418 100Ω 1/10W R420 100Ω 1/10W R411 100Ω 1/10W

R422 4.7KΩ 1/10W R423 4.7KΩ 1/10W

R498 10KΩ 1/10W

1uF/16V

VCC3.3

R424

R425

10KΩ 1/10W

R428 100Ω 1/10W R429 100Ω 1/10W

R491

NC

C461

VCTRL 3

PA[0..9]

WP

AUDIO_SD

R426

10KΩ 1/10W

R495

NC

HPD_CTRL 4

KEY1 KEY2

POWER

Volume_out

R484

10KΩ 1/10W

D429

UDZS5. 6B

R427 100Ω 1/10W

R493

NC

R480 10KΩ 1/10W

+5V

AUDIO_SD 7

U403

M24C04-WMN6TP

R492

NC

PA[0..9] 6

R405

22KΩ 1/10W

10KΩ 1/10W

DET_DVI 4 DET_VGA 4

on_PANEL 3

on_BACKLIGHT 3 adj_BACKLIGHT 3

8

VCC

7

WC

6

SCL

U407

NC

8

VCC

5

SDA

6

SCL

4

R406

+5V

R430 2KΩ 1/10W

R432 10KΩ 1/10W

1

NC

2

E1

3

E2

45

VSSSDA

1

A0

2

A1

3

A2

7

WP

GND

C422

0.1uF

C425

220nF16V

1uF/16V

VCC3.3

C456

Q402 PMBS3904

C431 NC

C455

NC

DDC_WP 4

+5VA

Cakor 8/9

VOLUME 7

KEY2

KEY1

LED_GRN/BLUE LED_ORANGE POWER

VCC1.83

VCC3.33

+5V

R412 10KΩ 1/10W

C424 0. 1uF

C427

C426

C428

0.1uF

20

15" LCD Color Monitor HP VP15

CN101

FB101

120 OHM

+

11

1 3 5 7

9 11 13

23

CONN

R101 330R 1/ 8W 5%

PA[0. .9]5

PA[0. .9]

PA0 PA1 PA2 PA3 PA4 PA5 PA6 PA7 PA8 PA9

LVACKP LVACKM LVA2P

LVA1P LVA1M LVA0P LVA0M LVA3P LVA3M

LVA0M LVA1M LVA2M LVACKM LVA3M

22uF50V

C101

RXE1RXE2RXECRXE3-LVA2M

VLCD

1 2

12

2 4 6 8 10 12 14

24

VLCD 3

C102

0.1uF

RXE0+ RXE1+ RXE2+ RXEC+ RXE3+

LVA0PRXE0LVA1P LVA2P LVACKP LVA3P

21

2006.05.03 add the schematic

AOC (Top Victory) Electronics Co., Ltd.

Tit le

PANEL INTERFACE

Size Document Number Rev

A

Date: Sheet

Wednesday , March 14, 2007

G2252-1-X-X-2-070313

7

of

6

F

15" LCD Color Monitor HP VP15

L709

1R 1/8W

CN702

PHONEJ ACK

1 2 3 4 5

AGND

OUT-L+5

OUT-L-5

C736 NC

AGND

L707 300OHM

C737

L708

NC

C725 470pF

C730 470pF

300OHM

C734

470pF

R733NC

R737NC

R728

10KΩ 1/10W

R729

10KΩ 1/10W

C735

470pF

11.3KΩ 1% 1/ 10W

L710 120Ω

1 2

R731

R734 NC

R732

11.3KΩ 1% 1/ 10W

L701 BEAD

L703 BEAD

+5VA

A_RIN

A_LIN

AGND

C720 0. 1uF

C722 0. 1uF

AUDI O_SD5

C726 1uF /16V

+

C728 470uF 16V

C732

R730

220pF

120KΩ 1/10W

AGND

U703

1

LINN

2

LINP

3

SHUTDOWN

4

PVDDL

5

LOUTP

6

PGNDL

7

PGNDL

8

LOUTN

9

PVDDL

10

COSC

11

ROSC

12 13

AGND VDD

TPA2008D2PWPRG4

AGND

RINN RINP

BYPASS

PVDDR

ROUTP PGNDR PGNDR

ROUTN

PVDDR

VOLUME

NC

24 23 22 21 20 19 18 17 16 15 14

C721 0. 1uF

C724 1uF/ 16V

C729 1uF /16V

+5VA

C738

+

47uF/2 5V

0.1uF

C723

L702 BEAD

AGND

L704 BEAD

VOLUME 5

+5VA

C733

0.1uF

AGND

R735

C727 470pF

NC

R736 NC

AGND

C731 470pF

R738 NC

AGND

OUT-R+ 5

OUT-R- 5

AGND

1 2

L705 120Ω

DGND 3,4, 5,6

+5VA

22

L706

1 2

120Ω

VCC5V

VCC5V 3

AOC (Top Victory) Electronics Co., Ltd.

Tit le

AUDIO

Size Document Number Rev

B

Wednesd ay , March 14, 2007

Date: Sheet

G2252-1-X-X-2-070313

7

of

7

F

15" LCD Color Monitor HP VP15

7.2 Power Board

R922 100 1/ 4W

4

1

-+

2

L902

142

7.0mH

3

4

C903 0.47uF/ 275V

R901

680K 1/4W

2

1

3

L901

4.0mH

BD901

2KBP08M

3

R900

680K 1/4W

C902

1000pF

C901

1000pF

C905

+

100uF/450V

R915

100K 1/8W

R904 430K 1/4W

R905 430K 1/4W

ZD901 RLZ36B

C909

0.1UF 50V

IC901

1

GND

OUT

2

COMP

VCC

3

VCC

CS

4 5

RT NC

LD7552BS

C911

0.1uF

R923

100 1/4W

T901

4

POWER X'FMR

C904

D903 FR103

+

R917

R918

1K 1/8W

1500pF/1KV

R910

100K 2W

D901

FR107

R916

2.4 1/4W

R919

10K 1/8W

6 3

1

Q903 2SK2645-54MR

FB901 BEAD

R920

0.68 2W

R907 510K 1/4W

R908 510K 1/4W

R909 510K 1/4W

C910

22uF/50V

10 1/8W

8 7 6

C912 220pF

95 10

7 8

11 12

R924 100 1/4W

1

2

100 1/4W

R925

R926 100 1/ 4W

R927 100 1/4W

D902

31DQ06FC 3

D904

3

SP10150

470uF/25V

C915

0.001uF

C924

C914

0.001uF

+

C916470uF/25V

+

470uF/25V

R930 330 1/8W

C920

C917

+

470uF/25V

+

L903

L904

470uF/25V

R937

3.9K 1/8W

C921

C918

+

470uF/25V

+

R934 33K 1/8W

R932

R929

R903

R921

1K 1/4W

ZD904

RLZ13B

1K 1/4W

Q901

PMBS3904

0.01uF/ 25V

ZD902 RLZ5.6B

C906

1K 1/4W

ZD903

RLZ13B

R914 1K 1/8W

R933 NC

C908

0.1uF/ 25V

+12V

C919

0.1uF/ 25V

5V

FUSE

F902

R902

680K 1/4W

VAR901

TNR10471

12

NR901

NTCR

t

3

CN901

F901

FUSE

12

R911 150 1/4W

IC903 NC

C913

0.33uF/ 25V

R912 75K 1/8W

R913

100K 1/8W

43

0.0022UF

12

C900

IC902

PC123X2YFZ OF

R931 1K 1/8W

IC904

KIA431A-AT/P

C907

0.1uF

R935 1K 1/8W

R936

2.43K 1/8W

R928 1K 1/8W

DIM

ON/OF F

+12V

5V

CN902

GND PWM

ON/OFF

PID

PID GND 12V 12V GND

3.3V

3.3V GND GND

1 2 3 4 5 6 7 8

9 10 11 12

Pitch 2.54mm

CONN

AOC (Top Victory) Electronics Co., Ltd.

Tit le

Size Docum ent Number Rev

Date: Sheet of

G2274-1-2-X-1-070322

B

Thursday , March 22, 2007

1

12

23

15" LCD Color Monitor HP VP15

+12V

ON/OF F

DIM

PID

R808

47K 1/4 W

R830 NC

R801

0 1/4W

R803

10K 1/4 W

C820 NC

R802

300K 1/8W

C801

0.01uF/ 25V

R811 NC

Q801

RK7002

R809 NC

R804

10K 1/8 W

Q802 PMBS3904

R812

10K 1/8 W

C804

2.2uF/25V

ZD801 RLZ5.6B

C805

0.001uF

1M 1/8W

R813

R805 470 1/4W

Q803 PMBS3904

VCC

R807 22 1/8W

R810

100K 1/8W

R814 43K 1/8W

220uF

C811

PT801

1 8

POWER X'FMR

4 3

C819

0.001uF

C821 1000OF/50 V

J914 10

R832

15R 1/8W

C814

NC

876

DDD

SGS

123

IC801

1

DRV1

PGND

2

VDDA

DRV2

3

TIME R

GNDA

4

DIM

CT

5

ISEN

SSTCMP

6

VSEN

LCT

7

OVPT

ENA

8 9

NC1 NC2

OZ9938GN

+

C806 1uF/16V

R833

15R 1/8W

R806

NC

5

D

Q805

AM9945N-T1-PF

G

4

16 15 14 13 12 11 10

C817

0.001uF

J921 10

6

7

R821

100K 1/8W

R820 56K 1/8W

C822 1000PF/5 0V

R815

100K 1/8W

R834

C807

180K 1/8W

0.01uF/ 25V

D801

BAV70

R817 33K 1/8 W

R816

1M 1/ 8W

NC

C813

C810 560P 50V

C809

0.022uF/25V

C816

15pF/3KV

R831

3

D802 BAV99

1K 1/8W

R819 1K 1/8W

C802

2pF/3KV

C818 470pF/50V

C815

0.047uF

R823

6.2M 1/ 2W

R825

NC

7K5 1/8W

R824

2

NC

1

R828

R827

330 1/8W

CN801

1 2

CONN

CN802

1 2

CONN

R818 68K 1/8 W

VCC

R822

1M 1/8W

Q806

RK7002

C803 NC

Q807

RK7002

D803

R826

C808

1M 1/ 8W

0.1uF/ 25V

R829

C812

1M 1/ 8W

0.1uF/ 25V

LL4148WP

D804

LL4148WP

AOC (Top Victory) Electronics Co., Ltd.

Tit le

Size Document Number Rev

Date: Sheet of

G2274-1-2-X-1-070322

A3

(HP)15"

Thursday, March 22, 2007

12

Q804

RK7002

1

24

15" LCD Color Monitor HP VP15

7.3 Key Board

CN004

LED_GRN/BLUE LED_OR ANGE POWER_ KEY

1 2 3 4

1 2

ZD005

NC

SW

GND

SW005

LED

LED001

POWER_ KEY

LED_GRN/BLUE

LED_OR ANGE

1

2

ZD006

NC

3

4

1 2

ZD007

NC

1 2

GND

CONN

AOC (Top Victory) Electronics Co., Ltd.

Tit le

Powe r Key

Size Document Number Rev

A

Dat e: Sheet

Saturday , April 14, 2007

G2283-1-P-X-1-070414

2

of

1

2

25

15" LCD Color Monitor HP VP15

8. PCB Layout

8.1 Main Board

26

15" LCD Color Monitor HP VP15

27

15" LCD Color Monitor HP VP15

8.2 Power Board

28

15" LCD Color Monitor HP VP15

29

15" LCD Color Monitor HP VP15

30

15" LCD Color Monitor HP VP15

8.3 Key Board

31

15" LCD Color Monitor HP VP15

9. Maintainability

9.1Equipments and Tools Requirement

1. Multi-meter.

2. Oscilloscope.

3. Pattern Generator.

4. DDC Tool with an IBM Compatible Computer.

5. Alignment Tool.

6. LCD Color Analyzer.

7. Service Manual.

8. User Manual.

32

15" LCD Color Monitor HP VP15

9.2 Trouble Shooting

9.2.1 Main Board

1、No power

Press power key and look if the

picture is normal

Please reinsert and make sure the

AC of 100-240 is normal

Measure U702 PIN 2=3.3V Q702 C = 1.8V

No power

NG

OK

NG

Reinsert or check the

power section

Measure CN701 PIN9/10=5V?

X401 oscillate waveforms are

normal

NG

OK

Replace U401

Replace X401

NG

Check power section

Replace U702/Q702

33

15" LCD Color Monitor HP VP15

No picture (LED is orange)

No picture

Measure U702 PIN2=3.3V; Q702 C = 1.8V

OK

NG

Replace U702/Q702

X401 oscillate waveforms

are normal

NG

OK

Check if the sync signal from

computer is output and video cable

is connected normally

Replace X401

OK

NG

Input the sync signal of computer, or

change the cable

Replace U401

34

15" LCD Color Monitor HP VP15

p

Panel Power Circuit

Check CN101 PIN 23-24 should have

response from 0V to 5V When we

switch the power switch from on to off

OK

Replace panel

9.2.2 Power Board

1. No Power

No power

Check the PPWR panel power relative circuit,Q706, Q704

NG

In normal operation, when LED =green, R725

Should =5 V,

If PPWR no-response when the power switch

Turn on and turn off, re

lace the U401- TSUM16AWK -LF

Check AC line volt 110V or 220V

OK

NG

Check AC line

Check the voltage of C905(+)

OK

Check start voltage for the pin3of IC901

NG

Check F901, bridge rectified circuit

OK

NG

Check R904-R906

Check the auxiliary voltage is between 10V-16V

Check IC901,T901, D901,D903

35

15" LCD Color Monitor HP VP15

2. W/LED No Backlight

Check C811 (+) =12V

OK

NG

Check Q803

Check ON/OFF signal

NG

OK

Check Interface board

Check IC801 pin2=5V ?

Check the pin1 & PIN4 of IC801 have saw tooth wave

OK

NG

Change Q801 or Q802

NG

OK

Change IC801

Check Q805 (-) has the output of square wave at short time.

NG

OK

CheckQ805

Check the resonant wave of pin2 & pin5 for PT801

OK

NG

Check Q805/D801

Check the output of PT801

NG

OK

Change PT801

Check connecter & lamp

36

15" LCD Color Monitor HP VP15

9.2.3 Key Board

OSD is unstable or not working

Is Keypad board connecting normally?

NG

Connect Keypad Board

OK

Is Button Switch normally?

NG

Replace Button Switch

OK

Is Keypad board normally?

NG

Replace Keypad Board

OK

Check main board

37

15" LCD Color Monitor HP VP15

10. White- Balance, Luminance Adjustment

Approximately 30 minutes should be allowed for warm up before proceeding White-Balance adjustment.

1. How to do the Chroma-7120 MEM .Channel setting

A. Reference to chroma 7120 user guide

B. Use “ SC” key and “ NEXT” key to modify xyY value and use “ID” key to modify the

TEXT description Following is the procedure to do white-balance adjust

2. Setting the color temp. You want

A. 9300k color:

9300 color temp. parameter is x = 283 ±15, y = 297 ±15, Y> 180 cd/m

B. sRGB color:

sRGB color temp. parameter is x = 313±15, y = 329 ±15, Y>180 cd/m

C. 6500K color:

6500K color temp. parameter is x = 313±15, y = 329 ±15, Y>180 cd/m2)

2 ,

2

)

3. Into factory mode of HP VP15

Turn on power, press the down (+) button, pull out the power cord, and then plug the power cord. Then the

factory OSD will be at the left top of the panel.

4. Bias adjustment:

Set the Contrast

to 80

Adjust the Brightness

5. Gain adjustment :

Move cursor to “-F-” and press MENU key

A. Adjust 9300k color-temperature

1. Switch the Chroma-7120 to 9300k channel.

2. The chroma 7120 will show x = 283±15, y = 297 ±15, Y>180 cd/m

3. Switch the chroma-720 to RGB MODE (with press “MODE” button to change )

4. Adjust the RED of color 9300K on factory window until chroma 7120 indicator reached

to 90.

2

the value R=100

5. Adjust the GREEN of color 9300K on factory window until chroma 7120 indicator reached

the value G=100

6. Adjust the BLUE of color 9300K on factory window until chroma 7120 indicator reached

the value B=100

7. Repeat above procedure ( item 4,5,6) until chroma 7120 RGB value meet the

tolerance =100±2

38

15" LCD Color Monitor HP VP15

B. Adjust sRGB color-temperature

1. Switch the chroma-7120 to sRGB channel.

2. The chroma 7120 will show x = 313 ±15, y = 329 ±15, Y >180 cd/m

3. Switch the chroma 7120 l to RGB MODE ( with press “MODE” button to change )

4. Adjust the RED of color sRGB on factory window until chroma 7120 indicator reached

the value R=100

5. Adjust the GREEN of color sRGB on factory window until chroma 7120 indicator reached

the value G=100

6. Adjust the BLUE of color sRGB on factory window until chroma 7120 indicator reached

the value B=100

7. Repeat above procedure ( item 4,5,6) until chroma 7120 RGB value meet the

tolerance =100±2

C. Adjust 6500k color-temperature

2

1. Switch the chroma-7120 to 6500K channel.

2. The chroma 7120 will show x = 313 ±15, y = 329 ±15, Y >180 cd/m

3. Switch the chroma 7120 l to RGB MODE ( with press “MODE” button to change )

4. Adjust the RED of color sRGB on factory window until chroma 7120 indicator reached

the value R=100

5. Adjust the GREEN of color sRGB on factory window until chroma 7120 indicator reached

the value G=100

6. Adjust the BLUE of color sRGB on factory window until chroma 7120 indicator reached

the value B=100

7. Repeat above procedure ( item 4,5,6) until chroma 7120 RGB value meet the

tolerance =100±2

D. Press reset key and Turn the Power-button “off to on” to quit from factory mode.

2

39

15" LCD Color Monitor HP VP15

11. Mechanical Instructions

Step Figure Description

Lay the monitor

Preparation

on a flat, soft

and clean

surface.

40

15" LCD Color Monitor HP VP15

Remove

the

stand

Remove the

decorate cover

and the screws

to remove the

stand.

41

15" LCD Color Monitor HP VP15

Remove the

back cover

Remove the

back cover

Remove the bezel

42

Remove the

screws to

remove the

bezel

15" LCD Color Monitor HP VP15

1、Remove the

Remove the main frame

screws marked

in red and to

remove the

main frame

43

15" LCD Color Monitor HP VP15

Remove

the

panel

1、Remove the

panel

1、Remove the

screws as the

arrowhead

indication to

remove the

keyboard

44

15" LCD Color Monitor HP VP15

1.Remove the

screws marked

in red to

remove the

main board,

Remove main board and power board

power baord,

2.Disconnect

the connector

and remove

the power

board and

main board.

The end

The machine

disconnect

freely

45

15" LCD Color Monitor HP VP15

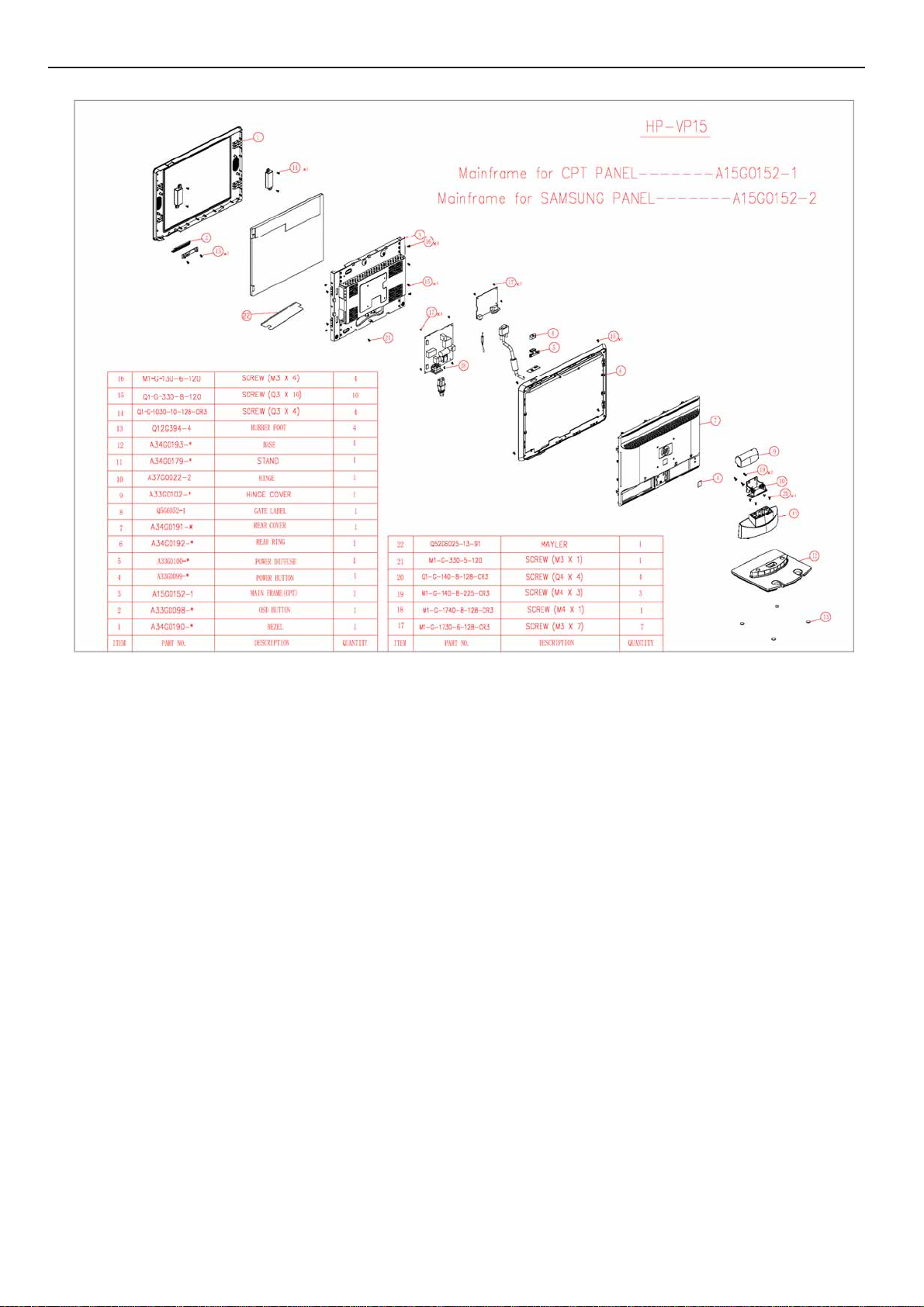

12. Monitor Exploded View

46

15" LCD Color Monitor HP VP15

13. BOM List (VP15)

T56CMWMLH6HPAP

Location Part No. Description

015G5689502 1 GND LUG (AL) 023G3178690 6A LOGO 040G 152509 RECYCLE LABEL 040G 152512 RECYCLE LABEL 040G 581654 3A CARTON LABEL 052G 1185 MIDDLE TAPE 052G 1186 SMALL TAPE 052G6022 1500 SMALL TAPE 089G 173 56507 AUDIO CABLE

E089B 089G 728HAA 21 SIGNAL CABLE

E089B 089G 728LAA 21 SIGNAL CABLE

E089A 089G412A19NLS3 POWER CODE

095G 900660 Q WIRE HARNESS 095G 900660 X WIRE HARNESS 095G801416QH24 WIRE HARNESS 095G801416XH24 WIRE HARNESS

E095A 095G801820D562 LVDS CABLE

E095A 095G801820X562 LVDS CABLE

0M1G 130 6120 SCREW M3X6 0M1G 140 8225 CR3 SCREW 0M1G1730 6128 CR3 SCREW 0M1G1730 6128 CR3 SCREW 0M1G1740 8128 CR3 SCREW 0Q1G 330 8120 SCREW 3X8mm 0Q1G 330 8120 SCREW 3X8mm 705GQ5K0B34009 REAR COVER ASS'Y 705GQ5K0F34005 15" LCD BEZEL ASS'Y 705GQ5K0P34007 STAND-BASE ASS'Y 750GLC50P1Q12Z000H PANEL LCD CLAA150XP01Q 000 ZBD HP CPT A15G0152 1 MAINFRAME A33G0102AAA 1X HINGE COVER CBPC6CMWHPQ1P CONVERSIONG2252-F-X-X-2-061130 KEPC6AA6P KEY G2283-D-K-X-1-061027 KEPC6AA7P KEY BOARD PWPC521CH1P POWER BOARD Q40G 15N69010A RATING LABEL Q41G160069050A doc kit FP1707 FOR APD

47

15" LCD Color Monitor HP VP15

Q41G7800690A41 vp15 qsg Q44G5010 1 EPS(L) Q44G5010 2 EPS(R) Q44G5010690 1A CARTON Q45G 88609 78 EPE BAG FOR MONITOR Q45G 88609 80 EPE BAG FOR BASE 0Q1G 330 8120 SCREW 3X8mm A33G0099 1A1P POWER BUTTON A33G0100 1 1D Power Diffuse A34G0191AAA 1B 30 REAR COVER A34G0192 PM 1B REAR RING Q05G6052 1 GATE LABEL 078G 311503 L SPK 4OHM 2W NeoSonica 078G 311503 R SPK 4OHM 2W NeoSonica 078G 311503 YL SPK 4OHM 2W SUNLINK 078G 311503 YR SPK 4OHM 2W SUNLINK 0Q1G1030 10128 CR3 SCREW A33G0098 PMA1L OSD BUTTON A34G0190AABA1B 30 BEZEL 012G 394 4 RUBBER FOOT 0Q1G 140 8128 CR3 SCREW A34G0179AAA 1X STAND A34G0193AAA 1X 20 BASE A37G0022 2 HINGE

CN701 033G8027 12 J CONNECTOR

CN403 033G8027 16 J CONNECTOR

CN101 033G8043 14 H CONNECTER

040G 457624 1B LABEL-CPU 040G 45762412B CBPC LABEL

C702 067G 3154797KV

C403 067G 3154797KV

EC 105℃ CAP 4.7UF M 50V EC 105℃ CAP 4.7UF M 50V

C418 067G215V100 7R LOW E.S.R 10UF +/-20% 50V

C408 067G215V100 7R LOW E.S.R 10UF +/-20% 50V

C717 067G215V100 7R LOW E.S.R 10UF +/-20% 50V

C703 067G215V101 4N KY25VB100M-CC3(6.3*11)

C710 067G215V101 4N KY25VB100M-CC3(6.3*11)

C712 067G215V101 4N KY25VB100M-CC3(6.3*11)

C101 067G215V220 7R

C738 067G215V470 4N KY25VB47-M-CC3.0 5*11MM

C101 067G215Y2207RV RUBYCON 50V 22UF

ELCAP 105℃ 22UF M 50V

48

15" LCD Color Monitor HP VP15

C728 067G405I4713KV

CN702 088G 30214K PHONE JACK 5PIN

CN405 088G 35315F H D-SUB 15PIN

X401 093G 22 53 CRYSTAL 14.318MHzHC-49US

SMTC6CMWHPQ1P MAIN BOARD FOR SMT SMTKEPC6AA6P KEY BOARD FOR SMT SMTKEPC6AA7P KEY BOARD FOR SMT

CN802 033G8020 2D U WAFER

CN801 033G8020 2D U WAFER

040G 45762420A LABEL 25x6mm 044G3231 15571 EVA WASHER

IC902 056G 139 7 1 IC EL817MA M-TYPE

IC902 056G 139 3A PC123Y22FZOF

R920 061G152M688 64 0.68OHM +-5% 2W

C816 065G 3J1506ET 15PF 5% CC45SL 3KV TDK

EC 105℃ CAP 470UF M 16V

C802 065G 3J2096ET 2PF 5% SL 3KV

C901 065G305M1022E2 1000P 400VAC/250VAC

C902 065G305M1022E2 1000P 400VAC/250VAC

C901 065G305M1022EM Y2 1000PF +-20% 250VAC

C902 065G305M1022EM Y2 1000PF +-20% 250VAC

C900 065G306M2222BP 2200PF +-20% 400VAC

C917 067G215D4714KV

C916 067G215D4714KV

C924 067G215D4714KV

C921 067G215D4714KV

C920 067G215D4714KV

C918 067G215D4714KV

C905 067G215S10115K 100UF 450V

C917 067G215V471 4N 470UF +-20% 25V

C916 067G215V471 4N 470UF +-20% 25V

C921 067G215V471 4N 470UF +-20% 25V

EC 105℃ CAP 470UF M 25V EC 105℃ CAP 470UF M 25V EC 105℃ CAP 470UF M 25V EC 105℃ CAP 470UF M 25V EC 105℃ CAP 470UF M 25V EC 105℃ CAP 470UF M 25V

C924 067G215V471 4N 470UF +-20% 25V

C920 067G215V471 4N 470UF +-20% 25V

C918 067G215V471 4N 470UF +-20% 25V

C920 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

C918 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

C917 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

C916 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

C924 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

C921 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

49

15" LCD Color Monitor HP VP15

C811 067G415V221 6K

L902 073G 174 65 H LINE FILTER

L903 073G 253 91 H CHOKE COIL

L904 073G 253 91 H CHOKE COIL

L901 073L 174 50 HH LINE FITER

T901 080GL15T 32 N XFMR FOR POWER YUVA

T901 080GL15T 32 T X'FMR 770uH SRW24LQ-TXXH016

PT801 080GL19T 18 H XFMR FOR INVERTER DADON

PT801 080GL19T 18 DN X'FMR100.3uH TK.2048M.101

CN901 087G 501 37 S AC INLET ST-01DG-B2K-K

DB901 093G 50460 28 BRIDGE DIODE KBP208G LITEON

DB901 093G 50460 8P BRIDGE DIODE 2KBP08M PANJIT

DB901 093G 50460502 KBP206G

D901 093G 6026T52T RECTIFIER DIODE FR107

D902 093G3006 1 1 31DQ06FC3 NIHON INTER

CAP 105℃ 220UF M 35V

CN902 095G801412W594 WIRE HARNESS

CN902 095G801412X594 WIRE HARNESS

NR901 705G 560 61GTW NR901 ASS'Y

R910 705G 909 11 06 R909 ASS'Y

705GQ5K0 57001 Q903 ASS'Y 705GQ5K0 93001 D904 ASS'Y PW521CH1SMTP POWER BAORD FOR S Q52G6025 13 91 MYLAR

U401 056G 562138 IC TSUM16AWK-LF PQFP-128 MST

U702 056G 563 25 IC A1C1084-33PETR-R AIC

U701 056G 585 4 IC AIC1117-33PYTR-R AIC

U703 056G 616 20 TPA2008D2 PWP-24

U403 056G1133 32 IC M24C04-WMN6TP SO8

U404 056G1133 34 M24C02-WMN6TP

U402 056G1133 63 IC PM25LV010-25 SCE SOIC-8 PMC

U402 056G1133 74 SST25VF010A-33-4C-SAE

U403 056G1133104 IC AF24BC04-SI 4K SOIC-8

Q402 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q403 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q401 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q703 057G 417 12 T KEC 2N3904S-RTK/PS

Q701 057G 417 12 T KEC 2N3904S-RTK/PS

Q706 057G 417 13 T KEC 2N3906S-RTK/PS

Q702 057G 417 17 T PZT2907A

Q701 057G 417511 MMBT3904

50

15" LCD Color Monitor HP VP15

Q703 057G 417511 MMBT3904

Q706 057G 417512 MMBT3906

Q704 057G 763 1 A03401 SOT23 BY AOS(A1)

Q704 057G 763501 FET AM2321P ANALOG POWER

FB410 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

R414 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

R496 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

R497 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

R722 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

FB411 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

FB412 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

R409 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

R420 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R418 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R411 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R442 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R443 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R445 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R488 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R704 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R429 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R441 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R428 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R427 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R446 061G0603102 RST CHIP 1K 1/10W 5%

R447 061G0603102 RST CHIP 1K 1/10W 5%

R476 061G0603102 RST CHIP 1K 1/10W 5%

R477 061G0603102 RST CHIP 1K 1/10W 5%

R701 061G0603102 RST CHIP 1K 1/10W 5%

R733 061G0603102 RST CHIP 1K 1/10W 5%

R736 061G0603102 RST CHIP 1K 1/10W 5%

R737 061G0603102 RST CHIP 1K 1/10W 5%

R738 061G0603102 RST CHIP 1K 1/10W 5%

R424 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R416 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R415 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R413 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R425 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R426 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R729 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

51

15" LCD Color Monitor HP VP15

R728 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R727 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R717 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R714 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R711 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R708 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R487 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R484 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R480 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R470 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R452 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R444 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R432 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R412 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R408 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R406 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R404 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R731 061G0603113 2F RST CHIPR 11.3 KOHM +-1% 1/10W

R732 061G0603113 2F RST CHIPR 11.3 KOHM +-1% 1/10W

R730 061G0603124 RST CHIPR 120 KOHM +-5% 1/10W

R430 061G0603202 RST CHIPR 2 KOHM +-5% 1/10W

R703 061G0603202 RST CHIPR 2 KOHM +-5% 1/10W

R417 061G0603204 RST CHIPR 200 KOHM +-5% 1/10W

R448 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W

R449 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W

R405 061G0603223 RST CHIPR 22 KOHM +-5% 1/10W

R453 061G0603330 RST CHIPR 33 OHM +-5% 1/10W

R454 061G0603330 RST CHIPR 33 OHM +-5% 1/10W

R403 061G0603390 0F RST CHIPR 390 OHM +-1% 1/10W

R474 061G0603392 RST CHIPR 3.9 KOHM +-5% 1/10W

R475 061G0603392 RST CHIPR 3.9 KOHM +-5% 1/10W

R437 061G0603471 RST CHIPR 470 OHM +-5% 1/10W

R725 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R712 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R707 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R451 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R450 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R423 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R422 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R702 061G0603510 RST CHIPR 51 OHM +-5% 1/10W

52

15" LCD Color Monitor HP VP15

R723 061G0603513 RST CHIPR 51 KOHM +-5% 1/10W

R498 061G0603513 RST CHIPR 51 KOHM +-5% 1/10W

R421 061G0603560 RST CHIPR 56 OHM +-5% 1/10W

R434 061G0603560 RST CHIPR 56 OHM +-5% 1/10W

R435 061G0603560 RST CHIPR 56 OHM +-5% 1/10W

R436 061G0603560 RST CHIPR 56 OHM +-5% 1/10W

R419 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

R438 061G0603750 9F RST CHIPR 75 OHM +-1% 1/10W

R439 061G0603750 9F RST CHIPR 75 OHM +-1% 1/10W

R440 061G0603750 9F RST CHIPR 75 OHM +-1% 1/10W

L709 061G0805109 RST CHIPR 1 OHM +-5% 1/8W

R101 061G0805331 RST CHIPR 330 OHM +-5% 1/8W

C419 065G0603104 32 CHIP 0.1UF 50V X7R

C416 065G0603104 32 CHIP 0.1UF 50V X7R

C415 065G0603104 32 CHIP 0.1UF 50V X7R

C414 065G0603104 32 CHIP 0.1UF 50V X7R

C413 065G0603104 32 CHIP 0.1UF 50V X7R

C412 065G0603104 32 CHIP 0.1UF 50V X7R

C411 065G0603104 32 CHIP 0.1UF 50V X7R

C410 065G0603104 32 CHIP 0.1UF 50V X7R

C420 065G0603104 32 CHIP 0.1UF 50V X7R

C709 065G0603104 32 CHIP 0.1UF 50V X7R

C704 065G0603104 32 CHIP 0.1UF 50V X7R

C701 065G0603104 32 CHIP 0.1UF 50V X7R

C444 065G0603104 32 CHIP 0.1UF 50V X7R

C441 065G0603104 32 CHIP 0.1UF 50V X7R

C440 065G0603104 32 CHIP 0.1UF 50V X7R

C439 065G0603104 32 CHIP 0.1UF 50V X7R

C430 065G0603104 32 CHIP 0.1UF 50V X7R

C429 065G0603104 32 CHIP 0.1UF 50V X7R

C428 065G0603104 32 CHIP 0.1UF 50V X7R

C427 065G0603104 32 CHIP 0.1UF 50V X7R

C426 065G0603104 32 CHIP 0.1UF 50V X7R

C424 065G0603104 32 CHIP 0.1UF 50V X7R

C422 065G0603104 32 CHIP 0.1UF 50V X7R

C719 065G0603104 32 CHIP 0.1UF 50V X7R

C733 065G0603104 32 CHIP 0.1UF 50V X7R

C723 065G0603104 32 CHIP 0.1UF 50V X7R

C722 065G0603104 32 CHIP 0.1UF 50V X7R

C721 065G0603104 32 CHIP 0.1UF 50V X7R

53

15" LCD Color Monitor HP VP15

C720 065G0603104 32 CHIP 0.1UF 50V X7R

C718 065G0603104 32 CHIP 0.1UF 50V X7R

C714 065G0603104 32 CHIP 0.1UF 50V X7R

C409 065G0603104 32 CHIP 0.1UF 50V X7R

C407 065G0603104 32 CHIP 0.1UF 50V X7R

C406 065G0603104 32 CHIP 0.1UF 50V X7R

C405 065G0603104 32 CHIP 0.1UF 50V X7R

C404 065G0603104 32 CHIP 0.1UF 50V X7R

C402 065G0603104 32 CHIP 0.1UF 50V X7R

C401 065G0603104 32 CHIP 0.1UF 50V X7R

C713 065G0603104 32 CHIP 0.1UF 50V X7R

C456 065G0603105 12 CHIP 1UF 16VX7R 0603

C724 065G0603105 12 CHIP 1UF 16VX7R 0603

C726 065G0603105 12 CHIP 1UF 16VX7R 0603

C729 065G0603105 12 CHIP 1UF 16VX7R 0603

C461 065G0603105 12 CHIP 1UF 16VX7R 0603

C421 065G0603220 31 CER1 0603 NP0 50V 22P PM

C423 065G0603220 31 CER1 0603 NP0 50V 22P PM

C732 065G0603221 31 CER1 0603 NP0 50V 220P P

C443 065G0603221 31 CER1 0603 NP0 50V 220P P

C417 065G0603224 12 CAP CHIP 0603 220N 16V X7R +/-10%

C425 065G0603224 12 CAP CHIP 0603 220N 16V X7R +/-10%

C442 065G0603330 31 CER1 0603 NP0 50V 33P PM

C735 065G0603471 31 CAP:CER 470PF 5%50V SMT 0603

C734 065G0603471 31 CAP:CER 470PF 5%50V SMT 0603

C725 065G0603471 32 CHIP 470PF 50V X7R

C727 065G0603471 32 CHIP 470PF 50V X7R

C730 065G0603471 32 CHIP 470PF 50V X7R

C731 065G0603471 32 CHIP 470PF 50V X7R

C432 065G0603473 32 CHIP 0.047UF 50V X7R

C433 065G0603473 32 CHIP 0.047UF 50V X7R

C434 065G0603473 32 CHIP 0.047UF 50V X7R

C435 065G0603473 32 CHIP 0.047UF 50V X7R

C438 065G0603473 32 CHIP 0.047UF 50V X7R

C436 065G0603473 32 CHIP 0.047UF 50V X7R

C437 065G0603473 32 CHIP 0.047UF 50V X7R

L701 071G 56B500 CHIP BEAD

L702 071G 56B500 CHIP BEAD

L703 071G 56B500 CHIP BEAD

L704 071G 56B500 CHIP BEAD

54

15" LCD Color Monitor HP VP15

FB101 071G 56K121 CHIP BEAD

L706 071G 56K121 CHIP BEAD

L705 071G 56K121 CHIP BEAD

L710 071G 56K121 CHIP BEAD

FB401 071G 56K121 CHIP BEAD

FB402 071G 56K121 CHIP BEAD

FB403 071G 56K121 CHIP BEAD

FB404 071G 56K121 CHIP BEAD

FB405 071G 56K121 CHIP BEAD

FB406 071G 56K121 CHIP BEAD

FB413 071G 56K121 CHIP BEAD

L706 071G 56K121 M CHIP BEAD

FB101 071G 56K121 M CHIP BEAD

FB413 071G 56K121 M CHIP BEAD

FB406 071G 56K121 M CHIP BEAD

FB405 071G 56K121 M CHIP BEAD

FB404 071G 56K121 M CHIP BEAD

FB403 071G 56K121 M CHIP BEAD

FB402 071G 56K121 M CHIP BEAD

FB401 071G 56K121 M CHIP BEAD

L710 071G 56K121 M CHIP BEAD

L705 071G 56K121 M CHIP BEAD

L708 071G 56V301 B CHIP BEAD FCM2012VF-301T07 bullwill

L707 071G 56V301 B CHIP BEAD FCM2012VF-301T07 bullwill

R705 071G 59B121 TB160808B

FB409 071G 59B121 TB160808B

D425 093G 39149 MLL5232B BY FULL POWER SMT

D412 093G 39149 MLL5232B BY FULL POWER SMT

D411 093G 39149 MLL5232B BY FULL POWER SMT

D410 093G 39149 MLL5232B BY FULL POWER SMT

D409 093G 39149 MLL5232B BY FULL POWER SMT

D408 093G 39149 MLL5232B BY FULL POWER SMT

D406 093G 39149 MLL5232B BY FULL POWER SMT

D407 093G 64 42 P BAV70 SOT-23

D702 093G 6432P LL4148

D403 093G 6433P BAV99

D404 093G 6433P BAV99

D405 093G 6433P BAV99

D429 093G 39P599 T MM3Z5V6B

D429 093G 39S 34 T UDZS5.6B

55

15" LCD Color Monitor HP VP15

D402 093G 39S 34 T UDZS5.6B

D401 093G 39S 34 T UDZS5.6B

D701 093G 64S522SEM LL4148

D704 093G2004 2 SR24/PANJIT-SMT

715G2252 1 MAIN BOARD PCB

CN003 033G8023 2 WAFER

CN002 033G8023 2 WAFER

CN003 033G8023 2 JS WAFER

CN002 033G8023 2 JS WAFER

CN001 033G803210C WAFER

CN001 033G803210D WAFER

CN001 033G803210S WAFER

C008 065G0603102 32 1000PF +-10% 50V X7R

C007 065G0603102 32 1000PF +-10% 50V X7R

C006 065G0603102 32 1000PF +-10% 50V X7R

C005 065G0603102 32 1000PF +-10% 50V X7R

C004 065G0603102 32 1000PF +-10% 50V X7R

C003 065G0603102 32 1000PF +-10% 50V X7R

C002 065G0603102 32 1000PF +-10% 50V X7R

C001 065G0603102 32 1000PF +-10% 50V X7R

SW004 077G 606 21HJ TACT SW 4PIN SMT TSXH-3GL

SW003 077G 606 21HJ TACT SW 4PIN SMT TSXH-3GL

SW002 077G 606 21HJ TACT SW 4PIN SMT TSXH-3GL

SW001 077G 606 21HJ TACT SW 4PIN SMT TSXH-3GL

ZD001 093G 39S 34 T UDZS5.6B

ZD002 093G 39S 34 T UDZS5.6B

ZD003 093G 39S 34 T UDZS5.6B

ZD004 093G 39S 34 T UDZS5.6B

715G2283 1 K KEY BOARD PCB

CN004 033G8032 4C WAFER

SW005 077G 607 1 FD TACT SWITCH

LED001 081G 14 20 AV LED AQUA WHITE / AMBER

ZD006 093G 39S 34 T UDZS5.6B

ZD007 093G 39S 34 T UDZS5.6B

ZD005 093G 39S 34 T UDZS5.6B

715G2283 1 P KEY BOARD PCB

NR901 061G 58050 WT NTC 5 OHM 5A

096G 29 10 H.S. TUBE

R909 061G152M10458F 100K OHM 5% 2W

096G 29 6 H.S. TUBE

56

15" LCD Color Monitor HP VP15

Q903 057G 667 30 2SK2645

Q903 057G 724 11 STP9NK65ZFP

090G6084 1 GP HEAT SINK 0M1G1730 8128 CR3 SCREW 090G6084 1 GP HEAT SINK

D904 093G 60245 SP10150

D904 093G 60261 DIODE

0M1G1730 8128 CR3 SCREW

IC901 056G 379 76 IC LD7552BPS SOP-8

IC801 056G 608 10 0Z9938

Q901 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q803 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q802 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q803 057G 417 12 T KEC 2N3904S-RTK/PS

Q802 057G 417 12 T KEC 2N3904S-RTK/PS

Q901 057G 417 12 T KEC 2N3904S-RTK/PS

Q801 057G 759 2 RK7002

Q804 057G 759 2 RK7002

Q806 057G 759 2 RK7002

Q807 057G 759 2 RK7002

Q805 057G 763 14 AM9945N

R917 061G0805100 10 OHM 1/10W

R918 061G0805100 1F RST CHIPR 1KOHM +-1% 1/8W

R928 061G0805100 1F RST CHIPR 1KOHM +-1% 1/8W

R931 061G0805100 1F RST CHIPR 1KOHM +-1% 1/8W

R804 061G0805100 2F RST CHIPR 10KOHM +-1% 1/8W

R812 061G0805100 2F RST CHIPR 10KOHM +-1% 1/8W

R919 061G0805100 2F RST CHIPR 10KOHM +-1% 1/8W

R810 061G0805100 3F RST CHIPR 100KOHM +-1% 1/8W

R815 061G0805100 3F RST CHIPR 100KOHM +-1% 1/8W

R821 061G0805100 3F RST CHIPR 100KOHM +-1% 1/8W

R913 061G0805100 3F RST CHIPR 100KOHM +-1% 1/8W

R915 061G0805100 3F RST CHIPR 100KOHM +-1% 1/8W

R819 061G0805102 CHIP 1KOHM 1/10W

R831 061G0805102 CHIP 1KOHM 1/10W

R935 061G0805102 CHIP 1KOHM 1/10W

R829 061G0805105 1MOHM 1/10W

R826 061G0805105 1MOHM 1/10W

R822 061G0805105 1MOHM 1/10W

R816 061G0805105 1MOHM 1/10W

57

15" LCD Color Monitor HP VP15

R813 061G0805105 1MOHM 1/10W

R832 061G0805150 15 0805

R833 061G0805150 15 0805

R834 061G0805184 RST CHIPR 180 KOHM +-5% 1/8W

R807 061G0805220 22&8 1/10W

R936 061G0805243 1F RST CHIPR 2.43 KOHM +-1% 1/8W

R802 061G0805304 RST CHIPR 300 KOHM +-5% 1/8W

R827 061G0805330 0F RST CHIPR 330 OHM +-1% 1/8W

R930 061G0805330 0F RST CHIPR 330 OHM +-1% 1/8W

R934 061G0805330 2F 33 KOHM 1/10W 1%

R817 061G0805330 2F 33 KOHM 1/10W 1%

R937 061G0805390 1F RST CHIPR 3.9 KOHM +-1% 1/8W

R814 061G0805433 RST CHIPR 43 KOHM +-5% 1/8W

R820 061G0805563 56KOHM 1/10W

R818 061G0805680 2F RST CHIPR 68 KOHM +-1% 1/8W

R912 061G0805750 2F RST CHIPR 75 KOHM +-1% 1/8W

R825 061G0805752 RST CHIPR 7.5 KOHM +-5% 1/8W

R801 061G1206000 0 OHM 1/8W

JR901 061G1206000 0 OHM 1/8W

R927 061G1206101 100 1206

R926 061G1206101 100 1206

R922 061G1206101 100 1206

R923 061G1206101 100 1206

R924 061G1206101 100 1206

R925 061G1206101 100 1206

R921 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W

R914 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W

R932 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W

R929 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W

R903 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W

R803 061G1206103 10 KOHM 1/8W

R911 061G1206151 RST CHIPR 150 OHM +-5% 1/4W

R916 061G1206249 RST CHIPR 2.4 OHM +-5% 1/4W

R904 061G1206434 RST CHIPR 430 KOHM +-5% 1/4W

R905 061G1206434 RST CHIPR 430 KOHM +-5% 1/4W

R906 061G1206434 RST CHIPR 430 KOHM +-5% 1/4W

R805 061G1206471 470 1206

R808 061G1206473 RST CHIPR 47KOHM +-5% 1/4W

R907 061G1206514 RST CHIPR 510 KOHM +-5% 1/4W

R908 061G1206514 RST CHIPR 510 KOHM +-5% 1/4W

58

15" LCD Color Monitor HP VP15

R909 061G1206514 RST CHIPR 510 KOHM +-5% 1/4W

R901 061G1206684 RST CHIPR 680 KOHM +-5% 1/4W

R902 061G1206684 RST CHIPR 680 KOHM +-5% 1/4W

R900 061G1206684 RST CHIPR 680 KOHM +-5% 1/4W

C805 065G0805102 32 CHIP 1000P 50VX7R 0805

C819 065G0805102 32 CHIP 1000P 50VX7R 0805

C817 065G0805102 32 CHIP 1000P 50VX7R 0805

C801 065G0805103 22 CHIP 0.01uF 25V X7R 0805

C807 065G0805103 22 CHIP 0.01uF 25V X7R 0805

C906 065G0805103 22 CHIP 0.01uF 25V X7R 0805

C911 065G0805104 22 0.1UF +-10% 25V X7R 080

C907 065G080510422T CAP 0805 0.1UF K 25V X7R TAIYO YUDEN

C908 065G080510422T CAP 0805 0.1UF K 25V X7R TAIYO YUDEN

C919 065G080510422T CAP 0805 0.1UF K 25V X7R TAIYO YUDEN

C909 065G080510422T CAP 0805 0.1UF K 25V X7R TAIYO YUDEN

C812 065G080510422T CAP 0805 0.1UF K 25V X7R TAIYO YUDEN

C808 065G080510422T CAP 0805 0.1UF K 25V X7R TAIYO YUDEN

C808 065G080510422W CAP 0805 0.1UF K 25V X7R WALSIN

C812 065G080510422W CAP 0805 0.1UF K 25V X7R WALSIN

C909 065G080510422W CAP 0805 0.1UF K 25V X7R WALSIN

C919 065G080510422W CAP 0805 0.1UF K 25V X7R WALSIN

C908 065G080510422W CAP 0805 0.1UF K 25V X7R WALSIN

C907 065G080510422W CAP 0805 0.1UF K 25V X7R WALSIN

C806 065G0805105 12 1UF +-10% 6V X7R

C912 065G0805221 32 CHIP 220PF 50V X7R 0805

C809 065G0805223 22 CHIP 0.022UF 25V X7R 080

C913 065G0805334 22 0.33UF+-10% 25V X7R 0805

C818 065G0805471 31 CHIP 470PF 50V NPO

C815 065G0805473 32 CHIP 0.047UF 50V X7R

C810 065G080556131G MLCC 0805 560PF G 50V NPO

C914 065G1206102 72 CHIP 1000PF 500V X7R

C915 065G1206102 72 CHIP 1000PF 500V X7R

C804 065G1206225 22 2.2UF 25V X7R 1206

D801 093G 64 42 P BAV70 SOT-23

D801 093G 64 42 PP BAV70 SOT-23

D803 093G 64 44 S LL4148WP

D804 093G 64 44 S LL4148WP

D802 093G 6433P BAV99

ZD801 093G 39GA01 T RLZ5.6B

ZD902 093G 39GA01 T RLZ5.6B

59

15" LCD Color Monitor HP VP15

ZD903 093G 39GA28 T ZENER DIODE RLZ13B SEMTECH

ZD904 093G 39GA28 T ZENER DIODE RLZ13B SEMTECH

ZD801 093G 39S 24 T RLZ 5.6B LLDS

ZD902 093G 39S 24 T RLZ 5.6B LLDS

ZD903 093G 39S 40 T RLZ 13B LLDS

ZD904 093G 39S 40 T RLZ 13B LLDS

PW521CH1AIP POWER BOARD FOR AI 034FPF20P01 BOBBIN

CN902 006G 31500 EYELET

C905 006G 31502 1.5MM RIVET

L902 006G 31502 1.5MM RIVET

NR901 006G 31502 1.5MM RIVET

PT801 006G 31502 1.5MM RIVET

T901 006G 31502 1.5MM RIVET

L901 006G 31502 1.5MM RIVET

IC903 056G 158 10 T IC AZ431AZ-AE1 TO-92 BY AAC

IC904 056G 158 10 T IC AZ431AZ-AE1 TO-92 BY AAC

IC903 056G 158 12 KIA431A-AT/P TO-92

IC904 056G 158 12 KIA431A-AT/P TO-92

J914 061G 60210052T 10 OHM 5% 1/6W

J921 061G 60210052T 10 OHM 5% 1/6W

R823 061G212Y625 KT MGFR 6.2MOHM +-5% 1/2W

C904 065G 1K152 1T 1.5NF/1KV Z5F+-10%

C910 067G215Y2207KT

J908 071G 55 9 T FERRITE BEAD

FB901 071G 55 29 FERRITE BEAD

F902 084G 55 2 MET2.50

F901 084G 55 2 MET2.50

F902 084G 55 5 FUSE 2.50A 250V

F901 084G 55 5 FUSE 2.50A 250V

D903 093G 6038T52T FR103

ED 105℃ 22UF M 50V KINGNICHI

715G2274 1 POWER BOARD PCB

60

15" LCD Color Monitor HP VP15

14. Different Parts List

Diversity of T56SMWMLH6HPAP compared with T56CMWMLH6HPAP

Location Part No. Description

750GLS50XOL12Z H SEC 15" PANEL

A15G0152 2 MAIN FRAME

CBPC6SMWHPA1P MAIN BOARD

PWPC521SH1P POWER BOARD

61

15" LCD Color Monitor HP VP15

T56CMWMKH6HPAP

Location Part No. Description

023G3178690 6A LOGO 040G 581654 3A CARTON LABEL 052G 1185 MIDDLE TAPE 052G 1186 SMALL TAPE 052G6022 1500 SMALL TAPE 089G 173 56507 AUDIO CABLE

E089B 089G 728HAA 21 SIGNAL CABLE

E089B 089G 728LAA 21 SIGNAL CABLE

E089A 089G402A19N IS AC POWER CABLE

E089A 089G402A19N LS POWER CORD

095G 900660 Q WIRE HARNESS 095G 900660 X WIRE HARNESS 095G801416QH24 WIRE HARNESS 095G801416XH24 WIRE HARNESS

E095A 095G801820D562 LVDS CABLE

E095A 095G801820X562 LVDS CABLE

0M1G 130 6120 SCREW M3X6 0M1G 140 8225 CR3 SCREW 0M1G1730 6128 CR3 SCREW 0M1G1730 6128 CR3 SCREW 0M1G1740 8128 CR3 SCREW 0Q1G 330 8120 SCREW 3X8mm 0Q1G 330 8120 SCREW 3X8mm 705GQ5K0B34009 REAR COVER ASS'Y 705GQ5K0F34005 15" LCD BEZEL ASS'Y 705GQ5K0P34007 STAND-BASE ASS'Y 750GLC50P1Q12Z000H PANEL LCD CLAA150XP01Q 000 ZBD HP CPT 750GLC50P1Q13Z000H PANEL LCD CLAA150XP01Q 000 ZBD HP CPT 750GLC50P1Q22Z000H PANEL LCD CLAA150XP01Q 010 ZBD HP CPT 750GLC50P1Q23Z000H PANEL LCD CLAA150XP01Q 010 ZBD HP CPT A15G0152 1 MAINFRAME A33G0102AAA 1X HINGE COVER CBPC6CMWHPQ1P MAIN BOARD KEPC6AA6P KEY BOARD KEPC6AA7P KEY BOARD PWPC521CH1P POWER BOARD Q15G0169 1 GND LUG Q40G 15N69010C RATING LABEL

62

15" LCD Color Monitor HP VP15

Q41G160069051C VP15 DOC KIT FOR NA Q41G7800690A41 vp15 qsg Q44G5010 1 EPS(L) Q44G5010 2 EPS(R) Q44G5010690 2B CARTON Q45G 88609 78 EPE BAG FOR MONITOR Q45G 88609 80 EPE BAG FOR BASE 0Q1G 330 8120 SCREW 3X8mm A33G0099 1A1P POWER BUTTON A33G0100 1 1D Power Diffuse A34G0191AAA 1B 30 REAR COVER A34G0192 PM 1B REAR RING Q05G6052 1 GATE LABEL 078G 311503 L SPK 4OHM 2W NeoSonica 078G 311503 R SPK 4OHM 2W NeoSonica 078G 311503 YL SPK 4OHM 2W SUNLINK 078G 311503 YR SPK 4OHM 2W SUNLINK 0Q1G1030 10128 CR3 SCREW A33G0098 PMA1L OSD BUTTON A34G0190AABA1B 30 BEZEL 012G 394 4 RUBBER FOOT 0Q1G 140 8128 CR3 SCREW A34G0179AAA 1X STAND A34G0193AAA 1X 20 BASE A37G0022 2 HINGE

CN701 033G8027 12 J CONNECTOR

CN403 033G8027 16 J CONNECTOR

CN101 033G8043 14 H CONNECTER

040G 457624 1B LABEL-CPU 040G 45762412B CBPC LABEL

C702 067G 3154797KV

EC 105℃ CAP 4.7UF M 50V

C403 067G 3154797KV

C408 067G215V100 7R LOW E.S.R 10UF +/-20% 50V

C418 067G215V100 7R LOW E.S.R 10UF +/-20% 50V

C717 067G215V100 7R LOW E.S.R 10UF +/-20% 50V

C703 067G215V101 4N KY25VB100M-CC3(6.3*11)

C710 067G215V101 4N KY25VB100M-CC3(6.3*11)

C712 067G215V101 4N KY25VB100M-CC3(6.3*11)

C101 067G215V220 7R

C738 067G215V470 4N KY25VB47-M-CC3.0 5*11MM

EC 105℃ CAP 4.7UF M 50V

ELCAP 105℃ 22UF M 50V

63

15" LCD Color Monitor HP VP15

C101 067G215Y2207RV RUBYCON 50V 22UF

C728 067G405I4713KV

CN702 088G 30214K PHONE JACK 5PIN

CN405 088G 35315F H D-SUB 15PIN

X401 093G 22 53 CRYSTAL 14.318MHzHC-49US

SMTC6CMWHPQ1P MAIN BOARD FOR SMT SMTKEPC6AA6P KEY BOARD FOR SMT SMTKEPC6AA7P KEY BOARD FOR SMT

CN802 033G8020 2D U WAFER

CN801 033G8020 2D U WAFER

040G 45762420A LABEL 25x6mm

IC902 056G 139 7 1 IC EL817MA M-TYPE

IC902 056G 139 3A PC123Y22FZOF

R920 061G152M688 64 0.68OHM +-5% 2W

C816 065G 3J1506ET 15PF 5% CC45SL 3KV TDK

C802 065G 3J2096ET 2PF 5% SL 3KV

C901 065G305M1022E2 1000P 400VAC/250VAC

EC 105℃ CAP 470UF M 16V

C902 065G305M1022E2 1000P 400VAC/250VAC

C901 065G305M1022EM Y2 1000PF +-20% 250VAC

C902 065G305M1022EM Y2 1000PF +-20% 250VAC

C900 065G306M2222BP 2200PF +-20% 400VAC

C918 067G215D4714KV

C917 067G215D4714KV

C916 067G215D4714KV

C924 067G215D4714KV

C921 067G215D4714KV

C920 067G215D4714KV

C905 067G215S10115K 100UF 450V

C921 067G215V471 4N 470UF +-20% 25V

C924 067G215V471 4N 470UF +-20% 25V

C920 067G215V471 4N 470UF +-20% 25V

C918 067G215V471 4N 470UF +-20% 25V

C917 067G215V471 4N 470UF +-20% 25V

EC 105℃ CAP 470UF M 25V EC 105℃ CAP 470UF M 25V EC 105℃ CAP 470UF M 25V EC 105℃ CAP 470UF M 25V EC 105℃ CAP 470UF M 25V EC 105℃ CAP 470UF M 25V

C916 067G215V471 4N 470UF +-20% 25V

C921 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

C924 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

C916 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

C917 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

C918 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

C920 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

64

15" LCD Color Monitor HP VP15

C811 067G415V221 6K

L902 073G 174 65 H LINE FILTER

L904 073G 253 91 H CHOKE COIL

L903 073G 253 91 H CHOKE COIL

L901 073L 174 50 HH LINE FITER

T901 080GL15T 32 T X'FMR 770uH SRW24LQ-TXXH016

PT801 080GL19T 18 H XFMR FOR INVERTER DADON

PT801 080GL19T 18 DN X'FMR100.3uH TK.2048M.101

CN901 087G 501 37 S AC INLET ST-01DG-B2K-K

DB901 093G 50460 28 BRIDGE DIODE KBP208G LITEON

DB901 093G 50460 8P BRIDGE DIODE 2KBP08M PANJIT

DB901 093G 50460502 KBP206G

D901 093G 6026T52T RECTIFIER DIODE FR107

D902 093G3006 1 1 31DQ06FC3 NIHON INTER

CN902 095G801412W594 WIRE HARNESS

CAP 105℃ 220UF M 35V

CN902 095G801412X594 WIRE HARNESS

NR901 705G 560 61GTW NR901 ASS'Y

705GQ5K0 57001 Q903 ASS'Y 705GQ5K0 93001 D904 ASS'Y 705GQE61002 R910 ASS'Y PW521CH1SMTP POWER BAORD FOR S Q44G3231 15609 EVA Q52G6025 13 91 MYLAR

U401 056G 562138 IC TSUM16AWK-LF PQFP-128 MST

U702 056G 563 25 IC A1C1084-33PETR-R AIC

U701 056G 585 4 IC AIC1117-33PYTR-R AIC

U703 056G 616 20 TPA2008D2 PWP-24

U403 056G1133 32 IC M24C04-WMN6TP SO8

U404 056G1133 34 M24C02-WMN6TP

U402 056G1133 74 SST25VF010A-33-4C-SAE

U403 056G1133104 IC AF24BC04-SI 4K SOIC-8

U402 056G1133713 IC PM25LV010A-100SCE SOIC-8

Q402 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q403 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q401 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q703 057G 417 12 T KEC 2N3904S-RTK/PS

Q701 057G 417 12 T KEC 2N3904S-RTK/PS

Q706 057G 417 13 T KEC 2N3906S-RTK/PS

Q702 057G 417 17 T PZT2907A

Q702 057G 41717B T tra PZT2907A PHILIPS

65

15" LCD Color Monitor HP VP15

Q701 057G 417511 MMBT3904

Q703 057G 417511 MMBT3904

Q706 057G 417512 MMBT3906

Q704 057G 763 1 A03401 SOT23 BY AOS(A1)

Q704 057G 763501 FET AM2321P ANALOG POWER

R409 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

R414 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

R496 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

R497 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

R722 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

FB410 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

FB411 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

FB412 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

R427 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R420 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R418 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R411 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R443 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R445 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R488 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R704 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R441 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R442 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R429 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R428 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R446 061G0603102 RST CHIP 1K 1/10W 5%

R447 061G0603102 RST CHIP 1K 1/10W 5%

R476 061G0603102 RST CHIP 1K 1/10W 5%

R477 061G0603102 RST CHIP 1K 1/10W 5%

R701 061G0603102 RST CHIP 1K 1/10W 5%

R733 061G0603102 RST CHIP 1K 1/10W 5%

R736 061G0603102 RST CHIP 1K 1/10W 5%

R737 061G0603102 RST CHIP 1K 1/10W 5%

R738 061G0603102 RST CHIP 1K 1/10W 5%

R416 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R415 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R413 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R424 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R425 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R426 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

66

15" LCD Color Monitor HP VP15

R729 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R728 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R727 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R717 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R714 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R711 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R708 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R487 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R484 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R480 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R470 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R452 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R444 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R432 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R412 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R408 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R406 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R404 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R731 061G0603113 2F RST CHIPR 11.3 KOHM +-1% 1/10W

R732 061G0603113 2F RST CHIPR 11.3 KOHM +-1% 1/10W

R730 061G0603124 RST CHIPR 120 KOHM +-5% 1/10W

R430 061G0603202 RST CHIPR 2 KOHM +-5% 1/10W

R703 061G0603202 RST CHIPR 2 KOHM +-5% 1/10W

R417 061G0603203 RST CHIPR 20 KOHM +-5% 1/10W

R448 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W

R449 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W

R405 061G0603223 RST CHIPR 22 KOHM +-5% 1/10W

R453 061G0603330 RST CHIPR 33 OHM +-5% 1/10W

R454 061G0603330 RST CHIPR 33 OHM +-5% 1/10W

R403 061G0603390 0F RST CHIPR 390 OHM +-1% 1/10W

R474 061G0603392 RST CHIPR 3.9 KOHM +-5% 1/10W

R475 061G0603392 RST CHIPR 3.9 KOHM +-5% 1/10W

R437 061G0603471 RST CHIPR 470 OHM +-5% 1/10W

R422 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R423 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R450 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R451 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R707 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R712 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R725 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

67

15" LCD Color Monitor HP VP15

R702 061G0603510 RST CHIPR 51 OHM +-5% 1/10W

R498 061G0603513 RST CHIPR 51 KOHM +-5% 1/10W

R723 061G0603513 RST CHIPR 51 KOHM +-5% 1/10W

R421 061G0603560 RST CHIPR 56 OHM +-5% 1/10W

R434 061G0603560 RST CHIPR 56 OHM +-5% 1/10W

R435 061G0603560 RST CHIPR 56 OHM +-5% 1/10W

R436 061G0603560 RST CHIPR 56 OHM +-5% 1/10W

R419 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

R438 061G0603750 9F RST CHIPR 75 OHM +-1% 1/10W

R439 061G0603750 9F RST CHIPR 75 OHM +-1% 1/10W

R440 061G0603750 9F RST CHIPR 75 OHM +-1% 1/10W

L709 061G0805109 RST CHIPR 1 OHM +-5% 1/8W

R101 061G0805331 RST CHIPR 330 OHM +-5% 1/8W

C427 065G0603104 32 CHIP 0.1UF 50V X7R

C426 065G0603104 32 CHIP 0.1UF 50V X7R

C424 065G0603104 32 CHIP 0.1UF 50V X7R

C422 065G0603104 32 CHIP 0.1UF 50V X7R

C420 065G0603104 32 CHIP 0.1UF 50V X7R

C419 065G0603104 32 CHIP 0.1UF 50V X7R

C416 065G0603104 32 CHIP 0.1UF 50V X7R

C415 065G0603104 32 CHIP 0.1UF 50V X7R

C414 065G0603104 32 CHIP 0.1UF 50V X7R

C413 065G0603104 32 CHIP 0.1UF 50V X7R

C412 065G0603104 32 CHIP 0.1UF 50V X7R

C428 065G0603104 32 CHIP 0.1UF 50V X7R

C720 065G0603104 32 CHIP 0.1UF 50V X7R

C718 065G0603104 32 CHIP 0.1UF 50V X7R

C714 065G0603104 32 CHIP 0.1UF 50V X7R

C713 065G0603104 32 CHIP 0.1UF 50V X7R

C709 065G0603104 32 CHIP 0.1UF 50V X7R

C704 065G0603104 32 CHIP 0.1UF 50V X7R

C701 065G0603104 32 CHIP 0.1UF 50V X7R

C444 065G0603104 32 CHIP 0.1UF 50V X7R

C441 065G0603104 32 CHIP 0.1UF 50V X7R

C440 065G0603104 32 CHIP 0.1UF 50V X7R

C439 065G0603104 32 CHIP 0.1UF 50V X7R

C430 065G0603104 32 CHIP 0.1UF 50V X7R

C429 065G0603104 32 CHIP 0.1UF 50V X7R

C411 065G0603104 32 CHIP 0.1UF 50V X7R

C719 065G0603104 32 CHIP 0.1UF 50V X7R

68

15" LCD Color Monitor HP VP15

C733 065G0603104 32 CHIP 0.1UF 50V X7R

C723 065G0603104 32 CHIP 0.1UF 50V X7R

C722 065G0603104 32 CHIP 0.1UF 50V X7R

C721 065G0603104 32 CHIP 0.1UF 50V X7R

C401 065G0603104 32 CHIP 0.1UF 50V X7R

C402 065G0603104 32 CHIP 0.1UF 50V X7R

C404 065G0603104 32 CHIP 0.1UF 50V X7R

C405 065G0603104 32 CHIP 0.1UF 50V X7R

C406 065G0603104 32 CHIP 0.1UF 50V X7R

C407 065G0603104 32 CHIP 0.1UF 50V X7R

C409 065G0603104 32 CHIP 0.1UF 50V X7R

C410 065G0603104 32 CHIP 0.1UF 50V X7R

C461 065G0603105 12 CHIP 1UF 16VX7R 0603

C729 065G0603105 12 CHIP 1UF 16VX7R 0603

C726 065G0603105 12 CHIP 1UF 16VX7R 0603

C724 065G0603105 12 CHIP 1UF 16VX7R 0603

C456 065G0603105 12 CHIP 1UF 16VX7R 0603

C421 065G0603220 31 CER1 0603 NP0 50V 22P PM

C423 065G0603220 31 CER1 0603 NP0 50V 22P PM

C443 065G0603221 31 CER1 0603 NP0 50V 220P P

C732 065G0603221 31 CER1 0603 NP0 50V 220P P

C417 065G0603224 12 CAP CHIP 0603 220N 16V X7R +/-10%

C425 065G0603224 12 CAP CHIP 0603 220N 16V X7R +/-10%

C442 065G0603330 31 CER1 0603 NP0 50V 33P PM

C734 065G0603471 31 CAP:CER 470PF 5%50V SMT 0603

C735 065G0603471 31 CAP:CER 470PF 5%50V SMT 0603

C727 065G0603471 31 CAP:CER 470PF 5%50V SMT 0603

C725 065G0603471 32 CHIP 470PF 50V X7R

C730 065G0603471 32 CHIP 470PF 50V X7R

C731 065G0603471 32 CHIP 470PF 50V X7R

C432 065G0603473 32 CHIP 0.047UF 50V X7R

C433 065G0603473 32 CHIP 0.047UF 50V X7R

C434 065G0603473 32 CHIP 0.047UF 50V X7R

C435 065G0603473 32 CHIP 0.047UF 50V X7R

C436 065G0603473 32 CHIP 0.047UF 50V X7R

C437 065G0603473 32 CHIP 0.047UF 50V X7R

C438 065G0603473 32 CHIP 0.047UF 50V X7R

L701 071G 56B500 CHIP BEAD

L702 071G 56B500 CHIP BEAD

L703 071G 56B500 CHIP BEAD

69

15" LCD Color Monitor HP VP15

L704 071G 56B500 CHIP BEAD

FB101 071G 56K121 CHIP BEAD

L706 071G 56K121 CHIP BEAD

FB413 071G 56K121 CHIP BEAD

FB406 071G 56K121 CHIP BEAD

FB405 071G 56K121 CHIP BEAD

FB404 071G 56K121 CHIP BEAD

FB403 071G 56K121 CHIP BEAD

FB402 071G 56K121 CHIP BEAD

FB401 071G 56K121 CHIP BEAD

L710 071G 56K121 CHIP BEAD

L705 071G 56K121 CHIP BEAD

L705 071G 56K121 M CHIP BEAD

L710 071G 56K121 M CHIP BEAD

FB401 071G 56K121 M CHIP BEAD

FB402 071G 56K121 M CHIP BEAD

FB403 071G 56K121 M CHIP BEAD

FB404 071G 56K121 M CHIP BEAD

FB405 071G 56K121 M CHIP BEAD

FB406 071G 56K121 M CHIP BEAD

FB413 071G 56K121 M CHIP BEAD

FB101 071G 56K121 M CHIP BEAD

L706 071G 56K121 M CHIP BEAD

L707 071G 56V301 B CHIP BEAD FCM2012VF-301T07 bullwill

L708 071G 56V301 B CHIP BEAD FCM2012VF-301T07 bullwill

R705 071G 59B121 TB160808B

FB409 071G 59B121 TB160808B

D425 093G 39147 TZMC5V6

D412 093G 39147 TZMC5V6

D411 093G 39147 TZMC5V6

D410 093G 39147 TZMC5V6

D409 093G 39147 TZMC5V6

D408 093G 39147 TZMC5V6

D406 093G 39147 TZMC5V6

D425 093G 39147SEM ZMM5V6ST

D412 093G 39147SEM ZMM5V6ST

D411 093G 39147SEM ZMM5V6ST

D410 093G 39147SEM ZMM5V6ST

D409 093G 39147SEM ZMM5V6ST

D408 093G 39147SEM ZMM5V6ST

70

15" LCD Color Monitor HP VP15

D406 093G 39147SEM ZMM5V6ST

D407 093G 64 42 P BAV70 SOT-23

D702 093G 6432P LL4148

D405 093G 6433P BAV99

D404 093G 6433P BAV99

D403 093G 6433P BAV99

D429 093G 39P599 T MM3Z5V6B

D401 093G 39S 34 T UDZS5.6B

D402 093G 39S 34 T UDZS5.6B

D429 093G 39S 34 T UDZS5.6B

D701 093G 64S522SEM LL4148

D704 093G2004 2 SR24/PANJIT-SMT

715G2252 1 MAIN BOARD PCB

CN003 033G8023 2 WAFER

CN002 033G8023 2 WAFER

CN003 033G8023 2 JS WAFER

CN002 033G8023 2 JS WAFER

CN001 033G803210C WAFER

CN001 033G803210D WAFER

CN001 033G803210S WAFER

C008 065G0603102 32 1000PF +-10% 50V X7R

C007 065G0603102 32 1000PF +-10% 50V X7R

C006 065G0603102 32 1000PF +-10% 50V X7R

C005 065G0603102 32 1000PF +-10% 50V X7R

C004 065G0603102 32 1000PF +-10% 50V X7R

C003 065G0603102 32 1000PF +-10% 50V X7R

C002 065G0603102 32 1000PF +-10% 50V X7R

C001 065G0603102 32 1000PF +-10% 50V X7R

SW003 077G 606 21HJ TACT SW 4PIN SMT TSXH-3GL

SW002 077G 606 21HJ TACT SW 4PIN SMT TSXH-3GL

SW001 077G 606 21HJ TACT SW 4PIN SMT TSXH-3GL

SW004 077G 606 21HJ TACT SW 4PIN SMT TSXH-3GL

ZD001 093G 39S 34 T UDZS5.6B

ZD002 093G 39S 34 T UDZS5.6B

ZD003 093G 39S 34 T UDZS5.6B

ZD004 093G 39S 34 T UDZS5.6B

715G2283 1 K KEY BOARD PCB

CN004 033G8032 4C WAFER

SW005 077G 607 1 FD TACT SWITCH

LED001 081G 14 20 AV LED AQUA WHITE / AMBER

71

15" LCD Color Monitor HP VP15

ZD006 093G 39S 34 T UDZS5.6B

ZD007 093G 39S 34 T UDZS5.6B

ZD005 093G 39S 34 T UDZS5.6B

715G2283 1 P KEY BOARD PCB

NR901 061G 58050 WT NTC 5 OHM 5A

096G 29 10 H.S. TUBE

Q903 057G 667 30 2SK2645

Q903 057G 724 11 STP9NK65ZFP

090G6084 1 GP HEAT SINK 0M1G1730 8128 CR3 SCREW 090G6084 1 GP HEAT SINK

D904 093G 60239 FME-210B T0-220

D904 093G 60245 SP10150 10A 150V ITO-220 BY SECOS

0M1G1730 8128 CR3 SCREW

R910 061G152M10458F 100K OHM 5% 2W

096G 29 6 H.S. TUBE

IC901 056G 379 76 IC LD7552BPS SOP-8

IC801 056G 608 10 IC OZ9938GN-B SOIC-16

Q802 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q803 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q901 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q901 057G 417 12 T KEC 2N3904S-RTK/PS

Q802 057G 417 12 T KEC 2N3904S-RTK/PS

Q803 057G 417 12 T KEC 2N3904S-RTK/PS

Q801 057G 759 2 RK7002

Q804 057G 759 2 RK7002

Q806 057G 759 2 RK7002

Q807 057G 759 2 RK7002

Q805 057G 763 14 AM9945N

R917 061G0805100 10 OHM 1/10W

R918 061G0805100 1F RST CHIPR 1KOHM +-1% 1/8W

R928 061G0805100 1F RST CHIPR 1KOHM +-1% 1/8W

R931 061G0805100 1F RST CHIPR 1KOHM +-1% 1/8W

R804 061G0805100 2F RST CHIPR 10KOHM +-1% 1/8W

R812 061G0805100 2F RST CHIPR 10KOHM +-1% 1/8W

R919 061G0805100 2F RST CHIPR 10KOHM +-1% 1/8W

R810 061G0805100 3F RST CHIPR 100KOHM +-1% 1/8W

R815 061G0805100 3F RST CHIPR 100KOHM +-1% 1/8W

R821 061G0805100 3F RST CHIPR 100KOHM +-1% 1/8W

R913 061G0805100 3F RST CHIPR 100KOHM +-1% 1/8W

72

15" LCD Color Monitor HP VP15

R915 061G0805100 3F RST CHIPR 100KOHM +-1% 1/8W

R819 061G0805102 CHIP 1KOHM 1/10W

R831 061G0805102 CHIP 1KOHM 1/10W

R935 061G0805102 CHIP 1KOHM 1/10W

R813 061G0805105 1MOHM 1/10W

R816 061G0805105 1MOHM 1/10W

R822 061G0805105 1MOHM 1/10W

R826 061G0805105 1MOHM 1/10W

R829 061G0805105 1MOHM 1/10W

R833 061G0805150 15 0805

R832 061G0805150 15 0805

R834 061G0805184 RST CHIPR 180 KOHM +-5% 1/8W

R807 061G0805220 22&8 1/10W

R936 061G0805243 1F RST CHIPR 2.43 KOHM +-1% 1/8W

R802 061G0805304 RST CHIPR 300 KOHM +-5% 1/8W

R930 061G0805330 0F RST CHIPR 330 OHM +-1% 1/8W

R827 061G0805330 0F RST CHIPR 330 OHM +-1% 1/8W

R817 061G0805330 2F 33 KOHM 1/10W 1%

R934 061G0805330 2F 33 KOHM 1/10W 1%

R937 061G0805390 1F RST CHIPR 3.9 KOHM +-1% 1/8W

R814 061G0805433 RST CHIPR 43 KOHM +-5% 1/8W

R820 061G0805563 56KOHM 1/10W

R818 061G0805680 2F RST CHIPR 68 KOHM +-1% 1/8W

R912 061G0805750 2F RST CHIPR 75 KOHM +-1% 1/8W

R825 061G0805752 RST CHIPR 7.5 KOHM +-5% 1/8W

R801 061G1206000 0 OHM 1/8W

JR901 061G1206000 0 OHM 1/8W

R927 061G1206101 100 1206

R926 061G1206101 100 1206

R925 061G1206101 100 1206

R924 061G1206101 100 1206

R923 061G1206101 100 1206

R922 061G1206101 100 1206

R921 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W

R914 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W

R932 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W

R929 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W

R903 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W

R803 061G1206103 10 KOHM 1/8W

R911 061G1206151 RST CHIPR 150 OHM +-5% 1/4W

73

15" LCD Color Monitor HP VP15

R916 061G1206249 RST CHIPR 2.4 OHM +-5% 1/4W

R906 061G1206434 RST CHIPR 430 KOHM +-5% 1/4W

R905 061G1206434 RST CHIPR 430 KOHM +-5% 1/4W

R904 061G1206434 RST CHIPR 430 KOHM +-5% 1/4W

R805 061G1206471 470 1206

R808 061G1206473 RST CHIPR 47KOHM +-5% 1/4W

R907 061G1206514 RST CHIPR 510 KOHM +-5% 1/4W

R908 061G1206514 RST CHIPR 510 KOHM +-5% 1/4W

R909 061G1206514 RST CHIPR 510 KOHM +-5% 1/4W

R901 061G1206684 RST CHIPR 680 KOHM +-5% 1/4W

R902 061G1206684 RST CHIPR 680 KOHM +-5% 1/4W

R900 061G1206684 RST CHIPR 680 KOHM +-5% 1/4W

C805 065G0805102 32 CHIP 1000P 50VX7R 0805

C819 065G0805102 32 CHIP 1000P 50VX7R 0805

C817 065G0805102 32 CHIP 1000P 50VX7R 0805

C801 065G0805103 22 CHIP 0.01uF 25V X7R 0805

C807 065G0805103 22 CHIP 0.01uF 25V X7R 0805

C906 065G0805103 22 CHIP 0.01uF 25V X7R 0805

C911 065G0805104 22 0.1UF +-10% 25V X7R 080

C907 065G080510422T CAP 0805 0.1UF K 25V X7R TAIYO YUDEN

C908 065G080510422T CAP 0805 0.1UF K 25V X7R TAIYO YUDEN

C919 065G080510422T CAP 0805 0.1UF K 25V X7R TAIYO YUDEN

C812 065G080510422T CAP 0805 0.1UF K 25V X7R TAIYO YUDEN

C808 065G080510422T CAP 0805 0.1UF K 25V X7R TAIYO YUDEN

C808 065G080510422W CAP 0805 0.1UF K 25V X7R WALSIN

C812 065G080510422W CAP 0805 0.1UF K 25V X7R WALSIN

C919 065G080510422W CAP 0805 0.1UF K 25V X7R WALSIN

C908 065G080510422W CAP 0805 0.1UF K 25V X7R WALSIN

C907 065G080510422W CAP 0805 0.1UF K 25V X7R WALSIN

C909 065G080510432W CAP 0805 0.1UF K 50 X7R WALSIN

C909 065G080510432Y CAP 0805 0.1UF K 50V X7R

C806 065G0805105 12 1UF +-10% 6V X7R

C912 065G0805221 32 CHIP 220PF 50V X7R 0805

C809 065G0805223 22 CHIP 0.022UF 25V X7R 080

C913 065G0805334 22 0.33UF+-10% 25V X7R 0805

C818 065G0805471 31 CHIP 470PF 50V NPO

C815 065G0805473 32 CHIP 0.047UF 50V X7R

C810 065G080556131G MLCC 0805 560PF G 50V NPO

C914 065G1206102 72 CHIP 1000PF 500V X7R

C915 065G1206102 72 CHIP 1000PF 500V X7R

74

15" LCD Color Monitor HP VP15

C804 065G1206225 22 2.2UF 25V X7R 1206

D801 093G 64 42 P BAV70 SOT-23

D801 093G 64 42 PP BAV70 SOT-23

D803 093G 64 44 S LL4148WP

D804 093G 64 44 S LL4148WP

D802 093G 6433P BAV99

ZD801 093G 39GA01 T RLZ5.6B

ZD902 093G 39GA01 T RLZ5.6B

ZD903 093G 39GA28 T ZENER DIODE RLZ13B SEMTECH

ZD904 093G 39GA28 T ZENER DIODE RLZ13B SEMTECH

ZD801 093G 39S 24 T RLZ 5.6B LLDS

ZD902 093G 39S 24 T RLZ 5.6B LLDS

ZD903 093G 39S 40 T RLZ 13B LLDS

ZD904 093G 39S 40 T RLZ 13B LLDS

PW521CH1AIP POWER BOARD FOR AI 034FPF20P01 BOBBIN

CN902 006G 31500 EYELET

C905 006G 31502 1.5MM RIVET

L902 006G 31502 1.5MM RIVET

NR901 006G 31502 1.5MM RIVET

PT801 006G 31502 1.5MM RIVET

T901 006G 31502 1.5MM RIVET

L901 006G 31502 1.5MM RIVET

Q903 006G 31502 1.5MM RIVET

IC903 056G 158 10 T IC AZ431AZ-AE1 TO-92 BY AAC

IC904 056G 158 10 T IC AZ431AZ-AE1 TO-92 BY AAC

IC903 056G 158 12 KIA431A-AT/P TO-92

IC904 056G 158 12 KIA431A-AT/P TO-92

J914 061G 60210052T 10 OHM 5% 1/6W

J921 061G 60210052T 10 OHM 5% 1/6W

R823 061G212Y625 KT MGFR 6.2MOHM +-5% 1/2W

C904 065G 1K152 1T 1.5NF/1KV Z5F+-10%

C910 067G215Y2207KT

J908 071G 55 9 T FERRITE BEAD

FB901 071G 55 29 FERRITE BEAD

F902 084G 55 2 FUSE 2.5A 250V MET2.50 BY CONQUER

F901 084G 55 2 FUSE 2.5A 250V MET2.50 BY CONQUER

F902 084G 55 5 FUSE 2.50A 250V

F901 084G 55 5 FUSE 2.50A 250V

D903 093G 6038T52T FR103

CAP 105℃ 22UF M 50V KINGNICHI

75

15" LCD Color Monitor HP VP15

715G2274 1 POWER BOARD PCB

76

15" LCD Color Monitor HP VP15

T56CMWMMH6HPAP

Location Part No. Description

023G3178690 6A LOGO 040G 581654 3A CARTON LABEL 052G 1185 MIDDLE TAPE 052G 1186 SMALL TAPE 052G6022 1500 SMALL TAPE 089G 173 56507 AUDIO CABLE

E089B 089G 728HAA 21 SIGNAL CABLE

E089B 089G 728LAA 21 SIGNAL CABLE

E089A 089G410A19N IS POWER CORD

E089A 089G410A19N LS POWER CODE

095G 900660 Q WIRE HARNESS 095G 900660 X WIRE HARNESS 095G801416QH24 WIRE HARNESS 095G801416XH24 WIRE HARNESS

E095A 095G801820D562 LVDS CABLE

E095A 095G801820X562 LVDS CABLE

0M1G 130 6120 SCREW M3X6 0M1G 140 8225 CR3 SCREW 0M1G1730 6128 CR3 SCREW 0M1G1730 6128 CR3 SCREW 0M1G1740 8128 CR3 SCREW 0Q1G 330 8120 SCREW 3X8mm 0Q1G 330 8120 SCREW 3X8mm 705GQ5K0B34009 REAR COVER ASS'Y 705GQ5K0F34005 15" LCD BEZEL ASS'Y 705GQ5K0P34007 STAND-BASE ASS'Y 750GLC50P1Q12Z000H PANEL LCD CLAA150XP01Q 000 ZBD HP CPT 750GLC50P1Q13Z000H PANEL LCD CLAA150XP01Q 000 ZBD HP CPT 750GLC50P1Q22Z000H PANEL LCD CLAA150XP01Q 010 ZBD HP CPT 750GLC50P1Q23Z000H PANEL LCD CLAA150XP01Q 010 ZBD HP CPT A15G0152 1 MAINFRAME A33G0102AAA 1X HINGE COVER CBPC6CMWHPQ1P MAIN BOARD KEPC6AA6P KEY BOARD KEPC6AA7P KEY BOARD PWPC521CH1P POWER BOARD Q15G0169 1 GND LUG Q40G 15N69010C RATING LABEL

77

15" LCD Color Monitor HP VP15

Q41G160069050C DOC KIT FOR AP Q41G7800690A41 vp15 qsg Q44G5010 1 EPS(L) Q44G5010 2 EPS(R) Q44G5010690 1D CARTON Q45G 88609 78 EPE BAG FOR MONITOR Q45G 88609 80 EPE BAG FOR BASE 0Q1G 330 8120 SCREW 3X8mm A33G0099 1A1P POWER BUTTON A33G0100 1 1D Power Diffuse A34G0191AAA 1B 30 REAR COVER A34G0192 PM 1B REAR RING Q05G6052 1 GATE LABEL 078G 311503 L SPK 4OHM 2W NeoSonica 078G 311503 R SPK 4OHM 2W NeoSonica 078G 311503 YL SPK 4OHM 2W SUNLINK 078G 311503 YR SPK 4OHM 2W SUNLINK 0Q1G1030 10128 CR3 SCREW A33G0098 PMA1L OSD BUTTON A34G0190AABA1B 30 BEZEL 012G 394 4 RUBBER FOOT 0Q1G 140 8128 CR3 SCREW A34G0179AAA 1X STAND A34G0193AAA 1X 20 BASE A37G0022 2 HINGE

CN701 033G8027 12 J CONNECTOR

CN403 033G8027 16 J CONNECTOR

CN101 033G8043 14 H CONNECTER

040G 457624 1B LABEL-CPU 040G 45762412B CBPC LABEL

C702 067G 3154797KV

EC 105℃ CAP 4.7UF M 50V

C403 067G 3154797KV

C408 067G215V100 7R LOW E.S.R 10UF +/-20% 50V

C418 067G215V100 7R LOW E.S.R 10UF +/-20% 50V

C717 067G215V100 7R LOW E.S.R 10UF +/-20% 50V

C703 067G215V101 4N KY25VB100M-CC3(6.3*11)

C710 067G215V101 4N KY25VB100M-CC3(6.3*11)

C712 067G215V101 4N KY25VB100M-CC3(6.3*11)

C101 067G215V220 7R

C738 067G215V470 4N KY25VB47-M-CC3.0 5*11MM

EC 105℃ CAP 4.7UF M 50V

ELCAP 105℃ 22UF M 50V

78

15" LCD Color Monitor HP VP15

C101 067G215Y2207RV RUBYCON 50V 22UF

C728 067G405I4713KV

CN702 088G 30214K PHONE JACK 5PIN

CN405 088G 35315F H D-SUB 15PIN

X401 093G 22 53 CRYSTAL 14.318MHzHC-49US

CN802 033G8020 2D U WAFER

CN801 033G8020 2D U WAFER

040G 45762420A LABEL 25x6mm

IC902 056G 139 7 1 IC EL817MA M-TYPE

IC902 056G 139 3A PC123Y22FZOF

R920 061G152M688 64 0.68OHM +-5% 2W

C816 065G 3J1506ET 15PF 5% CC45SL 3KV TDK

C802 065G 3J2096ET 2PF 5% SL 3KV

C901 065G305M1022E2 1000P 400VAC/250VAC

C902 065G305M1022E2 1000P 400VAC/250VAC

C901 065G305M1022EM Y2 1000PF +-20% 250VAC

C902 065G305M1022EM Y2 1000PF +-20% 250VAC

EC 105℃ CAP 470UF M 16V

C900 065G306M2222BP 2200PF +-20% 400VAC

C918 067G215D4714KV

C917 067G215D4714KV

C916 067G215D4714KV

C924 067G215D4714KV

C921 067G215D4714KV

C920 067G215D4714KV

C905 067G215S10115K 100UF 450V

C921 067G215V471 4N 470UF +-20% 25V

C924 067G215V471 4N 470UF +-20% 25V

C920 067G215V471 4N 470UF +-20% 25V

C918 067G215V471 4N 470UF +-20% 25V

C917 067G215V471 4N 470UF +-20% 25V

C916 067G215V471 4N 470UF +-20% 25V

C921 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

C924 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

EC 105℃ CAP 470UF M 25V EC 105℃ CAP 470UF M 25V EC 105℃ CAP 470UF M 25V EC 105℃ CAP 470UF M 25V EC 105℃ CAP 470UF M 25V EC 105℃ CAP 470UF M 25V

C916 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

C917 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

C918 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

C920 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

C811 067G415V221 6K

L902 073G 174 65 H LINE FILTER

L904 073G 253 91 H CHOKE COIL

CAP 105℃ 220UF M 35V

79

15" LCD Color Monitor HP VP15

L903 073G 253 91 H CHOKE COIL

L901 073L 174 50 HH LINE FITER

T901 080GL15T 32 T X'FMR 770uH SRW24LQ-TXXH016

PT801 080GL19T 18 H XFMR FOR INVERTER DADON

PT801 080GL19T 18 DN X'FMR100.3uH TK.2048M.101

CN901 087G 501 37 S AC INLET ST-01DG-B2K-K

DB901 093G 50460 28 BRIDGE DIODE KBP208G LITEON

DB901 093G 50460 8P BRIDGE DIODE 2KBP08M PANJIT

DB901 093G 50460502 KBP206G

D901 093G 6026T52T RECTIFIER DIODE FR107

D902 093G3006 1 1 31DQ06FC3 NIHON INTER

CN902 095G801412W594 WIRE HARNESS

CN902 095G801412X594 WIRE HARNESS

NR901 705G 560 61GTW NR901 ASS'Y

705GQ5K0 57001 Q903 ASS'Y 705GQ5K0 93001 D904 ASS'Y 705GQE61002 R910 ASS'Y Q44G3231 15609 EVA Q52G6025 13 91 MYLAR

U401 056G 562138 IC TSUM16AWK-LF PQFP-128 MST

U702 056G 563 25 IC A1C1084-33PETR-R AIC

U701 056G 585 4 IC AIC1117-33PYTR-R AIC

U703 056G 616 20 TPA2008D2 PWP-24

U403 056G1133 32 IC M24C04-WMN6TP SO8

U404 056G1133 34 M24C02-WMN6TP

U402 056G1133 74 SST25VF010A-33-4C-SAE

U403 056G1133104 IC AF24BC04-SI 4K SOIC-8

U402 056G1133713 IC PM25LV010A-100SCE SOIC-8

Q402 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q403 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q401 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q703 057G 417 12 T KEC 2N3904S-RTK/PS

Q701 057G 417 12 T KEC 2N3904S-RTK/PS

Q706 057G 417 13 T KEC 2N3906S-RTK/PS

Q702 057G 417 17 T PZT2907A

Q702 057G 41717B T tra PZT2907A PHILIPS

Q701 057G 417511 MMBT3904

Q703 057G 417511 MMBT3904

Q706 057G 417512 MMBT3906

Q704 057G 763 1 A03401 SOT23 BY AOS(A1)

80

15" LCD Color Monitor HP VP15

Q704 057G 763501 FET AM2321P ANALOG POWER

R409 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

R414 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

R496 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

R497 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

R722 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

FB410 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

FB411 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

FB412 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

R427 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R420 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R418 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R411 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R443 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R445 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R488 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R704 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R441 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R442 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R429 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R428 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R446 061G0603102 RST CHIP 1K 1/10W 5%

R447 061G0603102 RST CHIP 1K 1/10W 5%

R476 061G0603102 RST CHIP 1K 1/10W 5%

R477 061G0603102 RST CHIP 1K 1/10W 5%

R701 061G0603102 RST CHIP 1K 1/10W 5%

R733 061G0603102 RST CHIP 1K 1/10W 5%

R736 061G0603102 RST CHIP 1K 1/10W 5%

R737 061G0603102 RST CHIP 1K 1/10W 5%

R738 061G0603102 RST CHIP 1K 1/10W 5%

R416 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R415 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R413 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R424 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R425 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R426 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R729 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R728 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R727 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R717 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

81

15" LCD Color Monitor HP VP15

R714 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R711 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R708 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R487 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R484 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R480 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R470 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R452 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R444 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R432 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R412 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R408 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R406 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R404 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R731 061G0603113 2F RST CHIPR 11.3 KOHM +-1% 1/10W

R732 061G0603113 2F RST CHIPR 11.3 KOHM +-1% 1/10W

R730 061G0603124 RST CHIPR 120 KOHM +-5% 1/10W

R430 061G0603202 RST CHIPR 2 KOHM +-5% 1/10W

R703 061G0603202 RST CHIPR 2 KOHM +-5% 1/10W

R417 061G0603203 RST CHIPR 20 KOHM +-5% 1/10W

R448 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W

R449 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W

R405 061G0603223 RST CHIPR 22 KOHM +-5% 1/10W

R453 061G0603330 RST CHIPR 33 OHM +-5% 1/10W

R454 061G0603330 RST CHIPR 33 OHM +-5% 1/10W

R403 061G0603390 0F RST CHIPR 390 OHM +-1% 1/10W

R474 061G0603392 RST CHIPR 3.9 KOHM +-5% 1/10W

R475 061G0603392 RST CHIPR 3.9 KOHM +-5% 1/10W

R437 061G0603471 RST CHIPR 470 OHM +-5% 1/10W

R422 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R423 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R450 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R451 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R707 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R712 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R725 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R702 061G0603510 RST CHIPR 51 OHM +-5% 1/10W

R498 061G0603513 RST CHIPR 51 KOHM +-5% 1/10W

R723 061G0603513 RST CHIPR 51 KOHM +-5% 1/10W

R421 061G0603560 RST CHIPR 56 OHM +-5% 1/10W

82

15" LCD Color Monitor HP VP15

R434 061G0603560 RST CHIPR 56 OHM +-5% 1/10W

R435 061G0603560 RST CHIPR 56 OHM +-5% 1/10W

R436 061G0603560 RST CHIPR 56 OHM +-5% 1/10W

R419 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

R438 061G0603750 9F RST CHIPR 75 OHM +-1% 1/10W

R439 061G0603750 9F RST CHIPR 75 OHM +-1% 1/10W

R440 061G0603750 9F RST CHIPR 75 OHM +-1% 1/10W

L709 061G0805109 RST CHIPR 1 OHM +-5% 1/8W

R101 061G0805331 RST CHIPR 330 OHM +-5% 1/8W

C427 065G0603104 32 CHIP 0.1UF 50V X7R

C426 065G0603104 32 CHIP 0.1UF 50V X7R

C424 065G0603104 32 CHIP 0.1UF 50V X7R

C422 065G0603104 32 CHIP 0.1UF 50V X7R

C420 065G0603104 32 CHIP 0.1UF 50V X7R

C419 065G0603104 32 CHIP 0.1UF 50V X7R

C416 065G0603104 32 CHIP 0.1UF 50V X7R

C415 065G0603104 32 CHIP 0.1UF 50V X7R

C414 065G0603104 32 CHIP 0.1UF 50V X7R

C413 065G0603104 32 CHIP 0.1UF 50V X7R

C412 065G0603104 32 CHIP 0.1UF 50V X7R

C428 065G0603104 32 CHIP 0.1UF 50V X7R

C720 065G0603104 32 CHIP 0.1UF 50V X7R

C718 065G0603104 32 CHIP 0.1UF 50V X7R

C714 065G0603104 32 CHIP 0.1UF 50V X7R

C713 065G0603104 32 CHIP 0.1UF 50V X7R

C709 065G0603104 32 CHIP 0.1UF 50V X7R

C704 065G0603104 32 CHIP 0.1UF 50V X7R

C701 065G0603104 32 CHIP 0.1UF 50V X7R

C444 065G0603104 32 CHIP 0.1UF 50V X7R

C441 065G0603104 32 CHIP 0.1UF 50V X7R

C440 065G0603104 32 CHIP 0.1UF 50V X7R

C439 065G0603104 32 CHIP 0.1UF 50V X7R

C430 065G0603104 32 CHIP 0.1UF 50V X7R

C429 065G0603104 32 CHIP 0.1UF 50V X7R

C411 065G0603104 32 CHIP 0.1UF 50V X7R

C719 065G0603104 32 CHIP 0.1UF 50V X7R

C733 065G0603104 32 CHIP 0.1UF 50V X7R

C723 065G0603104 32 CHIP 0.1UF 50V X7R

C722 065G0603104 32 CHIP 0.1UF 50V X7R

C721 065G0603104 32 CHIP 0.1UF 50V X7R

83

15" LCD Color Monitor HP VP15

C401 065G0603104 32 CHIP 0.1UF 50V X7R

C402 065G0603104 32 CHIP 0.1UF 50V X7R

C404 065G0603104 32 CHIP 0.1UF 50V X7R

C405 065G0603104 32 CHIP 0.1UF 50V X7R

C406 065G0603104 32 CHIP 0.1UF 50V X7R

C407 065G0603104 32 CHIP 0.1UF 50V X7R

C409 065G0603104 32 CHIP 0.1UF 50V X7R

C410 065G0603104 32 CHIP 0.1UF 50V X7R

C461 065G0603105 12 CHIP 1UF 16VX7R 0603

C729 065G0603105 12 CHIP 1UF 16VX7R 0603

C726 065G0603105 12 CHIP 1UF 16VX7R 0603

C724 065G0603105 12 CHIP 1UF 16VX7R 0603

C456 065G0603105 12 CHIP 1UF 16VX7R 0603

C421 065G0603220 31 CER1 0603 NP0 50V 22P PM

C423 065G0603220 31 CER1 0603 NP0 50V 22P PM

C443 065G0603221 31 CER1 0603 NP0 50V 220P P

C732 065G0603221 31 CER1 0603 NP0 50V 220P P

C417 065G0603224 12 CAP CHIP 0603 220N 16V X7R +/-10%

C425 065G0603224 12 CAP CHIP 0603 220N 16V X7R +/-10%

C442 065G0603330 31 CER1 0603 NP0 50V 33P PM

C734 065G0603471 31 CAP:CER 470PF 5%50V SMT 0603

C735 065G0603471 31 CAP:CER 470PF 5%50V SMT 0603

C727 065G0603471 31 CAP:CER 470PF 5%50V SMT 0603

C725 065G0603471 32 CHIP 470PF 50V X7R

C730 065G0603471 32 CHIP 470PF 50V X7R

C731 065G0603471 32 CHIP 470PF 50V X7R

C432 065G0603473 32 CHIP 0.047UF 50V X7R

C433 065G0603473 32 CHIP 0.047UF 50V X7R

C434 065G0603473 32 CHIP 0.047UF 50V X7R

C435 065G0603473 32 CHIP 0.047UF 50V X7R

C436 065G0603473 32 CHIP 0.047UF 50V X7R

C437 065G0603473 32 CHIP 0.047UF 50V X7R

C438 065G0603473 32 CHIP 0.047UF 50V X7R

L701 071G 56B500 CHIP BEAD

L702 071G 56B500 CHIP BEAD

L703 071G 56B500 CHIP BEAD

L704 071G 56B500 CHIP BEAD

FB101 071G 56K121 CHIP BEAD

L706 071G 56K121 CHIP BEAD

FB413 071G 56K121 CHIP BEAD

84

15" LCD Color Monitor HP VP15

FB406 071G 56K121 CHIP BEAD

FB405 071G 56K121 CHIP BEAD

FB404 071G 56K121 CHIP BEAD

FB403 071G 56K121 CHIP BEAD

FB402 071G 56K121 CHIP BEAD

FB401 071G 56K121 CHIP BEAD

L710 071G 56K121 CHIP BEAD

L705 071G 56K121 CHIP BEAD

L705 071G 56K121 M CHIP BEAD

L710 071G 56K121 M CHIP BEAD

FB401 071G 56K121 M CHIP BEAD

FB402 071G 56K121 M CHIP BEAD

FB403 071G 56K121 M CHIP BEAD

FB404 071G 56K121 M CHIP BEAD

FB405 071G 56K121 M CHIP BEAD

FB406 071G 56K121 M CHIP BEAD

FB413 071G 56K121 M CHIP BEAD

FB101 071G 56K121 M CHIP BEAD

L706 071G 56K121 M CHIP BEAD

L707 071G 56V301 B CHIP BEAD FCM2012VF-301T07 bullwill

L708 071G 56V301 B CHIP BEAD FCM2012VF-301T07 bullwill

R705 071G 59B121 TB160808B

FB409 071G 59B121 TB160808B

D425 093G 39147 TZMC5V6

D412 093G 39147 TZMC5V6

D411 093G 39147 TZMC5V6

D410 093G 39147 TZMC5V6

D409 093G 39147 TZMC5V6

D408 093G 39147 TZMC5V6

D406 093G 39147 TZMC5V6

D425 093G 39147SEM ZMM5V6ST

D412 093G 39147SEM ZMM5V6ST

D411 093G 39147SEM ZMM5V6ST

D410 093G 39147SEM ZMM5V6ST

D409 093G 39147SEM ZMM5V6ST

D408 093G 39147SEM ZMM5V6ST

D406 093G 39147SEM ZMM5V6ST

D407 093G 64 42 P BAV70 SOT-23

D702 093G 6432P LL4148

D405 093G 6433P BAV99

85

15" LCD Color Monitor HP VP15

D404 093G 6433P BAV99

D403 093G 6433P BAV99

D429 093G 39P599 T MM3Z5V6B

D401 093G 39S 34 T UDZS5.6B

D402 093G 39S 34 T UDZS5.6B

D429 093G 39S 34 T UDZS5.6B

D701 093G 64S522SEM LL4148

D704 093G2004 2 SR24/PANJIT-SMT

715G2252 1 MAIN BOARD PCB

CN003 033G8023 2 WAFER

CN002 033G8023 2 WAFER

CN003 033G8023 2 JS WAFER

CN002 033G8023 2 JS WAFER

CN001 033G803210C WAFER

CN001 033G803210D WAFER

CN001 033G803210S WAFER

C008 065G0603102 32 1000PF +-10% 50V X7R

C007 065G0603102 32 1000PF +-10% 50V X7R

C006 065G0603102 32 1000PF +-10% 50V X7R

C005 065G0603102 32 1000PF +-10% 50V X7R

C004 065G0603102 32 1000PF +-10% 50V X7R

C003 065G0603102 32 1000PF +-10% 50V X7R

C002 065G0603102 32 1000PF +-10% 50V X7R

C001 065G0603102 32 1000PF +-10% 50V X7R

SW003 077G 606 21HJ TACT SW 4PIN SMT TSXH-3GL

SW002 077G 606 21HJ TACT SW 4PIN SMT TSXH-3GL

SW001 077G 606 21HJ TACT SW 4PIN SMT TSXH-3GL

SW004 077G 606 21HJ TACT SW 4PIN SMT TSXH-3GL

ZD001 093G 39S 34 T UDZS5.6B

ZD002 093G 39S 34 T UDZS5.6B

ZD003 093G 39S 34 T UDZS5.6B

ZD004 093G 39S 34 T UDZS5.6B

715G2283 1 K KEY BOARD PCB

CN004 033G8032 4C WAFER

SW005 077G 607 1 FD TACT SWITCH

LED001 081G 14 20 AV LED AQUA WHITE / AMBER

ZD006 093G 39S 34 T UDZS5.6B

ZD007 093G 39S 34 T UDZS5.6B

ZD005 093G 39S 34 T UDZS5.6B

715G2283 1 P KEY BOARD PCB

86

15" LCD Color Monitor HP VP15

NR901 061G 58050 WT NTC 5 OHM 5A

096G 29 10 H.S. TUBE

Q903 057G 667 30 2SK2645

Q903 057G 724 11 STP9NK65ZFP

090G6084 1 GP HEAT SINK 0M1G1730 8128 CR3 SCREW 090G6084 1 GP HEAT SINK

D904 093G 60239 FME-210B T0-220

D904 093G 60245 SP10150 10A 150V ITO-220 BY SECOS

0M1G1730 8128 CR3 SCREW

R910 061G152M10458F 100K OHM 5% 2W

096G 29 6 H.S. TUBE

IC901 056G 379 76 IC LD7552BPS SOP-8

IC801 056G 608 10 IC OZ9938GN-B SOIC-16

Q802 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q803 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q901 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q901 057G 417 12 T KEC 2N3904S-RTK/PS

Q802 057G 417 12 T KEC 2N3904S-RTK/PS

Q803 057G 417 12 T KEC 2N3904S-RTK/PS

Q801 057G 759 2 RK7002

Q804 057G 759 2 RK7002

Q806 057G 759 2 RK7002

Q807 057G 759 2 RK7002

Q805 057G 763 14 AM9945N

R917 061G0805100 10 OHM 1/10W

R918 061G0805100 1F RST CHIPR 1KOHM +-1% 1/8W

R928 061G0805100 1F RST CHIPR 1KOHM +-1% 1/8W

R931 061G0805100 1F RST CHIPR 1KOHM +-1% 1/8W

R804 061G0805100 2F RST CHIPR 10KOHM +-1% 1/8W

R812 061G0805100 2F RST CHIPR 10KOHM +-1% 1/8W

R919 061G0805100 2F RST CHIPR 10KOHM +-1% 1/8W

R810 061G0805100 3F RST CHIPR 100KOHM +-1% 1/8W

R815 061G0805100 3F RST CHIPR 100KOHM +-1% 1/8W

R821 061G0805100 3F RST CHIPR 100KOHM +-1% 1/8W

R913 061G0805100 3F RST CHIPR 100KOHM +-1% 1/8W

R915 061G0805100 3F RST CHIPR 100KOHM +-1% 1/8W

R819 061G0805102 CHIP 1KOHM 1/10W

R831 061G0805102 CHIP 1KOHM 1/10W

R935 061G0805102 CHIP 1KOHM 1/10W

87

15" LCD Color Monitor HP VP15

R813 061G0805105 1MOHM 1/10W

R816 061G0805105 1MOHM 1/10W

R822 061G0805105 1MOHM 1/10W

R826 061G0805105 1MOHM 1/10W

R829 061G0805105 1MOHM 1/10W

R833 061G0805150 15 0805

R832 061G0805150 15 0805

R834 061G0805184 RST CHIPR 180 KOHM +-5% 1/8W

R807 061G0805220 22&8 1/10W

R936 061G0805243 1F RST CHIPR 2.43 KOHM +-1% 1/8W

R802 061G0805304 RST CHIPR 300 KOHM +-5% 1/8W

R930 061G0805330 0F RST CHIPR 330 OHM +-1% 1/8W

R827 061G0805330 0F RST CHIPR 330 OHM +-1% 1/8W

R817 061G0805330 2F 33 KOHM 1/10W 1%

R934 061G0805330 2F 33 KOHM 1/10W 1%

R937 061G0805390 1F RST CHIPR 3.9 KOHM +-1% 1/8W

R814 061G0805433 RST CHIPR 43 KOHM +-5% 1/8W

R820 061G0805563 56KOHM 1/10W

R818 061G0805680 2F RST CHIPR 68 KOHM +-1% 1/8W

R912 061G0805750 2F RST CHIPR 75 KOHM +-1% 1/8W

R825 061G0805752 RST CHIPR 7.5 KOHM +-5% 1/8W

R801 061G1206000 0 OHM 1/8W

JR901 061G1206000 0 OHM 1/8W

R927 061G1206101 100 1206

R926 061G1206101 100 1206

R925 061G1206101 100 1206

R924 061G1206101 100 1206

R923 061G1206101 100 1206

R922 061G1206101 100 1206

R921 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W

R914 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W

R932 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W

R929 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W

R903 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W

R803 061G1206103 10 KOHM 1/8W

R911 061G1206151 RST CHIPR 150 OHM +-5% 1/4W

R916 061G1206249 RST CHIPR 2.4 OHM +-5% 1/4W

R906 061G1206434 RST CHIPR 430 KOHM +-5% 1/4W

R905 061G1206434 RST CHIPR 430 KOHM +-5% 1/4W

R904 061G1206434 RST CHIPR 430 KOHM +-5% 1/4W

88

15" LCD Color Monitor HP VP15

R805 061G1206471 470 1206

R808 061G1206473 RST CHIPR 47KOHM +-5% 1/4W

R907 061G1206514 RST CHIPR 510 KOHM +-5% 1/4W

R908 061G1206514 RST CHIPR 510 KOHM +-5% 1/4W

R909 061G1206514 RST CHIPR 510 KOHM +-5% 1/4W

R901 061G1206684 RST CHIPR 680 KOHM +-5% 1/4W

R902 061G1206684 RST CHIPR 680 KOHM +-5% 1/4W

R900 061G1206684 RST CHIPR 680 KOHM +-5% 1/4W

C805 065G0805102 32 CHIP 1000P 50VX7R 0805

C819 065G0805102 32 CHIP 1000P 50VX7R 0805

C817 065G0805102 32 CHIP 1000P 50VX7R 0805

C801 065G0805103 22 CHIP 0.01uF 25V X7R 0805

C807 065G0805103 22 CHIP 0.01uF 25V X7R 0805

C906 065G0805103 22 CHIP 0.01uF 25V X7R 0805

C911 065G0805104 22 0.1UF +-10% 25V X7R 080

C907 065G080510422T CAP 0805 0.1UF K 25V X7R TAIYO YUDEN

C908 065G080510422T CAP 0805 0.1UF K 25V X7R TAIYO YUDEN

C919 065G080510422T CAP 0805 0.1UF K 25V X7R TAIYO YUDEN

C812 065G080510422T CAP 0805 0.1UF K 25V X7R TAIYO YUDEN

C808 065G080510422T CAP 0805 0.1UF K 25V X7R TAIYO YUDEN

C808 065G080510422W CAP 0805 0.1UF K 25V X7R WALSIN

C812 065G080510422W CAP 0805 0.1UF K 25V X7R WALSIN

C919 065G080510422W CAP 0805 0.1UF K 25V X7R WALSIN

C908 065G080510422W CAP 0805 0.1UF K 25V X7R WALSIN

C907 065G080510422W CAP 0805 0.1UF K 25V X7R WALSIN

C909 065G080510432W CAP 0805 0.1UF K 50 X7R WALSIN

C909 065G080510432Y CAP 0805 0.1UF K 50V X7R

C806 065G0805105 12 1UF +-10% 6V X7R

C912 065G0805221 32 CHIP 220PF 50V X7R 0805

C809 065G0805223 22 CHIP 0.022UF 25V X7R 080

C913 065G0805334 22 0.33UF+-10% 25V X7R 0805

C818 065G0805471 31 CHIP 470PF 50V NPO

C815 065G0805473 32 CHIP 0.047UF 50V X7R

C810 065G080556131G MLCC 0805 560PF G 50V NPO

C914 065G1206102 72 CHIP 1000PF 500V X7R

C915 065G1206102 72 CHIP 1000PF 500V X7R

C804 065G1206225 22 2.2UF 25V X7R 1206

D801 093G 64 42 P BAV70 SOT-23

D801 093G 64 42 PP BAV70 SOT-23

D803 093G 64 44 S LL4148WP

89

15" LCD Color Monitor HP VP15

D804 093G 64 44 S LL4148WP

D802 093G 6433P BAV99

ZD801 093G 39GA01 T RLZ5.6B

ZD902 093G 39GA01 T RLZ5.6B

ZD903 093G 39GA28 T ZENER DIODE RLZ13B SEMTECH

ZD904 093G 39GA28 T ZENER DIODE RLZ13B SEMTECH

ZD801 093G 39S 24 T RLZ 5.6B LLDS

ZD902 093G 39S 24 T RLZ 5.6B LLDS

ZD903 093G 39S 40 T RLZ 13B LLDS

ZD904 093G 39S 40 T RLZ 13B LLDS

034FPF20P01 BOBBIN

CN902 006G 31500 EYELET

C905 006G 31502 1.5MM RIVET

L902 006G 31502 1.5MM RIVET

NR901 006G 31502 1.5MM RIVET

PT801 006G 31502 1.5MM RIVET

T901 006G 31502 1.5MM RIVET

L901 006G 31502 1.5MM RIVET

Q903 006G 31502 1.5MM RIVET

IC903 056G 158 10 T IC AZ431AZ-AE1 TO-92 BY AAC

IC904 056G 158 10 T IC AZ431AZ-AE1 TO-92 BY AAC

IC903 056G 158 12 KIA431A-AT/P TO-92

IC904 056G 158 12 KIA431A-AT/P TO-92

J914 061G 60210052T 10 OHM 5% 1/6W

J921 061G 60210052T 10 OHM 5% 1/6W

R823 061G212Y625 KT MGFR 6.2MOHM +-5% 1/2W

C904 065G 1K152 1T 1.5NF/1KV Z5F+-10%

C910 067G215Y2207KT

J908 071G 55 9 T FERRITE BEAD

FB901 071G 55 29 FERRITE BEAD

F902 084G 55 2 FUSE 2.5A 250V MET2.50 BY CONQUER

CAP 105℃ 22UF M 50V KINGNICHI

F901 084G 55 2 FUSE 2.5A 250V MET2.50 BY CONQUER

F902 084G 55 5 FUSE 2.50A 250V

F901 084G 55 5 FUSE 2.50A 250V

D903 093G 6038T52T FR103

715G2274 1 POWER BOARD PCB

90

15" LCD Color Monitor HP VP15

T56SMWMKH6HPAP

Location Part No. Description

023G3178690 6A LOGO

040G 581654 3A CARTON LABEL

052G 1185 MIDDLE TAPE

052G 1186 SMALL TAPE

052G6022 1500 SMALL TAPE

089G 173 56507 AUDIO CABLE

E089B 089G 728HAA 21 SIGNAL CABLE

E089B 089G 728LAA 21 SIGNAL CABLE

E089A 089G402A19N IS AC POWER CABLE

E089A 089G402A19N LS POWER CORD

095G 900660 Q WIRE HARNESS

095G 900660 X WIRE HARNESS

095G801416QH24 WIRE HARNESS

095G801416XH24 WIRE HARNESS

E095A 095G801820D562 LVDS CABLE

E095A 095G801820X562 LVDS CABLE

0M1G 130 6120 SCREW M3X6

0M1G 140 8225 CR3 SCREW

0M1G1730 6128 CR3 SCREW

0M1G1740 8128 CR3 SCREW

0Q1G 330 8120 SCREW 3X8mm

705GQ5K0B34009 REAR COVER ASS'Y

705GQ5K0F34005 15" LCD BEZEL ASS'Y

705GQ5K0P34007 STAND-BASE ASS'Y

750GLS50XOL12Z H SEC 15" PANEL

A15G0152 2 MAIN FRAME

A33G0102AAA 1X HINGE COVER

CBPC6SMWHPA1P MAIN BOARD

KEPC6AA6P KEY BOARD

KEPC6AA7P KEY BOARD

PWPC521SH1P POWER BOARD

Q15G0169 1 GND LUG

Q40G 15N69010C RATING LABEL

Q41G160069051C VP15 DOC KIT FOR NA

Q41G7800690A41 vp15 qsg

Q44G5010 1 EPS(L)

91

15" LCD Color Monitor HP VP15

Q44G5010 2 EPS(R)

Q44G5010690 2B CARTON

Q45G 88609 78 EPE BAG FOR MONITOR

Q45G 88609 80 EPE BAG FOR BASE

0Q1G 330 8120 SCREW 3X8mm

A33G0099 1A1P POWER BUTTON

A33G0100 1 1D Power Diffuse

A34G0191AAA 1B 30 REAR COVER

A34G0192 PM 1B REAR RING

Q05G6052 1 GATE LABEL

078G 311503 L SPK 4OHM 2W NeoSonica

078G 311503 R SPK 4OHM 2W NeoSonica

078G 311503 YL SPK 4OHM 2W SUNLINK

078G 311503 YR SPK 4OHM 2W SUNLINK

0Q1G1030 10128 CR3 SCREW

A33G0098 PMA1L OSD BUTTON

A34G0190AABA1B 30 BEZEL

012G 394 4 RUBBER FOOT

0Q1G 140 8128 CR3 SCREW

A34G0179AAA 1X STAND

A34G0193AAA 1X 20 BASE

A37G0022 2 HINGE

CN701 033G8027 12 J CONNECTOR

CN403 033G8027 16 J CONNECTOR

CN101 033G8043 14 H CONNECTER

040G 457624 1B LABEL-CPU

040G 45762412B CBPC LABEL

C403 067G 3154797KV

C702 067G 3154797KV

C408 067G215V100 7R LOW E.S.R 10UF +/-20% 50V

C418 067G215V100 7R LOW E.S.R 10UF +/-20% 50V

EC 105℃ CAP 4.7UF M 50V EC 105℃ CAP 4.7UF M 50V

C717 067G215V100 7R LOW E.S.R 10UF +/-20% 50V

C703 067G215V101 4N KY25VB100M-CC3(6.3*11)

C710 067G215V101 4N KY25VB100M-CC3(6.3*11)

C712 067G215V101 4N KY25VB100M-CC3(6.3*11)

C101 067G215V220 7R

C738 067G215V470 4N KY25VB47-M-CC3.0 5*11MM

C101 067G215Y2207RV RUBYCON 50V 22UF

C728 067G405I4713KV

CN702 088G 30214K PHONE JACK 5PIN

ELCAP 105℃ 22UF M 50V

EC 105℃ CAP 470UF M 16V

92

15" LCD Color Monitor HP VP15

CN405 088G 35315F H D-SUB 15PIN

X401 093G 22 53 CRYSTAL 14.318MHzHC-49US

CN801 033G8020 2D U WAFER

CN802 033G8020 2D U WAFER

040G 45762420A LABEL 25x6mm

IC902 056G 139 7 1 IC EL817MA M-TYPE

IC902 056G 139 3A PC123Y22FZOF

R920 061G152M688 64 0.68OHM +-5% 2W

C816 065G 3J1506ET 15PF 5% CC45SL 3KV TDK

C802 065G 3J2096ET 2PF 5% SL 3KV

C901 065G305M1022E2 1000P 400VAC/250VAC

C902 065G305M1022E2 1000P 400VAC/250VAC

C901 065G305M1022EM Y2 1000PF +-20% 250VAC

C902 065G305M1022EM Y2 1000PF +-20% 250VAC

C900 065G306M2222BP 2200PF +-20% 400VAC

C916 067G215D4714KV

C917 067G215D4714KV

C918 067G215D4714KV

C920 067G215D4714KV

C924 067G215D4714KV

C921 067G215D4714KV

C905 067G215S10115K 100UF 450V

C916 067G215V471 4N 470UF +-20% 25V

C917 067G215V471 4N 470UF +-20% 25V

C918 067G215V471 4N 470UF +-20% 25V

C920 067G215V471 4N 470UF +-20% 25V

C924 067G215V471 4N 470UF +-20% 25V

C921 067G215V471 4N 470UF +-20% 25V

C921 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

C924 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

C920 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

EC 105℃ CAP 470UF M 25V EC 105℃ CAP 470UF M 25V EC 105℃ CAP 470UF M 25V EC 105℃ CAP 470UF M 25V EC 105℃ CAP 470UF M 25V EC 105℃ CAP 470UF M 25V

C918 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

C917 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

C916 067G215V471 4R LOW E.S.R 470UF +/-20% 25V

C811 067G415V221 6K

L902 073G 174 65 H LINE FILTER

L904 073G 253 91 H CHOKE COIL

L903 073G 253 91 H CHOKE COIL

L901 073L 174 50 HH LINE FITER

T901 080GL15T 32 T X'FMR 770uH SRW24LQ-TXXH016

CAP 105℃ 220UF M 35V

93

15" LCD Color Monitor HP VP15

PT801 080GL19T 18 H XFMR FOR INVERTER DADON

PT801 080GL19T 18 DN X'FMR100.3uH TK.2048M.101

CN901 087G 501 37 S AC INLET ST-01DG-B2K-K

DB901 093G 50460 28 BRIDGE DIODE KBP208G LITEON

DB901 093G 50460 8P BRIDGE DIODE 2KBP08M PANJIT

DB901 093G 50460502 KBP206G

D901 093G 6026T52T RECTIFIER DIODE FR107

D902 093G3006 1 1 31DQ06FC3 NIHON INTER

CN902 095G801412W594 WIRE HARNESS

CN902 095G801412X594 WIRE HARNESS

NR901 705G 560 61GTW NR901 ASS'Y

705GQ5K0 57001 Q903 ASS'Y

705GQ5K0 93001 D904 ASS'Y

705GQE61002 R910 ASS'Y

Q44G3231 15609 EVA

Q52G6025 13 91 MYLAR

U401 056G 562138 IC TSUM16AWK-LF PQFP-128 MST

U702 056G 563 25 IC A1C1084-33PETR-R AIC

U701 056G 585 4 IC AIC1117-33PYTR-R AIC

U703 056G 616 20 TPA2008D2 PWP-24

U403 056G1133 32 IC M24C04-WMN6TP SO8

U404 056G1133 34 M24C02-WMN6TP

U402 056G1133 74 SST25VF010A-33-4C-SAE

U403 056G1133104 IC AF24BC04-SI 4K SOIC-8

U402 056G1133713 IC PM25LV010A-100SCE SOIC-8

Q402 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q401 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q403 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q703 057G 417 12 T KEC 2N3904S-RTK/PS

Q701 057G 417 12 T KEC 2N3904S-RTK/PS

Q706 057G 417 13 T KEC 2N3906S-RTK/PS

Q702 057G 417 17 T PZT2907A

Q702 057G 41717B T tra PZT2907A PHILIPS

Q701 057G 417511 MMBT3904

Q703 057G 417511 MMBT3904

Q706 057G 417512 MMBT3906

Q704 057G 763 1 A03401 SOT23 BY AOS(A1)

Q704 057G 763501 FET AM2321P ANALOG POWER

R722 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

R497 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

94

15" LCD Color Monitor HP VP15

R496 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

R414 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

R409 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

FB412 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

FB411 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

FB410 061G0603000 RST CHIPR 0 OHM +-5% 1/10W

R704 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R488 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R445 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R443 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R442 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R441 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R429 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R428 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R427 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R420 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R418 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R411 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R446 061G0603102 RST CHIP 1K 1/10W 5%

R447 061G0603102 RST CHIP 1K 1/10W 5%

R476 061G0603102 RST CHIP 1K 1/10W 5%

R477 061G0603102 RST CHIP 1K 1/10W 5%

R701 061G0603102 RST CHIP 1K 1/10W 5%

R733 061G0603102 RST CHIP 1K 1/10W 5%

R736 061G0603102 RST CHIP 1K 1/10W 5%

R737 061G0603102 RST CHIP 1K 1/10W 5%

R738 061G0603102 RST CHIP 1K 1/10W 5%

R406 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R408 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R412 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R413 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R416 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R424 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R425 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R729 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R728 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R727 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R717 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R714 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R711 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

95

15" LCD Color Monitor HP VP15

R708 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R487 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R484 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R480 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R470 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R452 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R444 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R432 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R426 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R404 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R415 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R731 061G0603113 2F RST CHIPR 11.3 KOHM +-1% 1/10W

R732 061G0603113 2F RST CHIPR 11.3 KOHM +-1% 1/10W

R730 061G0603124 RST CHIPR 120 KOHM +-5% 1/10W

R703 061G0603202 RST CHIPR 2 KOHM +-5% 1/10W

R430 061G0603202 RST CHIPR 2 KOHM +-5% 1/10W

R417 061G0603203 RST CHIPR 20 KOHM +-5% 1/10W

R448 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W

R449 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W

R405 061G0603223 RST CHIPR 22 KOHM +-5% 1/10W

R453 061G0603330 RST CHIPR 33 OHM +-5% 1/10W

R454 061G0603330 RST CHIPR 33 OHM +-5% 1/10W

R403 061G0603390 0F RST CHIPR 390 OHM +-1% 1/10W

R474 061G0603392 RST CHIPR 3.9 KOHM +-5% 1/10W

R475 061G0603392 RST CHIPR 3.9 KOHM +-5% 1/10W

R437 061G0603471 RST CHIPR 470 OHM +-5% 1/10W

R422 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R423 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R450 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R451 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R707 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R712 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R725 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W

R702 061G0603510 RST CHIPR 51 OHM +-5% 1/10W

R723 061G0603513 RST CHIPR 51 KOHM +-5% 1/10W

R498 061G0603513 RST CHIPR 51 KOHM +-5% 1/10W

R421 061G0603560 RST CHIPR 56 OHM +-5% 1/10W

R434 061G0603560 RST CHIPR 56 OHM +-5% 1/10W

R435 061G0603560 RST CHIPR 56 OHM +-5% 1/10W

R436 061G0603560 RST CHIPR 56 OHM +-5% 1/10W

96

15" LCD Color Monitor HP VP15

R419 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

R438 061G0603750 9F RST CHIPR 75 OHM +-1% 1/10W

R439 061G0603750 9F RST CHIPR 75 OHM +-1% 1/10W

R440 061G0603750 9F RST CHIPR 75 OHM +-1% 1/10W

L709 061G0805109 RST CHIPR 1 OHM +-5% 1/8W

R101 061G0805331 RST CHIPR 330 OHM +-5% 1/8W

C407 065G0603104 32 CHIP 0.1UF 50V X7R

C406 065G0603104 32 CHIP 0.1UF 50V X7R

C405 065G0603104 32 CHIP 0.1UF 50V X7R

C409 065G0603104 32 CHIP 0.1UF 50V X7R

C410 065G0603104 32 CHIP 0.1UF 50V X7R

C411 065G0603104 32 CHIP 0.1UF 50V X7R

C412 065G0603104 32 CHIP 0.1UF 50V X7R

C413 065G0603104 32 CHIP 0.1UF 50V X7R

C414 065G0603104 32 CHIP 0.1UF 50V X7R

C415 065G0603104 32 CHIP 0.1UF 50V X7R

C444 065G0603104 32 CHIP 0.1UF 50V X7R

C441 065G0603104 32 CHIP 0.1UF 50V X7R

C440 065G0603104 32 CHIP 0.1UF 50V X7R

C439 065G0603104 32 CHIP 0.1UF 50V X7R

C430 065G0603104 32 CHIP 0.1UF 50V X7R

C429 065G0603104 32 CHIP 0.1UF 50V X7R

C428 065G0603104 32 CHIP 0.1UF 50V X7R

C427 065G0603104 32 CHIP 0.1UF 50V X7R

C426 065G0603104 32 CHIP 0.1UF 50V X7R

C424 065G0603104 32 CHIP 0.1UF 50V X7R

C422 065G0603104 32 CHIP 0.1UF 50V X7R

C420 065G0603104 32 CHIP 0.1UF 50V X7R

C419 065G0603104 32 CHIP 0.1UF 50V X7R

C416 065G0603104 32 CHIP 0.1UF 50V X7R

C719 065G0603104 32 CHIP 0.1UF 50V X7R

C733 065G0603104 32 CHIP 0.1UF 50V X7R

C723 065G0603104 32 CHIP 0.1UF 50V X7R

C722 065G0603104 32 CHIP 0.1UF 50V X7R

C721 065G0603104 32 CHIP 0.1UF 50V X7R

C720 065G0603104 32 CHIP 0.1UF 50V X7R

C718 065G0603104 32 CHIP 0.1UF 50V X7R

C714 065G0603104 32 CHIP 0.1UF 50V X7R

C713 065G0603104 32 CHIP 0.1UF 50V X7R

C709 065G0603104 32 CHIP 0.1UF 50V X7R

97

15" LCD Color Monitor HP VP15

C704 065G0603104 32 CHIP 0.1UF 50V X7R

C701 065G0603104 32 CHIP 0.1UF 50V X7R

C401 065G0603104 32 CHIP 0.1UF 50V X7R

C402 065G0603104 32 CHIP 0.1UF 50V X7R

C404 065G0603104 32 CHIP 0.1UF 50V X7R

C461 065G0603105 12 CHIP 1UF 16VX7R 0603

C729 065G0603105 12 CHIP 1UF 16VX7R 0603

C726 065G0603105 12 CHIP 1UF 16VX7R 0603

C724 065G0603105 12 CHIP 1UF 16VX7R 0603

C456 065G0603105 12 CHIP 1UF 16VX7R 0603

C421 065G0603220 31 CER1 0603 NP0 50V 22P PM

C423 065G0603220 31 CER1 0603 NP0 50V 22P PM

C443 065G0603221 31 CER1 0603 NP0 50V 220P P

C732 065G0603221 31 CER1 0603 NP0 50V 220P P

C417 065G0603224 12 CAP CHIP 0603 220N 16V X7R +/-10%

C425 065G0603224 12 CAP CHIP 0603 220N 16V X7R +/-10%

C442 065G0603330 31 CER1 0603 NP0 50V 33P PM

C735 065G0603471 31 CAP:CER 470PF 5%50V SMT 0603

C727 065G0603471 31 CAP:CER 470PF 5%50V SMT 0603

C734 065G0603471 31 CAP:CER 470PF 5%50V SMT 0603

C731 065G0603471 32 CHIP 470PF 50V X7R

C730 065G0603471 32 CHIP 470PF 50V X7R

C725 065G0603471 32 CHIP 470PF 50V X7R

C432 065G0603473 32 CHIP 0.047UF 50V X7R

C433 065G0603473 32 CHIP 0.047UF 50V X7R

C434 065G0603473 32 CHIP 0.047UF 50V X7R

C435 065G0603473 32 CHIP 0.047UF 50V X7R

C436 065G0603473 32 CHIP 0.047UF 50V X7R

C437 065G0603473 32 CHIP 0.047UF 50V X7R

C438 065G0603473 32 CHIP 0.047UF 50V X7R

L701 071G 56B500 CHIP BEAD

L702 071G 56B500 CHIP BEAD

L703 071G 56B500 CHIP BEAD

L704 071G 56B500 CHIP BEAD

FB101 071G 56K121 CHIP BEAD

L706 071G 56K121 CHIP BEAD

FB413 071G 56K121 CHIP BEAD

FB406 071G 56K121 CHIP BEAD

FB405 071G 56K121 CHIP BEAD

FB404 071G 56K121 CHIP BEAD

98

15" LCD Color Monitor HP VP15

FB403 071G 56K121 CHIP BEAD

FB402 071G 56K121 CHIP BEAD

FB401 071G 56K121 CHIP BEAD

L710 071G 56K121 CHIP BEAD

L705 071G 56K121 CHIP BEAD

L706 071G 56K121 M CHIP BEAD

FB101 071G 56K121 M CHIP BEAD

FB413 071G 56K121 M CHIP BEAD

FB406 071G 56K121 M CHIP BEAD

FB405 071G 56K121 M CHIP BEAD

FB404 071G 56K121 M CHIP BEAD

FB403 071G 56K121 M CHIP BEAD

FB402 071G 56K121 M CHIP BEAD

FB401 071G 56K121 M CHIP BEAD

L710 071G 56K121 M CHIP BEAD

L705 071G 56K121 M CHIP BEAD

L708 071G 56V301 B CHIP BEAD FCM2012VF-301T07 bullwill

L707 071G 56V301 B CHIP BEAD FCM2012VF-301T07 bullwill

R705 071G 59B121 TB160808B

FB409 071G 59B121 TB160808B

D425 093G 39147 TZMC5V6

D412 093G 39147 TZMC5V6

D411 093G 39147 TZMC5V6

D410 093G 39147 TZMC5V6

D409 093G 39147 TZMC5V6

D408 093G 39147 TZMC5V6

D406 093G 39147 TZMC5V6

D425 093G 39147SEM ZMM5V6ST

D406 093G 39147SEM ZMM5V6ST

D408 093G 39147SEM ZMM5V6ST

D409 093G 39147SEM ZMM5V6ST

D410 093G 39147SEM ZMM5V6ST

D411 093G 39147SEM ZMM5V6ST

D412 093G 39147SEM ZMM5V6ST

D407 093G 64 42 P BAV70 SOT-23

D702 093G 6432P LL4148

D403 093G 6433P BAV99

D404 093G 6433P BAV99

D405 093G 6433P BAV99

D429 093G 39P599 T MM3Z5V6B

99

15" LCD Color Monitor HP VP15

D401 093G 39S 34 T UDZS5.6B

D402 093G 39S 34 T UDZS5.6B

D429 093G 39S 34 T UDZS5.6B

D701 093G 64S522SEM LL4148

D704 093G2004 2 SR24/PANJIT-SMT

715G2252 1 MAIN BOARD PCB

CN003 033G8023 2 WAFER

CN002 033G8023 2 WAFER

CN003 033G8023 2 JS WAFER

CN002 033G8023 2 JS WAFER

CN001 033G803210C WAFER

CN001 033G803210D WAFER

CN001 033G803210S WAFER

C001 065G0603102 32 1000PF +-10% 50V X7R

C002 065G0603102 32 1000PF +-10% 50V X7R

C003 065G0603102 32 1000PF +-10% 50V X7R

C004 065G0603102 32 1000PF +-10% 50V X7R

C005 065G0603102 32 1000PF +-10% 50V X7R

C006 065G0603102 32 1000PF +-10% 50V X7R

C007 065G0603102 32 1000PF +-10% 50V X7R

C008 065G0603102 32 1000PF +-10% 50V X7R

SW001 077G 606 21HJ TACT SW 4PIN SMT TSXH-3GL

SW002 077G 606 21HJ TACT SW 4PIN SMT TSXH-3GL

SW003 077G 606 21HJ TACT SW 4PIN SMT TSXH-3GL

SW004 077G 606 21HJ TACT SW 4PIN SMT TSXH-3GL

ZD004 093G 39S 34 T UDZS5.6B

ZD003 093G 39S 34 T UDZS5.6B

ZD002 093G 39S 34 T UDZS5.6B

ZD001 093G 39S 34 T UDZS5.6B

715G2283 1 K KEY BOARD PCB

CN004 033G8032 4C WAFER

SW005 077G 607 1 FD TACT SWITCH

LED001 081G 14 20 AV LED AQUA WHITE / AMBER

ZD006 093G 39S 34 T UDZS5.6B

ZD005 093G 39S 34 T UDZS5.6B

ZD007 093G 39S 34 T UDZS5.6B

715G2283 1 P KEY BOARD PCB

NR901 061G 58050 WT NTC 5 OHM 5A

096G 29 10 H.S. TUBE

Q903 057G 667 30 2SK2645

100

AOC VP15, VP15S Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
