AOC V19, V22 Schematic

维 修 手 册

客户

机种名

销售地区

AOC V19&V22

中国大陆

首次发布日期

: 2008/12

V19 H9RMMVNDWUA1PZ
V22 HCRCMVNDWUA1PZ

1

目录

1.安全与注意事项 ------------------------------------------------------------------------------------------------------ 03

2.技术规格 --------------------------------------------------------------------------------------------------------------- 05

3.操作说明及工厂模式调整 ------------------------------------------------------------------------------------------ 09

4. ISP 升级流程 --------------------------------------------------------------------------------------------------------- 14

5.故障处理流程 --------------------------------------------------------------------------------------------------------- 17

6.电气方框图 ------------------------------------------------------------------------------------------------------------ 21

7.线路图 ------------------------------------------------------------------------------------------------------------------ 22

8.爆炸图 ------------------------------------------------------------------------------------------------------------------ 30

9. BOM-------------------------------------------------------------------------------------------------------------------- 34

2

1.安全与注意事项

FCC 注意事项

FCC B 类无线电频率干扰声明 警告：(对于 FCC 认证的型号）

注意： 本设备已经通过测试，符合 FCC 规定第 15 部分有关 B 类数字设备的限制。这些限制可有效地防止在居住
区使用本设备时产生有害的干扰。本设备会产生、使用并且辐射无线电波，如果不按照说明来安装和使用，则可能对
无线电通信产生有害的干扰。但是，我们并不保证在某些特定位置安装本设备后不会产生干扰。如果本设备的确对无
线电或电视节目接收产生有害干扰（可通过打开和关闭本设备来确定是否存在干扰），我们希望用户采取下列一项或
几项措施来消除干扰：

1. 改变接收天线的方向或位置。

2. 增加本设备和接收器之间的距离。

3. 将本设备和接收器分别接到不同的电路电源插座。

4. 咨询经销商或专业的无线电 / 电视技术人员以寻求帮助。

注意事项：

1. 如果未经有关方面（负责是否符合标准）的明确许可而进行修改或改动，用户将被取消使用本设备的权利。

2. 应使用屏蔽的接口电缆和交流电源线（如果有）以便符合辐射限制。

3. 制造商对于因未经授权修改本设备而导致的任何无线电和电视干扰不承担责任。解决此类干扰是用户的责任。

WEEE 声明

欧盟的私人住宅用户对垃圾设备的处理

产品或其包装上的这个标记表示的是，该产品不得与您的其他家庭垃圾一起处理。相反，将您的垃圾设备交给指定的
收集点，使废弃电器设备得以回收是您的责任。您在处理垃圾设备时将其分类收集与回收，有助于保护天然资源，并
在回收利用时保护人体健康与环境。有关您可以将垃圾设备放在何处回收的更多信息，请联系您所在城市的办公室、
您购买产品的家庭垃圾处理服务处或商店。

3

预防措施

警告：如果不按本文档所述使用控件、进行调整或执行其它任何过程，可能导致电击、触电和 / 或机械伤害。

请阅读这些预防措施，并遵照这些说明来连接和使用计算机显示器。

• 不要使显示器靠近有水的地方，如浴缸、洗脸盆、厨房水池、洗衣盆、游泳池或潮湿的地下室等。

• 不要将显示器放置在不稳定的推车上、平台上或桌子上。如果显示器掉落，可能会造成人员伤害并导致设备

严重损坏。仅使用制造商推荐的或随显示器一起销售的推车或平台。如果将显示器挂在墙上或架子上，应使

用制造商认可的安装工具并按照工具说明进行操作。

• 机壳后部和底部的槽和开口用于通风目的。为确保显示器可靠运行而不会过热，切勿阻塞或覆盖这些开口。

不要将显示器放置在床、沙发、地毯或类似的表面上。不要将显示器放置在暖气片或热调节器上面或附近位

置。不要将显示器放置在书柜或橱柜中，除非通风良好。

• 显示器只应使用标签上注明的电源类型。如果您不了解家中的电源类型，请与经销商或当地电力公司联系。

• 本显示器配备有一个三相接地插头，其中一个端头接地。为安全起见，该插头应插入接地的电源插座中。如

果三相插头不能插入您的插座，请找电工安装一个正确的插座，或使用适配器将设备安全接地。不要改变接

地插头的安全功能。

• 遇有雷雨天气或长时间不使用时，应拔掉设备的电源线。这样做可以防止因电压突变而损坏显示器。

• 不要使电源板或延长线过载。过载可能导致火灾或电击。

• 切勿将任何异物塞入显示器机壳的开槽内。否则会导致电路短路而引起火灾或电击。切勿使液体溅落到显示

器上。

• 不要自行维修显示器，打开或拆卸机盖时有高压或其它危险。请委托专业维修人员来进行所有维修工作。

• 为确保正常运行，本显示器只应与 UL 列出的计算机一起使用，这些计算机的的插座经过正确配置并且标记

有 100 - 240V AC， Min. 5A 。

• 墙壁电源应安装在靠近设备的地方并且便于插拔电源线。

• 仅限使用列有 UL、CSA 授权标记之连接电源变压器(针对带外置电源适配器的产品)。

4

2. 技术规格

一般规格

LCD 面板

分辨率

市场型号

驱动系统 TFT 彩色 LCD TFT 彩色 LCD

可视尺寸

像素间距

视频 R， G，B 模拟接口，HDMI 接口 R，G，B 模拟接口，HDMI 接口

独立同步 行 /场 TTL 行 /场 TTL

显示颜色 16.7M 色彩 16.7M 色彩

点时钟

水平扫描范围

水平扫描尺寸（最大）

垂直扫描范围

垂直扫描尺寸（最大）

预设的最佳分辨率

预设的最高分辨率

即插即用

输入连接器 D-Sub 15 针，HDMI D-Sub 15 针，HDMI

输入视频信号

电源 100~240VAC， 50/60Hz 100~240VAC， 50/60Hz

V19 V22

481mm 对角 548mm 对角

0.243mm(H) x 0.243mm(V) 0.277mm(H) x 0.277mm(V)

165 MHz 165 MHz

30 kHz - 83 kHz 30 kHz - 83 kHz

408.24mm 465mm

56 Hz - 75 Hz 56 Hz - 75 Hz

255.15mm 291mm

1680 x 1050 (60 Hz) 1680 x 1050 (60 Hz)

1680 x 1050 (60 Hz) 1680 x 1050 (60 Hz)

VESA DDC2B/CI VESA DDC2B/CI

模拟： 0.7Vp-p（标准），75 OHM，
HDMI

模拟： 0.7Vp-p（标准），75 OHM，
HDMI

物理特性

功率消耗

连接器类型 15- 针 Mini D-Sub，HDMI 15- 针 Mini D-Sub，HDMI

信号电缆类型 可分离 可分离

高度 (含底座)

宽度

尺寸和重量

温度

湿度

海拔高度

深度

重量（仅监视器）

重量（含包装）

工作时 0°－ +40° 0°－ +40°

非工作时 -20°－+60° -20°－+60°

工作时 10% - 85%（非凝露） 10% - 85%（非凝露）

非工作时 5% - 80%（非凝露） 5% - 80%（非凝露）

工作时 0~3000m (0～10000 ft) 0~2000m (0～10000 ft)

非工作时 0~5000m (0～15000 ft) 0~2000m (0～15000 ft)

正常工作 < 32 W 正常工作 < 38 W

离机 <1 W 离机 <1 W

398.1 mm 438.8 mm

460.2mm 526mm

180mm 190mm

2.9 kg 3.8 kg

5.67 kg 7.9 kg

5

预设显示模式

V19

标准 分辨率 水平频率(kHz) 垂直频率(Hz)

640x480@60Hz 31.469 59.94

VGA

SVGA

XGA

SXGA

WXGA+

***

640x480@72Hz 37.861 72.809

640x480@75Hz 37.5 75

800x600@56Hz 35.156 56.25

800x600@60Hz 37.879 60.317

800x600@72Hz 48.077 72.188

800x600@75Hz 46.875 75

1024x768@60Hz 48.363 60.004

1024x768@70Hz 56.476 70.069

1024x768@75Hz 60.023 75.029

1280x1024@60Hz 63.981 60.02

1280x1024@75Hz 79.976 75.025

1680x1050@60Hz 65.29 59.95

1680x1050@60Hz 64.67 59.883

1152x864@75HZ 67.5 75

1280x960@60HZ 60 60

IBM MODE DOS 720xx400@70Hz 31.469 70.087

MAC MODE VGA 640x480@67Hz 35 66.667

MAC MODE SVGA 832x624@75Hz 49.725 74.551

MAC MODE XGA 1024x768@75Hz 60.241 74.927

6

V22

标准 分辨率 水平频率(kHz) 垂直频率(Hz)

VGA 640 x 480 @60Hz 31.469 59.940

VGA 640 x 480 @67Hz 35.000 66.667

VGA 640 x 480 @72Hz 37.861 72.809

VGA 640 x 480 @75Hz 37.500 75.000

Dos-mode 720 x 400 @70Hz 31.469 70.087

SVGA 800 x 600 @56Hz 35.156 56.250

SVGA 800 x 600 @60Hz 37.879 60.317

SVGA 800 x 600 @72Hz 48.077 72.188

SVGA 800 x 600 @75Hz 46.875 75.000

Mac-mode 832 x 624 @75Hz 49.725 74.500

XGA 1024×768 @60Hz DMT 48.363 60.004

XGA 1024×768 @70Hz DMT 56.476 70.069

XGA 1024×768 @72Hz 57.500 72.074

XGA 1024×768 @75Hz DMT 60.023 75.029

XGA 1024×768 @75Hz MAC 60.241 74.927

XGA 1280×768 @60Hz CVT15:9 47.776 59.870

XGA 1280×768 @60Hz CVT15:9 R 47.396 59.995

XGA 1280×768 @75Hz CVT15:9 60.289 74.893

VESA-Mode 1280×960 @60Hz DMT 60.000 60.000

SXGA 1280×1024 @60Hz DMT 63.981 60.020

SXGA 1280×1024 @70Hz 74.882 69.853

SXGA 1280×1024 @72Hz 76.700 72.000

SXGA 1280×1024 @75Hz DMT 79.976 75.025

VESA-Mode 1360×768 @60Hz DMT 47.712 60.015

VESA-Mode 1440×900 @60Hz CVT16:10 55.935 59.887

VESA-Mode 1440×900 @60Hz CVT16:10 R 55.469 59.901

WSXGA 1680×1050 @60Hz CVT16:9 65.290 59.954

WSXGA 1680×1050 @60Hz CVT16:9 R 64.674 59.883

HD 480P for HDTV Digital only 31.500 60.000

HD 720P for HDTV Digital only 45.000 60.000

7

接头引脚分配

管脚号 信号电缆的 15 针一端

1

2

3

4 N.C.
5

6 GND-R
7 GND-G
8 GND-B
9 +5V

10

11 N.C.
12

13

14

15

视频 - 红色
视频 - 绿色
视频 - 蓝色

检测电缆

接地

DDC- 串行数据
H- 同步
V- 同步
DDC- 串行时钟

管脚号 信号名称 管脚号 信号名称 管脚号 信号名称

TMDS 数据 2+

1

TMDS 数据 2 屏蔽

2

TMDS 数据 2

3

TMDS 数据 1+

4

TMDS 数据 1 屏蔽

5

TMDS 数据 1

6

TMDS 数据 0+

7

TMDS 数据 0 屏蔽

8

10

11

12

13

14

15

16

TMDS 数据 0

9

TMDS 时钟 +
TMDS 时钟屏蔽
TMDS 时钟

CEC

预留（设备未使用）

SCL

SDA

17

18

19

DDC/CEC 接地
+5V 电源
热插拔检测

8

3. 操作说明及工厂模式调整

快捷键

按电源开关即可开关显示器。其它功能按键位于前面板前方。通过调节这些功能键可得到您需要的画面。

* 接好电源线。
* 将信号线接到 PC 机显卡
* 打开显示器，电源指示灯亮。

电源/菜单：按电源键打开显示器，当显示器打开时按出菜单。连续按两秒关闭显示器。

情景模式（动态对比度）/向上：按此键选择不同的亮度模式（标准、文本、网络、游戏，电影、运动）和打开动态对
比度， 当主菜单或子菜单被激活时，此按键是向上功能键。

信号源切换(自动调整) /向下：
信号源快捷键：当没有 OSD 菜单时，按信号源快捷键激活信号源功能(仅针对两种输入信号及以上机型)。 连续按信

号源切换键来选择信息栏中显示的信号源，按菜单键调整为选择的信号源。
自动调整快捷键：当没有 OSD 菜单时，持续按自动调整快捷键 2 秒启动自动调整功能。

音量/向左： 按此键将出现音量调整菜单并减小音量，按向右键增加音量，当主菜单或子菜单被激活时，在 OSD 菜单
中此按键是向左功能键或者是减少数值。

4 :3 或宽屏/向右：按此键切换 4：3 或宽屏模式，当输入信号的分辨率是宽屏时，此键没有作用，当主菜单或子菜单
被激活时，在 OSD 菜单中此按键是向右功能键或者是增加数值。

9

OSD 调节

明亮度 调整数值 说明

亮 度

对比度

Eco Mode

伽玛

DCR

图象设置

0-100

0-100

标准

节能

网络

游戏

电影

运动

伽玛 1 调整为伽玛值 1

伽玛 2 调整为伽玛值 2

伽玛 3 调整为伽玛值 3

禁用

启用

调整显示亮度

调整显示对比度

正常使用模式

文本应用模式

网络应用模式

游戏应用模式

观赏电影应用模式

观赏户外运动模式

关闭动态对比度

开启动态对比度

时钟

相位

水平位置

垂直位置

色温

暖色温

正常色温

冷色温

sRGB

使用者设定

色彩增强

全色增强 禁用/启用 开启或关闭全色增强模式

自然肤色 禁用/启用 开启或关闭自然肤色模式

绿茵场景 禁用/启用 开启或关闭绿色增强模式

蔚蓝风景 禁用/启用 开启或关闭蓝色增强模式

自动检测 禁用/启用 开启或关闭自动增强模式

0-100

0-100

0-100

0-100

6500K

7300K

9300K

红 微调红色色温

绿 微调绿色色温

蓝 微调蓝色色温

调整图片时钟以降低垂直线噪声

调整图片相位以降低水平线噪声

调整图片的水平位置

调整图片的垂直位置

设置为暖色温

设置为常规色温

设置为冷色温

设置为 sRGB

演示 禁用/启用 开启或关闭左画面演示

10

窗口增亮

窗口尺寸

亮 度

对比度

水平位置

垂直位置

14-100

0-100

0-100

0-100

0-100

调整窗口尺寸大小

调整窗口亮度

调整窗口增强对比度

调整水平窗口位置

调整垂直窗口位置

增亮 禁用/启用 开启或关闭增亮窗口

OSD 设置

水平位置

垂直位置

显示时间

透明度

语言

其它

0-100

0-100

5-120

0-100

调整 OSD 水平位置

调整 OSD 垂直位置

调整 OSD 显示时间

调整 OSD 透明度

选择 OSD 语言

自动 自动检测输入信号

输入信号选择

自动调整 是或者否 自动调整画面

模拟 选择输入为模拟信号源

HDMI

选择输入为 HDMI 信号源(仅针对有 HDMI 接口
的机种)

画面比例 宽屏或 4:3 选择宽屏或 4:3 显示格式

DDC-CI

显示信息

重置

是或者否 打开/关闭 DDC-CI 支持

显示输入信号信息

重置 是或者否 恢复到出厂设置

退出

退出

退出 OSD

备注：

1. 当情景模式不在标准模式时，对比度和亮度不能被调节，当 DCR 打开时，对比度、亮度、情景模式和伽玛都不
能调节。

2. 当输入信号源是数字信号如 DVI 或 HDMI 时，图像设置没有作用。

3. 当选择三 RGB 色温时，对比度、亮度、亮度情景模式、伽玛等模式不能调整。

4. 全色增强：整个色彩饱和度被增强，适合于动态图片。

自然肤色：适合于肖像。
绿茵场景：适合于大片绿色场景。
蔚蓝风景：适合于天空或海洋。
自动检测：适合于户外或花园。
演示：屏幕分成两部分对比。

5. 当 DCR、色彩增强、窗口增强中有一个被激活，其他两个功能将被关闭。

6. 如果产品只有一个信号源输入， 输入信号选择将不能调整；

如果产品显示屏是 4：3 或者输入信号分辨率是宽屏信号，图像比率项将不能调整。
当动态对比度， 色彩增强， 窗口增亮任意一项功能启动， 另外 2 项功能将被自动关闭

11

LED 指示灯

状态 LED 颜色

开机模式 蓝色

离机模式 橙色

工厂模式调整

进入工厂模式方法：

机器应处于开机状态，关断输入的220V电源，先按住MENU键，然后接通电源，这时画面会出现”AUTO LEVEL”后

画面会进行自动调整。同时按MENU键，插拔电源，OSD菜单位于屏的左上角。

a.基本调整:

设置对比度

设置亮度

为 50。

为 90。

b.增益调整:

V19

调整6500K色温

1、选中“AUTO LEVEL”先进行底光栅自动调整

2、按“MENU”选择 6500K 进行 R G B 增益调整

x = 313 ±30，y = 329 ±30， Y>150±30 cd/m

调整7300K色温

1、选中“AUTO LEVEL”先进行底光栅自动调整

2、按“MENU”选择7300K进行R G B增益调整

x = 302 ±30，y = 318 ±30，Y>150 ±30 cd/m

调整9300K色温

1、选中“AUTO LEVEL”先进行底光栅自动调整

2、按“MENU”选择9300K进行R G B增益调整

x = 283 ±30，y = 297 ±30，Y >130 ±30 cd/m

调整SRGB

1、选中“AUTO LEVEL”先进行底光栅自动调整

2、按“MENU”选择 6500K 进行 R G B 增益调整

x = 313 ±30，y = 329 ±30，Y>150±30 cd/m

2

2

2

2

12

V22

调整6500K色温

1、选中“AUTO LEVEL”先进行底光栅自动调整

2、按“MENU”选择 6500K 进行 R G B 增益调整

x = 313 ±20，y = 329 ±20，Y=280 cd/m

调整7300K色温

1、选中“AUTO LEVEL”先进行底光栅自动调整

2、按“MENU”选择7300K进行R G B增益调整

x = 301 ±20， y = 317 ±20，Y=280 cd/m

调整9300K色温

1、选中“AUTO LEVEL”先进行底光栅自动调整

2、按“MENU”选择9300K进行R G B增益调整

x = 283 ±20，y = 297 ±20，Y =280 cd/m

调整SRGB

1、选中“AUTO LEVEL”先进行底光栅自动调整

2、按“MENU”选择 6500K 进行 R G B 增益调整

x = 313 ±20，y = 329 ±20，Y=280 cd/m

c.调整完毕直接关闭电源。

2

2

2

2

13

接

待烧录显示器

4. ISP 升级流程

以下为 TSUM 系列烧录作业指导书，仅供参考！

1.连接烧录板（板号: 715GT038-1）：

图 1

接 PC打印口

2.双击 ISP_Tool v3.772.exe， ，并点击“Connect”：

3.点击“Read ”选择要烧录的程序：

图 2

图 3-1

14

4.点击打开出现图 4 所示界面：

图 3-2

5.点“确定“后出现如下界面：

图 4

图 5

15

6.点“Auto”后再点“Run” 开始烧录:

7.当烧录完成后，出现如下界面：

图 6

图 7

16

5.故障处理流程

维修所需仪器/设备: 万用表、示波器、信号产生器
主板回路

无供电

按下电源键看画面是否正常

重新插插头然后检查 AC 输入（100-240V）是否正常？

检查 U103 PIN2=1.8V；U104 PIN2=3.3V

检查晶振 X40 是否正常

无供电

OK

OK

OK

替换 U401

NG

NG

NG

NG

检查适配器、升压板和交流电源输入部分

检查或者替换 U103，U104，CN104

替换 X401

17

无画 (指示灯为 橙色)

检查 U103 PIN2=1.8V；U104 PIN2=3.3V

检查 X401 震荡波是否正常

检查 CN403，CN404 的 HS/VS 是否正常

无画

检查信号线是否正常

OK

OK

OK

OK

更换 U401

NG

更换信号线

NG

更换 U103，U104，CN104

NG

更换 X401

NG

检查相关回路

18

白屏

检查 Q407 的基极是否
为低电平

检查 Q406，Q407 是否损坏
或者 CN402 是否虚焊

白屏

OK

NG

OK

替换 PA N E L

按键板回路
OSD 画面不稳定及不可调整

OSD 画面不稳定及不可调整

NG

检查相关元件

按键板是否连接正常

OK

按键开关是否正常

OK

按键板是否正常

OK

检查主板

检查 X401 的晶振是否正常

OK

检查 U401 复位电路是否正常

OK

替换 U401

NG

NG

NG

NG

NG

连接按键板

替换按键开关

替换按键板

替换 X401

检查相关元件

19

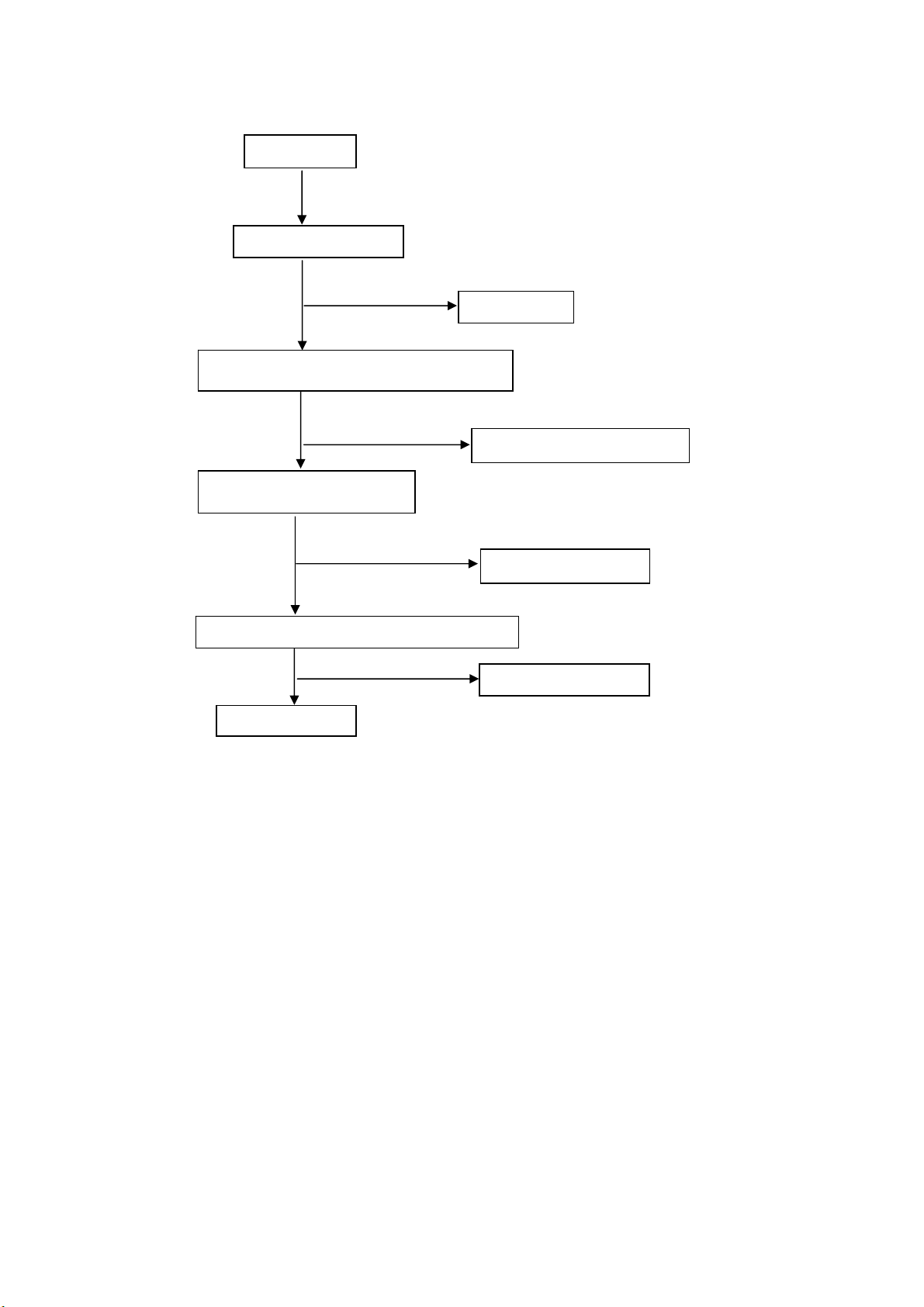

电源板电路
死机

检测交流电 100V or 240V 是否正常？

OK

NG

检测 C904 (+)的电压大小

NG

OK

检测 IC901 第 3 脚电压是否正常？

NG

OK

检测二次启动电压是否正常？

NG

OK

检测 AC 输入

检测全桥整流回路和 F901 回路

检测 R903，R904 或更换 IC901

1) 检测 IC901

2) 检测 D902， R909 回路

检测 IC901 第 8 脚的 PWM 波形是否正确

NG

OK

检测 Q901，IC902，IC903，D906，IC904

检测 IC901

20

(

)

_

A

6.电气方框图

6.1 主板

FLASH ROM (U402)

MX25L2025MC-12G

EEPROM (U403)

M24C04-WMN6TP

Crystal 14.3 MHz

(X401)

Scalar IC TSUMO58GDJ-LF (U401)

(Include ADC，OSD，MCU)

D-Sub Connector

(CN403)

SCL_VGA
SDA_VGA

Panel Interface

(CN402)

HDMI Connector

(CN404)

HDMI1_SCL
HDMI1

SD

Key control connector

CN401

ESD (U405)

AF24BC02-SI

21

ESD (U408)

AF24BC02-SI

7. 线路图

7.1 主板

715G3121-1

SCL_VGA

DGND

1716

CN403

1

11

6
2

12

7
3

13

8
4

14

15

HSI

VSI

CN404

20

SHELL1

22

SHELL3

21

SHELL2

HDMI

DGND

DGND

D2 Shield

D1 Shield

D0 Shield

CK Shield

CE Remote

DDC CLK

DDC DATA

HP DET

DGND

DB15

ZD408

RLZ5.6B

ZD409

RLZ5.6B

D2+

D2­D1+

D1­D0+

D0­CK+

CK-

NC

GND

+5V

PC5V

9

DET_VG A

5
10

DGND

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

DGND

HDMI_ +5V

HDMI_ HOTPLU G

RED-

GREEN-

BLUE-

PC5V

ZD406

RLZ5.6B

DGND

2

ZD407

C453 0.1uF 16V

RLZ5.6B

FB409 120 OHM

R478

1K 1/16W 5%

Q411

2N3904S-RTK/PS

DGND

3

D402

HD_DET

BAV99

1

R-

R+
G-

G+
B-

B+
CLK+

CLK-

DDC_CLK
DDC_DATA

3

D403

2

C454 0.1uF 16V

C456

22pF

DGND

C457

22pF

DGND

ZD410

RLZ5.6B

DGND

MVCC

R487

1K 1/16W 5%

Q412

2N3904S-RTK/PS

DGND

RED+

GREEN+

BLUE+

BAV99

1

SOGP

D405 LL4148

DGND

R463

2K2 1/16W 5%

R465

2K2 1/16W 5%

ZD411

RLZ5.6B

DGND

HDMI_ HOT1

3

D404

BAV99

1

2

C455 0. 1uF 16V

H_Sy nci n

R45175R 1/16W 5%

MVCC

SCL_VGA
SDA_VGA

R481 4K7 1/16W 5%

FB406 30 OHM1 2

FB407 30 OHM1 2

FB408 30 OHM1 2

R45275R 1/16W 5%

R45375R 1/16W 5%

DGND

VGA_R+

VGA_G+

VGA_B+

R462 1K 1/16W 5%

R464 1K 1/16W 5%

R469 100R 1/16W 5%
R470 100R 1/16W 5%

HDMI_HPD 5

R447 56 OHM 1/16W

R448 56 OHM 1/16W VGA_GIN

R449 56 OHM 1/16W

R450 470R 1/16W 5%

R454 100R 1/16W 5%

R455 100R 1/16W 5%

R456 100R 1/16W 5%

1

IN1

2

IN2

4

IN3

5 6

IN4 OUT4

DGND

1

IN1

2

IN2

4

IN3

5 6

IN4 OUT4

8

DGND

R476 100R 1/16W 5%
R477 100R 1/16W 5%

DDC_CLK

HDMI_ HOTPLU G

U406

OUT1
OUT2

OUT3

GND

GND

RClamp0524P.TCT

3

8

U407

OUT1
OUT2

OUT3

GND

GND

RClamp0524P.TCT

3

VGA_RIN

VGA_BIN

VGA_SOIN

VGA_R-

VGA_G-

VGA_B-

HSYNC 5

VSYNC 5

10
9

7

10
9

7

DDCA_SDA5
DDCA_SCL5

HDMI1 _SCL
HDMI1 _SDA

MVCC

5

6

I/O4

VDD

I/O1

GND

123 4

DGND

C460

0.22uF16V

DGND

DDC_DATA

U409

AZC099-04S

I/O2 I/O3

HDMI _+5V

G­G+

B­B+

CLK­CLK+

R­R+

C446 0. 047uF

C447 0. 047uF

C448 0. 047uF

C449 1000pF

C450 0. 047uF

C451 0. 047uF

C452 0. 047uF

MVCC4

R461 4K7 1/16W 5%

G- 5
G+ 5

B- 5
B+ 5

CLK- 5
CLK+ 5

R- 5
R+ 5

C461

10N 16V

DGND

HDMI _CTRL

R466 4K7 1/16W 5%

HDMI_+5V

C462

10N 16V

DGND

R472 4K7 1/16W 5%

DDCD_SDA5
DDCD_SCL5

T P V ( Top Victory Electronics Co . , Ltd. )

G3121-F-X-X-3-080925

絬 隔 瓜 絪 腹

Key Component

2.0.IN PUT

Date

RIN 5

GIN 5

BIN 5

SOG 5

GNDR 5

GNDG 5

GNDB 5

MVCC

R458

10K 1/16W 5%

DET_HDMI

R459 100R 1/16W 5%

R460 100R 1/16W 5%

DET_VGA

Q409

2N3904S-RTK/PS

DGND

HDMI_ +5V

CMVCC3,4,5

DSUB_ PWR

R467 4K7 1/16W 5%

R468 4K7 1/16W 5%

DDC_WP

CMVCC

D407 BAT54C132

HDMI_ PWR

U408

8

R474 4K7 1/16W 5%

R473 4K7 1/16W 5%

OEM MOD EL Size

TPV MODEL

PCB NAME

A0

VCC

7

A1

WP

6

A2

SCL

VSSSDA

AF24BC02-SI

DDC_WP

V19 SERIES

V22 SERIES F

715G3121-F

27Wednesday, September 24, 2008

of

Sheet

DGND

1
2
3
45

CMVCC

2

C463

10N 16V

MVCC

R457

10K 1/16W 5%

DDC_PROT

PC5V

1

D406

BAV70

3

U405

8

VCC

7

WP

6

SCL

VSSSDA

AF24BC02-SI

CMVCC 3,4,5

C459

0.22uF16V

DGND

A0
A1
A2

DGND

DDC_WP

Q408

2N3904S-RTK/PS

DGND

1
2
3
45

DGND

C464

10N 16V

C458

0.22uF16V

Rev

称爹

C

<

称爹

>

22

PB[0.. 9]5

PA[0.. 9]5

PPWR_ON5

PB[0..9]

PA[0..9]

R442

10K 1/16W 5%

PA0
PA1
PA2
PA3
PA4
PA5
PA6
PA7
PA8
PA9

PB0
PB1
PB2
PB3
PB4
PB5
PB6
PB7
PB8
PB9

LVB3P
LVB3M
LVBCKP
LVBCKM
LVB2P
LVB2M
LVB1P
LVB1M
LVB0P
LVB0M

LVA3P
LVA3M
LVACKP
LVACKM
LVA2P
LVA2M
LVA1P
LVA1M
LVA0P
LVA0M

R441

10K 1/16W 5%

R443 47K 1/16W 5%

PPWR _P

Q407

2N3906S-RTK/PS

C441

0.22uF16V

PPWR _G

C443

0.22uF16V

CMVCC2,4,5

C444

NC

LVB0M
LVB1M
LVB2M
LVBCKM
LVB3M
LVA0M
LVA1M
LVA2M
LVACKM
LVA3M

CMVCC

R440

10K 1/16W 5%

DGND

1
2
3
4

Q406

AO3401

PPWR _D

R446 0 OH M +-5% 1/8W

U404

D

S

D

S

D

S

D

G

NC\ AO4411

C440

10uF/ 10V

DGND

8
7
6
5

RXO0 ­RXO1 ­RXO2 ­RXOC­RXO3 ­RXE0 ­RXE1 ­RXE2 ­RXEC­RXE3 -

DGND

PANEL_VCC

PANEL_VCC

R444220 OHM 1/4W

R445220 OHM 1/4W

DGND

CN402

29
27
25
23
21
19
17
15
13
11

9
7
5
3
1

CONN

C442

0.1uF 16V

30
28
26
24
22
20
18
16
14
12
10
8
6
4
2

RXO0 +
RXO1 +
RXO2 +
RXOC+
RXO3 +
RXE0 +
RXE1 +
RXE2 +
RXEC+
RXE3 +

DGND

LVB0P
LVB1P
LVB2P
LVBCKP
LVB3P
LVA0P
LVA1P
LVA2P
LVACKP
LVA3P

DGND

DGND

3

D

1

G

2

S

AO3401L

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

G3121-F-X-X-3-080925

3.0.OUTPUT

23

C445

22UF16V

DGND

OEM MODEL Size

TPV MOD EL

PCB NAME

Sheet

V19 SERIES

V22 SERIES F

715G3121-F

37Wednesday , Sept ember 24, 2008

of

Rev

称爹

<

A

称爹

>

Derating Issue.

CMVCC

CMVCC2,3,5

+5V6,7

BKLT-EN

+5V

MVC C

FB102

300 OHM

C115

10uF/10V

DGND

VCC3.3

VCC3.32,5

R107

1K 1/16W 5%

C110

0.1uF 16V

DGND

D103 SM340C1 2

MVC C2

VCC3. 3

R108

10K 1/16W 5%

MVC C

C123

22UF16V

DGND

MVC C

C117

22UF16V

C113

22UF16V

DGND

C118

0.1uF 16V

C114

0.1uF 16V

DGND

U104

VOUTVIN

VSS

AP1117E33LA

1

DGND

U103

3 2

VIN VOUT

GND

1

DGND

23

C119

0.1uF 16V

C112

0.1uF 16V

DGND

VCC3.3

C116

22UF16V

VCC1.8

C111

22UF16V

VCC1.8 5

BKLT-VBRI

R111

NC

VCC3.3MVCC

R105

10K 1/16W 5%

R106 1K 1/ 16W 5%

adj_BACKLIGH T 5

C124

NC/22UF16V

DGND

CN104

CONN

C120

0.1uF 16V

DGND

10
9
8
7
6
5
4
3
2
1

BKLT-VBRI
BKLT-EN

DGND

Q101

EN_BKLT

2N3904S-RTK/PS

DGND

+12V7

R109 4K7 1/ 16W 5%

C128

0.001uF

DGND

on_BACKLIGH T 5

+12V

CN102

CONN

USB_FUSE

L103

1

5
4
3
2
1

PGND

24

D-_U SB

D+_U SB

4

2

3

90 ohm

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

C121
10uF/10V

PGND

G3121-F-X-X-3-080925

4.0.POW ER

FB103 120 OHM12

ZD102

EGA10603V05A1-B

1 2

USB_PWR

C122

0.1uF 16V

PGND

PGND

OEM MO DE L Size

TPV MODEL

PCB NAME

Sheet

ZD101

RLZ5.6B

PGND

ZD103

EGA10603V05A1-B

1 2

V19 SERIES

V22 SERIES F

715G3121-F

of

47Wednesday , Septem ber 24, 2008

PGND

USB_D­USB_D+

78

1

34

2
3
4

USB CONN V TYPE

6 5

PGND

CN103

12

Rev

称爹

PGND

B

称爹

>

<

VCC3.3

C422

0.22uF16V

DGND

CMVCC

C423

10uF/10V

R419

10K 1/16W 5%

DGND

AUDIO_MUTE

C432 56PF50V

C433 56PF50V

DGND

AVDD_33

DGND

R402

NC

R412

10K 1/16W 5%

AUMCKO6
AUOUTLR6
AUSCK6
AUSDO6
SW_AUOUT6

U401_XIN

U401_XOUT

RIN2
GNDR2
GIN2
GNDG2
SOG2
BIN2
GNDB2
HSYNC2
VSYNC2
DDCA_SDA2
DDCA_SCL2

B+2
B-2
G+2
G-2
R+2
R-2
CLK+2
CLK-2
DDCD_SDA2
DDCD_SCL2

R401 390 OHM 1/16W

U402

8

VDD

7

HOLD#

3

WP#

4 5

VSS SDI

MX25L2025MC-12G

VDDP

R423 NC

X401

14.3 Mhz

C421

0.1uF 16V

2

SDO

1

CE#

6

SCK

WP

XIN

XOUT

U401_BYPASS

C425

0.1uF 16V

DGND

R425

10K 1/16W 5%

DGND

R435 0R05 1/16W

R439 0R05 1/16W

28
27
25
24
26
23
22
32
33
34
35

9
10
12
13
15
16
18
19

5

6

U401_REXT

7

U401_REFP

31

30

U401_REFM

U401_PIN41

41

U401_PIN42

42
43

R489 22R 1/16W 5%

U401_PIN44

44

U401_RST

108

128

127

102

U401_MODE

37

45
46
47
48
49
50

XIN

XOUT

VDDC

AVDD_33 AVDD _18

8

104

14

53

74

126

20

VDDC

VDDC

VDDC

AVDD_ADC 33

AVDD_ADC 33

AVDD_ADC 33

TSUMO58GDJ-LF

GND

GND

GND

GND

GND

GND

1

11

172952

7288101

VDDC

GND

GND

GND

106

105

RIN0P
RIN0M
GIN0P
GIN0M
SOGIN0
BIN0P
BIN0M
HSYNC0
VSYNC0
DDCA_SDA/R S232_TX
DDCA_SCL/ rs232_RX

RX2P
RX2N
RX1P
RX1N
RX0P
RX0N
RXCKP
RXCKN
DDCD_SDA
DDCD_SCL

REXT

REFP

REFM

SDO
SCZ
SCK
SDI

RST

XIN

XOU T

BYPASS

MODE

MCKO
AUOUTLR
AUSCK
AUSDO
AUMUTE
SPDIFO

GND

21

AVDD_ADC 18

GND

GND

686963

62

AVDD_MEMPLL_33

40

54

58

VDDP

VDDP

AVDD_MEM PLL

GPIO_P14/PWM0

GPIO_P22/PWM1
GPIO_P24/PWM2

GPIO_P25/PWM3

GPIO_P00/SAR0
GPIO_P01/SAR1
GPIO_P02/SAR2
GPIO_P03/SAR3

GPIO_P13/PWM2

GPIO_P26/PWM0
GPIO_P27/PWM1

GND

GND

GND

113

DGND

C429

0.1uF 16V

PA[0..9] 3

PB[0..9] 3

VDDP

DGND

DGND

VCC3.3

KEY_POWER

R417

10K 1/16W 5%

C430

0.1uF 16V

KEY1
KEY2
KEY_POWER
LED_GRN
LED_RE D

FB401 120 OHM1 2

KEY1
KEY2

EE_WP
SCL
SDA

R482

3.9K OHM 1/16W

R485

10K 1/16W 5%

VDDP

U401

87

112

107

59

103

VCTRL

VDDP

VDDP

VDDP

VDDP

GPIO_P04

GPIO_P06
GPIO_P07

GPIO_P15
GPIO_P16

I2C_MCL
I2C_MDA

GPO_P42
GPO_P43

LVA3P

LVA3M
LVACKP
LVACKM

LVA2P

LVA2M

LVA1P

LVA1M

LVA0P

LVA0M

LVB3P

LVB3M
LVBCKP
LVBCKM

LVB2P

LVB2M

LVB1P

LVB1M

LVB0P

LVB0M

VDDP

VDDP

VDDP

VDDP

VDDP

PA0

77

PA1

78

PA2

79

PA3

80

PA4

81

PA5

82

PA6

83

PA7

84

PA8

85

PA9

86

PB0

91

PB1

92

PB2

93

PB3

94

PB4

95

PB5

96

PB6

97

PB7

98

PB8

99

PB9

100

2

Volume

36
51

73
109

119
120
121
122
123
124
125

3
4

39
38

60
65
66
71
114

75
76
89

NC

90

NC

55

NC

57

NC

56

NC

61

NC

64

NC

67

NC

70

NC

110
111
115

NC

116

NC

117

NC

118

NC

U401_PIN120
U401_PIN121

LED_GRN
LED_RE D

INTERRUP

EE_WP
WP

PA[0..9]

PB[0..9]

PPWR_ON 3
on_BACKLIGHT 4

R408 100R 1/16W 5%
R409 100R 1/16W 5%

adj_BACKLIGHT 4

R410 100R 1/16W 5%

VCC3.3

R416

10K 1/16W 5%

C428

C427

0.1uF 16V

0.1uF 16V

CN401

6
5
4
3
2
1

CONN

AVDD_MEMPLL_33

VCC3.32,4

C401

0.1uF 16V

DGND

VCC1.8

R490 0 OHM +-5% 1/10W C413

C416

10uF/10V

DGND

CMVCC

R405 10K 1/16W 5%

R484 10K 1/16W 5%

R418

10K 1/16W 5%

R420 100R 1/16W 5%
R422 100R 1/16W 5%
R424 100R 1/16W 5%

VCC3.3

DGND

R428

100K 1/16W 5%

MUTE _STAR

R483

3.9K OHM 1/16W

ZD413 RLZ5. 6B

CMVCC

R486

10K 1/16W 5%

U403_PIN7
U403_PIN6
U403_PIN5

D401

LL4148

MUTE_S

R429

100R 1/16W 5%

MUTE _CTRL

Q404
2N3906S-RTK/PS

MUTE_ST

ZD414 RLZ5. 6B

AVDD_18

C417

0.1uF 16V

DGND

HDMI_HPD 2

VCC3.3

DGND

VCC3.3

FB402 120 OHM1 2

VCC1.84

C424

U403

0.22uF16V

1

8

NC

VCC

2

7

E1

WC

3

6

E2

SCL

45

VSSSDA

M24C04-WMN6TP

DGND

C431

22UF16V

R432 1K 1/16W 5%

C438 0.1uF 16V

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

C403

C402

0.1uF 16V

0.1uF 16V

DGND

VCC1.8

R491 0 OHM +-5% 1/10W

VCC3.3

Volume

AUDIO_MUTE

MUTE _STA

C439 0.1uF 16V

ZD405 RLZ5. 6B

ZD404 RLZ5. 6B

DGND

G3121-F-X-X-3-080925

5.0.SCALER

C404

0.1uF 16V

R427 4K7 1/16W 5%

R431 1K 1/16W 5%

DGND

C406

C405

0.1uF 16V

DGND

FB405 120 OHM1 2

ZD412 RLZ5. 6B

C407

0.1uF 16V

0.1uF 16V

C412

C411

0.1uF 16V

10uF/10V

C418

0.1uF 16V

VOL_CTL

CMVCC

R430

10K 1/16W 5%

Q405

2N3904S-RTK/PS

DGND

OEM MODEL Size

V19 SERIES

TPV MODEL

V22 SERIES F

715G3121-F

PCB NAME

57Wednesday, September 24, 2008

Sheet

0.1uF 16V

of

DGND

VDDP

C419

0.1uF 16V

C408

0.1uF 16V

C414

0.1uF 16V

CMVCC

R421

1K 1/16W 5 %

VOL_CT

Q403

2N3904S-RTK/PS

DGND

AVDD_33

VDDC

C415

0.1uF 16V

C420

10uF/10V

CMVCC 2,3,4

R426 1K 1/ 16W 5%

MUTE 6

DGND

C426

10uF/10V

Rev

称爹

VOL 6

C

<

称爹

>

25

+5V_AUDIO

C602

TEST

NC

+5V_AUDIO

C617

0.1uF 16V

AGND

7

8

12
11

10
5

C601

0.1uF 16V

AGND

10uF/10V

U601_PIN7

U601_PIN8

U601_PIN10

C613

0.1uF 16V

CN601

PHONEJ ACK

C603 10uF/10V

C614

10uF/10V

絬 隔 瓜 絪 腹

Key Component

U601_PIN71

U601_PIN81

AULIN

INL

AURIN

INR

4
5
3
2
1

L

FB605 60 OHM

R

FB606 60 OHM

12

ZD601

AGND

MLVS 0603 M04

12

ZD602

AGND

MLVS0603M04

AGND

T P V ( Top Victory Electronics Co . , Ltd. )

G3121-F-X-X-3-080925

6.0.A UDIO

Date

R602 9K1 OHM 1/16W 5%

R605 9K1 OHM 1/16W 5%

modify SN

C6111000pF

R607 5K6 1/16W 5%

AGND

U602

1

1A

2

3

4

5 10

6

7

AGND

VCC

GND

1B0

1B1

2A

VCC

GND 2S

2B0NC2B1

FSA2257MTCX

SW_AUOUT5

R613 9K1 OH M 1/16W 5%

R614 9K1 OH M 1/16W 5%

OEM MO DE L Size

TPV MODEL

PCB NA ME

Sheet

HINL

HINR

C618 1uF 10V

C620 1uF 10V

R6175K6 1/16W 5%

C6231000pF

AGND

HINL

HINR

U601_PI N72

U601_PI N82

+5V_AUDIO

14

13

1S

12

11

9

8

NC

V19 SERIES

V22 SERIES F

715G3121-F

of

67Wednesday , September 24, 2008

C604 1uF 10V

C606 1uF 10V

C6121000pF

R608 5K6 1/16W 5%

C615

2.2uF/10V

AGND

SW_AUOUT

JA CK_I NL

JA CK_I NR

R6165K6 1/16W 5%

C6221000pF

+5V_AUDIO

R61210K 1/16W 5%

Rev

称爹

INL

INR

B

称爹

>

<

+5V4, 7

AURIN

AULIN

DGND

AUSCK5
AUSDO5
AUOUTLR5
AUMCKO5

MUTE5

VOL5

OUT-L+
OUT-L­OUT-R+
OUT-R-

C621 1uF 10V

C624 1uF 10V

6

U601

BCK
DATA
LRCK

SCK

FMT
MUTE
DEMP

4
3
2
1

C628

22UF16V

CN602

CONN

VCC

DGND

AGND

PCM1754DBQR

4

9

AGND

C616

22UF16V

OUT-R+

OUT-R-

OUT-L-

OUT-L+

VOUTL

VOUTR

ZEROA

VCOM

C609

22pF

C631100P 50V

AGND

I2S_SCK
I2S_SD0
I2S_LR
I2S_MCK

C610

22pF

+5V_AU DIO

U601_PIN15
U601_PIN14
U601_PIN13

R60910K 1/16W 5%

R61010K 1/16W 5%

R61110K 1/16W 5%

U603

1

SHUTDOWN
BYPASS
RIN­GND
GND
LIN­VOLUME
SE/BTL

APA2069JITUL

ROUT-

VDD

ROUT+

GND
GND

LOUT+

VDD

LOUT-

2
3
4
5
6
7
8 9

SPEAKER_L+
SPEAKER_L­SPEAKER_R+
SPEAKER_R-

C632100P 50V

AGND

1
2
3

16

15
14
13

16
15
14
13
12
11
10

AUSCK

R601 22R 1/16W 5%

AUSDO

R603 22R 1/16W 5%

AUOUTLR

R604 22R 1/16W 5% C605 10uF/10V

AUMCKO

R606 22R 1/16W 5%

C608

C607

22pF

22pF

DGND

+5V

R625 0 OHM +-5% 1/8W

C626

22UF16V

DGND

U603_PIN31 U 603_PIN3

R615 0R 05 1/16W

U603_PIN61

R618 0R 05 1/16W

FB601 22 OHM
FB602 22 OHM
FB603 22 OHM
FB604 22 OHM

AGND

U603_PIN2

C619

2.2uF/10V

SE

R619

AGND

100K 1/16W 5%

AGND

C629100P 50V

AGND

U603_PIN6

C630100P 50V

AGND

26

+5V

R103

39K 1/10W 5%

U105_PIN5

C106

0.001uF

+12V

C109

+

180uF 16V

U104_PIN4

PGND

Q102

1

S
S
S
G

AO4411

U102

8
7
6
5

LM3485

D
D
D
D

VIN
PGATE
PWR GN D
ADJ

2
3
4

+12V 4

8
7
6
5

5

4

FB104

ISEN SE

GND

NC

FB

L102

L

1 2

0 OHM

1
2
3
4

PGND

1

3

D101

SM840B

1 2

U105_PIN4

VIN_PWR

VIN_GND

U104_PIN8

C127

0.001uF

C125

100NF25V

D102

PGND

CN101

3

2
1

JACK

SM840B

1 2

3

2
1

L101 22U H +-20%

R101

22R 1/8W 5%

C126

0.001uF

U104_PIN81

C104

0.001uF

PGND

R102

56K 1/10W 5%

R104

18K 1/10W 5%

+5V4,6

C105

0.001uF

C107

NC/0.0047uF

C101

+

470uF 10V

DGND

C103

0.1uF 16V

DGND

PGND

DGND

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

G3121-F-X-X-3-080925

2.0.DC/DC CONVERTER

27

OE M MOD E L Si ze

TPV MODEL

PCB NAME

Sheet

V19 SERI ES

V22 SERI ES F

715G3121-F

of

77Wednesday , September 24, 2008

Rev

称爹

<

A

称爹

>

7.2 电源板

715G 901 -2 14

2

-

4

3

3

2

R901

1M 1/4W 5%

1M 1/4W 5%

C903 0. 47uF/275V

0.001uF
C901

2

1

F901
FUSE

4

L902

15.0mH

1

R902

0.001uF
C902

3

L901
L

4

100uF 450V

BD901

+

1

GBU408

12

C904A

t

NR901

NTCR

R923

47 OHM 1/4W +-5%

3

D904

3

D905

MBR20100CT

MBR20100CT

2

2

T901

3 2

R918

Q901
2SK2843

R921

1

2

3

4
5

6

7

C924

100PF1KV

R935

R903

23

PMBS3906

Q902

D903

D907

LL4148

620K OHM 1/4W

620K OHM 1/4W

R911

4K7 1/8W 5%

LL4148

C909

0.1uF

R904

SG5841SZ

1

GND

2

FB

3

VIN

SENSE

4 5

RI RT

R915

24K 1/8W 5%

+

C904

+

150uF/450V

R912

4K7 1/8W 5%

C907

0.47UF/ 25V

1

Q903

PDTC144WK

R936

68K 1/8W 5%

R910

470R 1/8W 5%

ZD901

RLZ24B

1 2

IC901

GATE

VDD

8
7
6

C905

1500PF2KV

R906

R905 R907

200K OHM 1/4W

D902

R909

PS102R

C906

22uF/50V

R913

C926

470PF25V

2R2 1/4W 5%

R917

10R 1/4W 5%

R937

220R 1/8W 5%

+

3K3 1/8W 5%

R908

C908

0.47UF/ 25V

1.5 OHM 1/4W

R919

D901

FR107

1

R938

10K 1/8W 5%

R920

1

8

9
10

11

C919

0.0047UF/ 400V

C925

0.01uF/25V

1

PC123X2YFZOF

12

43

C911

+

1000uF25V

R924
240 OHM 1/4W

IC903

D906

3

BAW56

R922

C923

100pF500V

C912

+

1000uF25V

R927
36K OHM 1/8W

C915

0.01uF/25V

2

1

C910

0.001uF

C920

+

R928

1K 1/8W 5%

IC904

AS431AZTR-E1

L903

3.5uH

C922

0.001uF

RJ1

JUMPER

R933

9.31K OHM 1% 1/8W

R934

2.43K OHM 1% 1/8W

IC902

1 8

OUT1 VDD

2 7

IN1- OUT2

3 6

IN1+ I N2-

4 5

GND IN2+

R926

1K 1/8W 5%

R925

4K7 1/4W 5%

+

1 2

SOD-123

R929
15K 1/8W 5%

C913

470uF 16V

ZD902

LED1

LED

C914

0.1uF

C916
220pF25V

C917
1uF/16V

R930

1K5 1/8W 5%

R931
150K 1/8W 5%

R932

3K3 1/8W 5%

+12V

C921

0.1uF

3

CN901
SOCKET

T P V ( Top Victory Electronics Co . , Ltd. )

Date

G 901-2-14-X-1-080729

01.adpter

12

絬 隔 瓜 絪 腹

Key Component

OEM MODEL Size

AOC

TPV MO DEL

AOC LED 1

715G 901 2 14

PCB NAME

Sheet

of

22Tuesday, November 18, 2008

Rev

称爹

A3

<

称爹

>

28

7.3 按键板

715G3168-1

CN001

LBADC1

6

LBADC2

5

DC_POWERON

4

LED_BLUE#

3
2

LED_RED#

1

CONN

R001 0R05 1/ 10W 5%

R002 2K OHM 1% 1/10W

R003 2K OHM 1% 1/10W
R004 1K 1/10W 1%

UP_V-

ZD002NC/UDZS5.6B

C002NC/ 0.1uF

SW002
SW

4K7 1/10W 5%

ZD007N C/UD ZS5.6B

ZD006N C/UD ZS5.6B

4K7 1/10W 5%

ZD003NC/UDZS5.6B

C003NC/ 0.1uF

R005

R006

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

POWER

1

2

SW003
SW

3 4

AMBER

5 6

BLUE

GND

G3168-B-X-X-1-080616

02.Key

LED_RED#
LED_BLUE#

Q001
PMBS3904

Q002
PMBS3904

DOWN_V+

ZD004NC/UDZS5.6B

C004NC/ 0.1uF

SW004
SW

OEM MO DEL S ize

TPV MODEL

PCB NAME

Sheet

LEFT_MENU

ZD005NC/UDZS5.6B

C005NC/ 0.1uF

SW005
SW

AOC

733/933/2233 F w B

715G3168-B

of

22Monday , June 16, 2008

Rev

称爹

B

称爹

>

<

GND

GND

RIGHT_AUTO

ZD001NC/UDZS5.6B

C001NC/ 0.1uF

SW001
SW

C010NC/ 0.1uF

C009NC/ 0.1uF

29

8. 爆炸图

30

31

V19

Item Part NO. Description Qty.

1 Q34G0451BCM 1C0100 BEZEL CHIP 1

2 Q34G0448AEPA1M0130 BEZEL(19") 1

3 Q24G 172 1 CAMERA COVER 1

4 Q33G0228 1 1C0100 733 POWER LENS 1

5 Q33G0227 KGA1C0100 733 POWER BUTTON 1

6 Q33G0229 X2 1L0100 733 KEY FUCTION 1

7 Q15G0372101 HINGE BKT 1

8 A85G0123101 SHIELD COVER 1

9 A85G0122101 SHIELD 1

10 Q34G0450 1 1C0100 BEZEL INSERT 1

11 Q34G0449AEP 1M0100 REAR COVER(19") 1

12 A37G0093201 HINGE ASM 1

13 A33G0482AEP 1M0100 STAND TOP 1

14 Q33G0233AEP 1M0100 733 STAND DOWN 1

15 Q24G 175 1 30 BASE GLASS 1

16 Q15G0358101 GM AOC 733_BASE_BKT 1

17 Q12G6600 6 FOOT 4

18 A33G0481AEP 1M0100 HINGE COVER 1

19 017G WCM 10 C WEBCAM MODULE CNF802121005041L 1

20 MAIN BOARD 1

21 SPK 2

22 PANEL 1

23 KEY BOARD 1

24 Q01G6019-2 SCREW(WEBCAM/BEZELE) 1

25 Q1G130-8-120 SCREW(BKT-HINGE/BEZEL) 3

26 M1G1730-6-120 SCREW(PCB/SHIELD) 2

27 Q1G330-8-120 SCREW(SHIELD/BEZEL) 2

28 Q1G140-8-120 SCREW(HINGE/STAND) 2

29 M1G1740-10-120 SCREW(STAND/HINGE) 3

30 Q1G130-8-47 SCREW(BASE METAL/STAND-BUTTOM) 3

31 001G6022-500 SCREW(BASE METAL/STAND-BUTTOM) 1

32

V22

Item Part NO. Description Qty.

1 A34G0872BCM 1C0100 BEZEL CHIP 1

2 A34G0869AEPA1M0130 BEZEL(L22WA-833) 1

3 Q24G 172 2 WEBCAM GLASS 1

4 Q33G0228 1 1L0100 733 POWER LENS 1

5 Q33G0227 KGA1C0100 733 POWER BUTTON 1

6 Q33G0229 X2 1L0100 733 KEY FUCTION 1

7 A15G0471101 HINGE BK 1

8 A85G0123101 SHIELD COVER 1

9 A85G0122101 SHIELD 1

10 A34G0871 1 1C0100 BEZEL INSERT 1

11 A34G0870AEP 1M0100 REAR COVER21.6" 1

12 A37G0093101 HINGE ASSEMBLY 1

13 A33G0482AEP 1M0100 STAND TOP 1

14 Q33G0233AEP 1M0100 733 STAND DOWN 1

15 A24G0003 1 BASE 1

16 Q15G0358101 GM AOC 733_BASE_BKT 1

17 012G 394 3 RUBBER FOOT 4

18 A33G0481AEP 1M0100 HINGE COVER 1

19 017G WCM 10 C WEBCAM MODULE CNF802121005041L 1

20 MAIN BOARD 1

21 SPK 2

22 PANEL 1

23 KEY BOARD 1

24 Q01G6019-2 SCREW(WEBCAM/BEZELE) 1

25 Q1G130-8-120 SCREW(BKT-HINGE/BEZEL) 3

26 M1G1730-6-120 SCREW(PCB/SHIELD) 2

27 Q1G330-8-120 SCREW(SHIELD/BEZEL) 2

28 Q1G140-8-120 SCREW(HINGE/STAND) 2

29 M1G1740-10-120 SCREW(STAND/HINGE) 3

30 Q1G130-8-47 SCREW(BASE METAL/STAND-BUTTOM) 2

31 001G6022-500 SCREW(BASE METAL/STAND-BUTTOM) 1

32 M1G940-8-47-CR3 SCREW(STAND/HINGE)

33 Q90G0161-1 SINK HEAT

1
1

33

9. BOM

V19 H9RMMVNDWUA1PZI

点位 料号 对象描述 备注

001G6022500 SCREW

040G 58162461A EPA LABEL

052G 1150 C INSULATING TAPE

052G 1186 SMALL TAPE

052G 1207 A CONDUCTIVE TAPE 45mm *25mm *0.08mm

052G 1211 B CONDUCTIVE TAPE 85mm *40mm *0.09mm

052G6019 1 INSULATING TAPE

078G 314504 K SPK 8OHM 1.5W 37X17 260 220MM KUAIDA

089G 17356X553 AUDIO CABLE

E08905 089G 175 8 G FQE41177F USB CABLE 1800mm A+B 2nd source

E08905 089G 175 8 X USB CABLE 1.8M

E08902 089G 725HAA DB D-SUB CABLE 2nd source

E08902 089G 725LAA DB D-SUB CABLE

089G414A15N YH POWER CORD

095G8018 3XH52 HARNESS 30P-30P 380MM

070GHDCP500HDC­MSTAR-HDCP

HDCP CODE

E09502 095G8022 6J503

E09502 095G8022 6W503 HARNESS 6P-6P 400MM 2nd source

E09503 095G802210D502

E09503 095G802210X502 HARNESS 10P-10P 350MM

0M1G1730 6120 SCREW,42-D020523

0M1G1740 10120 SCREW 42A9940008

0Q1G 130 8120 SCREW 42A9930011

0Q1G 330 8120 SCREW 3X8mm 42A9930017/ 42-D002093

705GQ834360 19" LCD BEZEL ASS'Y

017G WCM 10 C WEBCAM MODULE CNF802121005041L

095G8014 5DH08

Q01G6019 2 SCREW

Q24G 172 1 CAMERA COVER

Q33G0227 KGA1C0100 733 POWER BUTTON

Q33G0228 1 1C0100 733 POWER LENS

Q33G0229 X2 1L0100 733 KEY FUCTION

Q34G0448AEPA1M0130 BEZEL(19")

Q34G0450 1 1C0100 BEZEL INSERT

Q34G0451BCM 1C0100 BEZEL CHIP

Q52G 3 59 TAPE

705GQ834361 19" LCD BASE-STAND ASS'Y

0M1G 940 8 47 CR3 SCREW

0Q1G 130 8 47 CR3 SCREW

0Q1G 140 8120 SCREW T4X8

A33G0482AEP 1M0100 STAND TOP

A37G0093201 HINGE ASM

Q12G6600 6 FOOT

HARNESS 6P(1253 HR)-6P(1253 HR)
400MM

HARNESS 10P(A1253HA HR)-10P(A1001)
350MM

HARNESS 5P(A1253HA HR)-5P(A1001)
660mm

2nd source

34

Q15G0358101 GM AOC 733_BASE_BKT

Q24G 175 1 30 BASE GLASS

Q33G0233AEP 1M0100 733 STAND DOWN

750GLM190Z3211N000 PANEL M190Z3-L02 TW CMO

756GQ8CB AA033 SCALAR BOARD-CBPCRMVA1Q3

U402 056G1133120 IC MX25L2025MC-12G 2Mb SOP-8

SMTCR-U402 100GAMM9000N11 MCU ASS'Y-056G1133120

A33G0481AEP 1M0100 HINGE COVER

A85G0122101 SHIELD

A85G0123101 SHIELD COVER

ADPC81206QDEB ADPAPTER BOARD G901-2-14-X-2-081023

040G 45762412B CBPC LABEL

019G6005 1 SPRING TIE

033G6007 1 LENS

040G 154501 1 HI-POT GND LABEL

045G 88525 E PE BAG

P051 051G 6 4500 GLUE_RTV

052G 1211 A CONDUCTIVE TAPE 55mm *45mm *0.08mm

M012 052G6025 11520 INSULATE SHEET

052G6025 11631 INSULATE SHEET

IC903 056G 139 3A IC PC123Y22FZ0F

IC903 056G 139 3B IC PC123Y82FZ0F

NR901 061G 58050 WT NTC 5 OHM 5A

C903 063G 10747410V 0.47UF 275VAC ARCO

C903 063G107K474 TS CAP X2 0.47UF K 275VAC

C901 065G305M1022E2 1000P 400VAC/250VAC

C902 065G305M1022E2 1000P 400VAC/250VAC

C902 065G305M1022E3 1000PF. M.250VAC.Y2

C901 065G305M1022E3 1000PF. M.250VAC.Y2

C919 065G306M1022BP 1000PF Y1.CAP
C920 067G215C1024HV EC 105℃ CAP 1000UF M 25V
C912 067G215C1024HV EC 105℃ CAP 1000UF M 25V
C911 067G215C1024HV EC 105℃ CAP 1000UF M 25V
C920 067G215C1024KV EC 105℃ CAP 1000UF M 25V
C912 067G215C1024KV EC 105℃ CAP 1000UF M 25V
C911 067G215C1024KV EC 105℃ CAP 1000UF M 25V

C904 067G215S15115K EC105C 150UF 450V

071G 55500 S FERRITE BEAD 3.5*3*1.3

L903 073G 253 91 H CHOKE COIL

L903 073G 253 91 L CHOKE BY LI TA

L903 073G 253 91 S CHOKE COIL 3.5uH

L902 073L 174 31 HR LINE FILTER 34mH MIN

L901 073L 174 50 HH LINE FITER

T901 080LL17T 5 LG TRANS FORMER BY LI TAI

T901 080LL17T 5 TG X'FMR

T901 080LL17T 5LSG ADAPTOR BY LISHIN

LED1 081G 2 3 1P LED GPG2603T/R006-35A GUANGPU

CN901 087G 501 11 RF AC SOCKET

089G 171532 G DC CABLE

090G6063500 T HEAT SINK

090G6083 1 HEAT SINK

35

BD901 093G 50460900 BRIDEGE DIODE GBU408 LITEON

D904 093G 60228 MBR20100CT 20A 100VGI

D905 093G 60228 MBR20100CT 20A 100VGI

D905 093G 60237 SRF20100C

D904 093G 60237 SRF20100C

D901 093G 6026T52T RECTIFIER DIODE FR107

D902 093G 6038P52T PS102R

D902 093G 6038T52T FR103

RJ1 095G 90 26 COPPER MANGANESE WIRE CM

A 095G 205430322 WIRE HARNESS

0M1G 330 8120 SCREW 42-D000887

705G 990 57 01 Q901 ASS'Y

051G 200 1 OIL FOR DISAPPEAR

Q901 057G 724 8 2SK2843(SC)

0M1G1030 5120 SCREW SPIN BASE PLATE

Q90G0078 1 HEAT SINK

705GQ884002 F901 ASS'Y

F901 084G 53 2 H FUSE 2A 250V 3.6×10mm WALTER

096G 29 8 TUBE

IC902 056G 192 10 LM358DT

IC901 056G 379 74 IC SG5841SZ SOP-8

Q903 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q902 057G 417 6 PMBS3906/PHILIPS-SMT(06)

R926 061G0805102 RST CHIPR 1K OHM +-5% 1/8W

R928 061G0805102 RST CHIPR 1K OHM +-5% 1/8W

R930 061G0805152 RST CHIPR 1.5 KOHM +-5% 1/8W

R929 061G0805153 RST CHIPR 15KOHM +-5% 1/8W

R931 061G0805154 RST CHIPR 150KOHM +-5% 1/8W

R937 061G0805221 RST CHIPR 220 OHM +-5% 1/8W

R915 061G0805240 2F RST CHIPR 24 KOHM +-1% 1/8W

R934 061G0805243 1F RST CHIPR 2.43 KOHM +-1% 1/8W

R913 061G0805332 RST CHIPR 3.3 KOHM +-5% 1/8W

R932 061G0805332 RST CHIPR 3.3 KOHM +-5% 1/8W

R927 061G0805363 RST CHIPR 36 KOHM +-5% 1/8W

R910 061G0805471 RST CHIPR 470 OHM +-5% 1/8W

R912 061G0805472 RST CHIPR 4.7 KOHM +-5% 1/8W

R911 061G0805472 RST CHIPR 4.7 KOHM +-5% 1/8W

R936 061G0805683 RST CHIPR 68K OHM +-5% 1/8W

R933 061G0805931 1F RST CHIPR 9.31 KOHM +-1% 1/8W

R917 061G1206100 RST CHIPR 10 OHM +-5% 1/4W

R902 061G1206105 1M 1206

R901 061G1206105 1M 1206

R935 061G1206159 RST CHIPR 1.5 OHM +-5% 1/4W

R921 061G1206159 RST CHIPR 1.5 OHM +-5% 1/4W

R920 061G1206159 RST CHIPR 1.5 OHM +-5% 1/4W

R919 061G1206159 RST CHIPR 1.5 OHM +-5% 1/4W

R918 061G1206159 RST CHIPR 1.5 OHM +-5% 1/4W

R905 061G1206204 RST CHIPR 200 KOHM +-5% 1/4W

R906 061G1206204 RST CHIPR 200 KOHM +-5% 1/4W

R907 061G1206204 RST CHIPR 200 KOHM +-5% 1/4W

R908 061G1206204 RST CHIPR 200 KOHM +-5% 1/4W

36

R939 061G1206242 RST CHIPR 2.4 KOHM +-5% 1/4W

R923 061G1206470 RST CHIPR 47 OHM +-5% 1/4W

R922 061G1206470 RST CHIPR 47 OHM +-5% 1/4W

R925 061G1206472 RST CHIPR 4.7K OHM +-5% 1/4W

R909 061G1206519 RST CHIPR 5.1 OHM +-5% 1/4W

R904 061G1206624 RST CHIPR 620 KOHM +-5% 1/4W

R903 061G1206624 RST CHIPR 620 KOHM +-5% 1/4W

C915 065G0805103 22 CHIP 0.01uF 25V X7R 0805

C925 065G0805103 22 CHIP 0.01uF 25V X7R 0805

C909 065G0805104 22 0.1UF +-10% 25V X7R 080

C914 065G0805104 22 0.1UF +-10% 25V X7R 080

C921 065G0805104 22 0.1UF +-10% 25V X7R 080

C917 065G0805105 12 1UF +-10% 6V X7R

C916 065G0805221 21 220PF 25V 5%

C926 065G0805471 21 CAP CHIP 0805 470PF J 25V NPO

C907 065G0805474 27 CHIP 0.47UF 25V Y5V

C908 065G0805474 27 CHIP 0.47UF 25V Y5V

C923 065G1206101 71 CHIP 1206 100PF J 500V NPO

C922 065G1206102 32 CHIP 1000PF/XTR +-5%

C910 065G1206102 72 CAP CHIP 1206 1000PF K 500V X7R

C927 065G1206103 32 MLCC 1206 10NF K 50V X7R

D906 093G 64 38 P BAW56

ZD903 093G 6432S 1N4148W

D907 093G 6432S 1N4148W

ZD902 093G 39S 3 T BZT52-C11

ZD902 093G 39S 8 T RLZ11B LLDS

ZD901 093G 39S 12 T RLZ20B LLDS

T901 006G 31502 1.5MM RIVET

IC904 056G 158 4 T H431BA

IC904 056G 158 10 T IC AS431AZTR-E1 TO-92

R924 061G 17224152T 240 OHM 5% 1/4W

C924 065G 1K101 5T6921 100PF /1KV

C905 065G 2K152 1T6052 1.5NF/2KV Y5P +-10%

C905 065G 2K152 2T6921 CAP CER 1500pF K 2KV Y5P
C913 067G215D4713KT /105℃ EC 470UF M 16V KINGNICHI
C906 067G215Y2207KT CAP 105℃ 22UF M 50V KINGNICHI

715G 901 2 14 POWER BOARD PCB

M012 Q12G6900 2 THERMAL PAD

Q40G500B615 3B Rating label

P051 Q51G 6 4509 GLUE_RTV

P051 Q51G 6 4509 GLUE_RTV

W33G6045 B T 30 TOP COVER

W33G6046 B T COVER

040G 45762412B CBPC LABEL

U603 056G 616 34 IC APA2069JITUL 2.6W*2 PDIP-16

C109 067G204V181 3K CS CAP 180uF 16V 8*8 mm

C101 067G204V471 2K CS CAP 470uF 10V 8*8 mm

L102 073G 253137 ER CHOKE COIG BY EROCORE SCB-03

CN601 088G 30254S PHONE JACK 3.5mm 5P V/T GREEN

CN101 088G 3041FV DC JACK 3PIN

CN103 088G 351 4 TN USB CONN

37

CN403 088G 35315F A D-SUB 15PIN DB15-1

090G6077 2 GP HEAT SINK FOR U401

X401 093G 2253B J 14.31818MHZ/85C

Q12G6900 31 HEAT PAD

Q12G6900 32 HEAT PAD

Q90G0169 1 HEAT SINK FOR U103

Q90G6059 2 HEAT SINK FOR U603

CN602 033G8023 4 JS WAFER

CN102 033G8032 5F HR CONNECTOR

CN401 033G8032 6F HR CONNECTOR

CN104 033G803210F HR CONNECTOR

CN402 033G8033 30 WAFER 2*15P 1.25MM SMT

U102 056G 133 32 NS LM3485 MSOP-8 NS

U401 056G 562569 IC TSUMO58GDJ-LF PQFP-128

U103 056G 563123 IC G1084-18TU3Uf TO-263T

U104 056G 585 4A IC AP1117E33L-13

U602 056G 628 8 IC FSA2257MTCX TSSOP-14

U406 056G 662 10 IC RClamp0524P.TCT

U407 056G 662 10 IC RClamp0524P.TCT

U409 056G 662 13 IC AZC099-04S SOT23-6L

U601 056G1124 3 IC PCM1754DBQR SSOP-16

U403 056G1133 32 IC M24C04-WMN6TP SO8

U405 056G1133 84 AF24BC02-S1

U408 056G1133 84 AF24BC02-S1

U402 056G1133120 IC MX25L2025MC-12G 2Mb SOP-8

Q412 057G 417 12 T KEC 2N3904S-RTK/PS

Q411 057G 417 12 T KEC 2N3904S-RTK/PS

Q409 057G 417 12 T KEC 2N3904S-RTK/PS

Q408 057G 417 12 T KEC 2N3904S-RTK/PS

Q405 057G 417 12 T KEC 2N3904S-RTK/PS

Q403 057G 417 12 T KEC 2N3904S-RTK/PS

Q101 057G 417 12 T KEC 2N3904S-RTK/PS

Q404 057G 417 13 T KEC 2N3906S-RTK/PS

Q407 057G 417 13 T KEC 2N3906S-RTK/PS

Q406 057G 763 1 A03401 SOT23 BY AOS(A1)

Q102 057G 763 3 AO4411 SO-8

R435 061G0402000 RST CHIP MAX 0R05 1/16W

R439 061G0402000 RST CHIP MAX 0R05 1/16W

R615 061G0402000 RST CHIP MAX 0R05 1/16W

R618 061G0402000 RST CHIP MAX 0R05 1/16W

R455 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R456 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R459 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R460 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R469 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R470 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R476 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R477 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R408 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R409 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R410 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

38

R420 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R422 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R424 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R429 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R454 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R106 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R107 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R421 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R426 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R431 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R432 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R462 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R464 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R478 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R487 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R441 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R442 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R457 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R458 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R484 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R485 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R486 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R609 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R610 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R611 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R612 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R440 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R430 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R425 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R419 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R418 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R417 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R416 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R412 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R405 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R108 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R105 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R428 061G0402104 RST CHIPR 100 KOHM +-5% 1/16W

R619 061G0402104 RST CHIPR 100 KOHM +-5% 1/16W

R489 061G0402220 RST CHIPR 22 OHM +-5% 1/16W

R601 061G0402220 RST CHIPR 22 OHM +-5% 1/16W

R603 061G0402220 RST CHIPR 22 OHM +-5% 1/16W

R604 061G0402220 RST CHIPR 22 OHM +-5% 1/16W

R606 061G0402220 RST CHIPR 22 OHM +-5% 1/16W

R465 061G0402222 RST CHIPR 2.2 KOHM +-5% 1/16W

R463 061G0402222 RST CHIPR 2.2 KOHM +-5% 1/16W

R401 061G0402390 0F RST CHIP 390R 1/16W 1%

R482 061G0402392 RST CHIP 3.9K 1/16W 5%

R483 061G0402392 RST CHIP 3.9K 1/16W 5%

R450 061G0402471 RST CHIPR 470 OHM +-5% 1/16W

R468 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

39

R467 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R474 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R473 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R472 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R461 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R427 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R109 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R466 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R481 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R443 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W

R447 061G0402560 RST CHIP 56R 1/16W 5%

R448 061G0402560 RST CHIP 56R 1/16W 5%

R449 061G0402560 RST CHIP 56R 1/16W 5%

R607 061G0402562 RST CHIP 5K6 1/16W 5%

R608 061G0402562 RST CHIP 5K6 1/16W 5%

R616 061G0402562 RST CHIP 5K6 1/16W 5%

R617 061G0402562 RST CHIP 5K6 1/16W 5%

R451 061G0402750 RST CHIPR 75 OHM +-5% 1/16W

R452 061G0402750 RST CHIPR 75 OHM +-5% 1/16W

R453 061G0402750 RST CHIPR 75 OHM +-5% 1/16W

R602 061G0402912 RST CHIP 9K1 1/16W 5%

R605 061G0402912 RST CHIP 9K1 1/16W 5%

R613 061G0402912 RST CHIP 9K1 1/16W 5%

R614 061G0402912 RST CHIP 9K1 1/16W 5%

FB104 061G0603000 RST CHIP MAX 0R05 1/10W

R490 061G0603000 Y RST CHIP MAX 0R05 1/10W YAGEO

R491 061G0603000 Y RST CHIP MAX 0R05 1/10W YAGEO

R104 061G0603183 RST CHIPR 18 KOHM +-5% 1/10W

R103 061G0603393 RST CHIPR 39 KOHM +-5% 1/10W

R102 061G0603563 RST CHIPR 56 KOHM +-5% 1/10W

R625 061G0805000 Y RST CHIP MAX 0R05 1/8W YAGEO

R446 061G0805000 Y RST CHIP MAX 0R05 1/8W YAGEO

R101 061G0805220 RST CHIPR 22 OHM +-5% 1/8W

R445 061G1206221 RST CHIPR 220 OHM +-5% 1/4W

R444 061G1206221 RST CHIPR 220 OHM +-5% 1/4W

C629 065G040210131J 0402 MLCC 100PF J 50V

C630 065G040210131J 0402 MLCC 100PF J 50V

C631 065G040210131J 0402 MLCC 100PF J 50V

C632 065G040210131J 0402 MLCC 100PF J 50V

C449 065G0402102 32 1000PF +-10% 50V X7R

C611 065G0402102 32 1000PF +-10% 50V X7R

C612 065G0402102 32 1000PF +-10% 50V X7R

C622 065G0402102 32 1000PF +-10% 50V X7R

C623 065G0402102 32 1000PF +-10% 50V X7R

C461 065G040210312K Y CAP CHIP 0402 10N 16V X7R +/-10%

C462 065G040210312K Y CAP CHIP 0402 10N 16V X7R +/-10%

C463 065G040210312K Y CAP CHIP 0402 10N 16V X7R +/-10%

C464 065G040210312K Y CAP CHIP 0402 10N 16V X7R +/-10%

C417 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C415 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C414 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

40

C413 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C412 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C408 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C407 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C406 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C405 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C404 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C403 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C402 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C401 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C122 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C120 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C119 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C613 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C601 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C455 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C454 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C453 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C442 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C439 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C438 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C430 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C429 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C428 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C427 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C425 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C421 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C419 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C418 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C118 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C114 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C112 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C110 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C103 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C617 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C125 065G0402104 27 CAP CHIP 0402 100nF Z 25V Y5V

C624 065G0402105 A5 CAP 0402 1UF K 10V X5R

C621 065G0402105 A5 CAP 0402 1UF K 10V X5R

C620 065G0402105 A5 CAP 0402 1UF K 10V X5R

C618 065G0402105 A5 CAP 0402 1UF K 10V X5R

C606 065G0402105 A5 CAP 0402 1UF K 10V X5R

C604 065G0402105 A5 CAP 0402 1UF K 10V X5R

C610 065G0402220 31 CHIP 22PF 50V NPO

C609 065G0402220 31 CHIP 22PF 50V NPO

C608 065G0402220 31 CHIP 22PF 50V NPO

C607 065G0402220 31 CHIP 22PF 50V NPO

C457 065G0402220 31 CHIP 22PF 50V NPO

C456 065G0402220 31 CHIP 22PF 50V NPO

41

C422 065G0402224 17 CAP CER 0.22UF -20%-80%

C424 065G0402224 17 CAP CER 0.22UF -20%-80%

C441 065G0402224 17 CAP CER 0.22UF -20%-80%

C443 065G0402224 17 CAP CER 0.22UF -20%-80%

C458 065G0402224 17 CAP CER 0.22UF -20%-80%

C460 065G0402224 17 CAP CER 0.22UF -20%-80%

C459 065G0402224 17 CAP CER 0.22UF -20%-80%

C446 065G0402473 12 CHIP 0.047uF 16V X7R

C447 065G0402473 12 CHIP 0.047uF 16V X7R

C448 065G0402473 12 CHIP 0.047uF 16V X7R

C450 065G0402473 12 CHIP 0.047uF 16V X7R

C451 065G0402473 12 CHIP 0.047uF 16V X7R

C452 065G0402473 12 CHIP 0.047uF 16V X7R

C432 065G0402560 31 CHIP 56PF 50V X7R

C433 065G0402560 31 CHIP 56PF 50V X7R

C128 065G0603102 32 1000PF +-10% 50V X7R

C127 065G0603102 32 1000PF +-10% 50V X7R

C126 065G0603102 32 1000PF +-10% 50V X7R

C106 065G0603102 32 1000PF +-10% 50V X7R

C105 065G0603102 32 1000PF +-10% 50V X7R

C104 065G0603102 32 1000PF +-10% 50V X7R

C615 065G0603225 A5 CHIP 2.2uF 10V X5R

C619 065G0603225 A5 CHIP 2.2uF 10V X5R

C115 065G0805106 A7 CHIP 10uF 10V Y5V 0805

C121 065G0805106 A7 CHIP 10uF 10V Y5V 0805

C411 065G0805106 A7 CHIP 10uF 10V Y5V 0805

C416 065G0805106 A7 CHIP 10uF 10V Y5V 0805

C614 065G0805106 A7 CHIP 10uF 10V Y5V 0805

C605 065G0805106 A7 CHIP 10uF 10V Y5V 0805

C603 065G0805106 A7 CHIP 10uF 10V Y5V 0805

C602 065G0805106 A7 CHIP 10uF 10V Y5V 0805

C440 065G0805106 A7 CHIP 10uF 10V Y5V 0805

C426 065G0805106 A7 CHIP 10uF 10V Y5V 0805

C423 065G0805106 A7 CHIP 10uF 10V Y5V 0805

C420 065G0805106 A7 CHIP 10uF 10V Y5V 0805

C111 065G1206226 17 CAP CHIP 1206 22uF Z 16V Y5V

C113 065G1206226 17 CAP CHIP 1206 22uF Z 16V Y5V

C116 065G1206226 17 CAP CHIP 1206 22uF Z 16V Y5V

C117 065G1206226 17 CAP CHIP 1206 22uF Z 16V Y5V

C123 065G1206226 17 CAP CHIP 1206 22uF Z 16V Y5V

C445 065G1206226 17 CAP CHIP 1206 22uF Z 16V Y5V

C431 065G120622617Z CHIP 1206 22uF Z 16V Y5V

C616 065G120622617Z CHIP 1206 22uF Z 16V Y5V

C626 065G120622617Z CHIP 1206 22uF Z 16V Y5V

C628 065G120622617Z CHIP 1206 22uF Z 16V Y5V

FB601 071G 56F220 K CHIP BEAD 22 OHM 0805

FB602 071G 56F220 K CHIP BEAD 22 OHM 0805

FB603 071G 56F220 K CHIP BEAD 22 OHM 0805

42

FB604 071G 56F220 K CHIP BEAD 22 OHM 0805

FB102 071G 56G301 EA

BEAD 300 欧

FB103 071G 56K121 CHIP BEAD

FB401 071G 56K121 CHIP BEAD

FB402 071G 56K121 CHIP BEAD

FB405 071G 56K121 CHIP BEAD

FB409 071G 59B121 TB160808B

FB408 071G 59C300 CHIP BEAD

FB407 071G 59C300 CHIP BEAD

FB406 071G 59C300 CHIP BEAD

FB606 071G 59C600 CHIP BEAD

FB605 071G 59C600 CHIP BEAD

L101 073G M5822020T 22UH +-20%

L103 073G253S 6 T IND SMD CHOKE 90 oHM TDK

CN404 088G 34019A VD HDMI HEADER 19P V/T

D407 093G 60505 DIO SIG SM BAT54C(PHSE)R

D406 093G 64 42 P BAV70 SOT23 BY PAN JIT

ZD102 093G 64 49 SU DIODE ESD EGA 10603V05A1-B INPAQ

ZD103 093G 64 49 SU DIODE ESD EGA 10603V05A1-B INPAQ

ZD602 093G 64 59 SU ESD MLVS0603M04 0603

ZD601 093G 64 59 SU ESD MLVS0603M04 0603

D405 093G 6432P LL4148

D401 093G 6432P LL4148

D402 093G 6433P BAV99

D403 093G 6433P BAV99

D404 093G 6433P BAV99

ZD410 093G 39S 24 T RLZ 5.6B LLDS

ZD409 093G 39S 24 T RLZ 5.6B LLDS

ZD408 093G 39S 24 T RLZ 5.6B LLDS

ZD407 093G 39S 24 T RLZ 5.6B LLDS

ZD406 093G 39S 24 T RLZ 5.6B LLDS

ZD405 093G 39S 24 T RLZ 5.6B LLDS

ZD413 093G 39S 24 T RLZ 5.6B LLDS

ZD404 093G 39S 24 T RLZ 5.6B LLDS

ZD101 093G 39S 24 T RLZ 5.6B LLDS

ZD411 093G 39S 24 T RLZ 5.6B LLDS

ZD412 093G 39S 24 T RLZ 5.6B LLDS

ZD414 093G 39S 24 T RLZ 5.6B LLDS

D103 093G 60S 26 T DIODE SM340C 3A/40V SMC

D101 093G8004500 SM840B

D102 093G8004500 SM840B

715G3121 1 MAIN BOARD PCB

KEPC8QW3 KEY BOARD G3168-B-X-X-1-080616

SW002 077G 603 3 TO TACT SWITCH TS-03-BS

SW001 077G 603 3 TO TACT SWITCH TS-03-BS

SW005 077G 603 3 TO TACT SWITCH TS-03-BS

SW004 077G 603 3 TO TACT SWITCH TS-03-BS

SW003 077G610D 1 WB TACT SW+LED

43

Q55G 100625 TIN STICK_LOW ARGENTUM

CN001 033G8032 6F HR CONNECTOR

Q002 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q001 057G 417 4 PMBS3904/PHILIPS-SMT(04)

R001 061G0603000 RST CHIP MAX 0R05 1/10W

R004 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W

R002 061G0603200 1F RST CHIPR 2 KOHM +-1% 1/10W

R003 061G0603200 1F RST CHIPR 2 KOHM +-1% 1/10W

R006 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

R005 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

715G3168 1 KEY BOARD PCB

Q15G0372101 Hinge BKT

Q34G0449AEP 1M0100 REAR COVER(19")

Q36G 600517 DUSTER CLOTH

Q40G 19E61556A RATING LABEL

Q40G000262498A EPEAT LOGO LABEL

Q40G000262499A POP LABEL for V19&V22

Q40G0002850 9A VISTA LABEL

Q44G9149101 EPS

Q44G9149201 EPS

Q44G9149615 1A 19 LCD AOC CARTON

Q45G 77 5 PE PACKING

Q45G 88607 69 PE BAG

Q45G 88609 94 EPE BAG FOR MONITOR

Q52G 1185 99 BIG CARTON TAPE FOR AOC

Q41G7800615D32 WARRANTY CARD

Q41G780B61535A V19 QSG CHINA

Q45G 76 28 RN R PE BAG MANUAL

Q70G900261531A V19 CD MANUAL

040G 58162435A P/N LABEL FOR MANUAL PE BAG

040G 581689 4A BARCODE LABEL FOR 1

44

V22 HCRCMVNDWUA1PZ

点位 料号 对象描述 备注

040G 58162461A EPA LABEL

052G 1150 C INSULATING TAPE

052G 1186 SMALL TAPE

052G 1207 A CONDUCTIVE TAPE 45mm *25mm *0.08mm

052G 1211 B CONDUCTIVE TAPE 85mm *40mm *0.09mm

052G6019 1 INSULATING TAPE

070GHDCP500HDC(MST
AR-HDCP)

HDCP CODE

078G 508 1 Y SPK 8 OHM 2W 42X22mm 340 260 SUNLINK

089G 17356G553 AUDIO CABLE 1800MM

E08905 089G 175 8 G FQE41177F USB CABLE 1800mm A+B 2nd source

E08905 089G 175 8 X USB CABLE 1.8M

E08902 089G 725HAA DB D-SUB CABLE 2nd source

E08902 089G 725LAA DB D-SUB CABLE

E08901 089G414A15N CX POWER CORD

E08901 089G414A15N IS POWER CORD 2nd source

E08901 089G414A15N YH POWER CORD 2nd source

095G8018 3XH43 LVDS CABLE 30P-30P 460MM

095G8022 6D502 HARNESS 6P(A1253HA HR)-6P(A1255)

095G802210D501

HARNESS 10P(A1253HA HR)-10P
(A1253HA HR)

0M1G1730 6120 SCREW,42-D020523

0M1G1730 6120 SCREW,42-D020523

0M1G1740 10120 SCREW 42A9940008

0Q1G 140 8120 SCREW T4X8

0Q1G 330 8120 SCREW 3X8mm 42A9930017/ 42-D002093

705GQ834367 21.6" LCD STAND ASS'Y

012G 394 3 RUBBER FOOT

0M1G 940 8 47 CR3 SCREW

0Q1G 130 8 47 CR3 SCREW

0Q1G 140 8120 SCREW T4X8

A24G0003 1 BASE

A33G0482AEP 1M0100 STAND TOP

A37G0093101 HINGE ASSEMBLY

Q15G0358101 GM AOC 733_BASE_BKT

Q33G0233AEP 1M0100 733 STAND DOWN

705GQ834368 21.6" LCD BEZEL ASS'Y

017G WCM 10 C WEBCAM MODULE CNF802121005041L

095G8022 5D501 HARNESS 5P(A1253HA HR)-5P(A1002)

A34G0869AEPA1M0130 BEZEL(L22WA-833)

A34G0871 1 1C0100 BEZEL INSERT

A34G0872BCM 1C0100 BEZEL CHIP

Q01G6019 2 SCREW

Q24G 172 2 WEBCAM GLASS

Q33G0227 KGA1C0100 733 POWER BUTTON

Q33G0228 1 1L0100 733 POWER LENS

Q33G0229 X2 1L0100 733 KEY FUCTION

Q90G0161 1 SINK HEAT

45

E750 750GLC216UAA11N000 PANEL CLAA220UA01A 000 TW CPT 2nd source

E750 750GLC216UAA13N000 PANEL CLAA220UA01A 000 FZ CPT

E750 750GLC216UAA21N000 PANEL CLAA220UA01A 011 TW CPT 2nd source

E750 750GLC216UAA23N000 PANEL CLAA220UA01A 011 FZ CPT 2nd source

756GQ8CB AA026 SCALAR BOARD-CBPCRCMVA1Q1

U402 056G1133120 IC MX25L2025MC-12G 2Mb SOP-8

SMTCR-U402 100GAMCC001N21 MCU ASS'Y-056G1133120

A15G0471101 HINGE BK

A33G0481AEP 1M0100 HINGE COVER

A34G0870AEP 1M0100 REAR COVER21.6"

A85G0122101 SHIELD

A85G0123101 SHIELD COVER

ADPC81206QD1B ADPAPTER BOARD

040G 45762412B CBPC LABEL

019G6005 1 SPRING TIE

033G6007 1 LENS

040G 154501 1 HI-POT GND LABEL

045G 88525 E PE BAG

P051 051G 6 4500 GLUE_RTV

052G 1211 A CONDUCTIVE TAPE 55mm *45mm *0.08mm

M012 052G6025 11520 INSULATE SHEET

052G6025 11631 INSULATE SHEET

IC903 056G 139 3A IC PC123Y22FZ0F

IC903 056G 139 3B IC PC123Y82FZ0F

NR901 061G 58050 WT NTC 5 OHM 5A

C903 063G 10747410V 0.47UF 275VAC ARCO

C903 063G107K474 TS CAP X2 0.47UF K 275VAC

C901 065G305M1022E2 1000P 400VAC/250VAC

C902 065G305M1022E2 1000P 400VAC/250VAC

C901 065G305M1022E3 1000PF. M.250VAC.Y2

C902 065G305M1022E3 1000PF. M.250VAC.Y2

C919 065G306M1022BP 1000PF Y1.CAP
C920 067G215C1024HV EC 105 CAP 1000UF M 25V℃
C912 067G215C1024HV EC 105 CAP 1000UF M 25V℃

C911 067G215C1024HV EC 105 CAP 1000UF M 25V℃
C920 067G215C1024KV EC 105 CAP 1000UF M 25V℃
C912 067G215C1024KV EC 105 CAP 1000UF M 25V℃

C911 067G215C1024KV EC 105 CAP 1000UF M 25V℃

C904 067G215S15115K EC105C 150UF 450V

071G 55500 S FERRITE BEAD 3.5*3*1.3

L903 073G 253 91 H CHOKE COIL

L903 073G 253 91 L CHOKE BY LI TA

L903 073G 253 91 S CHOKE COIL 3.5uH

L902 073L 174 31 HR LINE FILTER 34mH MIN

L901 073L 174 50 HH LINE FITER

T901 080LL17T 5 LG TRANS FORMER BY LI TAI

T901 080LL17T 5 TG X'FMR

T901 080LL17T 5LSG ADAPTOR BY LISHIN

LED1 081G 2 3 1P LED GPG2603T/R006-35A GUANGPU

CN901 087G 501 11 RF AC SOCKET

089G 171532 G DC CABLE

46

090G6063500 T HEAT SINK

090G6083 1 HEAT SINK

BD901 093G 50460900 BRIDEGE DIODE GBU408 LITEON

D904 093G 60228 MBR20100CT 20A 100VGI

D905 093G 60228 MBR20100CT 20A 100VGI

D905 093G 60237 SRF20100C

D904 093G 60237 SRF20100C

D901 093G 6026T52T RECTIFIER DIODE FR107

D902 093G 6038P52T PS102R

D902 093G 6038T52T FR103

RJ1 095G 90 26 COPPER MANGANESE WIRE CM

A 095G 205430322 WIRE HARNESS

0M1G 330 8120 SCREW 42-D000887

705G 990 57 01 Q901 ASS'Y

051G 200 1 OIL FOR DISAPPEAR

Q901 057G 724 8 2SK2843(SC)

0M1G1030 5120 SCREW SPIN BASE PLATE

Q90G0078 1 HEAT SINK

705GQ884002 F901 ASS'Y

F901 084G 53 2 H FUSE 2A 250V 3.6×10mm WALTER

096G 29 8 TUBE

IC902 056G 192 10 LM358DT

IC901 056G 379 74 IC SG5841SZ SOP-8

Q903 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q902 057G 417 6 PMBS3906/PHILIPS-SMT(06)

R926 061G0805102 RST CHIPR 1K OHM +-5% 1/8W

R928 061G0805102 RST CHIPR 1K OHM +-5% 1/8W

R930 061G0805152 RST CHIPR 1.5 KOHM +-5% 1/8W

R929 061G0805153 RST CHIPR 15KOHM +-5% 1/8W

R931 061G0805154 RST CHIPR 150KOHM +-5% 1/8W

R937 061G0805221 RST CHIPR 220 OHM +-5% 1/8W

R915 061G0805240 2F RST CHIPR 24 KOHM +-1% 1/8W

R934 061G0805243 1F RST CHIPR 2.43 KOHM +-1% 1/8W

R913 061G0805332 RST CHIPR 3.3 KOHM +-5% 1/8W

R932 061G0805332 RST CHIPR 3.3 KOHM +-5% 1/8W

R927 061G0805363 RST CHIPR 36 KOHM +-5% 1/8W

R910 061G0805471 RST CHIPR 470 OHM +-5% 1/8W

R912 061G0805472 RST CHIPR 4.7 KOHM +-5% 1/8W

R911 061G0805472 RST CHIPR 4.7 KOHM +-5% 1/8W

R936 061G0805683 RST CHIPR 68K OHM +-5% 1/8W

R933 061G0805931 1F RST CHIPR 9.31 KOHM +-1% 1/8W

R917 061G1206100 RST CHIPR 10 OHM +-5% 1/4W

R902 061G1206105 1M 1206

R901 061G1206105 1M 1206

R935 061G1206159 RST CHIPR 1.5 OHM +-5% 1/4W

R921 061G1206159 RST CHIPR 1.5 OHM +-5% 1/4W

R920 061G1206159 RST CHIPR 1.5 OHM +-5% 1/4W

R919 061G1206159 RST CHIPR 1.5 OHM +-5% 1/4W

47

R918 061G1206159 RST CHIPR 1.5 OHM +-5% 1/4W

R908 061G1206204 RST CHIPR 200 KOHM +-5% 1/4W

R907 061G1206204 RST CHIPR 200 KOHM +-5% 1/4W

R906 061G1206204 RST CHIPR 200 KOHM +-5% 1/4W

R905 061G1206204 RST CHIPR 200 KOHM +-5% 1/4W

R939 061G1206242 RST CHIPR 2.4 KOHM +-5% 1/4W

R922 061G1206470 RST CHIPR 47 OHM +-5% 1/4W

R923 061G1206470 RST CHIPR 47 OHM +-5% 1/4W

R925 061G1206472 RST CHIPR 4.7K OHM +-5% 1/4W

R909 061G1206519 RST CHIPR 5.1 OHM +-5% 1/4W

R904 061G1206624 RST CHIPR 620 KOHM +-5% 1/4W

R903 061G1206624 RST CHIPR 620 KOHM +-5% 1/4W

C915 065G0805103 22 CHIP 0.01uF 25V X7R 0805

C925 065G0805103 22 CHIP 0.01uF 25V X7R 0805

C909 065G0805104 22 0.1UF +-10% 25V X7R 080

C914 065G0805104 22 0.1UF +-10% 25V X7R 080

C921 065G0805104 22 0.1UF +-10% 25V X7R 080

C917 065G0805105 12 1UF +-10% 6V X7R

C916 065G0805221 21 220PF 25V 5%

C926 065G0805471 21 CAP CHIP 0805 470PF J 25V NPO

C907 065G0805474 27 CHIP 0.47UF 25V Y5V

C908 065G0805474 27 CHIP 0.47UF 25V Y5V

C923 065G1206101 71 CHIP 1206 100PF J 500V NPO

C922 065G1206102 32 CHIP 1000PF/XTR +-5%

C910 065G1206102 72 CAP CHIP 1206 1000PF K 500V X7R

C927 065G1206103 32 MLCC 1206 10NF K 50V X7R

D906 093G 64 38 P BAW56

D907 093G 6432S 1N4148W

ZD903 093G 6432S 1N4148W

ZD902 093G 39S 3 T BZT52-C11

ZD902 093G 39S 8 T RLZ11B LLDS

ZD901 093G 39S 12 T RLZ20B LLDS

T901 006G 31502 1.5MM RIVET

IC904 056G 158 4 T H431BA

IC904 056G 158 10 T IC AS431AZTR-E1 TO-92

R924 061G 17224152T 240 OHM 5% 1/4W

C924 065G 1K101 5T6921 100PF /1KV

C905 065G 1K152 1T6052 1.5nF /1K Y5P+-10%

C905 065G 1K152 1T6285 1.5nF/1K Y5P +-10%

C905 065G 1K152 1T6921 1.5nF/1K Y5P +-10%
C906 067G 305220 7T 105 22UF +℃ -20% 50V
C913 067G 305471 3T 105 470UF +℃ -20% 16V

715G 901 2 14 POWER BOARD PCB

M012 Q12G6900 2 THERMAL PAD

Q40G500B615 3B RATING LABEL

P051 Q51G 6 4509 GLUE_RTV

48

P051 Q51G 6 4509 GLUE_RTV

W33G6045 B T 30 TOP COVER

W33G6046 B T COVER

040G 45762412B CBPC LABEL

U603 056G 616 34 IC APA2069JITUL 2.6W*2 PDIP-16

C109 067G204V181 3K CS CAP 180uF 16V 8*8 mm

C101 067G204V471 2K CS CAP 470uF 10V 8*8 mm

L102 073G 253137 ER CHOKE COIG BY EROCORE SCB-03

CN601 088G 30254S PHONE JACK 3.5mm 5P V/T GREEN

CN101 088G 3041FV DC JACK 3PIN

CN103 088G 351 4 TN USB CONN

CN403 088G 35315F A D-SUB 15PIN DB15-1

090G6077 2 GP HEAT SINK FOR U401

X401 093G 2253B J 14.31818MHZ/85C

Q12G6900 31 HEAT PAD

Q12G6900 32 HEAT PAD

Q90G0169 1 HEAT SINK FOR U103

Q90G6059 2 HEAT SINK FOR U603

CN602 033G8023 4 JS WAFER

CN102 033G8032 5F HR CONNECTOR

CN401 033G8032 6F HR CONNECTOR

CN104 033G803210F HR CONNECTOR

CN402 033G8033 30 WAFER 2*15P 1.25MM SMT

U102 056G 133 32 NS LM3485 MSOP-8 NS

U401 056G 562569 IC TSUMO58GDJ-LF PQFP-128

U103 056G 563123 IC G1084-18TU3Uf TO-263T

U104 056G 585 4A IC AP1117E33L-13

U602 056G 628 8 IC FSA2257MTCX TSSOP-14

U406 056G 662 10 IC RClamp0524P.TCT

U407 056G 662 10 IC RClamp0524P.TCT

U409 056G 662 13 IC AZC099-04S SOT23-6L

U601 056G1124 3 IC PCM1754DBQR SSOP-16

U403 056G1133 32 IC M24C04-WMN6TP SO8

U405 056G1133 84 AF24BC02-S1

U408 056G1133 84 AF24BC02-S1

U402 056G1133120 IC MX25L2025MC-12G 2Mb SOP-8

Q101 057G 417 12 T KEC 2N3904S-RTK/PS

Q403 057G 417 12 T KEC 2N3904S-RTK/PS

Q405 057G 417 12 T KEC 2N3904S-RTK/PS

Q408 057G 417 12 T KEC 2N3904S-RTK/PS

Q409 057G 417 12 T KEC 2N3904S-RTK/PS

Q411 057G 417 12 T KEC 2N3904S-RTK/PS

Q412 057G 417 12 T KEC 2N3904S-RTK/PS

Q404 057G 417 13 T KEC 2N3906S-RTK/PS

Q407 057G 417 13 T KEC 2N3906S-RTK/PS

Q406 057G 763 1 A03401 SOT23 BY AOS(A1)

49

Q102 057G 763 3 AO4411 SO-8

R618 061G0402000 RST CHIP MAX 0R05 1/16W

R615 061G0402000 RST CHIP MAX 0R05 1/16W

R439 061G0402000 RST CHIP MAX 0R05 1/16W

R435 061G0402000 RST CHIP MAX 0R05 1/16W

R106 061G0402100 Y RST CHIPR 10 OHM +-5% 1/16W YAGEO

R408 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R409 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R410 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R420 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R422 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R477 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R476 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R470 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R469 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R460 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R459 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R456 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R455 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R454 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R429 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R424 061G0402101 RST CHIPR 100 OHM +-5% 1/16W

R487 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R478 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R464 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R462 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R432 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R431 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R426 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R421 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R105 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R418 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R417 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R416 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R617 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R616 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R608 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R607 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R614 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R613 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R612 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R611 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R610 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R609 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R605 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R602 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R486 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R485 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

50

R484 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R458 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R457 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R442 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R441 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R440 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R430 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R425 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R419 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R412 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R405 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R108 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R428 061G0402104 RST CHIPR 100 KOHM +-5% 1/16W

R619 061G0402104 RST CHIPR 100 KOHM +-5% 1/16W

R606 061G0402220 RST CHIPR 22 OHM +-5% 1/16W

R604 061G0402220 RST CHIPR 22 OHM +-5% 1/16W

R603 061G0402220 RST CHIPR 22 OHM +-5% 1/16W

R601 061G0402220 RST CHIPR 22 OHM +-5% 1/16W

R489 061G0402220 RST CHIPR 22 OHM +-5% 1/16W

R463 061G0402222 RST CHIPR 2.2 KOHM +-5% 1/16W

R465 061G0402222 RST CHIPR 2.2 KOHM +-5% 1/16W

R401 061G0402390 0F RST CHIP 390R 1/16W 1%

R482 061G0402390 1F RST CHIPR 3.9KOHM +-1% 1/16W

R483 061G0402390 1F RST CHIPR 3.9KOHM +-1% 1/16W

R107 061G0402391 RST CHIPR 390 OHM +-5% 1/16W

R450 061G0402471 RST CHIPR 470 OHM +-5% 1/16W

R109 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R427 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R461 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R466 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R467 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R468 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R472 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R473 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R474 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R481 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R443 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W

R447 061G0402560 RST CHIP 56R 1/16W 5%

R448 061G0402560 RST CHIP 56R 1/16W 5%

R449 061G0402560 RST CHIP 56R 1/16W 5%

R451 061G0402750 RST CHIPR 75 OHM +-5% 1/16W

R452 061G0402750 RST CHIPR 75 OHM +-5% 1/16W

R453 061G0402750 RST CHIPR 75 OHM +-5% 1/16W

FB104 061G0603000 RST CHIP MAX 0R05 1/10W

R490 061G0603000 Y RST CHIP MAX 0R05 1/10W YAGEO

R491 061G0603000 Y RST CHIP MAX 0R05 1/10W YAGEO

R104 061G0603183 RST CHIPR 18 KOHM +-5% 1/10W

R103 061G0603393 RST CHIPR 39 KOHM +-5% 1/10W

51

R102 061G0603563 RST CHIPR 56 KOHM +-5% 1/10W

R446 061G0805000 Y RST CHIP MAX 0R05 1/8W YAGEO

R625 061G0805000 Y RST CHIP MAX 0R05 1/8W YAGEO

R101 061G0805220 Y RST CHIPR 22 OHM +-5% 1/8W YAGEO

R444 061G1206151 F RST CHIPR 150 OHM +-5% 1/4W FENGHUA

R445 061G1206151 F RST CHIPR 150 OHM +-5% 1/4W FENGHUA

C632 065G0402101 31 CHIP 100PF 50V NPO

C631 065G0402101 31 CHIP 100PF 50V NPO

C630 065G0402101 31 CHIP 100PF 50V NPO

C629 065G0402101 31 CHIP 100PF 50V NPO

C449 065G0402102 32 1000PF +-10% 50V X7R

C461 065G040210312K Y CAP CHIP 0402 10N 16V X7R +/-10%

C462 065G040210312K Y CAP CHIP 0402 10N 16V X7R +/-10%

C463 065G040210312K Y CAP CHIP 0402 10N 16V X7R +/-10%

C464 065G040210312K Y CAP CHIP 0402 10N 16V X7R +/-10%

C415 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C414 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C413 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C412 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C408 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C401 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C402 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C403 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C404 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C405 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C407 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C406 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C417 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C617 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C613 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C601 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C455 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C454 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C453 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C442 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C439 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C438 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C430 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C429 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C428 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C427 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C425 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C421 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C419 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C418 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C122 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

52

C120 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C119 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C118 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C114 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C112 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C110 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C103 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C125 065G0402104 27 CAP CHIP 0402 100nF Z 25V Y5V

C604 065G0402105 A5 CAP 0402 1UF K 10V X5R

C606 065G0402105 A5 CAP 0402 1UF K 10V X5R

C618 065G0402105 A5 CAP 0402 1UF K 10V X5R

C620 065G0402105 A5 CAP 0402 1UF K 10V X5R

C621 065G0402105 A5 CAP 0402 1UF K 10V X5R

C624 065G0402105 A5 CAP 0402 1UF K 10V X5R

C623 065G0402152 32 CHIP 1500PF 50V NPO

C622 065G0402152 32 CHIP 1500PF 50V NPO

C612 065G0402152 32 CHIP 1500PF 50V NPO

C611 065G0402152 32 CHIP 1500PF 50V NPO

C456 065G0402220 31 CHIP 22PF 50V NPO

C457 065G0402220 31 CHIP 22PF 50V NPO

C607 065G0402220 31 CHIP 22PF 50V NPO

C608 065G0402220 31 CHIP 22PF 50V NPO

C610 065G0402220 31 CHIP 22PF 50V NPO

C609 065G0402220 31 CHIP 22PF 50V NPO

C443 065G0402224 17 CAP CER 0.22UF -20%-80%

C422 065G0402224 17 CAP CER 0.22UF -20%-80%

C424 065G0402224 17 CAP CER 0.22UF -20%-80%

C441 065G0402224 17 CAP CER 0.22UF -20%-80%

C458 065G0402224 17 CAP CER 0.22UF -20%-80%

C459 065G0402224 17 CAP CER 0.22UF -20%-80%

C460 065G0402224 17 CAP CER 0.22UF -20%-80%

C452 065G0402473 12 CHIP 0.047uF 16V X7R

C451 065G0402473 12 CHIP 0.047uF 16V X7R

C450 065G0402473 12 CHIP 0.047uF 16V X7R

C448 065G0402473 12 CHIP 0.047uF 16V X7R

C447 065G0402473 12 CHIP 0.047uF 16V X7R

C446 065G0402473 12 CHIP 0.047uF 16V X7R

C432 065G0402560 31 CHIP 56PF 50V X7R

C433 065G0402560 31 CHIP 56PF 50V X7R

C106 065G0603102 32 1000PF +-10% 50V X7R

C105 065G0603102 32 1000PF +-10% 50V X7R

C104 065G0603102 32 1000PF +-10% 50V X7R

C126 065G0603102 32 1000PF +-10% 50V X7R

C127 065G0603102 32 1000PF +-10% 50V X7R

C128 065G0603102 32 1000PF +-10% 50V X7R

C619 065G0603225 A5 CHIP 2.2uF 10V X5R

C615 065G0603225 A5 CHIP 2.2uF 10V X5R

C115 065G0805106 A7 CHIP 10uF 10V Y5V 0805

53

C121 065G0805106 A7 CHIP 10uF 10V Y5V 0805

C411 065G0805106 A7 CHIP 10uF 10V Y5V 0805

C416 065G0805106 A7 CHIP 10uF 10V Y5V 0805

C420 065G0805106 A7 CHIP 10uF 10V Y5V 0805

C614 065G0805106 A7 CHIP 10uF 10V Y5V 0805

C605 065G0805106 A7 CHIP 10uF 10V Y5V 0805

C603 065G0805106 A7 CHIP 10uF 10V Y5V 0805

C602 065G0805106 A7 CHIP 10uF 10V Y5V 0805

C440 065G0805106 A7 CHIP 10uF 10V Y5V 0805

C426 065G0805106 A7 CHIP 10uF 10V Y5V 0805

C423 065G0805106 A7 CHIP 10uF 10V Y5V 0805

C111 065G1206226 17 CAP CHIP 1206 22uF Z 16V Y5V

C113 065G1206226 17 CAP CHIP 1206 22uF Z 16V Y5V

C116 065G1206226 17 CAP CHIP 1206 22uF Z 16V Y5V

C117 065G1206226 17 CAP CHIP 1206 22uF Z 16V Y5V

C123 065G1206226 17 CAP CHIP 1206 22uF Z 16V Y5V

C445 065G1206226 17 CAP CHIP 1206 22uF Z 16V Y5V

C431 065G120622617Z CHIP 1206 22uF Z 16V Y5V

C616 065G120622617Z CHIP 1206 22uF Z 16V Y5V

C626 065G120622617Z CHIP 1206 22uF Z 16V Y5V

C628 065G120622617Z CHIP 1206 22uF Z 16V Y5V

FB601 071G 56F220 K CHIP BEAD 22 OHM 0805

FB602 071G 56F220 K CHIP BEAD 22 OHM 0805

FB603 071G 56F220 K CHIP BEAD 22 OHM 0805

FB604 071G 56F220 K CHIP BEAD 22 OHM 0805

FB102 071G 56G301 EA BEAD 300OHM

FB103 071G 56K121 CHIP BEAD

FB401 071G 56K121 CHIP BEAD

FB402 071G 56K121 CHIP BEAD

FB405 071G 56K121 CHIP BEAD

FB409 071G 59B121 TB160808B

FB408 071G 59C300 CHIP BEAD

FB407 071G 59C300 CHIP BEAD

FB406 071G 59C300 CHIP BEAD

FB606 071G 59C600 CHIP BEAD

FB605 071G 59C600 CHIP BEAD

L101 073G M5822020T 22UH +-20%

L103 073G253S 6 T IND SMD CHOKE 90 OHM TDK

CN404 088G 34019A VD HDMI HEADER 19P V/T

D407 093G 60505 DIO SIG SM BAT54C(PHSE)R

D406 093G 64 42 P BAV70 SOT23 BY PAN JIT

ZD103 093G 64 49 SU DIODE ESD EGA 10603V05A1-B INPAQ

ZD102 093G 64 49 SU DIODE ESD EGA 10603V05A1-B INPAQ

ZD601 093G 64 59 SU ESD MLVS0603M04 0603

ZD602 093G 64 59 SU ESD MLVS0603M04 0603

D401 093G 6432P LL4148

D405 093G 6432P LL4148

D402 093G 6433P BAV99

54

D403 093G 6433P BAV99

D404 093G 6433P BAV99

ZD101 093G 39S 24 T RLZ 5.6B LLDS

ZD404 093G 39S 24 T RLZ 5.6B LLDS

ZD405 093G 39S 24 T RLZ 5.6B LLDS

ZD406 093G 39S 24 T RLZ 5.6B LLDS

ZD407 093G 39S 24 T RLZ 5.6B LLDS

ZD408 093G 39S 24 T RLZ 5.6B LLDS

ZD409 093G 39S 24 T RLZ 5.6B LLDS

ZD410 093G 39S 24 T RLZ 5.6B LLDS

ZD411 093G 39S 24 T RLZ 5.6B LLDS

ZD412 093G 39S 24 T RLZ 5.6B LLDS

ZD413 093G 39S 24 T RLZ 5.6B LLDS

ZD414 093G 39S 24 T RLZ 5.6B LLDS

D103 093G 60S 26 T DIODE SM340C 3A/40V SMC

D101 093G8004500 SM840B

D102 093G8004500 SM840B

715G3121 1 MAIN BOARD PCB

KEPC8QW3 KEY BOARD

SW004 077G 603 3 TO TACT SWITCH TS-03-BS

SW002 077G 603 3 TO TACT SWITCH TS-03-BS

SW001 077G 603 3 TO TACT SWITCH TS-03-BS

SW005 077G 603 3 TO TACT SWITCH TS-03-BS

SW003 077G610D 1 WB TACT SW+LED

Q55G 100625 TIN STICK_LOW ARGENTUM

CN001 033G8032 6F HR CONNECTOR

Q001 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q002 057G 417 4 PMBS3904/PHILIPS-SMT(04)

R001 061G0603000 RST CHIP MAX 0R05 1/10W

R004 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W

R003 061G0603200 1F RST CHIPR 2 KOHM +-1% 1/10W

R002 061G0603200 1F RST CHIPR 2 KOHM +-1% 1/10W

R005 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

R006 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

715G3168 1 KEY BOARD PCB

Q36G 600517 DUSTER CLOTH

Q40G 22E615 6A RATING LABEL

Q40G000262498A EPEAT LOGO LABEL

Q40G000262499A POP LABEL for V19&V22

Q40G0002850 9A VISTA LABEL

Q44GC069101 EPS

Q44GC069201 EPS

Q44GC069615 1A 22 LCD CARTON

Q45G 77 5 PE PACKING

55

Q45G 88607 69 PE BAG

Q45G 88609 95 EPE BAG

Q52G 1185 99 BIG CARTON TAPE FOR AOC

Q52G 3 59 TAPE

001G6022500 SCREW

Q41G7800615D32 WARRANTY CARD

Q41G780B61528A QSG

Q45G 76 28 RN R PE BAG MANUAL

Q70G220161526A CD MANUAL V22

040G 58162435A P/N LABEL FOR MANUAL PE BAG

040G 581689 4A BARCODE LABEL FOR 1

56
