SERVICE MANUAL

SPECTRUM Series

LCD Monitor

LM-700/LM-700A

P/N : 41A50-144

THESE DOCUMENTS ARE FOR REPAIR SERVICE INFORMATION ONLY. EVERY REASONABLE EFFORT HAS BEEN MADE TO ENSURE THE ACCURACY OF THIS MANUAL; WE CANNOT GUARANTEE THE ACCURACY OF THIS INFORMATION AFTER THE DATE OF PUBLICATION AND DISCLAIMS RE LIABILITY FOR CHANGES, ERRORS OR OMISSIONS,

MANUFACTURE DATA : JULY. 2001 REVISE 7 SEP 2001

TABLE OF CONTENTS

PAGE

1. SPECIFICATIONS .................................................................................................... 3

1-1 GENERAL SPECIFICATIONS ...................................................….............. 3

1-2 LCD MONITOR DESCRIPTION .................................................................. 4

1-3 INTERFACE CONNECTOR .................................................................……. 4

2. PRECAUTION AND NOTICES ................................................................................ 5

2-1 ASSEMBLY PRECAUTION ......................................................................... 5

2-2 OPERATIONG PRECAUTION ..................................................................... 5

2-3 STORAGE PRECAUTION …........................................................................ 5

2-4 HIGH VOLTAGE WARNING ....................................................................... 5

3. OPERATING INSTRUCTIONS ................................................................................ 6

4. ADJUSTMENT .......................................................................................................... 7

4-1 ADJUSTMENT CONDITIONS AND PRECAUTIONS ............................... 7

4-2 ADJUSTMENTS METHOD .& DESCRIPTION......................... 7-8

4-3 FRONT PANEL CONTROL KNOBS ............................................................ 9

5. CIRCUIT & SOFTWARE DESCRIPTION ................ 10

5-1 THE DIFFERENT BETWEEN EACH PANEL ……………………………. 10 5-2 SPECIAL FUNCTION WITH PRESS KEY ……………………………….. 10 5-3 THE OPTIONAL ON MAINBOARD USING SHUTTLE & 4 KEY.. 10 5-4 THE OPTIONAL ON MAINBOARD OR OTHER ACCESSORY USING

DIFFERENT PANEL 5-5 SIMPLE INTRODUCTION ABOUT LM500 CHIPSET …………………... 11 5-6 SOFTWARE FLOW-CHART 12

6. A). INTERFACE-BOARD TROUBLE SHOOTING CHART .................... 14

B). INVERTER - MODULE TROUBLE SHOOTING CHART .................... 23

I. CHI-MEI-inverter spec & trouble shooting chart

C). ADAPTER TROUBLE SHOOTING CHART & BOM....... 50

D). AUDIO TROUBLE SHOOTING CHART & BOM

E). Main-chip GMZAN1 specifications

7. MECHANICAL OF CABINET FRONT DIS-ASSEMBLY...................................... 64

8. PARTS LISTING .........................................................................................………... 65

9. POWER SYSTEM AND CONSUMPTION CURRENT............................................ 73

10. PCB LAYOUT .....................................................................………………………... 74

11. MAINBOARD SCHEMATIC DIAGRAM …............................................... 75

12. ADAPTER SCHEMATIC DIAGRAM

13.AUDIO SCHEMATIC DIAGRAM

1. SPECIFICATIONS FOR LCD MONITOR

1-1 General specifications

1. LCD-PANEL : Active display area 17 inches diagonal

Pixel pitch 0.264 mm x 0.264 mm Pixel format 1280 x 1024 RGB vertical stripe arrangement

2. Display Color : 8-bit, 16.7 million colors

●External Controls :

Power On/Off, Auto key, Left key, Right key ( for 4-key )

●OSD menu Controls

Contrast, Brightness, Focus, Clock,H-position, V-position, Language, Recall-7800, Recall-6500, Reset, Exit-osd, Red, Green, Blue, Selected Dos-resolution

4. Input Video Signal : Analog-signal 0.7Vpp

Video signal termination impedance 75 OHM

5. Scanning Frequencies : Horizontal: 29 KHz - 80 KHz Vertical: 55 Hz – 75 Hz Pixel clock: 135 MHz

6. Factory Preset Timing : 18 User Timings : 19 Input signal tolerance : H tolerance ±1 K, V tolerance ±1 Hz

7. Power Source : Switching Mode Power Supply AC 100 – 240 V, 50/60 Hz Universal Type

8. Operating Temperature : 0℃ - 50℃ Ambient

Non-operating Temperature : -20℃ - 60℃

9. Humidity :

Operating : 20% to 80% RH (non-condensing) Non Operating : 5% to 95%RH (38.7℃ maximum wet bulb temperature)

10. Weight :

5.5 kg

11. External Connection : 15Pin D-type Connector, AC power-Cord

12. View Angle : x-axis right/left = 60, y-axis up/down = 40 ,60

13. Outside dimension : Width x Height x Thickness = 422x 449 x 215 mm

14. Plug and Play : VESA DDC1/DDC2B

15. Power saving : VESA DPMS

1-2 LCD MONITOR DESCRIPTION

The LCD MONITOR will contain an main board, an Inverter module, keyboard and External Adapter which house the flat panel control logic, brightness control logic, DDC and DC-DC conversion The Inverter module will drive the backlight of panel . The Adapter will provides the 12V DC-power 5 Amp to Main-board and Inverter module .

Inverter

AC-IN 100v-240v

1-3 Interface Connectors

(A) AC-Power Cable (B) Video Signal Connectors and Cable (C) External Adapter

Main Board or Interface Board

ADAPTER

Monitor Block Diagram

CCFT Drive.

Keyboard

Flat Panel and CCFL backlight

HOST Computer

RS232 Connector For white balance adjustment in factory mode

Video signal, DDC

2. PRECAUTIONS AND NOTICES

2-1 ASSEMBLY PRECAUTION

(1) Please do not press or scratch LCD panel surface with anything hard. And do not soil LCD panel surface

by touching with bare hands (Polarizer film, surface of LCD panel is easy to be flawed)

In the LCD panel, the gap between two glass plates is kept perfectly even to maintain display

characteristic and reliability. If this panel is subject to hard pressing, the following occurs :

(a) Uniform color (b) Orientation of liquid crystal becomes disorder (2) Please wipe out LCD panel surface with absorbent cotton or soft cloth in case of it being soiled. (3) Please wipe out drops of adhesive like saliva and water in LCD panel surface immediately.

They might damage to cause panel surface variation and color change.

(4) Do not apply any strong mechanical shoc k to the LCD panel.

2-2 OPERATING PRECAUTIONS

(1) Please be sure to unplug the power cord before remove the back-cover. (be sure the power is turn-off) (2) Please do not change variable resistance settings in MAIN-BOARD, they are adjusted to the most suitable

value. If they are changed, it might happen LUMINANCE does not satisfy the white balance spec.

(3) Please consider that LCD backlight takes longer time to become stable of radiation characteristic in low

temperature than in room temperature.

(4) Please pay attention to displaying the same pattern for very long-time. Image might stick on LCD.

2-3 STORAGE PRECAUTIONS

(1) When you store LCD for a long time, it is recommended to keep the temperature between 0℃-40℃

without the exposure of sunlight and to keep the humidity less than 90% RH.

(2) Please do not leave the LCD in the environment of high humidity and high temperature such as 60℃

90%RH.

(3) Please do not leave the LCD in the environment of low temperature; below -15℃.

2-4 HIGH VOLTAGE WARNING

The high voltage was only generated by INVERTER module, if carelessly contacted the transformer on this module, can cause a serious shock. (the lamp voltage after stable around 600V, with lamp current around 8mA, and the lamp starting voltage was around 1500V, at Ta=25℃)

3. OPERATING INSTRUCTIONS

This procedure gives you instructions for installing and using the LM700 LCD monitor display.

1. Position the display on the desired operation and plug–in the power cord into External Adapter AC outlet.

Three-wire power cord must be shielded and is provided as a safety precaution as it con nects the chassis and cabinet to the electrical conduct ground. If the AC outlet in your location does not have provisions for the grounded type plug, the installer should attach the proper adapter to ensure a safe ground potential.

2. Connect the 15-pin color display shielded signal cable to your signal system device and lock both screws on the connector to ensure firm grounding. The connector information is as follow:

11 15

15 - Pin Color Display Signal Cable

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1. RED 9. 5V power from VGA-card

2. GREEN 10. GND

3. BLUE 11. SYNC. GND

4. GND 12. SDA

5. GND 13. HORIZ. SYNC

6. GND-R 14. VERT. SYNC

7. GND-G 15. SCL

8. GND-B

3. Apply power to the display by turning the power switch to the "ON" position and allow about thirty seconds for Panel warm-up. The Power-On indicator lights when the display is on.

4. With proper signals feed to the display, a pattern or data should appear on the screen, adjust the brightness and contrast to the most pleasing display, or press auto-key to get the best picture-quality.

5. This monitor has power saving function following the VESA DPMS. Be sure to connect the signal cable to the PC.

6. If your LM700 LCD monitor requires service, it must be returned with the power cord & Adapter.

4. ADJUSTMENT

4-1 ADJUSTMENT CONDITIONS AND PRECAUTIONS

Adjustments should be undertaken only on following function : contrast, brightness focus, clock, h-position, v-position, red, green, blue since 6500 color & 7800 color.

4-2 ADJUSTMENT METHOD

Press MENU button to activate OSD Menu or make a confirmation on desired function, Press Left/Right button to select the function or done the adjustment.

1. White-Balance, Luminance adjustment

Approximately 30 minutes should be allowed for warm up before proceeding white balance adjustment.

Before started adjust white balance ,please setting the Chroma-7120 MEM. Channel 5 to 7800 color an d MEM. channel 6 to 6500 color, ( our 7800 parameter is x = 296 ±10, y = 311 ±10, Y = 160 ±5cd/m2

and 6500 parameter is x = 313 ±10, y = 329 ±10, Y = 160 ±5 cd/m

How to setting MEM.channel you can reference to chroma 7120 user guide or simple use “ SC” key and “ NEXT” key to modify xyY value and use “ID” key to modify the TEXT description

)

Following is the procedure to do white-balance adjust

Press MENU button during 2 seconds along with plug in the DC-power cord will activate the factory mode, and the OSD screen will located at

I. Bias (Low luminance) adjustment :

1. Press “ AUTO” button , and wait for message “ Pass” ,check the Blacklevel value on

OSD should be large than 30, if less than 30 that means the offset calculation FAIL, please manual adjust the blacklevel to value 43

2. set the contrast and brightness on OSD window to maximal value , RGB to “50”

3. adjust the VR501 on INTERFACE board until chroma 7120 measurement reach the

value Y=240 cd/m

II. Gain adjustment :

a. adjust 7800 color-temperature

4. Set the Contrast of OSD function to 40, Brightness to 48

5. Switch the chroma-7120 to RGB-mode (with press “MODE” button )

6. switch the MEM.channel to Channel 05 ( with up or down arrow on chroma 7120 )

7. The lcd-indicator on chroma 7120 will show x = 296 ±10, y = 311 ±10, Y = 160 ±5

8. Adjust the RED on OSD window until chroma 7120 indicator reached the value

cd/m

R=100

left top of panel.

±5 cd/m2

9. adjust the GREEN on OSD, until chroma 7120 indicator reached G=100

10. adjust the BLUE on OSD, until chroma 7120 indicator reached B=100

11. repeat above procedure ( item 8,9,10) until chroma 7120 RGB value meet the tolence

=100±2

12. switch the chroma-7120 to xyY mode With press “MODE” button

13. Adjust the Contrast on OSD window until the Y measurement on chroma 7120 reached

the value Y= 180 cd/m

14. Press 78 on OSD window to save the adjustment result

b. adjust 65 0 0 c o l or-te m perature

1 Set the Contrast of OSD function to 40, Brightness to 48 2 Switch the chroma-7120 to RGB-mode (with press “MODE” button ) 3 switch the MEM.channel to Channel 06 ( with up or down arrow on chroma 7120 ) 4 The lcd-indicator on chroma 7120 will show x = 313 ±10, y = 329 ±10, Y = 160 ±5

cd/m

5 Adjust the RED on OSD window until chroma 7120 indicator reached the value R=100 6 adjust the GREEN on OSD, until chroma 7120 indicator reached G=100 7 adjust the BLUE on OSD, until chroma 7120 indicator reached B=100 8 repeat above procedure ( item 5,6,7) until chroma 7120 RGB value meet the tolence =100

±2

9 switch the chroma-7120 to xyY mode With press “MODE” button 10 Adjust the Contrast on OSD window until the Y measurement o n chroma 7120 reached

the value Y= 180 cd/m

11 Press 65 on OSD window to save the adjustment re sult

Turn the POWER-button off to on to quit from factory mode ( in USER-mode, the OSD window location was placed at middle of screen)

2. Clock adjustment

Set the Chroma at pattern 63 (cross-talk pattern) or WIN 9 8 / 95 sh ut - down mode (dot-pattern). Adjust until the vertical-Stripe-shadow as wide as possible or no visible. This function is adjust the PLL divider of ADC to generate an accurate pixel clock Example : Hsyn = 31.5KHz Pixel freq. = 25.175MHz (from VESA spec)

The Divider number is (N) = (Pixel freq. x 1000)/Hsyn

From this formula, we get the Divider number, if we fill this number in ADC register (divider register), the PLL of ADC will generate a clock which have same period with above Pixel freq.(25.175MHz) the accuracy of this clock will effect the size of screen.(this clock was called PIXEL-CLOCK)

3. Focus adjustment

Set the Chroma at pattern 63 (cross talk pattern) or WIN98 / 95 sh ut do w n mode (dot-pattern). Adjust the horizontal interference as less as possible This function is adjust the phase shift of PIXEL-CLOCK to acquire the right pixel data . If the relationship of pixel data and pixel clock not so match, we will see the horizontal interference on screen ,we only find this phenomena in crosstalk pattern or dot pattern , other pattern the affect is very light

4. H/V-Position adjustment

Set the Chroma to pattern 1 (crosshatch pattern) or WIN98/95 full-white pattern confirm above item 2 & 3 functions (clock & focus) was done well, if that 2 functions failed, the H/V position will be failed too. Adjust the four edge until all four-edges are visible at the edge of screen.

5. MULTI-LANGUAGE function

There have 5 language for selection, press “MENU” to selected and confirm , press “ LEFT” or “ RIGHT” to change the kind of language ( English , Deutch , Francais, Espanol, Italian)

6. Reset function

Clear each old status of auto-configuration and re-do auto-configuration ( for all mode) This function also recall 7800 color-temperature , if the monitor status was in “ Factory-mode” this reset function will clear Power-on counter ( backlight counter) too.

7. OSD-LOCK function

Press Left & Right key during switching on the monitor, the access to the OSD is locked, user only has access to “ Contrast, Brightness, Auto-key “. If the operator pressed the Left & Right during switching on the monitor again , the OSD is unlocked.

8. View Power-on counter and reset the Power-on counter( if not necessary , no suggest to entry factory

mode) The Power-on counter was used to record how long the backlight of panel already working, the backlight life time was guarantee minimal 25000 hours, the maintainer can check the record only in factory mode. Press MENU button for 2 seconds along with plug-in DC power cord will be in factory mode, and the OSD screen will located at press 78/65 , your white-balance data will overlap with the new-one, and you must perform the whitebalance process again. The result of counter was place at top of OSD, the maximal of record memory was 65000 hours, if exceed 65000 hours the counter will keep in 65000 hours until press “ RESET” at osd-menu in factory mode. The “ RESET” function in factory mode will execute following function:

1. clear the Power-on counter to zero hours

2. clear old auto-configuration status for all mode , so the monitor will automatically re-do auto-config

when change to next mode or power on-off

4-3 FRONT PANEL CONTROL KNOBS

Power button : Press to switch on or switch off the monitor. Auto button : to perform the automatic adjustment from CLOCK, FOCUS, H/V POSITION, but no affect the

color-temperature Left/Right button : select function or do an adjustment. MENU button : to activate the OSD window or to confirm the desired function

left top of panel but take cautions don’t press icon “78” & “65”, if you

5. CIRCUIT-DESCRIPTION

5-1 SPECIAL FUNCTION with PRESS-KEY

A). press Menu button during 2 seconds along with plug-in the DC Power cord:

That operation will set the monitor into “Factory- mode”, in Factory mode we can do the White balance adjustment with RS232 , and view the Backlight counter (this counter is use to record the panel activate hours ,for convenient the maintainer to check the panel backlight life time) In Factory mode, OSD-screen will locate in left top of screen. Press POWER-button off to on once will quit from factory mode and back to user-mode.

B). Press both Left & Right button along with Power button off to on once will activate the OSD-LOCK

function, repeat this procedure will disable OSD-LOCK In OSD-LOCK function, all OSD function will be lock , except Contrast and Brighness

OSD-INDEX EXPLANATION

1. CABLE NOT CONNECTED: Signal-cable not connected.

2. INPUT NOT SUPPORT:

a. INPUT frequency out of range: H > 81kHz, v > 75Hz or H < 28kHz, v < 55Hz b. INPUT frequency out of VESA-spec. (out of tolerance too far)

3. UNSUPPORT mode, try different Video-card Setting:

Input frequency out of tolerance, but still can catch-up by our system (if this message show, that means, this is new-user mode, AUTO-CONFIG will disable)

5-2 THE Different on MAINBOARD or other ACCESSORY when using different PANEL type

1). The MCU software should be change

example : for CHI-MEI panel , the MCU part-number is 56A-1125-61-M

for Hyundai panel , the MCU part-number is 56A-1125-61-Y

and the other ACCESSORY when use diffe rent panel type should be change as following:

1). The INVERTER module for CHI-MEI panel part-number is 79AL17-1-S

for Hyundai panel the INVERTER part number is 79A-L17-3-S

2). The cable to Panel side for CHI-MEI panel part number is 95A8018-30-1

for HYUNDAI panel is 95A8018-30-3

3). The Dsub cable for CHI-MEI is 89A-174D-5BF-GLF, for Hyundai is 89A-174-L17-3.

4). The Mechanical accessory is change or adding as follow;

MAIN-FRAME Panel

CHI-MEI PANEL M170E1 Hyundai PANELHT17E11-100

15A5684-1 15A5705-1 750ALCD170-3 750ALCD170-4

5-3 SIMPLE-INTRODUCTION about LM700 chipset

1. GMZAN1 ( all-in-one chip solution for ADC, OSD, scalar an d interpolation) :

USE for computer graphics images to convert analog RGB data to digital data with interpolation process, zooming, generated the OSD font , perform overlay function and generate drive-timing for LCD-PANEL.

2. M6759 (ALI- MCU, type 8052 series with 64k Rom-size and 512 byte ram) :

Use for calculate frequency, pixel-dot , detect change mode, rs232-communication, power-consumption control, OSD-index warning , …etc.

3. 24LC21 (MicroChip IC) :

EePROM type, 1K ROM-SIZE, for saving DDC-CONTENT.

4. 24C04 (ATMEL IC) :

EePROM type, 4K ROM-SIZE, for saving AUTO-config data, White-balance data, and Power-key status and Backlight-counter data.

5. LM2569S( NS brand switching regulator 12V to 5V with 3A load current) .

6. AIC 1084-33CM (AIC brand linear regulator 5V to 3.3V)

7. LVDS ( use NOVATEK NT7181F)

Convert the TTL signal to LVDS signal

The advantage of LVDS signal is : the wire can be lengthen and eliminate wire number , low EMI .

LVDS signal is high frequency but low voltage, only 0.35 VPP ,the frequency is seven times higher than TTL

MODULE-TPYE COMPONENT :

1. ADAPTER : CONVERSION-module to convert AC 110V-240V to 12VDC, with 5.0 AMP

2. INVERTER : CONVERSION-module to convert DC 12V to H igh-Voltage around 1600V, with frequency

30K-80Khz, 7mA-9Ma

Input analog RGB & H,V,& ddc signal & Rs232 communication

DDC-chip

DC 12V 5Amp

EXTERNALADAPTER

GMZAN1 (U200)

Oscillator 50 mhz

MCU ( U302 )

Main-board Block diagram

Communication signal: Hclk,Hfs,Hdata0

Keyboard module

Data Digital RGB

Panel Control Signal: Dhs, Dvs, Dclk

Crystal 20 mhz

LVDS chip (U601, U602)

Panel Power 5V

Panel-Power Control (U202)

INVERTER module

PANEL

5-4 SOFTWARE FLOW CHART

I. Power-On Subrotine CHART

POWER-ON START

Initial MCU I/O, Interrupt vector & Ram

Check Eeprom is empty ?

Check White-balance data(6500 & 7800) same with the backup data ? Check POC( backlight counter) data same with the backup data ?

IF not same, overwrite the data with backup value.

Check Previous power-switch status from Eeprom, & other system status

Check if in Factory mode?(when power-on,press the MENU Button will be in FACTORY mode)

Clear factory mode flag

Initial 1.POC (backlight counter)

2. Clr all mode value

MAIN-SUBROTINE LOOP

SET factory mode flag

II. MAIN SUBROTINE LOOP

Main loop start

Process Power-saving status ( according to below flow-chart result)

Check GMZAN IFM status .is change or not. And check Signal cable status ( cable not connected or not ) ** IFM is the register which measured the HSYN & Vsyn status

Yes, IFM have change

Is current system status in Power-saving ?

Check the IFM result is in the standard Mode table ?

Check the IFM result is in the user mode table ?

Out of range ( input not support) be confirm

confirm the frequency ( Hsyn or Vsyn) from IFM already

been changed ? ( check the change mode flag)

Process ( turn off OSD , setting GMZAN1according to above parameter,set LED status, set backlight status)

Check Auto-config mode flag already been set?

Read Key status and Process on OSD-screen

Check Factory mode flag= 1

Monitoring the time-out of osd status ( if no key input persist for 10 sec , the osd time-out counter will trigger )

)

Wake-up GMZAN1 (because GMZAN1 was in partial sleeping state)

Set mode index & parameter Set change mode flag

Do Auto-config automatically

if the RS232 buffer is full, process the command( while adjust white-balance in factory mode)

6. A). Interface-Board Trouble-Shooting chart

*Use the PC Win 98 white pattern, with some icon on it, and Change the Resolution to 640x480 60 Hz / 31 KHz **NOTICE : The free-running freq. of our system is 48 KHz / 60 Hz, so we recommend to use another

resolution to do trouble shooting, this trouble shooting is proceed with 640x480 @60Hz 31Khz

I. NO SCREEN APPEAR

DC-Power Part

Measured Input DC-voltage ( J1)= 12 V? Measured U305 AIC 1084 pin 2 = 3.3V? Measured U904 LT1117 pin 2= 3.3V?

Check Correspondent component. Is there any shortage or cold solder?

Yes, all DC level exist

Disconnected the Signal cable( Loose the Signal cable ),Is the screen show “Cable Not Connected” ?

Connected the Signal cable again, Check LED status.

No, nothing is show

Connected the Signal cable again, Check LED status.

Check the Wire-Harness from CN601,CN602 was tight enough?, check the Wire connection to panel side too

Check Panel-Power Circuit Block

Check U200 Data-output Block

Replace Inverter and Check

Inverter control relative circuit

Re-do White balance adjust

Note: 1. if Replace “MAIN-BOARD” , Please re-do “DDC-content” programmed & “WHITE-Balance”.

2. if Replace “ INVERTER” only, Please re-do “ WHITE-Balance”

Led Green

OK,Wire tight enough

OK,Panel Power OK

OK, U200 data OK

Led Orange

Check Power switch is in Power-on status , and check if Power switch had been stuck ?

OK, Keyboard no stuc

Measured RGB (r200,r201,r202) H,V Input at U401

in 9 ,4 ,was there have signal ?

OK,input Normal

OK, Mcu have transition

Replace U200 (Gmzan1)

Led orange

Measured Oscillator Block Oscillator U201 & Crystal X300

OK,clock normal

Check communication pin between U200 & MCU pin 2,6,7. , is it have transition?

Replace U302 (MCU) & check Reset pin 10 must be change from High to low when first AC power plugin

NG, no transition

Check Correspondent component short/open ( Protection Diode ) and Signal cable bad ?

Replace M

Led Green

PANEL-POWER CIRCUIT

)

check R225 should have response from 12V to 0V When we switch the power switch from on to off

Measured the U202 pin 5,6,7,8= 5 V?

OK,R225 have response

NG, no Voltage

INVERTER Control Relative Circuit

Measured the inveter connector CN303 Pin 1=12V, pin 3 on/off control=5V (on)

Replace INVERTER to new-one, and Check the screen is normal ??

OSCILLATOR BLOCK

Measured U201 Oscillator output R215= 50mhZ ?

Measured X300 Crystal output R340= 20mhZ ?

U200-DATA OUTPUT

Measured PCLK(L207) PVS,PHS (pin 73,74 from U200 ) Is there have any transition? Pclk around 47MHz to 57MHZ , PVS=60.09Hz , PHS around 67 KHz ??(refer to input signal=640x480@60 Hz 31k, and LED is green)

Check the PPWR panel power relative circuit, R223, Q200,U202(pin 5,6,7,8) In normal operation, when LED =green, R223 should =0 v, If PPWR no-response when the power switch Turn on and turn off, replace the U200-GMZAN1

Check U202 pin 1,2,3,4= 5V

Check U304 relative circuit.(R905,T300..)

Check the Bklt-On relative circuit, R315, Q304, R311, In normal operation, when LED =green, R315 Bklt-On should =0 v, If Bklt-On no-response when the power switch turn on-off,

lace the MCU

Replace INVERTER-module & Re-do white balance

Replace Oscillator U201

Replace Crystal X300

Replace GMZAN1 (U200) or replace MAINBOARD.

If MainBoard being replace , please do the DDC – content reprogrammed

Replace U202 ( Nmos, SI9933

II (a) THE SCREEN is Abnormal , stuck at white screen, OSD window can’t appear, but

keyboard & LED was normal operation.

At general, this symtom is cause by missing panel data or panel power, so we must check our wire-harness which connected to panel or the panel power controller (U202)

Check if the Wire harness from CN601 & CN602 loose? Check the wire on both Panel-side and Mainboard side.

Tighten it.

Yes, tight enough

Check the Panel-Power circuit as above (page 15) U202 pin 5,6,7,8 ,must be 5V

Yes, Voltage normal

Check the LVDS-Power L603,L604,L601,L6 02 ,L9 0 0= 3.3V ?

Yes, Voltage normal

Check the both U601 & U602 LVDS-Input pin 31= 45mhz – 65mhz, and pin 27 = Vsyn freq, pin 28 = 45khz- 65 khz

Yes, Frequency normal

Replace both LVDS chip ( U601 & U602)

Check U904,which convert the 5V to

3.3V

Check U200 DATA-OUPUT block as above ( page 15)

NG,no data output

Check OSCILLATOR Block as above ( page 15)

OK,all clock is normal

Replace U302 MCU and check it RESET pin 10 ,must be turn high to low when first AC

ower-on

OK, reset is normal

Check U200 DATA-OUTPUT block again

NG,still no data out

Replace U200 GMZAN1

II. (b)The screen had the Vertical Straight Line, might be stuck in Red, Green, Blue

That symptom is cause by bad Panel issue ( might be the Source IC from Panel is cold solder or

open loop ) so REPLACE THE PANEL TO NEW ONE.

KEYBOARD BLOCK check

Check U302 MCU pin 43,42,41,40,39 at High state(5V)? without press any key

Press power key and check U302 pin 43 = low (0V) ?

Check U302 pin 38 (LED green) will have transition from hi to low or low to hi when we press the power key??

Check U302 pin 20= 20MHz ? and pin 44 (VDD)=5V ? and pin 10 (reset)=0V ? at normal condition

Without press key and change mode, Check U302 pin 16,17(sda,scl)= hi 5V ? or keep transition ?

Replace U302 MCU

NG, MCU no response

Keep transition, that means eeprom no response

Mechanical was stuck, Check !

Replace Tact-switch SW105 at keyboard if still no work replace U302 MCU at main-board and check MCU relative reset circuit, and crystal

If still no Led green indicator, check Q102, R106 & LED at keyboard !! cold solder or bad

If one of this item was NG, check the relative circuit

Check U300 eeprom 24LC04 relative circuit, check U300 pin 7 = low?

Check JP202 is connect ?

Check U300 pin 8 (vdd)= 5V, and check R300

R301 cold solde

Replace eeprom

POWER-BLOCK check **Note : the Waveform of U304 pin 2 can determined the power situation

1. stable rectangle waveform with equal duty, freq aroun d 150 K- 1 58 K Hz

that means all power of this interface board is in normal operation ,and all status of 5V & 3.3V is working well

2. unstable or uneven rectangle waveform without same duty, that means ABNORMAL operation was

happened, check 3.3V or 5V ,if short-circuit or ba d component

3. rectangle waveform with large spike & harmonic pulse on front side , means all 3.3v is no load, U200

Gmzan1 was shut-down, and only U302 MCU still working , that means the monitor is in power saving status , all power system is working well .

Measure input power at U304 LM2596 pin 1= 12V ?

Check ADAPTER and connector if loose?

Check U304 pin 2 is a stable rectangle wave? Around 150k-158kHz stable rectangle wave with equal duty without any spike or harmonic pulse?

The interface board power is good

Check U304 pin 2 is a unstable rectangle wave ?

OK, unstable wave

Check all 3.3V & 5V power, there is short circuit or bad component was happened

NG, with harmonic

ulse

The interface board is in powersaving state, press power key to wake up & check your signal input

pei)

III.ALL SCREEN HAS INTERFERENCES OR NOISE, CAN’T BE FIXED BY AUTO KEY

** NOTE: There is so many kind of interferences, 1). One is cause by some VGA-CARD that not meet VESA spec or

power grounding too bad that influence our circuit

2).other is cause by external interferences, move the monitor far from electronic equipment.( rarely happened)

Use DOT-pattern, or win98/99 shut-down mode pattern, press “AUTO” key, was the interferences disappear ??

Adjust “FOCUS” step by step, until the horizontal interferences disappear

Does your signal-cable have an additional cable for extension ??

Does your noise only exist in one mode only? (ex: only at 1280x1024 @ 75 Hz, other is normal)

That was cause by you VGA-CARD setting, your VGA card timing backporch/frontporch exceed vesa timing too far, for some new AGP-VGA-CARD such situation always happened So in your control-panel icon ,select monitor ,setting ,

advance ,screen-adjust,at Size icon, increase step by step slowly, press “”AUTO”

key every step you increase the SIZE . repeat the procedure( increase/decrease SIZE one-step and press AUTO) until the interferences disappear, press “APPLY” to save in your VGA

NO additional extension cable

Yes, only happened on one mode

Yes, has extension

END

Put away the additional cable May be the additional cable grounding is not quite well

Change the Signal-cable to new-one or Try other brand VGA-CARD (make sure just only that brand VGACARD has this problem ,contact RDtai

There is an interferences in DOS MODE

NOTE :the criteria of doing AUTO-CONFIGURATION : must be a full-size screen, if the screen not full , the autoconfiguration will fail. So in dos mode ,just set your “CLOCK” in OSD-MENU to zero or use some EDITOR software which can full fill the whole screen (ex: PE2, HE) and then press “AUTO” Or you can use “DOS1.EXE” which attached in your Driver disk to optimize DOS mode performance

V. THE PANEL LUMINANCE WAS DOWN

Use white pattern and resolution 1280x1024 @ 60Hz , CHROMA 7120 measured the center of panel

Set Contrast, brightness =maximal, RGB= 50 Quit from OSD-screen, measured Y(luminance) With chroma 7120, check Y= 240±10 CD/M2 ?

If Y can reach ＞190 cd/m2 that means The lamp still working well, so we just re-do the white-balance process As following procedure

Adjust VR201 until maximal, measured Y = 240±10 cd/m2 ?

Use white-pattern, press MENU button along with AC power-plug in ( you will in factory mode) The OSD-menu will be at left-top of screen,

If the Y less than 160 cd/m2 (after the VR201= MAX, contrast, brightness = max) then change the LAMP of panel

press AUTO button to automatically adjust blacklevel value, you will see the sign PASS ,if FAIL , manual adjust the blacklevel until value 43 !

Set contrast, brightness to max, and turn the VR201 to max , wait for 20 minutes until the luminance Y stable The Y should be larger than 200 cd/m2 (for panel which already use for a year, the Y luminance might be a little down, around 180 cd/m2, there is acceptable too)

Follow this manual page 7 item 4-2 method to more detail procedure for do a white-balance adjust

6 B). Inverter –MODULE Spec &Trouble Shooting Chart

In LM700 model , we use CHI-MEI panel, and the INVERTER PROVIDER is SAMPO-

CORPORATION

I.) TROUBLE SHOOTING OF CHI-MEI INVERTER (part no : 79AL17-1-S)

TYPE: L0037 FOR CHI-MEI 17”PANEL

SAMPO CORPORATION

T R O U B L E S H O O T I N G O F C H I - M E I IN V E R T E R ( DIVTL0037-D42- -)

1.SAMPO PART NO .: L0037 ,AOC PART NO.: 79AL17-1-S

2.SCOPE : this is to specify the requirements of the subject parts used in

CHI-MEI (M170E1) 17

inch (4 C.C.F.L.) LCD monitor.

3.CONNECTOR PIN ASSIGMENT:

4-1. CON1: INPUT

MODEL NO.: S5B-PH-SM3-TB

4-2. CON2,CON3 : OUTPUT

MODEL NO. : SM04(4.0)B-BHS-1-TB

PIN SYMBOL DESCRIPTION

1 Vin Input voltage: 12V 2 Vin Input voltage: 12V 3 ON/OFF ON: 3V OFF:0V 4 Dimming Dimming range (0V~+5.0V)

5 GND GND

PIN SYMBOL DESCRIPTION

1 HV OUTPUT Input H.V to lamps 2 HV OUTPUT Input H.V to lamps 3 N.C. N.C. 4 RETURN Return to control

SAMPO CORPORATION

T R O U B L E S H O O T I N G O F C H I - M E I IN V E R T E R ( DIVTL0037-D42- -)

5.FUNCTION SPECIFICATIONS:

The data test with the set of SAMPO, and the test circuit is as below.

ITEM

SYMBOL MIN. TYP. MAX. UNIT REMARK

Input voltage

Vin

Input current Iin -- 2200 2500 mA output current

Iout

adj:0v( min.)

(min)

Output current

Iout

adj.:5 v(max.)

(max)

Frequency H.V open

H.V Load

F 40

Vopen

Vload

FUNCTION LOAD CIRCUIT:

10.8 12 13.2 V

2.1

5.5

2.6

6.0

3.1

6.5

50 60 KHZ

1400 1500 1600 Vrms

630 730 830 Vrms

FOR 1 CCFL LOAD:120KΩ

NO LOAD RL=120KΩ

120KΩ

10Ω

1 2

2 1

CON1

120KΩ

10Ω

1 2 3 4 5

120KΩ

10Ω 10Ω

PIN SYMBOL

1 Vin 12V 2 Vin 12V 3 ON/OFF 4 Dimming 5 GND

120KΩ

SAMPO CORPORATION

T R O U B L E S H O O T I N G O F C H I - M E I IN V E R T E R ( DIVTL0037-D42- -)

7.CIRCUIT DIAGRAM:

DDD

SSS

DDD

SSS

SAMPO CORPORATION

T R O U B L E S H O O T I N G O F C H I - M E I IN V E R T E R ( DIVTL0037-D42- -)

8.PART LIST

8-1 COMPONENTS LIST:

NO. REF. PART NAME PART NUMBER QTY DESCRIPTION SUPPLIER REMARK

1. CON1 CONNECTOR VCNCP0015-EJSTA 1 S5B-PH-SM3-TB JST

2. CON2,3

〃

3. R1,2 RESISTOR VRMHNVA--103J-A 2

4. R3,4

〃

VCNCP0014-PJSTA VCNCP0014-ZGLEA

VRMHNVA--683J-A 2

2 SM04(4.0)B.BHS-1-TB

GL SM02(4.0)-WH2

SMD 0603 10KΩ 5% SMD 0603 68KΩ 5%

JST

GEAN-LEA

YAGEO YAGEO

5. R5,6

6. R7,8

7. R9,10

8. R11,12, 31,32

9. R13,14

10. R15,16

11. R17,18

12. R27

13. R28,29,

14. R23,24, 25,26

15. R19,20

16. R21,22

17. R33

18. Q1 TRANSIST0R VSTDTC144WKA--A 1 SMD DTC144WKA ROHM

19. Q2

〃〃

〃〃〃〃〃〃

〃〃〃

〃

VRMHNVA--912J-A 2 VRMHNVA--274J-A 2

VRMHNVA--R00J-A 2

VRMCNV8--102F-A 4

VRMHNVA--752J-A 2 VRMHNVA--433J-A 2 VRMHNVA--271J-A 2 VRMHNVA--472J-A 1 VRMHNVA--392J-A 2 VRMBNV4--102F-A 4

VRMCNV8--183F-A 2 VRMCNV8--133F-A 2

VRMHNVA--363J-A 1

VSTDTA144WKA--A 1 SMD DTA144WKA ROHM

SMD 0603 9.1KΩ 5% SMD 0603 270KΩ 5%

SMD 0603 0Ω 5%

SMD 0805 1KΩ 1%

SMD 0603 7.5KΩ 5% SMD 0603 43KΩ 5% SMD 0603 270Ω 5%

SMD 0603 4.7KΩ 5% SMD 0603 3.9KΩ 5%

SMD 1206 1KΩ 1%

SMD 0805 18KΩ 1% SMD 0805 13KΩ 1% SMD 0603 36KΩ 5%

YAGEO YAGEO

YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO

YAGEO YAGEO YAGEO

20. Q3,5

21. Q4,6

22. Q7,8,9,

23. C1,2 CAPACITOR VCLFCN1EY224Z-A 2

24. C3,4,,9

25. C5 VCEATU1EC336M--

〃

〃〃

〃

VSTSST3904----A VSTMMBT3904-A

VSTCEM9435A-----A 2 SMD CEM9435A CET

VST2SD2150----A 4 SMD 2SD2150 ROHM

VCLRCN1EB104K-A 3

VCEATU1VC476M--

2 SMD SST3904-T116

SMD MMBT3904

SMD 0805 0.22 µF/25V

SMD 0805 0.1 µF/25V DIP UGX 33 µF/25V DIP UGX 47 µF/35V

ROHM

MOTOROLA

TDK TDK

SANYO

SAMPO CORPORATION

T R O U B L E S H O O T I N G O F C H I - M E I IN V E R T E R ( DIVTL0037-D42- -)

8-2 COMPONENTS LIST:

NO. REF. PART

NAME

PART NUMBER QTY DESCRIPTION SUPPLIER REMARK

26. C6

27. C10,11

28. C12,13

29 C14,15,19,

〃

CAPACITOR VCDSEU3SL220K-- 4

VCLRCN1HB102K-A 1 SMD 0805

1000PF/50V

VCLRCN1EB333K-A 2 SMD 0805 0.033

µF/25V

VCMEBF2AB184J-P

VCMECF2AC184J-P

DIP 0.18µF/100V DIP 0.18µF/100V

DIP 22PF/3KV 10%

TDK

ARCO

THOMSON

TDK

30. C7,16,17

31. C18

32. C21

33. D1,2 DIODE VSDRLS4148----A 2 SMD RLS4148 ROHM

34. D3,4

35. D5,6

36. D7,8

37. I.C I.C VSITL1451ACNS-A 1 SMD TL1451ACNS TEXAS

38. F1 FUSE QFS-N302FIDZD-A

40. L1,2 COIL RCHOL0007ID151A

〃〃〃

〃

〃〃

VCLFCN1EY105Z-A 3 VCLFCN1CY225Z-A 1 VCLFBN1CY475Z-A 1

VSDRB160L40---A

VSDSMA160-----A

VSZRLZ8.2B-----A 2 SMD RLZ8.2B ROHM VSDDA204K-----A 2 SMD DA204K ROHM

QFS-Z302FIDZD-A

RCHOL0007ID151-

SMD 0805 1 µF/25V SMD 0805 2.2 µF/16V SMD 0805 4.7 µF/16V

2 SMD RB160L40

SMD SMA160

1 SMD FUSE 3.0A/63

SMD FUSE 3.0A/63

DIP 150µH 10% DIP 150µH 10%

TDK TDK TDK

ROHM

TPC

LITTLE BUSSMANN

YST 竑赫

Attachment (FEC1Q2) Attachment 1

41. PT1,2 TRANS RCVT-1207ID-Z-A RCVT-1207ID-Z-C

42. PCB PCB QPWBGL983IDLF3- 1 QPWBGL983IDLF3- EISO

2 SMD YST-1207

SMD WT-1207

YST WT

LONGMAW 千友

Attachment 2 Attachment 2-1

SAMPO CORPORATION

T R O U B L E S H O O T I N G O F C H I - M E I IN V E R T E R ( DIVTL0037-D42- -)

9. TROUBLE SHOOTING

9-1 NO POWER:

CHECK ON FUSE

. FAIL

F1 Vin=12

TO CHANGE F1= 4.0A/63V

PASS FAIL

TO CHECK ON Q4&Q6 Vout = 9V

PASS

FAIL

TO CHECK ON L1&L2 INPUT 9V TO L1 OR L2

TO CHANGE L: Q7&Q8&C12&PT1 R: Q9&Q10&C13&PT2

PASS

FUNCTION TEST OK!

TO CHANGE

L: Q4&Q3&

L: Q4&Q3&Q11

R: Q5&Q6&

R: Q5&Q6&Q12

SAMPO CORPORATION

T R O U B L E S H O O T I N G O F C H I - M E I IN V E R T E R ( DIVTL0037-D42- -)

9-2 HIGHT VOLTAGE PROTECTION:

1. SHORT R30 OPEN LOAD

2. TEST C14 INPUT POINT

FAIL

PASS

VOLTAGE Vh=1600 ±100V rms

TO CHANGE ON PT1 OR PT2

FUNCTION TEST OK!

9-3 OUTPUT CURRENT ABNORMALITY:

1 CHECK ON C6 FREQUNCY

FAIL

&CHIP&IC CPIP 2 OSCILLATOR FREQUNCY RANGE = 100 ~ 250 KHZ

PASS

FUNCTION TEST OK!

TO CHANGE ON C6 CHIP OR IC CHIP

SAMPO CORPORATION

T R O U B L E S H O O T I N G O F C H I - M E I IN V E R T E R ( DIVTL0037-D42- -)

9-4. ENBALE

ABNORMALITY:

IF ENBALE ABNORMALITY

1. TO CHECK IC PIN 9 TURN NO

FAIL

HAVE 12 VOLTAGES

PASS

9-5 DIMMING CONTROL ABNORMALITY:

IF DIMMING ABNORMALITY TO CHECK R1&R2&C6&R33 HAVE BREAK

IF DIMMING ABNORMALITY TO

FAIL

CHECK R1&R2&C6 HAVR BREAK

TO CHANGE ON Q1&Q2

FUNCTION TEST OK!

TO CHANGE ON R1 OR R2 OR C6&R33

PASS

FUNCTION TEST OK!

- 9 -

SAMPO CORPORATION

T R O U B L E S H O O T I N G O F C H I - M E I IN V E R T E R ( DIVTL0037-D42- -)

9-6 TRANSFORMER ABNORMALITY:

FAIL

IF TRANSFORMER ABNORMALITY TO CHECK C3&C4 CHIP OUTLINE OR TRANSFORMER

PASS

TO CHANGE ON C3&C4 OR TRANSFORMER

FUNCTION TEST OK!

10. INSTRUMENTS FOR TEST:

1. DC POWER SUPPLY GPS-3030D

2. AC VTVM VT:-181E

3. DIGITAL MULTIMERTER MODEL-34401

4. HIGHTVOLT PROB MODEL-1137A

5.SCOPE MODEL-V-6545

6. AC mA METER MODEL-2016 (YOKOGAWA)

6 C). ADAPTER-MODULE Trouble shooting chart

The following spec & block-diagram is offer by CHI-SAM –COMPANY, for External Adapter

part number : 80AL17-1-CH ( Black), 80AL17-2-CH ( White)

AC ADAPTER CH-1205 TROUBLE SHOOTING

NO VOLTAGE O/P

CHECK BD101 AC VOLT. I/P OK ?

YES

CHECK BD101

DC VOLT. O/P OK ?

YES

CHECK U101 PIN7

12~15Vdc OK ?

YES

CHECK U101 PIN4 FREQ. (50~70KHZ)

OK ?

YES

CHECK Q101

PIN G & PIN D WAVE

OK ?

OK?

YES

CHECK D106, D107, U102, U103

REPLACE

F101

REPLACE

BD101

NG ?

CHECK

R115,D103,U101

CHECK

C110,U101

NG ?

CHECK Q101

I.) Adapter Schematic CH-1205

Please see the ADAPTER-SCHEMATIC in the end of this Document ( page 75)

IV. ADAPTER BOM LIST ( PART no. 80AL15-2-LI)

Item Reference Part Quantity Cat.NO.

1 BD101 DIODE BRIDGE KBL405G 600V/4A 1 PCS 15D7L405G6 2 CN101 AC POWER SOCKET 1 PCS 64P21-0001

3 BEAD1,BEAD2,BEAD3,BEAD4 BEAD 3.5*3.2*1.6mm 4 PCS 62C-353216

4 C116 CAP CER 102P/500V +-10% Y5P 1 PCS 99426A1025 5 C105 CAP CER 103P/500V +80-20% Z5V 1 PCS 99459F1033

C107,C108,C109,

C121,C122,C123

7 C112 CAP CER 271P/50V +-5% NPO SMD(0805) 1 PCS 99B15E271D 8 C113 CAP CER 301P/50V +-5% NPO SMD(0805) 1 PCS 99B15E301D

9 C110,C111 CAP CER 332P/50V +-10% X7R SMD(1206) 2 PCS 99B26D332E 10 C114 CAP CER 102P/50V +-10% X7R SMD(0805) 1 PCS 99B26D102D 11 C117,C118 CAP ELEC 1000U/16V +-20% 105℃(LOW ESR) 2 PCS 28D37-1021 12 C104 CAP ELEC 120U/400V +-20% 105℃ 650mA 18*36 1 PCS 281D701211 13 C106 CAP ELEC 150U/25V +-20% 105℃ 1 PCS 28147-1511 14 C119 CAP ELEC 470U/16V +-20% 105℃(LOW ESR) 1 PCS 28D37-4711 15 C103 CAP X1 0.47U/300Vac +-10% P=22.5 1 PCS 42A96-474G 16 C124 CAP Y2 102P/250Vac +-20% P=7.5，長腳 1 PCS 42D77-102F 17 C101,C102,C115 CAP Y2 222P/250Vac +-20% P=7.5 3 PCS 42D77-222F

18 L103 COIL CHOKE 5uH 5*20(RD005) 1 PCS 45M56-509C 19 D104,D105,D108,D109 DIODE 1N4148 75V/150mA(SMD) 4 PCS 15A2N41480 20 D102,D103 DIODE RLS245(SMD) 2 PCS 15AHLS2450 21 D106,D107 DIODE SCHOTTKY MBR20100CT 100V/20A 2 PCS 15B3100CT6

DIODE SCHOTTKY MBRF20100CT 100V/20A 15B3201006 DIODE SCHOTTKY FCH20A10 100V/20A 15B320A106

DIODE SCHOTTKY SS20FJK10L 100V/20A 15B3JK10L6 22 D101 DIODE UF4005G 600V/1A 1 PCS 15A74005G2 23 ZD102 DIODE ZENER RLZ18C(SMD) 1 PCS 15Z35Z18C0 24 ZD101 DIODE ZENER RLZ20B(SMD) 1 PCS 15Z35Z20B0 25 FOR COVER SCREW 26 F101 FUSE T2A/250Vac SLOW BLOW 1 PCS 49F54-202A 27 U105 IC AP431W*D 85℃ SMD(SOT-23) 1 PCS 171AP431WD 28 U104A IC BA10358F(SMD) 1 PCS 171A10358F 29 U101 IC CM3842 1 PCS 1700CM3842

30 U103 IC CM431 1 PCS 17000CM431 31 U102 32 J101 JUMPER 0.6ψ 8*12.5mm 1 PCS 54JB5-0005

34 J104 JUMPER 0.6ψ 8*22.5mm 1 PCS 54JB5-0009 35 J103,J105,J106 JUMPER 0.6ψ 8*5mm 3 PCS 54JB5-0002 36 J102 JUMPER 0.6ψ 8*7.5mm 1 PCS 54JB5-0003 37 LED101 LED L-34GD TYPE GREEN 1 PCS 1903112011 38 L102 LINE FILTER 18mH UU15.7(RD002) 1 PCS 47E10-0010 39 Q101 MOS FET 2SK2996 600V/10A 1 PCS 14K1SK2996

MOS FET2SK2761-01MR 600V//10A 14K1SK2761

MOS FET 2SK2843 600V/10A 14K1SK2843 40 R101 NTCR 3 OHM/5A 10ψ +-15% 1 PCS 26B2L50011

CAP CER 104P/50V +-10% X7R SMD(0805) 6 PCS 99B26D104D

PHM3-20*10 2 pcs

IC H11A817C 1 PCS 17011A817C

6721A30101

41 PCB PCB FOR CH-1205 REV:D 1 PCS 11S43-0030 42 R117 RES 100 1/8W +-5% SMD(0805) 1 PCS 2242510000 43 J109,J110 RES 0 OHM 1/4W +-5% SMD(1206) 2 PCS 2243500000 44 R143 RES 1.8K 1/8W +-5% SMD(0805) 1 PCS 2242518010 45 R114 RES 100 1/4W +-5% SMD(1206) 1 PCS 2243510000 46 R124,R127 RES 10K 1/8W +-5% SMD(0805) 2 PCS 2242510020 47 R136 RES 113K 1/8W +-1% SMD(0805) 1 PCS 2242111330 48 R145 RES 12K 1/4W +-5% SMD(1206) 1 PCS 2243512020 49 R128 RES 13K 1/8W +-5% SMD(0805) 1 PCS 2242513020 50 R115 RES 15 1/4W +-5% SMD(1206) 1 PCS 2243515090 51 R123 RES 150 1/4W +-5% SMD(1206) 1 PCS 2243515000 52 R107,R108,R109,R110 RES 180K 1/4W +-5% SMD(1206) 4 PCS 2243518030 53 R142 RES 2.4K 1/8W +-1% SMD(0805) 1 PCS 2242124010 54 R130,R131,R132, R133 RES 24 1/4W +-5% SMD(1206) 4 PCS 2243524090 55 R141 RES 270 1/4W +-5% SMD(1206) 1 PCS 2243527000 56 R129 RES 3.6K 1/8W +-5% SMD(0805) 1 PCS 2242536010 57 R137 RES 3.74K 1/8W +-1% SMD(0805) 1 PCS 2242137410 58 R139 RES 330 1/4W +-5% SMD(1206) 1 PCS 2243533000 59 R105,R106 RES 3M 1/4W +-5% SMD(1206) 2 PCS 2243530040 60 R104,R116 RES 4.7K 1/4W +-5% SMD(1206) 2 PCS 2243547010 61 R118,R144,R120,R134 RES 4.7K 1/8W +-5% SMD(0805) 4 PCS 2242547010 62 R102,R103 RES 470K 1/4W +-5% SMD(1206) 2 PCS 2243547030 63 R122 RES 47K 1/8W +-5% SMD(0805) 1 PCS 2242547020 64 R126 RES 510 1/8W +-5% SMD(0805) 1 PCS 2242551000 65 R138 RES 680 1/8W +-1% SMD(0805) 1 PCS 2242168000 66 R121 RES 8.2K 1/8W +-1% SMD(0805) 1 PCS 2242182010 67 R140 RES 9.31K 1/8W +-1% SMD(0805) 1 PCS 2242193110 68 R119 RES CF 4.7 K 1/8W +-5% 1 PCS 2222547011 69 R135 RES CuNi 10mΩ +-1%(錳銅線) 1 PCS 24911-0189 70 R111 RES MOF 43K 3W +-5% 立式(小型化)，不打KINK 1 PCS 2376543029

71 R125

72 FOR C124 SRK TUBE 1ψ*17mm 1 PCS 57701-0170 73 FOR CN101 RING TERMINAL *70mm 1 PCS 54B2310705 74 FOR PCB SCREW M3*6 ISO/SW ZNC 2 PCS 6720530051 75 FOR Q101,D107,D106 SPRING SK-7 3 PCS 76455-0010 76 FOR CN101 SRK TUBE 5ψ*0.9cm 1 PCS 57705-0090 77 FOR Q101,D107,D106 SRK TUBE 6ψ*16mm 3 PCS 57706-0160 78 FOR C105 SRK TUBE 8ψ*15mm 1 PCS 57708-0150 79 FOR R125 SRK TUBE 8ψ*22mm 1 PCS 57708-0220 80 L101 Toroidal choke coil 2mH TN12.7*7.9*3.5(RD009) 1 PCS 45M36-502L 81 Q102 TR NPN 2SC4505 400V/0.1A (SMD) 1 PCS 14D2SC4505 82 Q103,Q105 TR NPN C2412K 50V/0.15A(SMD) 2 PCS 14C2C2412K 83 Q104 TR PNP A1037AK -50V/-0.15A(SMD) 1 PCS 14A21037AK 84 VAR101 VARISTOR SAS-471KD07 7ψ 1 PCS 27111-0001 85 T101 X'FORMER PWR PQ2620 FOR CH-1205(RD010) 1 PCS 47S10-0040

RES W.W. 0.39 OHM 2W +-5% NKNP TYPE 立式，不打KINK

1 PCS 24735-398B

86 FOR FRONT HEATSINK 導熱墊片 TCR- 05 15*25-ASAHI 1 PCS 85011-0001 87 FOR FRONT HEATSINK 導熱墊片 TCR- 10 10*20-ASAHI 1 PCS 85100-0001 88 3M擋牆膠帶#44 1L 35*40mm 1 PCS 80400-0001 89 FRONT COVER 129.3*63.8*19.34mm 1 PCS 0810400020 90 BASE COVER 129.3*63.8*18.7mm 1 PCS 0820400020

91 92 FRONT HEATSINK FOR CH-1205 1 PCS 75170-0060

93 BOTTOM HEATSINK FOR CH-1205 REV:C 1 PCS 75170-005C 94 FRPP FOR CH-1205 BOTTOM HEATSINK 1 PCS 80300-0020 95 LED HOLDER 5*10 1 PCS 71720-0010 96 RATING FOR 捷聯 CH-1205 REV:C 1 PCS 0643C00026

97 15*4mm OK標籤 FOR 捷聯 CH-1205 REV:A 1 PCS 0643000031 98 FOR D106,D107 SILICON RUBBER COVER (TO-220ST-B) 2 PCS 80100-0001

DC OUTPUT POWER CABLE UL1185#18AWG ψ5.5*ψ2.5 *20.5,(音叉&車溝，黑)，L=80CM

1 PCS 56L1807811

6 D). AUDIO-MODULE Trouble shooting chart

I.) NO VOICE OUTPUT

Plug-out the DC power , make sure the monitor is in OFF status .

Use OHM-METER measure U1 pin 2, 4 (channel-A ) is speaker well connected? Measure U1 pin 10,12 ( channel B) is speaker well connected ?

]

Plug-in the DC power, set the monitor ON status .

Check U1 pin 1 = VCC 12V

Check U1 is work properly?

Check U1 pin 5 standby-bias voltage around 4 V ?

Check U1 pin 9 volume-bias around 1 V ?

Check Audio cable and J4 is well connected

YES

Check J1,J2 is well connected? Measured J2 pin 4,5 & 2,3 is well connected ?

YES

Check is speaker open circuit ?

Check R10,R11 & J5, S1 is open circuit?

Check R4 is open circuit?

Check R7 , VR1

II.) SOUND DISTORTION

Check U1 pin 2, 4 10, 12 is the voltage output = VCC / 2 . ?

YES

CHECK SPEAKER

AUDIO BOM

Bill Of Materials September 7,2001 18:09:14 Page1

Item Quantity Reference Part ______________________________________________

1 3 C1,C2,C4 1uF 2 1 C3 2200uF/25V 3 1 C5 10uF/50V 4 2 C6,C7 0.047uF 5 1 C8 100uF/16V 6 1 C9 100uF/25V 7 1 D1 LED 8 2 J1,J3 CON2 9 1 J2 EAR PHONE 10 1 J4 AUDIO IN 11 1 J5 DC IN 12 3 VR1,R1,R2 10K 13 1 R3 33K 14 1 R4 68K 15 2 R5,R6 15K 16 1 R7 130K 17 2 R9,R8 3K 18 2 R11,R10 1(3W) 19 1 R12 680 20 1 S1 SW SPST 21 1 U1 AN7522

Check U1

GMZAN1

The gmZAN1device utilizes Genesis’ patented third-generation Advanced Image Magnification technolog y as well as a proven integrated ADC/PLL to provide excellent image quality within a cost effective SVGA/XGA LCD monitor solution. As a pin-compatible replacement for the gmB120, the gmZAN1 incorporates all of the gmB120 features plus many enhanced features; including 10-bit gamma correction, Adaptive Contrast Enhancement (ACE) filtering, Sync On Green (SOG), and an enhanced OSD.

1.1 Features

z Fully integrated 135MHz 8-bit triple-ADC, PLL, and pre-amplifier z GmZ2 scaling algorithm featuring new Adaptive Contrast Enhancement (ACE) z On-chip programmable OSD engi ne z Integrated PLLs z 10-bit programmable gamma correction z Host interface with 1 or 4 data bits z Pin-compatible with gmB120

Integrated Analog Front End

z Integrated 8-bit triple ADC z Up to 135MHz sampling rates z No additional components needed z All color depths up to 24-bits/pixel are supported

High-Quality Advanced Scaling

z Fully programmable zoom z Independent horizontal / vertical zoom z Enhanced and adaptive scaling algorithm for optimal image quality z Recovery Mode / Native Mode

Input Format

z Analog RGB up to XGA 85Hz z Support for Sync On Green (SOG) z Support for composite sync modes

Output Format

z Support for 8 or 6-bit panels (with high quality dithering) z One or two pixel output format

Built In High-Speed Clock Generator

z Fully programmable timing parameters z On-chip PLLs generate clocks for the on-chip ADC and pixel clock from a single reference oscillator

Auto-Configuration / Auto-Detection

z Phase and image positioning z Input format detection

Operation Modes

z Bypass mode with no filtering z Multiple zoom modes:

 With filtering  With adaptive (ACE) filtering

Integrated On-Screen Display

z On-chip character RAM and ROM for better customization z External OSD supported for greater flexibility z Supports both landscape and portrait fonts z Many other font capabilities including: blinking, overlay and transparency

1.3 Pin Description

Unless otherwise stated, unused input pins must be tied to ground, and unused output pins left open.

Table 1 : Analog-to-Digital Converter

PIN # Name I/O Description

77 ADC_VDD2

78 ADC_GND2

79 ADC_VDD1

80 ADC_GND1

81 SUB_GNDA

82 ADC_GNDA

84 ADC_VDDA

83 Reserved 85 ADC_BGNDA

88 ADC_BVDDA

86 BLUE- I 87 BLUE+ I 89 ADC_GGNDA

92 ADC_GVDDA

90 GREEN- I 91 GREEN+ I 93 ADC_RGNDA

96 ADC_RVDDA

94 RED- I 95 RED+ I

Digital power for ADC encoding logic. Must be bypassed with 0.1uF capacitor to pin 78 (ADC_GND2) Digital GND for ADC encoding logic. Must be directly connected to the digital system ground plane. Digital power for ADC clocking circuit. Must by passed with 0.1uF capacitor to pin 80 (ACD_GND1). Digital GND for ADC clocking circuit. Must be directly connected to the digital system ground plane. Dedicated pin for substrate guard ring that protects the ADC reference system. Must be directly connected to the analog system ground plane. Analog ground for ADC analog blocks that are shared by all three channels. Includes bandgap reference, master biasing and full scale adjust. Must be directly connected to analog system ground plane. Analog power for ADC analog blocks that are shared by all three channels. Includes bandgap reference, master biasing and full scale adjust. Must be bypassed with 0.1uF capacitor to pin 82 (ADC_GNDA). For internal testing purpose only. Do not connect.

Analog ground for the blue channel. Must be directly connected to the analog system ground plane. Analog power for the blue channel. Must be bypassed with 0.1uF capacitor to pin 85(BGNDA). Negative analog input for the Blue channel.

Positive analog input for the Blue channel. Analog ground for the green channel. Must be directly connected to the analog

system ground plane. Analog power for the green channel. Must be bypassed with 0.1uF capacitor to pin 89 (ADC_GGNDA). Negative analog input for the Green channel.

Positive analog input for the Green channel. Analog ground for the red channel. Must be directly connected to the analog

system ground plane. Analog power for the red channel. Must be bypassed with 0.1uF capacitor to pin 93 (ADC_RGNDA).

Negative analog input for the Red channel. Positive analog input for the Red channel.

Table 2 : Host Interface (HIF) / External On-Screen Display

PIN # Name I/O Description

98 HFS I

103 HCLK I

99 HDATA I/O 100 RESETn I 101 IRQ O 115 OSD-HREF O 116 OSD-VREF O 117 OSD-Clk O 118 OSD-Data0 I 119 OSD-Data1 I 120 OSD-Data2 I 121 OSD-Data3 I 122 OSD-FSW I

123 MFB11 I/O 124 MFB10 I/O 102 MFB9 I/O

104 MFB8 I/O

105 MFB7 I/O

106 MFB6 I/O

107 MFB5 I/O

109 MFB4 I/O 110 MFB3 I/O 111 FMB2 I/O 112 MFB1 I/O 113 MFB0 I/O

Host Frame Sync. Frames the packet on the serial channel. Clock signal input for the 3-wire serial communication. Data signal for the 3-wire serial communication. Resets the gmZAN1 chip to a known state when low. Interrupt request output. HSYNC output for an external OSD controller chip. VSYNC output for an external OSD controller chip. Clock output for an external OSD controller chip. Data input 0 from an external OSD controller chip. Data input 1 from an external OSD controller chip. Data input 2 from an external OSD controller chip. Data input 3 from an external OSD controller chip.

External OSD window display enable. Displays data from external OSD controller when high.

Multi-Function Bus 11. One of twelve multi-function signals MFB[11:0]. Multi-Function Bus 10. One of twelve multi-function signals MFB[11:0].

Multi-Function Bus 9. One of twelve multi-function signals MFB[11:0]. Also used as HDATA3 in a 4-bit host interface configuration. Multi-Function Bus 8. One of twelve multi-function signals MFB[11:0]. Also used as HDATA2 in a 4-bit host interface configuration. Multi-Function Bus 7. One of twelve multi-function signals MFB[11:0]. Also used as HDATA1 in a 4-bit host interface configuration. Multi-Function Bus 6. One of twelve multi-function signals MFB[11:0]. Internally pulled up. When externally pulled down (sampled at reset ) the host interface is configured for 4 bits wide. In this configuration, MFB9:7 are used as HDATA 3:1. Multi-Function Bus 5 One of twelve multi-function signals MFB[11:0]. Internally pulled up. When externally pulled down (sampled at reset ) the chip uses an external crystal resonator across pins 141 and 142, instead of an oscillator.

Multi-Function Bus 4. One of twelve multi-function signals MFB[11:0]. Multi-Function Bus 3. One of twelve multi-function signals MFB[11:0]. Multi-Function Bus 2. One of twelve multi-function signals MFB[11:0]. Multi-Function Bus 1. One of twelve multi-function signals MFB[11:0]. Multi-Function Bus 0. One of twelve multi-function signals MFB[11:0].

Table 3 : Clock Recovery / Time Base Conversion

PIN # Name I/O Description

125 DVDD

127 DAC_DGNDA

128 DAC_DVDDA

129 PLL_DVDDA

130 Reserved 131 PLL_DGNDA

132 SUB_DGNDA

133 SUB_SGNDA

134 PLL_SGNDA

135 Reserved 136 PLL_SVDDA

137 DAC_SVDDA

138 DAC_SGNDA

139 SVDD 141 TCLK I Reference clock(TCLK) inpu t from the 50 MHz crystal oscillator

142 XTAL O If using an external oscillator, leave this pin floating. If using an external crystal,

143 PLL_RVDDA Analog power for the Reference DDS PLL. Must be bypassed with a 0.1uF

144 PLL_RGNDA Analog ground for the Reference DDS PLL. Must be directly connected to the

145 Reserved For testing purposes only. Do not connect. 146 SUB_RGNDA Dedicated pin for the substrate guard ring that protects the Reference DDS. Must

148 VSYNC I CRT Vsync input. TTL Schmitt trigger input. 149 SYN_VDD Digital power for CRT Sync input. 150 HSYNC/CSYNC I CRT Hsync or CRT composite sync input. TTL Schmitt trigger input.

Digital power for Destination DDS (direct digital synthesizer). Must be byp assed with a 0.1uF capacitor to digital ground plane. Analog ground for Destination DDS DAC. Must be directly connected to the analog system ground plane. Analog power for Destination DDS DAC. Must be bypassed with a 0.1uF capacitor to pin 127 (DAC_DGNDA). Analog power for the Destination DDS PLL. Must be bypassed with a 0.1uF capacitor to pin 131 (PLL_DGNDA).

For testing purposes only. Do not connect. Analog ground for the Destination DDS PLL. Must be directly connected to the

analog system ground plane. Dedicated pin for the substrate guard ring that protects the Destination DDS. Must be directly connected to the analog system ground plane. Dedicated pin for the substrate guard ring that protects the Source DDS. Must be directly connected to the analog system ground plane. Analog ground for the Source DDS PLL. Must be directly connected to the analog system ground.

For testing purposes only. Do not connect. Analog power for the Source DDS DAC. Must be bypassed with a 0.1uF

capacitor to pin 134 (PLL_SGNDA) Analog power for the Source DDS DAC. Must be by passed with a 0.1uF capacitor to pin 138 (DAC_SGNDA) Analog power for the Source DDS DAC. Must be directly connected to the analog system ground. Digital power for the Source DDS. Must be bypassed with a 0.1uF capacitor to digital ground plane.

connect crystal between TCLK(141) and XTAL(142). See MFB5(pin 107).

capacitor to pin 144(PLL_RGNDA)

analog system ground plane.

be directly connected to the analog system ground plane.

Table 4. TFT Panel Interface

PIN # Name I/O

6 PD47 O OB1 - - 7 PD46 O OB0 - - -

9 PD45 O OG1 - - 10 PD44 O OG0 - - 13 PD43 O OR1 - - 14 PD42 O OR0 - - 15 PD41 O EB1 - B1 16 PD40 O EB0 - B0 17 PD39 O EG1 - G1 19 PD38 O EG0 - G0 20 PD37 O ER1 - R1 22 PD36 O ER0 - R0 23 PD35 O OB7 OB5 - 24 PD34 O OB6 OB4 - 25 PD33 O OB5 OB3 - 26 PD32 O OB4 OB2 - 27 PD31 O OB3 OB1 - 28 PD30 O OB2 OB0 - 29 PD29 O OG7 OG5 - 31 PD28 O OG6 OG4 - 32 PD27 O OG5 OG3 - 34 PD26 O OG4 OG2 - 35 PD25 O OG3 OG1 - 36 PD24 O OG2 OG0 - 37 PD23 O OR7 OR5 - 38 PD22 O OR6 OR4 - 39 PD21 O OR5 OR3 - 42 PD20 O OR4 OR2 - 46 PD19 O OR3 OR1 - 47 PD18 O OR2 OR0 - 48 PD17 O EB7 EB5 B7 B5 50 PD16 O EB6 EB4 B6 B4 51 PD15 O EB5 EB3 B5 B3 52 PD14 O EB4 EB2 B4 B2 53 PD13 O EB3 EB1 B3 B1 54 PD12 O EB2 EB0 B2 B0 55 PD11 O EG7 EG5 G7 G5 56 PD10 O EG6 EG4 G6 G4 57 PD9 O EG5 EG3 G5 G3 62 PD8 O EG4 EG2 G4 G2

2pxl/clk 2pxl/clk 1pxl/clk 1pxl/clk

8bit 6-bit 8-bit 6-bit TFT

Description

PIN # Name I/O

63 PD7 O EG3 EG1 G3 G1 64 PD6 O EG2 EG0 G2 G0 66 PD5 O ER7 EG5 R7 R5 67 PD4 O ER6 ER4 R6 R4 68 PD3 O ER5 ER3 R5 R3 69 PD2 O ER4 ER2 R4 R2 70 PD1 O ER3 ER1 R3 R1 71 PD0 O EG2 ER0 R2 R0 43 PdispE O This output provides a panel display enable signal that is active when flat panel

74 PHS O This output provides the panel line clock signal. 73 PVS O This output provides the frame start signal. 44 PCLKA O This output is used to drive the flat panel shift clock. 45 PCLKB O Same as PCLKA above.

75 Pbias O This output is used to turn on/off the panel bias power or controls backlight. 76 Ppwr O This output is used to control the power to a flat panel.

2pxl/clk 2pxl/clk 1pxl/clk 1pxl/clk

8bit 6-bit 8-bit 6-bit TFT

data is valid.

The polarity and the phase of this signal are independently programmable.

Description

Table 5. Test Pins

PIN # Name I/O Description

3 PSCAN I

155 SCAN_IN1 I 157 SCAN_IN2 I 159 SCAN_OUT1 O 160 SCAN_OUT2 O 153 Reserved 154 Reserved

Enable automatic PCB assembly test. When this input is pulled high, the automatic PCB assembly test mode is entered. An internal pull-down resistor drives this input low for normal operation.

Scan input 1 used for automatic PCB assembly tesing. Scan input 2 used for automatic PCB assembly tesing. Scan output 1 used for automatic PCB assembly tesing.

Scan output 2 used for automatic PCB assembly tesing.

Table 6. VDD / VSS for Core Circuitry, Host Interface, and Panel/Memory Interface

PIN # Description

65, 40, 33, 12

149, 108, 58, 21, 11

158, 151, 140, 126, 114, 72, 61, 49, 41, 30, 18, 8, 1

PVDD4~PVDD1 for panel / memory interface. Connect to +3.3V.

Must be the same voltage as the CVDD’s SRVDD2-1, CVDD4, CVDD2-1 for co re circuitry. Connect to +3.3V. Must be the same voltage as the PVDD’s.

Digital grounds for core circuiry and panel / memory interface.

1.4 System-level Block Diagram

ADC_VDD

ADC_GND

Red Blue

R1RR1RR1

Green

R1RR1 R

Video Connector

RVDDA

Hsync Vsync

C1 C

C2 C

To Clock Generator

On-Screen Display Controller

R+,G+,B+

OSD-FSW OSD-FSW OSD-CLK

OSD-HREF OSD-VREF

MPU with EPROM

MFBs

RESETn

IRQ HES HCLK

HDATA

Figure 2. Typical Stand-alone Configuration

gmZAN1 Core

ADC

Host Interface

CVDD

CVSS

RVDDA

RGNDA

TCLK

Clock Generator

Pbias

Panel Interface

Pbias

SVDDA

SGNDA

DVDDA

DGNDA

Even Data

PCLKA

PHS PVS PDISPE

Odd Data

Power

Power Switching

Switching Module

Module

OSC

+5/3.3V

TFT Panel

+12V

1.5 Operating Modes

The Source Clock (also called SCLK in this document) and the Panel Clock are defined as follows: z The Source Clock is the sample clock regenerated from the input Hsync timing (called clock recovery) by

SCLK DDS (direct digital synthesis) and the PLL.

z The Panel Clock is the timing clock for panel data at the single pixel per clock rate. The actual PCLK to the

panel may be one-half of this frequency for double-pixel panel data format. When its frequency is different from that of source clock, the panel clock is generated by Destination Clock (or DCLK) DDS/PLL.

There are six display modes: Native, Slow DCLK, Zoom, Downscaling, Destination Stand Alone, and Source Stand Alone. Each mode is unique in terms of:

z Input video resolution vs. panel resolution z Source Clock frequency / Panel Clock frequency ratio z Source Hsync frequency / Panel Hsync frequenc ratio z Data source (analog RGB, panel background color, on-chip pattern generator

1.5.1 Native

Panel Clock frequency = Source Clock frequency Panel Hsync frequency = Input Hsync frequency Panel Vsync frequency = Input Vsync frequency

This mode is used when the input resolution is the same as the panel resolution and the input data clock frequency is within the panel clock frequency specification of the panel being used.

1.5.2 Slow DCLK

Panel Clock frequency < Source Clock frequency Panel Hsync frequency = Input Hsync frequency Panel Vsync frequency = Input Vsync frequency

This mode is used when the input resolution is the same as the panel resolution, but the input data clock frequency is exceeds the panel clock frequency specification of the panel being used. The panel clock is scaled to the Source Clock, and the internal data buffers are used to spread out the timing of the input data by making use of the large CRT blanking time to extends the panel horizontal display time.

1.5.3 Zoom

Panel Clock frequency > Source Clock frequency Panel Hsync frequency > Input Hsync frequency Panel Vsync frequency = Input Vsync frequency

This mode is used when the input resolution is less than the panel resolution. The input data clock is then locked to the pnael clock, which is at a higher frequency. The input data is zoomed to the panel resolution.

1.5.4 Downscaling

Panel Clock frequency < Source Clock frequency Panel Hsync frequency < Input Hsync frequency Panel Vsync frequency = Input Vsync frequency

This mode is used when the input resolution is greater than the panel resolution, to provide enough of a display to enable the user to recover to a supported resolution. The input clock is operated at a frequency less than that of the input pixel rate(under-sampled horizontally) and the scaling filter is used to drop input lines. In this mode, zoom scaling must be disabled

1.5.5 Destination Stand Alone

Panel Clock = DCLK in open loop (not locked) Panel Hsync frequency = DCLK frequency / (Destination Htotal register value) Panel Vsync frequency = DCLK frequency / (Dest. Htotal regi st er val ue * Dest. Vt ot al regi st er value)

This mode is used when the input is chang ing or not available. The OSD may still be used as in all other display modes and stable panel timing signals are produced. This mode may be automatically set when the gmZAN1 detects input timing changes that could cause out- of-spec operation of the panel.

1.5.6 Source Stand Alone

Panel Clock = DCLK in open loop (not locked to input Hsync) Panel Hsync frequency = SCLK frequency / (Source Htotal register value) Panel Vsync frequency = SCLK frequency / (Source Htotal register value *Source Vtotal register value)

This mode is used to display the pattern generator data. This mode may be useful for testing an LCD panel on the manufacturing line (color temperature calibration, etc.).

2. FUNCTIONAL DESCRIPTION

Figure 3 below shows the main functional blocks inside the gmZAN1

2.1 Overall Architecture

Figure 3. Block Diagram for gmZAN1

On-Screen Display Control

Analog RGB

Triple ADC

Source Timing Measurement / Generation

Scaling Engine

Gamma Control (CLUT) + Dither

Panel Timing Control

Panel

MCU

Host Interface

Clock Recovery

Pixel Clock Generator

Clock Reference

2.2 Clock Recovery Circuit

The gmZAN1 has a built-in clock recovery circuit. This circuit consists of a digital clock synthesizer and an analog PLL. The clock recovery circuit generates the clock used to sample analog RGB data (SCLK or source clock). This circuit is lo cked to the HSUNC of th e inc oming video signal. Th e RCLK generated from the TCLK input is used as a reference clock.

The clock recovery circuit adjusts the SCLK period so that the feedback pulse generated every SCLK period multiplied by the Source Horizontal Total value (as programmed into the registers) locks to the rising edge of the Hsync input. Even though the initial SCLK frequency and the final SCLK frequency are as far apart as 60MHz , locking can be achieved in less than 1ms across the operation voltage/temperature range.

The SCLK frequency (1/SCLK period) can be set to the range of 10-to-135 MHz. Using the DDS (direct digital

synthesis) technology the clock recovery circuit can generate any SCLK clock frequency within this range.

The pixel clock (DCLK or destination clock) is used to drive a panel when the panel clock is different from SCLK (or SCLK/2). It is generated by a circuit virtually identical to the clock recovery circuit. The difference is that DCLK is locked to SCLK while SCLK is locked to the Hsync input. DCLK frequency divided by N is locked to SCLK frequency divided by M. The value M and N are calculated and programmed in the register by firmware. The value M should be close to the Source Htotal value.

Figure 4. Clock Recovery Circuit

Hsync

Sample

Phase

Delay

DDS Digital

Clock

Synthesis

Course

Adjust

DDS Output

Analog

PLL & VCO

VCO

Out

Clock

Divider

÷ n

SCLK

Fine

Adjust

PLL

Divider

Prescaler

÷ 2 (or 1)

Source

Horizontal

Total Divider

TCLK

Analog

PLL & VCO

Post Scale

÷ 2 (or 1)

RCLK

PLL Divider

The table below summarizes the characteristics of the clock recovery circuit.

Table 7. Clock Recovery Characteristics

Minimum Typical Maximum

SCLK Frequency 10MHz 135 MHz Sampling Phase Adjustment 0.5 ns/step, 64 steps

Patented digital clock synthesis technology makes the gmZAN1 clock circuits very immune to temperature/voltage drift.

2.2.1 Sampling Phase Adjustment

The ADC sampling phase is adjusted by delaying the Hsync input at the programmable delay cell inside the gmZAN1. The delay value can be adjusted in 64 steps, 0.5 ns/step. The accuracy of the sampling phase is checked by the gmZAN1 and the “score” can be read in a register. This feature will enable accurate auto-adjustment of the ADC sampling phase.

2.2.2 Source Timing Generator

The STG module defines a capture window and sends the input data to the data path block. The figure below shows how the window is defined. For the horizontal direction, it is defined in SCLKs (equivalent to a pixel count). For the vertical direction, it is defined in lines. All the parameters in the figure that begin with “Source” are programmed into the gmZAN1 registers. Note that the vertical total is solely determined by the input. The reference point is as follows:

z The first pixel of a line: the pixel whose SCLK rising edge sees the transition of the HSYNC polarity from low

to high.

z The first line of a frame: the line whose HSYNC rising edge sees the transition of the VSYNC polarity from low

to high.

The gmZAN1 also supports the use of analog composite sync and digital sync signals as described in Section 2.3.2

Figure 5. Capture Window

Reference Point

Source Hstart

Source

Vstart

Source Height

Source Vertical Total (lines)

Source Horizontal Total (pixels)

Source Width

Capture Window

2.3 Analog-to-Digital Converter

2.3.1 Pin Connection

The RGB signals are to be connected to the gmZAN1 chip as described in Table 8 and Table 9.

Table 8. Pin Connection for RGB Input with Hsync/Vsync

GmZAN1 Pin Name (Pin Number) CRT Signal Name

Red+(#95) Red Red- (#94) N/A (Tie to Analog GND for Red on the board) Green+(#91) Green Green- (#90) N/A (Tie to Analog GND for Green on the board) Blue+(#87) Blue Blue- (#86) N/A (Tie to Analog GND for Blue on the board) HSYNC/CS (#150) Horizontal Sync VSYNC (#148) Vertical Sync

Table 9. Pin Connection for RGB Input with Composite Sync

GmZAN1 Pin Name (Pin Number) CRT Signal Name

Red+(#95) Red Red- (#94) N/A (Tie to Analog GND for Red on the board) Green+(#91) Green

When using Sync-On-Green this signal also carries the sync pulse. Green- (#90) N/A (Tie to Analog GND for Green on the board) Blue+(#87) Blue Blue- (#86) N/A (Tie to Analog GND for Blue on the board) HSYNC/CS (#150) Digital composite sync. Not applicable for Sync-On-Green

The gmZAN1 chip has three ADC’s (analog-to-digital converters), one for each color (red, green, and blue). Table 10 summarizes the characteristics of the ADC.

Table 10. ADC Characteristics

MIN TYP MAX NOTE

RGB Track & Hold Amplifiers

Band Width 160MHz Settling Time to 1/2% 8.5ns Full Scale Input = 0.75V, BW=160MHz(*) Full Scale Adjust Range @ R,G,B Inputs 0.45V 0.95V Full Scale Adjust Sensitivity +/-1 LSB Measured @ ADC Output (**) Zero Scale Adjust Range For a larger DC offset from an external

video source, the AC coupling feature is used to remove the offset.

Zero Scale Adjust Sensitivity +/-1 LSB Measured @ ADC Output

ADC+RGB Track & Hold Amplifiers

Sampling Frequency (fs) 20MHz 110MHz DNL +/- 0.9LSB fs = 80 MHz INL +/- 1.5LSB fs = 80 MHz Channel to Channel Matching +/- 0.5LSB Effective Number of Bits (ENOB) 7 Bits fin = 1MHz, fs=80 MHz Vin= -1db below

full scale=0.75V Power Dissipation 400mW fs=110 MHz, Vdd=3.3V Shut Down Current 100uA (*) Guaranteed by design (**) Independent of full scale R,G,B input

The gmZAN1 ADC has a built-in clamp circuit. By inserting series capacitors (about 10 nF) the DC offset of an external video source can be removed. The clamp pulse position and width are programmable.

2.3.2 Sync. Signal Support

The gmZAN1 chip supports digital separate sync (Hsync/Vsync), digital composite sync, and analog composite sync (also known as sync-on-green). All sync types are supported without external sync separation / extraction circuits.

Digital Composite Sync

The types of digital composite sync inputs supported are:

z OR/AND type: No Csync pulses toggling during the vertical sync period z XOR type: Csync polarity changes during the vertical sync period

The gmZan1 provides enough sync status information for the firmware to detect the digital composite sync type.

Sync-On-Green (Analog Composite Sync)

The voltage level of the sync tip during the vertical sync period can be either –0.3V or 0V

2.3.3 Display Mode Support

A mode calculation utility (MODECALC.EXE) provided by Genesis Microchip may be run before compilation of the firmware to determine which input modes can be supported. Refer to firmware documents for more details.

2.4 Input Timing Measurement

As described in section 2.2.2 above, input data is sent from the analog-to-digital converter to the source timing generator (STG) block. The STG block defines a capture window (Figure5).

The input timing measurement block consists of the source timing measurement (STM) block and interrupt request (IRQ) controller. Input timing parameters are measured by the STM block and stored in registers. Some input conditions will generate an IRQ to an external micro-controller. The IRQ generating conditions are programmable.

2.4.1 Source Timing Measurement

When it receives the active CRT signal (R,G,B and Sync signals) the Source Timing Measurement unit begins measuring the horizontal and vertical timing of the incoming signal using the sync signals and TCLKi as a reference. Horizontal measurement occurs by measuring a minimum and a maximum value for each parameter to account for TCLKi sampling granularity. The measured value is updated every line. Vertical parameters are measured in terms of horizontal lines. The trailing edge of the Hsync input is used to check the polarity of the Vsync input. The table below lists all the parameters that may be read in the source timing measurement (STM) registers of the gmZAN1.

Table 11. Input Timing Parameters Measured by the STM Block

Parameter Unit Updated at:

HSYNC Missing N/A Every 4096 TCLKs and every 80ms (2-bits) VSYNC Missing N/A Every 80ms HSYNC/VSYNC Timing Change N/A When the horizontal period delta or the vertical

eriod delta to the previous line / frame exceeds the

threshold value (programmable). HSYNC Polarity Positive/Negative After register read VSYNC Polarity Positive/Negative Every frame Horizontal Period Min/Max TCLKs and SCLKs After register read HSYNC High Period Min/Max TCLKs After register read Vertical Period Lines Every frame VSYNC High Period Lines Every frame Horizontal Display Start SCLKs Every frame Horizontal Display End SCLKs Every frame Vertical Display Start Lines Every frame Vertical Display End Lines Every frame Interlaced Input Detect N/A Every frame CRC Data/Line Data N/A Every frame CSYNC Detect N/A Every 80ms

The display start/end registers store the first and the last pixels/lines of the last frame that have RGB data above a programmed threshold. The reference point of the STM block is the same as that of the source timing generator (STG) block:

z The first pixel: the pixel whose SCLK rising edge sees the transition of the HSYNC polarity from low to high. z The first line: the line whose HSYNC rising edge sees the transition of the VSYNC polarity from low to high.

The CRC data and the line data are used to detect a test pattern image sent to the gmZAN1 input port.

2.4.2 IRQ Controller

Some input timing conditions can cause the gmZAN1 chip to generate an IRQ. The IRQ-generating conditions are programmable, as given in the following table.

Table 12. IRQ-Generation Conditions

IRQ Event Remark

Timing Event One of the three events:

z Leading edge of Vsync input, z Panel line count (the line count is programmable), z Every 10ms

Only one event may be selected at a time.

Timing Change Any of the following timing changes:

z Sync loss, z DDS tracking error beyond threshold, z Horizontal/vertical timing change beyond threshold

Threshold values are programmable.

Reading the IRQ status flags will not affect the STM registers. Note that if a new IRQ event occurs while the IRQ status register is being read, the IRQ signal will become inactive for minimum of one TCLK period and then get re-activated. The polarity of the IRQ signal is programmable.

2.5 Data Path

The data path block of gmZAN1 is shown in Figure 6.

Figure 6. gmZAN1 Data Path

Sampled Data

(or from

pattern

generator

8 8 10

Scaling

Filter

Gamma

Table

RGB

Offset

Panel

Dither

Background

Color

Internal

OSD

External

OSD

Data

8 or 6

0 S

8 or 6

0 S

Panel Data

2.5.1 Scaling Filter

The gmZAN1 scaling filter uses an advanced adaptive scaling technique proprietary to Genesis Microchip Inc. and provides high quality scaling of real time video and graphics images. This is Genesis’ third generation scaling technology that benefits from the expertise and feedback gained by supporting a wide range of solutions and applications.

2.5.2 Gamma Table

The gamma table is used to adjust the RGB data for the individual display characteristics of the TFT panel. The overall gamma of the display may be set, as well as separate corrections for each of the three display channels. In addition, the gamma table may be used for contrast, brightness, and white balan ce (temperature) adjustments. The lookup table has an 8-bit input (256 differen t RGB entries) and produces a 10-bit output.

2.5.3 RGB Offset

The RGB offsets provide a simple shift (positive or negative) for each of the three color channels. This may be used as a simple brightness adjustment within a limited range. The data is clamped to zero for negative offsets, and clamped to FFh for positive offsets. This adjustment is much faster than recalculating the gamma table, and could be used with the OSD user controller to provide a quick brightness adjust. An offset range of plus 127*4 to minus 127*4 is available.

2.5.4 Panel Data Dither

For TFT panels that have fewer than eight bits for each R,G,B input, the gmZAN1 provides ordered and random dithering patterns to help smoothly shade colors on 6-bit panels.

2.5.5 Panel Background Color

A solid background color may be selected for a border around th e active display area. The background color is most often set to black.

2.6 Panel Interface

The gmZAN1 chip interfaces directly with all of today’s commonly used active matrix flat panels with 640x480, 800x600 and 1024x768 resolutions. The resolution and the aspect ratio are NOT limited to specific values.

2.6.1 TFT Panel Interface Timing Specification

The TFT panel interface timing parameters are listed in Table 13 below. Refer to three timing diagrams of Figure 7 and Figure 8 for the timing parameter definition. All aspects of the gmZAN1 interface are programmable. For horizontal parameters, Horizontal Display Enable Start, Horizontal Display Enable End, Horizontal Sync Start and Horizontal Sync End are programmable. Vertical Display Enable Start, Vertical Display Enable End, Vertical Sync Start and Vertical Sync End are also fully programmable. In order to maximize panel data setup and hold time, the panel clock (PCLKA, PCLKB) output skew is programmable. In addition, the current drive strength of the panel interface pins is programmable.

Table 13. gmZAN1 TFT Panel Interface Timing

Signal Name Min Typical Max Unit

PVS

Period t1 0 16.67 2048 - lines

ms Frequency 60 - Hz Front porch t2 0 2048 lines Back porch t3 0 2048 lines Pulse width t4 0 2048 lines PdispE t5 0 Panel height 2048 lines Disp. Start from VS t6 0 2048 lines PVS set up tp PHS t18 1 2048 PCLK *1 PVS hold from PHS t19 1 2048 PCLK *1

PHS

Period t7 0 2048 [1024 PCLK *1 Front porch t8 0 2048 PCLK *1 Back porch t9 0 2048 PCLK *1 Pulse width t10 0 2048 PCLK *1 PdispE t11 0 Panel width 2048 [1024] PCLK *1 Disp. Start fom HS t12 0 2048 PCLK *1

PCLKA, PCLKB*4

Frequency t13 120 [60] MHz Clock (H) *2 t14 DCLK/2-3 [DCLK-3] DCLK/2-2 [DCLK-2] ns Clock (L) *2 t15 DCLK/2-3 [DCLK-3] DCLK/2-2 [DCLK-2] ns Type - One pxl/clock

[two pxl/clock]

Data

Set up *3 t16 DCLK/2-5 [DCLK-5] DCLK/2-2 [DCLK-2] ns Hold *3 t17 DCLK/2-5 [DCLK-5] DCLK/2-2 [DCLK-2] ns width 3 bits 18 bits [36 bits] 24 bits [48 bits] bits/pixel

NOTE: Numbers in [ ] are for two pixels/clock mode. NOTE: The drive current of the panel interface signals is programmable as shown in Table 1. The drive current is to be

programmed through the API upon chip initialization. Output current is programmable from 2 mA to 20mA in increments of 2 mA. Drive strength should be programmed to match the load presented by the cable and input of the panel. Values shown are based on a loading of 20pF and a drive strength of 8 mA.

NOTE *1: The PCLK is the panel shift clock. NOTE *2: The DCLK stands for Destination Clock (DCLK) period. Is equal to:

-PCLK period in one pixel/clock mode,

-twice the PCLK period in two pixels/clock mode. NOTE *3: The setup/hold time spec. for PCLK also applies to PHS and PdispE. The setup time (t16) and the hold time (t17) listed

in this table are for the case in which no clock-to-data skew is added. The PVS/PHS/PdispE/Pdata signals are asserted on the rising edge of the PCLK. The polarity of the PCLK and its skew are programmable. Clock to Data skew can be adjusted in sixteen 800-ps increments. In combination with the PCLK polarity inversion, the clock-to-data phase can be adjusted in total of 31 steps.

NOTE *4: The polarity of the PCLKA and the PCLKB are independently programmable.

The micro controller must have all the timing parameters of the panel used for the monitor. The parameters are to be stored in a non-volatile memory. As can be seen from this table, the wide range of timing programmability of the gmZAN1 panel interface makes it possible to support various kinds of panels known today:

Figure 7. timing Diagrams of the TFT Panel Interface (One pixel per clock)

(a) Vertical size in TFT

PVS

PHS

PDE

(b) Vsync width and display position in TFT

PVS

PHS

RGBs

t18

t19

PHS

PCLK

PDE

RGB data from data paths

t12

Panel Background Color Displayed

(d) Hsync width in TFT

t13

t16

t5t3

t10

t11

t10

t16

t14

t15

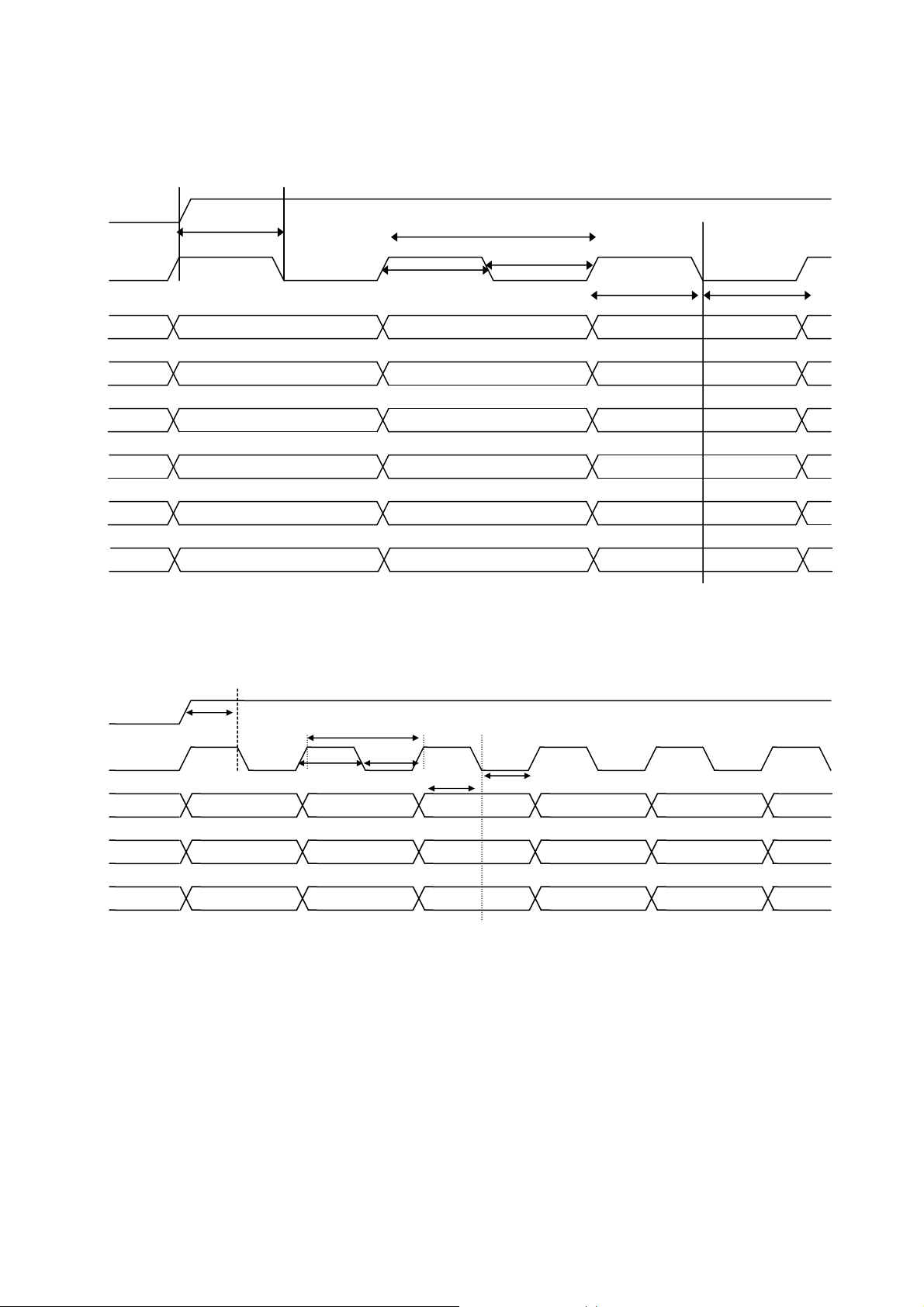

Figure 8. Data latch timing of the TFT Panel Interface

(a) Two pixel per clock mode in TFT

t14

R2,(N:0)

G2,(N:0)

t13

t15

t16

R4,(N:0)

t17

PDE

PCLK

t16

R0,(N:0)

G0,(N:0)

B0,(N:0)

B2,(N:0)

R1,(N:0)

G1,(N:0) G3,(N:0)

R3,(N:0)

B1,(N:0)

B3,(N:0)

(b) One pixel per clock mode in TFT

t15

t16

t17

PDE

PCLK

R(n:0)

t16

t13

t14

G(n:0)

B(n:0)

2.6.2 Power Manager

LCD panels require logic power, panel bias power, and control signals to be sequenced in a specific order, otherwise severe damage may occur and disable the panel permanently. The gmZAN1 has a built in power sequencer (Power Manager) that prevents this kind of damage. The Power Manager controls the power up/down sequences for LCD panels within the four states described below. See the timing diagram Figure 9.

2.6.2.1 State 0 (Power Off)

The Pbias signal and Ppower signal are low (inactive). The panel controls and data are forced low. This is the final state in the power down sequence. PM is kept in state 0 until the panel is enabled.

2.6.2.2 State 1 (Power On)

Intermediate step 1. The Ppower is high (active), the Pbias is low (inactive), and the panel interface is forced low (inactive).

2.6.2.3 State 2 (Panel Drive Enabled)

Intermediate step 2. The Ppower is high (active), the Pbias is low (inactive), and the panel interface is active.

2.6.2.4 State 3 (Panel Fully Active)

This is the final step in the power up sequence, with Ppower and Pbias high (active), and the panel interface activ e. PM is kept in this state until the internal TFT_Enable signal controlled by Panel Control register is disabled. The panel can be disabled through either an API call under program control or automatically by the gmZAN1 to prevent damage to the panel.

Figure 9. Panel Power Sequence

In Figure 9 above, t2=t6 and t3=t5. t1,t2,t3 and t4 are independently p rogrammable from one to eight steps in length. The length of each step is in the range of 511 * X* (TCLKi cycle) or (TCLKi cycle) * 32193 *X, where X is any positive integer value equal to or less than 256. TCLKi is the reference clock to the gmZAN1 chip, and ranges from

14.318 MHz to 50 MHz in frequency. This programmability provides enough flexibility to meet a wide range of power sequencing requirements by various panels.

TFT_EN Bit (register bit)

PPWR Output

Data/Controls Signals

PBias Output

2.6.3 Panel Interface Drive Strength

As mentioned previously, the gmZAN1 has programmable output pads for the TFT panel interface. Three groups of panel interface pads (panel clock, data, and control) are independently controllable and are programmed using API calls. See the API reference manual for details.

Table 14. Panel Interface Pad Drive Strength

Value (4 bits) Drive Strength in mA

0 Outputs are in tri-state condition 1 2mA 2 4mA 3 6mA 4 8mA 5 10mA 6 12mA 7 14mA 8 16mA 9 18mA 10,11,12,13,14,15 20mA

2.7 Host Interface

The host microcontroller interface of the gmZAN1 has two modes of operation: gmB120 compatible mode, and a 4bit serial interface mode. z GmB120 compatible mode-Four signals consisting of 1 data bit, a frame synchronization signal, a clock signal

and an Interrupt Request signal (IRQ). This mode is entered when a pull-down resistor is not connected to MFB6(pin number 106).

z 4-bit serial interface mode-Same as gmB120 compatible mode with the addition of three data bits so that four

data bits are transferred on each clock edge. This mode is entered when a (10K ohm) pull-down resistor is connected to MFB6(pin number 106).

When the chip is configured for 4-bit host interface, MFB9:7 are used as HDATA3:1 and HDATA is used as HDATA0. For instruction, Read Data, or Write Data, the data order is D3:0, D7:4, D11 :8, The burst mode operation then uses three clocks (instead of twelve) for each 12-bit data (or address) transmission.

In both modes, a reset pin sets the chip to a known state when the pin is pulled low. The RESETn pin must be low for at least 100ns after the CVDD has become stable (between +3.15V and +3.45V) in order to reset the chip to a known state.

The gmZAN1 chip has an on-chip pull-down resistor in the HFS input pad. No external pull-up is required. The signal stays low until driven high by the microcontroller.

2.7.1 Serial Communication Protocol

In the serial communication between the microcontroller and the gmZAN1, the microcontroller always acts as an initiator while the gmZAN1 is always the target. The following timing diagram describes the protocol of the serial channel of the gmZAN1 chip.

Figure 10. Timing Diagram of the gmZAN1 Serial Communication

Table 15 summarizes the serial channel specification of the gmZAN1. Refer to Figure 10 for the timing parameter definition.

Table 15. gmZAN1 Serial Channel Specification

Parameter Min. Typ. Max.

Word Size (Instruction and Data) --- 12 bits --HCLK low to HFS high (t1) 100 ns HFS low to HCLK inactive (t2) 100 ns HDATA Write to Read Turnaround Time (t3) 1 HCLK cycle 1 HCLK cycle HCLK cycle (t4) 100 ns Data in setup time (t5) 25 ns Data in hold time (t6) 25 ns Data out valid (t7) 5 ns 10

In the read operation, the microcontroller (Initiator) issues an instruction lasting 12 HCLKs. After the last bit of the command is transferred to the gmZAN1 on the 12 rising edge of HCLK at which point the gmZAN1 will start driving data. At the 13

clock, the microcontroller must stop driving data before the next

rising edge of HCLK, the

gmZAN1 will begin driving data.

Figure 11. Serial Host Interface Data Transfer Format

2 bits 10 bits 12 bits

Command Address Data

Command: 01 Write 00 = Read 1x = Reserved

Note that when the chip is configured for a 4-bit host interface, MFB9:7 are used as HDATA 3:1 and HDATA is used as HDATA0. The command and address information are transferred as Address 1:0+Command1:0, Address5:2 and Address9:6. The data information is transferred as Data3:0,Data 7:4, Data 11:8. Thus, in this mode the HDATA pin carries Command0, Address2, Address6, Data0, Data4 and Data8. On the gmZAN1 reference design board, the microcontroller toggles the HCLK and HDATA lines under program control. Genesis Microchip provides API calls to facilitate communication between the microcontroller and the gmZAN1. Refer to the API reference manual for details.

2.7.2 Multi-Function Bus (MFB)

The Multi-Function Bus provides additional 12 pins that are used as general purpose inp ut and output (GPIO) pins. Each pin can be independently configured as input or output. MFB pins 9 through 5 have special functions: z When a 10K ohm pull-down resistor is connected to MFB6 (MFB6 has an internal pull-up resistor) MFB9:7 are

used as host data bits HDATA3:1.

z When a 10K ohm pull-down resistor is connected to MFB5 (MFB5 has an internal pull-up resistor) a crystal can

be placed between XTAL and TCLK instead of using an external oscillator for the TCLK input.

Note that all pins on the multi-function bus MFB11:0 are internally pulled-up.

2.8 On-Screen Display Control

The gmZAN1 chip has a built-in OSD (On-Screen Display) controller with an integrated font ROM. The chip also supports an external OSD controller for monitor vendors to maintain a familiar user interface. The internal and external OSD windows may be displayed anywhere the panel Display Enable is active, regardless of whether the panel would otherwise display panel background color or active data.

2.8.1 OSD Color Map

Both the internal and external OSD display use a 16 location SRAM block for the color programming. Each color location is a twelve-bit value that defines the upper four bits of each of the 8 bit Red, Blue and Green color components as follows:

z D3:0 Blue; D7:4 of blue component of color z D7:4 Green; D7:4 of green component of color z D11:8 Red; D7:4 of red component of color

To extend the 4-bit color value programmed to the full 8 bits the following rule is applied: if any of the upper four color bits are a “1”, then R (G, B) data 3:0=1111b, otherwise R (G, B) data 3:0=0000b

2.8.2 On-Chip OSD Controller

The internal OSD uses a block of SRAM of 1536x12 bits and a ROM of 1024x12 bits. The SRAM is used for both the font data and the character-codes while the ROM is used to store the bit data for 56 commonly used characters. The font data is for 12 pixel x 18 line characters, one bit per pixel. The font data starts at address zero. The character-codes start at any offset (with an address resolution of 16) that is greater than the last location at which font data has been written . It is the programmer’s responsibility to ensure that there is no overlap between fonts and character-codes. This implementation results in a trade-off between the number of unique fonts on-screen at any one time and the total number of characters displayed. For example, one configuration would be 98 font maps (56 fonts in ROM and 42 fonts in SRAM) and 768 characters (e.g. in a 24x32 array).

The on-chip OSD of the gmZAN1 can support a portrait mode (in which the LCD monitor screen is rotated 90 degrees). In this portrait mode, all the fonts must be loaded in the SRAM, because the ROM stores fonts for a landscape mode (typical orientation) only. The font size in the portrait mode is 12 pixels by 12 lines. As is the case in landscape mode, the SRAM is divided into a font storage area and a character code storage area. For example, 64 fonts can be stored in RAM and an OSD window of 768 characters (such as 24x32) can still be displayed.

The first address of SRAM to be read for the first character displayed (upper left corner of window)is also programmable, with an address resolution of 16 (8-bits as the top bits of the 12-bit SRAM address). The charactercode is a 12-bit value used as follows:

z D6:0 font-map select, this is the top seven bits of the address for the first line of font bits z D8:7 Background color, 00=bcolor0, 01=bcolor1, 10=bcolor2, 11=transparent background z D10:9 Foreground color (0, 1, 2 or 3) z D11 Blink enable if set to 1, otherwise no blink

Although the OSD color map has room for sixteen colors, only seven are used by the internal OSD: three background colors and four foreground colors.

The blink rate is based on either a 32 or 64 frame cycle and the duty cycle may be selected as 25/75/50/50% or 75/25%. The 2-bit foreground and background attribu tes directly select the color (there is no indirect “look-up”, i.e. there is no TMASK function). The 2560 addresses of the ROM/SRAM are mapped as 10 segments of 256 contiguous addresses each, to the OSD memory page of 100h-1FFh in the host interface. A 4-bit register value selects the segment to map to the host R/W page.

The character cell height and width are programmable from 5-66 pixels or 2-65 lines. The X/Y offset of the font bitmap upper-left pixel relative to the upper-left pixel of the character cell is also programmable from 0-63 (pixels or lines). The OSD window height and width in characters/rows is programmable from 1-64.

The Start X/Y position for the upper left corner of the OSD window is programmable (in panel pixels and lines) from 0-2047. There is an optional window border (equal width on all four sides of the window) or a window shadow (the window bottom and right side) the border is a solid color that is selected by an SRAM location as RGB444. The border width may be set as 1, 2, 4 or 8 pixels/lines. These parameters are summarized in Figure 12 and Table 16. The Font Data D11:0 for each line is displayed with bit D11 first (leftmost) and D0 last. The reference point for the OSD start is always the upper left corner of the Panel display, which is the start (leading edge) of Panel Display Enable for both Horizontal and Vertical timing.

The OSD Window start position sets the location of the first pixel of the OSD to display, including any border. That is; if the border is enabled, the start of the character display of the OSD is offset from the OSD start position by the width/height of the border.

To improve the appearance and make it easy to find the OSD window on the screen, the user may select optional shadowing (3D effect). The “Shadow” feature operates in the same manner as in the B120; that is, it produces a region of half intensity (scaler data) pixels of the same width and height as the OSD window, but offset to the right and down by 8 pixels/lines (the border width setting has no effect). OSD foreground and background colors always cover the OSD window region of the “shadow”, but transparent background pixels in the OSD will show the half intensity panel data. Therefore, it is not recommended to use both the “shadow” feature and transparent background OSD pixels together. The ”shadow” does not The border and shadow are mutually exclusive, only one may be selected at a time.

The OSD window is not affected by the scaling operation. The size will stay the same whether the source input data is scaled or not.

change the intensity of any panel background color over which it may be located .

2.9 TCLK Input

The source timing is measured by using the TCLK input as a reference. Also, the reference clock to the on-chip PLLs are derived from the TCLK. It is therefore crucial to have a jitter-free clock reference. Table 19 shows the requirements for the TCLK signal.

Table 19. TCLK Specification

Frequency 20 MHz to 50 MHz Jitter 250 ps maximum Rise Time (10% to 90%) 5 ns Duty Cycle 40-60

There is also an option to use a crystal (instead of an oscillator) for the TCLK input. This option is selected by pulling down MFB5 and connecting the crystal between XTAL and TCLK.

3. ELECTRICAL CHARACTERISTICS

Table 20. Absolute Ratings

Parameter Min. Typ. Max. Note

PVDD 5.6 volts CVDD 5.6 volts Vin Vss-0.5 volt Vcc+0.5V Operating temperature 0 degree C 70 degree C Storage temperature -65 degree C 150 degree C Maximum power consumption ~2W

Table 21. DC Electrical Characteristic

Parameter Min. Typ. Max. Note

PVDD 3.15 volts 3.3 volts 3.47 volts CVDD 3.15 volts 3.3 volts 3.47 volts Vil (COMS inputs) Vil (TTL inputs) Vih (COMS inputs) Vih (TTL inputs) Voh 2.4 volts CVDD Vol 0.2 volts 0.4 volts Input Current -10 uA 10 uA PVDD operating supply current 0 mA 20 mA/pad @ 10pF (2) CVDD operating supply current 0 mA 500 mA (3) NOTE 1:5V-Tolerent TTL Input pads are as follows:

z CRT Interface: HSYNC (pin #150), VSYNC (#148) z Host Interface: HFS (#98), HCLK (#103), HDATA (#99), RESETN (#100), MFB[11:0]: MFB11 (#123),

MFB10 (#124), MFB9 (#102), MFB8 (#104), MFB7 (#105), MFB6 (#106), MFB5 (#107), MFB4 (#109), MFB3 (#110), MFB2 (#111), MFB1 (#112), MFB0 (#113)

z OSD Interface: OSD_DATA3 (#121), OSD_DATA2 (#120), OSD_DATA1 (#119), OSD_DATA0 (#118),

OSD_FSW (#122)

z Non-5V-Tolerant TTL Input Pad is: TCLK(#141) NOTE 2: When the panel interface is disabled, the supply current is 0 mA. The drive current of each pad can be programmed in the range of 2 mA to 20 mA (@capacitive loading = 10 pF) NOTE 3: When all circuits are powered down and TCLK is stopped, the CVDD supply current becomes 0 mA.

0.3*CVDD

0.8 volts

0.7 * CVDD

2.0 volts

1.1*CVDD

5.0+0.5 volts

(1)

7. MECHANICAL OF CABINET FRONT DIS-ASSEMBLY

For temporary, this page still not available.

Wait for mechanical drawing !

LOCATION

PARTS LIST OF CABINET

T780KMGHBAA0A SPECIFICATION

AUPC780A1 17” LCD AUDIO BOARD CBPC780GM 17” CONVERSION BOARD DCPC780A3 17” DC POWER BOARD KEPC780EK KEYBOARD

12A 381 1 RUBBER FOOT 15A 5684 1 MAIN FRAME 15A 5689 1 GND.CABLE CLAMP 15A 5689 2 GND. CLAMP 26A 800 13 LCD BAR-CODE 33A 3647 1 POWER LED LENS 33A 4058 Y L POWER KEY PAD 33A 4060 Y L CABLE COVER 33A 4061 Y L AUDIO POWER BUTTON 33A 4062 Y L VOLUME KNOB 33A 4063 Y L SCREW COVER 34A 756 1Y L FRONT PANEL (AOC) 34A 757 Y 1L BACK COVER 34A 758 Y L SUPPORT FRONT (AUDIO) 34A 759 Y 3L SUPPORT BACK 34A 760 Y L BASE 34A 761 Y L ARM COVER 37A 443 1 LCD HINGE 40A 155 237 ID LABEL ( LM-700A) 41A 401 948 1A OWNERS MANUAL 44A 3147 1 WOODEN FLAT PALLES 1140X1 44A 3148 1 WOODEN FLAT PALLES 1140X1 44A 3234 1 EPS CUSHION (L) 44A 3234 2 EPS CUSHION (R) 44A 3234 5 CARTON (AOC) 44A 3253 1 BASE SHEET 45A 113 1 PE BAG 45A 114 1 PE BAG 45A 116 1 CLIP BAG 52A 1208 A ALUMINIUM TAPE 35X25 52A 194 1 50CM X 500MX X 0.017MMt 70A L17 3A0C DRIVER DISK 78A 309 1 SPEAKER 16 OHM 2W 30* 70 79A L17 1 S INVERTER BY SAMPO 80A L17 2 C H ADAPTOR WHITE 85A 548 3 SHIELD CBPC 85A 574 1 SHIELD INVERTER 85A 583 1 SOFT-SHIELD 85A 583 6 SOFT-SHIELD 85A 583 7 SOFT-SHIELD 85A 583 8 SOFT-SHIELD 89A 173 56 4 AUDIO CABLE 89A 174D 5BFG L F SIGNAL CABLE 89A 404C 18N I S POWER CORD 95A 8013 2 29 HARNESS 2P 75mm 95A 8014 5 5A HARNESS 95A 8018 30 1 HARNESS B1A 1030 5128 SCREW 3X5mm B1A 1030 5128 SCREW 3X5 mm B1A 1030 8128 SCREW 3X8mm B1A 1030 8128 SCREW 3X8 mm M1A 330 6128 SCREW M3X6mm M1A 330 6128 SCREW M3X6mm M1A 330 6128 SCREW M3X6mm M1A 1030 10128 SCREW M3X10mm M1A 1740 12128 SCREW M4X12mm Q1A 330 8120 SCREW 3X8mm Q1A 340 12128 SCREW 4X12mm Q1A 340 16128 SCREW 4X16mm

LOCATION

PARTS LIST OF CABINET ( continue)

T780KMGHBAA0A SPECIFICATION

Q1A 1030 10128 SCREW Q1A 1030 12128 SCREW 3X12mm Q1A 1030 12128 SCREW 3X12mm 750A LCD 170 3 LCD-PANEL M170E1-01 BY CHI-MEI

PARTS LIST OF CONVERSION BOARD

LOCATION CBPC780GM SPECIFICATION

CN303 33A 3802- 5H WAFER 5P RIGHT ANELE PITCH 2.0 CN302 33A 3802- 9H WAFER 9P RIGHT ANELE PITCH 2.0 CN602 33A 3802- 10H WAFER 10P RIGHT ANELE PITCH CN601 33A 3802- 14H WAFER 14P RIGHT ANELE PITCH R319 33A 8009- 2 - 2 PIN MIN. JUMPER JP201 33A 8009- 3 3 PIN PLUG JP303 33A 8009- 3 3 PIN PLUG 33A 8810- 2 L 2P SHUNT MINI JUMPER CN200 33A 8013- 14 H PLUG 14P 90 40A 152- 43 LABEL (CBPC780GM) 44A 3231- 8 EVA U302 56A 1125- 61 M M6759FG BY ALI C307 67A 305- 331 6 330uF +- 20% 35V C309 67A 305- 331 6 330uF +- 20% 35V C310 67A 305- 331 6 330uF +- 20% 35V C312 67A 305- 331 6 330uF +- 20% 35V C927 67A 305- 331 6 330uF +- 20% 35V C928 67A 305- 331 6 330uF +- 20% 35V C945 67A 309- 471 3T 470uF +- 20% 16V FB301 71A 55- 28 BEAD P6H 7.62*5.08*6.4 BY TEC T300 73A 253- 108 Y CHOKE COIL BY SHINING T300 73A 253- 108 LI CHOKE COIL BY LINEARITY L905 73A 259- 4 200UH +/-5% VR501 75A 335- 103 10K OHM +-30% RH0615C14J ALPS 90A 372- 2 HEAT SINK X300 93A 22- 55 CRYSTAL 20MHz HC-49US U201 93A 22- 57 OSCILLATOR 50MHz –3.3V CN301 95A 9001- 6A HARNESS

LOCATION AI780GM SPECIFICATION

U601 56A 561- 5 NT7181 56L TSSOP U602 56A 561- 5 NT7181 56L TSSOP U200 56A 562- 8 gmZAN1 PQFP-160 GENESIS U304 56A 563- 1 CHIP LM2596S- 5.0 BY NS U305 56A 563- 7 AIC1084-33M TO-263 ANALOG U202 56A 566- 6 CHIP SI9953DY-T1 SILICON U904 56A 585- 2 LT1117 SMD SOT223 BY LINEARITY U904 56A 585- 4 AIC1117-33CY SOT-223 ANALOG U401 56A 74F- 14 CHIP MC74F14 BY MOTOROLA U401 56A 74F- 14 P N74F14D BY PHILIPS U203 56A 1133- 16 CHIP 24LC21A/SN BY MICRO U300 56A 1133- 17 AT24C04N-10SC BY ATMEL U300 56A 1133- 29 24LC04BT/SC SOI18 MICRO Q200 57A 417- 4 CHIP PMBS3904 BY PHILIPS Q304 57A 417- 4 CHIP PMBS3904 BY PHILIPS D303 57A 754- 1 BAT54C-GS08 SOT-23 TELEFUKON D303 57A 754- 2 BAT54C RP300 61A 125- 103 - 8 CHIP ARRAY 10K OHM 1/16W 8P4R L207 61A 0603- 000 CHIP 0 OHM 1/16W R200 61A 0603- 000 CHIP 0 OHM 1/16W R201 61A 0603- 000 CHIP 0 OHM 1/16W R202 61A 0603- 000 CHIP 0 OHM 1/16W R203 61A 0603- 000 CHIP 0 OHM 1/16W R207 61A 0603- 000 CHIP 0 OHM 1/16W R208 61A 0603- 000 CHIP 0 OHM 1/16W R229 61A 0603- 000 CHIP 0 OHM 1/16W R317 61A 0603- 000 CHIP 0 OHM 1/16W R340 61A 0603- 000 CHIP 0 OHM 1/16W R603 61A 0603- 000 CHIP 0 OHM 1/16W R905 61A 0603- 000 CHIP 0 OHM 1/16W R218 61A 0603- 101 CHIP 100 OHM 1/16W R219 61A 0603- 101 CHIP 100 OHM 1/16W R220 61A 0603- 101 CHIP 100 OHM 1/16W R227 61A 0603- 101 CHIP 100 OHM 1/16W R213 61A 0603- 102 CHIP 1KOHM 1/16W R214 61A 0603- 102 CHIP 1KOHM 1/16W R216 61A 0603- 103 CHIP 10K OHM 1/16W R217 61A 0603- 103 CHIP 10K OHM 1/16W R223 61A 0603- 103 CHIP 10K OHM 1/16W R224 61A 0603- 103 CHIP 10K OHM 1/16W R225 61A 0603- 103 CHIP 10K OHM 1/16W R300 61A 0603- 103 CHIP 10K OHM 1/16W R301 61A 0603- 103 CHIP 10K OHM 1/16W R311 61A 0603- 103 CHIP 10K OHM 1/16W R313 61A 0603- 103 CHIP 10K OHM 1/16W R315 61A 0603- 103 CHIP 10K OHM 1/16W R326 61A 0603- 103 CHIP 10K OHM 1/16W R327 61A 0603- 103 CHIP 10K OHM 1/16W R328 61A 0603- 103 CHIP 10K OHM 1/16W R329 61A 0603- 103 CHIP 10K OHM 1/16W R209 61A 0603- 202 CHIP 2K OHM 1/16W R210 61A 0603- 202 CHIP 2K OHM 1/16W R204 61A 0603- 750 CHIP 75 OHM 1/16W R205 61A 0603- 750 CHIP 75 OHM 1/16W R206 61A 0603- 750 CHIP 75 OHM 1/16W C229 65A 0603- 103 - 32 C230 65A 0603- 103 - 32 C231 65A 0603- 103 - 32 C232 65A 0603- 103 - 32 C233 65A 0603- 103 - 32 C234 65A 0603- 103 - 32 C251 65A 0603- 103 - 32 C606 65A 0603- 103 - 32 C608 65A 0603- 103 - 32 C614 65A 0603- 103 - 32

CHIP 0.01UF 50V X7R CHIP 0.01UF 50V X7R CHIP 0.01UF 50V X7R CHIP 0.01UF 50V X7R CHIP 0.01UF 50V X7R CHIP 0.01UF 50V X7R CHIP 0.01UF 50V X7R CHIP 0.01UF 50V X7R CHIP 0.01UF 50V X7R CHIP 0.01UF 50V X7R

LOCATION AI780GM SPECIFICATION

C616 65A 0603- 103 - 32 C201 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C202 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C204 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C205 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C207 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C208 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C209 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C210 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C211 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C212 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C213 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C215 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C217 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C218 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C219 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C220 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C221 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C222 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C223 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C225 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C226 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C227 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C228 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C237 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C244 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C245 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C246 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C300 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C304 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C308 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C311 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C405 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C601 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C602 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C604 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C618 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C619 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C939 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C940 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C941 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C942 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C944 65A 0603- 104 - 12 CHIP 0.1UF 16V X7R C250 65A 0603- 330 - 31 C303 65A 0603- 330 - 31 C306 65A 0603- 330 - 31 CP301 65A 600M- 102 - 8T CP302 65A 600M- 102 - 8T C605 67A 312- 100 - 3 C607 67A 312- 100 - 3 C613 67A 312- 100 - 3 C615 67A 312 100 3 1 SMD EC 10UF 16V 85C B C620 67A 312 100 3 1 SMD EC 10UF 16V 85C B C200 67A 312 101 3 1 SMD EC 100UF 16V 85C D C203 67A 312 101 3 1 SMD EC 100UF 16V 85C D C206 67A 312 101 3 1 SMD EC 100UF 16V 85C D C214 67A 312 101 3 1 SMD EC 100UF 16V 85C D C216 67A 312 101 3 1 SMD EC 100UF 16V 85C D C224 67A 312 101 3 1 SMD EC 100UF 16V 85C D C305 67A 312 101 3 1 SMD EC 100UF 16V 85C D C403 67A 312 101 3 1 SMD EC 100UF 16V 85C D

CHIP 0.01UF 50V X7R

CHIP33PF 50V NPO CHIP 33PF 50V NPO CHIP 33PF 50V NPO CHIP ARRAY 1000PF 8P CHIP ARRAY 1000PF 8P SMD EC 10UF 16V 85C B SMD EC 10UF 16V 85C B SMD EC 10UF 16V 85C B

LOCATION AI780GM SPECIFICATION

C603 67A 312 101 3 1 SMD EC 100UF 16V 85C D C943 67A 312 101 3 1 SMD EC 100UF 16V 85C D C313 67A 312 220 3 1 SMD EC 22UF 16V 85C CSIZE C314 67A 312 220 3 1 SMD EC 22UF 16V 85C CSIZE L200 71A 57G 601 1 CHIP BEAD 600 OHM 1206 T13216 L201 71A 57G 601 1 CHIP BEAD 600 OHM 1206 T13216 L202 71A 57G 601 1 CHIP BEAD 600 OHM 1206 T13216 L203 71A 57G 601 1 CHIP BEAD 600 OHM 1206 T13216 L300 71A 57G 601 1 CHIP BEAD 600 OHM 1206 T13216 L900 71A 57G 601 1 CHIP BEAD 600 OHM 1206 T13216 L601 71A 59B 121 1 CHIP BEAD 120 OHM 0603 TB1608 L602 71A 59B 121 1 CHIP BEAD 120 OHM 0603 TB1608 L603 71A 59B 121 1 CHIP BEAD 120 OHM 0603 TB1608 L604 71A 59B 121 1 CHIP BEAD 120 OHM 0603 TB1608 R215 71A 59B 121 1 CHIP BEAD 120 OHM 0603 TB1608 L601 71A 59C 121 B 0 CHIP BEAD 120 OHM 0603 FCM160 L602 71A 59C 121 B 0 CHIP BEAD 120 OHM 0603 FCM160 L603 71A 59C 121 B 0 CHIP BEAD 120 OHM 0603 FCM160 L604 71A 59C 121 B 0 CHIP BEAD 120 OHM 0603 FCM160 R215 71A 59C 121 B 0 CHIP BEAD 120 OHM 0603 FCM160 MTG U3 87A 202 44 1 IC SOCKET 44P PLCC D200 93A 391 39 1 CHIP ZD 5.6V BY FCI MLL752 D201 93A 391 39 1 CHIP ZD 5.6V BY FCIMLL752 D208 93A 391 39 1 CHIP ZD 5.6V BY FCI MLL752 D209 93A 391 39 1 CHIP ZD 5.6V BY FCIMLL752 D210 93A 391 39 1 CHIP ZD 5.6V BY FCIMLL752 D200 93A 391 47 0 ZENER DIODES TZMC5V6-GS8 D201 93A 391 47 0 ZENER DIODES TZMC5V6-GS8 D208 93A 391 47 0 ZENER DIODES TZMC5V6-GS8 D209 93A 391 47 0 ZENER DIODES TZMC5V6-GS8 D210 93A 391 47 0 ZENER DIODES TZMC5V6-GS8 D200 93A 391 49 0 CHIP ZD 5.6V BY FULL POWMLL523 D201 93A 391 49 0 CHIP ZD 5.6V BY FULL POWMLL523 D208 93A 391 49 0 CHIP ZD 5.6V BY FULL POWMLL523 D209 93A 391 49 0 CHIP ZD 5.6V BY FULL POWMLL523 D210 93A 391 49 0 CHIP ZD 5.6V BY FULL POWMLL523 D300 93A 602 11 1 SMB340 BY FULL POWER D300 93A 602 12 0 SMB340 BY FCI D300 93A 602 12 0 SMB340 BY FCI D202 93A 64 32 1 LL4148 SMD BY FCI D203 93A 64 32 1 LL4148 SMD BY FCI D204 93A 64 32 1 LL4148 SMD BY FCI D205 93A 64 32 1 LL4148 SMD BY FCI D206 93A 64 32 1 LL4148 SMD BY FCI D207 93A 64 32 1 LL4148 SMD BY FCI D301 93A 64 32 1 LL4148 SMD BY FCI D302 93A 64 32 1 LL4148 SMD BY FCI D202 93A 64 32 U 0 MLL4148 SMD BY FULL POWER D203 93A 64 32 U 0 MLL4148 SMD BY FULL POWER D204 93A 64 32 U 0 MLL4148 SMD BY FULL POWER D205 93A 64 32 U 0 MLL4148 SMD BY FULL POWER D206 93A 64 32 U 0 MLL4148 SMD BY FULL POWER D207 93A 64 32 U 0 MLL4148 SMD BY FULL POWER D301 93A 64 32 U 0 MLL4148 SMD BY FULL POWER D302 93A 64 32 U 0 MLL4148 SMD BY FULL POWER D202 93A 64 32 V 0 LL4148 GS08 SMD BY VISHAY D203 93A 64 32 V 0 LL4148 GS08 SMD BY VISHAY D204 93A 64 32 V 0 LL4148 GS08 SMD BY VISHAY D205 93A 64 32 V 0 LL4148 GS08 SMD BY VISHAY D206 93A 64 32 V 0 LL4148 GS08 SMD BY VISHAY D207 93A 64 32 V 0 LL4148 GS08 SMD BY VISHAY D301 93A 64 32 V 0 LL4148 GS08 SMD BY VISHAY D302 93 715

64 32 V 0 LL4148 GS08 SMD BY VISHAY

820 3 1 TF1780 MAIN BOARD 125 X 13

PARTS LIST OF KEY PC BOARD

LOCATION

KEPC780EK

TP101 9A 308 1 PIN TP102 9A 308 1 PIN J7 33A 3252 3 H WAFER 3P 3.96mm 90 40A 152 44 LABEL ( KEPC780EK) Q101 57A 419 PP T Q102 57A 419 PP T R101 61A 6021 0352 T 10K OHM 5% 1/6W R102 61A 6021 0352 T 10K OHM 5% 1/6W R103 61A 6021 0352 T 10K OHM 5% 1/6W R104 61A 6021 0352 T 10K OHM 5% 1/6W R105 61A 6021 0352 T 10K OHM 5% 1/6W R106 61A 6021 0352 T 10K OHM 5% 1/6W R107 61A 6021 0352 T 10K OHM 5% 1/6W R108 61A 6022 2152 T 220 OHM 5% 1/6W C101 65A 450 104 7T 0.1Uf+80-20% 56V Y5V SW1 77A 600 1 G TACT SWITCH SW2 77A 600 1 G TACT SWITCH SW3 77A 600 1 G TACT SWITCH SW4 77A 600 1 G TACT SWITCH SW5 77A 600 1 G TACT SWITCH LED1 81A 13 1 B H LED 5*7 mmBL-RYG202N JP2 88A 304 1 S DC POWER JACK SCD-014A BY SC J101 95A 90 23 TIN COATED 95A 8014 9 6 A HARNESS 715A 778 1 KEPC-1780F LCD K/B

Quantity SPECIFICATION

PARTS LIST OF DC-POWER BOARD

LOCATION DCPC780A3 Quantity SPECIFICATION

P4 33A 3278 2 1 2P PLUG B2B-XHA/JST B2B-XHA/JS P3-1 33A 3278 3 1 3P PLUG B3B-XHA/JST B3B-XHA/JS C71 67A 305 331 6 1

J2 88A 302 4 S 1 3.5mm P JACK SCJ-0356A-B-X SC J1 88A 304 1 S 1 DC POWER JACK SCD-014A BY SC JP3 89A 171 27 A 1 DC POWER CORD 715A 851 2 1 LCD USB & AUDIO BRD

330uF+－ 20% 35V

PARTS LIST OF AUDIO BOARD

LOCATION AUPC780A1 Quantity SPECIFICATION

P1 33A 3278 2 1 2P PLUG B2B-XHA/JST B2B-XHA/JS P2 33A 3278 2 1 2P PLUG B2B-XHA/JST B2B-XHA/JS 33A 8009 12E H 2 2*6 PIN DUAL ROW RIGHT ANGLE U1 56A 572 3 1 AN7522 BY PANASONIC R1 61A 172 103 5 2T 1 10K OHM 5% 1/4W R2 61A 172 103 5 2T 1 10K OHM 5% 1/4W R3 61A 172 333 5 2T 1 33K OHM 5% 1/4W R12 61A 172 681 5 2T 1 680 OHM 5% 1/4W R4 61A 172 683 5 2T 1 68K OHM 5% 1/4W R10 61A 153M 109 5 9 1

R11 61A 153M 109 5 9 1 R7 61A 175L 134 5 2T 1 130K OHM 5% 1/2 W

R5 61A 175L 153 5 2T 1 15K OHM 5% 1/2W R6 61A 175L 153 5 2T 1 15K OHM 5% 1/2 W C8 67A 309 101 4 1

C1 67A 309 109 7 1 C2 67A 309 109 7 1 C4 67A 309 109 7 1 C5 67A 309 109 7 1 C3 67A 309 222 3 1 VR1 75A 347A 103 5 5G 1 VR 10K OHM 9mm 30/12

S1 77A 411A 2 S 1 PUSH SW PS02-BAN D1 81A 2 3 2 1 LED LAMP-GREEN CSL-310G3GT J2 88A 302 4S 1 3.5mm P JACK SCJ-0356A-B-X SC 90A 400 1 1 HEAT SINK J003 95A 90 23 0 TIN COATED J004 95A 90 23 0 TIN COATED 95A 8013 2 2 8 1 HARNESS 2P 95A 8013 3 2 3 1 HARNESS 3P-2P M1A 330 6128 2 SCREW M3X6mm 715A 799 1 1 17”LCD AUDIO BOARD 76.0 X 1

1 OHM +－ 5% 3W 1 OHM +－ 5 % 3W

100uF+－20% 25V Matshushita 1uF +－20% 50V 1uF +－20% 50V 1uF +－20% 50V 1uF +－20% 50V 2200uF +－20% 16V

9. POWER SYSTEM AND CONSUMPTION CURRENT

ADAPTER MODULE Input AC 110V, 60Hz/240V, 50Hz Output DC 12V 5A

Main board power system

LM2596S-5, 12V to 5V (5A SPEC)

INVERTER MODULE Input DC 12V Output AC 1500V/30K-80KHz Current 14mA

AIC1084, 5V to 3.3V (5A SPEC)

3.3V

for GMZAN1 consumption

To CPU, Eeprom, 24c21, control-inverter-on.off 860mA when Cable not Connected 841mA when Normal operation To Chi-Mei Panel around 1250mA

LT1117 5V to 3.3V ( 800mAspec)

for LVDS consumption

Input Connector

AIC1084 5V to 3.3v

DDC chip

10. PCB LAYOUT

mzan1

LVDS power ( LT1117)

LVDS

PanelPower Control

LM2596 convert 12V to 5V

Keyboard-connector

VR adjust for Lamp Luminance

Inverter-connect

I). TOP-LEVEL FLOW

ower block

PAGE 4

+12V

+3.3V

+5V

11. SCHEMATIC DIAGRAM

POWER

PAGE 2

MCU

MICRO CONTROLLER

MFB1

+5V

MFB2

HDATA0

MFB2 MFB7 MFB8 MFB9

TCLK1

HCLK

/VGA_CON

RST1

SDA

HFS

RST

SCL

IRQ

RXD TXD

PAGE 3

MFB1 MFB2

HDATA0

MFB2

MFB7 MFB8 MFB9

TCLK1

SCL SDA

IRQ

HFS

HCLK

/VGA_CON RST

RST1

RXD TXD

ZAN1

+5V

+3.3V

+12V

.Gmzan1 bloc

ERED

EGRN EBLU ORED OGRN OBLU

PCLK

PHS PVS

PDISPE

PAGE 6

ERED

EGRN

EBLU

ORED

OGRN OBLU

PCLK

PHS PVS PDISPE

LVDS

AOC (Top Victory) Electronics Co., Ltd.

Title

LVDS block

Size Document Number Rev

Monday, December 11, 2000

Date: Sheet of

TOP LEVEL

763-17.DSN

II). GMZAN1 Block

1 2 3 4 5 6 7 8 9

ADC-AGND

RXD TXD

24LC21A

GND

BLUE /VGA_CON

VGA_HSYNC VGA_VSYNC

VGA_SDA

+5V

D303 BAT54

1 2 3

GND

VGA_SCL

NC NC NC

VGA_5V

SDA

SCL

VCCGND

VCLK

PLL_GNDA

R227

100

GND

U203

/VGA_CON

CN200

10 11 12 13 14

HEADER 14

RXD

TXD

VGA_5V

C618

0.1 uF

GND

C619

0.1 uF

C943 100uF

Connect two grounds at single point only.

ADC-AGND

C244

0.1 uF

+5V

+3.3V

876

RP300

10 K

123

U200

HDATA

105

MFB7

C212

0.1 uF

C221

0.1 uF

VDDA

C236 100 pF

C235 100 pF

104

MFB8

102

MFB9

103

HCLK

101

IRQ

HFS

107

MFB5

106

MFB6

124

MFB10

123

MFB11

109

MFB4

110

MFB3

111

MFB2

112

MFB1

113

MFB0

RED+

C229

10 nF

RED-

C232

10 nF

GREEN+

C230

10 nF

GREEN-

C233

10 nF

BLUE+

C231

10 nF

BLUE-

C234

10 nF

148

VSYNC

150

HSYNC/CS

Reserved

PSCAN

Reserved

130

Reserved

135

Reserved

142

XTAL(Reserved)

145

Reserved

152

Reserved

153

STI_TM1

ZAN1

HDATA0

MFB7 MFB8 MFB9

HCLK

IRQ

VDDA

D202 1N4148

VDDA

ADC-AGND

U401D

9 8

74LVT14_ADC

ADC-AGND

147

U401A

1 2

74LVT14_ADC

C209

0.1 uF

GND

C218

0.1 uF

C226

0.1 uF

ADC-AGND

GND

D204 1N4148

D205 1N4148

R212

100 (op)

MFB2

C210

0.1 uF

C219

0.1 uF

HFS

GND

R206 75

R205 75

R204 75

U401E

11 10

74LVT14_ADC

R211

100(op)

U401B

3 4

74LVT14_ADC

C227

0.1 uF

R317 0 R316 NC

ADC-AGND

C211

0.1 uF

C220

0.1 uF

R200 0

R203 0

R201 0

R207 0

R202 0

R208 0

C228

0.1 uF

+5V

R327 10 K

D210

C251

5.6 V

10nF

ADC-AGND

DDC_SDA

R220 100 R

R217

10 K D209

5.6V

5 6

R218

100 R

DDC_SCL

R219

+5V

100 R

R216

10 K

D208

5.6V

GND

C405

0.1UF

+3.3V

C206

+3.3V

100uF

R230 0

C216 22uF

+3.3V

L203

600(1206)

+5V

C207

0.1 uF

C213

0.1 uF

C224 100uF

D203

1N4148

ADC-AGND

D206

1N4148

D207

1N4148

R210 2 K

R214 1 K

D201

5.6 V

+5V

R209 2 K

R213 1 K

D200

5.6 V

ADC-AGND

C208

0.1 uF

C217

0.1 uF

C225

0.1 uF

3.3V

4058657779

108

RVDD1

RVDD2

CVDD1

RVDD3

CVDD4

CVSS1A

CVSS1

RVSS1

SRVSS1

RVSS2

18183041496172114

R232 0

GND

+3.3V

ADC_VDD2

CVSS2

GND

ADC_VDD1

RVSS3

RVSS4

C222

0.1 uF

111221

CVSS3

SRVDD1

SRVDD2

CVSS4

DVSS

126

3.3V

125

139

149

84889296128

SVDD

DVDD

CVDD2

SYN_VDD

ADC_VDDA

ADC_GND2

ADC_GND1

CVSS2A

CVSS5

SVSS

SYN_VSS

SRVSS2

140

151

158

147

R234 0

R233 0

C223

0.1 uF

VDDA

ADC_BVDDA

ADC_GVDDA

ADC_RVDDA

SUB_GNDA

ADC_GNDA

ADC_BGNDA

8182858993

ADC-AGND

ADC_GGNDA

DVDDA

129

DAC_DVDDA

ADC_RGNDA

RVDDA

SVDDA

143

136

137

141

TCLK

PLL_SVDDA

131

DAC_SVDDA

PLL_DGNDA

132

PGND

SUB_DGNDA

133

SUB_SGNDA

134

PLL_RVDDA

PLL_SGNDA

DAC_DGNDA

DAC_SGNDA

127

138

144

PLL_DVDDA

TCLK

OBLU1

PD47

OBLU0

PD46

OGRN1

PD45

OGRN0

PD44

ORED1

PD43

ORED0

PD42

EBLU1

PD41

EBLU0

PD40

EGRN1

PD39

EGRN0

PD38

ERED1

PD37

ERED0

PD36

OBLU7

PD35

OBLU6

PD34

OBLU5

PD33

OBLU4

PD32

OBLU3

PD31

OBLU2

PD30

OGRN7

PD29

OGRN6

PD28

OGRN5

PD27

OGRN4

PD26

OGRN3

PD25

OGRN2

PD24

ORED7

PD23

ORED6

PD22

ORED5

PD21

ORED4

PD20

ORED3

PD19

ORED2

PD18

EBLU7

PD17

EBLU6

PD16

EBLU5

PD15

EBLU4

PD14

EBLU3

PD13

EBLU2

PD12

EGRN7

PD11

EGRN6

PD10

EGRN5

PD9

EGRN4

PD8

EGRN3

PD7

EGRN2

PD6

ERED7

PD5

ERED6

PD4

ERED5

PD3

ERED4

PD2

ERED3

PD1

ERED2

PD0

PVS

PHS

PBIAS

PPWR

PDISPE

PCLKA

PCLKB

117

OSD_CLK

116

OSD_VREF

115

OSD_HREF

120

OSD_DATA2

119

OSD_DATA1

118

OSD_DATA0

122

OSD_FSW

121

OSD_DATA3

100

RESETn

154

STI_TM2

155

SCAN_IN1

156

Reserved

157

SCAN_IN2

159

SCAN_OUT1 SCAN_OUT2

PLL_RGNDA

SUB_RGNDA

146

GND

160

PPWR

+3.3V

L200

C200

600(1206)

100uF

L201

600(1206)

L202

600(1206)

0.1 uF

PCLKA PHS

ERED0 ERED1 ERED2 ERED3 ERED4 ERED5 ERED6 ERED7

EGRN0 EGRN1 EGRN2 EGRN3 EGRN4 EGRN5 EGRN6 EGRN7

EBLU0 EBLU1 EBLU2 EBLU3 EBLU4 EBLU5 EBLU6 EBLU7

+5V

R326

D302

10 K

C314 22 uF

C620 10uF

GND

R229

1N4148

C942

0.1 uF

GND

R223

10 K

Q200

MMBT3904

Title

Size Document Number Rev

Date: Sheet

PGND

C203 100uF

PGND

1 8

PGND

SB VCC

GND

PCLKA PHS

ERED[0..3]

ERED[4..7]

EGRN[0..3]

EGRN[4..7]

EBLU[0..3]

EBLU[4..7]

RST1

R225 10K

GND

C237

R224 10K

AOC (Top Victory) Electronics Co., Ltd.

Thursday, September 06, 2001

DVDDA

C201

C202

0.1 uF

SVDDA

C205

C204

0.1 uF

U201

OUT

50 MHz

C250 33 pF

GND

PVS PDISPE

ORED0 ORED1 ORED2 ORED3 ORED4 ORED5 ORED6 ORED7

OGRN0 OGRN1 OGRN2 OGRN3 OGRN4 OGRN5 OGRN6 OGRN7

OBLU0 OBLU1 OBLU2 OBLU3 OBLU4 OBLU5 OBLU6 OBLU7

R229: Let Zan1 been reseted twice!

+5V

123

S1G1S2

D1D1D2

876

C245

0.1 uF C246

0.1 uF

ZAN1

715AXXX-1

R215

bead 120

U202 SI9933ADY

PANEL_P

C214 100uF

JP201

RVDDA

C215

0.1 uF

PGND

TCLK

PVS PDISPE

ORED[0..3]

ORED[4..7]

OGRN[0..3]

OGRN[4..7]

OBLU[0..3]

OBLU[4..7]

+12V

123

+P5V

ERED[0..7]

EGRN[0..7]

EBLU[0..7]

ORED[0..7]

OGRN[0..7]

OBLU[0..7]

LVDS Block

PCLKB

PHS

PVS

PDISPE PCLKA

PD36 PD37 PD0 PD1 PD2 PD3 PD4 PD5

PD38 PD39 PD6 PD7 PD8 PD9 PD10 PD11

PD40 PD41 PD12 PD13 PD14 PD15 PD16 PD17

PD42 PD43 PD18 PD19 PD20 PD21 PD22 PD23

PD44 PD45 PD24 PD25 PD26 PD27 PD28 PD29

PD46 PD47 PD30 PD31 PD32 PD33 PD34 PD35

GND

51 52 54 55 56

2 4

7 11 12 14

8 10

15 19 20 22 23 24 16 18

25 27 28 30

51 52 54 55 56

3 50

7 11 12 14

8 10

15 19 20 22 23 24 16 18

25 27 28 30

U601 NT7181

TSSOP56

TXIN0 TXIN1 TXIN2 TXIN3 TXIN4 TXIN6 TXIN27 TXIN5

TXIN7 TXIN8 TXIN9 TXIN12 TXIN13 TXIN14 TXIN10 TXIN11

TXIN15 TXIN18 TXIN19 TXIN20 TXIN21 TXIN22 TXIN16 TXIN17

TXIN23 TXIN24 TXIN25 TXIN26

TXCLKIN

U602 NT7181

TSSOP56

TXIN0 TXIN1 TXIN2 TXIN3 TXIN4 TXIN6 TXIN27 TXIN5

TXIN7 TXIN8 TXIN9 TXIN12 TXIN13 TXIN14 TXIN10 TXIN11

TXIN15 TXIN18 TXIN19 TXIN20 TXIN21 TXIN22 TXIN16 TXIN17

TXIN23 TXIN24 TXIN25 TXIN26

TXCLKIN

EVEN

ODD

AVDD_3.3

91726

GND

C601

0.1uF

PWRDWN

TXOUT0-

TXOUT0+

TXOUT1-

TXOUT1+

TXOUT2-

TXOUT2+

TXOUT3-

TXOUT3+

TXCLKOUT-

TXCLKOUT+

LVDSVCC LVDSGND

LVDSGND LVDSGND

PLLVCC PLLGND

PLLGND

C604

0.1uF

PWRDWN

TXOUT0-

TXOUT0+

TXOUT1-

TXOUT1+

TXOUT2-

TXOUT2+

TXOUT3-

TXOUT3+

TXCLKOUT-

TXCLKOUT+

LVDSVCC LVDSGND

LVDSGND LVDSGND

PLLVCC PLLGND

PLLGND

EDGE

GND GND GND GND GND

AVDD_3.3

EDGE

GND GND GND GND GND

C602

0.1uF

C603 100uF

GND

TX0-E

48 47

TX0+E

TX1-E

TX1+E

TX2-E

TX2+E

TX3-E

TX3+E

TXCK-E

40 39

TXCK+E

C605

10uF

16V

36 34 35

C607

10uF

16V

53 29 21 13 5

GND

TX0-O

TX0+O

47 46

TX1-O TX1+O

45 42

TX2-O

TX2+O TX3-O

38 37

TX3+O

TXCK-O

TXCK+O

44 49

C613 10uF

16V

36 34

C615

35 33

10uF

16V

53 29 21 13 5

GND

TXE0 TXE1 TXE2 TXE3 TXE4 TXE5 TXE8 TXE9

TXE6 TXE7

GND

CN601

EVEN

2 3 4 5 6 7 8 9 10 11 12 13 14

HEADER 14

CN602

ODD

2 3 4 5 6 7 8 9 10

CON10

AVDD_3.3

L900 BEAD (120)

C928 330uF

C940

0.1uF

TXE0

TX0-E TX0+E

TXE1

TX1-E

TXE2 TXE3

TX1+E TX2-E

TXE4

TX2+E

PANEL_P

C939

0.1uF

U904 LT1117

TXE5 TXE6 TXE7 TXE8 TXE9

TXO0 TXO1 TXO2 TXO3 TXO4 TXO5 TXO6 TXO7 TXO8 TXO9

GND

TXCK-E TXCK+E TX3-E TX3+E

TX0-O TX0+O TX1-O TX1+O TX2-O TX2+O TXCK-O TXCK+O TX3-O TX3+O

OUT

ADJ

AVDD_3.3

GND

L601 BEAD120(0603)

L602 BEAD120(0603)

L603 BEAD120(0603)

L604 BEAD120(0603)

LVDS-EN

AVDD_3.3

+5V

C927 330uF

C606

0.01UF

C608

0.01UF

TXO0 TXO1 TXO2 TXO3 TXO4 TXO5 TXO8 TXO9

TXO6 TXO7

C614

0.01UF

C616

0.01UF

AOC (Top Victory) Electronics Co., Ltd.

Title

Size Document Number Rev Custom

Tuesday, July 10, 2001

Date: Sheet of

LVDS

715A820-1

SDA

SCL

MCU Block

+5V

C313 22 uF

R313 10 K

GND

R300 10 K

D301 1N4148

R301 10 K

RST

+A5V

U300

SCK

24LC04B

BKLT-PWM

VCC

A0 A1 A2

VSS

7 1 2 3 4

SDA SCL

HDATA0

MFB7 MFB8 MFB9

HCLK HFS

RXD

TXD IRQ

MFB2

RST1

/VGA_CON

C303 33 pF

GND

C300

0.1 uF

GND

RST

X300

20MHz

C306 33 pF

R341 TEST(OP)

R303 10 K(OP)

GND

R340

+5V

R431

10 K(OP)

GND

/BKLT-ON

8XC51/PLCC

P2.0/A8

P2.1/A9 P2.2/A10 P2.3/A11 P2.4/A12 P2.5/A13 P2.6/A14 P2.7/A15

ALE/PROG

P0.7/AD7 P0.6/AD6 P0.5/AD5 P0.4/AD4 P0.3/AD3 P0.2/AD2 P0.1/AD1 P0.0/AD0

EA/VP

NCNCNC

11223

R315

10 K

PSEN

VCC

24 25 26 27 28 29 30 31

32 33

36 37 38 39 40 41 42 43

44 35

+5V

R311 10 K

Q304MMBT3904

GND

KEY1(ORANGE?) KEY2(GREEN?) KEY3(AUTO) KEY4(ENTER) KEY5(RIGHT) KEY6(LEFT) KEY7(POWER)

C305 100uF

C944

0.1 uF

VR501 10 K

/BKLT-ON

C304

0.1 uF

+5V

GND

U302

T2/P1.0

T2EX/P1.1

P1.2

P1.3

P1.4

P1.5

P1.6

P1.7

RST

RXD/P3.0

TXD/P3.1

INT0/P3.2

INT1/P3.3

TO/P3.4

T1/P3.5

WR/P3.6

RD/P3.7

XTAL2

XTAL1

3 2

JP303

+A5V

C403 100uF

GND

(Panel-Select)*

R321 0 (OP)

GND

+12V

GND

R401

0(OP)

R323 0 (OP)

CN303

1 2 3 4 5

HEADER 5

GND

R325 0 (OP)

4.7K(OP)

R402

1K(OP)

C401 100uF(OP)

GND

CP301 1000 pF

+5V

R403

K/E Select

R319

BKLT-PWM

KEY

+5V

R328

R329

10 K

CN302

1 2 3 4 5 6 7 8 9

CP302 1000 pF

HEADER 9

GND

AOC (Top Victory) Electronics Co., Ltd.

Title

Size Document Number Rev

Date: Sheet of

MICRO CONTROLLER

Tuesday, July 10, 2001

715A820-1

CN301

+12V POWER

GND

FB301

INDUCTOR

+12V

C307 330 uF/35V

C308

0.1 uF

U304 LM2596S-5.0

VIN

TO263

/ON

543

GND

FBK

Vout

D300 B320

T300

33 uH

R905 0

R904

0(OP)

R902 3K(OP)

R903 1K(OP)

+5V

C309 330 uF/35V

C941

0.1 uF

POWER Block

Distribute throughout digital 'Gnd' plane

TP700 GND

TP701 GND

TP702 GND

+5V

C310 330 uF/35V

TP703 GND

GND

+5V

CHOKE

TP704 GND

L905

C311

0.1 uF

GND

TP705 GND

C945 470uF/16V

GND

U305 AIC 1084

VoutVin

GND

TP706 GND

+A5V

L300

(600)

GND

+3.3V

C312 330 uF/35V

AOC (Top Victory) Electronics Co., Ltd.

Title

Size Document Number Rev

Date: Sheet of

Tuesday, July 10, 2001

POWER

715A820-1

CN101 AC SOCKET

C101 CY 2200P/250V

C102

CY 2200P/250V

4.7K 1/4W

F101

2A/250V

R116

ZD102 RLZ18C

R117 100

R101

NTCR 3/5A

VAR101 471KD07

CY 1000P/250V

R119

4.7K

Q104

A1037AK

R118

4.7K

12.) ADAPTER SCHEMATIC CH-1205

BD101

KBL405G

R106

3M 1/4W

180K 1/4W

R108

180K 1/4W

R105

3M 1/4W

ZD101 RLZ20B

D109 IN4148

C106

150U/25V

VCC

VREF

U101

RT/CT

CM3842

VREF

COMP

C112

270P (NPO)

120U/400V

R107

OUT

GND

C104

Q102 2SC4505

C124

C109

0.1U

C108

0.1U

R120

4.7K

L101 2mH

C103

CX 0.47U/300V

D105

1N4148

Q105 C2412K

R102

470K 1/4W

R103

470K 1/4W

8.2K 1%

C110 3300P

R104

4.7K 1/4W

C107

0.1U

R121

C123

0.1U

L102 18mH

Q103 C2412K

R122 47K

C111 3300P

R109 180K 1/4W

R110 180K 1/4W

D102

RLS245

D103

RLS245

C125 NC*

150 1/4W

D104 1N4148

R123

R127 10K

R128

13K

43K/3W(MOF)

R114

100 1/4W

R115

15 1/4W

R124 10K

R111

BEAD 1

BEAD

D101

UF4005G

BEAD2

BEAD

C113 300P (NPO)

C114 1000P

R126 510

C105

103P/500V

R125

0.39/2W (W.W.)

H11A817C300

R129

3.6K

T101

PQ2620 for CH-1205

BEAD 4

BEAD

HS101

HEATSINK

Q101 2SK2996

U102

U103

CM431 0.5%

1000P/500V

C115

CY 2200P/250V

BEAD 3 BEAD

R143

1.8K

C116

24 1/4W

R141 270 1/4W

9.31K 1%

C122

0.1U R142

2.4K 1%

R130

R131

D106

MBR20100CT

D107

MBR20100CT

HS101

HEATSINK

R140

R132

24 1/4W

R133

24 1/4W

1000U/16V

L103 5UH

R145

12K 1/4W

C117

D108 1N4148

C118 1000U/16V

R139

330 1/4W

APPROVAL :

CHECK BY :

Title

CH-1205

Size Document Number Rev

<Doc> 02

Date: Sheet of

U104A BA10358F

R135

0.01

R138 680 1%

C121

0.1U

C119

470U/16V

R144

4.7K

R136 113K 1%

R137

3.74K 1%

11Monday, July 23, 2001

12V 5A

R134

4.7K

LED101

LED

U105

AP431W (SMD)

2200uF/25V

GND

13.AUDIO SCHEMATIC DIAGRAM

U1 AN7522

C1,C2,C4 --- 1uF/50V

VCC

OUT1+

GND

OUT1-

Stand-by

Vin1

GND

Vin2

Volume

OUT2+

GND

OUT2-

R3 33K

GND

R10

1(3W)

GND

10uF/50V

R11

1(3W)

R1 10K

R4 68K

GND

0.047uF R8

GND

GND GND

C1 1uF

10K

R5 15K

GND

C2 1uF

R6 15K

GND

C4 1uF

0.047uF R9

130K

C9 100uF/25V

VR1 10K

GND

1 2

CON2

2 1

CON2

GND

5 4 3 2 1

EAR PHONE

100uF/16V

S1 SW SPST

R12 680

D1 LED

GND

1 2 3

AUDIO IN

1 2

DC IN

GND

Title

Size Document Number Rev

Date: Sheet

LM700A Audio 1.5W X2

<Doc> <RevCode>A

11Friday, April 27, 2001

AOC LM-700, LM-700A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
