AOC LE55D6730-80 Schematic

维 修 手 册

品牌 机种

AOC LE55D6730/80

1

变更说明

版本 发布日期 变更说明 对外机种名 对内机种名

A00 Jan.16,2014

首次发布

LE55D6730/80 E55D41NDESA1NNX

2

目 录

1. 技术规格------------------------------------------------------------------------------------------------------------04

1.1 一般规格-------------------------------------------------------------------------------------------------------04

1.2 预设显示模式-------------------------------------------------------------------------------------------------05

2. 操作说明------------------------------------------------------------------------------------------------------------06

2.1 连接电视机----------------------------------------------------------------------------------------------------06

2.2 遥控器说明----------------------------------------------------------------------------------------------------10

2.3 OSD 调整----------------------------------------------------------------------------------------------------12

2.4 高级功能----------------------------------------------------------------------------------------------------22

3. 工厂模式调整------------------------------------------------------------------------------------------------------31

4. 电气方框图---------------------------------------------------------------------------------------------------------34

4.1 主板------------------------------------------------------------------------------------------------------------34

4.2 主板电源-------------------------------------------------------------------------------------------------------34

5. 线路图---------------------------------------------------------------------------------------------------------------36

5.1 主板-------------------------------------------------------------------------------------------------------------36

5.2 电源板----------------------------------------------------------------------------------------------------------55

5.3 按键板----------------------------------------------------------------------------------------------------------58

5.4 遥控板----------------------------------------------------------------------------------------------------------59

6. 软体及 EDID 烧录-------------------------------------------------------------------------------------------------60

7. 故障处理流程图---------------------------------------------------------------------------------------------------61

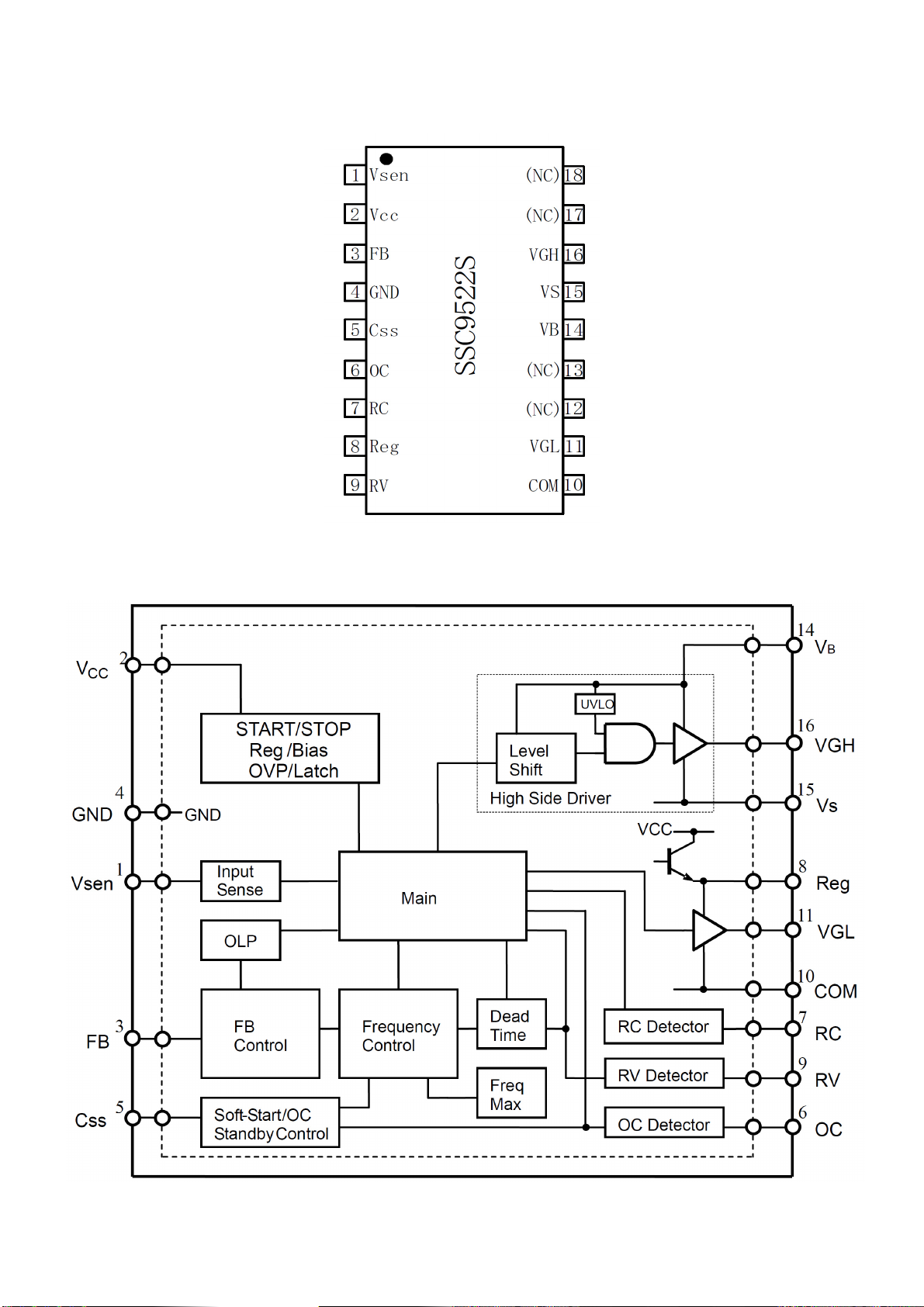

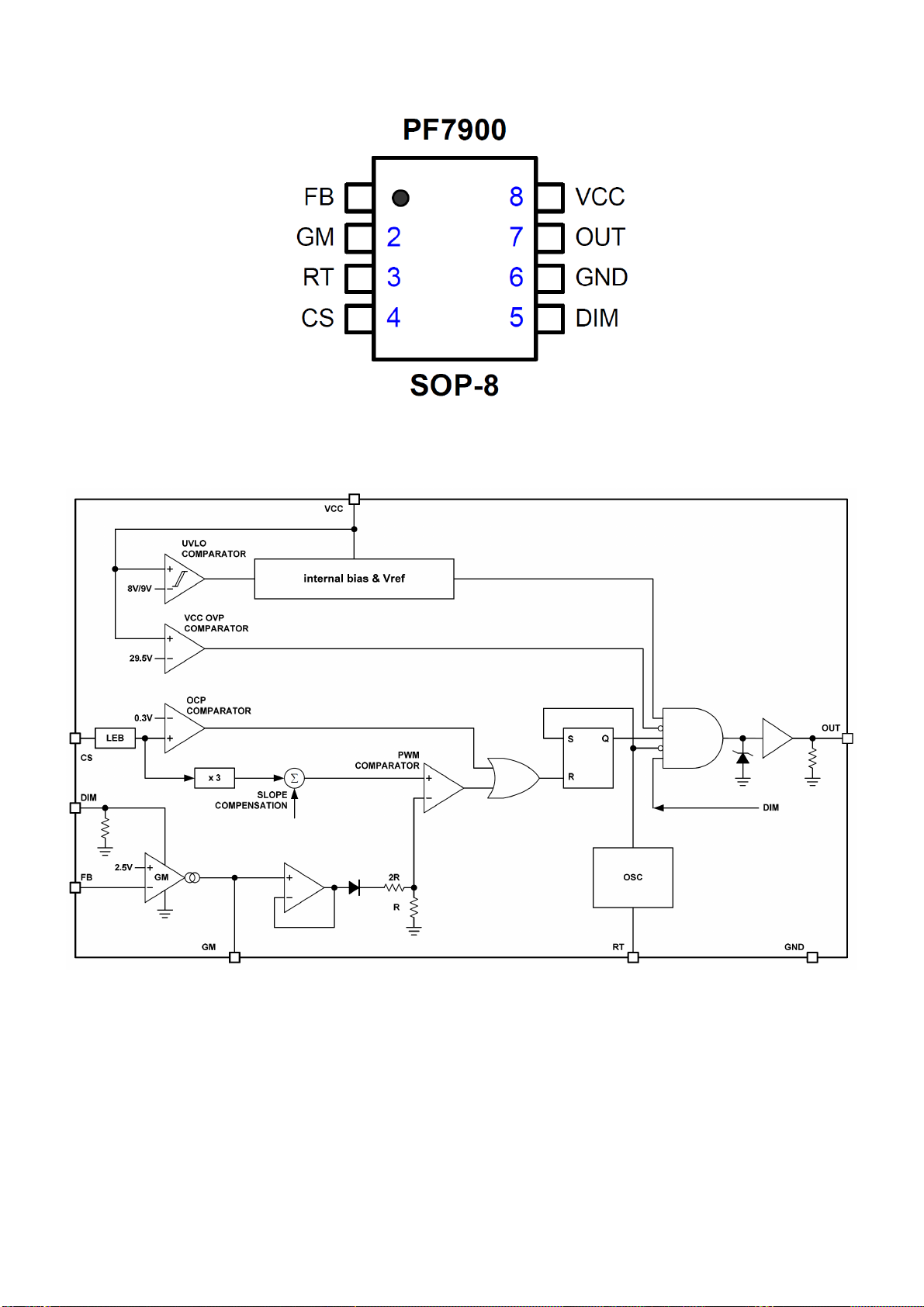

8. 主要 IC 管脚及内部框图---------------------------------------------------------------------------------------67

9. BOM-----------------------------------------------------------------------------------------------------------------71

3

1. 技术规格

1.1 一般规格

4

1.2 预设显示模式

电脑输入信号参照表

将电脑连接到电视后，按照下表，设置电脑中的输出信号。

预设电脑模式

标准 分辨率 水平频率（kHz） 垂直频率（Hz）

VGA
VESA
VESA
VESA

CVT

CVT

CEA

600×480
800×600

1024×768

1280×1024

1360×768

1920×1080

1280×720

31.469 59.940

37.879 60.317

48.363 60.004

63.981 60

47.720 59.799

66.587 59.934

45.0 60

DVI/电脑HDMI输入信号参照表

1.使用DVI端口时，将视频设备的DVI端口使用DVI转HDMI线连接到电视后，按照下表，设置视频设备的输出信号。

2.使用电脑HDMI端口时，将电脑的HDMI端口使用HDMI线连接到电视后，按照下表，设置电脑的输出信号。

预设电脑模式

标准 分辨率 水平频率（kHz） 垂直频率（Hz）

VGA
VESA
VESA

CVT

CVT

600×480

800×600
1024×768
1360×768

1920×1080

31.469 59.940

37.879 60.317

48.363 60.004

47.720 59.799

66.587 59.934

视频输入信号参照表

1.将视频设备的分量或HDMI端口连接到电视后，按照下表，设置视频设备的输出信号。

2.如果电脑显卡可支持视频格式信号，可设置下表输出信号。

预设分量或HDMI模式

标准 分辨率 水平频率（kHz） 垂直频率（Hz）

SD
SD
SD
SD
HD

HD
FHD
FHD
FHD
FHD

720×480i

720×480p

720×576i

720×576p
1280×720p
1280×720p

1920×1080p
1920×1080p

1920×1080i
1920×1080i

15.734 60

31.5 60

15.625 50

31.25 50

37.5 50
45 60

56.25 50

67.5 60

28.125 50

33.750 60

电视，视频模式支持的视频系统

模拟：PAL，D/K， 数字：DTMB（地面波数字电视信号） 。
标清接口
您也可以使用DVD播放机或VCR播放机观看传统节目。通过电视的视频输入，将设备连接到电视。

5

2. 操作说明

2.1 连接电视机

6

7

连接电视

有线系统或VHF/UHF天线系统
除标清模拟节目以外，您还可以观看标清或高清数字节目（如果您所在的地区能提供，并经过机顶盒或其他类似设备

转接）。
本电视能够接收有线和VHF/UHF天线的模拟信号电视节目。
强烈建议您使用75Ω同轴线连接天线/有线输入，以接收最佳的画面质量。300Ω双芯线很容易受到射频干扰影响，从

而造成信号降级。

天线隔离器安装说明

用心服务，创造完美是我们始终追求的目标。
电源布线如果不符合安全规范、电源电压异常、有线电视输入端口处有电压可能导致电视产品非正常失效，还可能造

成潜在的触电或火灾事故。我们产品在设计和制造时已将安全放在第一位，为保证您长期安全、放心地使用本产品，
避免使用过程中不安全的事故发生，本产品内部已含有天线隔离器。

友情提示：
若存在电源接地不正常或没有接地，请您与电源供电部门的电气工程师联系进行整改，使家中电源布线符合电工要求，

以保证您的用电安全。
若存在有线电视信号源接地不良，信号源电压异常问题，请与有线电视台联系及时进行改进。

高清接口
通过申请开通高清有线服务或高清卫星服务，您可以观看高清节目。为取得最佳的画面，请务必通过电视后面的HDMI

或分量视频（带音频）输入端，将该设备连接到电视。

HDMI连接

如果设备配有DVI插孔，而不是HDMI插孔，请将DVI插孔连接到HDMI输入（用DVI-to-HDMI线或适配器）插孔。将音
频插孔连接到电脑音频输入插孔。

8

分量信号;输入连接

视频信号输入连接

视频输出连接

电脑连接

如下面所示，用VGA线连接，将电视用作电脑显示器。本电视也可以连接到带DVI或HDMI输出的电脑。

使用含铁氧磁心的VGA线和音频线将电视连接到电脑。
如果电脑已连接到电视，并且5分钟以上没有电脑信号输入，则电视会自动进入待机模式。

9

2.2 遥控器说明

10

11

2.3 OSD调整

使用AOC电视

打开和关闭电视

您可以参照遥控器说明使用遥控器对电视进行操作。

提示：

1. 尽管待机时电视机的耗电量很少，
但电视机会继续耗电。当长时间不使
用电视机时，请将电视机的电源线与
电源插座断开。

2. 如果您找不到遥控器，但又想从待
机状态下打开电视机，请按电视机右

侧的

键。

初始安装
第一次打开电视机之前，请先确定已接上天线。

1. 打开电视机电源，第一次使用时，屏幕将会显示初始安装画面。按 OK 键开始进行初始安装。

12

2. 按▲/▼ 键选择语言，然后按 OK 键。

3. 如要开始搜索频道，请按 OK 键。电视将会开始搜索所有可用电视台。画面下方的进度条将会随着搜台进度往右移

动。

注：如果略过此步骤，也可于［电视］菜单中进行频道搜索。

4. 现已完成初始设定。请按OK键离开初始安装画面。

切换信号源
在AOC 电视中，按信源键在显示菜单上选择信号源。

13

注意：视频和分量信号共用一组端子，用户一定要保证输入的信号和选择的信号源要一致！否则可能会出现画面异常
现象。

频道切换/回看
在AOC电视中，您可以直接用遥控器更换频道，或者按电视右后方的频道▲/▼键来选择频道。
用遥控器更换频道时有如下方法：

1) 直接按数字键更换频道。

2) 按频道▲/▼更换频道。

3) 在TV source返回切换的频道。

调整音量、静音

1) 按“音量+/-”键调整音量大小。

2) 按“静音”键使电视静音。

14

图像设置

图像中的子菜单包含如下可调整项：

15

声音设置

声音设定中的子菜单包含如下可调整项：

16

频道设置

频道选单中的子菜单包含如下可设置：

17

功能设置

设置中的子菜单包含如下可调整项：

18

多媒体设置

按遥控器上“智能”键，进入智能页面，选择多媒体播放器进入USB 播放界面。

按▲/▼/◄/► 键选择图片、歌曲、视频，并进入要观看相关文件。

图片文件

按OK 调出播放功能条。

：开始/ 暂停播放图片。

19

：进入放大功能条后可根据功能条提示放大缩小和移动图片显示区域（图片为原图大小时不可移动）。

红色按键：在提示出现的时候可旋转图片。

多媒体音乐文件

：开始/ 暂停播放音乐。

： 切换上一曲或下一曲，不同的循环模式有不同的行为。

◄/► 按键：选择上一曲、播放/ 暂停、下一曲、随机、循环模式。按 键确认选择。

：切换循环模式。

视频文件

20

：开始/ 暂停播放视频。

：快退、快进视频。

： 切换上一曲或下一曲，不同的循环模式有不同的行为。

左/ 右按键：选择快退、播放/ 暂停、快进、循环模式。按 键确认选择。

：切换循环模式。

：设置3D、字幕、音轨选项。

多媒体模式下支持规格内的图片、歌曲、视频格式

文件类型 文件扩展名


音乐

视频

USB设备参数

USB 设备最大容量 最大单个文件大小
FAT 32 2T 4G
FAT 16 2G 2G

JPEG .jpg
BMP .bmp
PNG .png

MP3 .mp3
AVI .avi

MP4,MOV .mp4, .mov,
TS .ts
MKV .mkv
RMVB, RM .rmvb, .rm

21

2.4 高级功能

网络连接

支持网络功能，必须正确连接网络。

以下网络连接方式仅供参考，请根据网络条件选择最适当的连接方式。

有线网络连接

连接调制解调器（ADSL、有线通、网通等），通过拨号方式连接互联网。

连接至有线路由器，通过墙上的LAN端口连接互联网。

无线网络连接
本型号电视机内部配有无线网络接收模块，若您家中有无线网络，请依以下设定完成无线连接。

网络设置
按“智能”键进入智能电视页面，选择设定/设置/高级设置。

1. 应用管理：包括管理应用程序 和正在运行的服务，可对下载的应用程序进行强行停止或卸载，也可结束正在运行
的应用服务。

2. 网络和位置设置：对电视的网络进行设置。

3. 语言和键盘设置：设置菜单显示语言、选择输入法等的设置。

4. 系统备份升级:可进行系统升级、系统信息、恢复出厂设置。

5. 无线显示：在同一网络下，可与特定手机进行配对，通过电视显示手机正在播放的画面。

22

有线设置

1. 开启有线连接：开启/关闭电视有线网络连接。

2. 自动获取IP地址为开启：电视自动获取IP地址。

3. 自动获取IP地址为关闭：手动设置IP地址、子网掩码、默认网关、首选DNS、备选DNS。

无线设置

1. 设置wi-fi 为开启。

2. 选择自动扫描出来的网络名称后输入密码保存连接。

3. 添加其他：手动输入网络名称和密码。

23

查看网络状态
查看当前的网络连接状态和详细参数。

智能页面

24

进入智能页面：
在当前电视节目状态下，按“智能”键进入智能页面。
页面说明：
① 内置的应用。
② 电视节目窗口，显示当前信号源下的电视内容。
③ 显示当地气象。
④ 华数，商场，输入，设定。

智能页面操作：
按

▲/▼/◄/►键，选择智能页面的各项图标，按OK键，确认并进入选项。

软键盘说明

1. 本机可使用软键盘、USB键盘、无线键盘实现文字输入。

2. 软键盘默认使用谷歌输入法

3. 在需要输入的窗口，按OK键，出现软键盘。

4. 键盘界面说明：

中文/English：中/英文输入法切换。

：切换字母大写/小写。

#$%：在符号界面翻页选择。

使用网络电视
按遥控器上的“智能"快捷键进入智能电视界面。
注意：

1. 使用WASU华数服务需要连接到国际互联网。

2. 互联网电视业务需要用户保持至少1Mbps的稳定带宽接入。（其中超清体验专栏建议2Mbps以上的稳定带宽接入。）

3. 在使用互联网电视时如果也在同时使用电脑等互联网设备，观看效果可能会不佳设置导致服务不能连接。

华数电视

▲/▼/◄/►键选择“华数”。

1. 按

25

2. 按OK键进入华数界面。

全部应用

您可以在该界面中找到本机中的所有应用程序。
在文本输入框界面，请按确认键使用谷歌输入法输入，或接入键盘输入。

智能电视控制
您可以移动手的位置来使用手势控制功能，并使用遥控器顶部的麦克风来使用声音控制功能。
手势控制
手势操控功能目前为新功能体验，便利消费者操控电视的需要，并非主要功能，请按照个人需求试用，若产生任何身
体不适，诸如手臂酸痛，请稍作休息后再行操作。

开启手势控制

1. 按菜单键。

2. 选择[设置] > [手势控制]。

3. 选择[关]或是[开]，然后确认。

手势控制说明

• 启动手势控制：当您面对电视举起手掌时，手势控制将被开启并呈现控制提示（第一次使用的时候才会出现控制提

示，再次使用时无控制提示）。

• 移动鼠标: 您可以移动手的位置来控制鼠标。

• 确认：您可以握拳来确定操作。

• 切换频道：您可以往右挥增加频道，或往左挥减少频道。

• 切换应用程序页面：您可以往右挥切换到上一页，或往左挥切换到下一页。

• 调整音量：您可以将双手拉远来提高音量，或将双手靠近来降低音量。

• 返回：您可以挥手来返回上一页面。

手势控制注意事项

• 使用手势时，请保证适当的环境光线亮度，以便更好识别您的手掌。

26

• 使用手势时，在手掌距离摄像头2-3米的垂直距离上，使用效果最佳。

• 使用手势时，请保证手掌处于摄像头的视觉范围内，请勿超出视觉范围。

声音控制
使用遥控器顶部的麦克风来使用声音控制。

开启声音控制

1. 按菜单键。

2. 选择[设置] > [声音控制]。

3. 选择[关]或是[开]，然后确认。

声音控制说明

• 启动声音控制: 当您按下遥控器上的声控按钮，声音控制模式启动并出现提示。

• 输入指令: 请对准遥控器顶部的MIC(麦克风)，说出屏幕上的控制提示。

• 智能电视模式: 在智能电视模式，您可以念出应用程序名称来启动它。

• 声音输入字串: 您可以利用语音输入搜索字串。

面部识别
您可以通过脸部识别直接进入"百度云"等应用。
您通过摄像头注册脸部识别账户，下次登录的时候摄像头匹配头像成功，自动登录，无需手动输入账户跟密码。
需要管理注册账户，可进入账户管理，账户管理默认密码为：123456
注册脸部识别账户

1. 按遥控器上"智能电视"键。

2. 选择[脸部识别] > [注册] > 输入姓名>匹配以后确认。

查看脸部识别账户

1. 按遥控器上"智能电视"键。

2. 选择[脸部识别]，选择[登入]或者[登出]。

脸部识别说明：需要先登入百度账号及密码，并将账号与人脸绑定，才可以自动跟百度云匹配，下次登陆到该账户时，
就可自动匹配到当前账户，直接进入百度云，并可以在百度云中上传或者下载相关图片及文件。

27

故障排除

28

29

30

3. 工厂模式调整

白平衡调整：按“菜单+1+9+9+9+回看”进入工厂模式将 Current Source 选择为“component”，再 选择 Color temp
选择色温模式（Cool、Normal、Warm），选 择 OK 后再选择 Gain 栏调整 R/G/B 值，将色温规格调整至要求范围内。
以 LE55D6730 为例：
注意: R G B GAIN 分别最大不超过 138，128，138，component 调整完后，其他 source 的R G B GAIN 需和component
一样，若不一样，需要切到其他 source 将值调整为一样。

白平衡值检查：Current Source 选择为“视频”/T304、“HDMI”/T349、“电脑”/T137 三个模式，色温规格也需在规格范
围内，此时白平衡调整 OK。

调整规格是写在白平衡程式里面的，检验以产品规格为准：

色温

(x,y)

Item Level x y x y x y

调整规格
产品规格

80IRE 0.003 0.003 0.003 0.003 0.003 0.003
80IRE 0.015 0.015 0.015 0.015 0.015 0.015

Cool

(0.271,0.274)

Normal

(0.280,0.290)

Warm

(0.313.329)

注: 下页是关于一般工厂菜单的说明(和本机并非完全相同)，仅供参考！

31

工厂菜单说明

选项名称 调整范围

Brand

Main-MCU ver

Bootloader ver

Sub-MCU ver

EEPROM ver

Date

Model name

Scaler

Panel type

Current source

Auto color

ADC Gain

ADC Offset

Color temp.

根据IC SPEC

根据IC SPEC

不可调整

不可调整

不可调整

不可调整

不可调整

不可调整

不可调整

不可调整

不可调整

支持输入源

执行动作

支持色温

TV AV/S Comp HD PC

o o o o o

o o o o o

o o o o o

o o o o o

o o o o o

o o o o o

o o o o o

o o o o o

o o o o o

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

注释

客户名称

发布软体Main-MCU 版本

发布软体Bootloader 版本

发布软体Sub-MCU ver 版本

发布软体EEPROM 版本

软体发布日期

对外机种名

Scaler 型号

屏的型号
当前进工厂时的输入源， 该项可切换输入源， 对应输入源的ADC，色温， Scaler

等相关信息同步更新。
Auto color 项只对需要做自动校正输入源时有效，否则它不动作。Auto color 会

对输入的ADC 做自动矫正，调整ADC Gain 和Offset RGB 值。

在Auto Color 做完立即更新，并可手动调整。

在Auto Color 做完立即更新，并可手动调整。

当前设置的色温，该项可切换色温模式，并正确显示色温名称，对应色温的Scaler

Gain & Offset RGB 值等相关信息同步更新。

Scaler Gain

Scaler Offset

Burn in On/Off √ √ √ √ √

EEPROM Init

Back LIT time

根据IC SPEC

根据IC SPEC

执行动作

不可调整

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

o o o o o

Scaler Gain 值在白平衡调整时立即更新，并可手动调整。

Offset RGB 值在白平衡调整时立即更新，并可手动调整。

打开或关闭Burn in 模式。当Burn in 设置为On 时它将响应工厂遥控器功能；
EEPROM Init 后默认为On 状态；Reset 后默认为Off 。

实现的是初始化除了HDCP key 和产品序列号以外的全部EEPROM，如主菜单的
OSD 默认值， 工厂菜单的ADC 数据， 白平衡设定值，Black light 和Language

等， 同时把Burn in 设置为On， 响应工厂遥控器功能， 设置输入源为TV。

背光打开总计时，在EEPROM Initial 或Factory reset 后都清为0，显示值用十进
制表示，当时间到达显示最大值时就不再变化。

32

Total time

不可调整

o o o o o

AC ON 主电源供电总计时， 在EEPROM Initial 或Factory reset 后都清为0，显
示值用十进制表示，当时间到达显示最大值时就不再变化。

Black light

Language

Energy LOGO On/Off * * * * *

Reset

Exit

根据IC SPEC

支持语言

执行动作

执行动作

* * * * *

* * * * *

√ √ √ √ √

√ √ √ √ √

备注：

1. √表示该项有效, ×表示该项不存在，o 表示存在但选不到，*表示可选；

2. 不同机型工厂模式项目略有增删；

3. 进工厂模式时Burn in自动关闭。

设置背光灯的亮度

设置出厂时用户模式菜单语言，当在工厂菜单中更改此项值时，用户模式的OSD
中的菜单语言也做相应的更改并将该值保存（仅北美向可选）

仅中国向有该项

实现的是复位除了HDCP 和产品序列号，工厂菜单的ADC 数据，白平衡设定值，

Black light，Language 和Energy Logo 以外的全部EEPROM 数据，如主菜单的
OSD 默认值，并把用户菜单Language 设置为工厂Language，同时把Burn in 设

置为Off ，禁止响应工厂遥控器功能，设置输入源为TV。

退出工厂模式

33

4. 电气方框图

4.1 主板

CN403

LVDS60HzOutput

MEMC

U4201

MST7342Q-LF

CN4202

LVDSOutput

CN4203

LVDSOutput

USB1(Side)

USB2(Side)

USB3(Side)

or CI CARD

SDCard(Side)

HDMI1(Down)WithARC

HDMI2(Down)

HDMI3withMHL(side)

Ethernet(Down)

VGAAudioinPhoneJack.(Down)

VGA(Down)

YPbPr&CVBS1audioinPhoneJack.(Side)

YPbPr&CVBSshareYRCAJack.(Side)

U401

MSD8560IV

U606

TPA6138A2PW

R/L

I2S

Memory

DDR3 x3

2G bit 1600MHz
DRAM H5T Q2G63DFR

NAND Flash
16Gb
K9GAG08U0F- SCB0

U402(NC)

U407

U409

eMMC
32Gb
KLM4G1FE3B-B001

CVBSOutRCAJACK(side)

SPDIFOutRCAJACK(down)

U201

DEMODATBM
8869

U6001

TU101

DI30WN‐2I‐E

394G0DVB00T38L

HeadPhone(Down)

Audio
AMP.

AD83586

U408

U410(NC)

U403

Speaker

Speaker

WIFIViaUSBInterface3.0 CN702

ADCKey&IR

CN1701

34

4.2 主板电源

5V_12V_STB(3A)

PS_ON

FB712 FB709

2.1A

U703
TPS54528DDAR 5A

5V_12V_STB

R759
R757
R758

(NC)

(DC/DC)

+5V_STB

FB717

+5V_STB

U704
AP2125N

(LDO)

FB715

FB727

U701
TPS54519RTE

VDDC

(MOS)

Q701
A03401 4.2A

3V3SB

15mA (Max.)

(DC/DC)

FB701

FB714
FB713

+5V_SW

650mA (Max.)

VDDC (1.182V)

1.3A (Max.)

FB702

FB730

FB729

FB716

U401
MSD8560IV

(DC/DC)

U702
AT1528P11U 2A

U709
AZ1084D-3.3TRE1

U710
AP2114H-2.5TRG1

(LDO)

(LDO)

(DC/DC)

U705
AT1528P11U 2A

FB708

FB707

FB726

FB723

FB721

AVDD3V3

DVDD3V3

+3.3V_Tuner

+2.5V_Normal

650mA (Max.)

+1.5V_DDR

FB725

FB724

U707
AZ1117H-1.8-E1

(LDO)

U708
G912T63U 1A

(LDO)

+1.2V_DM

FB722

U401
MSD8560IV

U401 MSD8560IV / DDR

V_1.8V

AMBIMUSIC

ATBM8869

+24

FB719

+12V

FB720(NC)

(DC/DC)

U706
AOZ1284PI 4A

FB718

+5V_USB

2A1A

USB

35

5. 线路图

5.1 主板
715G6253M0F000004K

DIM
PS_ON

FB710

NC/120R 6A

R703 33R 1/16W 5%
R701 33R 1/16W 5%

24
5_12

12

1 2

13
11

9
7
5
3
1

CN701

CONN

14
12
10
8

24

6

5_12

4

12

2

R702 33R 1/16W 5%
R707 33R 1/16W 5%

C704

+

100uF 35V

+

C709
100UF 16V

1 2

FB703 120R 6A

C702

+

100UF 16V

BL_ON
SCA_BL

1 2

FB704 120R 6A

4A

SCA_BL 15

C706

100N 50V

C710

100N 16V

C701

100N 50V

C703

1nF 50V

C707

1nF 50V

C711

1nF 50V

+12V

+24

5V_12V_STB

DVDD3V3

R705

4.7K 1/16W

BRT_CNTL_IN15

DIM22

R731
NC

R708

DIM

C705

NC

0R05 1/16W

C

Q702

R

MMBT3904

+5V_SW

R730
NC/4.7K 1/16W

R709 NC

R712

4.7K 1/16W

DVDD3V3

4.7K 1/16W

R732

BL_DIMMING 15

+5V_STB

PS_ON

Q704

NC

OPWRSB:
Normal : Hig h
Stand_by: Low

R704
NC/4.7K 1/16W

R711

0R05 1/16W

R715

NC

R710
NC

3V3SB

R714

4.7K 1/16W

OPWRSB 15,18

BL_ON

C708

100N 16V

DVDD3V3

R706
1K

Q703

MMBT3904

BL_ON/ OFF:
Inverter on: Low
Inverter off: High

R713

4.7K 1/16W

3V3SB

R733
1K

BL_ON/OF F 15

3V3SB

R716

4.7K 1/16W

SCA_BL

R717
NC/4.7K 1/16W

5V_12V_STB

1 2

120R 6A

FB712

C730

100N 16V

FB711

1 2

NC/ 120R/6000mA

C716

10uF 16V

R722

100K 1/16W 5%

Vout=0.768x (1+124K/22.1K) = 5.06V

1500 mA

+5V_STB

PS_ON

FB715

1 2

120R 6A

R734

100R 1/16W 5%

R735
200K

R740

33K 1/16W 1%

Close to U706

C732

C740

100N 16V

22UF 6. 3V

C745

NC/1 uF 25V

C737

3N3 50V

30K OHM +- 1% 1/16W

R737

C744

1uF 25V

7K5 1/10W 5%

R739

R741

36K 1%

C734

10nF 50V

C743

470pF 50V

12V / 5V

U703

9

E-Pad

C717

1UF 10% 16V

R728

22.1K 1%

1
2
3

C714

C728

1UF 10% 16V

8.2NF 50V

EN
VFB

VBST
VREG5
SS4GND

TPS54528DDAR

R729 124K 1%

8

C731

VIN

7

100N 16V

6

SW

5

C729
22P 50V

Core power

Clos e to U40 1

U701

16

1
2

15

6
7
8
9

TPS54519RTE

VIN
VIN
VIN
EN
VSNS
COMP
RT/CLK
SS

10

PH

11

PH

12

PH

13

BOOT

14

PWRGD

3

GND

4

GND

5

AGND

PwPd

17

R738 5.1KOHM +-1%

Vout=0. 6x (1+35. 1K/33K) = 1. 238 CORE POWER

L703

1.5UH

C733

100N 16V

R736

NC/100K 1/16W 5%

TP701

C736

22UF

L702

3.3UH

(650KHz)

C735

22UF

C741

+5V_STB

+5V_SW

1 2

300R 4A

10 OHM 1/10W

C720

100N 16V

R724

1K8 1/10W 1%

+5V_STB

FB702

C718

100N 16V

R721

U70 2

1
2
3

8

VCC

VIN

7

REF

LX

6

GND

PGND

5

FB4EN

AT1528P11U

R727 4.7K 1/16W

R725

100R 1/10W 1%

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

04.POWER_1

Date

C719

NC

R726
5K6 1/10W 1%

4.7K 1/16W

VDDC

R718 1K

Normal power

C715

10uF 10V

L701

2.2UH

R723

NC

C725

NC

C726

NC

OEM MODEL

TPV MODEL

PCB NAME

Sheet

R719

C724

100N 16V

Q705

MMBT3904

C722

422Friday , August 23, 2013

FB709

1 2

C746

22uF 10V

C747

22uF 10V

C727

+

NC/2 20UF 16V

120R 6A

5000 mA

22UF

C739

VDDC

C742

+

330UF 6. 3V

FB714

1 2

120R 6A

FB713

1 2

C738

120R 6A

100N 50V

10UF 6. 3V X5R +-20%

Q701

AO3401

C712

100N 16V

R720

4.7K 1/16W

C721

C723

+

220UF 16V

10UF 6. 3V X5R +-20%

10UF 6. 3V X5R +-20%

Vout = 0.8x(R1+R2)/R2=3.33V

of

FB701

1 2

300R 4A

FB708

1 2

120R

FB707

1 2

120R

+5V_SW

C713

100N 16V

Size

Rev

称爹

AVDD3V3

DVDD3V3

<

Custom

D

称爹

>

36

+24

120R 6A

+12V

NC/ 120R/6000mA

FB719

1 2

FB720

1 2

C749

4.7UF 50V

C751

4.7UF 50V

C752

4.7UF 50V

C753

4.7UF 50V

1000 mA

R746
100K

C757

1uF

R748
20K 1/16W

C765

2.2nF 50V

USB power

FB_U711

NC/ 180P 50V

C754

680PF 50V

R747
43K 1/16W

C756

U706

9

E-Pad

8

EN

7

SS

6

FB

5

COMP

AOZ1284PI

1

LX

2

BST

3

GND

4

FSW

R754

100K 1/16W 5%

C750100N 50V

D701

SX34

2000 mA

+5V_U SB

10uF 10V

120R 6A

FB718

12

R753
NC/0R05

AMBIMUSIC POWER

DVDD3V3

FB725

1 2

120R/500m A

3

VIN

Close t o U802

U707

AZ1117CH -1.8TRG1

2

VOUT

ADJ( GND)

4

1

4

V_1.8V

FB722

1 2

120R/500m A

C769

10UF 6. 3V X5R +-20%

L705

4.7uH

R751

R752

NC/2.2R

C766

NC/ 1nF 50V

FB_U711

1 2

1K 1/10W 1%

C755

10uF 10V

R750

52.3K 1%

R749

10K +-1% 1/16W

C759

V1 = 0.8 * (1+ 52. 3/9. 53) =5.19 V

Tuner & Demod Power

500 mA 500 mA

+5V_SW

FB730

1 2

120R

1uF 10V

C770

250 mA

+3.3 V_Tuner

FB724

1 2

120R/500m A

1uF 10V

Close to TU201

U709

AZ1084CD -3.3TRG1

VIN3VOUT

Clo se to U201

U708
G912T63U

C772

GND/ ADJ

1

VI3VO

GND

1

4

2

+

2
4

1 2

+3.3V_Tuner

FB726

120R

C773
100UF 16V

250 mA

+1.2 V_DM

C771

10UF 6. 3V X5R +-20%

200 mA

5V_12V _STB

R759 NC/ 15R 1/8W 5%
R757 NC/ 15R 1/8W 5%
R758 NC/ 15R 1/8W 5%

600 mA.

+5V_SW

1 2

300R 4A

10 OHM 1/10W

C762

100N 16V

4K7 OHM 1/10W 1%

Standby Power

+5V_STB

FB716

R743

U70 5

1

VCC

2

REF

3

C760

100N 16V

R756

GND
FB4EN

AT1528P11U

R755

1K2 1/10W 1%

FB717

1 2

120R/500m A

C768

1uF 10V

Close to U407 /U408

8

VIN

7

LX

6

PGND

5

R742 4.7K 1/16W

C761

NC

R745
3K 1/10W 1%

U704

LDO AP2125N

3

VOUT

VIN

GND

1

C748

10uF 10V

R744
NC

C776

NC

200 mA

+5V_SW

2

FB727

1 2

120R/500m A

C767

10UF 6. 3V X5R +-20%

3V3SB

DDR power

Vout = 0.8x(3+1.2+4.7)/4.7=1.514V

1500 mA.

L704

2.2UH

C779

NC/1N 50V

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

05.POWER_2

C764

C775

100N 16V

10UF 6. 3V X5R +-20%
10UF 6. 3V X5R +-20%

FB729

1 2

C774

+

2.5V_Norm al

120R

C778

4.7uF 10V

120R 6A

C763

220UF 16V

FB721

12

OEM MO DEL

TPV MODEL

PCB NAME

Sheet

U710

AP2114H-2.5TRG1

VIN3VOUT

R760

NC/ 10K 1/16W 5%

+1.5 V_DDR

522Friday , August 23, 2013

of

GND14

Size

Rev

称爹

+2.5 V_Norm al

B

D

<

称爹

>

FB723

2

4

1 2

120R/500m A

C777

10UF 6. 3V X5R +-20%

37

HDMI1 (Down) ARC

TMDS D2+

DSHLD0

TMDS D2-

TMDS D1+

DSHLD1

TMDS D1-

TMDS D0+

DSHLD2

TMDS D0-

TMDSC+
CSHLD0

TMDSC-

CEC

SCL

SDA

DDC_GND

VCC5

HPD

HDMI

CN501

NC

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

20

SHLD0

22

SHLD2

23

SHLD3

21

SHLD1

(5/5/5)

RX1_2+

RX1_2­RX1_1+

RX1_1­RX1_0+

RX1_0­RX1_C+

RX1_C­CEC
ARC
SCL_1
SDA_1

+HDMI1/5V

HPD_1

HDMI2 (Down)

SHLD0

SHLD2

SHLD3

SHLD1

TMDSD2+

DSHLD0

TMDSD2-

TMDSD1+

DSHLD1

TMDSD1-

TMDSD0+

DSHLD2

TMDSD0-

TMDS C+
CSHLD0
TMDS C-

CEC

SCL
SDA

DDC_GND

VCC5

HPD

HDMI

CN502

NC

20

22

23

21

(5/5/5)

RX2_2+

1
2

RX2_2-

3

RX2_1+

4
5

RX2_1-

6

RX2_0+

7
8

RX2_0-

9

RX2_C+

10
11

RX2_C-

12

CEC

13
14

SCL_2

15

SDA_2

16
17

+HDMI2/5V

18

HPD_2

19

NEAR CN501

RX1_C-

R518 0R05 OH M

RX1_C+

R519 0R05 OH M

RX1_0+

+HDMI1/5V

R503

R501

10K 1/16W 5%

10K 1/16W 5%

R507 22R 1/16W 5%
R508 22R 1/16W 5%

12

12

12

12

ZD504

NC

12

ZD501

ZD502

ZD503

ZD509

NC

NC

NC

NC

HPD_1

MMBT3904

RX1_0­RX1_1+
RX1_1­RX1_2+
RX1_2-

+HDMI1/5V

Q501

R520 0R05 OH M
R521 0R05 OH M
R522 0R05 OH M
R523 0R05 OH M
R524 0R05 OH M
R525 0R05 OH M

HDMI1-SCL
HDMI1-SDA

R510

1K 1/16W 5%

R517

1K 1/16W 5%

HDMI1-CLKN
HDMI1-CLKP
HDMI1-RX0P
HDMI1-RX0N
HDMI1-RX1P
HDMI1-RX1N
HDMI1-RX2P
HDMI1-RX2N

R509

10K 1/16W 5%

HDMI1-HPDIN

HDMI1-HPDIN 7

RX1_C­RX1_C+

RX1_0­RX1_0+

RX1_1­RX1_1+

RX1_2­RX1_2+

U501

1
2

4
5

U502

IN1
IN2

IN3
IN4

1
2

4
5

NC/ AZ1045-04F.R7G

NC
NC

NC
NC

GND

GND

3

8

NC/ AZ1045-04F.R7G

IN1
IN2

IN3
IN4

NC
NC

NC
NC

GND

GND

3

8

RX1_C-

10

RX1_C+

9

RX1_0-

7

RX1_0+

6

RX1_1-

10

RX1_1+

9

RX1_2-

7

RX1_2+

6

HDMI ARC Function

+5V_SW

R502
1K

ARC

C501

R506

1UF 10% 16V

3.9K

3V3SB

R555 N C/27K

FOR PLUGGING-IN RINGING

180R 1/10W 1%

R505
82R 1/10W 1%

D501 N C/1N4148W

R504

HDMI-ARC

HDMI-CEC

HDMI-ARC 7

HDMI-CEC 7

near CN502

RX2_C-

R526 0R05 OH M

RX2_C+

+HDMI2/5V

R512

R513

10K 1/16W 5%

10K 1/16W 5%

R514 22R 1/16W 5%
R515 22R 1/16W 5%

12

NC

12

12

ZD507

ZD508

NC

12

ZD505

ZD506

NC

NC

RX2_0+
RX2_0­RX2_1+
RX2_1­RX2_2+
RX2_2-

HPD_2

Q502

MMBT3904

+HDMI2/5V

R527 0R05 OH M
R528 0R05 OH M
R529 0R05 OH M
R530 0R05 OH M
R531 0R05 OH M
R532 0R05 OH M
R533 0R05 OH M

HDMI2-SCL
HDMI2-SDA

R516

1K 1/16W 5%

R534

1K 1/16W 5%

HDMI2-CLKN
HDMI2-CLKP
HDMI2-RX0P
HDMI2-RX0N
HDMI2-RX1P
HDMI2-RX1N
HDMI2-RX2P
HDMI2-RX2N

R511

10K 1/16W 5%

HDMI2-HPDIN

HDMI2-HPDIN 7

RX2_C­RX2_C+

RX2_0­RX2_0+

RX2_1+

RX2_2­RX2_2+

U503

1
2

4
5

U504

IN1
IN2

IN3
IN4

1
2

4
5

NC/ AZ1045-04F.R7G

NC
NC

NC
NC

GND

GND

3

8

NC/ AZ1045-04F.R7G

IN1
IN2

IN3
IN4

GND

GND

3

8

HDMI Interface

HDMI1-RX0P

HDMI1-RX0N

HDMI1-RX1P

HDMI1-RX1N

HDMI1-RX2P
HDMI1-RX2N
HDMI1-CLKN

RX2_C-

10

RX2_C+

9

RX2_0-

7

RX2_0+

6

RX2_1-RX2_1-

10

NC

RX2_1+

9

NC

RX2_2-

7

NC

RX2_2+

6

NC

HDMI1-CLKP

HDMI1-SCL
HDMI1-SDA

HDMI1-HPDIN

HDMI2-RX0P
HDMI2-RX0N

HDMI2-RX1P
HDMI2-RX1N

HDMI2-RX2P
HDMI2-RX2N
HDMI2-CLKN
HDMI2-CLKP

HDMI2-SC L
HDMI2-SD A

HDMI2-HPDIN

CEC

HDMI1-R X0P 7
HDMI1-R X0N 7
HDMI1-R X1P 7
HDMI1-R X1N 7
HDMI1-R X2P 7
HDMI1-R X2N 7
HDMI1-CLKN 7
HDMI1-CLKP 7
HDMI1-SCL 7
HDMI1-SDA 7
HDMI1-HPDIN 7

HDMI2-R X0P 7
HDMI2-R X0N 7
HDMI2-R X1P 7
HDMI2-R X1N 7
HDMI2-R X2P 7
HDMI2-R X2N 7
HDMI2-CLKN 7
HDMI2-CLKP 7
HDMI2-SCL 7
HDMI2-SDA 7
HDMI2-HPDIN 7

CEC 7

38

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

06.HDMI 1&2

OEM MODEL

TPV MODEL

PCB NAME

Sheet

称爹

<

Custom

D

>

Size

Rev

of

622Friday , August 23, 2013

称爹

HDMI3 (Side)

SHLD0

SHLD2

SHLD3

SHLD1

CN503

TMDSD2+

DSHLD0

TMDS D2-

TMDSD1+

DSHLD1

TMDS D1-

TMDSD0+

DSHLD2

TMDS D0-

TMDSC +
CSHLD0

TMDSC-

CEC

SCL
SDA

DDC_GND

VCC5

HPD

HDMI

1
2
3
4
5
6
7
8
9
10
11
12
13
14

NC

15
16
17
18
19

20

22

23

21

(5/5/5)

RX3_2+
MHL_CD_SENSE
RX3_2­RX3_1+

RX3_1­RX3_0+

RX3_0­RX3_C+

RX3_C­CEC

SCL_3 HDMI3-SCL
SDA_3

+HDMI 3/5V
HPD_3

+5V_STB

R539

R538

10K 1/16W 5%

10K 1/16W 5%

R535 200R 1/ 16W

R548 22R 1/ 16W 5%
R549 22R 1/ 16W 5%

12

12

ZD513

NC

NC

12

12

ZD510

ZD512

ZD511

NC

NC

RX3_C­RX3_C+
RX3_0­RX3_0+
RX3_1­RX3_1+
RX3_2­RX3_2+

HPD_3

NEAR CN503

R550 0R05 OH M
R543 0R05 OH M
R551 0R05 OH M
R545 0R05 OH M
R542 0R05 OH M
R546 0R05 OH M
R544 0R05 OH M
R547 0R05 OH M

R540

22R 1/16W 5%

CEC

CEC 6

HDMI-CEC

HDMI3-SDA

HDMI3-HPDIN

HDMI3-CLKN

HDMI3-CLKP

HDMI3-RX0N

HDMI3-RX0P
HDMI3-RX1N
HDMI3-RX1P

HDMI3-RX2N

HDMI3-RX2P

HDMI-CEC 6

+HDMI3/5V

+HDMI3/5V

HPD_3

Q503

NC/ MMBT3904

FB501

1 2

120R

R537

NC/ 1K 1/16W 5%

R541

NC/ 1K 1/16W 5%

AVDD5V_MHL

R536

NC/ 10K 1/16W 5%

HDMI3-HPDIN

MHL_CD_SEN SE

C503

47NF 16V

R552

100R 1/16W 5%

R554

300K

RX3_C­RX3_C+

RX3_0­RX3_0+

PM14 15

U505

1

IN1

2

IN2

4

IN3

5

IN4

47K 1/16W 5%

OCB15

NC/ AZ1045-04F.R 7G

NC
NC

NC
NC

GND

GND

3

8

DVDD3V3

+HDMI3/5V +5V_U SB

R553

C502

10uF 10V

RX3_C-

10
9

RX3_0-

7
6

U507

APL3511CBI- TRG

2
1

U506

RX3_1+

RX3_2­RX3_2+RX3_0+ RX3_2+

OCB3EN
GND
VOUT

VIN

NC/ AZ1045-04F.R 7G

1

IN1

2

IN2

4

IN3

5

IN4

4

PM15 15

5

RX3_1-RX3_1-

10

NC

RX3_1+RX3_C+

9

NC

RX3_2-

7

NC

6

NC

GND

GND

3

8

Mode Selection

HDMI & Audio

U401C

HDMI1-RX0N6
HDMI1-RX0P6
HDMI1-RX1N6
HDMI1-RX1P6
HDMI1-RX2N6
HDMI1-RX2P6
HDMI1-CLKN6
HDMI1-CLKP6

HDMI1-SC L6

HDMI1-SDA6

HDMI1-HPDIN6

HDMI2-RX0N6
HDMI2-RX0P6
HDMI2-RX1N6
HDMI2-RX1P6
HDMI2-RX2N6
HDMI2-RX2P6
HDMI2-CLKN6
HDMI2-CLKP6

HDMI2-SC L6
HDMI2-SDA6

HDMI2-HPDIN6

HDMI-ARC6

HDMI1-RX0N
HDMI1-RX0P
HDMI1-RX1N
HDMI1-RX1P LINE_I N_1R
HDMI1-RX2N
HDMI1-RX2P
HDMI1-CLKN
HDMI1-CLKP
HDMI1-SCL
HDMI1-SDA

HDMI1-HPDIN

HDMI2-RX0N
HDMI2-RX0P
HDMI2-RX1N
HDMI2-RX1P
HDMI2-RX2N
HDMI2-RX2P
HDMI2-CLKN
HDMI2-CLKP
HDMI2-SCL
HDMI2-SDA

HDMI2-HPDIN

HDMI3-RX0N
HDMI3-RX0P
HDMI3-RX1N
HDMI3-RX1P
HDMI3-RX2N
HDMI3-RX2P
HDMI3-CLKN
HDMI3-CLKP
HDMI3-SCL
HDMI3-SDA

HDMI3-HPDIN

HDMI-ARC

HDMI-CEC

L2
M3
M2
M1
N3
N1
K2

L3
R6

T6
R5

H2

J3

J2

J1
K3
K1
G2
H3
P4

T5
P5

P2
R3
R2
R1

T3

T1
N2
P3
U5
U4
U6

E2
F3
F2
F1
G3
G1
D2
E3
N6
P6
M6

R4

M5

A_RX0N
A_RX0P
A_RX1N
A_RX1P
A_RX2N
A_RX2P
A_RXCN
A_RXCP
DDCDA_CK
DDCDA_DA
HOTPLUGA

B_RX0N
B_RX0P
B_RX1N
B_RX1P
B_RX2N
B_RX2P
B_RXCN
B_RXCP
DDCDB_CK
DDCDB_DA
HOTPLUGB

C_RX0N
C_RX0P
C_RX1N
C_RX1P
C_RX2N
C_RX2P
C_RXCN
C_RXCP
DDCDC_CK
DDCDC_DA
HOTPLUGC

D_RX0N
D_RX0P
D_RX1N
D_RX1P
D_RX2N
D_RX2P
D_RXCN
D_RXCP
DDCDD_CK
DDCDD_DA
HOTPLUGD

PAD_ARC0

CEC

MSD8560IV

HDMI

SPDIF

Analog

I2S

Audio

LINE_OU T_0L

LINE_OUT_0R

LINE_OU T_3L

LINE_OUT_3R

I2S_OUT_BCK
I2S_OUT_MCK

I2S_OUT_WS

LINE_I N_0L

LINE_I N_0R

LINE_I N_1L

LINE_I N_1R

LINE_I N_2L

LINE_I N_2R

LINE_I N_3L

LINE_I N_3R

MIC _I N

MIC_CM

HP_OUT_1L

HP_OUT_1R

VRP
VAG

VRM

I2S_OUT_SD

I2S_IN_BCK

I2S_IN_WS

I2S_IN_SD

IRINT

RESET

XTA LI N

XTA LO U T

GND

SPDIF _IN

SPDIF _OUT

AD1
AE3
AE1
AE2
AF3
AF2
AF4
AF5
AD6
AC6

AK4
AL4

AG4
AG5
AH4
AH5

AE5
AE4
AE6

H7
H5
H4
H6

E6
E5
F6

M4

D5

AM2
AM3

N9

G6
G5

LINE_I N_1L

LINE_I N_2L
LINE_I N_2R

I2S_IN_BCK
I2S_IN_WS
I2S_IN_SD

IR-in

Sy stem-R ST

XTAL I
XTAL O

C4108 2. 2UF 10V
C4109 2. 2UF 10V
C4110 2. 2UF 10V
C4111 2. 2UF 10V

M_HP_L 10
M_HP_R 10

AM_L 20
AM_R 20

AUVRP
AUVAG
AUVRM

IR-in 9,12

Sys tem-RST 16

M_SPD IF _OU T 10

C4112

33PF 50V

I2S_IN_BCK 9,10
I2S_IN_WS 9,10
I2S_IN_SD 10

YPBPR 0_L_IN 10

YPBPR0_R_I N 10

PC_L_IN 10

PC_R_I N 10

FB404 120R 0.3A
FB405 120R 0.3A
FB406 120R 0.3A
R4127 0R05 1/16W

1 2

1 2

1 2

I2S-OUT_BCK 11
I2S-OUT_MCK 11, 20
I2S-OUT_WS 11
I2S-OUT_SD 11

C4102 NC/22P 50V

C4103

C4105

C4104

NC/22P 50V
NC/22P 50V
NC/22P 50V

AUVRM
AUVRP
AUVAG

Close to MSTAR IC
with width trace

絬 隔 瓜 絪 腹

Key Component

DVDD3V3

C4100

C4106

100N 16V

10uF 10V

T P V ( Top Victory Electronics Co . , Ltd. )

07 .HDMI s ide( MHL)

Date

//{I2S_OUT_WS,I2S_OUT_BCK, I2S_OUT_MCK, PAD_PWM1, PAD_PWM0}
4'b00000 B51_NO_EJ (External SPI)
4'b00011 CA9_EMMC_NO_EJ
4'b00100 CA9_SPI_NO_EJ (External SPI)
4'b00110 CA9_ROM_NO_EJ
4'b01100 CA9_EMMC_M2_NO_EJ

R4137 NC/ 4.7K 1/16W
R4138 4.7K 1/16W
R4140 NC/ 4.7K 1/16W
R4139 4.7K 1/16W
R4132 NC/ 4.7K 1/16W
R4134 4.7K 1/16W
R4135 4.7K 1/16W
R4136 NC/ 4.7K 1/16W

R4129 NC /4.7K 1/16W
R4130 4.7K 1/16W
R4131 NC/ 4.7K 1/16W
R4133 4.7K 1/16W

PWM_PM

I2S-OUT_WS

I2S-OUT_BC K

I2S-OUT_MCK

CFG-PWM1

CFG-PWM0

PWM_PM 15

CFG-PWM1 15

CFG-PWM0 15

3V3SB

R4141 4. 7K 1/16W

R4142 NC/ 4.7K 1/16W

CRYSTAL

C4101

C4107

100N 16V

10uF 10V

FB403
120R/500m A

1 2

OEM MOD EL

TPV MO DEL

PCB NAME

Sheet

XTA LI

1

C4113

39PF 50V

722Friday , August 23, 2013

of

SPI_SDI

R4128

1M 1%

24

X40 1

24MHz

SPI_SDI 15, 16

3

Size

Rev

称爹

SPI_SDI

XTA LO

C4114

39PF 50V

<

Custom

D

称爹

>

39

CN1601

1234

6 5

USB CONN

CN1602

1234

6 5

USB CONN

1
2
3
4

1
2
3
4

USB1-D­USB1-D+

ZD1601

USB2-D­USB2-D+

ZD1603

USB1

R1606 5.1R 1/ 16W
R1605 5.1R 1/ 16W

ZD1602

NC

NC

1 2

1 2

USB2

R1604 5. 1R 1/16W
R1603 5. 1R 1/16W

ZD1604

NC

NC

1 2

1 2

trace : diffenentail 90R

TH1601

1 2

DM_P0 9
DP_P0 9

DM_P1 9
DP_P1 9

PTCR

C1601

100N 16V

TH1602

1 2

PTCR

C1605

100N 16V

C1603

100N 16V

C1606

100N 16V

+5V_U SB

C1602

22uF 10V

+5V_U SB

22uF 10V

C1604

CONN

CN4205

78

t

t

1
2
3
4
5
6

WIFImodule

Wi-Fi_EN

ZD7004

ZD7003

NC

NC

1 2

1 2

DVDD3V3

Wi-Fi_EN 15

R7008 5. 1R 1/16W
R7007 5. 1R 1/16W

SD/MMC Card
Reader

DM_P2 9
DP_P2 9

+5V_U SB

C7004
100N 16V

Wi-Fi_PWR_EN :
Enable : High
Disable : Low

DVDD3V3

R7011

10K 1/16W

Wi-Fi_EN

R7012

NC/10K 1/16 W

USB3 3.0

DVDD3V3

SD-D3
SD-CMD

SD-CLK

SD-D0
SD-D1
SD-D2
SD-WP#
SD-CDZ

1
2
3
4
5
6
7
8

9
10
11

R1109 10K

C1101

100N 16V

08.USB/ SD card

C1607

100N 16V

R1609 100K

TH1603

1 2

PTCR

NC/ G5250K1T1U

5

OUT

3

OC

U1602

2

IN

EN

GND

t

4

R1608 0R 05 1/16W

1

+5V_U SB

C1608

100N 16V

USB_CTL 14

C1616

22uF 10V

SD-WP#15
SD-CDZ15

T P V ( Top Vict ory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

SSRXN9
SSRXP9

SSTXN9
SSTXP9

R7010 5.1R 1/ 16W
R7009 5.1R 1/ 16W

ZD7005

ZD7006

NC

NC

NC

1 2

1 2

1 2

C7003 100N 16V
C7002 100N 16V

ZD7001

ZD7002

NC

1 2

CN1603

5

RXN

6

RXP

7

GND

8

TXN

9

TXP

USB CONN 9P

USB3.0

HAND1

VCC

GND

USB2.0

HAND2

10

1

USB3-D­USB3-D+

ZD1605

NC

R1601 5. 1R 1/16W
R1602 5. 1R 1/16W

ZD1606

NC

1 2

1 2

USB_OCD9

DM 9
DP 9

R1607 0R 05 1/16W

2

D-

3

D+

4

11

R1107 10K

R1102 10K

R1103 10K

R1104 10K

R1105 10K

R1106 10K

R1101 10K

R1108 10K

JACK

CN1101

DAT3
CMD
VSS
VCC
CLK
VSS
DAT0
DAT1
DAT2
Write Prot ect
Card Detect Indication

OEM MODEL

TPV MOD EL

PCB NAME

Sheet

15

TH4

14

TH3

13

TH2

12

TH1

SD-D3

R1110 0R 05 1/16W

SD-D2

R1112 0R 05 1/16W

SD-D1

R1113 0R 05 1/16W

SD-D0

R1114 0R 05 1/16W

SD-CLK SD1-CLK

R1115 0R 05 1/16W

SD-CMD SD1-CMD

R1116 0R 05 1/16W

of

822Friday , August 23, 2013

PCM_D7
PCM_D6
PCM_D5
PCM_D4

PCM_D7 14
PCM_D6 14
PCM_D5 14
PCM_D4 14

SD1-CLK 14
SD1-CMD 14

Size

Rev

称爹

<

Custom

D

称爹

>

40

YPbPr & AV1

A

B

C

RCA JACK

Close to MST IC
with wide trace

R1301

R1305

R1302

2

1

4

3

6

5

R1310

33R 1/16 W 5%

R1311

0R05 1/16W

R1309

33R 1/16 W 5%

R1308

68R 1/16 W 5%

R1307

33R 1/16 W 5%

R1306

68R 1/16 W 5%

R1303

33R 1/16 W 5%

R1304

68R 1/16 W 5%

12

ZD1302NC12ZD1301NC12ZD1303NC

C1307

47N16V

C1308

1N 50V

C1306

47N16V

C1303

47N16V

C1305

47N16V

C1304

47N16V

C1302

47N16V

C1301

47N16V

CN1301

Y_IN_1 GIN1

75R 1/16 W 1%

PB_IN_1

75R 1/16 W 1%

PR_IN_1 RIN1

75R 1/16 W 1%

Y_IN_1

PB_IN_1

PR_IN_1

CVBS2P

SOGIN1

GIN1N

BIN1

BIN1N

RIN1N

VGA Input

I2S_IN_WS7, 10

RED RIN0

R1211

75R 1/16W 1%

GRN GIN 0

R1214

75R 1/16W 1%

BLU BIN0

R1217

75R 1/16W 1%

UARTA_1_RX RED

R1201 NC/100R

VGASDA_IN

HSYNC#

VSYN C#

VGASCL_IN

Close to MST IC
with wide trace

R1209

33R 1/16W 5%

R1213

68R 1/16W 5%

R1220

0R05 1/16 W

R1216

33R 1/16W 5%

R1215

68R 1/16W 5%

R1219

33R 1/16W 5%

R1218

68R 1/16W 5%

D-SUB 15P

1716

11

12

13

14

15

C1201

47N16V

C1202

47N16V

C1207

1N 50V

C1204

47N16V

C1203

47N16V

C1206

47N16V

C1205

47N16V

CN1201

6
1
7
2
8
3
9
4
10
5

RIN0N

SOGIN0

GIN0N

BIN0N

PC_5V

12

12

ZD1206NC

ZD1205NC12ZD1207NC

(10mil)

VGA I2C

VGASCL_I N11,16

VGASDA_I N11,16

VGA_5V

1 2

FB1201

120R/3000mA

GRN

BLU

UARTA_1_TX

PC_5V

R1202 NC/100R

VGA SYNC SLICER

R1208 100R

VSYN C#

R1210 100R

12

12

ZD1204

ZD1203

NC

NC

(10mil)

VGASCL_I N

VGASDA_I N

12

ZD1201

NC

C1208

100N 16V

I2S_IN_BCK 7,10

R1205

10K

R1206 100R

R1207 100R

12

ZD1202

NC

R1203

R1212

10K

10K

HSYNCHSYNC#

VSYN C

+5V_STB

R1204
10K

U0RX

U0TX

RIN0N
RIN0
GIN0N
GIN0
BIN0N
BIN0
SOGIN0
HSYNC
VSYN C

RIN1N
RIN1
GIN1N
GIN1
BIN1N
BIN1
SOGIN1

U401E

W3

RIN0M

V1

RIN0P

V2

GIN0M

V3

GIN0P

U3

BIN0M

T2

BIN0P

U2

SOGIN0

Y4

HSYNC0

Y5

VSYN C0

AA1

RIN1M

AA2

RIN1P

AA3

GIN1M

Y2

GIN1P

W2

BIN1M

W1

BIN1P

Y3

SOGIN1

AD2

RIN2M

AD3

RIN2P

AC2

GIN2M

AC3

GIN2P

AB1

BIN2M

AB3

BIN2P

AB2

SOGIN2

AA5

HSYNC1

Y6

VSYN C1

MSD8560IV

U0RX 15,16

U0TX 15,16

Video

RGB

CVBS PHYUSB

GPIO19
GPIO20

DM_P0

DP_P0

DM_P1

DP_P1

DM_P2

DP_P2

SSRXN
SSRXP

SSTXN
SSTXP

CVBS3P
CVBS2P
CVBS1P
CVBS0P

VCOM0

CVBS_OUT1
CVBS_OUT2

A5
B5
C5
B4
C4
A3

A2
B2
B1
C2
AK5
AM6

AK7
AL8
AK8
AM8
AL7
AK6

AB5
AC5
AB6
AB4

AA6

AC4
AD5

VCOM0

CVBS1_OUT

RXVN 12
RXVP 12

TXVN 1 2
TXVP 12

USB_OCD 8

TP402

DM_P0 8
DP_P0 8
DM_P1 8
DP_P1 8
DM_P2 8
DP_P2 8

DM 8
DP 8
SSRXN 8
SSRXP 8
SSTXN 8
SSTXP 8

CVBS2P

C458 47NF 16V

R491 68 OHM +-5% 1/16W

RN

RP
TN

TP

DM

DP

MEMC control

AM_RESET15,20

R4121
NC/1K 1/16W 5%

DVDD3V3

R4120
NC/4.7K1/16W

Q406

NC/BC847C

RST_MEMC

+5V_SW

R1402
20K

R1406

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

R1401

470R 1/16W 5%

Q1402

MMBT3904

R1403

75R 1/16W 1%

R1405

75R 1/16W 1%

09.VIDEO I/O / iTV LV1

Q1401
MMBT390 6

C1401

100N 16V

R1404

75R 1/16W 1%

CVBSO

OEM MOD EL

TPV MO DEL

PCB NAME

Sheet

CVBSO

922Friday , August 23, 2013

CN1401

2

12

ZD1401

1

NC

RCA JACK

Custom

Size

Rev

D

称爹

>

<

of

称爹

R7001
10K 1/16W 5%

PMBS3906

RC_IR_OUT

C7001

ITV Level 1

+5V_STB

CN703

1
2
3
4
5
6
7

RST_ MEMC

8

CONN

Video Out

CVBS1_OUT

C1402

910

10UF 6. 3V

12KOHM +-5% 1/16W

+5V_STB

R7002
10K 1/16W 5%

R7006

NC/ 100R 1/16W 5%

R7003

IR-in7,12

U0RX

U0RX15,16

U0TX

U0TX15,16

OSCL011,12, 13,15,16,20,22
OSDA011,12,13,15,16, 20,22

123Q7001

100R 1/16 W 5%

R7004 100R 1/16W 5%
R7005 100R 1/16W 5%

OSCL0
OSDA0

NC/100N16V

41

V UVP = (1.25 - 6 A R3) (R1 + R2) /
R2
Hysteresis = 5 A R3 (R1 + R2) / R2

ClosetoU401

M_H P_L

M_H P_L7

R6205
0R05 1/16W

C6262

C6261

2.2UF

2.2UF

R6262

24K1/16W

R6263

24K1/16W

Line_in_L

ClosetoU401

C6259

R6256

24KOHM 1/10W

2.2UF

M_HP _R Line_in_R

M_HP _R7

R6206
0R05 1/16W

C6248

2.2UF

R6258

24KOHM 1/10W

R6211 51K 1/16W 5%

C6210

180pF 50V

R6254

30K

R6265

30K

C6211

180pF 50V

R6222

51K 1/16W 5%

R6212
47K 1/16W 5%

R6240
47K 1/16W 5%

C6254

47pF 50V

U606

TPA6138A2PW

R6251
47K 1/16W 5%

R6223
47K 1/16W 5%

14

+INL

+IN R1-INR2OUTR3SGND4Mute5PVSS6CN

C6260

47pF 50V

C6214

47pF 50V

13

12

11

-INL
OUTL

C6215

47pF 50V

+5V_SW

R3

R6255
51K 1%

10

9

8

CP

UVP

C6251

PVDD

PGND

4.7UF 16V

7

C6249

1UF 10V

　⊙ ⊙

R6215
33R 1/16W 5%

R6260
0R05 1/16W

R1

R6257
3K3 1/16W 1%
R6261
1K 1/16W 1%

R2

C6252

10uF

R6224
10K 1/10W 5%

R6216
33R 1/16W 5%

　⊙ ⊙

C6222

1000pF 50V

R6259

NC/0R05 OHM

C6253

1UF 10V

R6219
0R05 1/16W

C6221

1000pF 50V

DVDD3V3

CN603
NC\CONN

3
2
1

HP_LOUT

HP_ROUT

POP_MUTE 11

4 5

HP_DET15

HP_ROUT

HP_LOUT

C6204

47NF 16V

R6203

NC/1KOHM +-5% 1/16W

DVDD3V3

R6218
10K 1/16W 5%

C6205

47NF 16V

R6204

NC/1KOH M +-5% 1/16W

1 2FB6201

1 2FB6203

600R/200mA

600R/200mA

600R/200mA

EARPDET

HPROUT

12FB6202

HPLOUT

ZD6204

ZD6203

1 2

1 2

NC/VPORT0603100KV05

NC/VPORT0603100KV05

Head Phone Out

CN604

3
4
2

5
1

PHONE JAC K 5P

Component / AV audio in

CN1302

PHONE JAC K

1
3

2

12

ZD1304NC12ZD1305NC

R1312

10K 1/16W 5%

R1313

10K 1/16W 5%

PC audio in

CN1202

PHONE JAC K

1
3

2

12

R1221

10K 1/16W 5%

R1222

10K 1/16W 5%

12

ZD1208NC

ZD1209NC

42

YPBPR0_L_I N

YPBPR0_R _IN

R1314

R1315

12KOHM +-5% 1/16W

12KOHM +-5% 1/16W

PC_L_IN

R1223

R1224

12KOHM +-5% 1/16W
12KOHM +-5% 1/16W

YPBPR0_L_I N 7

YPBPR0_R _IN 7

PC_L_IN 7

PC_R_IN

PC_R_IN 7

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

10 .AUDIO IN/OUT

Date

CN608

CONN

SPDIF

I2S_IN_SD

NC/22P 50V
NC/22P 50V
NC/22P 50V

CN1501

2

1

RCA JACK

I2S_IN _BCK 7, 9

I2S_IN_WS 7,9

I2S_IN_SD 7

Size

Rev

称爹

D

称爹

<

Custom

>

C1501

12

1uF 10V

ZD1501
NC

SPDIF_OU T

I2S_IN_BCK

I2S_IN_WS

C6264

C6263

C6265

56

1
2
3
4

OEM MO DEL

TPV MODEL

PCB NAME

Sheet

R1501

100R 1/16W 1%

R1502
82R 1%

FB6205

120R 0.3A
120R 0.3A
120R 0.3A

10 22Friday , August 23, 2013

of

1 2FB6204

1 2

1 2FB6206

M_SPDIF_OUT7

+24

1 2

FB6001

1 2

NC/12 0R/3000mA

ZD6001

BZX84C3V6

10uF 10V

R6046 NC/1K

D6003

1 2

SX36

R6045 NC/0R05

Aud3A3

R6004 33R 1/ 16W 5%
R6005 33R 1/ 16W 5%
R6006 33R 1/ 16W 5%
R6007 33R 1/ 16W 5%

D413

SS0520_R1

C6058

13

R6023

470KOHM +-5% 1/10W

AUD_PWR _EN15

+24_AU D

Below 32" : 12V for 3W/5W 16ohm speaker
Above 32" : 24V for 8W/10W 16ohm speaker

I2S-OUT_SD7
I2S-OUT_WS7
I2S-OUT_BCK7
I2S-OUT_MCK7, 20

DVDD3V3 Aud3A3

R6021

100R 1/10W 5%

C6020

NC/100UF 16V

+

C6021

1 2

NC/4K7 1/16W 5%

R6001 0R05 1/16W
R6002 0R05 1/16W
R6003 NC /0R05 OHM
R6036 0R05 1/16W

C6059

NC/22U F 6.3V

22UF 6. 3V

R6022

1.8KOHM 1/10W

Q6003

PMBS3904

FB6012

120R 3A

R6049

C6003

100N 50V

AMP24V

R6024
10K 1/16W 5%

Q6004

DTC114ES3

R6047
NC/4K7 1/16W 5%

R6048 NC/4K7 1/16W 5%

Q6005

NC /MMB T3904

C6062
NC/10N 50V

C6004

0.1uF 50V

U6001

48

47

NC

VDDLA

49

THERMALPAD

1

SDATA1

2

MS

3

PLL

4

CFG0

5

CFG1

6

CLK_OUT

7

DGND

C6010

0.1uF 50V
8

DVDD

9

SDATA0

10

LRCIN

11

BCLK

12

MCLK

NC13VDDSA14SA15GNDS16SA17VDDSA18VDDSB19SB20GNDS21SB22VDDSB23NC

SA1

C6012

0.1uF 50V

AMP-MUTE15

AC_OFF _DE 15

C6005

0.1uF 50V

LA

45

46

LA

C6013

0.1uF 50V

R6025
1K 1/16W 5 %

C6064
NC/220NF 25V

LB

44

LB

GNDL

AD83586

SA2

1
2
3
4

C6006

0.1uF 50V

RB

40

41

43

42

RB

GNDR

VDDLB

VDDRB

SB1

C6014

0.1uF 50V

R6026
NC/10K 1/10W 5%

D6001 LL 4148

D6002 LL 4148

Q6006

S

D

S

D

S

D

G

D

NC/AO 4449 -7A/-30V

C6007

0.1uF 50V

RA

37

39

38

RA

NC

VDDRA

LINEIN

LREX

RESET#

ERROR#

PD#

DVDD

DGND

DEF

SA1
SA0
SCL

SDA

24

SB2

C6015

0.1uF 50V

+

C6022

100UF 35V

R6027
4K7 1/16W 5%

+24_AUD

8
7
6
5

C6061

C6063

10uF 25V

100NF 25V

AMP24V

C6016

C6060

+

+

100UF 35V

100UF 35V

36
35
34
33
32
31

30

29
28
27
26
25

AMP_PD

C6011

0.1uF 50V

AMP_DEF
AMP_SA0
AMP_SA1
AMP_SCL
AMP_SDA

R6043
0R05 1/16W

2.0 CH : AD82588

2.1 CH : AD83586

AMP24V

+

C6008

100UF 35V

FB6003

120R 6A

R6028
10K 1/16W 5%

POP_MUTE

Q6002

low action

PMBS3904

R6009
10K 1/4W

Aud3A3

1

2

12

POP_MUTE 10

Aud3A3

Aud3A3

I2SAMP_RESET 15

HS2

Audio Heat Sin k

+5V_SW

R6016
NC/4K7 1/16W 5%

AMP_SDA

R6018
NC/4K7 1/16W 5%

AMP_SCL

CN606

NC/CONN

1

2

R6017
0R05 1/16W

CN607

NC/CONN

1

2

R6019
0R05 1/16W

Reset (pu ll-up)

R6044

I2SAMP_RESET

470KOHM 5% 1/16W

AMP_PD

0R05 1/16W

C6019

0.47uF 16V

Aud3A3

R6010

NC/10K

AMP_SA0

R6011
10K 1/16W 5%

I2C Address = 0x60

VGASDA_IN 9,16

OSDA0 9, 12,13,15,16, 20,22

VGASCL_IN 9,16

OSCL0 9,12,13, 15,16,20,22

Aud3A3

R6008
1M

C6009

1UF 16V

R6020

POP_MUTE

Aud3A3

R6012

NC/10K

AMP_SA1

R6013
10K 1/16W 5%

Aud3A3

R6014

NC/10 K 1/16W 5%

AMP_DEF

R6015

10K 1/16W 5%

L6001

RA

C6023
470pF 50V

R6029
10 OHM 1/4W

R6034
10 OHM 1/4W

C6024
470pF 50V

RB

LA

C6035
470pF 50V

R6033
10 OHM 1/4W

R6030
10 OHM 1/4W

C6034

LB

SA1

SA2

SB1

SB2

470pF 50V

C6045

470pF 50V

R6037
10 OHM 1/4W

R6038
NC/10 OHM 1/4W

C6046

NC/470p F 50V

C6047

NC/470p F 50V

R6039
NC/10 OHM 1/4W

R6040
10 OHM 1/4W

C6048

470pF 50V

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

22uH

C6025

100N 50V

R6031
10 OHM 1/4W

R6032
10 OHM 1/4W

L6002

22uH

L6003

R6035
10 OHM 1/4W

R6136
10 OHM 1/4W

L6004

1 2

FB6008

HCB3216KF -121T30

NC to prevent audio amp. demage issue

FB6009

NC/H CB3216KF-121T30

1 2

1 2

FB6010

NC/H CB3216KF-121T30

FB6011

HCB3216KF -121T30

1 2

22uH

22uH

C6026

220NF 50V

C6027

220NF 50V

C6028

100N 50V

C6036

100N 50V

C6037

220NF 50V

C6038

220NF 50V

C6039

100N 50V

R6041
10 OHM 1/4W

R6042
10 OHM 1/4W

L6006

L6005

22uH

11 .AUDIO AMP

C6030

10N 50V

C6029
100N 50V

C6031

10N 50V

C6041

10N 50V

C6032
100N 50V

C6042

10N 50V

22uH

C6049

100N 50V

C6050

220NF 50V

C6053

0.47UF 50V

C6051

220NF 50V

C6052

100N 50V

OEM MODEL Size

TPV MODEL

PCB NAME

11 22Friday, August 23, 2013

Sheet

of

1N 50V

1N 50V

C6054

C6055

CN601
CONN

R-

1

R+

2

L-

3

L+

4

S+

S-

56

CN602
CONN

R

R­R+
L­L+

L

3
2
1

4 5

Custom

D

Rev

<

称爹

>

称爹

43

+5V_STB 3V3SB

CN1701

1415

1
2
3
4
5
6
7
8
9
10
11
12
13

CONN

C1701100N 16V

8.2K1/10W
R1701

C1702100N 16V

8.2K1/10W
R1702

C1703120pF 50V

trace : diffenentail 100 R

TXVP9
TXVN9

RXVP9
RXVN9

C1905

C1906NCC1907NCC1908

NC

Activity LED: Yellow

Link LED: Green

C1901 10P 50V

C1904 100N 16V

C1704100N 16V

R1703 10K

C1705120pF 50V

TSCL_1

+5V_SW

R1712

LEDB

Q1702

MMBT3904

1K

DVDD3V3

R1721
NC/ 4.7K 1/16W

Q1703

NC/ 2N7002

R1715

NC/ 0R05 1/16W

3V3SB

4.7K 1/16W

R1713
10K

LED_B

R1716

C1706120pF 50V

C1707120pF 50V

TO IR/KEY BOARD

R1704 100R 1/16W 5%
R1705 100R 1/16W 5%
R1706 100R 1/16W 5%

KEY_IN
KEY_PWR

ZD1701

ZD1702

ZD1704

ZD1703

NC

NC

NC

NC

1 2

1 2

1 2

1 2

R1720 3K 3 1/16W 5%

R1707 100R 1/16W 5%
R1710 100R 1/16W 5%

TSD A_1
TSCL_1

ZD1705

NC

NC R1718

1 2

1 2

R1722 NC /0R05 1/16W
R1723 NC /0R05 1/16W

ZD1707

ZD1706

NC

1 2

R1709 0R05 1/ 16W
R1708 0R05 1/ 16W

LEDR
LEDB

IR-in 7,9

LIGHT_SENSOR

KEY0-in
KEY1-in

OSDA0
OSCL0

SDA1
SCL1

R1711
2K 1/16W 5%

LIGHT_SENSOR 15

KEY0-in 15
KEY1-in 15

OSDA0 9,11, 13,15,16,20, 22
OSCL0 9,11,13,15,16, 20,22

SDA1 15
SCL1 15

Ethernet RJ45

CN1901

U1901

TXVP

IN44OUT4

TXVN

3

IN3

RXVP

2

IN2

RXVN

1

IN1

NC

LAN-LED015

LAN-LED115

NC

LAN-LED0

LAN-LED1

+2.5V_Normal

5
6

OUT3

7

OUT2

8

OUT1

R1901 470R
R1902 0R05 1/ 16W
R1903 470R
R1904 0R05 1/ 16W

R1905

REGOUT

0R051/8W

C1902

10N 50V

AC TIVI TY

LINKON

REGOUT

C1903

10N 50V

1

TCT P1

2

TD+ P 2

3

TD- P3

4

RD+ P4

5

RD- P5

6

RCT P6

7

NC P7

8

NC P8

9

NC P9

10

NC P10

11

NC P11

12

Y- P12

13

Y+ P13

14

G- P14

15

G+ P15

16

TH1

TH2

17

RJ45 CONN+LED R/A 15P

DVDD3V3

R1719
NC/ 4.7K 1/16W

Q1704

TSD A_1OSCL0 OSDA0

NC/ 0R05 1/16W

LED_B 15

NC/ 2N7002

LEDR

MMBT3904

LEDR

3V3SB

Q1701

R1714

1.5K

R1717

3.3K 1/16W

OPCTRL0

OPCTRL0 15

44

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

12.RJ45 / IR_ KEY

OEM MOD EL

TPV MO DEL

PCB NAME

Sheet

<

Custom

D

称爹

>

Size

Rev

12 22Friday , August 23, 2013

of

称爹

R108

NC/0R05 OHM

C138
1NF 500V

R109

NC/0R05 OHM

13

C139
1NF 500V

TU102
ST21WN-2I-E

GND

3.3V
SCL

SDA
GND
GND
IF_N

IF_P

IF_AGC

TH110TH211TH312TH4

C140
1NF 500V

+3.3V_Tuner

1
2

SCL-T

3

SDA-T

4
5
6

IF-IN- VIFM

7

IF-IN+

8

T_I F-A GC

9

R110

NC/0R05 OHM

10PF 50V

R105 0R05 1/ 10W
R104 0R05 1/ 10W

C141
1NF 500V

C143

R111

NC/0R05 OHM

C142

100N 16V

VIFP

+3.3V_Tuner

DVDD3V3

FB101

1 2

NC

FB102

1 2

120R/500mA

ASIC_3V3

C115

10UF 6.3V 20%

DVDD3V3

R130

4.7K 1/16W

40mA

C116

C117

100N 16V

R131

4.7K 1/16W

C118

100N 16V

100N 16V

ClosetoATBM8869

C119

100N 16V

To

T_SC L

Tuner

T_SD A

from

OSCL0

scaler

OSDA0

132mA

C120

100N 16V

R106 NC/ 22R
R107 NC/ 22R

R116 0R05 1/16W
R129 0R05 1/16W

+1.2V_ DM

FB103

1 2

120R/500mA

ASIC_1V2

C124

10UF 6.3V 20%

C125

100N 16V

C126

100N 16V

C127

100N 16V

ClosetoATBM8869

C128

100N 16V

C129

100N 16V

C130

100N 16V

C131

100N 16V

VIFM

VIFP

C167

100N 50V

C168

100N 50V

R193 0R05 1/ 16W

R194 0R05 1/ 16W

IF AGC Switch

IF_AGCtraceshieldingbyGND

T_I F- AGC

+3.3V_Tuner

R163
10K

Q105
MMBT3904

IF_AGC IF_AGC_DMT_IF -AG C

Q103

MMBT3906

R164
100K

R168 100K

AGC RC Filter

IF_AGC _T

IF_AGC_T14

RF_AGC_T

RF_AGC_T14

+3.3V_Tuner

R167
NC/ 0R05 1/16W

C164

NC

R197
100R 1/16W 1%

C165

L103

NC

NC

R198
100R 1/16W 1%

C166

NC

CLOSE to ScalerCLOSE to Tuner

Q104

MMBT3906

R165

R166
100K

1K

R169 10K

Q106
MMBT3904

Close Tuner

R162 100R

IF-AGC -SEL 14

C134

100N 16V

IF_AGC

ADCINN_DEMOD 14

ADCINP_DEMOD 14

TUNER I2C

SCL-T
SDA-T

22P 50V

Close to Tuner

C132

51K 1/16W 5%

Demod_RST

R135
0R05 1/16W

4.7K 1/16W

R126 100R 1/ 16W 5%
R127 100R 1/ 16W 5%

C133

22P 50V

R128

R113

C111

1uF 10V

+3.3V_Tuner

R117

NC

R121
1K 1/16W

DBGSEL
I2CSla ve
addres s
0x80/0x81

R125

4.7K 1/16W

OSCL2
OSDA2

T_SC L
T_SD A

DVDD3V3DVDD3V3

TSCL K
TSVALID
TSSYNC

DEBUG_BU S13

R112
100K 1/16W

ASIC_1V2
ASIC_3V3

DEBUG_BUS10

ASIC_3V3

ASIC_1V2
Reset#
DBGSEL

C110 10PF 50V

R114
100K 1/16W

TS7
TS6
TS5
TS4
TS3
TS2
TS1
TS0
TSSYNC
TSVALID
TSCL K

37

VDD12

38

VDD33

39

TESTIO20

40

VDD33

41

VDD12

42

RESETN

43

DBGSEL

44

TEST0

45

TEST1

46

TSBCLK

47

TSBVLD

48

TSBSYNC

49

E-PAD

IF_AGC_D M

C121

100N 16V

RP101

RP102

R136 22R 1/16W 5%
R137 22R 1/16W 5%
R138 22R 1/16W 5%

NC/10PF 50V

ASIC_3V3

ASIC_1V2

30

36

29

34

33

GND35GND

SDAS

VDD3331VDD3332VDD12

TESTIO23

ATBM8869

TSB71TSB62VDD333TSB54TSB45TSB36VDD127TSB28TSB19TSB010PWM011VDD12

ASIC_3V3

ASIC_1V2

TS5

TS4 ASIC_3V3

TS3

8
7
6
5
8
7
6
5

C137

TS7

22R

22R

TS2

TS6

R123 10K +-5%1/16W

1
2
3
4
1
2
3
4

ASIC_1V2

27

28

26

SCLS

SDAM

VDD12

REF_BI AS_EXT

ADVDD _ADC

CLK_REF_OUT

TS0

TS1

TSO_D 7
TSO_D 6
TSO_D 5
TSO_D 4
TSO_D 3
TSO_D 2
TSO_D 1
TSO_D 0

U201

25

SCLM

I2CINT

PWM1

VDD12

IVINN

IVINP
QVINN
QVINP

VDD_OSC
REFCLKI1
REFCLKI0

12

ASIC_1V2

TSO_S YN C
TSO_V LD
TSO_C LK

24

ASIC_1V2

23
22

R124 56K 1%

21

C106 100N 16V

20

C109 100N 16V

19

R119 0R05 1/ 16W

18

R120 0R05 1/ 16W

17
16
15
14
13

REFCLKI0

TSO_D 7 14
TSO_D 6 14
TSO_D 5 14
TSO_D 4 14
TSO_D 3 14
TSO_D 2 14
TSO_D 1 14
TSO_D 0 14

TSO_S YN C 14
TSO_V LD 14
TSO_C LK 14

C112

100N 16V

18P 50V

R122 1M 1%

1

C122

L101 2. 2uH

C113

2.2U10V

L102 2. 2uH

C114
10N 50V

24

X101

REFCLKI1

3

30.4MHz
C123

18P 50V

OSCL2
OSDA2
OSCL0
OSDA0

ADCINN_DEMOD
ADCINP_DEMOD

Demod_RST15

From
Tuner

VIFM

VIFP

DVDD3V3

DVDD3V3

OSCL2 14
OSDA2 14
OSCL0 9,11, 12,15,16,20,22
OSDA0 9,11,12,15, 16,20,22

ADCINN_DEMOD 14
ADCINP_DEMOD 14

Demod_RST

Close Tuner

45

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

13 .TUNER & DEMOD

Date

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

Custom

Size

Rev

D

<

称爹

13 22Friday , August 23, 2013

of

称爹

>

PCM CIA 5V Slot

CN1102 PCMICA CARD

1

GND

2

D3

3

D4

4

D5

5

D6

6

D7

7

CE1#

8

A10

9

OE#

10

A11

11

A9

12

A8

13

A13

14

A14

15

WE#

16

READY #:IREQ#

17

VCC

18

VPP1

19

A16

20

A15

21

A12

22

A7

23

A6

24

A5

25

A4

26

A3

27

A2

28

A1

29

A0

30

D0

31

D1

32

D2

33

WP#

34

GND

CI_VCC
CI_VCC

PCM_D3
PCM_D4
PCM_D5
PCM_D6
PCM_D7

PCM_CE_N

PCM_A10

PCM_OE_N

PCM_A11
PCM_A9
PCM_A8
PCM_A13

PCM_A14
PCM_WE_N
PCM_IRQA_N

TSO_ VLD

TSO_ CLK

PCM_A12

PCM_A7

PCM_A6

PCM_A5

PCM_A4

PCM_A3

PCM_A2

PCM_A1

PCM_A0

PCM_D0

PCM_D1

PCM_D2

CI Bus Power Control

+5V_SW

U1101

5

VOUT

VIN

CI_PWR _EN

R1118

4K7 1/16W 5%

CI_PWR_EN :
Enable : High
Disable : Low

GND

4

OCB

EN

APL3511CBI-TRG
C1102

1UF 10% 16V

CI_OCP :
Disable : Low

CI 3V3 PWR Cap.

DVDD3V3

R1125 0R05 1/ 16W

CI_DVDD3V3

C1105100N16V

PCMCIA

BVD2#:SPKR

BVD1#:STSCHG

69697070717172

72

R1119

4K7 1/16W 5%

1
2

CI_OCP

3

35

GND

CD1#

D11
D12
D13
D14
D15

CE2#

VS1#

IORD#

IOWR#

VCC

VPP2

VS2#

RESET

WAIT#

INPACK

REG#

D10

CD2#

GND

DVDD3V3

PCM_CD_N

36

TS_MD O3

37

TS_MD O4

38

TS_MD O5

39

TS_MD O6

40

TS_MD O7

41
42
43

PCM_IOR D_N

44

PCM_IOW R_N

45

TSO_ SY NC

46

A17
A18
A19
A20
A21

A22
A23
A24
A25

D8
D9

47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68

TSO_ D0
TSO_ D1
TSO_ D2
TSO_ D3

TSO_ D4
TSO_ D5
TSO_ D6
TSO_ D7

TS_MOCLK
PCM_RESET
PCM_WAIT_N

PCM_REG_N

TS_MOVAL

TS_MO STAR T

TS_MD O0

TS_MD O1

TS_MD O2

NAND_D7

CI_VCC
CI_VCC

DVDD3V3

R1117 100K 1/ 16W 5%

CLOSE TO CI CONNECTOR

FB1101 120R 3A

1 2

C110310UF 10V

C1107100N16V

R1120

10K 1/16W 5%

Regulator for 500mA output Current

CI_DVDD3V3 CI_VCC

R1121

10K 1/16W 5%

PCM_CD_N

C1106

100N16V

CI_VCC CI_VCC

10K 1/16W 5%

C1104

NC/4.7UF 50V

R1122

PCM_WAIT_N

Closed to CI Con ne ctor

CI_VCC

C1109

NC/ 4.7UF 50V

R1124

10K 1/16W 5%

PCM_IRQA_N

USB_CTL8

R1123

NC/ 10K 1/16W 5%

TS_MOCLK

PCM_D0
PCM_D1
PCM_D2
PCM_D3
PCM_D4
PCM_D5
PCM_D6
PCM_D7

PCM_A0
PCM_A1
PCM_A2
PCM_A3
PCM_A4
PCM_A5
PCM_A6
PCM_A7
PCM_A8
PCM_A9
PCM_A10
PCM_A11
PCM_A12
PCM_A13
PCM_A14

PCM_RESET
PCM_IRQA_N
PCM_IOWR_N
PCM_OE_N
PCM_WAIT_N
PCM_IORD_N
PCM_CD_N
PCM_REG_N
PCM_WE_N
PCM_CE_N

NAND_D7
SD1-CLK
SD1-CMD

NAND_ALE
NAND_WPZ
NAND_CEZ
EMMC _D7
NAND_CLE
NAND_REZ
NAND_WEZ
NAND_RBZ

NAND_D4
NAND_D6
NAND_D5

U401B

AJ28

PCM_D0

AH28

PCM_D1

AJ29

PCM_D2

AH26

PCM_D3

AJ26

PCM_D4

AG27

PCM_D5

AJ27

PCM_D6

AH27

PCM_D7

AJ21

PCM_A0

AG21

PCM_A1

AJ20

PCM_A2

AH19

PCM_A3

AH18

PCM_A4

AJ18

PCM_A5

AL18

PCM_A6

AM18

PCM_A7

AK15

PCM_A8

AL15

PCM_A9

AG17

PCM_A10

AG18

PCM_A11

AK17

PCM_A12

AL16

PCM_A13

AK16

PCM_A14

AG19

PCM_RESET

AM17

PCM_IRQA_N

AM15

PCM_IOWR_N

AH17

PCM_OE_N

AG20

PCM_WAIT_N

AJ17

PCM_IORD_N

AH16

PCM_CD_N

AH20

PCM_REG_N

AL17

PCM_WE_N

AG16

PCM_CE_N

AH29

PCM2_CD_N

AE32

PCM2_CE_N/SD _CLK

AE31

PCM2_IRQA_N/ SD_CMD

AG28

PCM2_RESET/SD_CLK1

AE30

PCM2_WAIT_N/ SD_CMD1

AG23

NAND_ALE

AJ23

NAND_WPZ

AG25

NAND_CEZ

AJ24

NAND_CE1Z

AH24

NAND_CLE

AH25

NAND_REZ

AH23

NAND_WEZ

AG24

NAND_RBZ

AG26

NC

AH22

EMMC _CMD

AH21

EMMC _RSTZ

AG22

EMMC CLK

MSD8560IV

TS0_D 0
TS0_D 1
TS0_D 2
TS0_D 3
TS0_D 4
TS0_D 5
TS0_D 6

TS0_D 7
TS0_CLK
TS0_VLD

TS0_SYNC

TS1_D 0

TS1_D 1

TS1_D 2

TS1_D 3

TS1_D 4

TS1_D 5

TS1_D 6

TS1_D 7
TS1_CLK
TS1_VLD

TS1_SYNC

TS2_D 0

TS2_CLK
TS2_VLD

TS2_SYNC

VIFP

VIFM

SSIF/ SIFP

SSIF/ SIFM

IFAGC

TGPIO0/UPGAIN

TGPI O1

TGPIO2/ I2C_CLK
TGPIO3/ I2C_SDA

TS_MD O0

AG15

TS_MD O1

AJ15

TS_MD O2

AH15

TS_MD O3

AG11

TS_MD O4

AH11

TS_MD O5

AJ11

TS_MD O6

AG12

TS_MD O7

AJ12

TS_MOCLK

AG14

TS_MOVAL

AH14

TS_MOS TART

AJ14

AL12
AK12
AL13
AK13
AL14
AH12
AH13
AG13
AK14
AM14
AM12

AK10
AL10

NC

AK9

NC

AL9

NC

AG10

NC

AH10

NC

AH9

NC

AJ9

NC

AK11
AM11
AL11

AJ3

NC

AH2

NC

AJ1
AJ2

AK2
AK1

IF_AGC_T

AG1

RF_AGC_T

AH3

NC

IF-AGC-SEL

AG2
AG3

OSCL2

AL1

OSDA2

AL2

8
7
6
5
8
7
6
5

C4119 100N 16V
C4120 100N 16V

OSCL2 13
OSDA2 13

eMMC

NAND_D4
NAND_D5
NAND_D6

NAND_RBZ
NAND_REZ
NAND_CEZ
NAND_CLE
NAND_ALE
NAND_WEZ
NAND_WPZ

EMMC_ D7

NAND_D4 16
NAND_D5 16
NAND_D6 16

NAND_R BZ 16
NAND_R EZ 16
NAND_C EZ 16
NAND_C LE 16
NAND_ALE 16
NAND_W EZ 16
NAND_W PZ 16

EMMC_D7 16

1

RP110122R

2
3
4
1

RP110222R

2
3
4

TSO_ D0
TSO_ D1
TSO_ D2
TSO_ D3
TSO_ D4
TSO_ D5
TSO_ D6
TSO_ D7

TSO_ CLK

R112622R 1/16W 5%

TSO_ VLD

R112722R 1/16W 5%

TSO_ SY NC

R112822R 1/16W 5%

ADCINP_DEMOD 13
ADCINN_DEMOD 13

IF-AGC-SEL 13

R4170 4.7K 1/16W

C4117

Demond

TSO_S YN C13

TSO_ VLD13
TSO_ CL K13

SD card

PCM_D78
PCM_D68
PCM_D58
PCM_D48

SD1-CLK8

SD1-CMD8

+3.3V_Tuner

22NF 25V

TSO_ D713
TSO_ D613
TSO_ D513
TSO_ D413
TSO_ D313
TSO_ D213
TSO_ D113
TSO_ D013

R4172 10K 1/16W

C4118

PCM_D7
PCM_D6
PCM_D5
PCM_D4

SD1-CLK

SD1-CMD

R4173 10K 1/16W

22NF 25V

TSO_ D7
TSO_ D6
TSO_ D5
TSO_ D4
TSO_ D3
TSO_ D2
TSO_ D1
TSO_ D0

TSO_S YN C

TSO_ VLD
TSO_ CLK

IF_AGC_T 13
RF_AGC_T 13

46

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

14.CI CARD

OEM MO DEL

TPV MODEL

PCB NAME

Sheet

<Title>

14 22Friday , August 23, 2013

Custom

Size

Rev

of

称爹

+5V_SW

R4115

4.7K 1/16W

R4117
10K

+12V

Panel VCC

PANEL_VCC_ON /OFF

High:PanelPowerOn
Low:PanelPowerOff

LVDS OUTPUT

LVDS-SEL
BIT_SEL

OSDA09,11, 12,13,16,20,22

OSCL09,11,12,13,16,20,22

TX_AE4N
TX_AE3N
TX_AECKN
TX_AE2N
TX_AE1N
TX_AE0N
TX_AO4 N
TX_AO3 N
TX_AOC KN

TX_AO2 N
TX_AO1 N

+PANEL_POWER

TX_AO0 N

OPC

2D/3D_SEL 3D-EN

R4124 0R05 1/4W

R4125 NC/0R05 1/4W
Q402

MMBT39 04

41

2
4
6

8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40

42

DVDD3V3

R41070R 05

R41054.7K

R4106

NC

R4112

R4111

NC

NC

R4113

R4123

100K

R4108

NC

NC

Q401

1

S

D

2

S

C469

220NF 25V
R4116
47K

R4118

0R05 1/10W

R4119 47K

1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39

CONN

CN403

R4109 NC
R4110 0R05

BRT_CN TL_IN 4

AI
3D-EN
LRO
LRIN

TX_AE4P
TX_AE3P
TX_AEC KP
TX_AE2P
TX_AE1P
TX_AE0P TX_AO2 P
TX_AO4P
TX_AO3P
TX_AOC KP

TX_AO2P
TX_AO1P
TX_AO0P

+PANEL_POWER

LVDS-SEL
BIT_SEL
AI

D

3

S

D

4

G

D

AO4449 -7A/-30V

+PANEL_POWER

8
7
6
5

C471

100N 50V

+

C470

100UF 16V

TX_AO0N
TX_AO0P
TX_AO1N
TX_AO1P

TX_AO2N
TX_AO2P
TX_AOC KN
TX_AOC KP

TX_AO3N
TX_AO3P
TX_AE0N
TX_AE0P

TX_AE1N
TX_AE1P
TX_AE2N
TX_AE2P

TX_AECKN
TX_AECKP
TX_AE3N
TX_AE3P

TX_AO0N 22

TX_AO0P 22

TX_AO1N 22

TX_AO1P 22

TX_AO2N 22

TX_AO2P 22

TX_AOC KN 2 2

TX_AOC KP 22

TX_AO3N 22

TX_AO3P 22

TX_AE0N 22

TX_AE0P 22

TX_AE1N 22

TX_AE1P 22

TX_AE2N 22

TX_AE2P 22

TX_AECKN 22

TX_AECKP 22

TX_AE3N 22

TX_AE3P 22

CFG-PWM07
CFG-PWM17
BL_ DI MMIN G4

OPCTRL012
PWM_PM7

KEY1-in12
HP_DET10

KEY0-in12

SPI_SCK16

SPI_SDI7,16
SPI_SDO16
SPI_CSN16

SD-WP#8
SCA_BL4

SYS_EEPROM_WP16

FLASH_WP16

OPWRSB4,18

AMP-MUTE11

SD-CDZ8

Wi-Fi_EN8

CFG-PWM0
CFG-PWM1
BL_ DI MMIN G
OPCTRL0
PWM_PM

KEY1-in
HP_DET
LED_B
KEY0-in

SPI_SCK
SPI_SDI
SPI_SDO
SPI_CSN

U0RX

U0RX9,16

U0TX

U0TX9,16

OSCL09,11,12,13,16,20,22

OSDA09, 11,12,13, 16,20,22

SCL112

SDA112

PM147
PM157

OCB7

OSCL0

OSDA0

SYS_EEPROM_WP

FLASH_WP

SCL1
OPWRSB

SDA1
AMP-MUTE
PM14
PM15
SD-CDZ

Wi-Fi_EN

2D/3D_SEL

GPIO & LVDS

U401D

B7

PWM0

C8

PWM1

B8

PWM2

C7

PWM3

N5

PWM_PM

K6

SAR0

L5

SAR1

L6

SAR2

L4

SAR3

C1

PM_SPI_CK

D3

PM_SPI_DI

D1

PM_SPI_DO

D4

PM_SPI_CS1/PM6

E4

PM_SPI_CS2/PM10

J5

DDCA_CK/UART0_RX

J6

DDCA_DA/UART0_TX

F5

DDCR_CK

F4

DDCR_DA

A6

GPIO4

B6

GPIO3

C6

GPIO2

B3

GPIO_PM0

K5

GPIO_PM1/PM_UART_TX

C3

GPIO_PM4

J4

GPIO_PM5/PM_UART_RX

D6

GPIO_PM7/PM_SPI_WP2

AK3

GPIO_PM14

AL3

GPIO_PM15

AJ4

GPIO_PM16

G8

GPIO_PM8

G9

PM_SPI_CZ

AD31

PM_SPI1_CK

AD32

PM_SPI1_DI

AC31

PM_SPI2_CK

AC30

PM_SPI2_DI

AD30

PM_VSYNC_LI KE

MSD8560IV

For 3D shutter control

DVDD3V3

+12V

LRIN
LRO

R4122
NC/0 OHM 1/8W

PWM SAR SPI GPIO

LVDS

CN705

NC/CONN

78

1
2
3
4
5
6

TCON 0
TCON 1
TCON 2
TCON 3
TCON 4
TCON 5

LVSYNC
LHSY NC

LDE

LCK
TCON 6
TCON 7
TCON 8
TCON 9

TCO N10
TCO N11
TCO N12
TCO N13

B0M

B1M

B2M

BCKM

BCKP

B3M

B4M

A0M

A1M

A2M

ACKM

ACKP

A3M

A4M

NC
NC
NC
NC
NC
NC

B0P

B1P

B2P

B3P

B4P

A0P

A1P

A2P

A3P

A4P

AF31
AF30
AG31
AG32
AG30
AH32
AH31
AH30
AJ31
AJ30
AK31
AK32

AK30
AL32
AL31
AM31
AL30
AM30
AK29
AM29
AL29
AK28
AL28

PANEL_VCC_ON/ OFF

AK27

TX_AO0 N

AL27

TX_AO0 P

AM27

TX_AO1 N

AK26

TX_AO1 P

AM26

TX_AO2 N

AL26
AK25

TX_AOC KN

AL25

TX_AOC KP

AK24

TX_AO3 N

AL24

TX_AO3 P

AM24

TX_AO4 N

AK23

TX_AO4 P

AM23

TX_AE0N

AL23

TX_AE0P

AK22

TX_AE1N

AL22

TX_AE1P

AK21

TX_AE2N

AL21

TX_AE2P

AM21

TX_AECKN

AK20

TX_AECKP

AM20

TX_AE3N

AL20

TX_AE3P

AK19

TX_AE4N

AL19

TX_AE4P

AK18

AUD_PWR_EN

AC_OFF_DE

Demod_RST
OPC

eMMC_RST

AM_RESET
LEDBAR_PWR EN

MEMC _RS T
I2SAMP_RESET
LIGHT_SENSOR
BL_ON/OFF

AUD_PWR _EN 11
AC_OFF_D E 11
Demod_RST 13LED_B12

LAN-LED0 12
eMMC_RST 16

AM_RESET 9,20
LEDBAR_PWR EN 20

LAN-LED1 12
MEMC _RS T 22
I2SAMP_RESET 11

LIGHT_SENSOR 12
BL_ON/OFF 4

47

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

15.LVDS /GPIO

LRO

LRIN

OEM MO DEL

TPV MODEL

PCB NAME

Sheet

LRO 22

LRIN 22

15 22Friday , August 23, 2013

of

Size

Rev

称爹

<

Custom

D

称爹

>

4G BYTE e.MMC

U403

THGB M5G5A1J BAIR 4GB

NF_D0

A3

DAT0

NF_D1

A4

DAT1

NF_D2

A5

DAT2

A2

NC

B7

NF_D3

NF_POWER

NF_D4
NF_D5
NF_D6
NF_D7

C402

0.1uF 50V

TP401
TP-R-0.75

NF_RSTZ NAND_D6

R456 22R 1/16W 5%

NF_CMD

R415 22R 1/16W 5%

NF_CLK

R413 22R 1/16W 5%

NF_D0

R451 22R 1/16W 5%

NF_D1

R452 22R 1/16W 5%

NF_D2

R453 22R 1/16W 5%

NF_D3

R414 22R 1/16W 5%

NF_D4

R455 22R 1/16W 5%

NF_D5

R448 22R 1/16W 5%

NF_D6

R449 22R 1/16W 5%

NF_D7

R450 22R 1/16W 5%

NC

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

C2

VDDI

C4

Vssq

A8

NC

C6

Vccq

D4

A1 index

A6

NC

E6

Vcc

E7

Vss

C1

NC

C3

NC

D1

NC

F5

Vcc

D2

NC

D3

NC

E1

NC

E2

NC

F1

NC

F2

NC

F3

NC

G3

NCC5NCE5NCG1NCG2NC

NAND_D4
NAND_D5
NAND_RBZ
NAND_ALE

NAND_WPZ
NAND_WEZ
NAND_REZ
NAND_CLE
NAND_CEZ
EMMC _D7

Vssq
Vccq
Vssq
Vccq
Vssq
Vccq
Vssq

CLK
CMD
Vccq

RSTN

NC

NC
Vcc
Vss

NC

NC

Vcc

NC
Vss

NC

NC
Vss

NC

NC

NC

NC

NF_POWER

P1
P6
P5
P4
P3
N5
N4
N2
M6
M5
M4
L5
K9
K8
L3
M2
K5
J10
N1
H10
M7
N7
G5
P7
M3
N3
P2

NF_C LK

NF_CMD

NF_RSTZ

NAND_D6 14
NAND_D4 14
NAND_D5 14
NAND_RBZ 14
NAND_ALE 14
NAND_WPZ 14
NAND_WEZ 14
NAND_REZ 14
NAND_CLE 14
NAND_CEZ 14
EMMC_ D7 14

C403

NC

NF_POWER

R408

4.7K 1/16W

C404
NC

DVDD3V3

R412

NC/0R 05 1/16W

NF_D0
NF_D1
NF_D2
NF_D3
NF_D4
NF_D5
NF_D6
NF_D7
NF_CMD

C407

2.2UF 16V

eMMC _RS T

R416 10K
R417 10K
R419 10K
R420 10K
R421 10K
R422 10K
R424 10K
R426 10K
R428 10K

R418 0R05 1/10W

C408

100N 16V

C409

2.2UF 16V

eMMC_RST 15

NF_POWER

40mA40mA

C410

100N 16V

NF_POWER

C411

100N 16V

Debug use

U0RX

U0RX9,15

U0TX

U0TX9,15

SYSTEM EEPROM

HI = > WP
LOW = > WRITE

OSCL09,11,12, 13,15,20,22
OSDA09,11,12,13,15,20, 22

SYS_EEPR OM_WP

OSCL0
OSDA0

VGASCL_IN
VGASDA_IN

SYS_EEPR OM_WP15

VGASCL_IN9,11

VGASDA_IN9,11

3V3SB

R440

R486
R487

R488
R489

NC/ 4.7K 1/16W

NC/0R05 OHM
NC/0R05 OHM

NC/0R05 OHM
NC/0R05 OHM

R446 NC/100R 1/16W 5%
R445 NC/100R 1/16W 5%

R441

NC/ 4.7K 1/16W

NC/BAT54C

D401

NC/100N 16V

CN704

NC/CONN

1
2
3
4

R437

C415

+5V _SWVGA_5V

R438

NC/ 4.7K 1/16W

DVDD3V3

R439

NC/ 4.7K 1/16W

NC/ 4.7K 1/16W

C412

NC/ 220NF 10V

R490
NC/0R 05 OHM

I2C Address "A0"

U406

8
7
6
5

1

E0

VCC

2

E1

WC

3

E2

SCL

VSS4SDA

NC/M24C64-W MN6P

+5V_STB

R459

1K 1/10W 1%

3V3SB

R457

NC/ 0R05 1/16W

R460

NC/ 6K8 1/10W 1%

3

VDD

TLV810MDBZR

RESET IC Function

R568

GND

1

2

NC/ 0R05 1/16W

R458 1K

R454
100K 1/16W 5%

U404

RESET

Sy stem-R ST

C413

47NF 16V

Sy stem-R ST 7

FLASH

FLASH_WP15

FLASH_WP

3V3SB

R403
10K 1/16W 5%

R401 1K 1/16W 5%

R402

NC/ 10K

48

U405

SPI_CSN15

SPI_SDO15

C401

NC/ 100N 16V

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

SPI_SDO
#F_WP

1
2
3

W25Q16DVSSIG

GND

16.FLASH

CS
DO

HOLD
WP
GND4DI

VCC

CLK

3V3SB

8

HOLD1_N

7

SPI_SCK

6

SPI_SDI

5

SPI_SCK 15

SPI_SDI 7,15

100N 16V

OEM MOD EL

TPV MO DEL

PCB NAME

Sheet

C416

<

Custom

D

称爹

>

Size

Rev

of

16 22Friday , August 23, 2013

称爹

B-DDR3-A1-T1
B-DDR3-A11-T1

A-DDR3-DQS1B18

A-DDR3-DQS0B18

A-DDR3-RESET-T118

A-DDR3-DQS3B18

A-DDR3-DQS2B18

A-DDR3-RESET-T218

R405 22 O HM 1/16W

R406 22 OHM 1/16W

RP403 22R

RP409 22R

RP413 22R

R409 22 O HM 1/16W

R410 22 OHM 1/16W
RP419 22R

RP423 22R

R427 22 O HM 1/16W

R429 22 OHM 1/16W
RP429 22R

RP433 22R

RP437 22R

R425 22 OHM 1/16W
R430 22 OHM 1/16W
RP439 22R

RP443 22R

A-DDR3-DQ018
A-DDR3-DQ118
A-DDR3-DQ218
A-DDR3-DQ318
A-DDR3-DQ418
A-DDR3-DQ518
A-DDR3-DQ618
A-DDR3-DQ718
A-DDR3-DQ818
A-DDR3-DQ918
A-DDR3-DQ1018
A-DDR3-DQ1118
A-DDR3-DQ1218
A-DDR3-DQ1318
A-DDR3-DQ1418
A-DDR3-DQ1518
A-DDR3-DQS118

A-DDR3-DQS018

A-DDR3-DM118
A-DDR3-DM018

A-DDR3-DQ1618
A-DDR3-DQ1718
A-DDR3-DQ1818
A-DDR3-DQ1918
A-DDR3-DQ2018
A-DDR3-DQ2118
A-DDR3-DQ2218
A-DDR3-DQ2318
A-DDR3-DQ2418
A-DDR3-DQ2518
A-DDR3-DQ2618
A-DDR3-DQ2718
A-DDR3-DQ2818
A-DDR3-DQ2918
A-DDR3-DQ3018
A-DDR3-DQ3118
A-DDR3-DQS318

A-DDR3-DQS218

A-DDR3-DM318
A-DDR3-DM218

A-DDR3-ODT-T1

A-DDR3-A7-T1
A-DDR3-A5-T1
A-DDR3-A3-T1
A-DDR3-BA2-T1

A-DDR3-A2-T1
A-DDR3-A13-T1
A-DDR3-A9-T1
A-DDR3-RESET-T1

A-DDR3-RASZ-T1
A-DDR3-CASZ-T1 A_DDR3_CASZ
A-DDR3-WEZ -T1
A-DDR3-A0-T1

A-DDR3-A1-T1
A-DDR 3-A11-T1

A-DDR3-A4-T1
A-DDR3-A8-T1
A-DDR3-A6-T1
A-DDR3-A14-T1

A-DDR3-CKE-T1
A-DDR3-A10-T1

A-DDR3-A12-T1

B-DDR3-ODT-T1
B-DDR3-BA0-T1

B-DDR3-A7-T1
B-DDR3-A5-T1
B-DDR3-A3-T1
B-DDR3-BA2-T1

B-DDR3-A2-T1
B-DDR 3-A13-T1
B-DDR3-A9-T1
B-DDR3-RESET-T1

B-DDR3-RASZ-T1
B-DDR3-CASZ-T1
B-DDR3-WEZ-T1
B-DDR3-A0-T1

B-DDR3-A4-T1
B-DDR3-A8-T1
B-DDR3-A6-T1
B-DDR 3-A14-T1

B-DDR3-CKE-T1
B-DDR 3-A10-T1
B-DDR3-BA1-T1
B-DDR 3-A12-T1

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

A_DDR3_ODT
A_DDR3_BA0A-DDR3-BA0-T1

8
7
6
5

A_DDR3_A2

8

A_DDR3_A13

7

A_DDR3_A9

6

A_DDR3_RESET

5

8
7
6
5

A_DDR3_A1

A_DDR3_A11

8
7
6
5

8
7
6
5

B_DDR3_ODT
B_DDR3_BA0

B_DDR3_A7

8

B_DDR3_A5

7

B_DDR3_A3

6

B_DDR3_BA2

5

B_DDR3_A2

8

B_DDR3_A13

7

B_DDR3_A9

6

B_DDR3_RESET

5

B_DDR3_RASZ

8

B_DDR3_CASZ

7

B_DDR3_WEZ

6

B_DDR3_A0

5

B_DDR3_A4

8

B_DDR3_A8

7

B_DDR3_A6

6

B_DDR3_A14

5

B_DDR3_CKE

8

B_DDR3_A10

7

B_DDR3_BA1

6

B_DDR3_A12

5

A-DDR3-DQ0
A-DDR3-DQ1
A-DDR3-DQ2
A-DDR3-DQ3
A-DDR3-DQ4
A-DDR3-DQ5
A-DDR3-DQ6
A-DDR3-DQ7
A-DDR3-DQ8
A-DDR3-DQ9
A-DDR3-DQ10
A-DDR3-DQ11
A-DDR3-DQ12
A-DDR3-DQ13
A-DDR3-DQ14
A-DDR3-DQ15
A-DDR3-DQS1
A-DDR3-DQS1B
A-DDR3-DQS0
A-DDR3-DQS0B
A-DDR3-DM1
A-DDR3-DM0

A-DDR3-RESET-T1

A-DDR3-DQ16
A-DDR3-DQ17
A-DDR3-DQ18
A-DDR3-DQ19
A-DDR3-DQ20
A-DDR3-DQ21
A-DDR3-DQ22
A-DDR3-DQ23
A-DDR3-DQ24
A-DDR3-DQ25
A-DDR3-DQ26
A-DDR3-DQ27
A-DDR3-DQ28
A-DDR3-DQ29
A-DDR3-DQ30
A-DDR3-DQ31
A-DDR3-DQS3
A-DDR3-DQS3B
A-DDR3-DQS2
A-DDR3-DQS2B
A-DDR3-DM3
A-DDR3-DM2

A-DDR3-RESET-T2

A_DDR3_A7
A_DDR3_A5
A_DDR3_A3
A_DDR3_BA2

A_DDR3_RASZ
A_DDR3_CASZ
A_DDR3_WEZ
A_DDR3_A0

A_DDR3_A4
A_DDR3_A8
A_DDR3_A6
A_DDR3_A14

A_DDR3_CKE
A_DDR3_A10
A_DDR3_BA1
A_DDR3_A12

B_DDR3_A1
B_DDR 3_A11

A_DDR3_ODT
A_DDR3_BA0

A_DDR3_A7
A_DDR3_A5
A_DDR3_A3
A_DDR3_BA2

A_DDR3_A2
A_DDR3_A13
A_DDR3_A9
A_DDR3_RESET

A_DDR3_RASZ

A_DDR3_WEZ
A_DDR3_A0

A_DDR3_A1
A_DDR3_A11

A_DDR3_A4
A_DDR3_A8
A_DDR3_A6
A_DDR3_A14

A_DDR3_CKE A-DDR3-CKE-T2
A_DDR3_A10
A_DDR3_BA1A-DDR3-BA1-T1
A_DDR3_A12

B-DDR3-DQS1B18

B-DDR3-DQS0B18

B-DDR3- RESET-T118

B-DDR3-DQ018
B-DDR3-DQ118
B-DDR3-DQ218
B-DDR3-DQ318
B-DDR3-DQ418
B-DDR3-DQ518
B-DDR3-DQ618
B-DDR3-DQ718
B-DDR3-DQ818
B-DDR3-DQ918
B-DDR3-DQ1018
B-DDR3-DQ1118
B-DDR3-DQ1218
B-DDR3-DQ1318
B-DDR3-DQ1418
B-DDR3-DQ1518
B-DDR3-DQS118

B-DDR3-DQS018

B-DDR3-DM118
B-DDR3-DM018

R407 22 O HM 1/16W

R404 22 O HM 1/16W

RP404 22R

RP410 22R

RP414 22R

R411 22 O HM 1/16W

R423 22 O HM 1/16W
RP420 22R

RP424 22R

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

B-DDR3-DQ0
B-DDR3-DQ1
B-DDR3-DQ2
B-DDR3-DQ3
B-DDR3-DQ4
B-DDR3-DQ5
B-DDR3-DQ6
B-DDR3-DQ7
B-DDR3-DQ8
B-DDR3-DQ9
B-DDR3-DQ10
B-DDR3-DQ11
B-DDR3-DQ12
B-DDR3-DQ13
B-DDR3-DQ14
B-DDR3-DQ15
B-DDR3-DQS1
B-DDR3-DQS1B
B-DDR3-DQS0
B-DDR3-DQS0B
B-DDR3-DM1
B-DDR3-DM0

B-DDR3-RESET-T1

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

A-DDR3-OD T-T2
A-DDR3-BA0-T2

A-DDR3-A1-T2

A-DDR3-A1 1-T2

A-DDR3-A7-T2
A-DDR3-A5-T2
A-DDR3-A3-T2
A-DDR3-BA2-T2

A-DDR3-A2-T2
A-DDR3-A13-T2
A-DDR3-A9-T2
A-DDR3-R ESET-T2

A-DDR3-RASZ-T2
A-DDR3-CASZ-T2
A-DDR3-WEZ-T2
A-DDR3-A0-T2

A-DDR3-A4-T2
A-DDR3-A8-T2
A-DDR3-A6-T2
A-DDR3-A14-T2

A-DDR3-A10-T2
A-DDR3-BA1-T2
A-DDR3-A12-T2

A_DDR3_DQ3
A_DDR3_DQ1

A_DDR3_DQ2
A_DDR3_DQ0

A_DDR3_DQ13
A_DDR3_DQ15

A_DDR3_DQ9
A_DDR3_DQ12

A_DDR3_DQ14
A_DDR3_DQ10

A_DDR3_DQ5
A_DDR3_DQ7

A_DDR3_DQ6
A_DDR3_DQ4

A_DDR3_DQ11
A_DDR3_DM1

A_DDR3_DM0
A_DDR3_DQ8

A_DDR3_DQS1B
A_DDR3_DQS1

A_DDR3_DQS0B
A_DDR3_DQS0

B_DDR3_DQ2
B_DDR3_DQ0

B_DDR3_DQ13
B_DDR3_DQ15

B_DDR3_DQ9
B_DDR3_DQ12

B_DDR3_DQ14
B_DDR3_DQ10

B_DDR3_DQ3
B_DDR3_DQ1

B_DDR3_DQ6
B_DDR3_DQ4

B_DDR3_DQ11
B_DDR3_DM1

B_DDR3_DM0
B_DDR3_DQ8

B_DDR3_DQ5
B_DDR3_DQ7

B_DDR3_DQS1B
B_DDR3_DQS1

B_DDR3_DQS0B
B_DDR3_DQS0

RP401 22R

1
2
3
4

RP405 22R

1
2
3
4

RP407 22R

1
2
3
4

RP411 22R

1
2
3
4

RP415 22R

1
2
3
4

RP417 22R

1
2
3
4

RP421 22R

1
2
3
4

RP425 22R

1
2
3
4

RP427 22R

1
2
3
4

RP431 22R

1
2
3
4

RP435 22R

1
2
3
4

RP441 22R

1
2
3
4

RP445 22R

1
2
3
4

RP447 22R

1
2
3
4

RP449 22R

1
2
3
4

RP456 22R

1
2
3
4

RP455 22R

1
2
3
4

RP458 22R

1
2
3
4

RP457 22R

1
2
3
4

RP459 22R

1
2
3
4

RP461 22R

1
2
3
4

RP463 22R

1
2
3
4

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

A-DDR3-DQ3
A-DDR3-DQ1

A-DDR3-DQ2
A-DDR3-DQ0

A-DDR3-DQ13
A-DDR3-DQ15

A-DDR3-DQ12

A-DDR3-DQ14
A-DDR3-DQ10

A-DDR3-DQ5
A-DDR3-DQ7

A-DDR3-DQ6
A-DDR3-DQ4

A-DDR3-DQ11

A-DDR3-DM0
A-DDR3-DQ8

A-DDR3-DQS1B
A-DDR3-DQS1

A-DDR3-DQS0B
A-DDR3-DQS0

B-DDR3-DQ2
B-DDR3-DQ0

B-DDR3-DQ13
B-DDR3-DQ15

B-DDR3-DQ9
B-DDR3-DQ12

B-DDR3-DQ14
B-DDR3-DQ10

B-DDR3-DQ3
B-DDR3-DQ1

B-DDR3-DQ6
B-DDR3-DQ4

B-DDR3-DQ11
B-DDR3-DM1

B-DDR3-DM0
B-DDR3-DQ8

B-DDR3-DQ5
B-DDR3-DQ7

B-DDR3-DQS1B
B-DDR3-DQS1

B-DDR3-DQS0B
B-DDR3-DQS0

A_DDR3_DQS3B
A_DDR3_DQS3

A_DDR3_DQ25
A_DDR3_DQ28

A_DDR3_DQ30
A_DDR3_DQ26

A_DDR3_DQ24
A_DDR3_DM2

A_DDR3_DQ19
A_DDR3_DQ17

A_DDR3_DQ22
A_DDR3_DQ20

A_DDR3_DQ16
A_DDR3_DQ18

A_DDR3_DQ27
A_DDR3_DM3A-DDR3-DM1

A_DDR3_DQ31
A_DDR3_DQ29

A_DDR3_DQS2B
A_DDR3_DQS2

A_DDR3_DQ21
A_DDR3_DQ23

RP402 22R

1
2
3
4

RP406 22R

1
2
3
4

RP408 22R

1
2
3
4

RP412 22R

1
2
3
4

RP416 22R

1
2
3
4

RP418 22R

1
2
3
4

RP422 22R

1
2
3
4

RP426 22R

1
2
3
4

RP428 22R

1
2
3
4

RP432 22R

1
2
3
4

RP436 22R

1
2
3
4

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

A-DDR3-DQS3B
A-DDR3-DQS3

A-DDR3-DQ25
A-DDR3-DQ28

A-DDR3-DQ30
A-DDR3-DQ26

A-DDR3-DQ24A-DDR3-DQ9
A-DDR3-DM2

A-DDR3-DQ19
A-DDR3-DQ17

A-DDR3-DQ22
A-DDR3-DQ20

A-DDR3-DQ16
A-DDR3-DQ18

A-DDR3-DQ27
A-DDR3-DM3

A-DDR3-DQ31
A-DDR3-DQ29

A-DDR3-DQS2B
A-DDR3-DQS2

A-DDR3-DQ21
A-DDR3-DQ23

A_DDR3_A0
A_DDR3_A1
A_DDR3_A2
A_DDR3_A3
A_DDR3_A4
A_DDR3_A5
A_DDR3_A6
A_DDR3_A7
A_DDR3_A8
A_DDR3_A9
A_DDR3_A10
A_DDR3_A11
A_DDR3_A12
A_DDR3_A13
A_DDR3_A14
A_DDR3_CASZ
A_DDR3_RASZ
A_DDR3_WEZ
A_DDR3_ODT
A_DDR3_BA0
A_DDR3_BA1
A_DDR3_BA2
A_DDR3_RESET
A_DDR3_CKE
A_DDR3_DQ0
A_DDR3_DQ1
A_DDR3_DQ2
A_DDR3_DQ3
A_DDR3_DQ4
A_DDR3_DQ5
A_DDR3_DQ6
A_DDR3_DQ7
A_DDR3_DQ8
A_DDR3_DQ9
A_DDR3_DQ10
A_DDR3_DQ11
A_DDR3_DQ12
A_DDR3_DQ13
A_DDR3_DQ14
A_DDR3_DQ15
A_DDR3_DM0
A_DDR3_DM1
A_DDR3_MCLK
A_DDR3_MCLKZ
A_DDR3_DQS0
A_DDR3_DQS0B
A_DDR3_DQS1
A_DDR3_DQS1B

A_DDR3_DQ16
A_DDR3_DQ17
A_DDR3_DQ18
A_DDR3_DQ19
A_DDR3_DQ20
A_DDR3_DQ21
A_DDR3_DQ22
A_DDR3_DQ23
A_DDR3_DQ24
A_DDR3_DQ25
A_DDR3_DQ26
A_DDR3_DQ27
A_DDR3_DQ28
A_DDR3_DQ29
A_DDR3_DQ30
A_DDR3_DQ31
A_DDR3_DM2
A_DDR3_DM3
A_DDR3_DQS2
A_DDR3_DQS2B
A_DDR3_DQS3
A_DDR3_DQS3B

U401A

C10

A_DDR3_A0/DDR2_A5

B11

A_DDR3_A1/DDR2_A13

E12

A_DDR3_A2/DDR2_A9

E10

A_DDR3_A3/DDR2_A10

B12

A_DDR3_A4/DDR2_A2

D11

A_DDR3_A5/DDR2_A3

E14

A_DDR3_A6/DDR2_A4

D12

A_DDR3_A7/DDR2_A7

A12

A_DDR3_A8/DDR2_A8

A9

A_DDR3_A9/DDR2_A14

B13

A_DDR3_A10/DDR2_CASZ

A11

A_DDR3_A11/DDR2_A6

D15

A_DDR3_A12/DDR2_A0

E11

A_DDR3_A13/DDR2_A12

E13

A_DDR3_A14/DDR2_A11

D13

A_DDR3_CASZ/DDR2_BA0

D14

A_DDR3_RASZ/DDR2_BA1

B10

A_DDR3_WEZ/DDR2_A1

D9

A_DDR3_ODT/DDR2_WEZ

D10

A_DDR3_BA0/DDR2_CKE

D16

A_DDR3_BA1/DDR2_RASZ

E9

A_DDR3_BA2/DDR2_BA2

C9

A_DDR3_RESETB

C14

A_DDR3_CKE/DDR2_ODT

E19

A_DDR3_DQ0/DDR2_DQ6

E15

A_DDR3_DQ1/DDR2_DQ0

E20

A_DDR3_DQ2/DDR2_DQ1

E16

A_DDR3_DQ3/DDR2_DQ7

B21

A_DDR3_DQ4/DDR2_DQ4

B15

A_DDR3_DQ5/DDR2_DQ5

A21

A_DDR3_DQ6/DDR2_DQ3

C16

A_DDR3_DQ7/DDR2_DQ2

B17

MSD8560IV

A_DDR3_DQ8/DDR2_DQ15

E18

A_DDR3_DQ9/DDR2_DMU

D17

A_DDR3_DQ10/DDR2_DQ10

B20

A_DDR3_DQ11/DDR2_DQ9

E17

A_DDR3_DQ12/DDR2_DML

D20

A_DDR3_DQ13/DDR2_DQ12

D18

A_DDR3_DQ14/DDR2_DQ8

D19

A_DDR3_DQ15/DDR2_DQ14

C17

A_DDR3_DM0//DDR2_DQ13

A20

A_DDR3_DM1/DDR2_DQ11

C15

A_DDR3_MCLK/DDR2_MCLK

A14

A_DDR3_MCLKZ/DDR2_MCLKZ

B19

A_DDR3_DQS0/DDR2_DQS0

C19

A_DDR3_DQS0B/DDR2_DQSB0

A18

A_DDR3_DQS1/DDR2_DQS1

C18

A_DDR3_DQS1B/DDR2_DQSB1

C28

A_DDR3_DQ16/DDR2_DQ6

D21

A_DDR3_DQ17/DDR2_DQ0

B28

A_DDR3_DQ18/DDR2_DQ1

D22

A_DDR3_DQ19/DDR2_DQ7

A29

A_DDR3_DQ20/DDR2_DQ4

B22

A_DDR3_DQ21/DDR2_DQ5

B29

A_DDR3_DQ22/DDR2_DQ3

C23

A_DDR3_DQ23/DDR2_DQ2

E22

A_DDR3_DQ24/DDR2_DQ15

E24

A_DDR3_DQ25/DDR2_DMU

E23

A_DDR3_DQ26/DDR2_DQ10

C27

A_DDR3_DQ27/DDR2_DQ9

D24

A_DDR3_DQ28/DDR2_DML

B26

A_DDR3_DQ29/DDR2_DQ12

D23

A_DDR3_DQ30/DDR2_DQ8

C26

A_DDR3_DQ31/DDR2_DQ14

E21

A_DDR3_DM2//DDR2_DQ13

A27

A_DDR3_DM3/DDR2_DQ11

C25

A_DDR3_DQS2/DDR2_DQS0

B24

A_DDR3_DQS2B/DDR2_DQSB0

C24

A_DDR3_DQS3/DDR2_DQS1

A23

A_DDR3_DQS3B/DDR2_DQSB1

A-DDR3-A0-T1
A-DDR3-A1-T1
A-DDR3-A2-T1
A-DDR3-A3-T1
A-DDR3-A4-T1
A-DDR3-A5-T1
A-DDR3-A6-T1
A-DDR3-A7-T1
A-DDR3-A8-T1
A-DDR3-A9-T1
A-DDR3-A10-T1
A-DDR3-A11-T1
A-DDR3-A12-T1
A-DDR3-A13-T1
A-DDR3-A14-T1
A-DDR3-BA0-T1
A-DDR3-BA1-T1
A-DDR3-BA2-T1
A-DDR3-CASZ-T1
A-DDR3-ODT-T1
A-DDR3-RASZ-T1
A-DDR3-WEZ-T1
A-DDR3-CKE-T1

B-DDR3-A0-T1
B-DDR3-A1-T1
B-DDR3-A2-T1
B-DDR3-A3-T1
B-DDR3-A4-T1
B-DDR3-A5-T1
B-DDR3-A6-T1
B-DDR3-A7-T1
B-DDR3-A8-T1
B-DDR3-A9-T1
B-DDR3-A10-T1
B-DDR3-A11-T1
B-DDR3-A12-T1
B-DDR3-A13-T1
B-DDR3-A14-T1
B-DDR3-BA0-T1
B-DDR3-BA1-T1
B-DDR3-BA2-T1
B-DDR3-CASZ-T1
B-DDR3-ODT-T1
B-DDR3-RASZ-T1
B-DDR3-WEZ-T1
B-DDR3-CKE-T1

A-DDR3-A0-T1 18
A-DDR3-A1-T1 18
A-DDR3-A2-T1 18
A-DDR3-A3-T1 18
A-DDR3-A4-T1 18
A-DDR3-A5-T1 18
A-DDR3-A6-T1 18
A-DDR3-A7-T1 18
A-DDR3-A8-T1 18
A-DDR3-A9-T1 18
A-DDR3-A10-T1 18
A-DDR3-A11-T1 18
A-DDR3-A12-T1 18
A-DDR3-A13-T1 18
A-DDR3-A14-T1 18
A-DDR3-BA0-T1 18
A-DDR3-BA1-T1 18
A-DDR3-BA2-T1 18
A-DDR3-CASZ-T1 18
A-D DR 3- OD T-T1 18
A-DDR3-RASZ-T1 18
A-DDR3-WEZ -T1 18
A-DDR3-CKE-T1 18

B-DDR3-A0-T1 18
B-DDR3-A1-T1 18
B-DDR3-A2-T1 18
B-DDR3-A3-T1 18
B-DDR3-A4-T1 18
B-DDR3-A5-T1 18
B-DDR3-A6-T1 18
B-DDR3-A7-T1 18
B-DDR3-A8-T1 18
B-DDR3-A9-T1 18
B-DDR3-A10-T1 18
B-DDR3-A11-T1 18
B-DDR3-A12-T1 18
B-DDR3-A13-T1 18
B-DDR3-A14-T1 18
B-DDR3-BA0-T1 18
B-DDR3-BA1-T1 18
B-DDR3-BA2-T1 18
B-DDR3-CASZ-T1 18
B-D DR 3- OD T-T1 18
B-DDR3-RASZ-T1 18
B-DDR3-WEZ-T1 18
B-DDR3-CKE-T1 18

B_DDR3_A10/DDR2_CASZ

B_DDR3_CASZ/DDR2_BA0
B_DDR3_RASZ/DDR2_BA1

B_DDR3_ODT/DDR2_WEZ

B_DDR3_BA0/DDR2_CKE

B_DDR3_BA1/DDR2_RASZ

B_DDR3_CKE/DDR2_ODT
B_DDR3_DQ0/DDR2_DQ6
B_DDR3_DQ1/DDR2_DQ0
B_DDR3_DQ2/DDR2_DQ1
B_DDR3_DQ3/DDR2_DQ7
B_DDR3_DQ4/DDR2_DQ4
B_DDR3_DQ5/DDR2_DQ5

MIU0

B_DDR3_DQ6/DDR2_DQ3
B_DDR3_DQ7/DDR2_DQ2

B_DDR3_DQ8/DDR2_DQ15

B_DDR3_DQ9/DDR2_DMU

B_DDR3_DQ10/DDR2_DQ10

B_DDR3_DQ11/DDR2_DQ9

MIU1

B_DDR3_DQ12/DDR2_DML

B_DDR3_DQ13/DDR2_DQ12

B_DDR3_DQ14/DDR2_DQ8
B_DDR3_DQ15/DDR2_DQ14
B_DDR3_DM0//DDR2_DQ13

B_DDR3_DM1/DDR2_DQ11

B_DDR3_MCLK/DDR2_MCLK

B_DDR3_MCLKZ/DDR2_MCLKZ

B_DDR3_DQS0/DDR2_DQS0

B_DDR3_DQS0B/DDR2_DQSB0

B_DDR3_DQS1/DDR2_DQS1

B_DDR3_DQS1B/DDR2_DQSB1

B_DDR3_A0/DDR2_A5

B_DDR3_A1/DDR2_A13

B_DDR3_A2/DDR2_A9

B_DDR3_A3/DDR2_A10

B_DDR3_A4/DDR2_A2
B_DDR3_A5/DDR2_A3
B_DDR3_A6/DDR2_A4
B_DDR3_A7/DDR2_A7
B_DDR3_A8/DDR2_A8

B_DDR3_A9/DDR2_A14

B_DDR3_A11/DD R2_A6

B_DDR3_A12/DD R2_A0
B_DDR3_A13/DDR2_A12
B_DDR3_A14/DDR2_A11

B_DDR3_WEZ/DDR2_A1

B_DDR3 _BA2/DDR 2_BA2

B_DDR3_RESETB

A-DDR3-A0-T2

A-DDR3-A1-T2

A-DDR3-A2-T2

A-DDR3-A3-T2

A-DDR3-A4-T2

A-DDR3-A5-T2

A-DDR3-A6-T2

A-DDR3-A7-T2

A-DDR3-A8-T2

A-DDR3-A9-T2

A-DDR3-A10 -T2

A-DDR3-A11 -T2

A-DDR3-A12-T2

A-DDR3-A13-T2

A-DDR3-A14-T2

A-DDR3-BA0-T2

A-DDR3-BA1-T2

A-DDR3-BA2-T2

A-DDR3-CASZ-T2

A-DDR3-ODT-T2

A-DDR3-RASZ-T2

A-DDR3-W EZ-T2

A-DDR3-CKE-T2

B_DDR3_A0

C31

B_DDR3_A1

D32

B_DDR3_A2

J29

B_DDR3_A3

B30

B_DDR3_A4

E30

B_DDR3_A5

H28

B_DDR3_A6

L29

B_DDR3_A7

J28

B_DDR3_A8

E31

B_DDR3_A9

B31

B_DDR 3_A10

F32

B_DDR 3_A11

D31

B_DDR 3_A12

M28

B_DDR 3_A13

H29

B_DDR 3_A14

K29

B_DDR3_CASZ

K28

B_DDR3_RASZ

L28

B_DDR3_WEZ

C32

B_DDR3_OD T

G29

B_DDR3_BA0

G28

B_DDR3_BA1

N28

B_DDR3_BA2

A30

B_DDR3_RESET

C30

B_DDR3_CKE

F30

B_DDR3_DQ0

T29

B_DDR3_DQ1

M29

B_DDR3_DQ2

U29

B_DDR3_DQ3

N29

B_DDR3_DQ4

P30

B_DDR3_DQ5

H30

B_DDR3_DQ6

P31

B_DDR3_DQ7

J31

B_DDR3_DQ8

K32

B_DDR3_DQ9

R29

B_DDR3_DQ10

P28

B_DDR3_DQ11

N32

B_DDR3_DQ12

P29

B_DDR3_DQ13

U28

B_DDR3_DQ14

R28

B_DDR3_DQ15

T28

B_DDR3_DM0

J30

B_DDR3_DM1

N31

B_DDR3_MCLK

G30

B_DDR3_MCLKZ

G31

B_DDR3_DQS0

M32

B_DDR3_DQS0B

M31

B_DDR3_DQS1

L31

B_DDR3_DQS1B

K30

AA31

NC

V28

NC

AA32

NC

W28

NC

AB31

NC

R32

NC

AB32

NC

R30

NC

W29

NC

AA29

NC

Y28

NC

W30

NC

Y29

NC

W32

NC

AA28

NC

V30

NC

V29

NC

Y31

NC

V31

NC

U30

NC

T30

NC

T31

NC

A-DDR3-A0-T2 18
A-DDR3-A1-T2 18
A-DDR3-A2-T2 18
A-DDR3-A3-T2 18
A-DDR3-A4-T2 18
A-DDR3-A5-T2 18
A-DDR3-A6-T2 18
A-DDR3-A7-T2 18
A-DDR3-A8-T2 18
A-DDR3-A9-T2 18
A-DDR3-A10-T2 18
A-DDR3-A11-T2 18
A-DDR3-A12-T2 18
A-DDR3-A13-T2 18
A-DDR3-A14-T2 18
A-DDR3-BA0-T2 18
A-DDR3-BA1-T2 18
A-DDR3-BA2-T2 18
A-DDR3-CASZ-T2 18
A-DDR3-OD T-T2 18
A-DDR3-RASZ-T2 18
A-DDR3-WEZ-T2 18
A-DDR3-CKE-T2 18

A_DDR3_MCLK18
A_DDR3_MCLKZ18
B_DDR3_MCLK18
B_DDR3_MCLKZ18

A_DDR3_CKE18
B_DDR3_CKE18

A_DDR3_MCLK
A_DDR3_MCLKZ
B_DDR3_MCLK
B_DDR3_MCLKZ

A_DDR3_CKE
B_DDR3_CKE

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

17.DDR page1

Date

OEM MODEL

TPV MO DEL

PCB NAME

Sheet

C

Size

D

Rev

称爹

>

<

17 22Friday, August 23, 2013

of

称爹

49

A-DDR3-DQ017
A-DDR3-DQ117
A-DDR3-DQ217
A-DDR3-DQ317
A-DDR3-DQ417
A-DDR3-DQ517
A-DDR3-DQ617
A-DDR3-DQ717
A-DDR3-DQ817
A-DDR3-DQ917
A-DDR3-DQ1017
A-DDR3-DQ1117
A-DDR3-DQ1217
A-DDR3-DQ1317
A-DDR3-DQ1417
A-DDR3-DQ1517

A-DDR3-DQS117

A-DDR3-DQS1B17

A-DDR3-DQS017

A-DDR3-DQS0B17

A-DDR3-DM117
A-DDR3-DM017

R475 240 OHM +-1% 1/16W

A-DDR3-RESET-T117

B-DDR3-DQ017
B-DDR3-DQ117
B-DDR3-DQ217
B-DDR3-DQ317
B-DDR3-DQ417
B-DDR3-DQ517
B-DDR3-DQ617
B-DDR3-DQ717
B-DDR3-DQ817
B-DDR3-DQ917
B-DDR3-DQ1017
B-DDR3-DQ1117
B-DDR3-DQ1217
B-DDR3-DQ1317
B-DDR3-DQ1417
B-DDR3-DQ1517

B-DDR3-DQS117

B-DDR3-DQS1B17

B-DDR3-DQS017

B-DDR3-DQS0B17

B-DDR3-DM117
B-DDR3-DM017

R482 240 OHM +-1% 1/16W

B-DDR3-RESET-T117

DDR3 2G bit 1600MHz

A-DDR3-DQ0
A-DDR3-DQ1
A-DDR3-DQ2
A-DDR3-DQ3
A-DDR3-DQ4
A-DDR3-DQ5
A-DDR3-DQ6
A-DDR3-DQ7
A-DDR3-DQ8
A-DDR3-DQ9
A-DDR3-DQ10
A-DDR3-DQ11
A-DDR3-DQ12
A-DDR3-DQ13
A-DDR3-DQ14
A-DDR3-DQ15

A-DDR3-DQS1
A-DDR3-DQS1B
A-DDR3-DQS0
A-DDR3-DQS0B
A-DDR3-DM1
A-DDR3-DM0

A-MVREFDQ-T1
A-MVREFCA-T1

A-DDR3-RESET-T1

+1.5V_D DR

B-DDR3-DQ0
B-DDR3-DQ1
B-DDR3-DQ2
B-DDR3-DQ3
B-DDR3-DQ4
B-DDR3-DQ5
B-DDR3-DQ6
B-DDR3-DQ7
B-DDR3-DQ8
B-DDR3-DQ9
B-DDR3-DQ10
B-DDR3-DQ11
B-DDR3-DQ12
B-DDR3-DQ13
B-DDR3-DQ14
B-DDR3-DQ15

B-DDR3-DQS1
B-DDR3-DQS1B
B-DDR3-DQS0
B-DDR3-DQS0B
B-DDR3-DM1
B-DDR3-DM0

B-MVREFDQ-T1
B-MVREFCA-T1

B-DDR3-RESET-T1

+1.5V_D DR

U402

E3

DQ0

F7

DQ1

F2

DQ2

F8

DQ3

H3

DQ4

H8

DQ5

G2

DQ6

H7

DQ7

D7

DQ8

C3

DQ9

C8

DQ10

C2

DQ11

A7

DQ12

A2

DQ13

B8

DQ14

A3

DQ15

C7

UDQS

B7

UDQS#

F3

LDQS

G3

LDQS#

D3

UDM

E7

LDM

H1

VREFDQ

M8

VREFCA

L8

ZQ

T2

RESET#

A1

VDDQ_0

A8

VDDQ_1

C1

VDDQ_2

C9

VDDQ_3

D2

VDDQ_4

E9

VDDQ_5

F1

VDDQ_6

H2

VDDQ_7

H9

VDDQ_8

B2

VDD_0

D9

VDD_1

G7

VDD_2
VDD_3K2VSS_3

K8

VDD_4

N1

VDD_5

N9

VDD_6

R9

VDD_8

R1

VDD_7

K4B2G1646E-BCK00DT

DDR3 2G bit 1600MHz

U408

E3

DQ0

F7

DQ1

F2

DQ2

F8

DQ3

H3

DQ4

H8

DQ5

G2

DQ6

H7

DQ7

D7

DQ8

C3

DQ9

C8

DQ10

C2

DQ11

A7

DQ12

A2

DQ13

B8

DQ14

A3

DQ15

C7

UDQS

B7

UDQS#

F3

LDQS

G3

LDQS#

D3

UDM

E7

LDM

H1

VREFDQ

M8

VREFCA

L8

ZQ

T2

RESET#

A1

VDDQ_0

A8

VDDQ_1

C1

VDDQ_2

C9

VDDQ_3

D2

VDDQ_4

E9

VDDQ_5

F1

VDDQ_6

H2

VDDQ_7

H9

VDDQ_8

B2

VDD_0

D9

VDD_1

G7

VDD_2
VDD_3K2VSS_3

K8

VDD_4

N1

VDD_5

N9

VDD_6

R9

VDD_8

R1

VDD_7

A10/AP

A12/BC#

NC_0
NC_1
NC_2
NC_3
NC_4
NC_6

CAS#

RAS#

VSSQ_0
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8

VSS_0
VSS_1
VSS_2

VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11

A10/AP

A12/BC#

NC_0
NC_1
NC_2
NC_3
NC_4
NC_6

CAS#

RAS#

VSSQ_0
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8

VSS_0

VSS_1

VSS_2

VSS_4

VSS_5

VSS_6

VSS_7

VSS_8

VSS_9
VSS_10
VSS_11

C405

C432

100N 16V

C422

100N 16V

C421

1nF 50V

C425

1nF 50V

C438

100N 16V

100N 16V

R492

0R05

A_DDR3_CKE 17

B_DDR3_CKE 17

A-DDR3_MCLK
A-DDR3_MCLKZ

100N 16V

C406

100N 16V

A_DDR3_MC LK

DDR3 2G bit 1600MHz

A-DDR3-A0-T1

N3

A0

A-DDR3-A1-T1

P7

A1

A-DDR3-A2-T1

P3

A2

A-DDR3-A3-T1

N2

A3

A-DDR3-A4-T1

P8

A4

A-DDR3-A5-T1

P2

A5

A-DDR3-A6-T1

R8

A6

A-DDR3-A7-T1

R2

A7

A-DDR3-A8-T1

T8

A8

A-DDR3-A9-T1

R3

A9

A-DDR3-A10-T1

L7

A-DDR3-A11-T1

R7

A11

A-DDR3-A12-T1

N7

A-DDR3-A13-T1

T3

A13

J1
J9
L1
L9
M7
T7

A-DDR3-BA0-T1

M2

BA0

A-DDR3-BA1-T1

N8

BA1

A-DDR3-BA2-T1

M3

BA2

A_DDR3-MCLK

J7

CK

A_DDR3-MCLKZ

K7

CK#

L2

CS#

A-DDR3-CASZ-T1

K3

A-DD R3 -OD T-T1

K1

ODT

A-DDR3-RASZ-T1

J3

A-DDR3-WEZ-T1

L3

WE#

A-DDR3-CKE-T1

K9

CKE

B1
B9
D1
D8
E2
E8
F9
G1
G9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B-DDR3-A0-T1

N3

A0

B-DDR3-A1-T1

P7

A1

B-DDR3-A2-T1

P3

A2

B-DDR3-A3-T1

N2

A3

B-DDR3-A4-T1

P8

A4

B-DDR3-A5-T1

P2

A5

B-DDR3-A6-T1

R8

A6

B-DDR3-A7-T1

R2

A7

B-DDR3-A8-T1

T8

A8

B-DDR3-A9-T1

R3

A9

B-DDR3-A10-T1

L7

B-DDR3-A11-T1

R7

A11

B-DDR3-A12-T1

N7

B-DDR3-A13-T1

T3

A13

J1
J9
L1
L9
M7

B-DDR3-A14-T1

T7

B-DDR3-BA0-T1

M2

BA0

B-DDR3-BA1-T1

N8

BA1

B-DDR3-BA2-T1

M3

BA2

B_DDR3-MCLK

J7

CK

B_DDR3-MCLKZ

K7

CK#

L2

CS#

B-DDR3-CASZ-T1

K3

B-DD R3 -OD T-T1

K1

ODT

B-DDR3-RASZ-T1

J3

B-DDR3-WEZ-T1

L3

WE#

B-DDR3-CKE-T1

K9

CKE

B1
B9
D1
D8
E2
E8
F9
G1
G9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

A-DDR3-A0-T1 17
A-DDR3-A1-T1 17
A-DDR3-A2-T1 17
A-DDR3-A3-T1 17
A-DDR3-A4-T1 17
A-DDR3-A5-T1 17
A-DDR3-A6-T1 17
A-DDR3-A7-T1 17
A-DDR3-A8-T1 17
A-DDR3-A9-T1 17
A-DDR3-A10-T1 17
A-DDR3-A11-T1 17
A-DDR3-A12-T1 17
A-DDR3-A13-T1 17

A-DDR3-A14-T1 17

A-DDR3-BA0-T1 17
A-DDR3-BA1-T1 17
A-DDR3-BA2-T1 17

R47256R 1/16W 1%
R47156R 1/16W 1%

A-DDR3-CASZ-T1 17
A-DD R3 -OD T-T1 17
A-DDR3-RASZ-T1 17
A-DDR3-WEZ -T1 17
A-DDR3-CKE-T1 17

B-DDR3-A0-T1 17
B-DDR3-A1-T1 17
B-DDR3-A2-T1 17
B-DDR3-A3-T1 17
B-DDR3-A4-T1 17
B-DDR3-A5-T1 17
B-DDR3-A6-T1 17
B-DDR3-A7-T1 17
B-DDR3-A8-T1 17
B-DDR3-A9-T1 17
B-DDR3-A10-T1 17
B-DDR3-A11-T1 17
B-DDR3-A12-T1 17
B-DDR3-A13-T1 17

B-DDR3-A14-T1 17

B-DDR3-BA0-T1 17
B-DDR3-BA1-T1 17
B-DDR3-BA2-T1 17

R48056R 1/16W 1%
R47956R 1/16W 1%

B-DDR3-CASZ-T1 17
B-DD R3 -OD T-T1 17
B-DDR3-RASZ-T1 17
B-DDR3-WEZ -T1 17
B-DDR3-CKE-T1 17

C417 10NF 50V

C446 10NF 50V

A-DDR3-DQS3B17

A-DDR3-DQS2B17

A-DDR3-RESET-T217

A-DDR3-DQ16

A-DDR3-DQ1617

A-DDR3-DQ17

A-DDR3-DQ1717

A-DDR3-DQ18

A-DDR3-DQ1817

A-DDR3-DQ19

A-DDR3-DQ1917

A-DDR3-DQ20

A-DDR3-DQ2017

A-DDR3-DQ21

A-DDR3-DQ2117

A-DDR3-DQ22

A-DDR3-DQ2217

A-DDR3-DQ23

A-DDR3-DQ2317

A-DDR3-DQ24

A-DDR3-DQ2417

A-DDR3-DQ25

A-DDR3-DQ2517

A-DDR3-DQ26

A-DDR3-DQ2617

A-DDR3-DQ27

A-DDR3-DQ2717

A-DDR3-DQ28

A-DDR3-DQ2817

A-DDR3-DQ29

A-DDR3-DQ2917

A-DDR3-DQ30

A-DDR3-DQ3017

A-DDR3-DQ31

A-DDR3-DQ3117

A-DDR3-DQS3

A-DDR3-DQS317

A-DDR3-DQS3B
A-DDR3-DQS2

A-DDR3-DQS217

A-DDR3-DQS2B
A-DDR3-DM3

A-DDR3-DM317

A-DDR3-DM2

A-DDR3-DM217

A-MVREFDQ-T2
A-MVREFCA-T2

R483 240 OHM +-1% 1/16W

A-DD R3 -RE SET-T2

+1.5V_D DR

U407

E3

DQ0

F7

DQ1

F2

DQ2

F8

DQ3

H3

DQ4

H8

DQ5

G2

DQ6

H7

DQ7

D7

DQ8

C3

DQ9

C8

DQ10

C2

DQ11

A7

DQ12

A2

DQ13

B8

DQ14

A3

DQ15

C7

UDQS

B7

UDQS#

F3

LDQS

G3

LDQS#

D3

UDM

E7

LDM

H1

VREFDQ

M8

VREFCA

L8

ZQ

T2

RESET#

A1

VDDQ_0

A8

VDDQ_1

C1

VDDQ_2

C9

VDDQ_3

D2

VDDQ_4

E9

VDDQ_5

F1

VDDQ_6

H2

VDDQ_7

H9

VDDQ_8

B2

VDD_0

D9

VDD_1

G7

VDD_2
VDD_3K2VSS_3

K8

VDD_4

N1

VDD_5

N9

VDD_6

R9

VDD_8

R1

VDD_7

K4B2G1646E-BCK00DT

A10/AP

A12/BC#

NC_0
NC_1
NC_2
NC_3
NC_4
NC_6

CAS#

RAS#

VSSQ_0
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8

VSS_0
VSS_1
VSS_2

VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11

A-DDR3-A0-T2

N3

A0

A-DDR3-A1-T2

P7

A1

A-DDR3-A2-T2

P3

A2

A-DDR3-A3-T2

N2

A3

A-DDR3-A4-T2

P8

A4

A-DDR3-A5-T2

P2

A5

A-DDR3-A6-T2

R8

A6

A-DDR3-A7-T2

R2

A7

A-DDR3-A8-T2

T8

A8

A-DDR3-A9-T2

R3

A9

A-DDR3-A10-T2

L7

A-DDR3-A11-T2

R7

A11

A-DDR3-A12-T2

N7

A-DDR3-A13-T2

T3

A13

J1
J9
L1
L9
M7

A-DDR3-A14-T2A-DDR3-A14-T1

T7

A-DDR3-BA0-T2

M2

BA0

A-DDR3-BA1-T2

N8

BA1

A-DDR3-BA2-T2

M3

BA2

A-DDR3_MCLK

J7

CK

A-DDR3_MCLKZ

K7

CK#

L2

CS#

A-DDR3-CASZ-T2

K3

A-DDR3-ODT-T2

K1

ODT

A-DDR3-RASZ-T2

J3

A-DDR3-WEZ-T2

L3

WE#

A-DDR3-CKE-T2

K9

CKE

B1
B9
D1
D8
E2
E8
F9
G1
G9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

A-DDR3-A0-T2 17
A-DDR3-A1-T2 17
A-DDR3-A2-T2 17
A-DDR3-A3-T2 17
A-DDR3-A4-T2 17
A-DDR3-A5-T2 17
A-DDR3-A6-T2 17
A-DDR3-A7-T2 17
A-DDR3-A8-T2 17
A-DDR3-A9-T2 17
A-DDR3-A10-T2 17
A-DDR3-A11-T2 17
A-DDR3-A12-T2 17
A-DDR3-A13-T2 17

A-DDR3-A14-T2 17

A-DDR3-BA0-T2 17
A-DDR3-BA1-T2 17
A-DDR3-BA2-T2 17

R43556R 1/16W 1%
R43656R 1/16W 1%

A-DDR3-CASZ-T2 17
A-DDR3-ODT-T2 17
A-DDR3-RASZ-T2 17
A-DDR3-WEZ-T2 17
A-DDR3-CKE-T2 17

OPWRSB4,15

C418 10NF 50V

R467 10K

A_DDR3_MCLK17
A_DDR3_MCLKZ17

C439

C426

+5V_STB

R470
10K

+1.5V_DDR

+1.5V_DDR

+1.5V_DDR

R433

2K 1/16W 5%

C437

100N 16V

R476

1Kohm 1/16W +/-1%

1Kohm 1/16W +/-1%

+1.5V_D DR

R474

1Kohm 1/16W +/-1%

1Kohm 1/16W +/-1%

+1.5V _DD R

C427

100N 16V

B_DDR3_MCLK17
B_DDR3_MCLKZ17

+1.5V_D DR

R444

2K 1/16W 5%

B-DDR3-RESET-T1

+1.5V_D DR

R447

1Kohm 1/16W +/-1%

1Kohm 1/16W +/-1%

+1.5V_D DR

R461

1Kohm 1/16W +/-1%

1Kohm 1/16W +/-1%

R484 1K

Q403
MMBT3904

100N 16V

R473

R466

100N 16V

R463

R462

R431 22 O HM 1/16W

A_DDR3_MC LKZ

R432 22 O HM 1/16W

+1.5V_D DR

R485

2K 1/16W 5%

A-DDR3-RESET-T2A-DDR3-RESET-T1

C436

C435

100N 16V

100N 16V

A-MVREFCA- T1

C454

C419

1nF 50V

100N 16V

A-MVREFDQ-T1 A-MVREFCA-T2

C451

C423

1nF 50V

100N 16V

C428

C429

100N 16V

100N 16V

B_DDR3_MCLK

R442 22 OHM 1/16W

B_DDR3_MCLKZ

R443 22 OHM 1/16W

B-MVREFCA- T1

C448

C449

1nF 50V

100N 16V

B-MVREFDQ-T1

C452

C453

1nF 50V

100N 16V

C456

NC

A_DDR3-MCLK

R434 0R05 1/ 16W

A_DDR3-MCLKZ

R478 0R05 1/ 16W

+1.5V_D DR

C440

C424

C434

100N 16V

+1.5V_D DR

C430

100N 16V

C447

C433

100N 16V

C420

100N 16V

+1.5V_D DR

R477

1Kohm 1/16W +/-1%

1Kohm 1/16W +/-1%

R469

1Kohm 1/16W +/-1%

1Kohm 1/16W +/-1%

B_DDR3-MCLK
B_DDR3-MCLKZ

+1.5V_D DR

C442

100N 16V

C431

100N 16V

100N 16V

C414

100N 16V

100N 16V

A-MVREFDQ-T2

C450

R468

100N 16V

C444

R464

100N 16V

C443

C445

C441

100N 16V

100N 16V

100N 16V

For DDR EM I issue

A_DDR3_CKE

R465

Q405

1K

2N7002K

B_DDR3_CKE

Q404

R481
1K

2N7002K

K4B2G1646E-BCK00DT

50

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

18.DDR page 2

Date

OEM MODEL

TPV MOD EL

PCB NAME

Sheet

C

Size

Rev

D

<

称爹

>

18 22Friday, Augus t 23, 2013

of

称爹

Power interface

VDDC

C455

C457

C478

NC/4. 7UF 6.3V

10UF 6.3V X5R +-20%

NC/22UF

+2.5V_Norma l

C498

2.2UF

Close to MTS IC

AVDD25_PGA

FB401

1 2

120R

Standby Power 3.3V

3V3SB

C492

100N 16V

Close to MTS IC

DDR3 POWER

+1.5V_DDR

C496

2.2UF

Close to MTS IC

Normal Power 3.3V

AVDD3V3

C494

2.2UF

100N 16V

Close to MTS IC

HS1

Heat Sink

1

2

C485
100N 16V

C495

2.2UF

C486

C497

2.2UF

C483

100N 16V

C472

100N 16V

100N 16V

C490

100N 16V

C479

100N 16V

C480

100N 16V

PGA_VCOM

C491

C475

C474

C473

100N 16V

100N 16V

100N 16V

Close to MTS IC

C481

C482

100N 16V

100N 16V

+2.5V_N orm al

C487

C488

C489

100N 16V

100N 16V

100N 16V

C493

C484

1uF 10V

100N 16V

C212 close to PIN AM5

C476

100N 16V

R4126

0R051/8W

C477

100N 16V

AVDD_MOD

1uF 10V

C499

1 2

FB402
120R

AVDD5V_MHL

AVDD3V3

+2.5V_Norma l

AVDD_MOD

AVDD25_PGA

3V3SB

AVDD3V3

+1.5V_DDR

PGA_VCOM

VDDC

TP13

TP16

U401F

AC25
AC26
AC27
AC28
AC29
AD27
AD28
AD29
AA24
AB24
AB25
AB26
AB18
AB19
AB20
W24

U24
V23
V24

W22

Y21

AA22

Y22
AA23
AB23

U8

AF8

AG9

AH8

AG8

AF9
AF10

AJ7

AH7

V8
V7
V5

V6
W5
W6

V4

W4
W7

L19
L20
L21
L22
K18
L18
M22
N22
N23
P23
L23
M23

AL5

AM5

AA25
AA26

M9
A15
A17
A24
A26
A31

B9
B14
B16
B18
B23
B25
B27
B32
C11
C12
C13
C20
C21
C22
C29
D25
D26
D27
D28
D29
D30
E25
E28
E29

F9
F10
F11
F12
F13
F14
F15
F16
F17
F18
F19
F20
F21
F22
F23
F24
F28
F29
F31
G27
G32
H27
H31
J27
J32
K27
K31
L27
L30
M27
M30
N27
N30
P27
R27
R31
T27
T32
U27
U31
V27
V32

W27
W31

Y27
Y30

AA27
AA30
AB27
AB28
AB29
AB30

D7

R11

R12

R13

A8

VDDC

GND

GND

GND
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC_CPU
VDDC_CPU
VDDC_CPU
VDDC_CPU

VDDC_DDR
AVDDL_HD MITX
AVDDL_MOD
AVDD11_ETH
AVDD1P1_ADC
AVDDLV_USB
DVDD_NODIE

NC
NC
AVDD25_ADC
AVDD25_ADC
AVDD25_ETH
AVDD_MOD
NC

NC

AVDD_DMPLL
AVDD_NODIE
AVDD_DVI
AVDD_DVI
AVDD_AU33
AVDD_EAR33
AVDD3P3_ADC_MPLL

VDDP
AVDD_LPLL

AVDD_DDR0_D
AVDD_DDR0_D
AVDD_DDR0_D
AVDD_DDR0_D
AVDD_DDR0_C
AVDD_DDR0_C
AVDD_DDR1_D
AVDD_DDR1_D
AVDD_DDR1_D
AVDD_DDR1_D
AVDD_DDR1_C
AVDD_DDR1_C

AVDD5V_MHL

VDD_3318

VSENCE_VSS
VSENCE_VDD

GEN_EFUSE
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

GND

GND

GND

GND

GND

AA11

AA12

AA13

AA14

AA15

AA16

R14

R15

R16

R17

R18

R19

R20

R21

R22

R23

R24

R26

T10

T11

T12

T13

T14

T15

T16

T17

T18

T19

T20

T21

T22

T23

T24

T25

T26

U10

U11

U12

U13

U14

U15

U16

U17

U18

U19

U20

U21

U22

U23

U25

U26

V10

V11

V12

V13

V14

V15

V16

V17

V18

V19

V20

V21

V22

V25

V26

W10

W11

W12

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GNDT7GNDT8GNDT9GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GNDU7GNDU9GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GNDV9GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

AB7

AB8

AB9

AC7

AC8

AA17

AA18

AA19

AA20

AA21

AB10

AC9

AB11

AB12

AB13

AB14

AB15

AB16

AB17

AB21

AB22

AC10

AC11

AC12

AD7

AD8

AC13

AC14

AC15

AD9

AC16

AC17

AC18

AC19

AC20

AC21

AC22

AC23

AC24

AD10

AD11

GND

AD12

AD13

AD14

AD15

AD16

AD17

AD18

AD19

AD20

AD21

AD22

AD23

P9

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GNDW8GNDW9GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

AE7

AE8

AE9

AE10

AD24

AD25

AD26

GND

AE11

AE12

AE13

AE14

AE15

AE16

AE17

AE18

AE19

AE20

AE21

AE22

D8

W13

W14

W15

W16

W17

W18

W19

W20

W21

W23

W25

W26

Y10

Y11

Y12

Y13

Y14

Y15

Y16

Y17

Y18

Y19

Y20

Y23

Y24

Y25

Y26

AA7

AA8

AA9

AA10

E7

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GNDY7GNDY8GNDY9GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

AF6

AF7

AE23

AE24

AE25

AE26

AE27

AE28

AE29

AF11

AF12

AF13

AF14

AF15

GND

AF16

AF17

AF18

AF19

AF20

AF21

AF22

AF23

AF24

AF25

AF26

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

E8

GND

AL6

GND

AM9

GND

F7

GND

F8

GND

G7

GND

G10

GND

G11

GND

G12

GND

G13

GND

G14

GND

G15

GND

G16

GND

G17

GND

G18

GND

G19

GND

G20

GND

G21

GND

G22

GND

G23

GND

H8

GND

H9

GND

H10

GND

H11

GND

H12

GND

H13

GND

H14

GND

H15

GND

H16

GND

H17

GND

H18

GND

H19

GND

H20

GND

H21

GND

H22

GND

H26

GND

J7

GND

J8

GND

J9

GND

J10

GND

J11

GND

J12

GND

J13

GND

J14

GND

J15

GND

J16

GND

J17

GND

J18

GND

J19

GND

J20

GND

J21

GND

J26

GND

K7

GND

K8

GND

K9

GND

K10

GND

K11

GND

K12

GND

K13

GND

K14

GND

K15

GND

K16

GND

K17

GND

K19

GND

K20

GND

K21

GND

K25

GND

K26

GND

L7

GND

L8

GND

L9

GND

L10

GND

L11

GND

L12

GND

L13

GND

L14

GND

L15

GND

L16

GND

L17

GND

L24

GND

L25

GND

L26

GND

M7

GND

M8

GND

M10

GND

M11

GND

M12

GND

M13

GND

M14

GND

M15

GND

M16

GND

M17

GND

M18

GND

M19

GND

M20

GND

M21

GND

M24

GND

M25

GND

M26

GND

N7

GND

N8

GND

N10

GND

N11

GND

N12

GND

N13

GND

N14

GND

N15

GND

N16

GND

N17

GND

N18

GND

N19

GND

N20

GND

N21

GND

N24

GND

N25

GND

N26

GND

P7

GND

P8

GND

P10

GND

P11

GND

P12

GND

P13

GND

P14

GND

P15

GND

P16

GND

P17

GND

P18

GND

P19

GND

P20

GND

P21

GND

P22

GND

P24

GND

P25

GND

P26

GND

R7

GND

R8

GND

R9

GND

R10

GND

R25

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

MSD8560IV

AJ5

AJ6

AG6

AG7

AH6

AF27

AF28

AF29

AG29

51

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

19.Power interface

Date

OEM MODE L

TPV MODEL

PCB NAME

Sheet

Custom

Size

Rev

D

<

称爹

>

19 22Friday, August 23, 2013

of

称爹

LEDBAR_PWREN15

AMBI_A0
AMBI_A1
AMBI_A2
AMBI_A3
AMBI_A4

DVDD3V3

U1801

1

A0

2

A1

3

A2

4

A3

5

A4

6

LED0

7

LED1

8

LED2

9

LED3
Vss10LED4

PCA9634PW

+12V

FB1801

1 2
120R 3A

FB1808

1 2

60R

20

VDD

19

SDA

18

SCL

17

A6

16

A5

15

OE

14

LED7

13

LED6

12

LED5

11

R1825 1.1 K 1%

C1820

100P 50V

AMBI_A6
AMBI_A5

R1806
10K 1/16W 5%

R1824

C1821

100P 50V

1
2
3
4
5
6
7
8
9

10

DVSS
DVSS
RESET
GPIO/MFP5
MCLK
BCLK
WCLK
DIN/MFP1
DOUT/MFP2
IOVDD

C1802

2.2uF

38

41

40

39

E-Pad

DVDD

FLY_P

DVDD_CP

U1802

TLV320AIC3256

IOVSS11SCLK/M FP312SCL/SSZ13SDA/MOS I14MISO/MFP415SPI_SELECT16IN1_L17IN1_R18IN2_L19IN2_R

AM_RESET 9,15

37

36

DVSS_CP

35

34

VNEG

FLY_N

MICDET

31

32

33

HPL

HPR

DRVDD_HP

GND_Sense

MIC BIA S

20

NC/1K 1/16W 5%

AVDD
AVDD

IN3_R

IN3_L

AVSS

C1803 100N 16V

C1804 100N 16V

C1830

100P 50V

Q1801

1

S

2

S

R1823
4K7 1/16W 5%

R1822 4K7 1/16W 5%

Q1802

MMBT390 4

C1811

4K7 1/16W 5%

10N 50V

AM_RESET 9,15

C1810
220NF 25V

C1809

100P 50V

3
4

S
G

AO4449 -7A/-30V

DVDD3V3

1 2FB1802

1 2FB1803

1 2FB1804

1 2FB1805

1 2FB1806

1 2FB1807

LED_PWR

8

D

7

D

6

D

5

D

C1812
10uF 25V

R1805 NC /4K7 1/16W 5%

OSDA0

R1807 NC /4K7 1/16W 5%

OSCL0

600R/300mA

600R/300mA

600R/300mA

C1814

1N 50V

600R/300mA

600R/300mA

600R/300mA

C1817

1N 50V

C1813
100NF 25V

OSDA0 9,11,12,13,15,16, 22

OSCL0 9,11,12, 13,15,16,22

L_R

L_G

L_B

C1816

C1815

1N 50V

1N 50V

R_R

R_G

R_B

C1818

C1819

1N 50V

1N 50V

AMBI_B0
AMBI_B1
AMBI_B2
AMBI_B3
AMBI_B4

DVDD3V3

U1803

1

A0

2

A1

3

A2

4

A3

5

A4

6

LED0

7

LED1

8

LED2

9

LED3
Vss10LED4

PCA9634PW

1 2

VDD
SDA

SCL

LED7
LED6
LED5

V_1.8V

C1808

100N 16V

AM_RESET9,15

I2S-OUT_MCK7,11

DVDD3V3

C1807

100N 16V

OSCL09, 11,12,13,15,16,22

OSDA09,11,12,13,15,16, 22

FB1815

60R

C1828

C1829

100P 50V

100P 50V

20
19
18

AMBI_B6

17

A6

AMBI_B5

16

A5

15

OE

14
13
12
11

R1827
10K 1/16W 5%

30
29
28
27

LOR

26

LOL

25
24
23
22

REF

21

R1802

DVDD3V3

1 2FB1809

1 2FB1810

1 2FB1811

C1805

2.2uF

V_1.8V

C1801

1UF 16V

1K 1/16W 5%

R1803

R1801

1K 1/16W 5%
R1804
NC/1K 1/16W 5%

R1830 NC/4K7 1/16W 5%

OSDA0

R1826 NC/4K7 1/16W 5%

OSCL0

600R/300mA

600R/300mA

600R/300mA

C1822

1N 50V

C1806

100N 16V

AM_R 7

AM_L 7

OSDA0 9,11,12,13,15, 16,22

OSCL0 9,11,12, 13,15,16,22

TL_R

TL_G

TL_B

C1823

C1824

1N 50V

1N 50V

DVDD3V3

R1809

NC/4K7 1/16W 5%

R1808
10K 1/16W 5%

R1842

NC/4K7 1/16W 5%

R1833
10K 1/16W 5%

AMBI_A0

DVDD3V3DVDD3V3 DVDD3V3DVDD3V3

R1811

NC/4K7 1/16W 5%

R1810
10K 1/16W 5%

DVDD3V3DVDD3V3

R1843

NC/4K7 1/16W 5%

R1835
10K 1/16W 5%

R1813

NC/ 4K7 1/16W 5%

AMBI_A1

R1812
10K 1/16W 5%

R1832

NC/ 4K7 1/16W 5%

AMBI_B1AMBI_B0 AMBI_B6AMBI_B3AMBI_B2 AMBI_B4

R1836
10K 1/16W 5%

R1815

NC/4K7 1/16W 5%

AMBI_A3

R1814
10K 1/16W 5%

DVDD3V3DVDD3V3 DVDD3V3DVDD3V3DVDD3V3

R1831

NC/4K7 1/16W 5%

R1839
10K 1/16W 5%

R1817

NC/4K7 1/16W 5%

AMBI_A4

R1816
10K 1/16W 5%

R1834

NC/4K7 1/16W 5%

R1840
10K 1/16W 5%

R1819

NC/ 4K7 1/16W 5%

AMBI_A5

R1818
10K 1/16W 5%

R1844

NC/ 4K7 1/16W 5%

AMBI_B5

R1838
10K 1/16W 5%

DVDD3V3DVDD3V3

R1821

NC/4K7 1/16W 5%

R1820
10K 1/16W 5%

R1837

NC/4K7 1/16W 5%

R1841
10K 1/16W 5%

LED_PWR

20 22Friday, August 23, 2013

C1826

1N 50V

of

TR_G

TR_R

TR_BTL_B

C1827

1N 50V

TR_R

TR_G

TR_B

18
17
16
15
14
13
12
11
10

CN1804

9

CONN
8
7
6
5
4
3
2
1

19 20

C

D

Rev

<

称爹

>

称爹

1 2FB1812

600R/300mA

1 2FB1813

600R/300mA

1 2FB1814

600R/300mA

AMBI_A6AMBI_A2

LED_PWR

CN1801

CONN

LED_PWR

18
17
16
15
14
13
12

CN1802

11

CONN

10

9
8

R_G

7
6

R_R

5
4

R_B

3
2
1

19 20

18
17
16
15
14
13
12
11
10

9
8

L_G

7
6

L_R

5
4

L_B

3
2
1

19 20

LED_PWR

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

20 .AMBIGLOW & AMBIMUS IC

Date

18
17
16
15
14
13
12
11
10

TL_G

TL_R

9
8
7
6
5
4
3
2
1

19 20

C1825

1N 50V

CN1803

CONN

OEM MODEL Size

TPV MOD EL

PCB NAME

Sheet

52

+5V_SW

+5V_SW

R4204

0R051/8W

C4207

10uF 16V

Rev: C Gill Change

R4213

0R051/8W

C4216
10uF 16V

C4202

10nF 50V

C4214

10nF 50V

1.8A

L4201
22UH

U711

1

BS

2

VIN

3

LX
GND4FB

APW7313

GND

COMP

C4204

9
8

SS

47nF 50V

7

EN

6
5

R4205

6.8K 1%

C4201

3.9NF 50V

Vout = 0.925x(1+1.5/10.2)=1.05V

1.8A

L4202
22UH

U713

1

BS

2

VIN

3

LX
GND4FB

APW7313

GND

COMP

C4212

9
8

SS

47nF 50V

7

EN

6
5

R4214

6.8K 1%

C4218

3.9NF 50V

C4208

22P 50V

C4217

22P 50V

+5V_SW

R4206
NC/ 36K 1%

+5V_SW

R4202
100K

NC/ 100pF 50V

R4212
100K

NC/ 100pF 50V

R4215
NC/36K 1%

C4205

C4215

R4203

1.43K 1%

R4208

10.2K

R4211
24K 1%

R4216

9.1KOHM +-1% 1/10W

C4203
22UF 10V

C4213
22UF 10V

FB4201

1 2

300R 4A

C4206
100N 16V

FB4202

1 2

300R 4A

FB4203

1 2

300R 4A

C4211
100N 16V

1V05_FRC

VCC3_3

3V3_FRC

VCC3_3

C4210

060

3

1UF16V

Vout=1.25x(R1+R2)/R1

U712

AZ1084CD -ADJTRG1

VIN3VOUT

GND/ ADJ

1

2

R4201

330 OHM +-1% 1/10W

R1

R4209

0R05 OHM

+

060

3

060

3

R4210 150R 1/10W 1%

R2

1V8_FRC DDR

R4207

0 OHM 1/8W

C4209

100UF 16V

Rev: C Gill Change

Vout = 0.92x(1+24/9.1)=3.34V

53

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

21.MEMC POWER

OEM MO DEL

TPV MO DEL

PCB NAME

Sheet

Size

Rev

21 22Thursday , July 04, 2013

of

称爹

B

D

<

称爹

>

CRYSTAL

XTAL _I

FRCReset

3V3_FRC

D4201

LL4148

SPI
Flash

C4261

100N16V

SPI_CK
SPI_DI

TX_AO0N15

TX_AO0P15

TX_AO1N15

TX_AO1P15

TX_AO2N15
TX_AO2P15
TX_AOCK N15
TX_AOCK P15

TX_AO3N15
TX_AO3P15

TX_AE0N15
TX_AE0P15

TX_AE1N15
TX_AE1P15

TX_AE2N15
TX_AE2P15

TX_AECKN15
TX_AECKP15

TX_AE3N15
TX_AE3P15

C4115

33PF 50V

C4259

10uF 10V

080

R4243

10K 1/16W 5%

C4219

100N16V

R4143

1M 1%

X402

24MHz

U202shouldbeprogramm ed
before solderingonPCB

U4203

8

CS#

VCC

7

SO/SIO1

HOLD#

6

WP#

SCLK

5

GND4SI/SIO0

MX25L2006EM1I-12G

TX_AO0N
TX_AO0P
TX_AO1N
TX_AO1P

TX_AO2N
TX_AO2P
TX_AOCK N
TX_AOCK P

TX_AO3N
TX_AO3P
TX_AE0N
TX_AE0P

TX_AE2N
TX_AE2P

TX_AECKN
TX_AECKP
TX_AE3N
TX_AE3P

XTAL_O

C4116

33PF 50V

FRCRST

C4260

10N 50V

VCC3_3

1
2
3

RP453 0R

RP450 0R

RP451 0R

RP452 0R

RP454 0R

OSDA09,11,12,13,15,16,20
OSCL09,11,12,13, 15,16,20

R4246

10K 1/16W 5%

SPI_CZ
SPI_DO
SPI_WP

5
6
7
8

5
6
7
8

5
6
7
8

5
6
7
8

5
6
7
8

1243

5

R4242 100OHM1/16W

VCC3_3

space/ trac e/space /trac e/spac e(mil)
25/8/5/8/25

C4220

100N16V

OSDA0
OSCL0

3D_EN

LRIN

4
3
2
1

4
3
2
1

4
3
2
1

4
3
2
1

4
3
2
1

1V05_FRC

C4221

C4222

100N16V

100N16V

R4225 100OHM1/16W
R4221 100OHM1/16W

R4227 100R 1/ 16W 1%

R4224 100R 1/ 16W 1%

R4230 100R 1/ 16W 1%

R4232 100R 1/ 16W 1%

R4234 100R 1/ 16W 1%

R4235 100R 1/ 16W 1%

R4236 100R 1/ 16W 1%

R4237 100R 1/ 16W 1%

R4238 100R 1/ 16W 1%

R4239 100R 1/ 16W 1%

R4240 100R 1/ 16W 1%

R4241 100R 1/ 16W 1%

R4244 100OHM1/16W

R4245 100OHM1/16W

RXO0­RXO0+
RXO1­RXO1+

RXO2­RXO2+
RXOC­RXOC+

RXO3­RXO3+
RXE0­RXE0+

RXE1-TX_AE1N
RXE1+TX_AE1P
RXE2­RXE2+

RXEC­RXEC+
RXE3­RXE3+

C4223

100N16V

MEMC_RS T15

I2CS_SDA
I2CS_SCL

SPI_DI
SPI_CK
SPI_CZ

SPI_DO
GPIO1
GPIO8
PWM_1
PWM_0

C4224

100N16V

RXO0­RXO0+
RXO1­RXO1+
RXO2­RXO2+
RXOC­RXOC+
RXO3­RXO3+
RXO4­RXO4+

RXE0­RXE0+
RXE1­RXE1+
RXE2­RXE2+
RXEC­RXEC+
RXE3­RXE3+
RXE4­RXE4+

3V3_FRC

SPI_WP

C4226

C4225

100N16V

100N16V

MEMC_RS T

U4201

MST7342 Q-L F

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54

R4247 33 OHM 1/16W

3V3_FRC

C4233

VDD

C4230

100N16V

XTAL_O

205

AVDD_MPLL

C4232

C4231

100N16V

100N16V

100N16V

AVDD_LPLL

ACKP

A0P

ACKM

A3P

A2M

A1M

A0M

A1P

A2P

XTAL_I

191

201

203

200

204

199

202

VSS

XTALI

XTALO

LPLL_REFIN

LPLL_FBCLK

A12

A9

A7

MA12
MA9
MA7
MA5

MA3
MA10
MA1
MBA2

MBA0
MBA1
MCKE
MWEZ

MDQ4
MDQ3
MDQ1
MDQ6

MDQ11
MDQ12
MDQ9
MDQ14

MDQM1
MDQM0

MDQS0
MDQSB 0

188

193

195

197

189

198

190

192

194

196

A2P

A1P

A0P

VSS

A2M

A1M

A0M

ACKP

ACKM

AVDD_LPLL

AVDD_LVDS

A5A3A10

BA0

BA2A1CKE

BA1

WEZ

DQS1
DQSB1

DQ15
DQ8
DQ10
DQ13

DQ7
DQ0
DQ2
DQ5

CLK
CLKZ

ODT
RASZ
CASZ
A0

A2
A4
A6
A8

C4227

C4228

C4229

100N16V

10UF

100N16V

060

3

AVDD_MPLL AVDD_LVDS

FRCRST

R4217 0R05 1/1 6W

R4218 0R05 1/16W

207

208

214

215

216

209

211

212

213

206

210

RESET

TESTPIN

S_M_PIF_FC

S_M_PIF_CS

M_S_PIF_CS

S_M_PIF_DA1

S_M_PIF_DA0

S_M_PIF_CLK

GPIO[5](LTD_CLK)

GPIO[6](LTD_DA0)

MST7342Q

2-CH LVDS in / 4-CH LVDS out
DDR2-16

GPIO[10]55GPIO[2]56GPIO[0]57VD3358SPI3_DI59SPI3_CK60SPI4_DI61SPI4_CK62SPI5_CZ63SPI5_DO64SPI5_DI65SPI5_CK66GPIO[4](LTD_DE)67GPIO[3](LTD_DA1)68VDD69DDR2_A1270DDR2_A971DDR2_A772DDR2_A573DDR2_A374DDR2_A1075AVDD_DDR76DDR2_A177DDR2_BA278DDR2_BA079DDR2_BA180DDR2_CKE81DDR2_WEZ82AVDD_DDR83DDR2_DQ[ 4]84DDR2_DQ[ 3]85DDR2_DQ[ 1]86DDR2_DQ[ 6]87DDR2_DQ[ 11]88DDR2_DQ[ 12]89AVDD_DDR90DDR2_DQ[ 9]91DDR2_DQ[ 14]92DDR2_DQM[1]93DDR2_DQM[0]94DVDD_DDR95VSS96DDR2_DQS[0]97DDR2_DQSB[ 0]98DDR2_DQS[1]99DDR2_DQSB[ 1]

4

5RP4202 22R

3

6

2

7

1

8

4

5RP4204 22R

3

6

2

7

1

8

4

5RP4206 22R

3

6

2

7

1

8

4

5RP4208 22R

3

6

2

7

1

8

4

5RP4210 22R

3

6

2

7

1

8

R4255 22 OHM 1/16W
R4256 22 OHM 1/16W

4

5RP4212 22R

3

6

2

7

1

8

VD33
VD33
M_S_PIF_F C
M_S_PIF_C LK
M_S_PIF_D A0
M_S_PIF_D A1
I2CS_SDA
I2CS_SCL
AVDD
RO0N
RO0P
RO1N
RO1P
RO2N
RO2P
ROCKN
ROCKP
RO3N
RO3P
RO4N
RO4P
AVDD
DVDD_HF
RE0N
RE0P
RE1N
RE1P
RE2N
RE2P
RECKN
RECKP
RE3N
RE3P
RE4N
RE4P
AVDD
VDD
VSS
VSYNC_Like
SPI2_DI
SPI2_CK
SPI1_DI
SPI1_CK
SPI_DI
SPI_CK
SPI_CZ
VSS
VD33
SPI_DO
GPIO[1]
GPIO[8]
PWM1
PWM0
GPIO[11]

A12
A9
A7
A5

A3
A10
A1
BA2

BA0
BA1
CKE
WEZ

DQ4
DQ3
DQ1
DQ6

DQ11
DQ12
DQ9
DQ14

DQM1
DQM0

DQS0
DQSB0

217

EPAD

1V8_FRCDD R

C4235

C4234

100N16V

100N16V

1V05_FRC

B0P

B1M

B0M

A3M

A4M

B1P

A4P

179

180

182

184

186

181

183

185

187

B1P

B0P

A4P

A3P

B1M

B0M

A4M

A3M

MOD_GPIO0

DQ6

DQ1

DQ4

DQ11

DQ12

DQ3

DQ9

DQ14

4

5RP4203 22R

3

6

2

7

1

8

4

5RP4205 22R

3

6

2

7

1

8

4

5RP4207 22R

3

6

2

7

1

8

4

5RP4209 22R

3

6

2

7

1

8

4

5RP4211 22R

3

6

2

7

1

8

4

5RP4201 22R

3

6

2

7

1

8

C4237

C4239

C4238

C4236

100N16V

10UF

060

3

B3P

BCKP

B2P

B2M

B3M

B4P

BCKM

B4M

C0M

C1M

C1P

C0P

178

176

177

B2P

AVDD_LVDS

MOD_GPIO1

AVDDL_MOD

DQM0

DQM1

164

170

172

173

165

167

174

169

171

175

166

168

B4P

B3P

C1P

C0P

B4M

B3M

B2M

C1M

C0M

BCKP

BCKM

AVDD_PLL

VSS

DDR2_DQ[ 15]

DDR2_DQ[ 8]

DDR2_DQ[ 10]

DDR2_DQ[ 13]

100

101

102

103

104

105

106

107

DQS1

DQSB0

DQS0

DQSB1

DQ15

DQ10

DQ13

DQ8

MDQS1
MDQSB 1

MDQ15
MDQ8
MDQ10
MDQ13

MDQ7
MDQ0

A11

MDQ2

A13

MDQ5

MCLK
MCLKZ

MODT
MRASZ
MCASZ
MA0

MA2
MA4
MA6
MA8

100N16V

C2P

163

C2P

AVDD_LVDS

C2M
CCKP
CCKM

C3P

C3M

AVDDL_MOD

C4P

C4M

D0P

D0M

D1P

D1M

MOD_G PI O2
MOD_G PI O3

D2P

D2M

AVDD_LVDS

DCKP
DCKM

D3P

D3M

D4P

D4M

VSS

LPLL_OUTCLK

AVDD_LPLL

I2CM_SDA

I2CM_SCL

OP_SYNC_L
SOFT_RST_L
SOFT_RST_R
OP_SYNC _R

VD33

VSS

VDD
DDR2_A13
DDR2_A11

DDR2_A8
DDR2_A6
DDR2_A4

AVDD_DDR

DDR2_A2

DDR2_A0
DDR2_CASZ
DDR2_RASZ

DDR2_ODT

AVDD_DDR

DDR2_MCLKZ

DDR2_MCLK

AVDD_DDR
DDR2_DQ[ 5]
DDR2_DQ[ 2]
DDR2_DQ[ 0]
DDR2_DQ[ 7]

AVDD_DDR

AVDD_DDR

108

AVDD_ MEMPLL

R4253 22 OHM 1/16W
R4254 22 OHM 1/16W

100N16V

C4240

100N16V

162
161
160
159
158
157
156
155
154
153
152
151
150
149
148
147
146
145
144
143
142
141
140
139
138
137
136
135
134
133
132
131
130
129
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109

C4241

100N16V

C2M
CCKP
CCKM
C3P
C3M

C4P
C4M
D0P
D0M
D1P
D1M

D2P
D2M

DCKP
DCKM
D3P
D3M
D4P
D4M

A13
A11
A8
A6
A4

A2
A0
CASZ
RASZ
ODT

CLKZ
CLK

DQ5
DQ2
DQ0
DQ7

1V8_FRCDD R

MA11
MA13

C4242

100N16V

AVDD_LPLL

C4265

100N16V

C4243

100N16V

C4244

100N16V

1V8_FRCDDR

C4262

100N16V

C4264

100N16V

C4266

100N16V

3V3_FRC

FB4204

1 2

60R 0.6A

060

C4245

NC/10UF

3

060

3

3V3_FRC

FB4206

1 2

60R 0.6A

060

3

3V3_FRC

FB4207

1 2

60R 0.6A

060

3

ChipConfig

GPIO1

PWM_0

PWM_1

GPIO8

GPIO1:Tw ochipuse,H:Maste r,L:Slave
CHIP_CONF:{GPIO8,PWM1,PWM0}
CHIP_CONF=3ˇd5:101:bootfrom internalSRAM
CHIP_CONF=3ˇd6:110:bootfrom EEPROM
CHIP_CONF=3ˇd7:111:bootfrom SPIFlash

U4202

A1

MDQM1

B3

UDM

MDQM0

F3

Vdd

LDM

123 789

MDQS0

F7

LDQS

MDQSB 0

E8

LDQS#

Vdd NC Vss

MDQS1

B7

UDQS

MDQSB 1

A8

UDQS#

DQ14 VssQ UDM

MDQ11

D3

DQ11

VddQ DQ9 VddQ

MDQ12

D1

DQ12

MDQ9

C2

DQ9

DQ12 VssQ DQ11

B1

DQ14

Vdd NC Vss

MDQ6

F1

DQ6

MDQ1

G2

DQ1

DQ6 VssQ LDM

MDQ3

H3

DQ3

MDQ4

H1

DQ4

VddQ DQ1 VddQ

DQ4 VssQ DQ3

MBA1

L3

BA1

VddL Vref Vss

MBA0

L2

BA0

MA1

M3

A1

MA10

M2

A10

RFU BA0 BA1

MA5

N3

A5

MA9

P3

A9

Vss A3 A5

MA12

R2

A12

MA7

P2

A7

MA3

N2

A3

Vdd A12 RFU

R7

RFU

MBA2

L1

RFU

R3

RFU

NCA2Vss

NCE2Vss

NCR8Vss

MA13

W9751G6KB-18

ClosetoDDRII

R4249

10K 1/16W

R4252

10K 1/16W

C4267

100N16V

MVREF

C4268

100N16V

C4269

100N16V

MCLK

MCLKZ

R4251 NC

1V8_FRCDD R

C4270

100N16V

AVDD_MPLL

C4247

C4246

2.2U10V

100N16V

AVDD_LPLL

C4251

C4250

100N16V

100N16V

C4255

C4254

100N16V

100N16V

R4226 NC/ 10K
R4223 10K 1/16W 5%

R4229 10K 1/16W 5%

R4231 10K 1/16W 5%

R4233 10K 1/16W 5%

1V8_FRCDD R

M9

J9

R1

E1

J1

Vdd

Vdd

Vdd

Vdd

VddL

CKE WE#

A10 A1

A7 A9

Vss

Vss

J3

A3

E3

P9

N1

C4271

100N16V

060

3

AVDD_LVDS

A9

C1

C3

VddQ

VddQ

A

VssQ UDQS# VddQ

B

UDQS VssQ DQ15

C

VddQ DQ8 VddQ

D

DQ10 VssQ DQ13

E

VssQ LDQS# VddQ

F

LDQS VssQ DQ7

G

VddQ DQ0 VddQ

H

DQ2 VssQ DQ5

J

VssDL CK Vdd

K

RAS# CK# ODT

L

CAS# CS#

M

A2 A0 Vdd

N

A6 A4

P

A11 A8

R

RFU NC

VssQ

VssQ

B2

A7

B8

C4272

100N16V

3V3_FRC

C4252

2.2U10V

C4253

100N16V

C7

VddQ

VssQ

D2

060

3

VCC3_3

E9

C9

VddQ

VddQ

VssQ

VssQ

E7

D8

FB4205

1 2

60R 0.6A

060

C4256

100N16V

G9

G7

G1

G3

VddQ

VddQ

VddQ

VddQ

Vss

VssQ

VssQ

VssQ

VssQ

F8

F2

H8

H2

R4248 82R 1%

R4250 82R 1%

C4263

10N 50V

C4273

100N16V

AVDD_MEMPLL

3

C4249

C4248

10UF

100N16V

060

3

DIM4

VddQ

MVREF

J2

Vref

MCKE

K2

CKE

MCLK

J8

CLK

MCLKZ

K8

CLK#

MDQ15

B9

DQ15

MDQ8

C8

DQ8

MDQ10

D7

DQ10

MDQ13MDQ14

D9

DQ13

MDQ7

F9

DQ7

MDQ0

G8

DQ0

MDQ2

H7

DQ2

MDQ5

H9

DQ5

MODT

K9

ODT

MRASZ

K7

RAS#

L8

CS#

MCASZ

L7

CAS#

MA0

M8

A0

MA2

M7

A2

MA4

N8

A4

MA6

N7

A6

MA8

P8

A8

MA11

P7

A11

MWEZ

K3

WE#

VssDL

VssQ

J7

MCLK

MCLKZ

R4259

0R05 1/16W

R4260

NC/4.7K1/16W

VCC3_3

+PANEL_POWER

R4257

NC/4.7K1/16W

LVDS_SEL
3D_EN
MEMC_P WM

A0P
A1P
A2P

ACKP
A3P
A4P

B0P
B1P
B2P

BCKP
B3P
B4P

C0P
C1P
C2P

CCKP
C3P C3M
C4P

D0P
D1P
D2P

DCKP
D3P
D4P

CN4201

1
2
3
4

CN4202

CONN

VCC3_3

CN4203

42

CONN

39

40

37

38

35

36

33

34

31

32

29

30

27

28

25

26

23

24

21

22

19

20

17

18

15

16

13

14

11

12

9

10

7

8

5

6

3

4

1

2

41

2

1

4

3

6

5

8

7

10

9

12

11

14

13

16

15

18

17

20

19

22

21

24

23

26

25

28

27

30

29

31 32

3V3_FRC

R4219

NC/10K

R4220

NC/10K

ROTATE
LRIN

A0M
A1M
A2M

ACKM
A3M
A4M
LRO
B0M
B1M
B2M

BCKM
B3M
B4M

C0M
C1M
C2M

CCKM

C4M

D0M
D1M
D2M

DCKM
D3M
D4M

I2CS_SDA
I2CS_SCL

R4258

NC/4.7K1/16W

R4261

NC/4.7K1/16W

LRO

LRIN

LRO 15

LRIN 15

CONN

C4276

C4275

C4274

10UF

1uF 10V

100N16V

060

3

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

22.MEMC

Date

OEM MODEL

TPV MODEL

PCB NAME

Sheet

22 22Friday, August 23, 2013

of

Custom

Size

Rev

D

<

称爹

>

称爹

54

5.2 电源板
715G5778P03W21002H

2

RV9902

-

TVR14561KFAOZF

DSPL201M-A21F

124

!

!

C9907

124

!

!

!

!

!

1 2

1
2
3
4 HS9801

HEAT SINK

R-

SG9904

150PF 250V

!

C9909

150PF 250V

!

CN901

SOCKET

HEAT SINK(Q9801,D9801)

R9991

NC

R9993

NC

4

2

1

L

CN904

CONN-NC

R9805
200KOHM 1/8W +/-5%

B

R9995 NC

R9996 NC

3

TS10B06G-06-X0

N

C9824

22N 50V

B1+

100N 50V

100N 50V

SG9905

DSPL201M-A21F

D145T60P7_5-1_2-R

t

D145T60P7_5-1_2-R

1 2

12

12

t

1 2

3 4

HEAT SINK(BD9901)

R-

!

L9903

3

12MH

BOX

C9911

470NF 275V

C9906

150PF 250V

!

L9901

3

12MH

R9901

1MOHM +-5% 1/2W

A

470NF 275V

C9910

C9908

change to 8.5mm

150PF 250V

!

NR9902

change package

NTCR

RV9907

TVR14621KT211Y
FB9999

BEAD

NR9901
NTCR

F9901

!

FUSE

HS9901

4
3
2
1

HEAT SINK

A B

HEAT
SINK(Q9101,Q9102)

HS9102

341

2

HEAT SINK

!

+

BD9901

56K 1/8W

C9145

C9146

R9146
2K43 1/8W 1%

C9148

4.7UF 10V

FB9810
BEAD

1

1 2

R-

R2A20113A

IC9801

1

FB

2

COMP

3

RT
VREF4CS

R2A20113ASP

R9806

C9825

220N 50V

R9141

0.1R

R9145

20K 1/8W 1%

VCC1

C9149
100N 50V

R9992

NC

R9994

NC

D9306
1N4148

VCC

+

BOX

D9115

1

FMEN-2308

3

Q9305

MMBT3906 PNP

C9336
10UF 50V

2

R9307
10K 1% 1/8W

C9345

100N 50V

C9980

470PF 250V

!

1

2

3
5

4

R9332
2R2 +-5% 1/4W

D9307

FR103

+

C9337
47UF 50V

C9160
330UF 35V

+

R9308
10K 1/8W 1%

T9301

POWER X'FMR

ZD9303

GDZJ15B

1 2

+

C9168
470UF 25V

5.2V

100K 1/8W 1%

100K 1/8W 1%

C9981

470PF 250V

!

!

ZD9304

C9174
330UF 35V

+

R9311

NC

R9309

R9310

R9399

47 OHM 1/4W

R9330

47 OHM 1/4W

R9331

47 OHM 1/4W

7

9

!

12

43

NC

2 3

1 2

C9161
330UF 35V

+

D9308

1

FMW-2156

2

3

IC9303
PC123X8YFZOF

1

IC9304

AZ432AZTR-G1

C9172
330UF 35V

+

C9343

220N 50V

C9395
2N2 50V

C9338
2N2 50V

+

R9334
220 OHM 1/4W

R9335

3K3 1/8W 5%

R9336

1Kohm +-1% 1/4W

C9340
470UF 25V

7.87K 1%

R9338

R9174

5.1K 1/4W

L9304

5uH

+

C9344
470UF 25V

R9337

12.7 KOHM +-1% 1/ 8W

R9339

NC

24V

C9165
100N 50V

5.2V

C9342

+

C9341
470UF 25V

Q9301

NC

R9340

R9341

NC

L9105

5uH

+

C9164
330UF 35V

100N 50V

C9347
100N 50V

DIM

C8550

1N 50V

NC

DV5

R9171

R9172

5.1K 1/4W

R9173

5.1K 1/4W

5.1K 1/4W

24VA

P_Scan

PS-On

12V

5.2V

P_Scan

On/Of f

12V

DIM

R8550

10K 1% 1/4W

24V

C9348
100N 50V

On/Of f

CN902

13
12
11
10

9
8
7
6
5
4
3
2
1

CONN

CN903

12
11
10

9
8
7
6
5
4
3
2
1

CONN

24VA

change to 150uF

L9106

C9163

+

470UF 25V

5.2V

Q9302

RK7002BM

C9301

100N 50V

5uH

R9304
100K 1/8W 1%

20K OHM

R9303

絬 隔 瓜 絪 腹

Key Component

+

C9169
470UF 25V

T P V ( Top Victory Electronics Co . , Ltd. )

POWER CIRCUIT

Friday , March 08, 201 3

Date

R9176

1.5K 1/4W

R9175

1.5K 1/4W

Main_ov

D9301

1 2

PS-On

RB160M

R9177

1.5K 1/4W

Q9103

PMBS3904

DV5

R9333
1K 1/8W 1%

OEM MODEL

TPV MODE L

PCB NAME

Sheet

C9170
100N 50V

R9143

NC

R9138

13

5.2V

R9324
1K 1/8W 1%

Q9106

MMBT3906 PNP

1Kohm +-1% 1/4W

C9144
100N 50V

of

C9349

100N 50V

R9111

NC

12V

24VA

12V

ZD9101

ZD9102

GDZJ30B

GDZJ15B

1 2

1 2

D9109

D9110

1N4148

1N4148

R9139
100R 1%

R9140
1K 1/8W 1%

A2

Size

Rev

C

<

称爹

>

称爹

D9802

1N5408-11

FB9804
BEAD

!

L9801
240UH

1 2

6

1

C9820

C9875

27NF

27NF

C9831

NC

VCC1

R9807

0 OHM +-5% 1/8W

470 OHM 1/4W

8

VCC

7

OUT

6

GND

5

R9804

NC

C9826

220pF 50V

C9827
100P 50V

R9144

1M 1% 1/4W

+

C9147
22UF 50V

R9147
470 OHM

43

ZD9105

NC

R-

BZT52-B5V1

Q9802

NTD4906NT4G

R9150

1.5M 1% 1/4W

!

12

1 2

FB9302

1 2

ZD9106

12

100 OHM 1/4W

R9811
R9810
13K OHM 1%

VBoot

C9150

0.47UF 50V

R9158

3.9K 1/4W

IC9106
PC123X8YFZOF

C9166
NC

IC9107
AS431AZTR-E1

BEAD

R9888

C9828
100N 50V

BZT52-B5V1

100N 50V

R9142

1.5M 1% 1/4W

C9151
1UF

C9152

1.5NF

R9148
NC

!

C9955

220PF 250V

330NF 50V

ZD9107

1 2

C9832

R9159

3.3K 1/4W

C9159

FMN-1106S

C9833

47pF

C9171

R9808

10R 1/8W 5%

+

C9829

UF4007

D9114

1
2
3
4
5
6
7
8

C9153

1UF

470 OHM 1/8W

R9149

C9154
560P 50V

24V

C9158
NC

D9801

1.5NF

C9830
10UF 50V

100N 50V

10K 1/8W

R9819

IC9101

Vsen
Vcc
FB
GND
Css
OC
RC
Reg
RV9COM

SSC9512S-TL

R9160

10K 1/8W 1%

FB9801
BEAD

1 2

FB9802

1 2

BEAD

0R05
R9817

1K 1/8W
R9818

R9151

10 OHM

NC
NC

VGH

VS
VB
NC
NC

VGL

ZD9104

GDZJ15B

R9101
200R 1/8W 1%

C9801

+

68UF 450V

TK18A60V

D9803
RB160M

12

R9809
30 OHM

R9813

10K 1/4W

680K OHM +-1% 1/4W

R9816

680K OHM +-1% 1/4W

VCC1

47OHM +-5% 1/8W

18
17
16
15
14
13
12
11
10

1 2

12V

R9161
24K 1/8W 1%

R9163
2K 1/8W 1%

C9802

+

68UF 450V

Q9801

R9815

D9113

RB160M

12

R9152

D9112

RB160M

R9154

47OHM +-5% 1/8W

10K 1/8W 1%

C9155
1N 50V

24V

R9801

0.05R

680K OHM +-1% 1/4W

12

R9156

C9156

100PF1KV

R9180
27K 1/8W 1%

C9804

+

68UF 450V

NC
C9877

R9814

R9102

10 OHM

R9153

10K 1/8W 1%

R9103

10 OHM

R-

B1+

C9912

470PF 250V

!

HEAT
SINK(D8120,Q8101)

HS9101

1
2
3
4

HEAT SINK

HS9301

HEAT SINK (D9308)

1
2
3
4

HS9103

1
2
3
4

HEAT SINK

B1+

C9803
470PF1KV

C9333

0.47UF 50V

R9317

1.5M 1% 1/4W

Q9101
TK10A 50D

Q9102
TK10A 50D

C9157A

22NF 800V

HEAT
SINK(D9115,D9116)

R9329

for 4000series 3.3V

0.1R
R9325
100K

R9326

100K

D9305

FR107

R9301

1.2R

R9320
510K 1% 1/8W

R9318

1.5M 1% 1/4W

VBoot

1
2

6
7

POWER X'FMR

T9101

1

4

830uH
C9157
27NF

change package

VCC1

Q9303
2SD1624T-TD-E

10K 1/8W 1%

+

C9302
22UF 50V

ZD9301

GDZJ18B

1 2

R9327

100K

1NF
C9331

R9328

100K

R9323

4.7M OHM +-5% 1/4W

R9319

1.5M 1% 1/4W

T9101A

11

15
14

13
12

9
8

10

11

7
8

5
6

9
10

12

Main_ ov

VCC

R9306

43

!

1

S/OCP

2

BR

3

GND
FB/OLP4VCC

C9334
1N 50V

!

12

12

R9302
100K 1/6W 5%

SB+

0R05

R9390

IC9301

A6069H

D9304

FR107

R9346
1K 1/4W

D9302

RB160M

IC9302

PC123X8YFZOF

D/ST
D/ST

100N 50V

C9335

8
7

5

D9116

1

FMEN-2308

2

3

DV5

R9178
5K1 +-5% 1/8W

Q9304

2N7002

55

12V

24V

0 OHM 1/8W

R8176

ZD8103

BZT52-B13

100N 50V

1 2

C8170
330UF 35V

+

C8111

3

L8101 33uH

+

C8121

22UF 50V

1

8

FB1GM2RT3CS

R8175

0.1R

6

OUT7VCC

GND

5

DIM

4

IC8103

PF7900S

1

3

D8120

MBRF10150CT

Q8101

TK12A10K3

R8157

10K 1/8W 1%

R8158
22 OHM 1/8W

RB160M

R8162
1Kohm +-1% 1/4W

R8153

R8177

R8148

1K 1/8W 1%

2

270K 1/4W

110K OHM 1%

R8161

2.2 OHM 1/8W

12

D8118

0 OHM 1/8W

DIM

0 OHM 1/8W

EN

R8145

R8147

C8106

NC

R8188
NC

C8189

NC

C8188

NC

R8144 430K

R8141
20K 1% 1/8W

C8118

+

120UF 100V

LED-COMP

C8109

+

120UF 100V

R9322

R8154
100K

10K 1% 1/4W

R8155
100K R8156

100K

ENOn/Of f

VLED

R8163

200K 1%

C8105
1N 50V

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

NC

C8113
1N 50V

24V to VLED (DC/DC)

Monday, Nov ember 19, 2012

56

Q8105

MMBT3906 PNP

1 2

OEM MOD EL

TPV MOD EL

PCB NAME

Sheet

R8190

1K 1/8W 1%

ZD8109

BZT52-B5V1

of

23

12V

1N 50VC8119

C9346

Size

Rev

称爹

<

A

C

称爹

>

12V

C8158

NC

IC8501

DIM

EN

LED-1

+

1

DIM

2

EN

3

VCC
LED4GND

C8157
100N 50V

COMP

GM

ISET

PF7700S

8
7
6
5

LED-COMP EN

R8501
11K 1%

C8501

100N 50V

DIM DIM

EN

12V

LED-2

1

DIM

2

EN

3

VCC
LED4GND

C8523
100N 50V

IC8502

COMP

GM

ISET

PF7700S

8
7
6
5

R8502
11K 1%

LED-COMP

C8502

100N 50V

12V

LED-3

1

DIM

2

EN

3

VCC
LED4GND

C8529
100N 50V

IC8503

COMP

ISET

PF7700S

8
7

GM

6
5

LED-COMP

R8503
11K 1%

C8503

100N 50V

12V

12V

12V

PWM_C

PWM_B

PWM_A

DIM

EN

LED-4

PWM_C

EN

LED-7

PWM_B

EN

LED-10

CN8503

CONN

1
2
3
4

IC8504

1

DIM

COMP

2

EN

3

VCC
LED4GND

PF7700S

C8518
100N 50V

IC8507

1

DIM

COMP

2

EN

3

VCC
LED4GND

PF7700S

C8519
100N 50V

IC8510

1

DIM

COMP

2

EN

3

VCC
LED4GND

PF7700S

C8520
100N 50V

R8513 0 OHM +-5% 1/8W

D8555 1N 4148W

R8514 0 OHM +-5% 1/8W

D8556 1N 4148W

R8515 0 OHM +-5% 1/8W

D8557 1N 4148W

PWM_A
PWM_B
PWM_C

ISET

ISET

ISET

GM

GM

GM

LED-8

LED-10

LED-12

VLED

IC8505

R8519NC

R8520NC

R8521NC

1

DIM

2

EN

3

VCC
LED4GND

C8524
100N 50V

1

DIM

2

EN

3

VCC
LED4GND

C8525
100N 50V

1

DIM

2

EN

3

VCC
LED4GND

C8526
100N 50V

8
7
6
5

8
7
6
5

8
7
6
5

DIM

R8504
11K 1%

R8507
11K 1%

R8510
11K 1%

LED-COMP

LED-COMP

LED-COMP

910

2

4

6

8

C8504

100N 50V

C8507

100N 50V

C8510

100N 50V

CN8504

1

3

5

7

CONN

LED-7

LED-9

LED-11

DIM

EN

12V

LED-5

PWM_C

EN

12V

LED-8

PWM_A

EN

12V 12V

LED-11

LED-1

LED-2

LED-3

LED-4

LED-5

LED-6

COMP

ISET

PF7700S

IC8508

COMP

ISET

PF7700S

IC8511

COMP

ISET

PF7700S

R8541 NC

LED-11

LED-12

R8540 NC

8
7

GM

6
5

8
7

GM

6
5

8
7

GM

6
5

LED-COMP

C8505

100N 50V

LED-COMP

C8508

100N 50V

LED-COMP PWM_A

C8511

100N 50V

VLED

R8548

0R05 1/4W

VLED

12
11
10

9
8
7
6
5
4
3
2
1

CN8506

NC

R8542 NC

R8543 NC

R8505
11K 1%

R8508
11K 1%

R8511
11K 1%

R8555 NC

R8546 NC

DIM

EN

12V

LED-6

PWM_B LED-COMP

EN

12V

LED-9

EN

LED-12

LED-7

LED-8

LED-9

LED-10

LED-11

LED-12

LED-1

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

R8522 NC

R8545 NC

R8523 NC

R8544 NC

R8524 NC

R8547 NC

.LED Driver

1
2
3

C8530
100N 50V

C8531
100N 50V

C8532
100N 50V

IC8506

DIM

COMP
EN
VCC

ISET

LED4GND

PF7700S

IC8509

1

DIM

2

EN

3

VCC
LED4GND

IC8512

1

DIM

2

EN

3

VCC
LED4GND

GM

COMP

ISET

PF7700S

COMP

ISET

PF7700S

8
7
6
5

GM

GM

R8506
11K 1%

8
7
6
5

R8509
11K 1%

8
7
6

R8512

5

11K 1%

VLED

OEM MO DE L

TPV MODEL

PCB NAME

Sheet

LED-COMP

C8506

100N 50V

LED-COMP

R8549 0R05 1/ 4W

VLED

of

33

C8509

100N 50V

C8512

100N 50V

12
11
10

9
8
7
6
5
4
3
2
1

CN8501

NC

Size

Rev

称爹

B

C

<

称爹

>

57

5.3 按键板
715G6137K01000004K

CN001

65

1

KEY1

2

KEY0

3
4

CONN

033G8032 4F HR

KEY0

R008
0R05 1/10W

C001

NC/ 0.1uF 16V

R001

22KOHM 1/10W

R002

0R05 1/10W

R003

8K2 1/10W 1%

R004
2K7 1/10W 1%

R005

8K2 1/10W 1%

SW001

TACT SW FWRD H1.5MM

SW007

TACT SW FWRD H1.5MM

SW003

TACT SW FWRD H1.5MM

SW004

TACT SW FWRD H1.5MM

SW005

TACT SW FWRD H1.5MM

~2.4V

~0V

~1.65V

~0.82V

~1.65V

tv/av

MENU

V+

V-

CH+

KEY1

R009
0R05 1/10W

C002

NC/ 0.1uF 16V

R006

22KOHM 1/10W

R007

0R05 1/10W

58

SW006

TACT SW FWRD H1.5MM

SW002

TACT SW FWRD H1.5MM

077G 607 2 FD

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

02-Keypad

~2.4V

~0V

CH-

power

OEM MO DE L

TPV MODEL

PCB NAME

Sheet

A

称爹

<

Custom

>

Size

Rev

of

22Tuesday , January 29, 2013

称爹

5.4 遥控板

715G5964R01000004S

CN1

CONN

67

1
2
3
4
5

033G8032 5F S B

R3
NC/0R05 OHM

LED_R

R5

4K7 1/16W 5%

Q1

BC847C

LED_R
LED_B
IR

VCC

R2

1K5 1/16W 5%

LED1

1

12-22/BHR6C-C31/2C

Red

R

2

3

VCC

Blue

B

Q2

BC847C

R1

15K 1/16W 5%

C1

2.2uF 10V

R6

4K7 1/16W 5%

U1

1
2
3
4

IRM-V836M3/TR1

R4
NC/0R05 OH M

LED_B

GND
VCC
Vout
GND

C2

100N 16V

R7

10K 1/16W 5%

R8

10K 1/16W 5%

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

C3

100N 16V

02-IR&LED

59

OEM MOD EL

TPV MOD EL

PCB NAME

Sheet

22

of

Size

Rev

称爹

<

A

称爹

A

>

6. 软体及 EDID 烧录

6.1 软体升级:

1.将如下 AOC_OBM_MbootUpgrade.bin 和 AOC_OBM_MstarUpgrad.bin 软体，拷到 U 盘根目录。

2.在电视关机的状态下（电源线拔掉），电视 USB 接口(非蓝色 USB 接口)插入存有软体的 U 盘。

3.然后电视插上电源线上电，开始升级软体，软体较大升级过程大概需 5min 左右，待升级完成后电视会自

动开机（即升级完成）。

注意：如更新不了软体，请换另外的 U 盘或者 U 盘接到电视其他 USB 接口，再尝试 USB 升级。

6.2 EDID 已经捆绑到软体中，无需单独烧录。

60

7. 故障处理流程

有

检测 IR 板及 LED 灯

更换 IR 板

检测电源板 CN902 的 PIN5/6 是否有 24V 电压输出

无电（LED 不亮）

检测插座是否有电或硬开关是否打开

有

检测电源板 CN902 的 PIN2/3 是否有 5.2V 电压输出

无法启动

有

无

无

无

重插电源插座或开启硬开关

更换电源板

更换电源板

更换按键板

检测按键板的 POWER 键是否失灵

是

检测遥控板的红外接收器 U1 是否失灵

是

更换遥控板

61

否

否

更换主板

检测 TV 是否受控，能否用遥控器或按键板开关机

检测 LVDS 线是否良好

是

检测主板上 CN403 的 PIN37/38/39/40
是否有 12V 供电

是

否

先更换主板
检测是否 OK

更换主板

更换 Panel

否

无画

是

检测是否有背光

是

否

重插或更换 LVDS 线

检测电源板 CN902 的 PIN5/6 是否有 24V 电压输出

是

否

否

检测主板 CN701 是否有 BL 信号

是

否

更换主板

更换电源板更换 Panel

否

更换主板

62

彩 条、水 波 纹、画 抖、画 闪 、

鬼影、残影、拖影等干扰

检测附近是否有干扰源

是 否

排除干扰源

检测信号源出
信号是否正常

是 否

先更换主板

检测是否 OK

否

更换 Panel

检测信号线

是否良好

是 否

更换信号线

重新设置

信号源

画异

TV 画面雪花点、重

影、细线、条纹干扰

检测 TV 信号线

是否接触不良

是 否

重新连接

TV 信号线

检测附近是否
有高频干扰源

是 否

排除干扰源 用场强仪检测信号强度

是否在 45-100db 之间，

65db 左右为最佳值

是

更换主板

63

间歇性画异加温
画异冷开机画异

检测软体版本是
否需要更新

是 否

升级软体

先更换主板

检查是否 OK

否

太弱：加装信号放大器
太强：减少信号放大器

或加装信号衰减器

否

取回站内
加温检测

无声或声音异常

检测信号源音频接口是否正确，或 TV 制式是否为 DK 制

是

否

检测 TV 是否被静音，调整音量大小，

或进入菜单进行复位看是否 OK

否

检测主板到喇叭的连接线是否断路

是 否

更换连接线

检测喇叭阻抗是否变质

(喇叭阻抗值标在喇叭上)

是 否

更换喇叭 更换主板

收不到台或收台不全

检测软体版本是否需要更新

重插音频接口或设置 TV 制式

检测此频道是否发生频
偏，尤其是使用卫星信号

是

建议客户重新

设置信号源

是 否

升级软体

用场强仪检测信号强度是否在
45-100db 之间，65db 左右为最佳值

是

用别的 TV 测试是否能收到此台

是

和客户说明当地 TV 信号未转播此台

否

更换主板

否

太弱:加装信号放大器
太强:减少信号放大器或加装信号衰减器

否

64

更换喇叭 主板功放异常

重新安置或更换电池

喇叭异响

（破音，滋滋声）

检测喇叭是否变质

是 否

更换主板

遥控失灵

检查遥控器电池是否未安置好或没电

是 否

更换遥控器 检测 IR 板是否异常

异响

用别的遥控器测试是否可用

是 否

是

更换 IR 板

电源板，PANEL 异响

更换电源板/PANEL

否

更换主板

65

更换按键

OSD 不稳定或无法正常工作

按键板连接正常吗？

否

接好按键板

是

按键正常吗？

否

是

按键板有无故障？

否

更换按键板

是

检查主板

66

8. 主要 IC 管脚及内部框图

SSC9522S-TL
Pin Description

Block Diagram

67

PF7900S
Pin Description

Block Diagram

68

TPA6138A2PWR
Pin Description

Block Diagram

69

MX25L1606EM2I
Pin Description

Block Diagram

70

9. BOM

注意：以下初始版本 BOM 信息仅供维修参考，不作为下单依据，如有变更，恕不另行通知，请以 RSPL 或 Service
BOM(http://cs.tpv.com.cn

E55D41NDESA1NNX

点位 组件 对象描述 备注
052G 1211 B
085T 583103 GASKET
0M1G 130 6 47 CR3 SCREW 3X6
0M1G1030 6 47 CR3 SCREW
0M1G1030 6 47 CR3 SCREW
0M1G1730 6120 SCREW 3X6
0M1G1740 8125 SCREW

3DG01 317GA3DG029ROR 3D GLASSES DL1008-4P
WIFI01 317GAAWF023ALP WIFI USB IEEE 802.11 B/G/N TPWUSN16T-A1
WIFI01 317GAAWF029CCC WIFI USB IEEE 802.11 B/G/N WM-8192B
SP01 378G0110567YAQ 16 OHM 11W L132*W34*34.5H 0 NO
SP02 378G0120586HAD 8 OHM 12W 230*218 650 BOX
ECN601 395G801304LC10 HARNESS 4P-B&R+B&W 850/400MM 2nd-Source
ECN601 395G801304WC10 HARNESS 4P-B&R+B&W 850/400MM
ECN1701 395G801413DN15 HARNESS 13P-5P+4P 800MM/1300MM
ECN1701 395G801413RN15 HARNESS 13P-5P+4P 800MM/1300MM 2nd-Source
ECN701 395G801414DM94 HARNESS 13P-14P 200MM 2nd-Source
ECN701 395G801414XM94 HARNESS 13P-14P 200MM
ECN403 395G801851RP10 LVDS CABLE 51P-40P 700MM 2nd-Source
ECN403 395G801851XP10 LVDS CABLE 51P-40P 700MM
EJ3 395G802205DM33 HARNESS 5P-4P 290MM 2nd-Source
EJ3 395G802205XM33 HARNESS 5P-4P 290MM
ECN702 395G802209DM04 HARNESS 9P-4P 550MM 2nd-Source
ECN702 395G802209XM04 HARNESS 9P-4P 550MM
RC01 398GRABD1NCACW REMOTE AOC KWS52-E0666F101-RF CHINESE

708GVA350WPX01 CITA 40(224 CH)
Q50G060046502A00BL PACKAGE_BUCKLE
Q50G060046502A00JY PACKAGE_BUCKLE
Q52G 1185 99 BIG CARTON TAPE FOR AOC 72MM
Q50G 4 10 TIE (Y1900221)
E750 750TFV550V25A8N000 LCD TPT550J1-HVD02 S5FAA XM TPV
Z40G0002ALL01A OTHER LABEL

CN1401 088G 78F114UCL RCA JACK R/A 6DEGREE 2P YELLOW H=8.45
CN1501 088G 78F116UCL RCA JACK 4P BLACK 8.3MM
CN1202 088G302C3O1ACL PHONE JACK R/A 3P ORANGE H=6.2
CN1302 088G302C3O1AQS PHONE JACK R/A 3P ORANGE H=6.2
CN604 088G302C5B1ACL PHONE JACK R/A 5P BLACK H=6.2
CN1603 088G352E912AXH USB A TYPE R/A 9P 1*1 BLUE 6.96MM
CN1601 088G352F6B3ACL USB A TYPE R/A 6P BLACK H=8.4
CN1602 088G352F6B3ACL USB A TYPE R/A 6P BLACK H=8.4
CN1201 088G353FFF4UCL D-SUB CONN R/A 15P BLUE8.5MM
CN701 311GW200C14ABX WAFER 2.0MM 14P R/A W2010-14RVA-S05
CN701 311GW200C14BBX CONN 2.0MM 14P R/A W2010-14RVA-S04
C6060 367G315M1016CT EC 100UF 20% 35V SY101M035F070T035PL
C6008 367G315M1016CT EC 100UF 20% 35V SY101M035F070T035PL
C6022 367G315M1016CT EC 100UF 20% 35V SY101M035F070T035PL
C6016 367G315M1016CT EC 100UF 20% 35V SY101M035F070T035PL
CN1301 388G078F139YCL RCA R/A 6P 1*3 G/BL/R 8.45
CN1901 388G342GFB6AGN RJ45 R/A 15P 1*1 BLACK 11.2

) 为准，谢谢！

CONDUCTIVE TAPE 85MM *40MM *0.09MM (单导)

71

TU102 394GNPAL0MN10L TUNER CHINA ST21WN-2I-E

709T62530XM001 COMSUMPTIVE ASSY
055G 23524 WELDING FLUX WITHOUT PB
Q49G 51100 CLEANER
Q55G 100625 TIN STICK_LOW ARGENTUM
P90T0060101 HEAT SINK (42X39X6MM)_ATV
Q85T 583162 GASKET
Q90T0092 2 HEAT SINK

U708 056G 563146 LDO G912T63U 1A 1.2V SOT-223
U702 056G 563345 DC/DC AT1528P11U 2A SOP-8
U705 056G 563345 DC/DC AT1528P11U 2A SOP-8
U606 056G 616128 AUDIO TPA6138A2PWR TSSOP-14
U6001 056G 616X02 AUDIO AD83586-LG48NAY 35W LQFP-48
U405 056G2233 31 FLASH MX25L1606EM2I-12G 200MIL 8-SOP
Q6002 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q6003 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q705 057G 417511 MMBT3904
Q703 057G 417511 MMBT3904
Q501 057G 417511 MMBT3904
Q702 057G 417511 MMBT3904
Q106 057G 417511 MMBT3904
Q105 057G 417511 MMBT3904
Q1402 057G 417511 MMBT3904
Q502 057G 417511 MMBT3904
Q403 057G 417511 MMBT3904
Q402 057G 417511 MMBT3904
Q1401 057G 417512 MMBT3906
Q103 057G 417512 MMBT3906
Q104 057G 417512 MMBT3906
Q6004 057G 760902 DIGITAL TRAN DTC114ES3 0.05A 50V SOT-323
Q701 057G 763 1 MOSFET A03401 4.2A 30V SOT-23
Q401 057G 763 79 FET AO4449 -7A/-30V SOIC-8
RP456 061G 1262208JT RST NET 22R 5% 1/16W
RP455 061G 1262208JT RST NET 22R 5% 1/16W
RP441 061G 1262208JT RST NET 22R 5% 1/16W
RP459 061G 1262208JT RST NET 22R 5% 1/16W
RP457 061G 1262208JT RST NET 22R 5% 1/16W
RP458 061G 1262208JT RST NET 22R 5% 1/16W
RP1102 061G 1262208JT RST NET 22R 5% 1/16W
RP1101 061G 1262208JT RST NET 22R 5% 1/16W
RP101 061G 1262208JT RST NET 22R 5% 1/16W
RP445 061G 1262208JT RST NET 22R 5% 1/16W
RP443 061G 1262208JT RST NET 22R 5% 1/16W
RP403 061G 1262208JT RST NET 22R 5% 1/16W
RP449 061G 1262208JT RST NET 22R 5% 1/16W
RP447 061G 1262208JT RST NET 22R 5% 1/16W
RP102 061G 1262208JT RST NET 22R 5% 1/16W
RP437 061G 1262208JT RST NET 22R 5% 1/16W
RP436 061G 1262208JT RST NET 22R 5% 1/16W
RP425 061G 1262208JT RST NET 22R 5% 1/16W
RP404 061G 1262208JT RST NET 22R 5% 1/16W
RP418 061G 1262208JT RST NET 22R 5% 1/16W
RP419 061G 1262208JT RST NET 22R 5% 1/16W
RP414 061G 1262208JT RST NET 22R 5% 1/16W

72

RP415 061G 1262208JT RST NET 22R 5% 1/16W
RP416 061G 1262208JT RST NET 22R 5% 1/16W
RP417 061G 1262208JT RST NET 22R 5% 1/16W
RP431 061G 1262208JT RST NET 22R 5% 1/16W
RP410 061G 1262208JT RST NET 22R 5% 1/16W
RP411 061G 1262208JT RST NET 22R 5% 1/16W
RP408 061G 1262208JT RST NET 22R 5% 1/16W
RP402 061G 1262208JT RST NET 22R 5% 1/16W
RP401 061G 1262208JT RST NET 22R 5% 1/16W
RP405 061G 1262208JT RST NET 22R 5% 1/16W
RP406 061G 1262208JT RST NET 22R 5% 1/16W
RP426 061G 1262208JT RST NET 22R 5% 1/16W
RP407 061G 1262208JT RST NET 22R 5% 1/16W
RP409 061G 1262208JT RST NET 22R 5% 1/16W
RP463 061G 1262208JT RST NET 22R 5% 1/16W
RP461 061G 1262208JT RST NET 22R 5% 1/16W
RP421 061G 1262208JT RST NET 22R 5% 1/16W
RP422 061G 1262208JT RST NET 22R 5% 1/16W
RP423 061G 1262208JT RST NET 22R 5% 1/16W
RP424 061G 1262208JT RST NET 22R 5% 1/16W
RP429 061G 1262208JT RST NET 22R 5% 1/16W
RP433 061G 1262208JT RST NET 22R 5% 1/16W
RP420 061G 1262208JT RST NET 22R 5% 1/16W
RP435 061G 1262208JT RST NET 22R 5% 1/16W
RP413 061G 1262208JT RST NET 22R 5% 1/16W
RP439 061G 1262208JT RST NET 22R 5% 1/16W
RP412 061G 1262208JT RST NET 22R 5% 1/16W
RP432 061G 1262208JT RST NET 22R 5% 1/16W
RP427 061G 1262208JT RST NET 22R 5% 1/16W
RP428 061G 1262208JT RST NET 22R 5% 1/16W
TH1602 061G 56A100 WT PTCR SMD 0.21R MAX 0.8W
TH1601 061G 56A100 WT PTCR SMD 0.21R MAX 0.8W
TH1603 061G 56A100 WT PTCR SMD 0.21R MAX 0.8W
R519 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R551 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R545 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R543 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R544 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R550 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R523 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R518 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R524 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R530 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R4110 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R4107 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R1715 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R525 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R520 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R521 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R542 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R529 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R528 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R533 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R527 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

73

R547 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R522 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R546 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R532 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R526 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R531 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R1902 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R6002 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R6001 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R6219 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R6019 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R478 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R6017 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R6043 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R1904 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R1311 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R135 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R120 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R129 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R1114 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R1115 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R116 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R1116 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R434 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R119 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R1608 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R1607 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R711 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R708 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R1709 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R1708 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R6036 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R6020 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R6205 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R4127 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R194 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R193 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R1113 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R1112 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R1110 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R1220 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R6260 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R6206 061G0402000 JT RST 0402 0.05R MAX 1/16W -
R1501 061G04021000FY RST CHIP 100R 1/16W 1%
R198 061G04021000FY RST CHIP 100R 1/16W 1%
R197 061G04021000FY RST CHIP 100R 1/16W 1%
R474 061G04021001FT RST CHIP R 1KOHM 1/16W +/-1%
R476 061G04021001FT RST CHIP R 1KOHM 1/16W +/-1%
R477 061G04021001FT RST CHIP R 1KOHM 1/16W +/-1%
R473 061G04021001FT RST CHIP R 1KOHM 1/16W +/-1%
R466 061G04021001FT RST CHIP R 1KOHM 1/16W +/-1%
R463 061G04021001FT RST CHIP R 1KOHM 1/16W +/-1%
R468 061G04021001FT RST CHIP R 1KOHM 1/16W +/-1%
R461 061G04021001FT RST CHIP R 1KOHM 1/16W +/-1%

74

R464 061G04021001FT RST CHIP R 1KOHM 1/16W +/-1%
R462 061G04021001FT RST CHIP R 1KOHM 1/16W +/-1%
R469 061G04021001FT RST CHIP R 1KOHM 1/16W +/-1%
R447 061G04021001FT RST CHIP R 1KOHM 1/16W +/-1%
R6261 061G04021001FY RST CHIP 1K 1/16W 1%
R4172 061G04021002FF RST CHIPR 10KOHM +-1% 1/16W FENGHUA
R4173 061G04021002FF RST CHIPR 10KOHM +-1% 1/16W FENGHUA
R7011 061G04021002FF RST CHIPR 10KOHM +-1% 1/16W FENGHUA
R749 061G04021002FT RST CHIPR 10K +-1% 1/16W TZAI YUAN
R4128 061G04021004FT RST CHIPR 1M +-1% 1/16W TZAI YUAN
R122 061G04021004FT RST CHIPR 1M +-1% 1/16W TZAI YUAN
R1208 061G0402101 JI BEST ONLY RST 0402 100R 5% 1/16W TA-I
R162 061G0402101 JI BEST ONLY RST 0402 100R 5% 1/16W TA-I
R1210 061G0402101 JI BEST ONLY RST 0402 100R 5% 1/16W TA-I
R1207 061G0402101 JI BEST ONLY RST 0402 100R 5% 1/16W TA-I
R1206 061G0402101 JI BEST ONLY RST 0402 100R 5% 1/16W TA-I
R552 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R126 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R1710 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R127 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R1707 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R1705 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R1706 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R734 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R121 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R401 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN
R534 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN
R510 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN
R517 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN
R6025 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN
R516 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN
R733 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
R458 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
R718 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
R706 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
R484 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
R481 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
R165 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
R465 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
R123 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R512 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R1313 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R6011 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R6015 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R6013 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R6218 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R513 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R1221 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R1222 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R6024 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R6028 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R509 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R511 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R1312 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN

75

R503 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R501 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R403 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R539 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R538 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R1703 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R424 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R1212 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R1103 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R1104 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R1106 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R1105 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R1108 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R1107 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R1109 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R428 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R426 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R420 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R421 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R422 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R4117 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R1203 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R163 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R1101 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R1205 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R1713 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R169 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R467 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R1204 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R1102 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R470 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R417 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R416 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R419 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R112 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R114 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R168 061G0402104 JI TEST ONLY RST 0402 100K 5% 1/16W TA-I
R166 061G0402104 JI TEST ONLY RST 0402 100K 5% 1/16W TA-I
R164 061G0402104 JI TEST ONLY RST 0402 100K 5% 1/16W TA-I
R4123 061G0402104 JI TEST ONLY RST 0402 100K 5% 1/16W TA-I
R746 061G0402104 JI TEST ONLY RST 0402 100K 5% 1/16W TA-I
R1609 061G0402104 JI TEST ONLY RST 0402 100K 5% 1/16W TA-I
R754 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN
R454 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN
R6008 061G0402105 JI EST ONLY RST 0402 1M 5% 1/16W TA-I
R1315 061G0402123 JT RST CHIPR 12KOHM +-5% 1/16W TZAI YUAN
R1314 061G0402123 JT RST CHIPR 12KOHM +-5% 1/16W TZAI YUAN
R1224 061G0402123 JT RST CHIPR 12KOHM +-5% 1/16W TZAI YUAN
R1223 061G0402123 JT RST CHIPR 12KOHM +-5% 1/16W TZAI YUAN
R1406 061G0402123 JT RST CHIPR 12KOHM +-5% 1/16W TZAI YUAN
R535 061G0402201 JI RST 0402 200R 5% 1/16W
R485 061G0402202 JT RST CHIP 2K 1/16W 5% TZAI YUAN
R433 061G0402202 JT RST CHIP 2K 1/16W 5% TZAI YUAN
R444 061G0402202 JT RST CHIP 2K 1/16W 5% TZAI YUAN

76

R1711 061G0402202 JT RST CHIP 2K 1/16W 5% TZAI YUAN
R748 061G0402203 JF RST CHIPR 20KOHM +-5% 1/16W FENGHUA
R1402 061G0402203 JI RST 0402 20K 5% 1/16W TA-I
R735 061G0402204 JT RST 0402 200K 5% 1/16W TZAI YUAN
R404 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA
R406 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA
R405 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA
R407 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA
R409 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA
R443 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA
R442 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA
R427 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA
R425 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA
R432 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA
R429 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA
R431 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA
R430 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA
R423 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA
R410 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA
R411 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA
R548 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R549 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R540 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R507 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R508 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R448 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R449 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R514 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R137 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R138 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R1126 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R1128 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R136 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R1127 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R456 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R450 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R451 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R453 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R452 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R455 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R515 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R413 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R414 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R415 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R475 061G04022400FF RST CHIPR 240 OHM +-1% 1/16W FENGHUA
R483 061G04022400FF RST CHIPR 240 OHM +-1% 1/16W FENGHUA
R482 061G04022400FF RST CHIPR 240 OHM +-1% 1/16W FENGHUA
R6263 061G0402243 JF RST CHIPR 24KOHM +-5% 1/16W FENGHUA
R6262 061G0402243 JF RST CHIPR 24KOHM +-5% 1/16W FENGHUA
R739 061G04023002FT RST 0402 30K 1% 1/16W
R554 061G0402304 JT RST 0402 300K 5% 1/16W TZAI YUAN
R1303 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN
R1307 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN
R1209 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN

77

R6007 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN
R1310 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN
R6006 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN
R6005 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN
R6004 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN
R1219 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN
R1216 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN
R1309 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN
R6215 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN
R6216 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN
R703 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN
R701 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN
R702 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN
R707 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN
R6257 061G04023301FT RST CHIP 3K3 1/16W 1%
R740 061G04023302FY RST CHIP 33K 1/16W 1%
R1720 061G0402332 JT RST CHIP 3K3 1/16W 5% TZAI YUAN
R1903 061G0402471 JI TEST ONLY RST 0402 470R 5% 1/16W TA-I
R1901 061G0402471 JI TEST ONLY RST 0402 470R 5% 1/16W TA-I
R1401 061G0402471 JT RST CHIP 470R 1/16W 5% TZAI YUAN
R130 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R4115 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R742 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R4141 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R408 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R4105 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R732 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R4170 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R719 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R720 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R727 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R712 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R716 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R713 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R714 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R705 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R4134 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R4133 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R131 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R128 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R125 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R4130 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R4135 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R4139 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R4138 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R6027 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R6240 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN
R553 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN
R6223 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN
R6212 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN
R6251 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN
R6044 061G0402474 JF RST 0402 470K 5% 1/16W
R6255 061G04025102FT RST 0402 51K 1/16W 1% TZAI YUAN
R113 061G0402513 JT RST CHIP 51K 1/16W 5% TZAI YUAN

78

R6222 061G0402513 JT RST CHIP 51K 1/16W 5% TZAI YUAN
R6211 061G0402513 JT RST CHIP 51K 1/16W 5% TZAI YUAN
R750 061G04025232FT RST 0402 52.3K 1/16W 1% TZAI YUAN
R124 061G04025602FI RST 0402 56K 1% 1/16W TA-I
R480 061G04025609FT RST CHIP 56R 1/16W 1%
R435 061G04025609FT RST CHIP 56R 1/16W 1%
R471 061G04025609FT RST CHIP 56R 1/16W 1%
R472 061G04025609FT RST CHIP 56R 1/16W 1%
R479 061G04025609FT RST CHIP 56R 1/16W 1%
R436 061G04025609FT RST CHIP 56R 1/16W 1%
R491 061G0402680 JF ST 0402 68R 5% 1/16W
R1218 061G0402680 JT RST CHIP 68R 1/16W 5% TZAI YUAN
R1215 061G0402680 JT RST CHIP 68R 1/16W 5% TZAI YUAN
R1213 061G0402680 JT RST CHIP 68R 1/16W 5% TZAI YUAN
R1308 061G0402680 JT RST CHIP 68R 1/16W 5% TZAI YUAN
R1306 061G0402680 JT RST CHIP 68R 1/16W 5% TZAI YUAN
R1304 061G0402680 JT RST CHIP 68R 1/16W 5% TZAI YUAN
R1404 061G04027509FY RST CHIP 75R 1/16W 1%
R1403 061G04027509FY RST CHIP 75R 1/16W 1%
R1217 061G04027509FY RST CHIP 75R 1/16W 1%
R1405 061G04027509FY RST CHIP 75R 1/16W 1%
R1301 061G04027509FY RST CHIP 75R 1/16W 1%
R1214 061G04027509FY RST CHIP 75R 1/16W 1%
R1211 061G04027509FY RST CHIP 75R 1/16W 1%
R1305 061G04027509FY RST CHIP 75R 1/16W 1%
R1302 061G04027509FY RST CHIP 75R 1/16W 1%
R1502 061G04028209FT RST 0402 82R 1% 1/16W
R4118 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R418 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R104 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R105 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R743 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA
R721 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA
R725 061G06031000FT RST CHIP 100R 1/10W 1%
R751 061G06031001FT RST CHIP 1K 1/10W 1%
R459 061G06031001FT RST CHIP 1K 1/10W 1%
R6021 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R502 061G0603102 JI TEST ONLY RST 0603 1K 5% 1/10W TA-I
R6224 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R755 061G06031201FT RST CHIP 1K2 1/10W 1%
R504 061G06031800FT RST CHIP 180R 1/10W 1%
R724 061G06031801FT RST CHIP 1K8 1/10W 1%
R6022 061G0603182 JT RST CHIPR 1.8KOHM 1/10W TZAI YUAN
R6258 061G06032402FF RST CHIPR 24KOHM 1/10W FENGHUA
R6256 061G06032402FF RST CHIPR 24KOHM 1/10W FENGHUA
R745 061G06033001FT RST CHIP 3K 1/10W 1%
R6265 061G06033002FI RST 0603 30K 1% 1/10W
R6254 061G06033002FI RST 0603 30K 1% 1/10W
R741 061G06033602FT RST 0603 36K 1% 1/10W
R506 061G0603392 JY RST CHIPR 3.9KOHM 5% 1/10W YAGEO
R756 061G06034701FY RST CHIP 4K7 1/10W 1%
R4116 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO
R4119 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO
R6023 061G0603474 JT RST CHIPR 470KOHM +-5% 1/10W TZAI YUAN

79

R738 061G06035101FT RST CHIP 5K1 1/10W 1%
R726 061G06035601FT RST CHIP 5K6 1/10W 1%
R737 061G0603752 JT RST CHIP 7K5 1/10W 5% TZAI YUAN
R1702 061G06038201FF RST CHIPR 8.2K OHM +-1% 1/10W FENGHUA
R1701 061G06038201FF RST CHIPR 8.2K OHM +-1% 1/10W FENGHUA
R505 061G06038209FT RST CHIP 82R 1/10W 1% TZAI YUAN
R4126 061G0805000 JY RST CHIPR MAX 0R05 OHM 1/8W YAGEO
R1905 061G0805000 JY RST CHIPR MAX 0R05 OHM 1/8W YAGEO
R4124 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R492 061G12060007JT RST CHIPR MAX 0R05 1/4W 1206
R6136 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
R6041 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
R6042 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
R6040 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
R6029 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
R6033 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
R6030 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
R6031 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
R6037 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
R6035 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
R6034 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
R6032 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
R6009 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
C110 065G040210031J F CAP 0402 10PF 5% 50V NP0
C143 065G040210031J T CAP 0402 10PF 5% 50V NP0
C703 065G040210232K F CAP 0402 1NF 10% 50V X7R
C449 065G040210232K F CAP 0402 1NF 10% 50V X7R
C453 065G040210232K F CAP 0402 1NF 10% 50V X7R
C707 065G040210232K F CAP 0402 1NF 10% 50V X7R
C711 065G040210232K F CAP 0402 1NF 10% 50V X7R
C421 065G040210232K F CAP 0402 1NF 10% 50V X7R
C423 065G040210232K F CAP 0402 1NF 10% 50V X7R
C425 065G040210232K F CAP 0402 1NF 10% 50V X7R
C419 065G040210232K F CAP 0402 1NF 10% 50V X7R
C6054 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C1308 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C6055 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C1207 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C446 065G040210332K F CAP 0402 10NF 10% 50V X7R
C418 065G040210332K F CAP 0402 10NF 10% 50V X7R
C417 065G040210332K F CAP 0402 10NF 10% 50V X7R
C6042 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%
C114 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%
C6030 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%
C6031 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%
C1903 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%
C1902 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%
C6041 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%
C732 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C720 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C442 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C116 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C490 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C142 065G040210412K Y CAP 0402 100NF 10% 16V X7R

80

C480 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C475 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C438 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C447 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C452 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C450 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4100 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C406 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C134 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C448 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4101 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C724 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C451 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C117 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4120 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C477 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C491 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C492 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C119 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C454 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C474 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4119 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C476 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C473 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C429 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C416 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C762 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C414 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C1702 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C760 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C1701 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C427 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C424 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C428 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C118 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C408 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C718 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C405 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C1603 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C1601 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C1607 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C1608 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C1605 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C1606 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C1101 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C708 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C713 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C733 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C1704 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C775 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C410 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C411 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C422 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C420 065G040210412K Y CAP 0402 100NF 10% 16V X7R

81

C426 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C710 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C712 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C489 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C112 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C488 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C486 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C487 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C127 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C128 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C129 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C126 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C120 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C125 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C121 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C441 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C433 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C479 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C431 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C432 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C434 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C109 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C7003 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C435 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C7004 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C436 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C483 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C106 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C485 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C481 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C430 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C1904 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C443 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C1401 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C439 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C440 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C445 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C444 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C437 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C7002 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C130 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C131 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C484 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C482 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C472 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C6063 065G040210425K Y CAP 0402 100NF 10% 25V X5R
C6253 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C6249 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C111 065G0402105A5K T CAP 0402 1UF 10% 10V X5R LMK105 BJ105KV
C772 065G0402105A5K T CAP 0402 1UF 10% 10V X5R LMK105 BJ105KV
C770 065G0402105A5K T CAP 0402 1UF 10% 10V X5R LMK105 BJ105KV
C768 065G0402105A5K T CAP 0402 1UF 10% 10V X5R LMK105 BJ105KV
C493 065G0402105A5K T CAP 0402 1UF 10% 10V X5R LMK105 BJ105KV
C499 065G0402105A5K T CAP 0402 1UF 10% 10V X5R LMK105 BJ105KV

82

C1501 065G0402105A5K T CAP 0402 1UF 10% 10V X5R LMK105 BJ105KV
C1402 065G040210605M M CAP 0402 10UF 20% 6.3V X5R -
C1703 065G040212131J T CAP CHIP 0402 120PF 50V J NPO
C1705 065G040212131J T CAP CHIP 0402 120PF 50V J NPO
C1707 065G040212131J T CAP CHIP 0402 120PF 50V J NPO
C1706 065G040212131J T CAP CHIP 0402 120PF 50V J NPO
C6210 065G040218131J A MLCC 0402 180PF 50V NP0 +-5% SAMSUNG
C6211 065G040218131J A MLCC 0402 180PF 50V NP0 +-5% SAMSUNG
C133 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5%
C132 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5%
C765 065G040222232K F CAP 0402 2.2NF K 50V X7R
C4118 065G040222322K F CAP 0402 22NF 10% 25V X7R
C4117 065G040222322K F CAP 0402 22NF 10% 25V X7R
C4112 065G040233031J F CAP 0402 33PF 5% 50V NP0
C4113 065G040239031J A CAP CHIP 0402 39PF J 50V NPO
C4114 065G040239031J A CAP CHIP 0402 39PF J 50V NPO
C6215 065G040247031J A CAP 0402 47PF 5% 50V NP0
C6214 065G040247031J A CAP 0402 47PF 5% 50V NP0
C6254 065G040247031J A CAP 0402 47PF 5% 50V NP0
C6260 065G040247031J A CAP 0402 47PF 5% 50V NP0
C6048 065G040247131J A CAP CHIP 0402 470PF J 50V NPO
C6045 065G040247131J A CAP CHIP 0402 470PF J 50V NPO
C6023 065G040247131J A CAP CHIP 0402 470PF J 50V NPO
C6035 065G040247131J A CAP CHIP 0402 470PF J 50V NPO
C6034 065G040247131J A CAP CHIP 0402 470PF J 50V NPO
C6024 065G040247131J A CAP CHIP 0402 470PF J 50V NPO
C743 065G040247131J A CAP CHIP 0402 470PF J 50V NPO
C503 065G040247312K F CAP 0402 47NF 10% 16V X7R
C1203 065G040247312K T CAP 0402 47NF 10% 16V X7R
C1202 065G040247312K T CAP 0402 47NF 10% 16V X7R
C1201 065G040247312K T CAP 0402 47NF 10% 16V X7R
C1206 065G040247312K T CAP 0402 47NF 10% 16V X7R
C1204 065G040247312K T CAP 0402 47NF 10% 16V X7R
C1205 065G040247312K T CAP 0402 47NF 10% 16V X7R
C1305 065G040247312K T CAP 0402 47NF 10% 16V X7R
C1303 065G040247312K T CAP 0402 47NF 10% 16V X7R
C1302 065G040247312K T CAP 0402 47NF 10% 16V X7R
C1301 065G040247312K T CAP 0402 47NF 10% 16V X7R
C1304 065G040247312K T CAP 0402 47NF 10% 16V X7R
C1307 065G040247312K T CAP 0402 47NF 10% 16V X7R
C1306 065G040247312K T CAP 0402 47NF 10% 16V X7R
C458 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C413 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C6205 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C6204 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C754 065G040268132K A CAP 0402 680PF 10% 50V X7R
C1901 065G060310031J Y CAP 0603 10P 50V NP0 +/-5%
C6222 065G060310231J Y CHIP 0603 1000PF 50V NPO
C6221 065G060310231J Y CHIP 0603 1000PF 50V NPO
C734 065G060310332K F CAP CHIP 0603 10NF K 50V X7R
C6006 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C6007 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C6004 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C6005 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

83

C402 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C6012 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C6013 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C6014 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C6011 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C6015 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C6010 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C6052 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C6025 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C6028 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C706 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C6039 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C701 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C6036 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C6049 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C750 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C471 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C738 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C6003 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C501 065G060310512K A CAP 0603 1UF 10% 16V X7R
C744 065G060310522K M CAP MLCC 0603 1UF K 25V X7R
C115 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C124 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C741 065G060310605M T CAP 0603 10UF 20% 6.3V X5R
C764 065G060310605M T CAP 0603 10UF 20% 6.3V X5R
C767 065G060310605M T CAP 0603 10UF 20% 6.3V X5R
C774 065G060310605M T CAP 0603 10UF 20% 6.3V X5R
C771 065G060310605M T CAP 0603 10UF 20% 6.3V X5R
C777 065G060310605M T CAP 0603 10UF 20% 6.3V X5R
C478 065G060310605M T CAP 0603 10UF 20% 6.3V X5R
C723 065G060310605M T CAP 0603 10UF 20% 6.3V X5R
C722 065G060310605M T CAP 0603 10UF 20% 6.3V X5R
C122 065G060318031J Y CAP CHIP 0603 18P 50V NPO +/-5%
C123 065G060318031J Y CAP CHIP 0603 18P 50V NPO +/-5%
C469 065G060322422K T CAP CHIP0603 220NF K 25V X7R
C498 065G060322515K M CAP 0603 2.2UF 10% 16V X5R
C496 065G060322515K M CAP 0603 2.2UF 10% 16V X5R
C497 065G060322515K M CAP 0603 2.2UF 10% 16V X5R
C494 065G060322515K M CAP 0603 2.2UF 10% 16V X5R
C495 065G060322515K M CAP 0603 2.2UF 10% 16V X5R
C409 065G060322515K T CAP 0603 2.2UF 10% 16V X5R
C407 065G060322515K T CAP 0603 2.2UF 10% 16V X5R
C113 065G0603225A5K T CAP 0603 2.2UF 10% 10V X5R
C737 065G060333232K Y CAP CHIP 0603 3N3 50V X7R +/-10%
C6019 065G060347412K T CAP CHIP 0603 0.47UF K 16V X7R
C778 065G0603475A5K M CAP CHIP 0603 4.7UF K 10V X5R
C167 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C168 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C6029 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C6032 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C6009 065G080510512K T CAP CHIP 0805 1UF K 16V X7R
C757 065G080510532K M CAP 0805 1UF 10% 50V X7R
C6252 065G080510602K T CAP 0805 10UF 10% 6.3V X7R
C4106 065G0805106A5K T CAP 0805 10UF 10% 10V X5R LMK212 BJ106K

84

C748 065G0805106A5K T CAP 0805 10UF 10% 10V X5R LMK212 BJ106K
C715 065G0805106A5K T CAP 0805 10UF 10% 10V X5R LMK212 BJ106K
C502 065G0805106A5K T CAP 0805 10UF 10% 10V X5R LMK212 BJ106K
C759 065G0805106A5K T CAP 0805 10UF 10% 10V X5R LMK212 BJ106K
C755 065G0805106A5K T CAP 0805 10UF 10% 10V X5R LMK212 BJ106K
C6021 065G0805106A5K T CAP 0805 10UF 10% 10V X5R LMK212 BJ106K
C4107 065G0805106A5K T CAP 0805 10UF 10% 10V X5R LMK212 BJ106K
C6050 065G080522432K T CAP 0805 220NF 10% 50V X7R UMK212 B7224
C6051 065G080522432K T CAP 0805 220NF 10% 50V X7R UMK212 B7224
C6027 065G080522432K T CAP 0805 220NF 10% 50V X7R UMK212 B7224
C6038 065G080522432K T CAP 0805 220NF 10% 50V X7R UMK212 B7224
C6037 065G080522432K T CAP 0805 220NF 10% 50V X7R UMK212 B7224
C6026 065G080522432K T CAP 0805 220NF 10% 50V X7R UMK212 B7224
C6259 065G080522525K T CAP CHIP 0805 2.2UF K 25V X5R
C6248 065G080522525K T CAP CHIP 0805 2.2UF K 25V X5R
C6262 065G080522525K T CAP CHIP 0805 2.2UF K 25V X5R
C6261 065G080522525K T CAP CHIP 0805 2.2UF K 25V X5R
C736 065G080522605M M CAP 0805 22UF 20% 6.3V X5R
C735 065G080522605M M CAP 0805 22UF 20% 6.3V X5R
C739 065G080522605M M CAP 0805 22UF 20% 6.3V X5R
C6058 065G080522605M T CAP 0805 22UF 20% 6.3V X5R JMK212 BJ226
C740 065G080522605M T CAP 0805 22UF 20% 6.3V X5R JMK212 BJ226
C6053 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R
C6251 065G080547515K T CAP 0805 4.7UF 10% 16V X5R EMK212 BJ475
C139 065G120610272K F CAP 1206 1NF 10% 500V X7R
C138 065G120610272K F CAP 1206 1NF 10% 500V X7R
C141 065G120610272K F CAP 1206 1NF 10% 500V X7R
C140 065G120610272K F CAP 1206 1NF 10% 500V X7R
C1602 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R
C1604 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R
C1616 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R
C751 065G120647532K M NO-SUGGEST 1206 4.7UF K 50V X7R
C753 065G120647532K M NO-SUGGEST 1206 4.7UF K 50V X7R
C752 065G120647532K M NO-SUGGEST 1206 4.7UF K 50V X7R
C749 065G120647532K M NO-SUGGEST 1206 4.7UF K 50V X7R
C6061 065G121010622K T CAP 1210 10UF 10% 25V X7R
C721 067G 3112213CT EC SMD 220UF 16V HV 6.3*7.7
C763 067G 3112213CT EC SMD 220UF 16V HV 6.3*7.7
C742 067G 3113311CT EC SMD 330UF 20% 6.3V 6.3*7.7
C470 067G311R1013LT EC SMD 100UF 20% 16V 6.3*5.3
C702 067G311R1013LT EC SMD 100UF 20% 16V 6.3*5.3
C709 067G311R1013LT EC SMD 100UF 20% 16V 6.3*5.3
C773 067G311R1013LT EC SMD 100UF 20% 16V 6.3*5.3
070GHDCP500HDC HDCP CODE
FB716 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB701 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB702 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB719 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
FB6003 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
FB714 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
FB713 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
FB715 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
FB703 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
FB704 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L

85

FB718 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
FB721 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
FB711 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB6011 071G 57G121 TA CHIP BEAD 1206 120R 25% HCB3216KF-121T30
FB6008 071G 57G121 TA CHIP BEAD 1206 120R 25% HCB3216KF-121T30
FB6012 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF
FB708 071G 59B121 JM CHIP BEAD 0603 120R/1000MA
FB707 071G 59B121 JM CHIP BEAD 0603 120R/1000MA
FB501 071G 59B121 JM CHIP BEAD 0603 120R/1000MA
FB730 071G 59B121 JM CHIP BEAD 0603 120R/1000MA
FB729 071G 59B121 JM CHIP BEAD 0603 120R/1000MA
FB402 071G 59B121 JM CHIP BEAD 0603 120R/1000MA
FB401 071G 59B121 JM CHIP BEAD 0603 120R/1000MA
FB726 071G 59B121 JM CHIP BEAD 0603 120R/1000MA
FB404 071G 59C121 TA CHIP BEAD 0603 120R 25% 300MA
FB405 071G 59C121 TA CHIP BEAD 0603 120R 25% 300MA
FB406 071G 59C121 TA CHIP BEAD 0603 120R 25% 300MA
FB6202 071G 59C601 M CHIP BEAD 0603 600R 25% MGGB1608E601HT-L
FB6201 071G 59C601 M CHIP BEAD 0603 600R 25% MGGB1608E601HT-L
FB6203 071G 59C601 M CHIP BEAD 0603 600R 25% MGGB1608E601HT-L
FB102 071G 59S121 M HIP BEAD 120R/500MA
FB103 071G 59S121 M HIP BEAD 120R/500MA
FB723 071G 59S121 M HIP BEAD 120R/500MA
FB717 071G 59S121 M HIP BEAD 120R/500MA
FB727 071G 59S121 M HIP BEAD 120R/500MA
FB724 071G 59S121 M HIP BEAD 120R/500MA
FB403 071G 59S121 M HIP BEAD 120R/500MA
L705 073G253S 46 H SMD CHOKE 4.7UH 20% 0.06R SPI65C-4R7,HF
L101 073G253S 94 M1 SMD CHOKE 2.2UH 20% 400MA
L102 073G253S 94 M1 SMD CHOKE 2.2UH 20% 400MA
L703 073G253S 96 M1 SMD CHOKE 1.5UH 10% 0.015R 9A
L704 073G253S522 T SMD CHOKE 2.2UH 30% 0.04R 3.4A
L701 073G253S522 T SMD CHOKE 2.2UH 30% 0.04R 3.4A
CN502 088G 34019K AV HDMI HEADER R/A 19P BLACK H=8.4
CN503 088G 34019K AV HDMI HEADER R/A 19P BLACK H=8.4
CN501 088G 34019K AV HDMI HEADER R/A 19P BLACK H=8.4
X101 093G 22SA11 YC CRYSTAL SMD5032-30.4M12PF30PPM40OHM
ZD6001 093G 39S 47 BZX84C3V6 SOT-23
D6003 093G 60S 43 T SCHOTTKY SX36 3A 60V SMA
D701 093G 60S927 T DIODE SX34 DO-214AA
D6002 093G 64S522SEM LL4148
D6001 093G 64S522SEM LL4148
CN4205 311GW125D06AAX CONN 1.25MM 6P S1315-06SVB-S03-R
CN403 311GW125F40ACX WAFER 1.25MM 40P V/T -
CN1701 311GW200N13ADJ WAFER 2.0MM 13P T20039A-13-2033000
CN602 311GW250B03ADL WAFER 2.5MM 3P R/A B2517W03HTM2
CN601 311GW250B04ADL WAFER 2.5MM 4P R/A B2517W04HTM2
U709 356G056317300C00HF LDO AZ1084CD-3.3TRG1 5A 3.3V TO-252-2(3)
U710 356G0563407 LDO AP2114H-2.5TRG1 1A 2.5V SOT-223
U704 356G0563417 LDO AP2125N-3.3TRG1 0.3A 3.3V SOT-23-3
U401 356G0568953601 SCALER MSD8560IV-YE BGA-953
U201 356G0575048050 DEMODULATOR ATBM8869 QFN-48
U407 356G0615002172 DRAM K4B2G1646E-BCK00DT 2GB FBGA-96
U402 356G0615002172 DRAM K4B2G1646E-BCK00DT 2GB FBGA-96

86

U408 356G0615002172 DRAM K4B2G1646E-BCK00DT 2GB FBGA-96
U404 356G0643438002 RESET TLV810MDBZR 4.38V SOT-23-3
U403 356G3333004010 FLASH THGBM5G5A1JBAIR 4GB P-VFBGA153
U706 356GD563008121 DC/DC AOZ1284PI 4A ADJ EPSO-8
U701 356GD563016013 DC/DC TPS54519RTE 5A 1.8V WQFN
Q405 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V
Q404 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V
R747 361G0402433AJF RST 0402 43K 5% 1/16W RC-02W433JT
R7010 361G04025108FT RST 0402 5.1 OHM 1% 1/16W SMD04025R1FT
R7008 361G04025108FT RST 0402 5.1 OHM 1% 1/16W SMD04025R1FT
R7007 361G04025108FT RST 0402 5.1 OHM 1% 1/16W SMD04025R1FT
R7009 361G04025108FT RST 0402 5.1 OHM 1% 1/16W SMD04025R1FT
R1606 361G04025108FT RST 0402 5.1 OHM 1% 1/16W SMD04025R1FT
R1602 361G04025108FT RST 0402 5.1 OHM 1% 1/16W SMD04025R1FT
R1604 361G04025108FT RST 0402 5.1 OHM 1% 1/16W SMD04025R1FT
R1603 361G04025108FT RST 0402 5.1 OHM 1% 1/16W SMD04025R1FT
R1605 361G04025108FT RST 0402 5.1 OHM 1% 1/16W SMD04025R1FT
R1601 361G04025108FT RST 0402 5.1 OHM 1% 1/16W SMD04025R1FT
C4109 365G0603225A2K000M CAP 0603 2.2UF 10% 10V X7R
C4111 365G0603225A2K000M CAP 0603 2.2UF 10% 10V X7R
C4110 365G0603225A2K000M CAP 0603 2.2UF 10% 10V X7R
C4108 365G0603225A2K000M CAP 0603 2.2UF 10% 10V X7R
C704 367G311X101GCT EC SMD 100UF/35V 20% 35V 6.3X7.7 2000 HR
370G0MAC605AOC

CD 华数 MAC
HDCP2-U405 370GHDCP601AOC CD HDCP2.0 CODE FOR AOC
L6005 373G253S259M00 SMD CHOKE 22UH 20% 5A 0.06R MGSDRH127-2
L6003 373G253S259M00 SMD CHOKE 22UH 20% 5A 0.06R MGSDRH127-2
L6004 373G253S259M00 SMD CHOKE 22UH 20% 5A 0.06R MGSDRH127-2
L6002 373G253S259M00 SMD CHOKE 22UH 20% 5A 0.06R MGSDRH127-2
L6001 373G253S259M00 SMD CHOKE 22UH 20% 5A 0.06R MGSDRH127-2
L6006 373G253S259M00 SMD CHOKE 22UH 20% 5A 0.06R MGSDRH127-2
CN1101 388G050022A0DL MEMORY R/A 11P 1*1 BLACK 7.3MM
X401 393G022SA4500J CRYSTAL NXK24.000AE20F-KAB8 20 PPM 20 P
D413 393G060S93400T00HF HF SS0520_R1_00001 0.5A 20V SOD-123

709T62530XS001 COMSUMPTIVE ASSY
055G 100610 TIN CREAM W/O PB
055G 23520 IPA
Q52G170100700B00XW MESH PRINTTING_PAPER
052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…)
E715 715G6253M0F000004K MAIN BOARD PCB
756TXDCB01D0460000 MAIN BOARD-CBPFDM5DA3

SMTF-U405 100TAMVS001DTX MCU ASSY-056G2233 31
SMTF-U403 100TAMVS002DTX MCU ASSY-356G3333004010
IRPFDAAF IR BOARD
CN1 033G8032 5F S HR CONNECTOR
Q2 057G 419513 BC847C
Q1 057G 419513 BC847C
R8 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R7 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R2 061G0402152 JT RST CHIP 1K5 1/16W 5% TZAI YUAN
R1 061G0402153 JT RST CHIP 15K 1/16W 5% TZAI YUAN
R6 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R5 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
C2 065G040210412K Y CAP 0402 100NF 10% 16V X7R

87

C3 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C1 065G0603225A5K M CAP MLCC 0603 2.2UF K 10V X5R
LED1 081G 15 3 EL LED SMD BLUE/RED 12-22/BHR6C-C31/2C
U1 356GS927036600 SMD IR RECEIVER TSOP75436TR 36 KHZ
709T59640XS001 COMSUMPTIVE ASSY
E715 715G5964R01000004S IR BOARD PCB
KEPFTX02 KEY BOARD
CN001 033G8032 4F HR CONNECTOR 4P 1.25
R009 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R008 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R007 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R002 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R001 061G06032202FY RST CHIP 22K 1/10W 1%
R006 061G06032202FY RST CHIP 22K 1/10W 1%
R004 061G06032701FT RST CHIP 2K7 1/10W 1%
R003 061G06038201FF RST CHIPR 8.2K OHM +-1% 1/10W FENGHUA
R005 061G06038201FF RST CHIPR 8.2K OHM +-1% 1/10W FENGHUA
R005 061G06038201FT RST CHIP 8K2 1/10W 1%
R003 061G06038201FT RST CHIP 8K2 1/10W 1%

SW001 077G 607 2 FD

SW004 077G 607 2 FD

SW007 077G 607 2 FD

SW006 077G 607 2 FD

SW005 077G 607 2 FD

SW002 077G 607 2 FD

SW003 077G 607 2 FD

CHIP TACT SW BY FORWARD

SFKQGMA2125T-PL

CHIP TACT SW BY FORWARD

SFKQGMA2125T-PL

CHIP TACT SW BY FORWARD

SFKQGMA2125T-PL

CHIP TACT SW BY FORWARD

SFKQGMA2125T-PL

CHIP TACT SW BY FORWARD

SFKQGMA2125T-PL

CHIP TACT SW BY FORWARD

SFKQGMA2125T-PL

CHIP TACT SW BY FORWARD

SFKQGMA2125T-PL
SW002 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01
SW006 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01

SW005 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01
SW004 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01
SW007 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01
SW001 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01
SW003 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01
709T61370XS001 COMSUMPTIVE ASSY
E715 715G6137K01000004K KEY BOARD PCB
E715 715G6137K01000004S KEY BOARD PCB 2nd-Source
E750 LCA550HVD02A10E30X PANEL TPT550J1-HVD02 S5FAA XM TPV 2nd-Source

P33E0457ADT01L0100 KEY_FRAME
P33E0458ADTQ1L0100 COVER_KEY
P33E0539AKZ01C0200 LENS N/A
P34E1440ADT08L0100 REAR_COVER
P34E1758XATZ1L01BB BEZEL N/A NA NA
PLTVDR421XXO9 POWER BOARD
Z40G0002ALL01A OTHER LABEL

CN8501 033G380212B YH WAFER 12P 2.0 DIP
CN8506 033G380212B YH WAFER 12P 2.0 DIP
CN8506 033G380212B YH L WAFER 12.0MM 12P
IC9302 056G 139 8 PHOTO-COUPLER PS2561DL1-1 CTR Q100~200%
IC9303 056G 139 8 PHOTO-COUPLER PS2561DL1-1 CTR Q100~200%

88

IC9106 056G 139 8 PHOTO-COUPLER PS2561DL1-1 CTR Q100~200%
IC9106 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4
IC9303 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4
IC9302 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4
IC9301 056G 379121 IC STR- A6069H DIP-8
R9801 061G3SWJ70759B SY RST WD 0.07R 5% 3W
C9910 063G107M47410M CAP X2 470NF 20% 275V R46KI3470HAP1M
C9911 063G107M47410M CAP X2 470NF 20% 275V R46KI3470HAP1M
C8109 067G415Z56010K EC 56UF 20% 160V EJ 8*35
C8118 067G415Z56010K EC 56UF 20% 160V EJ 8*35
FB9999 071G 55906 FERRITE CORE 510R C8B R6H 6X9.2(A)
L9901 073G 174270 H1 LINE FILTER 12MH MIN -- LCL-11821 HA
L9903 073G 174270 H1 LINE FILTER 12MH MIN -- LCL-11821 HA
L9901 073G 174270 X1 LINE FILTER 12MH MIN 1.5A 3LFT18106-123M
L9903 073G 174270 X1 LINE FILTER 12MH MIN 1.5A 3LFT18106-123M
L9801 073G 174275 H PFC CHOKE 240UH 10% ATQ32 2A GL-13213 HA
L9801 073G 174275 YS PFC CHOKE 240UH 10% ATQ32 2A YS04110093
T9301 080GL52P 54 H X'FMR 1000UH 10% 40UH EQ30 BCK-13026-HA
T9301 080GL52P 54 YS X'FMR 1MH 10% 40UH EQ30 YS04160434
CN901 087G 50147D DL AC R/A 2P 12.8MM
CN901 087G 50147D HC AC SOKET R/A 2P 12DEGREE H=12.8
D9802 093G 52918 RECTIFIER 1N5408G-04 X0 3A 1000V DO201AD
0Q1G 340 8140 SCREW Q1-SELF TAPING SCREW :Q X8.0
CN902 311GW250B13BBL CONN 2.5MM 13P R/A 35MM 10.5MM
CN902 311GW250B13BBX WAFER 2.5MM 13P R/A 35MM 7MM
RV9907 361G0046681KZE VARISTOR 680V 10%
RV9902 361G0046681KZE VARISTOR 680V 10%
RV9907 361G0046681KZW VARISTOR 680V 10%
RV9902 361G0046681KZW VARISTOR 680V 10%
NR9901 361G0058259MYW006A NTCR 2.5R 20% 3.1W SCK132R56MTY504
NR9902 361G0058259MYW006A NTCR 2.5R 20% 3.1W SCK132R56MTY504
R8175 361G3SWJ30759B00SY RST WD 0.03R 5% 3W NWS03JR030C200NH
R8175 361G3SWJ30759B00TZ RST WD 0.03R 5% 3W NKNP3WS0R03JMS10
R9801 361G3SWJ70759B00TZ RST WD 0.07R 5% 3W NKNP3WS0R07JMS10
C9820 363G210J105GHN CAP MPP 1UF 5% 450V 18*9.1*12.5 -
C9875 363G210J105GHP CAP MPP 1UF 5% 450V
C9820 363G210J105GHP CAP MPP 1UF 5% 450V
C9157 363G211J2235HA CAP MPP 22NF 5% 1KV 18*5*11 R75QI2220HA0
C9157 363G211J2235HE CAP MPP 22NF 5% 1KV 18*5*10.5 B32652A02
C9804 367G215X470PHZ001S EC 47UF 20% 450V 10*50 2000 HR 460MA HTL
C9801 367G215X470PHZ001S EC 47UF 20% 450V 10*50 2000 HR 460MA HTL
C9802 367G215X470PHZ001S EC 47UF 20% 450V 10*50 2000 HR 460MA HTL
C9802 367G215X470PKZ001S EC 47UF 20% 450V LF2W470MLT1052DLRV
C9804 367G215X470PKZ001S EC 47UF 20% 450V LF2W470MLT1052DLRV
C9801 367G215X470PKZ001S EC 47UF 20% 450V LF2W470MLT1052DLRV
L9105 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A
L9106 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A
L9106 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A
L9105 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A
L8101 373G0253257CP0 BOOST CHOKE 33UH 10% 2.5A L0212170-8
T9101 380GL32P111H00 X'FMR 830UH 12% 150UH EE4213 BCK-14206
T9101 380GL32P111T00 X'FMR 830UH 12% 150UH EE4213 SRV4213EE
BD9901 393G0050460A10 BRIDGE TS10K80-01 X0 10A 800V X0
705TAD57002 D9115 D9116 ASSY

89

D9115 093G 60323 DIODE FCHS30A08 30A/80V TO-220AB
D9116 093G 60931 DIODE MBRF1560CT ITO-220AB
D9115 093G 60987 SCHOTTKY FMEN-2308 30A 80V TO-22OF
D9116 093G1506 2 SCHOTTKY FMW-2156 15A 60V TO-220
0M1G1730 8120 SCREW
HS9103 Q90T0236 2 HEAT SINK
705TAD57003 D9308 ASS'Y
D9308 093G 60931 DIODE MBRF1560CT ITO-220AB
D9308 093G1506 2 SCHOTTKY FMW-2156 15A 60V TO-220
0M1G1730 8120 SCREW
HS9301 Q90T0236 1 HEAT SINK
705TAD93004

Q9801、D9801 ASSY
Q9801 057G 667A04 MOSFET STF24NM60N 17A 600V 30W TO-220FP
D9801 093G 52905 DIODE FMNS-1106S TO-220
0M1G1730 8120 SCREW
HS9801 Q90T0236 2 HEAT SINK
705TAD93005 D8120 Q8101 ASSY
D8120 093G 60247 ME-220A
0M1G1730 8120 SCREW
Q8101 357G0600A01 MOSFET AOTF4126 19A 100V 42W TO-220F
HS9101 Q90T0236 7 HEAT SINK
705TQ184005 F9901 ASS'Y
EF9901 084G 34 10 FUSE CLIP
EF9901 084G 34 14 BSE -- -- --
F9901 084G 41 7 FUSE 5A 250V 0215005M LITTELFUSE
F9901 084G 41 7 C FUSE 5A 250V UDA005(PF)
705TXC57333

Q9101、Q9102 ASSY
0M1G1730 8120 SCREW
Q9101 357G0667A06 MOSFET STF8NM50N 5A 500V 20W TO-220FP
Q9102 357G0667A06 MOSFET STF8NM50N 5A 500V 20W TO-220FP
HS9102 Q90T0237 1 HEAT SINK
IC9101 056G 379211 AC/DC SSC9522S-TL SOP-18
IC8103 056G 700 23 LED DRIVER PF7900S SOP-8
Q9103 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q9103 057G 417525 SMALLTRAN MMBT3904 200MA 40V SOT-23
Q9106 057G 417526 SMALLTRAN MMBT3906 -0.2A -40V SOT-23
Q9305 057G 417526 SMALLTRAN MMBT3906 -0.2A -40V SOT-23
Q9305 057G 417907 T TRA PMBT3906 PNP -200MA/-40V SOT-23
Q9106 057G 417907 T TRA PMBT3906 PNP -200MA/-40V SOT-23
Q9802 057G 600973 MOSFET TK2P60D 2A 600V 60W 2-7J1B
Q9802 057G 667A03 MOSFET STD1NK60T4 1A 600V 30W DPAK
Q9303 057G 761916 T SMALLTRAN PBSS4350X 3A 50V SOT89
Q9302 057G 763 62 FET 2N7002K 300MA/60V SOT-23
Q9302 057G 763532 MOSFET RK7002BM 0.25A 60V SOT-23
R8153 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R8513 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R8555 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R9311 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R9888 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R9111 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R8546 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R8515 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R8176 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R8514 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

90

R9311 061G0805000 JT RST 0805 0.05R MAX 1/8W
R9111 061G0805000 JT RST 0805 0.05R MAX 1/8W
R9888 061G0805000 JT RST 0805 0.05R MAX 1/8W
R8153 061G0805000 JT RST 0805 0.05R MAX 1/8W
R8515 061G0805000 JT RST 0805 0.05R MAX 1/8W
R8555 061G0805000 JT RST 0805 0.05R MAX 1/8W
R8176 061G0805000 JT RST 0805 0.05R MAX 1/8W
R8514 061G0805000 JT RST 0805 0.05R MAX 1/8W
R8513 061G0805000 JT RST 0805 0.05R MAX 1/8W
R8546 061G0805000 JT RST 0805 0.05R MAX 1/8W
R8158 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA
R9103 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA
R9102 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA
R9151 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA
R9808 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA
R9102 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN
R9103 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN
R9151 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN
R8158 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN
R9808 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN
R9160 061G08051001FF RST CHIPR 1KOHM +-1% 1/8W FENGHUA
R9324 061G08051001FF RST CHIPR 1KOHM +-1% 1/8W FENGHUA
R9140 061G08051001FF RST CHIPR 1KOHM +-1% 1/8W FENGHUA
R9160 061G08051001FT RST CHIP 1K 1/8W 1%
R9140 061G08051001FT RST CHIP 1K 1/8W 1%
R9324 061G08051001FT RST CHIP 1K 1/8W 1%
R9308 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R8157 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R9156 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R9153 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R9307 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R9153 061G08051002FT RST CHIP 10K 1/8W 1%
R9156 061G08051002FT RST CHIP 10K 1/8W 1%
R8157 061G08051002FT RST CHIP 10K 1/8W 1%
R9308 061G08051002FT RST CHIP 10K 1/8W 1%
R9307 061G08051002FT RST CHIP 10K 1/8W 1%
R9304 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA
R8148 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA
R9304 061G08051003FT RST CHIP 100K 1/8W 1%
R8148 061G08051003FT RST CHIP 100K 1/8W 1%
R9818 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R9818 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R9819 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R9819 061G0805103 JT RST 0805 10K 5% 1/8W
R8503 061G08051332FF RST 0805 13.3K 1% 1/8W --
R8506 061G08051332FF RST 0805 13.3K 1% 1/8W --
R8512 061G08051332FF RST 0805 13.3K 1% 1/8W --
R8502 061G08051332FF RST 0805 13.3K 1% 1/8W --
R8509 061G08051332FF RST 0805 13.3K 1% 1/8W --
R8511 061G08051332FF RST 0805 13.3K 1% 1/8W --
R8505 061G08051332FF RST 0805 13.3K 1% 1/8W --
R8501 061G08051332FF RST 0805 13.3K 1% 1/8W --
R8510 061G08051332FF RST 0805 13.3K 1% 1/8W --
R8508 061G08051332FF RST 0805 13.3K 1% 1/8W --

91

R8504 061G08051332FF RST 0805 13.3K 1% 1/8W --
R8507 061G08051332FF RST 0805 13.3K 1% 1/8W --
R9810 061G08051602FF RST CHIPR 16KOHM +-1% 1/8W FENGHUA
R9810 061G08051602FT RST CHIPR 16K +-1% 1/8W TZAI YUAN
R9101 061G08051800FF RST CHIPR 180 OHM +-1% 1/8W FENGHUA
R9101 061G08051800FT RST 0805 180R 1% 1/8W TZAI YUAN
R9145 061G08051802FY RST CHIP 18K 1/8W 1%
R9306 061G08052001FF RST CHIPR 2KOHM +-1% 1/8W FENGHUA
R9333 061G08052001FF RST CHIPR 2KOHM +-1% 1/8W FENGHUA
R9145 061G08052001FF RST CHIPR 2KOHM +-1% 1/8W FENGHUA
R9163 061G08052001FF RST CHIPR 2KOHM +-1% 1/8W FENGHUA
R9306 061G08052001FT RST CHIP 2K 1/8W 1%
R9333 061G08052001FT RST CHIP 2K 1/8W 1%
R9163 061G08052001FT RST CHIP 2K 1/8W 1%
R9805 061G0805204 JF RST CHIPR 200KOHM +-5% 1/8W FENGHUA
R9805 061G0805204 JT RST CHIP R 200KOHM 1/8W +/-5% TZAI YUAN
R8163 061G08052203FF RST CHIPR 220KOHM +-1% 1/8W FENGHUA
R8163 061G08052203FT RST CHIPR 220KOHM +-1% 1/8W
R9161 061G08052402FF RST CHIPR 24KOHM +-1% 1/8W FENGHUA
R9161 061G08052402FT RST CHIP 24K 1/8W 1%
R9146 061G08052431FF RST CHIPR 2.43KOHM +-1% 1/8W FENGHUA
R9146 061G08052431FT RST CHIP 2K43 1/8W 1%
R9180 061G08052702FF RST CHIPR 27KOHM +-1% 1/8W FENGHUA
R9180 061G08052702FT RST CHIP 27K 1/8W 1%
R9335 061G0805332 JF RST CHIPR 3.3KOHM +-5% 1/8W FENGHUA
R9335 061G0805332 JT RST CHIP 3K3 1/8W 5% TZAI YUAN
R9152 061G0805470 JF RST CHIPR 47OHM +-5% 1/8W FENGHUA
R9154 061G0805470 JF RST CHIPR 47OHM +-5% 1/8W FENGHUA
R9154 061G0805470 JT RST CHIPR 47OHM +-5% 1/8W TZAI YUAN
R9152 061G0805470 JT RST CHIPR 47OHM +-5% 1/8W TZAI YUAN
R9149 061G0805471 JF RST CHIPR 470 OHM +-5% 1/8W FENGHUA
R9149 061G0805471 JT RST CHIPR 470OHM +-5% 1/8W TZAI YUAN
R9178 061G0805512 JF RST CHIPR 5.1KOHM +-5% 1/8W FENGHUA
R9178 061G0805512 JT RST CHIPR 5K1 +-5% 1/8W TZAI YUAN
R9320 061G08055603FF RST CHIPR 560KOHM +-1% 1/8W FENGHUA
R9320 061G08055603FT RST CHIP 560K 1/8W 1%
R8147 061G08055603FT RST CHIP 560K 1/8W 1%
R9806 061G0805563 JF RST CHIPR 56KOHM +-5% 1/8W FENGHUA
R9806 061G0805563 JT RST CHIPR 56K +-5% 1/8W TZAI YUAN
R8141 061G08057502FT RST CHIP R 75 KOHM +-1% 1/8W
R9337 061G08058201FF RST CHIPR 8.2KOHM +-1% 1/8W FENGHUA
R9338 061G08058201FF RST CHIPR 8.2KOHM +-1% 1/8W FENGHUA
R9338 061G08058201FT RST CHIP 8K2 1/8W 1%
R9337 061G08058201FT RST CHIP 8K2 1/8W 1%
RJ903 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ906 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ908 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ902 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ912 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ920 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R9390 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R8549 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ914 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ904 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

92

RJ915 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ913 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ909 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ907 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ916 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ911 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ917 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ921 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ919 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R8548 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ905 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ910 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R8549 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
RJ905 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
RJ913 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
RJ907 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
RJ916 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
RJ921 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
RJ919 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
RJ917 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
RJ914 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
R8548 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
RJ911 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
RJ910 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
RJ906 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
RJ920 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
RJ912 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
RJ902 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
RJ903 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
RJ908 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
RJ915 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
RJ909 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
RJ904 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
R9139 061G12061000FT RST 1206 100R 1% 1/4W
R8550 061G12061001FF RST CHIPR 1KOHM +-1% 1/4W FENGHUA
R9336 061G12061001FT RST CHIP R 1KOHM +-1% 1/4W
R8162 061G12061001FT RST CHIP R 1KOHM +-1% 1/4W
R9138 061G12061001FT RST CHIP R 1KOHM +-1% 1/4W
R8550 061G12061001FT RST CHIP R 1KOHM +-1% 1/4W
R9138 061G12061001FY RST CHIPR 1KOHM +-1% 1/4W YAGEO
R8162 061G12061001FY RST CHIPR 1KOHM +-1% 1/4W YAGEO
R9336 061G12061001FY RST CHIPR 1KOHM +-1% 1/4W YAGEO
R9817 061G12061003FT RST 1206 100K 1% 1/4W SMD1206100KF
R9814 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W
R9303 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA
R9303 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
R9813 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
R9813 061G1206103 JY RST CHIPR 10K +-5% 1/4W YAGEO
R9328 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R8156 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R9326 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R8154 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R9327 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R9325 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN

93

R8155 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R9327 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO
R9325 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO
R9326 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO
R8156 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO
R9328 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO
R8154 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO
R8155 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO
R9317 061G12061504FT RST CHIP 1M5 1/4W 1%
R9142 061G12061504FT RST CHIP 1M5 1/4W 1%
R9319 061G12061504FT RST CHIP 1M5 1/4W 1%
R9150 061G12061504FT RST CHIP 1M5 1/4W 1%
R9144 061G12061504FT RST CHIP 1M5 1/4W 1%
R9318 061G12061504FT RST CHIP 1M5 1/4W 1%
R9319 061G12061504FY RST CHIP 1M5 1/4W 1%
R9142 061G12061504FY RST CHIP 1M5 1/4W 1%
R9317 061G12061504FY RST CHIP 1M5 1/4W 1%
R9150 061G12061504FY RST CHIP 1M5 1/4W 1%
R9144 061G12061504FY RST CHIP 1M5 1/4W 1%
R9318 061G12061504FY RST CHIP 1M5 1/4W 1%
R9177 061G1206152 JT RST CHIPR 1.5KOHM +-5% 1/4W TZAI YUAN
R9175 061G1206152 JT RST CHIPR 1.5KOHM +-5% 1/4W TZAI YUAN
R9176 061G1206152 JT RST CHIPR 1.5KOHM +-5% 1/4W TZAI YUAN
R9176 061G1206152 JY RST CHIPR 1K5 +-5% 1/4W YAGEO
R9175 061G1206152 JY RST CHIPR 1K5 +-5% 1/4W YAGEO
R9177 061G1206152 JY RST CHIPR 1K5 +-5% 1/4W YAGEO
R9809 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
R9807 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
R9159 061G1206203 JT RST CHIPR 20KOHM +-5% 1/4W TZAI YUAN
R9334 061G1206221 JT RST CHIPR 220 OHM +-5% 1/4W TZAI YUAN
R9346 061G1206221 JT RST CHIPR 220 OHM +-5% 1/4W TZAI YUAN
R9334 061G1206221 JY RST CHIPR 220R +-5% 1/4W YAGEO
R9332 061G1206229 JT RST CHIPR 2R2 +-5% 1/4W TZAI YUAN
R9332 061G1206229 JY RST 1206 2.2R 5% 1/4W
R9322 061G12063001FF RST CHIPR 3.0KOHM +-1% 1/4W FENGHUA
R9322 061G12063001FT RST 1206 3K 1% 1/4W
R9331 061G1206470 JT RST CHIPR 47 OHM +-5% 1/4W TZAI YUAN
R9330 061G1206470 JT RST CHIPR 47 OHM +-5% 1/4W TZAI YUAN
R9399 061G1206470 JT RST CHIPR 47 OHM +-5% 1/4W TZAI YUAN
R9331 061G1206470 JY RST CHIPR 47R +-5% 1/4W YAGEO
R9330 061G1206470 JY RST CHIPR 47R +-5% 1/4W YAGEO
R9147 061G1206471 JT ST CHIPR 470 OHM +-5% 1/4W TZAI YUAN
R9147 061G1206471 JY RST CHIPR 470R 1/4W +-5% YAGEO
R9323 061G1206475 JT RST CHIPR 4.7 MOHM +-5% 1/4W TZAI YUAN
R9323 061G1206475 JY RST CHIPR 4M7 +-5% 1/4W YAGEO
RJ901 061G1206479 JF RST CHIPR 4.7OHM +-5% 1/4W FENGHUA
RJ901 061G1206479 JT RST 1206 4.7R 5% 1/4W
R9171 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN
R9172 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN
R9173 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN
R9174 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN
R9158 061G1206512 JY RST CHIPR 5.1 KOHM +-5% 1/4W YAGEO
R9173 061G1206512 JY RST CHIPR 5.1 KOHM +-5% 1/4W YAGEO
R9174 061G1206512 JY RST CHIPR 5.1 KOHM +-5% 1/4W YAGEO

94

R9172 061G1206512 JY RST CHIPR 5.1 KOHM +-5% 1/4W YAGEO
R9171 061G1206512 JY RST CHIPR 5.1 KOHM +-5% 1/4W YAGEO
R8145 061G12065603FT RST 1206 560K 1% 1/4W
R9158 061G1206562 JT RST 1206 5.6K 5% 1/4W TZAI YUAN
R9815 061G12066803FT RST CHIP 680K 1/4W 1%
R9816 061G12066803FT RST CHIP 680K 1/4W 1%
R9816 061G12066803FY RST CHIPR 680KOHM +-1% 1/4W YAGEO
R9815 061G12066803FY RST CHIPR 680KOHM +-1% 1/4W YAGEO
R8144 061G12068202FT RST CHIPR 82KOHM +-1% 1/4W TZAI YUAN
C9827 065G080510231J F CAP 0805 1NF 5% 50V NPO
C9827 065G080510231J M CAP 0805 1NF 5% 50V NP0
C9334 065G080510232K F CAP 0805 1000PF 10% 50V X7R
C8105 065G080510232K F CAP 0805 1000PF 10% 50V X7R
C9155 065G080510232K F CAP 0805 1000PF 10% 50V X7R
C8119 065G080510232K F CAP 0805 1000PF 10% 50V X7R
C8550 065G080510232K F CAP 0805 1000PF 10% 50V X7R
C9334 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C8105 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C8119 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C8550 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C9155 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C8523 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9170 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9144 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8529 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8530 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9165 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8520 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9829 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9301 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8526 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8524 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8531 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8525 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8519 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9145 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9832 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9342 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8518 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8113 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9335 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9828 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9146 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8157 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8111 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8532 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9346 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8530 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9335 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9165 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9146 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9828 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8532 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8519 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

95

C8525 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8531 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8157 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8529 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9346 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8526 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9342 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8518 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9832 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8520 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9829 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8524 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9145 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9301 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9144 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8523 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9170 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8111 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8113 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9347 065G080510522K M CAP 0805 1UF 10% 25V X7R
C9151 065G080510522K M CAP 0805 1UF 10% 25V X7R
C9151 065G080510522K T CAP 0805 1UF 10% 25V X7R
C9347 065G080510522K T CAP 0805 1UF 10% 25V X7R
C9149 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9153 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9153 065G080510532K T CAP 0805 1UF 10% 50V X7R
C9149 065G080510532K T CAP 0805 1UF 10% 50V X7R
C9824 065G080522332K F CAP 0805 22NF K 50V X7R
C9824 065G080522332K Y CAP CHIP 0805 22N 50V X7R +/-10%
C9825 065G080522432K F CAP 0805 220NF 10% 50V X7R
C9343 065G080522432K F CAP 0805 220NF 10% 50V X7R
C9825 065G080522432K T CAP 0805 220NF 10% 50V X7R UMK212 B7224
C9343 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%
C9150 065G080522525K T CAP CHIP 0805 2.2UF K 25V X5R
C9826 065G080533232K A CAP 0805 3.3NF 10% 50V X7R
C9826 065G080533232K F CAP 0805 3.3NF 10% 50V X7R
C9338 065G080533232K F CAP 0805 3.3NF 10% 50V X7R
C9395 065G080533232K F CAP 0805 3.3NF 10% 50V X7R
C9338 065G080533232K Y CAP 0805 3.3NF 10% 50V X7R
C9395 065G080533232K Y CAP 0805 3.3NF 10% 50V X7R
C9159 065G080533432K A CAP 0805 330NF 10% 50V X7R
C9159 065G080533432K F CAP 0805 330NF 10% 50V X7R
C8512 065G080547432K F 0805 0.47UF K 50V X7R
C8504 065G080547432K F 0805 0.47UF K 50V X7R
C8506 065G080547432K F 0805 0.47UF K 50V X7R
C8507 065G080547432K F 0805 0.47UF K 50V X7R
C8501 065G080547432K F 0805 0.47UF K 50V X7R
C8502 065G080547432K F 0805 0.47UF K 50V X7R
C8511 065G080547432K F 0805 0.47UF K 50V X7R
C8508 065G080547432K F 0805 0.47UF K 50V X7R
C8505 065G080547432K F 0805 0.47UF K 50V X7R
C8510 065G080547432K F 0805 0.47UF K 50V X7R
C8503 065G080547432K F 0805 0.47UF K 50V X7R
C8509 065G080547432K F 0805 0.47UF K 50V X7R

96

C9333 065G080547432K F 0805 0.47UF K 50V X7R
C9166 065G080547432K F 0805 0.47UF K 50V X7R
C8511 065G080547432K M CAP 0805 470NF 10% 50V X7R
C8508 065G080547432K M CAP 0805 470NF 10% 50V X7R
C8510 065G080547432K M CAP 0805 470NF 10% 50V X7R
C8503 065G080547432K M CAP 0805 470NF 10% 50V X7R
C8509 065G080547432K M CAP 0805 470NF 10% 50V X7R
C8507 065G080547432K M CAP 0805 470NF 10% 50V X7R
C8501 065G080547432K M CAP 0805 470NF 10% 50V X7R
C8505 065G080547432K M CAP 0805 470NF 10% 50V X7R
C8504 065G080547432K M CAP 0805 470NF 10% 50V X7R
C8506 065G080547432K M CAP 0805 470NF 10% 50V X7R
C8512 065G080547432K M CAP 0805 470NF 10% 50V X7R
C8502 065G080547432K M CAP 0805 470NF 10% 50V X7R
C9333 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R
C9166 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R
C9148 065G0805475A2K A CAP 0805 4.7UF 10% 10V X7R CL21B475KPFN
C9148 065G0805475A2K T CAP CHIP 0805 4.7UF K 10V X7R
C9154 065G080556131J F CAP CHIP 0805 560PF J 50V NPO
C9154 065G080556131J Y CAP CHIP 0805 560P 50V NP0 +/-5%
D9301 093G 60S 15 T SCHOTTKY RB160M 60 TR 1A 60V SOD-123
D9302 093G 60S 15 T SCHOTTKY RB160M 60 TR 1A 60V SOD-123
D9112 093G 60S 15 T SCHOTTKY RB160M 60 TR 1A 60V SOD-123
D9803 093G 60S 15 T SCHOTTKY RB160M 60 TR 1A 60V SOD-123
D9113 093G 60S 15 T SCHOTTKY RB160M 60 TR 1A 60V SOD-123
IC9801 356G0379008222 PFC R2A20133ESP SOP8
IC8501 356G0700008052 LED DRIVER PF7700A S SOP-8
IC8510 356G0700008052 LED DRIVER PF7700A S SOP-8
IC8508 356G0700008052 LED DRIVER PF7700A S SOP-8
IC8507 356G0700008052 LED DRIVER PF7700A S SOP-8
IC8503 356G0700008052 LED DRIVER PF7700A S SOP-8
IC8509 356G0700008052 LED DRIVER PF7700A S SOP-8
IC8511 356G0700008052 LED DRIVER PF7700A S SOP-8
IC8505 356G0700008052 LED DRIVER PF7700A S SOP-8
IC8512 356G0700008052 LED DRIVER PF7700A S SOP-8
IC8504 356G0700008052 LED DRIVER PF7700A S SOP-8
IC8506 356G0700008052 LED DRIVER PF7700A S SOP-8
IC8502 356G0700008052 LED DRIVER PF7700A S SOP-8
Q9303 357G0761A0100T SMALLTRAN BTC4672M3 5A 50V 0.6W SOT-89
Q9302 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V
ZD9106 393G039S95400T00HF ZENER BZT52-B3V6_R1_00001 3.6V 0.41W SOD
ZD9107 393G039SA1200T ZENER BZT52-B22 22V 0.41W SOD-123 150C
D9113 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
D9803 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
D9112 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
D9301 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
D9302 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
NR9902 006G 31 4 1.7MM RIVET
BD9901 006G 31 4 1.7MM RIVET
NR9901 006G 31 4 1.7MM RIVET
T9301 006G 31 4 1.7MM RIVET
L9801 006G 31500 EYELET
CN901 006G 31500 EYELET
T9101 006G 31500 EYELET

97

C9911 006G 31502 EYELET
C9802 006G 31502 EYELET
L9901 006G 31502 EYELET
RV9907 006G 31502 EYELET
C9804 006G 31502 EYELET
C9910 006G 31502 EYELET
RV9902 006G 31502 EYELET
C9801 006G 31502 EYELET
L9903 006G 31502 EYELET
040G 45762420A LABEL 25X6MM
IC9107 056G 158 10 T DC/DC AS431AZTR-E1 150MA 40V TO-92
IC9304 056G 158 10 T DC/DC AS431AZTR-E1 150MA 40V TO-92
R9329 061G 1SJ10852T SY RST WD 0.1R 5% 1W
R9141 061G 1SJ10852T SY RST WD 0.1R 5% 1W
R9302 061G 60210452T TZ RST CFR 100K 1/6W 5%
R9901 061G212Y10552T SY RST MGFR 1MOHM +-5% 1/2W FUTABA
C9156 065G 1K101 2T6921 CAP CER 100PF 1KV K Y5P
C9156 065G 1K1019ST CAP CER 100PF 10% 1KV R
C9331 065G 1K10293T CAP CER 1NF 10% 1KV R
C9331 065G 1K1029ST CAP CER 1NF 10% 1KV R
C9171 065G 1K15293T CAP CER 1.5NF 10% 1KV R
C9171 065G 1K1529ST CAP CER 1.5NF 10% 1KV R
C9833 065G 1K470 2T6921 CAP CER 47PF K 1KV
C9877 065G 1K470 2T6921 CAP CER 47PF K 1KV
C9803 065G 1K471 2T6921 CAP CER 470PF 1KV K Y5P
C9803 065G 1K4719ST CAP CER 470PF 10% 1KV R
C9955 065G306K2212SR CAP Y1 220PF 10% 250V Y5P
C9955 065G306K2212WR CAP Y1 220PF 10% 250V Y5P CT7-Y1-250V-06
C9912 065G306K4712SR CAP Y1 470PF 10% 250V Y5P
C9981 065G306K4712SR CAP Y1 470PF 10% 250V Y5P
C9980 065G306K4712SR CAP Y1 470PF 10% 250V Y5P
C9980 065G306K4712WR CAP Y1 470PF 10% 250V Y5P CT7-Y1-250V-0
C9912 065G306K4712WR CAP Y1 470PF 10% 250V Y5P CT7-Y1-250V-0
C9981 065G306K4712WR CAP Y1 470PF 10% 250V Y5P CT7-Y1-250V-0
C9336 067G 3151007HB A EC 10UF 20% 50V 6.3*7 3000 HR
C9830 067G 3151007HB A EC 10UF 20% 50V 6.3*7 3000 HR
C9336 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000 HR
C9830 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000 HR
C9337 067G 3154707HT EC 47UF 20% 50V
C9337 067G 3154707KT EC 47UF 20% 50V ER1H470MPN1007RU
C9164 067G 5153316HT EC 330UF 20% 35V 10*12 5000 HR
C8170 067G 5153316HT EC 330UF 20% 35V 10*12 5000 HR
C9160 067G 5153316HT EC 330UF 20% 35V 10*12 5000 HR
C9174 067G 5153316HT EC 330UF 20% 35V 10*12 5000 HR
C9160 067G 5153316KT EC 330UF 20% 35V 10*12 5000 HR
C8170 067G 5153316KT EC 330UF 20% 35V 10*12 5000 HR
C9164 067G 5153316KT EC 330UF 20% 35V 10*12 5000 HR
C9174 067G 5153316KT EC 330UF 20% 35V 10*12 5000 HR
C9169 067G 5154714HT EC 470UF 20% 25V 10*12
C9344 067G 5154714HT EC 470UF 20% 25V 10*12
C9341 067G 5154714HT EC 470UF 20% 25V 10*12
C9168 067G 5154714HT EC 470UF 20% 25V 10*12
C9340 067G 5154714HT EC 470UF 20% 25V 10*12
C9169 067G 5154714KT EC 470UF 20% 25V EV1E471MPN1012RSU

98

C9344 067G 5154714KT EC 470UF 20% 25V EV1E471MPN1012RSU
C9341 067G 5154714KT EC 470UF 20% 25V EV1E471MPN1012RSU
C9163 067G 5154714KT EC 470UF 20% 25V EV1E471MPN1012RSU
C9168 067G 5154714KT EC 470UF 20% 25V EV1E471MPN1012RSU
C9340 067G 5154714KT EC 470UF 20% 25V EV1E471MPN1012RSU
C9302 067G315M2207HB EC 22UF 20% 50V 6.3*7 3000 HR
C9147 067G315M2207HB EC 22UF 20% 50V 6.3*7 3000 HR
C8121 067G315M2207HB EC 22UF 20% 50V 6.3*7 3000 HR
C8121 067G315M2207KB EC 22UF 20% 50V 6.3*7 3000 HR
C9302 067G315M2207KB EC 22UF 20% 50V 6.3*7 3000 HR
C9147 067G315M2207KB EC 22UF 20% 50V 6.3*7 3000 HR
FB9804 071G 55 8 BEAD 3.5*4.5 80R 25% BF-I35045W-699, HF
FB9802 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A
FB9302 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A
FB9810 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A
FB9801 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A
ZD9105 093G 3995652T DIODE GDZJ30B DO-35
ZD9301 093G 39A0852T GDZJ18B
D9114 093G 52908 RECTIFIER UF4007 A0 1 1000 DO-41
D9304 093G 6026T52T CTIFIER DIODE FR107
D9307 093G 6026T52T CTIFIER DIODE FR107
D9305 093G 6026T52T CTIFIER DIODE FR107
D9305 093G 60964 RECTIFIER PS1010R T/B 1A 1000V DO-41
D9307 093G 60964 RECTIFIER PS1010R T/B 1A 1000V DO-41
D9304 093G 60964 RECTIFIER PS1010R T/B 1A 1000V DO-41
D9109 093G 6451652T 1N4148
D9306 093G 6451652T 1N4148
D9110 093G 6451652T 1N4148
D9109 093G 6452452T SWITCHING 1N4148-B4006 0.2A 100V DO-35
D9306 093G 6452452T SWITCHING 1N4148-B4006 0.2A 100V DO-35
D9110 093G 6452452T SWITCHING 1N4148-B4006 0.2A 100V DO-35
ZD9303 093G 39G 5 ZENER MTZJ15B 15V 0.5W DO-35
ZD9104 093G 39G 5 ZENER MTZJ15B 15V 0.5W DO-35
ZD9104 093G 39G 7 ZENER GDZJ15B 15 0.5 DO-35
ZD9303 093G 39G 7 ZENER GDZJ15B 15 0.5 DO-35
ZD9102 093G 39G 8 ZENER GDZJ16B 16 0.5 DO-35
ZD9105 093G 39G 9 ZENER MTZJ30B 30V 0.5W DO-35
ZD9301 093G 39G 11 ZENER MTZJ18B 18V 0.5W DO-35
J988 095G 90 23 JUMP WIRE - -
J937 095G 90 23 JUMP WIRE - -
J906 095G 90 23 JUMP WIRE - -
J948 095G 90 23 JUMP WIRE - -
J916 095G 90 23 JUMP WIRE - -
J909 095G 90 23 JUMP WIRE - -
J907 095G 90 23 JUMP WIRE - -
J943 095G 90 23 JUMP WIRE - -
J959 095G 90 23 JUMP WIRE - -
J969 095G 90 23 JUMP WIRE - -
J917 095G 90 23 JUMP WIRE - -
J996 095G 90 23 JUMP WIRE - -
J919 095G 90 23 JUMP WIRE - -
J951 095G 90 23 JUMP WIRE - -
J984 095G 90 23 JUMP WIRE - -
J935 095G 90 23 JUMP WIRE - -

99

J964 095G 90 23 JUMP WIRE - -
J989 095G 90 23 JUMP WIRE - -
J980 095G 90 23 JUMP WIRE - -
J992 095G 90 23 JUMP WIRE - -
J965 095G 90 23 JUMP WIRE - -
J961 095G 90 23 JUMP WIRE - -
J902 095G 90 23 JUMP WIRE - -
J978 095G 90 23 JUMP WIRE - -
J931 095G 90 23 JUMP WIRE - -
J977 095G 90 23 JUMP WIRE - -
J995 095G 90 23 JUMP WIRE - -
J930 095G 90 23 JUMP WIRE - -
J938 095G 90 23 JUMP WIRE - -
J955 095G 90 23 JUMP WIRE - -
J973 095G 90 23 JUMP WIRE - -
J958 095G 90 23 JUMP WIRE - -
J901 095G 90 23 JUMP WIRE - -
J915 095G 90 23 JUMP WIRE - -
J979 095G 90 23 JUMP WIRE - -
J945 095G 90 23 JUMP WIRE - -
J926 095G 90 23 JUMP WIRE - -
J947 095G 90 23 JUMP WIRE - -
J924 095G 90 23 JUMP WIRE - -
J910 095G 90 23 JUMP WIRE - -
J990 095G 90 23 JUMP WIRE - -
J904 095G 90 23 JUMP WIRE - -
J956 095G 90 23 JUMP WIRE - -
J940 095G 90 23 JUMP WIRE - -
J918 095G 90 23 JUMP WIRE - -
J944 095G 90 23 JUMP WIRE - -
J982 095G 90 23 JUMP WIRE - -
J981 095G 90 23 JUMP WIRE - -
J923 095G 90 23 JUMP WIRE - -
J987 095G 90 23 JUMP WIRE - -
J921 095G 90 23 JUMP WIRE - -
J922 095G 90 23 JUMP WIRE - -
J911 095G 90 23 JUMP WIRE - -
J974 095G 90 23 JUMP WIRE - -
J946 095G 90 23 JUMP WIRE - -
J941 095G 90 23 JUMP WIRE - -
J905 095G 90 23 JUMP WIRE - -
J966 095G 90 23 JUMP WIRE - -
J928 095G 90 23 JUMP WIRE - -
J914 095G 90 23 JUMP WIRE - -
J932 095G 90 23 JUMP WIRE - -
J929 095G 90 23 JUMP WIRE - -
J953 095G 90 23 JUMP WIRE - -
J942 095G 90 23 JUMP WIRE - -
J925 095G 90 23 JUMP WIRE - -
J994 095G 90 23 JUMP WIRE - -
J903 095G 90 23 JUMP WIRE - -
J913 095G 90 23 JUMP WIRE - -
J972 095G 90 23 JUMP WIRE - -
J976 095G 90 23 JUMP WIRE - -

100
