AOC LE50D6660-80 Schematic

维 修 手 册

品牌 机种

AOC LE50D6660/80

LE58D6660/80

1

变更说明

版本 发布日期 变更说明 对外机种名 对内机种名

LE50D6660/80 E50E21NDEMABNNX

A00 Apr.25,2014

首次发布

LE58D6660/80 E58EM1NDESABNNX

2

目 录

1. 技术规格------------------------------------------------------------------------------------------------------------04

1.1 一般规格---------------------------------------------------------------------------------------------------------04

1.2 预设显示模式---------------------------------------------------------------------------------------------------06

2. 操作说明------------------------------------------------------------------------------------------------------------07

2.1 遥控器说明----------------------------------------------------------------------------------------------------07

2.2 连接电视机----------------------------------------------------------------------------------------------------09

2.3 OSD 调整----------------------------------------------------------------------------------------------------13

3. 工厂模式调整------------------------------------------------------------------------------------------------------29

4. 线路图---------------------------------------------------------------------------------------------------------------32

4.1 主板------------------------------------------------------------------------------------------------------32

4.2 电源板--------------------------------------------------------------------------------------------------- 33

4.3 遥控板 --------------------------------------------------------------------------------------------------- 42

4.4 按键板----------------------------------------------------------------------------------------------------------44

4.5 Converter 板---------------------------------------------------------------------------------------------------45

5. 软体及 EDID 烧录-------------------------------------------------------------------------------------------------46

6. 故障处理流程图---------------------------------------------------------------------------------------------------49

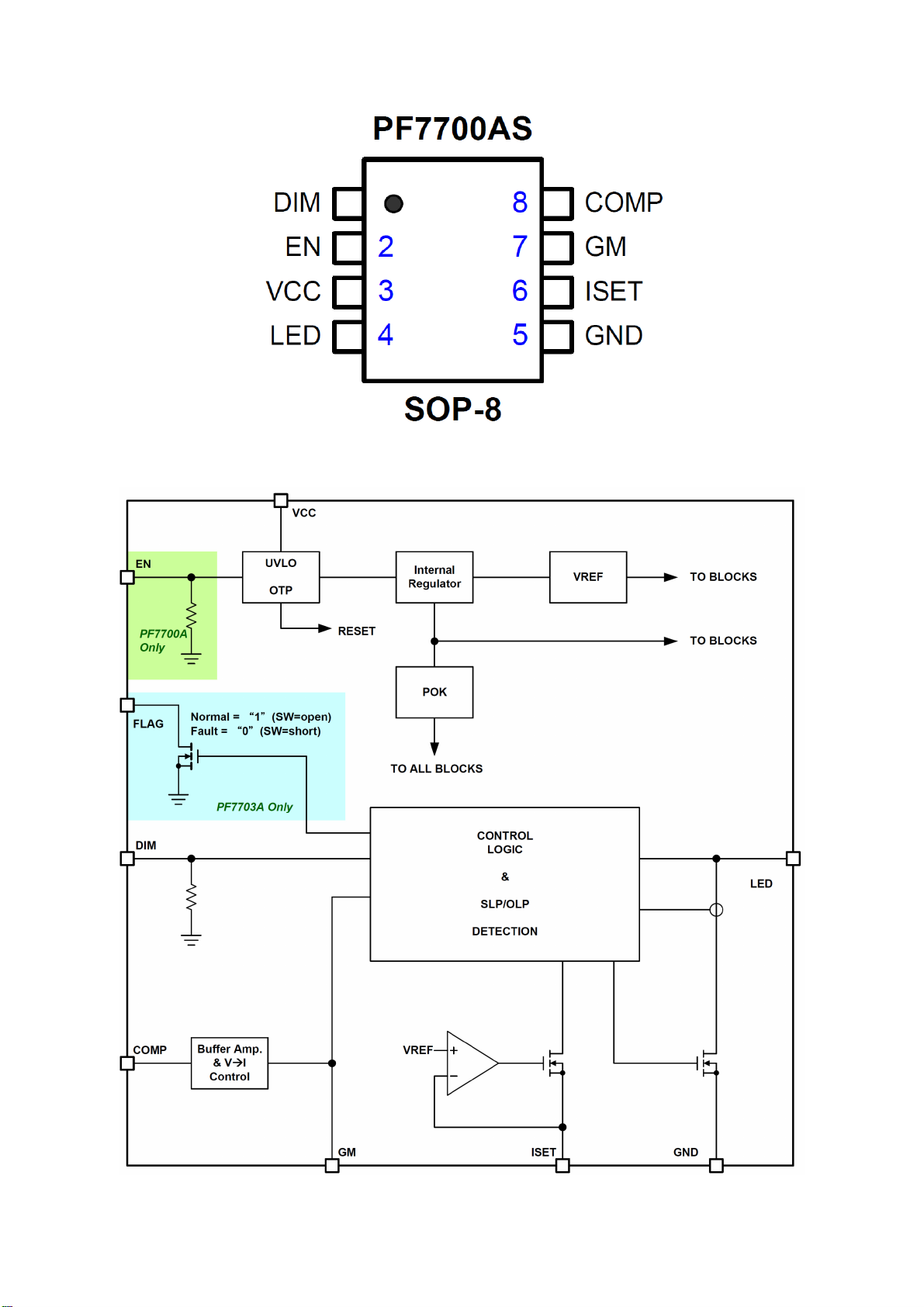

7. 主要 IC 管脚及内部框图---------------------------------------------------------------------------------------54

8. BOM-------------------------------------------------------------------------------------------------------------58

3

1. 技术规格

1.1 一般规格

4

5

1.2 预设显示模式

电脑输入信号参照表

将电脑连接到电视后，按照下表，设置电脑中的输出信号。

预设电脑模式

标准 分辨率 水平频率（kHz） 垂直频率（Hz）

VGA
VESA
VESA

CVT

CVT

CET

640×480

800×600
1024×768
1360×768

1920×1080

1280×720

31.469 59.94

37.879 60.317

48.363 60.004

47.72 59.799

66.587 59.934

45.0 60

DVI/电脑HDMI输入信号参照表

1. 使用DVI端口时，将视频设备的DVI端口使用DVI转HDMI线连接到电视后，按照下表，设置视频设备的输出信号。

2. 使用电脑HDMI端口时，将电脑的HDMI端口使用HDMI线连接到电视后，按照下表，设置电脑的输出信号。

预设HDMI模式

标准 分辨率 水平频率（kHz） 垂直频率（Hz）

VGA
VESA
VESA

CVT

CVT

640×480

800×600
1024×768
1360×768

1920×1080

31.469 59.94

37.879 60.317

48.363 60.004

47.72 59.799

66.587 59.934

视频输入信号参照表

1. 将视频设备的HDMI端口连接到电视后，按照下表，设置视频设备的输出信号。

2. 如果电脑显卡可支持视频格式信号，可设置下表输出信号。

HDMI模式

标准 分辨率 水平频率（kHz） 垂直频率（Hz）

SD
SD
SD
SD
HD

HD
FHD
FHD
FHD
FHD

720×480i

720×480p

720×576i

720×576p
1280×720p
1280×720p

1920×1080i

1920×1080i
1920×1080p
1920×1080p

15.734 60

31.5 60

15.625 50

31.25 50

37.5 50
45 60

28.125 50

33.75 60

56.25 50

67.5 60

电视，视频模式支持的视频系统

PAL D/K,数字:DTMB(地面波数字电视信号)
您也可以使用DVD 播放机或VCR 播放机观看传统节目。通过电视视频输入，将设备连接到电视。

6

2. 操作说明

2.1 遥控器说明

7

8

2.2 连接电视

9

10

连接电视

有线系统或VHF/UHF天线系统
除标清模拟节目以外，您还可以观看标清或高清数字节目（如果您所在的地区能提供，并经过机顶盒或其他类似设备

转接）。
本电视能够接收有线和VHF/UHF天线的模拟信号电视节目。
强烈建议您使用75Ω同轴线连接天线/有线输入，以接收最佳的画面质量。300Ω双芯线很容易受到射频干扰影响，从

而造成信号降级。
有线或VHF/UHF(或仅VHF)

高清接口
通过申请开通高清有线服务或高清卫星服务，您可以观看高清节目。为取得最佳的画面，请务必通过电视后面的HDMI
输入端，将该设备连接到电视。

HDMI连接

如果设备配有DVI插孔，而不是HDMI插孔，请将DVI插孔连接到HDMI输入（用DVI-to-HDMI线或适配器）插孔。将音
频插孔连接到电脑音频输入插孔。

分量信号输入连接

视频信号连接
切换信号源时请选择视频1

11

切换信号源时请选择视频2

视频输出连接

电脑连接
如下面所示，用VGA线连接，将电视用作电脑显示器。本电视也可以连接到带DVI或HDMI输出的电脑。

使用含铁氧磁心的VGA线和音频线将电视连接到电脑。
如果电脑已连接到电视，并且5分钟以上没有电脑信号输入，则电视会自动进入待机模式。

12

2.3 OSD调整

使用AOC电视

打开和关闭电视

您可以参照遥控器说明对电视进行操作。

提示：

1. 尽管待机时电视机的耗电量很少，但电视机会继续耗电。当长时间不使用电视机时，请将电视机的电源线与电源插座断
开。

2. 如果您找不到遥控器，但又想从待机状态下打开电视机，请按电视机右后方的“菜单/电源”键。

13

切换信号源

14

频道切换/回看

15

频道设置

16

图像设置

17

声音设置

18

功能设置

19

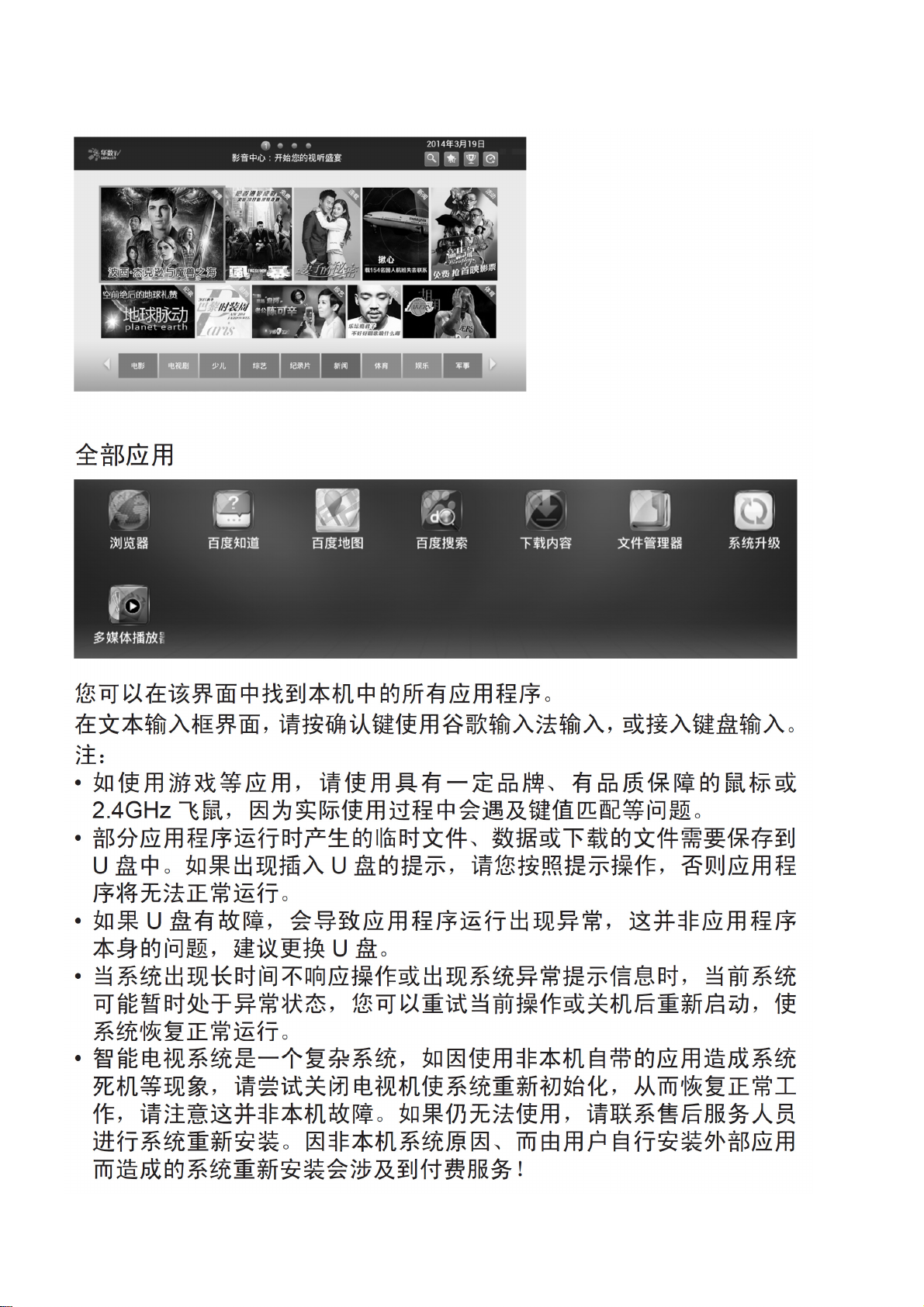

多媒体设置

20

21

22

23

24 25 26 27 28 29

3. 工厂模式调整

白平衡调整：
白平衡调整：按“菜单+1999+返回”进入工厂模式将 Current Source 选择为“component”，再选择 Color
temp 选择色温模式（Cool、Normal、Warm），选择 OK 后再选择 Gain 栏调整 R/G/B 值，将色温规格调整至
要求范围内。

注意：R G B GAIN 分别最大不超过 138，128，138，component 调整完后，其他 source 的 R G B GAIN 需
和 component 一样，若不一样，需要切到其他 source 将值调整为一样。

LE50D6660/80 色温规格:

色温

(x,y)

Item Level x y x y x y

调整规格
产品规格

LE58D6660/80 色温规格:

Item Level x y x y x y

调整规格
产品规格

注: 下页是关于一般工厂菜单的说明(和本机并非完全相同)，仅供参考！

80IRE 0.003 0.003 0.003 0.003 0.003 0.003
80IRE 0.015 0.015 0.015 0.015 0.015 0.015

色温
(x,y)

80IRE 0.003 0.003 0.003 0.003 0.003 0.003
80IRE 0.015 0.015 0.015 0.015 0.015 0.015

Cool

(0.259,0.265)

Cool

(0.263,0.260)

(0.280,0.290)

(0.280,0.290)

Normal

Normal

Warm

(0.298,0.310)

Warm

(0.298,0.310)

工厂菜单说明

选项名称 调整范围

Brand
Main-MCU ver
Bootloader ver

Sub-MCU ver
EEPROM ver

Date

Model name

Scaler

Panel type

Current source

Auto color

ADC Gain

ADC Offset

Color temp.

根据IC SPEC

根据IC SPEC

不可调整
不可调整
不可调整
不可调整
不可调整
不可调整
不可调整
不可调整
不可调整

支持输入源

执行动作

支持色温

TV AV/S Comp HD PC

o o o o o
o o o o o
o o o o o
o o o o o
o o o o o
o o o o o
o o o o o
o o o o o
o o o o o

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

注释
客户名称
发布软体Main-MCU 版本
发布软体Bootloader 版本
发布软体Sub-MCU ver 版本
发布软体EEPROM 版本
软体发布日期
对外机种名
Scaler 型号
屏的型号
当前进工厂时的输入源， 该项可切换输入源， 对应输入源的ADC，色温， Scaler

等相关信息同步更新。
Auto color 项只对需要做自动校正输入源时有效，否则它不动作。Auto color 会

对输入的ADC 做自动矫正，调整ADC Gain 和Offset RGB 值。
在Auto Color 做完立即更新，并可手动调整。

在Auto Color 做完立即更新，并可手动调整。

当前设置的色温，该项可切换色温模式，并正确显示色温名称，对应色温的Scaler

Gain & Offset RGB 值等相关信息同步更新。

Scaler Gain

Scaler Offset

Burn in On/Off √ √ √ √ √

EEPROM Init

Back LIT time

根据IC SPEC

根据IC SPEC

执行动作

不可调整

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

o o o o o

Scaler Gain 值在白平衡调整时立即更新，并可手动调整。

Offset RGB 值在白平衡调整时立即更新，并可手动调整。

打开或关闭Burn in 模式。当Burn in 设置为On 时它将响应工厂遥控器功能；
EEPROM Init 后默认为On 状态；Reset 后默认为Off 。

实现的是初始化除了HDCP key 和产品序列号以外的全部EEPROM，如主菜单的
OSD 默认值， 工厂菜单的ADC 数据， 白平衡设定值，Black light 和Language

等， 同时把Burn in 设置为On， 响应工厂遥控器功能， 设置输入源为TV。

背光打开总计时，在EEPROM Initial 或Factory reset 后都清为0，显示值用十进
制表示，当时间到达显示最大值时就不再变化。

30

Total time

不可调整

o o o o o

AC ON 主电源供电总计时， 在EEPROM Initial 或Factory reset 后都清为0，显
示值用十进制表示，当时间到达显示最大值时就不再变化。

Black light

Language

Energy LOGO On/Off * * * * *

Reset

Exit

根据IC SPEC

支持语言

执行动作

执行动作

* * * * *

* * * * *

√ √ √ √ √

√ √ √ √ √

备注：

1. √表示该项有效, ×表示该项不存在，o 表示存在但选不到，*表示可选；

2. 不同机型工厂模式项目略有增删；

3. 进工厂模式时Burn in自动关闭。

设置背光灯的亮度

设置出厂时用户模式菜单语言，当在工厂菜单中更改此项值时，用户模式的OSD
中的菜单语言也做相应的更改并将该值保存（仅北美向可选）

仅中国向有该项

实现的是复位除了HDCP 和产品序列号，工厂菜单的ADC 数据，白平衡设定值，

Black light，Language 和Energy Logo 以外的全部EEPROM 数据，如主菜单的
OSD 默认值，并把用户菜单Language 设置为工厂Language，同时把Burn in 设

置为Off ，禁止响应工厂遥控器功能，设置输入源为TV。

退出工厂模式

31

4. 线路图

4.1 主板

(外购)

32

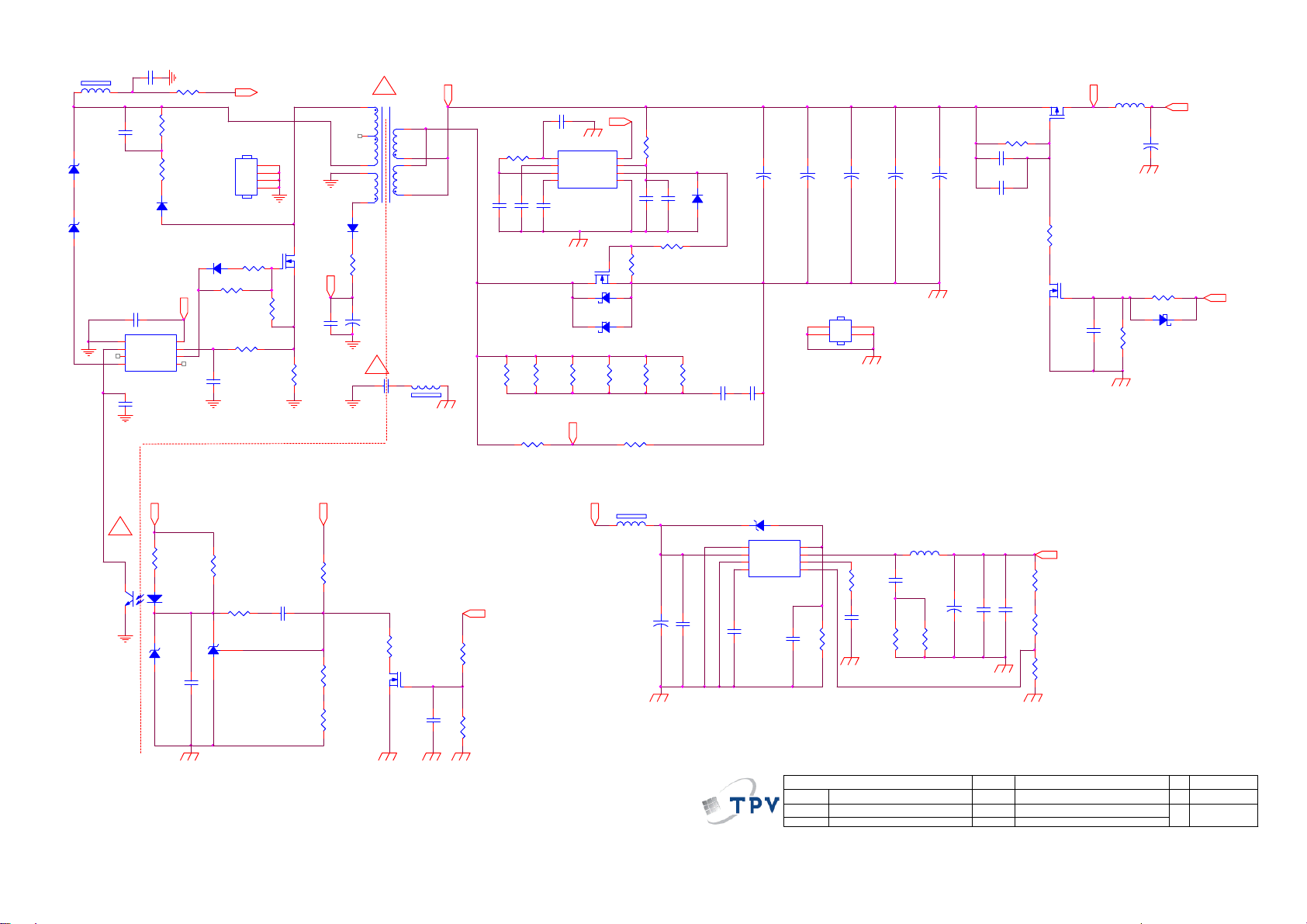

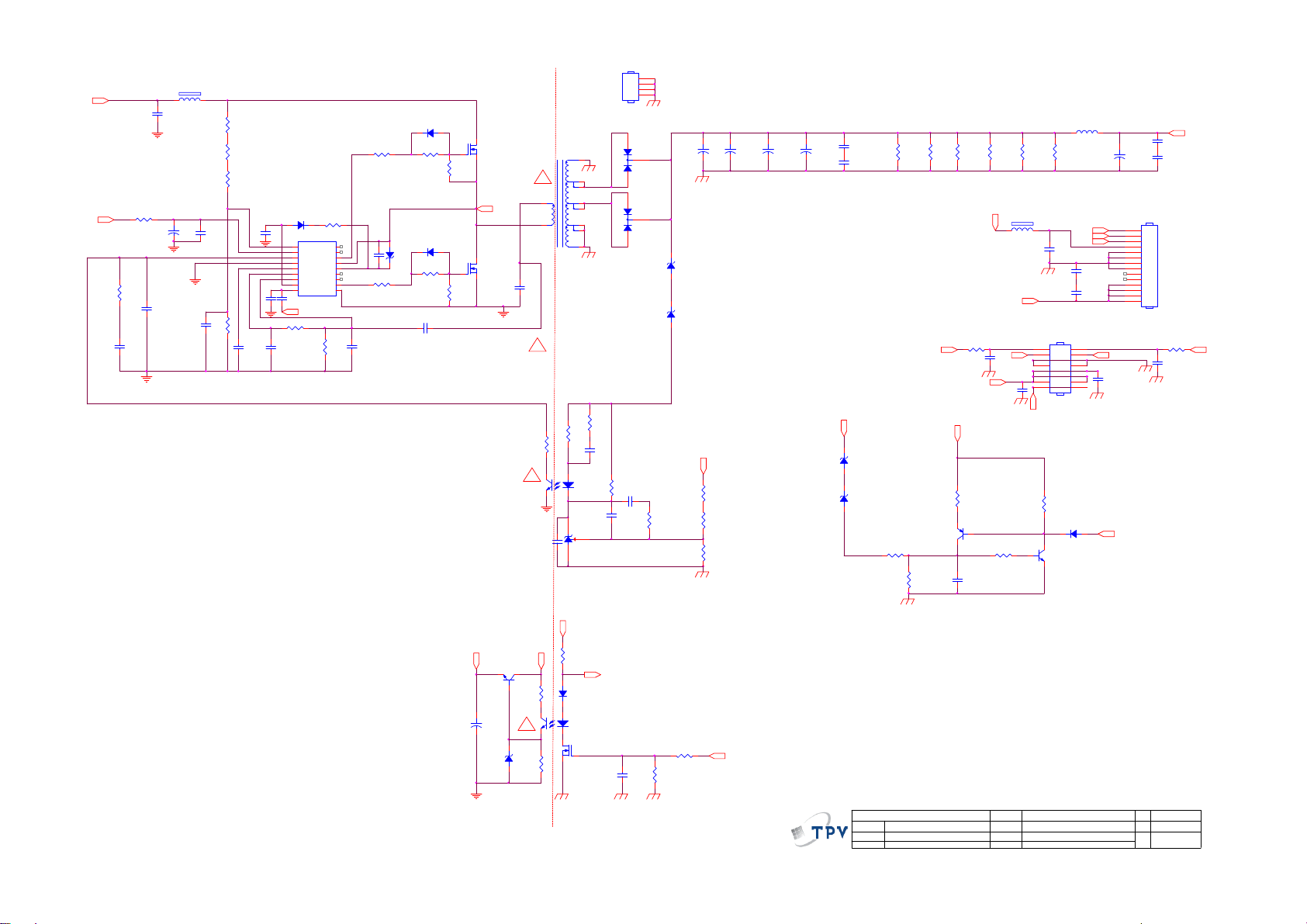

4.2 电源板

715G6439P01000002M (50 寸)

!

F9901

5A 250V

T5.0AL/250V

!

CN9901

NC/CONN

1
2

12

CN9902
SOCKET

!

FB9901

1 2

!

RV9901
620V

FB9902 BEAD

BEAD

CN9903
NC/CONN

!

!

12

L1N

NR9901

2

1 2

2.5R

t

470NF 275V

C9905

!

3

2

!

L9901
12MH

C9910

220PF 250V

!

4

1

!

!

C9906

470NF 275V

C9911

220PF 250V

!

SG9901

NC/DSPL-501N-A21F

!

1

2

C9901

3

NC/47PF

4

L9902
12MH

SG9902

NC/DSPL-501N-A21F

NR9902

t

2.5R

12

1

IC9901

8

NC/CAP004DG-T L

510K 1/4W

NC

3

D12D1

R9905

4

NC

NC5D26D27NC

R9901

510K 1/4W

R9903
510K 1/4W

R9902

510K 1/4W

R9904
510K 1/4W

R9906

510K 1/4W

4

R-

HD9901
NC

-

1
2
3
4

2

BD9901

TS10K80-02

3

!

+

1

Vsin

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

01.AC input

33

OEM MODEL

TPV MODEL

PCB NAME

Sheet

A

Size

Rev

of

15Tuesday , March 18, 2014

称爹

Vsin

C9805

1UF 450V

1

R9802

R-

L9801
240UH

6

!

4

D9803
RB160M

R9803
82 OHM

Q9801

STF24NM60N

12

FB9805

127R

1 2

C9818

47PF

R9806
10K OHM +-5% 1/8W

C9817

NC/47PF

D9802
FMNS-1106S

+

C9814

68uF 450V

R9804

1MOHM +-1% 1/4W

+

C9815

68uF 450V

HV

+

3

FB9803

1 2

BEAD

C9801

NC/1UF 450V

R9808

0.07R

R-

-

4

2

D9801
KBP206G

10R 1/ 8W 5%

VCC_ON

C9803

10UF 50V

+

C9811
1NF 50V

C9806

100N 50V

SSC-2005S

R9818

IC9801

16K 1% 1/8W

47 OHM 1/4W

8

6

5

OUT7VCC

GND

FB1COMP2RT3RDLY

4

R9813 27K 1/8W 5%

R9823

C9809

470K 1%

470NF 50V

R9810

C9807

CS

3.3nF 50V

C9810

2.2UF 25V

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

C9831

NC

12

R9811
NC/24K 1/8W 1%

R9812

22K 1/8W 1%

02 PFC-Sanken

ZD9801

BZT52-B3V6

C9802
10N 50V

33K 1/8W 1%

34

R9814

OEM MODEL

TPV MODEL

PCB NAME

Sheet

C9804

10N 50V

25Tuesday , March 18, 2014

R9809

680K OHM +-1% 1/4W

100K 1%

R9815

of

R9807

680K OHM +-1% 1/4W

HS9801

1
2
3
4

HEAT SINK

Size

Rev

称爹

A

C9113
1NF

VCC1

C9104

470UF 25V

D9106

1 2

C9121

RB160M

R9126 10 OHM 1/4W

1N 50V

Q9106
NC/2N7002K

C9140

NC/100N 50V

C9127

NC/1uF 50V

12VS

+

470UF 25V

HQ9102

HEAT SINK

DV5

R9130
NC/10K OHM

R9131
NC/330K 1% 1/8W

1

PGND

2

VIN

3

AGND
VCC4FB

C9128

NC/100N 50V
NC/1N 50V

+

+

C9105

C9106

C9107

470UF 25V

470UF 25V

1
2
3
4

12VS

NC/15K 1% 1/8W

DV5

+12V +12V

C9141

1uF

NC/BZ T52-B5V6
ZD9103

12

IC9105

8

EN

7

LX

6

COMP

5

NC/AOZ 3015AI

R9137

C9125
NC/2N2 50V

NC/30 OH M 1/4W

C9129

NC/3K OHM 1%

+

NC/100K 1/ 8W 1%

BL_ON/OFF

R9135

NC/20K 1/ 8W 1%

+

C9108
470UF 25V

NC/100KOHM +-5% 1/8W

R9162

R9164

NC/33K

R9165

3D_ON

+5V

C9142
1uF 50V

L9102NC/47uH

C9135
NC/2N2 50V

R9158

NC/30 OHM 1/4W

NC/100KOH M +-5% 1/8W

C9116

NC/1uF

C9117

NC/1uF

R9152

R9166

0 OHM +-5% 1/8W

D9110

NC/1N4148W

Q9107

NC/PMBT3906

R9163

NC/8.2K +-1% 1/8W

Q9108
NC/PMBT3904

C9143

NC/100N 50V

CN9100

2
4
6

8
10
12
14
16

CONN

+

C9124

NC/470UF 25V

R9161

R9151

Q9105

NC/P1604ED

C9119
NC/100N 50V

1
3
5
7
9
11
13
15

FB9103

BEAD

FB9904

1 2

R-

1K5 +-1% 1/8W

IC9102

EL817M(X)

R9406
10K 1/8W 1%

Q9403
2N7002K

5

4

3
2

1

FB9100

BEAD

R9119

43

C9402

100N 50V

COLDHOT

!

T9101

POWER X'FMR

12

470pF 250V

!

12

220PF 250V

127R

220PF 250V

12

BZT52-B15

1 2

R9408
510K 1% 1/8W

6
7

9
10

C9912

C9914

C9913

12VS

ZD9106

C9110

1uF

12VS

R9407

100 OHM 1/4W

C9132100N 50 V

R9108

27 OHM 1/4W

R9109

27 OHM 1/4W

R9110

27 OHM 1/4W

R9118
4K7 +-5% 1/8W

R9121
1K 1/8W 1%

IC9103

AS431AN-E1

R9124

22K 1%

C9131 100P 50V

R9132

27 OHM 1/4W

27 OHM 1/4W

27 OHM 1/4W

R9122 10K 1/4W

C9118
220N 50V

PS_ON

C9130

100N 50V

1

Timi ng

2

Pred

3

VR
Adj4GND

C9133

100P 50V

AOTF298L

R9133

R9134

R9115

2K2 1/8W 1%

IC9104

SYNC

MOSG- C

SP6018S8RGB

Q9102

D9108 MB810

12VS

R9120
9K1 1/8W 1%

120R 1/8W 1%

R9116

12VS

SYNC

8
7

Vdd

6
5

C9134

1uF

R9117

5.1K 1/4W

12

C9136

1N 50V

R9123 5.1K 1/4W

1 2

FB9102

NC/BEAD

C9126

NC/470U F 25V

R9125

4R7 1/4W 5%

1uF

C9137

SYNC

R9129
NC/10K OHM

+

HV

new part

1 2

1 2

ZD9101
BZT52-B39

ZD9102
BZT52-B39

IC9100
SSC2S110

1

GND

2

FB/OLP

3

NC
ST4NC

DRIVE

C9120

C9111

2.2NF

NC/1NF

+VCC1

8

VCC

7

D9103

OCP

6

1N4148W

5

C9102
470P 50V

62R 1%

R9103
470 OHM 1/4W

R9106

R9104
10R 1/8W 5%

R9107
10K OHM +-5% 1/8W

R9147
82KOHM +-5% 2WS

R9142
22R

D9102
SARS01-V1

Q9100

C9139

AOTF8N65

100N 50V
C9100
NC/47PF

R9111

0.36R

C9138

100N 50V

D9104

FR107G-A0

R9112

3.3 OHM 1/4W

+

47UF 50V

C9101

!

C9103
4N7 50V

HQ9100

1
2
3
4

HEAT SINK

+VCC1

VCC_ON

Q9401

BTC4672M3

C9401

10UF 50V

R9401

3K

!

IC9401

+

R9402

ZD9401

100K 1/8W 1%

DV5

R9403
2Kohm 1/4W +/ -5%

LED_OV

D9401

1N4148W

12

43

EL817M(X)

BZT52-B16

1 2

R9404
10K 1/4W

Q9402
PMBT3906

R9405
10K OHM

Q9104

NC/2N7002K

C9122

NC/1uF 50V

VCC1

C9123

NC/1uF 50V

PS_ON

+12V_A+12V_A

C9115
1N 50V

L9100
3UH

L9101
3UH

R9153

NC/100 OH M 1/4W

1 2

D9109
NC/RB160M

R9154
NC/510K 1% 1/ 8W

R9128
0 OHM +-5% 1/8W

R9140

NC/10. 5K OHM 1%

R9136

NC/200R 1/8W 1%

R9139

NC/2K 1/ 8W 1%

C9109
470UF 25V

+

C9112
470UF 25V

+

DIM

+5V

+12V

+12V_A

PS_ON

35

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

03 Main Power

Date

OEM MODEL

TPV MODEL

PCB NAME

Sheet

Custom

Size

Rev

of

35Tuesday, March 18, 2014

称爹

HEAT SINK(Q9801,D9801)

HV

C8101

100N 50V

100N 50V

1.5M 1% 1/4W

C8109

R8102

18K 1/8W 1%

VCC_ON

R8110

R8101

0.1R

R8103

1.5M 1% 1/4W

R8107

1.5M 1% 1/4W

+

C8108
22UF 50V

C8100
1NF

R8130
47K 1/8W 1%

C8116

4.7uF 10V

C8104

1UF

C8110

0.47UF 50V

VBoot

470 OHM

R8119
NC

R8125

C8114
10nF 50V

C8133
47P 50V

4

12VS

SS1060FL

IC8102

EL817M(X)

BZT52-B16

UF4007

C8105
10PF

470 OHM 1/8W

C8111
560P 50V

D8108

R8126

!

ZD8103

R8105

D8101

10 OHM

IC8101

1

Vsen

NC

2

Vcc

NC

3

FB

VGH

4

GND

VS

5

Css

VB

6

OC

NC

7

RC

NC

8

Reg

VGL

RV9COM

SSC9522S

ZD8101

BZT52-B15
C8106
1uF

R8116

R8120

220R 1%

NC/1Kohm +-1% 1/4W

1

23

IC8104

AS431AN-E1

1 2

18
17
16
15
14
13
12
11
10

12

1 2

D8109
SS1060FL

R8152

C8135
4N7 50V

1 2

D8103

SS1060FL

R8106
82 OHM

D8107 SS1060FL

R8111

82 OHM

C8112
1N 50V

20131113穝糤DIP癸郸.

ZD8102

ZD8104

1 2

BZT52-B22

BZT52-B22

1Kohm +-1% 1/4W

R8128
20K 1/4W

C8115
NC

C8117

4N7 50V

C8121
NC

R8104
10 OHM

R8108

10K 1/8W 1%

R8112

10 OHM

10K 1/8W 1%

C8107

100PF1KV

ZD8105

1 2

BZT52-B33

C8128

100N 50V

R8133

330K 1% 1/8W

VBoot

Q8101
AOTF8N50

Q8102

AOTF8N50

R8113

560K 1/8W 1%

560K 1%

C8113
22nF

R8124

R8127

R8138
62K 1/8W 1%

C8134
100PF

VLED

BL_ON/OFF

-VLED-1

Vo=70V R8138:46.4K R8127=499K R8124:750K

2

3

3D_ON

!

IC_VCC

-VLED-2

T8101

POWER X'FMR

10

6
5

9

DIM

LED_OV

R8131 10K 1/4W

R8150 NC /10K 1/4W

D8301

SS1060FL

R8151

NC/FMNS-1106S

Q8301

PMBS3904

NC

D8104

NC/FMNS-1106S

D8105

DV5

R8300

NC

R8302
2K 1/8W 1%

1Kohm +-1% 1/4W

C8119

100N 50V

C8122

NC/100P 50V

C8125

100N 50V

R8304

3

1

100N 50V

D8102

3

NC/FMX-23S

2

1

D8106

NC/FMX-23S

2

12VS

R8303
1K 1/8W 1%

Q8302

PMBT3906

C8301
100N 50V

R8129

82K +-1% 1/8W

1
2
3

C8120

100N 50V

1
2
3

C8126

R8301

0 OHM +-5% 1/8W

IC8103

DIM

COMP

EN

GM

VCC

ISET

LED4GND

TPV101

IC8105

DIM

COMP

EN

GM

VCC

ISET

LED4GND

TPV101

2 OHM 1%

+

C8102
NC/120uF 220V

R8305

5K1 1/8W 1%

R8311

1K 1/8W 1%

8
7
6
5

R8134

2 OHM 1%

8
7
6
5

R8140

2 OHM 1%

R8141

2 OHM 1%

HS8102 HEAT SINK

341

+

C8103

NC/120UF 100V

R8135

2 OHM 1%

R8142

2 OHM 1%

R8136

2

VLED

Q8303

PMBT3906

R8307
5K1 1/8W 1%

R8143

24R 1%

R8109
100K

IC8301

AS431AN-E1

R8310

3K 1/8W +/-1%

R8132
0 OHM +-5% 1/8W

R8137
24R 1%

R8139

0 OHM +-5% 1/8W

L8101
3UH

R8306
1K 1/8W 1%

R8118

NC/62 K 1/8W 1%

+

C8124

R8155

100K

NC/47UF 100V

12VS

R8308
75K 1%

R8309
36K 1%

C8302
100N 50V

12VS

C8140

100N 50V

C8118

0.47UF 50V

C8123

0.47UF 50V

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

04 LED

Date

VLED_A

VLED

R8154
100K

FB8101

1 2

Jumper

耚铬絬

C8132

NC/1NF 500V

-VLED-1

-VLED-2

Del R8146 , R8149 0805 -> 1206

Change R8144 -> J902

D8110

1N4148W

Q8104

PMBT3906

2 3

R8165

1

2K 1/8W 1%

R8166

10K 1/8W 1%

IC8106
AS431AN-E1

C8129

NC/100N 50V

C8130

NC/100N 50V

R8149

NC/0R 05 1/4W

C8138

1uF

C8136

1uF

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

45Tuesday, March 18, 2014

+VLED

of

+VLED

IC_VCC

VLED_A

R8167

47K +-1% 1/4W

R8168
43K 1/8W 1%

R8170 20K 1% 1/4W

R8169
5K6 +-1% 1/8W

HS8103
HEAT SINK

New Parts

1
2

HS8105
HEAT SINK

10/3

穝糤

1
2

LED э2
ch for
XNB

C8131
1NF 500V

20131113穝糤DIP癸郸.

IC_VCC

Q8105

2N7002K

C8139

470NF 50V

Size

Rev

称爹

,

CN8101

1
2
3
4
5
6
7
8

9
10
11
12

CONN

R8171
1MOHM +-1% 1/4W

R8172
510K 1% 1/8W

Custom

36

J901

1 2

J902

1 2

J903

1 2

J904

1 2

J907

1 2

J909

1 2

J912

1 2

JUMPER

J913

1 2

JUMPER

J920

1 2

JUMPER

J928

1 2

JUMPER

J935

1 2

JUMPER

JUMPER

J914

1 2

JUMPER

J922

1 2

JUMPER

J929

1 2

JUMPER

J936

1 2

JUMPER

JUMPER

J915

1 2

JUMPER

J923

1 2

JUMPER

J930

1 2

JUMPER

JUMPER

J916

1 2

JUMPER

J924

1 2

JUMPER

J931

1 2

JUMPER

J938

1 2

JUMPER

JUMPER

J919

1 2

JUMPER

J925

1 2

JUMPER

J932

1 2

JUMPER

J939

1 2

JUMPER

JUMPER

J920

1 2

JUMPER

J926

1 2

JUMPER

J933

1 2

JUMPER

J940

1 2

JUMPER

JUMPER

J921

1 2

JUMPER

J927

1 2

JUMPER

J934

1 2

JUMPER

J941

1 2

JUMPER

JR901

0R05 1/4W

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

05 JUMP

37

JR903

0R05 1/4W

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

JR904

0R05 1/4W

55Tuesday, March 18, 2014

JR905

0R05 1/4W

of

JR906

0R05 1/4W

Size

Rev

称爹

A

715G6607P01000002M (58 寸)

CN9903
CONN

!

12

!

CN9901

SOCKET

F9901

1 2
3 4

FUSE

NR9901

t

1 2

12

2.5R

FB9903

BEAD

L1N

2

C9908
470PF 250V

!

!

C9903

NC
RV9901
680V

C9904

NC

!

NR9902

1 2

2.5R

t

FB9901

470NF 275V

C9905

!

FB9902

BEAD

GND1

1

NC

GND3

1

12

BEAD

12

RV9902
NC

1

4

RV9903
NC

!

GND2

NC

GND4

2

3

L9901

18mH

1

1

!

470NF 275V

C9906

R9902
510K

R9901

1MOHM +-5% 1/4W

R9903
510K

220PF 250V

C9907

!

!

C9902

220PF 250V

BO

4

1

R9904
510K

R9905
510K

!

18mH

4

1

3

L9902

2

R9906
1MOHM +-5% 1/4W

!

3

2

TS10K80-02

L9903

0.25mH

HS9901

HEAT SINK

BD9902

4

BO

N

3

!

-

2

1
2

1

+

Vsin

NC

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

01.AC input

NC

38

N

OEM MO DE L

TPV MODEL

PCB NAME

Sheet

Size

Rev

of

15Wednesday, February 19, 2014

称爹

A

B+

VCC1

R9163

2K43 1/8W 1%

C9142

4.7uF 10V

R9112

2R2 +-5% 1/8W

C9143

0.1uF 50V

C9120
10NF 1KV

+

BEAD

FB9102

C9124

22UF 50V

C9108

100N 50V

12

C9144

100N 50V

R9116

18K 1/8W 1%

R9113

1.5M 1% 1/4W

R9114

1.5M 1% 1/4W

R9115

1.5M 1% 1/4W

47P 50V
C9106

C9134

1uF

1
2

HS9103

HEAT SINK

T9101

NC

12

For D9103, D9104.

11

7
8

5
6

9
10

12

60V

R9104
NC

R9118

6.2K OHM +-1% 1/8W

C9107
NC

IC9103
AS431AZTR-E1

SS1060FL

D9113

R9150

10ohm +/-1% 1/8W

R9109

D9102

10R 1/8W 5%

UF4007

C9145

1uF

IC9101 SSC9522S

1

Vsen

2

Vcc

3

FB

VGH

4

GND

5

Css

6

OC

7

RC

8

Reg
RV9COM

C9140
5PF

VBOOT

R9117

470 OHM 1/8W

C9139
560P 50V

R9103
180R 1%

C9141

1uF

18

NC

17

NC

16
15

VS

14

VB

13

ZD9101

NC

12

BZT52-B15

NC

11

VGL

10

R9151

10ohm +/-1% 1/8W

C9109

220PF

R9149

82 OHM

SS1060FL

12

D9114

R9154

82 OHM

C9110

100PF1KV

R9156
10K 1% 1/8W

R9152

10K 1% 1/8W

Q9105
AOTF8N50

VBOOT

Q9106

AOTF8N50

C9111
22nF

560 OHM 1/4W

EL817M(X)

R9105

!

IC9102

!

C9115

!

1

4

43

NC

3
4

1

D9103

FMXA-2202S

2

3

1

D9104
FMXA-2202S

2

3

R9119
10K OHM +-5% 1/8W

C9113

0.1uF 50V

C9112

NC

R9120

2.4K 1/8W

1 2

1 2

C9131

47UF 100V

ZD9106

BZT52-B22

ZD9107

BZT52-B22

+VBUS

+

R9127
22K 1/8W 1%

R9148

36K 1/8W 1%

R9122
2K49 1/8W 1%

+

C9117

47UF 100V

+

C9121

47UF 100V

+

C9127

47UF 100V

ZD9103

BZT52-B36

ZD9105

BZT52-B36

+VBUS

1 2

1 2

C9130

220NF 50V

C9129
220NF 50V

R9132

100 OHM 1/4W

R9123
NC

ON/OF F

R9133
1K 1/8W 1%

R9124
NC

R9141
33K 1/4W

R9102

10K 1/4W

C9102
1N 50V

+12V

R9134
1K OHM +-5% 1/8W

Q9103
PMBS3906

C9128

100N 50V

+12V

R9139
33K 1/4W

+12VC

+VBUS

3D

C9135

100N 50V

R9137

1K 1/8W 1%

BEAD

FB9904

R9143
33K 1/4W

C9137

100N 50V

+5V

12

2
4
6

8
10
12
14
16

Q9104

R9142
33K 1/4W

CN9101

CONN

R9136
2K 1/8W 5%

SS1060FL

PMBS3904

D9110

ON/OFF

1
3
5
7
9
11
13
15

L9103

1.1uH

3D
DIM

C9116
220NF 50V

C9138
220NF 50V

PS_ON

C9119
100N 50V

OVP

C9114
47UF 100V

+

+VBUS

C9132

220NF 50V

C9133

220NF 50V

CN9102

14
13
12
11
10

9
8
7
6
5
4
3
2
1

CONN

R9101

100 OHM 1/4W

C9101
1N 50V

DIM

VCC1

C9122

+

10UF 50V

2SD1624T-TD-E

Q9101

ZD9102
GDZJ15B

1 2

100K

R9128
2K OHM

!

R9138

+12V

VCC

R9129
1K 1/4W

OVP

D9109
1N4148W

12

43

IC9104

EL817M(X)

Q9102
2N7002K

100N 50V

C9123

100 OHM 1/4W

R9130
510K 1/8W

R9131

PS_ON

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

03.Main power

Date

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

Custom

Size

Rev

35Wednesday , February 19, 2014

of

称爹

39

Vsin

1 2

FB9801
BEAD

L9801

1

5

220uH

D9801
IN5408G-04

34

R9802

10 OHM 1/8W

D9803

C9817 100PF

D9802
FMNS-1106S

FB9803

127R

1 2

Q9801
TK18A60V

1 2

FB9802
127R

C9802
10NF 1KV

C9811
68uF 450V

C9812
68uF 450V

+

B+

+

C9801
1UF 450V

C9806

100N 50V

VCC1

20K 1/4W

C9804

47P 50V

C9805

+

22UF 50V

R9812

36K 1/8W

R9805

6

8

OUT7VCC

INV1COMP2RAMP3CS

C9809
47N 50V

R9814
2K 1/8W

5

ZCD

GND

4

10K 1/8W
R9813

LD7591T
IC9801

SS1060FL

33R 1/ 8W 5%

R9803

R9810
1K 1/8W

C9807
220pF 50V

C9810

0.47U F 50V

R9806

10K 1/8W

R9808

0.1R

C9808
47P 50V

R9804

1M 1% 1/4W

R9807

1M 1% 1/4W

R9809

1M 1% 1/4W

R9811
19K1 +-1% 1/8W

HS9801

1
2
3
4

For Q9801

HEAT SINK

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

04.PF C

40

OEM MODEL

TPV MODEL

PCB NAME

Sheet

Size

Rev

of

45Wednesday , February 19, 2014

称爹

A

1 2

1 2

FB9301

BEAD

ZD9301
BZT52-B39

ZD9302
BZT52-B39

12

10NF 1KV

C9303

2.2NF

C9318

0.1uF 50V

IC9301

1

GND

2

FB/OLP

3

NC
ST4NC

4.7NF 50V
C9326

C9301

DRIVE

SSC2S110

R9301

0.1R

R9302
82KOHM +-5% 2WS

R9306

22R

D9301

SARS01-V1

D9304

SS1060FL

VCC

8

VCC

7

OCP

6
5

HS9301

HEAT SINK

for Q9301

R9311

10R 1/8W 5%

R9312

62R 1%

R9314

10K OHM +-5% 1/8W

R9318

470 OHM 1/4W

C9324
470P 50V

6

10
7

9

BEAD
FB9302

12VS

C9302

100N 50V

SYNC

C9315

R9316

1

Tim ing

2

Pred

3

VR
Adj4GND

C9316

100P 50V

R9319

IC9302

SYN C

MOSG -C

SP6018S8RGB

Q9303

AOTF298L

200 OHM 1/4W

200 OHM 1/4W

SYN C

Vdd

R9320

R9305

22K 1%

100P 50V

C9314

100N 50V

12

R9315

200 OHM 1/ 4W

200 OHM 1/4W

R9324

10K 1/4W

8
7
6
5

R9310

5.1K 1/4W

12

D9305
NC

12

D9307
MB810

R9322

R9325

5.1K 1/4W

R9303

4R7 1/4W 5%

C9312

1uF

R9308

10 OHM 1/4W

200 OHM 1/ 4W

200 OHM 1/4W

C9313

1uF

R9323

D9302

SS1060FL

C9322

1N 50V

C9306

470UF 2 5V

C9323

1N 50V

470UF 2 5V

+

C9307

C9308

470UF 2 5V

+

HS9303

3
4

HEAT SINK

for Q9303

C9309

470UF 25V

+

1
2

470UF 25V

+

C9310

+

R930 4

NC/100KOHM +-5% 1/8W

C9305
NC/1uF

C9311
NC/1uF

NC/ 100KOHM +-5% 1/8W

R9307

B+

1
2
3
4

D9303

FR107G-A0

Q9301
AOTF8N65

VCC

C9320

0.1uF 50V

R9321

0.36R

5

4

3
2

1

POWER X'FMR

R9309
1 OHM 1/4W

C9319

+

47UF 50V

!

C9325

330PF 250V

!

T9301

Q9302

P1604ETF

Q9304
NC/ 2N7002K

C9321

NC/ 100N 50V

+12VC

L9301
3UH

C9304

470UF 25V

NC/100 OH M 1/4W

R9317
NC/ 510K 1% 1/8W

+

R9313

1 2

D9306

NC

+12V

PS_ON

1K5 +-1% 1/8W

IC9304

EL817M(X)

12VS

12VS

!

R9327

R9328

12

43

ZD9304

NC

1 2

C9337

1uF

4K7 +-5% 1/8W

R9332
1K 1/8W 1%

IC9305

AS431AN-E1

C9329
220N 50V

R9329
9K1 1/8W 1%

R9340
2K2 1/8W 1%

R9341
120R 1/8W 1%

R9337

NC/10K OHM

Q9305

NC/2N 7002K

C9338

NC/100N 50V

PS_ON

R9338
NC/1Kohm

R9342
NC/ 330K 1% 1/8W

12VS

1 2

FB9303

BEAD

C9332
470UF 25V

ZD9303

BZT52-B5V1_R1_000 01

12

IC9303

1

PGND

2

VIN

3

AGND
VCC4FB

+

C9334

100N 50V

C9335

100N 50V

8

EN

7

LX

6

COMP

5

AOZ3015AI

C9336

1N 50V

R9334

100K 1/8W 1%

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

05.Stand by

R9330

20K 1/8W 1%

C9333
2N2 50V

30 OHM 1/4W

C9327
2N2 50V

R9335

L930347uH

R9336

30 OHM 1/4W

+

C9328
470UF 2 5V

OEM MO DEL

TPV MO DEL

PCB NAME

Sheet

+5V

R933 1

100N 50V

C9331
100N 50V

11Wednesday , February 19, 2014

10.5K OHM 1%

R933 3

100R 1%

R9339

2K 1/8W 1%

of

Size

Rev

称爹

Custom

C9330

41

4.3 遥控板
715G6077R01000004K (50 寸)

LED201

081G 14 24 EL

RED

CN201

CON201

311GW125D05ACX

4

LED_R

67

1
2
3
4
5

LED_B

IR

R202 220 OHM 1/10W

R203 220 OHM 1/10W

VCC

R204

R0603

100R 1/10W 5%

LED

C201

2.2UF 16V

1

23

VCC

BLUE

R201

15K 1/10W

U201

1

GND

2

GND

3

OUT

4

VCC

IRM-H938M3/TR2

356GS927057

35mm

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

02-IR&LED

42

9mm

OEM MODEL

TPV MOD EL

PCB NAME

Sheet

<

A

称爹

A

>

Size

Rev

of

22Thursday , January 17, 2013

称爹

715G6638R01000004K (58 寸)

VCC_STBY

CN0201 CONN

67

1
2
3
4
5

LED_R
LED_B
IR
VCC_STB

C0201

100N 16V

VCC_STBY

C0202

100N 16V

12

ZD005

R007

R001

330R 1/16W 5%

LED001

NC/MLVG0402

GPTD1210BRC -D

10K

BC847C

R008

10K

Q001

4

RED

1

C0203

100N 16V

R002

330R 1/16W 5%

BlueRed

BLUE

2 3

Q002

BC847C

R006

R005

10K

C0204

100P 50V

10K

12

NC/MLVG0402

ZD006

VCC_STBY

47R 1/16W 5%

R003

10K

C0205

4.7uF 10V

R004

U001

1

GND

2

VCC

3

Vout

4

GND

I RM-H 336 M3/TR 2

12

ZD003

12

NC/MLVG0402

ZD004

NC/MLVG0402

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

02. IR BOARD

43

OEM MODEL

TPV MODEL

PCB NAME

Sheet

A

Size

Rev

B

称爹

称爹

>

of

22Monday, Nov ember 11, 2013

<

4.4 按键板
715G6316K01000004I

CN01

CONN

Direction switch

Center

Right

Left

Down

34

KEY1

1
2

C06

100N 50V

----><----|

7

SW01

F5

1 6

F1

2

F3

3 4

SW 6P

F4

F2

8

5

Up

2-5 short

1-5 short

4-5 short

3-5 short

6-5 short

Menu

CH+ 1K2

CH-

VOL-

VOL+

No function

Joystick circuit diagram

pin1

ResistanceKey function

0R

2K2

6K8

15K

pin2

pin3

Voltage

0V

0.5V

0.81V

1.65V

2.27V

3.3V

pin4

pin5 pin6

F1

F2

F3

F4

F5

Right

Center UpDown

Left

R01

----><----|

1K2 1/10W 1%

----><----|

R04

C04

2K2 1/10W 1%

絬 隔 瓜 絪 腹

Key Component

NC/ 100N 50V

T P V ( Top Victory Electronics Co . , Ltd. )

02. KEY

Date

R03

----><----|

6K8 1/10W 1%

C03

NC/ 100N 50V

----><----|

R02

C01

NC/ 100N 50V

0R05 1/10W

C02

NC/ 100N 50V

R05

----><----|

15K 1/10W 1%

C05

NC/ 100N 50V

OEM MO DEL

TPV MO DEL

PCB NAME

Sheet

22Tuesday , September 17, 2013

of

Size

Rev

称爹

Custom

1

XX

44

4.5 Converter 板
715G6140P02000002M (58 寸)

HQ8101
HEAT SINK

DIM

ON/OFF

+12V

+60V

VLED

LED55
LED44
LED33
LED22
LED11

PWM

EN

+12V

LED1

EN
+12V
LED1

BZT52-B27

68K 1/8W 1%

C8128

10UF 50V

ZD8202

R8301

LED1

1
2
3
4

+60V

47UF 100V

+

1 2

C8201

14
13
12
11
10

9
8
7
6
5
4
3
2
1

12
11
10

9
8
7
6
5
4
3
2
1

1
2
3

1
2
3

C8183

100N 50V

ZD8201

BZT52-B27

1 2

Q8301

PMBT3906

+

CN8101

CONN

0 OHM +-5% 1/8W

CONN
CN8102

IC8101

DIM

COMP

EN

GM

VCC

ISET

LED4GND

PF7700A

C8181

100N 50V

IC8102

DIM

COMP

EN

GM

VCC

ISET

LED4GND

PF7700A

LED11

20K +-5% 1/8W
R8302

R8303

100KOHM +-5% 1/8W

+

T

8
7
6
5

8
7
6
5

C8202

47UF 100V

R8104

NC

R8181

14K 1/8W

R8182

14K 1/8W

R8105

COMP

COMP

Q8302
PMBT3904

+

C8203

47UF 100V

+12V

+12V

C8182

470NF 50V

C8184

470NF 50V

PWM

3

D8102

1

R8116

0.03R

R8119

0 OHM +-5% 1/8W

C8146

1N 50V_NC

100KOHM +-5% 1/8W
R8118

C8126

1N 50V

PWM

EN

+12V

LED3

EN

+12V

LED3

ZD8206

BZT52-B27

R8307

68K 1/8W 1%

LED3

FMX-23S
2

BZT52-B27

1 2

1 2

PMBT3906

C8120
1N 50V

C8124
100N 50V

ZD8205

Q8305

C8212

NC

1NF 500V

C8211

NC

PWM

IC8301

1

DIM

2

EN

3

VCC
LED4GND

PF7700A

C8381

100N 50V

IC8302

1

DIM

2

EN

3

VCC
LED4GND

PF7700A

C8383

100N 50V

20K +-5% 1/8W
R8308

100KOHM +-5% 1/8W

+

C8103

120uF 220V

R8126

0 OHM +-5% 1/8W

8

COMP

7

GM

6

ISET

5

8

COMP

7

GM

6

ISET

5

LED33

R8309

C8108

+

120uF 220V

FB

COMP

R8381

14K 1/8W

COMP

R8382

14K 1/8W

PWM

Q8306
PMBT3904

C8112

L8101

6

R8124

R8127

330K 1% 1/8W

8
7
6
5

8
7
6
5

1

90uH

AOTF22N50

R8123

10K OHM +-5% 1/ 8W

T

6

5

8

OUT7VCC

GND

FB1GM2RT3CS

4

COMP

R8281

14K 1/8W

COMP

R8282

14K 1/8W

PWM

Q8304
PMBT3904

Q8102

IC8113
PF7900S

DIM

C8282

470NF 50V

C8284

470NF 50V

+

C8205

47UF 100V

C8127

10UF 50V

1

ZD8203
BZT52-B27

1 2

Q8303

PMBT3906

+

C8206

47UF 100V

R8125

NC

12

10ohm +/-1% 1/8W

D8101

NC

C8123

100N 50V

+

FB

23

Q8103

MMBT3906

IC8201

1

DIM

COMP

2

EN

GM

3

VCC

ISET

LED4GND

PF7700A

C8281

100N 50V

IC8202

1

DIM

COMP

2

EN

GM

3

VCC

ISET

LED4GND

PF7700A

C8283

100N 50V

LED22

20K +-5% 1/8W
R8305

R8306

100KOHM +-5% 1/8W

+

C8204

47UF 100V

+12V

C8105

+

NC

Q8105
NC

23

1

Q8104

NC

R8120

0 OHM +-5% 1/8W

ZD8102

BZT52-B16_NC

1 2

R8138
3K 1/8W 5%

ZD8101

BZT52-B4V7

1 2

PWM PWM

EN
+12V
LED2

PWM

EN
+12V
LED2

ZD8204

BZT52-B27

1 2

R8304

68K 1/8W 1%

LED2

R8202
820K 1%

R8203
820K 1%

C8382

470NF 50V

C8384

470NF 50V

L8102

3UH

+

C8125

120uF 220V

R8201
820K 1%

R8137
NC

C8148
NC

C8147
NC

R8209

68K 1/8W 1%

C8122
NC

R8204

68K 1/8W 1%

1

EN
+12V
LED4

PWMPWM

EN
+12VPWM
LED4

+60V

2
3

C8481

100N 50V

1
2
3

C8483

100N 50V

ZD8211

12

BZT52-B22

BZT52-B22

4.7K 1/4W

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Monday, J anuary 13, 2014

Date

COMP

IC8401

DIM

COMP
EN
VCC
LED4GND

PF7700A

IC8402

DIM

COMP
EN
VCC
LED4GND

PF7700A

ZD8212

R8317

R8318
1K1/4W

C8101

1NF 500V

GM

ISET

GM

ISET

12

PWM

EN

+12V

LED5

PWM

EN

+12V

LED5

8
7
6
5

8
7
6
5

1 2

R8207
330KOHM +-1% 1/4W

R8208
330KOHM +-1% 1/4W

1
2
3

C8581

100N 50V

1
2
3

C8583

100N 50V

COMP

R8481

14K 1/8W

COMP

R8482

14K 1/8W

EN1

BZT52-B5V1_R1_00001

Q8312

ZD8214

PMBT3906

R8205
330KOHM +-1% 1/4W

R8206
330KOHM +-1% 1/4W

IC8501

DIM

COMP

EN

GM

VCC

ISET

LED4GND

PF7700A

IC8502

DIM

COMP

EN

GM

VCC

ISET

LED4GND

PF7700A

C8482

470NF 50V

C8484

470NF 50V

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

VLED

+12V

BZT52-B27

1 2

1 2

PMBT3906

1 2

PMBT3906

ZD8209

Q8309

BZT52-B27

1 2

LED4

+12V

LED5

+12V

LED1

+12V

LED2

+12V

LED3

EN

PWM

20K +-5% 1/8W
R8314

100KOHM +-5% 1/8W

ZD8127

Q8307

100KOHM +-5% 1/8W

C8102

1NF 500V

8

COMP

7
6
5

R8581

C8582

470NF 50V

14K 1/8W

8

COMP

7
6
5

R8582

C8584

470NF 50V

14K 1/8W

ZD8210

BZT52-B27

R8313

68K 1/8W 1%

LED5

ZD8208

BZT52-B27

R8310

68K 1/8W 1%

LED4

52

of

ON/OFF

100R 1/8W 5%

LED55

R8315

LED44

20K +-5% 1/8W
R8311

R8312

Size

xx

Rev

称爹

LED44

Q8204
AOD450

LED55

Q8205
AOD450

LED11

Q8201
AOD450

LED22

Q8202
AOD450

LED33

Q8203
AOD450

R8241

100R 1/8W 5%

C8241

1N 50V

DIM

R8240

C8240

1N 50V

PWM

Q8310
PMBT3904

Q8308
PMBT3904

R8236
100 OHM 1/4W

C8236

1N 50V

R8237
100 OHM 1/4W

C8237

1N 50V

PWM

EN1

45

5. 软体及 EDID 烧录

5.1 软体烧录

一.Mboot升级

1.ISP升级方式

1.1 准备工作：Mstar串口升级工具一套，工具驱动一份。

1.2 安装驱动：

在PC端连接串口工具，进入设备管理器查看，更新Mstar USB Debug Tool A、Mstar USB

Debug Tool B的驱动，将驱动搜索目录定位在提供的Mstar工具驱动所在目录进行更新。

1.3 开始升级

1.3.1 双击打开ISP_Tool.exe工具，进入ISP Tool主界面。

1.3.2 选择主菜单Connect进行连接，能正常识别到芯片型号即连接成功，如图。如果不成功尝

试板卡重新上电，重复此步骤。

1.3.3 选择主菜单Read选项，将路径指向要升级的mboot.bin文件。

1.3.4 然后选择主菜单Auto选项，单击Run进行升级。当右下角显示绿色字体PASS时升级成功。

46

2.工厂菜单升级方式（推荐方式）

2.1 将Mboot.bin文件放在U盘根目录。

2.2 进入TV界面，遥控按键输入source+1147进入工厂菜单(Factory Menu)。

2.3 选择Other Options选项。

2.4 选择Upgrade Mboot。

2.5 选择Confirm 即开始升级Mboot程序。

注:由于出到客户端的软件通常都是烧录了MAC地址和HDCP数据的,所以在客户端遇到需要升级

Mboot的情况,请务必小心。

在软件能正常运行的情况下建议在工厂菜单进行Mboot升级。如果Mboot无法正常运行，需要采用

上面ISP升级方式时，请不要选择Erase Device的All Chip选项，此选项会导致MAC地址和HDCP

数据被擦除。

二.主程序升级

1. AC上电升级方式

1.1 完成烧录mBoot烧录。

1.2 将MstarUpgrade.bin文件放在U盘根目录。

1.3 上电时按住按键板TV/AV键，绿灯慢闪进入升级模式，即可松开按键板,绿灯快闪表示升级成功；

红灯快闪表示升级失败。

注：如果U盘中有以MAC或HDCP命名的文件夹且里面有对应文件时，会一起被升级，此LED灯提

示的是主程序的升级状态。

2.工厂菜单升级方式

2.1 将MstarUpgrade.bin文件放在U盘根目录。

2.2 进入TV界面，遥控按键输入source+1147进入工厂菜单(Factory Menu),

2.3 选择Other Options选项。

2.4 选择Upgrade Main。

2.5 选择Confirm 即开始升级主程序,2S后系统会重启升级模式。

2.6 升级时,可通过遥控LED灯的闪烁判断升级进度:

1）绿灯慢闪,表示升级中.

2）绿灯快闪,表示升级成功.

3）红灯快闪,表示升级失败.

47

3.用户菜单升级方式

3.1 将命名为update_signed.zip的升级包放在U盘的根目录下。

3.2 进入Android系统的“设置”页面。

3.3 选择系统备份升级选项。

3.4 选择系统升级。

3.5 选择本地升级即开始检测U盘进行升级。

4.Boot串口下敲命令升级方式

4.1 将MstarUpgrade.bin文件放在U盘根目录。

4.2 串口连接成功后，上电时按住Enter键进入Boot模式：Mstar＃

4.3 输入命令uup，检测U盘中文件，自动进入USB升级模式。

三、HDCP KEY烧录

1.将HDCP key bin文件放置在新建以HDCP命名的文件夹内；该文件夹放到U 盘的根目录

2.上电时按住按键板CH+键，绿灯慢闪进入升级模式，即可松开按键板，绿灯快闪表示升级成功；

红灯快闪表示升级失败。

四、MAC 地址烧录

1.将MAC bin文件放置在以MAC命名的文件夹内；该文件夹放到U盘根目录。

2.上电时按住按键板CH-键，绿灯慢闪进入升级模式，即可松开按键板，绿灯快闪表示升级成功；

红灯快闪表示升级失败。

五、升级异常处理

目前发现的升级异常主要集中在操作方法不对或U盘兼容性方面。确认操作方式正确后，如果仍有

问题可以尝试下面方法：

1.如出现无法升级的问题，请检查U盘格式，USB升级目前验证只支持FAT32格式，不支持NTFS

和FAT等文件格式。

2.对U盘进行格式化。

3.更换U盘。

5.2 EDID 烧录

此机种 EDID 数据包含于 flash 软体中，无需进行单独的 EDID 烧录。

48

6. 故障处理流程

无法启动

（

红色）

检测按键板及 LED 灯

检测电源板 CN9100 的 PIN15/16 是否有 5V 电压输出(50 寸)

检测电源板 CN9101 的 PIN15/16 是否有 5V 电压输出(58 寸)

更换按键板

无电（LED 不亮）

检测插座是否有电或硬开关是否打开

有

有

LED

无

重插电源插座或开启硬开关

无

更换电源板

检测电源板 CN9100 的 PIN11/12/13/14 是否有 12V 电压输出(50 寸)

检测电源板 CN9101 的 PIN11/12/13/14 是否有 12V 电压输出(58 寸)

更换按键板

有

检测按键板的POWER键是否失灵

是

检测按键板的红外接收器是否失灵

更换红外接收器

无

否

是

更换电源板

否

更换主板

49

彩条、水波纹、画抖、画闪、

鬼影、残影、拖影等干扰

检测附近是否有干扰源

是 否

排除干扰源

先更换主板

检测是否OK

否

更换Panel

检测信号线

是否良好

是 否

检测信号源出
信号是否正常

是 否

更换信号线

重新设置

信号源

画异

TV画面雪花点、重

影、细线、条纹干扰

检测TV信号线

是否接触不良

是

重新连接

TV信号线

排除干扰源 用场强仪检测信号强度

否

检测附近是否
有高频干扰源

是 否

是否在45-100db之间，

65db左右为最佳值

是

更换主板

间歇性画异加温
画异冷开机画异

检测软体版本是
否需要更新

是 否

升级软体

检测是否OK

否

太弱：加装信号放大器
太强：减少信号放大器

或加装信号衰减器

先更换主板

否

取回站内
加温检测

50

检测TV是否被静音，调整音量大小，

或进入菜单进行复位看是否OK

检测主板到喇叭的连接线是否断路

更换连接线

检测此频道是否发生频
偏，尤其是使用卫星信号

是

建议客户重新

设置信号源

无声或声音异常

检测信号源音频接口是否正确，或TV制式是否为DK制

是

否

是

否

检测喇叭阻抗是否变质

（喇叭阻抗值标在喇叭上）

是

否

更换喇叭 更换主板

收不到台或收台不全

是 否

检测软体版本是否需要更新

升级软体

用场强仪检测信号强度是否在
45-100db之间，65db左右为最佳

是

用别的TV测试是否能收到此台

是

和客户说明当地TV信号未转播此台

否

更换主板

否

重插音频接口或设置TV制式

否

太弱：加装信号放大器
太强：减少信号放大器或加装信号衰减

否

51

更换喇叭 主板功放异常

重新安置或更换电池

喇叭异响

（破音，滋滋声）

检测喇叭是否变质

是 否

更换主板

遥控失灵

检查遥控器电池是否未安置好或没电

是 否

更换遥控器

异响

用别的遥控器测试是否可用

是 否

检测按键板是否异常

是

更换按键板

电源板，PANEL异响

更换电源板/PANEL

否

更换主板

52

OSD 不稳定或无法正常工作

按键板连接正常吗？

否

接好按键板

是

按键正常吗？

是

按键板有无故障？

是

检查主板

否

否

更换按键

更换按键板

53

7. 主要 IC 管脚及内部框图

SSC9522S-TL

Pin Connections

Block Diagram

54

PF7700A S
Pin Description

Block Diagram

55

SSC2S110
Pin Description

Block Diagram

56

TPV101D

Pin Connections

Block Diagram

57

8. BOM

注意：以下初始版本 BOM 信息仅供维修参考，不作为下单依据，如有变更，恕不另行通知，请以 RSPL
或 Service BOM(http://cs.tpv.com.cn) 为准，谢谢！

E50E21NDEMABNNX

点位 组件 对象描述 备注
X15T944620200000YF BKT_CONNECTOR
0M1G 130 5 47 CR3 SCREW
0M1G1030 8 47 CR3 SCREW
0M1G1730 6120 SCREW 3X6
0M1G1730 6120 SCREW 3X6
0M1G1730 8120 SCREW
0M1G1740 8120 SCREW FOR STD/MF 42-D020715/42-D000649()
0Q1G 130 5 47 CR3 SCREW
0Q1G 930 6 47 CR3 SCREW 3X6
0Q1G1030 5120 SCREW

E31701 317GAAMB541CVT MAIN BOARD T.MS608.72 CT501
ECN30 317GAAWA500JSN WLAN ANTENNA IA-130360
SP01 378G0110567CDN 6 OHM 11W 146X34X41.9MM 0 UNIT
ECN18 395G801404DD22 HARNESS 4P PITCH2.0-B&R+B&W 750+300MM
ECN18 395G801404WD22 HARNESS 4P PITCH2.0-B&R+B&W 750+300MM 2nd-source
ECN6 395G801410RC38 HARNESS 10P PITCH2.0-5P PITCH1.25+2P PI
ECN6 395G801410WC38 HARNESS 10P PITCH2.0-5P PITCH1.25+2P PI 2nd-source
ECN2 395G801416RC36 HARNESS 16P PITCH2.0-14P PITCH2.0 400MM
ECN2 395G801416WC36 HARNESS 16P PITCH2.0-14P PITCH2.0 400MM 2nd-source
ECN12 395G801851DC86 LVDS CABLE 51P-40P 600MM 2nd-source
ECN12 395G801851XC86 LVDS CABLE 51P-40P 600MM

708GQA560CPX01 AOC 40(288 CH)
Q52G 1185 99 BIG CARTON TAPE FOR AOC 72MM
Q50G 4 10 TIE (Y1900221)

E750 750TBV500J82H8N000 LCD TPT500J1-LE8 SC1H XM TPV 2nd-source
IRPFDAAK IR BOARD
R204 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R201 061G0603153 JY RST CHIPR 15KOHM 1/10W YAGEO
R202 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R203 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
C201 065G060322515K T CAP 0603 2.2UF 10% 16V X5R
LED201 081G 14 24 EL CHIP LED BLUE/DARK RED
CN201 311GW125D05ACX WAFER 1.25MM 5P V/T S1315-05SVB-S03-R
U201 356GS927057 IR RECEIVER IRM-H938M3/TR2 38 KHZ 6V
E715 715G6077R01000004K IR BOARD PCB
E715 715G6077R01000004S IR BOARD PCB 2nd-source

KEPFDAAM KEY BOARD
Q40G000161520A CARTON LABEL

R02 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R02 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R01 061G06031201FF RST CHIPR 1.2KOHM +-1% 1/10W
R01 061G06031201FT RST CHIP 1K2 1/10W 1%
R05 061G06031502FF RST CHIPR 15KOHM +-1% 1/10W FENGHUA
R05 061G06031502FT RST CHIP 15K 1/10W 1%
R04 061G06032201FT RST CHIP 2K2 1/10W 1%
R04 061G06032201FY RST CHIP 2K2 1/10W 1%
R03 061G06036801FF RST CHIPR 6.8KOHM +-1% 1/10W FENGHUA
R03 061G06036801FT RST CHIP 6K8 1/10W 1%

58

CN01 311GW125D02ADX WAFER 1.25MM 2P R/A S1315-02RVB-S03-K
SW01 377G060902B0CJ CHIP TACT SW 6P 6MM 160G SMD
SW01 377G060902B0HJ CHIP TACT SW 6P 6MM 160G SMD
709T63160XS001 COMSUMPTIVE ASSY
E715 715G6316K01000004I KEY BOARD PCB
E715 715G6316K01000004S KEY BOARD PCB 2nd-source
E750 LVM500J1PE8AC62A0X TPT500J1-LE8 SC1H

P33E0667ALDZ1C0100 DECO_BEZEL
P33E0676XJT01R0100 BUTTON
P34E21110GM04K0100 REAR_COVER TV50W-14D-PH13B-PH15 NA NA
PLTVEY751XXZ3 POWER BOARD
Z40G0002ALL01A OTHER LABEL

CN8101 033G380212B YH WAFER 12P 2.0 DIP
IC9401 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4
IC8102 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4
IC9102 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4
Q8101 057G 667929 MOSFET AOTF8N50 8A 500V TO-220FP
Q8102 057G 667929 MOSFET AOTF8N50 8A 500V TO-220FP
R9808 061G3SWJ70759B SY RST WD 0.07R 5% 3W
C9906 063G107M47410M CAP X2 470NF 20% 275V R46KI3470HAP1M
C9905 063G107M47410M CAP X2 470NF 20% 275V R46KI3470HAP1M
C8102 067G515Z10110K EC 100UF 20% 160V 12.5*30 5000 HR -- -
FB9902 071G 55 21 H1 BEAD 6.0*10 700R 25% BF-I60100R-706B
FB9901 071G 55 21 H1 BEAD 6.0*10 700R 25% BF-I60100R-706B
FB9902 071G 55 21 S1 BEAD 6.0*10 700R 25% LG-LB0610-00211
FB9901 071G 55 21 S1 BEAD 6.0*10 700R 25% LG-LB0610-00211
CN9902 087G 50147D HC HF HF AC SOKET R/A 2P 12DEGREE H=12.8
D9801 093G 50460519 BRIDGE KBP206G X0 2A 800V KBP 80A
CN9902-1 0Q1G 340 8140 SCREW Q1-SELF TAPING SCREW :Q X8.0
CN9100 311GW200C16BBX ONN 2.0MM 16P R/A W2010-16RVA-S04,B200
IC8105 356G0700008060 LED DRIVER TPV101D DIP-8
IC8103 356G0700008060 LED DRIVER TPV101D DIP-8
RV9901 361G0046621KZE VARISTOR 620V 10%
NR9902 361G0058159MYX008A NTCR 1.5R 20% 3.6W 1.5D2-15MCSF
NR9901 361G0058159MYX008A NTCR 1.5R 20% 3.6W 1.5D2-15MCSF
R9808 361G3SWJ70759B00TZ RST WD 0.07R 5% 3W NKNP3WS0R07JMS10
C9805 363G210J105GHP CAP MPP 1UF 5% 450V
C8113 363G211J2235HE CAP MPP 22NF 5% 1KV 18*5*10.5 B32652A02
C9814 367G215X680PKZ000S EC 68UF 20% 450V 12.5*50 2000 HR 620MA -
C9815 367G215X680PKZ000S EC 68UF 20% 450V 12.5*50 2000 HR 620MA -
L9801 373G0174312H00 PFC CHOKE 240UH 8% 2A GL-13224 HA
L9801 373G0174312X00 PFC CHOKE 240UH 8% 1.5A -
L9901 373G0174314H00 LINE FILTER 12MH MIN 1.5 -
L9902 373G0174314H00 LINE FILTER 12MH MIN 1.5 -
L9902 373G0174314X00 LINE FILTER 12MH MIN 1.5A 3LFT18106-123
L9901 373G0174314X00 LINE FILTER 12MH MIN 1.5A 3LFT18106-123
L9100 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A
L8101 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A
L9101 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A
L9100 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A
L8101 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A
L9101 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A
T9101 380GL32P141H00 X'FMR 360U 10% 5U ER31 BCK-13122-HA
T9101 380GL32P141N00 X'FMR 360UH 10% 5UH ER31 -

59

T8101 380GL52P176H00 X'FMR 900UH 12% 150UH EE39 BCK-13920-H
T8101 380GL52P176YS0 X'FMR 900UH 12% 150UH EE39 YS04160710
705TXD57111 Q9100 ASSY
Q9100 057G 667931 MOSFET AOTF8N65 8A 650V TO-220FP
0M1G1730 8120 SCREW
HQ9100 Q90G0219 4 HEAT SINK ÐͲÄ/PROFILE

705TXD57112 Q9102 ASSY
0M1G1730 8120 SCREW

Q9102 357G0600100020 MOSFET AOTF298L 33A 100V TO-220F
HQ9102 Q90G0219 4 HEAT SINK ÐͲÄ/PROFILE
705TXD57113 Q9801 ASSY
Q9801 057G 667A04 MOSFET STF24NM60N 17A 600V 30W TO-220FP
D9802 093G 52905 DIODE FMNS-1106S TO-220
0M1G1730 8120 SCREW
HS9801 Q90T0236002A0000HG HEAT SINK
705TXD93114 D8106 D8102 ASSY
D8106 093G 220 24 DIODE FMX-23S SANKEN
D8102 093G 220 24 DIODE FMX-23S SANKEN
0M1G1730 8120 SCREW
HS8102 Q90T0237 1 HEAT SINK

705TXE93002 BD9901 ASS"Y
0M1G1730 8120 SCREW

BD9901 393G0050460A06 BRIDGE TS10K80-02 10A 800V KBJ
HS9901 Q90T0222007A0000HG HEAT SINK
IC8104 056G 158501 IC AS431AN-E1 SOT23
IC8106 056G 158501 IC AS431AN-E1 SOT23
IC8301 056G 158501 IC AS431AN-E1 SOT23
IC9103 056G 158501 IC AS431AN-E1 SOT23
IC8101 056G 379211 AC/DC SSC9522S-TL SOP-18
Q8301 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q8303 057G 417907 T TRA PMBT3906 PNP -200MA/-40V SOT-23
Q8104 057G 417907 T TRA PMBT3906 PNP -200MA/-40V SOT-23
Q9402 057G 417907 T TRA PMBT3906 PNP -200MA/-40V SOT-23
Q8302 057G 417907 T TRA PMBT3906 PNP -200MA/-40V SOT-23
R9128 061G0805000 JT RST 0805 0.05R MAX 1/8W
R8301 061G0805000 JT RST 0805 0.05R MAX 1/8W
R8132 061G0805000 JT RST 0805 0.05R MAX 1/8W
R8151 061G0805000 JT RST 0805 0.05R MAX 1/8W
R9166 061G0805000 JT RST 0805 0.05R MAX 1/8W
R8139 061G0805000 JT RST 0805 0.05R MAX 1/8W
R8112 061G0805100 JI RST 0805 10R 5% 1/8W TA-I
R8105 061G0805100 JI RST 0805 10R 5% 1/8W TA-I
R8104 061G0805100 JI RST 0805 10R 5% 1/8W TA-I
R9104 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN
R9802 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN
R9121 061G08051001FT RST CHIP 1K 1/8W 1%
R8306 061G08051001FT RST CHIP 1K 1/8W 1%
R8303 061G08051001FT RST CHIP 1K 1/8W 1%
R8311 061G08051001FT RST CHIP 1K 1/8W 1%
R9406 061G08051002FT RST CHIP 10K 1/8W 1%
R8113 061G08051002FY RST CHIP 10K 1/8W 1%
R8108 061G08051002FY RST CHIP 10K 1/8W 1%
R9402 061G08051003FT RST CHIP 100K 1/8W 1%
R9107 061G0805103 JT RST 0805 10K 5% 1/8W

60

R9806 061G0805103 JT RST 0805 10K 5% 1/8W
R9116 061G08051200FT RST CHIP 120R 1/8W 1%
R9119 061G08051501FT RST CHIPR 1K5 +-1% 1/8W TZAI YAUN
R9818 061G08051602FI RST 0805 16K 1% 1/8W
R8110 061G08051802FY RST CHIP 18K 1/8W 1%
R8302 061G08052001FT RST CHIP 2K 1/8W 1%
R8120 061G08052200FT RST 0805 220R 1% 1/8W TZAI YUAN
R9115 061G08052201FT CHIP 2K2 1/8W 1%
R9812 061G08052202FT RST CHIP 22K 1/8W 1%
R8310 061G08052491FT RST CHIP 2K49 1/8W 1%
R9813 061G0805273 JT RST CHIP 27K 1/8W 5% TZAI YUAN
R8166 061G08053301FT RST CHIP 3K3 1/8W 1%
R9814 061G08053302FT RST CHIP 33K 1/8W 1%
R8133 061G08053303FT RST CHIP 330K 1% 1/8W
R8168 061G08054302FT RST CHIP 43K 1/8W 1%
R8130 061G08054702FT RST CHIP 47K 1/8W 1%
R9823 061G08054703FT RST 0805 470K 1% 1/8W TAIZYUAN
R8116 061G0805471 JI RST 0805 470R 5% 1/8W
R9118 061G0805472 JT RST CHIPR 4K7 +-5% 1/8W TZAI YUAN
R8165 061G08055100FT RST CHIP R 510 OHM +-1% 1/8W
R8305 061G08055101FT RST CHIP 5K1 1/8W 1%
R8307 061G08055101FT RST CHIP 5K1 1/8W 1%
R8169 061G08055101FT RST CHIP 5K1 1/8W 1%
R9408 061G08055103FT RST CHIP 510K OHM 1/8W 1% TZAI YUAN
R8172 061G08055103FT RST CHIP 510K OHM 1/8W 1% TZAI YUAN
R8138 061G08056202FT RST CHIP 62K 1/8W 1%
R9106 061G08056209FT RST 0805 62R 1% 1/8W
R8127 061G08057503FT RST 0805 750K 1% 1/8W
R9803 061G0805820 JY RST CHIP R 82OHM 1/8W +/-5% YAGEO
R8111 061G0805820 JY RST CHIP R 82OHM 1/8W +/-5% YAGEO
R8106 061G0805820 JY RST CHIP R 82OHM 1/8W +/-5% YAGEO
R8129 061G08058202FT RST CHIPR 82K +-1% 1/8W TZAI YUAN
R9120 061G08059101FT RST CHIP 9K1 1/8W 1%
JR904 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR906 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R8149 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR903 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR901 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR905 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R9126 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
R8304 061G12061001FT RST CHIP R 1KOHM +-1% 1/4W
R8126 061G12061001FT RST CHIP R 1KOHM +-1% 1/4W
R9405 061G12061002FT RST CHIPR 10KOHM +-1% 1/4W 1206
R9815 061G12061003FY RST CHIPR 100KOHM +-1% 1/4W YAGEO
R9804 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W
R8171 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W
R9407 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R9122 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
R9404 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
R8131 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
R8154 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R8109 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R8155 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R8103 061G12061504FI RST 1206 1.5M 1% 1/4W

61

R8107 061G12061504FI RST 1206 1.5M 1% 1/4W
R8102 061G12061504FI RST 1206 1.5M 1% 1/4W
R8134 061G12061508FT RST 1206 1.5R 1% 1/4W
R8140 061G12061508FT RST 1206 1.5R 1% 1/4W
R8170 061G12062002FF RST CHIPR 20K OHM +-1% 1/4W FENGHUA
R8135 061G12062008FT RST CHIP 2 OHM +-1% 1/4W 1206
R8142 061G12062008FT RST CHIP 2 OHM +-1% 1/4W 1206
R8141 061G12062008FT RST CHIP 2 OHM +-1% 1/4W 1206
R8136 061G12062008FT RST CHIP 2 OHM +-1% 1/4W 1206
R9403 061G1206202 JT RST CHIP R 2KOHM 1/4W +/-5%
R8128 061G1206203 JT RST CHIPR 20KOHM +-5% 1/4W TZAI YUAN
R9124 061G12062202FT RST 1206 22K 1% 1/4W TZAI YUAN
R9109 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN
R9110 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN
R9133 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN
R9134 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN
R9108 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN
R9132 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN
R8309 061G12063002FT RST 1206 30K 1% 1/4W
R9401 061G1206302 JT RST CHIP 3K 5% 1/4W
R9112 061G1206339 JT RST CHIPR 3.3 OHM +-5% 1/4W TZAI YUAN
R9810 061G1206470 JT RST CHIPR 47 OHM +-5% 1/4W TZAI YUAN
R8167 061G12064702FT RST CHIPR 47 KOHM +-1% 1/4W TZAI YUAN
R8125 061G1206471 JI RST 470 OHM 5% 1/4W TA-I
R9103 061G1206471 JT ST CHIPR 470 OHM +-5% 1/4W TZAI YUAN
R9125 061G1206479 JT RST 1206 4.7R 5% 1/4W
R8124 061G12065103FT RST CHIPR 510 KOHM +-1% 1/4W TZAI YUAN
R9117 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN
R9123 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN
R9905 061G1206514 JT RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN
R9906 061G1206514 JT RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN
R9904 061G1206514 JT RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN
R9901 061G1206514 JT RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN
R9903 061G1206514 JT RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN
R9902 061G1206514 JT RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN
R8308 061G12066202FT RST 1206 62K 1/4W 1% TZAI YUAN
R8143 061G12066208FT RST 1206 6R2 1% 1/4W
R8137 061G12066208FT RST 1206 6R2 1% 1/4W
R9807 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA
R9809 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA
C9133 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5%
C9131 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5%
C9811 065G080510231J M CAP 0805 1NF 5% 50V NP0
C9115 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C9137 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C9136 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C8112 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C8114 065G080510332K F CAP 0805 10NF K 50V X7R
C9802 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10%
C9804 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10%
C9402 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8129 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9806 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9130 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

62

C8109 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8128 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9139 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8101 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9138 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8119 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8125 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8130 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8301 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9132 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8140 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8302 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8104 065G080510522K M AP 0805 1UF 10% 25V X7R
C8120 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9110 065G080510532K M CAP 0805 1UF 10% 50V X7R
C8138 065G080510532K M CAP 0805 1UF 10% 50V X7R
C8106 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9134 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9121 065G080510532K M CAP 0805 1UF 10% 50V X7R
C8126 065G080510532K M CAP 0805 1UF 10% 50V X7R
C8136 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9141 065G080510532K M CAP 0805 1UF 10% 50V X7R
C8120 065G080510532K T CAP 0805 1UF 10% 50V X7R
C9110 065G080510532K T CAP 0805 1UF 10% 50V X7R
C8138 065G080510532K T CAP 0805 1UF 10% 50V X7R
C8106 065G080510532K T CAP 0805 1UF 10% 50V X7R
C9134 065G080510532K T CAP 0805 1UF 10% 50V X7R
C9121 065G080510532K T CAP 0805 1UF 10% 50V X7R
C8126 065G080510532K T CAP 0805 1UF 10% 50V X7R
C8136 065G080510532K T CAP 0805 1UF 10% 50V X7R
C9141 065G080510532K T CAP 0805 1UF 10% 50V X7R
C9118 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%
C9810 065G080522522K M CAP 0805 2.2UF 10% 25V X7R
C9807 065G080533232K F CAP 0805 3.3NF 10% 50V X7R
C8133 065G080547031J Y AP CHIP 0805 47P 50V NP0 +/-5%
C9102 065G080547131J Y CAP CHIP 0805 470P 50V NPO +/-5%
C9103 065G080547232K Y CAP CHIP 0805 4N7 50V X7R +/-10%
C8117 065G080547232K Y CAP CHIP 0805 4N7 50V X7R +/-10%
C8139 065G080547432K M CAP 0805 470NF 10% 50V X7R
C9809 065G080547432K M CAP 0805 470NF 10% 50V X7R
C8118 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R
C8123 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R
C8110 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R
C8116 065G0805475A2K T CAP CHIP 0805 4.7UF K 10V X7R
C8111 065G080556131J Y CAP CHIP 0805 560P 50V NP0 +/-5%
C8131 065G120610272K Y CAP 1206 1NF 10% 500V X7R
C9142 065G120610532K M AP CHIP 1206 1UF K 50V X7R
D9106 093G 60S 15 T SCHOTTKY RB160M 60 TR 1A 60V SOD-123
D9803 093G 60S 15 T SCHOTTKY RB160M 60 TR 1A 60V SOD-123
IC9801 356G0379008232 PFC SSC-2005S SOP-8
IC9100 356G0379213 AC/DC SSC2S110 SOP-8
IC9104 356GD563008152000Z DC/DC SP6018S8RGB 1A 16V SOP-8
Q9401 357G0761A0100T SMALLTRAN BTC4672M3 5A 50V 0.6W SOT-89
Q9403 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V

63

Q8105 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V
D8110 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123
D9401 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123
D9103 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123
ZD9801 393G039S95400T00HF ZENER BZT52-B3V6_R1_00001 3.6V 0.41W SOD
ZD8102 393G039SA1200T ZENER BZT52-B22 22V 0.41W SOD-123 150C
ZD8104 393G039SA1200T ZENER BZT52-B22 22V 0.41W SOD-123 150C
ZD9101 393G039SA1300T ZENER BZT52-B39_R1_00001 39V 0.41W
ZD9102 393G039SA1300T ZENER BZT52-B39_R1_00001 39V 0.41W
ZD9401 393G039SA1400T ZENER BZT52-B16_R1_00001 16V 0.41W
ZD8103 393G039SA1400T ZENER BZT52-B16_R1_00001 16V 0.41W
ZD9106 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123
ZD8101 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123
ZD8105 393G039SA3500T ZENER BZT52-B33 33V(TYPE) 410MW SOD-123
D8109 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
D8107 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
D8301 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
D8108 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
D8103 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
D9108 393G060SA0700T SCHOTTKY MB810 8A 100V SMC
T9101 006G 31 4 1.7MM RIVET
NR9901 006G 31 4 1.7MM RIVET
NR9902 006G 31 4 1.7MM RIVET
CN9902 006G 31500 EYELET
040G 45762420A LABEL 25X6MM
R8101 061G 1SJ10852T SY RST WD 0.1R 5% 1W
R9147 061G152M82352T SY RST MOFR 82KOHM +-5% 2WS FUTABA
C8107 065G 1K101 2T6921 CAP CER 100PF 1KV K Y5P
C8134 065G 1K1019ST CAP CER 100PF 10% 1KV R
C9113 065G 1K10293T CAP CER 1NF 10% 1KV R
C8100 065G 1K10293T CAP CER 1NF 10% 1KV R
C9120 065G 1K22293S CAP CER 2.2NF 10% 1KV R TAPING
C9914 065G306K22123R CAP Y1 220PF 10% 250V Y5P
C9911 065G306K22123R CAP Y1 220PF 10% 250V Y5P
C9913 065G306K22123R CAP Y1 220PF 10% 250V Y5P
C9910 065G306K22123R CAP Y1 220PF 10% 250V Y5P
C9912 065G306K47123R CAP Y1 470PF 10% 250V Y5P
C9803 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000 HR
C9401 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000 HR
C9101 067G 3154707KT EC 47UF 20% 50V ER1H470MPN1007RU
C9108 067G 5154714KT EC 470UF 20% 25V 10*12 5000 HR 1.33A -
C9109 067G 5154714KT EC 470UF 20% 25V 10*12 5000 HR 1.33A -
C9105 067G 5154714KT EC 470UF 20% 25V 10*12 5000 HR 1.33A -
C9104 067G 5154714KT EC 470UF 20% 25V 10*12 5000 HR 1.33A -
C9107 067G 5154714KT EC 470UF 20% 25V 10*12 5000 HR 1.33A -
C9106 067G 5154714KT EC 470UF 20% 25V 10*12 5000 HR 1.33A -
C9112 067G 5154714KT EC 470UF 20% 25V 10*12 5000 HR 1.33A -
C8108 067G315M2207KB EC 22UF 20% 50V 6.3*7 3000 HR
FB9803 071G 55 23 BEAD 3.5*7.5*0.8 100R 25% GBQM4.777.571
FB9805 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-796
FB9904 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-796
FB9100 071G 55 29 FERRITE BEAD
FB9903 071G 55 29 FERRITE BEAD
FB9103 071G 55 29 FERRITE BEAD

64

D8101 093G 52908 RECTIFIER UF4007 A0 1 1000 DO-41
D9104 093G 60953 SCHOTTKY FR107G-A0 1A 1000V DO-41
D9102 093G1080 252T RECTIFIER SARS01-V1 1.2A 800V DO-41
J925 095G 90 23 JUMP WIRE - -
J938 095G 90 23 JUMP WIRE - -
J937 095G 90 23 JUMP WIRE - -
J915 095G 90 23 JUMP WIRE - -
J914 095G 90 23 JUMP WIRE - -
J923 095G 90 23 JUMP WIRE - -
J936 095G 90 23 JUMP WIRE - -
J934 095G 90 23 JUMP WIRE - -
J903 095G 90 23 JUMP WIRE - -
J904 095G 90 23 JUMP WIRE - -
J935 095G 90 23 JUMP WIRE - -
J928 095G 90 23 JUMP WIRE - -
J916 095G 90 23 JUMP WIRE - -
J932 095G 90 23 JUMP WIRE - -
J920 095G 90 23 JUMP WIRE - -
J907 095G 90 23 JUMP WIRE - -
J929 095G 90 23 JUMP WIRE - -
J926 095G 90 23 JUMP WIRE - -
J902 095G 90 23 JUMP WIRE - -
FB8101 095G 90 23 JUMP WIRE - -
J909 095G 90 23 JUMP WIRE - -
J901 095G 90 23 JUMP WIRE - -
J913 095G 90 23 JUMP WIRE - -
J930 095G 90 23 JUMP WIRE - -
J921 095G 90 23 JUMP WIRE - -
J924 095G 90 23 JUMP WIRE - -
J939 095G 90 23 JUMP WIRE - -
J919 095G 90 23 JUMP WIRE - -
J912 095G 90 23 JUMP WIRE - -
J941 095G 90 23 JUMP WIRE - -
J927 095G 90 23 JUMP WIRE - -
J922 095G 90 23 JUMP WIRE - -
J940 095G 90 23 JUMP WIRE - -
J931 095G 90 23 JUMP WIRE - -
J933 095G 90 23 JUMP WIRE - -
R9142 361G152M22052T00SY RST MOF 22R 5% 2W RSS02J22R0A520NH
R9142 361G152M22052T00TZ RST MOF 22R 5% 2W MOF2WS22RJT52
R9147 361G152M82352T00TZ RST MOF 82K 5% 2W MOF2WS82KJT52
R9111 361G2SWJ36852T00SY RST NWR 0.36OHM 5% 2W NWS02JR360A520NH
C8105 365G001J1006ST CAP CER 10PF 5% 1KV 8SL100J102N56G
C9818 365G001J4706ST CAP CER 47PF 5% 1KV SL 8SL470J102N56G
C9903 365G306J47063R CAP Y1 47PF 5% 250V SL CD45SL2GA470JDSKA
C9904 365G306J47063R CAP Y1 47PF 5% 250V SL CD45SL2GA470JDSKA
C8124 367G415X270LKT EC 27UF 20% 200V 12.5*12 4000 HR 270MA L
F9901 384G005600506C FUSE 5A 250V MST 5A 250V(H)
E715 715G6439P01000002M POWER BOARD PCB
HS8105 X90G070710100000BF HEAT SINK
HS8103 X90G070710100000BF HEAT SINK

Q02G707105000100XL BOLT
Q11G701100500100JY PCB-SUPPORT
Q36T 600 28 11 GP FIBER PLATE

65

Q36T 600 31 4 NONWOVEN FABRIC
Q36T 600 35 3 GP NONWOVEN FABRIC
Q40G000162492A CEL LABEL FOR TV MODEL G3/1.3/0.5
Q44T3231 21 11 EVA WASHER
Q45G88010TV08500WN PROTECT BAG
Q45G99010TV07200WN PROTECT BAG
Q52G100204000A00JY AL FOIL
Q52G130118600000YY TAPE
Q52G15010TV0070WXW TAPE_INSULATING
Q52G1501150523AWBK TAPE_INSULATING
Q52G160119100A00YY TAPE
Q52G18010TV16200HK INSULATING SHEET
Q52G18010TV17200HK INSULATING SHEET
X15T915020200000AJ BKT_HOLDER
X15T939810200000AJ BKT_HOLDER
X15T9442102000GMYF BKT_IO
X15T9443101000GMYF BKT_IO
X15T944810100000Z1 BKT_STAND
X15T944910100000Z1 BKT_STAND
X16G000202003800ZA GASKET
X20T8081001000YSXL DIE-CASTING_BRACKET_L
X20T8082001000YSXL DIE-CASTING_BRACKET_R
X40G2013040X1701ZA LABEL IO
X40G2013040X1801ZA LABEL IO
X44GQA561010SY
X44GQA562010SY
X44GQA56301EPE
X44GQA5661501A ARTWORK CARTON LE50D6660/80
X52G18010TV23800HK INSULATING SHEET

E08991 089G 17356CY01 RCA CABLE 100
E08901 089G214A15N JR AC POWER CORD 1500 FOR CHINA
0M1G1740 18120 RA SCREW
E39201 392GB1JA1A3E2C BATTERY 1.5V 2P LR03(KA)2S/G
E39801 398GRABD4NCACT REMOTE AOC YKF322-002 CHINESE

Q45G88010TV08900X1 PROTECT BAG
X41G50MV61506A MANUAL 6660 SERIES
X41G78DV61501F WARRANTY CARD AOC
040G 58162435A MANUAL P/N LABEL
Q40G 581689 4B SN LABEL(58X35MM)
X40G0001624 2A LABEL FOR SCREW PE BAG
X40G000162413A CARTON LABEL
X40G050061509A RATING LABEL FOR LE50D6660/80 CTA
Z40G0002ALL01A OTHER LABEL

CUSHION-T N/A 不分区域(全球
CUSHION-B N/A 不分区域(全球
CUSHION-FRONT N/A 不分区域(全

66

E58EM1NDESABNNX

点位 组件 对象描述 备注
085T 583103 GASKET
0M1G 130 6 47 CR3 SCREW 3X6
0M1G 130 8 47 CR3 SCREW 3X8
0M1G 130 10 47 CR3 SCREW
0M1G 940 8 47 CR3 SCREW 4X8
0M1G 940 8120 SCREW
0M1G1730 6120 SCREW 3X6
0M1G1730 8120 SCREW
0M1G1740 8120 SCREW FOR STD/MF 42-D020715/42-D000649()
0Q1G 930 6 47 CR3 SCREW 3X6

E31701 317GAAMB537CVT MAIN BOARD T.MS608.72 CT581
ECN30 317GAAWA500JSN WLAN ANTENNA IA-130360
SP01 378G0110567CDN 6 OHM 11W 146X34X41.9MM 0 UNIT
ECN01 395G801402RC01 HARNESS 2P PITCH2.0-2P PITCH1.25 200MM
ECN01 395G801402WC01 HARNESS 2P PITCH2.0-2P PITCH1.25 200MM 2nd-source
ECN18 395G801404WC91 HARNESS 4P PITCH2.0-B&R+B&W 900+400MM 2nd-source
ECN18 395G801404XC91 HARNESS 4P PITCH2.0-B&R+B&W 900+400MM
ECN6 395G801410RC24 HARNESS 10P PITCH2.0-5P PITCH1.25+2P PI
ECN6 395G801410XC24 HARNESS 10P PITCH2.0-5P PITCH1.25+2P PI 2nd-source
ECN8102 395G801412MY57 HARNESS 12P-12P 1000
ECN8102 395G801412RY57 HARNESS 12P-12P 1000 2nd-source
ECN9102 395G801414RC41 HARNESS 14P PITCH2.0-14P PITCH2.0 400MM 2nd-source
ECN9102 395G801414XC41 HARNESS 14P PITCH2.0-14P PITCH2.0 400MM
ECN2 395G801416RC43 HARNESS 16P PITCH2.0-14P PITCH2.0 800MM
ECN2 395G801416XC43 HARNESS 16P PITCH2.0-14P PITCH2.0 800MM 2nd-source
ECN12 395G801851DC86 LVDS CABLE 51P-40P 600MM 2nd-source
ECN12 395G801851XC86 LVDS CABLE 51P-40P 600MM

708GWA110CPX01 AOC 40(176 CH)
Q45G 77 5 PE PACKING
Q50G 4 10 TIE (Y1900221)
Q52G 1185 99 BIG CARTON TAPE FOR AOC 72MM
Q50G060046502A00BL PACKAGE_BUCKLE
E750 750TBN580J1L23N000 LCD V580HJ1-LD6 C2 NH CMI
ADTVE6020XA1 POWER BOARD
Z40G0002ALL01A OTHER LABEL

CN9102 033G380214B YH WAFER 2.0MM 14P W2015-14RVA-S01
IC9304 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4
IC9102 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4
IC9104 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4
Q9105 057G 667914 MOSFET TK10A50D 10A 500V TO-220
Q9106 057G 667914 MOSFET TK10A50D 10A 500V TO-220
R9808 061G153M10859B SY RST MOF 0.1R 5% 3WS PITCH=20MM
FB9902 071G 55906 FERRITE CORE 510R C8B R6H 6X9.2(A)
FB9901 071G 55906 FERRITE CORE 510R C8B R6H 6X9.2(A)
FB9801 071G 55906 FERRITE CORE 510R C8B R6H 6X9.2(A)
L9902 073G 174241 H LINE FILTER 18MH MIN LCL-12019 HA
L9902 073G 174241 X LINE FILTER 18MH MIN EF20 3LFEF2022-303M
L9103 073G 253191 HP CHOKE COIL 1.1UH VOC
CN9901 087G 50147D HC HF HF AC SOKET R/A 2P 12DEGREE H=12.8
D9801 093G 52918 RECTIFIER 1N5408G-04 X0 3A 1000V DO201AD
D9305 093G 60924 SCHOTTKY SR510-22 5A 100V DO-201AD
CN9901-1 0Q1G 340 8140 SCREW Q1-SELF TAPING SCREW :Q X8.0

67

CN9101 311GW200C16BBX ONN 2.0MM 16P R/A W2010-16RVA-S04,B200
RV9901 361G0046681KZE VARISTOR 680V 10%
NR9901 361G0058259MYW006A NTCR 2.5R 20% 3.1W SCK132R56MTY504
NR9902 361G0058259MYW006A NTCR 2.5R 20% 3.1W SCK132R56MTY504
C9906 363G107K474BEC CAP X2 470NF 10% 275V 18*9*13.5 B32922L
C9905 363G107K474BEC CAP X2 470NF 10% 275V 18*9*13.5 B32922L
C9801 363G210K105GZP CAP MPP 1UF 10% 450V
C9111 363G211J2235HA CAP MPP 22NF 5% 1KV 18*5*11 R75QI2220HA0
C9811 367G215X680PKZ000S EC 68UF 20% 450V 12.5*50 2000 HR 620MA -
C9812 367G215X680PKZ000S EC 68UF 20% 450V 12.5*50 2000 HR 620MA -
L9903 373G0174301H00 LINE FILTER 0.25MH MIN 2A LCL-11010 HA
L9903 373G0174301X00 LINE FILTER 0.25MH MIN 2A 3LFT1064-251M
L9901 373G0174303H00 LINE FILTER 18MH MIN 1.26A LCL-11822 HA
L9901 373G0174303X00 LINE FILTER 18MH MIN 1.26 3LFT18106-183
L9801 373G0174308H00 PFC CHOKE 220UH 10% 2A GL-13223 HA
L9301 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A
T9301 380GL32P141H00 X'FMR 360U 10% 5U ER31 BCK-13122-HA
T9101 380GL52P172T00 X'FMR 900ΜH 12% 135ΜH EE4213 SRV
BD9902 393G0050460A10 BRIDGE TS10K80-01 X0 10A 800V X0
705TXC84879 F9901 ASS"Y
F9901-1 084G 34 14 BSE -- -- --
F9901 084G 41 7 FUSE 5A 250V 0215005M LITTELFUSE
F9901 084G 41 7 C FUSE 5A 250V UDA005(PF)
705TXD57122 Q9801 D9802 ASS"Y
Q9801 057G 667954 MOSFET TK18A60V 18A 600V SC-67
Q9801 057G 667A04 MOSFET STF24NM60N 17A 600V 30W TO-220FP
D9802 093G 52905 DIODE FMNS-1106S TO-220
0M1G1730 8120 SCREW
D9802 393G0060A13 RECTIFIER STTH10LCD06FP 600V TO-220FPAC
HS9801 Q90T0236002A0000HG HEAT SINK
705TXD57129 Q9301 ASS"Y
Q9301 057G 667931 MOSFET AOTF8N65 8A 650V TO-220FP
0M1G1730 8120 SCREW
HS9301 Q90G0219 4 HEAT SINK ÐͲÄ/PROFILE

705TXD57130 Q9303 ASS'Y
0M1G1730 8120 SCREW

Q9303 357G0600100020 MOSFET AOTF298L 33A 100V TO-220F
HS9303 Q90T0237 1 HEAT SINK
705TXD93129 D9103 D9104 ASS"Y
D9103 093G 52 57 RECTIFIER FMXA-2202S 20A 200V TO-220F
D9104 093G 52 57 RECTIFIER FMXA-2202S 20A 200V TO-220F
0M1G1730 8120 SCREW
HS9103 Q90T0236002A0000HG HEAT SINK
IC9305 056G 158501 IC AS431AN-E1 SOT23
IC9101 056G 379211 AC/DC SSC9522S-TL SOP-18
Q9103 057G 417517 HF SMALLTRAN LMBT3906LT1G-HF SOT-23
Q9104 057G 417518 HF SMALLTRAN LMBT3904LT1G-HF SOT-23
R9802 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA
R9311 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN
R9109 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN
R9133 061G08051001FT RST CHIP 1K 1/8W 1%
R9137 061G08051001FT RST CHIP 1K 1/8W 1%
R9332 061G08051001FT RST CHIP 1K 1/8W 1%
R9156 061G08051002FT RST CHIP 10K 1/8W 1%

68

R9152 061G08051002FT RST CHIP 10K 1/8W 1%
R9150 061G08051009FT RST CHIP R 10OHM +/-1% 1/8W
R9151 061G08051009FT RST CHIP R 10OHM +/-1% 1/8W
R9810 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R9134 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R9813 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R9806 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R9314 061G0805103 JT RST 0805 10K 5% 1/8W
R9119 061G0805103 JT RST 0805 10K 5% 1/8W
R9341 061G08051200FT RST CHIP 120R 1/8W 1%
R9327 061G08051501FT RST CHIPR 1K5 +-1% 1/8W TZAI YAUN
R9103 061G08051600FT RST 0805 160R 1% 1/8W TZAI YUAN
R9116 061G08051802FY RST CHIP 18K 1/8W 1%
R9811 061G08051912FT RST CHIPR 19K1 +-1% 1/8W TZAI YUAN
R9814 061G0805202 JF RST CHIPR 2KOHM +-5% 1/8W FENGHUA
R9128 061G0805202 JT RST CHIP 2K 1/8W 5% TZAI YUAN
R9136 061G0805202 JT RST CHIP 2K 1/8W 5% TZAI YUAN
R9340 061G08052201FT CHIP 2K2 1/8W 1%
R9127 061G08052202FT RST CHIP 22K 1/8W 1%
R9112 061G0805229 JF RST CHIPR 2R2 +-5% 1/8W FENGHUA
R9120 061G0805242 JF RST CHIPR 2.4KOHM +-5% 1/8W FENGHUA
R9163 061G08052431FT RST CHIP 2K43 1/8W 1%
R9122 061G08052491FT RST CHIP 2K49 1/8W 1%
R9803 061G0805330 JT RST CHIP 33R 1/8W 5% TZAI YUAN
R9148 061G08053602FT RST CHIP 36K 1/8W 1%
R9812 061G0805363 JF ST CHIPR 36KOHM +-5% 1/8W FENGHUA
R9117 061G0805471 JT RST CHIPR 470OHM +-5% 1/8W TZAI YUAN
R9328 061G0805472 JT RST CHIPR 4K7 +-5% 1/8W TZAI YUAN
R9130 061G0805514 JF ST CHIPR 510KOHM +-5% 1/8W FENGHUA
R9118 061G08056201FT RST CHIPR 6.2KOHM +-1% 1/8W TZAI YUAN
R9312 061G08056209FT RST 0805 62R 1% 1/8W
R9154 061G0805820 JY RST CHIP R 82OHM 1/8W +/-5% YAGEO
R9149 061G0805820 JY RST CHIP R 82OHM 1/8W +/-5% YAGEO
R9329 061G08059101FT RST CHIP 9K1 1/8W 1%
JR901 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR904 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR902 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR903 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR906 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR905 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R9308 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
R9807 061G12061004FF E RST CHIP 1M 1% 1/4W 500V FENGHUA
R9804 061G12061004FF E RST CHIP 1M 1% 1/4W 500V FENGHUA
R9809 061G12061004FF E RST CHIP 1M 1% 1/4W 500V FENGHUA
R9132 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R9101 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R9131 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R9129 061G1206102 JF RST CHIPR 1KOHM +-5% 1/4W FENGHUA
R9324 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
R9102 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
R9138 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R9901 061G1206105 JT RST CHIPR 1MOHM +-5% 1/4W TZAI YUAN
R9906 061G1206105 JT RST CHIPR 1MOHM +-5% 1/4W TZAI YUAN
R9309 061G1206109 JT RST CHIPR 1 OHM +-5% 1/4W TZAI YUAN

69

R9114 061G12061504FT RST CHIP 1M5 1/4W 1%
R9115 061G12061504FT RST CHIP 1M5 1/4W 1%
R9113 061G12061504FT RST CHIP 1M5 1/4W 1%
R9323 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
R9315 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
R9320 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
R9322 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
R9319 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
R9316 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
R9805 061G1206203 JF RST CHIPR 20KOHM +-5% 1/4W FENGHUA
R9305 061G12062202FT RST 1206 22K 1% 1/4W TZAI YUAN
R9139 061G1206333 JF RST CHIPR 33KOHM +-5% 1/4W FENGHUA
R9142 061G1206333 JF RST CHIPR 33KOHM +-5% 1/4W FENGHUA
R9141 061G1206333 JF RST CHIPR 33KOHM +-5% 1/4W FENGHUA
R9143 061G1206333 JF RST CHIPR 33KOHM +-5% 1/4W FENGHUA
R9318 061G1206471 JT ST CHIPR 470 OHM +-5% 1/4W TZAI YUAN
R9303 061G1206479 JT RST 1206 4.7R 5% 1/4W
R9310 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN
R9325 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN
R9902 061G1206514 JF E RST CHIP 510K 5% 1/4W 500V FENGHUA
R9904 061G1206514 JF E RST CHIP 510K 5% 1/4W 500V FENGHUA
R9905 061G1206514 JF E RST CHIP 510K 5% 1/4W 500V FENGHUA
R9903 061G1206514 JF E RST CHIP 510K 5% 1/4W 500V FENGHUA
R9105 061G1206561 JT RST CHIPR 560 OHM +-5% 1/4W TZAI YUAN
C9316 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5%
C9315 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5%
C9102 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C9322 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C9101 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C9323 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C9113 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9320 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9318 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9143 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9302 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9806 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9135 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9108 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9314 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9137 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9128 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9119 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9144 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9123 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9145 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9313 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9141 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9312 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9134 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9337 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9337 065G080510532K T CAP 0805 1UF 10% 50V X7R
C9134 065G080510532K T CAP 0805 1UF 10% 50V X7R
C9312 065G080510532K T CAP 0805 1UF 10% 50V X7R
C9141 065G080510532K T CAP 0805 1UF 10% 50V X7R

70

C9313 065G080510532K T CAP 0805 1UF 10% 50V X7R
C9145 065G080510532K T CAP 0805 1UF 10% 50V X7R
C9109 065G080522131J F CAP CHIP 0805 220PF J 50V NPO
C9807 065G080522131J F CAP CHIP 0805 220PF J 50V NPO
C9116 065G080522432K T CAP 0805 220NF 10% 50V X7R UMK212 B7224
C9138 065G080522432K T CAP 0805 220NF 10% 50V X7R UMK212 B7224
C9129 065G080522432K T CAP 0805 220NF 10% 50V X7R UMK212 B7224
C9132 065G080522432K T CAP 0805 220NF 10% 50V X7R UMK212 B7224
C9133 065G080522432K T CAP 0805 220NF 10% 50V X7R UMK212 B7224
C9130 065G080522432K T CAP 0805 220NF 10% 50V X7R UMK212 B7224
C9329 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%
C9804 065G080547031J Y AP CHIP 0805 47P 50V NP0 +/-5%
C9808 065G080547031J Y AP CHIP 0805 47P 50V NP0 +/-5%
C9106 065G080547031J Y AP CHIP 0805 47P 50V NP0 +/-5%
C9324 065G080547131J Y CAP CHIP 0805 470P 50V NPO +/-5%
C9326 065G080547232K A CAP 0805 4.7NF 10% 50V X7R
C9809 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10%
C9810 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R
C9142 065G0805475A2K T CAP CHIP 0805 4.7UF K 10V X7R
C9139 065G080556131J Y CAP CHIP 0805 560P 50V NP0 +/-5%
IC9801 356G0379008218 PFC LD7591T GS SOP-8
IC9301 356G0379213 AC/DC SSC2S110 SOP-8
IC9302 356GD563008152000Z DC/DC SP6018S8RGB 1A 16V SOP-8
Q9101 357G0761A0100T SMALLTRAN BTC4672M3 5A 50V 0.6W SOT-89
Q9102 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V
D9109 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123
ZD9106 393G039SA1200T ZENER BZT52-B22 22V 0.41W SOD-123 150C
ZD9107 393G039SA1200T ZENER BZT52-B22 22V 0.41W SOD-123 150C
ZD9302 393G039SA1300T ZENER BZT52-B39_R1_00001 39V 0.41W
ZD9301 393G039SA1300T ZENER BZT52-B39_R1_00001 39V 0.41W
ZD9105 393G039SA2800T ZENER BZT52-B36 36V -- --
ZD9103 393G039SA2800T ZENER BZT52-B36 36V -- --
ZD9101 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123
D9110 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
D9304 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
D9302 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
D9114 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
D9113 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
D9803 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
D9307 393G060SA0700T SCHOTTKY MB810 8A 100V SMC
T9301 006G 31 4 1.7MM RIVET
CN9901 006G 31500 EYELET
T9101 006G 31500 EYELET
L9901 006G 31502 EYELET
L9902 006G 31502 EYELET
NR9901 006G 31502 EYELET
NR9902 006G 31502 EYELET
IC9103 056G 158 10 T DC/DC AS431AZTR-E1 150MA 40V TO-92
R9301 061G 1SJ10852T SY RST WD 0.1R 5% 1W
C9110 065G 1K101 2T6921 CAP CER 100PF 1KV K Y5P
C9817 065G 1K10193T CAP CER 100PF 10% 1KV R
C9303 065G 1K22293S CAP CER 2.2NF 10% 1KV R TAPING
C9120 065G 1M10333S CAP CER 10NF 20% 1KV Y5U
C9802 065G 1M10333S CAP CER 10NF 20% 1KV Y5U

71

C9301 065G 1M10333S CAP CER 10NF 20% 1KV Y5U
C9902 065G306K1012WR CAP Y1 100PF 10% 250V Y5P CT7-Y1-250V-06
C9907 065G306K1012WR CAP Y1 100PF 10% 250V Y5P CT7-Y1-250V-06
C9908 065G306K2212WR CAP Y1 220PF 10% 250V Y5P CT7-Y1-250V-06
C9325 065G306M10233R CAP Y1 1NF 20% 250V Y5U
C9122 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000 HR
C9319 067G 3154707KT EC 47UF 20% 50V ER1H470MPN1007RU
C9114 067G 5154709KT EC 47UF 20% 100V 10*12
C9121 067G 5154709KT EC 47UF 20% 100V 10*12
C9127 067G 5154709KT EC 47UF 20% 100V 10*12
C9131 067G 5154709KT EC 47UF 20% 100V 10*12
C9117 067G 5154709KT EC 47UF 20% 100V 10*12
C9309 067G 5154714KT EC 470UF 20% 25V 10*12 5000 HR 1.33A -
C9310 067G 5154714KT EC 470UF 20% 25V 10*12 5000 HR 1.33A -
C9308 067G 5154714KT EC 470UF 20% 25V 10*12 5000 HR 1.33A -
C9307 067G 5154714KT EC 470UF 20% 25V 10*12 5000 HR 1.33A -
C9306 067G 5154714KT EC 470UF 20% 25V 10*12 5000 HR 1.33A -
C9304 067G 5154714KT EC 470UF 20% 25V 10*12 5000 HR 1.33A -
C9805 067G315M2207KB EC 22UF 20% 50V 6.3*7 3000 HR
C9124 067G315M2207KB EC 22UF 20% 50V 6.3*7 3000 HR
FB9904 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A
FB9301 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A
FB9102 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A
FB9302 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A
FB9802 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-796
FB9803 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-796
D9102 093G 52908 RECTIFIER UF4007 A0 1 1000 DO-41
D9303 093G 60953 SCHOTTKY FR107G-A0 1A 1000V DO-41
ZD9102 093G 39G 7 ZENER GDZJ15B 15 0.5 DO-35
D9301 093G1080 252T RECTIFIER SARS01-V1 1.2A 800V DO-41
J931 095G 90 23 JUMP WIRE - -
J929 095G 90 23 JUMP WIRE - -
J919 095G 90 23 JUMP WIRE - -
J901 095G 90 23 JUMP WIRE - -
J904 095G 90 23 JUMP WIRE - -
J924 095G 90 23 JUMP WIRE - -
J915 095G 90 23 JUMP WIRE - -
J925 095G 90 23 JUMP WIRE - -
J920 095G 90 23 JUMP WIRE - -
J908 095G 90 23 JUMP WIRE - -
J911 095G 90 23 JUMP WIRE - -
J902 095G 90 23 JUMP WIRE - -
J906 095G 90 23 JUMP WIRE - -
J926 095G 90 23 JUMP WIRE - -
J913 095G 90 23 JUMP WIRE - -
J903 095G 90 23 JUMP WIRE - -
J914 095G 90 23 JUMP WIRE - -
J909 095G 90 23 JUMP WIRE - -
J927 095G 90 23 JUMP WIRE - -
J917 095G 90 23 JUMP WIRE - -
FB9903 095G 90 23 JUMP WIRE - -
J933 095G 90 23 JUMP WIRE - -
J928 095G 90 23 JUMP WIRE - -
J934 095G 90 23 JUMP WIRE - -

72

J907 095G 90 23 JUMP WIRE - -
J932 095G 90 23 JUMP WIRE - -
J921 095G 90 23 JUMP WIRE - -
J922 095G 90 23 JUMP WIRE - -
J930 095G 90 23 JUMP WIRE - -
J923 095G 90 23 JUMP WIRE - -
R9306 361G152M22052T00TZ RST MOF 22R 5% 2W MOF2WS22RJT52
R9302 361G152M82352T00TZ RST MOF 82K 5% 2W MOF2WS82KJT52
R9321 361G2SWJ36852T00SY RST NWR 0.36OHM 5% 2W NWS02JR360A520NH
C9140 365G001D5096WT CAP CER 5PF 0.5PF 1KV SL CC81-1KV-06D-S
C9903 365G306J47063R CAP Y1 47PF 5% 250V SL CD45SL2GA470JDSKA
C9904 365G306J47063R CAP Y1 47PF 5% 250V SL CD45SL2GA470JDSKA
E715 715G6607P01000002M POWER BOARD PCB
HS9901 Q90G6295 3 HEAT SINK
IRPFEXA2 IR BOARD
CN0201 033G8032 5F S HR CONNECTOR
040G 45762420A LABEL 25X6MM
Q001 057G 761516 SMALLTRAN BC847C 0.1 50 SOT-23
Q002 057G 761516 SMALLTRAN BC847C 0.1 50 SOT-23
R005 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R008 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R007 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R003 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R006 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R007 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R005 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R008 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R006 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R003 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R001 061G0402331 JF RST 0402 330R 5% 1/16W
R002 061G0402331 JF RST 0402 330R 5% 1/16W
R002 061G0402331 JT RST CHIP 330R 1/16W 5% TZAI YUAN
R001 061G0402331 JT RST CHIP 330R 1/16W 5% TZAI YUAN
R004 061G0402470 JF RST CHIPR 47 OHM 5% 1/16W FENGHUA
R004 061G0402470 JT RST CHIP 47R 1/16W 5% TZAI YUAN
C0204 065G040210131J A CAP CHIP 0402 100PF J 50V NPO
C0204 065G040210131J Y CAP CHIP 0402 100P 50V NP0 +/-5%
C0202 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C0201 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C0203 065G040210412K A CAP CHIP 0402 100NF K 16V X7R
C0202 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C0201 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C0203 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C0205 065G0603475A5K M CAP 0603 4.7UF 10% 10V X5R GRM188R61A47
C0205 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R
LED001 081G 14 24 GP CHIP LED (BR) GPTD1210BRC-D
U001 356GS927036007 IR RECEIVER IRM-H336M3/TR2 36 KHZ
E715 715G6638R01000004K IR BOARD PCB

KEPFDAAM KEY BOARD
Q40G000161520A CARTON LABEL

R02 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R02 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R01 061G06031201FF RST CHIPR 1.2KOHM +-1% 1/10W
R01 061G06031201FT RST CHIP 1K2 1/10W 1%

73

R05 061G06031502FF RST CHIPR 15KOHM +-1% 1/10W FENGHUA
R05 061G06031502FT RST CHIP 15K 1/10W 1%
R04 061G06032201FT RST CHIP 2K2 1/10W 1%
R04 061G06032201FY RST CHIP 2K2 1/10W 1%
R03 061G06036801FF RST CHIPR 6.8KOHM +-1% 1/10W FENGHUA
R03 061G06036801FT RST CHIP 6K8 1/10W 1%
CN01 311GW125D02ADX WAFER 1.25MM 2P R/A S1315-02RVB-S03-K
SW01 377G060902B0CJ CHIP TACT SW 6P 6MM 160G SMD
SW01 377G060902B0HJ CHIP TACT SW 6P 6MM 160G SMD
709T63160XS001 COMSUMPTIVE ASSY
E715 715G6316K01000004I KEY BOARD PCB
E715 715G6316K01000004S KEY BOARD PCB 2nd-source

LNTVEJA65XXA2 CONVERTER BOARD
Z40G0002ALL01A OTHER LABEL

CN8102 033G380212B YH WAFER 12P 2.0 DIP
CN8101 033G380214B YH WAFER 2.0MM 14P W2015-14RVA-S01
R8116 361G3SWJ30759B00SY RST WD 0.03R 5% 3W NWS03JR030C200NH
C8108 367G215X121MKZ000S EC 120UF 20% 220V 12.5*36 2000 HR 860MA
C8125 367G215X121MKZ000S EC 120UF 20% 220V 12.5*36 2000 HR 860MA
C8112 367G215X121MKZ000S EC 120UF 20% 220V 12.5*36 2000 HR 860MA
L8101 373G0174307H00 BOOST CHOKE 90UH 10% 3A GL-13222 HA
L8102 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A
705TXD57025 Q8101/Q8102/D8102 ASS'Y
D8102 093G 220 24 DIODE FMX-23S SANKEN
0M1G1730 8120 SCREW
Q8102 357G0611500002 MOSFET AOTF22N50 22A 500V TO-220F
HQ8101 Q90T0236 3 HEAT SINK
R8205 061G1206513 JT RST CHIPR 51 KOHM +-5% 1/4W TZAI YUAN
R8318 061G12066201FT RST 1206 6.2K 1% 1/4W
J8146 095G 90 23 JUMP WIRE - -
C8201 067G 5154709KT EC 47UF 20% 100V 10*12
C8204 067G 5154709KT EC 47UF 20% 100V 10*12
C8202 067G 5154709KT EC 47UF 20% 100V 10*12
C8203 067G 5154709KT EC 47UF 20% 100V 10*12
C8205 067G 5154709KT EC 47UF 20% 100V 10*12
C8206 067G 5154709KT EC 47UF 20% 100V 10*12
C8127 067G 5151007KB EC 10UF 20% 50V 5*11 EY
E715 715G6140P02000002M CONVERTER BOARD PCB
FOR L8101 006G 31502 EYELET
J8111 095G 90 23 JUMP WIRE - -
J8135 095G 90 23 JUMP WIRE - -
J8133 095G 90 23 JUMP WIRE - -
J8113 095G 90 23 JUMP WIRE - -
J8104 095G 90 23 JUMP WIRE - -
J8150 095G 90 23 JUMP WIRE - -
J8107 095G 90 23 JUMP WIRE - -
J8134 095G 90 23 JUMP WIRE - -
J8120 095G 90 23 JUMP WIRE - -
J8145 095G 90 23 JUMP WIRE - -
J8149 095G 90 23 JUMP WIRE - -
J8143 095G 90 23 JUMP WIRE - -
J8132 095G 90 23 JUMP WIRE - -
J8119 095G 90 23 JUMP WIRE - -
J8123 095G 90 23 JUMP WIRE - -

74

J8136 095G 90 23 JUMP WIRE - -
J8138 095G 90 23 JUMP WIRE - -
J8116 095G 90 23 JUMP WIRE - -
J8127 095G 90 23 JUMP WIRE - -
J8137 095G 90 23 JUMP WIRE - -
J8130 095G 90 23 JUMP WIRE - -
J8144 095G 90 23 JUMP WIRE - -
J8106 095G 90 23 JUMP WIRE - -
J8115 095G 90 23 JUMP WIRE - -
J8110 095G 90 23 JUMP WIRE - -
J8117 095G 90 23 JUMP WIRE - -
J8148 095G 90 23 JUMP WIRE - -
J8153 095G 90 23 JUMP WIRE - -
J8105 095G 90 23 JUMP WIRE - -
J8118 095G 90 23 JUMP WIRE - -
J8129 095G 90 23 JUMP WIRE - -
J8108 095G 90 23 JUMP WIRE - -
J8147 095G 90 23 JUMP WIRE - -
J8128 095G 90 23 JUMP WIRE - -
J8114 095G 90 23 JUMP WIRE - -
J8121 095G 90 23 JUMP WIRE - -
040G 45762420A LABEL 25X6MM
C8128 067G 5151007KB EC 10UF 20% 50V 5*11 EY
J8109 095G 90 23 JUMP WIRE - -
J8122 095G 90 23 JUMP WIRE - -
J8131 095G 90 23 JUMP WIRE - -
C8581 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8236 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8241 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8584 065G080547432K M CAP 0805 470NF 10% 50V X7R
R8318 061G12066201FF RST 1206 6.2K 1% 1/4W
C8382 065G080547432K M CAP 0805 470NF 10% 50V X7R
C8236 065G080510432K T 0.1UF K 50V X7R TAIYO YUDEN
IC8302 356G0700008052 LED DRIVER PF7700A S SOP-8
C8236 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
Q8205 357G0600200019 MOSFET AOD450 3.8A 200V TO-252
Q8312 057G 417907 T TRA PMBT3906 PNP -200MA/-40V SOT-23
C8241 065G080510432K T 0.1UF K 50V X7R TAIYO YUDEN
R8207 061G1206513 JT RST CHIPR 51 KOHM +-5% 1/4W TZAI YUAN
C8241 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
JR8102 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R8581 361G08051402FT RST 0805 14K 1% 1/8W SMD0805140KT
R8482 361G08051402FT RST 0805 14K 1% 1/8W SMD0805140KT
Q8204 357G0600200019 MOSFET AOD450 3.8A 200V TO-252
C8481 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
IC8401 356G0700008052 LED DRIVER PF7700A S SOP-8
C8240 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
R8123 061G0805103 JT RST 0805 10K 5% 1/8W
C8101 065G120610272K Y CAP 1206 1NF 10% 500V X7R
IC8502 356G0700008052 LED DRIVER PF7700A S SOP-8
IC8301 356G0700008052 LED DRIVER PF7700A S SOP-8
IC8202 356G0700008052 LED DRIVER PF7700A S SOP-8
ZD8101 393G039S96300T00HF ZENER BZT52-B4V7 4.7V 410MW SOD-123
Q8203 357G0600200019 MOSFET AOD450 3.8A 200V TO-252

75

Q8201 357G0600200019 MOSFET AOD450 3.8A 200V TO-252
R8481 361G08051402FT RST 0805 14K 1% 1/8W SMD0805140KT
R8381 361G08051402FT RST 0805 14K 1% 1/8W SMD0805140KT
R8282 361G08051402FT RST 0805 14K 1% 1/8W SMD0805140KT
R8182 361G08051402FT RST 0805 14K 1% 1/8W SMD0805140KT
R8119 061G0805000 JT RST 0805 0.05R MAX 1/8W
R8104 061G0805000 JT RST 0805 0.05R MAX 1/8W
R8120 061G0805000 JT RST 0805 0.05R MAX 1/8W
R8240 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN
R8241 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN
R8118 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN
R8209 061G08056802FT RST CHIP R 68K 1/8W 1%
Q8103 057G 417526 SMALLTRAN MMBT3906 -0.2A -40V SOT-23
R8126 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R8138 061G0805302 JT RST CHIP 3K 1/8W 5% TZAI YUAN
R8127 061G08053303FT RST CHIP 330K 1% 1/8W
R8201 061G08058203FT RST 0805 820K 1% 1/8W
R8203 061G08058203FT RST 0805 820K 1% 1/8W
JR8103 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN
R8317 061G12069101FT RST 1206 9.1K 1% 1/4W TZAI YUAN
C8120 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C8383 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8283 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8184 065G080547432K M CAP 0805 470NF 10% 50V X7R
C8384 065G080547432K M CAP 0805 470NF 10% 50V X7R
C8484 065G080547432K M CAP 0805 470NF 10% 50V X7R
C8582 065G080547432K M CAP 0805 470NF 10% 50V X7R
C8182 065G080547432K M CAP 0805 470NF 10% 50V X7R
C8482 065G080547432K M CAP 0805 470NF 10% 50V X7R
C8103 065G120610272K Y CAP 1206 1NF 10% 500V X7R
C8102 065G120610272K Y CAP 1206 1NF 10% 500V X7R
R8204 061G08056802FT RST CHIP R 68K 1/8W 1%
R8382 361G08051402FT RST 0805 14K 1% 1/8W SMD0805140KT
R8582 361G08051402FT RST 0805 14K 1% 1/8W SMD0805140KT
R8281 361G08051402FT RST 0805 14K 1% 1/8W SMD0805140KT
R8181 361G08051402FT RST 0805 14K 1% 1/8W SMD0805140KT
IC8113 056G 700 23 LED DRIVER PF7900S SOP-8
IC8101 356G0700008052 LED DRIVER PF7700A S SOP-8
IC8201 356G0700008052 LED DRIVER PF7700A S SOP-8
C8284 065G080547432K M CAP 0805 470NF 10% 50V X7R
C8282 065G080547432K M CAP 0805 470NF 10% 50V X7R
C8181 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8281 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8483 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8381 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8126 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C8237 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
R8206 061G1206513 JT RST CHIPR 51 KOHM +-5% 1/4W TZAI YUAN
R8208 061G1206513 JT RST CHIPR 51 KOHM +-5% 1/4W TZAI YUAN
R8202 061G08058203FT RST 0805 820K 1% 1/8W
JR8105 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR8104 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR8101 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R8236 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN

76

R8237 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
C8583 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8124 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8183 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
Q8202 357G0600200019 MOSFET AOD450 3.8A 200V TO-252
R8124 361G08051809FT RST 0805 18 OHM 1% 1/8W SMD0805018RF
IC8402 356G0700008052 LED DRIVER PF7700A S SOP-8
IC8501 356G0700008052 LED DRIVER PF7700A S SOP-8
IC8102 356G0700008052 LED DRIVER PF7700A S SOP-8
ZD8211 393G039SA1200T ZENER BZT52-B22 22V 0.41W SOD-123 150C
ZD8212 393G039SA1200T ZENER BZT52-B22 22V 0.41W SOD-123 150C
ZD8214 393G039S95100T00HF ZENER BZT52-B5V1_R1_00001 5.1V 0.41W SOD
C8123 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8381 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8483 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8281 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8181 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8282 065G080547432K F 0805 0.47UF K 50V X7R
C8284 065G080547432K F 0805 0.47UF K 50V X7R
R8126 061G0805000 JT RST 0805 0.05R MAX 1/8W
R8138 061G0805302 JF RST CHIPR 3KOHM +-5% 1/8W FENGHUA
R8127 061G08053303FY RST CHIP 330K 1/8W 1%
R8201 061G08058203FI RST 0805 820K 1% 1/8W
R8203 061G08058203FI RST 0805 820K 1% 1/8W
JR8103 061G1206102 JY RST CHIPR 1KOHM 5% 1/4W YAGEO
C8120 065G080510232K F CAP 0805 1000PF 10% 50V X7R
C8383 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8283 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8184 065G080547432K F 0805 0.47UF K 50V X7R
C8126 065G080510232K F CAP 0805 1000PF 10% 50V X7R
C8240 065G080510232K F CAP 0805 1000PF 10% 50V X7R
C8481 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
R8482 061G0805140 2F CHIRP 14KOHM 1% 1/8W
R8581 061G0805140 2F CHIRP 14KOHM 1% 1/8W
JR8102 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R8207 061G1206513 JF ST CHIPR 51KOHM +-5% 1/4W FENGHUA
R8205 061G1206513 JF ST CHIPR 51KOHM +-5% 1/4W FENGHUA
C8581 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8584 065G080547432K F 0805 0.47UF K 50V X7R
C8382 065G080547432K F 0805 0.47UF K 50V X7R
R8123 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R8208 061G1206513 JF ST CHIPR 51KOHM +-5% 1/4W FENGHUA
R8206 061G1206513 JF ST CHIPR 51KOHM +-5% 1/4W FENGHUA
C8237 065G080510232K F CAP 0805 1000PF 10% 50V X7R
R8118 061G0805104 JI RST 0805 100K 5% 1/8W
R8209 061G08056802FF RST 0805 68K 1% 1/8W
R8204 061G08056802FF RST 0805 68K 1% 1/8W
R8202 061G08058203FI RST 0805 820K 1% 1/8W
JR8104 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR8101 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R8236 061G1206101 JI RST 1206 100R 5% 1/4W
R8237 061G1206101 JI RST 1206 100R 5% 1/4W
C8583 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8124 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

77

C8183 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8123 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
R8382 061G0805140 2F CHIRP 14KOHM 1% 1/8W
R8582 061G0805140 2F CHIRP 14KOHM 1% 1/8W
R8281 061G0805140 2F CHIRP 14KOHM 1% 1/8W
R8181 061G0805140 2F CHIRP 14KOHM 1% 1/8W
R8241 061G1206101 JI RST 1206 100R 5% 1/4W
C8384 065G080547432K F 0805 0.47UF K 50V X7R
C8484 065G080547432K F 0805 0.47UF K 50V X7R
C8582 065G080547432K F 0805 0.47UF K 50V X7R
C8182 065G080547432K F 0805 0.47UF K 50V X7R
C8482 065G080547432K F 0805 0.47UF K 50V X7R
C8103 065G120610272K F CAP 1206 1NF 10% 500V X7R
C8102 065G120610272K F CAP 1206 1NF 10% 500V X7R
C8101 065G120610272K F CAP 1206 1NF 10% 500V X7R
R8481 061G0805140 2F CHIRP 14KOHM 1% 1/8W
R8381 061G0805140 2F CHIRP 14KOHM 1% 1/8W
R8282 061G0805140 2F CHIRP 14KOHM 1% 1/8W
R8182 061G0805140 2F CHIRP 14KOHM 1% 1/8W
R8119 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R8104 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R8120 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R8240 061G1206101 JI RST 1206 100R 5% 1/4W

P33E0676XJT01R0100 BUTTON
P33E0686ALDZ1C0100 DECO_LOGO
P34E2148ADTA1L0100 BEZEL N/A
P34E21490GM02K0100 REAR_COVER N/A
Q02G707105000100XL BOLT
Q11G701100500100JY PCB-SUPPORT
Q36G0600062090GPZA NON-WOVEN FABRIC
Q36T 600 28 10 GP NONWOVEN FABRIC
Q36T 600 31 6 HIMERON
Q45G88010TV08500WN PROTECT BAG
Q45G99010TV05500X1 PROTECT BAG
Q52G100204000A00JY AL FOIL
Q52G130118600000YY TAPE
Q52G15010TV0070WXW TAPE_INSULATING
Q52G1501150523AWBK TAPE_INSULATING
Q52G160119100A00YY TAPE
Q52G18010TV15400ZA INSULATING SHEET
Q52G18010TV1670AJY INSULATING SHEET
Q52G18010TV17200HK INSULATING SHEET
Q85T 583162 GASKET
X15T915020200000AJ BKT_HOLDER
X15T947510100000BL BKT_TOP
X15T947610100000BL BKT_BTM
X15T947710200000YF BKT_SPEAKER
X15T9478101000GMYF BKT_IO
X15T9479102000GMYF BKT_IO
X15T948010100000YF BKT_AC_INLET
X15T948110300000YF BKT_CHASSIS_L
X15T948210200000YF BKT_CHASSIS_R
X15T957110100000AJ BKT_HINGE
X15T957210100000AJ BKT_HINGE

78

X20T8081001000YSXL DIE-CASTING_BRACKET_L
X20T8082001000YSXL DIE-CASTING_BRACKET_R
X40G2013040X1701ZA LABEL IO
X40G2013040X1801ZA LABEL IO
X44GWA110FB0HF ARTWORK CARTON --
X44GWA111010SY
X44GWA112010SY
X44GWA113010SY
X44GWA114010SY
X44GWA11501EPE
X44GWA1161501A000T ARTWORK CARTON LE58D6660/80

E08991 089G 17356CY01 RCA CABLE 100
E08901 089G214A15N JR AC POWER CORD 1500 FOR CHINA
0M1G1740 18120 RA SCREW
E39201 392GB1JA1A3E2C BATTERY 1.5V 2P LR03(KA)2S/G
E39801 398GRABD4NCACT REMOTE AOC YKF322-002 CHINESE

Q45G8801 TV004 PE PACKINGX290X195X0.04
Q45G88010TV08900X1 PROTECT BAG
X41G50MV61506A MANUAL 6660 SERIES
X41G78DV61501F WARRANTY CARD AOC
040G 58162435A MANUAL P/N LABEL
Q40G 581689 4B SN LABEL(58X35MM)
Q40G000162492A CEL LABEL FOR TV MODEL G3/1.3/0.5
X40G0001624 2A LABEL FOR SCREW PE BAG
X40G000162413A CARTON LABEL
X40G058061501A RATING LABEL LE58D6660/80
Z40G0002ALL01A OTHER LABEL

CUSHION-TL N/A 不分区域(全
CUSHION-TR N/A 不分区域(全
CUSHION-BL N/A 不分区域(全
CUSHION-BR N/A 不分区域(全
CUSHION-FRONT N/A 不分区域(全

79
