39″LCD TV AOC LE39D5322/40
Service
Service
Service
31~68 KHz
TABLE OF CONTENTS
Description Page Description Page
Table of Contents.......……....................................…........1
Important Safety Notice.......................................……......2
Revision List…………………………………………………3
1. General Specification..............................……...…........4
2. Operating Instructions………………...…….……….......5
2.1 The Use of Remote Control…….…..……….…….......5
2.2 To Use the Menus….....………………….…..…….......6
2.3 How to Connect……..……………….…….……….....13
2.4 Front Panel Control Knobs…….………….……….....15
3. Input/ Output Specification…………...................…....16
4.Mechanical Instructions…………………………………19
5. Repair Flow Chart ……………………….…….…….....22
6. PCB Layout ………………..…………………....….......29
6.1 Main Board…………..……………...…….…….......29
SAFETY NOTICE
ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS
6.2 Power Board……...…………..….…….……….......30
6.3 Key Board……………………….……..……….......33
6.4 IR Board………………………….……..……….......33
7. Adjustment..............................................................34
7.1 ADC Adjustment……………………..……...………34
7.2 FW Upgrade.………………………………...………35
8. Block Diagram.…….................................................36
9. Schematic Diagram…..…………....………………...37
9.1 Main Board…………………………………...….......37
9.2 Power Board…………..….….……...………….......38
9.3 Key Board……………….……….…………….........40
9.4 IR Board……………….……….…………….........41
10. Exploded View………………………………….…...42
11. BOM List……………….……………….………….43
Horizontal Frequency
AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING
ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.
CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING
Copyright © 2012 by TPV Corporation. All rights reserved. Specifications are subject to change without notice.
No part of this publication may be reproduced in any form or means, without the prior written permission of TPV Corporation. Otherwise we will
reserve the right to investigate the legal responsibility.
1
Important Safety Notice
Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service
procedures recommended by AOC and described in this service manual are effective methods of performing service
operations. Some of these service operations require the use of tools specially designed for the purpose. The
special tools should be used when and as recommended.
It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in
order to minimize the risk of personal injury to service personnel. The possibility exists that improper service
methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE
NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in
which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not
recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.
Hereafter throughout this manual, AOC Company will be referred to as AOC.
WARNING
Use of substitute replacement parts, which do not have the same, specified safety characteristics might create
shock, fire, or other hazards.
Under no circumstances should the original design be modified or altered without written permission from AOC.
AOC assumes no liability, express or implied, arising out of any unauthorized modification of design.
Servicer assumes all liability.
FOR PRODUCTS CONTAINING LASER:
DANGER-Invisible laser radiations when open AVOID DIRECT EXPOSURE TO BEAM.
CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
CAUTION -The use of optical instruments with this product will increase eye hazard.
TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S
REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF
THIS SERVICE MANUAL.
Take care during handling the LCD module with backlight unit
-Must mount the module using mounting holes arranged in four corners.
-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.
-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to
the panel.
-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).
-Make certain that treatment person’s body is grounded through wristband.
-Do not leave the module in high temperature and in areas of high humidity for a long time.
-Avoid contact with water as it may a short circuit within the module.
-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may
damage the panel.)
2
Revision List
Version Release Date Revision Instructions Customer Model TPV Model
A00 Nov.23,2012 Initial release LE39D5322/40 E39C22NKCHAENNX
3
1. General Specification
Note:
Designs and specifications are subject to change without notice.
These models may not be compatible with features and/or specifications that may be added in the future.
4
2. Operating Instructions
2.1 The Use of Remote Control
Buttons located at the right side of the TV will operate the same as these buttons on the remote control.
5
2.2 To Use the Menus
6
7 8 9
10 11 12 13
2.3 How to Connect
14
15
2.4 Front Panel Control Knobs
16
3. Input / Output Specification
3.1 Signal Input (The main board is not produce by TPV)
17

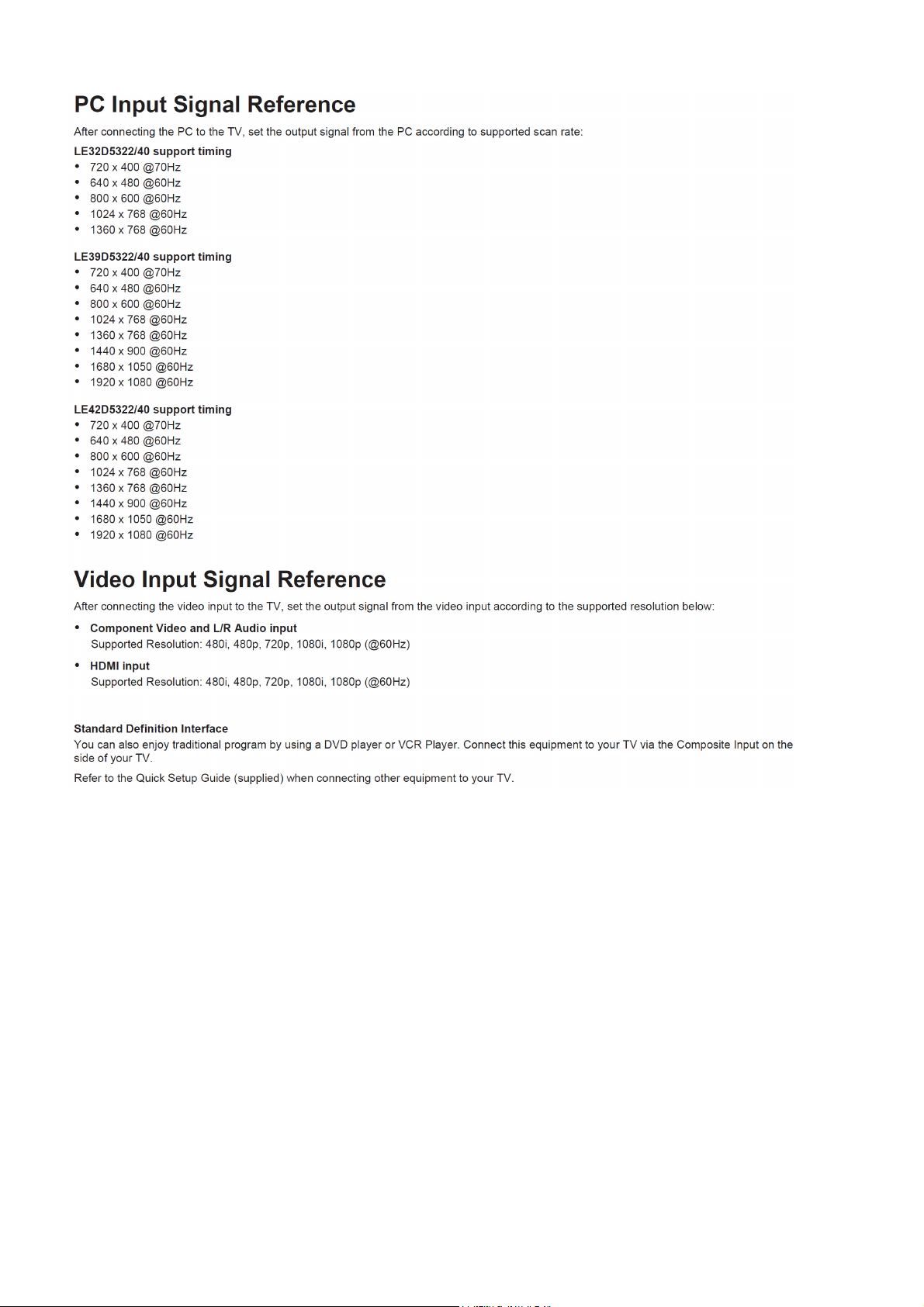

3.2 Compatible Mode Table
18
4. Mechanical Instructions
1. Remove the screws to remove BASE.
2. Remove the screws to remove REAR COVER.
19

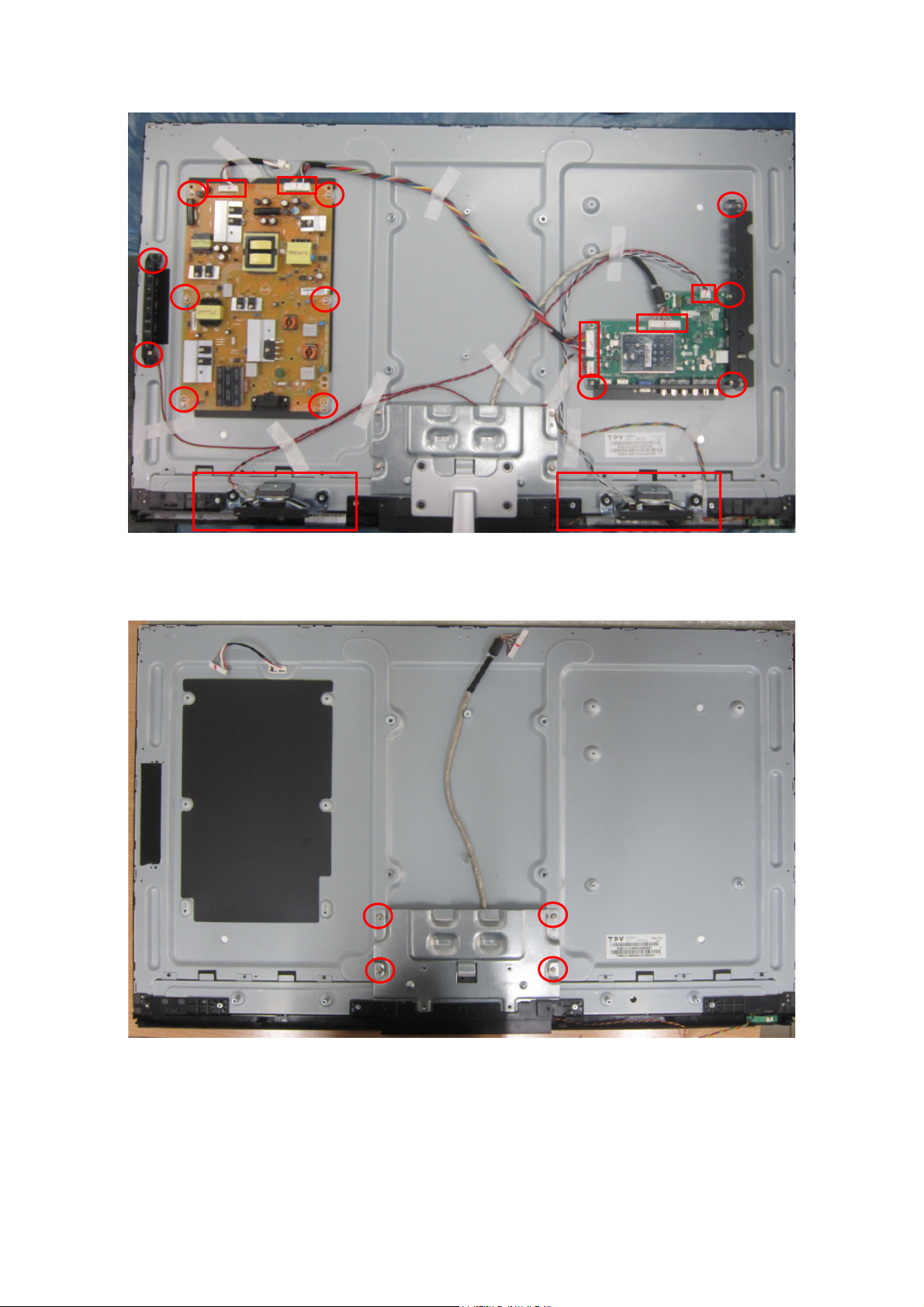

3. Remove the screws to remove MAIN BOARD, POWER BOARD and SPEAKERS.
4. Remove the screw to remove BKT. Remove Mylar, DECO and FFC cable.
20
5.The PANEL.
6.The DECO.
7. The IR BOARD.
21
5. Repair Flow Chart
1. Sin Energía
Sin Energía (LED “Apagado”)
Revise la entrada AC. ¿La
energía está en “encendida”?
Si
Salida Power board =5.2V?
Si
Revise IR board y LED
No
Reemplace IR board
No
No
Enciéndalo
No
Reemplace power board
Reemplace main board
22
2. No Enciende
(Chequee tecla power del control remoto, si
equipo no responde significa que es anormal).
No inicia (LED naranjo)
Salida Power board＝12V？
Si
Revise si el botón de power funciona
No
Revise si el receptor IR es normal
No
No
Reemplace power board
Si
Reemplace key board
Si
Reemplace IR board
Reemplace main board
No
Reemplace la Power board
23
3. Imagen Anormal
Entre al menú modo de fábrica para hacer
Imagen Anormal
Revise la fuente
Si
“EEPROM initial”&“Reset”
No
No
Reinicie la fuente
Revise main board
Si
Revise el cable LVDS
Si
Revise el panel
No
Reemplace panel
No
Reemplace main board
No
Reemplace LVDS cable
24
4. Sin Imagen
Revise si el TV funciona, si enciende/apaga
vía control remoto y botón de power.
Si
Revise cable LVDS
Si
Panel Vcc = 5.2V?
Sin imagen (LED verde)
Si
Revise si la luz del panel está
encendida= “On”
No
Vuelva a insertar o
Reemplace el cable LVDS
No
No
Reemplace main board
No
Revise señal L/P si
está disponible
Si
Salida de Power board＝12V？
Reemplace main board
No
No
Si
Reemplace the Panel
Reemplace main board
25
Si
Reemplace Panel
Reemplace power board
5. Problema de Sonido
Revise la conexión de la fuente de audio y si norma de
Sin sonido o sonido anormal
TV es correcto (NTSC-PAL N/M/ISTB)
Si
Revise si TV está mudo (muted), ajuste el volume o
entre al modo menú para reinicio?
No
Entre al modo menú de fábrica para reinicar
No
Revise el cable entre los parlantes y main
board si están OK
Si
No
Vuelva a insertar el cable de audio o cambie
la norma del TV
No
Reemplace cable
Revise los valores de Resistencia en el parlante que se encuentran en
las especificaciones (Nota: El valor está marcado en el parlante)
Si
Reemplace parlante
26
Reemplace main board
No
6. Control Remoto - mal funcionamiento
Control remoto - mal funcionamiento
Revise la batería del control remoto si está
bien colocada o no tiene energía
No
Use otros controles remotos, ¿funciona?
Si
Reemplace batería
Si
Reemplace el control remoto
No
¿Es anormal la IR board?
No
Reemplace main board
Si
Reemplace IR board
27
7. OSD es inestable o no trabaja de forma normal
OSD es inestable o no trabaja normalmente
La botonera está conectada correctamente?
Si
Los botones están OK?
Si
Botonera está OK?
Si
No
No
No
Reconecte el key board
Reemplace la función del botón
Reemplace la botonera
Entre al modo menú de fábrica para reinicar
No
Reemplace el main board
28
6. PCB Layout
6.1 Main Board (The main board is not produce by TPV)
29

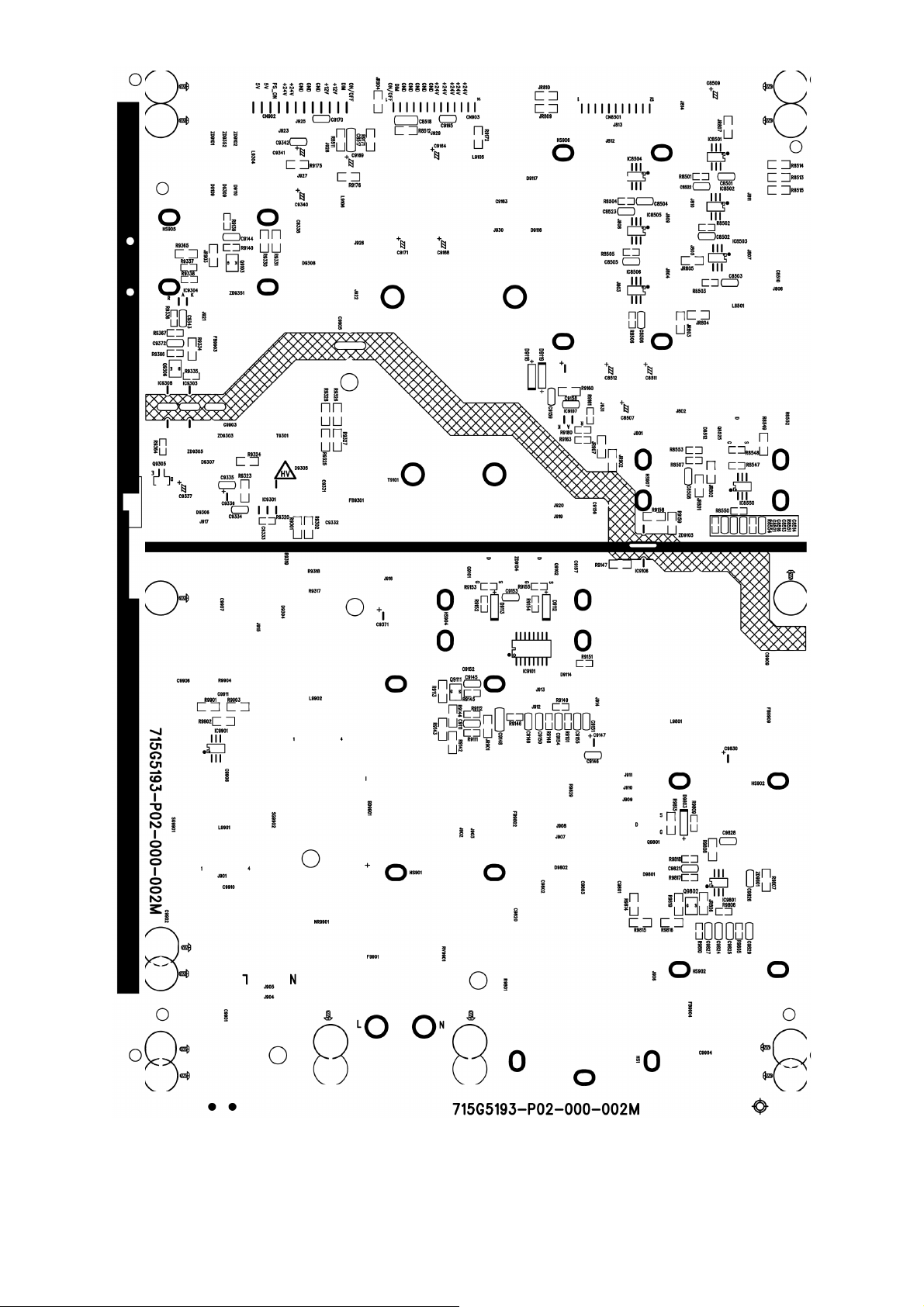

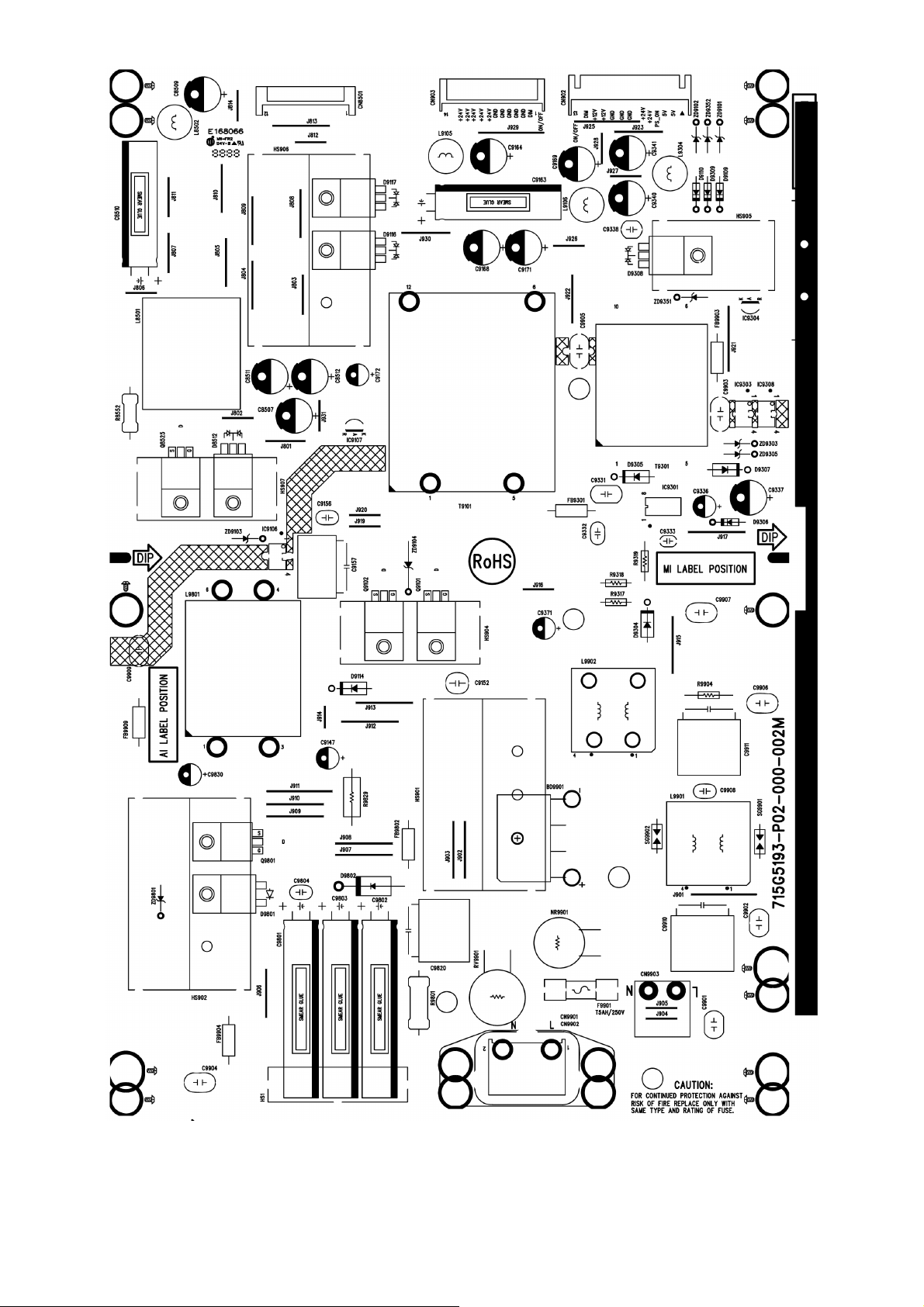

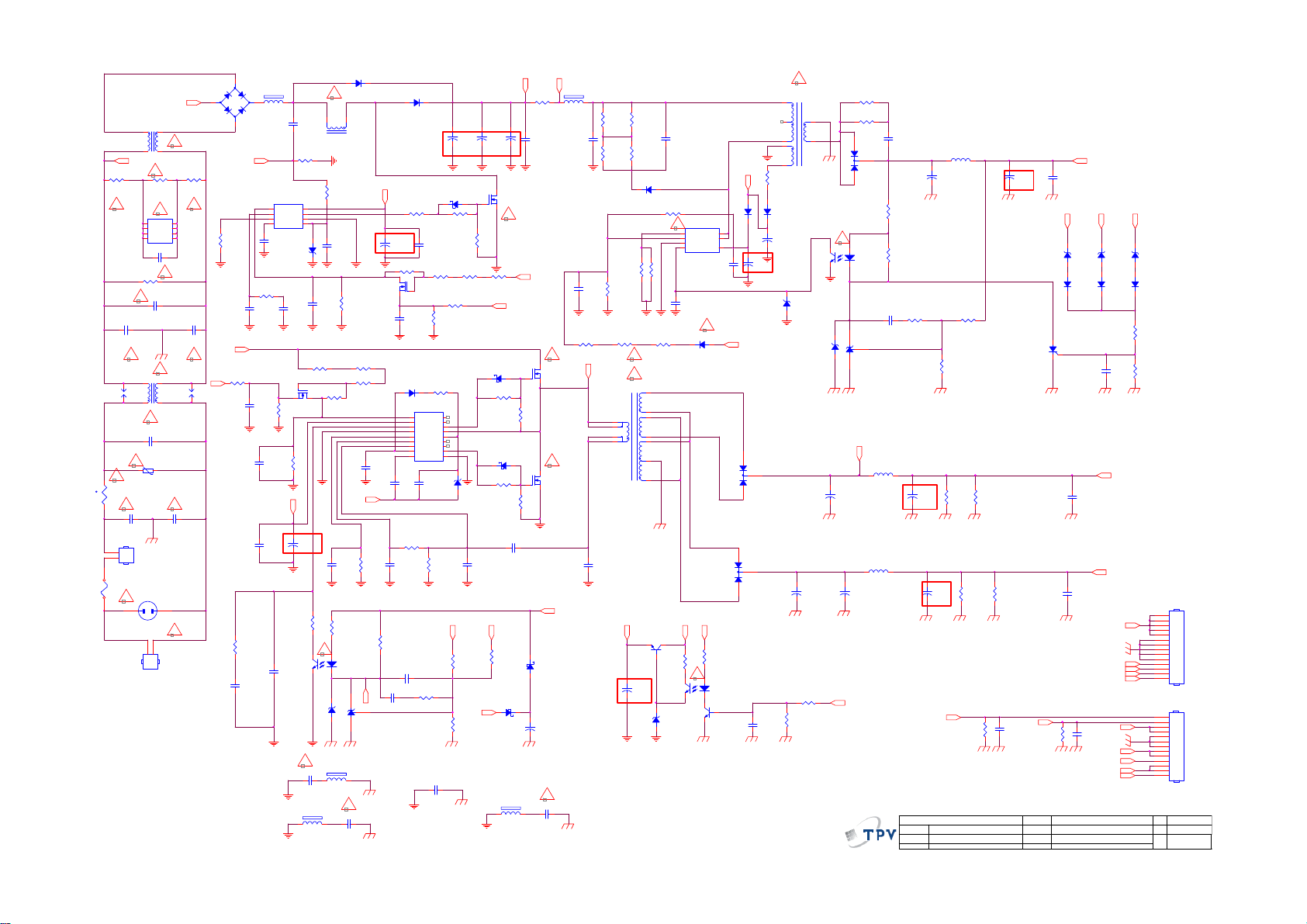

6.2 Power Board
715G5193P02000002M
30
31 32
6.3 Key Board
715G5298K01000004S

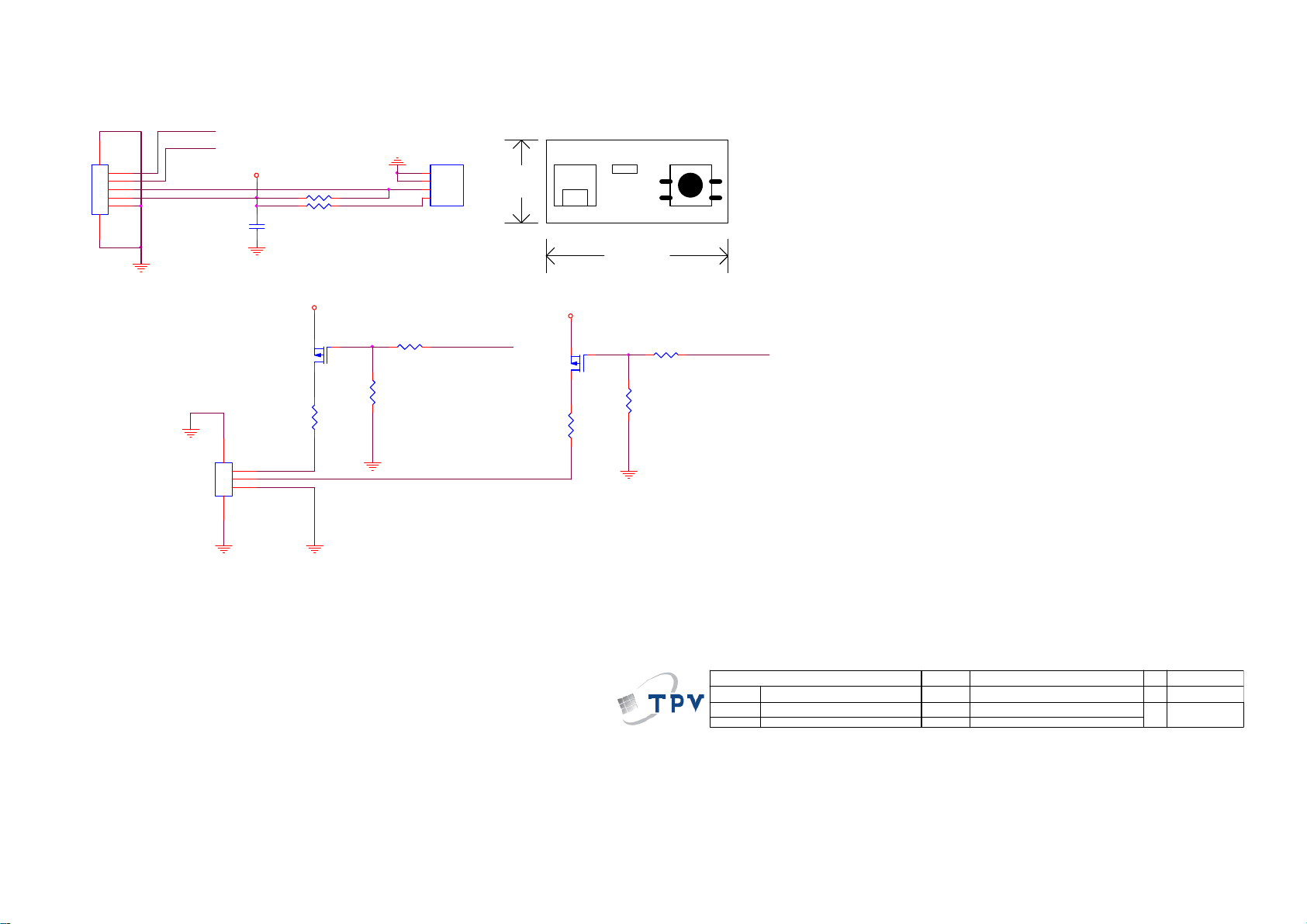

6.4 IR Board
715G5723R01000004S
33
7. Adjustment
7.1 ADC Adjustment
(The main board is not produce by TPV)
34
7.2 FW Upgrade
Step 1: Ready for F/W Upgrade
Changethesoftwarefilenameto“upgrade_loader.pkg”
1.1
1.2
PrepareanUSBdisk(ThefilesystemofUSBdiskmustbeFAT1 6orFAT32).
Copythefile(upgrade_loader.pkg)fromyourcomputertotheUSBdiskrootdirectory,andremoveitfrom
1.3
computer’sUSBport!
Note: 1). Note the version of this F/W before you change the software file name.
2). The software file name must be changed, or TV can’t detect the F/W.
Step 2: F/W Upgrade
2.1 AC on (Power plug)
2.2 Plug the USB disk on the USB port on the side I/O port of TV.
2.3 TV AC power off -> AC power on
2.4 TV will upgrade by itself after detect the USB disk condition and the content of the pkg file.
2.5 After finish upgrade process, TV will reboot by itself.
2.6 Remove USB disk from TV.
2.7 Check if the software version is correct. Menu\Setting\Version Info
2.8 please do factory reset in user menu.
2.9 Reset finish, AC OFF.
35
8. Block Diagram
