AOC LE32W037M Schematic

31.5″LCD TV AOC LE32W037M

Service

Service

Service

Horizontal Frequency

43~53 KHz

Table of Contents

Description Page

Table of Contents………………………………………....1

Description Page

6.1. Main Board….......................................................32

Important Safety Notice……………………………….…2

Revision List…………………………………..…….……3

1. General Specification...............................…….......4

2. Operating Instructions..............................................5

2.1. Controls &Connections ……..................................5

2.2. Remote Control………………................................6

2.3. Instructions for Use..............................................7

3. Input /Output Specification..........……………........20

3.1. Input Signal Connector............……....................20

3.2. Factory Preset Display Modes….........................21

4. Mechanical Instruction…………….………….….....22

5. Repair Flow Chart................................................25

6. PCB Layout...……..............................................32

SAFETY NOTICE

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS

AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING

ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

6.2. Power Board…....................................................36

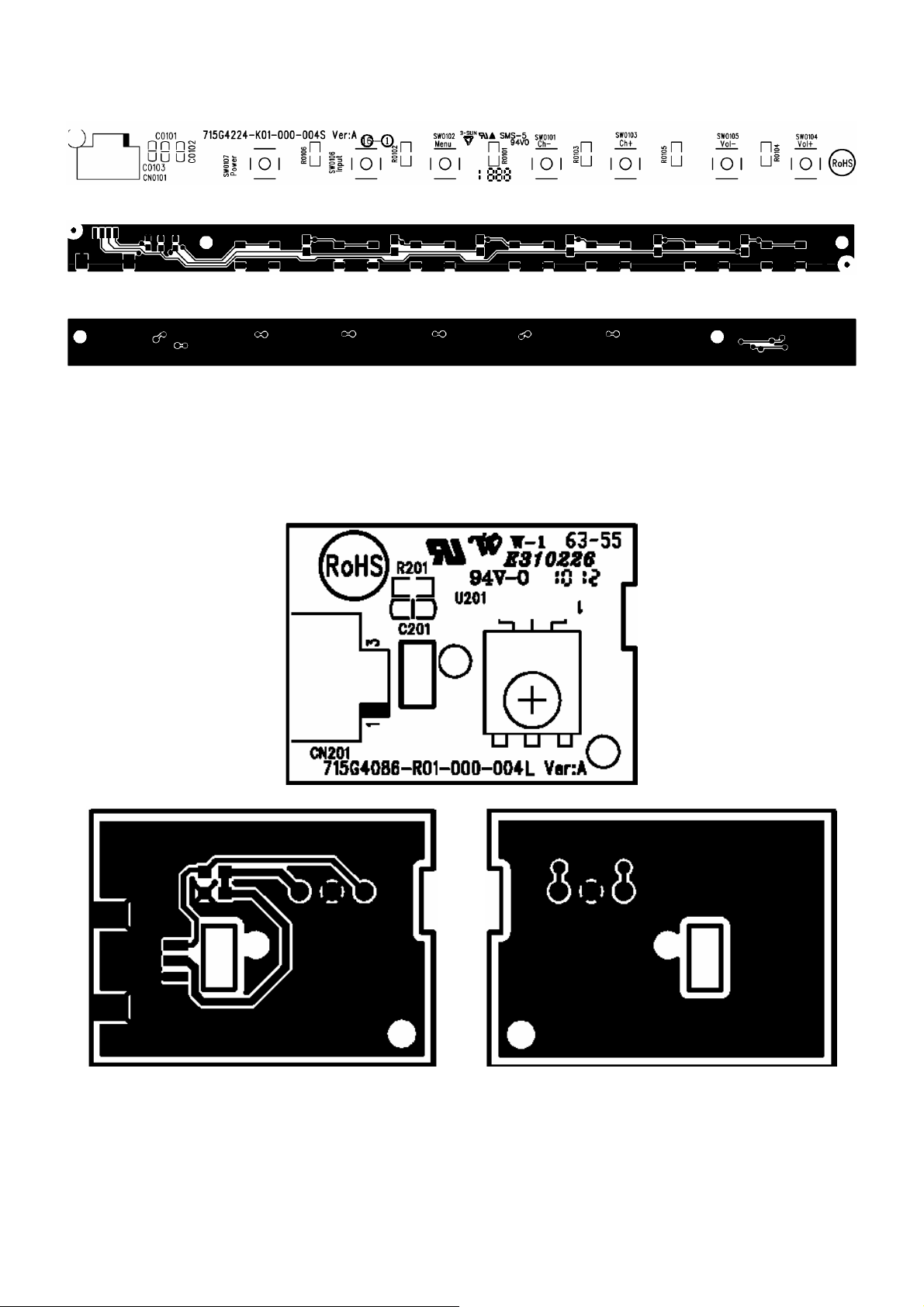

6.3. Key Board…........................................................38

6.4. IR Board………....................................................38

7. Adjustment……………………..……………………39

8. Block Diagram….....................................................40

9. Schematic Diagram...……......................................42

9.1. Main Board…………............................................42

9.2. Power Board……….............................................53

9.3. Key Board…........................................................56

9.4. IR Board…...........................................................57

10. Exploded View…..................................................58

11. BOM List……….………….………………..............60

1

Important Safety Notice

Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service

procedures recommended by AOC and described in this service manual are effective methods of performing service

operations. Some of these service operations require the use of tools specially designed for the purpose. The

special tools should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in

order to minimize the risk of personal injury to service personnel. The possibility exists that improper service

methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE

NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in

which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not

undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not

recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the

equipment will be jeopardized by the service method selected.

Hereafter throughout this manual, AOC Company will be referred to as AOC.

WARNING

Use of substitute replacement parts, which do not have the same, specified safety characteristics, might create

shock, fire, or other hazards.

Under no circumstances should the original design be modified or altered without written permission from AOC.

AOC assumes no liability, express or implied, arising out of any unauthorized modification of design.

Servicer assumes all liability.

FOR PRODUCTS CONTAINING LASER:

DANGER-Invisible laser radiations when open AVOID DIRECT EXPOSURE TO BEAM.

CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may

result in hazardous radiation exposure.

CAUTION -The use of optical instruments with this product will increase eye hazard.

TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S

REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF

THIS SERVICE MANUAL.

Take care during handling the LCD module with backlight unit

¾ Must mount the module using mounting holes arranged in four corners.

¾ Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.

¾ Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage

to the panel.

¾ Protect the module from the ESD as it may damage the electronic circuit (C-MOS).

¾ Make certain that treatment person’s body is grounded through wristband.

¾ Do not leave the module in high temperature and in areas of high humidity for a long time.

¾ Avoid contact with water as it may a short circuit within the module.

¾ If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth

may damage the panel.)

2

Revision List

Version Release Date Revision Instructions Customer Model TPV Model

A00 Nov.17,2010 Initial Release LE32W037M E32A22NCWEA1NN

3

1. General Specification

Model LE32W037M

Display Size of the Panel 800mm (31.5")

Embedded Resolution 1366 x 768

Viewing Angle Horizontal 176° vertical 176°

Brightness 400 cd/m2

Dynamic Contrast 20,000,000:1

Speaker 10W x 2

Video System PAL D/K B/G I; NTSC M/N

Audio System K/K, I, B/G. M, L. L’

Antenna Impedance 75Ω

Input Voltage 100V~240V, 50/60Hz

Power Consumption of the Full TV Set 110W

Power Consumption at Standby Mode ≤1W

Dimension (W x H x D)
(with stand and supporting rack in mm)

Dimension (W x H x D)
(without stand and supporting rack in mm)

Wall Mount Accessories Optional

Wall Mount Dimension 200 x 100mm four pieces of M4 screws

Operation Temperature 0° ~ 35°

Operation Humidity -10 ~ 90%

Storage Temperature 20° ~ 50°

Storage Humidity 10 ~ 90%

Net Weight (Kg) 9.38

Gross Weight (Kg) 11.78

Note: Design and specifications are subject to change without notice.

773 x 560 x 210

773 x 521 x 48

4

2. Operating Instructions

2.1 Controls & Connections

Controls

Item Description

VOL

CH

MENU

Signal Source

power

Press to increase or decrease the sound volume level.

Press to select the next higher or lower program number.

Press to open or exit the OSD menu.

Press to select the input source.

Switch the product on/standby or off.
The product is not powered off completely unless it is physically unplugged.

Connections

Item Description

Headphone Jack

AV (Audio/Video) Input

AV Out put

HDMI Input

PC VGA IN (RGB) & PC
Audio IN

Component Input

Connect to you headphones. While headphones are connected, the TV speakers
are muted.

Connect Audio (L/R)/Video output from an external device to these jacks.

For connecting the Audio (L/R)/Video signal of the TV to other display devices as
their source signal.
Connect a HDMI signal to HDMI port. The HDMI (High Definition Multimedia
Input) connector provides No-compressed and fully digital audio/video data
transmission between TV set and any HDMI audio/video devices, including the
set top box, DVD player, Blue-ray player, A/V receiver and computer.
It is used to connect the video output port of a personal computer with a 15-pin
D-SUB (Analog RGB) VGA cable. It can be connected to other simulated RGB
devices.
Connect separate audio cable between PC and TV to get sound.

Connect a component video (YPbPr)/audio (L/R) device to these jacks.
Component provides better picture quality than the composite video connections.

RF Input

USB

The RF input is for connecting to the cable or VHF/UHF antenna.

Connect USB storage device to enjoy a multimedia feature.

5

2.2 Remote Control

Before you use the remote control, please install the batteries.

6

2.3 Instructions for Use

2.3.1 Power on and off

Reminder

1. Your TV set continues consuming powers at a very low consumption rate. When you will not use it for extended

period of time, disconnect the power cable between the TV set and power socket.

2. When the remote control is not available and if you want to turn on your TV set from the standby model, please

press the CH+/- key or the source key at its side.

3. When turning your TV set off with the power switch of your TV set, it enters the power saving mode and

displayers no indicator light. You can turn on your TV set only with its power switch.

2.3.2 First time settings

While turning on your TV for the first time, you will be prompted to select a menu language and to install TV.

7

1. Press the ▲/▼button to select your desired language and press the OK.

2. Press the ▲/▼button to select your desired location and press the OK. We recommend select Home. Shop

mode is only for the dealers, who will display the TV in showroom.

3. Press the OK to start automatic channel installation. Press the MENU button to close the menu.

Switch between input sources

You can select signal sources to your AOC TV set directly with your remote controller. You can also press the

Source key in the display menu to select signal source.

1. Directly select the input signal sources by using

2. Select signal source with the Source key:

8

2.3.3 Picture Setting

Items Description

Personal The user can set their favorite setting.

Vivid For enhances picture contrast and sharpness.

Standard For standard picture settings. Recommended for home entertainment.

Auto Picture

Movie

Game For game and entertainment content.

For viewing film-based content. Most suitable for viewing in a

theater-like environment.

Energy saving Decrease backlight level to save the power.

Contrast To sharpen the picture quality.

Brightness To brighten the dark parts of the picture

Color To add or reduce color

Sharpness To improve detail

Noise Reduction

Color Temp. To select pre-defined color tones.

Advanced


To filter out and reduces the image noise and

improve picture quality.

Dynamic Contrast Automatically enhance the image contrast when set up on.

Dynamic Backlight To choose between Best Power, Best Picture, Off.

Color Enhancement

Make colors more vivid, bright colors in the details section to

improve the resolution when set up on.

Off

Minimum

Medium

Maximum

Normal

Cool

Warm

Auto format

Super zoom

4:3

Picture Format To select the available display format.

Note: Certain screen setups may be unavailable or have different options in accordance with the input sources.

9

Subtitle zoom

Movie expand 14:9

Movie expand 16:9

Wide screen

Only for PC source

Items Description

Contrast To sharpen the picture quality.

Brightness To brighten the dark parts of the picture

Normal

Color Temp. To select pre-defined color tones.

Picture Format To select the available display format.

Horizontal Shift Adjusts the picture horizontally for PC-VGA input.

Vertical Shift Adjusts the picture vertically for PC-VGA input.

Note: If the PC is connected to the TV and no signal has been input from the PC for more than 30 seconds, the TV

enters the standby mode automatically.

Cool

Warm

4:3

Wide screen

2.3.4 Audio Setting

10

Items Description

Standard: Suitable for spoken dialog.

News: For viewing news content.

Auto Sound

Bass Adjust the bass effect (Increases or decreases lower-pitched sounds).

Treble Adjust the treble effect (Increases or decreases high-pitched sounds).

Volume Adjust the volume ((Increases or decreases volume).

Balance Adjust the balance between left and right speakers to adapt to your listening position.

TV Speakers Turn on/off the TV speakers.

Surround Set surround sound effect on or off.

Headphone Volume Adjust volume of your earphones.

Auto Volume

Delta Volume

Movie: For viewing movie content.

Personal: Adjust sound mode as personal favorite.

Sound Mode can also be accessed by pressing the Audio button on the remote control.

On

Off

Automatically reduces sudden volume changes, for example, when switching between

the channels.

Levels out volume differences between channels or connected devices.

Switch to the connected device before you change the delta volume.

2.3.5 Features Setting

Items Description

Press the ◄/► button to select a value between 0 ~ 180 minutes.

Tips:

Sleep Timer

TV Clock

On Timer

1. If set to 0, the sleep timer is switched off.

2. The TV switches to standby after the specified time.

3. This can also be set using the SLEEP button on the remote control.

Press the ▲/▼/◄/► button or numeric buttons to enter time.

Select [Done] and press the OK. Press the [Display] key to view time at the lower right

corner of the screen.

You can switch on the TV from standby to a specific channel at a specified time.

Press the ► button to enter.

Press the ▲/▼ button to select the desired item and then press OK.

11

TV Lock (Optional)

Set Code

Only for PC source

[Activate]: Selects how often the TV is switched on.

[Time]: Sets the time to switch on the TV.

[Channel no]: Selects the channel or the input source.

Tips: 1. Select [On timer] > [Activate] > [Off] to disable this feature.

2. Set the TV time before you use [On timer].

Lock the TV to prevent access to all channels.

Enter your password using numeric buttons, the [TV lock] menu appears.

Press the ▲/▼ button to select [Lock] or [Unlock].

Press OK.

Tips: 1. Switch the TV off and on again for the change to take effect.

2. If you select [Lock], you have to enter your password every time you turn on your TV.

Follow the on-screen instruction to create or change your password using numeric buttons.

Tips: If forget your password, enter “8888” to override any existing codes.

Items Description

PIP Select PIP function on/off.

PIP Source Select PIP source from TV, AV IN 1, AV IN 2 /SV source only

PIP Sound Select PIP sound from VGA and PIP source.

Press the ◄/► button to select a value between 0 ~ 180 minutes.

Tips:

Sleep Timer

TV Lock

On Timer

1. If set to 0, the sleep timer is switched off.

2. The TV switches to standby after the specified time.

3. This can also be set using the SLEEP button on the remote control.

Press the ▲/▼/◄/► button or numeric buttons to enter time.

Select [Done] and press the OK. Press the [Display] key to view time at the lower right

corner of the screen.

You can switch on the TV from standby to a specific channel at a specified time.

Press the ► button to enter.

Press the ▲/▼ button to select the desired item and then press OK.

[Activate]: Selects how often the TV is switched on.

[Time]: Sets the time to switch on the TV.

[Channel no]: Selects the channel or the input source.

Tips: 1. Select [On timer] > [Activate] > [Off] to disable this feature.

2. Set the TV time before you use [On timer].

12

Lock the TV to prevent access to all channels.

Enter your password using numeric buttons, the [TV lock] menu appears.

TV Lock (Optional)

Set Code

2.3.6 Installation Setting

Press the ▲/▼ button to select [Lock] or [Unlock].

Press OK.

Tips: 1. Switch the TV off and on again for the change to take effect.

2. If you select [Lock], you have to enter your password every time you turn on your TV.

Follow the on-screen instruction to create or change your password using numeric buttons.

Tips: If forget your password, enter “8888” to override any existing codes.

Items Description

Menu Language Press the ▲/▼ button to choose a required language and press the OK.

Channel Search Please refer to channel search for details.

Location Optimum TV settings for your location-home or shop.

Volume bar We can display or hide the volume bar on screen display by selecting on/off.

Preferences

Factory Settings

E-link

(Optional)

E-label For shop mode only, sets the location of the e-label.

You can restore the default picture and sound settings of your TV.

The channel installation settings remain the same.

Enables one-touch play and one-touch standby between CEC compliant

devices.

Channel Search

Channel search can be done in two ways:

1. Auto search: TV automatically searches for the channel in the available frequency band.

2. Manual search: Search for the channels manually and store it to the desired channel number. So you can store

the favorite together.

Note: Make sure you have connected RF signal cable before performing channel search.

Auto Search:

1. Select installation menu.

2. Select auto search and press OK key or ► arrow key to tune channels automatically and store.

3. During auto searching press OK key to stop search. A dialog box is prompted to select [stop] or [continue]. To

stop searching select [stop] or to continue searching select [continue] and press OK key.

13

Manual Search:

1. Select installation menu.

2. Select manual search and press OK key or ► arrow key to get manual search as shown below.

3. Select a manual tuning parameter by using ▲/▼ arrow. Parameter selection order is as follows:

(Color system→ Sound system → Search → Channel number → Fine tune → Store current channel → Store

new channel → Skip channel).

14

2.3.7 Multimedia (USB) Setting

You may use your TV set to access music, pictures and video files in the USB devices.

Note: when a USB device is detected, the system switches to multimedia mode automatically.

Caution:

AOC is not responsible if the USB storage device is not supported, nor is it responsible for damage or loss of data
from the device.

1. Connect the USB storage device to the TV, TV can detect USB device automatically.

2. Press the ◄/OK button to select [Category Browse] or press the ► to select [File Browse].

Tips:

You can also enter multimedia source by pressing the source button on the remote control.

Browsing multimedia files in category browse mode:

Press the ▲/▼ button to select the desired item and then press the ► button to confirm your choice.

Press the ▲/▼/◄/► button to select a desired file.

Press the OK to play.

Viewing JPEG files:

Press the ▲/▼/◄/► button to select a previous or next file.

Press OK to view the selected JPEG file in full screen.

Music can be play in background while the JPEG slides (Play the music first and then select the JPEG).

Customization of the slideshow:

Press OK to select the slide item.

Slide Item Description

Stop Slideshow Starts or stops a slide show.

Slideshow transitions Sets the transition from one picture to the next.

Slideshow frequency Sets the amount of time (short, medium, and long) that a picture is shown.

Rotate image Rotates a picture

Show info Displays the picture information.

Stop music play

Press BACK/MENU close sub-menu.

Press source key to select other input signal sources.

Playing MP3 files:

Press ▲/▼ button to select the previous or next music.

Press the ►►| / |◄◄ button to switch to fast forward or fast backward mode (X2, X4, X8, X16, X32).

Stop the music when the music is played in background.

Tips: We can listen to music or not while browse picture.

15

Customization of the audio playback:

Press OK to select desired item when playing music:

Item Description

Stop playback Starts or stops the music.

Play once Disables repeat play and plays a song once.

Repeat Mode

Show info Displays the file information.

TV Speaker On/off the TV speakers.

Press BACK/MENU close sub-menu.

Press source key to select other input signal sources.

Playing Video files:

Press ▲/▼ button to select the previous or next video.

Press the ►►| / |◄◄ button to switch to fast forward or fast backward mode (X2, X4, X8, X16, X32).

Customization of the video playback:

Press OK to select desired item when playing video:

Item Description

Stop playback Starts or stops the video.

Repeat Mode

Repeat Repeats a song play-list.

Shuffle Plays songs randomly

Play once Disables repeat play and plays a video once.

Repeat Repeats a video.

Shuffle Plays video randomly

Show info Displays the file information.

TV Speaker On/off the TV speakers.

Press BACK/MENU close sub-menu.

Press source key to select other input signal sources.

Browsing multimedia file in file browse mode:

Press ► button to enter file browse mode.

Press ▲/▼ button to select the desired file.

Press ► button to enter to extract the file from folder.

Press OK to play.

Viewing JPEG files:

Press ▲/▼/◄/► button to select the previous or next picture.

Press OK to view the selected JPEG file in full screen.

Music can be play in background while the JPEG slides (play the music first and then select the JPEG).

16

Customization of the slideshow:

Press OK to select the slide item:

Slide Item Description

Stop Slideshow Starts or stops a slide show.

Slideshow transitions Sets the transition from one picture to the next.

Slideshow frequency Sets the amount of time (short, medium, and long) that a picture is shown.

Rotate image Rotates a picture

Show info Displays the picture information.

Stop music play

Press BACK/MENU close sub-menu.

Press source key to select other input signal sources.

Playing MP3 files:

Press ▲/▼ button to select the previous or next music.

Press the ►►| / |◄◄ button to switch to fast forward or fast backward mode (X2, X4, X8, X16, X32).

Customization of the audio playback:

Press OK to select desired item when playing music:

Item Description

Stop playback Starts or stops the music.

Play once Disables repeat play and plays a song once.

Repeat Mode

Show info Displays the file information.

TV Speaker On/off the TV speakers.

Repeat Repeats a song play-list.

Shuffle Plays songs randomly

Stop the music when the music is played in background.

Tips: We can listen to music or not while browse picture.

Press BACK/MENU close sub-menu.

Press source key to select other input signal sources.

Playing Video files:

Press ▲/▼ button to select the previous or next video.

Press the ►►| / |◄◄ button to switch to fast forward or fast backward mode (X2, X4, X8, X16, X32).

Customization of the video playback:

Press OK to select desired item when playing video:

Item Description

start playback Starts or stops the video.

Play once Disables repeat play and plays a video once.

Repeat Mode

Show info Displays the file information.

TV Speaker On/off the TV speakers.

Press BACK/MENU close sub-menu.

Press source key to select other input signal sources.

Repeat Repeats a video.

Shuffle Plays video randomly

17

Tips:

1. If can’t detect the connected device, it would be caused by the connected device driver not by TV failure.

2. The reading speed will be variable due to the different connected devices and different storage capacities.

3. Sometimes it can’t detect the device because the connected device can’t meet with the standard USB

specification requirement (5V/500mA).

4. USB port could be also used as software upgrade.

Supported Multimedia Formats

Note: It can’t support all the below formats due to some source files decoding issues.

It’s not caused by TV failure.

Format Resolution Type Note


Audio

Video

JPEG 5000 x 5000

Format Sample Rate Date Rate Channel

MP3 8-48 KHz 8-320 Kbps Mono/Stereo

Coding File Extension Codec Date Rate

MPEG4 .AVI/.VID/.MP4 DIVX3/4/5 /XVID/MPEG-4 Max 8 Mbps

Real-media .RM/.RMVB Real Video 8/9/10 Max 10 Mbps

High-Definition JPEG /

Baseline JPEG /

Progressive JPEG Max 1600 x 1024

2.3.7 Other Functions and Information
Grouping of Favorite Channels

You may create a list of favorite channels and stations for accessing them easily.

Reminder:

You can create up to four lists of favorite collections.

Select the favorite collection list.

1. Press OK to display the menu of channel options when watching TV.

2. Press OK to select “Show favorite CH” to display the collection list.

3. Press the ▲/▼key to select the collection list.

4. Press OK to display channels in the collection list.

Add channels in the collection list.

1. Switch to the channel you want to add the collection list

when watching TV.

2. Press OK to display the menu of channel options.

3. Press the ▲/▼key to select “Mark as favorite”.

4. Press OK or the ► key to display the collection list.

5. Press the ▲/▼ key to select the collection list in which

you want to add new channels.

6. Press OK to confirm adding channels in the collection list.

Remove channels from the favorite list.

Note: Before removing channels from any collection list you have to select it in advance.

1. Press OK to display the menu of channel options when watching TV.

2. Press OK to enter the “Show favorite ch”.

3. Press the ▲/▼ key to select desired collection lists. Press OK to enter it.

18

4. Press the ▲/▼ key to select the channel to be removed from the list.

5. Press OK to select.

6. Press OK again to display the menu of channel options.

7. Press the ▲/▼ key to select “Unmark as fav”.

Rename channel

1. Press the OK key, a virtual keyboard will appear.

2. Press the ▲/▼/◄/►button to select characters.

3. Press the OK to confirm each character.

4. Select [Done], then press the OK to finish renaming channels.

Tips:

1. Press [Aa] to change an uppercase letter to a lowercase letter.

2. The channel name can be up to six characters.

Lock/ Unlock channel

Press the OK and then press numeric buttons to input password.

Tips:

1. Switch the TV off and on again for the channel lock to take effect.

2. Default password: 8888.

3. If you access the locked channel by pressing CH+/- on the remote control, you will be prompted to enter

your password.

TV Time

Press the OK to display the time.

Tips:

1. If TV time had been enabled, the information is TV clock.

2. If TV time not be active, the information is TV worked time from this power on time.

3. TV Time setup is in the Feature section of TV main menu.

19

3. Input /Output Specification

3.1 Input Signal Connector

VGA Connector

Pin No. Description Pin No. Description Pin No. Description

1 Red Video 6 Red Ground 11 RXD

2 Green Video 7 Green Ground 12 Serial Data for DDC

3 Blue Video 8 Blue Ground 13 H-Sync.

4 TXD 9 No Pin! 14 V-Sync.

5 Ground 10 Sync Ground 15 Serial Clock for DDC

HDMI Connector

Pin No. Description Pin No. Description Pin No. Description

1 TMDS Data2+ 8 TMDS Data0 Shield 15 SCL

2 TMDS Data2 Shield 9 TMDS Data0- 16 SDA

3 TMDS Data2- 10 TMDS Clock+ 17 DDC/CEC Ground

4 TMDS Data1+ 11 TMDS Clock Shield 18 +5V Power

5 TMDS Data1 Shield 12 TMDS Clock- 19 Hot Plug Detect

6 TMDS Data1- 13 CEC

7 TMDS Data0+ 14 NC

1

6

11 15

5

10

USB Connector

Pin No. Description Pin No. Description

1 VCC 3 DATA+

2 DATA- 4 GND

20

3.2 Factory Preset Display Modes

21

4. Mechanical Instructions

1. Remove the screws to remove the base.

2. Remove the screws to remove the rear cover.

22

3. Disconnect all the connectors.

4. Remove the screws to remove the AC cover and the boards.

23

5. Remove the screws to remove the BRACKET_STAND and SPEAKER.

6. Remove the screws to remove the BRACKET_HOLDER_FIX.

24

p

5. Repair Flow Chart

1. No power

No power (LED “Off”)

Check the AC input and
the

ower is “ON”?

Yes

Power board output=5V?

Yes

Check the IR board and LED

Replace the IR board

No

Replace the main board

No

Power “On”

No

Replace the power board

25

2. Can’t start

Power board output＝24V？

Check the power key is under control?

Check the IR receiver is normal?

Replace the main board

Replace the Power board

Can’t start

No

Replace the power board

Yes

Yes

Replace the key board

No

Yes

Replace the IR board

No

No

26

3. Abnormal Display

Abnormal Display

Check the source

Yes

Enter factory mode to do

“EEPROM initial”&“Reset”

No

No

Reset the source

Check the main board

Yes

Check the LVDS cable

Yes

Check the panel

No

Replace the panel

No

Replace the main board

No

Replace the LVDS cable

27

4. No display

Check TV is under control and power
on/off by remote control and power key?

Yes

Check the LVDS cable

Yes

Panel Vcc = 5 V?

Yes

Replace the Panel

No display (LED blue)

Yes

Check the backlight is

“On”?

No

Reinsert or replace the
LVDS cable

No

Replace the main board

No

Replace the main board

No

Check the B/L

signal is available?

Yes

Power board output =24 V？

Yes

Replace the Panel

Replace main board

Replace the power board

No

No

28

5. Sound problem

Check the speaker resistance value is in spec
(Remark: The value is marked on the speaker)?

No sound or sound abnormal

Check the audio source connection

and the TV system are correct？

Yes

Check the TV is muted, adjust the

volume or enter the menu to reset?

No

Enter factory mode to do “Reset”

No

Check the cable between the

speakers and main board is

Yes

No

Reinsert the audio cable or
change the TV system

No

Replace the cable

No

Yes

Replace the speaker

Replace the main board

29

6. Remote Control malfunction

Remote Control malfunction

Check the remote control battery is
not properly placed or no power?

Use the other remote controls

Whether the IR board is

abnormal?

Yes

Replace the battery

No

Yes

Replace the remote control

No

Yes

Replace the IR board

No

Replace the main board

30

7. OSD is unstable or can’t work normally

OSD is unstable or can’t work normally

Key board connected properly?

Yes

No

Reconnect the key board

Buttons are OK?

Yes

Key board is OK?

Yes

Enter factory mode to do “Reset”

No

Replace the main board

No

No

Replace the button function

Replace the key board

31

6. PCB Layout

6.1 Main Board

715G4089M02000004F

32

33

34

35

6.2 Power Board

715G4078P01W22003H

36

37

6.3 Key Board

715G4224K01000004S

6.4 IR Board

715G4086R01000004

38

7. Adjustment

It needs to adjust ADC (YPbPr & VGA) and WB (YPbPr/VGA’s Normal/Warm/Cool).

ADC Adjustment

Step1. Enter into the factory mode.

Press RC key ‘menu’+’1’+’9’+’9’+’9’ or ‘menu’+’1’+’9’+’9’+’9’+’ok’.

Step2. ADC adjustment method

1. Enter into the factory mode (same as the above-mentioned).

2. Select “Current Source” (YPbPr/VGA).

3. Set Timing and Pattern of Source.

4. Timing and Pattern Setting:

YPbPr mode: Timing 314 pattern 185

VGA mode: Timing 137 pattern 42

5. Press the “Auto Color”.

WB Adjustment

Step1. Enter into the factory mode (same as the above-mentioned).

Step2.Take “YPbPr_Normal” adjust for example:

1. Select “Current Source”: YPbPr; “Color Temp”: Normal.

2. In COMPONENT mode: TIM = 314; PAT = 161(50IRE) to adjust RGB gain to meet the below spec.

Step3. Take VGA_Normal adjust for example:

1. Select “Current Source”: VGA, “Color Temp”: Normal.

2. In (VGA mode: TIM = 137; PAT = 161(50IRE)) to adjust RGB gain to meet the below spec.

Normal/ (7500K) Warm/ (6500K) Cool / (9300K)

x (center) 0.285 ± 0.020 0.313± 0.020 0.272 ± 0.020

y (center) 0.293 ± 0.020 0.329 ± 0.020 0.278 ± 0.020

Lv(center) >350cd/m2 >350cd/m2 >350cd/m2

39

8. Block Diagram

40

41 42

9. Schematic Diagram

9.1 Main Board

715G4089M02000004F

VGA_5V_S

R1104

4.7K1/ 16W

R1103

4.7K1/16W

R1112 100O HM1/16W

DDCSDA

HS

VS

DDCSCL

+5V_STBY

R1000

4.7K 1/16W

R1109 100OHM1/16W

RX0

CN1101

1716

11

12

13

14

15

1
6
2
7
3
8
4
9
5
10

CONN

18 19

1

VGA_5V_S

D1708

3

8
7
6

2

BAT54C

C1000 220N 25V

A0

VCC

A1

WP

A2

SCL

VSSSDA

TX0

VGA_5V

VGA_5V

U100

1

CAT24C02WI-GT3

2
3
45

ZD1102

BZX84-C5V6

1 3

R1113

DDCSDA
DDCSCL

TX0
RX0

RX0
TX0

R1110
NC/ 100OHM1/16W
NC/ 100OHM1/16W

VGA_SDA
VGA_SCL

R5423 NC/100OHM1/16W

U0RX 13

R5421 100OHM1/16W
R5424 NC/100OHM1/16W
R5422 100OHM1/16W

U0TX 13

创维机种

AOC

机种

R5423

100OHM

NC

R5421

NC

100OHM

R5424

100OHM

NC

R5422

NC

100OHM

R1110

R1112/R1109/R1000

R1113

U100/C1000/D1708

100OHM

NC

NC

追加

CLOSE TO IC

FB1102 30R/ 700mA

R

G

B

1 2

FB1103 30R/ 700mA

1 2 R1114

FB1104 30R/ 700mA

1 2

R1116
R1117
R1118

75R 1/16W 1%
75R 1/16W 1%
75R 1/16W 1%

C1112
C1113
C1114

5PF 50V
5PF 50V
5PF 50V

R1111
68OHM 1/16W

68OHM 1/16W
R1115
68OHM 1/16W

R1119

100OHM1/16W

C1108

10N 50V

C1109

10N 50V

C1110

10N 50V

C1111

4700P 50V

C1115 10N 50V

PC_R _IN 13

PC_G_I N 13

PC_B_IN 13

PC_SOG 13

PC_GND 13

PC_AUDIO

R1122

2.2K 1/16W

PHONEJ ACK

PHONEJ ACK

CN1102

R1120

100OHM1/16W
R1121
100OHM1/16W

R1123

2.2K 1/16W

1
2

3

R1124 12K 1/16W

C1116

330pF 50V

R1126 12K 1/16W

C1118

330pF 50V

PC_HSY NC 12,13

PC_VSY NC 12, 13

R1125
7K5 1/16W 5%

R1127

7K5 1/16W 5%

C1117

330pF 50V

C1119

330pF 50V

PC_AUL_I N 18

PC_AUR _IN 18

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

HS

DDCSDA

絬隔瓜絪腹

<

04: D -SUB I NPU T

1234

I/O1

GND

VDD

I/O4

5

6

+5V_STBY

>

VS

U101
AZC199-04S

I/O2I/O3

DDCSCL

R

RX0

1234

U103

AZC199-04S

I/O1

I/O2I/O3

GND

VDD

I/O4

B

G

5

6

+5V_STBY

OEM MODEL Size

TPV MODEL

PCB NAME

<Title> A4

<Doc > A

421Wednesday , June 30, 2010

Sheet

of

Rev

称爹

<

称爹

>

NC/JACK

A

B

C

D

E

CN1201

1

2
3

4
5

6
7

8
9
10
11

ZD103 NC /MLVG0402
ZD102 NC /MLVG0402
ZD101 NC /MLVG0402

1 2

1 2

1 2

1 2

1 2

1 2

FB1407

NC/ 120R/500mA

FB1408

NC/ 120R/500mA

FB1409

NC/ 120R/500mA

R1205 N C/75R 1/16W 1%
R1206 N C/75R 1/16W 1%
R1207 N C/75R 1/16W 1%

NC/ 15P 50V

C1205

NC/ 15P 50V

C1206

NC/ 15P 50V

C1207

R1201
NC/ 68OHM 1/16W

R1202
NC/ 68OHM 1/16W

R1203
NC/ 68OHM 1/16W

C1210

NC/ 330pF 50V

C1212

NC/ 330pF 50V

CLOSE TO IC

C1201 NC/ 10N 50V

C1202 NC/ 10N 50V

C1203 NC/ 10N 50V

R1231

C1232 NC/ 4700P 50V

NC/ 0R05 OHM

C1204 NC/ 10N 50V

R1208

NC/ 100OHM1/16W

R1209
NC/ 6.2K 1/16W

R1211

NC/ 6.2K 1/16W

R1210
NC/ 12K 1/16W

R1212
NC/ 12K 1/16W

COMP1_Y_IN 13

COMP1_PB_IN 13

COMP1_PR_IN 13

C1211

NC/ 330pF 50V

C1213

NC/ 330pF 50V

COMP1_SOG 6,13

COMP1_GND 13

COMP1_AUL_IN 18

COMP1_AUR_IN 18

C1508

AL313

1uF 25V

R1508

0R05 OHM

C7164

2N2 50V

18K 1/10W

CVBS1_IN _AUL_IN18

CVBS1_IN_AUR_IN18

R7513

0R05 1/10W

R658

15K 1/10W

23

Q608

PMBS3906

R660

1K 1/10W

C1234

47pF 50V

R1240
20K 1/16W

R1241
20K 1/16W

GND

100P 50V

R1232
100OHM1/16W

MLVG0402

R1239

6.2K 1/16W

R1238

6.2K 1/16W

CVBS_OUT13,16

C676

100NF 25V

C675

75R 1/16W 1%

ZD104

C1231

330pF 50V

C1236

330pF 50V

R1517
0R05 OHM

1 2

R1223

C1503

47UF 16V

+

R1502
10K1/16W

R1505
33K 1/16W 5%

C1513

100P 50V

2

1

4

3

6

5

10OHM1/16W

R1503

CN1203

A

B

C

JACK

+5V_ON

Q1502
PMBS3904

+

C1504 330uF 10V

R1506

150 OHM 1/8W

C1502

100N 16V

75R 1/16W 1%

R1504

CN1501

2

A

1

4

B

3

6

C

5

JACK

GND

R669

C1233 47N 16V

C1229

330pF 50V

C1237

330pF 50V

+5V_ON

R670

1K 1/10W

Q609

1

PMBS3904

2 3

1.2K 1/10W

R657

1K 1/10W

GND

+5V_ON

1

R659

CVBS1_IN13

JACK

A

B

C

D

E

CN1202

R668

R667

18K 1/10W

R7515

0R05 1/10W

C1509

1

2
3

4
5

6
7

8
9
10
11

ZD106 MLVG0402
ZD108 MLVG0402
ZD107 MLVG0402

1 2

1 2

1 2

1 2

1 2

1 2

FB1410

FB1411

FB1412

30R/700m A

30R/700m A

30R/700m A

R1218 75R 1/16W 1%
R1220 75R 1/16W 1%
R1219 75R 1/16W 1%

15P 50V

C1208

15P 50V

C1215

15P 50V

C1216

CLOSE TO IC

R1204
68OHM 1/16W

68OHM 1/16W

R1222
68OHM 1/16W

R1233
0R05 OHM

R1217

100OHM1/16W

C1220

330pF 50V

C1222

330pF 50V

C1209 10N 50V

C1217 10N 50VR1221

C1218 10N 50V

C1235 4700P 50V

C1219 10N 50V

R1213

6.2K 1/16W
R1215

20K 1/16W

R1214

6.2K 1/16W
R1216

20K 1/16W

COMP2_Y_IN 13

COMP2_PB_IN 13

COMP2_PR_IN 13

COMP2_SOG 6,13

COMP2_GND 13

C1221

330pF 50V

C1214

330pF 50V

AR313

1uF 25V

COMP2_AUL_IN 18

COMP2_AUR_IN 18

R1509
0R05 OHM
C7165

2N2 50V

R663

15K 1/10W

GND

1K 1/10W

1

Q611

1

PMBS3904

R664

2 3

1.2K 1/10W

R662

1K 1/10W

GND

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

1K 1/10W

G4089-M0G-000-0040-13-100531

05: REAR I/O

23

Q610

PMBS3906

R665

C678

100NF 25V

GND

C677

100P 50V

R1518

0R05 OHM

OEM MO DEL Size

TPV MO DE L

PCB NAME

Sheet

C1519

100P 50V

A3

of

521Wednesday , June 30, 2010

Rev

称爹

B

称爹

>

<

43

JACK
CN1401

Close to IC

R1407

C1408 47N 16V

R1408

75R 1/16W 1%

7
9
8
4
6
5
1
3

ZD105

MLVG0402

1 2

R1409

6.2K 1/16W

C1415

330pF 50V

100OHM1/16W

C1403

47pF 50V

R1410
20K 1/16W

C1414

330pF 50V

SID E_CVBS_I N 13

SIDE_C VBS_AUL_IN 18

2

123

CN1402

CONN

4

1234

0R05 OHM
0R05 OHM

65

R1418NC/ 0R05 OH M

R1405

NC/ 0R05 OH M

USB1_5V

USB0_5V

R1404
R1417

USB0_DN 13
USB0_DP 13

USB1_DP 13

USB1_DN 13

C1407

+

NC/100N 16V

R1414

6.2K 1/16W

C1416

330pF 50V

C1405

100N 16V

FB1403

NC/ 220R/ 2000mA

C1410

NC/ 100uF 16V

R1416
20K 1/16W

+

12

FB1402

220R/2000m A

C1406

100uF 16V

USB_OC1 13

C1411

NC

C1417

330pF 50V

12

t

TH1402

USB_OC 0 13

C1409

NC

12

+5V_O N

SID E_CVBS_AU R_I N 18

t

12

TH1401

+5V_ON

HDMI3_5V

R1419 1K 1/ 10W

HDMI3_DDC_SDA10,11,13

HDMI3_DDC_SCL10, 11,13

HDMI3_HPD10,11

HDMI3_CK-11,13

HDMI3_CK+11,13

HDMI3_D 0-11,1 3

HDMI3_D 0+11,13

HDMI3_D 1-11,1 3

HDMI3_D 1+11,13

HDMI3_D 2-11,1 3

HDMI3_D 2+11,13

R1411 470KOHM 5% 1/16W

R1413 1KOHM +-1% 1/16W

R1412 10OHM1/16W
R1415 10OHM1/16W

CEC10,11

CN1403

19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

HP DET
+5V
GND
DDC DATA
DDC CLK
NC
CE Remote
CK­CK Shield
CK+
D0­D0 Shield
D0+
D1­D1 Shield
D1+
D2­D2 Shield
D2+

HDMI

SHELL2

SHELL4

SHELL3

SHELL1

21

23

22

20

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

G4089-M0G-000-0040-13-100531

07: SIDE INPUT

Date

44

OEM MO D EL Si ze

TPV MO D EL

PCB N AME

Sheet

<Title > A4

E32A22NDW3ACX B

721Wednesday , June 30, 2010

of

Rev

称爹

<

称爹

>

M40CTP-2PN-E

12

TH1

13

TH2

14

TH3

15

TH4

TU1 00

NC
NC

SDA
SCL

IF_SOUND

VCC
AGC

NC

AUDI O OUT

CVBS

AS

1
2
3
4
5
6
7
8
9
10

TU_ CVB S

11

TU_ SIF

TU_ AS
TU_ SDA
TU_ SCL
TU_ SIF
+5VT

TU_ CVB S

C1615

100N 16V

C1620 100N 16V

TU_ AS

+5VT

C1602

100N 16V

75R 1/16W 1%

SIF_P 13

SIF_N 13

R1610

+5VT

R1601
NC

R1606
0R05 OHM

R1609
100OHM1/16W

C1612

47pF 50V

IIC LEVEL SHIFT

+5V_ON

+3V3

Close to IC

C1610 47nF 50V

C1627

1uF 25V

TV_C VBS 1 3

Tuner_CVBS_GND 13

5V for Tuner

G965-25ADJPI UF

+5V_O N

+

C219

330uF 10V

Vout=1.2*(38.3+12)/12=5.03V

U159

2.2 OHM 1/10W

R739

38.3KOHM +-1% 1/8W

R172

GND

VEN

123

678

GND

GND

VINVOADJ GND

4 5

12K1/10W

R173

+

C218

47uF/16V

FB151

1 2

220R/2000m A

C201

100uF 16V

+5VT

+

TU_ SCL
TU_ SDA

10P 50V

C1621

R1624 10OHM1/16W
R1625 10OHM1/16W

C1622

10P 50V

R1623

4.7K 1/16W

R1626

4.7K 1/16W

+5V_ON

Q1601

2N7002

Q1605

2N7002

+3V3

12,13,16

MT_S CL

MT_SD A

12,13,16

CN7103

4
3
2
1

+3V3

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

NC/CONN

G4089-M0G-000-0040-13-100531

09: TUNER

45

OEM MODEL Size

TPV MO D EL

PCB N AME

Sheet

<Title> A4

E32A22NDW 3ACX B

715T4089

921Wednesday , June 30, 2010

of

Rev

称爹

<

称爹

>

CN1701

NC/HDMI

24

TH 5

23

TH 4

22

TH 3

21
20

TH 2
TH 1

DDC DATA

DDC CLK

CE Remote

CK Shield

D0 Shield

D1 Shield

D2 Shield

HP DET

+5V

GND

NC

CK-

CK+

D0-

D0+

D1-

D1+

D2-

D2+

19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

R1701
NC/ 470KOH M 5% 1/16W

R1703
NC/ 1K 1/16W

R1707 NC/ 10OHM1/16W
R1708 NC/ 10OHM1/16W

HDMI1_HPD 11

R1706
NC

HDMI1_DDC_SDA 11,13
HDMI1_DDC_SCL11,13

HDMI1_C K- 11,13

HDMI1_C K+ 11,13
HDMI1_D 0- 11,13

HDMI1_D 0+ 11,13
HDMI1_D 1- 11,13

HDMI1_D 1+ 11,13
HDMI1_D 2- 11,13

HDMI1_D 2+ 11,13

HDMI1_5V

HDMI1_DDC_SCL11, 13

HDMI1_DDC_SDA11,13

HD MI1_5V

R1705

R1704
NC/ 47K 1/16W
NC/ 47K 1/16W

HDMI2_5V

2

NC/ BAT54C

2

BAT54C

D1706

D1705

3

+5V_STBY

1

3

+5V_STBY

R1001

NC/4.7K 1/16W

+5V_STBY

1

C1001 N C/220N 25V

8

VCC

7

WP

6

SCL

VSSSD A

1

A0

2

A1

3

NC/ M24C02-WMN6TP

A2

45

U102

24
23
22
21
20

CEC

TH 5
TH 4
TH 3
TH 2
TH 1

Q1501

HP DET

DDC DATA

DDC CLK

CE Remote

CK Shield

D0 Shield

D1 Shield

D2 Shield

+5V_STBY

2N7002

CN1702

HDMI

+5V

GND

NC

CK-

CK+

D0-

D0+

D1-

D1+

D2-

D2+

470KOHM 5% 1/16W

19
18
17
16
15

R1724 10OHM1/ 16W

14

R1723 10OHM1/ 16W

13
12
11
10
9
8
7
6
5
4
3
2
1

HDMI2_HPD11

HDMI3_HPD7,11

R1106

27K 1/10W

MST_C EC 11

HDMI1_HPD11

+3V3

R1725

R1722
1K 1/16W

HDMI2_HPD 11

R1726
1K 1/10W

HDMI2_DDC_SDA 11,13
HDMI2_D DC_SC L 11, 13

HDMI2_C K- 11,13

HDMI2_C K+ 11,13
HDMI2_D 0-11, 13

HDMI2_D 0+ 11,13
HDMI2_D 1- 11,13

HDMI2_D 1+ 11,13
HDMI2_D 2- 11,13

HDMI2_D 2+ 11,13

R1715 10OHM1/16W

R1719 10OHM1/16W

HDMI2_5V

Q1705

PMBS3904

Q1706

PMBS3904

R1710
NC/10OHM1/16W

Q1702

NC /PMBS3904

R1716

10OHM1/16W

R1721

10OHM1/16W

R1711

NC /10OH M1/16W

47K 1/16W

R1713
R1712

47K 1/16W

HDMI2_D DC_SC L11,13
HDMI2_DDC_SDA11,13

CEC

HDMI2_HPD_CTL 13

HDMI3_HPD_CTL 13

HDMI1_HPD_CTL 13

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

10: HDMI INTPUT

Date

HD MI3_5V

2

BAT54C

R1717

R1714

47K 1/16W
47K 1/16W

HDMI3_DDC_SCL11, 13

HDMI3_DDC_SDA11,13

46

D1707

+5V_STBY

R1002

4.7K 1/ 16W

+5V_STBY

1

3

+5V_STBY

R1003

4.7K 1/ 16W

OE M MOD E L Si ze

TPV MODEL

PCB NAME

Sheet

8

VCC

7

WP

6

SCL

8
7
6

C1002 220N 25V

1

A0

2

A1

3

A2

45

VSSSD A

C1003 220N 25V

1

A0

VCC
WP
SCL

10 21Wednesday , June 30, 2010

2

A1

3

A2

45

VSSSD A

of

U104

CAT24C02WI -GT3

U105

CAT24C02WI -GT3

Rev

称爹

<

A4

B

称爹

>

C4239

4.7UF 10V

C4278

4.7UF 10V

INVERTER_ON _OFF21

RDQ[15.. 0]14

DV10

AV12

DDRV

PANEL_PWR_CTL21

HDMI1_HPD_C TL10
HDMI2_HPD_C TL10
HDMI3_HPD_C TL10

USB_OC07

USB_OC17

EARP_DET7

RA[12..0 ]14

MEM_VRE F

C4223

100N 16V

C4240

100N 16V

FB4212

1 2

120R/3000mA

C4254

4.7UF 10V

C4279

100N 16V

ODSEL15

AV12_MEMPLL

RCLK0#14
RCLK014

C4241

100N 16V

AV12_PLL

C4280

100N 16V

RDQ0
RDQ1

RDQ2
RDQ3
RDQ4

RDQ5
RDQ6
RDQ7

RDQS014

RDQM014

RDQM114

RDQS114

RDQ8
RDQ9

RDQ10
RDQ11
RDQ12

RDQ13
RDQ14
RDQ15

RCKE14

RA11

RA9
RA8
RA7
RA6
RA5
RA4

RWE#14
RCAS#14
RRAS#14
RCS#14
RBA014
RBA114

RA0
RA1

RA2
RA3

C4255

4.7UF 10V

GPIO_8

GPIO_10

DDRV

C4242

100N 16V

C4281

100N 16V

R4226
51K 1/16W 5%
R4222
100K 1/16W

R4230
51K 1/16W 5%
R4227
100K 1/16W

DV10

DV33

C4243

100N 16V

C4256

100N 16V

RA12

RA10

C4259

3N3 50V

C4282

100N 16V

GPIO_0
GPIO_1
GPIO_2
GPIO_3

GPIO_4

GPIO_6

GPIO_7

257

129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192

C4244

100N 16V

C4283

100N 16V

USB0_DN7
USB0_DP7

U4201

TH1

DVDD10_2
DVDD10_2
RDQ0
RDQ1
VCC2IO_2
RDQ2
RDQ3
RDQ4
VCC2IO_2
RDQ5
RDQ6
RDQ7
VCC2IO_3
RDQS0
VCC2IO_2
RDQM0
DVDD10_2
RDQM1
VCC2IO_2
RDQS1
VCC2IO_2
RDQ8
RDQ9
VCC2IO_2
RDQ10
RDQ11
RDQ12
VCC2IO_2
RDQ13
RDQ14
RDQ15
AVDD12_MEMPLL_1
VCC2IO_1
RCLK0#
RCLK0
VCC2IO_2
RCKE
RA12
RA11
VCC2IO_2
RA9
RA8
RA7
RA6
RA5
RA4
RWE#
RCAS#
RRAS#
RCS#
RBA0
RBA1
RA10
RA0
RA1
DVDD10
RA2
RA3
VCC2IO_1
RVREF0
DVDD10_2
VDD33_2
VGA_SDA
VGA_SCL

AV33_USB

AV12_USB

R4221

5K1 1/10W 1%

C4246

C4247

100N 16V

100N 16V

C4284

C4285

100N 16V

100N 16V

+3V3

R4202
10K1/16W

GPIO_6

GPIO_8

GPIO_7

GPIO_10

122

123

124

125

126

127

128

GPIO5

GPIO6

GPIO7

GPIO8

GPIO9

GPIO10

GPIO11

USB_DP1

USB_DM1

AVDD12_USB

USB_VRT

AVDD33_USB

USB_DP0

USB_DM0

199

198

197

196

195

194

193

AV33_USB

USBVRT

7

7

USB1_DP

USB1_DN

Close to MT8222 As possible

C4248

100N 16V

AV12

1 2

C4261

10uF 6.3V

C4286

100N 16V

GPIO_3

GPIO_1

GPIO_4

GPIO_2

118

119

120

121

GPIO2

GPIO3

GPIO4

PWR5V_2

HDMI_CEC

DVDD10

203

202

201

200

DV10

HDMI3_D DC_SDA

HDMI3_5V

MST_CEC

AV12

FB4213

120R/3000mA

C4287

100N 16V

DV33

DV33

GPIO_0

DV10

114

115

116

117

GPIO0

GPIO1

VDD33_2

DVDD10_3

RX2_C

RX2_CB

HDMI_SCL2

HDMI_SDA2

206

207

205

204

HDMI3_D 0-

HDMI 3_CK+

HDMI 3_DDC_SCL

HDMI 3_CK-

FB4201

1 2

120R/3000mA

AV12_LVDS

C4293

100N 16V

O1N

O1P

110

O2N

109

O1P

O2N

AV33_LVDS

O2P

OCKN

AV33_LVDS

106

107

108

O2P

AVDD33_LVDSA

AV12_LVDS

OCKP

O3P

O3N

100

101

102

103

104

105

O4P

O3P

O4N

O3N

OCKP

OCKN

DV10

O0P

O0N

O1N

111

112

113

O0P

O0N

DVDD10_3

MT8222AHMU/B

RX1_0

RX1_C

RX1_0B

RX1_CB

AVDD33_HD MI

HDMI_SCL1

HDMI_SDA1

PWR5V_1

RX2_2

RX2_1

RX2_2B

RX2_1B

RX2_0

RX2_0B

208

HDMI3_D 0+

C4267

10uF 6.3V

C4294

100N 16V

209

HDMI3_D 1-

210

211

HDMI3_D 1+

HDMI3_D 2-

HDMI2_5V

AV12_LVDSPLL

C4268

100N 16V

213

212

HDMI3_D 2+

C4238

10uF 6.3V

C4295

100N 16V

214

HDMI2_D DC_SDA

217

216

215

HDMI 2_DDC_SCL

HDMI 2_CK-

AV33_HDMI

C4245

100N 16V

C4269

100N 16V

C4306

4.7UF 10V

221

220

218

219

HDMI2_D 0-

HDMI2_D 1-

HDMI2_D 0+

HDMI 2_CK+

AV12

C4270

10uF 6.3V

AV12

E1N

E0N

E0P

E1P

E0P

E1N

E0N

AVDD12_LVDS

SRS

RX1_2

RX1_1

RX1_2B

RX1_1B

225

224

222

223

HDMI2_D 2+

HDMI2_D 2-

HDMI2_D 1+

HDMI1_5V

FB4214

1 2

120R/3000mA

FB4219

1 2

120R/3000mA

C4288

4.7UF 10V

E2N

E1P

PWR5V_0

226

HDMI1_D DC_SDA

E2P

E2P

E2N

的功能

HDMI_SCL0

HDMI_SDA0

227

HDMI 1_DDC_SCL

ECKN

ECKP

AV33_LVDS

ECKP

ECKN

AVDD33_LVDSB

IC

RX0_C

RX0_0B

RX0_CB

229

230

228

HDMI1_D 0-

HDMI 1_CK+

HDMI 1_CK-

AV12_USB

C4262

10uF 6.3V

AV12_MEMPLL

C4296

NC/10uF 6. 3V

AV12_LVDSPLL

E3N

E3P

E3P

E4N

E3N

應用

RX0_1

RX0_1B

RX0_0

233

234

232

231

HDMI1_D 1-

HDMI1_D 1+

HDMI1_D 0+

HDMI1_D 2-

DV10

TP

E4P

AVDD12_VPLL

AVDD12_HD MI_3

RX0_2

RX0_2B

237

236

235

HDMI1_D 2+

VGAVSYNC#

AV12_HDMI

C4263

100N 16V

C4297

NC/100N 16V

DV33

DVDD10_4

VSYNC

238

VGAHSYNC#

UP35

VDD33_1

239

BLUP

AV12

AV12

UP34

UP31

UP33

UP33

UP34

UP35

242

241

240

VGAGND

VGASOG

GRNP

1 2

C4264

10uF 6.3V

FB4220

1 2

120R/3000mA

C4289

4.7UF 10V

U0TX

UP30

U0RX

UP30

UP31

TXD0

RXD0

SOY1

AVDD33_VGARPCOMGPSOGBPHSYNC

245

244

243

REDP

SOY2

AV33_VGA

FB4215

120R/3000mA

U0TX
U0RX

1 2

30OHM

SPI_SCK

IR_

INT0_

SPI_CS1

SPI_SCK

PR1P

PB1P

COM1

Y1P

249

248

247

246

PR2P

YPBPR2_N

Y2P

PB2P

AV12_HDMI

C4265

4.7UF 10V

AV12A_RGB

C4290

10uF 6.3V

ICE

SPI_SI

SPI_SO

SPI_CS#

SPI_SI

PRST#

SPI_SO

SPI_CS0

AVDD33_REF P_AADC

PB0P

COM0

Y0P

SOY0

254

253

252

251

250

YPBPR1_N

PR0P

SOY1

Y1P

PB0P

AV12D_RGB

C4266

100N 16V

C4291

100N 16V

ICE

AVDD12_SYS PLL
AVDD12_ADC PLL

PR0P

AV12D_RGB

LED2_ON 12,17

LED1_STBY

17

STANDBY 12,21
FLASH_WR# 12

5V_PWR_SW 12,21

FB7119

RC_IR_3V3 12,17

RST_MT8222

R4207
1K1/16W

EEPROM_WP 12

6566676869707172737475767778798081828384858687888990919293949596979899

PWM2

PWM3

64

PWM1

63

PWM0

62

SPDIF_OU T

61

TXD1

60

RXD1

59

HW_SCL

58

HW_SDA

57

GPIO25

56

GPIO24

55

GPIO23

54

GPIO22

53

GPIO21

52

GPIO20

51

I2S_ADIN

50

I2S_AOSDATA0

49

I2S_AOBCLK

48

I2S_AOLRCK

47

I2S_AOMCLK

46

VDD33_1

45

DVDD10_3

44

AR1

43

AL1

42

AVICM2

41

AR2

40

AL2

39

AR3

38

AL3

37

AVDD33_ADAC

36
35

AIN_R

34

AIN_L

33

VMID

32

AVDD33_AADC

31

AVDD12_APLL

30
29
28

AVDD12_PSPLL

27

AVDD12_DMPLL

26

XTAL I

25

XTAL O

24

AVDD33_XTAL

23

ADIN5

22

ADIN4

21

ADIN3

20

ADIN2

19

ADIN1

18

ADIN0

17

AVDD33_DIG

16

MPX1

15

MPX2_N

14

MPX2_P

13

AVDD33_SIF

12

AVDD33_CVBS

11

CVBS_BYPASS1

10

CVBS_BYPASS0

9

CVBS0P

8

CVBS0N

7

CVBS1P

6

CVBS2P

5

CVBS3P

4

CVBS_SY0

3

CVBS_SC0

2

CVBS_SY1

1

CVBS_SC1

AVDD12_RGB

AVDD12_DIG_R GB

Scaler MT8222AHSU/B LQFP -256

256

255

AV12A_RGB

AV12A_RGB

AV12

C4292

3N3 50V

U0TX17
U0RX17

R4224 22 OHM 1/16W

R4225 22 OHM 1/16W
R4210 10OHM1/16W
R4211 10OHM1/16W

GPIO_25

GPIO_22
GPIO_21
GPIO_20

AOSDATA0
AOBCK
AOLRCK
AOMCLK
DV33
DV10

AVICM

AR3
AL3

AV33_ADCREF
MT_AUD_R
MT_AUD_L
AUD_VMID
AV33_ADC

AV12_PLL

XTAL I
XTAL O
AV33_XTL
MTK_DC _ON_ OFF

R4259

10K1/16W

ADIN2
ADIN1

AV33_SIFDI G

R4219
0R05 OHM

VGA input

REDP
VGAGND
VGASOG

GRNP

BLUP
VGAHSYN C#
VGAVSYNC #

COMP1 input

SOY1

Y1P

YPBPR1_N

PB0P
PR0P

COMP2 input

SOY2

Y2P

YPBPR2_N

PB2P
PR2P

FB4216

AV12D_RGB

1 2

120R/3000mA

+3V3

R4229
10K1/16W

AUDIN_SEL1 18
AUDIN_SEL2 18

DV33
DV10

AR3 8
AL3 8

AV33_DAC
AV33_ADCREF

R4257
0R05 OHM

R4258 0R05 OHM

AV33_ADC

AV12_PLL

AV33_XTL

DC_ON_OFF 12,17

KEY2 17
KEY1 12,17

R4260

AV33_SIFDIG

100OHM1/16W

SIF_N 9

SIF_P 9

AV33_SIF
AV33_CVBS

CVBS_OUT 8, 16

TV_CV BS 9
Tuner_CVBS_GND 9

SIDE_CVBS_IN 7

CVBS1_IN 5

R7520

R7521

0R05 1/4W

0R05 1/4W

PC_R_IN 4
PC_GND 4
PC_SOG 4
PC_G_IN 4
PC_B_IN 4
VGAHSYN C
VGAVSYNC

COMP1_SOG 5, 6
COMP1_Y_IN 5
COMP1_GND 5
COMP1_PB_IN 5
COMP1_PR_IN 5

COMP2_SOG 5
COMP2_Y_IN 5
COMP2_GND 5
COMP2_PB_IN 5
COMP2_PR_IN 5

C4272

C4271

100N 16V

4.7UF 10V

+3V3

R4214

R4215

10K1/16W
10K1/16W

AUDIN _SEL3 18

BRIGHTNESS_PW M 21

MT_SCL 9,12, 16
MT_SDA 9,12,16

R4236 10K1/16W

R4235 10K1/16W

AV33_DAC

C4204

4.7UF 10V

C4207

10uF 6.3V

33P 50V

OP_MUTE 19

AMP_EN 20

AMP_MUTE 20

R4234
10K1/16W

C4203

4.7UF 10V

C4205

100N 16V

C4303 10uF 6.3V
C4304 10uF 6.3V

C4208

100N 16V

C4214

C4305

12P 50V

AOSDATA0
AOBCK
AOLRCK
AOMCLK

HDMI1_D0+
HDMI1_D0­HDMI1_D1+
HDMI1_D1­HDMI1_D2+
HDMI1_D2­HDMI1_CK+

HDMI1_CK­HDMI1_DDC _SCL
HDMI1_DDC _SDA

HDMI2_D0+

HDMI2_D0-

HDMI2_D1+

HDMI2_D1-

HDMI2_D2+

HDMI2_D2-

HDMI2_CK+

HDMI2_CK­HDMI2_DDC _SCL
HDMI2_DDC _SDA

HDMI3_D0+

HDMI3_D0-

HDMI3_D1+

HDMI3_D1-

HDMI3_D2+

HDMI3_D2-

HDMI3_CK+

HDMI3_CK­HDMI3_DDC _SCL
HDMI3_DDC _SDA

+3V3

+3V3

+3V3

AUD_R 18
AUD_L 18

X4201

27MHz

12

C4215

27P 50V

LIGHT_SENSOR 17

HDMI

R4223
R4220

CN5402
10K1/16W
10K1/16W

1
2
3

NC/CONN

R4217

820K 1/10W

HDMI1_D0+ 10, 11

HDMI1_D0- 10, 11

HDMI1_D1+ 10, 11

HDMI1_D1- 10, 11

HDMI1_D2+ 10, 11

HDMI1_D2- 10, 11

HDMI1_CK+ 10, 11

HDMI1_CK- 10 ,11
HDMI1_DDC _SCL 10,11
HDMI1_DDC _SDA 10,11

HDMI2_D0+ 10, 11

HDMI2_D0- 10, 11
HDMI2_D1+ 10, 11

HDMI2_D1- 10, 11
HDMI2_D2+ 10, 11

HDMI2_D2- 10, 11
HDMI2_CK+ 10, 11

HDMI2_CK- 10 ,11
HDMI2_DDC _SCL 10,11
HDMI2_DDC _SDA 10,11

HDMI3_D0+ 7, 11

HDMI3_D0- 7, 11
HDMI3_D1+ 7, 11

HDMI3_D1- 7, 11
HDMI3_D2+ 7, 11

HDMI3_D2- 7, 11
HDMI3_CK+ 7, 11

HDMI3_CK- 7, 11
HDMI3_DDC _SCL 7,10,11
HDMI3_DDC _SDA 7,10,11

Serial Flash IF

SPISCK12
SPI_SI12
SPI_SO12
SPI_CS#12

VGAHSYN C

VGAVSYNC

R490

10K 1/10W

+3V3

R4212
NC

R4216
10K1/16W

R4228 22 OHM 1/16W
R4231 22 OHM 1/16W
R4232 22 OHM 1/16W
R4233 22 OHM 1/16W

C4299

C4298

10uF 10V

100N 16V

SPI_SI
SPI_SO
SPI_CS#

+5V_STBY

1 2

C425
10uF 6.3V

R4250

SPI_SCK

100OHM1/16W

3

D403
BAV99

1

R460
1K 1/10W

R491

10K 1/10W

U4203

1

AOUTR

SDIN

2

DEM/SCLK

3

LRCK

4

MCLK

AOUTL

5 6

VQ FILT+

CS4344-CZZ

PC_HSYN C 4,12

PC_VSYN C 4,12

23

Q414

PMBS3906

100 OHM 1/10W

R438

R454

10K 1/10W

FB1

GLZ

10
9

VA

8

GND

7

C4300

10uF 10V

C410

47uF/16V

+

G1G2G3G4G5

12345

C4000

1uF 25V

LVDS INTERFACE

+3V3

R456

5.1K 1/10W

PMBS3904
Q404

C415

C427

100P 50V

NC

隔离罩

R4000

10K1/16W

R4002

470 OHM 1/16W

C4302

C4301

10uF 10V

100N 16V

470 OHM 1/16W

C4001

1uF 25V

R4001

10K1/16W

R4003

O0N
O0P
O1N
O1P
O2N
O2P
OCKN
OCKP
O3N
O3P

E0N
E0P
E1N
E1P
E2N
E2P
ECKN
ECKP
E3N
E3P

C4002

1.5nF 50V

FB4221

1 2

120R/3000mA

RXO0- 15
RXO0+ 15
RXO1- 15
RXO1+ 15
RXO2- 15
RXO2+ 15

RXOC- 15
RXOC+ 15
RXO3- 15
RXO3+ 15

RXE0- 15
RXE0+ 15
RXE1- 15
RXE1+ 15
RXE2- 15
RXE2+ 15

RXEC- 15
RXEC+ 15
RXE3- 15
RXE3+ 15

RST_MT8222

C424
10uF 6.3V

MAIN_AOR19

MAIN_AOL 19

C4003

1.5nF 50V

+3V3

10uF 6.3V

+3V3

10uF 6.3V

+3V3

+5V_ON

FB4208

1 2

120R/3000mA

C4236

FB4210

1 2

120R/3000mA

C4249

FB4217

1 2

120R/3000mA

C4273

4.7UF 10V

FB4202

+3V3

1 2
120R/3000mA

C4206

4.7UF 10V

+3V3

AV33_ADC

C4233

10uF 6.3V

AV33_USB

C4250

10uF 6.3V

AV33_XTL

C4274

10uF 6.3V

+

100uF 16V

+3V3

+3V3

+3V3

+3V3

FB4207

1 2

120R/3000mA

C4229

4.7UF 10V

C4209

FB4203

1 2

120R/3000mA

C4217

4.7UF 10V

FB4204

1 2

120R/3000mA

C4221

4.7UF 10V

FB4205

1 2

120R/3000mA

C4222

4.7UF 10V

FB4206

1 2

120R/3000mA

C4226

4.7UF 10V

+3V3

C4234

100N 16V

+3V3

C4251

100N 16V

+3V3

C4275

100N 16V

DV33

LED26DM99U/LED32DM99U

C4210

100N 16V

AV33_LVDS

C4230

10uF 6.3V

FB4209

1 2

120R/3000mA

FB4211

1 2

120R/3000mA

FB4218

1 2

120R/3000mA

C4211

100N 16V

AV33_VGA

AV33_SIF

AV33_DAC

AV33_CVBS

AV33_HDMI

AV33_SIFDIG

AV33_ADCREF

C4212

100N 16V

C4216

10uF 6.3V

C4219

10uF 6.3V

C4224

10uF 6.3V

C4227

10uF 6.3V

C4231

100N 16V

C4235

4.7UF 10V

C4252

4.7UF 10V

C4276

4.7UF 10V

C4213

100N 16V

C4218

100N 16V

C4220

100N 16V

C4225

100N 16V

C4228

100N 16V

C4232

100N 16V

C4237

100N 16V

C4253

100N 16V

C4277

100N 16V

47

T P V ( Top Victory Electroni cs Co . , Ltd. )

G4089-M0G-000-0040-13-100531

絬 隔 瓜 絪 腹

Key Component

13: MTK8222

Date

<Title> A2

OEM MODE L Size

TPV MODEL

E32A22NDW3AC X B

PCB NAME

13 21Tuesday, A ugust 10, 2010

of

Sheet

Rev

称爹

>

称爹

<

DDRV

MEM_D Q0

MEM_D Q1
MEM_D Q2
MEM_D Q3

MEM_D Q4
MEM_D Q5
MEM_D Q6
MEM_D Q7

MEM_D QS 0
MEM_D QM0
MEM_D QM1
MEM_D QS 1

MEM_D Q8
MEM_D Q9
MEM_D Q1 0
MEM_D Q1 1

MEM_D Q1 2
MEM_D Q1 3
MEM_D Q1 4
MEM_D Q1 5

RP5102

MEM_W E#
MEM_C AS #
MEM_R AS #

MEM_C S#
MEM_B A0
MEM_B A1
MEM_R A1 0

MEM_R A4
MEM_R A5
MEM_R A6
MEM_R A7

MEM_R A12
MEM_R A11
MEM_R A9
MEM_R A8

MEM_R A0
MEM_R A1
MEM_R A2

MEM_R A3

MEM_R C LK0

MEM_R C LK0 #

MEM_C KE

T P V ( Top Victory Electronics Co . , Ltd. )

G4089-M0G-000-0040-13-100531

絬 隔 瓜 絪 腹

Key Component

14: DDR1 MEMORY

Date

5
6
7
8

22 OHM +-5% 1/16W

RP5103

5
6
7
8

22 OHM +-5% 1/16W

RP5104

8
7
6
5
22 OHM +-5% 1/16W

RP5105

5
6
7
8

22 OHM +-5% 1/16W

RP5106

5
6
7
8

22 OHM +-5% 1/16W

R5112

22 OHM 1/16W

R5111

100R 1/16W 1%

R5113

22 OHM 1/16W

R5114

22 OHM 1/16W

RDQS0
RDQM0
RDQM1
RDQS1

RWE#

4
3

RCAS#

2

RRAS#

1

RCS#

4
3

RBA0
RBA1

2
1

RA10

1

RA4
RA5

2
3

RA6

4

RA7

4

RA12
RA11

3

RA9

2

RA8

1

RA0

4

RA1

3

RA2

2

RA3

1

RCLK0

RCLK0#

C5124

100uF 16V

DDRV

1K 1/16W 1%

1Kohm 1/16W +/ -1%(NC)

DDRV

+

1K 1/16W 1%

R4146

R4147

C5121

3N3 50V

FLASH_WR#13

R4149

1K 1/16W 1%

R4148

1K 1/16W

MEM_R A0
MEM_R A1
MEM_R A2
MEM_R A3
MEM_R A4
MEM_R A5
MEM_R A6
MEM_R A7
MEM_R A8
MEM_R A9
MEM_R A10
MEM_R A11
MEM_R A12

MEM_BA 0
MEM_BA 1

MEM_R CLK 0
MEM_RCLK0#
MEM_C S#
MEM_C KE
MEM_R AS#
MEM_C AS #

MEM_W E#

MEM_D QM1
MEM_D QM0

MEM_VR EF

C5122

3N3 50V

R4143

EEPROM_WP13

A1E1J9C1M9R1J1A9C3C7C9E9G1G3G7

U4106

VDD

VDD

VDD

VDD

M8

A0

M3

A1

M7

A2

N2

A3

N8

A4

N3

A5

N7

A6

P2

A7

P8

A8

P3

A9

M2

A10

P7

A11

R2

A12

L2

BA0

L3

BA1

L1

NC

J8

CK

K8

CK#

L8

CS

K2

CKE

K7

RAS

L7

CAS

K3 A2

WE NC

K9

ODT

B3

UDM

F3

LDM

R3

NC

R7

NC

NT5TU32M16CG-25C

DDRV

C5111

4.7uF 10V

+3V3_F

R4142

10K 1/10W

Q4102
NC/PD TC114ET

R4137
10K+-5%1/16W
10K+-5%1/16W

MT_SC L9,13,16
MT_SD A9, 13,16

VDD

VDDL

VDDQ

VDDQ

VSS

VSS

A3

E3J3N1P9J7B2B8D2D8E7F2F8H2

C5112

100N 16V

SPI_CS#13

SPI_SI13

+3V3_F

VSS

R4138

VSS

VSS

C5113

100N 16V

VSSDL

+3V3

VSSQ

VSSQ

A7

C5114

100N 16V

1
2
3
4 5

12

FB4103

120R/3000mA

R4139
10K1/16W

47 OHM 1/16W

Q4101
PDTC114ET

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VSSQ

VSSQ

VSSQ

VSSQ

VSSQ

C5115

100N 16V

U4105

CS#
SO/SIO1
WP#/SIO2
GND SI/SIO0

MX25L6445EM2I-10G

R4141

G9

VDDQ

VDDQ

VDDQ

VREF

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

UDQS
UDQS

LDQS
LDQS

VSSQ

VSSQ

VSSQ

H8

10uF 10V

VCC

NC/SIO3

SCLK

U4103

8

VCC

7

WC

6

SCL

VSSSD A

M24C64-WMN6P

IIC ADRESS "A0"

NC
NC
NC
NC
NC
NC
NC
NC
NC
NC

C5116

3N3 50V

C4108

8
7
6

E0
E1
E2

J2

G8
G2
H7
H3
H1
H9
F1
F9
C8
C2
D7
D3
D1
D9
B1
B9

B7
A8
F7
E8

E2
R8
AA1
AA2
AA3
AA4
AA6
AA7
AA8
AA9

1
2
3
45

C5118

3N3 50V

+3V3_F

MEM_V RE F

MEM_D Q6
MEM_D Q2
MEM_D Q4
MEM_D Q0
MEM_D Q1
MEM_D Q7
MEM_D Q3
MEM_D Q5
MEM_D Q1 3
MEM_D Q1 0
MEM_D Q1 5
MEM_D Q8
MEM_D Q9
MEM_D Q1 4
MEM_D Q1 1
MEM_D Q1 2

MEM_D QS1

MEM_D QS 0

C5119

3N3 50V

C4109

100N 16V

SPISCK

SPI_SO

+3V3

C4107

220N 25V

C5120

3N3 50V

13

C4110

100N 16V

RDQ0
RDQ1
RDQ2

RDQ3

RDQ4
RDQ5
RDQ6
RDQ7

RDQS0 12
RDQM0 12
RDQM1 12
RDQS1 12

RDQ8
RDQ9
RDQ10
RDQ11

RDQ12
RDQ13
RDQ14
RDQ15

RWE# 12
RCAS# 12
RRAS# 12

RCS# 12
RBA0 12
RBA1 12

RCLK0 12

RCLK0# 12

RCKE

RCKE 12

<Title> A3

OEM MO DEL Size

TPV MODEL

E32A22NDW3AC X B

PCB NAME

715T4089

14 21Wednesday , June 30, 2010

Sheet

of

48

RDQ[15..0] 12

RA[12..0] 12

Rev

<

称爹

>

称爹

For KEY & IR

31

CN5205

NC/CONN

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
3032

RXO0- 13
RXO0+ 13

RXO1- 13
RXO1+ 13

RXO2- 13
RXO2+ 13

RXOC- 13
RXOC+ 13

RXO3- 13
RXO3+ 13

PANEL_HI GH

PANEL_HI GH

PANEL_VCC

LED2_ON12, 13

LED1_STBY13

C7177

100pF 50V

RXE3+4, 12
RXEC+4,12
RXE2+4, 12

RXE1+4, 12
RXE0+4, 12
RXO3+4,12
RXOC+4,12

RXO2+4,12
RXO1+4,12

LIGH T_SENSOR13

C7176

100pF 50V

PANEL_HI GH
RXE3+
RXEC+
RXE2+

RXE1+
RXE0+
RXO3+

RXO2+
RXO1+
RXO0+

DC_ON_OFF

KEY213
KEY112, 13

R404

10K 1/10W

R406

10K 1/10W

R442

R440

10K 1/10W

10K 1/10W

29
27
25
23
21
19
17
15
13
11

9
7
5
3
1

DC_ON_OFF

ZD5401

1 3

PMBS3906

CN5201

3132

BZX84-C 5V6

Q402

30
28
26
24
22
20
18
16
14
12
10
8
6
4
2

CONN

R5401
R5402

R444
R443

R441 3.3K +-1% 1/ 10W
C5401
C5402

12,13

C5403
C5404

100N 16V
100N 16V
100N 16V
100N 16V

LED_G

LED_R

ZD5402

BZX84-C 5V6

1 3

1 3

+3V3

23

1

1

+3V3

PANEL_VC C

RXE3­RXEC­RXE2-

RXE1­RXE0­RXO3-RXOC+
RXOC-

RXO2­RXO1­RXO0-

BZX84-C 5V6

BZX84-C 5V6

1 3

+3V3

23

Q403
PMBS3906

RXE3- 4,12
RXEC- 4,12
RXE2- 4,12

RXE1- 4,12
RXE0- 4,12
RXO3- 4,12
RXOC- 4,12

RXO2- 4,12
RXO1- 4,12RXO0+4,12
RXO0- 4,12

RC_IR_3V3

ZD5406

ZD5405

+3V3

KEY

上拉电阻要求

ODC

3.3K +-1% 1/10W
10K 1/10W

R5414
R5416
R5417

C5405

33P 50V

PANEL_HI GH

R5215
NC

R5214
NC

R5404
0R05 OHM

4.7 OHM +-5% 1/16W

4.7 OHM +-5% 1/16W

LAYOUT靠近IC

+3V3

47 OHM 1/16W

100OHM1/16W

100OHM1/16W

R5210

ODSEL 1 3

NC

C5201

端

+

47uF/16V

PANEL_VC C

R5201
NC

R5202
NC/ 2K7 1/16W 5%

CONN

13
12
11
10

9
8
7
6
5
4
3
2
1

CN5401

CN5403

3
2
1

CONN

PANEL_H IGH

C5406

NC/ 100NF 25V

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

G4089-M0G-000-0040-13-100531

17: KEY, IR BD, & Compair I/F

Date

49

OEM MO D EL Size

TPV MOD E L

PCB N AME

Sheet

<Title > A4

E32A22NDW 3ACX B

715T4089

17 21Tuesday, August 10, 2010

of

Rev

称爹

<

称爹

>

CVBS1_IN_AU L_IN5

CVBS1_IN_AUR_IN5

+5V_ON

AUDIN_SEL113

+5V_ON

AUDIN_SEL213

+5V_ON

R6101

R6114
470KOHM 5% 1/16W
R6168
470KOHM 5% 1/16W
R6119
470KOHM 5% 1/16W

R6120 NC/470KOHM 5% 1/16W

R6129
470KOHM 5% 1/16W

R6130

470KOHM 5% 1/16W
R6131
470KOHM 5% 1/16W

R6132 NC/470KOHM 5% 1/16W

C6123

100N 16V

12
14
15
11

1
5
2
4

10

9

6

7

16

U6101

74HC4052D

X0
X1
X2
X3

Y0
Y1
Y2
Y3

A
B

EN

VEE
VDD

8

R6110

R6109

470KOHM 5% 1/16W
470KOHM 5% 1/16W

13

X

3

Y

GND

R6125
10K1/16W

R6127
10K1/16W

C6102 1uF 25V

1uF 25V

C6113

C6104 1uF 25V

C6106 NC/1uF 25V

C6107 1uF 25V

1uF 25V

C6117

C6109 1uF 25V

C6110 NC/1uF 25V

Q6101
PDTC114ET

Q6103
PDTC114ET

+5V_ON

C6119

22uF 10V

PC_AUL_IN4

COMP2_AUL_IN5

COMP1_AUL_IN5

PC_AUR_IN4

COMP2_AUR_IN5

COMP1_AUR_IN5

Audio input

CVBS_AU_IN

COMP2_AU_IN

PC_AU_IN

COMP1_AU_IN

SIDE_AU_IN

+5V

C6101

1UF16V

AUD_MUX_R

AUD_MUX_L

2.2KOHM +-1% 1/16W

R6103

2.2KOHM +-1% 1/16W

R6122 470KOHM 5% 1/16W

R6123 470KOHM 5% 1/16W

R6135 470KOHM 5% 1/16W

R6136 470KOHM 5% 1/16W

12
14
15
11

10

+5V_ON

16

C6122

100N 16V

U6102

74HC4052D

X0
X1
X2
X3

1

Y0

5

Y1

2

Y2

4

Y3

A

9

B

6

EN

7

VEE
VDD

8

X

Y

GND

R6111

470KOHM 5% 1/16W

13

3

R6112

470KOHM 5% 1/16W

C6118

1uF 25V

C6103 1uF 25V

C6114

1uF 25V

C6108 1uF 25V

Q6102
PDTC114ET

C6121

22uF 10V

SIDE_CVBS_AU L_IN7

AUD_MUX_L

SIDE_CVBS_AU R_IN7

AUD_MUX_R

+5V_ON

R6126 10K1/16W

AUDI N_SEL313

AUDIN_SEL2AUDIN_SEL1

1

0

0

1

X

0

1

0

1

X

AUDIN_SEL3

1

1

1

1

0

C6105

1UF16V

AUD_R 13

AUD_L 13

+5V_ON

R6102

2.2KOHM +-1% 1/16W

R6104

2.2KOHM +-1% 1/16W

C600

10uF 16V

D601

BAS32L

GND

GND

C647

2.2U25V

C601

0.1uF 50V

EARP_DET

C645

2.2U25V

C660

NC

1

2

3

4

GND

U604

CP+

PGND

CP-

NC

16

15

/LSD

PVDD

APA2176A

CVSS

VSS

567

14

GND

LOUT

C658

100nF 50V

13

NC

/RSD

ROUT

VDD

8

C648
100nF 50V

12

RIN

11

10

9

R7518

0R05OHM1/16W

C659
100nF 50V

LIN

GND

GND

1K1/16W

C7174

2N2 50V

C649
10uF 16V

R6210

GND

5
4
3
2
6
7
1

R7519

0R05OHM1/16W

13

C6207

1UF 16V

CN601

PHONEJ ACK

MAI N_ AOR

13

1K1/16W

C7175

2N2 50V

OP_MUTE

R6212

C6215

1UF 16V

R633

10K 1/10W

MAI N_ AOL

GND

13

Q604

PMBS3904

+5V

GND

R630
47K 1/16W

C656
100nF 50V

T P V ( Top Victory Electronics Co . , Ltd. )

G4089-M0G-000-0040-13-100531

絬 隔 瓜 絪 腹

Key Component

18: AUDI O SW

Date

OEM MO DEL Size

<Title> A3

TPV MODEL

E32A22NDW3AC X B

PCB NAME

Sheet

of

18 21Tuesday, October 26, 2010

Rev

称爹

>

称爹

<

50

MAI N_A OR
13

MAI N_A OL
13

24V

16V

12

GND

SGND

12

0.1uF 50V

SGND

R619

NC

U603

13

CBIAS

14

ROSC

15

AVCC

16

GND

17

NC

18

NC

19

NC

20

NC

21

NC

22

CLOCK

23

VREF

24

PROT

NC

FB7117

NC

C636

C635

+

330uF 35V

SGND

SGND

12

49

NC

IN1

TGND

GAIN1

STBYL

IN2

GAIN2

MUTELNCNCNCNC

2526272829303132333435

R617

SGND

R799

C667

0.1uF 5 0V

SGND

VD

SGND L600

C638

0.1uF 50V

1234567891011

NC

NCNCNC

VD1

VD1

OUT1

OUT1

48

NC

47

VS1

46

VS1

45

NC

44

HB1

43

NC

42

DVDD

41

HB2

40

NC

39

VS2

38

VS2

37

NC

VD2

VD2NCOUT2

OUT2

36

C657

0.1uF 5 0V

SGND

VD

C665

0.1uF 50V

SGND

22uH

C641

0.1uF 50V

C653

SGND

L601

22uH

C640

330uF 35V

+

C642

0.47UF 50V

SGND

10U 16V

C668

0.47UF 50V

+

C666

330uF 35V

T P V ( Top Victory Electronics Co . , Ltd. )

G4089-M0G-000-0040-13-100531

絬 隔 瓜 絪 腹

Key Component

20: AUDI O/AMP

Date

SGND

CONN

1
2
3
4

CN602

<Title> A3

OEM MO DE L Size

TPV MODEL

PCB NAME

20 21Wednesday , June 30, 2010

Sheet

of

Rev

称爹

B

<

称爹

>

FB7116

120R/6000mA

ZD600

RLZ11B

1 2

R610

C637

100NF 25V

AMP_EN13

R6313
12K 1/16W

R6314
12K 1/16W

AMP_MUTE8

4.7K 1/10W

SGND

R613

1K 1/10W

C6306

100P 50V

R622

10K 1/10W

+5V_STBY

10K 1/10W

10K 1/10W

SW_AMP_LIN

C6321

100P 50V

R638

R637

SGND

SGND

1

MUTE 5V

2 3

+

SGND

R616

10K+-5%1/16W

STBY

Q601

PMBS3904

SGND

SW_AMP_RI N

R639

10K 1/10W

Q413

PMBS3906

C672

100uF 16V

C639

0.1uF 50V
SGND

MUTE 5V

47K 1/16W

SGND

R620

47K 1/16W

Q603

PMBS3904

SGND

SGND

C643
1uF 16V

1uF 16V

R614
NC 30K 1/10W

C646

GND

C654

1uF 16V

R618
NC 30K 1/10W

SH600

SGND

C644 10U 16V

R615 33K 1/ 10W

AMP5VO

10U 16V

SGND

C651 10U 16V

C652

1uF 16V

SGND

270K 1/10W

R2A15112FP

51

PWR_ON

CN7102

CONN

1
2
3
4
5
6
7
8
9
10
11
12
13

C735

100nF 50V

PWR_ON

C7142

NC/ 330uF 10V

+5V_STBY

R733
10K 1/10W

GND

2K 1/10W
C7102

100N 50V

Q711
PMBS3904

R7147

+5V_STBY

+

R734

1K1/16W

+5V_ON

V_IPWM

+

C7108

330uF 35V

C7115

100N 50V

R7121
1K 1/10W

PMBS3904

Q7101

R7145

470OHM +-5% 1/10W

16V

C7110

100N 50V

24V

C7111

+

C7109

100N 50V

330uF 35V

STANDBY 12, 13

+5V_STBY

R7103
47K +-5% 1/10W

INVERTER_ON_OFF 13

V_IPWM

1K 1/10W

C723
NC/ 2U2 16V

R719

D7101

S1D-E3

+5V_STBY

+5V_O N

R717
NC/ 10K 1/10W

Q707
NC/ PMBS3904

GND

FB7102

1 2

120R/6000mA

R720

NC/1K1/16W

+

C7103

100uF 16V

R718
1K 1/10W

BRIGHTNESS_PWM 13

U7102

3 2

R7110

22R 1/10W 1%

VIN VOUT

ADJ

1

R7107 100R 1/10W 1%

R7108

24R 1/10W 1%

PANEL POWER
1>OFF ;
0>ON

100nF 50V

C7104

100nF 50V

Vout=1.25*(1+44/100)=1.8

C716

C7105

100nF 50V

DDRV

+

C7106

470uF 10V

PANEL_PWR_C TL13

10OHM1/10W

R725

U704
G5627F11U

1

VCC

2

REF

3

GND

4 5

FB EN

PGND

4.7K 1/16W

VIN

LX

FB7115

120R/6000m A

R569

100UF 25V

8
7
6

12

C717

R726
10K 1/10W

+5V_STBY16V

GND

C718

4.7UF 10V

+

4.7uH
L700

C730

1N 25V

6K2 1/10W 1%

12

FB7114

NC 120R /6000mA

VCC5_PANEL_I N

R565

10K 1/10W

Q407
PMBS3904

100nF 50V

100nF 50V

C470

100N 25V

R567
56K 1/10W

300 OHM

FB703

1 2

C719

R727

C732

+5V_STBY

C733

4.7UF 10V

AO4449 -7A/-30V

Q406

1

S

2

S

3

S

4

G

C720
100nF 50V

C731

22uF 10V

FB7105

8

D

7

D

6

D
D

5

C746

220uF16V

C471

NC

R571

R572

NC

GND

NC

C727

+

4.7uF K 25V

120R/6000mA

DV10

C729

1uF 25V

PANEL_VC C

12

C728

100nF 50V

8
7
6
5

100uF 16V

GND

+

C722

+3V3

FB7111

1 2

120R/6000mA

10uF 16V

C734

100nF 50V

C7155

FB7118

1 2

120R/6000mA

FB7113

1 2

120R/6000mA

100nF 50V

+

C7154

U7104

3 2

VI VO

+5V_ON

1 2

120R/6000mA

GND

1

FB7112

+5V

C7156

100nF 50V

AV12

+

C7163

100uF 16V

+5V_STBY

U7110

3 2

VIN VOUT

100nF 50V

+5V_STBY

4.7K 1/10W

GND

C7114

R716

10K 1/10W

R732

4.7K 1/10W

R730

Q709
PMBS3904

GND

1

+5V_STBY

GND

C721

220N 25V

R731
220K 1/10W

Q708
PMBS3904

C7116

100nF 50V

+

C221

47uF 25V

5V_PWR_SW12,13

R729

4.7K 1/10W

FB152

1 2

220R/2000mA

+

C220

47uF/16V

AO4449 -7A/-30V

1

S

2

S

3

S

4

G

+3V3

Q706

D
D
D
D

R728

16KOHM +-1% 1/10W

Vout = 0.8x(R727+R728)/R728=1.11V

T P V ( Top Victory Electronics Co . , Ltd. )

G4089-M0G-000-0040-13-100531

絬 隔 瓜 絪 腹

Key Component

21: DC-D C POWER

Date

OEM MOD EL Size

<Title> A3

TPV MO DEL

E32A22NDW3AC X B

PCB NAME

Sheet

of

21 21Wednesday , June 30, 2010

Low ESR EC

Rev

称爹

称爹

>

<

52

9.2 Power Board

715G4078P01W22003H

SG904
EM230X

R901

330K 1/4W

C902

220pF +-10%

C901

220pF +-10%

F901
5A 250V

t

NR901

NTCR

L902
8mH

3

C904

0.47UF

R902

330K 1/4W

L901
8mH

3

C903

0.47UF

CN901
CONN

t

NR902

12

12

NTCR

SG903

EM230X

142

R903

330K 1/4W

C906

220pF +-10%

142

C905

220pF +-10%

1

2

L

N

BO

2

BD901

FB902

KBJ1008G-F

+

-

1

4

3

0.47uF 520V

R998
43K 1/8W

C937

R9100

10KOHM +-5% 1/8W

C957

47N 50V

1 2

BEAD

IC930

1

INV

2

COMP

3

RAMP

4 5

CS ZCD

LD7591GS

VCC
OUT
GND

C956

0.47UF 50V

8
7
6

68P 50V

C942

R9125
13K 1/8W 1%

C948
1N 50V

D921
1N5408-E3/73

D922
3A/600V

R981
20K 1/4W

R990
2K 1/8W 5%

BO

B1+

R9180

1MOHM +-5% 1/4W

C975

0.1uF 50V

1 2

VCC1

+

47UF 50V

R995
13K 1/8W 1%

PR1007

R9179

1MOHM +-5% 1/4W

FB904

BEAD

R978

10 OHM +-5% 1/8W

C943

C944

100N 50V

D930

R9121

1MOHM +-5% 1/4W

+

C938
39uF 450V

D923

1N4148-B4006

R979

33 OHM +-5% 1/4W

10K 1/4W

R993
470OHM +-5% 1/8W

C949
220P 50V

R9146

1M5 1/4W 1%

IC919

1

BNO

2

COMP

3

NC

4 5

CS GND

LD7523GS

+

C939
39uF 450V

R9173

R9147

1M5 1/4W 1%

OVP
VCC
OUT

8
7
6

+

C9101
39uF 450V

Q921
14A/600V

R980
0R1 5% 2W

1M5 1/4W 1%

VCC1

+

+

R9150

C977

10UF 50V

C9102
39uF 450V

B+

R982
680K OHM +-1% 1/4W

R985
680K OHM +-1% 1/4W

R989
680K OHM +-1% 1/4W

C979

0.1uF 50V

R9127
10K 1/8W

C983
220P 50V

R9137

0.47 OHM +-5% 1W

C986
10nF

C993
220N 50V

C969

2200PF2KV

10 OHM 1/8W

470 OHM 1/8W

R9132

R9122

22 OHM 1/8W

R9138
100K 1/4W

R9142
100K 1/4W

1R2 5% 2W

R9152
560K 1/8W 1%

R9113
100K 1/4W

R9115
100K 1/4W

R9124

R9153

D929

SCS0520P

10K 1/8W

0R36 5% 2W

R9139
100K 1/4W

R9143
100K 1/4W

R9129

PR1007

12

D931

R9114
100K 1/4W

R9116
100K 1/4W

D928
PR1007

R9134

C985
2200PF2KV

R9149

4.7 MOHM +-5% 1/4W

IC922

A6069H

1

S/OCP

2

BR

3

GND

4 5

FB/OLP VCC

C995

1N 50V

T902

YUVA-1427

6

7
8

9

10

Q925
8A/800V

D/ST
D/ST

C996

100N 50V

5

4
3

2
1

+80V

R9184

5.1K 1/4W

ZD911
MTZJ T-7 2 30B

1 2

D939
1N4148

+24V

T903

YUVA-1426

10

9

8
7

6

VCC

R9151
2R2 +-5% 1/4W

D935

PR1007
D934
1N4148

8
7

3

1

D927
FMEN-220A

3

1

+

C994

10UF 50V

R9107

100 OHM 1/4W

R9108

100 OHM 1/4W

2

D926

FME-210B

2

R9119
100 OHM 1/4W

R9120

100 OHM 1/4W

+

C997

100UF 50V

+

C965
1000uF 35V

R9140

47 OHM 1/4W

1

R9144

47 OHM 1/4W

2
3

D932

3

FMWN-2308

5
4

2

1

12

43

IC923

PC123X8YFZ OF

C999
220N 50V

IC925

AS431AZTR-E1

L907
5uH

+

L908
5uH

+

C970
1000uF 35V

1KOHM +-5% 1/8W

C967
150UF 35V

+

C971
100UF 50V

C988

2200pF

+

470uF 10V

R9154
470 OHM 1/4W

R9155

3.3KOHM +-5% 1/8W

R9161

C968

0.1uF 50V

C972

0.1uF 50V

C990

R9156

8.2K +-1% 1/8W

+24V

+12V

+

C991

470uF 10V

5V

L909
5uH

C992
470uF 16V

R9166
7K5 1/8W +/-1%

+

2N3904S-RTK/PS

Q926

R9111

1.5K 1/4W

R9117

1.5K 1/4W

5V

C9100
100N 50V

+12V +24 V

1 2

R9112

1.5K 1/4W

R9118

1.5K 1/4W

R9181

5.1K 1/4W

ZD908
MTZJ T-72 1 6B

D937
1N4148

R9159
1KOHM +-1% 1/8W

R9162

1KOHM +-1% 1/8W

+24V

+12V

R9182

5.1K 1/4W

ZD910
MTZJ T-7 2 30B

1 2

D938
1N4148

R9183

5.1K 1/4W

C987

470pF/250V

C981

470pF/250V

FB903

1 2

BEAD

R9123
2K 1/4W

12

43

C976

10N 50V

FB906

C984

R9104
1K 1/8W

12

IC918

PC123X8YFZOF

Q924
2N3904S-RTK/PS

470pF/250V

C962

100N 50V

1 2

BEAD

R9105

10K OHM 1/8W

R9106
10K OHM 1/8W

PS_ON

VCC1

+

10UF 50V

Q923

KTD1691/P

C961

R9103
10K 1/8W

ZD905
MTZJ T- 72 16B

1 2

5V

VCC

43

IC920

PC123X8YFZOF

R9133

10K 1/8W

IC921
AS431AZTR-E1

R9128

3.9K 1/8W

C982

0.33uF 50V

絬 隔 瓜 絪 腹

Key Component

R9130
24KOHM +-1% 1/8W

R9135
2KOHM +-1% 1/8W

+24V

+12V

T P V ( Top Victory Electronics Co . , Ltd. )

02.AC input

Date

R9131

27K +-1% 1/8W

R9136
NC

OEM MOD EL Size

TPV MODEL

PCB NAME

Sheet

77Thursday, May 20, 2010

+12V

+24V

PS_ON

of

DIM

5V

ON/OFF

ON/OFF

DIM

CONN

13
12
11
10

9
8
7
6
5
4
3
2
1

CN904

A2

Rev

1.0

<

称爹

>

称爹

53

B+

C925
1N 50V

R948

0.1 ohm

R962

2Mohm 1/4W +/-1%

R964
27K 1/8W 1%

B1+

R952

2Mohm 1/4W +/-1%

R953

2Mohm 1/4W +/-1%

VCC1

R949

10R 1/8W 5%

D914
UF4007

C914
1U 25V

IC914

1

Vsen

NC

2

Vcc

NC

3

FB

VGH

4

GND

VS

5

Css

VB

6

OC

NC

7

RC

NC

8

Reg

VGL

9 10

RV COM

SSC9502S

C922

10pF/3KV

18
17
16
15
14
13
12
11

VBoot

C915
1U 25V

12

ZD902

MTZJ T-72 15B

47OHM +-5% 1/8W

10KOHM +-5% 1/8W

47OHM +-5% 1/8W

10KOHM +-5% 1/8W

D915

1N4148

R950

D918
1N4148

R960

R951

R961

VBoot

Q919

9.5A/ 500V

Q920

9.5A/ 500V

VBoot

T901

YU VA-1428

12
11

8
7

C928

0.027uF 5% 1000V

+

C912
12UF 160V

80V

80V

C921
NC

80V1

L904
5uH

SF35G

D917

6
5

4
3

2
1

D919

SF35G

+

C916
120UF 160V

+

C918
120UF 160V

12UF 160V

C917

+

C919

100N 50V

+

+

C920

10UF 50V

R963
2K43 1/8W 1%

C924

4.7UF 50V

C923
100N 50V

C927

4.7UF 16V

43

R965
NC

680P 50V

R969

4.3KOHM +-5% 1/8W

12

IC915
PC123X8YFZ OF

IC916
AS431AZTR-E1

R966

680OHM +-5% 1/8W

C929

ZD907

MTZJ T-72 30B

1 2

R970

3.3KOHM +-1% 1/8W

R967
200R 1/8W 1%

MTZJ T-72 30B

C933
NC

C934
220NF 50V

ZD903

1 2

R973

9.1K 1/8W

R975
43K 1/8W 1%

C926

100PF1KV
C930
1N 50V

ZD904

MTZJ T-72 30B

1 2

R968

47KOHM +-1% 1/8W

C936
68P 50V

C931

NC

R971

47KOHM +-1% 1/8W

VFB

R974
2K4 1/8W 1%

C935

470pF/250V

80V1

FB901

1 2

BEAD

80V

R972
100K 1/8W 1%

R976
27K 1/8W 1%

+80V

54

R955

R954
100K 1/4W

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

03.MAINPOW ER

Date

100K 1/4W

R956
100K 1/4W

R957
100K 1/4W

OEM MO DE L Size

TPV MO DEL

PCB NA ME

Sheet

R958
100K 1/4W

47Thursday , May 13, 2010

of

R959
100K 1/4W

Rev

称爹

B

1.0

<

称爹

>

VCON

R904

3.3K 1/4W

AZ432ANTR-G1

10OHM 1% 1/4W

VCON

R910

3.3K 1/4W

AZ432ANTR-G1

10OHM 1% 1/4W

IC901

IC907

R916

R922

LED1

Q901
12A/500V

R9216
10OHM 1% 1/4W

LED7

Q907
12A/500V

R9222
10OHM 1% 1/4W

VCON

R905

3.3K 1/4W

AZ432ANTR-G1

10OHM 1% 1/4W

VCON

R911

3.3K 1/4W

AZ432ANTR-G1

10OHM 1% 1/4W

IC902

IC908

R923

R917

Q902
12A/500V

R9217
10OHM 1% 1/4W

Q908
12A/500V

R9223
10OHM 1% 1/4W

VCON

R906

3.3K 1/4W

IC903

AZ432ANTR-G1

10OHM 1% 1/4W

VCONLED8

R912

3.3K 1/4W

IC909

AZ432ANTR-G1

R924

10OHM 1% 1/4W

IC906
AZ432ANTR-G1

R921

IC912

AZ432ANTR-G1

R927

LED6

Q906
12A/500V

R9221
10OHM 1% 1/4W

LED12

Q912
12A/500V

R9227
10OHM 1% 1/4W

LED10

LED1

ON/OFF

+12V

LED2

1

2

3

D901
BAV70

LED3

2

LED4

3

1

D902
BAV70

Q913
2N3904S-RTK/ PS

LED5

2

3

LED6

1

D903
BAV70

R929

10K 1/8W

R930
10KOHM +-5% 1/8W

LED7

2

LED short
protector

LED8

1

3

2N3906S-RTK/ PS

D904
BAV70

C907
NC

Q914

LED9

2

3

R931

20K 1/8W

1

R928

100K 1/8W

D905
BAV70

LED11

2

1 2

VCON

LED12

1

3

ZD901
MTZJ T-72 36B

1 2

ZD909
MTZJ T-72 36 B

D906
BAV70

Q905
12A/500V

R9220
10OHM 1% 1/4W

Q911
12A/500V

R9226
10OHM 1% 1/4W

VCON

R909

3.3K 1/4W

10OHM 1% 1/4W

VCON

R915

3.3K 1/4W

10OHM 1% 1/4W

LED3

Q903
12A/500V

R9218
10OHM 1% 1/4W

R918

LED9

Q909
12A/500V

R9224
10OHM 1% 1/4W

R907

3.3K 1/4W

IC904

AZ432ANTR-G 1

10OHM 1% 1/4W

VCON

R913

3.3K 1/4W

IC910

AZ432ANTR-G 1

10OHM 1% 1/4W

LED4VCON

Q904
12A/500V

R9219
10OHM 1% 1/4W

R919

LED10

Q910
12A/500V

R925

R9225
10OHM 1% 1/4W

VCON

R908

3.3K 1/4W

AZ432ANTR-G 1

10OHM 1% 1/4W

VCON

R914

3.3K 1/4W

AZ432ANTR-G 1

10OHM 1% 1/4W

LED5LED2

IC905

R920

LED11

IC911

R926

+12V

R936
1K 1/8W

AS431AZTR-E1

R941

5.6K 1/8W

LED1 LED2

2

1

3

Q917

2N3904S-RTK/PS

IC913

10K 1/8W

R947

D907
BAW56

12 channel self-feedback balance
loops

LED3

R939

10K 1/8W

LED5

D908
BAW56

C910

10UF 50V

LED6

2

1

3

R937

10K 1/8W

R943

9.1KOHM +-1% 1/8W

R945
22KOHM +-1% 1/8W

LED4

2

1

3

+

C913
NC

D909
BAW56

LED8

LED7

2

1

3

R940

100KOHM +-5% 1/4W

R944

10K 1/8W

R946

C911

NC

100N 50V

LED10

LED9

2

D910
BAW56

3

Output
Compensation

1

D911
BAW56

D913

1N4148

IC926

1

1OUT

2

1IN-

2OUT

3

1IN+

4 5

GND 2I N+

LM258D

LED11

VCC

2IN-

DIM

ON/OFF

LED12

2

1

D912
BAW56

3

VDECT

R9175
10K 1/8W

+12V

R935

C909

10K 1/8W

NC

8
7
6

C989
2U2 25V

VFB

Q915

2N7002

R942

220R 1/8W 5%

R9177
91KOHM +-5% 1/8W

R9178
1M 1/8W 5%

Balance Circuit
controller

LED12
LED11
LED10

LED9
LED8
LED7

Q918
2N7002

R938

100R 1/8W 5%

80V

13
12
11
10

80V

CN902

9
8
7
6
5
4
3
2
1

CONN

R934

R932

10K 1/8W

100K 1/8W

R9176
10K 1/8W

Q916
200mA/40V

R9172
10KOHM +-5% 1/8W

80V

CN905

12
11
10

LED6

9

LED5

8

LED4

7
6
5

LED3

4

LED2

3

LED1

2
1

CONN

80V

Titl e

<Title>

Size Document Number Rev

<Doc> <RevC ode>

C

Date: Sheet

57Tuesday , May 11, 2010

of

55

9.3 Key Board

715G4224K01000004S

SW0107

POWER

CN0101

CONN

C0103

100nF 50V

CH+

VOL+

65

1
2

KEY 2

3

KEY 1

4

C0102

100nF 50V

C0101

100nF 50V

VOL-

CH-

Menu

INPUT

R0103

8.2K +-1% 1/ 8W

R0104

470 OHM +-1% 1/8W

R0105

220 OHM 1/8W +-5%

R0101

8.2K +-1% 1/ 8W

R0102

470 OHM +-1% 1/8W

R0106

77G 607 2 FD

SW0103

77G 607 2 FD

SW0104

77G 607 2 FD

SW0105

77G 607 2 FD

SW0101

77G 607 2 FD
SW0102

77G 607 2 FD

SW0106

220 OHM 1/8W +-5%

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

02.KEY board

Wednes day , January 20, 2010

56

77G 607 2 FD

OEM MODEL Size

TPV MODEL

PCB NAME

Sheet

26K05HR

of

22

Rev

称爹

<

A

称爹

>

9.4 IR Board

715G4086R01000004S

CN201

CONN

4 5

33G8032 3F HR

VCC

U201

IRRV

3
2
1

R201 15K 1/10W

C201

0.1uF 16V

1

VOUT

2

GND

3

VCC

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

01-IR

OEM MODEL

TPV MOD EL

PCB NAME

Sheet

57

715G4086

11Wednes day , Dec ember 09, 2009

of

Size

Rev

称爹

<

A

A

称爹

>

10. Exploded View

58

Explode Parts List

Screw List

No. Part No. Description QTY.

No.

DECO_BEZEL

1

DECO_TV32WSL

2

BEZEL_TV32WSL-AOC1

3

IR BOARD

4

SPEAKER

5

COVER_FUNCTION

7

KEY 24 HINGE ASSY

8

KEY BOARD 25 BASE_TV32WSL-AOC1

9

10

12

27 0Q1G 930 6 47 CR3 SCREW for BEZEL & DECO_BEZEL 2

BRACKET_HOLDER_FIX

PANEL

Description

No.

13

14

15

18

21

22

26

POWER BOARD

MAIN BOARD

BRACKET_IO_SIDE-60MHZ

BRACKET_STAND

REAR_COVER_TV32WSL-10b

AC COVER

BRACKET

Description

28 0Q1G 930 6120 SCREW for BRACKET_HOLDER_FIX & BEZEL 8

29 0M1G1730 4120 SCREW for BRACKET_HOLDER_FIX & PANEL 8

30 0M1G1730 6120 SCREW for POWER BOARD & PANEL 5

31 0M1G1730 6120 SCREW for POWER BOARD & PANEL 6

35 0M1G1740 8125 SCREW for BRACKET_STAND & PANEL 4

36 0Q1G 940 12 47 CR3 SCREW for REAR COVER & BEZEL 14

37 0M1G1740 10225 CR3 SCREW for REAR COVER & BRACKET_STAND 1

38 0M1G1740 10225 CR3 SCREW for AC COVER & BRACKET_STAND 1

39 0M1G1740 10225 CR3 SCREW for HINGE ASSY & BRACKET_STAND 2

40 0Q1G 130 8120 SCREW for BRACKET & BASE 6

41 0Q1G 940 16 47 CR3 SCREW for BRACKET & BASE& HINGE ASSY 4

59

11. BOM List

Note: The parts information listed below are for reference only, and are subject to change without notice. Please go

to http://cs.tpv.com.cn/hello1.asp

E32A22NCWEA1NN

Location Part No. DESCRIPTION Remark

012G6213 1 RUBBER PAD

052G 1185 1 BIG TAPE(Y1200141)

052G 1186 SMALL TAPE

052G 2191 A PAPER TAPE

SP01 078G120A500 YA SPK 6 OHM 12W 165X32 800 550 SU

ECN901 089G217A18NIS8 F2 AC POWER CORD 1800+154MM

ECN7102 095G801313L677 HARNESS 13P(H2506)-13P(A2008H) 350MM 2nd source

ECN7102 095G801313X677 HARNESS 13P(H2506)-13P(A2008H) 350MM

ECN5210 095G8018 3LJ19 HARNESS 30P-30P 320

ECN5210 095G8018 3XJ19 LVDS CABLE 30P-30P(1.25MM) 360MM 2nd source

098GRABD1NEACD REMOTE CONTROL AOC 90-364100T4418

for the latest information.

0M1G 930 8 47 CR3 SCREW

0M1G1730 4120 SCREW

0M1G1730 6120 SCREW,42-D020523

0M1G1730 6120 SCREW,42-D020523

0M1G1740 8125 SCREW

0M1G1740 10225 CR3 SCREW 4.0X10.0

0M1G1740 10225 CR3 SCREW 4.0X10.0

0M1G1740 10225 CR3 SCREW 4.0X10.0

0Q1G 930 6120 SCREW 3X6MM

0Q1G 930 8 47 CR3 SCREW

0Q1G 940 12 47 CR3 SCREW

0Q1G 940 16 47 CR3 SCREW

705TQ949001 COMSUPTIVE ASS'Y-A4

705TQA34J90 REAR COVER ASS'Y 32"

A34T2005ADT 1L0100 REAR_COVER_TV32WSL-10B

Q36T 600 29 1 NONWOVEN FABRIC

Q36T 600 35 3 GP NONWOVEN FABRIC

Q36T 600 49 7 NONWOVEN FABRIC

Q36T 600 49 9 NONWOVEN FABRIC

Q40G2010 32024 SIDE IO LABEL

Q40G2010 32120 BACK IO LABEL

705TQA34J91 BEZEL ASS'Y 32''

ECN5403 017G DW554 GP LED MODULE 2*WHITE

ECN5401 095G801413D695 HARNESS 13P-3P+4P 750/850 2nd source

ECN5401 095G801413X695 HARNESS 13P-3P+4P 750/850

0Q1G 930 6 47 CR3 SCREW

A33T0999AFLB1L0100 COVER_FUNCTION

60

A33T1000AFL 1L0100 KEY

A34T2004AFLA1L0130 BEZEL_TV32WSL-AOC1

A34T2007AHR 1C0100 DECO_TV32WSL

Q35T0083BBV 1L0100 DECO_BEZEL

Q44T3231 21 27 EVA WASHER

Q44T3231 21 28 EVA WASHER

E750 750TVV315B5228N000 PANEL TPT315B5-L02 C1B XM TPV

756TQACB 2C017 02 MAIN BOARD-CBPFA2QCQ2

SMTF-U4105 100TAKVK012C21 FLASH ASSY-056G2233 15

SMTF-U4103 100TAKVK013C21 EEPROM ASSY-056G1133 83 1

CBPF-U104 100TAKVKA04C1E HDMI1_EDID ASSY-056G1133956

CBPF-U105 100TAKVKB05C1E HDMI2_EDID ASSY-056G1133956

SMTF-U100 100TAKVKV05C1E VGA_EDID ASSY-056G1133956

A33T0907ADT 1L0100 AC COVER

A34T2159ADT 1L0100 COVER_STAND

040G 45762412B CBPC LABEL

CN602 033G3278 4D 2.5MM PITCH WAFER

CN7102 033G327813D CONNECTOR

CN5403 033G3802 3B Y L CONNECTOR 3P 2.0PITCH

CN5401 033T380213B Y L CONNECTOR 13P 2.0

C636 067G215S3316KV EC 330UF M 35V 10*12MM

C640 067G215S3316KV EC 330UF M 35V 10*12MM

C666 067G215S3316KV EC 330UF M 35V 10*12MM

C7108 067G215S3316KV EC 330UF M 35V 10*12MM

C7109 067G215S3316KV EC 330UF M 35V 10*12MM

L600 073G 253178 H CHOKE COIL 22UH 25% L220S HA

L601 073G 253178 H CHOKE COIL 22UH 25% L220S HA

L600 073G 253178 L CHOKE COIL 22UH 25% CC-005184

L601 073G 253178 L CHOKE COIL 22UH 25% CC-005184

CN1202 088G 78 13 77 YG RCA JACK V/T 11P G/BL/R/W/R 1*5 10.5MM 2nd source

CN1203 088G 78 13 78 YG RCA JACK V/T 6P Y/W/R 1*3 2nd source

CN1501 088G 78 13 78 YG RCA JACK V/T 6P Y/W/R 1*3 2nd source

CN1202 088G 78 1377C RCA JACK 1*5 G/B/R/W/R WITH SW 10.5MM

CN1203 088G 78 1378C RCA JACK 1*3 Y/W/R V/T 10.5MM

CN1501 088G 78 1378C RCA JACK 1*3 Y/W/R V/T 10.5MM

CN1102 088G 302 69 YG PHONE JACK V/T 3P GREEN H=10.5 2nd source

CN601 088G 30211K PHONE JACK 7PIN

CN1102 088G 30269C PHONE JACK 3.5MM 3P GREEN V/T 10.5MM

CN601 088G 302A11 YG PHONE JACK 3.5¦µ 7PIN BLACK CKX3.507B-01 2nd source

CN1402 088G 352 21CL USB CONN TYPE A

CN1101 088G353A15FCSL D-SUB CONN V/T 15P BLUE -

CN1101 088G353A15FXSH D-SUB CONN V/T 15P BLUE 2nd source

CN1401 088T 7813A19C RCA JACK 1*3 R/W/Y

61

TU100 094T PALALL1LS TCL TUNER M40CTP-2PN-E

709G4089 QM001 COMSUPTIVE ASS'Y

055G 23524 WELDING FLUX WITHOUT PB

Q55G 100625 TIN STICK_LOW ARGENTUM

C7103 067G 3051013PT EC 100UF 20% 16V 5*11

C7106 067G 3054712CT EC 470UF 10V KM 8*11.5MM

C717 067G215H1014CT EC 100UF 20% 25V SY 8*7

C746 067G215H2213CT EC 220UF 16V SY 8X7MM

C7155 067G305M1003CT E.C CAP 10UF M 16V 4*7

C1406 067G305M1013PT 105C RADIAL E-CAPACTOR 100UF 16V

C201 067G305M1013PT 105C RADIAL E-CAPACTOR 100UF 16V

C7163 067G305M1013PT 105C RADIAL E-CAPACTOR 100UF 16V

C672 067G305M1013PT 105C RADIAL E-CAPACTOR 100UF 16V

C5124 067G305M1013PT 105C RADIAL E-CAPACTOR 100UF 16V

C4209 067G305M1013PT 105C RADIAL E-CAPACTOR 100UF 16V

C722 067G305M1013PT 105C RADIAL E-CAPACTOR 100UF 16V

C1504 067G305M3312CT EC 330UF 10V SJ 8X7MM

C219 067G305M3312CT EC 330UF 10V SJ 8X7MM

C221 067G305M4704PT EC 47UF 20% 25V 6.3*7

709G4089 QA001 COMSUPTIVE ASS'Y

U704 056G 379 92 IC G5627F11U SOP-8(FD)

U4201 056G 562312 IC MT8222AHMU/B LQFP256

U7102 056G 563 93 IC G9084T43U TO-252

U7110 056G 563121 IC G1084-33TU3UF TO-263T

U7110 056G 563254 LDO AZ1084S2-3.3TRE1 5A 3.3V TO263-2

U159 056G 563519 IC G965-25ADJPIUF 1.8A SOP-8

U6101 056G 614 1 74HC4052D S016 PHLIPS

U6102 056G 614 1 74HC4052D S016 PHLIPS

U4106 056G 615 67 IC NT5TU32M16CG-25C 512MB BGA-84

U603 056G 616518 IC R2A15112FP HTQFP48

U4203 056G 638601 OTHERS CS4344-CZZR TSSOP-10

U101 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L

U103 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L

U4103 056G1133 83 1 IC M24C64-WMN6P 64K SO-8 ST MTK-HDCP

U105 056G1133918 NO-SUGGEST AT24C02BN-SH-T 2KB SO-8

U104 056G1133918 NO-SUGGEST AT24C02BN-SH-T 2KB SO-8

U100 056G1133918 NO-SUGGEST AT24C02BN-SH-T 2KB SO-8

U100 056G1133956 IC CAT24C02WI-GT3 SO-8

U104 056G1133956 IC CAT24C02WI-GT3 SO-8

U105 056G1133956 IC CAT24C02WI-GT3 SO-8

U4105 056G2233 15 IC MX25L6445EM2I-10G 64MB SOP-8

U7104 056T 563146 IC G912T63U 1A/1.2V SOT-223

U604 056T 616516 IC APA2176AQBITRG TQFN3X3-16

62

Q1502 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q1705 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q1706 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q404 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q407 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q601 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q603 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q604 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q609 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q611 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q708 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q709 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q7101 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q711 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q610 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q608 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q414 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q413 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q403 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q402 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q4101 057G 761 15 PDTC114ET SOT23

Q6101 057G 761 15 PDTC114ET SOT23

Q6102 057G 761 15 PDTC114ET SOT23

Q6103 057G 761 15 PDTC114ET SOT23

Q406 057G 763 79 FET AO4449 -7A/-30V SOIC-8

Q706 057G 763 79 FET AO4449 -7A/-30V SOIC-8

Q1605 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS

Q1601 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS

Q1501 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS

TH1401 061G 52902 W PTC CHIP 8V 0R4 KMC4S075RY

RP5102 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W

RP5103 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W

RP5104 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W

RP5105 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W

RP5106 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W

R1508 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R5401 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R4258 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R4257 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R4219 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R1606 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R1417 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R1404 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

63

R1233 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R1509 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R1517 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R1518 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA

R7518 061G0402000 JY NO-SUGGEST RST CHIPR MAX 0R05 OHM 1/16W

R7519 061G0402000 JY NO-SUGGEST RST CHIPR MAX 0R05 OHM 1/16W

R4211 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R4210 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R1724 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R1723 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R1721 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R1719 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R1716 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R1715 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R1625 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R1624 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R1503 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R1415 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R1412 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R5111 061G04021000FT RST CHIP 100R 1/16W 1%

R1413 061G04021001FF RST CHIPR 1KOHM +-1% 1/16W FENGHUA

R4149 061G04021001FY RST CHIP 1K 1/16W 1%

R4148 061G04021001FY RST CHIP 1K 1/16W 1%

R4146 061G04021001FY RST CHIP 1K 1/16W 1%

R4250 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R4260 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R5422 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R5421 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R5417 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R1609 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R1407 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R1232 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R1217 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R1121 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R1120 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R1112 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R1109 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R4260 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R4250 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R1119 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W

R5416 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W

R1722 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA

R4143 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA

64

R4207 061G0402102 JY NO-SUGGEST RST CHIPR 1KOHM +-5% 1/16W YA

R6210 061G0402102 JY NO-SUGGEST RST CHIPR 1KOHM +-5% 1/16W YA

R6212 061G0402102 JY NO-SUGGEST RST CHIPR 1KOHM +-5% 1/16W YA

R734 061G0402102 JY NO-SUGGEST RST CHIPR 1KOHM +-5% 1/16W YA

R4137 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R4138 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R616 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R4223 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y

R4229 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y

R4234 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y

R4235 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y

R4236 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y

R4259 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y

R6125 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y

R6126 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y

R6127 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y

R1502 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y

R4000 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y

R4001 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y

R4139 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y

R4202 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y

R4214 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y

R4215 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y

R4216 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y

R4220 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y

R4222 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA

R4227 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA

R6313 061G0402123 JF RST CHIPR 12KOHM +-5% 1/16W FENGHUA

R6314 061G0402123 JF RST CHIPR 12KOHM +-5% 1/16W FENGHUA

R1126 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO

R1124 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO

R1215 061G0402203 JF RST CHIPR 20KOHM +-5% 1/16W FENGHUA

R1216 061G0402203 JF RST CHIPR 20KOHM +-5% 1/16W FENGHUA

R1240 061G0402203 JF RST CHIPR 20KOHM +-5% 1/16W FENGHUA

R1241 061G0402203 JF RST CHIPR 20KOHM +-5% 1/16W FENGHUA

R1410 061G0402203 JF RST CHIPR 20KOHM +-5% 1/16W FENGHUA

R1416 061G0402203 JF RST CHIPR 20KOHM +-5% 1/16W FENGHUA

R5114 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA

R5113 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA

R5112 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA

R4233 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA

R4232 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA

R4231 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA

65

R4228 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA

R4225 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA

R4224 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA

R6104 061G04022201FY RST CHIPR 2.2KOHM +-1% 1/16W YAGEO

R6103 061G04022201FY RST CHIPR 2.2KOHM +-1% 1/16W YAGEO

R6102 061G04022201FY RST CHIPR 2.2KOHM +-1% 1/16W YAGEO

R6101 061G04022201FY RST CHIPR 2.2KOHM +-1% 1/16W YAGEO

R1123 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA

R1122 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA

R1505 061G0402333 JF RST CHIP 33K 1/16W 5% FENGHUA

R5414 061G0402470 JY NO-SUGGEST RST CHIPR 47 OHM 5% 1/16W YAG

R4141 061G0402470 JY NO-SUGGEST RST CHIPR 47 OHM 5% 1/16W YAG

R4003 061G0402471 JF RST CHIPR 470 OHM 5% 1/16W FENGHUA

R4002 061G0402471 JF RST CHIPR 470 OHM 5% 1/16W FENGHUA

R569 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R1626 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R1623 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R1003 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R1002 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R1000 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R1103 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO

R1104 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO

R1717 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA

R1714 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA

R1713 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA

R1712 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA

R620 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA

R630 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA

R6119 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA

R6122 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA

R6123 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA

R6129 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA

R6130 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA

R6131 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA

R6135 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA

R6114 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA

R6112 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA

R6111 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA

R6110 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA

R6109 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA

R1725 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA

R1411 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA

R6136 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA

66

R6168 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA

R5402 061G0402479 JF RST CHIPR 4.7 OHM +-5% 1/16W FENGHUA

R5404 061G0402479 JF RST CHIPR 4.7 OHM +-5% 1/16W FENGHUA

R4230 061G0402513 JF RST CHIP 51K 1/16W 5% FENGHUA

R4226 061G0402513 JF RST CHIP 51K 1/16W 5% FENGHUA

R1414 061G0402622 JY RST CHIPR 6.2KOHM +-5% 1/16W YAGEO

R1409 061G0402622 JY RST CHIPR 6.2KOHM +-5% 1/16W YAGEO

R1239 061G0402622 JY RST CHIPR 6.2KOHM +-5% 1/16W YAGEO

R1238 061G0402622 JY RST CHIPR 6.2KOHM +-5% 1/16W YAGEO

R1214 061G0402622 JY RST CHIPR 6.2KOHM +-5% 1/16W YAGEO

R1213 061G0402622 JY RST CHIPR 6.2KOHM +-5% 1/16W YAGEO

R1222 061G0402680 JY NO-SUGGEST RST CHIPR 68 OHM +-5% 1/16W Y

R1221 061G0402680 JY NO-SUGGEST RST CHIPR 68 OHM +-5% 1/16W Y

R1204 061G0402680 JY NO-SUGGEST RST CHIPR 68 OHM +-5% 1/16W Y

R1115 061G0402680 JY NO-SUGGEST RST CHIPR 68 OHM +-5% 1/16W Y

R1114 061G0402680 JY NO-SUGGEST RST CHIPR 68 OHM +-5% 1/16W Y

R1111 061G0402680 JY NO-SUGGEST RST CHIPR 68 OHM +-5% 1/16W Y

R1218 061G04027509FT RST CHIP 75R 1/16W 1%

R1118 061G04027509FT RST CHIP 75R 1/16W 1%

R1117 061G04027509FT RST CHIP 75R 1/16W 1%

R1116 061G04027509FT RST CHIP 75R 1/16W 1%

R1220 061G04027509FT RST CHIP 75R 1/16W 1%

R1219 061G04027509FT RST CHIP 75R 1/16W 1%

R1223 061G04027509FT RST CHIP 75R 1/16W 1%

R1408 061G04027509FT RST CHIP 75R 1/16W 1%

R1504 061G04027509FT RST CHIP 75R 1/16W 1%

R1610 061G04027509FT RST CHIP 75R 1/16W 1%

R1127 061G0402752 JF RST CHIP 7K5 1/16W 5% FENGHUA

R1125 061G0402752 JF RST CHIP 7K5 1/16W 5% FENGHUA

R7515 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R7513 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R725 061G0603100 JY RST CHIPR 10OHM 1/10W YAGEO

R7107 061G06031000FY RST CHIP 100R 1% 1/10W

R438 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA

R719 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R718 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R7121 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R670 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R668 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R665 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R662 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R660 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R657 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

67

R613 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R460 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R1726 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R1419 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R404 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R406 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R4142 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R440 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R442 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R733 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R726 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R716 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R639 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R638 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R637 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R633 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R622 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R565 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R491 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R490 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R454 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R443 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R173 061G06031202FY RST CHIP 12K 1/10W 1%

R659 061G0603122 JF RST CHIPR 1.2KOHM 5% 1/10W FENGHUA

R664 061G0603122 JF RST CHIPR 1.2KOHM 5% 1/10W FENGHUA

R658 061G0603153 JF RST 0603 15K 5% 1/10W

R663 061G0603153 JF RST 0603 15K 5% 1/10W

R728 061G06031602FF RST CHIPR 16KOHM +-1% 1/10W FENGHUA

R667 061G0603183 JF RST CHIPR 18KOHM 5% 1/10W FENGHUA

R669 061G0603183 JF RST CHIPR 18KOHM 5% 1/10W FENGHUA

R7147 061G0603202 JF RST CHIPR 2K OHM +-5% 1/10W FENGHUA

R7110 061G06032209FT RST CHIP 22R 1/10W 1%

R731 061G0603224 JF RST CHIPR 220KOHM +-5% 1/10W FENGHUA

R739 061G0603229 JF RST CHIPR 2.2 OHM 5% 1/10W FENGHUA

R7108 061G06032409FT RST CHIP 24R 1/10W 1%

R7108 061G06032409FY RST CHIP 24R 1/10W 1%

R1106 061G0603273 JF RST CHIPR 27KOHM 5% 1/10W FENGHUA

R799 061G0603274 JF RST CHIPR 270KOHM 5% 1/10W FENGHUA

R444 061G06033301FF RST CHIPR 3.3KOHM +-1% 1/10W FENGHUA

R441 061G06033301FF RST CHIPR 3.3KOHM +-1% 1/10W FENGHUA

R615 061G0603333 JY RST CHIPR 33KOHM 1/10W YAGEO

R7145 061G0603471 JT RST CHIPR 470OHM +-5% 1/10W TZAI YUAN

R610 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

68

R729 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R730 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R732 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R7103 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA

R4221 061G06035101FY RST CHIP 5K1 1/10W 1%

R456 061G0603512 JY NO-SUGGEST RST CHIPR 5.1KOHM +-5% 1/10W

R567 061G0603563 JF RST CHIPR 56KOHM 5% 1/10W FENGHUA

R727 061G06036201FY RST CHIP 6K2 1/10W 1%

R4217 061G0603824 JF RST CHIPR 820KOHM 5% 1/10W FENGHUA

R1506 061G08051500FF RST CHIPR 150OHM +-1% 1/8W FENGHUA

R1506 061G08051500FT RST CHIPR 150OHM +-1% 1/8W TZAIYUAN

R172 061G08053832FF RST CHIPR 38.3KOHM +-1% 1/8W FENGHUA

R7521 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

R7520 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

C1622 065G040210031J Y CAP CHIP 0402 10P 50V NPO +/-5%

C1621 065G040210031J Y CAP CHIP 0402 10P 50V NPO +/-5%

C7177 065G040210131J A CAP CHIP 0402 100PF J 50V NPO

C7176 065G040210131J A CAP CHIP 0402 100PF J 50V NPO

C7177 065G040210131J T CAP CHIP 0402 100PF 50V NPO

C7176 065G040210131J T CAP CHIP 0402 100PF 50V NPO

C677 065G040210131J Y CAP CHIP 0402 100P 50V NPO +/-5%

C675 065G040210131J Y CAP CHIP 0402 100P 50V NPO +/-5%

C6321 065G040210131J Y CAP CHIP 0402 100P 50V NPO +/-5%

C6306 065G040210131J Y CAP CHIP 0402 100P 50V NPO +/-5%

C415 065G040210131J Y CAP CHIP 0402 100P 50V NPO +/-5%

C1519 065G040210131J Y CAP CHIP 0402 100P 50V NPO +/-5%

C1513 065G040210131J Y CAP CHIP 0402 100P 50V NPO +/-5%

C1219 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%

C1218 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%

C1217 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%

C1209 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%

C1115 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%

C1110 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%

C1109 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%

C1108 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%

C4242 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4241 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4240 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C1405 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C1502 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4237 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4234 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4232 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

69

C4231 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4228 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4225 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4223 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4220 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4218 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4213 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4212 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4211 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4210 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4208 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4205 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4110 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4109 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C1620 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C1615 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C1602 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4243 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4268 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4269 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4272 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4275 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4277 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4279 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4280 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4281 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4282 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4283 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4284 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4285 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4286 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4287 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4291 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4293 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4294 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4244 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4245 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4246 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C5403 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C5404 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C6122 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C6123 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4295 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

70

C4298 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4301 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C5112 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C5113 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C5114 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C5115 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C5401 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C5402 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4247 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4248 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4251 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4253 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4256 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4263 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C4266 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%

C637 065G040210425K M CAP 0402 100NF 10% 25V X5R

C678 065G040210425K M CAP 0402 100NF 10% 25V X5R

C676 065G040210425K M CAP 0402 100NF 10% 25V X5R

C637 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C678 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C676 065G040210425K T CAP 0402 0.1UF 10% 25V X5R

C4305 065G040212031J Y CAP CHIP 0402 12P 50V NPO +/-5%

C1208 065G040215031J Y CAP CHIP 0402 15PF J 50V NPO

C1215 065G040215031J Y CAP CHIP 0402 15PF J 50V NPO

C1216 065G040215031J Y CAP CHIP 0402 15PF J 50V NPO

C4002 065G040215232K Y CAP CHIP 0402 1.5NF 50V X7R

C4003 065G040215232K Y CAP CHIP 0402 1.5NF 50V X7R

C7164 065G040222232K Y CAP CHIP 0402 2N2 50V X7R +/-10%

C7165 065G040222232K Y CAP CHIP 0402 2N2 50V X7R +/-10%

C7174 065G040222232K Y CAP CHIP 0402 2N2 50V X7R +/-10%

C7175 065G040222232K Y CAP CHIP 0402 2N2 50V X7R +/-10%

C4215 065G040227031J Y CAP CHIP 0402 27P 50V NPO +/-5%

C5405 065G040233031J Y CAP CHIP 0402 33P 50V NPO +/-5%

C1414 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

C1415 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

C1416 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

C1417 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

C1237 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

C1236 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

C1231 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

C1229 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

C1119 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

C1118 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

71

C1117 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

C1116 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

C1214 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

C1220 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

C1221 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

C1222 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

C4259 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10%

C4292 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10%

C5116 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10%

C5118 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10%

C5119 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10%

C5120 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10%

C5121 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10%

C5122 065G040233232K Y CAP CHIP 0402 3N3 50V X7R +/-10%

C1234 065G040247031J Y CAP CHIP 0402 47PF 50V NPO +/-5%

C1403 065G040247031J Y CAP CHIP 0402 47PF 50V NPO +/-5%

C1612 065G040247031J Y CAP CHIP 0402 47PF 50V NPO +/-5%

C1111 065G040247232K Y CAP CHIP 0402 4700P 50V X7R +/-10%

C1235 065G040247232K Y CAP CHIP 0402 4700P 50V X7R +/-10%

C1233 065G040247312K 3 CHIP CAP 47NF16V X7R 10%

C1408 065G040247312K 3 CHIP CAP 47NF16V X7R 10%

C1114 065G040250931J Y NO-SUGGEST 0402 5PF 50V NPO

C1113 065G040250931J Y NO-SUGGEST 0402 5PF 50V NPO

C1112 065G040250931J Y NO-SUGGEST 0402 5PF 50V NPO

C730 065G060310221J Y CAP CHIP 0603 1N 25V NPO +/-5%

C470 065G060310422K Y CAP CHIP 0603 100N 25V X7R +/-10%

C735 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C734 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C732 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C728 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C720 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C719 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C716 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C7156 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C7154 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C7116 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C7114 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C7105 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C7104 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C659 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C658 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C656 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C648 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

72

C601 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C635 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C638 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C639 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C641 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C657 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C665 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C667 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C7102 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C7110 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C7111 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C7115 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C6101 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R

C6105 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R

C6101 065G060310512K M CAP 0603 1UF 10% 16V X7R

C6105 065G060310512K M CAP 0603 1UF 10% 16V X7R

C6101 065G060310512K T CAP 0603 1UF 10% 16V X7R

C6105 065G060310512K T CAP 0603 1UF 10% 16V X7R

C4000 065G060310522K M CAP MLCC 0603 1UF K 25V X7R

C4001 065G060310522K M CAP MLCC 0603 1UF K 25V X7R

C1627 065G060310522K T CAP CHIP 0603 1UF K 25V X7R

C4000 065G060310522K T CAP CHIP 0603 1UF K 25V X7R

C4001 065G060310522K T CAP CHIP 0603 1UF K 25V X7R

C6102 065G060310522K T CAP CHIP 0603 1UF K 25V X7R

C6103 065G060310522K T CAP CHIP 0603 1UF K 25V X7R

C6104 065G060310522K T CAP CHIP 0603 1UF K 25V X7R

C6107 065G060310522K T CAP CHIP 0603 1UF K 25V X7R

C6108 065G060310522K T CAP CHIP 0603 1UF K 25V X7R

C6109 065G060310522K T CAP CHIP 0603 1UF K 25V X7R

C6113 065G060310522K T CAP CHIP 0603 1UF K 25V X7R

C6114 065G060310522K T CAP CHIP 0603 1UF K 25V X7R

C6117 065G060310522K T CAP CHIP 0603 1UF K 25V X7R

C6118 065G060310522K T CAP CHIP 0603 1UF K 25V X7R

C6207 065G060310522K T CAP CHIP 0603 1UF K 25V X7R

C6215 065G060310522K T CAP CHIP 0603 1UF K 25V X7R

C4000 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R

C4001 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R

C1627 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R

C4000 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R

C4001 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R

C6102 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R

C6103 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R

C6104 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R

73

C6107 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R

C6108 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R

C6109 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R

C6113 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R

C6114 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R

C6117 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R

C6118 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R

C6207 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R

C6215 065G060310522K Y CAP CHIP 0603 1UF K 25V X7R

C1508 065G060310525K 3 MLCC 0603 1UF 25V X5R +/-10%

C1509 065G060310525K 3 MLCC 0603 1UF 25V X5R +/-10%

C729 065G060310525K 3 MLCC 0603 1UF 25V X5R +/-10%

C4304 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C4303 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C4290 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C4274 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C4270 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C4267 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C4264 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C4262 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C4261 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C4250 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C425 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C4249 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C424 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C4238 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C4236 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C4233 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C4230 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C4227 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C4224 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C4219 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C4216 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C4207 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C4227 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

C4230 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

C4233 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

C4236 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

C4238 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

C424 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

C4249 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

C425 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

C4219 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

74

C4216 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

C4207 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

C4250 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

C4261 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

C4262 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

C4264 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

C4267 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

C4270 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

C4274 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

C4290 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

C4303 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

C4304 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

C4224 065G060310605M Y CAP CHIP 0603 10UF 6.3V X5R +/-20%

C1000 065G060322422K Y CAP 0603 220N 25V X7R 10%

C1002 065G060322422K Y CAP 0603 220N 25V X7R 10%

C1003 065G060322422K Y CAP 0603 220N 25V X7R 10%

C4107 065G060322422K Y CAP 0603 220N 25V X7R 10%

C721 065G060322422K Y CAP 0603 220N 25V X7R 10%

C4214 065G060333031J Y CAP CHIP 0603 33P 50V NPO +/-5%

C1610 065G060347332K F CAP CHIP 0603 47NF K 50V X7R

C4289 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R

C4276 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R

C4273 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R

C4271 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R

C4265 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R

C4255 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R

C4254 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R

C4252 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R

C4239 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R

C5111 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R

C4203 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R

C4204 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R

C4217 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R

C4221 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R

C4222 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R

C4226 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R

C4229 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R

C4235 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R

C4273 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R

C4271 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R

C4265 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R

C4255 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R

C4254 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R

75

C4252 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R

C4239 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R

C4235 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R

C4229 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R

C4226 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R

C4222 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R

C4221 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R

C4217 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R

C4204 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R

C4203 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R

C4276 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R

C4289 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R

C5111 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R

C643 065G080510512K 3 MLCC 0805 CAP 1UF K 16V X7R

C652 065G080510512K 3 MLCC 0805 CAP 1UF K 16V X7R

C654 065G080510512K 3 MLCC 0805 CAP 1UF K 16V X7R

C643 065G080510512K T CAP CHIP 0805 1UF K 16V X7R

C652 065G080510512K T CAP CHIP 0805 1UF K 16V X7R

C654 065G080510512K T CAP CHIP 0805 1UF K 16V X7R

C654 065G080510512K Y CAP CHIP 0805 1U 16V X7R +/-10%

C652 065G080510512K Y CAP CHIP 0805 1U 16V X7R +/-10%

C643 065G080510512K Y CAP CHIP 0805 1U 16V X7R +/-10%

C649 065G080510615K T CHIP 10UF 16V X5R 0805

C644 065G080510617Z 3 CAP CHIP 0805 10U 16V Y5V -20~+80%

C646 065G080510617Z 3 CAP CHIP 0805 10U 16V Y5V -20~+80%

C651 065G080510617Z 3 CAP CHIP 0805 10U 16V Y5V -20~+80%

C653 065G080510617Z 3 CAP CHIP 0805 10U 16V Y5V -20~+80%

C4108 065G0805106A5K 3 CHIP 10UF 10V X5R 10%

C4299 065G0805106A5K 3 CHIP 10UF 10V X5R 10%

C4300 065G0805106A5K 3 CHIP 10UF 10V X5R 10%

C4302 065G0805106A5K 3 CHIP 10UF 10V X5R 10%

C4108 065G0805106A5K T CHIP 10UF 10V X5R 0805

C4299 065G0805106A5K T CHIP 10UF 10V X5R 0805

C4300 065G0805106A5K T CHIP 10UF 10V X5R 0805

C4302 065G0805106A5K T CHIP 10UF 10V X5R 0805

C645 065G080522522K T CAP 0805 2.2UF 10% 25V X7R

C647 065G080522522K T CAP 0805 2.2UF 10% 25V X7R

C642 065G080547432K F NO-SUGGEST 0805 0.47UF K 50V X7R

C668 065G080547432K F NO-SUGGEST 0805 0.47UF K 50V X7R

C642 065G080547432K M MLCC 0805 0.47UF 50V X7R

C668 065G080547432K M MLCC 0805 0.47UF 50V X7R

C668 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R

C642 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R

76

C668 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R

C642 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R

C642 065G080547432K Y CAP CHIP 0805 470N 50V X7R +/-10%

C668 065G080547432K Y CAP CHIP 0805 470N 50V X7R +/-10%

C727 065G080547525K M CAP 0805 4.7UF 10% 25V X5R

C727 065G080547525K T CAP MLCC 0805 4.7UF K 25V X5R

C727 065G080547525K Y CAP CHIP 0805 4U7 25V X5R +/-10%

C4306 065G0805475A2K 3 CAP CHIP 4.7UF 10V X7R +/- 10%

C4288 065G0805475A2K 3 CAP CHIP 4.7UF 10V X7R +/- 10%

C4278 065G0805475A2K 3 CAP CHIP 4.7UF 10V X7R +/- 10%

C4206 065G0805475A2K 3 CAP CHIP 4.7UF 10V X7R +/- 10%

C4206 065G0805475A2K T CAP CHIP 0805 4.7UF K 10V X7R

C4278 065G0805475A2K T CAP CHIP 0805 4.7UF K 10V X7R

C4288 065G0805475A2K T CAP CHIP 0805 4.7UF K 10V X7R

C718 065G0805475A7Z Y CAP CHIP 4.7UF 10V Y5V -20%~+80%

C733 065G0805475A7Z Y CAP CHIP 4.7UF 10V Y5V -20%~+80%

C600 065G120610612K 3 CHIP 10UF 16V X7R 10%

C600 065G120610612K T CAP CHIP 1206 10UF K 16V X7R

C600 065G120610612K T CAP CHIP 1206 10UF K 16V X7R

C600 065G120610612K Y CER 1206 10U 16V X7R 10%

C6119 065G1206226A5K 3 CHIP 22UF 10V X5R

C6121 065G1206226A5K 3 CHIP 22UF 10V X5R

C731 065G1206226A5K 3 CHIP 22UF 10V X5R

C6119 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R

C6121 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R

C731 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R

C1503 067G311F4703NT CAP S105C 47UF M 16V

C218 067G311F4703NT CAP S105C 47UF M 16V

C220 067G311F4703NT CAP S105C 47UF M 16V

C410 067G311F4703NT CAP S105C 47UF M 16V

C5201 067G311F4703NT CAP S105C 47UF M 16V

U4103 070GHDCP500HDC NO-SUGGEST HDCP CODE MTK-HDCP

FB1402 071G 56A221 M CHIP BEAD 0805 220R/2000MA

FB151 071G 56A221 M CHIP BEAD 0805 220R/2000MA

FB152 071G 56A221 M CHIP BEAD 0805 220R/2000MA

FB1402 071G 56A221 TA IND FXD 0805 EMI 100MHZ 220R R

FB151 071G 56A221 TA IND FXD 0805 EMI 100MHZ 220R R

FB152 071G 56A221 TA IND FXD 0805 EMI 100MHZ 220R R

FB703 071G 56G301 EA CHIP BEAD T1201209G301NP100

FB703 071G 56G301 MA CHIP BEAD 0805 300OHM 4A

FB7118 071G 56K121 CHIP BEAD

FB7116 071G 56K121 CHIP BEAD

FB7115 071G 56K121 CHIP BEAD

77

FB7113 071G 56K121 CHIP BEAD

FB7112 071G 56K121 CHIP BEAD

FB7111 071G 56K121 CHIP BEAD

FB7105 071G 56K121 CHIP BEAD

FB7102 071G 56K121 CHIP BEAD

FB7102 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60

FB7105 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60

FB7111 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60

FB7112 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60

FB7113 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60

FB7115 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60

FB7116 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60

FB7118 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60

FB4211 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF

FB4212 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF

FB4213 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF

FB4214 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF

FB4215 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF

FB4216 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF

FB4217 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF

FB4218 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF

FB4219 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF

FB4220 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF

FB4221 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF

FB4210 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF

FB4209 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF

FB4208 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF

FB4207 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF

FB4206 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF

FB4205 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF

FB4204 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF

FB4203 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF

FB4202 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF

FB4201 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF

FB4103 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF

FB4103 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB4201 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB4202 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB4203 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB4204 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB4205 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB4206 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB4207 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

78

FB4208 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB4209 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB4210 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB4211 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB4212 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB4213 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB4214 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB4215 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB4216 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB4217 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB4218 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB4219 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB4220 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB4221 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB7119 071G 59B300 M CHIP BEAD 0603 30OHM 25% 1000MA

FB1102 071G 59K300 M CHIP BEAD 0603 30R 700MA

FB1103 071G 59K300 M CHIP BEAD 0603 30R 700MA

FB1104 071G 59K300 M CHIP BEAD 0603 30R 700MA

FB1412 071G 59K300 TA CHIP BEAD 0603 30R/700MA TAI-TECH

FB1411 071G 59K300 TA CHIP BEAD 0603 30R/700MA TAI-TECH

FB1410 071G 59K300 TA CHIP BEAD 0603 30R/700MA TAI-TECH

FB1104 071G 59K300 TA CHIP BEAD 0603 30R/700MA TAI-TECH

FB1103 071G 59K300 TA CHIP BEAD 0603 30R/700MA TAI-TECH

FB1102 071G 59K300 TA CHIP BEAD 0603 30R/700MA TAI-TECH

FB703 071T 56G301 TA CHIP BEAD 300OHM 4000MA HCB2012KF-301T40

L700 073G253S 46 H SMD CHOKE 4.7UH

L700 073G253S 46 X SMD CHOKE 4.7UH 20% 2.8A 3SMCD54-4R7M

CN1403 088G 34019G AT HDMI HEADER 19P - -

CN1403 088G 34019G AV HDMI HEADER 19P BLACK - 2nd source

CN1702 088G 34019H VA HDMI HEADER 19P V/T H:13.0MM 2nd source

CN1702 088G 34019H VD HDMI HEADER 19P V/T H:13.0MM

CN1702 088G 34019H VT HDMI HEADER 19P BLACK - 2nd source

D1705 093G 60505 DIO SIG SM BAT54C(PHSE)R

D1707 093G 60505 DIO SIG SM BAT54C(PHSE)R

D1708 093G 60505 DIO SIG SM BAT54C(PHSE)R

D403 093G 64 33 DIO SIG SM BAV99 (PHSE)R

ZD600 093G 39S 44 T RLZ18B LLDS

ZD5406 093G 39S911 T DIODE BZX84-C5V6 SOT-23 PHILIPS

ZD5405 093G 39S911 T DIODE BZX84-C5V6 SOT-23 PHILIPS

ZD5402 093G 39S911 T DIODE BZX84-C5V6 SOT-23 PHILIPS

ZD5401 093G 39S911 T DIODE BZX84-C5V6 SOT-23 PHILIPS

ZD1102 093G 39S911 T DIODE BZX84-C5V6 SOT-23 PHILIPS

D601 093G 64S3PH BAS32L

79

ZD104 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ

ZD105 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ

ZD106 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ

ZD107 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ

ZD108 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ

D7101 093G1020 PH DIODE S1D-E3 DO-214AC

X4201 093T 22S920 C CRYSTAL 27MHZ 20P SMD-49

CN5201 311GW125A30ACH WAFER 1.25MM 30P

709G4089 QS001 COMSUPTIVE ASS'Y

052G 2191 A PAPER TAPE

055G 100610 TIN CREAM W/O PB

Q52G6026 7 MESH PRINTTING PAPER

E715 715G4089M02000004F MAIN PCB FR4 DS 193*186*1.6MM

E715 715G4089M02000004K MAIN PCB FR4 DS 193*186*1.6MM 2nd source

FB1 Q85T0174101 SHIELDING COVER -TOP

FB1 Q85T0175101 SHIELDING COVER -BOTTOM

IRPFAQA6 IR BOARD

U201 056G 627911 IR 38KHZ KSM-603TM2M

CN201 033G8032 3F HR CONNECTOR 3P 1.25

R201 061G0603153 JY RST CHIPR 15KOHM 1/10W YAGEO

C201 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

E715 715G4086R01000004L TV IR-PCB 27X20X1.2MM FR4 1OZ DS 2nd source

E715 715G4086R01000004S TV IR-PCB 27X20X1.2MM FR4 1OZ DS

KEPFAQB5 KEY BOARD

CN0101 033G8032 4F HR CONNECTOR 4P 1.25

R0106 061G08052201FY RST CHIPR 2.2K OHM 1/8W 1%

R0105 061G08052201FY RST CHIPR 2.2K OHM 1/8W 1%

R0104 061G08054700FF RST 0805 470R 1% 1/8W

R0102 061G08054700FF RST 0805 470R 1% 1/8W

R0103 061G08058201FF RST CHIPR 8.2KOHM +-1% 1/8W FENGHUA

R0101 061G08058201FF RST CHIPR 8.2KOHM +-1% 1/8W FENGHUA

C0102 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C0101 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C0103 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

SW0104 077G 607 2 CJ CHIP TACT SWITCH

SW0105 077G 607 2 CJ CHIP TACT SWITCH

SW0106 077G 607 2 CJ CHIP TACT SWITCH

SW0107 077G 607 2 CJ CHIP TACT SWITCH

SW0102 077G 607 2 CJ CHIP TACT SWITCH

SW0103 077G 607 2 CJ CHIP TACT SWITCH

SW0101 077G 607 2 CJ CHIP TACT SWITCH

SW0101 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL

SW0102 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL

80

SW0103 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL

SW0104 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL

SW0105 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL

SW0106 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL

SW0107 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL

715G4224K01000004S KEY PCB FR4 DS 145*10*1.6MM 94V-0

PLTVAL668XQD1 POWER BOARD G4078-P01-W22-0030-4-100802

040G 45762412B CBPC LABEL

009G6005 1 GP GROUND TERMINAL

CN905 033G380212H WAFER 2.0MM 12P

CN902 033G380213H WAFER 13P RIGHT ANGLE PITCH

CN901 033G8029 3A H B2P3S-VH

CN903 033T380213B Y L CONNECTOR 13P 2.0

IC915 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4

IC923 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4

IC920 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4

IC918 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4

IC918 056G 139 3B IC PC123Y82FZ0F

IC920 056G 139 3B IC PC123Y82FZ0F

IC923 056G 139 3B IC PC123Y82FZ0F

IC915 056G 139 3B IC PC123Y82FZ0F

IC922 056G 379121 IC STR- A6069H DIP-8

Q919 057G 611 9 MOSFET 2SK4097LS-MG5 9.5 500 TO-220FI

Q920 057G 611 9 MOSFET 2SK4097LS-MG5 9.5 500 TO-220FI

Q919 057G 667914 MOSFET TK10A50D TO220

Q920 057G 667914 MOSFET TK10A50D TO220

Q923 057G 761 7 KTD1691P

Q923 057G 761502 SMALLTRAN BTD1805AD3 5A 60V TO-126ML

Q923 057G 761909 T SMALLTRAN KSD1691YSTU 5A 60V TO-126

NR902 061G 58509MEW NTCR 5R 5A SCK13055MMY506

NR901 061G 58509MEW NTCR 5R 5A SCK13055MMY506

C903 063G107M47410M CAP X2 470NF 20% 275V

C904 063G107M47410M CAP X2 470NF 20% 275V

C904 063G107M474AUM CAP X2 470NF 20% 305V

C903 063G107M474AUM CAP X2 470NF 20% 305V

C937 063G210K474 BC 10 CAP MPP 470NF 10% 520V

C937 063G210K474BCC MPP CAP 0.47UF 10% 520V

C928 063G211J333 5C C 0.033UF 5% 1000V P=15MM

C928 063G211J333 5C 10 0.033UF 5% 1000V P=15MM R75QI2330500-J

C974 065G 2K331 2A CAP CER 330PF 10% 2KV Y5P

C922 065G 3J1006ET GP 10PF 5% SL 3KV TDK

C902 065G306K2212B3 Y1 CAP 220PF +-10% 250VAC

C906 065G306K2212B3 Y1 CAP 220PF +-10% 250VAC

81

C935 065G306K4712B3 Y1 CAP 470PF +-10% 250VAC CD SERIES

C984 065G306K4712B3 Y1 CAP 470PF +-10% 250VAC CD SERIES

C987 065G306K4712B3 Y1 CAP 470PF +-10% 250VAC CD SERIES

C981 065G306M1022B3 Y1 CAP 1000PF M 250VAC TDK

C9101 067G 42Z39015K EC 39UF M 450V 18*36MM

C9102 067G 42Z39015K EC 39UF M 450V 18*36MM

C938 067G 42Z39015K EC 39UF M 450V 18*36MM

C939 067G 42Z39015K EC 39UF M 450V 18*36MM

C9101 067G 42Z39015L EC 39UF 10% 450V 10*50

C9102 067G 42Z39015L EC 39UF 10% 450V 10*50

C938 067G 42Z39015L EC 39UF 10% 450V 10*50

C939 067G 42Z39015L EC 39UF 10% 450V 10*50

C991 067G204V471 2K CS CAP 470UF 10V 8*8 MM

C990 067G204V471 2K CS CAP 470UF 10V 8*8 MM

C991 067G204V471 2L CAP CS 470UF 20% 10V 8*8

C990 067G204V471 2L CAP CS 470UF 20% 10V 8*8

C994 067G215C1007KV EC 10UF 20% 50V EM 8*9

C977 067G215C1007KV EC 10UF 20% 50V EM 8*9

C961 067G215C1007KV EC 10UF 20% 50V EM 8*9

C920 067G215C1007KV EC 10UF 20% 50V EM 8*9

C910 067G215C1007KV EC 10UF 20% 50V EM 8*9

C944 067G215C4707KV EC 47UF 20% 50V EM 8*9

C992 067G215C4713KV LOW ESR EC 470UF 16V 8*9MM

C992 067G215C4713LV EC 470UF 20% 16V RXY 8*9

C924 067G215C4797KV EC 4.7UF 20% 50V EM 8*9

C970 067G215Z102 6K LOW ESR EC 1000UF M 35V 10*35MM

C965 067G215Z102 6K LOW ESR EC 1000UF M 35V 10*35MM

C970 067G215Z102 6L EC 1000UF 20% 35V RZW 10*35

C965 067G215Z102 6L EC 1000UF 20% 35V RZW 10*35

C918 067G415Z121 9K EC 120UF 20% 100V EJ 8*35

C916 067G415Z121 9K EC 120UF 20% 100V EJ 8*35

L901 073G 174159 H LINE FILTER 8MH MIN LCL-11611 HA

L901 073G 174159 L LINE FILTER 8MH MIN CC-013105

L903 073G 174162 L LINE FILTER 15MH 5% CC-012648-2

L910 073G 174194 L PFC CHOKE 294UH 10% CC-013601

L910 073G 174194 N PFC CHOKE 294UH 10% YUVA-1422

L909 073G 253203 H CHOKE COIL 5UH 15% 15MOHM DR8*10

L908 073G 253203 H CHOKE COIL 5UH 15% 15MOHM DR8*10

L907 073G 253203 H CHOKE COIL 5UH 15% 15MOHM DR8*10

L904 073G 253203 H CHOKE COIL 5UH 15% 15MOHM DR8*10

L904 073G 253203 S CHOKE COIL 5UH 15% 15MOHM DR8*10

L907 073G 253203 S CHOKE COIL 5UH 15% 15MOHM DR8*10

L908 073G 253203 S CHOKE COIL 5UH 15% 15MOHM DR8*10

82

L909 073G 253203 S CHOKE COIL 5UH 15% 15MOHM DR8*10

T903 080GL32P 30 L X'FMR 1.6MH 15% 30UH PT-013600

T903 080GL32P 30 N X'FMR 1.6MH 15% 30UH YUVA-1426

T902 080GL32P 31 L X'FMR 700UH 15% 7UH PT-013599

T902 080GL32P 31 N X'FMR 700UH 10% 7UH YUVA-1427

T901 080GL32P 42 N X'FMR 500UH 10% 105UH YUVA-1428-4

D921 093G 52 70 1 1N5408-E(SHORT PIN) 3A/1000V DO-201AD

D922 093G 52 72 DIODE RY3AV4 3A/600V AXIAL-LEAD

D921 093G 5255L52T DIDOE 1N5408-E3/73 3A/1000V DO-201AD

D921 093G 52910 DIODE 1N5408-11 3A/1000V DO-201AD

D917 093G 60945 DIODE SF35G-05 DO-201AD

D919 093G 60945 DIODE SF35G-05 DO-201AD

705TQ951035 OIL FOR DISAPPEAR

705TQA57014 Q925 ASS'Y

Q925 057G 600 35 STP8NK80ZFP

Q925 057G 667 22 FQPF8N80C TO-220F

0M1G1730 8120 SCREW

Q90T0195 1 HEAT SINK

705TQA57019 Q901/Q902 ASS'Y

Q901 057G 611901 MOSFET 12A/500V FMA12N50E TO-220F

Q902 057G 611901 MOSFET 12A/500V FMA12N50E TO-220F

Q902 057G 611903 MOSFET AOTF12N50 TO-220F

Q901 057G 611903 MOSFET AOTF12N50 TO-220F

0M1G1730 8120 SCREW

Q90T0194 3 HEAT SINK

705TQA57020 Q905/Q906 ASS'Y

Q905 057G 611901 MOSFET 12A/500V FMA12N50E TO-220F

Q906 057G 611901 MOSFET 12A/500V FMA12N50E TO-220F

Q906 057G 611903 MOSFET AOTF12N50 TO-220F

Q905 057G 611903 MOSFET AOTF12N50 TO-220F

0M1G1730 8120 SCREW

Q90T0194 3 HEAT SINK

705TQA57021 Q907/Q908 ASS'Y

Q907 057G 611901 MOSFET 12A/500V FMA12N50E TO-220F

Q908 057G 611901 MOSFET 12A/500V FMA12N50E TO-220F

Q908 057G 611903 MOSFET AOTF12N50 TO-220F

Q907 057G 611903 MOSFET AOTF12N50 TO-220F

0M1G1730 8120 SCREW

Q90T0194 3 HEAT SINK

705TQA57022 Q911/Q912 ASS'Y

Q911 057G 611901 MOSFET 12A/500V FMA12N50E TO-220F

Q912 057G 611901 MOSFET 12A/500V FMA12N50E TO-220F

Q912 057G 611903 MOSFET AOTF12N50 TO-220F

83

Q911 057G 611903 MOSFET AOTF12N50 TO-220F

0M1G1730 8120 SCREW

Q90T0194 3 HEAT SINK

705TQA57027 Q921 ASS"Y

Q921 057G 667 55 FET 2SK4087LS 14A/600V TO-220FI(LS)

0M1G 930 5120 SCREW

Q90T0220 1 HEAT SINK

705TQA93024 BD901 ASS'Y

BD901 093G 50460916 BRIDGE KBJ1008G-F 10A 800V KBJ

BD901 093G 50460932 BRIDGE TS10B06G-04 X0 10A 800V KBJ

0M1G1730 8120 SCREW

Q90T0194 1 HEAT SINK

705TQA93025 D926/D927 ASS'Y

D926 093G 60239 FME-210B T0-220

D927 093G 60329 DIODE FMEN-220A 20A/100V TO-220

D927 093G 60331 SCHOTTKY YG865C10RSC 20A 100V TO-220F

D926 093G 60903 DIODE MBRF10150CT TSC

D927 093G 60935 DIODE MBRF20100CT ITO-220AB

0M1G1730 8120 SCREW

Q90T0194 3 HEAT SINK

705TQA93026 D932 ASS'Y

D932 093G 60298 DIODE SBT15006JST 15A/60V TO-220ML(LS)

D932 093G 60931 DIODE MBRF1560CT ITO-220AB

0M1G1730 8120 SCREW

Q90T0195 1 HEAT SINK

709T4078 QM001 COMSUPTIVE ASS'Y

055G 23520 IPA

055G 23524 WELDING FLUX WITHOUT PB

Q49G 51100 CLEANER

Q51G 6 4509 GLUE_RTV

Q55G 100625 TIN STICK_LOW ARGENTUM

PLAL668XQD1SMT POWER BOARD FOR SMT

IC926 056G 192 31 IC OP AMPLIFIER LM258DT SOP-8

IC930 056G 379172 IC LD7591GS SOP-8

IC919 056G 379175 IC LD7523GS SOP-8

IC914 056G 379176 IC SSC9512S-TL SOP-18

IC908 056G 563242 IC DC/DC AZ432ANTR-G1 SOT-23

IC911 056G 563242 IC DC/DC AZ432ANTR-G1 SOT-23

IC912 056G 563242 IC DC/DC AZ432ANTR-G1 SOT-23

IC907 056G 563242 IC DC/DC AZ432ANTR-G1 SOT-23

IC905 056G 563242 IC DC/DC AZ432ANTR-G1 SOT-23

IC902 056G 563242 IC DC/DC AZ432ANTR-G1 SOT-23

IC906 056G 563242 IC DC/DC AZ432ANTR-G1 SOT-23

84

IC901 056G 563242 IC DC/DC AZ432ANTR-G1 SOT-23

Q917 057G 417 12 T KEC 2N3904S-RTK/PS

Q924 057G 417 12 T KEC 2N3904S-RTK/PS

Q913 057G 417 12 T KEC 2N3904S-RTK/PS

Q916 057G 417 12 T KEC 2N3904S-RTK/PS

Q926 057G 417 12 T KEC 2N3904S-RTK/PS

Q914 057G 417 13 T KEC 2N3906S-RTK/PS

Q914 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC

Q916 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC

Q913 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC

Q917 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC

Q924 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC

Q926 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC

Q915 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM

Q918 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM

Q915 057G 763511 MOSFET SRK7002LT1G SOT-23 LRC

Q918 057G 763511 MOSFET SRK7002LT1G SOT-23 LRC

Q918 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS

Q915 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS

R9122 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA

R949 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA

R978 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA

R978 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN

R9122 061G0805100 JY RST CHIPR 10OHM +- 5% 1/8W YEGAO

R949 061G0805100 JY RST CHIPR 10OHM +- 5% 1/8W YEGAO

R9104 061G08051001FT RST CHIP 1K 1/8W 1%

R9159 061G08051001FT RST CHIP 1K 1/8W 1%

R9161 061G08051001FT RST CHIP 1K 1/8W 1%

R9162 061G08051001FT RST CHIP 1K 1/8W 1%

R936 061G08051001FT RST CHIP 1K 1/8W 1%

R936 061G08051001FY RST CHIP 1K 1/8W 1%

R9162 061G08051001FY RST CHIP 1K 1/8W 1%

R9161 061G08051001FY RST CHIP 1K 1/8W 1%

R9159 061G08051001FY RST CHIP 1K 1/8W 1%

R9104 061G08051001FY RST CHIP 1K 1/8W 1%

R961 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R951 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R947 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R944 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R939 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R937 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R935 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R934 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

85

R930 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R929 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R9100 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R9103 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R9105 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R9106 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R9127 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R9129 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R9133 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R9175 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R9176 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R9100 061G08051002FY RST CHIP 10K 1/8W 1%

R9103 061G08051002FY RST CHIP 10K 1/8W 1%

R9105 061G08051002FY RST CHIP 10K 1/8W 1%

R9106 061G08051002FY RST CHIP 10K 1/8W 1%

R9127 061G08051002FY RST CHIP 10K 1/8W 1%

R9129 061G08051002FY RST CHIP 10K 1/8W 1%

R9133 061G08051002FY RST CHIP 10K 1/8W 1%

R961 061G08051002FY RST CHIP 10K 1/8W 1%

R951 061G08051002FY RST CHIP 10K 1/8W 1%

R947 061G08051002FY RST CHIP 10K 1/8W 1%

R944 061G08051002FY RST CHIP 10K 1/8W 1%

R939 061G08051002FY RST CHIP 10K 1/8W 1%

R937 061G08051002FY RST CHIP 10K 1/8W 1%

R935 061G08051002FY RST CHIP 10K 1/8W 1%

R934 061G08051002FY RST CHIP 10K 1/8W 1%

R930 061G08051002FY RST CHIP 10K 1/8W 1%

R929 061G08051002FY RST CHIP 10K 1/8W 1%

R9176 061G08051002FY RST CHIP 10K 1/8W 1%

R9175 061G08051002FY RST CHIP 10K 1/8W 1%

R932 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA

R928 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA

R928 061G08051003FY RST CHIP 100K 1/8W 1%

R932 061G08051003FY RST CHIP 100K 1/8W 1%

R938 061G0805101 JF RST 0805 100R 5% 1/8W

R938 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN

R9172 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO

R9178 061G0805105 JF RST CHIPR 1M OHM +- 5% 1/8W FENGHUA

R9178 061G0805105 JT RST CHIP 1M 1/8W 5% TZAI YUAN

R9125 061G08051302FF RST CHIPR 13KOHM +-1% 1/8W FENGHUA

R995 061G08051302FF RST CHIPR 13KOHM +-1% 1/8W FENGHUA

R9125 061G08051302FY RST CHIP 13K 1/8W 1%

R995 061G08051302FY RST CHIP 13K 1/8W 1%

86

R945 061G08051432FF RST CHIPR 14.3KOHM +-1% 1/8W FENGHUA

R967 061G08052000FF RST CHIPR 200 OHM +-1% 1/8W FENGHUA

R967 061G08052000FY RST CHIP 200R 1/8W 1%

R974 061G08052001FF RST CHIPR 2KOHM +-1% 1/8W FENGHUA

R9135 061G08052001FF RST CHIPR 2KOHM +-1% 1/8W FENGHUA

R974 061G08052001FT RST CHIP 2K 1/8W 1%

R9135 061G08052001FY RST CHIP 2K 1/8W 1%

R990 061G0805202 JF RST CHIPR 2KOHM +-5% 1/8W FENGHUA

R990 061G0805202 JT RST CHIP 2K 1/8W 5% TZAI YUAN

R931 061G0805203 JF RST CHIPR 20KOHM +-5% 1/8W FENGHUA

R931 061G0805203 JY RST CHIPR 20KOHM +-5% 1/8W

R971 061G08052102FT RST CHIPR 21K +-1% 1/8W TZAI YUAN

R971 061G08052102FY RST CHIP 21K 1/8W 1%

R9124 061G0805220 JF RST CHIPR 22 OHM +-5% 1/8W FENGHUA

R9124 061G0805220 JT RST CHIPR 22OHM +-5% 1/8W TZAI YUAN

R942 061G0805221 JF RST CHIPR 220 OHM +-5% 1/8W FENGHUA

R942 061G0805221 JT RST CHIP 220R 1/8W 5% TZAI YUAN

R9130 061G08052402FF RST CHIPR 24KOHM +-1% 1/8W FENGHUA

R9130 061G08052402FY RST CHIP 24K 1/8W 1%

R963 061G08052431FF RST CHIPR 2.43KOHM +-1% 1/8W FENGHUA

R963 061G08052431FY RST CHIP 2K43 1/8W 1%

R964 061G08052702FF RST CHIPR 27KOHM +-1% 1/8W FENGHUA

R9131 061G08052702FF RST CHIPR 27KOHM +-1% 1/8W FENGHUA

R964 061G08052702FY RST CHIP 27K 1/8W 1%

R9131 061G08052702FY RST CHIP 27K 1/8W 1%

R968 061G08053002FF RST CHIPR 30KOHM +-1% 1/8W FENGHUA

R968 061G08053002FT RST CHIP 30K 1/8W 1%

R970 061G08053301FF RST CHIPR 3.3KOHM +-1% 1/8W FENGHUA

R970 061G08053301FT RST CHIP 3K3 1/8W 1%

R9155 061G0805332 JF RST CHIPR 3.3KOHM +-5% 1/8W FENGHUA

R9155 061G0805332 JY RST CHIPR 3K3 +-5% 1/8W YAGEO

R9128 061G0805392 JF RST CHIPR 3.9KOHM +-5% 1/8W FENGHUA

R9128 061G0805392 JY RST CHIPR 3K9 +-5% 1/8W YAGEO

R969 061G0805432 JF RST CHIPR 4.3KOHM +-5% 1/8W FENGHUA

R969 061G0805432 JY RST CHIPR 4.3KOHM +-5% 1/8W YAGEO

R998 061G0805433 JF RST CHIPR 43KOHM +-5% 1/8W FENGHUA

R950 061G0805470 JF RST CHIPR 47OHM +-5% 1/8W FENGHUA

R960 061G0805470 JF RST CHIPR 47OHM +-5% 1/8W FENGHUA

R950 061G0805470 JT RST CHIPR 47OHM +-5% 1/8W TZAI YUAN

R960 061G0805470 JT RST CHIPR 47OHM +-5% 1/8W TZAI YUAN

R976 061G08054702FF RST CHIPR 47KOHM +-1% 1/8W FENGHUA

R976 061G08054702FT RST CHIP 47K 1/8W 1%

R993 061G0805471 JF RST CHIPR 470 OHM +-5% 1/8W FENGHUA

87

R9132 061G0805471 JF RST CHIPR 470 OHM +-5% 1/8W FENGHUA

R993 061G0805471 JY RST CHIPR 470OHM +-5% 1/8W YAGEO

R9132 061G0805471 JY RST CHIPR 470OHM +-5% 1/8W YAGEO

R933 061G08055602FF RST CHIPR 56KOHM +-1% 1/8W FENGHUA

R933 061G08055602FT RST CHIP R 56K 1/8W +/-1%

R9152 061G08055603FF RST CHIPR 560KOHM +-1% 1/8W FENGHUA

R9152 061G08055603FY RST CHIP 560K 1/8W 1%

R941 061G0805562 JF RST CHIPR 5.6KOHM +-5% 1/8W FENGHUA

R941 061G0805562 JY RST CHIPR 5K6 +-5% 1/8W YAGEO

R966 061G0805681 JF RST CHIPR 680OHM +-5% 1/8W FENGHUA

R966 061G0805681 JT RST CHIPR 680OHM +-5% 1/8W TZAI YUAN

R9166 061G08057501FF RST CHIPR 7.5KOHM +-1% 1/8W FENGHUA

R9166 061G08057501FY RST CHIP R 7K5 1/8W +/-1%

R9156 061G08058201FF RST CHIPR 8.2KOHM +-1% 1/8W FENGHUA

R9156 061G08058201FY RST CHIP 8K2 1/8W 1%

R943 061G08059101FF RST CHIPR 9.1KOHM +-1% 1/8W FENGHUA

R943 061G08059101FY RST CHIP 9K1 1/8W 1%

R973 061G0805912 JF RST CHIPR 9.1KOHM +-5% 1/8W FENGHUA

R973 061G0805912 JT RST CHIPR 9.1 KOHM +-5% 1/8W 0805

R9177 061G0805913 JF RST CHIPR 91KOHM +-5% 1/8W FENGHUA

R9177 061G0805913 JW RST CHIPR 91KOHM +-5% 1/8W WALSIN

JR905 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

JR906 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

JR907 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

JR901 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

JR902 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

JR903 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

JR904 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

JR902 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

JR903 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

JR901 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

JR904 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

JR905 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

JR906 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

JR907 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

R9173 061G12061002FF RST CHIPR 10KOHM +-1% 1/4W FENGHUA

R9173 061G12061002FT RST CHIPR 10KOHM +-1% 1/4W 1206

R972 061G12061003FF RST CHIPR 100KOHM +-1% 1/4W FENGHUA

R972 061G12061003FT RST CHIP 100K 1/8W 1%

R9121 061G12061004FF RST CHIPR 1 MOHM +-1% 1/4W FENGHUA

R9179 061G12061004FF RST CHIPR 1 MOHM +-1% 1/4W FENGHUA

R9180 061G12061004FF RST CHIPR 1 MOHM +-1% 1/4W FENGHUA

R9121 061G12061004FY RST CHIP 1M 1/4W 1%

88

R9179 061G12061004FY RST CHIP 1M 1/4W 1%

R9180 061G12061004FY RST CHIP 1M 1/4W 1%

R959 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA

R958 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA

R957 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA

R956 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA

R955 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA

R954 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA

R9143 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA

R9142 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA

R9139 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA

R9138 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA

R9116 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA

R9115 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA

R9114 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA

R9113 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA

R9113 061G1206104 JY NO-SUGGEST RST CHIPR 100KOHM 5% 1/4W YAG

R9114 061G1206104 JY NO-SUGGEST RST CHIPR 100KOHM 5% 1/4W YAG

R9115 061G1206104 JY NO-SUGGEST RST CHIPR 100KOHM 5% 1/4W YAG

R9116 061G1206104 JY NO-SUGGEST RST CHIPR 100KOHM 5% 1/4W YAG

R9138 061G1206104 JY NO-SUGGEST RST CHIPR 100KOHM 5% 1/4W YAG

R9139 061G1206104 JY NO-SUGGEST RST CHIPR 100KOHM 5% 1/4W YAG

R9142 061G1206104 JY NO-SUGGEST RST CHIPR 100KOHM 5% 1/4W YAG

R9143 061G1206104 JY NO-SUGGEST RST CHIPR 100KOHM 5% 1/4W YAG

R954 061G1206104 JY NO-SUGGEST RST CHIPR 100KOHM 5% 1/4W YAG

R955 061G1206104 JY NO-SUGGEST RST CHIPR 100KOHM 5% 1/4W YAG

R956 061G1206104 JY NO-SUGGEST RST CHIPR 100KOHM 5% 1/4W YAG

R957 061G1206104 JY NO-SUGGEST RST CHIPR 100KOHM 5% 1/4W YAG

R958 061G1206104 JY NO-SUGGEST RST CHIPR 100KOHM 5% 1/4W YAG

R959 061G1206104 JY NO-SUGGEST RST CHIPR 100KOHM 5% 1/4W YAG

R9118 061G12061501FF RST CHIPR 1.5KOHM +-1% 1/4W FENGHUA

R9117 061G12061501FF RST CHIPR 1.5KOHM +-1% 1/4W FENGHUA

R9112 061G12061501FF RST CHIPR 1.5KOHM +-1% 1/4W FENGHUA

R9111 061G12061501FF RST CHIPR 1.5KOHM +-1% 1/4W FENGHUA

R9118 061G12061501FY NO-SUGGEST RST CHIPR 1.5KOHM +-1% 1/4W Y

R9117 061G12061501FY NO-SUGGEST RST CHIPR 1.5KOHM +-1% 1/4W Y

R9112 061G12061501FY NO-SUGGEST RST CHIPR 1.5KOHM +-1% 1/4W Y

R9111 061G12061501FY NO-SUGGEST RST CHIPR 1.5KOHM +-1% 1/4W Y

R9146 061G12061504FF RST CHIPR 1.5MOHM 1% 1/4W FENGHUA

R9147 061G12061504FF RST CHIPR 1.5MOHM 1% 1/4W FENGHUA

R9150 061G12061504FF RST CHIPR 1.5MOHM 1% 1/4W FENGHUA

R9146 061G12061504FY RST CHIP 1M5 1/4W 1%

R9147 061G12061504FY RST CHIP 1M5 1/4W 1%

89

R9150 061G12061504FY RST CHIP 1M5 1/4W 1%

R926 061G12061509FI RST 1206 15R 1% 1/4W TA-I

R923 061G12061509FI RST 1206 15R 1% 1/4W TA-I

R922 061G12061509FI RST 1206 15R 1% 1/4W TA-I

R921 061G12061509FI RST 1206 15R 1% 1/4W TA-I

R920 061G12061509FI RST 1206 15R 1% 1/4W TA-I

R917 061G12061509FI RST 1206 15R 1% 1/4W TA-I

R916 061G12061509FI RST 1206 15R 1% 1/4W TA-I

R927 061G12061509FI RST 1206 15R 1% 1/4W TA-I

R917 061G12061509FT RST 1206 15R 1% 1/4W TA-I

R916 061G12061509FT RST 1206 15R 1% 1/4W TA-I

R921 061G12061509FT RST 1206 15R 1% 1/4W TA-I

R922 061G12061509FT RST 1206 15R 1% 1/4W TA-I

R923 061G12061509FT RST 1206 15R 1% 1/4W TA-I

R927 061G12061509FT RST 1206 15R 1% 1/4W TA-I

R926 061G12061509FT RST 1206 15R 1% 1/4W TA-I

R920 061G12061509FT RST 1206 15R 1% 1/4W TA-I

R952 061G12062004FF RST CHIPR 2MOHM 1% 1/4W FENGHUA

R953 061G12062004FF RST CHIPR 2MOHM 1% 1/4W FENGHUA

R962 061G12062004FF RST CHIPR 2MOHM 1% 1/4W FENGHUA

R962 061G12062004FY RST CHIP R 2MOHM 1/4W +/-1%

R953 061G12062004FY RST CHIP R 2MOHM 1/4W +/-1%

R952 061G12062004FY RST CHIP R 2MOHM 1/4W +/-1%

R9123 061G1206202 JF RST CHIPR 2KOHM +-5% 1/4W FENGHUA

R9123 061G1206202 JT RST CHIP R 2KOHM 1/4W +/-5%

R981 061G1206203 JF RST CHIPR 20KOHM +-5% 1/4W FENGHUA

R981 061G1206203 JT RST CHIPR 20KOHM +-5% 1/4W TZAI YUAN

R9151 061G1206229 JF RST CHIPR 2.2 OHM +-5% 1/4W FENGHUA

R9151 061G1206229 JT RST CHIPR 2R2 +-5% 1/4W TZAI YUAN

R979 061G1206330 JF RST CHIPR 33 OHM +-5% 1/4W FENGHUA

R979 061G1206330 JT RST CHIP R 33OHM 1/4W +/-5%

R908 061G1206332 JT RST CHIPR 3.3 KOHM +-5% 1/4W TZAI YUAN

R905 061G1206332 JT RST CHIPR 3.3 KOHM +-5% 1/4W TZAI YUAN

R909 061G1206332 JT RST CHIPR 3.3 KOHM +-5% 1/4W TZAI YUAN

R910 061G1206332 JT RST CHIPR 3.3 KOHM +-5% 1/4W TZAI YUAN

R911 061G1206332 JT RST CHIPR 3.3 KOHM +-5% 1/4W TZAI YUAN

R914 061G1206332 JT RST CHIPR 3.3 KOHM +-5% 1/4W TZAI YUAN

R915 061G1206332 JT RST CHIPR 3.3 KOHM +-5% 1/4W TZAI YUAN

R904 061G1206332 JT RST CHIPR 3.3 KOHM +-5% 1/4W TZAI YUAN

R915 061G1206332 JY RST CHIPR 3K3 +-5% 1/4W YAGEO

R914 061G1206332 JY RST CHIPR 3K3 +-5% 1/4W YAGEO

R911 061G1206332 JY RST CHIPR 3K3 +-5% 1/4W YAGEO

R910 061G1206332 JY RST CHIPR 3K3 +-5% 1/4W YAGEO

90

R909 061G1206332 JY RST CHIPR 3K3 +-5% 1/4W YAGEO

R908 061G1206332 JY RST CHIPR 3K3 +-5% 1/4W YAGEO

R905 061G1206332 JY RST CHIPR 3K3 +-5% 1/4W YAGEO

R904 061G1206332 JY RST CHIPR 3K3 +-5% 1/4W YAGEO

R901 061G1206334 JF RST CHIPR 330KOHM +-5% 1/4W FENGHUA

R903 061G1206334 JF RST CHIPR 330KOHM +-5% 1/4W FENGHUA

R902 061G1206334 JF RST CHIPR 330KOHM +-5% 1/4W FENGHUA

R903 061G1206334 JY RST CHIPR 330K +-5% 1/4W YAGEO

R901 061G1206334 JY RST CHIPR 330K +-5% 1/4W YAGEO

R902 061G1206334 JY RST CHIPR 330K +-5% 1/4W YAGEO

R9140 061G1206470 JF RST CHIPR 47 OHM +-5% 1/4W FENGHUA

R9144 061G1206470 JF RST CHIPR 47 OHM +-5% 1/4W FENGHUA

R9140 061G1206470 JY RST CHIPR 47R +-5% 1/4W YAGEO

R9144 061G1206470 JY RST CHIPR 47R +-5% 1/4W YAGEO

R9227 061G12064709FF RST 1206 47R 1% 1/4W FENGHUA

R9226 061G12064709FF RST 1206 47R 1% 1/4W FENGHUA

R9223 061G12064709FF RST 1206 47R 1% 1/4W FENGHUA

R9222 061G12064709FF RST 1206 47R 1% 1/4W FENGHUA

R9221 061G12064709FF RST 1206 47R 1% 1/4W FENGHUA

R9220 061G12064709FF RST 1206 47R 1% 1/4W FENGHUA

R9217 061G12064709FF RST 1206 47R 1% 1/4W FENGHUA

R9216 061G12064709FF RST 1206 47R 1% 1/4W FENGHUA

R9216 061G12064709FT RST 1206 33R 1% 1/4W TZAI YUAN

R9217 061G12064709FT RST 1206 33R 1% 1/4W TZAI YUAN

R9220 061G12064709FT RST 1206 33R 1% 1/4W TZAI YUAN

R9221 061G12064709FT RST 1206 33R 1% 1/4W TZAI YUAN

R9222 061G12064709FT RST 1206 33R 1% 1/4W TZAI YUAN

R9223 061G12064709FT RST 1206 33R 1% 1/4W TZAI YUAN

R9226 061G12064709FT RST 1206 33R 1% 1/4W TZAI YUAN

R9227 061G12064709FT RST 1206 33R 1% 1/4W TZAI YUAN

R9154 061G1206471 JF RST CHIPR 470 OHM +-5% 1/4W FENGHUA

R9154 061G1206471 JT RST CHIPR 470 OHM +-5% 1/4W TZAI YUAN

R9149 061G1206475 JF RST CHIPR 4.7 MOHM +-5% 1/4W FENGHUA

R9149 061G1206475 JT RST CHIPR 4.7 MOHM +-5% 1/4W TZAI YUAN

R9181 061G1206512 JF RST CHIPR 5.1KOHM +-5% 1/4W FENGHUA

R9182 061G1206512 JF RST CHIPR 5.1KOHM +-5% 1/4W FENGHUA

R9183 061G1206512 JF RST CHIPR 5.1KOHM +-5% 1/4W FENGHUA

R9184 061G1206512 JF RST CHIPR 5.1KOHM +-5% 1/4W FENGHUA

R9184 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN

R9183 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN

R9182 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN

R9181 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN

R982 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA

91

R985 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA

R989 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA

R982 061G12066803FY RST CHIPR 680KOHM +-1% 1/4W YAGEO

R985 061G12066803FY RST CHIPR 680KOHM +-1% 1/4W YAGEO

R989 061G12066803FY RST CHIPR 680KOHM +-1% 1/4W YAGEO

R940 061G1206683 JI RST 1206 68K 5% 1/4W

R940 061G1206683 JT RST CHIPR 68 KOHM +-5% 1/4W TZAI YUAN

C925 065G080510232K 3 CAP CHIP 0805 1N 50V X7R +/-10%

C930 065G080510232K 3 CAP CHIP 0805 1N 50V X7R +/-10%

C995 065G080510232K 3 CAP CHIP 0805 1N 50V X7R +/-10%

C995 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%

C948 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%

C930 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%

C925 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%

C976 065G080510332K 3 CAP CHIP 0805 10N 50V X7R +/-10%

C976 065G080510332K A CAP CHIP 0805 10NF K 50V X7R

C996 065G080510432K 3 CAP CHIP 0805 100N 50V X7R +/-10%

C979 065G080510432K 3 CAP CHIP 0805 100N 50V X7R +/-10%

C975 065G080510432K 3 CAP CHIP 0805 100N 50V X7R +/-10%

C972 065G080510432K 3 CAP CHIP 0805 100N 50V X7R +/-10%

C968 065G080510432K 3 CAP CHIP 0805 100N 50V X7R +/-10%

C962 065G080510432K 3 CAP CHIP 0805 100N 50V X7R +/-10%

C943 065G080510432K 3 CAP CHIP 0805 100N 50V X7R +/-10%

C923 065G080510432K 3 CAP CHIP 0805 100N 50V X7R +/-10%

C919 065G080510432K 3 CAP CHIP 0805 100N 50V X7R +/-10%

C911 065G080510432K 3 CAP CHIP 0805 100N 50V X7R +/-10%

C9100 065G080510432K 3 CAP CHIP 0805 100N 50V X7R +/-10%

C9100 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C911 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C919 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C923 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C943 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C962 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C968 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C972 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C975 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C979 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C996 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C914 065G080510522K 3 CAP CHIP 0805 1U 25V X7R +/-10%

C915 065G080510522K 3 CAP CHIP 0805 1U 25V X7R +/-10%

C915 065G080510522K Y CAP CHIP 0805 1U 25V X7R +/-10%

C914 065G080510522K Y CAP CHIP 0805 1U 25V X7R +/-10%

C983 065G080522131J F CAP CHIP 0805 220PF J 50V NPO

92

C949 065G080522131J F CAP CHIP 0805 220PF J 50V NPO

C983 065G080522131J Y CAP CHIP 0805 220P 50V NPO +/-5%

C949 065G080522131J Y CAP CHIP 0805 220P 50V NPO +/-5%

C999 065G080522432K 3 CAP CHIP 0805 220N 50V X7R +/-10%

C993 065G080522432K 3 CAP CHIP 0805 220N 50V X7R +/-10%

C934 065G080522432K 3 CAP CHIP 0805 220N 50V X7R +/-10%

C999 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%

C993 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%

C934 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%

C989 065G080522522K 3 CAP CHIP 0805 2U2 25V X7R +/-10%

C989 065G080522522K Y CAP CHIP 0805 2U2 25V X7R +/-10%

C982 065G080533432K 3 CAP CHIP 0805 330N 50V X7R +/-10%

C982 065G080533432K A CAP 0805 330NF 10% 50V X7R

C957 065G080547332K A CAP CHIP 0805 47NF K 50V X7R

C957 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10%

C956 065G080547432K A CAP CHIP 0805 0.47UF K 50V X7R

C956 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R

C927 065G080547515K 3 MLCC 0805 4U7 16V X5R +/-10%

C927 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R

C936 065G080568031J Y CAP CHIP 0805 68P 50V NPO +/-5%

C942 065G080568031J Y CAP CHIP 0805 68P 50V NPO +/-5%

C929 065G080568131J F CAP 0805 680PF 5% 50V NPO

C929 065G080568131J Y CAP CHIP 0805 680P 50V NPO +/-5%

D907 093G 64 38 P BAW56

D909 093G 64 38 P BAW56

D912 093G 64 38 P BAW56

D910 093G 64 38 P BAW56

D903 093G 64 42 PP BAV70 SOT-23

D904 093G 64 42 PP BAV70 SOT-23

D906 093G 64 42 PP BAV70 SOT-23

D901 093G 64 42 PP BAV70 SOT-23

D929 093G 60S 5 T SCHOTTKY SCS0520P 0.5A 20V SOD-123

CN901 006G 31500 EYELET

T901 006G 31502 1.5MM RIVET

IC913 056G 158 10 T IC AS431AZTR-E1 TO-92 BY AAC

IC916 056G 158 10 T IC AS431AZTR-E1 TO-92 BY AAC

IC921 056G 158 10 T IC AS431AZTR-E1 TO-92 BY AAC

IC925 056G 158 10 T IC AS431AZTR-E1 TO-92 BY AAC

IC913 056G 158 12 SHUNT REGULATOR KIA431A-AT/P TO-92

IC916 056G 158 12 SHUNT REGULATOR KIA431A-AT/P TO-92

IC921 056G 158 12 SHUNT REGULATOR KIA431A-AT/P TO-92

IC925 056G 158 12 SHUNT REGULATOR KIA431A-AT/P TO-92

R948 061G 30310852T GP FUSE RESISTOR

93

R9137 061G 30347852T SY RST FUSER 0.47 OHM +-5% 1W

R980 061G152M10852T RST MOFR 0.1 OHM +-5% 2WS

R980 061G152M10852T SY RST MOF 0R1 5% 2W

R9153 061G152M12952T SY RST MOF 1R2 5% 2W

R9134 061G152M36852T SY RST MOF 0R36 2W 5%

C926 065G 1K101 2T6921 CAP CER 100PF 1KV K Y5P

C988 065G 1K222 5T6213 CAP CER 2.2NF 10% 1KV Y5P

C940 065G 1K471 2T6921 CAP CER 470PF 1KV K Y5P

C969 065G 2K222 2T6921 CAP CER 2200PF K 2KV Y5P

C985 065G 2K222 2T6921 CAP CER 2200PF K 2KV Y5P

C997 067G215P1017KT EC 100UF 20% 50V EH 10*9

C997 067G215P1017LT EC 100UF 20% 50V 10*9

C912 067G215P12010K T EC 12UF 20% 160V EH 10*9

C917 067G215P12010K T EC 12UF 20% 160V EH 10*9

C967 067G215P1516KT EC 150UF 20% 35V EH 10*9

C971 067G215P2714CT EC 270UF 20% 25V 10*9

C971 067G215P2714KT EC 270UF 20% 25V EH 10*9

J915 071G 55 9 T FERRITE BEAD 3.5*6*0.8-T52

FB902 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A

FB904 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A

FB906 071G 55 29 FERRITE BEAD

FB903 071G 55 29 FERRITE BEAD

FB901 071G 55 29 FERRITE BEAD

FB901 071G 55 29 T FERRITE BEAD

FB903 071G 55 29 T FERRITE BEAD

FB906 071G 55 29 T FERRITE BEAD

F901 084G 55 4 FUSE 5A 250V

ZD902 093G 3916652T MTZJ15B (13.89-14.62)

ZD903 093G 3916652T MTZJ15B (13.89-14.62)

ZD905 093G 3916752T MTZJ T-72 16B

ZD908 093G 3916752T MTZJ T-72 16B

ZD910 093G 3917152T TZJ T-72 30B

ZD911 093G 3917152T TZJ T-72 30B

ZD905 093G 3954752T DIODE MTZJ16B SEMTECH

ZD908 093G 3954752T DIODE MTZJ16B SEMTECH

ZD901 093G 3955252T ZENER MTZJ36BST 32.79-34.49V 500MW DO-34

ZD901 093G 3996352T ZENER MTZJ T-72 36B 36V 0.5W DO-34

D935 093G 5212T52T DIODE 1N4007-AO DO-41

D931 093G 5212T52T DIODE 1N4007-AO DO-41

D930 093G 5212T52T DIODE 1N4007-AO DO-41

D928 093G 5212T52T DIODE 1N4007-AO DO-41

D913 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP

D915 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP

94

D918 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP

D923 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP

D934 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP

D937 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP

D938 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP

D939 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP

D939 093G 6452452T SWITCHING 1N4148-B4006 0.2A 100V DO-35

D938 093G 6452452T SWITCHING 1N4148-B4006 0.2A 100V DO-35

D937 093G 6452452T SWITCHING 1N4148-B4006 0.2A 100V DO-35

D934 093G 6452452T SWITCHING 1N4148-B4006 0.2A 100V DO-35

D923 093G 6452452T SWITCHING 1N4148-B4006 0.2A 100V DO-35

D918 093G 6452452T SWITCHING 1N4148-B4006 0.2A 100V DO-35

D915 093G 6452452T SWITCHING 1N4148-B4006 0.2A 100V DO-35

D913 093G 6452452T SWITCHING 1N4148-B4006 0.2A 100V DO-35

ZD907 093G 39G 5 DIODE MTZJ15B DO-34

ZD904 093G 39G 5 DIODE MTZJ15B DO-34

ZD911 093G 39G 9 DIODE MTZJ30B DO-34

ZD910 093G 39G 9 DIODE MTZJ30B DO-34

D914 093G1100 952T UF4007

D935 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41

D931 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41

D930 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41

D928 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41

J914 095G 90 23 JUMPER WIRE

J916 095G 90 23 JUMPER WIRE

J917 095G 90 23 JUMPER WIRE

J918 095G 90 23 JUMPER WIRE

J919 095G 90 23 JUMPER WIRE

J920 095G 90 23 JUMPER WIRE

J921 095G 90 23 JUMPER WIRE

J922 095G 90 23 JUMPER WIRE

J923 095G 90 23 JUMPER WIRE

J924 095G 90 23 JUMPER WIRE

J925 095G 90 23 JUMPER WIRE

J926 095G 90 23 JUMPER WIRE

J927 095G 90 23 JUMPER WIRE

J901 095G 90 23 JUMPER WIRE

J902 095G 90 23 JUMPER WIRE

J903 095G 90 23 JUMPER WIRE

J904 095G 90 23 JUMPER WIRE

J905 095G 90 23 JUMPER WIRE

J906 095G 90 23 JUMPER WIRE

J907 095G 90 23 JUMPER WIRE

95

J908 095G 90 23 JUMPER WIRE

J909 095G 90 23 JUMPER WIRE

J910 095G 90 23 JUMPER WIRE

J911 095G 90 23 JUMPER WIRE

J912 095G 90 23 JUMPER WIRE

J913 095G 90 23 JUMPER WIRE

J928 095G 90 23 JUMPER WIRE

J943 095G 90 23 JUMPER WIRE

J944 095G 90 23 JUMPER WIRE

J945 095G 90 23 JUMPER WIRE

J946 095G 90 23 JUMPER WIRE

J947 095G 90 23 JUMPER WIRE

J948 095G 90 23 JUMPER WIRE

J949 095G 90 23 JUMPER WIRE

J950 095G 90 23 JUMPER WIRE

J951 095G 90 23 JUMPER WIRE

J952 095G 90 23 JUMPER WIRE

J953 095G 90 23 JUMPER WIRE

ZD906 095G 90 23 JUMPER WIRE

ZD909 095G 90 23 JUMPER WIRE

J929 095G 90 23 JUMPER WIRE

J930 095G 90 23 JUMPER WIRE

J931 095G 90 23 JUMPER WIRE

J932 095G 90 23 JUMPER WIRE

J934 095G 90 23 JUMPER WIRE

J935 095G 90 23 JUMPER WIRE

J936 095G 90 23 JUMPER WIRE

J937 095G 90 23 JUMPER WIRE

J938 095G 90 23 JUMPER WIRE

J939 095G 90 23 JUMPER WIRE

J940 095G 90 23 JUMPER WIRE

J941 095G 90 23 JUMPER WIRE

J942 095G 90 23 JUMPER WIRE

E715 715G4078P01W22003H PWR PCB CEM1 SS 213X291X1.6MM

F901 084G 55 4 B FUSE 5A 250V SR-5-5A-AP

E715 715G4078P01W22003S PWR PCB CEM1 SS 213X291X1.6MM 2nd source

709T4078 QA001 COMSUPTIVE ASS'Y

C964 065G 1K4719AT C CAP. 470PF 1KV RR

709T4078 QS001 COMSUPTIVE ASS'Y

R9107 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA

R9108 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA

R9119 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA

R9120 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA

96

R9107 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN

R9108 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN

R9119 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN

R9120 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN

D901 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC

D903 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC

D904 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC

D906 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC

R940 061G1206683 JT RST CHIPR 68 KOHM +-5% 1/4W TZAI YUAN

Q40G0003615A90 LABEL WARRANTY STICKER LABEL

Q40G000367327A POP LABEL FOR LE32W037M

Q41G32MV61540B USER MANUAL

Q44GJ078615 4A CARTON LE32W037M

Q44GJ086102EPE CUSHION-T EPE

Q44GJ086202EPE CUSHION-B EPE

Q45G 77 5 PE PACKING (Y1900241)

Q45G 99609 61 EPE COVER FOR MONITOR

Q45G 99626 35 PE BAG

Q45G 99626 36 PE BAG

Q50G 4 10 TIE (Y1900221)

Q52G 1150523 TAPE_INSULATING

Q52G1001 TV001 AL TAPE

Q52G1801 TV003 INSULATING SHEET --

Q85G 583200 5 EMI PAD

092GB1JX1A3EGC

Q41G78DV615 6A WARRANTY CARD

Q45G 76 28NV2 R PE BAG FOR BASE SCREW SZ02742

Q45G2010M0201A P.E. BAG (INSTR. BOOK)

040G 58162435A P/N LABEL FOR MANUAL PE BAG

Q26G 800504 3B BARCODE LABEL FOR 4

Q40G 32061596A RATING LABEL

0Q1G 330 8 47 CR3 SCREW

A15T1299101 BRACKET_IO_SIDE-60MHZ

BATTERY LR03（KA）2S/G

0Q1G 130 8120 SCREW 42A9930011

A15T1297201 BRACKET

A15T1298101 BRACKET_STAND

A15T1300101 BRACKET_HOLDER_FIX

A34T2006AFL 1L0100 BASE_TV32WSL-AOC1

A34T2008ADT 1L0100 COVER_STAND

A34T2009AFL 1L0100 COVER_HINGE_NECK

A37T0183011 HINGE_ASSY

Q12G6300 25 1 RUBBER FOOT

97
