维 修 手 册

品牌 机种

AOC LE32D5210/65

1

变更说明

版本 发布日期 变更说明 对外机种名 对内机种名

A00 2011-11-21

首次发布

LE32D5210/65 G32BA2NTAFTA2NX

2

目 录

1. 技术规格------------------------------------------------------------------------------------------------------------04

1.1 一般规格---------------------------------------------------------------------------------------------------------04

1.2 控制面板---------------------------------------------------------------------------------------------------05

2. 操作说明------------------------------------------------------------------------------------------------------------06

2.1 连接电视机----------------------------------------------------------------------------------------------------06

2.2 OSD 调整----------------------------------------------------------------------------------------------------07

3. 工厂模式调整------------------------------------------------------------------------------------------------------11

4. 电气方框图---------------------------------------------------------------------------------------------------------15

4.1 主板---------------------------------------------------------------------------------------------------------------15

4.2 主板电源---------------------------------------------------------------------------------------------------------16

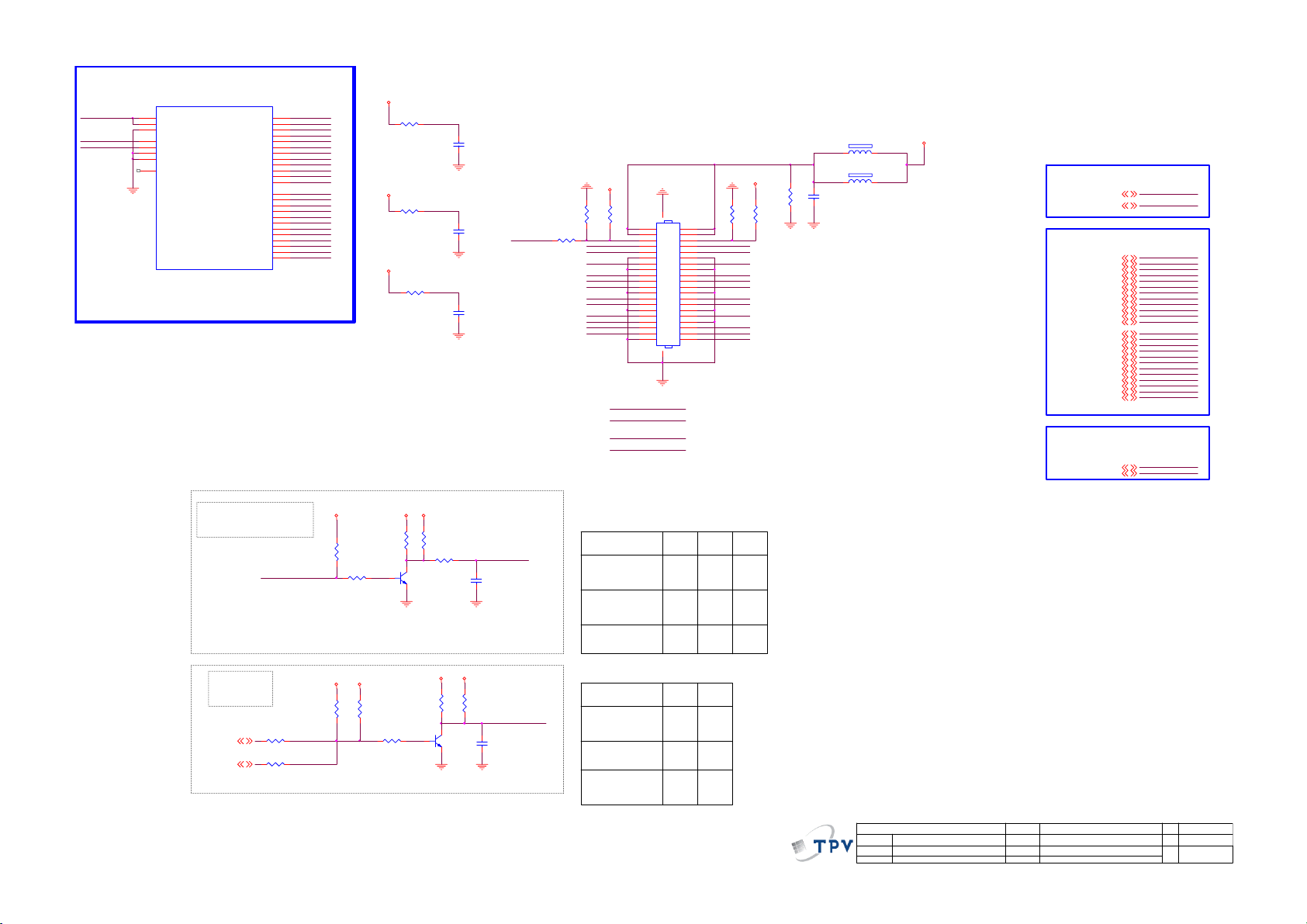

5. 线路图---------------------------------------------------------------------------------------------------------------17

5.1 主板-------------------------------------------------------------------------------------------------------------17

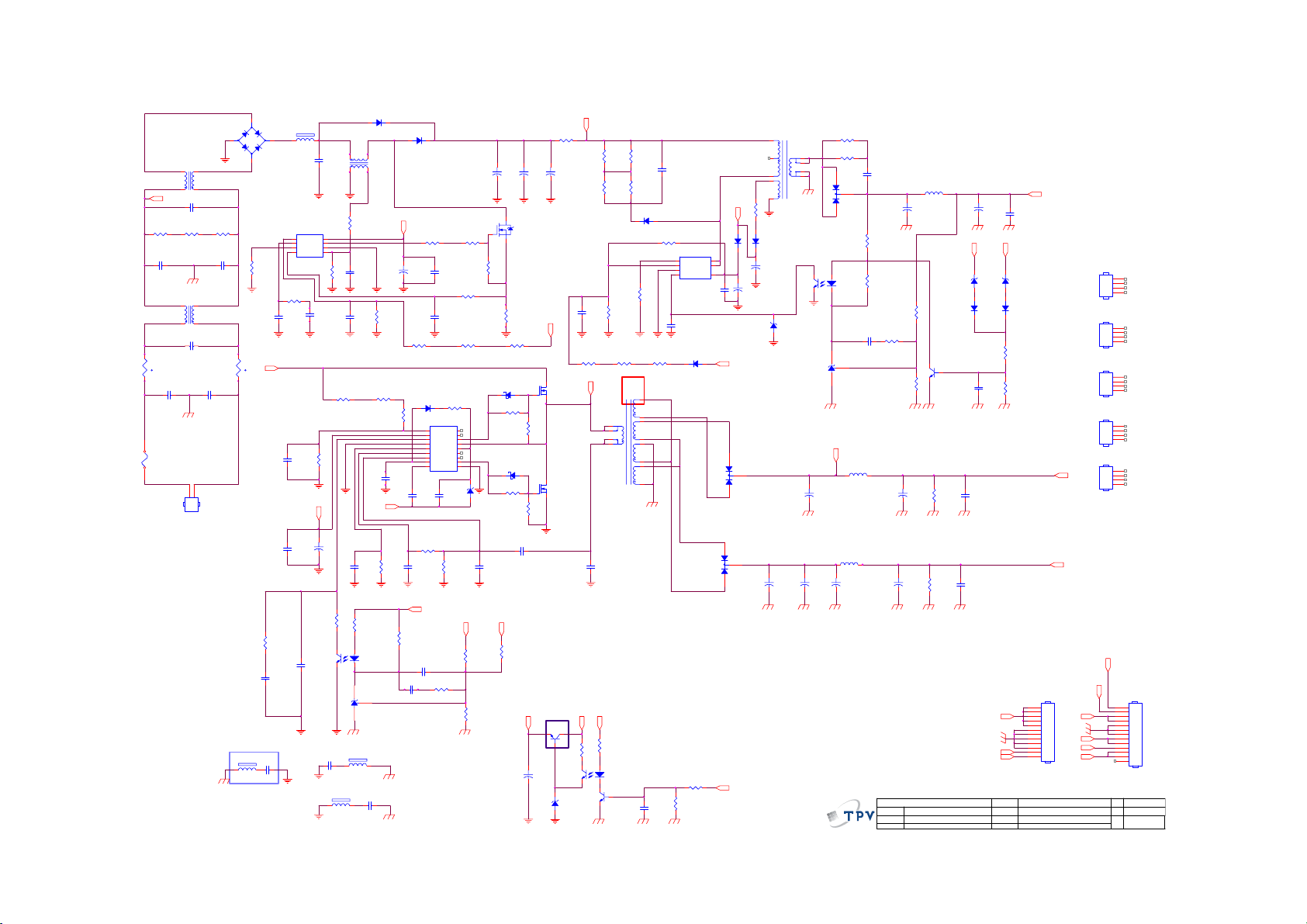

5.2 电源板----------------------------------------------------------------------------------------------------------34

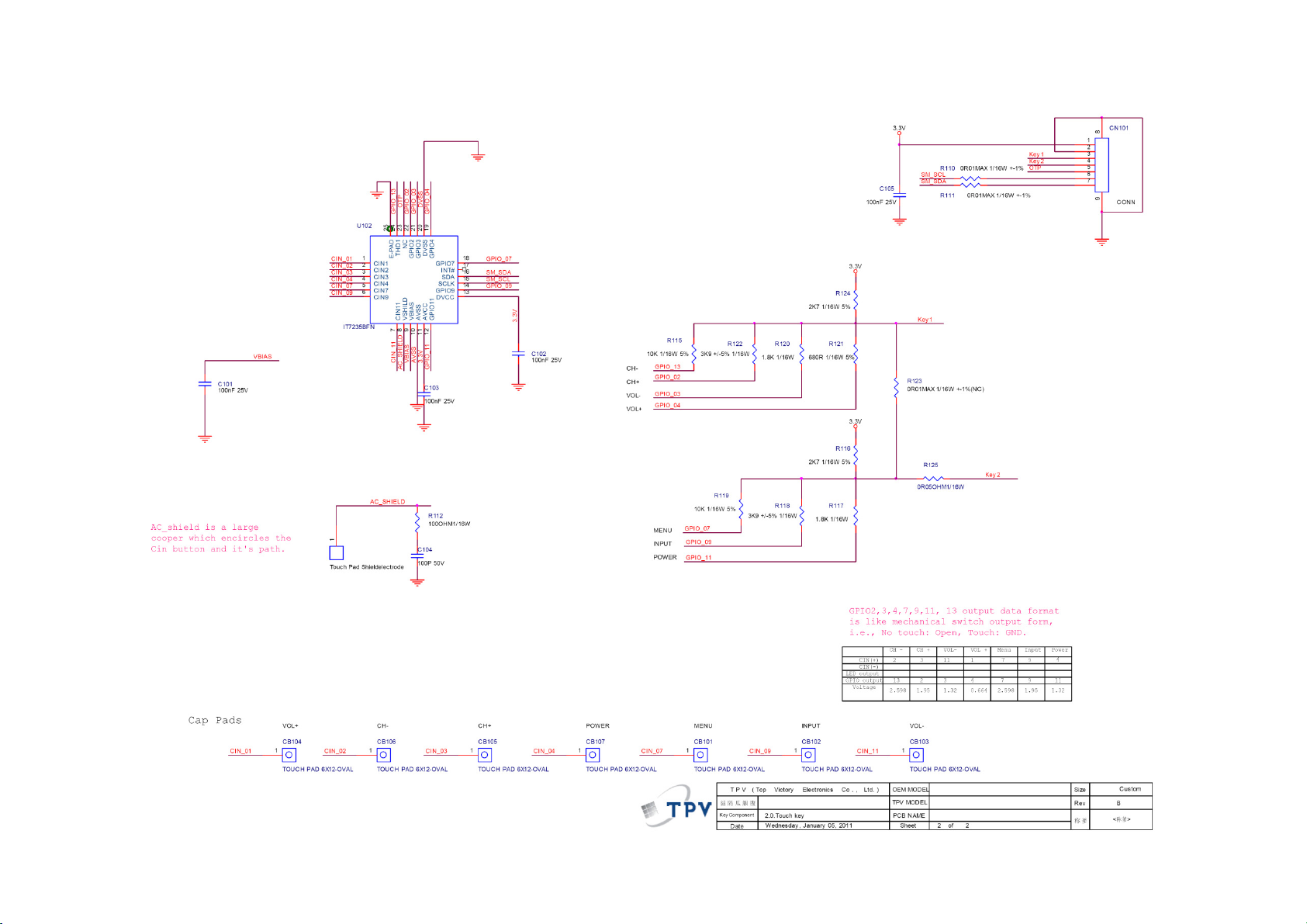

5.3 按键板----------------------------------------------------------------------------------------------------------35

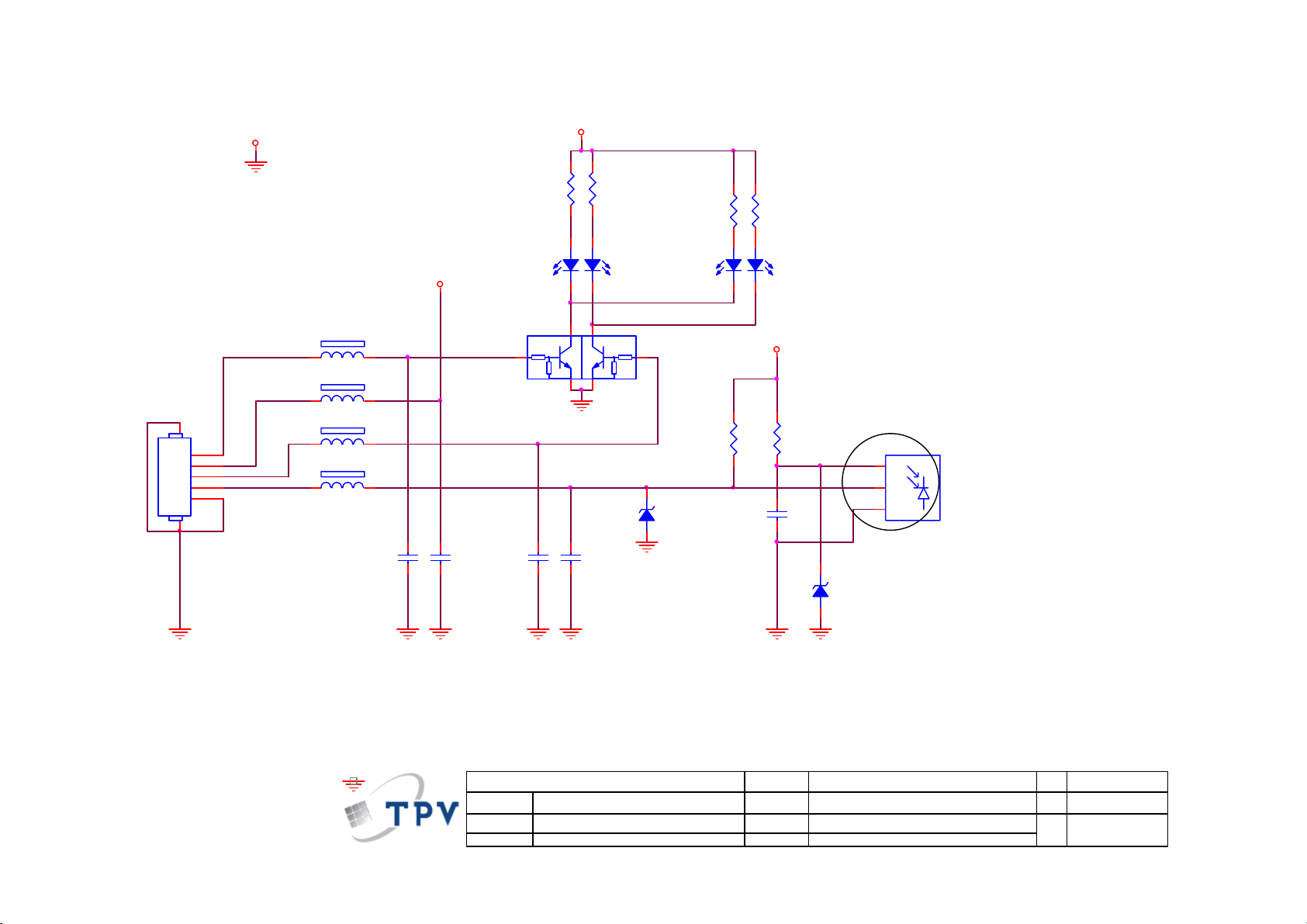

5.4 遥控板----------------------------------------------------------------------------------------------------------36

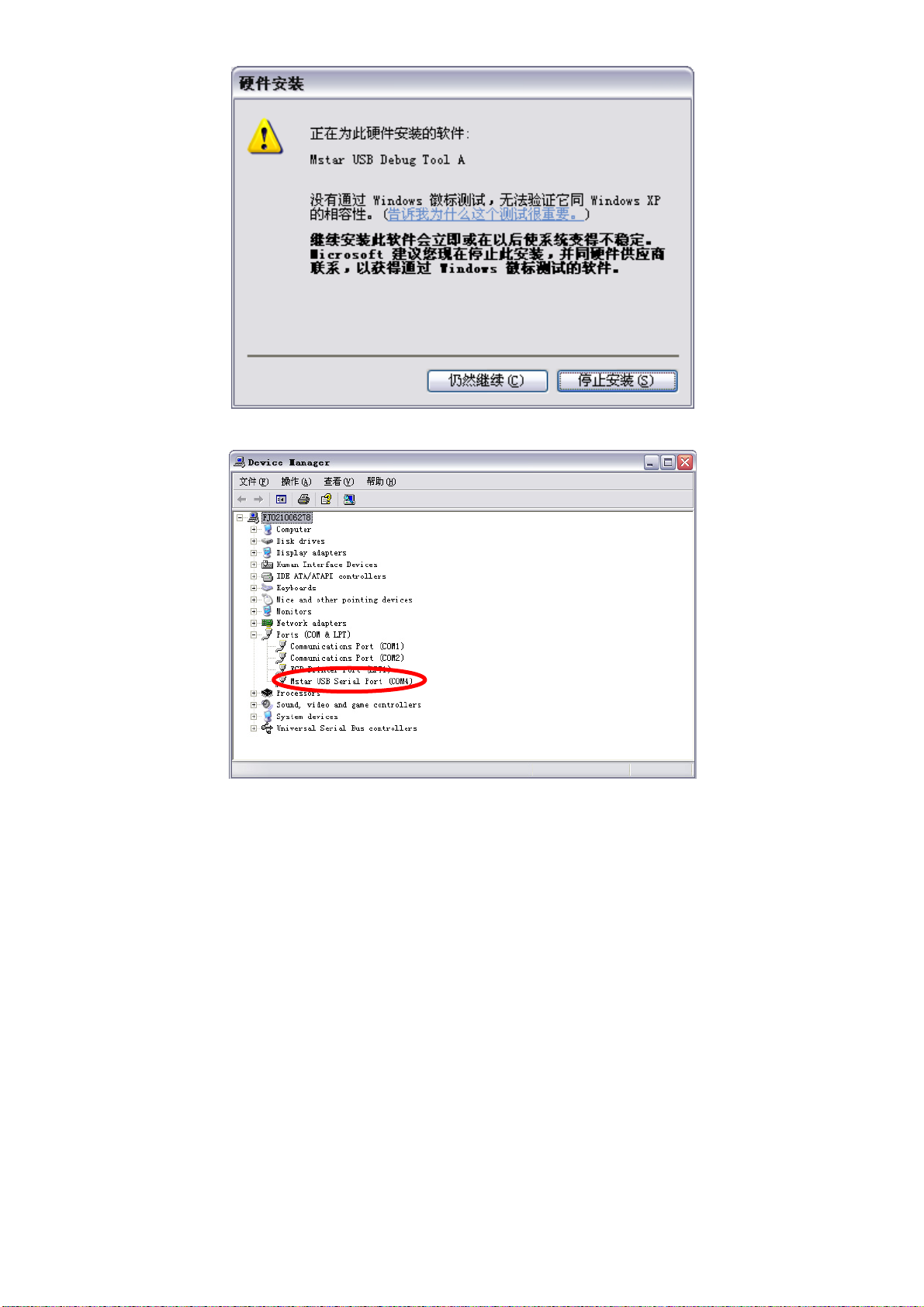

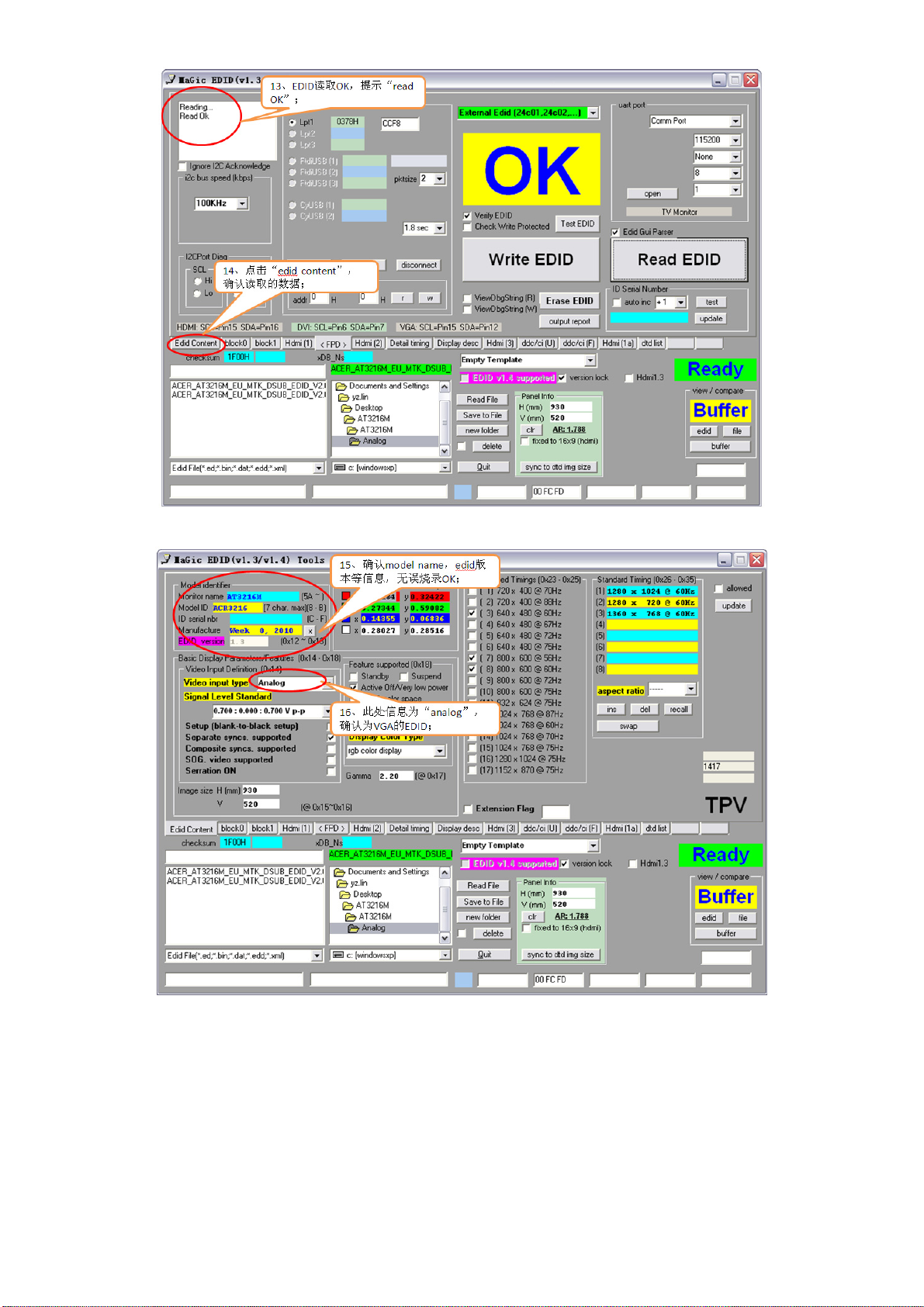

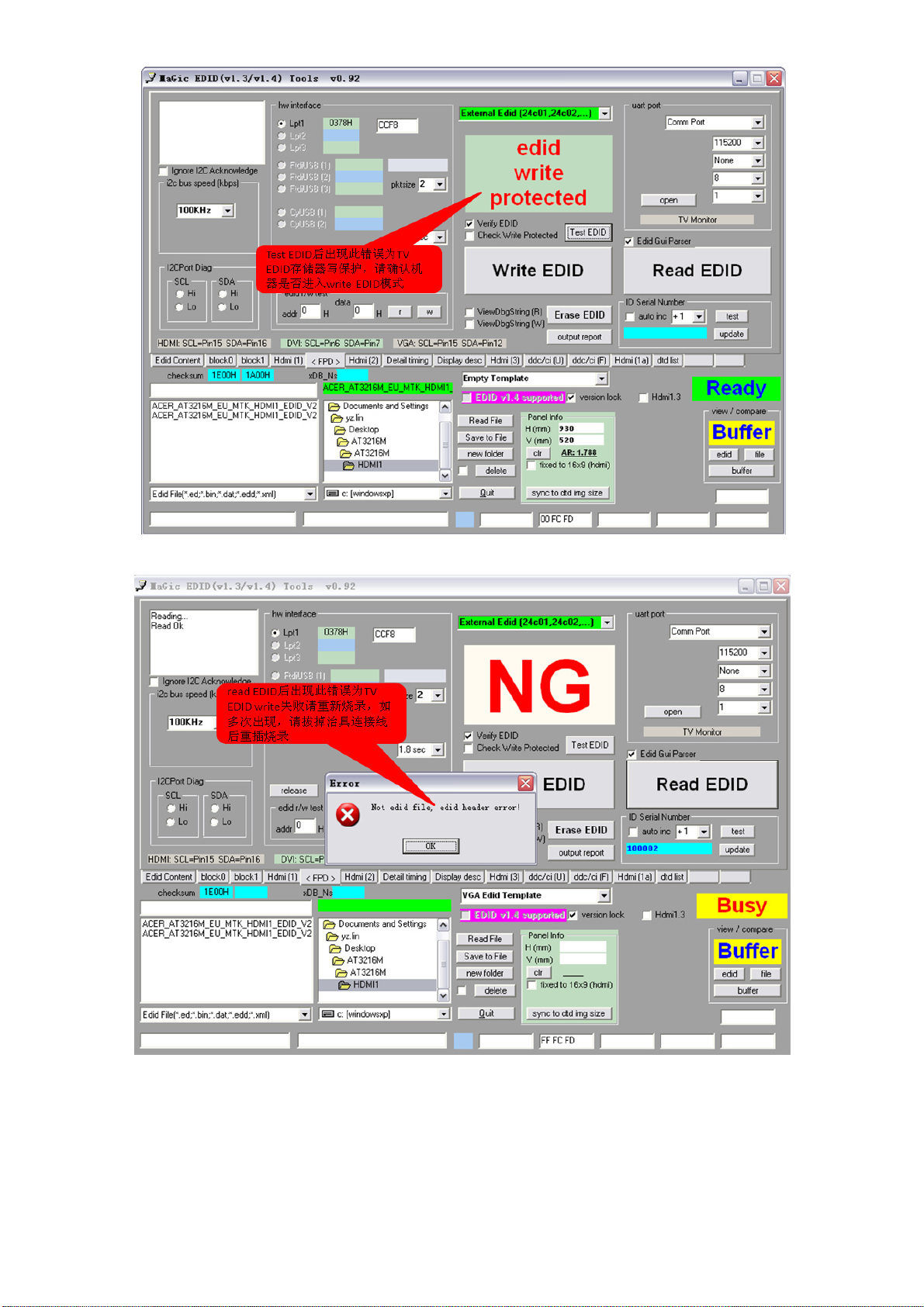

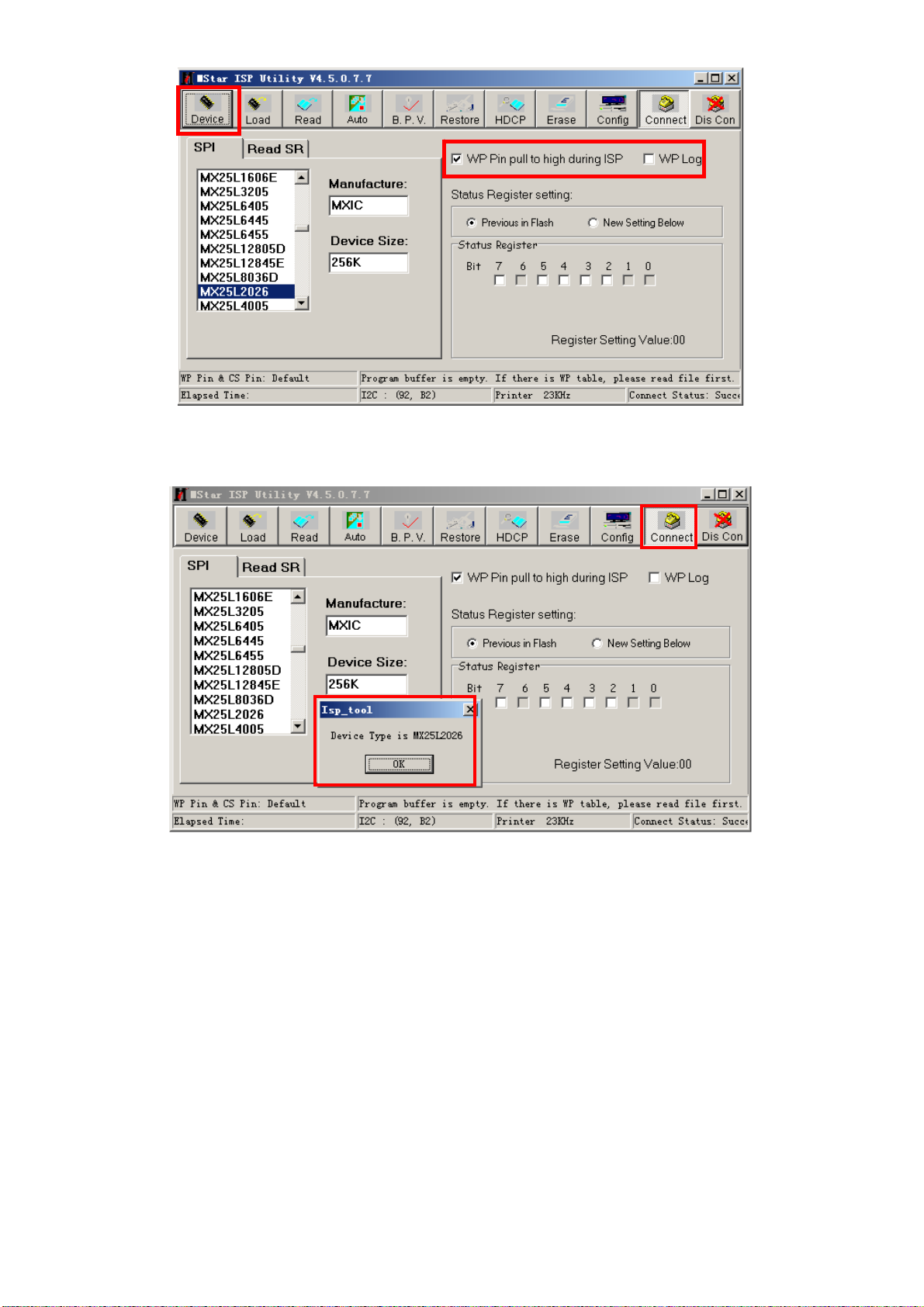

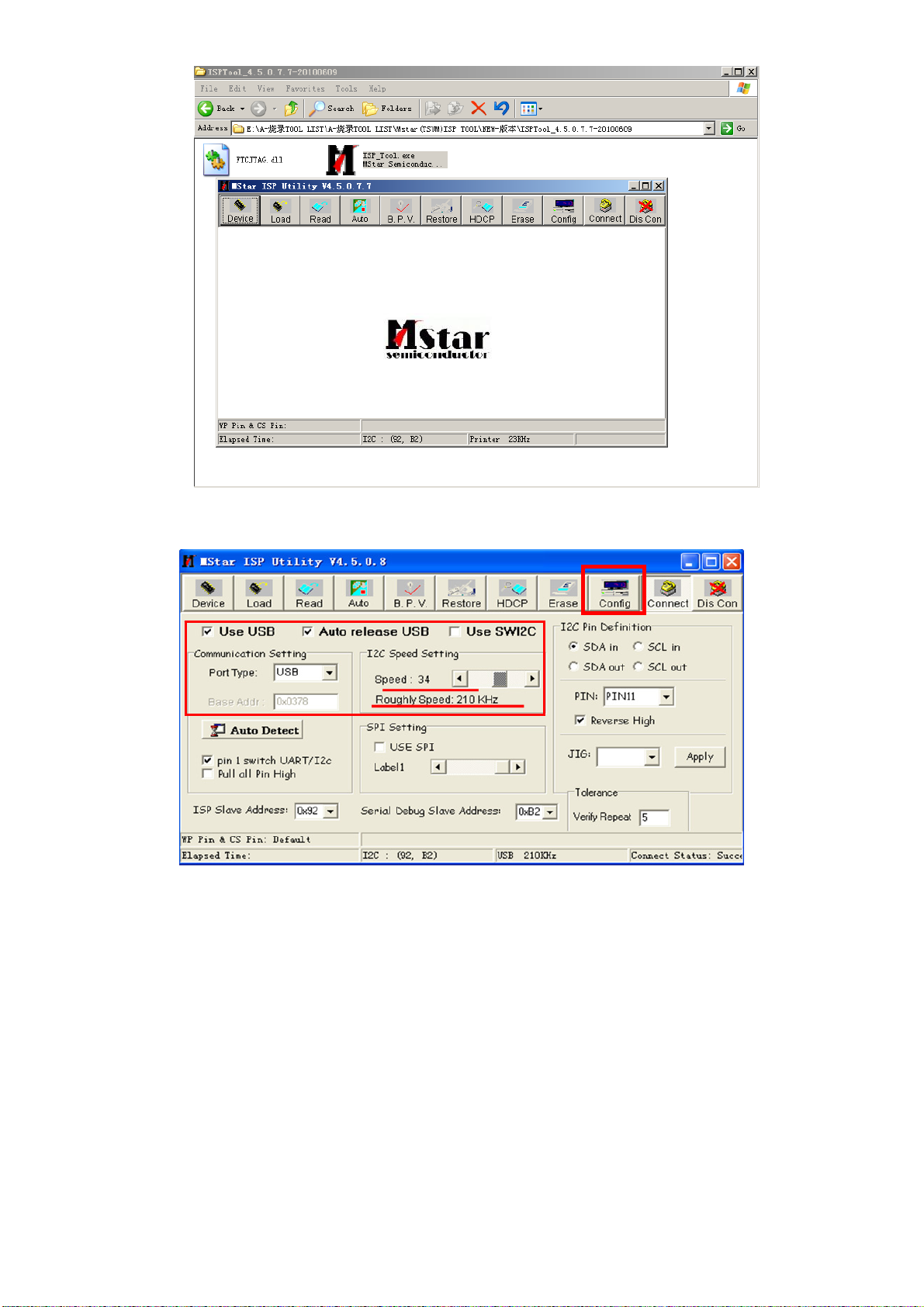

6. 软体及 EDID 烧录-------------------------------------------------------------------------------------------------37

7. 故障处理流程图---------------------------------------------------------------------------------------------------51

8. BOM-------------------------------------------------------------------------------------------------------------57

3

1. 技术规格

1.1 一般规格

機型

商品特性

LE32D5210/65

32" 液晶顯示器

支援 480i、480p、576i 576p、720p、1080i 1080p

3：２Pull Down 影片清晰轉換功能

睡眠定時

省電功能

3 段色溫調整

商品規格

面板解析度

支援PC 解析度

輸入端子

聲音輸出

電源 AC：110Va.c/60Hz

耗電

重量( 無腳座)

1920x1080

1920x1080@60Hz

VGA x1

AUDIO(mini jack)(L/R) x2 組

色差端子 x1組

AV 端子 x1

HDMI x3

10W + 10W

84W(typical)

8.55kg

重量( 含腳座)

尺寸( 無腳座)
(寬x深x高)

尺寸( 含腳座)

(寬x深x高)

10.1kg

760( 公釐)x39.9( 公釐)x478( 公釐)

760( 公釐)x203.5( 公釐)x536( 公釐)

4

1.2 控制面板

按鈕 按鈕觀賞功能(OSD 未打開) 選單功能(OSD 開啟)

1.MENU

2.INPUT

3.VOL

4.VOL

5.CH

6.CH

7. 電源 液晶顯示器開機/ 關機 液晶顯示器開機/ 關機

開啟OSD 功能選項

選擇訊號源 進入下一層選單。

降低音量 左右調整選項。

提高音量 左右調整選項。

顯示下一個已儲存的頻道 選擇下一個頻道。

顯示前一個已儲存的頻道 選擇上一個頻道。

返回上一個選單。關閉OSD 功
能選項

5

2. 操作说明

2.1 连接电视

6

2.2 OSD调整

使用OSD 功能選項( 螢幕直接顯示)

您的液晶顯示器具有OSD( 螢幕直接顯示) 功能，可以讓您調整與儲存對比、亮度及其他設定值。所有的
功能設定都可以透過特定的按鈕來進行調整。使用不同的輸入來源會呈現不同的OSD 功能選項。

叫出OSD 功能選項
從您的液晶顯示器面板來叫出OSD 功能選項：

按下“MENU＂來叫出OSD功能選項

OSD 功能選項操作

您可以按液晶顯示器面板上的菜單按鈕，進入OSD 功能選項來調整液晶顯示器的各項設定。
當輸入來源設定為PC 時:

影像選單

1. 按MENU 按鈕顯示主選單。在主選單中選擇[ 影像]，再按VOL 按鈕進入次選單。

2. 按CH 按鈕選擇[ 亮度]、[ 對比度]、[ 色溫]、或[ 進階設定] 的調整項目。

3. 按VOL 按鈕調整數值。

7

色溫：

1. 在[ 影像] 選單中，按CH 按鈕選擇[ 色溫]，再按VOL 按鈕選擇[ 正常]、[ 冷色]、或[ 暖色]。

進階設定：

1. 在[ 影像] 選單中，按CH 按鈕選擇[ 進階設定]，再按VOL 按鈕進入次選單。

2. 按CH 按鈕選擇[ 自動調整]、[ 水平位置]、[ 垂直位置]、[ 相位]、[ 時脈]、[ 解析度]。

3. 按VOL 按鈕調整選項。

8

聲音選單

1. 按MENU 按鈕顯示OSD 功能選項。在OSD 功能選項中選擇[ 聲音] 的選單，再按VOL 按鈕進入次選單。

2. 在[ 聲音] 選單中按CH 按鈕選擇[ 音場效果]、 [ 等化器120Hz]、 [ 等化器500Hz]、 [ 等化器

1.5kHz]、[ 等化器5kHz]、[ 等化器10kHz]、[ 平衡]、[ 立體環繞音效]、[ 數位聲音輸出] 項目，來
改善聲音品質。

3. 按VOL 按鈕調整數值。

功能選項

1. 按下MENU 按鈕顯示OSD 功能選項。在OSD 功能選項中選擇[ 功能]，再按VOL 按鈕進入次選單。

2. 在[ 功能] 選單中，按CH

按鈕選擇[ 功能表語言] 或[ 縮放]，再按VOL 按鈕來調整數值；

選擇[ 原廠設定] 來恢復原廠設定值或選擇[ 韌體版本] 來檢視目前OSD 功能選項的版本。

9

USB 選單

1. 按INPUT 按鈕顯示訊號源選單。在選單中選擇[ 多媒體]，再按VOL 按鈕進入次選單。

2. 進入次選單選擇播放您所連接的多媒體內容( 圖片)。

HDMI 可視區域設定

HDMI 可視區域功能可以調整HDMI 影像輸入時，在多媒體液晶顯示器上的畫面大小。

1. 按INPUT 按鈕顯示訊號源選單。在選單中選擇[HDMI1]、[HDMI2] 或[HDMI3]。

2. 按下菜單按鈕顯示OSD 功能選項。在OSD 功能選項中選擇[ 功能]，再按VOL 按鈕進入次選單。

3. 在[ 功能] 選單中，按CH 按鈕選擇[HDMI 可視區域設定]，再按VOL 按鈕選擇[ 全畫素] 或 [ 標

準]。

注意：[HDMI 可視區域設定] 選項只會出現在訊號源為HDMI，並且影像格式為480p、720p、1080i 或

1080p。

10

3. 工厂模式调整

以 LE26H100C 为例：

3.1 ADC 调整：

1: 将 Chroma 设置为 T314/P185
2: 按“菜单+1+9+9+9+回看”进入工厂模式
3: 将 Current Source 选择为“分量信号”
4: 再选择 Auto Color 按确认键后，待显示为 Pass 则 Components ADC 调整 OK。
5: 将 Chroma 设置为 T311/P185
6: 再选择 Auto Color 按确认键后，待显示为 Pass 则 Components ADC 调整 OK。

VGA ADC 调整：上述 ADC 调整 OK 后将

1: Chroma 设置为 T137/P42
2: 将 Current Source 选择为“电脑”
3: 再选择 Auto Color 按确认键后，待显示为 Pass 则 Components ADC 调整 OK。

分量信号

3.2 白平衡调整：

1：将 Chroma 设置为 T137/P141
2：按“菜单+1+9+9+9+回看”进入工厂模式
3：将 Current Source 选择为“VGA”（如图一）
4：再选择 Color temp 选择色温模式（Cool、Normal、Warm）（如图二）
5：选择 OK 后再选择 Gain 栏调整 R/G/B 值，将色温规格调整至要求范围内，
6：再将 Chroma 设置为 T314/P141
7：Current Source 切为 component
8：再选择 Color temp 选择色温模式（Cool、Normal、Warm）
9：选择 OK 后再选择 Gain 栏调整 R/G/B 值，将色温规格调整至要求范围内。

ADC 调整 OK

11

3.3 白平衡值检查：

Current Source 选择为“视频”/T303/P141、HDMI/T347/P141 色温规格也需在规格范围内，此时白平衡调整 OK。

图一 图二

调整规格是写在白平衡程式里面的，检验以产品规格为准：

色温

(x,y)

Item Level x y x y x y

调整规格
产品规格

80IRE 0.003 0.003 0.003 0.003 0.003 0.003
80IRE 0.030 0.030 0.030 0.030 0.030 0.030

12000K

(0.270,0.273)

9300K

(0.285,0.293)

注: 下页是关于一般工厂菜单的说明(和本机并非完全相同)，仅供参考！

6500K

(0.313,0.329)

12

工厂菜单说明

选项名称 调整范围

Brand

Main-MCU ver

Bootloader ver

Sub-MCU ver

EEPROM ver

Date

Model name

Scaler

Panel type

Current source

Auto color

ADC Gain

ADC Offset

Color temp.

根据IC SPEC

根据IC SPEC

不可调整

不可调整

不可调整

不可调整

不可调整

不可调整

不可调整

不可调整

不可调整

支持输入源

执行动作

支持色温

TV AV/S Comp HD PC

o o o o o

o o o o o

o o o o o

o o o o o

o o o o o

o o o o o

o o o o o

o o o o o

o o o o o

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

注释

客户名称

发布软体Main-MCU 版本

发布软体Bootloader 版本

发布软体Sub-MCU ver 版本

发布软体EEPROM 版本

软体发布日期

对外机种名

Scaler 型号

屏的型号
当前进工厂时的输入源， 该项可切换输入源， 对应输入源的ADC，色温， Scaler

等相关信息同步更新。
Auto color 项只对需要做自动校正输入源时有效，否则它不动作。Auto color 会

对输入的ADC 做自动矫正，调整ADC Gain 和Offset RGB 值。

在Auto Color 做完立即更新，并可手动调整。

在Auto Color 做完立即更新，并可手动调整。

当前设置的色温，该项可切换色温模式，并正确显示色温名称，对应色温的Scaler

Gain & Offset RGB 值等相关信息同步更新。

Scaler Gain

Scaler Offset

Burn in On/Off √ √ √ √ √

EEPROM Init

Back LIT time

根据IC SPEC

根据IC SPEC

执行动作

不可调整

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

o o o o o

Scaler Gain 值在白平衡调整时立即更新，并可手动调整。

Offset RGB 值在白平衡调整时立即更新，并可手动调整。

打开或关闭Burn in 模式。当Burn in 设置为On 时它将响应工厂遥控器功能；
EEPROM Init 后默认为On 状态；Reset 后默认为Off 。

实现的是初始化除了HDCP key 和产品序列号以外的全部EEPROM，如主菜单的
OSD 默认值， 工厂菜单的ADC 数据， 白平衡设定值，Black light 和Language

等， 同时把Burn in 设置为On， 响应工厂遥控器功能， 设置输入源为TV。

背光打开总计时，在EEPROM Initial 或Factory reset 后都清为0，显示值用十进
制表示，当时间到达显示最大值时就不再变化。

13

Total time

不可调整

o o o o o

AC ON 主电源供电总计时， 在EEPROM Initial 或Factory reset 后都清为0，显
示值用十进制表示，当时间到达显示最大值时就不再变化。

Black light

Language

Energy LOGO On/Off * * * * *

Reset

Exit

根据IC SPEC

支持语言

执行动作

执行动作

* * * * *

* * * * *

√ √ √ √ √

√ √ √ √ √

备注：

1. √表示该项有效, ×表示该项不存在，o 表示存在但选不到，*表示可选；

2. 不同机型工厂模式项目略有增删；

3. 进工厂模式时Burn in自动关闭。

设置背光灯的亮度

设置出厂时用户模式菜单语言，当在工厂菜单中更改此项值时，用户模式的OSD
中的菜单语言也做相应的更改并将该值保存（仅北美向可选）

仅中国向有该项

实现的是复位除了HDCP 和产品序列号，工厂菜单的ADC 数据，白平衡设定值，

Black light，Language 和Energy Logo 以外的全部EEPROM 数据，如主菜单的
OSD 默认值，并把用户菜单Language 设置为工厂Language，同时把Burn in 设

置为Off ，禁止响应工厂遥控器功能，设置输入源为TV。

退出工厂模式

14

4. 电气方框图

A

A

4.1 主板

TUNER

DDR II X 2

NOR FLASH

512 Gb / 1066 MHz

IF

4M Byte

NAND FLASH
16 MB

LVDS (50/60 Hz)

DDR II X 2

512 Gb / 1GHz

MT8282

NOR FLASH
4 Mb

LCD PANEL T-CON

LVDS (100/120 Hz)

PC IN

CVI

VID EO

HDMI1

DDC

HDMI2

DDC

HDMI3

DDC

UDIO R/L (PC)

UDIO R/L (CVI)

AUDIO
R/L (AV)

USB1

2.0

2.0

24C02

24C02

24C02

DDC

TMDS

351

USB
HUB
GL582GUSB2

24C02

RGB

YPbPr

CV BS

[RX0 : RX3]

MT5363

UARTKEY RC

NVM
24C32

I2C

CVBS Out

Digital Audio Output(COIXIAL)

SPDIF

AUDIO AMP

I2S

R/L

STA339BWTR

STA515W

WOOFER AMP

HP AMP HEADPHONE

MAX9728AETC+

SPK

SPK

15

4.2 主板电源

+24V

+12V/5V

STB_PWR5V

+5V_STB

+5V_STB

OPWESB

DV11

+5V_STB

G903T63UF
U751

BUCK (2A)
MP2212DN
U701

SI4835DDY
Q704

DV33SB+5V_STB LDO

DV11

BUCK (2A)

+5V_SW DV33

+5V_SW

DV33

+5V_SW

+5V_SW

+5V_SW

+5V_SW

+5V_SW

+5V_SW

+5V_SW

+5V_SW

USB_PWR_CTL

+12V/5V

NC/FB

MP2212DN
U702

HDMI SW
TMDS351PAGR
U501

HSMI 2 CON
CONNECT
CN502

EEPROM
M24C32
U503

HSMI 2 CON
CONNECT
CN506

EEPROM
M24C32
U504

HSMI 1 CON
CONNECT
CN501

EEPROM
M24C32
U502

SW
STMPS0040STR
U1002

BUCK
AME5106AIHAADJZ
U9108

AV33

NC/FB

NC/FB

DV33
AV33

DV33
AV33

DV33
AV33

DV33
AV33

DV33
AV33

EEPROM
M24C32
U409

NAND FLASH
HY27US08281A
U4051

USB HUB
GL852G
U1003

LDO
G1117T43Uf
U753

LDO (2A)
G1117T43Uf
U703

USB Connect
CN1305

USB Connect
CN1301

AV12

DV18_DDR

DV33

AV33

DV33SB

AV12

DV18_DDR

DV10

MT5363

U401

DDR2
NT5TU32M16CG-BD
512MB

DDR2
NT5TU32M16CG-BD
512MB

NC/FB

NC/FB

PANEL_VCC_ON/OFF

+12V/5V

+5V_SW

+12V/5V

+5V_SW

+12V/5V SW

+24V
+24_SW
+24V_AMP

LDO
G1117T43Uf
U1101

BUCK (2A)
G5657F12U
U704

BUCK (2A)
G5657F12U
U705

SI4835DDY
Q750

FB

FBFB

M82_DV33
M82_AV33

M82_DV11

PANEL_VCC

+5V_TUNER+12V/5V

+5V_SW

LDO

M82_AV33 M82_AV12

G1117T63UF
U706

FLASH

M82_DV33

MX25L4005AMI
U405

LDO

M82_DV33 M82_DDRV

G1084-18
U408

120Hz

PANEL_VCC

PANEL CON
CN414

60Hz

PANEL_VCC

PANEL CON
CN408

+5V_SW

LDO
G904T53U

FB

U6301

M82_AV12

M82_DDRV

AUD3V3

NC/FB

M82_DV33
M82_AV33

+24V_SW

16

AV33

DV33

M82_DV11

+24_AMP

AUD3V3

+24V_AMP

AUD_3V3

FB

TUNER

TU1501

MT8282

U4401

STA339BWTR
U6302
AUDIO AMP

STA515W
U6303
WOOFER AMP

LDO
L78L05ACU
U6202

DDR2
NT5TU32M16CG-25C
512MB

DDR2
NT5TU32M16CG-25C
512MB

OPS_5V

OPS_5V

MAX9728AETC+
U6201
PRE.AMP

HP out

5. 线路图

5.1 主板

715G4852M01000005K

EU MT5363 - 4 LAYERS

BRIGHT_ADJ:
Normal:Max :+3V3, Mi n:0V

TP706

TP707

TP705

Stand_B y:0V

INVERTER_ON_OFF:
Normal: High
Stand_B y: Low

INVERTER_ON_OFF

DC POWER INPUT

TP702

TP701

TP703

CN701

CONN

TP704

1
2
3
4
5
6
7
8
9
10
11
12
13

R703

10K 1/8W

BRIGH T_ADJ

STB_PWR5V

STANDBY:
Normal: High
Stand_by : Low

+12V/5V

+24V

R704 100R 1/16W 5%

SMD/0402

C701

NC/22U 10V

STANDBY

R713

NC/1K1/16W

SMD/0402

STANDBY

STB_PWR5V +5V_STB

FB701 120R/3000m A

1 2

DV33+5V_SW

BC847C

1K 1/16W 5%

SMD/0402

Q705

R712

FB702 120R/3000m A

1 2

R710 1K 1/16W 5%

SMD/0402

+

C702

470UF 10V

EC080-35

STAND_BY

R741

10K 1/10W 5%

も础

STAND_B Y:
Normal: Low
Stand_by : High

C708
100N16V

SMD/0402

OPWRSB(+5V_SW ON/OFF):
Normal: High
Stand_By: Low

DV11

R705 2K7 1/16W 5%

SMD/0402

+5V_STB TO +5V_SW BY DV11

120R/6000mA

1 2

FB703

10K 1/16W 5%

C730
100N16V

SMD/0402

R708

21Q702

3

BC847C

SI4835DDY

2
3
4 5

C705 1UF16V

R711

22KOHM 1/10W

OPWRSB10

STAND_BY11
BRIGHT_ADJ20

+5V_SW+5V_STB

120R/6000mA

81

1 2

7

FB704

6

Q704

C712

10uF 10V

INVERTER_ON_OFF20

OPWRSB

STAND_BY
BRIGHT_ADJ
INVERTER_ON_OFF

C707

100N 50V

OPWRSB

C711

100N 50V

DV33SB

C723

22uF 10V

C726

22uF 10V

R742

1K 1/10W 1%

R714

4K7 1/16W 5%

SMD/0402

C719

22uF 10V

C724

22uF 10V

FB705

220R/2000mA

1 2

C709

1UF16V

FB706

220R/2000mA

1 2

+5V_STB

D703 BAS316

MP2212DN-LF-Z

BS4VCC

3

IN

2

GND

1

FB

EN/SYN C

Thermal Pad

U701

+5V_SW

D704 BAS316

MP2212DN-LF-Z

BS4VCC

3

IN

2

GND

1

FB

EN/SYN C

Thermal Pad

U702

C725 1UF16V

R716

0R05 1/10W

C717

5
6

SW

7

SW

8
9

100N 50V

1 2

D701
NC/SS3P4

Vout=0. 8x (1+4K/10K) = 1. 12V for MP2212

C727 1UF16V

R725

0R05 1/10W

5
6

SW

7

SW

8
9

C718

100N 50V

1 2

D702
NC/SS3P4

Vout=0. 8x (1+31.5K/10K) = 3. 32V for MP2212

L701

4.7uH

0R05 1/10W

560pF 50V

L702

4.7uH

0R05 1/10W

560pF 50V

DV33

+3V3

AV33

DV11

C460

+

220UF 16V

C733

1UF16V

U703

IC G1117T43Uf

VIN3VOUT

GND/ADJ

1

FB707

220R/2000mA

1 2

2

FB710

220R/2000mA

1 2

R717
120R 1/10W 1%

R731

56R 1/10W 1%

DV33

C729

DV18_DDR

+

C734

100UF 16V

10uF 25V

EC060-25-AI

Vout=1. 25x (1+56/120)= 1.8 33V

The item of this page start from "701"

T P V ( Top Victory Electronics Co . , Ltd. )

715G4041-M0A

絬 隔 瓜 絪 腹

Key Component

04. POWER-1

Date

OEM MOD EL

TPV MOD EL

PCB NAME

Sheet

715G4041-M0A

of

420Friday , February 25, 2011

Size

Custom

Rev

1

称爹

HW4 nh

FB716 120R/3000m A

1 2

FB717 120R/3000m A

1 2

R715

R718

1K 1/10W 1%

C720

R720

3K 1/10W 1%

R721

10K 1/10W 1%

R719

R726

1.5K +-1% 1/10W

C722

R723

30K 1/10W 1%

R722

10K 1/10W 1%

22uF 10V

22uF 10V

C721

C728

C713

22uF 10V

FB709 120R/3000m A

C714

22uF 10V

C715

100N 50V

1 2

C716

100N 50V

17

+5V_STB DV33SB

U751
G903T63UF

2

VIN3VOUT

C765

1UF16V

GND14

4

+5V_STB TO DV33SB

FB751 120R/3000m A

1 2

C767

10uF 10V

Q750

PANEL_VCC+12V/ 5V

81
7
6

C768
10U 16V

Panel VCC=12V

PANE L_VCC ON/OFF:(GPIO5)
Normal: High
Stand_B y: Low

5.1KOHM +-5% 1/10W

PANEL_VCC _ON/OFF8

PANEL_VCC _ON/OFF _M17

R765 0R05 1/10W

R766 NC/ 0R05 1/10W

R750 10K 1/16W 5%

SMD/0402

R764

10K 1/10W 5%

10K 1/10W

R755

R752

SI4835DD Y

2
3
4 5

C754 1UF16V

R758 7K5 1/10W 5%

Q751

BC847C

U753

G1117T43Uf

VIN3VOUT

C758

1UF16V

C757

NC/ 10U 10V

Vo=1.25 x (1+1R/120R) = 1.25V

DV33 TO AV12

GND/ADJ

120R 1/10W 1%

1

2

R756

R757

1R 1/10W 5%

FB752 120R/3000m A

1 2

C764

10uF 10V

AV12DV33

The item of this page start from "750"

T P V ( Top Victory Electronics Co . , Ltd. )

715G4041-M0A

絬 隔 瓜 絪 腹

Key Component

05. POWER -2

Date

OEM MO DE L

TPV MO DE L

PCB NAME

Sheet

715G4041-M0A

of

520Friday , August 05 , 2011

Size

Rev

称爹

Custom

1

HW4 nh

18

C1133

RF_SW#
BST_CTR#
+5V_TUNER#

TU_S IF #

TU_CVBS

TU_RESET#

TU_FAT_IN2-

Impeda nce Contrl 100ohm and
route these path with differential
pa ttern on top l ayer .

TU_FAT_IN 2+

TU_FAT_IN 2-

0R05 1/10W

R1124

0R05 1/10W

TU_ SCL

TU_ SDA

TU_ 12

TU_ AF T

R1123

R1139

100R 1/1 6W 5%

R1134 0R05 1/10W

C1121

10N 50V

R1136 100R

100N16V

BST_CTR

C1105

100N16V

TU_S IF

R1133 10K 1/16W 5 %

R1131

10K 1/10W 5%

C1140

47N16V

RF_SW 11

TU_RESET 11

R1132

330K 5%(NC )

IF BPF

+5V_TUNER

C1103

10uF 10V

100N16V

綼　

綼　

(10N/50V)

+

C1106

C1129

220UF 16 V

MT5363

C1141

47N16V

MT5363

C1135

10N 50V

C1134

10N 50V

(10N/50V)

+

+3V3

C1122

+

100N16V

R1148

10K 1/10W 5%

FAT_IN+

FAT_IN-

C1104

680UF 10V

C1128

220UF 16V

SMD 5.5mm

L1101

NC/ 150uH

R1135

0R05 1/4W (NC)

IF_AGC 8

1Kohm 1/ 16W +/-1%

LMBT3906LT1G

Q1102

BST_CTR

C1137

100N16V

AV12

+5V_TUNER

R1146

23

Q1103

BC847C

+5V_SW

C1138

100N16V

1

R1147

470R 1/1 6W 5%

+3V3

C1139

100N16V

BST_CTR#

TU_S CL

TU_S IF #

+3V3
TU_A FT

TU_FAT_IN 2+

R1144

4K7 1/16W 5%

BST_CTR_MT

R1145

4K7 1/16W 5%

TU_CVBS

20
18
16
14
12
10

8
6
4
2

CN1101

10R 1/ 10W 5%(N C)

C1110

47UF 35V

6.3x5.4mm

CONN

R1141

+

19
17
15
13
11
9
7
5
3
1

R1103

47K 1/16W 5 %

R1107

150K 1/10W 5%

RF_SW#

+5V_TUNER#

TU_ SDA

TU_CVBS

TU_ 12

TU_RESET#

TU_FAT_IN2-TU_FAT_IN2+

+5V_TUNE R

R1104 0R 05 1/16W

IIC LEVEL SHIFT

Tuner Control

1UF16V

C1136

100nF 25V

Q1101

R1105

BC847C

0R05 1/10W

R1108

75R 1/10W 1%

75R 1/10 W 1%(NC )

C1131

TU_ AVI

R1109

+3V3

G1117T63Uf

NC/10U 10V

3

C1130

U1102

VIN

VOUT

GND

1

C1107

47pF 50V(N C)

75R 1/1 6W 1%

120R 1/ 10W 1%

C1108

1uF 10V

TU_ 12

R1138

C1109

47nF 16V

MPX_P
MPX_N

CVBS0P
CVBS0N

CVBS0P

CVBS0N

MPX_P8
MPX_N8

CVBS0P8
CVBS0N8,13

TUNER_DATA8

TUNER_CLK8

FAT_IN+8

FAT_IN-8

BST_CTR_MT11

2

TH

4

R1137

1R 1/10W 5%

close to 5363

R1106

100R 1/1 6W 5%

R1140

TUNER_DATA
TUNER_CLK

FAT_IN+

FAT_IN-

BST_CTR_MT

C1132

10uF 10V

TU_ SCL TUNER_CLK

C1111

33P50V

C1113

TU_S DA

33P50V

Close to Tuner

TU_ SI F

R1116

NC/2K2

R1111 220R +-5% 1/16 W

R1120 220R +-5% 1/16 W

R1115

0R05 1/1 6W

C1117

22P 50V(NC )

R1117

0R05 1/1 6W

R1142

4.7K

R1143

4.7K

+5V_TU NER

TUNER_DATA

Close to MT5363

C1116 100N16V

C1118 100N16V

MPX_P

MPX_N

+12V/5V

NC/120R/3000mA

FB1101

1 2

R1121

0R05 1/4 W

R1113 15 OHM 1/4W

R1118 15 OHM 1/4W

R1119 15 OHM 1/4W

絬 隔 瓜 絪 腹

Key Component

C1114

100N 16V

T P V ( Top Victory Electronics Co . , Ltd. )

715G4041-M0A

06. TUNER

Date

C1120

100N 16V

C1119

100N 16V

19

C1115

330N 25V

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

U1101

VIN3VOUT

GND

1

715G4041-M0A

620Friday , August 05, 2011

G9084TU3U
TO-263T

2

R1110

1K 1/10W 1%

R1112

3K 1/10W 1%

of

FB1102

+5V_TUNER

1 2

NC/ 120R/6000m A

C1112

100N 50V

R1122

0R05 1/4W

Vout= 1.25(1+R1/ R2)

Size

Rev

称爹

B

1

HW4 nh

P15

W16

U16

AB15

V15

R14

AC14

W14

AD13

N14
G10

AB13

U20
AF9

AE8

AB21

Y21
V21

P21
D21

B21
AC20
AA20

W20

R20
AB19

N20
AB17

Y19

V19

AC18
AA18

W18

U18

R18
AA16

Y17

V17

AC16
AC22
AA22

W22

U22

R22

G22

E22
AD21

P23

V23

Y23
AB23
AD23

R24

U24

T15

T21

T19

T17

T23

F9
D9

G8
E8
C8

W6

L6
J6

W4

L4
J4
Y3

U6304A

DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS

MT5363LIMG

Power
&
Ground

AVDD12_APLL
AVDD12_ADC PLL
AVDD12_SY SPLL

AVDD12_TVDPLL

AVSS12_PLL
AVSS12_PLL

VCCI O33
VCCI O33
VCCI O33
VCCI O33
VCCI O33
VCCI O33
VCCI O33
VCCI O33
VCCI O33

VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK

DVSS
DVSS
DVSS
DVSS

AG30
AH33
AG32
AF29

AH29
AH31

AF13
W36
W34
W32
V31
H31
J30
H23
AF15

AD15
V25
T25
AA24
N24
AE22
R16
AD17
AD19
AE18
AE20
AE16
N22
W24
Y15
AE14
AA14
U14
Y13
V13
AG12
AL8
AJ8
AM7
AK7
AH7
AL6
AJ6
AM5
AK5
AN4
AL4
AM3
AN2
AL2
AM1
Y25
AB25

AD25
P25
AE24
AC24

DV11

AVDD1V25_PLL

AVDD1V25_PLL

C4000
100N16V

SMD/0402

SMD/0402

C4001
100N16V

1 2

120R/3000mA

Bottom Side

C4003

C4002
100N16V

SMD/0402

SMD/0402

DV11

C4007
100N16V

SMD/0402

Strapping Mode

ICE Mode + Serial Boot

ICE mode + ROM Boot

Strapping Mode

XTAL 54MHz

PDWNC Normal

C4004

100N16V

100N16V

SMD/0402

C4008
100N16V

SMD/0402 SMD/0402

FB4000

AV12

C4005
100N16V

SMD/0402

C4009
100N16V

C4010
100N16V

SMD/0402 SMD/0402 SMD/0402

AOSDATA0 OPWM1

OPCTRL3(O)Strapping Mode

DV33

C4006
100N16V

SMD/0402

Bottom Side

C4011
100N16V

0

0

HW Strap Setting

M_AO LRC K8

M_AOBCK8
M_AOSDATA08
M_SPDIF_Out8,13

M_OPW M111

M_OP CTR L310,13,14

C4012
100N16V

C4013
100N16V

SMD/0402

ASPDIFAOBCKAOLRCK

000
10

01

C4014
100N16V

SMD/0402

C4015
100N16V

SMD/0402

MT5363 STRAPPING MODE

M_AO LRC K

M_AO BCK

M_SP DI F_ Out

M_AOSDATA0

M_OP WM1

M_OP CTR L3

DV33

R4006

4K7 1/16W 5%

SMD/0402

R4004

4K7 1/16W 5%

SMD/0402

M_AO LRC K
M_AOBCK
M_AOSDATA0
M_SP DI F_ Out
M_OP WM1
M_OP CTR L3

C4016
10uF 10V

4K7 1/16W 5%

SMD/0402

4K7 1/16W 5%

SMD/0402

R4002

NC/ 4K7 1/16W 5%

SMD/0402

4K7 1/16W 5%

SMD/0402

4K7 1/16W 5%

SMD/0402

R4000

R4001

R4003

R4005

20

The item of this page start from "4000"

T P V ( Top Victory Elec tronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

715G4041-M0A

07. MT5362 BYPASS/TRAP.

Date

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

715G4041-M0A

of

720Thursday , January 20, 2011

Size

Rev

称爹

Custom

1

HW4 nh

VGA_RX_TX_EN

PANEL_VCC_ON/ OFF5

BL_ON/OFF20

AUD_PWR_SW15

VIMD_AADC

R4051

0R05 1/16W

R4050

560R 1/10W 1%

AVDD3V3_REF P_AADC
AVDD3V3_ADAC0
AVDD3V3_ADAC1
AVDD3V3_AADC

ADAC_VCM

M_SPD IF _Out
SPDIF_DVD _IN

M_AOLRCK
M_AOM CL K
M_AOSDATA0
M_AOB CK
BL_ON/OFF
MCHIP_RST#
PANEL_VCC_ON/ OFF
AUD_PWR_SW

AVDD3V3_DIG

AVDD3V3_SIF

MPX_N

MPX_N6

MPX_P

MPX_P6

AVDD1V25_RGB

AVDD3V3_CVBS

AVDD3V3_VDAC

Moniter_Out

TP4050

TUNER_DATA
TUNER_CLK

IF_AGC6

R4052 0R05 1/ 16W

R4053 0R05 1/ 16W(NC)

FAT_IN­FAT_IN+

AM33
AN36
AN34

W30

AF33

AE34

AA30
AF35

AK31
AJ30

AL30
AK29

T31

Y31

Y29

U30
Y33

K33

L32

M37
M35

L36

L34
K31
P35
P37
N32

MT5363LIMG

AM25

AN26

AN32
AR32

AN30
AR30

AM29

AP31
AM31

AG34
AG36

AH35
AH37

U6304F

AVDD33_REF_AAD C
AVDD33_ADAC 0
AVDD33_ADAC 1
AVDD33_AADC

AVSS33_REF_AADC
AVSS33_ADAC0
AVSS33_ADAC1
AVSS33_AADC

VMID_AADC
AVICM

ASPDIF
ALIN

AOLRCK
AOMCLK
AOSDATA0
AOBCK
AOSDATA3
AOSDATA1
AOSDATA2
AOSDATA4

AVDD33_DI G
AVSS33_DIG

AVDD33_SIF
AVSS33_SIF

AF
MPXN
MPXP

U6304D

AVDD12_RGB

AVSS12_RGB

AVDD33_CVBS
AVSS33_CVBS

AVDD33_VDAC
AVSS33_VDAC

FS_VDAC

AT31

VDAC_OUT2
VDAC_OUT1
BYPASS0

AVDD33_DEMOD1
AVSS33_DEMOD1

ADCINN _DEMOD
ADCINP_D EMOD

N34

TUNER_DATA

N36

TUNER_CLK

M31

IF_AGC

M33

RF_AGC

MT5363LIMG

Audio I/F

Vide o I/F

AIN6_L_AADC
AIN6_R_AADC

AIN5_L_AADC
AIN5_R_AADC

AIN4_L_AADC
AIN4_R_AADC

AIN3_L_AADC
AIN3_R_AADC

AIN2_L_AADC
AIN2_R_AADC

AIN1_L_AADC
AIN1_R_AADC

AIN0_L_AADC
AIN0_R_AADC

TUNER_BYPASS

AR3

AL3

AR2

AL2

AR1

AL1

AR0

AL0

CVBS0P
CVBS1P

CVBS2P
CVBS3P

CVBS0N

SOY0

COM0

PR0P

SOY1

COM1

PR1P

VSYNC
HSYNC

R4056

0R05 1/10W

R4057

0R05 1/10W

R4058

0R05 1/10W

Near IC

AVDD3V3_AADC

AVDD3V3_REF P_AADC

AVDD3V3_DI G

VIMD_AADC

C4069
1UF16V

C4052
100N16V

SMD/0402

C4053
100N16V

SMD/0402

C4055
100N16V

SMD/0402

C4054
100N16V

SMD/0402

AV33

1 2

120R/3000mA

AV33

1 2

120R/3000mA

AV33

0R05 1/10W

VGA_L_IN

AA36

VGA_R_IN

Y37

AA34
Y35

AA32
AB33

AC36
AB37

IPTV_L_IN

AD35

IPTV_R_IN

AB35

CVBS_L_IN

AB31

CVBS_R_IN

AC32

YPbPr_L_IN

AD33

YPbPr_R_IN

AC34

U36
V37

HP_Out_R

U34

HP_Out_L

V35

V33
U32

AE36
AF37

VGA_L_IN 13
VGA_R_IN 13

IPTV_L_IN 12
IPTV_R_IN 12

CVBS_L_IN 13
CVBS_R_IN 13

YPbPr_L_IN 13
YPbPr_R_IN 13

HP_Out_R 15
HP_Out_L 15

AV33

AV33

AV33

FB4057

FB4058

R4059

Near IC

AVDD3V3_ADAC0

C4067
1UF16V

AVDD3V3_ADAC1

C4068
1UF16V

AVDD3V3_SIF

ADAC_VCM

C4062
1UF16V

C4056
100N16V

SMD/0402

C4057
100N16V

SMD/0402

C4058
100N16V

SMD/0402

C4059
100N16V

SMD/0402

Video Input

Video Output

CVBS0P6

CVBS0N6,13

SOY113

Y1P13

PB1P13

COM113

PR1P13
VSYNC13
HSYNC13

BP13

SOG13
GP13
COM13
RP13

Monit er_Ou t13

CVBS0P

CVBS0N

SOY1
Y1P
PB1P
COM1
PR1P
VSYNC
HSYNC
BP
SOG
GP
COM
RP

Moniter_Out

Tu ner I/O Inte rface

TUNER_DATA6

TUNER_CLK6

R4060

0R05 1/10W

R4061

0R05 1/10W

R4062

0R05 1/10W

AVDD1V25_RGB

AVDD3V3_VDACAV33

AVDD3V3_DEMOD

NEAR IC

C4060
100N16V

SMD/0402

C4061
100N16V

SMD/0402

C4050
100N16V

SMD/0402

MEMC RESET Control

SPDIF

HW Strap Setting

AV33

R4063

0R05 1/10W

AVDD3V3_CVBS

C4051
100N16V

SMD/0402

MCHIP_RST#17

M_SPDIF_Out7, 13

M_AOLRCK7

M_AOBC K7

M_AOSDATA07

VGA_RX_TX_EN11,13

SPDIF_DVD_IN12

FAT_IN+6

FAT_IN-6

NEAR IC

AV12

AP37

CVBS0P

AT37

CVBS1_IN

AU36
AP35
AT35
AP33

SY0

AT33

SC0

AR34

SY1

AU34

SC1

AR36

AU28
AR28

Y0P

AP29

PB0P

AT29
AU30

AP25
AU26

Y1P

AT27

PB1P

AR26
AP27

AU22
AR22
AT23

BP

AP23

SOG

AU24

GP

AR24

COM

AT25

RP

CVBS0N

SOY0
Y0P
PB0P
COM0
PR0P

SOY1
Y1P
PB1P
COM1
PR1PAVDD3V3_DEMOD

VSYN C
HSYNC
BP
SOG
GP
COM
RP

CVBS1_IN 13

SOY0 12
Y0P 12
PB0P 12
COM0 12
PR0P 12

AV33

TUNER_DATA
TUNER_CLK

MCHIP_RST#

M_SPDIF_Out

M_AOLRCK
M_AOB CK
M_AOSDATA0

VGA_RX_TX_EN

SPDIF_DVD_IN

FAT_IN+

FAT_IN-

M_AOSDATA0

R4228 22R 1/16W 5%
R4231 22R 1/16W 5%

M_AOLR CK

R4233 22R 1/16W 5%

M_AOMC LK

R4234 22R 1/16W 5%

I2S output to 2.1ch audio circuitr y

I2SDATA
BICKIM_AOBCK
LRCKI
XTI

I2SDATA 15
BICKI 15
LRCKI 15
XTI 15

21

The item of this page start from "4050"

T P V ( Top Victory Electronics Co . , Ltd. )

715G4041-M0A

絬 隔 瓜 絪 腹

Key Component

08. MT5362 PERIPHERAL/ USB2.0

Date

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

715G4041-M0A

of

820Thursday, January 20, 2011

Custom

Size

1

Rev

HW4 nh

称爹

DDR2 Interface

DV18_DDR

AV1V25_MEMPLL

TP4100
TP4101

RVREF3

RCKE

RCLK0
RCLK0#

RCLK1
RCLK1#

RODT
RRAS#
RCAS#
RCS#
RWE#

R4108 100R 1/16W 5%

SMD/0402

RBA0
RBA1
RBA2

U6304B

C2

VCC2IO

G14

VCC2IO

B1

VCC2IO

AF3

VCC2IO

R2

VCC2IO

R4

VCC2IO

E4

VCC2IO

G6

VCC2IO

AE4

VCC2IO

H7

VCC2IO

R6

VCC2IO

B13

VCC2IO

AD7

VCC2IO

E14

VCC2IO

D13

VCC2IO

AE2

VCC2IO

F5

VCC2IO

C12

VCC2IO

E12

VCC2IO

AC6

VCC2IO

F13

VCC2IO

D3

VCC2IO

AD5

VCC2IO

AF1

VCC2IO

J14

VCC2IO

P13

AVDD12_MEMPLL

T13

AVSS12_MEMPLL

K5

MEMTN

K7

MEMTP

P7

RVREF

N8

RVREF

K1

RCKE

B3

RCLK0

A2

RCLK0#

AD1

RCLK1

AD3

RCLK1#

N6

RODT

P5

RRAS#

L2

RCAS#

P3

RCS#

K3

RWE#

AB5

REXTDN

H3

RBA0

J2

RBA1

H1

RBA2

MT5363LIMG

RVREF_as closed to MT5363

DV18_DDR

R4104

1K 1/10W 1%

DRAM

RVREF3

R4105

1K 1/10W 1%

RDQM0

RDQS0

RDQS0#

RDQ0
RDQ1
RDQ2
RDQ3
RDQ4
RDQ5
RDQ6
RDQ7

RDQM1

RDQS1

RDQS1#

RDQ8

RDQ9
RDQ10
RDQ11
RDQ12
RDQ13
RDQ14
RDQ15

RDQM2

RDQS2

RDQS2#

RDQ16
RDQ17
RDQ18
RDQ19
RDQ20
RDQ21
RDQ22
RDQ23

RDQM3

RDQS3

RDQS3#

RDQ24
RDQ25
RDQ26
RDQ27
RDQ28
RDQ29
RDQ30
RDQ31

C4117
100N16V

SMD/0402

RA10
RA11
RA12
RA13

U402

RDQ0

G8

DQ0

RDQ1

G2

DQ1

RDQ2

H7

DQ2

RDQM0

E10

RDQS0

B9

RDQS0#

A8

RDQ0

D7

RDQ1

H11

RDQ2

E6

RDQ3

G12

RDQ4

H13

RDQ5

D5

RDQ6

F11

RDQ7

F7

RDQM1

C10

RDQS1

B7

RDQS1#

C6

RDQ8

B5

RDQ9

D11

RDQ10

A4

RDQ11

B11

RDQ12

A12

RDQ13

C4

RDQ14

A10

RDQ15

A6

RDQM2

V1

RDQS2

V3

RDQS2#

W2

RDQ16

AB1

RDQ17

U4

RDQ18

AC4

RDQ19

T1

RDQ20

T3

RDQ21

AC2

RDQ22

U2

RDQ23

AB3

RDQM3

U6

RDQS3

Y1

RDQS3#

AA2

RDQ24

Y5

RDQ25

T7

RDQ26

AA6

RDQ27

V7

RDQ28

V5

RDQ29

AA4

RDQ30

T5

RDQ31

Y7

RA0

N4

RA0
RA1
RA2
RA3
RA4
RA5
RA6
RA7
RA8
RA9

RA1

H5

RA2

M3

RA3

G4

RA4

M5

RA5

F1

RA6

M7

RA7

F3

RA8

P1

RA9

D1

RA10

G2

RA11

N2

RA12

E2

RA13

M1

RDQ3
RDQ4
RDQ5
RDQ6
RDQ7
RDQ8
RDQ9
RDQ10
RDQ11
RDQ12
RDQ13
RDQ14
RDQ15

RDQS1
RDQS1#
RDQS0
RDQS0#
RDQM1
RDQM0
RVREF1
1_CKE

DV18_DDR

H3

DQ3

H1

DQ4

H9

DQ5

F1

DQ6

F9

DQ7

C8

DQ8

C2

DQ9

D7

DQ10

D3

DQ11

D1

DQ12

D9

DQ13

B1

DQ14

B9

DQ15

A2

NC

E2

NC

B7

UDQS

A8

UDQS

F7

LDQS

E8

LDQS

B3

UDM

F3

LDM

J2

VREF
CKEK2WE

A1

VDD

A9

VDDQ

C1

VDDQ

C3

VDDQ

C7

VDDQ

C9

VDDQ

E1

VDD

E9

VDDQ

G1

VDDQ

G3

VDDQ

G7

VDDQ

G9

VDDQ

J1

VDDL

J9

VDD
VDDM9VSS

R1

VDD

NT5TU32M16CG-BD

DDR#1 DDR#2

NEAR IC NEAR IC

RCLK0

R4109

22R 1/16W 5 %

SMD/0402

RCLK0#

R4110

22R 1/16W 5 %

SMD/0402

1_A0

A10/AP

NC/A13
NC/A14

NC/N15

NC/BA2

VSSQ
VSSQ
VSSQ
VSSQ
VSSQ

VSSQ
VSSQ
VSSQ
VSSQ
VSSQ

VSSDL

1_A1
1_A2
1_A3
1_A4
1_A5
1_A6
1_A7
1_A8
1_A9
1_A10
1_A11
1_A12
1_A13

1_BA0
1_BA1
1_BA2
CLK0
CLK0#
1_CS#
1_CAS#
1_ODT
1_RAS#
1_WE#

1_A8
1_A13
1_A0
1_CAS#

1_A9
1_A12
1_A7
1_A5

1_A2
1_A6
1_A4
1_A11

1_BA2
1_A1
1_A10
1_A3

1_WE#
1_CKE
1_BA1
1_BA0

RODT
RRAS#
RCS#

M8

A0

M3

A1

M7

A2

N2

A3

N8

A4

N3

A5

N7

A6

P2

A7

P8

A8

P3

A9

M2
P7

A11

R2

A12

R8
R3
R7
L2

BA0

L3

BA1

L1
J8

CK

K8

CK

L8

CS

L7

CAS

K9

ODT

K7

RAS

K3
A3

VSS

A7
B2
B8
D2
D8
E3

VSS

E7
F2
F8
H2
H8
J3

VSS

J7
N1
P9

VSS

1
2
3
4

RP4100 56R

1
2
3
4

RP4101 56R

1
2
3
4

RP4102 56R

8
7
6
5

RP4108 56R

8
7
6
5

RP4110 56R

1
2
3
4

RP4111 56R

RA8

8

RA13

7

RA0

6

RCAS#

5

RA9

8

RA12

7

RA7

6

RA5

5

RA2

8

RA6

7

RA4

6

RA11

5

RBA2

1

RA1

2

RA10

3

RA3

4

RWE#

1

RCKE

2

RBA1

3

RBA0

4

8

1_ODT

7

1_RAS#

6

1_CS#

5

DV18_DDR

RVREF_as closed to U402

CLK0 CLK1

R4106
100R 1/16W 5%

SMD/0402

CLK0# CLK1#

R4103

1K 1/10W 1%

1K 1/10W 1%

R4102

RVREF1

C4101
100N16V

SMD/0402

RDQ16
RDQ17
RDQ18
RDQ19
RDQ20
RDQ21
RDQ22
RDQ23
RDQ24
RDQ25
RDQ26
RDQ27
RDQ28
RDQ29
RDQ30
RDQ31

RDQS3
RDQS3#
RDQS2
RDQS2#
RDQM3
RDQM2
RVREF2
2_CKE

Damping and Te rmination for CLKDamping and Termi nation for CLK

RCLK1

RCLK1#

G8
G2
H7
H3
H1
H9
F1
F9
C8
C2
D7
D3
D1
D9
B1
B9
A2
E2
B7
A8
F7
E8
B3
F3
J2

A1
A9
C1
C3
C7
C9
E1
E9
G1
G3
G7
G9
J1
J9

R1

U403

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10

A10/AP
DQ11
DQ12
DQ13

NC/A13

DQ14

NC/A14

DQ15

NC/N15
NC
NC
UDQS

NC/BA2
UDQS
LDQS
LDQS
UDM
LDM
VREF
CKEK2WE
VDD

VSSQ

VDDQ

VSSQ

VDDQ

VSSQ

VDDQ
VDDQ

VSSQ

VDDQ

VSSQ

VDD

VSSQ

VDDQ

VSSQ

VDDQ

VSSQ

VDDQ
VDDQ

VSSQ

VDDQ

VSSQ

VDDL

VSSDL

VDD
VDDM9VSS
VDD

NT5TU32M16CG-BD

R4111

22R 1/16W 5%

SMD/0402

R4112

22R 1/16W 5%

SMD/0402

2_A0

M8

A0

2_A1

M3

A1

2_A2

M7

A2

2_A3

N2

A3

2_A4

N8

A4

2_A5

N3

A5

2_A6

N7

A6

2_A7

P2

A7

2_A8

P8

A8

2_A9

P3

A9

2_A10

M2

2_A11

P7

A11

2_A12

R2

A12

2_A13

R8
R3
R7

2_BA0

L2

BA0

2_BA1

L3

BA1

2_BA2

L1

CLK1

J8

CK

CLK1#

K8

CK

2_CS#

L8

CS

2_CAS#

L7

CAS

2_ODT

K9

ODT

2_RAS#

K7

RAS

2_WE#

K3
A3

VSS

A7
B2
B8
D2
D8
E3

VSS

E7
F2
F8
H2
H8
J3

VSS

J7
N1
P9

VSS

NEAR DRAMNEAR DRAM

R4107
100R 1/16W 5%

SMD/0402

2_CAS#
2_A0
2_A13
2_A8

2_A3
2_A10
2_A1
2_BA2

2_BA0
2_BA1
2_CKE
2_WE#

2_A11
2_A4
2_A6
2_A2

2_A9
2_A12
2_A7
2_A5

RCS#
RRAS#
RODT

RVREF_as closed to U403

DV18_DDRDV18_DDR

R4100

1K 1/10W 1%

1K 1/10W 1%

1
2
3
4

RP4104 56R

1
2
3
4

RP4105 56R

1
2
3
4

RP4103 56R

1
2
3
4

RP4106 56R

1
2
3
4

RP4107 56R

5
6
7
8

RP4109 56R

R4101

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

4
3
2
1

RVREF2

C4100
100N16V

SMD/0402

RCAS#
RA0
RA13
RA8

RA3
RA10
RA1
RBA2

RBA0
RBA1
RCKE
RWE#

RA11
RA4
RA6
RA2

RA9
RA12
RA7
RA5

2_CS#
2_RAS#
2_ODT

AV1V25_MEMPLL

FB4100

AV12

120R/3000m A

1 2

AV1V25_MEMPLL

C4130

10N 50V

SMD/0402

DRAM DE-CAP.

DV18_DDR

C4102

+

NC/100UF 16V

DV18_DDR

C4103

+

NC/100UF 16V

C4104
100N16V

C4113
100N16V

C4105
100N16V

SMD/0402SMD/0402 SMD/0402SMD/0402 SMD/0402

C4114
100N16V

100N16V

100N16V

C4112
100N16V

SMD/0402SMD/0402 SMD/0402SMD/0402 SMD/0402

SMD/0402SMD/0402

Bottom Side DDR#1

C4115
100N16V

Bottom Side DDR#2

SMD/0402SMD/0402

C4107

C4106

C4108
100N16V

C4109
100N16V

C4118
100N16V

C4127
100N16V

C4119
100N16V

C4128
100N16V

SMD/0402

SMD/0402

C4120
100N16V

C4129
100N16V

MT5363 DE-CAP.

DV18_DDR

C4110

10uF 10V

C4116

1UF16V

Main Chip Bottom Side

C4122

C4111

100N16V

1UF16V

22

C4121
100N16V

C4123
100N16V

SMD/0402SMD/0402SMD/0402SMD/04 02

C4124
100N16V

C4125
100N16V

SMD/0402

C4126
100N16V

SMD/0402

The item of this page start from "4100"

T P V ( Top Victory Electronics Co . , Ltd. )

715G4041-M0A

絬 隔 瓜 絪 腹

Key Component

09. DDR2 MEMORY

Date

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

715G4041-M0A

of

920Tuesday , February 22, 2011

Custom

Size

1

Rev

HW4 nh

称爹

AVDD3V3_R EG

1V0SB

AVDD3V3_XTAL

E_FUSE

RC6

LED_R
M_OPCTRL1
M_OPCTRL2
EDID_WEN M_OPCTRL3
AMP_MUTE

PAALE
PACLE
PARB#
POWE#
POCE0#
POCE1#
POOE#
PDD0
PDD1
PDD2
PDD3
PDD4
PDD5
PDD6
PDD7

E_FUSE

R4184

4K7 1/16W 5%

SMD/0402

JTRST#
JTDI
JTMS
JTCK

JTDO

R4176
33R 1/16W 5 %

SMD/0402

LED_G:
Enable: High
Disable(Stand_By): Low

LED_R:
Enable(Stand_By): High
Disable: Low

LED_G:
For flash function when
press remote control

LED_R

R4157 100R 1/10W 5%

LED_G

R4162 100R 1/10W 5%

RC6

R4159 100R 1/10W 5%

RC612

Light_Sensor

R4178 100R 1/10W 5%

AN24

AL24

AM23

AK35
AK37

AN22

AM21
AM19
AN20
AR20
AU20

AR4
AU4

AN6
AU2
AR2

AR6
AU6

AR8
AU8

DV33

R416410K 1/16W 5%

SMD/0402

U6304C

AVDD33_VGA_STB
AVSS33_VGA_STB

AVDD10_LDO

AVDD33_XTAL_STB
AVSS33_XTAL

L30

FSRC_WR

OIRI

OPCTRL0
OPCTRL1
OPCTRL2
OPCTRL3
OPCTRL4

PAALE
PACLE

AT5

PARB#

AT3

POWE#

AT1

POCE0#
POCE1#
POOE#
PDD0

AP5

PDD1
PDD2
PDD3

AP7

PDD4

AT7

PDD5
PDD6
PDD7

MT5363LIMG

R416910K 1/16W 5%

R417410K 1/16W 5%

SMD/0402

SMD/0402

R4167
10K 1/16W 5%

SMD/0402

1K 1/10W(NC )

R4161

DV33

R417710K 1/16W 5%

SMD/0402

C4155 100N 50V

STB I/F &
Peripheral

R4166
10K 1/16W 5%

SMD/0402

R4163

15KOHM 1/10W(NC )

C4158100N 50V

AL22

ORESET#

AL20

OPWRSB

AJ34

XTAL O

AJ36

XTAL I

T37

VCXO

AL36

ADIN5_SR V

AM37

ADIN4_SR V

AL34

ADIN3_SR V

KEY_MENU_L_R_SOURCE

AM35

ADIN2_SR V

AK33

ADIN1_SR V

AL32

ADIN0_SR V

AT21

U0RX

AP21

U0TX

R36

U1RX

T35

U1TX

AH5

JTDO

AJ4

JTMS

AK3

JTCK

AJ2

JTDI

AK1

JTRST#

P31

OSCL2

P33

OSDA2

R34

OSCL1

R32

OSDA1

AP3

OSCL0

AP1

OSDA0

R4165
1K 1/16W 5%

CN406

SMD/0402

TVTREF #1

1
3
5
7

9
11
13
15

JTAG_DBGRQ

17

JTAG_DBGACK

19

R4168
10K 1/16W 5%

SMD/0402

DV33SB

12

C4157

C4153 NC/10N 50V

C4162 100N 50V

TO IR/KEY BOARD

ORESET#
OPWRSB

OXTALO
OXTALI
VCXO

SP_AMP_MUTE
KEY_UP_DN_DCSW

Light_Sensor

DC_ON/OFF

R9159 0R05 1 /16W(NC)

U0RX
U0TX

U1RX
U1TX

JTDO
JTMS
JTCK
JTDI
JTRST#

PWR5V_1
PWR5V_3
SYS_EEPROM_WP
A_RESET
OSCL0
OSDA0

2122

2
4
6
8
10
12
14
16
18
20

NC/60947 20P 1 .25MM

FB4152

120R/3000mA

Key1
Key2
DC_ON_OFF

100N 50V

+5V_STB

R4194 4K7 1/16W 5%

SMD/0402

TP4152

10K 1/16W 5%

SMD/0402

A_RESET 15

R4195

4K7 1/16W 5%

SMD/0402

M_OPCTRL1

DV33DV33

---------><-----|>

---------><---|>

---------><-|>

DV33SB

DV33SB

DV33SB

R4155

DV33SB

DV33SB

R4196
4K7 1/16W 5%

SMD/0402

M_OPCTRL2

+5V_STB DV33SB

R4153

1K 1/10W 1%

R4154

6K8 1/10W 1%

CN401

1
2
3
4
5
6
7
8

9
10
11
12
13

CONN

CN4802 changed
to Xinya
Right-angle hook
type

R4151

0R05 1/10W

R4160

0R05 1/10W

1V0SB

JTRST#

1V0SB

NEAR IC

AVDD3V3_REG

C4166
100N16V

NEAR IC

AVDD3V3_XTAL

C4169

C4167

10UF 6.3V X5R +-20%

100N16V

SMD/0402

R4152 1R 1/ 10W 5%

C4168

4.7UF 10V

R4170 10K 1/16W 5%

SMD/0402

Reset IC

R4150

NC/0R 05 1/10W(NC)

2.93V Action

3

U410

AZ809ANSTR-E1

Vcc

GND1RESET

ORESET#

2

R4180

100K 1/16W 5%

SMD/0402

SYSTEM EEPROM

SYS_EEPROM_WP

SMD/0402

LO = > WP

DV33

R4158

330R 1/16W 5 %

SMD/0402

R4182

4K7 1/16W 5%

SMD/0402

R4192

0R05 1/16W

16MB Nand Flash

1
2
3
4
5
6

PARB#

7

POOE#

8

POCE1#

9
10
11

V33

12
13
14
15

PACLE

16

PAALE

17

POWE#

18

Flash_WP#

19
20
21
22
23

4K7 1/16W 5%

SMD/0402

R4189

4K7 1/16W 5%

SMD/0402

U4051

NC

NC

NC

NC

NC

NC

NC

NC

NC

I/O7

NC

I/O6

R/B

I/O5

RE

I/O4

CE

NC

NC

NC

NC

PRE

VCC

VCC

VSS

VSS

NC

NC

NC

NC

CLE

NC

ALE

I/O3

WE

I/O2

WP

I/O1

NC

I/O0

NC

NC

NC

NC

NC

NC

NC24NC

HY27U S08281A-TPCB

512KB Nor Flash for Boot Code

R4188

DV33

4K7 1/16W 5%

OXTALI

SMD/0402

DV33SB

R4187

R4186

4K7 1/16W 5%

SMD/0402

R4156

U0TX

0R05 1/10W

U0RX

0R05 1/10W

R4179

POCE0#
PDD0
Flash_WP#

1
2
3

NC/MX25L4005AMI-12G

R4198

X4150

1 2

54MHz

CL=10P

C4163

10P 50V

1

BAV99

D4151

U4052

CS

VCC

SO

HOLD

WP

SCK

GND4SI

POCE0#

NC/820K 1/ 10W 5%

2

3

8
7
6
5

R4185

4K7 1/16W 5%

OXTALO

C4164

10P 50V

SMD/0402

DV33SB

2

DV33
POOE#
PDD1

DV33

3

L4150

0U82

C4165
1N 50V

SMD/0402

1

---><---|>

---><---|>

FOR CODE DOWNLOAD,DEBUGGING,
FACTO RY ALIGUMENT AND
COMPAIR MODE

DV33

R4190

4K7 1/16W 5%

SMD/0402

48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25

R4191

4K7 1/16W 5%

SMD/0402

PDD7
PDD6
PDD5
PDD4

PDD3
PDD2
PDD1
PDD0

OSCL0
OSDA0

V33

C4156

100N16V

SMD/0402

U409

8

VCC

7

WC

6

SCL

5

SDA

M24C32-WMN6TP

I2C ADDRESS " A0"HI = > WRITE

DV33

C4154

100N16V

SMD/0402

1

E0

2

E1

3

E2

4

VSS

C4151

1UF16V

DV33

C4152

100N16V

Crystal 1X
L4150 NC
C4165 NC
R4198 820K
Crystal 3X
L4150 0U82
C4165 1N
R4198 NC

BAV99

D4152

CONN

C4150

1UF16V

DV33SMD/0402

R4202

R4201

4K7 1/16W 5%(N C)

OSDA0
OSCL0

4K7 1/16W 5%(NC )

For IIC debug

TO KEY PAD BOARD

KEY_UP_DN_DCSW

KEY_MENU_L_R_SOURCE

DC_ON/OFF

1
2
3

CN410

Key P AD(DC mode)
KEY_UP _DN_DCSW -------------------KEY1
KEY_M ENU_L_R_SOURCE------------K EY2
DC_ON/OFF--------------------------------DC_ON_OFF

Touch PAD (IIC Control)
SCL(OSCL0)------------------------------------------DC_ON_OFF
SDA(OSDA 0)---------------------------------KEY2
Interrupt ----------------------------------------KEY1

VCXO

LED_G

LED_R

R4199

100R 1/10W 1%

R4200

100R 1/10W 1%

R4193

NC/100R 1/10W 1%

NC/4. 7 OHM +-5% 1/16W

NC/4. 7 OHM +-5% 1/16W

R4841

1K 1/10W 5%(NC )

R4825

1K 1/10W 5%(NC )

R4820

1K 1/10W 5%(NC )

The item of this page start from "4150"

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

+5V_STB

4 Pin

2.0mm Pitch
Vertical Type

R4181

R4113

+5V_STB

R4826

1K 1/10W 5%(N C)

R4827

1K 1/10W 5%(N C)

R4821

1K 1/10W 5%(N C)

715G4041-M0A

08. FLASH/JTAG/U ART/IR

CN411

1
2
3
4

NC/CONN

R41731MOHM 1/16W +/-5%

C4159

100N 50V

DV33SB

BC847C(NC)

Q4802

Q4803

BC847C(NC )

Q4804

BC847C(NC )

DV33SB

R4171

1MOHM 1/16W +/-5%

R4183

NC/3. 9K 1%

R4175 0R05 1/10W

R4172 0R05 1/10W

C4161

C4160

NC/100N 50V

NC/1uF 16V

R4837 0R05 1/16W(NC)

R4838 0R05 1/16W(NC)

R4828

34R 1%(NC)

R4829

255 OHM 1% 1/16W(N C)

R4830

120 OHM 1/16W(NC )

R4831

820 OHM +-5% 1/16W(N C)

R4824

0R05 1/16W( NC)

Audio Mu te/Digital Amp Control

SCART Interface

Other Control Interface

HDM I SW C T RL

MEMC RESET Control

Key1

Key2

DC_ON_OFF

DC_ON_OFFOSCL0

Key2OSDA0

CN4803

1
2
3

CONN(NC)

CN4801
changed to
Xinya

OEM MODEL

TPV MODEL

PCB NAME

715G4041-M0A

of

Sheet

10 20Monday, April 18, 2011

SP_AMP_MUTE15

AMP_MUTE15

U0RX12,13
U0TX12,13
LED_G11

OPWRSB4

M_OPCTRL37,13,14
EDID_WEN7,13,14

PWR5V_314
PWR5V_114

MCHIP_RST#8,17

MCHIP_RST#8,17
OSCL012,15,17
OSDA012, 15,17

U1RX12,17
U1TX12,17

SP_AMP_MUTE
AMP_MUTE

U0RX
U0TX
LED_G

OPWRSB

M_OPC TRL 3
EDID_WEN

PWR5V_3
PWR5V_1

MCHIP_RST#

MCHIP_RST#
OSCL0
OSDA0

U1RX
U1TX

Size

Custom

Rev

1

称爹

HW4 nh

23

VGA_RX_TX_EN8,13

R9143

NC/0 R05 1/16W

M_OPW M1
BL_DIMMING

for CI CARD
for CI CARD
for CI CARD
for CI CARD

J34
J36
T33

E36

D37

A32

C32

E32

B31
D31
D33

B37

A36

B35

A34
C34

B33
G32
C36
D35

F31

E34

G34
H33

F35
H35

G36

F37

F33
H37

U6304H

OPWM0
OPWM1
OPWM2

ETMDC
ETMDIO
ETTXD0
ETTXD1
ETTXD2
ETTXD3
ETTXEN
ETTXCLK
ETRXDV
ETRXD0
ETRXD1
ETRXD2
ETRXD3
ETRXCLK
ETCOL
ETCRS
ETRXER

ETPHYCLK
ETTXER

CI_MIVAL
CI_MISTRT
CI_MCLKI
CI_MDI0

CI_MOVAL
CI_MOSTRT
CI_MCLKO
CI_MDO0

MT5363LIMG

GPIO/
Int. CI/
MII

GPIO0
GPIO1
GPIO2
GPIO3
GPIO4
GPIO5
GPIO6
GPIO7
GPIO8

GPIO9
GPIO10
GPIO11
GPIO12
GPIO13
GPIO14
GPIO15
GPIO16
GPIO17
GPIO18
GPIO19
GPIO20
GPIO21
GPIO22
GPIO23
GPIO24
GPIO25
GPIO26
GPIO27
GPIO28
GPIO29
GPIO30
GPIO31
GPIO32
GPIO33
GPIO34
GPIO35
GPIO36
GPIO37
GPIO38
GPIO39
GPIO40
GPIO41
GPIO42
GPIO43
GPIO44

K35
K37
J32
A30
C30
G30
E30
H29
F29
B29
D29
C28
E28
J28
G28
H27
F27
B27
D27
G26
E26
A26
C26
J26
F25
H25
B25
D25
C24
G24
E24
J24
B23
F23
D23
A22
C22
AF5
AG2
AE6
AF7
AG4
AG6
AH3
AH1

for CI CARD
for CI CARD

for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD
for CI CARD

LVDSCTRL1

HDMI_SW _CTRL2

HP_DET#
LED_G

USB_PWR _CTL
HDMI_SW _CTRL1

STAND_BY

TP708

TP709

BST_CTR_MT

TU_RESET 6
RF_SW 6

R4235

4K7 1/16W 5%

for USB

R4232

4K7 1/16W 5%

SMD/0402

TP710

TP711

TP712

DV33

AC_OFF 15

+5V_SW

C9157

220UF 16V

8x7mm

FB1026

1 2

120R/3000mA

100UF 16V

FB9127

1 2

120R/6000m A

C9158

100N 50V

+

USB5V

C1002

+12V/5V

100K 1/10W

R9140

C9160

100N 50V

C1004

+

100N 50V

3KOHM 1/10W

C9154

R9141

100N 50V

Vout = (0.8 * (R1+R2))/ R2
R1=16 K R2= 3K

AV33

C1007

100N 50V

R9142

16K OHM 1%

R9157

3K 1/10W 1%

FB1025

120R/3000mA

C1077

1UF16V

C9152

100N 50V

U9108

1

FB

2

EN

3

OCSET
IN4SW

AP1534SG-13

12

C1075

100N 50V

R9136

5.1KOHM +-5% 1/10W

8

GND

7

GND

6

SW

5

C1064

100N 50V

SMD 5.5mm

L9104

35uH

ZD9104

SSA34

C9164

100N 50V

1 2

U3V3A

FB1010

120R/3000mA

FB9129

1 2

120R/6000m A

C9161

+

220UF 16V

8x7mm

1.5K +-1% 1/10W

12

C1074

100N 50V

R9146

C1073

100N 50V

USB_Power

C1008

100N 50V

C1078

100N 50V

C1076

100N 50V

3V3_P

+

C1067

10uF/35V

LVDS Control Interface

BL_DIMMING20

For CID Test Only

M_OP WM17

LVDSCTRL120
HDMI_SW_C TRL114
HDMI_SW_C TRL214

LED_G10
HP_DET#15

STAND_BY4

USB_DP14
USB_DM14

BST_CTR_MT6

BL_DIMMING

M_OPW M1

LVDSCTRL1
HDMI_SW_CTRL1
HDMI_SW_CTRL2

LED_G
HP_DET#

STAND_BY

USB_DP
USB_DM

BST_CTR_MT

NC/15K 1/ 10W

NC/15KOH M 1/10W

C1058 100N 50V

C1059

100N 50V

R1020

680R 1/10W 1%

C1053 100N 50V

C1032 1UF 16V

C1057

33P 50V

C1052

33P 50V

R1014

R1023

USB_DM
USB_DP

USB_DM2
USB_DP2

3V3_P

R1009

37

40

38

39

DVDD

PGANG

OVCUR2#

PWREN 3#
OVCUR3#
PWREN 4#
OVCUR4#

GREEN423AMBER4

22

24

NC/15K OHM 1/10W

NC/15K OHM 1/10W

10K 1/10W 5%

R1053

100K 1/10W 5%

PSELF

36

AMBER2

35

GREEN2

34

DVDD

33

AMBER3

32

GREEN3

31
30
29
28
27

TEST

26

RESET#

25

SEL48

R1050

R1049

USB_OVCUR2#

3V3_P

USB_OVCUR4#

USB_PWR_C TL

R1051

10K 1/10W 5%

USB_DP4
USB_DM4

R110N C/0R05 1/16W

R109N C/0R05 1/10W

U3V3A

U1003

1
2
3
4
5
6
7
8

9
10
11
12

R1054

X1001

1M

12MHz

1 2

AVDD
GND
DM0
DP0
DM1
DP1
AVDD
GND
DM2
DP2
RREF
AVDD

47

45

42

44

48

41

V5

V33

SEL27

AMBER146GREEN1

OVCUR1#

PWREN1#43PWREN2#

GL852G-MNG12

GND13X114X215AVDD16DM317DP318AVDD19GND20DM421DP4

U3V3A

USB_Power

USB5V

t

TH1004

NC/8V 0R4

t

TH1001

8V 0R4

USB_OVCUR4#

t

TH1003

NC/8V 0R4

t

TH1002

8V 0R4

USB_OVCUR2#

12

56

78

1234

12

R1015

22KOHM 1/10W

+

100UF 16V

R1022

47K 1/10W 5%

12

12

R1056

22KOHM 1/10W

+

100UF 16V

R1057

47K 1/10W 5%

C1050

C1060

USB_DM4
USB_DP4

C1070

100N 50V

USB_DM2
USB_DP2

C1062

100N 50V

C1055

4P7 50V

C1063

4P7 50V

C1054

R1055

4P7 50V

NC/ 15KOHM 1/10W

NC/15K 1/ 10W

C1061

R1059

4P7 50V

NC/ 15K 1/10W

NC/15K 1/ 10W

R1052

R1058

D1001

BAV99

D1003

BAV99

3

+5V_STB

2

2

2

+5V_STB

2

1

3

1

1
2
3
4

3

3

CN1305

D1002

USB CONN

BAV99

D1004

BAV99

1
2
3
4

USB CONN

CN1305

56

78

1234

CN1301

1

1

CN1301

The item of this page start from "4200"

T P V ( Top Victory Electronics Co . , Ltd. )

715G4041-M0A

絬 隔 瓜 絪 腹

Key Component

11. MT8295/CI C ARD

Date

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

715G4041-M0A

11 20Tuesday, April 19, 2011

of

Size

Rev

称爹

Custom

1

HW4 nh

24

CN1204

1
2
3
4
5
6
7
8

CONN(NC)

Y1

Pb1

Pr1

R1219

75R 1/16W 1%(NC)

AUDIO_L

AUDIO_R

YPbPr+Audio IN_IPTV

R4833

U0TX10, 13

U1TX10, 17

OSDA010,15, 17

U0RX10,13

U1RX10,17

OSCL010,15,17

RC610

22R 1/16W 5%(NC)

R4842

22R 1/16W 5%(NC)

R4832

22R 1/16W 5%(NC)

R4835

22R 1/16W 5%(NC)

R4843

22R 1/16W 5%(NC)

R4834

22R 1/16W 5%(NC)

R4840

22R 1/16W 5%(NC)

Q4807

2N7002(NC )

DV33

Q4805
2N7002(NC )

Q4806
2N7002(NC )

R4839

10K1/16W(N C)

For IPTV IIC/RS232 control

R1220

75R 1/16W 1%(NC)

+24V

R4816

+12V/ 5V

10K1/16W(N C)

R4836

10K1/16W(N C)

CN4805
Xinya
Horiz ontally type

FB1209 18 OHM +-5% 1/10W(N C)

FB1210 18 OHM +-5% 1/10W(N C)

FB1211 18 OHM +-5% 1/10W(N C)

R1221

75R 1/16W 1%(NC)

FB1212

1 2

600R/200m A(NC)

FB1213

1 2

600R/200m A(NC)

1 2

1 2

C1219

62R 1/16W 5%

62R 1/16W 5%(NC)

C122710uF 10V(NC) R1227

C122910uF 10V(NC)

120R/6000m A(NC)

FB1214

120R/6000m A(NC)

FB1215

CN4805

1
2
3
4
5
6
7

C1220

C1221

62R 1/16W 5%(NC)

CONN(NC)

CLOSE TO IC

R1222 68O HM 1/16W(N C)

R1223 68O HM 1/16W(N C)

R1224 68O HM 1/16W(N C)

R1226 68O HM 1/16W(N C)

30Kohm 1/16W +/-5%(NC)

R1229

30Kohm 1/16W +/-5%(NC)

SPDIF_DVD_IN8

For IPTV SPDIF IN

C1222 10N F 50V(NC)

C1223 10N F 50V(NC)

C1224 10N F 50V(NC)

C1225 470 0P 50V(NC)

R12250R05 1/16W (NC)

C1226 10N F 50V(NC)

Y0P

Y0P 8

PB0P

PB0P 8

PR0P

PR0P 8

SOY0

SOY0 8

COM0

COM0 8

IPTV_L_IN

IPTV_L_IN 8

IPTV_R_IN

IPTV_R_IN 8

0419 modify

R4844

NC/ 0R05 1/16W

絬 隔 瓜 絪 腹

Key Component

R4845

75 OHM +-5% 1/16W(N C)

T P V ( Top Victory Electronics Co . , Ltd. )

715G4041-M0A

12. SCART I/O

Date

CN4806

1
2

CONN(NC)

non-IPTV (org) IPTV
R4051(SMT) R4051(NC)
R4844(NC) R4844(SMT)
R9143(NC) R9143(SMT)

OEM MODEL

TPV MO DEL

PCB NAME

Sheet

715G4041-M0A

12 20F riday, March 04, 2011

of

Size

Rev

称爹

B

1

HW4 nh

25

YPbPr /CVBS INPUT &
SPDIF OUTPUT

CN111A

2

A

1

4

B

3

6

C

5

RCA JACK

YPbP r

CN111B

8

D

7

10

E

9

RCA JACK

YPbP r-Aud io

R/L INPUT for YPbPr/CVBS IN

CN136

RCA JACK

CVBS+Audio IN

CN1402

SPDIF_OUT

0R05 1/16W(NC)

SPDIF_OUT_GND

CVBS OUT

A

B

C

0R05 1/16W (NC)

AV3_CVBS_IN

2

1

4

3

6

5

Nearly I/O CONNECTOR

R1202

---><---|>

ZD1063

R1203

UDZSNP5.6B(NC)

1 2

PC VGA IN

PC INPUT

0R05 1/16W

U0RX#

R1165

VGASDA_IN

HSYNC#

VSYNC#

VGASCL_IN

D-SUB 15P

PC AUDIO IN

PHONEJACK

CN102

+5V_SW

DV33SB

R1191

10K 1/16W 5%

R1192

VGA_RX_TX_EN

100R 1/16W 5%

1

Y_IN_1

PB_IN_1

PR_IN_1

YPbPrL_IN

YPbPrR_IN

CVBSL_IN

CVBSR_IN

NC/47pF 50V(NC)

CN702

11

12

13

14

15

10.5 mm

R1190

4K7 1/16W 5%

3

Q1157

BC847C

2

0R05 1/16W(NC)

C1084

1716

3

2
1

YPBPR IN

AV1
(Component1)

SPDIF OUTPUT

SPDIF OUT

Nearly MT5363

1.8uH(NC)

R1100

L1050

C1083

47pF 50V(NC)

47pF 50V(NC)

RED

1

RED_GND

6

GRN

2

GRN_GND

7

BLU

3

BLU_GND

8

R1167

4

0R05 1/10W

9
5
10

VGA_AudioLIN

VGA_AudioRIN

U0RX U0RX#

Q1155
2N7002

NC/100OHM1/16W

R1188

SMD/0402

UDZSNP5.6B

UDZSNP5.6B

UDZSNP5.6B

CN113

1

2

3

CONN

C1082

U0TX#

ZD1164

1 2

For Alightment

ZD1150

ZD1151

SPDIF_OUT_GND

NC/UDZSNP5.6B

NEAR YPBPR CONNECTOR

D1150 NC/BAS316

2

+5V_SW

A1K

Y_IN_1

1 2

R1168
FB1158

80 OHM

18R 1/16W 5%

SMD/0402

1 2

D1151 NC/BAS316

2

+5V_SW

A1K

PB_IN_1

ZD1152

PR_IN_1

SPDIF_OUT

Monite r_Ou tSCT1_AV_OUT

R1099

75OHM1/16W(NC)

D1160
BAS316

A1K

----------><---------|

1 2

-------><--------------><-------

1 2

-------><-------

12

1 2

D1170

NC/BAS316

---><---|>

+5V_SW

1

D1159

A

BAS316

K

2

2

Q1156
2N7002

NC/100OHM1/16W

R1195

SMD/0402

FB1159

80 OHM

FB1160

80 OHM

A1K

D1152

NC/BAS316

+5V_SW

2

K

A

1

ZD1170

1 2

VGA_PLUGPWR

18R 1/16W 5%

SMD/0402

18R 1/16W 5%

SMD/0402

2

NC/VPORT0603100KV05

U0TX#U0TX

R1170

R1172

+5V_SW

AV AUDIO IN (for YPbPr&CVBS IN)

NEAR MT5363

SMD/0402

C1153 1.5nF 50V

SMD/0402

R1156 0R05 1/16W

R1158 68R 1/16W 5%

SMD/0402

C1156

15pF 50V

R1161

R1173

SMD/0402 SMD/0402 SMD/0402

0R05 1/16W

SMD/0402

SMD/0402

C1160

15pF 50V

C1162

15pF 50V

SMD/0402

R1194

100R 1/10W 5%

SMD/0402

R1162 100R 1/16W 5%

R1164 68R 1/16W 5%

SMD/0402

R1171 68R 1/16W 5%

R1189

240R 1/10W 1%

56R 1/16W 1%

R1166

56R 1/16W 1%

R1169

56R 1/16W 1%

C1189

NC/33PF 50V

NEAR YPBPR CONNECTOR

D1155 NC/BAS316

A1K

GRN

1 2

-------><------- -------><-------

FB1161

80 OHM

ZD1153

UDZSNP5.6B

VGA IN

UDZSNP5.6B

UDZSNP5.6B

NC/VPORT0603100KV05

VGA AUDIO

NC/VPORT0603100KV05

GRN_GND

BLU

ZD1154

BLU_GND

RED

ZD1155

RED_GND

1 2

1 2

-------><-------

1 2

VGA_AudioRIN

ZD1158

VGA_AudioLIN

ZD1159

D1156 NC/BAS316

A1K

1 2

FB1162

80 OHM

D1157 NC/BAS316

A1K

1 2

FB1163

80 OHM

1 2

---><---|>---><---|>

1 2

R1179

R1176

R1174

SOY1

C1154 10NF 50V

Y1P

SMD/0402SMD/0402

SMD/0402

C1157 10NF 50V

COM1

C1159 10NF 50V

PB1P

SMD/0402

C1163 10NF 50V

PR1P

SMD/0402SMD/0402

C1187

100N16V

M_SPDIF_Out

2

+5V_SW

C1170
5PF 50V

SMD/0402

R1186

75 OHM +-5% 1/16W

0R05 1/16W

SMD/0402

2

+5V_SW

C1171
5PF 50V

SMD/0402

75 OHM +-5% 1/16W

2

+5V_SW

C1172
5PF 50V

SMD/0402

SMD/0402 SMD/0402 SMD/0402

75 OHM +-5% 1/16W

NEARLY Connecter

+5V_SW

2

D1158

FB1168

K

NC/BAS316

A

600R/200mA

1

1 2

+5V_SW

2

D1161

FB1167

K

NC/BAS316

A

600R/200mA

1

1 2

C1180

10uF 10V

C1174

10uF 10V

68R 1/16W 5%

68R 1/16W 5%

CVBS IN

R1177

0R05 1/16W

R1180

68R 1/16W 5%

SMD/0402

R1181

100R 1/16W 5%

SMD/0402

R1175

SMD/0402

R1178

SMD/0402

R1152

30Kohm 1/16W +/-5%

SMD/0402

R1153

30Kohm 1/16W +/-5%

SMD/0402

AV AUDIO

CVBS

CVBS AUDIO

NEAR MT5363

C1173

1.5nF 50V

SMD/0402SMD/0402

C1178 10NF 50V

SMD/0402

C1176

10NF 50V

C1175

10NF 50V

C1179

10NF 50V

NC/VPORT0603100KV05

NC/VPORT0603100KV05

ZD1169

UDZSNP5.6B

NC/VPORT0603100KV05

NC/VPORT0603100KV05

SMD/0402

SMD/0402

SMD/0402

VGA_R_IN

VGA_L_IN

+5V_SW

NEAR YPBPR CONNECTOR

2

D1153

K

NC/BAS316

A

1

YPbPrR_I N

ZD1156

+5V_SW

2

1 2

D1154

K

NC/BAS316

A

1

YPbPrL_IN

CVBSR_IN

SOG

GP

COM

BP

RP

ZD1157

1 2

---><---|>---><---|>

1 2

NEAR AV CONNE CTOR NEAR MT5363

D1171

2

+5V_SW

A1K

NC/BAS316

R1200

---><---|>

0R05 1/16W

SMD/0402

R1199

75 OHM +-5% 1/16W

SMD/0402

+5V_SW

NEAR YPBPR CONNECTOR

2

D1163

K

NC/BAS316

A

1

ZD1166

+5V_SW

2

1 2

D1162

K

NC/BAS316

A

1

ZD1165

---><---|>---><---|>

1 2

C1164 10uF 10V

C1167 10uF 10V

C1165 10uF 10V

C1168 10uF 10V

HSYNC#

VSYNC#

----------><---------|----------><---------|

C1161
100N16V

SMD/0402

C1192

47P 50V

SMD/0402

0R05 1/16W

VGA_PLUGPWR

U110

1

A0

2

A1

3

A2
VSS4SDA

M24C02-WMN6TP

SMD/0402

R1201

SMD/0402

VCC

WP

SCL

EDID_WEN

SMD/0402

1 2

1 2

R1150

30K 1/10W 5%

R1151

30Kohm 1/16W +/-5%

R1154

30K 1/10W 5%

R1155

30Kohm 1/16W +/-5%

75 OHM +-5% 1/16W

ZD1160
UDZSNP5.6B

75 OHM +-5% 1/16W

SMD/0402

ZD1161
UDZSNP5.6B

VGA_PLUGPWR

8
7

VGASCL

6

VGASDA

5

R1187

SMD/0402

R1197

R1159

10K 1/16W 5%

SMD/0402

100R 1/16W 5%

YPbPr_R_IN

YPbPr_L_IN

C1191

R1198

CVBS1_INAV3_CVBS_IN

CVBS1_IN 8

47nF 16V

SMD/0402SMD/0402

C1152

CVBS0N

CVBS0N 6,8

1uF 10V

SMD/0402

CVBS_L_INCVBSL_IN

CVBS_L_IN 8

CVBS_R_IN

CVBS_R_IN 8

FB1164

80 OHM

FB1165

80 OHM

715G4041-M0A

11. YPBPR/VGA IN PUT

C1155
5PF 50V

SMD/0402

C1158
5PF 50V

SMD/0402

HSYNC

VSYNC

1 2

R1184
1K5 1/16W 5%

SMD/0402

1 2

R1185
1K5 1/16W 5%

SMD/0402

R1157

10K 1/16W 5%

SMD/0402

3

21Q1150

BC847C

The item of this page start from "1150"

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

Audio Input

Video Input

Other Control Interface

EDID_WEN7,10,14

Audio Input

YPbPr_L_IN8
YPbPr_R_IN8

Video Input

M_SPDIF_Out7,8
Moniter_Out8

U0RX10,12
U0TX10,12

VGA_RX_TX_EN8, 11

VGA_PLUGPWR

R1160

VGASCL_IN

----------><---------|

100R 1/16W 5%

ZD1162

VGASDA_IN

ZD1163

1 2

1 2

715G4041-M0A

13 20Tuesday, July 12, 2011

of

----------><---------|

SMD/0402

VGA_PLUGPWR

R1183

100R 1/16W 5%

SMD/0402

UDZSNP5.6B

UDZSNP5.6B

OEM MODE L

TPV MODEL

PCB NAME

Sheet

VGA_L_IN

VGA_L_IN8

VGA_R_IN

VGA_R_IN8

VSYNC

VSYNC8

HSYNC

HSYNC8

BP

BP8

SOG

SOG8

GP

GP8

COM

COM8

RP

RP8

EDID_W EN

YPbPr_L_IN
YPbPr_R_IN

SOY1

SOY18

Y1P

Y1P8

PB1P

PB1P8

COM1

COM18

PR1P

PR1P8

M_SPDIF_Out

Monite r_Ou t

U0RX
U0TX
VGA_RX_TX_EN

R1163
10K 1/16W 5 %

SMD/0402

VGASCL

R1182
10K 1/16W 5 %

SMD/0402

VGASDA

Size

Custom

Rev

1

HW4 nh

称爹

26

+5V_SW

D511

BAT54C

132

HPD1

RX2_1-

RX2_C-

RX2_2-

RX2_1+

RX2_C+

RX2_0-

HPD2

RX2_0+

RX2_2+

DV33_TMDS

U501

TMDS351PAGR

61

63

64

B2462A24

SHLD0

SHLD2

SHLD3

SHLD1

10
11
12
13
14
15
16

TMDSD2+

DSHLD0
TMDSD2-

TMDSD1+

DSHLD1
TMDSD1-

TMDSD0+

DSHLD2
TMDSD0­TMDSC+
CSHLD0

TMDSC-

DDC_GND

1

SDA3

2

SCL3

3

GND

4

B31

5

A31

6

VCC

7

B32

8

A32

9

GND
B33
A33
VCC
B34
A34
GND
Vsadj

CN502

CEC

NC
SCL
SDA

VCC5

HPD

HDMI

HPD3

Y417Z418VCC19Y320Z321GND22Y223Z224VCC25Y126Z127GND28SCL_SINK29SDA_SINK30HPD_SINK31S1

DV33_TMD S

M_RX2_2B

M_RX2_1

M_RX2_2

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

R540

19

1K 1/16W 5%

HDMI1_SDA
HDMI1_SCL

RX1_C­RX1_C+ RX3_1­DV33_TMDS
RX1_0­RX1_0+

RX1_1­RX1_1+
DV33_TMDS
RX1_2­RX1_2+

R546 4K64 1/10W 1%

20

22

23

21

HDMI 2 INPUT

CN501

20

SHLD0

1

TMDSD2+

2

22

DSHLD0

SHLD2

3

TMDSD2-

4

TMDSD1+

5

DSHLD1

6

TMDSD1-

7

TMDSD0+

8

DSHLD2

9

TMDSD0-

10

TMDSC+

11

CSHLD0

12

TMDSC -

13

CEC

14

NC

15

SCL

16

SDA

17

DDC_GND

R541

18

23

VCC5

SHLD3

19

1K 1/16W 5%

HPD

21

SHLD1

HDMI

HDMI 1 INPUT

CN506

20

SHLD0

1

TMDSD2+

2

22

DSHLD0

SHLD2

3

TMDSD2-

4

TMDSD1+

5

DSHLD1

6

TMDSD1-

7

TMDSD0+

8

DSHLD2

9

TMDSD0-

10

TMDSC+

11

CSHLD0

12

TMDSC-

13

CEC

14

NC

15

SCL

16

SDA

17

DDC_GND

18

23

SHLD3

21

SHLD1

R551

VCC5

1K 1/16W 5%

19

HPD

HDMI

HDMI 3 INPUT

1 2

DV33_TMDS

HDMI2_SDA

HDMI2_SCL

58

49

54

55

57

60

50

52

51

B2153A21

B2256A22

B2359A23

VCC

VCC

GND

SCL2

SDA2

HPD2

32

R568

1K 1/16W 5%

SMD/0402

M_RX2_C

DV33_TMD S

M_RX2_0

M_RX2_1B

M_RX2_CB

M_RX2_0B

HDMI_SW_HPD

HDMI_SW_SDA

HDMI_SW_SCL

SCL_2

SMD/0402

SDA_2

SMD/0402

PWR5V_2

R531470K 1/16W 5%

C516100N 16V

------><-------

SMD/0402

SCL_1

SMD/0402

SDA_1

SMD/0402

C509100N16V

R514470K 1/16W 5%

------><-------

SMD/0402

SCL_3

SMD/0402

SDA_3

SMD/0402

PWR5V_3

R525470K 1/16W 5%

C507100N 16V

------><-------

SMD/0402

FB505

120R/3000mA

C502

1UF16V

VDD

48

A14

47

B14

46

VCC

45

A13

44

B13

43

GND

42

A12

41

B12

40

VCC

39

A11

38

B11

37

SCL1

36

SDA1

35

HPD1

34

EQ

33

S2

R547 10K 1 /10W

R548 10K 1 /10W

R550 4.7K1/16W

RX2_2+

RX2_2­RX2_1+

RX2_1­RX2_0+

RX2_0-

RX2_C+

RX2_C­CEC_2

R529 100R 1/16W 5%
R530 100R 1/16W 5%

2

K

A

1

SMD/0402

RX1_2+

RX1_2­RX1_1+

RX1_1­RX1_0+

RX1_0-

RX1_C+

RX1_C­CEC_1

R510 100R 1/16W 5%
R511 100R 1/16W 5%

PWR5V_1

2

K

A

1

SMD/0402

RX3_2+

RX3_2-

RX3_1+

RX3_1­RX3_0+

RX3_0-

RX3_C+

RX3_C-

CEC_3

R521 100R 1/16W 5%
R522 100R 1/16W 5%

2

K

A

1

SMD/0402

D508BAS316

R549

4.7K1/16W

SMD/0402

R569

4.7K1/16W

D505BAS316

D501BAS316

RX3_2+
RX3_2-

DV33_TMDS

RX3_1+

RX3_0+
RX3_0-

DV33_TMDS

RX3_C+

RX3_C­HDMI3_SCL
HDMI3_SDA

HPD3

12

SMD/0402

D510 BAS316

A1K

ZD504NC/PDZ24B

D504 BAS316

A1K

12

ZD502NC/PDZ24B

D507 BAS316

A1K

12

ZD503NC/PDZ24B

SMD/0402

HDMI2_SCL
HDMI2_SDA

2

R5321K 1/16W 5 %

PWR5V_2

2

2

100R 1/16W 5%

HPLUGP2_5V

BC847C

SMD/0402

HDMI1_SCL
HDMI1_SDA

HPLUGP1_5V

R5151K 1/16W 5%

SMD/0402

PWR5V_1

HDMI3_SCL
HDMI3_SDA

HPLUGP3_5V

R5261K

SMD/0402

PWR5V_3

R570

R571

NC/0R05 OHM

R572

NC/0R05 OHM

R545

100R 1/16W 5%

DV33_TMDS

HPLUGP2_5V

3

HPLUGP1_5V

BC847C

HPLUGP3_5V

BC847C

HDMI_SW_C TRL2

SMD/0402

OSDA0

OSCL0

HDMI_SW_CTRL1

SMD/0402

R500

NC/0R05 1/16W

SMD/0402

R533

21Q506

1K

SMD/0402

3

21Q501

3

21Q504

TMDS351PAGR

TMDS361BPAGR

R513

NC/0R0 5 1/16W

SMD/0402

R517

1K

SMD/0402

R523

NC/0R0 5 1/16W

SMD/0402

R527

1K

SMD/0402

NC/2. 2K1/16W

R564

0R05 1/16W

SMD/0402

R545
R570

100R

HPD2

R544

4K7 1/16W 5%(NC )

SMD/0402

HPD1

R542

NC/4.7K 1/10W

SMD/0402

HPD3

R543

NC/4K7 1/16W 5%

SMD/0402

DV33

R563

SMD/0402

NC

FB504

1 2

120R/3000mA

C501

10uF 10V

DV33_TMDS

R549
R569

4K7

NC

R564

4K7

USB_DP11
USB_DM11

U508 NC/RClamp0524P.TCT

1

IN1

OUT1

2

IN2

OUT2

4

IN3

OUT3

IN45OUT4

GND

GND

3

8

U509 NC/RClamp0524P.TCT

1

IN1

OUT1

2

IN2

OUT2

4

IN3

OUT3

IN45OUT4

GND

GND

3

8

U510 NC/RClamp0524P.TCT

1

IN1

OUT1

2

IN2

OUT2

4

IN3

OUT3

IN45OUT4

GND

GND

3

8

U505 NC/RClamp0524P.TCT

1

IN1

2

IN2

4

IN3
IN45OUT4

GND

GND

3

8

U506 NC/RClamp0524P.TCT

1

IN1

2

IN2

4

IN3
IN45OUT4

GND

GND

3

8

U507 NC/RClamp0524P.TCT

1

IN1

2

IN2

4

IN3
IN45OUT4

GND

GND

3

8

U511 NC/RClamp0524P.TCT

1

IN1

2

IN2

4

IN3
IN45OUT4

GND

3

8

U512 NC/RClamp0524P.TCT

1

IN1

2

IN2

4

IN3
IN45OUT4

GND

3

8

U513 NC/RClamp0524P.TCT

1

IN1

2

IN2

4

IN3
IN45OUT4

GND

3

8

715G4041-M0A

of

14 20Wednesday , April 06, 2011

EDID_W EN
HDMI_SW_CTRL1
HDMI_SW_CTRL2

PWR5V_3
PWR5V_1
USB_DP
USB_DM

10
9

7
6

10
9

7
6

10
9

7
6

OUT1
OUT2

OUT3

OUT1
OUT2

OUT3

OUT1
OUT2

OUT3

OUT1
OUT2

OUT3

GND

OUT1
OUT2

OUT3

GND

OUT1
OUT2

OUT3

GND

PWR5V_2

10
9

7
6

10
9

7
6

10
9

7
6

10
9

7
6

10
9

7
6

10
9

7
6

RX2_2+
RX2_2-

RX2_1+
RX2_1-

RX2_0+
RX2_0-

RX2_C+
RX2_C-

CEC_2
SCL_2

SDA_2

RX1_2+
RX1_2-

RX1_1+
RX1_1-

CEC_1
SCL_1

SDA_1

PWR5V_1

PWR5V_3

RX1_0+
RX1_0-

RX1_C+
RX1_C-

RX3_2+
RX3_2-

RX3_1+
RX3_1-

RX3_0+
RX3_0-

RX3_C+
RX3_C-

CEC_3
SCL_3

SDA_3

(SID E)

Size

Rev

称爹

HW4 nh

Custom

1

EDID_W EN7,10,13

AV12 AVDD1V25_HDMI

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NEAR IC

AV33

NEAR IC

3 HDMI2 HDMI

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

R534

0R05 1/10W

AVDD1V25_USB

R565

0R05 1/10W

AVDD3V3_HDMI

R566

0R05 1/10W

AVDD3V3_USB

R567

0R05 1/10W

2 HDMI

ITEM 3 HDMI

R528

Q502

Q508

R540

R541

R504

C503
100N16V

SMD/0402

C504
100N16V

SMD/0402

C505
100N16V

SMD/0402

C510

C506

4.7UF 10V

100N16V

SMD/0402

YES

NC

YES

NC

YES

NC

YES

NC

YES

NC

NC

YES

The item of thi s page s tart from "50 1"

T P V ( Top Victory Electronics Co . , Ltd. )

715G4041-M0A

絬 隔 瓜 絪 腹

Key Component

13. HDMI1/HDMI2/HDMI3 INPUT

Date

NEAR IC

DV33_TMDS

C515
100N16V

SMD/0402

HDMI_SW_CTRL1

HDMI_SW_CTRL2

C513
100N16V

SMD/0402

SMD/0402

C514
100N16V

HDMI1

AVDD1V25_HDMI

AVDD3V3_HDMI

SMD/0402

HDMI3

H

HH

C520
100N16V

C521
100N16V

SMD/0402

C519
100N16V

SMD/0402

HDMI2

L

L

L

HDMI_CEC

AVDD1V25_USB

AVDD3V3_USB

USB_VRT
USB_DP
USB_DM

USB_VRT

AP11

AM13
AN12

AN14

AL10

AM9

AM11

AP9
AT9

AT11

AN10
AU10
AR10

R562

5K1 1/10W 1%

U6304E

AVDD12_HDMI

AVDD33_HDMI
AVSS33_HDMI

HDMI_CEC

AVDD12_USB
AVSS12_USB

AVDD33_USB
AVSS33_USB
AVSS33_USB
AVSS33_USB

USB_VRT
USB_DP
USB_DM

MT5363LIMG

HDMI &
USB I/F

RX1_CB

RX1_0B

RX1_1B

RX1_2B
HDMI_HPD1
HDMI_SDA1
HDMI_SCL1

PWR5V_1

RX2_CB

RX2_0B

RX2_1B

RX2_2B
HDMI_HPD2
HDMI_SDA2
HDMI_SCL2

PWR5V_2

AR16

RX1_C

AU16
AP17

RX1_0

AT17
AR18

RX1_1

AU18
AP19

RX1_2

AT19
AL18
AN18
AM17
AL16

M_RX2_C

AR12

RX2_C

M_RX2_CB

AU12

M_RX2_0

AP13

RX2_0

M_RX2_0B

AT13

M_RX2_1

AR14

RX2_1

M_RX2_1B

AU14

M_RX2_2

AP15

RX2_2

M_RX2_2B

AT15

HDMI_SW_HPD

AN16

HDMI_SW_SDA

AL14

HDMI_SW_SCL

AL12

PWR5V_2

AM15

Closed to Main Chi p

DV33SB

1

D502

A

BAS316

R571
R572

CEC_1

CEC_2

NC

0R

0R

+5V_SW

D509 BAS316

2

A1K

FB503 600R/500mA

HPLUGP2_5V

------><-------

HDMI 1 EDID EEPROM

+5V_SW

D503 BAS316

2

A1K

HPLUGP1_5V

------><-------

+5V_SW

D506 BAS316

2

A1K

HPLUGP3_5V

------><-------

K

2

R502

27K 1/10W 5%

HDMI_CECCEC_3

ZD501
NC/BZX384-C5V6

1 2

1 2

C517

100N16V

SMD/0402

U503

1

8

A0

VCC

2

7

A1

WP

3

6

A2

SCL

5

VSS4SDA

M24C02-WMN6TP

FB502 600R/500mA

1 2

C508100N16V

SMD/0402

U502

1

8

A0

VCC

2

7

A1

WP

3

6

A2

SCL

5

VSS4SDA

M24C02 -WMN 6TP

HDMI 2 EDID EEPROM

FB501 600R/500mA

1 2

C511100N16V

SMD/0402

U504

1

8

A0

VCC

2

7

A1

WP

3

6

A2

SCL

5

VSS4SDA

M24C02-WMN6TP

HDMI 3 EDID EEPROM

(SID E)

NEAR Connet

R536

R535

47K 1/10W 5%

10K 1/10W

R538

33 OHM 1/16W

SMD/0402

R508

R507

47K 1/10W 5%

10K 1/10W

R512

33 OHM 1/16W

SMD/0402

R518

R519

SMD/0402

SMD/0402

10K 1/16W 5%

47K 1/16W 5%

R524

33 OHM 1/16W

SMD/0402

R537

47K 1/10W 5%

HDMI2_SCL
HDMI2_SDA

R509

47K 1/10W 5%

R520

HDMI1_SCL
HDMI1_SDA

47K 1/16W 5%

SMD/0402

BC847C

BC847C

HDMI3_SCL
HDMI3_SDA

BC847C

EDID_WEN:
write_enable: High
write_disable: Low

3

21Q507

3

21Q503

3

R539

EDID_WEN

4.7K1/16W

SMD/0402

EDID_WEN:
write_enable: High
write_disable: Low

R516

EDID_WEN

4.7K1/16W

SMD/0402

EDID_WEN:
write_enable: High
write_disable: Low

R528

EDID_W EN

21Q505

4.7K1/16W

SMD/0402

ITEM

CN506

R521

R522

D507

C507

R525

D501

ZD503

R526

Q504

R523

2 HDMI

ITEM

3 HDMI

YES

R527

NC

YES

NC

R543

YES

NC

D506

YES

NC

FB501

YES

C511

NC

YES

NC

U504

YES

R518

NC

YES

NC

R519

YES

NC

R524

YES

NC

R520

YES

Q505

NC

HDMI_SW_CTRL111
HDMI_SW_CTRL211

PWR5V_310
PWR5V_110

HDMI2 ESD PROTECTER

RX2_2+
RX2_2-

RX2_1+
RX2_1-

RX2_0+
RX2_0-

RX2_C+
RX2_C-

CEC_2
SCL_2

SDA_2
PWR5V_2

HDMI1 ESD PROTECTER

RX1_2+
RX1_2-

RX1_1+
RX1_1-

RX1_0+
RX1_0-

RX1_C+
RX1_C-

CEC_1
SCL_1

SDA_1
PWR5V_1

HDMI3 ESD PROTECTER

RX3_2+
RX3_2-

RX3_1+
RX3_1-

RX3_0+
RX3_0-

RX3_C+
RX3_C-

CEC_3
SCL_3

SDA_3
PWR5V_3

OEM MODE L

TPV MODEL

PCB NAME

Sheet

27

FB6304

R6203

1.8KOHM 1/10W

Q6201

BC847C

+5V_ON

R6222

10K 1/16W 5%

R6204

AMP_MUTE10

100R 1/10W 1%

AC_OFF 11

3

1

Q6203

PDTC114ET

2

R6207

1.8KOHM 1/10W

D6201 LS4148

A1K

D6202 LS4148

A1K

2

2

R6217

4K7 1/16W 5%

R6216

10K 1/16W 5%

POP_MUTE

Q6202

BC847C

FB6203

120R/6000m A

R6206

R6208

R6219

NC/470K

C6215

NC/470N

Q6206

NC/MUN2211TIG

+24V

1 2

2
3
4 5

NC/SI4835DDY

10K 1/10W 5%

Q6204

R6221

A1K

C6229

100N 50V

D6203

S3B

+24V_SW

2

81
7
6

+

C6228

10uF/35V

6.3x7mm

+

C6227

330UF 35V

10x9mm

FB6202

120R/6000m A

1 2

+24V_AMP

+3V3

NC/56K

R6201

NC/18K

NC/47K

Q6205

AUD_PWR_SW8

NC/MUN 2211TIG

R6202

100K 1/10W 5%

ZD6201

BZX84C3V6

C6204

10uF 10V

13

R6205

470KOHM +-5% 1/10W

120R/6000mA

+5V_SW

12

SP_AMP_MUTE10

SP_AMP_MUTE

0R05 1/16W

+

C6358

100UF 16V

R6314

Aud3V3

Aud3A3

Aud3V3

HP_Out_L8

HP_Out_R8

PLL_GND

TP6302

TW

C6309

0.1uF 50V

HP_Out_L

HP_Out_R

C6321

0.1uF 50V

TP6301

A_Reset10

I2SDATA8

LRCKI8

BICKI8

XTI8

C63070.1uF 50V

R63132R2 1/16W 5%
C63220.1uF 50V

C6308

0.1uF 50V

R6311 10K 1/16W 5%

EAPD

10K 1/16W 5%

Aud3V3

C6310

0.1uF 50V

C6207

1UF16V

C6230

1UF16V

Aud3V3

Aud_SCL
Aud_SDA

A_Reset

PLL_FILT

PWDN

TW
EAPD

C6326

0.1uF 50V

R6301

10K 1/16W 5%

NC/1N 8 50V

10K 1/16W 5%

NC/1N 8 50V

DDX3B

DDX3A

C63110.1uF 50V

POP_MUTE

R6210

C6209

R6212

C6210

37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19

STA339BWTR

37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19

Thermal Pad
VDD_DIG
GND_DIG
SCL
SDA
INT_LINE
RESET
SDI
LRCKI
BICKI
XTI
GND_PLL
FILTER_PLL
VDD_PLL
PWRDN
GND_DIG
VDD_DIG
TWARN/OUT4A
EAPD/OUT4B

GND
VCCSIGN
VCCSIGN
VSS
VSS
IN2B
IN2A
IN1B
IN1A
TH_WA R
FAULT
TRI-STATE
PWRDN
CONFIG
VL
VDD
VDD
GND-REG
GND-CLEAN

R6209 10R 1/16W 5%

10K 1/16W 5%

R6223

R6224

10K 1/16W 5%

U6302

GND_SUB

SA

TEST_MODE

VSS

VCC_REG

OUT2B

GND2

VCC2
OUT2A
OUT1B

VCC1

GND1
OUT1A

GND_REG

VDD

CONFIG

OUT3B
OUT3A

U6303

1

GND-SUB

2

OUT2B

3

OUT2B

4

VCC2B

5

GND2B

6

GND2A

7

VCC2A

8

OUT2A

9

OUT2A

10

OUT1B

11

OUT1B

12

VCC1B

13

GND1B

14

GND1A

15

VCC1A

16

OUT1A

17

OUT1A

18

NC

STA515W

OPS_5V

C6206

1UF 10V

1

2

3

C1P

C1N

PGND

4

PVss

5

SHDN

6

IN_L

U6201

MAX9728AETC+

C6212 47P 50V

1

C6318

2

C6316

3

0.1uF 50V

0.1uF 50V
4
5

OUT2B

6
7
8

OUT2A

9

OUT1B

10
11
12

OUT1A

13

C6345

14

C6320

15

0.1uF 50V

16

0.1uF 50V

DDX3B

17

DDX3A

18

OUTA

OUTA

C6360

C6359

1U 50V

0.1uF 50V

C6313

C6312

0.1uF 50V

1U 50V

OUTB

SGND

7

C6314

1U 50V

C6319

1U 50V

VDD

OUTL

OUTR

SVss

IN R

9

8

R6213

10K 1/16W 5%

R6215

10K 1/16W 5%

C6315

0.1uF 50V

C6208

1UF 10V

C6346

0.1uF 50V

+

12

11

10

C6211

47P 50V

+

C6317

330UF 35V

10x9mm

C6340

330UF 35V

10x9mm 10x9mm

+5V_ON

FB6204

1 2

120R/3000m A

C6205

C6213

10uF 10V

1U 25V

R6211

10OHM1/10W

R6214

10OHM1/10W

Main audio output deleted

FB6301

120R/6000mA

+

C6356

330UF 35V

10x9mm

+24V_AMP

OUTA

FB6302

120R/6000mA

1 2

+

C6357

330UF 35V

22 OHM 1/8W

OUTB

R6304

HP_LOUT

HP_ROUT

+24V_AMP

12

C6337

330pF 50V

SMD

5.1mm

OUT2A

R6309

22 OHM 1/8W

OUT2B

OUT1A

R6315

22 OHM 1/8W

OUT1B

L6305

22uH

SMD

5.1mm

L6306

22uH

FB6201

+24V_SW

1 2

NC/120R/3000mA

HP_ROUT HPROUT

HP_DET#11

HP_LOUT

R1328NC/1KOHM +-5% 1/16W

C1327

C1326

47nF 16V

47nF 16V

L6303

22uH

C6332

SMD

0.1uF 50V

5.1mm

C6331

330pF 50V

SMD

L6304

5.1mm

22uH

L6301

22uH

SMD

5.1mm

C6323

330pF 50V

L6302

SMD

22uH

5.1mm

C6336

0.1uF 50V

6.2 OHM 1/4W

C6334

0.1uF 50V

R6305

C6335

0.1uF 50V

R6306

6.2 OHM 1/ 4W

C6333

0.1uF 50V

C6329

6.2 OHM 1/ 4W

0.1uF 50V

R6307

C6301

C6330

0.1uF 50V

R6308

C6328

6.2 OHM 1/ 4W

0.1uF 50V

C6324

0.1uF 50V

C6341

6.2 OHM 1/ 4W

0.1uF 50V

C6339

R6316

C6325

0.1uF 50V

R6310

C6327

6.2 OHM 1/ 4W

0.1uF 50V

C6354

1N 50V

C6353

C6302

1N 50V

100N 50V

C6355

1N 50V

C6202

NC/1uF 50V

FB1301 600R/200mA

FB1302 600R/200m A

FB1303 600R/200m A

R1329

NC/1KOH M +-5% 1/16W

C6351

1N 50V

100N 50V

C6350 1N 50 V

C6352

1N 50V

ROUT-

LOUT+

C6347

1N 50V

C6349

100N 50V

C6348

1N 50V

LOUT-

CONN

3
2
1

CN6302

ROUT+

1N 50V

IN3OUT

GND

2

12
12

12

OPS_5V

1

+

U6202

NC/L78L05 ACU-TR

8x9mm

EARPDET

HPLOUT

1
2
3
4

PHONEJACK
5
4
3
2
6
7
1

Right-angle
type

10.5mm

CN6301

CONN

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

C6201

NC/470uF 10V

CN1302

12

0.1uF 50V

+

R6321

0R05 1/16W

R6322

0R05 1/16W

R6318

C6338

OSCL0

OSDA0

1.8KOHM 1/10W

G903T63UF

0.6A/3.3V
SOT-223

U6301
G903T63UF

VIN3VOUT

Aud3V3

R6319

SP_AMP_MUTE
POP_MUTE

OEM MOD EL

TPV MOD EL

PCB NAME

Sheet

2

GND14

4

OSCL0 10 ,12,17

OSDA0 10,12, 17

715G4041-M0A

15 20Tuesday, July 12, 2011

of

Aud3V3

0.1uF 50V

+

C6304

Reset (p ull-up)

R6303

1R 1%

C6305

100UF 16V

5x7mm

PLL_FILT

PLL_GND

+5V_ON

FB6303

120R/3000m A

C6303

100UF 16V

5x7mm

IIC DIGITA L SW Co nnecti on to PL L fil ter

Aud_SCL

Aud_SDA

Powe r down (pull-up)

PWDN

1

1

D6301

D6302

A

A

K

K

LS4148

LS4148

2

2

715G4041-M0A

14. AUDIO AMP/H EADPHONE OUT

Aud3A3

C6343

680pF 50V

A_Reset

0.1uF 50V

C6306

R6312

2K2 +-1% 1/16W

C6342

4N7 50V

Aud3V3

R6317

10K 1/16W 5%

C6344

1NF

C

Size

1

Rev

HW4 nh

称爹

28

POWER M82_DV33

FB713

1 2

1 2

C737

220uF 16V(NC)

NC/220R/2000mA(NC)

FB714
220R/2000mA(NC)

+

C736

R729

10K 1/16W 5%(NC )

+12V/5 V

R728

15K 1/16W 5%(NC )

100N16V(NC)

OFF ON OFF O N

U704

1

NC

2

IN

7

EN

6

COMP

C735

180P 50V(NC)

R730

0R05 1/16W(N C)

+5V_SW

G5657F12U(NC )

LX

FB

SS

GND4Thermal Pad

9

C738

100N16V(NC)

CORE POWER M82_DV11

FB712
NC/220R/2000mA(NC)

1 2

FB711
220R/2000mA(NC)

C761

220uF 16V(NC)

M82_DV33

1 2

+

C739

R734

10K 1/16W 5%(NC )

+

C731

220UF 16V(NC )

M82_DV33

C732

100N16V(NC)

3

5

8

L703

10uH(NC)

D705

SS3P4(NC)

1 2

R1

R732

24K +-1% 1/16W(NC)

R2

R733

62K 1/16W 1%(NC)

+12V/5 V

+5V_SW

U705

G5657F12U(NC )

GND4Thermal Pad

9

3

LX

5

FB

8

SS

C741

100N16V(NC)

1

NC

2

IN

7

100N16V(NC)

EN

6

COMP

C740

2.2nF 50V(NC )

R735

10K 1/16W 5%(NC )

L704

4.7uH(NC )

D706

SS3P4(NC)

1 2

R737

18Kohm 1/16W +/-1%(N C)

R2

R736

3.9K 1%(N C)

R1

M82_DV11

+

C743

C742

100N16V(NC)

220UF 16V(NC )

POWER M82_AV33

M82_DV33 M82_AV33

C744
1uF 16V(NC)

FB708
220R/2000mA(NC)

1 2

C745
10NF 50V(NC)

Vout = 0.92x (1+R1/R2) = 0.92 x ( 1 + 62K/ 24K ) = 3.3V

POWER M82_AV12

M82_AV33

C748

+

C746

+

100UF 16V(NC )

C747
10NF 50V(NC )

220UF 16V(NC )

Vout = 0.92x (1+R1/R2) = 0.92 x ( 1 + 3.9K/ 18K ) = 1.19V

M82_AV12 = 1.2637 - 1 x 0. 064 = 1.1993 V

U706
G1117T63Uf(N C)

3

VIN

C749

100NF 25V(NC )

VOUT

GND

TH

1

4

R738

750R 1%(NC)

2

R740

C750

R1

1uF 16V(NC)

68K 1/16W 1%(NC )

R739

0R01 1/10W(N C)

C751

10uF 10V(NC)

C755

100N16V(NC)

R2

Vout = 1.25 x ( 1+ [R2/R1] ) = 1.25 x (1 + 750/68K) = 1.2637V

T P V ( Top Victory Electronics Co . , Lt d. )

絬 隔 瓜 絪 腹

Key Component

715G4041-M0A

16. MEMC DC CONVERTER

Date

29

M82_ AV12

C760

+

220UF 16V(NC )

OEM MO DE L

715G4041-M0A Cust om

TPV MOD EL

715G4041-M0A 1

PCB NAME

715G4041-M0A

Sheet

of

16 20Friday , March 04, 2 011

Size

Rev

称爹

HW4 nh

MT8282 Peripheral

V20

U13
U14
U15

Y19

V13
V14
V15

Y18
W18

W19
W20

U4401C

AVDD33_XTAL

AVDD12_SY SPLL
AVDD12_DMPLL
AVDD12_MJCPLL

AVSS33_XTAL
AVSS12_SYSPLL
AVSS12_DMPLL
AVSS12_MJCPLL

TP0
TN0

XTAL I
XTAL O

MT8282AGG(NC)

JRTCK

JTCK
JTMS

JTDO

JTRST

CLK_IN

CLK_OUT

RXDMA_ACK

PRST_

EFUSE

GPIO0
GPIO1
GPIO2
GPIO3

RXD0

TXD0

SFCK
SFD0
SFD1
SFCS

JTDI

SDA
SCL

AV33_XTAL

AV12_PLL

XTAL I
XTAL O

AV33 XTAL POWER

M82_AV33 M82_AV12

FB406

1 2

120R/3000mA(N C)

AV33_XTAL

C435

C436

100N16V(NC)

4.7UF 10V(N C)

V1
U2
V2
U3
T5
U4
W16
Y16

W1
W2
Y2

V3
Y3
W3
V4

U11
V11

W17
Y17

B20
B19
C20
C19

M82_GPIO20M82_JTDI
M82_GPIO21M82_JTRCK

M82_GPIO22M82_JTCK
M82_JTMS
M82_JTDO

M82_DMAACK
M82_RST#
M82_EFUSE

M82_U1TX
M82_U1RX

BL_ON/OFF _M 20
PANEL_VCC_ON/ OFF_M 5

M82_SDA
M82_SCL

M82_U0RX
M82_U0TX

R451 0R 05 1/16W(NC)
R430 0R 05 1/16W(NC)
R423 0R 05 1/16W(NC)
R424 0R 05 1/16W(NC)

AV12 PLL POWER

FB407

AV12_PLL

1 2

120R/3000mA(N C)

C439

TP401
TP402
TP403

TP4

4.7UF 10V(N C)

M82SPI_SCK
M82SPI_SO
M82SPI_SI
M82SPI_CS#

C440

R422

0R05 1/16W(N C)

C441

100N16V(NC)

M82_DV33

R428

1K 1/16W 5%(NC )

Serial Flash 4 Mb

M82SPI_CS#
M82SP I_ SI
WP# M82SPI_SCK

R421 0R05 1/ 16W(NC)

M82_JTMS

1
2
3

U405

8

CS

VCC

7

SO

HOLD

6

WP

SCK

M82SPI_SO

5

GND4SI

MX25L4005AMI-12G(NC)

M82_DV33

Trapping : Default Low when no configuration external

M82_DV33

R425 1K 1/ 16W 5%(NC)

M82_ JTD O

R426 1K 1/16W (NC)

I2C CONNECTION

M82_SDA

M82_SCL

R434 0R05 1/ 16W(NC)

R431 0R05 1/ 16W(NC)

Crystal

R429 820K 1/16W 5%(NC)

X401

330pF 50V(NC)

4

C437

27MHz(NC)

30PF 50V(NC)

XTAL OXTAL I

123

C438

30PF 50V(NC)

OSDA0

OSCL0

OSD DMA ACK

M82_DMAACK

R432

0R05 1/16W(N C)

MT8282 RESET#

R448

4K7 1/16W(NC )

R449

0R05 1/16W(N C)

MCHI P_R ST#

M82_RST#

R450
0R05 1/10W(NC)

C433

10uF 10V(NC)

DMA_ACK_GP4

M82_DV33

4K7 1/16W 5%(NC )

C434

100N16V(NC)

UART for code download and debug

R455

M82_U0TX

R457 0R05 1/16W(NC )

M82_U0RX

R456 0R05 1/16W(NC )

2nd UART for code
download from USB.

TP411

R4197

M82_U1RX

M82_U1TX

TP414

TP415

R458

4K7 1/16W 5%(NC)

R437

4K7 1/16W 5%(NC)

R427

0R05OHM1/16W(N C)

R452

0R05OHM1/16W(N C)

4K7 1/16W 5%(NC )

M82_AV33

4K7 1/16W 5%(NC )

R453

2nd UART from MT5363

U1RX10,12
U1TX10,12

I2C to MT5363

OSCL010,12,15
OSDA010,12,15

RESET from MT5363

MCHIP_RST#8

GPIO control to Panel

3 Pin

2.0mm P itch
Vertical Type

R454

4K7 1/16W 5%(NC )

M82_AV33

CN402

1
2
3

CONN(NC)

R433

4K7 1/16W 5%(NC)

U1TX

U1RX

M82_GPIO2019
M82_GPIO2119
M82_GPIO2219

U1RX
U1TX

OSCL0
OSDA0

MCHI P_R ST#

M82_GPIO20
M82_GPIO21
M82_GPIO22

MT8282 POWER

B2
C11
C12
C13

C3
C4

D11

D4
E10
E11

E5

E6
F16
H11
H13

H5

H9
J10
J12

J3

J5
K10
K11
K12
K13

K4

K5

K8

K9

L10
L11
L12

L3

L9
M10
M11
M13

M8
N11
N12

N3

N9

T12

U5

V5

U4401A

DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS

MT8282AGG(NC)

VCC3IO_3
VCC3IO_2
VCC3IO_1
VCC3IO_1

VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK

M82_DV33

C18
U12
R5
T4

M82_DV11

A18
A19
A20
B17
B18
C16
C17
D15
D16
E14
E15
H10
H12
J11
J13
J9
L13
L8
M12
M9
N10
N13
N8

DV33 IO POWER

M82_DV33

C442

+

220UF 16V(NC )

DV10 CORE POWER

M82_DV11

C448

C449

+

220UF 16V(NC )

22uF 10V(NC)

C461

4.7UF 10V(N C)

C443

4.7UF 10V(N C)

C462

4.7UF 10V(N C)

C444
100N16V(NC)

C463

4.7uF 10V(NC )

C445
100N16V(NC)

C450

4.7UF 10V(N C)

C446

3.3nF 50V(NC)

C451
100N16V(NC)

C447

3.3nF 50V(NC)

C452
100N16V(NC)

C453
10NF 50V(NC )

C454
10NF 50V(NC )

C455
4N7 25V(NC)

C456
4N7 25V(NC)

C457

1.5nF 50V(NC )

C458

1.5nF 50V(NC )

C459
330pF 50V(NC)

0419 modify

C

T P V ( Top Victory Electronics Co . , Ltd. )

715G4041-M0A

絬 隔 瓜 絪 腹

Key Component

17. MEMC PERIPHERAL

Date

OEM MOD EL

TPV MOD EL

PCB NAME

Sheet

715G4041-M0A

of

17 20Thursday, January 20, 2011

Size

1

Rev

HW4 nh

称爹

30

M82_DDRV

M_RA0
M_RA1
M_RA2
M_RA3
M_RA4
M_RA5
M_RA6
M_RA7
M_RA8
M_RA9
M_RA1 0
M_RA1 1
M_RA1 2

M_RCLK0
M_RCLK0#

M_RCLK1
M_RCLK1#

TP412

TP413

M82_AV12_MEMPLL
GND

M82_MEM_VREF

U4401B

C6

RA0

A3

RA1

A4

RA2

D3

RA3

D6

RA4

B3

RA5

B5

RA6

C1

RA7

C5

RA8

B1

RA9

D2

RA10

B4

RA11

C2

RA12

B8

VCC2IO

C15

VCC2IO

A17

VCC2IO

B16

VCC2IO

C9

VCC2IO

D14

VCC2IO

D8

VCC2IO

E13

VCC2IO

E7

VCC2IO

E8

VCC2IO

E9

VCC2IO

F1

VCC2IO

F2

VCC2IO

F3

VCC2IO

G4

VCC2IO

G5

VCC2IO

L5

VCC2IO

N5

VCC2IO

P3

VCC2IO

P4

VCC2IO

P5

VCC2IO

R2

VCC2IO

R3

VCC2IO

R4

VCC2IO

T1

VCC2IO

T2

VCC2IO

T3

VCC2IO

U1

VCC2IO

B7

RCLK0

A7

RCLK0_

P2

RCLK1

P1

RCLK1_

A2

MEMTP

A1

MEMTN

H8

AVDD12_MEMPLL

J8

AVSS12_MEMPLL

F4

RVREF0

F5

RVREF0

MT8282AGG(NC)

RDQ0
RDQ1
RDQ2
RDQ3
RDQ4
RDQ5
RDQ6
RDQ7
RDQ8

RDQ9
RDQ10
RDQ11
RDQ12
RDQ13
RDQ14
RDQ15
RDQ16
RDQ17
RDQ18
RDQ19
RDQ20
RDQ21
RDQ22
RDQ23
RDQ24
RDQ25
RDQ26
RDQ27
RDQ28
RDQ29
RDQ30
RDQ31

RDQM0
RDQM1
RDQM2
RDQM3

RDQS0

RDQS0_

RDQS1

RDQS1_

RDQS2

RDQS2_

RDQS3

RDQS3_

RWE_

RCKE
RRAS_

RCS_

RODT
RCAS_

REXTDN

M_RD Q0

B9

M_RD Q1

A15

M_RD Q2

A8

M_RD Q3

B15

M_RD Q4

A16

M_RD Q5

C8

M_RD Q6

C14

M_RD Q7

D9

M_RD Q8

A10

M_RD Q9

B13

M_RD Q1 0

B10

M_RD Q1 1

B14

M_RD Q1 2

A14

M_RD Q1 3

C10

M_RD Q1 4

D12

M_RD Q1 5

D10

M_RD Q1 6

M5

M_RD Q1 7

G1

M_RD Q1 8

N1

M_RD Q1 9

G2

M_RD Q2 0

G3

M_RD Q2 1

N4

M_RD Q2 2

H4

M_RD Q2 3

N2

M_RD Q2 4

L4

M_RD Q2 5

H2

M_RD Q2 6

M2

M_RD Q2 7

H1

M_RD Q2 8

H3

M_RD Q2 9

M3

M_RD Q3 0

J4

M_RD Q3 1

M4

M_RD QM0

E12

M_RD QM1

D13

M_RD QM2

K3

M_RD QM3

J2

M_RD QS 0

B12

M_RD QS 0#

A12

M_RD QS 1

A11

M_RD QS 1#

B11

M_RD QS 2

K2

M_RD QS 2#

K1

M_RD QS 3

L1

M_RD QS 3#

L2

M_RW E#

E1

M_RC KE

E3

M_RRAS#

A6

M_RC S#

B6

M_RO DT

C7

M_RCAS#

D7

M_RBA0

E4

RBA0

M_RBA1

D5

RBA1

E2

RBA2

R1

Damping for DDR#1 ADDR/CMD

M_RBA0

M_RC KE

M_RA 12
M_RA 7
M_RA 3
M_RA 10

M_RBA1
M_RA 1
M_RA 5
M_RA 9

M_RA 6
M_RA 8
M_RA 11
M_RA 2

M_RO DT
M_RRAS#
M_RC S#
M_RCAS#

R4407

M_RA4

300R 1/16W 1%(NC)

M_RA0

Damping and Termination for CLK

Close to MT8281

M_RC LK 0

R4402
22R 1/16W 5%(NC)

M_RC LK 0#

R4403
22R 1/16W 5%(NC)

M_RC LK 1

R4404
22R 1/16W 5%(NC)

M_RC LK 1#

R4406
22R 1/16W 5%(NC)

4

5

3

6

2

7

1

8

RP4401 56R(NC)

4

5

3

6

2

7

1

8

RP4403 56R(NC)

4

5

3

6

2

7

1

8

RP4405 56R(NC)

4

5

3

6

2

7

1

8

RP4407 56R(NC)

4

5

3

6

2

7

1

8

RP4409 56R(NC)

R4408

56R 1/16W 5%(NC)

R4410

56R 1/16W 5%(NC)

Damping for DDR#2 ADDR/CMD

M_1_BA0
M_1_WE#M_RW E#
M_1_CKE

M_1_A12
M_1_A7
M_1_A3
M_1_A10

M_1_BA1
M_1_A1
M_1_A5
M_1_A9

M_1_A6
M_1_A8
M_1_A11
M_1_A2

M_1_ODT
M_1_RAS#
M_1_CS#
M_1_CAS#

M_1_A4

M_1_A0

Close to DRAM

M_CL K0

R4401
100R 1/16W 5%(NC)

M_CLK 0#

M_CL K1

R4405
100R 1/16W 5%(NC)

M_CL K1#

M_2_BA0
M_2_WE#
M_2_CKE

RP4402 56R(NC)

M_2_A12
M_2_A7
M_2_A3
M_2_A10

RP4404 56R(NC)

M_2_BA1
M_2_A1
M_2_A5
M_2_A9

RP4406 56R(NC)

M_2_A6
M_2_A8
M_2_A11
M_2_A2

RP4408 56R(NC)

M_2_RAS#
M_2_CS#
M_2_CAS#

RP4410 56R(NC)

M_2_A4

R4409

M_2_A0

R4411

4

5

3

6

2

7

1

8

4

5

3

6

2

7

1

8

4

5

3

6

2

7

1

8

4

5

3

6

2

7

1

8

4

5

3

6

2

7

1

8

56R 1/16W 5%(NC)

56R 1/16W 5%(NC)

M_RBA0
M_RW E#
M_RC KE

M_RA 12
M_RA 7
M_RA 3
M_RA 10

M_RBA1
M_RA 1
M_RA 5
M_RA 9

M_RA 6
M_RA 8
M_RA 11
M_RA 2

M_RODTM_2_ODT
M_RR AS #
M_RC S#
M_RC AS #

M_RA 4

M_RA 0

U4403

M_RD Q0

G8

DQ0

M_RD Q1

G2

DQ1

M_RD Q2

H7

DQ2

M_RD Q3

H3

DQ3

M_RD Q4

H1

DQ4

M_RD Q5

H9

DQ5

M_RD Q6

F1

DQ6

M_RD Q7

F9

DQ7

M_RD Q8

C8

DQ8

M_RD Q9

C2

DQ9

M_RD Q10

D7

DQ10

M_RD Q11

D3

DQ11

M_RD Q12

D1

DQ12

M_RD Q13

D9

DQ13

M_RD Q14

B1

DQ14

M_RD Q15

B9

DQ15

NC/N15

A2

NC

E2

NC

M_RD QS1

B7

UDQS

A8

UDQS

F7

LDQS

E8

LDQS

B3

UDM

F3

LDM

J2

VREF
CKEK2WE

A1

VDD

A9

VDDQ

C1

VDDQ

C3

VDDQ

C7

VDDQ

C9

VDDQ

E1

VDD

E9

VDDQ

G1

VDDQ

G3

VDDQ

G7

VDDQ

G9

VDDQ

J1

VDDL

J9

VDD
VDDM9VSS

R1

VDD

NT5TU32M16CG-BD(NC)

NC/BA2

M_RD QS1#
M_RD QS0
M_RD QS0#
M_RD QM1
M_RD QM0
M82_MEM_V REF M82_MEM_VREF

M82_DDRV

A10/AP

NC/A13
NC/A14

VSSQ
VSSQ
VSSQ
VSSQ
VSSQ

VSSQ
VSSQ
VSSQ
VSSQ
VSSQ

VSSDL

M_1_A0

M8

A0

M_1_A1

M3

A1

M_1_A2

M7

A2

M_1_A3

N2

A3

M_1_A4

N8

A4

M_1_A5

N3

A5

M_1_A6

N7

A6

M_1_A7

P2

A7

M_1_A8

P8

A8

M_1_A9

P3

A9

M_1_A10

M2

M_1_A11

P7

A11

M_1_A12

R2

A12

R8
R3
R7
L2

BA0

M_1_BA1

L3

BA1

L1

M_CLK 0

J8

CK

M_CLK 0#

K8

CK

M_1_CS#

L8

CS

M_1_CAS#

L7

CAS

M_1_ODT

K9

ODT

M_1_RAS#

K7

RAS

M_1_WE#

K3
A3

VSS

A7
B2
B8
D2
D8
E3

VSS

E7
F2
F8
H2
H8
J3

VSS

J7
N1
P9

VSS

M82_D DRV

M_RD Q16
M_RD Q17
M_RD Q18
M_RD Q19
M_RD Q20
M_RD Q21
M_RD Q22
M_RD Q23
M_RD Q24
M_RD Q25
M_RD Q26
M_RD Q27
M_RD Q28
M_RD Q29
M_RD Q30
M_RD Q31

M_RD QS3
M_RD QS3#
M_RD QS2
M_RD QS2#
M_RD QM3
M_RD QM2

M_2_CKEM_1_CKE

DDR#1 LS B DDR#2 MSB

U4402

G8

DQ0

G2

DQ1

H7

DQ2

H3

DQ3

H1

DQ4

H9

DQ5

F1

DQ6

F9

DQ7

C8

DQ8

C2

DQ9

D7

DQ10

D3

DQ11

D1

DQ12

D9

DQ13

B1

DQ14

B9

DQ15

A2

NC

E2

NC

B7

UDQS

A8

UDQS

F7

LDQS

E8

LDQS

B3

UDM

F3

LDM

J2

VREF
CKEK2WE

A1

VDD

A9

VDDQ

C1

VDDQ

C3

VDDQ

C7

VDDQ

C9

VDDQ

E1

VDD

E9

VDDQ

G1

VDDQ

G3

VDDQ

G7

VDDQ

G9

VDDQ

J1

VDDL

J9

VDD
VDDM9VSS

R1

VDD

NT5TU32M16CG-BD(NC)

A10/AP

NC/A13
NC/A14
NC/N15

NC/BA2

VSSQ
VSSQ
VSSQ
VSSQ
VSSQ

VSSQ
VSSQ
VSSQ
VSSQ
VSSQ

VSSDL

DDR2-1066MHzDDR2-1066MHz

M_2_A0

M8

A0

M_2_A1

M3

A1

M_2_A2

M7

A2

M_2_A3

N2

A3

M_2_A4

N8

A4

M_2_A5

N3

A5

M_2_A6

N7

A6

M_2_A7

P2

A7

M_2_A8

P8

A8

M_2_A9

P3

A9

M_2_A10

M2

M_2_A11

P7

A11

M_2_A12

R2

A12

R8
R3
R7

M_2_BA 0M_1_BA0

L2

BA0

M_2_BA 1

L3

BA1

L1

M_CLK 1

J8

CK

M_CLK 1#

K8

CK

M_2_C S#

L8

CS

M_2_CAS#

L7

CAS

M_2_OD T

K9

ODT

M_2_RAS#

K7

RAS

M_2_W E#

K3
A3

VSS

A7
B2
B8
D2
D8
E3

VSS

E7
F2
F8
H2
H8
J3

VSS

J7
N1
P9

VSS

DRAM Power M82_DDRV

M82_DV33

FB408

1 2

120R/3000mA(NC )

C472

+

100UF 16V(NC)

M82_DDRV

R4412

1K 1/16W 1%( NC)

R4413

1K 1/16W 1%( NC)

CAPs for AV12_MEMPLL

M82_AV 12

120R/3000mA(NC )

U408

G1084-18

2

VIN3VOUT

C474

GND

100N16V(NC)

1

C475
1uF 16V(NC)

MEM_VREF for DRAM

C4415

C4416

4.7UF 10V(NC )

100N16V(NC)

FB4401

1 2

C4428

100N16V(NC)

M82_MEM_VREF

C4429

100N16V(NC)

M82_AV12_MEMPLL

C4442

4.7UF 10V(NC )

C476
100NF 25V(NC)

C4443
100N16V(NC)

C477
10NF 50V(NC)

C4430

100NF 25V(NC)

M82_DDRV

FB409
220R/2000mA(NC)

1 2

+

C473

220UF 16V(NC)

CAPs for DRAM IO Power ( Beneath the MT8282 )

M82_DDRV

C4401

+

220UF 16V(NC)

M82_DDRV

C478
10N 16V(NC)

C4402
10uF 10V(NC)

C479
10N 16V(NC)

C4403
100N16V(NC)

C4404
100N16V(NC)

C4405

6.8nF 50V(NC)

C4406

6.8nF 50V(NC)

CAPs for DRAM IO Power ( Beneath the DDR#1 )

M82_DDRV

C4417

+

220UF 16V(NC)

M82_DDRV

C4431

+

220UF 16V(NC)

C4418
100N16V(NC)

CAPs for DRAM IO Power ( Beneath the DDR#2 )

C4432
100N16V(NC)

C4419
100N16V(NC)

C4433
100N16V(NC)

C4420

6.8nF 50V(NC)

C4434

6.8nF 50V(NC)

C4421

6.8nF 50V(NC)

C4435

6.8nF 50V(NC)

C4422

1.5nF 50V (NC)

C4436

1.5nF 50V (NC)

31

C4407
330pF 50V(NC)

C4423

1.5nF 50V(NC)

C4437

1.5nF 50V(NC)

C4408
330pF 50V(NC)

C4424
330pF 50V(NC)

C4438
330pF 50V(NC)

C4409
330pF 50V(NC)

C4425
330pF 50V(NC)

C4439
330pF 50V(NC)

C4410

1.5nF 50V(NC)

C4426

10N 16V(NC)

C4440

NC/10N 16V(N C)

T P V ( Top Victory Electronics Co . , Ltd. )

715G4041-M0A

絬 隔 瓜 絪 腹

Key Component

18. ME MC DDR II

Date

C4411

1.5nF 50V(NC)

C4427

10N 16V(NC)

C4441

NC/10N 16V(N C)

OEM MODE L

TPV MO DEL

PCB NAME

Sheet

C412

1.5nF 50V(NC)

715G4041-M0A

18 20Thursday, J anuary 20, 2011

Size

Custom

Rev

1

HW4 nh

of

称爹

LVDS RX

AV33_LVDSRX

AV12_LVDSRX

TP408
TP409

LVDS TX

U4401D

U6

AVDD33_LVDSRXO

U10

AVDD33_LVDSRXE

U7

AVDD12_LVDSRX_CK

U8

AVDD12_LVDSRX

V10

AVSS33_LVDSRX

V6

AVSS33_LVDSRX

V7

AVSS12_LVDSRX_CK

V8

AVSS12_LVDSRX

U9

TN_VIPLL

V9

TP_VIPLL

MT8282AGG(NC)

AV33_LVDSTX

AV12_LVDSVPLL
AV12_LVDSTX

TP410

U4401E

K17
K18
U16
V17

L19

K19

H16

J16
V16
V19
R16

T16

L17

L18

K20

MT8282AGG(NC)

ROCLKP
ROCLKN

RECLKP
RECLKN

AVDD33_LVDSA
AVDD33_LVDSA
AVDD33_LVDSB
AVDD33_LVDSB

AVDD12_VPLL
AVDD12_LVDS

AVSS33_LVDSA
AVSS33_LVDSA
AVSS33_LVDSB
AVSS33_LVDSB
AVSS33_LVDSB
AVSS33_LVDSB

AVSS12_VPLL
AVSS12_LVDS

TP_VPL L

RO0P
RO0N
RO1P
RO1N
RO2P
RO2N

RO3P
RO3N
RO4P
RO4N

RE0P
RE0N
RE1P
RE1N
RE2P
RE2N

RE3P
RE3N
RE4P
RE4N

O0P

W4

O0N

Y4

O1P

W5

O1N

Y5

O2P

W6

O2N

Y6

OCKP

W7

OCKN

Y7

O3P

W8

O3N

Y8

O4P

W9

O4N

Y9

E0P

W10

E0N

Y10

E1P

W11

E1N

Y11

E2P

W12

E2N

Y12

ECKP

W13

ECKN

Y13

E3P

W14

E3N

Y14

E4P

W15

E4N

Y15

TX_AO0P

D17

AOCKP

AOCKN

AECKP
AECKN

BOCKP

BOCKN

BECKP
BECKN

AO0P
AO0N
AO1P
AO1N
AO2P
AO2N

AO3P
AO3N
AO4P
AO4N

AE0P
AE0N
AE1P
AE1N
AE2P
AE2N

AE3P
AE3N
AE4P
AE4N

BO0P
BO0N
BO1P
BO1N
BO2P
BO2N

BO3P
BO3N
BO4P
BO4N

BE0P
BE0N
BE1P
BE1N
BE2P
BE2N

BE3P
BE3N
BE4P
BE4N

TX_AO0N

D18

TX_AO1P

E17

TX_AO1N

E18

TX_AO2P

F17

TX_AO2N

F18

TX_AOCK P

G17

TX_AOC KN

G18

TX_AO3P

H17

TX_AO3N

H18

TX_AO4P

J17

TX_AO4N

J18

TX_AE0P

D20

TX_AE0N

D19

TX_AE1P

E20

TX_AE1N

E19

TX_AE2P

F20

TX_AE2N

F19

TX_AECKP

G20

TX_AECKN

G19

TX_AE3P

H20

TX_AE3N

H19

TX_AE4P

J20

TX_AE4N

J19

TX_BO0P

M19

TX_BO0N

M20

TX_BO1P

N19

TX_BO1N

N20

TX_BO2P

P19

TX_BO2N

P20

TX_BOCK P

R19

TX_BOC KN

R20

TX_BO3P

T19

TX_BO3N

T20

TX_BO4P

U19

TX_BO4N

U20

TX_BE0P

M18

TX_BE0N

M17

TX_BE1P

N18

TX_BE1N

N17

TX_BE2P

P18

TX_BE2N

P17

TX_BECKP

R18

TX_BECKN

R17

TX_BE3P

T18

TX_BE3N

T17

TX_BE4P

U18

TX_BE4N

U17

FB413

M82_AV33

120R/3000mA(NC )

M82_AV12 AV12_LVDSRX

120R/3000mA(NC )

1 2

FB411

1 2

PANEL_VCC

120R/3000mA(NC )

AV33_LVDSRX

TX_AOCKN

TX_AOCKP

M82_GPIO22

FB416

1 2

AV33_LVDSRX

C545

4.7UF 10V(N C)

AV12_LVDSRX

C538

4.7UF 10V(N C)

C537
100N16V(NC)

C546
100N16V(NC)

TX_AO0N
TX_AO0P

TX_AO1N
TX_AO1P

TX_AO2N
TX_AO2P

TX_AOCK N#
TX_AOCKP#

TX_AO3N
TX_AO3P

TX_AO4N
TX_AO4P

R470

0R05 1/16W(NC)

C533
100N16V(NC)

C530
100N16V(NC)

C542
330pF 50V(NC)

C529
330pF 50V(NC)

LVDS PORT A

CN414

4142

2

1

4

3

6

5

8

7

10

9

12

11

14

13

16

15

18

17

20

19

22

21

24

23

26

25

28

27

30

29

32

31

34

33

36

35

R468 0R05 1/16W(NC )

38

37

R469 0R05 1/16W(NC )

40

39

S1312-40SVA-1R(NC)

TX_AE0N
TX_AE0P

TX_AE1N
TX_AE1P

TX_AE2N
TX_AE2P

TX_AECKN#
TX_AECKP#

TX_AE3N
TX_AE3P

TX_AE4N
TX_AE4P

1
2

TX_AECKN

CN409

CONN(NC)

TX_AECKP

M82_GPIO20
M82_GPIO21

LVDS OUTPUT from MT5363

E0N20
E0P20
E1N20
E1P20
E2N20
E2P20
E3N20
E3P20
E4N20
E4P20
ECKN20
ECKP20

O0N20
O0P20
O1N20
O1P20
O2N20
O2P20
O3N20
O3P20
O4N20
O4P20
OCKN20
OCKP20

M82_GPIO2017
M82_GPIO2117
M82_GPIO2217

TX_BOCKP

TX_BOCKN

LVDS PORT B

CN407

TX_BO0N

2

TX_BO0P

4

TX_BO1N

6

TX_BO1P

8

10

TX_BO2N

12

TX_BO2P

14
16

TX_BOC KN#

18

TX_BOC KP#

20
22

TX_BO3N

24

TX_BO3P

26

TX_BO4N

28

TX_BO4P

30

S1312-30SVA-1R(NC)

31 32

TX_BE0N

1

TX_BE0P

3

TX_BE1N

5

TX_BE1P

7
9

TX_BE2N

11

TX_BE2P

13
15

TX_BECKN#

17

TX_BECKP#

19
21

TX_BE3N

23

TX_BE3P

25

TX_BE4N

27

TX_BE4P

29

TX_BECKP

TX_BECKN

E0N
E0P
E1N
E1P
E2N
E2P
E3N
E3P
E4N
E4P
ECKN
ECKP

O0N
O0P
O1N
O1P
O2N
O2P
O3N
O3P
O4N
O4P
OCKN
OCKP

M82_GPIO20
M82_GPIO21
M82_GPIO22

FB412

1 2

120R/3000mA(NC )

C528
100N16V(NC)

AV33_LVDSTX

C539
100NF 25V(NC)

C543
100NF 25V(NC)

FB414

1 2

120R/3000mA(NC )

AV12_LVDSTX

C535
100N16V(NC)

C540
100N16V(NC)

M82_AV12M82_AV12M82_AV33 AV33_LVDSTX

120R/3000mA(NC )

32

FB415

1 2

AV12_LVDSVPLLAV12_LVDSTX

AV12_LVDSVPLL

AV12_LVDSVPLL

C532
100N16V(NC)

C544
100N16V(NC)

T P V ( Top Victory Electronics Co . , Ltd. )

715G4041-M0A

絬 隔 瓜 絪 腹

Key Component

19. ME MC RX/TX

Date

OEM MODEL

TPV MOD EL

PCB NAME

Sheet

715G4041-M0A

19 20Thursday, J anuary 20, 2011

of

Size

C

Rev

1

HW4 nh

称爹

AVDD3V3_LVDS

AVDD1V25_LVD S
AVDD1V25_VPLL

F15

H15

J18

N16
N18

P17
P19

M19

U6304G

AVDD33_LVDS
AVDD33_LVDS
AVSS33_LVDS

AVDD12_LVDS
AVDD12_VPLL
AVSS12_LVDS
AVSS12_VPLL

TP_VPLL

MT5363LIMG

LVDS Output

AE0N

AE0P

AE1N

AE1P

AE2N

AE2P

AE3N

AE3P

AE4N

AE4P

AECKN
AECKP

AO0N

AO0P
AO1N

AO1P
AO2N

AO2P
AO3N

AO3P
AO4N

AO4P

AOCKN

AOCKP

AV33

E0N

E16

E0P

G16

E1N

F17

E1P

H17

E2N

E18

E2P

G18

E3N

E20

E3P

G20

E4N

F21

E4P

H21

ECKN

F19

ECKP

H19

O0N

B15

O0P

D15

O1N

A16

O1P

C16

O2N

B17

O2P

D17

O3N

B19

O3P

D19

O4N

A20

O4P

C20

OCKN

A18

OCKP

C18

NEAR MT5363

R418

0R05 1/10W

AV12

NEAR MT5363

R419

0R05 1/10W

AV12

NEAR MT5363

R420

0R05 1/10W

AVDD3V3_LVD S

AVDD1V25_LVD S

AVDD1V25_VPLL

C402
100N16V

C404
100N16V

C406
100N16V

LVDSCTRL1

R415

NC/1K 1/16W 5%

NEAR CN408

Panel_12V_5V

R417

E4N
E3N

ECK-ECK+

E2N
E1N
E0N

O4N
O3N

OCK-

O2N
O1N
O0N

DV33

R416

NC/0 OHM +-5% 1/16W

NC/1K 1/ 16W 5%

DV33

R403

R402

NC/1K 1/ 16W

0R05 1/16W

SELLVDS
E4P
E3P

E2P
E1P
E0P

O4P
O3P

OCK+
O2P
O1P
O0P

CONN

40

39

38

37
35
33
31
29
27
25
23
21
19
17
15
13
11

9
7
5
3
1

ODSEL

36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2

CN408

41 42

OCK-OCKN

OCK+OCKP

ECK-ECKN

ECK+ECKP

R414

10K OHM +-5% 1/8W

FB402 120R/3000m A

1 2

FB403 120R/3000m A

1 2

C407
10U 16V

PANEL_VCC

BL&LVDS CONTROL

LVDSCTRL111

BL_D IMMI NG11

LVDSCTRL1

BL_DIMMING

LVDS OUTPUT to MT8282

E0N19
E0P19
E1N19
E1P19
E2N19
E2P19
E3N19
E3P19
E4N19
E4P19
ECKN19
ECKP19

O0N19
O0P19
O1N19
O1P19
O2N19
O2P19
O3N19
O3P19
O4N19
O4P19
OCKN19
OCKP19

BACKLIGHT CONTROL

BRIGHT_ADJ4
INVERTER_ON_OFF4

BRIGHT_ADJ
INVERTER_ON_OFF

E0N
E0P
E1N
E1P
E2N
E2P
E3N
E3P
E4N
E4P
ECKN
ECKP

O0N
O0P
O1N
O1P
O2N
O2P
O3N
O3P
O4N
O4P
OCKN
OCKP

BL_DIM(PWM for Bright_Adj):
Max: 0 V
Min : +3 V3

INVERTER_ SW:
Inverter o n: Low
Inverter o ff: High

BL_ON/OF F8

BL_ON/OFF_M17

R435 0R05 1/10W

R436 NC/ 0R05 1/10W

BL_DIMMING

R404

NC/4.7K1/16W

SMD/0402

R413

4K7 1/16W 5%

SMD/0402

DV33

NC/4.7K1/16W

SMD/0402

R409

4K7 1/16W 5%

SMD/0402

BRIGHT ADJUST

DV33SB

DV33

R412

NC/4.7K1/16W

SMD/0402

R407

4K7 1/16W 5%

SMD/0402

DV33+5V_SW

R405

R406

10K 1/10W 5%

R408

100R 1/10W 5%

Q402

BC847C

+5V_SW

R410

2KOHM 1/10W(N C)

Q401

BC847C

INVER TER ON/OFF

DV33

R411

10K 1/10W 5%

BRIGHT_ADJ

C405

NC/10U 10V

INVERTER_ON_OFF

C401

NC/10U 10V

BL C ONTROL

PWM C ONTROL

DC CONTROL

T315HW07 PWM
T420HW08 PWM

INV ER TE R
ON/OFF

5V

T315HW07
T420HW08

33

R406R40 8 C405

100R

1K

5K6

1K

100R

10K

R411

R410

1K

N/C3V3

2K N/C

N/C

10K

N/C

10U

N/C

The item o f this page s tart from "40 1"

T P V ( Top Victory Electronics Co . , Ltd. )

715G4041-M0A

絬 隔 瓜 絪 腹

Key Component

20. LVDS OUTPUT

Date

OEM MOD EL

TPV MOD EL

PCB NAME

Sheet

715G4041-M0A

20 20Tuesday , February 22, 2011

of

Size

Custom

Rev

1

HW4 nh

称爹

5.2 电源板

715G4564P01W20003S

-

4

L9902

3

124

10MH

BOX

C9911

470NF 305V

R9902

330K 1/4W

3

L9901

470NF 305V

CN901
CONN

12MH

1

C9910

2

L

124

C9902

220pF +-10%

N

R9903

330K 1/4W

C9907

470PF 250V

12

t

FB904
BEAD

1 2

12

t

R9901

330K 1/4W

C9906

470PF 250V

F901

FUSE

NR901

NTCR

C9901

220pF +-10%

2

3

NR902

NTCR

470PF 250V

BD901

TS10B06G-06-X0

+

R9805
43K +-5% 1/8W

B+

C9145

100N 50V

100N 50V

R9146
2K43 1/8W 1%

C9148

4.7uF 25V

C9905

R929

0.1 ohm

+

C9803
47UF 450V

B+

1.5M OHM 1% 1/4W

Q9101

2SK4097LS 9.5A/500V

Q9102
2SK4097LS 9.5A/500V

Q905
2SD1624T-TD-E

R964
10K 1/8W

ZD905
GDZJ15B

1 2

B+

T9301

POWER X'FMR

D9306
1N4148

3

1

3

1

VCC

+

BOX

D9116

FMWN-2308

2

D9117

MBRF1560CT

2

PS_ON

C9336
10UF 50V

1

2

3
4

5

R9324
4R7 1/4W 5%

D9307
PS1010R

+

C9337
47UF 50V

1 2

+

C9166
270UF 25V

ZD9303

GDZJ15B

R9325

R9327

100K 1/4W

100K 1/4W

C9332

0.001uF/1KV

R9328

R9326

100K 1/4W

100K 1/4W

D9305

R9323

PS1010R

4.7 MOHM +-5% 1/4W

IC9301

1

8

S/OCP

D/ST

2

7

BR

D/ST

3

GND

5

FB/OLP4VCC

A6069H

C9335

C9334
1N 50V

R966
10K 1/8W

D9304

PS1010R

R967

10K 1/8W

100N 50V

R9301

1R 5% 2W

C9333

R9320

0.47UF 50V

620K 1/8W

R9318

1.5M OHM 1% 1/4W

T9101

4
3

2
1

POWER X'FMR

IC908

PC123X8YFZOF

R9319

1.5M OHM 1% 1/4W

9

6
5

8
12

10
7

11

C972

100N 50V

R9317

VBoot

C9157

18NF

VCC

5V

R965
220 OHM 1/4W

12

43

Q906
PMBS3904

6
7

9
10

43

+

C9163
1000uF 35V

+

C9167
270UF 25V

R9330

47 OHM 1/4W

R9331

47 OHM 1/4W

D9308

3

1

12

IC9302
PC123X8YFZOF

IC9303
AS431AZTR-E1

24V

L9106

5uH

+

C9168
270UF 25V

C9338

0.001uF/1KV

FMWN-2308

2

R9334
100 OHM 1/4W

R9335

3K3 1/8W 5%

8K2 1/8W 1%

C9343

0.22uF 50V

1K 1/8W

7K5 1/8W +/-1%

L9105

5uH

T P V ( Top Victory Electronics C o . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

L9304

5uH

+

C9340
470uF 10V

R9337

R9336

R9338

+

C9164
150UF 35V

+

C9169
270UF 25V

02.Power circuit

Q9103
PMBS3904

R9156

5.1K 1/4W

R9157

1.5K 1/4W

+24V

GDZJ30B

1 2

C9165
100N 50V

C9170
100N 50V

+

ZD9101

D9109
1N4148

C9341

470UF 16V

C9144
100N 50V

+24V

ON/OFF

DIM

OEM MODEL

TPV MODE L

PCB NAME

Sheet

+12V

GDZJ15B

1 2

C9342
100N 50V

ZD9102

D9110
1N4148

R9139
100 OHM 1%

R9140

1K 1/8W 1%

22Tuesday, J uly 12, 2011

5V

HS1
HEATSINK

1
2
3
4

HS6
HEATSINK

1
2
3
4

HS3
HEATSINK

1
2
3
4

HS4
HEATSINK

1
2
3
4

HS5
HEATSINK

1
2

+24V

3
4

+12V

ON/OFF

DIM

CN903

12
11
10

+12V

9
8
7
6
5

+24V

4
3

PS_ON

2
1

5V

CONN

of

CONN

13
12
11
10

9
8
7
6
5
4
3
2
1

CN902

A2

Size

1.0

Rev

称爹

>

<

称爹

FB902

1

1 2

BEAD

C9810

470NF 500V

IC9801

1

8

INV

VCC

2

7

COMP

OUT

3

6

RAMP

GND

5

CS4ZCD

LD7591GS

R9806

10K 1/8W

C9825

C9824

330nF 50V

33N 50V

R9145

13K OHM 1%

VCC1

C9146

+

C9147

10UF 50V

R9147

0R05 1/4W

C9149
100N 50V

C9903

470PF 250V

1 2

R9804

2K OHM

R9142

1M 1% 1/4W

43

FB903
BEAD

1

5

R9807
20K 1/4W

C9826

56PF 50V

C9827
100P 50V

0.47UF 50V

R9158

3.9K 1/4W

12

FB901

1 2

BEAD

D9801

1N5408-11

4

300UH

L9801

6

R9810
13K OHM 1%

R9143

1M 1% 1/4W

1M 1% 1/4W

VBoot

C9150

IC9102
PC123X8YFZOF

IC9103
AS431AZTR-E1

C9904

470PF 250V

R9144

10pF3KV

R9148
NC

VCC1

C9151

1UF

C9152

D9802

FMN-1106S

R9808

10 OHM 1/8W

+

C9830
10UF 50V

R9816

680K OHM +-1% 1/4W

D9114
UF4007

1
2
3
4
5
6
7
8

R9149

1K 1/8W 1%

C9154
620pF 50V

24V

R9159

3.3K 1/4W

C9158
NC

C9159

330nF 50V

C9828
100N 50V

C9829
470P 50V

10R 1/8W 5%

IC9101

Vsen
Vcc
FB
GND
Css
OC
RC
Reg
RV9COM

SSC9512S-TL

R9160
10K 1/4W

R9809

33 OHM 1/8W

R9813
10K 1/4W

R9811
470 OHM 1/4W

R9815

680K OHM +-1% 1/4W

R9151

18

NC

17

NC

16

VGH

15

VS

14

VB

13

NC

12

NC

11

VGL

10

C9153

1UF

R9101
200R 1/8W 5%

+12V

ZD9104

1 2

GDZJ15B

R9161
24K 1/8W 1%

R9163
2K 1/8W 1%

+

C9801
47UF 450V

2

1

3

680K OHM +-1% 1/4W

D9113
SS0520

R9152

47OHM +-5% 1/8W

10K 1/8W

D9112
SS0520

R9154

47OHM +-5% 1/8W

C9155
1N 50V

+24V

R9180
27K 1/8W 1%

R9801

0R1 5% 2W

R9814

12

R9153

R9155

10K 1/8W

C9156

100PF1KV

+

C9802
47UF 450V

Q9801

STP20NM60FP

12

VCC1

+

C971
10UF 50V

34

5.3 按键板

715G4682K02000004S

35

5.4 遥控板

715G5284R01000004S

EMI_GND

VCC_STBY

76

CN0201

CONN

1
2
3
4
5

LED1_ON

LED2_STBY

1 2

FB0201

600R/200mA

1 2

FB0202

600R/200mA

1 2

FB0203

600R/200mA

1 2

FB0204

600R/200mA

100N 50V

C0201

VCC_STBY

C0202

100N 50V

R0201

330OHM 1/10W

LED

LED0201

BLUE

BLUE

Q0201

PDTC114EU

R1

1

R2

C0203

100N 50V

330OHM 1/10W

4

1

2 3

32

32

C0204

100pF 50V

R0202

RED

RED

Q0202

PDTC114EU

R1

1

R2

1 3

R0205

330R 1/ 16W 5%

LED

LED0202

BLUE

R0203

2K7 1/16W 5%

ZD 0202

BZX84-C5V1

330R 1/ 16W 5%

4

1

2 3

VCC_STBY

C0205

4.7uF 10V

R0206

RED

R0204

47R 1/ 16W 5%

1 3

3

1

2

ZD0201

BZX84-C5V1

IR M-3638TF16

VS

OUT

GND

U0201

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

G XXXX-A

02. IR BOARD

36

OEM MODEL

TPV MODEL

PCB NAME

Sheet

7 15 G XXXX-A

of

22Friday , August 12, 2011

Size

Rev

称爹

<

A

A

称爹

>

6. 软体及 EDID 烧录

（1）烧录准备
1、下载 MST TOOL 驱动“MSTAR-USB-驱动-DB07-6 driver.rar”，解压，双击“setup.exe”按提示安装，

当安装过程中出现图 1.1.2 提示时，请选择“仍然继续（C）”，当出现图 1.1.3 提示时，请点击“确定”；

图 1.1.1

图 1.1.2

图 1.1.3

2、选择烧录治具（料号：715GT118-B），按图 1.2.1 方式连接烧录板；当第一次将该烧录板连接到电脑时，会弹出如

图 1.2.2 提示，请按提示进行硬件驱动安装；当出现如图 1.2.4 提示时，请点击“仍然继续（C）”继续安装，直至完成。
安装完成后，可在“我的电脑”——“属性”——“硬件”——“设备管理器”中找到“Mstar USB Serial Poart”，如图 1.2.5

37

使用 VG

A

V

口

A

脚

用线连

U

接口

连接到 T
VGA 接
注：VG
第 4、11
能接地。

线

；
线

不

图 1.2.1

使

USB

接到

PC

SB

图 1.2.2

图 1.2.3

38

图 1.2.4

图 1.2.5

（2）烧录

1.打开并运行烧录工具“MSTAR ISP Tool V4.5.0.7.7”如图 2.1.1：

特别注意：新版本的 TOOL 必须将“ISP_Tool.exe” 与“FTCJTAG.dll”放在同一个目录中运行，
否则将提示无法找到“FTCJTAG.dll 文件而造成无法打开烧录软件。

39

图 2.1.1

2. 点击 config（配置）,会出现如下信息，调整 speed 为 34（210KHZ）.

图 2.2.1

3.选择 DEVICE，将 WP Pin pull to high during ISP 前面打勾，设置如下图标红部分

40

图 2.3.1

4.用鼠标点击右上角 Connect 图标出现如图 2.4.1 提示,表示 TOOL、PC 以及 TV 通讯成功，点击 OK。(注意:不同的

机种(Device type)驱动型号不一样)

图 2.4.1

5.点击 Read, 出现如图 2.5.1 对话框，加载正确的待烧录软体，点击打开.

41

6.点击打开后，出现如图 2.6.1 界面。

7.点击 Auto , 出现如图 2.7.1 界面.点击 Run。

图 2.5.1

图 2.6.1

42

图 2.7.1

8.点击 Run.后，烧录过程界面如图 2.8.1。当出现 Blank OK, Program OK, Verify OK,并显示 Pass 如图 2.8.2，表示

软体烧录成功。

图 2.8.1

图 2.8.2

9.按住按键“menu”键，AC 上电，开机后在 OSD 上会有 F 的选项，选中进入工厂模式查看软体版本是否正确，如有
误，请确认软体并重新烧录；

43

EDID 烧录

(1)准备工作

1.烧录工具

治具 715G2005-C2、VGA 线（1 pcs）、打印接口线（1 pcs）、12V 输出电源适配器（1 set）、

图 1.1.1

2.安装打印口驱动 Port95nt

图 1.2.1

3.下载驱动程序“TpvEdidTool_0p92”，运行“InstallEdidXP.bat”，自动运行完毕，按键盘任意键退出.

图 1.3.1

（2）烧录

1.按图 2.1.1 方式连接治具；

44

图 2.1.1

2.按住按键“menu”键，AC 上电，开机后在 OSD 上会有 F 的选项，选中进入工厂模式；

3.运行烧录程序“TpvEdid.exe”；

图 2.3.1

(2)烧录过程

图 2.4.1

45

图 2.4.2

图 2.4.3

46

图 2.4.4

图 2.4.5

47

图 2.4.6

图 2.4.7

48

(3).Q&A

图 3.1.1

图 3.1.2

49

图 3.1.3

图 3.1.4

50

7. 故障处理流程

有

检测 IR 板及 LED 灯

更换 IR 板

检测电源板 CN902 的 PIN5/6 是否有 24V 电压输出

无电（LED 不亮）

检测插座是否有电或硬开关是否打开

有

检测电源板 CN902 的 PIN2/3 是否有 5.V 电压输出

无法启动

有

无

无

无

重插电源插座或开启硬开关

更换电源板

更换电源板

更换按键板

检测按键板的 POWER 键是否失灵

是

检测遥控板的红外接收器 U001 是否失灵

是

更换遥控板

51

否

否

更换主板

检测 TV 是否受控，能否用遥控器或按键板开关机

检测 LVD S 线是否良好

是

检测主板上 CN408 的 PIN37/38/39/40
是否有 12V 供电

是

否

先更换主板
检测是否 OK

更换主板

更换 Panel

否

无画

是

检测是否有背光

是

否

重插或更换 LVD S 线

检测电源板 CN902 的 PIN5/6 是否有 24V 电压输出

是

更换 Panel

否

否

检测主板 CN701 是否有 PW 信号

是

否

更换电源板

更换主板

否

更换主板

52

彩 条、水 波 纹、画抖、画 闪、

鬼影、残影、拖影等干扰

检测附近是否有干扰源

是 否

排除干扰源

检测信号源出
信号是否正常

是 否

先更换主板

检测是否 OK

否

更换 Panel

检测信号线

是否良好

是 否

更换信号线

重新设置

信号源

TV 画面雪花点、重

影、细线、条纹干扰

检测 TV 信号线

是否接触不良

是 否

重新连接

TV 信号线

排除干扰源

画异

间歇性画异加温
画异冷开机画异

检测附近是否

升级软体

有高频干扰源

是 否

用场强仪检测信号强度

是否在 45-100db 之间，

65db 左右为最佳值

是

否

更换主板 太弱：加装信号放大器

太强：减少信号放大器

或加装信号衰减器

53

检测软体版本是
否需要更新

是 否

先更换主板

检查是否 OK

否

取回站内
加温检测

无声或声音异常

检测信号源音频接口是否正确，或 TV 制式是否为 DK 制

是

否

检测 TV 是否被静音，调整音量大小，

或进入菜单进行复位看是否 OK

否

检测主板到喇叭的连接线是否断路

是 否

更换连接线

检测喇叭阻抗是否变质

(喇叭阻抗值标在喇叭上)

是 否

更换喇叭 更换主板

收不到台或收台不全

检测软体版本是否需要更新

重插音频接口或设置 TV 制式

检测此频道是否发生频
偏，尤其是使用卫星信号

是

建议客户重新

设置信号源

是 否

升级软体

用场强仪检测信号强度是否在
45-100db 之间，65db 左右为最佳值

是

用别的 TV 测试是否能收到此台

是

和客户说明当地 TV 信号未转播此台

否

更换主板

否

太弱:加装信号放大器
太强:减少信号放大器或加装信号衰减器

否

54

更换喇叭 主板功放异常

重新安置或更换电池

喇叭异响

（破音，滋滋声）

检测喇叭是否变质

是 否

更换主板

遥控失灵

检查遥控器电池是否未安置好或没电

是 否

更换遥控器 检测 IR 板是否异常

异响

用别的遥控器测试是否可用

是 否

是

更换 IR 板

电源板，PANEL 异响

更换电源板/PANEL

否

更换主板

55

更换按键

OSD 不稳定或无法正常工作

按键板连接正常吗？

否

接好按键板

是

按键正常吗？

否

是

按键板有无故障？

否

更换按键板

是

检查主板

56

8. BOM

注意: 以下料件信息仅供参考，如有变更，恕不另行通知，请到 http://cs.tpv.com.cn 获取最新信息。

G32BA2NTAFTA2NX

点位 组件 对象描述 备注

052G 1185 MIDDLE TAPE (Y1200141)
Q40G000162418A S/N LABEL
052G 2191 A PAPER TAPE
Q50G 4 10 TIE (Y1900221)
052G 1185 MIDDLE TAPE (Y1200141)
Q45G 99606 25 ESD insulating pe bag
052G 1185 MIDDLE TAPE (Y1200141)
ADTVA2412XBC ADAPTER BOARD
040G 45762412B CBPC LABEL

009G6005 1 GP GROUND TERMINAL
CN903 033G380212B YH wafer 12P 2.0 DIP
CN903 033G380212B YH L WAFER 12.0mm 12P
CN902 033G380213B YH WAFER 2.0mm 13P
CN902 033G380213B YH W WAFER 2.0mm 13P

IC908 056G 139 7 1 IC EL817MA M-TYPE
IC9102 056G 139 7 1 IC EL817MA M-TYPE
IC9302 056G 139 7 1 IC EL817MA M-TYPE

IC908 056G 139 10 IC TLP781F photocoupler DIP-4
IC9102 056G 139 10 IC TLP781F photocoupler DIP-4
IC9302 056G 139 10 IC TLP781F photocoupler DIP-4
IC9302 056G 139 3B IC PC123Y82FZ0F
IC9102 056G 139 3B IC PC123Y82FZ0F

IC908 056G 139 3B IC PC123Y82FZ0F
IC9301 056T 379121 IC STR- A6069H DIP-8

NR902 061G 58509MEW NTCR 5R 5A SCK13055MMY506
NR901 061G 58509MEW NTCR 5R 5A SCK13055MMY506
C9910 063G107K474AUZ CAP X2 470NF 10% 305V
C9911 063G107K474AUZ CAP X2 470NF 10% 305V
C9810 063G210K474HZU CAP MPP 470NF 10% 500V BULK ( B )
C9157 063G211J1835ZU CAP MPP 18NF 5% 1KV
C9152 065G 3J1006ET 10PF 5% SL 3KV
C9902 065G306K2212B3 Y1 CAP 220pF +-10% 250VAC
C9901 065G306K2212B3 Y1 CAP 220pF +-10% 250VAC
C9901 065G306K2212BM CAP Y1 220PF 10% 250V Y5P
C9902 065G306K2212BM CAP Y1 220PF 10% 250V Y5P
C9903 065G306K4712B3 Y1 CAP 470pF +-10% 250VAC CD SERIES
C9904 065G306K4712B3 Y1 CAP 470pF +-10% 250VAC CD SERIES
C9906 065G306K4712B3 Y1 CAP 470pF +-10% 250VAC CD SERIES
C9907 065G306K4712B3 Y1 CAP 470pF +-10% 250VAC CD SERIES
C9905 065G306K4712BS CAP Y1 470PF 10% 250V Y5P
C9907 065G306K4712BS CAP Y1 470PF 10% 250V Y5P
C9906 065G306K4712BS CAP Y1 470PF 10% 250V Y5P
C9904 065G306K4712BS CAP Y1 470PF 10% 250V Y5P
C9903 065G306K4712BS CAP Y1 470PF 10% 250V Y5P
C9341 067G 315471 3K EC CAP 470UF 20% 16V 8*9
C9801 067G 42Z47015H EC 47UF 20% 450V 10*50
C9802 067G 42Z47015H EC 47UF 20% 450V 10*50
C9802 067G 42Z47015K EC 47UF 20% 450V LF 10*50
C9801 067G 42Z47015K EC 47UF 20% 450V LF 10*50

57

C9340 067G204V271 3K CAP CS 270UF 20% 16V 8*8
C9147 067G215C1007KV EC 10UF 20% 50V EM 8*9
C9336 067G215C1007KV EC 10UF 20% 50V EM 8*9

C971 067G215C1007KV EC 10UF 20% 50V EM 8*9
C9830 067G215C1007KV EC 10UF 20% 50V EM 8*9
C9337 067G215C4707KV EC 47UF 20% 50V EM 8*9
C9163 067G215Z102 6K LOW ESR EC 1000uF M 35V 10*35mm

L9902 073G 174201 X LINE FILTER 10MH MIN 3LFT25154-103M
L9902 073G 174201 H1 LINE FILTER 10MH MIN LCL-12511 HA 3A 38
L9901 073G 174223 H LINE FILTER 12MH MIN LCL-11625 HA
L9901 073G 174223 X LINE FILTER 12MH MIN 3LFW619-123M-1
L9801 073G 174248YS1 PFC CHOKE 300UH 8% YS04120091
L9105 073G 253203 H CHOKE COIL 5uH 15% 15mOHM DR8*10
L9106 073G 253203 H CHOKE COIL 5uH 15% 15mOHM DR8*10
L9304 073G 253203 H CHOKE COIL 5uH 15% 15mOHM DR8*10
L9105 073G 253203 X CHOKE COIL 5uH 15% -­L9106 073G 253203 X CHOKE COIL 5uH 15% -­L9304 073G 253203 X CHOKE COIL 5uH 15% -­T9101 080GL32P 68 N1 X'FMR 600UH 10% 90UH QI-51 YUVA-1751

T9101 080GL32P 68CP1

X'FMR 600UH 10% 90UH OI-51 T020312-6

V01
T9301 080GL52P 27 L X'FMR 1MH 8% 36UH PT-014165 EFD35
T9301 080GL52P 27 N X'FMR 1MH 8% 36UH YUVA-1575 EFD35

T9301 080GL52P 27 YS X'FMR 1MH 8% 36UH YS04160309 EFD35

D9801 093G 52 70 1 1N5408-E(Short pin) 3A/1000V DO-201AD
D9801 093G 52910 RECTIFIER 1N5408-11 3A 1000V DO-201AD
CN901 311GW396B03BBX WAFER 3.96mm 3(2N)P R/A 11.88mm 9.5mm

705TXA57106 D9802 Q9801 ASS'Y
Q9801 057G 667 24 STP20NM60FP TO-220FP ST
D9802 093G 52 56 DIODE FMN-1106S 10A/600V TO-220

0M1G1730 8120 SCREW 3x8

HS4 Q90T0236 4 HEAT SINK

705TXA57111 Q9102 Q9101 ASS'Y
Q9101 057G 667 52 FET 2SK4100LS-T 7A/650V TO-220FI(LS)
Q9102 057G 667 52 FET 2SK4100LS-T 7A/650V TO-220FI(LS)

0M1G1730 8120 SCREW 3x8

HS3 Q90T0237 2 HEAT SINK

705TXA93137 BD901 ASS'Y
BD901 093G 50460937 BRIDGE TS10B06G-06-X0 10A 800V KBJ
BD901 093G 50460940 BRIDGE KBJ1008G-FU 10A 800V KBJ

0M1G1730 8225 CR3 SCREW 3.0x8.0

HS5 Q90T0222 8 HEAT SINK

705TXA93138 D9117 D9116 ASS'Y
D9116 093G 60324 SCHOTTKY FMWN-2308 30A 80V TO-220
D9117 093G 60931 DIODE MBRF1560CT ITO-220AB

0M1G1730 8120 SCREW 3x8

HS1 Q90T0236 4 HEAT SINK

705TXA93139 D9308 ASS'Y
D9308 093G 60324 SCHOTTKY FMWN-2308 30A 80V TO-220

0M1G1730 8120 SCREW 3x8

HS6 Q90T0236 1 HEAT SINK

R9808 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN

IC9101 056G 379176 IC SSC9512S-TL SOP-18

Q906 057G 417 4 PMBS3904/PHILIPS-SMT(04)

58

Q9103 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q906 057G 417518

Q9103 057G 417518

TRA LMBT3904LT1G 200mA/40V SOT-23
LRC
TRA LMBT3904LT1G 200mA/40V SOT-23
LRC

Q905 057G 419912 T TRANSISTOR 2SD1624T-TD-E PCP
R9151 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA
R9808 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA
R9151 061G0805100 JI RST 0805 10R 5% 1/8W TA-I
R9808 061G0805100 JI RST 0805 10R 5% 1/8W TA-I
R9151 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN
R9139 061G08051000FF RST CHIPR 100 OHM +-1% 1/8W FENGHUA
R9139 061G08051000FT RST CHIPR 100 OHM +-1% 1/8W
R9149 061G08051001FF RST CHIPR 1KOHM +-1% 1/8W FENGHUA
R9140 061G08051001FF RST CHIPR 1KOHM +-1% 1/8W FENGHUA
R9149 061G08051001FT RST CHIP 1K 1/8W 1%
R9140 061G08051001FT RST CHIP 1K 1/8W 1%
R9336 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA

R9336 061G0805102 JT

RST CHIPR 1K OHM +- 5% 1/8W TZAI
YUAN

R9806 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA

R967 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA

R966 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA

R964 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R9155 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R9153 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R9806 061G0805103 JI RST 0805 10K 5% 1/8W

R967 061G0805103 JI RST 0805 10K 5% 1/8W

R966 061G0805103 JI RST 0805 10K 5% 1/8W

R964 061G0805103 JI RST 0805 10K 5% 1/8W
R9155 061G0805103 JI RST 0805 10K 5% 1/8W
R9153 061G0805103 JI RST 0805 10K 5% 1/8W
R9145 061G08051302FF RST CHIPR 13KOHM +-1% 1/8W FENGHUA
R9810 061G08051302FF RST CHIPR 13KOHM +-1% 1/8W FENGHUA
R9810 061G08051302FI RST CHIPR 13KOHM +-1% 1/8W TA-I
R9145 061G08051302FI RST CHIPR 13KOHM +-1% 1/8W TA-I
R9163 061G08052001FF RST CHIPR 2KOHM +-1% 1/8W FENGHUA
R9163 061G08052001FT RST CHIP 2K 1/8W 1%
R9804 061G0805202 JF RST CHIPR 2KOHM +-5% 1/8W FENGHUA
R9804 061G0805202 JY RST CHIPR 2K 5% 0805 YAGEO
R9101 061G0805221 JF RST CHIPR 220 OHM +-5% 1/8W FENGHUA
R9101 061G0805221 JT RST CHIP 220R 1/8W 5% TZAI YUAN
R9161 061G08052402FF RST CHIPR 24KOHM +-1% 1/8W FENGHUA
R9161 061G08052402FT RST CHIP 24K 1/8W 1%
R9146 061G08052431FI RST CHIPR 2.43 KOHM +-1% 1/8W 0805
R9146 061G08052431FT RST CHIP 2K43 1/8W 1%
R9180 061G08052702FF RST CHIPR 27KOHM +-1% 1/8W FENGHUA
R9180 061G08052702FY RST CHIP 27K 1/8W 1%
R9809 061G0805330 JF RST CHIPR 33 OHM +-5% 1/8W FENGHUA
R9809 061G0805330 JT RST CHIP 33R 1/8W 5% TZAI YUAN
R9335 061G0805332 JF RST CHIPR 3.3KOHM +-5% 1/8W FENGHUA
R9335 061G0805332 JT RST CHIP 3K3 1/8W 5% TZAI YUAN
R9805 061G0805433 JF RST CHIPR 43KOHM +-5% 1/8W FENGHUA
R9805 061G0805433 JT RST CHIPR 43K +-5% 1/8W TZAI YUAN

59

R9152 061G0805470 JF RST CHIPR 47OHM +-5% 1/8W FENGHUA
R9154 061G0805470 JF RST CHIPR 47OHM +-5% 1/8W FENGHUA
R9152 061G0805470 JT RST CHIPR 47OHM +-5% 1/8W TZAI YUAN
R9154 061G0805470 JT RST CHIPR 47OHM +-5% 1/8W TZAI YUAN
R9338 061G08057501FF RST CHIPR 7.5KOHM +-1% 1/8W FENGHUA
R9338 061G08057501FY RST CHIP R 7K5 1/8W +/-1%
R9337 061G08058201FF RST CHIPR 8.2KOHM +-1% 1/8W FENGHUA
R9337 061G08058201FT RST CHIP 8K2 1/8W 1%

JR901 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR902 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR903 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR904 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR905 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR906 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

R9147 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

JR906 061G1206000 JI RST 1206 MAX0R05 5% 1/4W
JR905 061G1206000 JI RST 1206 MAX0R05 5% 1/4W
JR904 061G1206000 JI RST 1206 MAX0R05 5% 1/4W
JR903 061G1206000 JI RST 1206 MAX0R05 5% 1/4W
JR902 061G1206000 JI RST 1206 MAX0R05 5% 1/4W
JR901 061G1206000 JI RST 1206 MAX0R05 5% 1/4W
JR901 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR902 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR903 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR904 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR905 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

JR906 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R9147 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R9142 061G12061004FF RST CHIPR 1 MOHM +-1% 1/4W FENGHUA
R9143 061G12061004FF RST CHIPR 1 MOHM +-1% 1/4W FENGHUA
R9144 061G12061004FF RST CHIPR 1 MOHM +-1% 1/4W FENGHUA
R9142 061G12061004FI RST 1206 1M 1% 1/4W
R9143 061G12061004FI RST 1206 1M 1% 1/4W
R9144 061G12061004FI RST 1206 1M 1% 1/4W
R9334 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R9334 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R9813 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA
R9160 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA
R9160 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
R9813 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
R9325 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA
R9326 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA
R9327 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA
R9328 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA
R9325 061G1206104 JI RST 1206 100K 5% 1/4W
R9326 061G1206104 JI RST 1206 100K 5% 1/4W
R9327 061G1206104 JI RST 1206 100K 5% 1/4W
R9328 061G1206104 JI RST 1206 100K 5% 1/4W
R9325 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R9326 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R9327 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R9328 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R9319 061G12061504FF RST CHIPR 1.5MOHM 1% 1/4W FENGHUA
R9318 061G12061504FF RST CHIPR 1.5MOHM 1% 1/4W FENGHUA

60

R9317 061G12061504FF RST CHIPR 1.5MOHM 1% 1/4W FENGHUA
R9317 061G12061504FI RST 1206 1.5M 1% 1/4W
R9318 061G12061504FI RST 1206 1.5M 1% 1/4W
R9319 061G12061504FI RST 1206 1.5M 1% 1/4W
R9157 061G1206152 JF RST CHIPR 1.5KOHM +-5% 1/4W FENGHUA
R9157 061G1206152 JT RST CHIPR 1.5KOHM +-5% 1/4W TZAI YUAN
R9807 061G1206203 JF RST CHIPR 20KOHM +-5% 1/4W FENGHUA
R9807 061G1206203 JT RST CHIPR 20KOHM +-5% 1/4W TZAI YUAN

R965 061G1206221 JF RST CHIPR 220 OHM +-5% 1/4W FENGHUA
R965 061G1206221 JT RST CHIPR 220 OHM +-5% 1/4W TZAI YUAN

R9159 061G1206332 JF RST CHIPR 3.3KOHM +-5% 1/4W FENGHUA

R9159 061G1206332 JT

RST CHIPR 3.3 KOHM +-5% 1/4W TZAI
YUAN

R9901 061G1206334 JF RST CHIPR 330KOHM +-5% 1/4W FENGHUA
R9902 061G1206334 JF RST CHIPR 330KOHM +-5% 1/4W FENGHUA
R9903 061G1206334 JF RST CHIPR 330KOHM +-5% 1/4W FENGHUA

R9901 061G1206334 JT

R9902 061G1206334 JT

R9903 061G1206334 JT

RST CHIPR 330 KOHM +-5% 1/4W TZAI
YUAN
RST CHIPR 330 KOHM +-5% 1/4W TZAI
YUAN
RST CHIPR 330 KOHM +-5% 1/4W TZAI
YUAN

R9158 061G1206392 JF RST CHIPR 3.9KOHM +-5% 1/4W FENGHUA
R9158 061G1206392 JT RST CHIPR 3.9 KOHM 1/4W TZAI YUAN
R9330 061G1206470 JF RST CHIPR 47 OHM +-5% 1/4W FENGHUA
R9331 061G1206470 JF RST CHIPR 47 OHM +-5% 1/4W FENGHUA
R9330 061G1206470 JT RST CHIPR 47 OHM +-5% 1/4W TZAI YUAN
R9331 061G1206470 JT RST CHIPR 47 OHM +-5% 1/4W TZAI YUAN
R9811 061G1206471 JF RST CHIPR 470 OHM +-5% 1/4W FENGHUA

R9811 061G1206471 JT

RST CHIPR 470 OHM +-5% 1/4W TZAI
YUAN

R9323 061G1206475 JF RST CHIPR 4.7 MOHM +-5% 1/4W FENGHUA

R9323 061G1206475 JT

RST CHIPR 4.7 MOHM +-5% 1/4W TZAI
YUAN

R9324 061G1206479 JF RST CHIPR 4.7OHM +-5% 1/4W FENGHUA
R9324 061G1206479 JT RST 1206 4.7R 5% 1/4W
R9156 061G1206512 JF RST CHIPR 5.1KOHM +-5% 1/4W FENGHUA
R9156 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN
R9816 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA
R9815 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA
R9814 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA
R9815 061G12066803FI RST 680K OHM 1% 1/4W TA-I
R9816 061G12066803FI RST 680K OHM 1% 1/4W TA-I
R9814 061G12066803FI RST 680K OHM 1% 1/4W TA-I
C9827 065G080510131J F CAP CHIP 0805 100PF J 50V NPO
C9827 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5%
C9334 065G080510232K F CAP 0805 1000PF 10% 50V X7R
C9155 065G080510232K F CAP 0805 1000PF 10% 50V X7R
C9334 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C9155 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C9144 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9145 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9146 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9149 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9165 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

61

C9170 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9335 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9342 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C972 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9828 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9828 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C972 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9342 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9335 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9170 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9165 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9149 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9146 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9145 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9144 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9153 065G080510522K M CAP 0805 1UF 10% 25V X7R
C9151 065G080510522K M CAP 0805 1UF 10% 25V X7R
C9151 065G080510522K T CAP 0805 1UF 10% 25V X7R
C9153 065G080510522K T CAP 0805 1UF 10% 25V X7R
C9343 065G080522432K A CAP 0805 220NF 10% 50V X7R
C9343 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%
C9824 065G080533332K F CAP 0805 33NF K 50V X7R
C9824 065G080533332K Y CAP CHIP 0805 33N 50V X7R +/-10%
C9159 065G080533432K A CAP 0805 330NF 10% 50V X7R
C9825 065G080533432K A CAP 0805 330NF 10% 50V X7R
C9159 065G080533432K F CAP 0805 330NF 10% 50V X7R
C9825 065G080533432K F CAP 0805 330NF 10% 50V X7R
C9829 065G080547132K Y CAP CHIP 0805 470P 50V X7R +/-10%
C9333 065G080547432K A CAP CHIP 0805 0.47UF K 50V X7R
C9150 065G080547432K A CAP CHIP 0805 0.47UF K 50V X7R
C9333 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R
C9150 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R
C9826 065G080556031J F CAP CHIP 0805 56PF J 50V NPO
C9154 065G080562131J F CAP CHIP 0805 620PF J 50V NPO
C9148 065G120647522K T CAP CHIP 1206 4.7uF K 25V X7R
D9112 093G 60S931 T SCHOTTKY B0520 5A 20V SOD-123
D9113 093G 60S931 T SCHOTTKY B0520 5A 20V SOD-123
D9112 093G 60S934 T DIODE SS0520 SOD-123
D9113 093G 60S934 T DIODE SS0520 SOD-123

T9101 006G 31500 EYELET

CN901 006G 31500 EYELET

IC9303 056G 158 10 T

IC9103 056G 158 10 T

LDO IC AZ431AZ-AE1 TO-92 150MA 40V
TO-92
LDO IC AZ431AZ-AE1 TO-92 150MA 40V

TO-92
IC9303 056G 158 12 Shunt Regulator KIA431A-AT/P TO-92
IC9103 056G 158 12 Shunt Regulator KIA431A-AT/P TO-92

R929 061G 30310852T GP FUSER 0.1OHM +-5% 1W
R9801 061G152M10852T SY RST MOF 0R1 5% 2W
R9301 061G152M10952T SY RST MOF 1R 5% 2W
C9156 065G 1K101 2T6921 CAP CER 100pF 1KV K Y5P
C9164 067G215P1516KT EC 150UF 20% 35V 10*9
C9169 067G215P2714KT EC 270UF 20% 25V 10*9
C9168 067G215P2714KT EC 270UF 20% 25V 10*9

62

C9167 067G215P2714KT EC 270UF 20% 25V 10*9
C9166 067G215P2714KT EC 270UF 20% 25V 10*9
FB902 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A
FB901 071G 55 29 FERRITE BEAD
FB903 071G 55 29 FERRITE BEAD

F901 084G 55 4 FUSE 5A 250V

ZD9303 093G 3916652T MTZJ15B (13.89-14.62)
ZD9104 093G 3916652T MTZJ15B (13.89-14.62)
ZD9102 093G 3916652T MTZJ15B (13.89-14.62)

ZD905 093G 3916652T MTZJ15B (13.89-14.62)

ZD9101 093G 3917152T TZJ T-72 30B
ZD9101 093G 3995652T DIODE GDZJ30B DO-35

D9114 093G 52908 RECTIFIER UF4007 A0 1 1000 DO-41
D9304 093G 60964 RECTIFIER PS1010R T/B 1A 1000V DO-41
D9305 093G 60964 RECTIFIER PS1010R T/B 1A 1000V DO-41
D9307 093G 60964 RECTIFIER PS1010R T/B 1A 1000V DO-41
D9306 093G 6451652T 1N4148
D9110 093G 6451652T 1N4148
D9109 093G 6451652T 1N4148
D9109 093G 6452452T SWITCHING 1N4148-B4006 0.2A 100V DO-35
D9110 093G 6452452T SWITCHING 1N4148-B4006 0.2A 100V DO-35
D9306 093G 6452452T SWITCHING 1N4148-B4006 0.2A 100V DO-35

ZD9303 093G 39G 7 ZENER GDZJ15B 15 0.5 DO-35
ZD9104 093G 39G 7 ZENER GDZJ15B 15 0.5 DO-35
ZD9102 093G 39G 7 ZENER GDZJ15B 15 0.5 DO-35

ZD905 093G 39G 7 ZENER GDZJ15B 15 0.5 DO-35

J905 095G 90 23 JUMPER WIRE
J906 095G 90 23 JUMPER WIRE
J907 095G 90 23 JUMPER WIRE
J903 095G 90 23 JUMPER WIRE
J904 095G 90 23 JUMPER WIRE
J908 095G 90 23 JUMPER WIRE
J909 095G 90 23 JUMPER WIRE
J910 095G 90 23 JUMPER WIRE
J911 095G 90 23 JUMPER WIRE
J931 095G 90 23 JUMPER WIRE
J929 095G 90 23 JUMPER WIRE
J928 095G 90 23 JUMPER WIRE
J927 095G 90 23 JUMPER WIRE
J932 095G 90 23 JUMPER WIRE
J926 095G 90 23 JUMPER WIRE
J925 095G 90 23 JUMPER WIRE
J924 095G 90 23 JUMPER WIRE
J923 095G 90 23 JUMPER WIRE
J921 095G 90 23 JUMPER WIRE
J920 095G 90 23 JUMPER WIRE
J919 095G 90 23 JUMPER WIRE
J915 095G 90 23 JUMPER WIRE
J914 095G 90 23 JUMPER WIRE
J913 095G 90 23 JUMPER WIRE

715G4564P01W20003S PWR PCB CEM1 SS 195.5X301X1.6mm

R929 061G 30310852T HX RST FUSE 0.1R 5% 1W
R9801 061G152M10852T RST MOFR 0.1 OHM +-5% 2WS
FB904 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A

63

L9801 006G 31500 EYELET
D9304 093G 6026T52T CTIFIER DIODE FR107
D9305 093G 6026T52T CTIFIER DIODE FR107
D9307 093G 6026T52T CTIFIER DIODE FR107
C9332 065G 1K102 8T6213 CAP CER 1000PF K 1KV RR
C9338 065G 1K102 8T6213 CAP CER 1000PF K 1KV RR

IC9801 056G 379172 IC LD7591GS SOP-8

C9826 065G080556031J Y CAP 0805 56PF 5% 50V NP0
R9320 061G0805624 JF RST CHIPR 620KOHM +-5% 1/8W FENGHUA

Q45G 99606 25 ESD insulating pe bag
026G 800700 1A BARCODE LABEL
052G 1185 MIDDLE TAPE (Y1200141)
052G 1186 SMALL TAPE
052G 2191 A PAPER TAPE
089G220A18NHLU T1 AC POWER CORD 1800+100mm WITH SW

092GB1JX1A3EGC BATTERY 1.5V BATTERY LR03
ECN701 095G801413DX07 HARNESS 13P-13P 400MM
ECN701 095G801413WX07 HARNESS 13P-13P 400mm 2nd source
ECN903 095G801414DX02 HARNESS 14P-12P 300MM
ECN903 095G801414WX02 HARNESS 14P-12P 300mm 2nd source
ECN408 095G801851W 31 HARNESS 51P-40P 250mm 2nd source
ECN408 095G801851X 31 HARNESS 51P-40P 250mm

098GRABDENKACJ REMOTE AOC RC-AOC54-420

0M1G 940 8 47 CR3 SCREW 4x8

0M1G1730 6120 SCREW 3x6

0M1G1730 6120 SCREW 3x6

0M1G1740 6120 SCREW

0M1G1740 10225 CR3 SCREW M1-MACHINE SCREW x10.0

0M1G1740 12225 CR3 SCREW M1-MACHINE SCREW x12.0

0Q1G 940 12 47 CR3 SCREW 4x12

0Q1G 940 14 47 CR3 SCREW

0Q1T 330 6120

SCREW G1-SELF TAPING SCREW TYPE:4

x6
705TXB15002 TUNER BOX ASS'Y
0M1G1730 8120 SCREW 3x8

TUPFBXA6 TUNER BOARD
040G 45762412B CBPC LABEL

TU1101 094GNTAT MA10G TUNER USA TDTR-T051F

CN1101 311GB254D20ABX HEADER FEMALE 2.54mm 20P

709T4602 XM001 CONSUMABLE ASS'Y

C0101 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%
C1107 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C1106 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C1107 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C1106 065G040210412K T CAP CHIP 0402 100nF 16V X7R

715G4602T02000004S TUNERBOX PCB FR4 DS 54.5x60x1.6mm 2nd source
709T4602 XS001 CONSUMABLE ASS'Y
Z15T0132201 cover top tuner
Z15T0133101 cover btm tuner
705TXB41019 MANUAL ASS'Y
X41G32MV61516A MANUAL FOR Taiwan
X41G78DV615 7A WARRANTY CARD
040G 58162435A PN LABEL FOR Manual PE Bag
705TXBSCJ05 MAIN BOARD ASS'Y

64

0Q1G 330 6 47 CR3 SCREW 3x6
756TXBCB 2T018 01 MAIN BOARD-CBPFB4ETX4

SMTF-U4051 100TAKAK001T1X MCU ASS'Y-056G1133945

SMTF-U409 100TAKAK002T1X MCU ASS'Y-056G113353A
SMTF-U502 100TAKAKA01T1D MCU ASS'Y-056G1133956
SMTF-U503 100TAKAKB01T1D MCU ASS'Y-056G1133956
SMTF-U504 100TAKAKC01T1D MCU ASS'Y-056G1133956
SMTF-U110 100TAKAKV01T1D MCU ASS'Y-056G1133956

040G 45762412B CBPC LABEL

CN410 033G3802 3 H X WAFER 3P RIGHT ANGLE PITCH 2.0
CN401 033G380213B YH WAFER 2.0mm 13P
C1110 067G215C4706KV EC 47UF 20% 35V EM 8*9

C702 067G215H471 2H EC 470UF 20% 10V 8*9 2000 hr
C6227 067G305S3316HV EC 330UF 20% 35V 10*9 2000 hr
C6317 067G305S3316HV EC 330UF 20% 35V 10*9 2000 hr
C6356 067G305S3316HV EC 330UF 20% 35V 10*9 2000 hr
C1104 067G305S6812HV EC 680UF 20% 10V 10*9 2000 hr

CN1302 088G 30211K NO-SUGGEST PHONG JACK 7PIN

CN102 088G 30265C PHONE JACK 3P GREEN - 1 1
CN702 088G 35315FHLS D-SUB CONN SCREWED 15P BLUE ­CN113 088G 78G113ACL RCA JACK R/A 3P BLACK H=10.5
CN136 088G 78G131ACL RCA JACK 6P R/A Y/W/R H 1*3 H=10.5
CN111 088G 78G151ACL RCA JACK R/A 10P G/BL/R/W/R 1*5 H=10.5

CN1101 311GB254C20BBX

PIN HEADER 2.54mm 20P
W2510-20RVB-S01

CN6301 311GW250B04BBX WAFER 2.5MM 4P

CN701 311GW250B13BBX WAFER 2.5mm 13P R/A 35mm 7mm

709T4852 XM001 CONSUMPTIVE ASS'Y
055G 23520 IPA
055G 23524 WELDING FLUX WITHOUT PB
Q55G 100625 TIN STICK_LOW ARGENTUM
P85J0127201 SHIELD
P85J0128201 SHIELD

P90T0060201 HEAT SINK (42x39x6mm)
U9108 056G 379120 DC/DC AP1534SG-13 SOP-8L
U6304 056G 562315 IC Scaler MT5363LIMG BGA-522 (H.264)
U1101 056G 563124 IC G9084TU3U TO-263T
U1102 056G 563126 LDO G1117T63Uf 1A adj SOT-223

U751 056G 563149 IC G903T63UF 0.6A/3.3V SOT-223

U6301 056G 563149 IC G903T63UF 0.6A/3.3V SOT-223

U753 056G 563153 HF LDO AP1117DG-13 1A ADJ TO252-3L
U703 056G 563153 HF LDO AP1117DG-13 1A ADJ TO252-3L
U701 056G 563203 IC MP2212DN SOIC8E
U702 056G 563203 IC MP2212DN SOIC8E

U6302 056G 593 39 IC STA339BWTR PowerSSO36

U402 056G 615108 1 DRAM H5PS5162GFR-G7C 512M FBGA84
U403 056G 615108 1 DRAM H5PS5162GFR-G7C 512M FBGA84

U6201 056G 616916 IC MAX9728AETC+ TQFN-EP-12

U501 056G 623 33 IC TMDS351PAG TQFP-64
U410 056G 643 46 IC Reset AZ809ANSTR-E1 SOT-23 2.93V

U1003 056G 659 35 USB GL852G-MNG12 LQFP48

U409 056G113353A IC M24C32-WMN6T SO-8 ST

U4051 056G1133945 IC HY27US08281A-TPCB TSOP48

U110 056G1133956 IC CAT24C02WI-GT3 SO-8

65

U502 056G1133956 IC CAT24C02WI-GT3 SO-8
U503 056G1133956 IC CAT24C02WI-GT3 SO-8
U504 056G1133956 IC CAT24C02WI-GT3 SO-8

Q1102 057G 417517

Tra LMBT3906LT1G -200mA/-40V SOT-23

LRC
Q1157 057G 419513 BC847C
Q1103 057G 419513 BC847C

Q702 057G 477900 T TRA SIG SM BC847C (KEC0) R
Q6202 057G 477900 T TRA SIG SM BC847C (KEC0) R
Q6201 057G 477900 T TRA SIG SM BC847C (KEC0) R

Q507 057G 477900 T TRA SIG SM BC847C (KEC0) R

Q506 057G 477900 T TRA SIG SM BC847C (KEC0) R

Q505 057G 477900 T TRA SIG SM BC847C (KEC0) R

Q504 057G 477900 T TRA SIG SM BC847C (KEC0) R

Q503 057G 477900 T TRA SIG SM BC847C (KEC0) R

Q501 057G 477900 T TRA SIG SM BC847C (KEC0) R

Q402 057G 477900 T TRA SIG SM BC847C (KEC0) R

Q401 057G 477900 T TRA SIG SM BC847C (KEC0) R
Q1150 057G 477900 T TRA SIG SM BC847C (KEC0) R
Q1101 057G 477900 T TRA SIG SM BC847C (KEC0) R

Q705 057G 477900 T TRA SIG SM BC847C (KEC0) R

Q751 057G 477900 T TRA SIG SM BC847C (KEC0) R
Q1155 057G 759 2A HF TANSISTOR 2N7002H SOT-23
Q1156 057G 759 2A HF TANSISTOR 2N7002H SOT-23
Q6203 057G 761 15 PDTC114ET SOT23

Q704 057G 763912 MOSFET SI4835DDY SO-8

Q750 057G 763912 MOSFET SI4835DDY SO-8

TH1002 061G 52902 W PTC CHIP 8V 0R4 KMC4S075RY

TH1001 061G 52902 W PTC CHIP 8V 0R4 KMC4S075RY
RP4111 061G 1265608JT RST NET 56R 5% 1/16W
RP4110 061G 1265608JT RST NET 56R 5% 1/16W
RP4109 061G 1265608JT RST NET 56R 5% 1/16W
RP4108 061G 1265608JT RST NET 56R 5% 1/16W
RP4107 061G 1265608JT RST NET 56R 5% 1/16W
RP4106 061G 1265608JT RST NET 56R 5% 1/16W
RP4105 061G 1265608JT RST NET 56R 5% 1/16W
RP4104 061G 1265608JT RST NET 56R 5% 1/16W
RP4103 061G 1265608JT RST NET 56R 5% 1/16W
RP4102 061G 1265608JT RST NET 56R 5% 1/16W
RP4101 061G 1265608JT RST NET 56R 5% 1/16W
RP4100 061G 1265608JT RST NET 56R 5% 1/16W

R1104 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R1115 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R1117 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R1156 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R1165 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R1173 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R1177 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R1186 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R1200 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R1201 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R402 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R4051 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R4052 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

66

R4192 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R564 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R6314 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R6321 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R6322 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R6209 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN
R1146 061G04021001FT RST CHIP R 1Kohm 1/16W +/-1%
R1136 061G0402101 JI bEST ONLY RST 0402 100R 5% 1/16W TA-I
R1106 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R1139 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R1160 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R1162 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R1181 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R1183 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R1192 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R1198 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R4106 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R4107 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R4108 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R510 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R511 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R521 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R522 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R529 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R530 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R545 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R570 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R704 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN

R517 061G0402102 JI RST 0402 1K 5% 1/16W TA-I

R526 061G0402102 JI RST 0402 1K 5% 1/16W TA-I

R527 061G0402102 JI RST 0402 1K 5% 1/16W TA-I

R533 061G0402102 JI RST 0402 1K 5% 1/16W TA-I
R4165 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN

R515 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN

R532 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN

R540 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN

R541 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN

R551 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN

R568 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN

R710 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN

R712 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN
R1191 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R1182 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R1163 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN

R750 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN

R708 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R6317 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R4155 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R4164 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R4166 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R4167 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R4168 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R4169 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R4170 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN

67

R4174 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R4177 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN

R518 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R6210 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R6212 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R6213 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R6215 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R6216 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R6222 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R6223 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R6224 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R1159 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R1157 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R1133 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R4180 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN
R4171 061G0402105 JT RST CHIP R 1Mohm 1/16W +/-5% TZAI YUAN
R4173 061G0402105 JT RST CHIP R 1Mohm 1/16W +/-5% TZAI YUAN
R1184 061G0402152 JT RST CHIP 1K5 1/16W 5% TZAI YUAN
R1185 061G0402152 JT RST CHIP 1K5 1/16W 5% TZAI YUAN
R1168 061G0402180 JT RST CHIP 18R 1/16W 5% TZAI YUAN
R1170 061G0402180 JT RST CHIP 18R 1/16W 5% TZAI YUAN
R1172 061G0402180 JT RST CHIP 18R 1/16W 5% TZAI YUAN
R4109 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R4110 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R4111 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R4112 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R4228 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R4231 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R4233 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R4234 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R6312 061G04022201FT RST CHIPR 2K2 +-1% 1/16W TZAI YUAN
R1120 061G0402221 JT RST CHIPR 220R +-5% 1/16W TZAI YUAN
R1111 061G0402221 JT RST CHIPR 220R +-5% 1/16W TZAI YUAN
R6313 061G0402229 JT RST CHIP 2R2 1/16W 5% TZAI YUAN

R705 061G0402272 JT RST CHIP 2K7 1/16W 5% TZAI YUAN

R1155 061G0402303 JT

R1153 061G0402303 JT

R1152 061G0402303 JT

R1151 061G0402303 JT

RST CHIP R 30Kohm 1/16W +/-5% TZAI
YUAN
RST CHIP R 30Kohm 1/16W +/-5% TZAI
YUAN
RST CHIP R 30Kohm 1/16W +/-5% TZAI
YUAN
RST CHIP R 30Kohm 1/16W +/-5% TZAI
YUAN

R4176 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN

R538 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO

R524 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO

R512 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
R4158 061G0402331 JT RST CHIP 330R 1/16W 5% TZAI YUAN
R1147 061G0402471 JT RST CHIP 470R 1/16W 5% TZAI YUAN
R1142 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R1143 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R1144 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R1145 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R1190 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R4000 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN

68

R4001 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R4003 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R4004 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R4005 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R4006 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN

R407 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN

R409 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN

R413 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R4182 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R4184 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R4185 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R4186 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN

R714 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R6217 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R4235 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R4232 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R4196 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R4195 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R4194 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R4191 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R4190 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R4189 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R4188 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R4187 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN

R516 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO

R528 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO

R539 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO

R549 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO

R569 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO

R550 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO

R520 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN

R519 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN
R1103 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN

R531 061G0402474 JT RST CHIP 470K 1/16W 5% TZAI YUAN

R525 061G0402474 JT RST CHIP 470K 1/16W 5% TZAI YUAN

R514 061G0402474 JT RST CHIP 470K 1/16W 5% TZAI YUAN
R1169 061G04025609FT RST CHIP 56R 1/16W 1%
R1166 061G04025609FT RST CHIP 56R 1/16W 1%
R1161 061G04025609FT RST CHIP 56R 1/16W 1%
C1219 061G0402620 JF RST CHIP 62R 1/16W 5% FENGHUA
R1158 061G0402680 JT RST CHIP 68R 1/16W 5% TZAI YUAN
R1164 061G0402680 JT RST CHIP 68R 1/16W 5% TZAI YUAN
R1171 061G0402680 JT RST CHIP 68R 1/16W 5% TZAI YUAN
R1175 061G0402680 JT RST CHIP 68R 1/16W 5% TZAI YUAN
R1178 061G0402680 JT RST CHIP 68R 1/16W 5% TZAI YUAN
R1180 061G0402680 JT RST CHIP 68R 1/16W 5% TZAI YUAN
R1174 061G0402750 JT RST 0402 75R 5% 1/16W
R1176 061G0402750 JT RST 0402 75R 5% 1/16W
R1179 061G0402750 JT RST 0402 75R 5% 1/16W
R1187 061G0402750 JT RST 0402 75R 5% 1/16W
R1197 061G0402750 JT RST 0402 75R 5% 1/16W
R1199 061G0402750 JT RST 0402 75R 5% 1/16W
R1140 061G04027509FT RST CHIP 75R 1/16W 1%
R4061 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN

69

R4060 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R4059 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R4058 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R4057 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN

R716 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN

R566 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN

R565 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN

R534 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN

R435 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN

R420 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN

R419 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN

R418 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R4179 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R4175 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R4172 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R4160 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R4156 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R4151 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R4063 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R4062 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN

R725 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN

R726 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN

R765 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN

R567 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN

R715 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R4056 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R1167 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R1134 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R1124 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R1123 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R1105 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R6211 061G0603100 JY RST CHIPR 10OHM 1/10W YAGEO
R6214 061G0603100 JY RST CHIPR 10OHM 1/10W YAGEO
R6204 061G06031000FT RST CHIP 100R 1/10W 1%
R4199 061G06031000FT RST CHIP 100R 1/10W 1%
R4200 061G06031000FT RST CHIP 100R 1/10W 1%
R4104 061G06031001FT RST CHIP 1K 1/10W 1%
R4105 061G06031001FT RST CHIP 1K 1/10W 1%
R4153 061G06031001FT RST CHIP 1K 1/10W 1%

R718 061G06031001FT RST CHIP 1K 1/10W 1%

R742 061G06031001FT RST CHIP 1K 1/10W 1%
R4103 061G06031001FT RST CHIP 1K 1/10W 1%
R4102 061G06031001FT RST CHIP 1K 1/10W 1%
R4101 061G06031001FT RST CHIP 1K 1/10W 1%
R4100 061G06031001FT RST CHIP 1K 1/10W 1%
R1110 061G06031001FT RST CHIP 1K 1/10W 1%

R721 061G06031002FT RST CHIP 10K 1/10W 1%

R722 061G06031002FT RST CHIP 10K 1/10W 1%
R6303 061G06031008FT RST 0603 1R 1% 1/10W TZAI YUAN
R6202 061G0603101 JI RST 0603 100R 5% 1/10W TA-I
R1194 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN

R408 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R4157 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R4159 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN

70

R4162 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R4178 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R6202 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN

R764 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R741 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R6221 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R411 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R406 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R1148 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R1131 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R1051 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R1009 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R755 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R548 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R547 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R535 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R507 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R9140 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA
R1053 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN
R1054 061G0603105 JI RST 0603 1M 5% 1/16W TA-I
R1137 061G0603109 JT RST CHIP 1R 1/10W 5% TZAI YUAN
R4152 061G0603109 JT RST CHIP 1R 1/10W 5% TZAI YUAN

R757 061G0603109 JT RST CHIP 1R 1/10W 5% TZAI YUAN

R756 061G06031200FT RST CHIP 120R 1/10W 1%

R717 061G06031200FT RST CHIP 120R 1/10W 1%
R1138 061G06031200FT RST CHIP 120R 1/10W 1%

R719 061G06031501FY RST CHIPR 1.5KOHM +-1% 1/10W YAGEO
R9146 061G06031501FY RST CHIPR 1.5KOHM +-1% 1/10W YAGEO
R1107 061G0603154 JT RST CHIP 150K 1/10W 5% TZAI YUAN
R9142 061G06031602FY RST CHIPR 16K +-1% 1/10W YAGEO
R6203 061G0603182 JT RST CHIPR 1.8KOHM 1/10W TZAI YUAN
R6207 061G0603182 JT RST CHIPR 1.8KOHM 1/10W TZAI YUAN
R6319 061G0603182 JT RST CHIPR 1.8KOHM 1/10W TZAI YUAN
R1015 061G0603223 JT RST 0603 22K 5% 1/10W
R1056 061G0603223 JT RST 0603 22K 5% 1/10W

R711 061G0603223 JT RST 0603 22K 5% 1/10W
R1189 061G06032400FT RST CHIP 240R 1/10W 1%

R502 061G0603273 JT RST CHIP 27K 1/10W 5% TZAI YUAN
R1112 061G06033001FT RST CHIP 3K 1/10W 1%

R720 061G06033001FT RST CHIP 3K 1/10W 1%
R9157 061G06033001FT RST CHIP 3K 1/10W 1%

R723 061G06033002FT RST CHIP 30K 1/10W 1%
R9141 061G0603302 JT RST CHIPR 3KOHM 1/10W TZAI YUAN
R1150 061G0603303 JT RST CHIP 30K 1/10W 5% TZAI YUAN
R1154 061G0603303 JT RST CHIP 30K 1/10W 5% TZAI YUAN

R546 061G06034641FY RST CHIP 4K64 1/10W 1%
R6205 061G0603471 JI TEST ONLY RST 0603 470R 5% 1/16W TA-I
R6205 061G0603471 JT RST CHIPR 470OHM +-5% 1/10W TZAI YUAN
R1022 061G0603473 JT RST CHIP 47K 1/10W 5% TZAI YUAN
R1057 061G0603473 JT RST CHIP 47K 1/10W 5% TZAI YUAN

R508 061G0603473 JT RST CHIP 47K 1/10W 5% TZAI YUAN

R509 061G0603473 JT RST CHIP 47K 1/10W 5% TZAI YUAN

R536 061G0603473 JT RST CHIP 47K 1/10W 5% TZAI YUAN

R537 061G0603473 JT RST CHIP 47K 1/10W 5% TZAI YUAN

71

R562 061G06035101FY RST CHIP 5K1 1/10W 1%

R752 061G0603512 JT RST 0603 5.1K 5% 1/10W
R9136 061G0603512 JT RST 0603 5.1K 5% 1/10W
R4050 061G06035600FY RST CHIP 560R 1/10W 1%

R731 061G06035609FY RST CHIP 56R 1/10W 1%
R1020 061G06036800FT RST CHIP 680R 1/10W 1%
R4154 061G06036801FY RST CHIP 6K8 1/10W 1%
R1108 061G06037509FT RST CHIP 75R 1/10W 1%

R758 061G0603752 JT RST CHIP 7K5 1/10W 5% TZAI YUAN

R703 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA

R414 061G0805103 JT RST 0805 10K 5% 1/8W
R6315 061G0805220 JF RST CHIPR 22 OHM +-5% 1/8W FENGHUA
R6309 061G0805220 JF RST CHIPR 22 OHM +-5% 1/8W FENGHUA
R1122 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R1121 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R1119 061G1206150 JF RST CHIPR 15 OHM +-5% 1/4W FENGHUA
R1118 061G1206150 JF RST CHIPR 15 OHM +-5% 1/4W FENGHUA
R1113 061G1206150 JF RST CHIPR 15 OHM +-5% 1/4W FENGHUA
R6316 061G1206629 JT RST CHIPR 6.2 OHM +-5% 1/4W TZAI YUAN
R6310 061G1206629 JT RST CHIPR 6.2 OHM +-5% 1/4W TZAI YUAN
R6308 061G1206629 JT RST CHIPR 6.2 OHM +-5% 1/4W TZAI YUAN
R6307 061G1206629 JT RST CHIPR 6.2 OHM +-5% 1/4W TZAI YUAN
C4163 065G040210031D 3 CAP 0402 10PF 0.5pF 50V NP0
C4164 065G040210031D 3 CAP 0402 10PF 0.5pF 50V NP0
C4165 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%
C6347 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%
C6348 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%
C6349 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%
C6350 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%
C6351 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%
C6352 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%
C1179 065G040210332K A CAP 0402 10NF 10% 50V X7R
C1178 065G040210332K A CAP 0402 10NF 10% 50V X7R
C1176 065G040210332K A CAP 0402 10NF 10% 50V X7R
C1175 065G040210332K A CAP 0402 10NF 10% 50V X7R
C1163 065G040210332K A CAP 0402 10NF 10% 50V X7R
C1159 065G040210332K A CAP 0402 10NF 10% 50V X7R
C1157 065G040210332K A CAP 0402 10NF 10% 50V X7R
C1154 065G040210332K A CAP 0402 10NF 10% 50V X7R
C1121 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%
C1134 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%
C1135 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%
C4130 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%
C4120 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4119 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4121 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4122 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4123 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4124 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4118 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4117 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4115 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4114 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4113 065G040210412K T CAP CHIP 0402 100nF 16V X7R

72

C4112 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4056 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4057 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4058 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4059 065G040210412K T CAP CHIP 0402 100nF 16V X7R

C406 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4060 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4061 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4100 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4101 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4104 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4105 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4106 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4107 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4108 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4109 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4125 065G040210412K T CAP CHIP 0402 100nF 16V X7R

C514 065G040210412K T CAP CHIP 0402 100nF 16V X7R

C513 065G040210412K T CAP CHIP 0402 100nF 16V X7R

C511 065G040210412K T CAP CHIP 0402 100nF 16V X7R

C509 065G040210412K T CAP CHIP 0402 100nF 16V X7R

C508 065G040210412K T CAP CHIP 0402 100nF 16V X7R

C507 065G040210412K T CAP CHIP 0402 100nF 16V X7R

C506 065G040210412K T CAP CHIP 0402 100nF 16V X7R

C505 065G040210412K T CAP CHIP 0402 100nF 16V X7R

C504 065G040210412K T CAP CHIP 0402 100nF 16V X7R

C503 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4167 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4166 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4156 065G040210412K T CAP CHIP 0402 100nF 16V X7R

C515 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4126 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4127 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4128 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4129 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4152 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4154 065G040210412K T CAP CHIP 0402 100nF 16V X7R

C730 065G040210412K T CAP CHIP 0402 100nF 16V X7R

C708 065G040210412K T CAP CHIP 0402 100nF 16V X7R

C521 065G040210412K T CAP CHIP 0402 100nF 16V X7R

C520 065G040210412K T CAP CHIP 0402 100nF 16V X7R

C519 065G040210412K T CAP CHIP 0402 100nF 16V X7R

C517 065G040210412K T CAP CHIP 0402 100nF 16V X7R

C516 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4055 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4005 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4004 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4003 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4002 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4001 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4000 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C1187 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C1161 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C1139 065G040210412K T CAP CHIP 0402 100nF 16V X7R

73

C1138 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C1137 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C1133 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C1122 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C1118 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C1116 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C1106 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C1105 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4054 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4053 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4052 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4051 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4050 065G040210412K T CAP CHIP 0402 100nF 16V X7R

C404 065G040210412K T CAP CHIP 0402 100nF 16V X7R

C402 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4015 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4014 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4006 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4007 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4008 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4009 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4010 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4011 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4012 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C4013 065G040210412K T CAP CHIP 0402 100nF 16V X7R
C1114 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C1119 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C1120 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C1136 065G040210427Z Y CAP 0402 100NF -20%+80% 25V Y5V
C6208 065G0402105A5K 3 CAP CHIP 0402 1UF K 10V X5R
C6206 065G0402105A5K 3 CAP CHIP 0402 1UF K 10V X5R
C1108 065G0402105A5K T CAP 0402 1UF 10% 10V X5R
C1152 065G0402105A5K T CAP 0402 1UF 10% 10V X5R
C1160 065G040215031J A CAP 0402 15PF 5% 50V NP0
C1156 065G040215031J A CAP 0402 15PF 5% 50V NP0
C1162 065G040215031J A CAP 0402 15PF 5% 50V NP0
C1153 065G040215232K Y CAP CHIP 0402 1.5NF 50V X7R
C1173 065G040215232K Y CAP CHIP 0402 1.5NF 50V X7R
C1111 065G040233031J T CAP CHIP 0402 33pF 50V NPO
C1113 065G040233031J T CAP CHIP 0402 33pF 50V NPO
C6323 065G040233131J T CAP CHIP 0402 330PF 50V J NPO
C6331 065G040233131J T CAP CHIP 0402 330PF 50V J NPO
C1192 065G040247031J 3 CAP CHIP 0402 47P 50V NPO +/-5%
C6211 065G040247031J 3 CAP CHIP 0402 47P 50V NPO +/-5%
C6212 065G040247031J 3 CAP CHIP 0402 47P 50V NPO +/-5%
C1109 065G040247312K A CAP 0402 47NF 10% 16V X7R
C1191 065G040247312K A CAP 0402 47NF 10% 16V X7R
C1326 065G040247312K A CAP 0402 47NF 10% 16V X7R
C1327 065G040247312K A CAP 0402 47NF 10% 16V X7R
C1140 065G040247312K T CAP 0402 47NF 10% 16V X7R
C1141 065G040247312K T CAP 0402 47NF 10% 16V X7R
C1155 065G040250931C 3 CAP CHIP 0402 5PF 50V NP0 +/-0.25pF
C1158 065G040250931C 3 CAP CHIP 0402 5PF 50V NP0 +/-0.25pF
C1170 065G040250931C 3 CAP CHIP 0402 5PF 50V NP0 +/-0.25pF

74

C1171 065G040250931C 3 CAP CHIP 0402 5PF 50V NP0 +/-0.25pF
C1172 065G040250931C 3 CAP CHIP 0402 5PF 50V NP0 +/-0.25pF
C6343 065G040268132K 3 CAP CHIP 680pF 50V X7R +/-10%
C4158 065G060310432K 3 CAP CHIP 0603 0.1uF K 50V X7R
C4159 065G060310432K 3 CAP CHIP 0603 0.1uF K 50V X7R
C1073 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C1074 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C1070 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C1064 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C1062 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C1075 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C1076 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C1078 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C1112 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C4155 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C4157 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C4158 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C9164 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C9160 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C9158 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C9154 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C9152 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C718 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C717 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C716 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C715 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C711 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C707 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C6229 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C4162 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C4159 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C1059 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C1058 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C1053 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C1008 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C1007 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C1004 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C765 065G060310512K T CAP 0603 1UF 10% 16V X7R
C4150 065G060310512K T CAP 0603 1UF 10% 16V X7R
C4116 065G060310512K T CAP 0603 1UF 10% 16V X7R
C4111 065G060310512K T CAP 0603 1UF 10% 16V X7R
C4069 065G060310512K T CAP 0603 1UF 10% 16V X7R
C4068 065G060310512K T CAP 0603 1UF 10% 16V X7R
C4067 065G060310512K T CAP 0603 1UF 10% 16V X7R
C4062 065G060310512K T CAP 0603 1UF 10% 16V X7R
C1131 065G060310512K T CAP 0603 1UF 10% 16V X7R
C1032 065G060310512K T CAP 0603 1UF 10% 16V X7R
C1077 065G060310512K T CAP 0603 1UF 10% 16V X7R
C4151 065G060310512K T CAP 0603 1UF 10% 16V X7R

C502 065G060310512K T CAP 0603 1UF 10% 16V X7R
C6207 065G060310512K T CAP 0603 1UF 10% 16V X7R
C6230 065G060310512K T CAP 0603 1UF 10% 16V X7R

C705 065G060310512K T CAP 0603 1UF 10% 16V X7R

C709 065G060310512K T CAP 0603 1UF 10% 16V X7R

75

C725 065G060310512K T CAP 0603 1UF 10% 16V X7R

C727 065G060310512K T CAP 0603 1UF 10% 16V X7R

C733 065G060310512K T CAP 0603 1UF 10% 16V X7R

C754 065G060310512K T CAP 0603 1UF 10% 16V X7R

C758 065G060310512K T CAP 0603 1UF 10% 16V X7R
C4169 065G060310605M 3 MLCC 0603 10uF 6.3V X5R +-20% TDK
C4169 065G060310605M T CAP 0603 10UF 20% 6.3V X5R
C1052 065G060333031J Y CAP CHIP 0603 33P 50V NP0 +/-5%
C1057 065G060333031J Y CAP CHIP 0603 33P 50V NP0 +/-5%
C4168 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R

C510 065G0603475A5K 3 CAP 0603 4.7UF K 10V X5R

C510 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R
C4168 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R
C1054 065G060347931C Y CAP 0603 4.7PF 0.25pF 50V NPO
C1055 065G060347931C Y CAP 0603 4.7PF 0.25pF 50V NPO
C1061 065G060347931C Y CAP 0603 4.7PF 0.25pF 50V NPO
C1063 065G060347931C Y CAP 0603 4.7PF 0.25pF 50V NPO

C720 065G060356131J Y CAP CHIP 0603 560pF J 50V NP0

C722 065G060356131J Y CAP CHIP 0603 560pF J 50V NP0
C6344 065G080510231J F CAP 0805 1NF 5% 50V NPO
C6304 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C6306 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C6307 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C6346 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C6345 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C6341 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C6338 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C6332 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C6330 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C6329 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C6328 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C6327 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C6325 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C6324 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C6322 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C6321 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C6320 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C6318 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C6316 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C6339 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C6301 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C6213 065G080510522K 3 CAP CHIP 0805 1U 25V X7R +/-10%
C6319 065G080510532K T CAP 0805 1UF 10% 50V X7R
C6314 065G080510532K T CAP 0805 1UF 10% 50V X7R

C768 065G080510615K 3 CAP CHIP 0805 10U 16V X5R +/-10%

C407 065G080510615K 3 CAP CHIP 0805 10U 16V X5R +/-10%

C407 065G080510615K A CAP 0805 10UF 10% 16V X5R

C768 065G080510615K A CAP 0805 10UF 10% 16V X5R
C1103 065G0805106A5K 3 CHIP 10uF 10V X5R 10%
C1132 065G0805106A5K 3 CHIP 10uF 10V X5R 10%
C1164 065G0805106A5K 3 CHIP 10uF 10V X5R 10%
C1165 065G0805106A5K 3 CHIP 10uF 10V X5R 10%
C1167 065G0805106A5K 3 CHIP 10uF 10V X5R 10%
C1168 065G0805106A5K 3 CHIP 10uF 10V X5R 10%

76

C1174 065G0805106A5K 3 CHIP 10uF 10V X5R 10%
C1180 065G0805106A5K 3 CHIP 10uF 10V X5R 10%
C4016 065G0805106A5K 3 CHIP 10uF 10V X5R 10%
C4110 065G0805106A5K 3 CHIP 10uF 10V X5R 10%

C501 065G0805106A5K 3 CHIP 10uF 10V X5R 10%
C6204 065G0805106A5K 3 CHIP 10uF 10V X5R 10%
C6205 065G0805106A5K 3 CHIP 10uF 10V X5R 10%

C712 065G0805106A5K 3 CHIP 10uF 10V X5R 10%

C764 065G0805106A5K 3 CHIP 10uF 10V X5R 10%

C767 065G0805106A5K 3 CHIP 10uF 10V X5R 10%
C1115 065G080533422K 3 330NF 10% 25V X7R
C6342 065G080547232K Y CAP CHIP 0805 4N7 50V X7R +/-10%

C729 065G120610625K 3 CAP CHIP 1206 10uF K 25V X5R

C713 065G1206226A5K T CAP CHIP1206 22uF K 10V X5R

C714 065G1206226A5K T CAP CHIP1206 22uF K 10V X5R

C719 065G1206226A5K T CAP CHIP1206 22uF K 10V X5R

C721 065G1206226A5K T CAP CHIP1206 22uF K 10V X5R

C723 065G1206226A5K T CAP CHIP1206 22uF K 10V X5R

C724 065G1206226A5K T CAP CHIP1206 22uF K 10V X5R

C726 065G1206226A5K T CAP CHIP1206 22uF K 10V X5R

C728 065G1206226A5K T CAP CHIP1206 22uF K 10V X5R
C9157 067G 3112213LT EC SMD 220UF 20% 16V 6.3*7.7

C460 067G 3112213LT EC SMD 220UF 20% 16V 6.3*7.7
C1129 067G 3112213LT EC SMD 220UF 20% 16V 6.3*7.7
C1128 067G 3112213LT EC SMD 220UF 20% 16V 6.3*7.7
C9161 067G 3112213LT EC SMD 220UF 20% 16V 6.3*7.7
C1002 067G311C1013LT EC SMD 100UF 20% 16V VZH 6.3*7.7
C1050 067G311C1013LT EC SMD 100UF 20% 16V VZH 6.3*7.7
C1060 067G311C1013LT EC SMD 100UF 20% 16V VZH 6.3*7.7
C6303 067G311C1013LT EC SMD 100UF 20% 16V VZH 6.3*7.7
C6305 067G311C1013LT EC SMD 100UF 20% 16V VZH 6.3*7.7

C734 067G311C1013LT EC SMD 100UF 20% 16V VZH 6.3*7.7
C1067 067G311F1006ST 10uF 35V 105C V TYPE
C6228 067G311F1006ST 10uF 35V 105C V TYPE

U409 070GHDCP500HDC HDCP CODE
FB705 071G 56A221 TA IND FXD 0805 EMI 100MHZ 220R R
FB706 071G 56A221 TA IND FXD 0805 EMI 100MHZ 220R R
FB707 071G 56A221 TA IND FXD 0805 EMI 100MHZ 220R R
FB710 071G 56A221 TA IND FXD 0805 EMI 100MHZ 220R R

FB9129 071G 56K121 TA

FB9127 071G 56K121 TA

FB704 071G 56K121 TA

FB703 071G 56K121 TA

FB6304 071G 56K121 TA

FB6301 071G 56K121 TA

FB6203 071G 56K121 TA

FB6202 071G 56K121 TA

CHIP BEAD 120R/6000mA
HCB2012KF-121T60
CHIP BEAD 120R/6000mA
HCB2012KF-121T60
CHIP BEAD 120R/6000mA
HCB2012KF-121T60
CHIP BEAD 120R/6000mA
HCB2012KF-121T60
CHIP BEAD 120R/6000mA
HCB2012KF-121T60
CHIP BEAD 120R/6000mA
HCB2012KF-121T60
CHIP BEAD 120R/6000mA
HCB2012KF-121T60
CHIP BEAD 120R/6000mA
HCB2012KF-121T60

FB4152 071G 59A121 TA CHIP BEAD 120R/3000mA

77

HCB1608KF-121T30

FB4100 071G 59A121 TA

FB4058 071G 59A121 TA

FB4057 071G 59A121 TA

FB403 071G 59A121 TA

FB702 071G 59A121 TA

FB701 071G 59A121 TA

FB6303 071G 59A121 TA

FB1010 071G 59A121 TA

FB1025 071G 59A121 TA

FB1026 071G 59A121 TA

FB4000 071G 59A121 TA

FB402 071G 59A121 TA

FB709 071G 59A121 TA

FB716 071G 59A121 TA

FB717 071G 59A121 TA

FB751 071G 59A121 TA

FB752 071G 59A121 TA

FB6204 071G 59A121 TA

FB505 071G 59A121 TA

FB504 071G 59A121 TA

CHIP BEAD 120R/3000mA
HCB1608KF-121T30
CHIP BEAD 120R/3000mA
HCB1608KF-121T30
CHIP BEAD 120R/3000mA
HCB1608KF-121T30
CHIP BEAD 120R/3000mA
HCB1608KF-121T30
CHIP BEAD 120R/3000mA
HCB1608KF-121T30
CHIP BEAD 120R/3000mA
HCB1608KF-121T30
CHIP BEAD 120R/3000mA
HCB1608KF-121T30
CHIP BEAD 120R/3000mA
HCB1608KF-121T30
CHIP BEAD 120R/3000mA
HCB1608KF-121T30
CHIP BEAD 120R/3000mA
HCB1608KF-121T30
CHIP BEAD 120R/3000mA
HCB1608KF-121T30
CHIP BEAD 120R/3000mA
HCB1608KF-121T30
CHIP BEAD 120R/3000mA
HCB1608KF-121T30
CHIP BEAD 120R/3000mA
HCB1608KF-121T30
CHIP BEAD 120R/3000mA
HCB1608KF-121T30
CHIP BEAD 120R/3000mA
HCB1608KF-121T30
CHIP BEAD 120R/3000mA
HCB1608KF-121T30
CHIP BEAD 120R/3000mA
HCB1608KF-121T30
CHIP BEAD 120R/3000mA
HCB1608KF-121T30
CHIP BEAD 120R/3000mA
HCB1608KF-121T30

FB1303 071G 59C601 TA CHIP BEAD 600R/200mA FCM1608K-601T02
FB1302 071G 59C601 TA CHIP BEAD 600R/200mA FCM1608K-601T02
FB1301 071G 59C601 TA CHIP BEAD 600R/200mA FCM1608K-601T02
FB1168 071G 59C601 TA CHIP BEAD 600R/200mA FCM1608K-601T02
FB1167 071G 59C601 TA CHIP BEAD 600R/200mA FCM1608K-601T02
FB1165 071G 59C800 M CHIP BEAD 80 OHM 0603 400mA
FB1164 071G 59C800 M CHIP BEAD 80 OHM 0603 400mA
FB1163 071G 59C800 M CHIP BEAD 80 OHM 0603 400mA
FB1162 071G 59C800 M CHIP BEAD 80 OHM 0603 400mA
FB1161 071G 59C800 M CHIP BEAD 80 OHM 0603 400mA
FB1158 071G 59C800 M CHIP BEAD 80 OHM 0603 400mA
FB1159 071G 59C800 M CHIP BEAD 80 OHM 0603 400mA
FB1160 071G 59C800 M CHIP BEAD 80 OHM 0603 400mA

FB503 071G 59S601 M CHIP BEAD 0603 600R 25% 500mA
FB502 071G 59S601 M CHIP BEAD 0603 600R 25% 500mA
FB501 071G 59S601 M CHIP BEAD 0603 600R 25% 500mA
FB502 071G 59S601 T CHIP BEAD 600R/500mA MMZ1608S601CT
FB501 071G 59S601 T CHIP BEAD 600R/500mA MMZ1608S601CT
FB503 071G 59S601 T CHIP BEAD 600R/500mA MMZ1608S601CT

78

L4150 073G 63828 T CHIP INDUCTOR 0U82 10% MLF1608DR82K

L6301 073G253S 36 H HF

L6302 073G253S 36 H HF

L6303 073G253S 36 H HF

L6304 073G253S 36 H HF

L701 073G253S 46 H

L702 073G253S 46 H

L9104 073G253S905 H

SMD CHOKE 22UH 20% SPI105LRR-220

3.5A,HF
SMD CHOKE 22UH 20% SPI105LRR-220

3.5A,HF
SMD CHOKE 22UH 20% SPI105LRR-220

3.5A,HF
SMD CHOKE 22UH 20% SPI105LRR-220

3.5A,HF
SMD CHOKE 4.7UH 20% 0.06R
SPI65C-4R7,HF
SMD CHOKE 4.7UH 20% 0.06R
SPI65C-4R7,HF
SMD CHOKE 35uH 20% 2.8A

SPI1055QR-350
CN501 088G 34019KA1D HDMI HEADER R/A 19P BLACK H=8.4
CN502 088G 34019KA1D HDMI HEADER R/A 19P BLACK H=8.4

CN506 088G 34019KA1D HDMI HEADER R/A 19P BLACK H=8.4

CN1301 088G352F4B4ACL USB CONN A TYPE R/A 4P BLACK H=8.5
CN1305 088G352F4B4ACL USB CONN A TYPE R/A 4P BLACK H=8.5

D511 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23
D1001 093G 64 33 SWITCHING BAV99 0.2A 85V SOT-23
D1002 093G 64 33 SWITCHING BAV99 0.2A 85V SOT-23
D1003 093G 64 33 SWITCHING BAV99 0.2A 85V SOT-23
D1004 093G 64 33 SWITCHING BAV99 0.2A 85V SOT-23
D4151 093G 64 33 SWITCHING BAV99 0.2A 85V SOT-23
D4152 093G 64 33 SWITCHING BAV99 0.2A 85V SOT-23

X1001 093G 22S918 C CRYSTAL 12MHz 20P SMD-49

X4150 093G 22S922 C Crystal 54Mhz 10p SMD-49
ZD1150 093G 39S 34 T UDZSNP5.6B ROHM
ZD1151 093G 39S 34 T UDZSNP5.6B ROHM
ZD1152 093G 39S 34 T UDZSNP5.6B ROHM
ZD1153 093G 39S 34 T UDZSNP5.6B ROHM
ZD1154 093G 39S 34 T UDZSNP5.6B ROHM
ZD1155 093G 39S 34 T UDZSNP5.6B ROHM
ZD1160 093G 39S 34 T UDZSNP5.6B ROHM
ZD1161 093G 39S 34 T UDZSNP5.6B ROHM
ZD1162 093G 39S 34 T UDZSNP5.6B ROHM
ZD1163 093G 39S 34 T UDZSNP5.6B ROHM
ZD1169 093G 39S 34 T UDZSNP5.6B ROHM
ZD6201 093G 39S 47 BZX84C3V6 SOT-23

D6203 093G 52S902 T DIODE 3A/100V S3B DO-214AB
D1159 093G 64S900 T DIODE BAS316 SOD-323 PHILIPS
D1160 093G 64S900 T DIODE BAS316 SOD-323 PHILIPS

D501 093G 64S900 T DIODE BAS316 SOD-323 PHILIPS
D502 093G 64S900 T DIODE BAS316 SOD-323 PHILIPS
D503 093G 64S900 T DIODE BAS316 SOD-323 PHILIPS
D504 093G 64S900 T DIODE BAS316 SOD-323 PHILIPS
D505 093G 64S900 T DIODE BAS316 SOD-323 PHILIPS
D506 093G 64S900 T DIODE BAS316 SOD-323 PHILIPS
D507 093G 64S900 T DIODE BAS316 SOD-323 PHILIPS
D508 093G 64S900 T DIODE BAS316 SOD-323 PHILIPS
D509 093G 64S900 T DIODE BAS316 SOD-323 PHILIPS
D510 093G 64S900 T DIODE BAS316 SOD-323 PHILIPS
D703 093G 64S900 T DIODE BAS316 SOD-323 PHILIPS
D704 093G 64S900 T DIODE BAS316 SOD-323 PHILIPS

79

D6302 093G 64S901 T DIODE LS4148
D6301 093G 64S901 T DIODE LS4148
D6202 093G 64S901 T DIODE LS4148
D6201 093G 64S901 T DIODE LS4148

ZD9104 093T 60S801 DIODE 3A/40V SSA34 VISHAY

CN408 311GW125F40ACH WAFER 1.25mm 40P V/T 29.6mm 5.4mm

E715 715G4852M01000005F MAIN PCB FR4 4L 193*246*1.6mm 2nd source
E715 715G4852M01000005K MAIN PCB FR4 4L 193*246*1.6mm

709T4852 XS001 CONSUMPTIVE ASS'Y
055G 100610 TIN CREAM W/O PB
055G 23520 IPA
052G 2191 A PAPER TAPE
Q52G1701 7 XW MESH PRINTTING_PAPER
P15J0908701 BRACKET IO_SIDE
P15J0909401 BRACKET IO_BTM
705TXBSKJ06 SKD ASS'Y

SP01 078G120A 8 KE

SPEAKER 16 OHM 12W 140X26mm 450/350

NO
ECN401 095G801413DY11 HARNESS 13P-7P+5P 650mm
ECN401 095G801413RY11 HARNESS 13P-7P+5P 650mm

0M1G1740 10225 CR3 SCREW M1-MACHINE SCREW x10.0
0Q1G 940 12 47 CR3 SCREW 4x12
0Q1G 940 14 47 CR3 SCREW
0Q1G1830 6120 SCREW
705TXBSB010 BASE ASS'Y
0M1G 940 10125 SCREW M4X10
0M1G1740 12225 CR3 SCREW M1-MACHINE SCREW x12.0
0M1G1740 14225 CR3 SCREW
0Q1G 130 6120 SCREW (T3X6)
A15J1549302 BRACKET
A34J2457 GM 1L0100 BASE_TV32WSL-a1
A34J2458ADT 1L0100 Stand_TV32WSL-11a-aoc1-a1
A34J2459 GM 1L02BA COVER_HINGE
AM1G1740 12225 CR3 SCREW
P20J0009 1 DIE-CASTING AOC & OTS 32
P37J0114011 HINGE 40 AOC & OTS 32
Q12G6300 25 1 FOOT PAD
Q45G9901 TV008 P.E. BAGx680x540x0.02+0.3 0.02
A15J1548101 BRACKET
A33J1157 ED 1C0100 LENS_IR
A33J1158BFD 1L0100 LENS_LED
A34J2443 GM 5K01BA REAR COVER
A34J2447 GM 1L01BA COVER_Stand
A34J2454ADTA1L01BB BEZEL_TV32WSL-aoc1
A34J2455XABA1L0100 deco_bezel_TV32WSL-11a-aoc1-a1
P52G1801052 INSULATING PLATE _SCALER
Q36T 600 18113 NON-WOVEN FABRIC
Q36T 600 18114 CLOTH_GRIDDING
Q36T 600 28 4 GP NONWOVEN FABRIC
Q36T 600 29 1 CLOTH
Q36T 600 36 3 GP NONWOVEN FABRIC
Q36T 600 38 1 NONWOVEN FABRIC
Q40G2011 32008 side IO label
Q40G2011 32202 button io label

80

Q45G9901 TV010 P.E. BAG 1000 680 0.02+0.3 0.02
Q50G 500523 CABLE TIE
Q52G 1150523 TAPE_INSULATING
Q52G 1185 99 BIG CARTON TAPE FOR AOC
X44GJA12101 CUSHION-TL EPS
X44GJA12201 CUSHION-TR EPS
X44GJA12301 CUSHION-BL EPS
X44GJA12401 CUSHION-BR EPS
X44GJA12501EPE CUSHION-TM EPE
X44GJA12615 1A ARTWORK CARTON
X52G1201 TV X1 TAPE
X52G1201 TV X4 TAPE
KEPFBXF5 KEY BOARD G4682-K02-000-0040-2-110804

CN101 033G8032 7F S HR CONNECTOR 7P 1.25

U102 056G 669X32 TOUCH KEY IT7235BFN-3105/AX(R) QFN24
R125 061G0402000 JI RST 0402 0.05R MAX 1/16W
R111 061G0402000 JI RST 0402 0.05R MAX 1/16W
R110 061G0402000 JI RST 0402 0.05R MAX 1/16W
R119 061G04021002FT RST CHIPR 10K +-1% 1/16W TZAI YUAN
R115 061G04021002FT RST CHIPR 10K +-1% 1/16W TZAI YUAN
R119 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
R115 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
R112 061G0402101 JI bEST ONLY RST 0402 100R 5% 1/16W TA-I
R120 061G04021801FF RST 0402 1.8K 1% 1/16W FENGHUA
R117 061G04021801FF RST 0402 1.8K 1% 1/16W FENGHUA
R117 061G04021801FI RST 0402 1.8K 1% 1/16W TA-I
R120 061G04021801FI RST 0402 1.8K 1% 1/16W TA-I
R116 061G04022701FF RST CHIP 2.7K 1/16W 1% FENGHUA
R124 061G04022701FF RST CHIP 2.7K 1/16W 1% FENGHUA
R116 061G04022701FI TEST ONLY RST CHIP 2.7K 1/16W 1% TA-I
R124 061G04022701FI TEST ONLY RST CHIP 2.7K 1/16W 1% TA-I
R118 061G04023901FT RST 0402 3.9K 1% 1/16W TZAI YUAN
R122 061G04023901FT RST 0402 3.9K 1% 1/16W TZAI YUAN
R118 061G04023901FY RST CHIP 3.9KOHM 1% YAGEO
R122 061G04023901FY RST CHIP 3.9KOHM 1% YAGEO
R121 061G04026800FI RST 0402 680R 1% 1/16W TA-I
R121 061G04026800FT RST 0402 680R 1% 1/16W
C104 065G040210131J Y CAP CHIP 0402 100P 50V NP0 +/-5%
C101 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C102 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C103 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C105 065G040210412K Y CAP 0402 100NF 10% 16V X7R

715G4682K02000004S KEY PCB FR4 DS 10 X 124 X1.6MM
IRPFBXF8 IR BOARD G5284-R0A-000-0040-1-110812

U0201 056G 627911 IR 38KHZ KSM-603TM2M
CN0201 033G8032 5F B CONN 1.25mm 5P R/A 11.2mm 5.7mm
CN0201 033G8032 5F X WAFER 5P 1.25MM S1315-05RVB-S03-K

Q0202 057G 761903 T TRA PDTC114EU 100mA/50V SOT-323

Q0201 057G 761903 T TRA PDTC114EU 100mA/50V SOT-323

R0203 061G0402272 JT RST CHIP 2K7 1/16W 5% TZAI YUAN

R0204 061G0402470 JT RST CHIP 47R 1/16W 5% TZAI YUAN

R0202 061G0603331 JT RST 0603 330R 5% 1/10W

R0201 061G0603331 JT RST 0603 330R 5% 1/10W

C0204 065G060310131J F CAP CHIP 0603 100PF J 50V NPO

81

C0203 065G060310412K Y CAP CHIP 0603 100N 16V X7R +/-10%

C0202 065G060310412K Y CAP CHIP 0603 100N 16V X7R +/-10%

C0201 065G060310412K Y CAP CHIP 0603 100N 16V X7R +/-10%

C0205 065G0603475A5K M CAP CHIP 0603 4.7UF K 10V X5R

FB0204 071G 59C601 TA CHIP BEAD 600R/200mA FCM1608K-601T02
FB0201 071G 59C601 TA CHIP BEAD 600R/200mA FCM1608K-601T02
FB0202 071G 59C601 TA CHIP BEAD 600R/200mA FCM1608K-601T02

FB0203 071G 59C601 TA CHIP BEAD 600R/200mA FCM1608K-601T02
LED0201 081G 14 24 EL CHIP LED BLUE/DARK RED
LED0201 081G 14 24 GP CHIP LED (BR) GPTD1210BRC-D

ZD0201 093G 39S 66 DIO REG SM BZX84-C5V1 (PHSE)R

ZD0202 093G 39S 66 DIO REG SM BZX84-C5V1 (PHSE)R

715G5284R01000004S IR PCB FR4 DS 75X14X1.6mm
R0205 061G0402331 JT RST CHIP 330R 1/16W 5% TZAI YUAN
R0206 061G0402331 JT RST CHIP 330R 1/16W 5% TZAI YUAN

LED0202 081G 14 24 GP CHIP LED (BR) GPTD1210BRC-D
LED0202 081G 14 24 EL CHIP LED BLUE/DARK RED

ZD0201 093G 39S900 T DIODE BZX84-C5V1 SOT-23 VISHAY
ZD0202 093G 39S900 T DIODE BZX84-C5V1 SOT-23 VISHAY

E750 750TBU315H7832N000 LCD T315HW07 V802 SZ AUO

A15J1569101CKD BRACKET

A15J1570101CKD BRACKET

A33J1159 GM 1G0100 AC COVER

P15J1013101CKD BRACKET FIX-TOP-CN

Q40G 581689 4B SN LABEL(58x35mm)

Q44T3231 21 28 EVA WASHER

Q45G 77 4 PE FILM

Q52G 1185 99 BIG CARTON TAPE FOR AOC

Q52G1501150523 W INSULATING PLATE

X40G 32061525B RATING LABEL

X40G000261549A POP LABEL

X40G000261549A MYLAR

82
