AOC LE32A3130-80 Schematic

维 修 手 册

品牌 机种

AOC LE32A3130/80

1

变更说明

版本 发布日期 变更说明 对外机种名 对内机种名

A00 Nov.14,2013

首次发布

LE32A3130/80 E32DOKNDHCA1NNX

2

目 录

1. 技术规格------------------------------------------------------------------------------------------------------------04

1.1 一般规格---------------------------------------------------------------------------------------------------------04

1.2 预设显示模式---------------------------------------------------------------------------------------------------05

2. 操作说明------------------------------------------------------------------------------------------------------------06

2.1 连接电视机----------------------------------------------------------------------------------------------------06

2.2 遥控器说明----------------------------------------------------------------------------------------------------10

2.3 OSD 调整----------------------------------------------------------------------------------------------------12

3. 工厂模式调整------------------------------------------------------------------------------------------------------29

4. 电气方框图---------------------------------------------------------------------------------------------------------32

4.1 主板---------------------------------------------------------------------------------------------------------------32

4.2 主板电源---------------------------------------------------------------------------------------------------------33

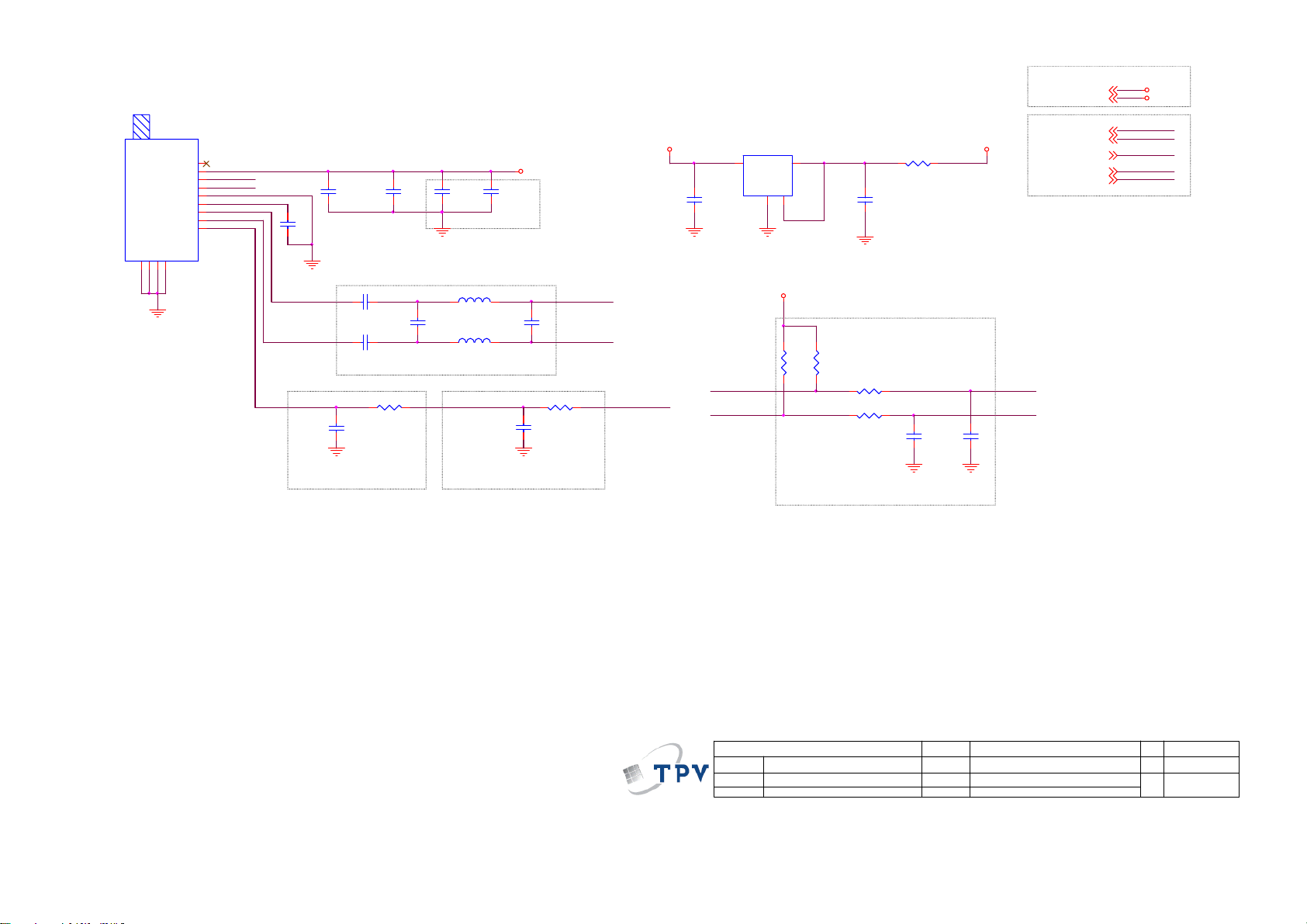

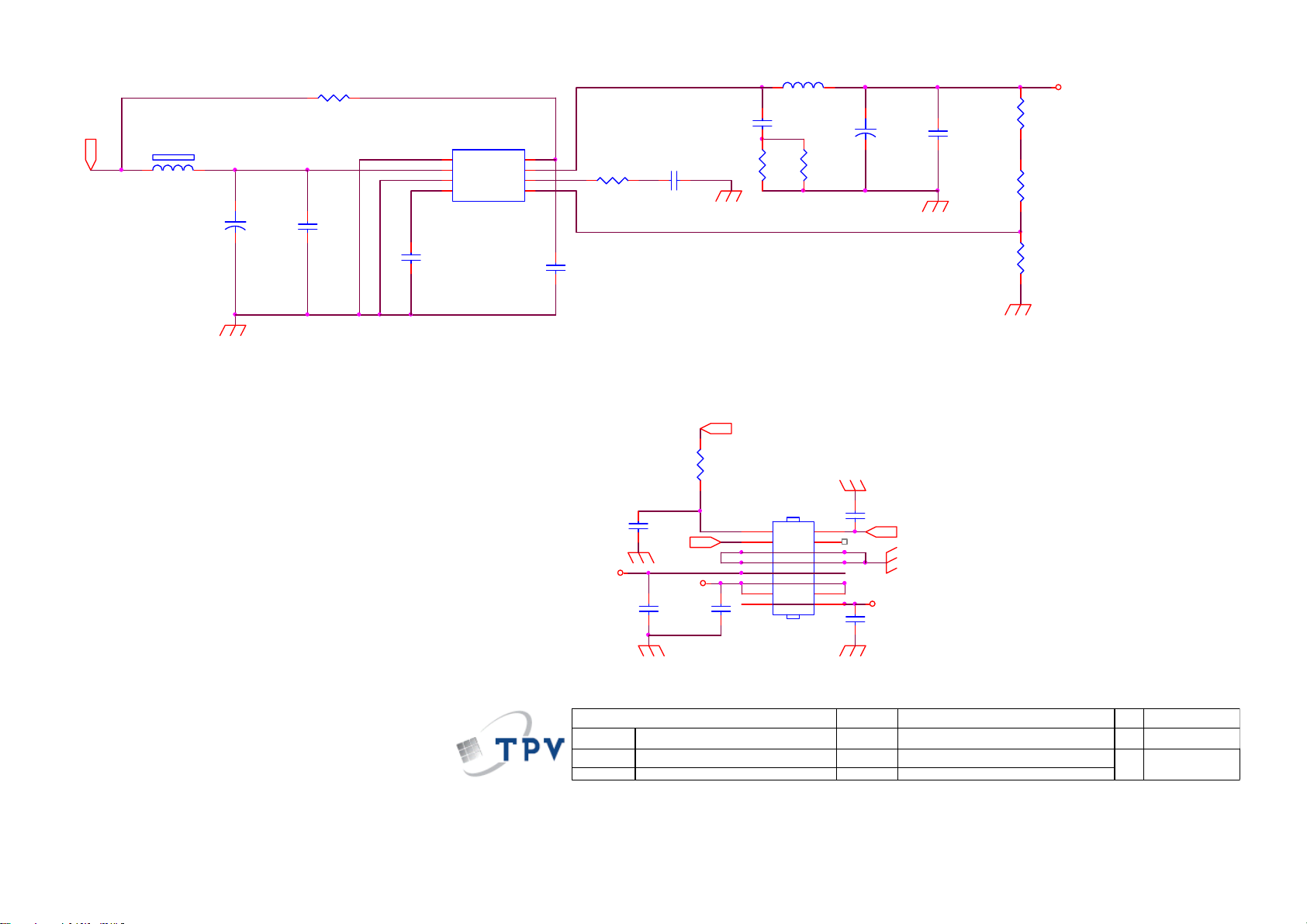

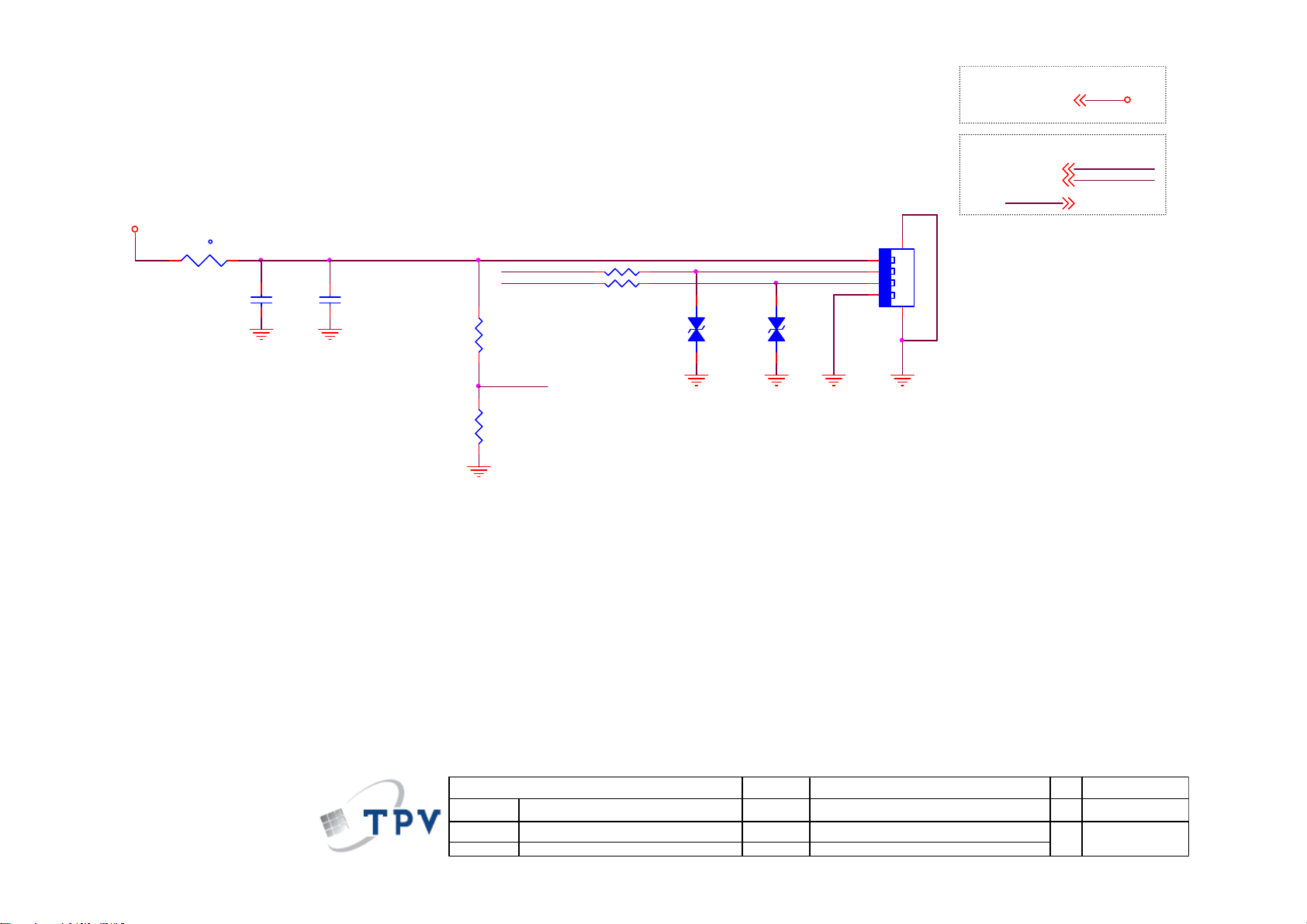

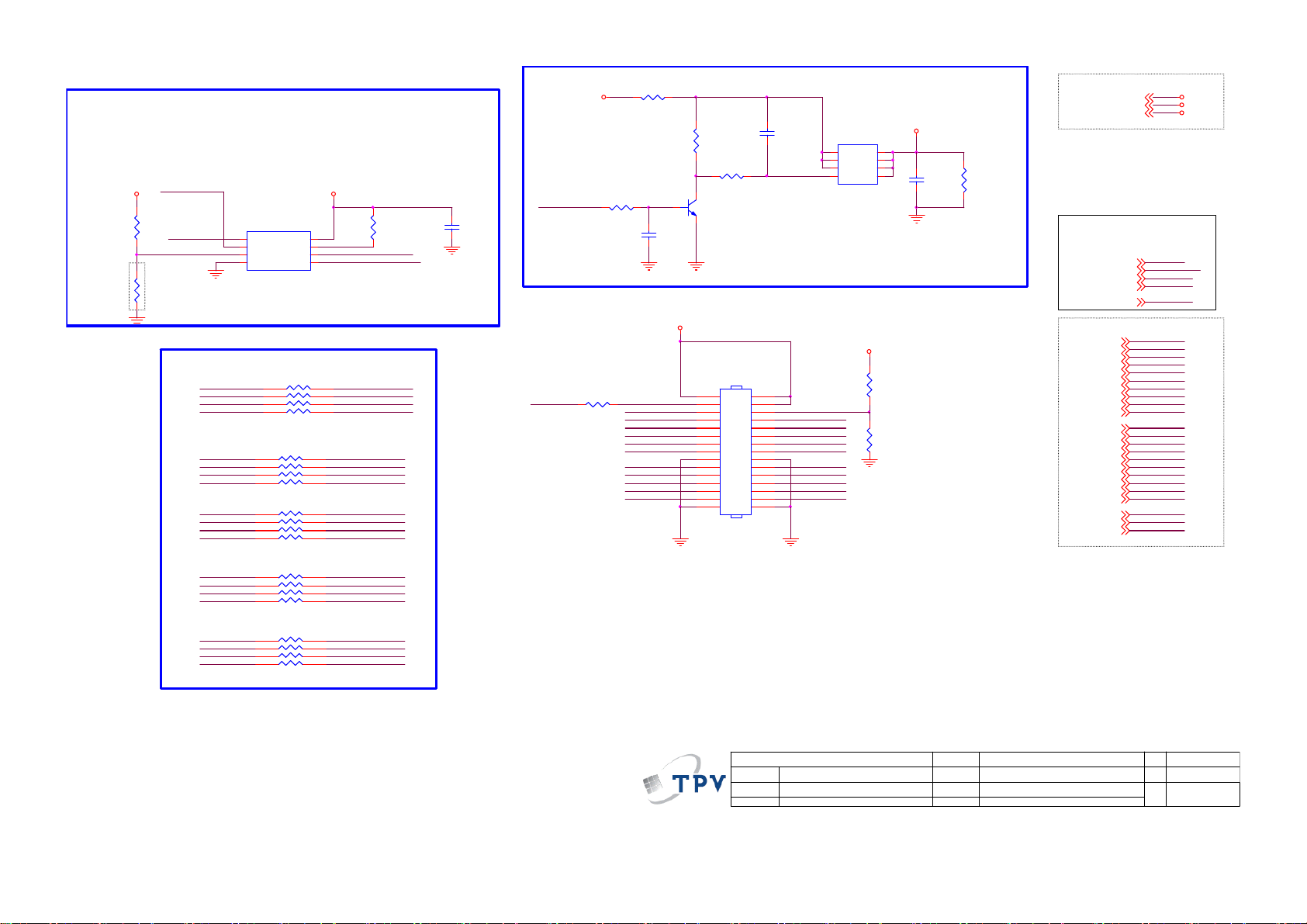

5. 线路图---------------------------------------------------------------------------------------------------------------34

5.1 主板-------------------------------------------------------------------------------------------------------------34

5.2 电源板----------------------------------------------------------------------------------------------------------45

5.3 按键板----------------------------------------------------------------------------------------------------------48

5.4 遥控板----------------------------------------------------------------------------------------------------------49

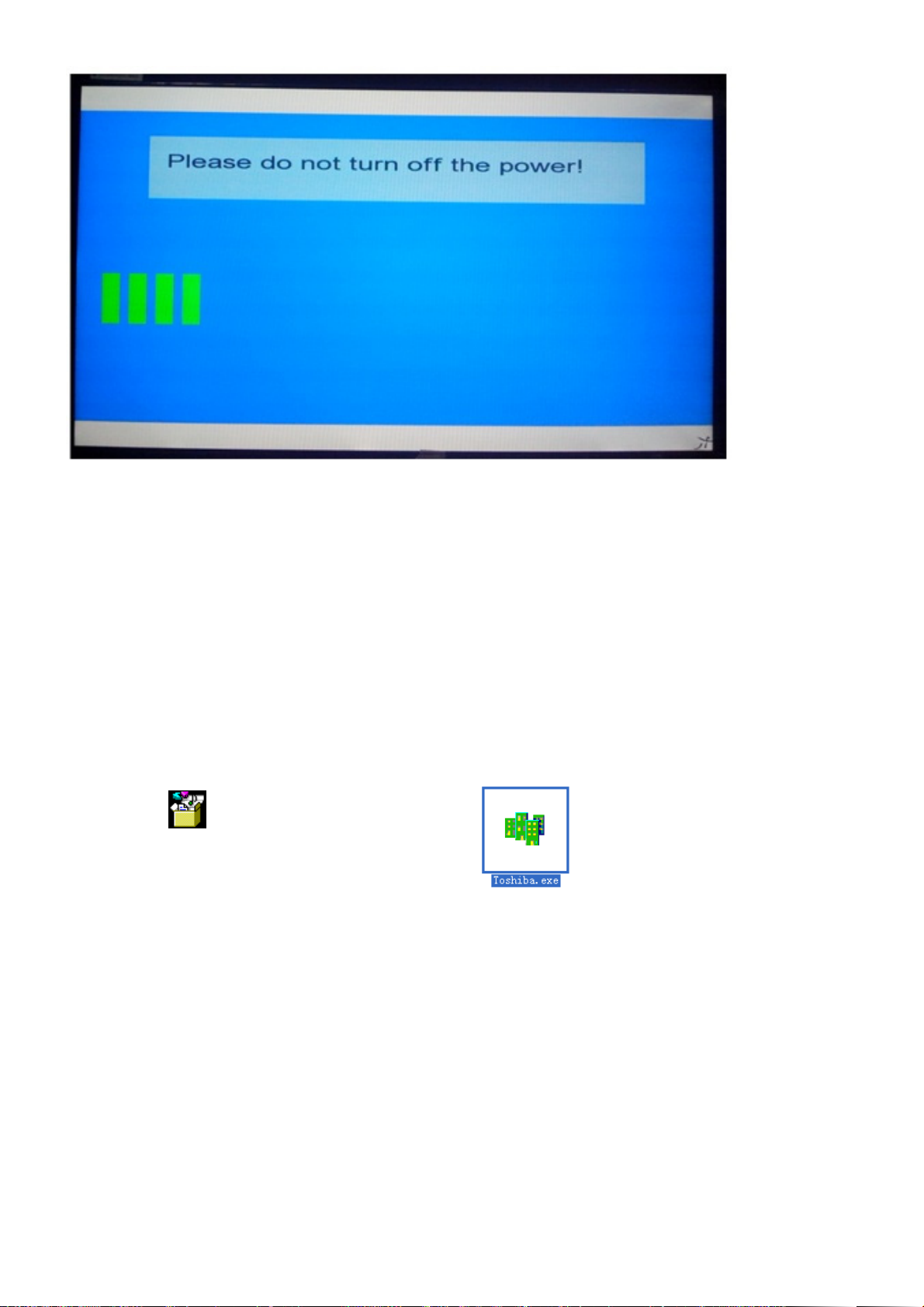

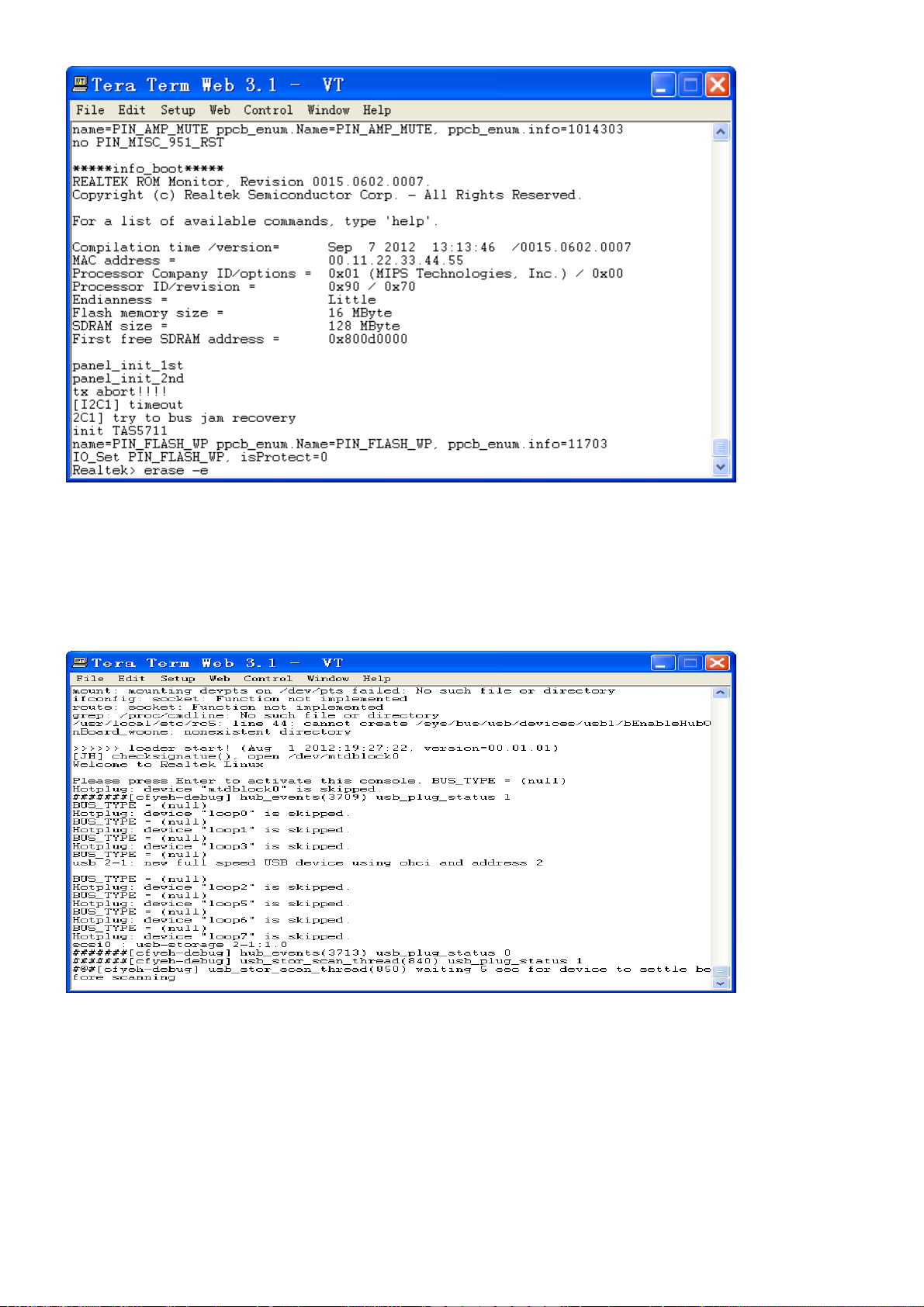

6. 软体及 EDID 烧录-------------------------------------------------------------------------------------------------50

7. 故障处理流程图---------------------------------------------------------------------------------------------------59

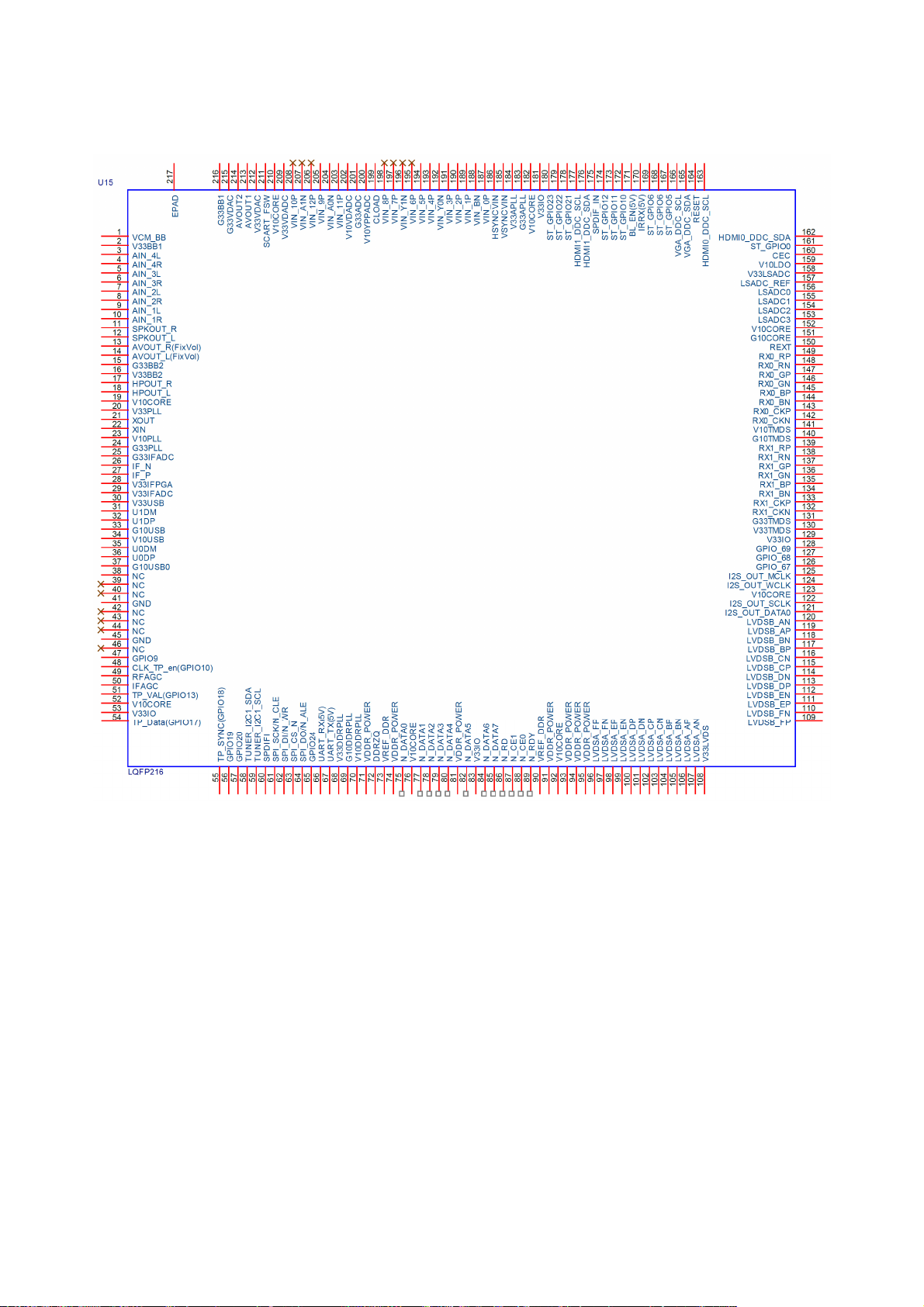

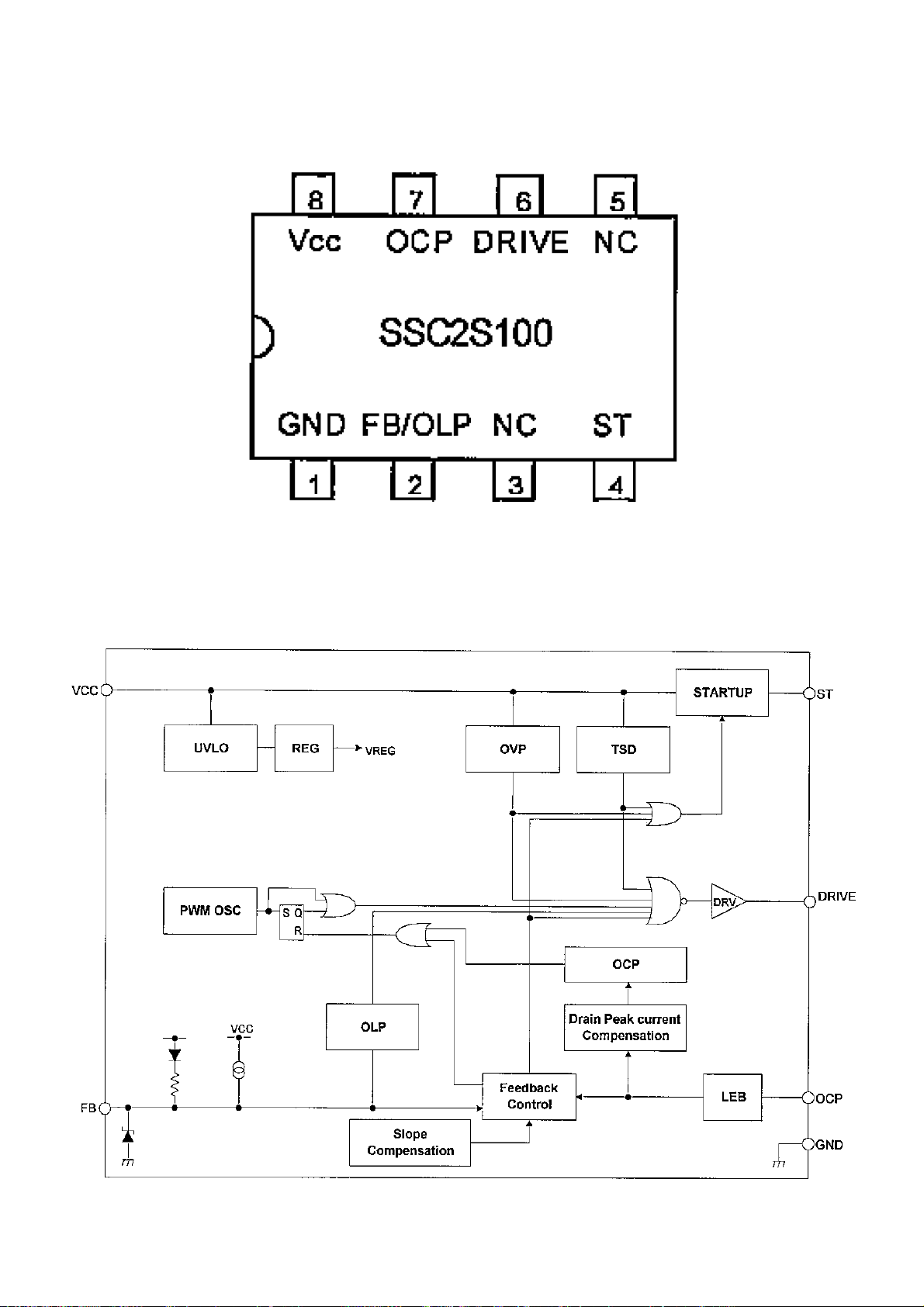

8. 主要 IC 管脚及内部框图---------------------------------------------------------------------------------------65

9. BOM-------------------------------------------------------------------------------------------------------------69

3

1. 技术规格

1.1 一般规格

4

1.2 预设显示模式

视频输入信号参照表

1. 将视频设备的分量或HDMI端口连接到电视后，按照下表，设置视频设备的输出信号。

2. 如果电脑显卡可支持视频格式信号，可设置下表输出信号。

预设分量或HDMI模式

标准 分辨率 水平频率（kHz） 垂直频率（Hz）

SD
SD
SD
SD
HD
HD
HD

HD
FHD
FHD

720×480i

720×480p

720×576i

720×576p
1280×720p
1280×720p

1920×1080i

1920×1080i
1920×1080p
1920×1080p

15.734 60

31.5 60

15.625 50

31.25 50

37.5 50
45 60

28.125 50

33.75 60

56.25 50

67.5 60

电视，视频模式支持的视频系统

PAL D/K B/G I
您也可以使用DVD 播放机或VCR 播放机观看传统节目。通过电视视频输入，将设备连接到电视。

5

2. 操作说明

2.1 连接电视

6

7

连接电视

有线系统或VHF/UHF天线系统
除标清模拟节目以外，您还可以观看标清或高清数字节目（如果您所在的地区能提供，并经过机顶盒或其他类似设备

转接）。
本电视能够接收有线和VHF/UHF天线的模拟信号电视节目。
强烈建议您使用75Ω同轴线连接天线/有线输入，以接收最佳的画面质量。300Ω双芯线很容易受到射频干扰影响，从

而造成信号降级。

天线隔离器安装说明

用心服务，创造完美是我们始终追求的目标。
电源布线如果不符合安全规范、电源电压异常、有线电视输入端口处有电压可能导致电视产品非正常失效，还可能造
成潜在的触电或火灾事故。我们产品在设计和制造时已将安全放在第一位，为保证您长期安全、放心地使用本产品，
避免使用过程中不安全的事故发生，我们将随机附送天线隔离器，请在安装电视的同时一并安装上天线隔离器，安装
方法如下图示（图片仅做示意参考，安装时天线隔离器请根据实际机台调整最适合方向安装，具体以实物为准）：

高清接口
通过申请开通高清有线服务或高清卫星服务，您可以观看高清节目。为取得最佳的画面，请务必通过电视后面的HDMI
或分量视频（带音频）输入端，将该设备连接到电视。

HDMI连接

如果设备配有DVI插孔，而不是HDMI插孔，请将DVI插孔连接到HDMI输入（用DVI-to-HDMI线或适配器）插孔。将音
频插孔连接到电脑音频输入插孔。

8

分量信号连接

视频信号输入连接

切换信号源时请选择视频1

切换信号源时请选择视频2

视频输出连接

电脑连接

如下面所示，用VGA线连接，将电视用作电脑显示器。本电视也可以连接到带DVI或HDMI输出的电脑。

使用含铁氧磁心的VGA线和音频线将电视连接到电脑。
如果电脑已连接到电视，并且5分钟以上没有电脑信号输入，则电视会自动进入待机模式。

9

2.2 遥控器说明

10

11 12

2.3 OSD调整

使用AOC电视

打开和关闭电视

您可以使用电视机或遥控器上的电源开关按钮打开电视。

提示：

1. 尽管待机时电视机的耗电量很少，
但电视机会继续耗电。当长时间不使
用电视机时，请将电视机的电源线与
电源插座断开。

2. 如果您找不到遥控器，但又想从待
机状态下打开电视机，请按电视机右
侧的“待机”键。

切换信号源
在 AOC 电视中，您可以直接通过遥控器选择信源，或按信源键在显示菜单上选择信号源。

1) 直接使用遥控器选择信号源时：按以下按键可直接切换输入的信号源。

2) 使用信源按键选择信号源时：

语言设置

13

频道搜索

14

频道切换/回看
在AOC电视中，您可以直接用遥控器更换频道,或者按电视右侧的频道▲/▼按键来选择频道
用遥控器更换频道时有如下方法：

1) 直接按数字键更换频道。

2) 按回看回到上一个观看过的频道或信源。

调整音量、静音

1) 按音量改变电视音量大小。

2) 按静音使电视静音。

15

图像设置

16

17

声音设置

18

19

搜台设置

此设置只在电视模式中可用。

20

电脑设置

此设置只在电脑模式中可用。

21

22

功能设置

23

24

多媒体功能

按信源键选择USB 信号源或直接按遥控器上的多媒体键选择USB 多媒体播放功能。系统启动后，将USB 设备正确

的插入电视机侧后方的USB 插口。进入系统菜单后，按遥控器上的▲/▼/ 键选择所需的流媒体选项。如下图

播放图片

1. 选择【图片】后，按OK键进入选择要播放的图片文件，按OK键进入图片预览界面。

▲/▼

。

▲/▼

▲/▼

2. 在图片预览界面按▲/▼/ 键选择您想欣赏的图片，按OK键开始播放。

3. 在图片播放界面按 键可以选择上一张或下一张图片。按OK键进入图片菜单，按键▲/▼/ 可以选择图
片的过场效果、旋转、播放时间或信息。

/▼

▲

25

4. 按OK键选择【过场效果】，可以选择由上到下、由左到右、随机、由下到上、由右到左、无六种图片播放方式。

5. 按“菜单”键逐级返回上一级菜单。

播放音乐

1. 选择【音乐】后，按OK键进入选择要播放的音乐文件，按OK键进入音乐预览界面。

2. 在音乐预览界面，按▲/▼/ 键选择您想欣赏的音乐，按OK键开始播放。

▲/▼

26

3. 按上一曲

4. 在歌曲播放过程中，按OK键进入音乐菜单，按▲/▼/ 键可以选择重复、均衡器、背景音乐、信息。

5. 按“菜单”键逐级返回上一级菜单。

播放视频

1. 选择【视频】后，按OK键进入选择要播放的视频文件，按OK键进入视频预览界面。

2. 在视频预览界面，按▲/▼/ 键选择您想欣赏的视频，按OK键开始播放。

、下一曲 、停止 、开始/暂停 键控制您当前欣赏的音乐。

▲/▼

▲/▼

3. 在视频播放界面按上一部

4. 在播放视频过程中，按OK键进入视频菜单按▲/▼/ 键可以选择重复、信息。

5. 按“菜单”键逐级返回上一级菜单。

播放文本

1. 选择【文本】后，按OK键进入选择要阅读的文本文件，按OK键进入文本预览界面。

2. 在文本阅读界面按上一页

、下一部 、停止 、开始/暂停 键控制您当前欣赏的影片。

、下一页 、停止 、开始/暂停 键控制您当前阅读的页面。

▲/▼

27

多媒体模式下支持规格内的图片、音乐、视频、文本格式

文件类型 文件扩展名

JPEG .jpg


BMP .bmp
PNG .png
GIF .gif

音乐

MP3 .mp3
AVI .avi

视频

MP4,MOV .mp4, .mov,
MKV .mkv
RMVB, RM .rmvb, .rm

文本

Text .txt

USB设备参数

USB 设备最大容量 最大单个文件大小

NTFS 2T 2T
FAT 32 192G 4G
FAT 16 2G 2G

28

3. 工厂模式调整

白平衡调整：按 “菜单+1+9+9+9+回看”进入工厂模式将 Current Source 选择为“component”，再选择 Color temp 选择
色温模式（Cool、Normal、Warm），选择 OK 后再选择 Gain 栏调整 R/G/B 值，将色温规格调整至要求范围内。以
LE32A3130 为例：
注意: R G B GAIN 分别最大不超过 138，128，138，component调整完后，其他 source 的 R G B GAIN 需和 component
一样，若不一样，需要切到其他 source 将值调整为一样。

白平衡值检查：Current Source 选择为“视频”/T304、“HDMI”/T349、“电脑”/T137 三个模式，色温规格也需在规格范
围内，此时白平衡调整 OK。

调整规格是写在白平衡程式里面的，检验以产品规格为准：

色温

(x,y)

Item Level x y x y x y

调整规格

产品规格

80IRE 0.003 0.003 0.003 0.003 0.003 0.003
80IRE 0.025 0.025 0.025 0.025 0.025 0.025

Cool

(0.271,0.274)

Normal

(0.285,0.293)

Warm

(0.313.321)

注: 下页是关于一般工厂菜单的说明(和本机并非完全相同)，仅供参考！

29

工厂菜单说明

选项名称 调整范围

Brand

Main-MCU ver

Bootloader ver

Sub-MCU ver

EEPROM ver

Date

Model name

Scaler

Panel type

Current source

Auto color

ADC Gain

ADC Offset

Color temp.

根据IC SPEC

根据IC SPEC

不可调整

不可调整

不可调整

不可调整

不可调整

不可调整

不可调整

不可调整

不可调整

支持输入源

执行动作

支持色温

TV AV/S Comp HD PC

o o o o o

o o o o o

o o o o o

o o o o o

o o o o o

o o o o o

o o o o o

o o o o o

o o o o o

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

注释

客户名称

发布软体Main-MCU 版本

发布软体Bootloader 版本

发布软体Sub-MCU ver 版本

发布软体EEPROM 版本

软体发布日期

对外机种名

Scaler 型号

屏的型号
当前进工厂时的输入源， 该项可切换输入源， 对应输入源的ADC，色温， Scaler

等相关信息同步更新。
Auto color 项只对需要做自动校正输入源时有效，否则它不动作。Auto color 会

对输入的ADC 做自动矫正，调整ADC Gain 和Offset RGB 值。

在Auto Color 做完立即更新，并可手动调整。

在Auto Color 做完立即更新，并可手动调整。

当前设置的色温，该项可切换色温模式，并正确显示色温名称，对应色温的Scaler

Gain & Offset RGB 值等相关信息同步更新。

Scaler Gain

Scaler Offset

Burn in On/Off √ √ √ √ √

EEPROM Init

Back LIT time

根据IC SPEC

根据IC SPEC

执行动作

不可调整

√ √ √ √ √

√ √ √ √ √

√ √ √ √ √

o o o o o

Scaler Gain 值在白平衡调整时立即更新，并可手动调整。

Offset RGB 值在白平衡调整时立即更新，并可手动调整。

打开或关闭Burn in 模式。当Burn in 设置为On 时它将响应工厂遥控器功能；
EEPROM Init 后默认为On 状态；Reset 后默认为Off 。

实现的是初始化除了HDCP key 和产品序列号以外的全部EEPROM，如主菜单的
OSD 默认值， 工厂菜单的ADC 数据， 白平衡设定值，Black light 和Language

等， 同时把Burn in 设置为On， 响应工厂遥控器功能， 设置输入源为TV。

背光打开总计时，在EEPROM Initial 或Factory reset 后都清为0，显示值用十进
制表示，当时间到达显示最大值时就不再变化。

30

Total time

不可调整

o o o o o

AC ON 主电源供电总计时， 在EEPROM Initial 或Factory reset 后都清为0，显
示值用十进制表示，当时间到达显示最大值时就不再变化。

Black light

Language

Energy LOGO On/Off * * * * *

Reset

Exit

根据IC SPEC

支持语言

执行动作

执行动作

* * * * *

* * * * *

√ √ √ √ √

√ √ √ √ √

备注：

1. √表示该项有效, ×表示该项不存在，o 表示存在但选不到，*表示可选；

2. 不同机型工厂模式项目略有增删；

3. 进工厂模式时Burn in自动关闭。

设置背光灯的亮度

设置出厂时用户模式菜单语言，当在工厂菜单中更改此项值时，用户模式的OSD
中的菜单语言也做相应的更改并将该值保存（仅北美向可选）

仅中国向有该项

实现的是复位除了HDCP 和产品序列号，工厂菜单的ADC 数据，白平衡设定值，

Black light，Language 和Energy Logo 以外的全部EEPROM 数据，如主菜单的
OSD 默认值，并把用户菜单Language 设置为工厂Language，同时把Burn in 设

置为Off ，禁止响应工厂遥控器功能，设置输入源为TV。

退出工厂模式

31

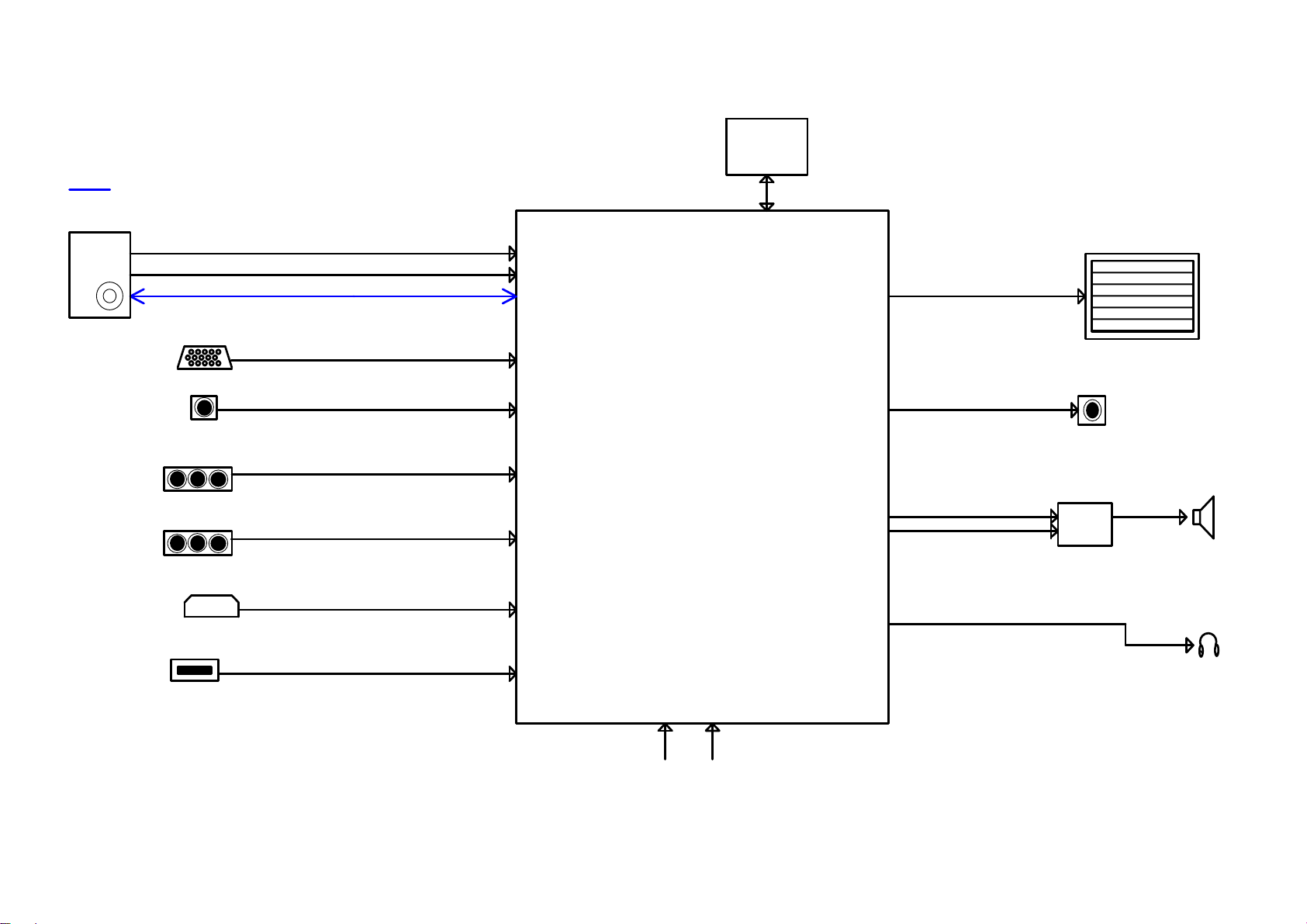

4. 电气方框图

4.1 主板

I2C

W25Q32BVSSIG

U403
NOR FL ASH 3 2Mb

DT21 CN-2 -E

TU101

D-SUB(PC IN)

PHONE JACK(PC R/L)

YPBPR

RC A(AV)

USB(Multimedia)

IF

HDMI

I2C

USB 2.0

MP3 & JPEG, SW UPDATE

IF1P

IF1N

VGA

PC AUDIO

YPbPr

CV BS

RTD2648

LVDS (50/60 Hz)

CV BS

monitor output

AOU T_ L

AOU T_ R

CVBS output

AUD IO AMP

AD52583

LCD PANEL T-CON

SPK X 2

SPK R/L

HEADPHONE

HP R/L

KEY RC

32

4.2 主板电源

D12V_IN

Power On => EN Pin pull high

Power Off => EN Pin pull Low

+12V

(2A)

G5655P12U

D5V_STB

1.0V(VCCK)

(1A)

G5695T11U

AT1528P11U

POWER_ON_LV2

D_5V

MOS

A3V3

D3V3

0.3A

POWER_ON_LV2

CMOS LDO 1.5V

D_5V

1.0V(VCCK)

Always ON

MOS

(1A)

G9661

(1A)

LDO

G903T63UF

IO_3V3, UART, Keypad, LVDS_3V3, LSADC_3V3, HDMI_3V3
ADC_3V3, BB_3V3, IFDADC_3V3, USB_3V3

M3V3 for SPI Flash

DDR Power

0.35A

ADC, VDC, APLL

A1V0

0.3A

D1V0 (Core Power)

3.3V

0.35A

Tuner

DDR3 :1.5V

0.75A

Silicon Tuner 3.3V

D_5V, USB_5V

PanelMOS

PANEL_EN

Audio AMP

AMP_VDD

MOS

POWER_ON_LV1

PVDD

33

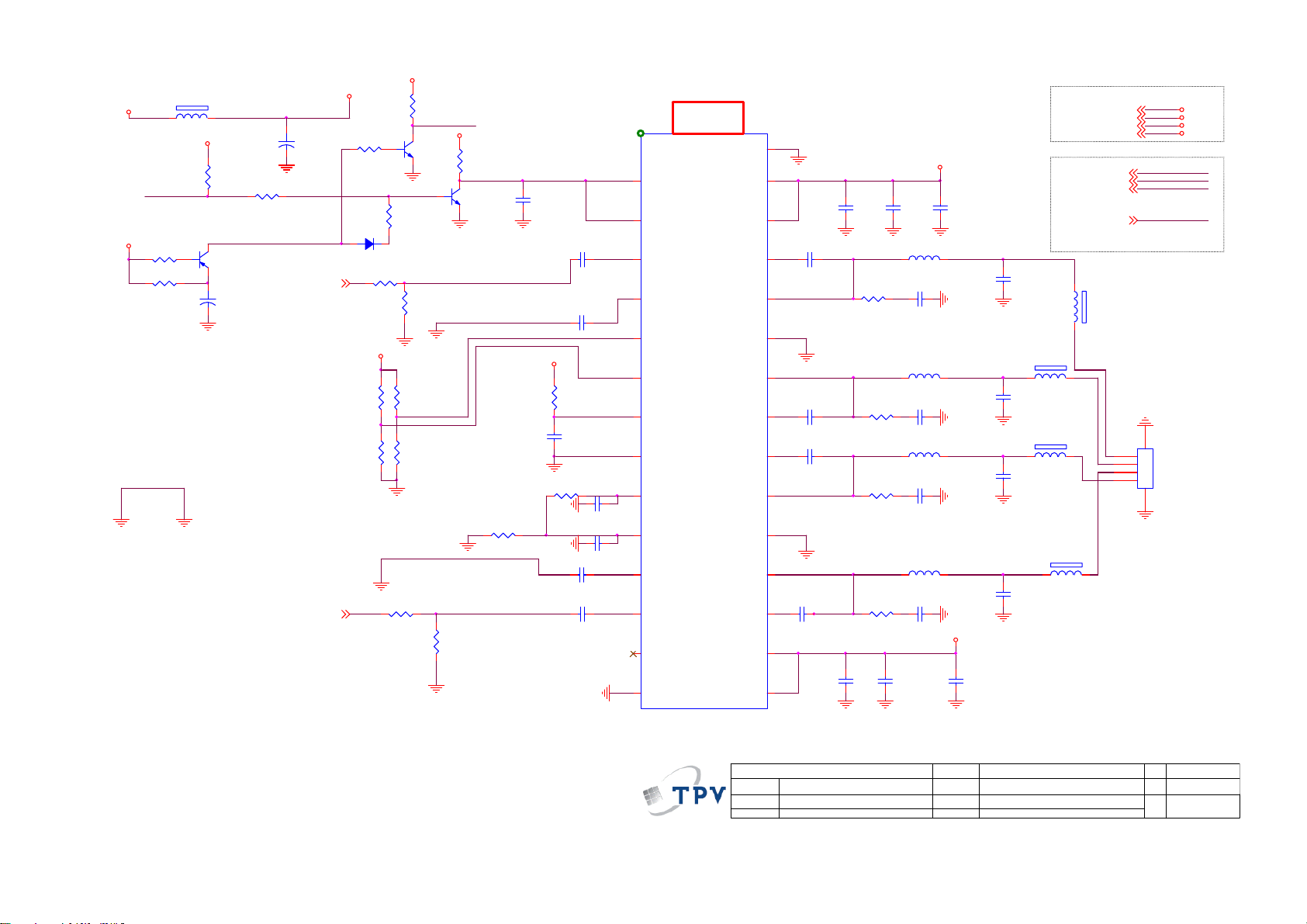

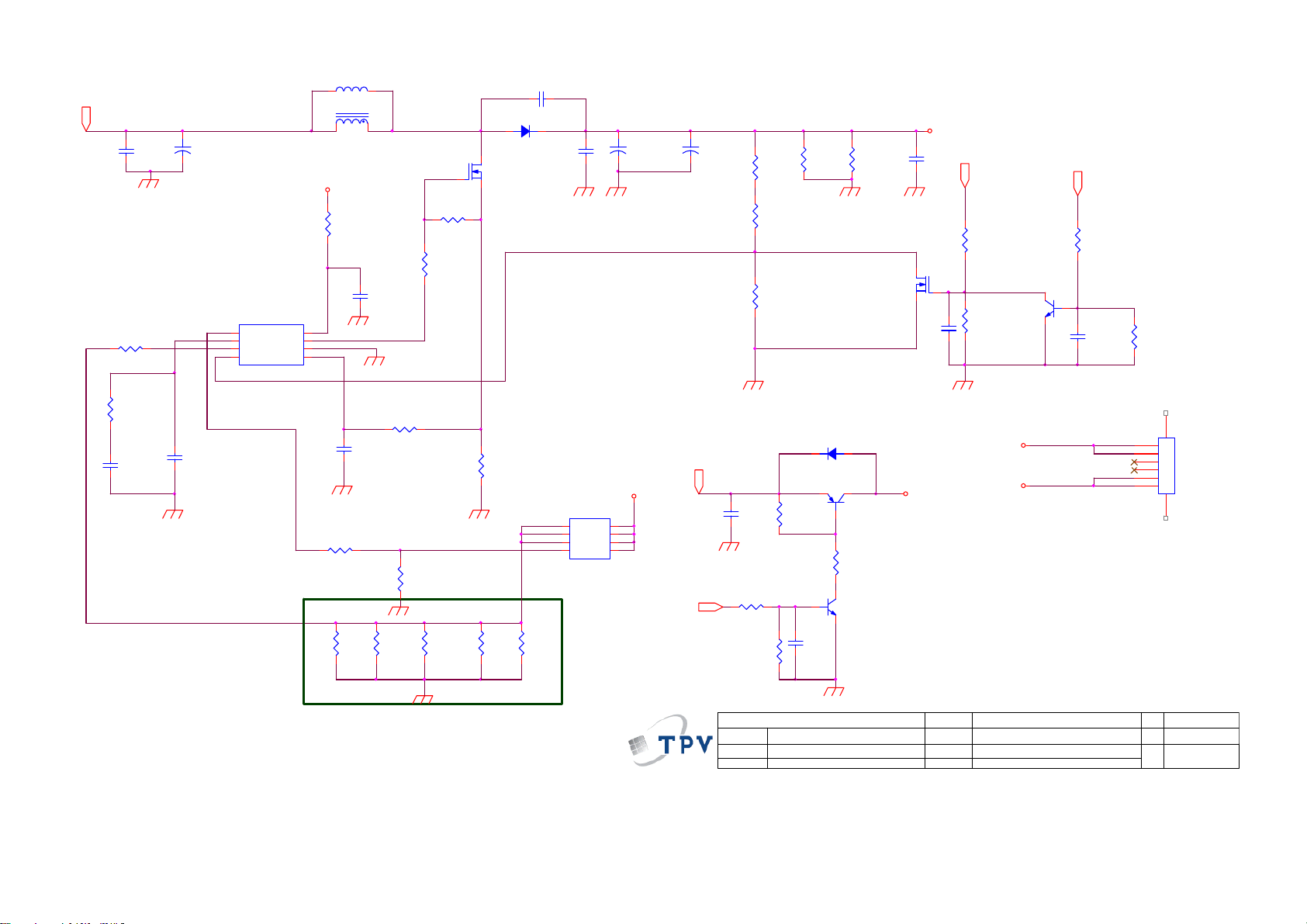

5. 线路图

5.1 主板
715G6172M01000004X

To
LVDS

To

HDMI0_CLK-7

HDMI0

HDMI0_CLK+7
HDMI0_D0-7
HDMI0_D0+7
HDMI0_D1-7
HDMI0_D1+7
HDMI0_D2-7
HDMI0_D2+7
HDMI_CEC7

HDMI0_DDC_SDA7
HDMI0_DDC_SCL7
HOTPLUG07

To
HDMI1

HDMI1_DDC_SDA7
HDMI1_DDC_SCL7
HOTPLUG17

To
Tuner

TUN_I2C_SDA12
TUN_I2C_SCL12

ATV_IF_AGC12

To
Keypad/IR

To
USB

A3V3

TEDP4
TEDN4
TECLKP4
TECLKN4
TECP4
TECN4
TEBP4
TEBN4
TEAP4
TEAN4

TODP4
TODN4
TOCLKP4
TOCLKN4
TOCP4
TOCN4
TOBP4
TOBN4
TOAP4
TOAN4

BL_EN14
PANEL_EN4
BL_ADJ14

HDMI1_CLK-7
HDMI1_CLK+7
HDMI1_D0-7
HDMI1_D0+7
HDMI1_D1-7
HDMI1_D1+7
HDMI1_D2-7
HDMI1_D2+7

3D_EN4

TUN_IF-12
TUN_IF+12

IRRX13
LEDG13

LSADC113
LSADC013

LEDR13

USB0_DM10
USB0_DP10

USB_OC#10

CORE_1V0D1V0

10UF 6.3V 20%

TEDP
TEDN
TECLKP
TECLKN
TECP
TECN
TEBP
TEBN
TEAP
TEAN

TODP
TODN
TOCLK P
TOCLK N
TOCP
TOCN
TOBP
TOBN
TOAP
TOAN

BL_EN
PANEL_EN
BL_ADJ

3D_EN

HDMI0_CLK­HDMI0_CLK+
HDMI0_D0­HDMI0_D0+
HDMI0_D1­HDMI0_D1+
HDMI0_D2­HDMI0_D2+
HDMI_CEC

HDMI0_DDC_SDA
HDMI0_DDC_SCL
HOTPLUG0

HDMI1_CLK­HDMI1_CLK+
HDMI1_D0­HDMI1_D0+
HDMI1_D1­HDMI1_D1+
HDMI1_D2­HDMI1_D2+

HDMI1_DDC_SDA
HDMI1_DDC_SCL
HOTPLUG1

TUN_I F ­TUN_I F +

TUN_I 2C _SD A
TUN_I 2C _SC L

ATV_IF_AGC

IRRX
LEDG

LSADC1
LSADC0

LEDR

USB0_DM
USB0_DP

USB_OC#

L401 0.33 uH

C4032

100N 16V

R4031 0R05 OHM

C4001

100N 16V

C4030

10UF 6.3V 20%

BB1_GNDBB1_GND

close to Main chip

BB2_GNDBB2_GND

close to main chip

C4019

BB1_3V3

BB2_3V3

DGND

C4045
100N 16V

C4028
100N 16V

10UF 6.3V 20%

ToVideo
input

YPbPr

CVBS

AV1_CVBS+5

IN

VGA

UART0

VGA_DDC_SCL6
VGA_DDC_SDA6

UART1

UART_RX16

UART_TX16

ToAudio
input

VGA/YPbPr/A V2

VGA/YPbPr_IN _L/AV2_CVBS_L6
VGA/YPbPr_IN _R/AV2_CVBS _R6

AV1

ToAudio
Out

Amp

AMP_STB9
interrupt9

Headphone

HP_OUT_JD8

SPDIF

SPDIF_OUT8

ToFlash
ROM

N_WP#/SPI_W P#4
N_ALE/SPI_SDO4
N_CLE/SPI_SCLK4
N_WE#/SPI_D I4

C4009

PLL_GND

C4033
100N 16V

PB0+6
YPbPr0-6
Y0+6
PR0+6

VIN_A0-5

VGA_B+6
VGA_B-6
VGA_G+6
VGA_R+6

VGA_HS6
VGA_VS6

AV_IN_L5
AV_IN_R5

AOUT_R9
AOUT_L9

HPOUT_L8
HPOUT_R8

SPI_CS#4

A1V0

A3V3

PB0+
YPbPr0­Y0+
PR0+

AV1_CVBS+
VIN_A0-

VGA_B+
VGA_B­VGA_G+
VGA_R+

VGA_HS
VGA_VS

VGA_DDC_SCL
VGA_DDC_SDA

UART_RX1

UART_TX1

AV_IN_L
AV_IN_R

AOUT_R

AOUT_L
AMP_STB
interrupt

HPOUT_L
HPOUT_R
HP_OUT_JD

SPDIF_OUT

SPI_CS#
N_WP#/SPI_WP#
N_ALE/SPI_SDO
N_CLE/SPI_SCLK
N_WE#/SPI_DI

C4022 33PF 50V

C4006 33PF 50V

R4040 0R05 OHM

R4032 0R05 OHM

C4056

C4016

100N 16V

100N 16V

Power

POWER_ON_LV214

POWER_ON_LV114

CVBS_OUT5

VGA/YPbPr_IN _L/AV2_CVBS_L
VGA/YPbPr_IN _R/AV2_CVB S_R

Rev:B

R4006 330R 1/16W 5%

12

X401
27MHz

PLL_1V0

C4031

100N 16V

PLL_GND

PLL_3V3

C4008

2.2UF 6.3V

PLL_GND

C4023

C4070

100N 16V

100N 16V

M3V34,8,11,14

A3V34,6,13, 14
D3V34,6,9,13,14

A1V014
D1V014

DDR_POWER14

POWER_ON_LV2

POWER_ON_LV1

CVBS_OUT

AGND

HPOUT_R
HPOUT_L

XOUT

XIN

For EMI 216MHZ 20130514

FB4003

A3V3

1 2

300R

C4004
1UF 10V

IFADC_GND

A1V0

C4039

C4052

100N 16V

NC/1UF 10V

C4015

C4066

C4069

100N 16V

100N 16V

100N 16V

M3V3

A3V3
D3V3

A1V0
D1V0
DDR_POWER

IFADC_3V3

IFADC_GND

USB_1V0

USB_GND

TMDS_1V0

TMDS_GND

100N 16VC4049
1UF 10VC4037

VGA/YPbPr_I N_L/AV2_CVBS_L
VGA/YPbPr_I N_R/AV2_C VBS_R

NC/10UF 6.3V 20%C4073
NC/10UF 6.3V 20%C4081

10UF 6.3V 20%C4057
10UF 6.3V 20%C4059

AGND
AGND

AGND

AGND

AGND

AGND

A3V3

R4012 0R05 OHM

C4029
100N 16V

C4067

2.2UF 6.3V

ETN_1V0

C4021
100N 16V

AGND

Pin199 CLOAD:
BOM For Mac : CS5 10uF
BOM For Pac': CS5 0R

YPPADC_1V0

VDADC_3V3

VDAC_3V3

CORE_1V0

CVBS_OUT

211

210

212

209

214

213

208

AVOUT2

AVOUT1

V33VDAC

V10CORE

V33VDADC

SCART_FSW

RTD2648SA

HP_OUT_JD

N_WE#/SPI_D I

N_WP#/SPI_W P#

TUN_I2C_SCL

TUN_I2C_SDA

SPI_CS#

N_CLE/SPI_SC LK

VDADC_1V0

AGND

AGND

AGND

VIN_A0-

AV1_CVBS+

C4040 10UF 6. 3V 20%

47NF 16VC4068

47NF 16VC4024

47NF 16VC4017

ADC3V3_GND

CLOAD_DW

202

205

199

198

197

195

207

204

196

200

206

203

201

VIN_9P

CLOAD

VIN_8P

VIN_7P

VIN_6P

VIN_10P

VIN_12P

VIN_11P

G33ADC

VIN_A1N

VIN_A0N

VIN_Y1N

V10VDADC

V10YPPADC

DDR_VREF1

AMP_STB

DDRPLL_GND

N_ALE/SPI_SDO

UART_RX1

UART_TX1

R4038 240R 1% 1/16W

CORE_1V0

DDRPLL_3V3

DDR_POWER

AGND

DGND

DDR_POWER

DDRPLL_1V0

A3V3

IFPGA_3V3

R4014 0R05 OHM

IFADC_GND

A1V0 DDRPLL_1V0

R4010 0R05 OHM

DDRPLL_GND

LVDS_3V3

D3V3

R4048 0R05 OHM

DGND

VGA_B-

VGA_B+

VGA_HS

VGA_G+

VGA_R+

VGA_VS

PR0+

APLL_3V3

Y0+

YPbPr0-

PB0+

47NF 16VC4107

47NF 16VC4108

47NF 16VC4109

47NF 16VC4110

47NF 16VC4044

47NF 16VC4005

47NF 16VC4027

47NF 16VC4026

188

186

185

194

193

191

190

189

187

192

184

VIN_5P

VIN_4P

VIN_3P

VIN_2P

VIN_1P

VIN_0P

VIN_BN

VIN_Y0N

VSYNCVIN

HSYNCVIN

IO_3V3

DDR_POWER

DGND

BOM For Pac': RS46 0R

C4003
100N 16V

C4042
100N 16V

A3V3

R4035 0R05 OHM

C4047
100N 16V

AGND

CORE_1V0

IO_3V3

R4019 0R05 OHM

APLL3V3_GND

183

V33APLL

G33APLL

R4029 NC/0R05 OHM

HOTPLUG1HOTPLUG1

LEDR

VGA_DDC_SCL

BL_EN

LEDG

IRRX

HOTPLUG0

POWER_ON_LV1

PANEL_EN

BL_ADJ

HDMI1_DDC_SCL

HDMI1_DDC_SDA

177

166

169

168

176

182

175

180

179

178

174

173

172

181

170

171

V33IO

V10CORE

DDR_VREF1

167

IRRX(5V)

SPDIF_IN

ST_GPIO5

BL_EN(5V)

ST_GPIO23

ST_GPIO22

ST_GPIO21

ST_GPIO12

ST_GPIO11

ST_GPIO10

HOTPLUG1(5V)

HOTPLUG0(5V)

HDMI1_DDC_SCL

HDMI1_DDC_SDA

LVDSA_DN

LVDSA_CP

LVDSA_CN

LVDSA_BP

100

101

102

103

104

105

TOBN

TOCLKP

TOCN

TOCP

TOBP

TODP

TOCLKN

TODN

CORE_1V0

DDR_POWER

DDR_POWER

DDR_POWER

C4041
1UF 10V

DGND

TMDS_3V 3

C4054
100N 16V

TMDS_G ND

AGND

AGND

VDAC3V3_GND

20130420

R4027 0R05 OHM

DGND

BB1_GND

215

216

217

U401

EPAD

G33BB1

G33VDAC

1

VCM_BB

2

V33BB1

3

AIN_4L

4

AIN_4R

5

AIN_3L

6

AIN_3R

7

AIN_2L

8

AIN_2R

9

AIN_1L

10

AIN_1R

11

AOUTR

12

AOUTL

13

SCART_R

14

SCART_L

15

G33BB2

16

V33BB2

17

HPOUT_R

18

HPOUT_L

19

V10CORE

20

V33PLL

21

XOUT

22

XIN

23

V10PLL

24

G33PLL

25

G33IFADC

26

IF_N

27

IF_P

28

V33IFPGA

29

V33IFADC

30

V33USB

31

U1DM

32

U1DP

33

G10USB

34

V10USB

35

U0DM

36

U0DP

37

G10USB0

38

V10ETN

39

ETNTXP

40

ETNTXN

41

GND0_ETN

42

ETNRXP

43

ETNRXN

44

V33ETN

45

GND1_ETN

46

V10ETN

47

GPIO9

48

GPIO10

49

RFAGC

50

IFAGC

51

GPIO13

52

V10CORE

53

V33IO

54

GPIO17

GPIO1855GPIO1956GPIO2057TUNER_I2C1_SDA58TUNER_I2C1_SCL59SPDIFI60SPI_SCK/N_C LE61SPI_DI/N_WR62SPI_CS_N63SPI_DO/N_ALE64GPIO2465ETN_LED0/UART_RX(5V)66ETN_LED1/UART_TX(5V)67V33DDRPLL68G10DDRPLL69V10DDRPLL70V15DDR71DDRZQ72VREF_DDR73V15DDR74N_DATA075V10CORE76N_DATA177N_DATA278N_DATA379N_DATA480V15DDR81N_DATA582V33IO83N_DATA684N_DATA785N_RD86N_CE187N_CE088N_RDY89VREF_DDR90V15DDR91V10CORE92V15DDR93V15DDR94V15DDR95LVDSA_FP96LVDSA_FN97LVDSA_EP98LVDSA_EN99LVDSA_DP

3D_EN

DDRPLL_3V3

C4061

C4035

100N 16V

100N 16V

2012/11/20

DGND

DDRPLL_GND

AV_IN_L
AV_IN_R
AOUT_R
AOUT_L

R4016 0 R05 OHM

BB2_3V3

CORE_1V0

PLL_3V3

R4045 0R05 OHM

TUN_IF­TUN_IF+

IFPGA_3V3
IFADC_3V3
USB_3V3

CORE_1V0

IO_3V3

ETN_3V3

AGND

C4018
NC/1UF 10V

C4010
100N 16V

C4043
100N 16V

XOUT
XIN

ATV_IF_AGC

USB_GND

USB0_DM
USB0_DP
USB_GND

C4036
100N 16V

C4077
100N 16V

VCM_BB

2.2UF 6.3VC4075

2.2UF 6.3VC4055

2.2UF 6.3VC4053

2.2UF 6.3VC4064

2.2UF 6.3VC4078

2.2UF 6.3VC4079

BB2_GND

PLL_GND

IFADC_GND

USB_3V3

USB_GND

IO_3V3D3V3

C4065
100N 16V

C4011

2.2UF 6.3V

BB1_3V3

AGND

PLL_1V0

USB_1V0

ETN_1V0

ETN_3V3

ETN_1V0

A3V3

C4076
100N 16V

2012/11/20

RESET Circuit

RESET#

HDMI0_DDC_SCL

VGA_DDC_SDA

163

165

164

RESET

HDMI0_DDC_SDA

VGA_DDC_SCL

VGA_DDC_SDA

HDMI0_DDC_SCL

ETN_LED1/GPIO_69
ETN_LED0/GPIO_68

LVDSA_BN

LVDSA_AP

LVDSA_AN

V33LVDS

106

107

108

TOAP

TOAN

LVDS_3V3

DDR_POWER

C4071
1UF 10V

C4050
1UF 10V

DGND

BOM For Pac': RD1 NM

BOM For Mac : RD1 1K

C4058
1UF 10V

Rev:B Rev:B

ST_GPIO0

V10LDO

V33LSADC

LSADC_REF

LSADC0
LSADC1
LSADC2
LSADC3

V10CORE

G10CORE

RX0_RP
RX0_RN
RX0_GP
RX0_GN
RX0_BP

RX0_BN
RX0_CKP
RX0_CKN
V10TMDS
G10TMDS

RX1_RP

RX1_RN

RX1_GP

RX1_GN

RX1_BP

RX1_BN
RX1_CKP
RX1_CKN
G33TMDS
V33TMDS

GPIO_67

I2S_OUT_MC LK
I2S_OUT_WCLK

V10CORE

I2S_OUT_SCLK

I2S_OUT_DATA0

LVDSB_AN
LVDSB_AP
LVDSB_BN
LVDSB_BP
LVDSB_CN
LVDSB_CP
LVDSB_DN
LVDSB_DP
LVDSB_EN
LVDSB_EP
LVDSB_FN
LVDSB_FP

R4020
1K 1%

DDR_VREF1

R4011
1K 1%

C4014

1UF 10V

CEC

REXT

V33IO

162
161
160
159
158
157
156
155
154
153
152
151
150
149
148
147
146
145
144
143
142
141
140
139
138
137
136
135
134
133
132
131
130
129
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109

RD3 0R

RD3 1K

C4063
1UF 10V

HDMI0_DDC_SDA
TEST_MODE

STB_1V0

LSADC_REF
LSADC0
LSADC1
USB_OC#
POWER_ON_LV2

HDMI_REXT
HDMI0_D2+
HDMI0_D2­HDMI0_D1+
HDMI0_D1­HDMI0_D0+
HDMI0_D0­HDMI0_CLK+
HDMI0_CLK-

TMDS_GND
HDMI1_D2+
HDMI1_D2­HDMI1_D1+
HDMI1_D1­HDMI1_D0+
HDMI1_D0­HDMI1_CLK+
HDMI1_CLK­TMDS_GND

interrupt

TEAN
TEAP
TEBN
TEBP
TECN
TECP
TECLKN
TECLKP
TEDN
TEDP

C4062
1UF 10V

R499

NC/0R05 1/16W

HDMI_CEC

STB_1V0
LSADC_3V3

R4003 NC/ 10K 1/16W

CORE_1V0

R4017 6.2K

TMDS_1 V0

TMDS_3V3
IO_3V3

CORE_1V0

C4007
10UF 6.3V 20%

A3V3

RESET#

SPDIF_OUT

C4002
10UF 6.3V 20%

A3V3 VDAC _3V3

R4030 0R05 OHM

R4026
10K

A3V3

C4051
100N 16V

R4004 0R05 OHM

A3V3

AGND

DGND
AGND

AGND

AGND

Power On Latch

HIF_Selection_n (Pin 59)
0 : HIF Enable
1 : HIF Disable

EJTAG (Pin 61, pull-hi)
0 : enable
1 : disable

ROM boot (Pin 63, pull-lo)
0 : boot from ROM
1 : don't boot from ROM

BOOT_MODE_bit1 (pin 64, pull-lo)
0 : SPI-Flash boot
1 : NAND-Flash boot

test mode (Pin 161, pull-hi)
0 : enable
1 : disable

PLL enable mode (Pin 162, pull-hi)
0 : disable
1 : enable

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

03. RTD2648

Date

VDAC3V3_GND

AGND

R4024 0R05 OHM

C4012

10UF 6.3V 20%

Didoe forward
voltage smaller
than 0.3V

For Layout

HDMI_CEC

DGNDAGND

C4048
100N 16V

C4046
100N 16V

LSADC_3V3

AGND

STB_1V0

DGND

D3V3

VDADC_1V0

A1V0

C4020
1UF 10V

C4060
100N 16V

AGND

AGND

APLL_3V3

APLL3V3_GND

C4072
100N 16V

12

ZD4005
MLVG0402

12

D401
RB551V-30

Rev:B

R4025
27K 1/16W 1%

Add for Heat Sink Outline 20110106

TUN_I2C_SCL

N_CLE/SPI_SC LK

SPI_CS#

N_ALE/SPI_SDO

TEST_MOD E

HDMI0_DDC_SDA

OEM MODEL Size

TPV MODEL

PCB NAME

Sheet

315Saturday, June 08, 2013

C4074
100N 16V

2012/11/20

Rev:B

R4015 NC /4.7K

NC

R4021 4.7K

M3V3

R4008

NC

NC/4.7K

R4022 4.7K

R4028 4.7K

R4023 4.7K

R4018 NC/4.7K

of

DGND

HS401

HEAT SINK

D3V3

A1V0 Y PPADC_1V 0VDADC_3V3

1
2

Default

M3V3

DGND

C4013
100N 16V

AGND

DGND

1

1

0

0

1

1

Custom

Rev

A

<

称爹

称爹

>

34

SPIFLASH

M3V3

N_WE#/SPI_DI

R4065

4.7K

R4066

NC/0R05 OHM

SPI_CS#

N_WP#/SPI_WP#

WP active low

20130226

U406

1

CS#

2

SO/SIO1

3

WP#
GND4SI/SIO0

W25Q64FVSSI G

TEAN TEAN_1
TEAP
TEBN
TEBP

TECN
TECP
TECL KN
TECL KP

TEDN
TEDP
TOAN
TOAP

TOBN
TOBP
TOCN
TOCP

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

M3V3

8

VCC

7

HOLD#

6

SCLK

5

RP4001 22 O HM

8
7
6
5

RP4002 22 OHM

8
7
6
5

RP4003 22 OHM

8
7
6
5

RP4004 22 O HM

8
7
6
5

SPI_HOLD

20130226

R4070

4.7K

N_CLE/ SPI_SCLK

N_ALE/ SPI_SDO

TEAP_1
TEBN_1
TEBP_1

TEC N_1

TEC P_1
TECL KN_ 1
TECLKP_1

TED N_1

TED P_1

TOAN _1

TOAP _1

TOBN _1

TOBP _1

TOCN_1

TOC P_1

C4080
100N 16V

+12V_Panel

PANEL_EN

LVDS

BL_DIM

R4064 NC/0R05 O HM

R4050 0R051/8W

R4061 4.7K

3D_EN
TEAP_1
TEBP_1
TEC P_1
TECLKP_1
TED P_1

TOAP_1
TOBP_1
TOC P_1
TOC LKP_ 1
TOD P_1

C4083
NC/1UF 10V

DGND

PANEL_VC C

DGND

R4053
10K

R4058 47K

Q401
MMBT3904

DGND

CN408CONN

30
28
26
24
22
20
18
16
14
12
10

8
6
4
2

LVDS(8-bit)

29
27
25
23
21
19
17
15
13
11
9
7
5
3
1

C4084
470nF 16V

DGND

1
2
3
4

SELLVDS
TEAN_1
TEBN_1
TEC N_1
TEC LKN _1
TED N_1

TOAN _1
TOBN _1
TOCN_1
TOC LKN _1
TODN_1

Q402

S

D

S

D

S

D

G

D

SM4310PSKC

D3V3

DGND

8
7
6
5

R4063
NC/4.7K

R4057
NC/4.7K

PANEL_VC C

C4087
10uF 16V

DGND

R4062
NC/10K

Power

SPI
Flash

N_WE#/SPI_DI3
N_WP#/SPI_WP#3
N_ALE/SPI_SD O3
N_CLE/SPI_SCLK3

Panel

TED P3
TED N3
TEC LKP3
TEC LKN3
TEC P3
TEC N3
TEBP3
TEBN3
TEAP3
TEAN3

TOD P3
TOD N3
TOC LKP3
TOC LKN3
TOC P3
TOC N3
TOBP3
TOBN3
TOAP3
TOAN3

PANEL_EN3

3D_EN3
BL_DI M14

+12V_Panel14

D3V33,6,9, 13,14
M3V33,8,11,14

SPI_CS#3

TED P
TED N
TEC LKP
TEC LKN
TEC P
TEC N
TEBP
TEBN
TEAP
TEAN

TOD P
TOD N
TOC LKP
TOC LKN
TOC P
TOC N
TOBP
TOBN
TOAP
TOAN

PANEL_EN
3D_EN
BL_DIM

+12V_Panel
D3V3
M3V3

N_WE#/ SPI_DI

N_WP#/ SPI_WP#
N_ALE/SPI_SD O
N_CLE/SPI_SCLK

SPI_CS#

TOCL KN
TOCL KP
TODN
TODP

1
2
3
4

RP4005 22 O HM

8
7
6
5

20130226

TOC LKN _1
TOCLKP_1
TODN_1
TOD P_1

35

T P V ( Top Victory Elec tronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

04. NAND F LASH/ LVDS

Date

OEM MODEL

TPV MODEL

PCB NAME

Sheet

B

Size

A

Rev

称爹

称爹

>

of

415Saturday , June 08, 2013

<

A

V IN

AGND

R4068 0R05 1/10W

AV1_CVBS+

AV1_CVBS+

AV1_CVBS+3
VIN_A0-3

AV_IN _L3
AV_IN _R3

AV1_CVBS+
VIN_A0-

AV_IN_L
AV_IN_R

CN102

CN103
CONN

A

B

RCA JACK

ZD101

3

2

1

2

1

4

3

AGND

MLVG0402

1 2

AGND

12

ZD103

MLVG0402

R105
75R 1%

12

ZD102
MLVG0402

AGNDAGND AGND

EMI

R4069 0R05 1/10W

C101

470pF 50V

AGND

C4089

NC /47pF 50V

R102 6K8 1/10W 5%

R101 6K8 1/10W 5%

C102

470pF 50V

AGND

R103
10K

VIN_A0-

AV_IN_L

AV_IN_R

AV_IN_R

R104
10K

AGND

Closeto
Connector

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

05. AV1 CV BS

36

OEM MOD EL

TPV MOD E L

PCB NAME

Sheet

A

Size

Rev

A

<

称爹

称爹

515Saturday , June 08, 2013

of

>

YPbPr
VideoInput

CN101

2

A

1

4

B

3

6

C

RCA JACK

5

AGND

12

ZD105
MLVG0402

VGA/YPbPr/AV2
AudioInput

CN105

3

2
1

AGND

AGND

12

ZD108
MLVG0402

CONN

AGND

12

ZD106
MLVG0402

12

ZD109
MLVG0402

Y1

PB1

PR1

12

ZD107
MLVG0402

AGND

C107

470pF 50V

R112

R113

75R 1%

75R 1%

AGND AGND AGND

R114 6K 8 1/10W 5%

R116 6K 8 1/10W 5%

C108

470pF 50V

AGND AGND

R4071 100OHM

R4072 100OHM

R4073 100OHM

R110
75R 1%

R4074 100OHM

R4075 100OHM

R4076 100OHM

Close to Main Chip

R111
10K 1/10W

AGND

Y0+co‐use
AV2_CVBS+

C4092

C4093

5PF 50V

5PF 50V

VGA&YPbPr&AV2 _CVBS+ L/R
sharethesameconnector

VGA/YPbPr_IN_L/AV2_CVBS_L

VGA/YPbPr_IN_R/AV2_CVBS_R

R115
10K 1/10W

C4091

5PF 50V

Y0+

PB0+

PR0+

YPbPr0-

YPbPr0-

YPbPr0-

Power

D_5V9,10,11,12, 14

D3V33,4, 9,13,14

YPbPr
VideoIn put

VGAVi deo
Input

VGA_B+3
VGA_B-3
VGA_G+3
VGA_R+3
VGA_HS3
VGA_VS3

UART0

VGA_DDC_SCL3
VGA_DDC_SDA3

VGA/YPbPr/AV2

VGA/YP bPr_IN_L/AV2_C VBS_L3

AudioInput

VGA/Y PbPr_IN_R/ AV2_CVBS_R3

UART1

UART_TX13
UART_RX13

PB0+

PB0+3

YPbPr0-

YPbPr0-3

Y0+

Y0+3

PR0+

PR0+3

VGA_DDC_SCL
VGA_DDC_SDA

UART_TX1
UART_RX1

D_5V

D3V3

VGA_B+
VGA_B­VGA_G+
VGA_R+
VGA_HS
VGA_VS

VGA/Y PbPr_IN_L/AV2_C VBS_L
VGA/Y PbPr_IN_R/ AV2_CVBS_R

VGAVideo
Input

R164
10K

VGA_DDC _SCL

VGA_VS

VGA_HS

VGA_DDC _SDA

AGND

VGA_DDC_SCL

1

D_5V

R157
10K

C144
22P 50V

AGND

AGND AGND

U103

1

I/O1

2

GND
I/O23I/O3

AOZ8105CI

2

D101

3

BAT54C

R158 100OHM

R163 100OHM

C141

R162

10PF 50V

2.2K OHM 1%

AGND

VSVGA_DDC_SDA VGA_RIN

6

I/O4

5

VDD

D_5V

HS

4

VGA_CON5V

20130318

AGND

R161

2.2K OHM 1%

VGA_GIN

UART_RX1

R4078 10K

1

I/O1

2

GND
I/O23I/O3

VGA_SCL

VS

HS

VGA_SDA

R155 100O HM

D3V3

U104

6

I/O4

5

VDD

VGA_BIN

4

AOZ8105CI

CN104

AGND

5

15

10
4

14

13

12

11

R156 100O HM

9

VGA_CON5V

3

VGA_BIN-

8
2

VGA_GIN-

7
1

VGA_RIN -

6

17 16

CONN

AGND

D_5V

AGND

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

06. VGA/YPb Pr/AV2 CVBS

Date

AGND

AGND

UART_TX1

VGA_BIN

VGA_GIN

VGA_RIN

R4077
10K

D3V3

AGND

AGND

AGND

R154
75R 1%

R150
75R 1%

R153
75R 1%

OEM MOD EL

TPV MOD EL

PCB NAME

Sheet

R4093 100OHM

R4094 100OHM

R4095 100OHM

R4096 100OHM

R160 100O HM

R4097 100OHM

ClosetoMainCh ip

of

615Saturday , June 08, 2013

C4094

5PF 50V

C4095

5PF 50V

C4096

5PF 50V

VGA_B+

VGA_B-

VGA_G+

VGA_B-

VGA_R+

VGA_B-

Size

Custom

Rev

A

称爹

称爹

>

<

37

Make on board

HDM I0

HDMI0_DDC_SCL
HDMI0_DDC_SDA

R513
47K

HOTPLUG0

10K

Make on board

CN501

DGND

D5V_STB

R501

4.7K

R508

4.7K

R507 100 OHM
R514 100 OHM

DGND DGND

R512
1K 1%

R504

DGND

Q502
MMBT39 04

HDMI0_C ON5V HDMI1_CON5V

HDMI0_D 2P

HDMI0_D 2N
HDMI0_D 1P

HDMI0_D 1N
HDMI0_D 0P

HDMI0_D 0N
HDMI0_C LKP

HDMI0_C LKN

HDMI_CEC HOTPLUG0

HDMI0_DDC_SCL#
HDMI0_DDC_SDA#

12

MLVG0402
ZD502

DGND

AC off EDID
solution

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19

TMDSD2+
DSHLD0
TMDSD2­TMDSD1+
DSHLD1
TMDSD1­TMDSD0+
DSHLD2
TMDSD0­TMDSC+
CSHLD0
TMDSC­CEC
NC
SCL
SDA
DDC_GND
VCC5
HPD

HDMI

SHLD0

SHLD2

SHLD3

SHLD1

20

22

23

21

DGND

without

HDM I1

HDMI1_DDC_SCL
HDMI1_DDC_SDA

HOTPLUG1

AC off EDID
solution
without
EEPROM

R506

4.7K

R502
47K

10K

EEPROM

D5V_STB

R511

4.7K

R503

HDMI1_D2P

HDMI1_D2N
HDMI1_D1P

HDMI1_D1N
HDMI1_D0P

HDMI1_D0N

DGND

R505 100 OH M
R510 100 OH M

R509
1K 1%

Q501
MMBT3904

DGND

HDMI1_CLKP

HDMI1_CLKN

HDMI_CEC

HDMI1_DDC_SCL#
HDMI1_DDC_SDA#

12

MLVG0402
ZD501

DGND

(180 degree connector)

CN502

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19

TMDSD2+
DSHLD0
TMDSD2­TMDSD1+
DSHLD1
TMDSD1­TMDSD0+
DSHLD2
TMDSD0­TMDSC+
CSHLD0
TMDSC­CEC
NC
SCL
SDA
DDC_GND
VCC5
HPD

HDMI

SHLD0

SHLD2

SHLD3

SHLD1

Power

D5V_STB9,13,14

20

22

23

21

DGND

HDMI0

HDMI0_D2+3
HDMI0_D2-3
HDMI0_D1+3
HDMI0_D1-3
HDMI0_D0+3
HDMI0_D0-3
HDMI0_CLK+3

HDMI0_CLK-3
HDMI0_DDC_SCL3
HDMI0_DDC_SDA3

HOTPLUG03

HDMI_CEC3

HDMI1

HDMI1_D2+3

HDMI1_D2-3

HDMI1_D1+3

HDMI1_D1-3

HDMI1_D0+3

HDMI1_D0-3

HDMI1_CLK+3

HDMI1_CLK-3
HDMI1_DDC_SCL3
HDMI1_DDC_SDA3

HOTPLUG13

D5V_STB

HDMI0_D2+
HDMI0_D2­HDMI0_D1+
HDMI0_D1­HDMI0_D0+
HDMI0_D0­HDMI0_CLK+
HDMI0_CLK­HDMI0_DDC_SCL
HDMI0_DDC_SDA

HDMI_CEC

HDMI1_D2+
HDMI1_D2­HDMI1_D1+
HDMI1_D1­HDMI1_D0+
HDMI1_D0­HDMI1_CLK+
HDMI1_CLK-

HDMI1_DDC_SCL

HDMI1_DDC_SDA
HOTPLUG1

HDMI0_D 2-HDMI0_D 2N

HDMI0_D 2+HDMI0_D2P

HDMI0_D 1N HDMI0_D1-

HDMI0_D 1P HDMI0_D 1+

HDMI0_D 0N HDMI0_D0-

HDMI0_D 0P HDMI0_D 0+

HDMI0_C LKN HDMI0_CLK-

HDMI0_C LKP HDMI0_CLK+

HDMI_CEC
HDMI0_DDC_SCL#

HDMI0_DDC_SDA#
HDMI0_C ON5V

U501 NC/RC lamp0524P.TCT

1

IN1

2

IN2

4

IN3

5

IN4

GND

8

3

DGND

GND

OUT1
OUT2

OUT3
OUT4

10
9

7
6

HDMI_CEC
HDMI0_DDC_SCL#

HDMI0_DDC_SDA#
HDMI0_CON5V

HDMI1_D 2N HDMI1_D2-

HDMI1_D 2P HDMI1_D 2+

HDMI1_D 1N HDMI1_D1-

HDMI1_D 1+HDMI1_D 1P

HDMI1_D 0-H DMI1_D0N

HDMI1_D 0P HDMI1_D 0+

HDMI1_C LKN HDMI1_C LK-

HDMI1_C LK+HDMI1_C LKP

絬 隔 瓜 絪 腹

Key Component

38

U502 NC/RClamp0524P.TCT

1

IN1

2

HDMI1_DDC_SDA#

T P V ( Top Victory Electronics Co . , Ltd. )

07. Video/Audio Input_HDMIx2

Date

IN2

4

IN3

5

IN4

8

GND

DGND

OUT1
OUT2

OUT3
OUT4

GND

3

OEM MO DE L

TPV MO DEL

PCB NAME

Sheet

10
9

7
6

HDMI_CECHDMI_CEC
HDMI1_DDC_SCL#HDMI1_DDC_SCL#

HDMI1_DDC_SDA#
HDMI1_CON5VHDMI1_CON5V

715Saturday , June 08, 2013

of

Size

Rev

称爹

B

A

称爹

>

<

SPDIF

SPDIF_OUT

CVBS_OUT

R119 75 OHM

12

R638

NC/10K 1/16W 5%

ZD604

MLVG0402

AGND

AGND

3

2

1

CN112

CONN

VIDEO OUT

Power

M3V 33,4,11, 14

Headphone

HPOUT_L3
HPOUT_R3
HP_OUT_JD3

SPDIF

SPDIF_OUT3

HPOUT_L
HPOUT_R

HP_OUT_JD

SPDIF_OUT

M3V 3

Headphone

CN602

CONN

Mark on board

HP OUT

1
7
6
2
3
4
5

AGND

R635 100OHM

M3V 3

12

AGND

R632
10K

ZD605
MLVG0402

AGND

1.65V: jack not plug in
0V: jack plug in

HP_OUT_JD

R636 22R 1/10W 5%

R637 22R 1/10W 5%

12

12

ZD603

ZD602

NC/MLVG0402

MLVG0402

AGND

20130604

R642
1K 1%

AGND AGND

R643
1K 1%

AGND

AGND

C654
100N 16V

C653
100N 16V

HPOUT_L

HPOUT_R

CVBS_OUT

CVBS_OUT3

CVBS_OUT

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

08. SPDIF/Headphone

39

OE M MOD EL

TPV MODEL

PCB NAME

Sheet

A

Size

Rev

A

<

称爹

称爹

of

815Friday , June 14, 2013

>

AMP_

+12V_Audio

STB
L: Mute disablde
H: Mute enable

AMP_STB

D5V_STB

R601 10K

R604 10K

FB603

1 2

120R 6A

D3V3

DGND

del D601 20130318

+

R618

10K

Q602
MMBT39 06

+

C612
100UF 16V

R606
10K

20130604
A_VDD change to D_5V

C632
100UF 25V

AOUT_L3

AOUT_R3

D3V3

PVDD

R623

10K

D602

BAS316

R607

100OHM

R611
NC/100K 1/10W

D_5V

R615

NC/ 10K 1/16W 5%

R608

0R05 OHM

R609 100OHM

R613
1K

R616

R617

Q603
MMBT39 04

10K

NC/0.05R

R624

20130318

10K

interrupt

D_5V

R612
NC/100K 1/10W

R610

10K

Q601
MMBT39 04

C607
100N 16V

AV_L_OUT#

PVDD

R605
27K 1/16W 5%

AV_R_OUT#

AMP_MUTE

C623 1U F 10% 16V

C618 1U F 10% 16V

R619

NC/ 10 OHM

A_VDD

C609
NC/ 1UF 10% 16V

R621
100K 1/16W

C624
1UF 10V

C626

C616 1U F 10% 16V

C602 1U F 10% 16V

1UF 10V

1

2

3

4

5

6

7

8

9

10

11

12

13

U601

SDZ

FAULTZ

LINP

LINN

GAIN0

GAIN1

AVCC

AGND

GVDD

PLIMIT

RINN

RINP

NC

1.2A Max

Ther ma l Pa d

PVCCL

PVCCL

BSPL

OUTPL

PGND

OUTNL

BSNL

BSNR

OUTNR

PGND

OUTPR

BSPR

PVCC

29

28

27

C608 NC/220N F 25V

26

25

24

23

C629 NC/220N F 25V

22

C620 NC/220N F 25V

21

20

19

18

17

C605 NC/220NF 25V

16

C625

100N 16V

R614

10OHM1/16W

R602

10OHM1/16W

R603

10OHM1/16W

R620

10OHM1/16W

PVDD

C601

1N 50V

L601
33uH

C606

330pF 50V

L602
33uH

C628 330pF 50V

L603
33uH

C621 330pF 50V

L604
33uH

C610

330pF 50V

C627
10uF 16V

PVDD

C617
1uF

L-

C619
1uF

co‐layout

R-

C611
1uF

co‐layout

R+

C622
1uF

Power

Amp

L+

12

FB605

1 2

HCB3216KF -121T30

FB606

1 2

HCB3216KF -121T30

FB607

1 2

HCB3216KF -121T30

+12V_Audio14
D5V_STB7,13,14
D_5V6,10,11,12,14
D3V33,4,6,13 ,14

AOUT_R3
AOUT_L3
AMP_STB3

interrupt3

FB604
HCB3216KF -121T30

4
3
2
1

5 6

AOUT_R
AOUT_L
AMP_STB

interrupt

CN601
CONN

+12V_Audio
D5V_STB
D_5V
D3V3

14

PBTL

AD52580-QG28N AR

40

C615

15

PVCC

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

09. AUDI O AMP

100N 16V

C604

1N 50V

C613
10uF 16V

OEM MODEL

TPV MODEL

PCB NAME

Sheet

Size

B

Rev

A

称爹

称爹

>

of

915Saturday , June 08, 2013

<

USB

Power

D_5V6,9, 11,12, 14

D_5V

D_5V

TH101

1 2

t

PTCR

DGND

C104
10UF 10V

DGND

C106
10UF 10V

R123

10K

R124
18K OHM 1%

GND

USB0_DM
USB0_DP

USB_OC#

R125 0R 05 OHM
R127 0R 05 OHM

12

ZD110
MLVG0402

12

ZD111
MLVG0402

DGND DGNDDGNDDGND

CN107

1
2
3
4

USB CONN

USB

USB0_DM3
USB0_DP3

USB_OC#

1234

6 5

USB0_DM
USB0_DP

USB_OC# 3

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

10. USB

41

OEM MO DEL

TPV MOD EL

PCB NAME

Sheet

Size

A

Rev

A

称爹

称爹

>

of

10 15Saturday , June 08, 2013

<

Rev:B

TU101

TUN ER

Tuner

13

AGND

ANT

3.3V
SCL

SDA

GND

Xou t

IF_N
IF_P

IF_AGC

TH110TH211TH312TH4

1
2

SCL_CAN

3

SDA_CAN

4
5
6

AIF-

7

AIF+

8

IF_AGC

9

C129

1N 50V

AGND

AGND

Closeto
Tune r

C119
10UF 6.3V 20%

C134 1UF 10V

C130 1UF 10V

Closetomain
chipU401

R142 1K 1%

C135
100N 16V

Tuner3.3V

C121

1UF 1 0V

C122

NC/1N 50V

AGND

L102 0.47uH

C126
20pF

L104 0.47uH

Closetomain
chipU401

C124

NC/ 470pF 50V

2012/11/20

AGND

350mA

3.3V_TUNER

C123
20pF

C137

10NF 50V

TUN_IF-

TUN _I F+

R14310K

C730

1UF 10V

U707

VIN3VOUT

2

GND14

4

G903T63UF

3.3V_TUN ER

R738 0R05 1/10W

C731
22UF 6.3V

DGND

D_5V 3.3V_TUNER

DGND DGND

I2C for Tuner

R141

R146

4.7K

4.7K

ATV_IF_AGC

TUN_I2C_SCL

TUN_I2C_SDA

Closeto
Tune r

R144 100O HM

R145 100O HM

C136
NC/ 10PF 50V

2012/11/20

350mA

AGNDAGND

SCL_CAN

SDA_CAN

C127
NC/ 10PF 50V

Power

Tuner

ATV_IF_AGC3

TUN _I 2C_S CL3
TUN _I 2C_S DA3

D_5V6,9,10, 11,14
D3V33,4, 6,9,13,14

TUN_IF+3
TUN_IF-3

D_5V

D3V3

TUN _I F+
TUN _I F-

ATV_IF_AGC

TUN _I 2C _SC L
TUN _I 2C _SD A

42

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

12. Tuner

OEM MODEL

TPV MODEL

PCB NAME

Sheet

Size

B

Rev

A

称爹

12 15Saturday , June 08, 2013

of

<称爹>

CN4003

CONN

1
2
3
4
5
6
7
8
9
10

DGND

LED-R
LED-G

IRRX1

POWER

KEY_ADC1

POWER_KEY

DGND

C4102
100N 16V

20130318

FB401

1 2

120R/3000m A

FB402

1 2

NC /120R /3000m A

D3V3

D5V_STB

Power

D5V_STB7,9, 14
D3V33,4, 6,9,14

Keypad

LSADC03
LSADC13

IR

D5V_STB
D3V3

LSADC0
LSADC1

IRRX3
LEDG3
LEDR3

IRRX
LEDG
LEDR

Make on board

Keypad

POWER_KEY
KEY_ADC1
LED-G LEDG_C TRL
LED-R

IRRX1

ZD402

MLVG0402

12

DGND

C4106
1N 50V

C4103
1N 50V

D3V3 D3V3

R4084

2.2K OHM 1%

12

C4101
1N 50V

ZD403

MLVG0402

R4085 100O HM

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

R4083

4.7KO HM 1%

12

C4105
1N 50V

ZD404

MLVG0402

IRRX

13. Keypad/IR

R4087 100R 1%
R4081 100R 1%
R4088 1K
R4086 1K

C4104
1N 50V

DGND

43

LSADC1
LSADC0

LEDR_CTRL

OEM MO DEL

TPV MOD EL

PCB NAME

Sheet

13 15Saturday , June 08, 2013

D3V3

R4082 4.7K

Q404
MMBT3 906

of

R4080 4.7K

Q403
MMBT3 906

Size

Rev

称爹

D3V3

DGND

A

A

称爹

<

R4089
NC/4.7K

LEDG

LEDR

R4090
NC/4.7K

>

DGND

1 2

C726

10nF 50V

D701

NC/SM340A

20130318

+12V

R719 0R051/8W

10uF 16V

C719

DGND

CORE POWE R D1V 0 A1V0

R703 10 OHM1/16W

U706

9

E-Pad

1

8

VCC

VIN

2

7

POK

LX

3

6

GND

PGND

5

FB4EN

APW7323AKAI-TRG

R729 100OHM

DGND

C705
1UF 10V

DGND

C720
NC/100N 16V

C724

100N 16V

POWER_ON_LV2

D_5V
Switch

DGND

DGND

C716
NC/100N 16V

D5V_STB

DGND

1
2
3

R710

47K

U704

BS
VIN
LX

COMP

GND4FB

APW7313

L701

2.2uH

Q704

GND

L702
22uH

SS
EN

DGND

9.53K 1%

AO3401

+12V

1.8A

DGND

R701

5.1K 1%

22PF 50V

C704

1.5nF 50V

R722
100K

NC/100p F 50V

R725

C706

36K 1%

C721

9
8

47nF 50V

7
6
5

DGND

Vout = 0. 92x(1+47/10.2)=5.16V

D5V_STB

R718 0R 05 1/10W

C703

10UF 10V

VCCK

R724

NC/100P 50V

C733

R1

R2

DGND

C713
22UF 6. 3V

20130226

R730

DGND

24K 1%

Vout=0.8(1+9.53/24)=1.1V

D_5V

C723

1UF 10V

C717

DGND

C711

22UF 10V

R723
47K 1%

DGND

R706

10.2K

FB702

1 2

120R/3000m A

R720 0R051/ 8W

Rev:B

C718

100N 16V

DGND

A1V0

D1V0

FB701

1 2

300R 4A

+

DGND

C735

NC/220U F 16V

D5V_STB

20130226

M3V3 Switch

POWER_ON _LV2

Rev:B

D5V_STB

DGND

D3V3

R713

1K 1%

C712

2.2UF 10V

20130604

D_5V

DGND

R754
NC/4.7K 1/16W

Q708

NC/MMBT3904

Power

+12V_Audio9

D5V_STB7, 9,13

DDR_POWER3

+12V_Panel4

POWER_ON _LV23

POWER_ON _LV13

M3V3

R755

4.7K 1/16W

R757
100OHM1/16W

R753

NC/10K+-5%1/16W

Q709

NC/MMBT3904

DGND

BL_EN3
BL_ADJ3

BL_DIM4

D_5V6,9,10,11,12

D3V33,4,6,9,13
M3V33,4,8, 11
A3V33,4,6,13
A1V03
D1V03

+12V_Au dio
D_5V
D5V_STB
D3V3
M3V3
A3V3
A1V0
D1V0
DDR_POWER
+12V_Panel

BL_EN
BL_ADJ

POWER_ON _LV2

BL_DIM

POWER_ON _LV1

R756
0R05 OHM

R751
NC/4.7K 1/16W

R752
NC/4.7K 1/16W

DGND

BL_ADJ

D3V3

10K 1/16W 5%

C737

100N 16V

NC/300R 4A

R749
0R05 OHM

R744
NC/4.7K 1/16W

R712

DGND

D5V_S TB

20130320

R745
NC/4.7K 1/16W

DGND

D_5V

NC/0R05 OHM

MMBT390 4

DGND

R743

10K 1/16W 5%

R726

Q702

POWER_ON_LV1

R742
10K

20130320

BRIGHTADJUST

M3V3

R758

NC/4.7K 1/16W

BL_DIM

BL_EN

C743
NC/100N 16V

20130420

1A

U705

VIN
GND
EN3VFB

G5695T11U

R714
47K

Q701
MMBT3904

L703 2.2UH

5

LX

4

R735 82K 1/16W

DGND

R715 N C/0R05 1/10W

AO3401

Q706

DGND

R736
18K OHM 1%

Vout=0.6(1+82/18)=3.33V

C708

100N 16V

1
2

DGND

D3V3

R708

4.7K

C715

1UF 10V

DGND

C710

10UF 6.3V 20%

M3V3

DGND

DGND

C707

2.2UF 6. 3V

D3V3 A3V3

+

C738

NC/220 UF 16V

20130425
video out noise

CN701

BL_DIM

1

BL_ON/OFF

2
3
4
5
6
7
8

DGND
9
10
11
12
13
14

10uF 16V

CONN

BRIGHTON/OFF

C740

10uF 16V

DGND

M3V3

R759

NC/4.7K 1/16W

BL_ON/OF F

C728

100nF 50V

C742
100N 16V

+12V_Audio

C739

D_5V

100nF 50V

+12V_Panel

DGND

DGND

R747

NC/4.7K 1/16W

Q705

NC/ MMBT3 904

DGND

C727

+

C732
NC/100UF 16V

R750
0R05 OHM

R746

NC/10K+-5%1/16W

+12V

+

C729
NC/100UF 16V

DGND

M3V3

R748
NC/10K+-5%1/16W

Q707

NC /MMBT3 904

DGND

FB703

1 2

VCCK

Rev:B

R721
10K

R716
820R

DGND

C722
NC/1U F 10V

DGND

Q703
MMBT390 4

DGND

D5V_STB

12

DGND

FB704
300R 4A

C736

2.2UF 10V

DGND

1
2

U708

VIN
GND
EN3VFB

G5695T11U

5

LX

4

L704 2.2uH

R740 82K 1/16W

DGND

L0805

R739
18K OHM 1%

Vout=0.6(1+82/18)=3.33V

C741

10UF 6.3V 20%

DGND

20130318

D_5V

C714

10UF 6.3V 20%

Rev:B

R731 10K

R732 0R05 O HM

DGND

DDR POWER

U701

VCNTL4NC

3

VIN

2

EN

1

POK

APL5932BKAI-TRG

C709
NC/1U F 10V

DGND

VOUT

E-Pad

R737 0R051/8W

C725
10UF 6.3V 20%

DGND

DDR_POWER

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

14. SYSTEM POWER

Date

OEM MOD EL

TPV MOD EL

PCB NAME

Sheet

Size

Custom

Rev

B

称爹

称爹

>

of

14 15Saturday, June 08, 2013

<

5
6
7

FB

8

GND

9

DGND

20130226

R733

NC/100P 50V

R1

47K 1%

C734

R734
36K 1%

R2

DGND

Vout = 0. 8x(1+R1/R2)

DDR3: Vout = 0.8x (1+31.6K/36K)=1.502V

DDR2: Vout = 0.8x (1+47/36)=1.844V

44

5.2 电源板
715G6154P01000002H

3

-

!

NC

C9903

C9906

!

4

-

2

L9902

3

18MH

L9901

3

18MH

!

R9140

620K 1/4W

R9134

620K 1/4W

C9901

220NF 305V

!

RV9901

620V

CN9901

SOCKET

3

1

+

2

!

124

C9904

220PF 250V

!!

124

620K 1/4W

12

BD9102

NC

+

!

!

R9139

620K 1/4W

R9132

!

!

1 2

1

SG9102
NC

FB9908

BEAD

1 2

t

NR9901

2.5R

1 2

F9902

T4AL 250V

FUSE 4AL/250V

BD9101

GBL08-07

4

2
1

SG9101
NC

R9133

620K 1/4W

R9141

620K 1/4W

FB9907

BEAD

1 2

CN901

N
L

220PF 250V

220PF 250V

FB9909

BEAD

!

1 2

1 2

220PF 250V

!

100UF 220V

ZD9105

BZT52-B39

ZD9104

BZT52-B39

!

C9907

+

C9102

IC9101
SSC2S110

1

GND

2

FB/OLP

3

NC
ST4NC

+

C9101

100UF 220V

VCC
OCP

DRIVE

R9104

100K

R9105

100K

D9103

Q9101
TK6A 65D

!

R9111
10K 1/8W

C9100

+

NC

R9106

100K

R9107

100K

!

R9112

0.3R

FR107G-A0

HS9102
HEAT SINK

4N7 50V

R9115

D9105

!

C9124

!

SR-EMI1

SR-EMI2

5

T9101

6

4

10

7
3
2

SR-EMI1

9

1

POWER X'FMR

R9108

NC

4.7 OHM

C9126

NC

1
2
3
4

4

(Q9101)(Q9102)

HS9101
HEAT SINK

1

23

1
2
3
4

SR-EMI2

IC9102

EL817M(X)

33K 1/8W 1%

100PF 50V

R9142

C9131

C9130

100N 50V

SP6018S8RGB

IC9104

1

Timi ng

SYN C

2

Pred

100N 50V

100P 50V

C9132

R9114100R 1%

R9116100R 1%

R9118100R 1%

R9119100R 1%

R9120100R 1%

R9123100R 1%

R9144

7.5K OHM 1%

C9119
1uF

3

C9137

AOTF298L

Vdd

VR

MOSG- C

Adj4GND

Vdd

C9134

10UF50V

+

Q9102

D9108MB5 10

12

C9135

1nF 50V

R9143

5K1 +-5% 1/8W

SYNC

R9122

1K8 1/8W 5%

ZD9106 BZT 52-B15

1K OHM +-5% 1/8W

IC9103

AS431AZTR-E1

1 2

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

01.POWER

Date

VddSYN C

8
7
6
5

D9109

SS1060FL

1 2

C9136

1nF 50V

1.8K 1/4W

C9117

0.47UF 50V

R9121

R9124

R9145

4.7 OHM 1/8W

C9108

100N 50V

R9148

0 OHM 1/8W

R9117

5K1 +-5% 1/8W

SR-EMI1

C9128

NC

+

R9125

9.31K OHM 1%

R9126

2K4 +/-1% 1/8W

OEM MO DEL

TPV MO DEL

PCB NAME

Sheet

470UF 25V

C9122

470UF 25V

+

+

NC

R9302

+

C9303NCR9304

of

13Wednesday , May 2 9, 2013

C9116

Q9301

NC

C9306

NC

NC

+

Q9305
NC

C9113

470UF 25V

C9115

470UF 25V

C9114

+

100N 50V

D9107
SR34

+12VOA

1 2

D9106NC

1 2

L9102

3uH

PS_ON

R9307

NC

C9123

+

470UF 25V

Size

Rev

称爹

+12V

A3

C9107

NC

+

C9125

NC

D9104

SS1060FL

8
7
6
5

!

!

C9908

NC

!

C9905

470PF 250V

2.2NF

100N 50V

C9104

220PF 250V

10R 1/8W 5%

12

R9110
62R 1%

C9105

+

47uF/50V

C9106

470P 50V

C9909

FB9904

NC

1 2

100K

R9102

100K

FR107G-A0

R9109

R9113

470OHM +-5% 1/8W

SR-EMI1

R9103

C9103

45

SR-EMI1

C8107
100N 50V

R8127

100R 1/8W 5%

R8122

47K +-5% 1/8W

C8118

C8108
100N 50V

L8103

33uH

8

1

L8102

VCC1

8
7
6
5

R8128

100 OHM 1/4W

0 OHM +-5% 1/8W

NC

R8138

R8141

1R 1%

C8104

1uF

C8110

1NF 50V

R8108

330R 1/8W 5%

R8129

10K OHM +-5% 1/8W

R8123

1R 1%

R8105

10K 1/8W

R8104

47 OHM

R8124

1R

C8112

+

470UF 25V

IC8501

1

DIMOUT

2
3

NC

VCC

GM

OUT

FB

GND

OVP/DI M4CS

PF7903BS

Q8104

AOD2916

R8110

0.05R

R8125

1R 1%

D8101

SR506

C8115
47pF

R8126

1R 1%

C8106

1N 50V

1
2
3
4

Q8101

S
S
S
G

AO4440

OVP:43V

+VLED

C8114

10N 50V

VCC1

Q8103
2N7002K

SR-EMI1

R8118

10K OHM +-5% 1/8W

R8119

330K 1/8W 5%

LED1

+VLED

NC

Q8105

PMBT3904

DIM

R8120

33K 1/8W 5%

C8111

100pF 50V

R8130

330K 1/8W 5%

6
5
4
3
2
1

7 8

CN8101
CONN

SR-EMI1

ON/OF F

+

C8113

220uF 50V

100K 1/8W 1%

C8119

NC

R8133

33K OHM

R8134

51K 1% 1/8W

R8116

51K 1% 1/8W

R8135

6.2K OHM +-1% 1/8W

R8117

R8101NCR8102

PMBT3906

R8131
15K 1% 1/8W

C8122

100N 50V

D8103

1N4148W

Q8106

NC

R8132

8.2K +-1% 1/8W

Q8107
PMBT3904

C8121

C8105

+

220uF 50V

LED1

8

D

7

D

6

D

5

D

46

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

02.LED DRIVER

Date

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

Size

Rev

of

23Wednesday , May 29, 2013

称爹

B

R9406 NC

L9410 NC

+5.2 V

SR-EMI1

FB9401

1 2

NC

C9402

NC

C9409
NC

IC 9105

1

PGND

2

VIN

3

AGND
VCC4FB

+

C9403

NC

C9404

NC

NC

EN

COMP

8
7

LX

6
5

NC

C9405

+12VOA

R9407

NC

C9129
1nF 50V

C9120

100N 50V

C9408
NC

PS_ON

+12V

100N 50V

DIM

R9128

100 OHM 1/8W

C9121

11
13
15

1
3
5
7
9

NC

R9411

CN9101

CONN

R9161

NC

+

C9412
NC

C9118
100N 50V

2
4
6
8
10
12
14
16

+5.2 V

C9146
NC

ON/ OFF

NC

C9413

R9414

NC

R9415

NC

R9416

NC

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

03.DC/DC

47

OEM MO DEL

TPV MOD EL

PCB NAME

Sheet

Size

Rev

of

13Wednesday , May 29, 2013

称爹

A4

5.3 按键板
715G6059K01000004S

CN01

65

1
2

FUNC_KEY

3
4

CONN

33G8032 4F HR

PWR-SW

FUNC_KEY

PWR-SW

R01

7K5 1/8W + /-1%

R02

2K7 1/8W 1%

R03

1K8 + /-1% 1/8W

R04

1K 1/8W 1%

750OHM +- 1% 1/8W

750OHM +- 1% 1/8W

750OHM +- 1% 1/8W

R05

R06

R07

SW01

TACT SW FWRD H1.5MM

SW02

TACT SW FWRD H1.5MM

SW03

TACT SW FWRD H1.5MM

SW04

TACT SW FWRD H1.5MM

SW05

TACT SW FWRD H1.5MM

SW06

TACT SW FWRD H1.5MM

SW07

TACT SW FWRD H1.5MM

VOL+

VOL-

CH+

CH-

Source Select

MENU

Power ON/OFF

2.48V~2.72V

2.04V~2.22V

1.58V~1.79V

1.24~1.45V

0.85V~1.02V

0.47V~0.63V

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

02-Keypad

48

OEM MODEL

TPV MODEL

PCB NAME

Sheet

A

<

称爹

Custom

>

Size

Rev

22Thursday , January 17, 2013

of

称爹

5.4 遥控板
715G5704R01000004X

LED201

081G 14 24 EL

RED

CN201

CONN

67

033G8032 5F S B

4

LED_R

LED_B

1
2
3
4
5

IR

R202 220 OHM 1/10W

R203 220 OHM 1/10W

VCC

R201 15K 1/10W

C201

0.1uF 50V

LED

1

23

BLUE

U201

1

GND

2

GND

3

OUT

4

VCC

IRM-H 938M3/ TR2

356GS927057

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

02-IR&LED

49

OEM MOD EL

TPV MOD EL

PCB NAME

Sheet

<

A

称爹

A

>

Size

Rev

of

22Monday, May 28, 2012

称爹

6. 软体及 EDID 烧录

6.1 软体升级:
方式 一:

1. 将发布软体名称修改为：install.img，并 Copy 到 U 盘中

2. 插入 U 盘

3. AC ON

4. TV 自动升级，升级完成后会自动开启.

方式 二:

1. 将发布软体 Copy 到 U 盘

2. TV 开机.

3. 插入 U 盘

4. 进入 CSM Menu (Menu + 456987 +回看)

5. 显示升级档案名称

6. 选择“是”.
TV 会重启并升级,升级后会自动开启.

如果主板内软体机种和需要升级软体机种不同怎么办？

1. 确认主板内软体机种名称. (进入工厂模式方式: Menu+1999+Recall)

2. 把软体名称更改为主板内软体机种名称及客户名称

例如：AOC_LE42A8830_AP_RTD2649_PCB5701-C_TPT460H1_HVD02_V1.01_20130428.img
做法：LE42A8830=>LE46A8830

3. 升级完成后, 再次进入工厂模式确认机种名称, 软体版本和日期是否正确

方式 三:当机器出现异常状况无法用方式一，方式二升级软体时，请使用方式三强制升级，方式三分为 5
个部分

1. 工具介绍
使用的 tools:

a. 一台 PC
b. USB 传输线一条（一端为小口）
c. USB 转串口小板 (厦门厂料号: 715GT216-A )
d. VGA 线 /自制线材
e. 串口软件/windows 自带程序“超级终端”
f. U 盘一个（FAT32 格式，只能有一个分区）

USB-RS232 转 VGA 的治具:
a. 厦门厂料号：715GT216-A；CS 站料号：715GT005-A-1
b. 如果维修站以上两个料号的治具都没有, 请使用 715GT080-A 代用, 但需要自己制作 VGA 转 3 PIN 的线

材,共两根 （一根烧写软体,一根烧写 Bootloader）

c. 如何制作线材, 请参考后续说明

50

715GT005-A-1 的连接图片
USB RS232 转 VGA

51

715GT080-A 图片
USB RS232 转 3PIN

线材 1 烧写bootloader 接法
1pin：NA
2pin：接 VGA 12pin（TX）
3pin：接 VGA 15pin(RX)
4pin：接 VGA 地,（如 5pin）

线材 2：烧写软体接法
1pin：NA
2pin：接 VGA 4pin（TX）
3pin：接 VGA 11pin(RX)
4pin：接 VGA 地,（如 5pin）

52

2. 工具连接
操作步骤：
a. 按示意图，连接好 PC--》ISP 板子--》TV，烧写 Bootloader 用线材 1 连接到 TV、烧写软体用线材 2 连
接到 TV。这里先使用线材 2 连接，然后安装 USB 转 RS232 的驱动：解压 usb to rs232 driver.7z，双击运
行/PL-2303/ PL-2303 Driver Installer.exe，按提示操作即可，接着打开 ttermpro.exe

usb to rs232 driver.7z

USB 驱动安装注意事项：

53

b. 打开 ttermpro.exe,对串口软件进行设置，选择相应的 COM 口

c. 当 USB 转串口工具连接到 PC 上时, 进设备管理器查看占用的是哪个 COM 口, 并在 ttermpro.exe 的

Serial port setup 中选择相应的 port, 设置如下图, 设置好后点击 OK, 终端开始显示 LOG.

3.烧录软体
a. 在终端界面中按住 ESC 重新开启 TV, 进入 Realtek boot mode, 然后输入 erase –e , 按 Enter 确认操作,

清除 TV 缓存数据, 清除完毕会再次出现”Realtek>”输入提示符

54

b. 将软体工程师提供的软体如

SUNING_LED-24E600_CN_RTD2648_PCB5635-C_TPM236H3_HGJL02_V2.09_20120823_3C7A.img

重新命名为 install.img 复制到 U 盘根目录 (此 U 盘必须 TV 可识别, 分区格式为 FAT32, 且只有一个分区),
将 U 盘接到 TV

c. 在终端中按住 Ta b 键, 将 TV AC off/on, 直到 (约 15-20s) 出现如下信息后放开 Ta b 键, (如出现异常请参
考 4.烧录失败分析进行处理)

d. 软体烧录过程中 TV 会出现进度条提示 (正屏 pannel 显示为正常画面, 倒屏 pannel 显示为倒立画面 ),
烧录完成 TV 会自动重启, 进入 TV source (如果有 U 盘部分机种会自动进入 USB 主界面)

e. 按 Menu+1999+recall 进入工厂菜单查看版本信息, 确认软体信息是否与软体名称
SUNING_LED-24E600_CN_RTD2648_PCB5635-C_TPM236H3_HGJL02_V2.09_20120823_3C7A.img
中的信息一致

55

4. 烧录失败分析

4.1 按 Ta b 键更新软体时报错
a. 检查 U 盘是否已连接至 TV, U 盘根目录下是否有 install.img
b. U 盘不兼容, 更换 U 盘重新烧录
c. 没有执行 erase –e 指令

4.2 连接 Tool 后无任何提示信息
a. 检查 Tool 连线是否正确, 使用的线材是否正确
b. 串口是否已宕机, 重新插拔 USB 出口, 必要时重启 PC
c. TV 没有 Bootloader, 需更新 Bootloader, 参考 5 进行操作

5.烧写 Bootloader

附件 Bootloadertool 用于更新 RTD2648(SH) TV Bootloader, 仅在以上操作无法更新软体时, 才需要更新

解压附件软体双击打开

bootloadertoo

l

关闭 TV, 使用线材 1 连接好 PC  ISP 板子  TV

a. 按下图操作步骤进行设置串口

, 设置完毕点击⑦所示区域进入下一页面;

56

b. 点击①选择好软体工程师提供的 Bootloader.bin 档, ②选择对应的 Bootloader 类型,点击 Start

57

c. 连接成功的提示如下所示

d. 烧录成功提示如下所示
e. BootLoader 烧录成功后, 再参考 2~3 烧录软体

6.2 EDID 已经捆绑到软体中，无需单独烧录。

58

7. 故障处理流程

有

检测 IR 板及 LED 灯

更换 IR 板

检测电源板 CN9101 的 PIN11/12/13/14 是否有 12V 电压输出

无电（LED 不亮）

检测插座是否有电或硬开关是否打开

有

检测电源板 CN9101 的 PIN15/16 是否有 5.2V 电压输出

无法启动

有

无

重插电源插座或开启硬开关

无

更换电源板

无

更换电源板

更换按键板

检测按键板的 POWER 键是否失灵

是

检测遥控板的红外接收器 U201 是否失灵

是

更换遥控板

59

否

否

更换主板

检测 TV 是否受控，能否用遥控器或按键板开关机

检测 LVDS 线是否良好

是

检测主板上 CN408 的 PIN27/29/30
是否有 12V 供电

是

否

先更换主板
检测是否 OK

更换主板

更换 Panel

否

无画

是

检测是否有背光

是

否

重插或更换 LVDS 线

检测电源板 CN9101 的 PIN11/12/13/14 是否有 12V 电压输出

是

否

否

检测主板 CN701 是否有 BL 信号

是

否

更换主板

否

更换主板

更换电源板更换 Panel

60

彩 条、水 波 纹、画 抖、画 闪 、

鬼影、残影、拖影等干扰

检测附近是否有干扰源

是 否

排除干扰源

检测信号源出
信号是否正常

是 否

先更换主板

检测是否 OK

否

更换 Panel

检测信号线

是否良好

是 否

更换信号线

重新设置

信号源

画异

TV 画面雪花点、重

影、细线、条纹干扰

检测 TV 信号线

是否接触不良

是 否

重新连接

TV 信号线

检测附近是否
有高频干扰源

是 否

排除干扰源 用场强仪检测信号强度

是否在 45-100db 之间，

65db 左右为最佳值

是

更换主板

61

间歇性画异加温
画异冷开机画异

检测软体版本是
否需要更新

是 否

升级软体

先更换主板

检查是否 OK

否

太弱：加装信号放大器
太强：减少信号放大器

或加装信号衰减器

否

取回站内
加温检测

无声或声音异常

检测信号源音频接口是否正确，或 TV 制式是否为 DK 制

是

否

检测 TV 是否被静音，调整音量大小，

或进入菜单进行复位看是否 OK

否

检测主板到喇叭的连接线是否断路

是 否

更换连接线

检测喇叭阻抗是否变质

(喇叭阻抗值标在喇叭上)

是 否

更换喇叭 更换主板

收不到台或收台不全

检测软体版本是否需要更新

重插音频接口或设置 TV 制式

检测此频道是否发生频
偏，尤其是使用卫星信号

是

建议客户重新

设置信号源

是 否

升级软体

用场强仪检测信号强度是否在
45-100db 之间，65db 左右为最佳值

是

用别的 TV 测试是否能收到此台

是

和客户说明当地 TV 信号未转播此台

否

更换主板

否

太弱:加装信号放大器
太强:减少信号放大器或加装信号衰减器

否

62

更换喇叭 主板功放异常

重新安置或更换电池

喇叭异响

（破音，滋滋声）

检测喇叭是否变质

是 否

更换主板

遥控失灵

检查遥控器电池是否未安置好或没电

是 否

更换遥控器 检测 IR 板是否异常

异响

用别的遥控器测试是否可用

是 否

是

更换 IR 板

电源板，PANEL 异响

更换电源板/PANEL

否

更换主板

63

更换按键

OSD 不稳定或无法正常工作

按键板连接正常吗？

否

接好按键板

是

按键正常吗？

否

是

按键板有无故障？

否

更换按键板

是

检查主板

64

8. 主要 IC 管脚及内部框图

RTD2648SA
Pin Description

65

Block Diagram

66

SSC2S110
Pin Description

Block Diagram

67

PF7903BS
Pin Description

Block Diagram

68

9. BOM

注意：以下初始版本 BOM 信息仅供维修参考，不作为下单依据，如有变更，恕不另行通知，请以 RSPL 或 Service
BOM(http://cs.tpv.com.cn

E32DOKNDHCA1NNX

点位 组件 对象描述 备注

SP01 378G0110567YDK 8 OHM 11W 132*34 0 UNIT
036T 600 18112 NONWOVEN FABRTC
036T 600 18119 GP NONWOVEN FABRTC
052G 1211 B
0M1G1030 6 47 CR3 SCREW
0M1G1030 6 47 CR3 SCREW
0M1G1030 6 47 CR3 SCREW
0M1G1030 8 47 CR3 SCREW
0M1G1730 6120 SCREW 3X6
0M1G1730 6120 SCREW 3X6
0M1G1730 8120 SCREW
0Q1G 130 8 47 CR3 SCREW 3X8
0Q1G 930 5120 SCREW
0Q1G 940 8 47 CR3 SCREW 4X8
0Q1G 940 8 47 CR3 SCREW 4X8

ECN4003 395G801313DY43 HARNESS 10P-5P+4P 600/600MM 2nd-Source
ECN4003 395G801313RY43 HARNESS 10P-5P+4P 600/600
ECN701 395G801314DY15 HARNESS 14P-16P 400 2nd-Source
ECN701 395G801314MY15 HARNESS 14P-16P 400
ECN601 395G801404DY50 HARNESS 4P-B&R+B&W 450/260
ECN408 395G801830MC06 LVDS CABLE 30P-30P 380
ECN408 395G801830RC06 LVDS CABLE 30P-30P 380 2nd-Source

708GJA920WPX04 AOC 40 (672 CH)
Q50G 4 10 TIE (Y1900221)
Q52G 1185 99 BIG CARTON TAPE FOR AOC 72MM
756TXDCB0KD1720002 MAIN BOARD-CBPFDKGDX6
SMTF-U406 100TARVK035D3X MCU ASSY-356G2233073
Z40G0002ALL01A OTHER LABEL

CN4003 033G380210B YH L CONNECTOR 10P 2.0
CN102 088G 78G114ACL RCA JACK R/A YELLOW H=10.5
CN112 088G 78G114ACL RCA JACK R/A YELLOW H=10.5
CN103 088G 78G121ACL RCA JACK R/A 4P W/R 1*2 H=10.5
CN101 088G 78G134ACL RCA JACK R/A 6P G/BL/R 1*3 H=10.5
CN105 088G302G3G2ACL PHONE JACK R/A 3P GREEN H=10MM
CN602 088G302G7B1ACL PHONE JACK R/A 7P BLACK H=10.5
CN602 088G302G7B1AQS PHONE JACK R/A 7P BLACK H=10.5MM
CN107 088G352F6B3ACL USB A TYPE R/A 6P BLACK H=8.4
CN104 088G353GFF1ACL D-SUB CONN 15P BLUE R/A H=10MM
CN104 088G353GFF1AXH D-SUB CONN 15P BLUE - R/A 10
TU101 094G PALALL10C TUNER ALL DMI21-C2I2RH
TU101 094G PALALL10L TUNER CHINA DT21WN-2-E
CN601 311GW200A04ABX WAFER 2.0MM 4P
CN408 311GW200C30ABL WAFER 2.0MM 2*15P
CN701 311GW250B14BBX WAFER 2.5MM 14P W2415-14RVA-S01-A
U401 Q12G714001700100SS HEAT PAD
U707 056G 563149 IC G903T63UF 0.6A/3.3V SOT-223
U706 056G 563398 LDO AT1527F11U 3A -
U104 056G 662505 ESD PROTECT AOZ8105CI SOT-23-6
U103 056G 662505 ESD PROTECT AOZ8105CI SOT-23-6

) 为准，谢谢！

CONDUCTIVE TAPE 85MM *40MM *0.09MM (单导)

69

Q601 057G 417511 MMBT3904
Q501 057G 417511 MMBT3904
Q502 057G 417511 MMBT3904
Q401 057G 417511 MMBT3904
Q701 057G 417511 MMBT3904
Q702 057G 417511 MMBT3904
Q603 057G 417511 MMBT3904
Q703 057G 417511 MMBT3904
Q403 057G 417512 MMBT3906
Q602 057G 417512 MMBT3906
Q404 057G 417512 MMBT3906
Q704 057G 763 1 MOSFET A03401 4.2A 30V SOT-23
Q706 057G 763 1 MOSFET A03401 4.2A 30V SOT-23
RP4002 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP4005 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP4001 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP4003 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP4004 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
TH101 061G 56A075 LT HF SMD PTC 0.75A 1206L075THYR
R4016 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R4030 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R750 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R4010 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R608 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R732 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R127 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R4012 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R4040 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R749 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R4024 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R125 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R4035 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R4032 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R4048 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R4014 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R4045 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R4027 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R4019 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R4004 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R4031 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R756 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R602 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R620 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R603 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R614 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R703 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R4087 061G04021000FI RST 0402 100R 1% 1/16W TA-I
R4081 061G04021000FI RST 0402 100R 1% 1/16W TA-I
R642 061G04021001FI RST 0402 1K 1% 1/16W TA-I
R509 061G04021001FI RST 0402 1K 1% 1/16W TA-I
R713 061G04021001FI RST 0402 1K 1% 1/16W TA-I
R643 061G04021001FI RST 0402 1K 1% 1/16W TA-I
R512 061G04021001FI RST 0402 1K 1% 1/16W TA-I
R4011 061G04021001FI RST 0402 1K 1% 1/16W TA-I

70

R142 061G04021001FI RST 0402 1K 1% 1/16W TA-I
R4020 061G04021001FI RST 0402 1K 1% 1/16W TA-I
R757 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R4076 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R4097 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R609 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R4072 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R4085 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R158 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R4094 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R4075 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R4093 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R4095 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R144 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R145 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R155 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R635 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R4074 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R729 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R163 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R607 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R4073 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R4071 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R160 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R4096 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R156 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R4088 061G0402102 JI RST 0402 1K 5% 1/16W TA-I
R613 061G0402102 JI RST 0402 1K 5% 1/16W TA-I
R4086 061G0402102 JI RST 0402 1K 5% 1/16W TA-I
R632 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R623 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R742 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R503 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R610 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R164 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R731 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R103 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R4026 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R601 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R616 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R721 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R4077 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R604 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R504 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R606 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R624 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R4078 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R618 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R104 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R123 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R143 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R157 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R4053 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R743 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN

71

R712 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R621 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R722 061G0402104 JI TEST ONLY RST 0402 100K 5% 1/16W TA-I
R736 061G04021802FY RST CHIP R 18KOHM 1/16W +/-1%
R739 061G04021802FY RST CHIP R 18KOHM 1/16W +/-1%
R124 061G04021802FY RST CHIP R 18KOHM 1/16W +/-1%
R162 061G04022201FI RST CHIPR 2.2KOHM +-1% 1/16W TA-I
R4084 061G04022201FI RST CHIPR 2.2KOHM +-1% 1/16W TA-I
R161 061G04022201FI RST CHIPR 2.2KOHM +-1% 1/16W TA-I
R4038 061G04022400FI RST 0402 240R 1% 1/16W
R730 061G04022402FF RST 0402 24K 1% 1/16W FENGHUA
R605 061G0402273 JF RST CHIP 27K 1/16W 5% FENGHUA
R4006 061G0402331 JF RST 0402 330R 5% 1/16W
R734 061G04023602FF RST 0402 36K 1% 1/16W FENGHUA
R725 061G04023602FT RST 0402 36K 1% 1/16W
R723 061G04024702FI RST 0402 47K 1% 1/16W TA-I
R733 061G04024702FI RST 0402 47K 1% 1/16W TA-I
R755 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R501 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R4082 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R146 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R4022 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R4021 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R506 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R508 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R511 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R4070 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R4065 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R4080 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R708 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R4061 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R4023 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R141 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R4028 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R710 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I
R502 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I
R714 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I
R4058 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I
R513 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I
R701 061G04025101FF RST CHIP 5.1K 1/16W 1% FENGHUA
R4017 061G0402622 JI RST 0402 6.2K 5% 1/16W
R154 061G04027509FI TEST ONLY RST 0402 75R 1% 1/16W TA-I
R105 061G04027509FI TEST ONLY RST 0402 75R 1% 1/16W TA-I
R112 061G04027509FI TEST ONLY RST 0402 75R 1% 1/16W TA-I
R110 061G04027509FI TEST ONLY RST 0402 75R 1% 1/16W TA-I
R150 061G04027509FI TEST ONLY RST 0402 75R 1% 1/16W TA-I
R113 061G04027509FI TEST ONLY RST 0402 75R 1% 1/16W TA-I
R153 061G04027509FI TEST ONLY RST 0402 75R 1% 1/16W TA-I
R735 061G04028202FF RST CHIPR 82KOHM +-1% 1/16W FENGHUA
R740 061G04028202FF RST CHIPR 82KOHM +-1% 1/16W FENGHUA
R716 061G0402821 JT RST CHIPR 820 OHM +-5% 1/16W
R724 061G04029531FF RST 0402 9.53K 1/16W 1% FENGHUA
R738 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R4069 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN

72

R718 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R4068 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R505 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R510 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R507 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R514 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R706 061G06031022FI RST 0603 10.2K 1% 1/10W
R111 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R115 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R4062 061G0603103 JI RST 0603 10K 5% 1/10W
R636 061G0603220 JT RST CHIP 22R 1/10W 5% TZAI YUAN
R637 061G0603220 JT RST CHIP 22R 1/10W 5% TZAI YUAN
R4083 061G06034701FF RST CHIPR 4.7KOHM +-1% 1/10W
R114 061G0603682 JT RST CHIP 6K8 1/10W 5% TZAI YUAN
R102 061G0603682 JT RST CHIP 6K8 1/10W 5% TZAI YUAN
R116 061G0603682 JT RST CHIP 6K8 1/10W 5% TZAI YUAN
R101 061G0603682 JT RST CHIP 6K8 1/10W 5% TZAI YUAN
R119 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO
FB704 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R737 061G0805000 JY RST CHIPR MAX 0R05 OHM 1/8W YAGEO
R719 061G0805000 JY RST CHIPR MAX 0R05 OHM 1/8W YAGEO
R720 061G0805000 JY RST CHIPR MAX 0R05 OHM 1/8W YAGEO
R4050 061G0805000 JY RST CHIPR MAX 0R05 OHM 1/8W YAGEO
C141 065G040210031J Y CAP 0402 10PF 5% 50V NP0
C4105 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C4101 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C129 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C4103 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C604 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C4106 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C601 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C4104 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C137 065G040210332K F CAP 0402 10NF 10% 50V X7R
C4080 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4048 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4077 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C737 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C615 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4065 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4029 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4028 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4060 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4036 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4049 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4013 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4045 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C708 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C135 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4072 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4033 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4070 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4039 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4074 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4016 065G040210412K Y CAP 0402 100NF 10% 16V X7R

73

C4051 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C653 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C654 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4054 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4069 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4042 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4056 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C724 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C718 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4003 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4023 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4035 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4021 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4046 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4010 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4102 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4032 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C625 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C742 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4015 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4066 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4031 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4061 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4076 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C607 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4001 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4043 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C4047 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C624 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C626 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C130 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C723 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C705 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C134 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C4041 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C4058 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C4037 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C4052 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C4071 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C715 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C4063 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C4020 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C4004 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C4050 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C4014 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C121 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C4062 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C730 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R
C704 065G040215232K A CAP 0402 1.5NF 10% 50V X7R
C123 065G040220031J Y CAP 0402 20PF 5% 50V NP0
C126 065G040220031J Y CAP 0402 20PF 5% 50V NP0
C706 065G040222031J A CAP 0402 22PF J 50V NPO
C144 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5%
C4006 065G040233031J A AP 0402 33PF 5% 50V NP0

74

C4022 065G040233031J A AP 0402 33PF 5% 50V NP0
C610 065G040233131J T AP CHIP 0402 330PF 50V J NPO
C628 065G040233131J T AP CHIP 0402 330PF 50V J NPO
C621 065G040233131J T AP CHIP 0402 330PF 50V J NPO
C606 065G040233131J T AP CHIP 0402 330PF 50V J NPO
C108 065G040247131J A CAP CHIP 0402 470PF J 50V NPO
C102 065G040247131J A CAP CHIP 0402 470PF J 50V NPO
C107 065G040247131J A CAP CHIP 0402 470PF J 50V NPO
C101 065G040247131J A CAP CHIP 0402 470PF J 50V NPO
C4068 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4109 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4044 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4107 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4108 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4110 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4027 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4017 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4024 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4026 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4005 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4095 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C4093 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C4092 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C4091 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C4094 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C4096 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0
C726 065G060310332K F CAP CHIP 0603 10NF K 50V X7R
C728 065G060310432K A CAP 0603 100NF 10% 50V X7R
C727 065G060310432K A CAP 0603 100NF 10% 50V X7R
C616 065G060310512K A CAP 0603 1UF 10% 16V X7R
C602 065G060310512K A CAP 0603 1UF 10% 16V X7R
C618 065G060310512K A CAP 0603 1UF 10% 16V X7R
C623 065G060310512K A CAP 0603 1UF 10% 16V X7R
C725 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C741 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4030 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4002 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C714 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4019 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4012 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4009 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4059 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C710 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4040 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4007 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4057 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C119 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C721 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C4084 065G060347412K A CAP 0603 470NF 10% 16V X7R
C613 065G080510615K A CAP 0805 10UF 10% 16V X5R
C4087 065G080510615K A CAP 0805 10UF 10% 16V X5R
C740 065G080510615K A CAP 0805 10UF 10% 16V X5R
C627 065G080510615K A CAP 0805 10UF 10% 16V X5R
C739 065G080510615K A CAP 0805 10UF 10% 16V X5R

75

C719 065G080510615K A CAP 0805 10UF 10% 16V X5R
C703 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C106 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C104 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C713 065G080522605M T CAP 0805 22UF 20% 6.3V X5R JMK212 BJ226
C731 065G080522605M T CAP 0805 22UF 20% 6.3V X5R JMK212 BJ226
C619 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R
C622 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R
C617 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R
C611 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R
C711 065G1206226A5K A 1206 22UF K 10V X5R
C612 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 HR 2
C632 067G311R1014CT EC 100UF 20% 25V 6.3*7.7
HDCP-U406 070GHDCP500HDC HDCP CODE
FB701 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB603 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
FB605 071G 57G121 TA CHIP BEAD 1206 120R 25% HCB3216KF-121T30
FB606 071G 57G121 TA CHIP BEAD 1206 120R 25% HCB3216KF-121T30
FB604 071G 57G121 TA CHIP BEAD 1206 120R 25% HCB3216KF-121T30
FB607 071G 57G121 TA CHIP BEAD 1206 120R 25% HCB3216KF-121T30
FB702 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30
FB401 071G 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30
FB4003 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA
L401 073G 6333810M CHIP INDUCTOR 0.33UH 10% 0.75R 100MA
L104 073G 63478 5M CHIP INDUCTOR 0603 100MA 0.47UH 5%
L102 073G 63478 5M CHIP INDUCTOR 0603 100MA 0.47UH 5%
L704 073G253S 94 M1 SMD CHOKE 2.2UH 20% 400MA
L703 073G253S135 M LCM SMD CHOKE 2.2UH 20% 0.079R ,1.2A,HF
CN501 088G 34019K AD HDMI HEADER 19P H:2.8MM
CN502 088G 34019K AD HDMI HEADER 19P H:2.8MM
CN502 088G 34019K AT HDMI HEADER R/A 19P BLACK H=8.4
CN501 088G 34019K AT HDMI HEADER R/A 19P BLACK H=8.4
CN501 088G 34019K AV HDMI HEADER R/A 19P BLACK H=8.4
CN502 088G 34019K AV HDMI HEADER R/A 19P BLACK H=8.4
D101 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23
X401 093G 22S517 YC CRYSTAL HC-49U/SMD 27M 30PPM 20PF
ZD602 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD101 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD106 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD404 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD111 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD102 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD109 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD604 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD103 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD402 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD107 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD403 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD605 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD4005 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD501 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD108 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD110 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD502 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ

76

ZD105 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
D602 093G 64S526SEM SWITCHING BAS316WS 250MA 100V SOD323
U401 356G0568216057 SCALER RTD2648SA LQFP-216
U601 356G0616028600 AUDIO AD52580-QG28NAR (AF) 15W E-TSSOP
U406 356G2233073 FLASH W25Q64FVSSIG 64MB SOIC-8
U708 356GD563005123 DC/DC G5695T11U 1 6V SOT-23-5
U705 356GD563005123 DC/DC G5695T11U 1 6V SOT-23-5
U704 356GD563008011 DC/DC APW7313KAI-TRG 3A 20V SOP-8
U706 356GD563008014 DC/DC APW7323AKAI-TRG 3.2A ADJ SOP-8
U701 356GD563008119 DC/DC APL5932BKAI-TRG 3A ADJ SOP-8
Q402 357G0763030011 MOSFET SM4310PSKC-TRG -7A -30V SOP-8
C4053 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C4075 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C4078 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C4079 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C4055 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C4008 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C4067 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C707 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C4064 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C4011 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M
C736 365G0603225A2K000A CAP 0603 2.2UF 10% 10V X7R
C712 365G0603225A2K000A CAP 0603 2.2UF 10% 10V X7R
L702 373G253S193D00 SMD CHOKE 22UH 20% 1.8 0.089 SWPG6045G2
L604 373G253S193D00 SMD CHOKE 22UH 20% 1.8 0.089 SWPG6045G2
L601 373G253S193D00 SMD CHOKE 22UH 20% 1.8 0.089 SWPG6045G2
L603 373G253S193D00 SMD CHOKE 22UH 20% 1.8 0.089 SWPG6045G2
L602 373G253S193D00 SMD CHOKE 22UH 20% 1.8 0.089 SWPG6045G2
L701 373G253S256D00 SMD CHOKE 2.2UH 30% 2.95A 0.030R SWPG40
E715 715G6172M01000004K MAIN BOARD PCB 2nd-Source
E715 715G6172M01000004X MAIN BOARD PCB
HS401 X90G801400200A HEAT SINK
IRPFCAB4 IR BOARD
CN201 033G8032 5F S HR CONNECTOR
R201 061G0603153 JY RST CHIPR 15KOHM 1/10W YAGEO
R203 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R202 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
C201 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
LED201 081G 14 24 EL CHIP LED BLUE/DARK RED
U201 356GS927057 IR RECEIVER IRM-H938M3/TR2 38 KHZ 6V
709T57040XS001 COMSUMPTIVE ASSY
E715 715G5704R01000004S IR BOARD PCB 2nd-Source
E715 715G5704R01000004X IR BOARD PCB
KEPFCXAG KEY BOARD
CN01 033G8032 4F X WAFER 1.25MM 4P R/A S1315-04RVB-S01-K
R04 061G08051001FT RST CHIP 1K 1/8W 1%
R03 061G08051801FY RST CHIP R 1K8 +/-1% 1/8W
R02 061G08052701FY RST CHIP 2K7 1/8W 1%
R05 061G08057500FF RST CHIPR 750 OHM +-1% 1/8W FENGHUA
R07 061G08057500FF RST CHIPR 750 OHM +-1% 1/8W FENGHUA
R06 061G08057500FF RST CHIPR 750 OHM +-1% 1/8W FENGHUA
R01 061G08057501FY RST CHIP R 7K5 1/8W +/-1%
SW04 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01
SW06 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01

77

SW05 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01
SW07 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01
SW03 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01
SW01 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01
SW02 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01
709T60590XS001 COMSUMPTIVE ASSY
E715 715G6059K01000004S KEY BOARD PCB
E750 LCO3151A041ADZE30X PANEL TPT315B5-A041 S11P XM TPV

P33E0486ADTY1L0100 COVER_KEY
P33E0525AKZ01C0100 LENS_IR
P33E052700101C0100 LENS_FUNCTION
P34E1357ADT01L0100 BASE
P34E14670GM0CK01BA REAR_COVER
P34E1609ADTX1L0100 DECO_BEZEL
PLTVDL241XXA2 POWER BOARD
Z40G0002ALL01A OTHER LABEL

IC9102 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4
C9901 063G 10722410V 0.22UF 275VAC ARCO
C9901 063G107K224 EM CAP X2 220NF 10% 305V BULK ( B )
L9902 073G 174241 H LINE FILTER 18MH MIN LCL-12019 HA
L9901 073G 174241 H LINE FILTER 18MH MIN LCL-12019 HA
CN9901 087G 50147D DL AC R/A 2P 12.8MM
CN9901 087G 50147D HC AC SOKET R/A 2P 12DEGREE H=12.8
D8101 093G 60334 SCHOTTKY SR506-44 5A 60V DO-201AD
0Q1G 340 8140 SCREW Q1-SELF TAPING SCREW :Q X8.0
CN8101 311GW200A06ABX WAFER 2.0MM 6P
CN9101 311GW200C16ABX CONN 2.0MM 16P R/A -
NR9901 361G0058259MYN006A NTCR 2.5R 20% 3.1W MF71-2.5D-13-MOL
NR9901 361G0058259MYW006A NTCR 2.5R 20% 3.1W SCK132R56MTY504
C9102 367G215X470PHZ002S EC 47UF 20% 450V 12.5*35 2000 HR 420MA H
C9101 367G215X470PHZ002S EC 47UF 20% 450V 12.5*35 2000 HR 420MA H
C9101 367G215X470PKZ002S .C 47UF 20% 450V 12.5*36 2000 HR 420MA P
C9102 367G215X470PKZ002S .C 47UF 20% 450V 12.5*36 2000 HR 420MA P
FB9908 371G0055021H02 BEAD 6.5*12.5 700R 25% BF-I60100R-815
FB9907 371G0055021H02 BEAD 6.5*12.5 700R 25% BF-I60100R-815
L9102 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A
L9102 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A
L8103 373G0253268H00 CHOKE COIL 33UH 10% 4A L330M HA
T9101 380GL32P134H00 X'FMR 360 ΜH 10% 5ΜH ER31 BCK-13
BD9101 393G0050460A05 BRIDGE GBL08-07 X0 4A 800V GBL

705TXD57051 Q9102 ASS`Y
0M1G1730 8120 SCREW

Q9102 357G0600100020 MOSFET AOTF298L 33A 100V TO-220F
HS9102 Q90G0219 2 HEAT SINK
705TXD57075 Q9101 ASS`Y
Q9101 057G 611908 MOSFET TK6A65D (STA4,Q),£¨Q,M) SC-67
0M1G1730 8120 SCREW
Q9101 357G0667650002 MOSFET TK5A65D 5A 650V TO220F
HS9101 Q90G0219 2 HEAT SINK
Q8107 057G 417 18 T PMBT3904 SOT-23
Q8105 057G 417 18 T PMBT3904 SOT-23
Q8106 057G 417907 T TRA PMBT3906 PNP -200MA/-40V SOT-23
R9148 061G0805000 JI RST 0805 MAX0.05R 5% 1/8W TA-I
R8138 061G0805000 JT RST 0805 0.05R MAX 1/8W

78

R9109 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN
R8134 061G08051003FY RST CHIP 100K 1/8W 1%
R9128 061G0805101 JF RST 0805 100R 5% 1/8W
R8127 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN
R9124 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R8105 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R9111 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R8129 061G0805103 JT RST 0805 10K 5% 1/8W
R8118 061G0805103 JT RST 0805 10K 5% 1/8W
R8131 061G08051502FI ST 0805 15K 1% 1/8W
R9122 061G0805182 JT RST CHIP 1K8 1/8W 5% TZAI YUAN
R9126 061G08052401FT RST CHIP R 2K4 +/-1% 1/8W
R9142 061G08053302FT RST CHIP 33K 1/8W 1%
R8108 061G0805331 JT RST CHIP 330R 1/8W 5% TZAI YUAN
R8133 061G0805333 JI RST CHIPR 33KOHM +-5% 1/8W 0805
R8120 061G0805333 JT RST CHIP 33K 1/8W 5% TZAI YUAN
R8130 061G0805334 JT RST CHIP 330K 1/8W 5% TZAI YUAN
R8119 061G0805334 JT RST CHIP 330K 1/8W 5% TZAI YUAN
R8104 061G0805470 JI RST CHIPR 47 OHM +-5% 1/8W 0805
R9113 061G0805471 JT RST CHIPR 470OHM +-5% 1/8W TZAI YUAN
R8122 061G0805473 JT RST CHIPR 47K +-5% 1/8W TZAI YUAN
R9145 061G0805479 JI RST 0805 4R7 5% 1/8W
R8135 061G08055102FI RST 51K OHM 1% 1/8W TA-I
R8116 061G08055102FI RST 51K OHM 1% 1/8W TA-I
R9143 061G0805512 JT RST CHIPR 5K1 +-5% 1/8W TZAI YUAN
R9117 061G0805512 JT RST CHIPR 5K1 +-5% 1/8W TZAI YUAN
R8117 061G08056201FT RST CHIPR 6.2KOHM +-1% 1/8W TZAI YUAN
R9110 061G08056209FT RST 0805 62R 1% 1/8W
R8132 061G08058201FF RST CHIPR 8.2KOHM +-1% 1/8W FENGHUA
R9125 061G08059311FI RST CHIPR 9.31 KOHM +-1% 1/8W 0805
JR8102 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR8101 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR8104 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR8103 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR8107 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR8105 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR8106 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R9114 061G12061000FT RST 1206 100R 1% 1/4W
R9120 061G12061000FT RST 1206 100R 1% 1/4W
R9123 061G12061000FT RST 1206 100R 1% 1/4W
R9119 061G12061000FT RST 1206 100R 1% 1/4W
R9118 061G12061000FT RST 1206 100R 1% 1/4W
R9116 061G12061000FT RST 1206 100R 1% 1/4W
R8123 061G12061008FY RST 1206 1R 1% 1/4W
R8125 061G12061008FY RST 1206 1R 1% 1/4W
R8126 061G12061008FY RST 1206 1R 1% 1/4W
R8128 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R9105 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R9106 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R9104 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R9102 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R9107 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R9103 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R8124 061G12061508FT RST 1206 1.5R 1% 1/4W

79

R9121 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN
R8141 061G12064708FF RST 1206 4.7R 1% 1/4W
R9108 061G1206479 JI RST 4.7 OHM 5% 1/4W TA-I
R9140 061G1206624 JF RST CHIPR 620KOHM +-5% 1/4W FENGHUA
R9139 061G1206624 JF RST CHIPR 620KOHM +-5% 1/4W FENGHUA
R9141 061G1206624 JF RST CHIPR 620KOHM +-5% 1/4W FENGHUA
R9134 061G1206624 JF RST CHIPR 620KOHM +-5% 1/4W FENGHUA
R9132 061G1206624 JF RST CHIPR 620KOHM +-5% 1/4W FENGHUA
R9133 061G1206624 JF RST CHIPR 620KOHM +-5% 1/4W FENGHUA
R9144 061G12067501FF RST CHIPR 7.5K OHM +-1% 1/4W FENGHUA
C9131 065G080510131J F CAP CHIP 0805 100PF J 50V NPO
C8111 065G080510131J M CAP CHIP 0805 100PF J 50V NPO
C9137 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5%
C8110 065G080510231J M CAP 0805 1NF 5% 50V NP0
C9129 065G080510232K F CAP 0805 1000PF 10% 50V X7R
C9136 065G080510232K F CAP 0805 1000PF 10% 50V X7R
C9135 065G080510232K F CAP 0805 1000PF 10% 50V X7R
C8106 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C8114 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10%
C8108 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9120 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9118 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9114 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9121 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8122 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8107 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9132 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9130 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9104 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9108 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9119 065G080510532K M CAP 0805 1UF 10% 50V X7R
C8104 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9106 065G080547131J Y CAP CHIP 0805 470P 50V NPO +/-5%
C9124 065G080547232K Y CAP CHIP 0805 4N7 50V X7R +/-10%
C9117 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R
IC9101 356G0379213 AC/DC SSC2S110 SOP-8
IC8501 356G0700008054 LED DRIVER PF7903BS SOP-8
IC9104 356GD563008152000Z DC/DC SP6018S8RGB 1A 16V SOP-8
Q8104 357G0600100010 MOSFET AOD2916 25A 100V TO252
Q8101 357G0763060001 MOSFET AO4440 5A 60V SOIC-8
Q8103 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V
D8103 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123
ZD9105 393G039SA1300T ZENER BZT52-B39_R1_00001 39V 0.41W
ZD9104 393G039SA1300T ZENER BZT52-B39_R1_00001 39V 0.41W
ZD9106 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123
D9104 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
D9109 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
D9108 393G060SA0600T SCHOTTKY MB510 5A 100V SMC
T9101 006G 31 4 1.7MM RIVET
CN9901 006G 31500 EYELET
L9902 006G 31502 EYELET
L9901 006G 31502 EYELET
NR9901 006G 31502 EYELET
040G 45762420A LABEL 25X6MM

80

IC9103 056G 158 10 T DC/DC AS431AZTR-E1 150MA 40V TO-92
R8110 061G2SWJ50752T SY RST WD 0.05R 5% 2W
C9103 065G 1K22293S CAP CER 2.2NF 10% 1KV R TAPING
C8115 065G 1K470 2T6921 CAP CER 47PF K 1KV
C9906 065G306K22123R CAP Y1 220PF 10% 250V Y5P
C9907 065G306K22123R CAP Y1 220PF 10% 250V Y5P
C9903 065G306K22123R CAP Y1 220PF 10% 250V Y5P
C9904 065G306K22123R CAP Y1 220PF 10% 250V Y5P
C9909 065G306K22123R CAP Y1 220PF 10% 250V Y5P
C9906 065G306K2212WR CAP Y1 220PF 10% 250V Y5P CT7-Y1-250V-06
C9907 065G306K2212WR CAP Y1 220PF 10% 250V Y5P CT7-Y1-250V-06
C9903 065G306K2212WR CAP Y1 220PF 10% 250V Y5P CT7-Y1-250V-06
C9909 065G306K2212WR CAP Y1 220PF 10% 250V Y5P CT7-Y1-250V-06
C9904 065G306K2212WR CAP Y1 220PF 10% 250V Y5P CT7-Y1-250V-06
C9905 065G306K47123R CAP Y1 470PF 10% 250V Y5P
C9905 065G306K4712WR CAP Y1 470PF 10% 250V Y5P CT7-Y1-250V-0
C9134 067G 3151007KB EC 10UF M 50V 5*11MM EG
C9105 067G 5154707KB EC 47UF 20% 50V 6.3*11
C9122 067G 5154714HT EC 470UF 20% 25V 10*12
C9115 067G 5154714HT EC 470UF 20% 25V 10*12
C9123 067G 5154714HT EC 470UF 20% 25V 10*12
C9113 067G 5154714HT EC 470UF 20% 25V 10*12
C8112 067G 5154714HT EC 470UF 20% 25V 10*12
C9116 067G 5154714HT EC 470UF 20% 25V 10*12
C8112 067G 5154714KT EC 470UF 20% 25V EV1E471MPN1012RSU
C9123 067G 5154714KT EC 470UF 20% 25V EV1E471MPN1012RSU
C9122 067G 5154714KT EC 470UF 20% 25V EV1E471MPN1012RSU
C9113 067G 5154714KT EC 470UF 20% 25V EV1E471MPN1012RSU
C9115 067G 5154714KT EC 470UF 20% 25V EV1E471MPN1012RSU
C9116 067G 5154714KT EC 470UF 20% 25V EV1E471MPN1012RSU
FB9909 071G 55 23 BEAD 3.5*7.5*0.8 100R 25% GBQM4.777.571
FB9909 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A
F9902 084G 56 4 C FUSE 4A 250V MST 4A 250V
D9103 093G 60953 SCHOTTKY FR107G-A0 1A 1000V DO-41
D9105 093G 60953 SCHOTTKY FR107G-A0 1A 1000V DO-41
J8101 095G 90 23 JUMP WIRE - -
J8106 095G 90 23 JUMP WIRE - -
J8105 095G 90 23 JUMP WIRE - -
J8123 095G 90 23 JUMP WIRE - -
J8111 095G 90 23 JUMP WIRE - -
J8104 095G 90 23 JUMP WIRE - -
J8130 095G 90 23 JUMP WIRE - -
J8113 095G 90 23 JUMP WIRE - -
J8127 095G 90 23 JUMP WIRE - -
J8102 095G 90 23 JUMP WIRE - -
J8120 095G 90 23 JUMP WIRE - -
J8110 095G 90 23 JUMP WIRE - -
J8108 095G 90 23 JUMP WIRE - -
J8121 095G 90 23 JUMP WIRE - -
J8103 095G 90 23 JUMP WIRE - -
J8128 095G 90 23 JUMP WIRE - -
J8133 095G 90 23 JUMP WIRE - -
J8107 095G 90 23 JUMP WIRE - -
J8126 095G 90 23 JUMP WIRE - -

81

J8115 095G 90 23 JUMP WIRE - -
J8112 095G 90 23 JUMP WIRE - -
J8116 095G 90 23 JUMP WIRE - -
J8109 095G 90 23 JUMP WIRE - -
J8119 095G 90 23 JUMP WIRE - -
J8117 095G 90 23 JUMP WIRE - -
R9112 361G2SWJ30852T00TZ RST NWR 0.3R 5% 2W NKNP2WS0R3JT52
C8113 367G515X221HKT EC 220UF 20% 50V 10*12 5000 HR 1330MA E
C8105 367G515X221HKT EC 220UF 20% 50V 10*12 5000 HR 1330MA E
E715 715G6154P01000002H POWER BOARD PCB

Q02G707105000100XL BOLT
Q11G701015000L00ZL PCB-SUPPORT
Q12G6300 25 3 FOOT PAD

M01201 Q12G716003000100BK RUBBER PAD
M01201 Q12G716003000100HK RUBBER PAD

Q16G0001 10 12 EVA WASHER
Q36T 600 18118 NON-WOVEN FABRIC
Q36T 600 28 11 BGP NONWOVEN FABRIC
Q36T 600 37 1 NONWOVEN FABRIC
Q36T 600 37 6 GP NONWOVEN FABRIC
Q36T 600 38 1 NONWOVEN FABRIC
Q44T3121510562 PU FOAM
Q45G99010TV05100X1 PROTECT BAG
Q50G 500 TV005 CABLE TIE
Q52G130118600000YY TAPE
Q52G1501150523AWBK TAPE_INSULATING
Q52G160119100A00YY TAPE
Q52G18010TV10500ZA INSULATING SHEET
Q52G18010TV15200ZA INSULATING SHEET
X15T8734203000GMYF BKT_IO
X15T875210100000AJ BKT_STAND
X15T875310100000AJ BKT_STAND
X15T8754201000GMYF BKT_IO
X40G2013032X0320YI LABEL IO
X40G2013032X0550XY LABEL SIDE
X44GJA921020FA CUSHION-T
X44GJA922010FA CUSHION-B
X44GJA9261501A ARTWORK CARTON

E08901 089G214A15N HL AC POWER CORD 1500MM
E08901 089G214A15N JR AC POWER CORD 1500 FOR CHINA 2nd-Source

092GB1JX1A3DGC BATTERY 1.5V BATTERY FOR LR03
0G1G 240 20 47 CR3 SCREW
0M1G1740 18225 CR3 SCREW 4.0X20.0

RFB01 317GARFM006CHH RF MODULE CBIP-X
RFB01 317GARFM008TCL RF MODULE GL03-2-E
E08902 389G017356GY09 AUDIO CABLE 100MM
E09801 398GRABD7NCACC REMOTE AOC RL81D CHINESE

Q45G88010TV07500X1 PROTECT BAG
X41G42MV61517B MANUAL LE32A3130/80_LE42A3130/80
X41G78DV61501D WARRANTY CARD AOC CHINA
040G 58162435A MANUAL P/N LABEL
Q40G 581689 4B SN LABEL(58X35MM)
X40G0001624 2A LABEL FOR SCREW PE BAG
X40G000162413A CARTON LABEL

82

X40G032061566A RATING LABEL LE32A3130/80
Q40G000162493A 3CEL LABEL FOR TV MODEL G2/2.0/0.5

83
