AOC LE32A1335-64 Schematic

31.5″LCD TV AOC LE32A1335/64

Service

Service

Service

Horizontal Frequency

31.5~60 KHz

TABLE OF CONTENTS

Description Page Description Page

Table of Contents.......……....................................…........1

Important Safety Notice.......................................……......2

Revision List…………………………………………………3

1. General Specification..............................……...…........4

2. Operating Instructions………………...…….……….......5

2.1 The Use of Remote Control…….…..……….…….......5

2.2 To Use the Menus….....………………….…..…….......6

2.3 How to Connect……..……………….…….……….....19

2.4 Front Panel Control Knobs…….………….……….....21

3. Input/ Output Specification………....................…....22

4. Mechanical Instructions…………………….................24

5. Repair Flow Chart ……………………….…….…….....27

6. PCB Layout ………………..………………....….......34

6.1 Main Board……...…………..….…….……….......34

SAFETY NOTICE

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS

6.2 Power Board……...…………..….…….……….......37

6.3 Key Board…...………………………………….......40

6.4 IR Board…...…………………………………….......40

6.5 Daughter Board……………………………….......40

7. Adjustment..............................................................41

8. Schematic Diagram…..…………....………………...42

8.1 Main Board…………..….….……...………….......42

8.2 Power Board…………..….….……...………….......51

8.3 Key Board……………….……….…………….........53

8.4 IR Board…...…………….……….…………….........54

8.5 Daughter Board…...…………….…………….........55

9. Exploded View………………………………….…...56

10. BOM List……………….……………….………….58

AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING

ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

Copyright © 2012 by TPV Corporation. All rights reserved. Specifications are subject to change without notice.
No part of this publication may be reproduced in any form or means, without the prior written permission of TPV Corporation. Otherwise we will
reserve the right to investigate the legal responsibility.

1

Important Safety Notice

Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service

procedures recommended by AOC and described in this service manual are effective methods of performing service

operations. Some of these service operations require the use of tools specially designed for the purpose. The

special tools should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in

order to minimize the risk of personal injury to service personnel. The possibility exists that improper service

methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE

NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in

which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not

undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not

recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the

equipment will be jeopardized by the service method selected.

Hereafter throughout this manual, AOC Company will be referred to as AOC.

WARNING

Use of substitute replacement parts, which do not have the same, specified safety characteristics might create

shock, fire, or other hazards.

Under no circumstances should the original design be modified or altered without written permission from AOC.

AOC assumes no liability, express or implied, arising out of any unauthorized modification of design.

Servicer assumes all liability.

FOR PRODUCTS CONTAINING LASER:

DANGER-Invisible laser radiations when open AVOID DIRECT EXPOSURE TO BEAM.

CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may

result in hazardous radiation exposure.

CAUTION -The use of optical instruments with this product will increase eye hazard.

TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S

REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF

THIS SERVICE MANUAL.

Take care during handling the LCD module with backlight unit

-Must mount the module using mounting holes arranged in four corners.

-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.

-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to

the panel.

-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).

-Make certain that treatment person’s body is grounded through wristband.

-Do not leave the module in high temperature and in areas of high humidity for a long time.

-Avoid contact with water as it may a short circuit within the module.

-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may
damage the panel.)

2

Revision List

Version Release Date Revision Instructions Customer Model TPV Model

A00 Sep.02.2013 Initial release LE32A1335/64 E32DO1NCCQACNNX

3

1. General Specification

4

2. Operating Instructions

2.1 The Use of Remote Control

5

2.2 To Use the Menus

6

7 8 9

10 11 12 13 14

15 16 17 18 19

2.3 How to Connect

20

2.4 Front Panel Control Knobs

21

3. Input / Output Specification

RGB Signal Input

15 - Pin Color Display Signal Cable

Pin No. Description Pin No. Description

1 Red Video 9 +5V

2 Green Video 10 Sync Ground

3 Blue Video 11 Not Used

4 Not Used 12 Serial Data for DDC

5 Ground 13 H-Sync.

6 Red Ground 14 V-Sync.

7 Green Ground 15 Serial Clock for DDC

8 Blue Ground

HDMI Digital Connector Pin Assignments

Pin No. Description Pin No. Description

1 TMDS Data2+ 2 TMDS Data2 Shield

3 TMDS Data2- 4 TMDS Data1+

5 TMDS Data1 Shield 6 TMDS Data1-

7 TMDS Data0+ 8 TMDS Data0 Shield

9 TMDS Data0- 10 TMDS Clock+

11 TMDS Clock Shield 12 TMDS Clock-

13 CEC 14 NC

15 SCL 16 SDA

17 DDC/CEC Ground 18 +5V Power

19 Hot Plug Detect

22

l

l

Compatible Mode Table

RGB Input Signal Timing

Vertical Horizontal Sync Polarity Presence Screen Mode

Dots × Lines

640 X 480

720 X 400

800 X 600

1024 x 768

1360 X 768

Frequency Frequency Horizonta

(Hz) (KHz) (16:9)

59.9 31.5 NEG NEG YES YES YES

69.6 31.3 NEG POS YES YES YES
60 37.9 POS POS YES YES YES
60 48.3 NEG NEG YES YES YES
60 47.7 POS POS YES YES YES

Vertical HorizontalVertica

FULL

23

4. Mechanical Instructions

1. Remove the screws to remove BASE.

2. Remove the screws to remove REAR COVER.

24

3. Remove the screws to remove SPEAKERS,BTK, MAIN BOARD and POWER BOARD.

4. Remove the IR board.

25

5. Remove the screws to remove the Panel.

26

p

p

5. Repair Flow Chart

1. No power

No power (LED “Off”)

Check the AC input and
the

ower is “ON”?

Yes

Power board

out

ut=5.2V?

Yes

Check the IR board and LED

Replace the IR board

No

Replace the main board

No

Power “On”

No

Replace the power board

27

2. Can’t start

Can’t start (LED red)

Power board output＝12/16V?

Yes

Check the power key is under control?

No

Check the IR receiver is normal?

No

Replace the power board

Yes

Replace the key board

Yes

Replace the IR board

No

Replace the main board

No

Replace the Power board

28

3. Abnormal display

Abnormal Display

Check the source

Yes

Enter factory mode to do

“EEPROM initial”&“Reset”

No

No

Reset the source

Check the main board

Yes

Check the LVDS cable

Yes

Check the panel

No

Replace the panel

No

Replace the main board

No

Replace the LVDS cable

29

4. No display

No display (No LED)

Check TV is under control and power
on/off by remote control and power key?

Yes

Check the LVDS cable

Yes

Yes

Check the backlight is

“On”?

No

Reinsert or replace the
LVDS cable

No

No

Check the B/L

signal is available?

Yes

Replace the main board

No

Replace main board

Panel Vcc = 12V?

Yes

Replace the Panel

No

Replace the main board

Power board output＝12/16V?

Yes

Replace the Panel

Replace the power board

No

30

5. Sound problem

No sound or sound abnormal

Check the audio source connection

and the TV system are correct?

Yes

Check the TV is muted, adjust the

volume or enter the menu to reset?

No

No

Reinsert the audio cable or
change the TV system

Enter factory mode to do “Reset”

No

Check the cable between the
speakers and main board is OK?

Yes

Check the speaker resistance value is in spec
(Remark: The value is marked on the speaker)?

Yes

Replace the cable

Replace the main board

No

No

Replace the speaker

31

6. Remote control malfunction

Remote Control malfunction

Check the remote control battery is
not properly placed or no power?

No

Use the other remote controls

No

Whether the IR board is

abnormal?

No

Replace the main board

Yes

Replace the battery

Yes

Replace the remote control

Yes

Replace the IR board

32

7. OSD is unstable or can’t work normally

OSD is unstable or can’t work normally

Key board connected properly?

Yes

Buttons are OK?

Yes

Key board is OK?

Yes

Enter factory mode to do “Reset”

No

No

No

No

Reconnect the key board

Replace the button function

Replace the key board

Replace the main board

33

6. PCB Layout

6.1 Main board

715G5740M01000004K

34

35 36

6.2 Power Board

715G5930P01000002M

37

38 39

6.3 Key Board

715G5711K01000004S

6.4 IR Board

715G5671R01000004X

x

6.5 Daughter Board

715G5912T02000004S

40

7. Adjustment

(Take other model for example)

ADC Adjustment

1. Factory Mode

Turn on the TV. Press RC key ‘menu’+’1’+’9’+’9’+’9’ or ‘menu’+’1’+’9’+’9’+’9’+’ok’.It will achieve the factory mode.

2. ADC Adjustment (It’s no need to adjust ADC.)

(1) Enter into the factory mode :(same as the above-mentioned)
(2) Select item “Source”: Ypbpr
a. Tim\pat. (COMPONENT mode: TIM = 314; PAT = 185，select item “auto color” and press ok key.

b. Tim\pat. (COMPONENT mode: TIM = 311; PAT = 185，select item “auto color” and press ok key.
(3) Select item “Source”: VGA

Tim\pat. (VGA mode: TIM = 137; PAT = 42，select item “auto color” and press ok key.

3. White Balance Adjustment

(1) Enter into the factory mode :(same as the above-mentioned).
(2) Just only adjust Ypbpr source.
a. Select item “Source”: Ypbpr and item “Color Temp”: Normal, Adjust gain of RGB to meet spec in the below
setting of Tim\pat. (COMPONENT mode: TIM = 314; PAT = 141(80IRE))
b. Select item “Source”: Ypbpr and item “Color Temp”:Warm, Adjust gain of RGB to meet spec in the below setting
of Tim\pat. (COMPONENT mode: TIM = 314; PAT = 141(80IRE))
c. Select item “Source”: Ypbpr and item “Color Temp”: Cool, Adjust gain of RGB to meet spec in the below setting
of Tim\pat. (COMPONENT mode: TIM = 314; PAT = 141(80IRE))
(3) check VGA TIM137,PAT141, AV TIM304 PAT141, HDMI TIM349 PAT141 , white balance whether or not meet
the specifications.

4.The following color specifications for reference, to RD engineering specifications.

Source VGA/YPbPr/AV/HDMI VGA/YPbPr/AV/HDMI VGA/YPbPr/AV/HDMI

Temp Normal/(8000 K　 ) Warm/(6500 K　 ) Cool/(9300 K　 )
x (center) 0.285 　 0.030 0.313 　 0.030 0.271　 0.030
y (center) 0.293 　 0.030 0.321 　 0.030 0.274 　 0.030

Note: 1、all models of color temperature within specification, but also ensure the brightness conform to
engineering specifications.

2、

RGB gain value cannot exceed 138,128,138

41

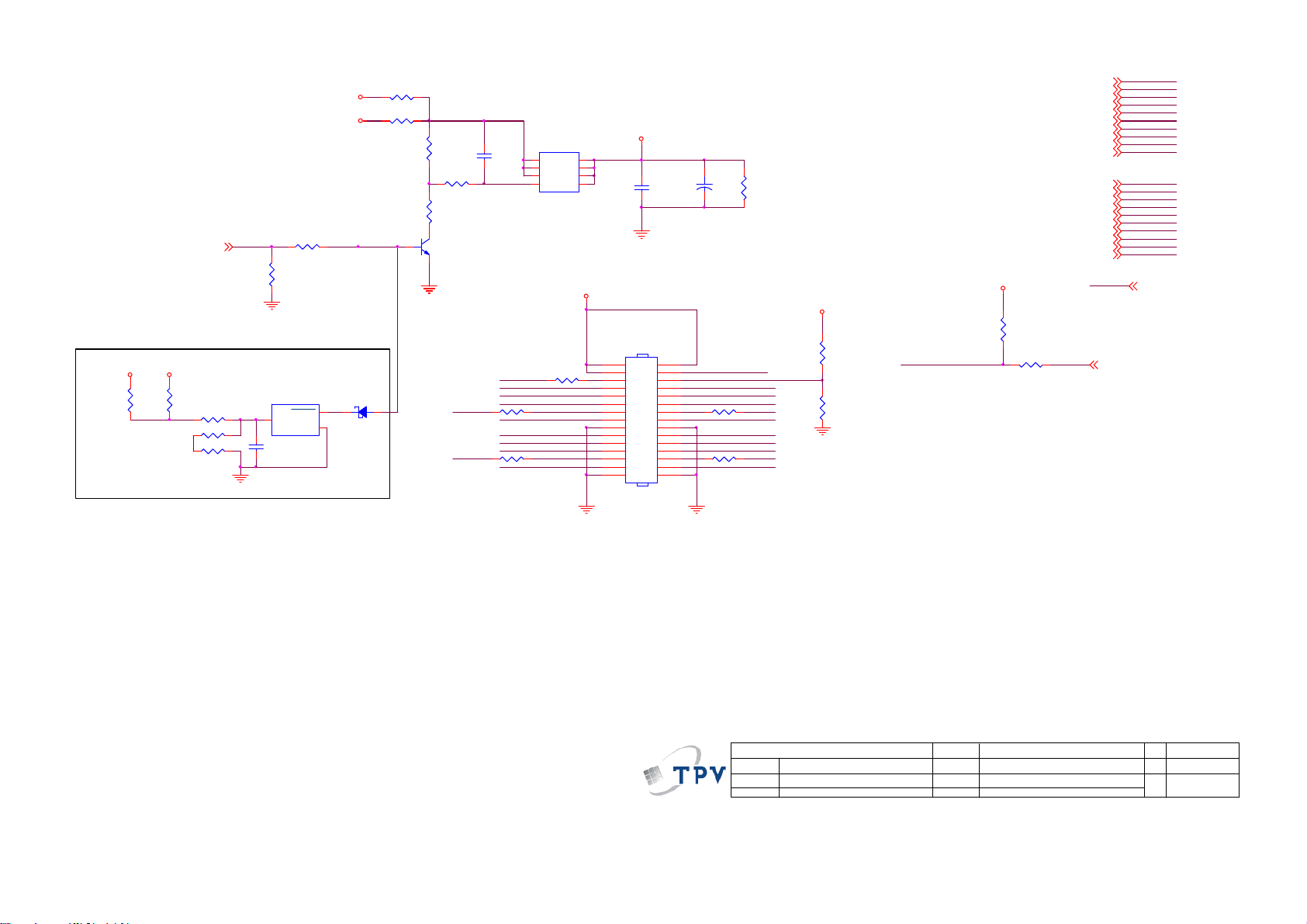

8. Schematic Diagram

8.1 Main Board

715G5740M01000004K

From
Power
Board

CN701

12V

P12V

1
2
3
4
5
6
7
8
9
10
11
12
13

CONN

13P R/A 2.5mm
311GW250B13BBX

PW_CTL2

PW_CTL2

24V

P24V

PW_CTL

PW_CTL

P24V

C705

0.1uF 50V

1 2

R723 4.7K

C703

100NF 16V

5V

ZD701

NC/BZT52-C5V6

R716 4.7K

+

+5V_Standby

C707

100NF 16V

C

B

C704

10UF 25V

SMT

E

P12V

+

C708

100UF 16V

SMT

+5V_Standby

R720

100K

R722
10K

Q706

MMBT390 4

+5V_Norm al

R729

47K

R708

NC/10K

R713

10K

R714 10K

Q705

MMBT3904

BL_EN
BL_PWM

R705 100R

+5V_Norm al

C724

100NF 16V

R712

1K

Q704

MMBT390 4

PS_ON

PS_ON

Q701

LP3401LT1G

+5V_Norma l

Standby Power

+5V_Standby

C712

+

C711

1UF16V

100UF 16V

DDR Power

+5V_No rmal

R718 2.2R

U702

+3.3V_Standby

AZ1117D

2

VI3VO

+

GND

1

VIN3VOUT

+

C721

100UF 16V

SMT

1

G1084PT43U

Vout = 1.25x(R1+R2)/R2

1.845V

C713

100UF 16V

SMT

U703

GND/ADJ

BL_EN

C702

NC/10N 50V

R1

NC/4.7UF 10V

C714

100NF 16V

2

R719

2.4K 1%

R701

0.05R

Backlight Control

+5V_No rmal

R702

1K

Q702

R703

NC/10K

MMBT3904

+5V_No rmal

R706

NC/10K

R709

1K

BL_PWM

C706

+1.8V_DDR

+

C722

C723

100UF 16V

NC/10uF

SMT

R721 1K 1%

R2

R704

1K

Q703

MMBT3904

+5V_No rmal

R728

10K

Q707

MMBT3904

+3.3V_Standby

R707

1K

R710 4.7K

+1.2V Core Power

+5V_Standby

C709

4.7uF 10V

R730
NC

6-12

Hi: Of f
Low: On

R727 4.7K

FB701

1 2

300R 4A

USB Power

P24V

R725

15KOHM 1/16W

R726

10K+-5%1/16W

VBL_CTRL

C701

100NF 16V

P12V

1UF 16V

VBL_CTRL 2

BRI_ADJ-PW M0 2,3

C710

10UF 10V

C715

100N 16V

0402

+5V_No rmal

C725

C716

100N 16V

0402

Vout = 0.8x(R1+R2)/R2

R724

NC/100K

U704

5

VOUT

VIN

GND

4

OCB3EN

APL3511CBI- TRG

R711 1K

1

VCC

2

POK

3

GND
FB4EN

1
2

U701

E-Pad

VIN

LX

PGND

APW7323AKAI-TRG

USB_5V

9

073G253S 68 H

8
7
6
5

C718

1UF16V

L701

2.2uH

7.5K 1%

R1

1.28V

+1.2V_VDDC

C719

C717

R715

C720

NC.10N 50V

0402

22UF 10V

22UF 10V

SMT

R717

12.4K 1%

R2

42

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

GXXXX-M0A-000-0040

Key Component

01-Power

Date

OEM MOD EL

NA

TPV MODE L

NA A

715GXXXX-M0A-000-0040

PCB NAME

19Monday, September 24, 2012

Sheet

of

Custom

Size

Rev

<

称爹

>

称爹

H/W R es et

HDMI_CEC5

HDMI-ARC5

VGA_HS4
VGA_VS4
VGA_BIN4
VGA_GIN4
SOG04
VGA_RIN4

Y+4
SOY4
Pb+4
Pr+4

CVBS_OUT04

USB0_DP4
USB0_DM4

LEDR9
LEDG9

TAGC7

HP_DET4, 6

IRIN9

UART-RX4,9

UART-TX4,9

KEY0-SAR 09
KEY1-SAR 19

CN402

NC/CONN

HDMI_HP1
HDMI1-SCL
HDMI1-SDA
HDMI1-CLKP
HDMI1-CLKN
HDMI1-RX0P
HDMI1-RX0N
HDMI1-RX1P
HDMI1-RX1N
HDMI1-RX2P
HDMI1-RX2N

HDMI_HP0
HDMI0-SCL
HDMI0-SDA
HDMI0-CLKP
HDMI0-CLKN
HDMI0-RX0P
HDMI0-RX0N
HDMI0-RX1P
HDMI0-RX1N
HDMI0-RX2P
HDMI0-RX2N

HDMI-CEC
HDMI-ARC

VGA_HS
VGA_VS
VGA_BIN
VGA_GIN
SOG0 AMP-AUOUTR0
VGA_RIN

Y+
SOY
Pb+
Pr+

AV2-CVBS0P
AV1-CVBS0P

CVBS_OUT0

VGA-AUR1
VGA-AUL1
COMP_AUR4
COMP_AUL4

USB0_DP
USB0_DM

LEDR
LEDG

VIFP
VIFM
TAGC

HP_DET

IRIN

UART-RX
UART-TX

KEY0-SAR0
KEY1-SAR1

Sys tem-RST

C405
1uF 10V

+5V_Standby

R405
1K 1/16W

C404

1NF 50V

R407

51R 1/16W 5%

HDMI_ARC

Debug & ISP port

R422

R421

4.7K

1
2
3

UART-RX

4

UART-TX

4.7K

HOTPLUG15
HDMI1_DDC_SCL5
HDMI1_DDC_SDA5
HDMI1_CLK+5
HDMI1_CLK-5
HDMI1_D0+5
HDMI1_D0-5
HDMI1_D1+5
HDMI1_D1-5
HDMI1_D2+5
HDMI1_D2-5

HOTPLUG05
HDMI0_DDC_SCL5
HDMI0_DDC_SDA5
HDMI0_CLK+5
HDMI0_CLK-5
HDMI0_D0+5
HDMI0_D0-5
HDMI0_D1+5
HDMI0_D1-5
HDMI0_D2+5
HDMI0_D2-5

AV2-CVBS0P4
AV1-CVBS0P4

VGA-AUR14
VGA-AUL14
COMP_AUR44
COMP_AUL44

VIFP7
VIFM7

+5V_Standby

3

1M 1/16W

D401

BAV99

1

2

C402

2.2UF 16V

R404

Q402

4.7K 1/16W

MMBT3906

R406

22K 1/16W

VDD33

VDDC

R410

68OHM 1/16W

AVDD_ADC

R412

68OHM 1/16W

R415

68OHM 1/16W

Close to IC
with width trace

100N 16V

FB402

60 OHM

1 2

CHIP_CONFIG

{IPAD_PWM1, PAD_PWM0}
B51_NO_EJ

R419

4.7K

R0402

System XTAL

XTALO

R427

0R05 OHM

1M 1/16W

XTAL I

R403

AU33

C412

R428

C403

2.2UF 16V

C407
47nF 16V

C408 47nF 16V

AV2-CVBS0P
AV1-CVBS0P

C410

47nF 16V

C413

10UF

4'h00

BRI_ADJ -PWM0VBL-CTRL

R420

4.7K

R0402

X401

12

24MHz

HDMI1-CLKN
HDMI1-CLKP
HDMI1-RX0N
HDMI1-RX0P

HDMI1-RX1N
HDMI1-RX1P
HDMI1-SDA
HDMI1-RX2N
HDMI1-RX2P
HDMI1-SCL
HDMI_ARC

VGA_HS
VGA_BIN
SOG0
VGA_GIN

VGA_RIN
VGA_VS

Pb+
SOY
Y+

Pr+

CVBS_OUT0

AUVRM
AUVAG

VGA-AUL1

C425
27PF 50V

C430
27PF 50V

HDMI0-RX2P

HDMI_HP1

HDMI0-RX2N

127

128

126

129

U401

E-Pad

RX2P_D

RX2N_D

1

RXCKN_A

HOTPLUGA

2

RXCKP_A

3

RX0N_A

4

RX0P_A

5

AVDD_33

6

RX1N_A

7

RX1P_A

8

DDCDA_DA

9

RX2N_A

10

RX2P_A

11

DDCDA_CK

12

ARC

13

AVDD1P2_DVI_A

14

HSYNC0

15

BIN0P

16

SOGIN0

17

GIN0P

18

GIN0M

19

RIN0P

20

VSYNC 0

21

AVDD3P3_ADC

22

BIN1P

23

SOGIN1

24

GIN1P

25

GIN1M

26

RIN1P

27

VSYNC 1

28

HSYNC1

29

CVBS1

30

CVBS0

31

VCOM

32

CVBSOUT

33

AU33

34

AUREF

35

AUVAG

36

AUL1

37

AUR1

38

AUL3

AUL440AUR4

AUR3

41

39

VGA-AUR1

COMP_AUL4

COMP_AUR4

AUDIO-EN AUDIO_EN
PWR-ON/OFF

VBL-C TRL VBL_C TRL
BRI_ADJ-PWM0

GND-EFUSE

HDMI0-RX1P

HDMI0-RX0P

HDMI0-SCL

HDMI0-SDA

HDMI0-RX1N

124

123

122

125

RX1P_D

RX1N_D

DDCDD_CK

PANEL-ON/ OFF

HDMI_HP0

HDMI0-CLKP

HDMI0-RX0N

System -RST

HDMI-CEC

IRIN

HDMI0-CLKN

116

118

121

112

120

117

115

113

114

119

IRIN

CEC

RX0P_D

RX0N_D

RXCKP_D

RXCKN_D

HWRESET

HOTPLUGD

DDCDD_DA

GND_EFUSE

SAR2/GPIO73

MST6931XP

GND

RFAGC

VIFM53VIFP

AUOUTL146AUOUTR147AUOUTL044AUOUTR045XIN49XOUT48AVDD_DMPLL

AVDD3P3_DADC51GPIO5658VDDP59VDDC60GPIO55

42

AUR543AUL5

AMP-AUOUTR0

AMP-AUOUTL0

+3.3V_Standby

55

54

52

50

VIFP

VIFM

TAGC

XTALI

XTALO

AV-AUOUTL3

AV-AUOUTR3

VDD33_DMPLL

AVDD33_DEMOD

R423

R0402

R424

R0402

4.7K

4.7K

PW_CTL

ON_PANELPANEL-ON/OFF

TUNER _SC L
TUNER _SD A

3D_enable

C418

C419

100N 16V

100N 16V

+3.3V_Standby

1 2

Power 1.2V

+1.2V_VDDC

1 2

FB401120R/3000mA

FB406

RXO0­RXO0+
RXO1­RXO1+
RXO2­RXO2+
RXOC­RXOC+
RXO3­RXO3+

RXE0­RXE0+
RXE1­RXE1+
RXE2­RXE2+
RXEC­RXEC+
RXE3­RXE3+

+3.3V_Standby

C420

100N 16V

60 OHM

C426
10UF

C423

100N 16V

RXO0- 3
RXO0+ 3
RXO1- 3
RXO1+ 3
RXO2- 3
RXO2+ 3
RXOC- 3
RXOC+ 3
RXO3- 3
RXO3+ 3

RXE0- 3
RXE0+ 3
RXE1- 3
RXE1+ 3
RXE2- 3
RXE2+ 3
RXEC- 3
RXEC+ 3
RXE3- 3
RXE3+ 3

3D_enable 3

C406
180PF 50V

C409
180PF 50V

C411
180PF 50V

C414
180PF 50V

FB404

1 2

C427

100N 16V

R409

100K 1/16W

R413

100K 1/16W

AV_AUOUTR3

R416

100K 1/16W

AV_AUOUTL3

R418

100K 1/16W

60 OHM

+3.3V_Standby

C428

100N 16V

AVDD_AD C

C421

100N 16V

C429

100N 16V

AMP_AUOUTR0 8

AMP_AUOUTL0 8

AV_AUOUTR3 6

AV_AUOUTL3 6

1 2

FB40760 OHM

VDDC

AU33AVDD33_DEMOD

C424

100N 16V

AVDD_DDR

KEY0-SAR0

KEY1-SAR1

BRI_ADJ -PWM0

UART-RX

UART-TX

VBL-CTR L

PWR-ON /OFF

104

105

106

107

108

111

110

103

109

GPIO64

TESTPIN

DDCA_CK

DDCA_DA

AVDD_D DR

SAR1/GPIO74

SAR0/GPIO75

AVDD_DDR

57

56

TUNER_SCL

TUNER_SDA

VDD33

VDDC

AVDD_DDR

PWM0/GP IO26

PWM1/GP IO25

USB1_DP
USB1_DM

AVDD_MOD

USB0_DP
USB0_DM

PWM2/GPIO24

INT/GPIO65

AVDD_MOD

LVBCKM
LVBCKP

AVDD_MOD

LVACKM
LVACKP

LVA3P

LVA4P61LVA4M62LVA3M

MST6931XP

63

64

RXE3+

RXE3-

AUDIO_EN 8

PW_CTL 1

ON_PANEL 3

VBL_CTRL 1

BRI_ADJ-PWM0 1,3

TUNER _SC L 7
TUNER _SD A 7

GPIO0
GPIO1
GPIO2
GPIO3

VDDC
LVB0M
LVB0P
LVB1M
LVB1P

LVB2M
LVB2P

LVB3M
LVB3P
LVB4M
LVB4P
LVA0M
LVA0P
LVA1M
LVA1P
LVA2M
LVA2P

102
101
100
99
98
97

SCZ

96

SDO

95

SDI

94

SCK

93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65

USB0_DP
USB0_DM
SPI_CS0N
SPI-SDO
SPI-SDI
SPI-SCK
SPI_WP0N

R401
100OHM1/16W

LEDG
LEDR

AUDIO-EN

RXO0­RXO0+
RXO1­RXO1+

RXO2­RXO2+
RXOC­RXOC+
RXO3­RXO3+

RXE0­RXE0+
RXE1­RXE1+
RXE2­RXE2+

RXEC­RXEC+

VDD33

HP_DET

3D_enable

VDDC

VDD33

VDD33

Power 3.3V

+3.3V_Standby

DDR Power

+1.8V_ DDR

FB408

0R05 1/10W

FB403

1 2

60 OHM

10UF

+3.3V_Standby

FB405

1 2

C431
10UF

NC/100N 16V

AMP-AUOUTL0
AV-AUOUTR3
AV-AUOUTL3

VDD33

C417

C416

C415

100N 16V

100N 16V

VDD33_DMPLL

60 OHM

C422

100N 16V

AVDD_D DR

C432

C433

4.7UF 6. 3V

SPI_CS0N
SPI-SDO
SPI_WP0N

+3.3V_Standby

WP active low

SERIAL FLASH

R431

4.7K

R434 1K

C435

100N 16V

FLASH_WP0N

R436

10K

DGND

1
2
3

close to IC

U402

CS#
SO/SIO1

HOLD#
WP#
GND4SI/SIO0

W25Q64FVSSIG

+3.3V_Standby

C434

R435 51R

C436
22PF 50V

100N 16V

DGND

SPI-SCK
SPI-SDI

8

VCC

7
6

SCLK

5

HS401

Heat Sink

DGND AGND

DGND

1

1

2

2

DGND

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

GXXXX-M0A-000-0040

Key Component

02.MST6831XP/SPI FLASH

Date

OEM MODE L

NA

TPV MOD EL

NA A

PCB NAME

715GXXXX-M0A-000-0040

29Monday, September 24, 2012

Sheet

of

Custom

Size

Rev

<

称爹

>

称爹

43

R444

NC/ 360R 1/10W 5%

P12V

+5V_Standby

R452

NC/ 220 OHM 1/10W

ON_PAN EL2

R447

NC/ 360R 1/10W 5%

R451

NC/ 390 OHM 1/10W

R453

NC/ 220 OHM 1/10W

R443

10K

DGND

NC/AZ809ANSTR-E1

3

Vcc

C439
NC/ 100N 50V

DGND

+5V_Standby

R442 4.7K

U403

RESET

GND

P12V

2

1

D402

NC/RB501V-40

12

R437 0oHM

R438

NC/0oHM

100K

R439

Panel Power

C401

1

S

2

220N 25V

R473

47K

R441

10K

Q403
MMBT39 04

DGND

RXOC+ RXOC1+

0R05 OHM

RXEC+

0R05 OHM

3
4

R446

NC/0R05 OHM

BLPWM

RXO0+
RXO1+
RXO2+

R454

RXO3+

RXE0+
RXE1+
RXE2+

R448

RXE3+

S
S
G

AO4449 -7A/-30V

Q401

8

D

7

D

6

D

5

D

PANEL_VCC

RXEC1+

DGND

PANEL_VCC

CONN

30
28
26
24
22
20
18
16
14
12
10

8
6
4
2

C437

100NF 16 V

DGND

29
27
25
23
21
19
17

RXOC1- RXOC-

15
13
11
9
7
5

RXEC1-

3
1

CN403

LVDS(8-bit)

+

C438

100UF 16V

3D_EN

SELLVDS

R455

0R05 OHM

R449

0R05 OHM

DGND

R440

RXO0­RXO1­RXO2-

RXO3-

RXE0­RXE1­RXE2­RXEC­RXE3-

2.2K 1/4W

R445

NC/ 4.7K

R450

NC/ 4.7K

DGND

+3.3V_Standby

3D_EN

+3.3V_Standby

R471

NC/4.7K

R472

0.05R

RXO0-2

RXO0+2

RXO1-2

RXO1+2

RXO2-2
RXO2+2
RXOC-2

RXOC+2

RXO3-2
RXO3+2

RXE0-2
RXE0+2

RXE1-2
RXE1+2

RXE2-2
RXE2+2
RXEC-2

RXEC+2

RXE3-2
RXE3+2

BLPWM

3D_enable 2

RXO0­RXO0+
RXO1­RXO1+
RXO2­RXO2+
RXOC­RXOC+
RXO3­RXO3+

RXE0­RXE0+
RXE1­RXE1+
RXE2­RXE2+
RXEC­RXEC+
RXE3­RXE3+

BRI_ADJ -PWM0 1,2

44

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

GXXXX-M0A-000-0040

03. LVDS

Date

OEM MODEL

TPV MO DE L

PCB NAME

Sheet

NA

NA A

715GXXXX-M0A-000-0040

39Monday, September 24, 2012

of

Size

Rev

称爹

B

<

称爹

>

VGA_SDA

VGA_HSYNC

VGA_VSYN C

VGA_SCL

12

13

CN102

A

B

C

D

E

RCA JACK

YPBPR Video/Audio IN

12

12

12

ZD102

ZD103

AGND

MLVG0402

MLVG0402

1

2
3
4
5
6

7
8

9
10

11

ZD106

AGNDAGND

MLVG0402

12

12

ZD107 MLVG0402

AGND

ZD104
MLVG0402

YPBPR1_I N_L1

YPBPR1_IN_R 1

330pF 50V

VGA IN

12

12

ZD101 MLVG0402

ZD113 MLVG0402

ZD112 MLVG040212ZD114 MLVG0402

VGA_HSYNC

VGA_VSYN C

R132 68R

R134 68R

R136

R137

10K

10K

Y1

PB1

PR1

R108

R107

R109

75 OHM

75 OHM

75 OHM

AGNDAGND

AGND

Placement Near RCA.

R116

10K 1/16W 5%

R117

10K 1/16W 5%

R118

C114

C113

330pF 50V

12K 1/16W

AGND

AGND

CN105

1716

CONN

6
1

11

7
2

12

8
3

13

9
4

14

10
5

15

12

088G353GFF1ACL

VGA_HS

VGA_HS 2

VGA_VS

VGA_VS 2

Close to MST IC

AGND AGND

R119

12K 1/16W

R102

33 OHM 1/16W
R104

R106

33 OHM 1/16W

R111

33 OHM 1/16W
R113

33 OHM 1/16W

12

ZD110 MLVG0402

12

ZD111 MLVG0402

12

ZD115 MLVG0402

VGA_SDA

VGA_SCL

33 OHM 1/16W

Close to MST IC

R133 33R

R135 33R

Close IC side

Y+

C102
47nF 16V

Pb+

C105
47nF 16V

Pr+

C106
47nF 16V

C107
1N50V

AV1-CVBS0P

C110
47nF 16V

COMP_AUL4

C111

2.2uF 10V

COMP_AUR4

C112

2.2uF 10V

Close IC side

R122 33R

R125

75R

0603

R126 33R

R127 33R

R128

75R

0603

R129 33R

R130

75R

0603

0402

SOY

0402

0402

0402

0402

Y+ 2

Pb+ 2

Pr+ 2

SOY 2

AV1-CVBS0P 2

COMP_AUL4 2

COMP_AUR4 2

VGA_R

VGA_G

VGA_SOG

VGA_B

UART-TX 2,9

UART-RX 2,9

C117
47nF 16V

C120
47nF 16V
C121
1N50V

C122
47nF 16V

VGA_RIN 2

VGA_GIN 2

SOG0 2

VGA_BIN 2

AV2-CVBS0P

C449
47nF 16V

2

CN103

1

2

3

CONN

CN104

3

2
1

CONN

AGND

HeadPhone

CN101

CONN

Mark on board

HP OUT

ZD105

MLVG0402

AGND

AGND

12

1
7
6
2
3
4
5

R147

33 OHM 1/16W

12

AGND

ZD108MLVG0402

AGND

AGND

CVBS Out

C108

22pF 50V

AGND

12

C118

470pF 50V

ZD109

MLVG0402

AGND

Placement Near
connect.

ZD116

MLVG0402

2Vp-p

R110

CVBS_OUT1

75 OHM

Rf

Gain=1+ (Rf/Rg )

PC AUDIO IN

R120

10K 1/16W 5%

R121

10K 1/16W 5%

C119

470pF 50V

AGND

AGND

HP_D

12

12

12

ZD118

ZD117

MLVG0402

MLVG0402

AGNDAGND

AGND

Rg

R123

R112

75 OHM

Q102
MMBT3906

AGND

R124
12K 1/16W
12K 1/16W

C123

NC/100N 16V

R103

220R 1/16W

Q101

MMBT3904

R115

75 OHM

AGNDAGN D

C103

100N 16V

R105

47K

C109
10UF 10V

R114

33K 1/16W 5%

VGA-AUL1

C115

2.2uF 10V

VGA-AUR1

C116

2.2uF 10V

C Placement
Near IC

+3.3V_Standby

C124

NC/100N 16V

1 2

C104

1uF 10V

CVBS_OUT0 2

VGA-AUL1 2

VGA-AUR1 2

R131
10K 1/16W 5%

HP_OUT_L
HP_OUT_R

FB102

300R

HP_DET 2,6

HP_OUT_L 6

HP_OUT_R 6

+5V_No rmal

USB IN

USB_5V

DGND

+

C126

100UF 16V

USB0_DM2
USB0_DP2

C125
100N 16V

ZD20/ZD21 new component for 0.5 Cp

R138 4.99ohm 1/16W +/- 1%

USB0_DM

R139 4.99ohm 1/16W +/- 1%

USB0_DP

NC/MLVG0402
NC/MLVG0402

ZD119

12

0.5pF

DGNDDGND

1
2
3
4

12

ZD120

DGND

DGNDAGND

USB_Shield_GND

USB CONN

1234

6 5

USB_Shield_GND

USB_Shield_GNDDGND

CN106

45

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

GXXXX-M0A-000-0040

Key Component

04. Vide o/Audio Interf ac/USB

Date

OEM MOD EL

NA

TPV MODEL

NA A

715GXXXX-M0A-000-0040

PCB NAME

49Monday , September 24, 2012

Sheet

of

A2

Size

Rev

<

称爹

>

称爹

AC off EDID
solution
without
EEPROM

HOTPLUG0

HDMI0_D2+
HDMI0_D2-

HDMI0_D1+
HDMI0_D1-

HDMI0_D0+
HDMI0_D0-

HDMI0_CLK+
HDMI0_CLK-

DGND

HDMI0_DDC_SCL#
HDMI0_DDC_SDA#

R503

R506

DGND

IN1
IN2

IN3
IN45OUT4

GND

GND

3

8

DGND

IN1
IN2

IN3
IN45OUT4

GND

GND

3

8

DGND

1K 1/10W

D502
MMBT39 04

OUT1
OUT2

OUT3

OUT1
OUT2

OUT3

R502
47K

10K 1/16W 5%

U502 NC/R Clamp0524P.TCT

1
2

4

U504 NC/R Clamp0524P.TCT

1
2

4

HDMI0_D2+

HDMI0_D2­HDMI0_D1+

HDMI0_D1­HDMI0_D0+

HDMI0_D0­HDMI0_CLK+

HDMI0_CLK-

10
9

7
6

10
9

7
6

R515 4. 99ohm 1/16W +/-1%

R516 4. 99ohm 1/16W +/-1%
R517 4. 99ohm 1/16W +/-1%

R518 4. 99ohm 1/16W +/-1%
R519 4. 99ohm 1/16W +/-1%

R520 4. 99ohm 1/16W +/-1%
R521 4. 99ohm 1/16W +/-1%

R522 4. 99ohm 1/16W +/-1%

HDMI_CEC1

HDMI-ARC

HDMI0_CON5V

12

MLVG0402
ZD502

DGND

HDMI0_D2+
HDMI0_D2-

HDMI0_D1+
HDMI0_D1-

HDMI0_D0+
HDMI0_D0-

HDMI0_CLK+
HDMI0_CLK-

HDMI0_DDC_SCL
HDMI0_DDC_SDA

CN501

1

TMDSD 2+

2

DSHLD0

3

TMDSD 2-

4

TMDSD 1+

5

DSHLD1

6

TMDSD 1-

7

TMDSD 0+

8

DSHLD2

9

TMDSD 0-

10

TMDSC +

11

CSHLD0

12

TMDSC -

13

CEC

14

NC

15

SCL

16

SDA

17

DDC_GND

18

VCC5

19

HPD

HDMI0

HDMI0_CON5V

R508
47K

20

SHLD0

22

SHLD2

23

SHLD3

21

SHLD1

Make on board

HDM I0

R509
47K

100R

HDMI0_D DC_SCL#

R510

HDMI0_D DC_SDA#

100R
R501

DGND

DGND

CN502

HDMI1_D2+

R523 4.99ohm 1/16W +/-1%

HDMI1_D2-

R524 4.99ohm 1/16W +/-1%

HDMI1_D1+

R525 4.99ohm 1/16W +/-1%

HDMI1_D1-

R526 4.99ohm 1/16W +/-1%

HDMI1_D0+

R527 4.99ohm 1/16W +/-1%

HDMI1_D0-

R528 4.99ohm 1/16W +/-1%

HDMI1_CLK+

AC off EDID
solution
without
EEPROM

HOTPLUG1

R504
47K

R507

10K 1/16W 5%

DGND

HDMI1_D DC_SCL#
HDMI1_D DC_SDA#

DGNDDGND

R505
1K 1/10W

D503
MMBT3904

HDMI1_CLK-

HDMI1_C ON5V

12

DGNDDGND

R529 4.99ohm 1/16W +/-1%

R530 4.99ohm 1/16W +/-1%

HDMI_CEC1

MLVG0402
ZD501

(180 degree connector)

U501 NC/RClamp0524P.TCT

HDMI1_D2+
HDMI1_D2-

HDMI1_D1+
HDMI1_D1-

HDMI1_D0+
HDMI1_D0-

HDMI1_CLK+
HDMI1_CLK-

12

12

MLVG0402
MLVG0402

ZD504
ZD503

DGND

1

IN1

2

IN2

4

IN3
IN45OUT4

GND

8

U503 NC/RClamp0524P.TCT

1

IN1

2

IN2

4

IN3
IN45OUT4

GND

8

3

DGND

3

DGND

GND

GND

OUT1
OUT2

OUT3

OUT1
OUT2

OUT3

10
9

7
6

10
9

7
6

HDMI1_D2+
HDMI1_D2-

HDMI1_D1+
HDMI1_D1-

HDMI1_D0+
HDMI1_D0-

HDMI1_CLK+
HDMI1_CLK-

1

TMDS D2+

2

DSHLD0

3

TMDS D2-

4

TMDS D1+

5

DSHLD1

6

TMDS D1-

7

TMDS D0+

8

DSHLD2

9

TMDS D0-

10

TMDS C+

11

CSHLD0

12

TMDS C-

13

CEC

14

NC

15

SCL

16

SDA

17

DDC_GND

18

VCC5

19

HPD

HDMI1

HDMI1_DDC_SCL

Make on board

HDM I1

HDMI1_C ON5V

R511
47K

SHLD0

SHLD2

SHLD3

SHLD1

R512
47K

100R

100R

20

22

23

21

R513

R514

DGND

HDMI1_DDC_SCL#
HDMI1_DDC_SDA#HDMI1_DDC_SDA

12

DGNDDGND

HDMI_CEC1

12

MLVG0402
MLVG0402

ZD507
ZD506

HDMI0_DDC_SCL2
HDMI0_DDC_SDA2

HDMI1_DDC_SCL2
HDMI1_DDC_SDA2

HDMI0_D2+2
HDMI0_D2-2
HDMI0_D1+2
HDMI0_D1-2
HDMI0_D0+2
HDMI0_D0-2
HDMI0_CLK+2
HDMI0_CLK-2

HOTPLUG02

HDMI_CEC2

HDMI1_D2+2
HDMI1_D2-2
HDMI1_D1+2
HDMI1_D1-2
HDMI1_D0+2
HDMI1_D0-2
HDMI1_CLK+2
HDMI1_CLK-2

HOTPLUG12

12

DGND

HDMI-ARC2

MLVG0 402
ZD505

R531

200R 1/16W

HDMI0-RX2P
HDMI0-RX2N
HDMI0-RX1P
HDMI0-RX1N
HDMI0-RX0P
HDMI0-RX0N
HDMI0-CLKP
HDMI0-CLKN
HDMI0-SCL
HDMI0-SDA
HDMI_HP0

HDMI-CEC

HDMI1-RX2P
HDMI1-RX2N
HDMI1-RX1P
HDMI1-RX1N
HDMI1-RX0P
HDMI1-RX0N
HDMI1-CLKP
HDMI1-CLKN
HDMI1-SCL
HDMI1-SDA
HDMI_HP1
HDMI-ARC

HDMI-CEC

From Main Chip

46

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

GXXXX-M0A-000-0040

05 . Input_ HDMI

Date

OEM MODEL

TPV MO DEL

PCB NAME

Sheet

NA

NA A

715GXXXX-M0A-000-0040

of

59Monday, September 24, 2 012

Size

Rev

称爹

称爹

<

Custom

>

AV_AUOUTR 32

AV_AUOUTL32

AV_AUOUTR 3

AV_AUOUTL3

HP_OUT_R

HP_OUT_L

HP_OUT_R 4

HP_OUT_L 4

C610

2.2UF 16V

C604

1UF16V

U602

16

1

CP+

2

PGND

3

CP-

4

NC

+3.3V_Standby

FB602

1 2

300R

FB601

1 2

300R

13

15

GND14/LSD

PVDD

APA2176A

CVSS5VSS6LOUT7VDD

8

NC

RIN

/RSD

LIN

ROUT

C611

10UF 10V

C601

100NF 16V

12

11

10

9

R607 100 O HM 1/10W
R608 100 O HM 1/10W

HP_SD

1UF16V

C602

10UF 10V

C606

1UF16V

C607

Headphone Amp

+5V_N orm al

C603

NC/ 1.5nF 50V

R602
0R05 OHM

R604 100O HM1/16W

R605 0R 05 OHM

C608

NC/ 1.5nF 50V

HP_OUT_R
HP_OUT_L

C605

1.5nF 50V

C609

1.5nF 50V

R603

200OHM1/16W

R606

200OHM1/16W

AV_AUOUTR3

HP_DET 2,4

AV_AUOU TL3

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

GXXXX-M0A-000-0040

06. Earphone pre amp

47

OEM MO D EL

TPV MODEL

PCB NAME

Sheet

NA

NA A

715GXXXX-M0A-000-0040

69Monday, September 24, 2012

of

Size

Rev

称爹

<

A4

称爹

>

TUNER
TU1 01

13

Silicon Tuner

1

ANT

2

3.3V

3

SCL_CAN

SCL

4

SDA_CAN

SDA

5

GND

6

Xout

7

IF_N

8

IF_P

9

IF_AGC

IF_AGC

TH110TH211TH312TH4

300mA

AIF+
AIF-

C133

1N 50V

Tuner3.3V

C131

1uF 10V

AGND

DGNDAGND

C132

1N 50V

3.3V_TUNER

+5V_No rmal

C127

10uF 10V

DGND

300mA

C128
100N 16V

Tuner Power

3.3V_TUNER

U101

VIN3VOUT

2

GND14

4

DGND

C129

100UF 16V

+

C101
100N 16V

DGND DGND

Close to Main chip

1K_100MHz/400_400MHz

FB101

1 2

1000OHM

3.3V_TUNER

C130

2.2UF 16V

DGND

Main Chip <-->

VIFP2
VIFM2

TUNER_SCL2
TUNER_SDA2

TUN_I2C_SCL
TUN_I2C_SDA

TUN_IF+
TUN_IF-

AGND

AGND

BPF_IN

AIF+

AIF-

L102

1UH

L101

1UH

IF_AGC Control Circuit

Close to Main chip

TAGC2

IF_AGC from IC

TAGC

3.3V_TUNER

R144
10K

R146

0R05 OHM

C140

22NF 25 V

AGND AGND

C135
56pF 50V

L need Q>15

close Tuner

L103

2.2uH

L104

C136

33PF 50V

2.2uH

R101

100R

IF_AGC trace shielding by GND

C134

100N 16V

R140
510R

C137

100N 16V

Close to Tuner

IF_AGC

To tuner

C141
100NF 16V

TUN_IF+

TUN_IF-

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

GXXXX-M0A-00 0-00 40

07. Tuner

Date

TP_SYNC[55]

TP_CLK[48]

TP_VALID[51]

I2C for Tuner

3.3V_TUNER

R141 4.7K

R142 4.7K

close to main chip

TUNER_SCL

Form main chip

TUNER_SDA

Form main chip

OEM MO DE L

TPV MODEL

PCB NAME

Sheet

R143

100OHM

R145

100OHM

NA

NA A

715GXXXX-M0A-000-0040

of

79Monday, September 24, 2012

TP_DI[54]

IF_CTL[47]

TUNER_SCL

TUNER_SDA

SCL_CAN

C138
NC/ 100pF 50V

SDA_CAN

AGND

C139
NC/ 100pF 50V

AGND

TUNER_SCL 2

TUNER_SDA 2

Size

Rev

称爹

B

称爹

>

<

48

AMP_AUOUTL02

AMP_AUOUTR02

+5V_Standby

AMP_MUTE

1 2

120R/6000m A

R627

R628

FB603

AUDIO_EN2

R609
10OHM1/16W
R610
10OHM1/16W

C612

NC/ 1NF 50V

AC OFF POPO

10K

10K

+

Q602

MMBT3906

C450

100UF 16V

AV_L_OUT#

AV_R_OUT#

R615 NC /100K 1/16W

R614

NC/100K 1/16W

AMP_MUTE
Low: Mute disablde
High: Mute enable

R629

10K

PVDDP24V

POP

C617

NC/ 1NF 50V

AV_L_OUT#

AV_R_OUT#

AMP_MUTE

R612

10K

R613

100OHM

100OHM

R625

POP

+5V_N ormal

R617 NC/10K

R601 0.05R

MMBT3904

R618 10K

R619 NC/ 0.05R

33K 1/16W 5%

+5V_N ormal

Q601

R611

10K

C613 100N 50V

C616 220NF 25V

PVDD

R620

10 OHM 1/4W

C627

1UF 50V

R622

10K+- 5%1/16W

R624

C635 220NF 25V

AMP_STB

C622

220NF 25V

C631

1UF 50V

C632

1UF 50V

C633

220NF 25V

1

2

3

4

5

6

7

8

9

10

11

12

13

14

U601

SDZ

FAULTZ

LINP

LINN

GAIN0

GAIN1

AVCC

AGND

GVDD

PLIMIT

RINN

RINP

NC

PBTL

1.2A Max

Thermal Pad

PVCCL

PVCCL

BSPL

OUTPL

PGND

OUTNL

BSNL

BSNR

OUTNR

PGND

OUTPR

BSPR

PVCC

PVCC

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

C620

0.22uF 50V

C625

0.22uF 50V

C628

0.22uF 50V

C636

0.22uF 50V

100N 50V

100N 50V

C638

C618

R616

10OHM1/16W

R621

10OHM1/16W

R623

10OHM1/16W

R626

10OHM1/16W

C619

1NF 50V

C639

1NF 50V

PVDD

100UF 35V

+

L602
47UH
C623

330pF 50V

L603
47UH
C626

330pF 50V

L601
47UH
C630

330pF 50V

L604
47UH
C637

330pF 50V

C614

PVDD

100UF 35V

C640

+

100UF 35V

+

C615

C621

330nF

C624

330nF

C629

330nF

C634

330nF

L+

L-

CONN

4

CN601

3
2
1

5 6

R-

R+

49

APA2614RI-TRG

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

GXXXX-M0A-000-0040

08. AUDIO AMP

Date

OEM MODEL

TPV MODEL

PCB NA ME

Sheet

NA

NA A

715GXXXX-M0A-000-0040

of

89Monday, September 24, 2012

Size

Rev

称爹

B

称爹

>

<

CN401

CONN

IRIN

UART-RX
UART-TX

1
2
3
4
5
6
7
8
9
10

DGND

+3.3V_Standby

LED-R
LED-G

POWER

KEY_AD C1

POWER_KEY

Q406
2N7002

R469 100R 1/16W 5%
R470 100R 1/16W 5%

+3.3V_Standby

POWER_KEY
KEY_AD C1
LED-G
LED-R

IRRX1
POWER

C443

1UF1 6V

DGND

R465

10K 1/16W 5%

R467 NC 100R 1/ 16W 5%

R468

100R 1/ 16W 5%

12

ZD404

MLVG0402

+3.3V_Standby

FB409

120R/ 6000mA

1 2

C441

12

C445

1N 50V

MLVG0402

DGND

1

2N3906S-R TK/PS

C446

1N 50V

ZD 403

+5V_Standby +5V_Standby

R466

10K 1/16W 5%

Q407

23

ZD405
MLVG0402

DGND

AGND

12

C440

1N 50V

C447

100nF 50V

1N 50V

12

ZD406

MLVG0402

R456
4K7 1/16W 1%

12

ZD402

MLVG0402

12

t

12

C442

100NF 16V

MLVG0402

R464

100OHM

TH4 01
0R4

ZD407
MLVG0402

+3.3V_Standby

R457
4K7 1/16W 1%

12

ZD 401

DGND

IRIN

CN404

R458
100OHM

R460
100OHM

C444

100NF 16V

67

1
2
3
4
5

CONN

KEY0-SAR 0IRRX1
KEY1-SAR 1

+3.3V_Standby

R461
200OHM1/16W

R462
200OHM1/16W

NC CONN

From Main Chip

KEY0-SAR 02
KEY1-SAR 12

IRIN2

LEDG2

LEDR2

R459

Q404

MMBT3906

Q405

MMBT3906

UART-TX2,4

UART-RX2, 4

45

CN405

4.7K

R476
NC/0R05 OHM

R463

4.7K

R477
NC/0R05 OHM

1
2
3

KEY0-SAR 0
KEY1-SAR 1

IRIN

LEDG

LEDR

LEDG

LEDR

LED-R
LED-G

DGND

R474

3.3K

R475
NC/3.3K

+3.3V_Standby

+3.3V_Standby

DGND DGND DGND DGND DGND

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

GXXXX-M0A-000-0040

09. Keypad/IR

50

DGND

OEM MODEL

TPV MODEL

PCB NAME

Sheet

NA

NA A

715GXXXX-M0A-000-0040

99Monday , Sept ember 24, 2012

of

Size

Rev

称爹

<

A4

称爹

>

8.2 Power Board

715G5930P01000002M

FB9903
BEAD

1 2

L9902
13mH

124

3

C9904
470NF 305V

C9902
470PF 250V

470PF 250V

124

C9908
470PF 250V

CAP004DG

1

NC

2

D1

3

D1
NC4NC

C9907
NC

R9902

510K +-1% 1/4W

R9905

1 2

CN9901
SOCKET

1

CN9905

NC/CONN

C9901
470NF 305V

IC9901

NC

D2
D2

NC

RV9901
NC

2

L9901
13mH

3

8
7
6
5

C9905
470PF 250V

FOR Q9101

NC

SG9901

R9904

NC

R9901

510K

FB9901
BEAD

1 2

t

NTCR

NR9901

1 2

F9901
FUSE

1 2

3 4

TS6B06G-01

C9903

HS9101

HEAT SINK

BD9901

-

4

R9906

NC

R9903

510K

1
2
3
4

2

+

1

3

FB9904
BEAD

CN9904
NC

1 2

2

N

1

L

NC

SG9904

NC

SG9902

12

FB9902
BEAD

C9912
470pF 250V

C9906
470pF 250V

C9911
470PF 250V

C9910
470PF 250V

FOR D9105 D9106

HS9102

HEAT SINK

R9145

100 OHM 1/4W

R9146

1 2

3

1

D9105

3

FMXA-2202S

1

R9147

NC/100 OHM 1%

C9133

NC/100N 50V

2

D9106
FME-220B

R9139
100 OHM 1/4W

R9140
100 OHM 1/4W

R9113
100 OHM 1/4W

R9114
100 OHM 1/4W

2

R9142

NC/1K OHM 1%

100 OHM 1/4W

NC/BZT52-B30

+

ZD9103

C9126

1NF 500V

C9127

1NF 500V

C9140

OVP

2N2 50V

2N2 50V

330UF 50V

C9142

C9143

+24VS

+

C9141

NC/330UF 50V

D9113

NC/RB160M

1 2

C9128
NC/33N 50V

1 2

+

C9135
680UF 25V

+

NC/200K 1/4W

R9131

1
2
3

C9109

330UF 50V

IC9151

GND
GND
SS
FLAG4EN

NC/PF8200S

12V

L9103

3.5uH

+

C9136
680UF 25V

Q9107

NC/P1604ETF

R9141
NC/100K

R9134

R9130

NC/10 OHM 1/4W

NC/10 OHM

8

VCC

7

GATE

6

ADJ

5

C9139

C9131

NC/1uF 50V

NC/1uF

C9125

NC/1N 50V

FB9908 BEAD

1 2

L9102
NC/3.5uH

NC/30K 1/8W 1%

C9134

NC/1N 50V

+

R9119

NC/20K 1% 1/8W

R9120
0R05 1/4W

R9150

R9151

NC/3K 1/8W +/ -1%

C9137

270UF 25V

+

C9111

+24VS

R9152

NC/20K OHM

IC9106

NC/KIA431AM-RTK-H

+24LED

100UF 50V

PS_ON

R9162
NC/1K OHM 1%

C9138

0.1UF 50V

NC

C9123

R9117

NC/91KOHM +-1% 1/8W

NC/1K OHM

R9115

10K 1/4W

Q9102
NC/2SA1797

R9160

+12V

C9112

0.1uF 50V

10K 1/4W

C9124

0.1uF 50V

R9116

10K 1/4W

R9143

R9136
NC

C9130
NC

R9144
NC/4K7 1/8W 1%

NC/1K OHM

R9159

C9115
1NF

1 2

2N2 500V

2N2 500V

FB9907
BEAD

C9117

C9120

HV

T9101

POWER X'FMR

6

5

4
2

1

R9112

3.3 OHM 1/4W

+12V&+24V

+12V

+24VS

R9127

9K1 1/8W 1%

R9128

110K 1/8W + /-1%

C9118
220N 50V

NC/PMBS3906

R9129
2K 1/8W 1%

11

8
9

10

NC/RB160M

OVP

Q9108

蛮舱癹甭

D9112

1N 50V

+

C9113

C9810

470uF/220V

C9104

C9106

470P 50V

1
2
3

IC9101
LD7752

CT
COMP
CS
GND4OUT

VCC

HV

100N 50V

3.3NF 500V

C9110

3.3NF 500V

8

6
5

C9105

R9109
470 OHM 1/4W

D9102
SS0520_R1

12

R9105

10 OHM

R9106
100R 1/8W 5%

C9114

1NF

R9101

6.8K 1/4W

R9102

6.8K 1/4W

R9103

6.8K 1/4W

C9108
47nF 50V

R9104
82KOHM +-5% 2WS

R9110
0R05 1/4W

R9108
0R05 1/4W

R9107
10K OHM +-5% 1/8W

R9135

5.1 OHM 1/4W

43

IC9102

PC123X8YFZOF

ZD9101

BZT52-B16

R9121
0R05 1/4W

R9118
0R05 1/4W

1 2

C9121

2N2 500V

D9101

1N4007

Q9101
TK5A50D

R9111

0.24 oHM 2W

12V

470 OHM +-1% 1/8W
R9124

12

IC9103
AS431AZTR-E1

+

C9122

2N2 500V

C9119
47pF

C9107

47UF 50V

R9125
2K 1/8W 1%

D9103
PR1007

OVP

R9126
1Kohm +-1% 1/ 4W

+12V锣+5.2V DC to DC

L9301

1 2

8
7
6
5

D9351
SK84C

R9360

0 OHM 1/8W

C9354

1N 50V

R9356
33K OHM

C9359 NC

15uH

5.1 OHM 1/4W

C9356

5.1 OHM 1/4W

C9355
1NF 50V

470UF 25V

C9357
NC/1UF

+

R9357
100KOHM +-5% 1/8W

R9354

R9355

+12V

FB9906
BEAD

C9351

2.2UF 25V

C9353
100N 50V

R9353

22 OHM 1/8W

IC9351
NR111D

1

BS

SS

2

VIN

EN

3

SW

ISET

GND4FB

12

+12VEN

470UF 25V

C9350

C9352

+

2.2UF 25V

FOR Q9107

NC/HS9103

1NF

1

C9144

2
3
4

1

HEAT SINK

FOR BD9901

HS9901
NC/HEAT SINK

1
2

+12VEN

2.5A

+5.2V

R9358

11K 1/8W 1%

C9358
1UF

R9359
2K 1/8W 1%

Vizio E320-A1(cost down)

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

02.POWER

Monday, February 18, 2013

Date

OEM MODEL

TPV MODE L

PCB NAME

Sheet

PLTVCL621XAO3G5930-P0B-000-0020

715G5930-P0B-000-0020

23

of

ON/OFF
DIM

PS_ON

ON/OFF

+12V

+12V

+5.2V

+12V

DIM

+24LED

170*180*25mm

Size

Rev

称爹

CN9902
CONN

13
12
11
10

9
8
7
6
5
4
3
2
1

CN9903
NC

12
11
10

9
8
7
6
5
4
3
2
1

01

<

称爹

>

51

+24LED

C8101

100UF 50V

VCC_1

FB

ZD8101

NC/BZ T52-B4V7

+

R8109
10R 1/8W 5%

DIMOUT

DIMOUT

1 2

C8105
NC

C8103

1uF

IC8101

PF

；

7903BS

C8109

NC/ 0.47UF 50V

C8108

0.1UF 50V

6

5

8

CS

OUT7VCC

GND

DIMOUT1GM2FB3OVP/DI M

4

R8102
47K 1/8W 1%

C8111
100N 50V

R8110

100R 1/8W 5%

R8111

10K OHM +-5% 1/8W

L8102

2

33UH

C8102
NC/ 100N 50V

FB

R8114
100R 1/8W 5%

4

R8104

22OHM +-5% 1/8W

D8101
1N4148W

R8108

C8110

330R 1/8W 5%

1NF 50V

LED_1

Q8102
PO320AL

4.7R 1%
R8115

R8105

2R2 +-5% 1/8W

ZD8102

BZT52-B22

1.8R

1.8R
R8120

HS8101
NC/HEAT SINK

1 2

1.8R

R8119

1
2

Q8101
PB210BTF

R8106

10K OHM +-5% 1/8W

R8107

0R1 5% 2W

R8118

ZD8103

NC/BZT52-B22

1 2

3

1

Q8103
2N7002

D8103
SP10100

2

1NF 50V

1NF
C8106

C8112

10K OHM +-5% 1/8W

+12V

R8103

+

C8107
47UF 100V

+

C8117
47UF 100V

R8101
10K OHM +-5% 1/8W

Q8104
PMBT3904

R8127
10K OHM +-5% 1/8W

R8116
330K 1% 1/8W

R8112
330K 1% 1/8W

R8117
22K 1%

R8113
1K OHM +-5% 1/8W

C8104
1nF 50V

LED_SOURCE

+12V

DIM

ON/OF F

100KOHM +-5% 1/8W

C8114

1uF

R8128
33K 1/4W

R8125

D8102
1N4148W

Q8106
PMBS3906

R8126
15K 1/8W 5%

C8113
100N 50V

R8124
51K +-5% 1/8W

Q8105
PMBS3904

LED_SOURCE

LED_SOURCE

+

C8115
47UF25V

LED_SOURCE

LED_1

For 29" use

LED_1

LED_1

For 32" use

VCC_1

CN8902

45

1
2
3

NC

CN8901
CONN

12
11
10

9
8
7
6
5
4
3
2
1

52

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

03. LED D RIVER

Thursday , Nov ember 22, 2012

Date

OEM MO DE L

TPV MO DE L

PCB NA ME

Sheet

Vizio E320-A1(cost down)

PLTVCL621XAO3G5930-P0B-000-0020

715G5930-P0B-000-0020

33

of

Size

170*180*25mm

Rev

称爹

01

<

称爹

>

8.3 Key Board

715G5711K01000004S

SW01

CN01

65

1
2
3
4

CONN

33G8032 4F HR

FUNC_KEY

PWR-SW

FUNC_KEY

R06
750OHM +- 1% 1/8W

R01

7K5 1/8W +/-1%

R02

2K7 1/8W 1%

R03

1K8 +/ -1% 1/8W

R04

1K 1/8W 1%

R05

750OHM +- 1% 1/8W

TACT SW FWRD H1.5MM

SW02

TACT SW FWRD H1.5MM

SW03

TACT SW FWRD H1.5MM

SW04

TACT SW FWRD H1.5MM

SW05

TACT SW FWRD H1.5MM

SW06

TACT SW FWRD H1.5MM

VOL+

VOL-

CH+

CH-

MENU

Source Select

2.48V~2.72V

2.04V~2.22V

1.58V~1.79V

1.24~1.45V

0.85V~1.02V

0.47V~0.63V

PWR-SW

R07
750OHM +- 1% 1/8W

SW07

TACT SW FWRD H1.5MM

77G 607 2 FD

絬 隔 瓜 絪 腹

Key Component

53

Power ON/OFF

T P V ( Top Victory Electronics Co . , Ltd. )

02-Keypad

Date

OEM MO D EL

TPV MODEL

PCB NAME

Sheet

A

称爹

<

Custom

>

Size

Rev

22Friday , April 27, 2012

of

称爹

8.4 IR Board

715G5671R01000004X

LED201

081G 14 24 EL

RED

033G8032 5F HR

CN201

67

1
2
3
4
5

CONN

LED_R

LED_B

IR

VCC

100R 1/10W 5%

R0603

R202 220 OHM 1/10W

R203 220 OHM 1/10W

R204

C201

2.2UF 16V

LED

R201

R0402

BLUE

VCC

1

23

U201

1

GND

2

GND

3

OUT

4

VCC

IRM-H 938M3 / TR2

4

15K 1/16W

change flat type emitting
terminal_120405 by Mars

10 mm

Top Vie w

SMD
LED

SMD IR

42.55mm

<

A

称爹

A

>

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

02-IR&LED

OEM MODEL

TPV MODEL

PCB NAME

Sheet

Size

Rev

of

22Friday , June 22, 2012

称爹

54

8.5 Daughter Board

715G5912T02000004S

CN002

CONN

3132

18

19

20

21

22

23

24

25

26

27

28

29

30

GND

TOCP_ 1

TOCN_1

GND

TOBP _1

TOBN_ 1

GND

TOAP _1

GND32

1

TOAN_ 1

1

3

GND

GND

TOAN_ 1

TOBP _1

GND10GND

TOCN_1

TOCLK P_1

TODN_1

13579111315171921232527293133

37

246

8

10121416182022242628303234

GND

GND

2

TOAP _1

TOBN_ 1

GND

TOCP_ 1

TOCLK N_1

TODP_ 1119

10

11

12

13

14

15

16

17

GND

GND

GND910

GND

TODP_ 1

TODN_1

GND

TOCLK P_1

TOCLK N_1

11

GND

GND

PANEL_VCC

PANEL_VCCPANEL_VCC

CN001

35

CONN

123456789

PANEL_VCC

PANEL_VCC

PANEL_VCC

PANEL_VCC

PANEL_VCC

38

36

GND

PANEL_VCC

PANEL_VCC

PANEL_VCC

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

02-Adapter

Date

OEM MO D EL

TPV MODEL

PCB NAME

Sheet

55

22

of

Size

Rev

称爹

<

A

称爹

A

>

9. Exploded View

56

Item Description

1 BEZEL

2 DECO_BEZEL

3 SPEAKER

4 PANEL

5 BKT_STAND

6 COVER_STAND

7 DECO_KEY

8 REAR_COVER

9 BASE

10 KEY BOARD

11 IR BOARD

12 MAIN BOARD

13 BKT_TOP

14 ADAPTER BOARD 20 LENS_POWER

15 BOLT 21 COVER_HINGE

16 BKT_BTM 22 BKT_STAND

17 INSULATING SHEET 23 BKT_STAND

19 LENS_IR 24 FOOT PAD

Item Description

57

10. BOM List

Note: The following information of initial version BOM are only for reference of repair, not place the order as the
basis and are subject to change without notice. Please base on RSPL or Service BOM (http://cs.tpv.com.cn) , thank
you!

E32DO1NCCQACNNX

Location Part No. Description Remark

036T 600 18129 NONWOVEN FABRTC
ECN601 095G8014 4D586 HARNESS 4P(PLUG)-B&R(650MM)+B&W(350MM)

0M1G 940 8125 SCREW M4X8
0M1G 940 16225 CR3 SCREW M1-MACHINE SCREW x16
0M1G1030 6 47 CR3 SCREW
0M1G1030 8 47 CR3 SCREW
0M1G1730 6120 SCREW 3x6
0M1G1730 8120 SCREW 3x8
0M1G1740 10225 CR3 SCREW M1-MACHINE SCREW x10.0
0Q1G 940 10 47 CR3 SCREW 4x10

SP01 378G0110617YAB 6 OHM 11W 132*34*33.5mm 0 NO
ECN002 395G176H030X07 FFC CABLE 30P 100 1.0MM
ECN701 395G801313DY29 HARNESS 13P-13P 260
ECN401 395G801410DY92 HARNESS 10P-5P+4P 600/700mm
ECN403 395G801836LY04 LVDS CABLE 30P-36P 320

708GJA660CPX03 AOC 40(654Philippines )
Q45G 77 5 PE PACKING
Q50G 4 10 TIE (Y1900221)
Q52G 1185 99 BIG CARTON TAPE FOR AOC 72MM
708GJA660CPX04 AOC 20 (315 Philippines)
Q45G 77 5 PE PACKING
Q50G 4 10 TIE (Y1900221)
Q52G 1185 99 BIG CARTON TAPE FOR AOC 72MM
756TXDCB01C0070000 MAIN BOARD-CBPFC3PDX6
SMTF-U402 100TAMVK003CTX MCU ASSY-356G223300200A
Z40G0002ALL01A SFIS Label 35mm*9mm

CN401 033G380210B YH L CONNECTOR 10P 2.0
C615 067G315M1016KV EC 100UF 20% 35V 8*7
C614 067G315M1016KV EC 100UF 20% 35V 8*7
C640 067G315M1016KV EC 100UF 20% 35V 8*7
CN103 088G 78G114ACL RCA JACK R/A YELLOW H=10.5
CN102 088G 78G155ACL RCA JACK R/A 13P G/BL/R/W/R 1*5 H=10.5
CN104 088G302G3G2ACL PHONE JACK R/A 3P GREEN H=10mm
CN101 088G302G7B1ACL PHONE JACK R/A 7P BLACK H=10.5
CN106 088G352F6B3ACL USB A TYPE R/A 6P BLACK H=8.4
CN105 088G353GFF1AXH D-SUB CONN 15P BLUE - R/A 10
TU101 094G PALALL10L TUNER China DT21WN-2-E
CN601 311GW200A04ABX WAFER 2.0mm 4P
CN403 311GW200C30ABL WAFER 2.0mm 2*15P
CN701 311GW250B13BBX WAFER 2.5mm 13P R/A 35mm 7mm
U703 056G 563143 C LDO G1084PT43U 5A ADJ TO-252
U101 056G 563149 IC G903T63UF 0.6A/3.3V SOT-223
U702 056G 563515 LDO AZ1117D-3.3TR/E1 1A/3.3V TO-252
U701 056G 563X04 DC/DC APW7323KAI-TRG 3.2A 5V SOP-8P
U601 056G 616 54 IC TPA3110D2 15W TSSOP-28
U602 056G 616516 AUDIO APA2176AQBITRG 0.27W TQFN3X3-16
Q403 057G 417511 MMBT3904

58

Q706 057G 417511 MMBT3904
Q101 057G 417511 MMBT3904
Q702 057G 417511 MMBT3904
D502 057G 417511 MMBT3904
Q601 057G 417511 MMBT3904
Q707 057G 417511 MMBT3904
D503 057G 417511 MMBT3904
Q703 057G 417511 MMBT3904
Q704 057G 417511 MMBT3904
Q705 057G 417511 MMBT3904
Q102 057G 417512 MMBT3906
Q405 057G 417512 MMBT3906
Q602 057G 417512 MMBT3906
Q404 057G 417512 MMBT3906
Q402 057G 417512 MMBT3906
Q401 057G 763 79 FET AO4449 -7A/-30V SOIC-8
Q701 057G 763940 MOSFET AO3401A SOT-23
R605 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R448 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R455 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R146 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R449 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R602 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R454 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA
R601 061G0402000 JI RST 0402 0.05R MAX 1/16W
R472 061G0402000 JI RST 0402 0.05R MAX 1/16W
R701 061G0402000 JI RST 0402 0.05R MAX 1/16W
R427 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R623 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R610 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R621 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R616 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R626 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R609 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R721 061G04021001FI RST 0402 1K 1% 1/16W TA-I
R622 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R604 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R401 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R705 061G0402101 JI bEST ONLY RST 0402 100R 5% 1/16W TA-I
R101 061G0402101 JI bEST ONLY RST 0402 100R 5% 1/16W TA-I
R510 061G0402101 JI bEST ONLY RST 0402 100R 5% 1/16W TA-I
R501 061G0402101 JI bEST ONLY RST 0402 100R 5% 1/16W TA-I
R514 061G0402101 JI bEST ONLY RST 0402 100R 5% 1/16W TA-I
R513 061G0402101 JI bEST ONLY RST 0402 100R 5% 1/16W TA-I
R143 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R625 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R458 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R145 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R460 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R613 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R464 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO
R405 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R434 061G0402102 JI RST 0402 1K 5% 1/16W TA-I
R702 061G0402102 JI RST 0402 1K 5% 1/16W TA-I

59

R711 061G0402102 JI RST 0402 1K 5% 1/16W TA-I
R712 061G0402102 JI RST 0402 1K 5% 1/16W TA-I
R707 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
R709 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
R704 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO
R726 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R611 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R443 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R628 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R441 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R618 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R713 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R629 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R627 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R612 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R714 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R722 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R136 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R137 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I
R120 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R507 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R121 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R131 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R116 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R506 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R117 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R436 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R728 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R144 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
R409 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R413 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R418 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R416 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R439 061G0402104 JI TEST ONLY RST 0402 100K 5% 1/16W TA-I
R720 061G0402104 JI TEST ONLY RST 0402 100K 5% 1/16W TA-I
R428 061G0402105 JF RST CHIPR 1MOHM 5% 1/16W FENGHUA
R403 061G0402105 JF RST CHIPR 1MOHM 5% 1/16W FENGHUA
R118 061G0402123 JF RST CHIPR 12KOHM +-5% 1/16W FENGHUA
R124 061G0402123 JF RST CHIPR 12KOHM +-5% 1/16W FENGHUA
R119 061G0402123 JF RST CHIPR 12KOHM +-5% 1/16W FENGHUA
R123 061G0402123 JF RST CHIPR 12KOHM +-5% 1/16W FENGHUA
R717 061G04021242FT RST 0402 12.4K 1% 1/16W TZAI YUAN
R725 061G0402153 JF RST CHIPR 15KOHM 1/16W FENGHUA
R606 061G0402201 JF RST CHIPR 200 OHM +-5% 1/16W FENGHUA
R603 061G0402201 JF RST CHIPR 200 OHM +-5% 1/16W FENGHUA
R461 061G0402201 JF RST CHIPR 200 OHM +-5% 1/16W FENGHUA
R462 061G0402201 JF RST CHIPR 200 OHM +-5% 1/16W FENGHUA
R531 061G0402201 JI RST 0402 200R 5% 1/16W
R103 061G0402221 JI RST 0402 220R 5% 1/16W
R406 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA
R719 061G04022401FI TEST ONLY RST 0402 2.4K 1% 1/16W TA-I
R111 061G0402330 JF RST CHIPR 33 OHM +-5% 1/16W FENGHUA
R102 061G0402330 JF RST CHIPR 33 OHM +-5% 1/16W FENGHUA
R104 061G0402330 JF RST CHIPR 33 OHM +-5% 1/16W FENGHUA

60

R106 061G0402330 JF RST CHIPR 33 OHM +-5% 1/16W FENGHUA
R113 061G0402330 JF RST CHIPR 33 OHM +-5% 1/16W FENGHUA
R135 061G0402330 JI RST 0402 33R 5% 1/16W
R129 061G0402330 JI RST 0402 33R 5% 1/16W
R122 061G0402330 JI RST 0402 33R 5% 1/16W
R127 061G0402330 JI RST 0402 33R 5% 1/16W
R133 061G0402330 JI RST 0402 33R 5% 1/16W
R126 061G0402330 JI RST 0402 33R 5% 1/16W
R475 061G0402332 JI RST 0402 3.3K 5% 1/16W
R114 061G0402333 JF ST CHIP 33K 1/16W 5% FENGHUA
R456 061G04024701FF RST 0402 4.7K 1% 1/16W
R457 061G04024701FF RST 0402 4.7K 1% 1/16W
R404 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R716 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R424 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R723 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R421 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R727 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R442 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R142 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R422 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R431 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R423 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R141 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R420 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R419 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R463 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R710 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R459 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R502 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I
R504 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I
R508 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I
R512 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I
R473 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I
R729 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I
R509 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I
R511 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I
R105 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO
R523 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F
R520 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F
R525 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F
R526 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F
R521 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F
R528 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F
R139 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F
R524 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F
R515 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F
R530 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F
R516 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F
R519 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F
R522 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F
R527 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F
R517 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F
R529 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F

61

R138 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F
R518 061G04024998FT RST 0402 4.99R 1% 1/16W SMD04024R99F
R407 061G0402510 JF RST CHIP 51R 1/16W 5% FENGHUA
R435 061G0402510 JF RST CHIP 51R 1/16W 5% FENGHUA
R140 061G0402511 JI RST 0402 510R 5% 1/16W
R132 061G0402680 JI RST 0402 68R 5% 1/16W
R134 061G0402680 JI RST 0402 68R 5% 1/16W
R410 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO
R412 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO
R415 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO
R624 061G04026801FF RST CHIPR 6.8K +-1% 1/16W FENGHUA
R715 061G04027501FI TEST ONLY RST 0402 7.5K 1% 1/16W TA-I
FB408 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R607 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R608 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R503 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R505 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R109 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO
R112 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO
R110 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO
R115 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO
R107 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO
R108 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO
R125 061G06037509FI RST 0603 75R 1% 1/10W
R128 061G06037509FI RST 0603 75R 1% 1/10W
R130 061G06037509FI RST 0603 75R 1% 1/10W
R437 061G08050004JT RST CHIPR 0805 0 OHM 4A
R620 061G1206100 JF RST CHIPR 10 OHM +-5% 1/4W FENGHUA
R718 061G1206229 JY RST 1206 2.2R 5% 1/4W
C404 065G040210232K A CAP 0402 1NF 10% 50V X7R
C619 065G040210232K A CAP 0402 1NF 10% 50V X7R
C639 065G040210232K A CAP 0402 1NF 10% 50V X7R
C107 065G040210232K T CAP 0402 1nF 10% 50V X7R UMK105 B7102KV
C121 065G040210232K T CAP 0402 1nF 10% 50V X7R UMK105 B7102KV
C133 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C440 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C445 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C441 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C132 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C446 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C444 065G040210412K F CAP 0402 100NF 10% 16V X7R
C707 065G040210412K F CAP 0402 100NF 10% 16V X7R
C714 065G040210412K F CAP 0402 100NF 10% 16V X7R
C141 065G040210412K F CAP 0402 100NF 10% 16V X7R
C437 065G040210412K F CAP 0402 100NF 10% 16V X7R
C701 065G040210412K F CAP 0402 100NF 10% 16V X7R
C724 065G040210412K F CAP 0402 100NF 10% 16V X7R
C442 065G040210412K F CAP 0402 100NF 10% 16V X7R
C601 065G040210412K F CAP 0402 100NF 10% 16V X7R
C703 065G040210412K F CAP 0402 100NF 10% 16V X7R
C715 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C103 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C418 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C421 065G040210412K Y CAP 0402 100NF 10% 16V X7R

62

C422 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C434 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C429 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C716 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C101 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C128 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C416 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C125 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C417 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C427 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C435 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C137 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C134 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C428 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C420 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C423 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C412 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C424 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C419 065G040210412K Y CAP 0402 100NF 10% 16V X7R
C405 065G0402105A5K T CAP 0402 1uF 10% 10V X5R LMK105 BJ105KV
C131 065G0402105A5K T CAP 0402 1uF 10% 10V X5R LMK105 BJ105KV
C104 065G0402105A5K T CAP 0402 1uF 10% 10V X5R LMK105 BJ105KV
C609 065G040215232K Y CAP CHIP 0402 1.5NF 50V X7R
C605 065G040215232K Y CAP CHIP 0402 1.5NF 50V X7R
C406 065G040218131J F CAP 0402 180PF 5% 50V NP0
C411 065G040218131J F CAP 0402 180PF 5% 50V NP0
C414 065G040218131J F CAP 0402 180PF 5% 50V NP0
C409 065G040218131J F CAP 0402 180PF 5% 50V NP0
C436 065G040222031J A CAP 0402 22PF J 50V NPO
C108 065G040222031J T CAP 0402 22pF 5% 50V NP0 UMK105 CG220JV
C140 065G040222322K F CAP 0402 22NF 10% 25V X7R
C425 065G040227031J F CAP 0402 27PF 5% 50V NP0
C430 065G040227031J F CAP 0402 27PF 5% 50V NP0
C136 065G040233031J F CAP 0402 33PF 5% 50V NP0
C637 065G040233131J T CAP CHIP 0402 330PF 50V J NPO
C630 065G040233131J T CAP CHIP 0402 330PF 50V J NPO
C623 065G040233131J T CAP CHIP 0402 330PF 50V J NPO
C626 065G040233131J T CAP CHIP 0402 330PF 50V J NPO
C119 065G040247131J A CAP CHIP 0402 470PF J 50V NPO
C114 065G040247131J A CAP CHIP 0402 470PF J 50V NPO
C118 065G040247131J A CAP CHIP 0402 470PF J 50V NPO
C113 065G040247131J A CAP CHIP 0402 470PF J 50V NPO
C117 065G040247312K A CAP 0402 47NF 10% 16V X7R
C122 065G040247312K A CAP 0402 47NF 10% 16V X7R
C408 065G040247312K A CAP 0402 47NF 10% 16V X7R
C106 065G040247312K A CAP 0402 47NF 10% 16V X7R
C105 065G040247312K A CAP 0402 47NF 10% 16V X7R
C120 065G040247312K A CAP 0402 47NF 10% 16V X7R
C449 065G040247312K A CAP 0402 47NF 10% 16V X7R
C110 065G040247312K A CAP 0402 47NF 10% 16V X7R
C102 065G040247312K A CAP 0402 47NF 10% 16V X7R
C410 065G040247312K A CAP 0402 47NF 10% 16V X7R
C407 065G040247312K A CAP 0402 47NF 10% 16V X7R
C433 065G040247505M M CAP 0402 4.7UF 20% 6.3V X5R

63

C135 065G040256031J A CAP 0402 56PF 5% 50V NP0
C613 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C618 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C638 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C725 065G060310512K M CAP 0603 1UF 10% 16V X7R
C604 065G060310512K T CAP 0603 1UF 10% 16V X7R
C607 065G060310512K T CAP 0603 1UF 10% 16V X7R
C712 065G060310512K T CAP 0603 1UF 10% 16V X7R
C606 065G060310512K T CAP 0603 1UF 10% 16V X7R
C718 065G060310512K T CAP 0603 1UF 10% 16V X7R
C443 065G060310512K T CAP 0603 1UF 10% 16V X7R
C431 065G060310605M M CAP 0603 10UF 20% 6.3V X5R
C426 065G060310605M M CAP 0603 10UF 20% 6.3V X5R
C415 065G060310605M M CAP 0603 10UF 20% 6.3V X5R
C413 065G060310605M M CAP 0603 10UF 20% 6.3V X5R
C616 065G060322422K T CAP CHIP0603 220NF K 25V X7R
C622 065G060322422K T CAP CHIP0603 220NF K 25V X7R
C633 065G060322422K T CAP CHIP0603 220NF K 25V X7R
C635 065G060322422K T CAP CHIP0603 220NF K 25V X7R
C401 065G060322422K Y CAP 0603 220N 25V X7R 10%
C402 065G060322515K A 0603 2.2UF K 16V X5R
C130 065G060322515K A 0603 2.2UF K 16V X5R
C403 065G060322515K A 0603 2.2UF K 16V X5R
C610 065G060322515K A 0603 2.2UF K 16V X5R
C111 065G0603225A5K M CAP MLCC 0603 2.2uF K 10V X5R
C115 065G0603225A5K M CAP MLCC 0603 2.2uF K 10V X5R
C112 065G0603225A5K M CAP MLCC 0603 2.2uF K 10V X5R
C116 065G0603225A5K M CAP MLCC 0603 2.2uF K 10V X5R
C709 065G0603475A5K M CAP CHIP 0603 4.7UF K 10V X5R
C705 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C632 065G080510532K A CAP 0805 1UF 10% 50V X7R
C631 065G080510532K A CAP 0805 1UF 10% 50V X7R
C627 065G080510532K A CAP 0805 1UF 10% 50V X7R
C629 065G080510532K A CAP 0805 1UF 10% 50V X7R
C634 065G080510532K A CAP 0805 1UF 10% 50V X7R
C621 065G080510532K A CAP 0805 1UF 10% 50V X7R
C624 065G080510532K A CAP 0805 1UF 10% 50V X7R
C602 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C109 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C710 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C611 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C127 065G0805106A5K T CAP 0805 10uF 10% 10V X5R LMK212 BJ106K
C636 065G080522432K A CAP 0805 220NF 10% 50V X7R
C620 065G080522432K A CAP 0805 220NF 10% 50V X7R
C625 065G080522432K A CAP 0805 220NF 10% 50V X7R
C628 065G080522432K A CAP 0805 220NF 10% 50V X7R
C717 065G1206226A5K A 1206 22UF K 10V X5R
C719 065G1206226A5K A 1206 22UF K 10V X5R
C704 067G311R1004CT EC SMD 10UF 20% 25V ZV 4*5.5
C708 067G311R1013CT EC SMD 100UF 20% 16V ZV 6.3*5.5
C711 067G311R1013CT EC SMD 100UF 20% 16V ZV 6.3*5.5
C713 067G311R1013CT EC SMD 100UF 20% 16V ZV 6.3*5.5
C722 067G311R1013CT EC SMD 100UF 20% 16V ZV 6.3*5.5
C721 067G311R1013CT EC SMD 100UF 20% 16V ZV 6.3*5.5

64

C126 067G311R1013CT EC SMD 100UF 20% 16V ZV 6.3*5.5
C129 067G311R1013CT EC SMD 100UF 20% 16V ZV 6.3*5.5
C438 067G311R1013CT EC SMD 100UF 20% 16V ZV 6.3*5.5
C450 067G311R1013CT EC SMD 100UF 20% 16V ZV 6.3*5.5
C450 067G311R1013LT EC SMD 100UF 20% 16V 6.3*5.3
C129 067G311R1013LT EC SMD 100UF 20% 16V 6.3*5.3
C126 067G311R1013LT EC SMD 100UF 20% 16V 6.3*5.3
C438 067G311R1013LT EC SMD 100UF 20% 16V 6.3*5.3
C711 067G311R1013LT EC SMD 100UF 20% 16V 6.3*5.3
C708 067G311R1013LT EC SMD 100UF 20% 16V 6.3*5.3
C713 067G311R1013LT EC SMD 100UF 20% 16V 6.3*5.3
C722 067G311R1013LT EC SMD 100UF 20% 16V 6.3*5.3
C721 067G311R1013LT EC SMD 100UF 20% 16V 6.3*5.3
FB101 071G 56D102 MA CHIP BEAD 1000ohm 0805 1A
FB701 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB603 071G 56K121 TA CHIP BEAD 120R/6000mA HCB2012KF-121T60
FB409 071G 56K121 TA CHIP BEAD 120R/6000mA HCB2012KF-121T60
FB401 071G 59A121 TA CHIP BEAD 120R/3000mA HCB1608KF-121T30
FB407 071G 59C600 TA CHIP BEAD 0603 60R 25% 600mA
FB404 071G 59C600 TA CHIP BEAD 0603 60R 25% 600mA
FB403 071G 59C600 TA CHIP BEAD 0603 60R 25% 600mA
FB402 071G 59C600 TA CHIP BEAD 0603 60R 25% 600mA
FB405 071G 59C600 TA CHIP BEAD 0603 60R 25% 600mA
FB406 071G 59C600 TA CHIP BEAD 0603 60R 25% 600mA
FB601 071G 59G301 M CHIP BEAD 0603 300R 25% 200mA
FB102 071G 59G301 M CHIP BEAD 0603 300R 25% 200mA
FB602 071G 59G301 M CHIP BEAD 0603 300R 25% 200mA
L102 073G 6310910M CHIP INDUCTOR 1UH 10% 0.6R 25mA
L101 073G 6310910M CHIP INDUCTOR 1UH 10% 0.6R 25mA
L104 073G 63229 TA CHIP INDUCROR 2.2uH 10% FCI1608F-2R2K
L103 073G 63229 TA CHIP INDUCROR 2.2uH 10% FCI1608F-2R2K
L701 073G253S 68 H SMD CHOKE 2.2UH 30% 2.04A 0.031R SPI530L
CN502 088G 34019K AV HDMI HEADER R/A 19P BLACK H=8.4
CN501 088G 34019K AV HDMI HEADER R/A 19P BLACK H=8.4
D401 093G 6433P BAV99
X401 093G 22SX02 YC CRYSTAL YC 49U/SMD 24MHz 20PPM 18PF
ZD505 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD105 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD501 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD506 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD504 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD117 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD118 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD102 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD104 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD106 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD111 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD507 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD115 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD402 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD103 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD113 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD503 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD112 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ

65

ZD403 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD401 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD116 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD502 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD114 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD109 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD101 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD107 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD108 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD110 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
CN405 311GW200B03ADH WAFER 2.0mm 3P A2001WR-S-03PD01
U401 356G0568128019 SCALER MST6931XP-Z1-VB EPLQFP-128
U704 356G0667023 Power Switch APL3511CBI-TRG SOT23-5 15
U402 356G223300200A FLASH W25Q32FVSSIG 32M SOP-8
L603 373G253S089H01 SMD CHOKE 22UH 20% 2.2A 73.3mΩ SPI75
L604 373G253S089H01 SMD CHOKE 22UH 20% 2.2A 73.3mΩ SPI75
L602 373G253S089H01 SMD CHOKE 22UH 20% 2.2A 73.3mΩ SPI75
L601 373G253S089H01 SMD CHOKE 22UH 20% 2.2A 73.3mΩ SPI75
D401 393G006433P0HF HF BAV99_R1_00001 0.5A 100V SOT-23
E715 715G5740M01000004K MAIN BOARD PCB
X12G8001 1 BGP HEAT PAD
HS401 X90G8014 1 HEAT SINK
IRPFCXAG IR BOARD
CN201 033G8032 5F B CONN 1.25mm 5P R/A 11.2mm 5.7mm
CN201 033G8032 5F X WAFER 1.25mm 5P R/A S1315-05RVB-S01-K
R201 061G0402153 JI RST 0402 15K 5% 1/16W
R204 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R202 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R203 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
C201 065G060322515K T CAP 0603 2.2UF 10% 16V X5R
LED201 081G 14 24 EL CHIP LED BLUE/DARK RED
LED201 081G 14 24 GP CHIP LED (BR) GPTD1210BRC-D
U201 356GS927057 IR RECEIVER IRM-H938M3/TR2 38 KHZ 6V
E715 715G5671R01000004X IR BOARD PCB
KEPFCXAE KEY BOARD
CN01 033G8032 4F B CONN 1.25mm 4P R/A 9.95mm 5.7mm
CN01 033G8032 4F X WAFER 1.25mm 4P R/A S1315-04RVB-S01-K
R04 061G08051001FT RST CHIP 1K 1/8W 1%
R03 061G08051801FY RST CHIP R 1K8 +/-1% 1/8W
R02 061G08052701FY RST CHIP 2K7 1/8W 1%
R06 061G08057500FF RST CHIPR 750 OHM +-1% 1/8W FENGHUA
R05 061G08057500FF RST CHIPR 750 OHM +-1% 1/8W FENGHUA
R07 061G08057500FF RST CHIPR 750 OHM +-1% 1/8W FENGHUA
R01 061G08057501FY RST CHIP R 7K5 1/8W +/-1%
SW04 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL
SW03 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL
SW06 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL
SW02 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL
SW05 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL
SW01 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL
SW07 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL
SW05 077G 607 2 HC TACT SW 4P 1.5mm 160g TS-4402-1.58B-01
SW02 077G 607 2 HC TACT SW 4P 1.5mm 160g TS-4402-1.58B-01
SW01 077G 607 2 HC TACT SW 4P 1.5mm 160g TS-4402-1.58B-01

66

SW04 077G 607 2 HC TACT SW 4P 1.5mm 160g TS-4402-1.58B-01
SW03 077G 607 2 HC TACT SW 4P 1.5mm 160g TS-4402-1.58B-01
SW06 077G 607 2 HC TACT SW 4P 1.5mm 160g TS-4402-1.58B-01
SW07 077G 607 2 HC TACT SW 4P 1.5mm 160g TS-4402-1.58B-01

709T57110XS001 COMSUMPTIVE ASSY
Q05G6054 1 SHEET
Q09G6012 1 PIN

E715 715G5711K01000004S KEY BOARD PCB
E715 715G5711K01000004X KEY BOARD PCB 2nd source
E750 LCO3151A042ADH910X PANEL TPT315B5-A042 21A XM TPV

P12G6311010 RUBBER PAD SILICONE
P33T0408ADT01L0200 DECO_KEY
P33T04180ED01C0100 LENS_IR
P33T041900101C0100 LENS_POWER
P34T12010GMY3K01BC REAR_COVER
P34T12050GM01K0100 COVER_STAND
P34T1237ADTA1L01BA DECO_BEZEL
P34T1238ADT01L0100 COVER_HINGE
P34T1239ADT01L01BA BASE
PLTVCL661XXT6 ADAPTER BOARD 715G5930P0C0000020
Z40G0002ALL01A SFIS Label 35mm*9mm

CN8901 033G380212B YH wafer 12P 2.0 DIP
IC9102 056G 139 3B PC123Y82FZOF SHARP
RV9901 061G 46621 P VARISTOR 620V 10% 16*7
FB9904 071G 55 21 H1 BEAD 6.0*10 700R 25% BF-I60100R-706B
FB9903 071G 55 21 H1 BEAD 6.0*10 700R 25% BF-I60100R-706B
FB9902 071G 55 21 H1 BEAD 6.0*10 700R 25% BF-I60100R-706B
FB9901 071G 55 21 H1 BEAD 6.0*10 700R 25% BF-I60100R-706B
L9902 073G 174106 LP LINE FILTER 13mH MIN VOC
L9901 073G 174106 LP LINE FILTER 13mH MIN VOC
L8102 073G 174259 X BOOST CHOKE 33UH 10% 3LCEE13-330K EE13
L9103 073G 253 91 V CHOKE COIL 3.5uH+-10%
CN9901 087G 50147D DL AC R/A 2P 12.8mm
BD9901 093G 50460925 BRIDGE TS6B06G-01 6A 800V KBJ
D8103 093G 60267 SCHOTTKY SP10100 10A 100V TO-220F
0Q1G 340 8140 SCREW Q1-SELF TAPING SCREW :Q x8.0
CN9902 311GW250B13BBX WAFER 2.5mm 13P R/A 35mm 7mm
IC9351 356GD563008116 DC/DC NR111D 4A 35V DIP-8
Q8101 357G0600100011 MOSFET PB210BTF 8A 100V TO-220F
NR9901 361G0058309MEW007A NTCR 3R 20% 3.6W SCK15037MJY501
C9904 363G107M334BAC CAP X2 330nF 20% 275V 18*12.5*9 R46KI33
C9901 363G107M334BAC CAP X2 330nF 20% 275V 18*12.5*9 R46KI33
C9901 363G107M334BEC CAP X2 330NF 20% 275V 18*7*12.5 B32922E2
C9904 363G107M334BEC CAP X2 330NF 20% 275V 18*7*12.5 B32922E2
C9810 367G315X151PKZ000S EC 150uF 20% 450V 18*45 3000 hr 1200mA -
L9301 373G0253259H00 CHOKE COIL 15uH 20% 2.5A L150B HA
T9101 380GL32P125N00 X'FMR 300uH 10% 6uH ERL28 YUVA-2016-9
705TXD57001 Q9101 Assy
HS9101 090G6241 1 GP HEAT SINK
0M1G1730 8120 SCREW 3x8
Q9101 357G0667650004 MOSFET TK8A65D(STA4,X,M) 8A 650V SC-67

705TXD84001 F9901 Assy
084G 34 14 FUSE -- -- --

F9901 084G 41 4 FUSE 250V 4A

67

705TXD93001 D9105+D9106 Assy
HS9102 090G6241 1 GP HEAT SINK
D9105 093G 52 57 RECTIFIER FMXA-2202S 20A 200V TO-220F
D9106 093G 60258 DIODE FME-220B TO-220 SANKEN
0M1G1730 8120 SCREW 3x8
Q8105 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q8106 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q8104 057G 417 18 T PMBT3904 SOT-23
Q8103 057G 759 2A HF TANSISTOR 2N7002H SOT-23
Q8102 057G 763992 MOSFET P0320AL 1A 200V SOT-223
R9360 061G0805000 JI RST 0805 MAX0.05R 5% 1/8W TA-I
R8109 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA
R8109 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN
R9106 061G0805101 JF RST 0805 100R 5% 1/8W
R8110 061G0805101 JF RST 0805 100R 5% 1/8W
R8114 061G0805101 JF RST 0805 100R 5% 1/8W
R9106 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN
R8114 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN
R8110 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN
R8113 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R8113 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R9107 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R8127 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R8106 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R8101 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R8103 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R8111 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R8101 061G0805103 JT RST 0805 10K 5% 1/8W
R8127 061G0805103 JT RST 0805 10K 5% 1/8W
R8106 061G0805103 JT RST 0805 10K 5% 1/8W
R9107 061G0805103 JT RST 0805 10K 5% 1/8W
R8111 061G0805103 JT RST 0805 10K 5% 1/8W
R8103 061G0805103 JT RST 0805 10K 5% 1/8W
R9357 061G0805104 JF RST CHIPR 100KOHM +-5% 1/8W FENGHUA
R8125 061G0805104 JF RST CHIPR 100KOHM +-5% 1/8W FENGHUA
R8125 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN
R9357 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN
R9358 061G08051102FT RST 0805 11K 1% 1/8W SMD0805011KF
R9128 061G08051103FF RST CHIPR 110KOHM +-1% 1/8W FENGHUA
R9128 061G08051103FT RST CHIP R 110K 1/8W +/-1%
R8126 061G0805153 JF RST CHIPR 15K +-5% 1/8W FENGHUA
R8126 061G0805153 JT RST CHIP 15K 1/8W 5% TZAI YUAN
R9129 061G08052001FF RST CHIPR 2KOHM +-1% 1/8W FENGHUA
R9125 061G08052001FF RST CHIPR 2KOHM +-1% 1/8W FENGHUA
R9359 061G08052001FF RST CHIPR 2KOHM +-1% 1/8W FENGHUA
R9129 061G08052001FT RST CHIP 2K 1/8W 1%
R9125 061G08052001FT RST CHIP 2K 1/8W 1%
R9359 061G08052001FT RST CHIP 2K 1/8W 1%
R8104 061G0805220 JF RST CHIPR 22 OHM +-5% 1/8W FENGHUA
R9353 061G0805220 JI RST 0805 22R 5% 1/8W
R8104 061G0805220 JT RST CHIPR 22OHM +-5% 1/8W TZAI YUAN
R8105 061G0805229 JF RST CHIPR 2R2 +-5% 1/8W FENGHUA
R8105 061G0805229 JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN
R8112 061G08053303FF RST CHIP 330K 1/8W 1%

68

R8116 061G08053303FF RST CHIP 330K 1/8W 1%
R8116 061G08053303FT RST CHIP 330K 1% 1/8W
R8112 061G08053303FT RST CHIP 330K 1% 1/8W
R8108 061G0805331 JF RST CHIPR 330 OHM +-5% 1/8W FENGHUA
R8108 061G0805331 JT RST CHIP 330R 1/8W 5% TZAI YUAN
R9356 061G0805333 JI RST CHIPR 33KOHM +-5% 1/8W 0805
R9124 061G08054700FF RST 0805 470R 1% 1/8W
R9124 061G08054700FT RST CHIP 470R 1/8W 1%
R8102 061G08054702FF RST CHIPR 47KOHM +-1% 1/8W FENGHUA
R8102 061G08054702FT RST CHIP 47K 1/8W 1%
R8124 061G0805513 JF RST CHIPR 51KOHM +-5% 1/8W FENGHUA
R8124 061G0805513 JT RST CHIPR 51K +-5% 1/8W TZAI YUAN
R9127 061G08059101FF RST CHIPR 9.1KOHM +-1% 1/8W FENGHUA
R9127 061G08059101FT RST CHIP 9K1 1/8W 1%
JR905 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR904 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR906 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R9108 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R9121 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R9118 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R9110 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R9108 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R9118 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R9121 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR905 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR904 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR906 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R9110 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R9126 061G12061001FF RST CHIPR 1KOHM +-1% 1/4W FENGHUA
R9126 061G12061001FT RST CHIP R 1Kohm +-1% 1/4W
R8115 061G12061009FT RST CHIP R 10ohm 1/4W +/-1%
R8115 061G12061009FY RST CHIPR 10OHM 1% 1/4W YAGEO
R9146 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R9114 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R9145 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R9113 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R9140 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R9139 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R9139 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R9114 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R9146 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R9113 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R9140 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R9145 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R9117 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA
R9115 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA
R9116 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA
R9116 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
R9115 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
R9117 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
R8119 061G1206189 FT RST 1206 1.8R 1% 1/4W
R8120 061G1206189 FT RST 1206 1.8R 1% 1/4W
R8118 061G1206189 FT RST 1206 1.8R 1% 1/4W
R8117 061G12062202FF RST 1206 22K 1% 1/4W FENGHUA

69

R8117 061G12062202FT RST 1206 22K 1% 1/4W TZAI YUAN
R8128 061G1206333 JF RST CHIPR 33KOHM +-5% 1/4W FENGHUA
R9112 061G1206339 JF RST CHIPR 3.3 OHM +-5% 1/4W FENGHUA
R9112 061G1206339 JT RST CHIPR 3.3 OHM +-5% 1/4W TZAI YUAN
R9109 061G1206471 JF RST CHIPR 470 OHM +-5% 1/4W FENGHUA
R9109 061G1206471 JT RST CHIPR 470 OHM +-5% 1/4W TZAI YUAN
R9903 061G1206514 JF E RST CHIP 510K 5% 1/4W 500V FENGHUA
R9901 061G1206514 JF E RST CHIP 510K 5% 1/4W 500V FENGHUA
R9902 061G1206514 JF E RST CHIP 510K 5% 1/4W 500V FENGHUA
R9902 061G1206514 JK E HITACHI-Assign RST CHIP 510K 5% 1/4W
R9901 061G1206514 JK E HITACHI-Assign RST CHIP 510K 5% 1/4W
R9903 061G1206514 JK E HITACHI-Assign RST CHIP 510K 5% 1/4W
R9135 061G1206519 JF RST CHIPR 5.1OHM +-5% 1/4W FENGHUA
R9354 061G1206519 JT RST CHIPR 5.1 OHM +-5% 1/4W TZAI YUAN
R9355 061G1206519 JT RST CHIPR 5.1 OHM +-5% 1/4W TZAI YUAN
R9135 061G1206519 JT RST CHIPR 5.1 OHM +-5% 1/4W TZAI YUAN
R9101 061G1206682 JF RST CHIPR 6.8KOHM +-5% 1/4W FENGHUA
R9102 061G1206682 JF RST CHIPR 6.8KOHM +-5% 1/4W FENGHUA
R9103 061G1206682 JF RST CHIPR 6.8KOHM +-5% 1/4W FENGHUA
R9102 061G1206682 JT RST CHIPR 6.8 KOHM +-5% 1/4W TZAI YUAN
R9101 061G1206682 JT RST CHIPR 6.8 KOHM +-5% 1/4W TZAI YUAN
R9103 061G1206682 JT RST CHIPR 6.8 KOHM +-5% 1/4W TZAI YUAN
C8104 065G060310232K F CAP CHIP 0603 1NF K 50V X7R
C8104 065G060310232K Y CAP CHIP 0603 1N 50V X7R +/-10%
C8110 065G080510231J F CAP 0805 1NF 5% 50V NPO
C8112 065G080510231J F CAP 0805 1NF 5% 50V NPO
C8110 065G080510231J M CAP 0805 1NF 5% 50V NP0
C8112 065G080510231J M CAP 0805 1NF 5% 50V NP0
C9113 065G080510232K F CAP 0805 1000PF 10% 50V X7R
C9354 065G080510232K F CAP 0805 1000PF 10% 50V X7R
C9355 065G080510232K F CAP 0805 1000PF 10% 50V X7R
C9355 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C9354 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C9113 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C9112 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C9124 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C8113 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9112 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9124 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8108 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9353 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C8111 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9138 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9105 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9138 065G080510432K T 0.1UF K 50V X7R TAIYO YUDEN
C8108 065G080510432K T 0.1UF K 50V X7R TAIYO YUDEN
C9105 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8111 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9353 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8113 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9358 065G080510522K M CAP 0805 1UF 10% 25V X7R
C9358 065G080510522K T CAP 0805 1UF 10% 25V X7R
C8103 065G080510532K M CAP 0805 1UF 10% 50V X7R
C8114 065G080510532K M CAP 0805 1UF 10% 50V X7R

70

C8103 065G080510532K T CAP 0805 1UF 10% 50V X7R
C8114 065G080510532K T CAP 0805 1UF 10% 50V X7R
C9142 065G080522232K F CAP 0805 2.2NF 10% 50V X7R
C9143 065G080522232K F CAP 0805 2.2NF 10% 50V X7R
C9142 065G080522232K Y CAP CHIP 0805 2N2 50V X7R +/-10%
C9143 065G080522232K Y CAP CHIP 0805 2N2 50V X7R +/-10%
C9118 065G080522432K F CAP 0805 220NF 10% 50V X7R
C9118 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%
C9351 065G080522522K M CAP 0805 2.2UF 10% 25V X7R
C9106 065G080547131J F CAP CHIP 0805 470PF J 50V NPO
C9106 065G080547131J Y CAP CHIP 0805 470P 50V NPO +/-5%
C9108 065G080547332K F CAP CHIP 0805 47NF K 50V X7R
C9127 065G120610272K F CAP 1206 1NF 10% 500V X7R
C9126 065G120610272K F CAP 1206 1NF 10% 500V X7R
C9126 065G120610272K Y CAP 1206 1NF 10% 500V X7R
C9127 065G120610272K Y CAP 1206 1NF 10% 500V X7R
C9120 065G120622272K F CAP 1206 2.2NF 10% 500V X7R
C9121 065G120622272K F CAP 1206 2.2NF 10% 500V X7R
C9122 065G120622272K F CAP 1206 2.2NF 10% 500V X7R
C9117 065G120622272K F CAP 1206 2.2NF 10% 500V X7R
C9117 065G120622272K Y CER 1206 2N2 500V X7R 10%
C9122 065G120622272K Y CER 1206 2N2 500V X7R 10%
C9120 065G120622272K Y CER 1206 2N2 500V X7R 10%
C9121 065G120622272K Y CER 1206 2N2 500V X7R 10%
C9110 065G120633272K F CAP CHIP 1206 3.3NF K 500V X7R
C9104 065G120633272K F CAP CHIP 1206 3.3NF K 500V X7R
C9104 065G120633272K Y CAP CHIP 1206 3.3NF K 500V X7R
C9110 065G120633272K Y CAP CHIP 1206 3.3NF K 500V X7R
IC9101 356G0379007220 AC/DC LD7752 GR SOP7
IC8101 356G0700008054 LED DRIVER PF7903BS SOP8
D8102 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123
D8101 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123
ZD8102 393G039SA1200T ZENER BZT52-B22 22V 0.41W SOD-123 150C
ZD9101 393G039SA1400T ZENER BZT52-B16_R1_00001 16V 0.41W
D9351 393G060SA0300T RECTIFIER SK84C 8A 40V DC-214AB/SMC
FOR T9101 006G 31 4 1.7MM RIVET

FOR
CN9901

FOR L9902 006G 31502 EYELET
FOR L9901 006G 31502 EYELET
IC9103 056G 158 10 T DC/DC AS431AZTR-E1 150MA 40V TO-92
R8107 061G152M10852T SY RST MOF 0R1 5% 2W
R9111 061G152M24852T SY RST MOFR 0.24OHM +-5% 2WS SY
R9104 061G152M82352T SY RST MOFR 82KOHM +-5% 2WS FUTABA
C9144 065G 1K10223T CAP CER 1NF 10% 1KV Y5P
C9115 065G 1K1029ST CAP CER 1NF 10% 1KV R
C9114 065G 1K1029ST CAP CER 1NF 10% 1KV R
C9119 065G 1K470 2T6921 CAP CER 47pF K 1KV
C9902 065G306K47123R CAP Y1 470PF 10% 250V Y5P
C9903 065G306K47123R CAP Y1 470PF 10% 250V Y5P
C9906 065G306K47123R CAP Y1 470PF 10% 250V Y5P
C9911 065G306K47123R CAP Y1 470PF 10% 250V Y5P
C9910 065G306K47123R CAP Y1 470PF 10% 250V Y5P
C9911 065G306K4712SR CAP Y1 470PF 10% 250V Y5P

006G 31500 EYELET

71

C9906 065G306K4712SR CAP Y1 470PF 10% 250V Y5P
C9903 065G306K4712SR CAP Y1 470PF 10% 250V Y5P
C9902 065G306K4712SR CAP Y1 470PF 10% 250V Y5P
C9910 065G306K4712SR CAP Y1 470PF 10% 250V Y5P
C8115 067G 3154704KB EC 47uF M 25V 5*11mm EG
C9107 067G 3154707KT EC 47UF 20% 50V ER1H470MPN1007RU
C8107 067G 5154709KT EC 47UF 20% 100V 10*12
C8117 067G 5154709KT EC 47UF 20% 100V 10*12
C9350 067G 5154714KT EC 470UF 20% 25V EV1E471MPN1012RSU
C9356 067G 5154714KT EC 470UF 20% 25V EV1E471MPN1012RSU
C9135 067G215D6814KT EC 680UF 20% 25V 10*20 ED ED1E681MPN1020
C9136 067G215D6814KT EC 680UF 20% 25V 10*20 ED ED1E681MPN1020
C9111 067G215P1017KT EC 100UF 20% 50V 10*9
C8101 067G215P1017KT EC 100UF 20% 50V 10*9
C9137 067G215P2714KT EC 270UF 20% 25V 10*9
FB9908 071G 55 8 BEAD 3.5*4.5 80R 25% BF-I35045W-699, HF
FB9906 071G 55 9 T BEAD 3.5*0.8*6.0mm 110R HF
FB9907 071G 55 9 T BEAD 3.5*0.8*6.0mm 110R HF
D9101 093G 5212T52T DIODE 1N4007-AO DO-41
D9103 093G110050152T DIODE PR1007 1A/1000V 500ns DO-41
J929 095G 90 23 JUMP WIRE - -
J903 095G 90 23 JUMP WIRE - -
J911 095G 90 23 JUMP WIRE - -
J913 095G 90 23 JUMP WIRE - -
J935 095G 90 23 JUMP WIRE - -
J909 095G 90 23 JUMP WIRE - -
J901 095G 90 23 JUMP WIRE - -
J932 095G 90 23 JUMP WIRE - -
J931 095G 90 23 JUMP WIRE - -
J930 095G 90 23 JUMP WIRE - -
J921 095G 90 23 JUMP WIRE - -
J922 095G 90 23 JUMP WIRE - -
J920 095G 90 23 JUMP WIRE - -
J927 095G 90 23 JUMP WIRE - -
J910 095G 90 23 JUMP WIRE - -
J917 095G 90 23 JUMP WIRE - -
J925 095G 90 23 JUMP WIRE - -
J926 095G 90 23 JUMP WIRE - -
J934 095G 90 23 JUMP WIRE - -
J907 095G 90 23 JUMP WIRE - -
J936 095G 90 23 JUMP WIRE - -
J928 095G 90 23 JUMP WIRE - -
J918 095G 90 23 JUMP WIRE - -
J904 095G 90 23 JUMP WIRE - -
J905 095G 90 23 JUMP WIRE - -
J933 095G 90 23 JUMP WIRE - -
J919 095G 90 23 JUMP WIRE - -
J912 095G 90 23 JUMP WIRE - -
C9140 367G415X3317KT EC 330UF 20% 50V 12.5*12
C9109 367G415X3317KT EC 330UF 20% 50V 12.5*12

715G5930P01000002M POWER BOARD PCB
PTPFBXABD OPTION BOARD

E715 715G5912T02000004S DAUGHTER BOARD PCB
CN002 311GF100B30ADJ FFC CONN 1.0mm 30P

72

CN001 311GW125F36ACH WAFER 1.25mm 36P V/T 27.1 5.4
Q02G7060001001 BOLT
M00201 Q02G706100200100HX BOLT
M00201 Q02G706100200100XL BOLT

Q11G701027000L PCB-SUPPORT
Q12G6300 25 3 FOOT PAD
Q16G0001 10 12 EVA WASHER
Q16G0001 20 8 EVA
Q36T 600 18134 NONWOVEN FABRIC
Q36T 600 37 11 GP NONWOVEN FABRIC
Q36T 600 37 19 GP NONWOVEN FABRIC
Q36T 600 37 26 GP NON-WOVEN FABRIC
Q44T3231 21 18 CUSHION
Q45G88010TV05300X1 PE PACKING
Q45G99010TV05100ZW PROTECT BAG
Q50G 500 TV005 CABLE TIE
Q52G130118600000YY TAPE
Q52G1501150523AWYY TAPE_INSULATING
Q52G160119100A00YY TAPE
Q52G18010TV12300ZA INSULATING SHEET
X15T841320100000Z1 BKT_STAND
X15T849310200000BL BKT_STAND
X15T849410100000BL BKT_STAND
X15T8839101000GMLH BKT_TOP
X15T8840101000GMLH BKT_BTM
X40G0002615A19 POS STICKER LABEL
X40G2013032X0140ZA LABEL IO
X40G2013032X0150ZA LABEL IO

M04401 X44GJA661010FS CUSHION-TL
M04401 X44GJA661010SY CUSHION-TL
M04402 X44GJA662010FS CUSHION-TR
M04402 X44GJA662010SY CUSHION-TR
M04403 X44GJA663020FS CUSHION-BL
M04403 X44GJA663020SY CUSHION-BL
M04404 X44GJA664020FS CUSHION-BR
M04404 X44GJA664020SY CUSHION-BR

X44GJA66501EPE CUSHION-TM
X44GJA6661510C ARTWORK CARTON
E08902 089G 184GAB500 HDMI CABLE 1800MM WHITE
092GB1JX1A3EGC BATTERY 1.5V LR03 AAA£¨LR03£© alkali

RFB01 388G303S0010CL BNC nf - 1*1 W 12.2
RFB01 388G303S0010HC BNC nf - 1*1 W 12.2
E08901 389G228A15N0IS AC POWER CORD 1500mm

398GRABD2NEACT REMOTE AOC YKF322-003 ENGLISH
Q45G2010M0101A pe bag for manual
Q45G88010TV07500X1 PROTECT BAG
X41G32MV61536A MANUAL LE32A1335/64 philippines
X41G78DV61510A WARRANTY CARD for Filipino
040G 58162435A MANUAL P/N LABEL
Q40G 581689 4B SN LABEL(58x35mm)
Q40G0001624 3A LABEL
X40G0001624 2A Label for screw pe bag
X40G032061559A RATING LABEL LE32A1335/64

73
