AOC LE32A1330/61, LE40A1330/61 Schematic

31.5″&39″LCD TV AOC LE32A1330/61-LE40A1330/61

Service

TABLE OF CONTENTS

Description Page Description Page

Table of Contents.......……....................................…........1

Important Safety Notice.......................................……......2

Revision List…………………………………………………3

1. General Specification..............................……...…........4

2. Operating Instructions………………...…….……….......5

2.1 The Use of Remote Control…….…..……….…….......5

2.2 To Use the Menus….....………………….…..…….......6

2.3 How to Connect……..……………….…….……….....17

2.4 Front Panel Control Knobs…….………….……….....19

3. Input/ Output Specification………....................…....20

4. Mechanical Instructions…………………….................22

5. Repair Flow Chart ……………………….…….…….....25

6. PCB Layout ………………..………………....….......32

SAFETY NOTICE

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS

6.1 Main Board…………..……………...…….…….......32

6.2 Power Board……...…………..….…….……….......35

6.3 Key Board…...………………………………….......37

6.4 IR Board…...…………………………………….......37

7. Adjustment..............................................................38

8. Block Diagram.…….................................................39

9. Schematic Diagram…..…………....………………...40

9.1 Main Board…………………………………...….......40

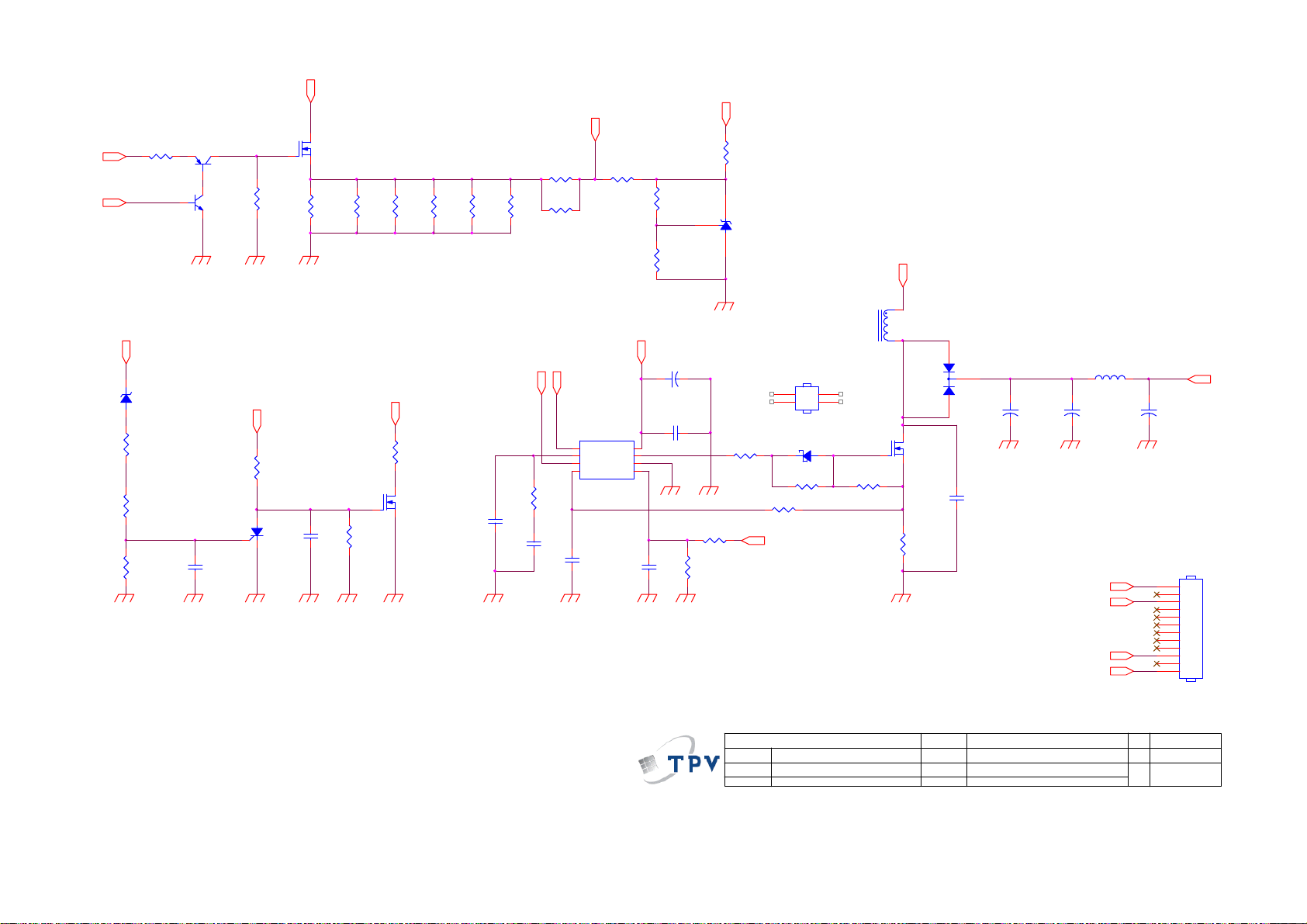

9.2 Power Board…………..….….……...………….......49

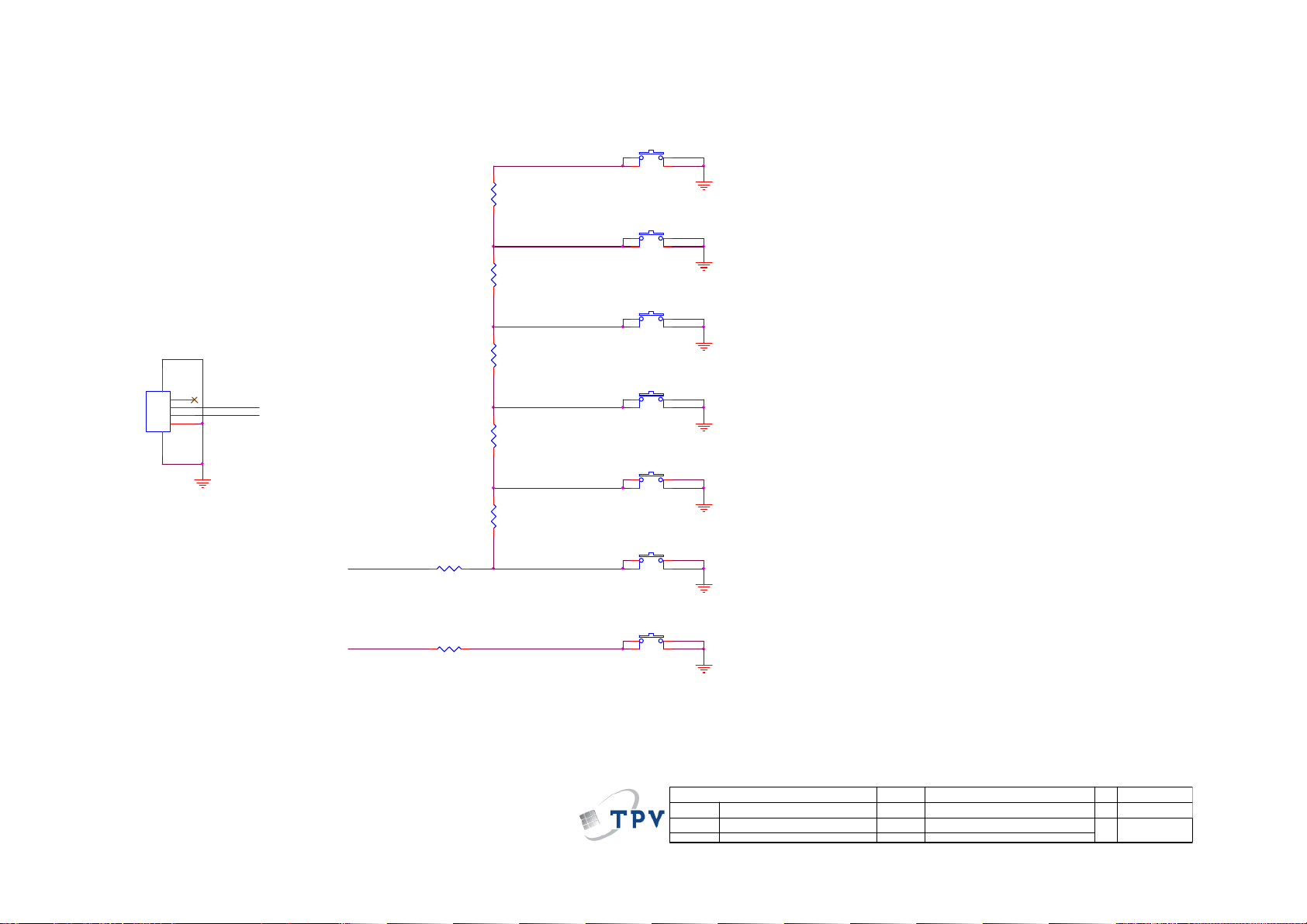

9.3 Key Board……………….……….…………….........51

9.4 IR Board…...…………….……….…………….........52

10. Exploded View………………………………….…...53

11. BOM List……………….………………….………….55

AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING

ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

1

Important Safety Notice

Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service procedures recommended by AOC and described in this service manual are effective methods of performing service operations. Some of these service operations require the use of tools specially designed for the purpose. The special tools should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected. Hereafter throughout this manual, AOC Company will be referred to as AOC.

WARNING

Use of substitute replacement parts, which do not have the same, specified safety characteristics might create shock, fire, or other hazards.

Under no circumstances should the original design be modified or altered without written permission from AOC. AOC assumes no liability, express or implied, arising out of any unauthorized modification of design. Servicer assumes all liability.

FOR PRODUCTS CONTAINING LASER: DANGER-Invisible laser radiations when open AVOID DIRECT EXPOSURE TO BEAM. CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. CAUTION -The use of optical instruments with this product will increase eye hazard.

TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF THIS SERVICE MANUAL. Take care during handling the LCD module with backlight unit

-Must mount the module using mounting holes arranged in four corners.

-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.

-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel.

-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).

-Make certain that treatment person’s body is grounded through wristband.

-Do not leave the module in high temperature and in areas of high humidity for a long time.

-Avoid contact with water as it may a short circuit within the module.

-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may damage the panel.)

2

Revision List

Version Release Date Revision Instructions Customer Model TPV Model

LE32A1330/61 E32C1KNCCQACNNX

A00 Sep.5,2012 Initial release

LE40A1330/61 E39C2KNCCQA1NNX

3

1. General Specification

Notes:

• Designs and specifications are subject to change without notice.

• This model may not be compatible with features and / or specifications that may be added in the future.

4

2. Operating Instructions

2.1 The Use of Remote Control

5

2.2 To Use the Menus

Picture Setup

Note: Certain screen setups may be unavailable or have different options in accordance with the input sources.

6

Picture Setup (For PC source only)

Note:

If the PC is connected to the TV and no signal has been input from the PC for more than 30 seconds, the TV enters the standby mode automatically.

7

Audio Setup

8

Features Setup

9

Channel Search This setup is available in TV mode only.

Note: Make sure you have connected RF signal cable before performing channel search.

10

Manual search description

11

Computer Setup

12

USB Media Center

TV USB port can be used to view JPEG photos, play mp3 music and Video files, and read text present in USB devices.

Entering to USB Media:

13

Play Music files

14

Playing Music files

USB menu settings for Music play

Playing Video files

USB menu setting for video play

Reading Text files

15

USB menu setting for text read

16

2.3 How to Connect

You can enjoy standard-definition and high-definition digital programming (if available in your area), along with standard-definition analog programming. It is strongly recommended that you connect the antenna/cable input using a 75-ohm coaxial cable to receive optimum picture quality. A 300- ohm twin lead cable can be easily affected by radio frequency interference, resulting in signal degradation.

Cable or VHF/UHF(or VHF only)

High Definition Interface

You can enjoy high-definition programming by subscribing to a high-definition cable service or a high-definition satellite service. For the best possible picture, make sure you connect this equipment to your TV via the HDMI or component video (with audio) input on the back of your TV.

HDMI Connection

If the equipment has a DVI jack and not an HDMI jack, connect the DVI jack to the HDMI IN (with DVI-to-HDMI cable or adapter) jack and connect the audio jack to the PC AUDIO IN jacks.

Component Signal Connection

Composite Signal Connection

17

Video Out Signal Connection

PC Connection

Use the TV as a monitor for your PC shown below with the HD15 to HD15 connection. This TV can also be connected to a PC with DVI or HDMI output.

• Connect the PC IN jack to the PC using the HD15- HD15 cable with ferrite core (analog RGB) and audio cable.

• If the PC is connected to the TV and no signal has been input from the PC for more than 30 seconds, the TV enters the standby mode automatically.

Connecting USB drive Connecting Earphone

18

2.4 Front Panel Control Knobs

19

3. Input / Output Specification

RGB Signal Input

15 - Pin Color Display Signal Cable

Pin No. Description Pin No. Description

1 Red Video 9 +5V 2 Green Video 10 Sync Ground 3 Blue Video 11 Not Used 4 Not Used 12 Serial Data for DDC 5 Ground 13 H-Sync. 6 Red Ground 14 V-Sync. 7 Green Ground 15 Serial Clock for DDC 8 Blue Ground

HDMI Digital Connector Pin Assignments

Pin No. Description Pin No. Description

1 TMDS Data2+ 2 TMDS Data2 Shield 3 TMDS Data2- 4 TMDS Data1+

5 TMDS Data1 Shield 6 TMDS Data1-

7 TMDS Data0+ 8 TMDS Data0 Shield

9 TMDS Data0- 10 TMDS Clock+ 11 TMDS Clock Shield 12 TMDS Clock13 CEC 14 NC 15 SCL 16 SDA 17 DDC/CEC Ground 18 +5V Power 19 Hot Plug Detect

20

Compatible Mode Table

LE32A1330/61

Analog RGB Input Signal Timing

Item

Resolution

1 720x400 31.5 N 70 P 28 2 3 800x600 37.9 P 60 P 40.0 4 5

HDMI Input Signal Timing PC Timing

Item

1 2 800x600 37.9 P 60. P 40.0 3 4

Video Timing

No Mode Resolution V. Freq. (Hz) H. Freq. (KHz)

1 480i 720(1440)x480 60 35 27 4:3/16:9 2 480P 640x480 60 31.5 25 4:3 3 480p 720x480 60 31.5 27 4:3/16:9 4 576i 720(1440)x576 50 15.6 27 4:3/16:9 5 576p 720x576 50 31.3 27 4:3/16:9 6 720p 1280x720 60 45 74.2 16:9 7 720p 1280x720 50 37.5 74.3 16:9 8 1080i 1920x1080 50 28.1 74.3 16:9

9 1080i 1920x1080 60 67.4 148.4 16:9 10 1080p 1920x1080 60 67.5 148.5 16:9 11 1080p 1920x1080 50 56.3 148.5 16:9

LE40A1330/61

RGB Input Signal Timing

Dots × Lines

640 X 480 59.9 31.5 NEG NEG YES YES YES 720 X 400 69.6 31.3 NEG POS YES YES YES

800 X 600 60 37.9 POS POS YES YES YES 1024 x 768 60 48.3 NEG NEG YES YES YES 1360 X 768 60 47.7 POS POS YES YES YES

1920 X 1080 60 67.4 POS POS YES YES YES

640x480 31.5 N 60 N 25.2

1024x768 48.4 N 60 N 65.0 1360x768 47.7 P 60 p 85.8

Resolution

640x480 31.5 N 60 N 25.2

1024x768 48.4 N 60 N 65.0 1360x768 47.7 P 60 p 85.8

Vertical Horizontal Sync Polarity Presence

Frequency Frequency Horizontal Vertical Horizontal Vertical FULL

(Hz) (KHz) (16:9)

Horizontal Vertical

Nominal

Freq. (KHz)

Horizontal Vertical

Nominal

Freq. (KHz)

Sync

Polarity

Sync

Polarity

Nominal

Freq.(Hz)

Nominal

Freq.(Hz)

Sync

Polarity

Sync

Polarity

Pixel clock

(MHz)

Nominal Pixel

Clock (MHz)

Nominal Pixel

Clock (MHz)

Screen Mode

Screen

Mode

21

4. Mechanical Instructions

1. Remove the screws to remove BASE.

2. Remove the screws to remove REAR COVER.

22

3. Remove the screws to remove SPEAKERS, MAIN BOARD and POWER BOARD.

4. Remove the IR board.

23

5. Remove the screws to remove the Panel.

24

p

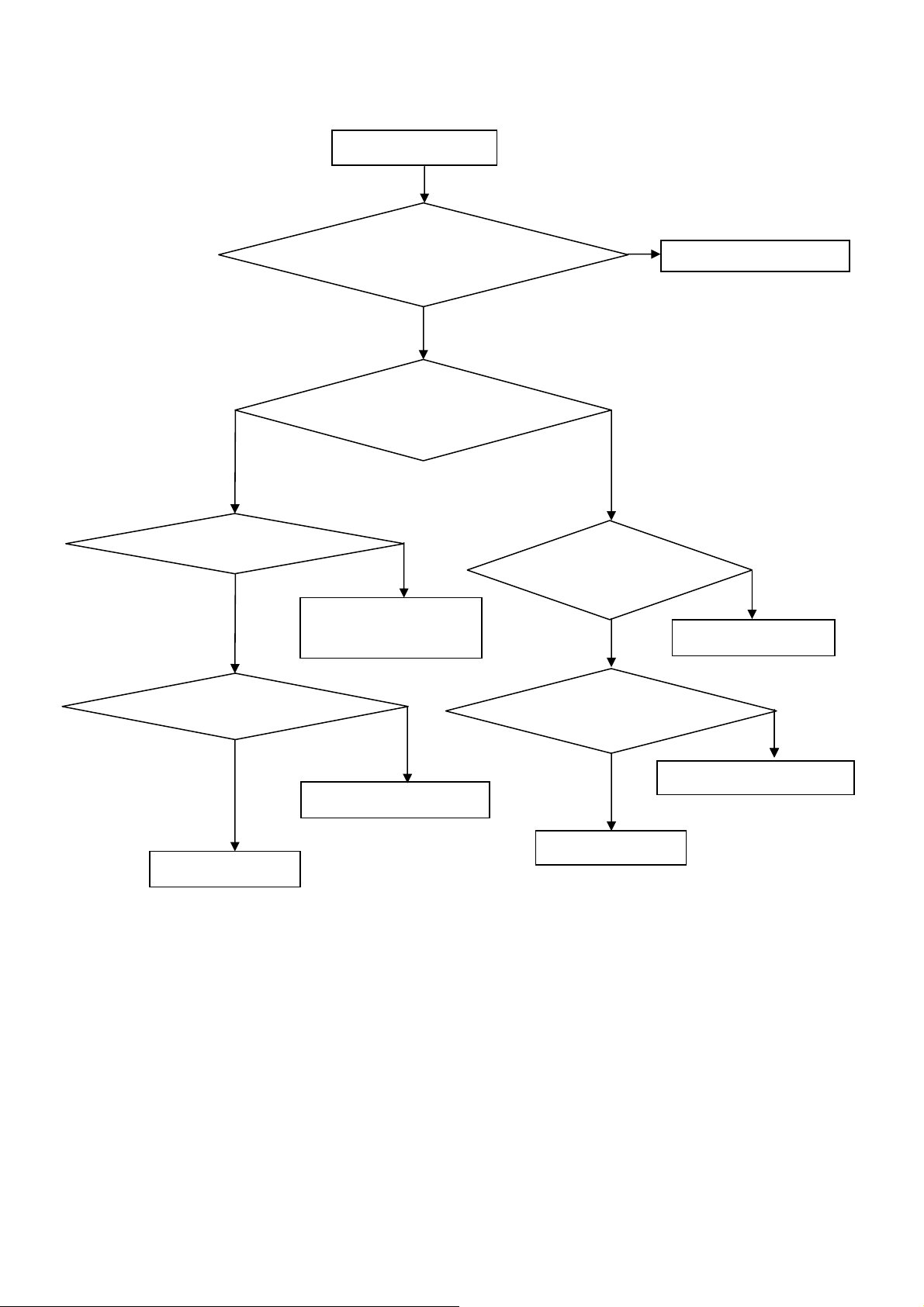

5. Repair Flow Chart

1. No power

No power (LED “Off”)

Check the AC input and the

ower is “ON”?

Yes

Power board

out

ut=5.2V?

Yes

Check the IR board and LED

Replace the IR board

No

Replace the main board

No

Power “On”

No

Replace the power board

25

2. Can’t start

Can’t start (LED red)

Power board output＝12/16V?

Yes

Check the power key is under control?

No

Check the IR receiver is normal?

No

Replace the power board

Yes

Replace the key board

Yes

Replace the IR board

No

Replace the main board

No

Replace the Power board

26

3. Abnormal display

Abnormal Display

Check the source

Yes

Enter factory mode to do

“EEPROM initial”&“Reset”

No

Reset the source

Check the main board

Yes

Check the LVDS cable

Yes

Check the panel

No

Replace the panel

No

Replace the main board

No

Replace the LVDS cable

27

4. No display

No display (No LED)

Check TV is under control and power on/off by remote control and power key?

Yes

Check the LVDS cable

Yes

Check the backlight is

“On”?

No

Reinsert or replace the LVDS cable

No

Check the B/L

signal is available?

Yes

Replace the main board

No

Replace main board

Panel Vcc = 12V?

Yes

Replace the Panel

No

Replace the main board

Power board output＝12/16V?

Yes

Replace the Panel

Replace the power board

No

28

5. Sound problem

No sound or sound abnormal

Check the audio source connection

and the TV system are correct?

Yes

Check the TV is muted, adjust the

volume or enter the menu to reset?

No

Reinsert the audio cable or change the TV system

Enter factory mode to do “Reset”

No

Check the cable between the speakers and main board is OK?

Yes

Check the speaker resistance value is in spec (Remark: The value is marked on the speaker)?

Yes

Replace the cable

Replace the main board

No

Replace the speaker

29

6. Remote control malfunction

Remote Control malfunction

Check the remote control battery is not properly placed or no power?

No

Use the other remote controls

No

Whether the IR board is

abnormal?

No

Replace the main board

Yes

Replace the battery

Yes

Replace the remote control

Yes

Replace the IR board

30

7. OSD is unstable or can’t work normally

OSD is unstable or can’t work normally

Key board connected properly?

Yes

Buttons are OK?

Yes

Key board is OK?

Yes

Enter factory mode to do “Reset”

No

Reconnect the key board

Replace the button function

Replace the key board

Replace the main board

31

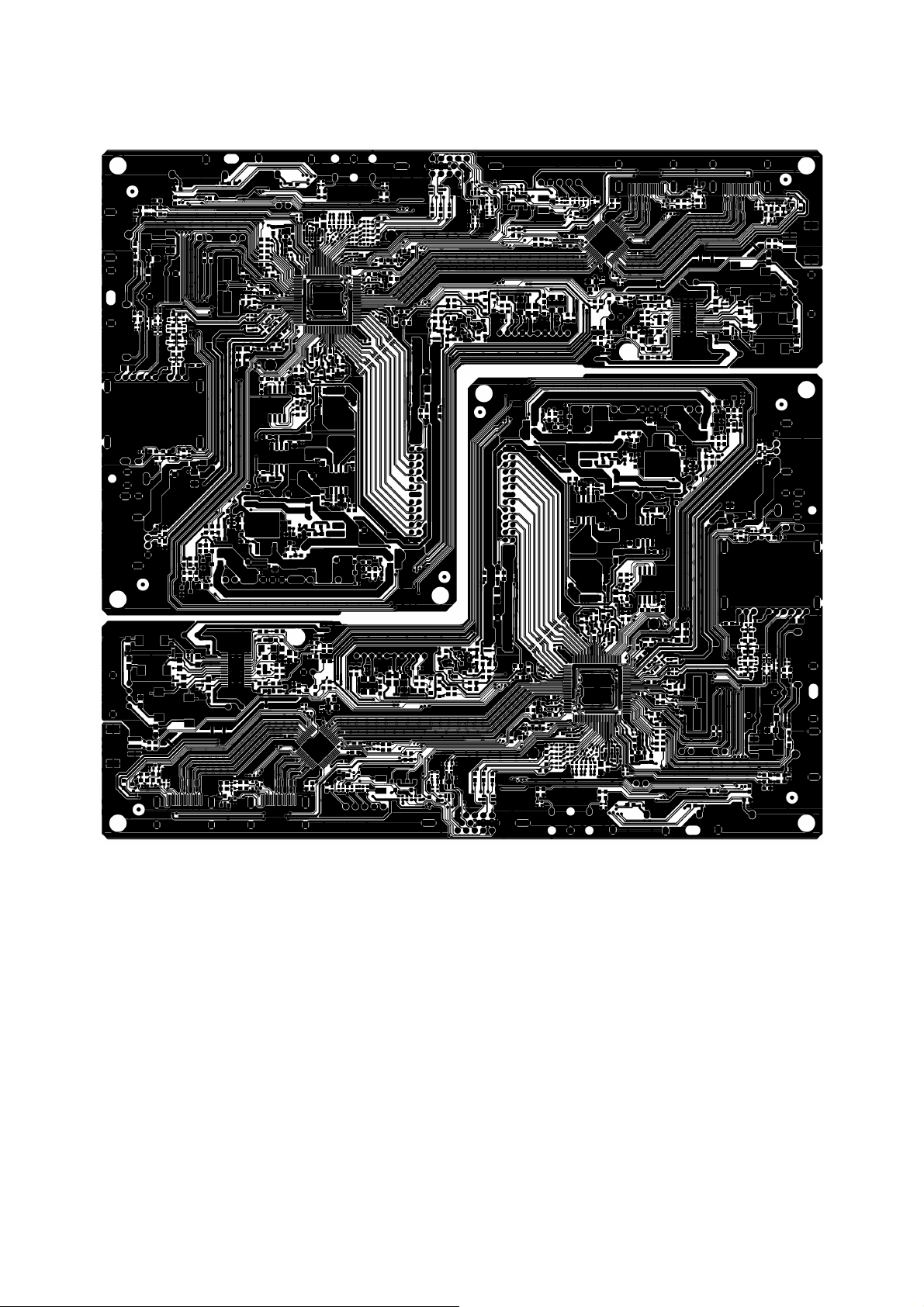

6. PCB Layout

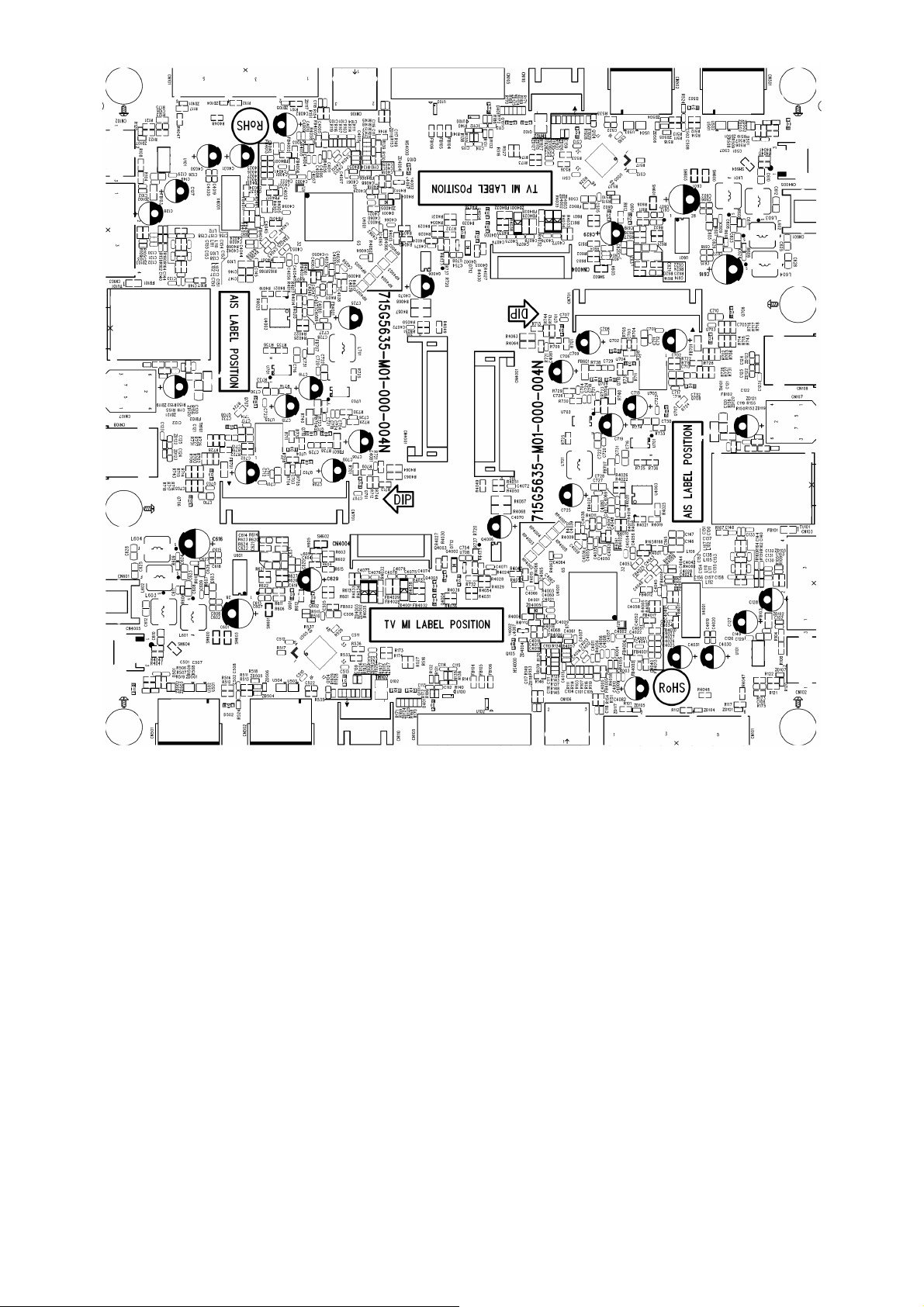

6.1 Main Board

715G5635M01000004N

32

33

34

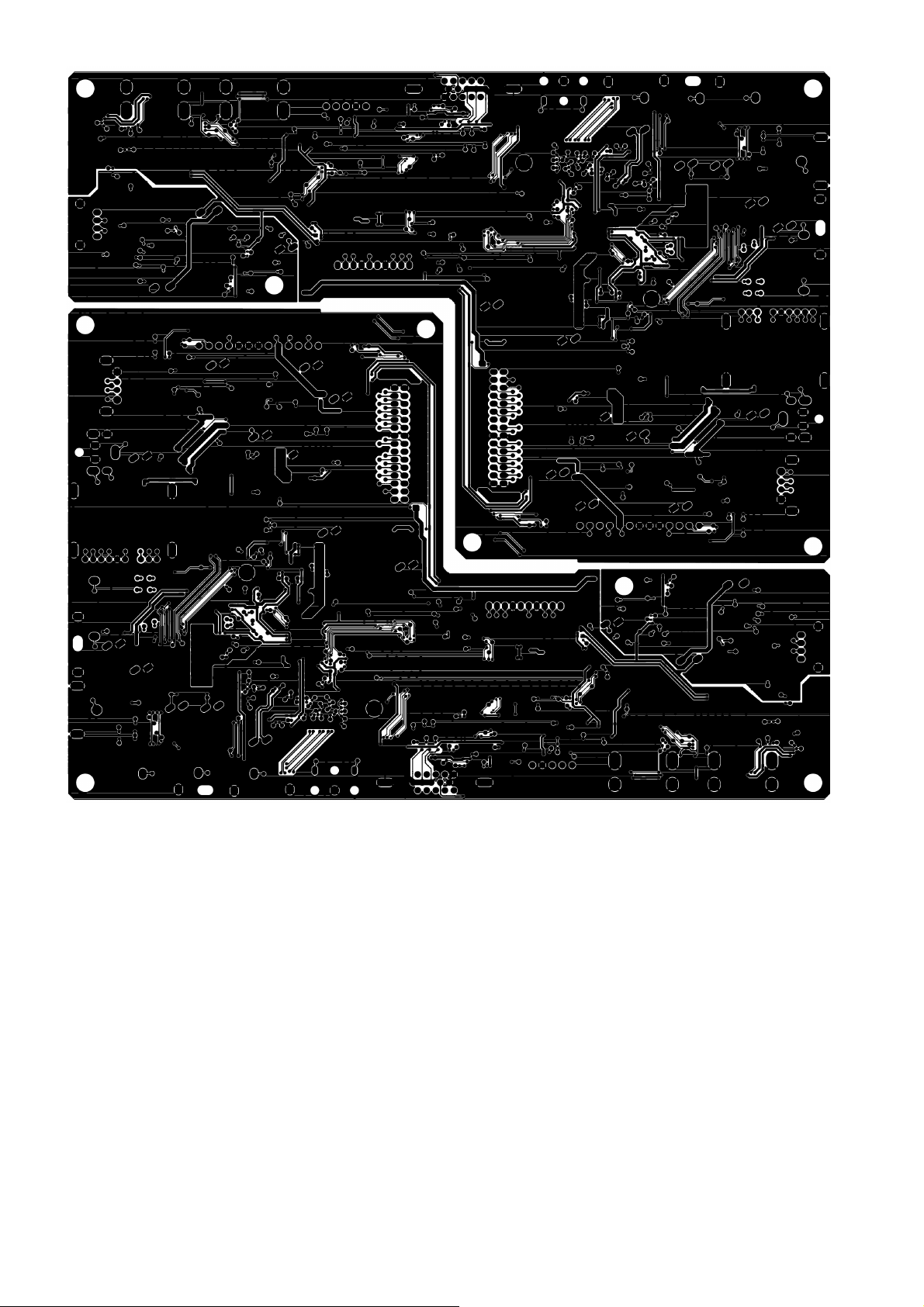

6.2 Power Board

715G5654P01001002M

35

36

6.3 Key Board

715G5711K01000004X

6.4 IR Board

715G5471R02000004X

x

37

7. Adjustment

(Take other model for example)

ADC Adjustment

1. Factory Mode

Turn on the TV. Press menu key and then press number key 1+9 +9+9+back. It will achieve the factory mode.

2. ADC Adjustment (It’s no need to adjust ADC.)

(1) Enter into the factory mode :(same as the above-mentioned) (2) Select item “Source”: Ypbpr a. Tim\pat. (COMPONENT mode: TIM = 314; PAT = 185，select item “auto color” and press ok key.

b. Tim\pat. (COMPONENT mode: TIM = 311; PAT = 185，select item “auto color” and press ok key. (3) Select item “Source”: VGA

Tim\pat. (VGA mode: TIM = 137; PAT = 42，select item “auto color” and press ok key.

3. White Balance Adjustment

(1) Enter into the factory mode :(same as the above-mentioned). (2) Just only adjust Ypbpr source. a. Select item “Source”: Ypbpr and item “Color Temp”: Normal, Adjust gain of RGB to meet spec in the below setting of Tim\pat. (COMPONENT mode: TIM = 314; PAT = 141(80IRE)) b. Select item “Source”: Ypbpr and item “Color Temp”:Warm, Adjust gain of RGB to meet spec in the below setting of Tim\pat. (COMPONENT mode: TIM = 314; PAT = 141(80IRE)) c. Select item “Source”: Ypbpr and item “Color Temp”: Cool, Adjust gain of RGB to meet spec in the below setting of Tim\pat. (COMPONENT mode: TIM = 314; PAT = 141(80IRE)) (3) check VGA TIM137,PAT141, AV TIM304 PAT141, HDMI TIM349 PAT141 , white balance whether or not meet the specifications.

4.The following color specifications for reference, to RD engineering specifications.

Source VGA/YPbPr/AV/HDMI VGA/YPbPr/AV/HDMI VGA/YPbPr/AV/HDMI

Temp Normal/(8000K) Warm/(6500K) Cool/(9300K) x (center) 0.285  0.030 0.313  0.030 0.271 0.030 y (center) 0.293  0.030 0.321  0.030 0.274 0.030

Note: 1、all models of color temperature within specification, but also ensure the brightness conform to engineering specifications.

2、

RGB gain value cannot exceed 138,128,138

38

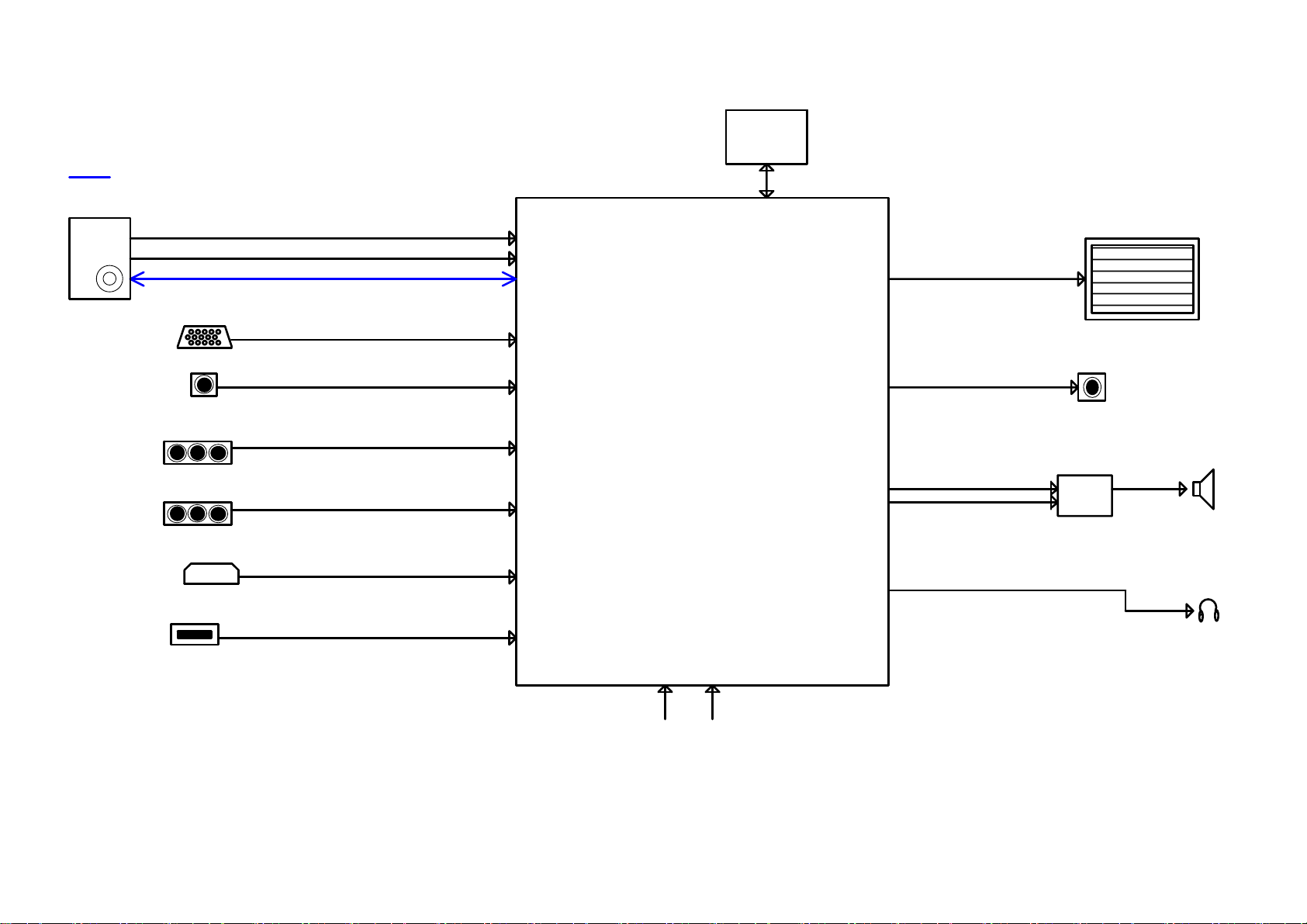

8. Block Diagram

I2C

W25Q32BVSSIG

U403 NOR FLA SH 3 2Mb

DT21 CN-2- E

TU101

D-SUB(PC IN)

PHONE JACK(PC R/L)

YPBPR

RC A(AV)

USB(Multimedia)

IF

HDMI

I2C

USB 2.0

MP3 & JPEG, SW UPDATE

IF1P

IF1N

VGA

PC AUDIO

YPbPr

CV BS

RTD2648

LVDS (50/60 Hz)

CV BS

monitor output

AOU T_L AOU T_R

CVBS output

AUD IO AMP

AD52583

LCD PANEL T-CON

SPK X 2

SPK R/L

HEADPHONE

HP R/L

39

RCKEY

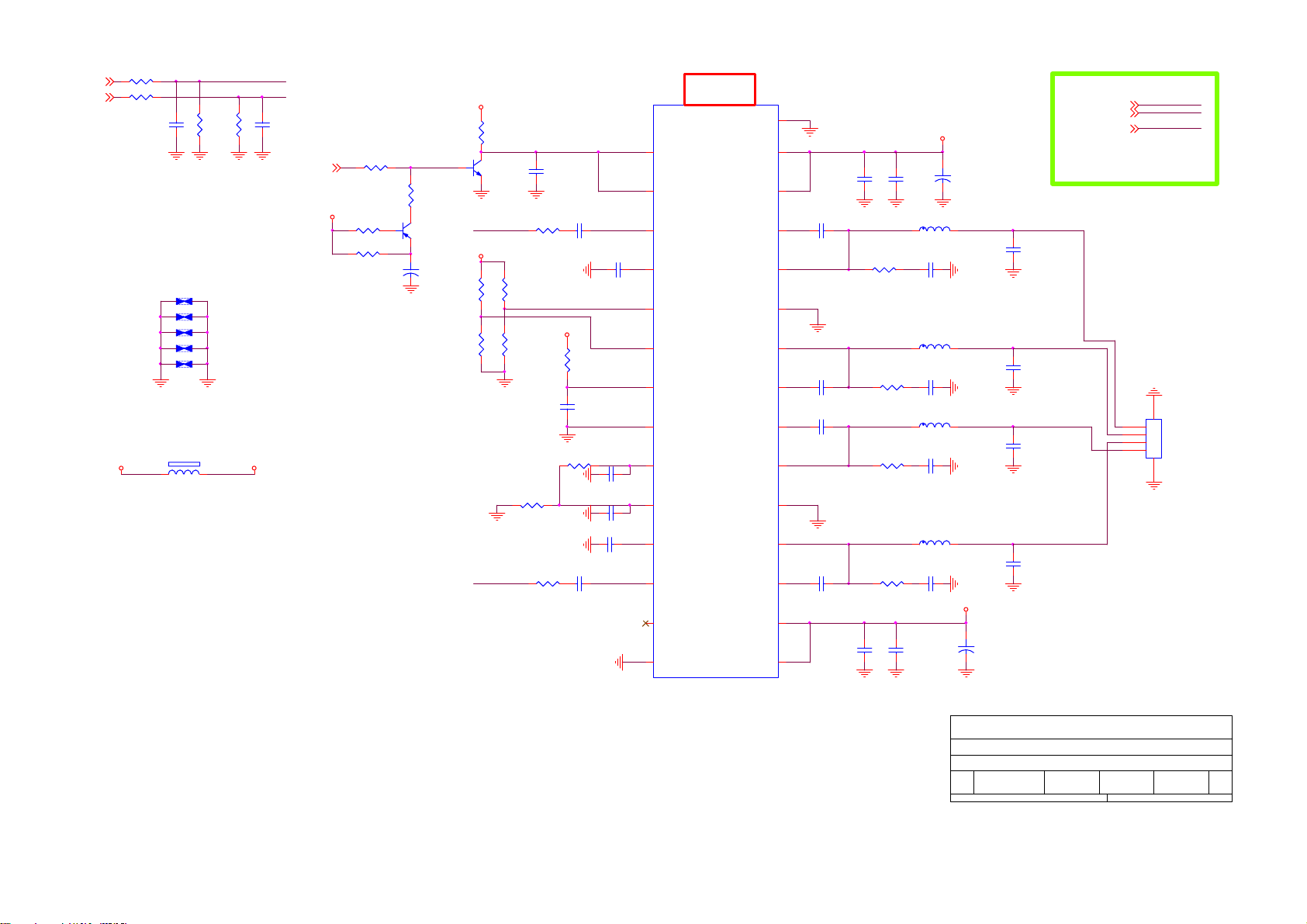

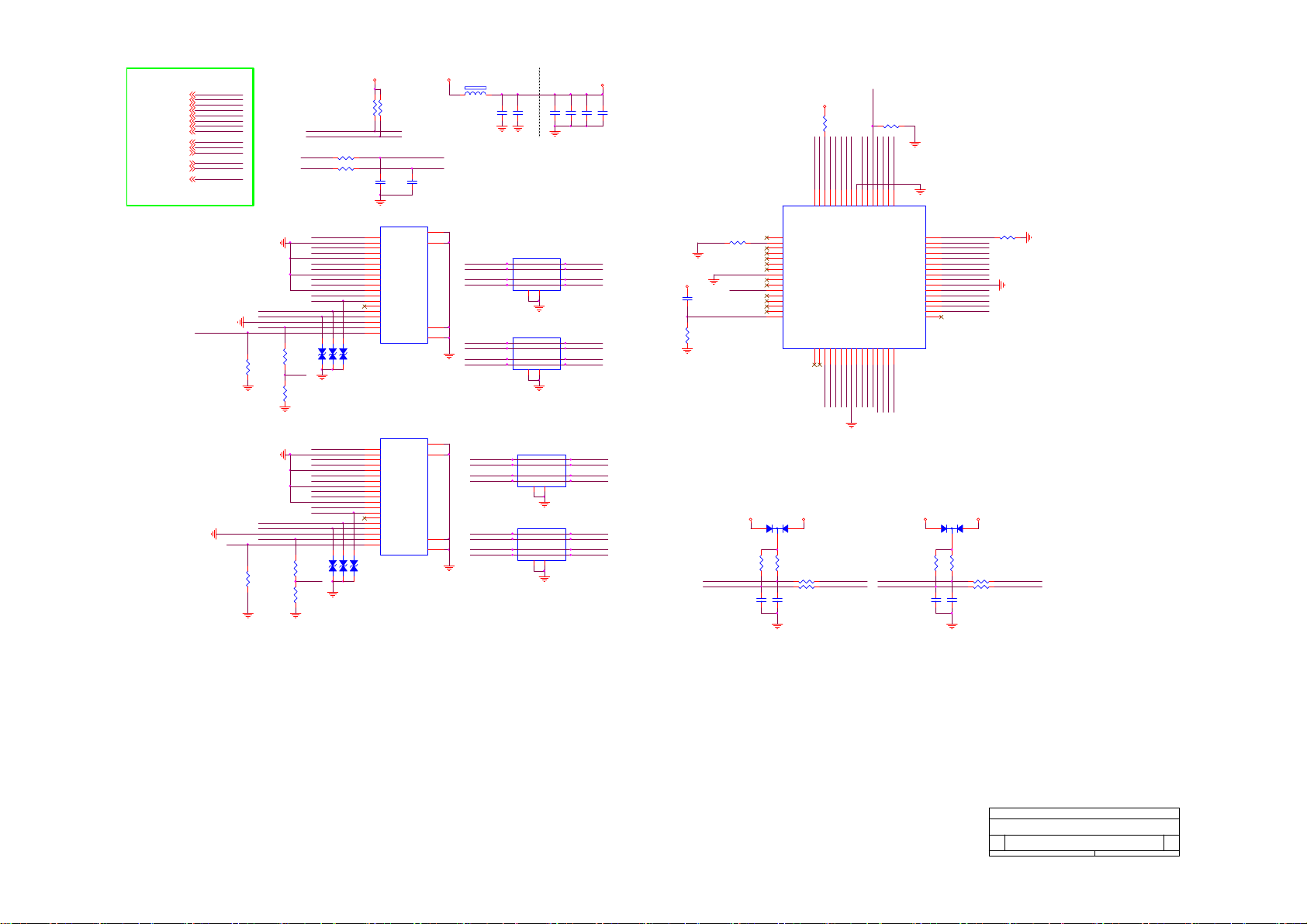

9. Schematic Diagram

9.1 Main Board

715G5635M01000004N

CN701

1 2 3 4 5 6 7 8

DGND 9 10 11 12 13

CONN

C708

100N 16V

C715

100UF16V

C718

100N 16V

DGND

U703

1

VCC

2

REF

3

GND

C724

100N 16V

FB4EN

AT1527F11U

DGND

Vout = 0.8x(1+R1/R2)=1.0V

BL_ON1 BL_PWM

C701

+24V_AMP

100N 16V

D5V_STB

+

C709 100UF16V

DGND

DDR_POWER

Mac: 1.8V Pac': 2.5V

M3V3

10K 1/10W

R733

R734

+

10K 1/10W

C730 10UF 10V

DGND

Vddr=0.8*(1.5+1.2)/1.2=1.8V

R723 10 OHM 1/10W

R725 10K 1/10W

9

E-PAD

PGND

L701

8

2.2UH

VIN

7

LX

6 5

NC/1NF 50V

DGNDDGND

1 2 3

+

DGND

C707

U701

POK VEN VIN VPP4NC

G9661

+

C719

100UF16V

C726

FB701

1 2

120R/6000mA C702

100UF16V

0.5A

E-Pad

GND

ADJ

VO

C722

4U7 10V

D5V_STB

DGNDDGND

9 8 7 6 5

MMBT3904

+12V

R701 10K 1/10W

NC/0R05 OHM

Q701

R712

10K 1/10W

1.5K +-1% 1/10W

1.2KOHM 1%

DGND

FB704

120R/6000mA

1 2

C720

100N 16V

DGND

R729

100N 16V

R1

9K1 1/10W 1%

R730

24KOHM 1/10W

R2

DGND

R735

R736

C727

BL_ADJ

BL_EN

3/19 Realtek request High / Low change define change Pull high vol

+3V3

D5V_STB

R731

R702

NC/10K 1/10W

NC/1K 1/10W

Q703

0R05 OHM

NC/ MMBT3904

DGND

D5V_STB

+3V3

R715

4.7K

NC/0R05 OHM

Q706

R718

1K 1/10W

MMBT3904

BL_ADJ : MAC no 5V tolerance

DGND

R703

R706

NC/1K 1/10W

R717

BL_EN

+3V3

R743

10K 1/10W

POWER_ON_LV2

BL_ADJ

D5V_STB

C711

10UF 10V

100N 16V

G1084PT43U

DGND

Vout = 1.25x(1+Rd/Rup)=3.31V

R727

0R05 OHM

+24V_AMP

R738

33K 1/10W 5%

R739

20K

DGND

POWER_ON_LV2

Del co-layout U702

0.5A SOT-223 80C

VIN3VOUT

C712

+3V3

R726 1K 1/10W

D_5V Q709

BL_ON1

C705

100N 16V

BL_PWM

C710

NC/10K 1/10W

R716

1K 1/10W

DGND

R714

+3V3

R744

R709

10K 1/10W

POWER_ON_LV1

NC/4.7UF 10V

FB707

DDR_POWER

1 2

0R

C731

C716

100N 16V

10UF 10V

DGND

D_5V

DGND

C728

10UF 10V

100N 16V

C721

C725

220uF 16V

DGND

+

Make on board

D1V0

A1V0

D1V0

R711

4.7K

U705

GND/ADJ

1

330 OHM +-1% 1/10W

R728 10K 1/10W

C729

100N 50V

10K 1/10W

200R 1% 1/10W

POWER_ON_LV2: High Active Low Standby

D5V_STB

R704

C703

100N 16V

R708

47K

Q704 MMBT3904

DGND

2

R719

C713

10UF 10V

R722

DGND

+3V3

R724

47K

Q708

MMBT3904

C732

1UF16V

DGND

R740 NC/0oHM

Q710

AO3404

Q702

LP3401LT1G

R705

NC/100K 1/10W

Del co-layout Q705

C717

10UF 10V

DGND

AO3401

Q707

100N 16V

D_5V

+

C706

NC/100UF16V

DGND

Make on board

0.5A

A3V3

+3V3

C714

100N 16V

M3V3

C723

DGND

USB_5V

100N 16V

D3V3

POWER_ON_LV1

POWER_ON_LV2

C704

BL_PWM

POWER_ON_LV1

POWER_ON_LV2

40

Titl e

Power

Size Document Number Rev

<Doc> 1.0

C

Date: Sheet

of

12Saturday, J uly 28, 2012

BL_ADJ

BL_EN

BL_PWM

POWER_ON_LV 1

POWER_ON_LV 2

CN701

CONN

1 2 3 4 5 6 7 8 9 10 11 12 13

100N 16V

C708

DGND

C715

100UF16V

BL_ON1 BL_PWM

C701

+24V_AMP

100N 16V

DDR_POWER

Mac: 1.8V Pac': 2.5V

10K 1/10W

R733

R734 10K 1/10W

C730 10UF 10V

DGND

M3V3

DGND

D5V_STB

+

C709 100UF16V

+

Vddr=0.8*(1.5+1.2)/1.2=1.8V

1 2 3

+

DGND

C707

POK VEN VIN VPP4NC

1 2

120R/6000mA

C702

100UF16V

0.5A

U701

E-Pad

GND ADJ

VO

G9661

FB701

D5V_STB

MMBT3904

DGNDDGND

9 8 7 6 5

+12V

R701 10K 1/10W

Q701

NC/0R05 OHM

R712

10K 1/10W

DGND

R735

1.5K +-1% 1/10W

R736

1.2KOHM 1%

DGND

3/19 Realtek request High / Low change define change Pull high vol

BL_ON1

Q703

C705

NC/MMBT3904

100N 16V

BL_PWM

C710

NC/10K 1/10W

R716

1K 1/10W

DGND

R714

D5V_STB

Q706

MMBT3904

DGND

+3V3

R744

R709

10K 1/10W

POWER_ON_LV1

NC/4.7UF 10V

FB707

DDR_POWER

1 2

0R

C731

C716

100N 16V

10UF 10V

DGND

+3V3

D5V_STB

R731

R702

NC/10K 1/10W

NC/1K 1/10W

R703

0R05 OHM

DGND

+3V3

R715

4.7K

NC/0R05 OHM

R718

1K 1/10W

BL_ADJ : MAC no 5V tolerance

R706

NC/1K 1/ 10W

R717

BL_EN

+3V3

R743

10K 1/10W

BL_ADJ

POWER_ON_LV2

Del co-layout U702

D5V_STB

10UF 10V

DGND

0.5A SOT-223 80C

U705

VIN3VOUT

C711

C712

100N 16V

G1084PT43U

Vout = 1.25x(1+Rd/Rup)=3.31V

10K 1/10W

R711

4.7K

2

200R 1% 1/10W

GND/ADJ

1

330 OHM +-1% 1/10W

R704

POWER_ON_LV2: High Active Low Standby

D5V_STB

DGND

R719

R722

100N 16V

47K

Q704 MMBT3904

DGND

C703

R708

C713

10UF 10V

Q702

LP3401LT1G

R705

NC/100K 1/10W

Del co-layout Q705

C717

10UF 10V

DGND

100N 16V

D_5V

100N 16V

+

C706

NC/100U F16V

DGND

Make on board

0.5A

A3V3

D3V3

+3V3

C714

POWER_ON_LV1

POWER_ON_LV2

C704

C724

100N 16V

C718

100N 16V

DGND

1

VCC

2

REF

3

GND FB4EN

U703

AT1527F11U

Vout = 0.8x(1+R1/R2)=1.0V

E-PAD

PGND

VIN

LX

R723 10 OHM 1/10W

9 8 7 6 5

DGNDDGND

100UF16V R725 10K 1/10W

L701

2.2UH

NC/1NF 50V

1UF16V

AO3404

C732

Q708

R740 NC/0oHM

+3V3

R724

47K

MMBT3904

DGND

Q710

AO3404

AO3401

Q707

M3V3

C723

100N 16V

DGND

USB_5V

Titl e

Power

Size Document Number Rev

<Doc> 1.0

C

Date: Sheet

of

12Saturday , July 28, 2012

FB704

D_5V

120R/6000m A

1 2

C727

100N 16V

DGND

C728

10UF 10V

C721

100N 16V

+

C726

4U7 10V

100N 16V

DGND

R729

R1

9K1 1/10W 1%

R730

24KOHM 1/10W

R2

DGND

C720

C722

C719

C725

220uF 16V

DGND

+

Make on board

A1V0

D1V0

A1V0

D1V0

POWER_ON_LV2

0R05 OHM

+24V_AMP

R727

R738

33K 1/10W 5%

R739

20K

DGND

+3V3

R726 1K 1/10W

R728 10K 1/10W

D_5V Q70 9

C729

100N 50V

41

Add R4054 for panel enable default status on 2/17'12

+12V

D5V_STB

R713

360R 1/10W 5%

R737

220 OHM 1/10W

RP400222 OHM

1 2 3 4

RP4004

RP4005 22 OHM

RP4001 22 OHM

22 OHM

8

TEAN_1

7

TEAP_1

6

TEBN_1

5

TEBP_1

RP400322 OHM

8

TECN_1

7

TEC P_1

6

TEDN_1

5

TED P_1

8

TOAN _1

7

TOAP_1

6

TOBN _1

5

TOBP_1

8

TOC N_1

7

TOC P_1

6

TOC LKN _1

5

TOCLKP_1

8

TOD N_1

7

TOD P_1

6 5

TEAN

TEAP

TEBN

TEBP

TEC N TEC P TED N TED P

TOAN TOAP TOBN TOBP

TOC N TOC P TOC LKN TOC LKP

TOD N TOD P

R4054

R4029

PANEL_EN

R721

NC/ 360R 1/ 10W 5%

R720

390 OHM 1/10W

R732

220 OHM 1/10W

NC/0R05 OHM

M3V3

3

C754 100N 50V

DGND

R4049

BL_PWM TEAP_1 TEBP_1 TEC P_1 TOCLKP_1 TED P_1

TOAP_1 TOBP_1 TOC P_1 TOCLKP_1 TOD P_1

D5V_STB

NC/ 100N 16V

4.7K

NC/100 OHM

R4031

4.7K

U708

AZ809ANSTR-E1

RESET

Vcc

GND

PANEL_VCC

DGND

+12V

C4081

M3V3

R4027

4.7K

R4030

4.7K Q4003 PMBS3904

DGND

D712

RB501V-40

2

1

CONN

30 28 26 24 22 20 18 16 14 12 10

8 6 4 2

LVDS(10-bit)

R4063 0oHM

R4064 NC/0oHM

DGND

10K 1/10W

12

29 27 25 23 21 19 17 15 13 11 9 7 5 3 1

CN4001

R4023

220N 16V

R4028

Q4002 PMBS3904

DGND

SELLVDS TEAN_1 TEBN_1 TEC N_1 TOC LKN _1 TED N_1

TOAN _1 TOBN _1 TOC N_1 TOC LKN _1 TOD N_1

DGND

47K

C4071

+3V3

NC/4.7K

R4051

NC/4.7K

DGND

R4050

Del co-layout Q4001

AO4449 -7A/-30V

Q4006

1

S

D

2

S

D

3

S

D

4

G

D

C4070

NC/ 100UF16V

R4024

NC

42

From Main Chip

DGND

TED P TED N

TEC P TEC N TEBP TEBN TEAP TEAN

TOD P TOD N TOC LKP TOC LKN TOC P TOC N TOBP TOBN TOAP TOAN

PANEL_EN BL_PWM

SPI_DI SPI_DO SPI_SCLK SPI_CS# SPI_WP

23Wednesday , July 04, 2012

of

TED P

DGND

SPI_SCLK SPI_DO

TED N

TEC P TEC N TEBP TEBN TEAP TEAN

TOD P TOD N TOC LKP TOC LKN TOC P TOC N TOBP TOBN TOAP TOAN

PANEL_EN BL_PWM

SPI_DI SPI_DO SPI_SCLK SPI_CS# SPI_WP

C4080

10UF 10V

8

PANEL_VCC

7 6 5

R4067

+

100N 16V

C4072

NC/ 680R

DGND

4.7K

NC/ 0R05 OHM

R4068

NC/ 680R

M3V3

R4019

SPI_DI

R4025

DGND

For Rtice Check

22R 1/10W 5%

SPI_CS#

R4021

SPI_DI 0 SPI_HOLD SPI_WP SPI_SCLK0

DGND

U4003

1

/CS

2

DO

3

/WP

4

GND

W25Q64FVSSI G

RM4 CM2 close to IC

Del co-layout U4004

3/19 Realtek request Add 10uF Cap

M3V3

C4069

R4020

100N 16V

8

VCC

7

/HOLD

6

CLK

5

DI

Tit le

Size Document Number Rev

B

Date: Sheet

4.7K

DGND

22R 1/10W 5%

R4022

SPI_DO0

R4026

22R 1/10W 5%

C4073

5PF 50V

LVDS

<Doc > 1.0

AV share with YPbPr

CN101

RCA JACK

YPbPr/AV Video in

2

A

1

4

B

3

6

C

5

AGND

ZD101

MLVG0402

12

MLVG0402

AGND

ZD104

12

ZD105 MLVG0402

Y1

PB1

PR1

AGND

R101 75 OHM

R112 75 OHM

R117 75 OHM

R103

C101

5PF 50V

C104

5PF 50V

C105

5PF 50V

100OHM1/16W

R107 100OHM1/16W

R111 100OHM1/16W

R114 100OHM1/16W

R116 100OHM1/16W

R119 100OHM1/16W

Close to Main Chip

Y0+Y1

YPbPr0-

PB0+PB1

YPbPr0-

PR0+PR1

YPbPr0-

AV INPUT & Video output

ZD107

MLVG0402

AGND

CN102

CONN

CN103

A

B

RCA JACK

3

2

1

2

1

4

3

MLVG0402

AGND

1 2

ZD102

R120 NC/75R

12

MLVG0402

0R05 1/10W

AGND

R175

12

ZD103

AGNDAGND AGND AGNDAGND

R122 75 OHM

R121

NC/ 0R05 1/ 10W

C106

NC

R104

6.8kOHM + -5% 1/10W

R105

6.8kOHM + -5% 1/10W

C103

C102

470pF 50V

CVBS_OUT

AV1_CVBS+

R123

NC/10K 1/10W 5%

VIN_A0-

YPBPR 1_IN_L

YPBPR 1_IN_R

R108 10K 1/10W

R109 10K 1/10W

To Chip

PB0+ YPbPr0Y0+ PR0+

YPBPR1_IN_L YPBPR1_IN_R

AV1_CVBS+ VIN_A0-

AV Output

CVBS_OUT

PB0+ YPbPr0Y0+ PR0+

YPBPR 1_IN_L YPBPR 1_IN_R

AV1_CVBS+ VIN_A0-

CVBS_OUT

43

Tit le

YPbPr

Size Document Number Rev

<Doc > 1.0

B

Date: Sheet

of

14Thursday , May 10, 2012

VGA_DDC_SCL

VGA_VS

VGA_HS

VGA_DDC_SDA

AGND

CONN

CN106

HS

VS

1 2

3

AGND

D_5V

BAT54C

R131

10K+- 5%1/16W

C112

NC/33P 50V

U100

1

I/O1

I/O4

2

GND

VDD

I/O23I/O3

AOZ8105C I

ZD117

MLVG0402

VGA_CON5V

1

2

D401

3

VGA_5V

R132 10K+- 5%1/16W

C114

C113

NC/33P 50V

22PF 50V

AGND AGND AGN D

For Lesson learn check list, change R140/R141 from 2k to 2.2k on 2/14

6

VGA_SDA

5

VGA_5V

4

VGA_SCL

12

ZD118 MLVG0402

AGND

R172 100OHM1/16W

R135 100OHM1/16W

R138 100OHM1/16W

C115

10PF 50V

C117

C118

470pF 50V

2.2K 1/16W

AGND

PC_LINE_IN

R149

6.8kOHM +- 5% 1/10W

R151

6.8kOHM +- 5% 1/10W

470pF 50V

AGND

Mark on board

D-sub

CONN

VGA_SCL

VS

HS

VGA_RX0

U102

1

I/O1

2

GND I/O23I/O3

AOZ8105C I

R169 100OHM1/16W

I/O4 VDD

VGA_IN_R

VGA_IN_L

R154 10K 1/10W

VGA_SDA

6 5 4

12

ZD124

MLVG0402

AGND

VGA_BIN VGA_5V VGA_GIN

R186 100OHM1/16W

R140

R141

2.2K 1/16W

AGNDAGND AGND

VGA_RIN

R153 10K 1/10W

AGNDAGND AGN D

From Main Chip

DGND

VGA_B+ VGA_BVGA_G+ VGA_R+

VGA_HS VGA_VS

VGA_DDC_SCL VGA_DDC_SDA

VGA_IN _L VGA_IN _R

HP_OUT_L HP_OUT_R

HP_OUT_JD

USB1_DM USB1_DP

TX0 RX0

VGA_TX0 VGA_RX0

USB_Shield_GN D

USB CONN

1

1234

2 3 4

6 5

USB_Shield_GN D

CN108

DGND

12

ZD122 MLVG0402

C122

+

100UF16V

VGA_B+ VGA_BVGA_G+ VGA_R+

VGA_HS VGA_VS

VGA_DDC_SCL VGA_DDC_SDA

VGA_IN _L VGA_IN _R

HP_OUT_L HP_OUT_R

HP_OUT_JD

USB1_DM USB1_DP

TX0 RX0

VGA_TX0 VGA_RX0

C123 100N 16V

12

ZD123 MLVG0402

AGND

5 10 4 9 3 8 2 7 1 6

VGA_CON5V

VGA_BIN-

VGA_GIN -

VGA_RIN-

12

ZD125

MLVG0402

R168 100OHM1/16W

AGND

R170

4.7K 1/16W

VGA_TX0

VGA_RX0

AGND

VGA_BIN

VGA_GIN

VGA_RIN

D5V_STB

VGA_TX0

R171

4.7K 1/1 6W

2N7002

+3V3

Q102

Q101

2N7002

TX0

RX0

AGND

15

14

13

12

11

17 16

CN105

1 2

FB104 60R 0. 6A

VGA_BIN -

1 2

FB105 60R 0. 6A

VGA_GIN-

1 2

FB106 60R 0. 6A

VGA_RIN-

C110

R130 75 OHM

5PF 50V

C111

R139 75 OHM

5PF 50V

C116

R146 75 OHM

5PF 50V

Close to Main Chip

USB_5V

1 2

TH1 01

C121

NC/ 22uF 10V

USB1_DM USB1_DP

NC/4P7 50V

VGA_B+VGA_BIN

R129 100OHM1/16W

VGA_B-

R134 100OHM1/16W

VGA_G+VGA_GIN

R137 100OHM1/16W

VGA_B-

R143 100OHM1/16W

VGA_R+VGA_RIN

R145 100OHM1/16W

VGA_B-

R148 100OHM1/16W

t

1 2

C124

FB102 220R/2000mA

C125

NC/4P7 50V

CN107

CONN

1 7 6 2 3 4 5

Mark on board

HP OUT

AGND

R152

AGND

NC/10K 1/10W

+3V3

AGND

R150 10K 1/10W

ZD119

MLVG0402

1.65V: jack not plug in 0V: jack plug in

12

ZD120

ZD121

MLVG0402

12

MLVG0402

AGNDAGNDAGND

R155 1K 1/10W

AGND AGNDAGND

R156 1K 1/10W

C120

C119

NC/100N 16V

NC/ 100N 16V

AGND

HP_OUT_JD HP_OUT_L HP_OUT_R

Exchange L/R of headphone on 2/20'12

44

DGND

USB_Shield_GND

DGND DGND

Titl e

VGA

Size Document Number Rev

<Doc > 1 .0

B

Date: Sheet

DGNDDGND

of

24Wednesda y , June 27 , 2012

SHLD0

SHLD2

SHLD3

SHLD1

SHLD0

SHLD2

SHLD3

SHLD1

HDMI_SCL

HDMI_SDA

C524 NC/12pF 50V

20

22

23

21

20

22

23

21

M3V3

DGND

FB502

1 2

120R

10UF 10V

HDMI0_D2+ HDMI0_D2-

HDMI0_D1+ HDMI0_D1-

HDMI0_D0+ HDMI0_D0-

HDMI0_CLK+ HDMI0_CLK-

HDMI1_D2+ HDMI1_D2-

HDMI1_D1+ HDMI1_D1-

HDMI1_D0+ HDMI1_D0-

HDMI1_CLK+ HDMI1_CLK-

C506

C505

100N 16V

DGND

NC/R Clamp0524P. TCT

1

IN1

2

IN2

4

IN3 IN45OUT4

NC/RClamp0524P.TCT

1

IN1

2

IN2

4

IN3 IN45OUT4

1

IN1

2

IN2

4

IN3 IN45OUT4

NC/R Clamp0524P. TCT

1

IN1

2

IN2

4

IN3 IN45OUT4

DV33_TMDS

C513

100N 16V

DGND

U501

OUT1 OUT2

OUT3

GND

3

8

DGND

U502

OUT1 OUT2

OUT3

GND

3

8

DGND

U503

NC/R Clamp0524P. TCT

OUT1 OUT2

OUT3

GND

3

8

DGND

U504

OUT1 OUT2

OUT3

GND

3

8

DGND

C511

100N 16V

10

HDMI0_D2+

9

HDMI0_D2-

7

HDMI0_D1+

6

HDMI0_D1-

10

HDMI0_D0+

9

HDMI0_D0-

7

HDMI0_CLK+

6

HDMI0_CLK-

10 9

7 6

10 9

7 6

DV33_TMDS

C510

100N 16V

HDMI1_D2+

HDMI1_D2-

HDMI1_D1+

HDMI1_D1-

HDMI1_D0+

HDMI1_D0-

HDMI1_CLK+ HDMI1_CLK-

C512

100N 16V

DGND

DV33_TMDS

R535

82K 1/10W

DGND

C522 1uF 16V

HDMI0_DDC_SDA

R533

499 +-1% 1/10W

DV33_TMDS

HDMI0_CON5V

NC/33 P 50V

RESET

C501

R506

4.7K

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

D501

132

R507

4.7K

C507

NC/33P 50V

DGND

U505

NC REXT ARX2P ARX2M NC ARX1P ARX1M VSS ARX0P ARX0M VCC ARXCP ARXCM ASCL ASDA RESET

D5V_STB

BAT54C

R508

100 OHM

R509 100 OHM

DV33_TMDS

R536NC/22K OHM 1/10W

HDMI_SDA

HDMI_SCL

HDMI_D2-

HDMI_D2+

36

34

37

35

33

TX2P

PCSCL

PCSDA

PCADR0

IT6633E-P

AHPD

APWR5V

16

14

15

HDMI1_D2-

HDMI1_D2+

DV33_TM DS

HDMI0_DDC_SCL# HDMI0_DDC_SDA#

HOTPLUG

R526 100K 1/16W

DGND

HDMI_D0+

HDMI_CLK+

HDMI_CLK-

HDMI_D1-

HDMI_D1+

HDMI_D0-

DV33_TM DS

38

TX2M

HDMI1_D1+

HDMI_DDC_SCL

HDMI_DDC_SDA

39

42

41

40

VSS

VCC

TX1P

TX0P

TX1M

HDMI 1_5V

HDMI1_D0-

HDMI1_D1-

HDMI1_D0+

DGND

47

46

48

45

44

TX0M43TXCP

TXCM

TXSCL

TXSDA

TXHPD

HDMI1_CLK-

HDMI1_CLK+

HDMI1_DDC_SCL

49

TXPWR5V

50

CHPD

51

CSDA

52

CSCL

53

CRXCM

54

CRXCP

55

CPWR5V

56

CRX0M

57

CRX0P

58

VSS

59

CRX1M

60

CRX1P

61

VCC

62

CRX2M

63

CRX2P

64

NC

BHPD1BSDA2BSCL3BRXCM4BRXCP5BRPWR5V6BRX0M7BRX0P8VSS9BRX1M10BRX1P11VCC12BRX2M13BRX2P

HOTPLUG1

HDMI1_DDC_SDA

132

R512

4.7K

HDMI1_DDC_SDA HDMI1_DDC_SDA#

C502

NC/33P 50V

HOTPLUG0 HDMI0_D DC_SDA HDMI0_D DC_SCL

HDMI0_CLK-

HDMI0_CLK+

HDMI0_5V

HDMI0_D0-

HDMI0_D0+

HDMI0_D1-

HDMI0_D1+

DV33_TMDS

HDMI0_D2-

HDMI0_D2+

D5V_STBHDMI1_CON5V

D502

BAT54C

R514

4.7K

R511

100 OHM

C508

NC/33P 50V

DGND

R513 100 OHM

R537

100K 1/16W

DGND

HDMI1_DDC_SCL#HDMI1_DDC_SCLHDMI0_DDC_SCL

Del co-layout (IE command)

To Main Chip

HDMI_D2+ HDMI_D2HDMI_D1+ HDMI_D1HDMI_D0+ HDMI_D0HDMI_CLK+ HDMI_CLK-

HDMI_DDC_SCL HDMI_DDC_SDA

HOTPLUG

TUN_I2C_SCL TUN_I2C_SDA

HDMI_CEC

HOTPLUG0

DGND

HDMI_D2+ HDMI_D2HDMI_D1+ HDMI_D1HDMI_D0+ HDMI_D0HDMI_CLK+ HDMI_CLK-

HDMI_DDC_SCL HDMI_DDC_SDA HOTPLUG

TUN_ I2C _SCL TUN_ I2C _SDA

HDMI_CEC

DGND

R519

100K 1/16W

HOTPLUG1

DGND

HDMI0_DDC_SCL# HDMI0_DDC_SDA#

HDMI0_C ON5V

R510

1.5KOHM +- 5% 1/16W

DGND

HDMI1_DDC_SCL# HDMI1_DDC_SDA#

HDMI1_C ON5V

1.5KOHM +- 5% 1/16W R524 100K 1/16W

3KOHM +-5

DGND

HDMI0_5V

TUN_I2C_SCL

TUN_I2C_SDA

R515 3KOHM +- 5

R518

HDMI1_5V

R517

％

1/16W

DGND

HDMI_DDC_SCL HDMI_DDC_SDA

22 OHM 1/10W

HDMI0_D2+

HDMI0_D2HDMI0_D1+

HDMI0_D1HDMI0_D0+

HDMI0_D0HDMI0_CLK+

HDMI0_CLK-

HDMI_CEC

12

DGND

％

1/16W

HDMI1_D2+

HDMI1_D2HDMI1_D1+

HDMI1_D1HDMI1_D0+

HDMI1_D0HDMI1_CLK+

HDMI1_CLK-

HDMI_CEC

12

DGND

12

R173

R174

ZD501 ZD502 ZD503 MLVG0402 MLVG0402 MLVG0402

12

ZD504 ZD505 ZD506 MLVG0402 MLVG0402 MLVG0402

D_5V

CN501

10 11 12 13 14 15 16 17 18 19

CN502

10 11 12 13 14 15 16 17 18 19

DGND

1 2 3 4 5 6 7 8 9

R516 R527 47K 47K

C523

NC/12p F 50V

TMDSD2+ DSHLD0 TMDSD2TMDSD1+ DSHLD1 TMDSD1TMDSD0+ DSHLD2 TMDSD0TMDSC+ CSHLD0 TMDSCCEC NC SCL SDA DDC_GND VCC5 HPD

HDMI

TMDSD2+ DSHLD0 TMDSD2TMDSD1+ DSHLD1 TMDSD1TMDSD0+ DSHLD2 TMDSD0TMDSC+ CSHLD0 TMDSCCEC NC SCL SDA DDC_GND VCC5 HPD

HDMI

45

Titl e

HDMI

Size Document Number Rev

<Doc> 1. 0

C

Date: Sheet

of

12Friday, J une 15, 2012

AOUT_L

AOUT_R

AMP_MUTE Low: Mute disablde High: Mute enable

R602 100 OHM R603 100 OHM

C604

1NF 50V

SH600

SH601

SH602

SH603

SH604

DGND

120R/6000m A

FB601

1 2

AV_L_OUT#

AV_R_OUT#

R605 NC /100K 1/10W

R604

NC/100K 1/10W

PVDD+24V_AMP

C605

1NF 50V

AMP_MUTE

D5V_STB

R601

10K 1/10W

R613

R615

R612 10K 1/10W

Q602 MMBT3906

C629

+

100UF16V

D_5V

R606 10K 1/10W

Q601 MMBT3904

AV_L_OUT#

D_5V

R621

NC/ 10K 1/10W

R627

0R05 OHM

AV_R_OUT#

R611

100 OHM

R622

10K 1/10W

R626

NC

R623

6K8 1/10W 1%

R614

100 OHM

AMP_STB

C607 100N 50V

C613 1uF 25V

PVDD

R624

10 OHM 1/4W

C622

1UF 50V

R620

3.32KOH M +-1% 1/10W

C620

1uF 25V

C614 1uF 25V

C619

1uF 25V

C621

1UF 50V

C633

1UF 50V

10

11

12

13

14

1

2

3

4

5

6

7

8

9

U601

SDZ

FAULTZ

LINP

LINN

GAIN0

GAIN1

AVCC

AGND

GVDD

PLIMIT

RINN

RINP

NC

PBTL

TPA3110D2

1.2A Max

Thermal Pad

PVCCL

BSPL

OUTPL

PGND

OUTNL

BSNL

BSNR

OUTNR

PGND

OUTPR

BSPR

PVCC

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

100N 50V

C603

0.22uF 50V

C608

0.22uF 50V

C623

0.22uF 50V

C626

0.22uF 50V

100N 50V

C602

C606

C618

1nF 50V

DGND DGND

R607

10OHM1/16W

R608

10OHM1/16W

R609

10OHM1/16W

R610

10OHM1/16W

C615

1nF 50V

DGND DGND DGND

PVDD

100UF 35V

+

C601

L601

47UH

C609

330pF 50V

L603

47UH

C611

330pF 50V

L602

47UH

C624

330pF 50V

L604

47UH

C627

330pF 50V

DGND

PVDD

100UF 35V

C616

+

C610

330nF

C612

330nF

C625

330nF

C628

330nF

AMP

CONN

4 3 2 1

AOUT_L AOUT_R

AMP_MUTE

CN601

5 6

AOUT_L AOUT_R

AMP_MUTE

L+

L-

R-

R+

46

Tit le

AUDIO AMP

Docum ent Num ber

Design Check Auditing

Size

B

Date: Sheet

Check of nameAudit ing of nameModif y Rev

Modify Rev

12Wednesday , June 27, 2012

Rev

00.00

of

Silicon Tuner

TUN ER TU1 01

FB101

NC/300 OHM

1

ANT

2

3.3V

3

SCL

4

SDA

5

GND

6

Xou t

7

IF_N

8

IF_P

9

IF_AGC

TH110TH211TH312TH4

13

AGND

IF_AGC Control Circuit

SCL_CAN SDA_CAN

AIFAIF+

IF_AGC

AGND

12

100UF16V

Tuner3.3V

C128

C133

1NF 50V

Tuner3.3V

+

C130

1UF 10V

C131

1NF 50V

I2C for Tuner

+3V3

R159 4.7K

R160 4.7K

close to main chip

TUN_I2C_SCL

Form main chip

TUN_I2C_SDA

Form main chip

AGND

R162 100OHM

R164 100OHM

300mA

3.3V_TUNER

C132

470pF 50V

AGND

TUN_I2C_SCL

TUN_I2C_SDA

SCL_CAN

C140 10PF 50V

SDA_CAN

C144 10PF 50V

AIF+

AIF-

3.3V_TUNER

U101

VIN3VOUT

GND14

4

DGND

AGND

C152

NC/15PF 50V

C138 30PF

C153 NC/15PF 50V

AGND

FB103

2

DGND

C154

NC/15PF 50V

L110

0.82UH

L105

NC/0.82UH

L111

C155

NC/15PF 50V

C129

NC/10U F 10V

AGND

0.82UH

1 2

0R

C149

100N 16V

AGND

C157 15PF 50V

AGND

DGND

L102

C137 15PF 50V

L107

300mA

C126

1UF 10V

0.82UH

D_5V 3.3V_TUNER

C127

+

100UF16V

C150

1UF 10V

C151

1UF 10V

close Tuner

C156

NC/15PF 50V

C158 NC/15PF 50V

L112

NC/0.82U H

TUN _I F+

TUN _I F-

Main Chip <-->

TUN _I F+ TUN _I F-

ATV_IF_AGC

TUN _I 2C _SC L TUN _I 2C _SD A

ATV_IF_AGC

TUN _I2 C_S CL TUN _I2 C_S DA

TUN _I F+ TUN _I F-

Close to Main chip

+3V3

IF_AGC from IC

R165 NC/1K 1/10W

R166

10K 1/10W

L109 0 OHM

C145

10NF 50V

C146

NC/10UF 10V

AGNDAGND AGNDAGND

Close to Tuner

R167

1K 1/10W

C147 NC/10UF 10V

C148 100N 16V

IF_AGC trace shielding by GND

IF_AGCATV_IF_AGC

To tuner

47

Titl e

Tuner

Size Document Number Rev

<Doc > 1.0

Custom

Date: Sheet

of

34Thursday, May 10, 2012

CN4004

1 2 3 4 5 6 7 8

KEY_AD C1

9

POWER_KEY

10

CONN

DGND

IR & KEYPAD CONNECTOR:

Pin01: LED-R Pin02: LED-G Pin03: IRRX1 Pin04/07: GND Pin05/06: POWER Pin08: KEY_ADC1 Pin09: POWER_KEY

CN4005

NC/CONN

45

1

LIGHT_R 1

2

LIGHT_G1

3

DGND

LED-R LED-G IRRX1

POWER

DGND

NC/300R 4A

R4040 NC/1K 1/10W

R4041 NC/1K 1/10W

FB4028

POWER_KEY KEY_AD C1

LED-G LED-R IRRX1 POWER

100N 16V

LEDR_C TRL LEDG_CTR L

D5V_STB +3V3

C4078

DGND

To Keypad

+3V3 +3V3

FB4029 300R 4A

1 2

C4074

100N 16V

C4079 100PF 50V

1 2

ZD4001

GLZ5. 6B

C4075

100N 16V

GLZ5. 6B

IRRX

VGA_RX0 VGA_TX0

R4032 2K2 1/10W 1%

1 2

ZD4002

1 2

FB4032

300R 4A

Q105

NC/2N7002

C4076

100N 16V

1 2

+3V3

R1926 NC/ 100R 1/ 16W 5% R1927 NC/ 100R 1/ 16W 5%

最好将ZD及100PF电容放在靠CN4004端

R4033 4K7 1/10W 1%

R4034 100 OHM

LSADC1

ZD4003

GLZ5. 6B

DGND

IRRX

R4035 100 OHM

C4077 100N 16V

R1931 NC

R1929

NC/2N3906S-RTK/PS

ZD116

NC/MLVG0402

LSADC0

R1928

NC/ 10K 1/16W 5%

12

R4038 1K 1/10W

R4037 1K 1/10W

D5V_STB D5V_STB

R1930

NC/ 10K 1/16W 5%

Q104

23

NC/ 100R 1/ 16W 5%

1

AGND

12

ZD115 NC/MLVG0402

NC/ 100nF 50V

DGND

LEDG_CTR L LEDR_C TRL

C159

12

NC/MLVG0402

ZD126

+3V3

t

Q4004

MMBT3906

12

TH1 02 NC/0R4

12

ZD127 NC/MLVG0402

Q4005 MMBT3906

DGNDDGNDDGNDDGNDDGND

R4036

4.7K

R4039

4.7K

1 2 3 4 5

DGND

CN110

NC/CONN

LEDG

LEDR

R4053 NC/4.7K

IRRX LEDR LEDG LSADC1 LSADC0

VGA_RX0 VGA_TX0

IRRX LEDR LEDG LSADC1 LSADC0

VGA_RX0 VGA_TX0

48

Tit le

Key pad

Size Document Number Rev

<Doc > 1.0

B

of

Date: Sheet

34Wednes day , J une 06, 2012

9.2 Power Board

715G5654P01001002M

FOR BD9901

ECN issue list_20120620

12

BEAD

FB9910

ECN issue list_20120601

SG9903

DSPL201M-A21F_NC

C9902 470PF 250V

SG9901

DSPL201M-A21F_NC

ECN issue list_20120601

470NF 305V

R9901

ECN issue list_20120601

ECN issue list_20120620

FB9908 Jumper _20120620

510K 1/4W

R9904

510K 1/4W_NC

t

NTCR

NR9901

1 2

FB9901 BEAD

1 2

ECN issue list_20120620

C9908 NC

F9901 FUSE

1 2

3 4

ECN issue list_20120620

FB9909 NC

1 2

FB9908 BEAD

12

C9912 470PF 250V

ECN issue list_20120620

HS9901 HEAT SINK

1 2

124

L9902

13MH

3

C9904 470NF 305V

C9903

470PF 250V

124

L9901

13MH

3

C9901

ECN issue list_20120718

R9902

R9903

510K 1/4W

ECN issue list_20120601

R9905

R9906

510K 1/4W_NC

IC9901

NC

1

8

NC

2

7

D1

D2

3

6

D1

D2

5

NC4NC

C9907 NC

RV9901 Varistor

C9905 NC

CN9901

SOCKET

1 2

C9909

ECN issue list_20120620

NC

FB9907 Jumper _20120620

C9910

220PF 250V

B+

FB9906 BEAD

12

ECN issue list_20120620

2

BD9901 TS6B06G -01

+

-

4

3

BEAD

FB9911

1 2

2 1

SG9904

SG9902

12

FB9902

BEAD

FB9907 BEAD

12

C9911 NC

ECN issue list_20120621

FB9903

1

BEAD

CN9904 CONN

N L

PFC_ZCD

R9813

DSPL201M-A21F_NC

47K OHM_NC

DSPL201M-A21F_NC

C9906 470pF 250V

R9806

HV

VCC_ON

12

C9801

1UF 450V_NC

R9801

10 OHM 1/8W_NC

VCC_ON

+

C9803

C9804

47PF 50V_NC

10UF 50V_NC

4.7K OHM_NC

R9101 0R1 5% 2W

C9114 1NF

R9106

20K OHM

R9107

2K 1/8W 1%

ECN issue list_20120601

D9801 1N5408G-04_NC

10

L9801 300UH_NC

1

2 6

D9803 SS0520_NC

12

R9803

33R 1/8W 5%_NC

10K 1% 1/8W_NC

R9802

IC9801 LD7591GS_NC

8

INV

VCC

7

COMP

OUT

6

RAMP

GND

5

R9808

C9806

10K 1% 1/8W_NC

0.22uF 50V_NC

C9807

C9805

0.1uF 50V_NC

100N 50V_NC

ECN issue list_20120601

+

C9103

C9102

10UF 50V

0.1UF 50V

C9104

0.1UF 50V

C9106

10nF 50V

PFC_ZCD

R9804

0.15R_NC

1 2 3

CS4ZCD

ECN issue list_20120613

82KOHM +-5% 2WS

C9101

2.2NF

ECN issue list_20120620

IC9101

1

BNO

OVP

2

COMP

VCC

3

NC

OUT

CS4GND

LD7523GS

R9110 470R 1%

1N 50V

C9105

D9802

FMNS-1106S_NC

C9802 2200PF_NC

R9809

Q9801 STP10NK60ZFP_NC

R9810

R9805 470R 1%_NC

R9811

C9808

R9807

1NF_NC

33K OHM_NC

FOR Q9801 D9802

HS9801 HEAT SINK

1 2 3 4

FOR D9105 D9104

HS9102 HEAT SINK

R9102

8 7

33 OHM 1/8W 6 5

R9111 10K 1% 1/8W

HV

C9810

+

150uF 450V

680K OHM 1% 1/4W_NC

ECN issue list_20120717

680K OHM 1% 1/4W_NC

C9809

R9812

100PF 50V_NC

13K OHM 1%_NC

PLTVCL621UAE1(CHH 32'' D-LED)T9101 change

1 2

to 380GL32P110CP0_ECN issue list_20120705

ECN issue list_20120620

R9103

D9101

0R05 1/4W

PR1007

R9108 22R 1/8W 1%

R9109

D9102 SS0520

12

ECN issue list_20120529

R9301

0.1R

D9301 PR1007

R9306 1M5 1/4W 1%

R9307 1M5 1/4W 1%

R9308 1M5 1/4W 1%

R9310

C9302

1R2 5% 2W

R9309

0.47UF 50V

620K 1/8W 1%

ECN issue list_20120601

FOR D9106 D9305

ECN issue list_20120601

6

4

2

FOR Q9101

HS9101 HEAT SINK

1 2 3 4

R9130 10K 1% 1/8W

R9112

0R33 5% 2W

ECN issue list_20120620

IC9102

PC123X8YFZOF

B+

R9302

R9303

100K 1%

R9304

R9305

100K 1%

C9301 1NF

R9311

4.7M 5% 1/8W

IC9301 A6069H

1

S/OCP

2

BR

3

GND FB/OLP4VCC

ECN issue list_20120601

C9303

10nF50V

ECN issue list_20120515

HS9103 HEAT SINK

1 2

12

9 10

8 11

7

T9101

POWER X'FMR

ECN issue list_20120515

100 OHM 1/4W

Q9101 STP10NK70ZFP

+12V

R9124

1K 1/8W 1%

12

43

R9125 22K 1% 1/8W

3K3 1/8W 1%

GDZJ16B

ZD9101

IC9103

1 2

AS431AZTR-E1

ECN issue list_20120620

D9302 PR1007

R9312 4R7 1/4W 5%

D9303 PR1007

8

D/ST

7

D/ST

5

C9304

GDZJ30B

ZD9301

0.1UF 50V 1 2

ECN issue list_20120718

R9132

220 OHM 1/4W

R9131

220 OHM 1/4W

3

D9104

FMX-23S 2

1

ECN issue list_20120515

R9113

100 OHM 1/4W

R9114

100 OHM 1/4W

D9105

3

FMXA-2202S

2

1

R9118

R9119

C9113 470PF

3

2

D9106 FMEN-220A

1

+12V

+24 LED

24K OHM 1%

R9127

R9126

C9118

0.47UF 50V

R9134

62K 1%_NC

T9301

1

POWER X'FMR

2

7

3

9

5

4

VCC

D9304 1N4148

+

C9305 10UF 50V

C9306

100uF/50V

C9121

100PF

+

C9107

330UF 50V

ECN issue list_20120718

+24VS

C9108 470PF

+

C9110

C9109

1000UF 35V

L9103

3.5uH

+

C9115

1000UF 25V

ECN issue list_20120620

+36V

R9133

120K

56K OHM 1%

R9128

ECN issue list_20120620

R9129

2.26K 1%

ECN issue list_20120529

R9314

100 OHM 1/4W

R9313

100 OHM 1/4W

3

D9305

FMEN-2308 2

1

ECN issue list_20120613

43

IC9302

PC123X8YFZOF

L9101

3.5uH

+

C9119

+

C9120

330UF 50V

L9102

3.5uH

ECN issue list_20120718

+

C9111

C9123

330UF 35V

ECN issue list_20120515

+

C9116

C9117

0.1uF 50V

680UF 25V

R9121

1.5K OHM

VCC

VCC_ON

C9402

10UF 50V

Key Component

5.2V

C9307

+

470PF

C9308 330UF 16V

L9301

3.5uH

+

C9309

470UF 25V

ECN issue list_20120502

5.2V

R9315 470R 1%

12

3.3K 1% 1/8W R9316

+36V

+24 LED

D9107 SR506

5.6K

R9116

R9117

0.1uF 50V

C9312

R9317

220NF 50V

3.3K 1% 1/8W

ECN issue list_20120601

IC9303 AS431AZTR-E1

ECN issue list_20120718

+

C9122

R9115

330UF 35V

ECN issue list_20120515

+12V

R9123

1.5K OHM

R9122

1.5K OHM

2SD1624T-TD-E

Q9401

+

R9401

10K 1% 1/8W

+5.2V

R9402 330R 1%

12

43

IC9401

PC123X8YFZOF

Q9402

PMBS3904

GDZJ16B

ZD9401

1 2

ECN issue list_20120601

T P V ( Top Victory Electronics C o . , Ltd. )

G5654-P0E-001-0020

絬隔瓜絪腹

02.POWER 715G5654-P0E-001-0020 Wednesday, July 18, 2012

Date

OEM MOD EL

TPV MODEL

PCB NAME

+

C9310

270UF 25V

ECN issue list_20120601

+5.2V

R9319

6.2K OHM +-1% 1/8W

R9318

5.6K OHM 1%

5.6K

C9112

0.1uF 50V

C9401

0.1UF 50V

Sheet

of

23

+5.2V

C9311

0.1UF 50V

+12V

+5.2V

ZD9602

ZD9601

GDZJ20B

GDZJ6.2B

1 2

D9601

1N4148

ECN issue list_20120529

Q9601

3

BCR1002N3

2

1

C9601 1UF 50V

ECN issue list_20120502

ON/OFF DIM

+12V

+24V aduio

PS_ON

+24V aduio

+5.2V

+12V

DIM

ON/OFF

ECN issue list_20120516

PS_ON

R9403 10K 1% 1/8W

R9404 10K 1% 1/8W

+24V aduio

ZD9603

GDZJ30B

1 2

1

2

D9602

BAV70

3

R9601 1K OHM 1%

R9602 1K OHM 1%

CN9902 CONN

13 12 11 10

9 8 7 6 5 4 3 2 1

+24 LED

CN9903

CONN_NC

12 11 10

9 8 7 6 5 4 3 2 1

Size

180*240*25mm

Rev

C

称爹

>

<

称爹

49

R8206

+12V

DIM

5.1K OHM

LED-SOURC E

ZD8301 GDZJ 30B

1 2

R8301

82K OHM 1%

ECN issue list_20120529

R8302

0 OHM 1/8W

R8303 1K OHM 1%

LED-1

Q8201 DTA144WN3/ S

R8207 10K 1% 1/8W

DTC 144WN3/S

Q8202

ON/O FF

R8304 10K 1% 1/8W

3

2

1

Q8301

C8302

1uF

BCR1002N 3

ECN issue list_20120620

ECN issue list_20120529

Q8203

P0420ATF

R8201

20R 1%

R8202

20R 1%

ECN issue list_20120718

R8203

20R 1%

FOR D-LED32

EN

R8306 300K 1/4W

Q8302 2N7002

C8301

1nF 50V

300K OHM

R8305

R8204

FB

R8208

75K 1%

R8205

20R 1%

R8214

R8213

20R 1%

75K 1%

FB

EN

ECN issue list_20120601

1

FB

2

COMP

3

RFW CS4DIM

R8101

30K OHM

NC

C8103

C8104

0.1UF 50V

C8105

ECN issue list_20120601

470PF 50V

R8211

100K 1% 1/8W

VCC DRV GND

IC8101 LD7400GS

+12V

8 7 6 5

R8210 100K 1% 1/8W

R8209

100K 1% 1/8W

C8101

10UF 50V

+

C8102

0.1UF 50V

C8106

1nF 50V

+12V

R8212

10K 1% 1/8W

ECN issue list_20120529

IC8201

AS431AN-E1

ECN issue list_20120529

FOR Q8101 D8103

HS8101

HEAT SINK

3 4

R8103

10K 1% 1/4W

R8102

300K OHM

R8104 33 OHM 1/4W

R8109 470R 1%

DIM

D8101 SS0520

R8105 33 OHM

1 2

12

L8101

33UH

R8106 10K 1% 1/8W

R8107

+36V

1

2

0R1 5% 2W

Q8101

AOTF454FL

D8103

3

FME-220B

2

1

+

C8107 47UF 100V

ECN issue list_20120529

C8110 470PF_NC

ECN issue list_20120502

LED-SOURCE

+

L8102 5uH

C8108

47UF 100V

LED-1

+

47UF 100V

LED-SOURC E

C8109

CN8901 CONN

12 11 10

9 8 7 6 5 4 3 2 1

50

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

Key Component

G5654-P0E-001-0020

03. LED D RI VER 715G5654-P0E-001-0020 Wednesday , July 18, 2012

Date

OEM MODEL

TPV MO DE L

PCB NAME

Sheet

of

33

Size

180*240*25mm

Rev

称爹

C

称爹

>

<

9.3 Key Board

715G5711K01000004X

SW01

CN01

65

CONN

33G8032 4F HR

R01

7K5 1/8W +/-1%

R02

2K7 1/8W 1%

R03

1K8 +/ -1% 1/8W

1 2

FUN C_KEY

3 4

PWR-SW

FUN C_KEY

R06 750OHM +- 1% 1/8W

R04

1K 1/8W 1%

R05

750OHM +- 1% 1/8W

TACT SW FWRD H1.5MM

SW02

TACT SW FWRD H1.5MM

SW03

TACT SW FWRD H1.5MM

SW04

TACT SW FWRD H1.5MM

SW05

TACT SW FWRD H1.5MM

SW06

TACT SW FWRD H1.5MM

VOL+

VOL-

CH+

CH-

MENU

Source Select

2.48V~2.72V

2.04V~2.22V

1.58V~1.79V

1.24~1.45V

0.85V~1.02V

0.47V~0.63V

PWR-SW

R07 750OHM +- 1% 1/8W

SW07

TACT SW FWRD H1.5MM

77G 607 2 FD

絬隔瓜絪腹

Key Component

51

Power ON/OFF

T P V ( Top Victory Electronics Co . , Ltd. )

02-Keypad

Date

OEM MO DE L

TPV MODEL

PCB NAME

Sheet

A

称爹

<

Custom

>

X

of

22Friday , April 27, 2012

Size

Rev

称爹

9.4 IR Board

715G5471R02000004X

LED201

081G 14 24 EL

RED

033G8032 5F HR

CN201

67

1 2 3 4 5

CONN

LED_R

LED_B

IR

R202 220 OHM 1/10W

R203 220 OHM 1/10W

VCC

R201 15K 1/10W

C201

0.1uF 50V

BLUE

1

23

Top Vie w

U201

1

GND

2

GND

3

OUT

4

VCC

IRM-H636M3/TR2

16 mm

Dip LED

IR

4

LED

37mm

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

Key Component

Date

715G5471-R0A-000-0040

02-IR&LED

52

OEM MODEL

TPV MOD EL

PCB NAME

Sheet

X

Dynex UFC Model

715G5471-R0A-000-0040

of

22Wednesday , January 18, 2012

Size

Rev

称爹

<

A

称爹

A

>

10. Exploded View

53

Item Description

1 BEZEL 2 DECO 3 SPEAKER 4 PANEL 5 BKT_STAND 6 COVER_STAND 7 KEY 8 REAR_COVER

9 BASE 10 KEY BOARD 11 IR BOARD 12 MAIN BOARD 13 BKT_IO 14 POWER BOARD 15 BOLT 16 BKT_IO 17 INSULATING SHEET 18 Q02G706100200100XL SCREW(FOR PANEL) 4

Item Part No. Description Qty

54

11. BOM List

Note: The parts information listed below are for reference only, and are subject to change without notice. Please go to http://cs.tpv.com.cn/hello1.asp

LE32A1330/61 E32C1KNCCQACNNX

Location Part No. Description Remark

052G 1186 SMALL TAPE

052G 2191 A PAPER TAPE

070GHDCP500HDC HDCP CODE ECN701 095G801313DS05 HARNESS 13P-13P 400 ECN701 095G801313WS05 HARNESS 13P-13P 400MM 2nd Source

0M1G1030 8 47 CR3 SCREW 0M1G1030 8 47 CR3 SCREW 0M1G1030 8 47 CR3 SCREW

0M1G1730 8120 SCREW 3X8 0M1G1730 8120 SCREW 3X8 0M1G1730 8120 SCREW 3X8

0M1G1740 10225 CR3 SCREW M1-MACHINE SCREW X10.0

0Q1G 930 8 47 CR3 SCREW 0Q1G 930 8 47 CR3 SCREW 0Q1G 940 8 47 CR3 SCREW 4X8

0Q1G 940 12 47 CR3 SCREW 4X12

0Q1G1030 6120 SCREW 3X6

SP01 378G0110567YAH 16 OHM 11W 132X34 0 NO ECN601 395G801404DY11 HARNESS 4P-B&R+B&W 450/260MM ECN601 395G801404XY11 HARNESS 4P-B&R+B&W 450/260 2nd Source

ECN4004 395G801410WY39 HARNESS 10P-5P+4P 550/700 2nd Source ECN4004 395G801410XY39 HARNESS 10P-5P+4P 550/700 ECN4001 395G801830LY46 LVDS CABLE 30P-30P 380MM 2nd Source ECN4001 395G801830XY46 LVDS CABLE 30P-30P 380MM

756TXCCB0KC0250001 MCU ASSY-CBPFCK8DX6

SMTF-U4003 100TARVK026C1X AOC LE32A1330/61 NOR_FLASH V2.00 3797

U4003 356G2233073 MCU ASSY-100TARVK026C1X

040G 45762412B CBPC LABEL

CN4004 033G380210B YH L CONNECTOR 10P 2.0

C601 067G315M1016KV EC 100UF 20% 35V 8*7

C616 067G315M1016KV EC 100UF 20% 35V 8*7

CN102 088G 78G114ACL RCA JACK R/A YELLOW H=10.5 CN103 088G 78G121ACL RCA JACK R/A 4P W/R 1*2 H=10.5 CN101 088G 78G134ACL RCA JACK R/A 6P G/BL/R 1*3 H=10.5 CN106 088G302G3G2ACL PHONE JACK R/A 3P GREEN H=10MM CN107 088G302G7B1ACL PHONE JACK R/A 7P BLACK H=10.5 CN108 088G352F6B2ACL USB CONN R/A 6P BLACK 8.4MM CN105 088G353GFF1AXH D-SUB CONN 15P BLUE - R/A 10 TU101 094G PALALL10C TUNER ALL DMI21-C2I2RH TU101 094G PALALL10L TUNER CHINA DT21WN-2-E CN601 311GW200A04ABX WAFER 2.0MM 4P

CN4001 311GW200C30ABL WAFER 2.0MM 2*15P

CN701 311GW250B13BBX WAFER 2.5MM 13P R/A 35MM 7MM

AIFCK8DX6 MAIN BOARD FOR AI C629 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382 C709 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382 C702 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382 C127 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382

C4031 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382

C128 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382

C4030 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382

for the latest information.

55

C4082 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382

C719 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382 C122 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382 C715 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382 C629 067G305S1013HB EC 100UF 20% 16V 6.3*7 C709 067G305S1013HB EC 100UF 20% 16V 6.3*7 C702 067G305S1013HB EC 100UF 20% 16V 6.3*7 C127 067G305S1013HB EC 100UF 20% 16V 6.3*7

C4031 067G305S1013HB EC 100UF 20% 16V 6.3*7

C128 067G305S1013HB EC 100UF 20% 16V 6.3*7

C4030 067G305S1013HB EC 100UF 20% 16V 6.3*7 C4082 067G305S1013HB EC 100UF 20% 16V 6.3*7

C719 067G305S1013HB EC 100UF 20% 16V 6.3*7 C122 067G305S1013HB EC 100UF 20% 16V 6.3*7 C715 067G305S1013HB EC 100UF 20% 16V 6.3*7 C725 067G305S2213HB EC 220UF 20% 16V 6.3*7

SMTFCK8DX6 MAIN BOARD FOR SMT U705 056G 563143 C LDO G1084PT43U 5A ADJ TO-252 U101 056G 563149 IC G903T63UF 0.6A/3.3V SOT-223 U703 056G 563398 DC/DC AT1527F11U 3A U701 056G 563X01 LDO G9661-25ADJF11U 2A 300MV DROP SOP-8 U601 056G 616 54 IC TPA3110D2 15W TSSOP-28 U708 056G 643 46 IC RESET AZ809ANSTR-E1 SOT-23 2.93V U100 056G 662505 ESD PROTECT AOZ8105CI SOT-23-6 U102 056G 662505 ESD PROTECT AOZ8105CI SOT-23-6

Q4003 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q4002 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q708 057G 417511 MMBT3904 Q601 057G 417511 MMBT3904 Q704 057G 417511 MMBT3904 Q701 057G 417511 MMBT3904 Q706 057G 417511 MMBT3904

Q4004 057G 417512 MMBT3906 Q4005 057G 417512 MMBT3906

Q602 057G 417512 MMBT3906 Q707 057G 763 1 MOSFET A03401 4.2A 30V SOT-23 Q709 057G 763 39 FET AO3404 SOT-23 AOS Q710 057G 763 39 FET AO3404 SOT-23 AOS

Q4006 057G 763 79 FET AO4449 -7A/-30V SOIC-8

Q101 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS Q102 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS Q702 057G 763940 MOSFET AO3401A SOT-23

RP4003 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W RP4004 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W RP4002 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W RP4001 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W RP4005 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W

TH101 061G 56A100 WT PTCR SMD 0.21R MAX 0.8W

R4062 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO R4061 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO R4060 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO R4065 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO R4058 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO R4059 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO R4056 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO R4057 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO R4055 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

56

R4066 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

R610 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R609 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R608 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R607 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R134 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R135 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R129 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R143 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R169 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R148 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R186 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R172 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R119 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R103 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R107 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R116 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R145 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R114 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R168 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R111 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R138 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R137 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R164 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R162 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R132 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R131 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R524 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R526 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R537 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R519 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R518 061G0402152 JF RST CHIPR 1.5KOHM +-5% 1/16W FENGHUA R510 061G0402152 JF RST CHIPR 1.5KOHM +-5% 1/16W FENGHUA R140 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA R141 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA R515 061G0402302 JF RST 0402 3K 5% 1/16W R517 061G0402302 JF RST 0402 3K 5% 1/16W R170 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R171 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R160 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I R159 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I R627 061G0603000 JI RST 0603 0.05R MAX 1/10W TA-I R175 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN R627 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO

FB4001 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO

R4005 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO

FB4004 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO

R703 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO R727 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO

R4001 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO

R723 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA

R4009 061G06031001FI 1EST ONLY RST 0603 1K 1% 1/10W TA-I R4011 061G06031001FI 1EST ONLY RST 0603 1K 1% 1/10W TA-I R4010 061G06031001FI 1EST ONLY RST 0603 1K 1% 1/10W TA-I R4012 061G06031001FI 1EST ONLY RST 0603 1K 1% 1/10W TA-I

R602 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO R603 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO

57

R4034 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO R4035 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO

R614 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO R611 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO R508 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO R513 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO R511 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO R509 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO R726 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO R156 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO R155 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO R167 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO R718 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO

R4038 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO

R716 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO

R4037 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO

R622 061G0603103 JI RST 0603 10K 5% 1/10W R615 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN R613 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN R612 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN R606 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO R109 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO R108 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO R733 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO R734 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO R153 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO R150 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO R154 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO R612 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO R613 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO R615 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO R744 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO R728 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO R725 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO R601 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO R701 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO R704 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO R712 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R4018 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R166 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R4023 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R715 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO R743 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO R736 061G06031201FF RST CHIPR 1.2KOHM +-1% 1/10W R735 061G06031501FF RST CHIPR 1.5K OHM +-1% 1/10W FENGHUA R719 061G06032000FY RST CHIP 200R 1% 1/10W R739 061G0603203 JY RST CHIP 20K 1/10W 5% YAGEO

R4022 061G0603220 JT RST CHIP 22R 1/10W 5% TZAI YUAN R4026 061G0603220 JT RST CHIP 22R 1/10W 5% TZAI YUAN R4021 061G0603220 JT RST CHIP 22R 1/10W 5% TZAI YUAN

R173 061G0603220 JY RST CHIPR 22 OHM £«-5£¥ 1/10W YAGEO R174 061G0603220 JY RST CHIPR 22 OHM £«-5£¥ 1/10W YAGEO

R4032 061G06032201FT RST CHIP 2K2 1/10W 1%

R732 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA R737 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA R730 061G06032402FF RST CHIPR 24KOHM 1/10W FENGHUA R730 061G06032402FY RST CHIPR 24KOHM +-1% 1/10W YAGEO

58

R722 061G06033300FF RST CHIPR 330 OHM +-1% 1/10W FENGHUA R620 061G06033321FF RST CHIPR 3.32KOHM +-1% 1/10W FENGHUA R738 061G0603333 JT RST CHIP 33K 1/10W 5% TZAI YUAN R713 061G0603361 JT RST CHIP 360R 1/10W 5% TZAI YUAN R720 061G0603391 JF RST CHIPR 390 OHM +-5% 1/10W FENGHUA

R4033 061G06034701FT RST CHIP 4K7 1/10W 1% R4020 061G0603472 JY R4039 061G0603472 JY R4030 061G0603472 JY R4031 061G0603472 JY R4027 061G0603472 JY R4017 061G0603472 JY R4014 061G0603472 JY R4015 061G0603472 JY

R512 061G0603472 JY

R4036 061G0603472 JY R4019 061G0603472 JY

R711 061G0603472 JY

R4054 061G0603472 JY

R514 061G0603472 JY R506 061G0603472 JY R507 061G0603472 JY

R4042 061G0603472 JY R4048 061G0603472 JY R4047 061G0603472 JY R4016 061G0603472 JY

R724 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO R708 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO R527 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO

R4028 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO

R516 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO R533 061G06034990FF RST CHIPR 499OHM +-1% 1/10W FENGHUA R533 061G06034990FI RST 0603 499R 1% 1/10W

R4003 061G0603622 JF RST CHIPR 6.2KOHM +-5% 1/10W FENGHUA

R623 061G06036801FY RST CHIP 6K8 1/10W 1% R151 061G0603682 JF RST CHIPR 6.8KOHM +-5% 1/10W FENGHUA R105 061G0603682 JF RST CHIPR 6.8KOHM +-5% 1/10W FENGHUA R104 061G0603682 JF RST CHIPR 6.8KOHM +-5% 1/10W FENGHUA R149 061G0603682 JF RST CHIPR 6.8KOHM +-5% 1/10W FENGHUA R101 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO R130 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO R139 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO R112 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO R146 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO R117 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO R122 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO R535 061G0603823 JF RST CHIPR 82KOHM 5% 1/10W FENGHUA R729 061G06039101FI TEST ONLY RST 0603 9.1K 1% 1/10W TA-I R729 061G06039101FY RST CHIPR 9.1KOHM +-1% 1/10W YAGEO

L109 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA FB707 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA FB103 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

FB4021 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

R4063 061G08050004JT RST CHIPR 0805 0 OHM 4A

R624 061G1206100 JF RST CHIPR 10 OHM +-5% 1/4W FENGHUA C144 065G040210031J T CAP 0402 10PF 5% 50V NP0

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

59

C140 065G040210031J T CAP 0402 10PF 5% 50V NP0 C115 065G040210031J Y CAP 0402 10PF 5% 50V NP0

C4079 065G040210131J F CAP 0402 100PF 5% 50V NP0

C133 065G040210232K A CAP 0402 1NF 10% 50V X7R C131 065G040210232K A CAP 0402 1NF 10% 50V X7R C604 065G040210232K A CAP 0402 1NF 10% 50V X7R C605 065G040210232K A CAP 0402 1NF 10% 50V X7R C145 065G040210332K A CAP 0402 10NF 10% 50V X7R C512 065G040210412K T CAP CHIP 0402 100NF 16V X7R C511 065G040210412K T CAP CHIP 0402 100NF 16V X7R C510 065G040210412K T CAP CHIP 0402 100NF 16V X7R C513 065G040210412K T CAP CHIP 0402 100NF 16V X7R

C505 065G040210412K T CAP CHIP 0402 100NF 16V X7R C4036 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4038 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4035 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4076 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4075 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4007 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C705 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4054 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C708 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4052 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C701 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4050 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4051 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C703 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4040 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4004 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4041 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C704 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4059 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4058 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C720 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4057 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C712 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4045 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4044 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C723 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C724 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C721 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4039 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C148 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4061 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4060 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C149 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4021 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4077 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4049 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C714 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C123 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4078 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4048 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4046 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4008 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4006 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C731 065G040210412K Y CAP 0402 100NF 10% 16V X7R

60

C4001 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4002 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C727 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4072 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C707 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4069 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4068 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4064 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4066 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4074 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C718 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4065 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4062 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4063 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4028 065G0402105A5K T CAP 0402 1UF 10% 10V X5R

C151 065G0402105A5K T CAP 0402 1UF 10% 10V X5R C4024 065G0402105A5K T CAP 0402 1UF 10% 10V X5R

C150 065G0402105A5K T CAP 0402 1UF 10% 10V X5R C4042 065G0402105A5K T CAP 0402 1UF 10% 10V X5R

C126 065G0402105A5K T CAP 0402 1UF 10% 10V X5R C4022 065G0402105A5K T CAP 0402 1UF 10% 10V X5R

C130 065G0402105A5K T CAP 0402 1UF 10% 10V X5R C4003 065G0402105A5K T CAP 0402 1UF 10% 10V X5R

C157 065G040215031J F CAP 0402 15PF J 50V NPO

C137 065G040215031J F CAP 0402 15PF J 50V NPO

C114 065G040222031J A CAP 0402 22PF J 50V NPO C4071 065G040222415K A CAP 0402 220NF 10% 16V X7R C4034 065G040230031J A CAP 0402 30PF 5% 5% 50V NP0

C138 065G040230031J A CAP 0402 30PF 5% 5% 50V NP0 C4037 065G040230031J A CAP 0402 30PF 5% 5% 50V NP0

C627 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

C611 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

C624 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

C609 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

C132 065G040247131J A CAP CHIP 0402 470PF J 50V NPO

C118 065G040247131J A CAP CHIP 0402 470PF J 50V NPO

C103 065G040247131J A CAP CHIP 0402 470PF J 50V NPO

C102 065G040247131J A CAP CHIP 0402 470PF J 50V NPO

C117 065G040247131J A CAP CHIP 0402 470PF J 50V NPO C4009 065G040247312K Y CAP 0402 47NF 10% 16V X7R C4015 065G040247312K Y CAP 0402 47NF 10% 16V X7R C4016 065G040247312K Y CAP 0402 47NF 10% 16V X7R C4013 065G040247312K Y CAP 0402 47NF 10% 16V X7R C4014 065G040247312K Y CAP 0402 47NF 10% 16V X7R C4017 065G040247312K Y CAP 0402 47NF 10% 16V X7R C4018 065G040247312K Y CAP 0402 47NF 10% 16V X7R C4011 065G040247312K Y CAP 0402 47NF 10% 16V X7R C4010 065G040247312K Y CAP 0402 47NF 10% 16V X7R C4012 065G040247312K Y CAP 0402 47NF 10% 16V X7R

C101 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0

C104 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0

C105 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0

C116 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0

C111 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0 C4073 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0

C110 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0

C615 065G060310232K A CAP CHIP 0603 1000PF K 50V X7R

61

C602 065G060310232K A CAP CHIP 0603 1000PF K 50V X7R

C754 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C606 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C607 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C618 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C729 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C522 065G060310512K T CAP 0603 1UF 10% 16V X7R

C732 065G060310512K T CAP 0603 1UF 10% 16V X7R

C620 065G060310522K T CAP CHIP 0603 1UF K 25V X7R

C614 065G060310522K T CAP CHIP 0603 1UF K 25V X7R

C619 065G060310522K T CAP CHIP 0603 1UF K 25V X7R

C613 065G060310522K T CAP CHIP 0603 1UF K 25V X7R C4047 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C4055 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C4029 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C4056 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C4020 065G0603225A5K T CAP 0603 2.2UF 10% 10V X5R C4019 065G0603225A5K T CAP 0603 2.2UF 10% 10V X5R C4025 065G0603225A5K T CAP 0603 2.2UF 10% 10V X5R C4026 065G0603225A5K T CAP 0603 2.2UF 10% 10V X5R C4027 065G0603225A5K T CAP 0603 2.2UF 10% 10V X5R C4023 065G0603225A5K T CAP 0603 2.2UF 10% 10V X5R C4053 065G060347506K M CAP 0603 4.7UF 10% 6.3V X6S C4043 065G060347506K M CAP 0603 4.7UF 10% 6.3V X6S

C621 065G080510532K A CAP 0805 1UF 10% 50V X7R

C622 065G080510532K A CAP 0805 1UF 10% 50V X7R

C633 065G080510532K A CAP 0805 1UF 10% 50V X7R C4005 065G0805106A5K A CAP 0805 10UF 10% 10V X5R

C506 065G0805106A5K A CAP 0805 10UF 10% 10V X5R

C713 065G0805106A5K A CAP 0805 10UF 10% 10V X5R

C716 065G0805106A5K A CAP 0805 10UF 10% 10V X5R

C717 065G0805106A5K A CAP 0805 10UF 10% 10V X5R

C711 065G0805106A5K A CAP 0805 10UF 10% 10V X5R

C730 065G0805106A5K A CAP 0805 10UF 10% 10V X5R

C728 065G0805106A5K A CAP 0805 10UF 10% 10V X5R C4080 065G0805106A5K A CAP 0805 10UF 10% 10V X5R

C623 065G080522432K A CAP 0805 220NF 10% 50V X7R

C626 065G080522432K A CAP 0805 220NF 10% 50V X7R

C603 065G080522432K A CAP 0805 220NF 10% 50V X7R

C608 065G080522432K A CAP 0805 220NF 10% 50V X7R

C612 065G080533432K A CAP 0805 330NF 10% 50V X7R

C628 065G080533432K A CAP 0805 330NF 10% 50V X7R

C610 065G080533432K A CAP 0805 330NF 10% 50V X7R

C625 065G080533432K A CAP 0805 330NF 10% 50V X7R

C722 065G0805475A2K A MLCC 0805 4U7 10V X7R +-10%

070GHDCP500HDC HDCP CODE

FB102 071G 56A221 M CHIP BEAD 0805 220R/2000MA

FB4032 071G 56G301 MA CHIP BEAD 0805 300OHM 4A FB4029 071G 56G301 MA CHIP BEAD 0805 300OHM 4A

FB704 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF FB601 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF FB701 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF FB704 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB601 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB502 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF

FB4025 071G 59B121 JM CHIP BEAD 0603 120R/1000MA

FB105 071G 59C600 M CHIP BEAD 60 OHM 0603 600MA

62

FB106 071G 59C600 M CHIP BEAD 60 OHM 0603 600MA FB104 071G 59C600 M CHIP BEAD 60 OHM 0603 600MA

FB4005 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA FB4015 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA FB4022 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA FB4010 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA FB4017 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA FB4014 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA FB4012 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA FB4018 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA FB4006 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA FB4002 073G 6310810M CHIP INDUCTOR 0.1UH +-10% 50MA FB4013 073G 6333810M CHIP INDUCTOR 0.33UH 10% 0.75R 100MA

L107 073G 63828 5M CHIP INDUCTOR 0603 0.82UH+-5% L102 073G 63828 5M CHIP INDUCTOR 0603 0.82UH+-5% L110 073G 63828 5M CHIP INDUCTOR 0603 0.82UH+-5% L111 073G 63828 5M CHIP INDUCTOR 0603 0.82UH+-5% L701 073G253S 71 M SMD CHOKE 2.2UH 20% 0.020R 8.2A L602 073G253S 83 M SMD CHOKE 47UH 20% 0.13R 1.4A L601 073G253S 83 M SMD CHOKE 47UH 20% 0.13R 1.4A L604 073G253S 83 M SMD CHOKE 47UH 20% 0.13R 1.4A

L603 073G253S 83 M SMD CHOKE 47UH 20% 0.13R 1.4A CN501 088G 34019K AV HDMI HEADER R/A 19P BLACK H=8.4 CN502 088G 34019K AV HDMI HEADER R/A 19P BLACK H=8.4

D401 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23 D502 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23 D501 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23

X4001 093G 22S517 YC CRYSTAL HC-49U/SMD 27M 30PPM 20PF ZD4001 093G 39S940 T ZENER GLZ5.6B 5.6 0.5 MINI-MELF LL-34 ZD4002 093G 39S940 T ZENER GLZ5.6B 5.6 0.5 MINI-MELF LL-34 ZD4003 093G 39S940 T ZENER GLZ5.6B 5.6 0.5 MINI-MELF LL-34

D712 093G 60S913 T DIODE RB501V-40 SOD-323 ZD101 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD102 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD103 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ

ZD4005 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ

ZD105 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD107 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD120 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD124 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD121 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD125 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD117 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD119 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD118 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD503 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD504 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD505 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD506 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD502 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD501 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD123 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD122 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD104 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ

U4001 356G0562X12 SCALER RTD2648 LQFP128

U505 356G0623X05 HDMI SWITCH IT6633E-P LQFP-64

U4003 356G2233073 FLASH W25Q64FVSSIG 64MB SOIC8 2.7~3.6V

63

E715 715G5635M01000004K MAIN BOARD PCB

E715 715G5635M01000004N MAIN BOARD PCB 2nd Source

E715 715G5635M01000004X MAIN BOARD PCB 2nd Source

X12G8001 1 BGP HEAT PAD

HS4000 X90G8014 1 HEAT SINK

IRPFCXAC IR BOARD CN201 033G8032 5F B CONN 1.25MM 5P R/A 11.2MM 5.7MM CN201 033G8032 5F X WAFER 5P 1.25MM S1315-05RVB-S03-K

R201 061G0603153 JY RST CHIPR 15KOHM 1/10W YAGEO R203 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA R202 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA C201 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

LED201 081G 14 24 EL CHIP LED BLUE/DARK RED

U201 356GS927072 IR RECEIVER IRM-H638M3/TR2 38 KHZ

709T54710XS001 COMSUPTIVE ASS'Y E715 715G5471R02000004S IR BOARD PCB E715 715G5471R02000004X IR BOARD PCB 2nd Source

KEPFCXAE KEY BOARD CN01 033G8032 4F B CONN 1.25MM 4P R/A 9.95MM 5.7MM CN01 033G8032 4F X WAFER 4P 1.25MM

R04 061G08051001FT RST CHIP 1K 1/8W 1% R03 061G08051801FY RST CHIP R 1K8 +/-1% 1/8W R02 061G08052701FY RST CHIP 2K7 1/8W 1% R06 061G08057500FF RST CHIPR 750 OHM +-1% 1/8W FENGHUA R05 061G08057500FF RST CHIPR 750 OHM +-1% 1/8W FENGHUA R07 061G08057500FF RST CHIPR 750 OHM +-1% 1/8W FENGHUA R01 061G08057501FY RST CHIP R 7K5 1/8W +/-1%

SW04 077G 607 2 FD

SW03 077G 607 2 FD

SW06 077G 607 2 FD

SW02 077G 607 2 FD

SW05 077G 607 2 FD

SW01 077G 607 2 FD

SW07 077G 607 2 FD

SW07 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01 SW05 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01 SW04 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01 SW01 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01 SW06 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01 SW03 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01 SW02 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01

709T57110XS001 COMSUMPTIVE ASSY

Q05G6054 1 SHEET

Q09G6012 1 PIN E715 715G5711K01000004S KEY BOARD PCB E715 715G5711K01000004X KEY BOARD PCB 2nd Source E750 LCV315TAT01AD8011X PANEL TPT315B5-TAT01 C1C XM TPV

P12G6311010 RUBBER PAD SILICONE

P33T0408ADT01L0100 KEY

P34T12010GMY3K01BA REAR_COVER

P34T1202ADT01L01BE DECO_BEZEL

CHIP TACT SW BY FORWARD SFKQGMA2125T-PL CHIP TACT SW BY FORWARD SFKQGMA2125T-PL CHIP TACT SW BY FORWARD SFKQGMA2125T-PL CHIP TACT SW BY FORWARD SFKQGMA2125T-PL CHIP TACT SW BY FORWARD SFKQGMA2125T-PL CHIP TACT SW BY FORWARD SFKQGMA2125T-PL CHIP TACT SW BY FORWARD SFKQGMA2125T-PL

64

P34T1203ADT01L01BA BASE

P34T1204ADT01L0100 STAND

P34T12050GM01K0100 COVER_STAND

PLTVCL621UXE6 POWER BOARD

Z40G0002ALL01A SFIS LABEL 35MM*9MM

CN8901 033G380212B YH WAFER 12P 2.0 DIP

IC9102 056G 139 3B PC123Y82FZOF SHARP IC9302 056G 139 3B PC123Y82FZOF SHARP IC9401 056G 139 3B PC123Y82FZOF SHARP IC9301 056G 379121 IC STR- A6069H DIP-8

Q8203 057G 600948 MOSFET P0420ATF 4A 200V TO-220F RV9901 061G 46621 P VARISTOR 620V 10% 16*7 NR9901 061G 58309MEW NTCR 3R 20% 3.6W SCK15037MMY502

C9904 063G107K474 EM CAP X2 470NF 10% 305V

C9901 063G107K474 EM CAP X2 470NF 10% 305V FB9901 071G 55 21 H1 BEAD 6.0*10 700R 25% BF-I60100R-706B FB9910 071G 55 21 H1 BEAD 6.0*10 700R 25% BF-I60100R-706B FB9911 071G 55 21 H1 BEAD 6.0*10 700R 25% BF-I60100R-706B FB9902 071G 55 21 H1 BEAD 6.0*10 700R 25% BF-I60100R-706B

L9902 073G 174106 X LINE FILTER 13MH MIN 3LFT201110-133M L9901 073G 174106 X LINE FILTER 13MH MIN 3LFT201110-133M L9102 073G 253 91 V CHOKE COIL 3.5UH+-10% L9301 073G 253 91 V CHOKE COIL 3.5UH+-10% L9103 073G 253 91 V CHOKE COIL 3.5UH+-10% L9101 073G 253 91 V CHOKE COIL 3.5UH+-10% L8102 073G 253203 X CHOKE COIL 5UH 15% -T9301 080GL52P 54 H X'FMR 1000UH 10% 40UH EQ30 BCK-13026-HA

CN9901 087G 50147D HC AC SOKET R/A 2P 12DEGREE H=12.8

D9107 093G 60334 SCHOTTKY SR506-44 5A 60V DO-201AD

CN9901 0Q1G 340 8140 SCREW Q1-SELF TAPING SCREW :Q X8.0 CN9902 311GW250B13BBX WAFER 2.5MM 13P R/A 35MM 7MM

C9810 367G315X151PKZ000S EC 150UF 20% 450V 18*45 3000 HR 1200MA -

L8101 373G0253249CP0 BOOST CHOKE 33UH 10% EQ25 0.5A L020692-6 T9101 380GL32P106N00 X'FMR 750UH 10% 18UH ER28 YUVA-2016-4

705TXC57330 Q9101 ASSY

Q9101 057G 667 21 MOSFET STP10NK70ZFP 8.6A 700V TO-220FP

0M1G1730 8120 SCREW 3X8

HS9101 Q90G0087 7 HEAT SINK ÆÄËÛ/OTHER

705TXC57331 Q8101 & D8103 ASSY

D8103 093G 60258 DIODE FME-220B TO-220 SANKEN

0M1G1730 8120 SCREW 3X8

Q8101 357G0600980 MOSFET AOTF454L 13A 150V 41W TO-220F

HS8101 Q90T0237 1 HEAT SINK

705TXC84040 F9901 ASSY EF9901 084G 34 10 FUSE CLIP EF9901 084G 34 14 FUSE CLIP 5*20MM

F9901 084G 41 3 C FUSE 3.15A 250V, TIME LAG FUSE

705TXC93969 BD9901 ASSY

HS9901 090G6064 1 HEAT SINK BD9901 093G 50460925 BRIDGE TS6B06G-01 6A 800V KBJ

0M1G1730 8120 SCREW 3X8

705TXC93970 D9104 & D9105 ASSY

HS9102 090G6064 1 HEAT SINK

D9105 093G 52 57 RECTIFIER FMXA-2202S 20A 200V TO-220F D9104 093G 52909 RECTIFIER SFF1006G 10A 400V ITO-220AB D9104 093G 220 24 DIODE FMX-23S SANKEN

0M1G1730 8120 SCREW 3X8

65

705TXC93971 D9106 & D9305 ASSY

HS9103 090G6064 1 HEAT SINK

D9106 093G 60329 DIODE FMEN-220A 20A/100V TO-220 D9305 093G 60987 SCHOTTKY FMEN-2308 30A 80V TO-22OF

0M1G1730 8120 SCREW 3X8 IC8201 056G 158501 IC AS431AN-E1 SOT23 IC9101 056G 379175 IC LD7523GS SOP-8 IC8101 056G 700 40 LED DRIVER LD7400GS SOP-8 Q9402 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q9401 057G 419912 T TRANSISTOR 2SD1624T-TD-E PCP Q8302 057G 759 2A HF TANSISTOR 2N7002H SOT-23 Q8201 057G 760 4A DTA144WN3/S SOT-23 Q8202 057G 760 5A DTC 144WN3/S SOT-23 Q8301 057G 769900 SMALLTRAN BCR1002N3 0.2A 50V SOT23 Q9601 057G 769900 SMALLTRAN BCR1002N3 0.2A 50V SOT23

R8302 061G0805000 JI RST 0805 MAX0.05R 5% 1/8W TA-I R9602 061G08051001FI RST CHIPR 1KOHM +-1% 1/8W TA-I R8303 061G08051001FI RST CHIPR 1KOHM +-1% 1/8W TA-I R9601 061G08051001FI RST CHIPR 1KOHM +-1% 1/8W TA-I R9124 061G08051001FT RST CHIP 1K 1/8W 1% R8207 061G08051002FI RST 0805 10K 1% 1/8W R8212 061G08051002FI RST 0805 10K 1% 1/8W R9111 061G08051002FI RST 0805 10K 1% 1/8W R9404 061G08051002FI RST 0805 10K 1% 1/8W R9401 061G08051002FI RST 0805 10K 1% 1/8W R8106 061G08051002FI RST 0805 10K 1% 1/8W R9130 061G08051002FI RST 0805 10K 1% 1/8W R9403 061G08051002FI RST 0805 10K 1% 1/8W R8304 061G08051002FI RST 0805 10K 1% 1/8W R8211 061G08051003FI RST 0805 100K 1% 1/8W R8210 061G08051003FI RST 0805 100K 1% 1/8W R8209 061G08051003FI RST 0805 100K 1% 1/8W R9107 061G08052001FT RST CHIP 2K 1/8W 1% R9125 061G08052202FI RST 0805 22K 1% 1/8W R9108 061G08052209FT RST 0805 22R 1% 1/8W R9129 061G08052261FY RST 0805 2.26K 1% 1/8W RC0805FR-07 2K26L R9127 061G08052402FI RST CHIPR 24 KOHM +-1% 1/8W R8101 061G0805303 JI RST CHIPR 30 KOHM +-5% 1/8W R8305 061G0805304 JI RST CHIPR 300K OHM +-5% 1/8W R8102 061G0805304 JI RST CHIPR 300K OHM +-5% 1/8W R9109 061G0805330 JF RST CHIPR 33 OHM +-5% 1/8W FENGHUA R8105 061G0805330 JI RST CHIPR 33 OHM +-5% 1/8W 0805 R9317 061G08053301FI RST 0805 3.3K 1% 1/8W R9316 061G08053301FI RST 0805 3.3K 1% 1/8W R9126 061G08053301FT RST CHIP 3K3 1/8W 1% R9311 061G0805475 JT RST CHIP 4.7M 5% 1/8W R9318 061G08055601FI RST CHIPR 5.6 KOHM +-1% 1/8W 0805 R9128 061G08055602FI RST CHIPR 56 KOHM +-1% 1/8W 0805 R9319 061G08056201FT RST CHIPR 6.2KOHM +-1% 1/8W TZAI YUAN R9309 061G08056203FT RST CHIP 620K 1/8W 1% JR803 061G1206000 JI RST 1206 MAX0R05 5% 1/4W JR903 061G1206000 JI RST 1206 MAX0R05 5% 1/4W JR802 061G1206000 JI RST 1206 MAX0R05 5% 1/4W JR901 061G1206000 JI RST 1206 MAX0R05 5% 1/4W JR902 061G1206000 JI RST 1206 MAX0R05 5% 1/4W JR906 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN JR905 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

66

R9103 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN R8103 061G12061002FI RST 1206 10K 1% 1/4W R9304 061G12061003FT RST CHIP 100K 1/4W 1% R9302 061G12061003FT RST CHIP 100K 1/4W 1% R9303 061G12061003FT RST CHIP 100K 1/4W 1% R9305 061G12061003FT RST CHIP 100K 1/4W 1% R9119 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R9114 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R9314 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R9113 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R9313 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R9118 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R9133 061G1206124 JT RST CHIP 120K 5% 1/4W R9121 061G12061501FT RST 1206 1.5K 1% 1/4W R9122 061G12061501FT RST 1206 1.5K 1% 1/4W R9123 061G12061501FT RST 1206 1.5K 1% 1/4W R9308 061G12061504FT RST CHIP 1M5 1/4W 1% R9307 061G12061504FT RST CHIP 1M5 1/4W 1% R9306 061G12061504FT RST CHIP 1M5 1/4W 1% R8205 061G12062009FI RST 1206 20R 1% 1/4W TA-I R8202 061G12062009FI RST 1206 20R 1% 1/4W TA-I R8201 061G12062009FI RST 1206 20R 1% 1/4W TA-I R8203 061G12062009FI RST 1206 20R 1% 1/4W TA-I R8213 061G12062009FI RST 1206 20R 1% 1/4W TA-I R8204 061G12062009FI RST 1206 20R 1% 1/4W TA-I R9106 061G1206203 JI RST 20K OHM 5% 1/4W TA-I R9131 061G1206221 JT RST CHIPR 220 OHM +-5% 1/4W TZAI YUAN R9132 061G1206221 JT RST CHIPR 220 OHM +-5% 1/4W TZAI YUAN R8306 061G1206304 JI RST 1206 300K 5% 1/4W R8104 061G1206330 JI RST 1206 33R 5% 1/4W R9402 061G12063300FT RST 1206 330R 1% 1/4W R9110 061G12064700FI RST 1206 470R 1% 1/4W TA-I R8109 061G12064700FI RST 1206 470R 1% 1/4W TA-I R9315 061G12064700FI RST 1206 470R 1% 1/4W TA-I R9312 061G1206479 JT RST 1206 4.7R 5% 1/4W R9902 061G12065103FT RST CHIPR 510 KOHM +-1% 1/4W TZAI YUAN R8206 061G1206512 JI RST 5.1K OHM 5% 1/4W TA-I R9901 061G1206514 JF RST CHIPR 510KOHM +-5% 1/4W FENGHUA R9903 061G1206514 JF RST CHIPR 510KOHM +-5% 1/4W FENGHUA R9115 061G1206562 JT RST 1206 5.6K 5% 1/4W TZAI YUAN R9116 061G1206562 JT RST 1206 5.6K 5% 1/4W TZAI YUAN R9117 061G1206562 JT RST 1206 5.6K 5% 1/4W TZAI YUAN R8214 061G12067502FT RST CHIPR 75K 1/4W +/-1% TZAI YUAN R8208 061G12067502FT RST CHIPR 75K 1/4W +/-1% TZAI YUAN R8301 061G12068202FT RST CHIPR 82KOHM +-1% 1/4W TZAI YUAN C8106 065G080510232K F CAP 0805 1000PF 10% 50V X7R C8301 065G080510232K F CAP 0805 1000PF 10% 50V X7R C9105 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% C9303 065G080510332K A CAP CHIP 0805 10NF K 50V X7R C9106 065G080510332K F CAP 0805 10NF K 50V X7R C9123 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C9117 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C9112 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C8104 065G080510432K T 0.1UF K 50V X7R TAIYO YUDEN C9311 065G080510432K T 0.1UF K 50V X7R TAIYO YUDEN C8102 065G080510432K T 0.1UF K 50V X7R TAIYO YUDEN C9304 065G080510432K T 0.1UF K 50V X7R TAIYO YUDEN

67

C9103 065G080510432K T 0.1UF K 50V X7R TAIYO YUDEN C9104 065G080510432K T 0.1UF K 50V X7R TAIYO YUDEN C9401 065G080510432K T 0.1UF K 50V X7R TAIYO YUDEN C9601 065G080510532K A CAP 0805 1UF 10% 50V X7R C8302 065G080510532K M CAP 0805 1UF 10% 50V X7R C9312 065G080522432K T CAP 0805 220NF K 50V X7R C8105 065G080547131J A CAP 0805 470PF 5% 50V NP0 C9302 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R C9118 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R D9602 093G 64 42SEM SWITCHING BAV70 215MA 75V SOT-23 D8101 393G060S93400T00HF HF SS0520_R1_00001 0.5A 20V SOD-123 D9102 393G060S93400T00HF HF SS0520_R1_00001 0.5A 20V SOD-123

CN9901 006G 31500 EYELET

IC9103 056G 158 10 T DC/DC AS431AZTR-E1 150MA 40V TO-92 IC9303 056G 158 10 T DC/DC AS431AZTR-E1 150MA 40V TO-92

R9301 061G 30310852T SY RST FUSE 0.1R 5% 1W R9101 061G152M10852T SY RST MOF 0R1 5% 2W R8107 061G152M10852T SY RST MOF 0R1 5% 2W R9310 061G152M12952T SY RST MOF 1R2 5% 2W R9112 061G152M33852T SY RST MOF 0R33 5% 2W R9102 061G152M82352T SY RST MOFR 82KOHM +-5% 2WS FUTABA C9121 065G 1K1019ST CAP CER 100PF 10% 1KV R C9114 065G 1K10293T CAP CER 1NF 10% 1KV R C9301 065G 1K1029ST CAP CER 1NF 10% 1KV R C9101 065G 1K22293S CAP CER 2.2NF 10% 1KV R TAPING C9307 065G 1K4719ST CAP CER 470PF 10% 1KV R C9113 065G 1K4719ST CAP CER 470PF 10% 1KV R C9108 065G 1K4719ST CAP CER 470PF 10% 1KV R C9910 065G306K2212SR CAP Y1 220PF 10% 250V Y5P C9906 065G306K47123R CAP Y1 470PF 10% 250V Y5P C9912 065G306K4712SR CAP Y1 470PF 10% 250V Y5P C9903 065G306K4712SR CAP Y1 470PF 10% 250V Y5P C9902 065G306K4712SR CAP Y1 470PF 10% 250V Y5P C9402 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000 HR C9305 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000 HR C9102 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000 HR C8101 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000 HR C9107 067G 5151018KT EC 100UF 20% 63V EV1J101MPN1012RSU C9119 067G 5151018KT EC 100UF 20% 63V EV1J101MPN1012RSU C9111 067G 5153316KT EC 330UF 20% 35V 10*12 5000 HR C9122 067G 5153316KT EC 330UF 20% 35V 10*12 5000 HR C8107 067G 5154709KT EC 47UF 20% 100V 10*12 C8109 067G 5154709KT EC 47UF 20% 100V 10*12 C8108 067G 5154709KT EC 47UF 20% 100V 10*12 C9308 067G204S3313KT CAP CS 330UF 20% 16V 10*7 2000 HR C9306 067G215D1017KT EC CAP 100UF 50V 8*12MM C9115 067G215H1024KT EC 1000UF 20% 25V 10*20 C9310 067G215P2714KT EC 270UF 20% 25V 10*9

C9309 067G215P4714KT EC 470UF 20% 25V 10*16 FB9906 071G 55 9 T BEAD 3.5*0.8*6.0MM 110R HF FB9903 071G 55 9 T BEAD 3.5*0.8*6.0MM 110R HF

ZD9602 093G 3957752T GDZJ6.2B ZD8301 093G 3995652T DIODE GDZJ30B DO-35 ZD9603 093G 3995652T DIODE GDZJ30B DO-35 ZD9301 093G 3995652T DIODE GDZJ30B DO-35 ZD9601 093G 3996052T DIODE GDZJ20B DO-35

D9601 093G 6451652T 1N4148

68

D9304 093G 6451652T 1N4148

ZD9401 093G 39G 8 ZENER GDZJ16B 16 0.5 DO-35 ZD9101 093G 39G 8 ZENER GDZJ16B 16 0.5 DO-35

D9303 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41

D9101 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41

D9301 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41

D9302 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41

J807 095G 90 23 JUMP WIRE - J917 095G 90 23 JUMP WIRE - J925 095G 90 23 JUMP WIRE - J920 095G 90 23 JUMP WIRE - J802 095G 90 23 JUMP WIRE - J805 095G 90 23 JUMP WIRE - J927 095G 90 23 JUMP WIRE - J804 095G 90 23 JUMP WIRE - J919 095G 90 23 JUMP WIRE - -

FB9907 095G 90 23 JUMP WIRE - -

J912 095G 90 23 JUMP WIRE - J907 095G 90 23 JUMP WIRE - J801 095G 90 23 JUMP WIRE - J929 095G 90 23 JUMP WIRE - J910 095G 90 23 JUMP WIRE - J803 095G 90 23 JUMP WIRE - J921 095G 90 23 JUMP WIRE - -

FB9908 095G 90 23 JUMP WIRE - -

J903 095G 90 23 JUMP WIRE - J905 095G 90 23 JUMP WIRE - J928 095G 90 23 JUMP WIRE - J918 095G 90 23 JUMP WIRE - J913 095G 90 23 JUMP WIRE - J902 095G 90 23 JUMP WIRE - J922 095G 90 23 JUMP WIRE - J911 095G 90 23 JUMP WIRE - J923 095G 90 23 JUMP WIRE - J909 095G 90 23 JUMP WIRE - J926 095G 90 23 JUMP WIRE - J901 095G 90 23 JUMP WIRE - J930 095G 90 23 JUMP WIRE - -

J906 095G 90 23 JUMP WIRE - C9120 367G415X3317KT EC 330UF 20% 50V 12.5*12 C9116 367G415X6814KT EC 680UF 20% 25V 12.5*12 C9110 367G515C102GKT EC 1000UF 20% 35V 12.5*20 6000HRS C9109 367G515C102GKT EC 1000UF 20% 35V 12.5*20 6000HRS

E715 715G5654P01001002M POWER BOARD PCB 2nd Source E715 715G5654P01001002S POWER BOARD PCB

Q02G7060001001 BOLT M00201 Q02G706100200100HX BOLT M00201 Q02G706100200100XL BOLT

Q11G701027000L PCB-SUPPORT

Q12G6300 25 3 FOOT PAD Q12G714001100100HB HEAT PAD Q12G714001100100HB HEAT PAD

Q16G0001 10 12 EVA WASHER

Q16G0001 20 8 EVA

Q36T 600 37 26 GP NON-WOVEN FABRIC

Q40G0003615D90 OTHER LABEL

Q44T3121510562 PU FOAM

69

Q45G 77 5 PE PACKING Q45G88010TV03500HW PROTECT BAG Q45G99010TV03900WN PROTECT BAG

Q50G 4 10 TIE (Y1900221) Q50G 500 TV005 CABLE TIE Q52G 1185 99 BIG CARTON TAPE FOR AOC 72MM

Q52G1501150523 W INSULATING PLATE

Q52G18010TV08200ZA INSULATING SHEET

X15T841210100000Z1 BKT_STAND

X15T841310100000Z1 BKT_STAND X15T8416101000GMZ1 BKT_IO X15T8425101000GMZ1 BKT_IO

M03502 X35T8022001B1C01TS DECO_BEZEL M03502 X35T8022001B1C01XD DECO_BEZEL

X40G000261587A OTHER LABEL --LE32A1330/61 M04001 X40G2012032X5900XY LABEL IO M04001 X40G2012032X5900ZA LABEL IO M04002 X40G2012032X6000XY LABEL IO M04002 X40G2012032X6000ZA LABEL IO

X41G78DV61508A WARRANTY CARD

X44GJA661010SY CUSHION-TL X44GJA662010SY CUSHION-TR X44GJA663010SY CUSHION-BL X44GJA664010SY CUSHION-BR

X44GJA6661501A ARTWORK CARTON AOC LE32A133061

E08901 089G217A18N IS AC POWER CORD 1800MM

092GB1JX1A3DGC BATTERY 1.5V BATTERY FOR LR03

098GRABD6NEACD REMOTE AOC 90-364100T4425

0M1G1740 16225 CR3 SCREW M1-MACHINE SCREW X16.0

Q45G2010M0101A PE BAG FOR MANUAL

Q45T 76 28NV2 R PE BAG FOR BASE SCREW SZ02742

X41G32MV61529B MANUAL LE32A1330/61 INDIA

040G 58162435A MANUAL P/N LABEL

Q40G 581689 4B SN LABEL(58X35MM) Q40G0001954 1A S/N LABEL X40G0001624 2A LABEL FOR SCREW PE BAG

X40G032061545A RATING LABEL --LE32A1330/61

70

LE40A1330/61 E39C2KNCCQA1NNX

Location Part No. Description Remark

0Q1G 940 12 47 CR3 SCREW 4X12 036T 600 18111 NONWOVEN FABRTC 052G 1186 SMALL TAPE 052G 2191 A PAPER TAPE 070GHDCP500HDC HDCP CODE

ECN701 095G801313DS05 HARNESS 13P-13P 400 ECN701 095G801313WS05 HARNESS 13P-13P 400MM 2nd Source

0M1G1030 6 47 CR3 SCREW 0M1G1730 8120 SCREW 3X8 0M1G1740 8120 SCREW FOR STD/MF 42-D020715/42-D000649() 0Q1G 130 6120 SCREW (T3X6) 0Q1G 930 8 47 CR3 SCREW 0Q1G1030 6120 SCREW 3X6

SP01 378G0110567YAH 16 OHM 11W 132X34 0 NO ECN601 395G801404DY11 HARNESS 4P-B&R+B&W 450/260MM 2nd Source ECN601 395G801404XY11 HARNESS 4P-B&R+B&W 450/260

ECN4004 395G801410WY38 HARNESS 10P-5P+4P 650/750 2nd Source ECN4004 395G801410XY38 HARNESS 10P-5P+4P 650/750 ECN4001 395G801851DY98 LVDS CABLE 51P-30P 400MM ECN4001 395G801851RY98 LVDS CABLE 51P-30P 400 2nd Source

756TXCCB0KC0260000 MAIN BOARD-CBPFCK8DX6

SMTF-U4003 100TARVT007CTX AOC LE40A1330/61 FLASH -- --

U4003 356G2233073 MCU ASSY-100TARVT007CTX

040G 45762412B CBPC LABEL

CN4004 033G380210B YH L CONNECTOR 10P 2.0

C601 067G315M1016KV EC 100UF 20% 35V 8*7

C616 067G315M1016KV EC 100UF 20% 35V 8*7

CN102 088G 78G114ACL RCA JACK R/A YELLOW H=10.5 CN103 088G 78G121ACL RCA JACK R/A 4P W/R 1*2 H=10.5 CN101 088G 78G134ACL RCA JACK R/A 6P G/BL/R 1*3 H=10.5 CN106 088G302G3G2ACL PHONE JACK R/A 3P GREEN H=10MM CN107 088G302G7B1ACL PHONE JACK R/A 7P BLACK H=10.5 CN108 088G352F6B2ACL USB CONN R/A 6P BLACK 8.4MM CN105 088G353GFF1AXH D-SUB CONN 15P BLUE - R/A 10 TU101 094G PALALL10C TUNER ALL DMI21-C2I2RH TU101 094G PALALL10L TUNER CHINA DT21WN-2-E CN601 311GW200A04ABX WAFER 2.0MM 4P

CN4001 311GW200C30ABL WAFER 2.0MM 2*15P

CN701 311GW250B13BBX WAFER 2.5MM 13P R/A 35MM 7MM

C629 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382

C709 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382

C702 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382

C127 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382

C4031 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382

C128 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382

C4030 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382 C4082 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382

C719 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382

C122 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382

C715 367G305S1013LB EC 100UF 10% 16V 6.3*7 2000 HR -- 000382

C629 067G305S1013HB EC 100UF 20% 16V 6.3*7

C709 067G305S1013HB EC 100UF 20% 16V 6.3*7

C702 067G305S1013HB EC 100UF 20% 16V 6.3*7

C127 067G305S1013HB EC 100UF 20% 16V 6.3*7

C4031 067G305S1013HB EC 100UF 20% 16V 6.3*7

71

C128 067G305S1013HB EC 100UF 20% 16V 6.3*7

C4030 067G305S1013HB EC 100UF 20% 16V 6.3*7 C4082 067G305S1013HB EC 100UF 20% 16V 6.3*7

C719 067G305S1013HB EC 100UF 20% 16V 6.3*7

C122 067G305S1013HB EC 100UF 20% 16V 6.3*7

C715 067G305S1013HB EC 100UF 20% 16V 6.3*7

C725 067G305S2213HB EC 220UF 20% 16V 6.3*7

U705 056G 563143 C LDO G1084PT43U 5A ADJ TO-252

U101 056G 563149 IC G903T63UF 0.6A/3.3V SOT-223

U703 056G 563398 DC/DC AT1527F11U 3A

U701 056G 563X01 LDO G9661-25ADJF11U 2A 300MV DROP SOP-8

U601 056G 616 54 IC TPA3110D2 15W TSSOP-28

U708 056G 643 46 IC RESET AZ809ANSTR-E1 SOT-23 2.93V

U102 056G 662505 ESD PROTECT AOZ8105CI SOT-23-6

U100 056G 662505 ESD PROTECT AOZ8105CI SOT-23-6

Q4003 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q4002 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q706 057G 417511 MMBT3904

Q701 057G 417511 MMBT3904

Q704 057G 417511 MMBT3904

Q708 057G 417511 MMBT3904

Q601 057G 417511 MMBT3904

Q4005 057G 417512 MMBT3906 Q4004 057G 417512 MMBT3906

Q602 057G 417512 MMBT3906

Q707 057G 763 1 MOSFET A03401 4.2A 30V SOT-23

Q709 057G 763 39 FET AO3404 SOT-23 AOS

Q710 057G 763 39 FET AO3404 SOT-23 AOS

Q4006 057G 763 79 FET AO4449 -7A/-30V SOIC-8

Q102 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS

Q101 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS

Q702 057G 763940 MOSFET AO3401A SOT-23

RP4005 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W RP4001 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W RP4002 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W RP4004 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W RP4003 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W

TH101 061G 56A100 WT PTCR SMD 0.21R MAX 0.8W

R4062 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO R4061 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO R4060 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO R4065 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO R4058 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO R4059 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO R4056 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO R4057 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO R4055 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO R4066 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

R610 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R609 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R608 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R607 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA

R111 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R138 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R137 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R172 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R186 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

72

R148 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R169 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R143 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R129 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R135 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R134 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R168 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R114 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R145 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R116 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R107 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R103 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R119 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R162 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO

R164 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO

R131 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R132 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R524 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA

R526 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA

R537 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA

R519 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA

R518 061G0402152 JF RST CHIPR 1.5KOHM +-5% 1/16W FENGHUA

R510 061G0402152 JF RST CHIPR 1.5KOHM +-5% 1/16W FENGHUA

R140 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA

R141 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA

R515 061G0402302 JF RST 0402 3K 5% 1/16W

R517 061G0402302 JF RST 0402 3K 5% 1/16W

R171 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R170 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R159 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I

R160 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I

R627 061G0603000 JI RST 0603 0.05R MAX 1/10W TA-I

R175 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN

R627 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO

FB4001 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO

R4005 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO

FB4004 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO

R703 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO

R727 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO

R4001 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO

R723 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA

R4009 061G06031001FI 1EST ONLY RST 0603 1K 1% 1/10W TA-I R4011 061G06031001FI 1EST ONLY RST 0603 1K 1% 1/10W TA-I R4010 061G06031001FI 1EST ONLY RST 0603 1K 1% 1/10W TA-I R4012 061G06031001FI 1EST ONLY RST 0603 1K 1% 1/10W TA-I

R602 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO

R603 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO

R4034 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO R4035 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO

R614 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO

R611 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO

R508 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO

R513 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO

R511 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO

R509 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO

R4037 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO

R716 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO

73

R4038 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO

R718 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO

R167 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO

R155 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO

R156 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO

R726 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO

R622 061G0603103 JI RST 0603 10K 5% 1/10W

R612 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R613 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R615 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R606 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R109 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R108 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R733 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R734 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R153 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R150 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R154 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R612 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R613 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R615 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R744 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R728 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R725 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R601 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R701 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R704 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R712 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R4018 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R166 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R4023 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R715 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R743 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R736 061G06031201FF RST CHIPR 1.2KOHM +-1% 1/10W

R735 061G06031501FF RST CHIPR 1.5K OHM +-1% 1/10W FENGHUA

R719 061G06032000FY RST CHIP 200R 1% 1/10W

R739 061G0603203 JY RST CHIP 20K 1/10W 5% YAGEO

R4021 061G0603220 JT RST CHIP 22R 1/10W 5% TZAI YUAN R4026 061G0603220 JT RST CHIP 22R 1/10W 5% TZAI YUAN R4022 061G0603220 JT RST CHIP 22R 1/10W 5% TZAI YUAN

R173 061G0603220 JY RST CHIPR 22 OHM £«-5£¥ 1/10W YAGEO

R174 061G0603220 JY RST CHIPR 22 OHM £«-5£¥ 1/10W YAGEO

R4032 061G06032201FT RST CHIP 2K2 1/10W 1%

R732 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA

R737 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA

R730 061G06032402FF RST CHIPR 24KOHM 1/10W FENGHUA

R730 061G06032402FY RST CHIPR 24KOHM +-1% 1/10W YAGEO

R722 061G06033300FF RST CHIPR 330 OHM +-1% 1/10W FENGHUA

R620 061G06033321FF RST CHIPR 3.32KOHM +-1% 1/10W FENGHUA

R738 061G0603333 JT RST CHIP 33K 1/10W 5% TZAI YUAN

R713 061G0603361 JT RST CHIP 360R 1/10W 5% TZAI YUAN

R720 061G0603391 JF RST CHIPR 390 OHM +-5% 1/10W FENGHUA

R4033 061G06034701FT RST CHIP 4K7 1/10W 1% R4020 061G0603472 JY R4039 061G0603472 JY R4030 061G0603472 JY R4031 061G0603472 JY

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

74

R4027 061G0603472 JY R4017 061G0603472 JY R4014 061G0603472 JY R4015 061G0603472 JY

R512 061G0603472 JY

R4036 061G0603472 JY R4019 061G0603472 JY

R711 061G0603472 JY

R4054 061G0603472 JY

R514 061G0603472 JY

R506 061G0603472 JY

R507 061G0603472 JY

R4042 061G0603472 JY R4048 061G0603472 JY R4047 061G0603472 JY R4016 061G0603472 JY

R516 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO

R4028 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO

R527 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO

R708 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO

R724 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO

R533 061G06034990FF RST CHIPR 499OHM +-1% 1/10W FENGHUA

R533 061G06034990FI RST 0603 499R 1% 1/10W

R4003 061G0603622 JF RST CHIPR 6.2KOHM +-5% 1/10W FENGHUA

R623 061G06036801FY RST CHIP 6K8 1/10W 1%

R151 061G0603682 JF RST CHIPR 6.8KOHM +-5% 1/10W FENGHUA

R105 061G0603682 JF RST CHIPR 6.8KOHM +-5% 1/10W FENGHUA

R104 061G0603682 JF RST CHIPR 6.8KOHM +-5% 1/10W FENGHUA

R149 061G0603682 JF RST CHIPR 6.8KOHM +-5% 1/10W FENGHUA

R101 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO

R130 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO

R139 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO

R112 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO

R146 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO

R117 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO

R122 061G0603750 JY RST CHIPR 75 OHM +-5% 1/10W YAGEO

R535 061G0603823 JF RST CHIPR 82KOHM 5% 1/10W FENGHUA

R729 061G06039101FI TEST ONLY RST 0603 9.1K 1% 1/10W TA-I

R729 061G06039101FY RST CHIPR 9.1KOHM +-1% 1/10W YAGEO

FB4021 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

FB103 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA FB707 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

L109 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

R4063 061G08050004JT RST CHIPR 0805 0 OHM 4A

R624 061G1206100 JF RST CHIPR 10 OHM +-5% 1/4W FENGHUA

C140 065G040210031J T CAP 0402 10PF 5% 50V NP0

C144 065G040210031J T CAP 0402 10PF 5% 50V NP0

C115 065G040210031J Y CAP 0402 10PF 5% 50V NP0

C4079 065G040210131J F CAP 0402 100PF 5% 50V NP0

C133 065G040210232K A CAP 0402 1NF 10% 50V X7R

C131 065G040210232K A CAP 0402 1NF 10% 50V X7R

C604 065G040210232K A CAP 0402 1NF 10% 50V X7R

C605 065G040210232K A CAP 0402 1NF 10% 50V X7R

C145 065G040210332K A CAP 0402 10NF 10% 50V X7R

C512 065G040210412K T CAP CHIP 0402 100NF 16V X7R

C511 065G040210412K T CAP CHIP 0402 100NF 16V X7R

RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO RST CHIPR 4.7KOHM ＋-5％ 1/10W YAGEO

75

C510 065G040210412K T CAP CHIP 0402 100NF 16V X7R

C513 065G040210412K T CAP CHIP 0402 100NF 16V X7R

C505 065G040210412K T CAP CHIP 0402 100NF 16V X7R

C4054 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C705 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C4007 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4075 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4076 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4021 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4077 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4049 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C714 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C123 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C4078 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4048 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4046 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C708 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C4041 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4004 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4040 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C703 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C4035 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4038 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4036 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C704 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C707 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C4051 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4050 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C701 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C4052 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4008 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C721 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C4039 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C148 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C4061 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4060 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C149 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C4063 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4062 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4065 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C718 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C4074 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4066 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4064 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4068 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4069 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4006 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C731 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C4001 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4002 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C727 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C4072 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4059 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4058 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C720 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C4057 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C712 065G040210412K Y CAP 0402 100NF 10% 16V X7R

76

C4045 065G040210412K Y CAP 0402 100NF 10% 16V X7R C4044 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C723 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C724 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C4003 065G0402105A5K T CAP 0402 1UF 10% 10V X5R

C130 065G0402105A5K T CAP 0402 1UF 10% 10V X5R

C4022 065G0402105A5K T CAP 0402 1UF 10% 10V X5R

C126 065G0402105A5K T CAP 0402 1UF 10% 10V X5R

C4042 065G0402105A5K T CAP 0402 1UF 10% 10V X5R

C150 065G0402105A5K T CAP 0402 1UF 10% 10V X5R

C4024 065G0402105A5K T CAP 0402 1UF 10% 10V X5R

C151 065G0402105A5K T CAP 0402 1UF 10% 10V X5R

C4028 065G0402105A5K T CAP 0402 1UF 10% 10V X5R

C137 065G040215031J F CAP 0402 15PF J 50V NPO

C157 065G040215031J F CAP 0402 15PF J 50V NPO

C114 065G040222031J A CAP 0402 22PF J 50V NPO

C4071 065G040222415K A CAP 0402 220NF 10% 16V X7R C4034 065G040230031J A CAP 0402 30PF 5% 5% 50V NP0

C138 065G040230031J A CAP 0402 30PF 5% 5% 50V NP0

C4037 065G040230031J A CAP 0402 30PF 5% 5% 50V NP0

C609 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

C624 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

C611 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

C627 065G040233131J T CAP CHIP 0402 330PF 50V J NPO

C132 065G040247131J A CAP CHIP 0402 470PF J 50V NPO

C118 065G040247131J A CAP CHIP 0402 470PF J 50V NPO

C103 065G040247131J A CAP CHIP 0402 470PF J 50V NPO

C102 065G040247131J A CAP CHIP 0402 470PF J 50V NPO

C117 065G040247131J A CAP CHIP 0402 470PF J 50V NPO

C4009 065G040247312K Y CAP 0402 47NF 10% 16V X7R C4015 065G040247312K Y CAP 0402 47NF 10% 16V X7R C4016 065G040247312K Y CAP 0402 47NF 10% 16V X7R C4013 065G040247312K Y CAP 0402 47NF 10% 16V X7R C4014 065G040247312K Y CAP 0402 47NF 10% 16V X7R C4017 065G040247312K Y CAP 0402 47NF 10% 16V X7R C4018 065G040247312K Y CAP 0402 47NF 10% 16V X7R C4011 065G040247312K Y CAP 0402 47NF 10% 16V X7R C4010 065G040247312K Y CAP 0402 47NF 10% 16V X7R C4012 065G040247312K Y CAP 0402 47NF 10% 16V X7R

C101 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0

C104 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0

C105 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0

C116 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0

C111 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0

C4073 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0

C110 065G040250931C Y CAP 0402 5PF 0.25PF 50V NP0

C615 065G060310232K A CAP CHIP 0603 1000PF K 50V X7R

C602 065G060310232K A CAP CHIP 0603 1000PF K 50V X7R

C754 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C606 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C607 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C618 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C729 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C522 065G060310512K T CAP 0603 1UF 10% 16V X7R

C732 065G060310512K T CAP 0603 1UF 10% 16V X7R

C620 065G060310522K T CAP CHIP 0603 1UF K 25V X7R

C614 065G060310522K T CAP CHIP 0603 1UF K 25V X7R

77

C619 065G060310522K T CAP CHIP 0603 1UF K 25V X7R

C613 065G060310522K T CAP CHIP 0603 1UF K 25V X7R

C4047 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C4055 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C4029 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C4056 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20% C4020 065G0603225A5K T CAP 0603 2.2UF 10% 10V X5R C4019 065G0603225A5K T CAP 0603 2.2UF 10% 10V X5R C4025 065G0603225A5K T CAP 0603 2.2UF 10% 10V X5R C4026 065G0603225A5K T CAP 0603 2.2UF 10% 10V X5R C4027 065G0603225A5K T CAP 0603 2.2UF 10% 10V X5R C4023 065G0603225A5K T CAP 0603 2.2UF 10% 10V X5R C4053 065G060347506K M CAP 0603 4.7UF 10% 6.3V X6S C4043 065G060347506K M CAP 0603 4.7UF 10% 6.3V X6S

C621 065G080510532K A CAP 0805 1UF 10% 50V X7R

C622 065G080510532K A CAP 0805 1UF 10% 50V X7R

C633 065G080510532K A CAP 0805 1UF 10% 50V X7R

C4005 065G0805106A5K A CAP 0805 10UF 10% 10V X5R

C506 065G0805106A5K A CAP 0805 10UF 10% 10V X5R

C713 065G0805106A5K A CAP 0805 10UF 10% 10V X5R

C716 065G0805106A5K A CAP 0805 10UF 10% 10V X5R

C717 065G0805106A5K A CAP 0805 10UF 10% 10V X5R

C711 065G0805106A5K A CAP 0805 10UF 10% 10V X5R

C730 065G0805106A5K A CAP 0805 10UF 10% 10V X5R

C728 065G0805106A5K A CAP 0805 10UF 10% 10V X5R

C4080 065G0805106A5K A CAP 0805 10UF 10% 10V X5R

C623 065G080522432K A CAP 0805 220NF 10% 50V X7R

C626 065G080522432K A CAP 0805 220NF 10% 50V X7R

C603 065G080522432K A CAP 0805 220NF 10% 50V X7R

C608 065G080522432K A CAP 0805 220NF 10% 50V X7R

C612 065G080533432K A CAP 0805 330NF 10% 50V X7R

C628 065G080533432K A CAP 0805 330NF 10% 50V X7R

C610 065G080533432K A CAP 0805 330NF 10% 50V X7R

C625 065G080533432K A CAP 0805 330NF 10% 50V X7R

C722 065G0805475A2K A MLCC 0805 4U7 10V X7R +-10%

070GHDCP500HDC HDCP CODE

FB102 071G 56A221 M CHIP BEAD 0805 220R/2000MA FB4029 071G 56G301 MA CHIP BEAD 0805 300OHM 4A FB4032 071G 56G301 MA CHIP BEAD 0805 300OHM 4A

FB704 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF

FB601 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF

FB701 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF

FB704 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60

FB601 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60

FB502 071G 59A121 M CHIP BEAD 0603 120R 25% 1608E121T3R0-LF FB4025 071G 59B121 JM CHIP BEAD 0603 120R/1000MA

FB106 071G 59C600 M CHIP BEAD 60 OHM 0603 600MA

FB104 071G 59C600 M CHIP BEAD 60 OHM 0603 600MA

FB105 071G 59C600 M CHIP BEAD 60 OHM 0603 600MA FB4005 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA FB4006 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA FB4018 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA FB4012 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA FB4014 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA FB4017 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA FB4010 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA FB4022 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA

78

FB4015 071G 59G301 M CHIP BEAD 0603 300R 25% 200MA FB4002 073G 6310810M CHIP INDUCTOR 0.1UH +-10% 50MA FB4013 073G 6333810M CHIP INDUCTOR 0.33UH 10% 0.75R 100MA

L107 073G 63828 5M CHIP INDUCTOR 0603 0.82UH+-5% L102 073G 63828 5M CHIP INDUCTOR 0603 0.82UH+-5% L110 073G 63828 5M CHIP INDUCTOR 0603 0.82UH+-5% L111 073G 63828 5M CHIP INDUCTOR 0603 0.82UH+-5% L701 073G253S 71 M SMD CHOKE 2.2UH 20% 0.020R 8.2A L602 073G253S 83 M SMD CHOKE 47UH 20% 0.13R 1.4A L601 073G253S 83 M SMD CHOKE 47UH 20% 0.13R 1.4A L604 073G253S 83 M SMD CHOKE 47UH 20% 0.13R 1.4A

L603 073G253S 83 M SMD CHOKE 47UH 20% 0.13R 1.4A CN501 088G 34019K AV HDMI HEADER R/A 19P BLACK H=8.4 CN502 088G 34019K AV HDMI HEADER R/A 19P BLACK H=8.4

D501 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23 D502 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23 D401 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23

X4001 093G 22S517 YC CRYSTAL HC-49U/SMD 27M 30PPM 20PF ZD4001 093G 39S940 T ZENER GLZ5.6B 5.6 0.5 MINI-MELF LL-34 ZD4002 093G 39S940 T ZENER GLZ5.6B 5.6 0.5 MINI-MELF LL-34 ZD4003 093G 39S940 T ZENER GLZ5.6B 5.6 0.5 MINI-MELF LL-34

D712 093G 60S913 T DIODE RB501V-40 SOD-323 ZD503 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD118 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD119 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD117 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD125 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD121 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD124 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD120 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD107 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD105 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ

ZD4005 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ

ZD101 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD102 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD103 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD104 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD122 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD123 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD501 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD502 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD506 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD505 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ ZD504 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ

U4001 356G0562X12 SCALER RTD2648 LQFP128

U505 356G0623X05 HDMI SWITCH IT6633E-P LQFP-64

U4003 356G2233073 FLASH W25Q64FVSSIG 64MB SOIC8 2.7~3.6V

E715 715G5635M01000004K MAIN BOARD PCB

E715 715G5635M01000004N MAIN BOARD PCB 2nd Source

E715 715G5635M01000004X MAIN BOARD PCB 2nd Source

X12G8001 1 BGP HEAT PAD

HS4000 X90G8014 1 HEAT SINK

IRPFCXAC IR BOARD CN201 033G8032 5F B CONN 1.25MM 5P R/A 11.2MM 5.7MM CN201 033G8032 5F X WAFER 5P 1.25MM S1315-05RVB-S03-K

R201 061G0603153 JY RST CHIPR 15KOHM 1/10W YAGEO R203 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA

79

R202 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA C201 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

LED201 081G 14 24 EL CHIP LED BLUE/DARK RED

U201 356GS927072 IR RECEIVER IRM-H638M3/TR2 38 KHZ

709T54710XS001 COMSUPTIVE ASS'Y

E715 715G5471R02000004S IR BOARD PCB E715 715G5471R02000004X IR BOARD PCB 2nd Source

KEPFCXAE KEY BOARD

CN01 033G8032 4F B CONN 1.25MM 4P R/A 9.95MM 5.7MM CN01 033G8032 4F X WAFER 4P 1.25MM

R04 061G08051001FT RST CHIP 1K 1/8W 1% R03 061G08051801FY RST CHIP R 1K8 +/-1% 1/8W R02 061G08052701FY RST CHIP 2K7 1/8W 1% R05 061G08057500FF RST CHIPR 750 OHM +-1% 1/8W FENGHUA R07 061G08057500FF RST CHIPR 750 OHM +-1% 1/8W FENGHUA R06 061G08057500FF RST CHIPR 750 OHM +-1% 1/8W FENGHUA R01 061G08057501FY RST CHIP R 7K5 1/8W +/-1%

SW05 077G 607 2 FD

SW01 077G 607 2 FD

SW04 077G 607 2 FD

SW03 077G 607 2 FD

SW06 077G 607 2 FD

SW02 077G 607 2 FD

SW07 077G 607 2 FD

SW06 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01 SW07 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01 SW05 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01 SW02 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01 SW03 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01 SW04 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01 SW01 077G 607 2 HC TACT SW 4P 1.5MM 160G TS-4402-1.58B-01

709T57110XS001 COMSUMPTIVE ASSY

Q05G6054 1 SHEET

Q09G6012 1 PIN

E715 715G5711K01000004S KEY BOARD PCB E715 715G5711K01000004X KEY BOARD PCB E750 LCM390J1L01AD1010X TPT390-J1L01 C1E XM TPV

P12G6311010 RUBBER PAD SILICONE

P33T0408ADT01L0100 KEY

P34T1188ADT01L01BD DECO_BEZEL

P34T11890GMZ3K01BA REAR_COVER

P34T11900GM01K0100 COVER_STAND

P34T1191ADT01L0100 BASE

P34T1192ADT01L0100 STAND

PLTVCL801UXE7 ADAPTER BOARD

Z40G0002ALL01A SFIS LABEL 35MM*9MM

CN8901 033G380212B YH WAFER 12P 2.0 DIP

IC9102 056G 139 3B PC123Y82FZOF SHARP IC9401 056G 139 3B PC123Y82FZOF SHARP IC9302 056G 139 3B PC123Y82FZOF SHARP IC9301 056G 379121 IC STR- A6069H DIP-8

CHIP TACT SW BY FORWARD SFKQGMA2125T-PL CHIP TACT SW BY FORWARD SFKQGMA2125T-PL CHIP TACT SW BY FORWARD SFKQGMA2125T-PL CHIP TACT SW BY FORWARD SFKQGMA2125T-PL CHIP TACT SW BY FORWARD SFKQGMA2125T-PL CHIP TACT SW BY FORWARD SFKQGMA2125T-PL CHIP TACT SW BY FORWARD SFKQGMA2125T-PL

80

Q8203 057G 600948 MOSFET P0420ATF 4A 200V TO-220F

RV9901 061G 46621 P VARISTOR 620V 10% 16*7 NR9901 061G 58309MEW NTCR 3R 20% 3.6W SCK15037MMY502

C9901 063G107K474 EM CAP X2 470NF 10% 305V

C9904 063G107K474 EM CAP X2 470NF 10% 305V FB9901 071G 55 21 H1 BEAD 6.0*10 700R 25% BF-I60100R-706B FB9902 071G 55 21 H1 BEAD 6.0*10 700R 25% BF-I60100R-706B FB9910 071G 55 21 H1 BEAD 6.0*10 700R 25% BF-I60100R-706B FB9911 071G 55 21 H1 BEAD 6.0*10 700R 25% BF-I60100R-706B

L9901 073G 174106 X LINE FILTER 13MH MIN 3LFT201110-133M L9902 073G 174106 X LINE FILTER 13MH MIN 3LFT201110-133M L9801 073G 174124 L PFC CHOKE 300UH 10% PT-009584 1 33 L9101 073G 253 91 V CHOKE COIL 3.5UH+-10% L9103 073G 253 91 V CHOKE COIL 3.5UH+-10% L9301 073G 253 91 V CHOKE COIL 3.5UH+-10% L9102 073G 253 91 V CHOKE COIL 3.5UH+-10% L8102 073G 253203 X CHOKE COIL 5UH 15% -- T9301 080GL52P 54 H X'FMR 1000UH 10% 40UH EQ30 BCK-13026-HA

CN9901 087G 50147D HC AC SOKET R/A 2P 12DEGREE H=12.8

D9801 093G 52918 RECTIFIER 1N5408G-04 X0 3A 1000V DO201AD

D9107 093G 60334 SCHOTTKY SR506-44 5A 60V DO-201AD

CN9901 0Q1G 340 8140 SCREW Q1-SELF TAPING SCREW :Q X8.0 CN9902 311GW250B13BBX WAFER 2.5MM 13P R/A 35MM 7MM

C9801 363G210J105GHN CAP MPP 1UF 5% 450V 18*9.1*12.5 --

C9810 367G315X151PKZ000S EC 150UF 20% 450V 18*45 3000 HR 1200MA -

L8101 373G0253249CP0 BOOST CHOKE 33UH 10% EQ25 0.5A L020692-6 T9101 380GL32P106N00 X'FMR 750UH 10% 18UH ER28 YUVA-2016-4

705TXC57330 Q9101 ASSY

Q9101 057G 667 21 MOSFET STP10NK70ZFP 8.6A 700V TO-220FP

0M1G1730 8120 SCREW 3X8

HS9101 Q90G0087 7 HEAT SINK ÆÄËÛ/OTHER

705TXC57331 Q8101 & D8103 ASSY

D8103 093G 60258 DIODE FME-220B TO-220 SANKEN

0M1G1730 8120 SCREW 3X8

Q8101 357G0600980 MOSFET AOTF454L 13A 150V 41W TO-220F

HS8101 Q90T0237 1 HEAT SINK

705TXC57883 Q9801/D9802 ASS'Y

Q9801 057G 667 50 TRA STP10NK60ZFP 10A/600V TO-220FP

D9802 093G 52905 DIODE FMNS-1106S TO-220

0M1G1730 8120 SCREW 3X8

HS9801 Q90G6241 1 GP HEAT SINK

705TXC84040 F9901 ASSY EF9901 084G 34 10 FUSE CLIP EF9901 084G 34 14 FUSE CLIP 5*20MM

F9901 084G 41 3 C FUSE 3.15A 250V, TIME LAG FUSE

705TXC93969 BD9901 ASSY

HS9901 090G6064 1 HEAT SINK BD9901 093G 50460925 BRIDGE TS6B06G-01 6A 800V KBJ

0M1G1730 8120 SCREW 3X8

705TXC93970 D9104 & D9105 ASSY

HS9102 090G6064 1 HEAT SINK

D9105 093G 52 57 RECTIFIER FMXA-2202S 20A 200V TO-220F D9104 093G 52909 RECTIFIER SFF1006G 10A 400V ITO-220AB D9104 093G 220 24 DIODE FMX-23S SANKEN

0M1G1730 8120 SCREW 3X8

705TXC93971 D9106 & D9305 ASSY

HS9103 090G6064 1 HEAT SINK

81

D9106 093G 60329 DIODE FMEN-220A 20A/100V TO-220 D9305 093G 60987 SCHOTTKY FMEN-2308 30A 80V TO-22OF

0M1G1730 8120 SCREW 3X8

IC8201 056G 158501 IC AS431AN-E1 SOT23 IC9801 056G 379172 IC LD7591GS SOP-8 IC9101 056G 379175 IC LD7523GS SOP-8 IC8101 056G 700 40 LED DRIVER LD7400GS SOP-8 Q9402 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q9401 057G 419912 T TRANSISTOR 2SD1624T-TD-E PCP Q8302 057G 759 2A HF TANSISTOR 2N7002H SOT-23 Q8201 057G 760 4A DTA144WN3/S SOT-23 Q8202 057G 760 5A DTC 144WN3/S SOT-23 Q9601 057G 769900 SMALLTRAN BCR1002N3 0.2A 50V SOT23 Q8301 057G 769900 SMALLTRAN BCR1002N3 0.2A 50V SOT23

R8302 061G0805000 JI RST 0805 MAX0.05R 5% 1/8W TA-I R9801 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA R8303 061G08051001FI RST CHIPR 1KOHM +-1% 1/8W TA-I R9601 061G08051001FI RST CHIPR 1KOHM +-1% 1/8W TA-I R9602 061G08051001FI RST CHIPR 1KOHM +-1% 1/8W TA-I R9124 061G08051001FT RST CHIP 1K 1/8W 1% R8106 061G08051002FI RST 0805 10K 1% 1/8W R8212 061G08051002FI RST 0805 10K 1% 1/8W R9401 061G08051002FI RST 0805 10K 1% 1/8W R9403 061G08051002FI RST 0805 10K 1% 1/8W R9111 061G08051002FI RST 0805 10K 1% 1/8W R8304 061G08051002FI RST 0805 10K 1% 1/8W R9130 061G08051002FI RST 0805 10K 1% 1/8W R9404 061G08051002FI RST 0805 10K 1% 1/8W R8207 061G08051002FI RST 0805 10K 1% 1/8W R9808 061G08051002FI RST 0805 10K 1% 1/8W R9803 061G08051002FI RST 0805 10K 1% 1/8W R8210 061G08051003FI RST 0805 100K 1% 1/8W R8211 061G08051003FI RST 0805 100K 1% 1/8W R8209 061G08051003FI RST 0805 100K 1% 1/8W R9812 061G08051302FI RST CHIPR 13KOHM +-1% 1/8W TA-I R9107 061G08052001FT RST CHIP 2K 1/8W 1% R9125 061G08052202FI RST 0805 22K 1% 1/8W R9108 061G08052209FT RST 0805 22R 1% 1/8W R9129 061G08052261FY RST 0805 2.26K 1% 1/8W RC0805FR-07 2K26L R9127 061G08052402FI RST CHIPR 24 KOHM +-1% 1/8W R8101 061G0805303 JI RST CHIPR 30 KOHM +-5% 1/8W R8102 061G0805304 JI RST CHIPR 300K OHM +-5% 1/8W R8305 061G0805304 JI RST CHIPR 300K OHM +-5% 1/8W R9109 061G0805330 JF RST CHIPR 33 OHM +-5% 1/8W FENGHUA R8105 061G0805330 JI RST CHIPR 33 OHM +-5% 1/8W 0805 R9802 061G0805330 JT RST CHIP 33R 1/8W 5% TZAI YUAN R9317 061G08053301FI RST 0805 3.3K 1% 1/8W R9316 061G08053301FI RST 0805 3.3K 1% 1/8W R9126 061G08053301FT RST CHIP 3K3 1/8W 1% R9806 061G0805332 JI RST CHIPR 3.3KOHM +-5% 1/8W 0805 R9807 061G0805333 JI RST CHIPR 33KOHM +-5% 1/8W 0805 R9311 061G0805475 JT RST CHIP 4.7M 5% 1/8W R9318 061G08055601FI RST CHIPR 5.6 KOHM +-1% 1/8W 0805 R9128 061G08055602FI RST CHIPR 56 KOHM +-1% 1/8W 0805 R9319 061G08056201FT RST CHIPR 6.2KOHM +-1% 1/8W TZAI YUAN R9309 061G08056203FT RST CHIP 620K 1/8W 1% JR901 061G1206000 JI RST 1206 MAX0R05 5% 1/4W

82

JR902 061G1206000 JI RST 1206 MAX0R05 5% 1/4W JR802 061G1206000 JI RST 1206 MAX0R05 5% 1/4W JR803 061G1206000 JI RST 1206 MAX0R05 5% 1/4W JR903 061G1206000 JI RST 1206 MAX0R05 5% 1/4W R9103 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN JR905 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN JR906 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN R8103 061G12061002FI RST 1206 10K 1% 1/4W R9304 061G12061003FT RST CHIP 100K 1/4W 1% R9303 061G12061003FT RST CHIP 100K 1/4W 1% R9302 061G12061003FT RST CHIP 100K 1/4W 1% R9305 061G12061003FT RST CHIP 100K 1/4W 1% R9313 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R9314 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R9119 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R9113 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R9114 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R9118 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R8301 061G1206124 JT RST CHIP 120K 5% 1/4W R9133 061G1206124 JT RST CHIP 120K 5% 1/4W R9121 061G12061501FT RST 1206 1.5K 1% 1/4W R9123 061G12061501FT RST 1206 1.5K 1% 1/4W R9122 061G12061501FT RST 1206 1.5K 1% 1/4W R9307 061G12061504FT RST CHIP 1M5 1/4W 1% R9308 061G12061504FT RST CHIP 1M5 1/4W 1% R9306 061G12061504FT RST CHIP 1M5 1/4W 1% R9813 061G1206203 JI RST 20K OHM 5% 1/4W TA-I R9106 061G1206203 JI RST 20K OHM 5% 1/4W TA-I R9132 061G1206221 JT RST CHIPR 220 OHM +-5% 1/4W TZAI YUAN R9131 061G1206221 JT RST CHIPR 220 OHM +-5% 1/4W TZAI YUAN R8306 061G1206304 JI RST 1206 300K 5% 1/4W R8104 061G1206330 JI RST 1206 33R 5% 1/4W R9402 061G12063300FT RST 1206 330R 1% 1/4W R9805 061G12064700FI RST 1206 470R 1% 1/4W TA-I R9110 061G12064700FI RST 1206 470R 1% 1/4W TA-I R8109 061G12064700FI RST 1206 470R 1% 1/4W TA-I R9315 061G12064700FI RST 1206 470R 1% 1/4W TA-I R9312 061G1206479 JT RST 1206 4.7R 5% 1/4W R9902 061G12065103FT RST CHIPR 510 KOHM +-1% 1/4W TZAI YUAN R8206 061G1206512 JI RST 5.1K OHM 5% 1/4W TA-I R9903 061G1206514 JF RST CHIPR 510KOHM +-5% 1/4W FENGHUA R9901 061G1206514 JF RST CHIPR 510KOHM +-5% 1/4W FENGHUA R9117 061G1206562 JT RST 1206 5.6K 5% 1/4W TZAI YUAN R9115 061G1206562 JT RST 1206 5.6K 5% 1/4W TZAI YUAN R9116 061G1206562 JT RST 1206 5.6K 5% 1/4W TZAI YUAN R9809 061G12066803FF E RST 1206 680K 1% 1/4W R9810 061G12066803FF E RST 1206 680K 1% 1/4W R9811 061G12066803FF E RST 1206 680K 1% 1/4W R8201 061G12066808FT RST 1206 6.8R 1% 1/4W R8202 061G12066808FT RST 1206 6.8R 1% 1/4W R8213 061G12066808FT RST 1206 6.8R 1% 1/4W R8205 061G12066808FT RST 1206 6.8R 1% 1/4W R8204 061G12066808FT RST 1206 6.8R 1% 1/4W R8203 061G12066808FT RST 1206 6.8R 1% 1/4W R8208 061G12067503FI RST 1206 750K 1% 1/4W R8214 061G12068202FT RST CHIPR 82KOHM +-1% 1/4W TZAI YUAN C9809 065G080510131J F CAP CHIP 0805 100PF J 50V NPO

83

C9808 065G080510231J F CAP 0805 1NF 5% 50V NPO C8106 065G080510232K F CAP 0805 1000PF 10% 50V X7R C8301 065G080510232K F CAP 0805 1000PF 10% 50V X7R C9105 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% C9303 065G080510332K A CAP CHIP 0805 10NF K 50V X7R C9106 065G080510332K F CAP 0805 10NF K 50V X7R C9807 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R C9117 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C9112 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C9123 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C8102 065G080510432K T 0.1UF K 50V X7R TAIYO YUDEN C9304 065G080510432K T 0.1UF K 50V X7R TAIYO YUDEN C9401 065G080510432K T 0.1UF K 50V X7R TAIYO YUDEN C9311 065G080510432K T 0.1UF K 50V X7R TAIYO YUDEN C9103 065G080510432K T 0.1UF K 50V X7R TAIYO YUDEN C9805 065G080510432K T 0.1UF K 50V X7R TAIYO YUDEN C9104 065G080510432K T 0.1UF K 50V X7R TAIYO YUDEN C8104 065G080510432K T 0.1UF K 50V X7R TAIYO YUDEN C9601 065G080510532K A CAP 0805 1UF 10% 50V X7R C8302 065G080510532K M CAP 0805 1UF 10% 50V X7R C9806 065G080522432K A CAP 0805 220NF 10% 50V X7R C9312 065G080522432K T CAP 0805 220NF K 50V X7R C9803 065G080547031J F CAP CHIP 0805 47PF J 50V NPO C8105 065G080547131J A CAP 0805 470PF 5% 50V NP0 C9118 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R C9302 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R D9602 093G 64 42SEM SWITCHING BAV70 215MA 75V SOT-23 D9102 393G060S93400T00HF HF SS0520_R1_00001 0.5A 20V SOD-123 D9803 393G060S93400T00HF HF SS0520_R1_00001 0.5A 20V SOD-123 D8101 393G060S93400T00HF HF SS0520_R1_00001 0.5A 20V SOD-123

CN9901 006G 31500 EYELET

IC9303 056G 158 10 T DC/DC AS431AZTR-E1 150MA 40V TO-92 IC9103 056G 158 10 T DC/DC AS431AZTR-E1 150MA 40V TO-92

R9301 061G 30310852T SY RST FUSE 0.1R 5% 1W R8107 061G152M10852T SY RST MOF 0R1 5% 2W R9101 061G152M10852T SY RST MOF 0R1 5% 2W R9310 061G152M12952T SY RST MOF 1R2 5% 2W R9804 061G152M15852T SY RST MOFR 0.15R 5% 2WS FUTABA R9112 061G152M33852T SY RST MOF 0R33 5% 2W R9102 061G152M82352T SY RST MOFR 82KOHM +-5% 2WS FUTABA C9121 065G 1K1019ST CAP CER 100PF 10% 1KV R C9114 065G 1K10293T CAP CER 1NF 10% 1KV R C9301 065G 1K1029ST CAP CER 1NF 10% 1KV R C9101 065G 1K22293S CAP CER 2.2NF 10% 1KV R TAPING C9307 065G 1K4719ST CAP CER 470PF 10% 1KV R C9113 065G 1K4719ST CAP CER 470PF 10% 1KV R C9108 065G 1K4719ST CAP CER 470PF 10% 1KV R C9910 065G306K2212SR CAP Y1 220PF 10% 250V Y5P C9906 065G306K47123R CAP Y1 470PF 10% 250V Y5P C9912 065G306K4712SR CAP Y1 470PF 10% 250V Y5P C9902 065G306K4712SR CAP Y1 470PF 10% 250V Y5P C9903 065G306K4712SR CAP Y1 470PF 10% 250V Y5P C9804 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000 HR C8101 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000 HR C9402 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000 HR C9305 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000 HR C9102 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000 HR

84

C9122 067G 5153316KT EC 330UF 20% 35V 10*12 5000 HR C9111 067G 5153316KT EC 330UF 20% 35V 10*12 5000 HR C8109 067G 5154709KT EC 47UF 20% 100V 10*12 C8108 067G 5154709KT EC 47UF 20% 100V 10*12 C8107 067G 5154709KT EC 47UF 20% 100V 10*12 C9308 067G204S3313KT CAP CS 330UF 20% 16V 10*7 2000 HR C9306 067G215D1017KT EC CAP 100UF 50V 8*12MM C9115 067G215H1024KT EC 1000UF 20% 25V 10*20 C9310 067G215P2714KT EC 270UF 20% 25V 10*9

C9309 067G215P4714KT EC 470UF 20% 25V 10*16 FB9903 071G 55 9 T BEAD 3.5*0.8*6.0MM 110R HF FB9906 071G 55 9 T BEAD 3.5*0.8*6.0MM 110R HF

ZD9602 093G 3957752T GDZJ6.2B ZD8301 093G 3995652T DIODE GDZJ30B DO-35 ZD9301 093G 3995652T DIODE GDZJ30B DO-35 ZD9603 093G 3995652T DIODE GDZJ30B DO-35 ZD9601 093G 3996052T DIODE GDZJ20B DO-35

D9304 093G 6451652T 1N4148

D9601 093G 6451652T 1N4148

ZD9101 093G 39G 8 ZENER GDZJ16B 16 0.5 DO-35 ZD9401 093G 39G 8 ZENER GDZJ16B 16 0.5 DO-35

D9101 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41

D9301 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41

D9302 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41

D9303 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41

J920 095G 90 23 JUMP WIRE - - J930 095G 90 23 JUMP WIRE - - J906 095G 90 23 JUMP WIRE - - J929 095G 90 23 JUMP WIRE - - J919 095G 90 23 JUMP WIRE - - J928 095G 90 23 JUMP WIRE - - J921 095G 90 23 JUMP WIRE - - J924 095G 90 23 JUMP WIRE - - J922 095G 90 23 JUMP WIRE - - J925 095G 90 23 JUMP WIRE - - J804 095G 90 23 JUMP WIRE - - J901 095G 90 23 JUMP WIRE - - J926 095G 90 23 JUMP WIRE - - J923 095G 90 23 JUMP WIRE - - J803 095G 90 23 JUMP WIRE - - J911 095G 90 23 JUMP WIRE - - J918 095G 90 23 JUMP WIRE - - J802 095G 90 23 JUMP WIRE - - J913 095G 90 23 JUMP WIRE - - J902 095G 90 23 JUMP WIRE - - J801 095G 90 23 JUMP WIRE - - J910 095G 90 23 JUMP WIRE - - J805 095G 90 23 JUMP WIRE - - J905 095G 90 23 JUMP WIRE - -

J903 095G 90 23 JUMP WIRE - - FB9907 095G 90 23 JUMP WIRE - - FB9908 095G 90 23 JUMP WIRE - -

J909 095G 90 23 JUMP WIRE - -

J912 095G 90 23 JUMP WIRE - -

J907 095G 90 23 JUMP WIRE - -

J807 095G 90 23 JUMP WIRE - -

J917 095G 90 23 JUMP WIRE - -

85

C9120 367G415X3317KT EC 330UF 20% 50V 12.5*12 C9107 367G415X3317KT EC 330UF 20% 50V 12.5*12 C9119 367G415X3317KT EC 330UF 20% 50V 12.5*12 C9116 367G415X6814KT EC 680UF 20% 25V 12.5*12 C9109 367G515C102GKT EC 1000UF 20% 35V 12.5*20 6000HRS C9110 367G515C102GKT EC 1000UF 20% 35V 12.5*20 6000HRS

E715 715G5654P01001002M POWER BOARD PCB 2nd Source E715 715G5654P01001002S POWER BOARD PCB

Q02G7060001001 BOLT Q02G706100200100XL BOLT Q12G6300 25 3 FOOT PAD Q12G714001100100HB HEAT PAD Q12G714001100100HB HEAT PAD Q36T 600 49 7 NON-WOVEN FABRIC Q40G0003615D90 OTHER LABEL Q45G 77 5 PE PACKING

M04502 Q45G88010TV03500HW PROTECT BAG M04502 Q45G88010TV03500X1 PROTECT BAG M04501 Q45G99010TV04100HW PROTECT BAG M04501 Q45G99010TV04100WN PROTECT BAG

Q50G 4 10 TIE (Y1900221) Q50G 500 TV005 CABLE TIE Q52G 1185 99 BIG CARTON TAPE FOR AOC 72MM Q52G1501150523 W INSULATING PLATE Q52G1501150523 W INSULATING PLATE Q52G18010TV08200ZA INSULATING SHEET X15T8415101000GMZ1 BKT_IO X15T8416101000GMZ1 BKT_IO X15T841710100000Z1 BKT_STAND X15T841810100000Z1 BKT_HINGE X15T841910200000AJ BKT_BASE X35T8023001B1C01XD DECO_BEZEL X40G000261589A POS STICKER LABEL --LE40A1330/61 X41G78DV61508A WARRANTY CARD X44GTA071010SY CUSHION-TL X44GTA072010SY CUSHION-TR X44GTA073010SY CUSHION-BL X44GTA074010SY CUSHION-BR X44GTA0761501A ARTWORK CARTON ASA LE40A133061

E08901 089G217A18N IS AC POWER CORD 1800MM

092GB1JX1A3DGC BATTERY 1.5V BATTERY FOR LR03 098GRABD6NEACD REMOTE AOC 90-364100T4425 Q45G2010M0101A PE BAG FOR MANUAL X41G32MV61529B MANUAL LE32A1330/61 INDIA 040G 58162435A MANUAL P/N LABEL Q40G 581689 4B SN LABEL(58X35MM) Q40G0001954 1A S/N LABEL X40G040061506A RATING LABEL --LE40A1330/61 Q45T 76 28NV2 R PE BAG FOR BASE SCREW SZ02742 0M1G1740 10225 CR3 SCREW M1-MACHINE SCREW X10.0

M04002 X40G2012040X0300ZA SIDE LABEL M04001 X40G2012032X5900ZA LABEL IO

X40G0001624 2A LABEL FOR SCREW PE BAG 0M1G1740 10225 CR3 SCREW M1-MACHINE SCREW X10.0 0Q1G 940 8 47 CR3 SCREW 4X8

M04001 X40G2012032X5900XY LABEL IO M04002 X40G2012040X0300XY SIDE LABEL

86

87

AOC LE32A1330/61, LE40A1330/61 Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
