23″ LCD TV AOC LE23A6330/61
Service
Service
Service
31~68 KHz
TABLE OF CONTENTS
Description Page Description Page
Table of Contents.......……....................................…........1
Important Safety Notice.......................................……......2
Revision List…………………………………………………3
1. General Specification..............................……...…........4
2. Operating Instructions………………...…….……….......5
2.1 The Use of Remote Control…….…..……….…….......5
2.2 To Use the Menus….....………………….……….......6
2.3 How to Connect……..……………….…….……….....18
2.4 Front Panel Control Knobs…….………….……….....20
3. Input/Output Specification…………....................…....21
4. Mechanical Instructions…………………….................23
5. Repair Flow Chart ……………………….…….…….....25
ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS
SAFETY NOTICE
6. PCB Layout ………………………………....….......31
6.1 Main Board…………..……………...…….…….......31
6.2 Power Board………………..…….…….……….......32
6.3 IR Board………………………….……..……….......32
7. Adjustment……..………………………….................33

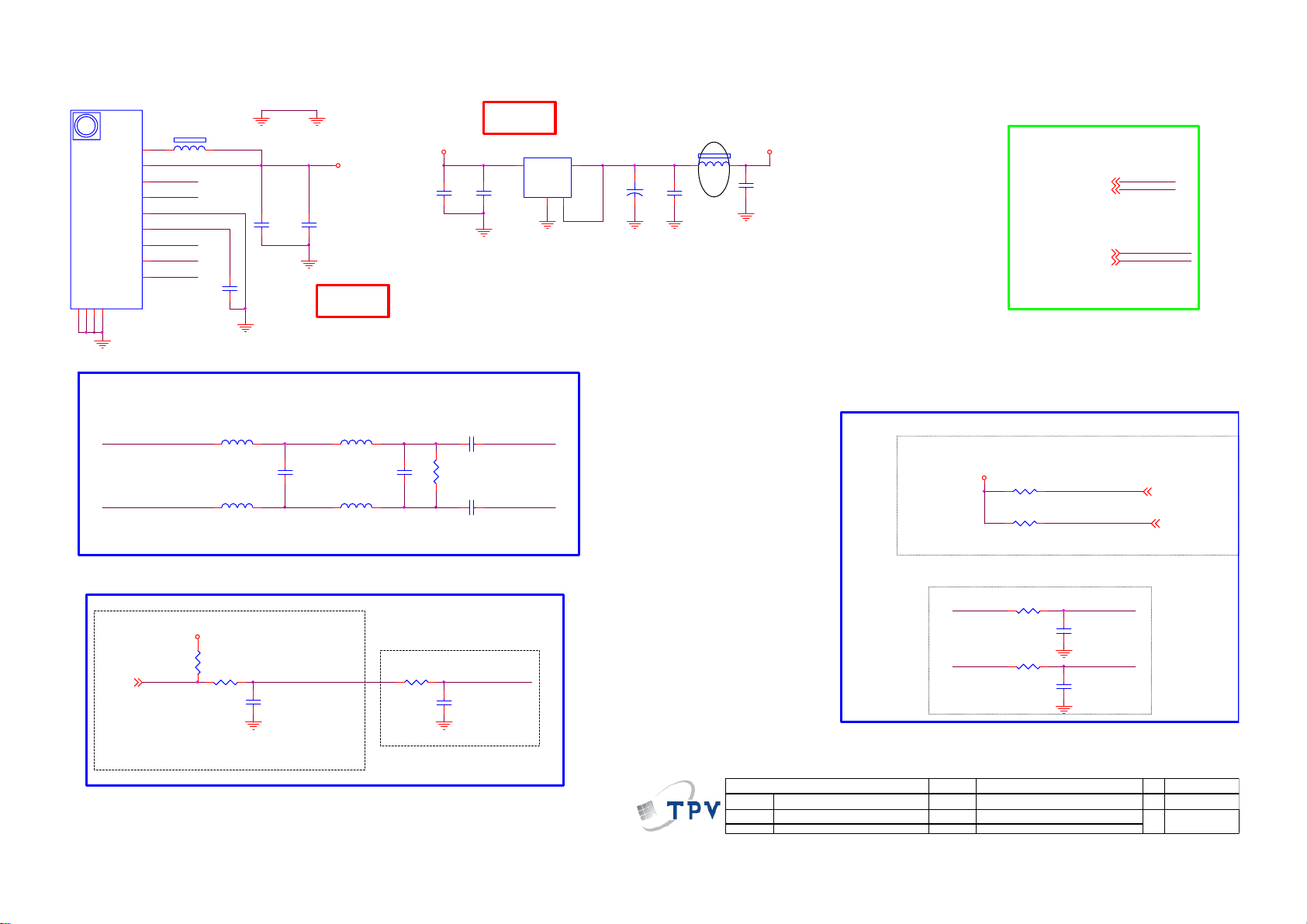

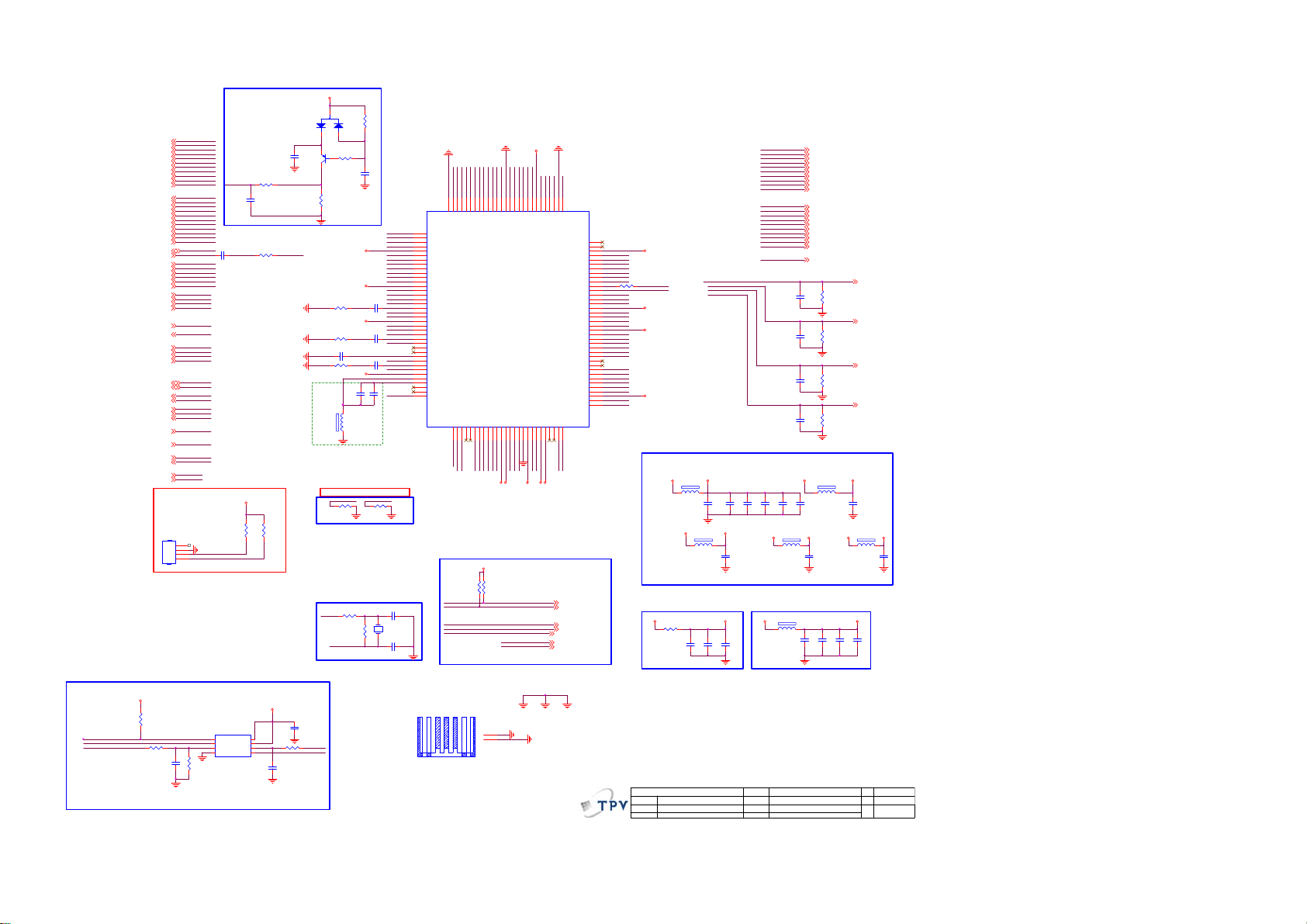

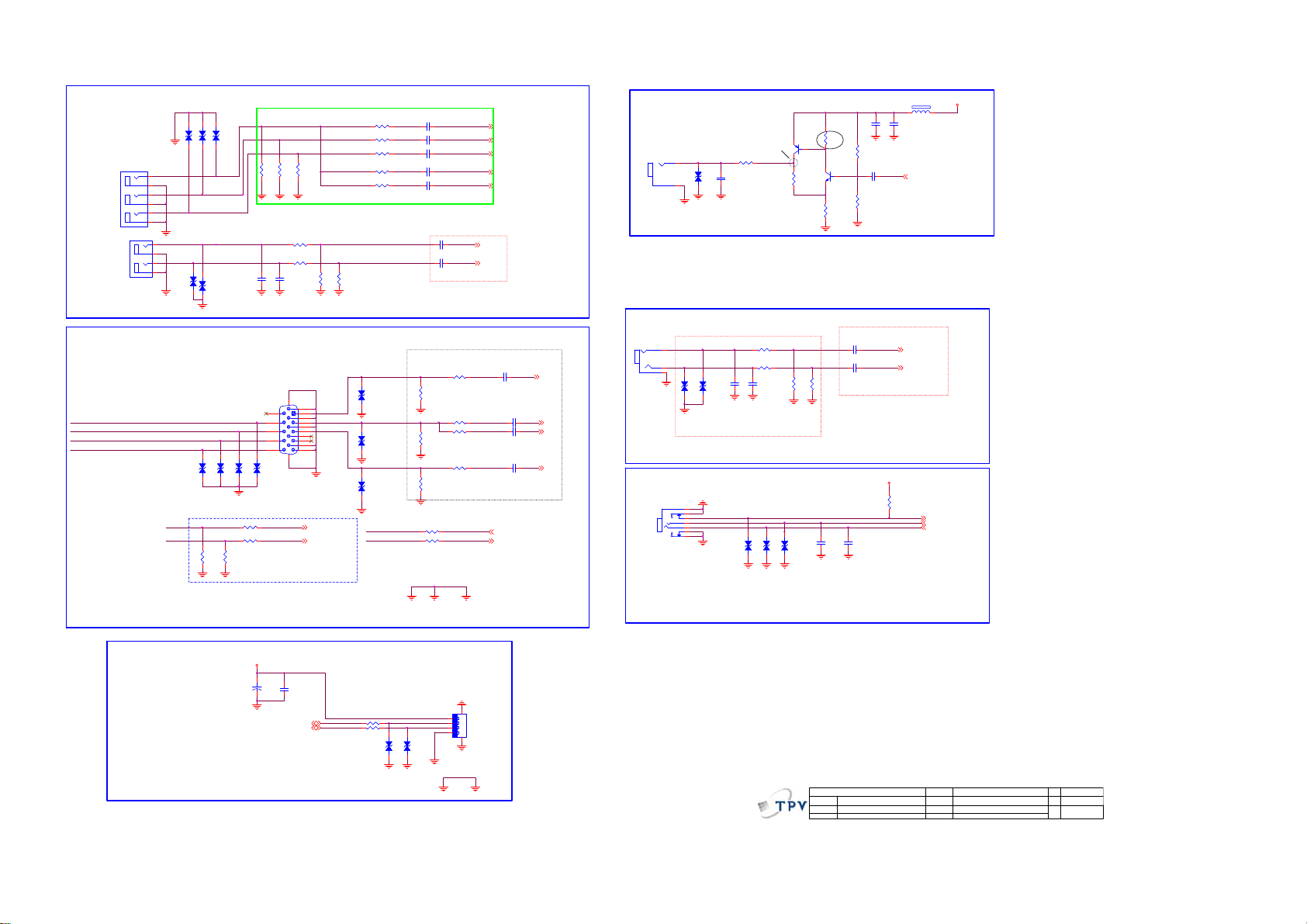

9. Schematic Diagram…..…………....………………...34
9.1 Main Board…………………………………...….......34
9.2 Power Board…………..….….……...………….......43
9.3 IR Board……...………….……….…………….........45
10. Exploded View………………………………….…...46
11. BOM List……………….………………….………….48
Horizontal Frequency
AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING
ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.
CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING
1
Important Safety Notice
Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service
procedures recommended by AOC and described in this service manual are effective methods of performing service
operations. Some of these service operations require the use of tools specially designed for the purpose. The
special tools should be used when and as recommended.
It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in
order to minimize the risk of personal injury to service personnel. The possibility exists that improper service
methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE
NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in
which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not
recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.
Hereafter throughout this manual, AOC Company will be referred to as AOC.
WARNING
Use of substitute replacement parts, which do not have the same, specified safety characteristics might create
shock, fire, or other hazards.
Under no circumstances should the original design be modified or altered without written permission from AOC.
AOC assumes no liability, express or implied, arising out of any unauthorized modification of design.
Servicer assumes all liability.
FOR PRODUCTS CONTAINING LASER:
DANGER-Invisible laser radiations when open AVOID DIRECT EXPOSURE TO BEAM.
CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
CAUTION -The use of optical instruments with this product will increase eye hazard.
TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S
REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF
THIS SERVICE MANUAL.
Take care during handling the LCD module with backlight unit
-Must mount the module using mounting holes arranged in four corners.
-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.
-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to
the panel.
-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).
-Make certain that treatment person’s body is grounded through wristband.
-Do not leave the module in high temperature and in areas of high humidity for a long time.
-Avoid contact with water as it may a short circuit within the module.
-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may damage the panel.)
2
Revision List
Version Release Date Revision Instructions
A00 Feb.21.2013 Initial Release LE23A6330/61 E23CG1NCBQA1NNF.LF
Customer
Model
TPV Model
3
1. General Specification
Note:
1. Designs and specifications are subject to change without notice.
2. This model may not be compatible with features and/or specifications that may be added in the future.
4

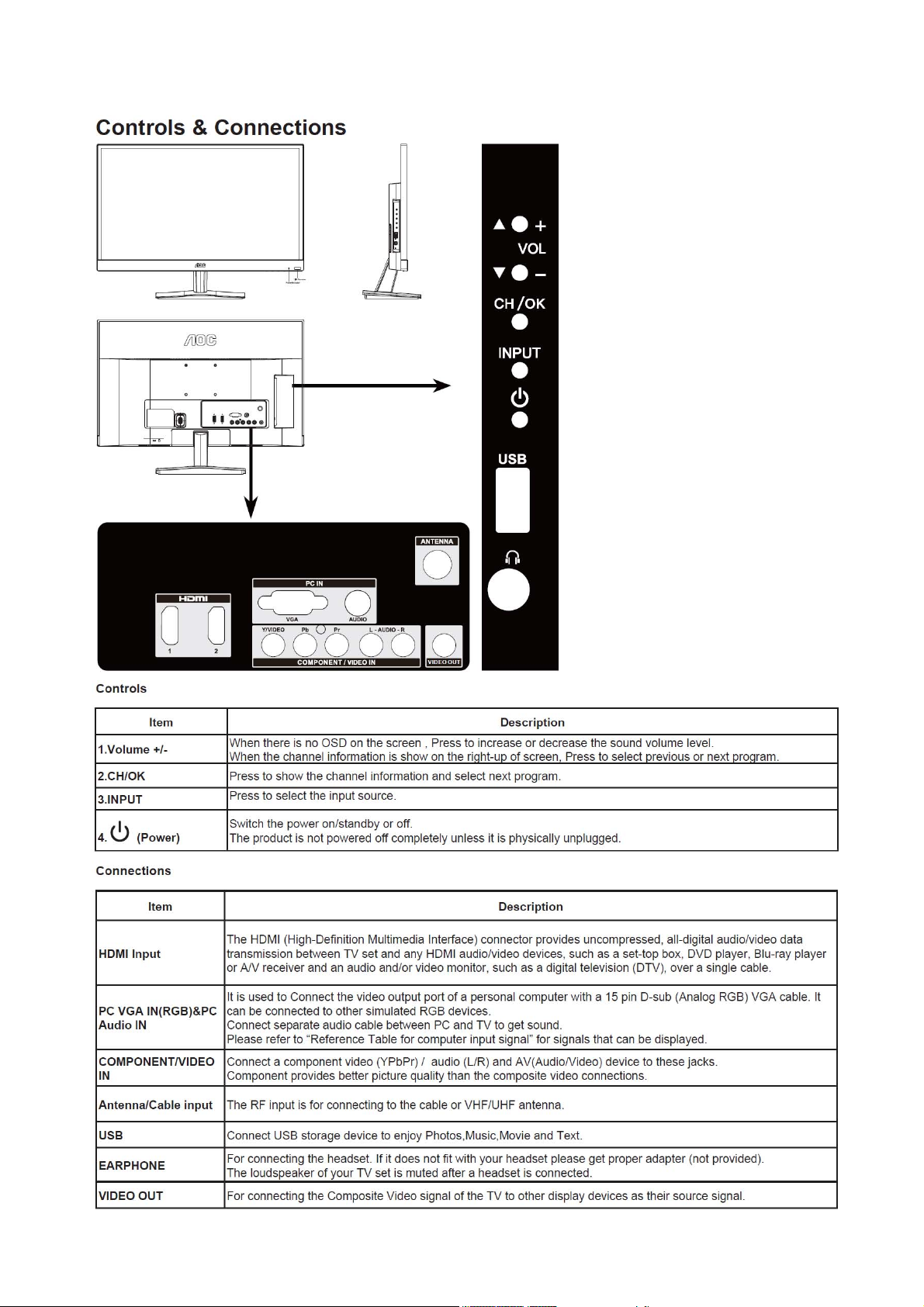

2. Operating Instructions
2.1 The Use of Remote Control
5
2.2 To Use the Menus
6
7
8
9
10
11
12
13
14
15
16
17
2.3 How to Connect
18
19
2.4 Front Panel Control Knobs
20
3. Input/Output Specification
3.1 RGB Signal Input
15 - Pin Color Display Signal Cable
Pin No. Description Pin No. Description
1 Red Video 9 No Pin
2 Green Video 10 Sync Ground
3 Blue Video 11 SDA(Remote Control)
4 SCL(Remote Control) 12 Serial Data for DDC
5 Ground 13 H-Sync.
6 Red Video Ground 14 V-Sync.
7 Green Video Ground 15 Serial Clock for DDC
8 Blue Video Ground
3.2 HDMI Digital Connector Pin Assignments
Pin No. Description Pin No. Description
1 TMDS Data2+ 2 TMDS Data2 Shield
3 TMDS Data2- 4 TMDS Data1+
5 TMDS Data1 Shield 6 TMDS Data1-
7 TMDS Data0+ 8 TMDS Data0 Shield
9 TMDS Data0- 10 TMDS Clock+
11 TMDS Clock Shield 12 TMDS Clock-
13 CEC 14 NC
15 SCL 16 SDA
17 DDC/CEC Ground 18 +5V Power
19 Hot Plug Detect
21

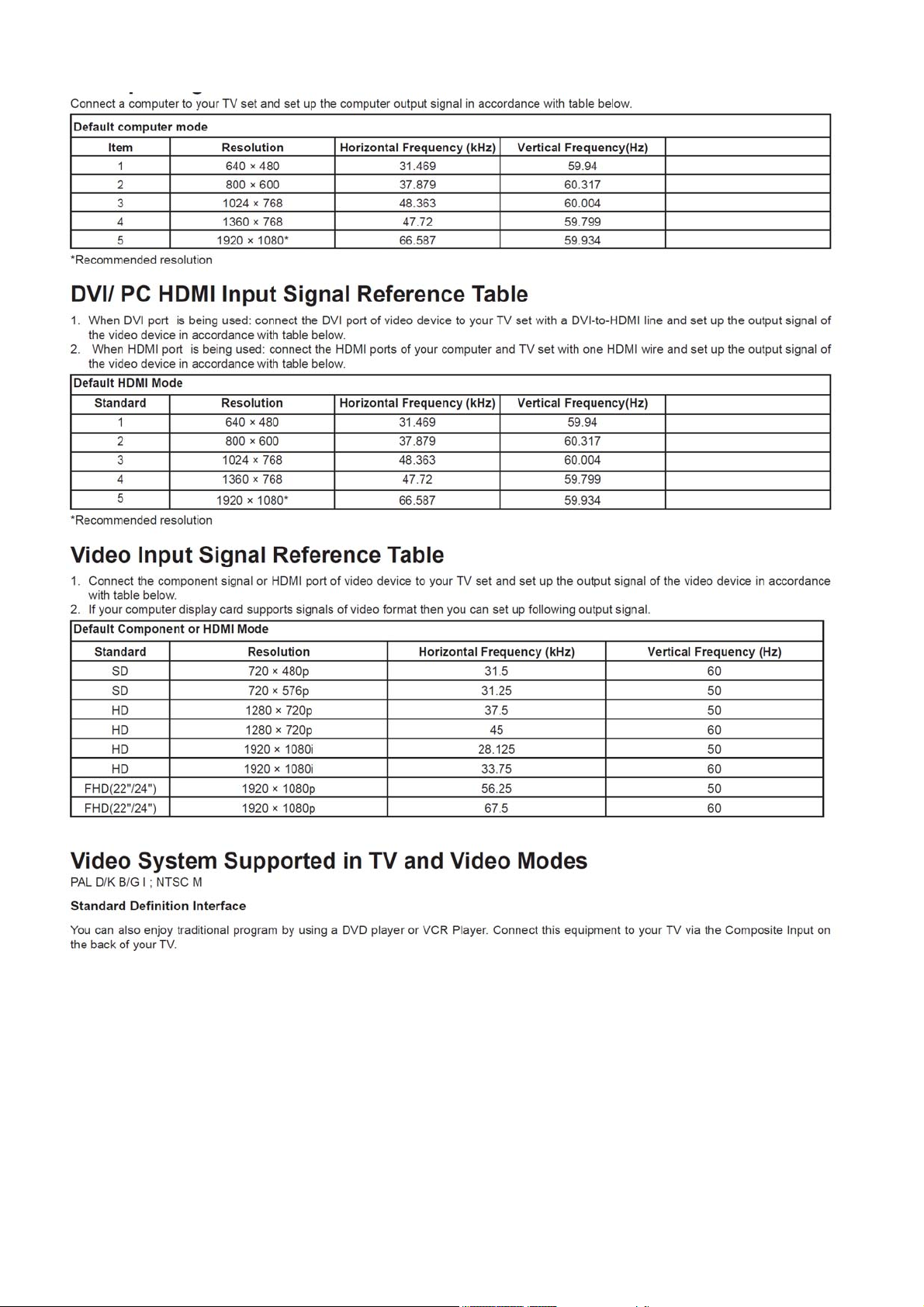

3.3 Compatible Mode Table
22

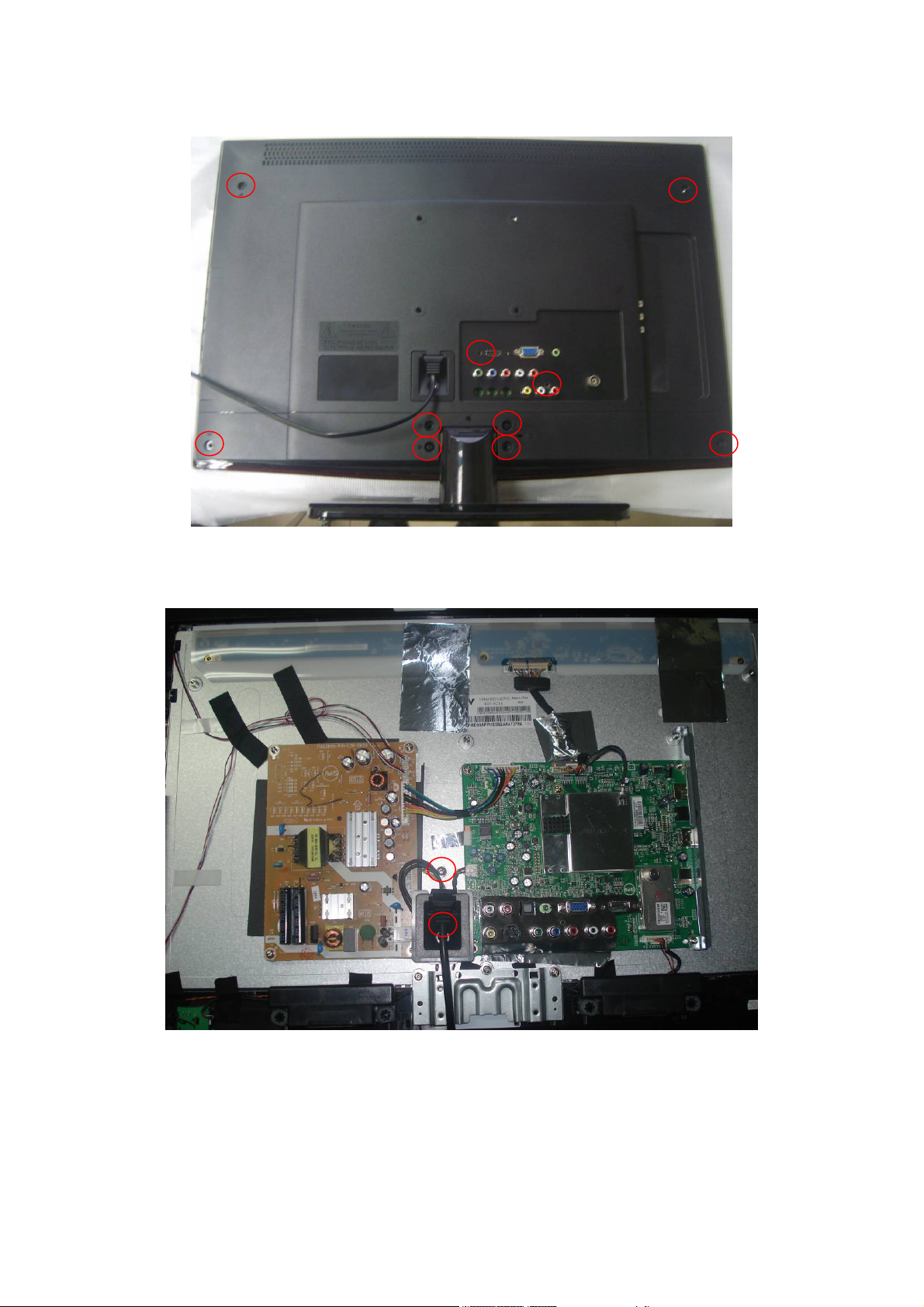

4. Mechanical Instructions
1. Remove the screws to remove the stand, base and rear cover.
2. Remove the screws to remove AC cover.
23
3. Remove the screws to remove main board, power board and hinge BKT.
4. Remove the screws to remove AC BKT, key board, IR board and speakers.
24
p
p
5. Repair Flow Chart
1. No power
No power (LED “Off”)
Check the AC input and the
ower is “ON”?
Yes
Power board
out
ut=5.2V?
Yes
Check the IR board and LED
Replace the IR board
No
Replace the main board
No
Power “On”
No
Replace the power board
25
2. Can’t start
Can’t start（LED red）
Power board output＝16V?
Yes
Check the power key is under control?
No
Check the IR receiver is normal?
No
Replace the power board
Yes
Replace the key board
Yes
Replace the IR board
No
Replace the main board
No
Replace the Power board
26
3. No display
No display (LED blue)
Check TV is under control and power on/off by remote control and power key?
Yes
Check the LVDS cable
Yes
Yes
Check the backlight is
“On”?
No
Reinsert or replace the LVDS cable
No
No
Check the B/L
signal is available?
Yes
Replace the main board
No
Replace main board
Panel Vcc = 5V?
Yes
Replace the Panel
No
Replace the main board
Power board output＝16V?
Yes
Replace the Panel
Replace the power board
No
27
4. Sound problem
No sound or sound abnormal
Check the audio source connection
and the TV system are correct？
Yes
Check the TV is muted, adjust the
volume or enter the menu to reset?
No
Check the cable between the
speakers and main board is ok?
No
Reinsert the audio cable or change the TV system
No
Yes
Check the speaker resistance value is in spec (Remark: The value is marked on the speaker)?
Yes
Replace the speaker
Replace the main board
Replace the cable
No
28
5. Remote control malfunction
Remote Control malfunction
Check the remote control battery is not properly placed or no power?
No
Use the other remote controls
No
Whether the IR board is
abnormal?
No
Replace the main board
Yes
Replace the battery
Yes
Replace the remote control
Yes
Replace the IR board
29
6. OSD is unstable or can’t work normally
OSD is unstable or can’t work normally
Key board connected properly?
Yes
Buttons are ok?
Yes
Key board is ok?
Yes
Replace the main board
No
Reconnect the key board
No
Replace the button function
No
Replace the key board
30
6. PCB Layout
6.1 Main Board
715G5789M01000004K
R4
ZD1 ZD4
ZD8
C705
CN406
CN401
L604
C634
C629
L601
C624
CN601
L602
C621
R2
ZD7
ZD2 ZD3
ZD701
C708
U702
C446
ZD403
C445
R456
R460
C442
ZD402
C626
C620
R616
R466
C447
ZD406
CN404
C707
Q704
C713
R462
C440
R464
C441
R461
C443
FB409
R457
C444
ZD401
R458
FB603
C637
R626
C636
C630
R623
C628
R621
C625
L603
C623
Q406
R468
Q407
R467
ZD404 ZD405
R469
R470
CN701
R708
R705
R712
R713
R714
Q705 R716
R723
R722
R423
R729
R720
C711
C712
C714
R475
R463
R479
R478
R474
Q404 Q405
R459
C640
C639
C638
U601
C618
C613
C619
R611
Q601
R629
R612
C614
Q602
C450
R627
R628
R465
TH401
ZD407
C704
Q706
Q701
C724
R438
C615
C635
C633
C632
C631
C627
R620
R601
R617
R618
R619
C622
R613
C616
R703
C706
C702
C703
R709
R702
R706
R728
R707
Q703
R710
R437
R419
R727
R421
R422
CN402
R625
C617
R615
R624
R622
R531
ZD505
D502
ZD502
R502 R506
R503
ZD504
R501
R508
R510
R509
ZD503
R522
R521
R520
R519
R518
R517
R516
R515
CN501
C437
C452
C451
U404 U405
Q401
C401
Q702
R704
Q707
U504
U502
R439
R441
R473
Q403
U403
D402
R444
R442
R443
C439R451
R447
R452
R453
U402
CN502
R434
R436
C435
R431
C403
R404
Q402
D401
R403
C402
D503
R507
ZD501
R504
R505
ZD507
R511
R514
R513
R512
ZD506
R530
R529
R528
R527
R526
R525
R524
R523
R435
C436
C434
C438
C448
R476
C510
R440
Q408
R477
C420
C433
C431
C404
R405R406
C419
R133
ZD112 ZD113ZD114
CN105
U503
U501
CN403
R420
R450
R446
R445
R472
R471
R424
R401
C427
U401
HS401
C429
R134
R407
R137
C405
R135
ZD101
R108
ZD103 ZD104
CN102
CN405
C417
R132
C122
C121
C120
C407
R129
R136
R126
R127
R410
R130
R128
ZD115
ZD111
R449
R448
R455
R454
FB403
R145
C416
R142
FB401
R141
C426
R143
C428
C432
C423
C422
C411
C414
C406
C409
C106
C449
C102
C105
C117
C421
C107
C110
C408
C410
C424
R106
R104
R111
R122
R412
R102
R113
R415
FB404
R125
ZD110
FB407
R107
R109
ZD102
C413
C412
FB402
C719
C717
C418
C415
C139
C138
FB408
FB406
FB405
R427
R428
R416
R418
R610
R409
R609
R413
C115
C116
R121
C119
ZD108 ZD109
R717
C720
R715
R711
R731
C718
L701
C726
C722
C723
R144
R146
L104
C137
C136
R140
C134
L103
C430
X401
C425
R614
C612
C112
C111
R123R124
R120
C118
R119
R117
ZD106
CN104
C114
R116
R118
C113
ZD107
CN107
C716
U701
C140
C135
C129
U101
C715
L101
L102
C127
C701
C710
U703
R719
C128
R114
C109
C103
C104
FB102
FB701
C101
C130
R103
Q102
C709
FB101
C132
R105
R701
R721
C141
R101
C133
TU101
C131
FB103
Q101
R115
R112
R110
C108
ZD105
C721
C602
FB601
C601
C605
R603
R602
C603
U602
C604
CN103
R718
C606
ZD5
R3
R402
SW4007
R408
SW4006
R411
SW4005
R414
SW4004
R417
SW4001
R726
R730
R725
C725
U704
R724
R138
R139
ZD119 ZD120
C125
C126
C608
R605
R606
C609
C607
R607
C124
ZD117
FB602
C611
R608
C123
ZD118
C610
R604
R131
ZD116
R1
CN106
CN101
31
6.2 Power Board
715G5804P01W20001M
GND2
MH1
CN8102
FB9906
HS9101
MH26
GND1
MH32
MH31
CN8104
C9908
J926
MH25
C9127
FB9905
C8102
FB9907
CN8101
Q9101
C9102
C9105
J904
R9112
MH24
C8106
Q8107
D9105
C9126
D9103
C9103
MH23
C9101
D8101
C8113
J925
Q8105
Q8106
T9101
RV9902
BD9101
J929
FB9901
C9902
R8107
J924
MH27
IC9102
FB9908
J903
L8102
J918
Q8104
MH28
C9904
MH13
RV9901
MH22
CN9902
J917
J916
Q8103
MH19
FB9902
J930
L9901
SG9901
C8101
J905
FB9903
C9903
SG9902
J915
J912
Q8102
C9907
FB9909
J914
J902
D9107
D9106
J923
J922
R8118
J911
D9113
D9112
D9102
D9111
D9109
D9101
D9108
F9901
FB9904
J919
ZD9102
ZD9103
J909
HS9102
HS9103
HS9104
MH12
R9901
C9901
J906
NR9901
C9906
J921
J920
C9116
R9130
L9102
NR9902
MH4
MH8
ZD9101
Q9102
C9111
J908
C9113
C9122
J907
C9109
C9121
CN9901
MH7
CN9904
CN9903
L9101
MH11
MH6
R9144
C9125
R9142
R9143
C8105
C9112
C9114
C9110
C9120
R8101
C8109
C8108
R8111
R8110
C8104
C8111
R8117
R8102
R9129
R8116
C9119
R9131
R9138
C9108
R9118
R9140
R9120
R9139
R9119
R9116
C9107
R9115
C9123
R9117
R8119
C8112
IC8501
C8110
C8114
R9123
R9125 R9126
C9115
R9133
C8103
JR903
MH29
R8108
R9127
R9124
C9117
R9135
R9136
MH30
R8103
R9134
R9132
R8113
R9141
IC9103
R9137
C8115
C8116
C8107
Q8101
R8106
R8104
R8105
D8102
D8103 D8104 D8105 D8106
R9106
R9104
R9101
R8122
R9102 R9103
R9107
R8130
R8123
JR901
R9108
R9105
R8129
R8121
R8114
R8115
Q9103
C9118
R9128
ZD9104
R9122
R9121
R9145
R8124
ZD9105
ZD9106
MH3
JR904
R8131
R8125
C9104
R9113
C9106
C9124
IC9101
JR902
R9114
D9104
R9110
R9111
R9109
MH18
6.3 IR Board
715G5943R01000004S
R205
C1
R203
R202
LED201
R204
U201
C201
R201
U1
C2
CN1
CN201
32
7. Adjustment
It’s no need to adjust the white balance for this model, do ADC only.

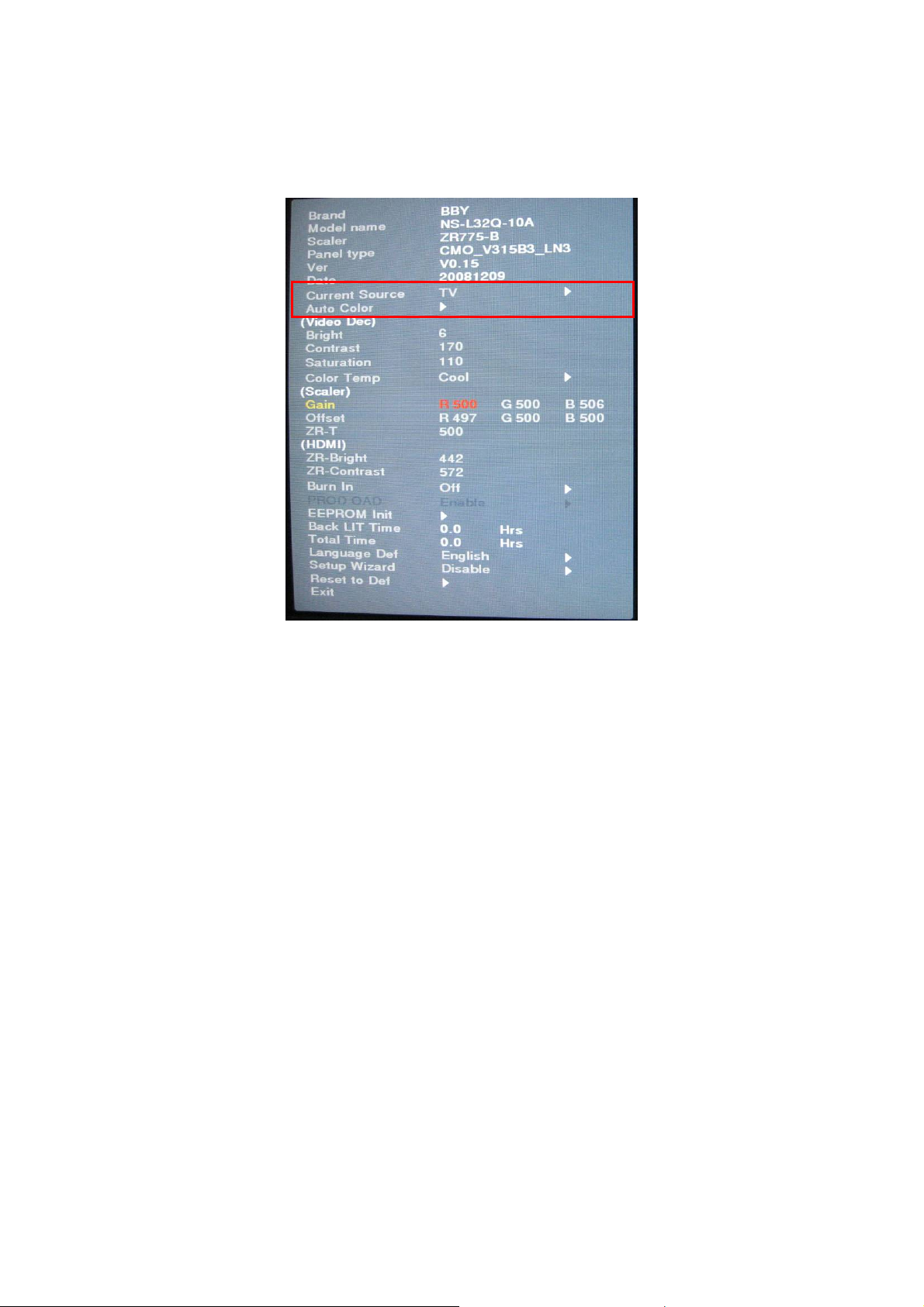

Step1: Turn on the TV, press “Menu”, then press number key 1 9 9 9 and “ENTER”, it will achieve the factory
mode. Take the following picture for example:
Step2: Change TV, press the “Current Source” to Component mode and change signal to 1080i mode, press the
“Auto Color”;
Step3: Change TV, press the “Current Source” to PC mode and change signal to PC TIMING 137(1024X768);
Pattern 147 (16 Grays), press the “Auto Color”.
33
9. Schematic Diagram

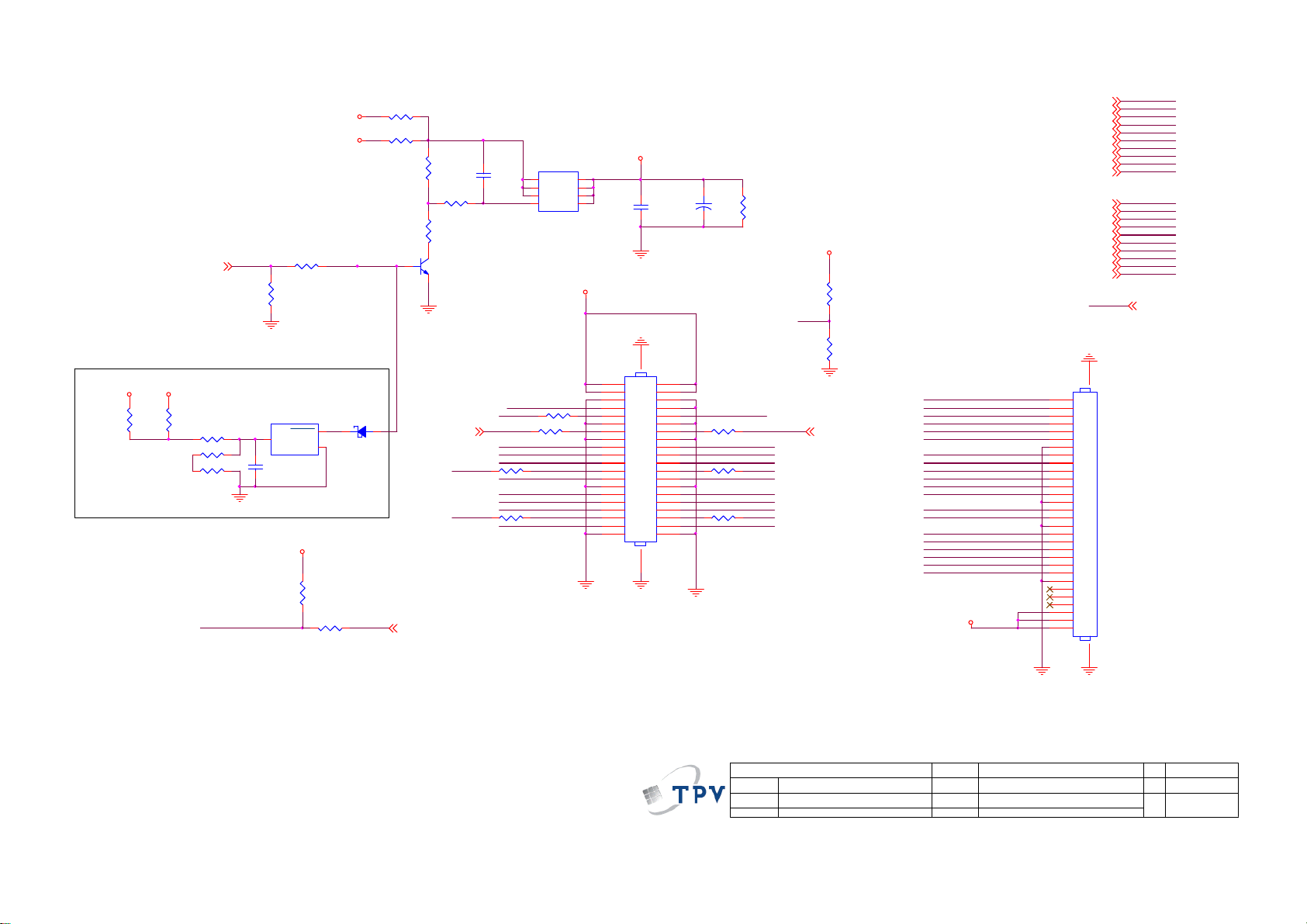

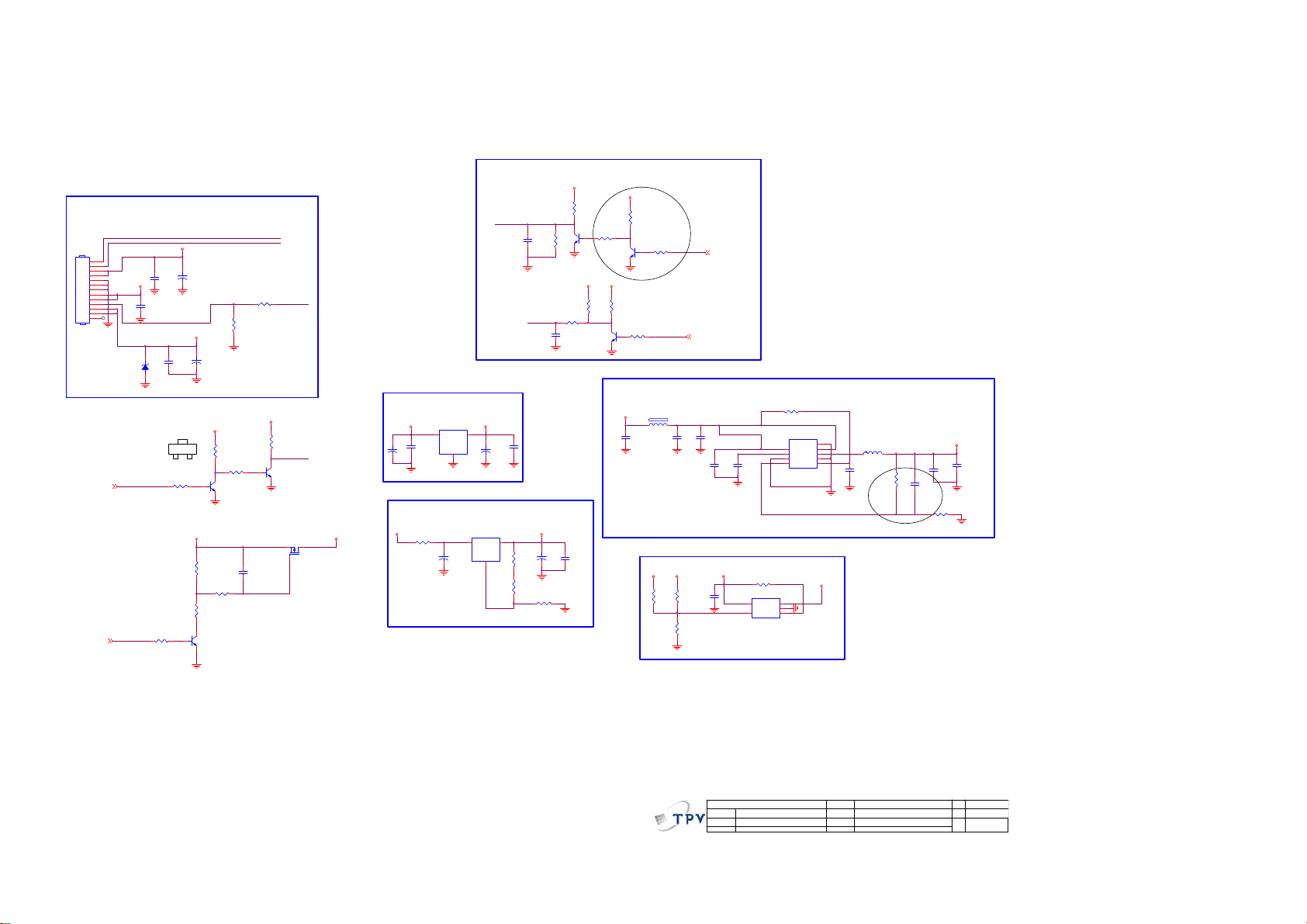

9.1 Main Board
715G5789M01000004K
POWER
From Power Board
CN70 1
1 2 3 4 5 6 7 8 9 10 11 12 13
CONN
13P R/A 2.5mm 311GW250B13BBX
PW_CTL2
PW_CTL2
12V
24V
P24V
PW_CTL
PW_CTL
P12V
P24V
1 2
C703
100NF 16V
C705
0.1uF 50V
5V
ZD701
NC/BZT52-C5V6
R716 4.7K
R723 4.7K
+
+5V_Standby
C707
100NF 16V
C
B
P12V
C704
10UF 25V
SMT
+
E
+5V_Standby
C708
100UF 16V
SMT
R720
100K
R722 10K
Q706
MMBT3904
+5V_Norm al
R729
47K
R713
10K
R714 10K
Q705
MMBT3904
R705 100R
R708
NC/10K
C724
100NF 16V
BL_EN BL_PWM
+5V_Norm al
R712
1K
Q704
MMBT3904
PS_ON
PS_ON
Q701
LP3401LT1G
+5V_Norm al
Standby Power
+5V_Standby
C712
+
C711
1UF16V
100UF 16V
DDR Power
+5V_Norm al
R718 2.2R
U702
+3.3V_Standby
AZ1117D
2
VI3VO
+
GND
1
U70 3 AZ1084D-ADJTRE1
3
+
VOUT2VIN
C721
GND
100UF 16V
1
SMT
Vout = 1.25x(R1+R2)/R2
1.845V
BL_EN
C713
100UF 16V
SMT
C702
NC/10N 50V
R1
BL_PWM
NC/4.7U F 10V
C714
100NF 16V
+1.8V_DDR
R719
2.4K 1%
R701
0.05R
R721 1K 1%
Backlight Control
+5V_Norm al
R702
1K
R704
Q702
R703
NC/10K
C706
+
C722
100UF 16V
SMT
1K
MMBT390 4
+5V_Norm al
+3.3V_Standby
R706
NC/10K
R709
1K
Q703
MMBT3904
C723
NC/10uF
R2
+5V_Norm al
6-12
R728
10K
Q707
R727 4.7K
MMBT3904
R707
1K
R710 4.7K
+1.2V Core Power
+5V_Standby
FB701
1 2
300R 4A
C709
4.7uF 10V
USB Power
P24V
R730
R725
NC/15KOHM 1/16W
27K 1/16W 5%
R726
10K+-5%1/16W
Hi: Of f Low: On
VBL_CTRL
C701
100NF 16V
P12V
1UF 16V
VBL_CTRL 2
BRI_ADJ- PWM0 2,3
C710
10UF 10V
C715
100N 16V
0402
+5V_Norm al
C725
C716
100N 16V
0402
Vout = 0.8x(R1+R2)/R2
R724
NC/100K
U704
5
VOUT
VIN
GND
4
OCB3EN
APL3511CBI-TRG
R711 1K
1 2 3
1 2
U701
E-Pad
VCC
VIN
POK
LX
GND
PGND
FB4EN
APW7323AKAI-TRG
9 8 7 6 5
USB_5V
073G253S 68 H
L701
2.2uH
C718
1UF16V
1.26V
7.5K 1%
+1.2V_VDDC
C719
C717
C720
10N 50V
0402
22UF 10V
22UF 10V
SMT
R717
12.4K 1%
R2
R715
R1
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
GXXXX-M0A-000-0040
Key Component
01-Power
Date
OEM MODEL
NA
TPV MOD EL
NA A
PCB NAME
715GXXXX-M0A-000-0040
Sheet
19Monday, Sept ember 24, 2012
of
Custom
Size
Rev
<
称爹
>
称爹
34
MST6931XP/SPI FLASH
HDMI_CEC5
HDMI-ARC5
VGA_HS4 VGA_VS4 VGA_BIN4 VGA_GIN4 SOG04 VGA_RIN4
Y+4 SOY4 Pb+4 Pr+4
AV1-CVBS0P4
CVBS_OUT04
VGA-AUR14 VGA-AUL14 COMP_AUR44 COMP_AUL44
USB0_DP4 USB0_DM4
LEDR9 LEDG9
VIFP7 VIFM7
TAGC7
HP_DET4,6
IRIN9
UART-RX4,9 UART-TX4,9
KEY0-SAR09 KEY1-SAR19
HDMI_HP1 HDMI1-SCL HDMI1-SDA HDMI1-CLKP HDMI1-CLKN
HDMI1-RX0P
HDMI1-RX0N
HDMI1-RX1P
HDMI1-RX1N
HDMI1-RX2P
HDMI1-RX2N
HDMI_HP0 HDMI0-SCL HDMI0-SDA HDMI0-CLKP HDMI0-CLKN
HDMI0-RX0P
HDMI0-RX0N
HDMI0-RX1P
HDMI0-RX1N
HDMI0-RX2P
HDMI0-RX2N
HDMI-CEC HDMI-ARC
VGA_HS VGA_VS VGA_BIN VGA_GIN SOG0 VGA_RIN
Y+ SOY Pb+ Pr+
AV1-CVBS0P
CVBS_OUT0
VGA-AUR1 VGA-AUL1 COMP_AUR4 COMP_AUL4
USB0_DP USB0_DM
LEDR LEDG
VIFP VIFM TAGC
HP_DET
IRIN
UART-RX UART-TX
KEY0-SAR0 KEY1-SAR1
Debug & IS P port
CN402
1 2 3
UART-RX
4
UART-TX
NC/CONN
System-R ST
C405 1uF 10V
+5V_Standby
HOTPLUG15 HDMI1_DDC_SCL5 HDMI1_DDC_SDA5 HDMI1_CLK+5 HDMI1_CLK-5 HDMI1_D0+5 HDMI1_D0-5 HDMI1_D1+5 HDMI1_D1-5 HDMI1_D2+5 HDMI1_D2-5
HOTPLUG05 HDMI0_DDC_SCL5 HDMI0_DDC_SDA5 HDMI0_CLK+5 HDMI0_CLK-5 HDMI0_D0+5 HDMI0_D0-5 HDMI0_D1+5 HDMI0_D1-5 HDMI0_D2+5 HDMI0_D2-5
H/W Reset
R405 1K 1/16W
C404
1NF 50V
R407
51R 1/16W 5%
R421
R422
4.7K
4.7K
HDMI_ARC
D401
BAV99
C402
2.2UF 16V
Close to IC with width trace
+5V_Standby
3
R403
1M 1/16W
1
2
R404
Q402
4.7K 1/16W C403
MMBT3906
2.2UF 16V
R406
22K 1/16W
HDMI1-CLKN HDMI1-CLKP HDMI1-RX0N HDMI1-RX0P
VDD33
HDMI1-RX1N HDMI1-RX1P HDMI1-SDA HDMI1-RX2N HDMI1-RX2P HDMI1-SCL HDMI_ARC
VDDC
VGA_HS VGA_BIN SOG0 VGA_GIN
R410
68OHM 1/16W
AVDD_ADC
R412
68OHM 1/16W
C449 47nF 16V R415
68OHM 1/16W
CHIP_CONFIG
{IPAD_PWM1, PAD_PWM0} B51_NO_EJ
VBL-CTRL
R419
4.7K
R0402
C407
VGA_RIN
47nF 16V
VGA_VS
Pb+ SOY Y+
C408
Pr+
47nF 16V
AV1-CVBS0P
C410
CVBS_OUT0
47nF 16V
AU33
AUVRM AUVAG
C412
VGA-AUL1
C413 10UF
100N 16V
FB402
60 OHM
1 2
4'h00
BRI_ADJ-PWM0
R420
4.7K
R0402
System XTAL
XTALO
R427
X401
0R05 OHM
12
R428
1M 1/16W
24MHz
XTALI
C425 27PF 50V
C430 27PF 50V
1
RXCKN_A
2
RXCKP_A
3
RX0N_A
4
RX0P_A
5
AVDD_33
6
RX1N_A
7
RX1P_A
8
DDCDA_DA
9
RX2N_A
10
RX2P_A
11
DDCDA_CK
12
ARC
13
AVDD1P2_DVI _A
14
HSYNC0
15
BIN0P
16
SOGIN0
17
GIN0P
18
GIN0M
19
RIN0P
20
VSYNC0
21
AVDD3P3_ADC
22
BIN1P
23
SOGIN1
24
GIN1P
25
GIN1M
26
RIN1P
27
VSYNC1
28
HSYNC1
29
CVBS1
30
CVBS0
31
VCOM
32
CVBSOUT
33
AU33
34
AUREF
35
AUVAG
36
AUL1
37
AUR1
38
AUL3
U401
HDMI0-RX0P
HDMI0-RX1P
HDMI0-RX2P
HDMI_HP1
HDMI0-SDA
HDMI0-SCL
HDMI0-RX2N
HDMI0-RX0N
HDMI0-CLKP
HDMI0-RX1N
HDMI0-CLKN
128
119
129
122
125
120
123
126
121
124
127
118
E-Pad
RX0P_D
RX1P_D
RX2P_D
RX0N_D
RX1N_D
RX2N_D
RXCKP_D
HOTPLUGA
DDCDD_DA
DDCDD_CK
MST693 1XP
AUOUTL146AUOUTR147AUOUTL044AUOUTR045XIN49XOUT48AVDD_DMPLL
AUL440AUR4
AUR543AUL5
AUR3
41
42
39
VGA-AUR1
COMP_AUR4
COMP_AUL4
AMP-AUOUT L0
AMP-AUOUT R0
XTALO
XTALI
AV-AUOUTL3
AV-AUOUTR3
+3.3V_Standby
R423 R424
4.7K
4.7K
AUDIO-EN
PW_CTL
PWR-ON/ OFF
VBL-C TRL VBL_ CTR L BRI_ADJ -PWM0
HDMI_HP0
117
116
RXCKN_D
HOTPLUGD
50
VDD33_DMPLL
GND-EFUSE
IRIN
HDMI-CEC
System-RST
113
114
115
CEC
HWRESET
GND_EFUSE
VIFM53VIFP
AVDD3P3_DAD C51GPIO5658VDDP59VDDC60GPIO55
54
52
TAGC
VIFM
VIFP
AVDD33_DEMOD
R0402 R0402
AUDIO_EN
ON_PANELPANEL-ON/OF F
TUNER_SCL TUNER_SDA
3D_enable
C419
C418
100N 16V
100N 16V
+3.3V_Standby
1 2
Power 1.2V
+1.2V_VDDC
1 2
FB401120R/3000mA
FB406
RXO0­RXO0+ RXO1­RXO1+ RXO2­RXO2+ RXOC­RXOC+ RXO3­RXO3+
RXE0­RXE0+ RXE1­RXE1+ RXE2­RXE2+ RXEC­RXEC+ RXE3­RXE3+
C420
100N 16V
60 OHM
C426 10UF
C406 180PF 50V
C409 180PF 50V
C411 180PF 50V
C414 180PF 50V
+3.3V_Standby
C423
100N 16V
100N 16V
RXO0- 3 RXO0+ 3 RXO1- 3 RXO1+ 3 RXO2- 3 RXO2+ 3 RXOC- 3 RXOC+ 3 RXO3- 3 RXO3+ 3
RXE0- 3 RXE0+ 3 RXE1- 3 RXE1+ 3 RXE2- 3 RXE2+ 3 RXEC- 3 RXEC+ 3 RXE3- 3 RXE3+ 3
3D_enable 3
AV_AUOUTR3
AV_AUOUTL3
FB404
1 2
60 OHM
C427
100N 16V
R409
100K 1/16W
R413
100K 1/16W
R416
100K 1/16W
R418
100K 1/16W
+3.3V_Standby
C428
AVDD_ADC
C421
100N 16V
C429
100N 16V
AMP_AUOUTR0 8
AMP_AUOUTL0 8
AV_AUOUTR3 6
AV_AUOUTL3 6
1 2
FB40760 OHM
VDDC
AU33AVDD33_DEMOD
C424
100N 16V
AVDD_DDR
PANEL-ON/OFF
KEY1-SAR1
KEY0-SAR0
BRI_ADJ-PWM0
UART-RX
UART-TX
VBL-CTRL
PWR-ON/ OFF
104
109
103
112
111
110
105
106
107
108
IRIN
GPIO64
TESTPIN
DDCA_CK
DDCA_DA
AVDD_DDR
SAR2/GPIO73
SAR1/GPIO74
SAR0/GPIO75
GND
RFAGC
AVDD_DDR
55
57
56
TUNER_SDA
TUNER_SCL
VDD33
AVDD_DDR
PWM0/GPI O26
PWM1/GPI O25
PWM2/GPIO24
LVA3P
LVA4P61LVA4M62LVA3M
63
64
RXE3-
RXE3+
VDDC
AUDIO_EN 8 PW_CTL 1
ON_PANEL 3 VBL_CTRL 1
BRI_ADJ -PWM0 1,3
TUNER_SCL 7 TUNER_SDA 7
USB1_DP USB1_DM
AVDD_MOD
USB0_DP USB0_DM
GPIO0 GPIO1 GPIO2 GPIO3
INT/GPIO65
VDDC
LVB0M
LVB0P
LVB1M
LVB1P
AVDD_MOD
LVB2M
LVB2P
LVBCKM
LVBCKP
LVB3M
LVB3P
LVB4M
LVB4P
LVA0M
LVA0P
LVA1M
LVA1P
LVA2M
LVA2P
AVDD_MOD
LVACKM
LVACKP
MST6931XP
102 101 100 99 98 97
SCZ
96
SDO
95
SDI
94
SCK
93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65
USB0_DP USB0_DM SPI_CS0N SPI-SDO SPI-SDI SPI-SCK SPI_WP0N
R401 100OHM1/16W
LEDG LEDR
AUDIO-EN
RXO0­RXO0+ RXO1­RXO1+
RXO2­RXO2+ RXOC­RXOC+ RXO3­RXO3+
RXE0­RXE0+ RXE1­RXE1+ RXE2­RXE2+
RXEC­RXEC+
VDD33
HP_DET
3D_enable
VDDC
VDD33
VDD33
Power 3.3V
+3.3V_Standby
DDR Power
+1.8V_DDR
FB408
0R05 1/10W
FB403
1 2
60 OHM
10UF
+3.3V_Standby
FB405
1 2
C431
NC/100N 16V
10UF
C415
VDD33
C432
AMP-AUOUTR0
AMP-AUOUTL0 AV-AUOUTR3 AV-AUOUTL3
60 OHM
C416
100N 16V
VDD33_DMPLL
C422
100N 16V
AVDD_DDR
C433
4.7UF 6. 3V
C417
100N 16V
SPI_CS0N SPI-SDO SPI_WP0N
+3.3V_Standby
WP active low
SERIAL FLASH
R431
4.7K
R434 1K
100N 16V
C435
FLASH_WP0N
R436
DGND
10K
1 2 3
close to IC
U402
CS# SO/SIO1
HOLD# WP# GND4SI/SIO0
W25Q32BVSSIG
+3.3V_Standby
C434
R435 51R
C436 22PF 50V
100N 16V
DGND
SPI-SCK SPI-SDI
8
VCC
7 6
SCLK
5
HS401
Heat Sink
DGND
DGND
1
1
2
2
AGND
DGND
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
GXXXX-M0A-000-0040
Key Component
02.MST6831XP/SPI FLASH
Date
OEM MOD EL
NA
TPV MODE L
NA A
PCB NAME
715GXXXX-M0A-000-0040
of
Sheet
29Monday, September 24, 2012
Custom
Size
Rev
称爹
>
<
称爹
35
LVDS
R444
NC/ 360R 1/10W 5%
P12V
+5V_Standby
R452
NC/ 220 OHM 1/10W
ON_PANEL2
R447
NC/ 360R 1/10W 5%
R451
NC/ 390 OHM 1/10W
R453
NC/ 220 OHM 1/10W
DGND
3D_EN
3
C439 NC/ 100N 50V
+5V_Standby
R442 4.7K
R443
10K
DGND
U403
NC/AZ809ANSTR-E1
Vcc
NC/4.7K
RESET
GND
+3.3V_Standby
R471
2
1
R472
NC/ 0.05R
P12V
NC/RB501V-40
D402
R437 NC/0oHM
R438
0oHM
R439
100K
12
3D_enable 2
Panel Po wer
C401
1 2
220N 25V
3
R446
NC/0R05 OHM
SELLVDS
BLPWM
TUN_I2C_SCL
R476
R454
R448
4
RXO0+ RXO1+ RXO2+
RXO3+
RXE0+ RXE1+ RXE2+
RXE3+
R473
47K
R441
10K
Q403 MMBT39 04
DGND
TUNER_SCL2,7
RXOC+ RXOC1+
0R05 OHM
0R05 OHM
AO4449 -7A/-30V
Q401
S
D
S
D
S
D
G
D
PANEL_VCC
NC/0R05 OHM
RXEC1+RXEC+
8 7 6 5
DGND
PANEL_VCC
DGND
2 4 6
8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40
C437
100NF 16V
DGND
41
CN403
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39
CONN
42
DGND
LVDS(8-bit)
+
C438
R440
100UF 16V
NC/1K 1/ 4W
3D_EN
R455
R449
TUN_I2C_SDA
RXO0­RXO1­RXO2-
RXO3-
RXE0­RXE1­RXE2­RXEC­RXE3-
R477 NC/0R05 OHM
RXOC1- RXOC-
0R05 OHM
RXEC1-
0R05 OHM
DGND
NC/4.7K
SELLVDS
NC/4.7K
DGND
+3.3V_Standby
R445
R450
TUNER_SDA 2,7
PANEL_VC C
RXO0­RXO0+ RXO1­RXO1+ RXO2­RXO2+
RXOC1­RXOC1+ RXO3­RXO3+ RXE0­RXE0+
RXE1­RXE1+
RXE2­RXE2+ RXEC1­RXEC1+ RXE3­RXE3+
CN405 NC/CONN
30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10
9 8 7 6 5 4 3 2 1
DGND
RXO0-2
RXO0+2
RXO1-2
RXO1+2
RXO2-2 RXO2+2 RXOC-2
RXOC+2
RXO3-2 RXO3+2
RXE0-2 RXE0+2
RXE1-2 RXE1+2
RXE2-2 RXE2+2 RXEC-2
RXEC+2
RXE3-2 RXE3+2
BLPWM
31 32
DGND
DGND
RXO0­RXO0+ RXO1­RXO1+ RXO2­RXO2+ RXOC­RXOC+ RXO3­RXO3+
RXE0­RXE0+ RXE1­RXE1+ RXE2­RXE2+ RXEC­RXEC+ RXE3­RXE3+
BRI_ADJ -PWM0 1, 2
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
GXXXX-M0A-000-0040
03. LVDS
Date
OEM MODEL
TPV MO DE L
PCB NAME
Sheet
NA
NA A
715GXXXX-M0A-000-0040
39Monday, September 24, 2012
of
Size
Rev
称爹
B
称爹
>
<
36
VIDEO/AUDIO INTERFAC/USB2.0
YPBPR Video/Audio IN
12
12
VGA_SDA
VGA_HSYN C
VGA_VSYNC
VGA_SCL
CONN
CN102
12
ZD102
AGND
MLVG0402
2
A
1
4
B
3
6
C
5
CONN
AGND
2
A
1
4
CN107
B
3
AGND
VGA_HSYN C
VGA_VSYNC
ZD106
MLVG0402
12
12
AGND
12
ZD103 MLVG0402
ZD104 MLVG0402
YPBPR1_IN_L1
YPBPR1_IN_R1
ZD107 MLVG0402
VGA IN
12
ZD113 MLVG0402
ZD112 MLVG0402
R136
R137
10K
10K
Y1
PB1
PR1
R107 75 OHM
AGNDAGND
Placement Near RCA.
C113
330pF 50V
AGND
AGND
11
12
13
14
15
12
12
ZD101 MLVG0402
ZD114 MLVG0402
088G353GFF1ACL
VGA_HS
R132 68R
VGA_VS
R134 68R
Close to MST IC
R108
R109
75 OHM
75 OHM
AGND
R116
10K 1/16W 5%
R117
10K 1/16W 5%
C114
330pF 50V
12K 1/16W
1716
6 1 7 2 8 3 9 4 10 5
CN105 CONN
R118
AGND AGND
VGA_HS 2
VGA_VS 2
R119
12K 1/16W
R102
33 OHM 1/16W R104
R106
33 OHM 1/16W
R111
33 OHM 1/16W R113
33 OHM 1/16W
12
ZD110 MLVG0402
12
ZD111 MLVG0402
12
ZD115 MLVG0402
VGA_SDA
VGA_SCL
33 OHM 1/16W
2.2uF 10V
2.2uF 10V
Close to MST IC
R133 33R
R135 33R
Close IC side
C102 47nF 16V
C105 47nF 16V
C106 47nF 16V
C107 1N50V
C110 47nF 16V
COMP_AUL4
C111
COMP_AUR4
C112
Close IC side
R122 33R
R125
75R
0603
R126 33R
R127 33R
R128
75R
0603
R129 33R
R130
75R
0603
Y+
Pb+
Pr+
AV1-CVBS0P
0402
SOY
0402
0402
0402
0402
Y+ 2
Pb+ 2
Pr+ 2
SOY 2
AV1-CVBS0P 2
COMP_AUL4 2
COMP_AUR4 2
VGA_R
VGA_G
VGA_SOG
VGA_B
UART-TX 2,9
UART-RX 2,9
C117 47nF 16V
C120 47nF 16V C121 1N50V
C122 47nF 16V
VGA_RIN 2
VGA_GIN 2
SOG0 2
VGA_BIN 2
CN103
RCA JACK
CN104
3
2 1
CONN
AGND
HeadPhone
CN101
CONN
Mark on board
HP OUT
2
MLVG0402
1
ZD105
AGND
AGND
AGND
12
ZD108MLVG0402
1 7 6 2 3 4 5
CVBS Out
12
C108
22pF 50V
AGND
12
C118
470pF 50V
ZD109
MLVG0402
Placement Near connect.
AGND
AGND
2Vp-p
R110
CVBS_OUT1
75 OHM
Gain=1+ (Rf/Rg)
PC AUDIO IN
R120
10K 1/16W 5%
R121
10K 1/16W 5%
C119
470pF 50V
AGND
AGND
12
12
ZD116
ZD118
ZD117
MLVG0402
MLVG0402
MLVG0402
AGNDAGND
+5V_Nor mal
FB102
1 2
300R
C103
C104
100N 16V
R105
47K
C109 10UF 10V
R114
33K 1/16W 5%
VGA-AUL1
C115
2.2uF 10V
VGA-AUR1
C116
2.2uF 10V
C Placement Near IC
+3.3V_Standby
C124
NC/100N 16V
1uF 10V
CVBS_OUT0 2
VGA-AUL1 2
VGA-AUR1 2
R131 10K 1/16W 5%
HP_OUT_L HP_OUT_R
HP_DET 2,6 HP_OUT_L 6 HP_OUT_R 6
R103
220R 1/16W
Q102 MMBT3906
Q101
MMBT3904
R112
75 OHM
Rf
R115
Rg
75 OHM
R123
R124 12K 1/16W 12K 1/16W
AGND
AGND
HP_D
12
C123
NC/100N 16V
AGND
AGNDAGND
DGNDAGND
USB IN
USB_5V
DGND
+
100UF 16V
C126
USB0_DM2 USB0_DP2
ZD20/ZD21 new component for 0.5 Cp
C125 100N 16V
USB0_DM USB0_DP
R138 4.99ohm 1/16W +/-1% R139 4.99ohm 1/16W +/-1%
12
12
ZD119
NC/MLVG0402
0.5pF
NC/MLVG0402
DGNDDGND
ZD120
DGND
USB_Shield_GND
1
1234
2 3 4
6 5
USB_Shield_GND
USB_Shield_GNDDGND
CN106
USB CONN
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
GXXXX-M0A-000-0040
Key Component
04. Vide o/Audio Inter fac/USB
Date
OEM MODEL
NA
TPV MOD EL
NA A
715GXXXX-M0A-000-0040
PCB NAME
49Monday, September 24, 2012
Sheet
of
A2
Size
Rev
<
称爹
>
称爹
37
INPUT_HDMI
AC off EDID solution without EEPROM
R502 47K
HOTPLUG0
HDMI0_D2+ HDMI0_D2-
HDMI0_D1+ HDMI0_D1-
HDMI0_D0+ HDMI0_D0-
HDMI0_CLK+ HDMI0_CLK-
R506
10K 1/16W 5%
U502 NC /RClam p0524P.TCT
1
IN1
2
IN2
4
IN3 IN45OUT4
U504 NC /RClam p0524P.TCT
1
IN1
2
IN2
4
IN3 IN45OUT4
DGND
HDMI0_D DC_SCL# HDMI0_D DC_SDA#
DGND
R503 1K 1/10W
D502 MMBT39 04
DGND
OUT1 OUT2
OUT3
GND
GND
3
8
DGND
OUT1 OUT2
OUT3
GND
GND
3
8
DGND
HDMI0_D2+
HDMI0_D2­HDMI0_D1+
HDMI0_D1­HDMI0_D0+
HDMI0_D0­HDMI0_CLK+
HDMI0_CLK-
10 9
7 6
10 9
7 6
R515 0R05 OHM
R516 0R05 OHM R517 0R05 OHM
R518 0R05 OHM R519 0R05 OHM
R520 0R05 OHM R521 0R05 OHM
R522 0R05 OHM
HDMI0_CON5V
12
MLVG0402 ZD502
DGND
HDMI0_D2+ HDMI0_D2-
HDMI0_D1+ HDMI0_D1-
HDMI0_D0+ HDMI0_D0-
HDMI0_CLK+ HDMI0_CLK-
HDMI_CEC1
HDMI-ARC

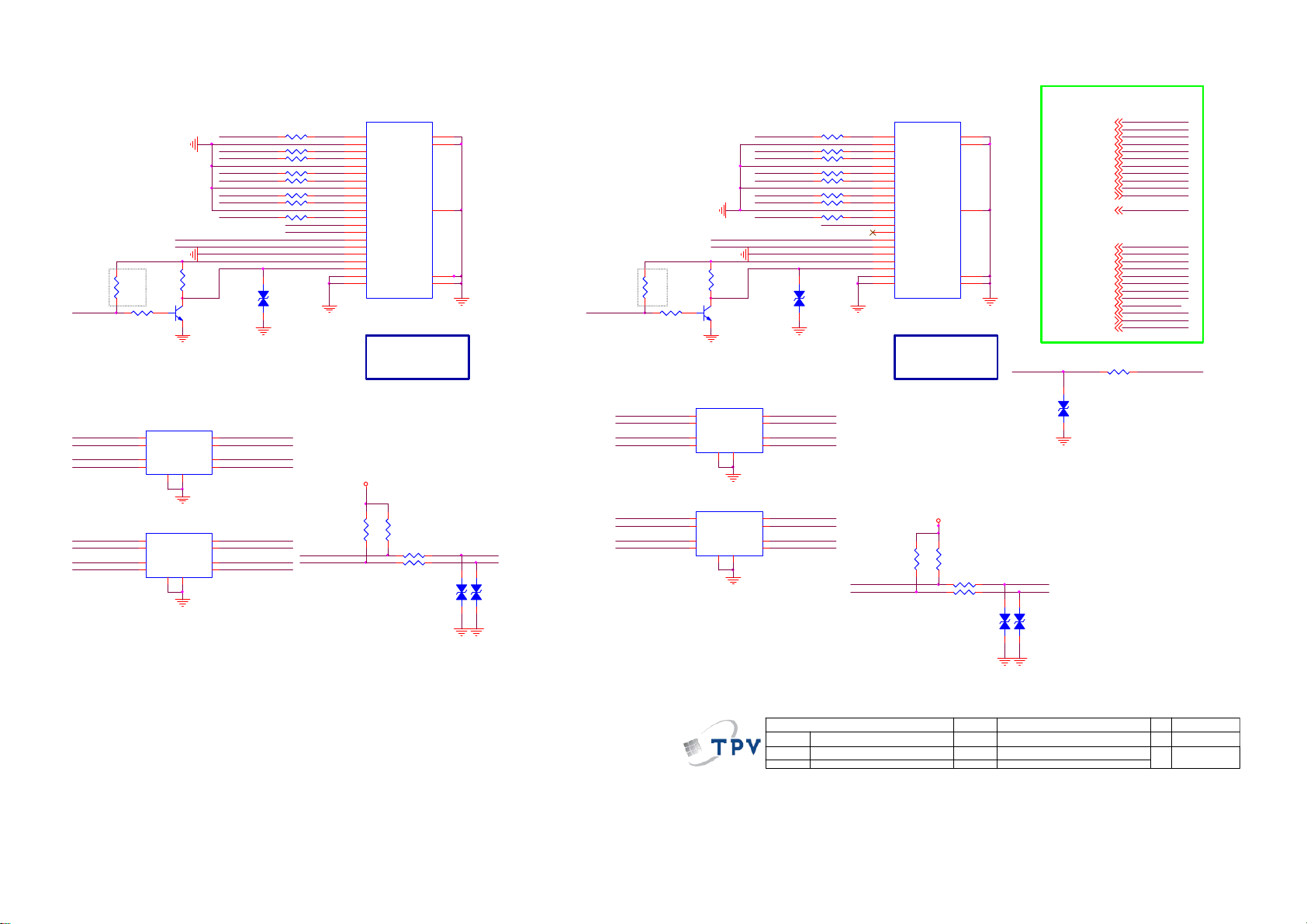

HDMI0_DDC_SCL HDMI0_DDC_SDA
DGND
HDMI0_CON5V
CN501
1
D2+
2
D2 Shield
3
D2-
4
D1+
5
D1 Shield
6
D1-
7
D0+
8
D0 Shield
9
D0-
10
CK+
11
CK Shield
12
CK-
13
CE Remote
14
NC
15
DDC CLK
16
DDC DATA
17
GND
18
+5V
19
HP DET
20
SHELL1
21
SHELL2
HDMI
Make on board
HDM I0
R508 47K
R509 47K
SHELL3 SHELL4
SHELL5
SHELL6 SHELL7
100R
100R R501
22 23
24
25 26
HDMI0_D DC_SCL#
R510
HDMI0_D DC_SDA#
DGND
12
DGND
12
DGND
MLVG0402 MLVG0402
ZD504 ZD503
AC off EDID solution without EEPROM
HOTPLUG1
HDMI1_D2+ HDMI1_D2-
HDMI1_D1+ HDMI1_D1-
HDMI1_D0+ HDMI1_D0-
HDMI1_CLK+ HDMI1_CLK-
DGND
R504 47K
R507
10K 1/16W 5%
U501 NC/RClamp0524P.TCT
1
IN1
2
IN2
4
IN3
5
IN4
U503 NC/RClamp0524P.TCT
1
IN1
2
IN2
4
IN3
5
IN4
HDMI1_D2+
R523 0R05 OHM
HDMI1_D2-
R524 0R05 OHM
HDMI1_D1+
R525 0R05 OHM
HDMI1_D1-
R526 0R05 OHM
HDMI1_D0+
R527 0R05 OHM
HDMI1_D0-
R528 0R05 OHM
HDMI1_CLK+
R529 0R05 OHM
HDMI1_CLK-
R530 0R05 OHM
12
HDMI_CEC1
MLVG0402 ZD501
DGND
HDMI1_DDC_SCL# HDMI1_DDC_SDA#
DGND
R505 1K 1/10W
D503 MMBT3904
DGND DGND
HDMI1_C ON5V
(180 degree connector)
10 9
7 6
10 9
7 6
HDMI1_D2+ HDMI1_D2-
HDMI1_D1+ HDMI1_D1-
HDMI1_D0+ HDMI1_D0-
HDMI1_CLK+ HDMI1_CLK-
OUT1 OUT2
OUT3 OUT4
GND
GND
3
8
DGND
OUT1 OUT2
OUT3 OUT4
GND
GND
3
8
DGND
CN502
1
D2+
2
D2 Shield
3
D2-
4
D1+
5
D1 Shield
6
D1-
7
D0+
8
D0 Shield
9
D0-
10
CK+
11
CK Shield
12
CK-
13
CE Remote
14
NC
15
DDC CLK
16
DDC DATA
17
GND
18
+5V
19
HP DET
20
SHELL1
21
SHELL2
HDMI
HDMI1_DDC_SCL HDMI1_DDC_SDA
22
SHELL3
23
SHELL4
24
SHELL5
25
SHELL6
26
SHELL7
Make on board
HDM I1
HDMI1_C ON5V
R511
R512
47K
47K
R513
100R
R514
100R
DGND
HDMI_CEC1
HDMI1_DDC_SCL# HDMI1_DDC_SDA#
12
12
MLVG0402 MLVG0402
DGNDDGND
From Main Chip
HDMI0_D2+2 HDMI0_D2-2 HDMI0_D1+2 HDMI0_D1-2 HDMI0_D0+2 HDMI0_D0-2 HDMI0_CLK+2
HDMI0_CLK-2 HDMI0_DDC_SCL2 HDMI0_DDC_SDA2
HOTPLUG02
HDMI_CEC2
HDMI1_D2+2
HDMI1_D2-2
HDMI1_D1+2
HDMI1_D1-2
HDMI1_D0+2
HDMI1_D0-2
HDMI1_CLK+2
HDMI1_CLK-2 HDMI1_DDC_SCL2 HDMI1_DDC_SDA2
HOTPLUG12
HDMI-ARC2
12
MLVG0402 ZD505
DGND
ZD507 ZD506
R531
200R 1/16W
HDMI0-RX2P HDMI0-RX2N HDMI0-RX1P HDMI0-RX1N HDMI0-RX0P HDMI0-RX0N HDMI0-CLKP HDMI0-CLKN HDMI0-SCL HDMI0-SDA HDMI_HP0
HDMI-CEC
HDMI1-RX2P HDMI1-RX2N HDMI1-RX1P HDMI1-RX1N HDMI1-RX0P HDMI1-RX0N HDMI1-CLKP HDMI1-CLKN HDMI1-SCL HDMI1-SDA HDMI_HP1 HDMI-ARC
HDMI-CEC
称爹
<
Custom
>
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
GXXXX-M0A-000-0040
05. Input_ HDMI
Date
OEM MO DE L
TPV MO DEL
PCB NAME
Sheet
NA
NA A
715GXXXX-M0A-000-0040
of
59Monday, Septem ber 24, 2012
Size
Rev
称爹
38
EARPHONE PRE AMP
AV_AUOUTR32
AV_AUOUTL32
AV_AUOUTR3
AV_AUOUTL3
HP_OUT_R
HP_OUT_L
HP_OUT_R 4
HP_OUT_L 4
C610
2.2UF 16V
C604
1UF16V
U602
16
1
CP+
2
PGND
3
CP-
4
NC
+3.3V_Standby
FB602
1 2
300R
FB601
1 2
300R
13
15
GND14/LSD
PVDD
APA2176A
CVSS5VSS6LOUT7VDD
8
NC
RIN
/RSD
LIN
ROUT
C611
10UF 10V
C601
100NF 16V
12
11
10
9
R607 100 OHM 1/10W R608 100 OHM 1/10W
HP_SD
1UF16V
C602
10UF 10V
C606
1UF16V
C607
Headphone Amp
+5V_N ormal
C603
NC/ 1.5nF 50V
R602 0R05 OHM
R604 100OHM1/16W
R605 0R05 O HM
C608
NC/ 1.5nF 50V
HP_OUT_R HP_OUT_L
C605
1.5nF 50V
C609
1.5nF 50V
R603
200OHM1/16W
R606
200OHM1/16W
AV_AUOUTR3
HP_DET 2,4
AV_AUOUTL3
<
称爹
A4
>
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
GXXXX-M0A-000-0040
06. Earphone pre amp
OEM MODEL
TPV MODEL
PCB NAME
Sheet
NA
NA A
715GXXXX-M0A-000-0040
of
69Monday, Septem ber 24, 2012
Size
Rev
称爹
39
TUNER
ANT-DC
CLK_OUT
IF_AGC
TH110TH211TH312TH4
13
AGND
BPF_IN
AIF+
TUNER
TU1 01
VCC
SCL
SDA
GND
IF_N
IF_P
AIF-
Silicon Tuner
FB103
NC/ 300 OHM
1
2
3
SCL_CAN
4
SDA_CAN
5
6
7
AIF+
8
AIF-
9
IF_AGC
C133
1N 50V
12
AGND
L102
1UH
L101
AGND DGND
Tuner3.3V
C131
1uF 10V
AGND
C135 56pF 50V
1UH
L need Q>15
3.3V_TUNER
C132
1N 50V
300mA
close Tuner
L103
2.2uH
L104
2.2uH
+5V_N orma l
C136
33PF 50V
C127
10uF 10V
R140 510R
DGND
C134
100N 16V
C137
100N 16V
300mA
C128 100N 16V
U101
VIN3VOUT
TUN _I F+
TUN _I F-
Tuner Power
3.3V_TUNER
2
GND14
DGND
C129
100UF 16V
4
+
C101 100N 16V
DGNDDGND
Close to Main chip
1K_100MHz/400_400MHz
FB101
1 2
1000OHM
3.3V_TUNER
C130
2.2UF 16V
DGND
TUNER_SCL2 TUNER_SDA2
TP_SYNC[55]
TP_CLK[48]
TP_VALID[51]
TP_DI[54]
IF_CTL[47]
I2C for Tuner
3.3V_TUNER
R141 4.7K
R142 4.7K
Main Chip <-->
VIFP2 VIFM2
TUNER_SCL
TUNER_SDA
TUN _I F+ TUN _I F-
TUN_I2C_SCL TUN_I2C_SDA
TUNER_SCL 2
TUNER_SDA 2
IF_AGC Control Circuit
Close to Main chip
TAGC2
IF_AGC from IC
TAGC
3.3V_TUNER
R144 10K
R146
0R05 OHM
C140
22NF 25V
100R
R101
AGNDAGND
Close to Tuner
IF_AGC
To tuner
C141 100NF 16V
close to main chip
TUNER_SCL
Form main chip
TUNER_SDA
Form main chip
R143
100OHM
R145
100OHM
AGND
AGND
C138 NC/ 100pF 50V
C139 NC/ 100pF 50V
SCL_CAN
SDA_CAN
IF_AGC trace shielding by GND
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
GXXXX-M0A-000-0040
07. Tuner
Date
OEM MODEL
TPV MO DEL
PCB NAME
Sheet
NA
NA A
715GXXXX-M0A-000-0040
79Monday, September 24, 2012
of
Size
Rev
称爹
B
<
称爹
>
40
AUDIO AMP
AMP_AUOUTL02
AMP_AUOUTR02
AMP_MUTE
AUDIO_EN2
+5V_Standby
AC OFF POPO
R627
10K
R628
10K
FB603
P24V PVD D
1 2
120R/6000m A
R609 10OHM1/16W R610 10OHM1/16W
C612
NC/1NF 50V
Q602
MMBT3906
+
C450
100UF 16V
AV_L_OUT#
AV_R_OUT#
R615 NC/100K 1/16W
R614
NC/100K 1/16W
AMP_MUTE Low: Mute disablde High: Mute enable
R629
10K
1.2A Max
AMP_STB
R620
NC/10 OHM 1/4W
C627
NC/1UF 50V
C633
220NF 25V
C622
220NF 25V
C631
1UF 50V
C632
1UF 50V
U601
1
SDZ
2
FLAGZ
3
LINP
4
LINN
5
GAIN0
6
GAIN1
7
NC
8
AGND
9
AVDD
10
PLIM
11
RINN
12
RINP
13
NC
14
PBTL
AD52580
Therm al Pad
ROUTN
ROUTP
PVCCR
PVCCR
PVCCL
PVCCL
LOUTP
PGND
LOUTN
PGND
29
28
27
26
NC
C620
NC/0.22uF 50V
25
24
23
22
NC
C625
NC/0.22uF 50V
21
NC
C628
NC/0.22uF 50V
20
19
18
17
NC
C636
NC/0.22uF 50V
16
C638
15
100N 50V
100N 50V
C618
10OHM1/16W
R616
R621
10OHM1/16W
R623
10OHM1/16W
R626
10OHM1/16W
1NF 50V
1NF 50V
PVDD
100UF 35V
100UF 35V
+
C614
+
L602 47UH C623
330pF 50V
L603 47UH C626
330pF 50V
L601 47UH C630
330pF 50V
L604 47UH C637
330pF 50V
C615
L+
C621
330nF
L-
C624
330nF
4
R-
C629
330nF
R+
C634
330nF
PVDD
100UF 35V
+
C640
CN601
3 2 1
5 6
CONN
C619
C639
+5V_Normal
R611
R613
100OHM
R625
POP
+5V_Normal
R617 NC/10K
R601 0.0 5R
MMBT3904
R618 10K
R619 NC/0.05R
27K 1/16W 1%
10K
Q601
C616 220N F 25V
R624
C613 100N 50V
PVDD
R622
100K 1%
C635 220NF 25V
C617
R612
NC/1NF 50V
AMP_MUTE
10K
AV_L_OUT#
100OHM
POP
AV_R_OUT#
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
GXXXX-M0A-000-0040
Key Component
08. AUDIO AMP
Date
OEM MODE L
NA
TPV MODEL
NA A
715GXXXX-M0A-000-0040
PCB NAME
89Monday, Sep tember 24, 20 12
Sheet
of
B
Size
Rev
<
称爹
>
称爹
AMP
41
KEYPAD/IR
DGND
1112
CN401
1 2 3 4 5 6 7 8 9 10
CONN
DGND
+3.3V_St andby
Q406
IRIN
NC/ 2N7002
UART-RX UART-TX
LED-R LED-G
POWER
KEY_AD C1
POWER _KEY
R469 NC/100R 1/16W 5% R470 NC/100R 1/16W 5%
POWER _KEY KEY_A DC1 LED-G LED-R
IRRX1 POWER
C443
1UF1 6V
DGND
R467 NC
R468
NC/ 2N3906S-RTK/PS
ZD404
NC/MLVG0402
R465
NC/ 10K 1/1 6W 5%
+3.3V_Sta ndby
120R/ 6000mA
1 2
C445
1N 50V
ZD403
MLVG0402
DGND
+5V_Standby
1
AGND
12
12
FB409
12
C446
1N 50V
R466
NC/ 10K 1/16 W 5%
Q407
23
NC/ 100R 1/ 16W 5%
ZD405 NC/ MLVG0402
NC/ 100nF 50 V
DGND
C440
1N 50V
C447
+3.3V_St andby
C441
1N 50V
MLVG0402
t
12
ZD406
NC/ MLVG0402
R456 4K7 1/16W 1%
12
ZD402
R464
100OHM
+5V_Standby
12
TH401 NC/0R4
12
ZD407 NC/MLVG0402
+3.3V_St andby
C442
100NF 16V
ZD401
MLVG0402
R457 4K7 1/16W 1%
12
C444
100NF 16V
DGNDDGND
IRIN
1 2 3 4 5
R458 100OHM
R460 100OHM
CN404
NC/CONN
KEY0-SAR0IRRX1 KEY1-SAR1
+3.3V_Stan dby
R461 10OHM1/16W
R462 10OHM1/16W
KEY_AD C1
POWER _KEY
From Main Chip
KEY0-S AR02 KEY1-S AR12
IRIN2
LEDG2
LEDR2
R459
Q404
MMBT3906
UART-TX2,4
UART-RX2,4
Q405 MMBT39 06
4.7K
R478 NC/0R05 OHM
R463
4.7K
R479
NC/0R05 OHM
R402
14.7KO HM 1/10W
R408
7.15K 1%
R411
4.3K
R414
2.49K 1%
R417
750 OHM + -1% 1/10W
KEY0-S AR0 KEY1-S AR1
IRIN
LEDG
LEDR
LEDG
R474
3.3K
LEDR
R475
NC/10K
3 4
SW4007
1 2
3 4
SW4006
1 2
3 4
SW4005
1 2
3 4
SW4004
1 2
3 4
SW4001
1 2
SW
077G602S 3A HJ
CONN
+3.3V_St andby
+3.3V_Stan dby
SW
SW
SW
SW
45
DGND
CN406
1 2 3
DGND
DGND
DGND
DGND
DGND
LED-R LED-G
DGND
VOL+
VOL-
CH+
CH-
Power
DGND
DGNDDGNDDGND
DGND
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
GXXXX-M0A-000-0040
09. Keypad/IR
OEM MODEL
TPV MOD EL
PCB NAME
Sheet
NA
NA A
715GXXXX-M0A-000-0040
of
99Monday , Sept ember 24, 2012
Size
Rev
称爹
A4
<
称爹
>
42
9.2 Power Board
715G5804P01W20001M
3
GBL08-07
!
-
!
L9901
30MH
R9901
2
C9903
470PF 250V
3
C9907
100PF 250V
!
窯　
063G107M474AUM
R9135
NC
R9134
NC
12
+
1
BD9101
12
FB9902
BEAD-NC
C9127
+
100UF 450V-NC
SG9902
DSPL-501N-A21F-NC
100KOHM +-5% 1/8W
12
FB9909 BEAD
T3.15AH/250V
F9901 FUSE
!
+
R9114
C9101 47UF 450 V
!
!
12
FB9901
BEAD-NC
C9902
470PF 250V
CN9902
2 1
CONN-NC
SG9901
DSPL-501N-A21F-NC
C9906
100PF 250V
!
R9136
NC
R9132NCR9133
12
FB9904 BEAD
12
NR9901
NTCR-NC
t
!
12
NR9902 3R
CN9901
t
SOCKET
4
RV9901
560V-NC
RV9902
560V-NC
124
!
C9901
0.47uF 305V
R9137
NC
NC
1MOHM +-5% 1/2W
!
FB9908 BEAD
1 2
+
C9102 47UF 450V
C9124 10N 50V
1N->680P
065G 1K222 2T6921穦Τ PITHC5.0(125　　PITCH琌7.5mm 065G 1K22293S)
1 2
HV
IC9101
1
PT
HV
2
FB
3
CS
VCC
GND4OUT
PF6200
R9113
220 OHM 1/4W
C9106 220P 50V
C9904
470PF 250V
FB9906
1 2
BEAD
R9101
6.8K 1/4 W
R9102
6.8K 1/4 W
R9103
6.8K 1/4 W
ZD9105 BZT52-B36
8
1 2
6 5
!
1 2
D9104
1N4148W
33R 1/8W 5% R9110
ZD9106 BZT52-B36
C9104 100N 50V
FB9903 BEAD
C9908
220PF 250V
钵　
C9103
2.2NF
R9109 18R 1%
100K->82K
R9104 82K OHM 1%
R9105 82K OHM 1%
R9111 10K OHM +-5% 1/8 W
C9105
+
47UF 50V
R9106 82K OHM 1%
R9107 82K OHM 1%
D9103
FR107
Q9101 STF6N65K3
R9112
0.43 OHM +-5% 2W S
ON/OFF
C9120
100N 50V-NC
R9108 4R7 1/4W 5%
D9105
C9126
100PF
HS9101
HEAT SINK
PS2561DL1-1
R9144
0 OHM +-5% 1/8W -NC
FR107
1 2 3 4
IC9102
DIM
C9125
100N 50V-NC
6
5
4 2
1
!
12V 380GL19P049N(H)00 16V 380GL19P048N(H)00
T9101
9 10
7 8
11 12
POWER X'FMR
!
HS9102 HEAT SINK-NC
12
43
R9142
0 OHM +-5% 1/8W
R9143
0 OHM +-5% 1/8W
+16V
+5.2V
1 2 3 4
D9109
SR506
D9108
SR506
R9117
22 OHM 1/4W
HS9103
HEAT SINK- NC
CN9903 CN9904
CN9904
13 12 11 10
9 8 7 6 5 4 3 2 1
CONN-NC
D9101
3
FMW-2156-NC
2
1
R9115
22 OHM 1/4W
R9116
22 OHM 1/4W
1
3
1 2
1 2
1 2
1 2 3 4
1 2 3 4 5 6 7 8
9 10 11 12 13
HS9104 HEAT SINK- NC
1 2 3 4
C9121
330UF 25V
+
C9107
2N2 50V
R9118
22 OHM 1/4W -NC
R9119
22 OHM 1/4W
R9120
22 OHM 1/4W
D9102
MBRF10150CT-NC
2
D9111 SR510-22
D9112 SR510-22
D9113 SR510-22
　ミ 绢仅
CN9903
ZD9104
BZT52-B6V8
CONN
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
C9109
C9123
330UF 25V
+
2N2 50V
R9138
22 OHM 1/4W-NC
R9139
22 OHM 1/4W
R9140
22 OHM 1/4W
C9108 1NF 500V
R9122 3K3 1/8W 1%
C9117
220N 50V
IC9103
AS431AN-E1
1 2
715G5309-P0A-W21-0020__120306
01.POWER
L9101
3UH
C9110 100N 50V-N C
C9122
330UF 25V
+
R9121
470OHM +-5% 1/8W
R9123 15K 1/8W 1%
R9145 3K3 1/8W 1%-NC
R9124 10K OHM +-5% 1/8W
2.8A
C9111
330UF 25V
+
C9113
330UF 25V
+
R9125 130K 1%
R9126
9.31K +-1% 1/8W
R9141 430OHM +-1% 1/8W
OEM MODEL
TPV MOD EL
PCB NAME
Sheet
+5.2V
C9112 100N 50V-N C
L9102
3UH
C9114 100N 50V-NC
Q9103
MMBT3904-NC
R9125/R9126+R9141 12V out 130K/9.31K+430 16V out 180K/9.31K+510
24PFL3507H
PLTV1E474GAF8
of
12Tuesday, D ecember 04, 2012
Q9102
2N3904
C9115 100N 50V-N C
R9130
470R
C9119
100N 50V
C9116
330UF 25V-NC
+
+16V
1 2
D9107 1N4148-NC
C9118 100N 50V-N C
093G 39A0852T-->18B
1 2
093G 39G 7----->15B
R9129 470 OHM 1/4W
R9131
1K OHM +-5% 1/8W
2.5A
ZD9102
GDZJ 22B-NC
100R 1/ 8W 5%-NC
1K OHM +-5% 1/8W-NC
ZD9101 GDZJ 15B
+5.2V
1 2
R9127
R9128
+16V
ZD9103
1N4148-NC
Size
Rev
称爹
+16V
GDZJ 5.6B-NC
D9106
A3
43
+16V
10N 50V
R8111 18K 1/8W 1%
16V/13K 12V/18K
VBJT
C8108
+16V
51K 1/8W 1%
VSET
R8110 100K 1%
C8105 100N 50V-NC
R8101
C8109
100N 50V
C8104 100N 50V
VADJ
DIM
VSET
C8114
10N 50V
ON/OF F
VFB
+5.2V
2N3904
Q8102
+
C8101
330UF 25V
IC8501
1
EN
2
DIM
3
GM
4
VFB
5
VSET
6
OVP RT7CS
R8102
PF7001S
180K +-1% 1/8W
R8115 56R 1%
56R 1%
R8114
R8113 18R 1%
SLP
VADJ
VBJT
VCC
VMOS
GND
SLP
14
VADJ
13 12 11 10 9 8
R8108
200OHM +-5% 1/8W
C8110
470P 50V
Q8103
2N3904
R8121 13R 1%
VBJT
Q8104
2N3904
R8122 13R 1%
R8129 NC
L8102
47uH
R8104
22OHM +-5% 1/8W
D8102 1N4148W
R8103
C8103
0 OHM +-5% 1/8W
100N 50V
LED2LED1 LED4LED3
R8130 NC
Q8105
2N3904
R8123 13R 1%
C8116
220P 50V-NC
C8107
220P 50V-NC
C8115
220P 50V-NC
R8105
2R2 +-5% 1/8W
+16V
R8131 NC
Q8106
2N3904
R8124 13R 1%
5
4
R8106
10K OHM +-5% 1/8W
R8107
0R1 5% 2W
Q8107
2N3904
R8125 13R 1%
SR310-29
D8101
1 2
Q8101 AO4486
D8D7D6D
AO4482L 6A/100V 057G 763958
S1S2S3G
AO4486 4.2A/100V 057G 763125 SM1A13NSKC 7A/100V 057G 763537 SM1105NSKC 3.5A/100V 357G0763A09
1 2
LED1
LED2
LED3
LED4
FB9905
JUMPER
C8106 1NF-N C
071G 55 29-->JUMPER 095G 90 23
C8102
+
33UF 100V
D8103
2
3
1
BAV99
D8104
2
3
1
BAV99
D8105
2
3
1
BAV99
D8106
2
3
1
BAV99
VFB
C8113
+
47UF 100V-N C
C8111 NC
FB9907
JUMPER
1 2
R8117 3K9 1/8W 1%
R8118
1M 1/6W 5%
R8119
150K 1/8W 5%
LED4
LED1
VLED+
R8116 100K 1%
OVP 66.6V
LED3
LED2
NC
SLP
C8112
VLED+
311AF050-H10-ABB
CN8101& CN8102 For FFC TRF Board
LED1
CN8102
2 1
NC
6 5 4 3 2 1
7 8
CN8101 For AUO&TPV
CN8104 LNT
CN8101
CONN
1 2 3 4 5 6 7 8 9
10
CONN-NC
CN8104
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
715G5309-P0A-W21-0020__120306
02.LED D RIVER
Date
OEM MODEL
TPV MODEL
PCB NA ME
Sheet
24PFL3507H
PLTV1E474GAF8
of
22Tuesday , December 04, 2012
Size
Rev
称爹
B
44
9.3 IR Board
715G5943R01000004S
LED_R
LED_B
IR
CONN
CN201
67
1 2 3 4 5
081G 14 24 EL
R202 NC_0R05 1/10W
R203 0R05 1/10W
VCC
R201 15K 1/10W
C201
0.1uF 50V
R204 NC/220 OHM 1/10W
R205 470R
LED201
BLUE
2 3
1
4
RED
LED
VCC
U201
1
GND
2
GND
3
OUT
4
VCC
IRM-H 938M3 /TR 2
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
715G5471-R0A-000-0040
02-IR&LED
OE M MOD E L
TPV MODEL
PCB NAME
Sheet
45
X
Dynex UFC Model
715G5471-R0A-000-0040
22Wednesday , January 16, 2013
of
Size
Rev
称爹
<
A
称爹
A
>
10. Exploded View
46
Item Part No. Description Qty
1 A34T3136AED-3L0100 MIDDLE_FRAME 1 2 A34T3135-OPZ2L0100 BEZEL 1 3 A34T3137AED-4L0100 REAR COVER 1 4 P34T1447-OP-1L0100 BASE 1 5 A34T3139AED-1L0100 STAND_FRONT 1 6 A33T1490AED-1L0100 STAND_REAR 1 7 A34T3138AED-1L0100 COVER_HINGE 1 8 P33T0477--2-1C0100 LENS_IR 1 9 A33T1429--1-1C0100 LENS 1 10 F40GTV03615-1A T2369M IO Back LABEL WW 1 11 Q37G0307013 HINGE ASSY 1 12 X15T8192201 BKT_VESA 1 13 X15T8673101 BKT_BASE 1 14 Q15G1405101 VESA PLATE 1 15 X15T8683101 SIDE BRACKET 1 16 F40GTV03615-2A T2369M IO Side LABEL WW 1 17 750SMT230W3FB1N100 PANEL LM230WF3-S2FB 1 18 X15T8682101 PANEL BRACKER 1 19 Q02G7071090001 20 X02G8008--1 PANEL BULI-POWER PCB 1 21 INSULATE PLATE 1 22 CBPFC3QCX2 CONVERSION BOARD 1 23 PLTVCD513UXD2 POWER BOARD 1 24 IRPFCXE8 IR BOARD 1 25 SPEAKER BOX-L 1 26 SPEAKER BOX-R 1
BOLT（M3X9MM，主板下方）
1
47
11. BOM List
Note: The parts information listed below are for reference only, and are subject to change without notice. Please go to http://cs.tpv.com.cn/hello1.asp
LE23A6330/61 E23CG1NCBQA1NNF.LF
Location Part No. Description Remark
001G6021--1 screw 036T-600-18115 Non-woven Fabric for middle frame L 040G-58162435A P/N LABEL FOR MANUAL PE BAG
040G-581689-4A
041G--68508--A control card 052G---1150--C 052G---2191--A PAPER TAPE 055G--23522 E08901 089G217A18N-IS AC POWER CORD 1800MM IS 092GB1JX1A3EGC BATTERY 1.5V LR03 0M1G1030--6-47-CR3 screw 0M1G1730--5120 screw 0M1G3030--4120 SCREW FOR PANEL 0Q1G-130--6120 SCREW (T3X6) 0Q1G-330--8-47-CR3 SCREW
SP01 378G0060622YAA
E098 398GRABDGNEACC REMOTE AOC RL81D-1 ENGLISH
708GDA03-CP-1A AOC 40 (2100) 044G6000--4-6B SPACE PAPER F07G1180--F108 Compound Pallet 1180*1086 F07G1194--F118 Compound Pallet 1194*1180 F44G1140-ZP105 PAPER BOARD F44G1160-ZP114 PAPER BOARD Q44G9005205 CONNER PAPER Q45G--77--5 PE PACKING (Y1900241) Q50G---4-10 TIE (Y1900221) Q52G---1185-99 big carton tape for aoc 7250L-0484A Conductive tape, Black, 14*25*0.1mm 7250L-0484B Conductive tape, Black, 20*35*0.1mm E750 750SMT230W3FB1N100 PANEL LM230WF3-S2FB 2436L-3229C LM230WF3-S2FB-K31 3110T-1040A EGI , 0.5T,LM230WFA-S2Z2 3550S-1466D AL7um,PET75um,438.3*37.2*0.1 3850L-0088A ID, YUPO, 78X37 6091L-2369C LM230WF3-S2FB
3022L-1928A
3022L-2236A LU963 , Kolon 3034L-1201A T6D6, Toray 3551L-0791C LM230WF3-S2FB, 'E' type 3550B-1104E GALVALUME, 0.8T, 'E' type(2nd tooling) 4296L-0284C KE951+Nitto 5000NS, black, 4x4x2 6916L-1247A LG INNOTEK, 8520E(YR), 48ea 5153L-0120A 05010HR-H10H , YEON-HO
6915L-0512A
for the latest information.
BARCODE LABEL FOR 1 (58x35mm)
黑色防静电胶带 INSULATING TAPE
氢氟醚 HFE3400
SPK 8 OHM 6W 84*23*34mm 100mm SUNLINK
TORAY, TDF127, T0.145, LM230WF3-S2D2
LGIT LED,Top View,2ea(LED Chip Q'TY per PKG), 8520E PKG,BM215WF4-T2G2
48
6920L-0307A 520.6 x 4.5 x 1.0
7250L-2289A
3850L-0151A BL, YUPO, 77X21 4975L-0630A LM230WF3-S2D2 4974L-1103A PC,ENTIRE,ETR-1010,V0 , BLACK 4974L-1104A PC,ENTIRE,ETR-1010,V0 , BLACK
7250L-2251A
7250L-2251B 3M, 4734-64B, Black, 297*5*0.64, Fixing
7250L-2251C
5151L-0316A LM230WF3-S2D2
3953L-0160J
3953L-0160K
5150L-0831A
7250L-0853E
E2436L 6925L-0054A
6925L-0047A 6060L-3238A LM230WF3-SJF1-K31 6061L-2629A LM230WF3-SJF1-K31
0ILUL-0285A
6308L-5261A
6308L-5262A
6884L-0090A
6884L-0034A
6884L-0152A
6884L-0153A
6884L-0053A
7752L-0004A KTEM-UV3000, KEC 7752L-0005A (HC-305, HI-CHEMICAL) 2nd source
6871L-3250B
C122,C345,C347,C348,C 354,C74,C85
C350,C351,C353 0CH2104K562 0.1UF 50V K X7R 1608 R/TP C100 0CH2153K562 15nF, K, 50V, X7R, 0.9mm, 1608, R/TP C343 0CH2473H562 47nF, K, 25V, X7R, 0.9mm, 1608, R/TP
C81 0CH2474D572
C5,C6,C7 0CH2A-0004A
C346 0CH2A-0007A
C50 0CH2A-0008A
0CH2102K562 1NF 50V K X 1608 R/TP
PD-25TT, 519.6*3.9*0.25, Thermal Conductivity
3M, 4734-64B, Black, 520.2*5*0.64, Fixing
3M, 4734-64B, Black, 513.8*4*0.64, Fixing
TORAY, E60L, 3M 1363-60,
288.1*1.5*0.188, LM230WF3-SSA1 TORAY, E60L, 3M 1363-60,
489.0*1.5*0.188, LM230WF3-SSA1 PMMA, Flat, T2.0, Printing,LM230WF3-S2D2 NITTO, 5000NS, White, 60*8*0.16, Fixing
LM230WF3(SJF1，S2F2/S2F6/S2FB) LM230WF3(SJF1，S2F2/S2F6/S2FB)
LS0608MEH3-C6LX, LUSEM, 720, 6BIT, EPI PGC, C_B, R/TP, 35MM, 5PF, UPILEX, ENG LSBXSPKHXAX6-02300T26,
530.1*300.9, LGC, S, B, X, S, P, K, H, X, A, X6, 02300, Top, 26 LSXXSPKHXAX6-02300B26,
512.4*289.4, LGC, S, X, X, S, P, K, H, X, A, X6, 02300, Bottom, 26 CP12941-20YA, SONY,
1.5MMX300MM, 20UM CP5420ISL, SONY, L=1.5MMX300M, T=20 AC-11600-14, HITACHI, 300MX1.5MM, 14UM (AC-11600-14, HITACHI, 300MX2.0MM, 14UM) CP2420ISL,L=1.5MMX300M, T=18UM, SONY
Source, Single, None-C/SKD, LM230WF3-SJF1-K31, Single Side
0.47uF, K, 10V, X5R, 0.95mm, 1608, R/TP
MLCC ** 10uf， K,10V,X5R,1.8mm,3216,R/TP 1U F, 10 Volt, K PER, X5R(JB), 1608 R/TP, T=0.9(MAX) MLCC ** 4.7uf， K,25V,X5R,0.95mm,3216,R/TP
49
2nd source
2nd source
2nd source
2nd source
2nd source
C102,C103,C340,C41,C8 8,C89,C90
C110,C355,C51,C87 0CH2A-0015A 1uF, K, 25V, X5R, 0.9mm, 1608, R/TP C181,C183,C217,C218,C
219,C220,C221,C227,C3 12,C322,C332,C342
C71,C94 0CH2A-0072A
C349 0CH2A-0073A
C120,C121,C82 0CH2A-0088A 3.3nF, K, 50V, X7R, 0.9mm, 1608, R/TP C170,C171,C172,C173,C
174,C180,C182,C311,C3 21,C331,C341
C80 0CH2A-0148A 10UF, K, 10V, X5R, 0.9mm, 1608, R/TP
C52,C53 0CH2A-0164A
C35,C36 0CH5121K412 120PF, J, 50V, 1608, R/TP, 0.9mm D3,D8 0DHZL-0008B BAV99-7-05-F, DIODES, SOT-23, R/TP ZD1 0DHZL-0076A SDZ3V3D, AUK, SOD-323, R/TP D1 0DHZL-0095A RB050M-30, ROHM, PMDU, R/TP D10 0DHZL-0131A SDB0740, AUK, SOT-23, R/TP D11 0DHZL-0142A SD05, SEMTECH, SOD323, R/TP F1 0FSLO-0013A F0603HI3000V032T, AEM, Ceramic
U1 0ISGL-0008C
US1 0ISML-0024A
UC1 0ITLL-0083A
L1 0LCAA-0039A
L2,L3 0LCAA-0089A
R232 0RH0000B622 0 ohm, 1/16W, 1005, 5%, R/TP R101,R105,R130,R200,R
203,R205,R248,R250,R2 60,R261,R267,R268,R60, R65,R82,R90
R85 0RH0102C422 10 OHM 1/10W 0603 1% R259,R279 0RH0221C622 2.2 OHM 1/10W 0603 5% R263,R264,R265,R266,R
269,R270,R271,R272,R2 73,R274,R275,R276
R262 0RH1000B422 100 ohm, 1/16W, 1005, 1%, R/TP R104,R2,R3,R56 0RH1000C422 100 OHM 1/10W 0603 1% R254 0RH1001C422 1K OHM 1/10W 0603 1% R16,R30,R55 0RH1002C422 10K OHM 1/10W 0603 1% R172,R181 0RH1003C422 100K OHM 1/10W 0603 1% R253 0RH1102C422 11K OHM 1/10W 0603 1% R186 0RH1202C422 12K OHM 1/10W 0603 1% R111 0RH1302C422 13K OHM 1/10W 0603 1% R180 0RH1501C422 1.5K OHM 1/10W 0603 1%
0CH2A-0013A
0CH2A-0030A 1uF, K, 10V, X5R, 0.55mm, 1005, R/TP
0CH2A-0091A 1uF, K, 25V, X5R, 0.6mm, 1005, R/TP
0RH0000C622 0 OHM 1/10W 0603 0.05R MAX
0RH0472C422 47 OHM 1/10W 0603 1%
MLCC ** 10uf， K,25V,X5R,1.8mm,3216,R/TP
MLCC ** 10uf， K,10V,X5R,1.35mm,2012,R/TP
0.1uF, K, 16V, X7R, 0.55mm, 1005, R/TP
0.47UF, K, 25V, X5R, 0.95mm, 1608, R/TP
M24C04-RDW, STmicroeletronics, 4K, 5ms, TSSOP, R/TP, 8 SM4043, SILICON MITUS, MNT, VDD BOOST + VGH BOOST + VGL C/P + VCC BUCK + L/S + OPAMP + DISCHARGING + GPM + PVCOM, QFN, R/TP, 48 TL2358EP, TLI, LVDS, 6/8, 2, EPI, 6, 3/4, DRD, SGIP, AFRC, DGA, SD, SM, SFA, Z-INV, ESD, LOWELL13, MLF, TR, 48 DP8L18F-100M, COIL MASTER, 10uH, M=20%, 1.9A, 114m Ohm, 8.1x6.8x1.8, R/TP CMI-DOP3910NH-6R8M, COIL MASTER, 6.8 UH, M=20%, 0.9 A, 0.26 OHM, 3.9X3.9X1 (MM), R/TP
50
R121 0RH1502C422 15K OHM 1/10W 0603 1% R170 0RH1503C422 150K ohm, 1/16W, 1608, 1%, R/TP R61 0RH1601C422 1.6K OHM 1/10W 0603 1% R93 0RH1801C422 1.8K OHM 1/10W 0603 1% R183,R256 0RH2001C422 2K OHM 1/10W 0603 1% R106,R252 0RH2002C422 20K OHM 1/10W 0603 1% R103 0RH2201C422 2.2K OHM 1/10W 0603 1% R123 0RH2203C422 220K ohm, 1/16W, 1608, 1%, R/TP R13,R14 0RH2401C422 2.4K OHM 1/10W 0603 1% R280,R80 0RH3002C422 30K OHM 1/10W 0603 1% R9 0RH3300C422 330 ohm, 1/16W, 1608, 1%, R/TP R120 0RH3301C422 3.3K OHM 1/10W 0603 1% R187 0RH3902C422 39K OHM 1/10W 0603 1% R87 0RH4301C422 4.3K OHM 1/10W 0603 1% R15 0RH4700C422 470 OHM 1/10W 0603 1% R110,R86 0RH4702C422 47K OHM 1/10W 0603 1% R257 0RH5100C422 510 OHM 1/10W 0603 1% R100,R185,R188,R91 0RH5101C422 5.1K OHM 1/10W 0603 1% R171,R70 0RH5102C422 51K OHM 1/10W 0603 1% R102 0RH5602C422 56K OHM 1/10W 0603 1% R229,R230 0RH5603C422 560K ohm, 1/16W, 1608, 1%, R/TP R81 0RH6202C422 62K OHM 1/10W 0603 1% R89 0RH7501C422 7.5K OHM 1/10W 0603 1% R122,R249,R255,R92 0RH8201C422 8.2K OHM 1/10W 0603 1% R88 0RH9100C422 910 OHM 1/10W 0603 1% R251,R64 0RH9101C422 9.1K OHM 1/10W 0603 1%
FL35,FL36 6200C-0014A
FL1,FL2,FL37 6200L-J015A BLM18PG300SN1D RT1 6322L-0012A 22K, +-3%, -, 0.21 MA, 3950, 1005, R/TP CN1 6630L-0180A IS100-L30O-C23, UJU, 30PIN, 1.0MM
6870S-1617A
6884L-0061A CP20631-35YA, 2.0MMX300M, SONY 6884L-0044B DP2252KSL(2.0MMX300M), SONY 2nd source 6884L-0044C AC-9825R-45(2.0MMX300M), HITACHI 2nd source
6884L-0083A
6884L-0174A EMA8888E, LGIT, 300M, 75 ΜM 2nd source 7526L-0001A DS 103, NC Chem., UV
7250L-0484P
756TXDCB01C0010000 MCU ASSY
SMTF-U402 100TAMGD004CTX AOC LE23A6330 FLASH -- NA
U402 356G223300200A
A33T1429--1-1C0100 LENS A33T1490AED-1L0100 STAND_REAR A34T3135-OPZ2L0100 BEZEL A34T3136AED-3L0100 MIDDLE_FRAME A34T3137AED-4L0100 REAR COVER A34T3138AED-1L0100 COVER_HINGE A34T3139AED-1L0100 STAND_FRONT AM1G1740-10225-CR3 screw CBPFC3QCX2 CONVERSION BOARD
BLM18EG601SN1D, MURATA, 0.35 Ohm, 1.6X0.8, R/TP
LM230WF3-SSB1-KL1, 2L, 0.6,
428.3*27.0, 6, J, Source, HF, Single Side
CP21831-35YA, SONY, 2.0 X 300M, 35UM
HWASUNG SEALING, STN1026WR(P), Gray, 12*30*0.11, Electric Conductivity
IC FLASH W25Q32FVSSIG 32M SOP-8 WINBOND
2nd source
51
040G-45762412B CBPC LABEL C614,C615,C640 067G315M1016KV EC 100UF 20% 35V 8*7
SW4001,SW4004,SW400 5,SW4006,SW4007
077G602S-3A-CJ TACT SW 4P 5.85 200g TDVC-4-NP 2nd source CN103 088G-78F114VCL RCA JACK 2P YELLOW CL 088G-78F114VYG RCA JACK 2P YELLOW YCG 2nd source CN107 088G-78F121XCL RCA JACK 4P CL 088G-78F121XYG RCA JACK 4P WHITE/RED YCG 2nd source CN102 088G-78F135XCL RCA JACK 6P CL 088G-78F135XYG RCA JACK 6P GREEN/BLUE/RED YCG 2nd source CN104 088G302F3G1VCL PHONE JACK 3P GREEN CL 088G302F3G1VYG PHONE JACK 3P GREEN YCG 2nd source CN101 088G302G7B1ACL PHONE JACK 7P BLACK CL
088G302G7B1AQS
CN106 088G352F6B3ACL USB CONN TYPE A 6PIN BLACK CL 088G352F6B3AYG USB CONN TYPE A 6PIN BLACK YCG 2nd source
CN105 088G353FFF3XCL
088G353FFF3XDL
TU101 094G-PALALL-7L TUNER CHINA DT21CN-2-E TCL CN601 311GW200A04ABX WAFER 4P 2.0mm XINYA 311GW200A04ABL WAFER 4P 2.0MM XIANGLONG 2nd source CN701 311GW250B13BBX WAFER 13P 2.5MM XINYA
709T57890XM001 COMSUPTIVE ASS'Y 052G---2191--A PAPER TAPE 055G--23520 IPA 055G--23524 WELDING FLUX WITHOUT PB Q49G--51100 Q55G-100622 TIN STICK(SAC0507) Q55G-100625 TIN STICK_LOW ARGENTUM Z40G0002ALL01A SMTC01 SMTFC3QCX2 MAIN BOARD FOR SMT SMTFC3QCX2WB MAIN BOARD FOR SMT WB 2nd source
U703 056G-563143--C
U101 056G-563224
056G-563149
U702 056G-563515
U701 056G-563X04
U602 056G-616516
U404,U405 056G-7SB157--F
Q102,Q402,Q404,Q405,Q 602
057G-417512
D502,D503,Q101,Q403,Q 408,Q601,Q702,Q703,Q7 04,Q705,Q706,Q707
057G-417511
077G602S-3A-HJ TACT SW 4P 5.85 200g TSDBYC2202
057G-417517
057G-417518
PHONE JACK 7P BLACK QIANGSHENG
D-SUB CONN WITH SCREW 15P BLUE CL D-SUB CONN WITH SCREW 15P BLUE DLK
唯特偶 GW2066 水基型清洁剂 Cleaner
SFIS Label 35mm*9mm（主板）
IC LDO G1084PT43U 5A ADJ TO-252 GMT IC LDO AP2114H-3.3TRG1 1A/3.3V SOT-223 BCD IC LDO G903T63UF 0.6A/3.3V SOT-223 GMT IC LDO AZ1117D-3.3TRE/G1 1A/3.3V TO-252 BCD IC DC/DC APW7323KAI-TRG 3.2A 5V SOP-8P ANPEC IC AUDIO APA2176AQBITRG 0.27W TQFN3X3-16 ANPEC IC NC7SB3157P6X MAA06A SC-70 FAIRCHIL TRA LMBT3906LT1G -0.2A/-40V SOT-23 LRC TRA MMBT3906 0.2A/40V SOT-23 BLUE ROCKET
TRA LMBT3904LT1G 0.2A/40V SOT-23 LRC
TRA MMBT3904 0.2A/40V SOT-23 BLUE ROCKET
52
2nd source
2nd source
2nd source
2nd source
2nd source
Q701 057G-763940
R146,R448,R449,R454,R 455,R515,R516,R517,R5 18,R519,R520,R521,R52 2,R523,R524,R525,R526, R527,R528,R529,R530,R 602,R605
R601,R701 061G0402000-JI
R427 061G0402000-JY
R461,R462,R609,R610,R 616,R621,R623,R626
R721 061G04021001FI RST 0402 1K 1% 1/16W TA-I
R622 061G04021003FT
R401,R604 061G0402101-JF
R101,R501,R510,R513,R 514,R705 R143,R145,R458,R460,R 464,R613,R625
R405 061G0402102-JF
R434,R702,R711,R712 061G0402102-JI
R704,R707,R709 061G0402102-JY
R726 061G0402103-JF
R136,R137,R441,R443,R 476,R611,R612,R618,R6 27,R628,R629,R713,R71 4,R722 R116,R117,R120,R121,R 506,R507
R144,R436,R728 061G0402103-JY
R409,R413,R416,R418 061G0402104-JF
R439,R720 061G0402104-JI
R403,R428 061G0402105-JF
R118,R119,R123,R124 061G0402123-JF
R717 061G04021242FT RST 0402 12.4K 1% 1/16W TZAI YUAN
R603,R606 061G0402201-JF
R531 061G0402201-JI RST 0402 200R 5% 1/16W R103 061G0402221-JI RST 0402 220R 5% 1/16W
R131 061G0402222-JF
061G0402222-JY
R406 061G0402223-JF
R719 061G04022401FI
R624 061G04022702FF
R730 061G0402273-JF RST CHIPR 27 KOHM +-5% 1/16W
061G0402000-JF
061G0402100-JF
061G0402101-JI
061G0402101-JY
061G0402103-JI
061G0402103-JT
MOSFET AO3401A 4.2A/30V SOT-23 AOS
RST CHIPR MAX0R05 1/16W FENGHUA
TEST ONLY RST 0402 0.05R MAX 1/16W TA-I RST CHIPR 0 OHM +-5% 1/16W YAGEO RST CHIPR 10 OHM +-5% 1/16W 0402 FENGHUA
RST CHIPR 100 KOHM +-1% 1/16W 0402 TZAI YUAN RST CHIPR 100 OHM +-5% 1/16W 0402 FENGHUA RST CHIPR 100 OHM +-5% 1/16W 0402 TA-I RST CHIPR 100 OHM +-5% 1/16W 0402 YAGEO RST CHIPR 1 KOHM +-5% 1/16W 0402 FENGHUA RST CHIPR 1 KOHM +-5% 1/16W 0402 TA-I RST CHIPR 1 KOHM +-5% 1/16W 0402 YAGEO RST CHIPR 10 KOHM +-5% 1/16W 0402 FENGHUA
RST CHIPR 10 KOHM +-5% 1/16W 0402 TA-I
RST CHIPR 10 KOHM +-5% 1/16W 0402 TZAI YUAN RST CHIPR 10 KOHM +-5% 1/16W 0402 YAGEO RST CHIPR 100 KOHM +-5% 1/16W 0402 FENGHUA RST CHIPR 100 KOHM +-5% 1/16W 0402 TA-I RST CHIPR 1 MOHM +-5% 1/16W 0402 FENGHUA RST CHIPR 12KOHM +-5% 1/16W FENGHUA
RST CHIPR 200 OHM +-5% 1/16W 0402 FENGHUA
RST CHIPR 2.2 KOHM +-5% 1/16W 0402 FENGHUA RST CHIPR 2.2 KOHM -5% 1/16W 0402 YAGEO RST CHIPR 22 KOHM +-5% 1/16W 0402 FENGHUA RST CHIPR 2.4 KOHM +-1% 1/16W 0402 TA-I RST CHIPR 27 KOHM +-1% 1/16W 0402 FENGHUA
2nd source
53
0402 FENGHUA
R102,R104,R106,R111,R 113 R122,R126,R127,R129,R 133,R135
R475 061G0402332-JI RST 0402 3.3K 5% 1/16W
R114 061G0402333-JF
R731 061G04024300FF
R456,R457 061G04024701FF RST 0402 4.7K 1% 1/16W FENGHUA
R404 061G0402472-JF
R141,R142,R419,R420,R 421,R422,R423,R424,R4 31,R442,R459,R463,R47 7,R710,R716,R723,R727 R473,R502,R504,R508,R 509,R511,R512,R729
R105 061G0402473-JY
R138,R139 061G04024998FT RST CHIP R 4.99ohm 1/16W +/-1% R407,R435 061G0402510-JF RST CHIP 51R 1/16W 5% FENGHUA R140 061G0402511-JI RST 0402 510R 5% 1/16W R132,R134 061G0402680-JI RST 0402 68R 5% 1/16W
R410,R412,R415 061G0402680-JY
R715 061G04027501FI
FB408 061G0603000-JF
R607,R608 061G0603101-JF
R503,R505 061G0603102-JY
R402 061G06031472FY RST CHIPR 14.7KOHM 1/10W YAGEO R414 061G06031501FI RST 0603 1.5K 1% 1/10W TA-I R411 061G06034301FI RST 0603 4.3K 1% 1/10W R408 061G06037151FI RST 0603 7.15K 1% 1/10W TA-I R107,R108,R109,R110,R
112,R115
R417 061G06037500FF
R125,R128,R130 061G06037509FI RST 0603 75R 1% 1/10W
R438 061G08050004JT
R718 061G1206229-JY RST CHIPR 2.2R 5% 1/4W YAGEO
C451,C452 065G040210131J---A
C404,C619,C639 065G040210232K---A
C107,C121 065G040210232K---T
C132,C133,C440,C441,C 445,C446
C720 065G040210332K---Y
C141,C437,C442,C444,C 448,C601,C701,C707,C7 14,C724
C101,C103,C125,C128,C 065G040210412K---Y MLCC 0402 0.1uF +-10% 16V X7R
061G0402330-JF
061G0402330-JI RST 0402 33R 5% 1/16W
061G0402472-JI
061G0402473-JI
061G0603750-JY
065G040210232K---Y
065G040210412K---F
RST CHIPR 33 OHM +-5% 1/16W FENGHUA
RST CHIPR 33 KOHM +-5% 1/16W 0402 FENGHUA RST CHIPR 430 OHM +-1% 1/16W 0402 FENGHUA
RST CHIPR 4.7 KOHM +-5% 1/16W 0402 FENGHUA
RST CHIPR 4.7 KOHM +-5% 1/16W 0402 TA-I
RST CHIPR 47 KOHM +-5% 1/16W 0402 TA-I RST CHIPR 47 KOHM +-5% 1/16W 0402 YAGEO
RST CHIPR 68 OHM +-5% 1/16W 0402 YAGEO RST CHIPR 7.5 KOHM +-1% 1/16W 0402 TA-I RST CHIPR MAX 0R05 1/10W FENGHUA RST CHIPR 100 OHM +-5% 1/10W 0603 FENGHUA RST CHIPR 1 KOHM +-5% 1/10W 0603 YAGEO
RST CHIPR 75 OHM +-5% 1/10W YAGEO RST CHIPR 750 OHM +-1% 1/10W FENGHUA
RST CHIPR 0 OHM +-5% 1/8W 0805 TZAI YUAN
MLCC 0402 100pF +-5% 50V NPO SAMSUNG MLCC 0402 1000pF +-10% 50V X7R SAMSUNG MLCC 0402 1000pF +-10% 50V X7R TAIYO YUDEN MLCC 0402 1000pF +-10% 50V X7R YAGEO MLCC 0402 10nF +-10% 50V X7R YAGEO
MLCC 0402 0.1uF +-10% 16V X7R FENGHUA
54
134,C137,C412,C416,C4 17,C418,C419,C420,C42 1,C422,C423,C424,C427, C428,C429,C434,C435,C 510,C715,C716
C104,C131,C405 065G0402105A5K---T
C605,C609 065G040215232K---Y CAP CHIP 0402 1.5NF 50V X7R C406,C409,C411,C414 065G040218131J---F CAP 0402 180PF 5% 50V NP0
C436 065G040222031J---A
C108 065G040222031J---T
C140 065G040222322K---F
C425,C430 065G040227031J---F CAP 0402 27PF 5% 50V NP0
C136 065G040233031J---F
C623,C626,C630,C637 065G040233131J---T
C113,C114,C118,C119 065G040247131J---A
C102,C105,C106,C110,C 117,C120,C122,C407,C4 08,C410,C449
C433 065G040247505M---M CAP 0402 4.7UF 20% 6.3V X5R
C135 065G040256031J---A
C613,C618,C638 065G060310432K---Y
C725 065G060310512K---M
C443,C604,C606,C607,C 712,C718
C413,C415,C426,C431 065G060310605M---M
C616,C622,C633,C635 065G060322422K---T
C401 065G060322422K---Y
C130,C402,C403,C610 065G060322515K---A
C111,C112,C115,C116 065G0603225A5K---M
C709 065G0603475A5K---M
C705 065G080510432K---F
C631,C632 065G080510532K---A
C109,C602,C611,C710 065G0805106A5K---A
C127 065G0805106A5K---T
C621,C624,C629,C634 065G080547432K---A
C717,C719 065G1206226A5K---A
C126,C129,C438,C450,C 708,C711,C713,C721,C7 22
FB101 071G-56D102-MA CHIP BEAD 1000ohm 0805 1A FB701 071G-56G301-DA CHIP BEAD 0805 300R 25% 4A
065G040247312K---A
065G060310512K---T
067G311R1013LT EC SMD 100UF 20% 16V 6.3*5.3
YAGEO
MLCC 0402 1uF +-10% 10V X5R TAIYO YUDEN
MLCC 0402 22pF +-5% 50V NPO SAMSUNG MLCC 0402 22pF +-5% 50V NPO TAIYO YUDEN CAP 0402 22NF 10% 25V X7R FENGHUA
MLCC 0402 33pF +-5% 50V NPO FENGHUA MLCC 0402 330pF +-5% 50V NPO TAIYO YUDEN MLCC 0402 470PF +-5% 50V NPO SAMSUNG
MLCC 0402 47nF +-10% 16V X7R SAMSUNG
MLCC 0402 56pF +-5% 50V NPO SAMSUNG MLCC 0603 0.1uF +-10% 50V X7R YAGEO MLCC 0603 1uF +-10% 16V X7R MURATA MLCC 0603 1uF +-10% 16V X7R TAIYO YUDEN MLCC 0603 10uF +-20% 6.3V X5R MURATA MLCC 0603 0.22uF +-10% 25V X7R TAIYO YUDEN MLCC 0603 0.22uF +-10% 25V X7R YAGEO MLCC 0603 2.2uF +-10% 16V X5R SAMSUNG MLCC 0603 2.2uF +-10% 10V X5R MURATA MLCC 0603 4.7uF +-10% 10V X5R MURATA MLCC 0805 0.1uF +-10% 50V X7R FENGHUA MLCC 0805 1uF +-10% 50V X7R SAMSUNG MLCC 0805 10uF +-10% 10V X5R SAMSUNG MLCC 0805 10uF +-10% 10V X5R TAIYO YUDEN MLCC 0805 0.47uF +-10% 50V X7R SAMSUNG MLCC 1206 22uF +-10% 10V X5R SAMSUNG
55
071G-56G301-MA CHIP BEAD 0805 300OHM 4A 2nd source FB409,FB603 071G-56K121--M CHIP BEAD
071G-56K121-TA
FB401 071G-59A121-TA CHIP BEAD 120R/3000mA
071G-59A121--M
FB402,FB403,FB404,FB4 05,FB406,FB407
071G-59C600--M CHIP BEAD 60 OHM 0603 600mA 2nd source FB102,FB601,FB602 071G-59G301--M CHIP BEAD 0603 300R 25% 200mA
071G-59G301-TA
L101,L102 073G--6310910M CHIP INDUCTOR 1UH 10% 0.6R 25mA
L103,L104 073G--63229-TA
L701 073G253S-68--H
CN501,CN502 088G-34021A-VA HDMI HEADER 21P VAST 088G-34021A-VD HDMI HEADER 21P DLK 2nd source
X401 093G-22SX02-YC
ZD101,ZD102,ZD103,ZD 104,ZD105,ZD106,ZD107 ,ZD108,ZD109,ZD110,ZD 111,ZD112,ZD113,ZD114 ,ZD115,ZD116,ZD117,ZD 118,ZD401,ZD402,ZD403 ,ZD501,ZD502,ZD503,ZD 504,ZD505,ZD506,ZD507
CN403 311GW125F40ACX WAFER 40P 1.25MM XINYA 311GW125F40ACH WAFER 40P 1.25mm HR 2nd source CN401 311GW200A10ADJ WAFER 10P 2.0MM JINGSHI CN406 311GW200B03ADH WAFER 3P 2.0MM HR
U401 356G0568128019
U601 356G0616028147
U704 356G0667023
U402 356G223300200A
Q401 357G0763030014
057G-763-79
L601,L602,L603,L604 373G253S089H01
D401 393G006433P0HF
709T57890XS001 COMSUMPTIVE ASS'Y 052G---2191--A PAPER TAPE 055G--23520 IPA 055G-100610 Q05G6054--1 Q09G6012--1 Q52G6026--7
E715 715G5789M01000004K
715G5789M01000004X
071G-59C600-TA
093G-64S500-SU
CHIP BEAD 120R/6000mA HCB2012KF-121T60
CHIP BEAD 0603 120R 25% 1608E121T3R0-LF CHIP BEAD 0603 60R 25% 600mA FCM1608CF-600T06 TAI-TECH
CHIP BEAD 300OHM 200mA FCM1608KF-301T02
CHIP INDUCTOR 2.2uH 10% FCI1608F-2R2K SMD CHOKE 2.2uH +-30% 0.031R
2.04A
CRYSTAL YC 49U/SMD 24MHz 20PPM 18PF YC
DIODE ESD MLVG04025R0QV05BP INPAQ
IC SCALER MST6931XP-Z1-VB EPLQFP-128 MSTAR IC AUDIO AD52580-QG28NAT 15W E-TSSOP 28L ESMT IC Power Switch APL3511CBI-TRG SOT23-5 150C ANPEC IC FLASH W25Q32FVSSIG 32M SOP-8 WINBOND MOSFET MTP9435BDYAQ8 -8.4A -30V SOP-8-6 Cystek MOSFET AO4449 -7A/-30V SOIC-8 AOS SMD CHOKE 22UH 20% 2.2A 73.3mΩ SPI755WCCL-220 Dadon DIODE HF ?BAV99_R1_00001 0.5A 100V SOT-23 PANJIT
锡膏 TIN CREAM W/O PB 接料带 SHEET 铜扣 PIN 擦网纸 Mesh Printting Paper MAIN PCB FR4 DS 193*125*1.6mm 3 连
扳 景旺
MAIN PCB FR4 DS 193*125*1.6mm 3 连
2nd source
2nd source
2nd source
2nd source
2nd source
56
扳 华新 X12G8001--1----BGP HEAT PAD HS401 X90G8013--1 HEAT SINK F40G230I615-3A Ratin label for T2369M WW F40GKA01624-2A Shipping label F40GTV03615-1A T2369M IO Back LABEL WW F40GTV03615-2A T2369M IO Side LABEL WW F40GTV03615-3A F40GTV03615-4A AOC TV Warranty Sticker Label
ECN8104 F95G176H10N372
F95G176X10N372
F95G176J10N372
ECN701 F95G801313D400
F95G801313X400
F95G801313T400
ECN601 F95G8014-4D162
F95G8014-4X162
ECN401 F95G801410D165
F95G801410X165
F95G801410T165 WIRE HARNESS 10P-5P 380MM DIY 2nd source
ECN403 F95G801840D322
F95G801840T322 LVDS CABLE 30P-40P 300mm DIY 2nd source F95G801840X322 LVDS CABLE 30P-40P 300mm XINYA 2nd source IRPFCXE8 IR BOARD SMTI01 SMTIRPFCXE8 IR BOARD FOR SMT SMTIRPFCXE8WB IR BOARD FOR SMT WB 2nd source
R203 061G0603000-JF
R201 061G0603153-JY RST CHIPR 15KOHM 1/10W YAGEO
R205 061G0603471-JF
061G0603471-JY
C201 065G060310432K---F
LED201 081G--14-24-GP
081G--14-24-EL
CN201 311GW125D05ACX WAFER 5P 1.25mm XINYA 033G8032-5F--S--HR WAFER 5P 1.25MM HR 2nd source
U201 356GS927057
E715 715G5943R01000004S
P15G8299--3 Vesa bkt P33T0477--2-1C0100 LENS_IR P34T1447-OP-1L0100 BASE
POP LABEL 贴前框
FFC CABLE 10PIN 260MM P0.5MM
HONGLIN
FFC CABLE 10PIN 260MM P0.5MM
WENXIN
FFC CABLE 10PIN 260MM P0.5MM
KOTL
WIRE HARNESS 13P-13P 100MM
GREATLAND
WIRE HARNESS 13P-13P 100MM
XINYA
WIRE HARNESS 13P-13P 100MM
DIY
WIRE HARNESS 4P-2P+2P
50+230mm GREATLAND
WIRE HARNESS 4P-2P 2P 50 230mm
XINYA
WIRE HARNESS 10P-5P 380MM
GREATLAND
WIRE HARNESS 10P-5P 380MM
XINYA
LVDS CABLE 30P-40P 300mm
GREATLAND
RST CHIPR MAX 0R05 1/10W
FENGHUA
RST CHIPR 470 OHM +-5% 1/10W 0603
FENGHUA
RST CHIPR 470 OHM -5% 1/10W
0603 YAGEO
MLCC 0603 0.1uF +-10% 50V X7R
FENGHUA
CHIP LED BLUE/RED
GPTD1210BRC-D GUANGPU
CHIP LED BLUE/DARK RED
EVERHIGHT
IC IR RECEIVER IRM-H938M3/TR2 38
KHZ 6V EVERLIGHT
IR PCB FR4 DS 46X8.15X1.6MM 60 联
板 三照
2nd source
2nd source
2nd source
2nd source
2nd source
2nd source
2nd source
2nd source
57
PLTVCD513UXD2 POWER BOARD 040G-45762412B CBPC LABEL
IC9102 056G-139--8
NR9901,NR9902 061G--58005--W RST NTCR 5 OHM 3A THINKING C9901 063G107M47410M CAP X2 0.47UF 20% 275VAC
C9103 065G--1K22293S
C9908 065G306K1012B3 CAP Y1 100pF +-10% 250VAC TDK
C9906,C9907 065G306K2212B3
C9902,C9903 065G306K4712B3
FB9904,FB9909 071G--55-21-H1
FB9901,FB9902 071G--55906--H
L9901 073G-174192--H LINE FILTER 30MH MIN LCL-12012 HA 073G-174192--L LINE FILTER 30MH MIN LF-013589-2 2nd source
L8102 073G-253214--H
F9901 084G--41-15--L FUSE 3.15A 250V 0215 3.15MXEP CN9901 087G-50147C-HC AC socket V/T 2P DB-8-01 H=14mm
D9108,D9109 093G--60334
D9111,D9113 093G--60335-HF
CN9901_1 0Q1G-340--8140 SCREW 4.0x8.0 CN8104 311GF050H10ABL FFC CONN 10P 0.5mm XIANGLONG CN9904 311GW250B13BBX WAFER 13P 2.5MM XINYA RV9901 361G0046621KZW VARISTOR 620V 10% THINKING
C9101,C9102 367G215X470PKZ002S
L9101,L9102 373G0253247H00
T9101 380GL19P048H00
BD9101 393G0050460A05
D8101 393G0060A0400T
705TAD93015 Q9101 ASS'Y Q9101_1 0M1G-930--8120 SCREW
Q9101 357G0667A11
HQ9101 Q90G0219--2 HEAT SINK
709G5804-QM001 CONSUMPTIVE ASS""Y 052G---2191--A PAPER TAPE 055G--23520 IPA
055G--23524--A
Q49G--51100 Q51G---6--4509 GLUE_RTV Q55G-100622 TIN STICK(SAC0507) Q55G-100625 TIN STICK_LOW ARGENTUM PLCD513UXD2SMT POWER BOARD FOR SMT
IC9103 056G-158501
IC8501 056G-700-34 IC LED DRIVER PF7001S SOP-14
IC PHOTO COUPLER PS2561DL1-1
RENESAS
CAP CER 2.2NF 10% 1KV R TAPING
TDK
CAP Y1 220pF +-10% 250VAC Y5P
TDK
Y1 CAP 470pF +-10% 250VAC CD
SERIES TDK
BEAD 6.0*10 700R 25%
BF-I60100R-706B DADON
BEAD 6.0*9.2 510R MIN
BF-I60090C-794 DADON
CHOKE COIL 47uH +-10% L470R HA
DADON
SCHOTTKY SR506-44 5A 60V
DO-201AD TSC
DIODE SCHOTTKY SR515-04 X0G 5A
150V DO-201AD TSC
EC 47UF 20% 450V 12.5*36 2000 hr
420mA PW2W470MLT1236DLRV
CHOKE COIL 3UH 15% DR8*8 5A
Dadon
X'FMR 800uH 10% 20uH EFD30
BCK-13029-HA Dadon
BRIDGE GBL08-07 X0 4A 800V GBL
TSC
DIODE SCHOTTKY SR310-29 X0
3A/100V DO-201AD TSC
MOSFET STF6N65K3 5.4A 650V 30W
TO-220FP ST
WELDING FULX WITHOUT Pb 无锡助
焊剂
唯特偶 GW2066 水基型清洁剂 Cleaner
IC AS431AN-E1 150mA/40V SOT23
AAC
58
Powerforest Q8101 057G-763958 MOSFET AO4482L 6A/100V SO-8 AOS
R8103,R9142,R9143 061G0805000-JT
R9131 061G0805102-JT
R8106,R9111,R9124 061G0805103-JT
R9114 061G0805104-JT
R8111 061G08051302FT RST CHIP 13K 1/8W 1% R9123 061G08051502FT RST 0805 15K 1/8W 1% TAZIYUAN R8119 061G0805154-JT RST CHIP 150K 1/8W 5% TZAI YUAN
R8102,R9125 061G08051803FT
R8108 061G0805201-JT
R8104 061G0805220-JT
R8105 061G0805229-JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN
R9110 061G0805330-JT
R9122 061G08053301FT RST CHIP 3K3 1/8W 1% R8117 061G08053901FT RST CHIP 3K9 1/8W 1%
R9121 061G0805471-JT
R9141 061G08055100FT RST CHIP R 510 OHM +-1% 1/8W R8101 061G08055102FT RST CHIP 51K 1/8W 1%
R9126 061G08059311FT
JR901,JR902,JR903,JR9 04
R8110,R8116 061G12061003FT
R9115,R9116,R9117,R91 18,R9119,R9120,R9138, R9139,R9140
R9113 061G1206221-JT
R9129 061G1206471-JT
R9108 061G1206479-JT RST 1206 4.7R 5% 1/4W
R9101,R9102,R9103 061G1206682-JT
R9104,R9105,R9106,R91 07
C8108,C8114,C9124 065G080510332K---Y
C8103,C8104,C8105,C81 09,C9104,C9110,C9112, C9114,C9115,C9119
C9106 065G080522131J---Y
C9107,C9123 065G080522232K---Y
C9117 065G080522432K---Y
C8110 065G080547131J---Y
C9108 065G120610272K---Y
D8103,D8104,D8106 093G--6433S DIODE Switching BAV99 SEMTECH
061G1206000-JT
061G1206220-JT
061G12068202FT
065G080510432K---Y
RST CHIPR 0 OHM +- 5% 1/8W TZAI
YUAN
RST CHIPR 1K OHM +- 5% 1/8W
TZAI YUAN
RST CHIPR 10 KOHM +-5% 1/8W 0805
TZAI YUAN
RST CHIPR 100KOHM +- 5% 1/8W
TZAI YUAN
RST CHIPR 180 KOHM +-1% 1/8W
0805 TZAI YUAN
RST CHIPR 200 OHM +-5% 1/8W 0805
TZAI YUAN
RST CHIPR 22OHM +-5% 1/8W TZAI
YUAN
CHIPR 0805 33 OHM +-5% 1/8W TZAI
YUAN
RST CHIPR 470OHM +-5% 1/8W TZAI
YUAN
RST CHIPR 9.31 KOHM +-1% 1/8W
0805 TZAI YUAN
RST CHIPR MAX0R05 1/4W TZAI
YUAN
RST CHIPR 100K +-1% 1/4W TZAI
YUAN
CHIPR 1206 22 OHM +-5% 1/4W TZAI
YUAN
RST CHIPR 220 OHM +-5% 1/4W TZAI
YUAN
RST 1206 470 OHM +-5% 1/4W TZAI
YUAN
RST CHIPR 6.8 KOHM +-5% 1/4W
TZAI YUAN
RST CHIPR 82KOHM +-1% 1/4W TZAI
YUAN
MLCC 0805 10nF +-10% 50V X7R
YAGEO
MLCC 0805 0.1uF +-10% 50V X7R
YAGEO
MLCC 0805 220pF +-5% 50V NPO
YAGEO
MLCC 0805 2200pF +-10% 50V X7R
YAGEO
MLCC 0805 0.22uF +-10% 50V X7R
YAGEO
CAP CHIP 0805 470P 50V NP0 +/-5%
YAGEO
MLCC 1206 1000PF +-10% 500V X7R
YAGEO
59
IC9101 356G0379007217 IC AC/DC PF6200 S SOP-7 Powerforest
R9109 361G08051809FY
R8121,R8122,R8123,R81 25
R8113,R8114,R8115 361G12065499FT
D8102,D9104 393G006432S0HF
ZD9104 393G039SA2400T
ZD9105,ZD9106 393G039SA2800T
PLCD513UXD2AI POWER BOARD FOR AI CN9901 006G--31500 EYELET
C9101,C9102,C9901,L99 01,RV9901,T9101 Q8102,Q8103,Q8104,Q8 105,Q8107,Q9102
R8118 061G-60210552T--TZ RST CFR 1M 1/6W 5% R8107 061G152M10852T--SY RST MOF 0R1 5% 2W
R9112 061G152M43852T--SY
R9130 061G152M47152T--SY
R9901 061G212Y10552T--SY
C9126 065G--1K10193T CAP CER 100PF 10% 1KV R TDK
C8113 067G-5151018KT
C8101,C9109,C9111,C91 13,C9116,C9121,C9122
C9105 067G-5154707KB EC 47UF 20% 50V 6.3*11 FB9905 071G--55-29 FERRITE BEAD ZD9101 093G--39A0852T DIODE ZENER GDZJ18B PANJIT
D9103,D9105 093G--6026T52T
FB9903,FB9906,FB9907, FB9908,J902,J903,J904,J 905,J907,J908,J909,J911 ,J912,J914,J915,J916,J9 17,J918,J919,J920,J921, J922,J923,J924,J925,J92 6
E715 715G5804P01W20001M
GND1,GND2 Q09G601500100100RJ
Q01G700100A003 Hand_screw Q02G7071090001 Q11G701017000L Q12G6082--3 FOOT PAD Q15G1405101 Hinge_bkt Q36T-600-28--10 Non-woven Fabric for rear cover Q36T-600-30--1 Non-woven Fabric for middle frame D Q36T-600-37-14--GP Non-woven Fabric for middle frame R Q36T-600-49--6 Non-woven Fabric for BZE Q37G0307013 HINGE Q40G0001624-4A PALLET LABEL Q40G0001954-1A
361G08059108FT
006G--31502 1.5MM RIVET
057G-417513--T TRA 2N3904 TO-92 LANJIAN
067G-5153314HT---A
095G--90-23 JUMPER WIRE
RST 0805 18R 1% 1/8W
RC0805FR-0718RL YAGEO
RST 0805 9.1 ohm 1% 1/8W
SMD08059R1F TZAI YUAN
RST 1206 54.9 ohm 1% 1/4W
SMD120654R9F TZAI YUAN
DIODE SWITCHING 100V 0.15A
1N4148W PANJIT
DIODE ZENER BZT52-B6V8 6.8V
0.41W SOD-123 PANJIT
ZENER BZT52-B36 36V SOD123
PANJIT
RST MOFR 0.43 OHM +-5% 2WS
FUTABA
RST MOFR 470 OHM +-5% 2WS
FUTABA
RST MGFR 1MOHM +-5% 1/2W
FUTABA
EC 100UF 20% 63V
EV1J101MPN1012RSU
EC 330UF 20% 25V
HSP331M1EG07VM6HTAP5
DIODE RECTIFIER FR107 AO
1A/1000V TSC
PWR PCB FR1 CTI>600 SS
127*182*1.6mm 2 连扳 闽威
料带端子
BOLT（M3X9MM，主板下方）
power 板上支撑钉
S/N LABEL 贴保修卡(50*22mm)
60
Q45G2010M0101A pe bag for manual Q45G8801-TV004 PE PACKINGx290x195x0.04 Q45G88010TV033 Q45G88010TV037 PROTECT BAG Q45G99010TV037 Q45T--76-28NV2---R PE BAG FOR BASE SCREW sz02742 Q52G---1185 3M TAPE Q52G1501-TV--7---W INSULATING SHEET Q52G18010TV133 INSULATING SHEET X01G8000--7 SCREW Q3x12 X02G8008--1 SCREW-STOPPER X15T8192201 BKT_VESA X15T8673101 BKT_BASE X15T8682101 BKT_HOLDER X15T8683101 BKT_IO X40G0001624-2A X41G23MV61504A LE23A6330/61 India manual for MTV X41G78DV61508A warranty card X44GDA031010SY EPS X44GDA032010SY EPS X44GDA03301EPE EPS X44GDA0361503A Carton for LE23A6330 IND
底座及支架 PE 袋（280*350）
整机 EPE 袋(540*680)
装螺丝 PE bag label 55*18mm
61
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
