AOC LC32W163 Schematic

32″ LCD TV AOC LC32W163

Service

Service

Service

31~48 KHz

TABLE OF CONTENTS

Description Page Description Page

Table of Contents.......……....................................…........1

Important Safety Notice.......................................……......2

Revision List…………………………………………………3

1. General Specification..............................……...…........4

2. Operating Instructions………………...…….……….......5

2.1 The Use of Remote Control…….…..……….…….......5

2.2 To Use the Menus….....………………….…..…….......7

2.3 How to Connect……..……………….…….……….....17

2.4 Front Panel Control Knobs…….………….……….....19

3. Input/Output Specification…………....................…....20

4. Mechanical Instructions…………………….................22

5. Repair Flow Chart ……………………….…….…….....25

6. PCB Layout ………………..…………………....….......32

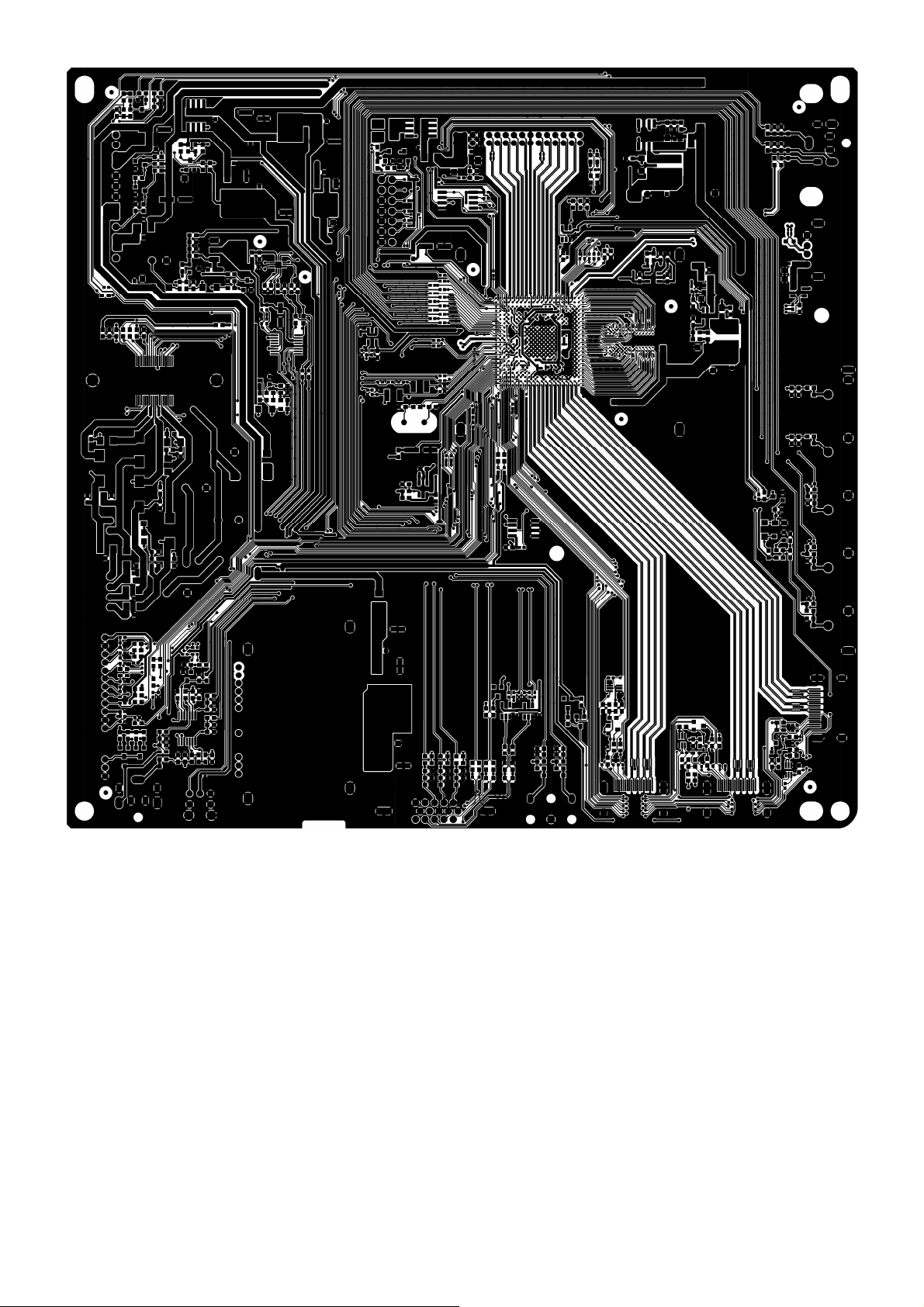

6.1 Main Board……………..……………...…….…….......32

SAFETY NOTICE

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS

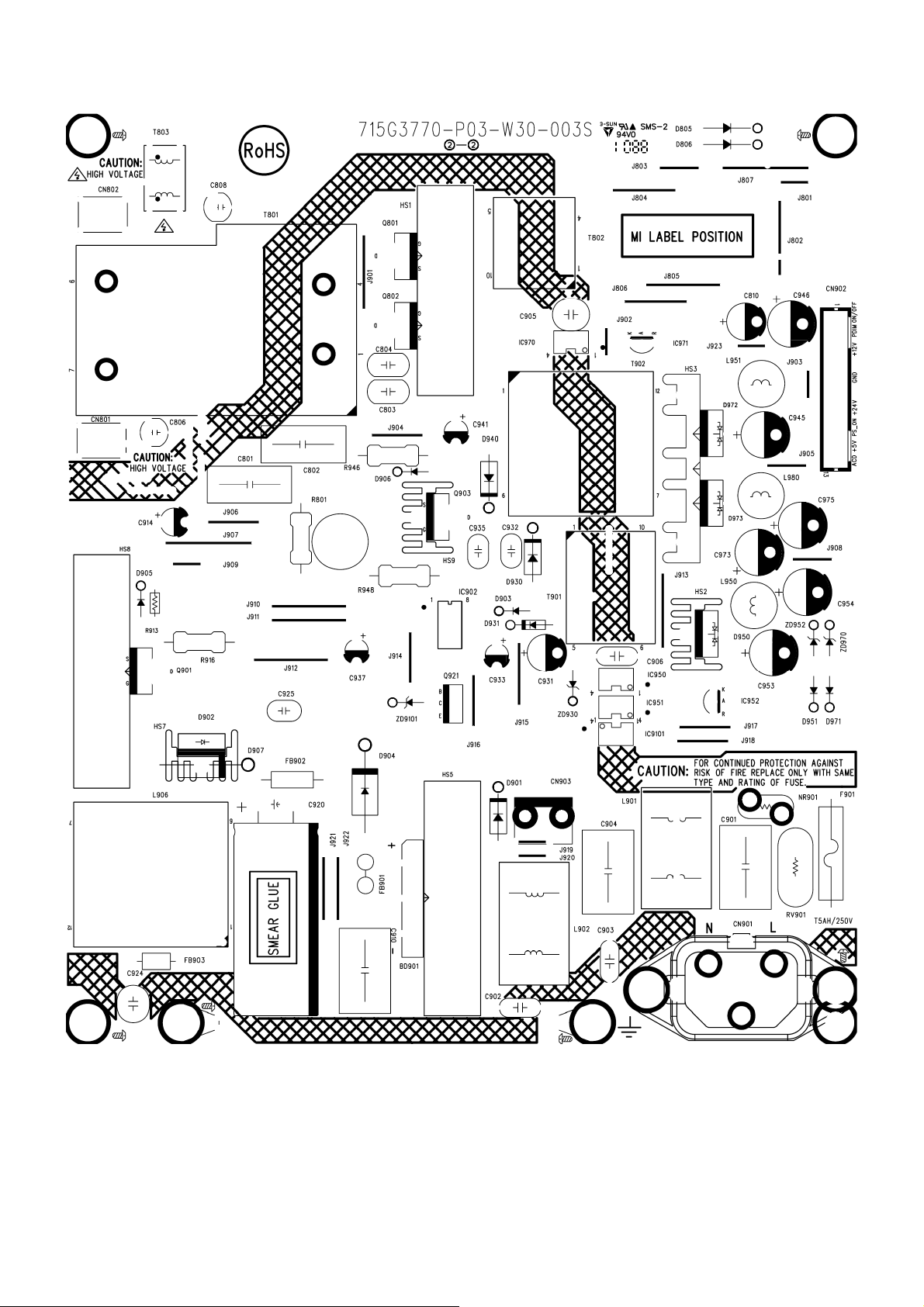

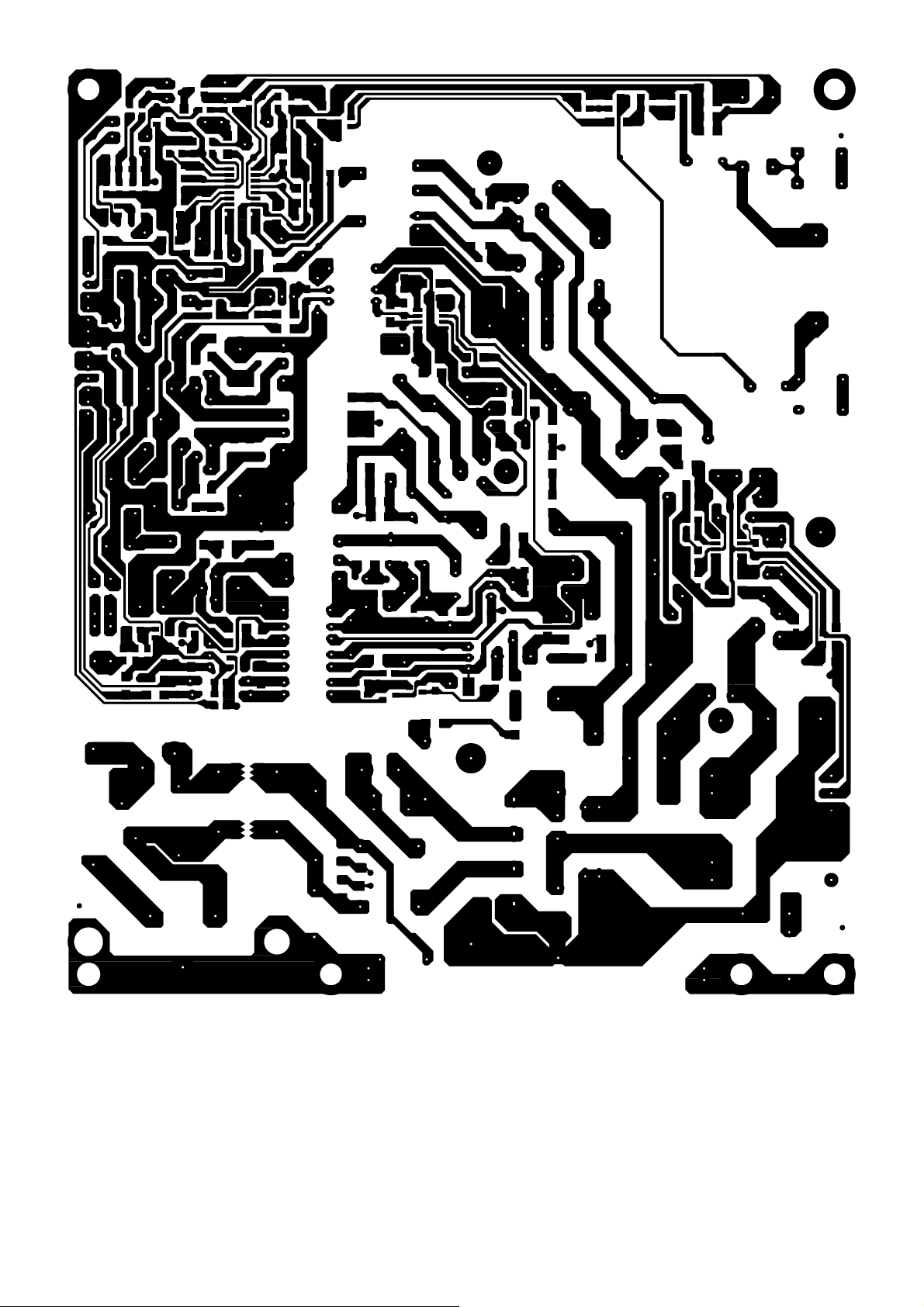

6.2 Power Board……...…………….…….……….......34

6.3 Key Board…………….………….……..……….......37

6.4 IR Board………………………….……..……….......37

7. Adjustment..............................................................38

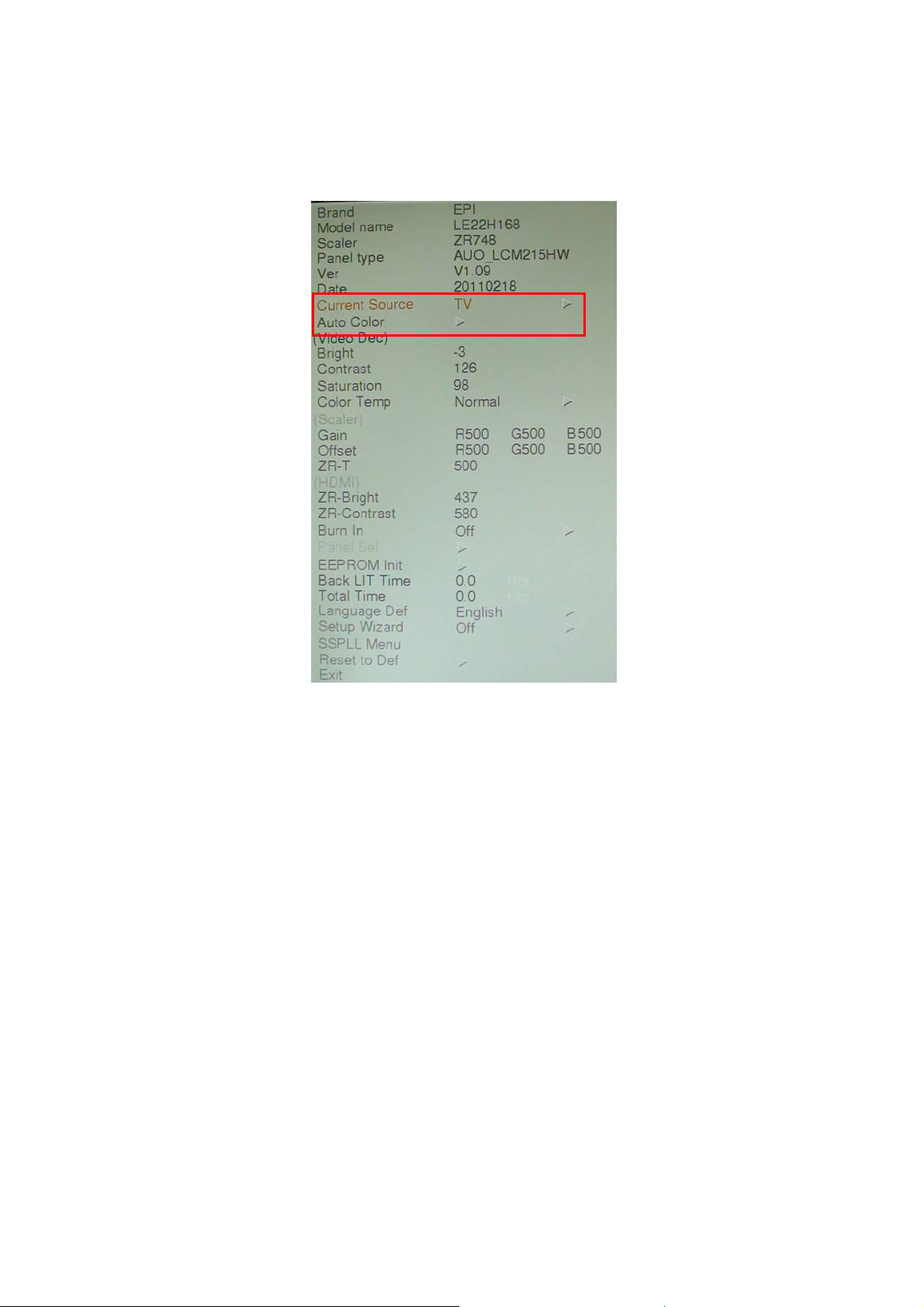

7.1 ADC Adjustment……………………..……...………38

7.2 FW Upgrade.………………………………...………39

8. Block Diagram.…….................................................43

9. Schematic Diagram…..…………....………………...44

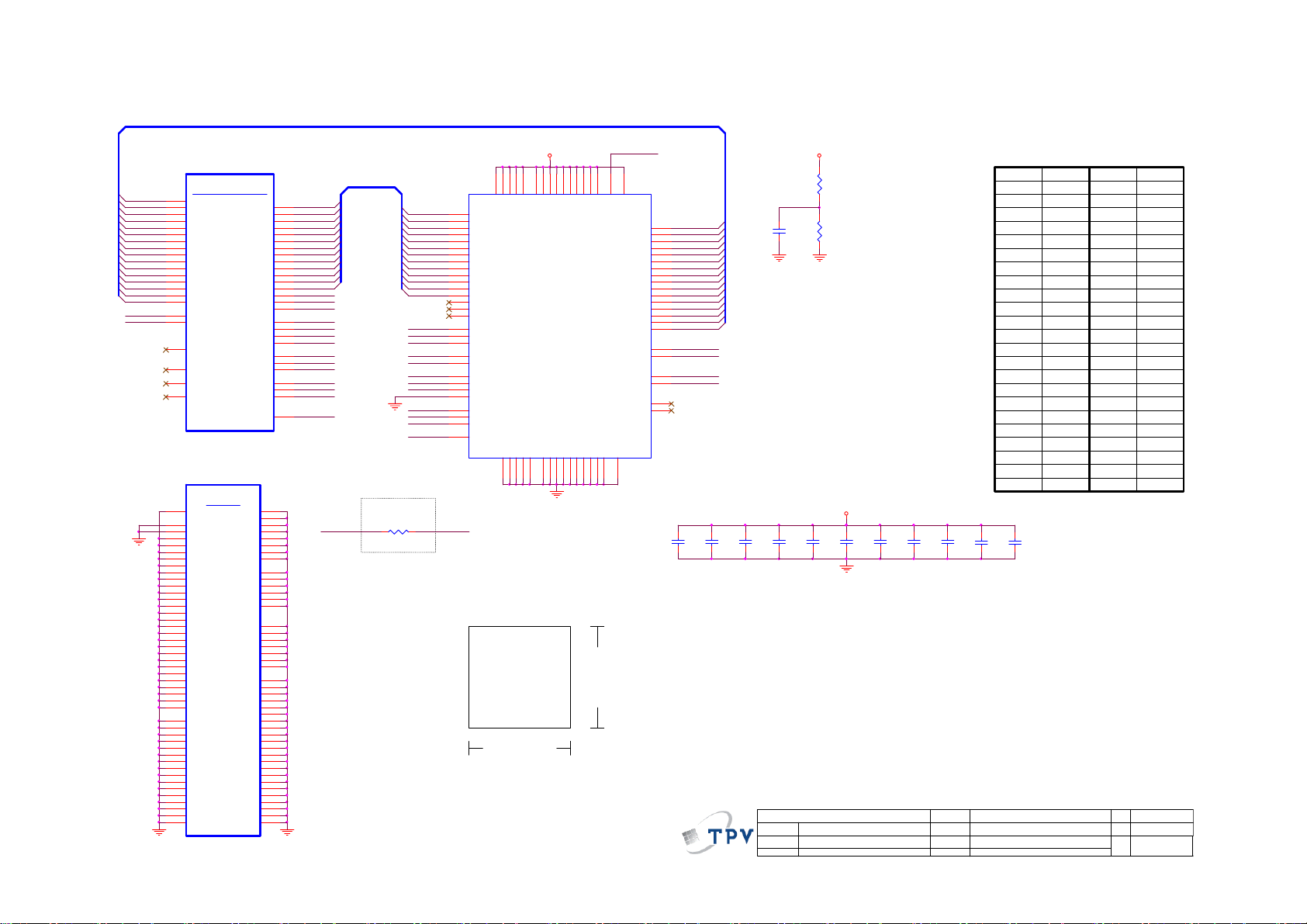

9.1 Main Board…………………………………...….......44

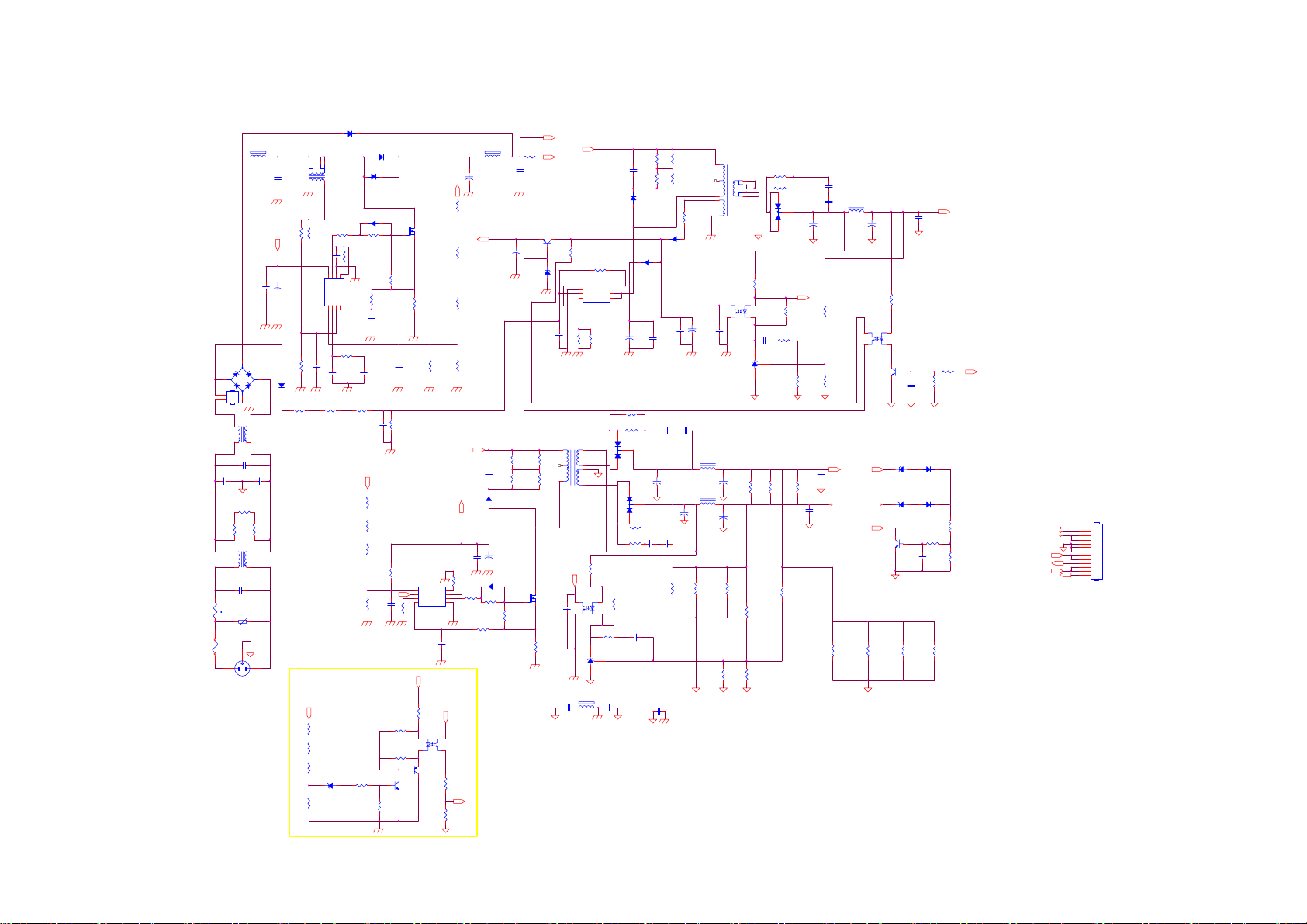

9.2 Power Board…………..….….……...………….......54

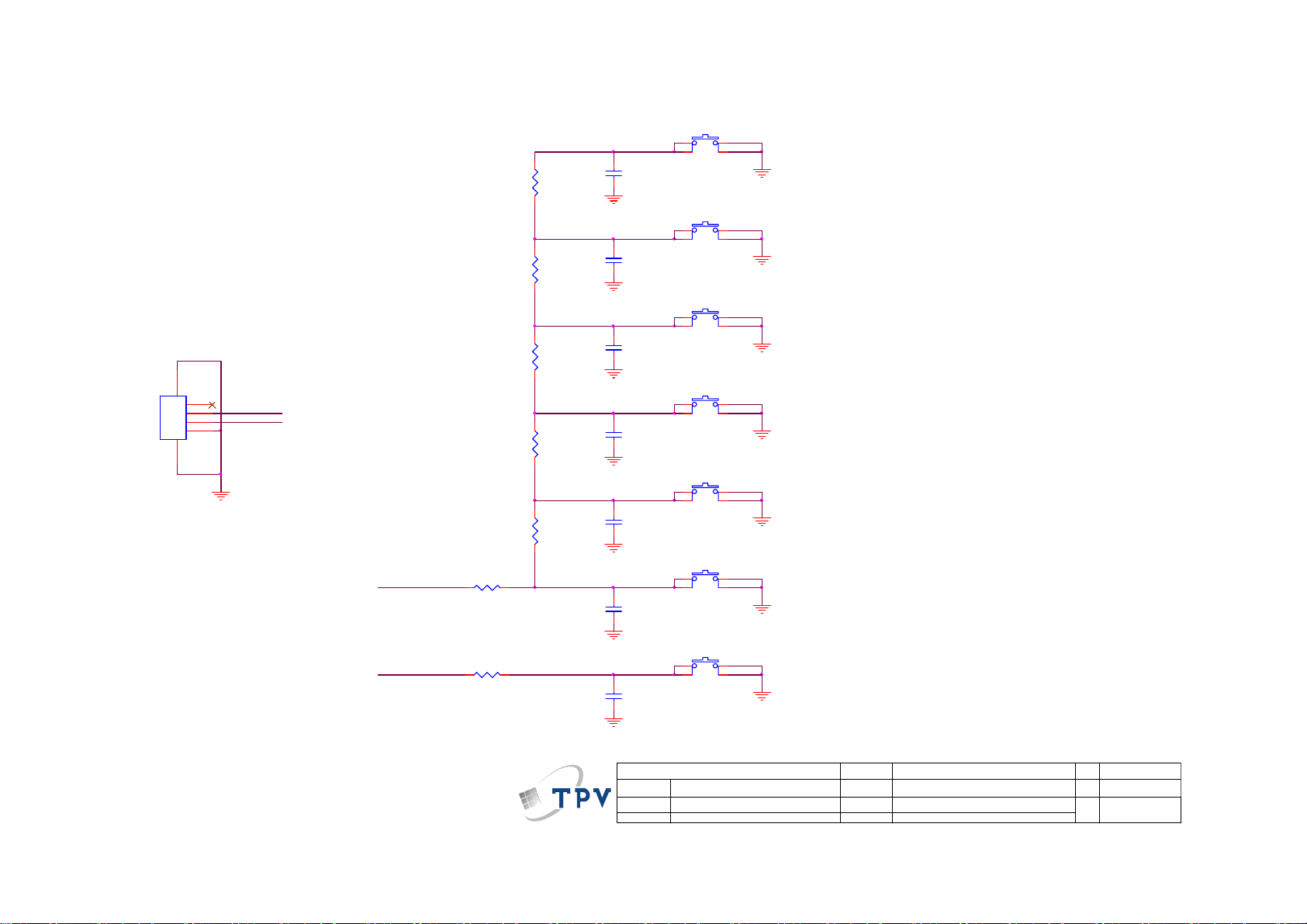

9.3 Key Board……………….……….…………….........56

9.4 IR Board……...………….……….…………….........57

10. Exploded View………………………………….…...58

11. BOM List……………….………………….………….60

Horizontal Frequency

AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING

ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

1

Important Safety Notice

Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service
procedures recommended by AOC and described in this service manual are effective methods of performing service
operations. Some of these service operations require the use of tools specially designed for the purpose. The
special tools should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in
order to minimize the risk of personal injury to service personnel. The possibility exists that improper service
methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE
NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in
which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not
recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.
Hereafter throughout this manual, AOC Company will be referred to as AOC.

WARNING

Use of substitute replacement parts, which do not have the same, specified safety characteristics might create
shock, fire, or other hazards.

Under no circumstances should the original design be modified or altered without written permission from AOC.
AOC assumes no liability, express or implied, arising out of any unauthorized modification of design.
Servicer assumes all liability.

FOR PRODUCTS CONTAINING LASER:
DANGER-Invisible laser radiations when open AVOID DIRECT EXPOSURE TO BEAM.
CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
CAUTION -The use of optical instruments with this product will increase eye hazard.

TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S
REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF
THIS SERVICE MANUAL.
Take care during handling the LCD module with backlight unit

-Must mount the module using mounting holes arranged in four corners.

-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.

-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to
the panel.

-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).

-Make certain that treatment person’s body is grounded through wristband.

-Do not leave the module in high temperature and in areas of high humidity for a long time.

-Avoid contact with water as it may a short circuit within the module.

-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may
damage the panel.)

2

Revision List

Version Release Date Revision Instructions TPV Model

A00 Aug.30,2011 Initial release E32BGZNSW3AENNX

A01 Oct.8,2011 Add new model E32BGZNKW3M49NX

3

1. General Specification

Modelo LC32W163
Tamaño del panel
Resolución

Sistema de TV

Cobertura de canales

Altavoz
Impedancia de Antena
Voltaje de entrada
Consumo de energia
Consumo de Energía en Modo

Suspendido
Terminales de Video/Audio

Entrada de Video/Audio

Salida de Audio

Entrada de Componentes

Terminales HDMI

Terminales VGA

Auriculares
Salida SPDIF
Tamaño (Ancho x Alto x

Profundidad) (con base y soporte)
(mm)
Tamaño (Ancho x Alto x
Profundidad)
(sin base y soporte) (mm)

Peso

Tamaño del Accesorio de montaje

Accesorios de montaje

Condiciones de
funcionamiento

Condiciones de
almacenamiento

Temperatura
Humedad
Altitud

Temperatura
Humedad
Humedad

Nota:

• Los diseños y las especificaciones están sujetos a cambios sin aviso previo.

• Este modelo podría no ser compatible con funciones y/o especificaciones que se introduzcan en el futuro.

800.4 mm diagonal (31.5” visibles)
1366 x 768
NTSC estándar

ATSC estándar (8-VSB, Clear-QAM)
VHF: 2 a través de 13
UHF: 14 a través de 69
Cable TV:
Banda templada (A – 8 a través de A - 1, A a través de I)
Super banda (J a través de W)
Hiper banda (AA a través de ZZ, AAA, BBB)
Ultra banda (65 a través de 94, 100 a través de 125)
8 W x 2

75Ω
100-240V AC, 50Hz/60Hz
135W

<1W

Lateral AV x1: Entrada Video/Audio / Salida Audio
VIDEO: 1 V(p-p), 75 ohm, sinc negativo.

AUDIO: 500mv (rms)
Linea de salida de Audio (R/L): Max 2.0Vrms
Componente trasero x1:

Y: 1V (p-p), 75 ohm, incluido sinc.
Pr/Cr: ±0.35V (p-p), 75 ohm
Pb/Cb: ±0.35V (p-p), 75 ohm
AUDIO: 500mv (rms)

ENTRADA HDMI : HDMI Trasera x1; Lateral HDMI x1
Conforme a HDCP
Conforme a E-EDID

ENTRADA VGA:
VGA trasero (D-SUB 15 Pin) Entrada x1
Conforme a E-EDID
Entrada de Audio: Mini-toma para estéreo (3.5Ø)

Salida de Audio: Mini-toma para estéreo (3.5Ø)
Toma de Salida de Audio Óptica Digital.

779 x 556 x 230

779 x 510 x 98

9.0 Kg (con soporte)

8.47 Kg (sin base)
200 x 200mm (el kit de montaje a la pared no está incluido)
Los accesorios opcionales no están incluidos en el empaquetado

estándar

0 ºC to +40 ºC 10%~85% To 3,000m

-10 ºC to +50 ºC 5%~85% To 5,000m

4

2. Operating Instructions

2.1 The Use of Remote Control

* Sonido Multicanal de Televisión (en inglés, Multichannel Television Sound (MTS)
La emisión estándar permite que los sonidos estéreo se transmitan con la imagen de TV.

5

** Segundo Programa de Audio (en ingles, Second Audio Program (SAP)

Un canal de audio adicional proporcionado por la emisión estándar de MTS. Una pista de sonido monofónico
incluida en la grabación o señal de video (normalmente contiene la traducción a un segundo idioma del programa
visualizado).
*** Sleep
Puede establecer un período de tiempo para que el televisor de apague automáticamente.

6

2.2 To Use the Menus

7

8 9

10 11 12 13 14 15 16

2.3 How to Connect

Conexión del televisor
Sistema de Cable o Sistema de Antena VHF/UHF

YPuede disfrutar de una programación digital de definición estándar y de alta definición (si está disponible en su
área), junto con la programación analógica de definición estándar.

Este televisor es capaz de recibir una programación digital decodificada proveniente de una señal de cable o de
una antena externa VHF/UHF.

Para recibir una calidad de imagen óptima, se recomienda con insistencia que conecte la antena/cable mediante un
cable coaxial de 75-ohm. La interferencia de radio frecuencia puede afectar fácilmente los cables de plomo de dos
conductores de 300 ohm, lo que resulta en una degradación de la señal.

Cable o VHF/UHF(or solo VHF)

Interfaz de alta definición

Puede disfrutar de una programación de alta definición mediante una suscripción a un servicio de alta definición por
cable o por satélite. Para obtener la mejor imagen posible, asegúrese de conectar este equipo a su televisor
mediante la entrada de HDMI o de video por componentes (con audio) en la parte posterior de tu televisor.

Conexión HDMI

Si el equipo tiene un terminal DVI y no HDMI, conecte el terminal DVI a la entrada HDMI (HDMI IN), con el cable
DVI-a-HDMI o el adaptador, y conecte el terminal de audio a las entradas de audio (PC AUDIO IN) (Sólo HDMI 1 es
compatible con audio DVI.).

Conexión de la Señal por Componentes

17

Conexión de Señal Compuesto

Conexión del PC

Puede usar el televisor a modo de monitor para su PC, como se muestra a continuación con la conexión de HD15 a
HD15. Este televisor también se puede conectar a su PC con una salida DVI o HDMI. (Consulte la Guía de
Configuración rápida).

● Conecte el terminal PC IN a su PC mediante el cable HD15-HD15 de núcleo de ferrita (RGB analógico) y un
cable de audio.

● Si su PC está conectado al televisor y no transmite ninguna señal al televisor por más de 30 segundos, el
televisor entra automáticamente al modo de espera.

Conexión de sonido externo

● Apague el televisor AOC LCD y el Dispositivo de Sonido y conecte la toma de salida de Audio a la toma SPDIF
en la parte trasera del televisor AOC LCD.

● Conecte un cable de audio a los conectores de salida de audio asociados a la salida de audio (R/L) y SPDIF en
el televisor y conecte el otro extremo a los conectores de audio asociados a la entrada de Audio de Sonido Externo.

18

2.4 Front Panel Control Knobs

* SPDIF

Sony/Philips Digital Interconnect Format. Formato de Interfaz Digital Sony/Philips. S/PDIF se utiliza generalmente
para transmitir multicanales de audio comprimidos desde un reproductor a un amplificador / receptor.

19

3. Input/Output Specification

3.1 RGB Signal Input

15 - Pin Color Display Signal Cable

Pin No. Description Pin No. Description

1 Red Video 9 KEY/PWR
2 Green Video 10 Ground
3 Blue Video 11 ID0/RES
4 ID2/RES 12 ID1/SDA
5 Ground 13 H-Sync.
6 Red Ground 14 V-Sync.
7 Green Ground 15 ID3/SCL
8 Blue Ground

3.2 HDMI Digital Connector Pin Assignments

Pin No. Description Pin No. Description

1 TMDS Data2+ 2 TMDS Data2 Shield
3 TMDS Data2- 4 TMDS Data1+

5 TMDS Data1 Shield 6 TMDS Data1-

7 TMDS Data0+ 8 TMDS Data0 Shield

9 TMDS Data0- 10 TMDS Clock+
11 TMDS Clock Shield 12 TMDS Clock­13 CEC 14 NC
15 SCL 16 SDA
17 DDC/CEC Ground 18 +5V Power
19 Hot Plug Detect

20

3.3 Compatible Mode Table

Tabla de señales de entrada de PC

Una vez que el PC está conectado al televisor, configure la señal de salida desde el PC, de acuerdo a la siguiente
tabla.

Configuración del Modo PC

Estándar Resolución Frecuencia Horizontal (kHz) Frecuencia Vertical (kHz)

VESA 640 x 480 31.469 59.940
VESA 720 x 400 31.469 70.087
VESA 800 x 600 37.879 60.317
VESA 1024 x 768 48.363 60.004
VESA 1280 x 720 44.772 59.855
VESA 1280 x 768 47.396 59.995
VESA 1360 x 768 47.712 85.500

Tabla de Referencia de Señal de Entrada de Video
Tras conectar la entrada de video al televisor, configure la señal de salida desde la entrada de video según la tabla

siguiente.

Configuración del Modo Video

Estánda Resolución Frecuencia Horizontal (kHz) Frecuencia Vertical (kHz)

SD 480i 15.75 60
SD 480P 31.5 60
HD 720P 45 60

HD 1080i 33.75 60
FHD 1080p 67.5 60
FHD 1080p 27 24

Interfaz de definición estándar
También puede disfrutar de la programación tradicional a través de un reproductor de DVD o de una

videograbadora. Conecte este equipo a su televisor mediante la entrada de video compuesto (COMPOSITE) en la
parte posterior de su televisor.

Cuando conecte otros equipos a su televisor, consulte la Guía de Configuración rápida (incluida).

21

4. Mechanical Instructions

1. Remove the screws to remove REAR COVER.

2. Remove the screws to remove BASE ASSY.

22

3. Remove the screws to remove MAIN BOARD and POWER BOARD.

4. Remove the screws to remove BKT and separate the BEZEL and PANEL.

23

5. Remove the screws to remove IR BOARD, KEY BOARD and SPEAKERS.

24

5. Repair Flow Chart

1. Sin Energía

Sin Energía (LED “Apagado”)

Revise la entrada AC. ¿La
energía está en “encendida”?

Si

Salida Power board =5V?

Si

Revise IR board y LED

No

Reemplace IR board

No

No

Enciéndalo

No

Reemplace power board

Reemplace main board

25

2. No Enciende

(Chequee tecla power del control remoto, si

equipo no responde significa que es anormal).

No inicia (LED naranjo)

Salida Power board＝24V？

Si

Revise si el botón de power funciona

No

Revise si el receptor IR es normal

No

No

Reemplace power board

Si

Reemplace key board

Si

Reemplace IR board

Reemplace main board

No

Reemplace la Power board

26

3. Imagen Anormal

Entre al menú modo de fábrica para hacer

Imagen Anormal

Revise la fuente

Si

“EEPROM initial”&“Reset”

No

No

Reinicie la fuente

Revise main board

Si

Revise el cable LVDS

Si

Revise el panel

No

Reemplace panel

No

Reemplace main board

No

Reemplace LVDS cable

27

4. Sin Imagen

Revise si el TV funciona, si enciende/apaga
vía control remoto y botón de power.

Si

Revise cable LVDS

Si

Panel Vcc = 12V?

Sin imagen (LED verde)

Si

Revise si la luz del panel está

encendida= “On”

No

Vuelva a insertar o
Reemplace el cable LVDS

No

No

Reemplace main board

No

Revise señal L/P si

está disponible

Si

Salida de Power board＝24V？

Reemplace main board

No

No

Si

Reemplace the Panel

Reemplace main board

28

Si

Reemplace Panel

Reemplace power board

5. Problema de Sonido

Revise la conexión de la fuente de audio y si norma de

Sin sonido o sonido anormal

TV es correcto (NTSC-PAL N/M/ISTB)

Si

Revise si TV está mudo (muted), ajuste el volume o

entre al modo menú para reinicio?

No

Entre al modo menú de fábrica para reinicar

No

Revise el cable entre los parlantes y main

board si están OK

Si

No

Vuelva a insertar el cable de audio o cambie
la norma del TV

No

Reemplace cable

Revise los valores de Resistencia en el parlante que se encuentran en
las especificaciones (Nota: El valor está marcado en el parlante)

Si

Reemplace parlante

29

Reemplace main board

No

6. Control Remoto - mal funcionamiento

Control remoto - mal funcionamiento

Revise la batería del control remoto si está
bien colocada o no tiene energía

No

Use otros controles remotos, ¿funciona?

Si

Reemplace batería

Si

Reemplace el control remoto

No

¿Es anormal la IR board?

No

Reemplace main board

Si

Reemplace IR board

30

7. OSD es inestable o no trabaja de forma normal

OSD es inestable o no trabaja normalmente

La botonera está conectada correctamente?

Si

Los botones están OK?

Si

Botonera está OK?

Si

No

No

No

Reconecte el key board

Reemplace la función del botón

Reemplace la botonera

Entre al modo menú de fábrica para reinicar

No

Reemplace el main board

31

6. PCB Layout

6.1 Main Board

715G4522M01000004K

32

33

6.2 Power Board

715G3770P03W30003S

34

35 36

6.3 Key Board

715G3814K01004004S

6.4 IR Board

715G3821R03000004M

37

7. Adjustment

7.1 ADC Adiustment

It’s no need to adjust the white balance for this model, do ADC only.

Step1: Turn on the TV, press “Menu”, then press number key 1 Æ 9 Æ 9 Æ 9 and “OK”, it will achieve the factory
mode. Take LE22H168 for example:

Step2: Change TV, press the “Current Source” to Component mode and change signal to 480i mode(TIMING 310),
Pattern 122(SMPTE BAR), press the “Auto Color”;

Step3: Change TV, press the “Current Source” to PC mode and change signal to PC TIMING 137(1024X768);
Pattern 147(16 Grays), press the “Auto Color”.

38

7.2 FW Upgrade

Take LE22H168 for example:
Step 1: Ready for F/W Upgrade

1.1 Prepare a USB memory (The file system of USB memory must be FAT16 or FAT 32).

1.2 Copy the file (EPI_LE22H168_USA_ZR748-A2_PCB4491-D_V1.09_20110218_72DB.ecc) you’re your
computer to the folder named “usbupdate" then copy this folder to USB memory root path, and remove it from
computer’s USB port!

Note: 1)

2) The version of this F/W is V1.09.

3) Make sure there is only one F/W file in your USB memory.

Step 2: F/W Upgrade

2.1 AC ON TV(Power plug Figure 2.1/2.2)

Figure 2.1 Figure 2.2

2.2 Press the power key on the Remote Control or the right side of TV to turn on TV.

Figure 2.3 Figure 2.4

39

2.3 Plug the USB memory on the USB port on the side I/O port of TV.(Figure 2.5)

Figure 2.5

2.4 When TV detect the USB memory and display below Upgrade info (Figure 2.6), press “Left” & “OK” button(on
the Navigation Keys on the Remote control, as follows Figure 2.7) to select “Yes” option to download
F/W(Figure 2.8)

.

Figure 2.6

Left

Down

OK

Figure 2.7

Figure 2.8

40

2.5 TV will upgrade automatically.
Note: When Upgrade on the process, please don’t Power-Off! (Figure 2.9)

Figure 2.9

2.6 When upgrade 100% and prompt for Upgrade Success info, remove the USB Drive and AC off and on to reset

TV (Figure 2.10)

Figure 2.10

Step 3: Check the F/W version and reset to default.

3.1 Press “MENU/EXIT”+ “1”+ “9”+ “9”+ “9”+ “OK” key to enter the factory mode (Figure 3.1).

Do the following steps rapidly:

1. Press “MENU/EXIT”;

2. Press “1”+ “9”+ “9”+ “9”;

3. Press “OK”

Menu

Figure 3.1

41

3.2 Check the F/W version on the fifth row of the factory mode info(eg. the “Ver” info is V1.09). If F/W version is

incorrect, please check the version of F/W in your USB memory, else let’s go to Step 3.3.

Figure 3.2

3.3 If F/W version is correct, press ‘down’ Key to choose ‘Reset to Def’ option (The option will be highlighted). Then

press ‘OK’ Key to active ‘Reset to Def’.

Figure 3.3 Figure 3.4

3.4 When “Reset to Def” show “Done”, then press ‘down’ Key to choose ‘exit’ option and press ‘OK’ Key to be off

factory mode.

Figure 3.5

DDC Upgrade

As the DDC data is included in the software, this model does not need a separate DDC Upgrade.

42

8. Block Diagram

Tuner
ENV56U04D8F

VIDEO

VIF

CVBS

System Block Diagram

LVDS

LCD PANEL

DDRII
W9751G6JB-18

Main Board Power System

P24V/16V

+5VSB

PANEL Inver ter

U602 STA339BWTR

U708 AS7812ADTR-G1

Q702 AO4449P12V

U709 G9084-50TU3U

Q702 AO4449

P24V/16V

9V

5VT

For Aud io Amp lifier

U709 G9084-50TU3U

PANEL LVDS Power

TU101 ENV56U04D8F

PANEL LVDS Power

5VT

For TUNER+5V

TU101 ENV56U04D8F

For TUNER+5 V

YPbPr

VGA

HDMI_1

HDMI_2

HDMI_3

CVBS & YPbPr AUDIO-R\L

VGA AUDIO-R\L

YPbPr

RGB

TMDS

TMDS

TMDS

Upward 32" TV

Pin

Function

BL_ON_OFF

1

2 BL_BRI_ADJ

12V

3

4

12V

5

GND

GND

6

7

GND

8

24V

9

24V

10 PWR_ON_STB

5.2V

11

5.2V

12

PWR_OK

13

POWER
BOARD

FLASH ROM
MX25L3206EM2I-12G

GPIO

Hsync, VsyncSN74LVC1G17

ZR39748BGCG

I2S

R\L

IEC958

EJTAG

CAT24C64WI-GT3

Audio Amplifier
STA339BWTR

Audio DAC
PCM1754DBQR

Audio Driver
DRV602PW

Power Board Input : +5VSB, P12V, P24V

Max. 2.5A

STB 15mA

Max. 1.5A

+5VSB

AO4449

P12V

P24V

U701 AZ1117D

VCC5D VCC3_3

U704 G1084-33T43Uf

U705 G1117-33T63Uf

U706 SC189ASKTRT

U707 G5692P11U

U709 G9084-50TU3U

AO4449

Audio Amplifier

3V3_STB

PLL3_3

VCC1_8

VCC1_1

5VT

Max. 1A

U703 G9141T11U

Max. 5A

U710 G9141T11U

U711 G9141T11U Max. 0.6A

Max. 1A

Max. 1.5A

Max. 2A

Max. 5A

PANEL LVDS Power

SPEAKER

Earphone Amplifier

R\L

MAX9728AETC+

Audio Lineout

SPDIF Output

1V1_STB

MSD_1V1

AFE_1V1

Max. 0.6A

Max. 0.6A

EarPhone
Output

Under 26" TV

Power Board Input :
+5VSB, P16V

Pin

Function

1

BL_ON_OFF

BL_BRI_ADJ

2

3

NC

NC

4

5

GND

6

GND

7

GND

16V

8

9

16V

PWR_ON_STB

10

5.2V

11

12

5.2V

13

Reserved

U701 AZ1117D

Q702 AO4449

VCC5D

U606 MAX9728AETC+

U704 G1084-33T43Uf U401 ZR39748BGCG

U706 SC189ASKTRT

U707 G5692P11U

3V3_STB

USB5V

5V_HP

VCC3_3

PLL3_3

VCC1_8

VCC1_1

U401 ZR39748BGCG

U703 G9141T11U For ZR39748BGCG uMCU

For USB OCPU409 G5250M1T1U

For Audio DAC (Headphone)U604 PCM1754DBQR

For Audio Headphone Amplifier

U406 CAT24C64WI-GT3

U405 MX25L3206EM2I-12G

U602 STA339BWTR For Audio Amplifier

U710 G9141T11U For ZR39748BGCG

U711 G9141T11U

U401 ZR39748BGCG

U402 W9751G6JB-18

U401 ZR39748BGCG

For ZR39748BGCG uMCU

1V1_STB

For ZR39748BGCG

Fo r EEP ROM

For SPI Flas h

For Audio Lineout DriverU603 DRV602PW

MSD_1V1

AFE_1V1

For ZR39748BGCGU401 ZR39748BGCGU705 G1117-33T63Uf

For ZR39748BGCG

For DDR II

For ZR39748BGCG

U401 ZR39748BGCG

U401 ZR39748BGCG

For ZR39748BGCGU401 ZR39748BGCG

43

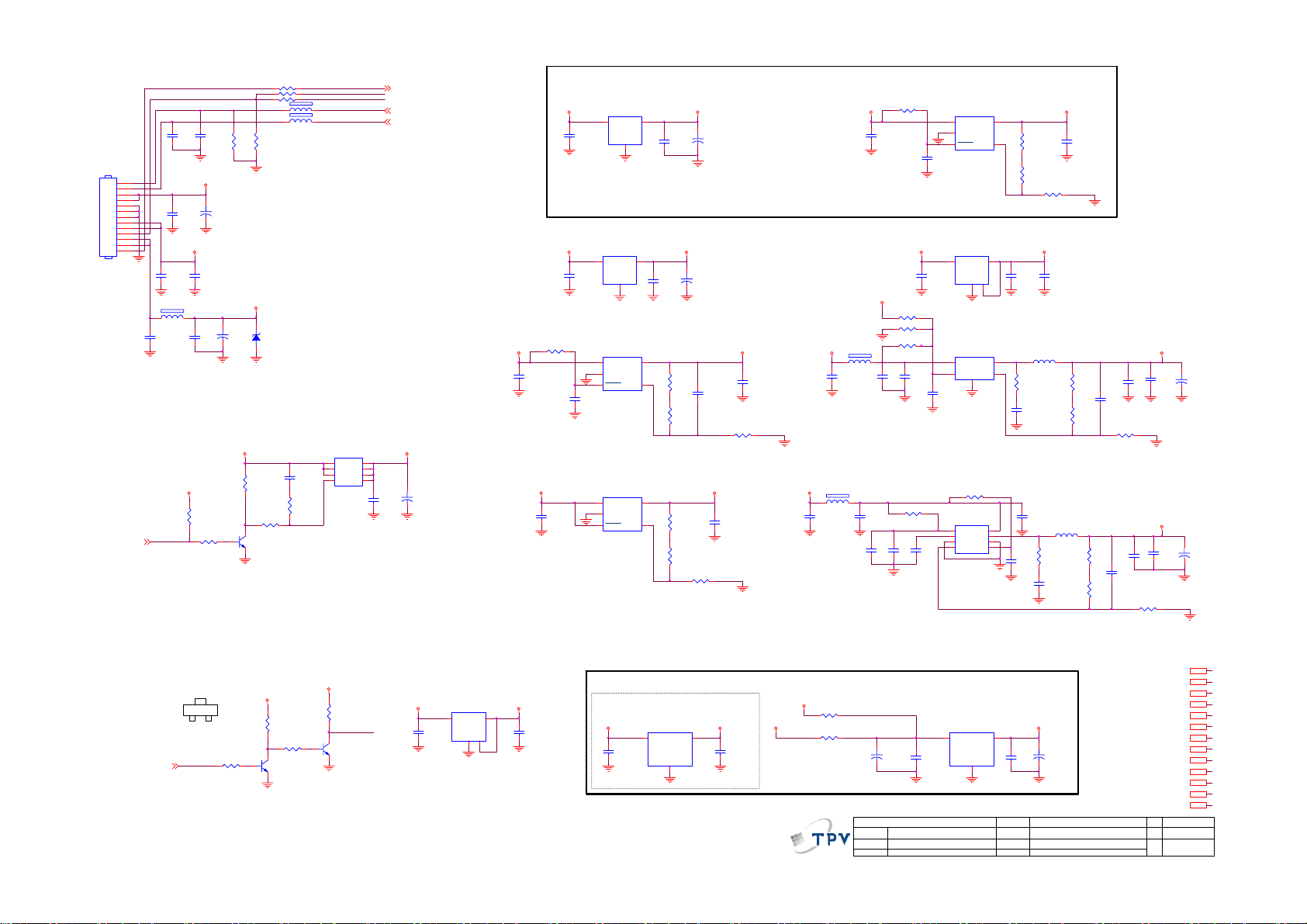

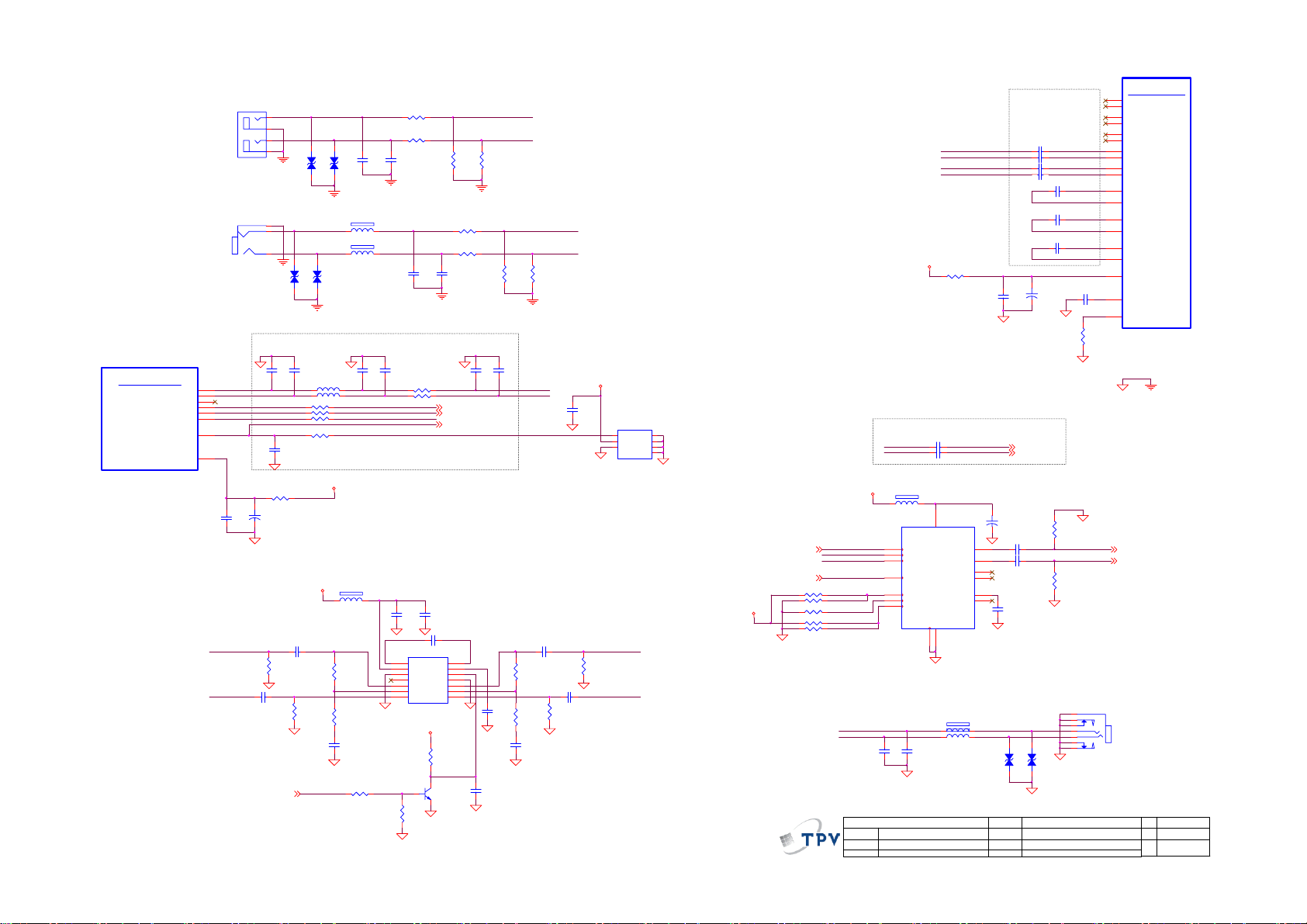

9. Schematic Diagram

9.1 Main Board

715G4522M01000004K

ENV56U04D8F
ET-29DHR

1 0402
2

RF Input
(Back)

5V: +B = 150mA(MAX)
I2C Bus Address
#C2H (Write Mode)
#C3H (Read Mode)

3

5
6

9
10
11
12
13
14

TU101

ENV56U04D8F

18

TU_G ND

TU_G ND

RF-AGC

BT Monitor

IF Monitor

IF AGC

IFD- out1

IFD_out 2

TH115TH216TH317TH4

NC

+B

NC

SCL
SDA

1
2

C147 2.2uF 10V

3

C104 2N2 50V

5
6
9
10
11
12
13
14

C101

100N16V

C110

10pF 50V

0402

5VT

C103

C102

1UF16V

2N2 50V

R101 100 OHM 1/10W
R102 100 OHM 1/10W

C111

10pF 50V

0402

C112

100N16V

0402

IF_AGC
IF_AN
IF_AP

I2C1_SCL
I2C1_SDA

I2C1_SCL 6
I2C1_SDA 6

space/trace/space/trace/space(mil)
25 / 8 / 6 / 8 / 25

Place close to TU101

C105 1N 50V

C109 1N 50V

0402

0402

L101

0.22uH 5% 0805

L103

0.22uH 5% 0805

Place parts very close to U401

L102

C106

33P 50V

0402

IF_AGC

0.15uH

C113

100N16V

0402

C107

15PF50V

0402

R103 2K 1/16W

0402

Place parts very
close to U401

C108

15PF50V

0402

IF_AINN
IF_AINP

C146

10N 50V

0402

U40 1F

Dmodulator I/F

B12

AFE_IFN

A12

AFE_IFP

A13

AFE_SIF/ AFE_PR2

A4

IF_AGC

ZR39748BGCG

VGA Input
(Back)

VGA_SDA7

VGA_SCL7

VGA_SDA

RGB_HSYNC

RGB_VSYN C

VGA_SCL

RGB_HSYNC

+5VSB

13

ZD110

BAT54

R121

R120

4.7K 1/10W

4.7K 1/10W

R107 100 OHM 1/10W

R109 1K 1/10W

R111 1K 1/10W

R115 100 OHM 1/10W

C120

100N16V

0402

3V3_STB

53

2 4

ZD101 MLVG0402

12

12

ZD102 MLVG0402

12

12

12

ZD106

ZD107

R116

R117

2.2K 1/10W

2.2K 1/10W

U10 3
SN74LVC1G17DBVR

VPORT0603100KV05

R119 220R +-5% 1/16W R126 220R +-5% 1/16W

R118 33 OHM 1/16W

ZD108

VPORT0603100KV05

VPORT0603100KV05

VGA_HSYN C

C123

NC/22pF

0402

VPORT0603100KV05

1716

11

12

13

14

15

12

ZD109

088G 35315FHDL

VGA_HSYNC_DET 7 VGA_VSYNC _DET 7

VGA_HSYN C 4

CN10 1

1
6
2
7
3
8
4
9
5
10

D-S UB 15P

R104 470OHM1/10W

R105 470OHM1/10W

12

ZD103

VPORT0603100KV05

UART0_TX

UART0_RX

12

12

ZD104

ZD105

VPORT0603100KV05

VPORT0603100KV05

RGB_VSYN C VGA_VSYNC

C114

NC/18pF 50V

0402

C124

100N16V

0402

UART0_TX 7

UART0_RX 7

C115

NC/18pF 50V

0402 0402

R112

C116

NC/18pF 50V

75R 1/10W 1%

3V3_STB

53

2 4

U10 5
SN74LVC1G17DBVR

T P V ( Top Victory Electronics C o . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

03-Tune r/VGA Inputs

Date

1 2FB101 30 OHM

1 2FB102 30 OHM

1 2FB103 30 OHM

R113

R114

75R 1/10W 1%

75R 1/10W 1%

04020402

R125 33 OHM 1/16W

04020402

C126

NC/22pF

0402

VGA_VSYNC _DETVGA_HSYN C_DET

OEM MO DEL

TPV MO DEL

PCB NAME

Sheet

R106 0.05R

R108 0.05R

R110 0.05R

VGA_VSYNC 7

715G4522

of

313Tuesday, July 19, 2011

VGA_R

VGA_G

VGA_B

VGA_R 4

VGA_G 4

VGA_B 4

Size

Rev

称爹

<

Custom

1

称爹

>

44

A

V Input
(Share with YPbPr_Y)
(Side)

YPbPr
Input
(Side)

CN111A

A

B

C

RCA JACK

088G 78G151AYG

Y

2

1

Pb

4

3

Pr

6

5

12

ZD111

VPORT0603100KV05

YPbPr_Y

12

12

ZD112

ZD113

VPORT0603100KV05

VPORT0603100KV05

C127 NC

R137

75R 1/10W 1%

R139

R138

75R 1/10W 1%

75R 1/10W 1%

VCC3_3

R127

NC

R129

NC

R131

NC

1 2FB104 30 OHM

1 2FB105 30 OHM

1 2FB106 30 OHM

R128

NC

Q101
NC

AV_CVBS

R132

NC

R133 47R 1/10 W 5%

R134 47R 1/10 W 5%

R136 47R 1/10 W 5%

C140

22P 50V

0402

C141

22P 50V

0402

C142

22P 50V

0402

YPbPr_Y

YPbPr_Pb

YPbPr_Pr

Place parts very
close to U401

AV_CVBS

YPbPr_Pr
YPbPr_Y
YPbPr_Pb

VGA_R3
VGA_G3
VGA_B3

VGA_HSYNC3

VGA_R
VGA_G
VGA_B

VGA_HSY NC

C128 NC

C129 47N16V
C130 47N16V
C131 47N16V
C132 1N 50V

C133 47N16V
C134 47N16V
C135 47N16V
C136 10N 50V

AFE_1V1

0402

0402
0402
0402
0402

0402
0402
0402
0402

C137 100N16V

0402

C138 200PF 50 V

0402

C139 3.9NF

0402

Video IN I/F

A15

AFE_SVIDEO_Y/ AFE_Y2

A16

AFE_SVID EO_C/AFE_PB2

B13

AFE_CVBS1

A14

AFE_CVBS2

C13

AFE_PR

C14

AFE_Y

C15

AFE_PB

B11

AFE_SOY

B14

AFE_VGA_R

B15

AFE_VGA_G

B16

AFE_VGA_B

C11

AFE_SOG

J3

AFE_HSYNC_IN/SNDBUS[12]

D12

AFE_RSET

C12

AFE_FI LTOUT

D10

AFE_FI LTOUT2

ZR39748BGCG

U401G

Lighting Logo

3V3_STB

3V3_STB

For Hitachi Project

Video signal detect
Active Low

For BBY Insignia Project
Hitachi Project

R146

NC/100K 1/10W

Y

C143 NC/1U F16V

R151

NC/560R

R153

NC/100K 1/10W

VCC3_3

R147

NC/10K 1/10W

D101

NC/LL4148

Q107
NC/MMBT3904

R152

C144

NC/10N 50V

NC/200K 1/10W

0402

VCC3_3

R144

NC/10K 1/10W

R149 NC/33 O HM 1/16W

Q105
NC /MMBT3 904

C145

NC/ 10uF 10V

0402

YPbPr_DET

YPbPr_DET 9

R140

NC/10K 1/10W

LIGHTING_LOGO_17

LIGHTING_LOGO_27

LIGHTING_LOGO_1

LIGHTING_LOGO_2

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

04- AV/YPbPr Input s

R142

NC/3.3K 1/16W

0402

R143

NC/10K 1/16W

0402

R150

NC/3.3K 1/16W

0402

R154

NC/10K 1/16W

0402

3V3_STB

Q103
NC/MMBT3904

R148

NC/10K 1/10W

Q106
NC/MMBT3904

OEM MOD EL

TPV MO DEL

PCB NAME

3V3_STB

Sheet

R141

NC/10R 1/10W

Q102
NC/AO3401

R145

NC/220R OHM 1/10W 5%

Q104
NC/AO3401

LOGO LED

LIGHTING_LOGO_1

LIGHTING_LOGO_2

715G4522

of

413Tuesday, July 19, 2011

CN411
NC/CONN

1
2
3

3P R/A 2.0mm
033G3802 3B YH L

Normal

Light

0

1

1

0

Size

Rev

称爹

Off

0

0

Custom

1

称爹

>

<

45

CN501

TMDSD 0+

TMDSD0-

TMDSD 1+

TMDSD1-

TMDSD 2+

TMDSD2-

TMDSC+

TMDSC-

SCL
SDA
CEC
HPD

VCC5

NC

DSHLD0
DSHLD1
DSHLD2
CSHLD0

DDC_GND

SHLD0
SHLD1
SHLD2
SHLD3

HDMI

088G340FJ01ATE

HDMI1 (Back)

CN502

TMDSD 0+

TMDSD0-

TMDSD 1+

TMDSD1-

TMDSD 2+

TMDSD2-

TMDSC+

TMDSC-

SCL
SDA
CEC
HPD

VCC5

NC

DSHLD0
DSHLD1
DSHLD2
CSHLD0

DDC_GND

SHLD0
SHLD1
SHLD2
SHLD3

NC/HDMI

088G340FJ01ATE

HDMI2 (Back)

CN506

TMDSD 0+

TMDSD0-

TMDSD 1+

TMDSD1-

TMDSD 2+

TMDSD2-

TMDSC+

TMDSC-

SCL
SDA
CEC
HPD

VCC5

NC

DSHLD0
DSHLD1
DSHLD2
CSHLD0

DDC_GND

SHLD0
SHLD1
SHLD2
SHLD3

HDMI

088G340FJ01ATE

HDMI3 (Side)

BBY Dynex only use CN506 (CCFL)

7
9

4
6

1
3

10
12

15
16
13
19

18

14

2
5
8
11
17

20
21
22
23

7
9

4
6

1
3

10
12

15
16
13
19

18

14

2
5
8
11
17

20
21
22
23

7
9

4
6

1
3

10
12

15
16
13
19

18

14

2
5
8
11
17

20
21
22
23

HDMI2_D0P
HDMI2_D0N

HDMI2_D1P
HDMI2_D1N

HDMI2_D2P
HDMI2_D2N

HDMI2_CLKP
HDMI2_CLKN

HDMI2_SCL
HDMI2_SDA
HDMI_CEC
HDMI2_HPD

FB501
120R

HDMI1_D0P
HDMI1_D0N

HDMI1_D1P
HDMI1_D1N

HDMI1_D2P
HDMI1_D2N

HDMI1_CLKP
HDMI1_CLKN

HDMI1_SCL
HDMI1_SDA
HDMI_CEC
HDMI1_HPD

1 2

FB505
NC/120R

HDMI0_D0P
HDMI0_D0N

HDMI0_D1P
HDMI0_D1N

HDMI0_D2P
HDMI0_D2N

HDMI0_CLKP
HDMI0_CLKN

HDMI0_SCL
HDMI0_SDA
HDMI_CEC

1 2

FB506
120R

HDMI0_ARC

HEAC+/UTILITY

12

ZD509

NC/MLVG0402

C501

100N16V

0402

C503

NC/100N16V

0402

HEAC-/HPD

C511

100N16V

0402

+5VSB HDMI2_5V

1

2

R502

10K 1/10W

12

ZD503

NC/MLVG0402

R511

NC/10K 1/10W

12

ZD507

NC/MLVG0402

R516

10K 1/10W

12

ZD511

MLVG0402

12

ZD504

MLVG0402

+5VSB

1

12

ZD508

NC/MLVG0402

+5VSB

1

12

ZD512

MLVG0402

3

R503

10K 1/10W

12

MLVG0402

HDMI1_5V

2

3

R512

NC/10K 1/10W

R535 NC /4.7K 1/10W

HDMI0_5V

2

3

R517

10K 1/10W

R537 4.7K 1/ 10W

HDMI2_5V

R505

1K 1/10W

12

ZD502

NC/MLVG0402

HDMI1_5V

R509

NC/1K 1/10W

12

ZD506

NC/MLVG0402

HDMI0_5V

R515

1K 1/10W

12

ZD510

NC/MLVG0402

HDMI ARC
DC voltage level = 4V
Signal voltage p-p = 500 mV +-100mV
Tr,Tf <= 60 ns

Run As 100 Ohm Differential Pairs

space/trace/space/trace/space(mil)
25 / 8 / 6 / 8 / 25

U50 4
NC/AZ1045-04F.R7G

HDMI2_CLKN

ZD513

BAT54C

HDMI2_SCL 7
HDMI2_SDA 7

R533 4.7K 1/ 10W1 2

ZD505

ZD514

NC/BAT54C

R536

NC/10K 1/10W

ZD515

BAT54C

R538

10K 1/10W

CN501, CN502, CN506 use 088G340FJ01ATE or 088G340FJ01AAT in LED model
CN501, CN502, CN506 use 088G 34019E AT or 088G 34019E AV in CCFL model

HDMI2_5V_A 7

R534

10K 1/10W

HDMI1_SCL 7
HDMI1_SDA 7

HDMI1_5V_A 7

HDMI0_SCL 7
HDMI0_SDA 7

HDMI0_5V_A 7

1

IN1

2

IN2

4

IN3
IN45NC

GND

GND

3

8

R539 N C/1K 1/16W

0402

R507

6
5
4

R508

10K 1/10W

U50 6
NC/AZ1045-04F.R7G

1

IN1

2

IN2

4

IN3
IN45NC

GND

GND

3

8

R540 N C/1K 1/16W

0402

R513

6
5
4

R514

NC/10K 1/10W

U50 8
NC/AZ1045-04F.R7G

1

IN1

2

IN2

4

IN3
IN45NC

GND

GND

3

8

R541 N C/1K 1/16W

0402

R531

6
5
4

R532

10K 1/10W

NC
NC

NC

Q502

2N7002KDW

D1
G2

NC
NC

NC

Q503

NC/2N7002KD W

D1
G2

NC
NC

NC

Q504

2N7002KDW

D1
G2

HDMI2_CLKP

HDMI2_D0N
HDMI2_D0P

HDMI2_HPD HDMI2_HPD_A

HDMI2_5V

4.7K 1/10W

HDMI2_HPD

HDMI1_CLKN
HDMI1_CLKP

HDMI1_D0N
HDMI1_D0P

HDMI1_5V

NC/4.7K 1/ 10W

HDMI1_HPD

HDMI0_CLKN
HDMI0_CLKP

HDMI0_D0N
HDMI0_D0P

HDMI0_HPD HDMI0_HPD_A

HDMI0_5V

4.7K 1/10W

HDMI0_HPD

HDMI2_D1N

10

HDMI2_D1P

9

HDMI2_D2N

7

HDMI2_D2P

6

1

S1

HDMI2_HPD_A

2

G1
D23S2

HDMI1_D1N

10

HDMI1_D1P

9

HDMI1_D2N

7

HDMI1_D2P

6

HDMI1_HPD_AHDMI1_HPD

1

S1

HDMI1_HPD_A

2

G1
D23S2

HDMI0_D1N

10

HDMI0_D1P

9

HDMI0_D2N

7

HDMI0_D2P

6

1

S1

HDMI0_HPD_A

2

G1
D23S2

46

U50 5
NC/AZ1045-04F.R7G

1

IN1

2

IN2

4

IN3
IN45NC

GND

GND

3

8

HDMI2_HPD_A 7

U50 7
NC/AZ1045-04F.R7G

1

IN1

2

IN2

4

IN3
IN45NC

GND

GND

3

8

HDMI1_HPD_A 7

U50 9
NC/AZ1045-04F.R7G

1

IN1

2

IN2

4

IN3
IN45NC

GND

GND

3

8

HDMI0_HPD_A 7

10

NC

9

NC

7

NC

6

10

NC

9

NC

7

NC

6

10

NC

9

NC

7

NC

6

HDMI CEC Function

3V3_STB

13

HDMI0_5V

R519

HDMI0_ARC

HEAC+/UTILITY

NC/1K 1/10W

NC/10 OHM 1/10W

R523

NC/3.9K 1/ 10W

T P V ( Top Victory Elect ronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

3V3_STB

ZD501

NC/BAT54

R504

NC/27K 1/10W

R520

05-HDMI Inputs

R501

NC/1K 1/ 10W

Q501
NC/2N 7002K

HDMI_CEC_INHDMI_CEC

C504

NC/0. 1uF 50V

HDMI_CEC_IN 7

R528

NC/560R 1/ 10W 1%

R529

NC/100 OHM 1/ 10W

C513

NC/0.1uF 50V

OEM MOD EL

TPV MOD EL

PCB NAME

Sheet

HDMI 0 Trace (mil)

D0P

D0N

D1P

D1N

D2P

D2N

CLKP

CLKN

VCC3_3

C512

NC/100N16V

53

1

0402

715G4522

of

513Tuesday, J uly 19, 2011

ARC_CTRL

COAXIAL_OUT

HDMI 1 Trace (mil)

Y2
Y1

W2
W1

V2
V1

U2
U1

T2
T1

R2
R1

P2
P1

N2
N1

M2
M1

L2
L1

K2
K1

J2
J1

HDMI 2 Trace (mil)

D0P

D0N

D1P

D1N

D2P

D2N

CLKP

CLKN

4225.05

4202.72

4132.94

4053.38

4035.42

4312.97

4293.89

HDMI0_D2P
HDMI0_D2N

HDMI0_D1P
HDMI0_D1N

HDMI0_D0P
HDMI0_D0N

HDMI0_CLKP
HDMI0_CLKN

HDMI1_D2P
HDMI1_D2N

HDMI1_D1P
HDMI1_D1N

HDMI1_D0P
HDMI1_D0N

HDMI1_CLKP
HDMI1_CLKN

HDMI2_D2P
HDMI2_D2N

HDMI2_D1P
HDMI2_D1N

HDMI2_D0P
HDMI2_D0N

HDMI2_CLKP
HDMI2_CLKN

24

U503
NC/SN74LVC1G126DBVR

4628.75

D0P

4585.2

D0N

D1P

4633.94

4587.814113.19

D1N

D2P

4647.55

D2N

4599.8

CLKP

4617.01

4573.74

CLKN

U401C

HDMI0 I/F

HDMI0_D2P
HDMI0_D2N

HDMI0_D1P
HDMI0_D1N

HDMI0_D0P
HDMI0_D0N

HDMI0_CLKP
HDMI0_CLKN

ZR39748BGCG

U401D

HDMI1 I/F

HDMI1_D2P
HDMI1_D2N

HDMI1_D1P
HDMI1_D1N

HDMI1_D0P
HDMI1_D0N

HDMI1_CLKP
HDMI1_CLKN

ZR39748BGCG

U401E

HDMI2 I/F

HDMI2_D2P
HDMI2_D2N

HDMI2_D1P
HDMI2_D1N

HDMI2_D0P
HDMI2_D0N

HDMI2_CLKP
HDMI2_CLKN

ZR39748BGCG

4373.89

4334.45

4377.24

4341.22

4392.95

4351.3

4360.69

4319.98

ARC_CTRL 9

COAXIAL_OUT 10

Size

Rev

称爹

<

Custom

1

称爹

>

For S/W Debug

U40 1B

TDO/EJTDO/SNDBUS[16]

EJTAG

TMS/EJTMS/SNDBU S[15]
TCK/EJTCK/SND BUS[21]

UART

I2C

SIO I/F

TDI/EJTDI/SNDBUS[20]

UART1_TX/GPIO_S[2]

UART1_RX/GPIO_S[3]

I2C0_C

I2C0_D
I2C1_C/ GPIO_S[4]
I2C1_D/ GPIO_S[5]

D19
D18
C18
D20

F20
E20

F4
F3
A21
A22

EJTDI
EJTDO
EJTMS
EJTCK

R413 4.7K 1/10W
R414 4.7K 1/10W
R415 1.8K 1/10W
R416 2.2K 1/10W

R498 0R05 1/10W
R499 0R05 1/10W

VCC3_3

VCC3_3

R402

4.7K 1/16W

C492NCC493

VCC3_3

R401

R403

1K 1/16W

1K 1/16W

0402 0402 0402

TP1

For S/W Debug TP1 connect
to RESET_N pin

NC

04020402

I2C0_SCL
I2C0_SDA
I2C1_SCL
I2C1_SDA

I2C0_SCL 7,11
I2C0_SDA 7,11
I2C1_SCL 3
I2C1_SDA 3

R404

1K 1/16W

EJTAG I/F

R405

NC

04020402

CN40 6

NC/E-J TAG2X7

HEADER 2X7P S/T 2.5mm

12
34
56
78

VCC3_3
910
1112
1314

EEPROM_WP7

SPI Flash

VCC3_3

EEPROM_WP
I2C0_SCL
I2C0_SDA

R411 33 OHM 1/16W
R412 33 OHM 1/16W

U405 should be programmed
before soldering on PCB

R406

C401

220NF 25V

10K+- 5%1/16W

0402

VCC3_3

VCC3_3

0402
0402

U40 6

8

VCC
WP
SCL
SDA

GND

A0
A1
A2

7
6
5

CAT2 4C6 4W I-GT3

1
2
3
4

SPI

SPI_CLK/GPIO_S[14]
SPI_SEL0/ GPIO_S[15]
SIP_SEL1/ GPIO_S[11]

SPI_HOLD/GPIO_S[12]

25M

USB2.0

ZR39748BGCG

USB2_DN
USB2_DP

C22
B22
B21
C21
Y21
C20

A8
B8

W21
W22
T18
V19

SPI_DO/GPIO_S[13]

SPI_DI/GPIO_S[7]

CLKOUT_25M

CLKIN_25M

USB2_REXT
USB_ATEST

USB 2.0 Power OCP

USB_EN9

R424 NC/33 OHM 1/16W

R425 150R

X401 25MHz

C403

18P 50V

USB2_DN
USB2_DP

R427 6.04KOHM +- 1% 1/10W

USB_EN

0402

C404

18P 50V

space/trace/space/trace/space(mil)
20 / 9 / 6 / 9 / 20

VCC5D USB5V

R428

+

C406

4.7K 1/10W

220uF 16V

SPI_WR
SPI_RD
SPI_CLK
SPI_CS_ N

SPI_HOL D

Crystal
50ppm 0~70

Run As 90 Ohm +/-15%
Differential Pairs

L401

NC/90OHM

073G253S505 Y

U409

5

4

1

OUT

IN

2

GND

3

OC

EN

G5250M1T1U

32

41

C407

4.7uF 10V

VCC3_3

R426

10K+-5% 1/16W

0402

R494

100K 1/8W

1

2

I/O

I/O

GND

AZC199-02S.R7G

3

USB_OC_N

USB 2.0 Port

(Side)

USB5V

USB_2_DN
USB_2_DP

C405

100N16V

0402

U40 8

Using in LED model

USB_OC_N 9

1234

1
2

CN10 3

3
4

NC/US B CONN

6 5

088G352F6B1ACL

47

R418

4.7K 1/16W

0402

1234

1
2
3
4

USB5V

USB_2_DN
USB_2_DP

SPI_HOLD
SPI_CLK
SPI_WR

088G 352 21CL

Using in CCFL model

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

06-SIO I/F

C402

MX25L3206EM2I-12G

100N16V

0402

CN10 4

USB CONN

6 5

U405

8

VCC

7

HOLD#

6

SCLK

5

SI/SIO0

OEM MO DEL

TPV MO DEL

PCB NAME

Sheet

CS#

SO/SIO1

WP#

GND

715G4522

R493

R417

NC/4.7K 1/16W

NC/4.7K 1/16W

0402

1
2
3
4

R422

4.7K 1/16W

0402

613Tuesday , July 19, 2011

of

0402

SPI_CS_ N
SPI_RD
SPI_WEN

SPI_WEN 9

Size

Rev

称爹

<

Custom

1

称爹

>

U40 1K

GPIO I/F

GPIO_P0/ BOOT_0/LRC LK/SND BUS[0]

GPIO_P1/BOOT_1/BCLK/SN DBUS[1]

GPIO_P4/ ACLK/SN DBUS[ 4]

GPIO_P5/ADATAIO[ 0]/SNDBUS[ 5]

GPIO_P6/SNDBUS[6]
GPIO_P7/SNDBUS[7]
GPIO_P8/SNDBUS[8]
GPIO_P9/SNDBUS[9]

GPIO_P10/SND BUS[10]

GPIO_P11/SND BUS[11]/PWM2

GPIO_P12/SND BUS[12]
GPIO_P14/SND BUS[14]

GPIO_P16/SND BUS16

ZR39748BGCG

CN40 1

1

2

3

4

5

6

7

8

9

10

11

12

CONN

12P R/A 2.0mm
033G380212B YH

VCC3_3

BOOT_0

F2

GPIO1

L3

ACLK

F1
G4
G3
G2
G1
H4
H3
H2
H1
J4
N3

0 : Watchdog Timer Enabled
1 : Watchdog Timer Disabled

WDT_EN_N

3V3_STB

C422

100N16V

0402

12

ZD405

MLVG0402

12

ZD406

MLVG0402

0402

R447 NC/10K +-5%1/16W

0402

R449

R450

10K+- 5%1/16W

10K+- 5%1/16W

0402

0402

12

ZD407

MLVG0402

MLVG0402

R434

NC/4.7K 1/16W

0402

R435 4.7K 1/16W
R436 4.7K 1/16W

R496

4.7K 1/16W

0402

ACLK

R491 220R +-5% 1/16W

GPIO1

R492 220R +-5% 1/16W

3V3_STB

12

ZD408

Bootstrap Configuration:
Please note: this section can not be removed
GPIO_P0 = 0 boot from SPI
GPIO_P0 = 1 boot from UART

0402
0402

AUD_SHDN
AUD_AMP_RSTN
PANEL_ON
EEPROM_WP
BL_ON_OFF

TKEY_IN T

0402

0402

0 : MIPS BOOTSTRAP
1 : EEPROM BOOTSTRAP

TVM_BO OT

I2S0_PCLK

I2S0_SCLK

R445 10K+ -5%1/16WR446 10K+ -5%1/16W

C423

100N16V

0402

AUD_SH DN 11
AUD_AMP_RSTN 11
PANEL_ON 9
EEPROM_WP 6
BL_ON_OFF 12

I2S0_PCLK 10,11

I2S0_SCLK 10,11

0402

1 2FB406 300OHM

R453

C424

C425

100N16V

NC/ 10P 50V

0402

0402

NC/33 OHM 1/16W

C426

NC/10P 50V

0402

0402

C427

NC/10N 50V

0402

IF using Touch keypad,
R451 change to 470K

R451

3.9K 1/10W

C428

C429

C430

NC/10N 50V

10N 50V

0402

10N 50V

04020402

LIGHTING_LOGO_14
LIGHTING_LOGO_24
VGA_HSY NC_DET3

VGA_VSYN C3

PWR_ON12

VGA_VSYNC_DET3

BL_BR_CTRL9,12

HDMI0_SCL5
HDMI0_SDA5
HDMI0_5V_A5
HDMI0_HPD_A5
HDMI1_SCL5
HDMI1_SDA5
HDMI1_5V_A5
HDMI1_HPD_A5
HDMI2_SCL5
HDMI2_SDA5
HDMI2_HPD_A5
HDMI2_5V_A5
HDMI_CEC _IN5

R452

0R05 1/10W

R462

NC/390K

R463

NC/0R05

48

UART0_TX3
UART0_RX3

VGA_SCL3
VGA_SDA3

C499

NC

KEY_I N
LIGHT_SEN SOR

If function
is not used

LIGHTING_LOGO_1
LIGHTING_LOGO_2
VGA_HSY NC_DET
KEY_PW R
VGA_VSYN C

PWR_ON
VGA_VSYN C_DET

KEY_I R

BL_BR_CTRL

UART0_TX
UART0_RX

VGA_SCL
VGA_SDA

HDMI0_SCL
HDMI0_SDA
HDMI0_5V_A
HDMI0_HPD _A
HDMI1_SCL
HDMI1_SDA
HDMI1_5V_A
HDMI1_HPD _A
HDMI2_SCL
HDMI2_SDA
HDMI2_HPD _A
HDMI2_5V_A
HDMI_CEC_IN

3V3_STB

R4B8

NC

R432 1K

3V3_STB

R440 4.7K 1/16W
R441 4.7K 1/16W

FB422

1 2F B425 NC/300OH M
1 2F B426 NC/300OH M

100 OHM

1 2F B423 300OHM
1 2F B424 300OHM
1 2F B410 NC/300OH M

1 2F B411 120R

U401L

C8

ADC8_IN 0

D8

ADC8_IN 1

C9

ADC8_IN 2

D9

ADC8_IN 3

D13

ADC8_IN 6

B4

T0/G PIO _TV_P 21

B6

T1/G PIO _TV_P 24

C6

INT0_N/GPI O_TV_P13

D6

INT1_N/GPI O_TV_P23

B2

INT2/AFE_VSYNC_IN/GPIO_TV_P29

B5

WDT_EN_N/ GPIO_TV_P27/T2

A5

BOOT_OPT/LED/GPIO_TV_P26

D5

POWER_CTL1/GPI O_TV_P15

C5

POWER_CTL2/GPI O_TV_P12

A2

IRR

D7

TVCPU_PWM0

A6

UART0TX/TVCPU_UART_TXD

C7

UART0RX/TVCPU_UART_RXD

B3

VGA_SCL/TV_DEBU G[7]

A3

VGA_SDA/TV_DEBU G[8]

E4

HDMI0_SCL

E3

HDMI0_SDA

D1

HDMI0_5VSENSE

E2

HDMI0_HPD

D4

GPIO_TV_P0/HDMI1_SCL

D3

GPIO_TV_P1/HDMI1_SDA

C1

GPIO_TV_P3/HDMI1_5VSENSE

D2

GPIO_TV_P2/HDMI1_HPD

C4

GPIO_TV_P4/HDMI2_SCL

C3

GPIO_TV_P5/HDMI2_SDA

B1

GPIO_TV_P7/HDMI2_HPD

C2

GPIO_TV_P6/HDMI2_5VSENSE

A1

HDMI_CEC

WDT_EN_NLED_2
TVM_BO OTLED_1

R4A2

R4A8 NC

0402
0402

0402

33R

ZR39748BGCG

System MCU RESET

3V3_STB

C421

1UF 6.3V

KEY_I N
TKEY _I NT
KEY_PW R
I2C0_SCL
I2C0_SDA
LED_B
LED_R
LIGHT_SEN SOR

KEY_I R

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

07-GPIO I/F

Date

I2C0_SCL 6,11
I2C0_SDA 6,11

MCU I/F

U40 4
AZ80 9ANS TR-E1

RESET

3

Vcc

GND

ADC8_R BIAS

RESET_N

IOVDD_STBY1
IOVDD_STBY2

COREVDD_STBY

CLK25M_VDD

CLKIN_RTC

CLKOUT_RTC

2

1

LED_1

LED_2

OEM MODEL

TPV MODEL

PCB NAME

Sheet

F6

E1

G6
H6

G7

F7

A7

B7

RESET_N

R448

100K

04020402

R456

LED_B

1K 1/10W

R459 NC

R460 3.3K 1/10 W

715G4522

713Tuesday, July 19, 2011

of

R431 10K+ -5%1/16W

0402

R433 100OHM1/16W

0402

C415 100N16V

0402

1 2

C417

C416

2.2uF 10V

10N 50V

0402

C419

C418

1UF 10V

100N16V

0402

0402

FB421

1 2

C489

1UF 6.3V

0402

R454

1.5K

Q402
MMBT3906

600 OHM

3V3_STB

C420

100N16V

0402

C490

22P 50V

0402

FB403

600 OHM

R455

NC

Q401
NC

LED_B

LED_R

Size

Rev

称爹

RESET_N

3V3_STB

1V1_STB

3V3_STB

<

称爹

Custom

1

>

512Mb 800MHz (32Mx16) DDRII
056G 615112
W9751G6JB-25
1Gb 1066MHz (64Mx16) DDRII
056G 615503
W971GG6JB-18

C439

10N 50V

OEM MOD EL

TPV MO DEL

PCB NAME

Sheet

C440

1UF 6. 3V

0402

C441

10uF 10V

715G4522

of

813Tuesday , July 19, 2011

Pin

S0_A0

S0_A1

S0_A2

S0_A3

S0_A4

S0_A5

S0_A6

S0_A7

S0_A8

S0_A9

S0_A10

S0_A11

S0_A12

S0_BA0

S0_BA1

S0_BA2

S0_CASN

S0_RASN

S0_ODT

S0_WEN

S0_CKE

S0_CK

S0_CKN

C442

10uF 10V

Trace (mil)

1124.02

1153.53

Pin

836.58 498.49

S0_DQ0

961.73

S0_DQ1

S0_DQ2

886.09

S0_DQ3

902.33

S0_DQ4

910.68

S0_DQ5

1042.31

980.89

S0_DQ6

S0_DQ7

977.18

999.25

S0_DQ8

S0_DQ9

820.87

S0_DQ10

S0_DQ11

S0_DQ12

758.31

S0_DQ13

888.72

S0_DQ14

749.31

S0_DQ15

811.13

S0_UDM

S0_LDM

797.17

668.53

S0_UDQS

715.3

S0_UDQSN

707.1

S0_LDQS

632.58

S0_LDQSN

693.54

Trace (mil)

531.62

528.6

634.45

555.98

580.84

468.9

493.77

330.74

380.19

338.16

349.03

381.241063.81

401.38

314.2

312.02

281.05

454.36

319.05

236.93

564.88

471.22

Custom

Size

1

Rev

称爹

>

<

称爹

S0_DQ15
S0_DQ14
S0_DQ13
S0_DQ12
S0_DQ11
S0_DQ10
S0_DQ9
S0_DQ8
S0_DQ7
S0_DQ6
S0_DQ5
S0_DQ4
S0_DQ3
S0_DQ2
S0_DQ1
S0_DQ0

S0_UDM
S0_LDM

U401A

AA15

S0_DQ15

AA9

S0_DQ14

AA16

S0_DQ13

AB9

S0_DQ12

AB11

S0_DQ11

AB14

S0_DQ10

AA10

S0_DQ9

AB16

S0_DQ8

AA13

S0_DQ7

AA8

S0_DQ6

AB12

S0_DQ5

AA7

S0_DQ4

AB7

S0_DQ3

AA12

S0_DQ2

AB8

S0_DQ1

AB13

S0_DQ0

AB10

S0_UDM

AA11

S0_LDM

V13

S0_VREF

V17

RDRIVER

U17

RDRIVER50

V16

RTERM

ZR39748BGCG

U401N

H9

AUDPLL_GN D

H11

AFE_PLL_GND

H12

AFE_GND

H13

GND5

H14

GND6

H15

AC_AGNDR EF

J8

GND8

J9

GND9

J10

GND10

J11

GND11

J12

GND12

J13

GND13

J14

GND14

J15

GND15

K8

GND16

K9

GND17

K10

GND18

K11

GND19

K12

GND20

K13

GND21

K14

GND22

K15

GND23

L8

GND24

L9

GND25

L10

GND26

L11

GND27

L12

GND28

L13

GND29

L14

GND30

M8

GND32

M9

GND33

M10

GND34

M11

GND35

M12

GND36

M13

GND37

M14

GND38

M15

GND39

N8

GND40

N9

GND41

N10

GND42

N11

GND43

N12

GND44

N13

GND45

N14

GND46

N15

GND47

ZR39748BGCG

S0 Memory I/F

S0_UDQSN

S0_UDQS

S0_LDQSN

S0_LDQS

S0_RAS_N
S0_CAS_N

S0_WE_N

S0_CK_N
S0_CK_P

S0_CKE

S0_ODT

GND

GND48
GND49
GND50
GND51
GND52
GND53
GND54
GND55

GND57
CVSS_MSD1
CVSS_MSD2
CVSS_MSD3
CVSS_MSD4

GND62

GND64

GND66

GND68

GND69

GND71

GND72

GND73

GND74

GND75

GND76

GND77

GND78

GND79

GND80

GND81

GND82

GND83

GND84

GND85

GND86

GND87

GND88

GND89

GND90

GND91

GND92

GND93

GND94

GND95

S0_A12
S0_A11
S0_A10

S0_A9
S0_A8
S0_A7
S0_A6
S0_A5
S0_A4
S0_A3
S0_A2
S0_A1

S0_A0
S0_BA2
S0_BA1
S0_BA0

S0_DQ[0:15]

VCC1_8 VCC1_8

S0_A[0:12]

S0_A12

AB1

S0_A11

Y22

S0_A10

AB4
AA1

S0_A8

AA22

S0_A7

AB2

S0_A6

AB22

S0_A5

AA2

S0_A4

AA21

S0_A3

AB3

S0_A2

AB21

S0_A1

AA3

S0_A0

AA20

S0_BA2

AA5

S0_BA1

AA4

S0_BA0

AB5

S0_UDQSN

AB15

S0_UDQS

AA14

S0_LDQSN

AB17

S0_LDQS

AA17

S0_RASN

AA19

S0_CASN

AB20

S0_WEN

AB6

S0_CKN

AA18

S0_CK

AB18

S0_CKE

AA6

S0_ODT

AB19

P8
P9
P10
P11
P12
P13
P14
P15

R9
R10
R11
R12
R13
R14

K3
M3
P3
R3
T3
V3
W3

Y3
Y4
Y5
Y6
Y7
Y8
Y9
Y10
Y11
Y12
Y13
Y14
Y15
Y16
Y17
Y18
Y19
K20
L20
M20
R20
G20

Close to DDRII

S0_CK

R466

150R 1%

0402

S0_A0
S0_A1
S0_A2
S0_A3
S0_A4
S0_A5
S0_A6
S0_A7
S0_A8
S0_A9
S0_A10
S0_A11
S0_A12

S0_BA0
S0_BA1
S0_BA2

S0_LDM
S0_UDM

S0_RASN
S0_CASN
S0_WEN

S0_CK
S0_CKN
S0_CKE

S0_ODT

S0_CKN

M8

A0

M3

A1

M7

A2

N2

A3

N8

A4

N3

A5

N7

A6

P2

A7

P8

A8

P3

A9

M2

A10/AP

P7

A11

R2

A12

R8

NC5

R3

NC3

R7

NC4

L2

BA0

L3

BA1

L1

NC

F3

LDM

B3

UDM

K7

RAS#

L7

CAS#

K3

WE#

L8

CS#

J8

CK

K8

CK#

K2

CKE

K9

ODT

M9

VDD1A1VDD2E1VDD3R1VDD4J9VDD5

VDDQ1C1VDDQ2G1VDDQ3C3VDDQ4G3VDDQ5C7VDDQ6G7VDDQ7A9VDDQ8C9VDDQ9

512Mb DDR2 SDRAM

VSS1N1VSS2A3VSS3E3VSS4J3VSS5

VSSQ1B2VSSQ2D2VSSQ3F2VSSQ4H2VSSQ5A7VSSQ6E7VSSQ7B8VSSQ8D8VSSQ9F8VSSQ10

P9

U401
U402

HEAT SINK

P85T0148101

H:1.7mm

53 +- 0.1 5mm

60 +- 0.15mm

S0_VREF

U402

J2

J1

G9

E9

VREF

VDDL

VDDQ10

LDQS

LDQS#

UDQS

UDQS#

VSSDL

J7

H8

G8

DQ0

G2

DQ1

H7

DQ2

H3

DQ3

H1

DQ4

H9

DQ5

F1

DQ6

F9

DQ7

C8

DQ8

C2

DQ9

D7

DQ10

D3

DQ11

D1

DQ12

D9

DQ13

B1

DQ14

B9

DQ15

F7
E8

B7
A8

A2

NC1

E2

NC2

W9751G6JB-18

S0_DQ0S0_A9
S0_DQ1
S0_DQ2
S0_DQ3
S0_DQ4
S0_DQ5
S0_DQ6
S0_DQ7
S0_DQ8
S0_DQ9
S0_DQ10
S0_DQ11
S0_DQ12
S0_DQ13
S0_DQ14
S0_DQ15

S0_LDQS
S0_LDQSN

S0_UDQS
S0_UDQSN

C432

100N16V

0402

C433

100N16V

0402

C434

100N16V

0402

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

R464

100R 1/16W 1%

0402

S0_VREF

C431

R465

100N16V

100R 1/16W 1%

0402

0402

C435

C436

100N16V

100N16V

04020402

08 -DDRII S DRAM I/F

VCC1_8

C437

100N16V

0402 0402

C438

10N 50V

0402

49

U401J

LVDS & TCON I/F

LVDS

STH1/SNDBUS[20]

TCON

TP/SNDBU S[19]/TAPSEL

CPV1/SNDBUS[22]

STH2/SNDBUS[21]

CPV2/SN DBUS[18]/ TAPSEL_CAS

OE2/SNDBUS[23]/TRST

ZR39748BGCG

Active Voltage is 8.5V,
if not connector the R4A7

-> Active Voltage is 7.4V

P12V

C495

NC/ 0.1uF 50V

LVDS_D0O_N
LVDS_D0O_P
LVDS_D1O_N
LVDS_D1O_P
LVDS_D2O_N
LVDS_D2O_P
LVDS_D3O_N
LVDS_D3O_P

LVDS_CO_N

LVDS_CO_P
LVDS_D4O_N
LVDS_D4O_P
LVDS_D5O_N
LVDS_D5O_P
LVDS_D0E_N

LVDS_D0E_P

LVDS_D1E_N

LVDS_D1E_P

LVDS_CE_N

LVDS_CE_P

LVDS_D2E_N

LVDS_D2E_P

LVDS_D3E_N

LVDS_D3E_P

LVDS_D4E_N

LVDS_D4E_P

LVDS_D5E_N

LVDS_D5E_P

LVDS_REXT

LVDS_ATEST

PWM/GPIO_S[ 16]

RVS/SNDBUS[17]

STV1/GPIO_S[9]

OE1/GPIO_S[ 8]

STV2/SNDBUS[24]

GPO/SNDBUS[13]

R4A3

U412
NC/AZ8 09ANS TR-E1

NC/1.2K

3

Vcc

R4A4

NC/820R 1/10W 1%

L22
L21
M22
M21
N22
N21
P22
P21
K22
K21
R22
R21
P20
N20
E22
E21
F22
F21
D22
D21
G22
G21
H22
H21
J22
J21
J20
H20

N18
L15

Y20

U21
W19
V22
T21
V20
T22
U22
U20
W20
V21
T20

RESET

GND

C496

2.2nF 50V

2

1

L402 NC/90OHM

L403 NC/90OHM

R472 820R 1/10W 1%

R475 NC

Place closer
to U401

R476 33 OHM 1/16W
R437 33 OHM 1/16W

If function
is not used

VCC3_3

R4A5

NC/22K

R4A6

NC/100K

0402

LVDS_D0O_N
LVDS_D0O_P
LVDS_D1O_N
LVDS_D1O_P
LVDS_D2O_N
LVDS_D2O_P
LVDS_D3O_N
LVDS_D3O_P
LVDS_CKO_N

32

LVDS_CKO_P

41

LVDS_D0E_N
LVDS_D0E_P
LVDS_D1E_N
LVDS_D1E_P
LVDS_CKE_N

32

LVDS_CKE_P

41

LVDS_D2E_N
LVDS_D2E_P
LVDS_D3E_N
LVDS_D3E_P

If use DC voltage,
R475 change to 1K and
C448 change to 100nF

BL_BR_CTRL

C448

NC/10 0N 50V

PWR_OK
PANEL_CTRL1

EARPHONE_D ET
YPbPr_DET

USB_EN
SPI_WEN

0402

USB_OC_N

0402

ARC_CTRL

R497

NC/0R05 OHM

0402

R4A9

NC/10K

R4B1

PWR_OK

NC/100R

Q405
NC/MMBT3904

PANEL_ON7

PANEL_ON

R4B7

R4A7

NC

BL_BR_CTRL 12

PWR_OK 12

EARPHON E_DET 11
YPbPr_DET 4

USB_EN 6
SPI_WEN 6
USB_OC_N 6
ARC_CTRL 5

0.05R

0402

R486

10K

R488

4.7K 1/10W

5V for 24"
12V for 32", 37", 40"

+5V

+12V

R481

NC/0R05 1/4W

R483

47K 1/10W 5%

R485

100K

Q404
MMBT3904

P12V+5VSB

R482

0R05 1/4W

C487

220N 25V

R484

0.05R

Q403

1
2
3
4

AO4485L

S
S
S
G

PANEL_POWER

8

D

7

D

6

D

5

D

PANEL_POWER

1 2

PANEL_PW

CN408

32
30
28

LVDS_CKE_P
LVDS_D0E_P
LVDS_D1E_P
LVDS_D2E_P LVDS_D2E_N
LVDS_D3E_P

LVDS_CKO_P
LVDS_D0O_P
LVDS_D1O_P
LVDS_D2O_P
LVDS_D3O_P

R4B6

0.05R

VCC3_3

C458

C457

100N16V

10UF 6. 3V

0402

C488

100N16V

0402

26
24
22
20
18
16
14
12
10

8
6
4
2

16PX2 S/T 2.0mm
311GW200C32ABL

C459

100N16V

0402

0402

VCC3_3

C460

1UF 6. 3V

50

FB412

BEAD

CONN

VCC1_1

0402

PLL3_3

R487

31
29

SELLVDS

27
25

LVDS_CKE_N

23

LVDS_D0E_N

21

LVDS_D1E_N

19
17

LVDS_D3E_N

15
13

LVDS_CKO_N

11

LVDS_D0O_N

9

LVDS_D1O_N

7

LVDS_D2O_N

5

LVDS_D3O_N

3

PANEL_CTRL1

1

C462

C461

1UF 6. 3V

10UF 6.3V

AFE_1V1

C491

10UF

1K5 OHM 1/16W 1%

0402

C446

10uF 16V

VCC1_1

C470

10UF

C476

10UF

0402

VCC3_3

R467

NC/1K 1/4W

VCC3_3

L5

L6
K17
K18

R5

T5

T6
R17
R18

J6
H17

F10

F13

D11

F11

F12

U16

R15

R473

NC/10K 1/10W

R474

10K 1/10W

U401M

C447

0.1uF 50V

C469

100N16V

0402

C475

100N16V

0402

C483 100N16V

ZR39748BGCG

T P V ( Top Victory Elec tronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

09-LVDS I/F

Date

VCC3_3

R468

NC/4.7K 1/10W

R469

1K 1/10W

POWER

IOVDD1
IOVDD2
IOVDD5
IOVDD6

CORE_VDD1
CORE_VDD2
CORE_VDD3
CORE_VDD4
CORE_VDD5
CORE_VDD6
CORE_VDD7

AFE_VPWR 10_PLL

AFE_VPWR 10

AFE_VPWR 33_PLL

AFE_VPWR 33_REF

AFE_VPWR 33

DDRPLL_AVDD

GNDDDRPLL

MVDD1
MVDD2
MVDD3
MVDD4
MVDD5
MVDD6

CVDD_MSD1
CVDD_MSD2

AUDPLL_VDDIO

VDDIO_SY SPLL

GNDSYSPLL

HDMI_VDD3P3_1
HDMI_VDD3P3_2
HDMI_VDD3P3_3

HDMI_REXT

HDMI_ATEST

HDMI_VDD1V

USB2_VDDA33T

LDI_VDD1
LDI_VDD2

LDI_CVDD

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

VCC1_8

V8
U9
V9
U13
U14
V14

U11
V11

F9

G8

C471 10N 50V

H10

N5
N6
R8
U5
U3

R6

T17

L17
L18

N17

715G4522

913Tuesday , July 19, 2011

C449

100N16V

0402

0402

MSD_ 1V1

C466

C465

NC

NC

0402

C468

C467

1UF 10V

10N 50V

0402

0402

R479 1.8K 1/16W

0402

R480 390OHM1/16W

0402

C474

C473

1UF 6. 3V

100N16V

0402 0402

C477

1UF 6. 3V

0402

C480

1UF 6. 3V

0402

C482

C481

1UF 6. 3V

100N16V

0402

0402

C486

C485

1UF 6. 3V

100N16V

0402

0402

of

VCC1_8

C450

1UF 6.3 V

0402

FB413

1 2

600 OHM

0402

FB416

1 2

60 OHM

FB418

1 2

600 OHM

FB419

1 2

600 OHM

FB420

1 2

600 OHM

C451

1UF 6. 3V

FB415

1 2

600 OHM

C452

10UF 6. 3V

PLL3_3

PLL3_3

VCC1_1

VCC3_3

VCC3_3

VCC1_1

Size

Rev

称爹

VCC3_3

<

Custom

1

称爹

>

V

YPbPr Audio
Input (Side)

GA Audio

Input (Back)

U401I

Audio OUT I/F

DDX_LO_L/SNDBUS[4]/ACLK

DDX_LO_R/SNDBUS[3]/ADATAIO[1]

DDX_LP/SNDBUS[1]/BCLK

DDX_LN/SNDBUS[5]/ADATAIO[0]

DDX_RP/SNDBUS[0]/LRCLK

DDX_RN/SNDBUS[2]/ADATAIO[2]

IEC958O/GPIO_S[10] /SNDBUS[14]

ZR39748BGCG

DDX_VDDIO

A9
C10
A10
B9
A11
B10

C19

F8

CN11 1B

RCA JACK

088G 78G151AYG

CN10 2

PHONEJACK

088G 30265C

DDX_LO_L
DDX_LO_R

ADATAIO_0
LRCLK

C623

1UF 6.3V

0402

LINE_OU T_L

8

D

7

10

E

9

1
2

3

Close to U401

C6B8

100pF 50V

C619

100pF 50V

R623 100 OHM 1/10W

+

C622

220UF 16V

SMT

C6C1 4.7uF 10V

R6B7
100K

PD_MUTE11

12

12

ZD601

VPORT0603100KV05

VPORT0603100KV05

FB601 300OHM

FB602 300OHM

12

12

ZD603

ZD604

VPORT0603100KV05

VPORT0603100KV05

C6B9

100pF 50V

04020402

L605 150 UH
L606 150 UH

R619 220R +-5% 1/16W
R620 220R +-5% 1/16W
R6B4 220R +-5% 1/16W

R622 100R

VCC3_3

VCC3_3

1 2

R6B9
100K

PD_MUTE

C606

ZD602

100P 50V

1 2

1 2

C6A9

47N16V

0402 0402

0402
0402
0402

0402

FB603

300OHM

R624

39K

R626

39K

C632

1UF16V

R640 100K 1/10W

R601 10K 1/10W

R604 10K 1/10W

C607

100P 50V

C614

100P 50V

C6B1

47N16V

R6B5 150 OHM
R6B6 150 OHM

I2S0_D0
I2S0_WS
I2S0_D2
COAXIAL_OUT

CoaxialIEC958_O

C621

C620

10uF 10V

1UF16V

C624 1U F16V

U60 3

8

CP
PVDD9PVSS

10

PGND

11

NC

SGND

12

OUTL

OUTR

13

-INL

14

+INL

DRV60 2PW R

VCC5D

R641

1M 1/10W

R607

13K 1/10W

R609 10K 1/10 W

R610 10K 1/10 W

C615

100P 50V

0402
0402

I2S0_D0 11
I2S0_WS 11

COAXIAL_OUT 5

7

CN

6
5

EN

4
3
2

-INR

1

+INR

R630

47K 1/10W 5%

Q601
MMBT3904

R608

13K 1/10W

C6B2

22N 25V

C629

1UF16V

C637

0.1uF 50V

YPbPr_Audio _L

YPbPr_Audio _R

R611

13K 1/10W

C6B3

22N 25V

04020402

PC_Audio_R

PC_Audio_L

R612

13K 1/10W

L_OUT
R_OUT

C6C2 4.7uF 10V

R625

39K

C628 0. 47uF 16VC627 0.47uF 16V

R627

39K

C633

1UF16V

R6C1
100K

C618

100N16V

0402

R6B8
100K

VCC5D

CN603

1

VIN

2

VCC

3

GND

JACK 3P

088G 359 9 JT

LINE_OU T_R

R_OUTL_OUT

TH4
TH3
TH2
TH1

7
6

SPDIF Output

5
4

(Back)

51

VCC5D

I2S0_SCLK

I2S0_SCLK7,11

I2S0_D2
I2S0_WS

I2S0_PCLK

I2S0_PCLK7,11

R631 NC
R632 0R05 OHM

R633 0R05 OHM

R634 NC
R635 0R05 OHM

VCC3_3

R613 2.2 OHM 1/1 0W

If without Lineout

R_OUT

C630 NC/1UF16V
C631 NC/1UF16V

VCC5D

FB604

1 2

NC

6

VCC

1

BCK

2

DATA

3

LRCK

U60 4

16

SCK

0402
0402

0402

0402
0402

LINE_OU T_L
LINE_OU T_R

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

PCM1754DBQR

15

FMT

14

MUTE

13

DEMP

DGND4AGND

9

1 2

FB606 300OHM

1 2

FB607 300OHM

C641

C640

100P 50V

100P 50V

10-Audio Inputs /Outputs

YPbPr_Audi o_L
YPbPr_Audi o_R

PC_Audio_L
PC_Audio_R

VOUTL

VOUTR

TEST

ZEROA

VCOM

NC

HP_RIN
HP_LINL_OUT

+

C634

10UF 25V

SMT

C635 2.2uF 10V

7

C638 2.2uF 10V

8

12
11

10
5

OEM MO DEL

TPV MOD EL

PCB NAME

Sheet

Place parts very
close to U401

C605 1UF 10V
C608 1UF 10V

C609 1UF 10V
C610 1UF 10V

C611 220pF 50V

C612 220pF 50V

C613 10uF 10V

+

C616

C617

220UF 16V

100N16V

0402

SMT

HP_RIN 11
HP_LIN 11

C639

10uF 10V

12

12

ZD605

ZD606

VPORT0603100KV05

VPORT0603100KV05

715G4522

10 13Tuesday , July 19, 2011

of

0402
0402

0402
0402

0402

0402

C6A8

100N16V

R628

20K 1/10W

R629

20K 1/10W

CN604

1
7
6
2
3
4
5

PHONEJACK

088G 30211K

0402

R614

9.53K 1%

0402

HP_LIN

HP_RIN

U40 1H

C16

LINE_I N1_L

A20

LINE_I N1_R

C17

LINE_I N2_L

B20

LINE_I N2_R

B17

LINE_I N3_L

A19

LINE_I N3_R

A17

LINE_I N4_L

B19

LINE_I N4_R

B18

LINE_I N5_L

A18

LINE_I N5_R

D16

AC_RCAP_N

D17

AC_RCAP_P

F15

AC_LCAP_N

F14

AC_LCAP_P

G18

AC_VREF N

G17

AC_VREF P

F16

AC_AVDD

F18

AC_VCM

F17

AC_RES

ZR39748BGCG

HP_LIN 11

HP_RIN 11

Audio IN I/F

Audio
Output
(Back)

Size

Rev

称爹

<

Custom

1

称爹

>

Option

VCC3_3

P24V

RB160M-60TE 25

+5VSB VC C5D

P24V

R667

R668

3.3K

NC

U609
NC/G1117-33T63Uf

2

VI3VO

C6A6

NC/1U F16V

FB610

1 2

600 OHM

D601

1 2

R669

NC

R672

1K 1/10W

VCC3_3 +5VSB

AMP_3V3

+

C679

0.1uF 50V

C678

47UF 35V

GND14

4

R693 2 .2 OHM 1/10W

C659

0.1uF 50V
R694 0 R05 1/10W

R666

10K 1/10W

R670

51K 1/10W

U60 8
AS4 31AN- E1

AMP_3V3VCC5D

C6A7

NC/10uF 10V

PLL_Vdd

C660

0.1uF 50V

I2S0_PCLK7,10
I2S0_SCLK7,10
I2S0_WS10
I2S0_D010

AUD_AMP_RSTN7

I2C0_SDA6,7
I2C0_SCL6,7

POP NOISE

D602

PD_MUTE

LL4148

R671

30K 1/10W 5%

AMP_3V3

C661

NC

AMP_3V3

FB609

1 2

30 OHM

R657 2.2K 1/10W

C662

4N7 50V

I2S0_PCLK
I2S0_SCLK
I2S0_WS
I2S0_D0
AUD_AMP_RSTN

I2C0_SD A
I2C0_SC L

FB613

1 2

30 OHM

PD_MUTE 10

C655 0. 1uF 50V

C663

PLL_FILTER

680pF 50V

PLL_GND

R659 100 OHM 1/10W

1 2

FB622 300OHM

1 2

FB623 300OHM

1 2

FB617 300OHM

C669 330P 50V

C646

C645

0.1uF 50V

0.1uF 50V

AMP_3V3

R653

4.7K 1/10W

PLL_Vdd

TP2
TP3

C670

0.1uF 50V

056G 616 71 STA339BWS13TR (16V) for 24"
056G 593 39 STA339BWTR (24V) for 32"

U602

19

EAPD/OUT4B

20

TWAR N/O UT4A

21

VDD_DIG

22

GND_DIG

23

PWRDN

24

VDD_PLL

25

FILTER_PLL

26

GND_PLL

27

XTI

28

BICKI

29

LRCKI

30

SDI

31

RESET

32

INT_LIN E

33

SDA

34

SCL

35

GND_DIG

36

VDD_DIG

37

Thermal Pad

STA3 39 BWTR

O=2- 1.9
mm

HEAT SINK
X90G8015 1

P24V

GND_REG

VCC_REG

TEST_MO DE

GND_SUB

FB608

1 2

BEAD

33 ohm

OUT3A
OUT3B

CONFIG

VDD

OUT1A

GND1

VCC1
OUT1B
OUT2A

VCC2

GND2
OUT2B

VSS

SA

37.2 +- 0. 2mm

H = 5mm

3mm

8.1 +- 0.1mm

18 mm

18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

AMP_24V

AMP_24V

C647

C648

1uF

1uF

C651

+

330UF 35V

SMT

TP4
TP5

C658 0. 1uF 50V

LOUT+

LOUT­ROUT+

ROUT-

C666 0. 1uF 50V

L601

47uH

C649

C664

0.1uF 50V

C667

0.1uF 50V

C676

0.1uF 50V

0.1uF 50V

C654

0.1uF 50V

R658 10 OHM 1/4W

C665 0.1uF 50V

R664 10 OHM 1/4W

C673 0.1uF 50V

R665 10 OHM 1/4W

C677 0.1uF 50V

R699

R6A1

NC/22 OHM 1/4W

0R05 1/10W

C6A1

NC/330P 50V

R654

R6A2

22 OHM 1/4W

NC/0R 05 1/10W

C656

330P 50V

L602

47uH

L603

47uH

R663

22 OHM 1/4W

C674

330P 50V

L604

47uH

L601, L602, L603, L604
33uH - 073G253S102 DN & 073G253S102 X for 8o hm SPK
47uH - 073G253S 83 DN & 073G253S 83 X for 16o hm SPK

R655

10 OHM 1/4W

R697

0R05 1/10W

C652

220N 50V

C671

220N 50V

AMP_24V

C699

NC/0.47UF 50V

R6A9

NC/0R 05 1/10W

AMP_24V

C668

1N 50V

C675

1N 50V

R696

NC/3. 4KOHM +-1% 1/10W

R698

NC/3. 4KOHM +-1% 1/10W

C650

1N 50V

C657

C672

1N 50V

WSPK+

WSPK-

1N 50V

R6A6 NC /0R05OHM1/8W

R6A3

NC/3. 4KOHM +-1% 1/10W

R6A4

NC/3. 4KOHM +-1% 1/10W

Woofer

AMP_24V

C6A2

+

NC/330U F 35V

L- R-

C6A4

+

NC/330U F 35V

FB618

1 2

120 OHM

FB619

1 2

120 OHM

FB620

1 2

120 OHM

AMP_24V

C6A3

+

NC/330U F 35V

C6A5

+

NC/330U F 35V

C653

1N 50V

12

WSPK+
WSPK-

FB621
120 OHM

C6B4

NC

C6B6NCC6B7

2.0 CH Mode

2.1 CH Mode

C6B5

NC

L+

4

L-

3

R+

2

R-

1

NC

4Pin R/A 2.0mm
33G3802 4B YH

CN60 5

2
1

NC/CONN

2P R/A 2.5mm
311GW250B02ABX

CN60 1

CONN

L+
L-

L

R+
R-

R

R673

NC/10K OH M 1/10W

R675 NC/10K OHM 1/10W

AUD_SHD N7

R677

10K 1/10W

R678

10K 1/10W

C682

0.1uF 50V

R674

10K 1/10W

Q602
MMBT390 4

VCC5D

D603

PD_MUTE

LL4148

C680

NC

HP_LIN

HP_LIN10

HP_RIN

HP_RIN10

If without Lineout
R683, R690 = 39K
R685, R692 = 4.7K
R686, R687 = 82K
C689, C690 = 75pF
R695, R6B1 = NC

PD_MUTE

R683 NC

R690 NC

R679

100K 1/10W

R681

1M 1/10W

C686

NC/1.2nF 50V

C694

NC/1.2nF 50V

R676

100K 1/10W

C683

Q603

1UF16V

MMBT3904

R685 20K 1/10W

R692 20K 1/10W

C691

47pF 50V

OEM MOD EL

TPV MOD EL

PCB NAME

Sheet

C692

47pF 50V

VCC3_3

715G4522

11 13Tuesday , July 19, 2011

R680

10K 1/10W

R682

100 OHM 1/10W

12

12

ZD607

ZD608

VPORT0603100KV05

VPORT0603100KV05

of

EarPhone
Output
(Side)

EAR_DET
EAR_L

EAR_R

12

ZD609

VPORT0603100KV05

CN602

1
7
6
2
3
4
5

PHONEJ ACK

88G 30211K

Size

Rev

称爹

<

Custom

1

称爹

>

C681
1UF16V

13

12

11

10

C698

NC/10uF 10V

R695

91K

C684

1UF16V

MAX9728AETC+

1

2

3

C1P

C1N

TH1

PGND

4

PVss

5

SHDN

6

IN_L

VDD

U606

OUTL

OUTR

SVss

SGND

IN R

9

7

8

C697

1UF16V

FB614

1 2

30 OHM

C689

47pF 50V

VCC5D5V_HP

R686

NC/82K 1/ 10W

EarP_L

EarP_R

R6B1

91K

FB615 300OHM

FB616 300OHM

C690

R687

NC/82K 1/ 10W

47pF 50V

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

11- Audio Amp/Earphone Output

Date

EARPHONE_DET9

R689

R688

47K 1/10W 5%

47K 1/10W 5%

52

From
Power
Board

CN701

1
2
3
4
5
6
7
8
9
10
11
12
13

CONN

13P R/A 2.5mm
311GW250B13BBX

PWR_ON7

C719

0.1uF 50V

FB703

1 2

BEAD

33 ohm

C725

0.1uF 50V

PWR_ON

C701

10N 50V

C715

0.1uF 50V

P24V

3V3_STB

C702

10N 50V

P12V

C714

+

100UF 16V

SMT

C717
1uF

C726

0.1uF 50V

R745

4.7K 1/10W

R725

22K 1/10W

+

R706

10K 1/10W

C724

220UF 16V

SMT

+5VSB

R701 NC/100 OHM 1/10W
R705 NC/10K 1/10W
R702 100 OHM 1/10W

1 2

FB707 300OHM

1 2

FB701 300OHM

R707

10K 1/10W

PWR_OK
PWR_ON
PS_ON

BL_ON_OFF

BL_BR_CTRL

PWR_OK 9

BL_ON_OFF 7

BL_BR_CTRL 9

12V for 32", 37", 40" CCFL & LED

16V for 24" LED
24V for 32", 37", 40" CCFL & LED

+5VSB

5V

ZD701

NC/BZT52-C5V6

1 2

VCC5D

8

D

7

D

6

D

5

D

+

C737

C738

220UF 16V

0.1uF 50V

SMT

R720

47K 1/10W 5%

R724

47K 1/10W 5%

Q703
MMBT3904

C736

0.33uF 16V

R722

0R05 1/10W

Q702

1

S

2

S

3

S

4

G

AO4449 -7A/-30V

Standby Power

2

5

4

5

4

C704

0.1uF 50V

VCC3_3

+

C733

0.1uF 50V

R752

2.7KOHM +-1% 1/10W

R1

R753

620R 1/10W 1%

R756

1K5 OHM 1/16W 1%

0402

R1

R757

220R +-5% 1/16W

0402

R758 15K 1%

3V3_STB

+

C728

220UF 16V

SMT

R2

C706

100UF 16V

SMT

C775

10N 50V

R754 15K 1/10W 1%

AFE_1V1

C721

4.7uF 10V

0402

R2

+5VSB

VCC5D

VCC3_3 MSD_1V1

R751 N C

C769

1UF16V

C703

1UF16V

C727

1UF16V

C771

10N 50V

U70 1

AZ1117D

VI3VO

1

U704
G1084-33T43Uf

3

VOUT2VIN

GND

1

U710
G9141T11U

1

IN

2

GND

SHDN3SET

GND

OUT

Vout = 1.0x(R1+R2)/R2

VCC3_3

C720

1UF 10V

0402

U711
G9141T11U

1

IN

2

GND

SHDN3SET

OUT

Vout = 1.0x(R1+R2)/R2

C770

4.7uF 10V

3V3_STB

R714 N C

C716

1UF16V

U70 3
G9141T11U

0402

C722

10N 50V

0402

1

2

IN

GND

SHDN3SET

5

OUT

4

Vout = 1.0x(R1+R2)/R2

VCC5D PLL3_3

U70 5
G1117-33T63Uf

2

VI3VO

C729

VCC3_3

VCC5D VCC1_8

FB706

1 2

120OHM

C731

4.7uF 10V

1UF16V

R765 20K OH M 1/16W 1%

0402

R766 13K 1/ 16W 1%

0402

R749 N C

C765

C764

10uF 10V

0.1uF 50V

U70 6
SC189ASKTRT

1

3

C766

1UF16V

GND14

4

5

VIN

LX

4

VOUT

EN

GND

2

Vout = 1.0x(R1+R2)/R2

VCC5D

FB704

1 2

300 OHM

C739

4.7uF 10V

C707

0.1uF 50V

C741

1UF16V

R727

10 OHM 1/10W

C742

0.1uF 50V

C743

0.1uF 50V

R726 30K 1/10W 5%

U70 7
AT1528P11U

1

8

VCC

VIN

2

7

REF

LX

3

6

GND

PGND

5

FB4EN

Vout = 0.8x(R1+R2)/R2

R715

1.5K +-1% 1/10W

R1

R717

220 OHM 1/10W

R718 15K 1/10W 1%

C734

10uF 10V

073G253S 68 H

L704

2.2uH

R750

2R2 +-5% 1/8W

C768

4N7 50V

C740

10uF 10V

C746

4.7uF 10V

1V1_STB

R2

C730

0.1uF 50V

R1

073G253S 68 H

L702

2.2uH

R755

2R2 +-5% 1/8W

C772

4N7 50V

C718

4.7uF 10V

R719

12K 1/10W

C767

0.1uF 50V

R721

220 OHM +-1% 1/10W

R723 15K 1/10W 1%

R728

6.2K 1/10W

R1

R730

820R 1/10W 1%

R2

C747

10N 50V

R732

C735

10uF 10V

C745

10uF 10V

R2

C776

0.1uF 50V

VCC1_1

C777

0.1uF 50V

15K 1/10W 1%

+

+

C732

22UF 35V

C744

220uF 16V

+5VSB3,5,9,11

3V3_STB3,4, 5,7

1V1_STB7

P24V11

P12V9

5VT3

VCC5D6,10, 11

VCC3_34,5,6,7,9, 10,11

PLL3_39

AFE_1V14, 9

VCC1_88,9

VCC1_19

MSD_1V19

Custom

Size

1

Rev

<

称爹

>

称爹

R747

10K 1/10W

+5VSB

R742

1K 1/10W

Q706
MMBT390 4

PS_ON

P12V 5V_HP

U712
G9117-50T63U

2

VIN3VOUT

C773

GND14

1UF16V

4

C774

1UF16V

R748

22K 1/10W

+5VSB

R743

10K 1/10W

Q707
MMBT3904

C

EB

PWR_ON

PWR_ON7

For Tuner

For 24" 16V

P24V

U70 8

1

C751

NC/1uF 50V

NC/AS7 81 2ADTR- G1

3

OUT

IN

GND

2

12VT

C752

NC/1uF 16V

12VT

P12V

R736 2.2 OHM

R738 NC/0R05 1/4W

U709
G9084-50TU3U

+

C757

100UF 16V

SMT

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

12-Power

Date

C761

0.1uF 50V

VIN3VOUT

5VT

2

+

C762

OEM MOD EL

TPV MOD EL

PCB NAME

Sheet

10uF 10V

715G4522

12 13Tuesday , July 19, 2011

C758

100UF 16V

SMT

of

ADJ/GN D

1

53

9.2 Power Board

715G3770P03W30003S

1

+

2

CN903

-

2

N

1

4

L

CONN

L902

3

13mH

C902

C904

680pF

R902

330K 1/4W

R901

330K 1/4W

L901

3

13mH

C901

12

NR901
NTCR

t

F901

5A 250V

3

1 2

CN901

SOCKET

FB901

1 2

BEAD

C913

0.1uF 50V

124

C903
680pF

124

RV901
varistor

BD901
KBJ608G

3

R903
330K 1/4W

VCC

+

1M5 1/4W 1%

C910
1uF/520V

R910
NC

C914
47uF/50V

D901
1N4007-E3/73

D904

IN5408

D902

L906

310uH

10OHM +-5% 1/8W

R932

C912

7

5

6

8

ZCD

VCC

GND

GATE

INV1COMP2MOT3CS

4

R918

10KOHM +-5% 1/8W

C917
47N 50V

1M5 1/4W 1%

1MOHM +-1% 1/4W

1M 1/4W 1%

1M 1/4W 1%

13K 1/8W 1%

ALL NC

12

10KOHM +-5% 1/8W

51K +-5% 1/8W

R912
NC

IC901
FAN6961SZ

R909

R924

R925

R926

R985

R9105

FMNS-1106S

D907

IN5408

D905
1N4148

10 OHM +-5% 1/6W

R913

R914

10KOHM +-5% 1/8W

R915
470 OHM 1/4W

C915
220P 50V

C918

0.47uF 50V

C921

0.1uF 50V

B+_390V

C943
47N 50V

10KOHM +-5% 1/8W

10KOHM +-5% 1/8W

100K 1/8W

R9106

R906
560K 1/8W 1%

R941
NC

FB

NC

R9108

R9109

Q901
2SK4086LS

0R12 5% 2W

C919
NC

1
2
3

R942

VCC

R9107

1

2 3

Q9101
2N3904S-RTK/PS

R916

R919
NC

IC903

BNO
COMP

VCC
NC
CS4GND

LD7523GS

IC9101

EL817M(X)

Q9102
2N3906S-RTK/PS

10KOHM +-5% 1/8W

OVP

OUT

126

5

8

7

R911
20K 1/4W

56P 50V

C916
NC

R917
15K 1/8W

R904

R905

1M5 1/4W 1%

ACD

B+_390V

R9101

1M5 1/4W 1%

R9102

1M5 1/4W 1%

R9103

1M5 1/4W 1%

ZD9101

MTZJ T- 72

R9104

82K 5%

R947

8
7
6
5

+5V

4

R801

R920
680K OHM +-1% 1/4W

R921
680K OHM +-1% 1/4W

R922
680K OHM +-1% 1/4W

R923
13K 1/8W 1%

B+

VCC

C942
100N 50V

R933

1R 1/4W 5%

1K 1/4W

C944
220P 50V

R9110

16.2K +-1% 1/4W

R9111
33K +-1% 1/4W

+

VCC

R945

ACD

FB902

1 2

BEAD

C920
100uF M 450V

+

R943

10OHM +-5% 1/8W

100K 1/4W

C935

0.1NF2KV

D940

PR1007

C941

10uF/50V

D906
1N4148

R996

100K 1/4W

R944
10KOHM +-5% 1/8W

R948

0.1 ohm

+

C937
10uF/50V

MTZJ T-72 16B

R998

C925
470PF1KV

ZD930

100K 1/4W

100K 1/4W

1 2

C907
100N 50V

R997

R999

Q903
2SK4101LS

R946
0R36 5% 2W

B+_390V

B+

Q921

KTD1691/P

5

4

3

C939
10N 50V

C924

0.001uF/250V

B+

R939
10K 1/4W

3
2
1

2.2 OHM 1/4W

R908

T902

POWER X'FMR

FB

IC970
EL817M(X)

FB903

1 2

R962

4.7M OHM +-5% 1/4W

IC902

FB/OLP4VCC
GND
BR

D/ST

S/OCP

D/ST

A6069H

R907

2.2 OHM 1/4W

9

8
10

11

R974
1K 1/4W

1234

10K 1/4W

IC971
AS431AZTR-E1

470pF/250V

NC

R993

R991

100K 1/4W

100K 1/4W

C932

0.1NF2KV
R994

100K 1/4W

R992

100K 1/4W

D930

PR1007

D931

AU02Z

D903

1N4148

5

7
8

C933

10uF/50V

100 OHM 1/4W

3

1

R975
3K9 +-5% 1/8W

R976

C906

+

R973
100 OHM 1/4W

R970

D973
YG865C10RSC

2

D972

3

2

1

R977

100 OHM 1/4W

R951

100 OHM 1/4W

C976

330N 50V

C908
100N 50V

YG865C10RSC

C957

1N 500V

470pF/250V

C934
100N 50V

C970

1N 500V

+

C973
470uF 35V

C952

1N 500V

R986

1.8K 1/4W

C905

C972

1N 500V

+

C945
470uF 35V

R931

2.2 OHM 1/4W

C931

+

L980

L

L951

L

1.8K 1/4W

T901

POWER X'FMR

1

2

3
4

5

C909
1N 50V

+

C975
470uF 35V

+

C946

R965

R980
NC

IC950
EL817M(X)

R967

1.8K 1/4W

6
7

9
10

1234

1.8K 1/4W

R971

1.8K 1/4W

R978

R979
2KOHM +-1% 1/8W

47 OHM 1/4W

R954
100 OHM 1/4W

C955
220N 50V

1K 1/4W

IC952

AS431AZTR-E1

R988

R950

3

1

R956

R952

2

47 OHM 1/4W

D950
MBRF1560CT

R987
27K 1/8W 1%

R955
1K 1/8W

R959
NC

R972

1.8K 1/4W

6.8K 1/4W

C950
1N 500V

C951

L950

1N 500V

L

+

C953
330uF 16V

A5V

C948
100N 50V

R966

R957
8K2 1/8W 1%

R958
7K5 1/8W +/-1%

+24V

C949
100N 50V

+12V

6.8K 1/4W

+

C954
470uF 16V

R960
1K 1/4W

IC951
EL817M(X)

1234

Q950
PMBS3904

ZD970

+24V

MTZJ T-72 30B

ZD952

+12V

MTZJ T-72 15B

A5V

Q970
PMBS3904

R969

R968

6.8K 1/4W

12

12

6.8K 1/4W

C956
100N 50V

D971

1N4148

D951

1N4148

1K 1/8W

R984

C947
100N 50V

R983

C978
100N 50V

+5V

R961

10KOHM +-5% 1/8W

R963

10KOHM +-5% 1/8W

R981

100OHM +-5% 1/8W

R982
1K 1/8W

PS_ON

CN902

1
2

ON/OFF

3

PDIM

4

+12V

5
6
7
8

+24V

9

10

PS_ON

11
12

+5V

13

ACD

CONN

54

B+_390V

R801

0.1 ohm

DR1

DR2

PDIM

10KOHM +-5% 1/8W

R830

D801

SCS0520P

R831NC

C805

2.2U25V

D802

SCS0520P

T802

1 9

POWER X'FMR

R832

75K 1/4W

R846
NC

C812
1N 50V

VS1

VS2

R801

54

7
10

R845
NC

R833

3.3MOHM +-1% 1/4W

C813
330P 50V

R834

680K

D808

2

3

1

BAV70

+12V

C814
NC

1K 1/4W

D803

SCS0520P

100 OHM 1/8W

R802

D804

SCS0520P

R803

100 OHM 1/8W

75K 1/4W

R836

R837

100K 1/8W

R816

10K 1/8W

R835

Q802

AOTF12N50

R817

10K 1/8W

C810

100uF 50V

ZCS

C821

15N 50V

Q801

AOTF12N50

C804

0.001uF /1KV

+

C803

0.001uF/1KV

C811

0.1uF 50V

IC801

1

DRV1

2

GND

3

ZCS

4

RT1

5

CT

6

LCT

7

PDIM

SSTCMP

VSEN8ISEN

OZ9976GN-C -0-TR

VREF

DRV2

VREF

ENA

ADIM

TIMER

VIN

C801

1uF/450V

4 7

2 6

C802

1uF/450V

16
15
14
13
12
11
10
9

1M5 +-1% 1/8W

T801

POWER X'FMR

IS2

R815
NC

R847

C815

47N 50V

C820

1.2nF 50V

C806

15PF/3KV

C807

1N5 50V

R814
100 OHM 1/8W

DR2DR1

ENA

ISEN

R843
470 OHM 1/4W

R844
10KOHM +-5% 1/8W

R843 680 OHM 1% for HD
R843 470 OHM 1% for FHD

R813 R808

ZCS

VREF

R840
1M 1/8W

R841

51K +-5% 1/8W
C816
2U2 25V

D807

3

BAV70

R804
51K +-5% 1/8W

2

3

150K 1/4W 5%

C817

0.22uF 50V

2

1

1

T803

3mH

4

R838

10K 1/4W

R839

75k+/-5%

R842

IS1

IS2

VP1

R805
51K +-5% 1/8W

R806

IS1

R811R812

ON/OF F

VS1

33KOHM +-1% 1/8W

C808

15PF/3KV

R809

51K +-5% 1/8W

C809
1N5 50V

R810

R810 R811 R812 R813 33R 1% 1206 FOR HD
R810 R811 R812 R813 27R 1% 1206 FOR FHD

Q803
RK7002FD5T116

C819

C818

4N7 50V

2.2U25V

R807
51K +-5% 1/8W

33KOHM +-1% 1/8W

ISEN

Q804
PMBS3904

Q805
PMBS3904

VS2

R820
51K +-5% 1/8W

R822
10KOHM +-5% 1/8W

R823

1M 1/8W

R825
10KOHM +-5% 1/8W

R826

1M 1/8W

VREF

C830
1uF 25V

C831
1uF 25V

R821

2K 1/8W

R824

2K 1/8W

CN801

2
1

CONN

CN802

2
1

CONN

D805

1N4148

IS1

D806

1N4148

IS2

55

9.3 Key Board

715G3814K01004004S

SW01

CN01

65

CONN

33G8032 4F HR

R01

7K5 1/8W +/-1%

C01

NC

TACT SW FWRD H1.5MM

SW02

VOL-

VOL+

R02

2K7 +- 1% 1/8W

C02

NC

TACT SW FWRD H1.5MM

SW03

CH+

R03

1K8 +/ -1% 1/8W

1
2
3
4

PWR-SW
FUNC_KEY

R04

1K 1/8W 1%

C03

NC

C04

NC

TACT SW FWRD H1.5MM

SW04

CH-

TACT SW FWRD H1.5MM

SW05

MENU

FUNC_KEY

PWR-SW

R07
750OHM +- 1% 1/8W

R08
750OHM +- 1% 1/8W

R05

750OHM +- 1% 1/8W

C05

NC

C06

NC

C07

NC

TACT SW FWRD H1.5MM

SW06

Source Select

TACT SW FWRD H1.5MM

SW07

Power ON/OFF

TACT SW FWRD H1.5MM

77G 607 2 FD

2.48V~2.72V

2.04V~2.22V

1.58V~1.79V

1.24~1.45V

0.85V~1.02V

0.47V~0.63V

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

01-Keypad

56

OEM MO DE L

TPV MO DE L

PCB NAME

Sheet

715GXXXX

11Monday, January 18, 2010

of

Size

Rev

称爹

A

<

称爹

Custom

>

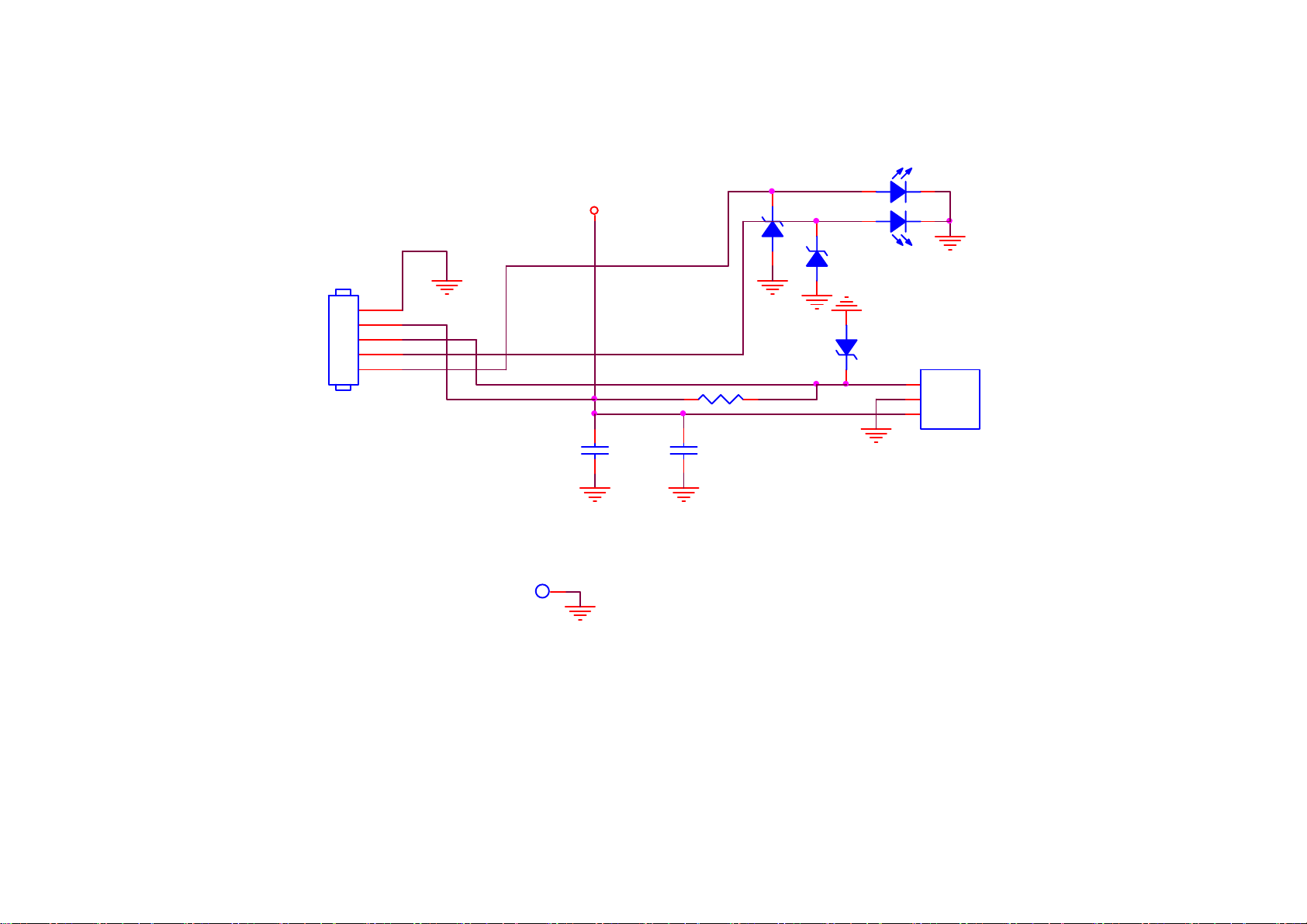

9.4 IR Board

715G3821R03000004M

LED01

LED

BLUE

CN01

5
4
3
2
1

CONN

33G8032 5F HR

LED_B

IRRV

GND01

VCC

ZD02

RLZ5.6B

LED_R

R001 15K 1/10W

C01

100N 50V

1

C02

NC/4.7uF/16V

BLUE

4

RED

ZD03

1 2

RLZ5.6B(NC)

81T 14 24 EL

1 2

12

RLZ5.6B

ZD01

23

1

RED

U01

1

VOUT

2

GND

3

VCC

KSM-603TM2M

57

10. Exploded View

58

Item Description

1 DECO
2 BEZEL
3 LENS IR
4 POWER LENS
5 IR BOARD
6 SPEAKER
7 KEY COVER
8 KEY BUTTON

9 KEY BOARD
10 BRACKET 23 001G6021 1 SCREW(SPEAKER/BEZEL) 4
11 BASE HINGE_COVER 24 0Q1G1830 6120 SCREW(IR BOARD/BEZEL) 1
12 BASE STAND_COVER 25 0Q1G 940 14 47 CR3 SCREW(PANEL/BEZEL) 2
13 BASE 26 0M1G1730 6120 SCREW(MAIN BOARD/PANEL/POWER BOARD) 8
14 VESA-BKT-TOP 27 0Q1G 330 8 47 CR3 SCREW(MAIN BOARD/SIDE BKT) 1
15 BRACKET PANEL_SUPPORT_TOP_L 28 0M1G 330 6 47 CR3 SCREW(MAIN BOARD/SIDE BKT) 1
16 BRACKET PANEL_SUPPORT_TOP_R 29 0M1G1740 6120
17 REAR COVER 30 0M1G 330 6 47 CR3 SCREW(MAIN BOARD/BTM BKT) 1
18 PANEL 31 0M1G1740 14 47 CR3 SCREW(HINGE BKT/HINGE COVER) 2
19 POWER BOARD 32 0Q1G 940 25 47 CR3 SCREW(STAND/HINGE COVER) 4
20 MAIN BOARD 33 0Q1G 940 25 47 CR3 SCREW(BASE/STAND) 4
21 BKT-PCB-RA-SIDE 34 0M1G 940 8 47 CR3 SCREW(REAR COVER/VESA/BKT/HINGE BKT) 6
22 BKT-PCB-MAIN-BOT 35 0Q1G 940 16 47 CR3 SCREW(REAR COVER/BEZEL) 10

Item Part No. Description Qty

SCREW(BKT/PANEL/VESA/HINGE BKT）

9

59

11. BOM List

Note: The parts information listed below are for reference only, and are subject to change without notice.
Please go to http://cs.tpv.com.cn/hello1.asp

E32BGZNSW3AENNX

Location Part No. Description Remark

052G 1185 1 BIG TAPE(Y1200141)
052G 1185 1 BIG TAPE(Y1200141)
052G 1186 SMALL TAPE
052G 1209 A TASMA ALUMINIOWA
052G 1209 A TASMA ALUMINIOWA
052G 2191 A PAPER TAPE
052G 2191 A PAPER TAPE

ECN701 095G801313D 41 HARNESS 13P-13P 100MM FQE102864I
ECN408 095G801832D 1 HARNESS 30P-32P 300MM FQE102863I
ECN802 095G8019 3D919 HARNESS 3P-2P 300MM FQE92029I 2nd source
ECN801 095G8019 3D920 HARNESS 3P-2P 1000MM FQE92030I 2nd source
ECN802 095G8019 3X919 HARNESS 3P-2P 300MM PANELTF0016
ECN801 095G8019 3X920 HARNESS 3P-2P 1000MM PANELTF0014

0M1G 940 8 47 CR3 SCREW 4X8
0M1G1730 6120 SCREW 3X6
0M1G1740 6120 SCREW
0M1G1740 14 47 CR3 SCREW
0M1G1830 8120 SCREW
0Q1G 940 14 47 CR3 SCREW
0Q1G 940 16 47 CR3 SCREW 4X16
705TXB33J06 PLASTIC ASS'Y
A33T0788ADTB1L01BA KEY COVER
A33T0789AFL 1L0100 KEY BUTTON
Q12G6082 1 FOOT PAD
Q36T 600 37 27 GP NONWOVEN FABRIC
705TXB34J54 REAR COVER ASS'Y 32"
A15T0282201 BKT-VESA-BTM
A34T1580 GM 1G01BA REAR COVER_32
Q12G6300253 RUBBER PAD
Q16G0001 10 12 EVA WASHER
Q16G0001 20 46 EVA WASHER
Q36T 600 35 2 GP NONWOVEN FABRIC
Q36T 600 40 1 NON-WOVEN FABRIC
X40G2010 40X01 LABEL IO
705TXB34J59 BEZEL ASS'Y
Q33T0379 ED 1C0100 LENS IR
Q33T0380 1 1C0100 POWER LENS
Q34T7081AFLF2L0130 BEZEL_TV32W-10A-CITA
Q35T0071BBV 1L0100 DECO
Q44T3231 21 27 EVA WASHER
Q44T3231 21 28 EVA WASHER
705TXB34J64 BASE ASS'Y 32"
0Q1G 940 25 47 CR3 SCREW
P34T0681 GM 1L02BA BASE
P34T0682 GM 1L0300 BASE STAND_COVER
P34T0683 GM 1A01BA BASE HINGE_COVER
X12G8009 1 RUBBER FOOT

for the latest information.

60

E750 750TAG320ECC16N000 LCD LC320WXE-SCC1 XM LGD
E750 750TVG320ECC13N000 LCD LC320WXE-SCC1 GZ LGD 2nd source

756TXBCB ZK081 00 MAIN BOARD-CBPFBZAKXV

U405 056G2233 34 FLASH MX25L3206EM2I-12G 32MB SOP-8

SMTF-U405 100TAZGK003K1X EPI_LC32W163_NA_FLASH_V2.00_C50A

040G 45762412B CBPC LABEL

CN401 033G380212B YH WAFER 12P 2.0 DIP

C732 067G215C2206KV EC 22UF 20% 35V EM 8*9
C678 067G215C4706CV EC 47UF 20% 35V 8*9
C744 067G215H221 3C EC 220UF 20% 16V 8*7
C406 067G215H221 3C EC 220UF 20% 16V 8*7

C651 067G515L3316LV EC 330UF 20% 35V 10*9 7000 HR
CN604 088G 30211K PHONE JACK 7PIN
CN602 088G 30211K PHONE JACK 7PIN
CN102 088G 30265C PHONE JACK 3P GREEN - 1 1
CN101 088G 35315FHDS D-SUB CONN R/A 15P BLUE H=10
CN101 088G 35315FHXS D-SUB CONN SCREWED R/A BLUE 15P H=10
CN603 088G 359 9 JT FIBER-OPTIC JACK R/A 3P BLACK H=10
CN111 088G 78G152ACL RCA JACK R/A 12P G/BL/R/W/R 1*5 H=10.5
CN104 088G352E4B2ACL FOR HITACHI USB A TYPE 4P BLACK H=7.5

X401 093G 22941 J CRYSTAL NXS25.000AC12F-KAB7 25M 30 12P
TU101 094GNTAT MA10M TUNER USA ENV56U04D8F
CN408 311GW200C32ABL WAFER 2.0MM 32P
CN601 311GW250B04BBX WAFER 2.5MM 4P
CN701 311GW250B13BBX WAFER 2.5MM 13P R/A 35MM 7MM

709T4522 XM001 COMSUPTIVE ASS'Y
055G 23524 WELDING FLUX WITHOUT PB
Q55G 100625 TIN STICK_LOW ARGENTUM
P85T0148103 SHIELD FOR U401 AND U402
Q85G 583598 SHIELD

U707 056G 379150 IC G5692P11U SOP-8
U401 056G 562A04 SCALER ZR39748BGCG A3 BGA-365
U704 056G 563 75 G1084-33T43UF TO-252
U705 056G 563114 IC G1117-33T63UF 1A/3.3V SOT-223
U709 056G 563155 LDO G9084-50TU3U 5.0A/5V TO-263T
U711 056G 563156 IC G9141T11U SOT23-5
U710 056G 563156 IC G9141T11U SOT23-5
U703 056G 563156 IC G9141T11U SOT23-5
U706 056G 563179 DC/DC CONVERTER IC SC189ASKTRT SOT23-5
U701 056G 563515 LDO AZ1117D-3.3TR/E1 1A/3.3V TO-252
U602 056G 593 39 IC STA339BWTR POWERSSO36
U402 056G 615117 DRAM W9751G6JB-18 WBGA-84 512MB
U404 056G 643 46 IC RESET AZ809ANSTR-E1 SOT-23 2.93V
U409 056G 665528 OTHERS IC G5250M1T1U 1A SOT23-5
U406 056G1133153 IC EEPROM CAT24C64WI-GT3 SOP8 64KB
U405 056G2233 34 FLASH MX25L3206EM2I-12G 32MB SOP-8
U105 056G4LVCG17 TI IC SN74LVC1G17DBVR STO-23
U103 056G4LVCG17 TI IC SN74LVC1G17DBVR STO-23
Q706 057G 417511 MMBT3904
Q707 057G 417511 MMBT3904
Q703 057G 417511 MMBT3904
Q404 057G 417511 MMBT3904
Q402 057G 417512 MMBT3906
Q702 057G 763 79 FET AO4449 -7A/-30V SOIC-8

61

Q403 057G 763982 MOSFET AO4485L -10A -40V SOIC-8
R464 061G04021000FT RST CHIP 100R 1/16W 1%
R465 061G04021000FT RST CHIP 100R 1/16W 1%
R433 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R401 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R403 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R404 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R432 061G0402102 JI RST 0402 1K 5% 1/16W TA-I
R406 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R426 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R431 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R445 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R446 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R449 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R450 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R448 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R466 061G04021500FI CHIP 150R 1/16W 1% TA-I
R487 061G04021501FF RST CHIP 1K5 1/16W 1% FENGHUA
R756 061G04021501FF RST CHIP 1K5 1/16W 1% FENGHUA
R758 061G04021502FF RST 0402 15K 1% 1/16W FENGHUA
R479 061G0402182 JY RST CHIPR 1.8KOHM 5% 1/16W YAGEO
R103 061G0402202 JF RST CHIPR 2KOHM +-5% 1/16W FENGHUA
R119 061G0402221 JT RST CHIPR 220R +-5% 1/16W TZAI YUAN
R126 061G0402221 JT RST CHIPR 220R +-5% 1/16W TZAI YUAN
R491 061G0402221 JT RST CHIPR 220R +-5% 1/16W TZAI YUAN
R492 061G0402221 JT RST CHIPR 220R +-5% 1/16W TZAI YUAN
R619 061G0402221 JT RST CHIPR 220R +-5% 1/16W TZAI YUAN
R620 061G0402221 JT RST CHIPR 220R +-5% 1/16W TZAI YUAN
R757 061G0402221 JT RST CHIPR 220R +-5% 1/16W TZAI YUAN
R480 061G04023900FF RST CHIPR 390 OHM +-1% 1/16W FENGHUA
R402 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R418 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R422 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R435 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R436 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R440 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R441 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R496 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R614 061G04029531FT RST CHIP 9.53K 1/16W 1% TZAI YUAN
R722 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R6A1 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R697 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R694 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R452 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R484 061G0603000 JI RST 0603 0.05R MAX 1/10W TA-I
R727 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA
R702 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R659 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R623 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R115 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R107 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R102 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R101 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R742 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

62

R515 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R469 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R111 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R109 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R747 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R743 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R707 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R706 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R610 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R609 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R604 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R601 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R538 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R532 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R517 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R516 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R486 061G0603103 JI RST 0603 10K 5% 1/10W
R485 061G0603104 JI TEST ONLY RST 0603 100K 5% 1/16W TA-I
R719 061G0603123 JY RST CHIPR 12KOHM 1/10W YAGEO
R425 061G06031500FI RST 0603 150R 1% 1/10W
R715 061G06031501FF RST CHIPR 1.5K OHM +-1% 1/10W FENGHUA
R718 061G06031502FY RST CHIP 15K 1/10W 1%
R723 061G06031502FY RST CHIP 15K 1/10W 1%
R732 061G06031502FY RST CHIP 15K 1/10W 1%
R754 061G06031502FY RST CHIP 15K 1/10W 1%
R454 061G0603152 JI RST 0603 1.5K 5% 1/10W
R415 061G0603182 JT RST CHIPR 1.8KOHM 1/10W TZAI YUAN
R721 061G06032200FT RST CHIP 220R 1/10W 1%
R717 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R116 061G0603222 JF RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA
R117 061G0603222 JF RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA
R416 061G0603222 JF RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA
R657 061G0603222 JF RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA
R725 061G0603223 JF RST CHIPR 22KOHM 5% 1/10W FENGHUA
R748 061G0603223 JF RST CHIPR 22KOHM 5% 1/10W FENGHUA
R613 061G0603229 JF RST CHIPR 2.2 OHM 5% 1/10W FENGHUA
R693 061G0603229 JF RST CHIPR 2.2 OHM 5% 1/10W FENGHUA
R752 061G06032701FF RST CHIPR 2.7KOHM +-1% 1/10W FENGHUA
R726 061G0603303 JT RST CHIP 30K 1/10W 5% TZAI YUAN
R475 061G0603330 JT RST CHIP 33R 1/10W 5% TZAI YUAN
R460 061G0603332 JF RST CHIPR 3.3KOHM 5% 1/10W FENGHUA
R451 061G06033901FT RST CHIP 3K9 1/10W 1%
R133 061G0603470 JT RST CHIP 47R 1/10W 5% TZAI YUAN
R134 061G0603470 JT RST CHIP 47R 1/10W 5% TZAI YUAN
R136 061G0603470 JT RST CHIP 47R 1/10W 5% TZAI YUAN
R104 061G0603471 JF RST CHIPR 470OHM +-5% 1/10W FENGHUA
R105 061G0603471 JF RST CHIPR 470OHM +-5% 1/10W FENGHUA
R745 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R653 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R537 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R531 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R488 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R428 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R414 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

63

R413 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R121 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R120 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R724 061G0603473 JT RST CHIP 47K 1/10W 5% TZAI YUAN
R720 061G0603473 JT RST CHIP 47K 1/10W 5% TZAI YUAN
R483 061G0603473 JT RST CHIP 47K 1/10W 5% TZAI YUAN
R427 061G06036041FF RST CHIPR 6.04KOHM +-1% 1/10W FENGHUA
R753 061G06036200FT RST CHIP 620R 1/10W 1%
R728 061G0603622 JF RST CHIPR 6.2KOHM +-5% 1/10W FENGHUA
R139 061G06037509FT RST CHIP 75R 1/10W 1%
R138 061G06037509FT RST CHIP 75R 1/10W 1%
R137 061G06037509FT RST CHIP 75R 1/10W 1%
R114 061G06037509FT RST CHIP 75R 1/10W 1%
R113 061G06037509FT RST CHIP 75R 1/10W 1%
R112 061G06037509FT RST CHIP 75R 1/10W 1%
R730 061G06038200FT RST CHIP 820R 1/10W 1%
R472 061G06038200FY RST CHIP 820R 1/10W 1%
R494 061G0805104 JY RST CHIPR 100KOHM 1/8W YAGEO
R755 061G0805229 JF RST CHIPR 2R2 +-5% 1/8W FENGHUA
R750 061G0805229 JF RST CHIPR 2R2 +-5% 1/8W FENGHUA
R482 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R655 061G1206100 JF RST CHIPR 10 OHM +-5% 1/4W FENGHUA
R658 061G1206100 JF RST CHIPR 10 OHM +-5% 1/4W FENGHUA
R664 061G1206100 JF RST CHIPR 10 OHM +-5% 1/4W FENGHUA
R665 061G1206100 JF RST CHIPR 10 OHM +-5% 1/4W FENGHUA
R663 061G1206220 JF RST CHIPR 22 OHM +-5% 1/4W FENGHUA
R654 061G1206220 JF RST CHIPR 22 OHM +-5% 1/4W FENGHUA
R736 061G1206229 JF RST CHIPR 2.2 OHM +-5% 1/4W FENGHUA
C421 065G040210503K 3 CAP 0402 1UF 10% 6.3V X6S
C623 065G040210503K 3 CAP 0402 1UF 10% 6.3V X6S
C489 065G040210503K 3 CAP 0402 1UF 10% 6.3V X6S
C486 065G040210503K 3 CAP 0402 1UF 10% 6.3V X6S
C482 065G040210503K 3 CAP 0402 1UF 10% 6.3V X6S
C480 065G040210503K 3 CAP 0402 1UF 10% 6.3V X6S
C477 065G040210503K 3 CAP 0402 1UF 10% 6.3V X6S
C474 065G040210503K 3 CAP 0402 1UF 10% 6.3V X6S
C461 065G040210503K 3 CAP 0402 1UF 10% 6.3V X6S
C460 065G040210503K 3 CAP 0402 1UF 10% 6.3V X6S
C451 065G040210503K 3 CAP 0402 1UF 10% 6.3V X6S
C450 065G040210503K 3 CAP 0402 1UF 10% 6.3V X6S
C440 065G040210503K 3 CAP 0402 1UF 10% 6.3V X6S
C720 065G0402105A5K 3 CAP CHIP 0402 1UF K 10V X5R
C610 065G0402105A5K 3 CAP CHIP 0402 1UF K 10V X5R
C609 065G0402105A5K 3 CAP CHIP 0402 1UF K 10V X5R
C608 065G0402105A5K 3 CAP CHIP 0402 1UF K 10V X5R
C605 065G0402105A5K 3 CAP CHIP 0402 1UF K 10V X5R
C468 065G0402105A5K 3 CAP CHIP 0402 1UF K 10V X5R
C419 065G0402105A5K 3 CAP CHIP 0402 1UF K 10V X5R
C138 065G040220131J M CAP 0402 200PF 5% 50V NP0
C490 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5%
C612 065G040222131J T CAP CHIP 0402 220PF 50V NPO
C611 065G040222131J T CAP CHIP 0402 220PF 50V NPO
C139 065G040239232K Y CAP 0402 3.9NF 10% 50V X7R
C135 065G040247312K A CAP 0402 47NF 10% 16V X7R

64

C134 065G040247312K A CAP 0402 47NF 10% 16V X7R
C133 065G040247312K A CAP 0402 47NF 10% 16V X7R
C131 065G040247312K A CAP 0402 47NF 10% 16V X7R
C130 065G040247312K A CAP 0402 47NF 10% 16V X7R
C129 065G040247312K A CAP 0402 47NF 10% 16V X7R
C660 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C659 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C658 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C655 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C654 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C649 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C646 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C645 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C447 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C767 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C704 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C764 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C761 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C743 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C742 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C738 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C733 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C730 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C726 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C725 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C664 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C665 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C666 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C667 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C670 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C673 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C676 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C677 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C707 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C715 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C719 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C769 065G060310512K T CAP 0603 1UF 10% 16V X7R
C766 065G060310512K T CAP 0603 1UF 10% 16V X7R
C741 065G060310512K T CAP 0603 1UF 10% 16V X7R
C729 065G060310512K T CAP 0603 1UF 10% 16V X7R
C727 065G060310512K T CAP 0603 1UF 10% 16V X7R
C716 065G060310512K T CAP 0603 1UF 10% 16V X7R
C703 065G060310512K T CAP 0603 1UF 10% 16V X7R
C103 065G060310512K T CAP 0603 1UF 10% 16V X7R
C487 065G060322422K Y CAP 0603 220N 25V X7R 10%
C417 065G0603225A5K T CAP 0603 2.2UF 10% 10V X5R
C736 065G060333412K A CAP 0603 330NF 10% 16V X7R
C718 065G0603475A5K M CAP CHIP 0603 4.7UF K 10V X5R
C721 065G0603475A5K M CAP CHIP 0603 4.7UF K 10V X5R
C770 065G0603475A5K M CAP CHIP 0603 4.7UF K 10V X5R
C731 065G0603475A5K M CAP CHIP 0603 4.7UF K 10V X5R
C739 065G0603475A5K M CAP CHIP 0603 4.7UF K 10V X5R
C746 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R
C647 065G080510532K M CAP 0805 1UF 10% 50V X7R

65

C648 065G080510532K M CAP 0805 1UF 10% 50V X7R
C452 065G080510606K M CAP 0805 10UF 10% 6.3V X6S
C458 065G080510606K M CAP 0805 10UF 10% 6.3V X6S
C462 065G080510606K M CAP 0805 10UF 10% 6.3V X6S
C446 065G080510615K M CAP CHIP 0805 10UF K 16V X5R
C765 065G0805106A5K 3 CHIP 10UF 10V X5R 10%
C762 065G0805106A5K 3 CHIP 10UF 10V X5R 10%
C745 065G0805106A5K 3 CHIP 10UF 10V X5R 10%
C740 065G0805106A5K 3 CHIP 10UF 10V X5R 10%
C735 065G0805106A5K 3 CHIP 10UF 10V X5R 10%
C734 065G0805106A5K 3 CHIP 10UF 10V X5R 10%
C613 065G0805106A5K 3 CHIP 10UF 10V X5R 10%
C442 065G0805106A5K 3 CHIP 10UF 10V X5R 10%
C441 065G0805106A5K 3 CHIP 10UF 10V X5R 10%
C407 065G0805475A5K 3 CAP MLCC 0805 4.7UF K 10V X5R
C616 067G 3112213CT EC SMD 220UF 16V HV 6.3*7.7
C622 067G 3112213CT EC SMD 220UF 16V HV 6.3*7.7
C724 067G 3112213CT EC SMD 220UF 16V HV 6.3*7.7
C737 067G 3112213CT EC SMD 220UF 16V HV 6.3*7.7

C714 067G311R1013CT EC SMD 100UF 20% 16V ZV 6.3*5.5
FB704 071G 56G301 EA CHIP BEAD 0805 300R 25% 4000MA
FB706 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF
FB610 071G 59B601 MA CHIP BEAD
FB421 071G 59B601 MA CHIP BEAD
FB420 071G 59B601 MA CHIP BEAD
FB419 071G 59B601 MA CHIP BEAD
FB418 071G 59B601 MA CHIP BEAD
FB415 071G 59B601 MA CHIP BEAD
FB413 071G 59B601 MA CHIP BEAD
FB403 071G 59B601 MA CHIP BEAD
FB416 071G 59C600 TA CHIP BEAD 0603 60R 25% 600MA
FB601 071G 59G301 TA CHIP BEAD 300OHM 200MA FCM1608KF-301T02
FB602 071G 59G301 TA CHIP BEAD 300OHM 200MA FCM1608KF-301T02
FB406 071G 59G301 TA CHIP BEAD 300OHM 200MA FCM1608KF-301T02
FB701 071G 59G301 TA CHIP BEAD 300OHM 200MA FCM1608KF-301T02
FB707 071G 59G301 TA CHIP BEAD 300OHM 200MA FCM1608KF-301T02
FB101 071G 59K300 B CHIP BEAD 0603 30R 25% 700MA
FB102 071G 59K300 B CHIP BEAD 0603 30R 25% 700MA
FB103 071G 59K300 B CHIP BEAD 0603 30R 25% 700MA
FB104 071G 59K300 B CHIP BEAD 0603 30R 25% 700MA
FB105 071G 59K300 B CHIP BEAD 0603 30R 25% 700MA
FB106 071G 59K300 B CHIP BEAD 0603 30R 25% 700MA
FB609 071G 59K300 B CHIP BEAD 0603 30R 25% 700MA
FB613 071G 59K300 B CHIP BEAD 0603 30R 25% 700MA
FB411 071G 59L121 M CHIP BEAD 0603 120R 0.3A
FB506 071G 59L121 M CHIP BEAD 0603 120R 0.3A
FB608 071G3216330 6M CHIP BEAD 1206 33 OHM 25% 6A
FB703 071G3216330 6M CHIP BEAD 1206 33 OHM 25% 6A
FB412 071G3216330 6M CHIP BEAD 1206 33 OHM 25% 6A

L102 073G 8515810K CHIP INDUCTOR 0.15UH 10% 0805
L103 073G 852285TA CHIP INDUCTOR 0.22UH 5% 0805
L101 073G 852285TA CHIP INDUCTOR 0.22UH 5% 0805
L604 073G253S 83 DN HF SMD CHOKE 47UH 20% 0.13R LZ.2B470.A2P
L603 073G253S 83 DN HF SMD CHOKE 47UH 20% 0.13R LZ.2B470.A2P

66

L602 073G253S 83 DN HF SMD CHOKE 47UH 20% 0.13R LZ.2B470.A2P

L601 073G253S 83 DN HF SMD CHOKE 47UH 20% 0.13R LZ.2B470.A2P
CN506 088G 34019E AT DMI HEADER 19P H:11.38MM
ZD515 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23
ZD103 093G 64 37 N VPORT0603100KV05
ZD104 093G 64 37 N VPORT0603100KV05
ZD105 093G 64 37 N VPORT0603100KV05
ZD106 093G 64 37 N VPORT0603100KV05
ZD107 093G 64 37 N VPORT0603100KV05
ZD108 093G 64 37 N VPORT0603100KV05
ZD109 093G 64 37 N VPORT0603100KV05
ZD111 093G 64 37 N VPORT0603100KV05
ZD112 093G 64 37 N VPORT0603100KV05
ZD113 093G 64 37 N VPORT0603100KV05
ZD110 093G 60S902 T DIODE BAT54 SOT-23 PHILIPS
ZD101 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD102 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD511 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD512 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ

Q504 057G 763996 MOSFET 2N7002KDW 0.115 60V SOT-363
FB617 071G 59G301 TA CHIP BEAD 300OHM 200MA FCM1608KF-301T02
FB618 071G3216121 3M CHIP BEAD 3216 120OHM 25%
FB619 071G3216121 3M CHIP BEAD 3216 120OHM 25%
FB620 071G3216121 3M CHIP BEAD 3216 120OHM 25%

C470 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C476 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C491 065G060310605M M CAP 0603 10UF 20% 6.3V X5R

C147 065G0603225A5K M CAP MLCC 0603 2.2UF K 10V X5R

R498 061G0603000 JI RST 0603 0.05R MAX 1/10W TA-I

R499 061G0603000 JI RST 0603 0.05R MAX 1/10W TA-I
FB422 071G 59G301 TA CHIP BEAD 300OHM 200MA FCM1608KF-301T02
FB424 071G 59G301 TA CHIP BEAD 300OHM 200MA FCM1608KF-301T02
FB622 071G 59G301 TA CHIP BEAD 300OHM 200MA FCM1608KF-301T02
FB623 071G 59G301 TA CHIP BEAD 300OHM 200MA FCM1608KF-301T02
FB621 071G3216121 3M CHIP BEAD 3216 120OHM 25%

C728 067G 3112213CT EC SMD 220UF 16V HV 6.3*7.7

C758 067G311R1013CT EC SMD 100UF 20% 16V ZV 6.3*5.5

U608 056G 158501 IC AS431AN-E1 SOT23

U603 056G 616 55 AUDIO DRV602PW 870MW TSSOP-14

U606 056G 616916 IC MAX9728AETC+ TQFN-EP-12

U604 056G1124 3 IC PCM1754DBQR SSOP-16

Q601 057G 417511 MMBT3904

Q602 057G 417511 MMBT3904

Q603 057G 417511 MMBT3904

Q502 057G 763996 MOSFET 2N7002KDW 0.115 60V SOT-363

R632 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R633 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R635 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R6B5 061G0402151 JI RST 0402 150R 5% 1/16W

R6B6 061G0402151 JI RST 0402 150R 5% 1/16W

R682 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN

R505 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN

R672 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN

R502 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

67

R503 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R508 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R534 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R666 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R674 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R677 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R678 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R680 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN

R640 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN

R676 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN

R679 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN

R641 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN

R681 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN

R628 061G0603203 JT RST 0603 20K 5% 1/10W

R629 061G0603203 JT RST 0603 20K 5% 1/10W

R685 061G0603203 JT RST 0603 20K 5% 1/10W

R692 061G0603203 JT RST 0603 20K 5% 1/10W

R671 061G0603303 JT RST CHIP 30K 1/10W 5% TZAI YUAN

R624 061G0603393 JI RST 0603 39K 5% 1/10W

R625 061G0603393 JI RST 0603 39K 5% 1/10W

R507 061G0603472 JT RST CHIP 4K7 1/10W 5% TZAI YUAN

R533 061G0603472 JT RST CHIP 4K7 1/10W 5% TZAI YUAN

R626 061G0603393 JI RST 0603 39K 5% 1/10W

R627 061G0603393 JI RST 0603 39K 5% 1/10W

R630 061G0603473 JT RST CHIP 47K 1/10W 5% TZAI YUAN

R688 061G0603473 JT RST CHIP 47K 1/10W 5% TZAI YUAN

R689 061G0603473 JT RST CHIP 47K 1/10W 5% TZAI YUAN

R670 061G0603513 JT RST CHIP 51K 1/10W 5% TZAI YUAN

R695 061G0603913 JI RST 0603 91K 5% 1/10W

R6B1 061G0603913 JI RST 0603 91K 5% 1/10W

C6B2 065G040222322K Y CAP 0402 22NF 10% 25V X7R

C6B3 065G040222322K Y CAP 0402 22NF 10% 25V X7R

C691 065G060347031J F CAP CHIP 0603 47PF J 50V NPO

C692 065G060347031J F CAP CHIP 0603 47PF J 50V NPO

C637 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C679 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C682 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C620 065G060310512K T CAP 0603 1UF 10% 16V X7R

C624 065G060310512K T CAP 0603 1UF 10% 16V X7R

C629 065G060310512K T CAP 0603 1UF 10% 16V X7R

C632 065G060310512K T CAP 0603 1UF 10% 16V X7R

C633 065G060310512K T CAP 0603 1UF 10% 16V X7R

C681 065G060310512K T CAP 0603 1UF 10% 16V X7R

C683 065G060310512K T CAP 0603 1UF 10% 16V X7R

C684 065G060310512K T CAP 0603 1UF 10% 16V X7R

C697 065G060310512K T CAP 0603 1UF 10% 16V X7R

C635 065G0603225A5K M CAP MLCC 0603 2.2UF K 10V X5R

C638 065G0603225A5K M CAP MLCC 0603 2.2UF K 10V X5R

C689 065G060347031J F CAP CHIP 0603 47PF J 50V NPO

C690 065G060347031J F CAP CHIP 0603 47PF J 50V NPO

C621 065G0805106A5K 3 CHIP 10UF 10V X5R 10%

C639 065G0805106A5K 3 CHIP 10UF 10V X5R 10%

C634 067G311R1004CT EC SMD 10UF 20% 25V ZV 4*5.5
FB603 071G 59G301 TA CHIP BEAD 300OHM 200MA FCM1608KF-301T02

68

FB606 071G 59G301 TA CHIP BEAD 300OHM 200MA FCM1608KF-301T02
FB607 071G 59G301 TA CHIP BEAD 300OHM 200MA FCM1608KF-301T02
FB615 071G 59G301 TA CHIP BEAD 300OHM 200MA FCM1608KF-301T02
FB616 071G 59G301 TA CHIP BEAD 300OHM 200MA FCM1608KF-301T02
FB614 071G 59K300 B CHIP BEAD 0603 30R 25% 700MA
FB501 071G 59L121 M CHIP BEAD 0603 120R 0.3A

L605 073G253S132 M CHIP INDUCTOR 3225 150UH 10% 220MA

L606 073G253S132 M CHIP INDUCTOR 3225 150UH 10% 220MA
CN501 088G 34019E AV HDMI HEADER 19P BLACK -
ZD513 093G 60505 SCHOTTKY BAT54C 0.2A 30V SOT-23

D602 093G 6432P LL4148
D603 093G 6432P LL4148

D601 093G 60S 15 T SCHOTTKY RB160M 60 TR 1A 60V SOD-123
ZD504 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD505 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD605 093G 64 37 N VPORT0603100KV05
ZD606 093G 64 37 N VPORT0603100KV05

R498 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN

R499 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN

R476 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN

R437 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN

R412 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN

R411 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN

R125 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN

R118 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN

R476 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO

R437 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO

R412 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO

R411 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO

R125 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO

R118 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO

R612 061G0603133 JT RST CHIPR 13K +-5% 1/10W TZAI YUAN

R611 061G0603133 JT RST CHIPR 13K +-5% 1/10W TZAI YUAN

R608 061G0603133 JT RST CHIPR 13K +-5% 1/10W TZAI YUAN

R607 061G0603133 JT RST CHIPR 13K +-5% 1/10W TZAI YUAN

R612 061G0603133 JI RST 0603 13K 5% 1/10W

R611 061G0603133 JI RST 0603 13K 5% 1/10W

R608 061G0603133 JI RST 0603 13K 5% 1/10W

R607 061G0603133 JI RST 0603 13K 5% 1/10W

R415 061G0603182 JY RST 0603 1.8K 5% 1/10W

R721 061G06032200FY RST CHIPR 220 OHM +-1% 1/10W

R451 061G06033901FY RST CHIP 3K9 1/10W 1%

C140 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5%

C141 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5%

C142 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5%

C6C1 065G0603475A5K M CAP CHIP 0603 4.7UF K 10V X5R
C6C2 065G0603475A5K M CAP CHIP 0603 4.7UF K 10V X5R

R6B7 061G0603104 JI TEST ONLY RST 0603 100K 5% 1/16W TA-I

R6B8 061G0603104 JI TEST ONLY RST 0603 100K 5% 1/16W TA-I

R6B9 061G0603104 JI TEST ONLY RST 0603 100K 5% 1/16W TA-I

R6C1 061G0603104 JI TEST ONLY RST 0603 100K 5% 1/16W TA-I

R667 061G0603332 JI RST 0603 3.3K 5% 1/10W

C717 065G080510532K M CAP 0805 1UF 10% 50V X7R

C706 067G311R1013CT EC SMD 100UF 20% 16V ZV 6.3*5.5

69

C776 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

U707 056G 563345 DC/DC AT1528P11U 2A SOP-8

C777 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C773 065G060310512K T CAP 0603 1UF 10% 16V X7R

C774 065G060310512K T CAP 0603 1UF 10% 16V X7R

U712 056G 563352 LDO G9117-50T63U 1A 5V SOT-223

C757 067G311R1013CT EC SMD 100UF 20% 16V ZV 6.3*5.5

R4A8 061G0402101 JI BEST ONLY RST 0402 100R 5% 1/16W TA-I

R622 061G0402101 JI BEST ONLY RST 0402 100R 5% 1/16W TA-I

E715 715G4522M01000004K MAIN BOARD PCB
ZD601 093G 64 37 N VPORT0603100KV05
ZD602 093G 64 37 N VPORT0603100KV05
ZD603 093G 64 37 N VPORT0603100KV05
ZD604 093G 64 37 N VPORT0603100KV05
ZD607 093G 64 37 N VPORT0603100KV05
ZD608 093G 64 37 N VPORT0603100KV05
ZD609 093G 64 37 N VPORT0603100KV05
ZD405 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD407 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD408 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ

U408 056G 662 22 ESD PROTECT AZC199-02S SOT23-3L
R4B7 061G0402000 JI RST 0402 0.05R MAX 1/16W

709T4522 XS001 COMSUPTIVE ASS'Y
055G 100610 TIN CREAM W/O PB
052G6026 2 MESH PRINTTING PAPER
052G 2191 A PAPER TAPE

Q702 057G 600906 MOSFET P2003EVG SOP-8
Q502 057G 763991 MOSFET 2N7002PS 0.32A 60V SOT363

Q504 057G 763991 MOSFET 2N7002PS 0.32A 60V SOT363
ZD513 093G 60518SEM SCHOTTKY BAT54C-HAF 0.2A 30V SOT-23
ZD515 093G 60518SEM SCHOTTKY BAT54C-HAF 0.2A 30V SOT-23

D601 093G 60S500 T SCHOTTKY SS1060FL 1A 60V SOD123FL

R765 061G04022002FT RST 0402 20K 1% 1/16W

R766 061G04021302FI RST CHIP 13K 1/16W 1% TA-I

L702 073G253S 68 M SMD CHOKE 2.2UH 30% 0.031R 2A
L704 073G253S 68 M SMD CHOKE 2.2UH 30% 0.031R 2A

FB704 071G 56G301 MA CHIP BEAD 0805 300OHM 4A

C475 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C473 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C469 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C459 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C457 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C449 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C437 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C436 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C481 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C483 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C485 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C488 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C511 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C617 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C618 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C6A8 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C435 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

70

C101 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C112 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C113 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C120 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C124 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C137 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C402 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C405 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C434 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C433 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C432 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C431 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C422 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C420 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C418 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C415 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C423 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C501 065G040210412K A CAP CHIP 0402 100NF K 16V X7R

C102 065G060322232K A CAP 0603 2.2NF K 50V X7R

C104 065G060322232K A CAP 0603 2.2NF K 50V X7R

C132 065G040210232K A CAP 0402 1NF 10% 50V X7R

C105 065G040210232K A CAP 0402 1NF 10% 50V X7R

C109 065G040210232K A CAP 0402 1NF 10% 50V X7R

C106 065G040233031J A CAP 0402 33PF 5% 50V NP0

C107 065G040215031J A CAP 0402 15PF 5% 50V NP0

C108 065G040215031J A CAP 0402 15PF 5% 50V NP0

C110 065G040210031D A CAP CHIP 0402 10PF D 50V NPO

C111 065G040210031D A CAP CHIP 0402 10PF D 50V NPO

C722 065G040210332K A CAP 0402 10NF 10% 50V X7R

C471 065G040210332K A CAP 0402 10NF 10% 50V X7R

C467 065G040210332K A CAP 0402 10NF 10% 50V X7R

C439 065G040210332K A CAP 0402 10NF 10% 50V X7R

C438 065G040210332K A CAP 0402 10NF 10% 50V X7R

C430 065G040210332K A CAP 0402 10NF 10% 50V X7R

C416 065G040210332K A CAP 0402 10NF 10% 50V X7R

C146 065G040210332K A CAP 0402 10NF 10% 50V X7R

C136 065G040210332K A CAP 0402 10NF 10% 50V X7R

C424 065G040210332K A CAP 0402 10NF 10% 50V X7R

C428 065G040210332K A CAP 0402 10NF 10% 50V X7R

C775 065G040210332K A CAP 0402 10NF 10% 50V X7R

C401 065G060322422K A MLCC 0603 220NF 25V X7R +/-10% SAMSUNG

C403 065G060318031J A CAP CHIP 0603 18PF J 50V NPO

C404 065G060318031J A CAP CHIP 0603 18PF J 50V NPO

C496 065G040222232K A CAP 0402 2.2NF 10% 50V X7R

C615 065G060310131J A CAP CHIP 0603 100PF J 50V NPO SAMSUNG

C614 065G060310131J A CAP CHIP 0603 100PF J 50V NPO SAMSUNG

C607 065G060310131J A CAP CHIP 0603 100PF J 50V NPO SAMSUNG

C606 065G060310131J A CAP CHIP 0603 100PF J 50V NPO SAMSUNG

C640 065G060310131J A CAP CHIP 0603 100PF J 50V NPO SAMSUNG

C641 065G060310131J A CAP CHIP 0603 100PF J 50V NPO SAMSUNG

C619 065G040210131J A CAP CHIP 0402 100PF J 50V NPO

C6B8 065G040210131J A CAP CHIP 0402 100PF J 50V NPO

C6B9 065G040210131J A CAP CHIP 0402 100PF J 50V NPO

C627 065G060347412K A CAP 0603 470NF 10% 16V X7R

71

C628 065G060347412K A CAP 0603 470NF 10% 16V X7R

C650 065G060310232K A CAP CHIP 0603 1000PF K 50V X7R

C653 065G060310232K A CAP CHIP 0603 1000PF K 50V X7R

C657 065G060310232K A CAP CHIP 0603 1000PF K 50V X7R

C668 065G060310232K A CAP CHIP 0603 1000PF K 50V X7R

C672 065G060310232K A CAP CHIP 0603 1000PF K 50V X7R

C675 065G060310232K A CAP CHIP 0603 1000PF K 50V X7R

C671 065G080522432K A CAP 0805 220NF 10% 50V X7R

C652 065G080522432K A CAP 0805 220NF 10% 50V X7R

C674 065G060333131J A CAP CHIP 0603 330PF J 50V NPO

C669 065G060333131J A CAP CHIP 0603 330PF J 50V NPO

C656 065G060333131J A CAP CHIP 0603 330PF J 50V NPO

C662 065G060347232K A CAP CHIP 0603 4.7NF K 50V X7R

C768 065G060310232K Y CAP CHIP 0603 1N 50V X7R +/-10%

C772 065G060347232K A CAP CHIP 0603 4.7NF K 50V X7R

C663 065G060368131J A CAP CHIP 0603 680PF J 50V NPO

C6A9 065G040247312K A CAP 0402 47NF 10% 16V X7R

C6B1 065G040247312K A CAP 0402 47NF 10% 16V X7R

C771 065G060310332K A CAP 0603 10NF 10% 50V X7R

C747 065G060310332K A CAP 0603 10NF 10% 50V X7R

C702 065G060310332K A CAP 0603 10NF 10% 50V X7R

C701 065G060310332K A CAP 0603 10NF 10% 50V X7R

R702 061G0603101 JI RST 0603 100R 5% 1/10W TA-I

R659 061G0603101 JI RST 0603 100R 5% 1/10W TA-I

R623 061G0603101 JI RST 0603 100R 5% 1/10W TA-I

R115 061G0603101 JI RST 0603 100R 5% 1/10W TA-I

R107 061G0603101 JI RST 0603 100R 5% 1/10W TA-I

R102 061G0603101 JI RST 0603 100R 5% 1/10W TA-I

R101 061G0603101 JI RST 0603 100R 5% 1/10W TA-I

R103 061G0402202 JI RST 0402 2K 5% 1/16W

R105 061G0603471 JI TEST ONLY RST 0603 470R 5% 1/16W TA-I

R104 061G0603471 JI TEST ONLY RST 0603 470R 5% 1/16W TA-I

R742 061G0603102 JI TEST ONLY RST 0603 1K 5% 1/10W TA-I

R515 061G0603102 JI TEST ONLY RST 0603 1K 5% 1/10W TA-I

R469 061G0603102 JI TEST ONLY RST 0603 1K 5% 1/10W TA-I

R111 061G0603102 JI TEST ONLY RST 0603 1K 5% 1/10W TA-I

R109 061G0603102 JI TEST ONLY RST 0603 1K 5% 1/10W TA-I

R139 061G06037509FI RST 0603 75R 1% 1/10W

R138 061G06037509FI RST 0603 75R 1% 1/10W

R137 061G06037509FI RST 0603 75R 1% 1/10W

R114 061G06037509FI RST 0603 75R 1% 1/10W

R113 061G06037509FI RST 0603 75R 1% 1/10W

R112 061G06037509FI RST 0603 75R 1% 1/10W

R116 061G0603222 JI RST 0603 2.2K 5% 1/10W

R117 061G0603222 JI RST 0603 2.2K 5% 1/10W

R416 061G0603222 JI RST 0603 2.2K 5% 1/10W

R657 061G0603222 JI RST 0603 2.2K 5% 1/10W

R757 061G0402221 JI RST 0402 220R 5% 1/16W

R620 061G0402221 JI RST 0402 220R 5% 1/16W

R619 061G0402221 JI RST 0402 220R 5% 1/16W

R492 061G0402221 JI RST 0402 220R 5% 1/16W

R491 061G0402221 JI RST 0402 220R 5% 1/16W

R126 061G0402221 JI RST 0402 220R 5% 1/16W

R119 061G0402221 JI RST 0402 220R 5% 1/16W

72

R745 061G0603472 JI RST 0603 4.7K 5% 1/10W TA-I

R653 061G0603472 JI RST 0603 4.7K 5% 1/10W TA-I

R537 061G0603472 JI RST 0603 4.7K 5% 1/10W TA-I

R531 061G0603472 JI RST 0603 4.7K 5% 1/10W TA-I

R488 061G0603472 JI RST 0603 4.7K 5% 1/10W TA-I

R428 061G0603472 JI RST 0603 4.7K 5% 1/10W TA-I

R414 061G0603472 JI RST 0603 4.7K 5% 1/10W TA-I

R413 061G0603472 JI RST 0603 4.7K 5% 1/10W TA-I

R121 061G0603472 JI RST 0603 4.7K 5% 1/10W TA-I

R120 061G0603472 JI RST 0603 4.7K 5% 1/10W TA-I

R133 061G0603470 JI RST 0603 47R 5% 1/10W

R134 061G0603470 JI RST 0603 47R 5% 1/10W

R136 061G0603470 JI RST 0603 47R 5% 1/10W

R401 061G0402102 JI RST 0402 1K 5% 1/16W TA-I

R403 061G0402102 JI RST 0402 1K 5% 1/16W TA-I

R404 061G0402102 JI RST 0402 1K 5% 1/16W TA-I

R402 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I

R418 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I

R422 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I

R435 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I

R436 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I

R496 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I

R440 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I

R441 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I

R450 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I

R449 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I

R446 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I

R445 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I

R431 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I

R426 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I

R406 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I

R425 061G06031500FF RST CHIPR 150 OHM +-1% 1/10W FENGHUA

R427 061G06036041FI RST 0603 6.04K 1% 1/10W

R432 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA

R433 061G0402101 JI BEST ONLY RST 0402 100R 5% 1/16W TA-I

R448 061G0402104 JI TEST ONLY RST 0402 100K 5% 1/16W TA-I

R722 061G0603000 JI RST 0603 0.05R MAX 1/10W TA-I

R6A1 061G0603000 JI RST 0603 0.05R MAX 1/10W TA-I

R697 061G0603000 JI RST 0603 0.05R MAX 1/10W TA-I

R694 061G0603000 JI RST 0603 0.05R MAX 1/10W TA-I

R452 061G0603000 JI RST 0603 0.05R MAX 1/10W TA-I

R454 061G0603152 JY RST CHIPR 1.5KOHM £«-5£¥ 1/10W YAGEO

R460 061G0603332 JI RST 0603 3.3K 5% 1/10W

R465 061G04021000FI RST 0402 100R 1% 1/16W TA-I

R464 061G04021000FI RST 0402 100R 1% 1/16W TA-I

R466 061G04021500FF RST CHIPR 150OHM +-1% 1/16W FENGHUA

R472 061G06038200FT RST CHIP 820R 1/10W 1%

R479 061G0402182 JF RST CHIPR 1.8KOHM 5% 1/16W FENGHUA

R480 061G04023900FT RST CHIP 390R 1/16W 1%

R482 061G1206000 JI RST 1206 MAX0R05 5% 1/4W

R483 061G0603473 JI TEST ONLY RST 0603 47K 5% 1/16W TA-I

R720 061G0603473 JI TEST ONLY RST 0603 47K 5% 1/16W TA-I

R724 061G0603473 JI TEST ONLY RST 0603 47K 5% 1/16W TA-I

R630 061G0603473 JI TEST ONLY RST 0603 47K 5% 1/16W TA-I

73

R688 061G0603473 JI TEST ONLY RST 0603 47K 5% 1/16W TA-I

R689 061G0603473 JI TEST ONLY RST 0603 47K 5% 1/16W TA-I

R486 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R487 061G04021501FI RST 0402 1.5K 1% 1/16W TA-I

R756 061G04021501FI RST 0402 1.5K 1% 1/16W TA-I

R494 061G0805104 JF RST CHIPR 100KOHM +-5% 1/8W FENGHUA

R4A8 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R622 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R4B7 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN

R502 061G0603103 JI RST 0603 10K 5% 1/10W

R503 061G0603103 JI RST 0603 10K 5% 1/10W

R508 061G0603103 JI RST 0603 10K 5% 1/10W

R534 061G0603103 JI RST 0603 10K 5% 1/10W

R666 061G0603103 JI RST 0603 10K 5% 1/10W

R674 061G0603103 JI RST 0603 10K 5% 1/10W

R677 061G0603103 JI RST 0603 10K 5% 1/10W

R678 061G0603103 JI RST 0603 10K 5% 1/10W

R680 061G0603103 JI RST 0603 10K 5% 1/10W

R747 061G0603103 JI RST 0603 10K 5% 1/10W

R743 061G0603103 JI RST 0603 10K 5% 1/10W

R707 061G0603103 JI RST 0603 10K 5% 1/10W

R706 061G0603103 JI RST 0603 10K 5% 1/10W

R610 061G0603103 JI RST 0603 10K 5% 1/10W

R609 061G0603103 JI RST 0603 10K 5% 1/10W

R604 061G0603103 JI RST 0603 10K 5% 1/10W

R601 061G0603103 JI RST 0603 10K 5% 1/10W

R538 061G0603103 JI RST 0603 10K 5% 1/10W

R532 061G0603103 JI RST 0603 10K 5% 1/10W

R517 061G0603103 JI RST 0603 10K 5% 1/10W

R516 061G0603103 JI RST 0603 10K 5% 1/10W

R693 061G0603229 JI RST 0603 2.2R 5% 1/10W TA-I

R613 061G0603229 JI RST 0603 2.2R 5% 1/10W TA-I

R614 061G04029531FF RST 0402 9.53K 1/16W 1% FENGHUA

R624 061G0603393 JF RST CHIPR 39KOHM 5% 1/10W FENGHUA

R625 061G0603393 JF RST CHIPR 39KOHM 5% 1/10W FENGHUA

R626 061G0603393 JF RST CHIPR 39KOHM 5% 1/10W FENGHUA

R627 061G0603393 JF RST CHIPR 39KOHM 5% 1/10W FENGHUA

R628 061G0603203 JI RST 0603 20K 5% 1/10W

R629 061G0603203 JI RST 0603 20K 5% 1/10W

R685 061G0603203 JI RST 0603 20K 5% 1/10W

R692 061G0603203 JI RST 0603 20K 5% 1/10W

R632 061G0402000 JI RST 0402 0.05R MAX 1/16W

R633 061G0402000 JI RST 0402 0.05R MAX 1/16W

R635 061G0402000 JI RST 0402 0.05R MAX 1/16W

R640 061G0603104 JI TEST ONLY RST 0603 100K 5% 1/16W TA-I

R676 061G0603104 JI TEST ONLY RST 0603 100K 5% 1/16W TA-I

R679 061G0603104 JI TEST ONLY RST 0603 100K 5% 1/16W TA-I

R641 061G0603105 JF RST CHIPR 1M OHM +-5% 1/10W FENGHUA

R681 061G0603105 JF RST CHIPR 1M OHM +-5% 1/10W FENGHUA

R654 061G1206220 JI RST 1206 22R 5% 1/4W TA-I

R663 061G1206220 JI RST 1206 22R 5% 1/4W TA-I

R665 061G1206100 JI RST 1206 10R 5% 1/4W

R664 061G1206100 JI RST 1206 10R 5% 1/4W

R658 061G1206100 JI RST 1206 10R 5% 1/4W

74

R655 061G1206100 JI RST 1206 10R 5% 1/4W

R667 061G0603332 JF RST CHIPR 3.3KOHM 5% 1/10W FENGHUA

R670 061G0603513 JI RST 0603 51K 5% 1/10W TA-I

R726 061G0603303 JI RST 0603 30K 5% 1/10W TA-I

R671 061G0603303 JI RST 0603 30K 5% 1/10W TA-I

R695 061G0603913 JF RST CHIPR 91K OHM +-5% 1/10W FENGHUA

R6B1 061G0603913 JF RST CHIPR 91K OHM +-5% 1/10W FENGHUA

R6B5 061G0402151 JF RST CHIPR 150 OHM +-5% 1/16W FENGHUA

R6B6 061G0402151 JF RST CHIPR 150 OHM +-5% 1/16W FENGHUA

R485 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R6B7 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R6B8 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R6B9 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R6C1 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R715 061G06031501FI RST 0603 1.5K 1% 1/10W TA-I

R717 061G0603221 JI RST 0603 220R 5% 1/16W TA-I

R754 061G06031502FI RST 0603 15K 1% 1/10W

R732 061G06031502FI RST 0603 15K 1% 1/10W

R723 061G06031502FI RST 0603 15K 1% 1/10W

R718 061G06031502FI RST 0603 15K 1% 1/10W

R719 061G0603123 JT RST CHIPR 12KOHM 1/10W TZAI YUAN

R725 061G0603223 JI RST 0603 22K 5% 1/10W TA-I

R748 061G0603223 JI RST 0603 22K 5% 1/10W TA-I

R727 061G0603100 JI RST 0603 10R 5% 1/16W TA-I

R728 061G0603622 JT RST CHIPR 6.2KOHM +-5% 1/10W TZAI YUAN

R730 061G06038200FY RST CHIP 820R 1/10W 1%

R736 061G1206229 JI RST 2.2 OHM 5% 1/4W TA-I

R750 061G0805229 JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN

R755 061G0805229 JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN

R752 061G06032701FT RST CHIP 2K7 1/10W 1%

R753 061G06036200FF RST CHIPR 620 OHM +-1% 1/10W FENGHUA

R758 061G04021502FI RST 0402 15K 1% 1/16W TA-I

R765 061G04022002FF RST CHIPR 20KOHM +-1% 1/16W FENGHUA

R766 061G04021302FY RST CHIP 13K 1/16W 1% YAGEO

R106 061G0603000 JI RST 0603 0.05R MAX 1/10W TA-I

R108 061G0603000 JI RST 0603 0.05R MAX 1/10W TA-I

R110 061G0603000 JI RST 0603 0.05R MAX 1/10W TA-I

R4B6 061G0603000 JI RST 0603 0.05R MAX 1/10W TA-I
FB423 071G 59G301 TA CHIP BEAD 300OHM 200MA FCM1608KF-301T02

R456 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
FB704 071T 56G301 TA CHIP BEAD 2012 300R 25% 4000MA
ZD109 093G 64 37 T ESD TVM1G5R5M100R
ZD108 093G 64 37 T ESD TVM1G5R5M100R
ZD111 093G 64 37 T ESD TVM1G5R5M100R
ZD112 093G 64 37 T ESD TVM1G5R5M100R
ZD113 093G 64 37 T ESD TVM1G5R5M100R
ZD107 093G 64 37 T ESD TVM1G5R5M100R
ZD106 093G 64 37 T ESD TVM1G5R5M100R
ZD105 093G 64 37 T ESD TVM1G5R5M100R
ZD104 093G 64 37 T ESD TVM1G5R5M100R
ZD103 093G 64 37 T ESD TVM1G5R5M100R
ZD605 093G 64 37 T ESD TVM1G5R5M100R
ZD606 093G 64 37 T ESD TVM1G5R5M100R
ZD601 093G 64 37 T ESD TVM1G5R5M100R

75

ZD602 093G 64 37 T ESD TVM1G5R5M100R
ZD603 093G 64 37 T ESD TVM1G5R5M100R
ZD604 093G 64 37 T ESD TVM1G5R5M100R
ZD607 093G 64 37 T ESD TVM1G5R5M100R
ZD608 093G 64 37 T ESD TVM1G5R5M100R
ZD609 093G 64 37 T ESD TVM1G5R5M100R

Q404 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC

Q703 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC

Q706 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC

Q707 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC

Q601 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC

Q602 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC

Q603 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC

D602 093G 64S522SEM LL4148

D603 093G 64S522SEM LL4148

U406 056G1133 83 1 IC M24C64-WMN6P 64K SO-8 ST
FB101 071G 59K300 TA CHIP BEAD 0603 30R 25% 700MA
FB102 071G 59K300 TA CHIP BEAD 0603 30R 25% 700MA
FB103 071G 59K300 TA CHIP BEAD 0603 30R 25% 700MA
FB104 071G 59K300 TA CHIP BEAD 0603 30R 25% 700MA
FB105 071G 59K300 TA CHIP BEAD 0603 30R 25% 700MA
FB106 071G 59K300 TA CHIP BEAD 0603 30R 25% 700MA
FB609 071G 59K300 TA CHIP BEAD 0603 30R 25% 700MA
FB613 071G 59K300 TA CHIP BEAD 0603 30R 25% 700MA
FB614 071G 59K300 TA CHIP BEAD 0603 30R 25% 700MA

X90T8015 1 HEAT SINK FOR U602
PWTV9LE1GXZ5 POWER BOARD
040G 45762412B CBPC LABEL
009G6005 1 GP GROUND TERMINAL

CN902 033G327813D CONNECTOR
CN801 033G8021 2E XY CONNECTOR
CN802 033G8021 2E XY CONNECTOR

IC950 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4
IC951 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4
IC970 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4
IC950 056G 139 10 IC TLP781F PHOTOCOUPLER DIP-4
IC951 056G 139 10 IC TLP781F PHOTOCOUPLER DIP-4
IC970 056G 139 10 IC TLP781F PHOTOCOUPLER DIP-4
IC950 056G 139 3B IC PC123Y82FZ0F
IC951 056G 139 3B IC PC123Y82FZ0F
IC970 056G 139 3B IC PC123Y82FZ0F
IC902 056G 379121 IC STR- A6069H DIP-8

Q921 057G 761 7 KTD1691P

Q921 057G 761502 SMALLTRAN BTD1805AD3 5A 60V TO-126ML

Q921 057G 761909 T SMALLTRAN KSD1691YSTU 5A 60V TO-126
RV901 061G 46906 W VARISTOR 560V TVR14561KFC4FY

C904 063G107K474 UM CAP X2 470NF 10% 275V

C901 063G107K474 UM CAP X2 470NF 10% 275V

C910 063G210K105BCN CONSIGN CAP MPP 1UF 10% 520V

C802 063G213J105GHE CAP DMPE 1UF 5% 450V BULK ( B )

C801 063G213J105GHE CAP DMPE 1UF 5% 450V BULK ( B )

C806 065G 3J1506ET 15PF 5% CC45SL 3KV TDK

C808 065G 3J1506ET 15PF 5% CC45SL 3KV TDK

C905 065G306K4712BM Y1 CAP 470PF +-10% 250V AC KX

76

C906 065G306K4712BM Y1 CAP 470PF +-10% 250V AC KX

C924 065G306M1022BM Y1.CAP.001UF 250VAC MURATA

C903 065G306M6812B3 Y1 CAP 680PF +-20% 250VAC CD SERIES

C902 065G306M6812B3 Y1 CAP 680PF +-20% 250VAC CD SERIES

C920 067G 42Z10115K EC 100UF 20% 450V 18*40

C953 067G204V331 3K CS CAP 330UF 16V 10*12 MM

C954 067G215A4713KV EC 470UF 20% 16V 10*12

C946 067G215A4714KV EC 470UF 20% 25V 10*16

C973 067G215A4716KV EC 470UF 20% 35V 10*20

C975 067G215A4716KV EC 470UF 20% 35V 10*20

C945 067G215P4716KV EC 470UF 20% 35V 10*20

L901 073G 174106 DN LINE FILTER 13MH LK.TF032.A20
L902 073G 174106 DN LINE FILTER 13MH LK.TF032.A20
L906 073G 174160 N PFC CHOKE 253UH 5% 100UH YUVA-1253
T803 073G 174180 YS COMMON FILTER CHOKE 3MH 25%
L950 073G 253 91 V CHOKE COIL 3.5UH+-10%
L951 073G 253 91 V CHOKE COIL 3.5UH+-10%
L980 073G 253 91 V CHOKE COIL 3.5UH+-10%
T802 080GL26T 15 N X'FMR 840UH MIN 8.4UH YUVA-1094 EE16
T801 080GL32T 30 YS INVERTER 11.3MH 30% 70MH YS04170464
T902 080GL37T 19 L X'FMR 550UH 5% PT-010923-3
T901 080GL52T 5 N2 X'FMR 1.0MH 10%
F901 084G 41 11 B FUSE 5A 250V BK/S505-V-5-R
F901 084G 41 11 C FUSE 5A 250V UDA-A 005(PF)

F901 084G 41 11 L FUSE 5A 250V 0215005.MXEP
CN901 087G 501 48 S AC SOCKET 3PIN + 3 HOLE
CN901 087G 501 48 DL AC SOCKET 3PIN + 3 HOLE

D904 093G 52 70 1 1N5408-E(SHORT PIN) 3A/1000V DO-201AD

0Q1G 340 8106 CR3 SCREW
705TX957080 Q903 ASS'Y

Q903 057G 667 51 MOSFET 2SK4101LS-MG5/FS 7A 650V TO-220FI

0M1G1730 8120 SCREW 3X8
Q90G6084 1 HEAT SINK
705TX957081 Q801/Q802 ASS'Y

Q801 057G 611901 MOSFET 12A/500V FMA12N50E TO-220F
Q802 057G 611901 MOSFET 12A/500V FMA12N50E TO-220F
Q801 057G 611903 MOSFET AOTF12N50 TO-220F
Q802 057G 611903 MOSFET AOTF12N50 TO-220F

0M1G1730 8120 SCREW 3X8
P90T0027201 HEAT SINK
705TX961011 NR901 ASS'Y

NR901 061G 58030 WL RST NTCR 3 OHM +-20% 5A THINKING

Q09T 203 8 PIN FOR NR901
705TX993102 D902 ASS'Y

D902 093G 52 56 DIODE FMN-1106S 10A/600V TO-220
D902 093G 52905 DIODE FMNS-1106S TO-220

0M1G1730 8120 SCREW 3X8
Q90G6084 1 HEAT SINK
705TX993103 D950 ASS'Y

D950 093G 60931 DIODE MBRF1560CT ITO-220AB
D950 093G1506 2 SCHOTTKY FMW-2156 15A 60V TO-220

0M1G1730 8120 SCREW 3X8
Q90G6084 1 HEAT SINK
705TX993104 D972/D973 ASS'Y

77

090G6064 1 HEAT SINK
D972 093G 60331 SCHOTTKY YG865C10RSC 20A 100V TO-220F
D973 093G 60331 SCHOTTKY YG865C10RSC 20A 100V TO-220F

0M1G1730 8120 SCREW 3X8

705TX993105 BD901 ASS'Y

BD901 093G 50460 34 BRIDGE KBJ608G 6A/800V KBJ
BD901 093G 50460925 BRIDGE TS6B06G-01 6A 800V KBJ

0M1G1730 10120 SCREW 3X10

P90T0027301 HEAT SINK

705TXB57909 Q901 ASS'Y
Q901 057G 611904 MOSFET AOTF12N60 TO-220F

0M1G1730 8120 SCREW 3X8

Q90T0206 1 HEAT SINK

709T3770 QM001 COMSUPTIVE ASS'Y

055G 23520 IPA

055G 23524 WELDING FLUX WITHOUT PB

Q49G 51100 CLEANER

Q55G 100625 TIN STICK_LOW ARGENTUM

IC901 056G 379164 IC FAN6961SZ SOP-8
IC903 056G 379175 IC LD7523GS SOP-8
IC801 056T 379122 IC OZ9976GN-C-0-TR SOP-16

Q950 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q805 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q804 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q970 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q803 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM
R943 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA
R943 061G0805100 JY RST CHIPR 10OHM +- 5% 1/8W YEGAO
R802 061G08051000FF RST CHIPR 100 OHM +-1% 1/8W FENGHUA
R803 061G08051000FF RST CHIPR 100 OHM +-1% 1/8W FENGHUA
R814 061G08051000FF RST CHIPR 100 OHM +-1% 1/8W FENGHUA
R981 061G08051000FF RST CHIPR 100 OHM +-1% 1/8W FENGHUA
R983 061G08051001FT RST CHIP 1K 1/8W 1%
R982 061G08051001FT RST CHIP 1K 1/8W 1%
R955 061G08051001FT RST CHIP 1K 1/8W 1%
R983 061G08051001FY RST CHIP 1K 1/8W 1%
R982 061G08051001FY RST CHIP 1K 1/8W 1%
R955 061G08051001FY RST CHIP 1K 1/8W 1%
R944 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R918 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R914 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R947 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R961 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R963 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R844 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R830 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R825 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R822 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R817 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R816 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R816 061G08051002FY RST CHIP 10K 1/8W 1%
R817 061G08051002FY RST CHIP 10K 1/8W 1%
R963 061G08051002FY RST CHIP 10K 1/8W 1%
R961 061G08051002FY RST CHIP 10K 1/8W 1%

78

R947 061G08051002FY RST CHIP 10K 1/8W 1%
R944 061G08051002FY RST CHIP 10K 1/8W 1%
R918 061G08051002FY RST CHIP 10K 1/8W 1%
R914 061G08051002FY RST CHIP 10K 1/8W 1%
R844 061G08051002FY RST CHIP 10K 1/8W 1%
R830 061G08051002FY RST CHIP 10K 1/8W 1%
R825 061G08051002FY RST CHIP 10K 1/8W 1%
R822 061G08051002FY RST CHIP 10K 1/8W 1%
R837 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA
R837 061G08051003FY RST CHIP 100K 1/8W 1%
R823 061G08051004FT RST CHIP R 1 MOHM +-1% 1/8W
R826 061G08051004FT RST CHIP R 1 MOHM +-1% 1/8W
R840 061G08051004FT RST CHIP R 1 MOHM +-1% 1/8W
R840 061G08051004FY RST CHIP 1M 1/8W 1%
R826 061G08051004FY RST CHIP 1M 1/8W 1%
R823 061G08051004FY RST CHIP 1M 1/8W 1%
R923 061G08051302FF RST CHIPR 13KOHM +-1% 1/8W FENGHUA
R985 061G08051302FF RST CHIPR 13KOHM +-1% 1/8W FENGHUA
R923 061G08051302FY RST CHIP 13K 1/8W 1%
R985 061G08051302FY RST CHIP 13K 1/8W 1%
R917 061G08051502FF RST CHIPR 15KOHM +-1% 1/8W FENGHUA
R917 061G08051502FT RST CHIP 15K 1/8W 1%
R847 061G08051504FF RST CHIPR 1M5 +-1% 1/8W FENGHUA
R847 061G08051504FT RST CHIPR 1M5 +-1% 1/8W TZAI YUAN
R821 061G08052001FF RST CHIPR 2KOHM +-1% 1/8W FENGHUA
R824 061G08052001FF RST CHIPR 2KOHM +-1% 1/8W FENGHUA
R979 061G08052001FF RST CHIPR 2KOHM +-1% 1/8W FENGHUA
R821 061G08052001FT RST CHIP 2K 1/8W 1%
R824 061G08052001FT RST CHIP 2K 1/8W 1%
R979 061G08052001FT RST CHIP 2K 1/8W 1%
R932 061G0805220 JI RST 0805 22R 5% 1/8W
R932 061G0805220 JT RST CHIPR 22OHM +-5% 1/8W TZAI YUAN
R978 061G08052402FF RST CHIPR 24KOHM +-1% 1/8W FENGHUA
R978 061G08052402FT RST CHIP 24K 1/8W 1%
R987 061G08052702FF RST CHIPR 27KOHM +-1% 1/8W FENGHUA
R987 061G08052702FY RST CHIP 27K 1/8W 1%
R806 061G08053902FI RST CHIPR 39 KOHM +-1% 1/8W
R808 061G08053902FI RST CHIPR 39 KOHM +-1% 1/8W
R808 061G08053902FY RST CHIP 39K 1/8W 1%
R806 061G08053902FY RST CHIP 39K 1/8W 1%
R975 061G0805392 JF RST CHIPR 3.9KOHM +-5% 1/8W FENGHUA
R975 061G0805392 JY RST CHIPR 3K9 +-5% 1/8W YAGEO
R841 061G0805513 JF RST CHIPR 51KOHM +-5% 1/8W FENGHUA
R820 061G0805513 JF RST CHIPR 51KOHM +-5% 1/8W FENGHUA
R809 061G0805513 JF RST CHIPR 51KOHM +-5% 1/8W FENGHUA
R807 061G0805513 JF RST CHIPR 51KOHM +-5% 1/8W FENGHUA
R805 061G0805513 JF RST CHIPR 51KOHM +-5% 1/8W FENGHUA
R804 061G0805513 JF RST CHIPR 51KOHM +-5% 1/8W FENGHUA
R804 061G0805513 JY RST CHIPR 51K +-5% 1/8W YAGEO
R805 061G0805513 JY RST CHIPR 51K +-5% 1/8W YAGEO
R807 061G0805513 JY RST CHIPR 51K +-5% 1/8W YAGEO
R809 061G0805513 JY RST CHIPR 51K +-5% 1/8W YAGEO
R820 061G0805513 JY RST CHIPR 51K +-5% 1/8W YAGEO
R841 061G0805513 JY RST CHIPR 51K +-5% 1/8W YAGEO

79

R906 061G08055603FF RST CHIPR 560KOHM +-1% 1/8W FENGHUA
R906 061G08055603FY RST CHIP 560K 1/8W 1%
R834 061G0805684 JT RST CHIPR 680K +-5% 1/8W TZAI YUAN
R958 061G08057501FT RST CHIP R 7K5 1/8W +/-1%
R958 061G08057501FY RST CHIP R 7K5 1/8W +/-1%
R842 061G0805753 JF RST CHIPR 75KOHM +-5% 1/8W FENGHUA
R957 061G08058201FT RST CHIP 8K2 1/8W 1%
R957 061G08058201FY RST CHIP 8K2 1/8W 1%

JR905 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR904 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR903 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR902 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR801 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

R974 061G12061001FF RST CHIPR 1KOHM +-1% 1/4W FENGHUA
R960 061G12061001FF RST CHIPR 1KOHM +-1% 1/4W FENGHUA
R956 061G12061001FF RST CHIPR 1KOHM +-1% 1/4W FENGHUA
R945 061G12061001FF RST CHIPR 1KOHM +-1% 1/4W FENGHUA
R836 061G12061001FF RST CHIPR 1KOHM +-1% 1/4W FENGHUA
R836 061G12061001FT RST CHIP R 1KOHM +-1% 1/4W
R945 061G12061001FT RST CHIP R 1KOHM +-1% 1/4W
R956 061G12061001FT RST CHIP R 1KOHM +-1% 1/4W
R960 061G12061001FT RST CHIP R 1KOHM +-1% 1/4W
R974 061G12061001FT RST CHIP R 1KOHM +-1% 1/4W
R976 061G12061002FF RST CHIPR 10KOHM +-1% 1/4W FENGHUA
R939 061G12061002FF RST CHIPR 10KOHM +-1% 1/4W FENGHUA
R838 061G12061002FF RST CHIPR 10KOHM +-1% 1/4W FENGHUA
R838 061G12061002FT RST CHIPR 10KOHM +-1% 1/4W 1206
R939 061G12061002FT RST CHIPR 10KOHM +-1% 1/4W 1206
R976 061G12061002FT RST CHIPR 10KOHM +-1% 1/4W 1206
R999 061G12061003FY RST CHIPR 100KOHM +-1% 1/4W YAGEO
R998 061G12061003FY RST CHIPR 100KOHM +-1% 1/4W YAGEO
R997 061G12061003FY RST CHIPR 100KOHM +-1% 1/4W YAGEO
R996 061G12061003FY RST CHIPR 100KOHM +-1% 1/4W YAGEO
R994 061G12061003FY RST CHIPR 100KOHM +-1% 1/4W YAGEO
R993 061G12061003FY RST CHIPR 100KOHM +-1% 1/4W YAGEO
R992 061G12061003FY RST CHIPR 100KOHM +-1% 1/4W YAGEO
R991 061G12061003FY RST CHIPR 100KOHM +-1% 1/4W YAGEO
R924 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W
R925 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W
R926 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W
R926 061G12061004FY RST CHIP 1M 1/4W 1%
R925 061G12061004FY RST CHIP 1M 1/4W 1%
R924 061G12061004FY RST CHIP 1M 1/4W 1%
R951 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R954 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R970 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R973 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R977 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R977 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R973 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R970 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R954 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R951 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R999 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO

80

R998 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO
R997 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO
R996 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO
R994 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO
R993 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO
R992 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO
R991 061G1206104 JY RST CHIPR 100KOHM 5% 1/4W YAGEO
R933 061G1206109 JT RST CHIPR 1 OHM +-5% 1/4W TZAI YUAN
R933 061G1206109 JY RST CHIP 1R 1/4W 5% YAGEO
R909 061G12061504FF RST CHIPR 1.5MOHM 1% 1/4W FENGHUA
R905 061G12061504FF RST CHIPR 1.5MOHM 1% 1/4W FENGHUA
R904 061G12061504FF RST CHIPR 1.5MOHM 1% 1/4W FENGHUA
R904 061G12061504FY RST CHIP 1M5 1/4W 1%
R905 061G12061504FY RST CHIP 1M5 1/4W 1%
R909 061G12061504FY RST CHIP 1M5 1/4W 1%
R839 061G1206154 JF RST CHIPR 150KOHM +-5% 1/4W FENGHUA
R839 061G1206154 JT RST CHIPR 150KOHM +-5% 1/4W TZAI YUAN
R965 061G1206182 JF RST CHIPR 1.8KOHM +-5% 1/4W FENGHUA
R967 061G1206182 JF RST CHIPR 1.8KOHM +-5% 1/4W FENGHUA
R971 061G1206182 JF RST CHIPR 1.8KOHM +-5% 1/4W FENGHUA
R972 061G1206182 JF RST CHIPR 1.8KOHM +-5% 1/4W FENGHUA
R986 061G1206182 JF RST CHIPR 1.8KOHM +-5% 1/4W FENGHUA
R988 061G1206182 JF RST CHIPR 1.8KOHM +-5% 1/4W FENGHUA
R988 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN
R986 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN
R972 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN
R971 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN
R967 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN
R965 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN
R911 061G1206203 JF RST CHIPR 20KOHM +-5% 1/4W FENGHUA
R911 061G1206203 JT RST CHIPR 20KOHM +-5% 1/4W TZAI YUAN
R907 061G1206229 JF RST CHIPR 2.2 OHM +-5% 1/4W FENGHUA
R908 061G1206229 JF RST CHIPR 2.2 OHM +-5% 1/4W FENGHUA
R931 061G1206229 JF RST CHIPR 2.2 OHM +-5% 1/4W FENGHUA
R931 061G1206229 JY RST 1206 2.2R 5% 1/4W
R908 061G1206229 JY RST 1206 2.2R 5% 1/4W
R907 061G1206229 JY RST 1206 2.2R 5% 1/4W
R833 061G12063304FF RST CHIPR 3.3MOHM +-1% 1/4W FENGHUA
R811 061G12063309FF RST 1206 33R 1% 1/4W FENGHUA
R813 061G12063309FF RST 1206 33R 1% 1/4W FENGHUA
R811 061G12063309FI RST 1206 33R 1% 1/4W TA-I
R813 061G12063309FI RST 1206 33R 1% 1/4W TA-I
R903 061G1206334 JF RST CHIPR 330KOHM +-5% 1/4W FENGHUA
R902 061G1206334 JF RST CHIPR 330KOHM +-5% 1/4W FENGHUA
R901 061G1206334 JF RST CHIPR 330KOHM +-5% 1/4W FENGHUA
R901 061G1206334 JT RST CHIPR 330 KOHM +-5% 1/4W TZAI YUAN
R902 061G1206334 JT RST CHIPR 330 KOHM +-5% 1/4W TZAI YUAN
R903 061G1206334 JT RST CHIPR 330 KOHM +-5% 1/4W TZAI YUAN
R810 061G12063579FF RST 1206 35.7R 1% 1/4W
R812 061G12063579FF RST 1206 35.7R 1% 1/4W
R835 061G12063902FI RST 1206 39K 1% 1/4W
R950 061G1206470 JF RST CHIPR 47 OHM +-5% 1/4W FENGHUA
R952 061G1206470 JF RST CHIPR 47 OHM +-5% 1/4W FENGHUA
R950 061G1206470 JT RST CHIPR 47 OHM +-5% 1/4W TZAI YUAN

81

R952 061G1206470 JT RST CHIPR 47 OHM +-5% 1/4W TZAI YUAN
R915 061G1206471 JF RST CHIPR 470 OHM +-5% 1/4W FENGHUA
R915 061G1206471 JT RST CHIPR 470 OHM +-5% 1/4W TZAI YUAN
R962 061G1206475 JF RST CHIPR 4.7 MOHM +-5% 1/4W FENGHUA
R962 061G1206475 JT RST CHIPR 4.7 MOHM +-5% 1/4W TZAI YUAN
R922 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA
R920 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA
R921 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA
R922 061G12066803FT RST CHIP 680K 1/4W 1%
R920 061G12066803FT RST CHIP 680K 1/4W 1%
R921 061G12066803FT RST CHIP 680K 1/4W 1%
R843 061G1206681 JF RST 1206 680R 5% 1/4W FENGHUA
R843 061G1206681 JT RST CHIPR 680 OHM +-5% 1/4W TZAI YUAN
R966 061G1206682 JF RST CHIPR 6.8KOHM +-5% 1/4W FENGHUA
R968 061G1206682 JF RST CHIPR 6.8KOHM +-5% 1/4W FENGHUA
R969 061G1206682 JF RST CHIPR 6.8KOHM +-5% 1/4W FENGHUA
R984 061G1206682 JF RST CHIPR 6.8KOHM +-5% 1/4W FENGHUA
R984 061G1206682 JT RST CHIPR 6.8 KOHM +-5% 1/4W TZAI YUAN
R969 061G1206682 JT RST CHIPR 6.8 KOHM +-5% 1/4W TZAI YUAN
R968 061G1206682 JT RST CHIPR 6.8 KOHM +-5% 1/4W TZAI YUAN
R966 061G1206682 JT RST CHIPR 6.8 KOHM +-5% 1/4W TZAI YUAN
R832 061G12067502FF RST CHIPR 75KOHM +-1% 1/4W FENGHUA
R832 061G12067502FT RST CHIPR 75K 1/4W +/-1% TZAI YUAN
C812 065G080510231J Y N0-SUGGEST CAP 0805 1NF 50V NP0 +/-5%
C909 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C939 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10%
C921 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C978 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C956 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C949 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C948 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C947 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C942 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C934 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C908 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C907 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C830 065G080510522K M CAP 0805 1UF 10% 25V X7R
C831 065G080510522K M CAP 0805 1UF 10% 25V X7R
C820 065G080512232K Y CAP 0805 1.2NF 10% 50V X7R
C821 065G080515332K Y CAP CHIP 0805 15N 50V X7R +/-10%
C915 065G080522132K Y CAP CHIP 0805 220P 50V X7R +/-10%
C944 065G080522132K Y CAP CHIP 0805 220P 50V X7R +/-10%
C817 065G080522432K F CAP 0805 220NF 10% 50V X7R
C955 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%
C805 065G080522522K T CAP 0805 2.2UF 10% 25V X7R
C819 065G080522522K T CAP 0805 2.2UF 10% 25V X7R
C816 065G080522525K T CAP CHIP 0805 2.2UF K 25V X5R
C813 065G080533131J Y CAP CHIP 0805 330P 50V NP0 +/-5%
C976 065G080533432K Y CAP CHIP 0805 330N 50V X7R +/-10%
C818 065G080547232K Y CAP CHIP 0805 4N7 50V X7R +/-10%
C814 065G080547232K Y CAP CHIP 0805 4N7 50V X7R +/-10%
C943 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10%
C917 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10%
C815 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10%

82

C912 065G080556031J Y CAP 0805 56PF 5% 50V NP0
C972 065G120610272K Y CAP 1206 1NF 10% 500V X7R
C970 065G120610272K Y CAP 1206 1NF 10% 500V X7R
C957 065G120610272K Y CAP 1206 1NF 10% 500V X7R
C952 065G120610272K Y CAP 1206 1NF 10% 500V X7R
C951 065G120610272K Y CAP 1206 1NF 10% 500V X7R
C950 065G120610272K Y CAP 1206 1NF 10% 500V X7R
D807 093G 64 42 PP BAV70 SOT-23
D808 093G 64 42 PP BAV70 SOT-23
D801 093G 60S 5 T SCHOTTKY SCS0520P 0.5A 20V SOD-123
D802 093G 60S 5 T SCHOTTKY SCS0520P 0.5A 20V SOD-123
D803 093G 60S 5 T SCHOTTKY SCS0520P 0.5A 20V SOD-123
D804 093G 60S 5 T SCHOTTKY SCS0520P 0.5A 20V SOD-123

CN901 006G 31500 GP EYELET

R801 061G 30310852T GP FUSER 0.1OHM +-5% 1W
R948 061G 30310852T GP FUSER 0.1OHM +-5% 1W
R916 061G152M12852T SY RST MOF 0R12 5% 2W
R946 061G152M36852T RST MOF 0R36 5% 2W
C932 065G 2K102 2T6921 CAP CER 1000PF 2KV K Y5P
C935 065G 2K102 2T6921 CAP CER 1000PF 2KV K Y5P
C810 067G215A1017KT EC 100UF 50V 8*12MM
C931 067G215A1017KT EC 100UF 50V 8*12MM
C933 067G215Y1007KT KY50VB10M-TP5 5*11.5 EG
C937 067G215Y1007KT KY50VB10M-TP5 5*11.5 EG
C941 067G215Y1007KT KY50VB10M-TP5 5*11.5 EG
C914 067G215Y4707KT EC 47UF 20% 50V 6.3*11MM EG

FB902 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A
FB901 071G 55 26 S BEAD 3.5*6MM 127R 25% LB3.5¡Á0.8¡Á6-2
ZD952 093G 3916652T MTZJ15B (13.89-14.62)
ZD930 093G 3916752T MTZJ T-72 16B
ZD970 093G 3917152T TZJ T-72 30B

D901 093G 52 1552T RECTIFIER 1N4007 1 1000 DO41
D931 093G 5250S52T DIODE AU02Z-V1 SANKEN
D906 093G 64 1152T PH SWITCHING 1N4148 0.2A 100V DO-35
D951 093G 64 1152T PH SWITCHING 1N4148 0.2A 100V DO-35
D971 093G 64 1152T PH SWITCHING 1N4148 0.2A 100V DO-35
D805 093G 64 1152T PH SWITCHING 1N4148 0.2A 100V DO-35
D806 093G 64 1152T PH SWITCHING 1N4148 0.2A 100V DO-35
D903 093G 64 1152T PH SWITCHING 1N4148 0.2A 100V DO-35
D940 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41
D930 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41

J803 095G 90 23 JUMPER WIRE
J804 095G 90 23 JUMPER WIRE
J805 095G 90 23 JUMPER WIRE
J806 095G 90 23 JUMPER WIRE
J807 095G 90 23 JUMPER WIRE
J901 095G 90 23 JUMPER WIRE
J902 095G 90 23 JUMPER WIRE
J903 095G 90 23 JUMPER WIRE
J904 095G 90 23 JUMPER WIRE
J905 095G 90 23 JUMPER WIRE
J906 095G 90 23 JUMPER WIRE
J801 095G 90 23 JUMPER WIRE
J802 095G 90 23 JUMPER WIRE

83

J907 095G 90 23 JUMPER WIRE
J908 095G 90 23 JUMPER WIRE
J910 095G 90 23 JUMPER WIRE
J911 095G 90 23 JUMPER WIRE
J912 095G 90 23 JUMPER WIRE
J913 095G 90 23 JUMPER WIRE
J914 095G 90 23 JUMPER WIRE
J915 095G 90 23 JUMPER WIRE
J917 095G 90 23 JUMPER WIRE
J919 095G 90 23 JUMPER WIRE
J920 095G 90 23 JUMPER WIRE
J921 095G 90 23 JUMPER WIRE
J922 095G 90 23 JUMPER WIRE
J923 095G 90 23 JUMPER WIRE

FB903 071G 55 29 FERRITE BEAD

C925 065G 1K471 2T6921 CAP CER 470PF 1KV K Y5P

IC952 056G 158 10 T LDO IC AZ431AZ-AE1 TO-92 150MA 40V TO-92
IC971 056G 158 10 T LDO IC AZ431AZ-AE1 TO-92 150MA 40V TO-92

FB901 071T 55 26 H BEAD 3.5X6.0X0.8 127R 25% BF-I35060R-796

T801 006G 31502 EYELET

709T3770 QA001 COMSUPTIVE ASS'Y

E715 715G3770P03W30003S POWER BOARD PCB
C803 065G 1K10293T CAP CER 1NF 10% 1KV R
C804 065G 1K10293T CAP CER 1NF 10% 1KV R
R913 095G 90 23 JUMPER WIRE
C807 065G080515232K F CAP 0805 1.5NF 10% 50V X7R
C809 065G080515232K F CAP 0805 1.5NF 10% 50V X7R
C918 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R

709T3770 QS001 COMSUPTIVE ASS'Y
R841 061G0805513 JT RST CHIPR 51K +-5% 1/8W TZAI YUAN
R820 061G0805513 JT RST CHIPR 51K +-5% 1/8W TZAI YUAN
R809 061G0805513 JT RST CHIPR 51K +-5% 1/8W TZAI YUAN
R807 061G0805513 JT RST CHIPR 51K +-5% 1/8W TZAI YUAN
R805 061G0805513 JT RST CHIPR 51K +-5% 1/8W TZAI YUAN
R804 061G0805513 JT RST CHIPR 51K +-5% 1/8W TZAI YUAN
R842 061G0805753 JT RST CHIPR 75K +-5% 1/8W TZAI YUAN
R806 061G08053902FT RST CHIP 39K 1/8W 1%
R808 061G08053902FT RST CHIP 39K 1/8W 1%
R830 061G08051002FT RST CHIP 10K 1/8W 1%
R963 061G08051002FT RST CHIP 10K 1/8W 1%
R961 061G08051002FT RST CHIP 10K 1/8W 1%
R947 061G08051002FT RST CHIP 10K 1/8W 1%
R944 061G08051002FT RST CHIP 10K 1/8W 1%
R918 061G08051002FT RST CHIP 10K 1/8W 1%
R816 061G08051002FT RST CHIP 10K 1/8W 1%
R817 061G08051002FT RST CHIP 10K 1/8W 1%
R822 061G08051002FT RST CHIP 10K 1/8W 1%
R825 061G08051002FT RST CHIP 10K 1/8W 1%
R844 061G08051002FT RST CHIP 10K 1/8W 1%
R914 061G08051002FT RST CHIP 10K 1/8W 1%
C811 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C913 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
R810 061G12063579FT RST CHIPR 35R7 1/4W +-1% TZAI YUAN
R812 061G12063579FT RST CHIPR 35R7 1/4W +-1% TZAI YUAN

84

R814 061G08051000FT RST CHIPR 100 OHM +-1% 1/8W
R981 061G08051000FT RST CHIPR 100 OHM +-1% 1/8W
R802 061G08051000FT RST CHIPR 100 OHM +-1% 1/8W
R803 061G08051000FT RST CHIPR 100 OHM +-1% 1/8W

JR801 061G1206000 JI RST 1206 MAX0R05 5% 1/4W
JR902 061G1206000 JI RST 1206 MAX0R05 5% 1/4W
JR903 061G1206000 JI RST 1206 MAX0R05 5% 1/4W
JR904 061G1206000 JI RST 1206 MAX0R05 5% 1/4W
JR905 061G1206000 JI RST 1206 MAX0R05 5% 1/4W
JR905 061G1206000 JI RST 1206 MAX0R05 5% 1/4W
JR904 061G1206000 JI RST 1206 MAX0R05 5% 1/4W
JR903 061G1206000 JI RST 1206 MAX0R05 5% 1/4W
JR902 061G1206000 JI RST 1206 MAX0R05 5% 1/4W
JR801 061G1206000 JI RST 1206 MAX0R05 5% 1/4W

R974 061G12061001FT RST CHIP R 1KOHM +-1% 1/4W
R960 061G12061001FT RST CHIP R 1KOHM +-1% 1/4W
R956 061G12061001FT RST CHIP R 1KOHM +-1% 1/4W
R945 061G12061001FT RST CHIP R 1KOHM +-1% 1/4W
R836 061G12061001FT RST CHIP R 1KOHM +-1% 1/4W

JR901 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR901 061G1206000 JI RST 1206 MAX0R05 5% 1/4W

Q11G5061 1 PCB SUPPORT

Q15T0715401 BRACKET PANEL_SUPPORT_TOP_L

Q15T0716401 BRACKET PANEL_SUPPORT_TOP_R

Q15T0720101 32-VESA-BKT-TOP

Q16G0001 10 12 EVA WASHER

Q36T 600 31 6 HIMERON

Q45G 77511 PE PACKING(BLACK)

Q45G 99626 36 PE BAG

Q45T 99609 61 EPE COVER FOR MONITOR

Q50G 4 10 TIE (Y1900221)

Q50G 500523 CABLE TIE

Q52G1501150523 W INSULATING PLATE

X02G8007 1 SCREW-STOPPER

X02G8008 1 SCREW-STOPPER

X16G8001 3 EVA WASHER

X44GJA10101 CUSHION-TL EPS

X44GJA10201 CUSHION-TR EPS

X44GJA10301 CUSHION-BL EPS

X44GJA10401 CUSHION-BR EPS

X44GJA10615 1B CARTON

E08901 089G702A18NIS9 AC POWER CORD 1800MM 2nd source
E08901 089G702A18NJR9 AC POWER CORD 1800 MM

092GB1JX1A3DGC BATTERY 1.5V BATTERY FOR LR03

E09801 098GR7BDBNEACD REMOTE CONTROL 90-364100T4401

0Q1G 940 25 47 CR3 SCREW

Q41G780061532E CARD SA CENTER LIST

Q45G2010M0101A PE BAG FOR MANUAL

Q45T 76 28NV2 R PE BAG FOR BASE SCREW SZ02742

X41G32MV673 5A LC32W163 MANUAL

X41G78DV615 2A WARRANTY CARD FOR URUGUAY/PANAMA

X41G78SV673 5A LC32W163 QSG

040G 58162435A PN LABEL FOR MANUAL PE BAG

040G 581689 4A BARCODE LABEL FOR 1

85

040G 581689 4A BARCODE LABEL FOR 1

X40G 32061520A RATING LABEL

X40G0001624 2A LABEL FOR SCREW PE BAG

0M1G 330 6 47 CR3 SCREW 42-D005390

0M1G 330 6 47 CR3 SCREW 42-D005390

0Q1G 330 8 47 CR3 SCREW 3X8

A15T1088401 2K10-40-BKT-PCB-RA-SIDE

Q02G7038 1 NUT

X15T8028201 2K10-40-BKT-PCB-MAIN-BOT

X40G2010 40X02 LABEL

X52G1001 TV X6 AL FOIL

001G6021 1 SCREW

SP01 078G0120 10 Y SPEAKER 16 OHM 12W 125X32MM

ECN601 095G8013 4DX04 HARNESS 4P-B&R+B&W 430/220MM
ECN401 095G801412WY14 HARNESS 12P-4P+5P 650/600MM

0Q1G1830 6120 SCREW

IRPF9XA7 IR BOARD

U01 056G 627911 IR 38KHZ KSM-603TM2M

709T3821 XM001 COMSUPTIVE ASS'Y

CN01 033G8032 5F HR CONNECTOR

R001 061G0603153 JY RST CHIPR 15KOHM 1/10W YAGEO

C01 065G060310432K Y CAP 0603 100NF 10% 50V X7R

LED01 081G 14 24 EL CHIP LED BLUE/DARK RED

ZD02 093G 39S 24 T RLZ 5.6B LLDS
ZD03 093G 39S 24 T RLZ 5.6B LLDS

E715 715G3821R03000004M IR BOARD PCB

709T3821 XS001 COMSUPTIVE ASS'Y

KEPFAXA1 KEY BOARD

709T3814 XM001 COMSUPTIVE ASS'Y

CN01 033G8032 4F HR CONNECTOR 4P 1.25

R04 061G08051001FT RST CHIP 1K 1/8W 1%
R03 061G08051801FT RST CHIP R 1K8 +/-1% 1/8W
R02 061G08052701FT RST CHIP 2K7 1/8W 1%
R05 061G08057500FF RST CHIPR 750 OHM +-1% 1/8W FENGHUA
R07 061G08057500FF RST CHIPR 750 OHM +-1% 1/8W FENGHUA
R08 061G08057500FF RST CHIPR 750 OHM +-1% 1/8W FENGHUA
R01 061G08057501FF RST CHIPR 7.5KOHM +-1% 1/8W FENGHUA

SW04 077G 607 2 FD

SW03 077G 607 2 FD

SW06 077G 607 2 FD

SW07 077G 607 2 FD

SW05 077G 607 2 FD

SW02 077G 607 2 FD

SW01 077G 607 2 FD

715G3814K01004004S KEY BOARD PCB

R02 061G08052701FF RST CHIPR 2K7 +-1% 1/8W FENGHUA
R05 061G08057500FT RST CHIPR 750R +-1% 1/8W TZAI YUAN
R07 061G08057500FT RST CHIPR 750R +-1% 1/8W TZAI YUAN
R08 061G08057500FT RST CHIPR 750R +-1% 1/8W TZAI YUAN

CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL

86

709T3814 XS001 COMSUPTIVE ASS'Y

R01 061G08057501FT RST CHIP R 7K5 1/8W +/-1%
R03 061G08051801FF RST CHIPR 1.8KOHM +-1% 1/8W FENGHUA
R04 061G08051001FF RST CHIPR 1KOHM +-1% 1/8W FENGHUA

Q15T0717301 BRACKET --

Q52G6025 15277 MYLAR

X40G000261536A POP LABEL

ECN701 095G801313X 41 HARNESS 13P-13P 100MM LCDXXTF0993 2nd source
ECN601 095G8013 4XX04 HARNESS 4P-B&R+B&W 430/220MM 2nd source

87
