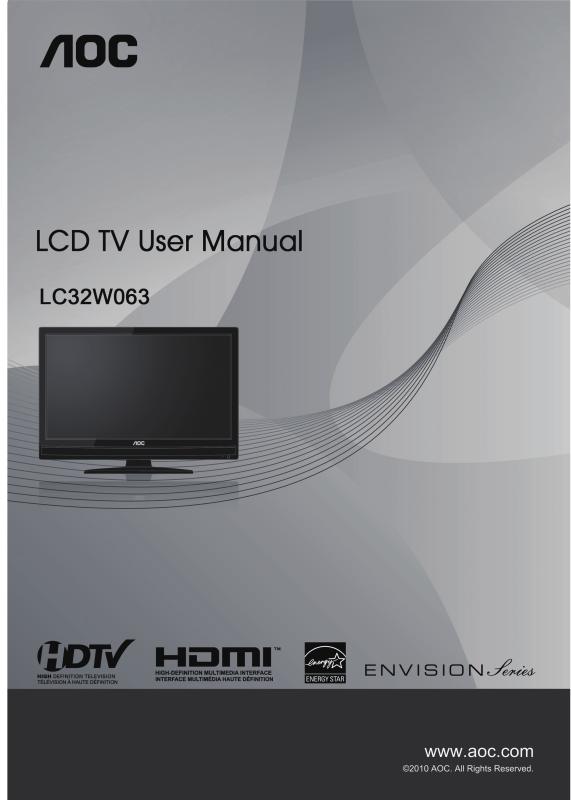

AOC LC32W063 User Manual

Download
1
This manual provides as an operational guide to user. All statements, technical information, and recommendations in this manual and in any guides or related documents are believed reliable, but the accuracy and completeness thereof are not guaranteed or warranted, and they are not intended to be, nor should they be understood to be, representations or warranties concerning the products described.
1
Table of Contents
IMPORTANT INFORMATION ..............................................................................................................................................3
WARNING ..............................................................................................................................................................................................................................................3
CAUTION ...............................................................................................................................................................................................................................................3
NOTIFICATION ......................................................................................................................................................................................................................................3
IMPORTANT SAFETY INFORMATION ...............................................................................................................................3
USAGE INSTRUCTIONS .....................................................................................................................................................4
Installation ...............................................................................................................................................................................................................................................4
AC Power Cable ......................................................................................................................................................................................................................................4
LCD Screen .............................................................................................................................................................................................................................................5
Electric Shock .........................................................................................................................................................................................................................................5
When Not in Use ....................................................................................................................................................................................................................................5
Overloading ............................................................................................................................................................................................................................................5
Plug the Power Cable on the TV Set .......................................................................................................................................................................................................5
Optional Equipment ................................................................................................................................................................................................................................6
Small Accessories ..................................................................................................................................................................................................................................6
Antennas .................................................................................................................................................................................................................................................6
Batteries ..................................................................................................................................................................................................................................................6
Cleaning ..................................................................................................................................................................................................................................................6
Magnetic Influence ..................................................................................................................................................................................................................................6
Carrying the TV .......................................................................................................................................................................................................................................7
Ventilation ................................................................................................................................................................................................................................................7
Moisture ...................................................................................................................................................................................................................................................7
Servicing ..................................................................................................................................................................................................................................................8
CONTENTS IN THE BOX ...................................................................................................................................................9
CONTROLS & CONNECTIONS: ...................................................................................................................................... 10
SET-UP ............................................................................................................................................................................ 12
CONNECTING TV ............................................................................................................................................................ 13
HDMI Connection ..................................................................................................................................................................................................................................13
Component Signal Connection ..............................................................................................................................................................................................................13
Composite/ S-Video Signal Connection ................................................................................................................................................................................................14
PC Connection ......................................................................................................................................................................................................................................14
PC INPUT SIGNAL REFERENCE CHART ..................................................................................................................... 15
VIDEO INPUT SIGNAL REFERENCE CHART ............................................................................................................... 15
USING AOC TV ................................................................................................................................................................. 16
Initial Setting ..........................................................................................................................................................................................................................................16
Changing Volume, Mute and Sound Mode ...........................................................................................................................................................................................24
Adjust PC Setting ..................................................................................................................................................................................................................................27
Feature Setup ........................................................................................................................................................................................................................................28
JPEG Viewer .........................................................................................................................................................................................................................................31
TROUBLESHOOTING ..................................................................................................................................................... 32
DIMENSIONS & SPECIFICATIONS ................................................................................................................................ 33
INDEX................................................................................................................................................................................ 34
2
Important Information
WARNING
Energy Star
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR
PRECAUCION
RIESGO DE CHOQUE ELECTRICO
NO ABRIR
This symbol is intended to alert the user to the presence of insinuated “dangerous voltage” within the TV’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the TV.
To reduce the risk of fire or electric shock, do not expose this TV to rain or moisture, the TV shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV.
CAUTION
To prevent electric shock, do not use this polarized AC plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure.
Use the Wall-Mount bracket or TV stand which was recommended by AOC, and please consult your dealer for detailed information.
Use with other Wall-Mount Bracket or TV stand may cause instability and possibly result in injury.
Please keep the factory default settings as shipped, in which the product can meet Energy Star requirements.
Important Safety Information
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.
8 ) Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that produce heat.
9 ) Do not defeat the safety purpose of the polarized or grounding
type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong. The wide blade or third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10 ) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11 ) Only use attachments/accessories specified by the
manufacturer.
12 ) Use only with a cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
NOTIFICATION
FCC Class B Radio Frequency Interference Statement Warning: (For FCC CERTIFIED MODELS)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/ TV technician for
help.
Pursuant to FCC regulations, you are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
For details concerning safety precautions, see “Important Safety Instructions” and “Important Usage Instructions” below.
SAFETY: Lamp Disposal Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY
AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS. FOR MORE INFORMATION, CONTACT THE ELECTRONIC INDUSTRIES ALLIANCE AT WWW. EIAE.ORG.
13 ) Unplug this apparatus during lightning storms or when unused
for long periods of time.
14 ) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15 ) If any liquid or solid object should fall inside the cabinet, unplug
the TV immediately and have it checked by qualified service
personnel before operating it further. 16 ) Avoid operating the TV at temperatures below 32°F (0°C). 17 ) If the TV is transported directly from a cold to a warm location,
or if the room temperature changes suddenly, the picture may
be blurred or show poor color due to moisture condensation. In
this case, please wait a few hours to let the moisture evaporate
before turning on the TV. 18 ) The TV shall be connected to a mains socket outlet with a
protective earthing connection. 19 ) The mains plug or appliance coupler is used as the disconnect
device, the disconnect device shall remain readily operable. 20 ) CAUTION – These servicing instructions are for use by qualified
service personnel only. To reduce the risk of electric shock,
do not perform any servicing other than that contained in the
operating instructions unless you are qualified to do so.
3
Usage Instructions
Installation
Placement
It is recommended to watch the TV at a distance of 3 -7 times which of the screen height, and in moderate brightness. Watching the TV for too long or in a dark room may cause eye fatigue. To obtain a clear picture, do not expose the screen to direct illumination or direct sunlight. It is recommended to use spot lighting directed down from the ceiling or to cover the windows that face the screen with opaque drapery. It is desirable to install the TV in a room where the floor and walls are not of a reflective material.
3h~7h
Wall-Mount
Wall-Mount installation requires the use of a Wall-Mount Bracket. When installing or removing the TV, using a Wall-Mount Bracket, be sure to use qualified contractors. If not properly secured during installation or removal from the Wall-Mount Bracket, the TV may fall and cause serious injury.
For use only with UL Listed Wall Mount Bracket with suitable weight/ load.
Observe the following when installing the TV using a Wall-Mount bracket.
1 2 3
h
To prevent the TV from toppling over and causing injury, take measurement to secure the TV to a wall or stand.
The TV should be installed near an easily accessible AC power outlet.
Observe the following in placing the TV. Otherwise the TV may fall from the stand or Wall-Mount, causing damage or serious injury.
Place the TV on a stable, level surface. Do not hang anything on the TV. Do not allow children to climb on
the TV.
Do not install the TV in places subject to extreme temperatures,
such as in direct sunlight, near a radiator, or near a heating vent or exposed to direct air conditioning.
Never place the TV in hot, oily, humidor excessively dusty places. Do not install the TV where insects may enter. Do not install the TV where it may be exposed to mechanical
vibration.
Do not install the TV in a location where it may protrude, such as
on or behind a pillar, or where you might bump your head on it. Otherwise, it may result in injury.
Outdoor Use
Do not install this TV outdoors. If the TV is exposed to rain, it may result in a fire or an electric shock. Do not expose the TV to direct sunlight, it may heat up and become damaged.
Vehicle, Ships and Other Vessels
Do not install this TV in a vehicle. Bumping of the vehicle may cause the TV to fall down and cause
injury.
Do not install this TV in a ship or vessel. If the TV is exposed to
seawater, it may cause a fire or damage the TV.
Medical institutions
Do not place this TV in a place where medical equipment is in
use.
The interference may cause a malfunction of both TV and the
medical equipment.
M4 screw(4pcs)
Be sure to follow the operating instructions supplied with the Wall-
Mount bracket when installing the TV.
Be sure to attach the brackets supplied with the Wall-Mount
bracket.
Don’t hang the TV from the ceiling. It may fall and cause serious
injury.
AC Power Cable
Use the AC power cord specified by AOC and suitable for the
voltage where you use it.
The plug is designed, for safety purposes, to fit into the wall outlet
only one way. If you are unable to insert the plug fully into the outlet, contact your dealer.
If you will not be using the TV for several days, disconnect the
power by pulling the plug itself. Never pull on the cord.
When disconnecting AC power cord, the power cord should be
easily accessible for disconnection.
TV should be installed near an easily accessible power outlet. Do not use a poor fitting outlet. Insert the plug fully into the outlet. If it is loose, it may cause arcing and result in a fire. Contact your electrician to have the outlet changed.
Observe the followings to prevent the AC power cord from being damaged. If the AC power cord is damaged, it may result in a fire or an electric shock. Stop using it and ask your dealer or AOC service center to exchange it.
Do not place the TV where the power cord is subject to wear or
abuse.
Do not pinch, bend, or twist the cord excessively. The core lines
may be bared and cut, causing a short-circuit, and resulting in a fire or an electric shock.
Attachments
Do not use attachments not recommended by the manufacturer, as they may cause hazards.
Do not convert or damage the power cord. Do not allow anything to rest on or roll over the power cord. Do not move the TV with the power cord plugged in. Keep the power cord away from heat sources. To unplug power cord, disconnect it from the wall outlet first. Be sure to grasp the plug when disconnecting the power cord. Do not pull the power cord. Do not use the supplied AC power cord on any other equipment. Use only an original AOC AC power cord, not other brands.
4
LCD Screen
Although the LCD screen is made with high-precision technology
and has effective pixels of 99.99% or more, black dots or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD panel and is not a malfunction.
The LCD screen is made with high-precision technology and to
achieve a high level of performance and picture quality, this TV’s backlight setting is set to maximize the brightness of the TV. However, uneven brightness may be observed when the LCD TV is viewed in a dark ambient without an input source or a blank screen. This condition is normal and not a malfunction of the TV. Changing the Picture mode, Backlight setting, enabling the Light Sensor, or turning on the Power management will improve this condition.
Do not expose the LCD screen surface to direct sunlight. Doing so
may damage the LCD panel.
Do not push or scratch the LCD screen, or place objects on top
of the TV. The image may be uneven or the LCD panel may be damaged.
If the TV is used in a cold place, a smear may occur in the picture
or the picture may become dark. This does not indicate a failure. These phenomena improve as the temperature rises.
Ghosting may occur when still pictures are displayed continuously.
It should disappear after a few moments.
The screen and cabinet get warm when the TV is in use. This is
not a malfunction.
Avoid spraying insect repellent with volatile material on the
screen.
Avoid prolonged contact with rubber or plastic material.
Broken Pieces
Do not throw anything at the TV. The screen glass may break by the impact and cause serious injury.
If the surface of the TV cracks, do not touch it until you have unplugged the AC power cord. Otherwise electric shock may result.
Electric Shock
Do not touch the AC power cord or the TV with a wet hand. If you plug/unplug the AC power cord from the TV with a wet hand, it may cause electric shock.
Lightning Storms
For added protection for this TV during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the TV due to lightning and power line surges.
When Not in Use
If you will not be using the TV set for several days, the TV set should be disconnected from the AC power outlet for environmental and safety reasons. The TV set is not disconnected from the AC power source when the TV set is switched off. To disconnect the TV set completely, pull the plug from the AC power outlet.
Handling of broken glass and liquid crystal leakage
If the LCD panel gets damaged, crystalline liquid leakage may occur, or scattered broken glass may result. Do not touch broken glass or crystalline liquid which is toxic, with bare hands as cuts, poisoning or skin irritation may occur. Also, do not let glass fragments or leaked crystalline liquid get into your eyes or mouth. Should either contact your eyes or mouth, rinse the contacted area thoroughly with water and consult your doctor.
Wiring
When connecting cables, be sure to unplug the AC power cord for your safety. Take care not to catch your feet on the cables. It may damage the TV set.
Overloading
This TV set is designed to operate on a 120 V AC supply only. Take care not to connect too many appliances to the same AC power outlet as this could result in a fire or an electric shock.
Plug the Power Cable on the TV Set
When you connect the power cable on your TV set, please make sure that the power cable was connected well.
5
Optional Equipment
Do not install optional equipment too close to the TV set. Keep optional equipment at least 11.875 inches (30 cm) away from the TV set. If a VCR is installed in front of the TV set or beside the TV set, the picture may become distorted. Picture distortion and/or noisy sound may occur if the TV set is positioned in close proximity to any equipment emitting electromagnetic radiation.
Small Accessories
Keep small accessories out of children’s reach.
Antennas
Outdoor antenna grounding
If an outdoor antenna is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits. WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM, EXTREME CARE SHOULD BE TAKEN TO KEEP FROM CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT WITH THEM IS ALMOST INVARIABLY FATAL. Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code (NEC) in USA and Section 54 of the Canadian Electrical Code in Canada provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
Antenna grounding according to the National Electrical Code, ANSI/NFPA 70.
Antenna lead-in wire
Antenna lead-in wire
Batteries
Do not dispose of batteries in a fire. Do not short circuit, disassemble or overheat the batteries.
Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type.
The batteries (batteries installed) shall not be exposed to
excessive heat such as sunshine, fire or the like.
Disposal of used batteries
To preserve our environment, dispose of used batteries according to your local laws or regulations.
Cleaning
Cleaning the AC power plug
Unplug the AC power plug and clean it regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate and result in a fire.
Cleaning the screen surface/ cabinet of the TV set
Unplug the AC power cord to avoid electric shock when cleaning. Clean the cabinet of the TV with a dry soft cloth. To remove dust
from the screen, wipe it gently with a soft cloth. Stubborn stains may be removed with a cloth slightly dampened with a solution of mild soap and warm water. Never use strong solvents such as thinner or benzine for cleaning.
If using a chemically pretreated cloth, please follow the instruction
provided on the package.
The ventilation holes can accumulate dust over time. To ensure
proper ventilation, we recommend removing the dust periodically (once a month) using a vacuum cleaner.
Magnetic Influence
This TV contains a strong magnet in the speaker unit that generates a magnetic field. Keep any items susceptible to magnetic fields away from the speaker.
Ground clamps
Electric service equipment
Ground clamps
Power service grounding electrode system
Grounding conductors
Antenna discharge unit
6
Sound
If a snapping or popping sound from the TV is continuous or frequent while the TV is operating, unplug the TV and consult your dealer or service technician. It is normal for some TV’s to make occasional snapping or popping sounds, particu larly when being turned on or off.
ding~
?
Pong~
Carrying the TV
Carry the TV in the specified manner
To avoid dropping the TV and causing serious injury, be sure to follow these guidelines:
Before carrying the TV, disconnect all cables. Carrying the large size TV requires two or more people.
When you carry the TV, place your hand as illustrated and hold it
securely. Do not put stress on the LCD panel.
Install on the wall
4 inches
10 cm
Installed with stand
4 inches
10 cm
11 7/8 inches
30 cm
4 inches
10 cm
11 7/8 inches
30 cm
4 inches
10 cm
Leave at least this space around the set.
4 inches
10 cm
Leave at least this space around the set.
When lifting or moving the TV, hold it firmly from the bottom. Place
your palm directly under the panel.
When carrying, do not subject the TV to shocks or vibration, or
excessive force.
Ventilation
The slots and openings in the TV are provided for necessary ventilation. To ensure reliable operation of the TV and to protect it from overheating, these slots and openings must never be blocked or covered.
Unless proper ventilation is provided, the TV may gather dust and get dirty. For proper ventilation, observe the following:
Do not install the TV face up, down or sideways. Do not install the TV turned over or upside down.
Never cover the slots and openings with a cloth or other materials. Never block the slots and openings by placing the TV on a bed,
sofa, rug or other similar surface.
Never place the TV in a confined space, such as a bookcase or
built-in cabinet, unless proper ventilation is provided.
Leave some space around the TV set as shown below. Otherwise, air-circulation may be inadequate and will cause overheating, which may cause a fire or damage to the TV set.
4 inches
10 cm
Never install the TV set where Air circulation is blocked.
Objects and ventilation holes
Never push objects of any kind into the TV through the cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or an electric shock. Do not place any objects on the TV.
Moisture
Moisture and flammable objects
The TV must not be exposed to dripping or splashing. Do not
place objects filled with liquids, such as vases, on the TV.
Do not use power-line operated TV sets near water— for
example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc. It may result in a fire or an electric shock.
Do not let this TV get wet. Never spill liquid of any kind on the TV.
If any liquid or solid object does fall through, do not operate the TV. It may result in electric shock or damage to the TV. Have it checked immediately by qualified personnel.
To prevent fire, keep flammable objects or open flame (e.g.
candles) away from the TV.
7
Volume Adjustment
Adjust the volume so as not to trouble your neighbors. Sound carries very easily at night. Therefore, closing the windows or using headphones is suggested.
When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.
Servicing
Do not attempt to service the TV by yourself since opening the cabinet may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Replacement Parts
When replacement parts are required, be sure the service technician certifies in writing that he/she has used replacement parts specified by the manufacturer that have the same characteristics as the original parts.
Unauthorized substitutions may result in a fire, an electric shock or other hazards.
Dolby License Notice and Trademark Acknowledgement
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Canadian notice
This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations.
Safety Check
Upon completion of any service or repairs to the TV, ask the service technician to perform routine safety checks (as specified by the manufacturer) to determine that the TV is in safe operating condition, and to so certify. Ask a qualified service technician to dispose of the TV.
Thank you for purchasing this AOC high-definition television. The quality of the image you see on your AOC TV is only as good as the quality of the signal it receives. To experience the stunning detail of your new AOC TV, you need access to HD programming. Your AOC TV can receive and display HD programming from:
Over-the-air broadcasting via HD-quality antenna HD cable subscription
HD satellite subscription Blu-ray Disc™ player or other external equipment
Contact your cable or satellite provider for information on upgrading to HD programming.
Mobile telephone warning
To avoid disturbances in picture and sound, malfunctioning of your TV or even damage to the TV, keep away your mobile telephone from the TV.
End of life directive
We are paying a lot of attention to produce environmental friendly in green focal areas.
Your new receiver contains materials, which can be recycled and reused.
At the end of its life, specialized companies can dismantle the discarded receiver to concentrate the reusable materials and to minimize the amount of materials to be disposed of.
Please ensure you dispose of your old receiver according to local regulations.
8
Contents in the Box
After unpack the TV box, please check the TV and all accessories are well presented and undamaged.
M4 Screw x 4
AOC LC32W063
Power Cable
User
Manual
Base
Remote Control
QSG Warranty
(To fix stand to base)
AAA Battery x 2
Card
User Manual
Quick Start Guide
9
Warranty Card
Controls & Connections:
Speaker
Speaker
Power Indicator
IR Receiver
L-Audio-R out SPDIF HDMI In
Volume +
Volume -
Channel
Channel
Menu
Input
Power
1. VOL + Press to increase the sound volume level.
2. VOL - Press to decrease the sound volume level.
3. CH ▲ Press to select the next higher program number.
4. CH ▼ Press to select the next lower program number.
5. MENU
Press to open or exit the OSD (on-screen display) menu.
6. INPUT Press to select the input source.
Press to turn on / off (standby) the TV set. (Press
Power
7.
to turn on TV after the power on status, LED had changed to Blue.)
USB/
SERVICE
USB/Service
HDMI 3
PC In
HDMI In
AV in 2 L-Audio-R
AV IN 2
Headphone Jack
S-VideoComponent InVHF/UHF Cable In
AV in 1 L-Audio-R
Item Description
Headphone Jack
L-AUDIO-R Out
*
SPDIF (Optical Digital Audio Out)
AV IN 1/2 (AV/S-VIDEO)/L­AUDIO-R
Connects to your headphones. If your headphones do not match the jack, use a suitable plug adapter (not supplied). While headphones are connected, the TV speakers are muted.
Connect an external sound system with standard audio cable to the AUDIO out (L/R) jacks on the back of your TV and to the AUDIO IN jacks on the amplifier.
Connect an external sound system with optical cable to the SPDIF out jack on the back of your TV to the SPDIF IN jack and to the amplifier or receiver.
Connects to the COMPOSITE VIDEO output or S-Video output jack from your video equipment that has COMPOSITE or S-Video VIDEO, and audio (L/R) jacks can connect audio source to your TV. When connected, S-Video will take priority over Composite video (Yellow jack).
USB/Service Insert USB storage device to the USB2.0 port to view photos (JPEG only).
Connects to the S-VIDEO output jack on your camcorder or other video equipment that has S-VIDEO. The
S-VIDEO Input
S-VIDEO provides better picture quality than composite video. The audio input connector was shared with COMPOSITE VIDEO IN.
HDMI (High-Definition Multimedia Interface) provides an uncompressed, all-digital audio/video interface between this TV and any HDMI-equipped audio/video equipment, such as a set-top box, DVD player, Blu-ray Disc player, A/V receiver as well as PC. HDMI supports enhanced, or high-definition video, plus digital audio.
If the equipment has a DVI jack and not an HDMI jack, connect the DVI jack to the HDMI IN (with DVI-to-HDMI cable or adapter) jack, and connect the audio jack to the PC AUDIO IN jacks of HDMI IN.
HDMI IN 1/ 2/ 3
DVI-to-HDMI cable DVI-to-HDMI adapter
HDMI connection is necessary to view 480i, 480p, 720p, 1080i and 1080p formats. Be sure to use only an HDMI cable that bears the HDMI logo.
Connects to a personal computer’s video output connector using HD15-HD15 cable (analog RGB). Can also be connected to other analog RGB equipment. See “PC Input Signal Reference Chart” on page 15 for the signals that
PC IN (RGB/AUDIO)
can be displayed. For some Apple Macintosh computers, it may be necessary to use an adapter (not supplied). If this is the case,
connect the adapter to the computer before connecting the HD15-HD15 cable. If the picture is noisy, flickering or not clear, adjust Phase and Pitch of Screen settings.
Component IN 1/ 2 (1080p/1080i/ 720p/480p/480i)/ L-AUDIO-R
VHF/UHF/Cable Input
Connects to your TV’s component video (YPbPr ) and audio (L/R) jacks. Component video provides better picture quality than the S-VIDEO or the composite video connections. Component video (YPbPr) connection is necessary to view 480i, 480p, 720p, 1080i and 1080p formats.
RF (Radio Frequency or modulated signal design used as the carrier for television broadcasts.) input that connects to your Cable or VHF/UHF antenna.
* SPDIF
Sony/Philips Digital Interconnect Format. S/PDIF is mostly used to transmit compressed multichannel audio from a media player to an amplifier/receiver.
10
Buttons located at the right side of the TV will operate the same as these buttons on the remote control.
Button Description
POWER Press to turn on and off the TV.
TV/ AV/
COMP
COMP/ HDMI/PCPress TV, AV, COMP or HDMI/PC separately to select the input directly.
0-9 Press 0-9 to select a channel; the channel changes after two seconds.
PR
PRECH
PRE CH
Press to go back to the previous TV channel or exit from the OSD when displaying menu items and settings.
COMP
VOL +/- Press to adjust the volume.
SOURCE
Press to display the list of External Inputs. Press repeatedly to toggle through the inputs.
MUTE Press to mute the sound. Press again or press VOL+ to restore the sound.
Press to scan through channels. To scan quickly through channels, press and hold down either + or -.
Move left, up, down or right to select the available option or adjust the setting in OSD menu.
PRECH
CH +/-
/ / /
OK Press to confirm the selected item or setting.
M U
EN
/
Exi t
MENU/EXIT
Press to display or close a list of convenient functions and menu shortcuts. The OSD (On Screen Display) menu items vary based on input and content. Press once to display the information pertaining to the channel and/or
Add Fav
Display
Display
Add Fav
Fav
DISPLAY
program when available. The OSD (On Screen Display) will time out in a few seconds or press again to immediately turn off the display.
Add Fav Press to add channel to Favorite List.
FAV Channel Press to display the Favorite Channel List.
Press to display digital program guide in TV mode. It may show current
EPG
M U
Fav
EN
/
Exi t
EPG
channel name, program name, time, rating, and summaries, depending on the information provided by the broadcaster.
No function.
No function.
MTS
Wide
Wide
WIDE
CC
MTS
Freeze Press to freeze the displayed picture.
MTS*
SLEEP***
Press repeatedly to step through the Wide Mode settings: Normal Mode, Wide mode, Zoom 1 Mode and Zoom 2 Mode. Press to display the USB thumbnail browser. This is activated only if the USB storage device is plugged into the USB hub.
Press to activate the NTSC TV sounds, such as: Stereo, SAP** or Mono tone and languages of DTV. Press repeatedly to cycle through the available sleep timer, 5, 10, 15, 30, 60, 90, 120 180 and 240 minutes to turn off TV automatically.
EPG
Press repeatedly to cycle through the available picture modes: Vivid,
AUDIO
Standard, Eco, Movie and Personal. The picture modes can also be accessed in the Picture settings. For details, see section- Adjust Picture Setting.
Press repeatedly to cycle through the available sound modes: Music, Speech and Personal. The sound modes can also be accessed in the Sound settings. For details, see section- Adjust Audio Setting.
V-Chip
CC
CC
Press to lock Parental Control temporarily. (After setting the restricted table of MPAA, Motion Picture Association of America or TV Rating.) Press repeatedly to change the closed caption type as CC Off / CC On / CC On With Mute.
* Multichannel Television Sound (MTS)
The broadcasting standard, which allows stereo sounds to be transmitted with the TV picture.
** Second Audio Program (SAP)
Another or additional audio channel provided for in the Multichannel Television Sound (MTS) broadcast standard. A monaural sound track included within the recorded or video signal (usually containing a second language translation for the displayed program).
*** Sleep
You can set a time period for which the TV will be turned off automatically.
11
Set-Up
Inserting Batteries into the Remote control
Insert two size AAA batteries (supplied) to the diagram inside the battery compartment of the remote control.
Attaching the Base
IMPORTANT: The Base of the AOC LCD TV must be assembled prior to usage.
1. Place the TV set facing down on a soft and flat surface (blanket, foam, cloth, etc.) to prevent any damage to TV set.
2. Carefully align and insert the Base to the stand
3. Insert the screws to the bottom of the base and use them to tighten the base to the stand.
4. Please refer to the “Important Usage instructions” in the above.
Wall-Mounting
Please install on a wall by using a Wall-Mount Bracket (sold separately). Before mounting the TV on a wall, the Table-Top Stand must be removed from the TV. Follow the simple steps below to remove the Table-Top Stand:
1. Disconnect all the cables from the TV.
2. Gently lay the TV, face down, onto a level and stable surface covered with a thick and soft cloth. Make sure the Table-Top Stand is hanging over the edge.
3. Remove the screws as shown in the illustration for your model and pull the Table-Top Stand out.
4. Do not remove any other screws from the TV.
5. Do not remove the Table-Top Stand for any reason other than to Wall-Mount the TV.
6. Be sure to store the removed screws and Table-Top Stand in a safe place until you are ready to reattach the Table-Top Stand. Keep the screws away from small children.
7. For bracket installation, refer to the instruction guide provided by the Wall-Mount Bracket model for your TV. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV’s weight.
8. For product protection and safety reasons, AOC strongly recommends that you use the Wall-Mount Bracket model designed for your TV and the Wall-Mounting of your TV should be performed by AOC dealer or licensed contractor.
1 2 3
M4 screw(4pcs)
Note: 200 mm x 200 mm wall mount bracket & M4 screws (Screws length: 10mm and pitch: 0.7mm) are not included. Please contact your local distributor.
12
Connecting TV
Cable System or VHF/UHF Antenna System
You can enjoy standard-definition and high-definition digital programming (if available in your area), along with standard-definition analog programming.
This TV is capable of receiving unscrambled digital programming for both cable and external VHF/UHF antenna.
It is strongly recommended that you connect the antenna/cable input using a 75-ohm coaxial cable to receive optimum picture quality. A 300-ohm twin lead cable can be easily affected by radio frequency interference, resulting in signal degradation.
Cable or VHF/UHF(or VHF only)
75-ohm coaxial cable (supplled)
Rear of TV
VHF/UHF input
TUNER
TUNER
TUNER
High Definition Interface
You can enjoy high-definition programming by subscribing to a high-definition cable service or a high-definition satellite service. For the best possible picture, make sure you connect this equipment to your TV via the HDMI or component video (with audio) input on the back of your TV.
HDMI Connection
HDMI IN 1 / 2 / 3
HDMI HD Multimedia Interface
HDMI
If the equipment has a DVI jack and not an HDMI jack, connect the DVI jack to the HDMI IN (with DVI-to-HDMI cable or adapter) jack and connect the audio jack to the PC AUDIO IN jacks.
HDMI
HDMI
Component Signal Connection
Component IN 1/2
Y Pb Pr Component Video Input
L R Y Pb Pr
L R Y Pb Pr
L R Y Pb Pr
13
L R Y Pb Pr
Audio
L R Y Pb Pr
Composite/ S-Video Signal Connection
SPDIF
SPDIF
SONY Philips Digital Interface
SPDIF IN
SPDIF
SPDIF
AV IN 1 / 2
AV
AV IN 1
S-VIDEO
S-VIDEO
S-VIDEO
S-VIDEO
S-VIDEO
Audio
S-VIDEO
PC Connection
Use the TV as a monitor for your PC shown below with the HD15 to HD15 connection. This TV can also be connected to a PC with DVI or HDMI output. (Refer to the separate Quick Setup Guide.)
VGA IN
PC
D-SUB
Connect the PC IN jack to the PC using the HD15- HD15 cable with ferrite core (analog RGB) and audio cable. If the PC is connected to the TV and no signal has been input from the PC for more than 30 seconds, the TV enters the standby mode
automatically.
External sound Connection
Turn off the AOC LCD TV and Sound Device and connect the Audio Out jack or SPDIF jack on the rear of AOC LCD TV. Connect an audio cable to the audio output connectors associated with the Audio Out (R/L) and SPDIF on the TV Set and connect the other
end to the audio connectors associated with the Audio input of the External Sound.
14
PC Input Signal Reference Chart
After connecting the PC to the TV, set the output signal from the PC according to the chart below.
Presetting PC Mode
Standard Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz)
VESA 640 x 480 31.469 59.94 VESA 800 x 600 37.879 60.317 VESA 1024 x 768 48.363 60.004 VESA 1360 x 768 47.72 59.799
Video Input Signal Reference Chart
After connecting the video input to the TV, set the output signal from the video input according to the chart below.
Presetting Video Mode
Standard Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz)
SD 480i 15.734 60 SD 480P 31.5 60 SD 576i 15.625 50 SD 576P 31.25 50 HD 720P 37.5 50 HD 720P 45 60 HD 1080i 28.125 50
HD 1080i 33.75 60 FHD 1080p 56.3 50 FHD 1080p 67.5 60
Standard Definition Interface
You can also enjoy traditional program by using a DVD player or VCR Player. Connect this equipment to your TV via the Composite Input or S-Video Input on the back of your TV.
Refer to the Quick Setup Guide (supplied) when connecting other equipment to your TV.
15
USING AOC TV
Turning the TV On and Off
You can turn on the TV by using power switch button on the TV set or on the remote controller.
Initial Wizard (1/8)
Please select language...
English
Spanish
French
Next Cancel
Navigate: Select:
OK
Initial Setting
When you first start up this AOC LCD TV set, please follow the Initial Wizard to your AOC LCD TV.
1. Selecting Language.
Select your preferred language: English, Spanish or French
1 Press ▲/▼ to select “Language”, and press OK.
2. Selecting Time mode.
Initial Wizard (2/8)
Please select Time mode...
Auto
Manual
Previous Cancel
Navigate: Select:
1 Press ▲/▼ to select “Auto” or “Manual” for Time Mode.
16
OK
A. Selecting Time Zone.
Inital Wizard (3/8)
Please select Time Zone...
NST MST
AST PST
EST AKST
CST HST
Previous Cancel
Navigate: Select:
1 Press ▲/▼/◄/► to select “Time Zone” which you located then press OK.
OK
17
B. Manually enter the time.
Initial Wizard (3/8)
Please enter the time...
2010Year
Month
Day
Time
Previous Cancel
Navigate: Select:
Year
1 Press ▲/▼ to select “Year” then press “OK”
2
Press ◄/► to adjust then press “OK”
Month
1 Press ▲/▼to select “Month” then press “OK”
Jan
1
12:02 AM
OK
OK
2
Press ◄/► to adjust then press “OK”
Day
1 Press ▲/▼ to select “Day” then press “OK”
2
Press ◄/► to adjust then press “OK”
Time
1 Press ▲/▼ to select “Time” then press “OK”
2
3
Press ◄/► to select “Hour”, “Minute” or “AM/PM” then press “OK”
Press ▲/▼ to adjust then press “OK”
18
3. Select “Eco” mode or “Vivid” mode.
When you turn on TV in the first time, you can choose “Eco” mode to decrease backlight level to save the power consumption or “Vivid” mode to enhance picture contrast and sharpness.
Initial Wizard (4/8)
Please select Eco/Vivid mode...
Eco
Vivid
Previous Cancel
Navigate: Select:
1 Press ▲/▼ to select “Eco” or “Vivid” for display setting.
4. Select TV RF tuning band
Initial Wizard (5/8)
Please select TV RF tuning band...
Air
Cable
Previous Cancel
ENTER
Navigate: Select:
1 Press ▲/▼ to select “Air” or “Cable” for RF Tuning setting. Press “OK” will execute channel searching.
OK
19
5. Search TV channel
Initial Wizard (6/8)
Please check if RF cable is
connected oroperly ...
Start
Previous Cancel
Navigate: Select:
1 Press ▲/▼ to select “Previous” or “Cancel” for RF Tuning setting. Press “OK” will execute channel searching.
OK
Initial Wizard (7/8)
Searching, Please wait ...
Searching Analog CH
Analog Channels Found
Digital Channels Found
CH 100
66
55
100%
Cancel
Navigate: Select:
OK
1 Press ▲/▼ to select “Cancel” for RF Tuning setting. Press “OK” will execute cancel the channel searching.
20
Initial Wizard (8/8)
Congratulations, TV Setup is done.
Exit: Cancel
M U
EN
1
/
Exi t
Press
M U
EN
/
Exi t
to exit initial setting wizard.
21
Viewing Mode Selection
For TV input with SD programs
Normal Mode
Suitable for viewing conventional 4:3 programs in their normal format.
Wide Mode
The original content in this mode has to ll the
entire screen of the display.
Zoom1 Mode
Use these aspect modes to zoom in and to reduce the black bars.
Zoom2 Mode
Use these aspect modes to zoom in and to reduce the black bars.
For TV input with HD programs
Normal Mode
Suitable for viewing conventional 4:3 programs in their normal format.
Wide Mode
The original content in this mode has to ll the
entire screen of the display.
Zoom1 Mode
Use these aspect modes to zoom in and to reduce the black bars.
Zoom2 Mode
Use these aspect modes to zoom in and to reduce the black bars.
22
Switching Input Source
OK
MENU
/Exit
0. TV
1. AV1
2. AV2
3. Component 1
4. Component 2
5. VGA
6. HDMI 1
7. HDMI 2
8. HDMI 3
Source List
Move Select Exit
On AOC TV, you can choose signal source on the remote control directly, or press “Source” to choose the signal source on the display menu.
1. When choosing signal source on the remote control directly: Press the following keys to switch input source.
COMP
Add Fav
COMP
PRECH
Display
M U
Fav
EPG
EN
/
Exit
Wide
MTS
CC
2. When using “Source” key to choose signal source:
1 Press Source to call out source menu.
2
3 Press OK to enter.
COMP
PRECH
Display
AddFav
M U
EN
Fav
/
Exit
Wide
EPG
MTS
CC
Press ▲/▼ to select input source: TV, AV1/ 2, Component 1/2, VGA, HDMI1/ 2/ 3.
23
OSD Manual Setting
Channel Search
CHANNEL
Tuning Band
Cable
Channel Strength
Auto CH Search
Add on CH Search
Channels List
Channel Labels
FAV Channel Setting
Move Select Return Exit
M U
1
2
3
EN
/
Ex it
OK
Press MENU to call out MENU.
Press ▲/▼ to select “Channel” , and press OK.
Press ▲/▼ to select “Auto CH Search”, and then press OK.
MENU
/Exit
The submenu of CHANNEL menu in TV mode shows as below.
1) Tuning Band: Select TV source signal from the Air (antenna) or Cable (CATV).
2) Channel Strength: Show the intensity of the received DTV signal.
3) Auto CH Search: Automatically scan all NTSC / ATSC TV channels and then store in the channel table. In channel scan process, the OSD
4) Add on CH Search: Add channels which are new found.
5) Channels List: Show the Channels List. User can edit (add/delete) the channel numbers.
6) Channel Labels: Show the NTSC /ATSC TV Channel Labels menu for user modifying channel labels specifically.
7) FAV Channel Settings: Show the Favorite Channel List. User can edit (add/delete) the favorite channels.
can display the number of channels which had been found.
24
Changing Channel/Flashback
On AOC TV, you can change channel on the remote control directly, or press CH ▲/▼ on the side of the TV to choose the channel.
37-2
1. Press the number keys directly to change the channel.
2. Press the CH to change channel.
3. Press PRE CH to go to the previous channel.
PR
PRE CH
25
Changing Volume, Mute and Sound Mode
1. Press VOL to change the volume.
2. Press MUTE to mute the TV.
3. Press Audio to change surround mode: Music, Speech and Personal.
For more details, please refer to “Adjust Audio Setting”.
26
Adjust Video Setting
VIDEO
Picture Mode
Brightness
Contrast
Sharpness
Color
Tint
45
53
56
69
G3
Color Temp
Move Select Return Exit
M U
1
2
3
/
EN
Ex it
OK
Press MENU/EXIT to call out MENU.
Press ▲/▼ to select “VIDEO” , and press OK.
Press ▲/▼ to select Video Settings: Picture Mode, Brightness, Contrast, Sharpness, Color, Tint, Color temp, Noise
reduction, Adaptive Contrast, DCR, Backlight, Aspect Ratio, Preset, and press OK to enter.
Vivid
Cool
MENU
/Exit
4
M U
5
Picture Setting Items Description
Picture Mode
Brightness Brightens or darkens the picture. Contrast Increases or decreases picture contrast.
Color Increases or decreases color saturation.
Tint Increases or decreases the green tones.
Sharpness Sharpens or softens the picture.
Noise reduction Reduces the noise level of connected equipment, and the VHF/UHF/CABLE input.
Color temp.
Noise Reduction Gives four NR effect degrees, such as: Low, Mid, High and Off. The default setting is Mid.
Adaptive Contrast Choose On or Off to adjust the gamma after analyzing the input signal automatically.
DCR Dynamic Contrast Ratio (DCR) auto adjusts the backlight of the screen.
/
EN
Ex it
Press ◄/► to adjust.
Press MENU/EXIT again to exit.
Vivid For Enhances picture contrast and sharpness. Standard For standard picture settings. Recommended for home entertainment. Eco Decrease backlight level to save the power consumption. Movie For viewing film-based content. Most suitable for viewing in a theater-like environment. Personal The user can set their favorite setting. Preset for all inputs can also be accessed by pressing Picture on the remote control to directly toggle the modes.
Cool Gives the white colors a bluish tint.
Warm Gives the white colors a reddish tint.
Standard Gives the white color a nature tint.
Personal Gives the white color a personal tint.
Backlight Backlight strength adjustment, the tuning range is 0 ~ 30.
Aspect Ratio Choose the display aspect.
Preset Restore the default video settings.
27
Adjust Audio Setting
AUDIO
Sound Mode
Bass
Treble
Balance
Audio Source
SPDIF
Speaker
Move Select Return Exit
M U
1
2
3
/
EN Ex it
OK
Press MENU/EXIT to call out MENU.
Press ▲/▼ to select “Audio” , and press OK.
Press ▲/▼ to select Audio Settings：Sound mode, Bass, Treble, Balance, Audio Source, SPDIF, Speaker, Multi
Language, AVL, Preset, and press OK to enter.
Personal
32
32
0
Stereo
PCM
On
MENU
/Exit
4
M U
5
Audio Setting Items Description
Sound Mode
Bass Increases or decreases lower-pitched sounds.
Treble Increases or decreases higher-pitched sounds.
Balance Emphasizes left or right speaker balance.
Audio Source Select the audio source from Mono, Stereo, or SAP. (This function works in ATV only.)
Audio Language
SPDIF
Speaker
Multi Language To choose the multi-language in DTV. AVL Enable or disable Automatic Volume Level. Preset Restore the default audio settings.
/
EN Ex it
Press ◄/► to adjust.
Press MENU/EXIT again to exit.
Music: Enhances treble and bass.
Speech: Enhances treble and keep bass in middle.
Personal: Adjust sound mode as personal favorite.
Sound Mode can also be accessed by pressing Audio on the remote control.
Change the audio language setting on ATSC TV programs. The number of the supported audio languages (English / Français / Español) Digital audio output format. Select from RAW and PCM. The difference between SPDIF PCM or RAW:
SPDIF PCM: It will only output as a PCM 44.1Khz digital no matter what the recording is in the media. SPDIF RAW: It will output the stream as it is digitally recorded, i.e. DTS recording as a DTS or a Dolby as a Dolby, or a
native 48 or 96Khz. Choose to turn on / off the TV internal speaker. The digital audio output signals and earphone output signals will not be turned off even though the TV speaker is off. The default setting is On.
28
Adjust PC Setting
This setting is only available in PC mode.
VGA
H-Position
V-Position
Clock
Phase
17
13
8
2
Auto Adjust
Preset
Move Select Return Exit
M U
1
2
3
/
EN
Ex it
OK
Press MENU/EXIT to call out MENU.
Press ▲/▼ to select “PC” , and press OK.
Press ▲/▼ to select PC Settings: H. Position, V. Position, Clock, Phase, Auto adjust, Preset, and press OK to
enter.
MENU
/Exit
4
M U
5
PC Setting Description
Auto adjust
H. Position Adjusts the Horizontal positioning.
V. Position Adjusts the Vertical positioning.
Clock Adjusts the Clock frequency on VGA signal.
Phase Adjusts the Phase frequency on VGA signal.
/
EN
Ex it
Press ◄/► to adjust.
Press MENU/EXIT again to exit.
Auto sync. PC timing to fit full screen display. For detail supported timing, please refer PC Input Signal Reference Chart on page 17.
29
Feature Setup
FEATURE
FEATURE
Menu Language
Menu Language
Time
Time
Password Setting
Transparency
Parental Control
Password Setting
1
English
English
Closed Captions
Parental Control
Analog Captions
Closed Captions
Digital Captions
Analog Captions
Move Select Return Exit
Move Select Return Exit
M U
1
2
3
4
5
EN
/
Ex it
M U
EN
/
Ex it
OK
Press MENU/EXIT to call out MENU.
Press ▲/▼ to select “Setup” , and press OK.
Press ▲/▼ to select Setting items: Menu language, Time, Password Setting, Parental control, Closed Captions,
Analog Caption, etc. and press OK to enter.
Press ◄/► to adjust.
Press MENU/EXIT again to exit.
With Mute
SERVICE1
Off
CC1
CC1
MENU
/Exit
The submenu of FEATURE mode in TV mode shows as below.
1. Menu language: Adjust the language setting for this TV unit. (English / Français / Español)
1 Press ◄/► to select: English / Français / Español, and press OK.
2. Time:
Set current time. The sub-menu includes Time Mode, Time Zone, and Daylight Savings.
FEATURE Time
Time Mode
Time Zone
Daylight Savings
Year
Month
Day
Time
Move Select
1 Scroll to Time and press OK to enter the menu for Time adjustment.
OK
Return Exit
Auto
HST
On
2010
Jan
12:02 AM
MENU
/Exit
1
30
2 Press ◄/► to adjust Auto or Manual setting for Time Mode and press OK.
3
4
5
M U
6
3. Password Setting: Change the 4-numeral parental control password. Three steps are required for changing the password:
Step 1:
Enter Old Password
Step 2:
Enter New Password
Step 3:
/
EN
Ex it
Press ▲/▼ to select “Time Zone”. Press ◄/► to adjust Time Zone which you located and press OK.
Press ▲/▼ to select “Daylight Savings”. Press ◄/► to on/off Daylight Savings and press OK.
For manually Time Mode setting, press ▲/▼ to select “Year”, “Month”, “Day”, and “Time”. Press ◄/► to adjust
“Year”, “Month”, “Day”, and “Time”, and press OK.
Press MENU/EXIT again to exit.
Press Number Key to enter the old password.
PR
Press Number Key to enter the New password.
PR
Confirm New Password
PR
Note: This item is only available in TV, Composite and S-Video source modes. The default password is [0 0 0 0].
Press Number Key to enter the New password.
31
4. Parental Control:
FEATURE Parental Control
Button Lock
Block Unrated TV
Off
Off
USA Parental Locks
Canadian Parental Locks
Open V-Chip
Move Select Return Exit
Provide the Parental Control (V-chip) function setting. Before entering the Parental Control sub-menu, user has to key in the password first. Enter the Parental Lock item, then the user can modify the restricted table about MPAA or TV Rating respectively. While exiting the sub-menu, the parental control function is working. The inhibitive channels or source signals can be unlock through pressing the V-CHIP key on the remote control and then key in the correct password.
Note: This feature is only available in TV, Composite and S-Video source modes. (The default password is: 0 0 0 0.)
Parental Control: Description
Button Lock
Block Unrated TV When Block Unrated TV is set to on, your TV will block unrated program. USA Parental Locks Set the parental control level by MPAA or TV Rating. Canadian Parental Locks Set the parental control level by English Rating or French Rating.
Open V-Chip
5. Closed Captions: Select a closed caption option. (Off / On / With Mute)
6. Analog Captions: Select an analog caption option. (CC 1-4 / TEXT 1-4)
7. Digital Captions: Select a digital caption option. (Service 1-6)
8. Digital Captions Setup: Provide numerous options for setting the digital closed caption style in the sub-menu.
Items Description
Style
Size Digital closed caption font size, which can be set as Automatic, Small, Normal, or Large. Font Digital closed caption font style, which can be chosen as Automatic, Default, or Font 1 ~ 7. Text Color Automatic / White / Red / Green / Blue / Yellow / Magenta / Cyan / Black. Text Opacity Automatic / Solid / Flashing / Transparent / Translucent. Background Color Automatic / Black / White/ Red / Green / Blue / Yellow / Magenta / Cyan. Background Opacity Automatic / Solid / Flashing / Transparent / Translucent. Edge Effect Automatic / None / Raised / Depressed / Uniform / Left Shadow / Right Shadow. Edge Color Automatic / Red / Green / Blue / Yellow / Magenta / Cyan / Black / White.
9. Input Labels: User can edit the input labels.
10. Component Setting: This option only shows and is available in component mode, which provides fine tuning component display. [Phase] – Adjust Picture Phase to reduce Horizontal-Line noise. The tuning range is from 0 to 100.
[Preset] – Restore the default component setting values.
11. MultiMedia Menu: This option shows the settings for the photo play function from USB storage device.
Note:
a. File number is limited to 1000 files b. This model is only supported JPEG format. c. JPEG sizes are limited up to 10928 x 6114.
12. Reset to Default: Restore all the default settings.
OK
Select On or Off to lock or unlock the control buttons on the side panel of the TV. When this function enables, the control buttons on your TV will be locked and TV will be controlled by remote control only.
Open V-Chip is an advanced V-Chip rating system for digital channels that are received. The rating table will be updated by downloading the RRT5 data for blocking.
Set to Automatic or Customer mode. If Custom mode is selected, user can modify the detail styles described below. The setting result will be shown immediately on the bottom of the submenu OSD.
Note: This feature is only available in Digital TV (ATSC) mode.
MENU
/Exit
32
JPEG Viewer
After plugging USB storage device into USB port, Multimedia List menu will display.
Or press “Photo” on the remote control after you plugging USB storage device.
Image Delay Normal
Start Side Show
Rotate Photo
Back To Upper Folder
Back To Root Folder
Exit
1 Press OK to enter JPEG Viewer.
2
M U
3 Press MENU/EXIT to display control menu.
/
EN
Ex it
Press ▲/▼/◄/►to select, and press OK to enlarge the selected photo (orange frame) browser.
Filename\.. Filename
FilenameFilename
Filename
Multimedia List
1. JPEG Viewer
Exit
JPEG Viewer Control: Description Image Delay Set display time for each picture in slide show. There are three options: Fast, Slow, and Normal.
Start Slide Show Enter Slide Show mode.
Rotate Photo Rotate selected picture. (0/90/180/270).
Back to Upper Folder Return to the upper folder.
Back to Root Folder Return to root folder.
Back To Browser Return to Browser mode. (Photo page with control menu.)
Exit Exit JPEG Viewer and return to original source. (Browser with Control menu.)
33
Troubleshooting
Condition Explanation / Solution
No picture
No picture Check the Power Saving settings.
Cannot receive any channels
TV is locked to one channel Perform Auto Program to add receivable channels that are not present in the TV’s memory.
Cannot receive or select
The TV turns off
No picture from some video
Poor picture
The quality of the images is not as good as what I saw at the store
Double images or ghosts
Only snow and noise appear on the screen
Dotted lines or stripes
No color/Dark picture/Color is not correct/The picture is too bright
Noisy picture
No sound/Noisy sound
Make sure the power cord is connected securely. Turn on the power of the TV. Check antenna/cable connections. Make sure the Cable setting is correct for your TV signal source.
Perform Auto Program to add receivable channels that are not present in the channels TV’s memory. To receive or select cable channels, make sure that Cable in the Channel settings is set to On. To receive or select UHF channels over an antenna, make sure Cable is set to Off.
Check if Sleep Timer is activated, or confirm the Duration setting of Timer automatically. Check PC Power Management in General Settings.
Check the connection between the optional video equipment and the TV Sources. Press INPUT on the remote control. Select your desired input from the External Inputs list.
Picture quality depends on the signal content. See Quick Setup Guide (supplied) to display the best possible picture for that signal.
Check antenna/cable connections. Check the antenna location and direction.
Check if the antenna is broken or bent; Check if the antenna has reached the end of its serviceable life. (3-5 years in normal use, 1-2 years at the seaside.)
Keep the TV away from noise sources such as cars, motorcycles, or hair-dryers. If using 300 ohm twin lead, move the excess lead away from the TV or try using 75 ohm coaxial cable instead.
Press PICTURE to select the desired Picture Mode; Adjust the Picture Mode options in the Picture settings.
Make sure that the antenna is connected using a 75-ohm coaxial cable. Keep the antenna cable away from other connecting cords. To avoid TV interference, make sure to use an undamaged antenna cable.
Check the volume control. Press MUTE or VOL + so that
Good picture, no sound
Audio noise
PC Input
No Picture / No Signal
Poor Picture Adjust the resolution. Adjust Pitch and Phase.
Wide Mode changes automatically
Suddenly the picture gets smaller
“Black box” on screen
Black bands appear at the edges of the screen
Condition Explanation / Solution
PC Input
Certain programs on DVD or other digital sources display a loss of detail, especially during fast-motion or dark scenes
Remote control does not operate
Disconnect your headphones. For HDMI equipment, confirm that the audio output setting of the connected equipment is set to PCM. This TV's HDMI inputs support PCM 32, 44.1 and 48 kHz, 16, 20 and 24bits.
Make sure that the antenna is connected using a 75-ohm coaxial cable. Keep the antenna cable away from other connecting cords. To avoid TV interference, make sure to use an undamaged antenna cable.
Confirm the PC is correctly connected to the TV with either the PC IN (with an HD15 cable) or with the HDMI IN. Ensure the output signal from the PC is one of the formats listed on page 18. Turn the PC off. Confirm the PC connection and restart the PC. Plug and play will auto-detect the TV and correctly set up PC timing. Verify PC Power Management is activated.
The current Wide Mode setting is automatically replaced with the 4:3 Default setting when you change the channel or video input, if 4:3 Default in the Screen settings is set to other than Off. If you want to lock in Wide Mode selected with WIDE on the remote control, set 4:3 Default to Off in the Screen settings. Check the Auto Wide option in the Screen settings.
The picture gets smaller during the commercials, this is due to the method the provider broadcasts their contents. When HD content channels switch to SD definition content (commercials), the picture may be small with a black border.
You have selected a text option and no text is available. To turn off this feature, set the CC Display option to Off. If you were trying to select closed captioning, select CC1 instead of Text1-4.
Some wide screen programs are filmed in aspect ratios that are greater than 16:9 (this is especially common with theatrical releases). Your TV will show these programs with black bands at the top and bottom of the screen. For more details, check the documentation that came with your DVD (or contact your program provider). Programs in 4:3 aspect ratio will have bands on left and right sides of the screen.
This is due to the digital compression of the source content used by certain digital broadcasts and DVDs which may cause your TV’s screen to display less detail than usual, or cause artifacts (small blocks or dots, pixilation) to appear on your screen. These signal compressions are more visible and are dependent on the clarity and resolution of the television.
Check the polarity of the batteries or replace the batteries. Point the remote control at the remote control sensor located at the front of the TV. Fluorescent lamps can interfere with your remote control operation; try turning off the fluorescent lamps. Keep the remote control sensor area clear from obstacles.
disappears from the screen.
34
Dimensions & Specifications
Model LC32W063
Panel size 800 mm diagonal (31.5” viewable)
Resolution 1366 x 768
TV System
Channel coverage
Speaker 10 W x 2
Antenna impedance 75Ω
Input Voltage 120VAC, 60Hz
Power consumption 120W
Standby power consumption <1W
Video/Audio Terminals
S-Video Input*
Video/Audio Input
Audio Output Audio line out (R/L): Max 2.0Vrms
Component Input
HDMI Terminals
VGA Terminals
Headphone Audio Output: Mini-jack for stereo (3.5Ø )
SPDIF Output Optical Digital Audio Out jack.
Size (W x H x D) (with base and stand) (mm)
Weight
Wall mount size 200 x200mm (Wall mount kit is not included)
Wall-Mount accessory Optional accessory and not included in standard package
Equipment: Operation Temperature Storage Temperature
NTSC standard ATSC standard (8-VSB, Clear-QAM)
VHF: 2 through 13 UHF: 14 through 69 Cable TV: Mild band (A - 8 through A - 1, A through I) Super band (J through W) Hyper band (AA through ZZ, AAA, BBB) Ultra band (65 through 94, 100 through 125)
Rear AV x1: S-Video/Video/Audio Input/Audio output Side AV x1: Video/Audio Input/Audio output
Y: 1 V(p-p), 75 ohm, negative sync. C: 0.286 V(p-p) (burst signal), 75 ohm
VIDEO: 1 V(p-p), 75 ohm, negative sync. AUDIO: 500mv (rms)
Rear Component x2: Y: 1V(p-p), 75 ohm, including sync. Pr/Cr: ±0.35V(p-p), 75 ohm Pb/Cb: ±0.35V(p-p), 75 ohm AUDIO: 500mv (rms)
HDMI INPUT: Rear HDMI x2; Side HDMI x1 HDCP compliant E-EDID compliant
VGA INPUT: Rear VGA (D-SUB 15 Pin) Input x1 E-EDID compliant Audio Input: Mini-jack for stereo (3.5Ø )
778.5 x 553.3 x 250.7
9.8 Kg (with stand)
8.2Kg (w/o stand and base)
35 ºC for moderate climates and 45 ºC for tropic climates (Maximum ambient temperature)
-20 ºC~50 ºC
* S-Video Input
You can connect your TV set to a high-resolution video source (such as Super VHS videocassette recorder, Laser Disc player, and DVD Home Theater Set) in order to provide maximum consumer viewing satisfaction.
Note:
• - Designs and specifications are subject to change without notice.
• - This model may not be compatible with features and/or specifications that may be added in the future.
35
Index
A
Antenna, 6, 33 Audio, 24, 26, 32 Audio Setting, 24, 26 Auto adjust, 27 Auto CH search, 22 AVL, 26
B
BACK, 11 Balance, 26 Bass, 26 B/L control, 28 Brightness, 25, 33
C
Channel, 22, 23, 32 Clock, 27 Closed Captions, 28, 30 Color, 25, 32 Color temp., 25 COMP, 11 Component, 10, 13 Contrast, 25, 33 CVBS, 21
D
DCR, 28 Dimensions, 33 DISPLAY, 11
E
Eco, 11, 19, 25
F
Frequency, 15
H
HDMI, 10 Headphone Jack, 10 H. Position, 27
I
Input Source, 21
M
MENU, 11, 21, 22, 25, 26, 27, 28, 29, 31 Menu language, 28 Menu timeout, 28 MODE, 11 MPAA, 11, 30 MTS, 11 Music, 24 MUTE, 11, 24
N
Noise reduction, 25
P
Panel size, 33 PC Connection, 14 PC Setting, 27 Personal, 24 Phase, 10, 27, 32 Picture Mode, 32 Picture Setting, 25 Power, 4, 5, 32, 33 Preset, 15, 25 Presetting PC Mode, 15 Presetting Video Mode, 15
R
Remote control, 11, 16, 21, 23, 25, 26, 32
Reset all, 28 Resolution, 15, 33
S
SAP, 11, 26 Setting, 32 Setup, 14, 15, 28, 32 Set-Up, 12 Sharpness, 25 Signal, 10, 13, 14, 15, 27, 32 Size, 25, 33 SLEEP, 11 Sound, 7, 8, 11, 24, 26 Sound mode, 26 Source, 21, 32 SOURCE, 11 SPDIF, 10, 14, 26, 33 Speaker, 33 Specifications, 33 Speech, 24 Standard, 11, 15, 25 Super contrast, 28 S-Video, 14, 15, 29, 30, 33 S-VIDEO, 10
T
Tint, 25 Treble, 26 Troubleshooting, 32
V
V-Chip, 11 Video, 15, 33 VIDEO, 10, 25 View Angle, 33 Virtual surround, 26 Vivid, 11, 19, 25 VOL, 11, 24, 32 Volume, 8, 24 V. Position, 27
W
Wall-Mount, 3, 4, 12, 33
Y
YPbPr, 10, 11
Z
ZOOM, 11
36
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
