AOC LC32R03, LC42R03F-C, LC32H03K Schematic

维 修 手 册

品牌 机种

AOC LC32R03&LC42R03F&C& LC32H03K

1

变更说明

版本 发布日期 变更说明 对外机种名 对内机种名

E32A2KA7A

A00 2010-5-23

A01 2010-11-19

导入新的电源板

715G4088P01W30003H

更新内容如下:
电源板线路图

A02 2010-11-23

A03 2011-4-29

BOM

导入新的电源板

715G3770P02W20003S

更新内容如下:
电源板线路图

BOM

首次发布

增加新机种

增加新机种

LC32R03

LC42R03F

LC42R03FC E42AMKNDW3A6NNX

LC32R03 E32AGKNDW3A1NNX

LC32R03 E32AGKNDW3A2NNX

LC32R03

LC42R03FC

E32A2KNDW3A1XNX

E32A2KNDW3A1NNX

E42AMKA7A

E42AMKNDW3A1XNX

E42AMKNDW3A1NNX

E32AGKNDW3A3NNX

E42AMKNDW3A7NNX

A04 2011-9-9

A05 2011-9-9

导入新的电源板

715G3829P03W20003M

A06 2011-9-9

A07 2011-9-9

更新内容如下:
电源板线路图

BOM

增加新机种

增加新机种

增加新机种

LC32R03

LC32H03K E32AKKNDW3A6NNX

LC42R03F E42BGKNDW3A1NNX

LC42R03FC E42BGKNDW3A6NNX

E32AKKNDW3A1NNX

2

目录

1.技术规格 --------------------------------------------------------------------------------------- -------------------------- 04

1.1 一般规格 ----------------------------------------------------------------------------------------------------------- 04

1.2预设显示模式 ----------------------------------------------------------------------------------------------------- 05

2.操作说明 --------------------------------------------------------------------------------------- -------------------------- 07

2.1 遥控器操作 -------------------------------------------------------------------------------------------------------- 07

2.2 控制面板 ----------------------------------------------------------------------------------------------------------- 08

2.3 背面和侧面信源接口 -------------------------------------------------------------------------------------------- 09

2.4 菜单操作 ----------------------------------------------------------------------------------------- ----------------- -10

3.工厂模式调整 ---------------------------------------------------------------------------------------------- ------------- 25

4.故障处理流程 ---------------------------------------------------------------------------------------------- ------------- 27

5.软体升级 SOP -------------------------------------------------------------------- -------------------------------------- 33

6.电气方框图 ------------------------------------------------------------------------------------- ------------------------- 34

7.线路图 ------------------------------------------------------------------------------ -------------------------------------- 35

7.1 主板 --------------------------------------------------- ---------------------------------------------------------------- 35

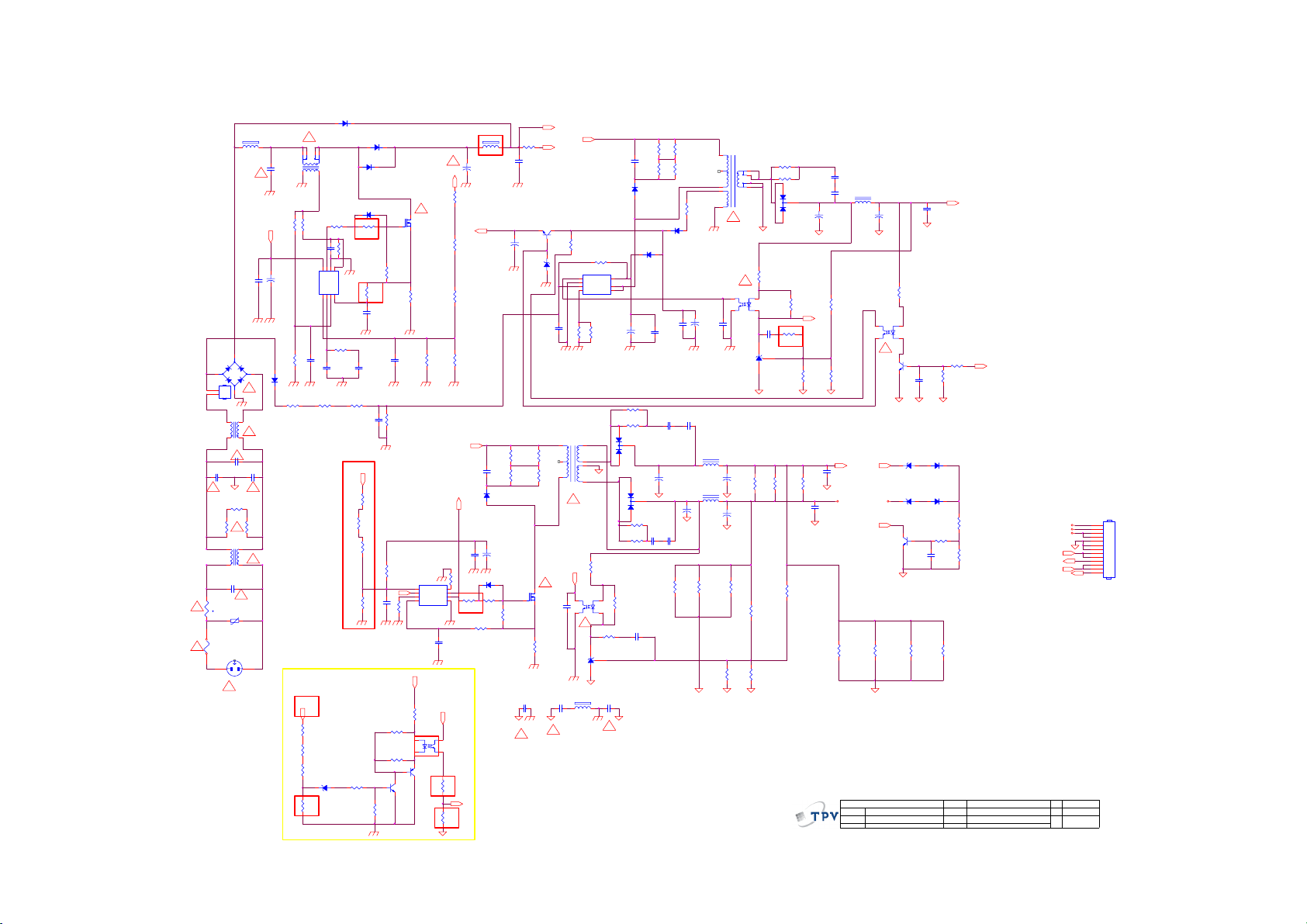

7.2 电源板 ---------------------------------------------------------------------------------------------------------------- 44

7.3 按键板 ---------------------------------------------------------------------------------------------------------------- 55

7.4 遥控板 ---------------------------------------------------------------------------------------------------------------- 56

8. BOM --------------------------------------------------------------------------------------------------------------------- 57

8.1 LC32R03 ------------------------------------------------------------------------------------------------------------ 57

8.2 LC42R03F -------------------------------------------------------------------------------------------------------- 138

3

1.技术规格

1.1 一般规格

型号 LC32R03 LC42R03F&FC

面板尺寸 80cm(31.5") 106.7cm

分辨率 1366 x 768 1920 x 1080

视角 水平 80°；垂直 80°

亮度 350 cd/m2 450 cd/m2

动态对比度

扬声器 5W x 2 10W x 2

视频系统 PAL D/K B/G I ; NTSC M/N

音频系统 D/K, I, B/G, M

天线阻抗

输入电压 220V～ 50/60Hz

能耗 150W 180W

待机能耗

尺寸（宽度 x 高度 x 深度） 778.5x 509.2x 79.9 (mm) 1011x649.7x108(mm)

墙上安装附件 选项

墙上安装尺寸 200x 200(mm) M6x 4颗螺丝 400x 200(mm) M6x 4颗螺丝

5 x Panel CR (Min)

75Ω

≤1W

设备
操作温度
操作湿度
存储温度
存储湿度

0°C~35°C
10~90%

-20°C~50°C
10~90%

4

1.2 预设显示模式

5

6

2.操作说明

2.1 遥控器操作

电视右侧的按钮与遥控器上的这些按钮功能相同。

7

2.2 控制面板

8

2.3 背面和侧面信源接口

9

2.4 菜单操作

打开和关闭电视

您可以使用电视机或遥控器上的电源开关按钮打开电视。

10

语言设置

频道搜索

11

12 13 14 15 16 17 18 19 20 21 22 23 24

3.工厂模式调整

一. ADC 调整

在 TV 模式下，按菜单和 1Æ 9 Æ 9 Æ 9.进入工厂模式。

1. 将“Current Source”切换到“component”模式并切换信号到 Component Timing 311（576i/50Hz）,Pattern

185(COLOR BAR), 按”Auto Color”.

2. 将“Current Source”切换到”电脑”模式并切换信号到电脑 TIMING 107(1360X768), Pattern 42 (5 MOSAIC)

按”Auto Color”.

二. 白平衡调整:

备注: 调整白平衡之前应先将机器先加温至少 30 分钟，需将 CA210 设置到 05 通道并设为 x,y, LV 模式。

以下为白平衡调整的步骤：

LC32R03:

Color temp x y LV (cd/m2)

Normal 0.283 0.297 350

Warm 0.313 0.329 350

Cool 0.274 0.286 350

LC42R03F&FC:

Color temp x y LV (cd/m2)

Normal 0.289 0.291 350

Warm 0.313 0.329 350

Cool 0.272 0.278 350

备注: 1. 白平衡调整 VGA 和 YPbPr 两个 source 的 Normal, Coll, Warm 三个色温；

2. x, y的值误差为±0.030；

3. 亮度和对比度均设为最大。

25

以 VGA 调整为例：

首先，按菜单和 1Æ 9 Æ 9 Æ 9.进入工厂模式，并将“Current source”切换到“电脑”模式；

其次，按“Reset”复位工厂模式里的白平衡；

再次，Gain(增益)调整：

调整 Cool 色温:

1. 通过在 80 IRE (Pattern 141)信号下调整 R,B 的值来调整白平衡；

2. 通过“Color temp”选中其他的色温并调整。

调整 Normal 色温:

1. 通过在 80 IRE (TIMING137, Pattern 141) 信号下调整 R,B 的值来调整白平衡；

2. 通过“Color temp”选中其他的色温并调整。

调整 Warm 色温:

通过在 80 IRE (Pattern 141)信号下调整 R,B 的值来调整白平衡；

选中并按“Exit”退出工厂模式。

26

4.故障处理流程

检测 IR 板及 LED 灯

更换 IR 板

无电（LED 不亮）

检测插座是否有电或硬开关是否打开

有

检测电源板 CN902 的 PIN11/12 是否有 5V 电压输出

无

重插电源插座或开启硬开关

无

更换电源板

无法启动（LED橙色）

检测电源板 CN902 的 PIN8/9 是否有 24V 电压输出

更换按键板

有

检测按键板的POWER键是否失灵

是

检测IR板的红外接收器U01是否失灵

无

否

是

更换电源板

否

更换IR板

27

更换主板

检测主板上CN405的

PIN5/6/7/8是否有5V供电

是

先更换主板

检测是否OK

否

更换Panel

否

更换主板

检测TV是否受控，能否用遥控器或按键板开关机

检测LVDS线是否良好

是

重插或更换LVDS线

无画（LED绿色）

是

检测是否有背光

是

否

检测电源板 CN902 的 PIN8/9 是否有 24V 电压输出

是

更换Panel

否

否

检测主板CN701是否有BL信号

是

否

更换电源板

更换主板

否

更换主板

28

信号是

有高频干扰源

彩条、水波纹、画抖、画闪、

鬼影、残影、拖影等干扰

检测附近是否有干扰源

是 否

排除干扰源

先更换主板

检测是否OK

否

更换Panel

检测信号线

是否良好

是 否

检测信号源出

是 否

更换信号线

否正常

重新设置

信号源

画异

TV画面雪花点、重

影、细线、条纹干扰

检测TV信号线

是否接触不良

是 否

重新连接

TV信号线

排除干扰源 用场强仪检测信号强度

检测附近是否

是 否

是否在45-100db之间，

65db左右为最佳值

是

更换主板

间歇性画异加温
画异冷开机画异

检测软体版本是
否需要更新
是 否

升级软体

检测是否OK

否

太弱：加装信号放大器
太强：减少信号放大器

或加装信号衰减器

先更换主板

否

取回站内
加温检测

29

无声或声音异常

更换连接线

检测信号源音频接口是否正确，或TV制式是否为DK制

是

检测TV是否被静音，调整音量大小，

或进入菜单进行复位看是否OK

否

检测主板到喇叭的连接线是否断路

是 否

检测喇叭阻抗是否变质

（喇叭阻抗值标在喇叭上）

是 否

更换喇叭 更换主板

收不到台或收台不全

否

重插音频接口或设置TV制式

检测此频道是否发生频
偏，尤其是使用卫星信号

建议客户重新

设置信号源

是

升级软体

用别的TV测试是否能收到此台

是

否

更换主板

检测软体版本是否需要更新

是 否

用场强仪检测信号强度是否在
45-100db之间，65db左右为最佳

是

否

和客户说明当地TV信号未转播此台

否

太弱：加装信号放大器
太强：减少信号放大器或加装信号衰减

30

喇叭异响

（破音，滋滋声）

检测喇叭是否变质

是 否

更换喇叭 主板功放异常

更换主板

异响

电源板，PANEL异响

更换电源板/PANEL

检查遥控器电池是否未安置好或没电

重新安置或更换电池

遥控失灵

是 否

更换遥控器 检测IR板是否异常

用别的遥控器测试是否可用

是 否

是

否

更换IR板

31

更换主板

更换按键

更换按键板

OSD 不稳定或无法正常工作

按键板连接正常吗？

是

按键正常吗？

是

按键板有无故障？

是

检查主板

否

否

否

接好按键板

32

5.软体升级 SOP

请登陆 ftp://cs.tpv.com.cn/
账号: TPVSQZ
密码: TPVZGDLSQZ20090707

到各相应的文件夹下载各相应平台的烧录 SOP。

注:该网址及登陆账号和密码后续都有可能变更，请以技术支持部最新发布的为准。

33

6.电气方框图

CN701

6A:71G 56K121 TA

FB704

FB705

FB702

FB716

6A:71G 56K121 TA

6A:71G 56K121 TA

FB708

FB715

+24V

+12V

+5VSB

93G 39S 44 T

6A:71G 56K121 TA

MUTE5V

ZD602

24V_AMP

FB423

FB420

30V/7A/40A:AO4449

+5VSW

Q702

57G 763 79

56G 659501

U104

BD8012FVJ

D501

D502
D503

4A:71G 56G301 EA

FB418

FB421

FB424

6A:71G 56K121 TA

FB712

57G 763 79

PANEL_ON

POWER_ON_LV2

57G 763 79

Audio MUTEL/STANDBYL pull up

56G 616518

VD1: Pin4/5
VD2: Pin32/33

R2A15112FP

Q404

VDD:Pin5

U101/U102

4A:71G 56G301 EA

FB101

HDMI CEC pull up

预留

IR VCC

IRRX

Q404

Audio MUTEL

BL_PWM/POWER_ON_LV1/BL_ON_OFF/OTHERS pull up

56G 379 92

U701

G5627F11U

U602

30V/7A/40A:AO4449

56G 662502

AZC199-04S

HDMI IIC pull up

射随

PANEL_ON

30V/7A/40A:AO4449

掉电侦测

+3V3

PANEL_VCC

VGA EDID pull up/USB pull up

USB VCC

Pin1

CN103

PANEL_VCC

De-Pop

6A:71G 56K121 TA

FB718

6A:71G 56K121 TA

D3_3V

FB707

6A:71G 56K121 TA

A3_3V

FB710

Q103/Q104 CVBS OUT AMP

RF _AGC Pull up

56G 563519

U105

G965-25ADJ

6A:71G 56K121 TA 6A:71G 56K121 TA

FB717

6A:71G 56K121 TA

FB719

56T 563 7

U703

AIC1084-33PM

4A:71G 56G301 EA

FB409

4A:71G 56G301 EA

FB411

4A:71G 56G301 EA

FB412

4A:71G 56G301 EA

FB413

4A:71G 56G301 EA

FB402

4A:71G 56G301 EA

FB403

4A:71G 56G301 EA

FB404

6A:71G 56K121 TA

FB713

HDMI_CEC pull up

BB3_3V

FB709

6A:71G 56K121 TA

2A:71G 56A221 TA

TUN_5V

FB106

56G 563143

U704

G1084T43Uf

56G 379 92

U702

G5627F11U
6A:71G 56K121 TA

STB1_2V

FB711

6A:71G 56K121 TA

A1_2V

FB701

CN602 phone jack pull up/CN104 Debug Pin

U403 VCC/U403 WP pull up/

LED Amp,KEY pull up

TMDS3_3V

4A:71G 56G301 EA

FB408

FB407

4A:71G 56G301 EA

FB706

6A:71G 56K121 TA

D1_2V

FB714

4A:71G 56G301 EA

FB401

4A:71G 56G301 EA

FB406

4A:71G 56G301 EA

FB405

FB414

4A:71G 56G301 EA

预留

U404 EEPROM VCC

TMDS1_2V

34

4A:71G 56G301 EA

FB107

4A:71G 56G301 EA

FB105

R4176/R4180

4A:71G 56G301 EA

FB422

DDR_IO_2.5V

Tuner IIC Pull up

分压

Tuner5V

DDR_VREF

TU101/TU102:TUNER VCC

VDD: Pin1/18/33DDR2_5V
VDDQ: Pin3/9/15/55/61

HY5DU561622FTP-4

VREF: Pin49

DDR_IO_2.5V: Pin87/94/107/117/121/129

CORE_1.2V: Pin34/44/70/83/99/133

STBY_CORE_1.2V: Pin140/151

USB_AVDD_1.2V: Pin38

ADC_VDD_1.2V: Pin203

VD_VDD_1.2V: Pin204

TMDS_1.2V: Pin163/182

IO_3.3V: Pin41/57/79/134/155

Reset/

一组

IIC及I/O pull up

DAC_VDD_3.3V: Pin22

ADC2X_VDD: Pin29

PLL_VDD_3.3V: Pin33

USB_AVDD_3.3V: Pin35

APLL_VDD_3.3V: Pin183

ADC_VDD_3.3V: Pin187

VD_VDD_3.3V: Pin188

TMDS_3.3V: Pin164

AVDD_BB0_3.3V: Pin2

AVDD_BB1_3.3V: Pin215

U402

U401

RTD2674U

7.线路图

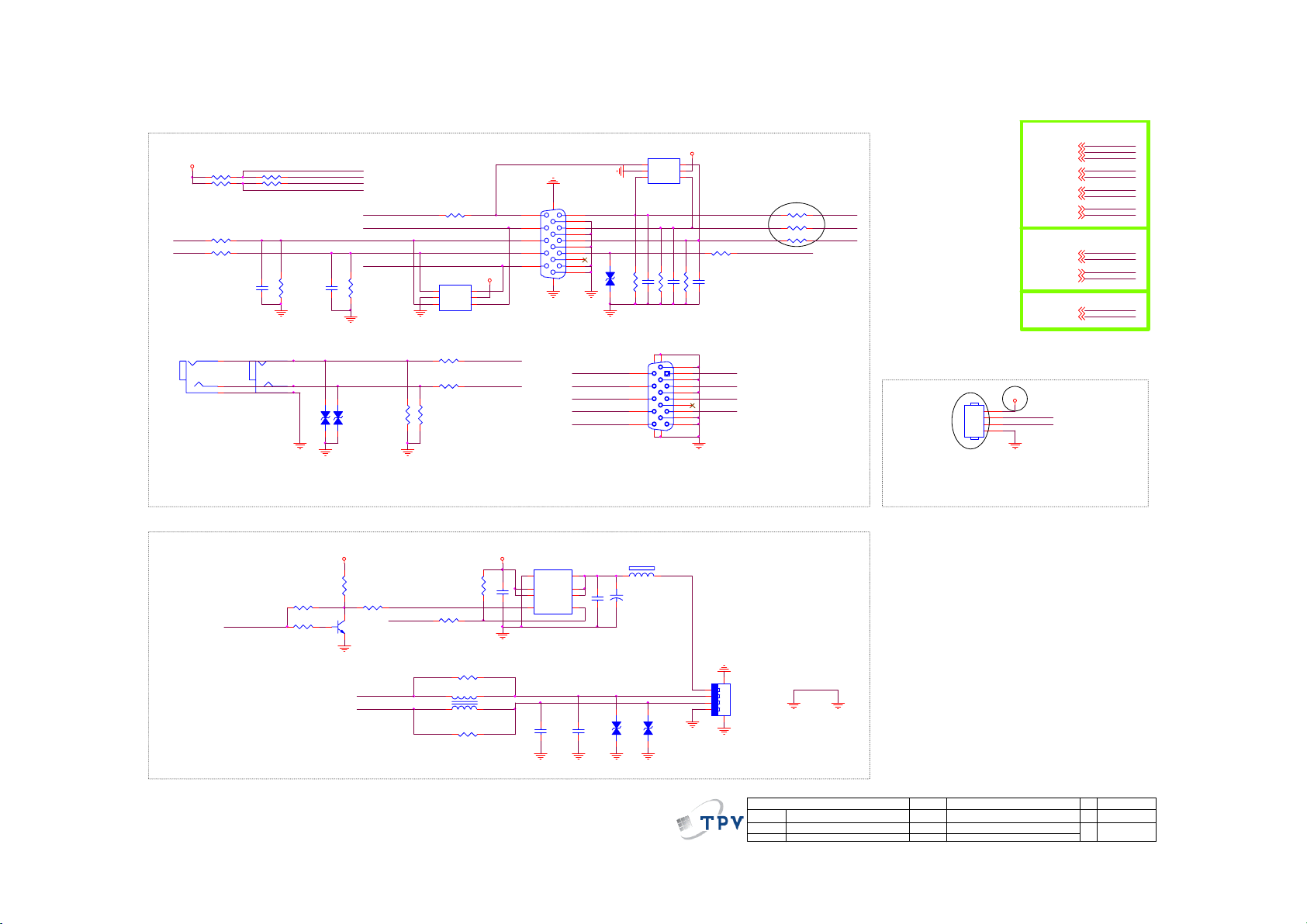

7.1 主板

715G3934M0D000004F

+5VSB

R114

R119 0R05 1/10W

10K 1/10W

R121 0R05 1/10W

10K 1/10W

R112

AHS0

R103 1K 1/10W

AVS0

R104 1K 1/10W

C102

R108

DGND

2.2K 1/10W

22pF 50V

3

2
1

MLVG0402

DGND

C103

ZD101

CN102S

NC

3

2
1

22pF 50V

PHONEJAC K

CN102

VGA_DDC_SD A
VGA_DDC_SD A#
VGA_DDC_SC L#
VGA_DDC_SC L

DGND

12

12

ZD103
MLVG0402

DGND

URAT_RX

VGA_DDC_SD A#

VGA_DDC_SC L#

R101

2.2K 1/10W

100K 1/10W

R115

DGND

DGND

R102
100 OHM +-5% 1/10W

U101

I/O23I/O3

2

GND

VDD

1

I/O1

I/O4

AZC199-04S

R110 27K 1/10W

R113 27K 1/10W

R116

100K 1/10W

4
5
6

HS

VS

+5VSB

VGA_IN_R

VGA_IN_L

VGA

+5VSB

U102

4

I/O23I/O3

2

DGND

CN101

1716

RX

11

12

13

14

15

DB15

DGND

DGND

1
6
2
7
3
8
4
9
5
10

DGND

RX

VGA_DDC_SD A#

HS

VS

VGA_DDC_SC L#

12

MLVG0402

DGND

TX

ZD102

11

12

13

14

15

GND

VDD

1

I/O1

I/O4

AZC199-04S

CN101S NC

1716

18 19

5
6

R105 100 OHM +-5% 1/10W

R109 75OHM +-5% 1/10W
R106 75OHM +-5% 1/10W
R107 75OHM +-5% 1/10W
C134 NC
C135 NC
C136 NC

6
1
7
2
8
3
9
4
10
5

RIN

GIN

BIN

TX

DGND

RIN

R122 BEAD 60ohm 600mA

GIN

R126 BEAD 60ohm 600mA

BIN

R177 BEAD 60ohm 600mA

URAT_TX

RIN+

GIN+

BIN+

CN104

NC

VGA_IN_L6
VGA_IN_R6

VGA_DDC_SC L6
VGA_DDC_SD A6

USB

USB_PWR_CTRL6
USB_PWR_F LAG6

UART

URAT_RX6
URAT_TX6

+3V3

1

URAT_RX

2

UR AT_TX

3
4

DGND

BIN+

BIN+6

GIN+

GIN+6

RIN+

RIN+6

AVS0

AVS06

AHS0

AHS06

VGA_IN_L
VGA_IN_R

VGA_DDC_SC L
VGA_DDC_SD A

USB_DM

USB_DM6

USB_DP

USB_DP6

USB_PWR_CTRL
USB_PWR_F LAG

URAT_RX
UR AT_TX

VGA

+5VSB

R124

NC

DGND

Q101

NC

R125

1K 1/10W

USB_DM

USB_DP

USB_PWR_FLAG

R128

1K 1/10W

R129 NC

4 1

3 2

R130 NC

USB_PWR_C TRL

R1200R05 1/10W

R127NC

USB

R123

10K 1/10W

L101

90OHM

1U25V

C118

+5VSB

DGND

U104 BD8012FVJ

1

GND

OUT

2

VIN

OUT

3

VIN

OUT

EN4OC

C106

4P7 50V

DGND

DGND

8

7
6

5

100nF 50V

C107

4P7 50V

C101

1 2

+

100uF/16V

12

ZD104
MLVG0402

DGND

FB101

300 OHM

C105

12

DGND

35

ZD105
MLVG0402

DGND

USB_Shield_GND

1234

1
2

CN103

3

CONNNECTOR

4

6 5

USB_Shield_GND

DGND

USB_Shield_GND

T P V ( Top Victory Electronics Co . , Ltd. )

G3934-D-X-X-1-100325

絬 隔 瓜 絪 腹

Key Component

01) VGA/USB/U ART

Date

UART(VGA Pin4 & Pin11 Share)

OEM MOD EL

TPV MOD EL

715G3934M0A0000040

PCB NAME

Sheet

of

19Wednesday , March 24, 2010

Size

Rev

称爹

A3

A

称爹

>

<

+

100uF/25V

PMBS3904

DGND

C108

Q105

CN111SA

NC

NC

CN112SA

NC

NC

DGND

CN111SB

CN112SB

C110
NC

DGND

R173
NC

2

1

4

3

6

5

8

7

10

9

2

1

4

3

6

5

8

7

10

9

CVBS_OUT

R170

4.7K 1/10W

R171
NC

R172

4.7K 1/10W

YPBPR 0_Y

YPBPR 0_PB

YPBPR 0_PR

YPBPR0_L

YPBPR0_R

DGND

YPBPR 1_Y

YPBPR 1_PB

YPBPR 1_PR

YPBPR1_L

YPBPR1_R

DGND

YPbPr INPUT

CVBS OUT

AVOUT_L

R1650R05 1/10W

AVOUT_R

R1670R05 1/10W

MUTE _AVO UT

CN121

2

A

1

JACK

B

C

CN121S

NC

4

3

6

12

12

5

ZD107
MLVG0402

2

1

4

3

6

5

DGND

ZD106
MLVG0402

DGNDDGNDDGND

12

ZD108
MLVG0402

R132 27K 1/10W

R134 27K 1/10W

R136

100K 1/10W

DGNDDGND

AV INPUT

CN122B

JACK

2

JACK

NC-1

CN122A

JACK

12

7 8

9 10

13

DGND

1

4

3

6

5

1

2

3

4

5

6

DGND

CY

GG

12

ZD114
MLVG0402

11

12

DGND

12

ZD116

ZD115

MLVG0402

MLVG0402

DGNDDGNDDGND

12

ZD123
MLVG0402

R166 0R05 1/ 10W

R145 27K 1/10W

R148 27K 1/10W

R149

100K 1/10W

DGNDDGND

12

ZD124
MLVG0402

DGNDDGND

SIDE AV/S-VIDEO INPUT(AUDIO SHARE)

T P V ( Top Victory Electronics Co . , Ltd. )

G3934-D-X-X-1-100325

絬 隔 瓜 絪 腹

Key Component

Date

36

R137

100K 1/10W

R150

100K 1/10W

75OHM +-5% 1/10W

CVBS0+

AV0_IN_L

AV0_IN_R

AV1_IN_L

AV1_IN_R

R163

OEM MODEL Size

TPV MODEL

PCB NAME

Sheet

R133
75OHM +-5% 1/10W

R138
0R05 1/10W

DGND

R146
75OHM +-5% 1/10W

R151
0R05 1/10W

DGND

R164
75OHM +-5% 1/10W

715G3934M0A000004002) YPbPr/ AV/CVBS OUT

29Wednesday , March 24, 2010

of

CVBS0-

CVBS1+

CVBS1-

SV0_C+

SV0_Y+

SV0-

JACK

1

A

B

C

D

E

CN111

ZD109 MLVG0402
ZD110 MLVG0402
ZD111 MLVG0402
ZD112 MLVG0402
ZD113 MLVG0402

NC

A

B

C

D

E

CN112

ZD117 NC
ZD118 NC
ZD119 NC
ZD120 NC
ZD121 NC

CN123S

NC

CN123

A

B

C

JACK

2
3

4
5

6
7

YPBPR 0_L

8
9
10

YPBPR0_R

11

DGND

12

12

12

12

DGND

1

2
3

4
5

6
7

YPBPR1_L

8
9
10

YPBPR1_R

11

DGND

12

DGND

2

1

4

3

6

5

ZD122

MLVG0402

2

1

4

3

6

5

ZD125

MLVG0402

DGND

12

12

12

12

12

FB103

121 OHM

1 2

12

C111
NC

DGND

DGND

12

12

ZD126

470P 50V

MLVG0402

DGND

C115

DGND

R135 5.1K 1/10W

R139 5.1K 1/10W

R140 75OH M +-5% 1/10W
R141 75OH M +-5% 1/10W
R142 75OH M +-5% 1/10W
R143 100K 1/ 10W
R144 100K 1/ 10W

R147 NC

R131 NC

R152 N C
R153 N C
R154 N C
R155 NC
R156 NC

C109

100nF 50V

DGND

R159

75OHM +-5% 1/10W

C112
NC

DGND

FB102

600 OHM

FB104

C116

600 OHM

470P 50V

+5VSW

23

Q103

PMBS3906

220 OHM 1/10W

220 OHM 1/10W

C113 4U7 10V

C114 4U7 10V

YPBPR0_Y

YPBPR 0_PB

YPBPR 0_PR

YPBPR0_I N_L

YPBPR 0_IN_R

YPBPR1_Y

YPBPR 1_PB

YPBPR 1_PR

YPBPR1_I N_L

YPBPR 1_IN_R

1

R160

R161

R168
NC

R157

330OHM 1/10W

Q104

PMBS3904

DGND

DGND

R169
NC

PMBS3904

R158

75K +-5% 1/10W

R162
100K 1/10W

DGND

Q102

YPbPr

YPBPR0_Y6

YPBPR 0_PB6

YPBPR 0_PR6

YPBPR0_I N_L6

YPBPR0_I N_R6

YPBPR1_Y6

YPBPR 1_PB6

YPBPR 1_PR6

YPBPR1_I N_L6

YPBPR1_I N_R6

AV IN

CVBS0+6
CVBS0-6

AV0_IN_L6
AV0_IN_R6

SIDE AV IN

CVBS1+6
CVBS1-6

AV1_IN_L6
AV1_IN_R6

SV IN

SV0_Y+6
SV0_C+6

SV0-6

AV OUT

AVOUT_R6
AVOUT_L6

CVBS_OUT6

MUTE_AVOUT6

Rev

称爹

YPBPR0_Y
YPBPR 0_PB
YPBPR 0_PR

YPBPR0_I N_L
YPBPR0_I N_R

YPBPR1_Y
YPBPR 1_PB
YPBPR 1_PR

YPBPR1_I N_L
YPBPR1_I N_R

CVBS0+
CVBS0-

AV0_IN_L
AV0_IN_R

CVBS1+
CVBS1-

AV1_IN_L
AV1_IN_R

SV0_Y+
SV0_C+
SV0-

AVOUT_R
AVOUT_L

CVBS_OUT

MUTE_AVOUT

A3

A

F41CT-2-E

TU101

ANT IN

SDA

VCC

AGC

TUNER

I2C_M0_SDA6

1 2

C131

+

47uF 25V

DGND

I2C_M0_SCL6

FB106

220R/2000mA

RF_AGC6

TUNER_IFT

1

IF

2

NC

AS

3

AS

TUNER_SDA

4

TUNER_SCL

5

SCL

6

NC

Tuner5V

7

RF_AGC#

8

9

NC

10

NC

11

NC

5V For TUNER

+5VSW

C130

+

330UF 16V

DGND

U105

G965-25ADJPI UF

2.2 OHM 1/10W

R190

8

VEN1VIN2VO3ADJ

38.3KOHM +-1% 1/ 8W
DGND

DGND

GND5GND6GND7GND

4

R188

12K1/10W

R189

IF1P

IF1P6

IF1N

IF1N6

I2C_M0_SDA
I2C_M0_SCL

RF_AGC

TUN_5V

U106

INPUT

INPUT

GND

3

715G3934M0A0000040

39Wednes day, March 24, 2010

TUN_5V

of

R175
NC

R176

0R05 1/10W

TUN _GN D

1

2

DGND

AS

4.7K 1/10W

L103

0.33uH 10%

R194

DGND

FB107

300 OHM

1 2

R193

4.7K 1/10W

I2C_M0_SDA

I2C_M0_SCL

C137

10N 50V

TUN ER_ IF T

Size

Rev

称爹

TUN _GN D

TUN_5V

A3

A

称爹

>

<

TH112TH213TH314TH4

15

TUN_GND

+5VSW

R182

1K 1/10W

C125

DGND

R183
0R05OHM1/8W

C126

100nF 50V

DGND

+

DGND

RF_AGC#

100nF 50V

C127

10uF/50V

R184 NC

23

Q106
PMBS3906

DGND

L104

R185

1

0R05 1/10W

1 2

C128

10uF 16V

DGND

10uH +-10%

R187

510 +-5% 1/10W

C129

100nF 50V

DGND

CLOSE TO RTD2674

RF_AGC

T P V ( Top Victory Electronics Co . , Ltd. )

Date

G3934-D-X-X-1-100325

03) TUNER

絬 隔 瓜 絪 腹

Key Component

37

FB105

300 OHM

TUN_5V

1 2

100uF/16V

C123

56P 50V

TUN_GND TUN_GND

CS C132/C133

IF1P

IF1N

C121

TUN_GND

TUNER_SCL

C119 1U25V

C120 1U25V

+

TUNER_SDA

L102

2.2uH

DGND

Tuner5V

C122

100nF 50V

R174 10 OHM 1/10W

R181 10 OHM 1/10W

C124

56P 50V

DGND

R191

1K 1/10W

HDBF 35A3DdA

4

OUTPUT

5

OUTPUT

R192

1K 1/10W

OEM MOD EL

TPV MOD EL

PCB NAME

Sheet

MHDMI（HDMI Mux

MHD MI_ D2+6
MHD MI_ D2-6
MHD MI_ D1+6
MHD MI_ D1-6
MHD MI_ D0+6

MHD MI_ D0-6
MHDMI_CLK+6
MHDMI_CLK-6

MHD MI_ SDA6

MHD MI_ SCL6

MHDMI_HPD6

）

MHDMI_D2+
MHDMI_D2­MHDMI_D1+
MHDMI_D1­MHDMI_D0+
MHDMI_D0-

MHDMI_CLK+

MHDMI_CLK-

MHDMI_SDA
MHD MI_ SCL

MHD MI_ HPD

HDMI2

HDMI2_D2+6

HDMI2_D2-6

HDMI2_D1+6

HDMI2_D1-6

HDMI2_D0+6

HDMI2_D0-6
HDMI2_C LK+6
HDMI2_C LK-6

HDMI2_SDA6

HDMI2_SCL6

HDMI2_HPD6

DGND

3

8

U506 NC R Clamp0524P.TCT

IN45OUT4

4

IN3

GND

GND

2

IN2

1

IN1

1

IN1

2

IN2

4

IN3
IN45OUT4

GND

GND

U507 NC R Clamp0524P.TCT

3

8

DGND

U509
NC R Clamp0524P. TCT

1

IN1

2

IN2

4

IN3
IN45OUT4

GND

GND

3

8

DGND

R534 10K 1/10W

R531 10K 1/10W

HDMI2_5V

HDMI_CEC#

3

HDMI1_H PD#

HDMI2_H PD#

OUT3

OUT2
OUT1

OUT1
OUT2

OUT3

OUT1
OUT2

OUT3

D501
BAT54C

12

DGND

DGND

12

HDMI1_D 2+

6

HDMI1_D 2-

7

HDMI1_D 1+

9

HDMI1_D 1-

10

HDMI1_D 0+

10

HDMI1_D 0-

9

HDMI1_C LK+

7

HDMI1_C LK-

6

R529 0R05 1/10W

10

HDMI1_SCL#

9

HDMI1_SDA#

7
6

HDMI2_5V

1

2

ZD502

R513

MLVG0402

100K 1/10W

R552

ZD503

100K 1/10W

MLVG0402

10K 1/10W

R516

+5VSB

DGND

DGND

HDMI2_C LK+

Q504
PMBS3904

Q507
PMBS3904

3

10K 1/10W

R517

HDMI_CEC#

HDMI1_5V

DGND

R512
1K 1/10W

R514

4.7K 1/10W

1K 1/10W

R553

4.7K 1/10W

D503
BAT54C

HDMI2_CLK-

R518

NC

R550

38

HDMI1_5V

1

2

+5VSB

R507

NC

10K 1/10W

R556

10K 1/10W

R557

HDMI1_5V

HDMI1_HPD

HDMI2_5V

HDMI2_HPD

+5VSB

R541

1K 1/10W

Q506

HDMI_CEC#

R551
0R05 1/10W

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

2N7002

R558 NC

G3934-D-X-X-1-100325

R544
1M 1/10W

+3V3

R542
NC

HDMI_CEC

OEM MO DEL

TPV MOD EL

PCB NAME

Sheet

715G3934M0A000004004) HDMI

49Wednesday , March 24, 2010

of

C512
100nF 50V

DGND

CN502S NC

DDC_GND

SHLD_GN D1
SHLD_GN D2

CN506

21

SHELL2

23

SHELL4

22

SHELL3

20

SHELL1

HDMI

TMDSC-

TMDSC+

TMDS D0-

TMDS D0+

TMDS D1-

TMDS D1+

TMDS D2-

TMDS D2+

VCC5

DSHLD0
DSHLD1
DSHLD2
CSHLD0

SHLD1
SHLD2
SHLD3
SHLD4
SHLD5

SCL
SDA
CEC
HPD

NC

HP DET

GND

DDC DATA

DDC CLK

CE Remote

CK Shield

D0 Shield

D1 Shield

D2 Shield

12
10

9
7

6
4

3
1

15
16
13
19

18

14

2
5
8
11
17

20
21
22
23
24
25
26

CK+

+5V

NC

CK-

D0-

D0+
D1-

D1+
D2-

D2+

DGND

HDMI1_C LK­HDMI1_C LK+

HDMI1_D 0­HDMI1_D 0+

HDMI1_D 1­HDMI1_D 1+

HDMI1_D 2­HDMI1_D 2+

HDMI1_SCL#
HDMI1_SDA#

HDMI1_C E

HDMI1_HPD#

HDMI1_5V

HDMI1_C LK+

19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

DGND

20
21
22
23
24

R525

NC

DGND

HDMI2_HPD#

NC

NC

TH1
TH2
TH3
TH4
TH5

HDMI1_CLK-

3241L501

NC

3241L503

NC

CN502

HDMI

1

D2+

2

D2 Shield

3

D2-

4

D1+

5

D1 Shield

6

D1-

7

D0+

8

D0 Shield

9

D0-

10

CK+

11

CK Shield

12

CK-

13

CE Remote

14

NC

15

DDC CLK

16

DDC DATA

17

GND

18

+5V

19

HP DET

R511

NC

U510
NC R Clamp0524P.TCT

1

IN1

2

IN2

4

IN3
IN45OUT4

GND

3

8

DGND

DGND

3

8

U512 NC R Clamp0524P.TCT

IN45OUT4

4

IN3

GND

3241L502

2

IN2

1

IN1

1

IN1

2

IN2

3241L504

4

IN3
IN45OUT4

GND

U513 NC R Clamp0524P.TCT

3

8

DGND

HDMI1_HPD#

OUT1
OUT2

OUT3

GND

OUT3

GND

OUT2
OUT1

OUT1
OUT2

OUT3

GND

HDMI1_CE

100nF 50V

DGND

10

HDMI2_SDA#

9

HDMI2_SC L#

7
6

R536
0R05 1/10W

HDMI2_CLK-

6

HDMI2_CLK+

7

HDMI2_D0-

9

HDMI2_D0+

10

HDMI2_D1-

10

HDMI2_D1+

9

HDMI2_D2-

7

HDMI2_D2+

6

C511

HDMI_CEC6

MHDMI_HPD HDMI1_HPD
MHDMI_SDA HDMI1_SDA
MHDMI_SCL HDMI1_SCL
MHDMI_CLK- HDMI1_CLK­MHDMI_CLK+ HDMI1_CLK+
MHDMI_D0- HDMI1_D0­MHDMI_D0+ HDMI1_D0+
MHDMI_D1- HDMI1_D1­MHDMI_D1+ HDMI1_D1+
MHDMI_D2- HDMI1_D2­MHDMI_D2+ HDMI1_D2+

R522 100 OHM 1/10W
R523 100 OHM 1/10W

R524 100 OHM 1/10W
R526 100 OHM 1/10W

HDMI2_D2+
HDMI2_D2­HDMI2_D1+
HDMI2_D1­HDMI2_D0+
HDMI2_D0-

HDMI2_C LK+

HDMI2_C LK-

HDMI2_SDA
HDMI2_SCL

HDMI2_HPD

HDMI_CEC

HDMI1_SCLHDMI1_SCL#
HDMI1_SDAHDMI1_SDA#

HDMI2_SCLHDMI2_SCL#
HDMI2_SDAHDMI2_SDA#

Size

Rev

称爹

A3

A

DGND

STB1_2V

DGND

CVBS0+

CVBS0-

CVBS1+

CVBS1-

DGND

DGND

SV0_C+

SV0-

SV0_Y+

RIN+

DGND

GIN+

DGND

BIN+

DGND

YPBPR0_Y

DGND

YPBPR0_PB

DGND

YPBPR0_PR

DGND

YPBPR1_Y

DGND

YPBPR1_PB

DGND

YPBPR1_PR

DGND

DDR_IO_2.5V

C4170

100nF 50V

C4177
100nF 50V

R4101

49.9 OHM +-1% 1/ 10W

R4105

49.9 OHM +-1% 1/ 10W

R4109

49.9 OHM +-1% 1/ 10W

R4107

49.9 OHM +-1% 1/ 10W

R4112

0R05 1/10W

R4114

0R05 1/10W

R4118

0R05 1/10W

R4120

0R05 1/10W

R4124

0R05 1/10W

R4126

0R05 1/10W

R4128
0R05 1/10W

R4132
0R05 1/10W

R4134
0R05 1/10W

R4136
0R05 1/10W

R4138
0R05 1/10W

R4143
0R05 1/10W

R4147
NC

R4152
0R05 1/10W

R4154
NC

R4156
NC

R4158
NC

R4161
NC

C4171

100nF 50V

100nF 50V

D1_2V

C4178
100nF 50V

DGND

L402

CHIP INDUCTOR 1.0uH +-10%

C4103

NC

L401CHIP INDUCTOR 1.0uH +-10%

C4108

NC

L404

CHIP INDUCTOR 1.0uH +-10%

C4119

NC

L403

CHIP INDUCTOR 1.0uH +-10%

C4120

NC

C4125

5pF 50V

C4130

5pF 50V

C4133

5pF 50V

C4138

5pF 50V

100 OHM 1/10W

C4141

5pF 50V

100 OHM 1/10W

100 OHM 1/10W

C4147

5pF 50V

100 OHM 1/10W

C4150

NC

NC

C4154

NC

NC

NC

C4160

NC

NC

C4173

C4172

100nF 50V

C4179

C4180

100nF 50V

100nF 50V

C4104

270PF50V

C4109

270PF50V

C4111 47nF 50 V

C4114

270PF50V

C4121

270PF50V

R4113
100 OHM 1/10W

R4115
100 OHM 1/10W

R4119
100 OHM 1/10W

R4121
100 OHM 1/10W

R4125
100 OHM 1/10W

R4127
100 OHM 1/10W

R4129
100 OHM 1/10W

R4133
100 OHM 1/10W

R4135

R4137

R4139

R4144

R4148
NC

R4153
100 OHM 1/10W

R4155

R4157

R4159

R4162

C4174

100nF 50V

100nF 50V

C4181
100nF 50V

47nF 50VC4117

C4175

C4182
100nF 50V

C4101
47nF 50V

C4106
47nF 50V

C4107
47nF 50V

C4110
47nF 50V

C4118
47nF 50V

C4115

47nF 50V

C4116

47nF 50V

C4124

47nF 50V

C4126

47nF 50V

C4128

47nF 50V

C4131

47nF 50V

C4132

47nF 50V

C4134

47nF 50V

C4137

47nF 50V

C4139

47nF 50V

C4140

47nF 50V

C4144

47nF 50V

C4149

NC

C4151

47nF 50V

C4152

NC

C4155

NC

C4196

4U7 10V

C4183
100nF 50V

VIN11P

COM_A0-

VIN14P

COM_A2-

VIN13P

VIN10P

SV_C+

COM_A1-

SV_Y+

VGA_R+

VGA_R-

VGA_G+

VGA_G-

VGA_B+

VGA_B-

Y1+

COM_Y0-

PB1+

Pr1+

Y2+

COM_Y1-

PB2+

PR2+

C4184
100nF 50V

0R05 1/10W

AUDIO OUTPUT For AV OUT

DDR2_5V

FB422
300 OHM

1 2

TMDS1_2V

C4185
100nF 50V

DGND

AV0_IN_L

AV0_IN_R

R4103

NC

AV1_IN_L

AV1_IN_R

R4106

NC

YPBPR0_IN_L

YPBPR0_IN_R

R4110

NC

YPBPR1_IN_L

YPBPR1_IN_R

R4122

VGA_IN_L

VGA_IN_R

R4130

NC

FB414
300 OHM

1 2

C4186
100nF 50V

DGND

DGND

DGND

DGND

DGND

A1_2V

10uF 16V

C4102 4U7 10V

C4105 4U7 10V

R4104
NC

C4112 4U7 10V

C4113 4U7 10V

R4108
NC

C4122 4U7 10V

C4123 4U7 10V

R4111
NC

C4127 4U7 10V

C4129 4U7 10V

R4123
0R05 1/10W

C4135 4U7 10V

C4136 4U7 10V

R4131
NC

DGND

D3_3V

C4187

DGND

C4165
100nF 50V

AIN_1L

AIN_1R

AIN_2L

AIN_2R

AIN_4L

AIN_4R

AIO_1LAVOU T_L

AIO_1RAVOUT_R

AIO_2L

AIO_2R

USB_3V3

C4188
100nF 50V

AIN_3L

AIN_3R

DGND

DGND

C4189
100nF 50V

A3_3V

C4156
100nF 50V

C4161
100nF 50V

C4166
100nF 50V

C4190

100nF 50V

A3_3V

A1_2V

A1_2V0

A1_2V1

USB_1V2

BB3_3V

FB402
300 OHM

1 2

FB403 300 OH M

FB404 300 OH M

BB3_3V

C4191
1U25V

TMDS3_3V

R4102
NC

D3_3V

STB1_2V

HDMI2_SCL

HDMI2_SDA

HDMI_SEL

MHDMI_SDA

MHDMI_SCL

VGA_DDC _SDA

VGA_DDC _SCL

HDMI_CEC

156

157

158

160

159

161

162

155

CEC

C4142
1U25V

HDDC0_SCL

VCM_BB1AIO_2L5AIO_1R6AIO_1L7AVDD_BB0_3. 3V2AIN_5L/ LSADC6

3

L_SEN1

AVDD_BB0

1 2

BB3_3V

DGND

HDMI_REXT

HDDC1_SCL

HDDC1_SDA

HDDC0_SDA

AIO_2R4AIN_4R8AIN_4L

AIO_2R

AIO_2L

AIO_1R

FB408
300 OHM

CS C4159

C4164
100nF 50V

C4169
100nF 50V

DGND

IO_3.3V

VGA_DDC_SCL

VGA_DDC_SDA

AIO_1L

AIN_4R

TMDS1_2V
TMDS3_3V

TMDS1_2V

1 2
1 2

FB406
300 OHM

1 2
1 2

FB405
300 OHM

FB407
300 OHM

1 2

DGND

TMDS3_3V

C4157
100nF 50V

C4162
100nF 50V

C4167
100nF 50V

DGNDDGND

C4193
100nF 50V

163

TMDS_ 1. 2V

164

DGND

DGND

DGND

DGND

DGND

TMDS_ 3. 3V

165

P1_RX3N/HDMI_CLKN_1

166

P1_RX3P/HDMI_CLKP_1

167

P1_RX2N/HDMI_0N_1

168

P1_RX2P/HDMI_0P_1

169

P1_RX1N/HDMI_1N_1

170

P1_RX1P/HDMI_1P_1

171

P1_RX0N/HDMI_2N_1

172

P1_RX0P/HDMI_2P_1

173

P0_RX3N/HDMI_CLKN_0

174

P0_RX3P/HDMI_CLKP_0

175

P0_RX2N/HDMI_0N_0

176

P0_RX2P/HDMI_0P_0

177

P0_RX1N/HDMI_1N_0

178

P0_RX1P/HDMI_1P_0

179

P0_RX0N/HDMI_2N_0

180

P0_RX0P/HDMI_2P_0

181

TMDS_ REXT

182

TMDS_ 1. 2V

183

APLL_VDD_3.3V

184

APLL_GND

185

HSYNC

186

VSYNC

187

ADC_VDD_3.3V

188

VD_VDD_3.3V

189

(VGA_B)VIN_0P

190

VIN_0N

191

(VGA_G)VIN_1P

192

VIN1_N

193

(VGA_R)VIN_2P

194

VIN_2N

195

(Pb)VIN_3P

196

VIN_Y0N

197

(Y)VIN _4P

198

(Pr)VIN_5P

199

(FSC_B/Pb)VIN_6P

200

VIN_Y1N

201

(FSC_G/ Pr)VIN_7P

202

(FSC_R/Y)VIN_8P

203

ADC_VDD_1.2V

204

VD_VDD_1.2V

205

VD_GND

206

(SV-C/FSC_CVBS)VIN_11P

207

VIN_A0N

208

(SV-Y)VI N_9P

209

(SV-C)VIN _12P

210

VIN_A1N

211

(CVBS/SV-Y)VIN_10P

212

(CVBS/SV-C)VIN_13P

213

VIN_A2N

214

(CVBS)VIN_14P

215

AVDD_BB1_3.3V

216

AGND_BB1

217

E-PAD

U401
RTD2674U

C4145
100nF 50V

DGND

VDAC3_3V0

C4158
100nF 50V

VDAC3_3V1

C4163
100nF 50V

PLL3_3V

C4168
100nF 50V

DDR_VREF

C4176
100nF 50V

DGND

MHDMI_CLK­MHDMI_CLK+
MHDMI_D0­MHDMI_D0+
MHDMI_D1­MHDMI_D1+
MHDMI_D2­MHDMI_D2+
HDMI2_CLK­HDMI2_CLK+
HDMI2_D0­HDMI2_D0+
HDMI2_D1­HDMI2_D1+
HDMI2_D2­HDMI2_D2+
HDMI_REXT

YPP3_3V0

AHS0
AVS0
YPP3_3V1
YPP3_3V2
VGA_B+
VGA_B­VGA_G+
VGA_G­VGA_R+
VGA_R­PB1+
COM_Y0­Y1+
PR1+
PB2+
COM_Y1­PR2+
Y2+
A1_2V0
A1_2V1

VIN11P
COM_A0­SV_Y+
SV_C+
COM_A1- TEDN
VIN10P
VIN13P
COM_A2­VIN14PVIN 14P
AVDD_BB1

YPP3_3V0

YPP3_3V1

YPP3_3V2

POWER_ON_LV2

MHDMI_HPD

RESET#

SPI_SCK

SPI_DI

SPI_DO

SPI_CS#

HDMI2_HPD

POWER_ON_LV1

IRRX

151

143

144

145

152

153

154

148

146

147

149

150

SPI_DI

SPI_DO

SPI_SCK

GPIO_C3

GPIO_C4

GPIO_C5

GPIO_C6

GPIO_C8

SPI_CS_N

RESET_IN

STBY_CORE_1.2V

AIN_3R10AIN_3L11AIN_2R12AIN_2L13AIN_1R14AIN_1L15AOUT_R16AOUT_L17HPOUT_R19HPOUT_L18SCART_ FSW_020DAC_VDD_3.3V22AVOUT_123AVOUT_224DAC_GND25ADC2X_GND_3.3V26IF_N27IF_P28ADC2X_VDD29PLL_GND30XIN31XOUT32PLL_VDD_3.3V33CORE_1.2V

9

HPOUT_JD

AOUT_L

AOUT_R

HPOUT_R

AIN_1R

AIN_2L

AIN_1L

AIN_3L

AIN_2R

AIN_3R

HPOUT_L

AIN_4L

FB409

300 OHM

RESET Cir.

AVDD_BB0

AVDD_BB1

R4168

6.2K 1/10W

RESET#

LSADC_REF

DGND

D1_2V

STB1_2V

D3_3V

DDR_IO_2.5V

POWER_KEY

LEDY

LSADC_REF

URAT_RX

URAT_TX

142

GPIO_C2

DDR_DQS1

DDR_DQ9

DDR_DQ8

LEDG

LSADC1

140

141

133

136

137

138

139

GPIO_C0

GPIO_C1

STBY_CORE_1.2V

129

135

132

130

131

134

DQ_9

DQ_8

DQS1

IO_3.3V

CORE_1.2V

LSADC_REF

LSADC0/GPIO

LSADC1/GPIO

LSADC2/GPIO

LSADC4/GPIO

RTD2674U
LQFP-216
E-PAD

SCART_ FSW_1

21

FB415300 OHM

MUTE_AVOUT

VDAC3_3V0

CVBS_OUT

1 2

A3_3V

R4169
15K +-1% 1/10W

DGND

1 2

FB417300 OHM

1 2

DGND

DGND

DGND

VDAC3_3V1

IF1P

IF1N

FB411300 OHM

1 2

C41921U25V

A3_3V

1

2

NC

XOU T

XIN

FB416
300 OHM

1 2

XIN

U405

GND

RESET

R4170

34

XOUT

PLL3_3V

D1_2V

1 2

FB412 300 OHM

A3_3V

Vcc

C4146

NC

22pF 50V

DDR_IO_2.5V

DDR_IO_2.5V

DDR_CK

DDR_ADD9

DDR_CKE

DDR_ADD8

DDR_DM1

DDR_DQ12

DDR_DQ15

DDR_DQ13

DDR_DQ11

DDR_DQ14

DDR_DQ10

DDR_VREF

DDR_ADD11

DDR_ADD12

DDR_CK#

114

115

122

117

121

118

120

116

119

112

123

124

125

126

127

128

DQ_14

DQ_13

DQ_12

DQ_11

DQ_10

DDR_IO_2.5V

USB_AVDD_3.3V35HSDM36HSDP37USB_AVDD_1.2V38I2C0_SCL39I2C0_SDA40IO_3.3V41GPIO_A0/RF_AGC42GPIO_A1/IF_AGC43CORE_1.2V44O_FP45O_FN46O_EP47O_EN48O_DP49O_DN50O_CP51O_CN52O_BP53O_BN

USB_1V2

USB_DP

USB_3V3

I2C_M0_SCL

I2C_M0_SDA

USB_DM

1 2

FB401 300 OHM

1 2

FB413300 OHM

A1_2V

A3_3V

D3_3V

3

NC

DGND

R4167
10 OHM 1/10W

X401
27MHz

1 2

C4194

22pF 50V

113

CK

CK#

CKE

DM1

DQ_15

ADDR9

ADDR11

ADDR12

DDR_VREF

DDR_IO_2.5V

DDR_IO_2.5V

123

4

RF_AGC

USB_PWR_CTRL

876

5

D1_2V

RP415

TOCLKP

TODP

TODN

TOCLKN

60R 1/16W 5%

D3_3V

Power On L atch (PO L)

R4160
10K 1/10W

C4100
100nF 50V

C4195

TCON /G PI O_B 12
TCON /G PI O_B 10

4

5

TOCP

SPI_CLK(TEST
mode Enable)

SPI_DO(PLL Enable)

SPI_CS#(SPI_EJTAG_EN)

Pin 154 (Boot mode)

DDR_ADD5

DDR_ADD7

DDR_ADD6

109

110

111

ADDR5

ADDR6

ADDR7

ADDR8

ADDR4

DDR_IO_2.5V

ADDR3
ADDR2
ADDR1
ADDR0

ADDR10

CORE_1.2V

DDR_IO_2.5V

DDR_IO_2.5V

CORE_1.2V

TCON/GPI O_B9

IO_3.3V
TCON/GPI O_B8
TCON/GPI O_B7
TCON/GPI O_B6
TCON/GPI O_B5
TCON/GPI O_B4
TCON/GPI O_B3
TCON/GPI O_B2
TCON/GPI O_B0

CORE_1.2V

IO_3.3V

54

123

876

RP414

TOBN

TOCN

TOBP

BA1
BA0

RAS#
CAS#

WE#
DM0

DQ_0
DQ_1
DQ_2
DQ_3
DQ_4
DQ_5

DQ_6
DQ_7
DQS0

E_AN
E_AP
E_BN
E_BP
E_CN
E_CP
E_DN
E_DP
E_EN
E_EP
E_FN
E_FP

O_AN
O_AP

POWER_ON _LV2

L_SEN1

MUTE_ AMP

URAT_RX

URAT_TX

60R 1/16W 5%

PANEL_ON

BL_ON_OFF

AMP_STB

L_SEN1

POWER_ON _LV1

MUTE_ AVO UT

LEDG

LEDY

DDR_ADD4

108
107
106
105
104
103
102
101
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

DDR_IO_2.5V

DDR_ADD3
DDR_ADD2
DDR_ADD1
DDR_ADD0
DDR_ADD10
DDR_BA1
DDR_BA0DDR_BA0

D1_2V

DDR_RAS#
DDR_CAS#
DDR_WE#
DDR_DM0

DDR_IO_2.5V

DDR_DQ0
DDR_DQ1
DDR_DQ2
DDR_DQ3
DDR_DQ4
DDR_DQ5

DDR_IO_2.5V

DDR_DQ6
DDR_DQ7

DDR_DQS0

D1_2V

BL_PWM
BL_ON_OFF

D3_3V

SPI_WP

AMP_STB
MUTE_ AMP

USB_PWR _FLAG

PANEL_ON

D1_2V

1

8

2

7

3

6

4

5

1

8

2

7

TECL KN

3

6

TECL KP

4

5

1

8

2

7

3

6

4

5

D3_3V

R4212 4 .7K 1/10W

C4143 2.2UF K 25V

R4140 NC

R4150 4 .7K 1/10W

R4151 1 0K OHM +-5% 1/10W

R4100 1 0K OHM +-5% 1/10W

R4216 4 .7K 1/10W

R4215 4 .7K 1/10W

R4192 4 .7K 1/10W

R4145 NC

R4142 NC

R4146 NC

R4149 NC

R4191 NC

100nF 50V

1 : Normal Mode (default)
0 : Test Mode

1 : Enable (default)
0 : Disable

1 : Disable (default)
0 : Enable

1 : Flash boot
0 : ROM boot (default)

G3934-D-X-X-1-100325

05) RTD2674

TEAN
TEAP
TEBN
TEBP
TECN
TECP

TEDP
TOAN
TOAP

L_SEN

C4153

RP411

60R 1/16W 5%

RP412

60R 1/16W 5%

RP413

60R 1/16W 5%

DGND

DGND

+3V3

D3_3V

SPI FLASH

SPI_CS#7
SPI_SCK7
SPI_DI7
SPI_DO7

DDR

DDR_DQ[15:0]7

DDR_ADD[12:0]7

DDR_BA[1:0]7

DDR_DQS[1:0]7

DDR_DM[1:0]7

DDR_CKE7
DDR_RAS#7
DDR_CAS#7
DDR_WE#7
DDR_CK7
DDR_CK#7

Component Video

YPBPR0_Y3
YPBPR0_PB3
YPBPR0_PR3

YPBPR1_Y3
YPBPR1_PB3
YPBPR1_PR3

RIN+2
GIN+2
BIN+2
AVS02
AHS02

VGA_DDC_SCL2
VGA_DDC_SDA2

HDMI

MHDMI_CLK-5
MHDMI_CLK+5

MHDMI_D0-5
MHDMI_D0+5
MHDMI_D1-5
MHDMI_D1+5
MHDMI_D2-5
MHDMI_D2+5

MHDMI _SD A5
MHDMI _SC L5

HDMI2_CLK-5
HDMI2_CLK+5

HDMI2_D0-5
HDMI2_D0+5
HDMI2_D1-5
HDMI2_D1+5
HDMI2_D2-5
HDMI2_D2+5

HDMI2_SDA5
HDMI2_SCL5

HDMI_CEC5

MHDMI _H PD5
HDMI2_HPD5

CVBS & SV IN

CVBS0+3
CVBS0-3

CVBS1+3
CVBS1-3

SV0_Y+3
SV0_C+3
SV0-3

CVBS OUT

CVBS_OUT3

IF DEMOD

IF1P4
IF1N4

RF_AGC4

LSADC

LSADC18

L_SEN8

SPI_SCK

SPI_DO

SPI_CS#

HDMI_SEL

Close to RTD2674

OEM MOD EL

TPV MODE L

PCB NAME

715G3934M0A0000040

59Thursday , May 20, 2010

Sheet

of

SPI_CS#
SPI_SCK
SPI_DI
SPI_DO

DDR_DQ[15:0]

DDR_ADD[12:0]

DDR_BA[1:0]

DDR_DQS[1:0]

DDR_DM[1:0]

DDR_CKE
DDR_RAS#
DDR_CAS#
DDR_WE#
DDR_CK
DDR_CK#

YPBPR0_Y
YPBPR0_PB
YPBPR0_PR

YPBPR1_Y
YPBPR1_PB
YPBPR1_PR

RIN+
GIN+
BIN+
AVS0
AHS0

VGA_DDC_SCL
VGA_DDC_SDA

MHDMI_CLK­MHDMI_CLK+
MHDMI_D0­MHDMI_D0+
MHDMI_D1­MHDMI_D1+
MHDMI_D2­MHDMI_D2+

MHDMI_SDA
MHDMI_SCL

HDMI2_CLK­HDMI2_CLK+
HDMI2_D0­HDMI2_D0+
HDMI2_D1­HDMI2_D1+
HDMI2_D2­HDMI2_D2+

HDMI2_SDA
HDMI2_SCL

HDMI_CEC

MHDMI_HPD
HDMI2_HPD

CVBS0+
CVBS0-

CVBS1+
CVBS1-

SV0_Y+
SV0_C+
SV0-

CVBS_OUT

IF1P
IF1N

RF_AGC

LSADC1

L_SEN

I2C

I2C_M0_SDA4
I2C_M0_SCL4

IRRX

IRRX8

PANEL LVDS

TEAN8
TEAP8
TEBN8
TEBP8
TECN8
TECP8
TECL KN8
TECL KP8
TEDN8
TEDP8

TOAN8
TOAP8
TOBN8
TOBP8
TOCN8
TOCP8
TOCL KN8
TOCL KP8
TODN8
TODP8

BB AUDIO

AV0_IN_L3
AV0_IN_R3
AV1_IN_L3
AV1_IN_R3

YPBPR0_IN_L3
YPBPR0_IN_R3
YPBPR1_IN_L3
YPBPR1_IN_R3

VGA_IN_L2
VGA_IN_R2

CLASS D AMP

AOUT_L9
AOUT_R9

HEAD PHONE OUT

HPOUT_L9
HPOUT_R9

CVBS OUT AUDIO OUT

AVOUT_L3
AVOUT_R3

UART

URAT_RX2
URAT_ TX2

USB

USB_DM2
USB_DP2

GPIO

LEDY8
POWER_ON _LV110
POWER_ON _LV210

POWER_KEY8

LEDG8

PANEL_ON8

BL_ON_OFF10

BL_PWM10

AMP_STB9
MUTE_A MP9

MUTE_AVOUT3

HPOUT_JD9

USB_PWR_CTRL2
USB_PWR_FLAG2

SPI_WP7

R4163 4.7K 1/10W

R4164 4.7K 1/10W

R4165 4.7K 1/10W

R4166 4.7K 1/10W

Size

Rev

称爹

I2C_M0_SDA
I2C_M0_SCL

IRRX

TEAN
TEAP
TEBN
TEBP
TECN
TECP
TECLKN
TECLKP
TEDN
TEDP

TOAN
TOAP
TOBN
TOBP
TOCN
TOCP
TOCLKN
TOCLKP
TODN
TODP

AV0_IN_L
AV0_IN_R
AV1_IN_L
AV1_IN_R

YPBPR0_IN_L
YPBPR0_IN_R
YPBPR1_IN_L
YPBPR1_IN_R

VGA_IN_L
VGA_IN_R

AOUT_L
AOUT_R

HPOUT_L
HPOUT_R

AVOUT_L
AVOUT_R

URAT_RX
URAT_ TX

USB_DM
USB_DP

LEDY
PANEL_ON_LV1
PANEL_ON_LV2

POWER_KEY

LEDG

PANEL_ON

BL_ON_OFF

BL_PWM

AMP_STB
MUTE_A MP
MUTE_A VOUT
HPOUT_JD

USB_PWR _CTRL
USB_PWR _FLAG

SPI_WP

D3_3V

DGND

<

A2

A

称爹

>

39

R4172
22 OHM +-1% 1/10W

DDR_DQ4

DDR_DQ6
DDR_DQ7

DDR_DQ0
DDR_DQ1
DDR_DQ2
DDR_DQ3

DDR_RAS#

DDR_CAS#
DDR_WE#

DDR_DM0

DDR_ADD10
DDR_BA1
DDR_BA0

DDR_ADD3
DDR_ADD2 DDR_ADD2_
DDR_ADD1
DDR_ADD0

DDR_ADD7 DDR_ADD7_
DDR_ADD6
DDR_ADD5
DDR_ADD4

DDR_ADD12
DDR_ADD11
DDR_ADD9
DDR_ADD8

DDR_DM1
DDR_CK#
DDR_CK
DDR_CKE

DDR_DQ12
DDR_DQ13
DDR_DQ14
DDR_DQ15

DDR_DQ8
DDR_DQ9
DDR_DQ10
DDR_DQ11

DDR_DQS1

22 OHM +-5% 1/16W
1

RP402

2
3
4

22 OHM +-5% 1/16W
1

RP403

2
3
4

22 OHM +-5% 1/16W
1

RP404

2
3
4

22 OHM +-5% 1/16W
1

RP405

2
3
4

22 OHM +-5% 1/16W
1

RP406

2
3
4

22 OHM +-5% 1/16W
1

RP407

2
3
4

22 OHM +-5% 1/16W
1

RP408

2
3
4

22 OHM +-5% 1/16W
1

RP409

2
3
4

22 OHM +-5% 1/16W
1

RP401

2
3
4

22 OHM +-5% 1/16W
1

RP410

2
3
4

R4182

22 OHM +-1% 1/10W

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

DDR_DQS0_DDR_DQS0

DDR_DQ4_
DDR_DQ5_DDR_DQ5
DDR_DQ6_
DDR_DQ7_

DDR_DQ0_
DDR_DQ1_
DDR_DQ2_
DDR_DQ3_

DDR_RAS#_
DDR_CAS#_
DDR_WE#_
DDR_DM0_

DDR_AD D10_
DDR_BA1_
DDR_BA0_

DDR_ADD3_

DDR_ADD1_
DDR_ADD0_

DDR_ADD6_
DDR_ADD5_
DDR_ADD4_

DDR_AD D12_
DDR_AD D11_
DDR_ADD9_
DDR_ADD8_

DDR_DM1_
DDR_CK#_
DDR_CK_
DDR_CKE_

DDR_DQ12_
DDR_DQ13_
DDR_DQ14_
DDR_DQ15_

DDR_DQ8_
DDR_DQ9_
DDR_DQ10_
DDR_DQ11_

DDR_DQS1_

DDR2_5V

DGND

DDR_DQ0_

DDR_DQ1_
DDR_DQ2_

DDR_DQ3_
DDR_DQ4_

DDR_DQ5_
DDR_DQ6_

DDR_DQ7_

DDR_DQS0_

DDR_DM0_
DDR_WE#_
DDR_CAS#_
DDR_RAS#_

DDR_BA0_
DDR_BA1_
DDR_ADD10_
DDR_ADD0_
DDR_ADD1_
DDR_ADD2_
DDR_ADD3_

C4205

+

100uF/16V

C4197

C4198

C4199

100nF 50V

100nF 50V

100nF 50V

U402

1

VDD

2

DQ0

3

VDDQ

4

DQ1

5

DQ2

6

VSSQ

7

DQ3

8

DQ4

9

VDDQ

10

DQ5

11

DQ6

12

VSSQ

13

DQ7

14

NC

15

VDDQ

16

LDQS

17

NC

18

VDD

19

NC

20

LDM

21

WE

22

CAS

23

RAS

24

CS

25

NC

26

BA0

27

BA1

28

AP/A10

29

A0

30

A1

31

A2

32

A3

33

VDD

IC H5DU2562GTR-FAC TSOPII-66

DQ15
VSSQ
DQ14
DQ13

VDDQ

DQ12
DQ11
VSSQ
DQ10

DQ9

VDDQ

DQ8

VSSQ

UDQS

VREF

UDM

CKE

VSS

VSS

CLK
CLK

A12
A11

VSS

C4200

100nF 50V

C4201

100nF 50V

C4202

100nF 50V

C4203

100nF 50V

C4204

100nF 50V

C4209

10uF 16V

C4210

10uF 16V

DDR

DDR_DQ[15:0]6

DDR_ADD[12:0]6

DDR_BA[1:0]6

DDR_DQS[1:0]6

DDR_DM[1:0]6

DDR_CKE6
DDR_RAS#6
DDR_CAS#6
DDR_WE#6
DDR_CK6
DDR_CK#6

SPI FLASH

SPI_CS#6
SPI_SCK6
SPI_DI6
SPI_DO6
SPI_WP6

DDR_DQ[15:0]

DDR_ADD[12:0]

DDR_BA[1:0]

DDR_DQS[1:0]

DDR_DM[1:0]

DDR_CKE
DDR_RAS#
DDR_CAS#
DDR_WE#
DDR_CK
DDR_CK#

SPI_CS#
SPI_SCK
SPI_DI
SPI_DO
SPI_WP

EEPROM

DDR2_5VDDR2_5V

66

DDR_DQ15_

65
64

DDR_DQ14_

63

DDR_DQ13_

62
61

DDR_DQ12_

60

DDR_DQ11_

59
58

DDR_DQ10_

57

DDR_DQ9_

56
55

DDR_DQ8_

54
53

NC

52

DDR_DQS1_

51
50

NC

49
48

DDR_DM1_

47

DDR_CK#_

46

DDR_CK_

45

DDR_CKE_

44
43

NC

A9
A8
A7
A6
A5
A4

DDR_ADD12_

42

DDR_ADD11_

41

DDR_ADD9_

40

DDR_ADD8_

39

DDR_ADD7_

38

DDR_ADD6_

37

DDR_ADD5_

36

DDR_ADD4_

35
34

DGNDDGND

R4179
120OHM 1/10W

DDR_ VREF

C4207
100nF 50V

DGND

DDR2_5V

DGND

R4176
1K 1/10W

R4180
1K 1/10W

DGND

C4211
100nF 50V

C4208
100nF 50V

D3_3V

R4173 4.7K 1/ 10W

C4206
1U25V

SPI_CS#

DGND

SPI_DI

SPI FLASH

SPI_HOLD

R4177

22 OHM 1/10W

R4171 22 OHM 1/10W

/CS
SO

/CS
SO
SPI_WP

U403

1

HOLD

2

VCC

3

NC

4

NC

5

NC

6

NC

7

CS
SO/SIO18WP

MX25L3205DMI-12G

U404

1

/CS

2

DO

3

/WP

4

GND

DGND

SI/SI O0

VCC

/HOLD

SCLK

NC

CLK

GND

DI

NC
NC
NC
NC

8
7
6
5

CL

R4174 22 OHM 1/10W

16

SI

15

R4175 22 OHM 1/10W

14
13
12
11
10

SPI_WP

9

DGND

D3_3V

SPI_HOLD

CL
SI

SPI_SCK
SPI_DO

R4178 4.7K 1/10W

D3_3V

EEPROM(NC)

T P V ( Top Victory Elec tronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

40

G3934-D-X-X-1-100325

Date

OEM MO DEL S ize

TPV MODEL

715G3934M0A000004006) DDR/ SPI FLASH/EEPR OM

PCB NAME

69Wednesday , March 24, 2010

Sheet

of

Rev

称爹

A3

A

CN401

LED-G

1

LED-Y

2

IRRX1

3
4

POWER

5
6
7
8

KEY1

9

POWERKEY

10
11

L_SEN

12
13

CONN

IR & KEYPAD CONNECTOR:

Pin01: LED-G
Pin02: LED-Y
Pin03: IRRX1
Pin04/7: GND
Pin05: POWER
Pin06/08/11/13: NC
Pin09: KEY1
Pin10: POWERKEY
Pin12: L_SEN

NC

ZD404NCC4219

1 2

DGND

IR & KEYPAD CONNECTOR

2
4
6
8
10
12
14
16
18
20
22
24
26
28
30

PANEL_VCC

DGND

PANEL_VCC

TODP
TOCL KP
TOCP
TOBP
TOAP
TEDP
TECL KP
TECP
TEBP
TEAP

DGND

CN405

1
3
5
7

9
11
13
15
17
19
21
23
25
27
29

CONN

TOD N
TOC LKN
TOC N
TOBN
TOAN
TEDN
TECL KN
TECN
TEBN
TEAN

FB418

300 OHM

POWERKEY
KEY1

POWER

PANEL_VCC

R4200
NC

R4201
NC

DGND

PANEL_ON

PANEL POWER:
1: OFF
0: ON

+5VSB

1 2

C4214 100pF 50V

DGND

RLZ5.6B

ZD402

D3_3V

1 2

IR/KEY

D3_3V

C4216 100pF 50V

DGND

R4189

2.2K 1/10W

ZD401

RLZ5.6B

R4204

DGND

+5VSB

D3_3V

1 2

Q406

PMBS3904

ZD403

RLZ5.6B

1 2

C4217 100pF 50V

IRRX

FB423

120R/6000mA

1 2

FB420

120R/6000mA

1 2

FB421 NC

1 2

FB424 NC

1 2

R4207

4.7K 1/10W

R4190

4.7K 1/8W

R4116

0R05 1/10W

R4117 0R05 1/10W

C4218 100pF 50V

DGND

LED-Y
LED-G

DGND

POWER_KEY

R4202

10K 1/10W

Q405

PMBS3904

LSADC1

FB425 300 OHM

FB426 300 OHM

R4205

120K +-5% 1/10W

12
12

C4221
100nF 50V

R4193 1K 1/10W
R4188 1K 1/10W

R4203

100K 1/10W

D3_3V

23

Q401

PMBS3906

1
2
3
4

R4195 4.7K 1/10W

1

23

Q402

PMBS3906

Q404

S

D

S

D

S

D

G

D

AO4449 -7A/-30V

R4194 4.7K 1/10W

1

8
7

C4222

6

100uF/25V

5

+

DGND

LEDY

LEDGIRRX1

R4209

NC

R4210

NC

PANEL_VCC

C4223
100nF 50V

FB419

NC

1 2

C4215 100pF 50V

C4213 100pF 50V

FB427 300 OHM

12

+12V

+5VSB

47K +-5% 1/10W

R4206 NC

R4208

4.7K 1/10W

C4224

100nF 50V

POWER_KEY6

PANEL

TEAN6
TEAP6
TEBN6
TEBP6
TECN6
TECP6
TECL KN6
TECL KP6
TEDN6
TEDP6

TOAN6
TOAP6
TOBN6
TOBP6
TOCN6
TOCP6
TOCL KN6
TOCL KP6
TODN6
TODP6

PANEL_ON6

LEDG

LEDG6

LSADC1

LSADC16

IRRX

IRRX6

POWER_KEY

L_SEN

L_SEN6

LEDY

LEDY6

TEAN
TEAP
TEBN
TEBP
TECN
TECP
TECL KN
TECL KP
TEDN
TEDP

TOAN
TOAP
TOBN
TOBP
TOCN
TOCP
TOCL KN
TOCL KP
TODN
TODP

PANEL_ON

LVDS

T P V ( Top Victory Electronics Co . , Ltd. )

G3934-D-X-X-1-100325

絬 隔 瓜 絪 腹

Key Component

41

Wednesday , March 24, 2010

Date

OEM MODEL

TPV MODEL

PCB NAME

Sheet

715G3934M0A000004007) LVDS/IR/KEY

of

7

9

Size

Rev

称爹

A3

A

C601

100nF 50V

AMP_STB

+24V

1 2

SGND

R604 1K 1/ 10W

MUTE _AMP

ZD602

RLZ18B

R602

4.7K 1/10W

R611 10K 1/ 10W

+5VSB

R613
10K 1/10W

R614
10K 1/10W

MUTE 5V

R603
47K +-5% 1/10W

Q602

PMBS3904

SGND SGND

SGND

R612

10K 1/10W

1

Q601
PMBS3906

2 3

+

100uF/16V

SGND

PGND

MUTE 5V

SGND

C623

C605
100nF 50V

AOUT_L

AOUT_R

R610
47K +-5% 1/10W

Q603

PMBS3904

SGND

PGND
PGND

PGND

SGND

R606

16.2K1/10W

R607

R608

16.2K1/10W

SH601
SH602
SH603

DGND

C609 10uF 25V

33KOHM 1/10W

C610

SGND

C615 10uF 25V

C616
1uF 50V

SGND

SGND

SGND

R605 NC

SGND

13
14
15
16
17
18
19
20
21
22
23
24

R609 NC

R601

270K 1/10W

C603

100nF 50V

C608
1U25V

CBIAS
ROSC
AVCC
GND
NC
NC
NC
NC
NC
CLOCK
VREF
PROT

C618
1U25V

49

TGND

24V_AMP

+

C602

470UF35V

SGND

SGND

12

10

9

11

5

NC6NC7NC8NC

IN1

GAIN1

STBYL

IN225GAIN226MUTEL27NC28NC29NC30NC31VD232VD233NC34OUT235OUT2

SGND

24V_AMP

C622

100nF 50V

SGND

C604 100nF 50V

SGND

3

2

NC

VD14VD1

OUT11OUT1

NC
VS1
VS1

NC
HB1

NC

DVDD

HB2

NC

VS2
VS2

NC

U602

36

R2A15112FP

SGND

C620

100nF 50V

48
47
46
45
44
43
42
41
40
39
38
37

SGND

SGND

C614 10uF 25V

SGND

SGND



22uH +-25%

SGND

C611

100nF 50V

SGND

C617

100nF 50V

L601

22uH +-25%

SGND

HEADPHONE

C606

+

470UF25V

C607

0.47uF 50V

C619 470UF 25V

+

C621

0.47uF 50V

CN602
PHONEJ ACK

DGND

5
4
3
2
6
7
1

DGND

D3_3V

C612

NC

R615
27K 1/10W

12

ZD603
MLVG0402

DGND

C613

SGND

NC

SGNDSGND

R616 10K 1/10W

12

ZD601
MLVG0402

C626

1U25V

AMP

AOUT_L6
AOUT_R6

MUTE _AMP6

AMP_STB6

HEADPHONE

HPOUT_L6
HPOUT_R6

HPOUT_JD6

CN601

4
3
2
1

CONN

C624 100uF/ 16V

+

C625 100uF/ 16V

+

C628 100nF 50V

C627 100nF 50V

R617 1K 1/10W

R618 1K 1/10W

DGND

AOUT_L
AOUT_R

MUTE_ AMP

AMP_STB

HPOUT_L
HPOUT_R

HPOUT_JD

HPOUT_R

HPOUT_JD

HPOUT_L

T P V ( Top Victory Electronics Co . , Ltd. )

G3934-D-X-X-1-100325

絬 隔 瓜 絪 腹

Key Component

Date

42

OEM MODEL

TPV MODEL

PCB NAME

Sheet

715G3934M0A000004008) AMP/HP

89Wednesday , March 24, 2010

of

Size

Rev

称爹

A3

A

POWER/BL CONNECTOR:

Pin01: BACKLIGHT ON/OFF
Pin02: BACKLIGHT PWM
Pin03: +12V
Pin04: +12V
Pin05: GND
Pin06: GND
Pin07: GND
Pin08: +24V
Pin09: +24V
Pin10: POWER ON/OFF
Pin11: +5VSTB
Pin12: +5VSTB

C734

100nF 50V

C742

100nF 50V

DGND

DGND

DGND

CN701

CONN

R721
10 OHM 1/10W

U701

1

VCC

2

REF

3

GND
FB4EN

G5627F11U

+5VSB

+

PGND

+

C721
100uF/16V

10K 1/10W

C714
100uF/16V

VIN

3

+5VSB

R703

Q704

PMBS3904

DGND

U703

VIN3VOUT

8
7

LX

6
5

DGND

U704 G1084T43Uf

VOUT

VIN

ADJ

1

R720

100R 1/10W 1%

DGND

1
2
3
4

R704

C703

100nF 50V

R708
47K +-5% 1/10W

100K 1/10W

5V SWITCHER FOR STB CUT OFF

2

C715

1

R716

GND/ADJ

NC

L702

4.7uH

R715
NC

R728
0R05 1/10W

+

C750
220uF/16V

C758

1N 50V

+

100nF 50V

220uF/16V

C757

4.7UF 10V

DGND

R726

R1

30K 1/10W 1%

R727

47KOHM +-1% 1/10W

R2

DGND

C716

120R/6000mA

1 2

C748
100nF 50V

CS FB706

2

C720

R701

100nF 50V

100R 1/10W 1%

CS C722

DGND

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

Q702

8

S

D

7

S

D

6

S

D

5

G

D

AO4449 -7A/-30V

FB711

120R/6000m A

1 2

FB701

120R/6000m A

1 2

FB719

+5VSW

C749

100nF 50V

C751

22uF 10V

100nF 50V

G3934-D-X-X-1-100325

09) POWER

DGND

C752

R702

10K 1/10W

R707

FB718

120R/6000m A

1 2

100nF 50V

DGND

DGND

DGND

C719

100nF 50V

DGND

+5VSB

DGND

C713

DGND

R709

4.7K 1/10W

Q705

PMBS3904

R732
10 OHM 1/10W

U702

1

VCC

2

REF

3

GND
FB4EN

G5627F11U

R705 NC

R713
NC

R714

4.7K 1/10W

C736

100nF 50V

22uF 10V

BL_ON_OFF

BL_PWM

+12V

+

C707
470UF16V

+24V

C718

+

470UF35V

POWER_ON_LV1

+5VSB

+

C701

220uF/16V

+5VSB

DGND

+3V3

+

C745

C744

220uF/16V

DGND

POWER_ON_LV2

+5VSW

47K +-5% 1/10W

R725
NC

R711

4.7K 1/10W

+3V3

C710

100nF 50V

C753

100nF 50V

FB717

120R/6000m A

1 2

DGND

C706

2.2U25V

DGND

FB702
120R/6000mA

1 2

FB716
120R/6000mA

1 2

FB704
120R/6000mA

1 2

FB705
120R/6000mA

1 2

+5VSB

C723
100nF 50V

DGND

FB708
120R/6000mA

1 2

FB715
120R/6000mA

1 2

+

C735
220uF/16V

C741

1N 50V

R706 4.7K 1/10W

+5VSB

Q703

PMBS3904

R712

1K 1/10W

Q706

PMBS3904

DGND

DGND

Q701
PMBS3904

DGND

C737

4.7UF 10V

DGND

R723

51K 1/10W

R1

R724

16.2K1/10W

R2

DGND

R710

1K 1/10W

C712

100nF 50V

C717

100nF 50V

DGND

R718
NC

R719

4.7K 1/10W

C725

100nF 50V

DGND

FB712

120R/6000m A

1 2

C738
100nF 50V

C743

100nF 50V

C705

100nF 50V

DGND

1
2
3

12V

4
5
6

DGND

7
8
9
10
11
12

R717

10K 1/10W

R722

NC

L701

8
7
6
5

4.7uH

DGND

PGND

VIN

LX

+

DGND

STB1_2V

A1_2V

1 2

C747

+

220uF/16V

DGND

DDR2_5V

+5VSW

C702

100uF/25V

FB714

120R/6000mA

C704

100nF 50V

D1_2V

OEM MO DEL Size

TPV MODEL

PCB NAME

Sheet

of

99Wed nesday, Marc h 24, 2010

POWER

POWER_ON_LV16
POWER_ON_LV26

BL_ON_OFF6

BL_PWM6

1073 POWER

FB707

+3V3

120R/6000m A

1 2

FB710

120R/6000m A

1 2

C732

10uF 16V

A3_3V

FB713

120R/6000m A

1 2

CLOSE TO RTD2674

FB709

120R/6000m A

1 2

C726

10uF 16V

D3_3V

CS C724

DGND

TMDS3_3V

C739

NC

DGND

DGND

POWER_ ON_LV1
POWER_ ON_LV2

BL_ON_OFF

BL_PWM

A3_3V

CS NC C733

BB3_3V

Rev

称爹

A3

A

43

7.2 电源板

LC32R03 715G3811P01H20003H

CN903

680pF

! !

330K 1/4W

12

!

t

!

2

2
1

F901

NC

R901

5A 250V

N
L

3

330K 1/4W

3

NR901
NTCR

1 2

C901

!

1

+

-

4

L902

13mH

!

C904C902

R902

!

L901

13mH

3

FB901

1 2

BEAD

C913

0.1uF 50V

BD901
KBJ608G

!

!

124

C903
680pF

R903
330K 1/4W

!

124

!

RV901
NC

CN901

SOCKET

!

3

VCC

+

1M5 1/4W 1%

C910

1uF/520V

R910

NC

C914

47uF/50V

D901

1N4007-E3/73

R904

!

126

8

R911

20K 1/4W

56P 50V

R917

15K +-5% 1/8W

1M5 1/4W 1%

ACD

B+_390V

R9101

NC

R9102

NC

R9103

NC

R9104

NC

5

L906

253uH

7

C912

8

INV1COMP2MOT3CS

C916

NC

R905

ZD9101

NC

10R 1/8W 5%

6

OUT7VCC

GND

10KOHM +-5% 1/8W

12

D904

IN5408-E

FMNS-1106S

D907

NC

D905

1N4148

R932

10 OHM +-5% 1/6W

R913

R912

NC

5

10KOHM +-5% 1/8W

ZCD

IC901

FAN6961SZ

4

R918

C918

C917

0.47uF 50V

47N 50V

R909

1M5 1/4W 1%

C921

0.1uF 50V

B+_390V

R924

1MOHM +-1% 1/4W

R925

1M 1/4W 1%

R926

1M 1/4W 1%

R985

13K 1/8W 1%

ALL NC

R9105

NC

R9106

NC

D902

R914

R915

470 OHM 1/4W

C915

220P 50V

C943

47N 50V

C919

NC

R906

560K 1/8W 1%

R941

NC

FB

NC

R9107

R9108

NC

R9109

NC

Q9101

NC

R942

NC

!

Q901

2SK4086LS

R916

0R12 5% 2W

1

BNO

2

COMP

3

(-)LATCH
CS4GND

VCC

IC9101

1

2 3

NC

Q9102

NC

R919

NC

10KOHM +-5% 1/8W

IC903

OVP
VCC
OUT

LD7523GS

+5V

R947

C944

220P 50V

4

!

R801

R920

680K OHM +-1% 1/4W

R921

680K OHM +-1% 1/4W

R922

680K OHM +-1% 1/4W

R923

13K 1/8W 1%

VCC

C942

100N 50V

8
7
6
5

1R 1/4W 5%

R9110

NC

R9111

NC

VCC

B+

R933

1K 1/4W

ACD

R945

+

C920

82uF M 450V

FB902

1 2

BEAD

100K 1/4W

C935

0.1NF2KV

D940

PR1007

+

C941

10uF/50V

D906

1N4148

R943

10OHM +-5% 1/8W

R948

0.1 ohm

C925

10NF1KV

+

C937

10uF/50V

MTZJ T-72 16B

R996

100K 1/4W

100K 1/4W

R998

100K 1/4W

R944

10KOHM +-5% 1/8W

C905

470pF/250V

!

ZD930

1 2

C907

100N 50V

R997

R999

!

Q903

2SK4101LS

R946

0R36 5% 2W

C924

0.001uF/25 0V

B+_390V

B+

Q921

KTD1691/P

C939

10N 50V

!

R908

2.2 OHM 1/4W

T902

5

4

3

POWER X'FMR

!

FB

1 2

B+

R939

10K 1/4W

4.7M OHM +-5% 1/4W

FB/OLP4VCC

3

GND

2

BR

1

S/OCP

9

8
10

11

IC970

EL817M(X)

!

FB903

BEAD

R962

IC902

D/ST
D/ST

A6069H

R907

2.2 OHM 1/4W

R974

1K 1/4W

1234

10K 1/4W

IC971

AS431AZTR-E1

470pF/250V

R976

C906

!

0.1NF2KV

5

7
8

C933

10uF/50V

C932

+

R973

100 OHM 1/4W

R970

100 OHM 1/4W

D973

3

YG865C10R SC

2

1

3

1

100 OHM 1/4W

R951

100 OHM 1/4W

R975

3K9 +-5% 1/8W

C976

330N 50V

100K 1/4W

D930

PR1007

D903

1N4148

C908

100N 50V

D972

YG865C10R SC

2

R977

R991

100K 1/4W

R992

C957

1N 500V

+

100K 1/4W

100K 1/4W

C934

100N 50V

C970

1N 500V

C973

470uF 35V

C952

1N 500V

1.8K 1/4W

R993

R994

D931

AU02Z

R986

C972

1N 500V

+

C945

470uF 35V

R931

2.2 OHM 1/4W

+

C931

100uF 50V

L980

L

L951

L

1.8K 1/4W

T901

1

POWER X'FMR

2

3
4

5

!

C909

1N 50V

+

C975

470uF 35V

+

C946

470uF 25V

R965

R980

NC

IC950

EL817M(X)

R967

1.8K 1/4W

!

6
7

9
10

1.8K 1/4W

R971

47 OHM 1/4W

R954

100 OHM 1/4W

1234

C955

220N 50V

1K 1/4W

IC952

AS431AZTR-E1

R988

1.8K 1/4W

R978

24KOHM +-1% 1/8W

R979

2KOHM +-1% 1/8W

R950

R955

1K 1/8W

R959

NC

R972

1.8K 1/4W

6.8K 1/4W

C950

1N 500V

C951

1N 500V

+

C953

330uF 16V

R957

8K2 1/8W 1%

A5V

R958

7K5 1/8W +/-1%

C949

100N 50V

C948

100N 50V

R966

L950

L

+

C954

470uF 16V

R960

1K 1/4W

IC951

EL817M(X)

1234

!

Q950

PMBS3904

ZD970

+24V

+24V

+12V

6.8K 1/4W

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

A5V

R968

G3811-P01-X-X-1-100319

01.POWER

+12V

6.8K 1/4W

MTZJ T-72 30B

ZD952

MTZJ T- 72 15B

R969

Q970

PMBS3904

12

12

6.8K 1/4W

C956

100N 50V

R984

D971

1N4148

D951

1N4148

1K 1/8W

C947

100N 50V

R983

R961

10KOHM +-5% 1/8W

R963

10KOHM +-5% 1/8W

C978

100N 50V

OEM MODE L

TPV MODEL

PCB NAME

Sheet

+5V

R981

100OHM +-5% 1/8W

R982

1K 1/8W

715G3811P01H20003H

of

12Monday, Apr il 12, 2010

PS_ON

CN902

1
2

ON/OFF

3

PDIM

4

+12V

5
6
7
8

+24V

9

PS_ON

10
11
12

+5V

13

ACD

CONN

Custom

Size

1.0

Rev

称爹

3

1

R952

R956

47 OHM 1/4W

D950

SBT15006JST

2

R987

27K 1/8W 1%

44

B+_390V

PDIM

R801

R830

10K 1/8W 5%

R831

NC

R801 0.1 ohm

ON/OFF

NC

R845 NC

R846

DR1

D801

SCS 0520P

62K 1/4W

C812

NC

C805

2.2uF 25V X7R

1 2

DR2

R832

1 2

C813

330P 50V

T802

1 9

POWER X'FMR

D802

SCS0520P

+12V

R833

10K 1/4W

R834

2.7K 1/8W

!

C814

NC

T803

D803

54

7
10

12

SCS 0520P

R802

100R 1/8W 5%

D804

SCS 0520P

12

R803

100OHM +-5% 1/8W

R816

10KOHM +-5% 1/8W

AOTF12N50

R817

10KOHM +-5% 1/8W

Q802

!

Q801

AOTF12N50

C803

1000PF1KV

C804

1000PF1KV

C801

1uF/450V

C802

1uF/450V

6

6

POWER X''FMR

!

R835

NC

C810

100uF 50V

DR1

R814

51OHM +-5% 1/8W

+

C811

100N 50V

IC801

1

DRV1

2

GND

3

ZCS

4

RT1

5

CT

6

LCT

7

PDIM

SSTCMP

VSEN8ISEN

OZ9976GN-C-0-TR

DRV2

VREF

ENA

ADIM

TIME R

16
15

VIN

14
13
12
11
10
9

ISEN

12N 50V

DR2

ENA

C815

NC

T801

!

R840

1M5 1/8W 5%

C816

1U 25V

VREF

11

71

7

111

R841

51K +-5% 1/8W

CN801

1
2

CONN

10K 1/4W

R839

100K 1/4W

C817

1U 25V

51K +-5% 1/8W

R838

R842

C818

4N7 50V

C819

2.2uF 25V X7R

CN803

CONN

5

VS

4

IS1

3
2

IS2

1

R836

ISEN

Q804

PMBS3904

Q805

PMBS3904

1K 1/4W

1M 1/8W

Q803

RK7002FD 5T116

R837

C821

1N5 50V

C820

1500PF 50V

VS

VREF

R820

100K 1/8W

D805

IS1

1N4148

D806

IS2

1N4148

C830

47N 50V

C831

47N 50V

R821

68K +-5% 1/8W

R824

68K +-5% 1/8W

R823

1M 1/8W

R826

1M 1/8W

R843

1.2K 1/4W

R844

9.1KOHM +-1% 1/8W

45

D807

2

3

1

BAV70

C824

NC

R810

NC

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

G3811-P01-X-X-1-100319

02.INVERTER

R811

240 OHM +-1% 1/8W

C822

680P 50V

R812

NC

R825

510 OHM +-1% 1/4W

R827

510 OHM +-1% 1/4W

C823

680P 50V

R813

240 OHM +-1% 1/8W

OEM MO DEL

TPV MODEL

PCB NAME

Sheet

715G3811P01H20003H

22Monday, April 12, 2010

IS1

IS2

Size

Rev

of

称爹

B

1.0

LC32R03 715G3652P02000003S

CN8802

1

TB

2
3

CONN

CN8803

1
2
3

CONN

T880 1

POWER X'FMR

TA

TA

T8802

!

4

POWER X'FMR

4

!

1 2

6

1 2

1GPIN 1

C8802
10pF/6KV

R8816

39KOHM +-1% 1/8W

R8817

5K1 + -5% 1/8W

VS

1K OHM 1/8W +-5%

C8818

1NF 50V

D8821

1N4148

R8823

IS2

IS2

C8819
1NF 50V

R8803
39KOHM +-1% 1/8W

R8813
5K1 +- 5% 1/8W

IS1

C8803
10pF/6KV

D8820
1N4148

1K OHM 1/8W +-5%

6

R8818

1

2

GPIN2

1GPIN 3
1GPIN 4

3

1

D8809
D-BAV99-7-F

2

CN8801

6
5
4
3
2
1

CONN

!

4

6

T8803

POWER X'FMR

C8804
10pF/6KV

3

18N 50V

1

D8815
D-BAV99-7-F

VS
IS1

IS2

! !

4

T880 4

1 2

1 2

6

POWER X'FMR

3

2

D8813

D-BAV99-7-F

1GPIN 5
1GPIN 6

1

P2

C8805
10pF/6KV

C8816

C8817
18N 50V

R8819

1K OHM 1/8W +-5%

P1

P2

P4

P5

P6

100 OHM + -5% 1/8W

4

6

POWER X'FMR

C8812
10pF/6KV

3

1

2

D8819 D -BAV99-7-F

R8801
100 OHM + -5% 1/8W

R8802
100 OHM + -5% 1/8W

R8806
100 OHM + -5% 1/8W

R8807

100 OHM + -5% 1/8W

R8809

510 OHM + -5% 1/8W

R8810

! !

4

1 2

1 2

6

T8806
POWER X'FMR

P6

T8805

C8813
10pF/6KV

3

C8824

C8825

18N 50V

18N 50V

2

D8811

D-BAV99-7-F

R8820

1K OHM 1/8W +-5%

R8814

R8812

510 OHM + -5% 1/8W

510 OHM + -5% 1/8W

R8811

510 OHM +-5% 1/8W

!

4

1 2

6

1 2

T8807

C8820

T8808
POWER X'FMR

P4

C8809
10pF/6KV

C8821
18N 50V

POWER X'FMR

1GPIN7 1GP IN9
1GPIN8

C8808
10pF/6KV

3

1

2

18N 50V

1

D8817 D -BAV99-7-F

R8821

1K OHM 1/8W +-5%

D8801
1N4148

D8802
1N4148

D8804
1N4148

D8805
1N4148

D8807
1N4148

R8815
510 OHM +-5% 1/8W

4

6

3

1

2

D8812

D-BAV99-7-F

RJ8801

0R05 1/4W

!

4

6

T8809

POWER X'FMR

1GPI N10 1GPI N12

C8810
10pF/6KV

3

C8822

18N 50V

1

2

D8818 D -BAV99-7-F

R8822

1K OHM 1/8W +-5%

1 2

1 2

POWER X'FMR

P5

C8811
10pF/6KV

C8823
18N 50V

!

4

6

T8810

R8804

10KOHM + -5% 1/8W

P1

1GPI N11

3

1

2

D-BAV99-7-F

D8808

2

D8814
D-BAV99-7-F

C8801

1N 50V

T881 1

POWER X'FMR

! !

4

6

C8806

10pF/6KV

3

1

R8808

100KOH M +-5% 1/8W

100K OHM 1/8W

T881 2

POWER X'FMR

1 2

1 2

C8814

18N 50V

18N 50V

4

6

C8807

10pF/6KV

C8815

D8822
1N4148

D8806
MTZJ T-72 5.1B

R8805

TB

VS

46

LC32R03 715G4088P01W30003H

FB901

330K 1/4W

1 2

BEAD

C913

0.1uF 50V

1

BD901

+

KBJ608G

2

3

CN903

-

2

N

1

4

L

CONN

L902

3

124

13mH

C904C902

C903

680pF

680pF

R902

330K 1/4W

R901

R903
330K 1/4W

L901

3

124

13mH

C901

12

NR901
NTCR

t

RV901
varistor

F901

5A 250V

3

1 2

CN901

SOCKET

VCC

+

1M5 1/4W 1%

C910
1uF/520V

C914
47uF/50V

D901
1N4007-E3/73

R904

126

5

8

7

R911

20K 1/4W

56P 50V

C916
NC

R917
39K 1/8W

R905

1M5 1/4W 1%

R9103

2Mohm 1/4W +/-1%

R9104

2Mohm 1/4W +/-1%

27K 1/8W 1%

L906

D904

IN5408

310uH

1R 1/4W 5%

R932

C912

5

8

6

ZCD

OUT7VCC

GND

INV1COMP2RAMP3CS

4

R918

10KOHM +-5% 1/8W

C917
47N 50V

1M5 1/4W 1%

R9105

FMY-1106S

D907

IN5408

D905
1N4148

10 OHM 1/8W

R913

R912
2K 1/8W 5%

10KOHM +-5% 1/8W

IC901

LD7591GS

C918

0.47uF 50V

R909

C921

0.1uF 50V

R9102

2Mohm 1/4W +/-1%

C9101
1N 50V

C9102

100N 50V

R9106

2.4KOHM +-1% 1/4W

C9104

4.7uF 50V

D902

R914

R915
470 OHM 1/4W

C915
220P 50V

+

C9103
10uF 50V

+

C9105
100N 50V

R906
560K 1/8W 1%

VCC

C907

470pF/250V

FB902

1 2

BEAD

+

C920
100uF M 450V

R920

680K OHM +-1% 1/4W
Q901
2SK4086LS

R916

0R12 5% 2W

C919
NC

B+

R9107

NC

R919
NC

C9106
470N 25V

1
2
3
4
5
6
7
8

C9113
1U 25V

IC970

Vsen
Vcc
FB
GND
Css
OC
RC
Reg
RV9COM

SSC9502S

VCC

R921

680K OHM +-1% 1/4W

R922

680K OHM +-1% 1/4W

R923

13K 1/8W 1%

18

NC

17

NC

16

VGH

15

VS

14

VB

13

NC

12

NC

11

VGL

10

C9107

1N 50V

47OHM +-5% 1/8W

47OHM +-5% 1/8W

C9108

680P 50V

D9101
1N4148

R9121

D9102
1N4148

R9122

+

C905

470pF/250V

C937
10uF/50V

ZD930

MTZJ T-72 15B

R9108
1K 1/8W

R948

0.1 ohm

C925
10NF1KV

KTD1691/P

1 2

2.2 OHM 1/4W

C924

0.001uF/250V

D9103
UF4007

!

R9123
10KOHM +-5% 1/8W

!

R9124
10KOHM +-5% 1/8W

R9109
200R 1/8W 1%

V_rise

Q921

R907

Q9101
2SK4100LS-T 7A/650V

Q9102
2SK4100LS-T 7A/650V

0.027uF 5% 1000V

!

AS431AZTR-E1

B+

R939
10K 1/4W

R910

4.7M OHM +-5% 1/4W

IC902
A6069H

FB/OLP4VCC

3

GND

2

BR

1

S/OCP

R908

2.2 OHM 1/4W

FB903

1 2

BEAD

R9120

10R 1/8W 5%

C9112
1U 25V

C9110

43

IC9102

B+

D/ST
D/ST

10uF/50V

C906

470pF/250V

ZD9101

MTZJ T-72 15B

1 2

C9111
10pF/3KV

R9135

4.7KOHM +-1% 1/8W

12

IC9101

PC123X8YFZOF

C9127
220N 50V

5

7
8

+

C933

T903

3

189

POWER X''FMR

C9109
100PF1KV

R9136

5.1KOHM +-1% 1/8W

C932

0.1NF2KV

100K 1/4W

D930

PR1007

D903

1N4148

C908
100N 50V

12

10

11

7

R991

100K 1/4W

R992

R9133

1.2K 1/8W

R9134

2K 1/8W 5%

D9110
FMWN-2308

R993

100K 1/4W

R994

100K 1/4W

D931

AU02Z

C934
100N 50V

1

2

3

D9111

3

FCQS10A065

2

1

R9137

20.5KOHM +-1% 1/8W

R9139

1.96KOHM +-1% 1/8W

R931

2.2 OHM 1/4W

C931

+

24V1

+

C9120

1000uF 35V

+

C9124
1000uF 25V

1

2

3
4

5

3.0uH +-10%

+

C9121
1000uF 35V

L9102

3.5uH

24V1

+12V+24V

T901

POWER X'FMR

IC950
EL817M(X)

4

C909
1N 50V

L9101

+

R9138
51KOHM +-1% 1/8W

+

C9122
470uF 35V

C9125
470uF 25V

6
7

9
10

R954
100 OHM 1/4W

1

23

C955
220N 50V

IC952

AS431AZTR-E1

12V/1.5A

R950

47 OHM 1/4W

3

1

R956

1K 1/8W

C9123
100N 50V

C9126
100N 50V

D9112

1N4148

R952

47 OHM 1/4W

D950
SBT15006JST

2

47nF 50V

R955
1K 1/8W

R9130

5.1K 1/4W

R9132

2.4K 1/4W

C9128

+

A5V

R959
NC

R9131

5.1K 1/4W

+12V

+24V

R9140
100KOHM +-1% 1/4W

C953
330uF 16V

C950
1N 500V

C951
1N 500V

R957
8K2 1/8W 1%

R958
7K5 1/8W +/-1%

+24V

Q9110

PMBS3906

L950

L

V_rise

+

IC951
EL817M(X)

C954
470uF 16V

1234

R960
1K 1/4W

Q950
PMBS3904

+5V

C947
100N 50V

R961

10K 1/4W

PS_ON

R963

10KOHM +-5% 1/8W
C956
100N 50V

D971

ZD970

+24V

+5V

A5V

12

1N4148

MTZJ T-72 30B

D951

ZD951

12

+12V

MTZJ T-72 15B

1N4148

ZD952

D952

12

MTZJ T-72 15B

1N4148

R981

ON/OFF

DIM

1K 1/8W

R983

C978
100N 50V

INV ON/OFF

100OHM +-5% 1/8W

R982
1K 1/8W

CN902

1
2
3
4
5
6
7
8

9
10
11
12
13

CONN

CN904

1

2

3

4

5

6

7

8

9
10
11
12
13

CONN

PS_ON

Q970
PMBS3904

DIM

+12V

+5V

+24V

47

LC32R03 715G3770P02W20003S

D904

8

R917
15K 1/8W

1M5 1/4W 1%

ACD

B+_390V

126

R911
20K 1/4W

C916
NC

R9101

1M5 1/4W 1%

R9102

1M5 1/4W 1%

R9103

1M5 1/4W 1%

MTZJ T- 72

R9104

82K 5%

5

L906

310uH

7

10OHM +-5% 1/8W

C912

56P 50V

6

8

7

VCC

GND

GATE

INV1COMP2MOT3CS

10KOHM +-5% 1/8W

R905

ZD9101

R932

5

ZCD

4

R918

C917
47N 50V

1M5 1/4W 1%

12

10KOHM +-5% 1/8W

51K +-5% 1/8W

IN5408

R912
NC

IC901
FAN6961SZ

R909

R924

1MOHM +-1% 1/4W

R925

1M 1/4W 1%

R926

1M 1/4W 1%

R985

13K 1/8W 1%

ALL NC

R9105

330K 1/4W

FB901

1 2

BEAD

C910
1uF/520V

R910
NC

VCC

+

C913

0.1uF 50V

C914
47uF/50V

1

BD901

+

KBJ608G

124

124

RV901
varistor

C903
680pF

3

R903
330K 1/4W

D901
1N4007-E3/73

1M5 1/4W 1%

R904

2

CN903

-

2

N

1

4

L

CONN

L902

3

13mH

C902

C904

680pF

R902

330K 1/4W

R901

L901

3

13mH

C901

12

NR901
NTCR

t

F901

5A 250V

3

1 2

CN901

SOCKET

D902

FMNS-1106S

D907

IN5408

D905
1N4148

10 OHM +-5% 1/6W

R913

R914

10KOHM +-5% 1/8W

R915
470 OHM 1/4W

C915
220P 50V

C918

0.47uF 50V

C921

0.1uF 50V

B+_390V

C943
47N 50V

10KOHM +-5% 1/8W

10KOHM +-5% 1/8W

100K 1/8W

R9106

R906
560K 1/8W 1%

R941
NC

FB

NC

R9107

R9108

R9109

Q9101
2N3904S-RTK/PS

C919
NC

R942

Q901
2SK4086LS

R916

0R12 5% 2W

IC903

1

BNO

2

COMP

3

NC
CS4GND

LD7523GS

VCC

IC9101

1

2 3

EL817M(X)

Q9102
2N3906S-RTK/PS

R801

R919
NC

10KOHM +-5% 1/8W

R947

8

OVP

7

VCC

6

OUT

5

C944
220P 50V

+5V

4

R9110

16.2K +-1% 1/4W

R9111
33K +-1% 1/4W

+

C920
100uF M 450V

R920
680K OHM +-1% 1/4W

VCC

R921
680K OHM +-1% 1/4W

R922
680K OHM +-1% 1/4W

R923
13K 1/8W 1%

B+

VCC

C942
100N 50V

R933

1R 1/4W 5%

R945

1K 1/4W

ACD

FB902

1 2

BEAD

C935

0.1NF2KV

D940

PR1007

+

C941

10uF/50V

R943

10OHM +-5% 1/8W

R996

100K 1/4W

100K 1/4W

D906
1N4148

R944
10KOHM +-5% 1/8W

R948

0.1 ohm

+

C937
10uF/50V

MTZJ T-72 16B

R998

C925
470PF1KV

ZD930

100K 1/4W

100K 1/4W

1 2

C907
100N 50V

R997

R999

Q903
2SK4101LS

R946
0R36 5% 2W

B+_390V

B+

Q921

KTD1691/P

5

4

3

C939
10N 50V

C924

0.001uF/250V

B+

R939
10K 1/4W

3
2
1

2.2 OHM 1/4W

R908

T902

POWER X'FMR

FB

IC970
EL817M(X)

4

FB903

1 2

R962

4.7M OHM +-5% 1/4W

IC902

FB/OLP4VCC
GND
BR

D/ST

S/OCP

D/ST

A6069H

R907

2.2 OHM 1/4W

9

8
10

11

R974
1K 1/4W

1

23

R976

10K 1/4W

IC971
AS431AZTR-E1

C906

470pF/250V

NC

C933

10uF/50V

5

7
8

+

R973
100 OHM 1/4W

R970

100 OHM 1/4W

D973

3

YG865C10RS C

2

1

100 OHM 1/4W

100 OHM 1/4W

R975
3K9 +-5% 1/8W

330N 50V

D972

3

2

1

R977

R951

C976

R991

100K 1/4W

C932

0.1NF2KV

R992

100K 1/4W

D930

PR1007

D903

1N4148

C908
100N 50V

YG865C10RS C

C957

1N 500V

470pF/250V

48

R993

100K 1/4W

R994

100K 1/4W

D931

AU02Z

C934
100N 50V

C972

C970

1N 500V

1N 500V

+

C973
470uF 35V

C952

1N 500V

R986

1.8K 1/4W

C905

+

C945
470uF 35V

R931

2.2 OHM 1/4W

C931

+

L980

L

L951

L

R965

1.8K 1/4W

1

2

3
4

5

T901

POWER X'FMR

IC950
EL817M(X)

4

C909
1N 50V

+

C975
470uF 35V

+

C946

R967

1.8K 1/4W

R980
NC

6
7

9
10

1

23

1.8K 1/4W

R971

1.8K 1/4W

R978

R979
2KOHM +-1% 1/8W

47 OHM 1/4W

R954
100 OHM 1/4W

C955
220N 50V

1K 1/4W

IC952

AS431AZTR-E1

R988

R950

R952

3

1

R956

47 OHM 1/4W

D950
MBRF1560CT

2

R987
27K 1/8W 1%

R955
1K 1/8W

R959
NC

R972

1.8K 1/4W

6.8K 1/4W

C950
1N 500V

C951
1N 500V

+

C953
330uF 16V

A5V

R957
8K2 1/8W 1%

R958
7K5 1/8W +/-1%

+24V

C949
100N 50V

+12V

C948
100N 50V

R966

6.8K 1/4W

絬 隔 瓜 絪 腹

Key Component

L950

L

+

C954
470uF 16V

R960
1K 1/4W

IC951
EL817M(X)

1234

Q950
PMBS3904

C956
100N 50V

ZD970

MTZJ T-72 30B

ZD952

+12V

MTZJ T-72 15B

R969

6.8K 1/4W

G3770-POD-X-X-2-100302

01.POWER BOARD

Q970
PMBS3904

12

12

6.8K 1/4W

R984

+24V

A5V

R968

T P V ( Top Victory Electronics Co . , Ltd. )

Date

D971

1N4148

D951

1N4148

1K 1/8W

C947
100N 50V

R983

R961

10KOHM +-5% 1/8W

R963

10KOHM +-5% 1/8W

C978
100N 50V

OEM MOD EL

TPV MODEL

PCB NAME

+5V

R981

100OHM +-5% 1/8W

R982
1K 1/8W

Sheet

PS_ON

715G3770-P0D

of

12Tuesday, March 02, 2010

PS_ON

+24V

+5V

ON/OFF

CN902

1
2
3

PDIM

4

+12V

5
6
7
8

9
10
11
12
13

ACD

CONN

Size

Custom

Rev

1

称爹

B+_390V

R801

0.1 ohm

DR1

DR2

PDIM

10KOHM +-5% 1/8W

R830

D801

SCS0520P

R831NC

C805

2.2U25V

D802

SCS0520P

T802

1 9

POWER X'FMR

R832

75K 1/4W

R846
NC

C812
1N 50V

VS1

VS2

R801

54

7
10

R845
NC

R833

3.3MOHM +-1% 1/4W

C813
330P 50V

R834

680K

D808

2

3

1

BAV70

+12V

C814
NC

1K 1/4W

D803

SCS0520P

100 OHM 1/8W

R802

D804

SCS0520P

R803

100 OHM 1/8W

75K 1/4W

R836

R837

100K 1/8W

10K 1/8W

R835

R816

100uF 50V

ZCS

Q802

AOTF12N50

R817

10K 1/8W

C810

C821

15N 50V

Q801

AOTF12N50

C804

0.001uF/1KV

+

C803

0.001uF/1KV

C811

0.1uF 50V

IC801

1

DRV1

2

GND

3

ZCS

4

RT1

5

CT

6

LCT

7

PDIM
VSEN8ISEN

OZ9976GN-C-0-TR

VREF

DRV2

VREF

ENA

ADIM

TIMER

SSTCMP

C801

1uF/450V

C802

1uF/450V

VIN

1M5 +-1% 1/8W

T801

4 7

POWER X'FMR

2 6

IS2

R815
NC

16
15
14
13
12
11
10
9

R847

C820

1.2nF 50V

R814
100 OHM 1/8W

DR2DR1

ENA

R840
1M 1/8W

C815

47N 50V

ISEN

51K +-5% 1/8W
C816
2U2 25V

R843
470 OHM 1/4W

R844
10KOHM +-5% 1/8W

R843 680 OHM 1% for HD
R843 470 OHM 1% for FHD

C806

15PF/3KV

C807

1N5 50V

2

3

R813 R808

ZCS

VREF

R841

C817

0.22uF 50V

D807

3

BAV70

R804
51K +-5% 1/8W

1

T803

3mH

4

R838

10K 1/4W

R839

150K 1/4W 5%

75k+/-5%

2

1

R842

IS1

IS2

VP1

R805
51K +-5% 1/8W

VS1

R806

33KOHM +-1% 1/8W

C808

15PF/3KV

R809

C819

2.2U25V

51K +-5% 1/8W

C809
1N5 50V

IS1

R811R812

R810

R810 R811 R812 R813 33R 1% 1206 FOR HD

ON/OF F

R810 R811 R812 R813 27R 1% 1206 FOR FHD

C818

4N7 50V

R807
51K +-5% 1/8W

33KOHM +-1% 1/8W

ISEN

Q803
RK7002FD5T116

Q804
PMBS3904

Q805
PMBS3904

VS2

R820
51K +-5% 1/8W

R822
10KOHM +-5% 1/8W

R823

1M 1/8W

R825
10KOHM +-5% 1/8W

R826

1M 1/8W

VREF

C830
1uF 25V

C831
1uF 25V

R821

2K 1/8W

R824

2K 1/8W

CN801

2
1

CONN

CN802

2
1

CONN

D805

1N4148

IS1

D806

1N4148

IS2

T P V ( Top Victory Electronics Co . , Ltd. )

G3770-POD-X-X-2-100302

絬 隔 瓜 絪 腹

Key Component

02.IN VERTER BOARD

Date

49

OEM MODEL

TPV MO DEL

PCB NAME

Sheet

715G3770-P0D

of

22Tuesday, March 02, 2010

Size

Rev

称爹

A3

1

LC42R03F&FC 715G3760P01W20003M

D904

GBJ1008

R901

300K 1/4W

HS1

HEAT SINK

1
2

HS21

HEAT SINK

1
2

HS6

HEAT SINK

1
2

L_1

2

BD901

+

-

1

4

FB901

!

1 2

3

BEAD

2

3

2

L903

20.0MH

!

1

4

C904

0.47UF

!

C902

680pF

!

2

3

L901

20.0MH

!

1

4

C901

!

0.47UF

R902

R903

300K 1/4W

!

RV901

NC

1 2

3

HS5

HEAT SINK

1
2

HEAT SINK

1
2

HEAT SINK

1
2

HS20

HS8

CN901

!

SOCKET

300K 1/4W

!

!

C910

1UF450V

ZCD

1

CN903

L

N

NC

C903

680pF

!

12

t

F901
5A 250V

HS9

HEAT SINK

1
2

NR901

NTCR

3 OHM 7A

!

D901

PR1007

Vcc_1

C922

0.1uF 50V

+

NC

C914

47uF/50V

R917

20K 1/8W

R910

B+_390V

11128

7

L904

170 UH

1

2

R911

47K 1/8W

C913

0.1uF 50V

C916
NC

FB902

1 2

BEAD

R924

1M5 1/4W 1%

R925

1M5 1/4W 1%

R926

1M5 1/4W 1%

ZD902

5.6B

12

MTZJ T- 72

R928

100KOHM +-1% 1/8W

R924,R925,R926

1.5M 1% 1/4W

1N5408-P

!

R932

10 OHM 1/8W

5

8

6

IC901

ZCD

OUT7VCC

GND

FAN6961

INV1COMP2MOT3CS

4

R918

10K 1/8W

C917

47N 50V

R904,R905,R909

1.5M 1% 1/4W

C928

0.001uF/250V

Vcc_1

R9905

1K 1/8W

D905 RB551V-30

R904

1M5 1/4W 1%

ZCD

R941
NC

R940

1K 1/8W

R9906

51K 1/8W

L_2

D902

FMN-1106S

12

R913

1

33 OHM 1/8W

R914

10K 1/8W

C912
56P 50V

R915

470 OHM 1/8W

C915
220pF 50V

C919
NC

C918

470N 50V

R905

1M5 1/4W 1%

L_1 L_2

7891011

1

2

Vcc_2

Q905

KTA1273-Y- AT/ P

R9907
R938

10K 1/8W

R9908
NC

R9909
NC

Q911
NC

Q910

PMBS3904

ACD
R9907,R9908 10K
R9909 100K
R988 16.9K
R989 33K

2

3

NC

1 2

C926
10nF

!

R916

0.2OHM2W

356

Vcc_1

12

FB907

BEAD

Q901

STW26NM60

R919
NC

12

!

R912

0.2OHM2W

R909

1M5 1/4W 1%

L904A

NC

+5VS

43

IC954
NC

!

R920

680K OHM +-1% 1/4W

R921

680K OHM +-1% 1/4W

R920,R921,R922
680K 1% 1/4W

R922

680K OHM +-1% 1/4W

R923

13KOHM +-1% 1/8W

R988
NC

ACD

R989
NC

C921

0.1uF 50V

RV904
NC

3.9K 1/8W

B+_390V

R930

+

C907

0.1uF 50V

R906

510K 1/8W

R929

10K OHM

0.1uF 50V

C924

100uF M 450V

R947

5.1K 1/4W

C943

FB_1

FB

C944
220pF 50V

C909

1N 50V

C920

10nF 50V

+

R942

51K 1/8W

C925

100uF M 450V

4.7 MOHM +-5% 1/4W

R908

2.4 OHM 1/4W

Vcc_1

R949

5.1K 1/4W

IC903
LD7523A

1

BNO

2

COMP

3

(-)LATCH
CS4GND

B+

R948

0.1 ohm

C911

10NF1KV

R937

A6069H

5

FB/OLP4VCC

3

GND

2

7

BR

D/ST

1

8

S/OCP

D/ST

IC902

R907

2.4 OHM 1/4W

C933

22uF/50V

Vcc

Q921

KTD1691/P

+

OVP
VCC
OUT

C937

10uF/50V

8
7
6
5

PC123X8YFZOF

1 2

Vcc_2

C942

0.1uF 50V

R945

470 OHM 1/8W

IC951

!

ZD901

MTZJ T- 72 16B

B+

0.001uF/1KV

C941

+

10uF/50V

43

PMBS3904

C939

R934

1K 1/8W

R9401,R9402,R9403,R9404
100K 1/4W

R9401

100K 1/4W

C929

0.001uF/1KV

R9402

100K 1/4W

D930

PR1007

Vcc

D903

1N4148

+

C908

+

0.1uF 50V

+5VS

R960

1K 1/8W

R939

10K 1/8W

12

Q950

C956

0.1uF 50V

R9211,R9212,R9213,R9214
100K 1/4W

R9211

100K 1/4W

R9212

100K 1/4W

D940

PR1007

D906 RB551V-30

12

R943

R933

22 OHM 1/8W

10 OHM 1/8W

R9403

100K 1/4W

R9404

100K 1/4W

D935

PR1007

C931

100uF 50V

R961

1K 1/8W

R9213

100K 1/4W

R9214

100K 1/4W

R944

10K 1/8W

R931

2.4 OHM 1/4W

R963

10K 1/8W

T902

POWER X'FMR

5

4

3

Q903

2SK4101LS

!

R946

0.33 OHM 2W

!

1

2

3
4

5

PS_ON

C927

470pF/250V

T901

POWER X'FMR

!

PC123X8YFZOF

7

10
8
9

11
12

FB903

1 2

BEAD

IC970

PC123X8YFZOF

R950,R951 100OHM 1/4W
C950,C951 0.001uF

R951

R950

100 OHM 1/4W

100 OHM 1/4W

6

3

D950

7

SBT15006JST

2

9
10

1

FB_1

R954

100 OHM 1/8W

12

43

IC950

!

C955

220N 50V

IC952

AS431AZTR-E1

R970

R971

C970

100 OHM 1/4W

100 OHM 1/4W

1N 50V

3

D951

FMEN210A
2

1

3

D952

FME-210B
2

1

R953

C961

C960

R952

100 OHM 1/4W

1N 50V

1N 50V

100 OHM 1/4W

R974

1K 1/4W

FB

12

43

R976

10K 1/8W

IC971

AS431AZTR-E1

C950

1N 50V

C951

1N 50V

+

C953

330uF 16V

R955

1K 1/8W

R956

1K 1/8W

R959

150K 1/8W

R970,R971 100OHM 1/4W

C971

C970,C971 0.001uF

1N 50V

+

C972

470uF 35V

+

C957
1000uF 25V

R975

3.9K 1/8W

C976

0.33uF 50V

+5VS

A5V

+12V

L950

3.5uH

+5V

R957

10KOHM +-1% 1/8W

R958

10KOHM +-1% 1/8W

L980

3.5uH

+

C973

470uF 35V

L951

3.5uH

R978

24KOHM +-1% 1/8W

R980

2KOHM +-1% 1/8W

C974

+

C954

470uF/16V

0.1uF 50V

ON/OFF

PDIM

+24V

PS_ON

+5V

ACD

R968,R969,R972,R973 2.2K 1/4W
R965,R966,r967 5.1K 1/4W

+

C975

470uF 35V

R968

2.2K 1/4W

R972

+

C959

470uF/25V

2.2K 1/4W

+24V

A5V

R987

27K +-1% 1/8W

Q970

PMBS3904

C978

R979
NC

0.1uF 50V

+12V

R969

2.2K 1/4W

C977

R973

2.2K 1/4W

0.1uF 50V

+5V

2.5A

R983

1K 1/8W

R966

5.1K 1/4W

+12V

2A

10
11
12
13

+12V

CN902

1
2
3
4
5
6
7
8
9

CONN

R965

5.1K 1/4W

1 2

R981

1K 1/8W

C979

0.1uF 50V

+24V

ZD951

MTZJ T-72 16B

1 2

D954

1N4148

R982

10K 1/8W

+24V

1.5A

ZD952

TZJ T-72 30B

D955

1N4148

T P V ( Top Victory Electronics Co . , Ltd. )

G3760-P0D-W30-X-1-100301

絬 隔 瓜 絪 腹

Key Component

01.POWER

Date

50

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

715G3760P01W20003M

12Monday, March 01, 2010

of

Size

Custom

Rev

D

ODM MODEL

称爹

LC42R03F&FC 715G3966P01000003H

CN8811

CONN

2
1

CN8803
CONN

CN8801

CONN

T880 1

1
2

5
4
3
2
1

TA

4

6

C8803
5pF/6KV

R8816

22KOHM +-1% 1/8W

R8817

3K6 1/8W 1%

TA

VS
IS1

IS2

21

C8805

330P 50V

D8821
1N4148

IS2

P1

P2

21

IS1

C8806

C8804

330P 50V

5pF/6KV

R8803
22KOHM +-1% 1/8W

D8820
1N4148

R8813
3K6 1/8W 1%

100 OHM 1/8W

R8801

R8802

R8811 R8812

4

T8802

6

CN8812

CONN

2

D8815

3

T8803

2
1

C8807
5pF/6KV

C8809
6N8 50V

1

D8801 1N4148

D8802 1N4148

510 OHM 1/8W

21

21

4

6

3

2

D8809

P1

C8808
5pF/6KV

C8810
6N8 50V

1

A

4

6

R8804

10KOHM +- 5% 1/8W

C8801

1N 50V

100KOHM + -5% 1/8W

T8804

CN8813

CONN

2

3

D8819

T8805

2
1

C8811
5pF/6KV

C8813
6N8 50V

1

R8808

ZD8801
MTZJ T-72 5.1B

4

6

2

D8813

R8807
1K 1/8W

21

21

P2

C8812
5pF/6KV

C8814
6N8 50V

3

1

R8805
100K OH M 1/8W

CN8805
CONN

1
2
3

CN8807
CONN

1
2

4

T880 6

6

C8802
220P 50V

L

B

VS

A
B
C

L

VS

C

BAV99

T P V ( Top Victory Electronics C o . , Lt d. )

絬 隔 瓜 絪 腹

Key Component

01.IN VERTER

Date

OEM MO DE L Size

TPV MO DE L

PCB NA ME

Sheet

G3966-P0B-00-X-1-100121

of

11Wednesday , Nov ember 11, 2009

Rev

称爹

51

B

C

LC42R03F&FC 715G3967P01000003S

CN8806
CONN

CN8808
CONN

A

P3

1

A

2

B

3
4

C

1
2
3

L

R8851

P4

R8852

P5

R8853

R8855

R8854

D8851 1N 4148

D8852 1N 4148

D8853 1N4148

R8856

CN8802

CONN

1
2

TB

TB

L

T885 1

CN8814

2
1

CONN

C8851
5pF/6KV

C8853
6N8 50V

3

1

2

B

D8854

C

T P V ( Top Victory Elect ronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

21

4

6

P3

3

2

D8855

02.INVER TER

21

C8852
5pF/6K V

C8854
6N8 50V

1

4

T8852

6

CN8815

CONN

2

2
1

3

D8856

T8853

C8855
5pF/6KV

C8857
6N8 50V

1

OEM MO DE L

TPV MO D EL

PCB N AME

Sheet

21

4

21

6

P4

C8856
5pF/6KV

C8858
6N8 50V

3

1

2

D8857

G3967-P0B-00-X-1-100121

11Wednesday , N ov ember 11, 2009

of

4

T885 4

6

CN8816

CONN

2

2
1

D8858

T8855

C8859
5pF/6KV

C8861
6N8 50V

3

1

21

4

21

4

T8856

3

C8860
5pF/6KV

C8862
6N8 50V

1

B

C

6

6

P5

2

D8859

Size

Rev

称爹

52

LC42R03F 715G3829P03W20003M

D904

L_1

C902 680pF

R901

300K 1/4W

HS1

HEAT SINK

1
2

HS21

HEAT SINK

1
2

HS6

HEAT SINK

1
2

BD901

3

300K 1/4W

FB908

TS10P06G

1 2

1

BEAD

+

2

-

FB901

1 2

4

BEAD

1

2

3

2

L903

20.0mH

1

4

C904 C AP X2 470NF 10% 275VAC MPX

124

13mH

C901 C AP X2 470NF 10% 275VAC MPX

R902

RV901

Varistor

CN901

SOCKET

HEAT SINK

1
2

HEAT SINK

HEAT SINK

CN903

L

N

CONN

C903 680pF

L901

3

R903

300K 1/4W

12

HS5

HS20

1
2

HS8

HEAT SINK

1

1

2

2

C910

1UF450V

ZCD

R910

300K 1/8W

Vcc_1

+

C914

47uF/50V

R917

56K 1/8W

D901
PR1007

NR901

NTCR

1 2

F901

FUSE

B+_390V

R924

R925

R926

R928

91KOHM +-1% 1/8W

C922

0.1uF 50V

HS9

11128

7

L904
170uH

1

2

R911
20K 1/8W

C913

0.1uF 50V

C916
NC

R904,R905,R909

1.5M 1% 1/4W

FB902

C928

BEAD

0.001uF/ 250V

5.6B

ZD902

12

MTZJ T-72

R924,R925,R926

1.5M 1% 1/4W

1N5408-P

5

8

6

OUT7VCC

GND

INV1COMP2MOT3CS

4

C917

47nF 50V

Vcc_1

R9905

10KOHM +-1% 1/8W

R9906

51K 1/8W

R932

47OHM +-5% 1/8W

IC901

FAN7529MX

ZCD

R918

10KOHM +-1% 1/8W

R904

R941
NC

R940

1K 1/8W 1%

C923

L_2

220PF 1KV

D902
FMN-1106S

D905

12

2

R913

B0520LW

1

3

75 OHM 1/8W

R914

10KOHM +-1% 1/8W

C912
CAP CHIP 0805 56PF J 50V NPO

R915
470 OHM 1/8W

C915

220pF 50V

C919
NC

C918
CAP CHIP 0805 0.47UF K 50V X7R

R905 R909

Vcc_2

Q905

KTA1273-Y- AT/ P

R9907

NC

R938

10KOHM +-1% 1/8W

R9908
NC

R9909
NC

Q911
NC

Q910
PMBS3904

1 2

Q901
STW26NM60

R916

0.2OHM2W

Vcc_1

12

B+_390V

FB909

1 2

R920

R921

R922

R923
13KOHM +-1% 1/8W

R988
NC

ACD

R989
NC

BEAD

RV904
NC

R930

3.9K 1/8W

C921

100N 50V

R075

100N 50V

R906
510K 1/8W

R929

10K OHM

0.1uF 50V

+

C924

100uF M 450V

C907

C943

FB_1

R947

5.1K 1/4W

FB

C920

10nF 50V

C909
1N 50V

+

C925

100uF M 450V

2.4 OHM 1/4W

R949

5.1K 1/4W

1

BNO

2

COMP

3

NC
CS4GND

R942
51K 1/8W

C944

220pF 50V

R908

IC903

LD7523GS

FB907
BEAD

C926
10nF

R912

0.2OHM2W

R919
NC

+5VS

43

IC954
NC

R948

0.1 ohm

C911
CAP CER 10NF K 1KV

R937

4.7 MOHM +-5% 1/ 4W

FB/OLP4VCC

3

GND

2

BR

1

S/OCP

R907

2.4 OHM 1/4W

Q921
KTD1691/P

+

C937
10uF/50V

Vcc_2

8

OVP

7

VCC

6

OUT

5

470 OHM 1/8W

A6069H

IC902

ZD901

MTZJ T-72 16B

1 2

C942

0.1uF 50V

R945

B+

D/ST
D/ST

B+

C941
10uF/50V

+

100KOHM +-1% 1/4W

C929

0.001uF/ 1KV

100KOHM +-1% 1/4W

D930
PR1007

5

7
8

C933

22uF/50V

VccVcc_1

R939

10KOHM +-1% 1/8W

43

100KOHM +-1% 1/4W

100KOHM +-1% 1/4W

R933

10 OHM 1/8W

R934

1K 1/8W 1%

D903
1N4148

C908

+

0.1uF 50V

+5VS

R960

1K 1/8W 1%

12

Q950
PMBS3904

C939

0.001uF/1KV

D940
PR1007

22 OHM 1/8W

R9401

R9402

IC951

PC123X8YFZOF

R9211

R9212

D906

B0520LW

R943

R9403

100KOHM +-1% 1/4W

R9404

100KOHM +-1% 1/4W

R931

2.4 OHM 1/4 W

Vcc

D935
PR1007

+

C931

100uF 50V

R961

1K 1/8W 1%

C956

0.1uF 50V

R9213

100KOHM +-1% 1/4W

R9214

100KOHM +-1% 1/4W

12

R944

10KOHM +-1% 1/8W

R963

10KOHM +-1% 1/8W

T902

POWER X'FMR

5

4

3

!

470pF/250V

Q903
2SK4101LS

R946

0R33 5% 2W

C927

1

2

3
4

5

PS_ON

T901
POWER X'FMR

6
7

9
10

3

7

1

10
8
9

11
12

R970,R971 100OHM 1/4W
C970,C971 0.001uF

FB903

1 2

BEAD

R950,R951 100OHM 1/4W
C950,C951 0.001uF

R950

R951

3

D950

SBT15006JST
2

1

FB_1

R954

100 OHM +-1% 1/8W

12

43

IC950

PC123X8YFZOF

C955

0.22uF 50V

IC952

AS431AZTR-E1

R970

R971

C970 C971

2

D951
FMEN210A

3

D952

FMEN-220A
2

1

R953

C961

R952

C960

R974

1K 1/4W

FB

12

43

IC970

PC123X8YFZOF

R976

10KOHM +-1% 1/8W

IC971

AS431AZTR-E1

+

C953
330uF 16V

R956

1K 1/8W 1%

R975

3.9K 1/8W

C950

C951

R955

1K 1/8W 1%

+

C972
470uF 35V

C976

0.33uF 50V

+

+5VS

A5V

R959

150KOHM +-1% 1/8W

+

C957
1000uF 25V

+12V

L950

3.5uH

+5V

R957

10KOHM +-1% 1/8W

R958

10KOHM +-1% 1/8W

L980

3.5uH

C973
470uF 35V

L951

3.5uH

R978
24KOHM +-1% 1/8W

R980
2KOHM +-1% 1/8W

+

C954

470uF 16V

C974

0.1uF 50V

ON/OFF

PDIM

+24V

PS_ON

+5V

ACD

R968,R969,R972,R973 2.2K 1/4W
R965,R966,r967 5.1K 1/4W

+

C975
470uF 35V

R968

2.2K 1/4W

+

C959

R972

470uF 25V

2.2K 1/4W

+24V

A5V

R987
27K +-1% 1/8W

Q970
PMBS3904

R979
NC

+12V

R969

2.2K 1/4W

R973

2.2K 1/4W

+5V

2.5A

R965

+12V

2A

ZD951

MTZJ T-7 2 16B

D954
1N4148

R983

1K 1/8W 1%

C978

0.1uF 50V

C977

0.1uF 50V

CN902

1
2
3
4
5
6
7
8

9
10
11
12
13

CONN

R966

+12V

1 2

R981

1K 1/8W 1%

R982

10KOHM +-1% 1/8W

+24V

1 2

+24V

1.5A

ZD952

MTZJ T-72 30B

D955
1N4148

C979

0.1uF 50V

Title

<Title>

Size Document Number Rev

PWTV9QG2LAAW C

Custom

Date: Sheet

53

of

14Tuesday, April 12, 2011

B+_390V

PDIM

10KOHM +-1% 1/8W

R812
NC

IS1

R826

510 OHM +-1% 1/8W

DR1

DIODE S S0520 SOD-123

R808

1 MOHM +-1% 1/8W

R807

C808
1N 50V

D806
1N4148

R801

0.1 ohm

C802

2.2U25V

DR2

D802

1 2

1 2

VREF

R805

82K 1/8W

C807

MLCC 0805 330pF 50V NPO +/-5% SAMSUNG

R813

680K +-5% 1/8W

R828

68K 1/8W

C817

47nF 50V

4

1

D804
DIODE SS0520 SOD-123

R806

3.3 MOHM +-5%

C810

1N 50V

VREF

R820

100KOHM +-1% 1/8W

Q804
PMBS3904

R829

1 MOHM +-1% 1/8W

T801

POWER X'FMR

5

6

7
9

10

R809
51K 1/8W

VS1

VS2

ISEN

1

2

D810

BAV70

Q803
2N7002

D801
DIODE S S0520 SOD-123

12

R832

R802

100 OHM +-1% 1/8W

D803 DIOD E SS0520 SOD- 123

12

R803

100 OHM +-1% 1/8W

+12V

ZCS

R817 1K 1/8W 1%

3

10KOHM +-1% 1/4W

R833

10KOHM +-1% 1/4W

1

DRV1

2

GND

3

ZCS

4

RT1

5

CT

6

LCT

7

PDIM
VSEN8ISEN

R819

C815

1.5nF 50V

100KOHM +-1% 1/8W

+

IC801

DRV2

VIN

VREF

ENA

ADIM

TIME R

SSTCMP

OZ9976GN -C-0-TR

1 MOHM +-1% 1/8W

ISEN

C816
820P 50V

Q801

P0850ATF

Q802

P0850ATF

C805

100uF 50V

16
15
14
13
12
11
10
9

R844

D808

D809

ENA

1 2

C806

0.1uF 50 V

C812

C803

0.001uF/1KV

R818

560 OHM 1/8W

C906

0.001uF /250V

FB904 BEAD

22nF 50V

R821

10KOHM +-1% 1/8W

C823
CAP CER 10NF K 1KV

C822

0.001uF/1KV

1 2

VREF

R811

1M5 1/4W 1%

1U25V

C809

C811

1U5 16V

D805

3

BAV70
C819
NC

FB905
BEAD

R834
NC

C801

1UF450V

C804

1UF450V

PDIM

R810

100KOHM +-1% 1/8W

R814
51K 1/8W

2

IS1

1

IS2

R815

51K 1/8W

ON/OFF

R804

10KOHM +-1% 1/8W

C813
4N7 50V

T802

2 7

4 6

POWER X'FMR

4 6

2 7

T803

POWER X'FMR

100 OHM 1/4W

VREFDR1 DR2

C814

2.2U25V

IS2

R816

R843
51K 1/8W

R822

CN904

2

R839

100KOHM +-1% 1/8W

C826

1500PF 50V

R840

51K 1/8W

R841

100KOHM +-1% 1/8W

C828

1500PF 50V

R842

51K 1/8W

1

CN801

VS1

CN802

2
1

CONN

VS2

C825
12PF6KV

IS1

ZCS

R823

56 OHM 1/4W

R824

56 OHM 1/4W

R835

R836

56 OHM 1/4W

56 OHM 1/4W

C827
12PF6KV

R837

51 OHM 1/4W

R838

R825

51 OHM 1/4W

IS2

R827

510 OHM +-1% 1/8W

D807
1N4148

R830

68K 1/8W

C818

47nF 50V

Q805
PMBS3904

R831

1 MOHM +-1% 1/8W

54

Titl e

<Title>

Size Document Number Rev

<Doc> <Rev Code>

B

Date: Sheet

of

11Monday, August 08, 2011

7.3 按键板

715G3814K01000003S

SW01

CN01

65

1
2
3
4

CONN

33G8032 4F HR

PWR-SW
FUN C_KEY

FUN C_KEY

PWR-SW

R07
750OHM +- 1% 1/8W

R08
750OHM +- 1% 1/8W

R01

7K5 1/8W + /-1%

R02

2K7 +- 1% 1/8W

R03

1K8 +/- 1% 1/8W

R04

1K 1/8W 1%

R05

750OHM +-1% 1/8W

C01

NC

C02

NC

C03

NC

C04

NC

C05

NC

C06

NC

C07

NC

TACT SW FWRD H1.5MM

SW02

TACT SW FWRD H1.5MM

SW03

TACT SW FWRD H1.5MM

SW04

TACT SW FWRD H1.5MM

SW05

TACT SW FWRD H1.5MM

SW06

TACT SW FWRD H1.5MM

SW07

TACT SW FWRD H1.5MM

77G 607 2 FD

VOL+

VOL-

CH+

CH-

MENU

Source Select

Power ON/OFF

2.48V~2.72V

2.04V~2.22V

1.58V~1.79V

1.24~1.45V

0.85V~1.02V

0.47V~0.63V

T P V ( Top Victory Electronics C o . , Lt d. )

絬 隔 瓜 絪 腹

Key Component

55

G3814-1-X-X-3-100127

Keypa d

Date

OEM MODEL

TPV MODEL

PCB NAME

Sheet

715G3814K01000003S

11Friday , January 29, 2010

of

Size

Rev

称爹

Custom

A

7.4 遥控板

715G3821R02000004S

LED01

LED

BLUE

CN01

5
4
3
2
1

CONN

33G8032 5F HR

LED_B

IRRV

GND01

VCC

ZD02

RLZ5.6B

1 2

LED_R

R001 15K 1/10W

C01

100N 50V

1

C02

NC/4.7uF/16V

BLUE

4

RED

ZD03

RLZ5.6B(NC)

81T 14 24 EL

1 2

12

RLZ5.6B

ZD01

23

1

RED

U01

1

VOUT

2

GND

3

VCC

KSM-603TM2M

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

G3821-1B-X-X-3-100319

IR&LED

OEM MODEL

TPV MODEL

PCB NAME

Sheet

56

715G3821R02000004S

of

11Friday , March 19, 2010

Size

Rev

称爹

Custom

0.2

8. BOM

注意: 以下料件信息仅供参考，如有变更，恕不另行通知，请到 http://cs.tpv.com.cn 获取最新信息。

8.1 LC32R03
E32A2KA7A E32A2KNDW3A1XNX

点位 组件 对象描述 备注

756TQACB KD033 04 MAIN BOARD(CBPFAK1DQ2)

U403 056T1133935 IC MX25L3205DMI-12G SOP-16

SMTF-U403 100TARVK001D41 MCU ASS'Y(056T1133935)

CN701 033T327812D WAFER 12P PLUG
CN601 033T3802 4B Y CONNECTOR
CN401 033T380213B Y L CONNECTOR 13P 2.0

U106 053T 44501 HD SAW FILTER
C606 067G215P4714PV
C619 067G215P4714PV
C602 067G215P4716AV CAP 105C 470UF M 35V
C718 067G215V471 6N

L602 073G 253158 H CHOKE COIL 22UH+/-25%

L601 073G 253158 H CHOKE COIL 22UH+/-25%
CN111 088G 78 1377C RCA JACK 1*5 G/B/R/W/R WITH SW 10.5MM
CN123 088G 78 1378C RCA JACK 1*3 Y/W/R V/T 10.5MM
CN121 088G 78 1378C RCA JACK 1*3 Y/W/R V/T 10.5MM
CN602 088G 30211K PHONE JACK 5PIN
CN102 088G 30269C PHONE JACK 3.5MM 3P GREEN V/T 10.5MM
CN103 088G 352 2 YG USB CONNECTOR USB4-01
CN103 088G 352 21CL USB CONN TYPE A
CN101 088G353A15FASC D-SUB 15PIN FEMALE VERTICAL SCREWED
CN122 088T 78 13A39 YG S JACK + RCA JACK 1*3 Y/W/R RCA-333S-010

TU101 094G PALALL20L TUNER TCL F41CT-2-E

CN405 311GW200C30AAL WAFER 2.0MM 2*15P

C127 067G 305100 7T

C4205 067G 305101 3T 100UF 16V 105C

C108 067G 305101 4T 100UF +-20% 25V
C702 067G 305101 4T 100UF +-20% 25V

C4222 067G 305101 4T 100UF +-20% 25V

C721 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C714 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C625 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C624 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C623 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C121 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C105 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C715 067G 305221 3T 220UF/16V
C701 067G 305221 3T 220UF/16V
C735 067G 305221 3T 220UF/16V
C745 067G 305221 3T 220UF/16V
C747 067G 305221 3T 220UF/16V
C750 067G 305221 3T 220UF/16V

CAP 105℃ 470UF M 25V
CAP 105℃ 470UF M 25V

CAP 105℃ 470UF M 35V

105 摄氏度 10UF +-20% 50V

57

C131 067G 3054704CT EC 47UF 25V KM 5X11MM
C707 067G 3054713PT CAP 105C 470UF M 16V 8*12
C130 067G 5153313CT EC 330UF 16V GF 8*12MM
U702 056G 379 92 IC G5627F11U SOP-8(FD)
U701 056G 379 92 IC G5627F11U SOP-8(FD)
U401 056G 562F09 IC RTD2674U-GR LQFP216
U704 056G 563143 IC G1084T43UF TO-252
U703 056G 563152 IC G1117T43UF TO-252
U105 056G 563519 IC G965-25ADJPIUF 1.8A SOP-8
U402 056G 615921 G IC H5DU2562GTR-FAC TSOPII-66
U602 056G 616518 IC R2A15112FP HTQFP48
U104 056G 659501 IC BD8012FVJ TSSOP-B8J
U101 056G 662502 C ESD AZC199-04S SOT23-6L
U102 056G 662502 C ESD AZC199-04S SOT23-6L
U403 056T1133935 IC MX25L3205DMI-12G SOP-16
Q102 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q104 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q105 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q706 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q705 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q704 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q703 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q701 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q603 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q602 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q507 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q504 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q406 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q405 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q103 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q106 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q401 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q402 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q601 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q404 057G 763 79 FET AO4449 -7A/-30V SOIC-8
Q702 057G 763 79 FET AO4449 -7A/-30V SOIC-8

Q506 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS
RP410 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP409 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP408 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP407 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP406 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP405 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP404 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP403 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP402 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP401 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W

58

R176 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R185 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R4112 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4114 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4118 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4120 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4124 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4126 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4117 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4116 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4123 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4122 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R728 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R551 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R536 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R529 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R4152 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4143 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4138 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4136 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4134 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4132 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4128 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R119 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R120 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R121 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R138 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R151 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R165 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R166 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R167 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R174 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA

R181 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA

R732 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA

R721 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA

R4167 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA

R720 061G06031000FY RST CHIPR 100 OHM +-1% 1/10W YAGEO

R701 061G06031000FY RST CHIPR 100 OHM +-1% 1/10W YAGEO

R102 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA

R526 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA

R105 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA

R4121 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4119 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4125 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4127 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4129 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4133 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA

59

R4135 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4137 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4139 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4144 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4153 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA

R522 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA

R523 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA

R524 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA

R4115 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4113 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA

R125 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R128 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R182 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R191 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R192 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R4176 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R4180 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R4188 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R4193 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R512 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R541 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R550 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R604 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R617 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R618 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R710 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R712 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R104 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R103 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R123 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R4160 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R4202 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R611 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R612 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R613 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R614 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R616 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R702 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R703 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R717 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R516 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R517 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R531 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R534 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R556 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R557 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R114 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

60

R112 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R4100 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R4151 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R704 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R552 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R513 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R4203 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R162 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R150 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R149 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R144 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R143 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R137 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R136 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R116 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R115 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R544 061G0603105 JF RST CHIPR 1M OHM +-5% 1/10W FENGHUA

R189 061G06031202FY RST CHIPR 12KOHM +-1% 1/10W YAGEO

R4179 061G0603121 JT RST CHIPR 120OHM 1/10W TZAI YUAN
R4205 061G0603124 JF RST CHIPR 120KOHM 5% 1/10W FENGHUA
R4169 061G06031502FF RST CHIPR 15KOHM +-1% 1/10W FENGHUA

R606 061G06031622FF RST CHIPR 16.2KOHM +-1% 1/10W FENGHUA

R608 061G06031622FF RST CHIPR 16.2KOHM +-1% 1/10W FENGHUA

R724 061G06031622FF RST CHIPR 16.2KOHM +-1% 1/10W FENGHUA

R4171 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R4174 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R4175 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R4177 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA

R160 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA

R161 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA

R101 061G0603222 JF RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA

R108 061G0603222 JF RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA

R4189 061G0603222 JF RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA

R190 061G0603229 JF RST CHIPR 2.2 OHM 5% 1/10W FENGHUA

R615 061G0603273 JF RST CHIPR 27KOHM 5% 1/10W FENGHUA

R148 061G0603273 JF RST CHIPR 27KOHM 5% 1/10W FENGHUA

R145 061G0603273 JF RST CHIPR 27KOHM 5% 1/10W FENGHUA

R134 061G0603273 JF RST CHIPR 27KOHM 5% 1/10W FENGHUA

R132 061G0603273 JF RST CHIPR 27KOHM 5% 1/10W FENGHUA

R113 061G0603273 JF RST CHIPR 27KOHM 5% 1/10W FENGHUA

R110 061G0603273 JF RST CHIPR 27KOHM 5% 1/10W FENGHUA

R601 061G0603274 JF RST CHIPR 270KOHM 5% 1/10W FENGHUA

R726 061G06033002FY RST CHIPR 30KOHM +-1% 1/10W YAGEO

R157 061G0603331 JT RST CHIPR 330OHM 1/10W TZAI YUAN

R607 061G0603333 JF RST CHIPR 33KOHM 1/10W FENGHUA

R727 061G06034702FF RST CHIPR 47KOHM +-1% 1/10W FENGHUA

R172 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

61

R193 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R194 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R4150 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4163 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4164 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4165 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4166 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4173 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4178 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4192 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4194 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4195 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4207 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4208 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4212 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R170 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R711 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R709 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R706 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R602 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R553 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R514 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R4215 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R714 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R719 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R4216 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4204 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA

R603 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA

R610 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA

R707 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA

R708 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA

R4182 061G06034999FF RST CHIPR 49.9 OHM +-1% 1/10W FENGHUA
R4172 061G06034999FF RST CHIPR 49.9 OHM +-1% 1/10W FENGHUA
R4109 061G06034999FF RST CHIPR 49.9 OHM +-1% 1/10W FENGHUA
R4107 061G06034999FF RST CHIPR 49.9 OHM +-1% 1/10W FENGHUA
R4105 061G06034999FF RST CHIPR 49.9 OHM +-1% 1/10W FENGHUA
R4101 061G06034999FF RST CHIPR 49.9 OHM +-1% 1/10W FENGHUA

R187 061G0603511 JY RST CHIPR 510OHM +-5% 1/10W YAGEO

R139 061G0603512 JY RST CHIPR 5.1KOHM +-5% 1/10W YAGEO

R135 061G0603512 JY RST CHIPR 5.1KOHM +-5% 1/10W YAGEO

R723 061G0603513 JF RST CHIPR 51K OHM +-5% 1/10W FENGHUA

R4168 061G0603622 JF RST CHIPR 6.2KOHM +-5% 1/10W FENGHUA

R106 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA

R107 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA

R109 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA

R133 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA

R140 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA

62

R141 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA

R142 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA

R146 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA

R159 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA

R163 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA

R164 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA

R158 061G0603753 JY RST CHIPR 75KOHM +-5% 1/10W YAGEO

R183 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

R188 061G08053832FF RST CHIPR 38.3KOHM +-1% 1/8W FENGHUA

R4190 061G0805472 JF RST CHIPR 4.7KOHM +-5% 1/8W FENGHUA
C4218 065G060310131J A CAP CHIP 0603 100PF J 50V NPO SAMSUNG
C4217 065G060310131J A CAP CHIP 0603 100PF J 50V NPO SAMSUNG
C4216 065G060310131J A CAP CHIP 0603 100PF J 50V NPO SAMSUNG
C4215 065G060310131J A CAP CHIP 0603 100PF J 50V NPO SAMSUNG
C4214 065G060310131J A CAP CHIP 0603 100PF J 50V NPO SAMSUNG
C4213 065G060310131J A CAP CHIP 0603 100PF J 50V NPO SAMSUNG

C741 065G060310232K Y CAP CHIP 0603 1N 50V X7R +/-10%

C758 065G060310232K Y CAP CHIP 0603 1N 50V X7R +/-10%

C137 065G060310332K Y CAP CHIP 0603 10N 50V X7R +/-10%

C4221 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4223 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4224 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C511 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C512 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C601 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C603 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C604 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C605 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C611 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C617 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C4208 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4186 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4188 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4189 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4190 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4193 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4197 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4198 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4199 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4200 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4201 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4202 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4203 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4204 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4207 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C720 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C723 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

63

C725 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C734 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C736 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C738 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C742 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C743 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C748 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C749 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C751 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C753 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C4211 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C620 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C622 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C627 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C628 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C703 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C704 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C705 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C710 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C712 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C713 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C716 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C717 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C719 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C4166 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4165 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4164 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4163 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4162 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4161 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4158 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4157 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4156 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4153 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4145 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4100 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C129 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C126 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C125 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C122 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C109 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C101 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C4167 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4185 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4184 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4183 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4182 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

64

C4181 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4180 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4179 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4178 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4177 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4168 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4169 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4170 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4171 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4172 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4173 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4174 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4175 065G060310432K A CAP CHIP 0603 100NF K 50V X7R
C4176 065G060310432K A CAP CHIP 0603 100NF K 50V X7R

C102 065G060322031J F CAP CHIP 0603 22PF J 50V NPO

C103 065G060322031J F CAP CHIP 0603 22PF J 50V NPO

C4194 065G060322031J F CAP CHIP 0603 22PF J 50V NPO
C4195 065G060322031J F CAP CHIP 0603 22PF J 50V NPO
C4104 065G060327131J F CAP CHIP 0603 270PF J 50V NPO
C4109 065G060327131J F CAP CHIP 0603 270PF J 50V NPO
C4114 065G060327131J F CAP CHIP 0603 270PF J 50V NPO
C4121 065G060327131J F CAP CHIP 0603 270PF J 50V NPO

C115 065G060347131J Y CAP CHIP 0603 470P 50V NPO +/-5%

C116 065G060347131J Y CAP CHIP 0603 470P 50V NPO +/-5%

C4101 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C4106 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C4107 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C4110 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C4111 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C4115 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C4116 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C4117 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C4118 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C4124 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C4126 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C4128 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C4131 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C4137 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C4139 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C4140 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C4144 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C4151 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C4134 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C4132 065G060347332K F CAP CHIP 0603 47NF K 50V X7R

C106 065G060347931C Y CAP CHIP 0603 4P7 50V NPO +/-0.25PF

C107 065G060347931C Y CAP CHIP 0603 4P7 50V NPO +/-0.25PF

C4147 065G060350931D F CAP CHIP 0603 5PF D 50V NPO

65

C4141 065G060350931D F CAP CHIP 0603 5PF D 50V NPO
C4138 065G060350931D F CAP CHIP 0603 5PF D 50V NPO
C4133 065G060350931D F CAP CHIP 0603 5PF D 50V NPO
C4130 065G060350931D F CAP CHIP 0603 5PF D 50V NPO
C4125 065G060350931D F CAP CHIP 0603 5PF D 50V NPO

C123 065G060356031J Y CAP CHIP 0603 56P 50V NPO +/-5%

C124 065G060356031J Y CAP CHIP 0603 56P 50V NPO +/-5%

C118 065G080510522K T CAP CHIP 0805 1UF K 25V X7R

C119 065G080510522K T CAP CHIP 0805 1UF K 25V X7R

C120 065G080510522K T CAP CHIP 0805 1UF K 25V X7R

C4142 065G080510522K T CAP CHIP 0805 1UF K 25V X7R
C4191 065G080510522K T CAP CHIP 0805 1UF K 25V X7R
C4192 065G080510522K T CAP CHIP 0805 1UF K 25V X7R
C4206 065G080510522K T CAP CHIP 0805 1UF K 25V X7R

C608 065G080510522K T CAP CHIP 0805 1UF K 25V X7R

C618 065G080510522K T CAP CHIP 0805 1UF K 25V X7R

C626 065G080510522K T CAP CHIP 0805 1UF K 25V X7R

C4143 065G080522522K T CAP CHIP 0805 2.2UF K 25V X7R

C607 065G080547432K A CAP CHIP 0805 0.47UF K 50V X7R

C621 065G080547432K A CAP CHIP 0805 0.47UF K 50V X7R

C607 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R

C621 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R

C4122 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R
C4113 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R
C4112 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R
C4105 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R
C4102 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R

C114 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R

C113 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R

C4123 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R
C4127 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R
C4129 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R
C4135 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R
C4136 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R
C4196 065G0805475A2K Y CAP CHIP 0805 4.7UF K 10V X7R

C737 065G0805475A7Z Y CAP CHIP 4.7UF 10V Y5V -20%~+80%

C757 065G0805475A7Z Y CAP CHIP 4.7UF 10V Y5V -20%~+80%

C616 065G120610532K T CAP CHIP 1206 1UF K 50V X7R

C4187 065G120610612K T CAP CHIP 1206 10UF K 16V X7R

C726 065G120610612K T CAP CHIP 1206 10UF K 16V X7R

C732 065G120610612K T CAP CHIP 1206 10UF K 16V X7R

C4209 065G120610612K T CAP CHIP 1206 10UF K 16V X7R
C4210 065G120610612K T CAP CHIP 1206 10UF K 16V X7R

C128 065G120610612K T CAP CHIP 1206 10UF K 16V X7R

C615 065G120610625K 3 CAP CHIP 1206 10UF K 25V X5R

C614 065G120610625K 3 CAP CHIP 1206 10UF K 25V X5R

C610 065G120610625K 3 CAP CHIP 1206 10UF K 25V X5R

66

C609 065G120610625K 3 CAP CHIP 1206 10UF K 25V X5R

C615 065G120610625K T CAP CHIP 1206 10UF K 25V X5R

C614 065G120610625K T CAP CHIP 1206 10UF K 25V X5R

C610 065G120610625K T CAP CHIP 1206 10UF K 25V X5R

C609 065G120610625K T CAP CHIP 1206 10UF K 25V X5R

C752 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R

C744 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R

FB106 071G 56A221 TA IND FXD 0805 EMI 100MHZ 220R R
FB403 071G 56G301 EA BEAD 300 OHM
FB404 071G 56G301 EA BEAD 300 OHM
FB405 071G 56G301 EA BEAD 300 OHM
FB406 071G 56G301 EA BEAD 300 OHM
FB407 071G 56G301 EA BEAD 300 OHM
FB408 071G 56G301 EA BEAD 300 OHM
FB409 071G 56G301 EA BEAD 300 OHM
FB411 071G 56G301 EA BEAD 300 OHM
FB412 071G 56G301 EA BEAD 300 OHM
FB413 071G 56G301 EA BEAD 300 OHM
FB414 071G 56G301 EA BEAD 300 OHM
FB415 071G 56G301 EA BEAD 300 OHM
FB416 071G 56G301 EA BEAD 300 OHM
FB417 071G 56G301 EA BEAD 300 OHM
FB418 071G 56G301 EA BEAD 300 OHM
FB422 071G 56G301 EA BEAD 300 OHM
FB425 071G 56G301 EA BEAD 300 OHM
FB426 071G 56G301 EA BEAD 300 OHM
FB427 071G 56G301 EA BEAD 300 OHM
FB402 071G 56G301 EA BEAD 300 OHM
FB401 071G 56G301 EA BEAD 300 OHM
FB107 071G 56G301 EA BEAD 300 OHM
FB105 071G 56G301 EA BEAD 300 OHM
FB101 071G 56G301 EA BEAD 300 OHM
FB714 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB715 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB719 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB718 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB717 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB716 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB702 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB701 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB713 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB712 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB711 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB710 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB709 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB708 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB707 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60

67

FB705 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB704 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB423 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60

FB420 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60
RP411 071G 57U600 M CHIP BEAD ARRAY 1206 60 OHM
RP412 071G 57U600 M CHIP BEAD ARRAY 1206 60 OHM
RP413 071G 57U600 M CHIP BEAD ARRAY 1206 60 OHM
RP414 071G 57U600 M CHIP BEAD ARRAY 1206 60 OHM
RP415 071G 57U600 M CHIP BEAD ARRAY 1206 60 OHM

FB103 071G 59B121 J CHIP BEAD 121 OHM

FB102 071G 59B601 MA CHIP BEAD

FB104 071G 59B601 MA CHIP BEAD

R122 071G 59C600 TA CHIP BEAD 60OHM 600MA FCM1608CF-600T06
R126 071G 59C600 TA CHIP BEAD 60OHM 600MA FCM1608CF-600T06
R177 071G 59C600 TA CHIP BEAD 60OHM 600MA FCM1608CF-600T06

L103 073G 6333810M CHIP INDUCTOR 0603 0.33UH +-10% 35MA
L701 073G253S 46 H SMD CHOKE 4.7UH
L702 073G253S 46 H SMD CHOKE 4.7UH
L104 073T 6310010M CHIP INDUCTOR 0603 10UH+-10% MICROGATE
L401 073T 6310910M CHIP INDUCTOR 1.0UH +-10% 25MA
L402 073T 6310910M CHIP INDUCTOR 1.0UH +-10% 25MA
L403 073T 6310910M CHIP INDUCTOR 1.0UH +-10% 25MA
L404 073T 6310910M CHIP INDUCTOR 1.0UH +-10% 25MA
L102 073T 6322910K CHIP INDUCTOR 0603 2.2UH 10%

L101 073T253S505 Y SMD COMMON CHOKE 0504 90 OHM 6GHZ
CN506 088G 34019E AT HDMI HEADER 19P H:11.38MM
CN506 088G 34019E AV HDMI HEADER 19P 16130053
CN506 088G 34019E VD HDMI HEADER 19P HDM24A-19BM4YN10
CN502 088G 34019H VT HDMI HEADER 19P V/T H:13.0MM

D501 093G 60505 DIO SIG SM BAT54C(PHSE)R

D503 093G 60505 DIO SIG SM BAT54C(PHSE)R
ZD401 093G 39S 24 T RLZ 5.6B LLDS
ZD402 093G 39S 24 T RLZ 5.6B LLDS
ZD403 093G 39S 24 T RLZ 5.6B LLDS
ZD602 093G 39S 44 T RLZ18B LLDS
ZD110 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD109 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD108 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD107 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD106 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD603 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD601 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD503 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD502 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD126 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD125 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD124 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ

68

ZD123 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD122 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD116 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD115 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD114 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD113 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD112 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD111 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD105 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD104 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD103 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD102 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD101 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ

X401 093T 22S920 C CRYSTAL 27MHZ 20P SMD-49

E715 715G3934M0D000004F TV MAIN-PCB 193X186X1.6MM FR-4 D/S 1OZ

E715 715G3934M0D000004L TV MAIN-PCB 193X186X1.6MM FR-4 D/S 1OZ

P90T0051301 HEAT SINK
Q45G 99606 25 ESD INSULATING PE BAG
KEPFAAA2 KEY BOARD G3814-1-X-X-3-100127

CN01 033G8032 4F HR CONNECTOR

R04 061G08051001FT RST CHIP 1K 1/8W 1%
R03 061G08051801FY RST CHIPR 1.8KOHM +-1% 1/8W YAGEO
R02 061G08052701FY RST CHIP 2K7 1/8W 1%
R08 061G08057500FF RST CHIPR 750 OHM +-1% 1/8W FENGHUA
R07 061G08057500FF RST CHIPR 750 OHM +-1% 1/8W FENGHUA
R05 061G08057500FF RST CHIPR 750 OHM +-1% 1/8W FENGHUA

R01 061G08057501FF RST CHIPR 7.5KOHM +-1% 1/8W FENGHUA
SW07 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL
SW06 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL
SW05 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL
SW02 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL
SW01 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL
SW03 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL
SW04 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL

715G3814K01000003S KEY-PCB 133.5*13.3*1.6MM CEM-1 SS 1OZ
Q45G 99606 25 ESD INSULATING PE BAG
IRPFAQB1 IR BOARD G3821-D-X-X-3-100419

U01 056G 627911 IR 38KHZ KSM-603TM2M

CN01 033G8032 5F HR CONNECTOR

R001 061G0603153 JY RST CHIPR MAX 15KOHM 1/10W YAGEO

C01 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R

LED01 081G 14 24 EL CHIP LED BLUE/DARK RED

ZD01 093G 39S 24 T RLZ 5.6B LLDS
ZD03 093G 39S 24 T RLZ 5.6B LLDS

715G3821R02000004S TV IR-PCB 25X27X1.6MM FR4 1OZ DS
ADTV92414AAW ADAPTER BOARD G3811-P01-X-X-1-100319
040G 45762412B CBPC LABEL

69

GND 009G6005 1 GROUND TERMINAL
CN902 033G327813D CONNECTOR
CN803 033G3802 5B Y L CONN 2.0 5P
CN801 033G8029 3A 3PIN (2PIN NC)

051G 6 4503 GLUE_RTV
IC950 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4
IC951 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4
IC970 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4
IC950 056G 139 10 IC TLP781F PHOTOCOUPLER DIP-4
IC951 056G 139 10 IC TLP781F PHOTOCOUPLER DIP-4
IC970 056G 139 10 IC TLP781F PHOTOCOUPLER DIP-4
IC902 056T 379121 IC STR- A6069H DIP-8

Q921 057G 761 7 KTD1691P
Q921 057G 761909 T TRANSISTOR KSD1691YSTU TO-126
C901 063G 10747410V 0.47UF 275VAC ARCO
C904 063G 10747410V 0.47UF 275VAC ARCO
C901 063G107K474 US 0.47UF +-10%
C904 063G107K474 US 0.47UF +-10%
C910 063G210K105BCN MPP CAP 1UF 520V P=15MM
C802 063G213J105GFA MPF CAP
C801 063G213J105GFA MPF CAP
C802 063G213J105GFC CAP MPE 1UF J 450V
C801 063G213J105GFC CAP MPE 1UF J 450V
C804 065G 1K1021AT CK45-R3AD102K-NR 1000PF / 1KV R-TYPE P
C803 065G 1K1021AT CK45-R3AD102K-NR 1000PF / 1KV R-TYPE P
C925 065G 1K103 2E6213 CAP CER 10NF K 1KV
C925 065G 1K103 2E6921 CAP CER 10NF K 1KV Y5U
C906 065G306K4712B3 Y1 CAP 470PF +-10% 250VAC CD SERIES
C905 065G306K4712B3 Y1 CAP 470PF +-10% 250VAC CD SERIES
C905 065G306K4712BM Y1 CAP 470PF +-10% 250V AC KX
C906 065G306K4712BM Y1 CAP 470PF +-10% 250V AC KX
C902 065G306K6812BM Y1 CAP 680PF 10% 250VAC KX
C903 065G306K6812BM Y1 CAP 680PF 10% 250VAC KX
C924 065G306M1022BM Y1.CAP.001UF 250VAC MURATA
C903 065G306M6812B3 Y1 CAP 680PF +-20% 250VAC CD SERIES
C902 065G306M6812B3 Y1 CAP 680PF +-20% 250VAC CD SERIES
C920 067G 42Z82015H EC 82UF M 450V 18*36MM
C920 067G 42Z82015K EC 82UF M 450V 18*36MM
C953 067G204V331 3K CS CAP 330UF 16V 10*12 MM
C953 067G204V331 3L CS CAP 330UF 16V 10*12.5 MM
C954 067G215A4713KV EC 470UF 16V M 10*12MM
C946 067G215A4714KV EC 470UF 25V 10*16MM
C975 067G215A4716HV EC 470UF M 35V 10*21MM
C973 067G215A4716HV EC 470UF M 35V 10*21MM
C945 067G215A4716HV EC 470UF M 35V 10*21MM
C975 067G215A4716KV EC 470UF 35V M 10*16MM
C973 067G215A4716KV EC 470UF 35V M 10*16MM

70

C945 067G215A4716KV EC 470UF 35V M 10*16MM
C954 067G215Y471 3H
C946 067G215Y471 4H

L902 073G 174106 L LINE FILTER 13MH LF-1008108
L901 073G 174106 L LINE FILTER 13MH LF-1008108
L901 073G 174106 DN LINE FILTER 13MH LK.TF032.A20
L902 073G 174106 DN LINE FILTER 13MH LK.TF032.A20
L906 073G 174160 L PFC CHOKE 253UH 5% CC-012523-1
L906 073G 174160 N PFC CHOKE 253UH 5% YUVA-1253
L980 073G 253 91 H CHOKE COIL
L951 073G 253 91 H CHOKE COIL
L950 073G 253 91 H CHOKE COIL
L980 073G 253 91 L CHOKE BY LI TA
L951 073G 253 91 L CHOKE BY LI TA

L950 073G 253 91 L CHOKE BY LI TA
T802 080GL26T 15 L POWER X'FMR 840UH PT-011699
T802 080GL26T 15 N X'FMR 840UH MIN YUVA-1094
T801 080GL32P 1 L POWER X'FMR 6MH 25% CC-011225-C
T801 080GL32P 1 N POWER X'FMR 6MH 25% YUVA-1187
T902 080GL37T 19 L X'FMR 550UH 5% PT-010923-3
T902 080GL37T 19 N X'FMR 550UH 5% YUVA-1089
T901 080GL52T 5 L2 X'FMR 1.0MH 10%
T901 080GL52T 5 N2 X'FMR 1.0MH 10%
F901 084G 41 11 B FUSE 5A 250V LEAD TYPE
F901 084G 41 11 C FUSE 5A 250V UDA-A 005(PF)
F901 084G 41 11 L FUSE 5A 250V

CN901 087G 501 47 S AC SOCKET 2PIN + 2 SCREW HOLE
CN901 087G 501 47 DL AC SOCKET 2PIN + 3 SCREW HOLE

D904 093G 52 70 1 1N5408-E(SHORT PIN) 3A/1000V DO-201AD

0Q1G 340 8106 CR3 SCREW
705TQ861001 NR901 ASS'Y

NR901 061T 58030 WL RST NTCR 3 OHM +-20% 5A THINKING

Q09T 203 8 PIN FOR NR901
705TQ957038 Q801/Q802 ASS'Y
051G 200 1 OIL FOR DISAPPEAR

Q802 057G 611903 MOSFET AOTF12N50 TO-220F
Q801 057G 611903 MOSFET AOTF12N50 TO-220F
Q801 057T 611901 MOSFET 12A/500V FMA12N50E TO-220F
Q802 057T 611901 MOSFET 12A/500V FMA12N50E TO-220F

0M1G1730 8120 SCREW

HS1 P90T0027201 HEAT SINK

705TQ957039 Q901 ASS'Y
051G 200 1 OIL FOR DISAPPEAR

Q901 057G 667 49 FET 2SK4086LS 11.5A/600V TO-220FI(LS)
Q901 057T 667 59 MOSFET FQPF12N60C 12A/600V TO-220F

0M1G1730 8120 SCREW

HS8 Q90T0206 1 HEAT SINK

ELCAP 105℃ 470UF M 16V
EC CAP 105 度 470UF 25V

71

705TQ957040 Q903 ASS'Y
051G 200 1 OIL FOR DISAPPEAR

Q903 057G 667 51 FET 2SK4101LS 7A/650V TO-220FI(LS)
Q903 057G 667931 TEST ONLY

HS9 090G6084 1 HEAT SINK

0M1G1730 8120 SCREW
705TQ993051 D902 ASS'Y
051G 200 1 OIL FOR DISAPPEAR

HS7 090G6084 1 HEAT SINK

D902 093G 52905 DIODE FMNS-1106S TO-220

0M1G1730 8120 SCREW
705TQ993052 BD901 ASS'Y
051G 200 1 OIL FOR DISAPPEAR

BD901 093G 50460 34 BRIDGE KBJ608G 6A/800V KBJ

0M1G1730 10120 SCREW 42A9930016

HS5 P90T0027301 HEAT SINK

705TQ993053 D950 ASS'Y
051G 200 1 OIL FOR DISAPPEAR

HS10 090G6084 1 HEAT SINK

D950 093G 60298 DIODE SBT15006JST 15A/60V TO-220ML(LS)
D950 093G1506 2 FMW-2156

0M1G1730 8120 SCREW
705TQ993054 D972/D973 ASS'Y
051G 200 1 OIL FOR DISAPPEAR

HS6 090G6064 1 HEAT SINK
D973 093G 60329 DIODE FMEN-220A 20A/100V TO-220
D972 093G 60329 DIODE FMEN-220A 20A/100V TO-220
D973 093G 60331 DIODE YG865C10RSC 20A/100V TO-220F
D972 093G 60331 DIODE YG865C10RSC 20A/100V TO-220F

0M1G1730 8120 SCREW
IC901 056G 379164 IC FAN6961SZ SOP-8
IC903 056G 379175 IC LD7523GS SOP-8
IC801 056T 379122 IC OZ9976GN-C-0-TR SOP-16

Q804 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q805 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q950 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q970 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q803 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM
Q803 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS
R943 061G0805100 JF RST CHIPR 10 OHM +-5% 1/10W FENGHUA
R932 061G0805100 JF RST CHIPR 10 OHM +-5% 1/10W FENGHUA
R943 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN
R943 061G0805100 JY RST CHIPR 10OHM +- 5% 1/8W YEGAO
R932 061G0805100 JY RST CHIPR 10OHM +- 5% 1/8W YEGAO
R820 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA
R820 061G08051003FY RST CHIPR 100KOHM +-1% 1/8W YAGEO
R823 061G08051004FF RST CHIPR 1 MOHM +-1% 1/8W FENGHUA

72

R826 061G08051004FF RST CHIPR 1 MOHM +-1% 1/8W FENGHUA
R837 061G08051004FF RST CHIPR 1 MOHM +-1% 1/8W FENGHUA
R823 061G08051004FF RST CHIPR 1 MOHM +-1% 1/8W FENGHUA
R826 061G08051004FF RST CHIPR 1 MOHM +-1% 1/8W FENGHUA
R837 061G08051004FF RST CHIPR 1 MOHM +-1% 1/8W FENGHUA
R826 061G08051004FT RST CHIP R 1 MOHM +-1% 1/8W
R837 061G08051004FT RST CHIP R 1 MOHM +-1% 1/8W
R823 061G08051004FT RST CHIP R 1 MOHM +-1% 1/8W
R826 061G08051004FT RST CHIP R 1 MOHM +-1% 1/8W
R837 061G08051004FT RST CHIP R 1 MOHM +-1% 1/8W
R823 061G08051004FT RST CHIP R 1 MOHM +-1% 1/8W
R981 061G0805101 JF RST CHIPR 100 OHM +-5% 1/8W FENGHUA
R803 061G0805101 JF RST CHIPR 100 OHM +-5% 1/8W FENGHUA
R802 061G0805101 JF RST CHIPR 100 OHM +-5% 1/8W FENGHUA
R981 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN
R803 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN
R802 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN
R802 061G0805101 JY RST CHIPR 100OHM +- 5% 1/8W YEGAO
R803 061G0805101 JY RST CHIPR 100OHM +- 5% 1/8W YEGAO
R981 061G0805101 JY RST CHIPR 100OHM +- 5% 1/8W YEGAO
R983 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R982 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R955 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R955 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R983 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R982 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R955 061G0805102 JY RST CHIPR 1K OHM 5% 1/8W YAGEO
R982 061G0805102 JY RST CHIPR 1K OHM 5% 1/8W YAGEO
R983 061G0805102 JY RST CHIPR 1K OHM 5% 1/8W YAGEO
R830 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R963 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R961 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R947 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R944 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R817 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R816 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R918 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R914 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R830 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R963 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R961 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R947 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R944 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R918 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R914 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R817 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R816 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN

73

R963 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO
R961 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO
R947 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO
R944 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO
R918 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO
R914 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO
R817 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO
R816 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO
R820 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN
R820 061G0805104 JY RST CHIPR 100KOHM 1/8W YAGEO
R837 061G0805105 JT RST CHIP 1M 1/8W 5% TZAI YUAN
R823 061G0805105 JT RST CHIP 1M 1/8W 5% TZAI YUAN
R826 061G0805105 JT RST CHIP 1M 1/8W 5% TZAI YUAN
R985 061G08051302FF RST CHIPR 13KOHM +-1% 1/8W FENGHUA
R923 061G08051302FF RST CHIPR 13KOHM +-1% 1/8W FENGHUA
R985 061G08051302FT RST CHIP 13K 1/8W 1%
R923 061G08051302FT RST CHIP 13K 1/8W 1%
R923 061G08051302FY RST CHIPR 13KOHM +-1% 1/8W YAGEO
R985 061G08051302FY RST CHIPR 13KOHM +-1% 1/8W YAGEO
R840 061G08051504FF RST CHIPR 1M5 +-1% 1/8W FENGHUA
R840 061G08051504FT RST CHIPR 1M5 +-1% 1/8W TZAI YUAN
R917 061G0805153 JF RST CHIPR 15K +-5% 1/8W FENGHUA
R917 061G0805153 JT RST CHIP 15K 1/8W 5% TZAI YUAN
R840 061G0805155 JW RST CHIPR 1M5 +-5% 1/8W WALSIN
R979 061G08052001FF RST CHIPR 2KOHM +-1% 1/8W FENGHUA
R979 061G08052001FT RST CHIP 2K 1/8W 1%
R813 061G08052400FF RST CHIPR 240 OHM +-1% 1/8W FENGHUA
R811 061G08052400FF RST CHIPR 240 OHM +-1% 1/8W FENGHUA
R813 061G08052400FT RST CHIP R 240 OHM +-1% 1/8W
R811 061G08052400FT RST CHIP R 240 OHM +-1% 1/8W
R978 061G08052402FF RST CHIPR 24KOHM +-1% 1/8W FENGHUA
R978 061G08052402FT RST CHIP 24K 1/8W 1%
R987 061G08052702FT RST CHIP 27K 1/8W 1%
R987 061G08052702FY RST CHIPR 27KOHM +-1% 1/8W YAGEO
R834 061G0805272 JF RST CHIPR 2.7KOHM +-5% 1/8W FENGHUA
R834 061G0805272 JT RST CHIPR 2K7 +-5% 1/8W TZAI YUAN
R975 061G0805392 JF RST CHIPR 3.9KOHM +-5% 1/8W FENGHUA
R975 061G0805392 JY RST CHIPR 3K9 +-5% 1/8W YAGEO
R814 061G0805510 JF RST CHIPR 51OHM +-5% 1/8W FENGHUA
R814 061G0805510 JW RST CHIPR 51OHM +-5% 1/8W WALSIN
R841 061G0805513 JF RST CHIPR 51KOHM +-5% 1/8W FENGHUA
R842 061G0805513 JF RST CHIPR 51KOHM +-5% 1/8W FENGHUA
R842 061G0805513 JY RST CHIPR 51K +-5% 1/8W YAGEO
R841 061G0805513 JY RST CHIPR 51K +-5% 1/8W YAGEO
R906 061G08055603FT RST CHIP 560K 1/8W 1%
R906 061G08055603FY RST CHIPR 560KOHM +-1% 1/8W YAGEO
R824 061G0805683 JF RST CHIPR 68KOHM +-5% 1/8W FENGHUA

74

R821 061G0805683 JF RST CHIPR 68KOHM +-5% 1/8W FENGHUA
R821 061G0805683 JT RST CHIPR 68K +-5% 1/8W TZAI YUAN
R824 061G0805683 JT RST CHIPR 68K +-5% 1/8W TZAI YUAN
R958 061G08057501FF RST CHIPR 7.5KOHM +-1% 1/8W FENGHUA
R958 061G08057501FT RST CHIP R 7K5 1/8W +/-1%
R957 061G08058201FF RST CHIPR 8.2KOHM +-1% 1/8W FENGHUA
R957 061G08058201FY RST CHIPR 8.2KOHM +-1% 1/8W YAGEO
R844 061G08059101FF RST CHIPR 9.1KOHM +-1% 1/8W FENGHUA

R844 061G08059101FY RST CHIPR 9.1KOHM +-1% 1/8W YAGEO
JR905 061G1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA
JR902 061G1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA
JR903 061G1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA
JR904 061G1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA
JR903 061G1206000 Y RST CHIP MAX 0R05 1/4W YAGEO
JR904 061G1206000 Y RST CHIP MAX 0R05 1/4W YAGEO
JR905 061G1206000 Y RST CHIP MAX 0R05 1/4W YAGEO
JR902 061G1206000 Y RST CHIP MAX 0R05 1/4W YAGEO

R924 061G12061004FF RST CHIPR 1 MOHM +-1% 1/4W FENGHUA

R925 061G12061004FF RST CHIPR 1 MOHM +-1% 1/4W FENGHUA

R926 061G12061004FF RST CHIPR 1 MOHM +-1% 1/4W FENGHUA

R924 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W

R925 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W

R926 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W

R977 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN

R973 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN

R970 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN

R954 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN

R951 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN

R977 061G1206101 JY RST CHIPR 100R +-5% 1/4W YAGEO

R973 061G1206101 JY RST CHIPR 100R +-5% 1/4W YAGEO

R970 061G1206101 JY RST CHIPR 100R +-5% 1/4W YAGEO

R954 061G1206101 JY RST CHIPR 100R +-5% 1/4W YAGEO

R951 061G1206101 JY RST CHIPR 100R +-5% 1/4W YAGEO

R836 061G1206102 JF RST CHIPR 1KOHM +-5% 1/4W FENGHUA

R945 061G1206102 JF RST CHIPR 1KOHM +-5% 1/4W FENGHUA

R956 061G1206102 JF RST CHIPR 1KOHM +-5% 1/4W FENGHUA

R960 061G1206102 JF RST CHIPR 1KOHM +-5% 1/4W FENGHUA

R974 061G1206102 JF RST CHIPR 1KOHM +-5% 1/4W FENGHUA

R974 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN

R960 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN

R956 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN

R945 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN

R836 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN

R833 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA

R833 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN

R976 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN

R838 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN

75

R939 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN

R976 061G1206103 JY RST CHIPR 10K +-5% 1/4W YAGEO

R939 061G1206103 JY RST CHIPR 10K +-5% 1/4W YAGEO

R838 061G1206103 JY RST CHIPR 10K +-5% 1/4W YAGEO

R999 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA

R998 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA

R997 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA

R996 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA

R994 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA

R993 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA

R992 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA

R991 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA

R839 061G1206104 JF RST CHIPR 100KOHM +-5% 1/4W FENGHUA

R999 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN

R998 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN

R997 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN

R996 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN

R994 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN

R993 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN

R992 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN

R991 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN

R839 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN

R933 061G1206109 JT RST CHIPR 1 OHM +-5% 1/4W TZAI YUAN

R933 061G1206109 JW RST CHIPR 1 OHM +-5% 1/4W WALSIN

R843 061G1206122 JT RST CHIPR 1.2KOHM +-5% 1/4W TZAI YUAN

R843 061G1206122 JW RST CHIPR 1.2KOHM +-5% 1/4W WALSIN

R904 061G12061504FT RST CHIP 1M5 1/4W 1%

R905 061G12061504FT RST CHIP 1M5 1/4W 1%

R909 061G12061504FT RST CHIP 1M5 1/4W 1%

R904 061G12061504FY RST CHIP 1M5 1/4W 1%

R905 061G12061504FY RST CHIP 1M5 1/4W 1%

R909 061G12061504FY RST CHIP 1M5 1/4W 1%

R988 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN

R986 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN

R972 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN

R971 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN

R967 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN

R965 061G1206182 JT RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN

R965 061G1206182 JW RST CHIPR 1.8KOHM +-5% 1/4W WALSIN

R967 061G1206182 JW RST CHIPR 1.8KOHM +-5% 1/4W WALSIN

R971 061G1206182 JW RST CHIPR 1.8KOHM +-5% 1/4W WALSIN

R972 061G1206182 JW RST CHIPR 1.8KOHM +-5% 1/4W WALSIN

R986 061G1206182 JW RST CHIPR 1.8KOHM +-5% 1/4W WALSIN

R988 061G1206182 JW RST CHIPR 1.8KOHM +-5% 1/4W WALSIN

R911 061G1206203 JT RST CHIPR 20KOHM +-5% 1/4W TZAI YUAN

R911 061G1206203 JW RST CHIPR 20KOHM +-5% 1/4W WALSIN

R931 061G1206229 JF RST CHIPR 2.2 OHM +-5% 1/4W FENGHUA

76

R908 061G1206229 JF RST CHIPR 2.2 OHM +-5% 1/4W FENGHUA

R907 061G1206229 JF RST CHIPR 2.2 OHM +-5% 1/4W FENGHUA

R931 061G1206229 JY RST CHIPR 2.2R 5% 1/4W YAGEO

R908 061G1206229 JY RST CHIPR 2.2R 5% 1/4W YAGEO

R907 061G1206229 JY RST CHIPR 2.2R 5% 1/4W YAGEO

R901 061G1206334 JF RST CHIPR 330KOHM +-5% 1/4W FENGHUA

R902 061G1206334 JF RST CHIPR 330KOHM +-5% 1/4W FENGHUA

R903 061G1206334 JF RST CHIPR 330KOHM +-5% 1/4W FENGHUA

R903 061G1206334 JT RST CHIPR 330 KOHM 1/4W TZAI YUAN

R901 061G1206334 JT RST CHIPR 330 KOHM 1/4W TZAI YUAN

R902 061G1206334 JT RST CHIPR 330 KOHM 1/4W TZAI YUAN

R950 061G1206470 JT RST CHIPR 47 OHM +-5% 1/4W TZAI YUAN

R952 061G1206470 JT RST CHIPR 47 OHM +-5% 1/4W TZAI YUAN

R950 061G1206470 JY RST CHIPR 47R +-5% 1/4W YAGEO

R952 061G1206470 JY RST CHIPR 47R +-5% 1/4W YAGEO

R915 061G1206471 JT RST CHIPR 470 OHM 1/4W TZAI YUAN

R915 061G1206471 JY RST CHIPR 470R 1/4W +-5% YAGEO

R962 061G1206475 JF RST CHIPR 4.7 MOHM +-5% 1/4W FENGHUA

R962 061G1206475 JT RST CHIPR 4.7 MOHM +-5% 1/4W TZAI YUAN

R827 061G12065100FF RST CHIPR 510 OHM +-5% 1/4W FENGHUA

R825 061G12065100FF RST CHIPR 510 OHM +-5% 1/4W FENGHUA

R827 061G12065100FY RST CHIPR 510 OHM +-1% 1/4W

R825 061G12065100FY RST CHIPR 510 OHM +-1% 1/4W

R832 061G12066202FF RST 1206 62K 1% 1/4W FENGHUA

R832 061G12066202FT RST 1206 62K 1/4W 1% TZAI YUAN

R920 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA

R921 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA

R922 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA

R922 061G12066803FT RST CHIP 680K 1/4W 1%

R920 061G12066803FT RST CHIP 680K 1/4W 1%

R921 061G12066803FT RST CHIP 680K 1/4W 1%

R966 061G1206682 JF RST CHIPR 6.8KOHM +-5% 1/4W FENGHUA

R969 061G1206682 JF RST CHIPR 6.8KOHM +-5% 1/4W FENGHUA

R984 061G1206682 JF RST CHIPR 6.8KOHM +-5% 1/4W FENGHUA

R968 061G1206682 JF RST CHIPR 6.8KOHM +-5% 1/4W FENGHUA

R984 061G1206682 JT RST CHIPR 6.8 KOHM 1/4W TZAI YUAN

R969 061G1206682 JT RST CHIPR 6.8 KOHM 1/4W TZAI YUAN

R968 061G1206682 JT RST CHIPR 6.8 KOHM 1/4W TZAI YUAN

R966 061G1206682 JT RST CHIPR 6.8 KOHM 1/4W TZAI YUAN

C909 065G080510232K 3 CAP CHIP 0805 1N 50V X7R +/-10%

C909 065G080510232K F CAP CHIP 0805 1NF K 50V X7R

C909 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%

C939 065G080510332K 3 CAP CHIP 0805 10N 50V X7R +/-10%

C939 065G080510332K A CAP CHIP 0805 10NF K 50V X7R

C939 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10%

C811 065G080510432K 3 CAP CHIP 0805 100N 50V X7R +/-10%

C956 065G080510432K A CAP CHIP 0805 100NF K 50V X7R

77

C978 065G080510432K A CAP CHIP 0805 100NF K 50V X7R

C948 065G080510432K A CAP CHIP 0805 100NF K 50V X7R

C947 065G080510432K A CAP CHIP 0805 100NF K 50V X7R

C949 065G080510432K A CAP CHIP 0805 100NF K 50V X7R

C942 065G080510432K A CAP CHIP 0805 100NF K 50V X7R

C934 065G080510432K A CAP CHIP 0805 100NF K 50V X7R

C921 065G080510432K A CAP CHIP 0805 100NF K 50V X7R

C913 065G080510432K A CAP CHIP 0805 100NF K 50V X7R

C908 065G080510432K A CAP CHIP 0805 100NF K 50V X7R

C907 065G080510432K A CAP CHIP 0805 100NF K 50V X7R

C978 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C956 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C949 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C948 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C947 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C942 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C934 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C921 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C913 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C908 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C907 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C811 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C978 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C956 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C949 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C948 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C947 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C942 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C934 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C921 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C913 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C908 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C907 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C811 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C817 065G080510522K 3 CAP CHIP 0805 1U 25V X7R +/-10%

C816 065G080510522K 3 CAP CHIP 0805 1U 25V X7R +/-10%

C817 065G080510522K T CAP CHIP 0805 1UF K 25V X7R

C816 065G080510522K T CAP CHIP 0805 1UF K 25V X7R

C815 065G080512332K Y CAP CHIP 0805 12N 50V X7R +/-10%

C821 065G080515232K 3 CAP CHIP 0805 0.0015UF 50V +/-10% X7R

C821 065G080515232K A CAP CHIP 0805 1500PF K 50V X7R

C820 065G080515232K F CAP CHIP 0805 1500PF K 50V X7R

C820 065G080515232K Y CAP CHIP 0805 1N5 50V X7R +/-10%

C821 065G080515232K Y CAP CHIP 0805 1N5 50V X7R +/-10%

C915 065G080522132K 3 CAP CHIP 0805 220P 50V X7R +/-10%

C944 065G080522132K 3 CAP CHIP 0805 220P 50V X7R +/-10%

C915 065G080522132K A CAP CHIP 0805 220PF K 50V X7R

78

C944 065G080522132K A CAP CHIP 0805 220PF K 50V X7R

C915 065G080522132K Y CAP CHIP 0805 220P 50V X7R +/-10%

C944 065G080522132K Y CAP CHIP 0805 220P 50V X7R +/-10%

C955 065G080522432K 3 CAP CHIP 0805 220N 50V X7R +/-10%

C955 065G080522432K F CAP CHIP 0805 0.22UF K 50V X7R

C955 065G080522432K Y CAP CHIP 0805 0.22UF K 50V X7R

C819 065G080522522K 3 CAP CHIP 0805 2U2 25V X7R +/-10%

C805 065G080522522K 3 CAP CHIP 0805 2U2 25V X7R +/-10%

C819 065G080522522K M MLCC 0805 CAP 2.2UF 25V X7R

C805 065G080522522K M MLCC 0805 CAP 2.2UF 25V X7R

C819 065G080522522K T CAP CHIP 0805 2.2UF K 25V X7R

C805 065G080522522K T CAP CHIP 0805 2.2UF K 25V X7R

C819 065G080522522K Y CAP CHIP 0805 2.2UF K 25V X7R

C805 065G080522522K Y CAP CHIP 0805 2.2UF K 25V X7R

C813 065G080533131J F CAP CHIP 0805 330PF J 50V NPO

C813 065G080533131J T CAP 0805 330PF J 50V NPO TAIYO YUDEN

C813 065G080533131J Y CAP CHIP 0805 330PF J 50V NPO

C976 065G080533432K 3 CAP CHIP 0805 330N 50V X7R +/-10%

C976 065G080533432K F CAP CHIP 0805 0.33UF K 50V X7R

C976 065G080533432K Y CAP CHIP 0805 330N 50V X7R +/-10%

C818 065G080547232K 3 CAP CHIP 0805 4N7 50V X7R +/-10%

C818 065G080547232K A CAP CHIP 0805 4700PF K 50V X7R

C818 065G080547232K Y CAP CHIP 0805 4700PF K 50V X7R

C831 065G080547332K A CAP CHIP 0805 47NF K 50V X7R

C917 065G080547332K A CAP CHIP 0805 47NF K 50V X7R

C943 065G080547332K A CAP CHIP 0805 47NF K 50V X7R

C830 065G080547332K A CAP CHIP 0805 47NF K 50V X7R

C943 065G080547332K F CAP CHIP 0805 47NF K 50V X7R

C830 065G080547332K F CAP CHIP 0805 47NF K 50V X7R

C831 065G080547332K F CAP CHIP 0805 47NF K 50V X7R

C917 065G080547332K F CAP CHIP 0805 47NF K 50V X7R

C943 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10%

C917 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10%

C831 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10%

C830 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10%

C918 065G080547432K 3 CAP 0805 0.47UF 10% 50V X7R

C918 065G080547432K F CAP CHIP 0805 0.47UF K 50V X7R

C918 065G080547432K F CAP CHIP 0805 0.47UF K 50V X7R

C918 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R

C918 065G080547432K Y CAP CHIP 0805 470N 50V X7R +/-10%

C912 065G080556031J 3 CAP CHIP 0805 56P 50V NPO +/-5%

C912 065G080556031J F CAP CHIP 0805 56PF J 50V NPO

C822 065G080568131J F CAP CHIP 0805 680PF J 50V NPO

C823 065G080568131J F CAP CHIP 0805 680PF J 50V NPO

C822 065G080568131J Y CAP CHIP 0805 680PF J 50V NPO

C823 065G080568131J Y CAP CHIP 0805 680PF J 50V NPO

C950 065G120610272K 3 CER 1206 1N 500V X7R 10%

79

C951 065G120610272K 3 CER 1206 1N 500V X7R 10%

C952 065G120610272K 3 CER 1206 1N 500V X7R 10%

C957 065G120610272K 3 CER 1206 1N 500V X7R 10%

C970 065G120610272K 3 CER 1206 1N 500V X7R 10%

C972 065G120610272K 3 CER 1206 1N 500V X7R 10%

C972 065G120610272K T CAP CHIP 1206 1000PF 500V X7R

C970 065G120610272K T CAP CHIP 1206 1000PF 500V X7R

C957 065G120610272K T CAP CHIP 1206 1000PF 500V X7R

C952 065G120610272K T CAP CHIP 1206 1000PF 500V X7R

C951 065G120610272K T CAP CHIP 1206 1000PF 500V X7R

C950 065G120610272K T CAP CHIP 1206 1000PF 500V X7R

C972 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R

C970 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R

C957 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R

C952 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R

C951 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R

C950 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R

D807 093G 64 42 PP BAV70 SOT-23

D801 093G 60S 5 T SCS0520P SOD-123

D802 093G 60S 5 T SCS0520P SOD-123

D803 093G 60S 5 T SCS0520P SOD-123

D804 093G 60S 5 T SCS0520P SOD-123

CN901 006G 31500 GP EYELET

IC971 056G 158 10 T IC AS431AZTR-E1 TO-92
IC952 056G 158 10 T IC AS431AZTR-E1 TO-92
IC971 056G 158 12 KIA431A-AT/P TO-92
IC952 056G 158 12 KIA431A-AT/P TO-92

R948 061G 30310852T GP FUSE RESISTOR

R801 061G 30310852T GP FUSE RESISTOR

R913 061G 60210052T TZ RST CFR 10R 1/6W 5%

R916 061G152M12852T RST MOFR 0.12 OHM +-5% 2WS

R946 061G152M36852T RST MOF 0R36 5% 2W

C932 065G 2K102 2T6921 CAP CER 1000PF 2KV K Y5P

C935 065G 2K102 2T6921 CAP CER 1000PF 2KV K Y5P

C941 067G 2151007NT KY50VB10M-TP5 5*11.5

C937 067G 2151007NT KY50VB10M-TP5 5*11.5

C933 067G 2151007NT KY50VB10M-TP5 5*11.5

C810 067G215A1017KT EC 100UF 50V 8*12MM

C931 067G215A1017KT EC 100UF 50V 8*12MM

C941 067G215Y1007KT KY50VB10M-TP5 5*11.5

C933 067G215Y1007KT KY50VB10M-TP5 5*11.5

C937 067G215Y1007KT KY50VB10M-TP5 5*11.5

C931 067G215Y1017NT EC 100UF 50V 8*11.5MM

C810 067G215Y1017NT EC 100UF 50V 8*11.5MM

C914 067G215Y4707KT 47UF 50V

C914 067G215Y4707LT LOW ESR EC 47UF 50V M 6.3*11MM
FB902 071G 55 23 S BEAD

80

FB903 071G 55 26 S FERRITE CORE
FB901 071G 55 26 S FERRITE CORE
FB903 071T 55 26 H FERRITE BEAD 3.5*6.0*0.8
FB901 071T 55 26 H FERRITE BEAD 3.5*6.0*0.8
ZD952 093G 3916652T MTZJ15B (13.89-14.62)
ZD930 093G 3916752T MTZJ T-72 16B
ZD970 093G 3917152T TZJ T-72 30B

D901 093G 52 1552T DIODE 1N4007-E3/73 1A/1000V DO-41

D901 093G 5212T52T DIODE 1N4007 DO-41

D931 093G 5250S52T DIODE AU02Z-V1 SANKEN

D905 093G 64 1152T 1N4148

D906 093G 64 1152T 1N4148

D951 093G 64 1152T 1N4148

D971 093G 64 1152T 1N4148

D903 093G 64 1152T 1N4148

D806 093G 64 1152T 1N4148

D805 093G 64 1152T 1N4148

D971 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

D951 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

D906 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

D805 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

D806 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

D903 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

D905 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
ZD952 093G 39G 5 DIODE MTZJ15B DO-34
ZD970 093G 39G 9 DIODE MTZJ30B DO-34

D930 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41

D940 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41

J906 095G 90 23 JUMPER WIRE
J907 095G 90 23 JUMPER WIRE
J908 095G 90 23 JUMPER WIRE
J909 095G 90 23 JUMPER WIRE
J910 095G 90 23 JUMPER WIRE
J911 095G 90 23 JUMPER WIRE
J912 095G 90 23 JUMPER WIRE
J913 095G 90 23 JUMPER WIRE
J914 095G 90 23 JUMPER WIRE
J915 095G 90 23 JUMPER WIRE
J916 095G 90 23 JUMPER WIRE
J917 095G 90 23 JUMPER WIRE
J918 095G 90 23 JUMPER WIRE
J923 095G 90 23 JUMPER WIRE
J922 095G 90 23 JUMPER WIRE
J921 095G 90 23 JUMPER WIRE
J920 095G 90 23 JUMPER WIRE
J919 095G 90 23 JUMPER WIRE
J801 095G 90 23 JUMPER WIRE

81

J802 095G 90 23 JUMPER WIRE
J803 095G 90 23 JUMPER WIRE
J804 095G 90 23 JUMPER WIRE
J805 095G 90 23 JUMPER WIRE
J806 095G 90 23 JUMPER WIRE
J807 095G 90 23 JUMPER WIRE
J905 095G 90 23 JUMPER WIRE
J904 095G 90 23 JUMPER WIRE
J903 095G 90 23 JUMPER WIRE
J902 095G 90 23 JUMPER WIRE
J901 095G 90 23 JUMPER WIRE
J808 095G 90 23 JUMPER WIRE

715G3811P01H20003H TV POWER-PCB 170X200X1.6MM SS CEM-1
Q45G 99606 25 ESD INSULATING PE BAG
INTV9LCCXAA9 INVERTER BOARD G3652-1-X-X-1-090903
040G 45762412B CBPC LABEL

CN8803 033G3802 2B Y CONNECTOR
CN8803 033G3802 2B Y W CONNECTOR
CN8802 033G3802 3B Y W CONN 2.0 3P
CN8802 033T3802 3B Y CONNECTOR

C8812 065G 6J1006ET 10PF 5% SL 6KV
C8813 065G 6J1006ET 10PF 5% SL 6KV
C8811 065G 6J1006ET 10PF 5% SL 6KV
C8810 065G 6J1006ET 10PF 5% SL 6KV
C8809 065G 6J1006ET 10PF 5% SL 6KV
C8808 065G 6J1006ET 10PF 5% SL 6KV
C8807 065G 6J1006ET 10PF 5% SL 6KV
C8806 065G 6J1006ET 10PF 5% SL 6KV
C8805 065G 6J1006ET 10PF 5% SL 6KV
C8804 065G 6J1006ET 10PF 5% SL 6KV
C8803 065G 6J1006ET 10PF 5% SL 6KV
C8802 065G 6J1006ET 10PF 5% SL 6KV

T8806 080GL32T 14 DN INVERTER X'FMR 182UH TK.6518A.101 VOC
T8807 080GL32T 14 DN INVERTER X'FMR 182UH TK.6518A.101 VOC
T8808 080GL32T 14 DN INVERTER X'FMR 182UH TK.6518A.101 VOC
T8809 080GL32T 14 DN INVERTER X'FMR 182UH TK.6518A.101 VOC
T8810 080GL32T 14 DN INVERTER X'FMR 182UH TK.6518A.101 VOC
T8812 080GL32T 14 DN INVERTER X'FMR 182UH TK.6518A.101 VOC
T8811 080GL32T 14 DN INVERTER X'FMR 182UH TK.6518A.101 VOC
T8805 080GL32T 14 DN INVERTER X'FMR 182UH TK.6518A.101 VOC
T8804 080GL32T 14 DN INVERTER X'FMR 182UH TK.6518A.101 VOC
T8803 080GL32T 14 DN INVERTER X'FMR 182UH TK.6518A.101 VOC
T8802 080GL32T 14 DN INVERTER X'FMR 182UH TK.6518A.101 VOC
T8801 080GL32T 14 DN INVERTER X'FMR 182UH TK.6518A.101 VOC

CN8801 095G 825 6D901 HARNESS 6P(SCN)-5P 300MM FQE092368HY

R8808 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA
R8805 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA

82

R8808 061G08051003FY RST CHIPR 100KOHM +-1% 1/8W YAGEO
R8805 061G08051003FY RST CHIPR 100KOHM +-1% 1/8W YAGEO
R8809 061G0805101 JF RST CHIPR 100 OHM +-5% 1/8W FENGHUA
R8807 061G0805101 JF RST CHIPR 100 OHM +-5% 1/8W FENGHUA
R8806 061G0805101 JF RST CHIPR 100 OHM +-5% 1/8W FENGHUA
R8802 061G0805101 JF RST CHIPR 100 OHM +-5% 1/8W FENGHUA
R8801 061G0805101 JF RST CHIPR 100 OHM +-5% 1/8W FENGHUA
R8809 061G0805101 JY RST CHIPR 100OHM +- 5% 1/8W YEGAO
R8807 061G0805101 JY RST CHIPR 100OHM +- 5% 1/8W YEGAO
R8806 061G0805101 JY RST CHIPR 100OHM +- 5% 1/8W YEGAO
R8802 061G0805101 JY RST CHIPR 100OHM +- 5% 1/8W YEGAO
R8801 061G0805101 JY RST CHIPR 100OHM +- 5% 1/8W YEGAO
R8822 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R8821 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R8820 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R8819 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R8818 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R8823 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R8818 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R8819 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R8820 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R8821 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R8822 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R8823 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R8804 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R8804 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R8808 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN
R8805 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN
R8803 061G08053902FT RST CHIP 39K 1/8W 1%
R8816 061G08053902FT RST CHIP 39K 1/8W 1%
R8816 061G08053902FY RST CHIPR 39KOHM +-1% 1/8W YAGEO
R8803 061G08053902FY RST CHIPR 39KOHM +-1% 1/8W YAGEO
R8810 061G0805511 JF RST CHIPR 510OHM +-5% 1/8W FENGHUA
R8815 061G0805511 JF RST CHIPR 510OHM +-5% 1/8W FENGHUA
R8814 061G0805511 JF RST CHIPR 510OHM +-5% 1/8W FENGHUA
R8812 061G0805511 JF RST CHIPR 510OHM +-5% 1/8W FENGHUA
R8811 061G0805511 JF RST CHIPR 510OHM +-5% 1/8W FENGHUA
R8815 061G0805511 JY RST CHIPR 510OHM +-5% 1/8W YAGEO
R8814 061G0805511 JY RST CHIPR 510OHM +-5% 1/8W YAGEO
R8812 061G0805511 JY RST CHIPR 510OHM +-5% 1/8W YAGEO
R8811 061G0805511 JY RST CHIPR 510OHM +-5% 1/8W YAGEO
R8810 061G0805511 JY RST CHIPR 510OHM +-5% 1/8W YAGEO
R8817 061G0805512 JF RST CHIPR 5.1KOHM +-5% 1/8W FENGHUA
R8813 061G0805512 JF RST CHIPR 5.1KOHM +-5% 1/8W FENGHUA
R8817 061G0805512 JW RST CHIPR 5K1 +-5% 1/8W WALSIN
R8813 061G0805512 JW RST CHIPR 5K1 +-5% 1/8W WALSIN

RJ8801 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

83

RJ8801 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

C8801 065G080510232K 3 CAP CHIP 0805 1N 50V X7R +/-10%
C8818 065G080510232K 3 CAP CHIP 0805 1N 50V X7R +/-10%
C8819 065G080510232K 3 CAP CHIP 0805 1N 50V X7R +/-10%
C8801 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C8818 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C8819 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C8814 065G080518332K 3 CAP CHIP 0805 18N 50V X7R +/-10%
C8815 065G080518332K 3 CAP CHIP 0805 18N 50V X7R +/-10%
C8816 065G080518332K 3 CAP CHIP 0805 18N 50V X7R +/-10%
C8817 065G080518332K 3 CAP CHIP 0805 18N 50V X7R +/-10%
C8820 065G080518332K 3 CAP CHIP 0805 18N 50V X7R +/-10%
C8821 065G080518332K 3 CAP CHIP 0805 18N 50V X7R +/-10%
C8822 065G080518332K 3 CAP CHIP 0805 18N 50V X7R +/-10%
C8823 065G080518332K 3 CAP CHIP 0805 18N 50V X7R +/-10%
C8824 065G080518332K 3 CAP CHIP 0805 18N 50V X7R +/-10%
C8825 065G080518332K 3 CAP CHIP 0805 18N 50V X7R +/-10%
C8825 065G080518332K Y CAP CHIP 0805 18NF K 50V X7R
C8824 065G080518332K Y CAP CHIP 0805 18NF K 50V X7R
C8823 065G080518332K Y CAP CHIP 0805 18NF K 50V X7R
C8822 065G080518332K Y CAP CHIP 0805 18NF K 50V X7R
C8821 065G080518332K Y CAP CHIP 0805 18NF K 50V X7R
C8820 065G080518332K Y CAP CHIP 0805 18NF K 50V X7R
C8817 065G080518332K Y CAP CHIP 0805 18NF K 50V X7R
C8816 065G080518332K Y CAP CHIP 0805 18NF K 50V X7R
C8815 065G080518332K Y CAP CHIP 0805 18NF K 50V X7R
C8814 065G080518332K Y CAP CHIP 0805 18NF K 50V X7R
D8819 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8818 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8817 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8815 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8814 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8813 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8812 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8811 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8809 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8808 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8808 093G 6433S DIODE BAV99 SEMTECH
D8809 093G 6433S DIODE BAV99 SEMTECH
D8811 093G 6433S DIODE BAV99 SEMTECH
D8812 093G 6433S DIODE BAV99 SEMTECH
D8813 093G 6433S DIODE BAV99 SEMTECH
D8814 093G 6433S DIODE BAV99 SEMTECH
D8815 093G 6433S DIODE BAV99 SEMTECH
D8817 093G 6433S DIODE BAV99 SEMTECH
D8818 093G 6433S DIODE BAV99 SEMTECH
D8819 093G 6433S DIODE BAV99 SEMTECH

84

D8806 093G 3919552T DIODE MTZJ T-72 5.1B 500MW/5.1V DO-34
D8822 093G 64 1152T 1N4148
D8821 093G 64 1152T 1N4148
D8820 093G 64 1152T 1N4148
D8807 093G 64 1152T 1N4148
D8805 093G 64 1152T 1N4148
D8804 093G 64 1152T 1N4148
D8802 093G 64 1152T 1N4148
D8801 093G 64 1152T 1N4148
D8822 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D8821 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D8820 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D8807 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D8805 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D8804 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D8802 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D8801 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

J8801 095G 90 23 JUMPER WIRE
J8802 095G 90 23 JUMPER WIRE
J8803 095G 90 23 JUMPER WIRE
J8804 095G 90 23 JUMPER WIRE
J8805 095G 90 23 JUMPER WIRE
J8806 095G 90 23 JUMPER WIRE
J8807 095G 90 23 JUMPER WIRE
J8808 095G 90 23 JUMPER WIRE
J8809 095G 90 23 JUMPER WIRE
J8810 095G 90 23 JUMPER WIRE
J8811 095G 90 23 JUMPER WIRE
J8812 095G 90 23 JUMPER WIRE
J8813 095G 90 23 JUMPER WIRE
J8814 095G 90 23 JUMPER WIRE

715G3652P02000003S TV-POWER S/S CEM-1 114X356.8X1.6MM

T8811 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y

T8812 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y

T8809 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y

T8803 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y

T8806 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y

85

T8807 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y

T8804 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y

T8810 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y

T8802 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y

T8805 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y

T8808 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y

T8801 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y
017T DW RF502
052G 1186 SMALL TAPE
052G 1211 B
052G 2191 A PAPER TAPE
089G214A18N IS POWER CORD 1.8M FA37B201312180TP

ECN701 095G801313D906 HARNESS 13P-12P 100MM FQ91572I 2nd source
ECN701 095G801313X906 HARNESS 13P-12P 100MM LCDXXTF0384

095G8021 3D904 HARNESS 3P-3P+2P 290MM FQE92155I

ECN405 095T8018 3DH57 LVDS CABLE 30P-30P 350MM

098GRABD1NCACD REMOTE CONTROL 90-364100T4402
0M1G 930 8 47 CR3 SCREW
0M1G 940 6120 SCREW (M4X6)
0M1G 940 10 47 CR3 SCREW
0M1G1730 6120 SCREW,42-D020523
0M1G1830 8120 SCREW
0Q1G 930 8 47 CR3 SCREW
0Q1G 940 14 47 CR3 SCREW
0Q1G 940 16 47 CR3 SCREW
705TQ949001 COMSUPTIVE ASS'Y-A4

E750 750TVV315B6131N000 PANEL TPT315B6L01 C1C FQ TPV

E750 TPT315B6L01A110 PANEL TPT315B6-L01 C1C FQ TPV 2nd source

A15T1023101 42-BKT-IO_SIDE-OTS
Q02G7021 2 BOLT
Q02G7022 3 SCREW-STOPPER
Q11G5061 1 PCB SUPPORT
Q15T0715101 PANEL SUPPORT BKT TOP L

RF BUFFER FOR 内销 CD

CONDUCTIVE TAPE 85MM *40MM *0.09MM (单导)

86

Q15T0716101 PANEL SUPPORT BKT TOP R
Q15T0717101 BASE SUPPORT BKT UDM
Q15T0720101 32_VESA_BKT_TOP
Q40G2010 42010 SIDE LABEL
Q41G783061516B WARRANTY CARD
Q44GJ061101 EPS FOR 2K10 32 AOC
Q44GJ061201 EPS FOR 2K10 32 AOC
Q44GJ061301 EPS FOR 2K10 32 AOC
Q44GJ061401 EPS FOR 2K10 32 AOC
Q45G 77 5 PE PACKING (Y1900241)
Q45T 99609 61 EPE COVER FOR MONITOR
Q50G 4 10 TIE (Y1900221)
Q50G 500523 CABLE TIE
Q52G 1150523 TAPE_INSULATING
Q52G 1185 99 BIG CARTON TAPE FOR AOC
X40G0002615 1B POP LABEL
X44GJ061615 2C 32 TV AOC CARTON
041T780062415A CERTIFICATE CARD
092GB1JX1A3DGC
Q41T7800954 A MANUAL
Q45G2010M0101A PE BAG FOR MANUAL
X41G32MV615 4C MANUAL
026G 800700 1A BARCODE LABEL
040G 58162435A P/N LABEL FOR MANUAL PE BAG
040G 581689 4A BARCODE LABEL FOR 1
X40G 320615 1A 32 TV AOC LABEL
001G6021 1 SCREW

SP01 078G0120 9 Y SPEAKER 6 OHM 12W 125X32MM

ECN601 095G8014 4D603 HARNESS 4P(2008)-B&R+B&W 750/500
ECN401 095G801413L691 HARNESS 13P(2008)-5P(A1253HA)+4P(A1253HA
ECN401 095G801413W691 HARNESS 13P(2008)-5P(A1253HA)+4P(A1253HA 2nd source

0Q1G1030 6120 SCREW
A15T0282201 BKT-VESA-BTM
A33E0788ADTB1L0100 KEY COVER
A33E0789AFL 1L0100 KEY BUTTON
A34E1580ADT 6L0130 REAR COVER_32
A34E1581ADT 1L0100 STAND HINGE -A2_32
Q12G6082 1 FOOT PAD
Q33E0379 ED 1C0100 LENS_POWER_A2
Q33E0380 1 1C0100 POWER LENS
Q34E7081AFLF2L0130 BEZEL_TV32W-10A-CITA
Q35T0071BBV 1L0100 DECO_BEZEL_TV 32"
Q36T 600 35 2 GP NONWOVEN FABRIC
Q37T0204011ADT0002 2K10-32 HINGE
Q44T3231 21 28 EVA WASHER
Q52G6025 13 20 MYLAR

BATTERY FOR LR03（KH）2S/G

LC32R03 E32AGKNDW3A1NNX

87

点位 组件 对象描述 备注

052G 1186 SMALL TAPE
052G 1211 B CONDUCTIVE TAPE 85MM *40MM *0.09MM
052G 2191 A PAPER TAPE
089G214A18N IS POWER CORD 1.8M FA37B201312180TP

ECN701 095G801313DX04 HARNESS 13P-12P 140MM
ECN701 095G801313XX04 HARNESS 13P-12P 140MM 2nd source
ECN904 095G801314DX01 HARNESS 13P-14P 280MM
ECN904 095G801314XX01 HARNESS 13P-14P 280MM 2nd source
ECN601 095G8014 4DX01 HARNESS 4P(2008)-B&R+B&W 750/550MM
ECN601 095G8014 4WX01 HARNESS 4P(2008)-B&R+B&W 750/550MM 2nd source
ECN405 095T8018 3DH57 HARNESS 30P-30P 380MM

098GRABD1NCACD REMOTE CONTROL AOC 90-364100T4402
0M1G 930 6 47 CR3 SCREW
0M1G 940 8 47 CR3 SCREW
0M1G 940 8125 SCREW M4X8
0M1G1730 6120 SCREW,42-D020523
0M1G1730 10120 SCREW 42A9930016
0M1G1740 8125 SCREW
0Q1G 930 8 47 CR3 SCREW
0Q1G 940 12 47 CR3 SCREW
0Q1G 940 16 47 CR3 SCREW
705TQ949001 COMSUPTIVE ASS'Y-A4
705TXA33J08 PLASTIC ASS'Y 32
A33E0788ADTB1L0100 KEY COVER
A33E0789AFL 1L0100 KEY BUTTON
Q12G6082 1 FOOT PAD
705TXA34J23 BEZEL ASS'Y 32
001G6021 1 SCREW
0Q1G1030 6120 SCREW
Q33E0379 ED 1C0100 LENS_POWER_A2
Q33E0380 1 1C0100 POWER LENS
Q34E7081AFLF2L0130 BEZEL_TV32W-10A-CITA
Q35T0071BBV 1L0100 DECO_BEZEL_TV 32"
Q44T3231 21 27 EVA WASHER
Q44T3231 21 28 EVA WASHER
705TXA34J24 REAR COVER ASS'Y 32
A15T0282201 BKT-VESA-BTM
A34E1580ADT 6L0230 REAR COVER_32
Q36T 600 35 2 GP NONWOVEN FABRIC
Q40G2010 42101 I/O LABLE
Q52G6025 13 20 MYLAR
750TAG320NCA12N001 LCD LC320WXN-SCA1 NJ LGD
ADTVA2412XZ1 ADAPTER BOARD
040G 45762412B CBPC LABEL
009G6005 1 GROUND TERMINAL

CN902 033T327813D CONNECTOR

88

CN904 033T327813D CONNECTOR

IC950 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4
IC951 056G 139 9 IC EL817M(X) PHOTOCOUPLER DIP-4

IC9101 056G 139 3B IC PC123Y82FZ0F

IC902 056T 379121 IC STR- A6069H DIP-8

Q921 057G 761 7 KTD1691P

Q921 057G 761502 SMALLTRAN BTD1805AD3 5A 60V TO-126ML

C901 063G 10747410V NO-SUGGEST 0.47UF 275VAC ARCO

C904 063G 10747410V NO-SUGGEST 0.47UF 275VAC ARCO

C904 063G107K474 EM CAP X2 470NF 10% 305V BULK ( B )

C901 063G107K474 EM CAP X2 470NF 10% 305V BULK ( B )

C904 063G107K474 UM CAP X2 470NF 10% 275VAC MPX

C901 063G107K474 UM CAP X2 470NF 10% 275VAC MPX

C910 063G210K105BCN MPP CAP 1UF 520V P=15MM
C9110 063G211J333 5C C 0.033UF 5% 1000V P=15MM
C9110 063G211J333 5C 10 0.033UF 5% 1000V P=15MM R75QI2330500-J

C925 065G 1K103 2E6921 CAP CER 10NF K 1KV Y5U
C9111 065G 3J1006ET GP 10PF 5% SL 3KV TDK

C906 065G306K4712B3 Y1 CAP 470PF +-10% 250VAC CD SERIES

C905 065G306K4712B3 Y1 CAP 470PF +-10% 250VAC CD SERIES

C906 065G306K4712BM Y1 CAP 470PF +-10% 250V AC KX

C905 065G306K4712BM Y1 CAP 470PF +-10% 250V AC KX

C924 065G306M1022BM Y1.CAP.001UF 250VAC MURATA

C902 065G306M6812B3 Y1 CAP 680PF +-20% 250VAC CD SERIES

C903 065G306M6812B3 Y1 CAP 680PF +-20% 250VAC CD SERIES

C920 067G 42Z10115H EC 100UF M 450V 18*40MM

C920 067G 42Z10115K EC 100UF M 450V 18*40MM

C953 067G204V331 3K CS CAP 330UF 16V 10*12 MM

C953 067G204V331 3L CS CAP 330UF 16V 10*12.5 MM

C954 067G215A4713HV EC 470UF M 16V 10*13MM

C954 067G215A4713KV EC 470UF 16V M 10*12MM
C9125 067G215A4714HV EC 470UF M 25V 10*16MM
C9125 067G215A4714KV EC 470UF 25V 10*16MM
C9124 067G215P1024KV LOW ESR EC 1000UF M 25V 12.5*20MM
C9120 067G215P1026KV LOW ESR EC 1000UF M 35V 12.5*25MM
C9121 067G215P1026KV LOW ESR EC 1000UF M 35V 12.5*25MM
C9122 067G215P4716KV LOW ESR EC 470UF M 35V 10*20MM

L902 073G 174106 L LINE FILTER 13MH LF-1008108
L901 073G 174106 L LINE FILTER 13MH LF-1008108
L901 073G 174106 DN LINE FILTER 13MH LK.TF032.A20
L902 073G 174106 DN LINE FILTER 13MH LK.TF032.A20
L906 073G 174165 L PFC CHOKE 310UH 5% CC-012978
L906 073G 174165 N PFC CHOKE 310UH 5% YUVA-1303

L950 073G 253 91 H IND CHOKE 3.5UH+-10% DADONG
L9102 073G 253 91 H IND CHOKE 3.5UH+-10% DADONG
L9102 073G 253 91 L CHOKE BY LI TA

L950 073G 253 91 L CHOKE BY LI TA

89

L9101 073G 253150 L CHOKE COIL 3.0UH +-10%

T903 080GL32P 26 N X'FMR 530UH 6% YUVA-1366
T901 080GL52T 5 L2 X'FMR 1.0MH
T901 080GL52T 5 N2 X'FMR 1.0MH 10%
F901 084G 41 11 B FUSE 5A 250V LEAD TYPE
F901 084G 41 11 C FUSE 5A 250V UDA-A 005(PF)

F901 084G 41 11 L FUSE 5A 250V
CN901 087G 501 47 S AC SOCKET 2PIN + 2 SCREW HOLE
CN901 087G 501 47 DL AC SOCKET 2PIN + 3 SCREW HOLE

D904 093G 52 70 1 1N5408-E(SHORT PIN) 3A/1000V DO-201AD

0Q1G 340 8106 CR3 SCREW
705TXA57005 Q9102 ASS'Y

Q9102 057G 667 52 FET 2SK4100LS-T 7A/650V TO-220FI(LS)
Q9102 057G 667914 MOSFET TK10A50D TO220

090G6084 1 HEAT SINK
0M1G1730 8120 SCREW
705TXA57006 Q9101 ASS"Y

Q9101 057G 667 52 FET 2SK4100LS-T 7A/650V TO-220FI(LS)
Q9101 057G 667914 MOSFET TK10A50D TO220

090G6084 1 HEAT SINK
0M1G1730 8120 SCREW
705TXA57007 Q901 ASS'Y

Q901 057G 611904 MOSFET AOTF12N60 TO-220F

Q901 057G 667 49 FET 2SK4086LS-MG5 TO-220FI(LS)

0M1G1730 10120 SCREW 42A9930016
Q90T0125 2 HEAT SINK
705TXA61002 NR901 ASS'Y

NR901 061G 58030 WL RST NTCR 3 OHM +-20% 5A THINKING

Q09T 203 8 PIN FOR NR901
705TXA93006 BD901 ASS'Y

BD901 093G 50460 34 BRIDGE KBJ608G 6A/800V KBJ
BD901 093G 50460925 BRIDGE DIODE TS6B06G-01 KBJ

0M1G1730 10120 SCREW 42A9930016
Q90T0125 2 HEAT SINK
705TXA93007 D9111 ASS'Y
090G6084 1 HEAT SINK

D9111 093G 60298 DIODE SBT15006JST 15A/60V TO-220ML(LS)
D9111 093G 60931 DIODE MBRF1560CT ITO-220AB

0M1G1730 8120 SCREW
705TXA93008 D902 ASS'Y
090G6084 1 HEAT SINK

D902 093G 52905 DIODE FMNS-1106S TO-220

0M1G1730 8120 SCREW
705TXA93009 D950 ASS'Y
090G6084 1 HEAT SINK

D950 093G 60298 DIODE SBT15006JST 15A/60V TO-220ML(LS)

D950 093G 60931 DIODE MBRF1560CT ITO-220AB

90

0M1G1730 8120 SCREW
705TXA93010 D9110 ASSY

D9110 093G 60324 DIODE FMWN-2308 30A/80V TO-220

0M1G1730 8120 SCREW
Q90T0125 2 HEAT SINK

IC901 056G 379172 IC LD7591GS SOP-8
IC970 056G 379176 IC SSC9512S-TL SOP-18

Q950 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q970 057G 417 4 PMBS3904/PHILIPS-SMT(04)

R9120 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA

R913 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA

R932 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA

R9120 061G0805100 JY RST CHIPR 10OHM +- 5% 1/8W YEGAO

R913 061G0805100 JY RST CHIPR 10OHM +- 5% 1/8W YEGAO

R932 061G0805100 JY RST CHIPR 10OHM +- 5% 1/8W YEGAO

R981 061G08051000FT RST CHIPR 100 OHM +-1% 1/8W

R981 061G08051000FY RST CHIPR 100 OHM +-1% 1/8W YAGEO

R983 061G08051001FT RST CHIP 1K 1/8W 1%

R982 061G08051001FT RST CHIP 1K 1/8W 1%

R956 061G08051001FT RST CHIP 1K 1/8W 1%

R955 061G08051001FT RST CHIP 1K 1/8W 1%

R9108 061G08051001FT RST CHIP 1K 1/8W 1%
R9108 061G08051001FY RST CHIP 1K 1/8W 1%

R955 061G08051001FY RST CHIP 1K 1/8W 1%

R956 061G08051001FY RST CHIP 1K 1/8W 1%

R982 061G08051001FY RST CHIP 1K 1/8W 1%

R983 061G08051001FY RST CHIP 1K 1/8W 1%

R963 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R918 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R914 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA

R9124 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R9123 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R9123 061G08051002FY RST CHIP 10K 1/8W 1%
R9124 061G08051002FY RST CHIP 10K 1/8W 1%

R914 061G08051002FY RST CHIP 10K 1/8W 1%

R918 061G08051002FY RST CHIP 10K 1/8W 1%

R963 061G08051002FY RST CHIP 10K 1/8W 1%

R9133 061G08051201FF RST CHIPR 1.2KOHM +-1% 1/8W FENGHUA
R9133 061G08051201FT RST CHIP R 1K2 1/8W +/-1%

R923 061G08051302FF RST CHIPR 13KOHM +-1% 1/8W FENGHUA

R923 061G08051302FY RST CHIP 13K 1/8W 1%

R9139 061G08051961FF RST CHIPR 1.96KOHM +-1% 1/8W FENGHUA
R9139 061G08051961FY RST CHIP 1K96 1/8W 1%
R9134 061G0805202 JF RST CHIPR 2KOHM +-5% 1/8W FENGHUA

R912 061G0805202 JF RST CHIPR 2KOHM +-5% 1/8W FENGHUA

R912 061G0805202 JT RST CHIP 2K 1/8W 5% TZAI YUAN

R9134 061G0805202 JT RST CHIP 2K 1/8W 5% TZAI YUAN

91

R9137 061G08052052FF RST CHIPR 20.5KOHM +-1% 1/8W FENGHUA
R9137 061G08052052FT RST CHIP 20K5 1/8W 1%
R9105 061G08052702FF RST CHIPR 27KOHM +-1% 1/8W FENGHUA
R9105 061G08052702FY RST CHIP 27K 1/8W 1%
R9109 061G0805331 JT RST CHIP 330R 1/8W 5% TZAI YUAN
R9109 061G0805331 JY RST CHIPR 330OHM +-5% 1/8W YAGEO

R917 061G0805433 JF RST CHIPR 43KOHM +-5% 1/8W FENGHUA

R917 061G0805433 JT RST CHIPR 43K +-5% 1/8W TZAI YUAN

R917 061G0805433 JY RST CHIPR 43KOHM +-5% 1/8W YAGEO

R9121 061G0805470 JF RST CHIPR 47OHM +-5% 1/8W FENGHUA
R9122 061G0805470 JF RST CHIPR 47OHM +-5% 1/8W FENGHUA
R9122 061G0805470 JT RST CHIPR 47OHM +-5% 1/8W TZAI YUAN
R9121 061G0805470 JT RST CHIPR 47OHM +-5% 1/8W TZAI YUAN
R9135 061G08054701FF RST CHIPR 4.7KOHM +-1% 1/8W FENGHUA
R9135 061G08054701FT RST CHIP 4K7 1/8W 1%
R9136 061G08055101FF RST CHIPR 5.1KOHM +-1% 1/8W FENGHUA
R9138 061G08055102FF RST CHIPR 51KOHM +-1% 1/8W FENGHUA

R906 061G08055603FF RST CHIPR 560KOHM +-1% 1/8W FENGHUA

R906 061G08055603FY RST CHIP 560K 1/8W 1%

R958 061G08057501FY RST CHIP R 7K5 1/8W +/-1%

R957 061G08058201FF RST CHIPR 8.2KOHM +-1% 1/8W FENGHUA

R957 061G08058201FY RST CHIP 8K2 1/8W 1%

JR907 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR906 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR905 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR904 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR903 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR902 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR901 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
JR901 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR902 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR903 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR904 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR905 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR906 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR907 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

R960 061G12061001FF RST CHIPR 1KOHM +-1% 1/4W FENGHUA

R939 061G12061002FF RST CHIPR 10KOHM +-1% 1/4W FENGHUA

R961 061G12061002FF RST CHIPR 10KOHM +-1% 1/4W FENGHUA

R939 061G12061002FT RST CHIPR 10KOHM +-1% 1/4W 1206

R961 061G12061002FT RST CHIPR 10KOHM +-1% 1/4W 1206

R994 061G12061003FF RST CHIPR 100KOHM +-1% 1/4W FENGHUA

R993 061G12061003FF RST CHIPR 100KOHM +-1% 1/4W FENGHUA

R992 061G12061003FF RST CHIPR 100KOHM +-1% 1/4W FENGHUA

R991 061G12061003FF RST CHIPR 100KOHM +-1% 1/4W FENGHUA

R991 061G12061003FY RST CHIPR 100KOHM +-1% 1/4W YAGEO

R992 061G12061003FY RST CHIPR 100KOHM +-1% 1/4W YAGEO

92

R993 061G12061003FY RST CHIPR 100KOHM +-1% 1/4W YAGEO

R994 061G12061003FY RST CHIPR 100KOHM +-1% 1/4W YAGEO

R954 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA

R954 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN

R904 061G12061504FF RST CHIPR 1.5MOHM 1% 1/4W FENGHUA

R905 061G12061504FF RST CHIPR 1.5MOHM 1% 1/4W FENGHUA

R909 061G12061504FF RST CHIPR 1.5MOHM 1% 1/4W FENGHUA

R904 061G12061504FY RST CHIP 1M5 1/4W 1%

R905 061G12061504FY RST CHIP 1M5 1/4W 1%

R909 061G12061504FY RST CHIP 1M5 1/4W 1%

R9102 061G12062004FF RST CHIPR 2MOHM 1% 1/4W FENGHUA
R9103 061G12062004FF RST CHIPR 2MOHM 1% 1/4W FENGHUA
R9104 061G12062004FF RST CHIPR 2MOHM 1% 1/4W FENGHUA
R9102 061G12062004FY RST CHIP R 2MOHM 1/4W +/-1%
R9103 061G12062004FY RST CHIP R 2MOHM 1/4W +/-1%
R9104 061G12062004FY RST CHIP R 2MOHM 1/4W +/-1%

R911 061G1206203 JF RST CHIPR 20KOHM +-5% 1/4W FENGHUA

R911 061G1206203 JT RST CHIPR 20KOHM +-5% 1/4W TZAI YUAN

R907 061G1206229 JF RST CHIPR 2.2 OHM +-5% 1/4W FENGHUA

R908 061G1206229 JF RST CHIPR 2.2 OHM +-5% 1/4W FENGHUA

R931 061G1206229 JF RST CHIPR 2.2 OHM +-5% 1/4W FENGHUA

R931 061G1206229 JY RST 1206 2.2R 5% 1/4W

R908 061G1206229 JY RST 1206 2.2R 5% 1/4W

R907 061G1206229 JY RST 1206 2.2R 5% 1/4W

R9106 061G12062401FF RST CHIPR 2.4KOHM +-1% 1/4W FENGHUA
R9132 061G1206242 JF RST CHIPR 2.4KOHM +-5% 1/4W FENGHUA
R9132 061G1206242 JT RST CHIPR 2.4KOHM +-5% 1/4W TZAI YUAN

R903 061G1206334 JF RST CHIPR 330KOHM +-5% 1/4W FENGHUA

R902 061G1206334 JF RST CHIPR 330KOHM +-5% 1/4W FENGHUA

R901 061G1206334 JF RST CHIPR 330KOHM +-5% 1/4W FENGHUA

R903 061G1206334 JT RST CHIPR 330 KOHM +-5% 1/4W TZAI YUAN

R902 061G1206334 JT RST CHIPR 330 KOHM +-5% 1/4W TZAI YUAN

R901 061G1206334 JT RST CHIPR 330 KOHM +-5% 1/4W TZAI YUAN

R952 061G1206470 JF RST CHIPR 47 OHM +-5% 1/4W FENGHUA

R950 061G1206470 JF RST CHIPR 47 OHM +-5% 1/4W FENGHUA

R950 061G1206470 JT RST CHIPR 47 OHM +-5% 1/4W TZAI YUAN

R952 061G1206470 JT RST CHIPR 47 OHM +-5% 1/4W TZAI YUAN

R915 061G1206471 JF RST CHIPR 470 OHM +-5% 1/4W FENGHUA

R915 061G1206471 JT RST CHIPR 470 OHM +-5% 1/4W TZAI YUAN

R910 061G1206475 JF RST CHIPR 4.7 MOHM +-5% 1/4W FENGHUA

R910 061G1206475 JT RST CHIPR 4.7 MOHM +-5% 1/4W TZAI YUAN

R9130 061G1206512 JF RST CHIPR 5.1KOHM +-5% 1/4W FENGHUA
R9131 061G1206512 JF RST CHIPR 5.1KOHM +-5% 1/4W FENGHUA
R9130 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN
R9131 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN

R920 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA

R921 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA

93

R922 061G12066803FF RST CHIPR 680KOHM +-1% 1/4W FENGHUA

R922 061G12066803FY RST CHIPR 680KOHM +-1% 1/4W YAGEO

R921 061G12066803FY RST CHIPR 680KOHM +-1% 1/4W YAGEO

R920 061G12066803FY RST CHIPR 680KOHM +-1% 1/4W YAGEO

C9107 065G080510231J Y CAP CHIP 0805 1N 50V NPO +/-5%
C9101 065G080510231J Y CAP CHIP 0805 1N 50V NPO +/-5%

C909 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%

C913 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R

C913 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R

C978 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C9105 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9123 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9126 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C934 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C947 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C956 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C908 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C9112 065G080510522K M CAP 0805 1UF 10% 25V X7R
C9113 065G080510522K M CAP 0805 1UF 10% 25V X7R

C915 065G080522131J F CAP CHIP 0805 220PF J 50V NPO

C915 065G080522131J Y CAP CHIP 0805 220P 50V NPO +/-5%

C921 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%

C955 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%

C9127 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%
C9106 065G080522522K Y CAP CHIP 0805 2U2 25V X7R +/-10%

C917 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10%

C918 065G080547432K A CAP CHIP 0805 0.47UF K 50V X7R

C918 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R

C912 065G080556031J F CAP CHIP 0805 56PF J 50V NPO

C9108 065G080568131J Y CAP CHIP 0805 680P 50V NPO +/-5%

C951 065G1206102B2K 3 CER 1206 1N 630V X7R 10%

C950 065G1206102B2K 3 CER 1206 1N 630V X7R 10%

C950 065G1206102B2K T CAP CHIP1206 1000PF K 630V X7R

C951 065G1206102B2K T CAP CHIP1206 1000PF K 630V X7R

C9102 065G120610432K F CAP CHIP 1206 0.1UF K 50V X7R
C9102 065G120610432K Y CER 1206 100N 50V X7R +/-10%

CN901 006G 31500 GP EYELET

T903 006G 31502 1.5MM RIVET

IC952 056G 158 10 T IC AS431AZTR-E1 TO-92 BY AAC

IC9102 056G 158 10 T IC AS431AZTR-E1 TO-92 BY AAC

R948 061G 30310852T GP FUSE RESISTOR

R916 061G152M10852T SY RST MOF 0R1 5% 2W

C9109 065G 1K101 2T6921 CAP CER 100PF 1KV K Y5P

C932 065G 2K102 2T6921 CAP CER 1000PF 2KV K Y5P

C9104 067G 3154797KT EC 4.7UF 50V M 5*11MM
C9103 067G215A1007KT EC 10UF 50V M 5*11MM

C931 067G215A1017KT EC 100UF 50V 8*12MM

94

C933 067G215Y1007KT KY50VB10M-TP5 5*11.5

C937 067G215Y1007KT KY50VB10M-TP5 5*11.5

C914 067G215Y4707KT EC 47UF 20% 50V 6.3*11MM

FB902 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A
FB901 071G 55 26 S BEAD 3.5*6MM 127 OHM 25% LB3.5¡Á0.8¡Á6-2

ZD9101 093G 3916652T MTZJ15B (13.89-14.62)

ZD930 093G 3916652T MTZJ15B (13.89-14.62)
ZD951 093G 3916652T MTZJ15B (13.89-14.62)
ZD970 093G 3917152T TZJ T-72 30B

D901 093G 52 1552T DIODE 1N4007-E3/73 1A/1000V DO-41

D931 093G 5250S52T DIODE AU02Z-V1 SANKEN

D9102 093G 64 1152T 1N4148
D9101 093G 64 1152T 1N4148

D903 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP

D905 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP

D951 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP

D971 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP

D9103 093G1100 952T UF4007

D930 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41

FB903 095G 90 23 JUMPER WIRE

J901 095G 90 23 JUMPER WIRE
J902 095G 90 23 JUMPER WIRE
J903 095G 90 23 JUMPER WIRE
J904 095G 90 23 JUMPER WIRE
J923 095G 90 23 JUMPER WIRE
J922 095G 90 23 JUMPER WIRE
J921 095G 90 23 JUMPER WIRE
J920 095G 90 23 JUMPER WIRE
J924 095G 90 23 JUMPER WIRE
J925 095G 90 23 JUMPER WIRE
J926 095G 90 23 JUMPER WIRE
J927 095G 90 23 JUMPER WIRE
J919 095G 90 23 JUMPER WIRE
J918 095G 90 23 JUMPER WIRE
J917 095G 90 23 JUMPER WIRE
J916 095G 90 23 JUMPER WIRE
J908 095G 90 23 JUMPER WIRE
J909 095G 90 23 JUMPER WIRE
J910 095G 90 23 JUMPER WIRE
J911 095G 90 23 JUMPER WIRE
J912 095G 90 23 JUMPER WIRE
J907 095G 90 23 JUMPER WIRE
J906 095G 90 23 JUMPER WIRE
J905 095G 90 23 JUMPER WIRE
J913 095G 90 23 JUMPER WIRE
J914 095G 90 23 JUMPER WIRE
J915 095G 90 23 JUMPER WIRE

95

E715 715G4088P01W30003H TV POWER-PCB SS CEM-1 1.6X170X200MM

E715 715G4088P01W30003M TV POWER-PCB SS CEM-1 1.6X170X200MM 2nd source

040G 45762412B CBPC LABEL
CN701 033T327812D WAFER 12P PLUG
CN601 033T3802 4B Y CONNECTOR
CN401 033T380213B Y L CONNECTOR 13P 2.0

U106 053T 44501 HD SAW FILTER HD-BF35 A3 DC
C619 067G215P4714PV CAP 105C 470UF M 25V
C606 067G215P4714PV CAP 105C 470UF M 25V
C718 067G215V471 6N CAP 105C 470UF M 35V
C602 067T215P4716AV NO-SUGGEST CAP 105C 470UF M 35V

L602 073G 253158 H CHOKE COIL 22UH+/-25%

L601 073G 253158 H CHOKE COIL 22UH+/-25%
CN111 088G 78 1377C RCA JACK 1*5 G/B/R/W/R WITH SW 10.5MM
CN121 088G 78 1378C RCA JACK 1*3 Y/W/R V/T 10.5MM
CN123 088G 78 1378C RCA JACK 1*3 Y/W/R V/T 10.5MM
CN602 088G 30211K PHONE JACK 7PIN
CN102 088G 30269C PHONE JACK 3.5MM 3P GREEN V/T 10.5MM
CN103 088G 352 2 YG USB CONNECTOR USB4-01
CN103 088G 352 21CL USB CONN TYPE A
CN101 088G353A15FASC D-SUB 15PIN FEMALE VERTICAL SCREWED
CN122 088T 78 13A39 YG S JACK + RCA JACK 1*3 Y/W/R RCA-333S-010

TU101 094G PALALL20L TUNER PAL F41CT-2-E

CN405 311GW200C30AAL WAFER 2.0MM 2*15P

C105 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C121 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C623 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C624 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C625 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C714 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C721 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C131 067G 3054704CT EC 47UF 25V KM 5X11MM
C707 067G 3054713PT NO-SUGGEST CAP 105C 470UF M 16V 8*12
C130 067G 5153313CT EC 330UF 16V GF 8*12MM
U701 056G 379 92 IC G5627F11U SOP-8(FD)
U702 056G 379 92 IC G5627F11U SOP-8(FD)
U401 056G 562F09 SCALER RTD2674U-GR LQFP216
U704 056G 563143 IC G1084T43UF TO-252
U703 056G 563152 IC G1117T43UF TO-252
U105 056G 563519 IC G965-25ADJPIUF 1.8A SOP-8
U402 056G 615921 G IC H5DU2562GTR-FAC TSOPII-66
U602 056G 616518 IC R2A15112FP HTQFP48
U104 056G 659501 USB IC BD8012FVJ TSSOP-B8J
U101 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L
U102 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L
U403 056T1133935 IC MX25L3205DMI-12G SOP-16 REL-HDCP
Q706 057G 417 4 PMBS3904/PHILIPS-SMT(04)

96

Q705 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q704 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q703 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q701 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q603 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q602 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q507 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q504 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q406 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q405 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q105 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q104 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q102 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q103 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q106 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q401 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q402 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q601 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q702 057G 763 79 FET AO4449 -7A/-30V SOIC-8

Q404 057G 763 79 FET AO4449 -7A/-30V SOIC-8
RP406 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP407 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP408 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP409 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP410 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP401 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP402 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP403 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP404 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP405 061G 1262208JY RST CHIP AR 8P4R 22 OHM +-5% 1/16W

R4152 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4117 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4118 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4120 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4122 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4123 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4124 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4126 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4128 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4132 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4134 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4136 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4138 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4143 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R119 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R120 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R121 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

97

R138 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R151 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R165 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R166 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R167 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R176 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R185 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R4112 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4114 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R4116 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R728 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R174 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA

R181 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA

R4167 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA

R721 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA

R732 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA

R701 061G06031000FY RST CHIP 100R 1% 1/10W

R720 061G06031000FY RST CHIP 100R 1% 1/10W

R4137 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4139 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4144 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4153 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA

R522 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA

R523 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA

R524 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA

R526 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA

R4135 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4113 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4115 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4119 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4121 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4125 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4127 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4129 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4133 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4188 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R4193 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R512 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R550 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R604 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R617 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R618 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R710 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R712 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R103 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R104 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R125 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

98

R128 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R182 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R191 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R192 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R4176 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R4180 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R611 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R612 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R613 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R614 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R616 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R702 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R703 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R717 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R534 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R112 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R114 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R123 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R4160 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R4202 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R516 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R517 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R531 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R513 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R4203 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R162 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R150 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R149 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R144 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R143 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R137 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R136 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R116 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R115 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R552 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R704 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA

R189 061G06031202FY RST CHIP 12K 1/10W 1%

R4179 061G0603121 JT RST CHIPR 120OHM 1/10W TZAI YUAN
R4205 061G0603124 JF RST CHIPR 120KOHM 5% 1/10W FENGHUA
R4169 061G06031502FF RST CHIPR 15KOHM +-1% 1/10W FENGHUA

R606 061G06031622FF RST CHIPR 16.2KOHM +-1% 1/10W FENGHUA

R608 061G06031622FF RST CHIPR 16.2KOHM +-1% 1/10W FENGHUA

R724 061G06031622FF RST CHIPR 16.2KOHM +-1% 1/10W FENGHUA

R4177 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R4175 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R4174 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R4171 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA

99

R160 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA

R161 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA

R101 061G0603222 JF RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA

R108 061G0603222 JF RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA

R4189 061G0603222 JF RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA

R190 061G0603229 JF RST CHIPR 2.2 OHM 5% 1/10W FENGHUA

R615 061G0603273 JF RST CHIPR 27KOHM 5% 1/10W FENGHUA

R148 061G0603273 JF RST CHIPR 27KOHM 5% 1/10W FENGHUA

R145 061G0603273 JF RST CHIPR 27KOHM 5% 1/10W FENGHUA

R134 061G0603273 JF RST CHIPR 27KOHM 5% 1/10W FENGHUA

R132 061G0603273 JF RST CHIPR 27KOHM 5% 1/10W FENGHUA

R113 061G0603273 JF RST CHIPR 27KOHM 5% 1/10W FENGHUA

R110 061G0603273 JF RST CHIPR 27KOHM 5% 1/10W FENGHUA

R601 061G0603274 JF RST CHIPR 270KOHM 5% 1/10W FENGHUA

R726 061G06033002FY RST CHIP 30K 1/10W 1%

R157 061G0603331 JT RST CHIPR 330OHM 1/10W TZAI YUAN

R607 061G0603333 JF RST CHIPR 33KOHM 1/10W FENGHUA

R727 061G06034702FF RST CHIPR 47KOHM +-1% 1/10W FENGHUA

R4207 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4208 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4212 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4215 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4216 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R514 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R553 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R602 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R706 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R709 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R711 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R714 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R719 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R4195 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R170 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R172 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R193 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R194 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R4150 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4163 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4164 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4165 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4166 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4173 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4178 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4192 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4194 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R708 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA

R707 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA

100
