AOC L32W931, L32W931P SERVICE MANUAL

32″LCD TV AOC L32W931(P)

1

Service

Service

Service

Horizontal Frequency

31.5~48 KHz

TABLE OF CONTENTS

Description Page Description Page

SAFETY NOTICE

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS
AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING
ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

6.2 Power Board………………..…….…….……….....30

6.3 Inverter Board……………..…….…….……….......35

6.4 Key Board………………………..……..………......39

6.5 IR Board………………………….……..………......39

7.Adjustment……..…………………………................40

8.Block Diagram.……...............................................41

9.Schematic Diagram…..…………....………………...43

9.1 Main Board…………………………………...….....43

9.2 Power Board…………..….….……...…………......53

9.3 Inverter Board…………..….……...…………........56

9.4 Key Board……………….……….……………........60

9.5 IR Board……...………….……….…………….......61

10.Exploded View…………………………………..….. 62

11.BOM List……………….………………….………...63

Table of Contents.......……....................................….....1

Important Safety Notice.......................................……...2

Revision List…………………………………………………3

1.General Specification..............................……...…......4

2.Operating Instructions………………...…….……….......5

2.1 The Use of Remote Control…….…..……….……......5

2.2 To Use the Menu….....…………………….……….......6

2.3 How to Connect……..……………….…….……….....10

2.4 Front Panel Control Knobs…….………….………....14

3.Input/Output Specification…………....................…....16

4.Mechanical Instructions…………………….................18

5.Repair Flow Chart ……………………….…….…….....21

6.PCB Layout ………………..…………………....….......28

6.1 Main Board…………..………………...…….………...28

2

Important Safety Notice

Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service
procedures recommended by AOC and described in this service manual are effective methods of performing service
operations. Some of these service operations require the use of tools specially designed for the purpose. The
special tools should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in
order to minimize the risk of personal injury to service personnel. The possibility exists that improper service
methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE
NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in
which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not
recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.
Hereafter throughout this manual, AOC Company will be referred to as AOC.

WARNING

Use of substitute replacement parts, which do not have the same, specified safety characteristics might create
shock, fire, or other hazards.

Under no circumstances should the original design be modified or altered without written permission from AOC.
AOC assumes no liability, express or implied, arising out of any unauthorized modification of design.
Servicer assumes all liability.

FOR PRODUCTS CONTAINING LASER:
DANGER-Invisible laser radiations when open AVOID DIRECT EXPOSURE TO BEAM.
CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
CAUTION -The use of optical instruments with this product will increase eye hazard.

TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S
REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF
THIS SERVICE MANUAL.
Take care during handling the LCD module with backlight unit

-Must mount the module using mounting holes arranged in four corners.

-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.

-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to
the panel.

-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).

-Make certain that treatment person’s body is grounded through wristband.

-Do not leave the module in high temperature and in areas of high humidity for a long time.

-Avoid contact with water as it may a short circuit within the module.

-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may
damage the panel.)

3

Revision List

Note: Check updating contents, please input keywords in the “Find box” of PDF and click “OK”. After that, it will
automatically locate to the updating contents.

Version

Release

Date

Revision Instructions Customer Model TPV Model

A00 Nov.-18-2009 Initial Release L32W931

E329MANS4WACNN

E329MANS4WAENN

A01 Jun.13,2010 Add power board L32W931

E329AANS4WE7NN

E329AANS4WE6NN

A02 Oct.12,2010

Add the new model

L32W931P E329MANC4WA4NN

A03 Jan.20,2011

Add new models, lead in the
new power board[PCB P/N:
715G3770P03W30003S]
Update as below:
PCB Layout
Schematic
BOM

L32W931

E329GANS4WAENN

E329GANS4WACNN

4

1. General Specification

5

2. Operating Instructions

2.1 The Use of Remote Control

6

2.2 To Use the Menus

7

8

9

10

2.3 How to Connect

11

12

13

14

2.4 Front Panel Control Knobs

15

1. HDMI – Conecte la fuente primaria para vídeo digital tal como un reproductor multimedia de DVD. La tira de color
negro en la parte trasera de la TV indica esta conexión.

2. PC/VGA IN (ENTRADA PC/VGA) – Conecte aquí los cables de audio y video de una computadora.

3. ENTRADA DE AV (AV/S-VIDEO) – Conecte la fuente primaria para dispositivos de video compuesto tales como
una videograbadora o una consola de videojuegos. Utilice los conectores blanco y rojo para conectar el audio
externo desde la misma fuente. El señal que está siendo llevado por el cable de Vídeo-S y el conector, y el Vídeo
RCA es el Conector Amarillo.

4. VIDEO COMPONENTE (Y/Pb/Pr con audio L/R) – Conecte aquí la fuente primaria para dispositivos de video
componente como un reproductor de DVD o un decodificador. De izquierda a derecha, utilice rojo para la entrada Pr,
azul para la entrada Pb, verde para la entrada Y, rojo para la entrada de audio derecho (R) y blanco para la entrada
de audio izquierdo (L).

5. TV IN (ENTRADA DE TV) – Conecte a un cable RF para TV.

6. AV O U T ( S A LIDA AV) – Conecte la SALIDA AV Y ENTRADA AV de la otra TV, el señal de modo TV será
mostrado en la otra TV.

16

3. Input/Output Specification

3.1 RGB Signal Input

15 - Pin Color Display Signal Cable

Pin No. Description Pin No. Description

1 Red Video 9 5V
2 Green Video 10 Sync Ground
3 Blue Video 11 Not Used
4 Not Used 12 Serial Data for DDC
5 Ground 13 H-Sync.
6 Red Video Ground 14 V-Sync.
7 Green Video Ground 15 Serial Clock for DDC
8 Blue Video Ground

3.2 HDMI Digital Connector Pin Assignments

Pin No. Description Pin No. Description

1 TMDS Data2+ 2 TMDS Data2 Shield
3 TMDS Data2- 4 TMDS Data1+

5 TMDS Data1 Shield 6 TMDS Data1-

7 TMDS Data0+ 8 TMDS Data0 Shield

9 TMDS Data0- 10 TMDS Clock+
11 TMDS Clock Shield 12 TMDS Clock­13 CEC 14 Reserved (N.C. on Device)
15 SCL 16 SDA
17 DDC/CEC Ground 18 +5V Power
19 Hot Plug Detect

17

3.3 AV/S-Video/Component Video Inputs

3.4 Compatible Mode Table

Dots ×

Lines

Vertical Horizontal Sync Polarity Presence Screen Mode

Frequency Frequency Horizontal Vertical Horizontal Vertical Normal Full

(Hz) (KHz) (4:3) (16:9)

720 × 400

70.1 31.5 NEG POS YES YES YES YES

640 × 480

59.9 31.5 NEG NEG YES YES YES YES

800 x 600

60 37.9 POS POS YES YES YES YES

1024 x 768

60 48.363 NEG NEG YES YES YES YES

1360 x 768

59.79 47.72 NEG POS YES YES YES YES

AV (Composite Video Input)
Video1

Video System NTSC/PAL
Amplitude 1.0 Vpp (including sync)
Impedance 75 ohm terminated

S-Video (Y / C Input)

S-Video2

Video System NTSC/PAL
Y signal amplitude 1.0Vpp (including sync)
C signal amplitude 0.286Vpp
Impedance 75 ohm terminated

Component (Y, Pb/Cb, Pr/Cr Input)

Video3

Video system NTSC/PAL
DTV 480i, 480p, 720p, 1080i
Y signal amplitude 1.0Vpp (including sync )

Pr,(R-Y) / Pb,(B-Y) signal

amplitude

0.7Vpp

Impedance 75 ohm terminated

18

4. Mechanical Instructions

1. Remove the screws to remove the stand base and rear cover.

2. Release connectors.

19

3. Remove the screws to remove main board, power board and bracket.

4. Remove the screws to remove speaker, inverter board and bracket.

20

5. Remove the panel.

6. Remove key board and IR board.

21

5. Repair Flow Chart

1. Sin Energía

Sin Energía (LED “Apagado”)

Revise la entrada AC. ¿La
energía está en “encendida”?

Enciéndalo

Revise IR board y LED

Reemplace IR board

Reemplace main board

Salida Power board =6V?

Reemplace power board

No

Si

No

Si

No

No

22

2. No Enciende

Revise si el receptor IR es normal

(Chequee tecla power del control remoto, si

equipo no responde significa que es anormal).

No inicia (LED naranjo)

Reemplace main board

Reemplace la Power board

No

Si

No

Si

No

No

Reemplace power board

Reemplace key board

Si

Reemplace IR board

Salida Power board＝12V/24V？

Revise si el botón de power funciona

23

3. Imagen Anormal

Imagen Anormal

Reinicie la fuente

Revise la fuente

Revise el panel

Reemplace main board

Reemplace LVDS cable

Reemplace panel

No

No

No

Si

Si

Si

No

No

Revise main board

Entre al menú modo de fábrica para hacer

“EEPROM initial”&“Reset”

Revise el cable LVDS

24

4. Sin Imagen

Revise señal L/P si

está disponible

Reemplace main board

Reemplace power board

Panel Vcc = 12V?

Reemplace the Panel

Sin imagen (LED verde)

Reemplace main board

Revise si la luz del panel está

encendida= “On”

Revise cable LVDS

Vuelva a insertar o
Reemplace el cable LVDS

Reemplace main board

Reemplace Panel

No

Si

Si

No

Si

No

No

Si

Si

No

Si

No

Salida de Power board＝12V/24 V？

Revise si el TV funciona, si enciende/apaga
vía control remoto y botón de power.

25

5. Problema de Sonido

Sin sonido o sonido anormal

Revise si TV está mudo (muted), ajuste el volume o

entre al modo menú para reinicio?

Vuelva a insertar el cable de audio o cambie
la norma del TV

Reemplace cable

Reemplace parlante

Reemplace main board

No

Si

Revise el cable entre los parlantes y main

board si están OK

Revise los valores de Resistencia en el parlante que se encuentran en
las especificaciones (Nota: El valor está marcado en el parlante)

Revise la conexión de la fuente de audio y si norma de

TV es correcto (NTSC-PAL N/M/ISTB)

Si

No

No

Si

No

Entre al modo menú de fábrica para reinicar

No

26

6. Control Remoto - mal funcionamiento

Control remoto - mal funcionamiento

Reemplace batería

Reemplace el control remoto

¿Es anormal la IR board?

Si

No

Reemplace IR board

Reemplace main board

No

Si

No

Si

Use otros controles remotos, ¿funciona?

Revise la batería del control remoto si está
bien colocada o no tiene energía

27

7. OSD es inestable o no trabaja de forma normal

La botonera está conectada correctamente?

Reconecte el key board

Los botones están OK?

Reemplace la función del botón

Si

No

Botonera está OK?

Reemplace la botonera

Reemplace el main board

No

Si

No

No

OSD es inestable o no trabaja normalmente

Entre al modo menú de fábrica para reinicar

Si

28

6. PCB Layout

6.1 Main Board

715G3364M01000004K

29

30

6.2 Power Board

E329MANS4WACNN 715G3332 1

31

32

E329AANS4WE7NN/E329AANS4WE6NN 715G3261P02000003S

33

34

35

6.3 Inverter Board

L32W931

715G3333 1 E329MANS4WACNN

36

L32W931P

715G3690P01000003M

37

Power Board

715G3770P03W30003S

38

39

6.4 Key Board

715G3400 1

6.5 IR Board

715G3394 2

40

7. Adjustment

It’s no need to adjust the white balance for the models.

1. Enter into the factory mode:

Turn on the TV, press MENU key with remote control, then press number key 1 Æ 9 Æ 9 Æ 9. It will achieve the
factory mode.

2. Click on "Autowhite 100%" in the PC and Component modes:

PC mode: TIM = 107; PAT = 42
Component mode: TIM = 311; PAT = 185

41

8. Block Diagram

R2A15112FP

SPEAKER

HDMI A

LVD S

RAIN0/LAIN0

SIF+/-

AIN 37,38,39,40
B, G, R, SOG

HDMI B

HDMI A

AIN 41,42,43,44
SOY, Y, Pb, Pr

AIN50 : CV_Y

DAC_LSR/L

Analog Audio

Analog Audio

Analog Video

Analog Video

Analog Video

HDMI C

AIN56 : CVBS_2

AIN 45,46,47,48
SOY, Y, Pb, Pr

HDMI C

HDMI B

CVBS

SPDIF

SCART2R/L

RAIN2/LAIN2

RAIN3/LAIN3

HDMI C

HDMI B

HDMI A

YPbPr /AUDIO 1

VGA-AUDIO

VGA

SWITCH
74HC4052

TUNER

AUDIO

YPbPr /AUDIO 2

AUDIO MONO

AUDIO

Audio IF

AUDIO1

CVBS1+S-VIDEO

S-VIDEO_Y

AV1_CVBS

AV_OUT

AV1_AUDIO

S-VIDEO_C

AV2_CVBS

CVBS2+AUDIO2

CVBS_OUT

AV2_AUDIO

AUDIO_OUT

SCART1 R/L

SPDIF

APA2176A HEADPHONE

LVDS connector

OUTPUT

Other

IR/LED

Keyp ad

FLASH

VCO 24.576MHz

AIN49 : CVBS_1

EPROM

M2B

AOUT2:CVBS_O

RAIN1/LAIN1

AIN51 : CV_C

AIN57 : T_CVBS

SCL/SDA_A

SCL/SDA_A

SCL/SDA_A

HDMI EDID C

HDMI EDID B

HDMI EDID A

VGA EDID

SDA/SCL

SDA/SCL

SDA/SCL

SDA/SCL

AOC HOTEL

RX/TX

RX/TX

RX/TX

HX6202-A

42

1084-33
U705

+5V_SB

5VSB

VCC3

VCCK18

SC4524B
U707

AO4449
Q705

VCC5

POWER_ON

AP1117D33
U703

AP1117D33
U702

V33_AUD

V33_HDMI_ADC

V33ADC_PLL / AVDD_ADC
VCC3IO / V33LV
HX6202A
U400

VCC18

AP1117D18
U700

VCC3
MX25L4005AM2C
U402

AVDD18 / VDDD18
V18AUD
HX6202A
U400

V33HDMI / VCCADC / VDDA33
HX6202A
U400

VCCK
HX6202A
U400

AP2176
U601
EARPHONE AMP

PI5V33
U107
VIDEO SWITCH

USB boad power
5V,5V TO 3.3v
5v to 1.8V

V33AUD
HX6202A
U400

VCC5

VCC5VCC5

VCC5

5VSB

5VSB

V33_AUD

VCCK

V33ADC_PLL / AVDD_ADC
VCC3IO / V33LV

HX6202A

U400

V33HDMI / VCCADC / VDDA33

V33AUD

AVDD18 / VDDD18 / V18AUD

V12_ADP

+12V_SB

POWER_ON

AO3407
Q701

74HC4052
U600
AUDIO SWITCH

VCC12 BA17808

ZD700

A1117D5.0
U300

VCC8

+24V

+5VT

TUNER
TU100

R2A15112FP
U603

V24_ADP

5VSB

M24C02
U502

M24C02
U506

M24C02­U503

M24C02
U100

PANEL_VCC

AO4449
Q405

M24C32
U401

PANEL

PANEL

PANEL_VCCAO4449

Q405

V12_ADP

5VSB5VSB5VSB5VSB

VCC5

PANEL_ON

PANEL_ON

5VSB

5VSB

USB HOSTMPS2171

U711

POWER_ON

94mA

1.5A

92mA

8mA

160mA

500mA--1.0A

981mA

121mA

400mA

43

9. Schematic Diagram

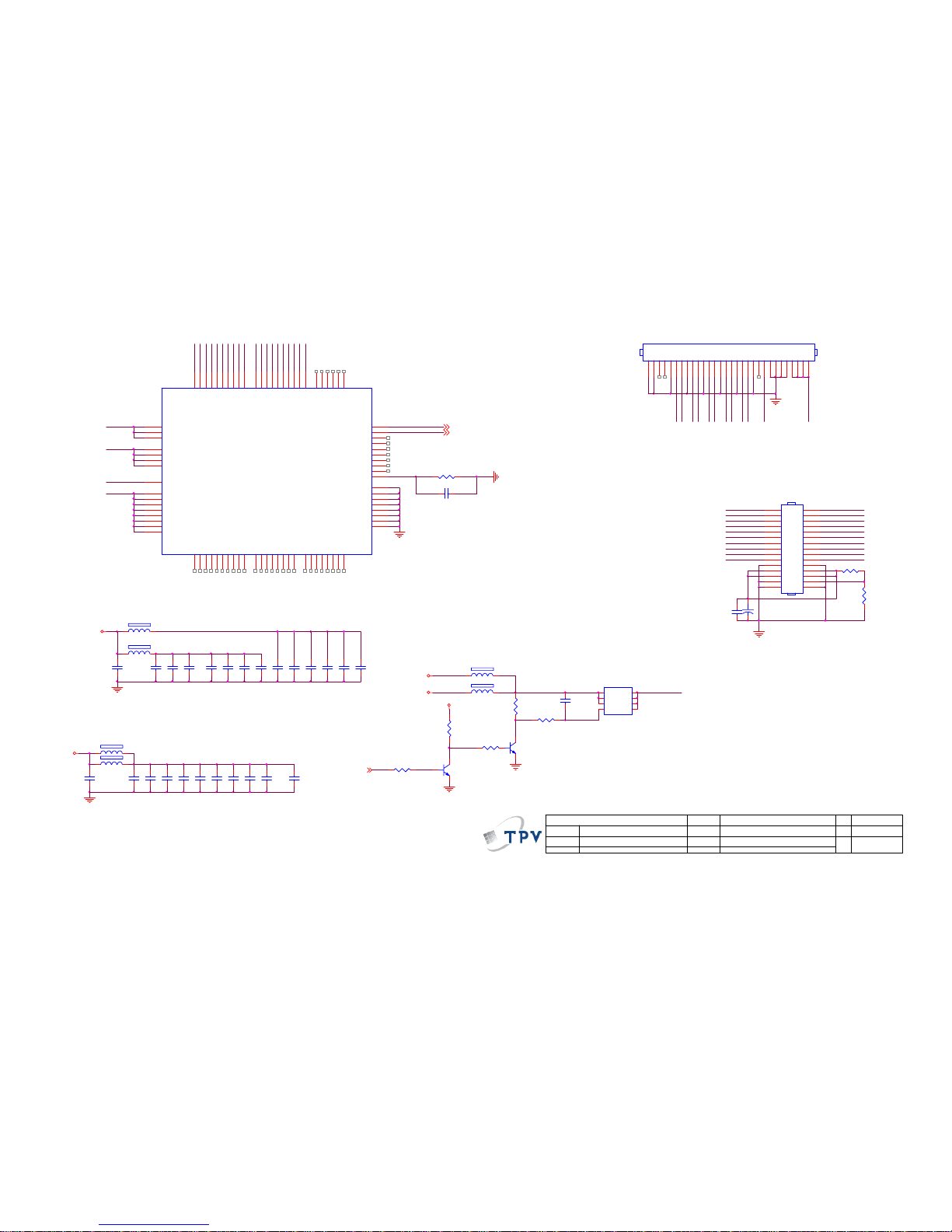

9.1 Main Board

715G3364M01000004K

GND

+5VSB

1

1

VS1
JGK

1

1

VS2
JGK

C750

330NF16V

+24V

5VSB

3.3V StandBy

VCC12

1
2
3
4
5
6

CN701

NC

VCC5

1

1

VS3
JGK

1

1

VS4
JGK

C708

2.2uF/16V

AUDIO MUX 8 V

ADJ(GND)1VOUT2VIN

3

U702

AP1117D33L-13

+

C720

100uF/16V

C722

0.1uF 50V

+

C721

220uF/16V

C719

0.1uF 50V

VCC5

GND

V33_HDMI_ADC

GND

V33_HDMI_ADC

R709
NC

R716

10K OHM 1/16W

R713

NC

R715

4.7K OHM 1/10W

C714
NC 0.22uF/50V

1 2

FB701

300 OHM

R714

22K OHM 1/16W

VIN

3

ADJ

1

VOUT

2

U705

AIC1084-33PM

1
2
3
4
5
6
7
8
9
10
11
12

CN700

CONN

R718

1K OHM 1/16W

1 2

FB702

300 OHM

+

C729

100uF/16V

+

C712

100uF/16V

R701
NC

Q707

PMBS3904

+

C710

470UF35V

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

Q705

AO4449 -7A/-30V

C700

0.1UF16V

+

C736

10uF/50V

R706

1K OHM 1/10W

C713

0.22uF

V33_AUD

Q706

PMBS3904

Q704

PMBS3904

C701

0.1uF 50V

Q700

PMBS3904

1 2

FB703

300 OHM

C733

0.1uF 50V

R717

47K 1/10W 5%

R712

1K OHM 1/10W

R708

1K OHM 1/10W

+

C707
470UF16V

+

C732

10uF/50V

+

C728

100uF/16V

Q708

PMBS3904

C709

0.1uF 50V

C706

0.1uF 50V

R711

4.7K OHM 1/10W

C730

0.1uF 50V

+

C702

220uF/16V

C731

0.1uF 50V

C711

0.1UF16V

R700

1K OHM 1/10W

1 2

FB700

120R/6000mA

R703

4.7K OHM 1/10W

R719
1K OHM 1/16W

R793

220R 1/10W 5%

C727

0.1uF 50V

VCC5

5VSB

5VSB

V12_ADP

GNDP

GNDP

5VSB

V33_AUD

GNDGND

VCC5

GND

GND

GNDP

GNDP

GND

GND

GND

+5VSB

GNDP

AGND

+5VSB

V24_ADP

+5VSB

AGND

AGND

AGND

5VSB

AGND

VCC3

GND

BL_ON 8

PW_ON 8

POWER_ON8,10

BL_ADJ 8

OEM MODE L

Size

Rev

Date

Sheet

of

TPV MODE L

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬隔瓜絪腹

00

Custom

112Wednesday, August 26, 2009

715G3364 G

称爹

<>

01)power

R794

NC 1/10W 5%

C716

0.1uF 50V

+

C717

100uF/16V

C718

0.1uF 50V

+

C715

220uF/16V

GND

V33_AUD

VCC18

GND

Q712
PMBS3904

ADJ(GND)1VOUT2VIN

3

U703

AP1117D33L-13

+

C778

100uF/16V

VCCK18

+

C763

220uF 10V

R736

2K 1/10W 5%

C745 100pF

5VSB

C749

0.0022uF

ZD702

SM340A

Vout = 1.0x(R1+R2)/R2=2.21

C761

0.1uF/16V

L704

4.7uH

+

C746
10uF/50V

C766

220pF

C751

0.1uF/16V

R1

1 2

FB706

300 OHM

D703 LL4148

C752

0.1uF/16V

SW

1

IN

2

ROSC

3

GND

4

BST

8

FB

7

COMP

6

SS/EN

5

TH1

9

U707
SC4524BSETRT

R734

2.2 OHM 1/10W

R725

10K OHM 1/10W

R2

C753

1UF16V

R737

10K 1/10W 5%

C762

22uF

R738

15K OHM 1% 1/10W

+

C779
100uF/16V

C765

0.022uF/25V

R735

68K OHM 1/10W

1

1

H2
JGK

1

1

H1
JGK

1

1

V1
JGK

1

1

H3
JGK

GNDGNDGNDGND

1

1

V2
JGK

GNDGND

1

1

H4
JGK

1.8V StandBy

C780

0.1uF/16V

AUDIO 3.3V

VCC12

VCC8

HDMI/ADC

3.3V

PWR_ON

1 2

ZD700
RLZ9.1B

ADJ/GND1OUTPUT2INPUT

3

U700

AZ1117D-1.8-E1

+12V

+24V

+5VSB

BL_ON1

1 2

FB704

NC 300 OHM

+12V

SYS_PW
Normal: Low
Stand_By: High

5V SW

44

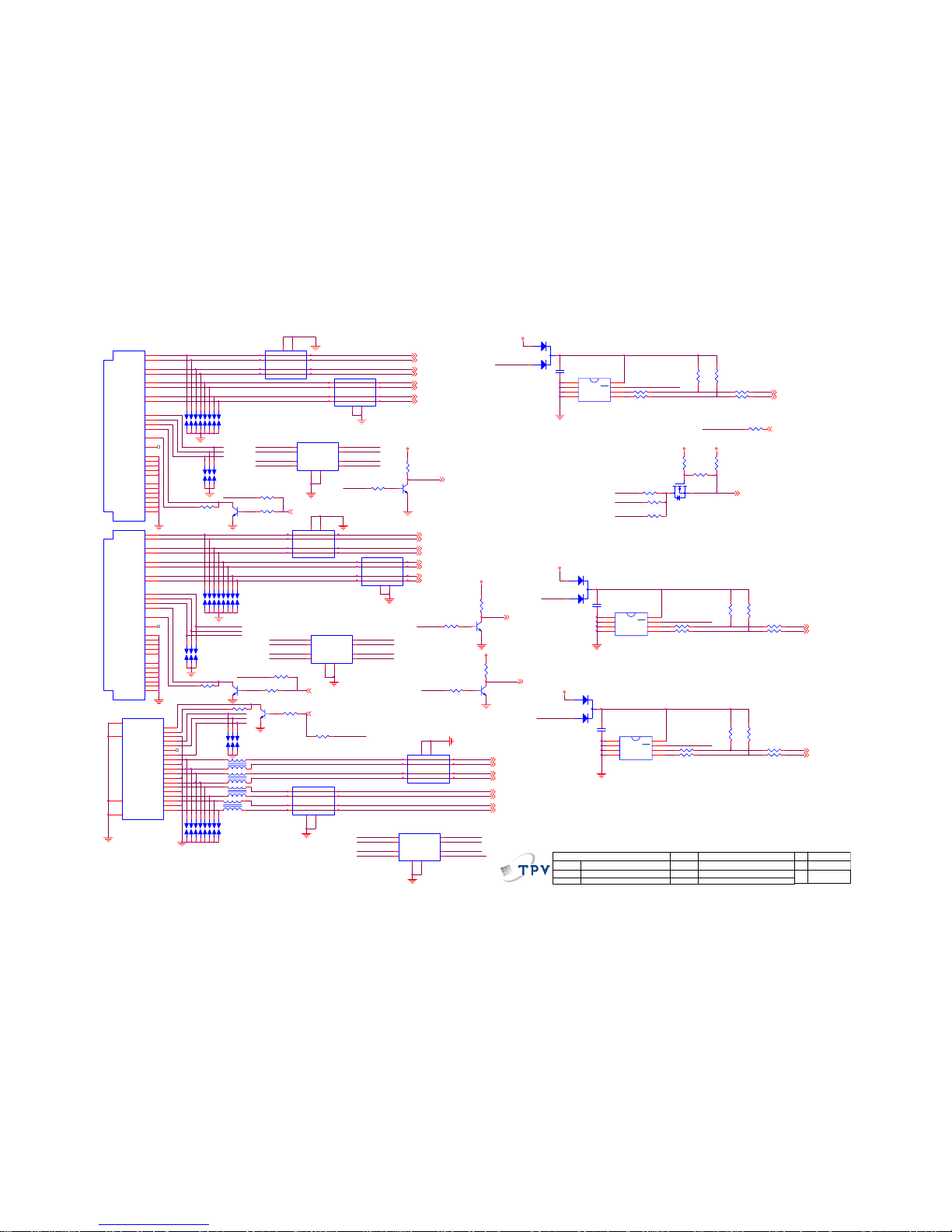

DDCA_SDA

DDCA_SCL

DDCA_SCL

DDCA_SDA

DDCB_SDA

HDMIB_5VIN

DDCB_SCL

DDCB_SDA
HDMIB_5VIN

HDMIB_CEC HDMIB_CEC

DDCB_SCL

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U511 NC RC lamp0524P.TCT

D501
BAT54C

R508
27K OHM 1/16W

12

SP513 NC

12

SP528 NC

E0

1

E1

2

E2

3

VSS4SDA

5

SCL

6

WC

7

VCC

8

U503

NC/M24C02-WD W6P

R501
10K OHM 1/16W

R506 0R05 1/16W

12

SP515 NC

R511

10K OHM 1/16W

C501

0.22uF16V

TMDSD 0+

7

TMDSD 0-

9

TMDSD 1+

4

TMDSD 1-

6

TMDSD 2+

1

TMDSD 2-

3

SCL

15

DSHLD1

5

VCC5

18

CSHLD0

11

HPD

19

NC

14

DSHLD0

2

CEC

13

SDA

16

DDC_GND

17

DSHLD2

8

TMDSC +

10

TMDSC -

12

SHLD_GND1

20

SHLD_GND2

21

SHLD1

22

SHLD2

23

SHLD3

24

SHLD4

25

SHLD5

26

CN500

HDMI

R507

1K OHM 1/16W

R524

1K OHM 1/16W

R517 0R05 1/16W

12

SP512 NC

12

SP521 NC

Q508

PMBS3904

12

SP501

NC

12

SP510 NC

HDMIC_CEC

R505

47K 1/16W 5%

12

SP518 NC

SHELL1

20

SHELL2

21

D2+

1

D2 Shield

2

D2-

3

D1+

4

D1 Shield

5

D1-

6

D0+

7

D0 Shield

8

D0-

9

CK+

10

CK Shield

11

CK-

12

CE Remote

13

NC

14

DDC CLK

15

DDC DATA

16

GND

17

+5V

18

HP DET

19

SHELL4

23

SHELL3

22

CN502

HDMI

R515

47K 1/16W 5%

Q500

PMBS3904

Q506

PMBS3904

E0

1

E1

2

E2

3

VSS4SDA

5

SCL

6

WC

7

VCC

8

U502

NC/M24C02-WD W6P

12

SP514 NC

TMDSD 0+

7

TMDSD 0-

9

TMDSD 1+

4

TMDSD 1-

6

TMDSD 2+

1

TMDSD 2-

3

SCL

15

DSHLD1

5

VCC5

18

CSHLD0

11

HPD

19

NC

14

DSHLD0

2

CEC

13

SDA

16

DDC_GND

17

DSHLD2

8

TMDSC +

10

TMDSC -

12

SHLD_GND1

20

SHLD_GND2

21

SHLD1

22

SHLD2

23

SHLD3

24

SHLD4

25

SHLD5

26

CN501

HDMI

12

SP507

NC

HDMIA_5VIN

3 2

4 1

L500 NC

12

SP516 NC

12

SP523 NC

12

SP522 NC

12

SP500

NC

12

SP530 NC

HDMI_EDID_WP

12

SP519 NC

12

SP505

NC

R503

47K 1/16W 5%

12

SP517 NC

R525

10K OHM 1/16W

12

SP520 NC

12

SP527 NC

12

SP524 NC

Q501

2N7002

Q504

PMBS3904

12

SP508 NC

R523

10K OHM 1/16W

12

SP526 NC

12

SP525 NC

R518 0R05 1/16W

12

SP509 NC

12

SP506

NC

R500

1K OHM 1/16W

12

SP503

NC

12

SP532 NC

12

SP502

NC

R502

10K OHM 1/16W

R527

10K OHM 1/16W

12

SP529 NC

12

SP531 NC

R516

47K 1/16W 5%

Q505

PMBS3904

R510

1M 1/16W 5%

R526

10K OHM 1/10W

12

SP504

NC

12

SP511 NC

D500
BAT54C

R522

1K OHM 1/16W

C503

0.22uF16V

VCC3

3 2

4 1

L501 NC

5VSB

5VSB

5VSB

5VSB

HA_CEC 6

RXA2+ 6

DDCHA_SDA 6

DDCHA_SCL 6

RXA0- 6

RXA2- 6

RXA1+ 6

RXA0+ 6

RXA1- 6

RXACLK+ 6

HPDC 6

DDCHC_SCL 6

RXACLK- 6

DDCA_SCL

RXC1+ 6

RXC2+ 6

DDCHC_SDA 6

DDCA_SDA

DDCA_SCL

HDMIA_CEC

HDMIA_5VIN

DDCA_SDA

RXCCLK+ 6

RXC0- 6

RXC2- 6

HDMIA_5VIN

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U508 NC RC lamp0524P.TCT

RXCCLK- 6

RXC0+ 6

RXC1- 6

HDMIA_CEC

HPDA 6

HPDB 6

HB5V_DET 8

HA5V_DET 8

3 2

4 1

L502 NC

5VSB

HDMIC_5VIN

DDCC_SDA

DDCC_SCL

HDMIC_5VIN

DDCC_SDA

DDCC_SCL

HDMIC_CEC

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U510 NC RC lamp0524P.TCT

HDMIC_CEC

3 2

4 1

L503 NC

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U507 NC RC lamp0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U509 NC RClamp0524P. TCT

RXB2- 6

RXB1+ 6

RXB2+ 6

RXB1- 6

RXBCLK+ 6

RXB0- 6

RXBCLK- 6

RXB0+ 6

HDMIA_5VIN

R792

100R 1/10W 5%

D502
BAT54C

R530

47K 1/16W 5%

C506

0.22uF16V

E0

1

E1

2

E2

3

VSS4SDA

5

SCL

6

WC

7

VCC

8

U506

NC/M24C02-WD W6P

R531

0R05 1/16W

R528

47K 1/16W 5%

R533

0R05 1/16W

DDCHB_SDA 6

DDCHB_SCL 6

5VSB

HDMIB_5VIN

HDMIB_5V_EEPROM

HDMI_EDID_WP

RXA1­RXA1+

R779

NC 100R 1/16W 5%

R780

NC 100R 1/16W 5%

DDCC_SDA

HDMIC_HPD

RXA2+

OEM MODE L

Size

Rev

Date

Sheet

of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics C o . , Ltd. )

Key Component

絬隔瓜絪腹

00

Custom

212Wednesday , August 26, 2009

715G3364 G

称爹

<>

02)HDMI

HDMIA_5V_EEPROM

DDCB_SDA

DDCB_SCL

R548

47K 1/10W 5%

HDMIA_5VIN

HDMIA_HPD

DDCB_SDA

DDCB_SCL

HDMIB_CEC

HDMIB_HPD

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U500

NC RClam p0524P.TCT

HDMIA_5VIN

HDMIB_5VIN

HDMIB_5VIN

HDMI_EDID_WP

RXA0+

RXACLK­RXACLK+

RXA0-

R776

NC 100 OHM 1/10W

R775

NC 100 OHM 1/10W

R774

0 OHM 1/10W

HDMIC_5VIN

R549

47K 1/10W 5%

R509 0R05 1/16W

R777

NC 100 OHM 1/16W

R778

NC 100 OHM 1/16W

EDID_WP 4,8

HDMIC_5V_EEPROM

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U501

NC RClam p0524P.TCT

HDMIC_CEC

HDMIC_5VIN

HDMI_EDID_WP

DDCC_SCL

HDMIC_5VIN

HDMIB_5VIN

R550

47K 1/10W 5%

DDCC_SDA

Q502

PMBS3904

R512

10K OHM 1/10W

R513

10K OHM 1/16W

HC5V_DET 8

5VSB

HDMIC_5VIN

HDMIA_CEC

R769

0 OHM 1/10W

R770

0 OHM 1/10W

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U504 NC RClam p0524P.TCT

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U505

NC RClam p0524P.TCT

RXC1-

RXCCLK­RXCCLK+

RXC0+

RXC1+

RXC2+

RXC0-

RXC2-

HDMIA_CEC

HDMIB_CEC

DDCC_SCL

45

OEM MOD EL

Size

Rev

Date

Sheet

of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬隔瓜絪腹

00

A4

312Wednesday , August 26, 2009

715G3364 G

称爹

<>

03)Tuner

ADS

C322

NC 0.001uF

ADS

AGC

SDA_TUN ER

C324

NC 100pF/50V

TGN D

C321
NC 0.001uF

L603
NC 1uH

IF+_TUNER

C309

0.01uF/25V

Near to IC

C323
NC 0.001uF

IF-_TUNER

IF+_TUNER

+5VT

SIF- 7

SIF+ 7

2008/11/05

2008/11/05

TV_CVBS

SCL_TUNER

SH301
SH302

SH303
SH304

SH305

SH307

SH306

SH308

SH311

SH309

SH310

SH300

GND

TGN D

1 2

FB300

300 OHM

5V for Tuner

R308

0 OHM 1/16W

R309
18R 1/10W 5%

R311
56R 1/10W 5%

R314

100 OHM 1/10W

+

C308

100uF/16V

+

C300

100uF/16V

R303

47 OHM 1W

NC1NC2Vb3SCL4SDA5AS6NC7NC8NC9NC10IF_SOUND11CVBS12VS13AF_SOUND

14

TH115TH216TH317TH4

18

TU10 0
M15WPP-2PN-E

C312

56pF

C313 0.1uF25V

1

ADJ/GN D

OUTPUT

2

INPUT

3

U300

AZ1117D- 5.0-E1

R310
100 OHM 1/16W

+

C303

100uF/16V

C304

0.1uF 50V

R312
NC

1 2

FB301
300 OHM

C302

0.1uF 50V

C314

220PF50V

R313
0 OHM 1/16W

R316
0 OHM 1/16W

C316

220PF50V

C315

56pF

R315

100 OHM 1/10W

+

C301

100uF/16V

R300
47 OHM 1W

TGND

VCC12

+5VT

TGN D

GND

GNDGND TGND

+5VT

TGND

TGND

TGND

TGND

T_SD A 8T_SC L

8

T_CVBS 6

Add T h ermal Pad

TUN_AUD

7

SIF+7

C307

0.01uF/25V

RF_AGC

IF-_TUNER

R236
R

R237

R

+5VT

VCC3

R235
R

Q503

NC 2N7002

RF_AGC

7

GND

RF_AGC

C325

NC 0.001uF

AGC

IF_AGC 7

TGND

IF_AGC

R326

NC 1K 1/10W 5%

C319

NC 0.1uF /25V

L604

NC 22uH

C326

NC 0.001uF

C318

NC 0.1uF /25V

L605

NC 22uH

C320

NC 0.001uF

R325

NC 1K 1/10W 5%

46

COM1_AUR_O

COM1_AUL_O

Y_GND

Near to IC

Y_GND

PR_GND

C129
NC

C126
NC

Y1_IN

C122 1000pF

R133

100R 1/10W 5%

R130

100R 1/10W 5%

C121
NC

C120
NC

R139

100R 1/10W 5%

12

SP107

NC

R128

100R 1/10W 5%

R129
75R 1/10W 5%

12

SP108

NC

C127
NC

R127

0R05 1/10W 5%

C119

0.047uF

R132

0R05 1/10W 5%

C128

0.047uF

12

SP111

NC

R138

0R05 1/10W 5%

C130

NC

C124

0.047uF

PR1 6

GND

GND

GND

PB1 6

SOY1 6

Y1 6

R135

75R 1/10W 5%

PB1_IN

PB_GND

R140

75R 1/10W 5%

PR1_IN

PB1_IN

VGASDA_IN

VGASCL_IN

BLU_GND

Y1_IN

PB1_IN

C101
1000pF

PR1_IN

VGA_5V

YPbPr2 INPUT

PB_GND

R114

68K 1/10W 5%

R115

68K 1/10W 5%

R100
BEAD 60 OHM

PR_GND

BLU

VGA_VIN

VGA_HIN HSYNC

12

SP103

NC

VSYNC

C105
NC

R102

33R 1/10W 5%

R109

33R 1/10W 5%

12

SP101

NC

R110

2.2K OHM 1/10W

C109
NC

1 2

FB101

80 OHM

1 2

FB103

80 OHM

R104

2.2K OHM 1/10W

HSYNC 6

VSYNC 6

R106
BEAD 60 OHM

R111
BEAD 60 OHM

12

SP112

NC

Y2_Input

COM2_AUR_O

9 +5V(DDC)

3 B_OUT

COM2_AUL_O

R146

5K1 1/10W 5%

C125

4.7uF/16V

R150

100K 1/10W 5%

C123

4.7uF/16V

R136

100K 1/10W 5%

R137

100K 1/10W 5%

15 DDC SCL

12

SP109

NC

R134

5K1 1/10W 5%

C132

4.7uF/16V

R131

5K1 1/10W 5%

12

SP110

NC

12

SP113 NC

2 G_OUT

14 TTL V-S

12

SP114 NC

R143

5K1 1/10W 5%

R149

100K 1/10W 5%

C136

4.7uF/16V

VGA P IN DEFIINITION

8 B_GND

COM1_AUL 7

COM1_AUR 7

COM2_AUR 7

COM2_AUL 7

COM1_AUR_O

COM1_AUL_O

12 DDC SDA
13 TTL H-S

7 G_GND

COM2_AUL_O

COM2_AUR_O

RED

RED_GND

4 NC

11 NC

10 GND

6 R_GND

5 GND

1 R_OUT

VGA_5V

2

1

4

3

6

5

8

7

10

9

CN103

JACK

1 2

FB102

100 OHM

12

SP115

NC

PB2_Input

C115

0.22uF

2

1

4

3

6

5

8

7

10

9

CN102

JACK

D100

BAT54C

VGASCL_IN

R120

10K 1/16W 5%

VGASDA_IN

R123

100R 1/10W 5%

R124
100R 1/10W 5%

R119

10K 1/16W 5%

12

SP106

NC

R118

100K 1/10W 5%

1 2

FB100

100 OHM

1

2

3

CN101

PHONEJ ACK

R117

100K 1/10W 5%

12

SP105

NC

C100 4. 7uF/16V

C113 4. 7uF/16V

OEM MOD EL

Size

Rev

Date

Sheet

of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬隔瓜絪腹

00

A3

412Wednesday , August 26, 2009

715G3364 G

称爹

<>

04)VGA/YP bPr Connector

VGA_AUL 7

VGA_AUR 7

VGA_AUL_O

VGA_AUR_O

R650
75 OHM 1/10W

Y2_IN 10

PR2_IN 10

PB2_IN 10

GND

1

6

2

7

3

8

4

9

5

11

12

13

14

15

10

1716

18 19

CN100
DB15

DB15

R648
75 OHM 1/10W

R649
75 OHM 1/10W

GND

GND

C142
NC

5VSB

C133
NC

C138
NC

C141
NC

R152

0R05 1/10W 5%

R147

0R05 1/10W 5%

C139
NC

R141

0R05 1/10W 5%

C134
NC

VGA_DDCSDA 6

VGA_DDCSCL 6

UART_TX 8

UART_RX 8

12

SP116

NC

PR2_Input

12

SP128

NC

EDID_WP 2, 8

YPbPr1 INPUT

12

SP129

NC

R/G/B : 75 Ohm Trace

GRN_GND

C110

0.047uF

C104
NC

C102

0.047uF

12

SP104

NC

R112
100R 1/10W 5%

R101
100R 1/10W 5%

R107
100R 1/10W 5%

R105

75R 1/10W 5%

12

SP100

NC

C103
NC

R103
100R 1/10W 5%

C107
NC

C111
NC

C108
NC

12

SP102

NC

C106

0.047uF

C112
NC

RAIN 6

GND

GND

GND

SOGAIN 6

BAIN 6

GAIN 6

RED

R108

75R 1/10W 5%

GRN

BLU

Near to IC

RED_GND

BLU_GND

R113

75R 1/10W 5%

GRN_GND

A0

1

A1

2

A2

3

VSS4SDA

5

SCL

6

WP

7

VCC

8

U100

NC M24C02-WMN 6TP

Y_GND

PB_GND

PR_GND

R791

100R 1/10W 5%

VGA_5V_EEPROM

12

SP130

NC

12

SP131

NC

GND

VGA_VIN

VGASDA_IN

VGA_HIN

GRN

47

SC_GND

C782
NC

GND

C167 4.7uF/16VR189

27K 1/10W 5%

R190

27K 1/10W 5%

C168 4.7uF/16V

AU1_L 7

AU1_R 7

CVBS1_IN

SC_IN SY_IN

R169

2.2uH

Near to IC

C154

NC

R173

2.2uH

R181

2.2uH

12

SP123

NC

CVBS1_IN

12

SP121

NC

12

SP120

NC

R172
56R 1/10W 5%

R171

100R 1/10W 5%

R176
56R 1/10W 5%

R182

18R 1/10W 5%

R183

100R 1/10W 5%

C164
220pF

C156

0.1uF25V

C157
NC

R175

100R 1/10W 5%

R170

18R 1/10W 5%

C158
220pF

C155
220pF

R174

18R 1/10W 5%

C162

0.1uF25V

C163
NC

R184
56R 1/10W 5%

C153

0.1uF25V

GND

GND

GND

CVBS_1 6

SV_C 6

SV_Y 6

SC_IN

SY_GND

CVBS_GND

SC_GND

SY_IN

CVBS_O

AV-OUT

CVBS_GND

OEM MOD EL

Size

Rev

Date

Sheet

of

TPV MOD EL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬隔瓜絪腹

00

A3

512Wednesday, August 26, 2009

715G3364 G

称爹

<>

05)SV/AV

C143

0.1uF 50V

C146
100pF

R160
10K OHM 1/16W

12

SP126

NC

C151

470pF

R157

75 OHM 1/16W

C149

4.7uF/16V

FB106

600 OHM

C150

4.7uF/16V

FB105

600 OHM

R162
680 OHM 1/10W

Q104

PMBS3904

C148

4.7uF/16V

1 2

FB104

120 OHM

R168
47K OHM 1/10W

R163

100K OHM 1/10W

R166
47K OHM 1/10W

1

23

Q102

MMBT3906

2

1

4

3

6

5

CN105B

JACK

C147

4.7uF/16V

R158

270R OHM 1/16W 5%

R191

100K 1/10W 5%

R167

4.7K OHM 1/10W

R164

100K OHM 1/10W

12

SP118

NC

7 8

9 10

11

12

13

GG

CY

CN105A

JACK

R165

4.7K OHM 1/10W

Q103

PMBS3904

12

SP127

NC

R159

150 OHM 1/10W

12

SP117

NC

R156
18K OHM 1/10W

C152

470pF

12

SP119

NC

R155

200 OHM 1/16W

R161
680 OHM 1/10W

2

1

4

3

6

5

CN104

5105-870-083-98

R192

100K 1/10W 5%

Q105

PMBS3904

C145

220PF50V

C144

10uF/16V

GND

VCC5

GND

GND

GND

GND

GND

GND

SCR_AUOUT_L 7

OFF_MUTE 8

CVBS_O 6

SCR_AUOUT_R 7

AV2/S-VIDEO-IN

CVBS_GND

R177

2.2uH

AV1-IN

12

SP124

NC

R188

100K 1/10W 5%

S-video

CVBS & R/L

12

SP122

NC

R180
56R 1/10W 5%

R178

18R 1/10W 5%

12

SP125

NC

C166 4.7uF/16V

R179

100R 1/10W 5%

2

1

4

3

6

5

CN106

5105-870-083-98

C159

0.1uF25V

0.1uF25V

C165 4.7uF/16V

C160
NC

C161
220pF

R187

100K 1/10W 5%

R186

27K 1/10W 5%

R185

27K 1/10W 5%

AU2_R 7

CVBS_2 6

GND

GND

AU2_L 7

CVBS2_IN

SY_GND

CVBS signal output

48

FILT : component place close to IC
Trace width as width as possible

VDDD18

ABVDD(3.3V)

52

AIN0_FAD

65

AIN1_FAD

64

AIN2_FAD

63

AINA1

37

AINA2

41

AINA3

45

AINA4

51

AINA5

53

AINB1

38

AINB2

43

AINB3

47

AINB4

54

AINC1

40

AINC2

44

AINC3

48

AINC4

55

AIND1

49

AIND2

50

AIND4

56

AIND5

57

SOG2

42

AOUT1

60

AOUT2

61

VDDA_AD(3.3V)58VDDA_AD(3.3V)

36

AVDD33_RX8AVDD33_RX22AVDD33_RX

246

AVDD33_RX

254

PVDD(3.3V)27PVDD(3.3V)

32

HSYNC

28

HDMI_RXA0N

9

HDMI_RXA0P

10

HDMI_RXA1N

11

HDMI_RXA1P

12

HDMI_RXA2N

13

HDMI_RXA2P

14

HDMI_RXACKN

6

HDMI_RXACKP

7

HDMI_RXB0N

18

HDMI_RXB0P

19

HDMI_RXB1N

20

HDMI_RXB1P

21

HDMI_RXB2N

23

HDMI_RXB2P

24

HDMI_RXBCKN

16

HDMI_RXBCKP

17

HDMI_RXC0N

247

HDMI_RXC0P

248

HDMI_RXC1N

249

HDMI_RXC1P

250

HDMI_RXC2N

251

HDMI_RXC2P

252

HDMI_RXCCKN

244

HDMI_RXCCKP

245

HPDA/GPIO52

235

HPDB/GPIO51

234

HPDC/GPIO_44

227

VSYNC

29

FILT

31

VDDA_APLL(1.8V)3VDDA_APLL(1.8V)

2

DVCC_PLL(1.8V)15DVCC_PLL(1.8V)

253

DSUBDDC_SCL/UART_RX1/GPIO48

231

DSUBDDC_SDA/UART_TX1/GPIO47

230

EXT_R

256

EXT_R

26

DDCHA_SCL/GPIO55

238

DDCHA_SDA/GPIO54

237

DDCHB_SCL/GPIO49

232

DDCHB_SDA/GPIO50

233

DDCHC_SCL/GPIO46

229

DDCHC_SDA/GPIO45

228

CEC/GPIO_53

236

VDDD(1.8V)4VDDD(1.8V)

242

AVDDA(3.3V)

62

SOG1

39

SOG3

46

MIDSCV

33

AVSS_AUD(0V)1AVSS_RX(0V)25AVSS_RX(0V)

255

VSSD(0V)5VSSD(0V)

243

PVSS(0V)

30

ADC_VREF

35

AVSSA(0V)59ABVSS(0V)

34

HDMI/ADC

U400A

HX6202A

R545

0 OHM 1/16W

R544

0 OHM 1/16W

S_SCL
S_SDA

C542 0. 1uF25V

C524 0. 1uF25V

C543 0. 1uF25V

HDMI DIGITAL 1.8V

C785 0.1uF 16V

GND

CVBS_2 5

ADC ANALOG 3.3V

CVBS_1 5

SV_Y 5
SV_C 5

AVDD18

CVBS_3 5

C548

1uF/16V

GND

C544

1uF/16V

R543

390 OHM 1/16W

C520

10uF/16V

1 2

FB500

300 OHM

1 2

FB505
300 OHM

C521

0.1uF25V

C525

0.1uF 16V

R536

1.6KOHM +-1% 1/10W

C527

0.1uF 16V

C530

0.1uF25V

C514

10uF/16V

C513

100pF

C522

0.1uF25V

C528

10uF/16V

C526

10uF/16V

C537

0.1uF25V

C515

0.01UF2 5V

C510

0.1uF25V

C517

0.1uF25V

11/05
For new version IC

C518

0.1uF25V

C519

0.1uF25V

1 2

FB502

300 OHM

R542

390 OHM 1/16W

C546

1uF/16V

1 2

FB503

300 OHM

C512

0.1uF25V

C509

0.1uF25V

C516

0.1uF 16V

C511

0.1uF25V

C538
100pF

C531

0.1uF25V

C536

0.1uF25V

V33ADC

FILT

V33ADC_PLL

V33ADC

V33HDMI

VMID

V33ADC_PLL

VDDA33

GND

GND

GND

V33_HDMI_ADC

GND

GND

VCC18

GND

GND

GND

GND

GND

RXACLK+2

RXACLK-2

V33_HDMI_ADC

GND

HPDA2

RXA0+2

RXA0-2

RXA1-2
RXA1+2

DDCHA_SDA2
DDCHA_SCL2

HPDB2

RXA2-2
RXA2+2

Remove with Analogix IP

DDCHB_SCL2

DDCHB_SDA2

HPDC2

RXB2+2

DDCHC_SCL2

DDCHC_SDA2

RXBCLK-2

RXB1+2
RXB2-2

RXB0-2
RXB0+2
RXB1-2

RXBCLK+2

RXC1+2
RXC2-2
RXC2+2

RXC1-2

RXCCLK+2

RXCCLK-2

RXC0-2
RXC0+2

CVBS_O 5

HSYNC 4

VSYNC 4

PB1 4

PB2 10

BAIN 4

RAIN 4

PR1 4

GAIN 4
SOGAIN 4

PR2 10

T_CVBS 3

V33ADC

V33HDMI

GND

1 2

FB506 300 OHM

1 2

FB501 300 OHM

SOY1 4

AVDD18

1 2

FB507

300 OHM

VCC18

Y1 4

REXT2

S_SDA

S_SCL

12

SP142

NC

11/05

1
2
3
4

CN503

NC

12

SP143

NC

GND

C545

0.1uF25V

V33ADC

VDDA33

VGA_DDCSCL 4

C547

0.1uF25V

OEM MOD EL

Size

Rev

Date

Sheet

of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬隔瓜絪腹

00

Custom

612Wednesday , August 26, 2009

715G3364 G

称爹

<>

06)M2B HDMI/Analog I /O

VGA_DDCSDA 4

C744

10uF/16V

SOY2 10

REXT1

GND

GND

C529

10uF/16V

R546

NC

ADC DIGITAL PLL 3.3V

C534

100pF

C533

0.1uF25V

1 2

FB504

300 OHM

C532

0.1uF25V

V33ADC_PLL

C549

10uF/16V

GND

VCC3

R547

NC

Y2 10

C535

10uF/16V

V33HDMI

VDDD18

HDMI ANALOG 3.3V

C784 0.1uF 16V

GND

V33ADC_PLL

HA_CEC2

HDMI ANALOG/AUDIO
PLL 1.8V

49

C683
10nF

AU2_R5

VGA_AUL4

AU1_R5
AU1_L5

VGA_AUR4

AU2_L5

SPDIFO

OEM MODEL

Size

Rev

Date

Sheet

of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬隔瓜絪腹

00

A2

712Wednesday , August 26, 2009

715G3364 G

称爹

<>

07)M2B Audio

SPDIFO

C658

0.1uF 50V

1 2

FB600

300 OHM

R781

1K 1/10W 5%

V33AUD

R600

0 OHM 1/16W

C618

0.1uF 50V

VRN

R622

10K OHM 1/10W

123

4

876

5

RP603

10KOHM +-5% 1/16W

R612

1K OHM 1/10W

C602

10uF/16V

VCM_ADC

R602

1K OHM 1/16W

C634 4.7uF/16V

R618
NC

C627

0.1uF25V

C600

0.1uF25V

VRP

C631

10uF/16V

12

SP600

NC

C617

0.1uF 50V

C608

0.1uF 50V

R614
NC

C649 10uF/16V

C642

0.33uF/50V

1 2

FB602

300 OHM

C657

0.1uF 50V

VREF_ADC

123

4

876

5

RP601

10KOHM +-5% 1/16W

C633 4.7uF/16V C635

0.1uF 50V

C624

10uF/16V

Q600

PMBS3904

SH602

VCM_ADC

Q601

PMBS3904

SH600

123

4

876

5

RP602

10KOHM +-5% 1/16W

C652
1UF25V

+

C660
470UF25V

C621

0.1uF25V

R606

1K OHM 1/16W

C620

10uF/16V

R607

75 OHM 1/16W

R782

1K 1/10W 5%

VBG

AGSCRT

C641

0.1uF 50V

C625

0.1uF25V

1Y0

12

2Y0

1

1Y1

14

2Y1

5

1Y2

15

2Y2

2

1Y3

11

2Y3

4

S0

10

S1

9

VEE

7

GND

8

/E

6

1Z

13

2Z

3

VCC

16

U600

74HC4052D

C619

0.1uF25V

R615

33K OHM 1/10W

R604

1.2K OHM 1/16W

VRN
VRP

C614

10uF/16V

C611

0.1uF25V

C661

0.1uF 50V

C615

0.1uF25V

L600

22uH

C630

10uF/16V

1 2

FB601

300 OHM

R610

4.7K OHM 1/10W

C603

0.1uF25V

C645

10uF/16V

10uF/16V

L601

22uH

C626

10uF/16V

C639

0.1uF 50V

C629

0.1uF25V

C659

0.33uF/50V

+

C636

470UF35V

R617

NC

R603

22 OHM 1/16W

Q603

PMBS3904

C622

10uF/16V

STBY

C638

0.1uF 50V

C612

10uF/16V

R611
47K OHM 1/16W

C601

0.1uF25V

C616

10uF/16V

C643

1UF25V

C628

10uF/16V

C613

0.1uF25V

SGND

R608 100 OHM 1/16W

SH601

C637

0.1UF16V

1

2

CN601

JACK

C644 10uF/16V

10uF/16V

123

4

876

5

RP600

10KOHM +-5% 1/16W

+

C640
470UF25V

C632

0.1uF 50V

R601
NC

C654

1UF25V

VCC3

R620

47K OHM 1/16W

C610

10uF/16V

C646

10uF/16V

R605

180 OHM 1/10W

VREFI
VCMI

C623

0.1uF25V

1

2

3

4

CN602

CONN

R613

NC

R609 100 OHM 1/16W

C604

0.1uF25V

C609

0.1uF25V

VCC_CLAMP

VCC5

GND

GND

GND

VCC8

VCC_CLAMP

VRNI

GNDGND

V33_AUD

GND

SGND

GND

GND

GND

SGND

MUTE5V

SGND

GND

GND GND

GND

GND

GND

V24_ADP

SGND

PGND

GND

SGND

SGND

SGND

C666

10uF/16V

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

PGND

PGND

SGND

SGND

V24_ADP

MUTE5V

SGND

SPDIF_OUTSPDIF_OUT

VCC_CLAMP

GND

1 2

FB604120 OHM

1 2

ZD600

RLZ18B

1

7

6

2

3

4

5

CN600

PHONEJACK

SW_AMP_LIN

SW_AMP_RIN

RAIN0

66

RAIN1

69

RAIN2

71

RAIN3

73

SCART1L

86

SCART1R

85

SCART2L

84

SCART2R

83

SIF_VCMG

92

SIF_VREFN

93

SIF_VREFP

94

DAC_LSL

89

DAC_LSR

88

GPIO40/SPDIFO

219

LAIN0

67

LAIN1

70

LAIN2

72

LAIN3

74

PIF_VREF

91

GPIO02/I2SREFCLK/SPDIFI

109

VSSA(0V)

68

ACDD_DAC(3.3V)

82

VDDA(3.3V)

75

AGND_DAC(0V)87AVSS_PIF(0V)

95

AVDD_PIF(3.3V)

98

AVDD_ADC(3.3V)

99

GPIO03/I2SCLKO/I2SCLKI

110

GPIO04/I2SWSO/I2SWSI

111

VREF_ADC

76

VRN

80

VRP

81

VCM

77

ADCINN

96

ADCINP

97

AGSCRT

78

VBG

79

AUDIO

U400B

HX6202A

SIF1+

SIF1-

EN

AU_S0 9

AU_S1 9

C686
NC 10nF

COM1_AUR4

COM2_AUR4

COM2_AUL4

GND

R796

0OHM 1/10W 5%

R795

0OHM 1/10W 5%

COM1_AUL4

C687
NC 10nF

INPUT

S1S0

HP_OUT_L

SW_AMP_LIN

HP_OUT_R

SW_AMP_RIN

SIF+3

USB_AUR10

USB_AUL10

OUTPUT

0

GND

TUN_AU D3

0

1 2

FB603

300 OHM

R787

1K 1/10W 5%

AVDD_ADC

R788

1K 1/10W 5%

SCR_AUOUT_L 5

SCR_AUOUT_R2
SCR_AUOUT_L2

COM1

0

C688
NC 10nF

TUN_AUD

R798

0OHM 1/10W 5%

R797

0OHM 1/10W 5%

C689
NC 10nF

SGND

R637

10K OHM 1/10W

+

C672
100uF/16V

MONO_ AU D

R638

10K OHM 1/10W

5VSB

R639
10K OHM 1/10W

1

2 3

Q413

PMBS3906

COM21

MUX_AUR

MUTE_HP HON E8

MONO_ AU D

MUX_AUL

C606

0.1uF25V

SGND

MONO1

R785

1K 1/10W 5%

STYAMP_MUT8

AVDD_ADC

USB

SCR_AUOUT_R 5

SPDIF_IN

L602

0 OHM 1/10W

C665

NC

0

1

2

CN407

NC

R786

1K 1/10W 5%

R624

10K OHM 1/16W

R625

10K OHM 1/16W

AMP_MUT8

5VSB

GND

SIF1+

R799

270K 1/10W 5%

0

1

GND

AMP5VO

0

1

SPDIF_IN

MUX_AUR
MUX_AUL

R621

5.1K

GND

C662

0.1uF 50V

C663

0.1uF 50V

C664
NC

12

SP603

GND

GND

SPGND

CP+

1

PGND

2

CP-

3

NC

4

CVSS5VSS6LOUT7VDD

8

ROUT

9

LIN

10

/RSD

11

RIN

12

NC

13

GND14/LSD

15

PVDD

16

APA2176A

U601

APA2176A

AU_S0

12

SP601

GND

1 2

FB605120 OHM

12

SP602

C648

1UF25V

EAR_DET8

GND

Q602

PMBS3904

C655

0.1uF 50V

R616

47K OHM 1/16W

GND

R619

10K OHM 1/16W

VCC5

GND

C653 1UF25V

HP_OUT_R

C656

1UF25V

HP_OUT_L

C647

1UF25V

GND

VCC5

+

C651

10uF/16V

C650

0.1uF 50V

0

GND SPGND

0

SIF-3

AU_S1

R783

1K1/10W 5%

VRPI

SIF1-

PGND

SCR_AUOUT_L2

SCR_AUOUT_R2

C607

330NF16V

V33AUD

SGND

MONO_AU D

C685
10nF

C684
10nF

IF_AGC3

RF_AGC3

OUT11OUT1

2

NC

3

VD14VD1

5

NC6NC7NC8NC

9

STBYL

10

GAIN1

11

IN1

12

CBIAS

13

ROSC

14

AVCC

15

GND

16

NC

17

NC

18

NC

19

NC

20

NC

21

CLOCK

22

VREF

23

PROT

24

IN225GAIN226MUTEL27NC28NC29NC30NC31VD232VD233NC34OUT235OUT2

36

NC

37

VS2

38

VS2

39

NC

40

HB2

41

DVDD

42

NC

43

HB1

44

NC

45

VS1

46

VS1

47

NC

48

TGND

49

U603

R2A15112FP

R784

1K1/10W 5%

C682
10nF

12

SP144

NC

C605

0.1uF25V

VREF_ADC

AGSCRT

VBG

50

IRDAT10

GND

R453 10K OHM 1/16W

R455 10K OHM 1/16W

R454 10K OHM 1/16W

1 2

FB415 300 OHM

IRVCC

FB707
68R 1/10W 5%

R755

NC 10K OHM 1/10W

ADC

R426

NC

Video_SEL10

System PLL 1.8V POWER

M_SDA

XTAL_IN

Change on 9/30

SCK

C783

1000pF

MUTE_H PH ONE 7

WP

T_SC L 3

T_SD A 3

1 2

ZD606
RLZ5.6B

JP3 NC(1): Test Mode
Short(0): Normal
Mode

1 2

ZD607

RLZ5.6B

AMP_MUT 7

M_SCL

HA5V_DET 2

XTAL_O

WP SCK

SDI

CSN
SDO

CS#

1

SO

2

W#

3

GND

4

VCC

8

HOLD#

7

SCK

6

SI

5

U402

MX25L4005AM2C-12G

C400

0.22uF

R400

4.7K OHM 1/ 16W

VCC3

GND

GND

SDO

R451

0 OHM 1/16W

R452

0 OHM 1/16W

ADC_KEY

IRDAT

R412

NC

VCC3

1 2

ZD608

RLZ5.6B

GND

11/18

Master IIC

T_SD A

UT_TX

UT_RX

T_SC L

12

SP146

NC

12

SP145

NC

12

SP148

NC

12

SP147

NC

1
2
3
4

CN402

NC

RS-232

IR_EN10

1
2
3
4

CN401

NC

5VSB

R413

NC

C781
NC 1NF16V

GND

POWER_KEY

EPROM_WP

V18AUD

M_SC L
M_SD A

HC5V_DET 2

GND

IRDAT

R414

NC

L_Y

12

ZD609
RLZ5.6B

L_B

GND

L_SEN

IRVCC

1

2

3

4

5

6

7

8

9

10

CN400

CONN

PW

IR_D

ADC

GND

L_SEN

ADD 1016

HB5V_DET 2

M_SDA

TSTMD

R415

NC

TSTMD

SDI

LED_G

LEDG

IR_D

L_B

VSS

4

VCC

8

SDA

5

SCL

6

E0

1

E1

2

E2

3

WC

7

U401

M24C 32- WMN 6TP

L_YLED_Y

AOC HOTEL

LEDY

IRDAT

UT_RX

UT_TX

M_SCL

R409 10K OHM 1/16W

UT_RXCSN

EPROM_WP

UT_TX

R444

100 OHM 1/10W

R445

100 OHM 1/10W

RST_N

113

SARIN0

220

SARIN1

221

SARIN2

222

SARIN3

223

TSTMD

112

GPIO05/I2SD ATO

114

GPIO06

115

GPIO07

116

GPIO08

117

GPIO09

118

GPIO10

121

GPIO11

122

GPIO12

123

GPIO13

124

GPIO14

125

GPIO15

126

GPIO16

127

GPIO17

128

GPIO27/PWM_B/D BLC

206

GPIO28/PWM_C

207

GPIO29/PWM_D

208

GPIO30/SPI_W P

209

GPIO31/MSDA

210

GPIO32/MSCL

211

GPIO33/SPI_SD I

212

GPIO34/SPI_C SN

213

GPIO35/SPI_SC K

214

GPIO36/SPI_SD O

215

GPIO37

216

GPIO38

217

GPIO39/IR_RX

218

GPIO41

224

GPIO42

225

GPIO43

226

PAD_OSCI

101

PAD_OSCO

100

GPIO00/U ART_TX0

107

GPIO01/UAR T_RX0

108

AVSS_PL(0V)

102

AVDD_PL(1.8V)

103

U400D

HX6202A

POWER_KEY

246

8

135

7

CN403

NC

LEDY
LEDG

ADC_KEY

OEM MODEL

Size

Rev

Date

Sheet

of

TPV MOD EL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬隔瓜絪腹

00

A3

812Wednesday , August 26, 2009

715G3364 G

称爹

<>

08)M2B MCU

PW

RST_N

1 2

FB403 300 OHM

1 2

FB406

300 OHM

R422

10K OHM 1/16W

C408
33pF

R406

10.2K1/10W

C401

0.22uF

C413
100pF

R401

4.7K OHM 1/16W

R434

1K OHM 1/10W

R403

1K OHM 1/16W

SARIN1

SARIN0

C402100pF

12

SP409
NC

123

4

876

5

RP400

10KOHM +-5% 1/16W

R424

1M OHM 1/10W

X40 0

24.576MHz

1 2

FB401 300 OHM

123

4

876

5

RP402

10KOHM +-5% 1/16W

12

SP400
NC

12

SP404

NC

R416

0 OHM 1/16W

R418 NC

R423

10K OHM 1/16W

C411

10uF/16V

C407100pF

1

23

Q401

MMBT3906

R431
NC

C404100pF

PW_ON 1

R417

0 OHM 1/16W

C405100pF

R41010K OHM 1/16W

1

23

Q400

MMBT3906

123

4

876

5

RP401

10KOHM +-5% 1/16W

123

4

876

5

RP403

10KOHM +-5% 1/16W

12

SP403

NC

R421

4.7K OHM 1/10W

R405

10.2K1/10W

R402

4.7K OHM 1/16W

1 2

FB404 300 OHM

R41110K OHM 1/16W

12

SP407

NC

C403100pF

R420

4.7K OHM 1/10W

R408 10K OHM 1/16W

R419 NC

1 2

FB402 300 OHM

R407 10K OHM 1/16W

add pull high
9/30.

12

SP406
NC

C406100pF

C409
33pF

12

SP408
NC

R404

1K OHM 1/16W

C412

0.1uF25V

1 2

FB405 300 OHM

VCC18

GNDGND

5VSB

VCC3

5VSB

GND

5VSB

5VSB

GND

GND

GND

5VSB

GND

5VSB

GND

VCC3

GND

5VSB

GND

GND

VCC3

GND

GND

GND GN D

5VSB

5VSB

BL_ADJ1

V18AUD

EAR_DET 7

PANEL_ON 9

EDID_WP 2,4

OFF_MUTE 5

BL_ON 1
POWER_ON 1,10

UART_TX 4
UART_RX 4

STYAMP_MUT 7

C415
100pF

C453

10uF/16V

VCC3

R763

NC 22K OHM 1/10W

R447

5K6 1/16W 5%

L_SEN

C452
NC

Q410

PMBS3904

GND

RST_N

R446

10K OHM 1/16W

GNDGND

R448 0 OHM 1/16W

GND

SYS_RST

+

C410

47uF/16V

R759

0 OHM 1/10W

+

C414
10uF/16V

R425

NC

R427

100Ω 1/10W

123Q403

PMBS3906

R430

10KΩ 1/10W

R432
10KΩ 1/10W

R459
1KΩ 1/10W

FOR ESD
ADD ON 10/25

3

1 2

D403
BAV99

5VSB

GND

MCU SDO to EEPROM SDI
MCU SDI to EEPROM SDO

1 2

FB400 NC 300 OHM

R760

0 OHM 1/10W

add on 1008

Q402

NC

R754

NC 10K OHM 1/10W

51

1 2

FB410
120R/3000mA

TX3AN

TXCKAN

TX3AP

TX1AN

TXCKAP

TX1AP

TX2AP

VCCK

TXCKAP

TX2AP

TX1AP

TX0BP

TX0AP

TX2BP

TX1BP

TX3AP

TX3BP

TXCKBP

TX0AP

TX0AN

VCCK18

VCC5_IN

GNDLV

11/18

C442

1uF/16V

VCCK

V33LV

VCC5_PANEL_IN VCC5_IN

TX0BN

TX0BP

GND

123456789

101112131415161718192021222324252627282930

CN408

NC

TX0AN

SELLVDS

TX1AP

TX1AN

TX0AP

TXCKAN

VCC5_IN

TX2AP

TX2AN

TX3AP

TX3AN

TXCKAP

VCC3IO(3.3V)

241

VCC3IO(3.3V)

120

VCC3IO(3.3V)

204

VCC3IO(3.3V)

106

VCCK(1.8V)

184

VCCK(1.8V)

172

VCCK(1.8V)

90

VCCK(1.8V)

138

VCCK(1.8V)

119

VCCK(1.8V)

239

VCCK(1.8V)

104

VCCK(1.8V)

205

VCCLV(3.3V)

203

GNDK(0V)

139

GNDK(0V)

105

GNDK(0V)

240

GNDK(0V)

185

FRSB0N/ LVA0N/ER6

163

FRSB0P/LVA0P/ ER7

162

FRSB1N/ ER4

165

FRSB1P/ER 5

164

FRSB2N/ ER2

167

FRSB2P/ER 3

166

FRSB3N/ ER0

169

FRSB3P/ER 1

168

FRSCLKN /LVB0N

151

FRSCLKP/ LVB0P

150

FRSG0N/ LVA3N/EG6

155

FRSG0P/LVA3P/ EG7

154

FRSG1N/ LVACKN/EG4

157

FRSG1P/LVAC KP/EG5

156

FRSG2N/ LVA2N/EG2

159

FRSG2P/LVA2P/ EG3

158

FRSG3N/ LVA1N/EG0

161

FRSG3P/LVA1P/ EG1

160

FRSR0N /LVB3N/EB6

143

FRSR0P/ LVB3P/EB7

142

FRSR1N /LVBCKN/EB4

145

FRSR1P/ LVBCKP/EB5

144

FRSR2N /LVB2N/EB2

147

FRSR2P/ LVB2P/EB3

146

FRSR3N /LVB1N/EB0

149

FRSR3P/ LVB1P/EB1

148

BRSB0N/OR 6

196

BRSB0P/OR7

195

BRSB1N/OR 4

198

BRSB1P/OR5

197

BRSB2N/OR 2

200

BRSB2P/OR3

199

BRSB3N/OR 0

202

BRSB3P/OR1

201

BRSCLKN

183

BRSCLKP

182

BRSG0N/OG6

188

BRSG0P/OG7

187

BRSG1N/OG4

190

BRSG1P/OG5

189

BRSG2N/OG2

192

BRSG2P/OG3

191

BRSG3N/OG0

194

BRSG3P/OG1

193

BRSR0N/O B6

175

BRSR0P/OB7

174

BRSR1N/O B4

177

BRSR1P/OB5

176

BRSR2N/O B2

179

BRSR2P/OB3

178

BRSR3N/O B0

181

BRSR3P/OB1

180

GPIO18/GVON

129

GPIO19/GVOFF /I2SDATI

130

GPIO20/OEV/TTL_DE

131

GPIO21/CPV/ TTL_HS

132

GPIO22/STV1/TTL_VS

133

GPIO23/POL

134

GPIO24/FTP

135

GPIO25/FSTH1/TTL_CLK

136

GPIO26/BSTH1

137

PI

173

AVDD3V_LV(3.3V)

140

AVDD3V_LV(3.3V)

170

AVSS_LV(V)

186

AVSS3V_LV(0V)

171

AVSS3V_LV(0V)

141

PVDD_LV(1.8V)

152

PVSS_LV(0V)

153

RSDS/LVDS

U400C

HX6202A

TX1AN

PN swap for layout

C443

1uF/16V

1 2

FB413
120R/3000mA

TX2AN

VCCK

PN swap for layout

VCC3IO

5VSB

C444

1uF/16V

PANEL POWER
1:OFF ;
0:ON

PI

Panel Power

VCC3IO

C421

10uF/16V

V33LVV33LV

C440

10uF/16V

VCC3IO

C418

0.1uF25V

1 2

FB407
300 OHM

C419

0.1uF25V

C422

0.1uF25V

C441

10uF/16V

C425

0.1uF25V

1 2

FB408
300 OHM

C417

10uF/16V

C424

0.1uF25V

C420

0.1uF25V

C423

0.1uF25V

GND

VCC3

C439

10uF/16V

1 2

FB412

NC 300 OHM

1 2FB411

300 OHM

AU_S1 7

AU_S0 7

AU_S1

AU_S0

OEM MOD EL

Size

Rev

Date

Sheet

of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronic s Co . , Ltd. )

Key Component

絬隔瓜絪腹

00

A3

912Wednesday , August 26, 2009

715G3364 G

称爹

<>

09)M2B LVDS

TX1BN

TXCKBN
TX3BN

TX2AN

TX0BN

TX2BN

R439

4.7K OHM 1/16W

TX0AN

TX3AN

TXCKAN

R438

NC

R442

4.7K OHM 1/16W

C430

0.1uF25V

+

C427

470UF16V

Q406

PMBS3904

R440

4.7K OHM 1/16W

R443

4.7K OHM 1/16W

R437

NC

C435

0.1uF25V

C436

0.1uF25V

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

Q405

AO4449 -7A/-30V

R441

220K 1/10W 5%

R436

13K OHM 1/10W

C429

0.1uF25V

C428

10uF/16V

C431

0.1uF25V

C434

0.1uF25V

C433

0.1uF25V

C432

0.1uF25V

C438

0.22uF

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

CN405

LVDS CONN DIP 2.0

C416

NC 0.1uF25V

C437

0.1uF25V

Q407

PMBS3904

C426

0.1uF 50V

GND

GND

GND

5VSB

GND

GND

GND

V12_ADP

PANEL_ON8

SELLVDS

TX3BP

TX2BN

TX1BN

TX3BN

TXCKBN

TX2BP

TXCKBP

TX1BP

52

R470
NC 0R05 1/1 0W 5%

C669

NC 10UF16V

R193

NC 0R05 1/10W 5%

usb_pr

usb_pb

usb_Y

R202

NC 100Ω

R204
NC 10KΩ

R206
NC 4.7KΩ

C176
NC 33pF

R210
NC 10KΩ

Q111
NC PMBS3904

R211
NC 100Ω

C180
NC 33pF

R215

NC 100Ω

Q107
NC PMBS3904

Q108
NC PMBS3904

R219
NC 4.7KΩ

R217
NC 4.7KΩ

C182
NC 33pF

R220
NC 10KΩ

R209

0R05 1/10W 5%

VCC5

PB_IN0

PR2_IN4

PB2_IN4

Low: Channel 2 /YPbPr2
High:Channel 1 /USB

V_SEL

R726

NC 10K OHM 1/16W

Q711

NC PMBS3904

VCC5

R728

NC 1K OHM 1/16W

GND

R194

NC 0R05 1/10W 5%

OEM MODEL

Size

Rev

Date

Sheet

of

TPV MOD EL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬隔瓜絪腹

A

C

10 12Wednesday, August 26, 2009

715G3364 G

称爹

<>

10)COMPONENT2 & USB INPU T

R195

NC 0R05 1/10W 5%

VCC5

1 2

FB108

NC 300 OHM

C174
NC 100pF

CVBS_3 5

Y_SCALER

12

SP132

NC

Pr_SCALER

Y_IN0

12

SP133

NC

12

SP134

NC

12

SP136

NC

1

2

3

4

5

6

7

8

9

10

CN208

NC CONN

USB_AUL7

USB_AUR7

C667

NC 10UF16V

IRDAT8

IR_EN8

VCC5

1 2

SP138

NC

1 2

SP137

NC

1 2

SP139

NC

Pb_SCALER

C679

NC 10UF16V

Video_SEL8

VCC5

C668

NC 10UF16V

R471
NC 0R05 1/1 0W 5%

usb_pb

1 2

FB213

NC 30R

R200
NC 56R 1/10 W 5%

Y_SCALER

R216

NC 5.1K OHM 1/16W

R205

NC 180R 1/10W 5%

C169

NC 0.1uF25V

GND

C171
NC

C170
NC

R218

NC 0R05 1/10W 5%

USB_CVBS

R213

0R05 1/10W 5%

Pb_SCALER

R233

0R05 1/10W 5%

Y2_IN4

PR_IN3

USB_GND

R472
NC 0R05 1/1 0W 5%

usb_Y

FOR EMI

VBUS

1
2
3
4

6 5

1234

CN703
NC CONNNECTOR

12

ZD604

NC VPORT0603100KV05

12

ZD605

NC VPORT0603100KV05

R789

NC 0R05 1/10W 5%

R790

NC 0R05 1/10W 5%

3 2

4 1

L208

NC 90OHM

USB_DP

USB_DM

R764
NC 0 OHM 1/10W

USB_GND

12

SP149

NC

12

SP150

NC

Y_IN3

R772

0R05 1/10W 5%

Y_SCALER

C670

NC 10UF16V

R771

0R05 1/10W 5%

R773

0R05 1/10W 5%

PR_IN0

PR_IN3

Y_IN0

C671

NC 10UF16V

PB_IN3

Y_IN3

PB_IN3

1

2

3

4

CN206

NC CONN

USB_GND

VBUS

R196

NC 0R05 1/10W 5%

12

SP140

NC

12

SP141

NC

USB_DM
USB_DP

PB_IN0

R197

NC 0R05 1/10W 5%

R198
NC 4.7KΩ

R199
NC 4.7KΩ

R201
NC 100R 1/10W 5%

R203
NC 10KΩ

C172
NC 270pF

R207
NC 10KΩ

R208
NC 4.7KΩ

C175
NC 100pF

C177
NC 270pF

C178
NC 270pF

R212

NC 100R 1/10W 5%

C179
NC 100pF

R214

NC 100R 1/10W 5%

Q112
NC PMBS3904

1 2

FB109

NC 300 OHM

DC

9

S2D

13

S1A

2

IN

1

S1B

5

S2A

3

S2B

6

S1C

11

S2C

10

DD

12

S1D

14

/EN

15

DA

4

VCC

16

GND

8

DB

7

U107

NC PI5V330SQE

Q109
NC PMBS3904

Q110
NC PMBS3904

1 2

FB110

NC 300 OHM

R221
NC 10KΩ

R222

NC 0R05 1/10W 5%

V_SEL

C539

NC 0.1uF2 5V

Pr_SCALER

usb_pr

R646
NC 39K 1/10W 5%

VBUS,5V
USB HOST,500mA,2.5W

USB_GND

R731

NC 10K OHM 1/16W

R732

NC 1K OHM 1/16W

R733

NC 1K OHM 1/16W

5VSB

PR_IN0

Q709

NC PMBS3904

GND

C776
NC 100pF

C777
NC 10uF

5VSB

POWER_ON1,8

5VSB

VBUS

C523

NC 10uF/16V

1 2

FB414

NC 120R

OUT

1

GND

2

FAULT

3

EN

4

IN

5

U711

NC STMPS2171STR-SOT23-5

R647

NC 4.7K OHM 1/10W

Active low

R757

NC 0 OHM 1/10W

Y_IN0

Near to IC

R145
100R 1/10W 5%

R153

100R 1/10W 5%

C137

0.047uF

C135 1000pF

R148
100R 1/10W 5%

R154
NC 75 OHM 1/16W

R142
100R 1/10W 5%

C131

0.047uF

R151
NC 75 OHM 1/16W

C140

0.047uF

R144
NC 75 OHM 1/16W

SOY2 6

GND

GND

GND

Y2 6

PR2 6

PB2 6

PR_IN0

PB_IN0

53

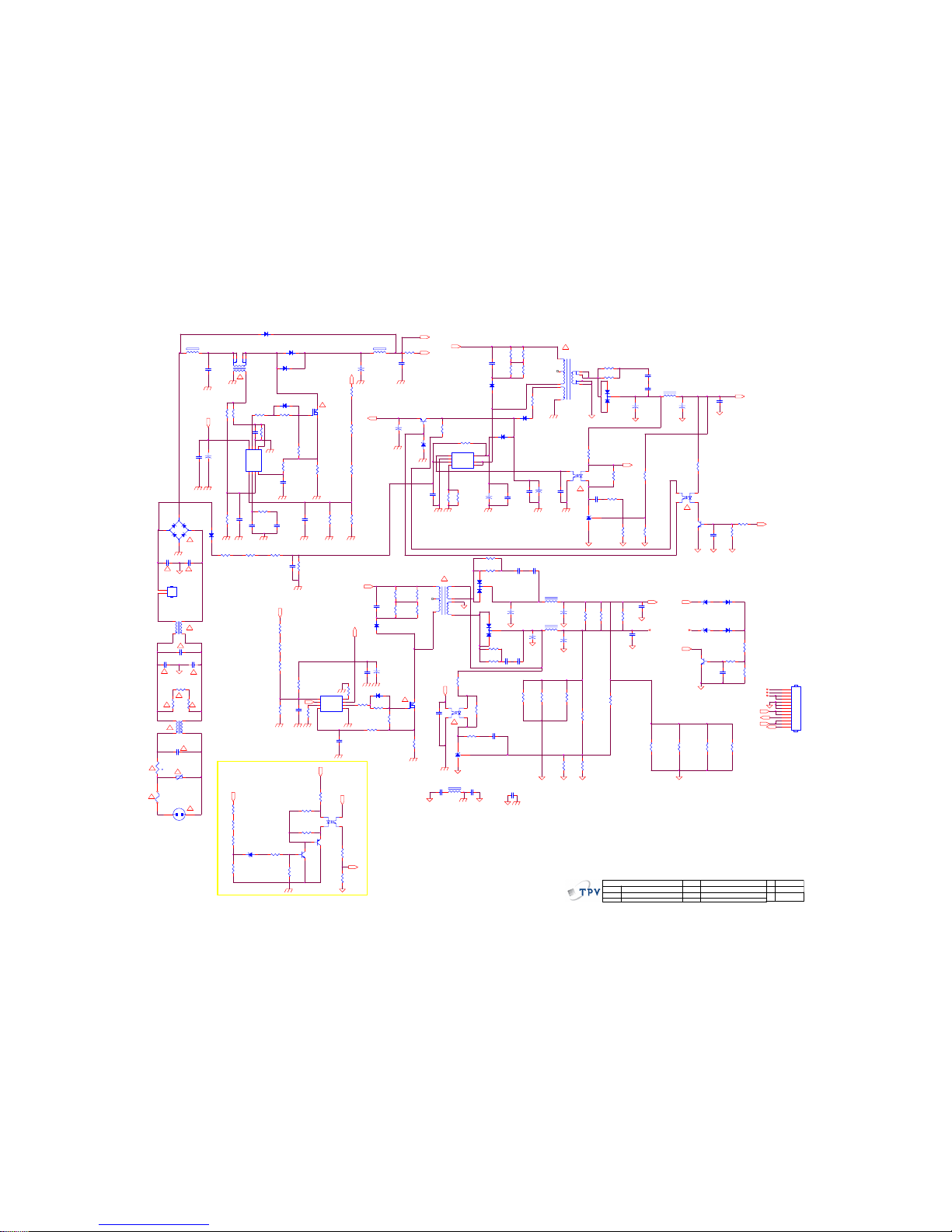

9.2 Power Board

E329MANS4WACNN 715G3332 1

R998

100K OHM 1/4W

ZD910
NC

1 2

R919
NC

+5V

-

+

BD901
D10XB60

2

1

3

4

C972

0.001uF

D951

1N4148

C923

0.1uF

Q924
DTC144WKA

R988

1.8K OHM 1/4W

R911
20K OHM 1/4W

R957

8.2KOHM +-1% 1/8W

R932

1R 1/8W 5%

ON/OFF

C957

0.001uF

R997

100K OHM 1/4W

R920
680K OHM +-1% 1/4W

SG901
NC

A

Custom

Wednesday , May 27, 200 9

BBY MODEL

POWER

OEM MODEL Size

Rev

Date

Sheet

of

TPV MODE L

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬隔瓜絪腹

R965

1.8K OHM 1/4W

R981

100 OHM 1/8W

R942

51KOHM +-5% 1/4W

t

NR901
NTCR

12

R948

0.1 ohm

C944
220pF

+

C975
470uF 35V

!

IC902

A6069H

1

2

3

4 5

7
8

S/OCP

BR

GND

FB/OLP VCC

D/ST
D/ST

D940

SARS01-V1

R977

100 OHM 1/4W

R993

100K OHM 1/4W

D950
SBT15006JST

1

2

3

R946

0.36 OHM +-5%

R936
NC

R923
13K OHM 1% 1/8W

R939
10K OHM 1/4W

C935
1000PF2KV

+

C946
470uF/25V

C912
100pF

C910
1uF/450V

ZD940
NC

12

B+

VCC

PDIM

C906
470pF/250V

R968

6.8K OHM 1/4W

C919
220pF,50V

R969

6.8K OHM 1/4W

R980
NC

+

C945
470uF 35V

C918

0.47uF/25V

D905

1N4148

R985

3.6K OHM 1/8W

R973
100 OHM 1/4W

C956

0.1uF

R928

100K OHM 1/8W

R903
330K OHM 1/4W

715G3332-I

IC952

AZ431AZ-AE1

R951

100 OHM 1/4W

R943

22 OHM 1/8W

C925
10nF

R976

10K OHM 1/4W

R905

1.5 MOHM +-5% 1/4W

ZD952

MTZJ T-7 2 15B

12

R955
1K OHM 1/8W

C939

0.01uF

Q921

KTD1691P

2

31

D970

SBR20010JST

1

2

3

C907

0.1uF

R918

10K OHM 1/8W

C942

0.1uF

C955

0.22uF/50V

L906

310uH

125

67

8

R975

3.9KOHM +-5% 1/8W

D910

NC

R950

47 OHM 1/4W

R994

100K OHM 1/4W

R974
1K OHM 1/4W

T902

POWER X'FMR

1

2

3

5

6

7

8

9

10

11

12

L950

L

F901

FUSE

C940
NC

SG902
NC

CN903

NC

1

2

L

N

C916
NC

R917
56K OHM 1/8W

R931

2.2 OHM 1/4W

R972

1.8K OHM 1/4W

T901

POWER X'FMR

1

2

3

5

4

7

6

9
10

IC970
EL817MC

12

43

C934

0.1uF

+24V

R910

300K OHM 1/4W

R929
10K OHM 1/4W

C922
1uF

FB902

BEAD

1 2

RV902
NC

R992

100K OHM 1/4W

R967

1.8K OHM 1/4W

!

C908

0.1uF

R904

1.5 MOHM +-5% 1/4W

R996

100K OHM 1/4W

R924
1M OHM 1% 1/4W

L901

13mH

124

3

IC903

LD7523PS

1
2
3
4 5

6

7

8

BNO
COMP
(-)LATCH
CS GND

OUT

VCC

OVP

D904

IN5408

R978

24K OHM 1% 1/8W

R954
100 OHM 1/4W

Q970
PMBS3904

D942

NC

C950

0.001uF

R935

1K OHM 1/4W

C901

0.47uF/275V

C951

0.001uF

D932

JUMPER

R925
1M OHM 1% 1/4W

PS_ON

R989

1K 1/8W 5%

R915
470 OHM 1/8W

R961

10K OHM

R962

4.7M OHM 1/4W

C902
680pF

+

C941

10uF/50V

FB901

BEAD

1 2

CN902

CONN

1
2
3
4
5
6
7
8

9
10
11
12

R959

100K OHM 1% 1/8W

VCC

R933

1R 1/8W 5%

D931

AU02Z

D903

1N4148

R927
NC

+

C937
10uF/50V

R963

10K OHM 1/8W

R926
1M OHM 1% 1/4W

Q950
PMBS3904

R906
510KOHM +-5% 1/8W

D902

FMN-1106S

R909

1.5 MOHM +-5% 1/4W

R966

6.8K OHM 1/4W

+12V

+

C914
47uF/50V

R938

4.7K OHM 1/8W

+

C920
120uF M 450V

C949

0.1uF

D906
1N4148

C978

0.1uF

R902

330K OHM 1/4W

R983

1K OHM 1/8W +-5%

RV901
NC

R970

100 OHM 1/4W

R984

6.8K OHM 1/4W

L902

13mH

124

3

B+

C930
NC

FB903

BEAD

1 2

C915
470pF,50V

C921

0.1uF

R916

0.12 OHM 2W

R960
1K OHM

D972

SBR20010JST

1

2

3

C952

0.001uF

R986

1.8K OHM 1/4W

R971

1.8K OHM 1/4W

L951

L

R999

100K OHM 1/4W

R979
2KOHM +-1% 1/8W

ٛ

0.33uF

C903
680pF

C947

0.1uF

!

R991

100K OHM 1/4W

C948

0.1uF

!

R913

10 OHM 1/8W

R964

2K OHM 1/8W

R941
10K OHM 1/4W

C924

0.001uF/250V

R921
680K OHM +-1% 1/4W

+24V

+5V

B+_390V

A5V

D901
1N4007-E3/73

+

C953
330uF 16V

R908

2.2 OHM 1/4W

IC971
AZ431AZ-AE1

FB

C932
1000PF2KV

ZD930

MTZJ T-72 16B

1 2

+

C933

10uF/50V

!

C943

0.047uF

VCC

+12V

CN901

SOCKET

1 2

3

Q903

STP10NK70ZFP

+

C973
470uF 35V

B+

+12V

Q901

STP20NM60FP

2

1

3

R947

10K OHM 1/8W

R987
27KOHM +-1% 1/4W

C970

0.001uF

A5V

IC951

EL817MC

12

43

C904

0.47uF/275V

R901

330K OHM 1/4W

D930

SARS01-V1

R956

1K OHM 1/8W

ZD970

MTZJ T-72 30B

12

IC950

EL817MC

12

43

R944
10K OHM 1/8W

C911
10nF

PS_ON

R958

8.2KOHM +-1% 1/8W

+

C931
100uF/50V

C913

0.1uF

Q925
KTA1273

2 1

3

L980

L

C917

0.047uF

R914

10K OHM 1/8W

R952

47 OHM 1/4W

R937

4.7K OHM 1/8W

C905
470pF/250V

B+_390V

FB

!

D971

1N4148

IC901
FAN7529MX

123

4 5

678

INV

COMP

MOT

CS ZCD

GND

OUT

VCC

+

C954
470uF 16V

R922
680K OHM +-1% 1/4W

+24V

C909

0.01uF

R945

1KOHM +-5% 1/4W

R982
1K OHM 1/8W +-5%

R907

2.2 OHM 1/4W

54

+12V

R821

9.1K OHM 1/8W

R819

1M OHM 1/8W

R833
10K OHM 1/4W +-5%

VREF

R814

51K OHM 1/8W +-5%

C823
10nF

T801

50:50:50

1

4

5

6

7

9

10

D807

1N4148

C803
1000pF

R810

100K OHM 1/8W

R817

1K OHM 1/8W +-5%

R802
100 OHM 1/8W

IC801

OZ9976GN

1
2
3
4
5
6
7
8 9

10

11

12

13

14

15

16

DRV1
GND
ZCS
RT1
CT
LCT
PDIM
VSEN ISEN

SSTCMP

TIMER

ADIM

ENA

VREF

VIN

DRV2

C808
1N 50V

PDIM

ISEN

R805

62K OHM 1/8W

R829

1M 1/8W

R823

240 OHM 1/8W

+

C805

470uF/25V

C819
NC(C1206)

A

B

Wednesday , July 15, 2009

BBY MODEL

INVERTER

OEM MOD EL Size

Rev

Date

Sheet

of

TPV MO DEL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬隔瓜絪腹

Q805
PMBS3904

C807
330PF/50V

R807

240K OHM 1/8W

C821

680PF/50V

IS1

IS2

C811
1U 25V

R811

1.5M OHM 1/8W

TB

DR2

TB

TA

R832
10K OHM 1/4W +-5%

C822
1000pF

R803
100 OHM 1/8W

B+_390V

R824

510 OHM 1/8W

VREF

C804

1uF/450V

IS1

DR2

C818
47N 50V

IS2

R801 0. 1 ohm

R812

150K OHM 1/8W

C815

0.0015uF/25V

T802

P:S=50:45

1

2

3

5

6

7

8

9

10

11

12

R809

NC

ON/OFF

C801

1uF/450V

D806

1N4148

VS

VS

R816
51 OHM 1/8W

Q801
FQPF12N60C

C813

4N7 50V

D805
BAV70

3

1

2

Q804
PMBS3904

IS1

R813

NC

ISEN

C810
4N7 50V

R825
NC

D801

SCS0520P

12

C814

2.2uF 25V X7R

CN802

CONN

1

2

3

4

5

R818

1.2K OHM 1/8W +-1%

IS2

DR1

C820

680PF/50V

R822

NC

C816

1500pF

C802

2.2uF 25V X7R

C817
47N 50V

Q803
RK7002

C809

1U 25V

R804

10K OHM 1/8W

D803

SCS0520P

12

TA

R808

1M OHM 1/8W

D802

SCS0520P

1 2

D804

SCS0520P

1 2

CN801

CONN

1

2

L

N

ENA

715G3332-1

R820

100K OHM 1/8W

Q802

FQPF12N60C

R815

51K

R806

3.3MOHM1/8W

R831

1M 1/8W

R828

68K OHM 1/8W

R826
240 OHM 1/8W

R830

68K OHM 1/8W

R827

510 OHM 1/8W

C812

0.022uF/25V

DR1

C806

0.1uF/ 50V

L801

L

55

E329AANS4WE7NN/E329AANS4WE6NN 715G3261P02000003S

R993

10 OHM 1/8W

C910
1KV 10nF

D903
1N5408-E3/73

R969
1K OHM 1/8W +-5%

C922

330pF/250V

D904

1N4007-E3/73

C920

0.47uF/275V

D905

NC/1N4148

1 2

ZD951

NC/MTZJ T-72 30B

1
2

HS1

Heat-sink(Q90G6273-1)

R991

1.5K OHM 1/4W

C926

0.001uF/250V

1
2

HS3
Heat-sink(Q90G0001-1)

R985
NC

C974

0.001uF

L971

3.0uH +-10%

R956
100K OHM 1/4W

12

ZD971

MTZJ 30B

R920

56K OHM 1/8W

1
2

HS4
Heat-sink(Q90G6084-3)

R976
100K OHM 1/4W

R933

680 OHM +-5% 1/8W

DET

C989
NC

F901

FUSE

R965

1KOHM +-5% 1/8W

IC973

AS431AZTR-E1

R981
NC

D975

1N4148

C991

0.47uF/25V

1
2

HS6
Heat-sink(Q90G6084-3)

+

C960

470uF 16V

R978
NC

R916

680KOHM1/4W

L972

3.5uH

D970
1N4148

+

C977
10uF 50V

R961

47 OHM +-5% 1/4W

C961

NC

C964

0.1uF/50V

R940

5.1KOHM +-5% 1/4W

SG902
EM230X(NC)

D953
AU02Z

L950

3.5uH

C905

0.1uF

1 2

ZD970

MTZJ T-72 15B

12

43

IC972

PC123X8YFZOF

C902

0.047uF

R943
1KOHM +-5% 1/8W

1 2

ZD950

MTZJ T-72 15B

INV1COMP2MOT3CS

4

ZCD

5

GND

6

OUT7VCC

8

IC901
FAN7529MX

R989
NC

C976

0.1uF

R990

10 OHM 1/8W

C980

0.027uF 5% 1000V

C971
100pF

R915
680KOHM1/4W

R927

2M OHM 1/4W +-5%

R957

4.7 OHM +-5% 1/4W

C972

0.1uF

1 2

3

CN901

SOCKET

R966
NC

1

2

3

D973

SBT15006JST

D954
1N4148

R983
NC

R946

1.96KOHM +-1% 1/8W

R975
100K OHM 1/4W

R967
2K49 1/8W 1%

R904

0 OHM 1/8W

D974

1N4148

C901
1uF/520V

R959

47 OHM +-5% 1/4W

R962
47 OHM +-5% 1/4W

R934

NC

Q952
2N3904S-RTK/PS

R948
NC

C906
56pF

R908

15KOHM1/4W

1 2

ZD973

MTZJ T-72 15B

1
2

HS7
Heat-sink(Q90G6084-3)

R980
NC

C992
1N 50V

R935
10K OHM 1/8W

R977
NC

R944
0 OHM +-5% 1/8W

Q970

2SK4100LS-T 7A/650V

Q951

2N3904S-RTK/PS

C951

2200PF2KV

+

C985
220uF 25V

R925

0.1 ohm

12

43

IC953

PC123X8YFZOF

R912

22 OHM 1/8W +-5%

R918
13KOHM +-1% 1/8W

D950
FR107

R921

200K OHM 1/4W

1
2

HS2

Heat-sink(Q90G6253-1)

D976
UF4007

R932

3.9K OHM 1/4W(NC)

12

ZD953

NC/TZX12C

C962

0.1uF/50V

R931

24KOHM +-5% 1/8W

R986

4.7 MOHM +-5% 1/4W

1

4

2

3

L901

10mH

1
2

7
8

9

10

11

12

13
14

15
16

T970

POWER X'FMR

1

2

3

D956

SBT15006JST

R930
200 OHM 1/8W

D971
1N4148

+

C966

10uF 50V

D901

1N4148

R902

330K OHM 1/4W

243

1

-+

BD901
U4KB80R

R952

1.5M OHM 1/4W

R911

4.7 OHM +-5% 1/8W

12

43

IC952

PC123X8YFZOF

+

C990

4.7uF 50V

R950

1.5M OHM 1/4W

R903

330K OHM 1/4W

R939

5.1KOHM +-5% 1/4W

C955

1N 50V

R910

470 OHM 1/4W

Q953

KTD1691/P

IC951
AS431AZTR-E1

R984
NC

R926

2M OHM 1/4W +-5%

R964
1K OHM 1/8W +-5%

C983
1U 50V

R942

6.2K OHM 1/4W

R919

NC

RV901
Varistor

R913

10KOHM +-5% 1/8W

R968
2K49 1/8W 1%

+

C981
1000uF 35V

1

4

2

3

L902

10mH

C953

0.1uF

Q971

2SK4100LS-T 7A/650V

+

C954
100uF 50V

Q955
NC/2N7002ESPT

R982
NC

C907
1N 50V

1
2

HS5
Heat-sink(Q90G6084-3)

R923
NC

R973

62K OHM 1/8W

R974
100K OHM 1/4W

R979
NC

R928

2M OHM 1/4W +-5%

SG901

EM230X(NC)

R938
10K OHM 1/8W

R947
NC

R901

330K OHM 1/4W

1
2

HS9

Heat-sink(Q90G6084-3)

R951

1.5M OHM 1/4W

1 2

ZD952

NC/MTZJ T-72 15B

R954
NC

1
2

HS8
Heat-sink(Q90T6119-3-GP)

+

C904
10uF 50V

R941

3.3K OHM 1/4W

R960

47 OHM +-5% 1/4W

C921

0.47uF/275V

R970

10K OHM 1/8W

R907
10K OHM 1/8W

C993
CAP CER 100pF 1KV K Y5P

C965
NC

NR901
NTCR

C903

0.33uF/50V

R917
680KOHM1/4W

C988

0.1uF/50V

L

1

N

2

CN904

CONN(NC)

+

C982
470uF 35V

C950

0.47uF/25V

R988
NC

Q954
NC/2N7002ESPT

Vsen

1

Vcc

2

FB

3

GND

4

Css

5

OC

6

RC

7

Reg

8

RV9COM

10

VGL

11

NC

12

NC

13

VB

14

VS

15

VGH

16

NC

17

NC

18

IC970

SSC9502S

VCC_1

+24V

VCC_1

+5V

24V

24V1 24V

24V1

PS_ON

+5V

PS_ON

+24V

VCC_1

+12V

+12V

FB

VCC

VCC

FB

R937
47 OHM 1/8W

R963
470 OHM 1/4W

S/OCP

1

BR

2

GND

3

FB/OLP4VCC

5

D/ST

7

D/ST

8

IC950

A6069H

CY904

0.001uF/250V

C957

2200pF

C986
NC

C995
1KV 10nF

OEM MODEL

Size

Rev

Date

Sheet

of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬隔瓜絪腹

1B

Custom

11Monday, January 11, 2010

715G3261P010000030

称爹

<>

01.POWER

FOR INVERTER
24V/6.231A

+

C984
1000uF 25V

1
2
3
4
5
6
7
8

9
10
11
12

CN902

CONN

R929
27KOHM +-1% 1/8W

C979
1U 25V

5V/2.5A

1 2

FB903

BEAD

12V/1.5A

C987
1U 50V

R949

11.5KOHM +-1% 1/8W

R972

51 OHM 1/4W

C923

330pF/250V

1

2

3

5

4

7

6

9
10

T950

POWER X'FMR

C925

1000PF/250VAC

2

1

3

Q901
SPA20N60C3

R987

4.7 MOHM +-5% 1/4W

C924

0.001uF/250V

1

2

3

D972
FMEN-220A

1 2

FB902

BEAD

R953
620KOHM +-1% 1/8W

C911
1KV 10nF

+

C909
100uF M 450V

R914

0.1OHM2W

DIM

INV ON/OFF

C994
1U 25V

D902

FMY-1106S

R992

10 OHM 1/8W

C963
1U 50V

R936
47 OHM 1/8W

1
2
3
4
5
6
7
8

9
10
11
12
13

CN903

CONN

1 2

FB901

BEAD

R971
1K OHM 1/8W +-5%

R945

51KOHM +-1% 1/8W

+

C952
22uF/50V

C973
10pF/3KV

C956

2200pF

R958

1.2OHM2W

5

6

182

7

L903

236uH

1 2

FB904

BEAD

+

C958
330uF 16V

56

9.3 Inverter Board

L32W931 E329MANS4WACNN 715G3333 1

T8802
POWER X'FMR

4

1 2

6

R8804

10KOHM +-5% 1/8W

C8823

18N 50V

R8819

1K OHM 1/8W +-5%

CN8802

CONN

1
2

L

N

D8808

BAV99

3

1

2

C8822

18N 50V

R8807

100 OHM +-5% 1/8W

D8820

1N4148

C8816

18N 50V

R8815
510 OHM 1/8W

R8813

6.8K OHM 1% 1/8W

P1

C8807

10pF/6KV

R8820

1K OHM 1/8W +-5%

IS1

C8814

18N 50V

TB

!

R8803
39K OHM 1/8W

P6

R8818

1K OHM 1/8W +-5%

R8821

1K OHM 1/8W +-5%

VS

P4

C8806

10pF/6KV

C8812
10pF/6KV

D8804
1N4148

TA

C8824

18N 50V

!

P1

T8812
POWER X'FMR

4

1 2

6

C8819

1NF 50V

C8803

10pF/6KV

T8810
POWER X'FMR

4

1 2

6

R8801
100 OHM +-5% 1/8W

R8822

1K OHM 1/8W +-5%

!

C8817

18N 50V

A

B

11Friday, March 20, 2009

715G3333-1

BBY MODEL

INVERTER

OEM MODEL Size

Rev

Date

Sheet

of

TPV MOD EL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬隔瓜絪腹

CN8801

WIRE

1

2

3

4

5

6

CN8807
CONN

1

2

R8809

100 OHM +-5% 1/8W

D8819

BAV99

3

1

2

!

IS1

R8812

510 OHM 1/8W

D8818

BAV99

3

1

2

CN8808
CONN

1

2

C8813

10pF/6KV

TA

T8803

POWER X'FMR

6

21

4

CN8803
CONN

1

2

T8801

POWER X'FMR

6

21

4

P4

R8802
100 OHM +-5% 1/8W

T8808
POWER X'FMR

4

1 2

6

T8809

POWER X'FMR

6

21

4

!

D8822

LL4148

C8825

18N 50V

C8811
10pF/6KV

R8811

510 OHM 1/8W

D8802
1N4148

TB

P6

CN8806
CONN

1

2

!

C8804
10pF/6KV

!

P5

D8812

BAV99

3

1

2

D8821
1N4148

R8816
39K OHM 1/8W

P2

D8809

BAV99

3

1

2

R8805

100K OHM 1/8W

C8801

1N 50V

C8809
10pF/6KV

R8806
100 OHM +-5% 1/8W

R8817

6.8K OHM 1% 1/ 8W

C8821
18N 50V

C8802
10pF/6KV

CN8805
CONN

1

2

IS2

C8818

1NF 50V

C8808
10pF/6KV

!

R8814

510 OHM 1/8W

R8808

100KOHM +-5% 1/8W

!

IS2

D8807
1N4148

D8801
1N4148

D8806
MTZJ T-72 5.1B

D8814

BAV99

3

1

2

D8805
1N4148

R8810

510 OHM 1/8W

T8811

POWER X'FMR

6

21

4

D8811

BAV99

3

1

2

!

D8817

BAV99

3

1

2

CN8804
CONN

1

2

T8804
POWER X'FMR

4

1 2

6

!

C8820

18N 50V

P2

D8813

BAV99

3

1

2

T8805

POWER X'FMR

6

21

4

R8823

0 OHM 1/8W

P5

C8815

18N 50V

C8810
10pF/6KV

VS

T8806
POWER X'FMR

4

1 2

6

C8805
10pF/6KV

D8815

BAV99

3

1

2

T8807

POWER X'FMR

6

21

4

!

57

L32W931P 715G3690P01000003M

R8806
100 OHM +-5% 1/8W

R8814

510 OHM +- 5% 1/8W

6

21

4

T8803A

POWER X'FMR

6

21

4

T8805A

POWER X'FMR

6

21

4

T8807A

POWER X'FMR

C8819

330PF 50V

C8804

5pF/6KV

IS1

C8817
6N8 50V

6

21

4

T8802A

POWER X'FMR

6

21

4

T8804A

POWER X'FMR

6

21

4

T8806A

POWER X'FMR

6

21

4

T8808A

POWER X'FMR

D8802
1N4148

D8804
1N4148

VS
IS1

TA

P1 P2

D8821

1N4148

D8820
1N4148

C8805
5pF/6KV

C8818

330PF 50V

P3

IS2

4

1 2

6

T8801
POWER X'FMR

P1

R8801
100 OHM +-5% 1/8W

R8802
100 OHM +-5% 1/8W

P2

D8801
1N4148

C8824

6N8 50V

TB

R8818

1K OHM 1/8W +-5%

R8811

510 OHM +- 5% 1/8W

R8812

510 OHM +- 5% 1/8W

4

1 2

6

T8803

POWER X'FMR

1

2

CN8804
CONN

4

1 2

6

T880 5

POWER X'FMR

1

2

CN8805
CONN

4

1 2

6

T880 7

POWER X'FMR

1
2
3

CN8802

CONN

1

2

CN8806
CONN

4

1 2

6

T880 2
POWER X'FMR

TB

4

1 2

6

T880 4
POWER X'FMR

1

2

CN8807
CONN

4

1 2

6

T880 6
POWER X'FMR

C8825

6N8 50V

4

1 2

6

T8808
POWER X'FMR

IS2

3

1

2

D8819 D -BAV99-7-F

3

1

2

D8813

D-BAV99-7-F

P2

C8820

6N8 50V

C8822

220pF K 50V X7R

R8803
39KOHM +-1% 1/8W

R8823

1K OHM +-5% 1/8W

R8816

39KOHM +-1% 1/8W

C8821

6N8 50V

VS

R8819

1K OHM 1/8W +-5%

R8820

1K OHM 1/8W +-5%

C8812
5pF/6KV

1

2

3

4

5

6

CN8801

CONN

C8816

6N8 50V

IS1

IS2

R8813
5K1 +- 5% 1/8W

C8802
5pF/6KV

VS

C8813
5pF/6KV

P3

R8817

5K1 +- 5% 1/8W

P3

TA

R8807

1K OHM 1/8W

P1

C8808
5pF/6KV

1
2
3

CN8803

CONN

C8809

5pF/6KV

R8804
10KOHM + -5% 1/8W

R8805

100K OHM 1/8W

C8801

1N 50V

R8808

100KOHM + -5% 1/8W

D8806
MTZJ T-72 5.1B

C8803
5pF/6KV

3

1

2

D8809
D-BAV99-7-F

3

1

2

D8815
D-BAV99-7-F

6

21

4

T8801A

POWER X'FMR

3

1

2

D8811

D-BAV99-7-F

3

1

2

D8817
D-BAV99-7-F

58

Power Board

715G3770P03W30003S

C820

1.2nF 50V

Q805
PMBS3904

R847

1M5 +-1% 1/8W

R846
NC

R816

10K 1/8W

R817

10K 1/8W

R801

0.1 ohm

B+_390V

VS1

VS2

ZCS

ISEN

IS1

IS2

3

1

2

D808

BAV70

IS1

IS2

ZCS

VS1

VS2

IS2

VREF

VREF

IS1

R806

39KOHM +-1% 1/8W

C815

47N 50V

ON/OFF

C808

15PF/3KV

PDIM

1

2

CN802

CONN

D803

SCS0520P

D804

SCS0520P

1

2

CN801

CONN

10

7

54

1 9

T802

POWER X'FMR

R808

39KOHM +-1% 1/8W

Q802

AOTF12N50

Q804
PMBS3904

!

!

!

!

VP1

ENA

2 6

4 7

T801

POWER X'FMR

OEM MOD EL

Size

Rev

Date

Sheet

of

TPV MOD EL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬隔瓜絪腹

1

A3

23Tuesday, Septem ber 28, 2010

715G3770-P0D

称爹

<>

02.INVERTER BOAR D

G3770-POD-X-X-1-100302

R801

R810

680K

R802

100 OHM 1/8W

C801

1uF/450V

R831NC

R838

10K 1/4W

R833

3.3MOHM +-1% 1/4W

3

1

2

D807

BAV70

R837

100K 1/8W

C812
1N 50V

R832

75K 1/4W

R836

1K 1/4W

R841

51K +-5% 1/8W

C802

1uF/450V

C807

1N5 50V

C817

0.22uF 50V

D806

1N4148

D805

1N4148

C811

0.1uF 50V

D801

SCS0520P

R822
10KOHM +-5% 1/8W

D802

SCS0520P

1

2

4

3

T803

3mH

R825
10KOHM +-5% 1/8W

R820
51K +-5% 1/8W

C819

2.2U25V

R840
1M 1/8W

R843
680 OHM 1/4W

R835

39K 1/4W

C806

15PF/3KV

R839

150K 1/4W 5%

R807
51K +-5% 1/8W

R844
10KOHM +-5% 1/8W

Q803
RK7002FD5T116

R805
51K +-5% 1/8W

R809

51K +-5% 1/8W

R804
51K +-5% 1/8W

C804

0.001uF/1KV

R830

10KOHM +-5% 1/8W

C821

15N 50V

C831
1uF 25V

C830
1uF 25V

R834

DRV1

1

GND

2

ZCS

3

RT1

4

CT

5

LCT

6

PDIM

7

VSEN8ISEN

9

SSTCMP

10

TIMER

11

ADIM

12

ENA

13

VREF

14

VIN

15

DRV2

16

IC801

OZ9976GN-C-0-TR

Q801

AOTF12N50

R842

75K+/-5%

R821

2K 1/8W

R803

100 OHM 1/8W

ISEN

C805

2.2U25V

C818

4N7 50V

R824

2K 1/8W

R826

1M 1/8W

C813
330P 50V

+

C810

100uF 50V

R814
100 OHM 1/8W

C814
NC

R823

1M 1/8W

C809
1N5 50V

R815
NC

C816
2U2 25V

+12V

R812

DR1 DR2

DR1

DR2

VREF

C803

0.001uF/1KV

R811R813

R845
NC

59

C911

0.001uF/250V

!

C922

0.001uF/250V

!

!

!

!

!

!

!

!

OEM MODEL

Size

Rev

Date

Sheet

of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics C o . , Ltd. )

Key Component

絬隔瓜絪腹

PWTV9LE1GAAP 1

Custom

23Tuesday, Septem ber 28, 2010

715G3770-P0D

称爹

<>

02.INVERTER BOARD

G3770-POD-X-X-1-100302

!

C943
47N 50V

R915
470 OHM 1/4W

D901
1N4007-E3/73

C949
100N 50V

+

C973
470uF 35V

R909

1M5 1/4W 1%

+

C933

10uF/50V

R943

10OHM +-5% 1/8W

R948

0.1 ohm

R973
100 OHM 1/4W

C976

330N 50V

12

t

NR901
NTCR

INV1COMP2MOT3CS

4

ZCD

5

GND

6

GATE

7

VCC

8

IC901
FAN6961SZ

R951

100 OHM 1/4W

R918

10KOHM +-5% 1/8W

D940

PR1007

D903

1N4148

213

4

-

+

BD901
KBJ608G

C902
680pF

R972

1.8K 1/4W

R988

1.8K 1/4W

R908

2.2 OHM 1/4W

D906
1N4148

RV901
NC

R9103

1M5 1/4W 1%

R9106

51K +-5% 1/8W

Q9101
2N3904S-RTK/PS

C955
220N 50V

1 2

CN901

SOCKET

L951

L

R916

0R12 5% 2W

C932

0.1NF2KV

D951

1N4148

C935

0.1NF2KV

R919
NC

1234

IC950
EL817M(X)

R965

1.8K 1/4W

C912

56P 50V

R932

10OHM +-5% 1/8W

C903
680pF

124

3

L901

13mH

!

124

3

L902

13mH

C951
1N 500V

R926

1M 1/4W 1%

4

5

3

8

9

10

11

T902

POWER X'FMR

L980

L

R952

47 OHM 1/4W

C919
NC

R966

6.8K 1/4W

Q970
PMBS3904

R974
1K 1/4W

R987
27K 1/8W 1%

R959
NC

1 2

FB901

BEAD

R914

10KOHM +-5% 1/8W

R998

100K 1/4W

R992

100K 1/4W

R976

10K 1/4W

R9105

10KOHM +-5% 1/8W

C909
1N 50V

C957

1N 500V

+

C941

10uF/50V

R955
1K 1/8W

C921

0.1uF 50V

R9110

16.2K +-1% 1/4W

+

C937
10uF/50V

R970

100 OHM 1/4W

R993

100K 1/4W

C910
1uF/520V

1

2

3

D972

YG865C10RSC

8

7

126

5

L906

310uH

R983

1K 1/8W

R963

10KOHM +-5% 1/8W

C944
220P 50V

R923
13K 1/8W 1%

R980
NC

+

C931

R913

10 OHM +-5% 1/6W

1

2

3

D973
YG865C10RSC

R961

10KOHM +-5% 1/8W

R947

10KOHM +-5% 1/8W

BNO

1

COMP

2

NC

3

CS4GND

5

OUT

6

VCC

7

OVP

8

IC903

LD7523GS

+

C945
470uF 35V

C917
47N 50V

Q950
PMBS3904

R979
2KOHM +-1% 1/8W

R967

1.8K 1/4W

R933

1R 1/4W 5%

R956

1K 1/4W

R944
10KOHM +-5% 1/8W

+

C914
47uF/50V

R957
8K2 1/8W 1%

S/OCP

1

BR

2

GND

3

FB/OLP4VCC

5

D/ST

7

D/ST

8

IC902

A6069H

1 2

FB902

BEAD

R960
1K 1/4W

IC971
AS431AZTR-E1

R903
330K 1/4W

R996

100K 1/4W

12

ZD970

MTZJ T-72 30B

R971

1.8K 1/4W

C950
1N 500V

R958
7K5 1/8W +/-1%

1234

IC951
EL817M(X)

R904

1M5 1/4W 1%

C905

470pF/250V

D905
1N4148

R921
680K OHM +-1% 1/4W

D907

IN5408

R902

330K 1/4W

R924

1MOHM +-1% 1/4W

C947
100N 50V

R912
NC

R9101

1M5 1/4W 1%

C924

0.001uF/250V

12

ZD9101

MTZJ T-72

C942
100N 50V

R920
680K OHM +-1% 1/4W

R981

100OHM +-5% 1/8W

C918

0.47uF 50V

1
2
3
4
5
6
7
8

9
10
11
12
13

CN902

CONN

D931

AU02Z

R945

1K 1/4W

C948
100N 50V

R906
560K 1/8W 1%

Q903
2SK4101LS

R9107

10KOHM +-5% 1/8W

12

ٛ

MTZJ T-72 15B

R982
1K 1/8W

R922
680K OHM +-1% 1/4W

R925

1M 1/4W 1%

R962

4.7M OHM +-5% 1/4W

R977

100 OHM 1/4W

R941
NC

C978
100N 50V

+

C953
330uF 16V

C925
470PF1KV

Q921

KTD1691/P

C913

0.1uF 50V

L

1

N

2

CN903

CONN

R984

6.8K 1/4W

L950

L

1 2

ZD930

MTZJ T-72 16B

R939
10K 1/4W

IC952

AS431AZTR-E1

R997

100K 1/4W

R969

6.8K 1/4W

!

R9102

1M5 1/4W 1%

R9109

100K 1/8W

R942

NC

C916
NC

D902

FMNS-1106S

C972

1N 500V

1

2

3

D950
MBRF1560CT

1234

IC970
EL817M(X)

C907
100N 50V

C908
100N 50V

C934
100N 50V

R901

330K 1/4W

R991

100K 1/4W

+

C954
470uF 16V

+

C920
100uF M 450V

C939
10N 50V

R910
NC

F901

5A 250V

ALL NC

Q9102
2N3906S-RTK/PS

C952

1N 500V

R968

6.8K 1/4W

R978

+

C975
470uF 35V

1

2 3

4

IC9101

EL817M(X)

C904

Q901
2SK4086LS

R954
100 OHM 1/4W

!

1

2

3

5

4

7

6

9
10

T901

POWER X'FMR

D971

1N4148

C906

470pF/250V

R907

2.2 OHM 1/4W

R905

1M5 1/4W 1%

R994

100K 1/4W

+

C946

R946
0R36 5% 2W

R975
3K9 +-5% 1/8W

D930

PR1007

D904

IN5408

R931

2.2 OHM 1/4W

C901

C970

1N 500V

R985

13K 1/8W 1%

R9108

10KOHM +-5% 1/8W

R9111
33K +-1% 1/4W

R9104

82K 5%

R917
15K 1/8W

R950

47 OHM 1/4W

C956
100N 50V

R911
20K 1/4W

R986

1.8K 1/4W

R999

100K 1/4W

C915
220P 50V

B+_390V

+5V

VCC

B+

ACD

VCC

+5V

ACD

PS_ON

FB

FB

+24V

B+_390V

R801

B+

A5V

B+

+24V

+5V

VCC

A5V

B+_390V

VCC

PS_ON

+24V

ON/OFF

+12V

+12V

PDIM

+12V

!

!

1 2

FB903

NC

!

!

!

ACD

!

!

!

!

!

!

60

9.4 Key Board

715G3400 1

Power ON/OFF

SW03

SW07

CN01

CONN

1
2
3
4

C08

NC

R08

100 OHM 1% 1/10W

3V3_STB

CH+

R05

1.8K OHM 1% 1/10W

R10

NC

C06

NC

C03

NC

MENU

R09

NC

FUNC _KEY

Source Select

SW02

R07

100 OHM 1% 1/10W

077G 603 AI HJ

R03

4.32K 1% 1/10W

SW06

C05

NC

SW04

C07

NC

VOL+

SW05

FUNC _KEY

PWR-SW

B

Custom

Wednesday , June 24, 2009

715G3400-D

称爹

<>

Keypa d

OEM MODEL Size

Rev

Date

Sheet

of

TPV MO DEL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬隔瓜絪腹

R04

2.74K 1% 1/10W

PWR-SW

3V3_STB

R01
20K OHM 1% 1/10W

C04

NC

VOL-

R02

8.2K1/10W 1%

C01

NC

JR01

0 OHM 1/8W

SW01

CH-

033G3802 4H

C02

NC

JR02

0 OHM 1/4W

61

9.5 IR Board

715G3394 2

56G 627 42

R003 4.7K 1/ 8W 5%

D01 LED

1

3

2

R002
22K 1/10W 5%

B

Custom

11Wednesday , May 06, 2009

715G3394

称爹

<>

01-IR&LED

OEM MO DE L Size

Rev

Date

Sheet

of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬隔瓜絪腹

U02

KSM-603TM2E

1
2
3

VOUT
GND
VCC

IRRV

R001 22K 1/10W 5%

C02

0.1uF/ 16V

U01
LED GPB2603C/R001-HB

12

81G 12 10 EL

D3V3

LED_R

C01

3.3uF/ 10V

LED_G

GND_PI N
GND PI N

1

033G8032 6F
HR

D3V3

LIGHT_SENSOR

C03

NC/4.7uF/16V

GREEN

RED

CN01

CONN

1

2

3

4

5

6

7 8

62

10. Exploded View

63

11. BOM List

Note: The parts information listed below are for reference only, and are subject to change without notice.
Please go to http://cs.tpv.com.cn/hello1.asp

for the latest information.

E329MANS4WACNN

Location Part No. Description Remark

040G 58162435A P/N LABEL FOR MANUAL PE BAG
052G 1185 1 BIG TAPE(Y1200141)
052G 1186 SMALL TAPE
052G 1211 B CONDUCTIVE TAPE 85MM *40MM *0.09MM
052G 2191 A PAPER TAPE

E07801 078G0120 2 K SPEAKER 6 OHM 12W 160X42MM
E07801 078G0120 2 Y SPEAKER 6 OHM 12W 160X42MM 2nd source

089G 725CAA DB D-SUB CABLE
089G408A18N IS POWER CORD WALL-OUT FOR ITALY

E09201 092TB1JX1A3WGC BATTERY LR03(EA)2S/G AAA
E09201 092TB1JX1A3WGM BATTERY FOR ALL EXPORT MODE LR03

095G801312D 42 HARNESS 12P-12P 150MM
095G8021 3D 52 HARNESS 3P-3P 300MM

E09503 095T8014 4D557 WIRE HARNESS 4P(PLUG)-B&R+B&W
E09503 095T8014 4X557 WIRE HARNESS 4P(PLUG)-B&R+B&W 2nd source

095T8018 3DH57 LVDS CABLE 30P-30P 350MM
098GRABD2NEACR REMOTE CONTROL RC2443801/01
0M1G 340 4120 SCREW
0M1G 930 8 47 CR3 SCREW
0M1G 940 16 47 CR3 SCREW
0M1G1730 8120 SCREW
0M1G1730 10120 SCREW 42A9930016
0Q1G 930 10 47 CR3 SCREW
0Q1G 940 16 47 CR3 SCREW

E750 750TVM315BN311N000 PANEL V315B3-LN3 C1/C2 TW CMO
E750 750TVM315BN313N000 PANEL V315B3-LN3 C1/C2 NH CMO 2nd source

756TQ9CB AS003 01 MAIN BOARD-CBPF9A4SY2

U402 056G1133923 IC MX25L4005AM2C-12G SOP-8

SMTF-U402 100TAHMK002C11 MCU ASS'Y-056G1133923

040G 45762412B CBPC LABEL
CN602 033G3802 4B Y W WAFER
CN405 033G8027 30 WAFER 30P 2.0MM DIP DUAL ROW
CN700 033T327812D WAFER 12P PLUG
CN602 033T3802 4B Y CONNECTOR
CN400 033T380210B Y CONNECTOR

R300 061G 208470 64 RST MOFR 47OHM +-5% 1W
R303 061G 208470 64 RST MOFR 47OHM +-5% 1W
C779 067G 305101 3T 100UF 16V 105C
C640 067G215P4714AV

CAP 105℃ 470UF M 25V

C660 067G215P4714AV

CAP 105℃ 470UF M 25V

C710 067G215V471 6N

CAP 105℃ 470UF M 35V

C636 067T215P4716AV CAP 105C 470UF M 35V
CN102 088G 78 13942 C RCA JACK 1*5 G/B/R/W/R AV5-8.4-02-01
CN103 088G 78 13942 C RCA JACK 1*5 G/B/R/W/R AV5-8.4-02-01
CN103 088G 78 13942 YG RCA JACK 1*5 G/B/R/W/R RCA-512DF
CN102 088G 78 13942 YG RCA JACK 1*5 G/B/R/W/R RCA-512DF
CN106 088G 7813A38C RCA JACK 1*3 Y/W/R V/A
CN104 088G 7813A38C RCA JACK 1*3 Y/W/R V/A

64

CN105 088G 7813A39C S JACK + RCA JACK 1*3 Y/W/R
CN600 088G 30211K PHONE JACK 5PIN
CN601 088T 78 8 9C RCA JACK 1*1 W/R V/A
CN105 088T 78 13A39 YG S JACK + RCA JACK 1*3 Y/W/R RCA-333S-010
CN101 088T 30252C PHONE JACK 3.5MM 3P V/A GREEN
CN101 088T 302A17 YG PHONE JACK 3.5MM 3P V/T GREEN
CN100 088T 35315F VC D-SUB 15PIN VERTICAL CONNECTOR
CN100 088T 35315F VD D-SUB 15PIN FEMALE VERTICAL WITH SCREW 2nd source

090G 372 2 HEAT SINK

X400 093G 2270B H XAT024576FK1H-3OHX AT-49 24.576MHZ
TU100 094TNTSC MN 7L TUNER M15WPP-4N-E

C651 067G 305100 3T 10UF 16V

C414 067G 305100 3T 10UF 16V

C746 067G 305100 7T

105℃ 10UF +-20% 50V

C736 067G 305100 7T

105℃ 10UF +-20% 50V

C732 067G 305100 7T

105℃ 10UF +-20% 50V
C778 067G 305101 3T 100UF 16V 105C
C720 067G 305101 3T 100UF 16V 105C
C728 067G 305101 3T 100UF 16V 105C
C717 067G 305101 3T 100UF 16V 105C
C712 067G 305101 3T 100UF 16V 105C
C672 067G 305101 3T 100UF 16V 105C
C308 067G 305101 3T 100UF 16V 105C
C303 067G 305101 3T 100UF 16V 105C
C301 067G 305101 3T 100UF 16V 105C
C300 067G 305101 3T 100UF 16V 105C
C729 067G 305101 3T 100UF 16V 105C
C763 067G 305221 2T 105C RADIALE-CAPACTOR 220UF 10V
C702 067G 305221 3T 220UF/16V
C715 067G 305221 3T 220UF/16V
C721 067G 305221 3T 220UF/16V
C410 067G 305470 3T 47UF +-20% 16V
C427 067G 3054713PT CAP 105C 470UF M 16V 8*12
C707 067G 3054713PT CAP 105C 470UF M 16V 8*12
U400 056G 562595 IC HX6202-A090QAG 1080P QFP-256
U705 056G 563 7 IC AIC1084-33PMTR-R AIC
U700 056G 563 31 IC AZ1117D-1.8-E1
U703 056G 563 52 IC AP1117D33G-13 TO252-3L DIODES
U702 056G 563 52 IC AP1117D33G-13 TO252-3L DIODES
U300 056G 585 11 IC AZ1117D-5.0-E1 AAC
U600 056G 614 1 74HC4052D S016 PHLIPS
U603 056G 616518 IC R2A15112FP HTQFP48
U401 056G113353A IC M24C32-WMN6T SO-8 ST
U402 056G1133923 IC MX25L4005AM2C-12G SOP-8
U707 056T 563952 IC SC4524BSETRT SO-8
U601 056T 616516 IC APA2176AQBITRL TQFN3X3-16

Q708 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q712 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q103 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q104 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q105 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q707 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q706 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q704 057G 417 4 PMBS3904/PHILIPS-SMT(04)

65

Q700 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q603 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q602 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q601 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q508 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q506 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q505 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q504 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q502 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q500 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q410 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q407 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q406 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q413 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q403 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q401 057G 417512 MMBT3906
Q400 057G 417512 MMBT3906
Q102 057G 417512 MMBT3906
Q705 057G 763 79 FET AO4449 -7A/-30V SOIC-8
Q405 057G 763 79 FET AO4449 -7A/-30V SOIC-8

Q501 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS
RP400 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP401 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP402 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP403 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP600 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP601 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP602 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP603 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W

R545 061G0402000 RST CHIP MAX 0R05 1/16W
R600 061G0402000 RST CHIP MAX 0R05 1/16W
R506 061G0402000 RST CHIP MAX 0R05 1/16W
R509 061G0402000 RST CHIP MAX 0R05 1/16W
R517 061G0402000 RST CHIP MAX 0R05 1/16W
R518 061G0402000 RST CHIP MAX 0R05 1/16W
R531 061G0402000 RST CHIP MAX 0R05 1/16W
R533 061G0402000 RST CHIP MAX 0R05 1/16W
R544 061G0402000 RST CHIP MAX 0R05 1/16W
R308 061G0402000 RST CHIP MAX 0R05 1/16W
R313 061G0402000 RST CHIP MAX 0R05 1/16W
R316 061G0402000 RST CHIP MAX 0R05 1/16W
R416 061G0402000 RST CHIP MAX 0R05 1/16W
R417 061G0402000 RST CHIP MAX 0R05 1/16W
R448 061G0402000 RST CHIP MAX 0R05 1/16W
R451 061G0402000 RST CHIP MAX 0R05 1/16W
R452 061G0402000 RST CHIP MAX 0R05 1/16W
R310 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R608 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R609 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R719 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R718 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R524 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R522 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R507 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

66

R500 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R404 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R403 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R454 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R453 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R446 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R423 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R422 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R411 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R410 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R409 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R408 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R407 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R160 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R120 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R119 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R716 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R625 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R624 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R619 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R527 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R525 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R523 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R513 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R511 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R502 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R501 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R455 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R510 061G0402105 RST CHIPR 1MOHM +-5% 1/16W
R155 061G0402201 RST CHIP 200R 1/16W 5%
R714 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W
R158 061G0402271 RST CHIP 270R 1/16W 5%
R508 061G0402273 RST CHIP 27K 1/16W 5%
R542 061G0402391 RST CHIPR 390 OHM +-5% 1/16W
R543 061G0402391 RST CHIPR 390 OHM +-5% 1/16W
R443 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R442 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R440 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R439 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R402 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R401 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R400 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R620 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W
R616 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W
R611 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W
R530 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W
R528 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W
R516 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W
R515 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W
R505 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W
R503 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W
R447 061G0402562 RST CHIP 5K6 1/16W 5%
R157 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R769 061G0603000 RST CHIP MAX 0R05 1/10W

67

R770 061G0603000 RST CHIP MAX 0R05 1/10W
R774 061G0603000 RST CHIP MAX 0R05 1/10W
R209 061G0603000 RST CHIP MAX 0R05 1/10W
R213 061G0603000 RST CHIP MAX 0R05 1/10W
R233 061G0603000 RST CHIP MAX 0R05 1/10W
R771 061G0603000 RST CHIP MAX 0R05 1/10W
R772 061G0603000 RST CHIP MAX 0R05 1/10W
R773 061G0603000 RST CHIP MAX 0R05 1/10W
R760 061G0603000 RST CHIP MAX 0R05 1/10W
R759 061G0603000 RST CHIP MAX 0R05 1/10W
R152 061G0603000 RST CHIP MAX 0R05 1/10W
R147 061G0603000 RST CHIP MAX 0R05 1/10W
R141 061G0603000 RST CHIP MAX 0R05 1/10W
R138 061G0603000 RST CHIP MAX 0R05 1/10W
R132 061G0603000 RST CHIP MAX 0R05 1/10W
R127 061G0603000 RST CHIP MAX 0R05 1/10W
L602 061G0603000 RST CHIP MAX 0R05 1/10W
R784 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R783 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R130 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R133 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R139 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R142 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R145 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R148 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R153 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R175 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R183 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
FB100 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
FB102 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R171 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R179 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R128 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R314 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R315 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R427 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R444 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R445 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R791 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R792 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R101 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R103 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R107 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R112 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R123 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R124 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R434 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R459 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R786 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R785 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R788 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R787 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R782 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R781 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

68

R712 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R708 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R706 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R700 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R612 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R737 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R725 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R639 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R638 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R637 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R622 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R526 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R512 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R432 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R430 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R149 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W

R137 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W

R136 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W

R118 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W

R117 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W

R164 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W

R163 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W

R150 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W

R187 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W

R188 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W

R191 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W

R192 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W

R424 061G0603105 RST CHIPR 1M OHM +-5% 1/10W

R436 061G0603133 RST CHIPR 13 KOHM +-5% 1/10W

R738 061G0603150 2F RST CHIPR 15 KOHM +-1% 1/10W

R159 061G0603151 RST CHIPR 150 OHM +-5% 1/10W

R536 061G0603160 1F RST CHIPR 1.6 KOHM +-1% 1/10W

R309 061G0603180 RST CHIPR 18 OHM +-5% 1/10W

R182 061G0603180 RST CHIPR 18 OHM +-5% 1/10W

R178 061G0603180 RST CHIPR 18 OHM +-5% 1/10W

R174 061G0603180 RST CHIPR 18 OHM +-5% 1/10W

R170 061G0603180 RST CHIPR 18 OHM +-5% 1/10W

R156 061G0603183 RST CHIPR 18 KOHM +-5% 1/10W

R736 061G0603202 RST CHIPR 2 KOHM +-5% 1/10W

R793 061G0603221 RST CHIPR 220 OHM +-5% 1/10W

R104 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W

R110 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W

R441 061G0603224 RST CHIPR 220 KOHM +-5% 1/10W

R734 061G0603229 RST CHIPR 2.2 OHM +-5% 1/10W

R185 061G0603273 RST CHIPR 27 KOHM +-5% 1/10W

R186 061G0603273 RST CHIPR 27 KOHM +-5% 1/10W

R189 061G0603273 RST CHIPR 27 KOHM +-5% 1/10W

R190 061G0603273 RST CHIPR 27 KOHM +-5% 1/10W

R799 061G0603274 RST CHIPR 270 KOHM +-5% 1/10W

R102 061G0603330 RST CHIPR 33 OHM +-5% 1/10W

R109 061G0603330 RST CHIPR 33 OHM +-5% 1/10W

R615 061G0603333 RST CHIPR 33KOHM +-5% 1/10W

R715 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

R711 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

69

R703 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

R610 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

R421 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

R420 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

R167 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

R165 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

R166 061G0603473 RST CHIPR 47 KOHM +-5% 1/10W

R168 061G0603473 RST CHIPR 47 KOHM +-5% 1/10W

R717 061G0603473 RST CHIPR 47 KOHM +-5% 1/10W

R621 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W

R146 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W

R143 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W

R134 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W

R131 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W

R311 061G0603560 RST CHIPR 56 OHM +-5% 1/10W

R184 061G0603560 RST CHIPR 56 OHM +-5% 1/10W

R180 061G0603560 RST CHIPR 56 OHM +-5% 1/10W

R176 061G0603560 RST CHIPR 56 OHM +-5% 1/10W

R172 061G0603560 RST CHIPR 56 OHM +-5% 1/10W
FB707 061G0603680 RST CHIPR 68 OHM +-5% 1/10W

R161 061G0603681 RST CHIPR 680 OHM +-5% 1/10W

R162 061G0603681 RST CHIPR 680 OHM +-5% 1/10W

R735 061G0603683 RST CHIPR 68K OHM +-5% 1/10W

R114 061G0603683 RST CHIPR 68K OHM +-5% 1/10W

R115 061G0603683 RST CHIPR 68K OHM +-5% 1/10W

R105 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

R108 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

R113 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

R129 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

R135 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

R140 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

R405 061T0603102 2F RST CHIPR 10.2 KOHM +-1% 1/10W

R406 061T0603102 2F RST CHIPR 10.2 KOHM +-1% 1/10W

C745 065G0603101 31 CER1 0603 NP0 50V 100P PM5 R

C685 065G0603103 32 CAP CHIP 0603 0.01UF K 50V X7R

C684 065G0603103 32 CAP CHIP 0603 0.01UF K 50V X7R

C683 065G0603103 32 CAP CHIP 0603 0.01UF K 50V X7R

C682 065G0603103 32 CAP CHIP 0603 0.01UF K 50V X7R

C751 065G0603104 12 CER2 0603 X7R 16V 100N P

C752 065G0603104 12 CER2 0603 X7R 16V 100N P

C761 065G0603104 12 CER2 0603 X7R 16V 100N P

C780 065G0603104 12 CER2 0603 X7R 16V 100N P

C143 065G0603104 32 CHIP 0.1UF 50V X7R

C302 065G0603104 32 CHIP 0.1UF 50V X7R

C304 065G0603104 32 CHIP 0.1UF 50V X7R

C426 065G0603104 32 CHIP 0.1UF 50V X7R

C632 065G0603104 32 CHIP 0.1UF 50V X7R

C733 065G0603104 32 CHIP 0.1UF 50V X7R

C731 065G0603104 32 CHIP 0.1UF 50V X7R

C730 065G0603104 32 CHIP 0.1UF 50V X7R

C727 065G0603104 32 CHIP 0.1UF 50V X7R

C722 065G0603104 32 CHIP 0.1UF 50V X7R

C719 065G0603104 32 CHIP 0.1UF 50V X7R

C718 065G0603104 32 CHIP 0.1UF 50V X7R

70

C716 065G0603104 32 CHIP 0.1UF 50V X7R

C709 065G0603104 32 CHIP 0.1UF 50V X7R

C706 065G0603104 32 CHIP 0.1UF 50V X7R

C701 065G0603104 32 CHIP 0.1UF 50V X7R

C663 065G0603104 32 CHIP 0.1UF 50V X7R

C662 065G0603104 32 CHIP 0.1UF 50V X7R

C661 065G0603104 32 CHIP 0.1UF 50V X7R

C658 065G0603104 32 CHIP 0.1UF 50V X7R

C657 065G0603104 32 CHIP 0.1UF 50V X7R

C655 065G0603104 32 CHIP 0.1UF 50V X7R

C650 065G0603104 32 CHIP 0.1UF 50V X7R

C641 065G0603104 32 CHIP 0.1UF 50V X7R

C639 065G0603104 32 CHIP 0.1UF 50V X7R

C638 065G0603104 32 CHIP 0.1UF 50V X7R

C635 065G0603104 32 CHIP 0.1UF 50V X7R

C548 065G0603105 12 CHIP 1UF 16VX7R 0603

C546 065G0603105 12 CHIP 1UF 16VX7R 0603

C544 065G0603105 12 CHIP 1UF 16VX7R 0603

C444 065G0603105 12 CHIP 1UF 16VX7R 0603

C443 065G0603105 12 CHIP 1UF 16VX7R 0603

C442 065G0603105 12 CHIP 1UF 16VX7R 0603

C753 065G0603105 15 0603,1.0UF,16V,X5R,+-10%

C656 065G0603105 22 CHIP 1UF 25V X7R 0603

C654 065G0603105 22 CHIP 1UF 25V X7R 0603

C653 065G0603105 22 CHIP 1UF 25V X7R 0603

C652 065G0603105 22 CHIP 1UF 25V X7R 0603

C648 065G0603105 22 CHIP 1UF 25V X7R 0603

C647 065G0603105 22 CHIP 1UF 25V X7R 0603

C643 065G0603105 22 CHIP 1UF 25V X7R 0603

C155 065G0603221 32 CHIP 220PF 50V X7R

C766 065G0603221 32 CHIP 220PF 50V X7R

C749 065G0603222 22 CHIP 2200PF 25V X7R

C765 065G0603223 22 CHIP 25V X7R 0603 22NF

C438 065G0603224 25 CAP CHIP 0603 220N 25V X5R +/-10%

C713 065G0603224 32 CHIP 0.22UF 50V X7R

C401 065G0603224 32 CHIP 0.22UF 50V X7R

C400 065G0603224 32 CHIP 0.22UF 50V X7R

C115 065G0603224 32 CHIP 0.22UF 50V X7R

C708 065G0603225 17 MLCC 0603 2.2UF Z 16V Y5V

C607 065G060333412K A CAP CHIP 0603 0.33UF K 16V X7R

C750 065G060333412K A CAP CHIP 0603 0.33UF K 16V X7R

C620 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C630 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C628 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C626 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C622 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C624 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C144 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C549 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C602 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C610 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C612 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C614 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C616 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

71

C631 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C644 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C645 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C646 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C649 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C666 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C744 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C535 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C411 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C417 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C421 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C428 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C439 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C440 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C441 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C453 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C514 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C520 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C526 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C528 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C529 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C659 065G0805334 32 CHIP 0.33UF 50V X7R

C642 065G0805334 32 CHIP 0.33UF 50V X7R

C634 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C633 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C168 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C167 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C166 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C165 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C150 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C149 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C100 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C113 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C123 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C125 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C132 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C136 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C147 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C148 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C762 065G1206226 A7 CHIP 1206 22UF Z 10V Y5V
FB503 071G 56G301 EA BEAD 300 OHM
FB504 071G 56G301 EA BEAD 300 OHM
FB505 071G 56G301 EA BEAD 300 OHM
FB507 071G 56G301 EA BEAD 300 OHM
FB600 071G 56G301 EA BEAD 300 OHM
FB601 071G 56G301 EA BEAD 300 OHM
FB603 071G 56G301 EA BEAD 300 OHM
FB502 071G 56G301 EA BEAD 300 OHM
FB500 071G 56G301 EA BEAD 300 OHM
FB411 071G 56G301 EA BEAD 300 OHM
FB408 071G 56G301 EA BEAD 300 OHM
FB407 071G 56G301 EA BEAD 300 OHM
FB406 071G 56G301 EA BEAD 300 OHM
FB301 071G 56G301 EA BEAD 300 OHM

72

FB300 071G 56G301 EA BEAD 300 OHM
FB700 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB706 071G 57G301 EA CHIP BEAD
FB703 071G 57G301 EA CHIP BEAD
FB702 071G 57G301 EA CHIP BEAD
FB701 071G 57G301 EA CHIP BEAD
FB104 071G 59B121 TB160808B
FB604 071G 59B121 TB160808B
FB605 071G 59B121 TB160808B
FB105 071G 59B601 MA CHIP BEAD
FB106 071G 59B601 MA CHIP BEAD

R100 071G 59C600 M CHIP BEAD 60 OHM 0603 600MA

R106 071G 59C600 M CHIP BEAD 60 OHM 0603 600MA

R111 071G 59C600 M CHIP BEAD 60 OHM 0603 600MA
FB101 071G 59C800 1HIP BEAD
FB103 071G 59C800 1HIP BEAD
FB402 071G 59G301 CHIP BEAD 300OHM
FB403 071G 59G301 CHIP BEAD 300OHM
FB404 071G 59G301 CHIP BEAD 300OHM
FB405 071G 59G301 CHIP BEAD 300OHM
FB501 071G 59G301 CHIP BEAD 300OHM
FB506 071G 59G301 CHIP BEAD 300OHM
FB415 071G 59G301 CHIP BEAD 300OHM
FB401 071G 59G301 CHIP BEAD 300OHM
FB410 071T 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30
FB413 071T 59A121 TA CHIP BEAD 120R/3000MA HCB1608KF-121T30

R169 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

R173 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

R177 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

R181 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

CN501 088G 340 21 VT HDMI HEADER 21P V/T
CN500 088G 340 21 VT HDMI HEADER 21P V/T
CN502 088T 340 19 AV HDMI HEADER 19P +SCREW HOLE

D100 093G 60230 BAT54C(L43)

D500 093G 60230 BAT54C(L43)

D501 093G 60230 BAT54C(L43)

D502 093G 60230 BAT54C(L43)

D403 093G 64 33 DIO SIG SM BAV99 (PHSE)R

D703 093G 6432P LL4148

ZD700 093G 39S 9 T ZENER DIODE RLZ9.1B ROHM
ZD606 093G 39S 24 T RLZ 5.6B LLDS
ZD607 093G 39S 24 T RLZ 5.6B LLDS
ZD608 093G 39S 24 T RLZ 5.6B LLDS
ZD609 093G 39S 24 T RLZ 5.6B LLDS
ZD600 093G 39S 44 T RLZ18B LLDS
ZD702 093G3004 3 SM340A

R795 061G0603000 RST CHIP MAX 0R05 1/10W

R796 061G0603000 RST CHIP MAX 0R05 1/10W

R797 061G0603000 RST CHIP MAX 0R05 1/10W

R798 061G0603000 RST CHIP MAX 0R05 1/10W

040G 457624 1B LABEL-CPU
R648 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
R649 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
R650 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

73

CN501 088T 340 21 VA HDMI HEADER 21P V/T 2nd source
CN500 088T 340 21 VA HDMI HEADER 21P V/T 2nd source

C158 065G0603221 32 CHIP 220PF 50V X7R
C164 065G0603221 32 CHIP 220PF 50V X7R
C161 065G0603221 32 CHIP 220PF 50V X7R
R548 061G0603473 RST CHIPR 47 KOHM +-5% 1/10W
R549 061G0603473 RST CHIPR 47 KOHM +-5% 1/10W
R550 061G0603473 RST CHIPR 47 KOHM +-5% 1/10W
C783 065G0603102 32 1000PF +-10% 50V X7R

Q600 057G 417 4 PMBS3904/PHILIPS-SMT(04)

R602 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R606 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R604 061G0402122 RST CHIP 1K2 1/16W 5%
R603 061G0402220 RST CHIPR 22 OHM +-5% 1/16W
R607 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R605 061G0603181 RST CHIPR 180 OHM +-5% 1/10W
C538 065G040210131J A CAP 0402 100PF J 50V NPO
C534 065G040210131J A CAP 0402 100PF J 50V NPO
C513 065G040210131J A CAP 0402 100PF J 50V NPO
C415 065G040210131J A CAP 0402 100PF J 50V NPO
C413 065G040210131J A CAP 0402 100PF J 50V NPO
C407 065G040210131J A CAP 0402 100PF J 50V NPO
C406 065G040210131J A CAP 0402 100PF J 50V NPO
C405 065G040210131J A CAP 0402 100PF J 50V NPO
C404 065G040210131J A CAP 0402 100PF J 50V NPO
C403 065G040210131J A CAP 0402 100PF J 50V NPO
C402 065G040210131J A CAP 0402 100PF J 50V NPO
C146 065G040210131J A CAP 0402 100PF J 50V NPO
C122 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%
C135 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%
C101 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%
C307 065G040210322K Y CAP CHIP 0402 10N 25V X7R +/-10%
C309 065G040210322K Y CAP CHIP 0402 10N 25V X7R +/-10%
C515 065G040210322K Y CAP CHIP 0402 10N 25V X7R +/-10%
C785 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C784 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C516 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C525 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C527 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C637 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C700 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C711 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C425 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C429 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C430 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C431 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C432 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C433 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C434 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C435 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C436 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C437 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C424 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C423 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z

74

C422 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C420 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C419 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C418 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C412 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C313 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C162 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C159 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C156 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C509 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C547 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C600 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C601 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C603 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C604 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C605 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C606 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C609 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C611 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C613 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C615 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C619 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C621 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C623 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C625 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C627 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C629 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C545 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C510 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C511 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C512 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C517 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C518 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C519 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C521 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C522 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C524 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C530 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C531 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C532 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C533 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C536 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C537 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C542 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C543 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C153 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C145 065G040222131J A CAP 0402 220PF J 50V NPO
C314 065G040222131J A CAP 0402 220PF J 50V NPO
C316 065G040222131J A CAP 0402 220PF J 50V NPO
C501 065G040222417Z A CAP CHIP 0402 220NF Z 16V Y5V
C503 065G040222417Z A CAP CHIP 0402 220NF Z 16V Y5V
C506 065G040222417Z A CAP CHIP 0402 220NF Z 16V Y5V
C408 065G040233031J A CAP 0402 33PF J 50V NPO
C409 065G040233031J A CAP 0402 33PF J 50V NPO

75

C151 065G040247131J A CAP CHIP 0402 470PF J 50V NPO
C152 065G040247131J A CAP CHIP 0402 470PF J 50V NPO
C102 065G040247312K A 68.31HIP 0402 47NF K 16V X7R
C106 065G040247312K A 68.31HIP 0402 47NF K 16V X7R
C110 065G040247312K A 68.31HIP 0402 47NF K 16V X7R
C119 065G040247312K A 68.31HIP 0402 47NF K 16V X7R
C124 065G040247312K A 68.31HIP 0402 47NF K 16V X7R
C128 065G040247312K A 68.31HIP 0402 47NF K 16V X7R
C131 065G040247312K A 68.31HIP 0402 47NF K 16V X7R
C137 065G040247312K A 68.31HIP 0402 47NF K 16V X7R
C140 065G040247312K A 68.31HIP 0402 47NF K 16V X7R
C312 065G040256031J Y CAP CHIP 0402 56PF 50V NPO +/-5%
C315 065G040256031J Y CAP CHIP 0402 56PF 50V NPO +/-5%
C617 065G0603104 32 CHIP 0.1UF 50V X7R
C608 065G0603104 32 CHIP 0.1UF 50V X7R
C618 065G0603104 32 CHIP 0.1UF 50V X7R

FB602 071G 56G301 EA BEAD 300 OHM

L704 073G253S 46 H SMD CHOKE 4.7UH

715G3364M01000004K MAIN BOARD PCB
L600 073T 259901 H CHOKE 22UH 10%
L601 073T 259901 H CHOKE 22UH 10%

INTV8LCCMAA5 INVERTER BOARD

040G 45762412B CBPC LABEL

CN8808 033G8021 2A F INVTER CONN. 13MM 2P
CN8807 033G8021 2A F INVTER CONN. 13MM 2P
CN8806 033G8021 2A F INVTER CONN. 13MM 2P
CN8805 033G8021 2A F INVTER CONN. 13MM 2P
CN8804 033G8021 2A F INVTER CONN. 13MM 2P
CN8803 033G8021 2A F INVTER CONN. 13MM 2P
CN8802 033G8029 3A H B2P3S-VH
CN8808 033T8021 2A U CONN 13.0MM 2P R/A
CN8807 033T8021 2A U CONN 13.0MM 2P R/A
CN8806 033T8021 2A U CONN 13.0MM 2P R/A
CN8805 033T8021 2A U CONN 13.0MM 2P R/A
CN8804 033T8021 2A U CONN 13.0MM 2P R/A
CN8803 033T8021 2A U CONN 13.0MM 2P R/A

CN8808 033T8021 2A JS

CONNECTOR 13.0MM 2P (ONLY FOR
TESTING )

CN8807 033T8021 2A JS

CONNECTOR 13.0MM 2P (ONLY FOR
TESTING )

CN8806 033T8021 2A JS

CONNECTOR 13.0MM 2P (ONLY FOR
TESTING )

CN8805 033T8021 2A JS

CONNECTOR 13.0MM 2P (ONLY FOR
TESTING )

CN8804 033T8021 2A JS

CONNECTOR 13.0MM 2P (ONLY FOR
TESTING )

CN8803 033T8021 2A JS

CONNECTOR 13.0MM 2P (ONLY FOR

TESTING )
C8813 065G 6J1006ET 10PF 5% SL 6KV
C8812 065G 6J1006ET 10PF 5% SL 6KV
C8811 065G 6J1006ET 10PF 5% SL 6KV
C8810 065G 6J1006ET 10PF 5% SL 6KV
C8809 065G 6J1006ET 10PF 5% SL 6KV
C8808 065G 6J1006ET 10PF 5% SL 6KV
C8807 065G 6J1006ET 10PF 5% SL 6KV

76

C8806 065G 6J1006ET 10PF 5% SL 6KV
C8805 065G 6J1006ET 10PF 5% SL 6KV
C8804 065G 6J1006ET 10PF 5% SL 6KV
C8803 065G 6J1006ET 10PF 5% SL 6KV
C8802 065G 6J1006ET 10PF 5% SL 6KV

CN8801 095G 825 6D504 HARNESS 6P(SCN)-5P(PLUG) 140MM
CN8801 095G 825 6J504 HARNESS 6P(SCN)-5P(PLUG) 160MM 2nd source

709T3333 QM001 COMSUPTIVE ASS'Y
055G 23524 WELDING FLUX WITHOUT PB
Q55G 100625 TIN STICK_LOW ARGENTUM

R8823 061G0805000 RST CHIP MAX 0R05 1/8W
R8809 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W
R8807 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W
R8806 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W
R8802 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W
R8801 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W
R8818 061G0805102 RST CHIPR 1K OHM +-5% 1/8W
R8819 061G0805102 RST CHIPR 1K OHM +-5% 1/8W
R8820 061G0805102 RST CHIPR 1K OHM +-5% 1/8W
R8821 061G0805102 RST CHIPR 1K OHM +-5% 1/8W
R8822 061G0805102 RST CHIPR 1K OHM +-5% 1/8W
R8804 061G0805103 RST CHIPR 10K OHM +-5% 1/8W
R8805 061G0805104 RST CHIPR 100K OHM +-5% 1/8W
R8808 061G0805104 RST CHIPR 100K OHM +-5% 1/8W
R8803 061G0805390 2F RST CHIPR 39 KOHM +-1% 1/8W
R8816 061G0805390 2F RST CHIPR 39 KOHM +-1% 1/8W
R8810 061G0805511 RST CHIPR 510 OHM +-5% 1/8W
R8811 061G0805511 RST CHIPR 510 OHM +-5% 1/8W
R8812 061G0805511 RST CHIPR 510 OHM +-5% 1/8W
R8814 061G0805511 RST CHIPR 510 OHM +-5% 1/8W
R8815 061G0805511 RST CHIPR 510 OHM +-5% 1/8W
R8817 061G08056801FY RST CHIPR 6.8KOHM +-1% 1/8W YAGEO
R8813 061G08056801FY RST CHIPR 6.8KOHM +-1% 1/8W YAGEO

RJ8801 061G1206000 RST CHIP MAX 0R05 1/4W

C8818 065G0805102 32 CHIP 1000P 50VX7R 0805
C8819 065G0805102 32 CHIP 1000P 50VX7R 0805
C8801 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C8825 065G080518332K 3 CAP CHIP 0805 18N 50V X7R +/-10%
C8824 065G080518332K 3 CAP CHIP 0805 18N 50V X7R +/-10%
C8823 065G080518332K 3 CAP CHIP 0805 18N 50V X7R +/-10%
C8822 065G080518332K 3 CAP CHIP 0805 18N 50V X7R +/-10%
C8821 065G080518332K 3 CAP CHIP 0805 18N 50V X7R +/-10%
C8820 065G080518332K 3 CAP CHIP 0805 18N 50V X7R +/-10%
C8817 065G080518332K 3 CAP CHIP 0805 18N 50V X7R +/-10%
C8816 065G080518332K 3 CAP CHIP 0805 18N 50V X7R +/-10%
C8815 065G080518332K 3 CAP CHIP 0805 18N 50V X7R +/-10%
C8814 065G080518332K 3 CAP CHIP 0805 18N 50V X7R +/-10%
D8808 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8819 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8818 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8817 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8815 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8814 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8813 093G 64 33 DIO SIG SM BAV99 (PHSE)R

77

D8812 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8811 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8809 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8819 093G 6433S DIODE BAV99 SEMTECH
D8818 093G 6433S DIODE BAV99 SEMTECH
D8817 093G 6433S DIODE BAV99 SEMTECH
D8815 093G 6433S DIODE BAV99 SEMTECH
D8814 093G 6433S DIODE BAV99 SEMTECH
D8813 093G 6433S DIODE BAV99 SEMTECH
D8812 093G 6433S DIODE BAV99 SEMTECH
D8811 093G 6433S DIODE BAV99 SEMTECH
D8809 093G 6433S DIODE BAV99 SEMTECH
D8808 093G 6433S DIODE BAV99 SEMTECH
D8822 093G 64S522SEM LL4148
D8806 093G 3919552T DIODE MTZJ T-72 5.1B 500MW/5.1V DO-34
D8820 093G 64 1152T 1N4148
D8807 093G 64 1152T 1N4148
D8805 093G 64 1152T 1N4148
D8804 093G 64 1152T 1N4148
D8802 093G 64 1152T 1N4148
D8801 093G 64 1152T 1N4148
D8821 093G 64 1152T 1N4148
D8801 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D8802 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D8804 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D8805 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D8821 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D8820 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D8807 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

J8806 095G 90 23 JUMPER WIRE
J8805 095G 90 23 JUMPER WIRE
J8804 095G 90 23 JUMPER WIRE
J8807 095G 90 23 JUMPER WIRE
J8808 095G 90 23 JUMPER WIRE
J8801 095G 90 23 JUMPER WIRE
J8802 095G 90 23 JUMPER WIRE
J8803 095G 90 23 JUMPER WIRE
J8809 095G 90 23 JUMPER WIRE
J8810 095G 90 23 JUMPER WIRE
J8811 095G 90 23 JUMPER WIRE
J8812 095G 90 23 JUMPER WIRE
J8813 095G 90 23 JUMPER WIRE

715G3333 1 INVERTER BOARD PCB
709T3333 QA001 COMSUPTIVE ASS'Y
709T3333 QS001 COMSUPTIVE ASS'Y

T8807 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y

T8810 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y

T8806 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y

78

T8811 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y

T8805 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y

T8804 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y

T8809 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y

T8812 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y

T8803 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y

T8802 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y

T8801 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y

T8808 S80GL32T14V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
S80GL32T14VZ TRANSFORMER ASS'Y
P15T0460101 BRACKET_SIDE_AV_CN
P15T0501201 BRACKET_POWER
P15T0536101 BRACKET_TOP
P15T0537201 BKT LEFT TOP G3 HIMAX
P15T0538101 BRACKET_VESA
P15T0539101 BRACKET_PCB_SUPPORT
P15T0540101 BRACKET_BASE
P15T0541101 BRACKET_HOLD_TOP
P15T0542101 BRACKET_HOLD_TOP
PWTV8LCCMACF POWER BOARD
040G 45762412B CBPC LABEL

CN802 033G3802 5B Y W WEAFER
CN801 033G8029 3A 3PIN (2PIN NC)
CN902 033T327812D WAFER 12P PLUG
CN802 033T3802 5B Y CONNECTOR

051T 6 4503 GLUE_RTV
IC950 056G 139 7 IC EL817MC M-TYPE
IC951 056G 139 7 IC EL817MC M-TYPE
IC970 056G 139 7 IC EL817MC M-TYPE
IC902 056T 379121 IC STR- A6069H DIP-8

Q921 057G 761 7 KTD1691P

C901 063G107K474 US 0.47UF +-10%
C904 063G107K474 US 0.47UF +-10%
C801 063G213J105GFA MPF CAP
C804 063G213J105GFA MPF CAP
C910 063G213J105GFA MPF CAP
C823 065G 1K103 2E6921 CAP CER 10NF K 1KV Y5U

79

C925 065G 1K103 2E6921 CAP CER 10NF K 1KV Y5U
C911 065G 1K103 2E6921 CAP CER 10NF K 1KV Y5U
C906 065G306K4712B3 Y1 CAP 470PF +-10% 250VAC CD SERIES
C905 065G306K4712B3 Y1 CAP 470PF +-10% 250VAC CD SERIES
C924 065G306M1022B2 1000PF 400VAC/250VAC Y1
C903 065G306M6812B3 Y1 CAP 680PF +-20% 250VAC CD SERIES
C902 065G306M6812B3 Y1 CAP 680PF +-20% 250VAC CD SERIES
C953 067G204V331 3K CS CAP 330UF 16V 10*12 MM
C954 067G215A4713KV EC 470UF 16V M 10*12MM
C945 067G215A4716KV EC 470UF 35V M 10*16MM
C975 067G215A4716KV EC 470UF 35V M 10*16MM
C973 067G215A4716KV EC 470UF 35V M 10*16MM
C946 067G215P4714KV LOW ESR EC 470UF M 25V 10*16MM
C805 067G215P4714KV LOW ESR EC 470UF M 25V 10*16MM
C920 067T 42Z12115K EC 120UF M 450V 18*45MM
L906 073G 174143 N PFC CHOKE 310UH YUVA-1123
L801 073G 253 91 L CHOKE BY LI TA
L950 073G 253 91 L CHOKE BY LI TA
L951 073G 253 91 L CHOKE BY LI TA
L980 073G 253 91 L CHOKE BY LI TA
L901 073T 174106 DN LINE FILTER 13MH LK.TF032.A20
L902 073T 174106 DN LINE FILTER 13MH LK.TF032.A20
T801 080GL26T 15 N X'FMR 840UH MIN YUVA-1094
T802 080GL32P 1 L POWER X'FMR 6MH 25% CC-011225-C
T902 080GL37T 19 N X'FMR 550UH 5% YUVA-1089
T901 080GL52T 5 N X'FMR 1.0MH YUVA-1068
F901 084G 41 11 L FUSE 5A 250V

CN901 087G 501 48 S AC SOCKET 3PIN + 3 HOLE

D904 093G 52 70 1 1N5408-E(SHORT PIN) 3A/1000V DO-201AD
D904 093G 5255L52T DIDOE 1N5408-E3/73 3A/1000V DO-201AD

0Q1G 340 8106 CR3 SCREW

705TQ857022 Q901 ASS'Y

Q901 057G 667 24 STP20NM60FP TO-220FP ST

0M1G1730 8120 SCREW

HS2 Q90T0095 2 HEAT SINK

705TQ857023 Q903 ASS'Y

Q903 057G 667 21 STP10NK70ZFP

0M1G1730 8120 SCREW

HS3 Q90T6084 6 HEAT SINK

705TQ857024 Q801/Q802 ASS'Y

Q802 057G 667 49 FET 2SK4086LS 11.5A/600V TO-220FI(LS)
Q801 057G 667 49 FET 2SK4086LS 11.5A/600V TO-220FI(LS)
Q801 057T 667 59 MOSFET FQPF12N60C 12A/600V TO-220F
Q802 057T 667 59 MOSFET FQPF12N60C 12A/600V TO-220F

0M1G1730 10120 SCREW 42A9930016

HS8 Q90T0087 2 HEAT SINK

705TQ861011 NR901 ASS'Y

NR901 061T 58030 WL RST NTCR 3 OHM +-20% 5A THINKING

Q09T 203 8 PIN FOR NR901

705TQ893054 BD901 ASS'Y

BD901 093G 50460 18 D10XB60

0M1G1730 10120 SCREW 42A9930016

HS1 P90T0027301 HEAT SINK

705TQ893055 D950 ASS'Y

80

HS5 090G6084 1 HEAT SINK
D950 093G 60298 DIODE SBT15006JST 15A/60V TO-220ML(LS)
D950 093G1506 2 FMW-2156

0M1G1730 8120 SCREW
705TQ893056 D902 ASS'Y

D902 093G 52 56 DIODE FMN-1106S 10A/600V TO-220

0M1G1730 8120 SCREW

HS6 Q90G6084 3 HEAT SINK

705TQ893057 D972 ASS'Y

HS7 090G6064 1 HEAT SINK
D970 093G 60282 DIODE SP20100R TO-220FP
D972 093G 60282 DIODE SP20100R TO-220FP
D972 093G 60300 DIODE SBR20010JST 20A/100V TO-220ML(LS)
D970 093G 60300 DIODE SBR20010JST 20A/100V TO-220ML(LS)

0M1G1730 8120 SCREW
709T3332 QM001 COMSUPTIVE ASS'Y
055G 23524 WELDING FLUX WITHOUT PB
Q51G 6 4509 GLUE_RTV
Q55G 100623

补焊锡丝

Q55G 100625 TIN STICK_LOW ARGENTUM

IC901 056G 368 12 IC FAN7529MX SOP-8
IC801 056T 379122 IC OZ9976GN-C-0-TR SOP-16
IC903 056T 379133 IC LD7523A GS SOP-8

Q804 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q805 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q950 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q970 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q803 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM
Q924 057G 760 5 DTC144WKA BY ROHM SMT

R913 061G0805100 RST CHIPR 10 OHM +-5% 1/8W
R959 061G0805100 3F RST CHIPR 100KOHM +-1% 1/8W
R829 061G0805100 4F RST CHIPR 1 MOHM +-1% 1/8W
R831 061G0805100 4F RST CHIPR 1 MOHM +-1% 1/8W
R802 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W
R803 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W
R981 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W
R817 061G0805102 RST CHIPR 1K OHM +-5% 1/8W
R955 061G0805102 RST CHIPR 1K OHM +-5% 1/8W
R956 061G0805102 RST CHIPR 1K OHM +-5% 1/8W
R982 061G0805102 RST CHIPR 1K OHM +-5% 1/8W
R983 061G0805102 RST CHIPR 1K OHM +-5% 1/8W
R989 061G0805102 RST CHIPR 1K OHM +-5% 1/8W
R963 061G0805103 RST CHIPR 10K OHM +-5% 1/8W
R947 061G0805103 RST CHIPR 10K OHM +-5% 1/8W
R944 061G0805103 RST CHIPR 10K OHM +-5% 1/8W
R918 061G0805103 RST CHIPR 10K OHM +-5% 1/8W
R914 061G0805103 RST CHIPR 10K OHM +-5% 1/8W
R804 061G0805103 RST CHIPR 10K OHM +-5% 1/8W
R810 061G0805104 RST CHIPR 100K OHM +-5% 1/8W
R820 061G0805104 RST CHIPR 100K OHM +-5% 1/8W
R928 061G0805104 RST CHIPR 100K OHM +-5% 1/8W
R819 061G0805105 RST CHIPR 1M OHM +-5% 1/8W
R808 061G0805105 RST CHIPR 1M OHM +-5% 1/8W
R932 061G0805109 RST CHIPR 1 OHM +-5% 1/8W

81

R933 061G0805109 RST CHIPR 1 OHM +-5% 1/8W
R818 061G0805120 1F RST CHIP 1K2 /8W 1%
R923 061G0805130 2F RST CHIP 13K 1/8W 1%
R812 061G0805154 RST CHIPR 150KOHM +-5% 1/8W
R811 061G0805155 RST CHIPR 1.5 MOHM +-5% 1/8W
R979 061G0805200 1F RST CHIPR 2 KOHM +-1% 1/8W
R964 061G0805202 RST CHIPR 2K OHM +-5% 1/8W
R943 061G0805220 RST CHIPR 22 OHM +-5% 1/8W
R826 061G0805240 0F RST CHIPR 240 OHM +-1% 1/8W
R978 061G0805240 2F RST CHIPR 24 KOHM +-1% 1/8W
R807 061G0805244 RST CHIPR 240 KOHM +-5% 1/8W
R987 061G0805270 2F RST CHIPR 27 KOHM +-1% 1/8W
R806 061G0805335 3.3M 0805
R985 061G0805362 JF RST CHIPR 3K6 +-5% 1/8W FENGHUA
R975 061G0805392 3.9 KOHM 1/10W
R915 061G0805470 0F RST CHIPR 470 OHM +-1% 1/8W
R937 061G0805472 RST CHIPR 4.7 KOHM +-5% 1/8W
R938 061G0805472 RST CHIPR 4.7 KOHM +-5% 1/8W
R816 061G0805510 RST CHIPR 51 OHM +-5% 1/8W
R824 061G0805510 0F RST CHIPR 510 OHM +-1% 1/8W
R827 061G0805510 0F RST CHIPR 510 OHM +-1% 1/8W
R814 061G0805513 RST CHIPR 51K OHM +-5% 1/8W
R917 061G0805563 RST CHIPR 56K OHM +-5% 1/8W
R906 061G0805564 RST CHIPR 560 KOHM +-5% 1/8W
R805 061G0805620 2F RST CHIPR 62 KOHM +-1% 1/8W
R828 061G0805683 RST CHIPR 68K OHM +-5% 1/8W
R830 061G0805683 RST CHIPR 68K OHM +-5% 1/8W
R957 061G0805820 1F RST CHIPR 8.2KOHM +-1% 1/8W
R958 061G0805820 1F RST CHIPR 8.2KOHM +-1% 1/8W
R821 061G08059101FF RST CHIPR 9.1KOHM +-1% 1/8W FENGHUA
R821 061G08059101FT RST CHIP 9K1 1/8W 1%

JR906 061G1206000 RST CHIP MAX 0R05 1/4W
JR905 061G1206000 RST CHIP MAX 0R05 1/4W
JR904 061G1206000 RST CHIP MAX 0R05 1/4W
JR903 061G1206000 RST CHIP MAX 0R05 1/4W
JR902 061G1206000 RST CHIP MAX 0R05 1/4W
JR901 061G1206000 RST CHIP MAX 0R05 1/4W
JR805 061G1206000 RST CHIP MAX 0R05 1/4W
JR804 061G1206000 RST CHIP MAX 0R05 1/4W
JR803 061G1206000 RST CHIP MAX 0R05 1/4W
JR802 061G1206000 RST CHIP MAX 0R05 1/4W
JR801 061G1206000 RST CHIP MAX 0R05 1/4W
JP907 061G1206000 RST CHIP MAX 0R05 1/4W

R924 061G1206100 4F RST CHIPR 1 MOHM +-1% 1/4W
R925 061G1206100 4F RST CHIPR 1 MOHM +-1% 1/4W
R926 061G1206100 4F RST CHIPR 1 MOHM +-1% 1/4W
R951 061G1206101 RST CHIPR 100 OHM +-5% 1/4W
R970 061G1206101 RST CHIPR 100 OHM +-5% 1/4W
R973 061G1206101 RST CHIPR 100 OHM +-5% 1/4W
R977 061G1206101 RST CHIPR 100 OHM +-5% 1/4W
R935 061G1206102 RST CHIPR 1K OHM +-5% 1/4W
R945 061G1206102 RST CHIPR 1K OHM +-5% 1/4W
R976 061G1206103 RST CHIPR 10K OHM +-5% 1/4W
R941 061G1206103 RST CHIPR 10K OHM +-5% 1/4W

82

R939 061G1206103 RST CHIPR 10K OHM +-5% 1/4W
R929 061G1206103 RST CHIPR 10K OHM +-5% 1/4W
R833 061G1206103 RST CHIPR 10K OHM +-5% 1/4W
R832 061G1206103 RST CHIPR 10K OHM +-5% 1/4W
R999 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W
R998 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W
R997 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W
R996 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W
R994 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W
R993 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W
R992 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W
R991 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W
R909 061G1206155 RST CHIPR 1.5 MOHM +-5% 1/4W
R905 061G1206155 RST CHIPR 1.5 MOHM +-5% 1/4W
R904 061G1206155 RST CHIPR 1.5 MOHM +-5% 1/4W
R988 061G1206182 RST CHIPR 1.8 KOHM +-5% 1/4W
R986 061G1206182 RST CHIPR 1.8 KOHM +-5% 1/4W
R972 061G1206182 RST CHIPR 1.8 KOHM +-5% 1/4W
R971 061G1206182 RST CHIPR 1.8 KOHM +-5% 1/4W
R967 061G1206182 RST CHIPR 1.8 KOHM +-5% 1/4W
R965 061G1206182 RST CHIPR 1.8 KOHM +-5% 1/4W
R911 061G1206203 RST CHIPR 20 KOHM +-5% 1/4W
R931 061G1206229 RST CHIPR 2.2 OHM +-5% 1/4W
R908 061G1206229 RST CHIPR 2.2 OHM +-5% 1/4W
R907 061G1206229 RST CHIPR 2.2 OHM +-5% 1/4W
R910 061G1206304 RST CHIPR 300K OHM +-5% 1/4W
R903 061G1206334 RST CHIPR 330KOHM +-5% 1/4W
R902 061G1206334 RST CHIPR 330KOHM +-5% 1/4W
R901 061G1206334 RST CHIPR 330KOHM +-5% 1/4W
R952 061G1206470 RST CHIPR 47 OHM +-5% 1/4W
R950 061G1206470 RST CHIPR 47 OHM +-5% 1/4W
R962 061G1206475 RST CHIPR 4.7 MOHM +-5% 1/4W
R942 061G1206513 RST CHIPR 51 KOHM +-5% 1/4W
R920 061G1206680 3F RST CHIPR 680KOHM +-1% 1/4W
R921 061G1206680 3F RST CHIPR 680KOHM +-1% 1/4W
R922 061G1206680 3F RST CHIPR 680KOHM +-1% 1/4W
R966 061G1206682 RST CHIPR 6.8 KOHM +-5% 1/4W
R968 061G1206682 RST CHIPR 6.8 KOHM +-5% 1/4W
R969 061G1206682 RST CHIPR 6.8 KOHM +-5% 1/4W
R984 061G1206682 RST CHIPR 6.8 KOHM +-5% 1/4W
C912 065G0805101 32 100PF +-10% 50V X7R
C808 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C909 065G0805103 32 CAP CHIP 0805 10NF K 50V X7R
C939 065G0805103 32 CAP CHIP 0805 10NF K 50V X7R
C907 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C908 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C913 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C921 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C923 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C934 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C942 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C947 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C948 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C949 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

83

C956 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C978 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C806 065G0805104 32 GP CHIP 0.1UF 50V X7R
C809 065G080510522K 3 CAP CHIP 0805 1U 25V X7R +/-10%
C811 065G080510522K 3 CAP CHIP 0805 1U 25V X7R +/-10%
C922 065G080510537Z 3 CAP CHIP 0805 1U 50V Y5V -20%+80%
C815 065G0805152 22 CHIP 1500PF 25V X7R 0805
C944 065G0805221 32 CHIP 220PF 50V X7R 0805
C812 065G0805223 22 CHIP 0.022UF 25V X7R 080
C955 065G0805224 32 0.22UF,K,50V,X7R
C814 065G080522522K M MLCC 0805 CAP 2.2UF 25V X7R
C802 065G080522522K M MLCC 0805 CAP 2.2UF 25V X7R
C807 065G080533131G MLCC 0805 330PF J 50V NPO
C976 065G0805334 32 GP CHIP 0805 0.33UF K 50V X7R
C813 065G080547232K Y CAP CHIP 0805 4700PF K 50V X7R
C810 065G080547232K Y CAP CHIP 0805 4700PF K 50V X7R
C943 065G0805473 32 CHIP 0.047UF 50V X7R
C917 065G0805473 32 CHIP 0.047UF 50V X7R
C817 065G0805473 32 CHIP 0.047UF 50V X7R
C818 065G0805473 32 CHIP 0.047UF 50V X7R
C918 065G0805474 22 CHIP 0.47UF 25V X7R 0805
C820 065G0805681 31 CHIP 680PF 50V NPO 0805
C821 065G0805681 31 CHIP 680PF 50V NPO 0805
C972 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R
C970 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R
C957 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R
C952 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R
C951 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R
C950 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R
D805 093G 64 42 PP BAV70 SOT-23
D801 093T 60S 5 T SCS0520P SOD-123
D802 093T 60S 5 T SCS0520P SOD-123
D803 093T 60S 5 T SCS0520P SOD-123
D804 093T 60S 5 T SCS0520P SOD-123

CN901 006G 31501 EYELET

T802 006G 31502 1.5MM RIVET

IC952 056G 158 10 T IC AS431AZTR-E1 TO-92

R974 061G 20010252T RST MFR 1K OHM +-1% 1/4W
R801 061G 30310852T GP FUSE RESISTOR
R948 061G 30310852T GP FUSE RESISTOR
R960 061G 60210252T CFR 1K OHM +-5% 1/6W
R961 061G 60210352T CFR 10KOHM +-5% 1/6W
R916 061G152M12852T RST MOFR 0.12 OHM +-5% 2WS
R946 061G152M36852T RST MOF 0R36 5% 2W
R954 061T 20010152T 100 OHM 1% 1/4W
C803 065G 1K102 5T6213 CER CAP 1000PF K 1KV TDK
C932 065G 2K102 2T6921 CAP CER 1000PF 2KV K Y5P
C935 065G 2K102 2T6921 CAP CER 1000PF 2KV K Y5P
C941 067G215Y1007KT KY50VB10M-TP5 5*11.5
C937 067G215Y1007KT KY50VB10M-TP5 5*11.5
C933 067G215Y1007KT KY50VB10M-TP5 5*11.5
C931 067G215Y1017NT EC 100UF 50V 8*11.5MM
C914 067G215Y4707KT 47UF 50V

ZD952 093G 3916652T MTZJ15B (13.89-14.62)

84

ZD930 093G 3916752T MTZJ T-72 16B
ZD970 093G 3917152T TZJ T-72 30B

D901 093G 52 1552T DIODE 1N4007-E3/73 1A/1000V DO-41
D931 093G 5250S52T DIODE AU02Z-V1 SANKEN
D951 093G 64 1152T 1N4148
D806 093G 64 1152T 1N4148
D807 093G 64 1152T 1N4148
D971 093G 64 1152T 1N4148
D906 093G 64 1152T 1N4148
D905 093G 64 1152T 1N4148
D903 093G 64 1152T 1N4148

ZD970 093G 39G 9 DIODE MTZJ30B DO-34

D930 093T1080 252T DIODE SARSO1-V1 SANKEN
D940 093T1080 252T DIODE SARSO1-V1 SANKEN

J921 095G 90 23 JUMPER WIRE
J908 095G 90 23 JUMPER WIRE
J907 095G 90 23 JUMPER WIRE
J803 095G 90 23 JUMPER WIRE
J806 095G 90 23 JUMPER WIRE
J808 095G 90 23 JUMPER WIRE
J901 095G 90 23 JUMPER WIRE
J802 095G 90 23 JUMPER WIRE
J801 095G 90 23 JUMPER WIRE

D932 095G 90 23 JUMPER WIRE

J905 095G 90 23 JUMPER WIRE
J904 095G 90 23 JUMPER WIRE
J903 095G 90 23 JUMPER WIRE
J902 095G 90 23 JUMPER WIRE
J910 095G 90 23 JUMPER WIRE
J927 095G 90 23 JUMPER WIRE
J926 095G 90 23 JUMPER WIRE
J925 095G 90 23 JUMPER WIRE
J906 095G 90 23 JUMPER WIRE
J911 095G 90 23 JUMPER WIRE
J912 095G 90 23 JUMPER WIRE
J923 095G 90 23 JUMPER WIRE
J922 095G 90 23 JUMPER WIRE
J920 095G 90 23 JUMPER WIRE
J914 095G 90 23 JUMPER WIRE
J804 095G 90 23 JUMPER WIRE
J805 095G 90 23 JUMPER WIRE
J807 095G 90 23 JUMPER WIRE
J809 095G 90 23 JUMPER WIRE
J913 095G 90 23 JUMPER WIRE
J916 095G 90 23 JUMPER WIRE
J917 095G 90 23 JUMPER WIRE
J918 095G 90 23 JUMPER WIRE
J919 095G 90 23 JUMPER WIRE

715G3332 1 POWER BOARD PCB
D807 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D806 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D903 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D905 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D906 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

85

D951 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D971 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

IC971 056G 158 10 T IC AS431AZTR-E1 TO-92

FB902 071G 55 23 BEAD

Q925 057G 420 3 T TRA KTA1273-Y- AT/ P_TO-92L KEC

J810 095G 90 23 JUMPER WIRE
FB903 071G 55 23 BEAD
FB901 071G 55 26 S FERRITE CORE

C822 065G 1K102 5T6213 CER CAP 1000PF K 1KV TDK

709T3332 QA001 COMSUPTIVE ASS'Y
R823 061G0805240 0F RST CHIPR 240 OHM +-1% 1/8W
R815 061G0805513 RST CHIPR 51K OHM +-5% 1/8W
C915 065G0805471 32 470PF/50V/0805/X7R
C919 065G080522131G CAP CHIP 0805 220PF G 50V NPO
C816 065G080515231J Y CAP CHIP 0805 1N5 50V NPO +/-5%
R985 061G0805362 JW RST CHIPR 3K6 +-5% 1/8W WALSIN

709T3332 QS001 COMSUPTIVE ASS'Y

Q01G6080 1 SCREW

Q11G5052 1 STRING

Q11T5043 5 PCB SUPPORT

Q26G 800504 3B BARCODE LABEL FOR 4

Q36T 600 30 18 NONWOVEN FABRIC

Q36T 600 30 18 NONWOVEN FABRIC

Q40G 32061569A RATING LABEL

Q40G000260028A SIDE LABEL

Q40G000267351A SA SERVICE LABEL

Q40G000361580A POP LABEL FOR L32W931

Q44GJ037101 EPS CUSHION

Q44GJ037201 EPS CUSHION

Q44GJ037301 EPS CUSHION

Q44GJ037401 EPS CUSHION

Q44GJ03761513A 32'' AOC CARTON

Q45G 77 5 PE PACKING (Y1900241)

Q45G 99626 36 PE BAG

Q45T 99609 61 EPE COVER FOR MONITOR

Q50G 4 10 TIE (Y1900221)

Q50T 500523 CABLE TIE

Q52T 1150522 TAPE_INSULATING

089G 17356C554 AUDIO CABLE

0Q1G 940 16 47 CR3 SCREW

Q41G320167333B MANUAL

Q41G7830673 4A QSG

Q41T780061532D SA CENTER LIST

Q41T780067353B WARRANTY CARD

Q45G 76 28NV2 R PE BAG FOR CLAMP

Q45G2010M0101A PE BAG FOR MANUAL

E09502 095G801410W612 HARNESS 9P-6P+4P 600/700 2nd source
E09502 095G801410X612 HARNESS 10P-6P+4P 600/700

705TQ933J10 PLASTIC ASS'Y 32

P33T0132ADT 1L0100 KEY_FUNCTION

705TQ934J42 BEZEL ASS'Y 32

036T 600 18115 GP HIMERON

0Q1G 930 10 47 CR3 SCREW

P33T0135AFT 1C0100 LENS_IR

86

P34T0302ADT 1L0130 BEZEL TV32W-9C1-9C2

P34T0303ADTB1L0100 DECO

Q36T 600 18113 CLOTH_GRIDDING

Q36T 600 18114 CLOTH_GRIDDING

Q52G 3 81 3M DOUBLE FACE TAPE

705TQ934J43 REAR COVER ASS'Y 32

0Q1G 930 10 47 CR3 SCREW

P15T0320101 BRACKET_VESA

P34T0304ADT 1A0130 REAR COVER 32

P34T0357ADT 1A0100 COVER_REAR_IO

705TQ934J44 BASE ASS'Y 32

0Q1G 130 8120 SCREW 42A9930011

P15T0439201 SASE PLATE ASSY

P34T0305ADT 1L0133 BASE

M037 P37T0087011 HINGE

Q12G6300 25 3 RUBBER

M037 SP37T0087011 HINGE ASS'Y

034F0307 1101A TOP_PLASTIC

034F0364 1101A BOTTOM_PLASTIC

028F0840110 SHAFT

002F7015 1 NUT

004F081510T 00 WASHER

004F180820M 00 WASHER

004F1808104 00 WASHER

004F1808104 01 WASHER

004F122515M 00 WASHER

040F0078001 BARCODE LABEL

705TQ949001 COMSUPTIVE ASS'Y-A4

IRPF9YA4 IR BOARD

U02 056T 627 33 1 IR 37.9KHZ KSM-603TM2E
U01 056T 627 41 LS JSA-3111B
D01 081G 12 6C GP LED RED/GREEN

P11G0021101 IR-HOLDER

P11G0022101 IR-HOLDER

P11G0027101 HOLDER

CN01 033G8032 6F HR CONNECTOR

R003 061G0805472 RST CHIPR 4.7 KOHM +-5% 1/8W

C02 065G0603104 12 CER2 0603 X7R 16V 100N P

715G3394 2 IR BOARD PCB
R001 061G0603223 RST CHIPR 22 KOHM +-5% 1/10W
R002 061G0603223 RST CHIPR 22 KOHM +-5% 1/10W

C01 065T0805335 A5 CHIP 3.3UF 10V X5R

KEPF9QAB KEY BOARD

CN01 033G3802 4H WAFER 4P RIGHT ANGLE

R07 061G0603100 0F RST CHIPR 100 OHM +-1% 1/10W
R08 061G0603100 0F RST CHIPR 100 OHM +-1% 1/10W
R05 061G0603180 1F RST CHIPR 1.8 KOHM +-1% 1/10W
R01 061G0603200 2F RST CHIPR 20 KOHM +-1% 1/10W
R03 061G0603432 1F RST CHIP 4.32K 1/10W 1%

R02 061G0603820 1F RST CHIPR 8.2 KOHM +-1% 1/10W
JR01 061G0805000 RST CHIP MAX 0R05 1/8W
JR02 061G1206000 RST CHIP MAX 0R05 1/4W

R04 061T0603274 1F RST CHIPR 2.74 KOHM +-1% 1/10W

SW01 077G 603 AI HJ TACT SWITCH 2PIN

87

SW02 077G 603 AI HJ TACT SWITCH 2PIN
SW03 077G 603 AI HJ TACT SWITCH 2PIN
SW04 077G 603 AI HJ TACT SWITCH 2PIN
SW05 077G 603 AI HJ TACT SWITCH 2PIN
SW06 077G 603 AI HJ TACT SWITCH 2PIN
SW07 077G 603 AI HJ TACT SWITCH 2PIN

715G3400 1 KEY BOARD PCB

L32W931P INTV9L88MQA8

Location Part No. Description

040G 45762412B CBPC LABEL
CN8802 033G3802 3B Y L CONNECTOR 3P 2.0PITCH
CN8803 033G3802 3B Y L CONNECTOR 3P 2.0PITCH
CN8802 033G3802 3B Y W CONNECTOR
CN8803 033G3802 3B Y W CONNECTOR
CN8807 033G8021 2A F INVTER CONN. 13MM 2P
CN8806 033G8021 2A F INVTER CONN. 13MM 2P
CN8805 033G8021 2A F INVTER CONN. 13MM 2P
CN8804 033G8021 2A F INVTER CONN. 13MM 2P
CN8804 033T8021 2A U CONN 13.0MM 2P R/A
CN8805 033T8021 2A U CONN 13.0MM 2P R/A
CN8806 033T8021 2A U CONN 13.0MM 2P R/A
CN8807 033T8021 2A U CONN 13.0MM 2P R/A

C8813 065G 6J5096ET CAP CER 5PF J 6KV
C8812 065G 6J5096ET CAP CER 5PF J 6KV
C8809 065G 6J5096ET CAP CER 5PF J 6KV
C8808 065G 6J5096ET CAP CER 5PF J 6KV
C8805 065G 6J5096ET CAP CER 5PF J 6KV
C8804 065G 6J5096ET CAP CER 5PF J 6KV
C8803 065G 6J5096ET CAP CER 5PF J 6KV
C8802 065G 6J5096ET CAP CER 5PF J 6KV

T8808 080GL32T 24 DN INVERTER X'FMR 155UH TK.6512J.101
T8807 080GL32T 24 DN INVERTER X'FMR 155UH TK.6512J.101
T8806 080GL32T 24 DN INVERTER X'FMR 155UH TK.6512J.101
T8805 080GL32T 24 DN INVERTER X'FMR 155UH TK.6512J.101
T8804 080GL32T 24 DN INVERTER X'FMR 155UH TK.6512J.101
T8803 080GL32T 24 DN INVERTER X'FMR 155UH TK.6512J.101
T8802 080GL32T 24 DN INVERTER X'FMR 155UH TK.6512J.101
T8801 080GL32T 24 DN INVERTER X'FMR 155UH TK.6512J.101

CN8801 095G 825 6D901 HARNESS 6P(SCN)-5P 300MM FQE092368HY

R8805 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA
R8808 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA
R8808 061G08051003FY RST CHIP 100K 1/8W 1%
R8805 061G08051003FY RST CHIP 100K 1/8W 1%
R8801 061G0805101 JF RST 0805 100R 5% 1/8W
R8802 061G0805101 JF RST 0805 100R 5% 1/8W
R8806 061G0805101 JF RST 0805 100R 5% 1/8W
R8806 061G0805101 JY RST CHIPR 100OHM +- 5% 1/8W YEGAO
R8802 061G0805101 JY RST CHIPR 100OHM +- 5% 1/8W YEGAO
R8801 061G0805101 JY RST CHIPR 100OHM +- 5% 1/8W YEGAO
R8807 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R8818 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R8819 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA

88

R8820 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R8823 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R8823 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R8820 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R8819 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R8818 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R8807 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R8804 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R8804 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R8805 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN
R8808 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN
R8803 061G08052202FT RST CHIP 22K 1/8W 1%
R8816 061G08052202FT RST CHIP 22K 1/8W 1%
R8803 061G08052202FY RST CHIPR 22 KOHM +-1% 1/8W
R8816 061G08052202FY RST CHIPR 22 KOHM +-1% 1/8W
R8817 061G08053601FF RST CHIPR 3.6KOHM +-1% 1/8W FENGHUA
R8813 061G08053601FF RST CHIPR 3.6KOHM +-1% 1/8W FENGHUA
R8817 061G08053601FT RST CHIP 3K6 1/8W 1%
R8813 061G08053601FT RST CHIP 3K6 1/8W 1%
R8811 061G0805511 JF RST CHIPR 510OHM +-5% 1/8W FENGHUA
R8812 061G0805511 JF RST CHIPR 510OHM +-5% 1/8W FENGHUA
R8814 061G0805511 JF RST CHIPR 510OHM +-5% 1/8W FENGHUA
R8811 061G0805511 JY RST CHIPR 510OHM +-5% 1/8W YAGEO
R8812 061G0805511 JY RST CHIPR 510OHM +-5% 1/8W YAGEO

R8814 061G0805511 JY RST CHIPR 510OHM +-5% 1/8W YAGEO
RJ8802 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
RJ8801 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
RJ8801 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
RJ8802 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

C8801 065G080510232K 3 CAP CHIP 0805 1N 50V X7R +/-10%

C8801 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%

C8822 065G080522132K A NO-SUGGEST 0805 220PF K 50V X7R

C8822 065G080522132K Y CAP CHIP 0805 220P 50V X7R +/-10%

C8819 065G080533131J F CAP CHIP 0805 330PF J 50V NPO

C8818 065G080533131J F CAP CHIP 0805 330PF J 50V NPO

C8818 065G080533131J T CAP 0805 330PF J 50V NPO TAIYO YUDEN

C8819 065G080533131J T CAP 0805 330PF J 50V NPO TAIYO YUDEN

C8818 065G080533131J Y CAP CHIP 0805 330P 50V NPO +/-5%

C8819 065G080533131J Y CAP CHIP 0805 330P 50V NPO +/-5%

C8825 065G080568231J 3 CAP CHIP 0805 6N8 50V NPO +/-5%

C8824 065G080568231J 3 CAP CHIP 0805 6N8 50V NPO +/-5%

C8821 065G080568231J 3 CAP CHIP 0805 6N8 50V NPO +/-5%

C8820 065G080568231J 3 CAP CHIP 0805 6N8 50V NPO +/-5%

C8817 065G080568231J 3 CAP CHIP 0805 6N8 50V NPO +/-5%

C8816 065G080568231J 3 CAP CHIP 0805 6N8 50V NPO +/-5%

C8817 065G080568231J F NO-SUGGEST CAP CHIP 0805 6.8NF 50V J NP

C8825 065G080568231J F NO-SUGGEST CAP CHIP 0805 6.8NF 50V J NP

C8824 065G080568231J F NO-SUGGEST CAP CHIP 0805 6.8NF 50V J NP

C8821 065G080568231J F NO-SUGGEST CAP CHIP 0805 6.8NF 50V J NP

C8820 065G080568231J F NO-SUGGEST CAP CHIP 0805 6.8NF 50V J NP

C8816 065G080568231J F NO-SUGGEST CAP CHIP 0805 6.8NF 50V J NP

D8819 093G 64 33 DIO SIG SM BAV99 (PHSE)R

D8817 093G 64 33 DIO SIG SM BAV99 (PHSE)R

D8815 093G 64 33 DIO SIG SM BAV99 (PHSE)R

D8813 093G 64 33 DIO SIG SM BAV99 (PHSE)R

D8811 093G 64 33 DIO SIG SM BAV99 (PHSE)R

D8809 093G 64 33 DIO SIG SM BAV99 (PHSE)R

89

D8809 093G 6433S SWITCHING DIODE BAV99

D8811 093G 6433S SWITCHING DIODE BAV99

D8813 093G 6433S SWITCHING DIODE BAV99

D8815 093G 6433S SWITCHING DIODE BAV99

D8817 093G 6433S SWITCHING DIODE BAV99

D8819 093G 6433S SWITCHING DIODE BAV99

D8806 093G 3919552T DIODE MTZJ T-72 5.1B 500MW/5.1V DO-34

D8801 093G 64 1152T 1N4148

D8802 093G 64 1152T 1N4148

D8804 093G 64 1152T 1N4148

D8820 093G 64 1152T 1N4148

D8821 093G 64 1152T 1N4148

D8821 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP

D8820 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP

D8804 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP

D8802 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP

D8801 093G 64 1152T PH SWITCH DIODE 1N4148 BY NXP

J8811 095G 90 23 JUMPER WIRE
J8810 095G 90 23 JUMPER WIRE
J8809 095G 90 23 JUMPER WIRE
J8808 095G 90 23 JUMPER WIRE
J8806 095G 90 23 JUMPER WIRE
J8805 095G 90 23 JUMPER WIRE
J8804 095G 90 23 JUMPER WIRE
J8803 095G 90 23 JUMPER WIRE
J8802 095G 90 23 JUMPER WIRE
J8801 095G 90 23 JUMPER WIRE

E715 715G3690P01000003M TV POWER-PCB 85X376X1.6MM S/S CEM-1

E715 715G3690P01000003S

TV POWER-PCB 85X376X1.6MM S/S CEM-1

---2ND SOURCE

90

E329GANS4WAENN

Location Part No. Description Remark

052G 1185 1 BIG TAPE(Y1200141)
052G 1186 SMALL TAPE
052G 1211 B CONDUCTIVE TAPE 85MM *40MM *0.09MM
052G 2191 A PAPER TAPE

E07801 078G0120 2 K SPK 6 OHM 12W 160X42MM KUAIDA
E07801 078G0120 2 Y SPK 6 OHM 12W 160X42MM SUNLINK 2nd source

089G 725CAA DB D-SUB CABLE
089G402A15N IS AC POWER CORD 1500MM

ECN700 095G801313D681 HARNESS 13P(H2503)-12P(2506) 160MM
ECN802 095G8019 3D919 HARNESS 3P-2P 300MM FQE92029I 2nd source
ECN801 095G8019 3D920 HARNESS 3P-2P 1000MM FQE92030I 2nd source
ECN802 095G8019 3X919 HARNESS 3P-2P 300MM PANELTF0016
ECN801 095G8019 3X920 HARNESS 3P-2P 1000MM PANELTF0014

E09503 095T8014 4D557 WIRE HARNESS 4P(PLUG)-B&R+B&W
E09503 095T8014 4X557 WIRE HARNESS 4P(PLUG)-B&R+B&W 2nd source

ECN405 095T8018 3DH57 HARNESS 30P-30P 380MM

098GRABD2NEACR REMOTE CONTROL AOC RC2443801/01
0M1G 330 4 47 CR3 SCREW
0M1G 940 6120 SCREW 4X6
0M1G 940 16 47 CR3 SCREW
0M1G1730 8120 SCREW
0M1G1730 10120 SCREW 42A9930016
0Q1G 330 10 47 CR3 SCREW
0Q1G 930 10 47 CR3 SCREW
0Q1G 940 16 47 CR3 SCREW
705TQ933J10 PLASTIC ASS'Y 32
P33T0132ADT 1L0100 KEY_FUNCTION
705TQ934J42 BEZEL ASS'Y 32
0Q1G 930 10 47 CR3 SCREW
P33T0135AFT 1C0100 LENS_IR
P34T0302ADT 1L0130 BEZEL TV32W-9C1-9C2
P34T0303ADTB1L0100 DECO
Q36T 600 30 2 HIMERON
Q44T3231 21 27 EVA WASHER
Q44T3231 21 28 EVA WASHER
Q52G 3 81 3M DOUBLE FACE TAPE
705TQ934J43 REAR COVER ASS'Y 32
0Q1G 930 10 47 CR3 SCREW
P15T0320101 BRACKET_VESA
P34T0304ADT 1A0130 REAR COVER 32
P34T0357ADT 1A0100 COVER_REAR_IO
705TQ934J44 BASE ASS'Y 32
0Q1G 130 8120 SCREW 42A9930011
P15T0439202 BKT_BASE_PLATE
P34T0305ADT 1L0220 BASE

M037 P37T0087011 HINGE

Q12G6300 25 3 RUBBER

M037 SP37T0087011 HINGE ASS'Y

002F7015 1 NUT
004F081510T 00 WASHER
004F122515M 00 WASHER
004F1808104 00 WASHER
004F1808104 01 WASHER
004F180820M 00 WASHER
028F0840110 SHAFT

91

034F0307 1101A TOP_PLASTIC
034F0364 1101A BOTTOM_PLASTIC
040F7607001 00 BARCODE LABEL
705TQ949001 COMSUPTIVE ASS'Y-A4

E750 750TVG320ECC13N000 LCD LC320WXE-SCC1 GZ LGD

756TQ9CB AS233 01 MAIN BOARD-CBPF9A4SQ3

U402 056G1133923 IC MX25L4005AM2C-12G SOP-8
U402 056G1133923 1 IC MX25L4005AM2I-12G SOP-8

SMTF-U402 100TAHGK001S11 MCU ASS'Y-056G1133923

040G 45762412B CBPC LABEL
CN700 033G327812D WAFER 12P PLUG
CN602 033G3802 4B Y WAFER 2.0MM 4P
CN602 033G3802 4B Y W WAFER 2nd source
CN405 033G8027 30 WAFER 30P 2.0MM DIP DUAL ROW
CN400 033T380210B Y CONNECTOR

R300 061G 208470 64 RST MOFR 47OHM +-5% 1W
R303 061G 208470 64 RST MOFR 47OHM +-5% 1W
C779 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C640 067G215P4714AV CAP 105C 470UF M 25V
C660 067G215P4714AV CAP 105C 470UF M 25V
C640 067G215P4714PV CAP 105C 470UF M 25V
C660 067G215P4714PV CAP 105C 470UF M 25V
C636 067G215P4716AV CAP 105C 470UF M 35V
C636 067G215P4716KV EC 470UF 20% 35V 10*20

C710 067G215V471 6N CAP 105C 470UF M 35V
CN106 088G 78 13938 YG RCA JACK 1*3 Y/W/R V/T RCA-346D-03 2nd source
CN104 088G 78 13938 YG RCA JACK 1*3 Y/W/R V/T RCA-346D-03 2nd source
CN102 088G 78 13942 C RCA JACK 1*5 G/B/R/W/R AV5-8.4-02-01 2nd source
CN103 088G 78 13942 C RCA JACK 1*5 G/B/R/W/R AV5-8.4-02-01 2nd source
CN102 088G 78 13942 YG RCA JACK 1*5 G/B/R/W/R RCA-512DF
CN103 088G 78 13942 YG RCA JACK 1*5 G/B/R/W/R RCA-512DF
CN104 088G 7813A38C RCA JACK 1*3 Y/W/R V/A
CN106 088G 7813A38C RCA JACK 1*3 Y/W/R V/A
CN105 088G 7813A39C S JACK + RCA JACK 1*3 Y/W/R 2nd source
CN600 088G 30211K PHONE JACK 7PIN
CN601 088T 78 8 9C RCA JACK 1P BLACK
CN105 088T 78 13A39 YG S JACK + RCA JACK 1*3 Y/W/R RCA-333S-010
CN101 088T 30252C PHONE JACK 3.5MM 3P V/A GREEN 2nd source
CN101 088T 302A17 YG PHONE JACK 3.5MM 3P V/T GREEN
CN100 088T 35315F VC D-SUB 15PIN FEMALE VERTICAL SCREWED
CN100 088T 35315FVSD D-SUB 15PIN FEMALE VERTICAL SCREWED 2nd source

090G 372 2 HEAT SINK

X400 093G 2270B H XAT024576FK1H-3OHX AT-49 24.576MHZ

TU100 094TNTSC MN 7L TUNER M15WPP-4N-E

C746 067G 3051007CT EC 10UF/50V KM 5*11MM

C736 067G 3051007CT EC 10UF/50V KM 5*11MM

C732 067G 3051007CT EC 10UF/50V KM 5*11MM

C651 067G 3051007CT EC 10UF/50V KM 5*11MM

C414 067G 3051007CT EC 10UF/50V KM 5*11MM

C414 067G 3051007KT EC 10UF/50V PF 5*11MM

C746 067G 3051007KT EC 10UF/50V PF 5*11MM

C732 067G 3051007KT EC 10UF/50V PF 5*11MM

C736 067G 3051007KT EC 10UF/50V PF 5*11MM

C651 067G 3051007KT EC 10UF/50V PF 5*11MM

C308 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C672 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C712 067G 3051014CT EC 100UF 25V KM 6.3X11MM

92

C717 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C720 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C728 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C729 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C778 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C300 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C301 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C303 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C763 067G 3052214CT EC 220UF/25V KM 8*11MM

C721 067G 3052214CT EC 220UF/25V KM 8*11MM

C702 067G 3052214CT EC 220UF/25V KM 8*11MM

C715 067G 3052214CT EC 220UF/25V KM 8*11MM

C763 067G 3052214ET EC 220UF 25V RGA 8X11MM

C721 067G 3052214ET EC 220UF 25V RGA 8X11MM

C715 067G 3052214ET EC 220UF 25V RGA 8X11MM

C702 067G 3052214ET EC 220UF 25V RGA 8X11MM

C410 067G 3054704CT EC 47UF 25V KM 5X11MM

C410 067G 3054704KT 47UF

C707 067G 3054713PT NO-SUGGEST CAP 105C 470UF M 16V 8*12

C427 067G 3054713PT NO-SUGGEST CAP 105C 470UF M 16V 8*12

L600 073T 259901 H CHOKE 22UH 10%
L601 073T 259901 H CHOKE 22UH 10%

040G 457624 1B LABEL-CPU
U400 056G 562595 IC HX6202-A090QAG 1080P QFP-256
U705 056G 563 7 IC AIC1084-33PMTR-R AIC
U705 056G 563 30 DC/DC CONVERTER -- -- -- --
U700 056G 563 31 IC AZ1117D-1.8-E1
U702 056G 563 52 LDO AP1117D33G-13-77
U703 056G 563 52 LDO AP1117D33G-13-77
U300 056G 585 11 IC AZ1117D-5.0-E1 AAC
U600 056G 614 1 74HC4052D SO-16
U603 056G 616518 IC R2A15112FP HTQFP48
U401 056G113353A IC M24C32-WMN6T SO-8 ST
U402 056G1133923 IC MX25L4005AM2C-12G SOP-8
U402 056G1133923 1 IC MX25L4005AM2I-12G SOP-8
U707 056T 563952 LDO SC4524BSETRT 2A 16V SO8
U601 056T 616516 IC APA2176AQBITRG TQFN3X3-16
Q103 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q104 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q105 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q406 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q407 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q712 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q708 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q707 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q706 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q704 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q700 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q603 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q602 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q601 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q410 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q500 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q502 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q504 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q600 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q508 057G 417 4 PMBS3904/PHILIPS-SMT(04)

93

Q505 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q506 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q413 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q403 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q401 057G 417512 MMBT3906
Q400 057G 417512 MMBT3906
Q102 057G 417512 MMBT3906
Q403 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC
Q413 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC
Q103 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q104 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q105 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q406 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q407 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q410 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q500 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q502 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q504 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q712 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q708 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q707 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q706 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q704 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q700 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q603 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q602 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q601 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q600 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q508 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q506 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q505 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q405 057G 763 79 FET AO4449 -7A/-30V SOIC-8
Q705 057G 763 79 FET AO4449 -7A/-30V SOIC-8
Q501 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS

RP603 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP602 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP601 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP600 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP403 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP402 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP401 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W
RP400 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W

R509 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R517 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R518 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R531 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R533 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R544 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R545 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R600 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R506 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R452 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R451 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R448 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R417 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R416 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R316 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

94

R313 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R308 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R609 061G0402101 JI BEST ONLY RST 0402 100R 5% 1/16W TA-I
R608 061G0402101 JI BEST ONLY RST 0402 100R 5% 1/16W TA-I
R310 061G0402101 JI BEST ONLY RST 0402 100R 5% 1/16W TA-I
R310 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R608 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R609 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R403 061G0402102 JI TEST ONLY RST 0402 1K 5% 1/16W TA-I
R404 061G0402102 JI TEST ONLY RST 0402 1K 5% 1/16W TA-I
R500 061G0402102 JI TEST ONLY RST 0402 1K 5% 1/16W TA-I
R507 061G0402102 JI TEST ONLY RST 0402 1K 5% 1/16W TA-I
R522 061G0402102 JI TEST ONLY RST 0402 1K 5% 1/16W TA-I
R524 061G0402102 JI TEST ONLY RST 0402 1K 5% 1/16W TA-I
R602 061G0402102 JI TEST ONLY RST 0402 1K 5% 1/16W TA-I
R606 061G0402102 JI TEST ONLY RST 0402 1K 5% 1/16W TA-I
R718 061G0402102 JI TEST ONLY RST 0402 1K 5% 1/16W TA-I
R719 061G0402102 JI TEST ONLY RST 0402 1K 5% 1/16W TA-I
R719 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN
R718 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN
R606 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN
R602 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN
R524 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN
R522 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN
R507 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN
R500 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN
R404 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN
R403 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN
R455 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R501 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R502 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R511 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R513 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R523 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R525 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R527 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R619 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R624 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R625 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R716 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R454 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R119 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R120 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R160 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R407 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R408 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R409 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R453 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R446 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R423 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R422 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R411 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R410 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R455 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R501 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R502 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R511 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN

95

R513 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R523 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R525 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R527 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R619 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R624 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R625 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R716 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R454 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R119 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R120 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R160 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R407 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R408 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R409 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R410 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R411 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R422 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R423 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R446 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R453 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R510 061G0402105 JI EST ONLY RST 0402 1M 5% 1/16W TA-I
R510 061G0402105 JT RST CHIP R 1MOHM 1/16W +/-5% TZAI YUAN
R604 061G0402122 JI RST 0402 1.2K 5% 1/16W
R604 061G0402122 JT RST CHIPR 1K2 +-5% 1/16W TZAI YUAN
R155 061G0402201 JI RST 0402 200R 5% 1/16W
R155 061G0402201 JT RST CHIP 200R 1/16W 5% TZAI YUAN
R603 061G0402220 JI RST 0402 22R 5% 1/16W TA-I
R603 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN
R714 061G0402223 JI TEST ONLY RST 0402 22K 5% 1/16W TA-I
R714 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN
R158 061G0402271 JF RST CHIP 270R 1/16W 5% FENGHUA
R158 061G0402271 JY RST CHIP 270R 1/16W 5% YAGEO
R508 061G0402273 JI RST 0402 27K 5% 1/16W
R508 061G0402273 JT RST CHIP 27K 1/16W 5% TZAI YUAN
R542 061G0402391 JI RST 0402 390R 5% 1/16W
R543 061G0402391 JI RST 0402 390R 5% 1/16W
R542 061G0402391 JT RST CHIP 390R 1/16W 5% TZAI YUAN
R543 061G0402391 JT RST CHIP 390R 1/16W 5% TZAI YUAN
R400 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R401 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R402 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R439 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R440 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R442 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R443 061G0402472 JI TEST ONLY RST CHIP 4.7K 5% 1/16W TA-I
R443 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R442 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R440 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R439 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R402 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R401 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R400 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN
R620 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I
R616 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I
R611 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I
R530 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I

96

R528 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I
R516 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I
R515 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I
R505 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I
R503 061G0402473 JI TEST ONLY RST 0402 47K 5% 1/16W TA-I
R620 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN
R616 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN
R611 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN
R530 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN
R528 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN
R516 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN
R515 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN
R505 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN
R503 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN
R447 061G0402562 JF RST CHIP 5K6 1/16W 5% FENGHUA
R447 061G0402562 JT RST CHIP 5K6 1/16W 5% TZAI YUAN
R157 061G0402750 JI TEST ONLY RST 0402 75R 5% 1/16W TA-I
R607 061G0402750 JI TEST ONLY RST 0402 75R 5% 1/16W TA-I
R157 061G0402750 JT RST CHIPR 75 OHM +-5% 1/16W TZAI YUAN
R607 061G0402750 JT RST CHIPR 75 OHM +-5% 1/16W TZAI YUAN
R769 061G0603000 JI TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R770 061G0603000 JI TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R771 061G0603000 JI TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R772 061G0603000 JI TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R773 061G0603000 JI TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R774 061G0603000 JI TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R795 061G0603000 JI TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R796 061G0603000 JI TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R797 061G0603000 JI TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R798 061G0603000 JI TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R760 061G0603000 JI TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R127 061G0603000 JI TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R132 061G0603000 JI TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R138 061G0603000 JI TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R141 061G0603000 JI TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R147 061G0603000 JI TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R152 061G0603000 JI TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R209 061G0603000 JI TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R213 061G0603000 JI TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R233 061G0603000 JI TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R759 061G0603000 JI TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R127 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R132 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R138 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R141 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R147 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R152 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R798 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R797 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R796 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R795 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R774 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R773 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R772 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R771 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R770 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R769 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN

97

R760 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R759 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R233 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R213 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R209 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R783 061G06031001FF RST CHIPR 1 KOHM +-1% 1/10W FENGHUA
R784 061G06031001FF RST CHIPR 1 KOHM +-1% 1/10W FENGHUA
R783 061G06031001FT RST CHIP 1K 1/10W 1%
R784 061G06031001FT RST CHIP 1K 1/10W 1%
R142 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
R139 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
R133 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
R130 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
R128 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
R124 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
R123 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
R112 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
R107 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
R103 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
R101 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I

FB102 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
FB100 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I

R792 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
R445 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
R444 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
R427 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
R315 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
R314 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
R183 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
R179 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
R175 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
R171 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
R153 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
R148 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
R145 061G0603101 JI TEST ONLY RST 0603 100R 5% 1/16W TA-I
R142 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R139 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R133 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R130 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R128 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R124 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R123 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R112 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R107 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R103 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R101 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN

FB102 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
FB100 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN

R792 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R445 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R444 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R427 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R315 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R314 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R183 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R179 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R175 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN

98

R171 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R153 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R148 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R145 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R788 061G0603102 JI TEST ONLY RST 0603 1K 5% 1/10W TA-I
R787 061G0603102 JI TEST ONLY RST 0603 1K 5% 1/10W TA-I
R782 061G0603102 JI TEST ONLY RST 0603 1K 5% 1/10W TA-I
R781 061G0603102 JI TEST ONLY RST 0603 1K 5% 1/10W TA-I
R712 061G0603102 JI TEST ONLY RST 0603 1K 5% 1/10W TA-I
R708 061G0603102 JI TEST ONLY RST 0603 1K 5% 1/10W TA-I
R706 061G0603102 JI TEST ONLY RST 0603 1K 5% 1/10W TA-I
R700 061G0603102 JI TEST ONLY RST 0603 1K 5% 1/10W TA-I
R612 061G0603102 JI TEST ONLY RST 0603 1K 5% 1/10W TA-I
R459 061G0603102 JI TEST ONLY RST 0603 1K 5% 1/10W TA-I
R434 061G0603102 JI TEST ONLY RST 0603 1K 5% 1/10W TA-I
R788 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN
R787 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN
R782 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN
R781 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN
R712 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN
R434 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN
R459 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN
R612 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN
R700 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN
R706 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN
R708 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN
R406 061G06031022FI RST 0603 10.2K 1% 1/10W
R405 061G06031022FI RST 0603 10.2K 1% 1/10W
R405 061G06031022FY RST CHIPR 10.2KOHM +-1% 1/10W YAGEO
R406 061G06031022FY RST CHIPR 10.2KOHM +-1% 1/10W YAGEO
R725 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R639 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R638 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R637 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R622 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R526 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R512 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R432 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R430 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R737 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R785 061G0603103 JI RST 0603 10K 5% 1/10W TA-I
R786 061G0603103 JI RST 0603 10K 5% 1/10W TA-I
R430 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R432 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R512 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R526 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R622 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R637 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R638 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R786 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R785 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R639 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R725 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R737 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R192 061G0603104 JI TEST ONLY RST 0603 100K 5% 1/16W TA-I
R191 061G0603104 JI TEST ONLY RST 0603 100K 5% 1/16W TA-I
R117 061G0603104 JI TEST ONLY RST 0603 100K 5% 1/16W TA-I

99

R118 061G0603104 JI TEST ONLY RST 0603 100K 5% 1/16W TA-I
R136 061G0603104 JI TEST ONLY RST 0603 100K 5% 1/16W TA-I
R137 061G0603104 JI TEST ONLY RST 0603 100K 5% 1/16W TA-I
R149 061G0603104 JI TEST ONLY RST 0603 100K 5% 1/16W TA-I
R150 061G0603104 JI TEST ONLY RST 0603 100K 5% 1/16W TA-I
R163 061G0603104 JI TEST ONLY RST 0603 100K 5% 1/16W TA-I
R164 061G0603104 JI TEST ONLY RST 0603 100K 5% 1/16W TA-I
R187 061G0603104 JI TEST ONLY RST 0603 100K 5% 1/16W TA-I
R188 061G0603104 JI TEST ONLY RST 0603 100K 5% 1/16W TA-I
R137 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN
R149 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN
R150 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN
R163 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN
R117 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN
R118 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN
R136 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN
R191 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN
R188 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN
R187 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN
R164 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN
R192 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN
R424 061G0603105 JI RST 0603 1M 5% 1/16W TA-I
R424 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
R618 061G0603123 JI RST 0603 12K 5% 1/10W
R614 061G0603123 JI RST 0603 12K 5% 1/10W
R614 061G0603123 JT RST CHIPR 12KOHM 1/10W TZAI YUAN
R618 061G0603123 JT RST CHIPR 12KOHM 1/10W TZAI YUAN
R436 061G0603133 JI RST 0603 13K 5% 1/10W
R436 061G0603133 JT RST CHIPR 13K +-5% 1/10W TZAI YUAN
R738 061G06031502FF RST CHIPR 15KOHM +-1% 1/10W FENGHUA
R738 061G06031502FT RST CHIP 15K 1/10W 1%
R159 061G0603151 JI RST 0603 150R 5% 1/10W
R159 061G0603151 JT RST CHIP 150R 1/10W 5% TZAI YUAN
R536 061G06031601FF RST CHIPR 1.6KOHM +-1% 1/10W FENGHUA
R536 061G06031601FI RST 0603 1.6K 1% 1/10W
R309 061G0603180 JI RST 0603 18R 5% 1/10W
R182 061G0603180 JI RST 0603 18R 5% 1/10W
R178 061G0603180 JI RST 0603 18R 5% 1/10W
R174 061G0603180 JI RST 0603 18R 5% 1/10W
R170 061G0603180 JI RST 0603 18R 5% 1/10W
R170 061G0603180 JT RST CHIP 18R 1/10W 5% TZAI YUAN
R174 061G0603180 JT RST CHIP 18R 1/10W 5% TZAI YUAN
R178 061G0603180 JT RST CHIP 18R 1/10W 5% TZAI YUAN
R182 061G0603180 JT RST CHIP 18R 1/10W 5% TZAI YUAN
R309 061G0603180 JT RST CHIP 18R 1/10W 5% TZAI YUAN
R605 061G0603181 JI RST 0603 180R 5% 1/10W
R605 061G0603181 JT RST CHIPR 180OHM 1/10W TZAI YUAN
R156 061G0603183 JI RST 0603 18K 5% 1/10W
R156 061G0603183 JT RST CHIP 18K 1/10W 5% TZAI YUAN
R736 061G0603202 JF RST CHIPR 2K OHM +-5% 1/10W FENGHUA
R736 061G0603202 JT RST CHIPR 2KOHM 1/10W TZAI YUAN
R793 061G0603221 JI RST 0603 220R 5% 1/16W TA-I
R793 061G0603221 JT RST CHIPR 220OHM 1/10W TZAI YUAN
R110 061G0603222 JI RST 0603 2.2K 5% 1/10W
R104 061G0603222 JI RST 0603 2.2K 5% 1/10W
R104 061G0603222 JT RST CHIP 2K2 1/10W 5% TZAI YUAN
R110 061G0603222 JT RST CHIP 2K2 1/10W 5% TZAI YUAN

100

R441 061G0603224 JI RST 0603 220K 5% 1/10W
R441 061G0603224 JT RST CHIP 220K 1/10W 5% TZAI YUAN
R734 061G0603229 JI RST 0603 2.2R 5% 1/10W TA-I
R734 061G0603229 JT RST CHIPR 2.2OHM 1/10W TZAI YUAN
R190 061G0603273 JI RST 0603 27K 5% 1/10W
R189 061G0603273 JI RST 0603 27K 5% 1/10W
R186 061G0603273 JI RST 0603 27K 5% 1/10W
R185 061G0603273 JI RST 0603 27K 5% 1/10W
R185 061G0603273 JT RST CHIP 27K 1/10W 5% TZAI YUAN
R186 061G0603273 JT RST CHIP 27K 1/10W 5% TZAI YUAN
R189 061G0603273 JT RST CHIP 27K 1/10W 5% TZAI YUAN
R190 061G0603273 JT RST CHIP 27K 1/10W 5% TZAI YUAN
R799 061G0603274 JF RST CHIPR 270KOHM 5% 1/10W FENGHUA
R799 061G0603274 JI RST 0603 270K 5% 1/10W
R102 061G0603330 JT RST CHIP 33R 1/10W 5% TZAI YUAN
R109 061G0603330 JT RST CHIP 33R 1/10W 5% TZAI YUAN
R102 061G0603330 JY RST CHIPR 33 OHM 1/10W YAGEO
R109 061G0603330 JY RST CHIPR 33 OHM 1/10W YAGEO
R615 061G0603333 JI RST 0603 33K 5% 1/10W
R615 061G0603333 JT RST CHIP 33K 1/10W 5% TZAI YUAN
R165 061G0603472 JI TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R167 061G0603472 JI TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R420 061G0603472 JI TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R421 061G0603472 JI TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R610 061G0603472 JI TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R703 061G0603472 JI TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R711 061G0603472 JI TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R715 061G0603472 JI TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R165 061G0603472 JT RST CHIP 4K7 1/10W 5% TZAI YUAN
R167 061G0603472 JT RST CHIP 4K7 1/10W 5% TZAI YUAN
R420 061G0603472 JT RST CHIP 4K7 1/10W 5% TZAI YUAN
R421 061G0603472 JT RST CHIP 4K7 1/10W 5% TZAI YUAN
R610 061G0603472 JT RST CHIP 4K7 1/10W 5% TZAI YUAN
R703 061G0603472 JT RST CHIP 4K7 1/10W 5% TZAI YUAN
R711 061G0603472 JT RST CHIP 4K7 1/10W 5% TZAI YUAN
R715 061G0603472 JT RST CHIP 4K7 1/10W 5% TZAI YUAN
R717 061G0603473 JI TEST ONLY RST 0603 47K 5% 1/16W TA-I
R550 061G0603473 JI TEST ONLY RST 0603 47K 5% 1/16W TA-I
R549 061G0603473 JI TEST ONLY RST 0603 47K 5% 1/16W TA-I
R548 061G0603473 JI TEST ONLY RST 0603 47K 5% 1/16W TA-I
R168 061G0603473 JI TEST ONLY RST 0603 47K 5% 1/16W TA-I
R166 061G0603473 JI TEST ONLY RST 0603 47K 5% 1/16W TA-I
R717 061G0603473 JT RST CHIP 47K 1/10W 5% TZAI YUAN
R550 061G0603473 JT RST CHIP 47K 1/10W 5% TZAI YUAN
R549 061G0603473 JT RST CHIP 47K 1/10W 5% TZAI YUAN
R548 061G0603473 JT RST CHIP 47K 1/10W 5% TZAI YUAN
R168 061G0603473 JT RST CHIP 47K 1/10W 5% TZAI YUAN
R166 061G0603473 JT RST CHIP 47K 1/10W 5% TZAI YUAN
R621 061G0603512 JI RST 0603 5.1K 5% 1/16W TA-I
R146 061G0603512 JI RST 0603 5.1K 5% 1/16W TA-I
R143 061G0603512 JI RST 0603 5.1K 5% 1/16W TA-I
R134 061G0603512 JI RST 0603 5.1K 5% 1/16W TA-I
R131 061G0603512 JI RST 0603 5.1K 5% 1/16W TA-I
R131 061G0603512 JT RST CHIPR 5.1KOHM +-5% 1/10W TZAI YUAN
R134 061G0603512 JT RST CHIPR 5.1KOHM +-5% 1/10W TZAI YUAN
R143 061G0603512 JT RST CHIPR 5.1KOHM +-5% 1/10W TZAI YUAN
R146 061G0603512 JT RST CHIPR 5.1KOHM +-5% 1/10W TZAI YUAN
