AOC L32W431 Service Manual

32″ LCD TV AOC L32W431

Service

Service

Service

Horizontal Frequency

31. 5 kHz to 49 kHz

Description Page Description Page

Table Of Contents.......…….............................…........1

Revision List……………………………………………....2

Important Safety Notice.......................................……......3

1. General Specification..............................………........4

2. Operating Instructions…………………….……….......5

2.1. The Use Of Remote Control…….………….…….......5

2.2. Front Panel Control Knobs……………….……….....6

2.3. To Use The Menu…...…………………….……….......7

2.4. How To Connect…….…………………….……….....13

3. Input/Output Specification…………....................…....15

4. Mechanical Instructions…………………….................17

5. Repair Flow Chart ……………………….…….…….....20

6.White-Balance, Luminance Adjustment….............26

显示桌面.scf

TABLE OF CONTENTS

7.PCB Layout …………..………………....….......30

7.1 Main Board…………..………….……….......30

7.2 Power Board…………..………….……….......33

7.3 Tuner Board…………………..……….......35

8. Block Diagram…………………………………..37

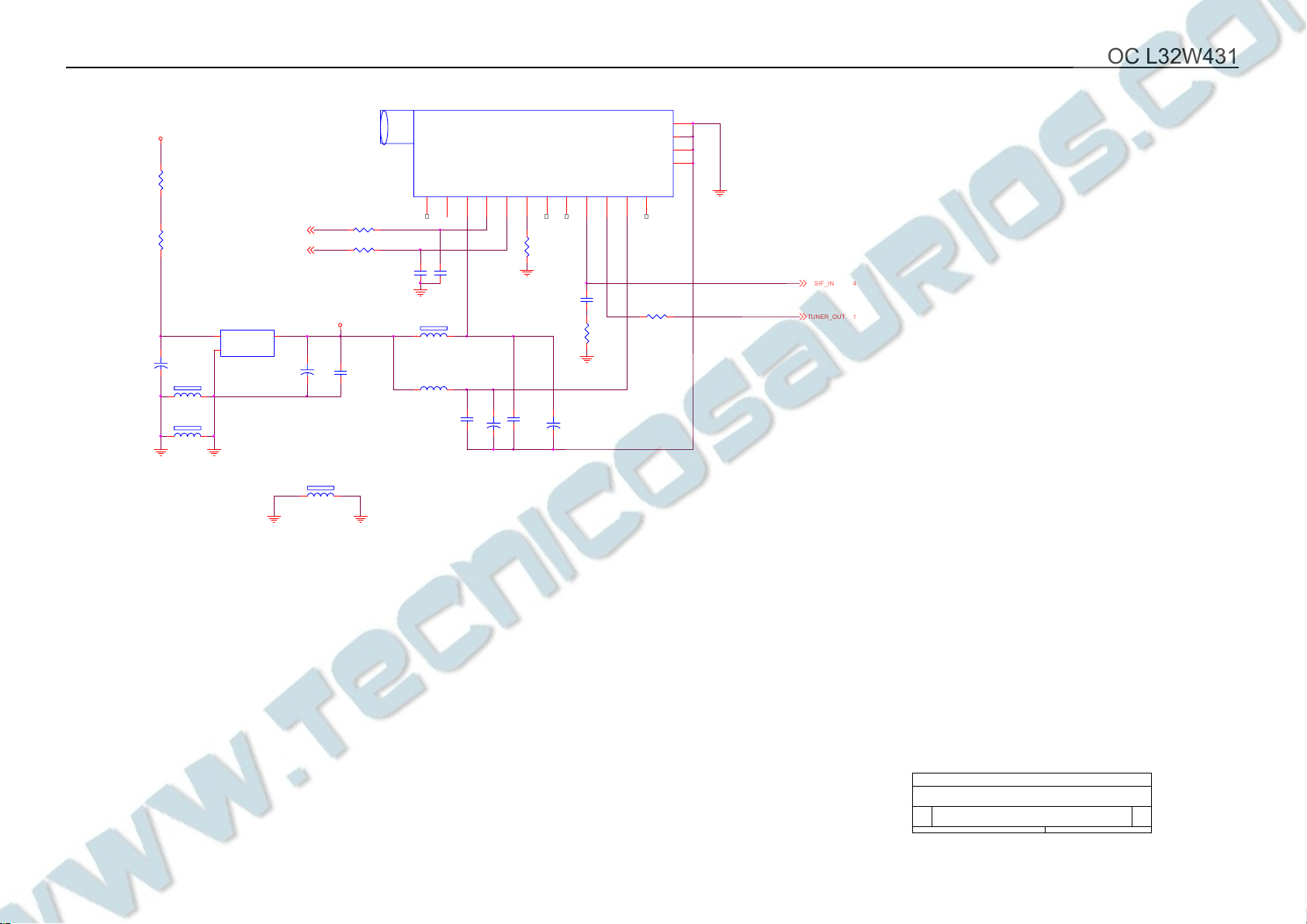

9. Schematic Diagram………………………………...38

9.1 Main Board………...………………………….......38

9.2 Power Board………...……….……….…………...49

9.3 Tuner Board………………….………….…….......51

10.Exploded View..……………............................55

11.BOM List……………….……………………….56

12.Different Parts List………………………………107

SAFETY NOTICE

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS

AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC

EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

1

32″ LCD TV AOC L32W431

Revision List

Version Release Date Revision History TPV Model

A00 Apr.-02-2007 Initial Release E326MTNSD1A3NP

A01 May-29-2007 Second Release E326MTNCW1GLN

A02 Jan-07-2008 Add SKD model for Brazil E327MTNSW1AC6N

2

32″ LCD TV AOC L32W431

Important Safety Notice

Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service

procedures recommended by AOC and described in this service manual are effective methods of performing service

operations. Some of these service operations require the use of tools specially designed for the purpose. The special

tools should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in

order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods

may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE NOT

EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in which

service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not

undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not

recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the

equipment will be jeopardized by the service method selected.

Hereafter throughout this manual, AOC Company will be referred to as AOC.

WARNING

Use of substitute replacement parts, which do not have the same, specified safety characteristics may create shock,

fire, or other hazards.

Under no circumstances should the original design be modified or altered without written permission from AOC. AOC

assumes no liability, express or implied, arising out of any unauthorized modification of design.

Servicer assumes all liability.

FOR PRODUCTS CONTAINING LASER:

DANGER-Invisible laser radiation when open AVOID DIRECT EXPOSURE TO BEAM.

CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may result

in hazardous radiation exposure.

CAUTION -The use of optical instruments with this product will increase eye hazard.

TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S

REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF

THIS SERVICE MANUAL.

Take care during handling the LCD module with backlight unit

-Must mount the module using mounting holes arranged in four corners.

-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.

-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to

the panel.

-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).

-Make certain that treatment person’s body is grounded through wristband.

-Do not leave the module in high temperature and in areas of high humidity for a long time.

-Avoid contact with water as it may a short circuit within the module.

-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may
damage the panel.)

3

32″ LCD TV AOC L32W431

1. General Specification

Items Specification

Screen Size 32”(81cm)TFT-LCD Panel

Panel type TV 32" B1-L04 CMO

Aspect Ratio 16:9

Resolution (Native) 1366 x 768 WXGA

Active Area 714.96 (H) x 404.6 (V) mm

LCD Panel

TV Function

Video Input

Pixel Pitch 0.1730 (H) x 0.5190 (V) mm

Contrast Ratio 700:1 (Typical)

Brightness 420 nits (Typical)

Response Time 6.5ms (G-G)

Display colors 16.7 million

Rated Life (Backlight) > 60000 Hrs (at 4.5mA)

Preset Color Cool /warm

TV Tuning System

Sound System MTS + SAP

Color systems NTSC / PALN / PALM

AV1 RCA x 1 Audio channel L / Rx 1

AV2

S-VIDEO S-VIDEO x 1 Audio channel L / Rx 1

HDMI HDMI x 1

COMPONENT
(480i/480p/720p/1080i)

Signal Input Analog: D-Sub 15 pin (detachable cable)

NTSC 181 channel (PLL band) electronic adjustment
system

RCA x 1
S-Video x 1

Y,Pb,Pr x 1 Audio channel L / Rx 1

Audio channel
L / R x 1（shared）

High Definition Media
Interface

PnP compatibility DDC 2B

PC Input

Audio Output Audio Output: L / R

OSD language English / Spanish / Portuguese

Wall Mount VESA 100mm X 100mm

Power

Environment

Accessories

Input frequency

Recommended Analog:1024 x 768 (60Hz)

Input Audio Headphone Mini-jack for stereo (3.5ø)

Power Input AC100V~240V, 50/60Hz

Power
Consumption

Operating Temperature + 0 °C ~ + 40 °C

Operating Humidity 10% to 85%

Storage Temperature - 10 °C ~ + 60 °C

Remote Controller, Batteries (x2), AC Power Cord, D-sub Signal Cable, Audio
Cable ,User’s Manual

Analog: FH: 31.5kHz to 49kHz
FV: 56Hz to 75Hz

Speaker (built-in): Two 15W speakers

Headphone Mini-jack for stereo (3.5ø)

Line Output (RCA L/R)

<200W

4

32″ LCD TV AOC L32W431

2. Operations Instructions

2.1 The Use of Remote Control

5

32″ LCD TV AOC L32W431

2.2 Front Panel Control Knobs

: Press to turn the TV on or off.

MENU Key: Press to show the OSD menu and exit OSD menu at the TV.

Down / Up Key: Press to select OSD function or change channel.

- / + Key: Press to confirm your function selection and make adjustment.

Source Key: Press to select your input source.

6

32″ LCD TV AOC L32W431

2.3 OSD Operations

To use the menus：

1. Press the MENU button to display each menu.

2. Use the cursor up/down to select a menu item.

3. Use the cursor left/right to enter a submenu or enable/disable the function.

4. Press the MENU button to exit the menu.

Main menu

SOURCE SELECT

Press the INPUT key on remote control or SOURCE key on keyboard to select source:

TV>AV1>AV2>S-VIDEO>COMPONENT>VGA>HDMI

Menu screen in TV mode:

Press the MENU button to enter into the OSD MENU in TV mode. Items adjustable include: VIDEO SETTING,

SOUND SETTING, OPTIONS SETTING, and CHANNEL SETTING

VIDEO SETTING:

1. PICTURE: User can select PERSONAL,VIVID,STANDARD,MILD,if selected except PERSONAL

item, Contrast, Brightness ,Saturation,Sharpness,NR,Backlight can’t adjust.

2. CONTRAST: Adjust black and white level, suitable contrast can make picture more lightly. Adjustment range is

from 0 to 100.

3. BRIGHTNESS: Adjust background brightness, user can collocation it with contrast adjustment range is from 0 to

100.

7

32″ LCD TV AOC L32W431

When adjust any item sub-OSD will show up like this.

4. SATURATION: Adjust color saturation, range is from 0 to 100.

5. SHARPNESS: Adjustment picture sharpness, range is from 0 to 100.

6. NR: When the signal is poor, you can turn on the noise reduction function.

7. BACKLIGHT: The adjustment range of Black Level is from 0 to 10.

You can adjust contrast, brightness, Saturation, Sharpness to your prefer level.

SOUND SETTING

1. VOLUME: The Volume adjustment range is from 0 to 100

You can adjust the Volume of the picture to the level you prefer.

2.EFFECT：You can choice your prefer mode of CUSTOM, STEREO, NEWS, MOVIE, MUSIC, BBE VIVA.

3.120Hz, 500Hz, 1500Hz, 5 KHz, 10KHZ. Choice the prefer frequency to increase or decrease.

OPTIONS SETTING:

English

1. MENU LANGUAGE: This indicates the different languages available for the OSD menu, including English, panish

and Portuguese. The default is English.

2. MENU TIMEOUT: OSD stay timer.

3. MENU BACKGROUND: User can select Opaque or transparency with Menu background.

4. SLEEP TIMER: Use this button to set a time period after which the TV will enter into standby mode. The time

period can be 0>15>30>45 > 60 > 90 >120 minutes. The timer will begin to count down from the selected number of

minutes after the OSD menu disappears.

8

32″ LCD TV AOC L32W431

Note: To check the remaining time, press the SLEEP button. To cancel the sleep timing, press the SLEEP button

repeatedly until 0 appears. If you turn off the TV after you set the sleep timing, the setting will be cleared. You will

need to set it again.

5. BLUE SCREEN: When there is no signal input in TV, AV, S-Video and HDTV modes, the screen will become blue.

If set to on, the screen will become blue. If set to Off, the screen will display a snowy picture when in TV signal mode

and become black in other signal modes. The default is On.

6. CC: You can enter to select the closed caption function.

7. RESET: Used to resume the TV’s default settings.

CHANNEL SETTING:

1. AIR/CABLE: You can select the TV signal AIR or CABLE.

2. AUTO SEARCH: Used to scan all the TV channels and save to memory.The TV’s total number of channels is 125

(1-125). If you use the remote control to select a number out of the range of 1-125, it will automatically skip to the

channel number you previously watched.

Menu screen in VGA mode:

The TV has a VGA analog interface, which can be switched using the INPUT button on the remote control.

9

32″ LCD TV AOC L32W431

Press the MENU button to enter into the OSD Main Menu. Adjustable items include: VIDEO SETTING, SOUND

SETTING, OPTIONS SETTING, VGA SETTING

VIDEO SETTING:

1. CONTRAST: Adjust black and white level, suitable contrast can make picture more lightly. Adjustment range is

from 0 to 100.

2. BRIGHTNESS: Adjust background brightness, user can collocation it with contrast adjustment range is from 0 to

100.

SOUND SETTING:

1. VOLUME: The Volume adjustment range is from 0 to 100

You can adjust the Volume of the picture to the level you prefer.

10

32″ LCD TV AOC L32W431

2.EFFECT：You can choice your prefer mode of CUSTOM, STEREO, NEWS, MOVIE, MUSIC, BBE VIVA.

3.120Hz, 500Hz, 1500Hz, 5 KHz, 10KHZ. Choice the prefer frequency to increase or decrease.

OPTIONS SETTING:

1. MENU LANGUAGE: This indicates the different languages available for the OSD menu, including Simplified

English, Spanish and Portuguese. The default is English.

2. MENU TIMEOUT: OSD stay timer.

3. MENU BACKGROUND: User can select Opaque or transparency with Menu background.

4. SLEEP TIMER: Use this button to set a time period after which the TV will enter into standby mode. The time

period can be 0>15>30>45 > 60 > 90 > 120 minutes. The timer will begin to count down from the selected number of

minutes after the OSD menu disappears.

Note: To check the remaining time, press the SLEEP button. To cancel the sleep timing, press the SLEEP button

repeatedly until 0 appears. If you turn off the TV after you set the sleep timing, the setting will be cleared. You will

need to set it again.

5. BLUE SCREEN: When there is no signal input in TV, AV, S-Video and HDTV modes, the screen will become blue.

If set to on, the screen will become blue. If set to off, the screen will display a snowy picture when in TV signal mode

and become black in other signal modes. The default is On.

6. RESET: Used to resume the TV’s default settings.

VGA SETTING:

1. Horizontal Position: change horizontal position on screen.

2. Vertical position: change vertical position on screen.

11

32″ LCD TV AOC L32W431

3. Clock: (The function only in VGA mode)

4. Focus: Adjust A/D focus. (The function only in VGA mode)

5. Auto tune: Auto tune to a best status on screen.(The function only in VGA mode)

6. Color temp: According your preference to adjust color temperate, there are warm, cool, standard.

7. Reset: recall defaulting.

Menu screen in AV1/AV2/S-VIDEO/COMPONET/HDMI mode:

Press the MENU button to enter into the OSD MENU in AV1/AV2/SVIDEO/COMPONET/HDMI mode. Items djustable

include: VIDEO SETTING, SOUND SETTING, OPTIONS SETTING，VIDEO SETTING:

Adjusting is same as the VIDEO SETTING in TV mode.

SOUND SETTING:

Adjusting is same as the SOUND SETTING in TV mode.

OPTION SETTING:

Adjusting is same as the OPTIONS SETTING in TV mode.

12

32″ LCD TV AOC L32W431

2.4 How to Connect

VIDEO RECORDER

1. Connect the antenna or cable 1 to the RF IN port of your VCR.

2. Connect another RF cable 2 from the output RF of your VCR to the Antenna input of your TV. Better quality when

playing from our VCR can be obtained if you also connect the Video, Audio LEFT AND right (only for stereo

equipment) cables 3 to the VIDEO, AUDIO L and R inputs AV. If you are using mono equipment, connect only the

VIDEO and the AUDIO L (Mono) ports.

If you’re VCR has an S-VHS video jack:

For improved picture quality, connect a S-Video cable with the S-VIDEO input on the TV instead of connecting the

VCR to the VIDEO port of AV2. S-Video does not provide audio, audio cables must still be connected to

provide sound. (S-Video and AV2 has the same audio input port)

CAMERA，CAMCORDER，VIDEO GAME SET，…..

1. Composite Video: Connect your camera, camcorder, videogame set… to Audio port 2 (Audio L for mono) and

Video port 3.

2. S-Video Connection

S-VHS quality with an S-VHS camcorder is obtained by connecting the S-VHS cable with the S-VIDEO input 1 and

AUDIO input 2.

DVD PLAYER

1. Connect the three separate component video cables 1 to the DVD player’s, Pb and Pr ports and to the Y, Pb and

Pr ports on the TV

13

32″ LCD TV AOC L32W431

2. Connect the audio cables 2 to the DVD player’s AUDIO L and R ports and to the L and R AUDIO AV ports on the

TV.

HDMI:

HDMI is the leading new standard for Digital video and audio interconnection.

To the HDMI connector you can connect HDMI devices such as a Set Top Box or compatible DVD-R or DVD player

with HDMI export, or DVI-equipped devices like a computer. So you can display high definition pictures on this TV in

the digital form.

DIGITAL SET TOP BOX

1. Connect the three separate component video cables 1 to the DTV set-top box Y, Pb and Pr ports and to the Y, Pb

and Pr ports on the TV.

2. Connect the audio cables 2 to the DTV player’s AUDIO L and R ports and to the L and R AUDIO AV ports on the

TV.

HEADPHONE

1. The earphone jack is located at the rear corner of the TV.

2. The

3. Use volume key to adjust the volume.
Note: When a TV channel or external AV source is blocked because of a rating set via the Parental (V-Chip) control
menu, the headphone will also be muted.

MUTE key on the remote control works on both internal speaker and the earphone.

14

32″ LCD TV AOC L32W431

3. Input/Output Specification

3.1 Input Signal connector

This procedure gives you instructions for installing and using the LCD TV display.
Lay the display on the desired operation and plug the power cord into a convenient AC outlet. Three-wire power cord
must be shielded and is provided as a safety precaution as it connects the chassis and cabinet to the electrical
conduct ground. If the AC outlet in your location does not have provisions for the grounded type plug, the installer
should attach the proper adapter to ensure a safe ground potential.

Connect the 15-pin D-SUB color display shielded signal cable to your signal system device and lock both screws

on the connector to ensure firm grounding. The connector information is as follow:

15 - Pin Color Display Signal Cable

Pin Signal Assignment Pin Signal Assignment

1 Red Video 9 No Pin!

2 Green Video 10 Sync. Ground

3 Blue Video 11 SDA (Remote Control)

4 SCL (Remote Control) 12 Serial Data for DDC

5 GROUND 13 Horizontal Sync.

6 Red Video Ground 14 Vertical Sync.

7 Green Video Ground 15 Serial Clock for DDC

8 Blue Video Ground

HDMI Digital connector pin assignments

Pin

1 TMDS Data2+ 2 TMDS Data2 Shield

3 TMDS Data2- 4 TMDS Data1+

5 TMDS Data1 Shield 6 TMDS Data1-

7 TMDS Data0+ 8 TMDS Data0 Shield

9 TMDS Data0- 10 TMDS Clock+

11 TMDS Clock Shield 12 TMDS Clock-

13 CEC 14 NC

15 SCL 16 SDA

17 DDC/CEC Ground 18 +5V Power

19 Hot Plug Detect

Signal Assignment Pin Signal Assignment

15

32″ LCD TV AOC L32W431

Apply power to the display by turning the power switch to the "ON" position and allow about ten seconds for

Panel warm-up. The Power-On indicator lights "GREEN" when the display is on.

With proper signals feed to the display, a pattern or data should appear on the screen, adjust the brightness and

contrast to the most pleasing display, or press auto-adjust to get the best picture-quality.

This TV (with PC function) has power saving function following the VESA DPMS. Be sure to connect the signal

cable to the PC.

If your TV requires service, it must be returned with the power cord.

3.2 Factory Preset Display Modes:

Analog RGB input signal timing

VESA MODES

Mode Resolution Total

640x480@60Hz 800 x 525 31.469 N 59.940 N 25.175

VGA

SVGA

XGA

WXGA 1360x768@60Hz 1792x795 47.712 P 60.015 P 85.5

640x480@72Hz 832 x 520 37.861 N 72.809 N 31.500
640x480@75Hz 840 x 500 37.5 N 75 N 31.500
800x600@56Hz 1024 x 625 35.156 P 56.25 P 36.000
800x600@60Hz 1056 x 628 37.879 P 60.317 P 40.000
800x600@72Hz 1040 x 666 48.097 P 72.188 P 40.000

800x600@75Hz 1056 x 625 460875 P 75 P 49.5
1024x768@60Hz 1344x806 48.363 N 60.004 N 65.000
1024x768@70Hz 1328x806 56.476 N 70.069 N 75.000
1024x768@75Hz 1312x800 60.023 P 75.029 P 78.750

HDMI input signal timing

VESA MODES

Horizontal Vertical

Nominal

Frequency

(KHz)

Polarity

Sync

Nominal

Freq.

(Hz)

Sync

Polarit

y

Nominal

Pixel

Clock

(MHz)

Mode Resolution Total

720P

1080i

480P

1280×720P 45.00 60 74.25

1920X1080i 33.75 60 74.25

720X480P 31.54 60 27.00

Frequency

Horizontal Vertical

Nominal

(KHz)

Sync

Polarity

Nominal

Freq.

(Hz)

Sync

Polarity

Nominal

Pixel

Clock

(MHz)

16

32″ LCD TV AOC L32W431

4. Mechanical Instructions

Step Figure Description

Lay the LCD-TV on a

Preparation

flat, soft and clean
surface. Disassemble
the stand cover.

Remove

the stand

remove
the rear

cover

Remove the 8 screws

Remove the 14 screws
to remove the rear
cover

17

32″ LCD TV AOC L32W431

Remove
the plate

Remove the 8 screws

Remove
the shield

Remove the screws

18

32″ LCD TV AOC L32W431

Remove
the main
board &
power
board

Remove
the main
frame

Remove the 9 screws
& 6 connectors to
remove the main
board and power
board

Remove the 16 screws
to remove the main
frame

Remove
the bezel

19

Remove the 2 screwa
and 4 connectors to
release the bezel.

32″ LCD TV AOC L32W431

5. Repair Flow Chart

5.1 No Power (No LED indicator)

Check power cord and board interface

Plug in power cord and interface

Check F901, BD901, D901, D902

Check IC981, D928 (12V)

OK

OK

NG

Check the load

NG

Replace F901 or BD901 or D910 or D902

Replace IC981or D928

OK

Check IC901

NG

Replace IC901

OK

Check Q901

OK

Check IC941

OK

Check Q941

OK

Check Q946 Q947

OK

Check IC927

NG

Ch

NG

NG

NG

Replace Q901

Replace IC941

Replace Q941

Replace Q946 Q947

Replace IC927

20

32″ LCD TV AOC L32W431

5.2 Can not start (LED indicator yellow)

Check key board

OK

Check 5V_SB

OK

Check PWR_ON signal

Check I2C communication

OK

Check Panel inverter board

NG

NG

Return to “5.1”

NG

NG

Repair the key board

Check main board power supply and U402

Replace panel

21

32″ LCD TV AOC L32W431

5.3 No display (LED indicator green)

Check the source

OK

NG

Reset source

Check LVDS cable

OK

Check 12V and 5V power supply

OK

Check main board power supply

OK

Check U402,U401

OK

Check U302, U301

NG

NG

NG

Reset LVDS cable

NG

Replace U402,U401

Replace U302, U301

Return to “5.1”

Check U407

OK

Check I2C communication

OK

Check panel

NG

Replace U407

NG

Replace panel

22

32″ LCD TV AOC L32W431

5.4 Abnormal display

Check the source

OK

NG

Reset source

Check signal filter circuit

OK

Check input

OK

Check LVDS cable

OK

Check panel

NG

NG

NG

NG

Replace the filter or resistance

RF signal

Replace LVDS cable

Replace panel

OK

Check TV system setup

OK

Check Tuner

OK

Replace Tuner

23

32″ LCD TV AOC L32W431

5.5 No sound

Check the source

OK

NG

Check signal filter circuit

OK

Reset source

Replace the filter circuit

Check Earphone jack

OK

Check U502, U503, U504, U601

OK

Check speaker

NG

NG

Replace the Earphone jack

SIF signal

Check Tuner

AV, S-video, HDMI, PC signal

NG

Replace speaker

Replace U502, U503, U504, U601

Check TV system setup

OK

NG

Replace Tuner

24

32″ LCD TV AOC L32W431

5.6 Key Board

OSD is unstable or not working

Is Key Pad Board connecting normally?

OK

Is Button Switch normally?

OK

Is Key Pad Board Normally?

OK

NG

NG

Connect Key Pad Board

Replace Button Switch

Replace Key Pad Board

Check Main Board

25

32″ LCD TV AOC L32W431

6. White Balance, Luminance Adjustment

Instrument List:

Chroma 2225、VG848、Chroma 7120

Adjustment Process:

① Instrument Orientation

Connect LCD-TV、Chroma 2225 and VG848, and set Timing137、Pattern1 on Chroma2225. Chroma7120’s lens

must aim at the center of Pattern1 showed on the LCD-TV’s screen. The distance of Chroma7120’s lens and the

center of screen is 20cm±1cm.

② ENTER FACTORY

After orientation OK, set Pattern104(black picture) on Chroma225.Press 1-9-9-9 on remote to enter the menu on

top left of the screen(refer to fig.1,this menu will show slowly), then from UP key(△) option to enter the menu (refer to

fig.2).

Fig.1

Fig.2

26

32″ LCD TV AOC L32W431

Fig.3

③ PC Mode White Balance Adjustment

Begin to adjust the W/B (White Balance) you should select the Color Temp(Warm and Cold) and enter the son menu

from father menu “Scaler” refer to Fig.2 and Fig.3.

Set channel color temperature value and brightness on Chroma7120.Set 303 319 350(warm Temp) on CH3 and

278 289 350(cold Temp) on CH4.Press MODE key on Chroma7120 to switch xyY mode.

Use black sleeve on Chroma7120’s lens to ensure no external ray. Set Pattern104 on Chroma2225.Adjust

SCALAR RB、GB、BB value to make sure the brightness is the lowest, then set Pattern105 on Chroma2225 and

adjust RG、GG、BG value to make the value displaying on Chroma7120 is about 100.Press “Save” to save. Switch to

CH4, select cold Temp and then adjust it according to above method. Press “Save” to save.

④ AV MODE W/B ADJUSTMENT

Begin to adjust AV/COMPONENT YPbPr(480I/576I)/COMPONENT T-scaler(480P/720P/1080I) /HDMI W/B,

their Color Temp modes refer to Fig.4/5/6/7

Fig.4

27

32″ LCD TV AOC L32W431

Fig.5

Fig.6

Fig.7

1.OFFSET(26%) W/B ADJUSTMENT(This is only for AV/TV)：Change the input signal to 26% white level

performance .Set the CHROMA7120 to 288 301 30 and MODE_RGB ,then adjust the TV’s RB、GB、BB to make

CHROMA7120 display to 100.

2.W/B ADJUSTMENT (100%): Change the input signal to 100% white level performance. Set the CHROMA7120

to 288 301 415 and MODE_RGB , then adjust the TV’s RG、GG、BG to make CHROMA7120 display to 100.

3.Save the adjustment. Then change the input signal to 26% white level performance. Set the CHROMA7120 to

28

32″ LCD TV AOC L32W431

MODE_RGB and CH3, check whether the color temperature was in SPEC (color spec is x±15;y±15;Y±15). In this

time, most of the TV is in SPEC, while the others should be adjusted twice or more to make its color temperature in

SPEC.

4.CHECK CUT OFF: Change the input signal to 0% white level performance. Firstly, press the “brightness” from

50% to 0% and make sure the Y is not changed. Secondly, change the input signal to 32 GRAYS performance and

make sure the grays is not connected at any position.( as the 5% level is between the first gray and the second gray.

5%=（1/32）*1.6。)

1.The white color temperature in PC Mode should be app.7200K(CIE1931: x=0.303, y=0.319， Y>350),

10300K(CIE1931 : x= 0.278, y= 0.289, Y>350 ).

2.The white color temperature in AV/TV Mode should be app. 8700K(CIE1931:x=0.288±15, Y=0.301±15, Y>370).

In this Mode,we should check the black balance,which level is 26% of the white level(1.0Vpp).

3. The white color temperature in HDTV/HDMI Mode should be app. 8700K(CIE1931:x=0.288±15, Y=0.301±15,

Y>370)

Those three channels should be factory preset and not be possible to be modified.

The measurement position is the center of the display(5) at brightness set to center and

Contrast set to max. . The tolerance of the color coordinates should be less than ± 0.015

29

32″ LCD TV AOC L32W431

7. PCB Layout

7.1 Main Board

30

32″ LCD TV AOC L32W431

31

32″ LCD TV AOC L32W431

32

32″ LCD TV AOC L32W431

7.2 Power Board

33

32″ LCD TV AOC L32W431

34

32’’ LCD TV AOC L32W431

DC-DC Board

7.3 Tuner Board

35

32’’ LCD TV AOC L32W431

36

32″ LCD TV AOC L32W431

8. Block Diagram

37

32″ LCD TV AOC L32W431

9. Schematic Diagram

9.1 Main Board

D207

NC

1 2

DVI_RX2- 7
DVI_RX2+ 7

5V_SB

3

D208

NC

DVI_SCL

DVI_SDA

3V3S

R235

3

DVI_DSCL7

1 2

5V_SB

HDMI_CLK7
VIDEO_CLK8

VIDEO_HS8

HDMI_VS7
VIDEO_VS8

DVI_RX1+

DVI_RX1-

U205

2

GND

3

3

RClamp0504F

VCC

61

61

5V_SB

5
4

4

NC

L208

600 OHM

HDMI_CLK
VIDEO_CLK

HDMI_HS
VIDEO_HS

HDMI_VS
VIDEO_VS

DVI_RX2-

DVI_RX2+

DVI_SDA

DVI_SCL

2
3

5
6

11
10

14
13

U206

S1A
S2A

S1B
S2B

S1C
S2C

S1D
S2D

U204
NC(NDC7002N)

5

S1

6

D1

C228

+

10uF/16V

16

PI5V330SQE

IN

VCC

DA

DB
DC
DD

EN

GND

8

G2D2

S2

G1

1

4
7
9
12

15

34
2
1

C229

0.1uF

CLK_2EX_1
DHS_2EX
DVS_2EX

R236

NC

CLOCK_SW 6

DHS_2EX 4HDMI_HS7
DVS_2EX 4

HDMI_CLK

HDMI_HS

HDMI_VS

DVI_DSDA 7

HI: SAA7117
LOW : HDMI

R239 NC

R240 NC

R241 NC

R242
0 1/16W

CLK_2EX 4

CLK_2EX_1

DHS_2EX

DVS_2EX

56T662-2

715V1768-C

DVI_RXC-

DVI_RXC+

U207

2

GND

3

3

RClamp0504F

VCC

61

4

DVI_RX0-

61

5V_SB

5

DVI_RX0+

4

AOC (Top Victory) Electronics Co., Ltd.

Title

Size Document Number Rev

A4

Date: Sheet of

DVI

Monday, July 24, 2006

1

11

C

P202

GND

DATA2-

DATA2+

DATA2/4_SHLD

DATA4-

DATA4+

DDC_CLK

DDC_DATA

A_VSYNC

DATA1-

DATA1+

DATA1/3_SHLD

DATA3-

DATA3+

+5V

GND

H_PLUG_DET

DATA0-

DATA0+

DATA0/5_SHLD

DATA5-

DATA5+

CLK_SHLD

CLK+

CLK-

A_RED

A_GREEN

A_BLUE

A_HSYNC

A_GND1
A_GND2

GND

JACK

C227 0.1uF

M24C02

U203

1

NC

VCC

2

NC

VCLK

3

NC

4 5

VSS SDA

R237 0 1/16W

BAT54C

5V

C230

0.1uF

31

DVI_RX2-

1

DVI_RX2+

2
3
4
5
6
7
8

DVI_RX1-

9

DVI_RX1+

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

C1
C2
C3
C4
C5
30
32

8
7
6

SCL

D200

P1_+5V

P1_+5V

DVI_RX0­DVI_RX0+

DVI_RXC+
DVI_RXC-

DVCC

DVCC

1

3

2

R233

4.7K 1/16W

R238
1K 1/16W

4.7K 1/16W

R234

DVI_RX1- 7
DVI_RX1+ 7

DVI_RX0- 7
DVI_RX0+ 7

DVI_RXC+ 7
DVI_RXC- 7

38

32″ LCD TV AOC L32W431

VGAVS

VGAHS

C217

0.047uF

C225

0.047uF

ZD201
MLL752A

VGAHS6

VGAVS6

R217

R218

4.7K 1/16W

VGA_SDA
VGA_SCL

3

D206
BAT54S

3.3V_SB

R201
NC

R21022

C208
100pF

4.7K 1/16W

3.3V_SB

3

D205
BAT54S

3.3V_SB

2

1

R202
NC

VGA_HS

VGA_VS

R21122

VGAHS

VGAVS

C209
47pF

2

1

100K

RxD

R231

P200
DB15

11

12

13

14

15

ZD200

MLL752A

U200 24LC02

8

VCC

5

SDA

6

SCL

4

GND

R224 180K 1/16W

R228
1M

0.47uF/50V

R229 180K 1/16W

C226

0.47uF/50V

11

12

13

14

15

VCLK

C219

NC2
NC1
NC0

1617

GG

5V

6
1
7
2
8
3
9
4

10

5

D204

BAT54C

7
3
2
1

Q203
PMBS3906

Q205
PMBS3906

R243

R244

12K 1/16W

22K 1/16W

COMP_R4
COMP_B4
COMP_Y4

C232

C231

+

22uF/16V

3.3V_SB

5V_SB

C201 100pF

C203 100pF

REMOTE6

KEY_AD6

5V_SB

D201

3

D202

3

D203
BAV99

R207

75 1/16W

+

3

1 2

R213 NC
R214 22
R215 NC
R216 22

TX 6
SC1 3,6,9

RX 6
SD1 3,6,9

ISP_SW 6

5V_SB

C224

0.001uF

C200

0.001uF

VGA_RIN 4

VGA_GIN 4

VGA_BIN 4

L206 150 OHM

L207

150 OHM

PMBS3904

SAA_Y8

VGA_HSIN 4

VGA_VSIN 4

Q201

PMBS3904

SAA_C8

47K 1/16W

47K 1/16W

Q200

R230

R232

BAV99

BAV99

L201

1

2

3

C213 0.1uF

R219

0 1/16W

Q202
PMBS3904

To mcu

Q204
PMBS3904

To mcu

60 OHM

L202 60 OHM

TxD

3.3V_SB

Detect_VGAVS 6

Detect_VGAHS 6

L203 60 OHM

1 2
3 4
5 6

9 8
11 10
13 12

C212

U201

0.1uF

TxD

13

RxD

1 2

R205

75 1/16W

1A 1Y
2A 2Y
3A 3Y
4A 4Y
5A 5Y

74LVC14

6A 6Y

GNDVCC

74LVC14

U202 74HC4052D

X

3

Y

GND

8

P201

PC_AUDIO

R206

75 1/16W

X0
X1
X2
X3

Y0
Y1
Y2
Y3

A
B

EN

VEE

VDD

10uF/16V

2
3
4
5
1

1 2

714

C218

12
14
15
11

1
5
2
4

10
9

6

7
16

6
1
7
2
8
3
9
4
10
5

R203

22 1/16W

R209

150 1/16W

VIDEO_OUT

R220

22 1/16W

R226

150 1/16W

PC_R

PC_L

5V_A

5V_A

PMBS3904

R221

12K 1/16W

R225

22K 1/16W

R204

R208

12K 1/16W

22uF/16V

22K 1/16W

Q206

22uF/16V

C205

+

C215

+

R245

R246

C214

C204

22 1/16W

120 1/16W

0.1uF/16V

0.1uF/16V

EX_Y 4

5V_A

EX_C 4

SC13,6,9
SD13,6,9

TUNER_OUT4,8

CVBS_SEL4

0.1uF/16V

C202 100pF

AV_18
AV_28

EX_C4

EX_Y4

VIDEO_OUT_1 4

INV_PRO6

BL_ADJ3,6

5V

5V_SB

R227

NC

0

R200

+20V

+12VP

+5VP

5V

LP200

8
7
6

300 OHM(8P4R)

2
4
6

8
10
12
14
16
18
20
22
24
26
28

CN201

I/O

L204 600 OHM
L205 600 OHM

L200

1
2
3
45

1
3
5
7
9
11
13
15
17
19
21
23
25
27
2930
3132
3334
3536

C210

R223 1K

150 OHM

C220100pF

C206

0.1uF

C2210.1uF

VIDEO_OUT

0.1uF/16V

C2220.1uF

PC_L
PC_R

HDMI_L 7
HDMI_R 7

R_OUT 9
L_OUT 9

Power Connect

0.1uF
C211

1
2
3
4
5
6
7
8

9
10
11
12

C216 100pF

C2230.1uF

AOC (Top Victory) Electronics Co., Ltd.

Title

Size Document Number Rev

Custom

Date: Sheet

Monday, April 10, 2006

I/O

2

C207

CN200
CONN

1
2
3
4
5
6
7
8

CN203

CONN

of

5V_A

12VSW

0.1uF/16V

C

11

39

32″ LCD TV AOC L32W431

U300

Extra SRAM

C3001

68pF

INPUT

0

0

1

1

0.1uF

10

25
24
21
23

26

20
22
27

C398

AS7C256A

AD0

A0

9

A1

8

A2

7

A3

6

A4

5

A5

4

A6

3

A7
A8
A9
A10
A11

2

A12
A13

1

A14

/CE
/OE
/WE

R337

R338

MPUGPIO0

11

D0
D1
D2
D3
D4
D5
D6
D7

VCC
GND

C397

+

22uF/16V

68 1/16W

68 1/16W

*CS1N is not a input or output pin
CS1N=0: SVP-EX CPU access enabled
CS1N=1:SVP-EX CPU access disabled

Connector for Amtel AT76C112 Video Output

AD1

12

AD2

13

AD3

15

AD4

16

AD5

17

AD6

18

AD73V_SCL

19

28
14

BL_ADJ 2,6

3V_SDA
3V_SCL

MPUCS0N

0

1

0

1

0

1

1

1

C395

0.1uF

OUTPUT

*CS1N

AD[0..7]

5V-1_CPU

3V_SDA 7,8
3V_SCL 7,8

MPUGPIO2

1

1

1

0

0

1

1

1

AOC (Top Victory) Electronics Co., Ltd.

Title

Size Document Number Rev

B

Date: Sheet

Monday, April 10, 2006

SVP-EX256_1

AD[0..7] 6

MPUGPIO3

1

1

1

0

3

of

C

11

G2D2

S2

G1

R332 10K

190

189

188

MPUGPIO2

MPUGPIO3

MPUGPIO4

P_17

FLD/IO

SDA

SCL

A_D7
A_D6
A_D5
A_D4
A_D3
A_D2
A_D1
A_D0

RD#
WR#

ALE

INT#

V5SF

RESET

BA1
BA0

CLKE

WE#

MVREF 5
CAS# 5
RAS# 5

CS0# 5
MCLK0# 5
MCLK0 5

3V3S

34
2
1

MPUGPIO1

MPUGPIO4

17
18

16
14

203
202
201
200
197
196
195
194

216
217
218
219
220

15

12

13

147
145
144
142

R331

4.7K

3V_SDA

5V

CS 6

EX-PWM

SDA_EX

SCL_EX

RD_EMU 6
WR_EMU 6
ALE_EMU 6

INT# 6

R339 470 1/16W

BA1 5
BA0 5
CLKE 5
WE# 5

3V_SDA 7,8

R335

10 1/16W

RN311 100

1 8
2 7
3 6
4 5
1 8
2 7
3 6
4 5

RN312

MPUCS0N

100

VDDM

R333

MPUCS0N

R341

10K

VD3_3

MCU_A[0..7]6

A[8..14]6

1.2K 1/16W
R336

10K 1/16W

AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0

RST_H 6

R340

1K 1/16W

A[0..7]

A[8..14]

R334

0.1uF

C3002

MPUGPIO4

HI
MPU has
Data/Address
multiplex

I2C Address:
7E/7F

5V

4.7K 1/16W

Q300

PMBS3904

5V_SB

R346

1K 1/16W

AD[0..7] 6

R300

0

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14

CS16
RD#6
WR#6

C399

68pF

MPUGPIO1

LO
MPU has
separated
Address/Data

I2C Address:
7C/7D
Not
Populated

VDDMQ

151

158

VSSM

VSSM

ADDR5

ADDR6

211

212

2 7

3 6

MCU_A5

MCU_A6

132

129

VSSM

VSSM

ADDR3

ADDR4

209

210

1 8

4 5

MCU_A3

MCU_A4

4.7K

121

116

VSSM

VSSM

ADDR1

ADDR2

207

208

2 7

3 6

MCU_A1

MCU_A0

MCU_A2

R330

105

VSSM

ADDR0

206

RN313

100

1 8

98

10187838180

VSSM

VSSM

130

SD12,6,9

SC12,6,9

VSSM

MCK0

131

VSSM

MCK0#

133

VDDMQC388

VSSM

CS0#

135

139

CS1#

137

C396

0.1uF

141

VDDR

RAS#

138

VSSR

CAS#

140

5
6

193

192

NC

MVREF

U303

S1
D1

NDC7002N

MPUGPIO1

191

MPUGPIO0

MPUGPIO1

MPUCS0N

TESTMODE

0.1uF

0.1uF

C380

0.1uF

C389

0.1uF

C381

MD0
MD1
MD2
MD3
MD4
MD5
MD6
MD7
MD8
MD9
MD10
MD11
MD12
MD13
MD14
MD15
MD16
MD17
MD18
MD19
MD20
MD21
MD22
MD23
MD24
MD25
MD26
MD27
MD28
MD29
MD30
MD31
DQM0
DQM1
DQM2
DQM3

MCU_A[0..7]6

C382

0.1uF

C390

0.1uF

SVP-EX52_256

U302A

73
75
76
78
84
86
88
90
91
93
94

96
102
104
106
108
148
150
152
154
160
162
163
165
166
168
170
172
178
180
181
183

79

97
159
177

DQS[0..3]5

MA[0..11]5

MD0
MD1
MD2
MD3
MD4
MD5
MD6
MD7
MD8
MD9
MD10
MD11
MD12
MD13
MD14
MD15
MD16
MD17
MD18
MD19
MD20
MD21
MD22
MD23
MD24
MD25
MD26
MD27
MD28
MD29
MD30
MD31
DQM0
DQM1
DQM2
DQM3

C383

0.1uF

C391

0.1uF

VDDMQ

179

VDDM

175

82

DQS0

C392

0.1uF

171

VDDM

DQS0

100

DQS1

C384

0.1uF

161

VDDM

DQS1

156

DQS2

157

VDDM

DQS2

174

DQS3

C379

0.1uF

VDDMQ

C387

0.1uF

MD[0..31]5

DQM[0..3]5

C386

C385

0.1uF

0.1uF

3V_SCL7,8

C394

C393

0.1uF

0.1uF

153

136

134

124

119

VDDM

VDDM

103958577173

VDDM

VDDM

VDDM

VDDM

VDDM

99

VDDM

VDDM

VDDM

VDDM

VDDM

176

VSSM

169

VSSM

155

VSSM

VSSM

SVP-EX [256]

(1 of 2)

DQS3

MA11

MA10

MA9

MA8

MA7

MA6

MA5

MA4

109

111

112

114

115

117

118

120

122

MA6

MA9

MA10

MA11

MA8

MA7

MA5

MA4

MA3

MA3

123

MA2

MA2

MA1

125

MA1

126

MA0

MA0

RN300

100

ADDR7

213

4 5

MCU_A7

40

32″ LCD TV AOC L32W431

P_37

TXOUT0-

VL1_8

DIN[0..23]7,8

FB300

1 2

150 OHM

FB302

1 2

150 OHM

VD1_8

C370

0.1uF

VD1_8

10uF/16V

10uF/16V

C360

0.1uF

C371

0.1uF

C338

C347

CLK_2EX1

56T126-10

SVP-EX52_256

U302B

DIN23
DIN22
DIN21
DIN20

MLF1
PLF2

14.318MHz
X300

C323

33pF

+

+

C361

0.1uF

C372

0.1uF

C373

107
113
143
149
167
184
198
214
251

110
146
164
182
185
199
215
250

C339

0.1uF

C348

0.1uF

0.1uF

69
70
71
72

67
89

68
74
92

C362

0.1uF

P_36

TXOUT0+

P_35

TXOUT1-

23
22
21

10
11

225
246
232
226
248
233

ANALOG_OUT

236
237
242
243
244
231

245
247
249

C326 NC

C330

0.1uF

AVSS_ADC1

P_34
P_31
P_30
P_29
P_28
P_27
P_26

R311 0 1/16W

VGA_HSIN 2
VGA_VSIN 2

PR_R1
Y_G1
PB_B1

CVBS1
CVBS2

AIN_N1
AIN_N2
AIN_N3

C331

0.1uF

C343
10uF/16V

+

C355

10uF/16V

1 2

C367

+

10uF/16V

C378

0.1uF

L303 600 OHM

DVS_2EX 1
DHS_2EX 1

PR_R2
Y_G2
PB_B2

Y
C

C332

0.1uF

L301

2.2uH

L302

2.2uH

FB305

150 OHM

Power saving ?

TXOUT1+
TXOUT2­TXOUT2+
TXCLK­TXCLK+
TXOUT3­TXOUT3+

C3006

C327

AVSS_ADC2

VA1_8

VA1_8

VD3_3

3.3V_SB

VA1_8

0.1uF/16V

ANALOG_OUT

R343 NC

NC

C333

0.1uF

DE_2EX 7

R342

1.2K 1/16W

R314

1.5K 1/16W

C3005 33pF

C3004

C328

C334

0.1uF

AVSS_ADC3

4.7uF/16V 0805

C319

10uF/16V

NC

C335

0.1uF

AVDD_ADC1

C344

0.1uF

AVSS_ADC1

C356

0.1uF

P_50

P_51

P_38
P_33
P_24

P_32
P_25

Low color shift on = Vcc

LCS6

TXOUT3+
TXOUT3­TXCLK+
TXCLK-

TXOUT2+
TXOUT2­TXOUT1+
TXOUT1-

TXOUT0+
TXOUT0-

5V_A

C318

R316470 1/16W

R31522K 1/16W

+

R320

R321

22K 1/16W

L300

2.2uH

+

C345
10uF/16V

VD3_3

P_40

C357

0.1uF

P_41

VD3_3

C376

0.1uF

Q301

PMBS3904

470 1/16W

VD1_8

C377

0.1uF

R344

470 1/16W

VA1_8

0.1uF/16V

Pin 56

CLK_2EX

DIN5

DIN3

DIN1

DIN0

DIN2

64

DIN23

P_63

P_64
DIN22
DIN21
DIN20

3

MLF1

6

PLF2

9

VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC

8

VSSC
VSSC
VSSC
VSSC
VSSC
VSSC
VSSC
VSSC
VSSC
VSSC
VSSC
VSSC

XTALO

XTALI

1

256

C324

33pF

C337

0.0027uF

0.0027uF

C364

C363

0.1uF

0.1uF

C375

C374

0.1uF

0.1uF

DIN9

DIN4

DIN7AVSS_ADC1

DIN6

DIN8

DIN11

DIN12

DIN10

CLK_2EX

P_51

P_50

P_49

P_50

P_51

P_52

P_53

P_54

P_55

P_56

P_57

P_58

P_59

P_60

P_61

P_62

SVP-EX [256]

(2 of 2)

PAVSS

PDVSS

AVSS_ADC1

AVSS3_BG_ASS

AVSS_ADC2

AVSS_ADC3

VSSH

PAVSS2

754

PAVSS1

PAVSS2

PAVSS1

C300

C365

0.1uF

PAVSS1

255

253

PAVSS

PDVSS

PAVDD1

MLF1

PAVDD2

PLF2

PAVSS2

239

AVSS_ADC2

VSSH

VSSH

VSSH

235

228

222

205

20

66

187

AVSS_ADC3

AVSS3_BG_ASS

DIN13

VSSH

DIN14

P_48

127

VSSL

VDDL

0.1uF

VSSL

PDVDD

0.1uF

PDVSS

C358

0.1uF

PAVSS

VDDH

0.1uF

VSSH

P_47

VSSL

DIN15

P_46

C340

C349

PAVDD

C368

DIN16

PAVDD2

1K
R309

DIN19

DIN17

DIN18

P_43

P_44

P_45

PAVDD

PAVDD2

PAVDD1

254

252

2

PAVDD

PAVDD1

PDVDD

R329 NC

VD3_3

P_41

P_40

P_40

P_41

P_42

PDVDD

AVDD_ADC1

AVDD_ADC2

238

227

AVDD_ADC1

AVDD_ADC2

+

+

+

+

P_38

P_37

P_39

374041

38

3942434445464748495051525354555657585960616263

P_37

P_38

P_39

AVDD3_AVSP2

AVDD_ADC3

234

221

AVDD_ADC3

AVDD3_AVSP2

FB301

1 2

C341
10uF/16V

FB303

1 2

C350

10uF/16V

FB304

1 2

C359
10uF/16V

FB306

1 2

C369
10uF/16V

VDDH

204

P_36

P_35

P_36

VDDH

65

186

150 OHM

150 OHM

150 OHM

150 OHM

P_34

P_35

VDDH

19

VD1_8

VL1_8

VL1_8

VD3_3

P_33

P_32

P_33

P_34

VDDH

128

VDDL

VDDH
EX3V3_SB

P_31

P_32

VDDL

P_24

P_27

P_26

P_25

P_28

P_30

P_29

24252627282930313233343536

P_24

P_25

P_26

P_27

P_28

P_29

P_30

P_31

DE

V

H

AIN_HS

AIN_VS

PR_R1

Y_G1

PB_B1

PR_R2

Y_G2

PB_B2

CVBS_OUTP
CVBS_OUTN

CVBS1
CVBS2
CVBS3

C

AIN_N1
AIN_N2
AIN_N3

VREFP_1

VREFN_1

VREFP_2

VREFN_2

VREFP_3

VREFN_3

241

240

230

229

224

223

VREFN_3
VREFP_3
VREFN_2
VREFP_2
VREFN_1

VREFP_1

AVDD_ADC2

C342

0.1uF

AVSS_ADC2

AVDD_ADC3

C354

0.1uF

AVSS_ADC3

AVDD3_AVSP2

C366

0.1uF

AVSS3_BG_ASS

VSSH

EX3V3_SB

CN300

CONNECTOR for PANEL

24

R310 NC

OD_SEL6

PMBS3906

R345

Q302

2.2K 1/16W

CVBS1

CVBS2

PVDD10

OD_SEL for CMO 32"

50 Hz = High

60 Hz = Low

VIDEO_OUT_1 2

Y_G1

PB_B1

PR_R1

Y_G2

C325 0.1uF

PB_B2

C329 0.1uF

C336 0.1uF

PR_R2

C346 0.1uF

C351 0.1uF

C352 0.1uF

Y

C353 0.1uF

C

C320 0.1uF

C321 0.1uF

C322 0.1uF

R325

NC

R326

NC

75 1/16W

R322

NC

May.05

R317

R327

NC

R323

NC

R318

R324

NC

R328

NC

C317

0.1uF

R319

75 1/16W

75 1/16W

TUNER_OUT 2,8

CVBS_SEL 2

EX_Y 2

EX_C 2

COMP_Y 2

COMP_B 2

COMP_R 2

VGA_GIN 2

VGA_BIN 2

VGA_RIN 2

AOC (Top Victory) Electronics Co., Ltd.

Title

Size Document Number Rev

Custom

Monday, April 10, 2006

Date: Sheet

SVP-EX256_2

1234567891011121314151617181920212223

+

C316
22uF/16V

C

11

of

4

41

32″ LCD TV AOC L32W431

MCLK0_1

MCLK0#_1

R347

0 1/16W

R348

DDQS0

R303 15

DDQS1

R304 15

DDQS2

R305 15

DDQS3

R306 15

RN301 22 1/16W

DQ23

5

DQ22

6

DQ20

7

DQ21

8

RN302 22 1/16W

DQ19

5

DQ18

6

DQ17

7

DQ16

8

RN303 22 1/16W

DQ7

5

DQ6

6

DQ5

7

DQ4

8

RN304 22 1/16W

DQ3 MD12

5

DQ2

6

DQ1

7

DQ0

8

RN305 22 1/16W

DQ31

5

DQ29

6

DQ30

7

DQ28

8

RN306 22 1/16W

DQ27

5

DQ26

6

DQ25

7

DQ24

8

RN307 22 1/16W

DQ15

5

DQ14

6

DQ13

7

DQ12

8

RN308 22 1/16W

DQ10

5

DQ11

6

DQ8

7

DQ9

8

51 1/16W

51 1/16W

0 1/16W

R301

R302

4
3
2
1

4
3
2
1

4
3
2
1

4
3
2
1

4
3
2
1

4
3
2
1

4
3
2
1

4
3
2
1

DQS0

DQS1

DQS2

DQS3

MD0
MD1
MD2
MD3

MD4
MD5
MD6
MD7

MD8
MD9
MD10
MD11

MD13
MD14
MD15

MD16
MD17
MD18
MD19

MD20
MD21
MD22
MD23

MD24
MD25
MD26
MD27

MD28
MD29
MD30
MD31

C301

MCLK0 3

0.01uF

MCLK0# 3

DQS[0..3] 3

MD[0..31] 3

MEMORY DECOUPLING SCHEME

AOC (Top Victory) Electronics Co., Ltd.

Title

Size Document Number Rev

B

Date: Sheet of

SVP-EX_DDR

Monday, April 10, 2006

5

11

C

Test pads for DDR

MCLK0_1

TP301
TP_T_C30

DDQS0

TP302
TP_T_C30

DQM0

TP303
TP_T_C30

DQ23

TP304
TP_T_C30

CAS#

TP305
TP_T_C30

RAS#

TP306
TP_T_C30

CS0#

TP307
TP_T_C30

WE#

TP308
TP_T_C30

TP309
TP_T_C30

TP310
TP_T_C30

TP300
TP_T_C30

VDDMQ

Each MD trace must be equal length.
Each DQS trace must be equal
length.

MA[0..11]3

MA2

MA0

MA1

A6
B5
A5
A4

B1
C2
C1
D1

E2

E1

F2

F1
H2
H1

J1

J2

A2
G2

A1

A3

A10

C3
C4
C5
C8
C9

C10

D5
D8

E4

E9

F4

F9
G4
G9
H4

J4
H9

J9

VDDMQ_1

A0

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7

DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23

DM0
DM2

DQS0

VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ

VSS

VSS

K4K9J5

DDR VDDMQ / VDDM de-caps

C305

C306

0.1uF

0.01uF

L304

600 OHM

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7

DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23

DQM1
DQM0

DDQS1
DDQS0

C304

0.1uF

MA3

MA4

VSS

J6

MA11

MA10

MA7

MA5

MA8

MA6

MA9

L4

K5L7M10M9M8L8M7M6L5M5M4

A9

A7A6A5A4A3A2A1

A10

A11

A8_AP

4M x 32 DDR

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

J7J8D4D6D7

D9

E5

C307

C308

0.01uF

0.01uF

L10

L11

M11

M1L1K1

K2

M3

BA0

CS#

RAS#

CAS#

CK

CKE

WE#

BA1

FBGA 144

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

C309

C310

0.01uF

0.01uF

MCLK0_1
MCLK0#_1

CK#

VSS

VSS

C311

0.0047uF

VSS

VSS

L9

RFU2

VSS

BA1 3
BA0 3
CS0# 3
RAS# 3
CAS# 3
WE# 3
CLKE 3

K8L6B3G3L2M2L3

RFU3

NC_L2

NC_B3

NC_G3

VSS

VSS

H8H7H6H5G8G7G6G5F8F7F6F5E8E7E6

K3K6K7

C312

0.0047uF

NC_M2

VDD

NC_L3

VDD

K11

K12

G10

NC_K11

NC_K12

NC_G10

VDD

VDD

VDD

K10D3D10C6C7

B10

NC_B10

VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ

VDD

DQ31
DQ30
DQ29
DQ28
DQ27
DQ26
DQ25
DQ24

DQ15
DQ14
DQ13
DQ12
DQ11
DQ10

DQ9
DQ8

DM3
DM1

DQS3
DQS1DQS2

VREFMCL

VDD

VDDM

VDD

A7
B8
A8
A9
B12
C11
C12
D12

E11
E12
F11
F12
H11
H12
J11
J12

A11
G11

A12
G12G1

M12L12

B2
B4
B6
B7
B9
B11
D2
D11
E3
F3
H3
J3
E10
F10
H10
J10

U301

EM6A9320BI

VDDM_1

DQ31
DQ30
DQ29
DQ28
DQ27
DQ26
DQ25
DQ24

DQ15
DQ14
DQ13
DQ12
DQ11
DQ10
DQ9
DQ8

DQM2
DQM3

DDQS2
DDQS3

L305

600 OHM

VDDMQ_1

VDDM_1

C313

0.1uF

DQM[0..3] 3

VDDMQ_1

C302

0.1uF

C303

0.1uF

C314

C315

0.1uF

0.01uF

R307

1K 1/16W

R308

1K 1/16W

MVREF 3

42

32″ LCD TV AOC L32W431

Q0
Q1
Q2
Q3
Q4
Q5
Q6
Q7

CE#
OE#

VCC
VPP

R428

22 1/16W

R432 47K

3.3V_SB

R482

4.7K

RST_7117

Q403
PMBS3904

2 3

3.3V_SB

R490

4.7K

Q404

1

2 3

When use W27E040,use R416 and
R411 ; R419 is Option.

When use W29C040,use R419 ;
R416 and R411 are Option.

13

RN402 33

1 8

14

2 7

15

3 6

17

4 5
1 8

18

2 7

19

3 6

20

4 5

21

RN404 33

PS

22
24

32

R411 NC

1

W27E040 USED

WR# 3

TP409
WR

R437

4.7K

4.7K

5V-1_CPU

R446 0

CPU_RST

Option

R465

NC

RST_7117 8

RST#

C402

0.01uF

WR_EMU 3

5V-1_CPU

R438

1

2

3

4

5

6

7

8

9

10

AD0
AD1
AD2

AD4
AD5
AD6
AD7

5V-1_CPU

C403

+

10uF/16V

R426

R431 100

R440 100 1/16W

R442

100 1/16W

CN403
CONN

2.54mm

Detect_VGAHS2

ISP_SW2

CLOCK_SW1

Detect_VGAVS2

VGAVS2

VGAHS2

RX_INT#7

BL_ADJ2,3

PWR_ON10

SCDT7

CE_REMOTE7

OD_SEL4

LCS4

CN404 CONN

C416

10uF/16V

KEY_AD2

5V-1_CPU

+

R460

R463

R464

R467

3.6V

1
2

5V-1_CPU

100

NC

100

100

R466

100

ZD400

1 2

MLL5227B

Reset MCU

R409 NC

100

R410

5V-1_CPU

100

R421

100

R422

AD7

AD6

AD5

AD4

AD3

AD2

AD1

AD0

R4028 4.7K

R433 4.7K

R435 4.7K

R4029 4.7K

R4030 4.7K

R439 4.7K

R441 100 1/16W

R443 100

R444 4.7K

E_PAGE

R4514.7K

R452NC

R473 220 1/16W

R478

R484 1K 1/16W

C400

C414

+

10uF/16V

CPU_RST

R412

4.7K

R4174.7K

R4574.7K

8.2K

0.001uF

R405 100

R406 NC

R407 NC

R408 100

R413

NC

R418

RST

4.7K

R4534.7K

R4584.7K

100uF/16V

C413

5V-1_CPU

R403

R4024.7K

4.7K

P1_4

P1_3

P1_6/INT4

P1_5/INT3

P9_3/DA0

P9_4/DA1

P9_2/TB2in

P9_1/TB1in

2

134679101213

Q402
PMBS3906

CPU_RST

VD3_3

R489
NC

RST_H3

100

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

+

P1_2

P1_1

P1_0

P0_7/AN0_7

P0_6/AN0_6

P0_5/AN0_5

P0_4/AN0_4

P0_3/AN0_3

P0_2/AN0_2

P0_1/AN0_1

P0_0/AN0_0

P10_7/AN7

P10_6/AN6

P10_5/AN5

P10_4/AN4

P10_3/AN3

P10_2/AN2

P10_1/AN1

Avss

P10_0/AN0

Vref

Avcc

P9_7/ADTRG

P9_6

P9_5

5V-1_CPU

TP400

TP401

TP403

TP402

A0

A1

A3

A2

R404

4.7K

A0

A2

A1

7172737475

70696867666564

P1_7/INT5

P2_0/A0/D0

P2_1/A1/D1

P2_2/A2/D2

P8_7/Xcin

BYTE

CNVss

P9_0/TB0in

8

5

R468

4.7K

5V-1_CPU

1

GND

2

RESET

U404

NC

ASM810SEUR-T

TP406

TP404

TP405

TP407

A6

A4

A5

A7

5V-1_CPU

A6

A4

A3

A7

A5

61

63

62

Vss

P2_3/A3/D3

P2_4/A4/D4

P3_0/A8

P2_5/A5/D5

P2_6/A6/D6

P2_7/A7/D7

M30620SPGP

U402

Vcc1

Xout

11

10.000MHZ

VD3_3

3

P8_5/NIM

Vss

Xin

14

15

X400

R469

4.7K

C412
15pF

5V-1_CPU

CPU_RST

C415

NC

P8_6/Xcout

Reset

C411
15pF

VCC

A[0..7]

60

595857565554535251

Vcc2

P3_1/A9

P3_2/A10

P3_3/A11

P3_4/A12

P3_5/A13

P3_6/A14

P8_3/INT1

P8_4/INT2

171820

16

P7_6/TA3out

P8_2/INT0

P8_0/TA4out

P7_7/TA3in

P8_1/TA4in

22

21

19

C409

100pF

Top View

1

2

3

P3_7/A15

P6_0/CTS0/RTS0

P6_4/CTS1/RTS1

P7_5/TA2in

23

24

R4794.7K

4.7K 1/16W

3
2
1

CN400
CONN

P4_0/A16

P7_4/TA2out

R4804.7K

R487

A8

A9

A10

A11

A12

A13

A14

A15

A16

A17

P4_1/A17

P4_2/A18

P4_3/A19

P4_4/CS0

P4_5/CS1

P4_6/CS2

P4_7/CS3

P5_0/WR

P5_1/BHE

P5_2/RD

P5_3/BCLK

P5_4/HLDA

P5_5/HOLD

P5_6/ALE

P5_7/RDY

P6_1/CLK0

P6_2/SCL0

P6_3/SDA0

P6_5/CLK1

P6_6/RXD1

P6_7/TXD1

P7_0/SDA2

P7_1/SCL2

P7_2/TA1out

P7_3/TA1in

25

R459

R4814.7K

5V-1_CPU

SC1
SD1

5V_SB

R488

4.7K 1/16W

A[8..14] 3

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

NC

SC1 2,3,9
SD1 2,3,9

MCU_A[0..7] 3

RN401 33

4 5

A0
A1

3 6

A2

2 7

A3 AD3

1 8

A4

RN403 33

4 5

A5

3 6

A6

2 7

A7

1 8

A8

RN405 33

4 5
3 6

A9
A10

2 7
1 8

A11

RN400 33

1 8

A12

2 7

A13
A14

3 6

A15

4 5

A16

R414 33
R415 33

100

R448

4.7K

NC

MUTE 9

REMOTE 2

INT# 3

INT_A 8

RX

TX

RST_HDMI

RST_EX52

R416

W27E040 USED

RX 2

R449

4.7K

5V-1_CPU

PANPWR_ON 10

RST_HDMI

A[8..18]

A18

R445

R447 100

SDAE

SCLE

INV_PRO 2

R450 4.7K

R454

R455

R456NC

4.7K

4.7K

R470 100 1/16W

R471 100 1/16W

R472 100 1/16W

R475 100 1/16W

A17
A18

R423 0 1/16W

R424 22 1/16W

R425 22 1/16W

R427 4.7K 1/16W

R429 22 1/16W

R434 22 1/16W

R436 4.7K 1/16W

R461

R462 100

U401

12

A0

11

A1

10

A2

9

A3

8

A4

7

A5

6

A6

5

A7

27

A8

26

A9

23

A10

25

A11

4

A12

28

A13

29

A14

3

A15

2

A16

30

A17

31 16

A18 GND

NC

R419

R420 33

CS1 3

TP408

CS 3

5V-1_CPU

RD

TP410

TP411ALE

ALE_EMU 3

5V-1_CPU

TX2

RST

R486 4.7K

5V-1_CPU

R491

4.7K

Socket = 87L 202-32

W27E040

A29040BL-70F

33

1

PMBS3904

2K

R492

AD[0..7] 3

CN401

1

R401 0

2

100pF

22 1/16W

1

C405

VD3_3

R430

10K 1/16W

Q401
NC

2 3

C406

100pF

C410 0.01uF

1

A0

VCC

2

A1

PAGE

3

A2

SCL

4 5

GND SDA

U400 24C64

24LC64

U403

4

VCC

GND

VCLKNC2

2

SCL

NC1

1

SDA

NC0

CONN

RD# 3

RD_EMU 3

SC1 2,3,9

SD1 2,3,9

5V_SB

5V-1_CPU

8

7

6

8
73
6
5

C401 10uF/16V

CONN
CN402

RST_H 3

L401

R47410K 1/16W

Reset SIL9011..

3.3V_SB

1

R400

2

C404
10uF/16V

600 OHM

C407

0.1uF

R47610K 1/16W

R47710K 1/16W

R483

R485

0

Reset EX52

100 1/16W

100 1/16W

AOC (Top Victory) Electronics Co., Ltd.

Title

Size Document Number Rev

Date: Sheet

Custom

Monday, April 10, 2006

MCU

5V-1_CPU

+

E_PAGE

6

RST# 7

RST_H 3

C408
100uF/16V

SCLE

SDAE

of

C

11

43

32″ LCD TV AOC L32W431

DVI_DSDA

DVI_DSCL

HDMI_DSDA

HDMI_DSCL

HDMI_RXC-_1
HDMI_RXC+_1

HDMI_RX0-_1
HDMI_RX0+_1

HDMI_RX1-_1
HDMI_RX1+_1

HDMI_RX2-_1
HDMI_RX2+_1

DVI_RXC­DVI_RXC+

DVI_RX0-HDMI_RX2+_1
DVI_RX0+

DVI_RX1­DVI_RX1+

DVI_RX2-
DVI_RX2+

AVCC

C447

C448

0.01uF

C454

C455

0.01uF

0.01uF

C461

0.01uF

VR1_8

C475

C476

0.01uF

0.1uF

CLOSED TO REGVCC

R4019

1M 1/16W

2

Q400

BSN20

3

2

Q405

BSN20

3

44

3V3S

R493

NC

R4000 NC

R4002 NC

R4007 100 1/16W

R4008 100 1/16W

C449

0.01uF

C462

0.01uF

XTALVCC

C477

0.01uF

R4016 33 1/16W

X401

28.322MHz

P400
HDMI_V_SMT

21

SHELL2

HP DET

23

SHELL4

DDC DATA

DDC CLK

CE Remote

CK Shield

D0 Shield

D1 Shield

22

SHELL3

D2 Shield

20

SHELL1

3V3S

R4012

NC

R4013 4.7K 1/16W

LOW:0x60/0x68
High:0x62

I2C Device Address Select

HDMI_SDA

HDMI_DSCL

HDMI_SCL

IIS_DATA
IIS_SCK
IIS_WS
MCLK

C4000

+

C4001

0.1uF

10uF/16V

19
18

+5V

17

GND

16
15
14

NC

13
12

CK-

11
10

CK+

9

D0-

8
7

D0+

6

D1-

5
4

D1+

3

D2-

2
1

D2+

RCLK48B

R4014

470K 1/16W

5
6

U408

1

SDIN

2

DEM/SCLK

3

LRCK

4

MCLK

5 6

VQ FILT+

5V

P0_+5V

U409

S1
D1

FDC6301N

CS4344

AOUTR

R498

1K 1/16W

HDMI_RXC-

HDMI_RXC+
HDMI_RX0-

HDMI_RX0+

HDMI_RX1-

HDMI_RX1+

HDMI_RX2-

HDMI_RX2+

G2D2
S2
G1

VA

GND

AOUTL

HDMI_SDA

34
2
1

D400

BAT54C

1

3

2

R495

HDMI_SCL R4004 0 1/16W

CE_REMOTE 6

1

4

L404

1

10
9
8
7

4

3

3V3S

C482

C496 10uF/16V

C499

+

10uF/16V

L405

2

+

L

5V_SB

10uF/16V

+

3

R4015

470K 1/16W

HDMI_DSDA

R402510K 1/16W

L

2

HDMI_RX1-_1
HDMI_RX1+_1

HDMI_RX2-_1
HDMI_RX2+_1

R4023 10K 1/16W

HDMI_L 2

R496

4.7K 1/16W

1

4

L403

2

3

3V3S

C436

0.1uF

HDMI_R 2

0.1uF

C417 0.1uF

U405 M24C02

8
7

47K 1/16W

6

L

5V_SB

U406

1

3
4
5 6

RCLAMP0514M

L406 220 OHM

C498

10uF/16V

VCC
VCLK
SCL

4

3

10uF/16V

C497

+

NC
NC
NC

VSSSDA

1

L402

2

10
92
8
7

C437

1
2
3
45

L

HDMI_RX1-_1
HDMI_RX1+_1

HDMI_RX2-_1

+

3V3S

L410

300 OHM

HDMI_RXC-_1

HDMI_RXC+_1

HDMI_RX0-_1
HDMI_RX0+_1

C438

0.1uF

L409

L400

C439

0.1uF

220 OHM

5V_A

1

3
4
5 6

RCLAMP0514M

C440

0.1uF

3V3S

C451

0.1uF

220 OHM

C470

10uF/16V

U410

C441

0.1uF

L407

220 OHM

+

C442

0.01uF

10
92
8
7

VR1_8

HDMI_RXC-_1
HDMI_RXC+_1

HDMI_RX0-_1
HDMI_RX0+_1

CLOSED TO AVCC

C443

C444

0.01uF

0.01uF

0.01uF

CLOSED TO PVCC

+

C450

C452

10uF/16V

0.1uF

CLOSED TO DVCC

CLOSED TO XTALVCC

C471

C472

0.1uF

0.01uF

LAYOUT: Place XTAL
circuit as compact
and close to chip
as possible

P0_+5V

P1_+5V

DVI_DSDA1

DVI_DSCL1

DVI_RXC-1
DVI_RXC+1

DVI_RX0-1
DVI_RX0+1

DVI_RX1-1
DVI_RX1+1

DVI_RX2-1
DVI_RX2+1

C445

10uF/16V

RX_INT#6

SCDT6

RST#6

C446

0.01uF

0.01uF

PVCC

C453

0.1uF

C460

C459

0.1uF

0.1uF

C474

+

0.1uF

C473

C480 18pF

C481 18pF

1

3V3S

1

3V3S

R494 100 1/16W

R497 100 1/16W

56

ANTSTO

39

R0XC-

40

R0XC+

43

R0X0-

44

R0X0+

47

R0X1-

48

R0X1+

51

R0X2-

52

R0X2+

58

R1XC-

59

R1XC+

62

R1X0-

63

R1X0+

66

R1X1-

67

R1X1+

70

R1X2-

71

R1X2+

38

AVCC

42

AVCC

46

AVCC

50

AVCC

57

AVCC

61

AVCC

65

AVCC

69

AVCC

41

AGND

45

AGND

49

AGND

53

AGND

60

AGND

64

AGND

68

AGND

72

AGND

37

PVCC0

55

PVCC1

54

PGND

74

DVCC

35

DVCC

73

DGND

36

DGND

98

XTALVCC

99

REGVCC

94

DVCC2

95

DGND2

R4022

10K 1/16W

R4024

10K 1/16W

R4026

10K 1/16W

R4027

10K 1/16W

3V3S

32

DSCL0

XTALOUT

XTALIN

96

97

31

DSDA0

R0PWR5V

3433237992

L411 220 OHM

103

1023029

SCDT

DSCL1

DSDA1

RESET#

SiI 9021/9031

R1PWR5V

VCC

VCC

VCC

VCC

105

114

+

C483

10uF/16V

104

5267689109

INT

OVCC

144-Pin TQFP

VCC

VCC

VCC

GND

GND

128

139248091106

VR1_8

C484

0.1uF

OVCC

GND

OVCC

GND

115

10uF/16V

OVCC

GND

127

C485

0.1uF

C418

+

122

1344257590

OVCC

OVCC

OVCC

GND

GNDNCNC

138

CLOSED TO OVCC

C419

+

10uF/16V

108

120

OGND

OGND

OGND

OGND

OGND

TEST

101

1009328

4.7K 1/16W

C486

C487

0.1uF

0.1uF

C421

C422

C420

0.1uF

0.1uF

0.1uF

R499 47 1/16W

R4001 47 1/16W

R4005 47 1/16W

R4006 47 1/16W

132

121

135

OGND

R4018

U407

DE

144

ODCK

OGND

Q0

VSYNC

HSYNC

143

Q1

142

Q2

141

Q3

140

Q4

137

Q5

136

Q6

133

Q7

132

Q8

131

Q9

130

Q10

129

Q11

126

Q12

125

Q13

124

Q14

123

Q15

119

Q16

118

Q17

117

Q18

116

Q19

113

Q20

112

Q21

111

Q22

110

Q23

107

CLK48B

87

MCLKIN

88

MCLKOUT

86

SCK

85

WS

84

SD0

83

NC/SD1

82

NC/SD2

81

NC/SD3

78

SPDIF

77

MUTEOUT

17

AnGY

20

AnBPb

14

AnRPr

9

VREF

11

COMP

7

DACAVCC

13

DACVCCR

16

DACVCCG

19

DACVCCB

8

DACAGND

12

DACGNDR

15

DACGNDG

18

DACGNDB

6

DACOVCC

22

DACDVCC

21

DACDGND

CSCL

CSDA

RSET

SiI 9021

10

27

Place resistor as close as possible to chip

R4017 182 1/16W 1%

R4020 100 1/16W

R4021

100 1/16W

C488

C489

C490

0.1uF

0.01uF

0.01uF

C423

0.1uF

RCLK48B

R4009 33 1/16W

C491

0.01uF

BOUT0
BOUT1
BOUT2
BOUT3
BOUT4
BOUT5
BOUT6
BOUT7

GOUT0
GOUT1
GOUT2
GOUT3
GOUT4
GOUT5
GOUT6
GOUT7

ROUT0
ROUT1
ROUT2
ROUT3
ROUT4
ROUT5
ROUT6
ROUT7

C424

0.01uF

C464

0.01uF

C478

0.1uF

C425

0.01uF

C432NCC434

1
2
3
4
1
2
3
4

1
2
3
4
1
2
3
4

1
2
3
4
1
2
3
4

R4010 NC

R4011 NC

C457

0.01uF

C465

0.01uF

C479

0.1uF

3V_SDA

3V_SCL

C492

0.01uF

C493

0.01uF

C458

10uF/16V

3V3S

C427

C426

0.01uF

0.01uF

C433

NC

8
7
6
5
8
7
6
5

8
7
6
5
8
7
6
5

8
7
6
5
8
7
6
5

RP406 47

8
7
6
5

+

C466

0.01uF

VR1_8

3V_SDA 3,8

3V_SCL 3,8

C494

0.01uF

HDMI_VS
HDMI_HS
HDMI_CLK

NC

RP401
100

RP400
100

RP402
100

RP403
100

RP404
100

RP405
100

C456

0.01uF

C467

0.01uF

1
2
3
4

0.01uF

0.01uF

C495

C428

C468

0.1uF

C430

C429

0.01uF

0.01uF

DE_2EX 4

HDMI_VS 1
HDMI_HS 1
HDMI_CLK 1

DIN8
DIN9
DIN10
DIN11
DIN12
DIN13
DIN14
DIN15

DIN0
DIN1
DIN2
DIN3
DIN4
DIN5
DIN6
DIN7

DIN16
DIN17
DIN18
DIN19
DIN20
DIN21
DIN22
DIN23

IIS_SCK
IIS_WS
IIS_DATA

C4002

NC

C469

0.1uF

AOC (Top Victory) Electronics Co., Ltd.

Title

SIL_9021

Size Document Number Rev

C

Date: Sheet

Monday, April 10, 2006

C431

0.01uF

DIN[0..23] 4,8

MCLK

C4003

NC

3V3S

L408

220 OHM

C463

+

10uF/16V

7

C

11

of

32″ LCD TV AOC L32W431

VDDA1.8

R503

AI11

C520 0.022uF

R516

R517 68 1/16W

X500

Option

NC

1K 1/16W

AI12

AI14

AI22

AI24

C516 0.022uF

C518 0.022uF

C522 0.022uF

C525 0.022uF

R515 NC

R500 0

68 1/16W

C529

33pF

C510 0.022uF

C511 0.022uF

R506 75

R509 75

R510 75

R514 75

VDD3.3

Logic 0 for slave address 42h/43h and 4Ah/4Bh
Logic 1 for slave address 40h/41h and 48h/49h

C512 0.022uF

C514 0.022uF

C515 0.022uF

C517 0.022uF

C521 0.022uF

C524 0.022uF

C526 0.022uF

0.022uF

C527

RST_71176

3V_SCL3,7
3V_SDA3,7

24.576MHz

C528

L501
NC

33pF

C530 NC

R520

R521

Logic 0 for 24.576MHz
Logic 1 for 32.11MHz

VDDA3.3

VDD1.8

0

C508

0.1uF

R518

4.7K 1/16W

M13

B11

P10

B13
B14

C12
C13

N13
N14

P13
D13
C14
A13
B12
A12

M12
P12
N11
P11

VDD3.3

VDDD4

VDDD5

AOUT

IGP0
IGP1

ITRDY

ICLK

IDQ
IGPV
IGPH

IPD0
IPD1
IPD2
IPD3
IPD4
IPD5
IPD6
IPD7

HPD0
HPD1
HPD2
HPD3
HPD4
HPD5
HPD6
HPD7

XRDY

XDQ
XCLK

XRV

XRH

XPD0
XPD1
XPD2
XPD3
XPD4
XPD5
XPD6
XPD7

ADP0
ADP1
ADP2
ADP3
ADP4
ADP5
ADP6
ADP7
ADP8

LLC
LLC2
RTS0
RTS1

RTCO
INT_A
RESO

M11

VDDD6

M1

L14
K13
N12
M14
L13
K14
K12

G14
G12
H11
H14
H13
J14
J13
K11

D14
E11
E13
E12
E14
F13
F14
G13

A6
B7
A7
D8
C7

A8
B8
A9
B9
A10
B10
A11
C11

N8
P8
M7
L7
P7
N7
L6
M6
P6

P4
N5
M10
N10
L10
P9
P5

C504

270pF

C8

C10

F12

H12M5M9N2P2M3K4H4F4D4L1J1G2

VXDD

VDD18_0

VDD18_1

VDD18_2

J2

AI11

K1

AI12

K2

AI13

L3

AI14

K3

AI1D

G4

AI21

G3

AI22

H2

AI23

J3

AI24

H1

AI2D

E3

AI31

F2

AI32

F3

AI33

G1

AI34

F1

AI3D

B1

AI41

D2

AI42

D1

AI43

E1

AI44

D3

AI4D
FSW

N4

CE

L12

ITRI
XTRI

N9

SCL
SDA

B4

XTALI

A3

XTAL

A2

XTOUT

B2

RES1
RES2
RES3

C3

RES4

C4

RES5
RES6
RES7

N1

RES8

N3

RES10
RES11
RES12

TEST0
TEST1
TEST2
TEST3
TEST4
TEST5

C6

TRST

B6

TCK

D6

TMS

A5

TDO

B5

TDI

P3

EXMCLR
AMXCLK
ALRCLK
ASCLK
AMCLK

N6

CLKEXT

VDD18_3

AGNDA

AGND

M2J4H3E4A4

L2

C2

VDD18_4

VDD18_5

VSSA0

VSSA1

VSSA2

VDDA0

VDDA1

VDDA18_0

VDDA18_1

U501

SAA7117AE

VSSA3

VXSS

VSSA4

VSSD1

C1

D5D9D11

VDDA2

VDDA3

VSSD2

VSSD3

G11L4L8

VDDA4

VDDA1A

VSSD4

VSSD5

E2B3C5C9D12

VDDA2A

VDDA3A

VDDA4A

VSSD6

VSSD7

VSSD8

L11D7D10

VDDD0

VSSD9

VSSD10

F11

VDDD1

VSSD11

J11L5L9

J12M4M8

VDDD2

VDDD3

VSSD12

VSSD13

C505

680pF

ICLK

IGPV
IGPH

XCLK
VS_VPC
HS_VPC

X0
X1
X2
X3
X4
X5
X6
X7

LLC

R522

4.7K 1/16W

R523

NC

Option

C506

0.1uF

INT_A 6

C507

0.0027uF

VDD3.3

X0
X1
X2
X3

X4
X5
X6
X7

RN501

33

1
2
3
4

RN502 33

1
2
3
4

8
7
6
5

8
7
6
5

XCLK
HS_VPC

VS_VPC

ICLK

LLC
IGPH

IGPV

VDD1.8

AI11

AI14

DIN0
DIN1
DIN2
DIN3

DIN4
DIN5
DIN6
DIN7

C538

270pF

AI12

AI22

AI24

C501 0.022uF

C502 0.022uF

C503 0.022uF

C509 0.022uF

C523 0.022uF

RN503 33

1
2
3
4

R519 NC

RN500 NC

8
7
6
5

C539

680pF

C540

0.0027uF

8
7
6
5

C541

0.1uF

R511 0 1/16W

DIN[0..23] 4,7

1
2
3
4

Option

R501 0 1/16W

R502 0 1/16W

R504 0 1/16W

R505 0 1/16W

Q500

PMBS3904

VIDEO_CLK 1
VIDEO_HS 1

VIDEO_VS 1

VIDEO_CLK 1
VIDEO_HS 1

VIDEO_VS 1

R507

R512

22 1/16W

150 1/16W

5V_A

R508

R513

12K 1/16W

22K 1/16W

SAA_Y 2

SAA_C 2

AV_1 2

AV_2 2

C513

0.1uF/16V

C519

+

22uF/16V

VDDA3.3

C531

C532

680pF

270pF

VDDA1.8

C535

270pF

TUNER_OUT 2,4

C533

0.0027uF

C536

680pF

AOC (Top Victory) Electronics Co., Ltd.

Title

Size Document Number Rev

B

Date: Sheet

Monday, April 10, 2006

SAA7117A

8

C534

0.1uF

C537

0.0027uF

of

B

11

45

32″ LCD TV AOC L32W431

1 3W

1 3W

R530

NC

C566

0.47uF/16V
R536

0 1/16W

C580 0.47uF/16V

C587

C5890.47uF/16V

678

123

4 5

10

INL+

9

INL-

19

FS1

20

FS2

16

INR+

15

INR-

11

/SHDN

17

G1

18

G2

12

SS

14

REG

13

AGND

Earphone Jack

5
4
3
2
1

CN502
CONN

C5490.1uF

123

PGND

PGND

U503MAX9704

4

VDD

VDD

AGND

35

C550

0.1uF

212223

VDD

VDD

Heatsink

34

Audio_L+

Audio_L-

Audio_R+

Audio_R-

L502 300 OHM

L503 300 OHM

C551

0.1uF

24

78

PGND

PGND

CHOLDNC

32

OUTL+

31

OUTL+

30

OUTL-

29

OUTL-

26

OUTR-

25

OUTR-

28

OUTR+

27

OUTR+

6

C1P

5

C1N

Heatsink

33

AUDIO_GND

L508 300 OHM

L509 300 OHM

L510 300 OHM

L511 300 OHM

0 1/10W

C5000

470pF

R526

R528

R529

Audio_L+

C571

0.1uF/25V

Audio_R-

C583

0.1uF/25V

Audio_R+

C588

0.01uF

C5001
470pF

0 1/10W

0 1/10W

0.01uF
C568

Audio_L-

0.01uF
C582

0.01uF
C572

100 1/16W

3
2
1

2
1

R534

100 1/16W

R540

100 1/16W

R544

CN500

CONN

CONN

+

C552

1000uF/25V

0.1uF

C559 1uF/25V

L504 15uH

L500 15uH

L505 15uH

L506 15uH

0.1uF/25V

C548

C590

0.01uF/25V

0.01uF/25V

0.01uF/25V

0.01uF/25V

C598

470pF

AUDIO_GND

C567

C575

C581

C584

C599

470pF

AUDIO_GND

AOC (Top Victory) Electronics Co., Ltd.

Title

Amplifier

Size Document Number Rev

Custom

Monday, April 10, 2006

Date: Sheet

9

of

100 1/16W

R537

CN501

11

C

C591
10uF

R532

4.7K 1/16W

C562

0.47uF/16V

R543

LP500

600 OHM(8P4R)

6
7
8

CP500
470pF

R524

R525

0.47uF/16V

45
3
2
1

R531

4.3K 1/16W

R535

4.3K 1/16W

Q501

1

3 2

3

R558 10K 1/16W

C565
100pF

100pF

100K 1/16W

EAR_R

EAR_L

V20SW

C576

1

R548

0.47uF/16V

100 1/16W

32

Q502

PMBS3904

R527
10K 1/16W

C579

U502

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15 16

L507

600 OHM

R547

100 1/16W

R549

620 1/8W

C596

0.001uF

R550

3.9K 1/16W

R557

INa

BBE1a

BBE2a

BBEOUTa

TONE INa

TONE-Ha

TONE-La

OUTa

AGC

SS-FIL

CVB

CVA

SDA

SCL

GND VCC

NJW1147

C594

0.1uF

U504 PT2308S

1 8

OUT1 VDD

2 7

IN1- OUT2

3 6

IN1+ IN2-

4 5

GND IN2+

3.9K 1/16W

+

C5003

10uF/16V

SD12,3,6

SC12,3,6

BBE_R

3

2

3 2

VI VO

C593

0.1uF

C5004

4.7uF/16V 0805

C5005

4.7uF/16V 0805

C542 4.7uF/16V 0805

C544 0.0033uF

C546 0.033uF

C553 4.7uF/16V 0805

C555 0.0047uF

C557 0.1uF

C560 4.7uF/16V 0805

C563 2.2uF/16V 0805

C569 0.1uF

C573 4.7uF/16V 0805

C577 4.7uF/16V 0805

R539 100

R541 100

1

U500

4

4

GND

1

R551

3.9K 1/16W

R553

3.9K 1/16W

3.9K 1/16W

R_OUT2

R560
330

D502
BAV99

12V

+

BBE_R

BBE_L

TONE INb

9V

R556

BBE1b

BBE2b

BBEOUTb

TONE-Hb

TONE-Lb

OUTb

SR-FIL

VREF

CTH

AUX0

AUX1

+

C592

10uF/16V

30

C543 4.7uF/16V 0805

INb

29

C545 0.0033uF

28

C547 0.033uF

27

C554 4.7uF/16V 0805

26

25

C556 0.0047uF

C558 0.1uF

24

23

C561 4.7uF/16V 0805

22

C564 0.1uF

21

C570 4.7uF/16V 0805

C574 4.7uF/16V 0805

20

19

CTL

C578 4.7uF/16V 0805

18

17

C585

0.1uF

R552

C5002

47uF/16V

3.9K

9V

C586
10uF/16V

+

5V_A

C595 47uF/16V

C5000.001uF

+

C597

MUTE6

+

+

D501
BAV99

EAR_DET

47uF/16V

R554

L_OUT 2

3

2

10K 1/16W

EAR_R

EAR_L

10K 1/16W

10K 1/16W

R546

R555

BBE_L

R533

1K

R559
330

BBE_R

R538
1K

9V

R542

5.1K 1/16W

8.2K 1/16W

1

2

PMBS3906

R545

D500

BAV70

EAR_DET

5V_A

1

46

32″ LCD TV AOC L32W431

13

STANDBY: 0
POWER ON:
1

PWR_ON6

+5VP

45

R707

22K 1/16W

+12VP

+

C713

10uF/16V

R715

22K 1/16W

L701

L

5V_SB

47K 1/16W

Q705

PMBS3904

45

R703

3

1

2

L705

L

R713

47K 1/16W

1

Q709

PMBS3904

GND

C701

1
2
3
4

R704

7.5K

C709

1uF/16V

13

3

2

0.1uF

Q702 AO4403

S1

D1

S1

D1

S1

D1

G1

D1

0.1uF

C703

C706

47uF/16V

12VP

5V

8
7
6
5

+

C712

0.1uF

Q700 AO4403

1

S1

2

S1

3

S1

4

G1

C718 0.1uF

R708
3K 1/10W

8

D1

7

D1

6

D1

5

D1

12V

R709
22K 1/16W

C714

10uF/16V

47K 1/16W

Q706

PMBS3904

L700

+

R701

3

1

2

300 OHM

3 2

C716

0.1uF

5V_SB

1
2
3
4

R705

7.5K

C710

1uF/16V

12VSW

AP1117E50A
56T 585 9

U701

VI VO

GND

1

Q703 AO4403

S1

D1

S1

D1

S1

D1

G1

D1

C704 0.1uF

C707

47uF/16V

12VP

4

4

8
7
6
5

5V_SB

C717

0.1uF

+

EX_5V

L704

5V_A

R710
3K 1/10W

L706

+

C715

10uF/16V

NC

300 OHM

+20V

47K 1/16W

R706

22K 1/16W

Q704

PMBS3904

C711 0.068uF/16V

R711

10K

Q708

PMBS3904

2

1
2
3
4

R702

1

S1
S1
S1
G1

Q707

R712

1

3

2

100K 1/16W

R700

0 1/16W

C708

NC

8

D1

7

D1

6

D1

5

D1

AO4403

R714

10K 1/16W

Q701 AO4403

1

S1

2

S1

3

S1

4

G1

C702 0.1uF

L702

V20SW

8

D1

7

D1

6

D1

5

D1

C705

10uF/35V

300 OHM

PVDD 4

PANPWR_ON 6

+

5V_SB

C719

22uF/16V

AP1117E3.3A

U702

3 2

VI VO

+

C720

0.1uF

1

GND

4

22uF/16V

4

C721

L707 600 OHM

+

C722

0.1uF

3.3V_SB

AOC (Top Victory) Electronics Co., Ltd.

Title

Size Document Number Rev

A4

Date: Sheet

Monday, April 10, 2006

POWER_1

C

10

11

of

47

32″ LCD TV AOC L32W431

TO-252

+

+

U703
AIC1084-33CE

C723
10uF/16V

C732

0.1uF

OUTIN

GND

1

U705

AP1117E33LA

23

OUTIN

4

GND

1

L708 300 OHM

23
4

C733

22uF/16V

C724

22uF/16V

+

3V3S

C734

0.1uF

VD3_3

+

Sil9021

3.3V
Power

SVP-EX 3.3V
Standby

C725

Power

0.1uF

5V

+

C729
22uF/16V

R717 4.7 2W

C726

10uF/16V

EX_5V

R716 2.2 2W

L710 300 OHM

10uF/16V

C731

56T 563 44

U704

AME8815BE-250Z

3 2

VI VO

+

C730

0.1uF

U706

AME8815BE-250Z

3 2

VI VO

GND

1

56T 563 44

4

4

GND

1

4

4

C727

47uF/16V

C735

47uF/16V

+

C728

0.1uF

+

C736

0.1uF

2.5V

VDDMQ

L709

600 OHM

Power for DDR
IO PADS

2.5V

L711

VDDM

600 OHM

Power for DDR
Core Logic

5V_SB

C740

0.1uF

EX_5V

C743

22uF/16V

R730 NC

R719 4.7 2W

U712

AIC1084-33PM

OUTIN

GND

1

R731 NC

23

C762

+

10uF/16V

TO-252

U708
AIC1084-18CE

OUTIN

GND

1

TO-252

U710
AIC1084-18CE

OUTIN

GND

1

AIC1084-18CE

23

VL1_8a

23

U700

23

OUTIN

GND

1

VA1_8a

L716 300 OHM

C749

10uF/16V

L719 300 OHM

C756

10uF/16V

10uF/16V

C757

10uF/16V

C750

L714 300 OHM

C742

C744

+

47uF/16V

10uF/16V

VA1_8

C751

0.1uF

VL1_8

C758

0.1uF

5V

VD1_8

+

C745

0.1uF

5V_SB

R718

10 2W

3 2

+

C761

10uF/16V

L721

NC

U711

VI VO

GND

1

L712 300 OHM

4

4

L720

C753

0.1uF

+

3 2

300 OHM

C759

22uF/16V

AP1117E33LA

C739
10uF/16V

U709

AZ1117H-1.8

VI VO

4

GND

1

+

U707

VR1_8

4

1

C760

0.1uF

GND

23

OUTIN

4

4

Sil9021

1.8V
Power

L717

600 OHM

600 OHM

L718

C746

VDDA1.8

VDD1.8

VDDA3.3

+

0.1uF

VDD3.3

0.1uF

1.8V Power for

C752

0.1uF

SAA7117A
ANALOG

1.8V Power
for

C755

SAA7117A

0.1uF

3.3V Power for

C738

SAA7117A
ANALOG

3.3V Power

C747

for
SAA7117A

L713

600 OHM

L715

600 OHM

C748

22uF/16V

C754

22uF/16V

C737

22uF/16V

22uF/16V

+

AOC (Top Victory) Electronics Co., Ltd.

Title

Size Document Number Rev

B

Monday, April 10, 2006

Date: Sheet of

POWER_2

11

C

11

48

32″ LCD TV AOC L32W431

9.2 Power Board

C905

R906

1.0uF/450V

620K 1/8W

R907

2

BD901
D10XB60

L904

L903

C919
470PF

L905

620K 1/8W

R908
0 1/8W

3

+

C910

C909

0.1uF

50V_10uF

R909
10K 1/10W

R929
100 1/8W

L901
180 uH

CN904

3

2

1

CONN

CN903

CONN

680K 1/8W

L902
180 uH

F901
5A_250V

1

C903
470PF/250V

R902

C918
470PF

3

2

1

2

1

2

1

2

1

1

4

-+

2

RV901
Varistor

3

4

C904
470PF/250V

C902

0.47uF/250V

R901
680K 1/8W

3

4

3

4

C901

0.22uF/250V

CN901
SOCKET

3

L906
PFC CHOKE

5

8

6

7

10

12

R903
68K 1/10W

8

VCC

IC901 TDA4863-2G(DIP-8)

INV

1

C913

0.01U

R910
10K 1/10W

C926

0.047uF/400V

D901
ML35

7

2

D905
MLL4148

D902
FMX-G26S

R936
22 1/10W

GD

COMP

6

GND

MULT

3

C911

0.001uF

D906
MLL4148

R904
47 1/10W

5

ZCDCS

4

C912

0.47uF/25V

C971
N.C

NR901
5A/3

C906
N.C

D904
MLL4148

470 1/10W

C920

0.1uF

C921

0.1uF/500V

R933

C927
1000PF

C928
N.C

D940
UF4003

+

C940
22UF/50V

L951

R941

1.0M 1/8W

R942

1.0M 1/8W

R944

4.3K 1/10W

BA159

R967

4.7K

R943

1.0M 1/8W

T921
PQ2625/ Lp=635UH

1

D920

3

5

4

R968

4.7K

BEAD

C908

0.01uF/500V

+

100K 1/10W

IC922
PC123FY2 4P

4

3

IC925
PC123

4

3

C953

0.01U

R964

C945
47uF50V

C947

0.001uF

1

2

1

2

C941

0.01uF/500V

8

7

VCC

IC941 L6565(DIP-8)

INV

2

1

C946
470PF

R953

56K 1/10W

11

12

7

8

9

10

R934
1K 1/10W

C937

0.1uF/25V

IC923
KA431

R980
470

C966
NC

D907
MLL4148

6

GD

GND

COMP

VFF

3

C938

0.1uF

D927
20A/100V

1

3

D928
20A/100V

1

3

R935

4.7K 1/10W

C942

2200PF/1KV(RR)

+

R948
33 1/10W

D944
MLL4148

5

ZCDCS

4

R931
1K 1/10W

R947
0 1/10W

C944
47uF50V

Q922

3904

2

2

C943

NC

1

2

+

R938
NC

C936

NC

C965

0.1uF

Q925
DTC144WKA

R945
47K 3W

D941

BA159

D942

BA159

Q941
STP10N70ZFP

R949
27K 1/10W

R950

0.39 2W

R952

6.8K 1/10W

J932

JUMPER

C932

1000uF/25V

D943
UF4003

+

1000uF/25V

+

C933

1000uF/25V

NR902
5A/3

t

t

C964

+

0.01U 630V

C907
180uF/420V

2

1

Q901

3

IRFP460A(TO-3P)

R905

R919

0.27 3W

0.27 3W

R914

R940

18K 1/10W

10K 1/10W

R956
N.C

C929
N.C

L921
BEAD

R926

R923

2M 1/8W

R927
2M 1/8W

R928

5.6K 1/10W

1M 1/8W

R924
1M 1/8W

2

L

7

D

IC981

3

X

1

TOP246Y

SCF

4

5

C924

0.1uF

R911
330K 1/8W

R912
330K 1/8W

R913
330K 1/8W

R925

6.8 1/10W

+

C925
50V_47uF

C922
2200PF 1KV

D922
UF4003

+

C923
50V_10uF

R982
NC

R981
NC

C952
NC

Q926
BT169

R921
100K 2W

0 1/10W

ZD921

D921
BA159

R922

6.8V

L922
N.C

C930

L923

3.5uH

49

ZD941
N.C

R951

2.4K 1/10W

+

+

C970

0.0022uF/250V

C915

0.0022uF/250V

T951

PQ3225/Lp=390uH

6

5

4

1

2

POWER X'FMR

IC942
PC123FY2 4P

4

3

4

3

C931
N.C

C934
220uF/25V

7

10

8

11

9

12

R962
1K 1/8W

1

2

R965
10K 1/10W

1

IC924
PC123FY2 4P

Q924

2

DTC144WKA

R932
39K 1/10W

R920
10K 1/10W

IC943
KA431

P1-1

P2-1

3

4

L952
sence choke

1

2

R939
NC

R946
NC

D946

MLL4148

R954
10 1/10W

D947
MLL4148

R955
10 1/10W

R915

4.7K 1/8W

C914

0.1uF

+

ZD944
12V

D926

MLL4148

R983
NC

C948

1000uF/35V

C954
NC

Q942
IRFB3415

Q943
IRFB3415

R963
N.C

C959

0.33uF

R937
680 1/8W

R966

1K 1/10W

C939

0.1uF

R930
NC

Q947
2SC945P

Q948
2SA733P

+

C949

1000uF/35V

C958
470pF

ZD945
28V

D925

MLL4148

Q926
DTC144WKA

+

C950

1000uF/35V

R959

11.5K 1/10W

Q945
2SC945P

R957

20 1/10W

D950

MLL4148

Q946
2SA733P

ZD946
26V

NC

FOR BACKLIGHT 24V/5A

+

ZD942

C951

13V

1000uF/35V

+

C957
10uF

D949
MLL4148

R958

2K 1/10W

R972

P1-1

R960
13K 1/10W

R961

1.5K 1/10W

L953

RJ901

common choke

10m

1

2

R970

R969

1K

1K

R978 1K

P2-1

+

C955
470uF/35V

3

4

ZD943
12V

C960
NC

12V/3.5A

5V/3.0A

Title

ADPF24180A1

Size Document Number Rev

<Doc> A

Custom

Date: Sheet

C961

0.1U

IC927 FP131

1

2

3

4

5

6

7

8

9

10

11

12

13

8

1

CN931

CONN

R916

6

3

Crc

Vout1

R971
18K

3.3K 1/8W

5

Vp2Vout2

4

R917

3.3K 1/8W

C962
100PF

12Friday, May 21, 2004

C956

0.1uF

7

Vn1

Vcc

GND

Vp1

2

CN951

1

2

3

4

5

6

7

8

R918

9

N.C

10

10P/2.0mm

CN952

1

2

3

4

5

6

7

8

9

10

11

12

12P/2.0mm

CN921

1

2

3

4

5

6

7

8

9

10

11

12

12P/2.0mm

of

32″ LCD TV AOC L32W431

C802
1uF/25V

Q801
AO4411

1

2

3

4

S1
S1
S1
G1

D1
D1
D1
D1

8

7

6

5

D801
SSM54

L801
22uH

R804
22 1/4W

+

C806
470uF/10V

+

C807
470uF/10V

C808
1000PF

C810
1000PF

R802
62K 1/16W

R803
20K 1/16W

C804
1000PF

C805
n.c

CN801

CONN

IC801
LM3485

8

VIN

7

+

C801
220uF/25V

1

2

3

4

5

6

7

8

9

10

11

12

13

5V/2.5A

R801
33K 1/16W

C803
1000PF

6

5

PGATE

PWGND

ADJ

ISENSE

FB

N.C

AGND

4

3

2

1

50

32″ LCD TV AOC L32W431

9.3 Tuner Board

COMP_R1

COMP_Y1

COMP_PB1

COMP_PR1

R151

R149NC

NC

AGND

AV_2

AV_22

C150

C151

C152

22pF

22pF

22pF

AGND

CH_SEL2

CH_SEL1

0

0

1

1

L118

1

C153

22pF

U100

0

1

0

1

R150NC

L100

120 OHM

L119

1

R156
75Ω 1/10W

1

C140

68pF

L121600 OHM

L122600 OHM

L123600 OHM

L124600 OHM

SVIDEO_C

SVIDEO_Y

75Ω 1/10W

L116

120 OHM

2

AGND

120 OHM

A_I

AV1

AV2

COMP

DVD

R137

1

2

2

COMP_R1

COMP_L1

COMP_L1

1

120 OHM

C141
68pF

AGND

AV2_L

AV2_R

AV1_R

AV1_L

2

L114

C142
68pF

600 OHM

1

1

1

L113

1

120 OHM

R138
75Ω 1/10W

AGND

2

10

5

9

4

6

8

3

7

2

AGND

C144 10uF/16V

+

C145 10uF/16V

+

C146 10uF/16V

+

C147 10uF/16V

+

AGND

L111

2

600 OHM

L112

2

120 OHM

2

C132

68pF

AGND

15

14

J103

JACK

11

13

12

AV2_R_S

AV2_L_S

AV_2_S

R154

0Ω 1/8W

47K 1/16W

C148 10uF/16V

+

C149 10uF/16V

+

5

6

7

8

47K 1/16W

C137

68pF

AGND

5

6

7

8

RN102

0Ω 1/8W

RN101

R153

4

3

2

1

C131
470pF

AGND

C133
68pF

AGND

4

3

2

1

AGND

J102

100 1/16W

C165

68pF

AGND

C167
330pF

AGND

5V_A

R134

1K 1/16W

SD1 3,4

SC1 3,4

CH_SEL2

CH_SEL1

C166
330pF

12V_T

L_OUT 4

R_OUT 4

HDMI_R 4

HDMI_L 4

PC_R 4

PC_L 4

VIDEO_OU T 2

11Thursday, November 09, 2006

CH_SEL4 2

CH_SEL3 2

CN104

1

2

3

4

5

6

CONN

5V_A

of

A

J101JACK

7

2

1

5

C135
470pF

6

3

1

5

2

C143
68pF

8

9

3

4

6

switch

9

7

4

8

L120

JACK

1

5

RN100

6

7

8

47K 1/16W

8V

LL4148-GS08

5

6

7

8

RN103

47K 1/16W

470pF

120 OHM

4

3

2

1

D100

AGND

2

75 1/16W

4

3

2

1

R132
0Ω 1/8W

R139 10K 1/16W

100 1/16W

R140

R145

100 1/16W

L115

2

1

600 OHM

L117

2

1

600 OHM

C138

C139

470pF

AGND

AV_1 2

R155

AGND

U100 74HC4052D

12

CH_SEL1

CH_SEL2

+

C162

10uF/16V

AV1_R1

AV2_R1

COMP_AR1

I_DVD_AR1

AV1_L1

AV2_L1

COMP_AL1

I_DVD_AL1

C163

0.1uF

AGND

X0

14

X1

15

X2

11

X3

1

Y0

5

Y1

2

Y2

4

Y3

10

A

9

B

6

EN

7

VEE

16

VDD

8

C134
10uF/16V

+

+

C136

10uF/16V

13

A_1_R 4

X

3

A_1_L 4

Y

GND

AGND

LINE_O_L 4

LINE_O_R 4

CVBS_SEL_12

TUNER_OUT3

COMP_Y1

COMP_PB1

COMP_PR1

AV_22

AV_12

SD13,4

SC13,4

R131 10K 1/ 16W

R133 10K 1/ 16W

U105 PCA9554PW

1

A0

2

A1

3

A2

4

I/O0

5

I/O1

6

I/O2

7

I/O3

8

VSS I/ O4

OPTION

AV2_L_S

AV2_R_S

SVIDEO_Y

SVIDEO_C

AV_2

AV_1

AGND

TPV(Top victory) Electronics Co., ltd.

Titl e

01 I/O Con nect

Size Docum ent Number Rev

A3

T2275-A-X-X-1-061109

Date: Sheet

AV_2_S

L127

L126

36

34

32

30

28

26

24

22

20

18

16

14

12

10

VDD

SDA

8

6

4

2

SCL

INT

I/O7

I/O6

I/O5

L125

300 OHM

300 OHM

J100

CONN

16

15

14

13

12

R142 100 1/16W

R144 100 1/16W

11

R146

10

9

R147 100 1/16W

80 OHM

AGND

35

33

31

29

27

25

23

21

19

17

15

13

11

9

7

5

3

1

51

32″ LCD TV AOC L32W431

10uF/ 16V

C120

C121

+

10uF/16V

+

C101

C123

+

10uF/16V

0.1uF

AV_11

AV_21 CVBS_SEL_1 1

CH_SEL31
CH_SEL41

5V_A

L107

600 OHM

SUBWOOF ER_OUT4

AGND

1
3
5

2
4

6

C124

0.1uF

U104

VIN1
VIN2
VIN3

SW1
SW2

V+

VOUT

GND

NJM-2244M-PF

8

7

CVBS_SEL_1

SW1

0

1

SW2

0

0

U104

CVBS_SEL_I

AV1

AV2

JACK

470pF

AGND

R157

0 1/10W

AGND

CN101

C125

1

2

3

L108
120 OHM

R126

NC

C128
68pF

AGND

100K 1/16W

AGND

R160

0Ω 1/10W

NC

C126

+

470uF/16V

AGND

C168
100pF

R124
75Ω 1/8W

VIDEO_OUT 1

TPV(Top victory) Electronics Co.,ltd.

Tit le

02 Video & Audio sel

Size D ocum ent N umber Rev

A4

T2275-A-X-X-1-061109

Date: Sheet

11Thursday , Nov ember 09, 2006

A

of

52

32″ LCD TV AOC L32W431

R120 0Ω 1/10W

R121 0Ω 1/10W

5VT

C156

0.1uF/16V

AGND

ANT IN

C129

NC

100pF

N.C.

AGND

L128

1 2

600 OHM

L129

200uH

C157

0.1uF/ 16V

12V_T

R103
10Ω 3W

R104
10Ω 3W

+

1 2

1 2

AGND

C154
10uF/16V

L130

600OHM

L131

600OHM

1

ADJ/ GND

AZ1117D-5.0-E1

AGND

SC11,4

SD11,4

U101

23

OUTPUTINPUT

+

C155

100uF/16V

L132

1 2

600OHM

AGND

TU10 0

TH1

TH2

TH3

TH4

+5V

SCL

3

C158

470uF/16V

SDA

4

5

AGND

C159

+

0.1uF/16V

N.C.

2131

NC

C130
100pF

AS_TU

R122
1KΩ 1/10W

9126

NC

+

AS_IF

10

C161

47pF

C160

100uF/16V

AGND

2ND IF SOUND

11

R115
75Ω 1/10W

+5V,I F

CVBS

AF/MPX

14

R119

75Ω 1/10W

AGND

SIF_IN 4

TUNER_OUT 1

53

TPV(Top victory) Electronics Co.,ltd.

Tit le

03 Philips_tuner

Size Document Number Rev

A3

T2275-A-X-X-1-061109

Date: Sheet

11Thursday, November 09, 2006

A

of

32″ LCD TV AOC L32W431

SIF_I N3

C601 100pF

R606 NC

R607 NC

5VT

L602

600 OHM

1K 1/ 16W

AGND

R603

AGND

C606

5pF

C607
5pF

X6 00

18.432MHz

12V_T

+

C604

C602

5VT

C609

C608

56pF

56pF

C646

56pF

C610

100uF/ 16V

L601

600 OHM

+

C611

470pF

C600

0.0015uF

10uF

0.1uF

AGND

AZ1117H -ADJ-E1
U600

3

VIN

1

ADJ

VOUT

2

AGND

L600

600 OHM

R602

120 1 /16W

R604

620 1/ 8W

C605

0.1uF

8V

AGND

+

C603

10uF/ 16V

5VT

R614

4.7K 1/16W

+

SUBWOOF ER_OU T2

SC11,3

SD11,3

C618

10uF/16V

C629
22uF/ 16V

AGND

R_OUT1

L_OUT1

+

0.0015uF

100 1/ 16W

100 1/ 16W

C620

AGND

R609

R611

C621

220pF

C622

470pF

R622

100 1/16W

R623

100 1/16W

R621
100Ω 1/10W

U601

1

SCL

2

SDA

3

I2S_CL

4

I2S_WS

5

I2S_DA_OUT

6

I2S_DA_IN1

7

ADR_DA

8

ADR_WS

9

ADR_CL

10

DVSUP

11

DVSS

12

I2S_DA_IN2

13

NC

14

NC

15

NC

16

RESETQ

C640

0.001uF

+

64

D_CTR_I/OUT1

NC

NC

NC

TP

XTAL_OU T

NC

ADR_SEL

STAND BYQ

D_CTR_I/OUT0

MSP3425G-QI-B8-V3

NCNCVREF 2

DACM_R

DACM_LNCNCNCNCNCVREF 1

171819202122232425262728293031

AGND

C642

0.001uF

C643
47uF/ 16V

C641

AGND

0.001uF

C644

0.001uF

470 1/ 16W

470 1/ 16W

C627

330pF

R608

470 1/ 16W

R610

470 1/16W

R612

R613

R615

470 1 /16W

R617 470 1/16W

A_1_R 1

A_1_L 1

PC_R 1

PC_L 1

HDMI_R 1
HDMI_L 1

11Wednes day , Nov ember 15, 2006

A

of

495051525354555657585960616263

AVSUP

AVSS

MON _IN

ASG

ASG

NC
NC
NC
NC
NC

AGNDC

AHVSS

CAPL_M

C633

10uF/ 16V

+

100 1/ 16W

100 1/ 16W

C645

0.001uF

+

R619

R620

48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33

C619 1uF/ 16V

C635

0.0015uF

ANA_I N-NCTESTEN

XTAL_IN

ANA_I N1+

VREFTOP

SC1_IN _R

SC1_IN _L

SC2_IN _R

SC2_IN _L

SC1_OU T_R

SC1_OU T_LNCAHVSU P

32

C639

10uF/ 16V

AGND

C612

0.1uF

+

C623

C613

+

10uF/ 16V

+

1uF/ 16V

C628

0.1uF

+

C630

3.3uF /16V

+

C636

470pF

LINE_O_L 1

LINE_O_R 1

AGND

AGND

C634

10uF/ 16V

L603

600 OHM

+

C614

1uF/ 16V

+

C615

1uF/ 16V

+

C616

1uF/ 16V

+

C617

1uF/ 16V

C626

C625

C624

330pF

AGND

8V

330pF

C631

330pF

330pF

C632

330pF

AGND

TPV(Top victory) Electronics Co.,ltd.

Tit le

04 AUDIO Processor __MSP3455G

Size Document Number Rev

A4

T2275-A-X-X-1-061109

Date: Sheet

54

32″ LCD TV AOC L32W431

10. Exploded View

55

32″ LCD TV AOC L32W431

11. BOM List

E326MTNSD1A3NP

Location Part No. Description

001T6020 1 SCREW-SPE CIAL
007T 6 L 28 COMPOUND PALLET
011TP004 1 CLIP WIRE DIA 10.9
015T5908 2 BRACKET
015T8214 1 BKT MAIN
015T8215 1 BKT LSIDE
015T8216 1 BKT R SIDE
015T8217 1 BKT LONG
015T8221 2 BKT HOLD PANEL
015T8223 6 BKT CONNECTOR
015T8270 2 BKT-PCB-SUPPORT-1
026T 800504 3 BARCODE LABEL
044T3A08 1 EPS
044T3A08 2 EPS
044T3A08 3 EPS
044T3A08 4 EPS
044T6002842 5A PAPER BOARD
044TZ001200 4B PIZZA BOX
050T 500 1 CABLE TIE
052T 1185 MIDDLE TAPE FOR CARTON
052T 1186 SMALL TAPE
052T 1211 A ADHESIVE TYPE
052T 1211 B ADHESIVE TYPE
052T6019 1 YELLOW TAPE
085T 717 4 SHIELD
089T 17356G554 AUDIO CABLE
089T 725GAA600 SIGNAL CABLE
089T402A15N IS POWER CORD
095T8014 5 47 HARNESS
095T8014 14664 WIRE HARNESS
095T8014 2D533 WIRE HARNESS
095T8014 3D551 WIRE HARNESS
095T8014 8D651 WIRE HARNESS
095T8018 3506 LVDS CABLE
098TRABD1NEACF REMOTE CONTROL FUHUA FQ FOR AOC
0M1T 330 4128 CR3 SCREW
0M1T 330 4128 CR3 SCREW
0M1T 330 6128 CR3 SCREW
0M1T 340 8 47 CR3 SCREW
0M1T 940 6120 SCREW
0M1T 940 6120 SCREW
0M1T 940 6120 SCREW
0M1T 940 6120 SCREW
0M1T 940 8120 SCREW
0M1T1140 6128 CR3 SCREW
0M1T1730 6128 CR3 SCREW
0Q1T 330 6128 CR3 SCREW
0Q1T 340 10 47 CR3 SCREW
0Q1T 340 10128 CR3 SCREW
0Q1T 340 10128 CR3 SCREW
0Q1T 340 10128 CR3 SCREW

56

32″ LCD TV AOC L32W431

0Q1T 340 10128 CR3 SCREW
0Q1T 930 6128 CR3 SCREW
705TQJK0B34050 BACK COVER ASS'Y
705TQJK0F34042 BEZEL ASS'Y
705TQJK0M34026 A4 ASS'Y
705TQJK0P34034 STAND ASS'Y
750TVMN0B1411N PANEL TV 32" B1-L04 CMO
ADPF24180A4P ADAPTER ASS`Y
CBPF6T1SQ3 MAIN BOARD
Q15T0063 2 BKT HOLD PANEL
Q15T0064 1 BKT HOLD PANEL
Q34T1661 GM 1A COVER CABLE
Q34T1666 GM 1A COVER HINGE BUTTOM
Q40T 32061519A RATING LABEL
Q40T 58161557B IO LABEL
Q44T3A08 5 1C U TYPE SHEET FOR BASE
Q44T3A0861517B CARTON
Q45T 76 28V19 R PE BAG FOR SPK-LINK-PLASTIC
Q45T 99606 2 R PE BAG FOR BASE
Q45T 99609 2 R EPE COVER
Q45T 99609 5 R EPE COVER
Q45T 99626 2 R PE BAG FOR MONITOR
TUPF6YA3 TUNER BOARD
040T 58162435A LABEL
041T780061532C SA CENTER LIST
041T780061580A WARRANTY BOOKLET
045T 76 28 C PE BAG FOR MANUAL
092TB1JX1A21GM BATTERY LR06 XINLI
Q41T3201673 8A MANUAL
011T 176 1 RL WIRE HOLDER
015T6184 1 KENSINGTON LOCK
015T8225 1 BKT KEY PAD
033T4823 RG L ID1 FUN KEY
033T6301A14 2C PC PLATE ON TOP
044T3121510506 SPONGE
044T3121510514 SPONGE
0M1T 330 4128 CR3 SCREW
0Q1T 330 6120 SCREW
0Q1T 330 6120 SCREW
KEPFF60KA2P KEY BOARD FOR ROHS
Q34T1660 GM 2A 30 REAR COVER
W33T6381CGM 1A COVER CARD READER
033T4978 1 C LENS POWER
078T 451 2 Y SPK 8OHM 15W SU
0Q1T1030 6128 CR3 SCREW
0Q1T1030 8128 CR3 SCREW
IRPF6QA9P IR BOARD
Q33T4979 ED C LENS REMOTE
Q34T1833 RGC1L BEZEL
HJPFA60A7P HEADPHONE JACK BOARD
012T6107 1 RUBBER FOOT
015T8234 1 BASE PLATE
020T 031 1 DIECASTING
033T4832 RG L CLIP CABLE
034T1664 RG L STAND BTM
034T1682 RG L BASE

57

32″ LCD TV AOC L32W431

037T 546 1 HINGE
0M1T 140 10120 SCREW M4X10
0M1T 330 4128 CR3 SCREW
0Q1T 140 8128 CR3 SCREW
0Q1T 140 10128 CR3 SCREW
Q34T1665 GM 1A COVER HINGE
W33T4854 RG L STAND MID
W33T4855 RG L STAND TOP

CN951 033T3802 10 PLUG
CN952 033T3802 12 WAFER PH-12

040T 45762420A S/N LABEL

IC922 056T 139 3A PC123Y22FZOF
IC924 056T 139 3A PC123Y22FZOF
IC925 056T 139 3A PC123Y22FZOF
IC942 056T 139 3A PC123Y22FZOF
IC922 056T 139 3B PC123X82FZOF
IC924 056T 139 3B PC123X82FZOF

IC942 056T 139 3B PC123X82FZOF
NR901 061T 58030 W RST NTCR 3 OHM 5A THINKING
NR902 061T 58030 W RST NTCR 3 OHM 5A THINKING

R950 061T 20K398GB1 CEMENTR 0.39 OHM +-10% 2W
R921 061T152M10458G6267 100K OHM 5% 2W
R905 061T153M27858G6267 0.27 OHM 5% 3W
R945 061T153M47358G6267 47K OHM 5% 3W
C901 063T 10722410S 0.22UF 275VAC X2
C902 063T 10747410S CAPACITANCE
C905 063T213J105GFA MPF CAP
C926 064T400K473 57 MPF CAP
C922 065T 1K222 2A6213 0.0022UF/1KV
C942 065T 1K222 2A6213 0.0022UF/1KV
C921 065T 1M103 3T6921 0.01UF 20% 1000V Y5V
C915 065T306M1022BM Y1.CAP.001UF 250VAC MURATA
C915 065T306M1022BM Y1.CAP.001UF 250VAC MURATA
C904 065T306M1022BM Y1.CAP.001UF 250VAC MURATA
C904 065T306M1022BM Y1.CAP.001UF 250VAC MURATA
C903 065T306M1022BM Y1.CAP.001UF 250VAC MURATA
C903 065T306M1022BM Y1.CAP.001UF 250VAC MURATA
C903 065T306M1022BP Y1.CAP.001UF 250VAC
C904 065T306M1022BP Y1.CAP.001UF 250VAC
C915 065T306M1022BP Y1.CAP.001UF 250VAC
C970 065T306M2222BP Y1.CAP.0022UF 250V AC
C907 067T 4018116N 105C KMQ180UF+-20% 420V
C907 067T 40K18116K 105C EC SHAP-IN
C932 067T215B102 4R 1000UF 25V 10*23
C933 067T215B102 4R 1000UF 25V 10*23
C930 067T215L102 6N KY35VB1000M-L 5*25MM
C948 067T215L102 6N KY35VB1000M-L 5*25MM
C949 067T215L102 6N KY35VB1000M-L 5*25MM
C950 067T215L102 6N KY35VB1000M-L 5*25MM
C951 067T215L102 6N KY35VB1000M-L 5*25MM
C930 067T215L102 6R LOW E.S.R 1000UF +/-20% 35V
C948 067T215L102 6R LOW E.S.R 1000UF +/-20% 35V
C949 067T215L102 6R LOW E.S.R 1000UF +/-20% 35V
C950 067T215L102 6R LOW E.S.R 1000UF +/-20% 35V
C951 067T215L102 6R LOW E.S.R 1000UF +/-20% 35V
C932 067T215L1024NL KY25VB1000M-L 10*25MM

58

32″ LCD TV AOC L32W431

C933 067T215L1024NL KY25VB1000M-L 10*25MM
C934 067T215L221 4N LOW E.S.R 220UFM 25V
C934 067T215L221 4R LOWE.S.R 220UFM 25V
C931 067T215L221 6N KY35VB220M-L 8*15MM
C955 067T215L471 6N KY35VB470M-L 10*20MM
C955 067T215L471 6R LOW E.S.R 470UF +/-20% 35V

L906 073L 174 44 LG POWER TRANSFORMER
L906 073L 174 44 TG CHOKE COIL
L953 073L 174 46 LG FILTER
L953 073L 174 46LSG FILTER
L952 073L 174 47 LG CHOKE COIL
L952 073L 174 47LSG LINE FILTER
L903 073L 174 48 LG LINE FILTER
L904 073L 174 49 LG LINE FILTER
L904 073L 174 49LSG LINE FILTER
L905 073L 174 52 LG CHOKE COIL
L905 073L 174 52LSG CHOKE COIL
L902 073L 253156 LH CHOKE COIL
L901 073L 253156 LH CHOKE COIL
L902 073L 253156 TH CHOKE COIL
L901 073L 253156 TH CHOKE COIL
L923 073T 253155 L CHOKE
L922 073T 253155 L CHOKE
L922 073T 253155 T CHOKE COIL
L922 073T 253155 LS CAO5005FL
L923 073T 253155 LS CAO5005FL
T951 080LL26T 2 LG X'FMR
T951 080LL26T 2 TG X'FMR

T921 080LL26T 3 TG XFMR
D922 093T1020 752T UF4003PT
D943 093T1020 752T UF4003PT
D920 093T1100 1052T BA159GPT
D921 093T1100 1052T BA159GPT
D941 093T1100 1052T BA159GPT
D942 093T1100 1052T BA159GPT

RJ905 095T 90 26 WIRE HARNESS

CN921 095T8013 12633 HARNESS

705L F94 56 01 IC981 ASS'Y
705L F94 57 02 Q942/Q943/D927/D928 ASS'Y
705L F94 57 04 Q901/Q941/D902 ASS'Y
705L F94 61 01 R919 ASS'Y
705L F94 87 02 CN901 ASS'Y
705L F94 93 01 BD901 ASS'Y
DCPF1205A3P DC TO DC BOARD

CN200 033T3278 12 12P PLUG B12B-XHA/JS B12B-XHA/
CN500 033T3802 2H WAFER 2P RIGHT ANGLE
CN501 033T3802 3H WAFER 3P RIGHT ANGLE
CN502 033T3802 5H WAFER 5P RIGHT ANELE PI
CN203 033T3802 8H WAFER 8P RIGHT ANGLE PITCH 2.0
CN404 033T8017 2 PIN HEADER 2P 2.0MM
CN201 033T801736A CH W CONNECTOR
CN201 033T801736A CH JF CONNECTOR
CN300 033T802724D H 24PIN

040T 457624 1B CPU LABEL
040T 45762412B CBPC LABEL
044T3231508512 CHIELD D-SUB

59

32″ LCD TV AOC L32W431

U401 056T1133 77ET2 EN29F040A-70JCP
U401 056T1133 80ET2 A29040BL-70F PLCC-32
R718 061T152M100 64 10OHM 5% 2W
R716 061T152M229 64 2.2 OHM 2W 5% MOF
R719 061T152M479 64 4.7 OHM +-5% 2W
R717 061T152M479 64 4.7 OHM +-5% 2W
R525 061T153M109 59 MOFR 1 OHM +-5% 3W
R524 061T153M109 59 MOFR 1 OHM +-5% 3W
C548 067T215C1024KV

L701 073T 253137 ER CHOKE COIL BY EROCORE SCB-03

L705 073T 253137 ER CHOKE COIL BY EROCORE SCB-03

L500 073T 253158 H CHOKE COIL 22UH+/-25%

L504 073T 253158 H CHOKE COIL 22UH+/-25%

L505 073T 253158 H CHOKE COIL 22UH+/-25%

L506 073T 253158 H CHOKE COIL 22UH+/-25%

L500 073T 253158 L CHOKE COIL

L504 073T 253158 L CHOKE COIL

L505 073T 253158 L CHOKE COIL

L506 073T 253158 L CHOKE COIL
P201 088T 30214K PHONE JACK
P200 088T 35315F HA D-SU13 15PIN
U302 090T 372 2 HEAT SINK
U503 090T6068 2 HEAT SINK
X300 093T 2253B J 14.31818MHZ/85C
X401 093T 2279B CRYSTAL 28.322MHZ 49U/S
X400 093T 2281B 10.000MHZ/30PF/49US

Q90T0054 1 HEAT SINK
Q90T0054 1 HEAT SINK

J100 033T802436C H HEADER FEMALE 36P 2.0MM

040T 45762412B CBPC LABEL

R104 061T153M100 59 10 OHM 5% 3W
R103 061T153M100 59 10 OHM 5% 3W

L129 073T 259 4 CHOKE COIL

085T 583510 GASKET

J102 088T 78 13 1C RCA JACK

J101 088T 78 13 3C AV-S-01-W

CN101 088T 78 1315C RCA JACK

J103 088T 78 1316C RCA JACK2*3 R/BLU/G+Y/W/R
X600 093T 22D60 BH CRYSTAL 18.432MHZ/12PF/49U

TU100 094TNTSC MA 1P TUNER

CN2 033T3802 4 WAFER PH-4

U4 056T 627 3 TSOP4838
U4 056T 627 3A TSOP4838 SB1
D6 081T 12 2 GP GP36032ME/50-ZO

CN1 033T3802 5H WAFER 5P RIGHT ANELE PI

J1 088T 30230C PHONE JACK
J1 088T 30230T PHONE JACK

GND 095T 900 53 HARNESS 95MM

IC981 056T 379 40 TOP246YN T0-220-7C

090T 427 1 HEAT SINL
0M1T1730 8128 CR3 SCREW
005T 42 1 CUSHION
012T 372 1 SILICON

Q943 057T 600 42 IRFB38N20D TO-220AB
Q942 057T 600 42 IRFB38N20D TO-220AB

090T 428 1 HEAT SINK

EC 105℃ CAP 1000UF M 25V

60

32″ LCD TV AOC L32W431

D927 093T 60239 FME-210B T0-220
D927 093T 60245 SP10150
D928 093T 60247 DIODE FME-220A TO-220 SANKEN

0M1T1730 10128 CR3 SCREW
012T 372 2 SILICON

Q901 057T 667 17 IRFP460APBF T0-247AC
Q901 057T 667 18 STW20NM50
Q901 057T 667 19 2SK3523-01R
Q941 057T 667 21 STP10NK70ZFP
Q941 057T 667 23 2SK3677-01MR

090T 426 5 HEAT SINK

D902 093T 220 22 DIODE YG972S6R TO-220F FUJI
D902 093T 220 23 DIODE FMX-G26S TO-220 SANKEN

0M1T1730 8128 CR3 SCREW
0M1T1730 10128 CR3 SCREW

R919 061T153M27858G6267 0.27 OHM 5% 3W

096T 29 8 TUBE

CN901 087T 501 22 RF AC SOCKET

095T 900619 WIRE HARNESS
096T 29 4 SHRINK TUBE UL/CSA
090T 425 1 HEAT SINK

BD901 093T 50460 18 D10XB60

0M1T1730 10128 CR3 SCREW

IC941 056T 379 38 L6565D SO-8
IC901 056T 538 8 TDA4863-2G SO-8

Q922 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q924 057T 760 5 DTC144WKA BY FOHM SMT
R947 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R944 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R922 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R954 061T0805100 RST CHIPR 10 OHM +-5% 1/8W
R955 061T0805100 RST CHIPR 10 OHM +-5% 1/8W
R920 061T0805100 2F RST CHIPR 10 KOHM +-1% 1/8W
R940 061T0805100 2F RST CHIPR 10 KOHM +-1% 1/8W
R931 061T0805102 RST CHIPR 1KOHM +-5% 1/4W
R934 061T0805102 RST CHIPR 1KOHM +-5% 1/4W
R910 061T0805103 RST CHIPR 10 KOHM +-5% 1/8W
R909 061T0805103 RST CHIPR 10 KOHM +-5% 1/8W
R965 061T0805103 RST CHIPR 10 KOHM +-5% 1/8W
R964 061T0805104 RST CHIPR 100 KOHM +-5% 1/8W
R959 061T0805115 2F RST CHIPR 11.5 KOHM +-1% 1/8W
R960 061T0805133 RST CHIPR 13 KOHM +-5% 1/8W
R961 061T0805152 RST CHIPR 1.5 KOHM +-5% 1/8W
R914 061T0805191 2F RST CHIPR 19.1 KOHM +-1% 1/8W
R957 061T0805200 9F RST CHIPR 20 OHM +-1% 1/8W
R958 061T0805202 RST CHIPR 2 KOHM +-5% 1/8W
R936 061T0805220 RST CHIPR 22 OHM +-5% 1/8W
R967 061T0805222 RST CHIPR 2.2 KOHM +-5% 1/8W
R951 061T0805242 RST CHIPR 2.4 KOHM +-5% 1/8W
R949 061T0805273 RST CHIPR 27 KOHM +-5% 1/8W
R930 061T0805280 3F RST CHIPR 280 KOHM +-1% 1/8W
R948 061T0805330 RST CHIPR 33 OHM +-5% 1/8W
R904 061T0805470 RST CHIPR 47 OHM +-5% 1/8W
R933 061T0805471 RST CHIPR 470 OHM +-5% 1/8W
R935 061T0805472 RST CHIPR 4.7 KOHM +-5% 1/8W
R932 061T0805510 2F RST CHIPR 51 KOHM +-1% 1/8W

61

32″ LCD TV AOC L32W431

R953 061T0805563 RST CHIPR 56 KOHM +-5% 1/8W
R952 061T0805682 RST CHIPR 6.8 KOHM +-5% 1/8W
R903 061T0805683 RST CHIPR 68 KOHM +-5% 1/8W
R925 061T0805689 RST CHIPR 6.8 OHM +-5% 1/8W
R908 061T1206000 RST CHIPR 0 OHM +-5% 1/4W

RJ901 061T1206000 RST CHIPR 0 OHM +-5% 1/4W
RJ903 061T1206000 RST CHIPR 0 OHM +-5% 1/4W

R983 061T1206100 3F RST CHIPR 100 KOHM +-1% 1/4W
R923 061T1206100 4F RST CHIPR 1 MOHM +-1% 1/4W
R924 061T1206100 4F RST CHIPR 1 MOHM +-1% 1/4W
R968 061T1206101 RST CHIPR 100 OHM +-5% 1/4W
R962 061T1206102 RST CHIPR 1 KOHM +-5% 1/4W
R927 061T1206205 RST CHIPR 2 MOHM +-5% 1/4W
R926 061T1206205 RST CHIPR 2 MOHM +-5% 1/4W
R974 061T1206330 RST CHIPR 33 OHM +-5% 1/4W
R946 061T1206330 RST CHIPR 33 OHM +-5% 1/4W
R929 061T1206330 RST CHIPR 33 OHM +-5% 1/4W
R913 061T1206330 3F RST CHIPR 330 KOHM +-1% 1/4W
R912 061T1206330 3F RST CHIPR 330 KOHM +-1% 1/4W
R911 061T1206330 3F RST CHIPR 330 KOHM +-1% 1/4W
R917 061T1206332 RST CHIPR 3.3 KOHM +-5% 1/4W
R916 061T1206332 RST CHIPR 3.3 KOHM +-5% 1/4W
R973 061T1206470 RST CHIPR 47 OHM +-5% 1/4W
R915 061T1206472 RST CHIPR 4.7 KOHM +-5% 1/4W
R928 061T1206562 RST CHIPR 5.6 KOHM +-5% 1/4W
R906 061T1206624 RST CHIPR 620 KOHM +-5% 1/4W
R907 061T1206624 RST CHIPR 620 KOHM +-5% 1/4W
R901 061T1206684 RST CHIPR 680KOHM +-5% 1/4W
R902 061T1206684 RST CHIPR 680KOHM +-5% 1/4W
C911 065T0805102 32 CHIP 1000PF 50V X7R 0805
C927 065T0805102 32 CHIP 1000PF 50V X7R 0805
C913 065T0805103 32 10NF/50V/0805/X7R
C936 065T0805103 32 10NF/50V/0805/X7R
C965 065T0805104 32 CHIP 0.1UF 50V X7R
C956 065T0805104 32 CHIP 0.1UF 50V X7R
C953 065T0805104 32 CHIP 0.1UF 50V X7R
C939 065T0805104 32 CHIP 0.1UF 50V X7R
C938 065T0805104 32 CHIP 0.1UF 50V X7R
C937 065T0805104 32 CHIP 0.1UF 50V X7R
C935 065T0805104 32 CHIP 0.1UF 50V X7R
C924 065T0805104 32 CHIP 0.1UF 50V X7R
C920 065T0805104 32 CHIP 0.1UF 50V X7R
C914 065T0805104 32 CHIP 0.1UF 50V X7R
C910 065T0805104 32 CHIP 0.1UF 50V X7R
C946 065T0805333 32 MLCC 0805 CAP 3300PF K 50V X7R
C959 065T0805334 22 CHIP 0.33UF +-10% 25V X7R 0805
C958 065T0805471 31 CHIP 470PF 50V NPO
C912 065T0805474 22 CHIP 0.47UF 25V X7R
C964 065T1206103B2M6213 CHIP 0.01UF 630V X7R
D904 093T 6432P LL4148 BY PANJIT
D905 093T 6432P LL4148 BY PANJIT
D906 093T 6432P LL4148 BY PANJIT
D907 093T 6432P LL4148 BY PANJIT
D923 093T 6432P LL4148 BY PANJIT
D924 093T 6432P LL4148 BY PANJIT
D925 093T 6432P LL4148 BY PANJIT

62

32″ LCD TV AOC L32W431

D926 093T 6432P LL4148 BY PANJIT
D929 093T 6432P LL4148 BY PANJIT
D944 093T 6432P LL4148 BY PANJIT
D945 093T 6432P LL4148 BY PANJIT
D946 093T 6432P LL4148 BY PANJIT
D947 093T 6432P LL4148 BY PANJIT
D949 093T 6432P LL4148 BY PANJIT
D950 093T 6432P LL4148 BY PANJIT
D904 093T 6432V LL4148-GSO8 SMD BY VISHA
D905 093T 6432V LL4148-GSO8 SMD BY VISHA
D906 093T 6432V LL4148-GSO8 SMD BY VISHA
D907 093T 6432V LL4148-GSO8 SMD BY VISHA
D923 093T 6432V LL4148-GSO8 SMD BY VISHA
D924 093T 6432V LL4148-GSO8 SMD BY VISHA
D925 093T 6432V LL4148-GSO8 SMD BY VISHA
D926 093T 6432V LL4148-GSO8 SMD BY VISHA
D929 093T 6432V LL4148-GSO8 SMD BY VISHA
D944 093T 6432V LL4148-GSO8 SMD BY VISHA
D945 093T 6432V LL4148-GSO8 SMD BY VISHA
D946 093T 6432V LL4148-GSO8 SMD BY VISHA
D947 093T 6432V LL4148-GSO8 SMD BY VISHA
D949 093T 6432V LL4148-GSO8 SMD BY VISHA
D950 093T 6432V LL4148-GSO8 SMD BY VISHA

ZD921 093T 39S 10 T RLZ6.8B LLDS
ZD944 093T 39S 15 T RLZ15B
ZD943 093T 39S 24 T RLZ 5.6B LLDS
ZD942 093T 39S 33 T PTZ 13B
ZD931 093T 39S 38 T PTZ 9.1B
ZD945 093T 39S 41 T RLZ24B LLDS
ZD946 093T 39S 42 T RLZ27B LLDS

D901 093T3060 10 ML35PT

CN801 033T800913Z H PIN HEADER 1*13 R/A

C807 067T215B471 3N
C806 067T215B471 3N
C806 067T215B471 3R LOW E.S.R 470UF +/-20% 16V
C807 067T215B471 3R LOW E.S.R 470UF +/-20% 16V
C801 067T405V221 4P
U500 056T 133 30AAC AZ1117H-ADJ-E1
U711 056T 133 33AAC IC AZ1117-1.8-E1
U503 056T 535 8 MAX9704
U302 056T 562600 IC SVP-EX52-LF TRIDENT
U712 056T 563 7 AIC1084-33PM TO-263 AIC
U703 056T 563 25 AIC1084-33PE
U708 056T 563 31 AZ1117D-1.8E1 TO-252
U710 056T 563 31 AZ1117D-1.8E1 TO-252
U700 056T 563 34 A1C1084-18PM
U706 056T 563 44 AME8815BEGT 250Z SOP-223
U704 056T 563 44 AME8815BEGT 250Z SOP-223
U701 056T 585 9 IC AP1117E50LA ANACHIP
U702 056T 585 4A AP1117E33LA
U705 056T 585 4A AP1117E33LA
U407 056T 586 6 IC SII9023CTU TQFP-144 SILICON IMAGE
U202 056T 614 1 IC 74HC4052D PHILIPS
U301 056T 615 9 NO APP EM6A9320BI-5MG
U301 056T 615 9 1 IC EM6A9320BI-5MG 0.11UM"M" FBGA-144
U300 056T 615104 LY61256RL-12E TSOP-1

105℃ 470UF M 16V NCC
105℃ 470UF M 16V NCC

105℃ 220UF M 25V

63

32″ LCD TV AOC L32W431

U300 056T 615105 AS 7C256A-10TIN TSOP-1
U504 056T 616 3 PT2308S SO-8 PTC
U502 056T 628 4 NJW1147M-PF
U206 056T 634 2 1 PI5V330SSQE PERICOMQSOP-16
U408 056T 638601 CS4344-CZZ
U406 056T 662 4 RCLAMP0514M.TBT
U410 056T 662 4 RCLAMP0514M.TBT
U402 056T1125182 IC M30300SAGP RENESAS
U402 056T1125610 M30620SPGP LQFP-100PIN
U200 056T1133 34 M24C02-WMN6TP
U405 056T1133 34 M24C02-WMN6TP
U403 056T1133 78 24LC64 ISNG SOIC(150MIL)
U200 056T113334A M24C02-WMN6TP
U405 056T113334A M24C02-WMN6TP
U201 056T4LVC 14 P 74LVC14ADT
U303 056T566N600 NDC7002N SOT-6 FAIRCHILD
Q404 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q502 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q704 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q705 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q706 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q708 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q709 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q403 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q301 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q300 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q206 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q204 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q202 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q201 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q200 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q501 057T 417 6 PMBS3906/PHILIPS-SMT
Q402 057T 417 6 PMBS3906/PHILIPS-SMT
Q203 057T 417 6 PMBS3906/PHILIPS-SMT
Q205 057T 417 6 PMBS3906/PHILIPS-SMT
Q302 057T 417 6 PMBS3906/PHILIPS-SMT
Q400 057T 600 54 FET BSN20 SOT-23 PHILIPS
Q405 057T 600 54 FET BSN20 SOT-23 PHILIPS
U409 057T 763 15 FDC6301N SSOT-6
Q707 057T 763 3B AM9435P.T1-PF SO-8
Q703 057T 763 3B AM9435P.T1-PF SO-8
Q700 057T 763 3B AM9435P.T1-PF SO-8
Q701 057T 763 3B AM9435P.T1-PF SO-8
Q702 057T 763 3B AM9435P.T1-PF SO-8

RP405 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP404 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP403 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP402 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP401 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP400 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RN313 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RN312 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RN311 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RN300 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RN308 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R
RN307 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R

64

32″ LCD TV AOC L32W431

RN306 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R
RN305 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R
RN304 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R
RN303 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R
RN302 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R
RN301 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R
RN405 061T 125330 8 RST CHIP AR 8P4R 33 OHM +-5% 1/16W
RN404 061T 125330 8 RST CHIP AR 8P4R 33 OHM +-5% 1/16W
RN403 061T 125330 8 RST CHIP AR 8P4R 33 OHM +-5% 1/16W
RN402 061T 125330 8 RST CHIP AR 8P4R 33 OHM +-5% 1/16W
RN401 061T 125330 8 RST CHIP AR 8P4R 33 OHM +-5% 1/16W
RN400 061T 125330 8 RST CHIP AR 8P4R 33 OHM +-5% 1/16W
RP406 061T 125470 8 RST CHIP AR 8P4R 47 OHM +-5% 1/16W

R700 061T0603000 CHIP 0OHM 1/16W
R536 061T0603000 CHIP 0OHM 1/16W
R423 061T0603000 CHIP 0OHM 1/16W

R4004 061T0603000 CHIP 0OHM 1/16W

R348 061T0603000 CHIP 0OHM 1/16W
R347 061T0603000 CHIP 0OHM 1/16W
R311 061T0603000 CHIP 0OHM 1/16W
R300 061T0603000 CHIP 0OHM 1/16W
R242 061T0603000 CHIP 0OHM 1/16W
R219 061T0603000 CHIP 0OHM 1/16W
R200 061T0603000 CHIP 0OHM 1/16W
R335 061T0603100 CHIP 10OHM 1/16W
R547 061T0603100 0F RST CHIPR 100 OHM +-1% 1/10W
R494 061T0603101 CHIP 100OHM 1/16W
R485 061T0603101 CHIP 100OHM 1/16W
R483 061T0603101 CHIP 100OHM 1/16W
R475 061T0603101 CHIP 100OHM 1/16W
R472 061T0603101 CHIP 100OHM 1/16W
R447 061T0603101 CHIP 100OHM 1/16W
R445 061T0603101 CHIP 100OHM 1/16W
R443 061T0603101 CHIP 100OHM 1/16W
R442 061T0603101 CHIP 100OHM 1/16W
R441 061T0603101 CHIP 100OHM 1/16W
R440 061T0603101 CHIP 100OHM 1/16W
R431 061T0603101 CHIP 100OHM 1/16W
R422 061T0603101 CHIP 100OHM 1/16W
R543 061T0603101 CHIP 100OHM 1/16W
R544 061T0603101 CHIP 100OHM 1/16W
R470 061T0603101 CHIP 100OHM 1/16W
R467 061T0603101 CHIP 100OHM 1/16W
R466 061T0603101 CHIP 100OHM 1/16W
R464 061T0603101 CHIP 100OHM 1/16W
R462 061T0603101 CHIP 100OHM 1/16W
R460 061T0603101 CHIP 100OHM 1/16W
R471 061T0603101 CHIP 100OHM 1/16W
R541 061T0603101 CHIP 100OHM 1/16W
R540 061T0603101 CHIP 100OHM 1/16W
R539 061T0603101 CHIP 100OHM 1/16W
R537 061T0603101 CHIP 100OHM 1/16W
R534 061T0603101 CHIP 100OHM 1/16W
R497 061T0603101 CHIP 100OHM 1/16W

R4007 061T0603101 CHIP 100OHM 1/16W
R4008 061T0603101 CHIP 100OHM 1/16W

65

32″ LCD TV AOC L32W431

R4020 061T0603101 CHIP 100OHM 1/16W
R4021 061T0603101 CHIP 100OHM 1/16W

R405 061T0603101 CHIP 100OHM 1/16W
R408 061T0603101 CHIP 100OHM 1/16W
R410 061T0603101 CHIP 100OHM 1/16W
R421 061T0603101 CHIP 100OHM 1/16W
R538 061T0603102 CHIP 1K OHM 1/16W
R533 061T0603102 CHIP 1K OHM 1/16W
R498 061T0603102 CHIP 1K OHM 1/16W
R484 061T0603102 CHIP 1K OHM 1/16W
R346 061T0603102 CHIP 1K OHM 1/16W
R340 061T0603102 CHIP 1K OHM 1/16W
R309 061T0603102 CHIP 1K OHM 1/16W
R308 061T0603102 CHIP 1K OHM 1/16W
R307 061T0603102 CHIP 1K OHM 1/16W
R223 061T0603102 CHIP 1K OHM 1/16W
R332 061T0603103 CHIP 10KOHM 1/16W
R336 061T0603103 CHIP 10KOHM 1/16W
R341 061T0603103 CHIP 10KOHM 1/16W

R4022 061T0603103 CHIP 10KOHM 1/16W
R4023 061T0603103 CHIP 10KOHM 1/16W
R4024 061T0603103 CHIP 10KOHM 1/16W
R4025 061T0603103 CHIP 10KOHM 1/16W
R4026 061T0603103 CHIP 10KOHM 1/16W
R4027 061T0603103 CHIP 10KOHM 1/16W

R430 061T0603103 CHIP 10KOHM 1/16W
R474 061T0603103 CHIP 10KOHM 1/16W
R714 061T0603103 CHIP 10KOHM 1/16W
R711 061T0603103 CHIP 10KOHM 1/16W
R558 061T0603103 CHIP 10KOHM 1/16W
R555 061T0603103 CHIP 10KOHM 1/16W
R554 061T0603103 CHIP 10KOHM 1/16W
R546 061T0603103 CHIP 10KOHM 1/16W
R527 061T0603103 CHIP 10KOHM 1/16W
R477 061T0603103 CHIP 10KOHM 1/16W
R476 061T0603103 CHIP 10KOHM 1/16W
R231 061T0603104 CHIP 100K OHM 1/16W
R712 061T0603104 CHIP 100K OHM 1/16W
R548 061T0603104 CHIP 100K OHM 1/16W

R4019 061T0603105 CHIP 1MOHM 1/16W

R228 061T0603105 CHIP 1MOHM 1/16W
R246 061T0603121 RST CHIPR 120 OHM +-5% 1/10W
R333 061T0603122 RST CHIPR 1.2 KOHM +-5% 1/10W
R342 061T0603122 RST CHIPR 1.2 KOHM +-5% 1/10W
R204 061T0603123 RST CHIPR 12 KOHM +-5% 1/10W
R221 061T0603123 RST CHIPR 12 KOHM +-5% 1/10W
R243 061T0603123 RST CHIPR 12 KOHM +-5% 1/10W
R306 061T0603150 RST CHIPR 15 OHM +-5% 1/10W
R305 061T0603150 RST CHIPR 15 OHM +-5% 1/10W
R304 061T0603150 RST CHIPR 15 OHM +-5% 1/10W
R303 061T0603150 RST CHIPR 15 OHM +-5% 1/10W
R209 061T0603151 RST CHIPR 150 OHM +-5% 1/10W
R226 061T0603151 RST CHIPR 150 OHM +-5% 1/10W
R314 061T0603152 CHIP 1.5KOHM 1/16W
R229 061T0603184 RST CHIPR 180 KOHM +-5% 1/10W
R224 061T0603184 RST CHIPR 180 KOHM +-5% 1/10W

66

32″ LCD TV AOC L32W431

R492 061T0603202 RST CHIPR 2 KOHM +-5% 1/10W
R425 061T0603220 CHIP 22OHM 1/16W
R424 061T0603220 CHIP 22OHM 1/16W
R245 061T0603220 CHIP 22OHM 1/16W
R220 061T0603220 CHIP 22OHM 1/16W
R216 061T0603220 CHIP 22OHM 1/16W
R214 061T0603220 CHIP 22OHM 1/16W
R211 061T0603220 CHIP 22OHM 1/16W
R210 061T0603220 CHIP 22OHM 1/16W
R203 061T0603220 CHIP 22OHM 1/16W
R426 061T0603220 CHIP 22OHM 1/16W
R428 061T0603220 CHIP 22OHM 1/16W
R429 061T0603220 CHIP 22OHM 1/16W
R434 061T0603220 CHIP 22OHM 1/16W
R473 061T0603221 CHIP 220OHM 1/16W
R345 061T0603222 CHIP 2.2K OHM 1/16W
R715 061T0603223 CHIP 22KOHM 1/16W
R709 061T0603223 CHIP 22KOHM 1/16W
R707 061T0603223 CHIP 22KOHM 1/16W
R706 061T0603223 CHIP 22KOHM 1/16W
R320 061T0603223 CHIP 22KOHM 1/16W
R315 061T0603223 CHIP 22KOHM 1/16W
R244 061T0603223 CHIP 22KOHM 1/16W
R225 061T0603223 CHIP 22KOHM 1/16W
R208 061T0603223 CHIP 22KOHM 1/16W
R420 061T0603330 CHIP 33OHM 1/16W
R419 061T0603330 CHIP 33OHM 1/16W
R415 061T0603330 CHIP 33OHM 1/16W
R414 061T0603330 CHIP 33OHM 1/16W

R4016 061T0603330 CHIP 33OHM 1/16W

R560 061T0603331 RST CHIPR 330 OHM +-5% 1/10W
R559 061T0603331 RST CHIPR 330 OHM +-5% 1/10W
R557 061T0603392 CHIP 3.9KOHM 1/16W
R556 061T0603392 CHIP 3.9KOHM 1/16W
R553 061T0603392 CHIP 3.9KOHM 1/16W
R551 061T0603392 CHIP 3.9KOHM 1/16W
R535 061T0603432 RST CHIPR 4.3 KOHM +-5% 1/10W
R531 061T0603432 RST CHIPR 4.3 KOHM +-5% 1/10W

R4001 061T0603470 RST CHIPR 47 OHM +-5% 1/10W
R4005 061T0603470 RST CHIPR 47 OHM +-5% 1/10W
R4006 061T0603470 RST CHIPR 47 OHM +-5% 1/10W

R499 061T0603470 RST CHIPR 47 OHM +-5% 1/10W
R316 061T0603471 RST CHIPR 470OHM +-5% 1/10W
R321 061T0603471 RST CHIPR 470OHM +-5% 1/10W
R339 061T0603471 RST CHIPR 470OHM +-5% 1/10W
R344 061T0603471 RST CHIPR 470OHM +-5% 1/10W
R444 061T0603472 CHIP 4.7KOHM 1/16W
R439 061T0603472 CHIP 4.7KOHM 1/16W
R438 061T0603472 CHIP 4.7KOHM 1/16W
R437 061T0603472 CHIP 4.7KOHM 1/16W
R436 061T0603472 CHIP 4.7KOHM 1/16W
R435 061T0603472 CHIP 4.7KOHM 1/16W
R433 061T0603472 CHIP 4.7KOHM 1/16W
R427 061T0603472 CHIP 4.7KOHM 1/16W
R418 061T0603472 CHIP 4.7KOHM 1/16W
R417 061T0603472 CHIP 4.7KOHM 1/16W

67

32″ LCD TV AOC L32W431

R412 061T0603472 CHIP 4.7KOHM 1/16W
R404 061T0603472 CHIP 4.7KOHM 1/16W
R455 061T0603472 CHIP 4.7KOHM 1/16W
R454 061T0603472 CHIP 4.7KOHM 1/16W
R453 061T0603472 CHIP 4.7KOHM 1/16W
R451 061T0603472 CHIP 4.7KOHM 1/16W
R450 061T0603472 CHIP 4.7KOHM 1/16W
R449 061T0603472 CHIP 4.7KOHM 1/16W
R448 061T0603472 CHIP 4.7KOHM 1/16W
R481 061T0603472 CHIP 4.7KOHM 1/16W
R482 061T0603472 CHIP 4.7KOHM 1/16W
R486 061T0603472 CHIP 4.7KOHM 1/16W
R490 061T0603472 CHIP 4.7KOHM 1/16W
R491 061T0603472 CHIP 4.7KOHM 1/16W
R495 061T0603472 CHIP 4.7KOHM 1/16W
R532 061T0603472 CHIP 4.7KOHM 1/16W
R468 061T0603472 CHIP 4.7KOHM 1/16W
R469 061T0603472 CHIP 4.7KOHM 1/16W
R479 061T0603472 CHIP 4.7KOHM 1/16W
R480 061T0603472 CHIP 4.7KOHM 1/16W
R457 061T0603472 CHIP 4.7KOHM 1/16W
R458 061T0603472 CHIP 4.7KOHM 1/16W
R217 061T0603472 CHIP 4.7KOHM 1/16W
R218 061T0603472 CHIP 4.7KOHM 1/16W
R330 061T0603472 CHIP 4.7KOHM 1/16W
R331 061T0603472 CHIP 4.7KOHM 1/16W
R334 061T0603472 CHIP 4.7KOHM 1/16W

R4013 061T0603472 CHIP 4.7KOHM 1/16W
R4018 061T0603472 CHIP 4.7KOHM 1/16W

R402 061T0603472 CHIP 4.7KOHM 1/16W

R4028 061T0603472 CHIP 4.7KOHM 1/16W
R4029 061T0603472 CHIP 4.7KOHM 1/16W

R403 061T0603472 CHIP 4.7KOHM 1/16W

R4030 061T0603472 CHIP 4.7KOHM 1/16W

R230 061T0603473 CHIP 47KOHM 1/16W
R232 061T0603473 CHIP 47KOHM 1/16W
R432 061T0603473 CHIP 47KOHM 1/16W
R496 061T0603473 CHIP 47KOHM 1/16W
R701 061T0603473 CHIP 47KOHM 1/16W
R702 061T0603473 CHIP 47KOHM 1/16W
R703 061T0603473 CHIP 47KOHM 1/16W
R713 061T0603473 CHIP 47KOHM 1/16W

R4014 061T0603474 RST CHIPR 470 KOHM +-5% 1/10W
R4015 061T0603474 RST CHIPR 470 KOHM +-5% 1/10W

R301 061T0603510 RST CHIPR 51 OHM +-5% 1/10W
R302 061T0603510 RST CHIPR 51 OHM +-5% 1/10W
R542 061T0603512 RST CHIPR 5.1 KOHM +-5% 1/10W
R337 061T0603680 RST CHIPR 68 OHM +-5% 1/10W
R338 061T0603680 RST CHIPR 68 OHM +-5% 1/10W
R552 061T0603682 RST CHIPR 6.8KOHM +-5% 1/10W
R550 061T0603682 RST CHIPR 6.8KOHM +-5% 1/10W
R205 061T0603750 75OHM
R206 061T0603750 75OHM
R207 061T0603750 75OHM
R328 061T0603750 75OHM
R317 061T0603750 9F CHIP 75OHM 1/16W 1%

68

32″ LCD TV AOC L32W431

R318 061T0603750 9F CHIP 75OHM 1/16W 1%
R319 061T0603750 9F CHIP 75OHM 1/16W 1%
R704 061T0603752 RST CHIPR 7.5 KOHM +-5% 1/10W
R705 061T0603752 RST CHIPR 7.5 KOHM +-5% 1/10W
R545 061T0603820 1F RST CHIPR 8.2 KOHM +-1% 1/10W
R478 061T0603822 RST CHIPR 8.2 KOHM +-5% 1/10W
R526 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R528 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R529 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R710 061T0805302 RST CHIPR 3 KOHM +-5% 1/8W
R708 061T0805302 RST CHIPR 3 KOHM +-5% 1/8W
R549 061T1206620 0F RST CHIPR 620 OHM +-1% 1/4W

L304 061V0805000 CHIP 0OHM 1/10W
C576 065T0603101 31 CHIP 100PF 50V NPO
C565 065T0603101 31 CHIP 100PF 50V NPO
C409 065T0603101 31 CHIP 100PF 50V NPO
C406 065T0603101 31 CHIP 100PF 50V NPO
C405 065T0603101 31 CHIP 100PF 50V NPO
C220 065T0603101 32 CHIP 100PF 50V X7R
C216 065T0603101 32 CHIP 100PF 50V X7R
C208 065T0603101 32 CHIP 100PF 50V X7R
C202 065T0603101 32 CHIP 100PF 50V X7R
C201 065T0603101 32 CHIP 100PF 50V X7R
C200 065T0603102 32 CHIP 1000PF 50V X7R
C224 065T0603102 32 CHIP 1000PF 50V X7R
C400 065T0603102 32 CHIP 1000PF 50V X7R
C500 065T0603102 32 CHIP 1000PF 50V X7R
C596 065T0603102 32 CHIP 1000PF 50V X7R
C466 065T0603103 32 CHIP 0.01UF 50V X7R
C467 065T0603103 32 CHIP 0.01UF 50V X7R
C446 065T0603103 32 CHIP 0.01UF 50V X7R
C445 065T0603103 32 CHIP 0.01UF 50V X7R
C444 065T0603103 32 CHIP 0.01UF 50V X7R
C443 065T0603103 32 CHIP 0.01UF 50V X7R
C442 065T0603103 32 CHIP 0.01UF 50V X7R
C431 065T0603103 32 CHIP 0.01UF 50V X7R
C430 065T0603103 32 CHIP 0.01UF 50V X7R
C429 065T0603103 32 CHIP 0.01UF 50V X7R
C428 065T0603103 32 CHIP 0.01UF 50V X7R
C427 065T0603103 32 CHIP 0.01UF 50V X7R
C426 065T0603103 32 CHIP 0.01UF 50V X7R
C461 065T0603103 32 CHIP 0.01UF 50V X7R
C455 065T0603103 32 CHIP 0.01UF 50V X7R
C454 065T0603103 32 CHIP 0.01UF 50V X7R
C449 065T0603103 32 CHIP 0.01UF 50V X7R
C448 065T0603103 32 CHIP 0.01UF 50V X7R
C447 065T0603103 32 CHIP 0.01UF 50V X7R
C472 065T0603103 32 CHIP 0.01UF 50V X7R
C475 065T0603103 32 CHIP 0.01UF 50V X7R
C477 065T0603103 32 CHIP 0.01UF 50V X7R
C489 065T0603103 32 CHIP 0.01UF 50V X7R
C490 065T0603103 32 CHIP 0.01UF 50V X7R
C491 065T0603103 32 CHIP 0.01UF 50V X7R
C492 065T0603103 32 CHIP 0.01UF 50V X7R
C493 065T0603103 32 CHIP 0.01UF 50V X7R
C494 065T0603103 32 CHIP 0.01UF 50V X7R

69

32″ LCD TV AOC L32W431

C462 065T0603103 32 CHIP 0.01UF 50V X7R
C464 065T0603103 32 CHIP 0.01UF 50V X7R
C465 065T0603103 32 CHIP 0.01UF 50V X7R
C588 065T0603103 32 CHIP 0.01UF 50V X7R
C582 065T0603103 32 CHIP 0.01UF 50V X7R
C572 065T0603103 32 CHIP 0.01UF 50V X7R
C568 065T0603103 32 CHIP 0.01UF 50V X7R
C495 065T0603103 32 CHIP 0.01UF 50V X7R
C301 065T0603103 32 CHIP 0.01UF 50V X7R
C306 065T0603103 32 CHIP 0.01UF 50V X7R
C307 065T0603103 32 CHIP 0.01UF 50V X7R
C425 065T0603103 32 CHIP 0.01UF 50V X7R
C424 065T0603103 32 CHIP 0.01UF 50V X7R
C410 065T0603103 32 CHIP 0.01UF 50V X7R
C402 065T0603103 32 CHIP 0.01UF 50V X7R
C315 065T0603103 32 CHIP 0.01UF 50V X7R
C310 065T0603103 32 CHIP 0.01UF 50V X7R
C309 065T0603103 32 CHIP 0.01UF 50V X7R
C308 065T0603103 32 CHIP 0.01UF 50V X7R
C722 065T0603104 12 MLCC 0603 0.1UF K 16V X7R
C342 065T0603104 12 MLCC 0603 0.1UF K 16V X7R
C339 065T0603104 12 MLCC 0603 0.1UF K 16V X7R
C318 065T0603104 12 MLCC 0603 0.1UF K 16V X7R
C232 065T0603104 12 MLCC 0603 0.1UF K 16V X7R
C223 065T0603104 12 MLCC 0603 0.1UF K 16V X7R
C222 065T0603104 12 MLCC 0603 0.1UF K 16V X7R
C221 065T0603104 12 MLCC 0603 0.1UF K 16V X7R
C214 065T0603104 12 MLCC 0603 0.1UF K 16V X7R
C213 065T0603104 12 MLCC 0603 0.1UF K 16V X7R
C211 065T0603104 12 MLCC 0603 0.1UF K 16V X7R
C210 065T0603104 12 MLCC 0603 0.1UF K 16V X7R
C207 065T0603104 12 MLCC 0603 0.1UF K 16V X7R
C206 065T0603104 12 MLCC 0603 0.1UF K 16V X7R
C204 065T0603104 12 MLCC 0603 0.1UF K 16V X7R
C590 065T0603104 22 CHIP 0.1UF 25V
C420 065T0603104 32 CHIP 0.1UF 50V X7R
C421 065T0603104 32 CHIP 0.1UF 50V X7R
C422 065T0603104 32 CHIP 0.1UF 50V X7R
C423 065T0603104 32 CHIP 0.1UF 50V X7R
C436 065T0603104 32 CHIP 0.1UF 50V X7R
C438 065T0603104 32 CHIP 0.1UF 50V X7R
C439 065T0603104 32 CHIP 0.1UF 50V X7R
C440 065T0603104 32 CHIP 0.1UF 50V X7R
C441 065T0603104 32 CHIP 0.1UF 50V X7R
C451 065T0603104 32 CHIP 0.1UF 50V X7R
C452 065T0603104 32 CHIP 0.1UF 50V X7R
C453 065T0603104 32 CHIP 0.1UF 50V X7R
C459 065T0603104 32 CHIP 0.1UF 50V X7R
C460 065T0603104 32 CHIP 0.1UF 50V X7R
C468 065T0603104 32 CHIP 0.1UF 50V X7R
C469 065T0603104 32 CHIP 0.1UF 50V X7R
C471 065T0603104 32 CHIP 0.1UF 50V X7R
C474 065T0603104 32 CHIP 0.1UF 50V X7R
C382 065T0603104 32 CHIP 0.1UF 50V X7R
C383 065T0603104 32 CHIP 0.1UF 50V X7R
C384 065T0603104 32 CHIP 0.1UF 50V X7R

70

32″ LCD TV AOC L32W431

C385 065T0603104 32 CHIP 0.1UF 50V X7R
C386 065T0603104 32 CHIP 0.1UF 50V X7R
C387 065T0603104 32 CHIP 0.1UF 50V X7R
C388 065T0603104 32 CHIP 0.1UF 50V X7R
C389 065T0603104 32 CHIP 0.1UF 50V X7R
C390 065T0603104 32 CHIP 0.1UF 50V X7R
C391 065T0603104 32 CHIP 0.1UF 50V X7R
C392 065T0603104 32 CHIP 0.1UF 50V X7R
C393 065T0603104 32 CHIP 0.1UF 50V X7R
C394 065T0603104 32 CHIP 0.1UF 50V X7R
C395 065T0603104 32 CHIP 0.1UF 50V X7R
C396 065T0603104 32 CHIP 0.1UF 50V X7R
C398 065T0603104 32 CHIP 0.1UF 50V X7R

C4001 065T0603104 32 CHIP 0.1UF 50V X7R

C407 065T0603104 32 CHIP 0.1UF 50V X7R
C417 065T0603104 32 CHIP 0.1UF 50V X7R
C476 065T0603104 32 CHIP 0.1UF 50V X7R
C701 065T0603104 32 CHIP 0.1UF 50V X7R
C702 065T0603104 32 CHIP 0.1UF 50V X7R
C703 065T0603104 32 CHIP 0.1UF 50V X7R
C704 065T0603104 32 CHIP 0.1UF 50V X7R
C712 065T0603104 32 CHIP 0.1UF 50V X7R
C716 065T0603104 32 CHIP 0.1UF 50V X7R
C717 065T0603104 32 CHIP 0.1UF 50V X7R
C718 065T0603104 32 CHIP 0.1UF 50V X7R
C720 065T0603104 32 CHIP 0.1UF 50V X7R
C725 065T0603104 32 CHIP 0.1UF 50V X7R
C728 065T0603104 32 CHIP 0.1UF 50V X7R
C730 065T0603104 32 CHIP 0.1UF 50V X7R
C732 065T0603104 32 CHIP 0.1UF 50V X7R
C734 065T0603104 32 CHIP 0.1UF 50V X7R
C736 065T0603104 32 CHIP 0.1UF 50V X7R
C740 065T0603104 32 CHIP 0.1UF 50V X7R
C745 065T0603104 32 CHIP 0.1UF 50V X7R
C751 065T0603104 32 CHIP 0.1UF 50V X7R
C594 065T0603104 32 CHIP 0.1UF 50V X7R
C478 065T0603104 32 CHIP 0.1UF 50V X7R
C479 065T0603104 32 CHIP 0.1UF 50V X7R
C484 065T0603104 32 CHIP 0.1UF 50V X7R
C485 065T0603104 32 CHIP 0.1UF 50V X7R
C486 065T0603104 32 CHIP 0.1UF 50V X7R
C487 065T0603104 32 CHIP 0.1UF 50V X7R
C488 065T0603104 32 CHIP 0.1UF 50V X7R
C498 065T0603104 32 CHIP 0.1UF 50V X7R
C549 065T0603104 32 CHIP 0.1UF 50V X7R
C550 065T0603104 32 CHIP 0.1UF 50V X7R
C551 065T0603104 32 CHIP 0.1UF 50V X7R
C552 065T0603104 32 CHIP 0.1UF 50V X7R
C557 065T0603104 32 CHIP 0.1UF 50V X7R
C558 065T0603104 32 CHIP 0.1UF 50V X7R
C564 065T0603104 32 CHIP 0.1UF 50V X7R
C569 065T0603104 32 CHIP 0.1UF 50V X7R
C585 065T0603104 32 CHIP 0.1UF 50V X7R
C593 065T0603104 32 CHIP 0.1UF 50V X7R
C381 065T0603104 32 CHIP 0.1UF 50V X7R
C320 065T0603104 32 CHIP 0.1UF 50V X7R

71

32″ LCD TV AOC L32W431

C321 065T0603104 32 CHIP 0.1UF 50V X7R
C322 065T0603104 32 CHIP 0.1UF 50V X7R
C325 065T0603104 32 CHIP 0.1UF 50V X7R
C329 065T0603104 32 CHIP 0.1UF 50V X7R
C330 065T0603104 32 CHIP 0.1UF 50V X7R
C331 065T0603104 32 CHIP 0.1UF 50V X7R
C332 065T0603104 32 CHIP 0.1UF 50V X7R
C333 065T0603104 32 CHIP 0.1UF 50V X7R
C334 065T0603104 32 CHIP 0.1UF 50V X7R
C335 065T0603104 32 CHIP 0.1UF 50V X7R
C336 065T0603104 32 CHIP 0.1UF 50V X7R
C340 065T0603104 32 CHIP 0.1UF 50V X7R
C344 065T0603104 32 CHIP 0.1UF 50V X7R
C758 065T0603104 32 CHIP 0.1UF 50V X7R
C760 065T0603104 32 CHIP 0.1UF 50V X7R
C212 065T0603104 32 CHIP 0.1UF 50V X7R
C229 065T0603104 32 CHIP 0.1UF 50V X7R
C230 065T0603104 32 CHIP 0.1UF 50V X7R

C3002 065T0603104 32 CHIP 0.1UF 50V X7R
C3006 065T0603104 32 CHIP 0.1UF 50V X7R

C302 065T0603104 32 CHIP 0.1UF 50V X7R
C303 065T0603104 32 CHIP 0.1UF 50V X7R
C304 065T0603104 32 CHIP 0.1UF 50V X7R
C305 065T0603104 32 CHIP 0.1UF 50V X7R
C313 065T0603104 32 CHIP 0.1UF 50V X7R
C314 065T0603104 32 CHIP 0.1UF 50V X7R
C317 065T0603104 32 CHIP 0.1UF 50V X7R
C346 065T0603104 32 CHIP 0.1UF 50V X7R
C365 065T0603104 32 CHIP 0.1UF 50V X7R
C366 065T0603104 32 CHIP 0.1UF 50V X7R
C368 065T0603104 32 CHIP 0.1UF 50V X7R
C370 065T0603104 32 CHIP 0.1UF 50V X7R
C371 065T0603104 32 CHIP 0.1UF 50V X7R
C372 065T0603104 32 CHIP 0.1UF 50V X7R
C373 065T0603104 32 CHIP 0.1UF 50V X7R
C374 065T0603104 32 CHIP 0.1UF 50V X7R
C375 065T0603104 32 CHIP 0.1UF 50V X7R
C376 065T0603104 32 CHIP 0.1UF 50V X7R
C377 065T0603104 32 CHIP 0.1UF 50V X7R
C378 065T0603104 32 CHIP 0.1UF 50V X7R
C379 065T0603104 32 CHIP 0.1UF 50V X7R
C380 065T0603104 32 CHIP 0.1UF 50V X7R
C349 065T0603104 32 CHIP 0.1UF 50V X7R
C348 065T0603104 32 CHIP 0.1UF 50V X7R
C351 065T0603104 32 CHIP 0.1UF 50V X7R
C352 065T0603104 32 CHIP 0.1UF 50V X7R
C353 065T0603104 32 CHIP 0.1UF 50V X7R
C354 065T0603104 32 CHIP 0.1UF 50V X7R
C356 065T0603104 32 CHIP 0.1UF 50V X7R
C357 065T0603104 32 CHIP 0.1UF 50V X7R
C358 065T0603104 32 CHIP 0.1UF 50V X7R
C360 065T0603104 32 CHIP 0.1UF 50V X7R
C361 065T0603104 32 CHIP 0.1UF 50V X7R
C362 065T0603104 32 CHIP 0.1UF 50V X7R
C363 065T0603104 32 CHIP 0.1UF 50V X7R
C364 065T0603104 32 CHIP 0.1UF 50V X7R

72

32″ LCD TV AOC L32W431

C481 065T0603150 31 CHIP 15PF 50V NPO
C480 065T0603150 31 CHIP 15PF 50V NPO
C300 065T0603272 32 CHIP 2700PF 50V X7R
C337 065T0603272 32 CHIP 2700PF 50V X7R

C3005 065T0603330 31 CHIP 33PF 50V NPO

C412 065T0603330 31 CHIP 33PF 50V NPO
C411 065T0603330 31 CHIP 33PF 50V NPO
C324 065T0603330 31 CHIP 33PF 50V NPO
C323 065T0603330 31 CHIP 33PF 50V NPO
C545 065T0603332 32 CHIP 3300PF 50V X7R
C544 065T0603332 32 CHIP 3300PF 50V X7R
C546 065T0603333 32 CHIP 0.033UF 50V X7R
C547 065T0603333 32 CHIP 0.033UF 50V X7R
C209 065T0603470 32 CHIP 47PF 50V X7R

C5000 065T0603471 31 CHIP 470PF 50V NPO
C5001 065T0603471 31 CHIP 470PF 50V NPO

C598 065T0603471 31 CHIP 470PF 50V NPO
C599 065T0603471 31 CHIP 470PF 50V NPO
C556 065T0603472 32 CHIP 4700PF 50V X7R
C555 065T0603472 32 CHIP 4700PF 50V X7R
C312 065T0603472 32 CHIP 4700PF 50V X7R
C311 065T0603472 32 CHIP 4700PF 50V X7R
C225 065T0603473 32 CHIP 0.047UF 50V X7R
C217 065T0603473 32 CHIP 0.047UF 50V X7R
C219 065T0603474 17 CHIP 0.47UF 16V Y5V
C226 065T0603474 17 CHIP 0.47UF 16V Y5V
C562 065T0603474 17 CHIP 0.47UF 16V Y5V
C566 065T0603474 17 CHIP 0.47UF 16V Y5V
C579 065T0603474 17 CHIP 0.47UF 16V Y5V
C580 065T0603474 17 CHIP 0.47UF 16V Y5V
C587 065T0603474 17 CHIP 0.47UF 16V Y5V
C589 065T0603474 17 CHIP 0.47UF 16V Y5V

C3001 065T0603680 31 CHIP 68PF 50V NPO

C399 065T0603680 31 CHIP 68PF 50V NPO
C711 065T0603683 12 CHIP 0.68UF 16V X7R
C584 065T0805103 22 CHIP 0.01UF 25V X7R 0805
C581 065T0805103 22 CHIP 0.01UF 25V X7R 0805
C575 065T0805103 22 CHIP 0.01UF 25V X7R 0805
C567 065T0805103 22 CHIP 0.01UF 25V X7R 0805
C571 065T0805104 22 0.1UF +-10% 25V X7R 0805
C583 065T0805104 22 0.1UF +-10% 25V X7R 0805
C709 065T0805105 12 1UF +-10% 16V X7R
C710 065T0805105 12 1UF +-10% 16V X7R
C559 065T0805105 22 CHIP 1UF 25V X7R 0805
C563 065T0805225 12 CHIP 2.2UF 16V X7R 0805

C3004 065T0805475 A5 CHIP 4.7UF 10V X5R
C5004 065T0805475 A5 CHIP 4.7UF 10V X5R
C5005 065T0805475 A5 CHIP 4.7UF 10V X5R

C542 065T0805475 A5 CHIP 4.7UF 10V X5R
C543 065T0805475 A5 CHIP 4.7UF 10V X5R
C553 065T0805475 A5 CHIP 4.7UF 10V X5R
C554 065T0805475 A5 CHIP 4.7UF 10V X5R
C560 065T0805475 A5 CHIP 4.7UF 10V X5R
C561 065T0805475 A5 CHIP 4.7UF 10V X5R
C570 065T0805475 A5 CHIP 4.7UF 10V X5R
C573 065T0805475 A5 CHIP 4.7UF 10V X5R

73

32″ LCD TV AOC L32W431

C574 065T0805475 A5 CHIP 4.7UF 10V X5R
C577 065T0805475 A5 CHIP 4.7UF 10V X5R
C578 065T0805475 A5 CHIP 4.7UF 10V X5R

CP500 065T600M471 8T CHIP ARRAY 470PF 8P

C705 067T 312100 6 SMD EC 10UF 35V 85C
C205 067T 312220 3 SMD EC 22UF 16V 85C
C215 067T 312220 3 SMD EC 22UF 16V 85C
C231 067T 312220 3 SMD EC 22UF 16V 85C
C316 067T 312220 3 SMD EC 22UF 16V 85C
C397 067T 312220 3 SMD EC 22UF 16V 85C
C719 067T 312220 3 SMD EC 22UF 16V 85C
C721 067T 312220 3 SMD EC 22UF 16V 85C
C724 067T 312220 3 SMD EC 22UF 16V 85C
C729 067T 312220 3 SMD EC 22UF 16V 85C
C733 067T 312220 3 SMD EC 22UF 16V 85C
C743 067T 312220 3 SMD EC 22UF 16V 85C
C759 067T 312220 3 SMD EC 22UF 16V 85C
C761 067T 4121003XT
C757 067T 4121003XT
C756 067T 4121003XT
C483 067T 4121003XT
C482 067T 4121003XT
C473 067T 4121003XT
C470 067T 4121003XT
C463 067T 4121003XT
C450 067T 4121003XT
C437 067T 4121003XT
C419 067T 4121003XT
C418 067T 4121003XT
C416 067T 4121003XT
C414 067T 4121003XT
C403 067T 4121003XT

C4000 067T 4121003XT

C762 067T 4121003XT
C591 067T 4121003XT
C586 067T 4121003XT

C5003 067T 4121003XT

C499 067T 4121003XT
C497 067T 4121003XT
C496 067T 4121003XT
C592 067T 4121003XT
C713 067T 4121003XT
C714 067T 4121003XT
C715 067T 4121003XT
C723 067T 4121003XT
C726 067T 4121003XT
C731 067T 4121003XT
C744 067T 4121003XT
C749 067T 4121003XT
C750 067T 4121003XT
C218 067T 4121003XT
C228 067T 4121003XT
C319 067T 4121003XT
C338 067T 4121003XT
C341 067T 4121003XT
C343 067T 4121003XT

EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V

74

32″ LCD TV AOC L32W431

C345 067T 4121003XT
C347 067T 4121003XT
C350 067T 4121003XT
C355 067T 4121003XT
C359 067T 4121003XT
C367 067T 4121003XT
C369 067T 4121003XT
C408 067T 4121013XT
C413 067T 4121013XT

C5002 067T 4124703XT

C595 067T 4124703XT
C597 067T 4124703XT
C706 067T 4124703XT
C707 067T 4124703XT
C727 067T 4124703XT
C735 067T 4124703XT
C742 067T 4124703XT

LP200 071T 56A301 8M CHIP BEAD

L400 071T 56B221 CHIP BEAD 220 OHM

L406 071T 56B221 CHIP BEAD 220 OHM

L407 071T 56B221 CHIP BEAD 220 OHM

L408 071T 56B221 CHIP BEAD 220 OHM

L409 071T 56B221 CHIP BEAD 220 OHM

L411 071T 56B221 CHIP BEAD 220 OHM

L711 071T 56D121 CHIP BEAD

FB300 071T 56G151 A CHIOP BEAD 150 OHM
FB302 071T 56G151 A CHIOP BEAD 150 OHM
FB303 071T 56G151 A CHIOP BEAD 150 OHM
FB304 071T 56G151 A CHIOP BEAD 150 OHM
FB305 071T 56G151 A CHIOP BEAD 150 OHM
FB306 071T 56G151 A CHIOP BEAD 150 OHM

L200 071T 56G151 B BEAD 0805 150 OHM

L206 071T 56G151 B BEAD 0805 150 OHM

L207 071T 56G151 B BEAD 0805 150 OHM

FB301 071T 56G151 MD 0603 150 OHM

L305 071T 56G301 EA CHIP BEAD 300 OHM 0805

L410 071T 56G301 EA CHIP BEAD 300 OHM 0805

L502 071T 56G301 EA CHIP BEAD 300 OHM 0805

L503 071T 56G301 EA CHIP BEAD 300 OHM 0805

L508 071T 56G301 EA CHIP BEAD 300 OHM 0805

L509 071T 56G301 EA CHIP BEAD 300 OHM 0805

L510 071T 56G301 EA CHIP BEAD 300 OHM 0805

L511 071T 56G301 EA CHIP BEAD 300 OHM 0805

L700 071T 56G301 EA CHIP BEAD 300 OHM 0805

L702 071T 56G301 EA CHIP BEAD 300 OHM 0805

L706 071T 56G301 EA CHIP BEAD 300 OHM 0805

L708 071T 56G301 EA CHIP BEAD 300 OHM 0805

L710 071T 56G301 EA CHIP BEAD 300 OHM 0805

L714 071T 56G301 EA CHIP BEAD 300 OHM 0805

L716 071T 56G301 EA CHIP BEAD 300 OHM 0805

L719 071T 56G301 EA CHIP BEAD 300 OHM 0805

L720 071T 56G301 EA CHIP BEAD 300 OHM 0805

L203 071T 56U600 CHIP BEAD 60 OHM 0805

L202 071T 56U600 CHIP BEAD 60 OHM 0805

L201 071T 56U600 CHIP BEAD 60 OHM 0805

L709 071T 56U601 MA 0805 600 OHM

EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ SMD CAP 100UF M 16V
EC 85℃ SMD CAP 100UF M 16V
EC 85℃ SMD CAP 47UF M 16V
EC 85℃ SMD CAP 47UF M 16V
EC 85℃ SMD CAP 47UF M 16V
EC 85℃ SMD CAP 47UF M 16V
EC 85℃ SMD CAP 47UF M 16V
EC 85℃ SMD CAP 47UF M 16V
EC 85℃ SMD CAP 47UF M 16V
EC 85℃ SMD CAP 47UF M 16V

75

32″ LCD TV AOC L32W431

L707 071T 56U601 MA 0805 600 OHM

L507 071T 56Z601 CHIP BEAD 600 OHM

L401 071T 56Z601 CHIP BEAD 600 OHM

L303 071T 56Z601 CHIP BEAD 600 OHM

L208 071T 56Z601 CHIP BEAD 600 OHM

L205 071T 56Z601 CHIP BEAD 600 OHM

L204 071T 56Z601 CHIP BEAD 600 OHM

LP500 071T 57G601 YB

LP500 071T 57G601TSB IND CHIP BEAD 1206 600OHM TECSTAR

L302 073T 12622910K CHIP INDUCTOR 2.2UH 10% 1206

L301 073T 12622910K CHIP INDUCTOR 2.2UH 10% 1206

L300 073T 12622910K CHIP INDUCTOR 2.2UH 10% 1206

L402 073T253S 6 K SMD CHOKE 90 OHM WCM2012D-900T

L403 073T253S 6 K SMD CHOKE 90 OHM WCM2012D-900T

L404 073T253S 6 K SMD CHOKE 90 OHM WCM2012D-900T

L405 073T253S 6 K SMD CHOKE 90 OHM WCM2012D-900T
U401 087T 202 32 NY IC SOCKET 32PIN PLCC
P400 088T 340 19 H HDMI HEADER

ZD200 093T 39147SEM ZMM5V6
ZD201 093T 39147SEM ZMM5V6

D205 093T 60231 NO APP BAT54S SOT-23
D206 093T 60231 NO APP BAT54S SOT-23
D204 093T 60505 BAT54C PHILIPS
D400 093T 60505 BAT54C PHILIPS
D500 093T 64 42 P BAV70 SOT23
D201 093T 6433P BAV99
D202 093T 6433P BAV99
D203 093T 6433P BAV99
D502 093T 6433P BAV99
D501 093T 6433P BAV99

ZD400 093T 39S 60 T MLL5227B

715T1768 1 MAIN BOARD PCB

U600 056T 133 30AAC AZ1117H-ADJ-E1
U101 056T 585 11 AZ1117D-5.0-E1
U601 056T 593 28 IC MSP3440G-QI-C12-000 PMQFP-64
U100 056T 614 1 IC 74HC4052D PHILIPS
U104 056T 625 1 NJM-2244M-TE1/JRC
U105 056T 652 1 PCA9554PW TSSOP-16 PHILIPS 8BI

RN103 061T 125473 8 RST CHIP AR 8P4R 47 KOHM +-5% 1/16W
RN102 061T 125473 8 RST CHIP AR 8P4R 47 KOHM +-5% 1/16W
RN101 061T 125473 8 RST CHIP AR 8P4R 47 KOHM +-5% 1/16W
RN100 061T 125473 8 RST CHIP AR 8P4R 47 KOHM +-5% 1/16W

R120 061T0603000 CHIP 0OHM 1/16W
R121 061T0603000 CHIP 0OHM 1/16W
R160 061T0603000 CHIP 0OHM 1/16W
R146 061T0603101 CHIP 100OHM 1/16W
R147 061T0603101 CHIP 100OHM 1/16W
R609 061T0603101 CHIP 100OHM 1/16W
R611 061T0603101 CHIP 100OHM 1/16W
R619 061T0603101 CHIP 100OHM 1/16W
R620 061T0603101 CHIP 100OHM 1/16W
R621 061T0603101 CHIP 100OHM 1/16W
R622 061T0603101 CHIP 100OHM 1/16W
R623 061T0603101 CHIP 100OHM 1/16W
R145 061T0603101 CHIP 100OHM 1/16W
R144 061T0603101 CHIP 100OHM 1/16W

CHIP BEAD ARRAY BK32164M601-T
TAIYOYUDEN

76

32″ LCD TV AOC L32W431

R142 061T0603101 CHIP 100OHM 1/16W
R140 061T0603101 CHIP 100OHM 1/16W
R122 061T0603102 CHIP 1K OHM 1/16W
R603 061T0603102 CHIP 1K OHM 1/16W
R134 061T0603102 CHIP 1K OHM 1/16W
R139 061T0603103 CHIP 10KOHM 1/16W
R133 061T0603103 CHIP 10KOHM 1/16W
R131 061T0603103 CHIP 10KOHM 1/16W
R602 061T0603120 0F RST CHIPR 120 OHM +-1% 1/10W
R617 061T0603471 RST CHIPR 470OHM +-5% 1/10W
R615 061T0603471 RST CHIPR 470OHM +-5% 1/10W
R613 061T0603471 RST CHIPR 470OHM +-5% 1/10W
R612 061T0603471 RST CHIPR 470OHM +-5% 1/10W
R610 061T0603471 RST CHIPR 470OHM +-5% 1/10W
R608 061T0603471 RST CHIPR 470OHM +-5% 1/10W
R614 061T0603472 CHIP 4.7KOHM 1/16W
R119 061T0603750 9F CHIP 75OHM 1/16W 1%
R115 061T0603750 9F CHIP 75OHM 1/16W 1%
R156 061T0603750 9F CHIP 75OHM 1/16W 1%
R155 061T0603750 9F CHIP 75OHM 1/16W 1%
R138 061T0603750 9F CHIP 75OHM 1/16W 1%
R137 061T0603750 9F CHIP 75OHM 1/16W 1%
R157 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R154 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R153 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R132 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R124 061T0805750 RST CHIPR 75 OHM +-5% 1/8W
R604 061T1206620 0F RST CHIPR 620 OHM +-1% 1/4W
C601 065T0603101 31 CHIP 100PF 50V NPO
C168 065T0603101 31 CHIP 100PF 50V NPO
C644 065T0603102 32 CHIP 1000PF 50V X7R
C645 065T0603102 32 CHIP 1000PF 50V X7R
C642 065T0603102 32 CHIP 1000PF 50V X7R
C641 065T0603102 32 CHIP 1000PF 50V X7R
C640 065T0603102 32 CHIP 1000PF 50V X7R
C159 065T0603104 12 MLCC 0603 0.1UF K 16V X7R
C156 065T0603104 12 MLCC 0603 0.1UF K 16V X7R
C157 065T0603104 12 MLCC 0603 0.1UF K 16V X7R
C628 065T0603104 32 CHIP 0.1UF 50V X7R
C612 065T0603104 32 CHIP 0.1UF 50V X7R
C605 065T0603104 32 CHIP 0.1UF 50V X7R
C604 065T0603104 32 CHIP 0.1UF 50V X7R
C163 065T0603104 32 CHIP 0.1UF 50V X7R
C124 065T0603104 32 CHIP 0.1UF 50V X7R
C101 065T0603104 32 CHIP 0.1UF 50V X7R
C635 065T0603152 31 CHIP 1500PF 50V NPO
C620 065T0603152 31 CHIP 1500PF 50V NPO
C600 065T0603152 31 CHIP 1500PF 50V NPO
C150 065T0603220 31 CHIP 22PF 50V NPO
C151 065T0603220 31 CHIP 22PF 50V NPO
C152 065T0603220 31 CHIP 22PF 50V NPO
C153 065T0603220 31 CHIP 22PF 50V NPO
C621 065T0603221 31 GP CHIP 220PF 50V NPO
C627 065T0603331 31 CHIP 330PF 50V NPO
C631 065T0603331 31 CHIP 330PF 50V NPO
C632 065T0603331 31 CHIP 330PF 50V NPO

77

32″ LCD TV AOC L32W431

C626 065T0603331 31 CHIP 330PF 50V NPO
C625 065T0603331 31 CHIP 330PF 50V NPO
C624 065T0603331 31 CHIP 330PF 50V NPO
C161 065T0603470 31 CHIP 47PF 50V NPO
C636 065T0603471 32 CHIP 470PF 50V NPO
C622 065T0603471 32 CHIP 470PF 50V NPO
C611 065T0603471 32 CHIP 470PF 50V NPO
C139 065T0603471 32 CHIP 470PF 50V NPO
C138 065T0603471 32 CHIP 470PF 50V NPO
C135 065T0603471 32 CHIP 470PF 50V NPO
C131 065T0603471 32 CHIP 470PF 50V NPO
C125 065T0603471 32 CHIP 470PF 50V NPO
C607 065T0603509 31 CHIP 5PF 50V NPO
C606 065T0603509 31 CHIP 5PF 50V NPO
C646 065T0603560 31 CHIP 56PF 50V NPO
C609 065T0603560 31 CHIP 56PF 50V NPO
C608 065T0603560 31 CHIP 56PF 50V NPO
C132 065T0603680 31 CHIP 68PF 50V NPO
C143 065T0603680 31 CHIP 68PF 50V NPO
C142 065T0603680 31 CHIP 68PF 50V NPO
C141 065T0603680 31 CHIP 68PF 50V NPO
C140 065T0603680 31 CHIP 68PF 50V NPO
C137 065T0603680 31 CHIP 68PF 50V NPO
C133 065T0603680 31 CHIP 68PF 50V NPO
C128 065T0603680 31 CHIP 68PF 50V NPO
C623 067T 312109 3 SMD EC 1UF 16V 85C
C619 067T 312109 3 SMD EC 1UF 16V 85C
C617 067T 312109 3 SMD EC 1UF 16V 85C
C616 067T 312109 3 SMD EC 1UF 16V 85C
C615 067T 312109 3 SMD EC 1UF 16V 85C
C614 067T 312109 3 SMD EC 1UF 16V 85C
C629 067T 312220 3 SMD EC 22UF 16V 85C
C630 067T 312339 3T CHIP EC 3.3UF 16V 85C
C158 067T 312471 3 SMD EC 470UF 16V 85C
C146 067T 4121003XT
C147 067T 4121003XT
C148 067T 4121003XT
C149 067T 4121003XT
C162 067T 4121003XT
C602 067T 4121003XT
C603 067T 4121003XT
C634 067T 4121003XT
C154 067T 4121003XT
C639 067T 4121003XT
C613 067T 4121003XT
C618 067T 4121003XT
C633 067T 4121003XT
C120 067T 4121003XT
C121 067T 4121003XT
C123 067T 4121003XT
C134 067T 4121003XT
C136 067T 4121003XT
C144 067T 4121003XT
C145 067T 4121003XT
C155 067T 4121013XT
C160 067T 4121013XT

EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ SMD CAP 100UF M 16V
EC 85℃ SMD CAP 100UF M 16V

78

32″ LCD TV AOC L32W431

C610 067T 4121013XT
C643 067T 4124703XT

L128 071T 56U601 BEAD 600 OHM

L111 071T 56Z601 CHIP BEAD 600 OHM

L115 071T 56Z601 CHIP BEAD 600 OHM

L117 071T 56Z601 CHIP BEAD 600 OHM

L600 071T 56Z601 CHIP BEAD 600 OHM

L107 071T 56Z601 CHIP BEAD 600 OHM

L132 071T 57G601 BEAD 1206 600 OHM

L130 071T 57G601 BEAD 1206 600 OHM

L131 071T 57G601 BEAD 1206 600 OHM

L108 071T 59B121 BEAD 0603 120 OHM

L120 071T 59B121 K CHIP BEAD

L119 071T 59B121 K CHIP BEAD

L118 071T 59B121 K CHIP BEAD

L116 071T 59B121 K CHIP BEAD

L113 071T 59B121 K CHIP BEAD

L112 071T 59B121 K CHIP BEAD

L100 071T 59B121 K CHIP BEAD

L603 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608

L602 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608

L601 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608

L124 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608

L123 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608

L122 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608

L121 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608

L114 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608
D100 093T 6432V LL4148-GSO8 SMD BY VISHA

715T2275 1 TUNER BOARD PCB

CN1 033T8032 4C WAFER 1.25MM SMT 4P

R5 061T0603000 CHIP 0OHM 1/16W
R4 061T0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R2 061T0603180 1F RST CHIPR 1.8 KOHM +-1% 1/10W
R1 061T0603220 1F RST CHIPR 2.2 KOHM +-1% 1/10W
R8 061T0603220 2F RST CHIPR 22 KOHM +-1% 1/10W
R6 061T0603330 1F RST CHIPR 3.3 KOHM +-1% 1/10W
R3 061T0603390 0F RST CHIPR 390 OHM +-1% 1/10W
R7 061T0603680 1F RST CHIPR 6.8 KOHM +-1% 1/10W
C1 065T0603101 32 CHIP 100PF 50V X7R
C2 065T0603101 32 CHIP 100PF 50V X7R

L2 071T 56U601 MA 0805 600 OHM
L1 071T 56U601 MA 0805 600 OHM
S1 077T 604 2 TO CHIP TACT SW TS-9-TMG-533
S2 077T 604 2 TO CHIP TACT SW TS-9-TMG-533
S6 077T 604 2 TO CHIP TACT SW TS-9-TMG-533
S7 077T 604 2 TO CHIP TACT SW TS-9-TMG-533
S4 077T 604 2 TO CHIP TACT SW TS-9-TMG-533
S5 077T 604 2 TO CHIP TACT SW TS-9-TMG-533
S3 077T 604 2 TO CHIP TACT SW TS-9-TMG-533

D1 093T 6433P BAV99

715T1623 1 KEY BOARD PCB

Q1 057T 417 6 PMBS3906/PHILIPS-SMT
R43 061T0603101 CHIP 100OHM 1/16W
R45 061T0603103 CHIP 10KOHM 1/16W
R44 061T1206301 RST CHIPR 300 OHM +-5% 1/4W
R46 061T1206331 RST CHIPR 330 OHM +-5% 1/4W

EC 85℃ SMD CAP 100UF M 16V
EC 85℃ SMD CAP 47UF M 16V

79

32″ LCD TV AOC L32W431

C43 065T0603102 32 GP CHIP 1000PF 50V X7R
C41 065T0603104 32 CHIP 0.1UF 50V X7R
C42 065T0603104 32 CHIP 0.1UF 50V X7R
C39 065T0603104 32 CHIP 0.1UF 50V X7R
C40 065T0805475 A5 CHIP 4.7UF 10V X5R
FB6 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608
FB7 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608
FB8 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608

ZD403 093T 6432V LL4148-GSO8 SMD BY VISHA

715T1836 1 3 IR BOARD PCB

C2 065T0603471 31 CHIP 470PF 50V NPO

C1 065T0603471 31 CHIP 470PF 50V NPO

C3 065T0603472 32 CHIP 4700PF 50V X7R
FB3 071T 56U601 BEAD 600 OHM
FB2 071T 56U601 BEAD 600 OHM
FB1 071T 56U601 BEAD 600 OHM

715T1290 1 5 PCB FOR HJPF

CN901 006T 31500 EYELET

T921 006T 31502 1.5MM RIVET
NR902 006T 31502 1.5MM RIVET
NR901 006T 31502 1.5MM RIVET

L906 006T 31502 1.5MM RIVET

L904 006T 31502 1.5MM RIVET

T951 006T 31502 1.5MM RIVET

IC943 056T 158 4 T H431BA
IC923 056T 158 4 T H431BA
IC923 056T 158 10 T IC AZ431AZ-AE1 TO-92 AAC
IC943 056T 158 10 T IC AZ431AZ-AE1 TO-92 AAC

Q945 057T 419 P T TRAN 2SC945P/NEC TAPING
Q947 057T 419 P T TRAN 2SC945P/NEC TAPING
Q945 057T 419501 T KTC945P
Q947 057T 419501 T KTC945P
Q946 057T 420 P T TRAN 2SA733P/NEC TAPING
Q948 057T 420 P T TRAN 2SA733P/NEC TAPING
Q946 057T 420501 T KTA733P
Q948 057T 420501 T KTA733P
Q926 057T 566 1 2N5060RLRAG TO-92 BY ON
Q926 057T 566 4 MCR100-6SCR
R938 061T 17247152T 470OHM 5% 1/4W
R966 061T 60110252T 1K OHM +-2% 1/6W
R937 061T 60168152T 680 OHM +-2% 1/6W
C941 065T 1M103 3T6921 0.01UF 20% 1000V Y5V
C908 065T517M103 3T 0.01UF 20% 500V Y5P
C909 067T 2151007NT 10UF 50V NCC 5*11MM
C923 067T 2151007NT 10UF 50V NCC 5*11MM
C957 067T 2151007NT 10UF 50V NCC 5*11MM
C909 067T 2151007RT LOW E.S.R 10UF +/-20% 50V
C923 067T 2151007RT LOW E.S.R 10UF +/-20% 50V
C957 067T 2151007RT LOW E.S.R 10UF +/-20% 50V
C925 067T 2154707NT 47UF 50V NCC 5*11MM
C944 067T 2154707NT 47UF 50V NCC 5*11MM
C945 067T 2154707NT 47UF 50V NCC 5*11MM
C925 067T 2154707RT LOW E.S.R 470UF +/-20% 50V
C944 067T 2154707RT LOW E.S.R 470UF +/-20% 50V
C945 067T 2154707RT LOW E.S.R 470UF +/-20% 50V

L921 071T 55 23 BEAD CORE

80

32″ LCD TV AOC L32W431

L951 071T 55 23 BEAD CORE

L921 071T 55 23 S FERRITE BEAD K-TYPE

L951 071T 55 23 S FERRITE BEAD K-TYPE

F901 084T 55 3 FUSE 5A 250V

F901 084T 55 4 FUSE 382-5A 250V WICKMANN

J917 095T 90 23 JUMP WIRE

J916 095T 90 23 JUMP WIRE

J915 095T 90 23 JUMP WIRE

J914 095T 90 23 JUMP WIRE

J913 095T 90 23 JUMP WIRE

J912 095T 90 23 JUMP WIRE

J911 095T 90 23 JUMP WIRE

J910 095T 90 23 JUMP WIRE

J909 095T 90 23 JUMP WIRE

J908 095T 90 23 JUMP WIRE

J907 095T 90 23 JUMP WIRE

J906 095T 90 23 JUMP WIRE

J935 095T 90 23 JUMP WIRE

J934 095T 90 23 JUMP WIRE

J933 095T 90 23 JUMP WIRE

J931 095T 90 23 JUMP WIRE

J928 095T 90 23 JUMP WIRE

J927 095T 90 23 JUMP WIRE

J926 095T 90 23 JUMP WIRE

J925 095T 90 23 JUMP WIRE

J924 095T 90 23 JUMP WIRE

J922 095T 90 23 JUMP WIRE

J921 095T 90 23 JUMP WIRE

J920 095T 90 23 JUMP WIRE

J919 095T 90 23 JUMP WIRE

J918 095T 90 23 JUMP WIRE

J905 095T 90 23 JUMP WIRE

J904 095T 90 23 JUMP WIRE

J902 095T 90 23 JUMP WIRE

J901 095T 90 23 JUMP WIRE

715T1180 3 POWER BOARD PCB

IC801 056T 133 32 NS LM3485

Q801 057T 763 3 AO4411L SO-8 BY AOS SMT
Q801 057T 763 4 RSS050P03
R803 061T0603200 2F RST CHIPR 20 KOHM +-1% 1/10W
R801 061T0603360 2F RST CHIPR 36 KOHM +-1% 1/10W
R802 061T0603620 2F RST CHIPR 62 KOHM +-1% 1/10W
R804 061T1206220 RST CHIPR 22 OHM +-5% 1/4W
C803 065T0603102 32 CHIP 1000PF 50V X7R
C804 065T0603102 32 CHIP 1000PF 50V X7R
C809 065T0603104 32 CHIP 0.1UF 50V X7R
C805 065T0603471 31 CHIP 470PF 50V NPO
C808 065T0805102 32 CHIP 1000PF 50V X7R 0805
C810 065T0805102 32 CHIP 1000PF 50V X7R 0805
C802 065T0805105 22 CHIP 1UF 25V X7R 0805

L801 073T M5822020T 22UH +-20%

D801 093T8004 2 SBM84PT

715T1278 4 PCB

81

32″ LCD TV AOC L32W431

E327MTNSW1AC6N

Location Part No. Description

026T 800504 3 BARCODE LABEL
036T 600 18107 NONWOVEN FABRTC
040T 581 26646 S/N LABEL
044T3231 15 EVA WASHER
044T6000 4E CARTON
045T 77 3 PE PACKING
045T 77500 RIBBON
045T 77501 RIBBON
049T 51 1A ERADICATOR
051T6001 2 DESICCANT
052T 1150 C BLACK TAPE
052T 1185 1 BIG TAPE
052T 1186 SMALL TAPE
052T 1211 A ADHESIVE TYPE
052T 2191 A TAPE
089T 173 56 38 AUDIO CABLE

E08904 089T 17356C554 AUDIO CABLE

089T 725GAA DB D-SUB
089T402A15NIS1 POWER CORD
095T8013 2 45 WIRE HARNESS
095T8013 12641 WIRE HARNESS
095T8013 3D 54 HARNESS 3P 680MM
095T8014 8640 D WIRE HARNESS
095T8014 13 11 WIRE HARNESS
095T8014 36 1 WIRE HARNESS
095T801414DH05 WIRE HARNESS
095T8018 3D657 LVDS CABLE 30P-24P 190MM
0M1T 330 4120 SCREW
0M1T 330 4120 SCREW
0M1T 330 10120 SCREW
0M1T 340 6 47 CR3 SCREW
0M1T 940 6120 SCREW
0M1T 940 6120 SCREW
0M1T 940 8 47 CR3 SCREW
0M1T1140 6120 SCREW 4*6MM
0M1T1730 6120 SCREW 3*6MM
0Q1T 340 12 47 CR3 SCREW
0Q1T 340 12120 SCREW
0Q1T 930 6 47 CR3 SCREW
0Q1T1030 6120 SCREW
0Q1T1030 8120 SCREW
705TQ715068 BRACKET ASS'Y
077T 306 26 RF ROCKER SWICH+SOCKET

E088 088T 303 7A S

095T 900 76 WIRE
095T 900 81 WIRE HARNESS
095T8021 3 27 WIRE HARNESS
Q15T8289 8CKD BKT PC DAO
705TQ733043 PLASTIC ASS'Y
044T3121510514 SPONGE
0Q1T 330 6120 SCREW

NTSC TO RCA CONN. 附 NUT+垫片

82

32″ LCD TV AOC L32W431

KEPF7QAC KEY BOARD

S5 077T 600 1GCJ TACT SWITCH TSPB-2 -NP
S6 077T 600 1GCJ TACT SWITCH TSPB-2 -NP
S7 077T 600 1GCJ TACT SWITCH TSPB-2 -NP
S3 077T 600 1GCJ TACT SWITCH TSPB-2 -NP
S4 077T 600 1GCJ TACT SWITCH TSPB-2 -NP
S2 077T 600 1GCJ TACT SWITCH TSPB-2 -NP
S1 077T 600 1GCJ TACT SWITCH TSPB-2 -NP

CN1 033T8032 4C WAFER 1.25MM SMT 4P

R5 061T0603000 CHIP 0OHM 1/16W
R4 061T0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R2 061T0603180 1F RST CHIPR 1.8 KOHM +-1% 1/10W
R1 061T0603220 1F RST CHIPR 2.2 KOHM +-1% 1/10W
R8 061T0603220 2F RST CHIPR 22 KOHM +-1% 1/10W
R6 061T0603330 1F RST CHIPR 3.3 KOHM +-1% 1/10W
R3 061T0603390 0F RST CHIPR 390 OHM +-1% 1/10W
R7 061T0603680 1F RST CHIPR 6.8 KOHM +-1% 1/10W
C1 065T0603101 32 CHIP 100PF 50V X7R
C2 065T0603101 32 CHIP 100PF 50V X7R
L1 071T 56U601 MA CHIP BEAD 0805 600 OHM 1000MA
L2 071T 56U601 MA CHIP BEAD 0805 600 OHM 1000MA
D1 093T 6433P BAV99

715T1886 1 KEY BOARD PCB
Q34T1859 GMB1A BUTTON COVER
705TQ734502 REAR COVER ASS'Y
015T6184 1 KENSINGTON LOCK
0Q1T 330 6120 SCREW
EFPF7QA7 E-FRAME

CN1 033T380213H WAFER 13P RIGHT ANGLE PITCH
CN2 088T 30231T CJ PHONE JACK

R3 061T0603000 CHIP 0OHM 1/16W

FB9 061T0603102 CHIP 1K OHM 1/16W

C1 065T0603471 32 CHIP 470PF 50V NPO
C2 065T0603471 32 CHIP 470PF 50V NPO

C3 065T0603472 32 CHIP 4700PF 50V X7R
FB8 071T 56G151 A CHIOP BEAD 150 OHM
FB7 071T 56G151 A CHIOP BEAD 150 OHM

715T1635 3 AUDIO BOARD PCB
Q33T4980 GM 1A CABLE CLIP
Q34T1834 GMA2A REAR COVER
Q36T 600 26 2 HEMIRON
Q36T 600 37 1 GP NONWOVEN FABRIC
Q36T 600 37 32 GP NONWOVEN FABRIC
Q44T3121510523 SPONGE
705TQ734503 STAND ASS'Y
012T 394 3 RUBBER FOOT
012T 394 3 RUBBER FOOT
0M1T 330 6120 SCREW
0Q1T 140 8120 SCREW
Q15T8304 1CKD BASE BKT
Q15T8305 1CKD STAND BKT
Q34T1835 KG 1L BASE
Q34T1860 KG 1L STAND

83

32″ LCD TV AOC L32W431

705TQ734504 BEZEL ASS'Y
033T4977 RG 1L BUTTON FUNCTION
033T4978 1 C LENS_POWER
044T3121510506 SPONGE
Q33T4979 ED C LENS REMOTE
Q34T1833 KGBAL BEZEL TV37W06-A1
705TQ778001 SPEAKER ASS'Y
078T 451 2A K SPK 8OHM 15W KUAIDA
Q12T7032 1 RUBBER LOOP
Q44T3231 21 37 EVA WASHER
ADPF24180G1 ADAPTER BOARD T1180-3-X-X-3-070517

GD901 009T6005 1 GROUND TERMINAL
GD902 009T6005 1 GROUND TERMINAL
GD903 009T6005 1 GROUND TERMINAL
GD904 009T6005 1 GROUND TERMINAL
CN921 033T3278 12 12P PLUG B12B-XHA/JS B12B-XHA/
CN952 033T3802 12 WAFER PH-12
CN904 033T8029 3A WAFER 2P 3.96MM
CN903 033T8029 3A WAFER 2P 3.96MM

040T 45762420A S/N LABEL

IC922 056T 139 3A IC PC123Y22FZ0F
IC924 056T 139 3A IC PC123Y22FZ0F
IC925 056T 139 3A IC PC123Y22FZ0F

IC942 056T 139 3A IC PC123Y22FZ0F
NR901 061T 58030 W RST NTCR 3 OHM 5A THINKING
NR902 061T 58030 W RST NTCR 3 OHM 5A THINKING

R950 061T 20K398GB1 CEMENTR 0.39 OHM +-10% 2W
R921 061T152M10458G6267 100K OHM 5% 2W
R905 061T153M27858G6267 0.27 OHM 5% 3W
R945 061T153M47358G6267 47K OHM 5% 3W
C901 063T 10722410S 0.22UF 275VAC X2
C905 063T213J105GFA MPF CAP
C926 064T400K473 57 MPF CAP
C922 065T 1K222 2A6213 0.0022UF/1KV
C942 065T 1K222 2A6213 0.0022UF/1KV
C921 065T 1M103 3T6921 0.01UF 20% 1000V Y5V
C903 065T306K4712BM GP Y1 CAP 470PF 250VAC MURATA 10%
C904 065T306K4712BM GP Y1 CAP 470PF 250VAC MURATA 10%
C915 065T306M1022BM Y1.CAP.001UF 250VAC MURATA
C970 065T306M1022BM Y1.CAP.001UF 250VAC MURATA
C907 067T 40K18116K 105C EC SHAP-IN
C930 067T215L102 6N EC 1000UF 35V KY35VB1000M-L 12.5*25MM
C948 067T215L102 6N EC 1000UF 35V KY35VB1000M-L 12.5*25MM
C949 067T215L102 6N EC 1000UF 35V KY35VB1000M-L 12.5*25MM
C950 067T215L102 6N EC 1000UF 35V KY35VB1000M-L 12.5*25MM
C951 067T215L102 6N EC 1000UF 35V KY35VB1000M-L 12.5*25MM
C933 067T215L1024NL KY25VB1000M-L 10*25MM
C932 067T215L1024NL KY25VB1000M-L 10*25MM
C934 067T215L221 4R LOWE.S.R 220UFM 25V
C931 067T215L221 6N KY35VB220M-L 8*15MM
C955 067T215L471 6N KY35VB470M-L 10*20MM
L906 073L 174 44 TG CHOKE COIL
L953 073L 174 46LSG FILTER

84

32″ LCD TV AOC L32W431

L952 073L 174 47LSG LINE FILTER
L904 073L 174 49LSG LINE FILTER
L905 073L 174 52LSG CHOKE COIL
L902 073L 253156 LH CHOKE COIL
L901 073L 253156 LH CHOKE COIL
L903 073T 174 68 L LINE FILTER
L922 073T 253155 LS CAO5005FL
L923 073T 253155 LS CAO5005FL
T951 080LL26T 2 TG X'FMR
T921 080LL26T 3 TG XFMR
D922 093T 6038P52T PS102R
D943 093T 6038P52T PS102R
D920 093T1100 1052T BA159GPT
D921 093T1100 1052T BA159GPT
D941 093T1100 1052T BA159GPT
D942 093T1100 1052T BA159GPT

RJ905 095T 90 26 WIRE HARNESS

705L F94 56 01 IC981 ASS'Y

IC981 056T 379 40 TOP246YN T0-220-7C

090T 427 1 HEAT SINL
0M1T1730 8120 SCREW
705L F94 57 01 Q901/Q941/D902 ASS'Y
012T 372 5 SILICON

Q901 057T 667 19 2SK3523-01R

Q941 057T 667 21 STP10NK70ZFP

090T 426 1 HEAT SINK

D902 093T 220 22 DIODE YG972S6R TO-220F FUJI

0M1T1730 12120 SCREW
705L F94 57 02 Q942/Q943/D927/D928 ASS'Y
005T 42 1 CUSHION
012T 372 1 SILICON

Q943 057T 600 42 IRFB38N20D TO-220AB

Q942 057T 600 42 IRFB38N20D TO-220AB

090T 428 1 HEAT SINK

D927 093T 60245 SP10150
D928 093T 60247 DIODE FME-220A TO-220 SANKEN

0M1T1730 10120 SCREW
705L F94 61 01 R919 ASS'Y

R919 061T153M27858G6267 0.27 OHM 5% 3W

096T 29 8 TUBE
705L F94 93 01 BD901 ASS'Y
090T 425 1 HEAT SINK

BD901 093T 50460 18 D10XB60

0M1T1730 10120 SCREW
DCPF1205A3P DC TO DC BOARD

CN801 033T800913Z H PIN HEADER 1*13 R/A

C806 067T215B471 3R LOW E.S.R 470UF +/-20% 16V
C807 067T215B471 3R LOW E.S.R 470UF +/-20% 16V

C801 067T405V221 4P
IC801 056T 133 32 NS LM3485
Q801 057T 763 3 AO4411L SO-8 BY AOS SMT

R803 061T0603200 2F RST CHIPR 20 KOHM +-1% 1/10W

R801 061T0603360 2F RST CHIPR 36 KOHM +-1% 1/10W

105℃ 220UF M 25V

85

32″ LCD TV AOC L32W431

R802 061T0603620 2F RST CHIPR 62 KOHM +-1% 1/10W

R804 061T1206220 RST CHIPR 22 OHM +-5% 1/4W

C803 065T0603102 32 CHIP 1000PF 50V X7R

C804 065T0603102 32 CHIP 1000PF 50V X7R

C809 065T0603104 32 CHIP 0.1UF 50V X7R

C805 065T0603471 31 CHIP 470PF 50V NPO

C808 065T0805102 32 CHIP 1000PF 50V X7R 0805

C810 065T0805102 32 CHIP 1000PF 50V X7R 0805

C802 065T0805105 22 CHIP 1UF 25V X7R 0805

L801 073T M5822020T 22UH +-20%

D801 093T8004 2 SBM84PT

715T1278 4 PCB

IC941 056T 379 38 IC IC E-L6565DTR SO-8 BY ST
IC901 056T 538 8 TDA4863-2G SO-8
Q922 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q924 057T 760 5 DTC144WKA BY FOHM SMT

R922 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

R944 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

R947 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

R955 061T0805100 RST CHIPR 10 OHM +-5% 1/8W

R954 061T0805100 RST CHIPR 10 OHM +-5% 1/8W

R920 061T0805100 2F RST CHIPR 10 KOHM +-1% 1/8W

R940 061T0805100 2F RST CHIPR 10 KOHM +-1% 1/8W

R931 061T0805102 RST CHIPR 1KOHM +-5% 1/4W

R934 061T0805102 RST CHIPR 1KOHM +-5% 1/4W

R909 061T0805103 RST CHIPR 10 KOHM +-5% 1/8W

R910 061T0805103 RST CHIPR 10 KOHM +-5% 1/8W

R965 061T0805103 RST CHIPR 10 KOHM +-5% 1/8W

R964 061T0805104 RST CHIPR 100 KOHM +-5% 1/8W

R959 061T0805115 2F RST CHIPR 11.5 KOHM +-1% 1/8W

R960 061T0805133 RST CHIPR 13 KOHM +-5% 1/8W

R961 061T0805152 RST CHIPR 1.5 KOHM +-5% 1/8W

R914 061T0805191 2F RST CHIPR 19.1 KOHM +-1% 1/8W

R957 061T0805200 9F RST CHIPR 20 OHM +-1% 1/8W

R958 061T0805202 RST CHIPR 2 KOHM +-5% 1/8W

R936 061T0805220 RST CHIPR 22 OHM +-5% 1/8W

R967 061T0805222 RST CHIPR 2.2 KOHM +-5% 1/8W

R951 061T0805242 RST CHIPR 2.4 KOHM +-5% 1/8W

R949 061T0805273 RST CHIPR 27 KOHM +-5% 1/8W

R930 061T0805280 3F RST CHIPR 280 KOHM +-1% 1/8W

R948 061T0805330 RST CHIPR 33 OHM +-5% 1/8W

R904 061T0805470 RST CHIPR 47 OHM +-5% 1/8W

R933 061T0805471 RST CHIPR 470 OHM +-5% 1/8W

R935 061T0805472 RST CHIPR 4.7 KOHM +-5% 1/8W

R932 061T0805510 2F RST CHIPR 51 KOHM +-1% 1/8W

R953 061T0805563 RST CHIPR 56 KOHM +-5% 1/8W

R952 061T0805682 RST CHIPR 6.8 KOHM +-5% 1/8W

R903 061T0805683 RST CHIPR 68 KOHM +-5% 1/8W

R925 061T0805689 RST CHIPR 6.8 OHM +-5% 1/8W

R908 061T1206000 RST CHIPR 0 OHM +-5% 1/4W

RJ901 061T1206000 RST CHIPR 0 OHM +-5% 1/4W
RJ903 061T1206000 RST CHIPR 0 OHM +-5% 1/4W

R983 061T1206100 3F RST CHIPR 100 KOHM +-1% 1/4W

86

32″ LCD TV AOC L32W431

R923 061T1206100 4F RST CHIPR 1 MOHM +-1% 1/4W

R924 061T1206100 4F RST CHIPR 1 MOHM +-1% 1/4W

R968 061T1206101 RST CHIPR 100 OHM +-5% 1/4W

R962 061T1206102 RST CHIPR 1 KOHM +-5% 1/4W

R926 061T1206205 RST CHIPR 2 MOHM +-5% 1/4W

R927 061T1206205 RST CHIPR 2 MOHM +-5% 1/4W

R929 061T1206330 RST CHIPR 33 OHM +-5% 1/4W

R946 061T1206330 RST CHIPR 33 OHM +-5% 1/4W

R974 061T1206330 RST CHIPR 33 OHM +-5% 1/4W

R911 061T1206330 3F RST CHIPR 330 KOHM +-1% 1/4W

R912 061T1206330 3F RST CHIPR 330 KOHM +-1% 1/4W

R913 061T1206330 3F RST CHIPR 330 KOHM +-1% 1/4W

R916 061T1206332 RST CHIPR 3.3 KOHM +-5% 1/4W

R917 061T1206332 RST CHIPR 3.3 KOHM +-5% 1/4W

R973 061T1206470 RST CHIPR 47 OHM +-5% 1/4W

R915 061T1206472 RST CHIPR 4.7 KOHM +-5% 1/4W

R928 061T1206562 RST CHIPR 5.6 KOHM +-5% 1/4W

R907 061T1206624 RST CHIPR 620 KOHM +-5% 1/4W

R906 061T1206624 RST CHIPR 620 KOHM +-5% 1/4W

R902 061T1206684 RST CHIPR 680KOHM +-5% 1/4W

R901 061T1206684 RST CHIPR 680KOHM +-5% 1/4W

C927 065T0805102 32 CHIP 1000PF 50V X7R 0805

C911 065T0805102 32 CHIP 1000PF 50V X7R 0805

C913 065T0805103 32 10NF/50V/0805/X7R

C936 065T0805103 32 10NF/50V/0805/X7R

C910 065T0805104 32 CHIP 0.1UF 50V X7R

C914 065T0805104 32 CHIP 0.1UF 50V X7R

C920 065T0805104 32 CHIP 0.1UF 50V X7R

C924 065T0805104 32 CHIP 0.1UF 50V X7R

C935 065T0805104 32 CHIP 0.1UF 50V X7R

C937 065T0805104 32 CHIP 0.1UF 50V X7R

C938 065T0805104 32 CHIP 0.1UF 50V X7R

C939 065T0805104 32 CHIP 0.1UF 50V X7R

C953 065T0805104 32 CHIP 0.1UF 50V X7R

C956 065T0805104 32 CHIP 0.1UF 50V X7R

C965 065T0805104 32 CHIP 0.1UF 50V X7R

C946 065T0805333 32 MLCC 0805 CAP 3300PF K 50V X7R

C959 065T0805334 22 CHIP 0.33UF +-10% 25V X7R 0805

C958 065T0805471 31 CHIP 470PF 50V NPO

C912 065T0805474 22 CHIP 0.47UF 25V X7R

C964 065T1206103B2M6213 CHIP 0.01UF 630V X7R

D929 093T 6432V LL4148-GSO8 SMD BY VISHA

D926 093T 6432V LL4148-GSO8 SMD BY VISHA

D925 093T 6432V LL4148-GSO8 SMD BY VISHA

D924 093T 6432V LL4148-GSO8 SMD BY VISHA

D923 093T 6432V LL4148-GSO8 SMD BY VISHA

D907 093T 6432V LL4148-GSO8 SMD BY VISHA

D906 093T 6432V LL4148-GSO8 SMD BY VISHA

D905 093T 6432V LL4148-GSO8 SMD BY VISHA

D904 093T 6432V LL4148-GSO8 SMD BY VISHA

D944 093T 6432V LL4148-GSO8 SMD BY VISHA

D945 093T 6432V LL4148-GSO8 SMD BY VISHA

D946 093T 6432V LL4148-GSO8 SMD BY VISHA

87

32″ LCD TV AOC L32W431

D947 093T 6432V LL4148-GSO8 SMD BY VISHA

D949 093T 6432V LL4148-GSO8 SMD BY VISHA

D950 093T 6432V LL4148-GSO8 SMD BY VISHA

ZD921 093T 39S 10 T RLZ6.8B LLDS
ZD944 093T 39S 15 T RLZ15B
ZD943 093T 39S 24 T RLZ 5.6B LLDS
ZD942 093T 39S 33 T PTZ 13B
ZD931 093T 39S 38 T PTZ 9.1B
ZD945 093T 39S 41 T RLZ24B LLDS
ZD946 093T 39S 42 T RLZ27B LLDS

D901 093T3060 10 ML35PT

L904 006T 31502 1.5MM RIVET

L906 006T 31502 1.5MM RIVET

NR901 006T 31502 1.5MM RIVET
NR902 006T 31502 1.5MM RIVET

T921 006T 31502 1.5MM RIVET

T951 006T 31502 1.5MM RIVET
IC923 056T 158 10 T IC AZ431AZ-AE1 TO-92 AAC
IC943 056T 158 10 T IC AZ431AZ-AE1 TO-92 AAC
Q945 057T 419501 T KTC945P
Q947 057T 419501 T KTC945P
Q946 057T 420501 T KTA733P
Q948 057T 420501 T KTA733P
Q926 057T 566 1 2N5060RLRAG TO-92 BY ON

R938 061T 17247152T 470OHM 5% 1/4W

R966 061T 60110252T 1K OHM +-2% 1/6W

R937 061T 60168152T 680 OHM +-2% 1/6W

C941 065T 1M103 3T6921 0.01UF 20% 1000V Y5V

C908 065T517M103 3T 0.01UF 20% 500V Y5P

C909 067T 2151007NT 10UF 50V NCC 5*11MM

C923 067T 2151007NT 10UF 50V NCC 5*11MM

C957 067T 2151007NT 10UF 50V NCC 5*11MM

C945 067T 2154707NT 47UF 50V NCC 5*11MM

C944 067T 2154707NT 47UF 50V NCC 5*11MM

C925 067T 2154707NT 47UF 50V NCC 5*11MM

L921 071T 55 23 S FERRITE BEAD K-TYPE

L951 071T 55 23 S FERRITE BEAD K-TYPE

F901 084T 55 4 FUSE 382-5A 250V WICKMANN

715T1180 3 POWER BOARD PCB
CBPF7T1SQ9 CONVERSION BOARD
012T6051 18 THERMAL PAD

CN200 033T3278 12 12P PLUG B12B-XHA/JS B12B-XHA/
CN500 033T3802 2H WAFER 2P RIGHT ANGLE
CN501 033T3802 3H WAFER 3P RIGHT ANGLE
CN502 033T3802 5H WAFER 5P RIGHT ANELE PI
CN203 033T3802 8H WAFER 8P RIGHT ANGLE PITCH 2.0
CN404 033T8017 2 PIN HEADER 2P 2.0MM
CN201 033T801736A CH W CONNECTOR
CN300 033T802724D H 24PIN

040T 457624 1B CPU LABEL
040T 45762412B CBPC LABEL
044T3231508512 CHIELD D-SUB

R718 061T152M100 64 10OHM 5% 2W

88

32″ LCD TV AOC L32W431

R716 061T152M229 64 2.2 OHM 2W 5% MOF

R717 061T152M479 64 4.7 OHM +-5% 2W

R719 061T152M479 64 4.7 OHM +-5% 2W

R524 061T153M109 59 MOFR 1 OHM +-5% 3W

R525 061T153M109 59 MOFR 1 OHM +-5% 3W

C548 067T215C1024KV

L701 073T 253137 ER CHOKE COIL BY EROCORE SCB-03

L705 073T 253137 ER CHOKE COIL BY EROCORE SCB-03

L505 073T 253158 H CHOKE COIL 22UH+/-25%

L504 073T 253158 H CHOKE COIL 22UH+/-25%

L500 073T 253158 H CHOKE COIL 22UH+/-25%

L506 073T 253158 H CHOKE COIL 22UH+/-25%

P201 088T 30214K PHONE JACK

P200 088T 35315F HA D-SU13 15PIN

U302 090T 372 2 HEAT SINK

U503 090T6068 2 HEAT SINK

X300 093T 2253B J 14.31818MHZ/85C

X401 093T 2279B CRYSTAL 28.322MHZ 49U/S

X400 093T 2281B 10.000MHZ/30PF/49US

Q90T0054 1 HEAT SINK
Q90T0054 1 HEAT SINK

U500 056T 133 30AAC IC AZ1117H-ADJ-E1

U711 056T 133 33AAC IC AZ1117-1.8-E1

U503 056T 535 8 MAX9704

U302 056T 562600 IC SVP-EX52-LF TRIDENT

U712 056T 563 7 AIC1084-33PM TO-263 AIC

U703 056T 563 25 AIC1084-33PE

U710 056T 563 31 AZ1117D-1.8E1 TO-252

U708 056T 563 31 AZ1117D-1.8E1 TO-252

U700 056T 563 34 A1C1084-18PM

U704 056T 563 44 AME8815BEGT 250Z SOP-223

U706 056T 563 44 AME8815BEGT 250Z SOP-223

U701 056T 585 9 IC AP1117E50LA ANACHIP

U702 056T 585 4A AP1117E33LA

U705 056T 585 4A AP1117E33LA

U407 056T 586 6 IC SII9023CTU TQFP-144 SILICON IMAGE

U202 056T 614 1 IC 74HC4052D PHILIPS

U301 056T 615 9 1 IC EM6A9320BI-5MG 0.11UM"M" FBGA-144

U300 056T 615104 LY61256RL-12E TSOP-1

U504 056T 616 3 PT2308S SO-8 PTC

U502 056T 628 4 NJW1147M-PF

U206 056T 634 2 1 PI5V330SSQE PERICOMQSOP-16

U408 056T 638601 CS4344-CZZ

U406 056T 662 4 RCLAMP0514M.TBT

U410 056T 662 4 RCLAMP0514M.TBT

U402 056T1125182 IC M30300SAGP RENESAS

U200 056T1133 34 M24C02-WMN6TP

U405 056T1133 34 M24C02-WMN6TP

U401

U403 056T1133 78 24LC64 ISNG SOIC(150MIL)

U201 056T4LVC 14 P 74LVC14ADT

U303 056T566N600 NDC7002N SOT-6 FAIRCHILD
Q709 057T 417 4 CHIP PMBS3904 BY PHILIPS

056T1133
77GA1(CHECKSUM:37CE)

EC 105℃ CAP 1000UF M 25V

EN29F040A-70JCP

89

32″ LCD TV AOC L32W431

Q708 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q706 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q705 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q704 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q502 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q404 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q403 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q301 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q300 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q206 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q204 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q202 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q201 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q200 057T 417 4 CHIP PMBS3904 BY PHILIPS
Q501 057T 417 6 PMBS3906/PHILIPS-SMT
Q402 057T 417 6 PMBS3906/PHILIPS-SMT
Q302 057T 417 6 PMBS3906/PHILIPS-SMT
Q205 057T 417 6 PMBS3906/PHILIPS-SMT
Q203 057T 417 6 PMBS3906/PHILIPS-SMT
Q400 057T 600 54 FET BSN20 SOT-23 PHILIPS
Q405 057T 600 54 FET BSN20 SOT-23 PHILIPS

U409 057T 763 15 FDC6301N SSOT-6
Q707 057T 763 3B AM9435P.T1-PF SO-8
Q703 057T 763 3B AM9435P.T1-PF SO-8
Q702 057T 763 3B AM9435P.T1-PF SO-8
Q701 057T 763 3B AM9435P.T1-PF SO-8
Q700 057T 763 3B AM9435P.T1-PF SO-8

RN300 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RN311 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RN312 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RN313 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP400 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP401 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP402 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP403 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP404 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP405 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RN308 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R
RN307 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R
RN306 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R
RN305 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R
RN304 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R
RN303 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R
RN302 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R
RN301 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R
RN405 061T 125330 8 RST CHIP AR 8P4R 33 OHM +-5% 1/16W
RN404 061T 125330 8 RST CHIP AR 8P4R 33 OHM +-5% 1/16W
RN403 061T 125330 8 RST CHIP AR 8P4R 33 OHM +-5% 1/16W
RN402 061T 125330 8 RST CHIP AR 8P4R 33 OHM +-5% 1/16W
RN401 061T 125330 8 RST CHIP AR 8P4R 33 OHM +-5% 1/16W
RN400 061T 125330 8 RST CHIP AR 8P4R 33 OHM +-5% 1/16W
RP406 061T 125470 8 RST CHIP AR 8P4R 47 OHM +-5% 1/16W

R700 061T0603000 CHIP 0OHM 1/16W

90

32″ LCD TV AOC L32W431

R536 061T0603000 CHIP 0OHM 1/16W

R423 061T0603000 CHIP 0OHM 1/16W

R4004 061T0603000 CHIP 0OHM 1/16W

R348 061T0603000 CHIP 0OHM 1/16W

R347 061T0603000 CHIP 0OHM 1/16W

R311 061T0603000 CHIP 0OHM 1/16W

R300 061T0603000 CHIP 0OHM 1/16W

R242 061T0603000 CHIP 0OHM 1/16W

R219 061T0603000 CHIP 0OHM 1/16W

R200 061T0603000 CHIP 0OHM 1/16W

R335 061T0603100 CHIP 10OHM 1/16W

R547 061T0603100 0F RST CHIPR 100 OHM +-1% 1/10W

R462 061T0603101 CHIP 100OHM 1/16W

R460 061T0603101 CHIP 100OHM 1/16W

R447 061T0603101 CHIP 100OHM 1/16W

R445 061T0603101 CHIP 100OHM 1/16W

R443 061T0603101 CHIP 100OHM 1/16W

R442 061T0603101 CHIP 100OHM 1/16W

R441 061T0603101 CHIP 100OHM 1/16W

R440 061T0603101 CHIP 100OHM 1/16W

R431 061T0603101 CHIP 100OHM 1/16W

R422 061T0603101 CHIP 100OHM 1/16W

R421 061T0603101 CHIP 100OHM 1/16W

R410 061T0603101 CHIP 100OHM 1/16W

R408 061T0603101 CHIP 100OHM 1/16W

R405 061T0603101 CHIP 100OHM 1/16W

R4021 061T0603101 CHIP 100OHM 1/16W
R4020 061T0603101 CHIP 100OHM 1/16W

R544 061T0603101 CHIP 100OHM 1/16W

R543 061T0603101 CHIP 100OHM 1/16W

R541 061T0603101 CHIP 100OHM 1/16W

R540 061T0603101 CHIP 100OHM 1/16W

R539 061T0603101 CHIP 100OHM 1/16W

R537 061T0603101 CHIP 100OHM 1/16W

R534 061T0603101 CHIP 100OHM 1/16W

R497 061T0603101 CHIP 100OHM 1/16W

R494 061T0603101 CHIP 100OHM 1/16W

R485 061T0603101 CHIP 100OHM 1/16W

R483 061T0603101 CHIP 100OHM 1/16W

R475 061T0603101 CHIP 100OHM 1/16W

R472 061T0603101 CHIP 100OHM 1/16W

R471 061T0603101 CHIP 100OHM 1/16W

R470 061T0603101 CHIP 100OHM 1/16W

R467 061T0603101 CHIP 100OHM 1/16W

R466 061T0603101 CHIP 100OHM 1/16W

R464 061T0603101 CHIP 100OHM 1/16W

R4008 061T0603101 CHIP 100OHM 1/16W
R4007 061T0603101 CHIP 100OHM 1/16W

R538 061T0603102 CHIP 1K OHM 1/16W

R533 061T0603102 CHIP 1K OHM 1/16W

R498 061T0603102 CHIP 1K OHM 1/16W

R484 061T0603102 CHIP 1K OHM 1/16W

R346 061T0603102 CHIP 1K OHM 1/16W

91

32″ LCD TV AOC L32W431

R340 061T0603102 CHIP 1K OHM 1/16W

R309 061T0603102 CHIP 1K OHM 1/16W

R308 061T0603102 CHIP 1K OHM 1/16W

R307 061T0603102 CHIP 1K OHM 1/16W

R223 061T0603102 CHIP 1K OHM 1/16W

R332 061T0603103 CHIP 10KOHM 1/16W

R336 061T0603103 CHIP 10KOHM 1/16W

R341 061T0603103 CHIP 10KOHM 1/16W

R4022 061T0603103 CHIP 10KOHM 1/16W
R4023 061T0603103 CHIP 10KOHM 1/16W
R4024 061T0603103 CHIP 10KOHM 1/16W
R4025 061T0603103 CHIP 10KOHM 1/16W

R714 061T0603103 CHIP 10KOHM 1/16W

R711 061T0603103 CHIP 10KOHM 1/16W

R558 061T0603103 CHIP 10KOHM 1/16W

R555 061T0603103 CHIP 10KOHM 1/16W

R554 061T0603103 CHIP 10KOHM 1/16W

R546 061T0603103 CHIP 10KOHM 1/16W

R527 061T0603103 CHIP 10KOHM 1/16W

R477 061T0603103 CHIP 10KOHM 1/16W

R476 061T0603103 CHIP 10KOHM 1/16W

R474 061T0603103 CHIP 10KOHM 1/16W

R430 061T0603103 CHIP 10KOHM 1/16W

R4027 061T0603103 CHIP 10KOHM 1/16W
R4026 061T0603103 CHIP 10KOHM 1/16W

R231 061T0603104 CHIP 100K OHM 1/16W

R548 061T0603104 CHIP 100K OHM 1/16W

R712 061T0603104 CHIP 100K OHM 1/16W

R228 061T0603105 CHIP 1MOHM 1/16W

R4019 061T0603105 CHIP 1MOHM 1/16W

R246 061T0603121 RST CHIPR 120 OHM +-5% 1/10W

R333 061T0603122 RST CHIPR 1.2 KOHM +-5% 1/10W

R342 061T0603122 RST CHIPR 1.2 KOHM +-5% 1/10W

R204 061T0603123 RST CHIPR 12 KOHM +-5% 1/10W

R221 061T0603123 RST CHIPR 12 KOHM +-5% 1/10W

R243 061T0603123 RST CHIPR 12 KOHM +-5% 1/10W

R303 061T0603150 RST CHIPR 15 OHM +-5% 1/10W

R304 061T0603150 RST CHIPR 15 OHM +-5% 1/10W

R305 061T0603150 RST CHIPR 15 OHM +-5% 1/10W

R306 061T0603150 RST CHIPR 15 OHM +-5% 1/10W

R209 061T0603151 RST CHIPR 150 OHM +-5% 1/10W

R226 061T0603151 RST CHIPR 150 OHM +-5% 1/10W

R314 061T0603152 CHIP 1.5KOHM 1/16W

R224 061T0603184 RST CHIPR 180 KOHM +-5% 1/10W

R229 061T0603184 RST CHIPR 180 KOHM +-5% 1/10W

R492 061T0603202 RST CHIPR 2 KOHM +-5% 1/10W

R203 061T0603220 CHIP 22OHM 1/16W

R210 061T0603220 CHIP 22OHM 1/16W

R211 061T0603220 CHIP 22OHM 1/16W

R214 061T0603220 CHIP 22OHM 1/16W

R216 061T0603220 CHIP 22OHM 1/16W

R220 061T0603220 CHIP 22OHM 1/16W

R245 061T0603220 CHIP 22OHM 1/16W

92

32″ LCD TV AOC L32W431

R424 061T0603220 CHIP 22OHM 1/16W

R425 061T0603220 CHIP 22OHM 1/16W

R426 061T0603220 CHIP 22OHM 1/16W

R428 061T0603220 CHIP 22OHM 1/16W

R429 061T0603220 CHIP 22OHM 1/16W

R434 061T0603220 CHIP 22OHM 1/16W

R473 061T0603221 CHIP 220OHM 1/16W

R345 061T0603222 CHIP 2.2K OHM 1/16W

R715 061T0603223 CHIP 22KOHM 1/16W

R709 061T0603223 CHIP 22KOHM 1/16W

R707 061T0603223 CHIP 22KOHM 1/16W

R706 061T0603223 CHIP 22KOHM 1/16W

R320 061T0603223 CHIP 22KOHM 1/16W

R315 061T0603223 CHIP 22KOHM 1/16W

R244 061T0603223 CHIP 22KOHM 1/16W

R225 061T0603223 CHIP 22KOHM 1/16W

R208 061T0603223 CHIP 22KOHM 1/16W

R4016 061T0603330 CHIP 33OHM 1/16W

R414 061T0603330 CHIP 33OHM 1/16W

R415 061T0603330 CHIP 33OHM 1/16W

R419 061T0603330 CHIP 33OHM 1/16W

R420 061T0603330 CHIP 33OHM 1/16W

R560 061T0603331 RST CHIPR 330 OHM +-5% 1/10W

R559 061T0603331 RST CHIPR 330 OHM +-5% 1/10W

R551 061T0603392 CHIP 3.9KOHM 1/16W

R553 061T0603392 CHIP 3.9KOHM 1/16W

R556 061T0603392 CHIP 3.9KOHM 1/16W

R557 061T0603392 CHIP 3.9KOHM 1/16W

R531 061T0603432 RST CHIPR 4.3 KOHM +-5% 1/10W

R535 061T0603432 RST CHIPR 4.3 KOHM +-5% 1/10W

R4001 061T0603470 RST CHIPR 47 OHM +-5% 1/10W
R4005 061T0603470 RST CHIPR 47 OHM +-5% 1/10W
R4006 061T0603470 RST CHIPR 47 OHM +-5% 1/10W

R499 061T0603470 RST CHIPR 47 OHM +-5% 1/10W

R344 061T0603471 RST CHIPR 470OHM +-5% 1/10W

R339 061T0603471 RST CHIPR 470OHM +-5% 1/10W

R321 061T0603471 RST CHIPR 470OHM +-5% 1/10W

R316 061T0603471 RST CHIPR 470OHM +-5% 1/10W

R403 061T0603472 CHIP 4.7KOHM 1/16W

R4029 061T0603472 CHIP 4.7KOHM 1/16W
R4028 061T0603472 CHIP 4.7KOHM 1/16W

R402 061T0603472 CHIP 4.7KOHM 1/16W

R4018 061T0603472 CHIP 4.7KOHM 1/16W

R453 061T0603472 CHIP 4.7KOHM 1/16W

R451 061T0603472 CHIP 4.7KOHM 1/16W

R450 061T0603472 CHIP 4.7KOHM 1/16W

R449 061T0603472 CHIP 4.7KOHM 1/16W

R481 061T0603472 CHIP 4.7KOHM 1/16W

R482 061T0603472 CHIP 4.7KOHM 1/16W

R486 061T0603472 CHIP 4.7KOHM 1/16W

R490 061T0603472 CHIP 4.7KOHM 1/16W

R491 061T0603472 CHIP 4.7KOHM 1/16W

R4030 061T0603472 CHIP 4.7KOHM 1/16W

93

32″ LCD TV AOC L32W431

R404 061T0603472 CHIP 4.7KOHM 1/16W

R412 061T0603472 CHIP 4.7KOHM 1/16W

R417 061T0603472 CHIP 4.7KOHM 1/16W

R418 061T0603472 CHIP 4.7KOHM 1/16W

R427 061T0603472 CHIP 4.7KOHM 1/16W

R433 061T0603472 CHIP 4.7KOHM 1/16W

R435 061T0603472 CHIP 4.7KOHM 1/16W

R436 061T0603472 CHIP 4.7KOHM 1/16W

R480 061T0603472 CHIP 4.7KOHM 1/16W

R448 061T0603472 CHIP 4.7KOHM 1/16W

R444 061T0603472 CHIP 4.7KOHM 1/16W

R439 061T0603472 CHIP 4.7KOHM 1/16W

R438 061T0603472 CHIP 4.7KOHM 1/16W

R437 061T0603472 CHIP 4.7KOHM 1/16W

R495 061T0603472 CHIP 4.7KOHM 1/16W

R532 061T0603472 CHIP 4.7KOHM 1/16W

R454 061T0603472 CHIP 4.7KOHM 1/16W

R455 061T0603472 CHIP 4.7KOHM 1/16W

R457 061T0603472 CHIP 4.7KOHM 1/16W

R458 061T0603472 CHIP 4.7KOHM 1/16W

R468 061T0603472 CHIP 4.7KOHM 1/16W

R469 061T0603472 CHIP 4.7KOHM 1/16W

R479 061T0603472 CHIP 4.7KOHM 1/16W

R4013 061T0603472 CHIP 4.7KOHM 1/16W

R334 061T0603472 CHIP 4.7KOHM 1/16W

R331 061T0603472 CHIP 4.7KOHM 1/16W

R330 061T0603472 CHIP 4.7KOHM 1/16W

R218 061T0603472 CHIP 4.7KOHM 1/16W

R217 061T0603472 CHIP 4.7KOHM 1/16W

R230 061T0603473 CHIP 47KOHM 1/16W

R232 061T0603473 CHIP 47KOHM 1/16W

R432 061T0603473 CHIP 47KOHM 1/16W

R496 061T0603473 CHIP 47KOHM 1/16W

R701 061T0603473 CHIP 47KOHM 1/16W

R702 061T0603473 CHIP 47KOHM 1/16W

R703 061T0603473 CHIP 47KOHM 1/16W

R713 061T0603473 CHIP 47KOHM 1/16W

R4014 061T0603474 RST CHIPR 470 KOHM +-5% 1/10W
R4015 061T0603474 RST CHIPR 470 KOHM +-5% 1/10W

R302 061T0603510 RST CHIPR 51 OHM +-5% 1/10W

R301 061T0603510 RST CHIPR 51 OHM +-5% 1/10W

R542 061T0603512 RST CHIPR 5.1 KOHM +-5% 1/10W

R338 061T0603680 RST CHIPR 68 OHM +-5% 1/10W

R337 061T0603680 RST CHIPR 68 OHM +-5% 1/10W

R552 061T0603682 RST CHIPR 6.8KOHM +-5% 1/10W

R550 061T0603682 RST CHIPR 6.8KOHM +-5% 1/10W

R328 061T0603750 75OHM

R207 061T0603750 75OHM

R206 061T0603750 75OHM

R205 061T0603750 75OHM

R319 061T0603750 9F CHIP 75OHM 1/16W 1%

R318 061T0603750 9F CHIP 75OHM 1/16W 1%

R317 061T0603750 9F CHIP 75OHM 1/16W 1%

94

32″ LCD TV AOC L32W431

R705 061T0603752 RST CHIPR 7.5 KOHM +-5% 1/10W

R704 061T0603752 RST CHIPR 7.5 KOHM +-5% 1/10W

R545 061T0603820 1F RST CHIPR 8.2 KOHM +-1% 1/10W

R478 061T0603822 RST CHIPR 8.2 KOHM +-5% 1/10W

R526 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

R528 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

R529 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

L304 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

L711 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

R710 061T0805302 RST CHIPR 3 KOHM +-5% 1/8W

R708 061T0805302 RST CHIPR 3 KOHM +-5% 1/8W

R549 061T1206620 0F RST CHIPR 620 OHM +-1% 1/4W

C405 065T0603101 31 CHIP 100PF 50V NPO

C406 065T0603101 31 CHIP 100PF 50V NPO

C409 065T0603101 31 CHIP 100PF 50V NPO

C565 065T0603101 31 CHIP 100PF 50V NPO

C576 065T0603101 31 CHIP 100PF 50V NPO

C201 065T0603101 32 CHIP 100PF 50V X7R

C202 065T0603101 32 CHIP 100PF 50V X7R

C208 065T0603101 32 CHIP 100PF 50V X7R

C216 065T0603101 32 CHIP 100PF 50V X7R

C220 065T0603101 32 CHIP 100PF 50V X7R

C596 065T0603102 32 CHIP 1000PF 50V X7R

C500 065T0603102 32 CHIP 1000PF 50V X7R

C400 065T0603102 32 CHIP 1000PF 50V X7R

C224 065T0603102 32 CHIP 1000PF 50V X7R

C200 065T0603102 32 CHIP 1000PF 50V X7R

C428 065T0603103 32 CHIP 0.01UF 50V X7R

C427 065T0603103 32 CHIP 0.01UF 50V X7R

C426 065T0603103 32 CHIP 0.01UF 50V X7R

C425 065T0603103 32 CHIP 0.01UF 50V X7R

C424 065T0603103 32 CHIP 0.01UF 50V X7R

C410 065T0603103 32 CHIP 0.01UF 50V X7R

C402 065T0603103 32 CHIP 0.01UF 50V X7R

C491 065T0603103 32 CHIP 0.01UF 50V X7R

C430 065T0603103 32 CHIP 0.01UF 50V X7R

C431 065T0603103 32 CHIP 0.01UF 50V X7R

C442 065T0603103 32 CHIP 0.01UF 50V X7R

C443 065T0603103 32 CHIP 0.01UF 50V X7R

C444 065T0603103 32 CHIP 0.01UF 50V X7R

C445 065T0603103 32 CHIP 0.01UF 50V X7R

C446 065T0603103 32 CHIP 0.01UF 50V X7R

C447 065T0603103 32 CHIP 0.01UF 50V X7R

C448 065T0603103 32 CHIP 0.01UF 50V X7R

C588 065T0603103 32 CHIP 0.01UF 50V X7R

C582 065T0603103 32 CHIP 0.01UF 50V X7R

C572 065T0603103 32 CHIP 0.01UF 50V X7R

C568 065T0603103 32 CHIP 0.01UF 50V X7R

C495 065T0603103 32 CHIP 0.01UF 50V X7R

C494 065T0603103 32 CHIP 0.01UF 50V X7R

C493 065T0603103 32 CHIP 0.01UF 50V X7R

C492 065T0603103 32 CHIP 0.01UF 50V X7R

C477 065T0603103 32 CHIP 0.01UF 50V X7R

95

32″ LCD TV AOC L32W431

C489 065T0603103 32 CHIP 0.01UF 50V X7R

C490 065T0603103 32 CHIP 0.01UF 50V X7R

C449 065T0603103 32 CHIP 0.01UF 50V X7R

C454 065T0603103 32 CHIP 0.01UF 50V X7R

C455 065T0603103 32 CHIP 0.01UF 50V X7R

C461 065T0603103 32 CHIP 0.01UF 50V X7R

C462 065T0603103 32 CHIP 0.01UF 50V X7R

C464 065T0603103 32 CHIP 0.01UF 50V X7R

C465 065T0603103 32 CHIP 0.01UF 50V X7R

C466 065T0603103 32 CHIP 0.01UF 50V X7R

C467 065T0603103 32 CHIP 0.01UF 50V X7R

C472 065T0603103 32 CHIP 0.01UF 50V X7R

C475 065T0603103 32 CHIP 0.01UF 50V X7R

C429 065T0603103 32 CHIP 0.01UF 50V X7R

C301 065T0603103 32 CHIP 0.01UF 50V X7R

C306 065T0603103 32 CHIP 0.01UF 50V X7R

C307 065T0603103 32 CHIP 0.01UF 50V X7R

C308 065T0603103 32 CHIP 0.01UF 50V X7R

C309 065T0603103 32 CHIP 0.01UF 50V X7R

C310 065T0603103 32 CHIP 0.01UF 50V X7R

C315 065T0603103 32 CHIP 0.01UF 50V X7R

C204 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C206 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C207 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C210 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C211 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C213 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C214 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C221 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C222 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C223 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C232 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C318 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C339 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C342 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C722 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C590 065T0603104 22 CHIP 0.1UF 25V

C382 065T0603104 32 CHIP 0.1UF 50V X7R

C383 065T0603104 32 CHIP 0.1UF 50V X7R

C384 065T0603104 32 CHIP 0.1UF 50V X7R

C385 065T0603104 32 CHIP 0.1UF 50V X7R

C386 065T0603104 32 CHIP 0.1UF 50V X7R

C387 065T0603104 32 CHIP 0.1UF 50V X7R

C388 065T0603104 32 CHIP 0.1UF 50V X7R

C389 065T0603104 32 CHIP 0.1UF 50V X7R

C390 065T0603104 32 CHIP 0.1UF 50V X7R

C391 065T0603104 32 CHIP 0.1UF 50V X7R

C392 065T0603104 32 CHIP 0.1UF 50V X7R

C393 065T0603104 32 CHIP 0.1UF 50V X7R

C394 065T0603104 32 CHIP 0.1UF 50V X7R

C395 065T0603104 32 CHIP 0.1UF 50V X7R

C396 065T0603104 32 CHIP 0.1UF 50V X7R

C398 065T0603104 32 CHIP 0.1UF 50V X7R

96

32″ LCD TV AOC L32W431

C4001 065T0603104 32 CHIP 0.1UF 50V X7R

C362 065T0603104 32 CHIP 0.1UF 50V X7R

C363 065T0603104 32 CHIP 0.1UF 50V X7R

C364 065T0603104 32 CHIP 0.1UF 50V X7R

C365 065T0603104 32 CHIP 0.1UF 50V X7R

C366 065T0603104 32 CHIP 0.1UF 50V X7R

C368 065T0603104 32 CHIP 0.1UF 50V X7R

C370 065T0603104 32 CHIP 0.1UF 50V X7R

C371 065T0603104 32 CHIP 0.1UF 50V X7R

C372 065T0603104 32 CHIP 0.1UF 50V X7R

C373 065T0603104 32 CHIP 0.1UF 50V X7R

C374 065T0603104 32 CHIP 0.1UF 50V X7R

C375 065T0603104 32 CHIP 0.1UF 50V X7R

C376 065T0603104 32 CHIP 0.1UF 50V X7R

C377 065T0603104 32 CHIP 0.1UF 50V X7R

C378 065T0603104 32 CHIP 0.1UF 50V X7R

C379 065T0603104 32 CHIP 0.1UF 50V X7R

C380 065T0603104 32 CHIP 0.1UF 50V X7R

C381 065T0603104 32 CHIP 0.1UF 50V X7R

C407 065T0603104 32 CHIP 0.1UF 50V X7R

C422 065T0603104 32 CHIP 0.1UF 50V X7R

C423 065T0603104 32 CHIP 0.1UF 50V X7R

C436 065T0603104 32 CHIP 0.1UF 50V X7R

C438 065T0603104 32 CHIP 0.1UF 50V X7R

C439 065T0603104 32 CHIP 0.1UF 50V X7R

C440 065T0603104 32 CHIP 0.1UF 50V X7R

C441 065T0603104 32 CHIP 0.1UF 50V X7R

C451 065T0603104 32 CHIP 0.1UF 50V X7R

C452 065T0603104 32 CHIP 0.1UF 50V X7R

C453 065T0603104 32 CHIP 0.1UF 50V X7R

C459 065T0603104 32 CHIP 0.1UF 50V X7R

C460 065T0603104 32 CHIP 0.1UF 50V X7R

C468 065T0603104 32 CHIP 0.1UF 50V X7R

C469 065T0603104 32 CHIP 0.1UF 50V X7R

C471 065T0603104 32 CHIP 0.1UF 50V X7R

C474 065T0603104 32 CHIP 0.1UF 50V X7R

C476 065T0603104 32 CHIP 0.1UF 50V X7R

C421 065T0603104 32 CHIP 0.1UF 50V X7R

C417 065T0603104 32 CHIP 0.1UF 50V X7R

C420 065T0603104 32 CHIP 0.1UF 50V X7R

C564 065T0603104 32 CHIP 0.1UF 50V X7R

C558 065T0603104 32 CHIP 0.1UF 50V X7R

C557 065T0603104 32 CHIP 0.1UF 50V X7R

C552 065T0603104 32 CHIP 0.1UF 50V X7R

C551 065T0603104 32 CHIP 0.1UF 50V X7R

C550 065T0603104 32 CHIP 0.1UF 50V X7R

C549 065T0603104 32 CHIP 0.1UF 50V X7R

C498 065T0603104 32 CHIP 0.1UF 50V X7R

C488 065T0603104 32 CHIP 0.1UF 50V X7R

C487 065T0603104 32 CHIP 0.1UF 50V X7R

C486 065T0603104 32 CHIP 0.1UF 50V X7R

C485 065T0603104 32 CHIP 0.1UF 50V X7R

C484 065T0603104 32 CHIP 0.1UF 50V X7R

97

32″ LCD TV AOC L32W431

C479 065T0603104 32 CHIP 0.1UF 50V X7R

C478 065T0603104 32 CHIP 0.1UF 50V X7R

C732 065T0603104 32 CHIP 0.1UF 50V X7R

C734 065T0603104 32 CHIP 0.1UF 50V X7R

C736 065T0603104 32 CHIP 0.1UF 50V X7R

C740 065T0603104 32 CHIP 0.1UF 50V X7R

C745 065T0603104 32 CHIP 0.1UF 50V X7R

C751 065T0603104 32 CHIP 0.1UF 50V X7R

C758 065T0603104 32 CHIP 0.1UF 50V X7R

C760 065T0603104 32 CHIP 0.1UF 50V X7R

C212 065T0603104 32 CHIP 0.1UF 50V X7R

C229 065T0603104 32 CHIP 0.1UF 50V X7R

C230 065T0603104 32 CHIP 0.1UF 50V X7R

C3002 065T0603104 32 CHIP 0.1UF 50V X7R
C3006 065T0603104 32 CHIP 0.1UF 50V X7R

C302 065T0603104 32 CHIP 0.1UF 50V X7R

C303 065T0603104 32 CHIP 0.1UF 50V X7R

C730 065T0603104 32 CHIP 0.1UF 50V X7R

C569 065T0603104 32 CHIP 0.1UF 50V X7R

C585 065T0603104 32 CHIP 0.1UF 50V X7R

C593 065T0603104 32 CHIP 0.1UF 50V X7R

C594 065T0603104 32 CHIP 0.1UF 50V X7R

C701 065T0603104 32 CHIP 0.1UF 50V X7R

C702 065T0603104 32 CHIP 0.1UF 50V X7R

C703 065T0603104 32 CHIP 0.1UF 50V X7R

C704 065T0603104 32 CHIP 0.1UF 50V X7R

C712 065T0603104 32 CHIP 0.1UF 50V X7R

C716 065T0603104 32 CHIP 0.1UF 50V X7R

C717 065T0603104 32 CHIP 0.1UF 50V X7R

C718 065T0603104 32 CHIP 0.1UF 50V X7R

C720 065T0603104 32 CHIP 0.1UF 50V X7R

C725 065T0603104 32 CHIP 0.1UF 50V X7R

C728 065T0603104 32 CHIP 0.1UF 50V X7R

C331 065T0603104 32 CHIP 0.1UF 50V X7R

C332 065T0603104 32 CHIP 0.1UF 50V X7R

C333 065T0603104 32 CHIP 0.1UF 50V X7R

C334 065T0603104 32 CHIP 0.1UF 50V X7R

C335 065T0603104 32 CHIP 0.1UF 50V X7R

C336 065T0603104 32 CHIP 0.1UF 50V X7R

C340 065T0603104 32 CHIP 0.1UF 50V X7R

C344 065T0603104 32 CHIP 0.1UF 50V X7R

C346 065T0603104 32 CHIP 0.1UF 50V X7R

C348 065T0603104 32 CHIP 0.1UF 50V X7R

C349 065T0603104 32 CHIP 0.1UF 50V X7R

C351 065T0603104 32 CHIP 0.1UF 50V X7R

C352 065T0603104 32 CHIP 0.1UF 50V X7R

C353 065T0603104 32 CHIP 0.1UF 50V X7R

C354 065T0603104 32 CHIP 0.1UF 50V X7R

C356 065T0603104 32 CHIP 0.1UF 50V X7R

C357 065T0603104 32 CHIP 0.1UF 50V X7R

C358 065T0603104 32 CHIP 0.1UF 50V X7R

C360 065T0603104 32 CHIP 0.1UF 50V X7R

C361 065T0603104 32 CHIP 0.1UF 50V X7R

98

32″ LCD TV AOC L32W431

C317 065T0603104 32 CHIP 0.1UF 50V X7R

C314 065T0603104 32 CHIP 0.1UF 50V X7R

C313 065T0603104 32 CHIP 0.1UF 50V X7R

C305 065T0603104 32 CHIP 0.1UF 50V X7R

C304 065T0603104 32 CHIP 0.1UF 50V X7R

C321 065T0603104 32 CHIP 0.1UF 50V X7R

C320 065T0603104 32 CHIP 0.1UF 50V X7R

C322 065T0603104 32 CHIP 0.1UF 50V X7R

C325 065T0603104 32 CHIP 0.1UF 50V X7R

C329 065T0603104 32 CHIP 0.1UF 50V X7R

C330 065T0603104 32 CHIP 0.1UF 50V X7R

C481 065T0603150 31 CHIP 15PF 50V NPO

C480 065T0603150 31 CHIP 15PF 50V NPO

C337 065T0603272 32 CHIP 2700PF 50V X7R

C300 065T0603272 32 CHIP 2700PF 50V X7R

C412 065T0603330 31 CHIP 33PF 50V NPO

C411 065T0603330 31 CHIP 33PF 50V NPO

C324 065T0603330 31 CHIP 33PF 50V NPO

C323 065T0603330 31 CHIP 33PF 50V NPO

C3005 065T0603330 31 CHIP 33PF 50V NPO

C544 065T0603332 32 CHIP 3300PF 50V X7R

C545 065T0603332 32 CHIP 3300PF 50V X7R

C546 065T0603333 32 CHIP 0.033UF 50V X7R

C547 065T0603333 32 CHIP 0.033UF 50V X7R

C209 065T0603470 32 CHIP 47PF 50V X7R

C5000 065T0603471 31 CHIP 470PF 50V NPO
C5001 065T0603471 31 CHIP 470PF 50V NPO

C598 065T0603471 31 CHIP 470PF 50V NPO

C599 065T0603471 31 CHIP 470PF 50V NPO

C311 065T0603472 32 CHIP 4700PF 50V X7R

C312 065T0603472 32 CHIP 4700PF 50V X7R

C555 065T0603472 32 CHIP 4700PF 50V X7R

C556 065T0603472 32 CHIP 4700PF 50V X7R

C225 065T0603473 32 CHIP 0.047UF 50V X7R

C217 065T0603473 32 CHIP 0.047UF 50V X7R

C589 065T0603474 17 CHIP 0.47UF 16V Y5V

C587 065T0603474 17 CHIP 0.47UF 16V Y5V

C580 065T0603474 17 CHIP 0.47UF 16V Y5V

C579 065T0603474 17 CHIP 0.47UF 16V Y5V

C566 065T0603474 17 CHIP 0.47UF 16V Y5V

C562 065T0603474 17 CHIP 0.47UF 16V Y5V

C226 065T0603474 17 CHIP 0.47UF 16V Y5V

C219 065T0603474 17 CHIP 0.47UF 16V Y5V

C399 065T0603680 31 CHIP 68PF 50V NPO

C3001 065T0603680 31 CHIP 68PF 50V NPO

C711 065T0603683 12 CHIP 0.68UF 16V X7R

C567 065T0805103 22 CHIP 0.01UF 25V X7R 0805

C575 065T0805103 22 CHIP 0.01UF 25V X7R 0805

C581 065T0805103 22 CHIP 0.01UF 25V X7R 0805

C584 065T0805103 22 CHIP 0.01UF 25V X7R 0805

C571 065T0805104 22 0.1UF +-10% 25V X7R 0805

C583 065T0805104 22 0.1UF +-10% 25V X7R 0805

C710 065T0805105 12 1UF +-10% 16V X7R

99

32″ LCD TV AOC L32W431

C709 065T0805105 12 1UF +-10% 16V X7R

C559 065T0805105 22 CHIP 1UF 25V X7R 0805

C563 065T0805225 12 CHIP 2.2UF 16V X7R 0805

C3004 065T0805475 A5 CHIP 4.7UF 10V X5R
C5004 065T0805475 A5 CHIP 4.7UF 10V X5R
C5005 065T0805475 A5 CHIP 4.7UF 10V X5R

C542 065T0805475 A5 CHIP 4.7UF 10V X5R

C543 065T0805475 A5 CHIP 4.7UF 10V X5R

C578 065T0805475 A5 CHIP 4.7UF 10V X5R

C577 065T0805475 A5 CHIP 4.7UF 10V X5R

C574 065T0805475 A5 CHIP 4.7UF 10V X5R

C573 065T0805475 A5 CHIP 4.7UF 10V X5R

C570 065T0805475 A5 CHIP 4.7UF 10V X5R

C561 065T0805475 A5 CHIP 4.7UF 10V X5R

C560 065T0805475 A5 CHIP 4.7UF 10V X5R

C554 065T0805475 A5 CHIP 4.7UF 10V X5R

C553 065T0805475 A5 CHIP 4.7UF 10V X5R

CP500 065T600M471 8T CHIP ARRAY 470PF 8P

C369 067T 4121003XT

C367 067T 4121003XT

C359 067T 4121003XT

C355 067T 4121003XT

C350 067T 4121003XT

C347 067T 4121003XT

C470 067T 4121003XT

C749 067T 4121003XT

C744 067T 4121003XT

C731 067T 4121003XT

C726 067T 4121003XT

C723 067T 4121003XT

C715 067T 4121003XT

C714 067T 4121003XT

C713 067T 4121003XT

C4000 067T 4121003XT

C403 067T 4121003XT

C414 067T 4121003XT

C416 067T 4121003XT

C418 067T 4121003XT

C419 067T 4121003XT

C437 067T 4121003XT

C450 067T 4121003XT

C463 067T 4121003XT

C592 067T 4121003XT

C591 067T 4121003XT

C586 067T 4121003XT

C5003 067T 4121003XT

C499 067T 4121003XT

C497 067T 4121003XT

C496 067T 4121003XT

C483 067T 4121003XT

C482 067T 4121003XT

C473 067T 4121003XT

C762 067T 4121003XT

EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V
EC 85℃ CHIP 10UF M 16V

100
