Safety

National Conventions

The following subsections describe notational conventions used in this document.

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: A NOTE indicates important information that helps you make better use of your computer system.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the

problem.

WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific presentation of the warning is mandated by regulatory authority.

Power

The monitor should be operated only from the type of power source indicated on the label. If you are not sure

of the type of power supplied to your home, consult your dealer or local power company.

The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.

Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges.

Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100 - 240V ~, Min. 5A

The wall socket shall be installed near the equipment and shall be easily accessible.

For use only with the attached power adapter (Output 12Vdc) which have UL,CSA listed license (Only for monitors with power adapter).

Manufacturers:

1) TPV ELECTRONICS(FUJIAN) CO., LTD model :

2) HONOR ELECTRONIC CO.,LTD model: ADS-65LSI-12-1 12045G

L&T

Display Technology



(FUJIAN)

LTD Model : ADPC1245

ADPC1245



Installation

Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. Follow the manufacturer’s instructions when installing the product and use mounting accessories recommended by the manufacturer. A product and cart combination should be moved with care.

Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or electric shock. Never spill liquids on the monitor.

Do not place the front of the product on the floor.

If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.

Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence overheating may cause a fire or damage to the monitor.

See below the recommended ventilation areas around the monitor when the monitor is installed on

the stand:

Cleaning

Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet.

When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface.

Please disconnect the power cord before cleaning the product.

Other

If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center.

Make sure that the ventilating openings are not blocked by a table or curtain.

Do not engage the LCD monitor in severe vibration or high impact conditions during operation.

Do not knock or drop the monitor during operation or transportation.

Setup

Contents in Box

Monitor

CD Manual

Base

Power Cable

Not all signal cables (Analog, MHL

check with the local dealer or AOC branch office for confirmation.

and HDMI cables) will be provided for all countries and regions. Please

Analog CableMHLCable

Adapter

Audio Cable

HDMI Cable

Setup Stand & Base

Please setup or remove the base following the steps as below.

Setup:

Remove:

Unit standing without base is available. (Caution: must put unit in flat surface. Any uneven or sloped surface may result unit damaged or injury to user.)

Adjusting Viewing Angle

For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor's angle.

You are able to adjust the monitor's angle from -5° to 23 °.

-5 23

NOTE:

Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.

Connecting the Monitor

Cable Connections In Back of Monitor and Computer:

1 2 3 4 5

Power

Audio port

56. HDMI1/MHL port .

HDMI2 port

To protect equipment, always turn off the PC and LCD monitor before connecting.

1 Connect the power cable to the AC port on the back of the monitor. 2 Connect one end of the 15-pin D-Sub and HDMI cable to the back of the monitor and connect the other end to the

3 Turn on your monitor and computer.

If your monitor displays an image, installation is complete. If it does not display an image, please refer Troubleshooting.

Earphone

D-Sub port

computer's D-Sub and HDMI or mobile's MHL port.

Adjusting

Setting Optimal Resolution

Windows 8

For Windows 8:

1. Right click and click All apps at the bottom-right of the screen.

2. Set the “View by” to “Category”.

3. Click Appearance and Personalization.

4. Click DISPLAY.

5. Set the resolution SLIDE-BAR to Optimal preset resolution.

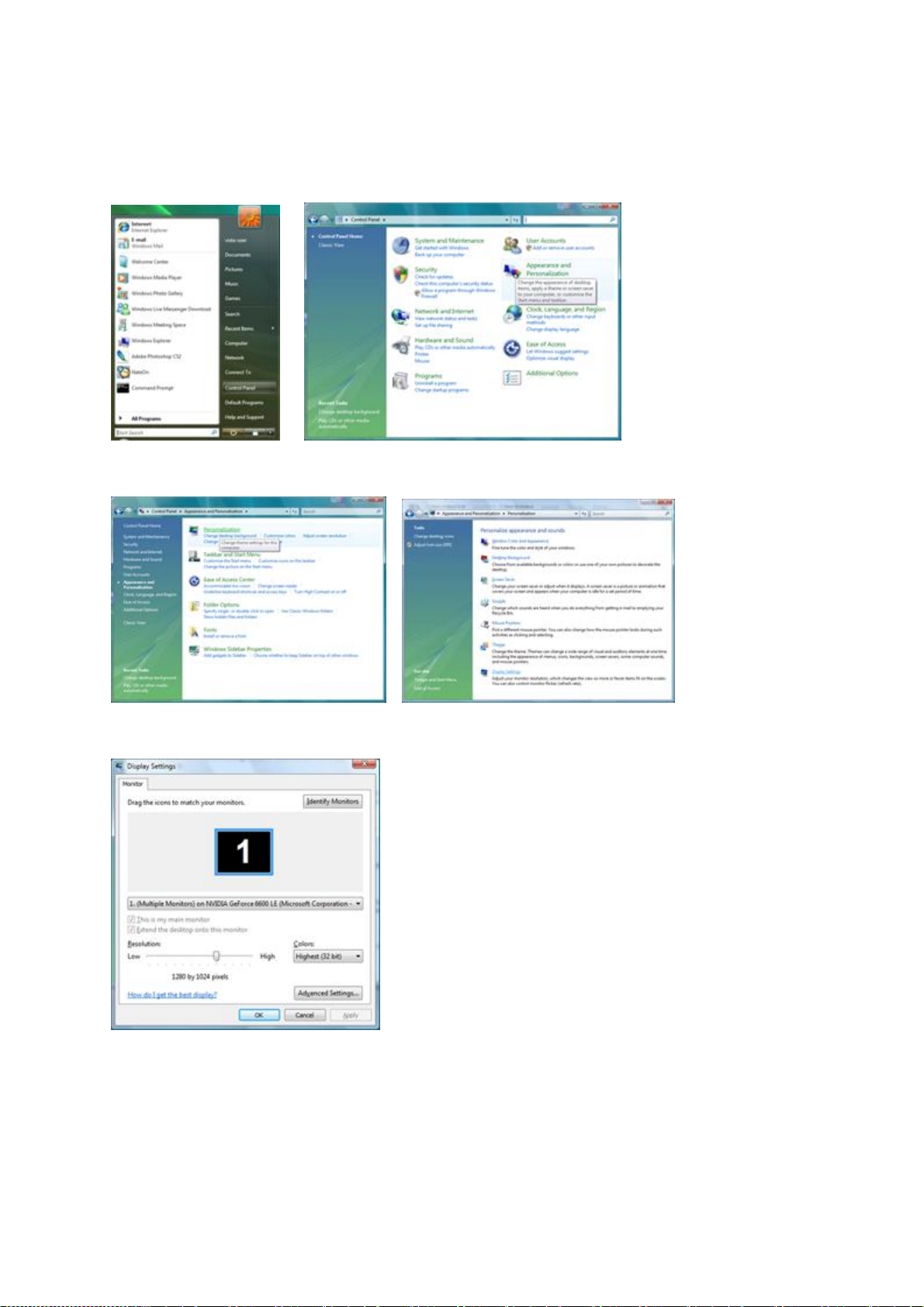

Windows Vista

For Windows Vista:

1 Click STAR T. 2 Click CONTROL PANEL.

3 Click Appearance and Personalization.

4 Click Personalization

5 Click Display Settings.

6 Set the resolution SLIDE-BAR to .

Optimal preset resolution

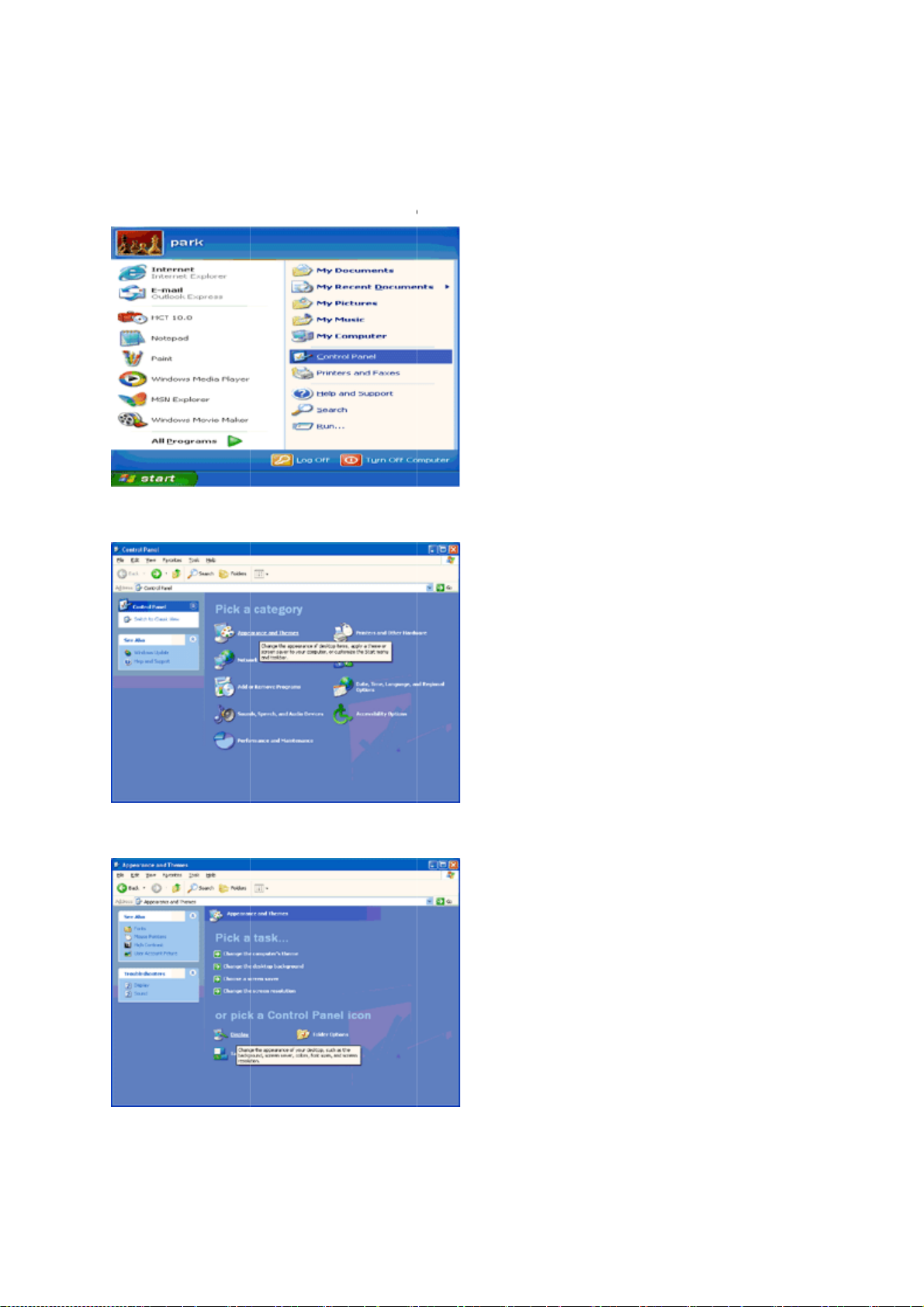

Windows XP

For Windows XP:

1 Click STAR T.

2 Click SETTINGS.

3 Click CONTROL PANEL.

4 Click Appearance and Themes.

5 Double click DISPLAY.

6 Click SETTINGS.

7 Set the resolution SLIDE-BAR to

Optimal preset resolution

Windows ME/2000

For Windows ME/2000:

1 Click STAR T. 2 Click SETTINGS. 3 Click CONTROL PANEL. 4 Double click DISPLAY. 5 Click SETTINGS. 6 Set the resolution SLIDE-BAR to .

Optimal preset resolution

Hotkeys

Menu/Enter

Volume/∧

ClearVision/

Source/Auto/Exit

Power

Press the Power button to turn on/off the monitor.

9ROXPH

When there is no OSD, press Volume adjust volume.

∧

∨

Auto / Exit / Source hot key

When there is no OSD, press Auto/Source button continuously about 2 second to do auto configure. When the OSD is closed, press Source button will be Source hot key function. Press Source button continuously to select the input source showed in the message bar, press Menu/Enter button to change to the source selected.

ClearVision/

1. When there is no OSD, Press the “ ” button to activate Clear Vision

2. Use the “” or “ “buttons to select between weak, medium, strong,

always “off”

Press and hold “ ” button for 5 seconds ,the vertical line

will display while no vertical line “ ”

∨

the vertical

the monitor clear vision

will be clear vision off more obviously.

Clear Vision function will provides the best image

viewing blurry images

∨

∧

∨

or off settings.

button for 5 seconds ,the vertical line will disappear while

vertical line will be the effect demo and right of

experience by converting low

∨

line is moving in screen;

into

Off /

When display picture in screen will be

;

clear and vivid images.

Default setting is

in screen;

Press the “ ” Button to turn

Strong / Medium / Weak,

Press and hold

∨

resolution and

vertical line

the left

Using "MHL(Mobile High-Definition Link)"

1. "MHL" (Mobile High-Definition Link)

This feature allows you to enjoy videos and photos (imported from a connected mobile device that supports MHL) on the

screen of

z To use the MHL function, you need an MHL-certified mobile device. You can check if your mobile device is MHL

z To use the MHL function, the latest version of software must be installed on the mobile device. z On some mobile devices, the MHL function may not be available depending on the device's performance or

z Since the display size of the product is larger than those of mobile devices, the picture quality may degrade. z This product is officially MHL-certified. If you encounter any problem when using the MHL function, please contact the

z The picture quality may degrade when content (imported from the mobile device) with a low

the product.

certified on the device manufacturer's website. To find a list of MHL-certified devices, visit the official MHL website (http://www.mhlconsortium.org).

functionality.

manufacturer of the mobile device.

Resolution is played on the product.

Using "MHL"

1. Connect the micro USB port on the mobile device to the [HDMI 1 / MHL] port on the product using the MHL cable.

z When the MHL cable is used, [HDMI 1/ MHL] is the only port on this monitor that supports the MHL function. z Mobile device must be purchased separately.

2. Connect the DC power adapter to the product and a power outlet.

3. Press the source button

4. After about 3 seconds, the MHL screen will be displayed if MHL mode is active. Remark: The indicated time "3 sec later" may vary depending on the mobile device.

and switch to HDMI 1/MHL to activate MHL mode.

When the mobile device is not connected or does not support MHL

z If MHL mode is not activated, check the connection of the mobile device.

z If MHL mode is not activated, check if the mobile device supports MHL. z If MHL mode is not activated even though the mobile device supports MHL, update the firmware

of the mobile device to the latest version.

If MHL mode is not activated even though the mobile device supports MHL, check if mobile device

MHL port is MHL standard port otherwise an additional MHL-enabled adapter is required.

OSD Setting

Basic and simple instruction on the control keys.



1) Press the MENU-button to activate the OSD window.

2) Press or to navigate through the functions. Once the desired function is highlighted, press the

3) Press or to change the settings of the selected function. Press AUTO to exit. If you want to adjust any

4) OSD Lock Function: To lock the OSD, press and hold the MENU button while the monitor is off and then press

Notes:

1) If the product has only one signal input, the item of "Input Select" is disable to adjust.

2) If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disable to

∧

∨

MENU-button to activate it . press or to navigate through the sub-menu functions. Once the desired function is highlighted, press MENU-button to activate it.

∧

∨

other function, repeat steps 2-3.

power button to turn the monitor on. To un-lock the OSD - press and hold the MENU button while the monitor is off and then press power button to turn the monitor on.

adjust.

non-standard ECO, DCR , DCB, Picture Boost is activated the other three of

One

accordingly.

Certain models may not have the overdrive option. Please refer to the actuaOSD of the dispay.

∧

∨

functions are turned off

Luminance

1. Press MENU (Menu) to display menu.



2. Press

3. Press

or to select (Luminance), and press MENU to enter.

∧

∨

∧

∨

or to select submenu, and press MENU to enter.



∧

4. Press or to adjust.

5. Press AUTO to exit.

∨

Brightness 0-100 Backlight Adjustment

Contrast 0-100 Contrast from Digital-register.

Eco mode

Gamma

DCR

Overdrive

Standard

Text

Internet

Game

Movie

Sports

Gamma1 Adjust to Gamma1

Gamma2 Adjust to Gamma 2

Gamma3 Adjust to Gamma 3

Off Disable dynamic contrast ratio

Standard Mode

Text Mode

Internet Mode

Game Mode

Movie Mode

Sports Mode

Enable dynamic contrast ratio

Weak

Medium

djust the response time

Strong

O ff

Image Setup

1. Press MENU (Menu) to display menu.

2. Press or

3. Press or

∧



∨

to select (Image Setup), and press MENU to enter.

∨

to select submenu, and press MENU to enter.



4. Press or

5. Press

∧

AUTO to exit.



∨

to adjust.

Clock 0-100 Adjust picture Clock to reduce Vertical-Line noise.

Phase 0-100 Adjust Picture Phase to reduce Horizontal-Line noise

Sharpness 0-100 Adjust picture sharpness

H.Position 0-100 Adjust the horizontal position of the picture.

V.Position 0-100 Adjust the vertical position of the picture.

Color Setup

1. Press MENU (Menu) to display menu.

2. Press or

3. Press or

∧

∨

to select (Color Setup), and press MENU to enter.

∨



to select submenu, and press MENU to enter.



∧

∨

4. Press or

5. Press AUTO to exit.



to adjust.

Color setup.

DCB Mode

DCB Demo On or off Disable or Enable Demo

Warm Recall Warm Color Temperature from EEPROM.

Normal Recall Normal Color Temperature from EEPROM.

Cool Recall Cool Color Temperature from EEPROM.

sRGB Recall SRGB Color Temperature from EEPROM.

Red Red Gain from Digital-register

User

Full Enhance on or off Disable or Enable Full Enhance Mode

Nature Skin on or off Disable or Enable Nature Skin Mode

Green Field on or off Disable or Enable Green Field Mode

Sky-blue on or off Disable or Enable Sky-blue Mode

AutoDetect on or off Disable or Enable AutoDetect Mode

Green Green Gain Digital-register.

Blue Blue Gain from Digital-register

Picture Boost

1. Press MENU (Menu) to display menu.

2. Press or

3. Press

∧

∨

to select (Picture Boost), and press MENU to enter.



to select submenu, and press MENU to enter.

∨



4. Press or

5. Press

∧

AUTO to exit.



to adjust.

∨

Frame Size 14-100 Adjust Frame Size

Brightness 0-100 Adjust Frame Brightness

Contrast 0-100 Adjust Frame Contrast

H. position 0-100 Adjust Frame horizontal Position

V.position 0-100 Adjust Frame vertical Position

Bright Frame on or off Disable or Enable Bright Frame

OSD Setup

1. Press MENU (Menu) to display menu.



∧

2. Press or to select (OSD Setup), and press MENU to enter.

∨

∧

3. Press or to select submenu, and press MENU to enter.

∨



4. Press or

5. Press AUTO to exit.

to adjust.



∧

∨

H.Position 0-100 Adjust the horizontal position of OSD

V.Position 0-100 Adjust the vertical position of OSD

Timeout 5-120 Adjust the OSD Timeout

Transparence 0-100 Adjust the transparence of OSD

Language Select the OSD language

Extra

1. Press

MENU (Menu) to display menu.

∧

2. Press or

3. Press or to select submenu, and press MENU to enter.

∨

to select (Extra), and press MENU to enter.

∧

∨



4. Press or

5. Press AUTO to exit.

to adjust.

∧

∨



Input Select

Auto Config yes or no Auto adjust the picture to default

Image Ratio wide or 4:3 Select wide or 4:3 format for display DDC-CI yes or no Turn ON/OFF DDC-CI Support

Auto Select to Auto Detect input signal

D-SUB HDMI1/

HDMI2

MHL

Select Signal Source as Input

D-SUB

Select

HDMI/

HDMI2

MHL

urce as Input

Reset

Off Timer 0~24hours Select timing to turn off the monitor.

Information

yes or no

Reset the menu to default

Show the information of the main image and sub-image source

Exit

1. Press MENU (Menu) to display menu.

2. Press or

3. Press AUTO to exit.

to select (Exit), and press MENU to enter.

∧

∨

Exit Exit the main OSD

LED Indicator

Status LED Color

Full Power Mode Blue

Active-off Mode orange

Driver

Monitor Driver

Windows 8

1. Start Windows® 8

2. Right click and click All apps at the bottom-right of the screen.

3. Click on the “Control panel” icon

4. Set the “View by” to “Large icons” or “Small icons”.

5. Click on the “Display” icon.

6. Click on the “Change display settings” button.

7. Click the

8. Click the “Monitor” tab and then click the “Properties” button.

“Advanced Settings” button.

9. Click the “Driver” tab.

10. Open the “Update Driver Software-Generic PnP Monitor” window by clicking on “Update Driver... “ and then click the "Browse my computer for driver software" button.

11. Select "Let me pick from a list of device drivers on my computer".

12. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).

13. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button.

14. Select your monitor model and click the “Next” button. The files will be copied from the CD to your hard disk drive.

15. Close all open windows and remove the CD.

16. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color Matching Profiles.

Windows 7

1. Start Windows® 7

2. Click on the 'Start' button and then click on 'Control Panel'.

3. Click on the 'Display' icon.

4. Click on the “Change display settings” button.

5. Click the “Advanced Settings” button.

6. Click the “Monitor” tab and then click the “Properties” button.

7. Click the “Driver” tab.

8. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on “Update Driver... “ and then click the "Browse my computer for driver software" button.

9. Select "Let me pick from a list of device drivers on my computer".

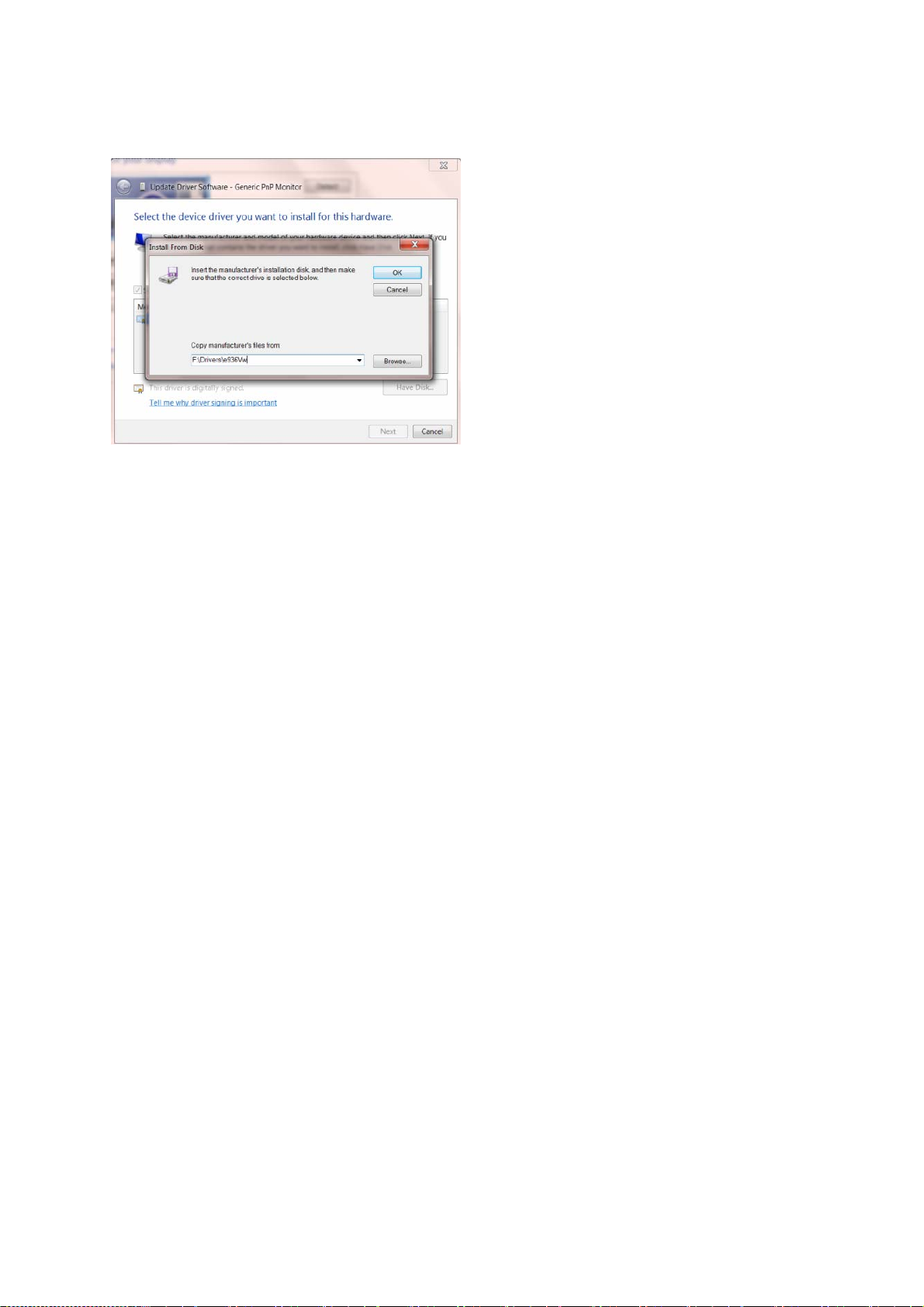

10. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).

11. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button.

12. Select your monitor model and click the “Next” button. The files will be copied from the CD to your hard disk drive.

13. Close all open windows and remove the CD.

14. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color Matching Profiles.

Windows Vista

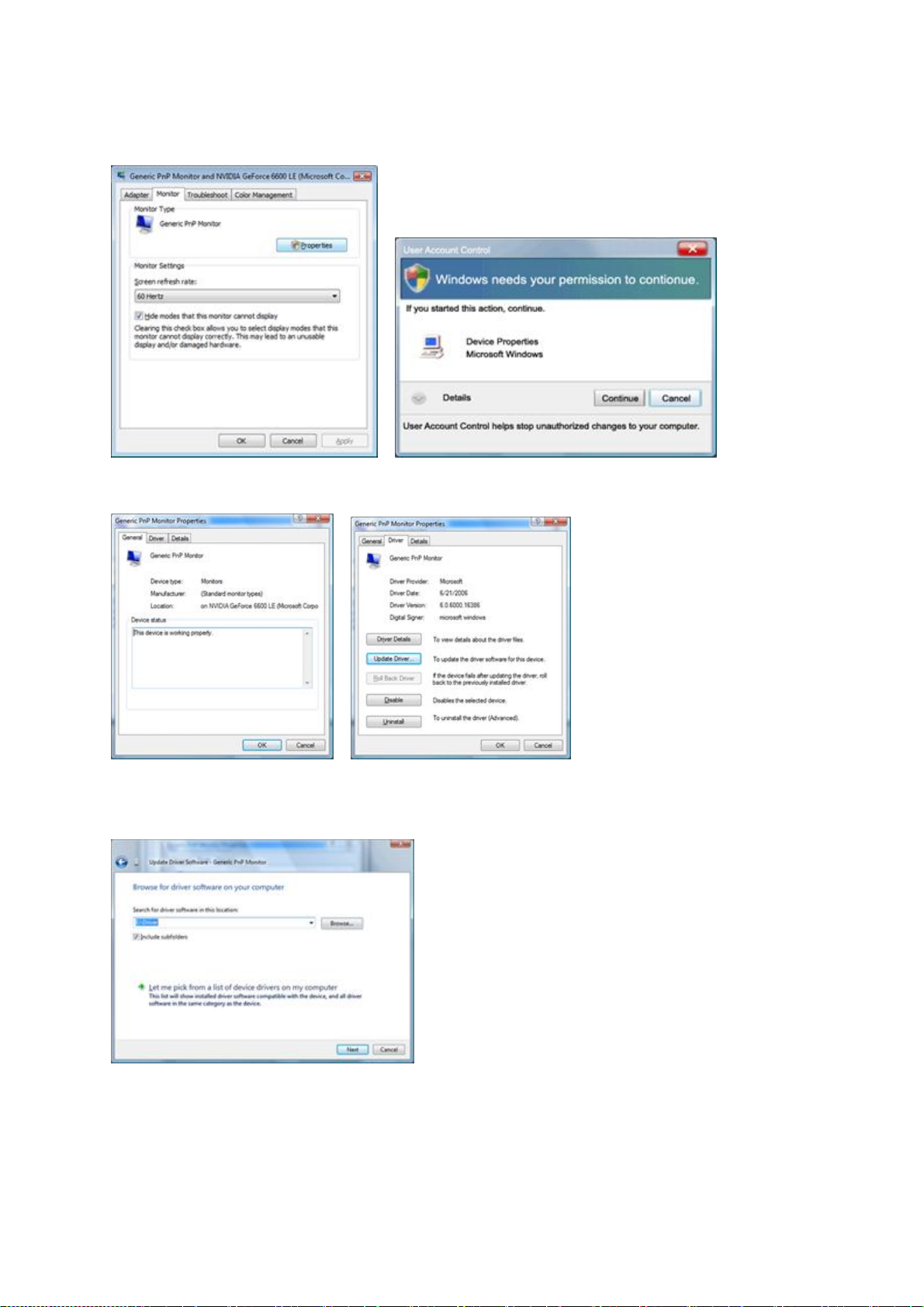

1. Click "Start" and "Control Panel". Then, double-click on "Appearance and Personalization".

2. Click "Personalization" and then "Display Settings".

3. Click "Advanced Settings...".

4. Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is. If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue".

5. Click "Update Driver..." in the "Driver" tab.

6. Check the "Browse my computer for driver software" checkbox and click "Let me pick from a list of device drivers on my computer".

7. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F:\Driver (CD-ROM Drive).

8. Select your monitor model and click on the 'Next' button.

9. Click "Close" → "Close" → "OK" → "OK" on the following screens displayed in sequence.

Windo

1. Start

2. Click

3. Sele

on the 'Start'

s XP

Windows® X

t and click o

button and th

the categor

en click on 'C

‘Appearance

ntrol Panel'.

and Themes’

4. Click

on the 'Displ

y' Item.

5. Sele

6. Sele

Ple

t the 'Setting

t 'Monitor' ta

If the 'Prope If the 'Prope se follow th

' tab then cli

ties' button is

ties' button i

steps below.

k on the 'Adv

inactive, it m

active, click

anced' button

ans your mo n 'Properties

itor is proper

button.

y configured. Please stop i

stallation.

7. Click

on the 'Drive

' tab and the

click on 'Up

ate Driver...'

utton.

8. Sele

9. Sele

t the 'Install f

t the 'Don't S

rom a list or s

earch. I will c

pecific locatio

oose the dri

n [advanced]'

er to install' r

radio button

dio button. T

nd then click

en click on t

on the 'Next'

e 'Next' butt

button.

10. Click (CD-

11. Click

12. Sele

13. Click

14. Click

on the 'Have

ROM Drive).

on the 'Open

t your monit

If you can s

message, pl on the 'Finis on the 'OK' b

disk...' button

' button, then

r model and e the 'has no

ase click on

' button then

utton and the

, then click o

click the 'OK'

lick on the 'N

passed Win the 'Continue the 'Close' bu

the 'OK' but

the 'Browse.

button.

xt' button.

ows® Logo t

Anyway' butt

tton.

on again to c

..' button and

sting to verif

lose the Displ

then select th

its compatib

ay Properties

e appropriate

ility with Win

dialog box.

drive F:

ows® XP'

Windows 2000

1. Start Windows® 2000

2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.

3. Double click on the 'Display' Icon.

4. Select the 'Settings' tab then click on 'Advanced...'.

5. Select 'Monitor'

- If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.

- If the 'Properties' button is active. Click on 'Properties' button. Please follow the steps given below.

6. Click on 'Driver' and then click on 'Update Driver...' then click on the 'Next' button.

7. Select 'Display a list of the known drivers for this device so that I can choose a specific driver', then click on 'Next' and then click on 'Have disk...'.

8. Click on the 'Browse...' button then select the appropriate drive F: ( CD-ROM Drive).

9. Click on the 'Open' button, then click on the 'OK' button.

10. Select your monitor model and click on the 'Next' button.

11. Click on the 'Finish' button then the 'Close' button.

If you can see the 'Digital Signature Not Found' window, click on the 'Yes' button.

Windows ME

1. Start Windows® Me

2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.

3. Double click on the 'Display' Icon.

4. Select the 'Settings' tab then click on 'Advanced...'.

5. Select the 'Monitor' button, then click on 'Change...' button.

6. Select 'Specify the location of the driver(Advanced)' and click on the 'Next' button.

7. Select 'Display a list of all the drivers in a specific location, so you can choose the driver you want', then click on 'Next' and then click on 'Have Disk...'.

8. Click on the 'Browse...' button, select the appropriate drive F: ( CD-ROM Drive) then click on the 'OK' button.

9. Click on the 'OK' button, select your monitor model and click on the 'Next' button.

10. Click on 'Finish' button then the 'Close' button.

i-Menu

Welcome to “i-Menu” software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide.

e-Saver

Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below). Please click on "driver/e-Saver/setup.exe" to start installing the e-Saver software, follow the install wizard to complete software installation.

Under each of the four PC status, you may choose from the pull-down menu the desired time (in minutes) for your monitor to automatically shutdown. The example above illustrated:

1) The monitor will never shutdown when the PC is powered on.

2) The monitor will automatically shutdown 5 minutes after the PC is powered off.

3) The monitor will automatically shutdown 10 minutes after the PC is in sleep/stand-by mode.

4) The monitor will automatically shutdown 20 minutes after the screen saver appears.

You can click “RESET” to set the e-Saver to its default settings like below.

Screen+

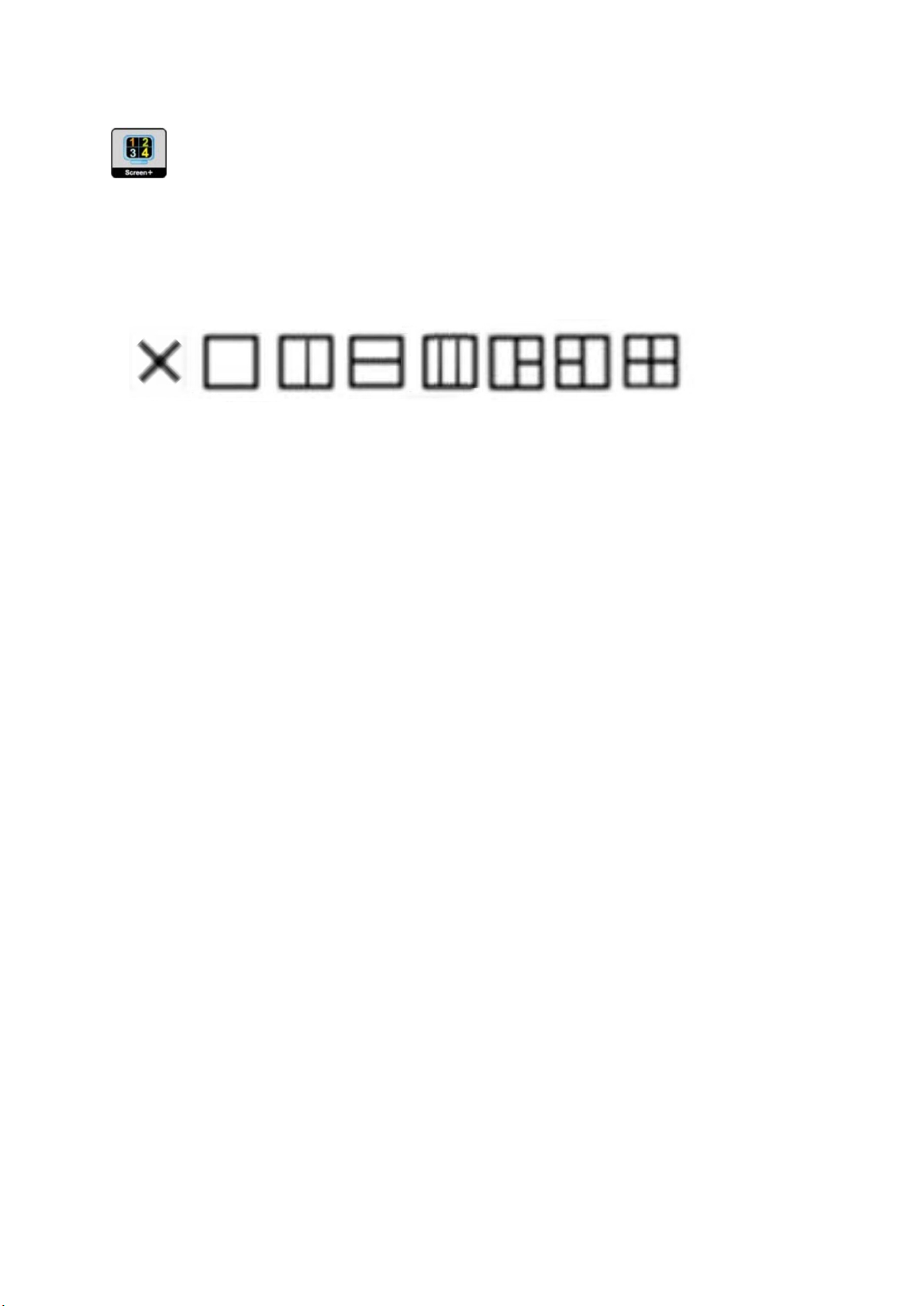

Welcome to "Screen+" software by AOC, Screen+ software is a desktop screen splitting tool, it splits the desktop into different panes, each pane displays a different window. You only need to drag the window to a corresponding pane, when you want to access it. It supports multiple monitor display to make your task easier. Please follow the installation software to install it.

Troubleshoot

your are using.

Problem & Question

Power LED Is Not ON

No images on the screen

Picture Is Fuzzy & Has Ghosting Shadowing Problem

Picture Bounces, Flickers Or Wave Pattern Appears In The Picture

Possible Solutions

Make sure the power button is ON and the Power Cord is properly connected to a grounded power outlet and to the monitor.

Is the power cord connected properly?

Check the power cord connection and power supply.

Is the cable connected correctly? (Connected using the D-sub cable) Check the DB-15 cable connection. (Connected using the DVI cable) Check the DVI cable connection. * DVI input is not available on every model.

If the power is on, reboot the computer to see the initial screen (the login screen), which can be seen. If the initial screen (the login screen) appears, boot the computer in the applicable mode (the safe mode for Windows ME/XP/2000) and then change the frequency of the video card. (Refer to the Setting the Optimal Resolution) If the initial screen (the login screen) does not appear, contact the Service Center or your dealer.

Can you see "Input Not Supported" on the screen? You can see this message when the signal from the video card exceeds the maximum resolution and frequency that the monitor can handle properly. Adjust the maximum resolution and frequency that the monitor can handle properly.

Make sure the AOC Monitor Drivers are installed.

Adjust the Contrast and Brightness Controls. Press to auto adjust. Make sure you are not using an extension cable or switch box. We recommend plugging the monitor directly to the video card output connector on the back .

Move electrical devices that may cause electrical interference as far away from the monitor as possible. Use the maximum refresh rate your monitor is capable of at the resolution

Monitor Is Stuck In Active Off-Mode"

Missing one of the primary colors (RED, GREEN, or BLUE)

Screen image is not centered or sized properly

Picture has color defects (white does not look white)

Horizontal or vertical disturbances on the screen

The Computer Power Switch should be in the ON position. The Computer Video Card should be snugly fitted in its slot. Make sure the monitor's video cable is properly connected to the computer. Inspect the monitor's video cable and make sure no pin is bent. Make sure your computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. The LED should either turn ON or OFF after hitting the CAPS LOCK key.

Inspect the monitor's video cable and make sure that no pin is damaged. Make sure the monitor's video cable is properly connected to the computer.

Adjust H-Position and V-Position or press hot-key (AUTO).

Adjust RGB color or select desired color temperature.

Use Windows 95/98/2000/ME/XP shut-down mode Adjust CLOCK and FOCUS. Press to auto-adjust.

Specification

General Specification

Panel

Resolution

Model name Driving system TFT Color LCD

Viewable Image Size Pixel pitch 0.0884*RGB( H )mm x 0.2652(V)mm

Video R, G, B Analog lnterface ,HDMI Separate Sync. H/V TTL Display Color 16.7M Colors Dot Clock 170MHz

Horizontal scan range 30kHz to 83kHz

Horizontal scan Size(Maximum) 509.18mm

Vertical scan range 50Hz to 76Hz

Vertical scan Size(Maximum) 286.42mm

Optimal preset resolution 1920×1080@60Hz

Plug & Play VESA DDC2B/C1

Input Connector VGA,

I2367F

58.42cm Diagonal

DMI1/MHL HDMI2

,MHL

Input Video Signal Analog: 0.7Vp-p(standard), 75 OHM, Positive,HDMI,MHL

Power Source 100-240V~, 50/60Hz

Power Consumption

Off timer 0-24 hrs Connector Type VGA

Signal Cable Type Detachable

Dimensions & Weight:

Physical

Characteristics

Environmental Temperature:

Height (with base)

Width

Depth

Weight (monitor only)

Active Standby < 0.5 W

394mm

531.4mm

120mm

3.75kg

(Typical)

6W

HDMI1/MHL,

HDMI2

Operating 0°C to 40°C

Non-Operating -25°C to 55°C

Humidity:

Operating 10% to 85% (non-condensing)

Non-Operating 5% to 93% (non-condensing)

ltitude:

Operating 0~ 5000m (0~ 16404 ft )

Non-Operating 0~ 12192m (0~ 40000 ft )

Preset Display Modes

STAND

Resolution

HORIZONTAL

FREQUENCY(kHz)

VERTICAL

FREQUENCY(Hz)

640x480@60Hz 31.469 59.940

VGA

640x480@72Hz 37.861 72.809 640x480@75Hz 37.500 75.00 800x600@56Hz 35.156 56.250 800x600@60Hz 37.879 60.317

SVGA

800x600@72Hz 48.077 72.188 800x600@75Hz 46.875 75.000

1024x768@60Hz 48.363 60.004

XGA

1024x768@70Hz 56.476 70.069 1024x768@75Hz 60.023 75.029

1280x1024@60Hz 63.981 60.020

SXGA

1280x1024@75Hz 79.976 75.025 WXGA+ 1440x900@60Hz 55.935 59.887 WSXGA 1680x1050@60Hz 65.290 59.954

HD 1920x1080@60Hz 67.500 60.000 ***

IBM

1280x960@60Hz 60.000 60.000

640x350@70Hz 31.469 70.087

MODE

DOS

MAC MODE

VGA

MAC MODE

SVGA

MAC MODE

720x400@70Hz 31.469 70.087

640x480@67Hz 35.000 66.667

832x624@75Hz 49.725 74.551

1024x768@75Hz 60.241 74.927

Pin Assignments

Pin Number 15-Pin Side of the Signal Cable 1 Video-Red 2 Video-Green 3 Video-Blue 4 N.C. 5 Detect Cable 6 GND-R 7 GND-G 8 GND-B 9 +5V

10 Ground 11 N.C. 12 DDC-Serial data 13 H-sync 14 V-sync 15 DDC-Serial clock

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name

1 TMDS Data 2+ 9 TMDS Data 0 17 2 TMDS Data 2 Shield 10 TMDS Clock + 18 +5V Power

TMDS Data 2

3 4 TMDS Data 1+ 12 5 TMDS Data 1Shield 13 CEC

TMDS Data 1

7 TMDS Data 0+ 15 SCL 8 TMDS Data 0 Shield 16 SDA

11 TMDS Clock Shield 19 Hot Plug Detect

TMDS Clock

Reserved (N.C. on

device



DDC/CEC Ground

Plug and Play

Plug & Play DDC2B Feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.

The DDC2B is a bi-directional data channel based on the I2C protocol. The host can request EDID information over the DDC2B channel.

Regulation

FCC Notice

FCC Class B Radio Frequency Interference Statement

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

NOTICE :

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference. It is the responsibility of the user to correct such interference.

WARNING: (FOR FCC CERTIFIED MODELS)



CE Declaration of Conformity

This product is in conformity with the following standards

• EN60950-1:2006 and A11+A1 (Safety requirement of Information Technology Equipment).

• EN 55022:2006+A1: 2007 (Radio Disturbance requirement of Information Technology Equipment).

• EN55024:1998+A1:2001+A2:2003 (Immunity requirement of Information Technology Equipment).

• EN 61000-3-2:2006+A1: 2009+A2: 2009 (Harmonic current emissions).

• EN 61000-3-3:2008 (Voltage fluctuations & flicker) following provisions of directives applicable.

• 2006/95/EC (Low Voltage Directive).

• 2004/108/EC (EMC Directive).

• 2005/32/EC (EuP Directive, EC No. 1275/2008 mplementing Directive for Standby and Off mode

power consumption) and is produced by a manufacturing organization on ISO9000 level.

WEEE Declaration

Disposal of Waste Equipment by Users in Private Household in the European Union.

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste.Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product .

WEEE/E-Waste declaration for India

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste.Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling in India, please visit the below web link. www.aocindia.com/ewaste.php

Service

Warranty Statement for Europe

LIMITED THREE-YEAR WARRANTY*

AOC Color Monitors sold within Europe

For AOC LCD Monitors sold within Europe, AOC International (Europe) B.V. warrants this product to be free from defects in material and workmanship for a period of Three (3) years after the original date of consumer purchase. During this period, AOC International (Europe) B.V. will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. In the absent of the proof of purchase, the warranty will start 3 months after the date of manufacturing indicated on the product.

If the product appears to be defective, please contact your local dealer or refer to the service and support section on dated proof of purchase, to the AOC Certified or Authorized Service Center under the following condition:

AOC International (Europe) B.V. is not responsible for any damaged during transport due to improper packing. AOC International (Europe) B.V. will pay the return shipping charges within one of the countries specified within this warranty statement. AOC International (Europe) B.V. is not responsible for any costs associated with the transportation of product across international borders. This includes the international border within the European Union.If the LCD Monitor is not available for collection when the currier attends, you will be charged a collection fee.

* This limited warranty does not cover any losses or damages that occur as a result of: 

All AOC LCD Monitors are produced according to the ISO 9241-307 Class 1pixel policy standards.

www.aoc-europe.com

•

 Make sure the LCD Monitor is packed in a proper carton box (AOC prefers the original carton box

to protects your monitor well enough during transport).

•

 Put the RMA number on the address label

•

 Put the RMA number on the shipping carton

•

Improper installation or maintenance



•

Misuse



•

Neglect



•

Any cause other than ordinary commercial or industrial application



•

Adjustment by non-authorized source



•

Repair, modification, or installation of options or parts by anyone other than an AOC Certified or



Authorized ServiceCenter

•

Improper environments like humidity and dusts



•

Damaged by violence



•

Excessive or inadequate heating or air conditioning or electrical powers failures, surges, or other



irregularities

for warranty instructions. Deliver the product freight pre-paid, along with the

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. AOC INTERNATIONAL (EUROPE) B.V. OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCULSIVELY AS STATED HERE. AOC INTERNATIONAL (EUROPE) B.V. LIABILITY, WHETHER BASED ON CONTRACT, TORT, WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL AOC INTERNATIONAL (EUROPE) B.V. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT, OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS,

YOU MAY HAVE OTHER RIGHTS, WHICH MAY VARY FROM COUNTRY TO COUNTRY. THIS LIMITED WARRANTY IS ONLY VALID FOR PRODUCTS PURCHASED IN THE MEMBER COUNTRIES OF THE EUROPEAN UNION.

Warranty Statement for North & South America (excluding Brazil)

WARRANTY STATEMENT for AOC Color Monitors

Including those Sold within North America as Specified

Envision Peripherals, Inc. warrants this product to be free from defects in material and workmanship for a period of three (3) years for parts & labor and one (1) year for CRT Tube or LCD Panel after the original date of consumer purchase. During this period, EPI ( EPI is the abbreviation of Envision Peripherals, Inc. ) will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. The parts or product that are replaced become the property of EPI.

In the USA to obtain service under this limited warranty, call EPI for the name of the Authorized Service Center closest to your area. Deliver the dated proof of purchase to the EPI

If you cannot deliver the product in person:

Pack it in its original shipping container (or equivalent)

Put the RMA number on the address label

Put the RMA number on the shipping carton

Insure it (or assume the risk of loss/damage during shipment)

Pay all shipping charges

EPI is not responsible for damage to inbound product that was not properly packaged. EPI will pay the return shipment charges within one of the countries specified within this warranty statement. EPI is not responsible for any costs associated with the transportation of product across international borders. This includes the international borders of the countries within this warranty statements.

In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free number (888) 662-9888. Or you can request an RMA Number online at www.aoc.com/na-warranty.

* This limited warranty does not cover any losses or damages that occur as a result of:

Shipping or improper installation or maintenance

Misuse

Neglect

Any cause other than ordinary commercial or industrial application

Adjustment by non-authorized source

Repair, modification, or installation of options or parts by anyone other than an EPI Authorized Service Center

Improper environment

Excessive or inadequate heating or air conditioning or electrical power failures, surges, or other irregularities

This three-year limited warranty does not cover any of the product's firmware or hardware that you or any third party have modified or altered; you bear the sole responsibility and liability for any such modification or alteration.

Authorized Service Center.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR AND ONE (1) YEAR FOR CRT TUBE OR LCD PANEL FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. IN THE UNITED STATES OF AMERICA, SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

EPI OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCLUSIVELY AS STATED HERE. EPI’ LIABILITY, WHETHER BASED ON CONTRACT, TORT. WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL ENVISION PERIPHERALS, INC. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. IN THE UNITED STATES OF AMERICA, SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.

In the United States of America, this limited warranty is only valid for Products purchased in the Continental United States, Alaska, and Hawaii. Outside the United States of America, this limited warranty is only valid for Products purchased in Canada.

Information in this document is subject to change without notice. For more details, please visit:

USA: http://us.aoc.com/support/warranty ARGENTINA: http://ar.aoc.com/support/warranty BOLIVIA: http://bo.aoc.com/support/warranty CHILE: http://cl.aoc.com/support/warranty COLOMBIA: http://co.aoc.com/warranty COSTA RICA: http://cr.aoc.com/support/warranty DOMINICAN REPUBLIC: http://do.aoc.com/support/warranty ECUADOR: http://ec.aoc.com/support/warranty EL SALVADOR: http://sv.aoc.com/support/warranty GUATEMALA: http://gt.aoc.com/support/warranty HONDURAS: http://hn.aoc.com/support/warranty NICARAGUA: http://ni.aoc.com/support/warranty PANAMA: http://pa.aoc.com/support/warranty PARAGUAY: http://py.aoc.com/support/warranty PERU: http://pe.aoc.com/support/warranty URUGUAY: http://pe.aoc.com/warranty VENEZUELA: http://ve.aoc.com/support/warranty

IF COUNTRY NOT LISTED: http://latin.aoc.com/warranty

AOC I2367FM User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety

National Conventions

Power

Installation

Cleaning

Other

Setup

Contents in Box

Setup Stand & Base

Adjusting Viewing Angle

Connecting the Monitor

Windows Vista

Windows XP

Windows ME/2000

Hotkeys

OSD Setting

Luminance

Image Setup

Color Setup

Picture Boost

OSD Setup

Extra

Exit

LED Indicator

i-Menu

e-Saver

Screen+

Troubleshoot

Specification

General Specification

Preset Display Modes

Pin Assignments

Plug and Play

Regulation

FCC Notice

WEEE Declaration

Service

Warranty Statement for Europe

Warranty Statement for North & South America (excluding Brazil)
