AOC I2367FH, I2367F, I2067F User Guide

LCD Monitor User Manual

I2367F /I2267

I2367F I2267FW

/ /I2067F

F

LED Backlight

W

H

/

2

Safety ........................................................................................................................................................................ 3

National Conventions ......................................................................................................................................... 3

Power

Installation .......................................................................................................................................................... 5

Cleaning ............................................................................................................................................................. 6

Other

Setup ........................................................................................................................................................................ 8

Contents in Box ................................................................................................................................................. 8

Setup Stand & Base

Adjusting Viewing Angle ................................................................................................................................... 11

Connecting the Monitor .................................................................................................................................... 12

Adjustin ................................................................................................................................................................. 14

Driver ...................................................................................................................................................................... 34

Troubleshoot
Specification

g

Setting Optimal Resolution .............................................................................................................................. 14

Windows Vista

Windows XP ............................................................................................................................................. 16

Windows ME/2000 .................................................................................................................................... 17

Hotkeys

OSD Setting ..................................................................................................................................................... 19

Luminanc ................................................................................................................................................ 20

Image Setup

Color Setup ............................................................................................................................................... 24

Picture Boost ............................................................................................................................................ 26

OSD Setup

Extra ......................................................................................................................................................... 30

Exit ............................................................................................................................................................ 32

LED Indicator

Monitor Driver .................................................................................................................................................. 34

Windows 7

Windows Vista .......................................................................................................................................... 37

Windows XP ............................................................................................................................................. 39

Windows 2000

Windows ME ............................................................................................................................................. 42

i-Menu .............................................................................................................................................................. 43

e-Saver

Screen+ ........................................................................................................................................................... 45

General Specification ....................................................................................................................................... 47

Preset Display Modes ...................................................................................................................................... 50

Pin Assignments

Plug and Play

Regulation ............................................................................................................................................................... 53

FCC Notice

CE Declaration of Conformity

WEEE Declaration

Service

Warranty Statement for Europe ....................................................................................................................... 56

Warranty Statement for North & South America (excluding Brazil) ........................................................... 58

e

...........................

..........................................................................................................................53

.

................................................................................................................................................................ 4

.................................................................................................................................................................. 7

.......................................................................................................................................... 9

.......................................................................................................................................... 14

............................................................................................................................................................ 18

............................................................................................................................................. 22

............................................................................................................................................... 28

................................................................................................................................................... 33

................................................................................................................................................ 34

.......................................................................................................................................... 42

............................................................................................................................................................ 44

........................................................................................................................................................... 46

............................................................................................................................................................ 47

.............................................................................................................................................. 51

................................................................................................................................................... 52

........................................................................................................................... 53

........................................................................................................................................... 54

.................................................................................................................................................................... 56

3

Safety

National Conventions

The following subsections describe notational conventions used in this document.

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type.
These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: A NOTE indicates important information that helps you make better use of your computer system.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the

problem.

WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some
warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific
presentation of the warning is mandated by regulatory authority.

4

Power

The monitor should be operated only from the type of power source indicated on the label. If you are not sure

of the type of power supplied to your home, consult your dealer or local power company.

The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug
will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire
plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat
the safety purpose of the grounded plug.

Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect
the monitor from damage due to power surges.

Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate
configured receptacles marked between 100 - 240V ~, Min. 5A

The wall socket shall be installed near the equipment and shall be easily accessible.

For use only with the attached power adapter (Output 12Vdc) which have UL,CSA listed license (Only for
monitors with power adapter).

Manufacturers:

H /I2267F

I2367F

1) TPV ELECTRONICS(FUJIAN) CO., LTD model :

WH

ADPC1245

2) HONOR ELECTRONIC CO.,LTD model: ADS-65LSI-12-1 12045G

I2367F/I2267F

W

/I2067F

1) TPV ELECTRONICS(FUJIAN) CO., LTD model : ADPC1236

2)

HONOR ELECTRONIC CO., LTD model : ADS-45NP-12-1 12036G

5

Installation

Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a
person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by
the manufacturer or sold with this product. Follow the manufacturer’s instructions when installing the product and
use mounting accessories recommended by the manufacturer. A product and cart combination should be moved
with care.

Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or
electric shock. Never spill liquids on the monitor.

Do not place the front of the product on the floor.

If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit
instructions.

Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence
overheating may cause a fire or damage to the monitor.

See below the recommended ventilation areas around the monitor when the monitor is installed on

the stand:

6

Cleaning

Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of
strong-detergent which will cauterize the product cabinet.

When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough
as it will scratch the screen surface.

Please disconnect the power cord before cleaning the product.

7

Other

If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and
contact a Service Center.

Make sure that the ventilating openings are not blocked by a table or curtain.

Do not engage the LCD monitor in severe vibration or high impact conditions during operation.

Do not knock or drop the monitor during operation or transportation.

8

Setup

Contents in Box

Monitor

*

CD Manual

Power Cable

*

Base

CableDVI

Adapter

*

Analog Cable

Audio Cable

*

HDMI Cable

Not all signal cables (Analog,

check with the local dealer or AOC branch office for confirmation.

and HDMI cables) will be provided for all countries and regions. Please

Setup Stand & Base

Please setup or remove the base following the steps as below.

Setup:

2

1

Remove:

9

Unit standing without base is available. (Caution: must put unit in flat surface. Any uneven or sloped surface may
result unit damaged or injury to user.)

10

Adjusting Viewing Angle

For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your
own preference.
Hold the stand so you will not topple the monitor when you change the monitor's angle.

You are able to adjust the monitor's angle from -5° to 23 °.

-5 23

NOTE:

Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.

11

Connecting the Monitor

Cable Connections In Back of Monitor and Computer:

1 2 3 4 5

Power

1.

2.

3.

Audio

4.

5. HDMI

To protect equipment, always turn off the PC and LCD monitor before connecting.

1 Connect the power cable to the AC port on the back of the monitor.
2 Connect one end of the 15-pin D-Sub/HDMI cable to the back of the monitor and connect the other end to the

3 Turn on your monitor and computer.

If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.

Earphone

D-Sub

computer's D-Sub/HDMI port.

12

Connecting the Monitor

Cable Connections In Back of Monitor and Computer:

1

Power

1.

2.

D-Sub

3.

DVI

To protect equipment, always turn off the PC and LCD monitor before connecting.

1 Connect the power cable to the AC port on the back of the monitor.
2 Connect one end of the 15-pin D-Sub/DVI cable to the back of the monitor and connect the other end to the

3 Turn on your monitor and computer.

If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.

computer's D-Sub/DVI port.

2

3

13

Adjusting

Setting Optimal Resolution

Windows Vista

For Windows Vista:

1 Click STAR T.
2 Click CONTROL PANEL.

3 Click Appearance and Personalization.

4 Click Personalization

1 4

5 Click Display Settings.

6 Set the resolution SLIDE-BAR to .

Optimal preset resolution

.

1

5

Windows XP

For Windows XP:

1 Click STAR T.

2 Click SETTINGS.

3 Click CONTROL PANEL.

4 Click Appearance and Themes.

5 Double click DISPLAY.

16

6 Click SETTINGS.

7 Set the resolution SLIDE-BAR to

Windows ME/2000

Optimal preset resolution

For Windows ME/2000:

1 Click STAR T.
2 Click SETTINGS.
3 Click CONTROL PANEL.
4 Double click DISPLAY.
5 Click SETTINGS.
6 Set the resolution SLIDE-BAR to .

Optimal preset resolution

1

7

Hotkeys

1

2

3

4

5

1

Menu/Enter

2

Volume/∧

3

Eco (DCR)

4

Source/Auto/Exit

Power

5

Power

Press the Power button to turn on/off the monitor.

Eco (DCR)

Press the Eco key continuously to select the Eco mode of brightness and DCR on when there is no OSD. (Eco
mode hot key may not be available in all models).

9ROXPH

When there is no OSD, press Volume adjust volume.

4:3 or wide image ratio /

When there is no OSD, press hotkey continuously to change 4:3 or wide image ratio. (If the product screen size
is 4:3 or input signal resolution is wide format, the hot key is disable to adjust. )

∧

∨

/

∨



∧

∧

1

Menu/Enter

2

4:3 or wide /∧

3

Eco (DCR)

4

Source/Auto/Exit

Power

5

∨

/

Auto / Exit / Source hot key

When there is no OSD, press Auto/Source button continuously about 2 second to do auto configure.
When the OSD is closed, press Source button will be Source hot key function. Press Source button continuously to
select the input source showed in the message bar, press Menu/Enter button to change to the source selected.

1

8

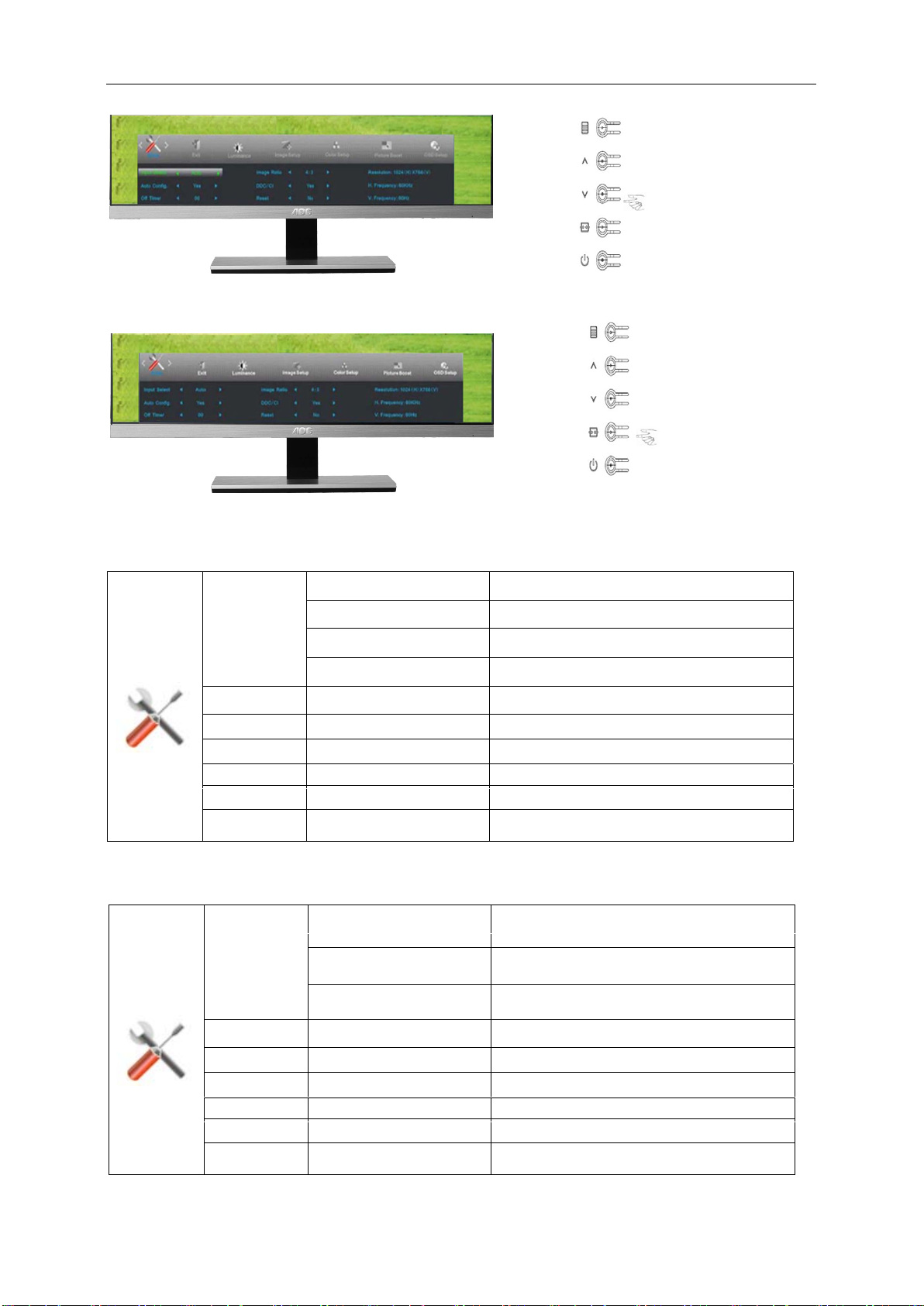

OSD Setting

Basic and simple instruction on the control keys.







1) Press the MENU-button to activate the OSD window.

2) Press or to navigate through the functions. Once the desired function is highlighted, press the

3) Press or to change the settings of the selected function. Press AUTO to exit. If you want to adjust any

4) OSD Lock Function: To lock the OSD, press and hold the MENU button while the monitor is off and then press

Notes:

1) If the product has only one signal input, the item of "Input Select" is disable to adjust.

2) If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disable to

3)

4)

∧

∨

MENU-button to activate it . press or to navigate through the sub-menu functions. Once the desired
function is highlighted, press MENU-button to activate it.

∧

∨

other function, repeat steps 2-3.

power button to turn the monitor on. To un-lock the OSD - press and hold the MENU button while the monitor
is off and then press power button to turn the monitor on.

adjust.

non-standard ECO, DCR , DCB, Picture Boost is activated the other three of

One

of

accordingly.

Ce rtain models m ay not have the O verdrive optio n. P le ase refer to the

∧

∨

,

functions are turned off

actual O SD of the d isp lay.

1

9

Luminance

1. Press MENU (Menu) to display menu.



2. Press

3. Press

or to select (Luminance), and press MENU to enter.

∧

∨

∧

∨

or to select submenu, and press MENU to enter.



20
