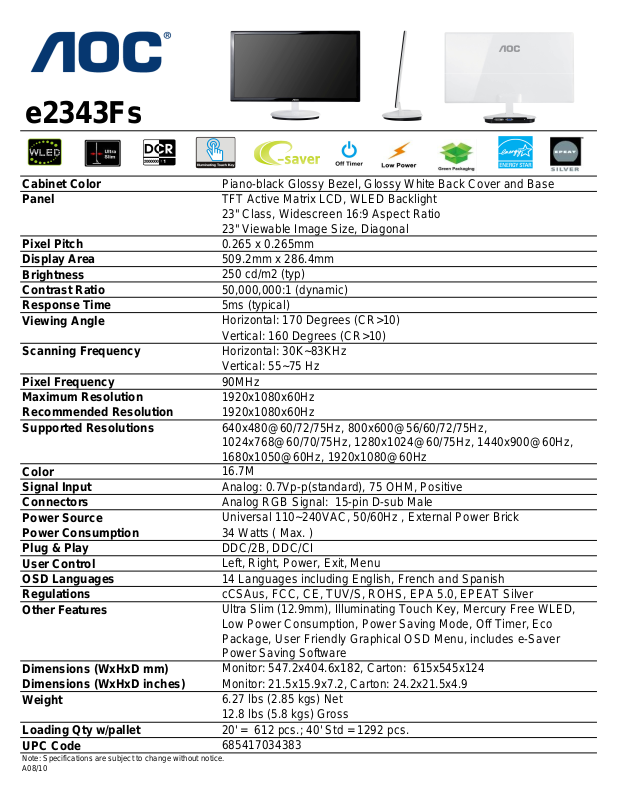

Aoc E2343FS BROCHURE

e2343Fs

23" Viewable Image Size, Diagonal

1680x1050@60Hz, 1920x1080@60Hz

Note: Specifications are subject to change without notice.

Cabinet Color
Panel

Pixel Pitch
Display Area
Brightness
Contrast Ratio
Response Time
Viewing Angle

Scanning Frequency

Pixel Frequency
Maximum Resolution
Recommended Resolution
Supported Resolutions

Color
Signal Input
Connectors
Power Source
Power Consumption
Plug & Play
User Control
OSD Languages
Regulations
Other Features

Dimensions (WxHxD mm)
Dimensions (WxHxD inches)
Weight

Loading Qty w/pallet
UPC Code

Piano-black Glossy Bezel, Glossy White Back Cover and Base
TFT Active Matrix LCD, WLED Backlight
23" Class, Widescreen 16:9 Aspect Ratio

0.265 x 0.265mm

509.2mm x 286.4mm
250 cd/m2 (typ)
50,000,000:1 (dynamic)
5ms (typical)
Horizontal: 170 Degrees (CR>10)
Vertical: 160 Degrees (CR>10)
Horizontal: 30K~83KHz
Vertical: 55~75 Hz
90MHz
1920x1080x60Hz
1920x1080x60Hz
640x480@60/72/75Hz, 800x600@56/60/72/75Hz,
1024x768@60/70/75Hz, 1280x1024@60/75Hz, 1440x900@60Hz,

16.7M
Analog: 0.7Vp-p(standard), 75 OHM, Positive
Analog RGB Signal: 15-pin D-sub Male
Universal 110~240VAC, 50/60Hz , External Power Brick
34 Watts ( Max. )
DDC/2B, DDC/CI
Left, Right, Power, Exit, Menu
14 Languages including English, French and Spanish
cCSAus, FCC, CE, TUV/S, ROHS, EPA 5.0, EPEAT Silver
Ultra Slim (12.9mm), Illuminating Touch Key, Mercury Free WLED,
Low Power Consumption, Power Saving Mode, Off Timer, Eco
Package, User Friendly Graphical OSD Menu, includes e-Saver
Power Saving Software
Monitor: 547.2x404.6x182, Carton: 615x545x124
Monitor: 21.5x15.9x7.2, Carton: 24.2x21.5x4.9

6.27 lbs (2.85 kgs) Net

12.8 lbs (5.8 kgs) Gross
20' = 612 pcs.; 40' Std = 1292 pcs.
685417034383

A08/10
