AOC e2250Swn Schematic

21.5" LCD Monitor AOC e2250Swn

1

Service

Horizontal Frequency

30 - 83kHz

Table of Contents

Description Page Description Page

SAFETY NOTICE ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

Table of Contents…………………..…………………..…...1

Revision List.…...................................................……......2

Important Safety Notice.….….............................……......3

1.Monitor Specification..............................………............4

2.LCD Monitor Description……….…………………….......5

3.Operation Instruction.…………...................……...........6

3.1.General Instructions....................................…...........6

3.2.Control Buttons and Connections...............................6

3.3.OSD Setting…..........................................................8

4.Input/Output pecification...............…..…………….......24

4.1.Input Signal Connector...............………..................24

4.2.Pres e t Displa y Modes …… ..........................25

4.3.Panel Specification…………..………………………..26

5.Block Diagram….........................................................28

5.1.Main Board…..….............................................28

5.2.Power Board…………..…………………………......29

6.Schematic…………..….........................................30

6.1.Main Board..…….…...........................................30

6.2.Power Board..……….........................................34

7.PCB Layout..………..............................................36

7.1.Main Board………..…........................................36

7.2.Power Board….…..............................................38

7.3.Key Board………..…..........................................39

8.Maintainability………............................................40

8.1.Equipments and Tools Requirement…...............40

8.2.Trouble Shooting…..………...............................41

9.White-Balance,Luminance Adjustment…............45

10.Monitor Exploded View……................................47

11.BOM List…………..……………………….............48

CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

2

Revision List

Version

Release Date

Revision History

TPV Model Name

A00

Dec.-28-2011

Initial release

TIBMRV2BDFA2NNE

TIBKRV2BDFA1NNE

A01

Feb.-20-2013

Add new models

TIA4RV2YAGACNNE

TIB1RV2QAGA1NNE

TIB2RV2BAGA1NNE

TIB2RV2BDFA1NNE

TIB2RV2YAGA1NNE

TIBKRV2BAGA7NNE

TIBKRV2QAGA12NE

TIC1RV2BAGA1NNE

TIC1RV2BAGA3NNE

TIC1RV2BAGA7NNE

TIC1RV2YAGA1NNE

TICARV2BAGA1NNE

TICARV2BAGA2NNE

3

Important Safety Notice

Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service procedures recommended by AOC and described in this service manual are effective methods of performing service operations. Some of these service operations require the use of tools specially designed for the purpose. The special tools should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected. Hereafter throughout this manual, AOC Company will be referred to as AOC.

WARNING

Use of substitute replacement parts, which do not have the same, specified safety characteristics may create shock, fire, or other hazards.

Under no circumstances should the original design be modified or altered without written permission from AOC. AOC assumes no liability, express or implied, arising out of any unauthorized modification of design. Servicer assumes all liability.

FOR PRODUCTS CONTAINING LASER: DANGER-Invisible laser radiation when open AVOID DIRECT EXPOSURE TO BEAM. CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. CAUTION -The use of optical instruments with this product will increase eye hazard.

TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF THIS SERVICE MANUAL. Take care during handling the LCD module with backlight unit

-Must mount the module using mounting holes arranged in four corners.

-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.

-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel.

-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).

-Make certain that treatment person’s body is grounded through wristband.

-Do not leave the module in high temperature and in areas of high humidity for a long time.

-Avoid contact with water as it may a short circuit within the module.

-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may damage the panel.)

4

1.Monitor Specifications

5

2.LCD Monitor Description

The LCD monitor will contain a main board, a power board and a key board which house the flat panel control logic, brightness control logic and DDC. The power part will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips each voltage.

AC-IN

100V-240V

Monitor Block Diagram

Flat Panel and LED backlight

Main Board

RS232 Connector For white balance adjustment in factory

LED Drive.

Video signal, DDC

HOST Computer

Key Board

Power board

6

3. Operating Instructions

3.1 General Instructions

Press the power button to turn the monitor on or off. The other control knobs are located at front panel of the monitor (See Figure ). By changing these settings, the picture can be adjusted to your personal preferences. * The power cord should be connected. * Press the power button to turn on the monitor. The power indicator will light up.

3.2 Control Buttons and Connections

Power

Press the Power button to turn on/off the monitor.

Eco (DCR)/ -

Press the Eco key continuously to select the Eco mode of brightness and DCR on when there is no OSD. ( Eco mode hot key may not be available in all models).

4 : 3 or wide/+

When there is no OSD, press + continuously to change 4:3 or wide image ratio. (If the product screen size is 4:3 or input signal resolution is wide format, the hot key is disable to adjust. )

Auto / Exit When the OSD is closed,. Press Auto button continuously to do auto configure (Only for the models with dual or

more inputs).

7

1. Power

2. Analog (DB-15 VGA cable)

To protect equipment, always turn off the PC and LCD monitor before connecting. 1 Connect the power cable to the AC port on the back of the monitor. 2 Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer's D-Sub port. 3 Turn on your monitor and computer. If your monitor displays an image, installation is complete. If it does not display an image, please refer Troubleshooting.

8

3.3 OSD Setting

Basic and simple instruction on the control keys.

1)Press the MENU-button to activate the OSD window.

2) Press - or + to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate it . press - or + to navigate through the sub-menu functions. Once the desired function is highlighted, press MENU-button to activate it.

3) Press - or + to change the settings of the selected function. Press AUTO to exit. If you want to adjust any other function, repeat steps 2-3.

4) OSD Lock Function: To lock the OSD, press and hold the MENU button while the monitor is off and then press power button to turn the monitor on. To un-lock the OSD - press and hold the MENU button while the monitor is off and then press power button to turn the monitor on. Notes:

1) If the product has only one signal input, the item of "Input Select" is disable to adjust.

2) If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disable to adjust.

3) One of DCR, Color Boost, and Picture Boost functions is active, the other two function is turned off accordingly.

Luminance

1

Press (Menu) to display menu.

2

Press or to select (Luminance), and press to enter.

3

Press or to select submenu, and press to enter.

4

Press or to adjust.

10

5

Press two times to exit.

11

Image Setup

1

Press (Menu) to display menu.

2

Press or to select (Image Setup), and press to enter.

3

Press or to select submenu, and press to enter.

4

Press or to adjust.

12

5

Press two times to exit.

13

Color Setup

1

Press (Menu) to display menu.

2

Press or to select (Color Setup), and press to enter.

3

Press or to select submenu, and press to enter.

4

Press or to adjust.

14

5

Press two times to exit.

15

Picture Boost

1

Press (Menu) to display menu.

2

Press or to select (Picture Boost), and press to enter.

3

Press or to select submenu, and press to enter.

4

Press or to adjust.

16

5

Press two times to exit.

17

OSD Setup

1

Press (Menu) to display menu.

2

Press or to select (OSD Setup), and press to enter.

3

Press or to select submenu, and press to enter.

4

Press or to adjust.

18

5

Press two times to exit.

19

Extra

1

Press (Menu) to display menu.

2

Press or to select (Extra), and press to enter.

3

Press or to select submenu, and press to enter.

4

Press or to adjust.

20

5

Press two times to exit.

21

Exit

1

Press (Menu) to display menu.

2

Press or to select (Exit), and press to enter.

3

Press two times to exit

22

LED Indicators

Status

LED Color

Full Power Mode

Green or Blue

Active-off Mode

Orange or red

e-Saver

Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below). Please click on "driver/e-Saver/setup.exe" to start installing the e-Saver software, follow the install wizard to complete software installation.

Under each of the four PC status, you may choose from the pull-down menu the desired time (in minutes) for your monitor to automatically shutdown. The example above illustrated:

1) The monitor will never shutdown when the PC is powered on.

2) The monitor will automatically shutdown 5 minutes after the PC is powered off.

3) The monitor will automatically shutdown 10 minutes after the PC is in sleep/stand-by mode.

4) The monitor will automatically shutdown 20 minutes after the screen saver appears.

You can click “RESET” to set the e-Saver to its default settings like below.

23

Screen+

Welcome to "Screen+" software by AOC, Screen+ software is a desktop screen splitting tool, it splits the desktop into different panes, each pane displays a different window. You only need to drag the window to a corresponding pane, when you want to access it. It supports multiple monitor display to make your task easier. Please follow the installation software to install it.

24

4. Input/Output Specification

4.1 Input Signal Connector

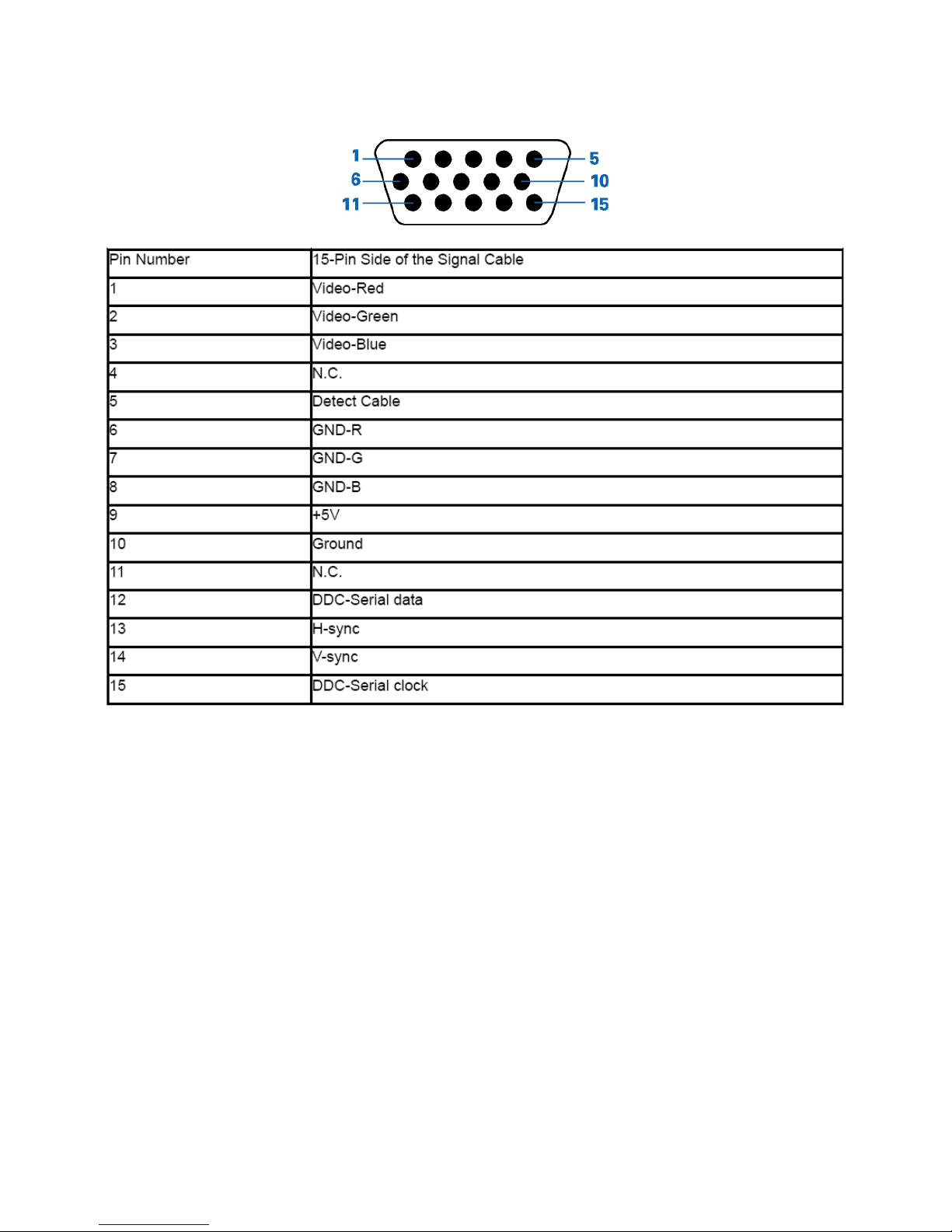

Analog connector

25

4.2 Preset Display Modes

26

4.3 Panel Specification

4.3.1 General Features

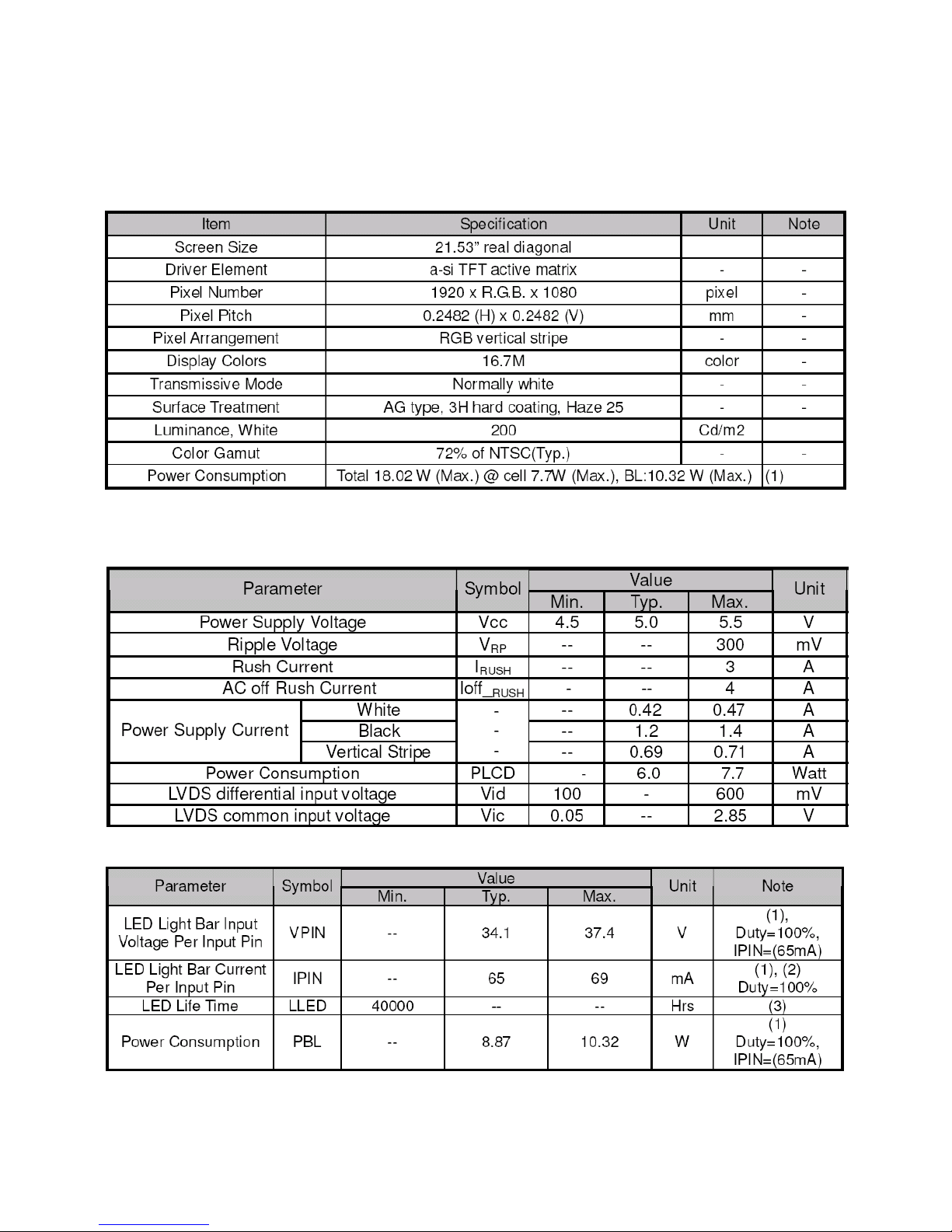

M215HGE-L23 is a 21.5” TFT Liquid Crystal Display module with WLED Backlight unit and 30 pins 2ch-LVDS interface. This module supports 1920 x 1080 Full HD mode and can display up to 16.7M colors. The converter module for Backlight is not built in.

4.3.2 General Specifitions

4.3.3 Electrical Characteristics

Electrical characteristics

Vcc = 5.0 V, Ta = 25 ± 2 ºC, Fr = 60Hz

Backlight Unit

Note (1) LED light bar input voltage and current are measured by utilizing a true RMS multimeter as shown below: Note (2) PBL = IPIN × VPIN × ( 4 ) input pins , Note (3) The lifetime of LED is defined as the time when LED packages continue to operate under the conditions at Ta = 25 ±2℃ and I= (65)mA (per chip) until the brightness becomes ≤ 50% of its

27

original value.

4.3.4 Optical Characteristics

28

5. Block Diagram

5.1 Main Board

04.Output

PPWR_ON# L/T_SCL L/T_SDA

CMVCC

PA[0..1] PA[4..9] PB[0..9]

PA[0..1]

CMVCC1

XGA/SXGA LVDS OUTPUT

CMVCC1

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬隔瓜絪腹

AOC 50 ID(1A) A

AOC 50 ID(1A)

A

3 7Friday , Nov ember 12, 2010

715G4737-M0B

<称爹>

01.Top

715G4737-M0B-000-0040_101028

02.Input

DSUB_R+ DSUB_G+

DSUB_B+

DSUB_V

DSUB_RDSUB_G-

DSUB_B-

DET_CABLE

DSUB_H

DSUB_SOG

DDC1_SDA

DDC1_SCL

CMVCC1

EDID_CTRL

05.Power

on_BACKLIGHT

Adj_BACKLIGHT

VCC1.2

CMVCC

VCC3.3

Mute

Volume#

PANEL_ID#

CMVCC1

VCTRL

03.Scalar

DSUB_R+ DSUB_G+ DSUB_SOG

DSUB_B+

DSUB_RDSUB_G-

DSUB_BDSUB_H DSUB_V

Adj_BACKLIGHT

VCC1.2

VCC3.3

PA[0..1]

PB[0..9]

DDC1_SDA DDC1_SCL DET_CABLE

on_BACKLIGHT

PPWR_ON#

PANEL_ID#

Volume#

Mute

PA[4..9]

CMVCC1

VCTRL

EDID_CTRL

L/T_SCL L/T_SDA

VCC1.2

VCC3.3

CMVCC

VCC1.2

CMVCC

VCC3.3

PB[0..9]

PA[4..9]

CMVCC1

29

5.2 Power Board

AC input

D801 C809

14.5V

MOSFET

(Q801)

ON/OFF

DIM

L801

LED

(CN804)

PWM Control

OZ9998BGN

(U801)

14.5V

EMI filter

Start Resistor

(R908,R911)

PWM Control

LD7576AGR

(U901)

Bridge Rectifier and Filter

Rectifier diodes

Transformer

(T901)

Feedback

Circuit

Regulator

(IC903)

5V

Photo coupler

(U902)

Power Switch

(Q901)

30

6. Schematic

6.1 Main Board

715G4737M02000004I

VGA_PLUG

U405

FM24C02A

A0

1

A1

2

A2

3

GND

4

SDA

5

SCL

6

WP

7

VCC

8

EDID_C TRL

C104 5PF 50V

C108 5PF 50V

C111 5PF 50V

CMVCC1 5

R109

1K 1/16W 5%

DDC1_SC L5

C435 1N50V

D403 LBAV70LT1G

CN101 D-SUB 15P

1 6

2 7

3 8

4 9

5

11

12

13

14

15

10

17 16

U103

AZC399-04S

I/O1

1

GND

2

I/O23I/O3

4

VDD

5

I/O4

6

U102

AZC399-04S

I/O1

1

GND

2

I/O23I/O3

4

VDD

5

I/O4

6

DSUB_SCL

056G 662504 эΘ2nd source

DSUB_SDA

R472

4K7 1/16W 5%

R473

4K7 1/16W 5%

VGA_R+ VGA_B+

VGA_G+

V_Sync

FB103

BEAD

1 2

C107

47nF 16V

C103 22PF 50V

R111

100R 1/16W 5%

R104

100R 1/16W 5%

FB102

BEAD

1 2

C105

47nF 16V

FB101

BEAD

1 2

R101 0R05 1/ 10W R102 100R 1/ 16W 5%

R117

100R 1/16W 5%

C113

47nF 16V

C110

47nF 16V

C102 22PF 50V

R106 2K2 1/16W 5%

R112 75 OHM +-5% 1/16W

R107 75 OHM +-5% 1/16W

C109

47nF 16V

R105

2K2 1/16W 5%

R115

100R 1/16W 5%

R108

100R 1/16W 5%

R103 100R 1/ 16W 5%

C101

47nF 16V

R116 75 OHM +-5% 1/16W

R114

100R 1/16W 5%

GND POW ER

R118 100K 1/16W 5%

DSUB_5V

DGND

ESD_5V

H_Sy nc

DSUB_SDA

DDC1_SD A5

ESD_5V

DSUB_H 5 DSUB_V 5

DET_CABLE 5

DSUB_R- 5

DSUB_R+ 5

DSUB_G- 5

ミ

ΑCONN

DSUB_G+ 5

DSUB_SOG 5

DSUB_B- 5

DSUB_B+ 5

DDC1_SC L

C115 NC

候綼

DSUB_SCL

VGA_PLUG

DDC1_SD A

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL PCB NAME

称爹

T P V ( Top Vic tory Electronics C o . , Lt d. )

Key Component

絬隔瓜絪腹

AOC 50 ID (1A) A

AOC 50 ID (1A)

B

4 7Friday , June 24, 2011

715G4737-M02

<称爹>

02.Input

715G4737-M02-000-0040_110620

Q407 LMBT3904LT1G

R474

22K 1/16W 5%

C114 NC

C434 220N16V

CMVCC1

R475 47R 1/16W 5%

V_Sync

DSUB_5V

VGA_R-

R476 47R 1/16W 5%

VGA_R+

VGA_G-

VGA_B+

DSUB_5V

CMVCC1

DSUB_SCL VGA_PLUG

VGA_G-

C106

22NF25V

VGA_G+DSUB_SDA

VGA_R-

ZD103

RLZ5.6B

1 2

VGA_B-

VGA_G+

VGA_B+H_Sy nc

VGA_R+

31

CMVCC1

ZD402

NC/MLVS0603M04

1 2

ZD404

NC/MLVS0603M04

1 2

ZD403

NC/MLVS0603M04

1 2

DSUB_V3

POWER_KEY#

DSUB_H3

DSUB_B-3

DSUB_B+3

DSUB_SOG3

DSUB_G-3

DSUB_G+3

DSUB_R-3

DSUB_R+3

U402

Pm25LD020C-SCE

CE#

1

SO

2

WP#

3

GND

4

VDD

8

HOLD#

7

SCK

6

SI

5

KEY1

R489 22R 1/16W 5% R490 22R 1/16W 5%

R492 22R 1/16W 5%

R491 22R 1/16W 5%

PA[4..9] 5

PB[0..9] 5

LED_GRN/BLUE

PANEL_ID# 7

on_BACKLIGHT 7 adj_BACKLIGHT 7

Volume# 7

R478 NC

Mute 7

PPWR_ON# 6 DET_CABLE 4

POWER_KEY#

VCC3.37

CMVCC1

R469

2K2 1/16W 5%

VCC1.27

LED_O

LED_G/B

R493 NC

LED_ORANGE/TOUCH _VCC

LED_GRN/BLUE

R494 NC

R461 NC/0R05 1/16W

CMVCC17

Near to Connect

PA[0..1] 5

R426 NC

WP

VCC3.3

MSCL

R451 NC

MSDA

R452 NC

DDC1_SDA3

KEY2

Q402

LMBT3906LT1G

Q403

LMBT3906LT1G

VCC3.3

PA0 PA1

PA[0..1]

KEY1

R453 NC

PA4 PA5

PA[4..9]

MSCL

PA7

PA6

R468 330OHM 1/10W

C429 NC

PA9

PA8

EE_WP

MSDA

R481

0R05 1/16W

R455 NC

R454 NC

U403

NC/M24C04-WMN6TP

NC

1

E1

2

E2

3

VSS4SDA

5

SCL

6

WC

7

VCC

8

VCC3.3

PB1

PB[0..9]

PB0

PB4

PB2

PB5

PB3

R421

3K9 +/-5% 1/16W R482 NC

KEY2

X401

14.31818MHZ/32PF

1 2

PB9

PB6 PB8

CN408

CONN

1

2

3

4

5

6

PB7

CN409

NC/CONN

1

2

3

4

5

6

7

LED_O

When use touch Key,GPIO_P07 as to control touch key VCC

LVDS

LED_G/B

VCC3.3

FB405

NC

C436 100N16V

VCC3.3

VCTRL 7

R407

NC/10K 1/16W 5%

R404

NC/10K 1/16W 5%

CN406

NC/CONN

1 2 3 4 5 6 7 8

If product spec is <0.3W, need to check flash VCC current.

R462 NC/0R05 1/16W

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL PCB NAME

称爹

T P V ( Top Victory Elect ronics Co . , Ltd. )

Key Component

絬隔瓜絪腹

AOC 50 ID(1A)

A

AOC 50 ID(1A)

C

5 7Friday, June 24, 2011

715G4737-M02

<称爹>

03.Scalar

715G4737-M02-000-0040_110620

R463 NC R464 NC

EDID_CTRL

R485 4K7 1/16W 5%

(0)

LBADC1

(2K)

(2K) 1.118V

MENU

LBADC2

0.673V

UP

1.118V

(1K)

CN402

NC/CONN

1 2 3 4 5 6

0V

DOWN

AUTO

(KEY2)

(KEY1)

VCC3.3

VCC1.2

CN407

NC/CONN

1 2 3 4 5 6 7

R405 100R 1/16W 5%

R427 3K9 +/-5% 1/16W

C407 100N16V

R424 NC

C412 20pF 50V

FB404

NC

L/T_SCL4

L/T_SDA 4

C411 20pF 50V

C418 NC

R466

2K2 1/16W 5%

R428 3K9 +/-5% 1/16W

R411 100R 1/16W 5%

R419 NC/100R 1/16W 5%

C404 100N16V

LED_ORANGE/TOUCH _VCC

C408 220N16V

C403

100N16V

C433 NC

C413100N 16V

R410 10K 1/16W 5%

TOUCH_POWER

R414 10K 1/16W 5%

C417 100N16V

C414100N 16V

R487 10K 1/16W 5%

R420 100R 1/16W 5%

C416 100N16V

R408 10K 1/16W 5%

RTD2270LW-CG

U401

R+

13

G+

10

SOG0

11

B+

8

R-

12

G-

9

B-

7

HSYNC0

16

VSYNC0

17

REXT

4

ADC_REF

15

ADC_GND

14

SPI_SDO

21

SPI_SCL

23

SPI_CE

22

SPI_SDI

24

P5.1/PWM1

27

P5.3/PWM3

56

XIN

1

XOUT

2

TXE2+

35

TXE2-

36

TXE1+

37

TXE1-

38

TXE0+

39

TXE0-

40

TXO3+

41

TXO3-

42

TXOC+

43

TXOC-

44

TXO2+

45

TXO2-

46

TXO1+

47

TXO1-

48

TXO0+

49

TXO0-

50

TXE3-

34

TXE3+

33

GND

5

ADC_VDD33

6

DGND

32

DGND

31

LDO_CTL

52

DVDD12

30

DDCA_SDA/R S232_TX

18

DDCA_SCL/rs 232_RX

19

P5.5/PWM5

62

P5.0//PWM0

20

P5.2/PWM2

28

P3.3

55

P6.1/ADC1

58

P6.2/ADC2

59

P6.3

60

P5.4

61

P3.2

63

P1.1

64

P3.6/I2C_MDA

25

P3.7/I2C_MCL

26

RST

54

PVDD33

51

DVDD12

53

P1.0/T2

29

P6.0/ADC0

57

GND

3

C415100N 16V

+

C410

NC/10UF 50V R418 NC/100R 1/16W 5%

C401

100N16V

C406 100N16V

R401

0R05 1/16W

R402

0R05 1/16W

R412 100R 1/16W 5%

R417 NC/10K 1/16W 5%

R425 NC

R403 390R 1/16W 1%

R413 100R 1/16W 5%

FB401

30OHM

CMVCC1

VCC3.3

VCC1.2

AVDD

VCC3.3

ZD401

NC/RLZ5. 6B

LED_ORANGE/TOUCH _VCC

TOUCH_POWER

R471 470OHM +-5% 1/10W

EE_WP

DDC1_SCL3

32

PB2

PB[0..9]5

PPWR_ON#5

1

G

R477

300 OHM 1/4W

PB4PB5

PB0

PB6

CMVCC 7

R488 reserved for fixing inrush current issue

AO3401A

3 D

2

S

PPWR_ON#

L/T_SDA L/T_SCL

Q404

LMBT3906LT1G

PA1

PA0

+

C421

100UF 16V

FB402

120OHM

R436

100K 1/16W 5%

Q405 AO3401A

C420 100N16V

C419 100N16VR433

10K 1/16W 5%

PANEL_VCC

CMVCC

L/T_SCL 3 L/T_SDA 3

Q411

NC/AO4411

S1S2S

3G4

D8D7D6D

5

R434

300 OHM 1/4W

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬隔瓜絪腹 AOC 50 ID(1A) A

AOC 50 ID(1A)

A

6 7Friday , June 24, 2011

715G4737-M02

<称爹>

04.Output

715G4737-M02-000-0040_110620

PB9

PB8

CN405 for 18.5" panel (single LVDS channel)

PB7

PANEL_VCC

L/T_SDA

PA[0..1]

PB6

PA4 PA5

PA[4..9]

L/T_SCL

PA6 PA7

PA9

PA8

PB5

PB4

PA1

PB3

PB[0..9]

PB4

PB3

PB1

PB0 PB2

PB5

PB9

PB8

PB7

PB6 PB2

PB1

R488 NC/82 KOHM +-5% 1/16W

PB1

PB9

PB2

PA0

PA5

PA6

PA9

PA4 PA8

PB7

PB0

PA7

PB8

PB3

PA9

R435

10K 1/16W 5%

PA8

PA7

PA6

PA5

PA4

PB3

CN405

CONN

2 4 6 8 10 12 14 16 18 20 22 24 26 28 30

1 3 5 7

9 11 13 15 17 19 21 23 25 27 29

PB2

PA1

PA0

PA[4..9]5

CN403

NC/CONN

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

PA[0..1]5

33

Q409 MMBT2907A

VCC3.3 4, 5

R441 10K 1/16W 5%

Mute 5

adj_BACKLIGHT 5

Volume# 5

on_BACKLIGHT 5

PANEL_ID# 5

VCC1.2 5

CMVCC1 5

CMVCC5

R442 1K 1/16W 5%

Q408 NC/2N 3904S-RTK/PS

C432 100N16V

+

C426 100UF 16V

+

C423 100UF 16V

+

C427 100UF 16V

FB403 NC

R446 NC

R439 10K 1/16W 5%

C425 NC

R448 NC/4K7 1/16W 5%

C422 100N16V

R449 NC

C428 100N16V

CMVCC

MVCC

VCC3.3VCC3.3

VCC3.3

VCC3.3 VCC3.3VCC3.3

CMVCC1

VCC1.2

CMVCC1

U406

AP1117E33L-13-77

ADJ(GND )

1

VOUT

2

VIN

3

4

VCC3.3

R465 NC

VCTRL5

Audio model

R419

R418

R486

Non-Audio model

NC

100 ohm

0 ohm

NC

100 ohm

CN404

CONN

1

2

3

4

5

6

7

8

9

R450 NC

NC(R0402)

R480 N C/1.5 OHM +-5% 2WS

R479 0R05 1/4W

Volume

BKLT-EN

BKLT-VBRI

Mute

C_PANEL_IN DEX

BKLT-EN

Volume

CMVCC

BKLT-VBRI

CMVCC

U404

NC/G1117-33T43UF

ADJ(GND )

1

VOUT(TAB)

2

VIN

3

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL PCB NAME

称爹

T P V ( Top Victory Electronic s Co . , Ltd. )

Key Component

絬隔瓜絪腹 AOC 50 I D(1A) A

AOC 50 I D(1A)

B

7 7Friday , June 24, 2011

715G4737-M02

<称爹>

05.Power

715G4737-M02-000-0040_110620

Q406

LMBT3904LT1G

Q410 MMBT2907A

R486 NC/0R 05 1/16W

U404 can use package 223 or 252.

R437 10K 1/16W 5%

R447 NC/10K 1/16W 5%

R440 10K 1/16W 5%

34

6.2 Power Board

715G4744P01000001C

CN903/NC

CONN

1 2 3 4

+5V1

80GL22T-3

ADD C906

+

C907A

47uF M 450V

эDIP 1/2W

!

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL PCB NAME

称爹

T P V ( Top Vict ory Elect ronics Co . , Ltd. )

Key Component

絬隔瓜絪腹 PLPCA9361AHD4 1

Custom

1 2Friday , January 28, 2011

715G4744-P01-000-0010

ODM MODEL

01.POWER

G4744-P01-000-X-4-110128

R902

620K 1/4W

HS2 NC/HEAT SI NK(D906_5V/4A)

1 2

HS3 HEAT SINK(D906_5V/ 2.5A)

1 2

D903

FR107

+

C921 NC/1000uF25V

R931 NC

D906

SRF1060

123

R913

1 OHM 1/4W

+

C920 680uF/16V

R929 100 OHM 1/4W

F801 0R05 1/4W

FB902

BEAD

1 2

C915

ZD901 MTZJ T-72 16B

1 2

D904 FR103

C916 2N2 500V

L906

D909 NC/31DQ06F C3

R935 NC/20K 1/ 8W +/-1%

R918

10K OHM +-5% 1/8W

R932 NC

C903

1000PF/250VAC

L901

30mH

142

3

C917 2N2 500V

C900

0.0022UF

-

+

BD901

KBP208G

2

1

3

4

R907 1K OHM +-5% 1/8W

R900

620K 1/4W

D905 NC/31DQ06F C3

R928 10K 1/8W

C926 100N 50V

R906 100K

+

C922 470UF M 16V

C924

0.1uF 50V

R914 NC

D908 NC/IN 4148

R933 NC

R905 470OHM +-5% 1/8W

C927

47N 50V

R904 250OHM2W

D902 SR515

FB903

BEAD

1 2

R919 220 OHM 1/8W

D901 SR515

C923 1nF 50V

R917

10 OHM 1/4W

R910 100 OHM 1/4W

R920 2K 1/8W

R909 100 OHM 1/4W

T901

POWER X'FMR

1

3

4

5

6

7

8

9 10

11

12

C908

0.47UF

Q901 P0765ATF

C928 2N2 500V

U902

PC123X2YFZOF

12

43

U901

LD7576AGR

CT

1

COMP

2

CS

3

GND4OUT

5

VCC

6

HV

8

R901

620K 1/4W

+

C913 47uF/50V

C911

1500PF2KV

F902

FUSE

GND1 GND

1 2

R915 22 OHM 1/4W +-5%

L907/NC

t

NR901 NTCR

12

R912 100 OHM 1/4W

R916 10K1/8W +/-1%

C914 1N 50V

R930 100 OHM 1/4W

+

C925

NC/1000uF/ 16V

C912 100N 50V

R903 100 OHM 1/4W

D907 1N4148

C906 1N 50V

R924

0.47OHM2W

R921 NC/100K 1/ 10W 1%

F903/NC

FUSE

F901 FUSE

CN901 SOCKET

1 2

3

C929

2N2 500V

C902

1000PF/250VAC

+

C918 680UF/25V

+

C931 NC/470uF/ 16V

FB901 BEAD

12

HS1 HEAT SINK(Q901)

1 2

R925

9.1KOHM +-1% 1/8W

Q904

KTD1028

R923 220 OHM 1/4W

R911 10K 1/4W

CN902 Wire Harness

1

2

3

4

5

6

7

8

9

+

C907

47uF M 450V

R908 10K 1/4W

+5V1

+14.5V

VOL

DIM

+5V

MUTE

ON/OFF

IC903

AS431AZTR-E1

!

N.C

35

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬隔瓜絪腹

PLPCA9361AHD4

1

Custom

2 2Friday , January 28, 2011

715G4744-P01-000-0010

ODM MODEL

02.INVER TER

G4744-P01-000-X-4-110128

R808 1 OHM +-5% 1/8W

+

C801

330uF 25V

R804

10 OHM 1/8W

CN801

NC/C ONN

1

2

3

4

5

C808 100PF 500V

U801

OZ9998BGN

ISEN1

13

ISEN2

14

GND

15

ISEN316ISEN4

1

ISET

2

OVP

3

RT

4

ENA

5

ISW

6

LDR

7

VREF

8

VIN

9

STATUS

10

SSTCMP

11

PWM

12

R820

NC

C813 100PF 50V

R819

NC

R812

0.1R 1%

R818 10K 1/8W

R813

0.1R 1%

D801

SK310B

1 2

R814

10 OHM 1% 1/4W

C807

220N 50V

R821

NC

R803

300K 1/8W

C811

0.47UF 50V

R822

NC

Q801

APM8005KCTRG

S11G12S23G2

4

D25D26D17D1

8

R817

100 OHM 1/4W

C803 1N 50V

C805

1UF/25V

L801

47UH

CN804 CONN

1

2

3

4

5

6

7 8

FB802

BEAD

1 2

C806

220N 50V

R810

24K 1/8W 1%

R816

7.5K OHM 1%

C814 100N 50V

C815

1N 50V

FB801 BEAD

1 2

R807 1 OHM +-5% 1/8W

R809

330K 1/8W 5%

CN802

NC/C ONN

1 2

R802

300K 1/8W

CN803

NC/C ONN

1 2

R815

160K 1/8W

C804

0.47UF 50V

C810

0.47UF 50V

R806

1K 1/8W

C816

1000PF500V

R805

100K 1/8W

+

C809 33UF 100V

R801

10K 1/8W

C812

100PF 50V

R811

0R05OHM1/8W

C802

10N 50V

+14.5V

ON/OFF

DIM

36

7. PCB Layout

7.1 Main Board

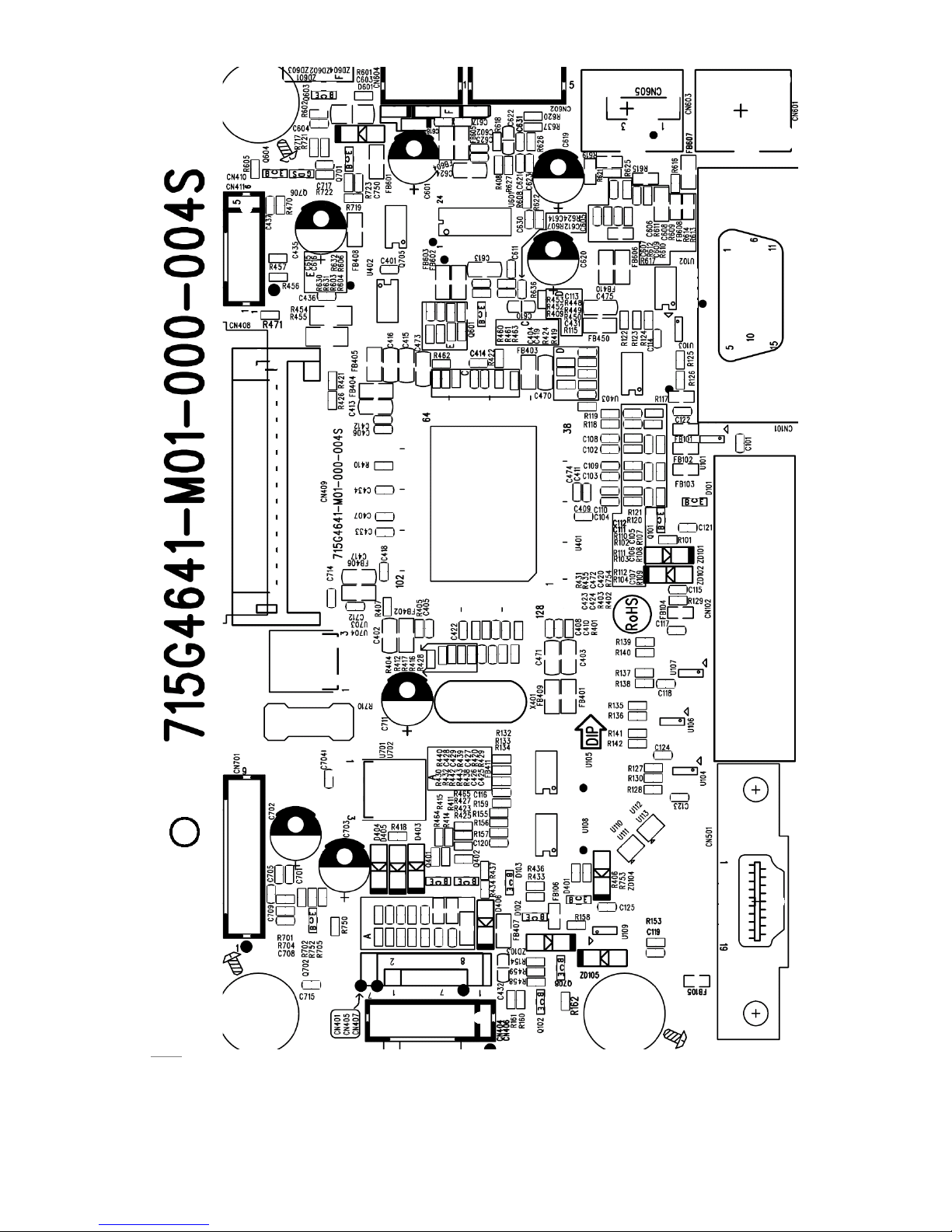

715G4641M01000004S

37

38

7.2 Power Board

715G4744P01000001C

39

7.3 Key Board

715G4747K01000001C

40

8. Maintainability

8.1 Equipments and Tools Requirement

1. Voltmeter.

2. Oscilloscope.

3. Pattern Generator.

4. DDC Tool with an IBM Compatible Computer.

5. Alignment Tool.

6. LCD Color Analyzer.

7. Service Manual.

8. User Manual.

41

8.2 Trouble Shooting

1. No Power

OK

NG

No power

Check power cable is

tightened?

Check Power “On/Off”

is “On”?

Re-plug the power cable

Replace main board and check connections

Check the LED indicate is OK?

Check the AC power

Replace the converter board

OK

NG

OK

NG

Turn on the Power “On/Off” switch

Replace key board and check connections

NG

42

2. No Video (Power LED Blue)

No Video (Power LED Blue)

Press the power

button is OK?

Check the LVDS/FFC

cable or panel

The end

NG

OK

NG

Replace the main board

Replace the converter

board

Replace the LVDS/FFC

cable or panel

NG

The end

Replace the key board

NG

OK

Replace the main

board and connection

OK

43

3. DIM

OK

The end

OK

The end

OK

The end

DIM (image overlap, focus or flicker)

Reset in factory mode

Set to the optimal frequency, select the recommended frequency

Pull out signal cable and check “Self Test Feature

Check” is ok?

Check the signal cable and the PC

Readjust the phase and pixel

clock in the user mode

Replace the main board

Replace the panel

NG

OK

NG

OK

The end

OK

NG

44

4. Color is not optimal

NG

Color is not optimal

Miss color

Color shift

Replace the signal cable

Pull out the signal cable

and check the screen

color display is normal?

The end

Replace the signal cable or PC

Reset the factory mode

In the user mode, set the” color settings” until customer satisfy

Replace the main board

NG

OK

NG

OK

NG

45

9.White- Balance, Luminance Adjustment

Approximately 30 minutes should be allowed for warm up before proceeding white balance adjustment. How to setting MEM channel you can reference to chroma 7120 user guide or simple use “SC” key and “NEXT” Key to modify xyY value and use “ID” key to modify the TEXT description Following is the procedure to do white-balance adjust .

1. Setting the color temp.

A. 6500K:

Warm color temp. parameter is x=313±30 ，y=329±30

B. 7300K

Normal color temp. parameter is x=302±30 ，y=318±30

C. 9300K

Cool color temp. parameter is x=283±30，y=297±30

D. sRGB

sRGB color temp. parameter is x=313±30 ，y=329±30

2. Enter into the factory mode:

Press the MENU button,Pull out the power cord, then plug the power cord. Then the factory OSD will be at the left top of the panel.

3. Biase adjustment:

Set the Contrast to 50; Adjust the Brightness to 90.

4. Gain adjustment:

A. Adjust Warm (6500K) color-temperature

1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)

2. Switch the MEM.channel to Channel 3 (with up or down arrow on chroma 7120)

3. The LCD-indicator on chroma 7120 will show x=313±30 ，y=329±30

4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100

5. Adjust the GREEN on factory window until chroma 7120 indicator reachedthe value G=100

6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100

7. Repeat above procedure (item4, 5, 6) until chroma 7120 RGB value meet the tolerance =100±2

46

B. Adjust Normal (7300K) color-temperature

1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)

2. Switch the MEM.channel to Channel 4(with up or down arrow on chroma 7120)

3. The LCD-indicator on chroma 7120 will show x=302±30 ，y=318±30

4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100

5. Adjust the GREEN on factory window until chroma 7120 indicator reachedthe value G=100

6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100

7. Repeat above procedure (item 4, 5, 6) until chroma 7120 RGB value meet the tolerance =100±2

C. Adjust Cool (9300K) color-temperature

1. Switch the Chroma-7120 to RGB-Mode (with press “MODE” button)

2. Switch the MEM. Channel to Channel 9 (with up or down arrow on chroma 7120)

3. The LCD-indicator on chroma 7120 will show x=283±30，y=297±30

4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100

5. Adjust the GREEN on factory window until chroma 7120 indicator reached the value G=100

6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100

7. Repeat above procedure (item 4, 5, 6) until chroma 7120 RGB value meet the tolerance =100±2

D. Adjust sRGB color-temperature

1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)

2. Switch the MEM.channel to Channel 10 (with up or down arrow on chroma 7120)

3. The LCD-indicator on chroma 7120 will show x=313±30 ，y=329±30

4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100

5. Adjust the GREEN on factory window until chroma 7120 indicator reachedthe value G=100

6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100

7. Repeat above procedure (item 4, 5, 6) until chroma 7120 RGB value meet the tolerance =100±2

E. Turn the Power-button off to quit from factory mode.

47

10.Monitor Exploded Views

NO

PART NAME

Q'TY 1 BEZEL

1 2 FUNCTION BUTTON

1 3 POWER LENS

1 4 MYLAY

1 5 MAIN FRAME

1 6 HINGE PLATE

2

7

REAR COVER

1

8

HINGE

1 9 STAND

1

10

STAND COVER

1

11

BASE 1 12

RUBBER FOOT

4

48

11. BOM List

Note: The parts information listed below are for reference only, and are subject to change without notice. Please go to http://cs.tpvaoc.cn/hello1.asp for the latest information.

TIBMRV2BDFA2NNE

Location

Part No.

Description

Remark

040G 58162461A

EPA LABEL

050G 600 1 W

WHITE STRAP (1G004991)

052G 2191 A

PAPER TAPE

052G6019 1

INSULATING TAPE

E08902

089G 715CAAE01

SIGNAL CABLE

2nd source

E08902

089G 715GAAE01

SIGNAL CABLE

2nd source

E08902

089G 715HAAE01

SIGNAL CABLE

E08901

089G404A15N HL

AC POWER CORD 1500mm

E08901

089G404A15N IS

AC POWER CORD 1500

2nd source

E08907

095G179J30NE34

FFC CABLE 30pin 190mm 1.0mm

E09504

095G8014 6DE45

HARNESS 6P(CI1406)-6P(2008) 140

2nd source

E09504

095G8014 6TE45

HARNESS 6P(CI1406)--6P(2008) 140

E09504

095G8014 6WE45

HARNESS 6P(CI1406S)-6P(2008) 140

2nd source

0D1G1030 8120

screw

0M1G 930 8 47 CR3

SCREW 3x8

0M1G1140 8120

SCREW 4x8

0Q1G 140 12120

SCREW 4X12

0Q1G 930 10120

SCREW (T3X10)

E750

750GBM215HGN12N000

LCD M215HGE-L23 C1(YY) NB CMI

A15G1587101

BKT_HINGE SGCC

A15G1597101803

MAIN FRAME FOR 50TH 21.5W

A33G1181ABJ 1L0100

FUNCTION BUTTON FOR 50TH

A33G1182 1 1L0100

POWER LENS FOR 50TH

A33G1183ABJ 1L0100

STAND TOP FOR 50TH 18.5W

A33G1184ABJ 1L0100

HINGE COVER FOR 50TH 18.5W

A34G2530ABJ 1B0100

STAND COVER

A34G2547ABJDAB0105

BEZEL

A34G2548ABJ NB0100

REAR COVER CKD

A34G2549ABJ 2B0130

BASE

AM1G1740 10125

SCREW

H37G0030014

HINGE 21.5

H40G 001624 1A

CARTON LABEL BARCODE 1

H40G 20N61544A

E2050SN ID LABEL-EU

H40G 45762413B

P/N LABEL FOR BASE

H44GB018103

EPS

H44GB018203

EPS

H44GB018615 6B

ARTWORK CARTON e2250Swn

H45G 77 6

PE PACKING

49

H45G 87 1 25

EPE COVER

H52G1801 16006

insulating sheet

H70G21C1615 6A

e2250Swn CD MANUAL

KEPCAHB5

KEY BOARD

PLPCBB381MHD1

POWER BOARD

Q40G 58162435A

LABEL

Q45G 76 28 H A

P.E. BAGx320x210x0.04

Q52G 1185 99

BIG CARTON TAPE FOR AOC

Q52G1001207 A JY

AL FOIL

Q52G1001211 B JY

AL FOIL

Q52G6019 14

TAPE

E08907

S95G179T30NE34

FFC CABLE 30P 190mm P1.0MM

2nd source

756GHBCB A1082

MAIN BOARD-CBPCBRVA1H1

SMTCB-U402

100GARMI002W11

MCU ASS'Y-056G2233 11

CN408

033G3802 6B Y L

WAFER

CN404

033G3802 9B Y L

CONN 2.0 9P

CN403

033G801930F CH JS

FFC CONN 1.0mm 30P R/A 34mm 6.3mm

CN101

088G 35315FVCL

D-SUB CONN V/T 15P BLUE H=10.4

X401

093G 2253B J

NXS14.31818AC32F-KAB10

709G4737 HM002

COMSUPTIVE ASS'Y

H40G 45762429A

LABEL

LED001

081G 12 1F GH

LED GREEN/YELLOW GHZYG603D2-5B

CN001

095G820H 6TE10

HARNESS 6P(SANW)-6P(2008) 120

CN001

095G820H 6WE10

HARNESS 6P(SANW)-6P(2008) 120

2nd source

709G4747 HM001

COMSUPTIVE ASS'Y

GND1

009G6005 1

GND TERMINAL

U902

056G 139 3A

PC123Y22FZOF SHARP

NR901

061G 5810T

NTCR 8R 20% 3.1W SCK13084MMY501

C908

063G107K474 6S

0.47UF +-10%

C809

067G 415330 9K

EC 33UF 20% 100V ED 8*12

C907

067G 42Z68015K

EC 68UF 20% 450V 12.5*50 2000 hr

L901

073G 174 65 H2

LINE FILTER 30mH MIN

L906

073G 253191 H

IND CHOKE 1.1uH DADON

L801

073G 253214 DN

CHOKE COIL 47UH 10% LZ.CC013.G01 2.5A

T901

080GL22T 3 N3

X'FMR 490UH 7% 4UH YUVA-1656

CN901

087G 501 48 S

AC SOCKET 3PIN + 3 Hole

D902

093G 60335

DIODE SR515 5A/150V DO-201AD

D901

093G 60335

DIODE SR515 5A/150V DO-201AD

CN902

095G 825 9T518

HARNESS 9P-9P 120MM

CN902

095G 825 9W518

HARNESS 9P-9P 120MM

2nd source

0Q1G 340 8140

SCREW 4.0x8.0

CN804

311GW200A06ABX

WAFER 2.0mm 6P

705GHA57006

Q901 ASS"Y

705GHA93006

D906 ASS"Y

709G4744 HM001

CONSUMPTIVE ASS'Y

50

H40G 45762429A

LABEL

BD901

093G 50460515

BRIDGE KBP308G-C 3A 800V KBP

Q55G 100625

TIN STICK_LOW ARGENTUM

C423

067G305M1013PB

EC 100uF M 16V 6.3*7mm JH CD70H

C421

067G305M1013PB

EC 100uF M 16V 6.3*7mm JH CD70H

C427

067G305M1013PB

EC 100uF M 16V 6.3*7mm JH CD70H

C426

067G305M1013PB

EC 100uF M 16V 6.3*7mm JH CD70H

U401

056G 562432

SCALER RTD2280LW-CG LQFP-64

U406

056G 563149

IC G903T63UF 0.6A/3.3V SOT-223

U102

056G 662 48

ESD PROTECT AZC399-04S.R7G SOT23-6L

U103

056G 662 48

ESD PROTECT AZC399-04S.R7G SOT23-6L

U405

056G1133531

EEPROM FM24C02A-SO-T-G 2K SOP-8

U402

056G2233 11

IC Pm25LD020C-SCE SIOC-8(150mil) 2M

U402

056G2233501

FLASH MX25L2026DM1I-12G 2Mb SOP-8

2nd source

Q402

057G 417517

Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC

Q403

057G 417517

Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC

Q404

057G 417517

Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC

Q406

057G 417518

TRA LMBT3904LT1G 200mA/40V SOT-23 LRC

Q407

057G 417518

TRA LMBT3904LT1G 200mA/40V SOT-23 LRC

Q409

057G 417527

SMALLTRAN MMBT2907A -0.6 -60V SOT-23

Q410

057G 417527

SMALLTRAN MMBT2907A -0.6 -60V SOT-23

Q405

057G 763940

MOSFET AO3401A SOT-23

R481

061G0402000 JT

RST CHIPR MAX0R05 1/16W TZAI YUAN

R402

061G0402000 JT

RST CHIPR MAX0R05 1/16W TZAI YUAN

R401

061G0402000 JT

RST CHIPR MAX0R05 1/16W TZAI YUAN

R420

061G0402101 JT
