AOC e2243Fw Schematic

21.5" LCD Color Monitor AOC e2243Fw
Service
Service
Service
Horizontal Frequency
30-83 KHz
Table of Contents
Description Page Description Page
Table of Contents.......……..............................……........1
Revision List.…........................................…………........2
Important Safety Notice.……............................……......3
1.Monitor Specification..............................………..........4
5.Block Diagram…….........………….................23
6.Schematic……………........................................24
6.1.Main Board………...........................................24
6.2.Key Board...…….............................................29
2.LCD Monitor Description……………………………......5
3.Operation Instruction…………...............……..............6
3.1.General Instructions...........................…...................6
3.2.Control Button…………….…..............……...............6
3.3.OSD Menu…………….…...........................…...........7
4.Input/Output Specification............……………............18
4.1.Input Signal Connector............………….................18
4.2.Factory Preset Display Modes…….........................19
4.3.Panel Specification.....………...…………................20
7.PCB Layout..………….......................................30
7.1.Main Board………...........................................30
7.2.Key Board…………….....................................32
8.Maintainability……….........................................33
8.1.Equipments and Tools Requirement...............33
8.2.Trouble Shooting………….............................34
9.White-Balance, Luminance Adjustment.............38

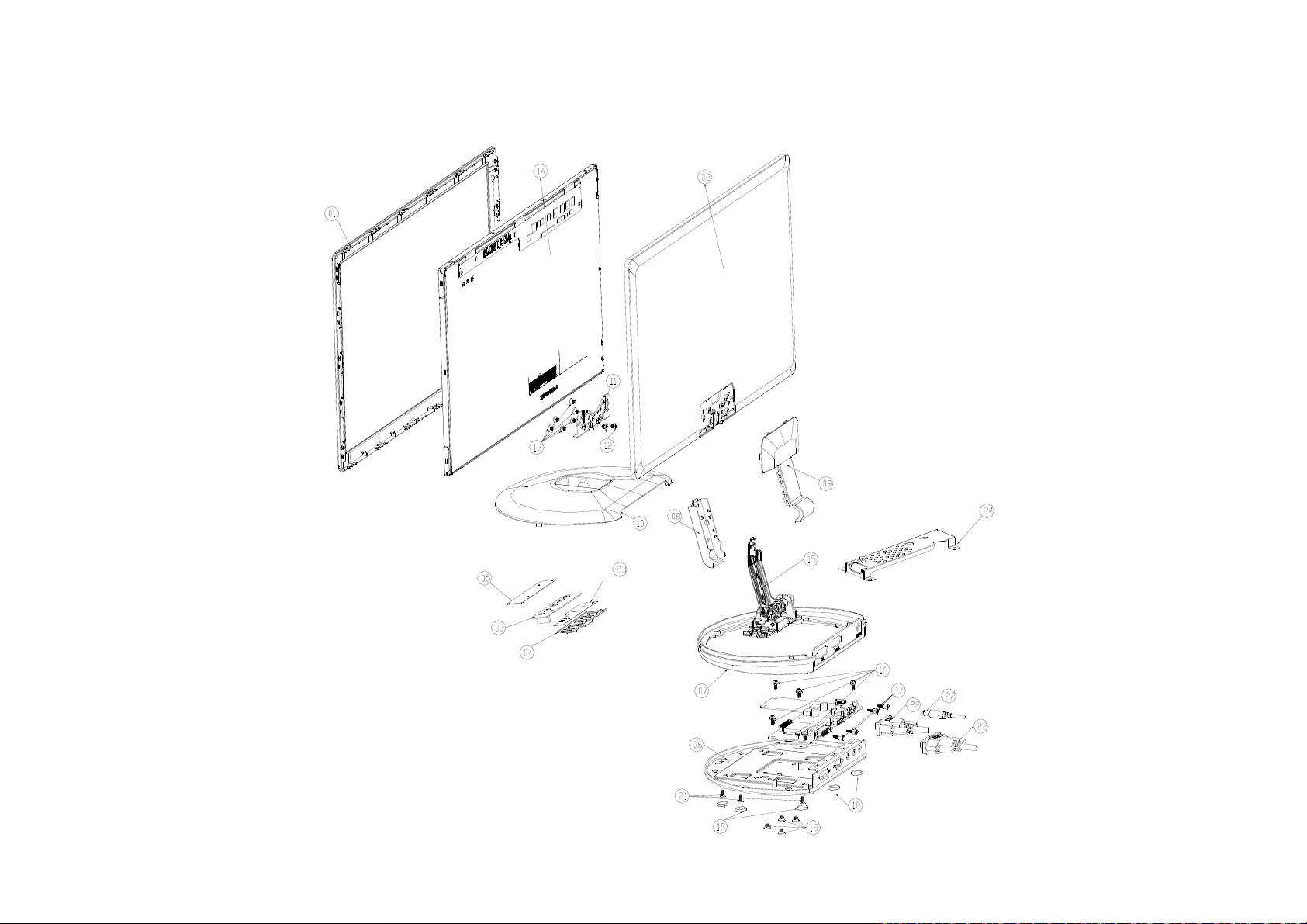

10.Monitor Exploded View………..…….…............40
11.BOM List…………………………………...........42
SAFETY NOTICE
ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS
AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING
ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.
CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING
Revision List
Version Release Date Revision History L&T Model Name
TIAJNR2BZ3K2HNF.LF TIAJNR2MZ3VEHNF.LF TIAJNR2CZ3GGHNF.LF
A00 Aug.-19-2010 Initial release
A01 Sep.-09-2010 Add new models
A02 Oct.-28-2010 Add new model TIAJNR2QZ3K6XNF.LF
A03 Nov.-09-2010 Add new models
A04 Nov.-26-2010 Add new models TIAJNR2CZ3ACHNF.LF
A05 Dec.-20-2010 Add new models
A06 Jan.-21-2011 Add new models
A07 Apr.-29-2011 Add new model TIAJNR2CZ3RDHNF.LF
A08 Sep.-11-2011 Add new model
A09 Nov.-7-2011 Add new model
A10 Jan-30-2012 Add new model TIAJNR2QZ3IEHNF.LF
A11 May-20-2012 Add new model
A12 May-23-2012 Add new model
A13 May-23-2012 Add new model TICJNR2YZ3A2HNF.LF A14 May-26-2012 Add new model TICJNR2BZ3K3HNF.LF
A15 JUN-24-2012 Add new model
A16 JUL-01-2012 Add new models
A17 AUG-03-2012 Add new models TICJNR2MZ3RLHNF.LF A18 AUG-20-2012 Add new model TICJNR2BZ3K5HNF.LF A19 DEC-11-2012 Add new model TICJNR2BZ3A7HNF.LF
TIAJNR2FZ3UHHNF.LF
TIAJNR2TZ3IRHNF.LF TIAJNR2KZ3E6HNF.LF TIAJNR2LZ33AHNF.LF TIAJNR2BZ3K3HNF.LF TIAJNR2QZ3E6HNF.LF
TIAJNR2CZ36AHNF.LF TIAJNR2QZ3K7XNF.LF
TIAJNR2LZ3IGHNF.LF TIAJNR2KZ3E8HNF.LF TIAJNR2QZ3E8HNF.LF
TIAJNR2PZ3IDHNF.LF
TIAJNR2QZ3K6XNF.PA
TIAJNR2CZ38AHNF.LF
TIAJNR2CZ3AOHNF.LF
TIAJNR2CZ38AHNF.LF
TIAJNR2CZ3RAHNF.LF TIAJNR2AZ3PGHNF.LF TIAJNR2CZ3SUHNF.LF
TIAJNR2BZ3A7HNF.LF
TIAJNR2CZ3SCHNF.LF
TIAJNR2CZ3ETHNF.LF TIAJNR2CZ3ETHNF.LF TICJNR2KZ3E8HNF.LF
TICJNR2PZ3IDHNF.LF
TICJNR2BZ3A8HNF.LF
TICJNR2QZ3E8HNF.LF
TICJNR2BZ3K2HNF.LF
TICJNR2CZ3SCHNF.LF TICJNR2CZ3SUHNF.LF
2
Important Safety Notice
Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service
procedures recommended by AOC and described in this service manual are effective methods of performing service
operations. Some of these service operations require the use of tools specially designed for the purpose. The
special tools should be used when and as recommended.
It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in
order to minimize the risk of personal injury to service personnel. The possibility exists that improper service
methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE
NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in
which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not
recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.
Hereafter throughout this manual, AOC Company will be referred to as AOC.
WARNING
Use of substitute replacement parts, which do not have the same, specified safety characteristics may create shock,
fire, or other hazards.
Under no circumstances should the original design be modified or altered without written permission from AOC.
AOC assumes no liability, express or implied, arising out of any unauthorized modification of design.
Servicer assumes all liability.
FOR PRODUCTS CONTAINING LASER:
DANGER-Invisible laser radiation when open AVOID DIRECT EXPOSURE TO BEAM.
CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
CAUTION -The use of optical instruments with this product will increase eye hazard.
TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S
REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF
THIS SERVICE MANUAL.
Take care during handling the LCD module with backlight unit
-Must mount the module using mounting holes arranged in four corners.
-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.
-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to
the panel.
-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).
-Make certain that treatment person’s body is grounded through wristband.
-Do not leave the module in high temperature and in areas of high humidity for a long time.
-Avoid contact with water as it may a short circuit within the module.
-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may
damage the panel.)
3
1. Monitor Specifications
4
2. LCD Monitor Description
The LCD MONITOR will contain a main board and a key board which house the flat panel control logic, brightness
control logic and DDC.
Monitor Block Diagram
LED Drive.
Flat Panel and
LED backlight
Main Board
DVI
Signal
Key Board
D-SUB
Signal
Adapter
AC-IN
100V~24
5
3. Operating Instructions
3.1 General Instructions
Press the power button to turn the monitor on or off. The other control knobs are located at base of the monitor. By
changing these settings, the picture can be adjusted to your personal preferences.
3.2 Control Buttons
Power
Press the Power button to turn 0n/off the monitor.
Eco Mode / <
Press the Eco key continuously to select the Eco mode of brightness when there is no OSD ( Eco mode hot key may
not be available in all models).
4:3 or wide image ratio / >
When there is no OSD, press > hotkey continuously to change 4:3 or wide image ratio. (If the product screen size is
4:3 or input signal resolution is wide format, the hot key is disable to adjust. )
Auto/Source/Exit
When the OSD is closed, press Auto/Source/Exit button continuously about 2 second to do auto configure (only for
the models with dual or more inputs).
When the OSD is closed, press Auto/Source/Exit button will be Source hot key function(Only for the models with
dual or more inputs).Press Auto/Source/Exit button continuously to select the input source showed in the message
bar, press Menu/Enter button to change to the source selected.
6
3.3 OSD Menu
1) Press the MENU-button to activate the OSD window.
2) Press < or > to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate sub-menu . Once the desired function is highlighted, press MENU-button to activate it.
3) Press < or > to change the settings of the selected function. Press < or > to select another function in sub-menu . Press AUTO to exit . If you want to adjust any other function, repeat steps 2-3.
4) OSD Lock Function: To lock the OSD, press and hold the MENU button while the monitor is off and then press power button to turn the monitor on. To un-lock the OSD - press and hold the MENU button while the monitor is off and then press power button to turn the monitor on.
Notes:
1) If the product has only one signal input, the item of "Input Select" is disable to adjust.
2) If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disable to
adjust.
3) One of DCR, Color Boost, and Picture Boost functions is active, the other two function is turned off accordingly.
7
8
9
10
11
12
13
14
15
16
17
4. Input/Output Specification
4.1 Input Signal Connector
Analog connector
DVI connector
18
4.2 Factory Preset Display Modes
19
4.3 Panel Specification
4.3.1 General Features
LM215WF4-TRA2 is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type
display operating in the normally white mode. It has a 21.5 inch diagonally measured active display area with Full
HD resolution (1080 vertical by 1920 horizontal pixel array) Each pixel is divided into Red, Green and Blue
sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is
determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than 16,7M colors with
Advanced-FRC(Frame Rate Control). It has been designed to apply the interface method that enables low power,
high speed, low EMI. FPD Link or compatible must be used as a LVDS(Low Voltage Differential Signaling) chip. It is
intended to support applications where thin thickness, wide viewing angle, low power are critical factors and graphic
displays are important. In combination with the vertical arrangement of the sub-pixels, the LM215WF4-TRA2
characteristics provide an excellent flat panel display for office automation products such as monitors.

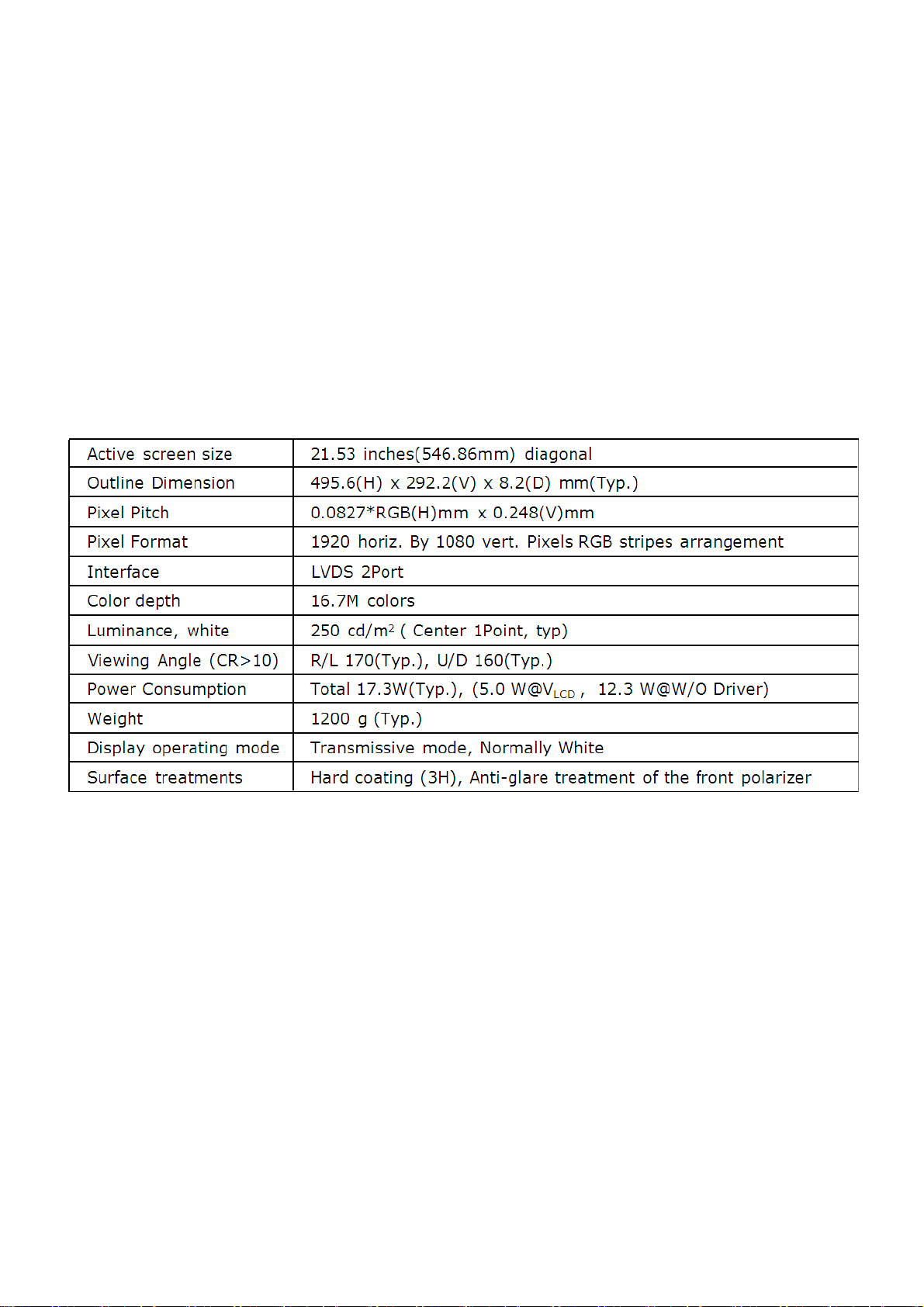

4.3.2 Display Characteristics
20
4.3.3 Optical Characteristics
Electrical characteristics
Parameter Symbol
MODULE :
Ta = 25°C
Values
Unit
Min Typ Max
Power Supply Input Voltage V
Permissive Power Input Ripple V
I
LCD-MOSAIC
Power Supply Input Current
Power Consumption P
Inrush current I
LED bar Electrical characteristics
Parameter Symbol Condition
I
LCD-BLACK
I
LCD-BLACK
4.5 5.0 5.5 Vdc
LCD
- - 0.3 V
LCD
(60Hz) - 1000 1300 mA
(60Hz) - 1300 1690 mA
(75Hz) - 2000 mA
- 5.00 6.5 Watt
LCD
- - 3.0 A
RUSH
Ta = 25°C
Values
Unit
Min. Typ. Max.
LED :
LED String Current Is - 60 65 mA
LED String Voltage Vs - 51.2 56 V
Power Consumption PBar - 12.3 13.4 Watt
LED Life Time LED_LT 30,000 - - Hrs
21
4.3.4 Optical Characteristics
(Ta= 25°C, V
=5.0V, fv=60Hz, D
LCD
= 77.0MHz, Is=60mA)
CLK
Values
Parameter Symbol
Units
Min Typ Max
Contrast Ratio CR 700 1000 -
Surface Luminance, white LWH 200 250 - cd/m2
Luminance Variation
WHITE
Rise Time Tr
9P 75 - - %
- 1.3 2.6 ms
R
Response Time
Decay Time TrD - 3.7 7.4 ms
Rx
0.624
RED
Ry 0.347
Gx 0.337
GREEN
Color Coordinates
Gy 0.625
Typ
Typ
[CIE1931]
Viewing Angle (CR>5)
x axis, right(=0°) r
x axis, left (=180°) l
y axis, up (=90°) u
y axis, down (=270°) d
Viewing Angle (CR>10)
x axis, right(=0°) r
x axis, left (=180°) l
y axis, up (=90°) u
y axis, down (=270°) d
BLUE
WHITE
Bx 0.158
-0.03
+0.03
By 0.052
Wx 0.313
Wy 0.329
75 88 Degree
75 88
70 85
70 85
70 85 Degree
70 85
60 75
70 85
Crosstalk
Luminance uniformity -
LR - - 1.7
Angular dependence (TCO’03)
Color grayscale linearity Δu’v’
22
1.5 %
0.018
(
)
(
)
5. Block Diagram
Main Board
Flash Memory
Pm25LD020C
(U402)
12MHZ
(X401)
Scalar IC NT68668AUFG
(Include MCU, ADC, OSD)
DVI
Connector
CN102
(U401)
Panel Interface
(CN409)
D-Sub
Connector
CN101
H sync
V sync
RGB
Key control Interface
(CN401)
LED
(CN803)
D801
Feedback Circuit
L801
MOSFET
(Q806)
PWM Control
MP3389EF
(U801)
12V
ON/OFF
DIM
23

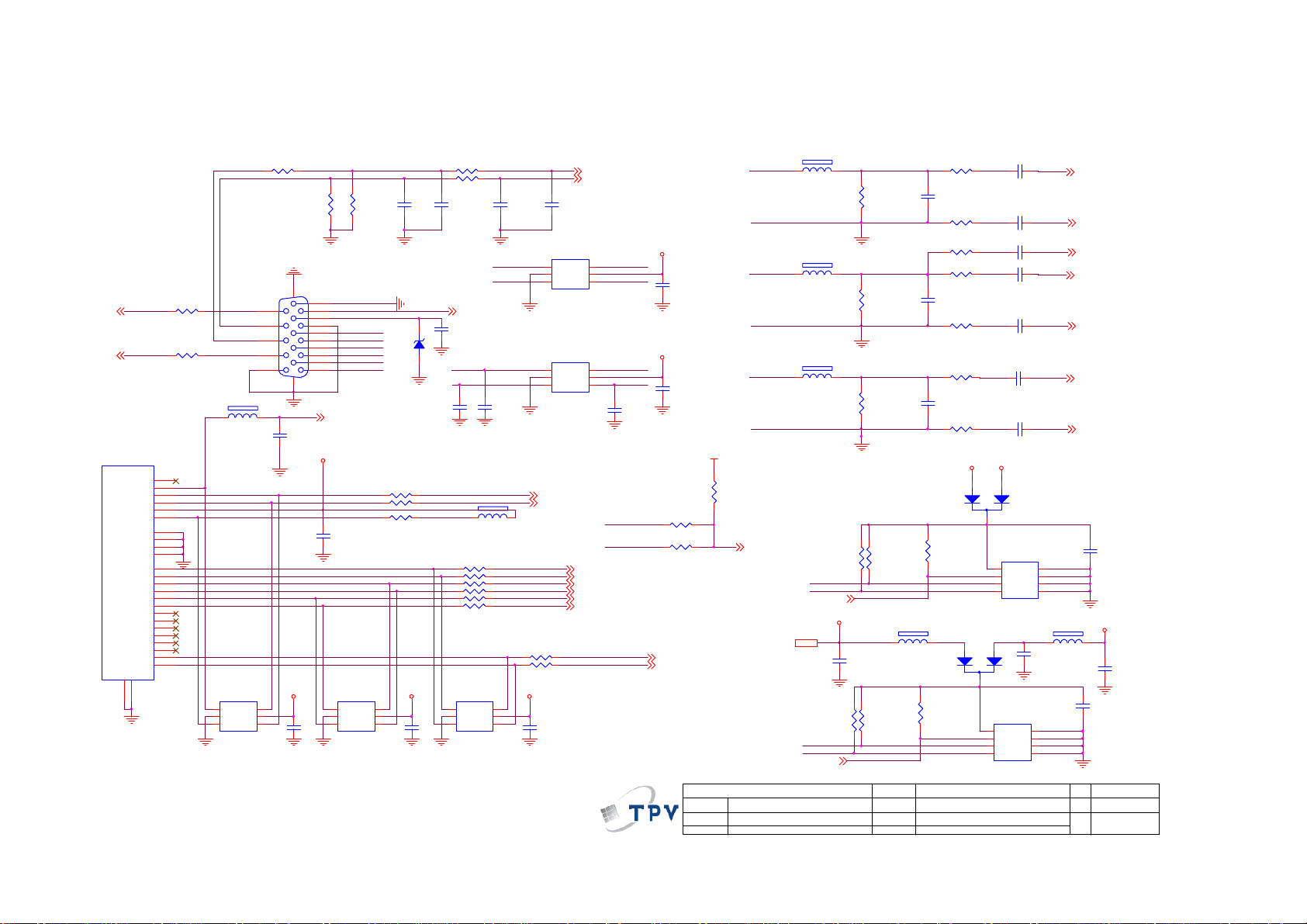

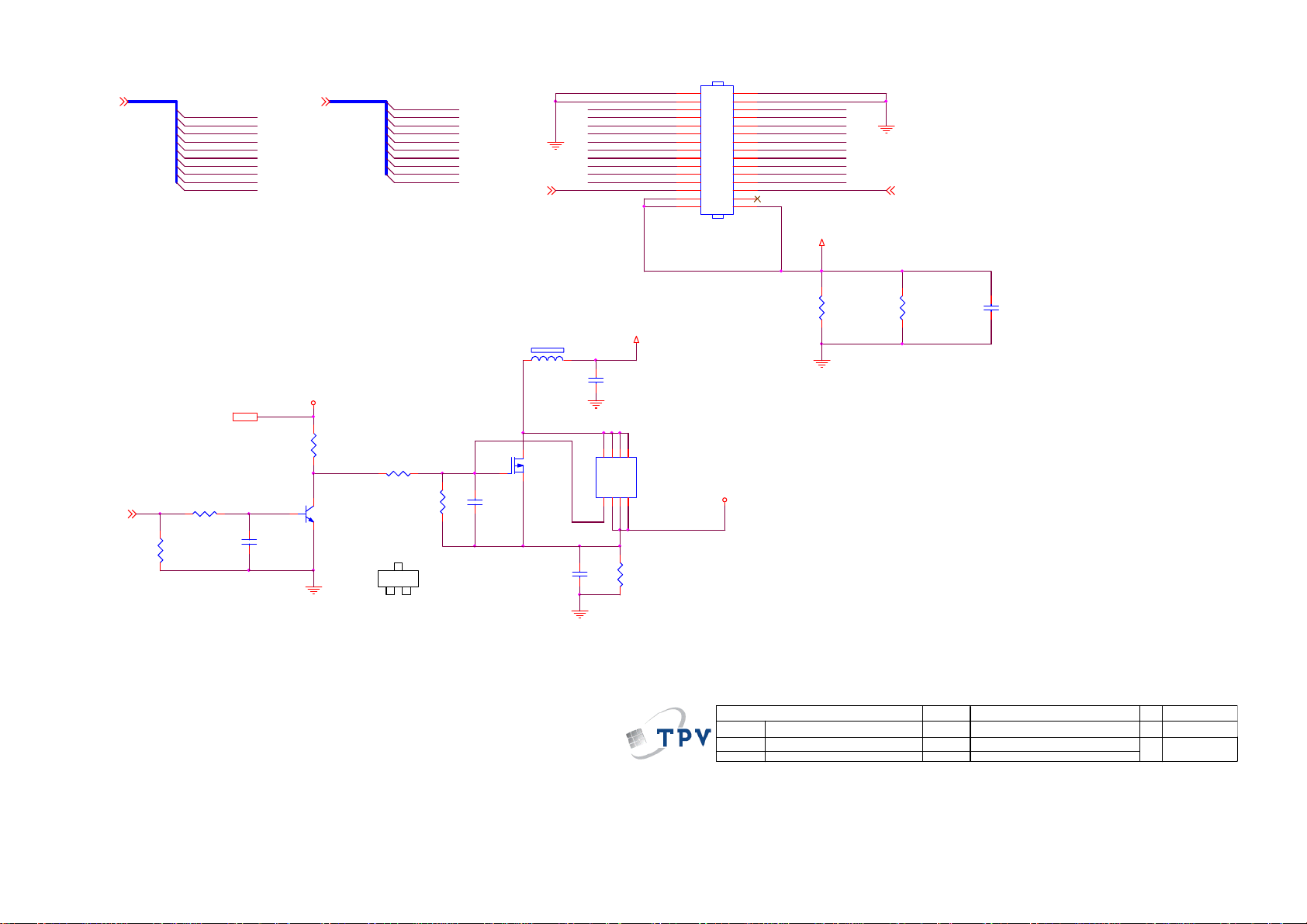

6. Schematic
6.1 Main Board
715G4134M01000004F
H_Sync V_Sy nc
R101
DDC1_SCL5
DDC1_SDA5
DDC1_SCL
DDC1_SDA
CN102 JACK
VSYN C
SYNC GND
DDC SCL DDC SDA
HPD
1/3shield 2/4shield 0/5shield
clk shield
DAT0+
DAT0-
DAT1+
DAT1-
DAT2+
DAT2-
DAT3+
DAT3-
DAT4+
DAT4-
DAT5+
DAT5-
clk+
GND26GND
25
+5V
clk-
100OHM1/16W
R113
100OHM1/16W
8 15 6 7 14 16
DVI_HPD
11 3 19 22
18 17 10 9 2 1 13 12 5 4 21 20 23 24
U107 AOZ8105CI
1
I/O1
2
GND I/O23I/O3
DSUB_SCL
DSUB_SDA
FB107
300 OHM
I/O4
VDD
R102 0R05 1/1 0W
R106
2.2K 1/16W
CN101 DB15
10
17 16
C123 150pF 50V
C121 100N 16V
5 9 4 8 3 7 2 6 1
DVI_5V
15
14
13
12
11
6 5 4
DET_VGA DSUB_5V
DET_DVI 5
C112 100N 16V
U105 AOZ8105CI
1
I/O1
2
GND I/O23I/O3
R107
2.2K 1/16W
VGA_B­VGA_B+ VGA_G­VGA_G+ VGA_R­VGA_R+
R118 100OHM1/16W R119 100OHM1/16W
R120 10K+-5%1/16W
6
I/O4
5
VDD
4
ZD101
RLZ5.6B
ESD_VCC1ESD_VCC1
C103 22P 50V
5PF 50V
C122 100N 16V
C129
1 2
R103 100OHM1/16W R104 100OHM1/16W
DSUB_SCL
DSUB_SDA
C130
5PF 50V
DDC2_SCL DDC2_SDA
I/O4 VDD
6 5 4
C127 NC/22P 50V
R132 10OHM1/16W R134 10OHM1/16W
ESD_VCC1
C104 22P 50V
DET_VGA 5
C124 100N 16V
VGA_G+
VGA_R+
FB106 300 OHM
R126 10OHM1/16W R127 10OHM1/16W R128 10OHM1/16W R129 10OHM1/16W R130 10OHM1/16W R131 10OHM1/16W
U106 AOZ8105CI
I/O1 GND I/O23I/O3
C128 NC/22P 50V
U104 AOZ8105C I
1
I/O1
2
GND I/O23I/O3
U103 AOZ8105C I
1
I/O1
2
GND I/O23I/O3
DDC2_SCL 5 DDC2_SDA 5
RX0P RX0N RX1P RX1N RX2P RX2N
C120 100N 16V
DSUB_H 5 DSUB_V 5
I/O4
VDD
I/O4
VDD
RX0P 5 RX0N 5 RX1P 5 RX1N 5 RX2P 5 RX2N 5
6 5 4
6 5 4
VGA_B+
H_Sync
V_Sync
DET_VGA
C131
5PF 50V
DET_VGA
DET_DVI
RXCP RXCN
ESD_VCC
ESD_VCC
100K 1/16W
220K 1/16W 5%
RXCP 5 RXCN 5
VGA_B+
11/30/2009
VGA_B-
C125 100N 16V
C126 100N 16V
VCC3.3
R135
R139
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
VGA_G+
11/30/2009
VGA_G-
VGA_R+
11/30/2009
VGA_R-
R133 390K + /-5% 1/16W
DET_CABLE 5
CMVCC13,4,5
G4134-M0D-000-0040-1-100617
2.0.IN PUT
FB102
1 2
BEAD
FB103
1 2
BEAD
FB101
1 2
BEAD
4.7K 1/1 6W
DDC1_SCL DDC1_SDA
DDC_WP5
CMVCC1
4.7K 1/ 16W
DDC2_SCL DDC2_SDA
DDC_WP5
R137
R124
C118 1N 50V
ESD_VCC1
R108
75OHM 1/16W
R112
75OHM 1/16W
R116
75OHM 1/16W
ESD_VCC
R125
4.7K 1/16W
FB104
300 OHM
R138
4.7K 1/16W
OEM MOD EL
TPV MOD EL
PCB NAME
Sheet
R136 22K 1/16W
AOC
27Thursday , June 17, 2010
2010/4/2
R123 22K 1/16W
D102 BAV70
of
R105
10OHM1/16W
C105 NC/5PF 50V
R109
47 OHM 1/16W
R110
470 OHM 1/16W
R111
10OHM1/16W
C109 NC/5PF 50V
R114
47 OHM 1/16W
R115
10OHM1/16W
C113 NC/5PF 50V
R117
47 OHM 1/16W
CMVCC1
2
D101 BAV70
2
3
C102 47nF 16V
C106 47nF 16V
C107 1N 50V
C108 47nF 16V
C110 47nF 16V
C111 47nF 16V
C114 47nF 16V
DSUB_5V
1
3
U101
8
VCC
7
WP
6
SCL
5
VSS4SDA
CAT24C02W I-GT3
1
U102
8
A0
VCC
7
A1
WP
6
A2
SCL
5
VSS4SDA
CAT2 4C0 2WI -GT3
A0 A1 A2
C115 100N 16V
220N16V
1 2 3
220N16V
1 2 3
300 OHM
C117
DSUB_B+ 5
DSUB_B- 5
DSUB_SOG 5
DSUB_G+ 5
DSUB_G- 5
DSUB_R+ 5
DSUB_R- 5
C116
FB105
Size
Rev
称爹
DVI_5V
C119 1N 50V
B
B
24
PA[0.. 9]5 PB[0.. 9]5
PA[0.. 9]
PA0 LVA3P PA1 LVA3M PA2 LVACKP PA3 LVACKM PA4 LVA2P PA5 LVA2M PA6 LVA1P PA7 LVA1M PA8 LVA0P PA9 LVA0M
PB[0.. 9]
CN409
2
4
LVB3PPB0 LVB3MPB1 LVBCKPPB2 LVBCKMPB3 LVB2PPB4 LVB2MPB5 LVB1PPB6 LVB1MPB7 LVB0PPB8 LVB0MPB9
2010/2/26 2010/2/26
LVB2M R XO2­LVBCKM RXOC-
LVACKM RXEC-
6
RXO0-LVB0M
8
RXO1-LVB1M
10 12 14
RXO3-LVB3M
16
RXE0-LVA0M
18
RXE1-LVA1M
20
RXE2-LVA2M
22 24
RXE3-LVA3M
26 28 30
CONN
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29
RXO0+ LVB0P RXO1+ LVB1P RXO2+ LVB2P RXOC+ LVBC KP RXO3+ LVB3P RXE0+ LVA0P RXE1+ LVA1P RXE2+ LVA2P RXEC+ LVACKP RXE3+ LVA3P SCL_PANELSDA_PANEL
PANEL_VCC
SCL_PANEL 5SDA_PANEL5
R301 300 OHM 1/4W
5
4
C305 1uF 16V
PANEL_VCC
C302 22UF 16V
R308 NC/ 10K+-5%1/16W
U301
D8D7D6D
NC/AO4411
S1S2S3G
CMVCC1
FB301
1 2
120 OHM
CMVCC1
CMVCC12,4, 5
R305 10K+-5%1/16W
PPWR_ON #5
R304
22K 1/16W
R303
4.7K 1/16W
C304 100N 16V
Q302
LMBT3904LT1G
R306
100K 1/16W
3
1
G
Q301 AO3401A
C303 R307 NC
220N16V
D
2
S
R302 300 OHM 1/4W
C301 100N 16V
AO3401L
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
G4134-M0D-000-0040-1-100617
3.0.OU TPUT
Date
OEM MOD EL
TPV MODEL
PCB NAME
Sheet
AOC
37Thursday , June 17, 2010
Size
Rev
of
称爹
B
B
25
C708 100N 16V
SOT 223
G1117-33T43UF
U704
VI3VO
1
SOT 252
U702
3
SOT 223
U701
VI3VO
1
GND
ADJ(GND)1VOUT(TAB)2VIN
VCC3.3
2
GND
2
C709 100N 16V
Dropout voltage must < 0.8V @ 400mA
Dropout voltage must < 0.8V @ 600mA
C707 22UF 16V
CMVCC1
12
D707 SR34
12
D708 SR34
VCC3.3
12
12
D703 SR34
D704 SR34
R704 22K 1/16W
CMVCC1
R703 10K+-5%1/16W
on_BACKLIGH T 5
CMVCC1
R702 10K+-5%1/16W
BKLT-EN7
BKLT-EN
C702 100N 16V
Q701 LMBT3904LT1G
BKLT-VBR17
C720 10uF 25V
R712
100K 1/16W
0402=>0603 2010/3/4
C712 100N 50V
BKLT-VBRI
+12V
+
C718 180uF 16V
C721 100N 16V
+12V 6,7
CMVCC1
R705 10K+-5%1/16W
R706
100OHM1/16W
R711 33K 1/16W 5%
C715 1N 50V
adj_BACKLIGHT 5
Place a large Pad with TOP
1 2
0402=>0603 2010/3/4
C719 100N 50V
C713 100N 16V
R727 300K
FB701
BEAD
2010/1/25
FB703
0R05 1/10W
9
Thermal Pad
8
BST
7
VIN
6
COMP
FREQ
5
GND
U705 MP1584EN
CN701
3
2 1
JACK
SOT 252
U703 NC/AZ1117D-1. 8-E1
3
OUT2IN
C706 100N 16V
1
SW
2
EN
3 4
FB
D701
C710 1N 50V
C711 1N 50V
2010/3/8 add EMI solution
C722
150pF 50V
R726 100K 1/16W
SR34
1 2
GND
1
L701 22UH
R713
6.8K +-1% 1/16W
R714
1.2K OHM 1/16W 1%
C705 100N 16V
2010/2/25
C714 1N 50V
VCC1.8
C704 22UF 16V
C723 10uF 25V
2010/1/25
+
C716 470uF 10V
C717 100N 16V
CMVCC1
1 2
ZD702 NC/RLZ 6.2B
CMVCC1 2,3,5
26
T P V ( Top Victory Electronics Co . , Ltd. )
G4134-M0D-000-004 0-1-100617
絬 隔 瓜 絪 腹
Key Component
4.0.POWER
Date
OEM MOD EL
TPV MOD EL
PCB NAME
Sheet
C
AOC
of
47Thursday, June 17, 2010
Size
B
Rev
称爹
VCC3. 3
VCC3. 3 2, 4
FB404 300OHM
FB405 300OHM
FB406 NC/300OHM
FB407 300OHM
FB410 300OHM
WP
C413
4.7UF 10V
C0805
C416
4.7UF 10V
C0805
C421
4.7UF 10V
C0805
C423
4.7UF 10V
C0805
AVCC
DVDD
ADC_VAA33
ADC_BIAS
6
15
C414 1uF 16V
2
C417
100N 16V
28
C422 100N 16V
17
C424 1uF 16V
VCC33
C408
CMVCC1
1N 50V
R416
220K 1/16W 5 %
C425 100N 16V
DVDD
C429
220N16V
R401 100OHM1/16W
C415 1uF 16V
51
C418
100N 16V
R415 100K 1/16W
DVDD
SPI_CE SPI_SO
R402 10K+-5%1/16W
53
C419
100N 16V
5V_DET
R403
10K+-5%1/16W
U402
1
CE#
2
SO
3
WP#
4
GND
Pm25LD020C-SCE
HOLD#
6
ADC_VAA18
DGND/CGND
DGND/CGND
18
101
1
R421
ADC_VAA33
15
17
AVCC
AVCC
ADC_BI AS
AGND
AGND
PGND
ADC_GND A
9
12
27
R407 NC/0R05 1/ 16W
NC/0R05 OHM
R410 NC/4.7K 1/ 16W
LMBT3906LT1G
DVDD
51
90
116
2
28
53
NC
DVDD
DVDD
DVDD
DVDD_ZP
ADC_VAA33
DGND/CGND
DGND/CGND
DGND
DGND
63
89
112
111
R408
23
1
Q402
DGND/CGND DGND/CGND DGND/CGND DGND/CGND DGND/CGND DGND/CGND DGND/CGND DGND/CGND DGND/CGND DGND/CGND
VCC3.3CMVCC1
R409 0R05 OHM
R411
4.7K 1/16W
TCLK1M TCLK1 P
TCLK2M TCLK2 P
INT_VSO INT_HSO
PWMA* PWMB*
PC4/PW M1 PC3/PW M0
PA7/PWM9* PA6/PWM8* PA5/PWM7* PA4/PWM6*
PA3/PWM5 PA1/PWM3 PA2/PWM4 PA0/PWM2
100OHM1/16W
4.7K 1/16W
100 99 98 97 96 95 94 93 92 91
88
T0M
87
T0P
86
T1M
85
T1P
84
T2M
83
T2P
82 81 80
T3M
79
T3P
77
T4M
76
T4P
75
T5M
74
T5P
73
T6M
72
T6P
71 70 69
T7M
68
T7P
62
VCKI
61
V7
60
V6
59
V5
58
V4
57
V3
56
V2
55
V1
54
V0
113 114
117 118
103
PC7
102
PC6
124
PC5
123 122 110
PC2
121
PC1*
120
PC0*
40 39 38 37 36 67 66 65
R412
R413
VCC1. 84
PB9 PB8 PB7 PB6 PB5 PB4 PB3 PB2 PB1
PB0 PA9 PA8 PA7 PA6 PA5 PA4 PA3 PA2 PA1 PA0
R426 NC/100OHM1/16W
LED_GRN/BLUE
LED_ORAN GE
FB403 300OHM
VCC3. 3
45
RX2+ RX2­RX1+ RX1­RX0+ RX0­RXC+ RXC-
AHS0 AVS0
B0+ B0-
SOG_DET
G0+ G0-
R0+ R0-
DDCSDA2 DDCSCL2 DDCSDA1 DDCSCL1
R434 1M 1/16W
16
REXT
4
RX2+
5
RX2-
7
RX1+
8
RX1-
10
RX0+
11
RX0-
13
RXC+
14
RXC-
41
HSYNCI1
42
VSYNCI1
19
BIN1+
20
BIN1-
21
SOG1I
22
GIN1+
23
GIN1-
24
RIN1+
25
RIN1-
34
PB7/DD C_SDA1*
35
PB6/DDC_SCL1*
46
PB5/DD C_SDA0*
47
PB4/DDC_SCL0*
30
PB3/ADC3/INTE1
33
PB2/ADC2/INTE0
125
PB1/ADC1
126
PB0/ADC0
104
SPI_CE
105
SPI_SO
106
SPI_SI
107
SPI_CLK
108
PD4
48
PD5
29
PD6
49
P35
50
P34
31
P31/TXD
32
P30/RXD
1
RSTB
127
OSCI
128
OSCO
U401
PLL_DVDD
NT68668FG/C
2010/3/3
LED_G
LED_R
R414
AVCC
90
116
C437
C438
100N 16V
100N 16V
DET_CABLE2
KEY1 KEY2
DDC_WP2
C426 47pF 50V C427 100N 16V
C428 47pF 50V
8
VDD
7 6
SPI_CK
SCK
5
SPI_SI
SI
470R 1/16W 1%
RX2P2 RX2N2 RX1P2 RX1N2 RX0P2 RX0N2 RXCP2 RXCN2
DSUB_H2 DSUB_V2
DSUB_B+2 DSUB_B-2
DSUB_SOG2 DSUB_G+2 DSUB_G-2
DSUB_R+2 DSUB_R-2
DDC2_SDA2 DDC2_SCL2 DDC1_SDA2 DDC1_SCL2
DET_CABLE
R436 100OHM1/16W R437 100OHM1/16W
For touch key 2010/2/2
SPI_CE
SPI_SO
SPI_SI
SPI_CK
WP
DDC_WP
R435 100OHM1/16W
X401
12MHZ
1 2
2010/3/11
C406
4.7UF 10V
C0805
C407
100N 16V
CMVCC12, 3,4
NC/LMBT3906LT1G
R404
0R05 1/10W
R405
0R05 1/10W
ADC_VAA
CVDD ADC_BIAS
52
115
119
43
CVDD
CVDD
PLL_GND
DGND
GND
3
44
109
CMVCC1 VCC3.3
R406
NC/0R 05 OHM
Q401
CVDD_ZP
DGND/CGND
GND
64
23
AVCC
26
78
0R05 OHM
VCC1.8
PA0 PA1 PA2 PA3 PA4 PA5 PA6 PA7 PA8 PA9
PB0 PB1 PB2 PB3 PB4 PB5 PB6 PB7 PB8 PB9
adj_BACKLIGHT Volume
on_BACKLIGHT LED_GRN/BLUE LED_ORANGE
POWER_KEY# AUDIO_MUTE
R438 4.7K 1/16W R439 4.7K 1/16W
Panel_ON
CN401
7 6 5 4 3 2 1
CONN
C436
100N 16V
11/30/2009
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
CVDD
FB401
0R05OHM1/8W
C439
4.7UF 10V
C0805
FB402
ADC_VAA
300OHM
C404
4.7UF 10V
C0805
adj_BACKLIGHT 4 Volume 6
on_BACKLIGHT 4
AUDIO_MU TE 6
DVDD
SDA_PANEL 3 SCL_PANEL 3 PPWR_ON # 3
KEY1 KEY2 POWER_KEY#
LED_G LED_R
C431
FB408
1 2
120 OHM
FB409
1 2
NC/120 OHM
G4134-M0D-000-0040-1-100617
5.0.SCALER
52
26
PA[0..9]
PB[0..9]
100N 16V
C401
100N 16V
C405
100N 16V
115
119
C403
C402
100N 16V
100N 16V
PA[0..9] 3
PB[0..9] 3
R417 NC/100OHM1/16W
R418 NC/100OHM1/16W
R431
NC/3. 9K1/16W
C432
C433
100N 16V
NC/100N 16V
CMVCC1
LED_R
OEM MODEL
AOC
TPV MOD EL
PCB NAME
Sheet
of
57Thursday, J une 17, 2010
VCC3.3
R419 NC/10K+-5%1/16W
VCC3.3
R432
NC/3. 9K1/16W
ZD401
C434
NC/RLZ5.6B
NC/100N 16V
VCC3.3
R433
ZD402
NC/RLZ5.6B
R420 NC/10K+-5%1/16W
DET_VGA 2 DET_DVI 2
NC/3. 9K1/16W
ZD403
C435
NC/RLZ5.6B
NC/100N 16V
Size
Rev
称爹
C
B
27
R832 R833 R836 R839 R840 R827 R828 R829 R830 R831 R803 R819 R809 R834 R812 R816
+12V
+12V 4, 6
R813
0R05 4A 1/ 4W
C801 0. 47uF 16V
BKLT-EN4
BKLT-VBR14
R806 1K 1/10W
2010/3/4
R808 1K 1/10W
C802 68N F 50V
C812
R807 20K 1/10W
R810 20K 1/10W
R802 270K +- 1% 1/10W
C808 NC
51KOHM + -1% 1/10W
R804 100K 1/10W
20"18.5" 23"21.5"
NC
NC 0 ohm 0 ohm
NC NC0 ohm0 ohm NC 0 ohm 0 ohm
1 ohm
NC 0 ohm
NC NC0 ohm
1 ohm
1 ohm
NC 1 ohmNC 1 ohm 1 ohm 1 ohm 1 ohm 1 ohm NC
NC 51K 30K
7.15K 7.15K 75K
30K
6.04K
NC
NC 51K51K
75K
0.1 ohm0.15 ohm0.15 ohm
100N 50V
R803
NCNC0 ohm0 ohm
1 ohm1 ohm1 ohm1 ohm 1 ohm
NC 51K 10K10K
6.2K 75K
0.1 ohm NCNCNCNC
R811
150 OHM 1/10W
R819
30KOHM +-1% 1/10W
U801
10 11 12 13
1 2 3 4 5 6 7 8 9
R840 0R05 1/10W
MP33 89E F
NC VIN
VFAULT
VCC
GATE
COMP
PGND
EN
ISENSE
DBRT
OVP
GND
LED1
OSC
LED2
ISET
LED3
BOSC
LED4
LED12
LED5
LED11
LED6
LED10
LED7
LED914LED8
E-Pad
29
R839 NC/0R05 1/10W
L801
+
C811
28
NC
27 26 25 24 23 22 21 20 19 18 17 16 15
NC/ 470uF 16V
R836
0R05 1/10W
C810 100N 50V
47UH
R833
NC/0R01 1/10W
R801
10 OHM 1/10W
C805
OVP
R832
0R05 1/10W
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
100pF 50V
C809
100pF 50V
0.15 OH M +-1% 1/4W
G4134-M0D-000-0040-1-100617
7.0.C ONVERT
R841
2.2 OHM 1/10W
R812
8
S11G12S23G2
1 2
Q806
D25D26D17D1
APM8005KCTRG
4
R842
2.2 OHM 1/10W
R816 NC
D801
SK310B
OVP
OEM MOD EL
TPV MODEL
PCB NAME
Sheet
C807
+
4.7UF 100V
C806
75KOHM + -1% 1/10W
100pF 50V
R827 1R 1/10W 5%
R828 1R 1/10W 5%
R831 1R 1/10W 5%
R829 NC/ 1R 1/10W 5%
R830 1R 1/10W 5%
AOC
77Thursday , June 17, 2010
of
C803
0.47UF 50V
C804
0.47UF 50V
R834
C813
2N2 50V
C814
2N2 50V
R805
300K 1/8W
R809
6.8KOHM + -1% 1/10W
1112
CN803
1 2 3 4 5 6 7 8 9
10
CONN
Size
Rev
称爹
Custom
B
28
6.2 Key Board
715G4164K01000004F
AC_SHI ELD
TP2
KEY0.1524
C007
100nF 25V
VBIAS
R004 100R 1/16W 5%
C008
100P 50V
TP1
KEY0. 1524
U001
CIN_01 CIN_02 CIN_03 CIN_04 CIN_07 CIN_09
IT7230BFN
R001 10K 1/16W 5%
V3.3
R002 10K 1/16W 5%
C003
12P 50V
R003 10K 1/16W 5%
C004
12P 50V
SM_CLK
R005 0R05 1/16W
SM_DATA
V3.35V_LED
C011
1uF Z 10V
+ MenuAuto
Power
R006 0R05 1/16W
ZD001 NC/UDZSNP5.6B
1 2
CLK DATA THD SM_INT#
CN001 CONN
89
1 2 3 4 5 6 7
THD
GPIO_03
GPIO_02
GPIO_04
20
24
23
19
22
25
NC
DVSS
THD1
GPIO4
GPIO321GPIO2
E-PAD
1
CIN1
2
CIN2
3
CIN3
4
CIN4
5
CIN7
6
CIN9
CIN117VSHILD8VBIAS9AVSS10AVCC11GPIO11
CIN_11
AC_SHIELD
5V_LED
12
V3.3-VBIAS
GPIO_11
100nF 25V
GPIO7
INT#
SCLK
GPIO9
DVCC
C006
18
GPIO_07
17
SM_INT#
16
SM_DATA
SDA
15
SM_CLK
14
GPIO_09
13
V3.3
C005
100nF 25V
LED004
LED003
R011 4K7 1/16W 5%
2 1
LED
GPIO_11
-_2 KEY 0.1524 MENU_5 K EY0.1524
CIN_01
LED
CIN_03 CIN_04 CIN_11
-
R010 4K7 1/16W 5%
2 1
GPIO_03
+_3
KEY0. 1524
R007
4K7 1/16W 5%
+
1
LED001 12-22/ T7R8D-D30/ 2C
Red
White
2
3
GPIO_04
GPIO_07
PWR_1 KEY 0.1524
R008 4K7 1/16W 5%
LED005
Power Auto
LED
CIN_07
2 1
GPIO_02
AUTO_4
R012
4K7 1/16W 5%
KEY0.1524
LED002
29
LED
MENU
R009 4K7 1/16W 5%
2 1
C013
1uF Z 10V
GPIO_09
T P V ( Top Victory Electronics Co . , Ltd. )
715G4164-K0C-000-0040_20100420.DSN
絬 隔 瓜 絪 腹
Key Component
Date
Antenna
CIN_09
CIN_02
T2
KEY0. 1524
T1 KE Y 0.1 524
OEM MODEL
TPV MOD EL
PCB NAME
Sheet
A3
Size
Rev
715G4164-K0C2.0 Touch k ey
of
22Tuesday, April 20, 2010
C
称爹
7. PCB Layout
7.1 Main Board
715G4134M01000004F
30
31
7.2 Key Board
715G4164K01000004F
32
8. Maintainability
8.1 Equipments and Tools Requirement
1. Voltmeter.
2. Oscilloscope.
3. Pattern Generator.
4. DDC Tool with an IBM Compatible Computer.
5. Alignment Tool.
6. LCD Color Analyzer.
7. Service Manual.
8. User Manual.
33
8.2 Trouble Shooting
1. No Power
No power
Check power cable is
tightened?
Re-plug the power cable
OK
Check Power “On/Off”
is “On”?
Turn on the Power “On/Off” switch
OK
Check the LED indicate is OK?
Check the AC power
OK
Replace main board and check connections
Replace key board and check connections
34
2. No Video (Power LED White)
No Video (Power LED White)
Press the power
button is OK?
Replace the main
board and connection
NG
Replace the main board
OK
The end
Check the LVDS/FFC
cable or panel
OK
Replace the LVDS/FFC
cable or panel
Replace the key board
35
q
y
3. DIM
DIM (image overlap, focus or flicker)
Reset in factory mode
OK
The end
NG
Set to the optimal frequency, select the recommended fre
uenc
OK
The end
NG
Readjust the phase and pixel clock in the user mode
OK
The end
NG
Pull out signal cable and check “Self Test Feature
Check” is ok?
OK
Check the signal cable
and the PC
NG
NG
Replace the main board
OK
The end
NG
Replace the panel
OK
36
g
y
4. Color is not optimal
Color is not optimal
Miss color
Color shift
Replace the signal cable
OK
NG
The end
Reset the factory mode
NG
In the user mode, set the” color
settin
s” until customer satisf
Pull out the signal cable
and check the screen
color display is normal?
NG
OK
NG
Replace the signal cable or PC
Replace the main board
37
9. White- Balance, Luminance Adjustment
Approximately 30 minutes should be allowed for warm up before proceeding white balance adjustment.
How to setting MEM channel you can reference to chroma 7120 user guide or simpl use “SC” key and “NEXT” Key
to modify xyY value and use “ID” key to modify the TEXT description Following is the procedure to do white-balance
adjust .
2. Setting the color temp. you want
A. MEM.CHANNEL 3 Warm (6500K):
Warm color temp. parameter is x = 313 ±30, y = 329 ±30
B. MEM.CHANNEL 4 Normal (7300K):
Normal color temp. parameter is x = 301 ±30, y = 317 ±30
C. MEM.CHANNEL 9 Cool (9300K):
Cool color temp. parameter is x = 283 ±30, y = 297 ±30
D. MEM.CHANNEL 10 (sRGB color):
sRGB color temp. parameter is x = 313 ±30, y = 329 ±30
3. Enter into the factory mode
Turn off the power, press two direction keys and turn the power on. Then press the “MENU” button. The factory OSD
will appear.
4. Gain adjustment:
Move cursor to “-F-” and press MENU key
A. Adjust Warm (6500K) color-temperature
1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)
2. Switch the MEM.channel to Channel 3 (with up or down arrow on chroma 7120)
3. The LCD-indicator on chroma 7120 will show x = 313 ±30, y = 329 ±30
4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100
5. Adjust the GREEN on factory window until chroma 7120 indicator reachedthe value G=100
6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100
7. Repeat above procedure (item 4, 5, 6) until chroma 7120 RGB value meet the tolerance =100±2
B. Adjust Normal (7300K) color-temperature
1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)
2. Switch the MEM.channel to Channel 4 (with up or down arrow on chroma 7120)
3. The LCD-indicator on chroma 7120 will show x = 301 ±30, y = 317 ±30
4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100
5. Adjust the GREEN on factory window until chroma 7120 indicator reachedthe value G=100
6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100
7. Repeat above procedure (item 4, 5, 6) until chroma 7120 RGB value meet the tolerance =100±2
38
C. Adjust Cool (9300K) color-temperature
1. Switch the Chroma-7120 to RGB-Mode (with press “MODE” button)
2. Switch the MEM. Channel to Channel 9 (with up or down arrow on chroma 7120)
3. The LCD-indicator on chroma 7120 will show x = 283 ±30, y = 297 ±30
4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100
5. Adjust the GREEN on factory window until chroma 7120 indicator reached the value G=100
6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100
7. Repeat above procedure (item 4, 5, 6) until chroma 7120 RGB value meet the tolerance =100±2
D. Adjust sRGB color-temperature
1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)
2. Switch the MEM.channel to Channel 10 (with up or down arrow on chroma 7120)
3. The LCD-indicator on chroma 7120 will show x = 313 ±30, y = 329 ±30
4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100
5. Adjust the GREEN on factory window until chroma 7120 indicator reachedthe value G=100
6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100
7. Repeat above procedure (item 4, 5, 6) until chroma 7120 RGB value meet the tolerance =100±2
E. Turn the Power-button off to quit from factory mode.
39
10. Monitor Exploded View
40
No. Description No. Part No. Description
1 BEZEL L215W-TB1-TBP1 12 0M1G-940--5125 SCREW(HINGE /TILT SUPPORT BRACKET)
2 REAR COVER 13 0M1G-140--6125 SCREW(TILT SUPPORT BRACKET/ REAR COVER)
3 KEY BOARD 14 PANEL
4 LENS 15 HINGE_ASS’Y
5 WASHER 16 0M1G1730--6120 SCREW(MAIN BOARD/ SHIELD_MAIN_BASE)
6 SHIELD_MAIN_BASE 17 SCREW(FOR SIGNAL CONNECTOR)
7 BASE TRIM 18 FOOT PAD
8 HINGE FRONT COVER 19 0M1G-140--8125 SCREW(SHIELD_MAIN_BASE / HINGE)
9 HINGE BACK COVER 20 N/A N/A
10 BASE COVER-TOP 21 0Q1G-140-10120 SCREW(BASE/ SHIELD_MAIN_BASE)
11 TILT SUPPORT BRACKET 22 N/A N/A
23 3M TAPE
24 SHIELD COVER
41
11. BOM List
Note: The parts information listed below are for reference only, and are subject to change without notice. Please go
to http://cs.tpv.com.cn/hello1.asp
TIAJNR2BZ3K2HNF.LF
Location Part No. Description Remark
040G-58162435A P/N LABEL FOR MANUAL PE BAG
040G-581689-4A BARCODE LABEL FOR 1
052G---1211--B CONDUCTIVE TAPE 85MM *40MM *0.09MM
052G---2191--A PAPER TAPE
052G6019--1 INSULATING TAPE
085G-583576 GASKET_ELECTRIC
089G-725CAA-DB D-SUB CABLE
089G404A15N-IS AC POWER CORD 1500MM EUROPE REG.
095G176J-10V03 FFC CABLE 10PIN 591MM 0.5MM
095G8014-7L605
E09501 095G8018-3DJ48 LVDS CABLE 30P-30P(2004) 430MM
095G8018-3LJ48 LVDS CABLE 30P-30P(2004) 430MM 2ndsource
for the latest information.
WIRE HARNESS 7P-7P(A1253HA HR)
120MM
0M1G-140--6125 SCREW
0M1G-140--8125 SCREW
0M1G-940--5125 .CREW
0M1G1730--6120 SCREW,42-D020523
0Q1G-140-10120 SCREW
708GB04201S-1A 40"" AOC SLIPSHEET(1520)
708GB042-CP-1A 40"" AOC COMPOUND PALLET(1440)
Q50G---4-10 TIE (Y1900221)
Q52G---1185-99 BIG CARTON TAPE FOR AOC
750GMT215W4A21N000 PANEL LM215WF4-TRA2 FQ LTD
2436L-1638A LM215WF4-TRA2-6F1-A0
3110T-0706A
3850L-0088A ID, YUPO, 78X37
4296L-0284A
GALVALUME, T=0.3,
LM215WF4-TRA1-6F1-A0
PMP-P2 100-520U-13, 5U-C60 BLACK A600,
180X7X0.45
6060L-1842A LM215WF4-TRA2-6F1-A0
6061L-1515A LM215WF4-TRA1-611
6871L-2345A SOURCE,SINGLE,LM215WF4-TRA2-6F1-A0
C115 0CH2103K562 10NF, K, 50V, X7R, 0.9MM, 1608, R/TP
C915,C916 0CH2104H942 0.1UF, Z, 25V, Y5V, 0.9MM, 1608,R/TP
C51,C924 0CH2104K562 0.1UF 50V K X7R 1608 R/TP
42
A
C79,C911 0CH2473H562 47NF, K, 25V, X7R, 0.9MM, 1608, R/TP
C56,C57,C58,C59,C74 0CH2473K562 47NF 50V K X7R 1608 R/TP
C36,C908 0CH2A-0007A
C50,C55 0CH2A-0010A 33NF, M, 25V, X7R, 0.9MM, 1608,R/TP
C22,C23,C32,C33,C34 0CH2A-0011A
C101,C102,C103,C104,
C105,C106,C107,C108,
C109,C110,C111,C112,
0CH2A-0015A 1UF, K, 25V, X5R, 0.9MM, 1608, R/TP
C113,C114,C301,C303,
C305,C307,C309,C311,
C77,C907
C73 0CH2A-0017A
C313,C314,C315,C318,
C52,C61,C62,C63,C64,
0CH2A-0026A
C71,C72,C913,C914,
1U F, 10 VOLT, K PER, X5R(JB), 1608 R/TP,
T=0.9(MAX)
10U F, 16 VOLT, K PER, X5R(JB), 3216 R/TP,
T=0.95(MAX)
2.2U F, 10 VOLT, K PER, X5R(JB),
1608 R/TP, T=0.9(MAX)
10U F, 25 VOLT, K PER, X5R(JB),
3225 R/TP, T=1.0(MAX)
C920,C921
C1,C2,
0CH2A-0038A
,C312,C5,C6,C7,C8
C701 0CH2A-0049A 1.5NF, 50, -10~+10(K), 1608, X7R(JB)
C75 0CH2A-0088A 3.3NF, K, 50V, X7R, 0.9MM, 1608, R/TP
C3,C4,C912 0CH2A-0091A 1UF, K, 25V, X5R, 0.6MM, 1005, R/TP
D3,D4,D5 0DHZL-0008B BAV99-7-05-F, DIODES, SOT-23, R/TP
ZD1 0DHZL-0061A SDZ6V2D, AUK, SOD-323, R/TP
D6 0DHZL-0095A RB050M-30, ROHM, PMDU, R/TP
F1 0FFST-0002A
U3 0IDIL-0002A
UC2 0IIML-0004A
U4 0ISGL-0008C
0.1U F, 25 VOLT, Z PER, Y5V(JF),
1005 R/TP, T0.55(MAX)
F0603FA2500V032T, AEM, 2.5, 32 VOLT,
1.6X0.8X0.8, SMT, CERAMIC, UL/CSA
AP7167-FNG-7,DIODES,
DFN3030-10, R/TP, 10
IML7821BE, IML, 5V~20V, 320MA, 20V/US,
40MHZ, 1CH, TSOT, R/TP, 5PIN
M24C04-RDW, STMICROELETRONICS,
4K, 5MS, TSSOP, R/TP, 8
DJUST_3.3V, 1.2A,
SM4025, SILICON MITUS, MONITOR,
US2 0ISML-0007A
UC1 0ISWL-0078A
BOOST+L/S(GPM)+OP-AMP+PVCOM+DISC
HARGING,
SW0640, SIW, LVDS, 6/8, 2, MINI-LVDS,
6, 1, DRD, GIP, AFRC, DGA, MUTE, MLF,
TR, 68
43
TNI8016-100M, DACOWELL, 10UH, M20,
L1 0LCAA-0069A
FL4,FL5,R103,R109,
R118,R119,R121,R125,
R126,R127,R129,R138,
R139,R140,R142,R179,
R180,R20,R302,R4,R54
R601,R602,R801,R802,
R901,R902,R903,R906,
R908
R131 0RH0102C422 10 OHM 1/16W 1608 1% D R/TP
R701 0RH0221C622 2.2 OHM 1/16W 1608 5% D R/TP
R10,R11,R12,R13,R14,
R15,R16,R17,R18,R19,
R22,R23,R25,R26
R322 0RH0472C422 47 OHM 1/16W 1608 1% D R/TP
2.1A, 0.093,8.0X11.0X1.8(1.2MM,IN-BOARD),
R/TP
0RH0000C622 0 OHM 1/16W 1608 5% D R/TP
0RH0302C422 30 OHM 1/16W 1608 1% D R/TP
R150,R2,R3 0RH1000C422 100 OHM 1/16W 1608 1% D R/TP
R1 0RH1001C422 1K OHM 1/16W 1608 1% D R/TP
R24,R27,R55 0RH1002C422 10K OHM 1/16W 1608 1% D R/TP
R123 0RH1102C422 11K OHM 1/16W 1608 1% D R/TP
R244 0RH1202C422 12K OHM 1/16W 1608 1% D R/TP
R151,R242,R254 0RH1502C422 15K OHM 1/16W 1608 1% D R/TP
R114,R136,R211,R214 0RH1601C422 1.6K OHM 1/16W 1608 1% D R/TP
R130,R234,R777 0RH1602C422 16K OHM 1/16W 1608 1% D R/TP
R224 0RH1802C422 18K OHM 1/16W 1608 1% D R/TP
R225,R232,R235 0RH2002C422 20K OHM 1/16W 1608 1% D R/TP
R141 0RH2200C422 220 OHM 1/16W 1608 1% D R/TP
R115 0RH2201C422 2.2K OHM 1/16W 1608 1% D R/TP
R50,R51 0RH2401C422 2.4K OHM 1/16W 1608 1% D R/TP
R222,R255,R904 0RH2402C422 24K OHM 1/16W 1608 1% D R/TP
R261 0RH2700C422 270 OHM 1/16W 1608 1% D R/TP
R148,R212,R213,R245 0RH3302C422 33K OHM 1/16W 1608 1% D R/TP
R223 0RH3303C422 330K OHM 1/16W 1608 1% D R/TP
R135,R243,R253 0RH3602C422 36K 1/16W 1% 1608
R146 0RH3902C422 39K OHM 1/16W 1608 1% D R/TP
R104,R106,R324,
R326,R67
R233 0RH4702C422 47K OHM 1/16W 1608 1% D R/TP
R110,R132,R778,R905 0RH5101C422 5.1K OHM 1/16W 1608 1% D R/TP
R117 0RH5102C422 51K OHM 1/16W 1608 1% D R/TP
0RH4700C422 470 OHM 1/16W 1608 1% D R/TP
44
R122,R124,R909 0RH5601C422 5.6K OHM 1/16W 1608 1% D R/TP
R201,R203 0RH6200C422 620 OHM 1/16W 1608 1% D R/TP
R202 0RH6802C422 68K OHM 1/16W 1608 1% D R/TP
R252 0RH7501C422 7.5K OHM 1 / 16 W 1608 1% D R/TP
R21,R231,R241,R251 0RH8201C422 8.2K OHM 1/16W 1608 1% D R/TP
R221 0RH9101C422 9.1K OHM 1/16W 1608 1% D R/TP
R910 0RH9102C422 91K OHM 1/16W 1608 1% D R/TP
AR3,AR4,AR5,AR6 0RHZL10005A 100OHM 5 1/16W 3216 R/TP
Q2 0TRRL-0010A
Q1 0TRRL-0011A
FL6,FL7,FL8,FL9 6200L-J015A BLM18PG300SN1D
RT1 6322L-0004A 22K OHM, +-3%, 125, 0.21, 3950, 1608, R/TP
CN1 6630L-0157B
6870S-1127A
6091L-1301B LM215WF4-TRA2-6F1-A0
3022L-1152A
3022L-1314A
3032L-0847A
KTA1505S-Y-RTK/H, KEC, PNP, R/TP,
SOT-23, .
KTC3876S-Y-RTK/H, KEC, NPN, R/TP,
SOT-23, .
FI-XB30SL-HF10, JAE, 30 PIN, 1 MM,
ANGLE, SN, USER LOCK
LM215WF4-TRA2-6F1-A0, 2L, 0.6T,
460.0 X 39.65, 6, J, 72, SOURCE
KOLON, XC210, T=0.123,
LM215WF4-TRA1-6F1-A0
TORAY, TPL123, T=0.133,
LM215WF4-TRA1-6F1-A0
EFUN, HGL-8B, T=0.210, ANGLE = 0?,
LM215WF4-TRA1-6F1-A0
3550B-0696A AL, T=0.5, LM215WF4-TRA1-6F1-A0
3850L-0151A BL, YUPO, 77X21
4000L-0036B
4975L-0334A LM215WF4-TRA1-6F1-A0
4296L-0243A
4296L-0246A
4974L-0639A
5151L-0184A LM215WF4-TRA1-6F1-A0
3034L-0788A
3953L-0090A
SWCH18A, TAP-TITE B, PAN HEAD, M2.0,
L2.5, ELECTROLESS NI
SJ CHEMICAL, SJC #101, SILICONE, GRAY,
TERAOKA 767, 274.7*1.4*0.25
SJ CHEMICAL, SJC #101, SILICONE,
GRAY,TERAOKA 767, 485*1.4*0.25
ENTIRE, ETR-1010,
LM230WF5-TRA1-7F1-A0
TORAY, 225E6QD, T=0.225, TERAOKA 7051,
LM215WF4-TRA1-6F1-A0
TORAY, 188E60L, T=0.188, TERAOKA 7051,
482.7*1.8*0.188, LM215WF4-TRA1-6F1-A0
45
3953L-0095A
TORAY, 188E60L, T=0.188, TERAOKA 7051,
285.8*1.8*0.2, LM215WF4-TRA1-6F1-A0
5150L-0440A
6916L-0249A
5153L-0068A 10FH-SM1-GAN-TB(LF)(SN) , JST
6915L-0173A
6920L-0041A
7250L-1036A T-GLOBAL, LI-98, 282.6*3.8*0.25
7250L-0864A NITTO, NITTO 5000NS, CLEAR, 30*3*0.16
7250L-0865A 3M, ZH350, SILVER,15*8*0.08
7250L-1408A ZH350 25X16X0.1
756GQACB-AA068--00 MAIN BOARD-CBPCANRA1QL
SMTCA-U402 100GANGI000YT1 MCU ASS'Y-056G2233-11
PMMA, FLAT, 2.0, PRINTING,
LM215WF4-TRA1-6F1-A0
WOOREE LED, 64(NUMBER OF LED),
WHITE LED, LM215WF4-TRA1-6F1-A0
WOOREE LED, WM32NW1F, TOP VIEW,
1EA(LED CHIP Q'TY PER PKG), 3.0*2.0*0.8,
283.6*4.4*1.0, 4EA(NUMBER OF CHAIN),
1L(NUMBER OF LAYER), 64EA(NUMBER
OF LED), AL
A15G1327101 TILT SUPPORT BRACKET
A34G2040AGS-1B0100 LENS
A34G2041AKMA1M0100 BASE COVER-TOP
A34G2042AED-1B0100 BASE TRIM
A34G2043AGS-1B0100 HINGE FRONT COVER
A34G2044AGS-1B0100 HINGE BACK COVER
A34G2096AEDA1B0100 BEZEL L215W-TB1-TBP1
A34G2141AGSA1B0100 REAR COVER L215W-TB1-TBP1
A37G0188012 HINGE 21.5
A85G0260101 SHIELD_MAIN_BASE
A85G0272101 SHIELD COVER
ADPC91236YJ1 ADAPTER BOARD
CN401 033G3802-7B--Y---L CONN 2.0 7P
CN409 033G804330C-HR WAFER 2*15P 2.0PICTH
040G-45762412B CBPC LABEL
C718 067G204V181-3K CS CAP 180UF 16V 8*8 MM
C716 067G204V471-2K CS CAP 470UF 10V 8*8 MM
C807 067G415R479-9K EC 4.7UF 20% 100V ED 8*12
FB701 071G--5526A--H CORE 6.0X3.5X3.5 127 25% 3.5X6.0
071G--5526A--S CORE 6.0X3.5X3.5 127 25%
CN701 088G-3041CF DC JACK
CN101 088G-35315F-HD D-SUB CONN F ATTACHED SCREW
46
A
088G-35315F-XH
D-SUB 15PIN VERTICAL CONN WITH
SCREW
CN102 088G-35424F--C DVI 24PIN CONN F
088G-35424F-XH DVI 24PIN CONN F ATTACHED SCREW 2ndsource
709G4134-QM001 COMSUPTIVE ASS'Y
055G--23524--A WELDING FULX WITHOUT PB
Q55G-100625 TIN STICK_LOW ARGENTUM
CN803 033G801910Y--H FPC CONN. 0.5MM SMT 10P
U401 056G-562328 IC SCALER NT68668AUFG QFP-128
056G-562281 IC NT68668UFG/C QFP-128
U704 056G-563113 IC G1117-18T63UF 1A/1.8V SOT-223
U705 056G-563215 IC DC/DC MP1584EN SOIC8E
U702 056G-563512 IC G1117-33T43UF TO-252
U103,U104,U105,
056G-662505 IC ESD AOZ8105CI SOT-23-6 AOS
U106,U107
U801 056G-700--5 IC LED DRIVER MP3389EF TSSOP28
nd
2
source
U101,U102 056G1133956 IC CAT24C02WI-GT3 SO-8
U402 056G2233-11 IC PM25LD020C-SCE SIOC-8(150MIL) 2M
056G1133-90--1 IC PM25LV020-100SCE 2MB SOIC-8 PMC
TRA LMBT3906LT1G -200MA/-40V SOT-23
Q402 057G-417517
LRC
057G-417512 MMBT3906
TRA LMBT3904LT1G 200MA/40V SOT-23
Q302,Q701 057G-417518
LRC
057G-417511 MMBT3904
Q301 057G-763940 MOSFET AO3401A SOT-23
Q806 057G-763947 MOSFET APM8005KCTRG SOP-8
R409,R421 061G0402000-JF RST CHIPR MAX0R05 1/16W FENGHUA
061G0402000-JY RST CHIPR 0 OHM -5% 1/16W YAGEO
R126,R127,R128,R129,
061G0402100-JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R130,R131,R132,R134
061G0402100-JY RST CHIPR 10 OHM -5% 1/16W YAGEO
R105,R111,R115 061G0402100-JT RST CHIP 10R 1/16W 5% TZAI YUAN
061G0402100-JF RST CHIPR 10 OHM -5% 1/16W FENGHUA
R101,R103,R104,R113,
RST CHIPR 100 OHM +-5% 1/16W
R118,R119,R401,R412,
061G0402101-JF
FENGHUA
R435,R436,R437,R706
061G0402101-JY RST CHIPR 100 OHM -5% 1/16W YAGEO
R120,R305,R402,R403,
061G0402103-JF RST CHIPR 10KOHM +-5% 1/16W FENGHU
R702,R703,R705
47
061G0402103-JY RST CHIPR 10KOHM -5% 1/16W YAGEO
R135,R306,R415,
061G0402104-JF
R712,R726
061G0402104-JY RST CHIPR 100KOHM -5% 1/16W YAGEO
R434 061G0402105-JF RST CHIPR 1MOHM 5% 1/16W FENGHUA
061G0402105-JY RST CHIPR 1000KOHM 1/16W YAGEO
R714 061G04021201FF RST CHIP 1.2K 1/16W 1% FENGHUA
061G04021201FY RST CHIP 1.2K 1/16W 1%
R106,R107 061G0402222-JF
061G0402222-JY RST CHIPR 2.2KOHM -5% 1/16W YAGEO
R123,R136,R304,R704 061G0402223-JF RST CHIPR 22KOHM 5% 1/16W FENGHUA
061G0402223-JY RST CHIPR 22KOHM -5% 1/16W YAGEO
R139,R416 061G0402224-JT RST CHIP 220K 1/16W 5% TZAI YUAN
061G0402224-JY RST CHIPR 220KOHM -5% 1/16W YAGEO
R727 061G0402304-JF RST 0402 300K 5% 1/16W FENGHUA
061G0402304-JT RST 0402 300K 5% 1/16W TZAI YUAN
RST CHIPR 100KOHM +-5% 1/16W
FENGHUA
RST CHIPR 2.2KOHM +-5% 1/16W
FENGHUA
R711 061G0402333-JF RST CHIP 33K 1/16W 5% FENGHUA
R133 061G0402394-JY RST CHIP R 390K +/-5% 1/16W YAGEO
R109,R114,R117 061G0402470-JT RST CHIP 47R 1/16W 5% TZAI YUAN
R414 061G04024700FF RST CHIP 470R 1/16W 1% FENGHUA
R110 061G0402471-JF RST CHIPR 470 OHM 5% 1/16W FENGHUA
R124,R125,R137,R138,
R303,R411,R413,R438,
R439
R713 061G04026801FF RST CHIPR 6.8K +-1% 1/16W FENGHUA
061G0402333-JY
061G0402394-JF RST CHIP R 390K /-5% 1/16W FENGHUA
061G0402470-JF RST CHIPR 47 OHM 5% 1/16W FENGHUA
061G04024700FY RST CHIP 470R 1/16W 1%
061G0402471-JY RST CHIPR 470OHM -5% 1/16W YAGEO
061G0402472-JF
061G0402472-JY RST CHIPR 4.7KOHM -5% 1/16W YAGEO
RST CHIPR 33KOHM ??-5?? 1/16W
YAGEO
RST CHIPR 4.7KOHM +-5% 1/16W
FENGHUA
061G04026801FY RST CHIP 6K8 1/16W 1%
R108,R112,R116 061G0402750-JF RST CHIPR 75 OHM +-5% 1/16W FENGHUA
061G0402750-JY RST CHIPR 75OHM -5% 1/16W YAGEO
FB703,R102,R404,
R405,R833,R839
061G0603000-JF RST CHIPR MAX 0R05 1/10W FENGHUA
TEST ONLY RST 0603 0.05R MAX 1/16W
061G0603000-JI
TA-I
48
A
A
A
A
R801 061G0603100-JF RST CHIPR 10 OHM 5% 1/10W FENGHUA
061G0603100-JY RST CHIPR 10OHM 1/10W YAGEO
R819 061G06031002FF RST CHIPR 10KOHM +-1% 1/10W FENGHU
061G06031002FY RST CHIPR 10KOHM -1% 1/10W YAGEO
R806,R808 061G0603102-JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
061G0603102-JI TEST ONLY RST 0603 1K 5% 1/16W TA-I
R804 061G0603104-JF RST CHIPR 100KOHM 5% 1/10W FENGHUA
061G0603104-JI TEST ONLY RST 0603 100K 5% 1/16W TA-I
R827,R828,R829,R830 061G0603109-JF RST CHIP 1R 1/10W 5% FENGHUA
061G0603109-JY RST CHIPR 1 OHM -5% 1/10W YAGEO
RST CHIPR 150 OHM +-5% 1/10W
R811 061G0603151-JF
FENGHUA
061G0603151-JT RST CHIP 150R 1/10W 5% TZAI YUAN
RST CHIPR 20K OHM +-5% 1/10W
R807,R810 061G0603203-JF
FENGHUA
061G0603203-JY RST CHIP 20K 1/10W 5% YAGEO
R841,R842 061G0603229-JF RST CHIPR 2.2 OHM 5% 1/10W FENGHUA
061G0603229-JI RST 0603 2.2R 5% 1/10W TA-I
R802 061G06032703FF
RST CHIPR 270KOHM +-1% 1/10W
FENGHUA
061G06032703FY RST CHIPR 270KOHM -1% 1/10W YAGEO
R803 061G06035102FF RST CHIPR 51KOHM +-1% 1/10W FENGHU
061G06035102FY RST CHIPR 51KOHM -1% 1/10W YAGEO
RST CHIPR 6.8KOHM +-1% 1/10W
R809 061G06036801FF
FENGHUA
061G06036801FT RST CHIP 6K8 1/10W 1%
R834 061G06037502FF RST CHIPR 75KOHM +-1% 1/10W FENGHU
061G06037502FY RST CHIPR 75KOHM -1% 1/10W YAGEO
FB401 061G0805000-JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R805 061G0805304-JF RST CHIPR 300KOHM +-5% 1/8W FENGHU
061G0805304-JY RST CHIPR 300K -5% 1/8W YAGEO
R813 061G12060004JF RST CHIPR MAX0R05 4A 1/4W FENGHUA
061G12060004JY RST CHIPR MAX0R05 4A 1/4W YAGEO
R812 061G12061007FF RST 1206 0.1R 1% 1/4W
061G12061007FT RST 1206 0.1R 1% 1/4W
R301,R302 061G1206301-JT RST CHIPR 300 OHM 1/4W TZAI YUAN
061G1206301-JW RST CHIPR 300 OHM -5% 1/4W WALSIN
C107,C118,C119,C408,
C714
065G040210232K---Y CAP CHIP 0402 1N 50V X7R +/-10%
065G040210232K---A CAP 0402 1NF K 50V X7R
49
C112,C115,C120,C121,
C122,C124,C125,C126,
C301,C304,C401,C402,
C403,C405,C407,C417,
C418,C419,C422,C425,
C427,C431,C432,C436,
C437,C438,C702,C705,
C706,C708,C709,C713,
C717,C721
C123,C722 065G040215131J---Y CHIP 150PF 50V NPO YAGEO
C103,C104 065G040222031J---Y CAP CHIP 0402 22P 50V NPO +/-5%
C116,C117,C303,C429 065G040222415K---A CAP CHIP 0402 0.22UF K 16V X5R
C426,C428 065G040247031J---Y CAP CHIP 0402 47PF 50V NPO +/-5%
C102,C106,C108,
C110,C111,C114
065G040210412K---Y CAP CHIP 0402 100N 16V X7R +/-10%
065G040210412K---A CAP CHIP 0402 100NF K 16V X7R
065G040222031J---A CAP 0402 22PF J 50V NPO
065G040222415K---T CAP CHIP 0402 220NF K 16V X5R
065G040222415K---Y CAP CHIP 0402 220NF 16V X5R
065G040247031J---A CAP CHIP 0402 47PF J 50V NPO
065G040247312K---A 8.31HIP 0402 47NF K 16V X7R
065G040247312K---T CAP CHIP 0402 0.047UF 16V X7R
C129,C130,C131 065G040250931C---Y CAP CHIP 0402 5PF 50V NPO +/-0.25PF
065G040250931C---3 CAP CHIP 0402 5PF 50V NPO /-0.25PF
C805,C806,C809 065G060310131J---Y CAP CHIP 0603 100P 50V NPO +/-5%
065G060310131J---F CAP CHIP 0603 100PF J 50V NPO
C710,C711,C715 065G060310232K---Y CAP CHIP 0603 1N 50V X7R +/-10%
065G060310232K---F CAP CHIP 0603 1NF K 50V X7R
C712,C719,C810,C812 065G060310432K---Y CAP CHIP 0603 0.1UF K 50V X7R
065G060310432K---F CAP CHIP 0603 0.1UF K 50V X7R
C305,C414,C415,C424 065G060310512K---T CAP CHIP 0603 1UF K 16V X7R
065G060310512K---3 MLCC 0603 CAP 1UF K 16V X7R
C801 065G060347412K---A CAP CHIP 0603 470NF K 16V X7R
065G060347412K---Y CAP CHIP 0603 0.47UF K 16V X7R
C802 065G060368332K---Y CAP CHIP 0603 68NF K 50V X7R
065G060368332K---F CAP CHIP 0603 68NF K 50V X7R
C813,C814 065G080522232K---Y CAP CHIP 0805 2N2 50V*7R+/-10%
C803,C804 065G080547432K---A CAP CHIP 0805 0.47UF K 50V X7R
065G080547432K---Y CAP CHIP 0805 470N 50V X7R /-10%
C404,C406,C413,C416,
C421,C423,C439
065G0805475A2K---T CAP CHIP 4U7 10V X7R 10%
065G0805475A2K---3 CAP CHIP 4.7UF 10V X7R /- 10%
50
C720,C723 065G120610625K---T CAP CHIP 1206 10UF K 25V X5R
C302,C704,C707 065G1206226A5K---T CAP CHIP 1206 22UF K 16V X5R
065G120622615K---M CAP CHIP 1206 22UF K 16V X5R
065G120622615K---A CAP CHIP 1206 22UF K 16V X5R
U402 070GHDCP500HDC HDCP CODE
FB301,FB408 071G-56K121 CHIP BEAD
071G-56K121--M CHIP BEAD
FB402,FB403,FB404,
FB405,FB407,FB410
FB104,FB105,
FB106,FB107
FB101,FB102,FB103 071G-59K190--B 19 OHM BEAD
L801 073G253S-98-DN SMD CHOKE 47UH 20% 3A 64R
L701 073G253S521--H SMD CHOKE 22UH 20% 3.3A HF
D101,D102 093G--64-42-PP BAV70 SOT-23
X401 093G-22S-51--A CRYSTAL 12MHZ 32P SMD-49
ZD101 093G-39GA01--T RLZ5.6B
D801 093G-60S932--T DIODE SK310B DO-214AA
D701,D703,D704,
D707,D708
071G-56V301--B CHIP BEAD FCM2012VF-301T07 BULLWILL
071G-59G301 CHIP BEAD 300OHM
093G3004--2 SR34 PAN JIT
709G4134-QS001 COMSUPTIVE ASS'Y
052G---2191--A PAPER TAPE
Q52G6026--6 MESH PRINTTING PAPER
E715 715G4134M01000004K MAIN PCB 146*115MM*1.6MM FR-4 D/S 1OZ
715G4134M01000004L MAIN BOARD FRO SMT 2ndsource
715G4134M01000004F MAIN PCB FR4 DS 146X115X1.6MM 2ndsource
KEPCAQQR KEY BOARD
CN001 033G8032-7F--S--HR CONNECTOR 7P 1.25
U001 056G-669-15 TEST ONLY IT7230BFN
R005,R006 061G0402000-JT RST CHIPR MAX0R05 1/16W TZAI YUAN
061G0402000-JY RST CHIPR 0 OHM -5% 1/16W YAGEO
R004 061G0402101-JT RST CHIP 100R 1/16W 5% TZAI YUAN
061G0402101-JY RST CHIPR 100 OHM -5% 1/16W YAGEO
R001,R002,R003 061G0402103-JT RST CHIP 10K 1/16W 5% TZAI YUAN
061G0402103-JY RST CHIPR 10KOHM -5% 1/16W YAGEO
R007,R008,R009,
R010,R011,R012
C008 065G040210131J---Y CAP CHIP 0402 100P 50V NPO +/-5%
061G0402472-JT RST CHIP 4K7 1/16W 5% TZAI YUAN
061G0402472-JY RST CHIPR 4.7KOHM -5% 1/16W YAGEO
065G040210131J---T CAP CHIP 0402 100PF 50V NPO
51
C005,C006,C007 065G040210427Z---T CAP CHIP 0402 0.1UF 25V Y5V
C011,C013 065G0402105A7Z---Y CAP CHIP 0402 1UF Z 10V Y5V
065G0402105A7Z---3 CAP CHIP 0402 1UF Z 10V Y5V
C003,C004 065G040212031J---Y CAP CHIP 0402 12P 50V NPO +/-5%
065G040212031J---T CAP CHIP 0402 12PF 50V J NPO
LED001 081G--15--2-EL LED WHITE/RED 12-22/T7R8D-D30/2C SMD
LED002,LED003,
LED004,LED005
081G-15W--1-EL CHIP LED WHITE
709G4164-QS001 COMSUPTIVE ASS'Y
715G4164K01000004M KEY PCB FR4 DS97X23X1.0MM
715G4164K01000004F KEY PCB FR4 DS97X23X1.0MM
Q05G6131--1 WASHER
Q36G-600517 DUSTER CLOTH
Q40G-18E61515A RATING LABEL
Q40G000161515A CARTON LABEL
Q40G000361596A POP LABEL(WIN 7+EPEAT+EPA)
Q40G0003615C68 LABEL POP FOR E943FW/E94FWS
Q40G0003615A81 WARRNING LABEL
Q41G78D1615-4A CARD
Q41G78S161537A QSG
Q44GB042101 PULP MOLD
Q44GB042201 PULP MOLD
Q44GB042615-1A CARTON CARTON
Q44GD065301EPE CUSHION EPE
Q45G--88609197 EPE BAG
Q45G2010M0201A PE BAG
Q52G1201--4 3M TAPE
Q70G22C161519A E2243FW CD MANUAL
52
Loading...
