Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service procedures
recommended by AOC and described in this service manual are effective methods of performing service operations. Some of
these service operations require the use of tools specially designed for the purpose. The special tools should be used when
and as recommended.
It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in order to
minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage
the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. AOC could
not possibly know, evaluate and advise the service trade of all conceivable ways in which service might be done or of the
possible hazardous consequences of each way. Consequently, AOC has not undertaken any such broad evaluation.
Accordingly, a servicer who uses a service procedure or tool which is not recommended by AOC must first satisfy himself
thoroughly that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected.
Hereafter throughout this manual, AOC Company will be referred to as AOC.
WARNING
Use of substitute replacement parts, which do not have the same, specified safety characteristics may create shock, fire, or
other hazards.
Under no circumstances should the original design be modified or altered without written permission from AOC. AOC
assumes no liability, express or implied, arising out of any unauthorized modification of design.
Servicer assumes all liability.
FOR PRODUCTS CONTAINING LASER:
DANGER-Invisible laser radiation when open AVOID DIRECT EXPOSURE TO BEAM.
CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may result in
hazardous radiation exposure.
CAUTION -The use of optical instruments with this product will increase eye hazard.
TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S
REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF THIS
SERVICE MANUAL.
Take care during handling the LCD module with backlight unit
-Must mount the module using mounting holes arranged in four corners.
-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.
-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to the panel.
-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).
-Make certain that treatment person’s body is grounded through wristband.
-Do not leave the module in high temperature and in areas of high humidity for a long time.
-Avoid contact with water as it may a short circuit within the module.
-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may damage
the panel.)
3
21.5" LCD Color Monitor AOC e2236Vw
1. Monitor Specifications
Model name e2236Vw
Driving system TFT Color LCD
Viewable Image Size 547mm diagonal
LCD Panel
Resolution
Physical
Characteristics
Environmental
Pixel pitch 0.248mm(H) x 0.248mm(V)
Video R, G, B Analog lnterface & Digital Interface
Separate Sync. H/V TTL
Display Color 16.7M Colors
Dot Clock 148.5 MHz
Horizontal scan range 30 kHz - 80 kHz
Horizontal scan
Size(Maximum)
Vertical scan range 55 Hz - 75 Hz
Vertical scan Size(Maximum) 268.11mm
Optimal preset resolution 1920 x 1080 (60 Hz)
Highest preset resolution 1920 x 1080 (60 Hz)
Plug & Play VESA DDC2B/CI
Input Connector D-Sub 15pin & DVI-D
Input Video Signal Analog: 0.7Vp-p(standard), 75 OHM, TMDS
Power Source 100-240V~, 50/60Hz
Power Consumption
USB Downstream port (A type )To USB device, loading < 100mA
off timer 0~24hours Select timing to turn off the monitor.
Connector Type 15-pin Mini D-Sub & DVI-D
Signal Cable Type Detachable
Dimensions & Weight:
Temperature:
Humidity:
Altitude:
476.64mm
Typical < 42 W
Standby < 1 W
Height (with base) 396.6 mm
Width 531.3mm
Depth 206mm
Weight (monitor only) 4.35 kg
Weight (with packaging) 5.8 kg
Operating 0° to 40°
Non-Operating -20°to 60°
Operating 10% to 85% (non-condensing)
Non-Operating 5% to 80% (non-condensing)
Operating 0~ 3000m (0~ 10000 ft )
Non-Operating 0~ 5000m (0~ 15000 ft )
4
21.5" LCD Color Monitor AOC e2236Vw
2. LCD Monitor Description
The LCD monitor will contain a main board, an adapter board, a converter board, two USB boards and a key board
which house the flat panel control logic, brightness control logic and DDC.
The power part will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips each
voltage.
Converter board
Adapter board
AC-IN
100V-240V

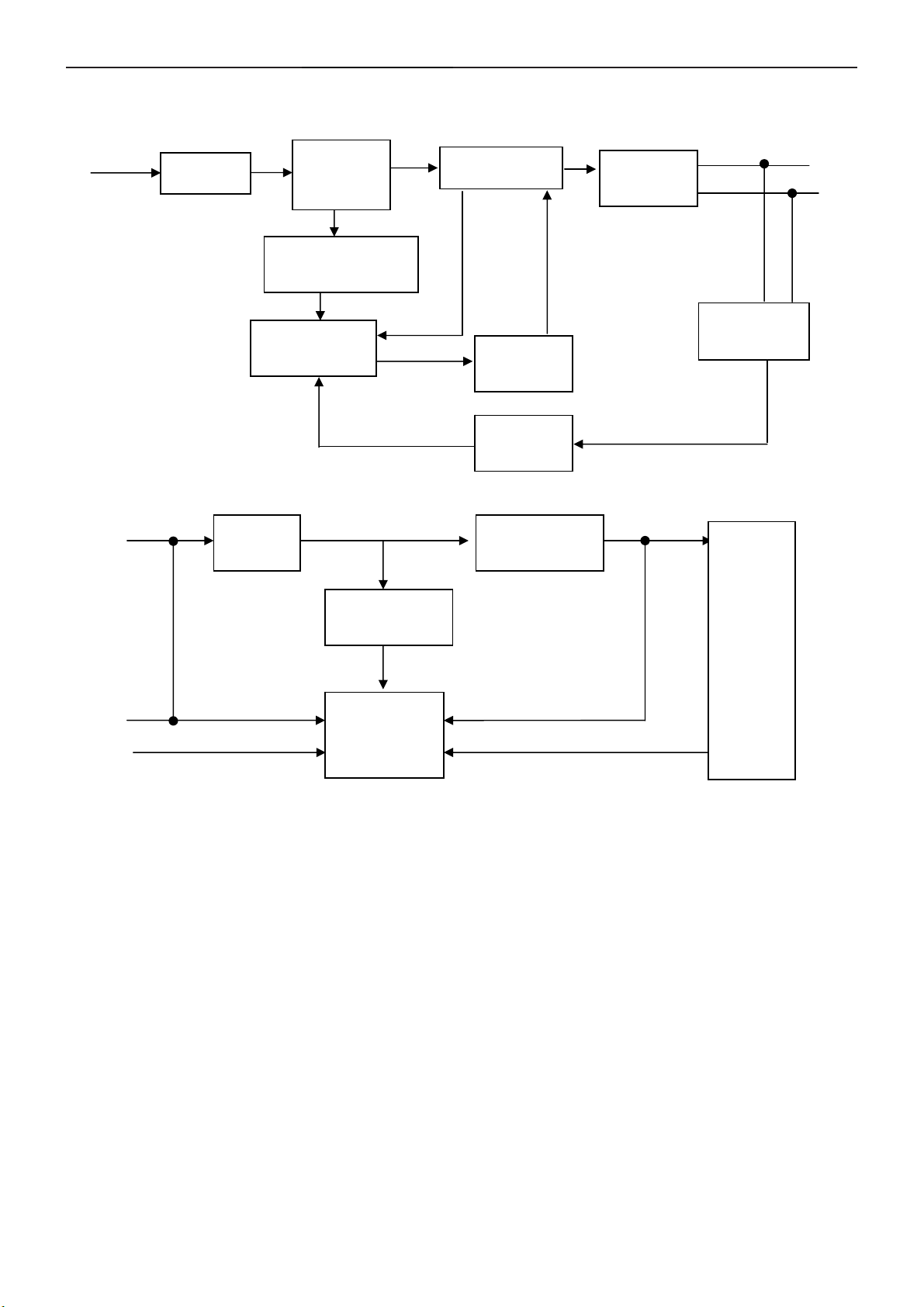

Monitor Block Diagram
LED Drive
Key board
Flat Panel and
LED backlight
Main Board
USB board*2
Video signal DDC
HOST Computer
RS232 Connector
For white balance
adjustment in factory
mode
5
21.5" LCD Color Monitor AOC e2236Vw
3. Operating Instructions
3.1 General Instructions
Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the
monitor.
By changing these settings, the picture can be adjusted to your personal preferences.
The power cord should be connected.
-
Connect the video cable from the monitor to the video card.
-
Press the power button to turn on the monitor, the power indicator will light up.
-
3.2 Control Buttons and Connections
Power Press to turn on or turn off the monitor.
Source (4 : 3 or wide) / Up Press
format.
Source hot key : When the OSD is closed, press
dual or more inputs) .Press Source button continuously to select the input source
showed in the message bar , press Menu/Enter button to change to the source
selected.
Auto / DownAuto configure hot key: When the OSD is closed, press Auto button to do auto configure.
key to change the screen aspect ratio between standard 4:3 format or Wide
button will be Source hot key function (Only for the models with
6
21.5" LCD Color Monitor AOC e2236Vw
1. Power
2. Analog (DB-15 VGA cable)
3.DVI
To protect equipment, always turn off the PC and LCD monitor before connecting.
1. Connect the power cable to the AC port on the back of the monitor.
2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the
computer's D-Sub port.
3. (Optional – Requires a video card with DVI port) - Connect one end of the DVI cable to the back of the
monitor and connect the other end to the computer’s DVI port.
4. Turn on your monitor and computer.
If your monitor displays an image, installation is complete. If it does not display an image, please refer
Notes : When Eco mode is not set as “Standard”, Contrast and Brightness can not be adjusted; When DCR is set as
“On”, Contrast, Brightness, Eco mode and Gamma can not be adjusted.
10
21.5" LCD Color Monitor AOC e2236Vw
Color Boost --- Full Enhance, Nature Skin, Sky-Blue, Green Field, Auto Detect, Demo, Off, Exit
Full Enhance
Nature Skin
Sky-Blue
11
21.5" LCD Color Monitor AOC e2236Vw
Green Field
Auto Detect
Demo
12
21.5" LCD Color Monitor AOC e2236Vw
Off
Exit
Notes :
Full Enhance: Total color saturation is enhanced, suitable for vivid pictures.
Natural Skin: Suitable for human portrait.
Green Field: Suitable for large area of green.
Sky Blue: Suitable for sky or ocean scene.
Auto Detect: Suitable for outdoor or garden.
Demo: Screen divided into two for comparison purpose.
13
21.5" LCD Color Monitor AOC e2236Vw
Luminance ---Brightness,Contrast, Gamma
Brightness
Contrast
Gamma
14
21.5" LCD Color Monitor AOC e2236Vw
Exit
Notes : When Eco mode is not set as “Standard”, Contrast and Brightness can not be adjusted; When DCR is set as
“On”, Contrast, Brightness, Eco mode and Gamma can not be adjusted.
C811 change short item.
CN804 cancel ,add CN801
20100207
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
G4137-P01-000-0040-2-100510
02.CONVERTER
Date
40
OEM MO DE L
TPV MO D EL
PCB NAME
Sheet
HP X23LED SEC
LNPCAD 561SHA11.0
715G4137-P01-000-0040
of
22Wednesd ay , J une 30, 2010
Size
Rev
称爹
<
称爹
A3
>
21.5" LCD Color Monitor AOC e2236Vw

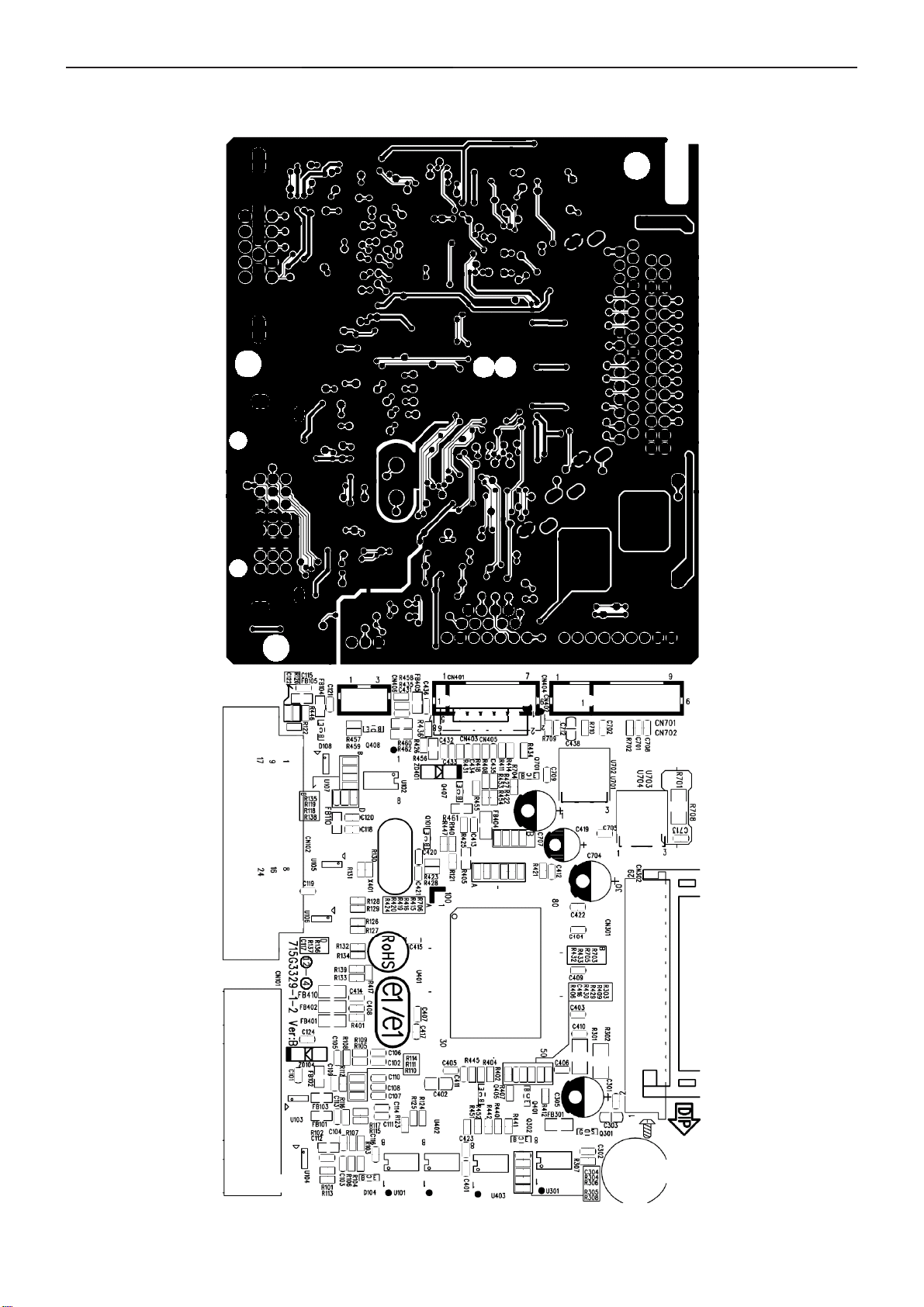

7. PCB Layout
7.1 Main Board
715G3329 1 2
41
21.5" LCD Color Monitor AOC e2236Vw
7.2 Power Board
Adapter
715G3189P02LED001S
42
21.5" LCD Color Monitor AOC e2236Vw
Converter
715G4137P01000004S
43
21.5" LCD Color Monitor AOC e2236Vw
7.3 Key Board
715G3371 2
7.4 USB Board
715G3501 3
715G2663 2
44
21.5" LCD Color Monitor AOC e2236Vw
8. Maintainability
8.1 Equipments and Tools Requirement
1. Voltmeter.
2. Oscilloscope.
3. Pattern Generator.
4. DDC Tool with an IBM Compatible Computer.
5. Alignment Tool.
6. LCD Color Analyzer.
7. Service Manual.
8. User Manual.
45
21.5" LCD Color Monitor AOC e2236Vw
8.2 Trouble Shooting
1. No Power
No power
Check power cable is
tightened?
OK
Check Power “On/Off”
is “On”?
OK
Check the LED
indicate is OK?
NG
Re-plug the power cable
NG
Turn on the Power “On/Off” switch
NG
Check the AC power
OK
Replace the converter board
NG
Replace main board and check connections
NG
Replace key board and check connections
46
21.5" LCD Color Monitor AOC e2236Vw
2. No Video (Power LED Blue)
No Video (Power LED Blue)
Press the power
button is OK?
OK
Replace the converter
board
NG
Replace the main
board and connection
NG
Replace the main board
OK
The end
OK
The end
NG
Check the LVDS/FFC
cable or panel
NG
Replace the key board
OK
Replace the LVDS/FFC
cable or panel
47
21.5" LCD Color Monitor AOC e2236Vw
3. DIM
DIM (image overlap, focus or flicker)
Reset in factory mode
NG
Set to the optimal
frequency, select the
recommended frequency
NG
Readjust the phase and pixel
clock in the user mode
NG
Pull out signal cable and
check “Self Test Feature
Check” is ok?
OK
The end
OK
The end
OK
The end
OK
Check the signal cable
and the PC
NG
Replace the main board
NG
Replace the panel
OK
NG
OK
The end
48
21.5" LCD Color Monitor AOC e2236Vw
4. Color is not optimal
Miss color
Replace the signal cable
NG
Pull out the signal cable
and check the screen
color display is normal?
NG
Replace the main board
Replace the signal cable or PC
Color is not optimal
OK
The end
OK
Color shift
Reset the factory mode
NG
In the user mode, set the” color
settings” until customer satisfy
NG
49
21.5" LCD Color Monitor AOC e2236Vw
9.Firmware and DDC Instruction
9.1 Firmware Instruction(TSUM IC ISP for exemple TSUMO58GDJ)
1. OPERATION CONDITIONS:
1) An i486 (or above) personal computer or compatible.
2) Microsoft operation system Windows XP.
3) “MSTAR ISP Tool V4.5.0.7.7”programs.
4) Printer cable and VGA cable.
5) ISP board (PN: 715GT039-A).
2. Connection:
1) LPT cable connect PC and ISP board ;
2)VGA cable connect monitor and ISP board ;
3)Reference picture as below
ISP Board (TPV P/N:715GT039-A)
3.Software list:
1)LPT driver:
2)MSTAR ISP TOOL:
Eg: TSUMO58GDJ_LGLM215WF4_20100518_V005_8143.BIN
3)Setup LPT driver:run Port95nt icon:
4)USB driver install
50
21.5" LCD Color Monitor AOC e2236Vw
4 .Program:
1)Run MSTAR ISP Tool V4.5.0.7.7,interface as below:
2) Choose CONFIG icon ,interface as below :
Setting as :
Port type :LPT1
Speed :50KHZ
51
21.5" LCD Color Monitor AOC e2236Vw
3)Choose DEVICE,and choice WP Pin pull to high during ISP :
4)Choose CONNECT icon ,and interface show Device type , PC and monitor communications successful, click
“OK”.
52
21.5" LCD Color Monitor AOC e2236Vw
5)Click “Read”, show as follow picture, then choose correct software to click “open.
PS:For exemple TSUMO58GDJ_LGLM215WF4_20100518_V005_8143.BIN
6 )Then ,as below :
7.
53
21.5" LCD Color Monitor AOC e2236Vw
7) Click icon“Restore”as following
8) Show the interface as follows after press the AUTO button
54
21.5" LCD Color Monitor AOC e2236Vw
9).Then , press Run icon ,as below,Show Blank OK, Program OK, Verify OK, It’s successfully if interface show
PASS.
10) AC off, wait about one minute, after the elextricity large capacitance of power board release, then AC on,
otherwise, the key button and power button cann't work.
5.Check Software Version and auto color and reset:
You should check the program code is right in factory mode ;(about the method of enter factory mode ,pls reference
the service manual )
5.1Auto level :
1)Monitor display gray pattern ;
2)Enter the factory mode ;
55
21.5" LCD Color Monitor AOC e2236Vw
3)Choise the AUTO LEVEL icon and run it.
4)Check the gray pattern is clear ;
5)Change to full black pattern , and check the display there is no noise .
5.2Reset
Monitor would change to default setting after reset .
5.3power off
Monitor must be turned off after rework code.
6:HDCP Write SOP
I. Prepare condition:
1. Prepare one PC and the system is WIN98/NT/2000/XP, make sure the PC have Print Port.
2. Install Port95nt Software, the way of the install Port95 (LPT PORT drive):
a. selects the software of Port95nt.exe, and run it,
b. After install ok, restart the PC.
3. Connect the cable and Jig:
a. Use the Print cable to connect the PC and HDCP card.
b. Connect the VGA cable with the ISP record card, the picture of Print cable, VGA cable and ISP card as below:
Connect to PC LPT
Connect to Monitor
ISP Tool TPV P/N: 715GT034-B
Connect to Signal Source
(e.g.: Chroma/PC etc)
DC 12V
56
21.5" LCD Color Monitor AOC e2236Vw
II. HDCP Write Step:
Step1. Double click “HDCP20091026.exe”
Step2. Click “Load HDCP…”. choose the corresponding “*.BIN” by scaler IC (MST Scaler) ,then click “Open” as
below.
57
21.5" LCD Color Monitor AOC e2236Vw
Step3. Pls choose the item remarked in red (i.e.: New CMD/Only Connect One Monitor/MST Scaler), then click
“Start” to write HDCP, when display “Monitor 1 PASS” means Write OK.
58
21.5" LCD Color Monitor AOC e2236Vw
III. Check HDCP.
USE “Blu-Ray Disc” DVD to check whether the monitor with DVI connector displays normally.
If error message appeared “” as below:
1. Check whether the HDCP writer is correct.
2. Check whether the tool is correct or not, and check the connection between PC, Monitor and tool. In addition,
check whether the tool’s power supply is available.
3. If still no work, pls modify the “config.ini” as below, and then try again.

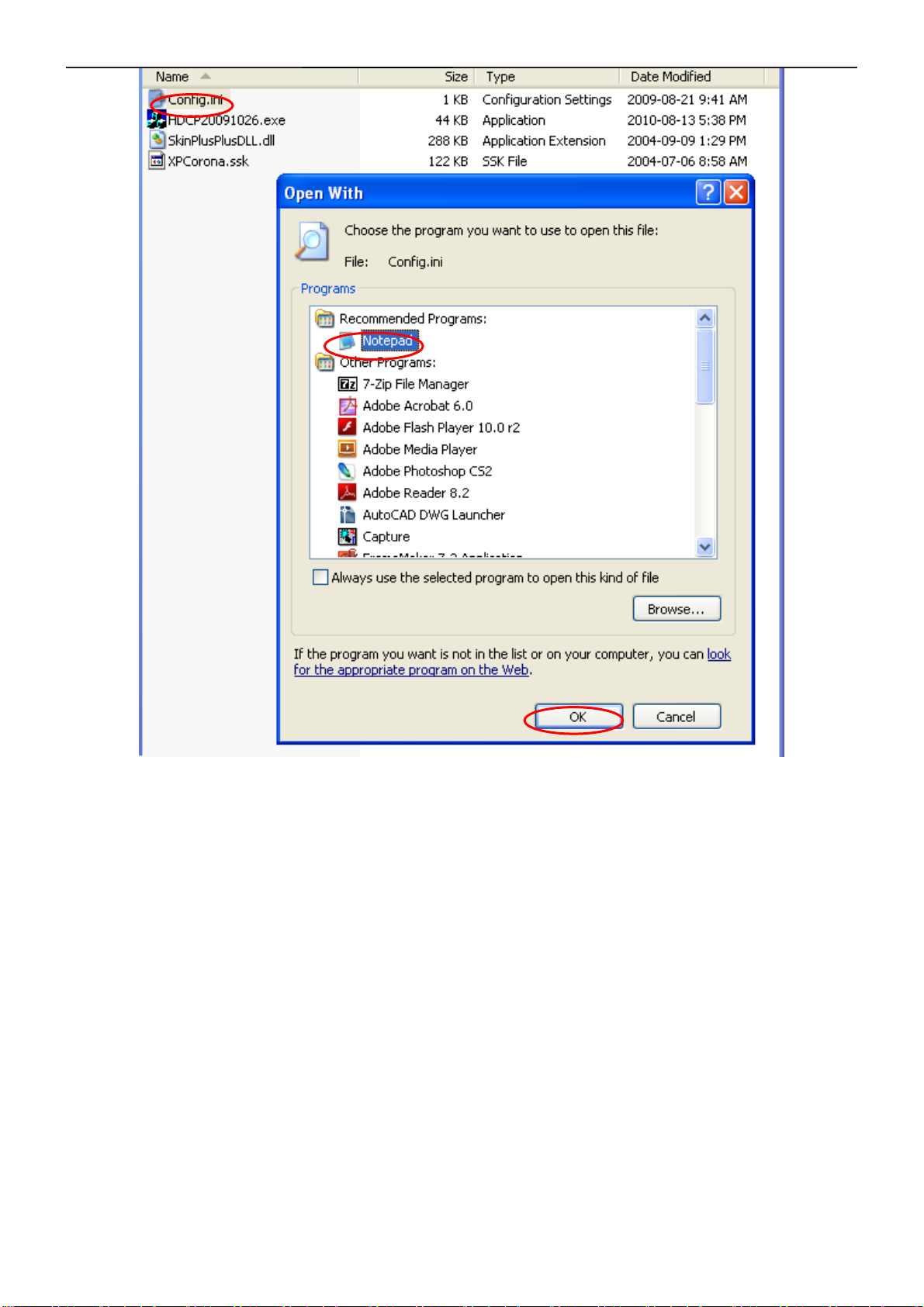

Modify Step: Right click “config.ini”-> Open with “Notepad”->”OK”-> Modify the HDCP value (350->500,
150->300, 500->700)->Save.
PS: You can also open “config.ini” directly if you have opened it through “Open with ‘Notepad’ ” before.
59
21.5" LCD Color Monitor AOC e2236Vw
60
21.5" LCD Color Monitor AOC e2236Vw
350 ->500
150 ->300
500 ->700
61
21.5" LCD Color Monitor AOC e2236Vw
9.2 DDC Instruction
Tool list:
1. DDC board:715GT034-B
2. Software (WA.DAT&WD.DAT&*. CONFIG.INI)
3. LPT driver software
4. LPT cable, D-SUB CABLE ,DVI CABLE and DVI to HDMI CABLE
5. 12V( Adapter)
6. TPVDDCHDMI and TPVDDC6.0
7. PC
8. For example:e2239Fwt
Tool picture
For VGA&DVI BURNING: DDC Board as the follow picture:
TO PC LPT
DC 12V power
DVI
Install software:
Note:Burning softsare and EDID data must be put in the same folder as follow picture:
VGA
LCD DVI port
62
21.5" LCD Color Monitor AOC e2236Vw
VGA&DVI Burning:

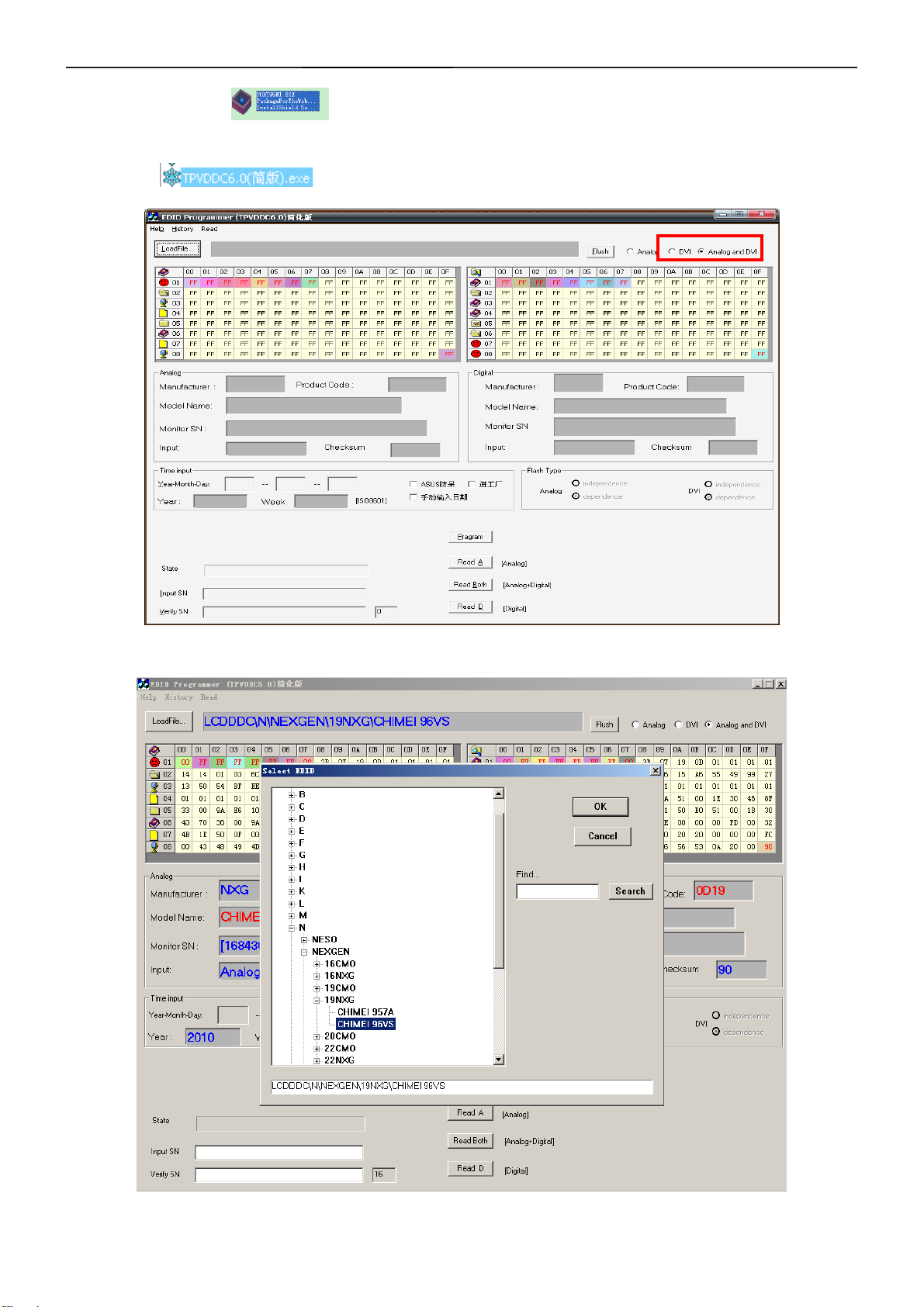

1.Double-click the icon “” to install Port95nt print driver, and then restart the computer.
Double-click
2. Click “Load file” and select as follow picture.then click “LCDDDC”
EX: DDCModelName:CHIMEI96VS
, select “Analog and DVI” show as follow picture
63
21.5" LCD Color Monitor AOC e2236Vw
3. Click “ok” show as follow picture.
4.Input same SN twice and date. Click “Pragram” to burn. When appear “pass” as follow picture that burning is
successful.
64
21.5" LCD Color Monitor AOC e2236Vw
5. Click “program”,
Note: . Appear fault as follow , please input SN twice and burning again.
65
21.5" LCD Color Monitor AOC e2236Vw

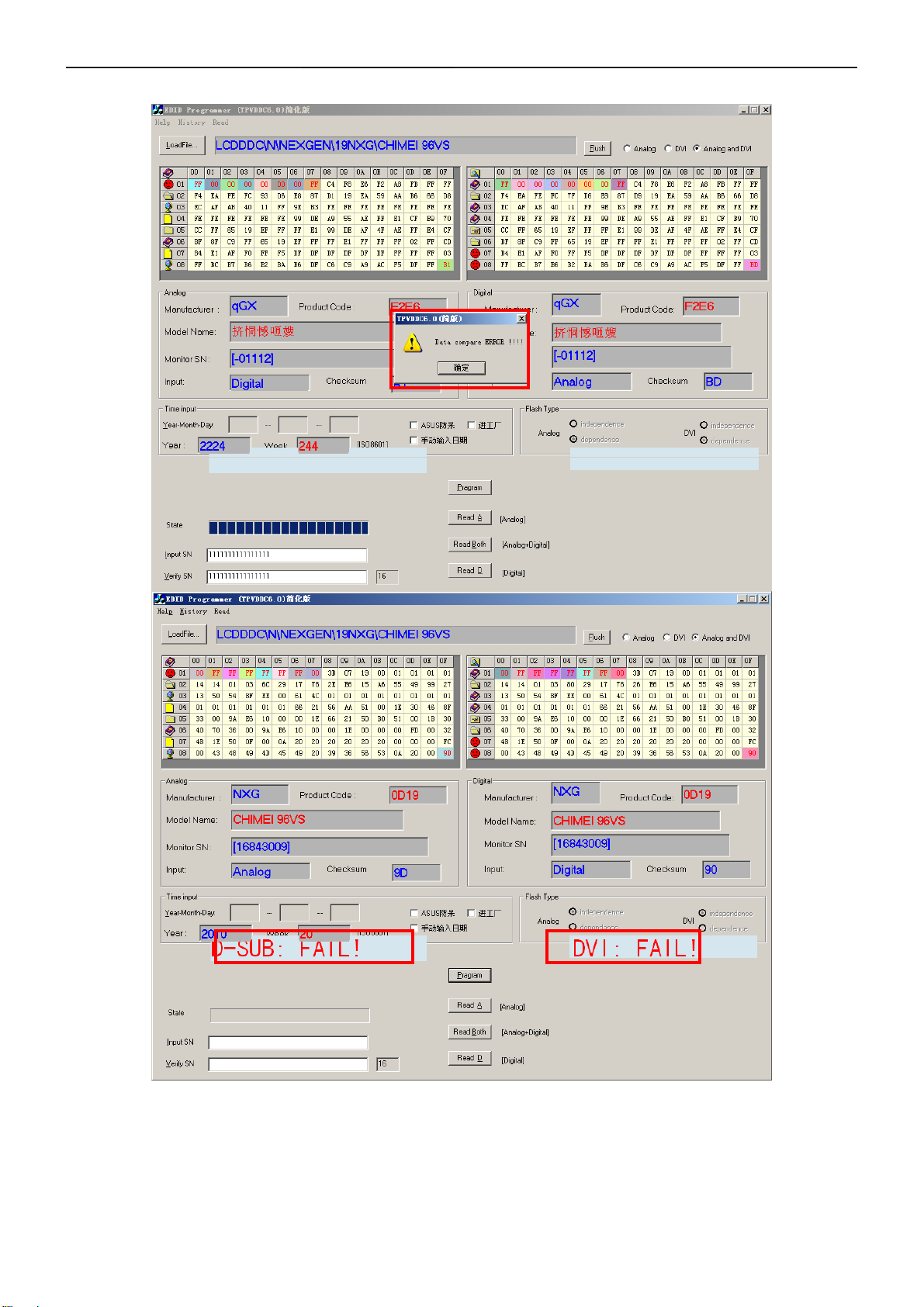

When appear “pass” as follow picture that burning is successful.
Click “Read both” show as follow picuture..If read SN and model name are same as before inputing as before
that burning is successful.
66
21.5" LCD Color Monitor AOC e2236Vw
Appear fault as follow, please check the connection of LPT cable , Tool adapter cable and LCD power.
Appear fault as follow,please check the connection of VGA and the connection of DVI
Note:
If the burn software is unsuccessfulll, appear fault:
1. For VGA,the resolution will be not the best achieve.
2. For DVI,No picture,no sound.
If program failed, in VGA mode, you can’t use the optimal resolution.
67
21.5" LCD Color Monitor AOC e2236Vw
When Read is OK, program is NG, pls do take following action:
1. For VGA,cut off the 9th pin (connect the monitor).
2. For DVI, cut off the 14th pin (the shortest pin, power supply).
3. Connect the EEPROM WP pin to ground.
68
21.5" LCD Color Monitor AOC e2236Vw
10. White- Balance, Luminance Adjustment
Approximately 30 minutes should be allowed for warm up before proceeding White-Balance adjustment.
1. How to do the Chroma-7120 MEM. Channel setting
A. Reference to chroma 7120 user guide
B. Use “ SC” key and “ NEXT” key to modify x, y, Y value and use “ID” key to modify the
TEXT description Following is the procedure to do white-balance adjust
2. Setting the color temp. you want
A. MEM.CHANNEL 3 (6500K color):
6500K color temp. parameter is x = 313 ±30, y = 329 ±30, Y = 200 cd/m2
B. MEM.CHANNEL 4 (7300K color):
7300K color temp. parameter is x = 302 ±30, y = 318 ±30, Y = 180 cd/m
C. MEM.CHANNEL 9 (9300K color):
9300K color temp. parameter is x = 283 ±30, y = 297 ±30, Y = 170 cd/m2
D. MEM.CHANNEL 10 (SRGB color):
SRGB color temp. parameter is x = 313 ±30, y = 329 ±30, Y = 180 cd/m2
3. Enter into the factory mode:
2 ,
Turn off the power, then press ∧ key,∨ key and press the Power button at the same time, the next, press the
Menu button, You will enter into the factory mode.
4. Bias adjustment:
Set the Contrast
to 50; Adjust the Brightness to 90.
5. Gain adjustment:
Move cursor to “-F-” and press MENU key
A. Adjust Warm (6500K) color-temperature
1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)
2. Switch the MEM.channel to Channel 3 (with up or down arrow on chroma 7120)
3. The LCD-indicator on chroma 7120 will show x = 313 ±30, y = 329 ±30, Y = 200 cd/m
2
4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100
5. Adjust the GREEN on factory window until chroma 7120 indicator reached the value G=100
6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100
7. Repeat above procedure (item 4,5,6) until chroma 7120 RGB value meet the tolerance =100±5
B. Adjust Normal (7300K) color-temperature
1. Switch the Chroma-7120 to RGB-Mode (with press “MODE” button)
2. Switch the MEM. Channel to Channel 4 (with up or down arrow on chroma 7120)
2
3. The LCD-indicator on chroma 7120 will show x = 302 ±30, y = 318 ±30, Y = 180 cd/m
4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100
5. Adjust the GREEN on factory window until chroma 7120 indicator reached the value G=100
6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100
7. Repeat above procedure (item 4,5,6) until chroma 7120 RGB value meet the tolerance =100±5
C. Adjust Cool (9300K) color-temperature
1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)
69
21.5" LCD Color Monitor AOC e2236Vw
2. Switch the MEM.channel to Channel 9(with up or down arrow on chroma 7120)
3. The LCD-indicator on chroma 7120 will show x = 283 ±30, y = 297 ±30, Y = 170 cd/m
4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100
5. Adjust the GREEN on factory window until chroma 7120 indicator reached the value G=100
6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100
7. Repeat above procedure (item 4,5,6) until chroma 7120 RGB value meet the tolerance =100±5
D. Adjust SRGB color-temperature
1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)
2. Switch the MEM.channel to Channel 10(with up or down arrow on chroma 7120)
3. The LCD-indicator on chroma 7120 will show x = 313 ±30, y = 329 ±30, Y = 180 cd/m
4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100
5. Adjust the GREEN on factory window until chroma 7120 indicator reached the value G=100
6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100
7. Repeat above procedure (item 4,5,6) until chroma 7120 RGB value meet the tolerance =100±5
E. Turn the Power-button off to quit from factory mode.
2
2
70
21.5" LCD Color Monitor AOC e2236Vw
11.Mechanical Instructions
1.Put the monitor on the EPE pad.
2.Lay down the monitor, then use cross screwdriver or the expert tools leave off the stand while press the Push area
of the back cover.
3.Overturn the monitor and the top towards to us.
71
21.5" LCD Color Monitor AOC e2236Vw
4.Take apart the front frame with hands on the label area.
5.As the center of one side of USB connector, take apart 3 sides and stop. Attention: Do not break off the key pc
side, or pull the front frame forcibly, to avoid the keypad peel off.
6.Overturn the monitor, on the USB connector area, one hand press the Panel, and use the other to undrawn the
back cover.
72
21.5" LCD Color Monitor AOC e2236Vw
7.Make the notice that the front frame of the key pc side should be separated at last.
8. In turn to take apart the key pc connect PIN (A&B), lamp line (C&D), peel off the aluminum foil (E&F), draw off the
FFC pin (G), if there is defect with main pc, need leave of f the six-angle screw (H).
9.Withdraw the front frame from the Panel side. Use screwdriver to take off the screw which used to fix the iron
frame and Panel, and then take apart them.
73
21.5" LCD Color Monitor AOC e2236Vw
10. According to the different defective area, take off the screws ABCDE to get the relevant part to maintain. Before
take apart the POWER pc should take off the AC iron piece first.
11. Use little screwdriver to peel off the key pc from the front frame when need maintain it.
74
21.5" LCD Color Monitor AOC e2236Vw
12. Monitor Exploded View
75
21.5" LCD Color Monitor AOC e2236Vw
13. BOM List
Note: The parts information listed below are for reference only, and are subject to change without notice. Please go
to http://cs.tpv.com.cn/hello1.asp
TIAASL2E6WA1BNE
Location Part NO. Description Remark
052G 1208 A AL FOIL 052G 1211 B Conductive Tape 85mm *40mm *0.09mm 052G 2191 A PAPER TAPE
E08905 089G 175 8A C USB CABLE 1800MM without PE bag
E08905 089G 175 8A G USB CABLE 1800MM without PE bag 2nd source
E08902 089G 715CAAE01 SIGNAL CABLE 2nd source
E08902 089G 715GAAE01 SIGNAL CABLE 2nd source
E08902 089G 715HAAE01 SIGNAL CABLE
E08903 089G1745CAA 9 DVI CABLE 1500 2nd source
E08903 089G1745GAA 9 DVI CABLE 2nd source
E08903 089G1745HAA 9 DVI CABLE 1.5M
E08901 089G412A15NHL3 AC POWER CORD 1500mm
E08901 089G412A15NIS3 AC POWER CORD 1500mm 2nd source
H40G 001624 1A CARTON LABEL BARCODE 1 H40G 22N61534A ID LABEL H40G000261587A AP BOXSTIKER LABEL
H41G780061558C Australia warranty 808GE2236VWHKG E2236VW HongKong ASS'Y
E08905 089G 175 8A C USB CABLE 1800MM without PE bag
E08905 089G 175 8A G USB CABLE 1800MM without PE bag 2nd source
E08902 089G 715CAAE01 SIGNAL CABLE 2nd source
E08902 089G 715GAAE01 SIGNAL CABLE 2nd source
E08902 089G 715HAAE01 SIGNAL CABLE
E08903 089G1745CAA 9 DVI CABLE 1500 2nd source
E08903 089G1745GAA 9 DVI CABLE 2nd source
E08903 089G1745HAA 9 DVI CABLE 1.5M
E08901 089G410A15N HL AC POWER CORD 1500
E08901 089G410A15N IS AC POWER CORD 1500 2nd source
H40G 001624 1A CARTON LABEL BARCODE 1 H40G 22N61534A ID LABEL H40G000261587A AP BOXSTIKER LABEL H41G780961529A AP WARRANTY booklist 808GE2236VWINA E2236VW Indonesia ASS'Y 026G 800504 H BAR CODE LABEL
E08905 089G 175 8A C USB CABLE 1800MM without PE bag
E08905 089G 175 8A G USB CABLE 1800MM without PE bag 2nd source
E08902 089G 715CAAE01 SIGNAL CABLE 2nd source
E08902 089G 715GAAE01 SIGNAL CABLE 2nd source
E08902 089G 715HAAE01 SIGNAL CABLE
E08903 089G1745CAA 9 DVI CABLE 1500 2nd source
E08903 089G1745GAA 9 DVI CABLE 2nd source
E08903 089G1745HAA 9 DVI CABLE 1.5M
E08901 089G404A15N HL AC POWER CORD 1500mm
E08901 089G404A15N IS AC POWER CORD 1500 2nd source
H40G 22N61556A e2236Vw ID LABEL-Indonesia H40G 58361596A e2236Vw INA CARTON LABEL B H40G000261587A AP BOXSTIKER LABEL
H41G1800615 1B manual--Indonesia
H41G780061583A warranty card--Indonesia 808GE2236VWPHI E2236VW Philippines ASS'Y
E08905 089G 175 8A C USB CABLE 1800MM without PE bag
E08905 089G 175 8A G USB CABLE 1800MM without PE bag 2nd source
E08902 089G 715CAAE01 SIGNAL CABLE 2nd source
E08902 089G 715GAAE01 SIGNAL CABLE 2nd source
E08902 089G 715HAAE01 SIGNAL CABLE
77
21.5" LCD Color Monitor AOC e2236Vw
E08903 089G1745CAA 9 DVI CABLE 1500 2nd source
E08903 089G1745GAA 9 DVI CABLE 2nd source
E08903 089G1745HAA 9 DVI CABLE 1.5M
E08901 089G402A15N HL AC POWER CORD 1500mm
E08901 089G402A15N IS AC POWER CORD 1500MM 2nd source
H40G 001624 1A CARTON LABEL BARCODE 1 H40G 22N61534A ID LABEL H40G000261587A AP BOXSTIKER LABEL H41G780961529A AP WARRANTY booklist 808GE2236VWTHA E2236VW Thailand ASS'Y
E08905 089G 175 8A C USB CABLE 1800MM without PE bag
E08905 089G 175 8A G USB CABLE 1800MM without PE bag 2nd source
E08902 089G 715CAAE01 SIGNAL CABLE 2nd source
E08902 089G 715GAAE01 SIGNAL CABLE 2nd source
E08902 089G 715HAAE01 SIGNAL CABLE
E08903 089G1745CAA 9 DVI CABLE 1500 2nd source
E08903 089G1745GAA 9 DVI CABLE 2nd source
E08903 089G1745HAA 9 DVI CABLE 1.5M
E08901 089G402A15N HL AC POWER CORD 1500mm
E08901 089G402A15N IS AC POWER CORD 1500MM 2nd source
H40G 001624 1A CARTON LABEL BARCODE 1 H40G 22N61534A ID LABEL H40G000261587A AP BOXSTIKER LABEL H41G780961530A AOC warranty card--Thailand 808GE2236VWTPE E2236VW taiwan ASS'Y 026G 800504 H BAR CODE LABEL
E08905 089G 175 8A C USB CABLE 1800MM without PE bag
E08905 089G 175 8A G USB CABLE 1800MM without PE bag 2nd source
E08902 089G 715CAAE01 SIGNAL CABLE 2nd source
E08902 089G 715GAAE01 SIGNAL CABLE 2nd source
E08902 089G 715HAAE01 SIGNAL CABLE
E08903 089G1745CAA 9 DVI CABLE 1500 2nd source
E08903 089G1745GAA 9 DVI CABLE 2nd source
E08903 089G1745HAA 9 DVI CABLE 1.5M
E08901 089G420A15N IS AC POWER CORD 1500MM TAIWAN
H40G 22N61546A ID LABEL H40G 58261572A AOC TW WARRANTY LABEL H40G 58261573B carton label H40G000261587A AP BOXSTIKER LABEL H41G780961540A TW WARRANTY BOOKLIST 808GE2236VWUAE e2236Vw United Arab Emirates ASS'Y
E08905 089G 175 8A C USB CABLE 1800MM without PE bag
E08905 089G 175 8A G USB CABLE 1800MM without PE bag 2nd source
E08902 089G 715CAAE01 SIGNAL CABLE 2nd source
E08902 089G 715GAAE01 SIGNAL CABLE 2nd source
E08902 089G 715HAAE01 SIGNAL CABLE
E08903 089G1745CAA 9 DVI CABLE 1500 2nd source
E08903 089G1745GAA 9 DVI CABLE 2nd source
E08903 089G1745HAA 9 DVI CABLE 1.5M
E08901 089G404A15N HL AC POWER CORD 1500mm
E08901 089G404A15N IS AC POWER CORD 1500 2nd source
H40G 001624 1A CARTON LABEL BARCODE 1 H40G 22N61534A ID LABEL H41G780961529A AP WARRANTY booklist 808GE2236VWVIE E2236VW Vietnam ASS'Y
E08905 089G 175 8A C USB CABLE 1800MM without PE bag
78
21.5" LCD Color Monitor AOC e2236Vw
E08905 089G 175 8A G USB CABLE 1800MM without PE bag 2nd source
E08902 089G 715CAAE01 SIGNAL CABLE 2nd source
E08902 089G 715GAAE01 SIGNAL CABLE 2nd source
E08902 089G 715HAAE01 SIGNAL CABLE
E08903 089G1745CAA 9 DVI CABLE 1500 2nd source
E08903 089G1745GAA 9 DVI CABLE 2nd source
E08903 089G1745HAA 9 DVI CABLE 1.5M
E08901 089G404A15N HL AC POWER CORD 1500mm
E08901 089G404A15N IS AC POWER CORD 1500 2nd source
H40G 001624 1A CARTON LABEL BARCODE 1 H40G 22N61534A ID LABEL H40G000261587A AP BOXSTIKER LABEL
Q41G78D161522A Vietnam warranty
C904 063G107K2246S1 X2 CAP 0.22UF K 275VAC
C902 065G306K3312B3 Y1 CAP 330PF K 250VAC CD
C903 065G306K3312B3 Y1 CAP 330PF K 250VAC CD
C900 065G306M1022BP CAP Y1 1NF 20% 250V Y5U
C918 067G 3151007KV CAP 105C 10UF M 50V
C712 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C713 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C115 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C124 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C301 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C304 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C403 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C404 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C405 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C406 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C407 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C408 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C409 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C410 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C411 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C412 065G040210412K A CAP CHIP 0402 100nF K 16V X7R
C436 065G0402105A5K Y NO-SUGGEST CAP 0402 1UF 10% 10V X5R
C103 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5%
C104 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5%
C116 065G040222415K Y CAP CHIP 0402 220nF 16V X5R
C117 065G040222415K Y CAP CHIP 0402 220nF 16V X5R
C302 065G040222415K Y CAP CHIP 0402 220nF 16V X5R
C401 065G040222415K Y CAP CHIP 0402 220nF 16V X5R
C421 065G040247031J Y CAP 0402 47PF 5% 50V NP0
C420 065G040247031J Y CAP 0402 47PF 5% 50V NP0
C114 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C111 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C110 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C108 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C106 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C102 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C113 065G040250931C Y CAP 0402 5PF 0.25pF 50V NP0
C109 065G040250931C Y CAP 0402 5PF 0.25pF 50V NP0
C105 065G040250931C Y CAP 0402 5PF 0.25pF 50V NP0
C303 065G060310522K T CAP CHIP 0603 1uF K 25V X7R
C402 065G0805475A5K Y CAP CHIP 0805 4.7UF K 10V X5R
FB301 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF
FB410 071G 56V301 M CHIP BEAD 0805 300R 25% 700mA
FB404 071G 56V301 M CHIP BEAD 0805 300R 25% 700mA
FB402 071G 56V301 M CHIP BEAD 0805 300R 25% 700mA
FB401 071G 56V301 M CHIP BEAD 0805 300R 25% 700mA
FB110 071G 59G301 EM CHIP BEAD 0603 300R 25% 200mA
FB105 071G 59G301 EM CHIP BEAD 0603 300R 25% 200mA
FB104 071G 59G301 EM CHIP BEAD 0603 300R 25% 200mA
FB103 071G 59K190 M CHIP BEAD 0603 19R/500mA
FB102 071G 59K190 M CHIP BEAD 0603 19R/500mA
FB101 071G 59K190 M CHIP BEAD 0603 19R/500mA
D104 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC
D108 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC
ZD104 093G 39GA01 T RLZ5.6B
709G3329 HS003 CONSUMPTIVE ASS'Y
715G3329 1 2 MAIN BOARD PCB
H52G1701 1 MESH PRINTTING_PAPER
CN001 033G8034 6H H L1 CONN 1.0mm 6P R/A - -
U001 056G 669 10 TOUCH KEY CG7246AMT QFN-16(COL)
R012 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
83
21.5" LCD Color Monitor AOC e2236Vw
R009 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R008 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R001 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R002 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R007 061G0603561 JT RST CHIPR 560OHM +-5% 1/10W TZAI YUAN
R006 061G0603561 JT RST CHIPR 560OHM +-5% 1/10W TZAI YUAN
R005 061G0603561 JT RST CHIPR 560OHM +-5% 1/10W TZAI YUAN
R004 061G0603561 JT RST CHIPR 560OHM +-5% 1/10W TZAI YUAN
C001 065G060310231J Y CHIP 0603 1000pF 50V NPO
C002 065G0603225A5K A CAP 0603 2.2UF K 10V X5R
LED001 081G15BY 2 GP CHIP LED blue/yellow GPTD12048BOC1-A
ZD005 093G 39S 34 T UDZSNP5.6B ROHM
ZD004 093G 39S 34 T UDZSNP5.6B ROHM
