Safety
National Conventions
The following subsections describe notational conventions used in this docum ent.
Notes, Cautions, and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type.
These blocks are notes, cautions, and warnings, and they are used as follows:
NOTE: A NOTE indicates important information that helps you make better use of your computer system.
CAUTION: A CAUTIO N indicates e ither potenti al da mage to hardw are or lo ss of da ta a nd tells you how to avoid the
problem.
WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some
warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific
presentation of the warning is mandated by regulatory authority.
5
Power
The monitor should be operated only from the type of power source indicated on the label. If you are not sure
of the type of power supplied to your home, consult your dealer or local power company.
The monitor is equippe d with a three-pronged grounded plug, a p lug with a third (grounding) pin. T his plu g will
fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug,
have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the
safety purpose of the grounded plug.
Unplug the unit during a ligh tning stor m or w hen it w ill not be used for long periods of time. This w ill protect the
monitor from damage due to power surges.
Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate
configured receptacles marked between 100-240V~, Mi n. 5A
The wall socket shall be installed near the equipment and shall be easily accessible.
6
Installation
Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a
person and cause ser iou s d amage to this product. Use only a cart , s t an d, tripod, bracket, or table re comme nded by
the manufacturer or sold with this product. Follow the manufacturer’s instructions when installing the product and
use mounting accessories recommended by the manufacturer. A product and cart combination should be moved
with care.
Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or
electric shock. Never spill liquids on the monitor.
Do not place the front of the product on the floor.
If you mount the moni tor on a wall or shelf, use a mounting kit appr ov ed by the manufacturer and follow the kit
instructions.
Remark: Suitable for entertainment purposes at controlled luminous environments, to avoid disturbing
reflections from the screen.
Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence
overheating may cause a fire or damage to the monitor.
See below the recommended ventilation areas around the monitor when the monitor is installe d on the wall or on
the stand:
7
8
Cleaning
Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of
strong-detergent which will cauterize the product cabinet.
When cleaning, make sure no detergent is leaked int o t he product. The cleaning cloth sh oul d no t b e too rough
as it will scratch the screen surface.
Please disconnect the power cord before cleaning the product.
9
Other
If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and
contact a Service Center.
Make sure that the ventilating openings are not blocked by a table or curtain.
Do not engage the LCD monitor in severe vibration or high impact conditions during operation.
Do not knock or drop the monitor during operation or transportation.
For display with glossy bezel the user should consider the placement of the display as the bezel may cause
disturbing reflections from surrounding light and bright surfaces.
10
Setup
Content of the Box
Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC
branch office for confirmation.
11
Setup Stand
Please setup or remove the Stand following the steps as below.
Setup
Remove:
12
Adjusting Viewing Angle
For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your
own preference.
Hold the stand so you will not topple the monitor when you change the monitor's angle.
You are able to adjust the monitor's angle from 20° to 40 °.
NOTE: Do not adjust the viewing angle over 40 degrees in order to avoid damage.
NOTE:
Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.
Do not put your hand close to the gap between the monitor and the base to avoid the injury when adjusting the
viewing angle.
13
Connecting the Monitor
Cable Connections In Back of Monitor and Computer:
1. VGA cable
2. DVI cable
3. USB cable
4. Power cable
To protect equipment, always turn off the PC and LCD monitor before connecting.
1. Connect the power cable to the AC port on the back of the monitor.
2. Connect one end of the 15-pin D -Sub cable to the back of the monitor and connect the other end to the
computer's D-Sub port.
3. Optional – (Requires a video card with DV I p ort ) - Connect one end of the DV I c abl e to the back of the monit or
and connect the other end to the computer’s DVI port.
4. Connect one end of the USB cable to the back of the monitor and connect the other end to the computer's
USB port.
5. Turn on your monitor and computer.
If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.
14
Touch Screen
User can use Display Single-touch Function under operating system higher than Window XP home premium.
Before using Display Single-touch Function, user need to connect basic wires (power cable, VGA cable, USB
cable).Then user can fully enjoy Single-touch Function. Part of specific use, please see the following drawings.
Note: Zoom in/out supports most software in Windows, but some software is still not supported
15
Wall Mounting
Preparing to install an optional wall mounting arm.
This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this
procedure. Follow these steps:
1. Fold the stand.
2. Follow the manufacturer's instructions to assemble the wall mounting arm.
3. Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the
back of the monitor.
4. Insert the 4 screws into the holes and tighten.
5. Reconnect the cables. Refer to the user's manual that came with the optional wall mounting arm for
instructions on attaching it to the wall.
16
Adjusting
Setting Optimal Resolution
Windows Vista
For Windows Vista:
1 Click START.
2 Click CONTROL PANEL.
3 Click Appearance and Personalization.
4 Click Personalization
17
5 Click Display Settings.
6 Set the resolution SLIDE-BAR to Optimal preset resolution
18
Windows XP
For Windows XP:
1 Click START.
2 Click SETTINGS.
3 Click CONTROL PANEL.
4 Click Appearance and Themes.
5 Double click DISPLAY.
19
6 Click SETTINGS.
7 Set the resolution SLIDE-BAR to Optimal preset resoluti on
Windows ME/2000
For Windows ME/2000:
1 Click START.
2 Click SETTINGS.
3 Click CONTROL PANEL.
4 Double click DISPLAY.
5 Click SETTINGS.
6 Set the resolution SLIDE-BAR to Optimal preset resolution
20
Windows 7
1. Start Windows® 7
2. Click on the 'Start' button and then click on 'Control Panel'.
3. Click on the “Display” icon.
4. Click on the “Change display settings” button.
5. Click the “Advanced Settings” button.
21
6. Click the “Monitor” tab and then click the “Properties” button.
7. Click the “Driver” tab.
22
8. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on “Update Driver... “ and
then click the "Browse my computer for driver software" button.
9. Select "Let me pick from a list of device drivers on my computer".
10. Click the “Have Disk” butto n. Click on the “Browse” button and navigate to the following directory:
X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).
23
11. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button.
12. Select your monitor model and click the “Next” button. The files will be copied from the CD to your hard disk
drive.
13. Close all open windows and remove the CD.
14. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color
Matching Profiles.
24
Windows 8
For Windows 8:
1. Right click and click All apps at the bottom-right of the screen.
2. Set the “View by” to “Category”.
3. Click Appearance and Perso naliz at ion.
25
4. Click DISPLAY.
5. Set the resolution SLIDE-BAR to Optimal preset resolution.
26
Hotkeys
1 Source/Auto/Exit
2 Clear Vision/<
3 4:3/>
4 Menu/Enter
5 Power
27
Clear Vision
1. When there is no OSD, Press the “<” button to activate Clear Vision.
2. Use the “<” or “>” buttons to select between weak, medium, strong, or off settings. Default setting is always
“off”.
3. Press and hold “<” button for 5 seconds to activate the Clear Vision Demo, and a mes sag e of “Clear Vision
Demo: on” will be display on the screen for a duration of 5 seconds. Press Menu or Exit button, the message
will disappear. Press and hold “<” button for 5 seconds again, Clear Vision Demo will be off.
Clear Vision function provides the best image viewing experience by converting low resolution and blurry images
into clear and vivid images.
Off
Weak
Clear Vision
Medium
Strong
Clear Vision Demo on or off Disable or Enable Demo
Adjust the Clear Vision
28
OSD Setting
Basic and simple instruction on the control keys.
1. Press the MENU-button to activate the OSD window.
2. Press < or > to navigate through the functions. Once the desired function is highlighted, press the
MENU-button to activate. Press < or > to navigate through the sub-menu. Once the desired function is
highlighted, press MENU-button to activate.
3. Press < or > to change the settings of the selected f unc tion. P ress AUTO to ex it. If y ou w ant to adjust any other
function, repeat steps 2-3.
4. OSD Lock Function: To lock the OSD, press an d hold the MENU-button while the mo nitor is of f and t hen pres s
power-button to turn the monitor on. To un-lock the OSD , press and hold the MENU-button while the monitor
is off and then press power-button to turn the monitor on.
Notes:
1. If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disabled.
2. One of Clear vision, DPS, DCR, Color Boost, and Picture Boost functions is activated; the other four functions
are turned off accordingly.
29
Luminance
1 Press (Menu) to display menu.
2 Press < or > to select
3 Press < or > to select submenu, and press
4 Press < or > to adjust.
5 Press
to exit.
Brightness 0-100 Backlight Adjustment.
Contrast 0-100 Contrast from Digital-register.
Eco mode
(Luminance), and press to enter.
Standard
Text
Internet
Game
Movie
to enter.
Standard Mode.
Text Mode.
Internet Mode.
Game Mode.
Movie Mode.
Gamma
DCR
Sports
Gamma1 Adjust to Gamma 1.
Gamma2 Adjust to Gamma 2.
Gamma3 Adjust to Gamma 3.
Off
On
Sports Mode.
Disable dynamic contrast ratio.
Enable dynamic contrast ratio.
30
Image Setup
1 Press
2 Press < or > to select
3 Press < or > to select submenu, and press to enter.
4 Press < or > to adjust.
5 Press
(Menu) to display menu.
(Image Setup), and press to enter.
to exit.
Clock 0-100 Adjust picture Clock to reduce Vertical-Line noise.
Phase 0-100 Adjust Picture Phase to reduce Horizontal-Line noise.
Sharpness 0-100 Adjust picture sharpness.
H.Position 0-100 Adjust the horizontal position of the picture.
V.Position 0-100 Adjust the vertical position of the picture.
31
Color Setup
1 Press
2 Press < or > to select
3 Press < or > to select submenu, and press
4 Press < or > to adjust.
5 Press
(Menu) to display menu.
(Color Setup), and press to enter.
to exit.
Warm
Normal
Cool
Color Temp.
DCB Mode
sRGB
User
Full Enhance on or off Disable or Enable Full Enhance Mode.
Nature Skin on or off Disable or Enable Nature Skin Mode.
Green Field on or off Disable or Enable Green Field Mode.
to enter.
Red Red Gain from Digital-register.
Green Green Gain Digital-register.
Blue Blue Gain from Digital-register.
Recall Warm Color Temperature from EEPROM.
Recall Normal Color Temperature from EEPROM.
Recall Cool Color Temperature from EEPROM.
Recall SRGB Color Temperature from EEPROM.
DCB Demo
Sky-blue on or off Disable or Enable Sky-blue Mode.
AutoDetect on or off Disable or Enable AutoDetect Mode.
on or off Disable or Enable Demo.
32
Picture Boost
V. position
0-100
Adjust Frame vertical position.
1 Press
2 Press < or > to select (Picture Boost), and press to enter.
3 Press < or > to select submenu, and press
4 Press < or > to adjust.
5 Press
(Menu) to display menu.
to enter.
to exit.
Frame Size 14-100 Adjust Frame Size.
Brightness 0-100 Adjust Frame Brightness.
Contrast 0-100 Adjust Frame Contrast.
H. position 0-100 Adjust Frame horizontal position.
Bright Frame on or off Disable or Enable Bright Frame.
33
OSD Setup
Transparence
0-100
Adjust the transparence of OSD.
1 Press
2 Press < or > to select
3 Press < or > to select submenu, and press
4 Press < or > to adjust.
5 Press
(Menu) to display menu.
(OSD Setup), and press to enter.
to exit.
H. Position 0-100 Adjust the horizontal position of OSD.
V. Position 0-100 Adjust the vertical position of OSD.
Timeout 5-120 Adjust the OSD Timeout.
Language
Break Reminder
on or off
to enter.
Select the OSD language.
Disable or Enable
(1 hour of work, break ?) /
(2 hours of work, break ?)
34
Extra
Image Ratio
wide or 4:3
Select wide or 4:3 format for display.
DDC-CI
yes or no
Turn ON/OFF DDC-CI Support.
1 Press
2 Press < or > to select
3 Press < or > to select submenu, and press
4 Press < or > to adjust.
5 Press
(Menu) to display menu.
(Extra), and press to enter.
to exit.
Input Select Analog / DVI Select input signal source.
Auto Config. yes or no Auto adjust the picture to default.
Off timer 0-24hrs Select DC off time.
Reset
Information
yes or no Reset the menu to default.
to enter.
Show the information of t he m ain image
and sub-image source.
35
Exit
1 Press
2 Press < or > to select (Exit), and press to enter.
3 Press to exit.
(Menu) to display menu.
Exit Exit the main OSD.
36
LED Indicator
Status
LED Color
Full Power Mode Blue
Active-off Mode Orange or red
37
Driver
Monitor Driver
Windows 2000
1. Start Windows® 2000
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select 'Monitor'
- If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.
- If the 'Properties' button is active. Click on 'Properties' button. Please follow the steps given below.
6. Click on 'Driver' and then click on 'Update Driver...' then click on the 'Next' button.
7. Select 'Display a list of t he know n driv ers for th is dev ice so that I can c hoose a specifi c driv er', t hen click on ' Nex t'
and then click on 'Have disk...'.
8. Click on the 'Browse...' button then select the appropriate drive F: ( CD-ROM Drive).
9. Click on the 'Open' button, then click on the 'OK' button.
10. Select your monitor model and click on the 'Next' button.
11. Click on the 'Finish' button then the 'Close' button.
If you can see the 'Digital Signature Not Found' window, click on the 'Yes' button.
Windows ME
1. Start Windows® Me
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select the 'Monitor' button, then click on 'Change...' button.
6. Select 'Specify the location of the driver(Advanced)' and click on the 'Next' button.
7. Select 'Display a list of all the drivers in a specific location, so you can choose the driver you want', then click on
'Next' and then click on 'Have Disk...'.
8. Click on the 'Browse...' button, select the appropriate drive F: ( CD-ROM Drive) then click on the 'OK' button.
9. Click on the 'OK' button, select your monitor model and click on the 'Next' button.
10. Click on 'Finish' button then the 'Close' button.
38
Windows XP
1. Start Windows® XP
2. Click on the 'Start' button and then click on 'Control Panel'.
3. Select and click on the category ‘Appearance and Themes’
4. Click on the 'Display' Item.
39
5. Select the 'Settings' tab then click on the 'Advanced' button.
6. Select 'Monitor' tab
- If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.
- If the 'Properties' button is active, click on 'Properties' button.
Please follow the steps below.
7. Click on the 'Driver' tab and then click on 'Update Driver...' button.
40
8. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button.
9. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button.
10. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F:
(CD-ROM Drive).
11. Click on the 'Open' button, then click the 'OK' button.
12. Select your monitor model and click on the 'Next' button.
- If you can see t he 'has not passed Windows® Logo t est ing to verify its compat ibi lity w ith Windows® XP' message,
please click on the 'Continue Anyway' button.
13. Click on the 'Finish' button then the 'Close' button.
14. Click on the 'OK' button and then the 'OK' button again to close the Display Properties dialog box.
41
Windows Vista
1. Click "Start " and "Control Panel". Then, double-click on "Appearance and Personalization".
2. Click "Personalization" and then "D isplay Sett ing s".
3. Click "Advanced Settings...".
42
4. Click "Properties" in the "M onitor" tab. If the "Properties" button is dea ctivate d, it mean s th e configura tion for your
monitor is completed. The monitor can be used as is.
If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue".
5. Click "Update Driver..." in the "Driver" tab.
6. Check the "Browse my com put er f or driv er software" checkbox and click " Let me p ic k fro m a l ist of device drivers
on my computer".
7. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive
F:\Driver (CD-ROM Drive).
8. Select your monitor model and click on the 'Next' button.
9. Click "Close" → "Close" → "OK" → "OK" on the following screens displayed in sequence.
43
Windows 7
1.St art Windows® 7
2.Click on t he 'Start' button and then click on 'Control Panel'.
3. Click on the 'Display' icon.
44
4.Ckick on the “Change display settings” button.
5.Click the “Advanced Settings” button.
6.
Click the “Monitor” tab and then click the “Properties” button.
45
7.Click the “Driver” tab.
8. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on “Update Driver... “and then
click the "Browse my computer for driver software" button.
9. Select "Let me pick from a list of device drivers on my computer".
46
10. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory:
X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).
11. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button.
12. Select your monitor model and click the “Next” button. The files will be copied from the CD to your hard disk
drive.
13. Close all open windows and remove the CD.
14. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color
Matching Profiles.
47
Windows 8
1. Start Windows® 8
2. Right click and click All apps at the bottom-right of the screen.
3. Click on the “Control panel” icon
4. Set the “View by” to “Large icons” or “Small icons”.
5. Click on the “Display” icon.
48
6. Click on the “Change display settings” button.
7. Click the “Advanced Settings” button.
8. Click the “Monitor” tab and then click the “Properties” button.
49
9. Click the “Driver” tab.
10. Open the “Update Driver Software-Generic PnP Monitor” window by clicking on “Update Driver... “ and
then click the "Browse my computer for driver software" button.
11. Select "Let me pick from a list of device drivers on my computer".
50
12. Click the “Have Disk” butto n. Click on the “Browse” button and navigate to the following directory:
X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).
13. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button.
14. Select your monitor model and click the “Next” button. The files will be copied from the CD to your hard disk
drive.
15. Close all open windows and remove the CD.
16. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color
Matching Profiles.
51
i-Menu
Welcome to “ i-Menu” software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on
screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation
guide.
Note: Does not support IOS
52
e-Saver
Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown
functions for your monitors, allows your monitor to timely shut dow n when PC unit is at any status (On, Off, Sleep or
Screen Saver); the actual shutdown time depends on your preferences (see example below).
Please cli ck on "driver/e-Saver/setup.exe" to start installing the e-Saver software, follow the install wizard to
complete software installation.
Note: Does not support IOS
Under each of the four PC status, you may choose from the pull-down menu the desired time (in minutes) for your
monitor to automatically shutdown. The example above illustrated:
1) The monitor will never shutdown when the PC is powered on.
2) The monitor will automatically shutdown 5 minutes after the PC is powered off.
3) The monitor will automatically shutdown 10 minutes after the PC is in sleep/stand-by mode.
4) The monitor will automatically shutdown 20 minutes after the screen saver appears.
You can click “RESET” to set the e-Saver to its default settings like below.
53

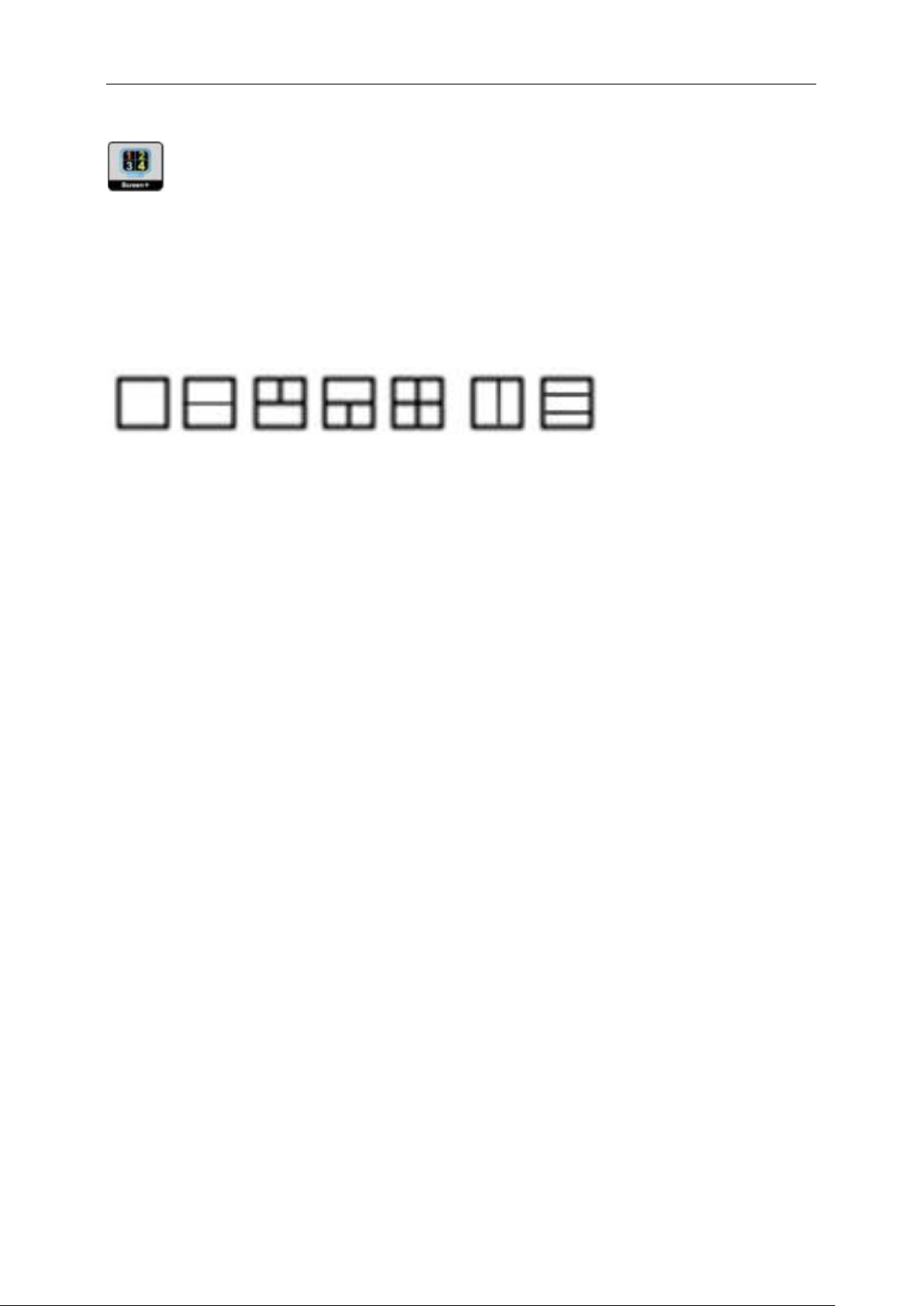

Screen+
Welcome to "Screen+" software by AOC, Screen+ software is a desktop screen splitting tool, it splits the desktop
into different panes, each pane displays a different window. You only need to drag the window to a corresponding
pane, when you want to access it. It supports multiple monitor display to make your task easier. Please follow the
installation software to install it.
Note: Does not support IOS
54
Troubleshoot
If the power is on, reboot the computer to see the initial screen (the login
If the initial screen (the login screen) does not appear, contact the Service
Make sure you are not using an extension cable or switch box. We
ecommend plugging the monitor directly to the video card output connector
Problem & Question
Power LED Is Not ON
No images on the screen
Possible Solutions
Make sure the pow er butt on is ON and t he Pow er C ord is pro perly conne cted
to a grounded power outlet and to the monitor.
Is the power cord connected properly?
Check the power cord connection and power supply.
Is the signal cable connected correctly?
(Connected using the signal cable)
Check the signal cable connection.
screen), which can be seen.
If the initial screen (the login screen) appears, boot the computer in the
applicable mode (the saf e mod e for Windows ME/XP/2000) and then cha ng e
the frequency of the video card.
(Refer to the Setting the Optimal Resolution)
Center or your dealer.
Can you see "Input Not Supported" on the screen?
You can see this message when the signal from the video card exceeds the
maximum resolution and frequency that the monitor can handle properly.
Adjust the maximum resolution and frequency that the monitor can handle
properly.
Make sure the AOC Monitor Drivers are installed.
Adjust the Contrast and Brightness Controls.
Picture Is Fuzzy & Has
Ghosting Shadowing Problem
Picture Bounces, Flickers Or
Wave Pattern Appears In The
Press to auto adjust.
r
on the back .
Move electrical devices that may cause electrical interference as far away
from the monitor as possible.
Use the maximum refresh rate your monitor is capable of at the resolution
you are using.
55
Monitor Is Stuck In Active
Make sure your computer is operational by hitting the CAPS LOCK key on
down mode Adjust CLOCK and
If touch does not work, re-plug in out touch USB cable. If it still does not
ging USB, please be noted that no object
Off-Mode"
The Computer Power Switch should be in the ON position.
The Computer Video Card should be snugly fitted in its slot.
Make sure the monitor's video cable is properly connected to the computer.
Inspect the monitor's video cable and make sure no pin is bent.
the keyboard while observing the CAPS LOCK LED. The LED should either
turn ON or OFF after hitting the CAPS LOCK key.
Missing one of the primary
colors (RED, GREEN, or
BLUE)
Screen image is not centered
or sized properly
Picture has color defects
(white does not look white)
Horizontal or vertical
disturbances on the screen
Display not on whole screen
in default resolution ration
Touch does not work
Inspect the monitor's video cable and make sure that no pin is damaged.
Make sure the monitor's video cable is properly connected to the computer.
Adjust H-Position and V-Position or press hot-key (Power/AUTO).
Adjust RGB color or select desired color temperature.
Use Windows 95/98/2000/ME/XP shutFOCUS.
Press to auto-adjust.
Use I-menu software from CD (or download from AOC
select “reset” option to adjust.
work, re-plug in out monitor power cable.
Note: When restarting or plug
should be placed on the screen
official website),
56
Specification
General Specification
Panel
Resolution
Product name
Driving system
Viewable Image Size
Pixel pitch
Video
Separate Sync.
Display Color
Dot Clock
Horizontal scan range 30 kHz - 83 kHz
Horizontal scan Size(Max imum) 432.0mm
Vertical scan range 50 Hz - 76 Hz
Vertical scan Size(Maximum) 239.76mm
Optimal preset resolution 1600 x 900 @60 Hz
Plug & Play VESA DDC2B/CI
Input Connector D-Sub 15pin; DVI
Input Video Signal Analog: 0.7Vp-p(standard), 75 OHM, TMDS
E2060VWT
TFT Color LCD
49.5cm diagonal
0.27mm(H) x 0.27mm(V)
R, G, B Analog lnterface & Digital Interface
H/V TTL
16.7M Colors
170MHz
Physical
Characteristics
Environmental
Power Source 100-240V~, 50/60Hz, 1.5A
Power Consumption
Off timer
Connector Type D-Sub; DVI
Signal Cable Type Detachable
Dimensions 491.7(W ) x 342.4(H) x 83.7(D)mm
Weight（only monitor） 5.03kg
Temperature:
Humidity:
Altitude:
Active: 18 W (typical)
Standby ≤ 0.5 W
0-24 hrs
Operating 0° to 40°
Non-Operating -25°to 55°
Operating 10% to 85% (non-condensing)
Non-Operating 5% to 93% (non-condensing)
Operating 0~ 3658m (0~ 12000 ft )
Non-Operating 0~ 12192m (0~ 40000 ft )
57
Touch screen specifications
Touch technology Infrared rays interception detection
Input Method Finger, gloved hand, or any other opaque stylus
Touch stylus diameter >8mm
Resolution 1600 x 900
Touch accuracy 95% area <2.5mm
Microsoft Windows 8 Single touch(plug &play)
Operating Systems
Microsoft Windows 7 Single touch(plug &play)
Microsoft Windows Vista Single touch(plug &play)
Microsoft Windows XP Single touch(plug &play)
58
Preset Display Modes
Dos-mode
720 × 400
31.47kHz
70.0Hz
640 × 480
31.47kHz
60.0Hz
640 × 480
37.861kHz
72.8 Hz
640 × 480
37.50kHz
75.0Hz
800 × 600
37.879kHz
60.0Hz
1024 × 768
48.363kHz
60.0Hz
WXGA
1600 × 900
60.000kHz
60.0Hz
Standard Resolution H. Frequency (kHz) V. Frequency (Hz)
VGA
800 × 600 48.077kHz 72.2 Hz
SVGA
800 × 600 46.875kHz 75.0Hz
832 x 624 49.725kHz 75.0Hz
XGA
1024 × 768 56.476kHz 70.0Hz
1024 × 768 60.021kHz 75.0Hz
59
Pin Assignments
15-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 Video-Red 9 +5V
2 Video-Green 10 Ground
3 Video-Blue 11 N.C.
4 N.C. 12 DDC-Serial data
5 Detect Cable 13 H-sync
6 GND-R 14 V-sync
7 GND-G 15 DDC-Serial clock
8 GND-B
24 - Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1. TMDS Data 2- 13. TMDS Data 3+
2. TMDS Data 2+ 14. +5V Power
3. TMDS Data 2/4 Shield 15. Ground(for+5V)
4. TMDS Data 4- 16. Hot Plug Detect
5. TMDS Data 4+ 17. TMDS Data 0-
6. DDC Clock 18. TMDS Data 0+
7. DDC Data 19. TMDS Data 0/5 Shield
8. N.C. 20. TMDS Data 5-
9. TMDS Data 1- 21. TMDS Data 5+
10. TMDS Data 1+ 22. TMDS Clock Shield
11. TMDS Data 1/3 Shield 23. TMDS Clock +
12. TMDS Data 3- 24. TMDS Clock -
60
Plug and Play
Plug & Play DDC2B Feature
This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the
monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional
information about its display capabilities.
The DDC2B is a bi-directional dat a channel based o n the I2C protocol. T he host can reque st E DID informat ion over
the DDC2B channel.
61
Regulation
FCC Notice
FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular in st allation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
NOTICE :
The changes or modifications not expressly approved by the party responsible for co mpl ian ce could v oid the user's
authority to operate the equipment.
Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this
equipment. It is the responsibilities of the user to correct such interference. It is the responsibility of the user to
correct such interference
62
WEEE Declaration
Disposal of Waste Equipment by Users in Private Household in the European Union.
This symbol on the product or on its packaging indicates that this product must not be disposed of with your other
household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a
designated collection point for the recycling of waste electrical and electronic equipment. The separate collection
and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure
that it is recycled in a manner that protects human health and the environment. For more information about where
you can drop off your waste equipment for recycling, please contact your local city office, your household waste
disposal service or the shop where you purchased the product.
WEEE Declaration for India
This symbol on the product or on its packaging indicates that this product must not be disposed of with your other
household waste. Instead it is your responsibility to dispose of your waste equipment by handing it over to a
designated collection point for the recycling of waste electrical and electronic equipment. The separate collection
and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure
that it is recycled in a manner that protects human health and the environment.
For more information about where you can drop off your waste equipment for recycling in India please visit the
below web link.
www.aocindia.com/ewaste.php
.
Loading...
