SERVICE MANUAL
维 修 手 册
客户/品牌 机种名
AOC e2037F/e2437F
1
变更说明
版本 发布日期 变更说明 对外机种名 对内机种名
A00 Sep-25-2010
A01
Dec.9,2011
添加新的 Converter 板：
715G4082P03001004S
更新：
方框图/线路图/料件清单
添加新的 Converter 板：
715G4128P04000004S
更新：
方框图/线路图/料件清单
首次发布
添加新的对内机种名
e2037F
e2437F TKAAA8NYPXA1HZ
E2437F TKAAA8NYPXA1H1
E2037F TAAGSL2YPXA1HZ
E2437F TKAAA82YPXA1HZ
TA92A8NYBXA1HZ
TA92A8NYBXA2HZ
2
目录
1. 技术规格 -------------------------------------------------------------------------------------------------------------- 4
1.1 一般规格 --------------------------------------------------------------------------------------------------------- 4
1.2 工厂预设模式 --------------------------------------------------------------------------------------------------- 6
2. 操作说明 -------------------------------------------------------------------------------------------------------------- 8
2.1控制面板 --------------------------------------------------------------------------------------------------------- 8
2.2接口说明 --------------------------------------------------------------------------------------------------------- 10
2.3 OSD 菜单调整 ------------------------------------------------------------------------------------------------- 12
3. 工厂模式调整 -------------------------------------------------------------------------------------------------------- 25
4. 故障处理流程 -------------------------------------------------------------------------------------------------------- 26
4.1 主板 --------------------------------------------------------------------------------------------------------------- 26
4.2 电源板 ------------------------------------------------------------------------------------------------------------ 29
4.3 按键板 ------------------------------------------------------------------------------------------------------------ 32
5. 电气方框图 ----------------------------------------------------------------------------------------------------------- 33
5.1主板 --------------------------------------------------------------------------------------------------------------- 33
5.2电源板 ------------------------------------------------------------------------------------------------------------ 34
6. 线路图 ----------------------------------------------------------------------------------------------------------------- 37
6.1主板 --------------------------------------------------------------------------------------------------------------- 37

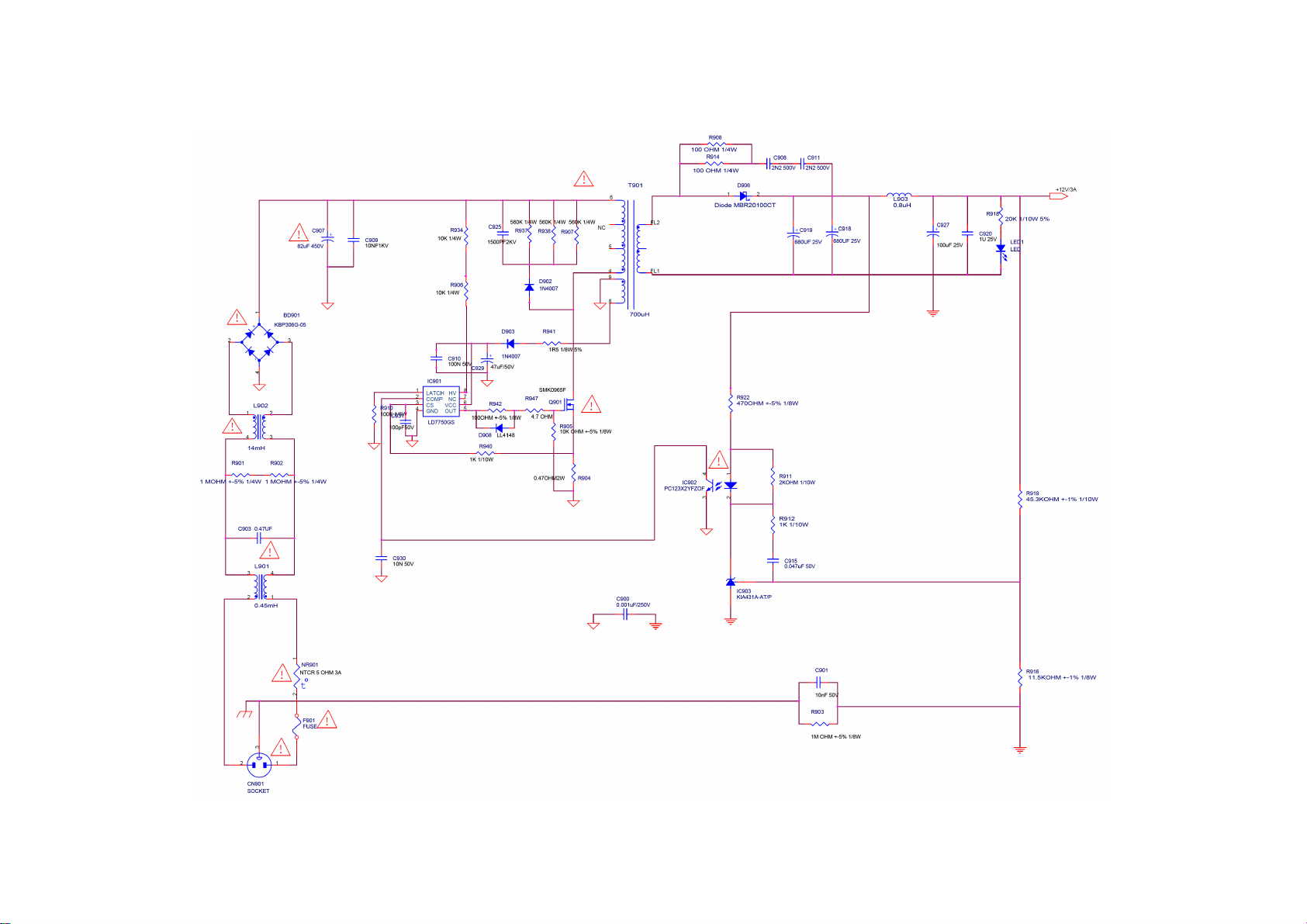

6.2电源板 ------------------------------------------------------------------------------------------------------------ 42

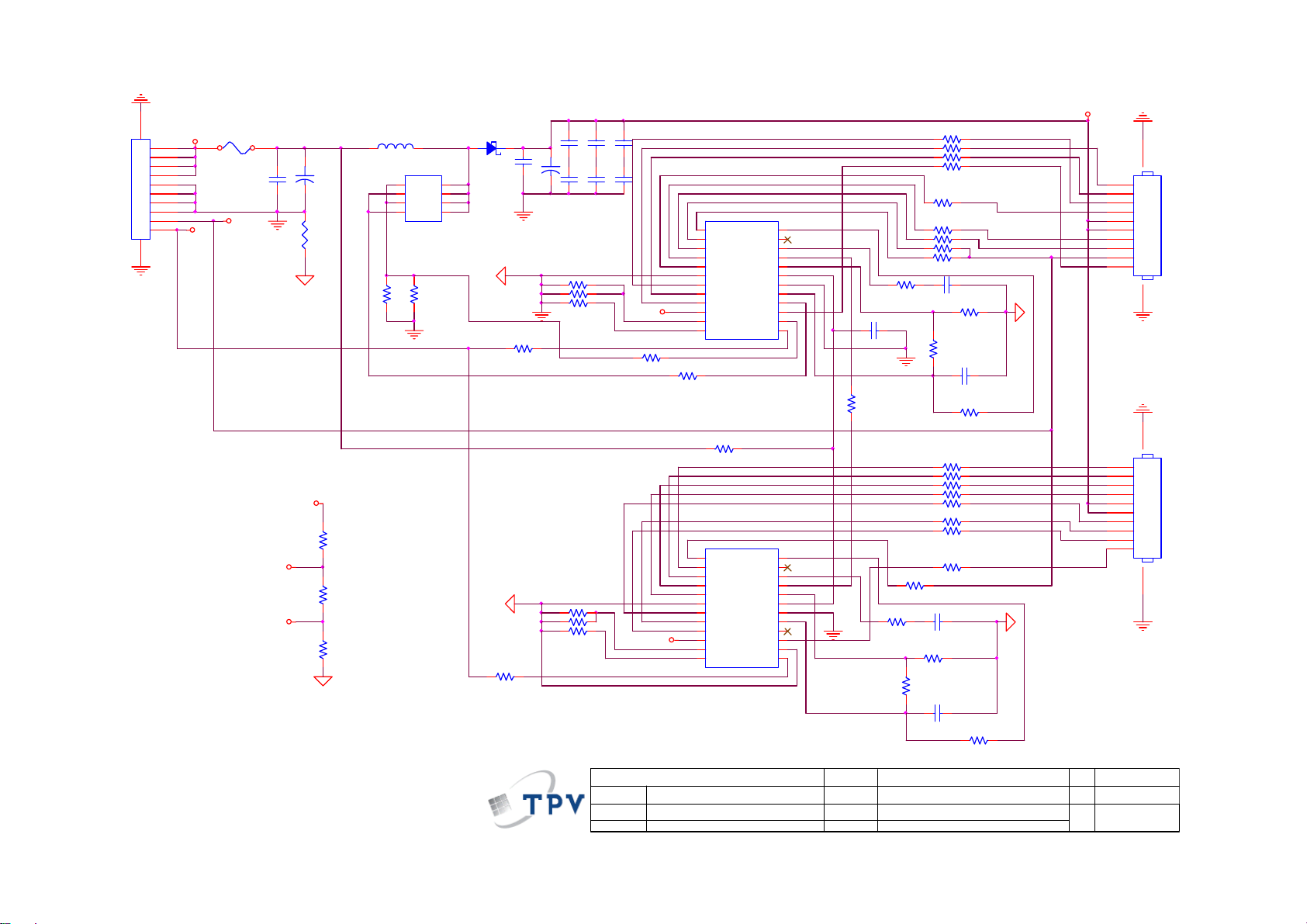

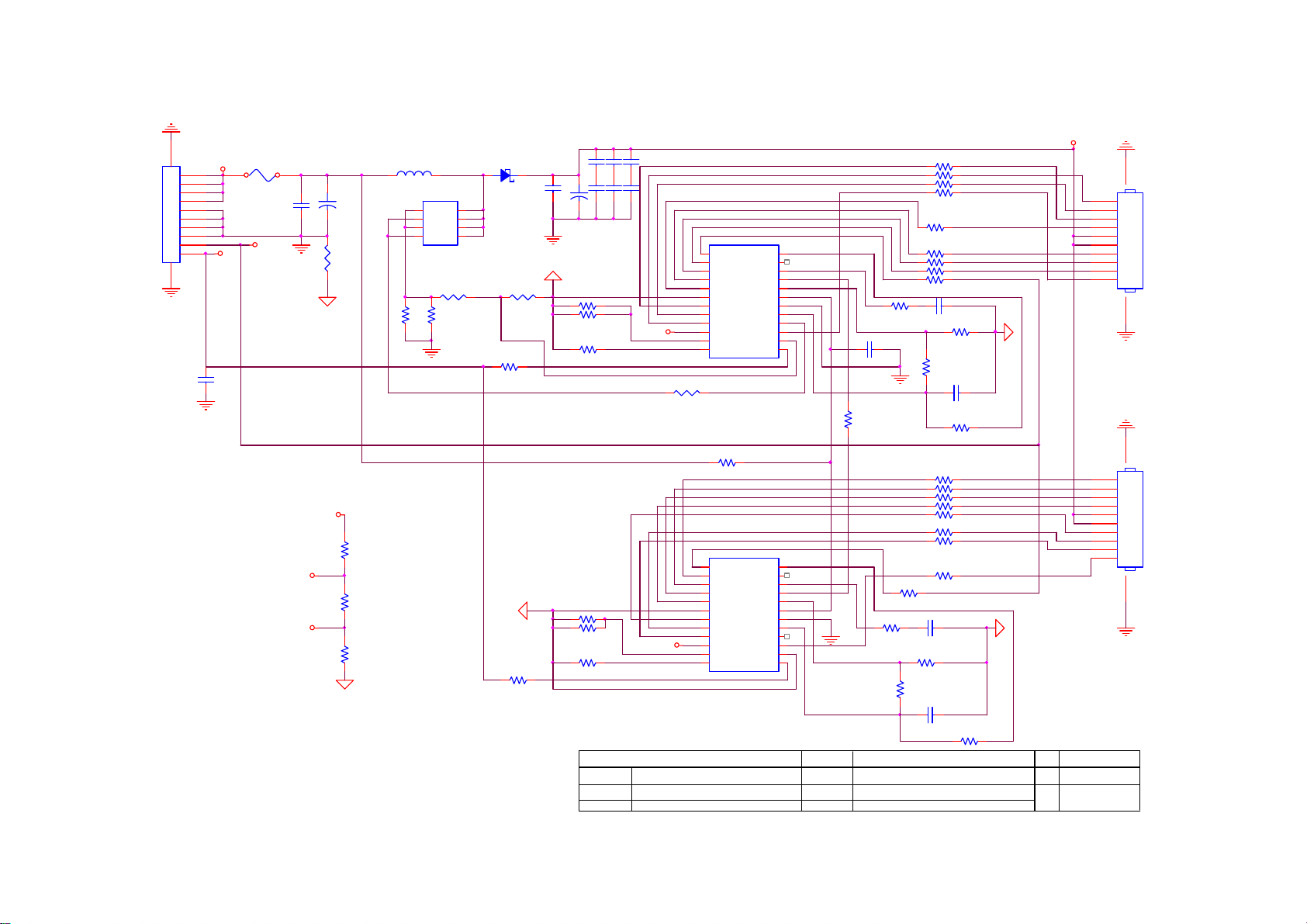

6.3 LED 板 ----------------------------------------------------------------------------------------------------------- 47
6.4 光传感器板 ------------------------------------------------------------------------------------------------------ 48
6.5按键板 ------------------------------------------------------------------------------------------------------------ 49
7. ISP 和 DDC 烧录 SOP --------------------------------------------------------------------------------------------- 50
8. 料件清单 -------------------------------------------------------------------------------------------------------------- 51
3
1. 技术规格
1.1 一般规格
e2037F
LCD 面板
分辨率
产品代码
驱动系统 TFT 彩色LED
可视尺寸 50.8cm 对角
像素间距
视频 R, G, B 模拟接口,DVI接口
独立同步 行 /场TTL
显示颜色 16.7M 色彩
点时钟
水平扫描范围
水平扫描尺寸（最大）
垂直扫描范围
垂直扫描尺寸（最大）
预设的最佳分辨率
预设的最高分辨率
即插即用
输入连接器 D-Sub 15 针，DVI-D
e2037F
0.2768mm(H) x 0.2768mm(V)
108MHz
30 kHz -80 kHz
442.8mm
55 Hz - 75 Hz
249.075mm
1600x 900(60 Hz)
1600x 900(60 Hz)
VESA DDC2B/CI
物理特性
输入视频信号 模拟: 0.7Vp-p（标准）, 75 OHM, TMDS
电源
功率消耗
连接器类型 15 针Mini D-Sub DVI-D
信号电缆类型 可分离
高度(含底座)
尺寸和重量
温度
湿度
海拔高度
宽度
深度
重量（仅显示器）
工作时
非工作时
工作时 10% - 85%（ 非凝露）
非工作时 5% -93%（非凝露）
工作时
非工作时
100-240VAC, 50/60Hz
正常工作< 25W
离机< 0.5W
374.60mm
502.40mm
102.80 mm
3.4 kg
0°C- +40°C
-25°C- +55°C
0~12000 ft
0~40000 ft
4
e2437F
LCD 面板
分辨率
产品代码
e2437F
驱动系统 TFT 彩色LED
可视尺寸 61.0cm 对角
像素间距
0.277mm(H) x 0.277mm(V)
视频 R, G, B 模拟接口,DVI接口
独立同步 行 /场TTL
显示颜色 16.7M 色彩
点时钟
水平扫描范围
水平扫描尺寸（最大）
垂直扫描范围
垂直扫描尺寸（最大）
预设的最佳分辨率
预设的最高分辨率
即插即用
148.5MHz
30 kHz -80 kHz
531.36mm
55 Hz - 75 Hz
298.89mm
1920x1080
1920x1080
(60 Hz)
(60 Hz)
VESA DDC2B/CI
输入连接器 D-Sub 15 针，DVI-D
物理特性
输入视频信号 模拟,DVI
电源
100-240VAC, 50/60Hz
正常工作< 25W
功率消耗
离机< 0.5W
连接器类型 15 针Mini D-Sub DVI-D
信号电缆类型 可分离
高度(含底座)
宽度
422.75mm
595.58mm
尺寸和重量
深度
重量（仅显示器）
工作时
139.50mm
3.85 kg
0°C- +40°C
温度
非工作时
-25°C- +55°C
工作时 10% - 85%（ 非凝露）
湿度
非工作时 5% -93%（非凝露）
海拔高度
工作时
非工作时
0~12000 ft
0~40000 ft
5
1.2 工厂预设模式
e2037F
6
e2437F
7
2. 操作说明
2.1 控制面板
外部控制
电源：
连续按住菜单(电源)键至2 秒关闭电源。
亮度情景模式（动态对比度）/ i-care /向上：
在画面没有OSD 时，连续按此热键可选择不同的亮度情景应用模式及打开动态对比度功能。
i-care 功能会自动侦测周围环境的亮度并根据不同环境亮度自动调整显示器屏幕亮度。
对比度快捷键：
当没有OSD 菜单时，按对比度快捷键(
4:3 及宽屏画面切换热键：
在画面没有OSD 时，连续
屏模式, 此键无作用)。
信号源快捷键：
当没有OSD 菜单时，按信号源快捷键激活信号源功能(仅针对两种输入信号及以上机型)。连续按信号源切换键来选
择信息栏中显示的信号源，按菜单键调整为选择的信号源。
键可进行4:3 或宽屏显示模式切换(如果产品屏幕尺寸是4:3 或者输入信号的分辨率是宽
)激活对比度调整菜单，按 或 调节对比度大小。
自动调整快捷键：
当没有OSD 菜单时，持续按自动调整快捷键2 秒启动自动调整功能。
8
1. 电源
2. D-Sub 模拟接口
3. DVI 数字接口
为保护显示器，请在连接前关闭电脑和显示器。
1 将电源适电缆连接到监视器后部的 AC-In 端口。
2 将15-针 D-Sub 电缆的一端连接到监视器后部，另一端连接到计算机的 D-Sub 端口。
3 （可选–需要带DVI 端口的视频卡） - 将DVI 电缆的一端连接到显示器的背后，然后将另一端连接到计算机
的DVI 端口。
4 打开显示器和计算机的电源。
如果监视器显示一个图像，则说明安装完毕。如果不显示图像，请参见故障排除 。
9
2.2 接口说明
10
11
2.3 OSD 菜单调整
基本按键操作说明
1) 按菜单（电源）键启动OSD 主画面。 通过上下左右键浏览次级菜单，按菜单（电源）键进入次级菜单。
2) 进入次级菜单后，用上下键选择子项目，左右键选择数值增加减小；按菜单(电源)键返回上级菜单。
3) 如果您想调整其它任何功能，请重复步骤 1-2 。
4) 在主菜单画面下，选择“退出”图标，再按菜单(电源)键退出OSD 画面。
5) OSD 锁定功能：要锁定OSD ，请在显示器关闭时按住（向左）按钮，然后按电源按钮打开显示器。 要解锁OSD ，
请在显示器关闭时按住（向左）按钮，然后按电源按钮打开显示器。
请注意：
1) 如果产品只有单一信号输入，OSD 中的“输入选择”项目不可调整
2) 如果产品屏幕比例是4:3 或者输入分辨率是宽屏模式，OSD 中的“图像比例”项目不可调整。
3) 当动态对比度，色彩增强，窗口增亮任意一项功能启动，另外2 项功能将被自动关闭。
12
13 14 15 16
17
18
19
20
21 22
23
24
3. 工厂模式调整
进入工厂模式方法：
关闭显示器，按“上&下”键的同时打开显示器，即可进入工厂模式。
a.增益调整：
调整sRGB色温
1、选中“AUTO LEVEL”先进行底光栅自动调整
2、按“MENU”选择sRGB进行R G B增益调整
x = 313 ±30, y = 329 ±30
调整9300K色温
1、选中“AUTO LEVEL”先进行底光栅自动调整
2、按“MENU”选择9300K进行R G B增益调整
x = 283 ±30, y = 297 ±30
调整7300K色温
1、选中“AUTO LEVEL”先进行底光栅自动调整
2、按“MENU”选择7300K进行R G B增益调整
x = 302±30, y = 318 ±30 (e2037F)
x = 301±30, y = 317 ±30 (e2437F)
调整6500K色温
1、选中“AUTO LEVEL”先进行底光栅自动调整
2、按“MENU”选择 6500K 进行 R G B 增益调整
x = 313 ±30, y = 329 ±30
b.调整完毕直接关闭电源。
25
4. 故障处理流程
4.1 主板
无供电
无供电
按下电源键看画面是否正常
重新插插头然后检查 AC:100-240V 是否正常?
NG
OK
NG
检查适配器及升压板部分和交流电源输入
检查 U702 Vout=3.3V; C704(+)=1.8V
NG
OK
检查 X401 晶振是否正常
检查或更换 CN702,U702,U704
OK
NG
更换 X401
更换 U401
26
无画 (LED 蓝色)
无画
检查信号线
NG
OK
更换信号线
检查 U702 Vout=3.3V; C704(+)=1.8V
OK
更换 CN702,U702,U704
检查 X401 震荡波是否正常
OK
NG
更换 X401
检查 CN101 的 HS/VS 是否正常
OK
检查相关回路
更换 U401
27
白屏
白屏
检查 Q401 的基极是否
为高电平
OK
NG
检查 X401 的晶振是否正常
NG
OK
更换 X401
检查 Q302 是否损坏
或 CN301 虚焊
OK
NG
检查相关元件
检查 U401 复位电路是否正常
NG
OK
检查相关元件
更换 PANEL
更换 U401
28
4.2 电源板
死机
检测交流电 100V or 240V 是否正常？
OK
NG
检测 AC 输入
检测 C907 (+)的电压大小
OK
NG
检测全桥整流回路和 F901 回路
检测 IC901 第 8 脚电压是否正常？
NG
检测 R908 或更换 IC901
OK
检测二次启动电压是否正常？
OK
NG
1) 检测 IC901
2) 检测 D903 回路
检测 IC901 第 6 脚的 PWM 波形
OK
NG
检测 IC901
检测 D906,L903,IC902,IC903,C901
29
无背光（e2037F）
检测 R806 电压是否为 14.5V
OK
NG
检测 Adapter 回路
检测 ON/OFF 信号
OK
NG
检测主板
检测 IC801 第 19 脚是否为 25V
OK
NG
更换 IC801
检测 IC801 第 14 脚的 PWM 波形
NG
OK
更换 IC801
检测 Q801
OK
NG
更换 Q801
检测 ZD801
检查接口或灯管,反馈和保护回路
OK
NG
更换 ZD801
30
无背光（e2437F）
检测 R806 电压是否为 14V
NG
OK
检测 ON/OFF 信号
检测 Adapter 回路
OK
检测 IC801 第 19 脚是否为 25V
OK
检测 IC801 第 14 脚的 PWM 波形
OK
检测 Q801
OK
NG
NG
NG
NG
检测主板
更换 IC801
更换 IC801
更换 Q801
检测 ZD801
NG
OK
检查接口或灯管,反馈和保护回路
更换 ZD801
31
4.3 按键板
OSD 画面不稳定及不可调整
OSD 画面不稳定及不可调整
按键板是否连接正常
按键开关是否正常
按键板是否正常
OK
OK
OK
OK
检查主板
NG
连接好按键板
NG
替换按键开关
NG
替换按键板
32
5 电气方框图
(
A
A
5.1 主板
FLASH ROM
EN25F20-100GCP
U402)
DDC2_SCL
DDC2_SD
14.31818MHZ
(X401)
Scalar IC TSUMU58NHL-LF（e2037F）
TSUMU58NWHL （e2437F）
(Include ADC, OSD, MCU)
(U401)
EEPROM
FM24C02A
(U102)
DDC1_SCL
DDC1_SD
Panel Interface
(CN301)
RGB
H sync
V sync
Key Control Interface
(CN401)
EEPROM
FM24C02A
(U101)
DVI Connector
(CN102)
D-Sub Connector
(CN101)
33
5.2 电源板
e2037F
AC input
EMI
Bridge
Rectifier
and Filter
Start Resistor
(R934,R906)
Transformer
Rectifier
diodes
12V
715G3823P04000004L
14.5V
DIM
ENA
PWM Control
(IC901)
L801
MOSFET
(Q801)
PWM Control
TA9690GN
(IC801)
Power Switch
(Q901)
Photo coupler
(IC902)
ZD801
Feedback
Circuit
LED
(CN802)
PWM Control
TA9690GN
(IC802)
LED
(CN803)
34
715G4082P03001004S
(
)
14.5V
DIM
ON/OFF
e2437F
AC input
L801
MOSFET
(Q801)
IC LED Driver
MP3389EF
Bridge
EMI
Rectifier
and Filter
U801
Transformer
D801
Rectifier
diodes
LED
(CN803)
12V
Start Resistor
(R934,R906)
PWM Control
(IC901)
Power Switch
(Q901)
Feedback
Circuit
Photo coupler
(IC902)
35
715G3823P04000004L
14V
L801
MOSFET
(Q801)
ZD801
LED
DIM
ENA
715G4128P04000004S
14.5V
L801
PWM Control
TA9690GN
(IC801)
PWM Control
TA9690GN
(IC802)
(CN802)
LED
(CN803)
D801
DIM
ON/OFF
MOSFET
(Q806)
PWM Control
MP3389EF
(U801)
LED
(CN804)
36
6. 线路图
6.1 主板
715G3598M01000004W
DDC1_SCL5
DDC1_SDA5
DDC1_SDA
CN102
JACK
VSYN C
SYNC GND
DDC SCL
DDC SDA
HPD
1/3shield
2/4shield
0/5shield
clk shield
DAT0+
DAT0-
DAT1+
DAT1-
DAT2+
DAT2-
DAT3+
DAT3-
DAT4+
DAT4-
DAT5+
DAT5-
GND26GND
25
+5V
clk+
clk-
R101
100OHM1/16W
R113
100OHM1/16W
8
DVI_HPD
15
6
7
14
16
11
3
19
22
18
17
10
9
2
1
13
12
5
4
21
20
23
24
H_Sync
V_Sync
DSUB_SCLDDC1_SCL
DSUB_SDA
U107
AZC199-04S
1
I/O1
2
GND
I/O23I/O3
R102 0R05 1/10W
2.2K1/16W
15
14
13
12
11
17 16
6
I/O4
5
VDD
4
R106
CN101
10
5
9
4
8
3
7
2
6
1
D-SUB 15P
DVI_5V
C121
1000pF 50V
VGA_PLUG
VGA_BVGA_B+
VGA_GVGA_G+
VGA_RVGA_R+
C118
1000pF 50V
U105
AZC199-04S
1
I/O1
2
GND
I/O23I/O3
R107
2.2K1/16W
I/O4
VDD
ZD101
RLZ5.6B
6
5
4
C103
22P 50V
DSUB_5V
R118 100OH M1/16W
R119 100OH M1/16W
R120 10K1/ 16W
C119
1000pF 50V
ESD_VCC 1ESD_VCC1
R103 1K1/ 16W
R104 1K1/ 16W
C104
22P 50V
DSUB_SCL
DSUB_SDA
C124
100N 16V
VGA_G+
VGA_R+ VGA_B+
FB106 300 OHM
R126 10OHM1/16W
R127 10OHM1/16W
R128 10OHM1/16W
R129 10OHM1/16W
R130 10OHM1/16W
R131 10OHM1/16W
U106
AZC199-04S
1
2
I/O1
I/O4
GND
VDD
I/O23I/O3
6
5
4
DSUB_H 5
DSUB_V 5
U104
AZC199-04S
1
I/O1
I/O4
2
GND
VDD
I/O23I/O3
U103
AZC199-04S
1
I/O1
I/O4
2
GND
VDD
I/O23I/O3
DDC2_SCL
DDC2_SDA
R132 10OHM1/16W
R134 10OHM1/16W
ESD_VCC1
RX0P
RX0N
RX1P
RX1N
RX2P
RX2N
C120
1000pF 50V
DDC 2_SCL 5
DDC 2_SDA 5
RX0P 5
RX0N 5
RX1P 5
RX1N 5
RX2P 5
RX2N 5
6
5
4
6
5
4
H_Sync
V_Sync
VGA_PLUG
RXCP
RXCN
DVI_HPD
VGA_PLUG
ESD_VCC
ESD_VCC
RXCP 5
RXCN 5
R135
10K1/16W
R139
6.8K1/16W
VCC3.3
R133
10K1/16W
DET_CABLE 5
VGA_B+
VGA_B-
VGA_G+
VGA_G-
VGA_R+
VGA_R-
FB102
1 2
BEAD
FB103
1 2
BEAD
FB101
1 2
BEAD
DDC_WP5
CMVCC1
4.7K1/16W
DDC1_SCL
DDC1_SDA
DDC_WP5
4.7K1/16W
DDC2_SCL
DDC2_SDA
R124
R137
R108
75OHM1/16W
R112
75OHM1/16W
R116
75OHM1/16W
ESD_VCC 1
R138
4.7K1/16W
FB104
300 OHM
ESD_VCC
R125
4.7K1/16W
CMVCC13,4,5, 8
R105
10OHM1/16W
C105
5PF 50V
R109
47 OHM 1/16W
R110
470OHM1/16W
R111
10OHM1/16W
C109
5PF 50V
R114
47 OHM 1/16W
R115
10OHM1/16W
C113
5PF 50V
R117
47 OHM 1/16W
D101
BAV70
R123
10K1/16W
CMVCC1
D102
BAV70
R136
10K1/16W
2
2
3
C102
47N 16V
C106
47N 16V
C107
1000pF 50V
C108
47N 16V
C110
47N 16V
C111
47N 16V
C114
47N 16V
DSUB_5V
1
3
U101
8
VCC
7
WP
6
SCL
5
VSS4SDA
AT24C02BN-SH-T
1
U102
8
A0
VCC
7
A1
WP
6
A2
SCL
5
VSS4SDA
AT24C02BN-SH -T
A0
A1
A2
C115
100N 16V
220N16V
1
2
3
DSUB_B+ 5
DSUB_B- 5
DSUB_SOG 5
DSUB_G+ 5
DSUB_G- 5
DSUB_R+ 5
DSUB_R- 5
C116
220N16V
1
2
3
FB105
300 OHM
C117
DVI_5V
37
T P V ( Top Victory Electronics Co . , Ltd. )
G3598-M01-000-0040-1-100326
絬 隔 瓜 絪 腹
Key Component
2.0.I NPUT
Date
OEM MODEL
TPV MO DEL
PCB NAME
Sheet
2237Fw
15Friday , March 26, 2010
B
Size
I
Rev
<
称爹
of
称爹
>
PA[0..9]5 PB[0.. 9]5
PA[0.. 9]
PA0 LVA3P
PA1 LVA3M
PA2 LVACKP
PA3 LVACKM
PA4 LVA2P
PA5 LVA2M
PA6 LVA1P
PA7 LVA1M
PA8 LVA0P
PA9 LVA0M
PB[0..9]
CN301
3132
29
LVB3PPB0
LVB3MPB1
LVBCKPPB2
LVBCKMPB3
LVB2PPB4
LVB2MPB5
LVB1PPB6
LVB1MPB7
LVB0PPB8
LVB0MPB9
LVB2M RXO2LVBCKM RXOC-
LVACKM RXEC-
27
RXO0-LVB0M
25
RXO1-LVB1M
23
21
19
RXO3-LVB3M
17
RXE0-LVA0M
15
RXE1-LVA1M
13
RXE2-LVA2M
11
RXE3-LVA3M
30
28
RXO0+ LVB0P
26
RXO1+ LVB1P
24
RXO2+ LVB2P
22
RXOC+ LVBCKP
20
RXO3+ LVB3P
18
RXE0+ LVA0P
16
RXE1+ LVA1P
14
RXE2+ LVA2P
12
RXEC+ LVACKP
10
9
7
5
3
1
8
6
4
2
CONN
RXE3+ LVA3P
PANEL_VCC
R301
220 OHM 1/4W
5
4
C305
1uF 16V
PANEL_VCC
C302
22UF 16V
U301
D8D7D6D
NC/ AO4411
S1S2S3G
R308
10K1/16W
CMVCC1
FB301
1 2
120 OHM
CMVCC1
CMVCC12,4,5, 8
R305
10K1/16W
PPWR_ON #5
22K1/16W
R303
4.7K1/16W
R304
C304
100N 16V
Q302
LMBT3904LT1G
R306
100K1/16W
3
1
G
Q301
AO3401
R307
NC
C303
220N16V
D
2
S
R302
220 OHM 1/4W
C301
100N 16V
AO3401L
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
G3598-M01-000-0040-1-100326
3.0.OU TPUT
Date
OEM MODEL
TPV MO DEL
PCB NAME
Sheet
2237Fw
25Sunday , March 28, 2010
Size
Rev
of
称爹
B
I
称爹
>
<
38
CN702
1112
1
2
3
4
5
6
7
8
9
10
CONN
BKLT-EN
C702
100N 16V
BKLT-VBRI
CMVCC1
BKLT-VBRI
BKLT-EN
R702
10K1/16W
Q701
LMBT3904LT1G
R704 22K1/16W
R712
100K1/16W
C712
100nF 25V
+12V
CMVCC1
R705
10K1/16W
R708
NC/0R 05 1/10W 5%
CMVCC1
R703
10K1/16W
R706
100OHM1/16W
C721
100N 16V
R707
0R05 1/10W
on_BACKLIGHT 5
adj_BACKLIGHT 5
R711
33K 1/16W
CMVCC1
R727
180K 1/16W 5%
C713
100nF 25V
9
8
7
6
5
U705
Therm al Pad
BST
VIN
FREQ
GND
MP1584EN
0R05 1/10W
SW
EN
COMP
FB
FB703
CMVCC1
12
D707
SM340A
12
D708
SM340A
VCC3.3
12
D703
SM340A
12
D704
SM340A
C706
100N 16V
1
2
3
4
D701
C710
1N 50V
C711
1N 50V
C722
150pF 50V
R726
100K1/16W
1 2
SM340A
SOT 252
U702
G1117-33T43UF
SOT 223
U701
VI3VO
C708
100N 16V
SOT 223
U704
VI3VO
GND
1
SOT 252
U703
NC/AZ 1117D-1.8-E1
3
OUT2IN
GND
1
L701 22UH
3
GND
1
2
ADJ(GND)1VOUT(T AB)2VIN
2
R713
6K8 1/16W 1%
R714
1K3 +-1% 1/16W
C705
100N 16V
C709
100N 16V
VCC1.8
C714
1N 50V
C723
10uF 25V
VCC3.3
C704
22UF 16V
C707
22UF 16V
+
C716
470uF 10V
C717
100N 16V
CMVCC1
1 2
ZD702
NC/RLZ6.2B
CMVCC1 2,3,5,8
11/30/2009
C715
1N 50V
C720
10uF 25V
+12V
+
C718
180uF 16V
+12V
C719
100nF 25V
FB701
1 2
BEAD
CN701
3
2
1
JACK
C
T P V ( Top Victory Electronics Co . , Ltd. )
G3598-M01-000-0040-1-100326
絬 隔 瓜 絪 腹
Key Component
4.0.POWER
Date
OEM MODEL
TPV MODEL
PCB NAME
Sheet
2237Fw
35Sunday, March 28, 2010
of
Size
I
Rev
称爹
>
<
称爹
39
e2037F
VCC3.3
C401
220N16V
R412
10K1/16W
C419
CMVCC1
10U 10V
WP
R421
100K1/16W
U402
1
CS#
2
DO
HOLD#
3
WP#
VSS4DI
EN25F20-10 0GCP
C420 47pF 50V
C421 47pF 50V
VCC
CLK
DSUB_R+2
DSUB_R-2
DSUB_G+2
DSUB_G-2
DSUB_SOG2
DSUB_B+2
DSUB_B-2
DSUB_H2
DSUB_V2
DDC1_SDA2
DDC1_SCL2
DDC2_SDA2
DDC2_SCL2
AVDD
R401 390R 1/16W 1%
8
7
6
5
PPWR_ON#3
R4230R05O HM1/16W
14.31818MHZ/32PF
1 2
R428 100OHM1/16W
VCC3.3
VMPLL
VDVI
8
14
23
RIN0P
AVDD_33
AVDD_33
22
RIN0M
20
GIN0P
19
GIN0M
21
SOGIN0
18
BIN0P
17
BIN0M
27
HSYNC0
28
VSYNC 0
30
DDCA_SDA/RS232_TX
31
DDCA_SCL/rs232_RX
3
RX2P2
RX2N2
RX1P2
RX1N2
RX0P2
RX0N2
RXCP2
RXCN2
X401
100N 16V
C417
C422
100N 16V
4
6
7
9
10
12
13
100
1
15
26
25
37
38
39
40
48
84
96
97
80
52
53
RX2P
RX2N
RX1P
RX1N
RX0P
RX0N
RXCKP
RXCKN
DDCD_SDA
DDCD_SCL
REXT
REFP
REFM
SDO
SCZ
SCK
SDI
GPIO_P27/PWM1
RST
XOU T
XIN
BYPASS
MODE[ 0]
MODE[ 1]
VDDP
AVDD
VPLL
24
16
56
75
49
VDDP
VDDP32VDDP
AVDD_33
AVDD_3398AVDD_33
TSUMU58NHL-LF
LVDS
GND2GND
GND11GND29GND
GND50GND57GND76GND79GND
5
33
83
VDDC
51
VDDP
VDDC
VDDC66VDDC82VDDC
GPIO_P15/PWM0
PWM2/GPIO_P24
PWM1/GPIO_P25
GPIO_P17/SAR0
GPIO_P00/SAR1
GPIO_P01/SAR2
GPIO_P02/SAR3
PWM0/GPIO_P26
GPIO_P16/PWM2
GPIO_P10/I 2C_MCL
GPIO_P11/I2C_MDA
34
LVACKP
LVACKM
LVBCKP
LVBCKM
GPIO_P40
GPIO_P41
GPIO_P22
GPIO_P23
GPIO_P46
GPIO_P12
GPIO_P06
GPIO_P07
GPIO_P13
GPIO_P14
VCTRL
LVA3P
LVA3M
LVA2P
LVA2M
LVA1P
LVA1M
LVA0P
LVA0M
LVB3P
LVB3M
LVB2P
LVB2M
LVB1P
LVB1M
LVB0P
LVB0M
81
PA0
54
PA1
55
PA2
58
PA3
59
PA4
60
PA5
61
PA6
62
PA7
63
PA8
64
PA9
65
PB0
67
PB1
68
PB2
69
PB3
70
PB4
71
PB5
72
PB6
73
PB7
74
PB8
77
PB9
78
36
45
46
41
42
35
R425 NC/100OHM1/16W
47
R409 100OHM1/16W
85
86
87
88
R415 100OHM1/16W
89
R416 100OHM1/16W
90
R417 100OHM1/16W
91
92
93
94
95
99
44
R436 100OHM1/16W
43
R437 100OHM1/16W
LED_ORANGE
LED_GRN/BLUE
PA[0..9]
PB[0..9]
WP
KEY1
KEY2
R438
10K1/16W
MSCL
MSDA
PA[0..9] 3
PB[0..9] 3
on_BACKLIGHT 4
adj_BACKLIGHT 4
DET_CABLE 2
Volume 8
AUDIO_MUTE 8
VCC3.3
R439
10K1/16W
R406
22K1/16W
VCC3.3
FB402
300OHM
1
2
3
4
VPLL
R407
10K1/16W
65
CN402
CONN
C408
100N 16V
C416
100N 16V
VCC3.3
FB401
300OHM
VCC3.32,4
Q401
LMBT3904LT1G
AVDD
DDC_WP 2
VCC3.3
VCC3.3
1
C414
100N 16V
R414
0R05OHM1/ 16W
R404
4.7K1/16W
R419
4.7K1/16W
R420
4.7K1/16W
VCC3.3
VDVI
C415
100N 16V
LED_GRN/BLUE
LED_ORANGELED_ORAN GE
FB404
VDDC
Q402
C410
100N 16V
CMVCC1
300OHM
C404
100N 16V
23
C411
100N 16V
NC/0R05 1/16W
1
VMPLL
C418
NC 100N 16V
C405
100N 16V
R402
4.7K1/16W
LMBT3906LT1G
R413
Q403
C406
100N 16V
C412
100N 16V
CMVCC1
C413
100N 16V
23
VCC3.3
C407
100N 16V
VCC3.3
VDDP
C402
C403
10U 10V
100N 16V
VCC1.8
VCC1.84
C409
100N 16V
CMVCC12,3,4, 6,8
LMBT3906LT1G
LED_G
R403
0R05 1/10W
LED_R
R405
0R05 1/10W
40
KEY1
CN401
89
1
KEY2
2
POWER_KEY #
3
LED_G
4
LED_R
5
6
7
CONN
T P V ( Top Victory Electronics Co . , Ltd. )
G3598-M01-000-0040-17-100326
絬 隔 瓜 絪 腹
Key Component
5.0.SCALER
Date
FB405
0R
C431
100N 16V
FB408
1 2
120 OHM
FB409
1 2
NC/120 OHM
OEM MODEL
TPV MOD EL
PCB NAME
FB4060R
Sheet
R432
ZD401
R433
3.9K1/16W
3.9K1/16W
C434
NC/RLZ5.6B
C435
ZD403
ZD402
NC/0.1uF 16V
NC/0.1uF 16V
NC/RLZ5.6B
NC/RLZ5.6B
C
Size
Rev
1
称爹
>
<
称爹
R431
NC/3.9K OHM +-1% 1/16W
C433
C432
NC/0.1uF 16V
100N 16V
CMVCC1
LED_R
45Sunday, March 28, 2010
of
e2437F
220N16V
CMVCC1
VCC3.3
VPLL
FB402
300OHM
VMPLL
VDVI
8
14
23
DSUB_R+2
DSUB_R-2
DSUB_G+2
DSUB_G-2
DSUB_SOG2
DSUB_B+2
DSUB_B-2
DSUB_H2
DSUB_V2
DDC1_SDA2
DDC1_SCL2
DDC2_SDA2
DDC2_SCL2
AVDD
R401 390R 1/16W 1%
VCC3.3
C401
R412
10K1/16W
C419
10U 10V
WP
R421
100K1/16W
U402
1
CS#
2
DO
HOLD#
3
WP#
VSS4DI
EN25F20-100GCP
C420 47pF 50V
C421 47pF 50V
VCC
CLK
8
7
6
5
PPWR_ON#3
R4230R05O HM1/16W
X401
14.31818MHZ/32PF
1 2
R428 100OHM1/16W
RIN0P
AVDD_33
AVDD_33
22
RIN0M
20
GIN0P
19
GIN0M
21
SOGIN0
18
BIN0P
17
BIN0M
27
HSYNC0
28
VSYNC 0
30
DDCA_SDA/ RS232_TX
31
DDCA_SCL/ rs232_RX
3
RX2P2
RX2P
4
RX2N2
RX2N
6
RX1P2
RX1P
7
RX1N2
RX1N
9
RX0P2
RX0P
10
RX0N2
RX0N
12
RXCP2
RXCKP
13
RXCN2
RXCKN
100
DDCD_SDA
1
DDCD_SCL
15
REXT
100N 16V
26
REFP
C417
25
REFM
37
SDO
38
SCZ
39
SCK
40
SDI
48
GPIO_P27/PWM1
84
RST
96
XOU T
97
XIN
80
C422
BYPASS
100N 16V
52
NC
53
MODE
VDDP
AVDD
VPLL
51
56
75
49
24
16
VDDP
VDDP
VDDP32VDDP
VDDC
AVDD_33
AVDD_3398AVDD_33
TSUMU58NWHL-LF-1
LVDS
GPIO_P10/I2C_MCL
GPIO_P11/I2C_MDA
GND2GND
GND11GND29GND
GND50GND57GND76GND79GND
5
33
83
VDDC
34
VDDC66VDDC82VDDC
LVACKP
LVACKM
LVBCKP
LVBCKM
GPIO_P40
GPIO_P41
GPIO_P42
GPIO_P23
GPIO_P22
GPIO_P15/PWM0
PWM2/GPIO_P24
GPIO_P12
PWM1/GPIO_P25
GPIO_P17/SAR0
GPIO_P00/SAR1
GPIO_P01/SAR2
GPIO_P02/SAR3
GPIO_P06
GPIO_P07
PWM0/GPIO_P26
GPIO_P13
GPIO_P14
GPIO_P16/PWM2
VCTRL
LVA3P
LVA3M
LVA2P
LVA2M
LVA1P
LVA1M
LVA0P
LVA0M
LVB3P
LVB3M
LVB2P
LVB2M
LVB1P
LVB1M
LVB0P
LVB0M
81
PA0
54
PA1
55
PA2
58
PA3
59
PA4
60
PA5
61
PA6
62
PA7
63
PA8
64
PA9
65
PB0
67
PB1
68
PB2
69
PB3
70
PB4
71
PB5
72
PB6
73
PB7
74
PB8
77
PB9
78
36
45
46
41
42
35
R425 NC/100OHM1/16W
47
R409 100OHM1/16W
85
86
87
88
R415 100OH M1/16W
R416 100OH M1/16W
89
90
R417 100OH M1/16W
91
92
93
94
95
99
44
R436 100OHM1/16W
43
R437 100OHM1/16W
LED_ORAN GE
LED_GRN/BLUE
PA[0..9]
PB[0..9]
POWER_KEY #
WP
KEY1
KEY2
10K1/16W
MSCL
MSDA
PA[0..9] 3
PB[0..9] 3
Volume 8
AUDIO_MUTE 8
VCC3.3
R438
on_BACKLIGHT 4
adj_BACKLIGHT 4
DET_CABLE 2
R439
10K1/16W
R406
22K1/16W
VCC3.3
R407
10K1/16W
65
1
2
3
4
CN402
CONN
C408
100N 16V
C416
100N 16V
VCC3.3
FB401
300OHM
VCC3.32,4
Q401
LMBT3904LT1G
DDC_WP 2
AVDD
VCC1.84
C407
100N 16V
VCC3.3
LED_G
LED_R
C402
10U 10V
VDDP
VCC1.8
CMVCC12,3,4,6, 8
R403
0R05 1/10W
R405
0R05 1/10W
VCC3.3
C403
100N 16V
VDDC
C409
100N 16V
Q402
LMBT3906LT1G
C410
100N 16V
CMVCC1
FB404
300OHM
C404
100N 16V
23
C411
100N 16V
NC/0R05 1/ 16W
1
VMPLL
C418
NC 100N 16V
C405
100N 16V
R413
R402
4.7K1/16W
LMBT3906LT1G
C406
100N 16V
C412
100N 16V
CMVCC1
C413
100N 16V
VCC3.3
VCC3.3
123Q403
C414
100N 16V
R414
0R05OHM1/16W
R404
4.7K1/16W
R419
4.7K1/16W
R420
4.7K1/16W
VCC3.3
VDVI
C415
100N 16V
LED_GRN/BLUE
LED_ORANGELED_ORANGE
R432
ZD401
R433
3.9K1/16W
3.9K1/16W
C434
C435
ZD402
ZD403
NC/0.1uF 16V
NC/RLZ 5.6B
NC/0.1uF 16V
NC/RLZ 5.6B
NC/RLZ 5.6B
C
Size
Rev
称爹
>
<
称爹
KEY1
CN401
89
1
KEY2
2
POWER_KEY #
3
LED_G
4
LED_R
5
6
7
CONN
T P V ( Top Victory Electronics Co . , Ltd. )
G3598-M01-000-0040-1-100326
絬 隔 瓜 絪 腹
Key Component
5.0.SCALER
Date
FB405
0R
C431
100N 16V
FB408
1 2
120 OHM
FB409
1 2
NC/120 OHM
OEM MODEL
TPV MODEL
PCB NAME
R431
FB4060R
Sheet
NC/3.9K OHM +-1% 1/16W
C433
C432
NC/0.1uF 16V
100N 16V
CMVCC1
LED_R
2237Fw I
of
45Friday, March 26, 2010
41
6.2 电源板
适配器板
715G3980P02000003S
42
转换板
715G3823P04000004L（e2037F）
CN801
CONN
+14.5V
10
9
8
7
6
5
4
3
2
1
ENA
11 12
C816
1N 50V
F801
100N 50V
DIM
FUSE
C801
0R05 1/4W
100uF 50V
R825
OVP2
OVP1
C802
+
Vout
22uH
R801
0.3 OH M +-1% 1/4W
R822
1M 1/10W 5%
R823
4.7K 1/10W
R824
56K +-5% 1/10W
L801
Q801
1
S2
2
G2
3
S1
4 5
G1 D1
AO4828L
R844
10 OHM 1/10W
R802
0.3 OHM
D2
D2
D1
8
7
6
10K 1/10W 5%
ZD801
B360B
C803
100N 50V
R845
NC
R806
10K 1/10W 5%
R817
C810
NC
C811
NC
+
C804
100uF 50V
R804
27K 1/10W 1%
R842
150K +-1% 1/10W
R815
27K 1/10W 1%
R843
150K +-1% 1/10W
絬 隔 瓜 絪 腹
Key Component
C812
NC
C813
NC
C814
NC
C815
NC
1
PWM
STATUS
2
ISEN1
3
ISEN2
4
ISEN3
5
ISEN4
6
GNDA
7
ISEN8
8
ISEN6
9
OVP1
R805 120KOHM 1/10W
OVP2
R816 120KOHM 1/10W
T P V ( Top Victory Electronics Co . , Ltd. )
ISEN7
10
OVP
11
ISET
12 13
RT ENA
R807
10 OHM 1/10W
1
PWM
2
ISEN1
3
ISEN2
4
ISEN3
5
ISEN4
6
GNDA
7
ISEN8
8
ISEN6
9
ISEN7
10
OVP
11
ISET
12 13
RT ENA
TA9690GN
SSTCMP
IC801
TA9690GN
SSTCMP
IC802
NC
COMP
SEL
VIN
GNDP
VREF
LDR
ISEN5
ISW
R814
10 OHM 1/10W
STATUS
NC
COMP
SEL
VIN
GNDP
VREF
LDR
ISEN5
ISW
G3823-P01-000-X-1-091108
02.CON VERTER
Thursday, March 04, 2010
Date
R833 1 OHM 1/10W
R832 1 OHM 1/10W
R831 1 OHM 1/10W
R830 1 OHM 1/10W
R829 1 OHM 1/10W
R813 10K 1/10W 5%
C805
R812
0.47uF 16V
1K 1/10W 5%
R808
NC
C808
0.47uF 16V
R803
1K 1/10W 5%
R818
NC
C809
2.2U16V
R828 1 OHM 1/10W
R827 1 OHM 1/10W
R826 1 OHM 1/10W
R810
C807
2.2U16V
R809
100K 1/10W 5%
R841 1 OHM 1/10W
R840 1 OHM 1/10W
R839 1 OHM 1/10W
R838 1 OHM 1/10W
R837 1 OHM 1/10W
R836 1 OHM 1/10W
R835 1 OHM 1/10W
R834 1 OHM 1/10W
R819
100K 1/10W 5%
24
23
22
21
20
19
18
17
16
15
14
24
23
22
21
20
19
18
17
16
15
14
OEM MODEL Size
TPV MODEL
PCB NAME
Sheet
100 OHM 1/10W
C806
2U2 25V
R811
0R05 1/10W
R821 10K 1/10W 5%
R820
100 OHM 1/10W
715G3823-P01
of
Rev
称爹
Vout
CN802
CONN
CN803
CONN
1
OD M MOD EL
10
9
8
7
6
5
4
3
2
1
11 12
10
9
8
7
6
5
4
3
2
1
11 12
A4
43
715G4082P03001004S（e2037F）
11 12
CN801
CONN
10
9
8
7
6
5
4
3
2
1
DIM
R818 0R05 1/ 4W
ON/OF F
R823
DR
NC/0R05OHM1/8W
+14.5V
C809
100N 50V
R824
NC/ 10K 1/10W
Q805
NC/ 2N7002 SOT-23
R825
NC/2K 1/10W
Q804
NC/2N7002 SOT-23
+14. 5V
C813
ON/OF F
DIM
+
100uF/50V
R806
1K 1/10W
R808
1K 1/10W
Q802
NC/ MMBT3904
R820
NC/ 10ohm +/-1% 1/8W
NC/ 0R05OHM1/8W
R821
Q803
NC/ MMBT3906
R826 3.3 OHM
Gate
R822
10K 1/10W
C801
470N 50V
C802
68NF 50V
R807
20K 1/10W
R810
20K 1/10W
C808
NC
R802
200KOHM 1/ 10W
R803
56KOHM +-1% 1/10W
10K 1/10W
R804
100K 1/10W
R819
DR
22uH
U801
MP3389EF
1
NC
2
VIN
3
VCC
4
COMP
5
EN
6
DBRT
7
GND
8
OSC
9
ISET
10
BOSC
11
LED12
12
LED11
13
LED10
LED914LED8
NC
NC
For 2 string panel
CN802
CN803 N.C
R830 0 OHM
R831 N.C
R832 0 OHM
Q806
1
S2
D2
2
G2
D2
3
S1
Gate
L801
NC/AOD4126
28
NC
27
VFAULT
DR
26
GATE
25
PGND
24
ISENSE
E-Pad
29
R830
絬 隔 瓜 絪 腹
Key Component
OVP
23
OVP
22
LED1
21
LED2
20
LED3
19
LED4
18
LED5
17
LED6
16
LED7
15
R832
R831
NC
For 3 string panel
CN802 N.C
CN803
R830 N.C
R831 0 O HM
R832 N.C
R33 1 OHM
T P V ( Top Victory Electronics Co . , Ltd. )
G4082-P01-001-0040-5-110316
01.CON VERTER
Date
D1
G14D1
APM8005
Q801
8
7
6
5
D801
1 2
3A 100V
R801
NC/10 OHM 1% 1/4W
C805
NC/ 100pF 50V
R811
0.3 OHM
R812
0.3 OHM +- 1% 1/4W
OEM MO DEL
TPV MODEL
PCB NAME
Sheet
C803
470N 50V
+
C807
C804
470N 50V
R8271 OHM +-5% 1/8W
R828 1 OH M +-5% 1/8W
L20T-3 LED
715G4082P03001004S
11Thursday , March 17, 2011
4.7uF 100V
OVP
R809
6.2KOHM +-1% 1/10W
of
R805
300KOHM 1/8W
C806
100pF 50V
Size
Rev
称爹
Custom
6
5
4
3
2
1
1
2
3
4
A
7 8
CN802
NC
CN803
CONN
44
715G3823P04000004L（e2437F）
11 12
CN801
CONN
10
9
8
7
6
5
4
3
2
1
+14V
ENA
F801
100N 50V
DIM
FUSE
C801
0R05 1/4W
R825
0.3 OHM 1/4W
OVP2
OVP1
C802
+
100uF 50V
Vout
R822
1M 1/10W 1%
R823
4K7 OHM 1/10W 1%
R824
43K 1/10W 1%
R801
L801
22uH
Q801
1
2
3
P8008HV
S2
D2
G2
D2
S1
D1
G14D1
R802
0.3 ohm 1/ 4w
ZD801
B360B
100N 50V
8
7
6
5
56K 1/10W
56KOHM +-1% 1/10W
10K 1/10W 5%
C804
4.7uF/ 100V
100N 50V
C803
R842
R806
10K 1/10W 5%
R843
R817
C810
+
C812
C813
C811
NC
NC
NC
R804
56K1/10W
R805
120KOHM 1/10W
R815
56KOHM +-1% 1/10W
R816
120KOHM 1/10W
C814
C815
NC
NC
OVP1
R844
10R 1/10W
10R 1/10W
OVP2
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
1
PWM
ISEN1
ISEN2
ISEN3
ISEN4
GNDA
ISEN8
ISEN6
ISEN7
OVP
ISET
RT
IC801
TA9690GN
PWM
ISEN1
ISEN2
ISEN3
ISEN4
GNDA
ISEN8
ISEN6
ISEN7
OVP
ISET
RT
IC802
TA9690GN
STATUS
NC
SSTCMP
COMP
SEL
VIN
GNDP
VREF
LDR
ISEN5
ISW
ENA
R814
10 OHM 1/10W
STATUS
NC
SSTCMP
COMP
SEL
VIN
GNDP
VREF
LDR
ISEN5
ISW
ENA
R807
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
G3823-P03-000-X-15-100609
02.CONVERTER
Wednesday , June 09, 2010
Vout
Size
Rev
称爹
CN802
CONN
10
9
8
7
6
5
4
3
2
1
CN803
CONN
10
9
8
7
6
5
4
3
2
1
OD M MOD EL
11 12
11 12
A4
1
R833 1 OH M 1/10W
R832 1 OHM 1/10W
R831 1 OH M 1/10W
R830 1 OHM 1/10W
R829 1 OH M 1/10W
24
23
22
21
20
19
18
17
16
15
14
13
24
23
22
21
20
19
18
17
16
15
14
13
R811
0R05 1/10W
OEM MODEL
TPV MODEL
PCB NAME
Sheet
100 OHM 1/10W
C806
2U2 25V
R821 10K 1/ 10W 5%
R820
100 OHM 1/10W
of
R813 10K 1/10W 5%
R812
C805
0.47uF 16V
1K 1/10W 5%
R808
NC
C808
0.47uF 16V
R803
1K 1/10W 5%
R818
NC
C809
2.2U16V
R828 1 OH M 1/10W
R827 1 OH M 1/10W
R826 1 OH M 1/10W
R810
C807
2.2U16V
R809
100K 1/10W 5%
R841 1 OHM 1/10W
R840 1 OHM 1/10W
R839 1 OHM 1/10W
R838 1 OHM 1/10W
R837 1 OHM 1/10W
R836 1 OHM 1/10W
R835 1 OHM 1/10W
R834 1 OHM 1/10W
R819
100K 1/10W 5%
45
715G4128P04000004S（e2437F）
CN801
+14.5V
CONN
10
9
8
7
6
5
4
3
2
1
11 12
R823
DR
+14.5V
2009-12-09
CHANGE
NC(0 OHM)
R818 0R 05 1/4W
DIM
ON/O FF
R824
NC(2KOHM)
Q804
NC(2N 7002)
Q805
NC(2N 7002)
R825
NC(2KOHM)
R812
+
ON/O FF
DIM
R831
NC(3K9 1/ 10W)
0R05 4A 1/4W
C809
100UF 35V
R806
1K 1/10W
R808
1K 1/10W
Q802
NC(MMBT3904)
R820
NC
NC
R821
Q803
NC(MMBT3906)
（
0 OHM
）
R822
10K 1/10W 1%
C801
0.47uF 50V
C802
68NF 50V
R807
20K 1/10W
R810
20K 1/10W
C808
NC
R802
180K 1/10W
R803
27K 1/10W 1%
R804
100KOHM +-1% 1/10W
R826 10ohm +/-1% 1/8W
Gate
DR
U801
1
NC
2
VIN
3
VCC
4
COMP
5
EN
6
DBRT
7
GND
8
OSC
9
ISET
10
BOSC
11
LED12
12
LED11
13
LED10
14 15
LED9 LED 8
R819
33KOHM +-1% 1/10W
MP3389EF
R832 N C
VFAULT
GATE
PGND
ISENSE
OVP
LED1
LED2
LED3
LED4
LED5
LED6
LED7
E-Pad
29
D801
5
4
R815
D2
G2
Q806
P8008HV
R836
1 2
B3100B
R801
10 OHM 1% 1/4W
C805
220P 100V
R827
R828
1 OHM +-5% 1/8W
R829
1 OHM +-5% 1/8W
2009-12-09
CHANGE
+
C807
4.7UF 100V
5.6KOHM +-1% 1/10W
1 OHM +-5% 1/8W
1 OHM +-5% 1/8W
C803
0.47UF 50V
C804
0.47UF 50V
R809
OVP
R805
300K 1/8W
C806
100pF 50V
78
CN803
1
NC
2
3
4
5
6
78
CN804
1
2
CONN
3
4
5
6
L801
22uH
Q801
28
NC
27
DR
26
25
24
OVP
23
22
21
20
19
18
17
16
NC(AOD 4126)
Gate
R834 N C
R833 N C
R838 0 Ohm
R837 0 Ohm
R835 0 Ohm
876
D1D1D2
S1G1S2
123
R811
0.15 OHM +-1% 1/4W
0.15 OHM +-1% 1/4W
2009-12-16
CHANGE
2009-12-09
CHANGE
46
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
G4128-P0A-000-0040-6-100701
01.CON VERTER
Date
OEM MODEL Size
Sheet
LNPCAD 491EQB7
715G4128-P0A-000-0040
11Tuesday , July 27, 2010
of
Rev
称爹
TPV MO DEL
PCB NA ME
Custom
A
ODM MODEL
6.3 LED 板
715G3757T01000004L
Lightbar_Vc c=5V
12
LED031
LED
R031
220 OHM 1/10W 5%
12
LED039
LED
12
LED032
LED
R032
220 OHM 1/10W 5%
12
LED040
LED
12
LED033
LED
R033
220 OHM 1/10W 5%
12
LED041
LED
12
LED034
LED
R034
220 OHM 1/10W 5%
12
LED042
LED
12
LED035
LED
R035
220 OHM 1/10W 5%
12
LED043
LED
12
LED036
LED
R036
220 OHM 1/10W 5%
12
LED044
LED
12
LED037
LED
R037
220 OHM 1/10W 5%
12
LED045
LED
12
LED038
LED
R038
220 OHM 1/10W 5%
CN031
CONN
R039
1
2
3
Lightbar_c rtl
R046
1K 1/10W
C031
100N 16V
Q031
SST2222A
220 OHM 1/10W 5%
R040
220 OHM 1/10W 5%
R041
220 OHM 1/10W 5%
T P V ( Top Victory Electronics Co . , Ltd. )
线路图编号
Key Component
Date
R042
220 OHM 1/10W 5%
G3757-T0B-000-0040-090721
02 light bar
220 OHM 1/10W 5%
R043
R044
220 OHM 1/10W 5%
OEM MODEL Size
TPV MOD EL
PCB NAME
Sheet
715G3757-T0B
12Friday , September 25, 2009
R045
220 OHM 1/10W 5%
of
Rev
备注
B
B
称爹
>
<
47
6.4 光传感器板
715G3637T01000004S
ZD711
NC/UDZS5.6B
VCC
1 2
GND
1
VDD
2
ADR
3 4
GND C LK
ALS-PDIC17-79NB/TR8
GND
U711
DATA
INT
6
5
ZD712
NC/UDZS5.6B
VCC
GND
SMBCLK
SMBDAT
1
2
3
4
CN711
CONN
SMBDAT
SMBCLK
ZD713
NC/UDZS5.6B
1 2
1 2
GNDGND
T P V ( Top Victory Electronics Co . , Ltd. )
絬 隔 瓜 絪 腹
Key Component
Date
G3637-T0B-000-0040-090909
ALS-PDIC17-79NB/TR8
OEM MOD EL Size
TPV MODEL
PCB NAME
Sheet
715G3637-T0B
of
22Wednesday , September 09, 2009
Rev
称爹
48
<
A
B
称爹
>
6.5 按键板
715G3646K01000004W
U001
CY 8C20224-12LKXI
LED_Blue
LED_Amber
I2C_SCL
I2C_SDA
CN001
CONN
78
1
2
3
4
5
6
C001
1000pF 50V
1
2
3
4
GP0[0]
GP0[1]
I2C SCL
I2C SDA
16
GP0[4]
GP1[0]
567
Button_1
VCC
CSInt
GP1[1]
Button_2
131415
VDD
GP0[3]
GP0[2]
XRE S
GP1[4]
GP1[3]
VSS
GP1[2]
8
Button_3
I2C_SCL
I2C_SDA
LED_Vcc
VCC
Lightbar_Vcc
C002
10UF 6.3V X5R +-20%
C003
100N 16V
12
Lightbar_ctrl
11
10
Button_5
9
Button_4
Buttons
Button_1
R001 560R 1/10W 5%
Button_2
R002 560R 1/10W 5%
Button_3
R003 560R 1/10W 5%
R004 560R 1/10W 5%
Button_4
Button_5
R005 560R 1/10W 5%
1
LED001
ORANGE
BLUE
LED
3
2
LED002
LED
12
Lef t
Down
Power
Right
Up
LED003
LED
T01
T02
T03
T04
T05
LED004
LED
12
LED005
LED
12
12
CN002
CONN
R011
R006
1K 1/10W
ZD001
NC/UDZSNP5.6B
1
2
3
ZD002
1 2
Lightbar_Vcc
Lightbar_ctrl
ZD003
ZD004
1 2
1 2
NC/UDZSNP5.6B
1 2
NC/UDZSNP5.6B
NC/UDZSNP5.6B
1.5K 1/10W
Q001
LMBT3904LT1G
C004
100N 16V
1K 1/10W
R012
4.7K 1/10W
R007
LED_Blue
絬 隔 瓜 絪 腹
Key Component
R008
1K 1/10W
Q002
LMBT3904LT1G
C005
100N 16V
T P V ( Top Victory Electronics Co . , Ltd. )
G3646-K01-X-X-1-100427.DSN
2.0.key
Date
R009
1K 1/10W
R013
4.7K 1/10W
LED_Amber
OEM MOD EL Size
TPV MODEL
PCB NAME
715G3646-K0E
Sheet
of
22Tuesday, April 27, 2010
R010
1K 1/10W
Rev
称爹
B
E
称爹
>
<
49
7. ISP 和 DDC 烧录 SOP
请登陆 ftp://cs.tpv.com.cn/ 到各相应的文件夹下载各相应平台的烧录 SOP。
账号: TPVSQZ
密码: TPVZGDLSQZ20090707
注:该网址及登陆账号和密码后续都有可能变更，请以技术支持部最新发布的为准。
50
8. 料件清单
注意: 以下料件信息仅供参考，如有变更，恕不另行通知，请到 http://cs.tpv.com.cn 获取最新信息。
TA92A8NYBXA1HZ（e2037F）
点位 组件 对象描述 备注
052G 1211 A CONDUCTIVE TAPE 55MM *45MM *0.08MM
052G 1211 B CONDUCTIVE TAPE 85MM *40MM *0.09MM
052G 2191 A PAPER TAPE
052G6019 1 INSULATING TAPE
070GHDCP500HDC NO-SUGGEST HDCP CODE
E08902 089G 725CAADBD D-SUB CABLE 1500MM
E08902 089G 725GAADBD D-SUB CABLE 1500MM 2nd source
E08902 089G 725HAADBD D-SUB CABLE 1500MM 2nd source
E08901 089G414A15N CX POWER CORD 2nd source
E08901 089G414A15N IS POWER
E09503 095G176J 10534 FFC CABLE 10PIN 65MM P0.5MM
E09504 095G176J 10535 FFC CABLE 10PIN 65MM P0.5MM
E09503 095G176W 10534 FFC CABLE 10P P0.5MM 75MM 2nd source
E09504 095G176W 10535 FFC CABLE 10P P0.5MM 310MM 2nd source
E09501 095G8018 3XJ22 LVDS CABLE 30P-30P(1.25) 240MM 2nd source
E09505 095G8022 3D501 HARNESS 3P-3P 180MM
E09506 095G8022 4L502 HARNESS
095G8022 7W501 HARNESS 7P-6P 80MM
095G802210D508 HARNESS 10P-10P 330MM
0M1G1030 6120 SCREW M3X6
0Q1G 930 6120 SCREW 3X6MM
705GQA34040 2037 STAND ASS'Y
A33G0782 X2 1L0100 STAND_CORE
A34G1528AGZ 1C0100 STAND
A37G0139012 2037F-HINGE
Q01G6078 2 SCREW
705GQA34041 2037 REAR ASS'Y
0Q1G1040 10120 SCREW
A15G0877101 VESE_NUT_PLATE
A15G0878101 STAND_BRKT
A33G0609ABJ 1L0100 HINGE RELEASE
Q34G7070AGS 1B0130 REAR COVER
708GA083 WP AOC 40(1768 CHN)
Q45G 77 5 PE PACKING (Y1900241)
Q50G 4 10 TIE (Y1900221)
Q52G 1185 99 BIG CARTON TAPE FOR AOC
750GLV200O1221N000 LCD TPM200O1-L02 C1B FQ TPV
756GQACB AA030 00 MAIN BOARD-CBPCAA8A1QH
U402 056G1133129 IC EN25F20-100GCP 2MB SOP-8
SMTCA-U402 100GAMVA003YT1 MCU ASS'Y-056G1133129
A15G0881301 2037-SHIELDING-CASE3-SCALAR
A15G0882301 SHIELDING -COVER (SCARLAR 135X44)
A33G0760AGS 1L0100 LIGHT_GUIDE
A33G1526 KG 1L0100 NO-SUGGEST LIGHT PIPE
A85G0204E04 SHIELDING-CASE-INVERTER
A85G0205401 SHIELDING-COVER-INVERTER
ADPC91236YB1 POWER BOARD
040G 45762412B CBPC LABEL
Q40G300B615 1C LABEL ADAPTER
IC902 056G 139 3A PC123Y22FZOF SHARP
51
NR901 061G 58005 W RST NTCR 5 OHM 3A THINKING
R904 061G152M47852T RST MOFR 0.47 OHM +-5% 2WS
R904 061G152M47858G 0.47 OHM +-5% 2W
C903 063G107K474 6S 0.47UF +-10%
C903 063G107K474 UM CAP X2 470NF 10% 275VAC MPX
C903 063G107M47410M CAP X2 0.47UF 20% 275VAC
C909 065G 1K103 2E6213 CAP CER 10NF K 1KV
C909 065G 1K103 2E6921 CAP CER 10NF K 1KV Y5U
C900 065G306M1022B3 Y1 CAP 1000PF M 250VAC TDK
C900 065G306M1022BP Y1 1000PF M 250VAC
C900 065G306M1022BP Y1 1000PF M 250VAC
C919 067G 515681 4L EC 680UF 20% 25V RZW 8*20
C918 067G 515681 4L EC 680UF 20% 25V RZW 8*20
C919 067G215C5614NV EC 560UF 20% 25V KZM 8*20
C918 067G215C5614NV EC 560UF 20% 25V KZM 8*20
C919 067G215C5614RV EC 560UF 20% 25V ZLH 8*20
C918 067G215C5614RV EC 560UF 20% 25V ZLH 8*20
C907 067G515Z82015L EC 82UF 20% 450V RXQ 18*31.5
C907 067G515Z82015N EC 82UF 20% 450V KXG 18*30
D903 071G 55 30 FERRITE BEAD 4.0*2*3
D902 071G 55 30 FERRITE BEAD 4.0*2*3
L902 073G 174514 H LINE FILTER 14MH MIN LCL-11402 HA
L902 073G 174514 S LINE FILTER 14MH MIN
L902 073G 174514 X LINE FILTER 14MH MIN 3LFT1495-143M
L901 073G 174515 H LINE FILTER 0.45MH MIN LCL-11006 HA
L901 073G 174515 S LINE FILTER 0.45MH MIN
L901 073G 174515 X LINE FILTER 0.45MH MIN 3LFT1064-451M
L903 073G 253902 H IND CHOKE 0.8UH MIN DADON
L903 073G 253902 S IND CHOKE 0.8UH MIN TAICHANG
T901 080GL19P512 F POWER X'FMR 700UH 5%
T901 080GL19P512 H POWER X'FMR 700UH 5% BCK-11002-HA
T901 080GL19P512 N POWER X'FMR 700UH 5%
T901 080GL19P512 S X'FMR 700UH 5% 6UH BCK-RM10-26209
LED1 081G 2 3 1P LED GPG2603T/R006-35A GUANGPU
LED1 081G 2 1B GP BLUE LED GPB2903CE/GP-1-40-HB
E08906 089G 171535 G DC CABLE 1000MM
E08906 089G 171536 C DC CABLE 1200MM 2nd source
E08906 089G 171536 G DC CABLE 1000MM 2nd source
E08906 089G 171536 H DC CABLE 1200MM 2nd source
BD901 093G 50460514 BRIDGE KBP306G-05 3A/800V TSC
D903 093G 52 1552T DIODE 1N4007-E3/73 1A/1000V DO-41
D902 093G 5212T52T DIODE 1N4007-AO DO-41
D903 093G 5212T52T DIODE 1N4007-AO DO-41
705GQ957052 D906 ASS"Y
051G 200 1 OIL FOR DISAPPEAR
D906 093G 60226 STPS20H100CT
D906 093G 60228 MBR20100CT 20A 100VGI
D906 093G 605AP DIODE MBR20100CT
0M1G1730 5120 SCREW
HS1 Q90G0201 1 HEAT SINK
705GQ957053 Q901 ASS"Y
051G 200 1 OIL FOR DISAPPEAR
Q901 057G 667 21 NO-SUGGEST STP10NK70ZFP
Q901 057G 667924 MOSFET SMK0965F
0M1G3030 5125 SCREW
HS1 Q90G0200 1 HEAT SINK
705GQA57002 AC SOCKET ASS'Y
52
CN901 087G 50112A CJ AC SOCKET 3P -
CN901 087G 50112A DL AC SOCKET 3P 3642501 2nd source
095G 900H12 X YELLOW/GREEN 75MM
096G 29 6 H.S. TUBE
IC901 056G 379530 AC/DC CONVERTER LD7750GS SOP-8
R940 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R912 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R940 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN
R912 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN
R911 061G0603202 JF RST CHIPR 2K OHM +-5% 1/10W FENGHUA
R911 061G0603202 JT RST CHIPR 2KOHM 1/10W TZAI YUAN
R918 061G0603203 JF RST CHIPR 20K OHM +-5% 1/10W FENGHUA
R918 061G0603203 JT RST CHIP 20K 1/10W 5% TZAI YUAN
R919 061G06034532FF RST CHIPR 45.3KOHM +-1% 1/10W FENGHUA
R905 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R905 061G08051002FT RST CHIP 10K 1/8W 1%
R905 061G08051002FY RST CHIP 10K 1/8W 1%
R903 061G08051004FF RST CHIPR 1 MOHM +-1% 1/8W FENGHUA
R903 061G08051004FT RST CHIP R 1 MOHM +-1% 1/8W
R942 061G0805101 JY RST CHIPR 100OHM +- 5% 1/8W YEGAO
R910 061G0805104 JF RST CHIPR 100KOHM +-5% 1/8W FENGHUA
R910 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN
R916 061G08051152FT RST CHIPR 11.5KOHM +- 1% 1/8W TZAI YUAN
R941 061G0805159 JT RST CHIP 1R5 1/8W 5%
R922 061G0805471 JT RST CHIPR 470OHM +-5% 1/8W TZAI YUAN
JR901 061G1206000 7 RST CHIP MAX 0R05 1/4W
R908 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R914 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R914 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R908 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R906 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA
R934 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA
R906 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
R934 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
R901 061G1206105 JF RST CHIPR 1 MOHM +-5% 1/4W FENGHUA
R902 061G1206105 JF RST CHIPR 1 MOHM +-5% 1/4W FENGHUA
R937 061G1206564 JF RST CHIPR 560KOHM +-5% 1/4W FENGHUA
R907 061G1206564 JF RST CHIPR 560KOHM +-5% 1/4W FENGHUA
R938 061G1206564 JF RST CHIPR 560KOHM +-5% 1/4W FENGHUA
C930 065G060310332K F CAP CHIP 0603 10NF K 50V X7R
C930 065G060310332K Y CAP CHIP 0603 10N 50V X7R +/-10%
C915 065G060347332K M NDS-ASSIGN MLCC 0603 CAP 0.047UF 50V X7R
C915 065G060347332K Y CAP CHIP 0603 47N 50V X7R +/-10%
C931 065G080510131J A CAP CHIP 0805 100PF J 50V NPO
C931 065G080510131J F CAP CHIP 0805 100PF J 50V NPO
C931 065G080510131J Y CAP CHIP 0805 100P 50V NPO +/-5%
C901 065G080510332K A CAP CHIP 0805 10NF K 50V X7R
C901 065G080510332K F CAP 0805 10NF K 50V X7R
C910 065G080510432K 3 CAP CHIP 0805 100N 50V X7R +/-10%
C910 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C910 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C920 065G080510522K 3 CAP CHIP 0805 1U 25V X7R +/-10%
C920 065G080510522K Y CAP CHIP 0805 1U 25V X7R +/-10%
C911 065G120622272K Y CER 1206 2N2 500V X7R 10%
C908 065G120622272K Y CER 1206 2N2 500V X7R 10%
C908 065G1206222B2K T CAP CHIP 1206 2200PF K 630V X7R
C911 065G1206222B2K T CAP CHIP 1206 2200PF K 630V X7R
53
D908 093G 64S522SEM LL4148
D908 093G 64S901 T DIODE LS4148
CN901 006G 31500 EYELET
A 006G 31501 EYELET
GND 006G 31501 EYELET
12V 006G 31501 EYELET
L902 006G 31502 1.5MM RIVET
L901 006G 31502 1.5MM RIVET
C907 006G 31502 1.5MM RIVET
C903 006G 31502 1.5MM RIVET
NR901 006G 31502 1.5MM RIVET
IC903 056G 158 12 KIA431A-AT/P TO-92
R947 061G 60210052T XZ RST CF 10R 5% 1/6W
C925 065G 2K152 2T6213 CAP CER 1500PF K 2KV
C925 065G 2K152 2T6921 CAP CER 1500PF K 2KV Y5P
C929 067G 2154707NT KY50VB47M-TP5 6.3*11
C929 067G 2154707RT 47UF +-20% 50V
C929 067G215Y4707LT LOW ESR EC 47UF 50V M 6.3*11MM
FB901 071G 55908 BEAD - 60R - C8B RH3.5X4.7X1.0+TAP
F901 084G 55 7W FUSE 3.15A 250V WICKMANN
F901 084G 56 3 B FUSE 3.15A 250V
J901 095G 90 23 JUMPER WIRE
J903 095G 90 23 JUMPER WIRE
J904 095G 90 23 JUMPER WIRE
J906 095G 90 23 JUMPER WIRE
715G3980P03000003S PWR PCB CEM-1 CTI>600 SS 96.5X44X1.6MM
Q33G0464ADT 1T 18 TOP COVER
Q33G0465ADT 1T 18 BOTTOM COVER
Q33G6007 1 1C LENS
Q40G000362427A LABEL
Q45G5501 1 PE PACKING 140 80 3.0
Q51G 6 4509 GLUE_RTV
Q51G 6 4509 GLUE_RTV
T901 S80GL19P512V TRANSFORMER ASS'Y
S34FP19P512VZ GROUPWARE WIRE
ADPC93602AB6 ADAPTER BOARD G3823-P01-000-X-1-100225
040G 45762412B CBPC LABEL
C804 067G 4151017KV EC 100UF 50V ED 8*12
C802 067G 4151017KV EC 100UF 50V ED 8*12
C804 067G 4151017LV EC 100UF 20% 50V RZY 8*11.5
C802 067G 4151017LV EC 100UF 20% 50V RZY 8*11.5
CN802 033G801910Y H FPC CONN. 0.5MM SMT 10P 2nd source
CN803 033G801910Y H FPC CONN. 0.5MM SMT 10P 2nd source
CN801 033G803210F HR CONNECTOR 10P 1.25
IC801 056G 379185 AC/DC CONVERTER TA9690GN-A1-0-TR SOP-24
IC802 056G 379185 AC/DC CONVERTER TA9690GN-A1-0-TR SOP-24
Q801 057G 763 6 AO4828 SOIC-8 BY AOS
R811 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R814 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA
R807 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA
R844 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA
R812 061G0603101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/10W
R820 061G0603101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/10W
R803 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN
R810 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN
R806 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R813 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
54
R817 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R821 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R809 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN
R819 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN
R826 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R827 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R828 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R829 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R830 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R831 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R832 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R833 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R834 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R835 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R836 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R837 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R838 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R839 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R840 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R841 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R816 061G0603124 JY NO-SUGGEST RST CHIPR 120KOHM 1/10W YAGEO
R805 061G0603124 JY NO-SUGGEST RST CHIPR 120KOHM 1/10W YAGEO
R842 061G06031503FF RST CHIPR 150KOHM +-1% 1/10W FENGHUA
R843 061G06031503FF RST CHIPR 150KOHM +-1% 1/10W FENGHUA
R804 061G06032702FY RST CHIP 27K 1/10W 1%
R815 061G06032702FY RST CHIP 27K 1/10W 1%
R823 061G0603472 JY NO-SUGGEST RST CHIPR 4.7KOHM £«-5£¥ 1/1
R824 061G06035602FF RST CHIPR 56KOHM +-1% 1/10W FENGHUA
R824 061G06035602FY RST CHIPR 56KOHM +-1% 1/10W YAGEO
R822 061G08051004FF RST CHIPR 1 MOHM +-1% 1/8W FENGHUA
R822 061G08051004FT RST CHIP R 1 MOHM +-1% 1/8W
R825 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R802 061G1206308 JF RST CHIPR 0.3 OHM +-5% 1/4W FENGHUA
R801 061G1206308 JF RST CHIPR 0.3 OHM +-5% 1/4W FENGHUA
C816 065G060310232K Y CAP CHIP 0603 1N 50V X7R +/-10%
C805 065G060347412K 3 CAP CHIP 0603 0.47UF K 16V X7R
C808 065G060347412K 3 CAP CHIP 0603 0.47UF K 16V X7R
C803 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C810 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C801 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C803 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C810 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C807 065G080522512K T CAP CHIP 0805 2.2UF K 16V X7R
C809 065G080522512K T CAP CHIP 0805 2.2UF K 16V X7R
C806 065G080522525K T CAP CHIP 0805 2.2UF K 25V X5R
L801 073G253S 80 H SMD CHOKE 22UH 2.16A SPI103LRR-220
L801 073G253S 80 DN SMD CHOKE 22UH 2.16A LZ.3A220.A1P HF
ZD801 093G 60S 31 T DIODE B360B 3A/60V SMB
CN802 311GF050B10ADH FFC CONN 0.5MM 10P
CN803 311GF050B10ADH FFC CONN 0.5MM 10P
E715 715G3823P04000004L CONVERTER PCB FR4 110X40X1.6MM DS
E715 715G3823P04000004W CONVERTER PCB FR4 110X40X1.6MM DS 2nd source
040G 45762412B CBPC LABEL
C718 067G204V181 3K CS CAP 180UF 16V 8*8 MM
C716 067G204V471 2K CS CAP 470UF 10V 8*8 MM
FB701 071G 55 26 S BEAD 3.5*6MM 127 OHM 25% LB3.5¡Á0.8¡Á6-2
CN701 088G 304 11 C DC POWER JACK 3P 2.5MM
55
CN101 088G 35315FVXH D-SUB CONN 15P V/T 10.5MM WITH SCREW
CN102 088G 35424F VC DVI CONN 24P V/T WITH SCREW
090G6250 1 GP HEAT SINK
X401 093G 22 53 J CRYSTAL 14.31818MHZ/32PF49US
X401 093G 22 53 YC CRYSTAL 14.31818MHZ/32PF 49U/S YC
CN402 033G8032 4F HR CONNECTOR 4P 1.25
CN401 033G8032 7F HR CONNECTOR
CN702 033G803210F HR CONNECTOR 10P 1.25
U401 056G 562599 IC TSUMU58NHL-LF MSTAR
U704 056G 563113 IC G1117-18T63UF 1A/1.8V SOT-223
U705 056G 563215 IC DC/DC MP1584EN SOIC8E
U702 056G 563512 IC G1117-33T43UF 1A/3.3V TO-252
U103 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L
U104 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L
U105 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L
U106 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L
U107 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L
U402 056G1133129 IC EN25F20-100GCP 2MB SOP-8
U101 056G1133531 EEPROM FM24C02A-SO-T-G 2K SOP-8
U102 056G1133531 EEPROM FM24C02A-SO-T-G 2K SOP-8
U102 056G1133918 NO-SUGGEST AT24C02BN-SH-T 2KB SO-8
U101 056G1133918 NO-SUGGEST AT24C02BN-SH-T 2KB SO-8
Q402 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC
Q403 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC
Q302 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q401 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q701 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q301 057G 763 1 AO3401 SOT23 BY AOS
R414 061G0402000 JY NO-SUGGEST RST CHIPR MAX 0R05 OHM 1/16W
R423 061G0402000 JY NO-SUGGEST RST CHIPR MAX 0R05 OHM 1/16W
R134 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R132 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R131 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R130 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R129 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R128 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R127 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R126 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R115 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R111 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R105 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R131 061G0402100 JY NO-SUGGEST RST CHIPR 10 OHM +-5% 1/16W Y
R130 061G0402100 JY NO-SUGGEST RST CHIPR 10 OHM +-5% 1/16W Y
R129 061G0402100 JY NO-SUGGEST RST CHIPR 10 OHM +-5% 1/16W Y
R128 061G0402100 JY NO-SUGGEST RST CHIPR 10 OHM +-5% 1/16W Y
R127 061G0402100 JY NO-SUGGEST RST CHIPR 10 OHM +-5% 1/16W Y
R126 061G0402100 JY NO-SUGGEST RST CHIPR 10 OHM +-5% 1/16W Y
R115 061G0402100 JY NO-SUGGEST RST CHIPR 10 OHM +-5% 1/16W Y
R111 061G0402100 JY NO-SUGGEST RST CHIPR 10 OHM +-5% 1/16W Y
R105 061G0402100 JY NO-SUGGEST RST CHIPR 10 OHM +-5% 1/16W Y
R132 061G0402100 JY NO-SUGGEST RST CHIPR 10 OHM +-5% 1/16W Y
R134 061G0402100 JY NO-SUGGEST RST CHIPR 10 OHM +-5% 1/16W Y
R706 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R437 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R436 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R428 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R417 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
56
R416 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R101 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R113 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R118 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R119 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R409 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R415 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R428 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R706 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R437 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R436 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R417 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R416 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R415 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R409 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R119 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R118 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R113 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R101 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R103 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R104 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R103 061G0402102 JY NO-SUGGEST RST CHIPR 1KOHM +-5% 1/16W YA
R104 061G0402102 JY NO-SUGGEST RST CHIPR 1KOHM +-5% 1/16W YA
R705 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R703 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R702 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R439 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R438 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R412 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R407 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R120 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R123 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R133 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R135 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R136 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R305 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R308 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R705 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R703 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R702 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R439 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R438 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R412 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R407 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R308 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R305 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R136 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R135 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R133 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R123 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R120 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R421 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R726 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO
R712 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO
R421 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO
R714 061G04021301FT RST 0402 1.3K 1% 1/16W TZAI YUAN
R714 061G04021301FY RST CHIPR 1K3 +-1% 1/16W YAGEO
57
R727 061G0402184 JY RST CHIP 180K 1/16W 5% YAGEO
R107 061G0402222 JY RST CHIPR 2.2KOHM +-5% 1/16W YAGEO
R106 061G0402222 JY RST CHIPR 2.2KOHM +-5% 1/16W YAGEO
R704 061G0402223 JY RST CHIPR 22KOHM +-5% 1/16W YAGEO
R406 061G0402223 JY RST CHIPR 22KOHM +-5% 1/16W YAGEO
R304 061G0402223 JY RST CHIPR 22KOHM +-5% 1/16W YAGEO
R711 061G0402333 JF RST CHIP 33K 1/16W 5% FENGHUA
R711 061G0402333 JY RST CHIPR 33KOHM £«-5£¥ 1/16W YAGEO
R401 061G04023900FY RST CHIP 390R 1/16W 1%
R432 061G04023901FY RST CHIP 3.9KOHM 1% YAGEO
R433 061G04023901FY RST CHIP 3.9KOHM 1% YAGEO
R109 061G0402470 JY NO-SUGGEST RST CHIPR 47 OHM 5% 1/16W YAG
R117 061G0402470 JY NO-SUGGEST RST CHIPR 47 OHM 5% 1/16W YAG
R114 061G0402470 JY NO-SUGGEST RST CHIPR 47 OHM 5% 1/16W YAG
R110 061G0402471 JY RST CHIPR 470OHM +-5% 1/16W YAGEO
R303 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R138 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R137 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R125 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R124 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R402 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R404 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R419 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R420 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R420 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO
R419 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO
R404 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO
R402 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO
R303 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO
R138 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO
R137 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO
R125 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO
R124 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO
R306 061G0402563 JY RST CHIPR 56KOHM 1/16W YAGEO
R713 061G04026801FY RST CHIP 6K8 1/16W 1%
R139 061G0402682 JY RST CHIPR 6.8KOHM +-5% 1/16W YAGEO
R108 061G0402750 JY NO-SUGGEST RST CHIPR 75OHM +-5% 1/16W YA
R112 061G0402750 JY NO-SUGGEST RST CHIPR 75OHM +-5% 1/16W YA
R116 061G0402750 JY NO-SUGGEST RST CHIPR 75OHM +-5% 1/16W YA
R405 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R707 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R102 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R403 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
FB703 061G0603000 JY NO-SUGGEST RST CHIPR MAX0R05 1/10W YAGEO
FB406 061G0603000 JY NO-SUGGEST RST CHIPR MAX0R05 1/10W YAGEO
FB405 061G0603000 JY NO-SUGGEST RST CHIPR MAX0R05 1/10W YAGEO
R102 061G0603000 JY NO-SUGGEST RST CHIPR MAX0R05 1/10W YAGEO
R707 061G0603000 JY NO-SUGGEST RST CHIPR MAX0R05 1/10W YAGEO
R405 061G0603000 JY NO-SUGGEST RST CHIPR MAX0R05 1/10W YAGEO
R403 061G0603000 JY NO-SUGGEST RST CHIPR MAX0R05 1/10W YAGEO
R301 061G1206221 JF RST CHIPR 220 OHM +-5% 1/4W FENGHUA
R302 061G1206221 JF RST CHIPR 220 OHM +-5% 1/4W FENGHUA
C107 065G040210232K 3 CAP CHIP 0402 1N 50V X7R +/-10%
C118 065G040210232K 3 CAP CHIP 0402 1N 50V X7R +/-10%
C119 065G040210232K 3 CAP CHIP 0402 1N 50V X7R +/-10%
C120 065G040210232K 3 CAP CHIP 0402 1N 50V X7R +/-10%
C121 065G040210232K 3 CAP CHIP 0402 1N 50V X7R +/-10%
58
C710 065G040210232K 3 CAP CHIP 0402 1N 50V X7R +/-10%
C710 065G040210232K A CAP 0402 1NF K 50V X7R
C121 065G040210232K A CAP 0402 1NF K 50V X7R
C120 065G040210232K A CAP 0402 1NF K 50V X7R
C119 065G040210232K A CAP 0402 1NF K 50V X7R
C118 065G040210232K A CAP 0402 1NF K 50V X7R
C107 065G040210232K A CAP 0402 1NF K 50V X7R
C710 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%
C714 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%
C411 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C410 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C409 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C408 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C407 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C406 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C405 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C404 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C403 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C304 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C301 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C124 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C115 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C412 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C721 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C717 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C709 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C708 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C706 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C705 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C702 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C432 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C431 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C422 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C417 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C416 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C415 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C414 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C413 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C721 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C717 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C709 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C708 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C706 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C705 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C702 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C432 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C431 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C422 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C417 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C416 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C415 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C414 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C413 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C406 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C407 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C408 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C409 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
59
C410 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C411 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C412 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C405 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C404 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C403 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C304 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C301 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C124 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C115 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C414 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C415 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C416 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C417 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C422 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C431 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C432 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C702 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C705 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C706 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C708 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C709 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C717 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C721 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C413 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C115 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C124 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C301 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C304 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C403 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C404 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C405 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C406 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C407 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C408 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C409 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C410 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C411 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C412 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C712 065G040210427Z T NO-SUGGEST 0402 0.1UF 25V Y5V
C713 065G040210427Z T NO-SUGGEST 0402 0.1UF 25V Y5V
C719 065G040210427Z T NO-SUGGEST 0402 0.1UF 25V Y5V
C722 065G040215131J Y CHIP 150PF 50V NPO YAGEO
C103 065G040222031J Y CAP CHIP 0402 22P 50V NPO +/-5%
C104 065G040222031J Y CAP CHIP 0402 22P 50V NPO +/-5%
C303 065G040222415K A NO-SUGGEST 0402 0.22UF K 16V X5R
C117 065G040222415K A NO-SUGGEST 0402 0.22UF K 16V X5R
C116 065G040222415K A NO-SUGGEST 0402 0.22UF K 16V X5R
C116 065G040222415K T CAP CHIP 0402 220NF K 16V X5R
C117 065G040222415K T CAP CHIP 0402 220NF K 16V X5R
C303 065G040222415K T CAP CHIP 0402 220NF K 16V X5R
C401 065G040222417Z Y NO-SUGGEST 0402 220NF 16V Y5V
C420 065G040247031J Y CAP CHIP 0402 47PF 50V NPO +/-5%
C421 065G040247031J Y CAP CHIP 0402 47PF 50V NPO +/-5%
C102 065G040247312K A 8.31HIP 0402 47NF K 16V X7R
C106 065G040247312K A 8.31HIP 0402 47NF K 16V X7R
C108 065G040247312K A 8.31HIP 0402 47NF K 16V X7R
60
C110 065G040247312K A 8.31HIP 0402 47NF K 16V X7R
C111 065G040247312K A 8.31HIP 0402 47NF K 16V X7R
C114 065G040247312K A 8.31HIP 0402 47NF K 16V X7R
C114 065G040247312K T CAP 0402 47NF 10% 16V X7R
C111 065G040247312K T CAP 0402 47NF 10% 16V X7R
C110 065G040247312K T CAP 0402 47NF 10% 16V X7R
C108 065G040247312K T CAP 0402 47NF 10% 16V X7R
C106 065G040247312K T CAP 0402 47NF 10% 16V X7R
C102 065G040247312K T CAP 0402 47NF 10% 16V X7R
C113 065G040250931J Y NO-SUGGEST 0402 5PF 50V NPO
C109 065G040250931J Y NO-SUGGEST 0402 5PF 50V NPO
C105 065G040250931J Y NO-SUGGEST 0402 5PF 50V NPO
C715 065G060310232K Y CAP CHIP 0603 1N 50V X7R +/-10%
C711 065G060310232K Y CAP CHIP 0603 1N 50V X7R +/-10%
C305 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R
C419 065G0805106A7Z T NO-SUGGEST 0805 10UF Z 10V Y5V
C402 065G0805106A7Z T NO-SUGGEST 0805 10UF Z 10V Y5V
C720 065G120610625K T CAP CHIP 1206 10UF K 25V X5R
C723 065G120610625K T CAP CHIP 1206 10UF K 25V X5R
C723 065G120610625K Y NO-SUGGEST CAP CHIP 1206 10UF K 25V X5R
C720 065G120610625K Y NO-SUGGEST CAP CHIP 1206 10UF K 25V X5R
C302 065G120622615K M CAP CHIP 1206 22UF K 16V X5R
C704 065G120622615K M CAP CHIP 1206 22UF K 16V X5R
C707 065G120622615K M CAP CHIP 1206 22UF K 16V X5R
C302 065G120622615K T CAP CHIP 1206 22UF K 16V X5R
C704 065G120622615K T CAP CHIP 1206 22UF K 16V X5R
C707 065G120622615K T CAP CHIP 1206 22UF K 16V X5R
FB408 071G 56K121 CHIP BEAD
FB301 071G 56K121 CHIP BEAD
FB404 071G 56V301 B CHIP BEAD 0805 300OHM BULLWILL
FB402 071G 56V301 B CHIP BEAD 0805 300OHM BULLWILL
FB401 071G 56V301 B CHIP BEAD 0805 300OHM BULLWILL
FB106 071G 59G301 CHIP BEAD 300OHM
FB105 071G 59G301 CHIP BEAD 300OHM
FB104 071G 59G301 CHIP BEAD 300OHM
FB101 071G 59K190 B 19 OHM BEAD
FB102 071G 59K190 B 19 OHM BEAD
FB103 071G 59K190 B 19 OHM BEAD
L701 073G253S521 H SMD CHOKE 22UH 20% 3.3A HF
D101 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC
D102 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC
D101 093G 64 42 PP BAV70 SOT-23
D102 093G 64 42 PP BAV70 SOT-23
ZD101 093G 39GA01 T RLZ5.6B
D704 093G3004 3 SM340A
D703 093G3004 3 SM340A
D701 093G3004 3 SM340A
D708 093G3004 3 SM340A
D707 093G3004 3 SM340A
CN301 311GW125A30ACH WAFER 1.25MM 30P
E715 715G3598M01000004L MAIN PCB FR-4 135X50X1.6MM DS 2nd source
E715 715G3598M01000004W MAIN PCB FR-4 135X50X1.6MM DS
KEPC9QKL KEY BOARD G3646-K01-X-X-1-100428
Q52G 3100 DOUBLE FACE TAPE
CN002 033G8032 3F S HR CONNECTOR
CN001 033G8032 6F S HR CONNECTOR
U001 056G 669 1 IC CG7216AM QFN-16(COL)
61
Q002 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q001 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
R006 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R007 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R008 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R009 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R010 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R010 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R009 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R008 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R007 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R006 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R011 061G0603152 JY NO-SUGGEST RST CHIPR 1.5KOHM £«-5£¥ 1/1
R012 061G0603472 JY NO-SUGGEST RST CHIPR 4.7KOHM £«-5£¥ 1/1
R013 061G0603472 JY NO-SUGGEST RST CHIPR 4.7KOHM £«-5£¥ 1/1
R005 061G0603561 JF RST CHIP 560R 1/10W 5% FENGHUA
R004 061G0603561 JF RST CHIP 560R 1/10W 5% FENGHUA
R003 061G0603561 JF RST CHIP 560R 1/10W 5% FENGHUA
R002 061G0603561 JF RST CHIP 560R 1/10W 5% FENGHUA
R001 061G0603561 JF RST CHIP 560R 1/10W 5% FENGHUA
R005 061G0603561 JY RST CHIP 560R 1/10W 5% YAGEO
R004 061G0603561 JY RST CHIP 560R 1/10W 5% YAGEO
R003 061G0603561 JY RST CHIP 560R 1/10W 5% YAGEO
R002 061G0603561 JY RST CHIP 560R 1/10W 5% YAGEO
R001 061G0603561 JY RST CHIP 560R 1/10W 5% YAGEO
C001 065G060310231J M NO-SUGGEST 0603 1000PF J 50V NPO
C005 065G060310412K Y CAP CHIP 0603 100N 16V X7R +/-10%
C004 065G060310412K Y CAP CHIP 0603 100N 16V X7R +/-10%
C003 065G060310412K Y CAP CHIP 0603 100N 16V X7R +/-10%
C002 065G060310605M T CAP 0603 10UF 20% 6.3V X5R
LED005 081G 14 33 EL LED 23-21B/B3C-AL1M2B16Y/2A
LED004 081G 14 33 EL LED 23-21B/B3C-AL1M2B16Y/2A
LED003 081G 14 33 EL LED 23-21B/B3C-AL1M2B16Y/2A
LED002 081G 14 33 EL LED 23-21B/B3C-AL1M2B16Y/2A
LED001 081G15BY 2 EL LED 12-22/BHS2C-C30/2C
E715 715G3646K01000004S KEY PCB FR4 50X29X1.6MM DS 2nd source
E715 715G3646K01000004W KEY PCB FR4 50X29X1.6MM DS
LEPC9QQL LED BOARD G3757-T0D-000-0040-1-090925
CN031 033G8032 3F HR CONNECTOR 3P 1.25
Q031 057G 761 18 T TEST ONLY SST2222A 0.4 60 SMT3
R046 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R031 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R032 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R033 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R034 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R035 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R036 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R037 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R038 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R039 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R040 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R041 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R042 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R043 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R044 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R045 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
C031 065G060310412K Y CAP CHIP 0603 100N 16V X7R +/-10%
62
LED031 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED032 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED033 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED034 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED035 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED036 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED037 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED038 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED039 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED040 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED041 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED042 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED043 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED044 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED045 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
715G3757T01000004L OTHER PCB FR-4 320X9.5X1.0MM
R045 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R044 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R043 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R042 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R041 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R040 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R039 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R038 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R037 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R036 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R035 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R034 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R033 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R032 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R031 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
LSPC9QQL LIGHT BOARD
CN711 033G8032 4F S HR CONNECTOR
U711 056G 665 62 IC ALS-PDIC17-79NB/TR8 FN-6
715G3637T01000004S OTHER PCB FR-4 18X14X1.0MM DS
Q12G6300 98 RUBBER
Q34G7067 KGC1C0101 BEZEL L20WA-937-2
Q34G7069ABJ 1B0100 BEZEL-INNER
Q40G0003615A23 E2237FW POP LABEL
Q40G0003615B18 37 STICKER LABEL
Q40G000362420A WIN7+EPEAT SILVER+EPA 54X15
Q41G2009615 9C WARRANTY CARD
Q41G78S161519A E2037F/2037F QSG
Q44GA083101 AOC 2037F
Q44GA083201 AOC 2037F
Q44GA083615 2C CARTON E2037F
Q45G 88609206 N EPE BAG
Q52G6025 13258 INSULATE SHEET
E09501 S95G80183J22 LVDS CABLE 30P-30P(1.25) 240MM
033F303SM24K30 PK2407P30/TD00-30LH
033F206H30P252 PD240315/A1252H002-2*15P
033F303TTD1 TD00-T 2407PS-00
033F206T2J1252 2403PS-2/A1252TOP-2
033F303TTD1 TD00-T 2407PS-00
033F206T2J1252 2403PS-2/A1252TOP-2
033F303SM24K30 PK2407P30/TD00-30LH
033F206H30P252 PD240315/A1252H002-2*15P
63
E09505 S95G80223501 HARNESS 3P-3P 260MM 2nd source
033F206H03P253 A1253HA-3P
033F206H03P253 A1253HA-3P
033F206THR2253 A1253TPE-A
E09506 S95G80224502 HARNESS 4P-4P 260MM 2nd source
033F206H04P253 A1253HA-4P
033F206H04P253 A1253HA-4P
033F206THR2253 A1253TPE-A
Q36G 600517 DUSTER CLOTH
Q45G2010M0201A P.E. BAG (INSTR. BOOK)
Q70G200161511A E2037F CD MANUAL
040G 58162435A P/N LABEL FOR MANUAL PE BAG
040G 581689 4A BARCODE LABEL FOR 1
Q40G 22E61525A RATING LABEL
Q40G000161514A CARTON LABEL
Q40G000162424A CEL LABEL FOR G1
64
TKAAA8NYPXA1HZ（e2437F）
点位 组件 对象描述 工程图号
052G 1211 A CONDUCTIVE TAPE 55MM *45MM *0.08MM
052G 1211 B CONDUCTIVE TAPE 85MM *40MM *0.09MM
052G 2191 A PAPER TAPE
052G6019 1 INSULATING TAPE
070GHDCP500HDC NO-SUGGEST HDCP CODE
089G1745GAA AC DVI CABLE
089G414A15N HL POWER CORD 1500MM CHINA REG
095G176J 10528 FFC CABLE 10PIN 95MM P0.5MM
095G176J 10566 FFC CABLE 10PIN 385MM P0.5MM
095G8018 3XH98 HARNESS
095G8022 3D501 HARNESS 3P-3P 180MM
095G8022 4L502 HARNESS
095G8022 7W501 HARNESS 7P-6P 80MM
095G802210D505 HARNESS 10P-10P 350
0M1G1030 6120 SCREW M3X6
0Q1G 930 6120 SCREW 3X6MM
0Q1G1040 10120 SCREW
708GD045 WP AOC 40 (1292)
Q45G 77 5 PE PACKING (Y1900241)
Q50G 4 10 TIE (Y1900221)
Q52G 1185 99 BIG CARTON TAPE FOR AOC
E750 750GLU240H1613N000 PANEL M240HW01 V600 XM AUO
E750 750GLU240H1623N000 PANEL M240HW01 V60A XM AUO 2nd source
756GQACB AA031 00 MAIN BOARD-CBPC9A8A1Q1
U402 056G1133129 IC EN25F20-100GCP 2MB SOP-8
SMTC9-U402 100GAMAE008YT1 MCU ASS'Y-056G1133129
A15G0877101 VESE_NUT_PLATE
A15G0878101 STAND_BRKT
A15G0881101 SHIELDING -CASE (SCARLAR 135X44)
A15G0882601 SHIELDING -COVER 7(SCARLAR 135X50)
A33G0609ABJ 1L0100 HINGE RELEASE
A33G0760AGS 1L0100 LIGHT_GUIDE
A33G0782 X2 1L0100 STAND_CORE
A33G1526 KG 1L0100 NO-SUGGEST LIGHT PIPE
A34G1474ABJ 6B0100 COVER BEZEL 24"
A34G1475AGS 6B0130 REAR COVER
A34G1528AGZ 1C0100 STAND
A34G2022 KGA1C0101 BEZEL
A37G0139013 HINGE
A85G0204501 SHIELDING-CASE-INVERTER
ADPC91236YB1 POWER BOARD
040G 45762412B CBPC LABEL
Q40G300B615 1C LABEL ADAPTER
IC902 056G 139 3A PC123Y22FZOF SHARP
NR901 061G 58005 W RST NTCR 5 OHM 3A THINKING
R904 061G152M47852T RST MOFR 0.47 OHM +-5% 2WS
R904 061G152M47858G 0.47 OHM +-5% 2W
C903 063G107K474 6S 0.47UF +-10%
C903 063G107K474 UM CAP X2 470NF 10% 275VAC MPX
C903 063G107M47410M CAP X2 0.47UF 20% 275VAC
C909 065G 1K103 2E6213 CAP CER 10NF K 1KV
C909 065G 1K103 2E6921 CAP CER 10NF K 1KV Y5U
C900 065G306M1022B3 Y1 CAP 1000PF M 250VAC TDK
65
C900 065G306M1022BP Y1 1000PF M 250VAC
C900 065G306M1022BP Y1 1000PF M 250VAC
C918 067G 515681 4L EC 680UF 20% 25V RZW 8*20
C919 067G 515681 4L EC 680UF 20% 25V RZW 8*20
C919 067G215C5614NV EC 560UF 20% 25V KZM 8*20
C918 067G215C5614NV EC 560UF 20% 25V KZM 8*20
C919 067G215C5614RV EC 560UF 20% 25V ZLH 8*20
C918 067G215C5614RV EC 560UF 20% 25V ZLH 8*20
C907 067G515Z82015L EC 82UF 20% 450V RXQ 18*31.5
C907 067G515Z82015N EC 82UF 20% 450V KXG 18*30
D903 071G 55 30 FERRITE BEAD 4.0*2*3
D902 071G 55 30 FERRITE BEAD 4.0*2*3
L902 073G 174514 H LINE FILTER 14MH MIN LCL-11402 HA
L902 073G 174514 S LINE FILTER 14MH MIN
L902 073G 174514 X LINE FILTER 14MH MIN 3LFT1495-143M
L901 073G 174515 H LINE FILTER 0.45MH MIN LCL-11006 HA
L901 073G 174515 S LINE FILTER 0.45MH MIN
L901 073G 174515 X LINE FILTER 0.45MH MIN 3LFT1064-451M
L903 073G 253902 H IND CHOKE 0.8UH MIN DADON
L903 073G 253902 S IND CHOKE 0.8UH MIN TAICHANG
T901 080GL19P512 F POWER X'FMR 700UH 5%
T901 080GL19P512 H POWER X'FMR 700UH 5% BCK-11002-HA
T901 080GL19P512 N POWER X'FMR 700UH 5%
T901 080GL19P512 S X'FMR 700UH 5% 6UH BCK-RM10-26209
LED1 081G 2 3 1P LED GPG2603T/R006-35A GUANGPU
LED1 081G 2 1B GP BLUE LED GPB2903CE/GP-1-40-HB
E08906 089G 171535 G DC CABLE 1000MM
E08906 089G 171536 C DC CABLE 1200MM 2nd source
E08906 089G 171536 G DC CABLE 1000MM 2nd source
E08906 089G 171536 H DC CABLE 1200MM 2nd source
BD901 093G 50460514 BRIDGE KBP306G-05 3A/800V TSC
D903 093G 52 1552T DIODE 1N4007-E3/73 1A/1000V DO-41
D902 093G 5212T52T DIODE 1N4007-AO DO-41
D903 093G 5212T52T DIODE 1N4007-AO DO-41
705GQ957052 D906 ASS"Y
051G 200 1 OIL FOR DISAPPEAR
D906 093G 60226 STPS20H100CT
D906 093G 60228 MBR20100CT 20A 100VGI
D906 093G 605AP DIODE MBR20100CT
0M1G1730 5120 SCREW
HS1 Q90G0201 1 HEAT SINK
705GQ957053 Q901 ASS"Y
051G 200 1 OIL FOR DISAPPEAR
Q901 057G 667 21 NO-SUGGEST STP10NK70ZFP
Q901 057G 667924 MOSFET SMK0965F
0M1G3030 5125 SCREW
HS1 Q90G0200 1 HEAT SINK
705GQA57002 AC SOCKET ASS'Y
CN901 087G 50112A CJ AC SOCKET 3P -
CN901 087G 50112A DL AC SOCKET 3P 3642501 2nd source
095G 900H12 X YELLOW/GREEN 75MM
096G 29 6 H.S. TUBE
IC901 056G 379530 AC/DC CONVERTER LD7750GS SOP-8
R940 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R912 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R940 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN
R912 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN
66
R911 061G0603202 JF RST CHIPR 2K OHM +-5% 1/10W FENGHUA
R911 061G0603202 JT RST CHIPR 2KOHM 1/10W TZAI YUAN
R918 061G0603203 JF RST CHIPR 20K OHM +-5% 1/10W FENGHUA
R918 061G0603203 JT RST CHIP 20K 1/10W 5% TZAI YUAN
R919 061G06034532FF RST CHIPR 45.3KOHM +-1% 1/10W FENGHUA
R905 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R905 061G08051002FT RST CHIP 10K 1/8W 1%
R905 061G08051002FY RST CHIP 10K 1/8W 1%
R903 061G08051004FF RST CHIPR 1 MOHM +-1% 1/8W FENGHUA
R903 061G08051004FT RST CHIP R 1 MOHM +-1% 1/8W
R942 061G0805101 JY RST CHIPR 100OHM +- 5% 1/8W YEGAO
R910 061G0805104 JF RST CHIPR 100KOHM +-5% 1/8W FENGHUA
R910 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN
R916 061G08051152FT RST CHIPR 11.5KOHM +- 1% 1/8W TZAI YUAN
R941 061G0805159 JT RST CHIP 1R5 1/8W 5%
R922 061G0805471 JT RST CHIPR 470OHM +-5% 1/8W TZAI YUAN
JR901 061G1206000 7 RST CHIP MAX 0R05 1/4W
R908 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R914 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R908 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R914 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R906 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA
R934 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA
R906 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
R934 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
R902 061G1206105 JF RST CHIPR 1 MOHM +-5% 1/4W FENGHUA
R901 061G1206105 JF RST CHIPR 1 MOHM +-5% 1/4W FENGHUA
R938 061G1206564 JF RST CHIPR 560KOHM +-5% 1/4W FENGHUA
R937 061G1206564 JF RST CHIPR 560KOHM +-5% 1/4W FENGHUA
R907 061G1206564 JF RST CHIPR 560KOHM +-5% 1/4W FENGHUA
C930 065G060310332K F CAP CHIP 0603 10NF K 50V X7R
C930 065G060310332K Y CAP CHIP 0603 10N 50V X7R +/-10%
C915 065G060347332K M NDS-ASSIGN MLCC 0603 CAP 0.047UF 50V X7R
C915 065G060347332K Y CAP CHIP 0603 47N 50V X7R +/-10%
C931 065G080510131J A CAP CHIP 0805 100PF J 50V NPO
C931 065G080510131J F CAP CHIP 0805 100PF J 50V NPO
C931 065G080510131J Y CAP CHIP 0805 100P 50V NPO +/-5%
C901 065G080510332K A CAP CHIP 0805 10NF K 50V X7R
C901 065G080510332K F CAP 0805 10NF K 50V X7R
C910 065G080510432K 3 CAP CHIP 0805 100N 50V X7R +/-10%
C910 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R
C910 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C920 065G080510522K 3 CAP CHIP 0805 1U 25V X7R +/-10%
C920 065G080510522K Y CAP CHIP 0805 1U 25V X7R +/-10%
C911 065G120622272K Y CER 1206 2N2 500V X7R 10%
C908 065G120622272K Y CER 1206 2N2 500V X7R 10%
C911 065G1206222B2K T CAP CHIP 1206 2200PF K 630V X7R
C908 065G1206222B2K T CAP CHIP 1206 2200PF K 630V X7R
D908 093G 64S522SEM LL4148
D908 093G 64S901 T DIODE LS4148
CN901 006G 31500 EYELET
12V 006G 31501 EYELET
GND 006G 31501 EYELET
A 006G 31501 EYELET
C903 006G 31502 1.5MM RIVET
C907 006G 31502 1.5MM RIVET
L901 006G 31502 1.5MM RIVET
67
L902 006G 31502 1.5MM RIVET
NR901 006G 31502 1.5MM RIVET
IC903 056G 158 12 KIA431A-AT/P TO-92
R947 061G 60210052T XZ RST CF 10R 5% 1/6W
C925 065G 2K152 2T6213 CAP CER 1500PF K 2KV
C925 065G 2K152 2T6921 CAP CER 1500PF K 2KV Y5P
C929 067G 2154707NT KY50VB47M-TP5 6.3*11
C929 067G 2154707RT 47UF +-20% 50V
C929 067G215Y4707LT LOW ESR EC 47UF 50V M 6.3*11MM
FB901 071G 55908 BEAD - 60R - C8B RH3.5X4.7X1.0+TAP
F901 084G 55 7W FUSE 3.15A 250V WICKMANN
F901 084G 56 3 B FUSE 3.15A 250V
J901 095G 90 23 JUMPER WIRE
J903 095G 90 23 JUMPER WIRE
J904 095G 90 23 JUMPER WIRE
J906 095G 90 23 JUMPER WIRE
715G3980P03000003S PWR PCB CEM-1 CTI>600 SS 96.5X44X1.6MM
Q33G0464ADT 1T 18 TOP COVER
Q33G0465ADT 1T 18 BOTTOM COVER
Q33G6007 1 1C LENS
Q40G000362427A LABEL
Q45G5501 1 PE PACKING 140 80 3.0
Q51G 6 4509 GLUE_RTV
Q51G 6 4509 GLUE_RTV
T901 S80GL19P512V TRANSFORMER ASS'Y
S34FP19P512VZ GROUPWARE WIRE
040G 45762412B CBPC LABEL
C718 067G204V181 3K CS CAP 180UF 16V 8*8 MM
C716 067G204V471 2K CS CAP 470UF 10V 8*8 MM
FB701 071G 55 26 S BEAD 3.5*6MM 127 OHM 25% LB3.5¡Á0.8¡Á6-2
CN701 088G 304 11 C DC POWER JACK 3P 2.5MM
CN101 088G 35315FVXH D-SUB CONN 15P V/T 10.5MM WITH SCREW
CN102 088G 35424F VC DVI CONN 24P V/T WITH SCREW
090G6250 1 GP HEAT SINK
X401 093G 22 53 J CRYSTAL 14.31818MHZ/32PF49US
X401 093G 22 53 YC CRYSTAL 14.31818MHZ/32PF 49U/S YC
CN402 033G8032 4F HR CONNECTOR 4P 1.25
CN401 033G8032 7F HR CONNECTOR
CN702 033G803210F HR CONNECTOR 10P 1.25
U704 056G 563113 IC G1117-18T63UF 1A/1.8V SOT-223
U702 056G 563512 IC G1117-33T43UF 1A/3.3V TO-252
U107 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L
U106 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L
U105 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L
U104 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L
U103 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L
U402 056G1133129 IC EN25F20-100GCP 2MB SOP-8
Q403 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC
Q402 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC
Q302 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q401 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q701 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q301 057G 763 1 AO3401 SOT23 BY AOS
R414 061G0402000 JY NO-SUGGEST RST CHIPR MAX 0R05 OHM 1/16W
R423 061G0402000 JY NO-SUGGEST RST CHIPR MAX 0R05 OHM 1/16W
R134 061G0402100 JY NO-SUGGEST RST CHIPR 10 OHM +-5% 1/16W Y
R132 061G0402100 JY NO-SUGGEST RST CHIPR 10 OHM +-5% 1/16W Y
68
R131 061G0402100 JY NO-SUGGEST RST CHIPR 10 OHM +-5% 1/16W Y
R130 061G0402100 JY NO-SUGGEST RST CHIPR 10 OHM +-5% 1/16W Y
R129 061G0402100 JY NO-SUGGEST RST CHIPR 10 OHM +-5% 1/16W Y
R128 061G0402100 JY NO-SUGGEST RST CHIPR 10 OHM +-5% 1/16W Y
R127 061G0402100 JY NO-SUGGEST RST CHIPR 10 OHM +-5% 1/16W Y
R126 061G0402100 JY NO-SUGGEST RST CHIPR 10 OHM +-5% 1/16W Y
R115 061G0402100 JY NO-SUGGEST RST CHIPR 10 OHM +-5% 1/16W Y
R111 061G0402100 JY NO-SUGGEST RST CHIPR 10 OHM +-5% 1/16W Y
R105 061G0402100 JY NO-SUGGEST RST CHIPR 10 OHM +-5% 1/16W Y
R101 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R113 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R706 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R437 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R436 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R417 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R416 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R415 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R409 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R119 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R118 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R103 061G0402102 JY NO-SUGGEST RST CHIPR 1KOHM +-5% 1/16W YA
R104 061G0402102 JY NO-SUGGEST RST CHIPR 1KOHM +-5% 1/16W YA
R407 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R412 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R438 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R439 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R702 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R703 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R705 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R308 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R305 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R136 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R135 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R133 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R123 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R120 061G0402103 JY NO-SUGGEST RST CHIPR 10KOHM +-5% 1/16W Y
R421 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO
R106 061G0402222 JY RST CHIPR 2.2KOHM +-5% 1/16W YAGEO
R107 061G0402222 JY RST CHIPR 2.2KOHM +-5% 1/16W YAGEO
R304 061G0402223 JY RST CHIPR 22KOHM +-5% 1/16W YAGEO
R406 061G0402223 JY RST CHIPR 22KOHM +-5% 1/16W YAGEO
R704 061G0402223 JY RST CHIPR 22KOHM +-5% 1/16W YAGEO
R401 061G04023900FY RST CHIP 390R 1/16W 1%
R432 061G04023901FY RST CHIP 3.9KOHM 1% YAGEO
R433 061G04023901FY RST CHIP 3.9KOHM 1% YAGEO
R109 061G0402470 JY NO-SUGGEST RST CHIPR 47 OHM 5% 1/16W YAG
R114 061G0402470 JY NO-SUGGEST RST CHIPR 47 OHM 5% 1/16W YAG
R117 061G0402470 JY NO-SUGGEST RST CHIPR 47 OHM 5% 1/16W YAG
R110 061G0402471 JY RST CHIPR 470OHM +-5% 1/16W YAGEO
R124 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO
R125 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO
R137 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO
R138 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO
R303 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO
R139 061G0402682 JY RST CHIPR 6.8KOHM +-5% 1/16W YAGEO
R116 061G0402750 JY NO-SUGGEST RST CHIPR 75OHM +-5% 1/16W YA
R112 061G0402750 JY NO-SUGGEST RST CHIPR 75OHM +-5% 1/16W YA
69
R108 061G0402750 JY NO-SUGGEST RST CHIPR 75OHM +-5% 1/16W YA
R102 061G0603000 JY NO-SUGGEST RST CHIPR MAX0R05 1/10W YAGEO
R403 061G0603000 JY NO-SUGGEST RST CHIPR MAX0R05 1/10W YAGEO
R405 061G0603000 JY NO-SUGGEST RST CHIPR MAX0R05 1/10W YAGEO
R707 061G0603000 JY NO-SUGGEST RST CHIPR MAX0R05 1/10W YAGEO
R301 061G1206221 JF RST CHIPR 220 OHM +-5% 1/4W FENGHUA
R302 061G1206221 JF RST CHIPR 220 OHM +-5% 1/4W FENGHUA
C103 065G040222031J Y CAP CHIP 0402 22P 50V NPO +/-5%
C104 065G040222031J Y CAP CHIP 0402 22P 50V NPO +/-5%
C401 065G040222417Z Y NO-SUGGEST 0402 220NF 16V Y5V
C421 065G040247031J Y CAP CHIP 0402 47PF 50V NPO +/-5%
C420 065G040247031J Y CAP CHIP 0402 47PF 50V NPO +/-5%
C105 065G040250931J Y NO-SUGGEST 0402 5PF 50V NPO
C109 065G040250931J Y NO-SUGGEST 0402 5PF 50V NPO
C113 065G040250931J Y NO-SUGGEST 0402 5PF 50V NPO
C305 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R
FB301 071G 56K121 CHIP BEAD
FB408 071G 56K121 CHIP BEAD
FB401 071G 56V301 B CHIP BEAD 0805 300OHM BULLWILL
FB402 071G 56V301 B CHIP BEAD 0805 300OHM BULLWILL
FB404 071G 56V301 B CHIP BEAD 0805 300OHM BULLWILL
FB103 071G 59K190 B 19 OHM BEAD
FB102 071G 59K190 B 19 OHM BEAD
FB101 071G 59K190 B 19 OHM BEAD
ZD101 093G 39GA01 T RLZ5.6B
D701 093G3004 3 SM340A
D703 093G3004 3 SM340A
D704 093G3004 3 SM340A
D707 093G3004 3 SM340A
D708 093G3004 3 SM340A
U401 056G 562299 IC TSUMU58NWHL-LF-1 PQFP-100
U705 056G 563215 IC DC/DC MP1584EN SOIC8E
U101 056G1133531 EEPROM FM24C02A-SO-T-G 2K SOP-8
U102 056G1133531 EEPROM FM24C02A-SO-T-G 2K SOP-8
U101 056G1133918 NO-SUGGEST AT24C02BN-SH-T 2KB SO-8
U102 056G1133918 NO-SUGGEST AT24C02BN-SH-T 2KB SO-8
R134 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R132 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R131 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R130 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R129 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R128 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R127 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R126 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R115 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R111 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R105 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA
R706 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R437 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R436 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R417 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R416 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R415 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R409 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R119 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R118 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R113 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
70
R101 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R428 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R428 061G0402101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/16W
R104 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R103 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R308 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R407 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R412 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R438 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R439 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R702 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R703 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R705 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R305 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R136 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R135 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R133 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R123 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R120 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R421 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R306 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO
R712 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO
R726 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO
R714 061G04021301FT RST 0402 1.3K 1% 1/16W TZAI YUAN
R714 061G04021301FY RST CHIPR 1K3 +-1% 1/16W YAGEO
R727 061G0402184 JY RST CHIP 180K 1/16W 5% YAGEO
R711 061G0402333 JF RST CHIP 33K 1/16W 5% FENGHUA
R711 061G0402333 JY RST CHIPR 33KOHM £«-5£¥ 1/16W YAGEO
R124 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R402 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R404 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R419 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R420 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R303 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R138 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R137 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R125 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R402 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO
R404 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO
R419 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO
R420 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO
R713 061G04026801FY RST CHIP 6K8 1/16W 1%
R707 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R405 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R403 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R102 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
FB703 061G0603000 JY NO-SUGGEST RST CHIPR MAX0R05 1/10W YAGEO
FB405 061G0603000 JY NO-SUGGEST RST CHIPR MAX0R05 1/10W YAGEO
FB406 061G0603000 JY NO-SUGGEST RST CHIPR MAX0R05 1/10W YAGEO
C107 065G040210232K 3 CAP CHIP 0402 1N 50V X7R +/-10%
C118 065G040210232K 3 CAP CHIP 0402 1N 50V X7R +/-10%
C119 065G040210232K 3 CAP CHIP 0402 1N 50V X7R +/-10%
C120 065G040210232K 3 CAP CHIP 0402 1N 50V X7R +/-10%
C121 065G040210232K 3 CAP CHIP 0402 1N 50V X7R +/-10%
C121 065G040210232K A CAP 0402 1NF K 50V X7R
C120 065G040210232K A CAP 0402 1NF K 50V X7R
C119 065G040210232K A CAP 0402 1NF K 50V X7R
71
C118 065G040210232K A CAP 0402 1NF K 50V X7R
C107 065G040210232K A CAP 0402 1NF K 50V X7R
C710 065G040210232K A CAP 0402 1NF K 50V X7R
C714 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%
C115 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C717 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C709 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C708 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C706 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C705 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C702 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C432 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C413 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C414 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C415 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C416 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C417 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C124 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C721 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C412 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C411 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C410 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C409 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C408 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C407 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C406 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C405 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C404 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C403 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C304 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C301 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C422 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C431 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10%
C708 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C709 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C717 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C115 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C124 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C301 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C304 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C403 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C404 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C405 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C721 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C416 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C415 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C706 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C412 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C411 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C410 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C409 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C408 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C407 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C406 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C417 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C422 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C431 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
72
C432 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C702 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C705 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C414 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C413 065G040210412K M CAP 0402 0.1UF 10% 16V X7R
C413 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C412 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C411 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C410 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C409 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C408 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C407 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C406 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C405 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C404 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C403 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C304 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C301 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C414 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C721 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C717 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C709 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C708 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C706 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C705 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C702 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C432 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C431 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C422 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C417 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C416 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C415 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C124 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C115 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10%
C712 065G040210427Z T NO-SUGGEST 0402 0.1UF 25V Y5V
C713 065G040210427Z T NO-SUGGEST 0402 0.1UF 25V Y5V
C719 065G040210427Z T NO-SUGGEST 0402 0.1UF 25V Y5V
C722 065G040215131J Y CHIP 150PF 50V NPO YAGEO
C116 065G040222415K A NO-SUGGEST 0402 0.22UF K 16V X5R
C117 065G040222415K A NO-SUGGEST 0402 0.22UF K 16V X5R
C303 065G040222415K A NO-SUGGEST 0402 0.22UF K 16V X5R
C116 065G040222415K T CAP CHIP 0402 220NF K 16V X5R
C117 065G040222415K T CAP CHIP 0402 220NF K 16V X5R
C303 065G040222415K T CAP CHIP 0402 220NF K 16V X5R
C102 065G040247312K A 8.31HIP 0402 47NF K 16V X7R
C106 065G040247312K A 8.31HIP 0402 47NF K 16V X7R
C108 065G040247312K A 8.31HIP 0402 47NF K 16V X7R
C110 065G040247312K A 8.31HIP 0402 47NF K 16V X7R
C111 065G040247312K A 8.31HIP 0402 47NF K 16V X7R
C114 065G040247312K A 8.31HIP 0402 47NF K 16V X7R
C114 065G040247312K T CAP 0402 47NF 10% 16V X7R
C111 065G040247312K T CAP 0402 47NF 10% 16V X7R
C110 065G040247312K T CAP 0402 47NF 10% 16V X7R
C108 065G040247312K T CAP 0402 47NF 10% 16V X7R
C106 065G040247312K T CAP 0402 47NF 10% 16V X7R
C102 065G040247312K T CAP 0402 47NF 10% 16V X7R
C711 065G060310232K Y CAP CHIP 0603 1N 50V X7R +/-10%
73
C715 065G060310232K Y CAP CHIP 0603 1N 50V X7R +/-10%
C402 065G0805106A7Z T NO-SUGGEST 0805 10UF Z 10V Y5V
C419 065G0805106A7Z T NO-SUGGEST 0805 10UF Z 10V Y5V
C723 065G120610625K T CAP CHIP 1206 10UF K 25V X5R
C720 065G120610625K T CAP CHIP 1206 10UF K 25V X5R
C720 065G120610625K Y NO-SUGGEST CAP CHIP 1206 10UF K 25V X5R
C723 065G120610625K Y NO-SUGGEST CAP CHIP 1206 10UF K 25V X5R
C707 065G120622615K M CAP CHIP 1206 22UF K 16V X5R
C704 065G120622615K M CAP CHIP 1206 22UF K 16V X5R
C302 065G120622615K M CAP CHIP 1206 22UF K 16V X5R
C707 065G120622615K T CAP CHIP 1206 22UF K 16V X5R
C704 065G120622615K T CAP CHIP 1206 22UF K 16V X5R
C302 065G120622615K T CAP CHIP 1206 22UF K 16V X5R
FB104 071G 59G301 CHIP BEAD 300OHM
FB105 071G 59G301 CHIP BEAD 300OHM
FB106 071G 59G301 CHIP BEAD 300OHM
L701 073G253S521 H SMD CHOKE 22UH 20% 3.3A HF
D102 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC
D101 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC
D101 093G 64 42 PP BAV70 SOT-23
D102 093G 64 42 PP BAV70 SOT-23
CN301 311GW125A30ACH WAFER 1.25MM 30P
E715 715G3598M01000004L MAIN PCB FR-4 135X50X1.6MM DS
E715 715G3598M01000004W MAIN PCB FR-4 135X50X1.6MM DS 2nd source
KEPC9QKL KEY BOARD G3646-K01-X-X-1-100428
Q52G 3100 DOUBLE FACE TAPE
CN002 033G8032 3F S HR CONNECTOR
CN001 033G8032 6F S HR CONNECTOR
U001 056G 669 1 IC CG7216AM QFN-16(COL)
Q002 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q001 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
R006 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R007 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R008 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R009 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R010 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R010 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R009 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R008 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R007 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R006 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R011 061G0603152 JY NO-SUGGEST RST CHIPR 1.5KOHM £«-5£¥ 1/1
R012 061G0603472 JY NO-SUGGEST RST CHIPR 4.7KOHM £«-5£¥ 1/1
R013 061G0603472 JY NO-SUGGEST RST CHIPR 4.7KOHM £«-5£¥ 1/1
R005 061G0603561 JF RST CHIP 560R 1/10W 5% FENGHUA
R004 061G0603561 JF RST CHIP 560R 1/10W 5% FENGHUA
R003 061G0603561 JF RST CHIP 560R 1/10W 5% FENGHUA
R002 061G0603561 JF RST CHIP 560R 1/10W 5% FENGHUA
R001 061G0603561 JF RST CHIP 560R 1/10W 5% FENGHUA
R001 061G0603561 JY RST CHIP 560R 1/10W 5% YAGEO
R002 061G0603561 JY RST CHIP 560R 1/10W 5% YAGEO
R003 061G0603561 JY RST CHIP 560R 1/10W 5% YAGEO
R004 061G0603561 JY RST CHIP 560R 1/10W 5% YAGEO
R005 061G0603561 JY RST CHIP 560R 1/10W 5% YAGEO
C001 065G060310231J M NO-SUGGEST 0603 1000PF J 50V NPO
C005 065G060310412K Y CAP CHIP 0603 100N 16V X7R +/-10%
C003 065G060310412K Y CAP CHIP 0603 100N 16V X7R +/-10%
74
C004 065G060310412K Y CAP CHIP 0603 100N 16V X7R +/-10%
C002 065G060310605M T CAP 0603 10UF 20% 6.3V X5R
LED004 081G 14 33 EL LED 23-21B/B3C-AL1M2B16Y/2A
LED005 081G 14 33 EL LED 23-21B/B3C-AL1M2B16Y/2A
LED003 081G 14 33 EL LED 23-21B/B3C-AL1M2B16Y/2A
LED002 081G 14 33 EL LED 23-21B/B3C-AL1M2B16Y/2A
LED001 081G15BY 2 EL LED 12-22/BHS2C-C30/2C
E715 715G3646K01000004S KEY PCB FR4 50X29X1.6MM DS 2nd source
E715 715G3646K01000004W KEY PCB FR4 50X29X1.6MM DS
LEPC9QQL LED BOARD G3757-T0D-000-0040-1-090925
CN031 033G8032 3F HR CONNECTOR 3P 1.25
Q031 057G 761 18 T TEST ONLY SST2222A 0.4 60 SMT3
R046 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R031 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R032 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R033 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R034 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R035 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R036 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R037 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R038 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R039 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R040 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R041 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R042 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R043 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R044 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
R045 061G0603221 JY NO-SUGGEST RST CHIP 220 OHM 1/10W 5%
C031 065G060310412K Y CAP CHIP 0603 100N 16V X7R +/-10%
LED031 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED032 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED033 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED034 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED035 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED036 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED037 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED038 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED039 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED040 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED041 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED042 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED043 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED044 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
LED045 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T
715G3757T01000004L OTHER PCB FR-4 320X9.5X1.0MM
R045 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R044 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R043 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R042 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R041 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R040 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R039 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R038 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R037 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R036 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R035 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R034 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
75
R033 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R032 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R031 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
LNPCAE382AQDB CONVERTER BOARD G3823-P03-000-X-15-100609
040G 45762412B CBPC LABEL
C802 067G 4151017KV EC 100UF 50V ED 8*12
C802 067G 4151017LV EC 100UF 20% 50V RZY 8*11.5
C804 067G 415479 9K EC 4.7UF 20% 100V ED 8*12
C804 067G 415479 9L EC 4.7UF 20% 100V ED 8*12
CN803 033G801910Y H FPC CONN. 0.5MM SMT 10P
CN802 033G801910Y H FPC CONN. 0.5MM SMT 10P
CN801 033G803210F HR CONNECTOR 10P 1.25
IC802 056G 379185 AC/DC CONVERTER TA9690GN-A1-0-TR SOP-24
IC801 056G 379185 AC/DC CONVERTER TA9690GN-A1-0-TR SOP-24
Q801 057G 763 92 FET P8008HV 4A/80V SOP-8
R811 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R823 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN
R811 061G0603000 JY NO-SUGGEST RST CHIPR MAX0R05 1/10W YAGEO
R823 061G0603000 JY NO-SUGGEST RST CHIPR MAX0R05 1/10W YAGEO
R814 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA
R814 061G0603100 JT RST CHIP 10R 1/10W 5% TZAI YUAN
R812 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R820 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R820 061G0603101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/10W
R812 061G0603101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/10W
R810 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN
R803 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN
R810 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R803 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R821 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R817 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R813 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R806 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R821 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R817 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R806 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R813 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R809 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN
R819 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN
R809 061G0603104 JY RST CHIPR 100KOHM 1/10W YAGEO
R819 061G0603104 JY RST CHIPR 100KOHM 1/10W YAGEO
R836 061G0603109 JT RST CHIP 1R 1/10W 5% TZAI YUAN
R835 061G0603109 JT RST CHIP 1R 1/10W 5% TZAI YUAN
R834 061G0603109 JT RST CHIP 1R 1/10W 5% TZAI YUAN
R833 061G0603109 JT RST CHIP 1R 1/10W 5% TZAI YUAN
R832 061G0603109 JT RST CHIP 1R 1/10W 5% TZAI YUAN
R831 061G0603109 JT RST CHIP 1R 1/10W 5% TZAI YUAN
R830 061G0603109 JT RST CHIP 1R 1/10W 5% TZAI YUAN
R829 061G0603109 JT RST CHIP 1R 1/10W 5% TZAI YUAN
R828 061G0603109 JT RST CHIP 1R 1/10W 5% TZAI YUAN
R827 061G0603109 JT RST CHIP 1R 1/10W 5% TZAI YUAN
R826 061G0603109 JT RST CHIP 1R 1/10W 5% TZAI YUAN
R840 061G0603109 JT RST CHIP 1R 1/10W 5% TZAI YUAN
R841 061G0603109 JT RST CHIP 1R 1/10W 5% TZAI YUAN
R839 061G0603109 JT RST CHIP 1R 1/10W 5% TZAI YUAN
R837 061G0603109 JT RST CHIP 1R 1/10W 5% TZAI YUAN
R838 061G0603109 JT RST CHIP 1R 1/10W 5% TZAI YUAN
76
R826 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R827 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R828 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R829 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R830 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R831 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R832 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R833 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R834 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R835 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R836 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R837 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R838 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R839 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R840 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R841 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA
R805 061G0603124 JT RST CHIP 120K 1/10W 5% TZAI YUAN
R816 061G0603124 JT RST CHIP 120K 1/10W 5% TZAI YUAN
R805 061G0603124 JY NO-SUGGEST RST CHIPR 120KOHM 1/10W YAGEO
R816 061G0603124 JY NO-SUGGEST RST CHIPR 120KOHM 1/10W YAGEO
R824 061G06034302FF RST CHIPR 43KOHM +-1% 1/10W FENGHUA
R824 061G06034302FY RST CHIP 43K 1/10W 1%
R843 061G06035602FF RST CHIPR 56KOHM +-1% 1/10W FENGHUA
R815 061G06035602FF RST CHIPR 56KOHM +-1% 1/10W FENGHUA
R843 061G06035602FY RST CHIPR 56KOHM +-1% 1/10W YAGEO
R815 061G06035602FY RST CHIPR 56KOHM +-1% 1/10W YAGEO
R842 061G0603563 JF RST CHIPR 56KOHM 5% 1/10W FENGHUA
R842 061G0603563 JT RST CHIPR 56KOHM +-5% 1/10W TZAI YUAN
R804 061G0603563 JT RST CHIPR 56KOHM +-5% 1/10W TZAI YUAN
R804 061G0603563 JY RST CHIPR 56KOHM +-5% 1/10W YAGEO
R822 061G08051004FT RST CHIP R 1 MOHM +-1% 1/8W
R825 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R825 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R802 061G1206308 JF RST CHIPR 0.3 OHM +-5% 1/4W FENGHUA
R801 061G1206308 JF RST CHIPR 0.3 OHM +-5% 1/4W FENGHUA
C808 065G060347412K 3 CAP CHIP 0603 0.47UF K 16V X7R
C805 065G060347412K 3 CAP CHIP 0603 0.47UF K 16V X7R
C808 065G060347412K Y CAP CHIP 0.47UF 16V +/-10% X7R
C805 065G060347412K Y CAP CHIP 0.47UF 16V +/-10% X7R
C801 065G080510432K 3 CAP CHIP 0805 100N 50V X7R +/-10%
C801 065G080510432K 3 CAP CHIP 0805 100N 50V X7R +/-10%
C803 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C803 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C807 065G080522512K A NO-SUGGEST 0805 2.2UF K 16V X7R
C809 065G080522512K A NO-SUGGEST 0805 2.2UF K 16V X7R
C807 065G080522512K T CAP CHIP 0805 2.2UF K 16V X7R
C809 065G080522512K T CAP CHIP 0805 2.2UF K 16V X7R
C806 065G080522522K Y CAP CHIP 0805 2U2 25V X7R +/-10%
C806 065G080522525K T CAP CHIP 0805 2.2UF K 25V X5R
L801 073G253S 80 H SMD CHOKE 22UH 2.16A SPI103LRR-220
L801 073G253S 80 DN SMD CHOKE 22UH 2.16A LZ.3A220.A1P HF
ZD801 093G 60S 31 T DIODE B360B 3A/60V SMB
E715 715G3823P04000004W CONVERTER PCB FR4 110X40X1.6MM DS 2nd source
R807 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA
R844 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA
R807 061G0603100 JT RST CHIP 10R 1/10W 5% TZAI YUAN
R844 061G0603100 JT RST CHIP 10R 1/10W 5% TZAI YUAN
77
C810 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C810 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
E715 715G3823P04000004L CONVERTER PCB FR4 110X40X1.6MM DS
CN802 311GF050B10ADH FFC CONN 0.5MM 10P 2nd source
CN803 311GF050B10ADH FFC CONN 0.5MM 10P 2nd source
LSPC9QQL LIGHT BOARD
CN711 033G8032 4F S HR CONNECTOR
U711 056G 665 62 IC ALS-PDIC17-79NB/TR8 FN-6
715G3637T01000004S OTHER PCB FR-4 18X14X1.0MM DS
Q01G6078 2 SCREW
Q12G6300 98 RUBBER
Q40G0003615A23 E2237FW POP LABEL
Q40G0003615B18 37 STICKER LABEL
Q40G000362420A WIN7+EPEAT SILVER+EPA 54X15
Q41G2009615 9C WARRANTY CARD
Q41G78S161517A E2237FW QSG
Q44GD045101 EPS
Q44GD045201 EPS
Q44GD045615 1A 24 LCD CARTON
Q45G 88609198 3002BAG
Q70G24C1615 5B CD MANUAL
Q36G 600517 DUSTER CLOTH
Q45G2010M0201A P.E. BAG (INSTR. BOOK)
040G 58162435A P/N LABEL FOR MANUAL PE BAG
040G 581689 4A BARCODE LABEL FOR 1
Q40G 24E61537A RATING LABEL
Q40G000161514A CARTON LABEL
Q40G000162439A LABEL -CEL G1 LABEL 1.05/0.5
78
E2037F TAAGSL2YPXA1HZ Converter 板 LNPCAA431GQDU
点位 组件 对象描述 备注
C813 067G215C1016KV EC 100UF 20% 35V EM 8*9
C807A 067G415Z479 9K EC 4.7UF 20% 100V 8*12
H40G 45762429A LABEL
U801 056G 700 5 IC LED DRIVER MP3389EF TSSOP28
Q806 057G 763947 MOSFET APM8005KCTRG 6A 80V SOP-8
R806 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R808 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R806 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R808 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R822 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R822 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R802 061G06032003FF RST CHIPR 200KOHM 1/10W FENGHUA
R802 061G06032003FY RST CHIPR 200KOHM 1/10W YAGEO
R807 061G0603203 JF RST CHIPR 20K OHM +-5% 1/10W FENGHUA
R810 061G0603203 JF RST CHIPR 20K OHM +-5% 1/10W FENGHUA
R807 061G0603203 JT RST 0603 20K 5% 1/10W
R810 061G0603203 JT RST 0603 20K 5% 1/10W
R819 061G06035602FF RST CHIPR 56KOHM +-1% 1/10W FENGHUA
R819 061G06035602FY RST CHIPR 56KOHM +-1% 1/10W YAGEO
R809 061G06036801FF RST CHIPR 6.8KOHM +-1% 1/10W FENGHUA
R827 061G0805109 JT RST CHIP 1R 1/8W 5% TZAI YUAN
R828 061G0805109 JT RST CHIP 1R 1/8W 5% TZAI YUAN
R805 061G0805304 JT RST CHIP 300K 1/8W 5% TZAI YUAN
R805 061G0805304 JY RST CHIPR 300K +-5% 1/8W YAGEO
R826 061G0805339 JT RST CHIP 3.3R 1/8W 5% TZAI YUAN
R826 061G0805339 JY RST CHIP 3.3R 1/8W 5% YAGEO
R818 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R818 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
C806 065G060310131J M CAP CHIP 0603 100PF J 50V NPO
C802 065G060368332K Y CHIP 0603 68NF 50V X7R
C804 065G080547432K A CAP CHIP 0805 0.47UF K 50V X7R
C803 065G080547432K A CAP CHIP 0805 0.47UF K 50V X7R
C801 065G080547432K A CAP CHIP 0805 0.47UF K 50V X7R
L801 073G253S 59 DN SMD CHOKE 22UH 20% 0.032R LK.29220.A2P 4
D801 093G 60S932 T SCHOTTKY SK310B R4 3A 100V DO-214AA
CN801 033G803210F HR CONNECTOR 10P 1.25
C809 065G080510432K 3 CAP CHIP 0805 100N 50V X7R +/-10%
R827 061G0805109 JY RST CHIP 1R 1/8W 5% YAGEO
R828 061G0805109 JY RST CHIP 1R 1/8W 5% YAGEO
R811 061G1206308 JF RST CHIPR 0.3 OHM +-5% 1/4W FENGHUA
D801 093G 60S907 T SCHOTTKY B3100B 3A 100V SMB
R812 061G12061507FT RST CHIPR 0.15 OHM +-1% 1/4W
R809 061G06036801FI RST 0603 6.8K 1% 1/10W
R830 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R830 061G0805000 JT RST 0805 0.05R MAX 1/8W
CN803 311GF100C06ADH FFC CONN 1.0MM 6P
R803 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R804 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA
R804 061G0603104 JY RST CHIPR 100KOHM 1/10W YAGEO
R803 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO
R832 061G0805000 JT RST 0805 0.05R MAX 1/8W
R832 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
79
E715 715G4082P03001004S CONVERTER BOARD PCB
Q806 057G 763 92 FET P8008HV 4A/80V SOP-8
Q806 057G 763 6 AO4828 SOIC-8 BY AOS
E715 715G4082P03001004I CONVERTER BOARD PCB 2nd source
R811 061G1206308 JI RST CHIPR 0.3 OHM +-5% 1/4W 1206
R818 061G1206000 JI RST 1206 MAX0R05 5% 1/4W
R822 061G0603103 JI RST 0603 10K 5% 1/10W
R803 061G0603103 JI RST 0603 10K 5% 1/10W
80
E2437F TKAAA82YPXA1HZ Converter 板 LNPCAE381EQBB
点位 组件 对象描述 备注
C809 067G315M1016KV EC 100UF 20% 35V 8*7
C807 067G415Z479 9K EC 4.7UF 20% 100V 8*12
H40G 45762429A LABEL
U801 056G 700 5 IC LED DRIVER MP3389EF TSSOP28
Q806 057G 763525 FET APM9948K 4.7A/60V SO-8 ANPEC
R806 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R808 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R806 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R808 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R803 061G06031202FT RST CHIP 12K 1/10W 1%
R803 061G06031202FY RST CHIP 12K 1/10W 1%
R819 061G06032002FT RST CHIP 20K 1/10W 1%
R819 061G06032002FY RST CHIP 20K 1/10W 1%
R807 061G0603203 JF RST CHIPR 20K OHM +-5% 1/10W FENGHUA
R810 061G0603203 JF RST CHIPR 20K OHM +-5% 1/10W FENGHUA
R807 061G0603203 JT RST 0603 20K 5% 1/10W
R810 061G0603203 JT RST 0603 20K 5% 1/10W
R809 061G06038201FT RST CHIP 8K2 1/10W 1%
R809 061G06038201FY RST CHIP 8K2 1/10W 1%
R827 061G0805109 JT RST CHIP 1R 1/8W 5% TZAI YUAN
R828 061G0805109 JT RST CHIP 1R 1/8W 5% TZAI YUAN
R828 061G0805109 JY RST CHIP 1R 1/8W 5% YAGEO
R827 061G0805109 JY RST CHIP 1R 1/8W 5% YAGEO
R805 061G0805304 JF RST CHIPR 300KOHM +-5% 1/8W FENGHUA
R805 061G0805304 JY RST CHIPR 300K +-5% 1/8W YAGEO
R818 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R818 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
R801 061G12061009FF RST CHIP 10 OHM 1% 1/4W FENGHUA
R801 061G12061009FT RST CHIP R 10OHM 1/4W +/-1%
C806 065G060310131J M CAP CHIP 0603 100PF J 50V NPO
C802 065G060368332K Y CHIP 0603 68NF 50V X7R
C805 065G080522141J Y CAP CHIP 0805 220P 100V NP0 +/-5%
C801 065G080547432K A CAP CHIP 0805 0.47UF K 50V X7R
C803 065G080547432K A CAP CHIP 0805 0.47UF K 50V X7R
C804 065G080547432K A CAP CHIP 0805 0.47UF K 50V X7R
D801 093G 60S 31 T SCHOTTKY B360B 3A 60V SMB
R812 061G12060004JF RST CHIPR MAX0R05 4A 1/4W FENGHUA
R812 061G12060004JY RST CHIPR MAX0R05 4A 1/4W YAGEO
L801 073G253S 59 X SMD CHOKE 22UH 4A 3SMSL12575-220M HF
R804 061G06031003FF RST CHIPR 100KOHM +-1% 1/10W FENGHUA
R804 061G06031003FY RST CHIP 100K 1/10W 1%
CN801 033G803210F HR HF CONNECTOR 1.25MM 10P
R829 061G0805109 JY RST CHIP 1R 1/8W 5% YAGEO
R829 061G0805109 JF RST CHIPR 1 OHM +- 5% 1/8W FENGHUA
CN804 033G8032 6F HR CONNECTOR 6P 1.25
CN804 033G8032 6F X WAFER 6P 1.25MM
R835 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R835 061G0805000 JT RST 0805 0.05R MAX 1/8W
R837 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R837 061G0805000 JT RST 0805 0.05R MAX 1/8W
R838 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R838 061G0805000 JT RST 0805 0.05R MAX 1/8W
81
R836 061G0805109 JT RST CHIP 1R 1/8W 5% TZAI YUAN
R836 061G0805109 JF RST CHIPR 1 OHM +- 5% 1/8W FENGHUA
Q806 057G 763 6 AO4828 SOIC-8 BY AOS
D801 093G 60S926 T DIODE SR36 DO-214AA
R829 061G0805109 JT RST CHIP 1R 1/8W 5% TZAI YUAN
E715 715G4128P04000004S CONVERTER BOARD PCB
R822 061G06031002FT RST CHIP 10K 1/10W 1%
R822 061G06031002FY RST CHIPR 10KOHM +-1% 1/10W YAGEO
R826 061G0805339 JF RST CHIP 3.3R 1/8W 5% FENGHUA
R826 061G0805339 JY RST CHIP 3.3R 1/8W 5% YAGEO
R802 061G06032203FY RST CHIPR 220KOHM +-1% 1/10W YAGEO
R802 061G06032203FF RST CHIPR 220KOHM +-1% 1/10W FENGHUA
CN801 033G803210F X WAFER 10P 1.25MM S1315-10RVB-S03-K
CN801 033G803210F HR CONNECTOR 10P 1.25
R811 061G12061507FT RST CHIPR 0.15 OHM +-1% 1/4W
R811 061G12061507FF RST 1206 0.15R 1% 1/4W
R815 061G12061507FT RST CHIPR 0.15 OHM +-1% 1/4W
R815 061G12061507FF RST 1206 0.15R 1% 1/4W
R818 061G1206000 JI RST 1206 MAX0R05 5% 1/4W
E715 715G4128P04000004M CONVERTER BOARD PCB 2nd source
R813 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO
R813 061G0603000 JI RST 0603 0.05R MAX 1/10W TA-I
82
Loading...
