Table of Contents…………………..…………………..…...1
Revision List.…...................................................……......2
Important Safety Notice.….….............................……......3
1.Monitor Specification..............................………............4
2.LCD Monitor Description……….…………………….......5
3.Operation Instruction.…………...................……...........6
3.1. Connecting the Monitor...............................…...........6
3.2. Control the Display....................................................6
3.3.Setting the USB Monitor...........................................7
3.4.new technology..........................................7
4 Panel Specification……........ .......……………….......8
4.1.General Features.............. .………..................8
4.2.General Specifications……..........................8
4.3.Electrical Characteristics..………………………..8
4.4.Optical Characteristics..………………………..11
5.Block Diagram…...................................................12
5.1.Main Board…..….............................................17
5.2.USB Board…..….............................................17
6.PCB Layout..………..............................................18
6.1.Main Board………..…........................................18
6.2.USB Board….…..............................................20
7.Maintainability………............................................21
7.1.Equipments and Tools Requirement…...............21
7.2.Trouble Shooting…..………...............................22
8.Firmware and DDC Instruction……………….….26
9.Monitor Exploded View……................................29
10.BOM List…………..……………………….............30
CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING
Table of Contents
Description Page Description Page
SAFETY NOTICE
ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE
CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING
ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.
1
Revision List
Version
Release Date
Revision History
TPV Model Name
A00
Oct.-31-2011
Initial release
T6BADL2KBXA1NNE
T6BADL2EBXA1NNE
T6BADL2QBXE6NNE
T6BADL2CBXA1NNE
A01
Mar.-13-2012
Add new models
T6CADL2CBXA2NNE
T6CADL2EBXA2NNE
A02
Nov.-13-2012
Add new models
T6CADL2FBXA1NNE
T6CADL2FBXA3NNE
T6CSDL2MBXA1NNE
T6BSDL2BBXACNNE
T6CSDL2KBXE6NNE
T6CSDL2FBXA1NNE
2
Important Safety Notice
Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service
procedures recommended by AOC and described in this service manual are effective methods of performing service
operations. Some of these service operations require the use of tools specially designed for the purpose. The
special tools should be used when and as recommended.
It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in
order to minimize the risk of personal injury to service personnel. The possibility exists that improper service
methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE
NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in
which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not
recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.
Hereafter throughout this manual, AOC Company will be referred to as AOC.
WARNING
Use of substitute replacement parts, which do not have the same, specified safety characteristics may create shock,
fire, or other hazards.
Under no circumstances should the original design be modified or altered without written permission from AOC.
AOC assumes no liability, express or implied, arising out of any unauthorized modification of design.
Servicer assumes all liability.
FOR PRODUCTS CONTAINING LASER:
DANGER-Invisible laser radiation when open AVOID DIRECT EXPOSURE TO BEAM.
CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
CAUTION -The use of optical instruments with this product will increase eye hazard.
TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S
REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF
THIS SERVICE MANUAL.
Take care during handling the LCD module with backlight unit
-Must mount the module using mounting holes arranged in four corners.
-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.
-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to
the panel.
-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).
-Make certain that treatment person’s body is grounded through wristband.
-Do not leave the module in high temperature and in areas of high humidity for a long time.
-Avoid contact with water as it may a short circuit within the module.
-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may
damage the panel.)
3
1.Monitor Specifications
4
2.LCD Monitor Description
Monitor Block Diagram
Panel
Main Board
PC,5V
USB Board
12V
The LCD monitor will contain a main board, a USB board，the PC will provide power.
5
3. Operating Instructions
3.1 Connecting the Monitor
Cable Connections In Rear of Monitor to Connect PC/Laptop:
Important!! Follow the software installation described on page 11 to 15 before connecting the USB monitor to your
Laptop/PC.
.
1 Connecting the LCD monitor to your computer
To protect the equipment, always turn off the computer before connecting.
- Connect one end of the USB cable to the LCD monitor and the end of USB cable to the computer.
- Your computer should detect the USB Monitor automatically.
Follow the procedure described starting on page 16 to configure your USB Monitor. Note: Some computers may not
provide enough power to the LCD monitor from one USB port.
If so, connect the other USB connector on the Y end of the cable into another USB on your computer.
3.2 Control the Display
You can use the AOC USB LCD monitor in mirror mode or extended mode. Settings may vary depending on your
operating system.
For Microsoft® Windows® 7
Press the Windows® key ( ) + P to switch between different modes as shown below.
For Microsoft® Windows® XP and Microsoft® Windows Vista®
Right-click the “ ”icon in the system tray of your Windows ® desktop to configure the display settings
Disconnecting the LCD Monitor
1. For Microsoft® Windows® 7 only, you can turn the monitor OFF by pressing the Windows key ( ) + P, and then
selecting “Computer only”. For Microsoft® Windows vista® and Windows® XP, you can select OFF by right-Clicking
6
the “ ” icon in the system tray.
2. Remove the USB cable from the computer and monitor.
3.3 Setting the USB Monitor
Follow this procedure to configure the AOC Monitor
1. Open screen resolution
2. Set the display options. Refer to the table below for details on each option.
To control the behavior of an attached AOC USB monitor, it is also possible to use Windows Key ( ) + P to display
a menu (and cycle through it) to switch mode.
3.4 new technology
The AOC e1649Fwu monitor supports an auto-pivot function to keep the display upright as the monitor is rotated
between portrait and landscape position. The monitor has to be rotated slowly and over 75∘with the tilt angle within
30∘to activate the auto-pivot function. The default setting for auto-pivot is on. You need to disable the auto-pivot
function if you would like to manually rotate the display. If the auto-pivot is not functioned, rotate the display using
orientation menu, then set the auto-pivot to on again.
7
4. Panel Specification
4. 1 General Features
B156XW02 V6 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and
LED backlight system. The screen format is intended to support the 16:9 HD, 1366(H) x768(V) screen and 262k
colors (RGB 6-bits data driver) with LED backlight driving circuit. All input signals are LVDS interface compatible.
B156XW02 V6 is designed for a display unit of notebook style personal computer and
industrial machine.
4.2 General Specifications
4.3 Electrical Characteristics
Electrical characteristics
8
Note 1:Maximum Measurement Condition：Black Pattern at 3.3V driving voltage. (Pmax=V3.3 x Iblack)
Note 2:Measure Condition
Note 3 : Maximum Measurement Condition 2：Black Pattern at 3.3V driving voltage, frame rate@75Hz.
(Pmax=V3.3 x Iblack)
9
Note: LVDS Signal Waveform
LED array electrical characteristics
Note 1: Calculator value for reference PLED = VF (Normal Distribution) * IF (Normal Distribution) / Efficiency
Note 2: The LED life-time define as the estimated time to 50% degradation of initial luminous.
10
4.4 Optical Characteristics
Ta= 25°C
11

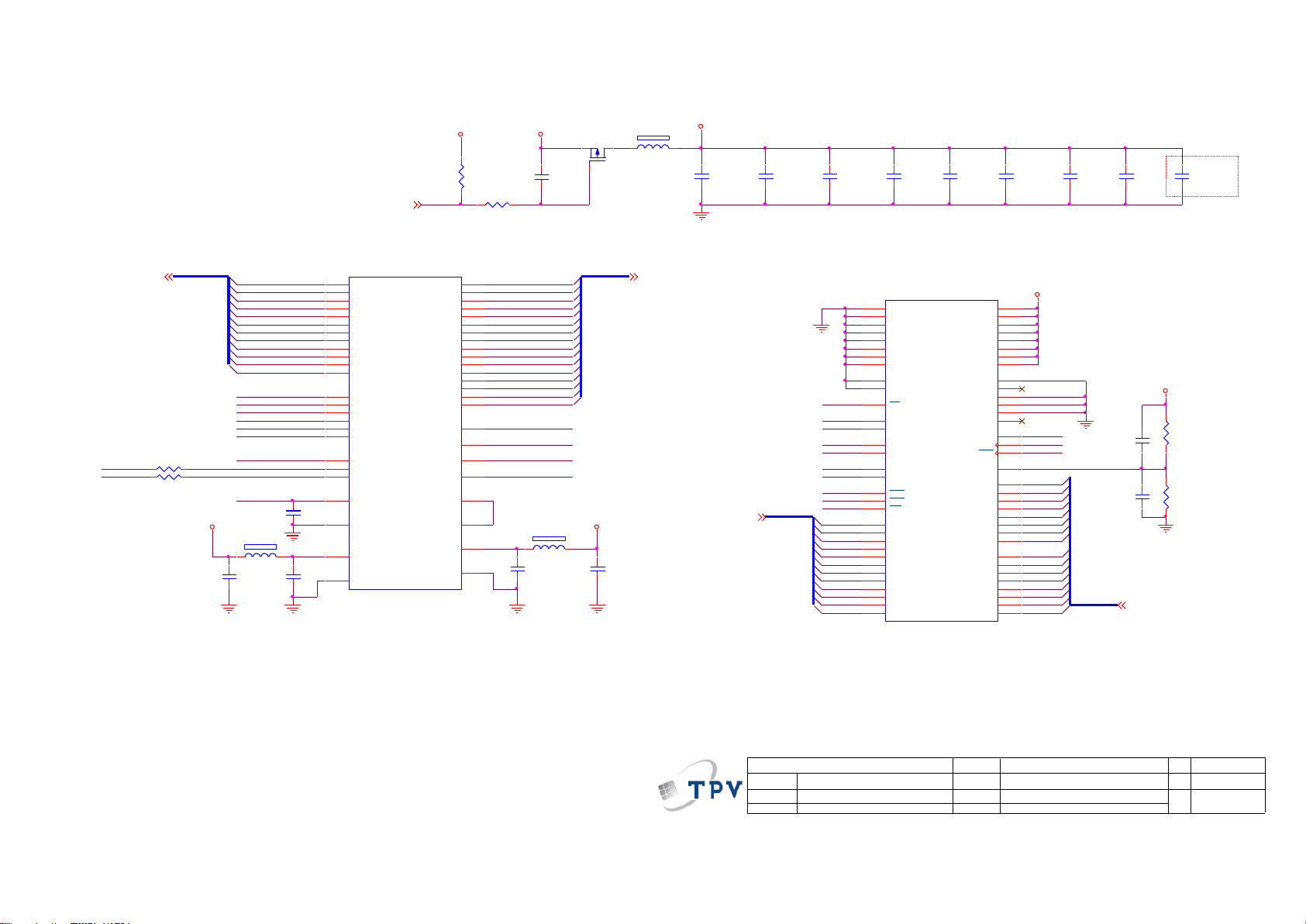

5. Schematic
OEM MODEL Size
Rev
Date
Sheet of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
A
USB power cordless
B
1 7Thursday, April 28, 2011
<称爹>
03. Power
G4548-T0B-000-0050-101230
G4548-T0B-000-0050-1-101230
U708
AT1528P11U
VCC
1
REF
2
GND
3
FB4EN
5
PGND
6
LX
7
VIN
8
C761
100N 16V
R406
15K 1%
R404 47K +-1% 1/16W
DGND
DGND
DGND
+3.3V
C467
100N 16V
R407
10 OHM 1/10W
U707
G9141T11U
IN
1
GND
2
SHDN3SET
4
OUT
5
+3.3V
DGND
C762
10uF 10V
R408 24K 1%
+2V6
R405
15K 1%
+3.3V
DGND
C756
10uF 10V
DGND
U702
G5126TB1U
LX
1
GND
2
FB
3
EN
4
OVP
5
IN
6
C755
100N 16V
R410
4.3K 1%
R402
75 OHM +-1% 1/16W
C753
100N 16V
R403
100OHM1/16W
C751
100N 16V
C759
100N 16V
DGND
DGND
DGND DGND
+12V
C703
10uF 10V
C752
10uF 10V
C750
100N 16V
C757
22UF 16V
GMT G5126TB1U Vout=0.2(1+R2/R1)=12, R402=75 ohm
C754
10uF 10V
C760
10uF 10V
L703
10uH
D701
SR24
1 2
U709
VI3VO
2
GND
1
4
4Q305
AO3401A
Vout=0.8(1+R2/R1)=3.3067
R752
15KOHM 1/16W
+1.2V
L701
2.2uH 17.3mOHM 8.2A
BCD AP3031KTR-G1 Vout=0.2(1+R2/R1)=12, R402=75 ohm
C758 NC/560pF 50V
VBUS0
VBUS0
C765
1UF 16V
BCD AP2126K-ADJTRG1 Vout=1.25(1+R2/R1)=2.6, R405=22K
GMT G914T11U Vout=1(1+R2/R1)=2.6, R405=15K
C704
22UF 16V
5.1 Main Board
715G4548M01000005I
12
OEM MODEL Size
Rev
Date
Sheet of
TPV MODEL
PCB NAME
称爹
T P V ( Top Vic tory Elect ronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹 A
USB power cordless
C
1 7Thursday, April 28, 2011
<称爹>

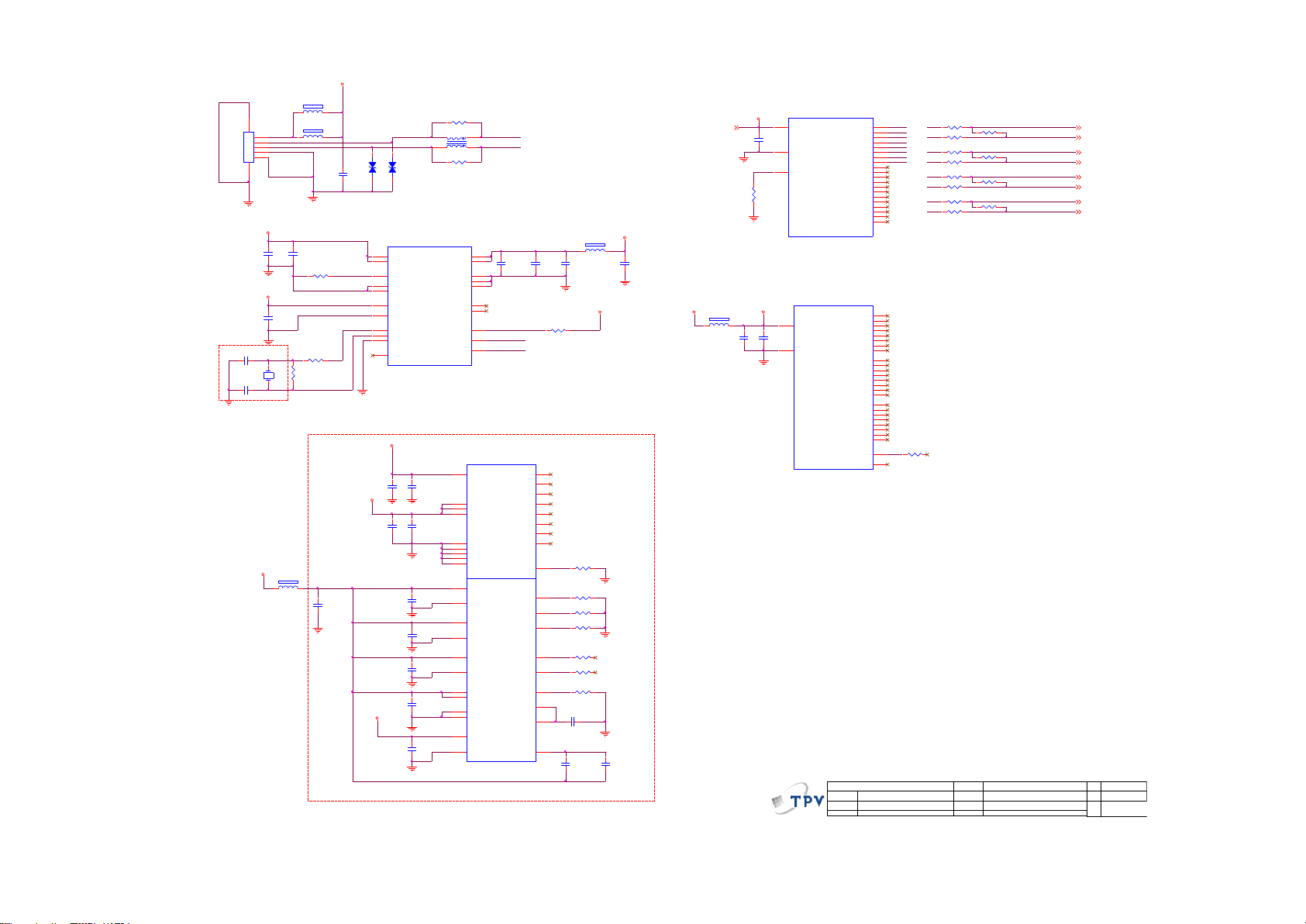

04.DL-195 DVI _USB
G4548-T0B-000-0050-101230
G4548-T0B-000-0050-1-101230
C414
100N 16V
C422
1UF 10V
R424
1M 1/16W
R415 NC
FB402
120 OHM
1 2
U401H
DL-125
FPI_DATA_7P
V17
FPI_DATA_0N
V10
FPI_DATA_0P
U10
FPI_DATA_1N
U11
FPI_DATA_1P
V11
FPI_DATA_2N
U12
FPI_DATA_2P
V12
FPI_CLK_0N
T13
FPI_CLK_0P
T12
FPI_DATA_3N
V13
FPI_DATA_3P
U13
FPI_DATA_4P
U14
FPI_DATA_5N
U15
FPI_DATA_5P
V15
FPI_DATA_6N
U16
FPI_DATA_4N
V14
FPI_DATA_6P
V16
FPI_CLK_1N
U18
FPI_CLK_1P
V18
FPI_DATA_7N
U17
FPI_PLL_AVDD33
B12
FPI_PLL_AVSS33
E10
FPI_XRES
T10
C404
100N 16V
C416
100N 16V
C402
100N 16V
C418
100N 16V
C424
100N 16V
U401B
DL-125
DVI_AVDD33
D6
DVI_DVDD 12
C5
DVI_DVDD 12
E6
DVI_DVDD 12
D5
DVI_DVSS
D4
DVI_DVSS
E5
DVI_VSS
C2
DVI_VSS
C3
DVI_VSS
C4
DVI_CLKN
B1
DVI_CLKP
C1
DVI_TX0N
B4
DVI_TX0P
A3
DVI_TX1N
B3
DVI_TXI1P
A2
DVI_TX2N
B2
DVI_TX2P
A1
DVI_REXT
A4
DAC_R
A7
DAC_G
A6
DAC_B
A5
DAC_REXT
A9
DAC_VREFI N
A10
DAC_VREFOU T
C9
DAC_COMP
A8
DAC_AVD33R
B9
VIDEO_HSY NC
G16
VIDEO_VSYN C
G17
DAC_AVS33R
B8
DAC_AVS33G
B7
DAC_AVS33B
B6
DAC_AVSS
B10
DAC_VSSUB
A11
DAC_DVSS
B5
DAC_AVD33G
C8
DAC_AVD33B
C7
DAC_AVDD
C10
DAC_VDWELL
B11
DAC_DVDD
D7
C406
100N 16V
R423
3KOHM 1% 1/16W
Route diff pair to 90ohms diff
U401C
DL-125
VIDEO_B0
R16
VIDEO_B1
R17
VIDEO_B2
P16
VIDEO_B3
R18
VIDEO_B4
N16
VIDEO_B5
T18
VIDEO_B6
M16
VIDEO_B7
N17
VIDEO_R4
H16
VIDEO_G0
P18
VIDEO_G1
L16
VIDEO_G2
N18
VIDEO_G3
K16
VIDEO_G4
M17
VIDEO_G5
J16
VIDEO_R3
J18
VIDEO_G6
M18
VIDEO_R0
J17
VIDEO_R1
L18
VIDEO_R2
K17
VIDEO_R5
K18
VIDEO_R6
H18
VIDEO_R7
H17
VIDEO_G7
L17
VIDEO_PLL_AVDD33
C12
VIDEO_PLL_AVSS33
E11
VIDEO_CLK
P17
VIDEO_BLANK_N
T17
C426
100N 16V
C420
100N 16V
C412
100N 16V
USB / XTAL
C419
100N 16V
U401E
DL-125
USB_VDD33C
V7
USB_VDD33C
T8
USB_VSS33C
V8
USB_VSS33C
U8
XTAL_OUT
A16
XTAL_IN
A17
XTAL_SEL
A15
USB_DP
U5
USB_DN
V5
USB_VBUS
T4
USB_VDD33T
T5
USB_VDD33T
V6
USB_VSS33T
U6
USB_VSS33T
T7
USB_VREF
U7
USB_ANALOG_TEST
U9
USB_VDD12
U4
USB_VSS12
V4
USB_VSS33T
T6
USB_XTAL_IN
T9
USB_XTAL_OUT
V9
Dip => SMD
C417
100N 16V
Type A => mini Type
NC
C401
1UF 10V
C423
1UF 10V
C413
100N 16V
R426 NC
C408
100N 16V
R417
3.48KOHM 1/10W
C421
1UF 10V
R414 NC
TEST-PAD
R418 10K+-5%1/16W
DAC_COMP
R416 475 OHM +-1% 1/10W
FB401
120 OHM
1 2
C403
100N 16V
FB403120 OHM
1 2
C409
100N 16V
C425
100N 16V
+3V3
+3V3_PLL
+3V3_PLL
DGND
+3V3
+1V2
+1V2
NC
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
+3V3
+3V3
DGND
Route diff pairs to 90ohms differential impedance
DGND
DGND
DGND
DGND
+1V2
DGND
+3V3
DGND
DGND
DGND
DGND
DGND
NC
USB_XTALIN
USB_REF
USB_DN
+3V3_PLL
VCLK
CN702
CONN
1
2
3
4
5
67
USB_XTALO
27pF => 18pF
CL=32pF => 20pF
R468 75OHM 1/16W
R469 75OHM 1/16W
R470 75OHM 1/16W
DGND
AVDD33
USB_VDD33T
R449 24.9 OHM 1% 1/ 16W
R450 24.9 OHM 1% 1/ 16W
R457
100OHM1/16W
R0+
R0-
R1-
R452 24.9 OHM 1% 1/ 16W
R458
100OHM1/16W
R1+
R451 24.9 OHM 1% 1/ 16W
R454 24.9 OHM 1% 1/ 16W
R2-
R459
100OHM1/16W
R2+
R453 24.9 OHM 1% 1/ 16W
RC-
R456 24.9 OHM 1% 1/ 16W
R460
100OHM1/16W
RC+
R455 24.9 OHM 1% 1/ 16W
R0-
R2+
R2RC-
R0+
R1R1+
RC+
FB702
120 OHM
1 2
FPI_XRES
C407
4.7UF 10V
USB_DP
USB_VBUS
VV
X401
12MHz 20P
1 2
VH
DPU
R711 NC
DGND
VBUS0
L702
90OHM
1
4
2
3
C709
100N 16V
ZD702
NC
1 2
R710 NC
ZD701
NC
1 2
DMU
USB_VSS33
C415
4.7UF 10V
VBUS0
C428
18pF 50V
C427
18pF 50V
R401 11. 5KOHM +-1% 1/8W
CLKIN-
Rin2-
CLKIN+
Rin2+
Rin1+
Rin1-
Rin0+
Rin0-
DAC_VREF
DAC_REXT
Rin0Rin0+
Rin1-
Rin2-
Rin1+
Rin2+
CLKIN+
CLKIN-
USB_DP
USB_DN
R422
0R05 OHM
DGND
FB701
120 OHM
1 2
DVI_REXT
13
OEM MODEL Size
Rev
Date
Sheet of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
A
USB power cordless
B
1 7Thursday, April 28, 2011
<称爹>
05.DL-195 DDR SDRAM
G4548-T0B-000-0050-101230
G4548-T0B-000-0050-1-101230
DDR_DQ2
DDR_DQ1
DDR_DQ0
DLL12V
VREF
+2V6
+3.3V +1.2V
R740
2.2KOHM +-1% 1/16W
C746
100N 16V
FB406120 OHM
1 2
U402
H5DU1262GTR-E3C
A0
29
A1
30
A2
31
A3
32
A4
35
A5
36
A6
37
A7
38
A8
39
A9
40
A10/AP
28
A11
41
DQ0
2
DQ1
4
DQ2
5
DQ3
7
DQ4
8
DQ5
10
DQ6
11
DQ7
13
DQ8
54
DQ9
56
DQ10
57
DQ11
59
DQ12
60
DQ13
62
DQ14
63
DQ15
65
BA0
26
BA1
27
CS
24
RAS
23
CAS
22
WE
21
LDM
20
UDM
47
LDQS
16
UDQS
51
CKE
44
CLK
45
CLK
46
MVDD
1
MVDD
18
MVDD
33
VDDQ
3
VDDQ
9
VDDQ
15
VDDQ
55
VDDQ
61
VSS
34
VSS
48
VSS
66
VSSQ
6
VSSQ
12
VSSQ
58
VSSQ
64
VREF
49
VSSQ
52
NC
14
NC
17
NC
19
NC
25
NC
43
NC
53
NC
50
NC
42
C736
100N 16V
C737
100N 16V
C740
100N 16V
C742
100N 16V
FB404
120 OHM
1 2
R743 10OHM1/16W
C735
100N 16V
C429
100N 16V
C738
100N 16V
C747
100N 16V
R742 10OHM1/16W
U401A
DL-125
DDR_A0
U1
DDR_A1
R3
DDR_A2
T3
DDR_A3
V2
DDR_A4
V3
DDR_A5
U3
DDR_A6
V1
DDR_A7
U2
DDR_A8
P3
DDR_A9
T1
DDR_A10
T2
DDR_A11
R1
DDR_DQ0
E2
DDR_DQ1
E1
DDR_DQ2
G3
DDR_DQ3
H3
DDR_DQ4
H1
DDR_DQ5
J1
DDR_DQ6
J2
DDR_DQ7
L2
DDR_DQ8
H2
DDR_DQ9
G1
DDR_DQ10
G2
DDR_DQ11
F1
DDR_DQ12
F2
DDR_DQ13
F3
DDR_DQ14
D1
DDR_DQ15
D3
DDR_BA0
P2
DDR_BA1
R2
DDR_/CS
N3
DDR_/RAS
P1
DDR_/CAS
N1
DDR_/WE
N2
DDR_CKE
M3
DDR_CK
M2
DDR_/CK
M1
DDR_VREF
K1
DDR_MASK_OUT
D2
DDR_MASK_IN
E3
DDR_LDM
L3
DDR_UDM
K3
DDR_LDQS
L1
DDR_UDQS
J3
DDR_VSSR
K2
DDR_PLL_AVSS33
A12
DDR_PLL_AVDD33
A13
DLL_AVSS
C6
DLL_AVDD
E8
C739
100N 16V
FB405
120 OHM
1 2
C741
100N 16V
C748
100N 16V
DGND
DGND
DGNDDGND
+2V6_SW
DGND
DGND
DGND
DGND
+2V6_SW
+2V6_SW
DDR_A[0..11]
DDR_DQ[0..15]
DDR_DQ[0..15]
DDR_A[0..11]
R307
1K 1/16W
C303
1N 50V
Q304
AO3401A
DDR_UDQS
DDR_LDQS
/DDR_CK
DDR_CK
C744
100N 16V
+3V3
DDR_A10
DDR_A9
DDR_A8
DDR_A5
DDR_A1
DDR_A4
DDR_A2
DDR_A11
DDR_A7
DDR_A6
DDR_A3
/DDR_CS
DDR_A0
DDR_DQ10
DDR_DQ12
DDR_DQ3
DDR_BA1
DDR_DQ4
DDR_DQ8
DDR_DQ6
DDR_DQ2
DDR_DQ7
DDR_DQ0
DDR_DQ15
DDR_DQ5
DDR_DQ13
DDR_DQ1
DDR_DQ9
DDR_DQ14
DDR_DQ11
R751
10K+-5%1/16W
DDR_BA0
DDR_BA1
DDR_BA0
/DDR_WE
/DDR_CS
/DDR_CAS
/DDR_RAS
DDR_UDM
DDR_CKIN
DDR_CKE DDR_UDM
/DDR_CKIN DDR_LDM
DDR_LDM
C743
10uF 10V
DDR_UDQS
DDR_LDQS
/DDR_RAS
/DDR_CASVREF
/DDR_WE
C405
10N 50V
DDR_A11
DDR_A10
DDR_UDQS to DDR_UDM & DDR_DQ[8:15] +/- 25ps
DDR_CK to all others (except DQ[ ] ) < +/- 50ps
DDR_A9
DDR_* :
DDR Memory
Connect pin D2 & D3 directiy together
DDR_A8
DDR_CK to LDQS & UDQS < +/- 100ps
(DDR Mask should be equal to the sum of LDQS ans UDQS)
Match lengths in following groups :
DDR_A7
Zo = 65R
DDR_LDQS to DDR_LDM & DDR_DQ[0:7] +/- 25ps
DDR_A6
DDR_A5
DDR_A4
DDR_A3
DDRM
DDR_A2
DDR_A1
DDR_A0
DDR_CKE
DDR_CK
/DDR_CK
DDR_DQ15
DDR_DQ14
DDR_DQ13
DDR_DQ12
DDR_DQ11
PLL33V
R744
2.2KOHM +-1% 1/16W
LOWPOWER_ON
DDR_DQ10
DDR_DQ9
DGND
DDR_DQ8
C745
100N 16V
DDR_DQ7
DDR_DQ6
DDR_DQ5
DDR_DQ4
DDR_DQ3
14
R474
10K+-5%1/16W
R475
10K+-5%1/16W
OEM MODEL Size
Rev
Date
Sheet of
TPV MODEL
PCB NAME
称爹
T P V ( Top Vic tory Elec tronics C o . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
A
USB power cordless
C
1 7Thursday, April 28, 2011
<称爹>
06.DL-195 Power_Flash
G4548-T0B-000-0050-101230
G4548-T0B-000-0050-1-101230
SCLUD
SDAUD
C410
100N 16V
C411
100N 16V
LED_AMBER
LED_GREEN
LED_A
EEPROM_DIS
CN401
NC/CON N
1
2
3
45
Q408
NC/LMBT3906LT1G
C466
10uF 10V
C447220N 10V
Q306
LMBT3904LT1G
CN708
NC/CON N
1
2
3
4
5
6 7
Q307
LMBT3904LT1G
JTRST
SDAUD
C436
1UF 10V
FB408
120 OHM
1 2
C444
100N 16V
R432
10K+-5%1/16W
C443
100N 16V
C454
1UF 10V
C442
100N 16V
C435
100N 16V
R428
4.7K 1/16W
U401F
DL-125
JTAG_TDI
B13
JTAG_TDO
B15
JTAG_TMS
A14
JTAG_TCK
C14
JTAG_MODE
C15
JTAG_TRST
B14
RESET_N
C13
SCAN_EN
B17
R437
0R05 OHM
C451
100N 16V
LED_G
R446
100K 1/16W
FB409
120 OHM
1 2
U410
NC/MAX809STRG
GND
1
RESET
2
VCC
3
R448
NC
C457
100N 16V
R476
10K+-5%1/16W
R477
10K+-5%1/16W
R447
NC/10OHM1/16W
R441
4.7K 1/16W
R442
NC
R439
33 OHM 1/16W
C432
100N 16V
SW1
SW2
FB407
120 OHM
1 2
C449
100N 16V
U409
AT24C128BN-SH-T
A0
1
A1
2
A2
3
VSS4SDA
5
SCL
6
WP
7
VCC
8
CN706
NC/CON N
1
2
3
4
5
67
U401G
DL-125
CORE_PLL_VSS33
D10
PLL_DVSS12
D11
VSS33
P15
VSS33
L15
VSS33
N15
VSS33
J15
VSS33
T15
VSS33
R15
VSS33
E15
VSS33
T11
VSS33
R11
VSS33
R14
VSS33
R13
VSS33
R12
VSS33
T14
VSS12
K9
VSS26
F4
VSS26
G4
VSS26
H4
VSS26
N4
VSS26
R4
VSS26
P4
VSS26
R5
VSS26
K4
VSS26
J4
VSS26
E4
VSS26
L4
VSS26
M4
VDD12
E7
VSS12
D8
VSS12
H8
VSS12
H9
VSS12
H10
VSS12
H11
VSS12
J8
VSS12
J9
VSS12
J10
VSS12
J11
VSS12
K8
VSS12
K10
VSS12
K11
VSS12
L8
VSS12
L9
VSS12
L10
VSS12
L11
CORE_PLL_AVDD33
C11
PLL_DVDD12
D12
VDD33
P10
VDD33
H14
VDD33
K14
VDD33
P12
VDD33
P13
VDD33
P14
VDD33
D13
VDD33
M14
VDD33
E13
VDD33
D14
VDD33
D15
VDD33
E14
VDD33
F14
VSS33
F15
VSS33
G15
VSS33
H15
VSS33
K15
VSS33
T16
VSS33
M15
VDD26
L5
VDD26
R9
VDD26
F5
VDD26
J5
VDD26
G5
VDD26
R8
VDD26
R7
VDD26
R6
VDD26
P8
VDD26
P6
VDD26
P5
VDD26
N5
VDD26
R10
VDD12
P7
VDD12
E9
VDD12
E12
VDD12
G14
VDD12
J14
VDD12
K5
VDD12
P9
VDD12
N14
VDD12
M5
VDD12
L14
VDD12
H5
VDD12
D9
VDD12
P11
U408
NC/M25P128-VMF6TG
HOLD
1
VCC
2
DU
3
DU
4
DU
5
DU
6
S
7
Q8W
9
VSS
10
DU
11
DU
12
DU
13
DU
14
D
15
C
16
C453
100N 16V
R445
4.7K 1/16W
C452
100N 16V
C430
100N 16V
C441
100N 16V
C440
100N 16V
R440
33 OHM 1/16W
R471 NC/100OHM1/16W
R473 NC/100OHM1/16W
R472 NC/100OHM1/16W
C764
10uF 10V
SCLUD
EEPROM_DIS
R462 NC/10K+-5%1/16W
C465
10uF 10V
C458
1UF 16V
EEPROM_DIS
R466
NC/120OHM 1/ 10W
C438NC/220N 10V
U407
Roll Ball Switch
Cathode
1
Anode
2
Emitter13Collector4Emitter2
5
R436
620 OHM 1/16W
LED_G
FB705
120 OHM
1 2
JTDI
JTMS
R429 NC/1K 1/16W
LED_A
LED_GREEN LED_AMBER
R461 NC/10K+-5%1/16W
Q409
NC/LMBT3906LT1G
R431
NC/10K+-5%1/16W
C455
4.7UF 10V
C434
100N 16V
U401D
DL-125
GPIO_0
B16
GPIO_1
C16
GPIO_2
A18
GPIO_3
D16
GPIO_4
E18
GPIO_5
C17
GPIO_6
B18
GPIO_7
C18
GPIO_8
E17
GPIO_9
F18
GPIO_10
F16
GPIO_11
F17
GPIO_12
G18
GPIO_13
D17
GPIO_14
D18
GPIO_15
E16
C450
100N 16V
R433
NC
C439
100N 16V
R435
22K 1/16W
C448
100N 16V
R438
1K 1/16W
C456
100N 16V
C433
100N 16V
R443
10K+-5%1/16W
C445
1UF 10V
C431
100N 16V
R467
NC/120OHM 1/ 10W
R434
22K 1/16W
DGND
DGND
+1.2V
DGND
+1V2
DGND
DGND
+3V3
DGND
DGND
+3V3
DGND
DGND
+1V2
DGND
+3V3
+3V3
DGND
+3V3
DGND
DGND
+1V2
DGND
DGND
+3V3
+3.3V
DGND
+3V3_PLL
+3V3
DGND
+3V3
DGND
DGND
+3V3
+3V3
DGND
DGND
+3V3
+3V3+3V3
DGND
+2.6V
+2.6V+2V6
DGND
DGND
DGND
+3V3
+3V3
+3V3
DGND
DGND
DGND
DGND
GPIO15
GPIO14
GPIO14
GPIO13
GPIO12
DGND
DGNDDGND
PANEL_ON
VLED_PWM
GPIO14
GPIO13
GPIO15
+3V3_PLL
GPIO12
GPIO15
JTAG
JTAG interface for test purposes only
Add more capacitors if there is space.
I2C EEPROM
Then place 1uF 0603 caps as close an possible.
Optional SPI Flash
GPIO
Flrst place 100nF 0402 caps as close to the associated power / ground balls as possible.
VLED_EN
LOWPOWER_ON
锣
オ锣
タ盽
SW2SW1
dip => SMD
H L
HL
HLH
L锣
RTUD
JTDO
JTCK
C446
4.7UF 10V
C437
4.7UF 10V
D702
LL4148
+1V2PLL
SW1
R464 100OHM1/16W
SW2
R465 100OHM1/16W
J_EN
JMODE
RTUD2
15
OEM MODEL Size
Rev
Date
Sheet of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹 A
USB power cordless
Custom
1 7Thursday, April 28, 2011
<称爹>
07.Panel interf ace
G4548-T0B-000-0050-101230
G4548-T0B-000-0050-1-101230
VLED_PWM
VLED_EN
L705
90OHM
1
4
2
3
L707
90OHM
1
4
2
3
L706
90OHM
1
4
2
3
R747
4.7K 1/16W
R748
4.7K 1/16W
Route diff pairs to 100ohms differential impedance
Ensure pairs are routed together
R301 100OHM1/16W
DGND DGND
C302
100N 16VR306
100K 1/16W
Q301
AO3401A
R304
4.7K 1/16W
Q302
LMBT3904LT1G
R305
10K+-5%1/16W
Panel_VCC
DGND
+3.3V
PANEL_ON
R745
4.7K 1/16W
DGND
R753
300 OHM
VLED_PWM1
R749 100OHM1/16W
VLED_PWM1
+12V
R750 100OHM1/16W
C305
22UF 16V
L704
90OHM
1
4
2
3
DGND
VLED_EN1
C304
10uF 6.3V
DGND
R302 100OHM1/16W
C301
100N 16V
C475 NC
DGND
C476 NC
DGND
C306
10uF 6.3V
Rin0-
Rin1-
Rin0+
Rin1+
Rin2+
Rin2-
CLKINCLKIN+
C763
10uF 10V
C474 NC
C473 NC
Panel_VCC
Panel_VCC
Panel_VCC
VLED
VLED_EN1
DGND
VLED
FB704
120 OHM
1 2
C472 NC
VLED
C471 NC
DGND
FB703
120 OHM
1 2
C469 NC
C470 NC
Panel_VCC
R746
300 OHM
CN701
CONN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
DGND
16
5.2 USB Board
GND
Route diff pairs to 90ohms differential impedance
Type A => mini Type
VBUS0
GND
GND
FB002
120 OHM
1 2
12345
CN002
MINI USB CONN
1
2
3
4
5
67
89
DMU
DPU
GND
R002 NC
VBUS0
L001
90OHM
1
4
2
3
C001
100N 16V
ZD002
NC
1 2
R001 NC
ZD001
NC
1 2
CN001
CONN
1
2
3
4
5
67
USB_DP
USB_DN
OEM MODEL Size
Rev
Date
Sheet of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
C
AOC e1649Fwu
A
2 2Thursday, April 28, 2011
715G
<称爹>
2. USB board
USB_DN
USB_DP
FB001
120 OHM
1 2
715G5071T01000004S
17
6. PCB Layout
6.1 Main Board
715G4548M01000005I
18
19
6.3 USB Board
715G5071T01000004S
20
7. Maintainability
7.1 Equipments and Tools Requirement
1. Voltmeter.
2. Oscilloscope.
3. Pattern Generator.
4. DDC Tool with an IBM Compatible Computer.
5. Alignment Tool.
6. LCD Color Analyzer.
7. Service Manual.
8. User Manual.
21
7.2 Trouble Shooting
OK
NG
No power
Check power cable is
tightened?
Check Power “On/Off”
is “On”?
Re-plug the power cable
Replace main board and check connections
Check the LED
indicate is OK?
Check the AC power
Replace the converter board
OK
NG
OK
NG
NG
Turn on the Power “On/Off” switch
Replace key board and check connections
NG
1.No Power
22
2. No Video (Power LED Blue)
No Video (Power LED Blue)
Press the power
button is OK?
Check the LVDS/FFC
cable or panel
The end
NG
OK
OK
NG
Replace the main board
Replace the converter
board
Replace the LVDS/FFC
cable or panel
NG
The end
Replace the key board
NG
OK
Replace the main
board and connection
OK
23
3. DIM
OK
The end
OK
The end
OK
The end
DIM (image overlap, focus or flicker)
Reset in factory mode
Set to the optimal
frequency, select the
recommended frequency
Pull out signal cable and
check “Self Test Feature
Check” is ok?
Check the signal cable
and the PC
Readjust the phase and pixel
clock in the user mode
Replace the main board
Replace the panel
NG
NG
NG
OK
NG
NG
OK
The end
OK
NG
24
4. Color is not optimal
NG
Color is not optimal
Miss color
Color shift
Replace the signal cable
Pull out the signal cable
and check the screen
color display is normal?
The end
Replace the signal cable or PC
Reset the factory mode
In the user mode, set the” color
settings” until customer satisfy
Replace the main board
NG
OK
NG
OK
NG
25
8. Firmware and DDC Instruction
Don't burn HDCP-KEY
1. Install the newest driver (DLsetup_7.0M1.exe), the driver provided by the Display Link
2. Connect USB Monitor to PC, as the follow picture
3. Double-click the icon “DL1x0-DL1x5 Tester.exe”
Choose “Program Firmware”
26
Load Firmware
27
Burning off software, USB Monitor can be displayed
28
9. Monitor Exploded Views
29
10. BOM List
Location
Part No.
Description
Remark
052G 2191 A
PAPER TAPE
E08905
089G 175M05 L
USB CABLE 2.0 mini B to type A+A 1000mm
ECN701
095G176J40NW04
FFC CABLE 40PIN 210mm 0.5mm
ECN702
095G8022 6DM01
HARNESS 6P-6P 130mm FQE111052I
0M1G2040 5120
SCREW
0Q1G 130 8120
SCREW 3x8
0Q1G1030 6120
SCREW 3x6
E750
750NBU156X2617N000
LCD B156XW02 V603(H/W:0A) WJ AUO
A15G1691101
MAIN_FRAME
A15G1695101
MAIN_FRAME COVER
A34G2684AEDA1B0100
e1649Fwu_BEZEL
A34G2685AED 1B0100
REAR COVER
A34G2686AED 1B0100
COVER
A34G2687AED 1B0100
e1649Fwu_STAND
A34G2688AED 1B0100
e1649Fwu_STAND
A37G0276011
HINGE_15.6"
H40G 001624 1A
CARTON LABEL BARCODE 1
H40G 15N61523A
E1649FWU ID LABEL
H40G000261537A
E1649FWU FRENCH LABEL
H40G000261544A
E1649FWU POP LABEL
H41G78S1615 1B
e1649Fwu QSG
H44G5005101
EPS
H44G5005201
EPS
H44G5006615 1C
ARTWORK CARTON E1649FWU
H45G 87 1 17
EPE COVER
H45G3301001JLY
RPOTECT BAG
H52G1601 1
anti static electricity_tape
H70G16C1615 1C
e1649Fwu CD MANUAL
Q12G6300137
FOOT PAD
Q40G 58162435A
LABEL
Q45G 76 28 H A
P.E. BAGx320x210x0.04
Q50G 4 10
TIE (Y1900221)
Q52G1001211 B JY
AL FOIL
Q85G 583612
GASKET_ALUMINIUM FOIL
ECN701
S95G176T40NW04
FFC CABLE P0.5 40P 210MM
2nd source
USBBHA2
USB BOARD
756GHBCB A1073
MAIN BOARD-CBPCBDLA1H1
Note: The parts information listed below are for reference only, and are subject to change without notice. Please go
to http://cs.tpv.com.cn/hello1.asp for the latest information.
T6BADL2KBXA1NNE
30
SMTCB-U409
100GAAA6000W11
MCU ASS'Y-056G1133138
H40G 45762429A
LABEL
CN702
033G8032 6F HR
CONNECTOR 6P 1.25
U702
056G 379110
IC G5126TB1U SOT23-6
U407
056G 527 18
Tilt Sensor ISA401
U709
056G 563146
LDO G912T63U 1A 1.2V SOT-223
U707
056G 563156
IC G9141T11U SOT23-5
U708
056G 563345
DC/DC AT1528P11U 2A SOP-8
U402
056G 615902 G
DRAM H5DU1262GTR-E3C 128M TSOPII-66
U401
056G1126 81
V/A PROCESSOR DL-125 BGA-276
U409
056G1133138
EEPROM AT24C128BN-SH-T 128Kb SOIC8
Q307
057G 417518
TRA LMBT3904LT1G 200mA/40V SOT-23 LRC
Q306
057G 417518
TRA LMBT3904LT1G 200mA/40V SOT-23 LRC
Q302
057G 417518
TRA LMBT3904LT1G 200mA/40V SOT-23 LRC
Q301
057G 763940
MOSFET AO3401A SOT-23
Q304
057G 763940
MOSFET AO3401A SOT-23
Q305
057G 763940
MOSFET AO3401A SOT-23
R422
061G0402000 JF
RST CHIPR MAX0R05 1/16W FENGHUA
R437
061G0402000 JF
RST CHIPR MAX0R05 1/16W FENGHUA
R742
061G04021009FF
RST CHIPR 10 OHM +-1% 1/16W FENGHUA
R743
061G04021009FF
RST CHIPR 10 OHM +-1% 1/16W FENGHUA
R750
061G0402101 JF
RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R749
061G0402101 JF
RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R465
061G0402101 JF
RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R464
061G0402101 JF
RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R460
061G0402101 JF
RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R459
061G0402101 JF
RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R458
061G0402101 JF
RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R457
061G0402101 JF
RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R403
061G0402101 JF
RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R302
061G0402101 JF
RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R301
061G0402101 JF
RST CHIPR 100 OHM +-5% 1/16W FENGHUA
R438
061G0402102 JF
RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R307
061G0402102 JF
RST CHIPR 1KOHM +-5% 1/16W FENGHUA
R751
061G0402103 JF
RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R477
061G0402103 JF
RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R476
061G0402103 JF
RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R475
061G0402103 JF
RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R474
061G0402103 JF
RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R443
061G0402103 JF
RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R432
061G0402103 JF
RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R418
061G0402103 JF
RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R305
061G0402103 JF
RST CHIPR 10KOHM +-5% 1/16W FENGHUA
R306
061G0402104 JF
RST CHIPR 100KOHM +-5% 1/16W FENGHUA
31
R446
061G0402104 JF
RST CHIPR 100KOHM +-5% 1/16W FENGHUA
R424
061G0402105 JF
RST CHIPR 1MOHM 5% 1/16W FENGHUA
R405
061G04021502FF
RST 0402 15K 1% 1/16W FENGHUA
R406
061G04021502FF
RST 0402 15K 1% 1/16W FENGHUA
R752
061G0402153 JF
RST CHIPR 15KOHM 1/16W FENGHUA
R740
061G04022201FF
RST CHIPR 2.2KOHM +-1% 1/16W FENGHUA
R744
061G04022201FF
RST CHIPR 2.2KOHM +-1% 1/16W FENGHUA
R434
061G0402223 JF
RST CHIPR 22KOHM 5% 1/16W FENGHUA
R435
061G0402223 JF
RST CHIPR 22KOHM 5% 1/16W FENGHUA
R408
061G04022402FF
RST 0402 24K 1% 1/16W FENGHUA
R456
061G04022499FF
RST CHIP 0402 24.9OHM 1% 1/16W FENGHUA
R455
061G04022499FF
RST CHIP 0402 24.9OHM 1% 1/16W FENGHUA
R454
061G04022499FF
RST CHIP 0402 24.9OHM 1% 1/16W FENGHUA
R453
061G04022499FF
RST CHIP 0402 24.9OHM 1% 1/16W FENGHUA
R452
061G04022499FF
RST CHIP 0402 24.9OHM 1% 1/16W FENGHUA
R451
061G04022499FF
RST CHIP 0402 24.9OHM 1% 1/16W FENGHUA
R450
061G04022499FF
RST CHIP 0402 24.9OHM 1% 1/16W FENGHUA
R449
061G04022499FF
RST CHIP 0402 24.9OHM 1% 1/16W FENGHUA
R423
061G04023001FF
RST CHIP 3KOHM 1% 1/16W FENGHUA
R439
061G0402330 JF
RST CHIPR 33 OHM +-5% 1/16W FENGHUA
R440
061G0402330 JF
RST CHIPR 33 OHM +-5% 1/16W FENGHUA
R410
061G04024301FF
RST CHIP 4K3 1/16W 1% FENGHUA
R404
061G04024702FF
RST CHIPR 0402 47K +-1% 1/16W FENGHUA
R748
061G0402472 JF
RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R747
061G0402472 JF
RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R745
061G0402472 JF
RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R445
061G0402472 JF
RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R441
061G0402472 JF
RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R428
061G0402472 JF
RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R304
061G0402472 JF
RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R436
061G0402621 JF
RST CHIPR 620 OHM +-5% 1/16W FENGHUA
R468
061G0402750 JF
RST CHIPR 75 OHM +-5% 1/16W FENGHUA
R469
061G0402750 JF
RST CHIPR 75 OHM +-5% 1/16W FENGHUA
R470
061G0402750 JF
RST CHIPR 75 OHM +-5% 1/16W FENGHUA
R402
061G04027509FF
RST CHIPR 75 OHM +-1% 1/16W FENGHUA
R407
061G0603100 JF
RST CHIPR 10 OHM 5% 1/10W FENGHUA
R480
061G0603100 JF
RST CHIPR 10 OHM 5% 1/10W FENGHUA
R417
061G06033481FF
RST CHIPR 3.48KOHM 1/10W FENGHUA
R416
061G06034750FF
RST CHIPR 475 OHM +-1% 1/10W FENGHUA
R401
061G08051152FF
RST CHIPR 11.5KOHM +-1% 1/8W FENGHUA
R753
061G1206301 JF
RST CHIPR 300 OHM +-5% 1/4W fenghua
R746
061G1206301 JF
RST CHIPR 300 OHM +-5% 1/4W fenghua
C480
065G040210131J Y
CAP CHIP 0402 100P 50V NP0 +/-5%
C303
065G040210232K Y
CAP CHIP 0402 1N 50V X7R +/-10%
32
C405
065G040210332K Y
CAP CHIP 0402 10N 50V X7R +/-10%
C737
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C736
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C735
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C709
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C467
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C457
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C456
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C453
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C452
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C451
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C450
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C449
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C448
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C444
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C443
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C738
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C761
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C759
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C755
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C753
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C751
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C750
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C748
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C747
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C746
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C745
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C744
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C742
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C741
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C740
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C739
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C442
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C417
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C416
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C414
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C413
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C412
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C411
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C410
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C409
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C408
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C406
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C404
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
33
C403
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C402
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C302
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C301
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C418
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C441
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C440
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C439
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C435
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C434
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C433
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C432
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C431
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C430
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C429
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C426
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C425
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C424
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C420
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C419
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
C454
065G0402105A5K Y
NO-SUGGEST CAP 0402 1UF 10% 10V X5R
C445
065G0402105A5K Y
NO-SUGGEST CAP 0402 1UF 10% 10V X5R
C436
065G0402105A5K Y
NO-SUGGEST CAP 0402 1UF 10% 10V X5R
C423
065G0402105A5K Y
NO-SUGGEST CAP 0402 1UF 10% 10V X5R
C422
065G0402105A5K Y
NO-SUGGEST CAP 0402 1UF 10% 10V X5R
C421
065G0402105A5K Y
NO-SUGGEST CAP 0402 1UF 10% 10V X5R
C401
065G0402105A5K Y
NO-SUGGEST CAP 0402 1UF 10% 10V X5R
C476
065G040218031J Y
MLCC 0402 18pF 50V NPO +-5% YAGEO
C475
065G040218031J Y
MLCC 0402 18pF 50V NPO +-5% YAGEO
C474
065G040218031J Y
MLCC 0402 18pF 50V NPO +-5% YAGEO
C473
065G040218031J Y
MLCC 0402 18pF 50V NPO +-5% YAGEO
C472
065G040218031J Y
MLCC 0402 18pF 50V NPO +-5% YAGEO
C427
065G040218031J Y
MLCC 0402 18pF 50V NPO +-5% YAGEO
C428
065G040218031J Y
MLCC 0402 18pF 50V NPO +-5% YAGEO
C469
065G040218031J Y
MLCC 0402 18pF 50V NPO +-5% YAGEO
C471
065G040218031J Y
MLCC 0402 18pF 50V NPO +-5% YAGEO
C470
065G040218031J Y
MLCC 0402 18pF 50V NPO +-5% YAGEO
C447
065G0402224A5K Y
CAP CHIP 0402 220N 10V X5R +/-10%
C765
065G060310512K T
CAP 0603 1UF 10% 16V X7R
C458
065G060310512K T
CAP 0603 1UF 10% 16V X7R
C304
065G060310605M Y
NO-SUGGEST CAP 0603 10uF 20% 6.3V X5R
C306
065G060310605M Y
NO-SUGGEST CAP 0603 10uF 20% 6.3V X5R
C764
065G0805106A5K Y
NO-SUGGEST CAP 0805 10uF 10% 10V X5R
C763
065G0805106A5K Y
NO-SUGGEST CAP 0805 10uF 10% 10V X5R
34
C762
065G0805106A5K Y
NO-SUGGEST CAP 0805 10uF 10% 10V X5R
C760
065G0805106A5K Y
NO-SUGGEST CAP 0805 10uF 10% 10V X5R
C756
065G0805106A5K Y
NO-SUGGEST CAP 0805 10uF 10% 10V X5R
C754
065G0805106A5K Y
NO-SUGGEST CAP 0805 10uF 10% 10V X5R
C752
065G0805106A5K Y
NO-SUGGEST CAP 0805 10uF 10% 10V X5R
C743
065G0805106A5K Y
NO-SUGGEST CAP 0805 10uF 10% 10V X5R
C703
065G0805106A5K Y
NO-SUGGEST CAP 0805 10uF 10% 10V X5R
C466
065G0805106A5K Y
NO-SUGGEST CAP 0805 10uF 10% 10V X5R
C465
065G0805106A5K Y
NO-SUGGEST CAP 0805 10uF 10% 10V X5R
C455
065G0805475A2K Y
NO-SUGGEST CAP 0805 4.7UF 10% 10V X7R
C446
065G0805475A2K Y
NO-SUGGEST CAP 0805 4.7UF 10% 10V X7R
C437
065G0805475A2K Y
NO-SUGGEST CAP 0805 4.7UF 10% 10V X7R
C415
065G0805475A2K Y
NO-SUGGEST CAP 0805 4.7UF 10% 10V X7R
C407
065G0805475A2K Y
NO-SUGGEST CAP 0805 4.7UF 10% 10V X7R
C757
065G120622615K T
CAP CHIP 1206 22UF K 16V X5R
C704
065G120622615K T
CAP CHIP 1206 22UF K 16V X5R
C305
065G120622615K T
CAP CHIP 1206 22UF K 16V X5R
FB705
071G 56K121 M
CHIP BEAD 120OHM 6A MGLB2012-120T-LF
FB704
071G 56K121 M
CHIP BEAD 120OHM 6A MGLB2012-120T-LF
FB703
071G 56K121 M
CHIP BEAD 120OHM 6A MGLB2012-120T-LF
FB702
071G 56K121 M
CHIP BEAD 120OHM 6A MGLB2012-120T-LF
FB701
071G 56K121 M
CHIP BEAD 120OHM 6A MGLB2012-120T-LF
FB409
071G 56K121 M
CHIP BEAD 120OHM 6A MGLB2012-120T-LF
FB408
071G 56K121 M
CHIP BEAD 120OHM 6A MGLB2012-120T-LF
FB401
071G 56K121 M
CHIP BEAD 120OHM 6A MGLB2012-120T-LF
FB402
071G 56K121 M
CHIP BEAD 120OHM 6A MGLB2012-120T-LF
FB403
071G 56K121 M
CHIP BEAD 120OHM 6A MGLB2012-120T-LF
FB404
071G 56K121 M
CHIP BEAD 120OHM 6A MGLB2012-120T-LF
FB405
071G 56K121 M
CHIP BEAD 120OHM 6A MGLB2012-120T-LF
FB406
071G 56K121 M
CHIP BEAD 120OHM 6A MGLB2012-120T-LF
FB407
071G 56K121 M
CHIP BEAD 120OHM 6A MGLB2012-120T-LF
L707
073G253S 6 M
COMMON FILTER CHOKE 90 ohm HF
L706
073G253S 6 M
COMMON FILTER CHOKE 90 ohm HF
L705
073G253S 6 M
COMMON FILTER CHOKE 90 ohm HF
L704
073G253S 6 M
COMMON FILTER CHOKE 90 ohm HF
L702
073G253S 6 M
COMMON FILTER CHOKE 90 ohm HF
L701
073G253S 71 M
SMD CHOKE 2.2UH 20% 0.020R 8.2A
L703
073G253S 73 H
SMD CHOKE 10UH 20% 0.059R 3.18A
X401
093G 22S918 C
CRYSTAL 12MHz 20P SMD-49
D702
093G 64S522SEM
LL4148
D701
093G2004 2
DIODE SR24
CN701
311GF050B40ADH
FFC CONN 0.5mm 40P
709G4548 HS001
CONSUMPTIVE ASS'Y
E715
715G4548M01000005I
MAIN PCB FR4 4L 110X60X1.6MM
35
H52G 2191 1
美纹胶带
H52G1701 1
MESH PRINTTING_PAPER
C001
065G040210412K Y
CAP 0402 100NF 10% 16V X7R
L001
073G253S 6 M
COMMON FILTER CHOKE 90 ohm HF
CN001
033G8032 6F HR
CONNECTOR 6P 1.25
CN002
088G 341902 CL
MINI USB CONN R/A 5P BLACK H=3.95
E715
715G5071T01000004S
USB PCB FR4 DS 38.5*25*1.6MM
36
Loading...
