AOC E1649FWU User Manual

USB Monitor User Manual

Safety ........................................................................................................................................................................ 3

National Conventions ......................................................................................................................................... 3

Installation .......................................................................................................................................................... 4

Cleaning............................................................................................................................................................. 5

Other .................................................................................................................................................................. 6

Setup ........................................................................................................................................................................ 7

Contents in Box ................................................................................................................................................. 7

Setup Stand ....................................................................................................................................................... 8

Adjusting Viewing Angle ..................................................................................................................................... 9

Connecting the Monitor .................................................................................................................................... 10

Installation of USB Graphic software on your computer .......................................................................................... 11

For Microsoft ® Windows® 7 ........................................................................................................................... 11

For Microsoft® Windows Vista® ...................................................................................................................... 13

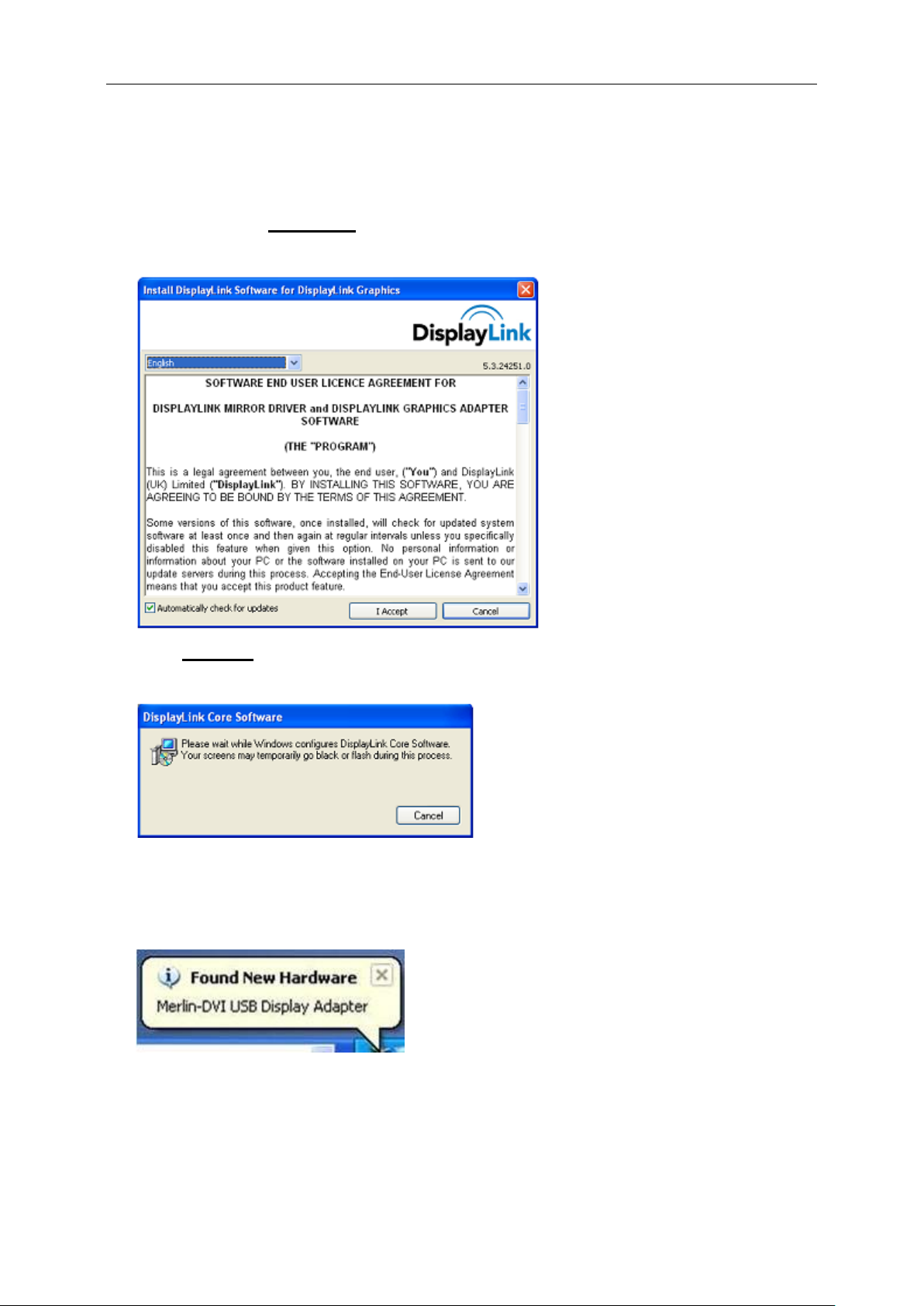

For Microsoft® Windows® XP ......................................................................................................................... 15

Setting the USB Monitor .................................................................................................................................. 16

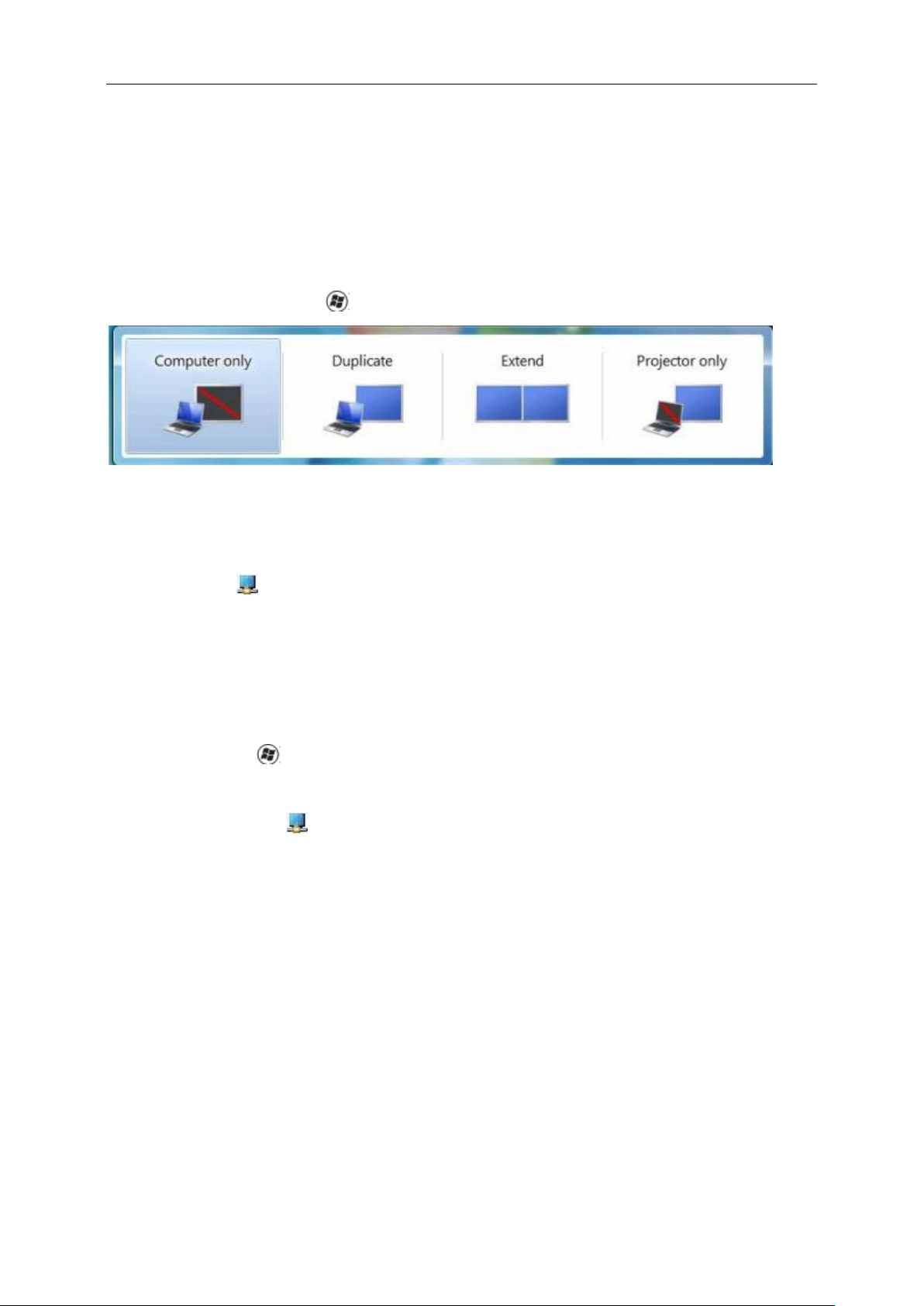

To Control the Display ............................................................................................................................................. 17

For Microsoft® Windows® 7 ............................................................................................................................ 17

For Microsoft® Windows® XP and Microsoft® Windows Vista® ..................................................................... 17

Disconnecting the LCD Monitor ................................................................................................ ....................... 17

Cleaning the LCD Monitor................................................................................................................................ 17

Supported Media Player .................................................................................................................................. 18

PC Requirements ............................................................................................................................................ 19

Troubleshooting ...................................................................................................................................................... 22

Specification ............................................................................................................................................................ 23

General Specification ....................................................................................................................................... 23

Regulation ............................................................................................................................................................... 24

FCC Notice ...................................................................................................................................................... 24

WEEE Declaration ........................................................................................................................................... 25

EPA Energy Star .............................................................................................................................................. 25

Service .................................................................................................................................................................... 26

Warranty Statement for Europe........................................................................................................................ 26

Warranty Statement for North & South America (excluding Brazil) .................................................................. 28

Safety

National Conventions

The following subsections describe notational conventions used in this document.

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: A NOTE indicates important information that helps you make better use of

your computer system.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of

data and tells you how to avoid the problem.

WARNING: A WARNING indicates the potential for bodily harm and tells you how to

avoid the problem. Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific presentation of the warning is mandated by regulatory authority.

Installation

Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold

with this product. Follow the manufacturer‟s instructions when installing the product

and use mounting accessories recommended by the manufacturer. A product and cart combination should be moved with care.

Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or electric shock. Never spill liquids on the monitor.

Do not place the front of the product on the floor.

Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence overheating may cause a fire or damage to the monitor. See below the recommended ventilation areas around the monitor when the monitor is installed on the wall or on the stand:

Cleaning

Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out

the stain, instead of strong-detergent which will cauterize the product cabinet.

When cleaning, make sure no detergent is leaked into the product. The cleaning

cloth should not be too rough as it will scratch the screen surface.

Other

If the product is emitting a strange smell, sound or smoke, disconnect the power

plug IMMEDIATELY and contact a Service Center.

Make sure that the ventilating openings are not blocked by a table or curtain.

Do not engage the LCD monitor in severe vibration or high impact conditions

during operation.

Do not knock or drop the monitor during operation or transportation.

Setup

QSG CD Manual Carry Case (Option)

USB Cable

Contents in Box

Setup Stand

Please setup the stand following the steps as below. Setup:

Caution:

Must put unit in flat surface. Any uneven or sloped surface may result in unit damage

or injury to user.

Adjusting Viewing Angle

For optimal viewing, it is recommended to look at the full face of the monitor, and then adjust the monitor's angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor's angle. You are able to adjust the monitor's angle as below.

NOTE:

Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.

The AOC e1649Fwu monitor supports an auto-pivot function to keep the display upright as the monitor is rotated between portrait and landscape position. The monitor has to be rotated slowly and over 75∘with the tilt angle within 30∘to activate the

auto-pivot function. The default setting for auto-pivot is on. You need to disable the auto-pivot function if you would like to manually rotate the display. If the auto-pivot is not functioned, rotate the display using orientation menu, then set the auto-pivot to on again.
