AOC D42H931G Schematic

42″LCD TV AOC D42H931G

英华家电维修资料专用 QQ:505966338

Service

Service

Service

31~56 KHz

TABLE OF CONTENTS

Description Page Description Page

Table of Contents.......……....................................…........1

Important Safety Notice.......................................……......2

Revision List…………………………………………………3

1. General Specification..............................……...…........4

2. Operating Instructions………………...…….……….......5

2.1 The Use of Remote Control…….…..……….…….......5

2.2 To Use the Menu….....…………………….……….......6

2.3 How to Connect……..……………….…….……….....15

2.4 Front Panel Control Knobs…….………….……….....21

3. Input/Output Specification…………....................…....24

4. Mechanical Instructions…………………….................26

5. Repair Flow Chart ……………………….…….…….....29

6. PCB Layout ………………..…………………....….......35

6.1 Main Board…………..………………...…….…….......35

6.2 Power Board………………..…….…….……….......37

SAFETY NOTICE

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS

6.3 Inverter Board……………..…….…….……….......40

6.4 Tuner Board…………………………..……….......41

6.5 Key Board………………………..……..……….......42

6.6 IR Board………………………….……..……….......42

7. Adjustment……..………………………….................43

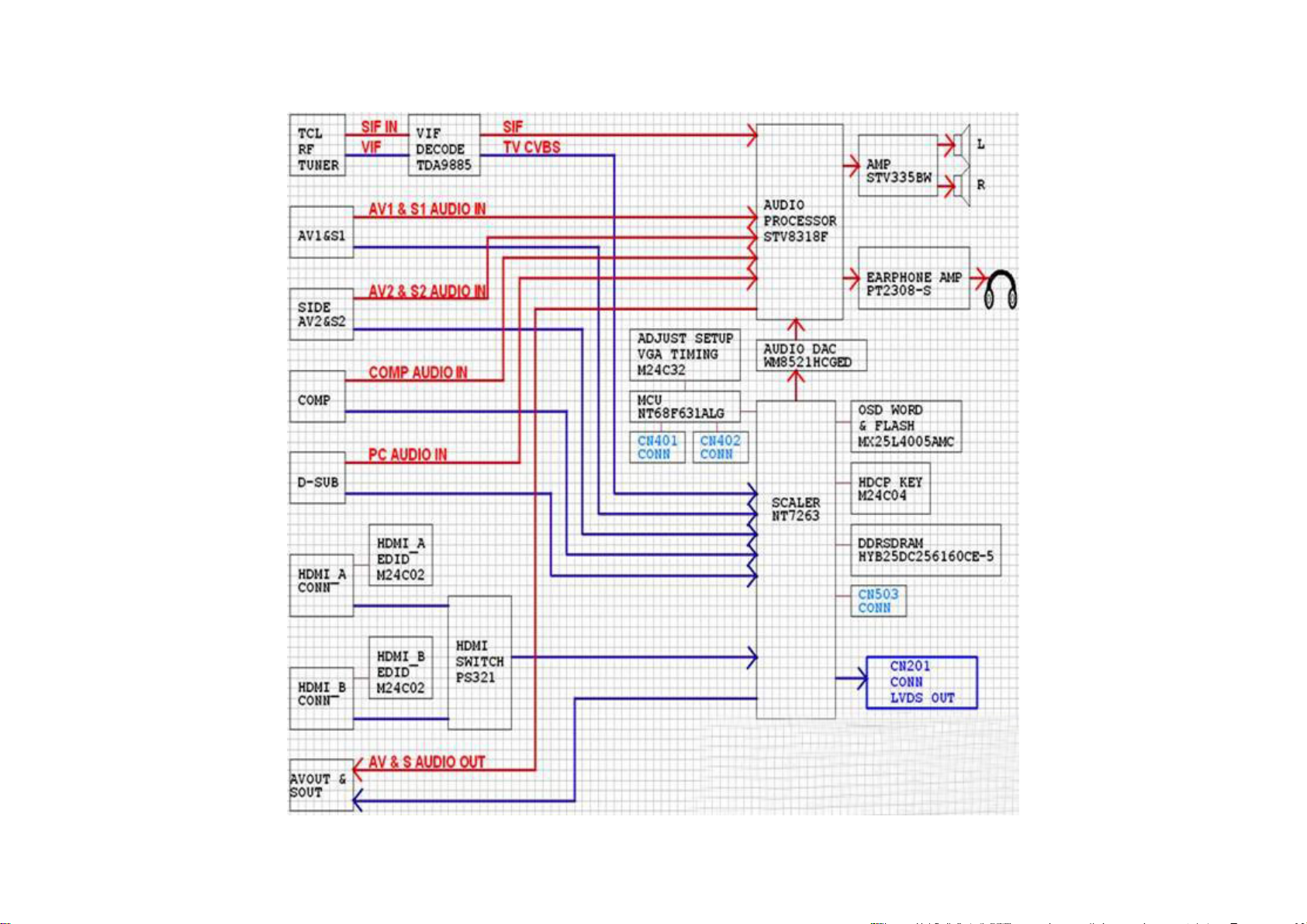

8. Block Diagram.…….................................................44

9. Schematic Diagram…..…………....………………...45

9.1 Main Board…………………………………...….......45

9.2 Power Board…………..….….……...………….......55

9.3 Inverter Board…………..….……...………….......60

9.4 Tuner Board……………….…….…………….........61

9.5 Key Board………………………..……..……….......71

9.6 IR Board……...………….……….…………….........72

10. Exploded View………………………………….…...73

11. BOM List……………….………………….………….75

Horizontal Frequency

AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING

ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

1

英华家电维修资料专用 QQ:505966338

Important Safety Notice

Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service

procedures recommended by AOC and described in this service manual are effective methods of performing service

operations. Some of these service operations require the use of tools specially designed for the purpose. The

special tools should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in

order to minimize the risk of personal injury to service personnel. The possibility exists that improper service

methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE

NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in

which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not

undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not

recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the

equipment will be jeopardized by the service method selected.

Hereafter throughout this manual, AOC Company will be referred to as AOC.

WARNING

Use of substitute replacement parts, which do not have the same, specified safety characteristics might create

shock, fire, or other hazards.

Under no circumstances should the original design be modified or altered without written permission from AOC.

AOC assumes no liability, express or implied, arising out of any unauthorized modification of design.

Servicer assumes all liability.

FOR PRODUCTS CONTAINING LASER:

DANGER-Invisible laser radiations when open AVOID DIRECT EXPOSURE TO BEAM.

CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may

result in hazardous radiation exposure.

CAUTION -The use of optical instruments with this product will increase eye hazard.

TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S

REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF

THIS SERVICE MANUAL.

Take care during handling the LCD module with backlight unit

-Must mount the module using mounting holes arranged in four corners.

-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.

-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to

the panel.

-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).

-Make certain that treatment person’s body is grounded through wristband.

-Do not leave the module in high temperature and in areas of high humidity for a long time.

-Avoid contact with water as it may a short circuit within the module.

-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may
damage the panel.)

2

英华家电维修资料专用 QQ:505966338

Revision List

Version Release Date Revision Instructions TPV Model

A00 May 17,2010 Initial Release E429MNNS4WB16N

3

英华家电维修资料专用 QQ:505966338

1. General Specification

Modelo D42H931G

Tamanho da Tela (Diagonal)

Resolução

Saída Áudio

Voltagem

Consumo de Energia (Operação Normal) (Standby)

Dimensões (com base) (L)x(A)x(P) (mm)

Dimensões para Suporte de Parede

Considerações Ambientais Temperatura de Operação
Umidade de Operação Temperatura de
Armazenamento Umidade de Armazenamento

42”, 1067mm

1920x1080

7Wx2

AC100-240V 50/60Hz

250W

1016x678x276

200x200mm M6x10mm. 4pçs

0ºC~35ºC (32ºF~95ºF) 20~80%

-10ºC~50ºC (14ºF~122ºF) 20~80%

4

英华家电维修资料专用 QQ:505966338

2. Operating Instructions

2.1 The Use of Remote Control

5

英华家电维修资料专用 QQ:505966338

2.2 To Use the Menu

6

英华家电维修资料专用 QQ:505966338

7

英华家电维修资料专用 QQ:505966338

8

英华家电维修资料专用 QQ:505966338

9

英华家电维修资料专用 QQ:505966338

10

英华家电维修资料专用 QQ:505966338

11

英华家电维修资料专用 QQ:505966338

12

英华家电维修资料专用 QQ:505966338

13

英华家电维修资料专用 QQ:505966338

14

英华家电维修资料专用 QQ:505966338

2.3 How to Connect

15

英华家电维修资料专用 QQ:505966338

16

英华家电维修资料专用 QQ:505966338

17

英华家电维修资料专用 QQ:505966338

18

英华家电维修资料专用 QQ:505966338

19

英华家电维修资料专用 QQ:505966338

20

英华家电维修资料专用 QQ:505966338

2.4 Front Panel Control Knobs

21

英华家电维修资料专用 QQ:505966338

22

英华家电维修资料专用 QQ:505966338

23

英华家电维修资料专用 QQ:505966338

3. Input/Output Specification

3.1 RGB Signal Input

15 - Pin Color Display Signal Cable

Pin No. Description Pin No. Description

1 Red Video 9 No Pin!

2 Green Video 10 Sync Ground

3 Blue Video 11 SDA(Remote Control)

4 SCL(Remote Control) 12 Serial Data for DDC

5 Ground 13 H-Sync.

6 Red Video Ground 14 V-Sync.

7 Green Video Ground 15 Serial Clock for DDC

8 Blue Video Ground

3.2 Digital RGB Connector Pin Assignments

Pin No. Description Pin No. Description

1 TMDS Data2+ 2 TMDS Data2 Shield

3 TMDS Data2- 4 TMDS Data1+

5 TMDS Data1 Shield 6 TMDS Data1-

7 TMDS Data0+ 8 TMDS Data0 Shield

9 TMDS Data0- 10 TMDS Clock+

11 TMDS Clock Shield 12 TMDS Clock-

13 CEC 14 NC

15 SCL 16 SDA

17 DDC/CEC Ground 18 +5V Power

19 Hot Plug Detect

24

英华家电维修资料专用 QQ:505966338

3.3 Compatible Mode Table

Analog RGB Input Signal Timing

Dots ×

Lines

720×400 31.47 70 NEG POS YES YES YES YES

640×480 31.47 59.94 NEG NEG YES YES YES YES

640×480 37.5 75 NEG NEG YES YES YES YES

640×480 37.86 72.81 NEG NEG YES YES YES YES

800×600 37.88 60.32 POS POS YES YES YES YES

800×600 46.88 75 POS POS YES YES YES YES

800×600 48.08 72.19 POS POS YES YES YES YES

1024×768 48.4 60 NEG NEG YES YES YES YES

1360×768 47.7 60 POS POS YES YES YES YES

1440×900 55.94 60 NEG POS YES YES YES YES

Horizontal Vertical Sync Polarity Presence Screen Mode

Frequency Frequency

(kHz) (Hz) (4:3) (16:9)

Horizontal Vertical Horizontal Vertical

Normal Full

HDMI Input Signal Timing

VESA MODES

Horizontal Vertical

Nominal

Mode Resolution Total

720P

1080i 1920X1080i 33.75 60 74.25

480P 720X480P 31.54 60 27

480i 720X480i 15.75 60 13.51

1280×720P

45 60 74.25

Frequency

(KHz)

Sync

Polarity

Nominal

Freq.

(Hz)

Sync

Polarity

Nominal

Pixel
Clock
(MHz)

25

英华家电维修资料专用 QQ:505966338

4. Mechanical Instructions

1. Remove the screws to remove the stand ass’y.

2. Remove the screws to remove rear cover.

26

英华家电维修资料专用 QQ:505966338

3. Remove the screws to remove main board, tuner board, power board and inverter board.

4. Remove the screws to remove bracket and separate bezel and panel.

27

英华家电维修资料专用 QQ:505966338

5. Remove the screws to remove key board, IR board and speakers.

28

p

英华家电维修资料专用 QQ:505966338

5. Repair Flow Chart

1. No power

No power (LED “Off”)

Check the AC input and
the

ower is “ON”?

Yes

Power board output=5V?

Yes

Check the IR board and LED

Replace the IR board

No

Replace the main board

No

Power “On”

No

Replace the power board

29

英华家电维修资料专用 QQ:505966338

2. Can’t start

Can’t start（LED red）

Power board output＝24V?

Yes

Check the power key is under control?

No

Check the IR receiver is normal?

No

Replace the power board

Yes

Replace the key board

Yes

Replace the IR board

No

Replace the main board

No

Replace the Power board

30

英华家电维修资料专用 QQ:505966338

3. No display

No display (LED blue)

Check TV is under control and power
on/off by remote control and power key?

Yes

Check the LVDS cable

Yes

Yes

Check the backlight is

“On”?

No

Reinsert or replace the
LVDS cable

No

No

Check the B/L

signal is available?

Yes

Replace the main board

No

Replace main board

Panel Vcc = 5V?

Yes

Replace the Panel

No

Replace the main board

Power board output＝24V?

Yes

Replace the Panel

Replace the power board

No

31

英华家电维修资料专用 QQ:505966338

4. Sound problem

No sound or sound abnormal

Check the audio source connection

and the TV system are correct？

Yes

Check the TV is muted, adjust the

volume or enter the menu to reset?

No

Check the cable between the

speakers and main board is ok?

No

Reinsert the audio cable or
change the TV system

No

Yes

Check the speaker resistance value is in spec
(Remark: The value is marked on the speaker)?

Yes

Replace the speaker

Replace the main board

Replace the cable

No

32

英华家电维修资料专用 QQ:505966338

5. Remote control malfunction

Remote Control malfunction

Check the remote control battery is
not properly placed or no power?

No

Use the other remote controls

No

Whether the IR board is

abnormal?

No

Replace the main board

Yes

Replace the battery

Yes

Replace the remote control

Yes

Replace the IR board

33

英华家电维修资料专用 QQ:505966338

6. OSD is unstable or can’t work normally

OSD is unstable or can’t work normally

Key board connected properly?

Yes

Buttons are ok?

Yes

Key board is ok?

Yes

Replace the main board

No

Reconnect the key board

No

Replace the button function

No

Replace the key board

34

英华家电维修资料专用 QQ:505966338

6. PCB Layout

6.1 Main Board

715G4005M0E000004L

35

英华家电维修资料专用 QQ:505966338

36

英华家电维修资料专用 QQ:505966338

6.2 Power Board

715G3351 1

37

英华家电维修资料专用 QQ:505966338

38

英华家电维修资料专用 QQ:505966338

39

英华家电维修资料专用 QQ:505966338

6.3 Inverter Board

715G3358 2

40

英华家电维修资料专用 QQ:505966338

6.4 Tuner Board

715G4012M0F000005K

41

英华家电维修资料专用 QQ:505966338

6.5 Key Board

715G3400K01001001S

6.6 IR Board

715G3394R01001004S

42

英华家电维修资料专用 QQ:505966338

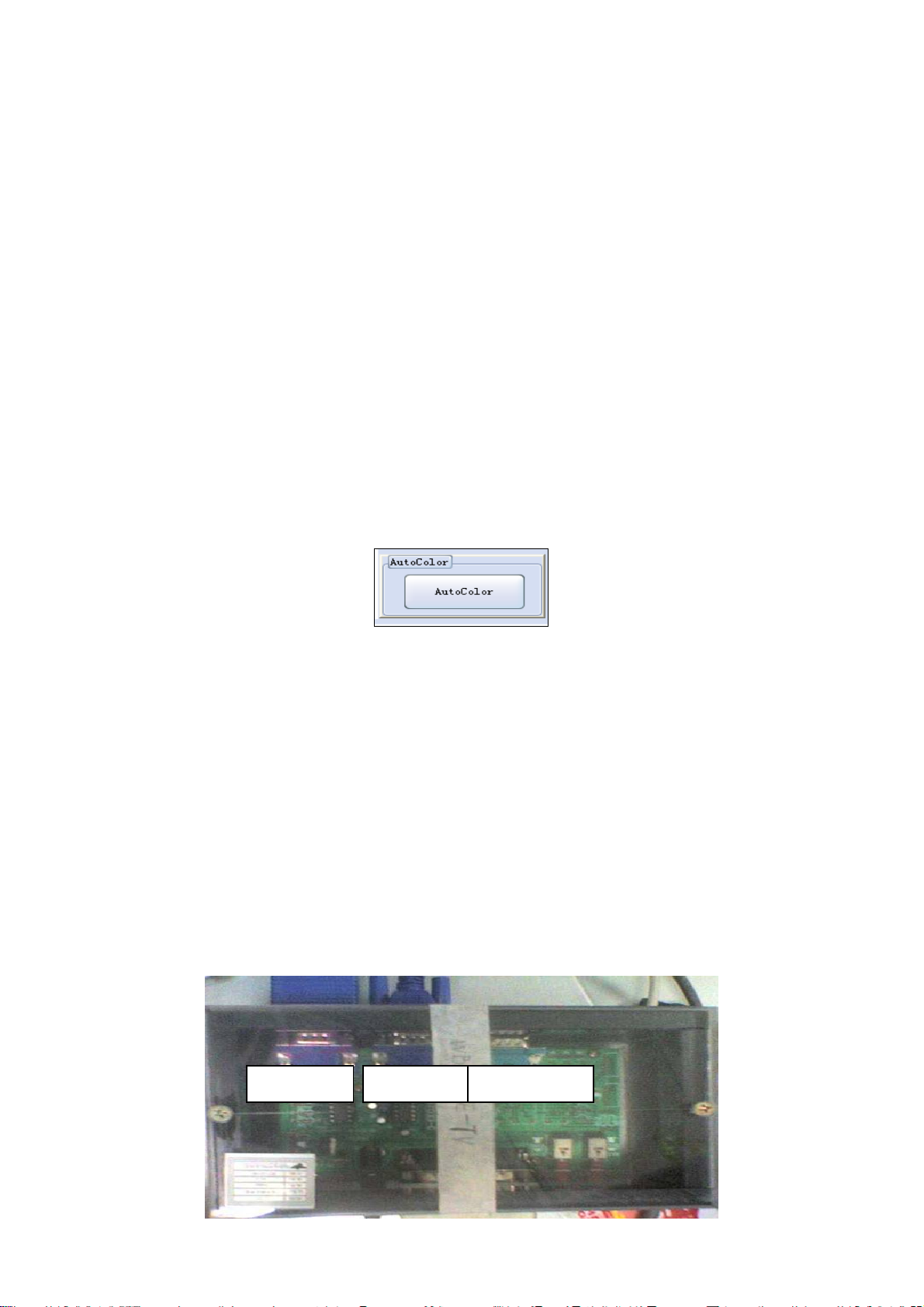

7. Adjustment

White Balance

Tools: Pencil/Gauge one Static ring one

Glove one pair RS232 wire two
VGA wire some

Material: VGA, YPbPr wire some Record card some
Beautiful grain rubber some

Instruments: K8256/Chroma-22291 one

FI box one
ISP card between PC and chroma, monitor one
Locates the fixture one

(Sign use voltage instrument if has not used the voltage is 220V)

PC (Brings a minute four serial port line) one

Preparation

Connect K-8256/Chroma-22291 with power line, and then turn on PC.
Preparation before adjustment: connect PC, K-8256A/Chroma-22291 and main board, and then connect the signal
wire: connect signal generator port with correspond machine signal port. POWER ON each signal source.

Adjusting Operation

1. Press MENU+1999 to enter factory mode, set the first option ”EEPROM INITIAL”, make ”OFF” to “on”, after again
opens automatically, start to do ADC.

2. Doing ADC needs to connect the VGA wire, YPbPr wire.

3. Firstly, opening ADC Formula, then press

4. If it shows ”NG” in red in adjustment, it shows that adjustment fail. Press ”End” to end progress, check the VGA
and YPbPr Mode, check the picture normal, if it shows ”PASS” in green, it shows the end of the adjustment. Pull out
the signal wire and the power wire, press the air-switch to let the machine to the next station.

Spec&Caution

1. Check main board and FI box connection ok.

2. Before adjustment, please check each equipment is ok and the connection is right. After connecting every wire,
then power on.

Remark: K8256/Chroma-22291 can be used to generate PC and AV signal, substitutes original PC and the
YPbPr supply oscillator, by saves the instrument.

3. After this adjustment, it is no allowed to enter the factory mode again in later operation.

4. After adjustment, fill in the record card when meeting the bad machine and adhere it to bezel.

5. Put OK/NG card away according to the condition of machine when having a rest.

6. White balance Auto Color program name is Auto Color.exe, configuration files: Auto_Color.ini.

Connection of Equipment

To Monitor To C hro ma To RS232 wire

43

英华家电维修资料专用 QQ:505966338

8. Block Diagram

44

英华家电维修资料专用 QQ:505966338

9. Schematic Diagram

9.1 Main Board

715G4005M0E000004L

MAI N5V

INT_IR7

5VP

+12VP

L703

BL_BRI

24VP

MAIN 5V

(5V STAND BY)

MCU _VC C

5VP

ADC07

600 OHM

R703 NC

CN702

2
4
6

8
10
12

CONN

0R05 1/10WR702

100 OHM 1/10WR704

(5V STAND BY)

680OHM +-5% 1/10WR701

1
3
5
7
9
11

8
7
6

150OHML701

300 OHM

LP701

L702

+5VP

C766
100N 50V

1
2
3
45

C702

100N 50V

C706

C703

100N 50V

600 OHM

100N 50V

C704

100N 50V

C705

100N 50V

BL

+12VP

24VP

C701

100pF 50V

C707
100N 50V

R709

MMBT3904

Q704

MAIN 5V

R710

1K 1/10W

10K 1/10W

R712

10K 1/10W

R711

PANEL_ON7

BL_BRI

C715

22uF 10V

R722

22K 1/10W

12VP

L712 ノ　 37",42",47"
L705

ノ　

26",32"

300 OHM

L712

1 2

R720
10K 1/10W

(for panel T1,T2 )

R721

360K 1/10W

Q705
MMBT3904

L705

1 2

C721

100N 50V

NC 300 OHM

5VP

Q706

AO4411

1
2
3
4

5V:1200mA

8

S

D

7

S

D

6

S

D

5

G

D

R723

10K 1/10W

PANEL_VCC

CN701

1
2
3
4
5
6
7
8

CONN

BACKLIGHT5

47K +-5% 1/10W

DCR_PWM5

R705

R800 NC

BRIGHTNESS7

47K +-5% 1/10W

BL

C714
100N 50V

CN9007

CONN

100N 50V

1
2
3
4
5
6

MAIN 12V

C722

+

C723

10uF/50V

U704

VI3VO

MAIN 12V

MAIN 5V

AZ1117H-AD J-E1

120OHM 1/10W

2

GND14

4

R725

620 OHM +-1% 1/4W

R785

NC

Q711
NC

24VP

R724

L724

MAIN24V

300 OHM

Q709
NC

1

8

S

D

2

7

S

D

3

6

S

D

4

5

G

D

R786

NC

R787
NC

+8V

+

C724

C725
100N 50V

10uF/50V

+12VP

C719
100N 50V

MAIN 5V MAIN 1V8

U705

C711

100uF/16V

AIC1084-25PETR -R

+

VIN3VOUT

GND

1

200mA

2

MAIN 2V5

C712

100N 50V

12VP

R713

100K 1/10W

270K 1/10W

Q702
MMBT3904

C713

+

220uF/16V

R706

C733
NC

R714
22K 1/10W

1

S

2

S

3

S

4

G

MAIN12V

Q701

AO4411

8

D

7

D

6

D

5

D

C731 NC

5VP

R715

10K 1/10W

C730
100N 50V

MAIN 5V

100uF/16V

C708

絬 隔 瓜 絪 腹

Key Component

R783

10K 1/10W

R788

NC

Q710
MMBT3904

U701

VIN3VOUT

+

GND

1

T P V ( Top Victory Electronics Co . , Ltd. )

01 POWER

Date

22K 1/10W

900mA

2

+5VP

R718

22K 1/10W

R784

MAI N3V 3

C709
100N 50V

+

100N 50V

POWER_ON 7

C710

220uF/16V

R716

C720

47K +-5% 1/10W

180K 1/10W

Q707
MMBT3904

OEM MODEL

TPV MO DEL

PCB NAME

Sheet

5VP

R717

MAIN 3V3

715G4005-D

110Thursday, March 04, 2010

C732
100N 50V

100uF/16V

of

C716

1
2
3
4

Q708

AO4411

S

D

S

D

S

D

G

D

C774 NC

C775
NC 100N 50V

U703

AP1084D18LA

ADJ(GND)1VOUT2VIN

3

+

MAIN 5V

8
7
6
5

R756

NC
R757
0R05 1/10W

R719

3.3K 1/10W

600mA

C717

100N 50V

Size

Rev

称爹

+

C718

220uF/16V

<

A3

C

称爹

>

45

英华家电维修资料专用 QQ:505966338

HS

ZD127

2.2K 1/10W

1 2

R106

VGA_EDID7

PHONEJ ACK

PC AUDIO INPUT

MCU _RX7

R103 510 +-5% 1/10W

VS

R104 510 +-5% 1/10W

ZD126

2.2K 1/ 10W

1 2

RLZ6.8B

CN102

RLZ6.8B

R107

VGA

C197

NC

PP_SCL
PP_SDA

18K 1/10W

REV:D>E (080508)
for ST DTV I2C Switch

ZD106

VPORT0603100KV05

ZD107

VPORT0603100KV05

3

2
1

PP_SDA

PP_SCL

C195

10pF 50V

R194

4.7K 1/10W

12

12

ZD101 VPORT0603100KV05

ZD102 VPORT0603100KV05

R101 100 OHM 1/10W

R102 100 OHM 1/10W

L127 60 OHM

L128 60 OHM

R105 100 OHM 1/10W

C196
10pF 50V

R195

4.7K 1/10W

8
7
6
5

R196

L104 150OHM

L105 150OHM

C117

C118

1nF 50V

1nF 50V

12

12

12

C198 220NF 25V

U102

VCC
WP
SCL
SDA

M24C02-WMN6TP

GND

A0
A1
A2

PP_SDA

ISP_SDA7
SDA_T7

PP_SCL

ISP_SCL7
SCL_T7

PC_R

PC_L

R192

NC

1
2
3
4

VGA INPUT

11

12

13

14

15

ZD103

VPORT0603100KV05

MCU _VC C

R163 NC

SDA4,5,7

R164 NC

SCL4,5, 7

ISP_SW7
ISP_SW17

ISP_POW

PC_R 9

PC_L 9

R193

NC

S_VIDEO 1 IN

1716

CN101

DB15

1
6
2
7
3
8
4
9
5
10

R131
0R05 1/10W

C168
100N 50V

U103

74HC4052D

12
14
15
11

1
5
2
4

10

9

6

7

16

C116
100N 50V

R108 100 OHM 1/10W

ZD104

VPORT0603100KV05

R130
0R05 1/10W

X0

X
X1
X2

Y

X3

Y0
Y1
Y2
Y3

A
B

EN

VEE
VDD

GND

8

MCU _TX 7

BAT54C

VPORT0603100KV05

14

PP_SDA

PP_SCL

2

D105

3

VGA

U101

1A11Y
2A32Y
3A53Y
4A94Y
5A115Y
6A136Y

VCC

74LVC14ADT

5VP

1

D107

SCS140V

GND

12

ISP_POW

2
4
6
8
10
12

7

CVBS_OUT3

AV1_CVBS3

75OHM +-5% 1/10W

ZD105

12

12

HS

VS

13

3

S_VIDEO 2 IN(side)

L125 120 OHM

S2_C3

L126 120 OHM

S2_Y3

75OHM +-5% 1/10W

R189

R190
75OHM +-5% 1/10W

L101 32 OHM

L102 32 OHM

L103 32 OHM

C1945.6pF 50V

C1935.6pF 50V

C1925.6pF 50V

Rev:B-->C

R170 200R 1/ 10W 5%
R171 200R 1/ 10W 5%

L110
120 OHM

VPORT0603100KV05

R191

C187
68pF 50V

0R05 1/10W

ZD124

C188
68pF 50V

1 2

VPORT0603100KV05

ZD125

1 2

R141

1

D103
BAV99

3

R11075OHM +-5% 1/10W

R10975OHM +-5% 1/10W

R11175OHM +-5% 1/10W

I0_HS 3

MCU _VS 7
I0_VS 3

2

5VP

I0_R 3

I0_G 3

I0_B 3

3

1

2

D106
BAV99

D104
BAV99

3

HD_L9

5VP

HD_R9

AV1 INPUT & AV OUTPUT

ZD112

65981

4

7

EF

C140
68pF 50V

ZD123

ZD122

1 2

1 2

VPORT0603100KV05

VPORT0603100KV05

T P V ( Top Victory Elec tronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

12

ZD110

L119 120 OHM

ZD119

4 5

2 3

CN103 DIN JACK

VPORT0603100KV05

VPORT0603100KV05

CN106

C129
68pF 50V

JACK

1 2

1

32

D

ABC

6

1

2

5VP

COMPONENT INPUT

L113 600 OHM

HD_L

R134
NC

ZD113

VPORT0603100KV05

L114 600 OHM

HD_R

R135
NC

VPORT0603100KV05

ZD111

1 2

VPORT0603100KV05

VPORT0603100KV05

C143
220pF 50V

AV2_CVBS3

75OHM +-5% 1/10W

02 INPUT / OUTPUT

1 2

ZD114

1 2

C133

C132

470pF 50V

470pF 50V

1 2

L123 600 OHM

L124 600 OHM

C144

R144

220pF 50V

NC

R139

CN105

C134
220pF 50V

C135
220pF 50V

L111

600 OHM

L112

600 OHM

REV:C->D
for line out POP

AV1_R

AV1_L

R145

NC

L118 120 O HM

R140
0R05 1/10W

C130

4.7UF 16V

C131

4.7UF 16V

3 2

6 5

SPDIF -OUT-1 10MCU _H S 7

R183

47K +-5% 1/10W

AV1_R 9

AV1_L 9

CN111

JACK

ZD118

1 2

VPORT0603100KV05

OEM MODEL

TPV MODEL

PCB NAME

Sheet

9 814

7

JACK

R184

47K +-5% 1/10W

79461

8

ZD121
C139
68pF 50V

1 2

715G4005-D

210Thursday, March 04, 2010

ZD115

ZD116

ZD117

R181
680OHM +-5% 1/10W

R182
680OHM +-5% 1/10W

Q107
2SD1757K

325

ZD120

1 2

VPORT0603100KV05

of

L115 120 OHM

C136
68pF 50V

1 2

VPORT0603100KV05

L116 120 OHM

C137
68pF 50V

1 2

VPORT0603100KV05

L117 120 OHM

C138
68pF 50V

1 2

VPORT0603100KV05

C181

4.7UF 16V

C182

Q106
2SD1757K

R188
47K +-5% 1/10W

4.7UF 16V

4.7K 1/10W

R186
47K +-5% 1/10W

R187

4.7K 1/10W

R185

AV2 INPUT(SIDE)

600 OHM

L120

L121

600 OHM

C142

C141

220pF 50V

220pF 50V

VPORT0603100KV05

R136
75OHM +-5% 1/10 W

R137
75OHM +-5% 1/10 W

R138
75OHM +-5% 1/10 W

LINEOUT_L

LINEOUT_R

LINEOUT_MUTE 7,9,10

R143

R142
NC

Size

Rev

称爹

HD_Y 3

HD_PB 3

HD_PR 3

LINEO UT_L 9

LINEO UT_R 9

AV2_L

AV2_L 9

AV2_R

AV2_R 9

NC

A3

A

<

称爹

>

46

英华家电维修资料专用 QQ:505966338

ATV TUNER

ANT IN

121314

trace 15mil Jhonson_1025

1112 conn delete

R167 47 OHM 3W

R168 47 OHM 3W

R793 0R05OHM1/8W

R794 0R05OHM1/8W

R795 0R05OHM1/8W

R796 0R05OHM1/8W

R798 0R05OHM1/8W

R799 0R05OHM1/8W

R797 0R05 1/4W

R745

5.6KOHM +-5% 1/10W

R746 0R 05 1/10W C749 0.47UF 25V

SDA_A7

SCL_A7

+

C726

100uF/16 V

TU7 01

AGC

AS

SCL

SDA

BP

AFC

BT

IF

15

C746 390pF 50 V

C747 10N 50V

R773 12K 1/10W

R749 0R05 1/10W

C727
100N 50V

1

3

4

5

7

8

9

11

C748 10N 50V

R748
0R05 1/10W

3

1

AGC1

C738

100pF 50V

C772
100N 50V

VIF1

VIF2

R747
0R05 1/10W

SIF9

INPUT

ADJ/GN D

AZ1117D-5.0-E1

C737
100pF 50V

+30V

+

C773

10uF/50V

C741

1nF 50V

U707

2

OUTPUT

0R05 1/10W

R730

R731 12K 1/10W

R732 100K 1/10W

+

C736 100uF/16V

R733 1K 1/10W

R734 NC

R735 100 OHM 1/10W

R736 100 OHM 1/10W

L713 120 OHM

+

C739 100uF/16V

C740
100N 50V

+5VI F

R739

4.7K 1/1 0W

IF

R741

1.2K 1/1 0W

IF DECODER

U708
TDA9885TS/V5

1

VIF1

2

VIF2

3

IC/OP1

4

5

6

7

8

9

10

VAGC/OP2

FMPLL

DEEM

AFD

DGND

AUO

TOP

MUTE/VAGC

FM1/SDA

FM0/SCL11TAGC

QSSO/SIOMAD12VIF0/N C

+

C728

100uF/16 V

SIF2

SIF1

AFC

VPLL

AGND

CVBS

REF

VP

AGC

R737

NC

SIF2

24

SIF1

23

22

21

20

+5VIF

19

18

17

16

C753 1nF 50V

15

14

13

R755 NC

+5VT

+5VT

SCL_A 7

SDA_A 7

+5VTMAI N12 V

+30V

C729
100N 50V

10 OHM 1/10W

1 2

+5VT

IF

SW

R738

NC

IF

SW

R750 NC

R751 NC

R752 330 OHM 1/1 0WC751 220NF 25V

C752 1500P50V

R753 470OHM1/10W

X70 1

4.7pF 50VC776

4.000MHz
R754
0R05 1/10W

R774

ZD701
NC

U709

VF45A3D

INPUT1SWITCHING INPUT2CHIP CARRIER -GROUND3OUTPU T4OUTPU T

INPUT1SWITCHING INPUT2CHIP CARRIER-GROUND3OUTPU T4OUTPU T

C750
100N 50V

L723
180uH

C768

100uF/50V

–

癸ぇ丁

筳

5

L727 120 O HM

L728 120 O HM

Rev:B-->C

–

癸ぇ丁

筳

GND

U710
AF45A3D

5

L729 120 O HM

L730 120 O HM

Rev:B-->C

+5VT

TV_CVBS

AGC

D701

BAS32L

+

R775

47K +-5% 1/10W

GND

TO IO/I1 CVBS

R782
470OHM1/10W

C754

220uF/16V

C769
1500P50V

VIF1

+5VI F

+

1

2

4

150 OHM 1/10W

I0_R2

I0_G2

I0_B2

VIF2

HD_PR2

HD_Y2

HD_PB2

SIF1

SIF2

L722 200uH

U106

MC34063AL

SWC

SWE

TCA P3VCC

COMP

GND

R776

IF

IF_SW7

C755
10N 50V

180 OHM 1/10W

8

DC

7

PK

6

5

R777

1.8K 1/10W

R146
100 OHM 1/10W

100 OHM 1/10W
R148
100 OHM 1/10W
R149
100 OHM 1/10W
R150
100 OHM 1/10W
R151
100 OHM 1/10W
R152
100 OHM 1/10W

I0_HS2

I0_VS2

R155
100 OHM 1/10W
R156
100 OHM 1/10W
R157
100 OHM 1/10W
R158
100 OHM 1/10W
R159
100 OHM 1/10W
R160
100 OHM 1/10W
R161
100 OHM 1/10W

D702 NC

R781

NC

L720
120 OHM

R778

C145 47nF 50V

C146 47nF 50VR147

C147 47nF 50V

C148 47nF 50V

C149 47nF 50V

C150 47nF 50V

C151 47nF 50V

R153 100 OHM 1/10W

R154 100 OHM 1/10W

C152 47nF 50V

C153 47nF 50V

C154 47nF 50V

C155 4N7 50V

C156 47nF 50V

C157 47nF 50V

C158 47nF 50V

C159 NC

+5VT

NC

R780

+5VT

R779

6.2 OHM 5% 1/4W

+

C770
100N 50V

100uF/16 V

SW

Q506
NC

MAIN 12V

1 2

L721 300 OHM

C771

65

69

I0R0+

255

I0R0+

256

I0R0-

I0G0+

253

I0G0+

I0SOG0

252

I0SOG0

254

I0G0-

I0B0+

250

I0B0+

251

I0B0-

1

I0HS0

2

I0VS0

I0R1+

245

I0R1+

246

I0R1-

I0G1+

243

I0G1+

I0SOG1

242

I0SOG1

244

I0G1-

I0B1+

240

I0B1+

241

I0B1-

247

C160

I0RMDSCV

100N 50V

239

C161

I0BMDSCV

100N 50V

U401C
NT7263

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

66

70

SIF-

VIF-

SIF+

VIF+

I0/I1 Block

31

C162
100N 50V
C163
100N 50V
C164
100N 50V
C165
100N 50V

03 TUNER / IF , IO / I1

I1ADC2-

I1ADC3-

40

35

57

73

PEAK

VAFC

I1ADC1-

I1ADC0-

44

22 OHM 1/10W

26

R162

64

59

71

54

AFD

TOP

REFIN

I1Cr/SCARTR1

I1Y/ SCARTG1

I1Cb/SCARTB1

I1Y2/SCARTY1

I1HSOUT

I1VSOUT

I1YOUT

25

48

+

C169

10uF/50V

OEM MO DEL

TPV MOD EL

PCB NAME

Sheet

56

VPLL

FMPLL

72

TAGC

62

SSIF

61

MONO

60

IFY_OUT

0R05 1/10W

C176
100N 50V

C166

R125

100N 50V

0R05 1/1 0W

C179
100N 50V

C185
100N 50V

C186
100N 50V

MAI N5V

R121

NC

1000uF M 16V

R119

75OHM +-5% 1/10W

TV_CVBS

AV1_CVBS 2

S2_C 2

S2_Y 2

S-VIDEO2

+

100uF/16V

+

I1Y0

47

46

43

36

33

39

30

42

51

34

41

32

45

52

1K 1/10W

Q108
MMBT3904

47OHM +-5% 1/ 8W

I1Y1

C

Y

C

C

Y

C

Y

C175 NC

Rev:B-->C

R124

0R05 1/1 0W

NC

R122

Q105

MMBT39 06

2.2K 1/10W

R117

R120

I1Y0

I1Y1

I1Y3

I1C0

SCARTR0

SCARTG0

SCARTB0

SCARTY0

SCARTF B0

SCARTF B1

R123

NC

R113

C199

22pF 50V

R112 47K +-5% 1/10W

R116
56OHM 1/10W

33KOHM 1/ 10W

R114

R115

A

715G4005-D

310Thursday, March 04, 2010

of

AV2_CVBS 2

C170

C171

R118
100K 1/10W

Size

Rev

称爹

TV_C VBS

CVBS_OUT 2

A3

<

称爹

>

47

英华家电维修资料专用 QQ:505966338

5VP

NC

R506

18K 1/10W

U501

VCC
WP
SCL

GND

SDA

M24C02-WMN6TP

10
9

7
6

HDMIA_RX1-

10

HDMIA_RX1+

9

HDMIA_RX2-

7

HDMIA_RX2+

6

C504

220NF 25V

A0

VCC

A1

WP

A2

SCL

GND

SDA

OUT1
OUT2

OUT3

GND

GND

3

8

OUT1
OUT2

OUT3

GND

GND

3

8

MAI N5V

C502
220NF 25V

1

A0

2

A1

3

A2

4

HDMIA_RXC­HDMIA_RXC+

HDMIA_RX0­HDMIA_RX0+

1
2
3
4

10
9

7
6

10
9

7
6

HDMIB_RXC­HDMIB_RXC+

HDMIB_RX0­HDMIB_RX0+

HDMIB_RX1­HDMIB_RX1+

HDMIB_RX2­HDMIB_RX2+

L509 300 OH M

MAIN 3V3

HDMIB_POW

HDMIA_POW

HDMIB_SDA
HDMIB_SCL

HDMIB_RXC­HDMIB_RXC+
HDMIB_RX0­HDMIB_RX0+
HDMIB_RX1­HDMIB_RX1+
HDMIB_RX2­HDMIB_RX2+

HDMIA_SDA
HDMIA_SCL

HDMIA_RXC­HDMIA_RXC+
HDMIA_RX0­HDMIA_RX0+
HDMIA_RX1­HDMIA_RX1+
HDMIA_RX2­HDMIA_RX2+

SDA2,5,7
SCL2, 5,7

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

U507

62

63
64

67
68
70
71
73
74
76
77

80

2
3

5
6
8

9
11
12
14
15

36K 1/10W

36K 1/10W

HPD2

SDA2
SCL2

B21
A21
B22
A22
B23
A23
B24
A24

HPD1

ASDA
ASCL

B11
A11
B12
A12
B13
A13
B14
A14

560R 1% 1/ 10W

04 PS321 HDMI SW

R552

21

HDMI_SW

+

C505

22uF/25V

R9007

R551

20

1

79

PC1/POWDN

PC0/I2C_RST

C506

0.1uF

50

VCC

R558

10K 1/10W

33

43

VCC

VCC

POW3

HDMI_SW

7

13

17

27

VCC

VCC

VCC

NC

56

69

75

61

VCC

VCC

POW2

POW1

PS321TQFP80G-B1

GND

GND

GND

REXT18NC

S2/SCL_C TL22S1/SDA_C TL

OE#/STANDBY

19

42

R520

4.7K 1/10W

I2C_CTL_EN37GND

GND

GND

GND

GND

4

GND

10

16

36

30

24

59

53

47

R553

HDMI_SW

OEM MOD EL

TPV MO DEL

PCB NAME

Sheet

C508

C507

100N 50V

100N 50V

10K 1/10W

40

HPD_SINK

VCC

S3/I2C_ADDR

EDID _BRG_EN65GND

66

4.7K 1/10W

39

SDA_SI NK

38

SCL_SIN K

35

Z1

34

Y1

32

Z2

31

Y2

29

Z3

28

Y3

26

Z4

25

Y4

60

CEXT

41

POW_SIN K

58

A34

57

B34

55

A33

54

B33

52

A32

51

B32

49

A31

48

B31

46

SCL3

45

SDA3

44

HPD3

23

GND

GND

72

78

R556
NC

NC

R554

R557

HDMIC_RXC­HDMIC_RXC+
HDMIC_RX0­HDMIC_RX0+

HDMIC_RX1­HDMIC_RX1+
HDMIC_RX2-

HDMIC_RX2+

A

715G4005-D

410Thursday , March 04, 2010

of

C509
100N 50V

R549

DSDA
DSCL

C521 2U2 16V

R555

4.7K 1/10W

1112

1
2
3
4
5
6
7
8
9

10

CONN

C510

C511

100N 50V

100N 50V

R550

10K 1/10W

HDMI_RXC- 5
HDMI_RXC+ 5
HDMI_RX0- 5
HDMI_RX0+ 5
HDMI_RX1- 5
HDMI_RX1+ 5
HDMI_RX2- 5
HDMI_RX2+ 5

HDMI_POW

HDMIC_RX2+

HDMIC_RX2­HDMIC_RX1+
HDMIC_RX1­HDMIC_RX0+
HDMIC_RX0­HDMIC_RXC+
HDMIC_RXC-

HDMI_SW

CN1807

C513

C512

100N 50V

100N 50V

DSDA 5
DSCL 5

5

Size

Rev

称爹

A3

<

称爹

>

HDMI-1 INPUT

HDMIA_DET7

1K 1/10W

CN501

SHLD_GN D2
SHLD_GN D1

DDC_GND

CSHLD0
DSHLD2
DSHLD1
DSHLD0

TMDS C-

TMDSC +

TMDS D2-

TMDSD 2+

TMDS D1-

TMDSD 1+

TMDS D0-

TMDSD 0+

HDMI

R501

SHLD5
SHLD4
SHLD3
SHLD2
SHLD1

VCC5

HPD
CEC
SDA

NC

SCL

HDMI-2 INPUT

HDMIB_DET7

R509

1K 1/10W

CN502

SHLD_GN D2
SHLD_GN D1

DDC_GND

CSHLD0
DSHLD2
DSHLD1
DSHLD0

TMDS C-

TMDSC +

TMDS D2-

TMDSD 2+

TMDS D1-

TMDSD 1+

TMDS D0-

TMDSD 0+

HDMI

SHLD5
SHLD4
SHLD3
SHLD2
SHLD1

VCC5

HPD
CEC
SDA

NC

SCL

R514

4.7K 1/10W

HDMI_WP

R505

4.7K 1/10W

HDMIA_RX1­HDMIA_RX1+

HDMIA_RX2­HDMIA_RX2+

4.7K 1/10W

HDMIB_RXC-

HDMIB_RXC+

HDMIB_RX0+

HDMIB_RX1­HDMIB_RX1+

HDMIB_RX2-

HDMIB_RX2+

Q502
MMBT390 4

R508

4.7K 1/10W

U502 RClam p0524P.TCT

1

IN1

2

IN2

4

IN3
IN45OUT4

GND

8

U503 RClam p0524P.TCT

1

IN1

2

IN2

4

IN3
IN45OUT4

GND

8

R513

4.7K 1/10W

HDMI_WP

HDMIB_RX0-

8
7
6
5

OUT1
OUT2

OUT3

GND

3

OUT1
OUT2

OUT3

GND

3

U504

8
7
6
5

M24C02-WMN6TP

U505 RClam p0524P.TCT

1

IN1

2

IN2

4

IN3
IN45OUT4

U506 RClam p0524P.TCT

1

IN1

2

IN2

4

IN3
IN45OUT4

HDMI_EDID7

5VP

MAIN 5V

R515

R502

NC

R510

R516
0R05 1/10W

20K 1/10W

20K 1/10W

C501

R503

1K 1/10W

1

2

L501 90 ohm

1

2

L504 90 ohm

1

2

L503 90 ohm

1

2

L502 90 ohm

MAI N5V5VP

R517
NC

R511

1K 1/10W

1

2

L505 90 o hm

1

2

L508 90 ohm

1

2

L507 90 ohm

1

2

L506 90 ohm

Q501
MMBT390 4

26
25
24
23
22
21
20

17
11
8
5
2

14

HDMIA_POW

18

19

CEC

13

HDMIA_SDA

16

HDMIA_SCL

15

12
10

3
1

6
4

9
7

Q503
MMBT390 4

26
25
24
23
22
21
20

17
11
8
5
2

14

HDMIB_POW

18

19

CEC

13
16
15

12
10

3
1

6
4

9
7

HDMIB_SDA

HDMIB_SCL

NC

4

3

4

3

4

3

4

3

R518
0R05 1/10W

C503

NC

4

3

4

3

4

3

4

3

R504 1K 1/10W

D501

1

2

BAT54C

D502

1

2

BAT54C

3

R507

HDMIA_RXC­HDMIA_RXC+

HDMIA_RX0­HDMIA_RX0+

3

R512

48

英华家电维修资料专用 QQ:505966338

LVDS OUTPUT

MAI N3V 3

R528 1K 1/10W

R529 1K 1/10W

R530 10K 1/10W

NC

VCC

E1

WC

E2

SCL

VSS4SDA

U509
M24C04-WMN6TP

RP505

4

5

3

6

2

7

1

8

RP507

4

5

3

6

2

7

1

8

NC

FSI
FWP
FHOLD
FSO

HDMI_R

10K 1/10W

C522

220NF 25V

1
2
3

MAI N3V 3

R128

HD_MCLK
HD_SCK
HD_WS
HD_SDHDMI_SD

HD_MCLK
HD_SCK
HD_WS
HD_SD

FSCK

FCE

1K 1/10W

HDMI_HDCP7

R527

HDMI_MC LK19
HDMI_SCK19
HDMI_WS19
HDMI_SD19

I4_D5_F SCK

FCS

PD_FLASH7

KSCL
KSDA

I4_D6_UTRX

I4_D7_U TTX

I4_D0_FSI
I4_D1_FWP
I4_D2_FHOLD
I4_D3_FSO

8
7
6
5

HDMI_MC LK

HDMI_SCK

HDMI_WS

22R 1/16W 5%

HDMI_MCLK1
HDMI_SCK1

HDMI_WS1

HDMI_SD1

CN503
NC

3

2

1

RP506

4

5

3

6

2

7

1

8

22R 1/16W 5%

R531 22 O HM 1/10W

R532 22 O HM 1/10W

R533 NC

HDMI_R9

HDMI_WS
HDMI_SD
HDMI_SCK

C12110uF/50V

+

　кで皌璶

HDMI_RXC-4
HDMI_RXC+4
HDMI_RX0-4
HDMI_RX0+4
HDMI_RX1-4
HDMI_RX1+4
HDMI_RX2-4
HDMI_RX2+4

DSCL4
DSDA4

R534 1K 1/10W

R535 NC

HDMI_POW4

R538

C515
15P 50V

MAI N3V 3

FCE
FSI
FWP

1
2
3
4
5
6
7

100OHM

KSCL
KSDA

HD_SD
HD_WS
HD_SCK
HD_MCLK

C514
NC

X50 2

28.322MHZ

1M 1/10W

I4_D0_FSI
I4_D1_FWP
I4_D2_FHOLD
I4_D3_FSO

I4_D5_FSCK
I4_D6_UTRX
I4 _D7 _UTTX

FCS

L510 120 OHM

U510

1

CS

VCC

2

SO

HOLD

3

WP

SCK

GND4SI

MX25L4005AMC

U105

DGND
LRCLK
DIN

FORMAT

BCLK

DEEMPH

MUTE

VOUTL
VOUTR
AGND

WM8521HCGED/RV

8
7
6
5

DVDD

MCL K

AVDD

CAP

C516
15P 50V

197
198
200
201
203
204
206
207

212
213

214
215

195

217

219
221
222
223

218

191

190

224
225
226
228
229
230
232
233
234

9
10
11
13
14
15
16
18
19
20

C517 4.7U F 16V

14
13
12
11
10
9
8

C122
100N 50V

10uF/50V

U401B
NT7263

RC­RC+
RX0­RX0+
RX1­RX1+
RX2­RX2+

DSCL
DSDA

KSCL
KSDA

RSVD

PWR5V

SD
WS
SCK
HMCLK

SPDIF

HAXO

HAXI

I2D0/HAD0
I2D1/HAD1
I2D2/HAD2
I2D3/HAD3
I2D4/HAD4
I2D5/HAD5
I2D6/HAD6
I2D7/HAD7
I2CLK/HALE

I4D0/FSI
I4D1/FWP#
I4D2/FHOLD#
I4D3/FSO
I4D4
I4D5/FSCK
I4D6/UTRX
I4D7/UTTX
I4CLK
FCS#

FHOLD
FSCK
FSO

C119

+

100N 50V

C120

10uF/50V

C126 10uF/ 50V

+

C123

C518
100N 50V

+

C124
100N 50V

+

C125

10uF/50V

LVDSCLK0+
LVDSCLK0-

LVDSCLK1+
LVDSCLK1-

GPIO4/PW M4
GPIO5/PW M5

GPIO7/PW M7

HDMI/DP Block

GPIO8/PW M8

HSDA/HRD#

HSCL/HWR#

L106

120 OHM

L107

120 OHM

10K 1/10W

LVDSC0+
LVDSC0­LVDSC1+
LVDSC1­LVDSC2+
LVDSC2­LVDSC3+
LVDSC3-

LVDSC4+
LVDSC4­LVDSC5+
LVDSC5­LVDSC6+
LVDSC6­LVDSC7+
LVDSC7-

GPIO0
GPIO1
GPIO2
GPIO3

GPIO6

HRST#

HIRQ

HSEL

HTYPE

TEST

HDMI_MCLK

HDMI_L

R129

XI

XO

WXGA-PANEL

LVDS0+

108

LVDS0-

109

LVDS1+

106

LVDS1-

107

LVDS2+

104

LVDS2-

105

LVDS3+

100

LVDS3-

101

LVDSCLK0+

102

LVDSCLK0-

103

LVDS4+

96

LVDS4-

97

LVDS5+

94

LVDS5-

95

LVDS6+

92

LVDS6-

93

LVDS7+

88

LVDS7-

89

LVDSCLK1+

90

LVDSCLK1-

91

23
24
81
82

R801 NC

83
84
236
237
238

76

77

78

80

8

75

21

4

5

X503 12MHz

C519
33pF 50V

MAI N3V 3

MAIN12V

HDMI_L 9

R543

ODSEL_ON

0R05 1/10W

R544
0R05 1/10W

SYS_RSTn 7

INT_726X 7

SDA 2,4,7

SCL 2,4,7

R539 NC

R540 1K 1/10W

R542

1M 1/10W

1080P-PANEL

r202

DCR_ON7

nc

R201

0R05 1/10W

8mil

PANEL_VCC

BACKLIGHT-Contronal

BACKLI GHT 1

DCR_PWM 1

NT7263 ->R539=NC,R540=1KOHM

NT72631->R539=0 OHM,R540=NC

R541 NC

R541

璶綼　

X503

T P V ( Top Victory Electronics Co . , Ltd. )

05.HDMI,LVDS

Date

C520
33pF 50V

OSC_OUT=12mil,

絬 隔 瓜 絪 腹

Key Component

DCR

(#10,NC)

L201

1 2

MAI N3V 3

OSC_OUT 7

璶　

GND

LVDS0+ LVDS0-

LVDS2+ LVDS2-

(#1,GND1) (#21,GND2)

LVDSCLK0+

(#18,GND3)

LVDS3+
LVDS4+
LVDS5+
LVDS6+

(#26,GND5)

LVDSCLK1+ LVDSCLK1-

(#37,GND8)

LVDS7+

(#43,GND10)
(#45,GND12)

300 OHM

(#13,FC RO0+)
(#15,FC RO1+)
(#17,FC RO2+)
(#18,GND1)
(#20,FC CLK+)
(#8,RPF,GND9)
(#23,FC RO3+)
(#29,SC RO0+)
(#31,SC RO1+)
(#33,SC RO2+)
(#34,GND3)
(#36,SC CLK+)
(#10,DGMEN,GND11)
(#39,SC RO3+)
(#7,LVDS SEL)

(#45,GND5)
(#47,GND7)
(#49,+12V)
(#51,+12V)

C201

+

100uF/16V

OEM MO DE L

TPV MOD EL

PCB NAME

Sheet

CN201
CONN

2
4
6

8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40

VGA GND#1

VGA GND#2

VGA GND#3

VGA GND#4

VGA GND#5

VGA GND#6

HDMI GND#1

HDMI GND#2

HDMI GND#3

(#12,FC RO0-)

1

(#14,FC RO1-)

3

(#16,FC RO2-)

5
7

(#19,FC CLK-)

9

(#9,ODSEL,GND10)

11

(#22,FC RO3-)

13

(#28,SC RO0-)

15

(#30,SC RO1-)

17

(#32,SC RO2-)

19

(#37,GND4)

21

(#35,SC CLK-)

23

(#11,DGREN,GND12)

25

(#38,SC RO3-)

27
29
31

(#44,GND6)

33

(#46,GND8)

35

(#48,+12V)

37

(#50,+12V)

39

LVDS1-LVDS1+

(#11,GND2)

LVDSCLK0-

(#21,GND4)

LVDS3­LVDS4­LVDS5­LVDS6-

(#27,GND6)

(#34,GND7)

(#9,EN_DBL)

LVDS7-

(#42,GND9)
(#44,GND11)
(#46,GND13)

R210 0R05 1/4W

R211 0R05 1/4W

R212 0R05 1/4W

R213 0R05 1/4W

R214 0R05 1/4W

R215 0R05 1/4W

R216 0R05 1/4W

R217
0R05 1/10W

R218
0R05 1/10W

HDMI GND#4

HDMI GND#5

R220 0R05 1/4W

HDMI GND#6

R227

SOUND GND#6

0R05 1/10W

HDMI GND#7

VGA GND#7

HDMI GND#8

R223 0R05 1/4W

R225 0R05 1/4W

HDMI GND#9

VGA GND#9

HDMI GND#10

R228 0R05 1/4W

R229 0R05 1/4W

HDMI GND#11

HDMI GND#12

A

715G4005-D

510Thursday , March 04, 2010

of

R231 0R05 1/4W

Size

Rev

称爹

DCR

ODSEL_ON

A3

<

称爹

>

49

英华家电维修资料专用 QQ:505966338

8mil

D

MA[0..11]

6mil

12mil

B

B

MCL K

MCL Kn

MBA0
MBA1

MCA S
MRA S

C

MWE
MCS

MDQ S0
MDQ S1

MCK E

RP401 22R 1/16W 5%

MA0
MA1
MA2
MA3

MA4
MA5
MA6
MA7

MA8
MA9
MA11

MA10

R402 22 OHM 1/10W
R403 22 OHM 1/10W

R408 22 OHM 1/10W

R409 22 OHM 1/10W

R411
220 OHM 1/10W

R410 22 OHM 1/10W

1
2
3
4

RP402 22R 1/16W 5%

1
2
3
4

RP403 22R 1/16W 5%

1
2
3
4

R401

22 OHM 1/10W

RP404 22R 1/16W 5%

1
2
3
4

R404 0R05 1/10W
R405 0R05 1/10W
R406 1K 1/10W
R407 1K 1/10W

A0

8

A1

7

A2

6

A3

5

A4

8

A5

7

A6

6

A7

5

A8

8

A9

7

A11

6

A12

5

A10

U401A
NT7263

A0

144

MA0

A1

146

MA1

A2

147

MA2

A3

148

MA3

A4

153

MA4

A5

154

MA5

A6

156

MA6

A7

157

MA7

A8

158

MA8

A9

159

MA9

A10

143

MA10

A11

161

MA11

A12

162

MA12

141

MBA0

142

MBA1

8
7
6
5

CLK0

CLKn

DQS0

DQS1

DQS2

DQS3

CKE

135

MCA S#

136

MRA S#

138

MWE #

139

MCS #

123

MDQ S0

134

MDQ S1

173

MDQ S2

185

MDQ S3

155

MCK E#

149

MCL K+

150

MCL K-

MMU Block

MDQ 0
MDQ 1
MDQ 2
MDQ 3
MDQ 4
MDQ 5
MDQ 6
MDQ 7
MDQ 8

MDQ 9
MDQ 10
MDQ 11
MDQ 12
MDQ 13
MDQ 14
MDQ 15
MDQ 16
MDQ 17
MDQ 18
MDQ 19
MDQ 20
MDQ 21
MDQ 22
MDQ 23
MDQ 24
MDQ 25
MDQ 26
MDQ 27
MDQ 28
MDQ 29
MDQ 30
MDQ 31

112
114
116
117
118
120
121
122
133
132
130
129
128
127
126
124
171
170
169
168
167
165
164
163
174
176
177
178
180
181
183
184

75R 1/16W 5%

75R 1/16W 5%

75R 1/16W 5%

75R 1/16W 5%

RP405

RP406

RP407

RP408

8
7
6
5
8
7
6
5
5
6
7
8
5
6
7
8

MD0

1

MD1

2

MD2

3

MD3

4

MD4

1

MD5

2

MD6

3

MD7

4

MD8

4

MD9

3

MD1 0

2

MD1 1

1

MD1 2

4

MD1 3

3

MD1 4

2

MD1 5

1

A

MA[0.. 11] MD[0..15]

MD[0..15]

6mil

C401
100N 50V

MAI N2V 5

MA0
MA1
MA2
MA3
MA4
MA5
MA6
MA7
MA8
MA9
MA11

MA10
MBA0
MBA1

MCK E
MCL K
MCL Kn

MDQ S1

MRA S
MCA S
MWE
MDQ S0

MCS

U402

HY B25DC256160C E-5

C402
100N 50V

C403

C404

100N 50V

10uF 16V

R430
0R05 1/10W

29
30
31
32
35
36
37
38
39
40
41
42
28
26
27

44
45
46
51

23
22
21
16

24

VDDA

VDD01VDD118VDD2

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A11
A12
A10/AP
BA0
BA1

CKE
CK
CK
UDQS

RAS
CAS
WE
LDQS

CS0

VSS066VSS148VSS234VSSQ06VSSQ112VSSQ252VSSQ358VSSQ4

C405

C406

C407

100N 50V

100N 50V

R431
0R05 1/10W

MD0
MD1
MD2
MD3
MD4
MD5
MD6
MD7
MD8
MD9
MD1 0
MD1 1
MD1 2
MD1 3
MD1 4
MD1 5

C408
100N 50V

C411
100N 50V

100N 50V

VDDQA

33

VDDQ03VDDQ19VDDQ215VDDQ355VDDQ4

64

61

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

UDM

LDM

VREF

2
4
5
7
8
10
11
13
54
56
57
59
60
62
63
65

19

NC

50

NC

47
20

49

VDDQAVDDA

C410

C409
100N 50V

10uF 16V

MAI N2V 5

DDR_VREF 8

R412 1K 1/10W

R413

1K 1/10W

MAI N2V 5

50

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

06. MMU/ DD R

OEM MO DE L

TPV MODEL

PCB NAME

Sheet

Size

A

715G4005-D

of

610Thursday , March 04, 2010

Rev

称爹

A3

<

称爹

>

英华家电维修资料专用 QQ:505966338

ISP_POW

5VP

MCU _VC C

R449

0R05 1/10W

D403

LL4148

CN403

NC

12K 1/10W

10K 1/10W

D407

1
2

C418 470N 16V

U404

1

E0

2

E1

3

E2

4

VSS

M24C32-WMN6TP

MAI N5V

R672

R680

12

SCS140V

D401

1 2

SCS140V

R434

300OHM 1/10W

5VP

R448

NC

R414

100K 1/10W

C414
10uF 16V

VCC

WC
SCL

SDA

D603
LL4148

U406

AS431AN-E1

ADC1

5VP

REV:D>E (080508)
for ST DTV I2C Switch

OSC_OUT5

MCU _VC C

8

VGA_EDID

7

SCL

6

SDA

5

D604

1 2

MAIN 12V

D602

1 2

R668

10K 1/10W

R673 47K +-5% 1/10W

+

C6116

100uF/16V

C6117
100N 50V

Q403
MMBT3904

R435

1K 1/10W

R436

3.3K 1/10W

R450 NC
R415 4.7K 1/10W
R416 10K 1/ 10W

ISP_SW12

R418 NC

SW_I2C

HW_I2C

SCS140V

+

Q608
MMBT3906

C6114
100N 50V

3.3K 1/10W

C6115

330uF/16V

10K 1/10W

C412 100uF/16V

BRIGHTNESS1
HDMI_HDCP5
HDMI_EDID4

AUDIO_RESET9

ISP_SW2

SYS_R STn5
PD_FLASH5

ISP_SCL2
ISP_SDA2

SCL2,4,5
SDA2,4,5

POWER_ON1
PANEL_ON1

X40 3 1 2 MH z

C415

33pF 50V

R428
0R05 1/10W
R429
0R05 1/10W

R677

R681

+

C413
100N 50V

S3

ISP_SW1

MCU _H S2
MCU _VS2

1M 1/10WR417

SCL_ST_DTV

SDA_ST_DTV

DTV_I2C

Q605
MMBT390 4

AS431AN-E1

U607

MCU _VC C

U403

44

VDD

2

PA0/PWM2

6

PA4*/PWM6*

7

PA5*/PWM7*

8

PA6*/PWM8*

9

PA7*/PWM9*

43

PC0*

42

PC1*

40

PC3

25

PB4*/SCL0*

26

PB5*/SDA0*

27

PB6*/SCL1*

28

PB7*/SDA1*

19

PE1

18

PE0

34

PD2

35

PD1

10

RSTB

32

NC1

33

NC2

20

OSCO

21

OSCI

C416

33pF 50V

REV:D>E (080508)
for ST DTV I2C

CN401

1
2
3
4

CONN

REV:C->D
for line out POP

ZD604 RLZ 3.3B

R669

2K 1/10W

R676
NC

AMP24V

R437

NC

R439

NC

NCR438

Q405

NC

NT68F631ALG

39

PC4

38

PC5

37

PC6

36

PC7

1

PD0

31

PD3

30

PD4

29

PD5

4

PA2/PWM4
PA3/PWM5
PA1/PWM3

PB0/ADC 0
PB1/ADC 1

PB2/ADC2/I NTE0
PB3/ADC3/I NTE1

P30/RXD

P31/TXD

PC2/SOGI

R419

2.7K 1/10W

SDA_A3

R422

2.7K 1/10W

SCL_A3 SCL 2, 4,5

P34/T0
P35/T1

PD6

GND

5VP

5VP

Q402
BSN20

3

5
3

23
24

14
15

11
13

16
17

41

12
22

Q401
BSN20

3

VGA_EDID

MCU _VC C

R789 22 OHM 1/10 W
R790 22 OHM 1/10 W
R791 22 OHM 1/10 W
R79222 OHM 1/10W

DTV_I2C

HDMIA_DET 4
HDMIB_DET 4
IF_SW 3

AMP_FAULT 10

MUTE

1

2

2

TXD

VGA_EDID 2
DCR_ON 5

ADC0 1

R420

10 OHM 1/10W

R421 NC

R423

10 OHM 1/10W

R424 NC

DCR_ON

ADC0

ADC1

R432 22 OHM 1/10W

RXD

R451 22 OHM 1/10W
R452 22 OHM 1/10W

R466 22 O HM 1/10W

MCU _VC C

1

MCU_RX 2

MCU _TX 2

D

BSN20

SG

R699

4.7K 1/10W

12

R678
NC

3

D601

R671

NC

2

R679

47K +-5% 1/10W

10K 1/10W

1

Q607
MMBT3904

R670

4.7K 1/10W

Q606
MMBT3904

10K 1/10W

S0
S1
S2

HDMI_B+SW

DTV_I2C

INT_726X 5
INT_IR 1

SCL_T

SDA_T

AudioAmp_R ST

SDA_T

SCL_T

2.2K 1/10W

R674

LI NEO UT_ MUTE 2 ,9, 10

MCU _VC C

NCR440

NCR441

AudioAmp_R ST

SDA_T 9,10

SDA 2,4,5

SCL_T 9,10

R667

10K 1/10W

Q604
MMBT3904

ISP_SW

HDMIA_DET
HDMIB_DET

ADC1

MUTE

BRIGHTNESS
DCR_ON
AMP_FAULT
VGA_EDID

HDMI_HDCP
HDMI_EDID
DTV_I2C

IF_SW

SCL_T
SDA_T
PANEL_ON
POWER_ON

ISP_SCL
ISP_SDA
SCL
SDA

ISP_SW1
HDMI_B+SW
S2
S1

S0
PD_FLASH
SYS_R STn
S3

MUTE

R666

R447 4.7K 1/ 10W

R442 4.7K 1/ 10W
R443 4.7K 1/ 10W
R444 4.7K 1/ 10W
R445 NC

RP410

3.3 KOHM +-5% 1/16W

8
7
6
5

R453 3. 3K 1/10W
R454 3. 3K 1/10W
R455 3. 3K 1/10W

R446 3. 3K 1/10W

RP412

8
7
6
5

RP413

2.2 KOHM +-5% 1/16W

8
7
6
5

5/30

RP414

3.3 KOHM +-5% 1/16W

8
7
6
5

R456 3. 3K 1/10W
R457 3. 3K 1/10W
R458 3. 3K 1/10W
R459 3. 3K 1/10W

R465 3. 3K 1/10W

R425

NC

PHONE_DET9

R460

10K 1/10W

EARPHONE_MUTE 9

R675
47K +-5% 1/10W

MCU _VC C

1
2
3
4

1
2
3
4

1
2
3
4

REV:D>E (080508)
for ST DTV I2C Switch

1
2
3
4

D404 NC

D405 LL4148

D406 LL4148

MUTE="L"

R427
100K 1/10W

MCU _VC C

R426

4.7K 1/10 W

Q404

MMBT3904

D408

AMP_MUTE 9,10

C

3904

B

E

12

SCS140V

MCU_VCC

51

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

07.MCU

Date

OEM MO DEL

TPV MO DEL

A

PCB NAME

715G4005-D

Sheet

of

710Thursday , March 04, 2010

Size

Rev

称爹

A3

称爹

>

<

英华家电维修资料专用 QQ:505966338

VDDP

VDDC 1V8

C420

C421

C422

C423

100N 50V

100N 50V

100N 50V

100N 50V

L406 300 OHM

MAI N3 V3

MAI N3 V3

L407 300 OHM

NT7263 ->R464=NC
NT72631->R464=0 OHM

MAI N1 V8

R433
0R05 1/10W

VDDA_PLLIF

MAI N3V3

C424

C425

C426

C427

100N 50V

L408 300 OHM

+

C449

100uF/16V

3V3_1

100N 50V

100N 50V

C441
22uF 10V

C445
22uF 10V

L417 300 OHM

L418 300 OHM

C442

100N 50V

R464 N C

C450

100uF/16V

C453
22uF 10V

100N 50V

L404
300 OHM

C444
100N 50V

248

MAI N1 V8

VDDAI F

50

VDDAI 1

VDDAI 138VDDAI 0

VSSAI0

249

100N 50V

C447
100N 50V

67

VDDAI F

VSSAI1

VSSAI1

49

37

C430

C429

100N 50V

3V3_1

L409 120 O HM

98

VDDALV

VSSAIF

VSSAIF

VSSAIF

63

68

58

C433

C432

C431

22uF 10V

100N 50V

MAI N3V3

VDDC 1V8 VDDM

113

140

175

211

227

VDDC18

VDDC18

VDDC18

VDDC18

C448
100N 50V

7

VDDC18

100N 50V

VDDC1827VDDC1885VDDC18

Power Block

GND

GND22GND79GND

VSSALV

12

99

115

MAI N1 V8

125

DDR_VREF6

MAI N2 V5

VDDP

216

231

VDDP17VDDP74VDDP

VDDP

GND

GND

GND

GND

GND

GND

GND

137

152

166

179

220

235

L414 300 OHM

119

131

145

VDDM

VDDM

196

1V8_1

C428

22uF 10V

C443

100N 50V

C446
100N 50V

186

NC

6

+

VDDA_PLLI 0

C451
100N 50V

3

VSSA_PLLI0

53

VSSA_PLLIF

C452
100N 50V

55

VDDA_PLLI F

87

VDDA_PLLLV

C454
100N 50V

86

VSSA_PLLLV

VDDAI F

VDD A_PLLIF

MAI N3 V3

R461
0R05 1/10W

160

172

182

VDDM

VDDM

VDDM

VDDM

AGND

AGND

AGND

208

202

C470 22uF 10V

VDDM

C435

C434

100N 50V

100N 50V

C476 2U2 16V

R463 N CR462 N C

151

187

MVREF

VDDAH

VCC18_HAUD

209

210

C469
100N 50V

C437

C436

100N 50V

100N 50V

C458

100N 50V

199

205

VDDA18_PLLH AUD

AVDD

AVDD

VSSA18_PLLHAUD

VSSA_PLLT

GND_HAUD

193

C471
100N 50V

C472 22uF 10V

C439

C438

100N 50V

Rev:B-->C

C459
100N 50V

VDDA18_XTAL

VDDA_PLLI 1

VSSA_PLLI1
VSSA_PLLM

VDD A_PLLM

VDDA_PLLT

U401D
NT7263

194

L415 300 OHM

C440

100N 50V

C460
100N 50V

L405 300 OH ML403 300 OHM

22uF 10V

L410 300 OHM

C461
22uF 10V

188

189

192

28

29
111

110

C462
100N 50V

C463
100N 50V

1V8_1

C465
100N 50V

C467
100N 50V

L411 300 OH M

C464
22uF 10V

L412 300 OHM

C466
22uF 10V

C468
22uF 10V

L413 300 OH M

MAI N3 V3

MAI N2 V5

MAI N3 V3

MAI N1 V8

MAI N1 V8

MAI N1V8

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

08.NT7263 POWER

Date

52

OEM MODEL

TPV MODEL

PCB NAME

Sheet

Size

A

715G4005-D

of

810Thursday , March 04, 2010

Rev

称爹

B

<

称爹

>

英华家电维修资料专用 QQ:505966338

SC1

AV1

SC2

AV2

SC3

COMPONE NT

SC4

VGA

SC5

HDMI D/A

HD_R

HD_R2

HD_L

HD_L2

HDMI_R

HDMI_R5

HDMI_L

HDMI_L5

AV2_R

AV2_R2

AV2_L

AV2_L2

AV1_R

AV1_R2

AV1_L

AV1_L2

PC_R

PC_R2

PC_L

PC_L2

LIN EOU T_MUTE2,7,10

8V

15mA

3.3V

100mA

1.8V

275mA

STV8351F Address (pin48)

Write

L

80h(*)

H

84h

C626 2U2 16V
C627 2U2 16V

C631

C630

220pF 50V

220pF 50V

C632 2U2 16V
C633 2U2 16V

C634

C635

220pF 50V

220pF 50V

C636 2U2 16V
C639 2U2 16V

C642

C643

220pF 50V

220pF 50V

C649 2U2 16V
C650 2U2 16V

C651

C652

220pF 50V

220pF 50V

C659 2U2 16V
C660 2U2 16V

C661

C662

220pF 50V

220pF 50V

C675

4.7UF 16V

HP_R

C679

4.7UF 16V

HP_L

Read

81h(*)
85h

+8V

4.7K 1/10W

47K +-5% 1/10W

4.7K 1/10W

47K +-5% 1/10W

45mA

300mA

825mA

R602 15K 1/10W
R603 15K 1/10W

R605 15K 1/10W
R606 15K 1/10W

R608 15K 1/10W
R610 15K 1/10W

C644 0.1uF 50V
C645 10uF 16V

C646 0.1uF 50V
C647 10uF 16V

R613 15K 1/10W
R614 15K 1/10W

FB606

220 OHM

R619 15K 1/10W
R620 15K 1/10W

R628

R631

R637

R639

C6122

0.1uF 50V

C655

0.1uF 50V

Q602
MMBT3904

Q603
MMBT3904

C606

0.1uF 50V

+

C654

10uF/25V

AMPD1V8

FB608

220 OHM

4.7UF 16 V

R629 100K 1 /10W

4.7UF 16 V

C607

0.1uF 50V

AU_8V

SIF3

C676

C680

R638

100K 1/10W

C608

0.1uF 50V

AMP3V3

C670 56P 50V

R627

3.9K 1/10W

R635

3.9K 1/10W

3.9K 1/10W

25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

C668

0.1uF 50V

C673

1nF 50V

C609

C610

C611

0.1uF 50V

0.1uF 50V

0.1uF 50V

27

28

26

SC3_IN_L

NC
NC

VSD33_CON V

VDD33_C ONV
GND_SA
NC
NC
SC5_IN_R
SC5_IN_L
SC2_OUT_R
SC2_OUT_L
GND33_LS
VCC33_LS
SC2_IN_R
SC2_IN_L
VBG
VREFA
SC1_IN_R

9

SC1_IN_L

8

GND33_SC

7

VCC33_SC

6

SC3_OUT_R

5

SC3_OUT_L

4

GND_H

3

VCC_H

2

SC1_OUT_R

1

SC1_OUT_L

SC4_IN _R

SC4_IN _L99MONO_IN98GND18_I F97VCC18_I F96GNDPW_IF95SIF2_P94SIF_N93SIF_P92VSS18_ADC91VDD18_AD C90GND_PSUB89IRQ88BUS_EXP87VSS1886VDD1885I2SA_DAT A84I2SA_LR_C LK83I2SA_SCLK82I2S_DATA381I2S_DATA280I2S_DATA179I2S_DATA078I2S_LR_CLK77I2S_SCLK

100

+

C665

10uF/25V

FB613

10uH +-10%

1 2

R625

6.8kOH M +-5% 1/10W

R640

10uF 16V

AMP1V8 A3V3AMP3V3

C613

C612

+

0.1uF 50V

0.1uF 50V

C628 10N 50V
C629 10N 50V

33

35

37

39

32

36

31

34

29

30

SC3_IN _R

38

NC

NC

NC

LS_L

LS_C

LS_R

LS_SUB

SCL_FLT

SCR_FLT

U603

STV8318F

C667

C666

220NF 25V

10N 50V

C669
22N 50V

R696
560OHM +-5% 1/10W

L601

+5VT

120 OHM

U605

1

8

OUT1

VDD

2

7

IN1-

OUT2

3

6

IN1+

IN2-

5

VSS4IN2+

PT2308-S-TP(L)

6.8kOHM +-5% 1/10W

R636

3.9K 1/10W

C681

FB601

220 OHM

C602

10uF/25V

L602 180uH

L603 180uH

41

44

42

45

40

NC

NC

NC43NC

HP_LSS_L

HP_LSS_R

C601

1nF 50V

HDMI_SD15
HDMI_WS15
HDMI_SCK15
HDMI_MCLK15

C671

C672

100N 50V

10uF 16V

C6781nF 50V

R630

A1V8

46

49

48

47

50

VSS18

HP_DET

ADR_SEL

VSS18_CONV

VDD18_C ONV

I2SD_DATA

I2SO_DATA1

I2SO_LR_CLK

I2SO_SCLK

I2SO_DATAO

S/PDIF_BY PASS

S/PDIF_OUT

VDD33_IO1

VSS33_IO1

CK_TST_CTRL

XTAL I N _ C L K XTP

XTALOUT_CLKXTM

VCC18_C LK1
GND18_C LK1
GND18_C LK2

VCC18_C LK2

VSS33_IO2

VDD33_IO2

I2S_PCM_CLK

76

C674

C677

100 OHM 1/10W

C614

0.1uF 50V

VDD18

VSS18

VDD18

CLK_SEL

47uF/16V

+

47uF/16V

+

R632

SCL
SDA

RST

R690
0R05 1/10W

C615

0.1uF 50V

C624

10N 50V

51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75

AMPD3V3

C617

0.1uF 50V

C619 1uF 16V

C623 1uF 16V

AMP_MUTE

+

C604
10uF/25V

C616

+

0.1uF 50V

C625

10N 50V

R604
0R05 1/10W

C603

10uF/25V

AMP1V8

FB602

220 OHM

I2C and AMP_RESETN GND

R607 100 OHM 1/10W
R609 100 OHM 1/10W
R611 100 OHM 1/10W

R623
0R05 1/10W

Right

Left

R633
100 OHM 1/10W

C6118 1uF 25V

R691 100 OHM 1/10W

IEC958O

R612 47 +-5% 1/ 10W

C648 30pF 50V

X60 1

27.000MHz

1 2

C653 22pF 50V

C656

0.1uF 50V

R621
R622

0R05 1/10W
0R05 1/10W

NCR626

C657

0.1uF 50V

PHONE_DET7

EARPHONE_MUTE7

FB607

220 OHM

MAIN 5V

6
5
4

AMPD1V8

U604

D1
S1

NDC700 2N

NCR634

I2SO_WS
I2SO_SCLK
I2SO_D0

AMPD3V3

C663

1nF 50V

10K 1/10W

G1
S2
G23D2

1
2

AMPD1V8

A3V3

+

AMP_MUTE 7, 10

SCL_T
SDA_T

AMP_RESETN 10

I2SO_WS 10
I2SO_SCLK 10
I2SO_D0 10

L600
0R05 1/10W

FB604

220 OHM

C605
10uF/25V

FB603

220 OHM

C618

0.1uF 50V

SPDIF -OUT 10

HP_L

HP_R

SPDIF BYPASS

AUDIO_RESET

AUDIO_RESET7

LINEOUT_L
LINEOUT_R

C664

1nF 50V

I2SO_PCLK

R624

LP601

8
7
6

CP601

470pF

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

09.AUDIO PR OCESSOR

Date

A1V8

SCL_T 7,10
SDA_T 7,10

2
1

C600

NC

R618

47K +-5% 1/10W

LINEOUT_L 2
LINEOUT_R 2

I2SO_PCLK 10

1
2
3
45

817263

G1084-33T43UF TO252

U602

MAIN 5V

100uF/16V

CN9005

AMP3V3

CONN

54

3

VOUT2VIN

+

C620

100uF/16V

A3V3 A1V8

C637

R615

470K1/10W

R697

10K 1/10W

AMP3V3

EARPHONE AMP

12

12

12

ZD601

ZD602

VPORT0603100KV05

VPORT0603100KV05

VPORT0603100KV05

GND

1

U601

3

Vin

+

C640
100N 50V

1K 1/10W

R617

Q601
MMBT3904

R695

NC

R694 NC

C6120
NC

PHONEJ ACK

1
7
6
2
3
4
5

CN602

ZD603

OEM MODEL

TPV MOD EL

A

715G4005-D

PCB NAME

Sheet

AMP3V3

910Thursday , March 04, 2010

1

AMP3V3

Q609
NC

of

ADJ

800mA

2

Vout

AIC1117A-18PE

R616
470K1/10W

C658

2U2 16V

C622
100N 50V

A3V3

+

C621

220uF/16V

C641
100N 50V

+

C638

100uF/16V

AMP_RESETN 10

C

Size

Rev

<

称爹

>

称爹

53

英华家电维修资料专用 QQ:505966338

AMP3V3

C696

0.1uF 50V

I2SO_D09
AMP_MUTE7,9

FB610

1 2

600 OHM

FB611

1 2

600 OHM

I2SO_D0
AMP_MUTE

LI NEO UT_MU TE2,7,9

C683

100N 50V

C697

0.1uF 50V

U608

1
2

SN74LVC1G08D CKR

R9002 4.7K 1/10W

AudioAmp_RST

C684
100N 50V

A

VCC
B
GND3Y

47K +-5% 1/10W

22 OHM 1/10W

C685

1U50V

R648 2. 2K 1/10W

C698

C699

NC

4N7 50V

AMP3V3

5

4

C6119

0.1uF 50V

SPDIF -OUT9

R9003

AMP3V3

R467

AMP_RESETN9

C686

I2SO_PCLK9
I2SO_SCLK9
I2SO_WS9

AMP_FAULT7

1U50V

SDA_T7,9
SCL_T7,9

AMP3V3

Q9003
MMBT3904

FB612

1 2

AMP24V

Q9001
MMBT3904

R468

4.7K 1/10W

NC

FB609

1 2

300 OHM

+

C682

470uF 35V

C6100

680pF 50V

I2SO_PCLK

I2SO_SCLK
I2SO_WS

AMP_RESETN RST

AMP_FAULT
SDA_T
SCL_T

C6103

0.1uF 50V

L9006 60 OHM

R9001 10K 1/10W

U9001

1

A

2

B
GND3Y

SN74LVC1G08D CKR

SPDIF -OUT-12

R689

NC 100 OH M 1/10W

MAIN12V

MAIN24V

R601

3.3OHM 1/10W

PLL_FILTER

PLL_GND

R650
R651
R652 0R05 1/10W
R653 0R05 1/10W
R654 100 OHM 1/10W
R655 NC
R656 100 OHM 1/10W
R657 100 OHM 1/10W

R659 3. 3OHM 1/10W

C6104

0.1uF 50V

5

VCC

4

R9004
470OHM1/10W

C9002 10N 50V

RST

USE FB612 12V VCC and U606 STA559BW
USE FB609 24V VCC and U606 STA335BW

AMP3V3

R645
10K 1/10W

PLL_VddPLL_Vdd

0R05 1/10W
0R05 1/10W

C9001

0.1uF 50V

6/20

C6121

1uF 25V

Q9002
2SC2412KR

R9005
150 OHM 1/10W

R9006
75OHM +-5% 1/10W

U606

19

EAPD/OU T4A

20

TWA RN /OU T4B

21

Vdd_DIG

22

GND_DIG

23

PWRDN

24

PLL_Vdd

25

PLL_FILTER

26

PLL_GND

27

XTI

28

BICKI

29

LRCKI

30

SDI

31

RESET

32

INT_LIN E

33

SDA

34

SCL

35

GND_DIG

36

Vdd_DIG

STA335BW

GND

Vdd

GND_REG

OUT1A

GND1

Vcc1
OUT1B
OUT2A

VCC2

GND2

OUT2B

Vcc_REG

VSS

GND_SUB

18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2

SA

1

OUT3A/DD X3A
OUT3B/DD X3B

TEST_MODE

R682 0R05OHM1/8W

R683 0R05OHM1/8W

R684 0R05OHM1/8W

R685 0R05OHM1/8W

R686 0R05OHM1/8W

R687 0R05OHM1/8W

R688 0R05OHM1/8W

R692 0R05OHM1/8W

R693 0R05OHM1/8W

R698 0R05OHM1/8W

L604 22uH +-25%

C687

C691
100N 50V

C6101
100N 50V

C6109
100N 50V

C6113
100N 50V

100N 50V

R644

6.2 OHM 5% 1/4W

C694
100N 50V

R649

6.2 OHM 5% 1/4W

C6105
100N 50V

R662

6.2 OHM 5% 1/4W

C6112
100N 50V

R665

6.2 OHM 5% 1/4W

R643

22 OHM 1/4W

C692

330pF 50V

AMP24VAMP3V3

C695
100N 50V

LOUT+

LOUT­ROUT+

ROUT-

C6102
100N 50V

22uH +-25%

L605

L606 22uH +-25%

R661

22 OHM 1/4W

C6110

330pF 50V

22uH +-25%

L607

AMP24V

C689

0.47UF /100V

AMP24V

C6107

0.47UF /100V

R641

NC

R642

NC

R646

NC

R647

NC

R658

NC

R660

NC

R663

NC

R664

NC

AMP24V

AMP24V

C688

1nF 50V

C693

1nF 50V

C6106

1nF 50V

C6111

1nF 50V

C690

1nF 50V

C6108

1nF 50V

4
3
2
1

CN601

CONN

L

L+
L­R+
R-

R

54

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

10.AUD IO AMP

OEM MO DE L

TPV MODEL

PCB NAME

Sheet

715G4005-D

10 10Thursday , March 04, 2010

of

Size

Rev

称爹

<

Custom

A

称爹

>

英华家电维修资料专用 QQ:505966338

9.2 Power Board

715G3351 1

RV902

NC
NC
SG903

RV903

NC

3

CN901

1 2

F901
FUSE

HS1

HEAT SINK (BD901)

1
2

300K OHM 1/4W

RV901
Varistor

1 2

300K OHM 1/4W

300K OHM 1/4W

t

NR901

R901

R902

0.47uF

R903

1 2

NR902

HEAT SINK (IC 901)

t

HS3

1
2

C901

SG901
NC

L901

1

4

20.0MH

SG902
NC

HEAT SINK (Q901)

C902
680pF

1

4

20.0MH
L903

2

3

4

12

1

L

CN902
NC

2

2.0MH
L902

1

2

3

C903
680pF

HS5

1
2

2

C904

4

0.47uF

3

-

FB901
BEAD

N

2

3

+

BD901
D10XB60

1

R+

BO

HEAT SINK (Q901,D901)

HS2

1
2

HEAT SINK (D910)

HS4

1
2

HEAT SINK (D904,D 907)

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

HS6

1
2

01.AC side

55

OE M MOD E L

TPV MODEL

PCB NAME

Sheet

715G3351-1

of

15Tuesday , May 26, 2009

Size

Rev

称爹

<

A

1.0

称爹

>

英华家电维修资料专用 QQ:505966338

DR1

D802

SCS0520P

C802

2.2uF 25V X7R

1 2

PDIM

240K 1/10W 5%

180K 1/10W 5%

R807

R812

4

1

T801

ON/OFF

B+

R856 NC

1M 1/8W 5%

C808

0.001uF

5

R839
10R 1/8W 5%

6

7
9

10

R808

R802

1K2 1/4W 5%

R840
10R 1/8W 5%

R844
200 OHM 1/8W
R803
1K2 1/8W 5%

62K OHM 1/8W

R801 0.1 ohm

R843

200 OHM 1/8W

SST2907A

R805

D801
1N4148-B4006

Q808

SST2907A

D803
1N4148

Q809

R806

3.3M OHM 1/8W

C807
330pF50V

R813

NC

R832
10K OHM 1/4W +-5%

Q802

2SK4086LS

R833
10K OHM 1/4W +-5%

12V

VS

C810

Q801

C822

2SK4086LS

2.2uF 25V X7R
T803

5

6

10R 1/8W 5%

200 OHM 1/8W

7
9

10

C806

0.1uF

IC801

DRV1

DRV2

GND

VIN

ZCS

VREF

RT1

ENA

CT

ADIM

LCT

TIMER

PDIM

SSTCMP

VSEN8ISEN

OZ9976GN-C-0-TR

R841
10R 1/8W 5%

R842

16
15
14
13
12
11
10
9

ISEN

DR2

T1

D804

SCS0520P

1 2

C803
100PF1KV

090107 090107

L801

3.5uH

R809

36K OHM 1/8W

R817
1K OHM

C805

470uF 25V

R819
1M +-5% 1/8W

+

R849
100K 1/10W 5%

VSEN

C815
2N2 50V

R816
NC

4

1

1
2
3
4
5
6
7

R857
270KOHM +-5% 1/10W

R845

200 OHM 1/8W

R834

1K2 1/4W 5%

R846

R836

1K2 1/8W 5%

1N4148

C812

0.047uF

D808

1N4148-B4006

SST2907A

D809

Q811

SST2907A

DR2DR1

ENA

Q810

C809

1U 25V

R835
10K OHM 1/4W +-5%

Q807

2SK4086LS

R837
10K OHM 1/4W +-5%

VREF

R811

1.5M 1/8W 5%

R814

51K 1/8W 5%

Q806
2SK4086LS

T2

C821
100PF1KV

10K OHM 1/4W +-5%

100K OHM 1/4W

C811

R810

R804

R815

T802

1

T1

2

7
8

TB

9

3

10

6

11

TA

12

5

T2

NC

C813

C814

2.2uF 25V X7R

HEAT SINK (Q806)

HEAT SINK (Q801)

HEAT SINK (Q807)

HEAT SINK (Q802)

CN801

L

N

CONN

CN802

CONN

HS7

1
2

HS8

1
2

HS9

1
2

HS10

1
2

TB
1
2

TA

5

VS

4

IS1
3

2

IS2

1

12V

U801B
(NC)LM393MX

84

5

+

6

-

R853
(NC)100K 1/10W 5%

12V

R850
(NC)100K OHM 1/4W

VREF

R852
(NC)100K 1/10W 5%

VSEN

84

1

C823

NC

U801A
(NC)LM393MX

3

+

2

-

VSEN

C816

1500PF50V

3

D805
BAV70

02.Inv erter Control

1

2

R822
220 OHM +- 1% 1/10W
R823
NC

R818

1K2 /8W 1%

090107

R821
10K 1/8W 5%

T P V ( Top Victory Elect ronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

C819
680pF

OEM MO DEL

TPV MOD EL

PCB NAME

Sheet

R825
220 OHM +- 1% 1/10W

R848
82K 1/10W 5%

R847
510K 1/10W 5%

Q812
RK7002FD5T116

+

C801

47uF/50V

IS1

D806
1N4148

IS2

D807
1N4148

C817
33N 50V

R830

68K 1/10W 5%
C818
33N 50V

R828

68K 1/10W 5%

Q813

RK7002FD5T116

IFP

R851
10M OHM 1/10W

D810
1N4148

VREF

100K 1/10W 5%

IFP

Q815
(NC)RK7002F D5T116

VREF

R820

Q804
PMBS3904

R829

1M 1/10W 5%

Q805
PMBS3904

R831

1M 1/10W 5%

ISEN

R854
(NC)100K 1/10W 5%

7

R855
(NC)1M 1/10W 5%

Q803
RK7002FD5T116

Q814

(NC)RK7002F D5T116

R826
NC

715G3351-1

of

25Tuesday, May 26, 2009

R824

C820
680pF

R827

IS1

IS2

Custom

Size

Rev

1.0

称爹

>

<

称爹

56

英华家电维修资料专用 QQ:505966338

B+

1 2

FB902
BEAD

R904

4.7 OHM 1W

C943

0.1NF 2KV

B1+

R905

100K OHM 1/4W

C910
2200PF2KV

R909

100K OHM 1/4W

D902

SARS01-V1

R906

100K OHM 1/4W

R910

100K OHM 1/4W

D903
JUMPER

6

POWER X'FMR

5

4

T902

1.5 KOHM +-5% 1/4W

D907
FMX-12SL

2

D904
FME-210B

2

R907

R985

1.5 KOHM +-5% 1/4W

11
12

9
10

7
8

3

1

3

1.5 KOHM +-5% 1/4W
R908

R986

1.5 KOHM +-5% 1/4W

C907

1206 1NF K 500V X7R

C908

1206 1NF K 500V X7R

+

C911
1000uF 35V

L906

3.5uH

+

C912
470uF 35V

C913

0.1uF
R911
NC

R912
NC

R913
NC

24V

R914NCR915

NC

R924

3.6K OHM 1/8W

C922

0.047uF

R930

1M 1/4W 5%

R931

1M 1/4W 5%

R936

1M 1/4W 5%

R941

R919
10K OHM 1/4W

R925
51K 1/8W 5 %

C926
1uF

R916
4K7 1/4W 5%

1

BNO

2

COMP

3

(-)LATCH
CS4GND

IC902
LD7523A

Q904
KTA1273-Y- AT/ P

R938
10K 1/8W 5%

Q903
DTC144WKA

OVP
VCC
OUT

R935
1K 1/8W 5%

8
7
6
5

C923
220pF

C915

0.1uF

R921

22 OHM 1/4W +-5%

R927

1K OHM 1/4W

VCC1

+

C914
10uF/50V

R926
10K 1/8W 5%

Q901
STP10NK70ZF P

R928

0.27OHM 2W

C924

0.01uF

1

R917

22R 1/4W 5%

IC909
EL817MA

43

22R 1/4W 5%

R929
470 OHM 1/4W

12

R937

10K 1/8W 5%

IC903
KIA431A-AT/P

R918

C916

0.0022uF

R932

3.9K OHM 1/ 8W

C925

0.33uF/ 50V

C917

0.0022uF

+

C919
1000uF 25V

R933

R940
2K OHM 1% 1/8W

+

C920
1000uF 25V

L905

3.5uH

R934

+

C921

470uF 25V

PS_ON

C918

0.1uF

ON/OF F
PDIM
12V

24V

5V

R922
NC

12V

R923
NC

CN903

1
2
3
4
5
6
7
8

9
10
11
12

57

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

03.MAINPOWER

Date

OEM MODEL

TPV MODEL

PCB N AME

Sheet

715G3351-1

of

35Tuesday , May 26, 2009

Size

Rev

称爹

B

1.0

称爹

>

<

英华家电维修资料专用 QQ:505966338

R+

D920
SUF305B

R942

3.3M OHM 1/ 14W

VCC1

R948

3.3M OHM 1/ 14W

C927
1uF/520V

0.1OHM2W
R943

0.1OHM2W
R945

1

2

789

356

101112

L904

P:S=50:28

R944

100R 1/8W 5%

D901
FMXA-1106S

1N5408-E3/73

1N4148
D909

R947

47 OHM 1/8W

D908

R949
10K 1/8W 5%

+

C928

0.1N F2KV

2

1

3

Q902
STW20NM60

C929

100uF M 450V

R946

B+

+

C930

100uF M 450V

R951

3.3M OHM 1/ 14W

R954
180K 1/8W 5%

Q905
KTD1691/P BY KEC

ZD902
MTZJ T-72 16B

1 2

R952
220 OHM 1/4W

C935
1uF/ 25V

C931

10uF/50V

R958
1K 1/8W 5%

43

IC905

EL817MA

Vcc

12

Q906
PMBS3904

+

R959
470R 1/8W 5%

C932

0.1uF

7

8

GATE

GND1ICOMP2ISENSE3VINS

C936
1000pF

5V

R961
10K 1/8W 5%

6

VCC

5

VSENSE

4

C937

IC904

VCOMP

ICE2PC S02G

2K7 1/8W 5%

R960

C940

0.1uF

R956
NC

R953
51K 1/8W 5%

C933

0.1uF

PS_ON

C934
1uF/25V

0.001uF/ 250V
C939

C938
100pF

R950

R955

R957

11.5K OH M 1% 1/8W

T P V ( Top Victory Elec tronic s C o . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

04.MAINPOW ER

58

OEM MO D EL

TPV MODEL

PCB NAME

Sheet

715G3351-1

of

45Tuesday , May 26, 2009

Size

Rev

称爹

<

1.0

称爹

Custom

>

英华家电维修资料专用 QQ:505966338

B1+

POWER X'FMR

1

T901

BO

D919
PR1007

100K OHM 1/4W

R970
1M5 1/4W 1%

R973
1M5 1/4W 1%

4.7M OHM 1/4W
R977
1M5 1/4W 1%

R980
560K OHM 1% 1/8W

R963

100K OHM 1/4W

R965

C905
NC

R976

IC901
A6069H

C956

0.22uF/ 50V

R964
100K OHM 1/4W

D911
JUMPER

R966
100K OHM 1/4W

8

5

VCC

D/ST7D/ST

S/OCP1BR2GND3FB/OLP

4

10uF/50V

R981

1.2OHM2W

3.3 OH M 1/4W

PR1007

1N4148
D915

C951

0.1uF

C954

D912
SARS01-V1

R967

D913

+

1 2

C942

0.1NF 2KV

NC
R974

+

C952
47uF/50V

C955

ZD907
NC

470pF/250V

2

3
4

5

D914
PR1007

+

C953
47uF/50V

ZD906
NC

C960

470pF/250V

C906

Vcc

6
7

9
10

33 OHM 1/4W

EL817MA

IC907

43

1 2

C958

+

NC

3

1

33 OHM 1/4W

R968

R971

R975
220 OHM 1/4W

12

R983

1K8 1/8W 5%

IC908
KIA431A-AT/P

D910
SBT15006JST

2

C944

0.0022uF

0.0022uF
C949

33 OHM 1/4W

R969

R972

33 OHM 1/4W

R979
1K 1/8W 5%

C957

0.22uF/ 25V

+

C945

1000uF M 16V

R978
8K2 1/8W 1%

R984
8K2 1/8W 1%

C961
(NC)0.1uF

+

C946

1000uF M 16V

ZD905
MTZJ T- 72

1 2

D918

1N4148

L907

3.5uH

C962
(NC)0.1uF

Q907
PMBS3904

C959

0.1uF

+

C947

1000uF M 16V

ZD903

MTZJ T-72 30B

D916
1N4148

C963
(NC)0. 1uF

24V

ZD904

1 2

MTZJ T- 72 15 B

D917
1N4148

R982

56R 1/ 8W 5%

R920

10K 1/8W 5%

C948

0.1uF

1 2

5V

12V

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

05.STANDBY

Tuesday , May 26, 2009

59

OEM MO D EL

TPV MODEL

PCB N AME

Sheet

715G3351-1

5

of

5

Size

Rev

称爹

Custom

1.0

<

称爹

>

英华家电维修资料专用 QQ:505966338

9.3 Inverter Board

715G3358 2

CN8802

1

L

2

N

CONN

TA

57

28

57

28

T8802

P1

C8821

0.0056uF

C8807
3pF 6KV

POWER X'FMR

CN8804
CONN

3

2

D8812
BAV99

2

BAV99

D8811

CN8803
CONN

3

T8801

POWER X'FMR

2
1

C8806
3pF 6KV

3

1

2

D8818
BAV99

C8820

0.0056uF

1

R8822
0R05 1/8W

TB

POWER X'FMR

2
1

3

1

2

D8819
BAV99

TA

T8803

C8808
3pF 6KV

P3

28

C8825

0.0056uF

57

T8806

POWER X'FMR

C8811
3pF 6KV

2

BAV99

R8801
100R 1/8W 5%

R8802
100R 1/8W 5%

R8803
100R 1/8W 5%

R8806

100R 1/8W 5%

R8808
100R 1/8W 5%

R8809
100R 1/8W 5%

R8810
100R 1/8W 5%

510R 1/8W 5%

510R 1/8W 5%

POWER X'FMR

2
1

CN8806
CONN

3

1

D8814

R8811

510R 1/8W 5%

T8807

C8812
3pF 6KV

3

2

D8821 BAV99

R8812

510R 1/8W 5%

57

C8826

0.0056uF

1

R8825
0R05 1/8W

R8813

28

28

P4

C8827

0.0056uF

R8814

C8813
3pF 6KV

R8815
510R 1/8W 5%

57

T8808

POWER X'FMR

CN8807
CONN

2

D8815

BAV99

R8816
510R 1/8W 5%

POWER X'FMR

3

1

2
1

2

R8817
510R 1/8W 5%

57

T8809

C8814
3pF 6KV

3

0.0056uF

1

D8822 BAV99

T8805

2

57

C8810
3pF 6KV

3

1

D8820 BAV99

R8824
0R05 1/8W

P1

P2

P3

P4

P5

P6

P7

0.0056uF

28

C8824

CN8801

6

VS

5

IS1

4
3

IS2

2
1

CONN

57

28

57

28

T8804

POWER X'FMR

POWER X'FMR

P2

C8809
3pF 6KV

C8822

C8823

0.0056uF

0.0056uF

1

R8823
0R05 1/8W

C8834
560pF50V

CN8805
CONN

2

BAV99

D8813

2
1

3

1

C8828

0.0056uF

R8826
0R05 1/8W

28

C8829

28

P5

C8815
3pF 6KV

D8801
1N4148

D8802
1N4148

D8803
1N4148

D8804
1N4148

D8806
1N4148

D8807
1N4148

D8808
1N4148

57

T8810

POWER X'FMR

2

BAV99

CN8808
CONN

3

D8816

R8804
10K 1/8W 5%

R8830
24K 1/8W 5%

T8811

POWER X'FMR

2
1

C8816
3pF 6KV

3

1

2

D8823 BAV99

0.01uF

1

C8801

57

C8830

0.0056uF

R8827
0R05 1/8W

100K 1/8W 5%

28

28

P6

C8817
3pF 6KV

C8831

0.0056uF

R8807

D8825
1N4148

D8805
MTZJ T-72 5.1B

57

T8812

POWER X'FMR

CN8809
CONN

2

D8817

BAV99

POWER X'FMR

3

1

2
1

2

R8805

100K 1/8W 5%

T8813

C8818
3pF 6KV

3

1

D8824 BAV99

57

C8832

0.0056uF

28

28

P7

C8833

0.0056uF

C8819
3pF 6KV

57

T8814

POWER X'FMR

CN8810
CONN

R8828
0R05 1/8W

POWER X'FMR

2

3pF 6KV

1

T8815

C8802

57

IS1

C8803

560PF/50V

R8818
39K 1/8W 5%

D8827
1N4148

R8820
10K 1/8W 5%

28

28

C8804

560PF/50V

IS2

57

T8816

POWER X'FMR

R8819
39K 1/8W 5%

R8821

10K 1/8W 5%

TB

C8805
3pF 6KV

D8826
1N4148

0R05 1/8W

VS

R8829

60

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

01.INVER TER

Date

OEM MOD EL

TPV MOD EL

PCB NAME

Sheet

715G3358-2

11Monday, F ebruary 09, 2009

of

C

Size

1.0

Rev

<

称爹

>

称爹

英华家电维修资料专用 QQ:505966338

9.4 Tuner Board

715G4012M0F000005K

3.3V

C17

C18

10N 50V

10N 50V

R1
0R05OHM1/16W

FB4 121 OHM

2.5V

R4 0R05OHM1/16W

FB6 121 OHM

1.0V

FB7 121 OHM

1.0V

FB8 121 OHM

1.0V

R5 0R05OHM1/ 16W

FB9 121 OHM

2.5V

FB2

C19

10N 50V

1 2

1.0V

300 OHM

C20

C21

10N 50V

10N 50V

FB5 121 OHM

0R05OHM1/16W

C31

10N 50V

C33

10N 50V

C35

10N 50V

C37

10N 50V

C39

10N 50V

R2

+

C22

100N 16V

100N 16V

10N 50V

C32

C34

100N 16V

C36

100N 16V

C38

100N 16V

C40

100N 16V

C15

100uF/16 V

C23

C29

100N 16V

C16

10U 16V

C24

100N 16V

100N 16V

C30

100N 16V

C25

3V3

100N 16V

C26

AG32
AG33
AG34
AH32

AJ32

AK32

V30
U31

G30

K30

J30
H30

J31
H31
K31
G31

M30
L30
G32
N30
E29

C29
E31

F3
E4

D3
E3

B1
C2
C3

D1
D2

AP7

AN8

AM15

AM14

AM13

AM12

AM11

VDDE33

VDDE33

VDDE33

VDDE33

VDDE33

VDDE33

GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE

CKGA_PLL1DVD D10
CKGA_PLL2DVD D10

CKGA_PLL1DGN D10
CKGA_PLL2DGN D10

CKGA_PLL1AVDD 25
CKGA_PLL2AVDD 25
CKGA_PLLVDD E25

CKGA_PLL1AGND 25
CKGA_PLL2AGND 25

FS0_VDDD

DVDDPLL80V0

CKGB_4FS0VDDD
CKGB_4FS1VDDD

CKGB_4FS0GNDD
CKGB_4FS1GNDD
DGNDPLL80V0
FS0_GNDD

CKGB_4FS0VCCA
CKGB_4FS1VCCA
4FS_VDDE25A
AVDDPLL80V 0
PLL80_VDD E25A

FS0_VCCA
FS0_VDDE25A

1 2

120R/6000mA

C12

C27

FB1

1 2

FB32

C13

100N 16V

2V5

C28

100N 16V

120R/6000mA

1 2

FB3

R3

0R05OHM1/1 6W

C4

+

100uF/16 V

AM10

AM9

AK24

AK23

AF34

AF33

AF32

AF31

G34

VDDE33

VDDE33

VDDE33

VDDE33

VDDE33

VDDE33

VDDE33

VDDE33

VDDE33

VDDE33

AL24

G33

C26

B26

A26

VDDE33

VDDE33

VDDE33

VDDE33

VDDF4VDDF5VDDG4VDD

USB_VDDB33

10U 16V

10N 50V

N16

N17

N18

N19

P17

P18

R13

R17

R18

R22

T13

T14

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

U1A

ST-7101BWC

C2

C1

C14

C3

10N 50V

10N 50V

T21

T22

U13

U14

U21

U22

V13

V14

V21

V22

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

C5

10N 50V

10N 50V

W13

W14

W21

W22

Y13

Y17

Y18

Y22

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

C7

10N 50V

C6

100N 16V

AA17

AA18

AB16

AB17

AB18

AB19

AF30

AK16

AL16

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

C9

100N 16V

C8

AM16

AM17

AM18

AM19

AN16

AP16

VDD

VDD

VDD

VDD

VDD

VDD

VDD

C10

100N 16V

AK3

AK7

VDDE25

AL7

VDDE25

VDDE25

C11

100N 16V

AM7

AN7

VDDE25

VDDE25

GNDE
GNDE
GNDE
GNDE

GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE

GNDA
GNDA

100N 16V

10N 50V

AK4
AK5
AL4
AL5

A24
B24
C14
C15
C16
C17
C18
C19
C20
C21
C22
C23
C24
D23
E23
J3
K3
L3
M3
N3
P3
R3
R4
R5
T3
AD3
AE3
AF3
AG3
AH3
AJ3
AM4
AM6
AN4
AN6
AP4
AP6

D27
M32

1.0V

Ver:C-->D

2.5V

300 OHM

FB10 121 OH M

2.5V

C41

10N 50V

R6
0R05OHM1/ 16W

C42

100N 16V

CKGB_4FS0GNDA

CKGB_4FS1GNDA

L32

F31

M31

GNDH3GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

FS0_GNDA

FS0_GNDEA

4FS_GND EA

AGNDPLL80V 0

PLL80_GND EA

P13

P14

P15

P16

P19

P20

P21

F32

K32

N13

N14

N15

N20

N21

C31

D32

N22

P22

GND

T15

R14

R15

R16

R19

R20

R21

GND

GND

T16

61

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

T17

T18

T19

T20

V15

V16

V17

V18

V19

U15

U16

U17

U18

U19

V20

U20

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

Y14

W15

W16

W17

W18

W19

W20

01 SYSTEM POWER

Y15

Y16

Y19

Y20

Y21

AA13

AA14

AA15

AA16

AA19

AA20

AA21

AA22

AB13

AB14

AB15

AB20

OEM MODEL

TPV MO DE L

PCB NAME

Sheet

AB21

AB22

AL31

AK29

AK30

AK31

715T3176-B

19Thursday , February 04, 2010

of

AP26

AP32

AN26

AN32

AM22

Size

Rev

称爹

B

C

<

称爹

>

英华家电维修资料专用 QQ:505966338

C48

100N 16V

3.3V

FB31

121 OHM

3

U4

VDD

RESET(RESET)

EM6353BX2SP3B-2.9+

3V3

1

GND

2

1
2

CN2

NC

R19

4.7K 1/ 16W

Q1

MMBT39 04

R29 10K+-5%1/16W

R30 10K+-5%1/16W

R32 10K+-5%1/16W
R34 10K+-5%1/16W
R36 10K+-5%1/16W

CN3

19
17
15
13
11

9
7
5
3
1

NC

R44

10K+-5%1/16W

JTAG Connector
Pitch 2.54mm

C46

12P 50V

3.3V

R11
NC

R20

4.7K 1/16W

20
18
16
14
12
10
8
6

R40 75 OHM +-1% 1/16W

4

R41 75 OHM +-1% 1/16W

2

1

2

R8
0R05 1/10W

C218

100N 16V

3V3

Q2

MMBT3904

3V3

68 OHM +-5% 1/16W

R37
10K+-5%1/16W

U6

NC

VCC

1A

GND31Y

NC

12P 50V

X2

12

R14

100K1/16W

R21
10K+-5%1/16W

R35

3V3

5

C50 NC

4

R209

C47

N_TRST

TDO
TDI
TCK

TMS

N_ASEBRK

TRIGIN
TRIGOUT

6/3

0R05OHM1/ 16W

C45

NC 100N 16V

R208

0R05OH M1/16W

R9

100 OHM 1/10W

RST#3

U3

5

VCC

4

GND

1Y

NC

R10 0R05OHM1/16W

R13 0R05OHM1/16W

RST#

R12

4.7K 1/ 16W

R17 NC

R18 1 0K+-5%1/16W

R224 10K+-5%1/16W
R223 10K+-5%1/16W
R27 10K+-5%1/ 16W
R28 10K+-5%1/ 16W

2V52V5

U2

VCC

1Y

NC

1

NC

2

1A

3

GND

ST-7101BWC

U1B

5

C43

NC 100N 16V

1

NC

2

1A

3

E27

C1

AP27

AN27

A29
C30

G5

L31

AL6

AM5

AM31

AN9

AP9

D19

E16

D18
D17
E21
D21
D22
E22
D20
E20

AK25
AK26
AK27
AK28

TP3

TP4

TP5

TP6

AN5

E19

E17

D16

E18

AP5

4

SYSBC LKINALT

SYSAC LKIN

SYSBC LKIN

SYSBC LKOSC

NC
NC
NC
NC
NC
NC
NC
NC
NC

notRST

NMI

DCUTRIGOUT
DCUTRIGIN
TMS
TCK
TDI
TDO
notTRST
notASEBRK

SYSITRQ0
SYSITRQ1
SYSITRQ2
SYSITRQ3

WDGR STOUT

SYSCLKOUT

RTCCLKIN

TMUCLK

DAA_C1A
DAA_C2A

3V3

C44
100N 16V

R7

68 OHM +-5% 1/16W

R226 2.7K 1/10W

X1

4

VDD

Count1GND

30mHZ

絬 隔 瓜 絪 腹

Key Component

3V3

R225 2.7K 1/10W

3

OUT

2

R239

AM32

PIO0B0

AP33

PIO0B1

AN33

PIO0B2

AP34

PIO0B3

AN34

PIO0B4

AM33

PIO0B5

AM34

PIO0B6

AL32

PIO0B7

AL34

PIO1B0

AL33

PIO1B1

AK34

PIO1B2

AK33

PIO1B3

AJ34

PIO1B4

AJ33

PIO1B5

AH34

PIO1B6

AH33

PIO1B7

AJ30

PIO2B0

AJ31

PIO2B1

AH30

PIO2B2

AH31

PIO2B3

AG30

PIO2B4

AG31

PIO2B5

AE31

PIO2B6

AE30

PIO2B7

AE32

PIO3B0

AE34

PIO3B1

AE33

PIO3B2

AD34

PIO3B3

AD33

PIO3B4

AC34

PIO3B5

AC33

PIO3B6

AB34

PIO3B7

AD32

PIO4B0

AD30

PIO4B1
PIO4B2
PIO4B3
PIO4B4
PIO4B5
PIO4B6
PIO4B7

PIO5B0
PIO5B1
PIO5B2
PIO5B3
PIO5B4
PIO5B5
PIO5B6
PIO5B7

T P V ( Top Victory Electronics Co . , Ltd. )

Date

AD31
AC30
AC31
AB30
AB31
AA30

AB33
AA34
AA33
Y34
Y33
AA31
Y30
Y31

02 SYSTEM

RXD
TXD

DTV_I2C

NC

SCL
SDA

EXT_SDA

EXT_SCL

C232

10N 50V

PHY CLK

U19 74HC 4052D

12
14
15
11

1
5
2
4

10

9

6

7

16

3V3

C233 100N 16V
R241 NC
R240 NC

R15

2K7 1/16W 5%

TP2

R22 47 OHM 1/16W

R216 47 OHM 1/16W

R23 2K7 1/16W 5%
R24 2K7 1/16W 5%

R25 0R05OHM1/16W
R26 0R05OHM1/16W

R214 47 OHM 1/16W
R215 47 OHM 1/16W
R31 NC
R33 NC

R39 NC

TS0_ERROR 7

R42

DTV_I2C

NC

NRSJ

OEM MO DE L

TPV MO DEL

PCB NAME

Sheet

X0

X
X1
X2

Y
X3

Y0
Y1
Y2
Y3

A
B

EN

VEE
VDD

GND

8

SCL_ATV
SDA_ATV

DTV_I2C

3V3

R16

2K7 1/16W 5%

C49 100N 16V

3

USB_OC
USB_PW_EN

715T3176-B

28Monday, March 22, 2010

of

Ver:C-->D

13

3

R38
NC

NIM_SCL 7
NIM_SDA 7

2

1

TXD
RXD

CN9

1
2
3
4

CONN

R237 4.7K 1/16W

R238 NC

FE_RST# 7

TP15

3V3

U5

M24C64-WMN6P

8
7
6
5

R43

NC

D2

NC

1

E0

VCC

2

E1

WC

3

E2

SCL

VSS4SDA

EXT_SCL

EXT_SDA

R236 0R05O HM1/16W

CN7

1
2
3

NC

Size

Rev

称爹

<

Custom

C

称爹

>

62

英华家电维修资料专用 QQ:505966338

LMI_BA04
LMI_BA14

LMI_WE#4
LMI_CS0#4
LMI_RAS#4
LMI_CAS#4
LMI_CLKE4

LMI_CLK4

LMI_CLKN4

1V25_DDR

22 OHM +-5% 1/16W

RP8

22 OHM +-5% 1/16W

22 OHM +-5% 1/16W

LMI_A[0.. 12]4

22 OHM +-5% 1/16W

22 OHM +-5% 1/16W

22 OHM +-5% 1/16W

22 OHM +-5% 1/16W

22 OHM +-5% 1/16W

22 OHM +-5% 1/16W

22 OHM +-5% 1/16W

LMI_D[0..31]4

LMI_DQS[0..3]4

LMI_DQM[0.. 3]4

LMI_BA0

LMI_BA1

LMI_WE#
LMI_CS0#
LMI_RAS#
LMI_CAS# EMI_A4EMI_A4EMI_A4EMI_A4EMI_A4EMI_A4
LMI_CLKELMI_CLKELMI_CLKE

LMI_CLKELMI_CLKELMI_CLKE
LMI_CLK
LMI_CLKN

2V5_DDR

C56

100N 16V

C57
100N 16V

RP3

RP9

LMI_A[0..12]

RP11

22 OHM +-5% 1/16W

RP13

RP15

RP19

RP20

RP21

R47 22 OHM 1/16W
R48 22 OHM 1/16W
RP1

R53 22 OH M 1/16W

R75 22 OH M 1/16W

RP17

RP18

LMI_D[0. .31]

LMI_DQS[0. .3]

LMI_DQM[0.. 3]

4

5

3

6

2

7

1

8

22 OHM +-5% 1/16W

R56
10K+-5%1/16W

TP7

R67
100OHM1/16W

R71 22 OH M 1/16W
R73 0R 05OHM1/16W

R79 120K OH M +-0.5% 1/16W

LMI_A0
LMI_A1
LMI_A2
LMI_A3
LMI_A4
LMI_A5
LMI_A6
LMI_A7
LMI_A8
LMI_A9
LMI_A10
LMI_A11
LMI_A12

LMI_D0
LMI_D1
LMI_D2
LMI_D3
LMI_D4
LMI_D5
LMI_D6
LMI_D7
LMI_D8
LMI_D9
LMI_D10
LMI_D11
LMI_D12
LMI_D13
LMI_D14
LMI_D15
LMI_D16
LMI_D17
LMI_D18
LMI_D19
LMI_D20
LMI_D21
LMI_D22
LMI_D23
LMI_D24
LMI_D25
LMI_D26
LMI_D27
LMI_D28
LMI_D29
LMI_D30
LMI_D31

LMI_DQS0
LMI_DQS1
LMI_DQS2
LMI_DQS3

LMI_DQM0
LMI_DQM1
LMI_DQM2
LMI_DQM3

4

5

3

6

2

7

1

8

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

R87 22 OHM 1/16W

1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
4
3
2
1

5

8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
5
6
7
8

R99 22 OH M 1/16W
R100 22 OHM 1/16W
R101 22 OHM 1/16W
R102 22 OHM 1/16W

R103 22 OHM 1/16W
R104 22 OHM 1/16W
R105 22 OHM 1/16W
R106 22 OHM 1/16W

K4
L5
J5
L4

M5

K5

J4
Y5
U1
U2
H5
R1
R2

M4
N5
N4

P5
U4

V5

V4

W5
W4

U5

P4

T5

T4

V1

V2

W1
W2

Y1
Y2

AA1
AA2

E2

E1

F2

F1
G2
G1
H2
H1

AD1
AD2

AE1
AE2
AF1

AF2
AG1
AG2

L2

L1
M2
M1
N2
N1

P2

P1

AB1

J2

AC2

K1

AB2

J1

AC1

K2

LMIBA0
LMIBA1
notLMIWE
notLMICS0
notLMICS1
notLMIRAS
notLMICAS
LMICLKEN
LMICLK
notLMICLK
LMIVREF
LMIREF
LMIGNDBCOMP

LMIA0
LMIA1
LMIA2
LMIA3
LMIA4
LMIA5
LMIA6
LMIA7
LMIA8
LMIA9
LMIA10
LMIA11
LMIA12

LMID0
LMID1
LMID2
LMID3
LMID4
LMID5
LMID6
LMID7
LMID8
LMID9
LMID10
LMID11
LMID12
LMID13
LMID14
LMID15
LMID16
LMID17
LMID18
LMID19
LMID20
LMID21
LMID22
LMID23
LMID24
LMID25
LMID26
LMID27
LMID28
LMID29
LMID30
LMID31

LMIDQS0
LMIDQS1
LMIDQS2
LMIDQS3

LMIDQM0
LMIDQM1
LMIDQM2
LMIDQM3

AA5

AB3

AC3

LMISYSVDD E25

LMISYSVDD E25

LMISYSVDD E25

U1C

ST-7101BWC

C51

100N 16V

AA3

C52

100N 16V

LMISYSVDD E25T1LMISYSVDD E25T2LMISYSVDD E25U3LMISYSVDD E25V3LMISYSVDD E25W3LMISYSVDD E25Y3LMISYSVDD E25Y4LMISYSVDD E25

2V5_DDR

C53

10N 50V

notEMIBE0
notEMIBE1

notEMIOE
notEMICS0
notEMICS1
notEMICS2
notEMICS3
notEMICS4

EMIRDnotWR

EMIFLASHCLK

notEMILBA
notEMIBAA

EMI_DMAREQ0
EMI_DMAREQ1

LMISYSD LL_VDD

LMISYSD LL_VSS

C54

10N 50V

EMIA1
EMIA2
EMIA3
EMIA4
EMIA5
EMIA6
EMIA7
EMIA8

EMIA9
EMIA10
EMIA11
EMIA12
EMIA13
EMIA14
EMIA15
EMIA16
EMIA17
EMIA18
EMIA19
EMIA20
EMIA21
EMIA22
EMIA23

EMID0

EMID1

EMID2

EMID3

EMID4

EMID5

EMID6

EMID7

EMID8

EMID9

EMID10
EMID11
EMID12
EMID13
EMID14
EMID15

EMIWAI T

EMIREQ

EMIGNT

FB11

1 2

C55

10U 16V

RP4 47 OHM 1/16W 5%
RP5 47 OHM 1/16W 5%
RP2 47 OHM 1/16W 5%
RP6 47 OHM 1/16W 5%

RP7 47 OHM 1/16W 5%

AL9
AK10
AL10
AK11
AL11
AK12
AL12
AK13
AL13
AK14
AL14
AK15
AL15
AK17
AL17
AK18
AL18
AK19
AL19
AK20
AL20
AK21
AL21

47 OHM 1/16W 5%

AP20
AP19
AP18
AP17
AP15
AP14
AP13
AP12
AN20
AN19
AN18
AN17
AN15
AN14
AN13
AN12

AP11
AN11
AP10
AK9
AL8
AM8
AP8
AK8
AN10
AN21
AP22
AP21

AK22
AM20
AM21
AN22
AL22

H4

G3

8
7
6
5
8
7
6
5
8
7
6
5
8
7
6

5
8
7
6
5

R84 47R +-1% 1/16W
R85

R86

RP10

1
2
3
4
8
7
6
5
8
7
6
5
1
2
3
4

RP14 47 OHM 1/16W 5%

RP16 47 OHM 1/16W 5%
R88 47R +-1% 1/16W
R89 47R +-1% 1/16W
R90 10K+-5%1/ 16W

EMI_A25
EMI_A24

R92 47R +-1% 1/16W

R94 10K+-5%1/ 16W
R95 10K+-5%1/ 16W

TP9
R96 10K+-5%1/ 16W
R97 10K+-5%1/ 16W

C61

10N 50V

120R/6000mA

2.5V

EMI_A1

1

EMI_A2

2

EMI_A3

3

EMI_A4

4

EMI_A5

1

EMI_A6

2

EMI_A7

3

EMI_A8

4

EMI_A9

1

EMI_A10

2

EMI_A11

3

EMI_A12

4

EMI_A13

1

EMI_A14

2

EMI_A15

3

EMI_A16

4
1
2
3
4

47R +-1% 1/16W

47R +-1% 1/16W
RP12 47 OHM 1/16W 5%

C62

100N 16V

EMI_A17
EMI_A18
EMI_A19
EMI_A20
EMI_A21
EMI_A22
EMI_A23

8
7
6
5
1
2
3
4
1
2
3
4
8
7
6
5

TP8

R207 0R05OHM1/16W

RST#2

R98 NC

12V

1.0V

3V3

R91

4.7K 1/16W

3V3

EMI_A1
EMI_A2EMI_A2EMI_A2EMI_A2
EMI_A3

EMI_A5
EMI_A6
EMI_A7
EMI_A8EMI_A8EMI_A8
EMI_A9EMI_A9EMI_A9
EMI_A10EMI_A10EMI_A10
EMI_A12EMI_A12EMI_A12
EMI_A13
EMI_A14
EMI_A15EMI_A15EMI_A15

EMI_D0
EMI_D1
EMI_D2
EMI_D3
EMI_D4
EMI_D5
EMI_D6
EMI_D7
EMI_D8
EMI_D9
EMI_D10
EMI_D11
EMI_D12
EMI_D13
EMI_D14
EMI_D15

F_OE#
EMI_CS0#
F_WE#

U17

29

DQ0

31

DQ1

33

DQ2

35

DQ3

38

DQ4

40

DQ5

42

DQ6

44

DQ7

30

DQ8

32

DQ9

34

DQ10

36

DQ11

39

DQ12

41

DQ13

43

DQ14

45

DQ15/A-1

28

OE

26

CE

11

WE

15

RY/BY

14

VPP/WP

47

BYTE

12

RP

NC 29GL064N 90TFI040

R93 NC

C60

NC

EMI_A[1.. 22]

VCC

Q6
NC

R49 4. 7K 1/16W
R50 4. 7K 1/16W
R51 NC
R52 NC
R54 NC
R55 NC
R57 NC
R58 NC
R59 NC
R60 4. 7K 1/16W
R61 NC
R62 NC
R63 4. 7K 1/16W
R64 NC

R65 NC
R66 NC
R68 4. 7K 1/16W
R76 4. 7K 1/16W
R69 4. 7K 1/16W
R77 4. 7K 1/16W
R70 4. 7K 1/16W
R72 4. 7K 1/16W
R78 4. 7K 1/16W
R74 NC
R80 4. 7K 1/16W
R81 4. 7K 1/16W
R82 NC
R83 4. 7K 1/16W

25

A0

24

A1

23

A2

22

A3

21

A4

20

A5

19

A6

18

A7

8

A8

7

A9

6

A10

5

A11

4

A12

3

A13

2

A14

1

A15

48

A16

17

A17

16

A18

9

A19

10

A20

13

A21

37

27

VSS

46

VSS

EMI_A1
EMI_A2
EMI_A3
EMI_A4
EMI_A5
EMI_A6
EMI_A7
EMI_A8
EMI_A9
EMI_A10
EMI_A11
EMI_A12
EMI_A13
EMI_A14
EMI_A15
EMI_A16
EMI_A17
EMI_A18
EMI_A19
EMI_A20
EMI_A21
EMI_A22

3V3

C58

100N 16V

C59

100N 16V

3V3

EMI_D0
EMI_D1
EMI_D2
EMI_D3
EMI_D4
EMI_D5
EMI_D6
EMI_D7

EMI_D8
EMI_D9
EMI_D10
EMI_D11
EMI_D12
EMI_D13
EMI_D14
EMI_D15

3V3

R45

NC 0R 05 1/10W

35
37
39
41
44
46
48
50

36
38
40
42
45
47
49
51

17

16

27
28
30
55

43
29

33
52

U7

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7

DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15/A1

RY/BY#

WP#/ACC

NC#27
NC#28
NC#30
NC#55

VCC
VIO

VSS
VSS

NC

A23/NC #1

A24/NC #56

WE#

RESET#

BYTE#

CE#

OE#

EMI_A1

31

A0

EMI_A2

26

A1

EMI_A3

25

A2

EMI_A4

24

A3

EMI_A5

23

A4

EMI_A6

22

A5

EMI_A7

21

A6

EMI_A8

20

A7

EMI_A9

10

A8

EMI_A10

9

A9

EMI_A11

8

A10

EMI_A12

7

A11

EMI_A13

6

A12

EMI_A14

5

A13

EMI_A15

4

A14

EMI_A16

3

A15

EMI_A17

54

A16

EMI_A18

19

A17

EMI_A19

18

A18

EMI_A20

11

A19

EMI_A21

12

A20

EMI_A22

15

A21

EMI_A23

2

A22

EMI_A24

1

EMI_A25

56

EMI_CS0#

32

F_OE#

34

F_WE#

13

14

53

3V3

63

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

03 FLASH

OEM MO DE L

TPV MOD EL

PCB NAME

Sheet

715T3176

of

38Monday , March 22, 2010

Size

Rev

称爹

<

Custom

C

称爹

>

英华家电维修资料专用 QQ:505966338

LMI_DQS[0..3]3

LMI_DQS[0..3]

2V5_DDR

10N 50V

LMI_A0
LMI_A1
LMI_A2

LMI_A4
LMI_A5
LMI_A6
LMI_A7
LMI_A8
LMI_A9
LMI_A10
LMI_A11
LMI_A12

LMI_DQS0
LMI_DQS2

LMI_DQM0
LMI_DQM2

2V5_DDR

C79

100N 16V

1V25_DDR

C69

C70

10N 50V

C81
100N 16V

10N 50V

10N 50V

2V5_DDR

C63

C71

29
30
31
32
35
36
37
38
39
40
28
41
42

14
17
19
25
43
50
53

16
51

20
47

49

C72

10N 50V

U8

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
AP/A10
A11
A12

NC
NC
NC
NC
NC
NC
NC

LDQS
UDQS

LDM
UDM

VREF

C64

10N 50V

C73

10N 50V

61

64

55

VDDQ

VSSQ

58

15

VDDQ

VSSQ

52

C65

10N 50V

3

9

VDDQ

VDDQ

VSSQ

VSSQ

6

12

VDDQ

VSSQ

LMI_A[0..12]

LMI_WE#
LMI_CAS#
LMI_RAS#
LMI_CS0#

LMI_BA0
LMI_BA1
LMI_CLK
LMI_CLKN
LMI_CLKE

LMI_D[ 0..31]

LMI_D0
LMI_D1
LMI_D2
LMI_D3
LMI_D4
LMI_D5
LMI_D6
LMI_D7
LMI_D8
LMI_D9
LMI_D10
LMI_D11
LMI_D12
LMI_D13
LMI_D14
LMI_D15

LMI_D0
LMI_D1
LMI_D2

LMI_D4
LMI_D5

LMI_D7
LMI_D16
LMI_D17
LMI_D18
LMI_D19

LMI_D21
LMI_D22
LMI_D23

LMI_D16
LMI_D17
LMI_D18
LMI_D19
LMI_D20
LMI_D21
LMI_D22
LMI_D23
LMI_D24
LMI_D25
LMI_D26
LMI_D27
LMI_D28
LMI_D29
LMI_D30
LMI_D31

LMI_D8
LMI_D9
LMI_D10
LMI_D11
LMI_D12
LMI_D13
LMI_D14
LMI_D15
LMI_D24
LMI_D25
LMI_D26
LMI_D27
LMI_D28
LMI_D29
LMI_D30
LMI_D31

RP23

4 5
3 6
2 7

RP25

1 8
4 5
3 6
2 7

100 OHM 1/16W
RP27

1 8
4 5
3 6
2 7

100 OHM 1/16W
RP29

1 8
4 5
3 6
2 7

100 OHM 1/16W

1 8

100 OHM 1/16W

RP33

100 OHM 1/16W

4 5
3 6
2 7
1 8

R116 100OHM1/16W
R117 100OHM1/16W
R118 100OHM1/16W
R119 100OHM1/16W
R120 100OHM1/16W

2

DQ0

4

DQ1

5

DQ2

7

DQ3

8

DQ4

10

DQ5

11

DQ6

13

DQ7

54

DQ8

56

DQ9

57

DQ10

59

DQ11

60

DQ12

62

DQ13

63

DQ14

65

DQ15

21

WE

22

CAS

23

RAS

24

CS

26

BA0

27

BA1

45

CK

46

CK

44

CKE

VTT

VTT

2V5_DDR

C76

10N 50V

29
30
31
32
35
36
37
38
39
40
28
41
42

14
17
19
25
43
50
53

16
51

20
47

49

C68

10N 50V

C77

10N 50V

2V5_DD R

10N 50V

LMI_A0
LMI_A1
LMI_A2
LMI_A3LMI_A3 LMI_D3
LMI_A4
LMI_A5
LMI_A6
LMI_A7
LMI_A8
LMI_A9
LMI_A10
LMI_A11
LMI_A12

LMI_DQS1
LMI_DQS3

LMI_DQM1
LMI_DQM3

2V5_DDR

C78

C80

100N 16V

C82

100N 16V

LMI_A0
LMI_A1
LMI_A2
LMI_A3
LMI_A4
LMI_A5
LMI_A6LMI_D6
LMI_A7
LMI_A8
LMI_A9
LMI_A11
LMI_A10
LMI_A12LMI_D20

1V25_DDR

VTT

10N 50V

15

55

VDDQ

VDDQ

VSSQ

VSSQ

52

58

C74

VDDQ

VSSQ

C67

10N 50V

C75

10N 50V

U9

NT5DS32M16CS-5T

61

A0
A1

VDDQ

A2
A3
A4
A5
A6
A7
A8
A9

AP/A10

A11
A12

NC
NC
NC
NC
NC
NC
NC

LDQS

UDQS

LDM

UDM

VREF

VSSQ

64

C66

10N 50V

1

18

33

3

9

VDD

VDD

VDD

VDDQ

VSSQ

VSS

VSS

VSS

6

12

34

48

66

VTT

1

18

33

DQ0
DQ1

VDD

VDD

VDD

DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

CAS

RAS

BA0
BA1

CKE

VSS

VSS

VSS

34

48

66

LMI_D[0.. 31]3

100 OHM 1/16 W

1 8

RP24

2 7
3 6
4 5
1 8

RP22 100 OHM 1/16W

2 7
3 6
4 5
1 8
2 7
3 6
4 5

RP26 100 OHM 1/16W

1 8
2 7
3 6
4 5

RP28 100 OH M 1/16W

NT5DS32M16CS-5T

2
4
5
7
8
10
11
13
54
56
57
59
60
62
63
65

21

WE

22
23
24

CS

26
27

45

CK

46

CK

44

LMI_WE#3
LMI_CAS#3
LMI_RAS#3

LMI_CS0#3

LMI_BA03
LMI_BA13

LMI_CLK3
LMI_CLKN3
LMI_CLKE3

LMI_A[0.. 12] 3

RP30

100 OHM 1/16 W

4 5
3 6
2 7
1 8
4 5RP31 100 OHM 1/16W
3 6
2 7
1 8
4 5
3 6

RP32

2 7
1 8

R107

R108 100OHM1/16W
R109 100OHM1/16W
R110 100OHM1/16W
R111 100OHM1/16W

VTT

R112 100OHM1/16W
R113 100OHM1/16W
R114 100OHM1/16W
R115 100OHM1/16W

100OHM1/16W

100 OHM 1/16W

VTT

LMI_DQS0
LMI_DQS1
LMI_DQS2
LMI_DQS3

LMI_DQM0
LMI_DQM1
LMI_DQM2
LMI_DQM3

LMI_DQM[0..3]3

VTT

C84

C85

10U 16V

C86

10U 16V

C83

10U 16V

10U 16V

LMI_DQM[0..3]

C87

10U 16V

C88

10U 16V

C89

10U 16V

C90

10U 16V

C91

10U 16V

C92

10U 16V

64

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

04 SYSTEM MEMORY

Date

OEM MODEL

TPV MO D EL

PCB NAME

Sheet

715T3176-B

49Thursday , February 04, 2010

of

Size

Rev

称爹

B

C

<

称爹

>

英华家电维修资料专用 QQ:505966338

1V25_DDR

VLMI_A[0..12]6

VLMI_DQS[0..3]6

VLMI_DQM[0..3]6

VLMI_BA06
VLMI_BA16

VLMI_WE#6
VLMI_CS0#6
VLMI_RAS#6
VLMI_CAS#6
VLMI_CLKE6

VLMI_CLK6

VLMI_CLKN6

2V5_DDRV

22 OHM +-5% 1/ 16W

22 OHM +-5% 1/ 16W

22 OHM +-5% 1/ 16W

22 OHM +-5% 1/ 16W

22 OHM +-5% 1/ 16W

22 OHM +-5% 1/ 16W

22 OHM +-5% 1/ 16W

22 OHM +-5% 1/ 16W

VLMI_D[0..31]6

VLMI_DQS[0..3]

VLMI_BA0
VLMI_BA1
VLMI_WE#
VLMI_CS0#
VLMI_RAS#
VLMI_CAS#
VLMI_CLKE
VLMI_CLK
VLMI_CLKN

C108

100N 16V

C109

100N 16V

VLMI_A[0..12]

RP38

RP39

RP40

RP41

RP42

RP43

RP44

RP45

VLMI_D[0..31]

VLMI_DQM[0..3]

22 OHM +-5% 1/ 16W

RP34

R121 22 OHM 1/16W
R122 22 OHM 1/16W

1

8

22 OHM 1/16W

2

7

3

6

4

R123

R124
10K+-5%1/16W

R127 22 OHM 1/16W

R125
100OHM1/16W

R129 22 OHM 1/16W
R130 0R05OHM1/16W
R131 change t he product code t o "G"

VLMI_A0
VLMI_A1
VLMI_A2
VLMI_A3
VLMI_A4
VLMI_A5
VLMI_A6
VLMI_A7
VLMI_A8

VLMI_A9
VLMI_A10
VLMI_A11

VLMI_A12

VLMI_D0

VLMI_D1

VLMI_D2

VLMI_D3

VLMI_D4

VLMI_D5

VLMI_D6

VLMI_D7

VLMI_D8

VLMI_D9

VLMI_D10

VLMI_D11

VLMI_D12

VLMI_D13

VLMI_D14

VLMI_D15

VLMI_D16

VLMI_D17

VLMI_D18

VLMI_D19

VLMI_D20

VLMI_D21

VLMI_D22

VLMI_D23

VLMI_D24

VLMI_D25

VLMI_D26

VLMI_D27

VLMI_D28

VLMI_D29

VLMI_D30

VLMI_D31

VLMI_DQS0

VLMI_DQS1

VLMI_DQS2

VLMI_DQS3

VLMI_DQM0

VLMI_DQM1

VLMI_DQM2

VLMI_DQM3

5

TP10

RP35 22 OH M +-5% 1/16W
RP36 22 OH M +-5% 1/16W

4

RP37 22 OH M +-5% 1/16W

3
2
1
4
3
2
1
1
2
3
4

R135

4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1
4
3
2
1

R142 22 OHM 1/16W
R143 22 OHM 1/16W
R144 22 OHM 1/16W
R145 22 OHM 1/16W

R147 22 OHM 1/16W
R148 22 OHM 1/16W
R149 22 OHM 1/16W
R150 22 OHM 1/16W

5
6
7
8
5
6
7
8
8
7
6
5

5
6
7
8
5
6
7
8
5
6
7
8
5
6
7
8
5
6
7
8
5
6
7
8
5
6
7
8
5
6
7
8

2V5_DDRV

22 OHM 1/16W

D14

E13
E15

D11

E11

E14
D15
D13

A13

B13
C11

B12

B11

E10
D10

E9
D9
D6
E6
D5
E5
D4
E7
D8
E8
D7

A14

B14

A15

B15

A16

B16

A17

B17

A1
B2
A2
B3
A3
B4
A4

B5
A20
B20
A21
B21
A22
B22
A23
B23

A7

B8

A8

B9

A9
B10
A10
A11

A18

A5
B19

B7

B18

B6
A19

A6

C93

100N 16V

VLMIBA0
VLMIBA1
VnotLMIWE
VnotLMICS0
VnotLMICS1
VnotLMIRAS
VnotLMICAS
VLMICLKEN
VLMICLK
VnotLMICLK
VLMIVREF
VLMIREF
VLMIGNDBCOMP

VLMIA0
VLMIA1
VLMIA2
VLMIA3
VLMIA4
VLMIA5
VLMIA6
VLMIA7
VLMIA8
VLMIA9
VLMIA10
VLMIA11
VLMIA12

VLMID0
VLMID1
VLMID2
VLMID3
VLMID4
VLMID5
VLMID6
VLMID7
VLMID8
VLMID9
VLMID10
VLMID11
VLMID12
VLMID13
VLMID14
VLMID15
VLMID16
VLMID17
VLMID18
VLMID19
VLMID20
VLMID21
VLMID22
VLMID23
VLMID24
VLMID25
VLMID26
VLMID27
VLMID28
VLMID29
VLMID30
VLMID31

VLMIDQS0
VLMIDQS1
VLMIDQS2
VLMIDQS3

VLMID QM0
VLMID QM1
VLMID QM2
VLMID QM3

C94

100N 16V

LMIVIDVD DE25C4LMIVIDVD DE25C5LMIVIDVD DE25C6LMIVIDVD DE25C7LMIVIDVD DE25C8LMIVIDVD DE25C9LMIVIDVD DE25

C95

10N 50V

C96

10N 50V

C10

C13

D12

LMIVIDVD DE25

LMIVIDVD DE25

U1D

ST-7101BWC

E12

LMIVIDVD DE25

FB12

1 2

C97

10U 16V

AB32

W33

AA32

HDMI_VDDD

HDMI_VDDSL

AC32

HDMI_VDDX

HDMI_VDDP

300 OHM

W32

W34

Y32

HDMI_VDDC2

HDMI_VDDCK

W31

HDMI_VDDC1

HDMI_VDDC0

HDMI_VDD33

V31

W30

HDMI_VDD

VDD33_HDMI

2.5V

GND33_HDMI

HDMI_VSSD

HDMI_VSSSL

HDMI_VSSX

HDMI_VSSP

HDMI_VSSCK

HDMI_VSSC2
HDMI_VSSC1
HDMI_VSSC0

HDDAC_VCCA
SDDAC_VC CA

VID_VDD E25A
HDDAC_GNDA
SDDAC_GNDA

VID_GNDEA

AUXY_R
AUXC_G

AUXCVBS_B

R_PR

B_PB

SD_REXT0
SD_REXT1

GND_REXT0
GND_REXT1

IDUMPC
IDUMPY

IDUMPCVBS

IDUMPR
IDUMPG

IDUMPB

DHSO

DVSO
DYC0
DYC1
DYC2
DYC3
DYC4
DYC5
DYC6
DYC7
DYC8

DYC9
DYC10
DYC11
DYC12
DYC13
DYC14
DYC15

TX0N
TX0P
TX1N
TX1P
TX2N

TX2P
TXCKN
TXCKP

TMDS REF

LMIVIDDLL_VDD

LMIVIDDLL_VSS

10N 50V

10N 50V

G_Y

C98

10N 50V

C106

R32

N32
U32
V33
P32
V32
V34
N33
N34

D30
E30
H32
C32
F30
J32

C111

10N 50V

B34
A34

R212 NC

C34

R140 NC

D34
F34

R138

E34

R136 NC

A31

R137 8.2K 1/16W

A32

R139 8.2K 1/16W

B31
B32

A33
B33
C33
D33
F33
E33

M33
M34
L34
L33
K34
K33
J34
J33
H34
H33
U30
T31
T30
R31
R30
P31
P30
N31

T34
T33
R34
R33
P34
P33
U34
U33
T32

R146

47R +-1% 1/16W

A12

C118

C12

10N 50V

C99

C100

10N 50V

FB14

C107
100N 16V

FB15

C110

100N 16V

R126 0R05OHM1/16W

NC

RX_DV
RX_ER
TXD0
TXD1
TXD2
TXD3
TX_EN
MDI O
MDC
RX_CLK
RXD0
RXD1
RXD2
RXD3
TX_CLK

COL
CRS
MDI NT

1.0V

C119

100N 16V

C101

10N 50V

100N 16V

1 2

300 OHM

1 2

HDMI_VDD33

C102

300 OHM

C103

100N 16V

100N 16V

3.3V

2.5V

TX2P

TX2N

TXCKP

TXCKN

TX1N

C104

TX0P

TX0N

TX1P

3V3

FB13 121 OHM

C105
100N 16V

R128 0R05OHM1/16W

3V3

TX2P
TX2N

TX1P
TX1N

TX0P
TX0N

TXCKP
TXCKN

R1892 36K 1/ 10W

R1893 N C 4.7K 1/10W
R1896 N C 4.7K 1/10W

R1895 N C 4.7K 1/10W

4.7K 1/10W

4.7K 1/10W

4.7K 1/10W

U1805

0R05 1/10W
0R05 1/10W
0R05 1/10W

R1882
R1880
R1881

37

GND

38

IN1p

39

IN1n

40

VCC

41

IN2p

42

IN2n

43

GND

44

IN3p

45

IN3n

46

VCC

47

IN4p

48

IN4n

R1898
R1897
R1906

1.0V

3V3

28

32

31

36

33

30

29

35

VCC

GND

GND

GND1POW2PC03PC14GND5REXT6HPD7SDA8SCL9CEXT10VCC11GND

CFG134CFG0

DDCBUF_EN#

PS121QFN48G

R1899

499 +-1% 1/10W

SCLZ

SDAZ

HPD_SINK

27

GND

3V3

R1894

4.7K 1/10W

25

26

OE#

OUT1p
OUT1n

I2C_CTL_EN#

OUT2p
OUT2n

OUT3p
OUT3n

OUT4p
OUT4n

12

C1842

2.2U25V

GND

VCC

GND

VCC

GND

49

0R05 1/10W

R1890

24
23
22
21
20
19
18
17
16
15
14
13

CONN

10

OUTTX2P

9

OUTTX2N

8

OUTTX1P

7

OUTTX1N

6

OUTTX0P

5

OUTTX0N

4

OUTTXCKP

3

OUTTXCKN

2
1

CN1806

11 12

3V3

OUTTX2P
OUTTX2N

OUTTX1P
OUTTX1N

OUTTX0P
OUTTX0N

OUTTXCKP
OUTTXCKN

3V3

C1843

10U 16V

C1844

100N 50V

100N 16V

C1845

C1846

100N 16V

100N 16V

C1847

C1848

100N 16V

C1849

100N 16V

C1850

100N 16V

65

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

05 VIDEO

Date

OEM MO DEL

TPV MODEL

PCB NAME

Sheet

715T3176-B

of

59Monday, March 22, 2010

Custom

Size

C

Rev

称爹

>

<

称爹

英华家电维修资料专用 QQ:505966338

VLMI_DQS[0. .3]5

VLMI_DQM[0. .3]5

VTT

VLMI_DQS[0. .3]

2V5_DDRV

1V25_DDR

VLMI_DQM[0..3]

10N 50V

C126

10N 50V

VLMI_A0
VLMI_A1
VLMI_A2
VLMI_A3
VLMI_A4
VLMI_A5
VLMI_A6
VLMI_A7
VLMI_A8
VLMI_A9
VLMI_A10
VLMI_A11
VLMI_A12

VLMI_DQS2
VLMI_DQS0

VLMI_DQM2
VLMI_DQM0

2V5_DDR V

2V5_DDR V

C120

C127

10N 50V

C137

100N 16V

C139

100N 16V

10N 50V

C128

10N 50V

29
30
31
32
35
36
37
38
39
40
28
41
42

14
17
19
25
43
50
53

16
51

20
47

49

C121

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
AP/A10
A11
A12

NC
NC
NC
NC
NC
NC
NC

LDQS
UDQS

LDM
UDM

VREF

C129

10N 50V

C122

10N 50V

100 OHM 1/16W

C130

10N 50V

3

9

15

55

61

VDDQ

VDDQ

VDDQ

VDDQ

VSSQ

VSSQ

VSSQ

VSSQ

6

12

52

58

64

VDDQ

VSSQ

VLMI_A[0. .12]

100 OHM 1/16W

100 OHM 1/16W

VLMI_WE#
VLMI_CAS#
VLMI_RAS#
VLMI_CS0#

VLMI_BA0
VLMI_BA1

VLMI_CLK
VLMI_CLKN

VLMI_CLKE

VLMI_D[0.. 31]

C123

10N 50V

10N 50V

3

9

VDDQ

VDDQ

VSSQ

VSSQ

6

12

C131

15

52

55

VDDQ

VSSQ

58

10N 50V

61

VDDQ

VDDQ

VSSQ

VSSQ

64

2V5_DDR V

10N 50V

C132

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9

AP/A10

A11
A12

NC
NC
NC
NC
NC
NC
NC

LDQS

UDQS

LDM

UDM

VREF

C124

10N 50V

C133

10N 50V

10N 50V

U11

NT5DS32M16CS-5T

29
30
31
32
35
36
37
38
39
40
28
41
42

14
17
19
25
43
50
53

16
51

20
47

49

C125

2V5_DDR V

C134

VLMI_D0
VLMI_D1
VLMI_D2
VLMI_D3
VLMI_D4

VLMI_D5
VLMI_D6
VLMI_D7

VLMI_D8

VLMI_D9

VLMI_D10
VLMI_D11
VLMI_D12
VLMI_D13
VLMI_D14

VLMI_D15

VLMI_D16
VLMI_D17
VLMI_D18
VLMI_D19
VLMI_D20 VLMI_A4
VLMI_D21
VLMI_D22
VLMI_D23
VLMI_D0
VLMI_D1
VLMI_D2
VLMI_D3
VLMI_D4
VLMI_D5
VLMI_D6
VLMI_D7

VLMI_D16
VLMI_D17
VLMI_D18
VLMI_D19
VLMI_D20
VLMI_D21
VLMI_D22
VLMI_D23
VLMI_D24
VLMI_D25
VLMI_D26
VLMI_D27
VLMI_D28
VLMI_D29
VLMI_D30
VLMI_D31

VLMI_D24
VLMI_D25
VLMI_D26
VLMI_D27
VLMI_D28
VLMI_D29
VLMI_D30
VLMI_D31
VLMI_D8
VLMI_D9
VLMI_D10
VLMI_D11
VLMI_D12
VLMI_D13
VLMI_D14
VLMI_D15

RP47

4 5
3 6
2 7

RP49

1 8
4 5
3 6
2 7

100 OHM 1/16W
RP51

1 8
4 5
3 6
2 7

100 OHM 1/16W
RP53

1 8
4 5
3 6
2 7

100 OHM 1/16W

1 8

100 OHM 1/16W

RP57

4 5
3 6
2 7
1 8

R160 100OH M1/16W
R161 100OH M1/16W

100 OHM 1/16W

R162 100OH M1/16W
R163 100OH M1/16W

R164 100OH M1/16W

VTT

1

18

2

DQ0

4

DQ1

5

DQ2

7

DQ3

8

DQ4

10

DQ5

11

DQ6

13

DQ7

54

DQ8

56

DQ9

57

DQ10

59

DQ11

60

DQ12

62

DQ13

63

DQ14

65

DQ15

21

WE

22

CAS

23

RAS

24

CS

26

BA0

27

BA1

45

CK

46

CK

44

CKE

33

VDD

VDD

VDD

VSS

VSS

VSS

34

48

66

VTT

10N 50V

VLMI_A0
VLMI_A1
VLMI_A2
VLMI_A3

VLMI_A5
VLMI_A6
VLMI_A7
VLMI_A8
VLMI_A9
VLMI_A10
VLMI_A11
VLMI_A12

VLMI_DQS3
VLMI_DQS1

VLMI_DQM3
VLMI_DQM1

2V5_DDRV

C135

VLMI_A0
VLMI_A1
VLMI_A2
VLMI_A3
VLMI_A4
VLMI_A5
VLMI_A6
VLMI_A7
VLMI_A8
VLMI_A9
VLMI_A11
VLMI_A12
VLMI_A10

VTT

R152 100OH M1/16W
R153 100OH M1/16W
R154 100OH M1/16W
R155 100OH M1/16W

VTT

R156 100OH M1/16W
R157 100OH M1/16W
R158 100OH M1/16W
R159 100OH M1/16W

C136

100N 16V

C138

100N 16V

VLMI_D[0. .31]5

VTT

1 8

RP46

2 7
3 6
4 5
1 8

RP48

2 7
3 6
4 5
1 8

RP50100 OH M 1/16W

2 7
3 6
4 5
1 8
2 7
3 6
4 5RP52

U10

1

18

33

VDD

VDD

VSS

VSS

34

48

66

VDD

VSS

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

WE
CAS
RAS

BA0

BA1

CKE

CS

CK
CK

VLMI_CAS#5
VLMI_RAS#5

VLMI_CS0#5

VLMI_CLKN5

VLMI_CLKE5

NT5DS32M16CS-5T

2
4
5
7
8
10
11
13
54
56
57
59
60
62
63
65

21
22
23
24

26
27

45
46

44

VLMI_WE#5

VLMI_BA05
VLMI_BA15

VLMI_CLK5

R151 100OH M1/16W

1V25_DDR

VLMI_A[0.. 12] 5

RP54

4 5
3 6
2 7

RP55

1 8
4 5
3 6
2 7

100 OHM 1/16W
RP56

1 8
4 5
3 6
2 7

100 OHM 1/16W

1 8

100 OHM 1/16W

VTT

VLMI_DQS0
VLMI_DQS1
VLMI_DQS2
VLMI_DQS3

VLMI_DQM0
VLMI_DQM1
VLMI_DQM2
VLMI_DQM3

C140

10U 16V

C141

10U 16V

C142

10U 16V

C143

10U 16V

C144

10U 16V

C145

10U 16V

C146

10U 16V

C147

10U 16V

C148

10U 16V

C149

10U 16V

66

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

06 V IDEO MEMORY

Date

OEM MO DE L

TPV MOD EL

PCB NAME

Sheet

715T3176-B

69Thursday , F ebruary 04, 2010

of

Size

Rev

称爹

B

C

称爹

>

<

英华家电维修资料专用 QQ:505966338

2.5V

1.0V

5V

FB27 NC

CONN

1.0V

1.0V

1.0V

1.0V

FB25 121 OHM

FB26

121 OHM

R166
0R05OHM1/16 W

R174
NC

CN1

2

SPDIF _OUT

1

FB18 121 OHM

C152

10N 50V

FB20 121 OHM

C155

10N 50V

FB22 121 OHM

C158

10N 50V

FB24 121 OHM

C161

10N 50V

C163

10N 50V

C167

NC

Q8

NC

R173 NC

R233 0R05 1/10W

C172

10N 50V

100OHM1/16W

100N 16V

R211 470 OHM 1/16W

TP11
TP12
TP13
TP14

R178

12V

C164

10N 50V

R170

NC

Q7
NC

R179

100OHM1/16W

C153

100N 16V

C156
100N 16V

C159

100N 16V

C162

100N 16V

C165

R175

47R +-1% 1/16W

R180
560R 1/ 16W 5%

C166

100N 16V

MCL K
SCLK
LRCLK
SDATA

PCMOUT4
PCMOUT3
PCMOUT2

C175
1UF16V

R242 33 OHM +-5% 2WS

R243 27 OHM +-5% 2WS

10UF16V

AL30

SATAVDDREF

AM27

SATAVSSREF

AM29

SATAVDDR0

AL28

SATAVDDR1

AN28

SATAVSSR

AN29

SATAVDDT0

AP29

SATAVDDT1

AP28

SATAVSST

AL29

SATAVDDDLL

AM28

SATAVSSDLL

AM26

SATAVDDOSC25

AL26

SATAVDDOSC

AL27

SATAVSSOSC

AP30

SATATXN

AN30

SATATXP

AP31

SATARXN

AN31

SATARXP

AM30

SATAREF

D29

AUDSIN

D28

AUDSTRBIN

E28

AUDLRCLKIN

D26

PCMCLKOUT

E24

SCLKOUT

E26

LRCLKOUT

A25

PCMDATA0

B25

PCMDATA1

C25

PCMDATA2

D25

PCMDATA3

E25

PCMDATA4

D24

SPDIF OUT

A28

OUTPR

B28

OUTMR

A27

OUTPL

B27

OUTML

C27

IREF

C28

VBGFIL

PCMOUT2

PCMOUT3

DH_R

PCMOUT4

DH_L

3V3

3V3

3V3

C223

+

C224

100N 16V

U1E

ST-7101BWC

R217 NC

R219 NC

R221 NC

U20 AZ 1117D-5.0-E1

3

OUTPUT

INPUT

1

ADJ/ GND

R218 4. 7K 1/16W

R220 4. 7K 1/16W

R222 4. 7K 1/16W

2

100N 16V

TS0D 0
TS0D 1
TS0D 2
TS0D 3
TS0D 4
TS0D 5
TS0D 6
TS0D 7

TS0PSYNC

TS0VA LID

TS0B CLK

TS0ER RO R

TS1D 0
TS1D 1
TS1D 2
TS1D 3
TS1D 4
TS1D 5
TS1D 6
TS1D 7

TS1PSYNC

TS1VA LID

TS1B CLK

TS1ER RO R

TS2D 0
TS2D 1
TS2D 2
TS2D 3
TS2D 4
TS2D 5
TS2D 6
TS2D 7

TS2PSYNC

TS2VA LID

TS2B CLK

TS2ER RO R

USB_VDDBS

USB_VDD P

USB_VDDBC25

USB_VDDP25

USB_VSSBS

USB_VSSP
USB_VSSC25
USB_VSSP25

USBDM

USBDP

USB_RREF

AUD_VCCA

AUD_VD DE25A

AUD_GN DA

AUD_GN DAS

AUD_VCCEA

C225

5V_TUNER

+

100uF/16 V

AH5
AG4
AK1
AK2
AJ1
AJ2
AH1
AH2
AJ4
AJ5
AK6
AH4

AE5
AD4
AD5
AC4
AC5
AB4
AB5
AA4
AF4
AF5
AG5
AE4

AP1
AN2
AN1
AM2
AM1
AL2
AL1
AL3
AP3
AN3
AM3
AP2

AL25
AP24
AM24
AN24

AL23
AP23
AN23
AM23

AP25
AN25
AM25

B29
D31

A30
B30
E32

C226

TS0_D0
TS0_D1
TS0_D2
TS0_D3
TS0_D4
TS0_D5
TS0_D6

TS0_D7
TS0_PSYNC
TS0_VALID
TS0_B CLK
TS0_ERROR

10K+-5%1/16W

R183

R165

10K+-5%1/16W

NIM_SDA2

NIM_SCL2

R169

10K+-5%1/16W

C169

C168

10N 50V

100N 16V

10N 50V

USBDM

C173

10N 50V

USBDP

FB30 121 OHM

C174
100N 16V

R181 0R05OH M1/16W

R210 1.5KOHM +-5% 1/16W

FB16 120R/3000mA

3.3V

C150

+

100uF/ 16V

2.5V

+

C160

100uF/ 16V

FB21 120R/3000mA

1.5V

C157

+

100uF/ 16V

TS0_D [0 ..7 ]

R255 0R 05OHM1/16W

5V

1

Q3
NC

R252
NC

2.5V

TU_ SDA

3

TU_ SCL

R253

NC

3

ZD4

R250

R251

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

2

NC

5V

2

NC

R256

FB28 121 OHM

FB29 121 OHM

C171

100N 16V

C170

R172

32V

07 AUDI O & TUNER

1

Q4
NC

0R05OHM1/16 W

0R05OHM1/1 6W

R227
10 OHM 1/10W

FE_RST#2

12

FB23 121 OHMFB19 121 OHM

TS0_D7
TS0_D6
TS0_D5
TS0_D4
TS0_D3
TS0_D2
TS0_D1
TS0_D0

D3

BAS32L

+

C220 1.5nF 50V

OEM MODEL

TPV MODEL

PCB NAME

Sheet

FB17

C154

100uF/50 V

FE_RST#

5V_TUNER

32V

TS0_ ERR OR2

R167 100OH M1/16W
R168 100OH M1/16W

1.0V

2.5V

L13
180uH

C219

100uF/5 0V

R228 47K +-5% 1/ 10W

NC

120R/3000mA

+

220uF/16 V

+

C114

100P 50V

L11 200uH

U18

R229

100 OHM 1/10W

715T3176-B

of

79Thursday , March 18, 2010

C151

C115

100P 50V

180 OHM 1/10W

MC34063AL

1

SWC

2

SWE

TCAP3VCC

4

COMP

GND

Digibest-->A

1.8K 1/1 0W

DC

PK

R230

TU1
TUN ER

1

B1 +5V

2

N/C

3

B2 +5V

4

N/C

5

B3 +32V

6

GND

7

RESET

8

ERROR OUT

9

MONITOR 1

10

MONITOR 0

11

N/C

12

B4 +3.3V

13

GND

14

B5 +2.5V

15

B5 +1.5V

16

PSYN C

17

DVALID

18

DATA 7

19

DATA 6

20

DATA 5

21

DATA 4

22

DATA 3

23

DATA 2

24

DATA 1

25

DATA 0

26

CLOCK

27

IIC DATA

28

IIC CLOCK

R171 0R 05OHM1/16W

R231

8

7

6

5

C221

0.1uF 5 0V

TH129TH230TH331TH4

32

R232

6.2 OHM 5% 1/4W

1 2

L14 300 OHM

+

C222

100uF/ 16V

Size

Rev

称爹

12V

B

C

称爹

>

<

67

英华家电维修资料专用 QQ:505966338

(Max Power Consumption 150mA)

(5V Max Power Consumption 0.6A)

Digibest-->A

U12 CLZ 8831-RST

1

IN

2

SS/SCP

5

GND

6

C184

10N 50V

GND

7

LX

8

LX

3

FB

4

COMP

R187

0R05OHM1/16W

C187

2N2 50V

L4
10uH 4A

1K1/16W

ZD1
SSA34-E3

1 2

R182

C186

100N 16V

R265

NC

(Max Powe r Consumption 2.7A)

C180

100N 16V

R186
51KOHM +-1% 1/10W

R189
39K 1/10W

C112

7/3

NC

1.0V

+

C181

470uF/16V

LOW ESR

C182

1UF16V

R260

22K 1/10W

5V

R261 100K 1/ 10W

U22

4

OUT

IN

EN1OC

GND

2

G5250K1T1U

C230

1UF16V

5

3

C1864

47uF/16V

5V_SW

+

U13

3

VIN

C1862

100N 16V

VOUT

VSS

AP1117E33LA

1

3.3V

2

R184

+

NC

R188

0R05OHM1/16W

C183

47uF/16V

C185

100N 16V

+

12V

L16 300 OHM

C178

470uF/16V

1M2 1/16W 5%

C179

100N 16V

R185

12V

C190

+

220uF/16V

R141 0R 051/8W

R176 0R 051/8W

R177 0R 051/8W

R132 0R 051/8W

R133 0R 051/8W

R134 0R 051/8W

C191
100N 16V

100K 1/16W

R193

1

2

5

6

C194
10N 50V

R201 0R 051/8W

R203 0R 051/8W

R213

0R051/8W

R205 0R 051/8W

0R051/8W

R206

R249 0R 051/8W

U15 C LZ8831-RST

IN

SS/SCP

GND

GND

COMP

5K6 1/16W 5%

R234 0R 051/8W

R244 0R 051/8W

R245 0R 051/8W

R246 0R 051/8W

R248 0R 051/8W

R190 0R 051/8W

(Max Powe r Consumption 2A)

C192

100N 16V

2.5V

+

5V

C193

470uF/16V

LOW ESR

NC

3V3

L2

12

L1

300 OHM

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

08 POWER

Date

U16

9

Thermal Pad

8

NC

7

NC

6

VCNTL

5

NC

G2992F1U

VIN

GND
VREF
VOUT

5V

C188

1UF16V

1
2
3
4

7/20

C208

100N 16V

3

2V5_DDR

OEM MO DE L

TPV MO DE L

PCB NAME

Sheet

G1117T63Uf

G1117T63Uf

U14

VIN

VOUT

GND

TH

1

4

C198

+

LOW ESR

1000uF/16V

R199

0R05OHM1/16W

VTT

+

C209

LOW ESR

715T3176-B

of

89Frid ay , April 02, 2010

(Max Pow er Consumption 150mA)

2

R191

100OHM1/16W

R195
22 OHM 1/16W

1V25_DDR

R200 0R05OHM1/16W

C204

100N 16V

1000uF M 16V

+

C231
1UF16V

C203

NC

C189

47uF/16V

1.5V

2V5_DDR

C205

100N 16V

Size

Rev

称爹

C195

100N 16V

R198

1KOHM +-1% 1/16W

R202

1KOHM +-1% 1/16W

B

C

称爹

>

<

7

LX

8

LX

3

FB

4

R196

C197
2N2 50V

5V

12V

5V

L5
10uH 4A

1K1/16W

ZD2
SSA34-E3

1 2

MAIM5V

MAIM12V

MAIM5V

10N 25V

R235

C113

NC

C196

R192

NC

R204 0R 051/8W

R247 0R 051/8W

R194
200K 1%

R197
47KOHM +-1% 1/10W

CN5

1
2
3
4
5
6

CONN

68

英华家电维修资料专用 QQ:505966338

MDI O
MDC

COL
MDI N T

RX_DV
RX_CLK
RX_ER
TX_CL K
TX_EN

RXD0
RXD1
RXD2
RXD3

MII INTERFACE

TXD0
TXD1
TXD2
TXD3

NRSJ

PHYC LK

CRS

FB1806

3.3V_ETH

1 2

120R/3A

C1801

100uF M 16V

close to LAN8700

R181322 OHM 1/ 10W
R181422 OHM 1/ 10W

R185222 OHM 1/ 10W
R185022 OHM 1/ 10W

1
2
3
4

4
3
2

0OHM 1/16W

1

1
2
3
4

R183222 OHM 1/ 10W
R183333R 1/ 10W 5%

R184522 OHM 1/ 10W

120R/3A

MII _V DD IO

R1810 1.5KOHM 1/10W

R184210K 1/10W

3.3V_ETH

MII _V DD IO

25

U1801

4

MDI O

2

MDC

36

COL/RMII/CRS_DV

1

nINT/TX_ER/TXD4

19

RX_DV

20

RX_CLK/RE GOFF

21

RX_ER/RXD4

22

TX_CLK

6

TX_EN

18

RXD0/MODE0

17

RXD1/MODE1

16

RXD2/MODE2

15

RXD3/nINTSEL

23

TXD0

24

TXD1

26

TXD2

27

TXD3

5

nRST

14

CLKIN/XTAL1

3

CRS/PHYAD4

13

XTA L2

LAN8700C-AEZG

FB1805

1 2

7

VDDIO

VDD33

R1840

12k4 1%

DGND

MII _A VDD

C1819

10U 16V

DGND

LAN8700

36pin QFN

FDUPLEX/PHYAD3

SPEED100/PHY AD0

AC TIVI TY /P HY AD 2

EXRES1

VDD_CORE8VSS/FLA G

34

37

C1810

100N 50V

C1809

4.7uF K 25V

C1820

0.1uF 50V

MII _A VDD

33

30

VDDA3. 3

TXP

TXN

RXP

RXN

LINK/PH YAD1

35

VDDA3. 3

C1821

0.1uF 50V

VDDA3. 3

29

28

32

31

12
9
10
11

C1822

0.1uF 50V

TXIN +

TXIN -

RXIN+

RXIN-

C1804

10N 50V

MII _A VDD

DGND

MII _A VDD

49R9 1/10W 1%
R1806

C1806

10N 50V

DGND

49R9 1/ 10W 1%
R1805

R1803
49R9 1/ 10W 1%

270OHM 1/10W

y ellowGreen

D1802

C1863

47uF/16V

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

MII _V DD IO

R1835

12

12D1801 y ellowGreen

5VUSB

+

08 POWER

R1804
49R9 1/10W 1%

3

C1861

100N 16V

10R 1%

R1802

C1828

10PF 50V

R1843

270OHM 1/10W

LINKLED
ACTIVELED

AP1117E33LA
U21

VIN

CT0/1

CT0/1

C1803

22nF50V

DGND

270OHM 1/ 10W

J1801

1

TD+

3

CT

2

TD-

7

RD+

PCB SIDE

CT

6

RD-

8

NC

4
5

NC

9

green

10
11

yellow

12

R1817

DGND

TXIN +

TXIN ­RXIN+

MII _V DD IO

C1859

47uF/16V

715T3176-B

99Friday , April 02, 2010

R1816

270OHM 1/ 10W

3.3V_ETH

C1860

100N 16V

of

RXIN-

C1827 10PF 50V

C1826

C1808

10PF 50V

10PF 50V

GND_ETH

2

VOUT

VSS

1

DGND

OEM MO DEL

TPV MO DEL

PCB NAME

Sheet

+

75ohm

75ohm

75ohm

75ohm

102pF

shield GND

RJ45_13F -60

IN1(TX+)

IN2(TX-)

IN3(RX+)

IN6(RX-)
IN4
IN5
IN7
IN8

R1818

0R05OHM1/ 8W

Size

Rev

称爹

Cable side

13

SH_GND

14

SH_GND

GND_ETH

GND_ETH

Custom

C

<

称爹

>

MII_VDDIO

C1813

+

DGND

8

RP6022 OHM +- 5% 1/16W

7
6
5

5

RP5922 OHM +- 5% 1/16W

6
7
8

8

RP61

7
6
5

DGND

0.1uF 50V

R1853
NC

C1818

0.1uF 50V

R1807NC

R180110K 1/10W

R1808NC

R1809NC

69

英华家电维修资料专用 QQ:505966338

100N 16V

C1857

5VUSB

+

GNDUSB

C1858

470uF/16V

C1853

220uF/ 16V

12V

+

C1852

100N 16V

R1900

1M2 1/16W 5%

USB_PW_EN

C1851

10N 50V

C1885

1uF 16V

U1821 CLZ8831-RST

1

IN

2

SS/SCP

5

GND

6

GND

5VUSB

GNDUSB

4.7K 1/10W

U23

4

IN

EN1OC

LX

LX

FB

COMP

OUT

GND

2

G5250K1T1U

7

8

3

4

R1869

5

3

R1901

0R05 1/ 10W

C1854

2N2 50V

SSA34-E3

D1803

1 2

C1841
47uF 16V

10uH 4A

L1804

R1902

1K 1/10W

C1855

100N 16V

R1903

NC 1/ 10W

C1840
100P 50V

C1856

100N 16V

VBUS

R1858
39K 1/10W

180K 1/10W

R1904

R1905

20K 1/10W

R1859

0R05 1/10W

USB_OC

USBDM
USBDP

NC RClamp0524P.TCT

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

08 POWER

Date

10

OUT1

9

OUT2

7

OUT3

6

OUT4

U1802

GNDUSB

GND

3

70

8

IN1
IN2

IN3
IN4

GND

GNDUSB

1
2

4
5

OEM MODEL

TPV MOD EL

PCB NAME

Sheet

715T3176-B

10 10Wednesday , April 07, 2010

of

1234

1
2
3
4

6 5

CONNNECTOR
CN1801

Size

Rev

称爹

C

<

称爹

Custom

>

英华家电维修资料专用 QQ:505966338

9.5 Key Board

715G3400K01001001S

CN1

CONN

1
2
3

5VS

Key_AD

1

0R05 1/4W

R9

3

D1
BAV99

2

5VS

L1 600 OHM

L2 600 OHM

NC

C1

R1 2.2KOH M +-1% 1/8W

C2

0.1uF

R5

0 OHM 1/10W

R8

22K OHM 1% 1/10W

SW4

SW

R2

1.8K OHM 1% 1/10W

SW7

SW

R3

390 OHM 1% 1/10W

SW1

SW

1K OHM 1% 1/10W

SW2

SW

R4

3.3K OHM 1% 1/10W

SW3

SW

R6

R7

6.8K OHM 1% 1/10W

SW5

SW

SW6

SW

POWER

SOURCE

4.55V

MENU

2.25V

CH_DOWN

0.75V

S1~S7 = 77T 600 1 GCJ

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

01 KEY BD

CH_UP

1.56V

OEM MO D EL

TPV MODEL

PCB NAME

Sheet

715T3400

11Tuesday , December 29, 2009

of

VOL_DOWN

3V0V

VOL_UP

3.78V

Size

Rev

称爹

<

A4

1.0

称爹

>

71

英华家电维修资料专用 QQ:505966338

9.6 IR Board

715G3394R01001004S

CONN

4
3
2
1

12

U01
JSA-3111B

CN1

6 5

5VSB

5V_

FB2

600 OHM

D1 LL4148

C5

0.1uF

FB3

600 OHM

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

FB1

600 OHM

R6NC

R5
1K OHM 1/10W

01 IR receiv e

R3

10K 1/10W

R4

330 1/8W

C4

0.1uF

D01

UB

D2

R2
300 1/8W

Q1
PMBS3906

1

3

SUR

2

OEM MO D EL

TPV MODEL

PCB N AME

Sheet

100 1/10W

LL4148

715T3394

11Monday, December 07, 2009

R1

C1

4.7uF /10V

of

C2

0.1uF

U02

3

VCC

2

GND

1

VOUT

FM-6038TM2-5AN

C3

100pF

Size

Rev

称爹

<

A

1.1

称爹

>

72

英华家电维修资料专用 QQ:505966338

10. Exploded View

73

英华家电维修资料专用 QQ:505966338

Item Description

1 BEZEL
2 DECO
6 LENS_IR
7 IR BOARD
8 KEY_FUNCTION

9 KEY BOARD
10 SPEAKER
11 BKT_FIX
12 PANEL
13 INVERTER BOARD
14 SHIELD_INVERTER
15 BRACKET_VESA
17 RACKET_PCB_SUPPORT
18 BRACKET_BASE 35 0Q1G 130 8120 SCREW(BASE/BKT) 6
19 BRACKET_SIDE_AV 36 0M1G6022500 SCREW(BASE/BKT) 4
23 POWER BOARD 37 0M1G1430 8 47 CR3 SCREW(HINGE/BASE_SWIVEL) 1
24 MAIN BOARD 38 0M1G 940 16 47 CR3 SCREW(BASE COVER/REAR COVER) 4
25 BRACKET_VESA 39 0Q1G 940 25 47 CR3 SCREW(BEZEL/REAR COVER) 15
26 REAR COVER 40 0Q1G 930 10 47 CR3 SCREW(FIX BRACKET/PANEL/BEZEL) 1
28 HINGE ASSY 42 001G6021 1 SCREW(SPEAKER/BEZEL) 2
29 BASE_SWIVEL 43 0Q1G 940 25 47 CR3 SCREW(BRACKET_BASE/PANEL) 4
30 BASE COVER 44 0M1G1740 8120 SCREW(BRACKET_VESA/PANEL) 4
31 BASE 45 0M1G 930 6120 SCREW(INVERTER BOARD/SHIELD_INVERTER/PANEL) 2
32 BRACKET_BASE_PLATE 46 0D1G1730 8120 SCREW(MAIN BOARD/BKT) 4
34 RUBBER 49 0Q1G 930 10 47 CR3 SCREW(MAIN BOARD/BRACKET_SIDE) 2

Item Part No. Description Qty

74

英华家电维修资料专用 QQ:505966338

11. BOM List

Note: The parts information listed below are for reference only, and are subject to change without notice.
Please go to http://cs.tpv.com.cn/hello1.asp

E429MNNS4WB16N

Location Part No. Description Remark

001G6021 1 SCREW
040G 581689 4A BARCODE LABEL FOR 1
045G 77500 BARCODE RIBBON
045G 77501 BARCODE RIBBON
051G6001 2 DESICCANT
052G 1150 C INSULATING TAPE
052G 1186 SMALL TAPE
052G 2191 A PAPER TAPE

SP01 078G0150 6 Y SPEAKER 6 OHM 15W 160X42MM

089G 725HAA DB D-SUB CABLE

E08901 089G424A15N CX AC POWER CORD 1500MM BRAZIL REG.
E08901 089G424A15N IS AC POWER CORD 1.5M FOR BRAZIL REG. 2nd source

089T 17356G553 AUDIO CABLE
089T 17356L 57 RF CABLE 220MM

ECN601 095G8014 4D599 HARNESS 4P(2008)-B&R+B&W 650/700MM 2nd source
ECN601 095G8014 4X599 HARNESS 4P(2008)-B&R+B&W 650/700MM
ECN701 095G8014 8XH41 HARNESS 8P-4P+3P 920/1120

E09502 095G8021 3D561 HARNESS 3P-3P 230MM
E09502 095G8021 3W561 HARNESS 3P-3P 230MM 2nd source

095G802210X507 HARNESS 10P-10P 300MM
095T8013 6D 32 HARNESS 6P-6P 150MM
095T801312D 50 HARNESS 12P-12P 180MM
095T8014 2D 21 HARNESS 2P-2P 250MM
095T8014 4D 40 HARNESS 4P-4P 250MM
095T801851D 5 HARNESS 51P-40 300MM
0D1G1730 8120 SCREW
0D1G1730 8120 SCREW
0M1G 930 6120 SCREW
0M1G 930 6120 SCREW
0M1G 930 6120 SCREW
0M1G 940 16 47 CR3 SCREW
0M1G1430 8 47 CR3 SCREW
0M1G1430 8 47 CR3 SCREW
0M1G1740 8120 SCREW FOR STD/MF 42-D020715/42-D000649()
0M1G1740 8120 SCREW FOR STD/MF 42-D020715/42-D000649()
0M1G1740 8120 SCREW FOR STD/MF 42-D020715/42-D000649()
0M1G1830 8120 SCREW
0M1G6022500 SCREW
0Q1G 930 10 47 CR3 SCREW
0Q1G 930 10 47 CR3 SCREW
0Q1G 930 10 47 CR3 SCREW
0Q1G 940 25 47 CR3 SCREW
0Q1G 940 25 47 CR3 SCREW
705TQ934NDF BEZEL ASS'Y 42"
0Q1G 930 10 47 CR3 SCREW
IRPF9QQF IR BOARD

U02 056G 627 42 LS FM-8038TM2-5DN
U01 081G 3 B GP LED GPB2603C/R001-HB

for the latest information.

75

英华家电维修资料专用 QQ:505966338

D01 081G 12 10 EL LED BLUE/RED 209-3SURUBW/C470/S530-A3

P11G0021101 IR-HOLDER FOR U02
P11G0022101 IR-HOLDER FOR U01
P11G0027101 HOLDER FOR D01

CN1 033G8032 4F X WAFER 4P 1.25MM
CN1 033G8032 4F HR CONNECTOR

Q1 057G 417 6 PMBS3906/PHILIPS-SMT(06)
R1 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R5 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R3 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R4 061G0805331 Y RST CHIPR 330 OHM +-5% 1/8W YAGEO
R2 061T0805301 RST CHIP 300R 1/8W 5%
C3 065G060310131J A CAP CHIP 0603 100PF J 50V NPO SAMSUNG
C2 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C4 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C5 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C1 065G0805475 A5 0805 4.7UF +-10% 10V X5R
FB2 071G 59B601 EA CHIP BEAD 600 OHM
FB1 071G 59B601 EA CHIP BEAD 600 OHM
FB3 071G 59B601 EA CHIP BEAD 600 OHM

D2 093G 6432V LL4148-GSO8

D1 093G 6432V LL4148-GSO8

715G3394R01001004S IR BOARD PCB
KEPF9YQF KEY BOARD

CN1 033G3802 3H WAFER 3P RIGHT ANGLE

R5 061G0603000 RST CHIP MAX 0R05 1/10W

R4 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W

R2 061G0603180 1F RST CHIPR 1.8 KOHM +-1% 1/10W

R8 061G0603220 2F RST CHIPR 22 KOHM +-1% 1/10W

R6 061G0603330 1F BST CHIPR 3.3KOHM +-1% 1/10W

R3 061G0603390 0F RST CHIPR 390 OHM +-1% 1/10W

R7 061G0603680 1F RST CHIPR 6.8 KOHM +-1% 1/10W

R1 061G08052201FF RST CHIPR 2.2KOHM +-1% 1/8W FENGHUA

R9 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

C2 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

L1 071G 56U601 MA CHIP BEAD 0805 600 OHM 1000MA
L2 071G 56U601 MA CHIP BEAD 0805 600 OHM 1000MA

D1 093G 6433P BAV99

SW4 077G 603 AI HJ TACT SWITCH 2PIN
SW3 077G 603 AI HJ TACT SWITCH 2PIN
SW2 077G 603 AI HJ TACT SWITCH 2PIN
SW1 077G 603 AI HJ TACT SWITCH 2PIN
SW6 077G 603 AI HJ TACT SWITCH 2PIN
SW5 077G 603 AI HJ TACT SWITCH 2PIN
SW7 077G 603 AI HJ TACT SWITCH 2PIN

715G3400K01001001S KEY BOARD PCB
P33T0132ADT 1L0100 KEY_FUNCTION
P33T0134AFT 1C0100 LENS_IR
P34T0294ADT 1L0100 BEZEL TV42W-9C1
P34T0295ADTA1L0100 DECO-42
Q36T 600 30 8 GP NONWOVEN FABRIC
Q52G 3 81 3M DOUBLE FACE TAPE
705TQ934NE2 STAND ASS”Y 42”
0M1G1030 6120 SCREW M3X6

76

英华家电维修资料专用 QQ:505966338

0Q1G 130 8120 SCREW 42A9930011
P15T0437101CKD BRACKET_BASE_PLATE
P34T0297ADT 1L0100 BASE
P34T0298ADT 1L0100 BASE_SWIVEL
P34T0299ADT 1L0100 BASE COVER
P37T0084011CKD HINGE ASSY
Q12G6300 25 3 RUBBER
705TQ934NE3 REAR COVER ASS”Y 42”
0Q1G 930 10 47 CR3 SCREW
P15T0320101CKD BRACKET_VESA
P34T0296ADT 1A0100 REAR COVER TV42W
Q16G0001 30 7 SPONGE
Q34T7114ADT 1A0100 COVER_REAR_IO
Q44T3231 21 7 EVA WASHER
705TQ949001 COMSUPTIVE ASS'Y-A4
709T3394 QM001 COMSUPTIVE ASS'Y
Q49G 51100 CLEANER
709T3394 QS001 COMSUPTIVE ASS'Y
052G6026 2 MESH PRINTTING PAPER
709T3400 QM002 COMSUPTIVE ASS'Y
Q49G 51100 CLEANER
709T3400 QS002 COMSUPTIVE ASS'Y
709T4005 QM001 COMSUPTIVE ASS'Y
055G 23524 WELDING FLUX WITHOUT PB
Q49G 51100 CLEANER
Q55G 100620500 TIN STICK(SN-0.5AG)
709T4005 QS001 COMSUPTIVE ASS'Y
052G 2191 A PAPER TAPE
052G6026 2 MESH PRINTTING PAPER
055G 23520 IPA
055G 100610 TIN CREAM W/O PB
709T4102 QM001 COMSUPTIVE ASS'Y
055G 23524 WELDING FLUX WITHOUT PB
Q49G 51100 CLEANER
Q55G 100620500 TIN STICK(SN-0.5AG)
709T4102 QS001 COMSUPTIVE ASS'Y
052G 2191 A PAPER TAPE
052G6026 2 MESH PRINTTING PAPER
055G 23520 IPA
055G 100610 TIN CREAM W/O PB

E750 750TVM420HN413N000 PANEL V420H1-LN4 C1 NH CMO

756TQ9TU NS201 01 MAIN BOARD-TUPF9QQF

U7 056G2233500 IC FLASH MX29GL512ELT2I-10Q 512M TSOP-56

STUP-U7 100TANMM020S11 MCU ASS'Y-056G2233500

756TQACB NS001 01 MAIN BOARD-CBPF9N3SQF
U403 056G1125177 NT68F631ALG PLCC-44
U510 056G1133526 IC MX25L4005AMC-12G SOP-8

SMTF-U510 100TANMM015S11 MCU ASS'Y-056G1133526
SMTF-U403 100TANMM019S11 MCU ASS'Y-056G1125177

A15T0320101CKD BKT_FIX_CMO

CN9007 033G3278 6D WAFER 2.5PITCH 6P

CN702 033G327812D WAFER 12P PLUG

CN9005 033G3802 2B Y CONNECTOR

CN401 033G3802 4B Y L CONN 2.0 4P

77

英华家电维修资料专用 QQ:505966338

CN601 033G3802 4B Y L CONN 2.0 4P
CN201 033G8027 40 X WAFER 2.0MM 2*20P DIP
CN701 033T3802 8B Y CONNECTOR

U709 056T 665505 HD IC VF45A3D HAODA
U710 056T 665506 HD IC AF45A3D HAODA
R167 061G153M470 59 470 OHM 5% 3W
R168 061G153M470 59 470 OHM 5% 3W
C768 067G 3051017PT EC 100UF 20% 50V 8*11.5
C682 067G 305471 6C EC 470UF 35V KM 10X16MM
C171 067G215S1023KV

L604 073G 253158 H CHOKE COIL 22UH+/-25%
L605 073G 253158 H CHOKE COIL 22UH+/-25%
L606 073G 253158 H CHOKE COIL 22UH+/-25%
L607 073G 253158 H CHOKE COIL 22UH+/-25%

L722 073G 253195 L CHOKE COIL 200UH CC-008305
CN106 088G 78 1364S RCA JACK 2*3 Y/W/R+Y/W/R V/A
CN602 088G 30211K PHONE JACK 5PIN
CN106 088T 78 1364C RCA JACK 2*3 Y/W/R+Y/W/R V/A
CN105 088T 78 1369C RCA JACK 2*3 G/B/R+B/W/R
CN105 088T 78 1369S RCA JACK 2*3 G/B/R+BLK/W/R
CN111 088T 7813A19C RCA JACK 1*3 R/W/Y
CN103 088T 100 15 ST MINI DIN JACK 4PIN V/A
CN102 088T 30252C PHONE JACK 3.5MM 3P V/A GREEN
CN101 088T 35315FVSC D-SUB 15PIN VERTICAL CONN WITH SCREW

X502 093G 2228S JZ 49/S-28.322MHZ

X503 093G 2251B J CRYSTAL 12MHZ NXS12.000AC30F-KAB10

X403 093G 2251B J CRYSTAL 12MHZ NXS12.000AC30F-KAB10

X601 093G 2264B J XTL NXS27.000AC16F-KAB9 HC-49/US

X701 093G 2286B J XTL NXS4.000AC18F-KAB9 HC49/U-S

TU701 094TNTSC MN 8L TUNER TCL F14WP-4N-E
C6107 064G178J4740RT CL21X 63V 0.47UF

C689 064G178J4740RT CL21X 63V 0.47UF
C773 067G 305100 7T
C724 067G 305100 7T
C723 067G 305100 7T
C169 067G 305100 7T
C126 067G 305100 7T
C125 067G 305100 7T
C123 067G 305100 7T
C121 067G 305100 7T
C120 067G 305100 7T
C602 067G 3051007PT
C603 067G 3051007PT
C604 067G 3051007PT
C605 067G 3051007PT
C654 067G 3051007PT
C665 067G 3051007PT
C771 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C739 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C736 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C728 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C726 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C716 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C711 067G 3051014CT EC 100UF 25V KM 6.3X11MM

EC CAP 105℃ 1000UF M 16V

105℃ 10UF +-20% 50V
105℃ 10UF +-20% 50V
105℃ 10UF +-20% 50V
105℃ 10UF +-20% 50V
105℃ 10UF +-20% 50V
105℃ 10UF +-20% 50V
105℃ 10UF +-20% 50V
105℃ 10UF +-20% 50V
105℃ 10UF +-20% 50V
CAP 105℃ 10UF M 50V
CAP 105℃ 10UF M 50V
CAP 105℃ 10UF M 50V
CAP 105℃ 10UF M 50V
CAP 105℃ 10UF M 50V
CAP 105℃ 10UF M 50V

78

英华家电维修资料专用 QQ:505966338

C708 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C638 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C637 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C620 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C6116 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C450 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C449 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C412 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C201 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C170 067G 3051014CT EC 100UF 25V KM 6.3X11MM
C505 067G 3052207XT
C718 067G 305221 3T 220UF/16V
C754 067G 305221 3T 220UF/16V
C621 067G 305221 3T 220UF/16V
C710 067G 305221 3T 220UF/16V
C713 067G 305221 3T 220UF/16V

C6115 067G 305331 3T 330UF,+-20% 16V

C674 067G 305470 3T 47UF +-20% 16V
C677 067G 305470 3T 47UF +-20% 16V

CN1807 033G803210F S HR CONNECTOR

U704 056G 133 30AAC AZ1117H-ADJ-E1
U607 056G 158501 IC AS431AN-E1 SOT23
U406 056G 158501 IC AS431AN-E1 SOT23
U106 056G 379 36 MC34063A SOP-8
U601 056G 563 31 IC AZ1117D-1.8-E1
U703 056G 563 56 AP1084D18G-13 TO252-3L
U705 056G 563 96 B IC AIC1084-25GETR 5A 2.5V TO-252
U701 056G 563121 IC G1084-33TU3UF TO-263T
U703 056G 563517 IC AZ1084D-1.8TRE1 5A/1.8V TO-252
U601 056G 563930 IC AIC1117A-18PE SOT-252
U707 056G 585 11 IC AZ1117D-5.0-E1 AAC
U103 056G 614 1 74HC4052D S016 PHLIPS
U605 056G 616 3 IC PT2308-S-TP(L) SO-8
U507 056G 634 19 IC PS321TQFP80G TQFP-80
U105 056G 647 18 IC WM8521HCGED/RV SOIC-14
U708 056G 647 24 IC TDA9885TS/V3 SSOP-24
U502 056G 662 10 IC RCLAMP0524P.TCT
U503 056G 662 10 IC RCLAMP0524P.TCT
U505 056G 662 10 IC RCLAMP0524P.TCT
U506 056G 662 10 IC RCLAMP0524P.TCT
U403 056G1125177 NT68F631ALG PLCC-44
U509 056G1133 32 IC M24C04-WMN6TP SO8
U504 056G1133 34 M24C02-WMN6TP
U501 056G1133 34 M24C02-WMN6TP
U102 056G1133 34 M24C02-WMN6TP
U510 056G1133526 IC MX25L4005AMC-12G SOP-8
U404 056G113353A IC M24C32-WMN6T SO-8 ST
U101 056G4LVC 14 P 74LVC14ADT

U9001 056G4LVCG08 TI IC SN74LVC1G08DCKR SC70-5

U608 056G4LVCG08 TI IC SN74LVC1G08DCKR SC70-5
U604 056G566N600 IC NDC7002N SOT-6 FAIRCHILD
U602 056T 563 75 G1084-33T43UF TO-252
U603 056T 593 29 1 IC STV8318F TQFP-100
U606 056T 593 32 IC STA335BW13TR POWERSSO36

105℃ 22UF +-20% 50V

79

英华家电维修资料专用 QQ:505966338

U402 056T 61550C NT5DS16M16CS-5T
U402 056T 615913 IC HYB25DC256160CE-5 TSOPII66
U401 056T1126 35 IC NT7263 LQFP-256
Q704 057G 417511 MMBT3904
Q702 057G 417511 MMBT3904
Q607 057G 417511 MMBT3904
Q606 057G 417511 MMBT3904
Q605 057G 417511 MMBT3904
Q604 057G 417511 MMBT3904
Q603 057G 417511 MMBT3904
Q602 057G 417511 MMBT3904
Q503 057G 417511 MMBT3904
Q502 057G 417511 MMBT3904
Q501 057G 417511 MMBT3904
Q404 057G 417511 MMBT3904
Q403 057G 417511 MMBT3904
Q108 057G 417511 MMBT3904
Q705 057G 417511 MMBT3904
Q707 057G 417511 MMBT3904

Q710 057G 417511 MMBT3904
Q9001 057G 417511 MMBT3904
Q9003 057G 417511 MMBT3904

Q601 057G 417511 MMBT3904

Q608 057G 417512 MMBT3906

Q105 057G 417512 MMBT3906

Q106 057G 419 8 T TRA 2SD1757K 0.5A/15V SC-59

Q107 057G 419 8 T TRA 2SD1757K 0.5A/15V SC-59

Q401 057G 600 54 BSN20

Q402 057G 600 54 BSN20

Q708 057G 763 3 AO4411 SO-8

Q706 057G 763 3 AO4411 SO-8

Q701 057G 763 3 AO4411 SO-8
Q9002 057G 765 1 2SC2412K

RP506 061G 125220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP505 061G 125220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP404 061G 125220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP403 061G 125220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP402 061G 125220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP401 061G 125220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP413 061G 125222 8 RST CHIP AR 8P4R 2.2 KOHM +-5% 1/16W
RP410 061G 125332 8 RST CHIP AR 8P4R 3.3 KOHM +-5% 1/16W
RP412 061G 125332 8 RST CHIP AR 8P4R 3.3 KOHM +-5% 1/16W
RP414 061G 125332 8 RST CHIP AR 8P4R 3.3 KOHM +-5% 1/16W
RP408 061G 125750 8 RST CHIP ARRAY 75R 1/16W 5% 8P4R
RP407 061G 125750 8 RST CHIP ARRAY 75R 1/16W 5% 8P4R
RP406 061G 125750 8 RST CHIP ARRAY 75R 1/16W 5% 8P4R
RP405 061G 125750 8 RST CHIP ARRAY 75R 1/16W 5% 8P4R

R404 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R405 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R428 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R429 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R430 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R431 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R433 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

80

英华家电维修资料专用 QQ:505966338

R449 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R461 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R516 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R518 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R227 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R218 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R217 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R201 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R191 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R140 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R131 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R130 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R125 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R124 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

R120 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA

L600 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R757 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R754 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R749 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R748 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R747 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R746 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R730 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R702 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R690 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R653 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R652 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R651 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R650 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R623 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R622 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R621 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R604 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R544 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R543 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R774 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA
R423 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA
R420 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA
R158 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R159 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R160 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R161 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R607 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R609 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R611 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R632 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R633 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R654 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R656 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R657 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R691 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R704 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R735 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R736 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA

81

英华家电维修资料专用 QQ:505966338

R101 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R102 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R105 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R108 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R146 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R147 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R148 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R149 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R150 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R151 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R152 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R153 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R154 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R155 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R156 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R157 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R617 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R733 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R710 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R540 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R534 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R529 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R528 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R527 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R511 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R509 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R113 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R406 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R407 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R412 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R413 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R435 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R501 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R503 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R504 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R128 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R129 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R416 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R460 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R530 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R549 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R697 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R9001 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R783 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R723 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R720 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R715 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R712 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R711 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R680 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R550 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R558 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R624 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R645 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

82

英华家电维修资料专用 QQ:505966338

R666 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R668 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R671 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R674 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R677 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R713 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA
R732 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA
R638 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA
R629 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA
R427 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA
R414 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA
R118 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA
R417 061G0603105 JF RST CHIPR 1M OHM +-5% 1/10W FENGHUA
R538 061G0603105 JF RST CHIPR 1M OHM +-5% 1/10W FENGHUA
R542 061G0603105 JF RST CHIPR 1M OHM +-5% 1/10W FENGHUA
R724 061G0603121 JT RST CHIPR 120OHM 1/10W TZAI YUAN
R741 061G0603122 JF RST CHIPR 1.2KOHM 5% 1/10W FENGHUA
R672 061G0603123 JY RST CHIPR 12KOHM 1/10W YAGEO
R731 061G0603123 JY RST CHIPR 12KOHM 1/10W YAGEO
R773 061G0603123 JY RST CHIPR 12KOHM 1/10W YAGEO

R9005 061G0603151 JF RST CHIPR 150 OHM +-5% 1/10W FENGHUA

R776 061G0603151 JF RST CHIPR 150 OHM +-5% 1/10W FENGHUA
R620 061G0603153 JF RST CHIPR 15KOHM 5% 1/10W FENGHUA
R619 061G0603153 JF RST CHIPR 15KOHM 5% 1/10W FENGHUA
R614 061G0603153 JF RST CHIPR 15KOHM 5% 1/10W FENGHUA
R613 061G0603153 JF RST CHIPR 15KOHM 5% 1/10W FENGHUA
R610 061G0603153 JF RST CHIPR 15KOHM 5% 1/10W FENGHUA
R608 061G0603153 JF RST CHIPR 15KOHM 5% 1/10W FENGHUA
R606 061G0603153 JF RST CHIPR 15KOHM 5% 1/10W FENGHUA
R605 061G0603153 JF RST CHIPR 15KOHM 5% 1/10W FENGHUA
R603 061G0603153 JF RST CHIPR 15KOHM 5% 1/10W FENGHUA
R602 061G0603153 JF RST CHIPR 15KOHM 5% 1/10W FENGHUA
R778 061G0603181 JF RST CHIPR 180 OHM +-5% 1/10W FENGHUA
R777 061G0603182 JF RST CHIPR 1.8K OHM +-5% 1/10W FENGHUA
R506 061G0603183 JF RST CHIPR 18KOHM 5% 1/10W FENGHUA
R196 061G0603183 JF RST CHIPR 18KOHM 5% 1/10W FENGHUA
R717 061G0603184 JF RST CHIPR 180KOHM 5% 1/10W FENGHUA
R170 061G0603201 JF RST CHIP 200R 1/10W 5% FENGHUA
R171 061G0603201 JF RST CHIP 200R 1/10W 5% FENGHUA
R669 061G0603202 JF RST CHIPR 2K OHM +-5% 1/10W FENGHUA
R510 061G0603203 JF RST CHIPR 20K OHM +-5% 1/10W FENGHUA
R502 061G0603203 JF RST CHIPR 20K OHM +-5% 1/10W FENGHUA
R467 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R466 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R792 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R791 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R790 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R789 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R532 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R531 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R452 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R162 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R401 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R402 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA

83

英华家电维修资料专用 QQ:505966338

R403 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R408 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R409 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R410 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R432 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R451 061G0603220 JF ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R411 061G0603221 JF ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R106 061G0603222 JF RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA
R107 061G0603222 JF RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA
R117 061G0603222 JF RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA
R648 061G0603222 JF RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA
R667 061G0603222 JF RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA
R784 061G0603223 JF RST CHIPR 22KOHM 5% 1/10W FENGHUA
R722 061G0603223 JF RST CHIPR 22KOHM 5% 1/10W FENGHUA
R718 061G0603223 JF RST CHIPR 22KOHM 5% 1/10W FENGHUA
R714 061G0603223 JF RST CHIPR 22KOHM 5% 1/10W FENGHUA
R419 061G0603272 JF RST CHIPR 2.7KOHM 5% 1/10W FENGHUA
R422 061G0603272 JF RST CHIPR 2.7KOHM 5% 1/10W FENGHUA
R706 061G0603274 JF RST CHIPR 270KOHM 5% 1/10W FENGHUA
R434 061G0603301 JW RST CHIPR 300OHM 1/10W WALSIN
R752 061G0603331 JY RST CHIPR 330 OHM +-5% 1/10W YAGEO
R458 061G0603332 JF RST CHIPR 3.3KOHM 5% 1/10W FENGHUA
R457 061G0603332 JF RST CHIPR 3.3KOHM 5% 1/10W FENGHUA
R456 061G0603332 JF RST CHIPR 3.3KOHM 5% 1/10W FENGHUA
R455 061G0603332 JF RST CHIPR 3.3KOHM 5% 1/10W FENGHUA
R454 061G0603332 JF RST CHIPR 3.3KOHM 5% 1/10W FENGHUA
R453 061G0603332 JF RST CHIPR 3.3KOHM 5% 1/10W FENGHUA
R446 061G0603332 JF RST CHIPR 3.3KOHM 5% 1/10W FENGHUA
R436 061G0603332 JF RST CHIPR 3.3KOHM 5% 1/10W FENGHUA
R459 061G0603332 JF RST CHIPR 3.3KOHM 5% 1/10W FENGHUA
R681 061G0603332 JF RST CHIPR 3.3KOHM 5% 1/10W FENGHUA
R719 061G0603332 JF RST CHIPR 3.3KOHM 5% 1/10W FENGHUA
R465 061G0603332 JF RST CHIPR 3.3KOHM 5% 1/10W FENGHUA
R114 061G0603333 JF RST CHIPR 33KOHM 1/10W FENGHUA
R601 061G0603339 JF RST CHIPR 3.3OHM 1/10W FENGHUA
R659 061G0603339 JF RST CHIPR 3.3OHM 1/10W FENGHUA
R552 061G0603363 JF RST CHIPR 36KOHM 5% 1/10W FENGHUA
R551 061G0603363 JF RST CHIPR 36KOHM 5% 1/10W FENGHUA
R721 061G0603364 JF RST CHIPR 360KOHM 5% 1/10W FENGHUA
R627 061G0603392 JF RST CHIPR 3.9KOHM 5% 1/10W FENGHUA
R635 061G0603392 JF RST CHIPR 3.9KOHM 5% 1/10W FENGHUA
R636 061G0603392 JF RST CHIPR 3.9KOHM 5% 1/10W FENGHUA
R640 061G0603392 JF RST CHIPR 3.9KOHM 5% 1/10W FENGHUA
R612 061G0603470 JF RST CHIPR 47OHM +-5% 1/10W FENGHUA
R753 061G0603471 JF RST CHIPR 470OHM +-5% 1/10W FENGHUA
R782 061G0603471 JF RST CHIPR 470OHM +-5% 1/10W FENGHUA

R9004 061G0603471 JF RST CHIPR 470OHM +-5% 1/10W FENGHUA

R447 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R444 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R443 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R442 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R426 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R415 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R195 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

84

英华家电维修资料专用 QQ:505966338

R194 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R187 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R185 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R507 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R468 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R9002 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R739 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R699 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R670 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R637 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R628 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R557 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R555 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R553 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R514 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R513 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R512 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R508 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R112 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA
R183 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA
R184 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA
R186 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA
R188 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA
R631 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA
R639 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA
R673 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA
R675 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA
R679 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA
R705 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA
R709 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA
R716 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA
R775 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA

R9003 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA

R618 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA
R615 061G0603474 JF RST CHIPR 470KOHM +-5% 1/10W FENGHUA
R616 061G0603474 JF RST CHIPR 470KOHM +-5% 1/10W FENGHUA
R520 061G0603510 0F RST CHIPR 510OHM +-1% 1/10W
R103 061G0603511 JW RST CHIPR 510OHM +-5% 1/10W WALSIN
R104 061G0603511 JW RST CHIPR 510OHM +-5% 1/10W WALSIN
R116 061G0603560 JF RST CHIPR 56 OHM +-5% 1/10W FENGHUA
R696 061G0603561 JT RST CHIPR 560OHM +-5% 1/10W TZAI YUAN
R745 061G0603562 JT RST CHIPR 5.6KOHM +-5% 1/10W TZAI YUAN
R181 061G0603681 JF RST CHIPR 680OHM +-5% 1/10W FENGHUA
R182 061G0603681 JF RST CHIPR 680OHM +-5% 1/10W FENGHUA
R701 061G0603681 JF RST CHIPR 680OHM +-5% 1/10W FENGHUA
R625 061G0603682 JF RST CHIPR 6.8KOHM +-5% 1/10W FENGHUA
R630 061G0603682 JF RST CHIPR 6.8KOHM +-5% 1/10W FENGHUA
R139 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R138 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R137 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R136 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R119 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R111 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R110 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA

85

英华家电维修资料专用 QQ:505966338

R109 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R141 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R189 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R190 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA

R9006 061G0603750 JF RST CHIPR 75OHM +- 5% 1/10W FENGHUA

R692 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R693 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R698 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R793 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R794 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R795 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R796 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R798 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R799 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R682 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R683 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R684 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R685 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R686 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R687 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R688 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R115 061G0805470 JF RST CHIPR 47OHM +-5% 1/8W FENGHUA
R229 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R231 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R797 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R228 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R225 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R223 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R220 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R216 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R215 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R214 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R213 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R212 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R211 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R210 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R661 061G1206220 JF RST CHIPR 22 OHM +-5% 1/4W FENGHUA
R643 061G1206220 JF RST CHIPR 22 OHM +-5% 1/4W FENGHUA
R725 061G12066200FF RST CHIPR 620 OHM +-1% 1/4W FENGHUA
R644 061G1206629 JF RST CHIPR 6.2 OHM +-5% 1/4W FENGHUA
R649 061G1206629 JF RST CHIPR 6.2 OHM +-5% 1/4W FENGHUA
R662 061G1206629 JF RST CHIPR 6.2 OHM +-5% 1/4W FENGHUA
R665 061G1206629 JF RST CHIPR 6.2 OHM +-5% 1/4W FENGHUA
R779 061G1206629 JF RST CHIPR 6.2 OHM +-5% 1/4W FENGHUA

CP601 065G 600471 8T CAP 6ACC 470PF K 50V

C195 065G060310031D F CAP CHIP 0603 10PF D 50V NPO
C196 065G060310031D F CAP CHIP 0603 10PF D 50V NPO
C738 065G060310131J F CAP CHIP 0603 100PF J 50V NPO
C737 065G060310131J F CAP CHIP 0603 100PF J 50V NPO
C701 065G060310131J F CAP CHIP 0603 100PF J 50V NPO
C753 065G060310232K F CAP CHIP 0603 1NF K 50V X7R
C741 065G060310232K F CAP CHIP 0603 1NF K 50V X7R
C693 065G060310232K F CAP CHIP 0603 1NF K 50V X7R
C690 065G060310232K F CAP CHIP 0603 1NF K 50V X7R

86

英华家电维修资料专用 QQ:505966338

C688 065G060310232K F CAP CHIP 0603 1NF K 50V X7R
C678 065G060310232K F CAP CHIP 0603 1NF K 50V X7R
C673 065G060310232K F CAP CHIP 0603 1NF K 50V X7R
C664 065G060310232K F CAP CHIP 0603 1NF K 50V X7R
C663 065G060310232K F CAP CHIP 0603 1NF K 50V X7R

C6111 065G060310232K F CAP CHIP 0603 1NF K 50V X7R
C6108 065G060310232K F CAP CHIP 0603 1NF K 50V X7R
C6106 065G060310232K F CAP CHIP 0603 1NF K 50V X7R

C601 065G060310232K F CAP CHIP 0603 1NF K 50V X7R
C118 065G060310232K F CAP CHIP 0603 1NF K 50V X7R
C117 065G060310232K F CAP CHIP 0603 1NF K 50V X7R

C9002 065G060310332K Y CAP CHIP 0603 10N 50V X7R +/-10%

C755 065G060310332K Y CAP CHIP 0603 10N 50V X7R +/-10%
C748 065G060310332K Y CAP CHIP 0603 10N 50V X7R +/-10%
C747 065G060310332K Y CAP CHIP 0603 10N 50V X7R +/-10%
C666 065G060310332K Y CAP CHIP 0603 10N 50V X7R +/-10%
C629 065G060310332K Y CAP CHIP 0603 10N 50V X7R +/-10%
C628 065G060310332K Y CAP CHIP 0603 10N 50V X7R +/-10%
C625 065G060310332K Y CAP CHIP 0603 10N 50V X7R +/-10%
C624 065G060310332K Y CAP CHIP 0603 10N 50V X7R +/-10%
C615 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C616 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C617 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C618 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C644 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C646 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C655 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C656 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C657 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C668 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C696 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C697 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C9001 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C606 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C607 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C608 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C609 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C610 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C6103 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C6104 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C611 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C6119 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C612 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C6122 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

C613 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C614 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C434 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C432 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C431 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C430 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C429 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C427 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C426 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C425 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R

87

英华家电维修资料专用 QQ:505966338

C424 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C423 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C422 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C421 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C750 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C435 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C454 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C452 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C451 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C448 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C447 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C446 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C444 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C443 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C442 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C439 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C438 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C437 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C436 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C687 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C684 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C683 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C671 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C641 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C640 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C622 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R

C6117 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C6114 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C6113 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C6112 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C6109 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C6105 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R

C717 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C714 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C712 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C709 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C707 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C706 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C705 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C704 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C703 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C702 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C695 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C694 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C691 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R

C6102 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R

C463 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C462 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C460 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C459 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C458 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C719 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C720 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C722 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R

88

英华家电维修资料专用 QQ:505966338

C725 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C727 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C729 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C730 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C740 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R

C6101 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R

C518 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C513 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C512 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C511 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C510 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C509 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C508 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C507 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C471 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C469 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C467 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C465 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C420 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C165 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C164 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C163 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C162 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C161 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C160 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C124 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C122 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C119 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C116 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C766 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C770 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C772 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C506 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C721 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C732 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C413 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C411 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C409 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C408 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C407 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C406 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C405 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C403 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C166 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C168 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C176 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C179 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C185 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C186 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C401 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C402 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R
C619 065G060310517Z Y CAP CHIP 0603 1UF Z 16V Y5V
C623 065G060310517Z Y CAP CHIP 0603 1UF Z 16V Y5V

C6118 065G060310525K 3 MLCC 0603 1UF 25V X5R +/-10%

89

英华家电维修资料专用 QQ:505966338

C6121 065G060310525K 3 MLCC 0603 1UF 25V X5R +/-10%

C516 065G060315031J Y CAP CHIP 0603 15P 50V NPO +/-5%
C515 065G060315031J Y CAP CHIP 0603 15P 50V NPO +/-5%
C752 065G060315232K Y CAP CHIP 0603 1500PF K 50V X7R
C769 065G060315232K Y CAP CHIP 0603 1500PF K 50V X7R
C199 065G060322031J F CAP CHIP 0603 22PF J 50V NPO
C653 065G060322031J F CAP CHIP 0603 22PF J 50V NPO
C634 065G060322131J F CAP CHIP 0603 220PF J 50V NPO
C631 065G060322131J F CAP CHIP 0603 220PF J 50V NPO
C630 065G060322131J F CAP CHIP 0603 220PF J 50V NPO
C144 065G060322131J F CAP CHIP 0603 220PF J 50V NPO
C143 065G060322131J F CAP CHIP 0603 220PF J 50V NPO
C142 065G060322131J F CAP CHIP 0603 220PF J 50V NPO
C141 065G060322131J F CAP CHIP 0603 220PF J 50V NPO
C135 065G060322131J F CAP CHIP 0603 220PF J 50V NPO
C635 065G060322131J F CAP CHIP 0603 220PF J 50V NPO
C642 065G060322131J F CAP CHIP 0603 220PF J 50V NPO
C643 065G060322131J F CAP CHIP 0603 220PF J 50V NPO
C651 065G060322131J F CAP CHIP 0603 220PF J 50V NPO
C652 065G060322131J F CAP CHIP 0603 220PF J 50V NPO
C661 065G060322131J F CAP CHIP 0603 220PF J 50V NPO
C662 065G060322131J F CAP CHIP 0603 220PF J 50V NPO
C134 065G060322131J F CAP CHIP 0603 220PF J 50V NPO
C669 065G060322332K Y CAP CHIP 0603 22N 50V X7R +/-10%
C751 065G060322422K T CAP CHIP0603 220NF K 25V X7R
C667 065G060322422K T CAP CHIP0603 220NF K 25V X7R
C522 065G060322422K T CAP CHIP0603 220NF K 25V X7R
C504 065G060322422K T CAP CHIP0603 220NF K 25V X7R
C502 065G060322422K T CAP CHIP0603 220NF K 25V X7R
C198 065G060322422K T CAP CHIP0603 220NF K 25V X7R
C660 065G060322517Z Y CAP CHIP 0603 2.2UF Z 16V Y5V
C659 065G060322517Z Y CAP CHIP 0603 2.2UF Z 16V Y5V
C658 065G060322517Z Y CAP CHIP 0603 2.2UF Z 16V Y5V
C650 065G060322517Z Y CAP CHIP 0603 2.2UF Z 16V Y5V
C649 065G060322517Z Y CAP CHIP 0603 2.2UF Z 16V Y5V
C639 065G060322517Z Y CAP CHIP 0603 2.2UF Z 16V Y5V
C636 065G060322517Z Y CAP CHIP 0603 2.2UF Z 16V Y5V
C633 065G060322517Z Y CAP CHIP 0603 2.2UF Z 16V Y5V
C632 065G060322517Z Y CAP CHIP 0603 2.2UF Z 16V Y5V
C627 065G060322517Z Y CAP CHIP 0603 2.2UF Z 16V Y5V
C626 065G060322517Z Y CAP CHIP 0603 2.2UF Z 16V Y5V
C521 065G060322517Z Y CAP CHIP 0603 2.2UF Z 16V Y5V
C476 065G060322517Z Y CAP CHIP 0603 2.2UF Z 16V Y5V
C648 065G060330031J F CAP CHIP 0603 30PF J 50V NPO
C415 065G060333031J F BCAP CHIP 0603 33PF J 50V NPO
C416 065G060333031J F BCAP CHIP 0603 33PF J 50V NPO
C519 065G060333031J F BCAP CHIP 0603 33PF J 50V NPO
C520 065G060333031J F BCAP CHIP 0603 33PF J 50V NPO

C6110 065G060333131J F CAP CHIP 0603 330PF J 50V NPO

C692 065G060333131J F CAP CHIP 0603 330PF J 50V NPO
C746 065G060339131J F CAP CHIP 0603 390PF J 50V NPO
C133 065G060347131J F CAP CHIP 0603 470PF J 50V NPO
C132 065G060347131J F CAP CHIP 0603 470PF J 50V NPO
C699 065G060347232K Y CAP CHIP 0603 4N7 50V X7R +/-10%

90

英华家电维修资料专用 QQ:505966338

C155 065G060347232K Y CAP CHIP 0603 4N7 50V X7R +/-10%
C150 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C149 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C151 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C152 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C148 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C147 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C146 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C145 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C153 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C154 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C156 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C157 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C158 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C749 065G060347427Z F CAP CHIP 0603 0.47UF Z 25V W5V
C776 065G060347931J Y CAP CHIP 0603 4.7PF B/C 50V NPO
C670 065G060356031J Y CAP CHIP 0603 56P 50V NPO +/-5%
C192 065G060356931J Y CAP CHIP 0603 5.6PF J 50V NPO
C193 065G060356931J Y CAP CHIP 0603 5.6PF J 50V NPO
C194 065G060356931J Y CAP CHIP 0603 5.6PF J 50V NPO
C188 065G060368031J F CAP CHIP 0603 68PF J 50V NPO
C187 065G060368031J F CAP CHIP 0603 68PF J 50V NPO
C140 065G060368031J F CAP CHIP 0603 68PF J 50V NPO
C139 065G060368031J F CAP CHIP 0603 68PF J 50V NPO
C138 065G060368031J F CAP CHIP 0603 68PF J 50V NPO
C137 065G060368031J F CAP CHIP 0603 68PF J 50V NPO
C136 065G060368031J F CAP CHIP 0603 68PF J 50V NPO
C129 065G060368031J F CAP CHIP 0603 68PF J 50V NPO

C6100 065G060368131J Y CAP CHIP 0603 680PF J 50V NPO

C686 065G080510537Z T CAP CHIP 0805 1UF Z 50V Y5V
C685 065G080510537Z T CAP CHIP 0805 1UF Z 50V Y5V
C404 065G080510615K Y CAP CHIP 0805 10UF K 16V X5R
C410 065G080510615K Y CAP CHIP 0805 10UF K 16V X5R
C414 065G080510615K Y CAP CHIP 0805 10UF K 16V X5R
C672 065G080510615K Y CAP CHIP 0805 10UF K 16V X5R
C681 065G080510615K Y CAP CHIP 0805 10UF K 16V X5R
C418 065G080547412K Y CAP CHIP 0805 470N 16V X7R +/-10%
C680 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R
C679 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R
C676 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R
C675 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R
C517 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R
C182 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R
C181 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R
C131 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R
C130 065G080547515K T CAP CHIP 0805 4.7UF K 16V X5R
C647 065G120610612K T CAP CHIP 1206 10UF K 16V X7R
C645 065G120610612K T CAP CHIP 1206 10UF K 16V X7R
C715 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R
C472 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R
C470 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R
C468 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R
C466 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R
C464 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R

91

英华家电维修资料专用 QQ:505966338

C461 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R
C428 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R
C433 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R
C440 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R
C441 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R
C445 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R
C453 065G1206226A5K T CAP CHIP1206 22UF K 10V X5R
U509 070GHDCP500HDC HDCP CODE

LP701 071G 56A301 8M CHIP BEAD

L101 071G 56F320 K CHIP BEAD 32 OHM 0805

L102 071G 56F320 K CHIP BEAD 32 OHM 0805

L103 071G 56F320 K CHIP BEAD 32 OHM 0805

L701 071G 56G151 B BEAD 0805 150 OHM

L105 071G 56G151 B BEAD 0805 150 OHM

L104 071G 56G151 B BEAD 0805 150 OHM

FB609 071G 56G301 EA BEAD 300 OHM

L201 071G 56G301 EA BEAD 300 OHM

L403 071G 56G301 EA BEAD 300 OHM

L404 071G 56G301 EA BEAD 300 OHM

L405 071G 56G301 EA BEAD 300 OHM

L406 071G 56G301 EA BEAD 300 OHM

L407 071G 56G301 EA BEAD 300 OHM

L408 071G 56G301 EA BEAD 300 OHM

L410 071G 56G301 EA BEAD 300 OHM

L712 071G 56G301 EA BEAD 300 OHM

L724 071G 56G301 EA BEAD 300 OHM

L721 071G 56G301 EA BEAD 300 OHM

L509 071G 56G301 EA BEAD 300 OHM

L418 071G 56G301 EA BEAD 300 OHM

L417 071G 56G301 EA BEAD 300 OHM

L415 071G 56G301 EA BEAD 300 OHM

L414 071G 56G301 EA BEAD 300 OHM

L413 071G 56G301 EA BEAD 300 OHM

L412 071G 56G301 EA BEAD 300 OHM

L411 071G 56G301 EA BEAD 300 OHM

L9006 071G 56U600 CHIP BEAD 60 OHM

L128 071G 56U600 CHIP BEAD 60 OHM

L127 071G 56U600 CHIP BEAD 60 OHM

FB610 071G 56Z601 M CHIP BEAD 600OHM
FB611 071G 56Z601 M CHIP BEAD 600OHM

L702 071G 56Z601 M CHIP BEAD 600OHM

L703 071G 56Z601 M CHIP BEAD 600OHM

LP601 071G 57G601 MB CHIP BEAD 1206 600OHM MGAB3216J4-601T-LF

L409 071G 59B121 TB160808B

L510 071G 59B121 TB160808B

L601 071G 59B121 TB160808B

L713 071G 59B121 TB160808B

L720 071G 59B121 TB160808B

L727 071G 59B121 TB160808B

L728 071G 59B121 TB160808B

L729 071G 59B121 TB160808B

L730 071G 59B121 TB160808B

L126 071G 59B121 TB160808B

L106 071G 59B121 TB160808B

92

英华家电维修资料专用 QQ:505966338

L107 071G 59B121 TB160808B

L110 071G 59B121 TB160808B

L115 071G 59B121 TB160808B

L116 071G 59B121 TB160808B

L117 071G 59B121 TB160808B

L118 071G 59B121 TB160808B

L119 071G 59B121 TB160808B

L125 071G 59B121 TB160808B

L124 071G 59B601 MA CHIP BEAD

L123 071G 59B601 MA CHIP BEAD

L121 071G 59B601 MA CHIP BEAD

L120 071G 59B601 MA CHIP BEAD

L114 071G 59B601 MA CHIP BEAD

L113 071G 59B601 MA CHIP BEAD

L112 071G 59B601 MA CHIP BEAD

L111 071G 59B601 MA CHIP BEAD

FB608 071G2012221 2Y CHIP BEAD 0805 220OHM +-25% 2A
FB607 071G2012221 2Y CHIP BEAD 0805 220OHM +-25% 2A
FB606 071G2012221 2Y CHIP BEAD 0805 220OHM +-25% 2A
FB604 071G2012221 2Y CHIP BEAD 0805 220OHM +-25% 2A
FB603 071G2012221 2Y CHIP BEAD 0805 220OHM +-25% 2A
FB602 071G2012221 2Y CHIP BEAD 0805 220OHM +-25% 2A
FB601 071G2012221 2Y CHIP BEAD 0805 220OHM +-25% 2A

L723 073G 62181 CHIP INDUCTOR

L603 073G 62181 CHIP INDUCTOR

L602 073G 62181 CHIP INDUCTOR

L508 073G253S 6 T IND SMD CHOKE 90 OHM TDK

L507 073G253S 6 T IND SMD CHOKE 90 OHM TDK

L506 073G253S 6 T IND SMD CHOKE 90 OHM TDK

L505 073G253S 6 T IND SMD CHOKE 90 OHM TDK

L504 073G253S 6 T IND SMD CHOKE 90 OHM TDK

L503 073G253S 6 T IND SMD CHOKE 90 OHM TDK

L502 073G253S 6 T IND SMD CHOKE 90 OHM TDK

L501 073G253S 6 T IND SMD CHOKE 90 OHM TDK

FB613 073T 6310010M CHIP INDUCTOR 0603 10UH+-10% MICROGATE

CN501 088T 340 21 VA HDMI HEADER 21P V/T 2nd source
CN502 088T 340 21 VA HDMI HEADER 21P V/T 2nd source
CN501 088T 340 21 VN HDMI HEADER 21P V/A
CN502 088T 340 21 VN HDMI HEADER 21P V/A

D502 093G 60230 BAT54C(L43)
D501 093G 60230 BAT54C(L43)
D105 093G 60230 BAT54C(L43)

ZD113 093G 64 37 N VPORT0603100KV05
ZD114 093G 64 37 N VPORT0603100KV05
ZD115 093G 64 37 N VPORT0603100KV05
ZD116 093G 64 37 N VPORT0603100KV05
ZD117 093G 64 37 N VPORT0603100KV05
ZD118 093G 64 37 N VPORT0603100KV05
ZD122 093G 64 37 N VPORT0603100KV05
ZD121 093G 64 37 N VPORT0603100KV05
ZD120 093G 64 37 N VPORT0603100KV05
ZD119 093G 64 37 N VPORT0603100KV05
ZD112 093G 64 37 N VPORT0603100KV05
ZD111 093G 64 37 N VPORT0603100KV05

93

英华家电维修资料专用 QQ:505966338

ZD110 093G 64 37 N VPORT0603100KV05
ZD107 093G 64 37 N VPORT0603100KV05
ZD106 093G 64 37 N VPORT0603100KV05
ZD105 093G 64 37 N VPORT0603100KV05
ZD101 093G 64 37 N VPORT0603100KV05
ZD102 093G 64 37 N VPORT0603100KV05
ZD103 093G 64 37 N VPORT0603100KV05
ZD104 093G 64 37 N VPORT0603100KV05
ZD123 093G 64 37 N VPORT0603100KV05
ZD124 093G 64 37 N VPORT0603100KV05
ZD125 093G 64 37 N VPORT0603100KV05
ZD601 093G 64 37 N VPORT0603100KV05
ZD602 093G 64 37 N VPORT0603100KV05
ZD603 093G 64 37 N VPORT0603100KV05

D403 093G 6432V LL4148-GSO8
D405 093G 6432V LL4148-GSO8
D406 093G 6432V LL4148-GSO8
D603 093G 6432V LL4148-GSO8
D106 093G 6433S DIODE BAV99 SEMTECH
D104 093G 6433S DIODE BAV99 SEMTECH
D103 093G 6433S DIODE BAV99 SEMTECH

ZD126 093G 39S 10 T RLZ6.8B BY ROHM
ZD127 093G 39S 10 T RLZ6.8B BY ROHM
ZD604 093G 39S 98 T ZENER DIODE RLZ3.3B ROHM

D604 093G 60S 34 T DIODE SCS140V 1A/40V SC-76
D602 093G 60S 34 T DIODE SCS140V 1A/40V SC-76
D408 093G 60S 34 T DIODE SCS140V 1A/40V SC-76
D407 093G 60S 34 T DIODE SCS140V 1A/40V SC-76
D401 093G 60S 34 T DIODE SCS140V 1A/40V SC-76
D701 093G 64S3PH BAS32L
D603 093G 64S522SEM LL4148
D406 093G 64S522SEM LL4148
D405 093G 64S522SEM LL4148
D403 093G 64S522SEM LL4148

715G4005M0E000004L MAIN BOARD PCB
Q85T0076101 SHIELDING
Q90T6068 2 GP HEAT SINK FOR U606
INTV8QGGMAA6 INVERTER BOARD
040G 45762412B CBPC LABEL

CN8802 033G8029 3A H B2P3S-VH
CN8810 033T8021 2A U CONN 13.0MM 2P R/A
CN8809 033T8021 2A U CONN 13.0MM 2P R/A
CN8808 033T8021 2A U CONN 13.0MM 2P R/A
CN8807 033T8021 2A U CONN 13.0MM 2P R/A
CN8806 033T8021 2A U CONN 13.0MM 2P R/A
CN8805 033T8021 2A U CONN 13.0MM 2P R/A
CN8804 033T8021 2A U CONN 13.0MM 2P R/A
CN8803 033T8021 2A U CONN 13.0MM 2P R/A

C8819 065G 6J3096ET CER CAP 3PF J 6KV
C8818 065G 6J3096ET CER CAP 3PF J 6KV
C8817 065G 6J3096ET CER CAP 3PF J 6KV
C8816 065G 6J3096ET CER CAP 3PF J 6KV
C8815 065G 6J3096ET CER CAP 3PF J 6KV
C8814 065G 6J3096ET CER CAP 3PF J 6KV

94

英华家电维修资料专用 QQ:505966338

C8813 065G 6J3096ET CER CAP 3PF J 6KV
C8812 065G 6J3096ET CER CAP 3PF J 6KV
C8802 065G 6J3096ET CER CAP 3PF J 6KV
C8805 065G 6J3096ET CER CAP 3PF J 6KV
C8806 065G 6J3096ET CER CAP 3PF J 6KV
C8807 065G 6J3096ET CER CAP 3PF J 6KV
C8808 065G 6J3096ET CER CAP 3PF J 6KV
C8809 065G 6J3096ET CER CAP 3PF J 6KV
C8810 065G 6J3096ET CER CAP 3PF J 6KV
C8811 065G 6J3096ET CER CAP 3PF J 6KV

CN8801 095G 825 6D505 HARNESS 6P(SCN)-5P(PLUG) 230MM
CN8801 095G 825 6W505 HARNESS 6P(SCN)-5P(PLUG) 230MM 2nd source

C8801 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10%
C8803 065G080556131G F CAP CHIP 0805 560PF G 50V NPO
C8804 065G080556131G F CAP CHIP 0805 560PF G 50V NPO
C8834 065G080556131G F CAP CHIP 0805 560PF G 50V NPO
D8805 093G 3919552T DIODE MTZJ T-72 5.1B 500MW/5.1V DO-34
D8801 093G 64 1152T 1N4148
D8802 093G 64 1152T 1N4148
D8803 093G 64 1152T 1N4148
D8804 093G 64 1152T 1N4148
D8806 093G 64 1152T 1N4148
D8807 093G 64 1152T 1N4148
D8808 093G 64 1152T 1N4148
D8825 093G 64 1152T 1N4148
D8826 093G 64 1152T 1N4148
D8827 093G 64 1152T 1N4148
D8827 093G 64 1152T FA SWITCH DIODE 1N4148 BY FAIRCHILD
D8826 093G 64 1152T FA SWITCH DIODE 1N4148 BY FAIRCHILD
D8825 093G 64 1152T FA SWITCH DIODE 1N4148 BY FAIRCHILD
D8808 093G 64 1152T FA SWITCH DIODE 1N4148 BY FAIRCHILD
D8807 093G 64 1152T FA SWITCH DIODE 1N4148 BY FAIRCHILD
D8806 093G 64 1152T FA SWITCH DIODE 1N4148 BY FAIRCHILD
D8804 093G 64 1152T FA SWITCH DIODE 1N4148 BY FAIRCHILD
D8803 093G 64 1152T FA SWITCH DIODE 1N4148 BY FAIRCHILD
D8802 093G 64 1152T FA SWITCH DIODE 1N4148 BY FAIRCHILD
D8801 093G 64 1152T FA SWITCH DIODE 1N4148 BY FAIRCHILD
D8827 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D8801 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D8802 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D8803 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D8804 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D8806 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D8807 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D8808 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D8825 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS
D8826 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

J8821 095G 90 23 JUMPER WIRE
J8820 095G 90 23 JUMPER WIRE
J8819 095G 90 23 JUMPER WIRE
J8809 095G 90 23 JUMPER WIRE
J8808 095G 90 23 JUMPER WIRE
J8807 095G 90 23 JUMPER WIRE
J8806 095G 90 23 JUMPER WIRE

95

英华家电维修资料专用 QQ:505966338

J8805 095G 90 23 JUMPER WIRE
J8804 095G 90 23 JUMPER WIRE
J8803 095G 90 23 JUMPER WIRE
J8802 095G 90 23 JUMPER WIRE
J8801 095G 90 23 JUMPER WIRE

715G3358 2 INVERTER BOARD PCB
R8823 061G0805000 RST CHIP MAX 0R05 1/8W
R8829 061G0805000 RST CHIP MAX 0R05 1/8W
R8824 061G0805000 RST CHIP MAX 0R05 1/8W
R8825 061G0805000 RST CHIP MAX 0R05 1/8W
R8826 061G0805000 RST CHIP MAX 0R05 1/8W
R8827 061G0805000 RST CHIP MAX 0R05 1/8W
R8828 061G0805000 RST CHIP MAX 0R05 1/8W
R8822 061G0805000 RST CHIP MAX 0R05 1/8W
R8802 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W
R8803 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W
R8806 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W
R8808 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W
R8801 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W
R8809 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W
R8810 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W
R8821 061G0805103 RST CHIPR 10K OHM +-5% 1/8W
R8804 061G0805103 RST CHIPR 10K OHM +-5% 1/8W
R8820 061G0805103 RST CHIPR 10K OHM +-5% 1/8W
R8805 061G0805104 RST CHIPR 100K OHM +-5% 1/8W
R8807 061G0805104 RST CHIPR 100K OHM +-5% 1/8W
R8830 061G0805243 RST CHIPR 24 KOHM +-5% 1/8W
R8819 061G0805393 RST CHIPR 39KOHM +-5% 1/8W
R8818 061G0805393 RST CHIPR 39KOHM +-5% 1/8W
R8811 061G0805511 RST CHIPR 510 OHM +-5% 1/8W
R8812 061G0805511 RST CHIPR 510 OHM +-5% 1/8W
R8813 061G0805511 RST CHIPR 510 OHM +-5% 1/8W
R8814 061G0805511 RST CHIPR 510 OHM +-5% 1/8W
R8815 061G0805511 RST CHIPR 510 OHM +-5% 1/8W
R8816 061G0805511 RST CHIPR 510 OHM +-5% 1/8W
R8817 061G0805511 RST CHIPR 510 OHM +-5% 1/8W

RJ8822 061G1206000 RST CHIP MAX 0R05 1/4W
RJ8817 061G1206000 RST CHIP MAX 0R05 1/4W
RJ8816 061G1206000 RST CHIP MAX 0R05 1/4W
RJ8815 061G1206000 RST CHIP MAX 0R05 1/4W
RJ8814 061G1206000 RST CHIP MAX 0R05 1/4W
RJ8813 061G1206000 RST CHIP MAX 0R05 1/4W
RJ8812 061G1206000 RST CHIP MAX 0R05 1/4W
RJ8811 061G1206000 RST CHIP MAX 0R05 1/4W
RJ8810 061G1206000 RST CHIP MAX 0R05 1/4W

C8820 065G080556231J Y CAP CHIP 0805 5600PF J 50V NPO
C8821 065G080556231J Y CAP CHIP 0805 5600PF J 50V NPO
C8822 065G080556231J Y CAP CHIP 0805 5600PF J 50V NPO
C8823 065G080556231J Y CAP CHIP 0805 5600PF J 50V NPO
C8833 065G080556231J Y CAP CHIP 0805 5600PF J 50V NPO
C8832 065G080556231J Y CAP CHIP 0805 5600PF J 50V NPO
C8830 065G080556231J Y CAP CHIP 0805 5600PF J 50V NPO
C8831 065G080556231J Y CAP CHIP 0805 5600PF J 50V NPO
C8824 065G080556231J Y CAP CHIP 0805 5600PF J 50V NPO

96

英华家电维修资料专用 QQ:505966338

C8825 065G080556231J Y CAP CHIP 0805 5600PF J 50V NPO
C8826 065G080556231J Y CAP CHIP 0805 5600PF J 50V NPO
C8827 065G080556231J Y CAP CHIP 0805 5600PF J 50V NPO
C8828 065G080556231J Y CAP CHIP 0805 5600PF J 50V NPO
C8829 065G080556231J Y CAP CHIP 0805 5600PF J 50V NPO
D8811 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8812 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8813 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8821 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8820 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8819 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8818 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8822 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8823 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8824 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8815 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8814 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8816 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8817 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D8812 093G 6433S DIODE BAV99 SEMTECH
D8811 093G 6433S DIODE BAV99 SEMTECH
D8818 093G 6433S DIODE BAV99 SEMTECH
D8819 093G 6433S DIODE BAV99 SEMTECH
D8820 093G 6433S DIODE BAV99 SEMTECH
D8821 093G 6433S DIODE BAV99 SEMTECH
D8822 093G 6433S DIODE BAV99 SEMTECH
D8823 093G 6433S DIODE BAV99 SEMTECH
D8824 093G 6433S DIODE BAV99 SEMTECH
D8815 093G 6433S DIODE BAV99 SEMTECH
D8816 093G 6433S DIODE BAV99 SEMTECH
D8817 093G 6433S DIODE BAV99 SEMTECH
D8813 093G 6433S DIODE BAV99 SEMTECH
D8814 093G 6433S DIODE BAV99 SEMTECH

T8801 S80GL42T22V TRANSFORMER ASS'Y

Q34FPE16P01 EEL-16 COVER

071FPE16101 01 MAGNETIC CORE EEL16-Z PC40

S80GL42T22VZ TRANSFORMER ASS'Y

T8802 S80GL42T22V TRANSFORMER ASS'Y

Q34FPE16P01 EEL-16 COVER

071FPE16101 01 MAGNETIC CORE EEL16-Z PC40

S80GL42T22VZ TRANSFORMER ASS'Y

T8803 S80GL42T22V TRANSFORMER ASS'Y

Q34FPE16P01 EEL-16 COVER

071FPE16101 01 MAGNETIC CORE EEL16-Z PC40

S80GL42T22VZ TRANSFORMER ASS'Y

T8804 S80GL42T22V TRANSFORMER ASS'Y

Q34FPE16P01 EEL-16 COVER

071FPE16101 01 MAGNETIC CORE EEL16-Z PC40

S80GL42T22VZ TRANSFORMER ASS'Y

T8805 S80GL42T22V TRANSFORMER ASS'Y

Q34FPE16P01 EEL-16 COVER

071FPE16101 01 MAGNETIC CORE EEL16-Z PC40

S80GL42T22VZ TRANSFORMER ASS'Y

T8810 S80GL42T22V TRANSFORMER ASS'Y

97

英华家电维修资料专用 QQ:505966338

Q34FPE16P01 EEL-16 COVER

071FPE16101 01 MAGNETIC CORE EEL16-Z PC40

S80GL42T22VZ TRANSFORMER ASS'Y

T8807 S80GL42T22V TRANSFORMER ASS'Y

Q34FPE16P01 EEL-16 COVER

071FPE16101 01 MAGNETIC CORE EEL16-Z PC40

S80GL42T22VZ TRANSFORMER ASS'Y

T8812 S80GL42T22V TRANSFORMER ASS'Y

Q34FPE16P01 EEL-16 COVER

071FPE16101 01 MAGNETIC CORE EEL16-Z PC40

S80GL42T22VZ TRANSFORMER ASS'Y

T8809 S80GL42T22V TRANSFORMER ASS'Y

Q34FPE16P01 EEL-16 COVER

071FPE16101 01 MAGNETIC CORE EEL16-Z PC40

S80GL42T22VZ TRANSFORMER ASS'Y

T8808 S80GL42T22V TRANSFORMER ASS'Y

Q34FPE16P01 EEL-16 COVER

071FPE16101 01 MAGNETIC CORE EEL16-Z PC40

S80GL42T22VZ TRANSFORMER ASS'Y

T8814 S80GL42T22V TRANSFORMER ASS'Y

Q34FPE16P01 EEL-16 COVER

071FPE16101 01 MAGNETIC CORE EEL16-Z PC40

S80GL42T22VZ TRANSFORMER ASS'Y

T8813 S80GL42T22V TRANSFORMER ASS'Y

Q34FPE16P01 EEL-16 COVER

071FPE16101 01 MAGNETIC CORE EEL16-Z PC40

S80GL42T22VZ TRANSFORMER ASS'Y

T8815 S80GL42T22V TRANSFORMER ASS'Y

Q34FPE16P01 EEL-16 COVER

071FPE16101 01 MAGNETIC CORE EEL16-Z PC40

S80GL42T22VZ TRANSFORMER ASS'Y

T8816 S80GL42T22V TRANSFORMER ASS'Y

Q34FPE16P01 EEL-16 COVER

071FPE16101 01 MAGNETIC CORE EEL16-Z PC40

S80GL42T22VZ TRANSFORMER ASS'Y

T8806 S80GL42T22V TRANSFORMER ASS'Y

Q34FPE16P01 EEL-16 COVER

071FPE16101 01 MAGNETIC CORE EEL16-Z PC40

S80GL42T22VZ TRANSFORMER ASS'Y

T8811 S80GL42T22V TRANSFORMER ASS'Y

Q34FPE16P01 EEL-16 COVER

071FPE16101 01 MAGNETIC CORE EEL16-Z PC40

S80GL42T22VZ TRANSFORMER ASS'Y

P15T0433201CKD BRACKET_BASE --

P15T0434301CKD BRACKET_PCB_SUPPORT --

P15T0435401CKD BRACKET_SIDE_AV

P15T0436101CKD BRACKET_VESA

P85T0102101CKD SHIELD_INVERTER

PWTV8QGGMQJ3 POWER BOARD

040G 45762412B CBPC LABEL

009G6005 1 GP GROUND TERMINAL

CN802 033G3802 5B Y W WEAFER
CN801 033G8029 3A 3PIN (2PIN NC)
CN903 033T327812D WAFER 12P PLUG

98

英华家电维修资料专用 QQ:505966338

IC909 056G 139 7 1 IC EL817MA M-TYPE
IC907 056G 139 7 1 IC EL817MA M-TYPE
IC905 056G 139 7 1 IC EL817MA M-TYPE
IC901 056T 379121 IC STR- A6069H DIP-8

Q905 057G 761 7 KTD1691P
RV901 061G 46 17 VARISTOR 560V TNR14V561K
RV901 061T 46906 W VARISTOR 560V TVR14561KFC4FY

R943 061T153M10852T RST MOFR 0.1 OHM +-5% 3WS

R945 061T153M10852T RST MOFR 0.1 OHM +-5% 3WS

C901 063G107K474 US 0.47UF +-10%

C904 063G107K474 US 0.47UF +-10%

C927 063G210K105BCN MPP CAP 1UF 520V P=15MM

C906 065G306K4712BM Y1 CAP 470PF +-10% 250V AC KX

C960 065G306K4712BM Y1 CAP 470PF +-10% 250V AC KX

C902 065G306K6812BM Y1 CAP 680PF 10% 250VAC KX

C903 065G306K6812BM Y1 CAP 680PF 10% 250VAC KX

C939 065G306M1022BM Y1.CAP.001UF 250VAC MURATA

C929 067G 42Z10115K EC 100UF M 450V 18*40MM

C930 067G 42Z10115K EC 100UF M 450V 18*40MM

C919 067G215P1024KV LOW ESR EC 1000UF M 25V 12.5*20MM

C920 067G215P1024KV LOW ESR EC 1000UF M 25V 12.5*20MM

C911 067G215P1026KV LOW ESR EC 1000UF M 35V 12.5*25MM

C805 067G215P4714KV LOW ESR EC 470UF M 25V 10*16MM

C921 067G215P4714KV LOW ESR EC 470UF M 25V 10*16MM

C912 067G215P4716KV LOW ESR EC 470UF M 35V 10*20MM

C945 067G215S1023KV

C946 067G215S1023KV

C947 067G215S1023KV

L904 073G 174147 L PFC CHOKE 800UH CC-011619
L907 073G 253 91 H CHOKE COIL
L906 073G 253 91 H CHOKE COIL
L905 073G 253 91 H CHOKE COIL
L801 073G 253 91 H CHOKE COIL
L903 073L 174 49 VG LINE FILTER 20.0MH MIN
L901 073L 174 49 VG LINE FILTER 20.0MH MIN
L902 073L 174 52 VG LINE FILTER 2.0MH MIN
T802 080GL42T 20 YS X'FMR 1.9MH YS04160231
T801 080GL42T 21 YS X'FMR 5.5MH YS04160234
T803 080GL42T 21 YS X'FMR 5.5MH YS04160234
T901 080GL52T 5 N2 X'FMR 1.0MH 10%

F901 084G 41 11 L FUSE 5A 250V
CN901 087G 501 48 S AC SOCKET 3PIN + 3 HOLE
CN901 087G 501 48 DL AC SOCKET 3PIN + 3 HOLE

D908 093G 52 70 1 1N5408-E(SHORT PIN) 3A/1000V DO-201AD
D908 093G 5255L52T DIDOE 1N5408-E3/73 3A/1000V DO-201AD

0Q1G 340 8106 CR3 SCREW
705TQ761021 NR901 ASS'Y

NR901 061T 58030 WL RST NTCR 3 OHM +-20% 5A THINKING

Q09G 203 8 PIN
705TQ857058 Q901 ASS'Y

Q901 057G 667 21 STP10NK70ZFP

090G6084 1 HEAT SINK
0M1G1730 8120 SCREW
705TQ857059 Q801 ASS'Y

EC CAP 105℃ 1000UF M 16V
EC CAP 105℃ 1000UF M 16V
EC CAP 105℃ 1000UF M 16V

99

英华家电维修资料专用 QQ:505966338

Q801 057G 667 49 FET 2SK4086LS 11.5A/600V TO-220FI(LS)
Q801 057T 667 59 MOSFET FQPF12N60C 12A/600V TO-220F

090G6084 1 HEAT SINK
0M1G1730 8120 SCREW
705TQ857060 Q802 ASS'Y

Q802 057G 667 49 FET 2SK4086LS 11.5A/600V TO-220FI(LS)
Q802 057T 667 59 MOSFET FQPF12N60C 12A/600V TO-220F

090G6084 1 HEAT SINK
0M1G1730 8120 SCREW
705TQ857061 Q806 ASS'Y

Q806 057G 667 49 FET 2SK4086LS 11.5A/600V TO-220FI(LS)
Q806 057T 667 59 MOSFET FQPF12N60C 12A/600V TO-220F

090G6084 1 HEAT SINK
0M1G1730 8120 SCREW
705TQ857062 Q807 ASS'Y

Q807 057G 667 49 FET 2SK4086LS 11.5A/600V TO-220FI(LS)
Q807 057T 667 59 MOSFET FQPF12N60C 12A/600V TO-220F

090G6084 1 HEAT SINK
0M1G1730 8120 SCREW
705TQ861013 NR902 ASS'Y

NR902 061T 58030 WL RST NTCR 3 OHM +-20% 5A THINKING

Q09T 203 8 PIN FOR NR901
705TQ893068 D901&D902 ASS'Y
012T 372 2 SILICON

Q902 057G 667 25 STW20NM60
D901 093G 220 33 DIODE FMXA-1106S

0M1G1730 10120 SCREW 42A9930016
Q90T0096A01 HEAT SINK
705TQ893069 D904&D907 ASS'Y

D907 093G 52 66 DIODE FMX-12SL 10A/200V TO-220
D907 093G 52 69 DIODE YG902C2RSC 10A/200V TO-220F15
D904 093G 60239 FME-210B T0-220

0M1G1730 8120 SCREW
Q90T0095 2 HEAT SINK
705TQ893070 D910 ASS'Y
090G6084 1 HEAT SINK

D910 093G 60240 YG802C06R TO-220F15
D910 093G 60298 DIODE SBT15006JST 15A/60V TO-220ML(LS)
D910 093G 60526 SCHOTTKY MBRF1060CT ITO-220AB

0M1G1730 8120 SCREW
705TQ893077 BD901 ASS'Y

BD901 093G 50460 18 D10XB60
BD901 093G 50460 49 BRIDGE KBJ1008G 10A/800V KBJ

0M1G1730 10120 SCREW 42A9930016
Q90G0001 2 HEAT SINK

IC904 056G 379104 IC ICE2PCS02H PG-DSO-8
IC801 056T 379122 IC OZ9976GN-C-0-TR SOP-16
IC902 056T 379133 IC LD7523A GS SOP-8

Q805 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q804 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q906 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q907 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q808 057G 417 20 T TRA SST2907A SST3 ROHM
Q809 057G 417 20 T TRA SST2907A SST3 ROHM

100
