AOC D32W831, D42H831, D47H831 Diagram

32″&42″&47″ Digital LCD TV AOC D32W831&D42H831&D47H831

Service

Service

Service

Horizontal Frequency

32”:31~60 kHz

42”/47”:31~65 kHz

TABLE OF CONTENTS

Description Page Description Page

Table Of Contents.......……..............................…........1

Important Safety Notice.......................................……......2

Revision List…………………………………………………3

1. General Specification..............................………........4

2. Operating Instructions…………………….……….......5

2.1. Remote Control………………….….……….…….......5

2.2. Control Buttons and Connections…...………………..6

2.3. Use the Menus….…….…………………….……….....9

2.4. Front Panel Control Knobs……………….……….....10

3. Input/Output Specification…………....................…....11

4. Mechanical Instructions…………………….................13

5. Repair Flow Chart ……………………….…….…….....16

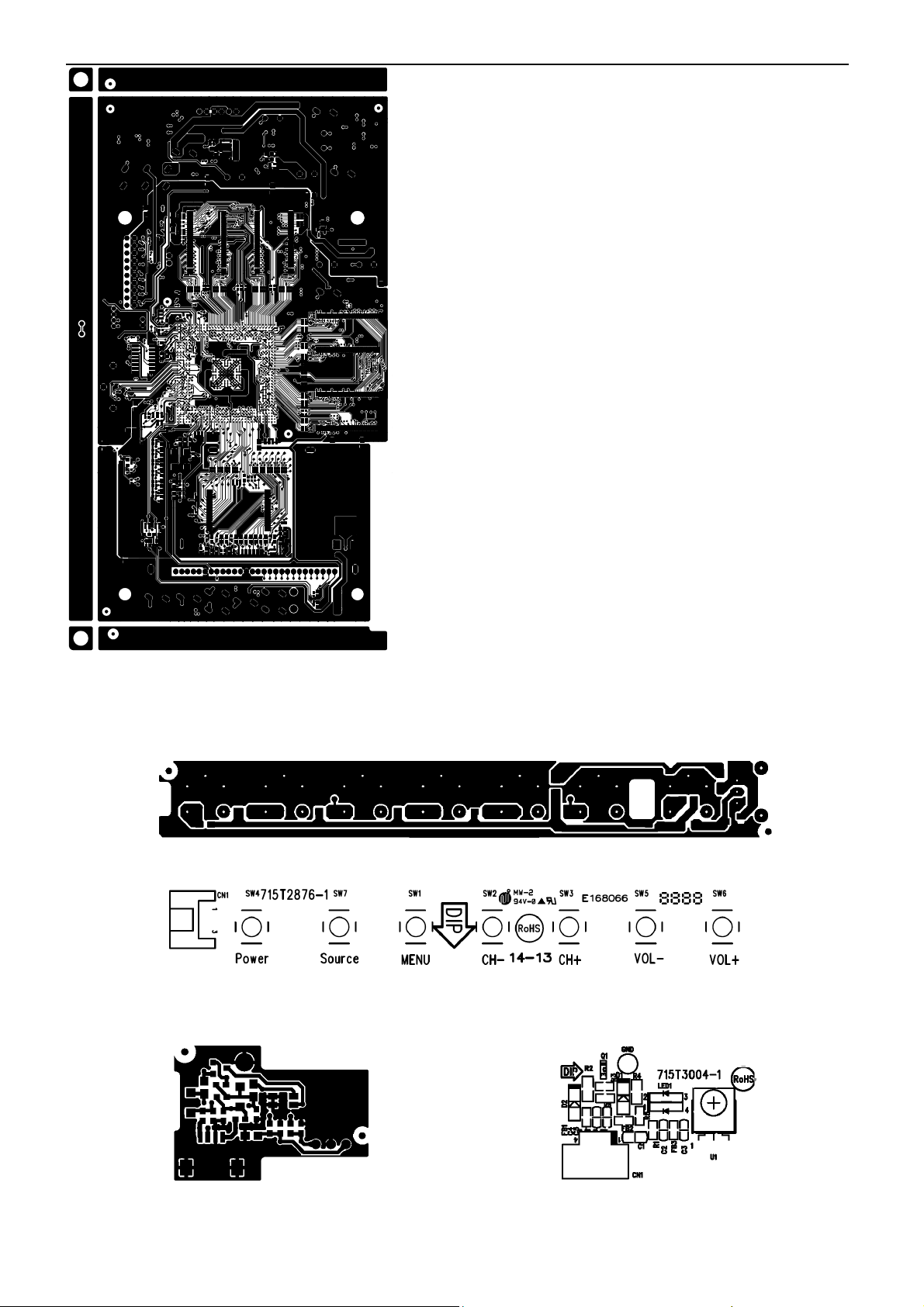

6. PCB Layout ………………..………………....….......21

6.1.Main Board…………....…..……………...……….......21

6.2.Power Board……..…..………..………….……….......24

SAFETY NOTICE

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE

6.3.Tuner Board…………….……………………….......26

6.4.Key Board………………………….…………….......26

6.5.IR Board………………………….…………..….......26

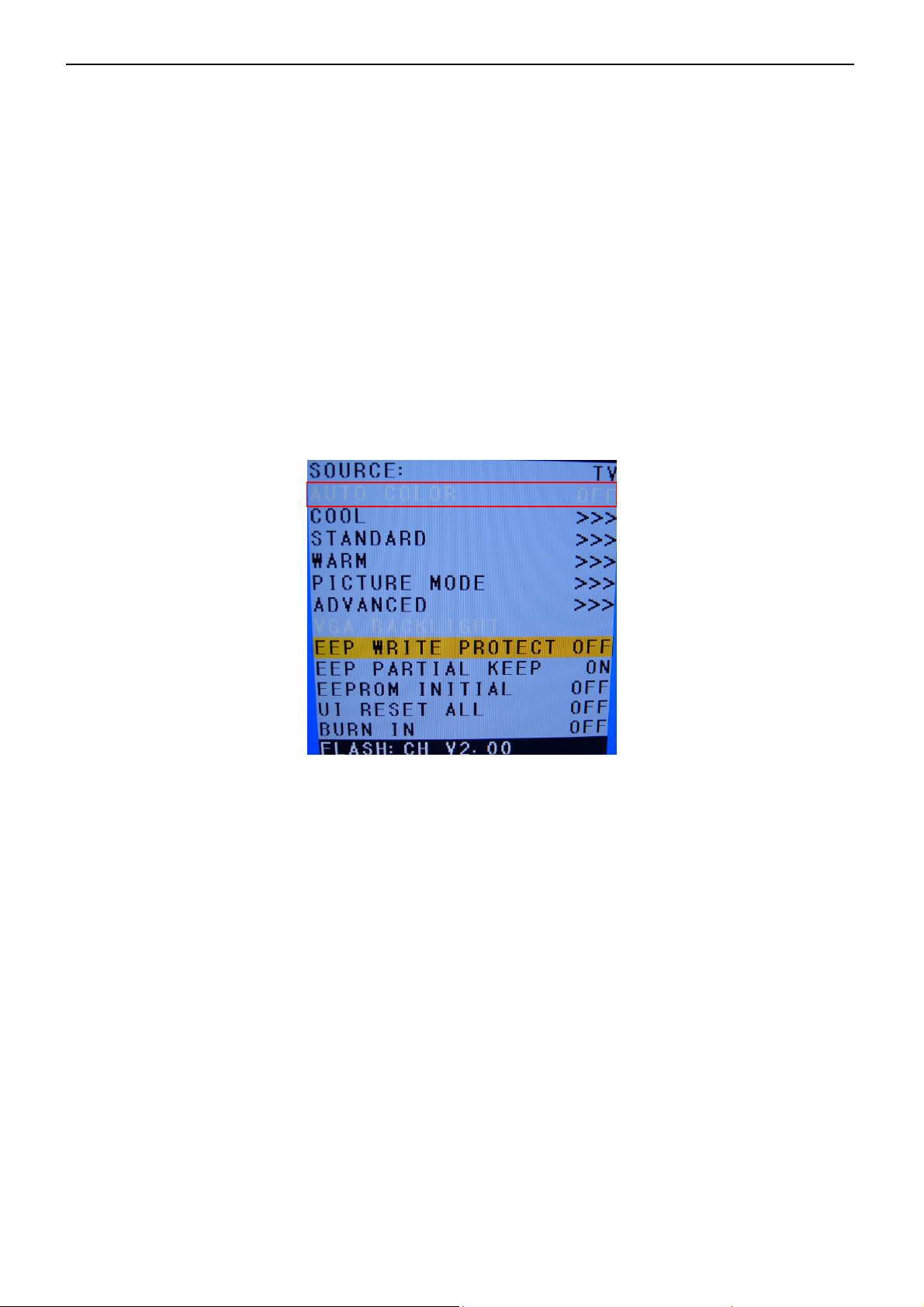

7.Adjustment…………………………….…...................27

8. Block Diagram.…….................................................28

9. Schematic……………...……………………………...47

9.1.Main Board……...…………………………...….......47

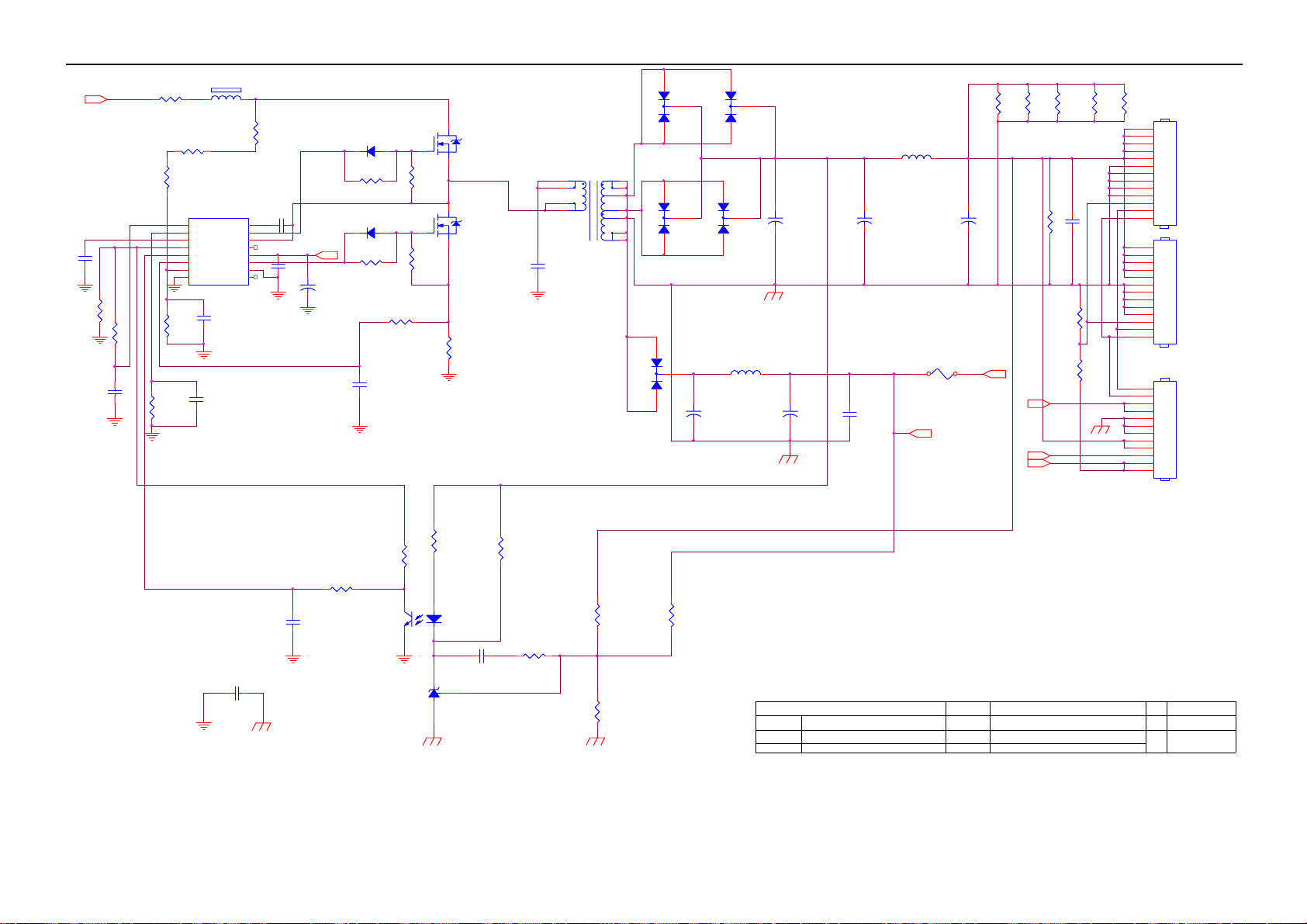

9.2.Power Board….….….….…………...………….......57

9.3.Tuner Board…….……………………………….......62

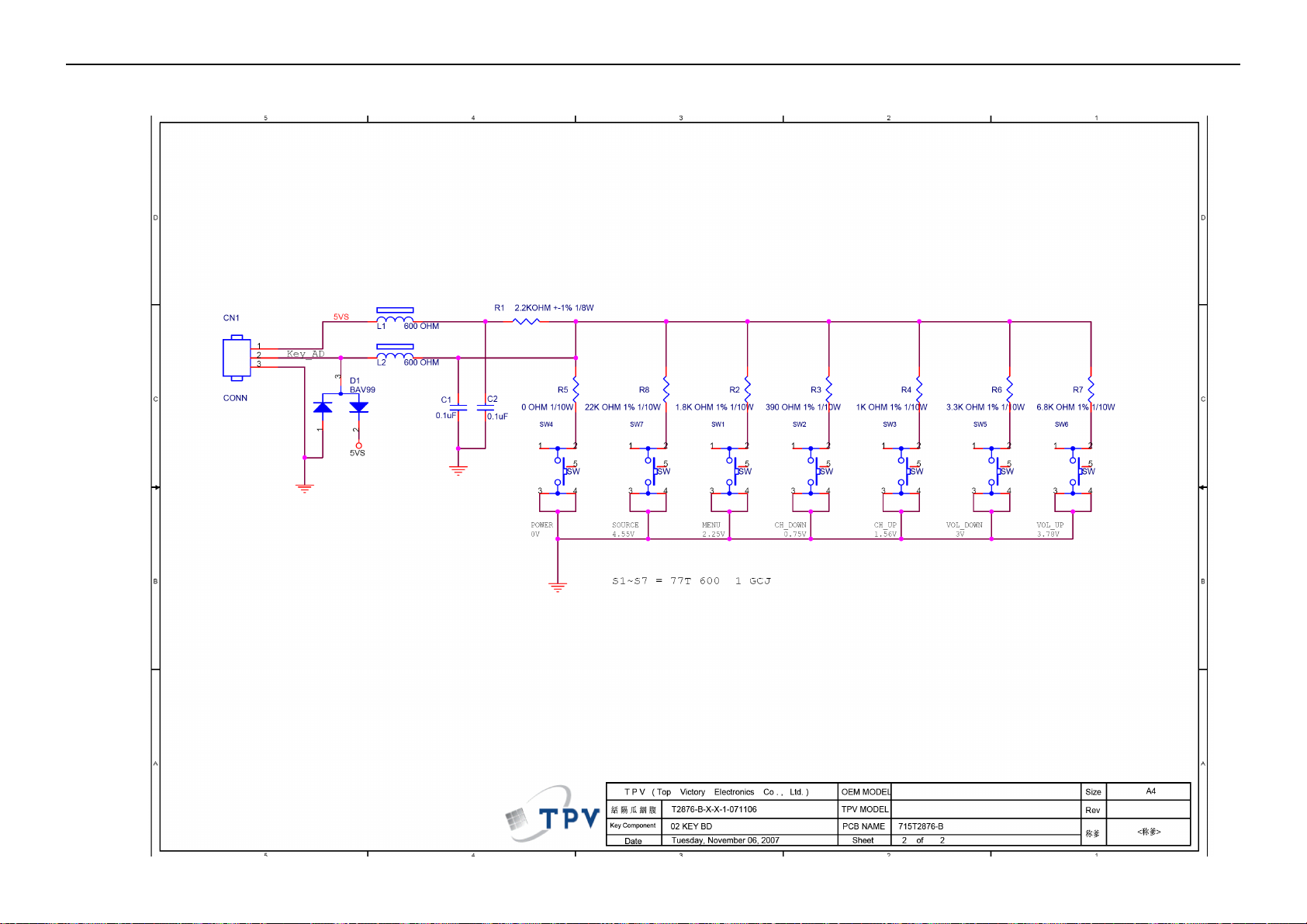

9.4.Key Board………………………………….…….......70

9.5.IR Board……..…………………..….……….….......71

10.Exploded View…….…………………………….…...72

11.BOM List……………..….…………………………….75

12.Different Parts List…………………..……………186

CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING

ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

1

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

Important Safety Notice

Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service

procedures recommended by AOC and described in this service manual are effective methods of performing service

operations. Some of these service operations require the use of tools specially designed for the purpose. The

special tools should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in

order to minimize the risk of personal injury to service personnel. The possibility exists that improper service

methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE

NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in

which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not

undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not

recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the

equipment will be jeopardized by the service method selected.

Hereafter throughout this manual, AOC Company will be referred to as AOC.

WARNING

Use of substitute replacement parts, which do not have the same, specified safety characteristics might create

shock, fire, or other hazards.

Under no circumstances should the original design be modified or altered without written permission from AOC.

AOC assumes no liability, express or implied, arising out of any unauthorized modification of design.

Servicer assumes all liability.

FOR PRODUCTS CONTAINING LASER:

DANGER-Invisible laser radiations when open AVOID DIRECT EXPOSURE TO BEAM.

CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may

result in hazardous radiation exposure.

CAUTION -The use of optical instruments with this product will increase eye hazard.

TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S

REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF

THIS SERVICE MANUAL.

Take care during handling the LCD module with backlight unit

-Must mount the module using mounting holes arranged in four corners.

-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.

-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to

the panel.

-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).

-Make certain that treatment person’s body is grounded through wristband.

-Do not leave the module in high temperature and in areas of high humidity for a long time.

-Avoid contact with water as it may a short circuit within the module.

-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may
damage the panel.)

2

32″&42″&47″ Digital LCD TV AOC D32W831&D42H831&D47H831

Revision List

Version Release Date Revision Histoty Customer Model TPV Model

A00 Sep.-12-2008 Initial Release

D32W831

D42H831 E42RMNNSW8AE6N

D47H831 E47RMNNSW8A2NN

E32RMNNSW8AE2N
E32RMNNSW8AE6N

3

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

1. General Specification

4

32″&42″&47″ Digital LCD TV AOC D32W831&D42H831&D47H831

2. Operating Instructions

2.1 Remote Control

5

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

2.2 Control Buttons and Connections

Control Buttons

6

32″&42″&47″ Digital LCD TV AOC D32W831&D42H831&D47H831

Connections

7

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

8

32″&42″&47″ Digital LCD TV AOC D32W831&D42H831&D47H831

2.3 Use the Menus

9

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

10

32″&42″&47″ Digital LCD TV AOC D32W831&D42H831&D47H831

11

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

12

32″&42″&47″ Digital LCD TV AOC D32W831&D42H831&D47H831

13

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

14

32″&42″&47″ Digital LCD TV AOC D32W831&D42H831&D47H831

15

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

16

32″&42″&47″ Digital LCD TV AOC D32W831&D42H831&D47H831

17

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

18

32″&42″&47″ Digital LCD TV AOC D32W831&D42H831&D47H831

19

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

3. Input/Output Specification

3.1 Connectors

CONNECTORS
AC Power IEC : 3 Pin Cord
The display shall support an IEC C-13/C-14 (Standard) type male power receptacle for connection
to mains power.

AV Video

S-video

Component

Analog RGB

Pin – Assignment of 15-pin D-sub:

1 Red Video 9 No Pin!
2 Green Video 10 Sync Ground
3 Blue Video 11 SDA(Remote Control)
4 SCL(Remote Control) 12 Serial Data for DDC
5 Ground 13 H-Sync.
6 Red Ground 14 V-Sync.
7 Green Ground 15 Serial Clock for DDC
8 Blue Ground

Digital RGB

Composite Input Connector

S-video Input Connector

HD Component YPbPr RCA Video Input
(480i, 480P, 720P, 1080i) Connectors

SPDIF output test(the black port)

: Rear side / Data Cable : 15-pin D-sub female

:Rear side/Data Cable : HDMI Video Input Connector

HDMI Digital connector pin assignments:

PIN Signal Assignment PIN Signal Assignment

1 TMDS Data2+ 2 TMDS Data2 Shield
3 TMDS Data2- 4 TMDS Data1+
5 TMDS Data1 Shield 6 TMDS Data1­7 TMDS Data0+ 8 TMDS Data0 Shield

9 TMDS Data0- 10 TMDS Clock+
11 TMDS Clock Shield 12 TMDS Clock­13 CEC 14 NC
15 SCL 16 SDA
17 DDC/CEC Ground 18 +5V Power
19 Hot Plug Detect

20

32″&42″&47″ Digital LCD TV AOC D32W831&D42H831&D47H831

3.2 Input Signal Timing

Analog RGB Input Signal Timing

Horizontal Vertical Sync Polarity

Presence

Screen Mode Remark

Dots ×Lines

720×400 31.47 70.00

640×480 31.47 59.94

640×480 37.50 75.00

640×480 37.86 72.81

800×600 37.88 60.32

800×600 46.88 75.00

800×600 48.08 72.19

1024×768 48.40 60.00

1360×768 47.70 60.00

1440×900 55.94 60.00

Frequency Frequency Normal FULL

(kHz) (Hz)

Horizontal Vertical Horizontal Vertical

(4:3) (16:9)

NEG POS YES YES YES YES

NEG NEG YES YES YES YES

NEG NEG YES YES YES YES

NEG NEG YES YES YES YES

POS POS YES YES YES YES

POS POS YES YES YES YES

POS POS YES YES YES YES

NEG NEG YES YES YES YES

POS POS YES YES YES YES

NEG POS YES YES YES YES

HDMI Input Signal Timing

VESA MODES

Nominal

Mode Resolution Total

720P 1280×720P 45.00 60 74.25

Frequency

Horizontal Vertical

(KHz)

Sync Polarity

Nominal

Freq.

(Hz)

Sync

Polarity

Only for

42” and 47”

Nominal

Pixel
Clock
(MHz)

1080i 1920X1080i 33.75 60 74.25

480P 720X480P 31.54 60 27.00

480i 720X480i 15.75 60 13.51

21

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

4. Mechanical Instructions

4.1 D32W831

1. Remove the base as figure 1.

Figure 1

2. Remove the rear cover as figure 2.

Figure 2

3. Remove the main board, power board and tuner board figure 3.

Figure 3

22

32″&42″&47″ Digital LCD TV AOC D32W831&D42H831&D47H831

4. Remove the screws to remove the BKT-BASE-SUPPORT BKT-PCB-HOLDER(TOP and BTM) as figure 4.

5. Remove the key board and IR board as figure 5.

Figure 4

Figure 5

23

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

6. Remove the panel support as figure 6.

Figure 6

7. Remove the panel as figure 7.

8. The end.

Figure 7

24

32″&42″&47″ Digital LCD TV AOC D32W831&D42H831&D47H831

4.2 D42H831

1. Remove the base as figure 1.

Figure 1

2. Remove the rear cover as figure 2.

Figure 2

3. Remove the main board, power board,tuner board and key board as figure 3.

Figure 3

25

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

4. Remove the IR board as figure 4.

Figure 4

5. Remove the BKT_VESA(big) and BKT_FIX(small) as figure 5.

6. Remove the BKT-PCB as figure 6.

Figure 5

Figure 6

26

32″&42″&47″ Digital LCD TV AOC D32W831&D42H831&D47H831

7. Remove the panel BKT as figure 7.

.

Figure 7

8. The end.

27

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

4.3 D47H831

1. Remove the base as figure 1.

Figure 1

2. Remove the rear cover as figure 2.

Figure 2

3. Remove the main board, power board,tuner board and key board as figure 3.

Figure 3

28

32″&42″&47″ Digital LCD TV AOC D32W831&D42H831&D47H831

4. Remove the IR board as figure 4.

Figure 4

5. Remove the BKT_FIX as figure 5.

6. Remove the BKT_VESA as figure 6.

Figure 5

Figure 6

29

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

7. Remove the BKT_panel as figure 7.

8. The end.

Figure 7

30

32″&42″&47″ Digital LCD TV AOC D32W831&D42H831&D47H831

5. Repair Flow Chart

1. No Power (No LED indicator)

Check power cord and board interface

OK

Check F901, BD901,C905

OK

Check voltage of IC902

OK

Check T901

OK

Check D907,C921,C923,IC905,IC907

2. Can not start (No LED indicator)

Can not start

Check key board or remote control

OK

OK

Check power supply for main board

OK

Check U403

OK

NG

Check I2C communication

NG

NG

NG

Replace U403

NG

NG

NG

Replace T901

NG

Repair key board or remote control

Replace the failure component

Plug in power cord and interface

Replace F901,BD901, C905

Check Q901, IC902

Replace D907,C921,C923,IC905,IC907

31

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

g

3. No display (LED indicator Green )

Check back light is OK

4. Abnormal display

Check the source

OK

Check LVDS cable

and connector

OK

Check U403

OK

Check U401

NG

NG

NG

OK

Check Panel

NG

Replace U403

Replace U401

Reset source

Check 12V

power supply

OK

Check BL-ON/OFF signal

NG

Replace Panel

NG

NG

Check Q705、Q704

Check PS

signal

NG

NG

OK

Replace Q705、Q704

Check power

board

OK

Check signal filter circuit

OK

OK

Check U401

NG

TV signal Check TV system setup

AV/SV/Comp
onent si

PC signal

HDMI signal

NG

Replace the filter or inductance

OK

Check TU701

Check the circuit from

nal

Replace U401

connector to U401

Check the circuit from
connector to U401

Check U507

NG

Replace TU701

NG

NG

Replace the failure
component

NG

Replace the failure
component

Replace U507

OK

Check panel

NG

Replace panel

32

32″&42″&47″ Digital LCD TV AOC D32W831&D42H831&D47H831

p

p

5. No sound

Check the source

OK

Check signal filter circuit

NG

Reset source

Replace the filter or inductance

Check Earphone jack

OK

Check U603

Check U606

OK

NG

SIF signal Check TV system setu

AV/SV/COMP
ONENT/PC
signal

NG

NG

Replace the Earphone jack

NG

HDMI signal

Replace U603

Replace U606

NG

OK

Check TU701

Check U603

Check U507

NG

NG

NG

Replace TU701

Replace the failure
com

onent

Replace U507

Check speaker

NG

Replace speaker

33

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

6. Key Board

OSD is unstable or not working

Is Key Pad Board connecting normally?

Y

Is Button Switch normally?

Y

Is Key Pad Board Normally?

Y

Check Main Board

N

Connect Key Pad Board

N

N

Replace Button Switch

Replace Key Pad Board

34

32″&42″&47″ Digital LCD TV AOC D32W831&D42H831&D47H831

6. PCB Layout

6.1 Main Board

715T3115-H

35

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

36

32″&42″&47″ Digital LCD TV AOC D32W831&D42H831&D47H831

37

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

6.2 Power Board

D32W831 715T2804 2

38

32″&42″&47″ Digital LCD TV AOC D32W831&D42H831&D47H831

39

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

D42H831&D47H831 715T2802 1

40

32″&42″&47″ Digital LCD TV AOC D32W831&D42H831&D47H831

41

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

42

32″&42″&47″ Digital LCD TV AOC D32W831&D42H831&D47H831

6.3 Tuner Board

715T3176-D

43

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

6.4 Key Board

715T2876 1

6.5 IR Board

715T3004 1

44

32″&42″&47″ Digital LCD TV AOC D32W831&D42H831&D47H831

7. Adjustment

It’s no need to do white balance adjustment, you need only do the “Auto Color” for the DTV models.

First, you have to enter into the factory mode:

Press the “menu” and “1-9-9-9” buttons in the remote control to enter the factory mode.

Then,do the “Auto Color” in the PC mode and Component mode below:

1. PC mode, TIMING =137; PATTERN =5;

2. Component mode:

1). TIMING=310, PATTERN=5;

2). TIMING =312, PATTERN =5;

3). TIMING =314, PATTERN =5

45

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

8. Block Diagram

46

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

9. Schematic

9.1 Main Board 715T3115-H

R703 NC

+

C723

10uF/50V

(5V STAND BY)

680 OHM 1/10WR701

0 OHM 1/10WR702

100 OHM 1/10WR704

MAI N5V

(5V STAND BY)

+5VP

+30V

MAI N12 V

MAI N5V

MAIN 12V

MAIN 5V

AZ1117H-ADJ-E1

3

VIN

1

ADJ

8
7
6

300 OHM
LP701

600 OHML702

600 OHML703

C706

0.1uF

C707

0.1uF

R785
NC

Q711
NC

U704

VOUT

120 OHM 1/10W

R725

620 OHM 1% 1/4W

MCU _VC C

CONN

CN702

CN9002

NC

CN9007

CONN

MAIN 5V

INT_IR7

ADC07

1
2
3
4
5
6

1
2
3
4
5
6

MAI N12 V

C722

0.1uF

5VP

5VP

1
2
3
4
5
6
7
8
9
10
11
12

C766

0.1uF

150 OHML701

BL

BL_BRI

+12VP

24VP

24VP

2

R724

R709

Q704

MMBT3904

TP703

TP70 2

12VP

R713
47K OHM 1/10W

R706

100K OHM 1/10W

Q702
MMBT3904

+

C713
220uF 10V

MAIN 5V

R710
1K OHM 1/10W

R711

10K OHM 1/10W

R712
10K OHM 1/10W

TP70 4

Q701
AO4411

1

S

2

S

3

S

4

G

C731 NC

10K OHM 1/10W

C730

0.1uF

R714
22K OHM 1/10W

TP705

PANEL_ON7

MAIN 5V

8

D

7

D

6

D

5

D

R715

C708

100uF/16V

BL_BRI

C715
22UF/10V

R722
22K OHM 1/10W

MAI N12 V

5VP

R783
10K OHM 1/10W

R788
NC

U701

3 2

VIN VOUT

+

12VP

Q710
MMBT3904

GND

1

L712 ノ　 37",42",47"
L705

ノ　

26",32"

L705 NC

R720
10K OHM 1/10W

R721
100K OHM 1/10W

Q705
MMBT3904

22K OHM 1/10W

R784

22K OHM 1/10W

900mA

C709

0.1uF

(for panel T1,T2 )

+5VP

R718

POWER_ON 7

MAIN 3V3

+

C710
220uF 10V

1 2

C721

0.068uF

C720

0.1uF

300 OHML712

R716
47K OHM 1/10W

100K OHM 1/10W

Q707
MMBT390 4

5VP

5VP

1

S

2

S

3

S

4

G

R717

MAI N3V 3

Q706
AO4411

1
2
3
4

C716

100uF/16V

5V:1200mA

8

D

7

D

6

D

5

D

10K OHM 1/10W

Q708
AO4411

S

D

S

D

S

D

G

D

C774 NC

C775

0.1uF

U703

AP1084D18LA

VOUT

VIN

123

+

R723

MAIN 5V

8
7
6
5

ADJ(GND)

R756

R757
0 OHM 1/10W

PANEL_VCC

R719

3.3K OHM 1/ 10W

NC

600mA

C717

0.1uF

MAIN 1V8

+

C718
220uF 10V

CN701

1
2

100pF C 701

R705

47K OHM 1/10W

100uF/16V

3
4
5
6
7
8

CONN

C711

BL

C714

0.1uF

+12VP

MAIN 5V

AIC1084-25PETR-R

3 2

+

DCR_PWM5

BRIGHTNESS7

U705

VIN VOUT

1

GND

R800 NC

TP701

C719

0.1uF

200mA

C712

0.1uF

47K OHM 1/10W

MAIN 2V5

1
2
3
45

0.1uF C705

0.1uF C704

0.1uF C703

0.1uF C702

BACKLIGHT5

L724

MAIN 24V

300 OHM

Q709
NC

1

8

S

D

2

7

S

D

3

6

S

D

4

5

G

D

R786
NC

R787
NC

+8V

+

C725

C724

0.1uF

10uF/50V

T P V ( Top Victory Electronics Co . , Ltd. )

T3115-F-X-X-1-080620

絬 隔 瓜 絪 腹

Key Component

Date

47

OEM MOD EL Size

TPV MODEL

715T3115-F01 POWER

PCB NAME

Sheet

of

110Tuesday, Augus t 05, 2008

A3

Rev

C

称爹

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

9

9

HS

R106

2.2K OHM 1/10W

VGA_EDI D7

PC AUDIO INPUT

S1_C3

S1_Y3

75 OHM 1/10W

MCU _RX7

R103 510 OHM 1/10W

R104 510 OHM 1/10W

VS

ZD127

RLZ6.8B

1 2

R107

2.2K OHM 1/10W

C197

NC

VPORT0603100KV05

VPORT0603100KV05

CN102

PHONEJ ACK

R132

ZD101 VPOR T0603100KV05

ZD102 VPORT0603100KV05

R194

C195
10pF

4.7K OHM 1/10W

R196

12

12

C117

0.001uF

R195

4.7K OHM 1/10W

C127

68pF

R101 100 OHM 1/10W

L104 150 OHM

L105 150 OHM

C118

0.001uF

PP_SDA

PP_SCL

ZD126

RLZ6.8B

1 2

VGA

PP_SCL
PP_SDA

18K OHM 1/10W

REV:D>E (080508)
for ST DTV I2C Switch

ZD106

ZD107

3

2
1

L108 120 OHM

R133
75 OHM 1/10W

12

12

R102 100 OHM 1/10W

L127 60 OHM

L128 60 OHM

R105 100 OHM 1/10W

C196
10pF

C198 0.22uF

U102

8

VCC

7

WP

6

SCL

M24C02-WMN6TP

C128

68pF

ZD103

12

VPORT0603100KV05

1

A0

2

A1

3

A2

45

GNDSDA

PP_SDA

SDA4,5,7
ISP_SDA7
SDA_T7

PP_SCL

SCL4,5 ,7
ISP_SCL7
SCL_T7

ISP_POW

PC_R

PC_L

R192

NC

ZD108

1 2

1 2

VPORT0603100KV05

VGA INPUT

1716

11

12

13

14

15

MCU_VCC

R163 NC

R164 NC

ISP_SW7
ISP_SW17

C116

PC_R 9

0.1uF

PC_L 9

R193

NC

S_VIDEO 1 IN

4 5

2 3

CN103 DIN JACK

ZD109

VPORT0603100KV05

CN101

DB15

1
6
2
7
3
8

R108 100 OHM 1/10W

4
9
5

ZD104

10

VPORT0603100KV05

R130 0 OHM 1/10W
R131 0 OHM 1/10W

C168

0.1uF

U103

74HC4052D

12
14
15
11

10

16

1

X

X0
X1

Y

X2
X3

1

Y0

5

Y1

2

Y2

4

Y3

A

9

B

6

EN

7

VEE
VDD

GND

8

6

MCU _TX 7

ZD105

12

12

HS

VS

13

3

5VP

1

2

D105

BAT54C

D107

SCS140V

3

VPORT0603100KV05

VGA

U101

1 2

1A 1Y

3 4

2A 2Y

5 6

3A 3Y

9 8

4A 4Y

11 10

5A 5Y

13 12

6A 6Y

GNDVCC

74LVC14ADT

PP_SDA

PP_SCL

12

ISP_POW

714

CVBS_OUT3

AV1_CVBS3

75 OHM 1/10W

S_VIDEO 2 IN(side)

L125 120 OHM

S2_C3

L126 120 OHM

S2_Y3

R189

75 OHM 1/10W

R190
75 OHM 1/10W

C187
68pF

L101 32 OHM

L102 32 OHM

L103 32 OHM

C1935.6pF

C1925.6pF

C1945.6pF

Rev:B-->C

R170 200 OHM 1/10W
R171 200 OHM 1/10W

L110
120 OHM

R191

0 OHM 1/10W

R141

ZD125

ZD124

C188
68pF

1 2

1 2

VPORT0603100KV05

48

1

2

5VP

I0_R 3

I0_G 3

I0_B 3

3

1

D104
BAV99

3

HD_L9

D106
BAV99

5VP

2

HD_R9

D103
BAV99

3

R11075 OHM 1% 1/ 10W

R10975 OHM 1% 1/ 10W

R11175 OHM 1% 1/ 10W

I0_HS 3
MCU_HS 7
MCU_VS 7
I0_VS 3

AV1 INPUT & AV OUTPUT

CN106
JACK

32

65981

4

12

ZD110

VPORT0603100KV05

L119 120 OHM

VPORT0603100KV05

ZD119

4

2

6L109 120 OH M

C129

68pF

VPORT0603100KV05

CN108

DIN JACK

C140
68pF

1 2

7

ZD123

ZD122

1 2

1 2

VPORT0603100KV05

3

1

5

絬 隔 瓜 絪 腹

Key Component

1

2

5VP

COMPONENT INPUT

L113 600 OHM

HD_L

R134
NC

ZD113

VPORT0603100KV05

L114 600 OHM

HD_R

R135
NC

ZD114

VPORT0603100KV05

ZD112

ZD111

C132
470pF

1 2

1 2

VPORT0603100KV05

VPORT0603100KV05

L123 600 OHM

L124 600 OHM

C143

C144
220pF

220pF

VPORT0603100KV05

AV2_CVBS3

R139

75 OHM 1/10W

T P V ( Top Victory Electronics Co . , Ltd. )

T3115-F-X-X-1-080620

02 INPUT / OUTPUT

Date

C134
220pF

1 2

C135
220pF

1 2

L111

600 OHM

L112

600 OHM

C133
470pF

REV:C->D
for line out POP

R144

NC

L118 120 OHM

R140

0 OHM 1/10W

AV1_R

AV1_L

R145

NC

L115 120 OH M

ZD115

C136
68pF

1 2

VPORT0603100KV05

L116 120 OH M

CN105

3 2

6 5

9 814

SPDIF-OUT-1 10

C130

4.7uF/ 16V

C131

4.7uF/ 16V

R183

47K OHM 1/10W

AV1_R 9

AV1_L 9

CN111

JACK

79461

C139

ZD118

68pF

1 2

VPORT0603100KV05

OEM MOD EL Size

TPV MOD EL

PCB NAME

Sheet

7

R184

47K OHM 1/10W

8

715T3115-F

210Saturday , July 26, 2008

JACK

Q107
2SD1757K

ZD121

1 2

of

ZD116

C137
68pF

1 2

VPORT0603100KV05

L117 120 OHM

ZD117

C138
68pF

1 2

VPORT0603100KV05

R181
680 OHM 1/10W

R182
680 OHM 1/10W

Q106
2SD1757K

4.7K OHM 1/10W

R186
47K OHM 1/10W

4.7K OHM 1/10W

R188
47K OHM 1/10W

AV2 INPUT(SIDE)

325

L120

L121

C142

C141

220pF

220pF

ZD120

1 2

VPORT0603100KV05

VPORT0603100KV05

C181

4.7uF/ 16V

C182

4.7uF/ 16V

R187

600 OHM

600 OHM

LINEOUT_L

LINEOUT_R

R185

R136
75 OHM 1/10W

R137
75 OHM 1/10W

R138
75 OHM 1/10W

LINEOUT_MUTE 7,9,10

AV2_L

AV2_R

R142

R143

NC

NC

Rev

称爹

HD_Y 3

HD_PB 3

HD_PR 3

LINEOUT_L 9

LINEOUT_R 9

AV2_L

AV2_R

A3

C

称爹

<

>

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

C769

0.0015uF

VIF1

+5VIF

+

VIF2

L722 200uH

U106

MC34063A

1

SWC

2

SWE

3 6

TCAP VCC

4

GND

R776

150 OHM 1/10W

I0_R2

I0_G2

I0_B2

HD_PR2

HD_Y2

HD_PB2

SIF1

SIF2

IF

IF_SW7

C755

0.01uF

180 OHM 1/10W

8

DC

7

PK

5

COMP

R777

1.8K OHM 1/ 10W

R146
100 OHM 1/10W
R147
100 OHM 1/10W
R148
100 OHM 1/10W
R149
100 OHM 1/10W
R150
100 OHM 1/10W
R151
100 OHM 1/10W
R152
100 OHM 1/10W

I0_HS2

I0_VS2

R155
100 OHM 1/10W
R156
100 OHM 1/10W
R157
100 OHM 1/10W
R158
100 OHM 1/10W
R159
100 OHM 1/10W
R160
100 OHM 1/10W
R161
100 OHM 1/10W

D702 NC

R781

NC

L720
120 OHM

49

R778

C770

0.1uF

C145 0.047uF

C146 0.047uF

C147 0.047uF

C148 0.047uF

C149 0.047uF

C150 0.047uF

C151 0.047uF

R153 100 OHM 1/10W

R154 100 OHM 1/10W

C152 0.047uF

C153 0.047uF

C154 0.047uF

C155 0.0047uF

C156 0.047uF

C157 0.047uF

C158 0.047uF

C159 NC

C160 0.1uF

C161

+5VT

NC

R780

Q506
NC

+5VT

R779
6R2 1/4W 5%

1 2

L721 300 OHM

+

C771

100uF/16V

I0R0+

I0G0+

I0SOG0

I0B0+

I0R1+

I0G1+

I0SOG1

I0B1+

0.1uF

SW

MAIN12V

69

70

VIF-

VIF+

255

I0R0+

256

I0R0-

253

I0G0+

252

I0SOG0

254

I0G0-

250

I0B0+

251

I0B0-

1

I0HS0

2

I0VS0

245

I0R1+

246

I0R1-

243

I0G1+

242

I0SOG1

244

I0G1-

240

I0B1+

241

I0B1-

247

I0RMDSCV

239

I0BMDSCV

U401C
NT7263

C162 0.1uF

C163 0.1uF

C164 0.1uF

C165 0.1uF

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

T3115-F-X-X-1-080620

Date

57

65

66

SIF-

SIF+

VAFC

I0/I1 Block

I1ADC1-

I1ADC2-

I1ADC3-

I1ADC0-

40

35

31

44

22 OHM 1/10W

54

59

64

71

73

VPLL

FMPLL

TAGC

SSIF

MON O

IFY_OUT

I1Y0

I1Y1

I1Y3

I1C0

SCARTR0

SCARTG0

SCARTB0

SCARTY0

SCARTFB0

SCARTFB1

R123

NC

C199

22pF

R112 47K OHM 1/10W

R114

33K OHM 1/10W

715T3115-F03 TUNER / IF , IO / I1

310Saturday, July 26, 2008

56

72

62

61

60

47

46

43

36

33

39

30

42

51

34

41

32

45

52

R113

1K OHM 1/ 10W

MMBT3906

Q108
MMBT3904

R116
56 OHM 1/10W

R115

47 OHM 1/ 8W

of

I1Y0

I1Y1

I1Y3

I1C0

C

Y

C

C

Y

C

Y

R124

Q105

C175 0.1uF

C176 0.1uF

C177 0.1uF

C178 0.1uF

C166 0.1uF

C179 0.1uF

C185 0. 1uF

C186 0. 1uF

Rev:B-->C

0 OHM 1/10W

NC
R122

0 OHM 1/10W

R117

R120

2.2K OHM 1/10W

TV_C VBS

S1_Y 2

S1_C 2

R125
100 OHM 1/10W

AV1_CVBS 2

S2_C 2

S2_Y 2

S-VIDEO2

MAI N5V

+

100uF/16V

R121
NC

+

1000UF/ 16V

75 OHM 1/ 10W

R119

AV2_CVBS 2

C170

C171

R118
100K OHM 1/10W

Rev

称爹

TV_CVBS

CVBS_OUT 2

A3

C

AFD

TOP

PEAK

REFIN

I1Cr/SCARTR1

I1Y/ SCARTG1

I1Cb/SCARTB1

I1Y2/SCARTY 1

I1HSOUT

I1VSOUT

I1YOUT

25

26

48

R162

+

C169

10uF/50V

OEM MODEL Size

TPV MODEL

PCB NAME

Sheet

R167 47 OHM 3W

MAIN12V

R168 47 OHM 3W

ATV TUNER

ANT IN

121314

R793 0 OHM 1/8W

R794 0 OHM 1/8W

R795 0 OHM 1/8W

R796 0 OHM 1/8W

R798 0 OHM 1/8W

R799 0 OHM 1/8W

R797 0 OHM +-5% 1/4W

R745

5.6K OHM 1/ 10W

R746 0 OHM 1/10W

trace 15mil Jhonson_1025

1112 conn delete

SDA_A7

SCL_A7

U707

AP1117D50LA

3 2

VI VO

+

C726

100uF/16V

TU701

AGC

SCL

SDA

AFC

15

+

1

3

AS

4

5

7

BP

8

9

BT

C772

0.1uF

11

IF

C727

0.1uF

AGC1

C738

100pF

GND

1

R730

R731 12K OHM 1/10W

R732 100K OHM 1/10W

C736 100uF/16V

R733 1K OHM 1/10W

R734 NC

C737

R735 100 OHM 1/10W

100pF

R736 100 OHM 1/10W

C739 100uF /16V

+30V

C740 0.1uF

+

C773

10uF/50V

+5VIF

R739

4.7K OHM 1/ 10W

C741

0.001uF

R741

1.2K OHM 1/ 10W

C728

100uF/16V

0 OHM 1/10W

+

L713 1 20 OHM

+

IF

IF DECODER

U708
TDA 9885 TS/ V3

1

VIF1

VIF1

2

VIF2

VIF2

C746 390pF

C747 0.01uF

C748 0.01uF

C749 0.47uF

R747 0 OHM 1/10W

R773 12K OHM 1/10W

R748 0 OHM 1/10W

R749 0 OHM 1/10W

3

TP70 6

4

5

6

7

8

9

10

11 14

12 13

SIF9

IC/OP1

FMPLL

DEEM

AFD

DGND

AUO

TOP

FM1/SDA

FM0/SCL TAGC

QSSO/SIOMADVIF0/NC

TV_CVBS / TV_MONO trace change to 15mil

SIF2

SIF1

VAGC/OP2

AFC

VP

VPLL

AGND

CVBS

MUTE /VA GC

REF

C729

0.1uF

AGC

R737
NC

24

SIF2

23

SIF1

22

21

20

19

C751 0.22uF

18

17

16

15

R755 NC

+5VT

+5VT

SCL_A 7

SDA_A 7

+5VIF

C753 0. 001uF

+5VT

+30V

R774

10 OHM 1/10W

ZD701
NC

1 2

U709

VF45A3D

+5VT

R738
NC

R753 1K OH M 1/10W

4.7pFC776

INPUT

SWITCHING INPUT

CHIP CARRIER -GROUND

12345

IF

SW

U710
AF45A3D

INPUT

SWITCHING INPUT

CHIP CARRIER-GROUND

OUTPUT

12345

IF

SW

R750 NC

R751 NC

C750 0.1uF

R752 330 OH M 1/10W

C752 0.0015uF

X70 1

4.000MHz

R754 0 OHM 1/10W

picture improve_1002
Trace 15mil Jhonson_1025

L723
180uH

C768

100uF/50V

–

癸ぇ丁

筳

GND

OUTPU T

OUTPU T

L727 120 OHM

L728 120 OHM

Rev:B-->C

–

癸ぇ丁

筳

GND

OUTPUT

L729 120 OHM

L730 120 OHM

Rev:B-->C

+5VT

TO IO/I1 CVBS

TV_C VBS

AGC

D701

BAS32L

+

R775

47K OHM 1/10W

R782
1K OHM 1/10W

C754

220uF 10V

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

5VP

NC

R506

18K OHM 1/10W

U501

VCC
WP
SCL

GNDSDA

M24C02-WMN6TP

HDMIA_RXC-

10

HDMIA_RXC+

9

7

HDMIA_RX0­HDMIA_RX0+

10

HDMIA_RX1­HDMIA_RX1+

9

HDMIA_RX2-

7

HDMIA_RX2+

C504

0.22uF

A0

VCC

A1

WP

A2

SCL

GNDSDA

OUT1
OUT2

OUT3

GND

GND

3

8

OUT1
OUT2

OUT3

GND

GND

3

8

MAI N5 V

C502

0.22uF

1

A0

2

A1

3

A2

45

　кで皌璶

1
2
3
45

10
9

7

10
9

7

100 OHM

HDMIB_RXC­HDMIB_RXC+

HDMIB_RX0­HDMIB_RX0+

HDMIB_RX1­HDMIB_RX1+

HDMIB_RX2­HDMIB_RX2+

　кで皌璶

50

100OHM

L509 300 OH M

MAI N3 V3

+

C505
22uF/16V

R9007

HDMIB_POW

HDMIA_POW

HDMIB_SDA
HDMIB_SCL DSCL

HDMIB_RXC­HDMIB_RXC+
HDMIB_RX0­HDMIB_RX0+
HDMIB_RX1­HDMIB_RX1+
HDMIB_RX2­HDMIB_RX2+

HDMIA_SDA
HDMIA_SCL

HDMIA_RXC­HDMIA_RXC+
HDMIA_RX0­HDMIA_RX0+
HDMIA_RX1­HDMIA_RX1+
HDMIA_RX2­HDMIA_RX2+

62

63
64

67
68
70
71
73
74
76
77

80

2
3

5
6
8

9
11
12
14
15

U507

SDA2,5,7
SCL2, 5,7

R551

36K1/10W

R552

36K1/10W

1

20

HPD2

SDA2
SCL2

PC1/POW DN

PC0/I2C_RST
B21
A21
B22
A22
B23
A23
B24
A24

HPD1

ASDA
ASCL

B11
A11
B12
A12
B13
A13
B14
A14

S2/SCL_CT L

S1/SDA_C TL

19

22

21

500 OHM +-1% 1/10W

NC

R520

OE#/STAN DBY

18

42

79

POW1

PS321

REXT

4.7K OHM 1/10W

75

4

NC

69

VCC

GND

10

56

61

VCC

POW2

GND

GND

16

24

R553

C506

0.1uF

R558

10K OHM 1/10W

33

27

50

43

VCC

VCC

VCC

POW3

I2C_CT L_EN

GND

GND

GND

37

36

30

47

HDMI_SW

C507

0.1uF

HDMI_SW

7

13

17

VCC

VCC

VCC

GND

GND

GND

59

53

65

4.7K OHM 1/10W

C508

0.1uF

HPD_SINK

VCC

SDA_SIN K

SCL_SIN K

CEXT

POW_SIN K

SCL3
SDA3
HPD3

S3/I2C_A DDR

EDID_BR G_EN

GND

GND

GND

66

72

78

R554

R557

C509

0.1uF

10K OHM 1/10W

40

39
38

35

Z1

34

Y1

32

Z2

31

Y2

29

Z3

28

Y3

26

Z4

25

Y4

C521 2.2uF 16V Y5V

60
41
58

A34

57

B34

55

A33

54

B33

52

A32

51

B32

49

A31

48

B31

46
45
44
23

R556
NC

NC

R549

DSDA

5/29

HDMIC_RXC­HDMIC_RXC+

HDMIC_RX2-

HDMIC_RX2+

HDMIC_RX1­HDMIC_RX1+

HDMIC_RX0­HDMIC_RX0+

T P V ( Top Victory Electronics Co . , Ltd. )

T3115-F-X-X-1-080605

絬 隔 瓜 絪 腹

Key Component

Date

OEM MOD EL Size

TPV MOD EL

715T3115-F04 PS321 HDMI SW

PCB NAME

410Friday , August 01, 2008

Sheet

of

C511

C510

0.1uF

0.1uF

HDMI_RXC- 5
HDMI_RXC+ 5
HDMI_RX0- 5
HDMI_RX0+ 5
HDMI_RX1- 5
HDMI_RX1+ 5
HDMI_RX2- 5
HDMI_RX2+ 5

R555

4.7K OHM 1/10W

HDMI_SW

C512

0.1uF

R550

10K OHM 1/10W

DSDA 5
DSCL 5

HDMI_POW 5

1

2

L9002 90 ohm

1

2

L9003 90 ohm

1

2

L9004 90 ohm

1

2

L9005 90 ohm

CN9003

26

SHLD5

25

SHLD4

24

SHLD3

23

SHLD2

22

SHLD1

21

SHLD_GND 2

20

SHLD_GND 1

17

DDC_GND

11

CSHLD0

8

DSHLD2

5

DSHLD1

2

DSHLD0

14

NC

18

VCC5

19

HPD

13

CEC

16

SDA

15

SCL

12

TMDSC-

10

TMDSC+

3

TMDSD2-

1

TMDSD2+

6

TMDSD1-

4

TMDSD1+

9

TMDSD0-

7

TMDSD0+

Rev

称爹

C513

0.1uF

4

3

4

3

4

3

HDMIC_RX0-

4

3

HDMI_SW

HDMIC_RX2+

HDMIC_RX2-

HDMIC_RX1+

HDMIC_RX1-

HDMIC_RX0+

HDMIC_RXC+

HDMIC_RXC-

HDMI

A3

C

HDMI-1 INPUT

CN501

SHLD_GND 2
SHLD_GND 1

DDC_GND

CSHLD0
DSHLD2
DSHLD1
DSHLD0

TMDSC+

TMDSD2-

TMDSD2+

TMDSD1-

TMDSD1+

TMDSD0-

TMDSD0+

HDMI

R501

1K OHM 1/10W

SHLD5
SHLD4
SHLD3
SHLD2
SHLD1

NC

VCC5

HPD
CEC

SDA
SCL

TMDSC-

HDMIA_DET7

HDMI-2 INPUT

HDMIB_DET7

1K OHM 1/10W

CN502

SHLD_GND 2
SHLD_GND 1

DDC_GND

CSHLD0
DSHLD2
DSHLD1
DSHLD0

TMDSC+

TMDSD2-

TMDSD2+

TMDSD1-

TMDSD1+

TMDSD0-

TMDSD0+

HDMI

R509

SHLD5
SHLD4
SHLD3
SHLD2
SHLD1

VCC5

HPD
CEC

SDA
SCL

TMDSC-

NC

26
25
24
23
22
21
20

17
11
8
5
2

14

18

19
13
16
15

12
10

3
1

6
4

9
7

26
25
24
23
22
21
20

17
11
8
5
2

14

18

19
13
16
15

12
10

3
1

6
4

9
7

Q501

MMBT3904

CEC

Q503

MMBT3904

CEC

HDMIA_POW

HDMIA_SDA
HDMIA_SCL

HDMIB_POW

HDMIB_SDA
HDMIB_SCL

R502

R510

20K OHM 1/ 10W

20K OHM 1/ 10W

5VP

5VP

HDMI_EDID7

MAIN 5V

R515
NC
R516
0 OHM 1/10W

1K OHM 1/10W

1

2

L501 90 ohm

1

2

L504 90 ohm

1

2

L503 90 ohm

1

2

L502 90 ohm

MAIN 5V

R517
NC
R518
0 OHM 1/10W

R511

1K OHM 1/10W

1

2

L505 90 ohm

1

2

L508 90 ohm

1

2

L507 90 ohm

1

2

L506 90 ohm

R503

C501
NC

C503

NC

4

3

4

3

4

3

4

3

4

3

4

3

4

3

4

3

R504 1K OHM 1/10W

D501

1

2

BAT54C

R507

HDMIA_RXC­HDMIA_RXC+

HDMIA_RX0­HDMIA_RX0+

D502

1

2

3

BAT54C

R512

3

HDMIA_RX1­HDMIA_RX1+

HDMIA_RX2­HDMIA_RX2+

4.7K OHM 1/10W

4.7K OHM 1/ 10W

4.7K OHM 1/10W

HDMIB_RXC-

HDMIB_RXC+

HDMIB_RX0+

HDMIB_RX1­HDMIB_RX1+

HDMIB_RX2-

HDMIB_RX2+

HDMI_WP

Q502
MMBT3904

4.7K OHM 1/ 10W

R513

R514

4.7K OHM 1/10W

R505

R508

U502 RClamp0524P.TCT

1
2

4
5 6

U503 RClamp0524P.TCT

1
2

4
5 6

HDMI_WP

HDMIB_RX0-

OUT1

IN1

OUT2

IN2

IN3

OUT3

IN4 OUT4

GND

GND

3

8

OUT1

IN1

OUT2

IN2

IN3

OUT3

IN4 OUT4

GND

GND

3

8

8
7
6

U505 RClamp0524P.TCT

1

IN1

2

IN2

4

IN3

5 6

IN4 OUT4

U506 RClamp0524P.TCT

1

IN1

2

IN2

4

IN3

5 6

IN4 OUT4

8
7
6

U504

M24C02-WMN6TP

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

LVDS OUTPUT

MAI N3V 3

R528 1K OHM 1/10W

R529 1K OHM 1/10W

R530 10K OHM 1/10W

1K OHM 1/10W

HDMI_HDCP7

R527

HDMI_MCLK19
HDMI_SCK19
HDMI_WS19
HDMI_SD19

I4_D5_F SCK

FCS

PD_FLASH7

KSCL
KSDA

I4_D6_U TRX

I4_D7_U TTX

I4_D0_FS I
I4_D1_FW P
I4_D2_FH OLD
I4_D3_FS O

8
7
6

HDMI_MCLK

HDMI_SCK

HDMI_WS

HDMI_SD

22 OHM +-5% 1/16W

HDMI_MCLK1
HDMI_SCK1

HDMI_WS1

HDMI_SD1

NC

3

2

1

RP506

4

5

3

6

2

7

1

8

22 OHM +-5% 1/16W

R531 22 OHM 1/10W

R532 22 OHM 1/10W

R533 NC

HDMI_R9

VCC

NC

E1

WC

E2

SCL

VSSSDA

U509
M24C04-WMN6TP

RP505

4

5

3

6

2

7

1

8

RP507

4

5

3

6

2

7

1

8

NC

FSI
FWP
FHOLD
FSO

HDMI_R

10K OHM 1/10W

C522

0.22uF

1
2
3
45

R128

MAI N3V 3

HD_MCLK
HD_SCK
HD_WS
HD_SD

HD_MCLK
HD_SCK
HD_WS
HD_SD

FSCK

FCE

HDMI_WS
HDMI_SD
HDMI_SCK

C12110uF/50V

+

FCE
FSI
FWP

R534 1K OHM 1/10W

R535 N C

　кで皌璶

100OHM

HDMI_RXC-4
HDMI_RXC+4
HDMI_RX0-4
HDMI_RX0+4
HDMI_RX1-4
HDMI_RX1+4
HDMI_RX2-4
HDMI_RX2+4

DSCL4
DSDA4

HDMI_POW4

X502 28.322MHZ

R538

C515
15pF

MAI N3V 3

1
2
3
4
5
6
7 8

KSCL
KSDA

HD_SD
HD_WS
HD_SCK
HD_MCLK

C514
NC

12

1M OHM 1/10W

I4_D0_FS I
I4_D1_FW P
I4_D2_FH OLD
I4_D3_FS O

I4_D5_FS CK
I4_D6_U TRX
I4_D7_U TTX

FCS

L510 120 OHM

U510

1

VCC

CS

2

HOLD

SO

3

SCK

WP

4 5

GND S I

MX25L4005AMC

U105

DGND

DVDD
LRCLK
DIN

FORMAT

BCLK

DEEMPH

MUTE

VOUTL
VOUTR
AGND CAP

WM8521HCGED/ RV

8
7
6

MCL K

AVDD

C122

0.1uF

C516
15pF

C119

14
13
12
11
10
9

0.1uF

197
198
200
201
203
204
206
207

212
213

214
215

195

217

219
221
222
223

218

191

190

224
225
226
228
229
230
232
233
234

9
10
11
13
14
15
16
18
19
20

U401B
NT7263

RC­RC+
RX0­RX0+
RX1­RX1+
RX2­RX2+

DSCL
DSDA

KSCL
KSDA

RSVD

PWR5V

SD
WS
SCK
HMCLK

SPDIF

HAXO

HAXI

I2D0/HAD0
I2D1/HAD1
I2D2/HAD2
I2D3/HAD3
I2D4/HAD4
I2D5/HAD5
I2D6/HAD6
I2D7/HAD7
I2CLK/HALE

I4D0/FSI
I4D1/FWP#
I4D2/FHOLD#
I4D3/FSO
I4D4
I4D5/FSCK
I4D6/UTRX
I4D7/UTTX
I4CLK
FCS#

C517 4. 7uF/16V

C518 0.1uF

FHOLD
FSCK
FSO

+

C120

10uF/50V

C126 10uF/50V

+

C124

0.1uF

+

+

C123

10uF/50V

10uF/50V

LVDSC0+

LVDSC0-

LVDSC1+

LVDSC1-

LVDSC2+

LVDSC2-

LVDSC3+

LVDSC3-

LVDSCLK0+

LVDSCLK0-

LVDSC4+

LVDSC4-

LVDSC5+

LVDSC5-

LVDSC6+

LVDSC6-

LVDSC7+

LVDSC7-

LVDSCLK1+

LVDSCLK1-

GPIO0
GPIO1
GPIO2

GPIO3
GPIO4/PW M4
GPIO5/PW M5

GPIO6
GPIO7/PW M7

HDMI/DP Block

GPIO8/PW M8

HRST#

HIRQ

HSDA/HRD#

HSCL/HWR#

HSEL

HTYPE

TEST

L106

120 OHM

L107

120 OHM

HDMI_MCLK

HDMI_L

R129

10K OHM 1/10W

C125

108
109
106
107
104
105
100
101
102
103

96
97
94
95
92
93
88
89
90
91

23
24
81
82
83
84
236
237
238

76

77

78

80

8

75

21

4

XI

5

XO

WXGA-PANEL

LVDS0+
LVDS0­LVDS1+
LVDS1­LVDS2+
LVDS2­LVDS3+

LVDS3-

LVDSCLK0+
LVDSCLK0-

LVDS4+
LVDS4­LVDS5+
LVDS5­LVDS6+
LVDS6­LVDS7+
LVDS7­LVDSCLK1+
LVDSCLK1-

R543 0 OHM 1/10W

R544 0 OHM 1/10W

R801 NC

X503 12MHz

R542
1M OHM 1/10W

C519
33pF

MAI N3V 3

MAI N12 V

HDMI_L 9

51

1080P-PANEL

8mil

BACKLIGHT-Contronal

ODSEL_ON

DCR_PWM 1

SYS_R STn 7

INT_726X 7

SDA 2,4,7

SCL 2,4,7

R539 NC

R540 1K OHM 1/10W

C520
33pF

r202

nc

DCR_ON7

PANEL_VCC

BACKLIG HT 1

R541 NC

R541

璶綼　

OSC_OUT=12mil,

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

DCR

R201

0 OHM 1/10W

(#10,NC)

L201

1 2

NT7263 ->R539=NC,R540=1KOHM
NT72631->R539=0 OHM,R540=NC

MAIN 3V3

OSC_OUT 7

X503

璶　

GND

T3115-F-X-X-1-080605

LVDS0+
LVDS1+
LVDS2+

(#1,GND1)

LVDSCLK0+

(#18,GND3)

LVDS3+
LVDS4+
LVDS5+
LVDS6+

(#26,GND5)

LVDSCLK1+

(#37,GND8)

LVDS7+

(#43,GND10)
(#45,GND12)

300 OHM

+

CN201
CONN

(#13,FC RO0+)
(#15,FC RO1+)
(#17,FC RO2+)
(#18,GND1)
(#20,FC CLK+)
(#8,RPF,GND9)
(#23,FC RO3+)
(#29,SC RO0+)
(#31,SC RO1+)
(#33,SC RO2+)
(#34,GND3)
(#36,SC CLK+)
(#10,DGMEN,GND11)
(#39,SC RO3+)
(#7,LVDS SEL)

(#45,GND5)
(#47,GND7)
(#49,+12V)
(#51,+12V)

C201

100uF/16V

2
4
6

8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40

VGA GND#1

VGA GND#2

VGA GND#3

VGA GND#4

VGA GND#5

VGA GND#6

HDMI GND#1

HDMI GND#2

HDMI GND#3

HDMI GND#4

HDMI GND#5

HDMI GND#6

SOUND GND#6

HDMI GND#7

VGA GND#7

HDMI GND#8

HDMI GND#9

VGA GND#9

HDMI GND#10

HDMI GND#11

HDMI GND#12

OEM MOD EL Size

TPV MO DEL

715T3115-F05.HD MI,LVDS

PCB NAME

Sheet

510Tuesday , August 05, 2008

of

(#12,FC RO0-)

1

(#14,FC RO1-)

3

(#16,FC RO2-)

5

(#21,GND2)

7

(#19,FC CLK-)

9

(#9,ODSEL,GND10)

11

(#22,FC RO3-)

13

(#28,SC RO0-)

15

(#30,SC RO1-)

17

(#32,SC RO2-)

19

(#37,GND4)

21

(#35,SC CLK-)

23

(#11,DGREN,GND12)

25

(#38,SC RO3-)

27
29
31

(#44,GND6)

33

(#46,GND8)

35

(#48,+12V)

37

(#50,+12V)

39

(#34,GND7)

(#42,GND9)
(#44,GND11)
(#46,GND13)

R210 0 OHM +-5% 1/4W

R211 0 OHM +-5% 1/4W

R212 0 OHM +-5% 1/4W

R213 0 OHM +-5% 1/4W

R214 0 OHM +-5% 1/4W

R215 0 OHM +-5% 1/4W

R216 0 OHM +-5% 1/4WCN503

R217 0 OHM 1/10W

R218 0 OHM 1/10W

R219 0 OHM +-5% 1/4W

R220 0 OHM +-5% 1/4W

R221 0 OHM +-5% 1/4W

R227 0 OHM 1/10W

R222 0 OHM +-5% 1/4W

R223 0 OHM +-5% 1/4W

R225 0 OHM +-5% 1/4W

R226 0 OHM +-5% 1/4W

R228 0 OHM +-5% 1/4W

R229 0 OHM +-5% 1/4W

R230 0 OHM +-5% 1/4W

R231 0 OHM +-5% 1/4W

LVDS0­LVDS1­LVDS2-

(#11,GND2)

LVDSCLK0-

(#21,GND4)

LVDS3­LVDS4­LVDS5­LVDS6-

(#27,GND6)

LVDSCLK1-

LVDS7-

(#9,EN_DBL)

Rev

称爹

DCR

ODSEL_ON

A3

C

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

8mil

D

MA[0 .. 11]

6mil

12mil

B

C

B

MCL K

MCL Kn

MCK E

MBA0
MBA1

MDQ S0

MDQ S1

RP401 22 OH M +-5% 1/16W

MA0
MA1
MA2
MA3

MA4
MA5
MA6
MA7

MA8
MA9
MA11

MA10

R402 22 OHM 1/10W
R403 22 OHM 1/10W

MCA S
MRA S
MWE
MCS

R408 22 OHM 1/10W

R409 22 OHM 1/10W

R411
220 OHM 1/10W

R410 22 OHM 1/10W

1
2
3
4

RP402 22 OH M +-5% 1/16W

1
2
3
4

RP403 22 OH M +-5% 1/16W

1
2
3
4

R401

RP404 22 OHM +-5% 1/ 16W

1
2
3
4

R404 0 OHM 1/10W
R405 0 OHM 1/10W
R406 1K OHM 1/10W
R407 1K OHM 1/10W

8
7
6
5

8
7
6
5 A7

8
7
65A11

22 OHM 1/10W

8
7
6
5

DQS0

DQS1

DQS2

DQS3

CKE

CLK0

CLKn

C403

0.1uF

29
30
31
32
35
36
37
38
39
40
41

28
26
27

44
45
46
51

23
22
21
16

24

VDDA

C404
10uF/10V

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A11

A10/AP
BA0
BA1

CKE
CK
CK
UDQS

RAS
CAS
WE
LDQS

CS0

VDDA

VDDQA

11833

VDD0

VSS0

6648346125258

VDD1

VSS1

VDD2

VSS2

39155561

VDDQ0

VSSQ0

VSSQ1

C405

0.1uF

R431 0 OHM 1/10W

DQ0

VDDQ1

VDDQ2

VDDQ3

VDDQ4

DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

NC
NC

UDM

LDM

VREF

VSSQ2

VSSQ3

VSSQ4

64

C406

0.1uF

C407

C408

0.1uF

0.1uF

MD0

2

MD1

4
5

MD2
MD3

7

MD4

8

MD5

10
11

MD6

13

MD7
MD8

54
56

MD1 0

57

MD1 1

59

MD1 2

60
62

MD1 3
MD1 4

63
65

MD1 5

19
50

47
20

49

C411

0.1uF

A0
A1
A2
A3

A4
A5
A6

A8
A9

A12

A10

U401A
NT7263

144

A0

MA0

146

A1

MA1

A2

147

MA2

A3

148

MA3

A4

153

MA4

A5

154

MA5

A6

156

MA6

157

A7

MA7

A8

158

MA8

159

A9

MA9

143

A10

MA10

A11

161

MA11

A12

162

MA12

141

MBA0

142

MBA1

135

MCAS#

136

MRAS#

138

MWE #

139

MCS #

123

MDQ S0

134

MDQ S1

173

MDQ S2

185

MDQ S3

155

MCKE#

149

MCL K+

150

MCL K-

MMU Block

MDQ 0
MDQ 1
MDQ 2
MDQ 3
MDQ 4
MDQ 5
MDQ 6
MDQ 7
MDQ 8

MDQ 9
MDQ 10
MDQ 11
MDQ 12
MDQ 13
MDQ 14
MDQ 15
MDQ 16
MDQ 17
MDQ 18
MDQ 19
MDQ 20
MDQ 21
MDQ 22
MDQ 23
MDQ 24
MDQ 25
MDQ 26
MDQ 27
MDQ 28
MDQ 29
MDQ 30
MDQ 31

112
114
116
117
118
120
121
122
133
132
130
129
128
127
126
124
171
170
169
168
167
165
164
163
174
176
177
178
180
181
183
184

RP405

75 OHM 1/16W

RP406

75 OHM 1/16W

RP407

75 OHM 1/16W

RP408

75 OHM 1/16W

8
7
6
5
8
7
6
5
5
6
7
8
5
6
7
8

MD0

1

MD1

2

MD2

3
4

MD3
MD4

1

MD5

2
3

MD6
MD7

4

MD8

4

MD9

3

MD1 0

2
1

MD1 1

4

MD1 2

3

MD1 3
MD1 4

2

MD1 5

1

A

MD[0..15]

6mil

MA[ 0.. 11]

C402

C401

0.1uF

0.1uF

MAI N2V 5

R430 0 OHM 1/10W

MA0
MA1
MA2
MA3
MA4
MA5
MA6
MA7
MA8
MA9 MD9
MA11

MA10
MBA0
MBA1

MCK E
MCL K
MCL Kn

MDQ S1

MRA S
MCA S
MWE
MDQ S0

MCS

U402

HY B25DC256160CE-5

VDDQA

C410
10uF/10V

C409

0.1uF

MAI N2V 5

MD[ 0. .15 ]

DDR_VREF 8

R412 1K OHM 1/10W

R413

1K OHM 1/10W

MAI N2V 5

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

T3115-F-X-X-1-080605

Date

OEM MO DE L Size

TPV MODEL

PCB NAME

Sheet

715T3115-F06.MMU/DDR

of

610Saturday , July 26, 2008

Rev

称爹

A3

C

52

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

CN403

NC

5VP

MCU _VC C

LL4148

1 2

SCS140V

300 OHM 1/10W

D403

1
2

C418 0.47uF /25V

U404

1

E0

2

E1E2WC

3
4

VSS

M24C32-WMN6TP

MAIN 5V

R672

12K OHM 1/10W

R680

10K OHM 1/10W

D401

R434

R414

100K OHM 1/10W

C414
10uF/10V

VCC

SCL
SDA

D603
LL4148

ISP_POW

U406

AZ431AN-AE1

ADC1

5VP

REV:D>E (080508)
for ST DTV I2C Switch

OSC_OUT5

MCU_VCC

8
7

VGA_EDID

6

SCL

5

SDA

D604 SC S140V

1 2

MAIN12V

1 2

R668

10K OHM 1/10W

R673 47K OHM 1/10W

+

C6116

100uF/16V

C6117

0.1uF

Q403
MMBT3904

R435

1K OHM 1/10W

R436

3.3K OHM 1/ 10W

R450 NC
R415 4. 7K OHM 1/10W
R416 10K OH M 1/10W

ISP_SW12

R418 NC

SW_I2C

HW_I2C

R428

R429

D602

+

330uF/16V

10K OHM 1/10W

Q608

MMBT3906

C6114

3.3K OHM 1/10W

0.1uF

AUDIO_RESET9

C6115

R677

R681

C412 100uF/ 16V

C413 0.1uF

BRIGH TNESS1
HDMI_HDCP5
HDMI_EDID4

ISP_SW2

SYS_R STn5
PD_FLASH5

ISP_SCL2
ISP_SDA2

SCL2,4,5
SDA2,4, 5

POWER_ON1
PANEL_ON1

ISP_SW1

MCU_HS2
MCU_VS2

X403 12MHz

C415
33pF

0 OHM 1/10W

SCL_ST_DTV

SDA_ST_DTV

0 OHM 1/10W

Q605
MMBT3904

AZ431AN-AE1

MCU _VC C

+

S3

1M OHM 1/10WR417

REV:D>E (080508)
for ST DTV I2C

REV:C->D
for line out POP

2K OHM 1/10W

U607

44

2
6
7
8
9

43
42
40

25
26
27
28

19
18
34
35

10

32
33

20

21

C416
33pF

DTV_I2C

R669

U403

VDD

PA0/PWM2
PA4*/PW M6*
PA5*/PW M7*
PA6*/PW M8*
PA7*/PW M9*

PC0*
PC1*
PC3

PB4*/SC L0*
PB5*/SDA0*
PB6*/SC L1*
PB7*/SDA1*

PE1
PE0
PD2
PD1

RSTB

NC1
NC2

OSCO

OSCI

CN401

1
2
3
4

CONN

ZD604 RLZ3. 3B

R676
NC

NT68F631ALG

PA2/PWM4
PA3/PWM5
PA1/PWM3

PB0/ADC0
PB1/ADC1

PB2/ADC 2/INTE0
PB3/ADC 3/INTE1

P30/RXD

P31/TXD

PC2/SOGI

R419

2.7K OHM 1/10W

SDA_A3

R422

2.7K OHM 1/10W

SCL_A3

R699

12

4.7K OHM 1/10W

3

D601
BAV99

1

2

R678
NC

R679

47K OHM 1/10W

PC4
PC5
PC6
PC7
PD0
PD3
PD4
PD5

P34/T0
P35/T1

PD6

GND

5VP

5VP

R671
10K OHM 1/10W

39
38
37
36
1
31
30
29

4
5

VGA_EDID

DCR_ON

3

ADC0

23

ADC1

24

R432 22 OHM 1/10W

14
15

11

RXD

13

16
17

41

MUTE

12
22

MCU_VCC

1

Q401
BSN20

3

MCU_VCC

1

Q402
BSN20

3

D

BSN20

S

G

Q607
MMBT3904

TXD

2

2

AMP24V

NCR438

VDDP1 8
HDMIA_DET 4
HDMIB_DET 4
IF_SW 3

R424 N C

4.7K OHM 1/10W

Q606
MMBT3904

R437
NC

R439
NC

R789 22 OHM 1/10W
R790 22 OHM 1/10W
R791 22 OHM 1/10W
R79222 OHM 1/10W

10 OHM 1/10W

R421 NC

10 OHM 1/10W

R670

AMP_FAULT 10
VGA_EDID 2
DCR_ON 5

ADC0 1

MCU_RX 2

MCU_TX 2

R451

22 OHM 1/10W

R452

22 OHM 1/10W

R420

R423

R674

10K OHM 1/10W

LINEOUT_MUTE 2,9,10

HDMI_B+SW

INT_726X 5
INT_IR 1

Q405

NC

6/5

SCL_T

SDA_T

SDA_T

SCL_T

2.2K OHM 1/10W

MMBT3904

MCU_VCC

NCR440

NCR441

S0
S1

SDA_T 9,10

SDA 2,4,5

SCL_T 9,10

SCL 2,4,5

R667

Q604

ISP_SW

HDMIA_DET
HDMIB_DET

ADC1

MUTE

BRIGHTNESS
DCR_ONS2
AMP_FAULT
VGA_EDID

HDMI_HDCP
HDMI_EDID
VDDP1

IF_SW

SCL_T
SDA_T
PANEL_ON
POWER_ON

ISP_SCL
ISP_SDA
SCL
SDA

ISP_SW1
HDMI_B+SW
S2
S1

S0
PD_FLASH
SYS_R STn
S3

MUTE

R666

10K OHM 1/10W

R447 4.7K OHM 1/10W

R442 4.7K OHM 1/10W
R443 4.7K OHM 1/10W
R444 4.7K OHM 1/10W
R445 4.7K OHM 1/10W

RP410

3.3 KOHM +-5% 1/16W

1

8

2

7

3

6

4

5

R453 3. 3K OHM 1/10W
R454 3. 3K OHM 1/10W
R455 3. 3K OHM 1/10W

R446 3. 3K OHM 1/10W

RP412

3.3 KOHM +-5% 1/16W

R456 3. 3K OHM 1/10W
R457 3. 3K OHM 1/10W
R458 3. 3K OHM 1/10W
R459 3. 3K OHM 1/10W

1K OHM 1/10W

PHONE_D ET9

R460

10K OHM 1/10W

1

8

2

7

3

6

4

5

RP413

2.2 KOHM +-5% 1/16W

1

8

2

7

3

6

4

5

5/30

RP414

1

8

2

7

3

6

4

5

R425

D404 NC

D405 LL4148

D406 LL4148

EARPHONE_MUTE 9

R675
47K OHM 1/10W

MCU _VC C

REV:D>E (080508)
for ST DTV I2C Switch

MUTE="L"

R427
100K OHM 1/10W

MCU_VCC

R426

4.7K OHM 1/10W

AMP_MUTE 9,10

Q404
MMBT3904

C

3904

B

E

T P V ( Top Victory Electronics Co . , Ltd. )

Date

T3115-F-X-X-1-080605

07.MCU

絬 隔 瓜 絪 腹

Key Component

53

OEM MOD EL Size

TPV MOD EL

715T3115-F

PCB NAME

710Saturday , July 26, 2008

Sheet

of

Rev

称爹

A3

C

称爹

>

<

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

burn in mode control use

MAI N1 V8

VDDAI F

C447

0.1uF

503738

VDDAI 1

VDDAI 1

VSSAI0

249

VDDP

6749

VDDAI FVSSAI1

C429

0.1uF

3V3_1

VSSAI1

98

VDDALV

VSSAIF

VSSAIF

63

58

C430

0.1uF

L409 120 OH M

VSSAIF

68

C448

0.1uF

7

VDDC18

2785113

VDDC18

VSSALV

99

0.1uF

VDDC18

0.1uF

VDDC1V8

140

175

VDDC18

VDDC18

GND

12

2279115

MAI N1V 8

C432

C431

L404
300 OHM

C433
22UF/ 10V

DDR_VREF6

MAI N2 V5

MAI N3V 3

1774216

VDDP

VDDM

231

VDDP

VDDP

VDDP

VDDP

211

227

VDDC18

VDDC18

VDDC18

Power Block

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

125

137

152

166

179

220

235

L414 300 OH M

MAI N3V 3

R461

0 OHM 1/10W

R462 NC

119

131

145

160

172

VDDM

VDDM

VDDM

VDDM

VDDM

AGND

AGND

AGND

208

196

202

1V8_1

C470 22U F/10V

VDDM

C476 2.2UF 10V

R463 NC

182

151

VDDM

MVREF

VCC18_H AUD

209

C469

0.1uF

C434

0.1uF

187

C436

C435

0.1uF

0.1uF

199

205

AVDD

AVDD

VDDAH

VSSA_PLLT

GND_HAUD

193

210

C471

0.1uF

C472 22U F/10V

C437

C438

0.1uF

0.1uF

Rev:B-->C

C459

0.1uF

VDDA18_XTAL

VDDA_PLLI 1

VSSA_PLLI1

VSSA_PLLM

VDDA_PLLM

VDDA_PLLT

U401D
NT7263

194

L415 300 OHM

C460

0.1uF

C458

0.1uF

VDDA18_ PLLHAUD

VSSA18_PLLHAU D

C439

0.1uF

C440

L410 300 OHM

C461
22UF/ 10V

188

189

192

28

29
111

110

L405 300 OHM

22UF/ 10V

C462

0.1uF

C463

0.1uF

1V8_1

C465

0.1uF

C467

0.1uF

MAI N3V 3

MAI N2 V5

MAI N3 V3

L411 300 OHM

C464

22UF/ 10V

L412 300 OHM

C466

22UF/ 10V

C468
22UF/ 10V

L413 300 OHM

MAI N1V 8

MAI N1V 8

MAI N1 V8

VDDC1V8

C420

0.1uF

NT7263 ->R464=NC
NT72631->R464=0 OHM

C421

0.1uF

MAI N3V 3

MAI N3V 3

MAI N1V 8

R433
0 OHM 1/10W

MAI N3 V3

C422

0.1uF

L407 300 OHM

VDDA_PL LIF

C424

C423

0.1uF

0.1uF

L406 300 OH M

C441
22UF/ 10V

L408 300 OHM

+

C449

100uF/16V

3V3_1

C426

C425

0.1uF

0.1uF

C445
22UF/ 10V

R464 NC

C450

100uF/16V

C453
22UF/ 10V

L417 300 OH M

L418 300 OH M

+

C427

0.1uF

C442

0.1uF

VDDP17

L403 300 OHM

C428
22UF/ 10V

C443

0.1uF

C446

0.1uF

186

C451

0.1uF

53

C452

0.1uF

55

87

C454

0.1uF

86

VDDAI F

VDDA_PLLI F

C444

0.1uF

NC

6

VDDA_PLLI 0

3

VSSA_PLLI0
VSSA_PLLIF

VDDA_PLLI F

VDDA_PLLL V

VSSA_PLLLV

L419
NC

248

VDDAI 0

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

54

T3115-F-X-X-1-080605

Date

OEM MODEL Size

TPV MO DE L

PCB NAME

Sheet

715T3115-F08.NT7263 POWE R

810Saturday, July 26, 2008

of

Rev

称爹

B

C

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

SC1

CN9006
CN

AV1

SC2

AV2

SC3

COMPONE NT

SC4

VGA

SC5

HDMI D/A

HD_R

HD_R2

HD_L

HD_L2

1
2
3
4

HDMI_R

HDMI_R5

HDMI_L

HDMI_L5

AV2_R

AV2_R2

AV2_L

AV2_L2

AV1_R

AV1_R2

AV1_L

AV1_L2

PC_R

PC_R2

PC_L

PC_L2

LIN EOUT_MU TE2,7 ,10

8V

15mA

3.3V

100mA

1.8V

275mA

STV8351F Address (pin48)

Write

L

80h(*)
84h

H

C626 2.2UF 10V
C627 2.2UF 10V

C631

C630

220pF

220pF

C632 2.2UF 10V
C633 2.2UF 10V

C635

C634

220pF

220pF

C636 2.2UF 10V
C639 2.2UF 10V

C643

C642

220pF

220pF

C649 2.2UF 10V
C650 2.2UF 10V

C651

C652

220pF

220pF

C659 2.2UF 10V
C660 2.2UF 10V

C662

C661

220pF

220pF

C675

4.7uF/1 6V

HP_R

C679

4.7uF/1 6V

HP_L

45mA

300mA

825mA

Read

81h(*)
85h

R602 15K OHM 1/10W
R603 15K OHM 1/10W

R605 15K OHM 1/10W
R606 15K OHM 1/10W

R608 15K OHM 1/10W
R610 15K OHM 1/10W

C644 0.1uF/16 V
C645 10uF/16V

C646 0.1uF/16 V
C647 10uF/16V

R613 15K OHM 1/10W
R614 15K OHM 1/10W

+8V

FB606

220 OHM

R619 15K OHM 1/10W
R620 15K OHM 1/10W

R628

4.7K OHM 1/10W

R631

47K OHM 1/10W

R637

4.7K OHM 1/10W

R639

47K OHM 1/10W

C6122

0.1uF/16V

C655

0.1uF/16V

Q602
MMBT3904

Q603

MMBT3904

C606

C607

0.1uF/16 V

0.1uF/1 6V

AU_8V

C654

+

10uF/16V

AMPD1V8

FB608

220 OHM

C676

4.7uF/16V

R629 100K OHM 1/10W

C680

4.7uF/16V

R638

100K OHM 1/10W

AMP3V3

SIF3

3.9K OHM 1/10W

3.9K OHM 1/10W

C608

C609

0.1uF/16V

0.1uF/1 6V

25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

C668

0.1uF/16V

C670 56pF

C673

0.001uF

R627

R635

R640

3.9K OHM 1/10W

C610

C611

0.1uF/16V

0.1uF/1 6V

26272829303132333435363738394041424344454647484950

NC
NC

VSD33_CONV

VDD33_CON V
GND_SA
NC
NC
SC5_IN_R
SC5_IN_L
SC2_OUT_R
SC2_OUT_L
GND33_LS
VCC33_LS
SC2_IN_R
SC2_IN_L
VBG
VREFA
SC1_IN_R
SC1_IN_L
GND33_SC
VCC33_SC
SC3_OUT_R
SC3_OUT_L
GND_H
VCC_H
SC1_OUT_R
SC1_OUT_L

SC4_IN_R

SC4_IN_L

100999897969594939291908988878685848382818079787776

+

C665

10uF/16V

FB613

10uH +-10%

1 2

R625

6.8K OHM 1/ 10W

10uF/16V

C612

0.1uF/16V

C628 0.01uF
C629 0.01uF

NC

LS_C

SCL_FLT

SCR_FLT

SC3_IN_L

SC3_IN_R

MONO_IN

GND18_IF

VCC18_IF

GNDPW_IF

SIF2_P

SIF_N

C667

C666

0.22uF

0.01uF

R696
560 OHM 1/10W

+5VT

U605

1

OUT1

VDD

2

IN1-

OUT2

3

IN1+

IN2-

4 5

VSS IN2+

PT2308-S(L)

R636

3.9K OHM 1/10W

C681

AMP1V8

C613

+

0.1uF/1 6V

NC

NC

LS_L

LS_R

LS_SUB

U603

STV8318F

SIF_P

VSS18_ADC

VDD18_ADC

GND_PSUB

IRQ

C669

0.022uF

L601
120 OHM

C671

0.1uF

8
7
6

6.8K OHM 1/10W

FB601

220 OHM

C602

10uF/16V

L602 180uH

L603 180uH

NC

NC

NC

NC

HP_LSS_L

HP_LSS_R

BUS_EXP

VSS18

VDD18

I2SA_DATA

I2SA_LR_CLK

I2SA_SCLK

C601

0.001uF

HDMI_SD15
HDMI_WS15
HDMI_SCK15
HDMI_MCLK15

C672

10uF/16V

C6780. 001uF

R630

A1V8

VSS18

HP_DET

ADR_SEL

VSS18_CONV

VDD18_CON V

I2SD_DATA

I2SO_DATA1

I2SO_LR_CLK

I2SO_SCLK

I2SO_DATAO

S/PDIF _BYPASS

S/PDIF _OUT

VDD33_IO1
VSS33_IO1

CK_TST_CTRL

XTALIN_CLKXTP

XTALOUT_CLKXTM

VCC18_CL K1
GND18_CLK1
GND18_CLK2
VCC18_CL K2

VSS33_IO2
VDD33_IO2

I2S_PCM_CLK

I2S_DATA3

I2S_DATA2

I2S_DATA1

I2S_DATA0

I2S_LR_C LK

C674

C677

100 OHM 1/10W

C615

C614

0.1uF/16V

0.1uF/16V

C624

0.01uF

R604 0 OHM 1/10W

VDD18

51

SCL

52

SDA

53

RST

54
55
56
57
58
59
60
61
62
63
64

VSS18

65

VDD18

66

CLK_SEL

67
68
69
70
71
72
73
74
75

I2S_SCLK

R690

0 OHM 1/10W

47uF/16V

+

47uF/16V

+

R632

A3V3

AMP3V3

FB602

220 OHM

C603

C616

+

0.1uF/16 V
10uF/16V

C625

0.01uF

AMP1V8

I2C and AMP_RESETN GND

R607 100 OHM 1/10W
R609 100 OHM 1/10W
R611 100 OHM 1/10W

C6118 1uF/ 25V

IEC958O

C648 30PF J 50V

C653 22pF

1 2

C656

0.1uF/16V

R621 0 OHM 1/10W
R622 0 OHM 1/10W

R623

0 OHM 1/10W

R633
100 OHM 1/10W

AMPD3V3

+

C617

0.1uF/16V

C619 1uF/ 16V

C623 1uF/ 16V

AMP_MUTE

R691 100 OHM 1/10W

R612 47 OHM 1/10W

AMPD1V8

X60 1

27.000MHz

NCR626

C657

0.1uF/1 6V

PHONE_DET7

EARPHONE_MUTE7

FB607

220 OHM

MAIN 5V

6
5

U604

D1
S1

NDC7002N

NCR634

AMPD3V3

C663

0.001uF

C604
10uF/16V

I2SO_WS
I2SO_SCLK
I2SO_D0

10K OHM 1/10W

1

G1

2

S2

34

G2D2

FB603

220 OHM

SPDIF-OU T 10

AUDIO_R ESET7

C664

0.001uF

R624

A3V3

C618

0.1uF/16 V

HP_L

HP_R

AMP_MUTE 7,10

AMP_RESETN 10

I2SO_WS 10
I2SO_SCLK 10
I2SO_D0 10

0 OHM 1/10W

LINEOUT_L
LINEOUT_R

I2SO_PCLK

AMPD1V8

+

SCL_T
SDA_T

L600

8
7
6

600OHM

6/3

FB604

220 OHM

C605
10uF/16V

SCL_T 7,10
SDA_T 7,10

C600

NC

SPDIF BYPASS

AUDIO_R ESET

LINEOUT_L 2
LINEOUT_R 2

I2SO_PCLK 10

LP601

1
2
3
45

817263

CP601

470pF

A1V8

CN9005

2
1

CONN

R618 NC

100uF/16V

AMP3V3

54

G1084-33T43UF TO252

U602

MAIN 5V

+

C620

100uF/16V

U601
AP1117D18LA

VOUT

VIN

A3V3

C640

C637

+

0.1uF

R615

NC

R697 NC

AMP3V3

R695

NC

R694 NC

C6120
NC(C1206)

EARPHONE AMP

12

ZD601

VPORT0603100KV05

12

12

ZD603

ZD602

VPORT0603100KV05

VPORT0603100KV05

CN602

1
5
4
3
2
7
6

PHONEJACK

VOUTVIN

GND

1

ADJ(GND )

123

R617 NC

Q601
MMBT3904

AMP3V3

23

C641

0.1uF

AMP3V3

800mA

Q609
NC

A3V3

+

C622

0.1uF

A1V8

C638

+

100uF/16V

R616
470K OHM 1/10W

C658

2.2uF 16V Y5V

C621
220uF 10V

AMP_RESETN 10

T P V ( Top Victory Electronics Co . , Ltd. )

T3115-F-X-X-1-080605

絬 隔 瓜 絪 腹

Key Component

09.AUDI O PROCESSOR

Date

55

OEM MODEL Size

TPV MODEL

PCB NAME

715T3115-F

of

910Saturday , July 26, 2008

Sheet

C

C

Rev

称爹

>

<

称爹

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

GND

Vdd

GND_REG

OUT1A

GND1

Vcc1
OUT1B
OUT2A

VCC2
GND2

OUT2B

Vcc_REG

VSS

GND_SUB

1819
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2

SA

1

OUT3A/DDX3AEAPD/OU T4A
OUT3B/DDX3B

TEST_MODE

R682 0 OHM 1/8W

R683 0 OHM 1/8W

R684 0 OHM 1/8W

R685 0 OHM 1/8W

R686 0 OHM 1/8W

R687 0 OHM 1/8W

R688 0 OHM 1/8W

R692 0 OHM 1/8W

R693 0 OHM 1/8W

R698 0 OHM 1/8W

AMP24V

C695 0.1uF

LOUT­ROUT+

C6102 0.1uF

LOUT+

ROUT-

L604 22uH +-25%

R643

22 OHM 1/4W

C691

C692

330pF

L605

L606 22uH +-25%

R661

22 OHM 1/4W

C6110

330pF

L607

0.1uF

22uH +-25%

C6101

0.1uF

C6109

0.1uF

22uH +-25%

C6113

0.1uF

C687

0.1uF

R644

6R2 1/4W 5%

C694

0.1uF

R649

6R2 1/4W 5%

C6105

0.1uF

R662

6R2 1/4W 5%

C6112

0.1uF

R665

6R2 1/4W 5%

C689

0.47uF

C6107

0.47uF

AMP24V

AMP24V

R641

NC

R642

NC

R646

NC

R647

NC

R658

NC

R660

NC

R663

NC

R664

NC

AMP24V

AMP24V

C688

0.001uF

C693

0.001uF

C6106

0.001uF

C6111

0.001uF

C690

0.001uF

C6108

0.001uF

4
3
2
1

CN601

CONN

L

L+
L­R+
R-

R

AMP3V3

C696

0.1uF/ 16V

I2SO_D09
AMP_MUTE7, 9

LI NEO UT_MU TE2,7,9

FB612

1 2

AMP24V

C6123

NC

FB610

1 2

600 OHM

FB611

1 2

600 OHM

I2SO_D0 R653 0 OHM 1/10W

AMP_MUTE

C683

+

0.1uF

PLL_Vdd

C697

0.1uF/ 16V

U608

1

A

VCC

2

B

3 4

GND Y

SN74LVC1G08D CKR

R9002 4.7K OHM 1/10W

47K OHM 1/10W

C685

C684

1uF

0.1uF

R648 2.2K OHM 1/10W

C698

C699

NC

4700PF50V

AMP3V3

5

SPDIF-OU T9

R9003

C6119

0.1uF/ 16V

AMP_RESETN9

C686

I2SO_PCLK9
I2SO_SCLK9
I2SO_WS9

AMP_FAULT7

1uF

SDA_T7, 9
SCL_T7,9

AMP3V3

MMBT3904

Q9001

NC

FB609

1 2

300 OHM

C682

+

1000UF/ 35V

C6100

680pF/25V

I2SO_PCLK

I2SO_SCLK
I2SO_WS

AMP_RESETN

AMP_FAULT
SDA_T
SCL_T

C6103

0.1uF/ 16V

L9006 60 OHM

R9001 10K OHM 1/10W

U9001

1

A

2

B

3 4

GND Y

SN74LVC1G08D CKR

SPDIF -OUT-12

MAIN12V

MAIN24V

AMP3V3

R601

3.3 OHM +-5% 1/10W

PLL_FILTER

PLL_GND

R650 0 OHM 1/10W
R651 0 OHM 1/10W
R652 0 OHM 1/10W

R654 100 OHM 1/10W
R655 NC

5/29

R656 100 OHM 1/10W
R657 100 OHM 1/10W

R659 3.3 OHM +-5% 1/10W

C6104

0.1uF/ 16V

5

VCC

R9004

470 OHM 1/10W

C9002 0.01uF

USE FB612 12V VCC and U606 STA559BW
USE FB609 24V VCC and U606 STA335BW

AMP3V3

R645
10K OHM 1/10W

U606

20

TWA RN /OU T4B

21

Vdd_DIG

22

GND_DIG

23

PWRDN

24

PLL_Vdd

25

PLL_FILTER

26

PLL_GND

27

XTI

28

BICKI

29

LRCKI

30

SDI

31

RESET

32

INT_LIN E

33

SDA

34

SCL

35

GND_DIG

36

Vdd_DIG

STA335BW

C9001

0.1uF/ 16V

6/20

PLL_Vdd

C6121

1uF/25V

Q9002
2SC2412KR

R9005
150 OHM 1/10W

R9006
75 OHM 1/10W

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

T3115-F-X-X-1-080605

Date

OEM MO DEL Size

TPV MODEL

PCB NAME

Sheet

715T3115-F10.AUDIO AMP

of

10 10Saturday, July 26, 2008

Rev

称爹

B

C

56

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

9.2 Power Board

D32W831 715T2804 2

L903

1 2

BEAD

1

BD901
BU1006A-E3/45

+

2

3

-

4

RV901
(nc)Varistor

L902

3

124

13mH

S73T174106V

R902
330K OHM 1/4W

C902

0.001uF/250V

FUSE

C904

0.047UF

L901

124

13mH

S73T174106V

C901

0.047UF

CN901
SOCKET

1 2

C903

0.001uF/250V

3

3

R903
330K OHM 1/4W

R901
330K OHM 1/4W

t

NR901
NTCR

1 2

F901

C905
1uF/520V

AC

510KOHM +-5% 1/8W

R959

L906
300uH

73T 174122 L

1

8

652

7

R906
200K OHM 1/4W

R907
56K OHM 1/8W

71G 55 9 T

1 2

R905
15KOHM1/4W

C910
56pF

C906

0.001uF/250V

FB902
BEAD

0.001uF/250V

C932

0.1uF

VCC

R908
15K OHM 1/8W

C914

0.1uF

65T0805104 32

071220

C950

B+

C933
220pF

678

OUT

VCC

GND

INV

COMP

MOT

123

4 5

C913

0.01uF

65T0805103 32

071220

RFmin

R958
18K OHM 1% 1/8W

CS ZCD

IC901
FAN7529MX

C911

0.1uF

+

R909
47K OHM 1% 1/8W

R957
10K OHM 1/4W

C934

0.22uF/25V

10uF/50V

HS1:P/N
Q90T0086 1
BD901/Q901/D902

R918
10 OHM 1/8W

R919
22 OHM 1/8W

C909

470 OHM
R917

C912

1000pF

R912
1M OHM 1% 1/4W

R913
33K OHM 1% 1/8W

STBY

D903
LS4148

1 2

R953
2M OHM 1/4W

R954
2M OHM 1/4W

R955
2M OHM 1/4W

1
2
3
4
5
6
7
8 9

R956
27K OHM 1/8W

1

R916
10K OHM 1/8W

R911
1M OHM 1% 1/4W

FB905

BEAD

71G 55 9 T

Css

DELAY

CF

RFmin

STBY

ISEN

LINE

DIS PFC_STOP

IC951
L6599D

56T 665 10 1

D902

DIODE FMN-1106S 10A /600V TO-220

93T 52 56

2

AC

Q901
STW20NM60

3

R915

0.1 OHM 3W

61T153M10852T

R910
1M OHM 1% 1/4W

R932
1M OHM 1% 1/4W

AC

C951
10nF

C936

0.1uF

R914

16

VBOOT

0 OHM 1/4W

15

HVG

14

OUT

13

N.C.

12

Vcc

11

LVG

10

GND

C935

0.1uF

B+

FB906
BEAD

+

C907

71T 55 26 S

100uF/450V

1 2

C953
10nF

65G 1K471 2T

R920
150KOHM +-1% 1/4W

VCC

C937

0.1uF

FB904

1 2

BEAD

71G 55 9 T

FB

C920

0.1uF

B+

R933
1M OHM 1% 1/4W

D951
LS4148

22 OHM 1/8W

R960

+

C939
10uF/50V

R921
150KOHM +-1% 1/4W

BNO

R930
51K OHM 1/8W

VCC

D952
LS4148

22 OHM 1/8W

R962

1K OHM 1/4W

R964

C940

0.001uF

C952
10nF

R924
1K OHM 1/8W

R934

1M OHM 1% 1/4W

R961
51KOHM +-5% 1/8W

51KOHM +-5% 1/8W

C915

0.01uF

R922
150KOHM +-1% 1/4W

1

BNO

2

COMP

3

(-)LATCH

4 5

CS GND

IC931
LD7522PS

C919

1000pF

+

C921
10uF/50V

D934
LS4148

R935
240K OHM 1% 1/8W

2

1

3

2

1

3

R963

STBY

100 OHM 1/4W

8

OVP

7

VCC

6

OUT

2

1

3

B

HS4:P/N
Q90T0098 1
Q951

Q951
STP20NM50/FP

HS5:P/N
Q90T0098 1
Q952

Q952
STP20NM50/FP

R965

0.33 OHM +-5% 2WS

61T152M33852T

R967

C942

0.0047uF

R929
470 OHM 1% 1/6W

Q932
KTD1691/P

C922
1uF

RFmin

R966

3.9K OHM 1/4W

R923
10K OHM 1/4W

VCC1

C918

0.1uF

D931
LS4148

R928
22 OHM 1/8W

A

R936
150K OHM 1% 1/8W

T951
POWER X'FMR

80TL40T 8 YS

11416
2

7
8

C941

0.027uF/1000V

63T211J273 5C 10

43

D932
LS4148

+

C917
10uF/50V

R931
1K OHM 1/8W

12

3

2

D933

AU02Z

+

C916
100uF/50V

67T215A1017KT

R927
10K OHM 1/8W

BNO

13

10
9

11
12

15

R968

6.2K OHM 1/4W

IC952
PC123X8YFZOF

C948
NC

R970

C949

1K OHM 1/8W

0.1uF

1

IC953
AZ431AZ-AE1

VCC1

R969

3.3K OHM 1/4W

61G 17233252T

C923
2200pF1KV

D937
SARS01-V1

FB901

1 2

BEAD

71T 55 26 S

Q931
STP10NK70ZFP

HS2:P/N
Q90T0098 1
Q931

R926

1.2 OHM 2W

61T152M12952T

R937

100KOHM +-5% 1WS

R925

4.7 OHM 1/4W

HS6:P/N
Q90T0087A01
D955

+24V

R972

20.5K OHM 1% 1/8W

R973

1.96K OHM 1/8W

T931

1

2

3
4

5

80TL32T 5 N

D955

3

V30100C-E3/4W

2

1

HS7:P/N
Q90T0098 1
Q956

3

D956
SBT15006JST

2

1

24V

+12V

POWER X'FMR

9
10

6
7

FB

12

43

24V

+

+

R971
47KOHM +-1% 1/8W

R938
47 OHM 1/4W

R940
47 OHM 1/4W

5V

R942
470 OHM 1/4W

IC932
PC123X8YFZOF

C930

0.1uF

IC933
AZ431AZ-AE1

L971

3.0uH +-10%

C943
1000UF35V

67T215A1026KV

C946
470uF/25V

R939

C924

47 OHM 1/4W

0.001uF

R941
47 OHM 1/4W

3

1

+12V

+24V

R943
1K OHM 1/8W

R944
10K OHM 1/8W

R946

2.1K OHM 1% 1/8W

+

C944

C945

470UF35V

1uF

67T215A4716KT

L931

3.5uH

+

R976

C947
220uF/25V

1.5K OHM 1/4W

67T215A2214KT

絬 隔 瓜 絪 腹

Key Component

5V

C925

0.001uF

D935
SBT15006JST

2

HS3:P/N
Q90T0098 1
D935

ZD931
MTZJ T-72 15B

12

ZD932
MTZJ T-72 27B

12

Q933
2N3904S-RTK/PS

R945

2.4K OHM 1% 1/8W

R974

5.1KOHM +-5% 1/4W

+12V

T P V ( Top Victory Electronics C o . , Ltd. )

02.POWER

Date

L932

3.5uH

+

C926
1000uF/25V

67T215A1024KT

D938
LS4148

D939
LS4148

R947
56 OHM 1/4W

R948
62K OHM 1/8W 1%

C929

0.1uF

A

+5V

43

B

ZD933
RLZ15B

1 2

R975

5.1KOHM +-5% 1/4W

+24V

T2804-1-X-X-4-080318 ADTV82418PA2

+5V

+

C928
470uF 16V

5V

R949
1K OHM 1/4W

12

IC934

Sheet

R950

10KOHM +-5% 1/8W
C931
1uF

715T2804 1

of

12Tuesday, March 18, 2008

+12V

PS ON

PS ON

R951
3K OHM

R952
3K OHM 1/8W

INV

DIM

PC123X8YFZOF

Q934
2N3904S-RTK/PS

+24V

+5V

OEM MODEL Size

TPV MODEL

PCB NAME

CN902

1
2
3
4
5
6
7
8

9
10
11
12

CONN

ENA

CN903

1

2

3

4

5

6

7

8

9
10
11
12
13

CONN

Custom

Rev

1.0

称爹

>

<

称爹

57

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

D42H831&D47H831 715T2802 1

R901

1 2

C957

220pF/250V

CN901
SOCKET

87T 501 44 DL

3

C958

220pF/250V

F901

5A/250V

RV901

NR901

1 2

NTCR

t

1

2

C901
1uF/520V

L

L901

510K OHM 1/4W

4

3 R902

C954
NC

510K OHM 1/4W

R903
510K OHM 1/4W

C902

220pF/ 250V

65T305K2212E3

C903

220pF/ 250V

L
L
L902

1

4

2

C904

3

0.047UF

L903

1

2

4

3

4

2

-

3

+

BD901

1

D10XB60

BO

R+

HS1: P/NQ90T0124 1
BD901

称爹

<

A

1.0

>

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

02.ACside

58

OE M MOD EL Size

TPV MODEL

PCB NAME

Sheet

ADPC24250BB1

715T2802 F

of

12Monday, March 03, 2008

Rev

称爹

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

HS5: P/N Q90T0098 1

B+

C940
220pF

R960

24KOHM +-1% 1/8W

R961

10KOHM +-1% 1/8W

C941

0.22uF/ 50V

1 2

R955

0.1 ohm

R957

2M OHM 1/4W

R958
2M OHM 1/4W

IC903

1

Css

2

DELAY

3

CF

4

RFmin

5

STBY

6

ISEN

7

LINE

8 9

DIS PFC_STOP

L6599D

56T 665 10 1

R959
27KOHM +-5% 1/8W

R962

510KOHM +-5% 1/8W

FB905
BEAD

VBOOT

0.001uF
C942

C943
1uF/25V

HVG

N.C.

GND

OUT

Vcc

LVG

R956
2M OHM 1/4W

16
15
14
13
12
11
10

0.1uF
C944

C945

0.1uF/ 50V

VCC1

+

C946
47uF/25V

67G215A4704KT

D914

R965

LL4148
22 OHM 1/8W

D915

LL4148

R967
22 OHM 1/8W

1K OHM 1/8W
R970

C947

0.001uF

Q902,Q903

1

R966
51KOHM +-5% 1/8W

1

R968
51KOHM +-5% 1/8W

2

Q902
2SK4085LS

3

2

Q903
2SK4085LS

3

R969

0.15 OH M 3W

61G 3J158 59

POWER X'FMR

6
7

3
4

C948

0.027uF/ 1000V

T902

8
9
12

13
14

10
11

D906

SBT15006JST

3

FMEN-230A

1

3

FMEN-230A

1

3

2

1

2

2

D916

D917

+

C918
470uF/25V

3

2

D916A
NC

1

3

+

2

D917A
NC

1

3.5uH
L905

C935
1000uF/35V

+

C919
220uF/25V

C920

0.1uF

+

3.0uH
L907

C936
1000uF/35V

470uF/35V

F902
(nc)F USE

P

C937

R926

R925

NC

NC

+

5.1KOHM +-5% 1/4W

12V

PS_ON

R984

R983

NC

NC

R971

R979

3.3KOHM +-5% 1/8W

R904

3.3KOHM +-5% 1/8W

12V

5V

C939
1uF

R985

NC

CN904

1
2
3
4
5
6
7
8

9
10
11
12
13

CN902

CONN

33T380213B Y

1

2

3

4

5

6

7

8

9
10
11
12
13

CONN

33T380213B Y

CN903

1

2

3

4

5

6

7

8

9
10
11
12

CONN

33T327812D

0.1uF/ 25V
C949

R973
10KOHM +-1% 1/8W

5.1K OHM 1% 1/8W
R974

R975

20.5K OHM 1% 1/8W

R976
2KOHM +-1% 1/8W

59

R948
56KOHM +-1% 1/8W

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

03.MAINPOWER

OEM MODEL Size

TPV MOD EL

PCB NAME

Sheet

ADPC24250BB1

715T2802 F

of

12Monday, March 03, 2008

Rev

称爹

B

1.0

<

称爹

>

R972

EL817MC
IC907

43

56G 139 7 1

7.5KOHM +-1% 1/8W

12

IC908

KIA431A-AT/P

C951

0.001uF/ 250V

3.9KOHM +-1% 1/8W

R964

100 OHM 1/8W

C950

0.01uF

R963

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

+

C908
120uF450V

B+

R+

D918

SARS01-V1

VCC1

R905

2.2M OHM 1/4W

R906

2.2M OHM 1/4W

C916

NC

R920

2.2M OHM 1/4W

R977
100K OHM 1/8W

Q906
2N3904S-RTK/PS

ZD901
RLZ15B

1 2

C905

1uF/450V

R915
220 OHM 1/4W

+

C911
1uF/25V

R913

0.1 OHM 3W

0.1 OHM 3W
R914

+

C953
NC

EL817MC

43

271

L904

600uH

C955

9

680pF

C909
47uF/25V

67G215A4704KT

ICE2PCS02G

NC
R981

Vcc

R921
1K OHM 1/8W

IC904

12

56G 139 7 1

8

1 2

FB901
BEAD

71T 55 29

FB907
BEAD

1 2

HS5

C938

0.1uF

IC901

123

C910
4700pF/25V

R952
220 OHM 1/8W

Q908
2N3904S-RTK/PS

VCC

GATE

GND

ICOMP

NC
R907

678

VSENSE

ISENSE

VINS VCOM P

4 5

C912

0.001uF

5V

0 OHM +-5% 1/8W

R980

R908
NC

R954
1K OHM 1/8W

22 OHM 1/8W

R917

Q909
NC

Q910
NC

R978

51K OHM 1/8W

C913

0.022uF/ 25V

2.7K OHM 1/8W
R953

C934

0.1uF/ 25V

R909
22 OHM 1/8W

NC
R986

R910
NC

C914

0.1uF

PS_ON

LL4148
D902

NC
D903

R912
NC

D901

FMXA-1106S

R911
10K OHM 1/8W

C933

0.001uF/ 250V

1 2

FB903
BEAD

1 2

FB904

1000pF

BEAD

C906

1 2

FB902
BEAD

71T 55 29

2

Q905
NC

Q904

STW20NM60

3

C952
1000pF

1

2

1

3

+

C907

120uF450V

R916
430K OHM 1% 1/4W

R982
430K OHM 1% 1/4W

R918
430K OHM 1% 1/4W

R919
10K OHM 1% 1/8W

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

60

04.PFC

Date

OEM MO DE L Size

TPV MODEL

PCB NA ME

Sheet

ADPC24250BB1

715T2802 F

of

12Monday, March 03, 2008

Rev

称爹

B

1.0

称爹

>

<

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

B+

BO

150K 1/4W
R933

R929
1M 1/4W

R930
1M 1/4W

R931
1M 1/4W

D909
LL4148

R932

240KOHM +-5% 1/8W

C925
1uF/ 25V

R940
150KOHM +-5% 1/8W

4.7 OHM 1W
R922

100KOHM +-5% 2WS

LL4148
D908

R936

22 OHM 1/8W

R937

10K OHM 1/8W

ZD902
(NC)RLZ18B

1 2

1

BNO

2

COMP

3

(-)LATCH

4 5

CS GND

IC902

LD7522PS

R923

SARS01-V1

OVP
VCC
OUT

0.1uF/ 25V

D905

R934
150K 1/4W

470 OHM 1/8W

R939

C929

0.001uF

8
7
6

C926

C915

1500pF2KV

Q901
2SK4100LS

R938

1.2OHM2W

R935
150K 1/4W

D911

LL4148

R942
10KOHM +-5% 1/8W

+

C927
10uF/50V

R943

1K OHM 1/8W

POWER X'FMR

1

2

3
4

5

R924

4.7 OHM 1/4W

D910

AU02Z

Vcc

C928

+

100uF/50V

T901

C922
1uF

9
10

6
7

100 OHM 1/8W

43

C930

0.047uF

HS4: P/N Q90T6084 1
D907

D907

3

SBT15006JST

2

C917

0.001uF

1

47 OHM 1/4W

R927

R928

47 OHM 1/4W

R944

EL817MC
IC905

12

56G 139 7 1

R946
2K OHM 1/8W

IC906
KIA431A-AT/P

R945
1K OHM 1/8W

C931

0.1uF /25V

3.5uH
L906

+

C921

1000uF/25V

+

C923

470uF/16V

R947

2.4KOH M +-5% 1/8W

R949

2.4KOH M +-5% 1/8W

C924

0.1uF

ZD904
RLZ5.6B

D912
LL4148

C932

0.1uF /25V

ZD905
RLZ15B

1 2

D913
LL4148

R950

220 OHM 1/8W

Q907
2N3904S-R TK/PS

R951

1K OHM 1/8W

5V

P

1 2

R941
51K OHM 1/8W

HS3: P/N Q90T6084 1
Q901

1 2

FB906
BEAD

C956

680pF

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

05.STANDBY

Date

OEM MO DE L Size

TPV M OD EL

PCB NAME

Sheet

ADPC24 250BB1

715T2802 F

12Monday, March 03, 2008

of

Rev

称爹

B

1.0

<

称爹

>

61

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

9.3 Tuner Board

715T3176-D

3.3V

C17

C18

0.01UF 25V

0.01UF25V

R1
0 OHM 1/16W

FB4 120 OHM

2.5V

R4 0 OHM 1/16W

FB6 120 OHM

1.0V

FB7 120 OHM

1.0V

FB8 120 OHM

1.0V

R5 0 OH M 1/16W

FB9 120 OHM

2.5V

C19

0.01UF 25V

0.01UF 25V

1.0V

300 OHMFB2 1 2

+

C15

100uF/16V

C21

C20

FB5 120 OHM

0.01UF 25V

0.01UF 25V

0.01UF 25V

0.01UF 25V

0.01UF 25V

R2

0 OHM 1/16W

C31

0.01UF 25V

C33

C35

C37

C39

C22

0.1UF 16V

0.1UF 16V

C29

0.01UF 25V

C32

0.1UF 16V

C34

0.1UF 16V

C36

0.1UF 16V

C38

0.1UF 16V

C40

0.1UF 16V

C23

C16

10uF/16V

C24

0.1UF 16V

0.1UF 16V

C30

0.1UF 16V

C25

3V3

0.1UF 16V

C26

U31
AG32
AG33
AG34
AH32

AJ32
AK32

G30

H30

H31

G31

M30

G32

N30

C29

V30

K30

J30

J31

K31

L30

E29

E31

F3
E4

D3
E3

B1
C2
C3

D1
D2

AP7

AN8

AM15

AM14

AM13

AM12

AM11

VDDE33

VDDE33

VDDE33

VDDE33

VDDE33

VDDE33

GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE

CKGA_PLL1DVD D10
CKGA_PLL2DVD D10

CKGA_PLL1DGN D10
CKGA_PLL2DGN D10

CKGA_PLL1AVDD 25
CKGA_PLL2AVDD 25
CKGA_PLLVDD E25

CKGA_PLL1AGND 25
CKGA_PLL2AGND 25

FS0_VDDD

DVDD PLL80V0

CKGB_4F S0VDDD
CKGB_4F S1VDDD

CKGB_4FS0GNDD
CKGB_4FS1GNDD
DGNDPLL80V0
FS0_GNDD

CKGB_4F S0VCCA
CKGB_4F S1VCCA
4FS_VDD E25A
AVDDPLL80V0
PLL80_VDDE25A

FS0_VCCA
FS0_VDDE25A

1 2

C10

0.1UF16V

AK3

AK7

VDDE25

VDDE25

0.1UF16V

AL7

AM7

VDDE25

VDDE25

GNDE
GNDE
GNDE
GNDE

GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE
GNDE

GNDA
GNDA

C11

AN7

VDDE25

C12

0.1UF 16V

0.01UF 25V

AK4
AK5
AL4
AL5

A24
B24
C14
C15
C16
C17
C18
C19
C20
C21
C22
C23
C24
D23
E23
J3
K3
L3
M3
N3
P3
R3
R4
R5
T3
AD3
AE3
AF3
AG3
AH3
AJ3
AM4
AM6
AN4
AN6
AP4
AP6

D27
M32

1 2

C27

C3

C4

C2

C14

+

100uF/16V

F4F5G4

AM10

AM9

AK24

AK23

AF34

AF33

AF32

AF31

G34

G33

VDDE33

VDDE33

VDDE33

VDDE33

VDDE33

VDDE33

VDDE33

VDDE33

VDDE33

VDDE33

AL24

C26

B26

A26

VDDE33

VDDE33

VDDE33

VDDE33

USB_VDDB33

N16

VDD

VDD

VDD

C1

0.01UF 25V

0.01UF 25V

10uF/16V

N17

N18

N19

P17

P18

R13

R17

R18

R22

T13

T14

T21

T22

U13

U14

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

0.01UF25V

U21

U22

V13

V14

V21

V22

VDD

VDD

VDD

VDD

VDD

VDD

C5

0.01UF 25V

0.01UF 25V

W13

W14

W21

W22

Y13

Y17

Y18

Y22

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

C7

C6

0.01UF 25V

0.1UF 16V

AA17

AA18

AB16

AB17

AB18

AB19

AF30

AK16

AL16

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

C9

C8

0.1UF16V

AM16

AM17

AM18

AM19

AN16

AP16

VDD

VDD

VDD

VDD

VDD

VDD

VDD

U1A

STi7101

C13

0.1UF 16V

2V5

120R/6000 mAFB1

120R/6000 mAFB32

1 2

C28

0.1UF 16V

R3

0 OHM 1/16W

300 OHMFB3

1.0V

2.5V

FB10 120 OH M

2.5V

C41

0.01UF 25V

R6
0 OHM 1/16W

C42

0.1UF 16V

CKGB_4FS0GNDA

CKGB_4FS1GNDA

4FS_GNDEA

M31

L32

F31

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

FS0_GND A

FS0_GND EA

AGNDPLL80V0

PLL80_GNDEA

H3

N13

N14

N15

N20

N21

N22

P13

P14

P15

P16

P19

P20

P21

P22

R14

R15

R16

R19

R20

R21

T15

T16

T17

T18

T19

T20

U15

U16

U17

U18

U19

U20

V15

V16

V17

V18

V19

V20

W15

W16

W17

W18

W19

W20

Y14

Y15

Y16

Y19

Y20

Y21

AA13

AA14

AA15

AA16

AA19

AA20

AA21

AA22

AB13

AB14

AB15

AB20

AB21

AB22

Sheet

AK29

715T3176-B

18Saturday , July 26, 2008

C31

F32

D32

K32

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

T3176-B-X-X-1-080423

01 SYSTEM POWER

Date

OEM MODEL Size

TPV MODEL

PCB NAME

GND

AK30

AK31

AL31

AM22

AN26

AN32

AP26

of

62

5/29

GND

GND

AP32

B

Rev

称爹

C

称爹

>

<

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

E27

AP27

AN27

A29

C30

L31
AL6

AM5

AM31

AN9
AP9

D19

E16

D18
D17

E21
D21
D22

E22
D20

E20

AK25
AK26
AK27
AK28

E19

E17

D16

E18

AN5
AP5

C43

NC

C1

G5

2V5

5

SYSBC LKINALT

SYSAC LKIN

SYSBC LKIN

SYSBC LKOSC

NC
NC
NC
NC
NC
NC
NC
NC
NC

notRST

NMI

DCUTRIGOUT
DCUTRIGIN
TMS
TCK
TDI
TDO
notTRST
notASEBR K

SYSI TRQ0
SYSI TRQ1
SYSI TRQ2
SYSI TRQ3

WDGR STOUT

SYSC LKOUT

RTCCLKIN

TMUCLK

DAA_C1A
DAA_C2A

U2

VCC

NC

3V3

C44

1

NC

2

1A

34

GND1Y

0.1UF 16V

R7

68R 1/16W 5%

U1B

STi7101

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

T3176-B-X-X-1-080423

Date

X1

4

VDD

1 2

Count GN D

27MHZ

Digibest-->A

OUT

3

PIO0B0
PIO0B1
PIO0B2
PIO0B3
PIO0B4
PIO0B5
PIO0B6
PIO0B7

PIO1B0
PIO1B1
PIO1B2
PIO1B3
PIO1B4
PIO1B5
PIO1B6
PIO1B7

PIO2B0
PIO2B1
PIO2B2
PIO2B3
PIO2B4
PIO2B5
PIO2B6
PIO2B7

PIO3B0
PIO3B1
PIO3B2
PIO3B3
PIO3B4
PIO3B5
PIO3B6
PIO3B7

PIO4B0
PIO4B1
PIO4B2
PIO4B3
PIO4B4
PIO4B5
PIO4B6
PIO4B7

PIO5B0
PIO5B1
PIO5B2
PIO5B3
PIO5B4
PIO5B5
PIO5B6
PIO5B7

R225 2.7K OH M 1/10W

EXT_SDA

EXT_SCL

I2C

R239

nc

AM32
AP33
AN33
AP34
AN34
AM33
AM34
AL32

AL34
AL33
AK34
AK33
AJ34
AJ33

R15

AH34
AH33

2.7KOHM +-5% 1/16W

AJ30
AJ31
AH30
AH31
AG30
AG31

R22 47R 1/ 16W 5%

AE31
AE30

AE32

SCL
SDA

AE34
AE33
AD34
AD33
AC34
AC33
AB34

AD32
AD30
AD31
AC30
AC31
AB30
AB31
AA30

AB33
AA34
AA33
Y34
Y33
AA31
Y30
Y31

OEM MO DEL Siz e

TPV MODEL

PCB NA ME

R214 47R 1/ 16W 5%
R215 47R 1/16W 5 %
R31 NC
R33 NC

R39 NC

TS0_ERROR 7

I2C

715T3176-B02 SYSTEM

28Saturday , July 26, 2008

Sheet

C232

nc

3V3

3V3

R16

2.7KOHM +-5% 1/16W

TP2

R216 47R 1/16W 5%

R23 2.7KOHM +-5% 1/16W
R24 2.7KOHM +-5% 1/16W

C49 0.1UF16V

R25 0 OHM 1/16W
R26 0 OHM 1/16W

R38
NC

3

of

R226 2.7K OH M 1/10W

3V3

U19 74HC4052D

12

X0

14
15
11

1
5
2
4

10

9

6

7

16

C233 0. 1UF16V
R241 NC
R240 NC

DTV-I2C

R237 4.7K OHM 1/16W

NIM_SCL 7

NIM_SCL 7
NIM_SDA 7

NIM_SDA 7

R43

NC

2

D2
NC

1

X
X1
X2

Y

X3

Y0
Y1
Y2
Y3

A
B

EN

VEE
VDD

GND

8

SCL_ATV
SDA_ATV

R238 NC

FE_RST# 7

TP15

3V3

U5

M24C64-WMN6P

8

VCC

7

WC

6

SCL

VSSSDA

RXD
TXD

R236 0 OHM 1/16W

Rev

称爹

13

3

E0
E1
E2

EXT_SCL

EXT_SDA

1
2
3
45

Ver:C-->D

CN9

1
2
3
4

CONN

B

C

C48

0.1UF 16V

3.3V

FB31

120 OHM

U4

3

GND

VDD

RESET(RESET)

EM6353BX2 SP3B-2.9+

CN2

NC

4.7K OHM 1/16W

R29 10K OHM 1/16W
R30 10K OHM 1/16W
R32 10K OHM 1/16W
R34 10K OHM 1/16W
R36 10K OHM 1/16W

19
17
15
13
11

9
7
5
3
1

R44

3V3

JTAG Connector
Pitch 2.54mm

Digibest-->A

1

2

1
2

R19

Q1

MMBT39 04

CN3

20
18
16
14
12
10
8
6
4
2

NC

10K OHM 1/16W

C46

NC

4

VDD

1 2

Count GN D

3.3V

R8

NC

R11

NC

C218

0.1UF 16V

3V3

R20

4.7K OHM 1/16W

Q2

MMBT39 04

3V3

68R 1/16W 5%

R37
10K OHM 1/16W

R40 75R OHM 1/16W 0.5%
R41 75R OHM 1/16W 0.5%

U6

1

NC

VCC

2

1A

3 4

GND 1Y

NC

2.5V

X2 N C

OUT

R14

100K OHM 1/16W

R21
10K OHM 1/16W

R35

3V3

5

R209

C47

NC

3

N_TRST

TDO
TDI
TCK

TMS

N_ASEBRK

TRIGIN
TRIGOUT

C50 NC

6/3

0 OHM 1/16W

0 OHM 1/16W

R9

NC

C45

0.1UF 16V

R208

R13 0 OHM 1/16W

RST#

RST#3

2V5

U3

5

NC

VCC

1A

GND1Y

NC

R10 0 OHM 1/16W

R12

4.7K OHM 1/16 W

R17 NC

R18 10K OH M 1/16W

R224 10K OHM 1/16W
R223 10K OHM 1/16W
R27 10K OH M 1/16W
R28 10K OH M 1/16W

TP3

TP4

TP5

TP6

1

2

34

63

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

LMI_BA04
LMI_BA14

LMI_WE#4

LMI_CS0#4
LMI_RAS#4
LMI_CAS#4
LMI_CLKE4

LMI_CLK4

LMI_CLKN4

1V25_DDR

LMI_A[0..12]4

LMI_D[0. .31]4

LMI_DQM[0.. 3]4

LMI_BA0

LMI_BA1

LMI_WE#
LMI_CS0#
LMI_RAS#
LMI_CAS#
LMI_CLKE

LMI_CLKE

LMI_CLKE

LMI_CLKE

LMI_CLKE

LMI_CLKE
LMI_CLK
LMI_CLKN

2V5_DDR

C56

0.1UF 16V

C57

0.1UF 16V

LMI_A[0..12]

LMI_D[0..31]

LMI_DQS[0. .3]4

LMI_DQS[0..3]

LMI_DQM[0..3]

R47 22 OHM 1/16W
R48 22 OHM 1/16W
RP1 22OHM1/16W

4 5
3 6
2 7
1 8

R53 22 OHM 1/16W

R56
10K OHM 1/16W

K4

LMIBA0

L5

LMIBA1

R75 22 OHM 1/16W

TP7

R67
100 OHM 1/16W

R71 22 OHM 1/16W
R73 0 OHM 1/16W
R79 120K OHM 1/16W 0. 5%

RP3

4 5

LMI_A0

3 6

LMI_A1

2 7

LMI_A2

1 8

LMI_A3
LMI_A4

RP8 22OHM1/16W1 8

LMI_A5

2 7
3 6

LMI_A6
LMI_A7
LMI_A8
LMI_A9
LMI_A10
LMI_A11

R87 22 OHM 1/16W

LMI_A12 EMI_A3

RP11 22OHM1/16W1 8

LMI_D0
LMI_D1
LMI_D2
LMI_D3

RP13 22OHM1/16W1 8

LMI_D4
LMI_D5
LMI_D6
LMI_D7
LMI_D8

RP15 22OHM1/16W1 8

LMI_D9
LMI_D10
LMI_D11

RP17 22OHM1/16W1 8

LMI_D12
LMI_D13
LMI_D14
LMI_D15

RP18 22OHM1/16W1 8

LMI_D16
LMI_D17
LMI_D18
LMI_D19

RP19 22OHM1/16W1 8

LMI_D20
LMI_D21
LMI_D22
LMI_D23

RP20 22OHM1/16W1 8

LMI_D24
LMI_D25
LMI_D26
LMI_D27

RP21 22OHM1/16W

LMI_D28
LMI_D29
LMI_D30
LMI_D31

R99 22 OHM 1/16W

LMI_DQS0

R100 22 OHM 1/16W

LMI_DQS1

R101 22 OHM 1/16W

LMI_DQS2
LMI_DQS3

R102 22 OHM 1/16W

LMI_DQM0

R103 22 OHM 1/16W
R104 22 OHM 1/16W

LMI_DQM1
LMI_DQM2

R105 22 OHM 1/16W
R106 22 OHM 1/16W

LMI_DQM3

RP9

4 5
1 8
2 7
3 6
4 5

22OHM1/16W

2 7
3 6
4 5

2 7
3 6
4 5

2 7
3 6
4 5

2 7
3 6
4 5

2 7
3 6
4 5

2 7
3 6
4 5

2 7
3 6
4 5
4 5
3 6
2 7
1 8

22OHM1/16W

J5
L4

M5

K5

J4
Y5
U1
U2
H5
R1
R2

M4
N5
N4

P5
U4

V5

V4

W5
W4

U5

P4

T5

T4

V1

V2

W1
W2

Y1
Y2

AA1
AA2

E2

E1

F2

F1
G2
G1
H2
H1

AD1
AD2
AE1
AE2
AF1
AF2
AG1
AG2

L2

L1
M2
M1
N2
N1

P2

P1

AB1

J2

AC2

K1

AB2

J1

AC1

K2

notLMIWE
notLMICS0
notLMICS1
notLMIRAS
notLMICAS
LMICLKEN
LMICLK
notLMICLK
LMIVREF
LMIREF
LMIGNDBC OMP

LMIA0
LMIA1
LMIA2
LMIA3
LMIA4
LMIA5
LMIA6
LMIA7
LMIA8
LMIA9
LMIA10
LMIA11
LMIA12

LMID0
LMID1
LMID2
LMID3
LMID4
LMID5
LMID6
LMID7
LMID8
LMID9
LMID10
LMID11
LMID12
LMID13
LMID14
LMID15
LMID16
LMID17
LMID18
LMID19
LMID20
LMID21
LMID22
LMID23
LMID24
LMID25
LMID26
LMID27
LMID28
LMID29
LMID30
LMID31

LMIDQS0
LMIDQS1
LMIDQS2
LMIDQS3

LMIDQM0
LMIDQM1
LMIDQM2
LMIDQM3

C51

C52

0.1UF 16V

0.1UF 16V

AA3

AA5

AB3

AC3

LMISYSVDDE25

LMISYSVDDE25

LMISYSVDDE25

T1T2U3V3W3Y3Y4

LMISYSVDDE25

LMISYSVDDE25

LMISYSVDDE25

LMISYSVDDE25

LMISYSVDDE25

LMISYSVDDE25

LMISYSVDDE25

U1C

STi7101

LMISYSVDDE25

2V5_DDR

C53

0.01UF 25V

notEMIBE0
notEMIBE1

notEMIOE
notEMIC S0
notEMIC S1
notEMIC S2
notEMIC S3
notEMIC S4

EMIRDnot WR

EMIFLASH CLK

notEMILBA
notEMIBAA

EMIWAIT

EMIREQ

EMIGNT
EMI_DMAREQ0
EMI_DMAREQ1

LMISYSDLL_VDD

LMISYSD LL_VSS

C54

0.01UF 25V

EMIA1
EMIA2
EMIA3
EMIA4
EMIA5
EMIA6
EMIA7
EMIA8

EMIA9
EMIA10
EMIA11
EMIA12
EMIA13
EMIA14
EMIA15
EMIA16
EMIA17
EMIA18
EMIA19
EMIA20
EMIA21
EMIA22
EMIA23

EMID0
EMID1
EMID2
EMID3
EMID4
EMID5
EMID6
EMID7
EMID8

EMID9
EMID10
EMID11
EMID12
EMID13
EMID14
EMID15

AL9
AK10
AL10
AK11
AL11
AK12
AL12
AK13
AL13
AK14
AL14
AK15
AL15
AK17
AL17
AK18
AL18
AK19
AL19
AK20
AL20
AK21
AL21

AP20
AP19
AP18
AP17
AP15
AP14
AP13
AP12
AN20
AN19
AN18
AN17
AN15
AN14
AN13
AN12

AP11
AN11
AP10
AK9
AL8
AM8
AP8
AK8
AN10
AN21
AP22
AP21

AK22
AM20
AM21
AN22
AL22

H4

G3

120R/6000m AFB11

1 2

C55

10uF/16V

RP4

18
27
36

RP5

45
18
27
36

47 OHM 1/16W
RP2

45
18
27
36

47 OHM 1/16W
RP6

45
18
27
36

47 OHM 1/16W
RP7

45
18
27
36

47 OHM 1/16W

R84 47R 1/16W 5%
R85 47R 1/16W 5%

RP10 47 OHM 1/16W1 8

RP16 47 OHM 1/16W1 8

45

R86

47 OHM 1/16W

NC

2 7
3 6

RP12

4 5

18
27
36

RP14

45
18
27
36

47 OHM 1/16W

45

2 7
3 6

47 OHM 1/16W

4 5

R88 47R 1/ 16W 5%
R89 47R 1/ 16W 5%
R90 10K OHM 1/16W

TP8

R92 47R 1/16W 5%

RST#2

12V

R94 10K OHM 1/16W
R95 10K OHM 1/16W

TP9
R96 10K OHM 1/16W
R97 10K OHM 1/16W

C61

0.01UF 25V

C62

0.1UF 16V

1.0V

EMI_A1
EMI_A2

EMI_A2

2.5V

EMI_A1
EMI_A2
EMI_A3
EMI_A4
EMI_A5
EMI_A6
EMI_A7
EMI_A8

EMI_A9
EMI_A10
EMI_A11
EMI_A12
EMI_A13
EMI_A14
EMI_A15
EMI_A16
EMI_A17
EMI_A18
EMI_A19
EMI_A20
EMI_A21
EMI_A22

R207 0 OHM 1/16W

R98 NC

EMI_A2

EMI_A2
EMI_A3
EMI_A4

EMI_A4

EMI_A4

EMI_A4

EMI_A4

EMI_A4
EMI_A5
EMI_A6
EMI_A7
EMI_A8

EMI_A8

EMI_A8
EMI_A9

EMI_A9

EMI_A9
EMI_A10

EMI_A10

EMI_A10
EMI_A12

EMI_A12

EMI_A12
EMI_A13
EMI_A14

EMI_A15

EMI_A15

EMI_A15

EMI_D0
EMI_D1
EMI_D2
EMI_D3
EMI_D4
EMI_D5
EMI_D6 EMI_A7
EMI_D7
EMI_D8
EMI_D9
EMI_D10
EMI_D11
EMI_D12
EMI_D13
EMI_D14
EMI_D15

F_OE#
EMI_CS0#
F_WE#

3V3

R91

4.7K OHM 1/16W

3V3

U7

29

DQ0

31

DQ1

33

DQ2

35

DQ3

38

DQ4

40

DQ5

42

DQ6

44

DQ7

30

DQ8

32

DQ9

34

DQ10

36

DQ11

39

DQ12

41

DQ13

43

DQ14

45

DQ15/A-1

28

OE

26

CE

11

WE

15

RY/BY

14

VPP/WP

47

BYTE

12

RP

29GL064N90TFI040

C60

NC

EMI_A[1..22]

A0
A1
A2
A3
A4
A5
A6
A7
A8

A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21

VCC

VSS
VSS

R93 NC

Q6
NC

R49 4.7K OHM 1/16W
R50 4.7K OHM 1/16W
R51 NC
R52 NC
R54 NC
R55 NC
R57 NC
R58 NC
R59 NC
R60 4.7K OHM 1/16W
R61 NC
R62 NC
R63 4.7K OHM 1/16W
R64 NC

R65 NC
R66 NC
R68 4.7K OHM 1/16W
R76 4.7K OHM 1/16W
R69 4.7K OHM 1/16W
R77 4.7K OHM 1/16W
R70 4.7K OHM 1/16W
R72 4.7K OHM 1/16W
R78 4.7K OHM 1/16W
R74 NC
R80 4.7K OHM 1/16W
R81 4.7K OHM 1/16W
R82 NC
R83 4.7K OHM 1/16W

25
24
23
22
21
20
19
18
8
7
6
5
4
3
2
1
48
17
16
9
10
13

37

27
46

EMI_A1
EMI_A2

EMI_A4
EMI_A5
EMI_A6

EMI_A8
EMI_A9
EMI_A10
EMI_A11
EMI_A12
EMI_A13
EMI_A14
EMI_A15
EMI_A16
EMI_A17
EMI_A18
EMI_A19
EMI_A20
EMI_A21
EMI_A22

C58

0.1UF16V

3V3

C59

0.1UF 16V

3V3

3V3

T P V ( Top Victory Electronics Co . , Ltd. )

T3176-B-X-X-1- 080423

絬 隔 瓜 絪 腹

Key Component

Date

64

OEM MO DEL Si ze

TPV MO DEL

715T317603 FLASH

PCB NAME

38Saturday, July 26, 2008

Sheet

of

Rev

称爹

Custom

C

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

LMI_DQS[0..3]3

LMI_DQS[0..3]

2V5_DDR

0.01U F25V

LMI_A0
LMI_A1
LMI_A2
LMI_A3
LMI_A4
LMI_A5
LMI_A6
LMI_A7
LMI_A8
LMI_A9
LMI_A10
LMI_A11
LMI_A12

LMI_DQS0
LMI_DQS2

LMI_DQM0
LMI_DQM2

C79

0.1UF 16V

1V25_DDR

C69

0.01UF25V

2V5_DD R

0.01UF 25V

C70

C81

0.1UF 16V

2V5_DDR

C63

C71

0.01UF25V

0.01UF25V

U8

29
30
31
32
35
36
37
38
39
40
28
41
42

14
17
19
25
43
50
53

16
51

20
47

49

C72

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
AP/A10
A11
A12

NC
NC
NC
NC
NC
NC
NC

LDQS
UDQS

LDM
UDM

VREF

C64

0.01UF25V

C73

0.01UF 25V

55

61

VDDQ

VSSQ

58

64

0.01UF25V

9

15

VDDQ

VDDQ

VSSQ

VSSQ

12

52

3

VDDQ

VSSQ

6

C65

VDDQ

VSSQ

LMI_A[0..12]

LMI_WE#
LMI_CAS#
LMI_RAS#
LMI_CS0#

LMI_BA0
LMI_BA1
LMI_CLK
LMI_CLKN
LMI_CLKE

LMI_D[0.. 31]

LMI_D0
LMI_D1
LMI_D2
LMI_D3
LMI_D4
LMI_D5
LMI_D6
LMI_D7
LMI_D8
LMI_D9
LMI_D10
LMI_D11
LMI_D12
LMI_D13
LMI_D14
LMI_D15

LMI_D0
LMI_D1
LMI_D2
LMI_D3
LMI_D4
LMI_D5
LMI_D6
LMI_D7
LMI_D16
LMI_D17
LMI_D18
LMI_D19
LMI_D20
LMI_D21
LMI_D22
LMI_D23

LMI_D16
LMI_D17
LMI_D18
LMI_D19
LMI_D20
LMI_D21
LMI_D22
LMI_D23
LMI_D24
LMI_D25
LMI_D26
LMI_D27
LMI_D28
LMI_D29
LMI_D30
LMI_D31

LMI_D8
LMI_D9
LMI_D10
LMI_D11
LMI_D12
LMI_D13
LMI_D14
LMI_D15
LMI_D24
LMI_D25
LMI_D26
LMI_D27
LMI_D28
LMI_D29
LMI_D30
LMI_D31

RP23

4 5
3 6
2 7

RP25

1 8
4 5
3 6
2 7

100OHM +-5% 1/16W
RP27

1 8
4 5
3 6
2 7

100OHM +-5% 1/16W
RP29

1 8
4 5
3 6
2 7

100OHM +-5% 1/16W

1 8

100OHM +-5% 1/16W

RP33

100OHM +-5% 1/16W

4 5
3 6
2 7
1 8

R116 100 OH M 1/16W
R117 100 OH M 1/16W
R118 100 OH M 1/16W
R119 100 OH M 1/16W
R120 100 OH M 1/16W

DQ0

4

DQ1

5

DQ2

7

DQ3

8

DQ4

10

DQ5

11

DQ6

13

DQ7

54

DQ8

56

DQ9

57

DQ10

59

DQ11

60

DQ12

62

DQ13

63

DQ14

65

DQ15

21

WE

22

CAS

23

RAS

24

CS

26

BA0

27

BA1

45

CK

46

CK

44

CKE

VTT

VTT

123

18

33

VDD

VDD

VDD

VSS

VSS

VSS

34

48

66

C66

0.01UF 25V

9

VDDQ

VDDQ

VSSQ

VSSQ

6

12

2V5_DDR

C74

0.01UF 25V

0.01U F25V

15

55

61

VDDQ

VDDQ

VDDQ

VSSQ

VSSQ

VSSQ

52

58

64

AP/A10

UDQS

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9

C76

0.01UF 25V

0.01UF25V

29
30
31
32
35
36
37
38
39
40
28
41
42

14
17
19
25
43
50
53

16
51

20
47

49

C68

0.01U F25V

C67

0.01UF25V

C75

U9

HYB25DC512160CE-5

A11
A12

NC
NC
NC
NC
NC
NC
NC

LDQS

LDM

UDM

VREF

C77

2V5_DDR

0.01UF25V

LMI_A0
LMI_A1
LMI_A2
LMI_A3
LMI_A4
LMI_A5
LMI_A6
LMI_A7
LMI_A8
LMI_A9
LMI_A10
LMI_A11
LMI_A12

LMI_DQS1
LMI_DQS3

LMI_DQM1
LMI_DQM3

2V5_DDR

C78

C80

0.1UF16V

C82

0.1UF16V

LMI_A0
LMI_A1
LMI_A2
LMI_A3
LMI_A4
LMI_A5
LMI_A6
LMI_A7
LMI_A8
LMI_A9
LMI_A11
LMI_A10
LMI_A12

1V25_DDR

VTT

VTT

1

18

33

DQ0
DQ1

VDD

VDD

VDD

DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

WE
CAS
RAS

BA0
BA1

CKE

VSS

VSS

VSS

34

48

66

LMI_D[0..31]3

100OHM +-5% 1/16W

RP24

1 8
2 7
3 6
4 5

RP22 100OHM +-5% 1/16W1 8

2 7
3 6
4 5
1 8
2 7
3 6
4 5

RP26 100OHM +-5% 1/16W

1 8
2 7
3 6
4 5

RP28 100OHM +-5% 1/16W

HY B25DC512160CE-5

2
4
5
7
8
10
11
13
54
56
57
59
60
62
63
65

21
22
23
24

CS

26
27

45

CK

46

CK

44

LMI_WE#3
LMI_CAS#3
LMI_RAS#3
LMI_CS0#3

LMI_BA03
LMI_BA13
LMI_CLK3

LMI_CLKN3

LMI_CLKE3

LMI_A[0..12] 3

RP30

100OHM +-5% 1/16W

4 5
3 6
2 7
1 8

RP31 100OHM +-5% 1/16W

4 5
3 6
2 7
1 8
4 5

RP32

3 6
2 7
1 8

R107

100OHM +-5% 1/16W

R108 100 OH M 1/16W
R109 100 OH M 1/16W
R110 100 OH M 1/16W
R111 100 OH M 1/16W

VTT

R112 100 OH M 1/16W
R113 100 OH M 1/16W
R114 100 OH M 1/16W
R115 100 OH M 1/16W

VTT

100 OHM 1/16W

LMI_DQS0
LMI_DQS1
LMI_DQS2
LMI_DQS3

LMI_DQM0
LMI_DQM1
LMI_DQM2
LMI_DQM3

C84

10uF/ 16V

LMI_DQM[0..3]

C85

10uF/ 16V

C86

10uF/16V

C87

10uF/16V

C88

10uF/16V

C89

10uF/16V

C90

10uF/16V

C91

10uF/ 16V

C92

10uF/16V

65

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

T3176-B-X-X-1-080423

Date

OEM MO DE L Size

TPV MO DEL

PCB NAME

Sheet

715T3176-B04 SYSTEM MEMORY

of

48Saturday, July 26, 2008

Rev

称爹

C

C

LMI_DQM[0..3]3

VTT

C83

10uF/16V

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

FB12

10uF/16V

C96

C13

D12

E12

AB32

HDMI_VDDD

LMIVIDVDDE25

LMIVIDVDDE25

LMIVIDVDDE25

U1D

1 2

300 OHM

C97

AA32

W33

AC32

W32

HDMI_VDDX

HDMI_VDDP

HDMI_VDDSL

HDMI_VDDCK

W34

Y32

HDMI_VDDC2

W31

V31

HDMI_VDDC1

HDMI_VDDC0

HDMI_VDD33

W30

HDMI_VDD

VDD33_HDMI

HDDAC_VCCA
SDDAC_VCCA

HDDAC_GNDA
SDDAC_GNDA

LMIVIDDLL_VD D

LMIVIDD LL_VSS

2.5V

GND33_HDMI

HDMI_VSSD

HDMI_VSSSL

HDMI_VSSX

HDMI_VSSP
HDMI_VSSC K
HDMI_VSSC 2
HDMI_VSSC 1
HDMI_VSSC 0

VID_VDDE25A

VID_GNDEA

AUXY_R
AUXC_G

AUXCVBS_B

R_PR

G_Y

B_PB

SD_REXT0
SD_REXT1

GND_REXT0

GND_REXT1

IDUMPC
IDUMPY

IDU MPCVBS

IDUMPR
IDUMPG

IDUMPB

DHSO
DVSO
DYC0
DYC1
DYC2
DYC3
DYC4
DYC5
DYC6
DYC7
DYC8

DYC9
DYC10
DYC11
DYC12
DYC13
DYC14
DYC15

TX0N
TX0P
TX1N
TX1P
TX2N

TX2P
TXCKN
TXCKP

TMDSREF

C98

0.01UF 25V

C106

0.01UF25V

R32

N32
U32
V33
P32
V32
V34
N33
N34

D30
E30
H32
C32
F30
J32

B34
A34
C34

D34
F34
E34

R137 8.2K OHM 1/16W

A31

R139 8.2K OHM 1/16W

A32

B31
B32

A33
B33
C33
D33
F33
E33

M33
M34
L34
L33
K34
K33
J34
J33
H34
H33
U30
T31
T30
R31
R30
P31
P30
N31

T34
T33
R34
R33
P34
P33
U34
U33
T32

A12

C12

0.01UF25V

C99

0.01UF 25V

C111

0.01UF25V

R212 NC

R140 NC
R138
R136 NC

R146 47R 1/ 16W 5%

C118

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

C101

C100

0.01UF 25V

0.01UF25V

1 2

FB14

300 OHM

C107

0.1UF 16V

FB15

1 2

C110

0.1UF 16V
R126 0 OHM 1/16W

NC

TXCKP

TXCKN

1.0V

C119

0.1UF 16V

T3176-B-X-X-1-080423

0.1UF 16V

TX1P

TX2P

TX2N

C102

300 OHM

TX0P

TX0N

TX1N

HDMI_VDD33

C103

0.1UF 16V

3.3V

2.5V

FB13 120 OHM

C105

C104

0.1UF 16V

0.1UF 16V

R128 0 OHM 1/16W

5/29
Cancel CN7

6/5

CN6

7

TMDSD0+

9

TMDSD0-

4

TMDSD1+

6

TMDSD1-

1

TMDSD2+

3

TMDSD2-

10

TMDSC+

12

TMDSC-

15

SCL

16

SDA

13

CEC

19

HPD

18

VCC5

14

NC

2

DSHLD0

5

DSHLD1

8

DSHLD2

11

CSHLD0

17

DDC_GND

20

SHLD_GND1

21

SHLD_GND2

22

SHLD1

23

SHLD2

24

SHLD3

25

SHLD4

26

SHLD5

HDMI

OEM MODEL Size

TPV MODEL

PCB NAME

Sheet

715T3176-B05 VIDEO

58Saturday , July 26, 2008

of

1.0V

Digibest-->A

Rev

称爹

Custom

C

1V25_DDR

VLMI_DQS[ 0..3]6

VLMI_DQM[ 0..3]6

R121 22 OHM 1/16W
R122 22 OHM 1/16W

RP34

1 8
2 7
3 6
4 5

R123

R124
10K OHM 1/16W

R127 22 OHM 1/16W

R125
100 OHM 1/16W

R129 22 OHM 1/16W

R130 0 OHM 1/16W
R131 120K OHM 1/16W 0.5%

VLMI_A0
VLMI_A1
VLMI_A2
VLMI_A3
VLMI_A4
VLMI_A5
VLMI_A6
VLMI_A7
VLMI_A8

VLMI_A9
VLMI_A10
VLMI_A11

VLMI_A12

VLMI_D0

VLMI_D1

VLMI_D2

VLMI_D3

VLMI_D4

VLMI_D5

VLMI_D6

VLMI_D7

VLMI_D8

VLMI_D9

VLMI_D10

VLMI_D11

VLMI_D12

VLMI_D13

VLMI_D14

VLMI_D15

VLMI_D16

VLMI_D17

VLMI_D18

VLMI_D19

VLMI_D20

VLMI_D21

VLMI_D22

VLMI_D23

VLMI_D24

VLMI_D25

VLMI_D26

VLMI_D27

VLMI_D28

VLMI_D29

VLMI_D30

VLMI_D31

VLMI_DQS0

VLMI_DQS1

VLMI_DQS2

VLMI_DQS3

VLMI_DQM0

VLMI_DQM1

VLMI_DQM2

VLMI_DQM3

22OHM1/16W

TP10

RP35 22OHM1/ 16W

4 5
3 6
2 7
1 8
4 5

RP36 22OHM1/16W

3 6
2 7

RP37

1 8
1 8
2 7
3 6
4 5

R135

RP38

4 5
3 6
2 7

RP39

1 8
4 5
3 6

22OHM1/16W

2 7

RP40

1 8
4 5
3 6

22OHM1/16W

2 7

RP41

1 8
4 5
3 6

22OHM1/16W

2 7

RP42

1 8
4 5
3 6

22OHM1/16W

2 7

RP43

1 8
4 5
3 6

22OHM1/16W

2 7

RP44

1 8
4 5

22OHM1/16W

3 6
2 7

RP45

1 8
4 5
3 6

22OHM1/16W

2 7
1 8

22OHM1/16W

R142 22 OHM 1/16W
R143 22 OHM 1/16W
R144 22 OHM 1/16W
R145 22 OHM 1/16W

R147 22 OHM 1/16W
R148 22 OHM 1/16W
R149 22 OHM 1/16W
R150 22 OHM 1/16W

22 OHM 1/16W

2V5_DDRV

VLMI_DQS[0..3]

VLMI_BA0
VLMI_BA1
VLMI_WE#
VLMI_CS0#
VLMI_RAS#
VLMI_CAS#
VLMI_CLKE
VLMI_CLK
VLMI_CLKN

C108

0.1UF 16V

C109

0.1UF 16V

VLMI _A[0..12]

VLMI_D[0.. 31]

VLMI_DQM[0..3]

VLMI_BA06
VLMI_BA16

VLMI_WE#6
VLMI_CS0#6
VLMI_RAS#6
VLMI_CAS#6
VLMI_CLKE6

VLMI_CLK6

VLMI_CLKN6

VLMI_A[0..12]6

VLMI_D[0.. 31]6

2V5_DDRV

22 OHM 1/16W

22OHM1/16W

D14

D11

D15
D13

C11

D10

E13
E15

E11
E14

A13
B13

B12
B11

E10

E9
D9
D6
E6
D5
E5
D4
E7
D8
E8
D7

A14
B14
A15
B15
A16
B16
A17
B17

A1
B2
A2
B3
A3
B4
A4

B5
A20
B20
A21
B21
A22
B22
A23
B23

A7

B8

A8

B9

A9
B10
A10
A11

A18

A5
B19

B7

B18

B6
A19

A6

C93

0.1UF 16V

0.1U F16V

VLMIBA0
VLMIBA1
VnotLMIWE
VnotLMICS0
VnotLMICS1
VnotLMIRAS
VnotLMICAS
VLMICLKEN
VLMICLK
VnotLMICLK
VLMIVREF
VLMIREF
VLMIGNDBC OMP

VLMIA0
VLMIA1
VLMIA2
VLMIA3
VLMIA4
VLMIA5
VLMIA6
VLMIA7
VLMIA8
VLMIA9
VLMIA10
VLMIA11
VLMIA12

VLMID0
VLMID1
VLMID2
VLMID3
VLMID4
VLMID5
VLMID6
VLMID7
VLMID8
VLMID9
VLMID10
VLMID11
VLMID12
VLMID13
VLMID14
VLMID15
VLMID16
VLMID17
VLMID18
VLMID19
VLMID20
VLMID21
VLMID22
VLMID23
VLMID24
VLMID25
VLMID26
VLMID27
VLMID28
VLMID29
VLMID30
VLMID31

VLMIDQS0
VLMIDQS1
VLMIDQS2
VLMIDQS3

VLMIDQM0
VLMIDQM1
VLMIDQM2
VLMIDQM3

C95

0.01UF 25V

C94

0.01UF 25V

C4C5C6C7C8C9C10

LMIVIDVDDE25

LMIVIDVDDE25

LMIVIDVDDE25

LMIVIDVDDE25

LMIVIDVDDE25

LMIVIDVDDE25

LMIVIDVDDE25

STi7101

66

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

1V25_DD R

VTT

VLMI_DQS[0..3]

VLMI_D[0..31]5

2V5_DDRV

C121

0.01UF 25V

C129

0.01UF 25V

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
AP/A10
A11
A12

NC
NC
NC
NC
NC
NC
NC

LDQS
UDQS

LDM
UDM

VREF

C122

0.01UF 25V

100OHM +-5% 1/16W

C130

0.01UF 25V

9

15

55

61

VDDQ

VDDQ

VDDQ

VSSQ

VSSQ

VSSQ

12

52

58

64

C120

0.01UF 25V

2V5_DDRV

C127

0.01UF 25V

C128

0.01UF 25V

29
30
31
32
35
36
37
38
39
40
28
41
42

14
17
19
25
43
50
53

16
51

20
47

49

C126

0.01UF 25V

VLMI_A0
VLMI_A1 VLMI_D17
VLMI_A2
VLMI_A3
VLMI_A4
VLMI_A5
VLMI_A6
VLMI_A7
VLMI_A8
VLMI_A9
VLMI_A10
VLMI_A11
VLMI_A12

VLMI_DQS2
VLMI_DQS0

VLMI_DQM2
VLMI_DQM0

2V5_DDRV

C137

0.1UF 16V

C139

0.1UF 16V

VLMI_DQM[0..3]

3

VDDQ

VSSQ

6

VDDQ

VSSQ

1

18

33

VDD

VDD

VDD

VSS

VSS

VSS

34

48

66

VTT

RP46

1 8
2 7
3 6
4 5

RP48

1 8
2 7
3 6
4 5

RP50100OHM +-5% 1/16W 1 8

2 7
3 6
4 5
1 8
2 7
3 6

RP52

4 5

U10

HY B25DC256160CE-5

2

DQ0

4

DQ1

5

DQ2

7

DQ3

8

DQ4

10

DQ5

11

DQ6

13

DQ7

54

DQ8

56

DQ9

57

DQ10

59

DQ11

60

DQ12

62

DQ13

63

DQ14

65

DQ15

21

WE

22

CAS

23

RAS

24

CS

26

BA0

27

BA1

45

CK

46

CK

44

CKE

VLMI_WE#5
VLMI_CAS#5
VLMI_RAS#5

VLMI_CS0#5

VLMI_BA05
VLMI_BA15

VLMI_CLK5

VLMI_CLKN5

VLMI_CLKE5

100OHM +-5% 1/16W

100OHM +-5% 1/16W

VLMI_D[0..31]

VLMI_D0
VLMI_D1
VLMI_D2
VLMI_D3
VLMI_D4

VLMI_D5
VLMI_D6
VLMI_D7

VLMI_D8

VLMI_D9

VLMI_D10
VLMI_D11
VLMI_D12
VLMI_D13
VLMI_D14

VLMI_D16

VLMI_D18
VLMI_D19
VLMI_D20

VLMI_D22
VLMI_D23 VLMI_D31
VLMI_D0
VLMI_D1
VLMI_D2
VLMI_D3
VLMI_D4
VLMI_D5
VLMI_D6
VLMI_D7

VLMI_WE#
VLMI_CAS#
VLMI_RAS#
VLMI_CS0#

VLMI_BA0
VLMI_BA1

VLMI_CLK
VLMI_CLKN

VLMI_CLKE

VLMI_D16
VLMI_D17
VLMI_D18
VLMI_D19
VLMI_D20
VLMI_D21
VLMI_D22
VLMI_D23
VLMI_D24
VLMI_D25
VLMI_D26
VLMI_D27
VLMI_D28
VLMI_D29
VLMI_D30
VLMI_D31VLMI_D 15

VLMI_D24
VLMI_D25
VLMI_D26
VLMI_D27
VLMI_D28
VLMI_D29
VLMI_D30

VLMI_D8
VLMI_D9
VLMI_D10
VLMI_D11
VLMI_D12
VLMI_D13
VLMI_D14
VLMI_D15

RP47

4 5
3 6
2 7

RP49

1 8
4 5
3 6

100OHM +-5% 1/16W

2 7

RP51

1 8
4 5
3 6

100OHM +-5% 1/16W

2 7

RP53

1 8
4 5
3 6

100OHM +-5% 1/16W

2 7
1 8

100OHM +-5% 1/16W

RP57

4 5
3 6
2 7
1 8

R160 100 OH M 1/16W
R161 100 OH M 1/16W

100OHM +-5% 1/16W

R162 100 OH M 1/16W
R163 100 OH M 1/16W

R164 100 OH M 1/16W

DQ0

4

DQ1

5

DQ2

7

DQ3

8

DQ4

10

DQ5

11

DQ6

13

DQ7

54

DQ8

56

DQ9

57

DQ10

59

DQ11

60

DQ12

62

DQ13

63

DQ14

65

DQ15

21

WE

22

CAS

23

RAS

24

CS

26

BA0

27

BA1

45

CK

46

CK

44

CKE

VTT

123

18

33

VDD

VDD

VDD

VSS

VSS

VSS

34

48

66

C123

0.01UF 25V

0.01UF 25V

9

VDDQ

VSSQ

6

12

VTT

C131

15

VDDQ

VSSQ

52

55

VDDQ

VSSQ

58

61

VDDQ

VSSQ

64

2V5_DDRV

0.01UF 25V

C132

0.01UF 25V

VDDQ

AP/A10

A11
A12

NC
NC
NC
NC
NC
NC
NC

LDQS

UDQS

LDM

UDM

VREF

VSSQ

C124

C133

0.01UF 25V

U11

HY B25DC256160CE-5

29

A0

30

A1

31

A2

32

A3

35

A4

36

A5

37

A6

38

A7

39

A8

40

A9

28
41
42

14
17
19
25
43
50
53

16
51

20
47

49

VLMI_A[0.. 12]

C125

0.01UF 25V

2V5_DDRV

C134

0.01UF 25V

2V5_DDRV

C135

0.01UF 25V

VLMI_A0
VLMI_A1
VLMI_A2
VLMI_A3
VLMI_A4
VLMI_A5
VLMI_A6
VLMI_A7
VLMI_A8
VLMI_A9
VLMI_A10
VLMI_A11
VLMI_A12

VLMI_DQS3
VLMI_DQS1

VLMI_DQM3
VLMI_DQM1

C136

0.1UF 16V

C138

0.1UF 16V

VLMI_A[0.. 12] 5

VLMI_A0
VLMI_A1
VLMI_A2
VLMI_A3
VLMI_A4
VLMI_A5VLMI_D21
VLMI_A6
VLMI_A7
VLMI_A8
VLMI_A9
VLMI_A11
VLMI_A12
VLMI_A10

VTT

R152 100 OH M 1/16W
R153 100 OH M 1/16W
R154 100 OH M 1/16W
R155 100 OH M 1/16W

VTT

R156 100 OH M 1/16W
R157 100 OH M 1/16W
R158 100 OH M 1/16W
R159 100 OH M 1/16W

1V25_DDR

4 5
3 6
2 7
1 8
4 5
3 6
2 7
1 8
4 5
3 6
2 7
1 8

R151 100 OH M 1/16W

RP54

RP55

100OHM +-5% 1/16W
RP56

100OHM +-5% 1/16W

100OHM +-5% 1/16W

VLMI_DQS0
VLMI_DQS1
VLMI_DQS2
VLMI_DQS3

VLMI_DQM0
VLMI_DQM1
VLMI_DQM2
VLMI_DQM3

VTT

VLMI_DQS[0..3]5

VLMI _DQM[0..3]5

C140

10uF/ 16V

C141

10uF/ 16V

C142

10uF/ 16V

C143

10uF/ 16V

C144

10uF/ 16V

C145

10uF/ 16V

C146

10uF/ 16V

C147

10uF/ 16V

C148

10uF/ 16V

T P V ( Top Victory Electronics C o . , Lt d. )

絬 隔 瓜 絪 腹

Key Component

T3176-B-X-X-1-080423

Date

67

C149

10uF/ 16V

OEM MOD EL S ize

TPV MODEL

PCB NAME

Sheet

715T3176-B06 VIDEO MEMORY

of

68Saturday , July 26, 2008

Rev

称爹

C

C

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

TU1
TUNER

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

C115

100pF/50V

R231

180 OHM 1/10W

8

DC

7

PK

5

COMP

R230

1.8K OHM 1/10W

B1 +5V
N/C
B2 +5V
N/C
B3 +32V
GND
RESET
ERROR OUT
MON ITO R 1
MON ITO R 0
N/C
B4 +3.3V
GND
B5 +2.5V
B5 +1.5V
PSYN C
DVALID
DATA 7
DATA 6
DATA 5
DATA 4
DATA 3
DATA 2
DATA 1
DATA 0
CLOCK
IIC DATA
IIC CLOCK

R171 0 OHM 1/16W

C221

0.1uF 50V

TH1

TH2

TH3

TH4

293031

32

R232
6R2 1/4W 5%

1 2

L14 300 OH M

+

C222

100uF/16V

Rev

称爹

B

C

2.5V

1.0V

5V

FB27 NC

6/18

R174
NC

CN1

2
1

CONN

Digibest-->A

FB18 120 OHM

1.0V

FB20 120 OHM

1.0V

0.01UF 25V

FB22 120 OHM

1.0V

0.01UF 25V

FB24 120 OHM

1.0V

0.01UF 25V

FB25 120 OHM

FB26

120 OHM

C163

0.01UF 25V
R166
0 OHM 1/16W

TP11
TP12
TP13
TP14

C167

NC

NC
Q8

R173 NC

R233 0 OHM 1/10W

C172

0.01UF 25V

SPDIF _OUT

100 OHM 1/16W

12V

5/29

C164

C165

0.01UF 25V

Q7
NC

R179

100 OHM 1/16W

C153

0.1UF 16V

C156

0.1UF 16V

C159

0.1UF 16V

C162

0.1UF 16V

0.1UF 16V

PCMOUT4
PCMOUT3

PCMOUT2

R175
47R 1/16W 5%

R180
560 OHM 1/16W

C152

0.01UF 25V

C155

C158

C161

0.1UF 16V

R211 470R 1/16W 5%

R170

NC

R178

C166

MCL K
SCLK
LRCLK
SDATA

C175
1uF/16V

R242 33 OHM 2W

R243 27 OHM 2W

AL30

SATAVDDREF

AM27

SATAVSSREF

AM29

SATAVDDR0

AL28

SATAVDDR1

AN28

SATAVSSR

AN29

SATAVDDT0

AP29

SATAVDDT1

AP28

SATAVSST

AL29

SATAVDDDLL

AM28

SATAVSSDLL

AM26

SATAVDDOSC 25

AL26

SATAVDDOSC

AL27

SATAVSSOSC

AP30

SATA TXN

AN30

SATA TXP

AP31

SATARXN

AN31

SATARXP

AM30

SATAREF

D29

AUDSIN

D28

AUDSTRBIN

E28

AUDLRCLKIN

D26

PCMCLKOUT

E24

SCLKOUT

E26

LRCLKOU T

A25

PCMDATA0

B25

PCMDATA1

C25

PCMDATA2

D25

PCMDATA3

E25

PCMDATA4

D24

SPDIFOUT

A28

OUTPR

B28

OUTMR

A27

OUTPL

B27

OUTML

C27

IREF

C28

VBGFIL

PCMOUT2

PCMOUT3

DH_R

PCMOUT4

DH_L

+

C223

10UF16V

0.1UF 16V

STi7101

R217 NC

3V3

R219 NC

3V3

R221 NC

3V3

U20 AZ 1117D-5.0-E1

1

C224

23

OUTPUTINPUT

ADJ/GN D

TS0P SY NC

TS0V ALI D

TS0B CLK

TS0ERROR

TS1P SY NC

TS1V ALI D

TS1B CLK

TS1ERROR

TS2P SY NC

TS2V ALI D

TS2B CLK

TS2ERROR

USB_VDDBS

USB_VDDP

USB_VDD BC25

USB_VDDP25

USB_VSSBS

USB_VSSP
USB_VSSC25
USB_VSSP25

USBDM

USBDP

USB_RREF

AUD_VCC A

AUD_VDDE25A

AUD_GNDA

AUD_GNDAS

AUD_VCCEA

R218 4.7K OHM 1/16W

R220 4.7K OHM 1/16W

R222 4.7K OHM 1/16W

C225

0.1UF 16V

TS0D 0
TS0D 1
TS0D 2
TS0D 3
TS0D 4
TS0D 5
TS0D 6
TS0D 7

TS1D 0
TS1D 1
TS1D 2
TS1D 3
TS1D 4
TS1D 5
TS1D 6
TS1D 7

TS2D 0
TS2D 1
TS2D 2
TS2D 3
TS2D 4
TS2D 5
TS2D 6
TS2D 7

5V_TUNER

+

C226

100uF/16V

TS0_D0

AH5
AG4

TS0_D1
TS0_D2

AK1

TS0_D3

AK2

TS0_D4

AJ1
AJ2

TS0_D5

AH1

TS0_D6

AH2

TS0_D7

TS0_PSYNC

AJ4
AJ5

TS0_VALID

AK6

TS0_BCLK
TS0_ERROR

AH4

AE5
AD4
AD5
AC4
AC5
AB4
AB5
AA4
AF4
AF5
AG5
AE4

AP1
AN2
AN1
AM2
AM1
AL2
AL1
AL3
AP3
AN3
AM3
AP2

AL25
AP24
AM24
AN24

AL23
AP23
AN23
AM23

AP25
AN25
AM25

B29
D31

A30
B30
E32

10K OHM 1/16W

R183

R165

10K OHM 1/ 16W

NIM_SDA2

NIM_SCL2

R169

10K OHM 1/16W

C169

C168

0.1UF 16V

0.01UF 25V

R210 1K5 OHM 1/16W 5% 12V

C173

0.01UF 25V

FB16 120R /3000mA

3.3V

+

FB19 120 OH M

2.5V

+

FB21 120R /3000mA

1.5V

+

TS0_D[0..7]

R255 0 OHM 1/16w

1

Q3

5V

NC

R250

NC

5V

R251

NC

R256 0 ohm 1/16w

FB28 120 OHM

FB29 120 OHM

C171

0.1UF 16V

C170

0.01UF 25V

FB30 120 OHM

C174

0.1UF 16V

R181 0 OHM 1/16W

Key Component

R172

32V

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

T3176-B-X-X-1-080423

Date

2

1

2

3

Q4
NC

3

0 OHM 1/16W

R227
10 OHM 1/10W

2.5V

5V_TUNER

C150

100uF/16V

32V

C160

100uF/16V

C157

100uF/16V

TS0_ERROR2

FE_RST#2

R252
NC

TU_ SDA

TU_ SCL

TUNER I2C Connector
Pitch 2.00mm

R253
NC

1.0V

2.5V

L13
180uH

C219

100uF/50V

ZD4

NC

FB17

120R/3000m A

+

C151

220uF/16V

FB23 120 OHM

+

C154
100uF/50V

TS0_D7
TS0_D6
TS0_D5
TS0_D4
TS0_D3
TS0_D2
TS0_D1
TS0_D0

FE_RST#

R167 100 OHM 1/16W
R168 100 OHM 1/16W

C114

7/4

R228 47K OHM 1/10W

12

100pF/50V

L11 200uH

D3

BAS32L

+

C220 0.0015uF

U18

MC34063A

1

SWC

2

SWE

3 6

TCAP VCC

4

GND

Digibest-->A

R229

100 OHM 1/10W

OEM MO DE L Size

TPV MO DE L

PCB NAME

Sheet

715T3176-B07 AUDIO & TUNER

of

78Wednesday , September 03, 2008

68

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

5V

12V

+

C178

470uF/16V

12V

+

C190
220uF/16V

U17 12V--> 5V DEL
Digibest-->A

L15 300 OHM

L16 NC

C179

0.1UF 16V

R185

1M2 OHM 1/16W 5%

C191

0.1UF 16V

1M2 OHM 1/16W 5%

R193

(5V Max P owe r Consumption 0.6A)

C184

0.01UF25V

C194

0.01UF25V

Digibest-->A

U12 CLZ 8831-RST

1

IN

2

SS/SCP

5

GND

6 4

GND COMP

U15 C LZ8831-RST

1

IN

2

SS/SCP

5

GND

6 4

GND COMP

R141 0 OHM 1/8W

R176 0 OHM 1/8W

R177 0 OHM 1/8W

R132 0 OHM 1/8W

R133 0 OHM 1/8W

R134 0 OHM 1/8W

7

LX

8

LX

3

FB

R187

0 OHM 1/16W

7

LX

8

LX

3

FB

R196

0 OHM 1/16W

L4
10uH 4A

ZD1

SSA34

1 2

C187

2200pF/50V

C197
2200pF/50V

R201 0 OH M 1/8W

R203 0 OHM 1/8W

R213

0 OHM 1/8W

R205 0 OH M 1/8W

R206 0 OHM 1/8W

R249 0 OHM 1/8W

R204 0 OHM 1/8W

R247 0 OHM 1/8W

(Max P owe r Consumption 2.7A)

R182
1K OHM 1/16W

C186

0.1UF 16V

R186
51KOHM +-1% 1/10W

R189
39KOHM +-1% 1/10W

(Max P owe r Consumption 2A)

L5
10uH 4A

ZD2

SSA34

1 2

R235
1K OHM 1/16W

C196

0.1UF 16V

R192

NC

R234 0 OHM 1/8W

R244 0 OHM 1/8W

R245 0 OHM 1/8W

R246 0 OHM 1/8W

R248 0 OHM 1/8W

R190 0 OHM 1/8W

1.0V

+

C180

0.1UF 16V

r194
200KOHM1/16W

R197
47KOHM +-1% 1/10W

C192

0.1UF 16V

C181

470uF/16V

LOW ESR

22K OHM 1/10W

2.5V

+

5V

4

1 3

C182

1uF/ 16V

R260

C193
470uF/16V

LOW ESR

5V

L1

300 OHM

Digibest-->A

5V

MAIM5V

32V

12V

5V

R261 100K 1/10W 5%

U22

IN

EN OC

OUT

GND

G5250K1T1U

2

5

Ver:C-->D

C230

1uF/16V

5V

C188

1uF/ 16V

3V3

L2

NC

1 2

L12

L33 NC

MAIM12V

MAIM5V

9
8
7
6

nc

3

U16

Thermal Pad
NC
NC
VCNTL

G2992F1U

U13

G1117T63Uf

G1117T63Uf

U14

VIN

VOUT

GND

124

1

VIN

2

GND

3

VREF

45

VOUTNC

CN5

1
2
3
4
5
6

CONN

VOUTVIN

VSS

AP1117E33LA

1

TH

2V5_DDR

C208

0.1UF 16V

23

R184

R191

100OHM1/16W

R195
22OHM1/16W

+

R199
0 OHM 1/16W

VTT

(Max P owe r Consumption 150mA)

3.3V

+

NC

R188

0 OHM 1/16W

C183

47uF/16V

C185

0.1UF 16V

(Max P owe r Consumption 150mA)

1.5V

C189

C195

0.1UF 16V

C203

nc

C231
1uF/16V

C198
1000uF/16V

LOW ESR

1V25_DDR

+

C209
1000UF/16V

LOW ESR

+

47uF/16V

R200 0 OHM 1/16W

C204

0.1UF 16V

2V5_DDR

C205

0.1UF 16V

R198

1K OHM 1/16W

R202

1K OHM 1/16W

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

T3176-B-X-X-1-080423

Date

OEM MO DE L Size

TPV MODEL

PCB NAME

Sheet

715T3176-B08 POWER

of

88Saturday, July 26, 2008

Rev

称爹

B

C

69

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

9.4 Key Board

715T2876 1

70

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

9.5 IR Board

715T3004 1

71

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

10. Exploded View

D32W831

72

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

D42H831

73

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

D47H831

74

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

11. BOM List

D32W831 E32RMNNSW8AE2N

Location Part No. Description Remark

036T 600 18112 NONWOVEN FABRTC
040T 154501 1 HI-POT GND LABEL
040T 581689 4A S/N LABEL
044T3231 15 EVA WASHER
045T 77500 RIBBON
045T 77501 RIBBON
049T 51 1A ERADICATOR
050T 600 1 W WHITE STRAPE
051T 2 14 FUSE GEL
051T6001 2 DESICCANT
052T 1150 C BLACK TAPE
052T 1185 MIDDLE TAPE FOR CARTON
052T 1186 SMALL TAPE
052T 1211 A ADHESIVE TYPE
052T 1211 B ADHESIVE TYPE
052T 1211511 ALUMINUM FOIL TAPE
052T 2191 A TAPE
052T6026 1 MESH PRINTTING PAPER
052T6026 2 MESH PRINTTING PAPER
055G 100615 TIN THREAD W/O PB
055T 100610 TIN CREAM W/O PB
078T 495501 K SPK 8 OHM 11W 120X30MM KUAIDA
089T 173 56 31 AUDION CABLE

E08909 089T 184LAA 7 HDMI CABLE 130MM WITH EXTERNAL TUBE
E08909 089T 184MAA 6 HDMI CABLE 200MM 2nd source

089T 725HAA DB D-SUB
089T402A15NIS1 POWER CORD
095T8013 6D 32 HARNESS 6P-6P 150MM
095T801312D 48 HARNESS 12P-12P 120MM
095T8014 2D 21 HARNESS 2P-2P 250MM
095T8014 4D 40 HARNESS 4P-4P 250MM
095T8014 4D545 WIRE HARNESS 4P(PLUG)-B&R+B&W
095T8014 8D 72 HARNESS 8P-4P+3P 820MM
095T801414D107 HARNESS 13P-14P 280MM
095T801840D 2 HARNESS 30P-40P 210MM
0D1T 930 8 47 CR3 SCREW
0D1T 940 6120 SCREW
0M1T 940 6120 SCREW
0M1T 940 6120 SCREW
0M1T 940 10 47 CR3 SCREW
0M1T1730 6120 SCREW 3*6MM
0M1T1730 6120 SCREW 3*6MM
0M1T1730 10120 SCREW
0M1T1740 6120 SCREW
0Q1T 940 14 47 CR3 SCREW
0Q1T 940 14 47 CR3 SCREW
0Q1T1040 8 47 CR3 SCREW
705TQ833011 PLASTIC ASS'Y
0Q1T 930 6120 SCREW
A33T0304 GMA1L0100 COVER_FUNC
A33T0305 QV 1L0200 BUTTON_FUNC
705TQ834451 STAND ASS'Y

75

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

0Q1T 130 8120 SCREW
A15T0384201CKD BKT-BASE-PLATE-A1-BIG
A34T0521 GM 1L0200 BASE_S1
Q12T6300 25 2 RUBBER FOOT

M037

M037 SQ37T0078021C HINGE ASSY 2nd source

028F0848110 SHAFT
034F0520 GM 1L TOP PLASTIC
034F0519 GM 1L BOTTOM PLASTIC
002F7015 1 NUT
004F081510T 00 WASHER
004F180810M 00 WASHER
004F1808104 00 WASHER
004F1808104 01 WASHER
004F122515M 00 WASHER
705TQ834452 BEZEL ASS'Y
A33T0334AEU 1C0100 LENS_POWER&IR FOR A2

705TQ834649 REAR COVER ASS'Y
A15T0282101CKD BKT-VESA-BTM
A34T0518 GM 2A0200 REAR COVER 32
Q36T 600 18113 CLOTH_GRIDDING
Q36T 600 37 36 GP NONWOVEN FABRIC
750TVMM5B1112N PANEL V315B1-L01 C2 NB CMO
756TQ8CB NS006 MAIN BOARD-CBPFRN3SQC

U403 056T1125177 NT68F631ALG PLCC-44

U510 056T1133526 IC MX25L4005AMC-12G SOP-8
SMTF-U403 100TANMK001S12 MCU ASS'Y-056T1125177
SMTF-U510 100TANMK002S12 MCU ASS'Y-056T1133526

756TQ8TU NS004 TUNER BOARD-TUPFRC1SQ1

U7 056T1133123 IC S29GL064N90TFI040 TSOP-48

STUP-U7 100TANMK003S11 MCU ASS'Y-056T1133123

A15T0279102CKD BKT-PCB-HOLDER-BTM
A15T0280103CKD PANEL SUPPORT
A15T0280301CKD BKT-PANEL-SUPPORT
A15T0281201CKD BKT-VESA-TOP
A15T0283102CKD BKT-BASE-SUPPORT
A15T0456101CKD BRAZEL DTV PCB BKT
ADPC24180BB1 ADAPTER BOARD T2804-1-X-X-1-080512
040G 45762412B CBPC LABEL

CN902 033T327812D WAFER 12P PLUG
CN903 033T380213B Y CONNECTOR

IC952 056T 139 3B IC PC123Y82FZ0F
IC934 056T 139 3B IC PC123Y82FZ0F
IC932 056T 139 3B IC PC123Y82FZ0F

Q932 057T 761 7 KTD1691P

R915 061T153M10852T RST MOFR 0.1 OHM +-5% 3WS

C904 063T107K474 TS CAP X2 0.47UF K 275VAC UTX 2nd source

C901 063T107K474 TS CAP X2 0.47UF K 275VAC UTX 2nd source

C901 063T107K474 US X2 CAP 0.47UF K 275VAC

C904 063T107K474 US X2 CAP 0.47UF K 275VAC

C941 063T210J2735C2 MPP 27NF J 1000V 2nd source

C941 063T210J2735CC CAP MPPS 27NF 1000V 5% 2nd source

C905 063T210K105BCN MPP CAP 1UF 520V P=15MM

C941 063T211J273 5C 10 0.027UF 5% 1000V P=15MM

Q37T0078021 GM
CKD

A34T0517
GMC2L0500

HINGE ASS'Y

BEZEL TV32W-8A2

76

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

C951 065T 1K103 2E6213 CAP CER 10NF K 1KV 2nd source

C952 065T 1K103 2E6213 CAP CER 10NF K 1KV 2nd source

C951 065T 1K103 2E6921 CAP CER 10NF K 1KV Y5P

C952 065T 1K103 2E6921 CAP CER 10NF K 1KV Y5P

C906

C903

C902

C950

C907 067G215S10115N PAG450VB100-M-L18*35.5MM 2nd source

C926 067T215A1024KV EC 1000UF 25V 12.5*20MM

C943 067T215A1026KV EC 1000UF 35V 12.5*25MM

C928 067T215A4713KV EC 470UF 16V M 10*12MM

C944 067T215A4716KV EC 470UF 35V M 10*16MM

C946 067T215S4714KL

L903 071T 55 21 IND BEAD 10.0*6.0

FB906 071T 55 26 H FERRITE BEAD 3.5*6.0*0.8 2nd source
FB901 071T 55 26 H FERRITE BEAD 3.5*6.0*0.8 2nd source
FB906 071T 55 26 S FERRITE CORE
FB901 071T 55 26 S FERRITE CORE

L902 073T 174106 L LINE FILTER 13MH LF-1008108
L901 073T 174106 L LINE FILTER 13MH LF-1008108
L906 073T 174122 L PFC CHOKE 230UH PT-009321
L932 073T 253 91 H CHOKE COIL
L931 073T 253 91 H CHOKE COIL
L971 073T 253150 L CHOCK
T931 080TL32T 5 N X'FMR 1.9MH YUVA-827
T951 080TL40T 8 YS X'FMR 600UH YS04160149

CN901 087T 501 44 DL AC SOCKET 3PIN + 2 SCREW HOLE V/T

705TQ757011 Q951 ASS'Y

Q951 057T 611 9 FET 2SK4097LS 9.5A/500V TO-220FI(LS)

0M1T1730 8120 SCREW
Q90G6084 3 HEAT SINK
705TQ757012 Q952 ASS'Y

Q952 057T 611 9 FET 2SK4097LS 9.5A/500V TO-220FI(LS)

0M1T1730 8120 SCREW
Q90G6084 3 HEAT SINK
705TQ757013 Q931 ASS'Y

Q931 057T 667 52 FET 2SK4100LS-T 7A/650V TO-220FI(LS)

0M1T1730 8120 SCREW
Q90G6084 3 HEAT SINK
705TQ757022 Q901 ASS'Y

Q901 057T 600 72 FET SPW16N50C3 16A/560V P-TO247

0M1T1730 10120 SCREW
Q12T 372 8 SILICON
Q90T0095 2 HEAT SINK
705TQ761021 NR901 ASS'Y

NR901 061T 58030 WL RST NTCR 3 OHM +-20% 5A THINKING

Q09T 203 8 PIN
705TQ793020 BD901 ASS'Y

BD901 093T 50460 39 BRIDGE BU1006A-E3/45 10A/600V BU

0M1T1730 10120 SCREW
Q90T0095 2 HEAT SINK
705TQ793021 D902 ASS'Y

065T306M1022BM
GP
065T306M1022BM
GP
065T306M1022BM
GP
065T306M1022BM
GP

Y1.CAP.001UF 250VAC MURATA

Y1.CAP.001UF 250VAC MURATA

Y1.CAP.001UF 250VAC MURATA

Y1.CAP.001UF 250VAC MURATA

ELCAP 105℃ 470UF M 25V

77

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

D902 093T 52 56 DIODE FMN-1106S 10A/600V TO-220

0M1T1730 8120 SCREW
Q90G6084 3 HEAT SINK
705TQ793022 D935 ASS'Y

D935 093T 60298 DIODE SBT15006JST 15A/60V TO-220ML(LS)

0M1T1730 8120 SCREW
Q90G6084 3 HEAT SINK
705TQ793023 D955/D956 ASS'Y
005T 42 1 CUSHION
032G3028 8 MICA
051G 200 1 OIL FOR DISAPPEAR

D956 093T 60298 DIODE SBT15006JST 15A/60V TO-220ML(LS)

D955 093T 60310 DIODE V30100C-E3/4W 30A/100V TO-220AB

0M1T1730 10120 SCREW
Q90T0087 2 HEAT SINK

IC901 056T 368 12 IC FAN7529MX SOP-8
IC931 056T 379 79 IC LD7522PS SOP-8
IC951 056T 665 10 1 IC RESONANT L6599DTR SO-16N ST

Q933 057T 417 12 T TRA 2N3904S-RTK/PS SOT-23 KEC

Q934 057T 417 12 T TRA 2N3904S-RTK/PS SOT-23 KEC

R973 061G0805196 1F RST CHIP 1.96K 1/8W 1%

R918 061T0805100 RST CHIPR 10 OHM +-5% 1/8W

R924 061T0805102 RST CHIPR 1KOHM +-5% 1/4W

R931 061T0805102 RST CHIPR 1KOHM +-5% 1/4W

R943 061T0805102 RST CHIPR 1KOHM +-5% 1/4W

R970 061T0805102 RST CHIPR 1KOHM +-5% 1/4W

R916 061T0805103 RST CHIPR 10 KOHM +-5% 1/8W

R927 061T0805103 RST CHIPR 10 KOHM +-5% 1/8W

R944 061T0805103 RST CHIPR 10 KOHM +-5% 1/8W

R950 061T0805103 RST CHIPR 10 KOHM +-5% 1/8W

R936 061T0805150 3F RST CHIPR 150 KOHM +-1% 1/8W

R908 061T0805153 RST CHIPR 15 KOHM +-5% 1/8W

R958 061T0805180 2F RST CHIPR 18 KOHM +-1% 1/8W

R972 061T0805205 2F RST CHIPR 20.5KOHM +-1% 1/8W

R919 061T0805220 RST CHIPR 22 OHM +-5% 1/8W

R928 061T0805220 RST CHIPR 22 OHM +-5% 1/8W

R960 061T0805220 RST CHIPR 22 OHM +-5% 1/8W

R962 061T0805220 RST CHIPR 22 OHM +-5% 1/8W

R946 061T0805240 1F RST CHIPR 2.4 KOHM +-1% 1/8W

R945 061T0805240 1F RST CHIPR 2.4 KOHM +-1% 1/8W

R935 061T0805240 3F RST CHIPR 240 KOHM +-1% 1/8W

R956 061T0805273 RST CHIPR 27 KOHM +-5% 1/8W

R952 061T0805302 RST CHIPR 3 KOHM +-5% 1/8W

R913 061T0805330 2F RST CHIPR 33 KOHM +-1% 1/8W

R909 061T0805470 2F RST CHIPR 47 KOHM +-1% 1/8W

R971 061T0805470 2F RST CHIPR 47 KOHM +-1% 1/8W

R963 061T0805513 RST CHIPR 51 KOHM +-5% 1/8W

R961 061T0805513 RST CHIPR 51 KOHM +-5% 1/8W

R930 061T0805513 RST CHIPR 51 KOHM +-5% 1/8W

R959 061T0805514 RST CHIPR 510KOHM +-5% 1/8W

R907 061T0805563 RST CHIPR 56 KOHM +-5% 1/8W

R948 061T0805620 2F RST CHIPR 62 KOHM +-1% 1/8W

R914 061T1206000 RST CHIPR 0 OHM +-5% 1/4W

R910 061T1206100 4F RST CHIPR 1 MOHM +-1% 1/4W

R934 061T1206100 4F RST CHIPR 1 MOHM +-1% 1/4W

R933 061T1206100 4F RST CHIPR 1 MOHM +-1% 1/4W

R932 061T1206100 4F RST CHIPR 1 MOHM +-1% 1/4W

78

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

R912 061T1206100 4F RST CHIPR 1 MOHM +-1% 1/4W

R911 061T1206100 4F RST CHIPR 1 MOHM +-1% 1/4W

R920 061T1206150 3F RST CHIPR 150KOHM +-1% 1/4W

R921 061T1206150 3F RST CHIPR 150KOHM +-1% 1/4W

R922 061T1206150 3F RST CHIPR 150KOHM +-1% 1/4W

R976 061T1206152 RST CHIPR 1.5 KOHM +-5% 1/4W

R905 061T1206153 RST CHIPR 15 KOHM +-5% 1/4W

R906 061T1206204 RST CHIPR 200 KOHM +-5% 1/4W

R953 061T1206205 RST CHIPR 2 MOHM +-5% 1/4W

R954 061T1206205 RST CHIPR 2 MOHM +-5% 1/4W

R955 061T1206205 RST CHIPR 2 MOHM +-5% 1/4W

R901 061T1206334 RST CHIPR 330 KOHM +-5% 1/4W

R902 061T1206334 RST CHIPR 330 KOHM +-5% 1/4W

R903 061T1206334 RST CHIPR 330 KOHM +-5% 1/4W

R938 061T1206470 RST CHIPR 47 OHM +-5% 1/4W

R939 061T1206470 RST CHIPR 47 OHM +-5% 1/4W

R940 061T1206470 RST CHIPR 47 OHM +-5% 1/4W

R941 061T1206470 RST CHIPR 47 OHM +-5% 1/4W

R925 061T1206479 RST CHIPR 4.7 OHM +-5% 1/4W

R974 061T1206512 RST CHIPR 5.1KOHM +-5% 1/4W

R975 061T1206512 RST CHIPR 5.1KOHM +-5% 1/4W

C919 065T0805102 31 1000PF 50V NPO

C912 065T0805102 31 1000PF 50V NPO

C940 065T0805102 32 CHIP 1000PF 50V X7R 0805

C925 065T0805102 32 CHIP 1000PF 50V X7R 0805

C924 065T0805102 32 CHIP 1000PF 50V X7R 0805

C913 065T0805103 32 10NF/50V/0805/X7R

C915 065T0805103 32 10NF/50V/0805/X7R

C914 065T0805104 32 CHIP 0.1UF 50V X7R

C949 065T0805104 32 CHIP 0.1UF 50V X7R

C920 065T0805104 32 CHIP 0.1UF 50V X7R

C937 065T0805104 32 CHIP 0.1UF 50V X7R

C911 065T0805104 32 CHIP 0.1UF 50V X7R

C918 065T0805104 32 CHIP 0.1UF 50V X7R

C929 065T0805104 32 CHIP 0.1UF 50V X7R

C930 065T0805104 32 CHIP 0.1UF 50V X7R

C932 065T0805104 32 CHIP 0.1UF 50V X7R

C935 065T0805104 32 CHIP 0.1UF 50V X7R

C936 065T0805104 32 CHIP 0.1UF 50V X7R

C922 065T0805105 37 CHIP 1UF 50V Y5V

C931 065T0805105 37 CHIP 1UF 50V Y5V

C945 065T0805105 37 CHIP 1UF 50V Y5V

C933 065T0805221 31 220PF 50V NPO

C934 065T0805224 22 CAIP CAP 0.22 UF 25V X7R

C942 065T0805472 32 MLCC 0805 CAP 4700PF K 50V X7R

C910 065T0805560 31 MLCC 0805 CAP 56PF J 50V NPO

ZD933 093T 39S 15 T RLZ15B

D903 093T 64S901 T DIODE LS4148

D931 093T 64S901 T DIODE LS4148

D952 093T 64S901 T DIODE LS4148

D951 093T 64S901 T DIODE LS4148

D932 093T 64S901 T DIODE LS4148

D934 093T 64S901 T DIODE LS4148

D939 093T 64S901 T DIODE LS4148

D938 093T 64S901 T DIODE LS4148

T951 006G 31 4 1.7MM RIVET

006G 31 4 1.7MM RIVET

79

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

CN901 006G 31501 EYELET

IC953 056T 158 10 T IC AS431AZTR-E1 TO-92
IC933 056T 158 10 T IC AS431AZTR-E1 TO-92

R969 061G 17233252T 3.3K 1/4W

R929 061G 21047152T 470 OHM 1% 1/6W

R937 061G208M10452T RST MOF 100K 5% 1W

R964 061T 17210252T RST CFR 1KOHM +-5% 1/4W

R949 061T 17210252T RST CFR 1KOHM +-5% 1/4W

R957 061T 17210352T CFR 10KOHM +-5% 1/4W

R923 061T 17210352T CFR 10KOHM +-5% 1/4W

R942 061T 17247152T 470OHM 5% 1/4W

R947 061T 17256052T RST CFR 56 OHM +-5% 1/4W

R968 061T 17262252T 6.2KPHM 5% 1/4W

R967 061T 20010152T 100 OHM 1% 1/4W

R966 061T 20039252T RST MFR 3.9KOHM +-1% 1/4W

R951 061T 21030252T 3KOHM 1% 1/6W

R917 061T 60247152T 470OHM +-5% 1/6W

R926 061T152M12952T RST MOFR 1.2OHM +-5% 2WS

R965 061T152M33852T RST MOFR 0.33 OHM +-5% 2WS

C953 065G 1K471 2T 470PF 1KV Z5P +-10%

C923 065T 1K222 2T6921 0.0022UF 1KV +-10%

C916 067T215A1017KT EC 100UF 50V 8*12MM

C947 067T215A2214KT EC 220UF 25V 8*12MM

C939 067T215Y1007KT EC105 10U 50V KEM50V

C921 067T215Y1007KT EC105 10U 50V KEM50V

C917 067T215Y1007KT EC105 10U 50V KEM50V

C909 067T215Y1007KT EC105 10U 50V KEM50V

FB904 071G 55 9 T FERRITE BEAD
FB905 071G 55 9 T FERRITE BEAD
FB902 071G 55 9 T FERRITE BEAD

F901 084T 55 4 FUSE 382-5A 250V WICKMANN
ZD931 093T 3916652T MTZJ T-72 15B
ZD932 093T 3917052T MTZJT-72 27B

D933 093T 5250S52T AU02Z
D937 093T1080 252T DIODE SARSO1-V1 SANKEN

715T2804 2 POWER PCB CEM-1 130X200X1.6MM SS
Q51G 6 4509 GLUE_RTV

L932 S73G25391V CHOKE COIL ASS'Y

L931 S73G25391V CHOKE COIL ASS'Y

L901 S73T174106V TRANSFORMER ASS'Y

040FP174106 V LABEL

L902 S73T174106V TRANSFORMER ASS'Y

040FP174106 V LABEL

CN9007 033T3278 6D CONNECTOR 6P 2.5 DIP

CN702 033T327812D WAFER 12P PLUG

CN9005 033T3802 2B Y CONNECTOR

CN401 033T3802 4B Y CONNECTOR
CN601 033T3802 4B Y CONNECTOR
CN701 033T3802 8B Y CONNECTOR
CN201 033T8027 40 WAFER 40P 2.0MM DIP

U709 056T 665505 HD IC VF45A3D HAODA
U710 056T 665506 HD IC AF45A3D HAODA
R167 061T153M470 59 RST MOFR 47 OHM +-5% 3WS
R168 061T153M470 59 RST MOFR 47 OHM +-5% 3WS
C768 067T 305101 7P 105 RADIAL ECA PACTOR
C171 067T215S1023KV
C682 067T215S1026KV EC CAP 1000UF 35V 12.5*25MM

EC 105℃ CAP 1000UF M 16V

80

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

L604 073T 253158 H CHOKE COIL 22UH+/-25%

L605 073T 253158 H CHOKE COIL 22UH+/-25%

L606 073T 253158 H CHOKE COIL 22UH+/-25%

L607 073T 253158 H CHOKE COIL 22UH+/-25%

L722 073T 253195 L CHOKE COIL 200UH CC-008305

CN106 088T 78 1364C RCA JACK 2*3 Y/W/R+Y/W/R V/A
CN106 088T 78 1364S RCA JACK 2*3 Y/W/R+Y/W/R V/A
CN105 088T 78 1369C RCA JACK 2*3 G/B/R+B/W/R
CN105 088T 78 1369S RCA JACK 2*3 G/B/R+BLK/W/R
CN111 088T 7813A19C RCA JACK 1*3 R/W/Y
CN108 088T 100 11 ST MINI DIN JACK 4P+ SWITCH 2MJ-0602-005
CN103 088T 100 15 ST MINI DIN JACK 4PIN V/A
CN102 088T 30252S PHONE JACK 3.5MM 3P V/A GREEN
CN602 088T 302901 S PHONE JACK 3.5MM 7P BLACK 2SJ-W48A-001
CN101 088T 35315F FX

CN101 088T 35315F VD

X403 093T 2251B J NXS12.000AC30F-BT-2

X503 093T 2251B J NXS12.000AC30F-BT-2

X601 093T 2264B J XTL NXS27.000AC16F-KAB5 HC-49/US

X502 093T 2279B H CRYSTAL 28.322MHZ 14P HC-49S

X701 093T 2286B J XTL NXS4.000AC18F-KAB5 HC49/U-S
TU701 094TNTSC MN 8L TUNER TCL F14WP-4N-E

0Q1T 930 8 47 CR3 SCREW
705TQ815013 BRACKET ASS'Y
089T 17356L 56 RF CABLE 100MM
A15T0287401CKD BKT_IO
Q40T000262497A SIDE LABEL

C6107 064T176J474 0T 0.47UF +-5% 50/63V

C689 064T176J474 0T 0.47UF +-5% 50/63V
C665 067T 305100 3T 10UF 16V
C654 067T 305100 3T 10UF 16V
C605 067T 305100 3T 10UF 16V
C604 067T 305100 3T 10UF 16V
C603 067T 305100 3T 10UF 16V
C602 067T 305100 3T 10UF 16V
C773 067T 305100 7T 10UF
C724 067T 305100 7T 10UF
C723 067T 305100 7T 10UF
C169 067T 305100 7T 10UF
C126 067T 305100 7T 10UF
C125 067T 305100 7T 10UF
C123 067T 305100 7T 10UF
C121 067T 305100 7T 10UF
C120 067T 305100 7T 10UF
C771 067T 305101 3T 100UF 16V 105C
C739 067T 305101 3T 100UF 16V 105C
C736 067T 305101 3T 100UF 16V 105C
C728 067T 305101 3T 100UF 16V 105C
C726 067T 305101 3T 100UF 16V 105C
C716 067T 305101 3T 100UF 16V 105C
C711 067T 305101 3T 100UF 16V 105C
C708 067T 305101 3T 100UF 16V 105C
C638 067T 305101 3T 100UF 16V 105C
C170 067T 305101 3T 100UF 16V 105C
C201 067T 305101 3T 100UF 16V 105C
C412 067T 305101 3T 100UF 16V 105C

D-SUB 15PIN FEMALE VERTICAL 附螺絲
D-SUB 15PIN FEMALE VERTICAL WITH

SCREW

81

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

C449 067T 305101 3T 100UF 16V 105C
C450 067T 305101 3T 100UF 16V 105C

C6116 067T 305101 3T 100UF 16V 105C

C620 067T 305101 3T 100UF 16V 105C
C637 067T 305101 3T 100UF 16V 105C
C754 067T 305221 2T
C713 067T 305221 2T
C718 067T 305221 2T
C710 067T 305221 2T
C621 067T 305221 2T

C6115 067T 305331 3T

C677 067T 305470 3T
C674 067T 305470 3T
U704 056T 133 30AAC IC AZ1117H-ADJ-E1
U406 056T 158501 IC AS431AN-E1 SOT23
U607 056T 158501 IC AS431AN-E1 SOT23
U106 056T 379 36 MC34063A
U601 056T 563 50 AP1117D18LA T0252-3L
U707 056T 563 51 AP1117D50LA T0252-3L
U703 056T 563 56 AP1084D18LA TO-252-3L
U602 056T 563 75 G1084-33T43UF TO-252
U705 056T 563 96 IC AIC1084-25PETR-R TO-252
U701 056T 563121 IC G1084-33TU3UF TO-263T
U603 056T 593 29 1 IC STV8318F TQFP-100
U606 056T 593 32 IC STA335BW13TR POWERSSO36
U103 056T 614 1 IC 74HC4052D PHILIPS
U402 056T 615913 IC HYB25DC256160CE-5 TSOPII66
U605 056T 616 3 PT2308S SO-8 PTC
U507 056T 634 19 IC PS321TQFP80G TQFP-80
U105 056T 647 18 IC WM8521HCGED/RV SOIC-14
U708 056T 647 24 IC TDA9885TS/V3 SSOP-24
U506 056T 662 10 IC RCLAMP0524P.TCT
U502 056T 662 10 IC RCLAMP0524P.TCT
U503 056T 662 10 IC RCLAMP0524P.TCT
U505 056T 662 10 IC RCLAMP0524P.TCT
U403 056T1125177 NT68F631ALG PLCC-44
U401 056T1126 35 IC NT7263 LQFP-256
U509 056T1133 32 M24C04-WMN6TP
U504 056T1133 34 M24C02-WMN6TP
U501 056T1133 34 M24C02-WMN6TP
U102 056T1133 34 M24C02-WMN6TP
U510 056T1133526 IC MX25L4005AMC-12G SOP-8
U404 056T113353A M24C32-WMN6TP
U101 056T4LVC 14 P 74LVC14ADT
U608 056T4LVCG08 TI IC SN74LVC1G08DCKR SC70-5

U9001 056T4LVCG08 TI IC SN74LVC1G08DCKR SC70-5

U604 056T566N600 NDC7002N SOT-6 FAIRCHILD
Q108 057T 417511 TRA MMBT3904 BLUE ROKET
Q403 057T 417511 TRA MMBT3904 BLUE ROKET

Q9001 057T 417511 TRA MMBT3904 BLUE ROKET

Q710 057T 417511 TRA MMBT3904 BLUE ROKET
Q707 057T 417511 TRA MMBT3904 BLUE ROKET
Q705 057T 417511 TRA MMBT3904 BLUE ROKET
Q704 057T 417511 TRA MMBT3904 BLUE ROKET
Q702 057T 417511 TRA MMBT3904 BLUE ROKET
Q607 057T 417511 TRA MMBT3904 BLUE ROKET

CAP 105℃ 220UF M 10V
CAP 105℃ 220UF M 10V
CAP 105℃ 220UF M 10V
CAP 105℃ 220UF M 10V
CAP 105℃ 220UF M 10V
CAP 105℃ 330UF 16V
EC 105℃ 47UF M 16V
EC 105℃ 47UF M 16V

82

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

Q606 057T 417511 TRA MMBT3904 BLUE ROKET
Q605 057T 417511 TRA MMBT3904 BLUE ROKET
Q604 057T 417511 TRA MMBT3904 BLUE ROKET
Q603 057T 417511 TRA MMBT3904 BLUE ROKET
Q602 057T 417511 TRA MMBT3904 BLUE ROKET
Q601 057T 417511 TRA MMBT3904 BLUE ROKET
Q503 057T 417511 TRA MMBT3904 BLUE ROKET
Q502 057T 417511 TRA MMBT3904 BLUE ROKET
Q501 057T 417511 TRA MMBT3904 BLUE ROKET
Q404 057T 417511 TRA MMBT3904 BLUE ROKET
Q608 057T 417512 TRA MMBT3906 BLUE ROKET
Q105 057T 417512 TRA MMBT3906 BLUE ROKET
Q106 057T 419 8 T TRA 2SD1757K 0.5A/15V SC-59
Q107 057T 419 8 T TRA 2SD1757K 0.5A/15V SC-59
Q401 057T 600 54 FET BSN20 SOT-23 PHILIPS
Q402 057T 600 54 FET BSN20 SOT-23 PHILIPS
Q701 057T 763 3 AO4411L SO-8 BY AOS SMT
Q706 057T 763 3 AO4411L SO-8 BY AOS SMT
Q708 057T 763 3 AO4411L SO-8 BY AOS SMT

Q9002 057T 765 1 2SC2412KR

RP413 061G 125222 8 RST CHIP AR 8P4R 2.2 KOHM +-5% 1/16W
RP401 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R
RP402 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R
RP403 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R
RP404 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R
RP505 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R
RP506 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R
RP410 061T 125332 8 RST CHIPR AR 8P4R 3.3KOHM +-5% 1/16W
RP412 061T 125332 8 RST CHIPR AR 8P4R 3.3KOHM +-5% 1/16W
RP414 061T 125332 8 RST CHIPR AR 8P4R 3.3KOHM +-5% 1/16W
RP405 061T 125750 8 RST CHIP AR 8P4R 75 OHM +-5% 1/16W
RP406 061T 125750 8 RST CHIP AR 8P4R 75 OHM +-5% 1/16W
RP407 061T 125750 8 RST CHIP AR 8P4R 75 OHM +-5% 1/16W
RP408 061T 125750 8 RST CHIP AR 8P4R 75 OHM +-5% 1/16W

R690 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R653 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R652 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R651 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R650 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R623 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R622 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R621 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R604 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R544 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R702 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R730 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R746 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R747 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R748 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R749 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R754 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R757 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R201 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R125 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R543 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

L600 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

R120 061T0603000 RST CHIPR 0 OHM +-5% 1/10W

83

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

R124 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R130 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R131 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R140 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R191 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R217 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R218 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R227 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R518 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R516 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R461 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R433 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R431 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R430 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R429 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R428 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R405 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R404 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R420 061T0603100 CHIP 10OHM 1/16W
R423 061T0603100 CHIP 10OHM 1/16W
R774 061T0603100 CHIP 10OHM 1/16W
R721 061T0603100 3F RST CHIPR 100KOHM +-1% 1/10W
R101 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R159 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R160 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R161 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R607 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R609 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R611 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R632 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R633 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R654 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R656 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R657 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R691 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R704 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R735 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R736 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R158 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R102 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R105 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R108 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R146 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R147 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R148 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R149 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R150 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R157 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R156 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R155 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R154 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R153 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R152 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R151 061T0603101 RST CHIPR 100 OHM +-5% 1/10W
R509 061T0603102 RST CHIPR 1KOHM +-5% 1/10W
R511 061T0603102 RST CHIPR 1KOHM +-5% 1/10W
R527 061T0603102 RST CHIPR 1KOHM +-5% 1/10W

84

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

R528 061T0603102 RST CHIPR 1KOHM +-5% 1/10W
R529 061T0603102 RST CHIPR 1KOHM +-5% 1/10W
R534 061T0603102 RST CHIPR 1KOHM +-5% 1/10W
R540 061T0603102 RST CHIPR 1KOHM +-5% 1/10W
R669 061T0603102 RST CHIPR 1KOHM +-5% 1/10W
R710 061T0603102 RST CHIPR 1KOHM +-5% 1/10W
R733 061T0603102 RST CHIPR 1KOHM +-5% 1/10W
R504 061T0603102 RST CHIPR 1KOHM +-5% 1/10W
R503 061T0603102 RST CHIPR 1KOHM +-5% 1/10W
R501 061T0603102 RST CHIPR 1KOHM +-5% 1/10W
R435 061T0603102 RST CHIPR 1KOHM +-5% 1/10W
R425 061T0603102 RST CHIPR 1KOHM +-5% 1/10W
R413 061T0603102 RST CHIPR 1KOHM +-5% 1/10W
R412 061T0603102 RST CHIPR 1KOHM +-5% 1/10W
R407 061T0603102 RST CHIPR 1KOHM +-5% 1/10W
R406 061T0603102 RST CHIPR 1KOHM +-5% 1/10W
R113 061T0603102 RST CHIPR 1KOHM +-5% 1/10W
R715 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R712 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R711 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R680 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R677 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R674 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R671 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R668 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R666 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R645 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R624 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R558 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R550 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R549 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R530 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R460 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R416 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R129 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R128 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R720 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R723 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R783 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R9001 061T0603103 RST CHIPR 10KOHM +-5% 1/10W

R732 061T0603104 RST CHIPR 100KOHM +-5% 1/10W
R717 061T0603104 RST CHIPR 100KOHM +-5% 1/10W
R706 061T0603104 RST CHIPR 100KOHM +-5% 1/10W
R638 061T0603104 RST CHIPR 100KOHM +-5% 1/10W
R629 061T0603104 RST CHIPR 100KOHM +-5% 1/10W
R427 061T0603104 RST CHIPR 100KOHM +-5% 1/10W
R414 061T0603104 RST CHIPR 100KOHM +-5% 1/10W
R118 061T0603104 RST CHIPR 100KOHM +-5% 1/10W
R542 061T0603105 RST CHIPR 1MOHM +-5% 1/10W
R538 061T0603105 RST CHIPR 1MOHM +-5% 1/10W
R417 061T0603105 RST CHIPR 1MOHM +-5% 1/10W
R724 061T0603121 RST CHIPR 120 OHM +-5% 1/10W
R741 061T0603122 RST CHIPR 1.2 KOHM +-5% 1/10W
R672 061T0603123 RST CHIPR 12 KOHM +-5% 1/10W
R731 061T0603123 RST CHIPR 12 KOHM +-5% 1/10W
R773 061T0603123 RST CHIPR 12 KOHM +-5% 1/10W
R776 061T0603151 RST CHIPR 150 OHM +-5% 1/10W

85

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

R9005 061T0603151 RST CHIPR 150 OHM +-5% 1/10W

R602 061T0603153 RST CHIPR 15 KOHM +-5% 1/10W
R603 061T0603153 RST CHIPR 15 KOHM +-5% 1/10W
R605 061T0603153 RST CHIPR 15 KOHM +-5% 1/10W
R606 061T0603153 RST CHIPR 15 KOHM +-5% 1/10W
R608 061T0603153 RST CHIPR 15 KOHM +-5% 1/10W
R610 061T0603153 RST CHIPR 15 KOHM +-5% 1/10W
R613 061T0603153 RST CHIPR 15 KOHM +-5% 1/10W
R614 061T0603153 RST CHIPR 15 KOHM +-5% 1/10W
R619 061T0603153 RST CHIPR 15 KOHM +-5% 1/10W
R620 061T0603153 RST CHIPR 15 KOHM +-5% 1/10W
R778 061T0603181 RST CHIPR 180 OHM +-5% 1/10W
R777 061T0603182 CHIP 1.8K OHM 1/16W
R196 061T0603183 RST CHIPR 18 KOHM +-5% 1/10W
R506 061T0603183 RST CHIPR 18 KOHM +-5% 1/10W
R171 061T0603201 RST CHIPR 200 OHM +-5% 1/10W
R170 061T0603201 RST CHIPR 200 OHM +-5% 1/10W
R502 061T0603203 CHIPR 20K OHM+-5% 1/10W
R510 061T0603203 CHIPR 20K OHM+-5% 1/10W
R452 061T0603220 CHIP 22OHM 1/10W
R451 061T0603220 CHIP 22OHM 1/10W
R432 061T0603220 CHIP 22OHM 1/10W
R410 061T0603220 CHIP 22OHM 1/10W
R409 061T0603220 CHIP 22OHM 1/10W
R408 061T0603220 CHIP 22OHM 1/10W
R403 061T0603220 CHIP 22OHM 1/10W
R402 061T0603220 CHIP 22OHM 1/10W
R401 061T0603220 CHIP 22OHM 1/10W
R162 061T0603220 CHIP 22OHM 1/10W
R531 061T0603220 CHIP 22OHM 1/10W
R532 061T0603220 CHIP 22OHM 1/10W
R789 061T0603220 CHIP 22OHM 1/10W
R790 061T0603220 CHIP 22OHM 1/10W
R791 061T0603220 CHIP 22OHM 1/10W
R792 061T0603220 CHIP 22OHM 1/10W
R411 061T0603221 CHIP 220OHM 1/16W
R667 061T0603222 CHIP 2.2K OHM 1/16W
R648 061T0603222 CHIP 2.2K OHM 1/16W
R117 061T0603222 CHIP 2.2K OHM 1/16W
R107 061T0603222 CHIP 2.2K OHM 1/16W
R106 061T0603222 CHIP 2.2K OHM 1/16W
R714 061T0603223 CHIP 22KOHM 1/16W
R718 061T0603223 CHIP 22KOHM 1/16W
R722 061T0603223 CHIP 22KOHM 1/16W
R784 061T0603223 CHIP 22KOHM 1/16W
R419 061T0603272 CHIP 2.7KOHM 1/16W
R422 061T0603272 CHIP 2.7KOHM 1/16W
R434 061T0603301 RST CHIPR 300OHM +-5% 1/10W
R752 061T0603331 RST CHIPR 330 OHM +-5% 1/10W
R719 061T0603332 RST CHIPR 3.3 KOHM +-5% 1/10W
R681 061T0603332 RST CHIPR 3.3 KOHM +-5% 1/10W
R459 061T0603332 RST CHIPR 3.3 KOHM +-5% 1/10W
R458 061T0603332 RST CHIPR 3.3 KOHM +-5% 1/10W
R457 061T0603332 RST CHIPR 3.3 KOHM +-5% 1/10W
R456 061T0603332 RST CHIPR 3.3 KOHM +-5% 1/10W
R455 061T0603332 RST CHIPR 3.3 KOHM +-5% 1/10W
R454 061T0603332 RST CHIPR 3.3 KOHM +-5% 1/10W

86

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

R453 061T0603332 RST CHIPR 3.3 KOHM +-5% 1/10W
R446 061T0603332 RST CHIPR 3.3 KOHM +-5% 1/10W
R436 061T0603332 RST CHIPR 3.3 KOHM +-5% 1/10W
R114 061T0603333 RST CHIPR 33 KOHM +-5% 1/10W
R601 061T0603339 F RST CHIPR 3.3 OHM +-5% 1/10W FENGHUA
R659 061T0603339 F RST CHIPR 3.3 OHM +-5% 1/10W FENGHUA
R551 061T0603363 RST CHIP 36K 1/10W 5%
R552 061T0603363 RST CHIP 36K 1/10W 5%
R627 061T0603392 CHIP 3.9KOHM 1/16W
R635 061T0603392 CHIP 3.9KOHM 1/16W
R636 061T0603392 CHIP 3.9KOHM 1/16W
R640 061T0603392 CHIP 3.9KOHM 1/16W
R612 061T0603470 RST CHIPR 47 OHM +-5% 1/10W
R753 061T0603471 RST CHIPR 470OHM +-5% 1/10W
R782 061T0603471 RST CHIPR 470OHM +-5% 1/10W

R9004 061T0603471 RST CHIPR 470OHM +-5% 1/10W

R185 061T0603472 CHIP 4.7KOHM 1/16W
R187 061T0603472 CHIP 4.7KOHM 1/16W
R194 061T0603472 CHIP 4.7KOHM 1/16W
R195 061T0603472 CHIP 4.7KOHM 1/16W
R415 061T0603472 CHIP 4.7KOHM 1/16W
R426 061T0603472 CHIP 4.7KOHM 1/16W
R557 061T0603472 CHIP 4.7KOHM 1/16W

R9002 061T0603472 CHIP 4.7KOHM 1/16W

R739 061T0603472 CHIP 4.7KOHM 1/16W
R699 061T0603472 CHIP 4.7KOHM 1/16W
R670 061T0603472 CHIP 4.7KOHM 1/16W
R637 061T0603472 CHIP 4.7KOHM 1/16W
R628 061T0603472 CHIP 4.7KOHM 1/16W
R555 061T0603472 CHIP 4.7KOHM 1/16W
R553 061T0603472 CHIP 4.7KOHM 1/16W
R514 061T0603472 CHIP 4.7KOHM 1/16W
R513 061T0603472 CHIP 4.7KOHM 1/16W
R512 061T0603472 CHIP 4.7KOHM 1/16W
R508 061T0603472 CHIP 4.7KOHM 1/16W
R507 061T0603472 CHIP 4.7KOHM 1/16W
R447 061T0603472 CHIP 4.7KOHM 1/16W
R445 061T0603472 CHIP 4.7KOHM 1/16W
R444 061T0603472 CHIP 4.7KOHM 1/16W
R443 061T0603472 CHIP 4.7KOHM 1/16W
R442 061T0603472 CHIP 4.7KOHM 1/16W
R112 061T0603473 CHIP 47KOHM 1/16W
R183 061T0603473 CHIP 47KOHM 1/16W
R184 061T0603473 CHIP 47KOHM 1/16W
R186 061T0603473 CHIP 47KOHM 1/16W
R188 061T0603473 CHIP 47KOHM 1/16W
R631 061T0603473 CHIP 47KOHM 1/16W
R639 061T0603473 CHIP 47KOHM 1/16W
R673 061T0603473 CHIP 47KOHM 1/16W
R675 061T0603473 CHIP 47KOHM 1/16W
R679 061T0603473 CHIP 47KOHM 1/16W
R705 061T0603473 CHIP 47KOHM 1/16W
R709 061T0603473 CHIP 47KOHM 1/16W
R713 061T0603473 CHIP 47KOHM 1/16W
R716 061T0603473 CHIP 47KOHM 1/16W
R775 061T0603473 CHIP 47KOHM 1/16W

R9003 061T0603473 CHIP 47KOHM 1/16W

87

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

R616 061T0603474 RST CHIPR 470 KOHM +-5% 1/10W
R520 061T0603510 0F RST CHIPR 510OHM +-1% 1/10W
R103 061T0603511 RST CHIPR 510 OHM +-5% 1/10W
R104 061T0603511 RST CHIPR 510 OHM +-5% 1/10W
R116 061T0603560 9F RST CHIPR 56 OHM +-1% 1/10W
R696 061T0603561 RST CHIPR 560 OHM +-5% 1/10W
R745 061T0603562 RST CHIPR 5.6 KOHM +-5% 1/10W
R181 061T0603681 RST CHIPR 680 OHM +-5% 1/10W
R182 061T0603681 RST CHIPR 680 OHM +-5% 1/10W
R701 061T0603681 RST CHIPR 680 OHM +-5% 1/10W
R625 061T0603682 RST CHIPR 6.8KOHM +-5% 1/10W
R630 061T0603682 RST CHIPR 6.8KOHM +-5% 1/10W

R9006 061T0603750 RST CHIPR 75 OHM +-5% 1/10W

R190 061T0603750 RST CHIPR 75 OHM +-5% 1/10W
R189 061T0603750 RST CHIPR 75 OHM +-5% 1/10W
R141 061T0603750 RST CHIPR 75 OHM +-5% 1/10W
R119 061T0603750 RST CHIPR 75 OHM +-5% 1/10W
R132 061T0603750 RST CHIPR 75 OHM +-5% 1/10W
R133 061T0603750 RST CHIPR 75 OHM +-5% 1/10W
R136 061T0603750 RST CHIPR 75 OHM +-5% 1/10W
R137 061T0603750 RST CHIPR 75 OHM +-5% 1/10W
R138 061T0603750 RST CHIPR 75 OHM +-5% 1/10W
R139 061T0603750 RST CHIPR 75 OHM +-5% 1/10W
R111 061T0603750 9F CHIP 75OHM 1/10W 1%
R110 061T0603750 9F CHIP 75OHM 1/10W 1%
R109 061T0603750 9F CHIP 75OHM 1/10W 1%
R795 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R794 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R793 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R698 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R693 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R692 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R688 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R687 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R686 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R685 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R684 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R683 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R682 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R796 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R798 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R799 061T0805000 RST CHIPR 0 OHM +-5% 1/8W
R115 061T0805470 RST CHIPR 47 OHM +-5% 1/8W
R219 061T1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA
R220 061T1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA
R221 061T1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA
R222 061T1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA
R223 061T1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA
R225 061T1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA
R226 061T1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA
R228 061T1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA
R229 061T1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA
R230 061T1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA
R231 061T1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA
R797 061T1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA
R216 061T1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA
R215 061T1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA

88

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

R214 061T1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA
R213 061T1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA
R212 061T1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA
R211 061T1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA
R210 061T1206000 F RST CHIPR 0 OHM +-5% 1/4W FENGHUA
R661 061T1206220 RST CHIPR 22 OHM +-5% 1/4W
R643 061T1206220 RST CHIPR 22 OHM +-5% 1/4W
R725 061T1206620 0F RST CHIPR 620 OHM +-1% 1/4W
R779 061T1206629 RST CHIP 6R2 1/4W 5%
R665 061T1206629 RST CHIP 6R2 1/4W 5%
R662 061T1206629 RST CHIP 6R2 1/4W 5%
R649 061T1206629 RST CHIP 6R2 1/4W 5%
R644 061T1206629 RST CHIP 6R2 1/4W 5%

CP601 065T 600471 8T CHIP ARRAY 470PF 8P

C195 065T0603100 31 GP CHIP 10PF 50V NPO
C196 065T0603100 31 GP CHIP 10PF 50V NPO
C738 065T0603101 31 CHIP 100PF 50V NPO
C701 065T0603101 31 CHIP 100PF 50V NPO
C737 065T0603101 31 CHIP 100PF 50V NPO
C741 065T0603102 31 CHIP 1000PF 50V NPO
C753 065T0603102 31 CHIP 1000PF 50V NPO
C118 065T0603102 31 CHIP 1000PF 50V NPO
C117 065T0603102 31 CHIP 1000PF 50V NPO

C601 065T0603102 32 CHIP 1000PF 50V X7R
C6106 065T0603102 32 CHIP 1000PF 50V X7R
C6108 065T0603102 32 CHIP 1000PF 50V X7R
C6111 065T0603102 32 CHIP 1000PF 50V X7R

C663 065T0603102 32 CHIP 1000PF 50V X7R

C664 065T0603102 32 CHIP 1000PF 50V X7R

C673 065T0603102 32 CHIP 1000PF 50V X7R

C678 065T0603102 32 CHIP 1000PF 50V X7R

C688 065T0603102 32 CHIP 1000PF 50V X7R

C690 065T0603102 32 CHIP 1000PF 50V X7R

C693 065T0603102 32 CHIP 1000PF 50V X7R
C9002 065T0603103 32 CHIP 0.01UF 50V X7R

C755 065T0603103 32 CHIP 0.01UF 50V X7R

C748 065T0603103 32 CHIP 0.01UF 50V X7R

C747 065T0603103 32 CHIP 0.01UF 50V X7R

C666 065T0603103 32 CHIP 0.01UF 50V X7R

C629 065T0603103 32 CHIP 0.01UF 50V X7R

C628 065T0603103 32 CHIP 0.01UF 50V X7R

C625 065T0603103 32 CHIP 0.01UF 50V X7R

C624 065T0603103 32 CHIP 0.01UF 50V X7R

C614 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C613 065T0603104 12 MLCC 0603 0.1UF K 16V X7R
C6122 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C612 065T0603104 12 MLCC 0603 0.1UF K 16V X7R
C6119 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C611 065T0603104 12 MLCC 0603 0.1UF K 16V X7R
C6104 065T0603104 12 MLCC 0603 0.1UF K 16V X7R
C6103 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C610 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C609 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C608 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C607 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C606 065T0603104 12 MLCC 0603 0.1UF K 16V X7R
C9001 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

89

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

C697 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C696 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C668 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C657 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C656 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C655 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C646 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C644 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C618 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C617 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C616 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C615 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C446 065T0603104 32 CHIP 0.1UF 50V X7R

C447 065T0603104 32 CHIP 0.1UF 50V X7R

C448 065T0603104 32 CHIP 0.1UF 50V X7R

C451 065T0603104 32 CHIP 0.1UF 50V X7R

C452 065T0603104 32 CHIP 0.1UF 50V X7R

C454 065T0603104 32 CHIP 0.1UF 50V X7R

C458 065T0603104 32 CHIP 0.1UF 50V X7R

C459 065T0603104 32 CHIP 0.1UF 50V X7R

C460 065T0603104 32 CHIP 0.1UF 50V X7R

C714 065T0603104 32 CHIP 0.1UF 50V X7R

C712 065T0603104 32 CHIP 0.1UF 50V X7R

C709 065T0603104 32 CHIP 0.1UF 50V X7R

C707 065T0603104 32 CHIP 0.1UF 50V X7R

C706 065T0603104 32 CHIP 0.1UF 50V X7R

C705 065T0603104 32 CHIP 0.1UF 50V X7R

C704 065T0603104 32 CHIP 0.1UF 50V X7R

C703 065T0603104 32 CHIP 0.1UF 50V X7R

C702 065T0603104 32 CHIP 0.1UF 50V X7R

C695 065T0603104 32 CHIP 0.1UF 50V X7R

C694 065T0603104 32 CHIP 0.1UF 50V X7R

C421 065T0603104 32 CHIP 0.1UF 50V X7R

C422 065T0603104 32 CHIP 0.1UF 50V X7R

C423 065T0603104 32 CHIP 0.1UF 50V X7R

C424 065T0603104 32 CHIP 0.1UF 50V X7R

C425 065T0603104 32 CHIP 0.1UF 50V X7R

C426 065T0603104 32 CHIP 0.1UF 50V X7R

C427 065T0603104 32 CHIP 0.1UF 50V X7R

C429 065T0603104 32 CHIP 0.1UF 50V X7R

C430 065T0603104 32 CHIP 0.1UF 50V X7R

C431 065T0603104 32 CHIP 0.1UF 50V X7R

C432 065T0603104 32 CHIP 0.1UF 50V X7R

C434 065T0603104 32 CHIP 0.1UF 50V X7R

C435 065T0603104 32 CHIP 0.1UF 50V X7R

C436 065T0603104 32 CHIP 0.1UF 50V X7R

C437 065T0603104 32 CHIP 0.1UF 50V X7R

C438 065T0603104 32 CHIP 0.1UF 50V X7R

C439 065T0603104 32 CHIP 0.1UF 50V X7R

C442 065T0603104 32 CHIP 0.1UF 50V X7R

C443 065T0603104 32 CHIP 0.1UF 50V X7R

C444 065T0603104 32 CHIP 0.1UF 50V X7R

C722 065T0603104 32 CHIP 0.1UF 50V X7R

C720 065T0603104 32 CHIP 0.1UF 50V X7R

C719 065T0603104 32 CHIP 0.1UF 50V X7R

C717 065T0603104 32 CHIP 0.1UF 50V X7R

C462 065T0603104 32 CHIP 0.1UF 50V X7R

90

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

C463 065T0603104 32 CHIP 0.1UF 50V X7R

C465 065T0603104 32 CHIP 0.1UF 50V X7R

C467 065T0603104 32 CHIP 0.1UF 50V X7R

C469 065T0603104 32 CHIP 0.1UF 50V X7R

C471 065T0603104 32 CHIP 0.1UF 50V X7R

C506 065T0603104 32 CHIP 0.1UF 50V X7R

C507 065T0603104 32 CHIP 0.1UF 50V X7R

C508 065T0603104 32 CHIP 0.1UF 50V X7R

C509 065T0603104 32 CHIP 0.1UF 50V X7R

C510 065T0603104 32 CHIP 0.1UF 50V X7R

C511 065T0603104 32 CHIP 0.1UF 50V X7R

C512 065T0603104 32 CHIP 0.1UF 50V X7R

C513 065T0603104 32 CHIP 0.1UF 50V X7R

C518 065T0603104 32 CHIP 0.1UF 50V X7R
C6101 065T0603104 32 CHIP 0.1UF 50V X7R

C691 065T0603104 32 CHIP 0.1UF 50V X7R

C687 065T0603104 32 CHIP 0.1UF 50V X7R

C684 065T0603104 32 CHIP 0.1UF 50V X7R

C683 065T0603104 32 CHIP 0.1UF 50V X7R

C671 065T0603104 32 CHIP 0.1UF 50V X7R

C641 065T0603104 32 CHIP 0.1UF 50V X7R

C640 065T0603104 32 CHIP 0.1UF 50V X7R

C622 065T0603104 32 CHIP 0.1UF 50V X7R
C6117 065T0603104 32 CHIP 0.1UF 50V X7R
C6114 065T0603104 32 CHIP 0.1UF 50V X7R
C6113 065T0603104 32 CHIP 0.1UF 50V X7R
C6112 065T0603104 32 CHIP 0.1UF 50V X7R
C6109 065T0603104 32 CHIP 0.1UF 50V X7R
C6105 065T0603104 32 CHIP 0.1UF 50V X7R
C6102 065T0603104 32 CHIP 0.1UF 50V X7R

C740 065T0603104 32 CHIP 0.1UF 50V X7R

C730 065T0603104 32 CHIP 0.1UF 50V X7R

C729 065T0603104 32 CHIP 0.1UF 50V X7R

C727 065T0603104 32 CHIP 0.1UF 50V X7R

C725 065T0603104 32 CHIP 0.1UF 50V X7R

C168 065T0603104 32 CHIP 0.1UF 50V X7R

C166 065T0603104 32 CHIP 0.1UF 50V X7R

C165 065T0603104 32 CHIP 0.1UF 50V X7R

C164 065T0603104 32 CHIP 0.1UF 50V X7R

C163 065T0603104 32 CHIP 0.1UF 50V X7R

C162 065T0603104 32 CHIP 0.1UF 50V X7R

C161 065T0603104 32 CHIP 0.1UF 50V X7R

C160 065T0603104 32 CHIP 0.1UF 50V X7R

C124 065T0603104 32 CHIP 0.1UF 50V X7R

C122 065T0603104 32 CHIP 0.1UF 50V X7R

C119 065T0603104 32 CHIP 0.1UF 50V X7R

C116 065T0603104 32 CHIP 0.1UF 50V X7R

C750 065T0603104 32 CHIP 0.1UF 50V X7R

C766 065T0603104 32 CHIP 0.1UF 50V X7R

C770 065T0603104 32 CHIP 0.1UF 50V X7R

C772 065T0603104 32 CHIP 0.1UF 50V X7R

C775 065T0603104 32 CHIP 0.1UF 50V X7R

C420 065T0603104 32 CHIP 0.1UF 50V X7R

C413 065T0603104 32 CHIP 0.1UF 50V X7R

C411 065T0603104 32 CHIP 0.1UF 50V X7R

C409 065T0603104 32 CHIP 0.1UF 50V X7R

C408 065T0603104 32 CHIP 0.1UF 50V X7R

91

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

C407 065T0603104 32 CHIP 0.1UF 50V X7R

C406 065T0603104 32 CHIP 0.1UF 50V X7R

C405 065T0603104 32 CHIP 0.1UF 50V X7R

C403 065T0603104 32 CHIP 0.1UF 50V X7R

C402 065T0603104 32 CHIP 0.1UF 50V X7R

C401 065T0603104 32 CHIP 0.1UF 50V X7R

C186 065T0603104 32 CHIP 0.1UF 50V X7R

C185 065T0603104 32 CHIP 0.1UF 50V X7R

C179 065T0603104 32 CHIP 0.1UF 50V X7R

C178 065T0603104 32 CHIP 0.1UF 50V X7R

C177 065T0603104 32 CHIP 0.1UF 50V X7R

C176 065T0603104 32 CHIP 0.1UF 50V X7R

C623 065T0603105 17 CHIP 1UF 16V Y5V

C619 065T0603105 17 CHIP 1UF 16V Y5V
C6118 065T0603105 25 CHIP 1UF 25V X5R
C6121 065T0603105 25 CHIP 1UF 25V X5R

C515 065T0603150 31 CHIP 15PF 50V NPO

C516 065T0603150 31 CHIP 15PF 50V NPO

C769 065T0603152 31 CHIP 1500PF 50V NPO

C752 065T0603152 31 CHIP 1500PF 50V NPO

C199 065T0603220 31 CHIP 22PF 50V NPO

C653 065T0603220 31 CHIP 22PF 50V NPO

C635 065T0603221 31 CHIP 220PF 50V NPO

C634 065T0603221 31 CHIP 220PF 50V NPO

C631 065T0603221 31 CHIP 220PF 50V NPO

C630 065T0603221 31 CHIP 220PF 50V NPO

C144 065T0603221 31 CHIP 220PF 50V NPO

C143 065T0603221 31 CHIP 220PF 50V NPO

C142 065T0603221 31 CHIP 220PF 50V NPO

C141 065T0603221 31 CHIP 220PF 50V NPO

C135 065T0603221 31 CHIP 220PF 50V NPO

C134 065T0603221 31 CHIP 220PF 50V NPO

C642 065T0603221 31 CHIP 220PF 50V NPO

C643 065T0603221 31 CHIP 220PF 50V NPO

C651 065T0603221 31 CHIP 220PF 50V NPO

C652 065T0603221 31 CHIP 220PF 50V NPO

C661 065T0603221 31 CHIP 220PF 50V NPO

C662 065T0603221 31 CHIP 220PF 50V NPO

C669 065T0603223 32 CHIP 0.022UF 50V X7R 0603

C667 065T0603224 22 CHIP CAP 0.22UF 25V X7

C198 065T0603224 32 MLCC 0603 0.22UF K 50V X7R

C502 065T0603224 32 MLCC 0603 0.22UF K 50V X7R

C504 065T0603224 32 MLCC 0603 0.22UF K 50V X7R

C522 065T0603224 32 MLCC 0603 0.22UF K 50V X7R

C751 065T0603224 32 MLCC 0603 0.22UF K 50V X7R

C521 065T0603225 17 CHIP 2.2UF 16V Y5V

C658 065T0603225 17 CHIP 2.2UF 16V Y5V

C476 065T0603225A5K Y CAP CHIP 0603 2.2UF K 10V X5R

C626 065T0603225A5K Y CAP CHIP 0603 2.2UF K 10V X5R

C627 065T0603225A5K Y CAP CHIP 0603 2.2UF K 10V X5R

C632 065T0603225A5K Y CAP CHIP 0603 2.2UF K 10V X5R

C633 065T0603225A5K Y CAP CHIP 0603 2.2UF K 10V X5R

C636 065T0603225A5K Y CAP CHIP 0603 2.2UF K 10V X5R

C639 065T0603225A5K Y CAP CHIP 0603 2.2UF K 10V X5R

C649 065T0603225A5K Y CAP CHIP 0603 2.2UF K 10V X5R

C650 065T0603225A5K Y CAP CHIP 0603 2.2UF K 10V X5R

C659 065T0603225A5K Y CAP CHIP 0603 2.2UF K 10V X5R

92

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

C660 065T0603225A5K Y CAP CHIP 0603 2.2UF K 10V X5R

C648 065T0603300 31 CHIP 0603 30PF J 50V NPO

C520 065T0603330 31 CHIP 33PF 50V NPO

C519 065T0603330 31 CHIP 33PF 50V NPO

C415 065T0603330 31 CHIP 33PF 50V NPO

C416 065T0603330 31 CHIP 33PF 50V NPO

C692 065T0603331 32 CHIP 330PF 50V X7R
C6110 065T0603331 32 CHIP 330PF 50V X7R

C746 065T0603391 31 CHIP 390PF 50V NPO

C133 065T0603471 31 CHIP 470PF 50V NPO

C132 065T0603471 31 CHIP 470PF 50V NPO

C155 065T0603472 32 CHIP 4700PF 50V X7R

C699 065T060347232K Y CAP CHIP 0603 4700PF K 50V X7R

C158 065T0603473 32 CHIP 0.047UF 50V X7R

C157 065T0603473 32 CHIP 0.047UF 50V X7R

C156 065T0603473 32 CHIP 0.047UF 50V X7R

C154 065T0603473 32 CHIP 0.047UF 50V X7R

C153 065T0603473 32 CHIP 0.047UF 50V X7R

C152 065T0603473 32 CHIP 0.047UF 50V X7R

C151 065T0603473 32 CHIP 0.047UF 50V X7R

C150 065T0603473 32 CHIP 0.047UF 50V X7R

C149 065T0603473 32 CHIP 0.047UF 50V X7R

C148 065T0603473 32 CHIP 0.047UF 50V X7R

C147 065T0603473 32 CHIP 0.047UF 50V X7R

C146 065T0603473 32 CHIP 0.047UF 50V X7R

C145 065T0603473 32 CHIP 0.047UF 50V X7R

C749 065T0603474 27 CHIP 0.47UF 25V Y5V

C776 065T060347931Y MLCC 0603 4.7PF B/C 50V NPO

C670 065T0603560 31 CHIP 56PF 50V NPO

C192 065T0603569 31 CHIP 5.6PF 50V NPO

C193 065T0603569 31 CHIP 5.6PF 50V NPO

C194 065T0603569 31 CHIP 5.6PF 50V NPO

C188 065T0603680 31 CHIP 68PF 50V NPO

C187 065T0603680 31 CHIP 68PF 50V NPO

C140 065T0603680 31 CHIP 68PF 50V NPO

C139 065T0603680 31 CHIP 68PF 50V NPO

C138 065T0603680 31 CHIP 68PF 50V NPO

C137 065T0603680 31 CHIP 68PF 50V NPO

C136 065T0603680 31 CHIP 68PF 50V NPO

C128 065T0603680 31 CHIP 68PF 50V NPO

C127 065T0603680 31 CHIP 68PF 50V NPO

C129 065T0603680 32 CHIP 68PF 50V X7R
C6100 065T0603681 21 CHIP 680PF 25V NPO

C721 065T0603683 32 CHIP 0.068UF 50V X7R

C685 065T0805105 37 CHIP 1UF 50V Y5V

C686 065T0805105 37 CHIP 1UF 50V Y5V

C672 065T0805106 15 CHIP 10UF 16V X5R 0805

C681 065T0805106 15 CHIP 10UF 16V X5R 0805

C404 065T0805106 A5 CHIP 10UF 10V X5R 0805

C410 065T0805106 A5 CHIP 10UF 10V X5R 0805

C414 065T0805106 A5 CHIP 10UF 10V X5R 0805

C418 065T0805474 22 CHIP 0.47UF 25V X7R

C680 065T0805475 15 CHIP 4.7UF 16V X5R

C679 065T0805475 15 CHIP 4.7UF 16V X5R

C676 065T0805475 15 CHIP 4.7UF 16V X5R

C675 065T0805475 15 CHIP 4.7UF 16V X5R

C517 065T0805475 15 CHIP 4.7UF 16V X5R

93

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

C182 065T0805475 15 CHIP 4.7UF 16V X5R

C181 065T0805475 15 CHIP 4.7UF 16V X5R

C131 065T0805475 15 CHIP 4.7UF 16V X5R

C130 065T0805475 15 CHIP 4.7UF 16V X5R

C645 065T1206106 17 CHIP 10UF 16V Y5V

C647 065T1206106 17 CHIP 10UF 16V Y5V

C464 065T1206226 A5 CHIP 22UF 10V X5R

C466 065T1206226 A5 CHIP 22UF 10V X5R

C468 065T1206226 A5 CHIP 22UF 10V X5R

C470 065T1206226 A5 CHIP 22UF 10V X5R

C472 065T1206226 A5 CHIP 22UF 10V X5R

C715 065T1206226 A5 CHIP 22UF 10V X5R

C505 065T1206226 A5 CHIP 22UF 10V X5R

C428 065T1206226 A5 CHIP 22UF 10V X5R

C433 065T1206226 A5 CHIP 22UF 10V X5R

C440 065T1206226 A5 CHIP 22UF 10V X5R

C441 065T1206226 A5 CHIP 22UF 10V X5R

C445 065T1206226 A5 CHIP 22UF 10V X5R

C453 065T1206226 A5 CHIP 22UF 10V X5R

C461 065T1206226 A5 CHIP 22UF 10V X5R

CP601 065T600M471 8T CHIP ARRAY 470PF 8P

U509 070GHDCP500HDC HDCP CODE
LP701 071T 56A301 8K CHIP BEAD ARRAY 300 OHM

L101 071T 56F320 K CHIP BEAD 32 OHM 0805
L102 071T 56F320 K CHIP BEAD 32 OHM 0805
L103 071T 56F320 K CHIP BEAD 32 OHM 0805
L701 071T 56G151 B BEAD 0805 150 OHM
L105 071T 56G151 B BEAD 0805 150 OHM
L104 071T 56G151 B BEAD 0805 150 OHM
L418 071T 56G301 EA CHIP BEAD 300 OHM 0805
L417 071T 56G301 EA CHIP BEAD 300 OHM 0805
L415 071T 56G301 EA CHIP BEAD 300 OHM 0805
L414 071T 56G301 EA CHIP BEAD 300 OHM 0805
L413 071T 56G301 EA CHIP BEAD 300 OHM 0805
L412 071T 56G301 EA CHIP BEAD 300 OHM 0805
L411 071T 56G301 EA CHIP BEAD 300 OHM 0805
L410 071T 56G301 EA CHIP BEAD 300 OHM 0805
L408 071T 56G301 EA CHIP BEAD 300 OHM 0805
L407 071T 56G301 EA CHIP BEAD 300 OHM 0805
L406 071T 56G301 EA CHIP BEAD 300 OHM 0805
L405 071T 56G301 EA CHIP BEAD 300 OHM 0805
L404 071T 56G301 EA CHIP BEAD 300 OHM 0805
L403 071T 56G301 EA CHIP BEAD 300 OHM 0805
L201 071T 56G301 EA CHIP BEAD 300 OHM 0805

FB609 071T 56G301 EA CHIP BEAD 300 OHM 0805

L509 071T 56G301 EA CHIP BEAD 300 OHM 0805
L721 071T 56G301 EA CHIP BEAD 300 OHM 0805
L724 071T 56G301 EA CHIP BEAD 300 OHM 0805
L705 071T 56G301 EA CHIP BEAD 300 OHM 0805
L127 071T 56U600 CHIP BEAD 60 OHM 0805
L128 071T 56U600 CHIP BEAD 60 OHM 0805

L9006 071T 56U600 CHIP BEAD 60 OHM 0805

L703 071T 56Z601 CHIP BEAD 600 OHM

L702 071T 56Z601 CHIP BEAD 600 OHM
FB611 071T 56Z601 CHIP BEAD 600 OHM
FB610 071T 56Z601 CHIP BEAD 600 OHM
LP601 071T 57G601TSB IND CHIP BEAD 1206 600OHM TECSTAR

94

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

L126 071T 59B121 K CHIP BEAD

L409 071T 59B121 K CHIP BEAD

L510 071T 59B121 K CHIP BEAD

L601 071T 59B121 K CHIP BEAD

L713 071T 59B121 K CHIP BEAD

L720 071T 59B121 K CHIP BEAD

L727 071T 59B121 K CHIP BEAD

L728 071T 59B121 K CHIP BEAD

L729 071T 59B121 K CHIP BEAD

L730 071T 59B121 K CHIP BEAD

L125 071T 59B121 K CHIP BEAD

L106 071T 59B121 K CHIP BEAD

L107 071T 59B121 K CHIP BEAD

L108 071T 59B121 K CHIP BEAD

L109 071T 59B121 K CHIP BEAD

L110 071T 59B121 K CHIP BEAD

L115 071T 59B121 K CHIP BEAD

L116 071T 59B121 K CHIP BEAD

L117 071T 59B121 K CHIP BEAD

L118 071T 59B121 K CHIP BEAD

L119 071T 59B121 K CHIP BEAD

L124 071T 59B601 MA CHIP BEAD

L123 071T 59B601 MA CHIP BEAD

L121 071T 59B601 MA CHIP BEAD

L120 071T 59B601 MA CHIP BEAD

L114 071T 59B601 MA CHIP BEAD

L113 071T 59B601 MA CHIP BEAD

L112 071T 59B601 MA CHIP BEAD

L111 071T 59B601 MA CHIP BEAD
FB608 071T2012221 2Y CHIP BEAD 0805 220OHM +-25% 2A
FB607 071T2012221 2Y CHIP BEAD 0805 220OHM +-25% 2A
FB606 071T2012221 2Y CHIP BEAD 0805 220OHM +-25% 2A
FB604 071T2012221 2Y CHIP BEAD 0805 220OHM +-25% 2A
FB603 071T2012221 2Y CHIP BEAD 0805 220OHM +-25% 2A
FB602 071T2012221 2Y CHIP BEAD 0805 220OHM +-25% 2A
FB601 071T2012221 2Y CHIP BEAD 0805 220OHM +-25% 2A

L602 073T 62181 180UH +-10%

L603 073T 62181 180UH +-10%

L723 073T 62181 180UH +-10%

FB613 073T 6310010M

L501 073T253S 6 T SMD CHOKE 90 OHM ACM2012D-900-2P-T00

L502 073T253S 6 T SMD CHOKE 90 OHM ACM2012D-900-2P-T00

L503 073T253S 6 T SMD CHOKE 90 OHM ACM2012D-900-2P-T00

L504 073T253S 6 T SMD CHOKE 90 OHM ACM2012D-900-2P-T00

L505 073T253S 6 T SMD CHOKE 90 OHM ACM2012D-900-2P-T00

L506 073T253S 6 T SMD CHOKE 90 OHM ACM2012D-900-2P-T00

L507 073T253S 6 T SMD CHOKE 90 OHM ACM2012D-900-2P-T00

L508 073T253S 6 T SMD CHOKE 90 OHM ACM2012D-900-2P-T00

L9002 073T253S 6 T SMD CHOKE 90 OHM ACM2012D-900-2P-T00
L9003 073T253S 6 T SMD CHOKE 90 OHM ACM2012D-900-2P-T00
L9004 073T253S 6 T SMD CHOKE 90 OHM ACM2012D-900-2P-T00

L9005 073T253S 6 T SMD CHOKE 90 OHM ACM2012D-900-2P-T00
CN502 088T 340 21 VD HDMI HEADER 21P V/T
CN501 088T 340 21 VD HDMI HEADER 21P V/T
CN502 088T 340 21 VN HDMI HEADER 21P V/A
CN501 088T 340 21 VN HDMI HEADER 21P V/A

CHIP INDUCTOR 0603 10UH+-10%
MICROGATE

95

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

CN9003 088T 34019A VD HDMI HEADER 19P V/T
CN9003 088T 34019CVMO HDMI HEADER 19P V/T

D105 093T 60230 BAT54C BY MCC
D501 093T 60230 BAT54C BY MCC

D502 093T 60230 BAT54C BY MCC
ZD111 093T 64 37 N V-PORT-0603-100K V05
ZD112 093T 64 37 N V-PORT-0603-100K V05
ZD113 093T 64 37 N V-PORT-0603-100K V05
ZD114 093T 64 37 N V-PORT-0603-100K V05
ZD115 093T 64 37 N V-PORT-0603-100K V05
ZD116 093T 64 37 N V-PORT-0603-100K V05
ZD117 093T 64 37 N V-PORT-0603-100K V05
ZD118 093T 64 37 N V-PORT-0603-100K V05
ZD119 093T 64 37 N V-PORT-0603-100K V05
ZD120 093T 64 37 N V-PORT-0603-100K V05
ZD110 093T 64 37 N V-PORT-0603-100K V05
ZD109 093T 64 37 N V-PORT-0603-100K V05
ZD108 093T 64 37 N V-PORT-0603-100K V05
ZD101 093T 64 37 N V-PORT-0603-100K V05
ZD102 093T 64 37 N V-PORT-0603-100K V05
ZD103 093T 64 37 N V-PORT-0603-100K V05
ZD104 093T 64 37 N V-PORT-0603-100K V05
ZD105 093T 64 37 N V-PORT-0603-100K V05
ZD106 093T 64 37 N V-PORT-0603-100K V05
ZD107 093T 64 37 N V-PORT-0603-100K V05
ZD121 093T 64 37 N V-PORT-0603-100K V05
ZD122 093T 64 37 N V-PORT-0603-100K V05
ZD123 093T 64 37 N V-PORT-0603-100K V05
ZD124 093T 64 37 N V-PORT-0603-100K V05
ZD125 093T 64 37 N V-PORT-0603-100K V05
ZD601 093T 64 37 N V-PORT-0603-100K V05
ZD602 093T 64 37 N V-PORT-0603-100K V05
ZD603 093T 64 37 N V-PORT-0603-100K V05

D405 093T 6432V LL4148-GSO8 SMD BY VISHA

D406 093T 6432V LL4148-GSO8 SMD BY VISHA

D603 093T 6432V LL4148-GSO8 SMD BY VISHA

D403 093T 6432V LL4148-GSO8 SMD BY VISHA

D103 093T 6433S DIODE BAV99 SEMTECH

D104 093T 6433S DIODE BAV99 SEMTECH

D106 093T 6433S DIODE BAV99 SEMTECH

D601 093T 6433S DIODE BAV99 SEMTECH
ZD127 093T 39S 10 T RLZ6.8B LLDS
ZD126 093T 39S 10 T RLZ6.8B LLDS
ZD604 093T 39S 98 T DIODE RLZ3.3B LL-34 ROHM

D107 093T 60S 34 T DIODE SCS140V 1A/40V SC-76

D401 093T 60S 34 T DIODE SCS140V 1A/40V SC-76

D602 093T 60S 34 T DIODE SCS140V 1A/40V SC-76

D604 093T 60S 34 T DIODE SCS140V 1A/40V SC-76

D701 093T 64S3PH BAS32L SOD80C

715T3115 H MAIN-PCB 2-LAYER T1.6MM
Q85T0076101 SHIELDING
Q90T6068 2 GP HEAT SINK
IRPF8QA7 IR BOARD T3004-D-X-X-1-080309

U1 056T 627 7 FM-6038TM2-5AN

CN1 033T8032 4F HR CONNECTOR

Q1 057T 417 6 PMBS3906/PHILIPS-SMT
R1 061T0603101 RST CHIPR 100 OHM +-5% 1/10W

96

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

R5 061T0603102 RST CHIPR 1KOHM +-5% 1/10W
R3 061T0603103 RST CHIPR 10KOHM +-5% 1/10W
R2 061T0805301 RST CHIP 300R 1/8W 5%
R4 061T0805331 Y RST CHIPR 330 OHM +-5% 1/8W YAGEO
C3 065T0603101 31 CHIP 100PF 50V NPO
C5 065T0603104 32 CHIP 0.1UF 50V X7R
C4 065T0603104 32 CHIP 0.1UF 50V X7R
C2 065T0603104 32 CHIP 0.1UF 50V X7R

C1 065T0805475 A5 CHIP 4.7UF 10V X5R
FB2 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608
FB1 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608
FB3 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608

LED1 081T 14 24 EL CHIP LED BLUE/DARK RED

D1 093T 6432V LL4148-GSO8 SMD BY VISHA

D2 093T 6432V LL4148-GSO8 SMD BY VISHA

715T3004 1 IR PCB 30X24X1.6MM FR-4 D/S
KEPF8AA3 KEPC BOARD T2876-1-X-X-1-080309

CN1 033T3802 3H WAFER 3P RIGHT ANGLE
SW4 077T 600 1GCJ TACT SWITCH TSPB-2 -NP
SW5 077T 600 1GCJ TACT SWITCH TSPB-2 -NP
SW6 077T 600 1GCJ TACT SWITCH TSPB-2 -NP
SW7 077T 600 1GCJ TACT SWITCH TSPB-2 -NP
SW2 077T 600 1GCJ TACT SWITCH TSPB-2 -NP
SW3 077T 600 1GCJ TACT SWITCH TSPB-2 -NP
SW1 077T 600 1GCJ TACT SWITCH TSPB-2 -NP

R5 061T0603000 RST CHIPR 0 OHM +-5% 1/10W
R4 061T0603100 1F RST CHIPR 1 KOHM +-1% 1/10W
R2 061T0603180 1F RST CHIPR 1.8 KOHM +-1% 1/10W
R8 061T0603220 2F RST CHIPR 22 KOHM +-1% 1/10W
R6 061T0603330 1F RST CHIPR 3.3 KOHM +-1% 1/10W
R3 061T0603390 0F RST CHIPR 390 OHM +-1% 1/10W
R7 061T0603680 1F RST CHIPR 6.8 KOHM +-1% 1/10W
R1 061T08052201FF RST CHIPR 2.2KOHM +-1% 1/8W FENGHUA
C2 065T0603104 32 CHIP 0.1UF 50V X7R

L2 071T 56U601 MA CHIP BEAD 0805 600 OHM 1000MA
L1 071T 56U601 MA CHIP BEAD 0805 600 OHM 1000MA

D1 093T 6433P BAV99

715T2876 1 KEY PCB 111X15X1.6MM FR-1 S/S
Q11T5027 1 LEAD-CLAMPER
Q36T 600 18113 CLOTH_GRIDDING
Q36T 600 18114 CLOTH_GRIDDING
Q36T 600 18120 .LOTH_GRIDDING
Q36T 600 18120 .LOTH_GRIDDING
Q36T 600 36 9 GP NONWOVEN FABRIC
Q36T 600 37 12 GP NONWOVEN FABRIC
Q40T 32061549A RATING LABEL
Q40T000262496A IO LABEL
Q41T7800615A92 WARRANTY CARD
Q44TJ019101 CUSHION EPS 32
Q44TJ019201 CUSHION EPS 32
Q44TJ019301 CUSHION EPS 32
Q44TJ019401 CUSHION EPS 32
Q44TJ019615 9A 32" TV CARTON
Q44TJ020101 EPE TOP FOR CMO PANEL
Q44TJ020201 EPE BOTTOM FOR CMO PANEL
Q45G 77 5 PE PACKING
Q45T 76 28CK2 R PE BAG

97

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

Q45T 76 28NV2 R PE BAG FOR CLAMP
Q45T 99609 61 EPE COVER FOR MONITOR
Q45T 99609 79 EPE COVER FOR BASE
Q50T 500523 CABLE TIE
Q52T 1185 98 MIDDLE CARTON TAPE FOR AOC
Q52T 1185 99 BIG CARTON TAPE FOR AOC

CN5 033T3278 6D CONNECTOR 6P 2.5 DIP

CN1 033T3802 2B Y CONNECTOR

CN9 033T3802 4B Y CONNECTOR

R243 061T152M270 64 27 OHM 5% 2W
R242 061T152M330 64 33 OHM 5% 2W
C151 067T 215221 3H
C226 067T 305101 3T 100UF 16V 105C
C219 067T 305101 7P 105 RADIAL ECA PACTOR
C154 067T 305101 7P 105 RADIAL ECA PACTOR
C209 067T215S1023KV
C181 067T215S471 3K LOW ESR EC 470UF 16V
C193 067T215S471 3K LOW ESR EC 470UF 16V
C178 067T215S471 3K LOW ESR EC 470UF 16V
C198 067T215V102 3N EC 1000UF 16V NCC KY16VB
C223 067T305M1003PT E.C CAP 10UF M 16V 4*7

L11 073T 253195 L CHOKE COIL 200UH CC-008305

TU1 094TISDB T 1A TUNER ISDB-T TDHL5-002A

C15 067T 305101 3T 100UF 16V 105C

C14 067T 305101 3T 100UF 16V 105C
C160 067T 305101 3T 100UF 16V 105C
C222 067T 305101 3T 100UF 16V 105C
C157 067T 305101 3T 100UF 16V 105C
C150 067T 305101 3T 100UF 16V 105C
C190 067T 305221 3T 220UF/16V
C183 067T 305470 3T
C189 067T 305470 3T

U18 056T 379 36 MC34063A

U16 056T 379125 IC G2992F1U SOP-8

U14 056T 563126 IC G1117T63UF SOT-223

U15 056T 563137 IC CLZ8831-RST SOP-8

U12 056T 563137 IC CLZ8831-RST SOP-8

U16 056T 563138 IC RT9173PS SOP-8

U1 056T 575 13 IC ST-7101BWC PBGA-680
U22 056T 581 9 IC G5250K1T1U SOT23-5
U20 056T 585 11 AZ1117D-5.0-E1
U13 056T 585 4A AP1117E33LA
U19 056T 614 1 IC 74HC4052D PHILIPS

U9 056T 615 58 IC HYB25DC512160CE-5 512M PG-TSOPII-66-1

U8 056T 615 58 IC HYB25DC512160CE-5 512M PG-TSOPII-66-1
U11 056T 615913 IC HYB25DC256160CE-5 TSOPII66
U10 056T 615913 IC HYB25DC256160CE-5 TSOPII66

U4 056T 643500 EM6353BX2SP3B-2.9+ 3PIN SOT23-3

U5 056T1133 83 1 IC M24C64-WMN6P 64K SO-8 ST

U7 056T1133123 IC S29GL064N90TFI040 TSOP-48

Q1 057T 417511 TRA MMBT3904 BLUE ROKET

Q2 057T 417511 TRA MMBT3904 BLUE ROKET

R198 061G0402100 1F RST CHIPR 1KOHM +-1% 1/16W
R202 061G0402100 1F RST CHIPR 1KOHM +-1% 1/16W
R185 061G0402125 RST CHIP 1M2 1/16W 5%
R210 061G0402152 RST CHIP 1K5 1/16W 5%

RP31 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W

CAP 105℃ 220UF M 16V

EC 105℃ CAP 1000UF M 16V

EC 105℃ 47UF M 16V
EC 105℃ 47UF M 16V

98

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

RP30 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W
RP29 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W
RP28 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W
RP27 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W
RP26 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W
RP25 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W
RP24 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W
RP23 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W
RP22 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W
RP57 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W
RP56 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W
RP55 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W
RP54 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W
RP53 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W
RP52 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W
RP51 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W
RP50 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W
RP49 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W
RP48 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W
RP47 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W
RP46 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W
RP33 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W
RP32 061T 126101 8Y RST CHIP AR 8P4R 100OHM +-5% 1/16W
RP19 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP18 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP17 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W

RP9 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W

RP8 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP45 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP44 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP43 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP42 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP41 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP40 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP39 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP38 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP37 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP36 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP35 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP34 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W

RP3 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP21 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP20 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP15 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP13 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP11 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W

RP1 061T 126220 8 RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP10 061T 126470 8 RST CHIPR AR 8P4R 47 OHM +-5% 1/16W
RP12 061T 126470 8 RST CHIPR AR 8P4R 47 OHM +-5% 1/16W
RP14 061T 126470 8 RST CHIPR AR 8P4R 47 OHM +-5% 1/16W
RP16 061T 126470 8 RST CHIPR AR 8P4R 47 OHM +-5% 1/16W

RP2 061T 126470 8 RST CHIPR AR 8P4R 47 OHM +-5% 1/16W

RP4 061T 126470 8 RST CHIPR AR 8P4R 47 OHM +-5% 1/16W

RP5 061T 126470 8 RST CHIPR AR 8P4R 47 OHM +-5% 1/16W

RP6 061T 126470 8 RST CHIPR AR 8P4R 47 OHM +-5% 1/16W

RP7 061T 126470 8 RST CHIPR AR 8P4R 47 OHM +-5% 1/16W

R187 061T0402000 RST CHIP JUMP MAX 0R05 1/16W

99

32″&42″&47″Digital LCD TV AOC D32W831&D42H831&D47H831

R181 061T0402000 RST CHIP JUMP MAX 0R05 1/16W
R172 061T0402000 RST CHIP JUMP MAX 0R05 1/16W
R171 061T0402000 RST CHIP JUMP MAX 0R05 1/16W
R166 061T0402000 RST CHIP JUMP MAX 0R05 1/16W
R256 061T0402000 RST CHIP JUMP MAX 0R05 1/16W
R255 061T0402000 RST CHIP JUMP MAX 0R05 1/16W
R188 061T0402000 RST CHIP JUMP MAX 0R05 1/16W
R199 061T0402000 RST CHIP JUMP MAX 0R05 1/16W

R2 061T0402000 RST CHIP JUMP MAX 0R05 1/16W
R200 061T0402000 RST CHIP JUMP MAX 0R05 1/16W
R207 061T0402000 RST CHIP JUMP MAX 0R05 1/16W
R208 061T0402000 RST CHIP JUMP MAX 0R05 1/16W
R209 061T0402000 RST CHIP JUMP MAX 0R05 1/16W

R25 061T0402000 RST CHIP JUMP MAX 0R05 1/16W
R26 061T0402000 RST CHIP JUMP MAX 0R05 1/16W

R3 061T0402000 RST CHIP JUMP MAX 0R05 1/16W

R4 061T0402000 RST CHIP JUMP MAX 0R05 1/16W

R5 061T0402000 RST CHIP JUMP MAX 0R05 1/16W

R6 061T0402000 RST CHIP JUMP MAX 0R05 1/16W

R73 061T0402000 RST CHIP JUMP MAX 0R05 1/16W
R236 061T0402000 RST CHIP JUMP MAX 0R05 1/16W
R130 061T0402000 RST CHIP JUMP MAX 0R05 1/16W

R13 061T0402000 RST CHIP JUMP MAX 0R05 1/16W
R128 061T0402000 RST CHIP JUMP MAX 0R05 1/16W
R126 061T0402000 RST CHIP JUMP MAX 0R05 1/16W

R10 061T0402000 RST CHIP JUMP MAX 0R05 1/16W

R1 061T0402000 RST CHIP JUMP MAX 0R05 1/16W
R157 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R156 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R155 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R154 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R153 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R152 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R151 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R125 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R120 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R119 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R118 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R117 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R116 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R168 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R167 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R191 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

R67 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R179 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R178 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R164 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R163 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R162 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R161 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R160 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R159 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R158 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R107 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R108 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R109 061T0402101 RST CHIPR 100 OHM +-5% 1/16W
R110 061T0402101 RST CHIPR 100 OHM +-5% 1/16W

100
