Safety

National Conventions

The following subsections describe not atio nal conventions used in this document.

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: A NOTE indicates important information that helps you make better use of your computer system.

CAUTION: A CAUTIO N indicates e ither potenti al da mage to hardw are or lo ss of da ta a nd tells y ou how to av oid th e

problem.

WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem.Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the spe cif ic presentation of the warning is mandated by regulatory authority.

Power

The monitor should be operated only from the type of power source indicated on the label. If you are not sure

of the type of power supplied to your home, consult your dealer or local power company.

The monitor is equippe d with a three-pronged grounded plug, a plug with a third (grounding) pin. T his plu g will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.

Unplug the unit during a light ning stor m or w hen it w ill not be used for lon g period s of ti me. T his w ill protect th e monitor from damage due to power surges.

Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100-240V AC, Min. 5A.

The wall socket shall be installed near the equipment and shall be easily accessible.

For use only with the attached power adapter (Output: 20Vdc, 4.5A)

Manufacturers: TPV ELECTRONICS（FUJIAN）CO., LTD. Model: ADPC2090

Installation

Leave at lease this space around the set

10cm

4 英寸

10cm

4 英寸

11 7/8英寸

10cm

4 英寸

Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause ser iou s d am age t o this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. Follow the manufacturer’s instructions when installing the product and use mounting accessories recommended by the manufacturer. A product and cart combination should be moved with care.

Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or electric shock. Never spill liquids on the monitor.

Do not place the front of the product on the floor.

If you mount the monitor on a wall or shelf, use a mounting ki t approved by the manufacturer and f ol low t he ki t instructions.

Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence overheating may cause a fire or damage to the monitor.

See below the recommended ventilation areas around the monitor when the monitor is installed on the wall or on the stand:

Installed with stand

Cleaning

Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet.

When cleaning, make sure no detergent is leaked into the product. The cleaning clo t h sh oul d no t b e too rough as it will scratch the screen surface.

Please disconnect the power cord before cleaning the product.

Other

If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center.

Make sure that the ventilating openings are not blocked by a table or curtain.

Do not engage the LCD monitor in severe vibration or high impact conditions during operation.

Do not knock or drop the monitor during operation or transportation.

Setup

CD Manual Warranty card Adapter Stand Screws Base Hand Screw

Power Cable Audio Cable Analog Cable DP Cable HDMI Cable USB Cable Micphone Cable Quick Switch Keypad

Monitor

Contents in Box

Not all signal cables (Audio, Analog, DP, HDMI, USB and Micphone cables) will be provided for all cou nt rie s a nd

regions. Please check with the local dealer or AOC branch office for confirmation.

Setup Stand & Base

Please setup or remove the base following the steps as below.

Setup:

Remove:

Adjusting Viewing Angle

For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor's angle. You are able to adjust the monitor as below: Tilt angle:-5.5°~28°

NOTE: Do not adjust the viewing angle over 28 degrees in order to avoid damage.

Connecting the Monitor

Cable Connections In Back of Monitor and Computer:

1 Microphone in 2 Earphone (Combined with Microphone) 3 USB3.0 downstream + fast charging(BC1.2) 4 USB3.0 downstream 5 USB3.0 upstream 6 HDMI-2 7 HDMI-1 8 DP-2 9 DP-1 10 VGA 11 Line in 12 Microphone out (Connect to PC) 13 Quick Switch Keypad 14 DC in To protect equipment, always turn off the PC and LCD monitor before connecting. 1 Connect the power cable to the DC port on the back of the monitor. 2 Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the

computer's D-Sub port.

3 (Optional – Requires a video card with HDMI port) - Connect one end of the HDMI cable to the back of the

monitor and connect the other end to the computer’s HDMI port.

4 (Optional –Requires a video card with Audio port) - Connect one end of the Audio cable to the back of the

monitor and connect the other end to the computer’s Audio port.

5 (Optional–Requires a video card with DP port) –Connect one end of the DP cable to the back of the monitor

and connect the other end to the computer’s DP port. 6 Turn on your monitor and computer. 7 Video content supporting resolution:

VGA: 1920 x1080@60Hz (Maximum)

HDMI/DP: 2560x1440@144Hz (Maximum) If your monitor displays an image, installation is complete. If it does not display an image, please refer Troubleshooting.

Free-Sync function

1. Free-Sync function is working with DP/HDMI

2. Compatible Graphics Card: Recommend list is as the below, also could be checked by visiting www.AMD.com

• A MD Radeon R9 300 Series（370 series except）

• A MD Radeon R9 Fury X

• A MD Radeon R7 360

• AMD Radeon R9 295X2

• AMD Radeon R9 290X

• AMD Radeon R9 290

• AMD Radeon R9 285

• AMD Radeon R7 260X

• AMD Radeon R7 260

Adjusting

Setting Optimal Resolution

Windows 10

For Windows 10:

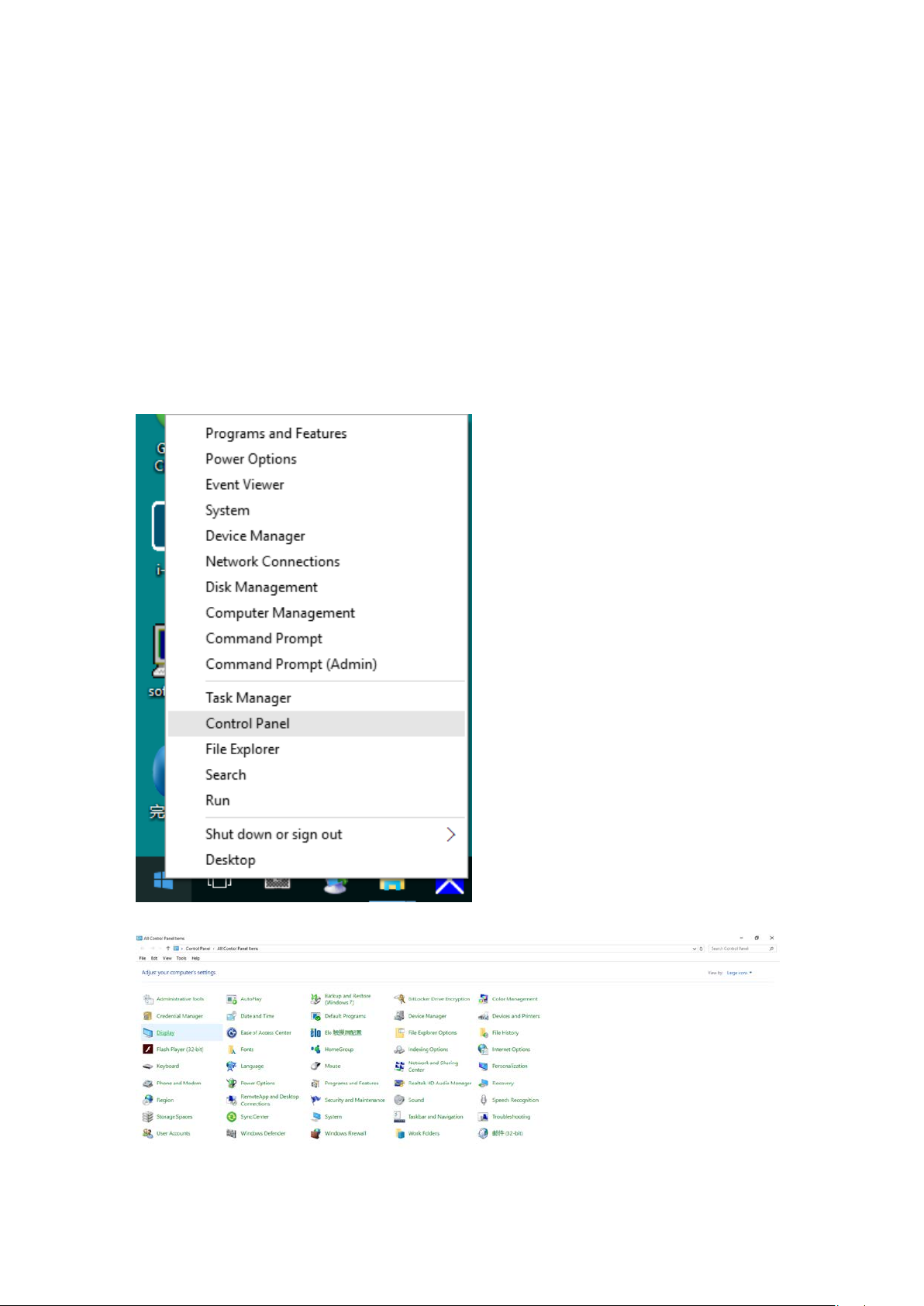

• Right click START.

• Click "CONTROL PANEL".

• Click "DISPLAY".

• Click on the "Change display settings" button.

• Set the resolution SLIDE-BAR to Optimal preset resolution.

Windows 8

For Windows 8:

• Right click and click All apps at the bottom-right of the screen.

• Set the "View by" to "Category".

• Click "Appearance and Personalization".

• Click "DISPLAY".

• Set the resolution SLIDE-BAR to Optimal preset resolution

Windows 7

For Windows 7:

• Click START.

• Click "CONTROL PANEL".

• Click "Appearance".

• Click "DISPLAY".

• Click on the "Change display settings" button.

• Set the resolution SLIDE-BAR to Optimal preset resolution

Hotkeys

1 Source/Auto/Exit 2 Shadow Control 3 Game Mode/Left 4 LED color/Right 5 Power/ Menu/Enter

Power/Menu/Enter

Press the Power button to turn on the monitor. When there is no OSD, Press to display the OSD or confirm the selection. Press about 2 second to turn off the monitor.

Shadow Control

When there is no OSD, Press Shadow Control button to active Shadow Control adjustment bar, Press “Left” or “Right” to adjust contrast for clear picture.

Game Mode/Left

When there is no OSD, press ”Left” key to open game mode function, then press ”Left” or “Right” key to select game mode (FPS, RTS, Racing, Gamer 1, Gamer 2 or Gamer 3) basing on the different game types.

LED Light Effects Control/Right When there is no OSD, press “Right” key to active LED Light Effects Control function.

Source/Auto/Exit

When the OSD is closed, press Source/Auto/Exit button will be Source hot key function. When the OSD is closed, press Source/Auto/Exit button continuously about 2 second to do auto configure (Only for the models with D-Sub).

Quick Switch

◀:

When there is no OSD, press the ◀ button to open game mode function, then press ◀ or ▶ key to select game mode (FPS, RTS, Racing, Gamer 1, Gamer 2 or Gamer 3) basing on the different game types.

▶:

When there is no OSD, press “Right” key to active LED Light Effects Control function.

Menu/OK:

When there is no OSD, Press to display the OSD or confirm the selection.

▲:

When the OSD is closed, press Source/Auto/Exit button cont in uous ly about 2 second to do auto configure (Only for the models with D-Sub). ▼: When there is no OSD, Press ▼ button to active Shadow Control adjustment bar, Press “Left” or “Right” to adjust contrast for clear picture.

Press the 1 button to select Gamer 1 mode

Press the 2 button to select Gamer 2 mode

Press the 3 button to select Gamer 3 mode

▲ button will be Source hot key function. When the OSD is closed, press

OSD Setting

Basic and simple instruction on the control keys.

1) Press the MENU-button to activate the OSD window.

2) Press< or >to navigate through the functions. Once the desired function is highlighted, press the

MENU-button to activate it. press< or >to navigate through the sub-menu f unctio ns. O nce t he desired function

is highlighted, press MENU-button to activate it.

3) Press< or >to change the settings of the selected function. Press AUTO–button to exit. If you want to adjust

any other function, repeat steps 2-3.

4) OSD Lock/Unlock Function: To lock or unlock the OSD, press and hold the Down–button for 10s while OSD

function is not active.

Notes:

1) If the product has only one signal input, the item of "Input Select" is disable to adjust.

2) ECO modes (except Standard mode), DCR, DCB mode and Picture Boost, for these four states that only one

state can exist.

Luminance

1. Press MENU-button to display menu.

2. Press Left or Right to select

3. Press Left or Right to select submenu, and press MENU-button to enter.

4. Press Left or Right to adjust.

5. Press AUTO-button to exit

(Luinance), and press MENU-button to enter.

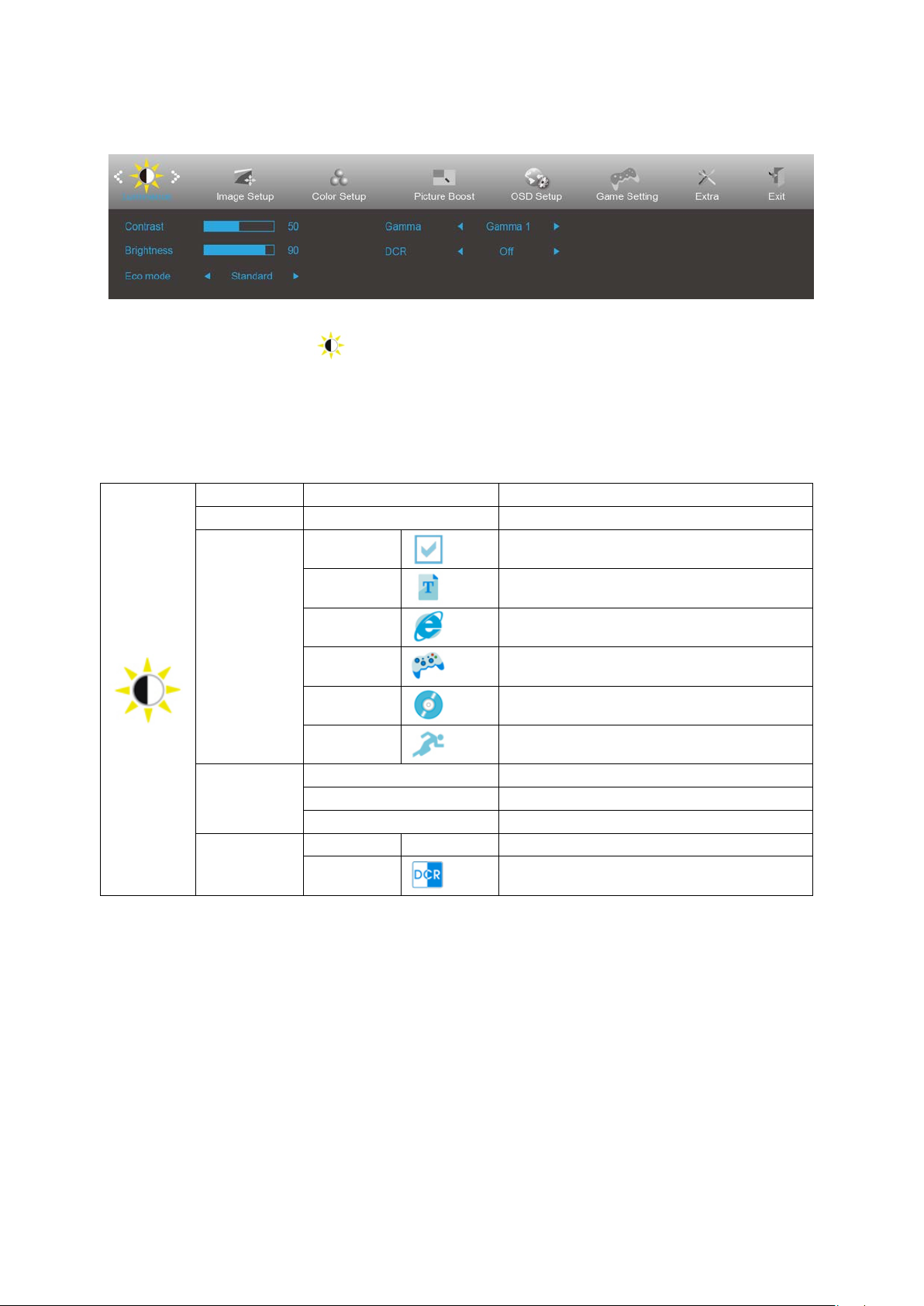

Contrast 0-100 Contrast from Digital-register. Brightness 0-100 Backlight Adjustment

Eco mode

Gamma

DCR

Standard

Text

Internet

Game

Movie

Sports Gamma1 Adjust to Gamma 1

Gamma2 Adjust to Gamma 2 Gamma3 Adjust to Gamma 3 Off Disable dynamic contrast ratio

Standard Mode

Text Mode

Internet Mode

Game Mode

Movie Mode

Sports Mode

Enable dynamic contrast ratio

Image Setup

1. Press MENU-button to display menu.

2. Press Left or Right to select (Image Setup), and press MENU-button to enter.

3. Press Left or Right to select submenu, and press MENU-button to enter.

4. Press Left or Right to adjust.

5. Press AUTO-button to exit.

Clock 0-100 Adjust picture Clock to reduce Vertical-Line noise. Phase 0-100 Adjust Picture Phase to reduce Horizontal-Line noise Sharpness 0-100 Adjust picture sharpness H. Position 0-100 Adjust the horizontal position of the picture. V. Position 0-100 Adjust the vertical position of the picture.

Color Setup

1. Press MENU-button to display menu.

2. Press Left or Right to select (Color Setup), and press MENU-button to enter.

3. Press Left or Right to select submenu, and press MENU-button to enter.

4. Press Left or Right to adjust.

5. Press AUTO-button to exit

Color Temp.

DCB Mode

DCB Demo On or off Disable or Enable Demo

Warm Recall Warm Color Temperature from EEPROM. Normal Recall Normal Color Temperature from EEPROM. Cool Recall Cool Color Temperature from EEPROM. sRGB Recall SRGB Color Temperature from EEPROM.

Red Red Gain from Digital-register

User

Full Enhance on or off Disable or Enable Full Enhance Mode Nature Skin on or off Disable or Enable Nature Skin Mode Green Field on or off Disable or Enable Green Field Mode Sky-blue on or off Disable or Enable Sky-blue Mode AutoDetect on or off Disable or Enable AutoDetect Mode

Green Green Gain Digital-register. Blue Blue Gain from Digital-register

Picture Boost

1. Press MENU-button to display menu.

2. Press Left or Right to select

3. Press Left or Right to select submenu, and press MENU-button to enter.

4. Press Left or Right to adjust.

5. Press AUTO-button to exit

Bright Frame on or off Disable or Enable Bright Frame Frame Size 14-100 Adjust Frame Size Brightness 0-100 Adjust Frame Brightness Contrast 0-100 Adjust Frame Contrast H. position 0-100 Adjust Frame horizontal Position V. position 0-100 Adjust Frame vertical Position

(Picture Boost), and press MENU-button to enter .

Note: Adjust the brightness, contrast, and position of the Bright Frame for better viewing experience.

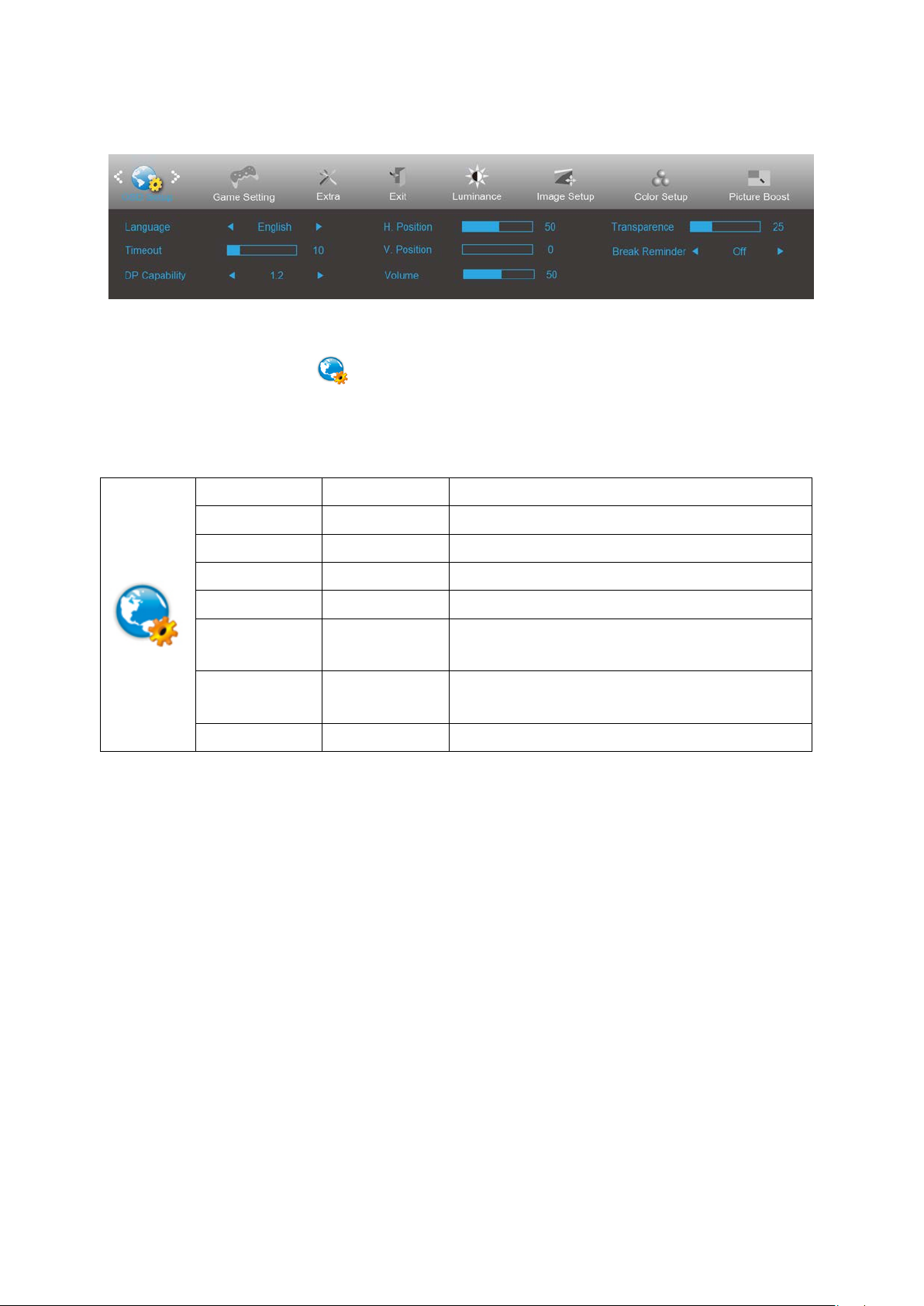

OSD Setup

Break reminder if the user continuously work for more

please be noted that only DP1.2 support free sync

1. Press MENU-button to display menu.

2. Press Left or Right to select

3. Press Left or Right to select submenu, and press MENU-button to enter.

4. Press Left or Right to adjust.

5. Press AUTO-button to exit

Language Select the OSD language Timeout 5-120 Adjust the OSD Timeout H. Position 0-100 Adjust the horizontal position of OSD V. Position 0-100 Adjust the vertical position of OSD Transparence 0-100 Adjust the transparence of OSD

Break Reminder

DP Capability

Volume

Notes:

If the DP video content supports DP1.2, please select DP1.2 for DP Capability; otherwise, please select DP1.1

(OSD Setup), and press MENU-button to enter.

on or off

1.1/1.2

0-100

than 1hrs

function Volume Adjustment.

Game Setting

For playing FPS (first Person Shooters) games. Improves dark theme black level details.

For playing RTS (Real Time Strategy). Improves the image quality.

For playing Racing games, Provides fastest response time and high color saturation.

Shadow Control Default is 50, then end-user can adjust

trast for clear pict ure.

adjusting from 50 to0 for clear picture

Low input Lag

On/off

Turn off frame buffer to decrease input lag

Game Color will provide 0-20 level for adjusting saturation to get better picture.

Off/Weak/

1. Press MENU-button to display menu.

2. Press Left or Right to select

3. Press Left or Right to select submenu, and press MENU-button to enter.

4. Press Left or Right to adjust.

5. Press AUTO-button to exit

Game Mode

Shadow Control 0-100

Game Color

(Game setting), and press MENU-button to enter.

FPS RTS Racing

Gamer 1 User’s preference settings saved as Gamer 1. Gamer 2 User’s preference settings saved as Gamer 2. Gamer 3 User’s preference settings saved as Gamer 3. off No optimization by Smart image game

from 50 to 100 or 0 to increa se con

1. If picture is too dark to be saw the detail clearly, adjusting from 50 to100 for clear picture..

2. If picture is too white to be saw the detail clearly,

0-20

Low Blue Light

Medium/Strong Weak

Medium

Overdrive

Strong Off

Decrease blue light wave by controlling color temperature.

Adjust the response time.

Extra

1. Press MENU-button to display menu.

2. Press Left or Right to select

3. Press Left or Right to select submenu, and press MENU-button to enter.

4. Press Left or Right to adjust.

5. Press AUTO-button to exit

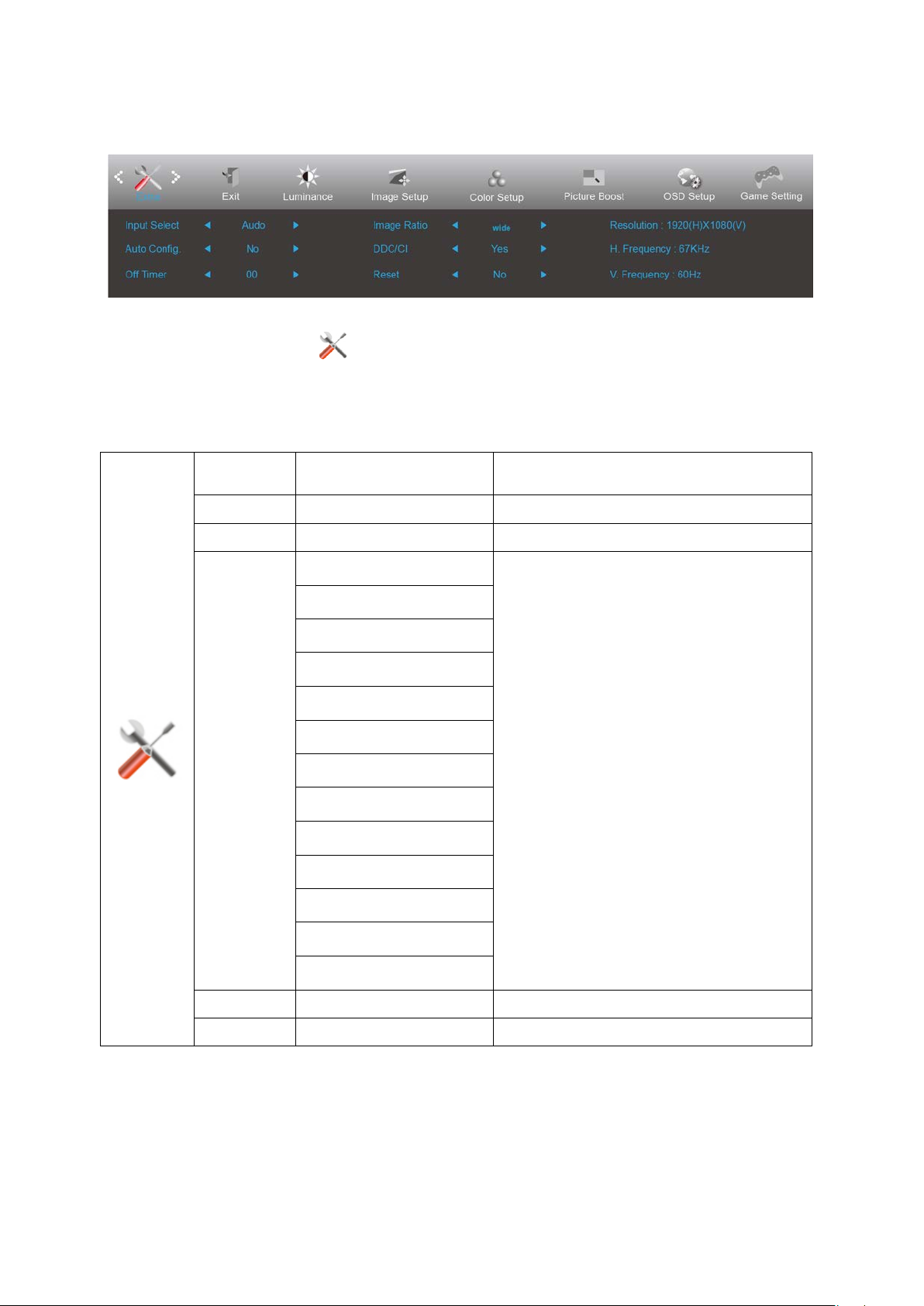

Input Select

Auto Config yes or no Auto adjust the picture to default Off timer 0-24hrs Select DC off time

Image Ratio

AUTO/D-SUB/HDMI1/HDMI2 /DP1/DP2

Wide 1:1 4:3 17” (4:3) 19” (4:3) 19” (5:4) 19”W (16:10)

21.5”W (16:9)

(Extra), and press MENU-button to enter.

Select Input Signal Source

Select image ratio for display.

22”W (16:10) 23”W (16:9)

23.6”W (16:9) 24”W (16:9) 27”W (16:9)

DDC-CI yes or no Turn ON/OFF DDC-CI Support Reset Yes or no Reset the menu to default

Exit

1. Press MENU-button to display menu.

2. Press Left or Right to select (Exit), and press MENU-button to enter.

3. Press AUTO-button to exit

Exit Exit the main OSD

LED Indicator

Status LED Color

Full Power Mode Blue

Active-off Mode Orange

Driver

Monitor Driver

Windows 10

• Star t Windows® 10

• Right click START.

• Click "Control Panel".

• Click on the "Display" icon.

• Click on the"Change display settings"button

• Click the"AdvancedSettings"button.

• Click the "Monitor" tab and then click the "Properties" button.

• Click the "Driver" tab.

• Open the "Update Driver Software-Generic PnP Monitor" window by clicking on "Update Dr iv er... “and then

click the "Browse my computer for driver software" button.

• Select "Let me pick from a list of device drivers on my computer".

• Click the "Have Disk" button. Click on the "Browse" button and navigate to the following directory: X:\Driver\module name(where X is the drive letter designator for the CD-ROM drive).

• Select the "xxx.inf" file and click the "Open" button. Click the "OK" button.

• Select your monitor model and click the "Next" button. T he files will be copied from the CD to your hard disk

drive.

• Close all open windows and remove the CD.

• Restart the system. The system will automatically select the maximum refresh rate and corresponding Color

Matching Profiles.

Windows 8

• Start Windows® 8

• Right click and click All apps at the bott om-right of the screen.

• Click on the "Control Panel" icon

• Set the "View by" to "Large icons" or "Small icons".

• Click on the "Display"icon.

• Click on the "Change display settings" button.

• Click the "Advanced Settings" button.

• Click the "Monitor" tab and then click the "Properties" button.

• Click the "Driver" tab.

• Open the "Update Driver Software-Generic PnP Moni tor" window by clicking on "Update Driver ..."and then

click the "Browse my computer for driver software" button.

• Select "Let me pick from a list of device drivers on my computer".

• Click the "Have Disk" b utton . C lick on the "Browse" button and navigate to the following directory:

X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).

• Select the "xxx.inf" file and click the "Open" button. Click the "OK" button.

• Select your monitor model and click the "Next" button. The files will be copied from the CD to your hard disk

drive.

• Close all open windows and remove the CD.

• Restart the system. The system will automatically select the maximum refresh rate and corresponding Color

Matching Profiles.

Windows 7

• Star t Windows® 7

• Click on the "Start" button and then click on "Control Panel".

• Click on the "Display"icon.

• Click on the "Change display settings" button.

• Click the "Advanced Settings" button.

Click the "Monitor" tab and then click the "Properties" button.

•

• Click the "Driver" tab.

• Open the "Update Driver Software-Generic PnP Monitor" window by clicking on “Update Driver... "and

then click the "Browse my computer for driver software" button.

• Select "Let me pick from a list of device drivers on my computer".

• Click the "Have Disk" button. Click on the "Browse" button and navigate to the following directory: X:\Driver\module name(where X is the drive letter designator for the CD-ROM drive).

• Select the "xxx.inf" file and click the "Open" button. Click the "OK" button.

• Select your monitor model and click the "Next" button. The files will be copied from the CD to your hard disk

drive.

• Close all open windows and remove the CD.

• Restart the system. The system will automatically select the maximum refresh rate and corresponding Color

Matching Profiles.

i-Menu

Welcome to “i-Menu” software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide. The software Supported operating systems: Windows 10, Windows 8, Windows 7.

e-Saver

Welcome to use AOC e -Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shu tdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below). Please click on "driver/e-Saver/setup.exe" to start installing the e-Saver software, follow the install wizard to complete software installation.

Under each of the four PC status, you may choose from the pull-down menu the desired time (in minutes) you’re your monitor to automatically shut down. The example above illustrated:

1) The monitor will never shutdown when the PC is powered on.

2) The monitor will automatically shutdown 5 minutes after the PC is powered off.

3) The monitor will automatically shutdown 10 minutes after the PC is in sleep/stand-by mode.

4) The monitor will automatically shutdown 20 minutes after the screen saver appears.

You can click “RESET” to set the e-Saver to its default settings like below.

Screen+

Welcome to “Screen+” software by AOC. Screen+ software is a desktop screen splitting tool; it splits the desktop into different panels, and each panel displays a different window. You only need to drag the window to a corresponding panel when you want to access it. It supports multiple monitor display to make your task easier. Please follow the installation software to insta ll it. The software Supported operating systems: Windows 10，

Windows 8,Windows 7.

Troubleshoot

Make sure the AOC Monitor Drivers are installed.

Move electrical devices that may cause electrical interference as far away

you are using.

Problem & Question

Power LED Is Not ON

No images on the screen

Possible Solutions Make sure the power butt on is ON and t he Pow er C ord is pro perly co nnected

to a grounded power outlet and to the monitor.

Is the power cord connected properly?

Check the power cord connection and power supply.

Is the cable connected correc tly?

(Connected using the D-s ub c able) Check the DB-15 cable connection. (Connected using the DVI cable) Check the DVI cable connection. * DVI input is not available on every model.

If the power is on, reboot the computer to see the initial screen (the login

screen), which can be seen. If the initial screen (the login screen) appears, boot the computer in the applicable mode (the safe mode for Windows ME/XP/2000) and then change the frequency of the video card. (Refer to the Setting the Optimal Resolution) If the initial screen (the login screen) does not appear, contact the Service Center or your dealer.

Can you see "Input Not Supported" on the screen?

You can see this message when the signal from the video card exceeds the maximum resolution and frequency that the monitor can handle properly. Adjust the maximum resolution and frequency that the monitor can handle properly.

Picture Is Fuzzy & Has Ghosting Shadowing Problem

Picture Bounces, Flickers Or Wave Pattern Appears In The Picture

Monitor Is Stuck In Active Off-Mode"

Missing one of the primary colors (RED, GREEN, or BLUE)

Screen image is not centered or sized properly

Picture has color defects (white does not look white)

Horizontal or vertical disturbances on the screen

Adjust the Contrast and Brightness Controls. Press to auto adjust. Make sure you are not using an extension cable or switch box. We recommend plugging the monitor directly to the video card output connector on the back.

from the monitor as possible. Use the maximum refresh rate your monitor is capable of at the resolution

The Computer Power Switch should be in the ON position. The Computer Video Card should be snugly fitted in its slot. Make sure the monitor's video cable is properly connected to the computer. Inspect the monitor's video cable and make sure no pin is bent. Make sure your computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. The LED should either turn ON or OFF after hitting the CAPS LOCK key.

Inspect the monitor's video cable and make sure that no pin is damaged. Make sure the monitor's video cable is properly connected to the computer.

Adjust H-Position and V-Position or press hot-key (AUTO).

Adjust RGB color or select desired color temperature.

Use Windows 95/98/2000/ME/XP shut-down mode to adjust CLOCK and FOCUS. Press to auto-adjust.

Specification

Panel

Model

Driving system

Vie

Pixel pitch

Video

Separate Sync.

Display Color

Others

Horizontal scan range

30k~160kHz(VGA, HDMI 1.4b) 30k~230kHz(HDMI 2.0, DP)

Horizontal scan Size(Maximum)

Vertical

50~146Hz(VGA) 48~146Hz(HDMI,DP)

Vertical Scan Size(Maximum)

Optimal preset resolution

1920x1080@60Hz RB(VGA) 2560 x1440 @60Hz (HDMI, DP)

Plug & Play

Input Connector

Input Video Signal

Output Connector

Power Source

Power Consumption

Power saving

Off timer

Physical Characteristics

Connector Type

Signal Cable Type

Dimensions & Weight:

Height(with Bas

Width

Depth

Weight(Monitor only)

9.17Kg

Environmental

Temperature

Non-Operating

-25°~ 55°

Humidity

General Specification

name AG322QCX

TFT Color LCD

wable Image Size 80.0 cm diagonal

0.2724mm(H) x 0.2724mm(V)

R, G, B Analog lnterface & HDMI lnterface & DP Interface

H/V TTL

16.7M Colors

697.344mm

scan range

392.256mm

VESA DDC2B/CI

VGA /HDMI/DP/Line in/Microphone In

Analog: 0.7Vp-p(standard), 75 OHM, TMDS

Earphone out/Microphone in

20Vdc, 4.5A

Typical(Brightness = 90,Contrast = 50) 47W Max. (brightness = 100, contrast =100) ≤95W

≤0.5W

0~24 hrs

VGA\ HDMI\DP\Earphone out/Microphone In

Detachable

712.7mm

266.5 mm

titude

e) 524.66~634.66mm

Operating 0°~ 40°

Operating 10% ~ 85% (non-condensing) Non-Operating 5% ~ 93% (non-condensing) Operating 0~ 5000 m (0~ 16404ft ) Non-Operating 0~ 12192m (0~ 40000ft )

Preset Display Modes

HORIZONTAL

FREQUENCY(kHz)

VERTICAL

FREQUENCY(Hz)

VGA

640x480@60Hz

31.469

59.94

VGA

640x480@67Hz

66.667

VGA

640x480@72Hz

37.861

72.809

VGA

640x480@75Hz

37.5

VGA

640x480@100Hz

51.08

99.769

VGA

640x480@120Hz

61.91

119.518

DOS MODE

720x400@70Hz

31.469

70.087

DOS MODE

720x480@60Hz

29.855

59.710

720x576@50Hz

31.25

SVGA

800x600@56Hz

35.156

56.25

SVGA

800x600@60Hz

37.879

60.317

SVGA

800x600@72Hz

48.077

72.188

SVGA

800x600@75Hz

46.875

SVGA

800x600@100Hz

63.684

99.662

SVGA

800x600@120Hz

76.302

119.97

SVGA

832x624@75Hz

49.725

74.551

XGA

1024x768@60Hz

48.363

60.004

XGA

1024x768@70Hz

56.476

70.069

XGA

1024x768@75Hz

60.023

75.029

XGA

1024x768@100Hz

81.577

99.972

XGA

1024x768@120Hz

97.551

119.989

SXGA

1280x1024@60Hz

63.981

60.02

SXGA

1280x1024@75Hz

79.975

75.025

Full HD

1920x1080@60Hz

67.5

FHD

1920x1080@100Hz

113.221

99.93

FHD

1920x1080@120Hz

137.26

119.982

QHD

2560x1440@60Hz

88.787

59.951

QHD

2560x1440@75Hz

111.028

74.968

QHD

2560x1440@144Hz

222.056

143.912

STANDARD RESOLUTION

Pin Assignments

15-Pin Color Display Signal Cable Pin Number

15-Pin Side of the Signal Cable Pin Number 15-Pin Side of the Signal Cable Video-Red Video-Green Video-Blue N.C. Detect Cable GND-R GND-G GND-B

+5V Ground N.C. DDC-Serial data H-sync V-sync DDC-Serial clock

Pin No. Signal Name

1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground

2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power

3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect

4. TMDS Data 1+ 12. TMDS Clock-

5. TMDS Data 1Shield 13. CEC

6. TMDS Data 1- 14. Reserved (N.C. on device)

7. TMDS Data 0+ 15. SCL

8. TMDS Data 0 Shield 16. SDA

Pin No. Signal Name

20-Pin Color Display Signal Cable

Pin No. Signal Name Pin No. Signal Name

1 ML_Lane 3 (n) 11 GND 2 3 ML_Lane 3 (p) 13 CONFIG1 4 ML_Lane 2 (n) 14 CONFIG2 5 GND 15 AUX_CH(p) 6 ML_Lane 2 (p) 16 GND 7 ML_Lane 1 (n) 17 AUX_CH(n) 8 GND 18 Hot Plug Detect 9 ML_Lane 1 (p) 19 Return DP_PWR

10 ML_Lane 0 (n) 20 DP_PWR

GND

ML_Lane 0 (p)

Plug and Play

Plug & Play DDC2B Feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.

The DDC2B is a bi-directional data c hannel ba sed on the I 2C pr otocol. T he host can req ue st ED ID informat ion over the DDC2B channel.

Regulation

FCC Notice

FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipm ent doe s cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

NOTICE:

The changes or modification s not expressly approved by the party responsible f or compl iance could void the user's authority to operate the equipment. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the respon sib il itie s of the user to correct such interference. It is the responsibility of the user to correct such interference.

WEEE Declaration

Disposal of Waste Equipment by Users in Private Household in the European Union.

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

E-Waste Declaration for India

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about E –waste, please visit http:// equipment for recycling in India please contact on below given contact details. Helpline number: 080-6788-6788 / 080-3323-1313 (Monday to Saturday, 10 a.m. to 6 p.m.) Centralized E-waste collection center Address: TPV Technology India Private Limited, 59, Maheswari Nagar, 1st Main Road, Mahadevapura Post, Whitefield Road, Bangalore, Karnataka, PIN: 560048, Tel: 080-3023-1000 E-mail:

This product complies with all implemented RoHS type regulations worldwide, including but not limited to, EU, Korea, Japan, US States (e.g. California),Ukraine, Serbia, Turkey, Vietnam and India.

We continue to monitor, influence and develop our processes to comply with upcoming proposed RoHS type regulations, including but not limite d to, Braz il, Argentina, Canada.

serviceindia@aoc.com

www.aocindia.com/ewaste.php and to know where you can drop off your waste

Reduction in the use of haz ardous substances (India)

This product complies with the “E-Waste (Management) Rules, 2016” CHAPTER V, rule 16, sub-rule (1). Whereas New Electrical and Electronic Equipment and their components or consumables or parts or spares do not contain Lead, Mercury, Cadmium, Hexavalent Chromium, polybrominated biphenyls and polybrominated diphenyl ethers beyond a maximum concentration value of 0.1% by weight in homogenous materials for lead, mercury, hexavalent chromium, polybrominated bip heny ls and polybrominated diphenyl ethers and of 0.01% by weight in homogenous materials for cadmium except of exemptions set in Schedule 2 of the Rule.

Service

Warranty Statement for Europe

LIMITED THREE-YEAR WARRANTY*

For AOC LCD Monitors sold within Europe, AOC International (Europe) B.V. warrants this product to be free from defects in material and workmanship for a period of Three (3) years after the original date of consumer purchase. During this period, AOC International (Europe) B.V. will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. In the absent of the proof of purchase, the warranty will start 3 months after the date of manufacturing indicated on the product.

If the product appears to be defective, please contact your local dealer or refer to the service and support section on

www.aoc-europe.com for the warranty instructions in your country. The freight cost for the warranty is pre-paid

by AOC for the delivery and return. Please ensure you provide a dated proof of purchase along with the product and deliver to the AOC Certified or Authorized Service Center under the following condition:

• Make sure the LCD Monitor is packed in a proper carton box (AOC prefers the original carton box to protects your monitor well enough during transport).

• Put the RMA number on the address label

• Put the RMA number on the shipping carton

AOC International (E uro pe) B.V . will pay the return shippin g charges within one of the coun tries specified within this warranty statement. AOC International (Europe) B.V. is not responsible for any costs associated with the transportation of product across international borders. This includes the international border within the European Union. If the LCD Monitor is not available for collection when the currier attends, you will be charged a collection fee.

* This limited warranty does not cover any losses or damages that occur as a result of:

• Damages during transport due to improper packaging

• Improper installation or maintenance other then in accordance with AOC’s user manual

• Misuse

• Neglect

• Any cause other than ordinary commercial or industrial application

• Adjustment by non-authoriz ed source

• Repair, modification, or installation of options or parts by anyone other than an AOC Certified or

Authorized Service Center

• Improper environments like humidity, water damage and dusts

• Damaged by violence, earthquake and terrorist attacks

• Excessive or inadequate heating or air conditioning or electrical pow er s failure s, surg es, or ot her

irregularities

This limited warranty does not cover any of the product firmware or hardware that you or any third party have modified or altered; you bear the sole responsibility and liability for any such modifications or alterati on.

All AOC LCD Monitors are produced according to the ISO 9241-307 Class 1 pixel policy standards.

If your warranty has ex pired, you still have a cces s to all av ailable s ervice o ptions , but y ou will be re spons ible f or the cost of service, including parts, labor, shipping (if any) and applicable taxes. AOC Certified or Authorized Service Center will provide you with an estimate of service costs before receiving your authorization to perform service.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ) ARE LIMITED IN DURATION TO A PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. AOC INTERNATIONAL (EUROPE) B.V. OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCULSIVELY AS STATED HERE. AOC INTERNATIONAL (EUROPE) B.V. LIABILITY, WHETHER BASED ON CONTRACT, TORT, WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL AOC INTERNATIONAL (EUROPE) B.V. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT, OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUE NTIAL DAMAGE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS, WHICH MAY VARY FROM COUNTRY TO COUNTRY. THIS LIMITED WARRANTY IS ONLY VALID FOR PRODUCTS PURCHASED IN THE MEMBER COUNTRIES OF THE EUROPEAN UNION.

Information in this document is subject to change without notice. For more information, please visit:

http://www.aoc-europe.com

Warranty Statement for Middle East and Africa (MEA)

And

The Commonwealth of Independent States (CIS)

LIMITED ONE to THREE YEARS WARRANTY*

For AOC LCD Monitors sold within the Middle East and Africa (MEA) and the Commonwealth of Independent States (CIS), AOC International (Europe) B.V. warrants this product to be free from defects in material and workmanship for a period of One (1) to Three (3) years from the manufacture date depending on sale coun tr y. During this period, AOC International (Europe) B.V. offers a Carry-In (return to Service Center)Warranty Support at an AOC’s Authorized Service Center or Dealer and at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. As a Standard Policy, the warranty will be calculated from the manufacture date identified from the product ID serial number, but the total warranty will be Fifteen (15) months to Thirty Nine (39) months from MFD (manufacture date) depending on sale country. Warranty will be considered for exceptional cases that are out of warranty as per the product ID serial number and for such exceptional cases; Original Invoice/Proof Of Purchase Receipt is mandatory.

If the product appears to be defective, please contact your AOC authorized dealer or refer to the service and support section on AOC’s website for the warranty instructions in your country:

• Egypt:

• CIS Central Asia:

• Middle East:

• South Africa:

• Saudi Arabia:

Please ensure you provide a dated proof of purchase along with the product and deliver to the AOC Authorized Service Center or Dealer under the following condition:

• Make sure the LCD Monitor is packed in a proper carton box (AOC prefers the original carton box to

• Put the RMA number on the address label

• Put the RMA number on the shipping carton

* This limited warranty does not cover any losses or damages that occur as a result of:

• Damages during transport due to improper packaging

• Improper installation or maintenance other then in accordance with AOC’s user manual

• Misuse

• Neglect

• Any cause other than ordinary commercial or industrial application

• Adjustment by non-authoriz ed source

• Repair, modification, or installation of options or parts by anyone other than an AOC Certified or

http://aocmonitorap.com/egypt_eng

http://aocmonitorap.com/ciscentral

http://aocmonitorap.com/middleeast

http://aocmonitorap.com/southafrica

http://aocmonitorap.com/saudiarabia

protects your monitor well enough during transport).



Authorized Service Center

• Improper environments like humidity, water damage and dusts

• Damaged by violence, earthquakes and terrorist attacks

• Excessive or inadequat e heati ng or air condit io nin g or electrical powers failures, surges, or other

irregularities

All AOC LCD Monitors are produced according to the ISO 9241-307 Class 1 pixel policy standards.

If your warranty has ex pired, you still have a cces s to all av ailable s ervice o ptions , but y ou will be re spons ible f or the cost of service, including parts, labor, shipping (if any) and applicable taxes. AOC Certified, Authorized Service Center or dealer will provide you with an estimate of service costs before receiving your authorization to perform service.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ) ARE LIMITED IN DURATION TO A PERIOD OF ONE (1) to THREE (3) YEARS FOR PARTS AND LABOR FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. AOC INTERNATIONAL (EUROPE) B.V. OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCULSIVELY AS STATED HERE. AOC INTERNATIONAL (EUROPE) B.V. LIABILITY, WHETHER BASED ON CONTRACT, TORT, WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL AOC INTERNATIONAL (EUROPE) B.V. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT, OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS, WHICH MAY VARY FROM COUNTRY TO COUNTRY. THIS LIMITED WARRANTY IS ONLY VALID FOR PRODUCTS PURCHASED IN THE MEMBER COUNTRIES OF THE EUROPEAN UNION.

Information in this document is subject to change without notice. For more information, please visit:

http://www.aocmonitorap.com

AOC International (Europe) B.V.

Prins Bernhardplein 200 / 6

T el: +31 (0)20 504 6962 • Fax: +31 (0)20 5046933

floor, A msterdam, The Netherlands

AOC PIXEL POLICY

ISO 9241-307 CLASS 1

July 25th, 2013

AOC strives to deliver the highest quality products. We use some of the industry’s most advanced manufacturing processes and practice stringent quality control. However, pixel or sub pixel defects on the TFT monitor panels used in flat panel monitors are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but AO C guar antees th at any mo nitor with an una ccept a ble numb er of defects will be repaired or replaced under warranty. This Pixel Policy explains the different types of pixel defects and defines acceptable defect levels for each type. In order to qualify for repair or replacement under warranty, the number of pixel defects on a TFT monitor panel must exceed these acceptable levels.

Pixels and Sub Pixel Definition

A pixel, or picture element, is composed of three sub pixels in the primary colors of red, green and blue. When all sub pixels of pixel are lit, the three colored sub pixel together appear as a single white pixel. When all are dark, the three colored sub pixels together appear as a single black pixel.

Types of Pixel Defects

 Bright Dot Defects: the monitor displays a dark pattern, sub pixels or pixels are always lit or “on”  Black Dot Defects: the monitor displays a light pattern, sub pixels or pixels are always dark or “off”.

ISO 9241-307

Pixel Defect Class

Classe 1 1 1

AOC International (Europe) B.V.

Defect Type

1Bright Pixel

Defect Type 2

Black Pixel

Defect Type 3

Bright Sub pixel

2 1 0

+ + +

Defect Type 4

Black Sub pixel

1 3 5

Warranty Statement for North & South America (excluding Brazil)

WARRANTY STATEMENT For AOC Color Monitors

Including those Sold within North America as Specified

Envision Peripherals, Inc. warrants this product to be free from defects in material and workmanship for a period of three (3) years for parts & labor and one (1) year for CRT Tube or LCD Panel after the original date of consumer purchase. During this period, EPI ( EPI is the abbreviation of Envision Peripherals, Inc. ) will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. The parts or product that are replaced become the property of EPI.

In the USA to obtain service under this limited warranty, call EPI for the name of the Authorized Service Center closest to your area. Deliver the product freight pre-paid, along with the dated proof of purchase, to the EPI Authorized Service Center. If you cannot deliver the product in person:

Pack it in its original shipping container (or equivalent) Put the RMA number on the address label Put the RMA number on the shipping carton Insure it (or assume the risk of loss/damage during shipment) Pay all shipping charges

EPI is not responsible for damage to inbound product that was not properly packaged. EPI will pay the return shipment charges within one of the countries specified within this warranty statement. EPI is not responsible for any costs associated with the transportation of product across international borders. This includes the international borders of the countries within this warranty statements.

In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free number (888) 662-9888. Or you can request an RMA Number online at www.aoc.com/na-warranty.

* This limited warranty does not cover any losses or damages that occur as a result of:

Shipping or improper installation or maintenance Misuse Neglect Any cause other than ordinary commercial or industrial application Adjustment by non-authoriz ed source Repair, modification, or installation of options or parts by anyone other than an EPI Authorized Service Center Improper environment Excessive or inadequate heating or air conditioning or electrical power failures, surges, or other irregularities

This three-year limited warranty does not cover any of the product's firmware or hardware that you or any third party have modified or altered; you bear the sole responsibility and liability for any such modification or alteration.

EPI OBLIGAT IONS AND Y OUR REMEDIES HEREUNDER ARE SOLELY AND EXCLUSIVELY AS STATED HER E . EPI’ LIABILITY, WHETHER BASED ON CONTRACT, TORT. WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL ENVISION PERIPHERALS, INC. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. IN THE UNITED STATES OF AMERICA, SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. SO THE ABOVE LIMITATION MAY NOT APPL Y TO YOU. AL THOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.

In the United States of America, this limited warranty is only valid for Products purchased in the Continental United St ates, Ala ska, and Hawaii. Outside the United States of America, this limited warranty is only valid for Products purchased in Canada.

Information in this document is subject to change without notice. For more details, please visit:

USA: http://us.aoc.com/support/warranty ARGENTINA: http://ar.aoc.com/support/warranty BOLIVIA: http://bo.aoc.com/support/warranty CHILE: http://cl.aoc.com/support/warranty COLOMBIA: http://co.aoc.com/warranty COSTA RICA: http://cr.aoc.com/support/warranty DOMINICAN REPUBLIC: http://do.aoc.com/support/warranty ECUADOR: http://ec.aoc.com/support/warranty EL SALVADOR : http://sv.aoc.com/support/warranty GUATEMALA: http://gt.aoc.com/support/warranty HONDURAS: http://hn.aoc.com/support/warranty NICARAGUA: http://ni.aoc.com/support/warranty PANAMA: http://pa.aoc.com/support/warranty PARAGUAY: http://py.aoc.com/support/warranty PERU: http://pe.aoc.com/support/warranty URUGUAY: http://pe.aoc.com/warranty VENEZUELA: http://ve.aoc.com/support/warranty IF COUNTRY NOT LISTED: http://latin.aoc.com/warranty

PERIOD

NO CHARGE

CHARGES

EASE PROGRAME

Only for AOC branded monitors sold within the continental United States.

All AOC branded monitors are now covered by the EASE Program. If your monitor malfunctions at any time during the first three months, AOC will provide a replacement monitor within 72 hours after you are approved for our program. If your monitor qualifies for the EASE program, AOC will pay for freight both ways.

Step 1: Phone our TECH Department at 888.662.9888

Step 2: Fill out and return EASE registration forms by mail or fax.

Step 3: We will issue a Return Authorization Number upon verification into the program.

Step 4: A monitor will be advance shipped to your location.

Step 5: We will issue a UPS Call Tag to pick up the defective unit.

Step 6: Please review the following chart to see your E AS E program qualifications.

WARRANTY

COVERAGE AT

CUSTOMER

Within the first three months of purchase: Covered by EASE

Between 4 months – 1 Year

Between 1 Year - 3 Years: Covered by standard limited warranty

- New AOC monitor

- Call tag dispatched an d r eturn freightcharges via UPS

- All Parts & Labor Including CRT Tube & LCD Panel

- Parts & Labor (excluding CRT Tube & LCD Panel)

- None*

- UPS Return Freight to AOC

*AOC will need to obtain a credit card number if you would like to get a new AOC monitor advanced shipped to your location, prior to the defective unit arriving at AOC’s service center. If you do not wish to supply a credit card, AOC will only ship the new monitor, once the defective unit arrives at the AOC service center.

www.aocmonitor.com

AOC AG322QCX User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety

National Conventions

Power

Installation

Cleaning

Other

Setup

Contents in Box

Setup Stand & Base

Adjusting Viewing Angle

Connecting the Monitor

Free-Sync function

Adjusting

Setting Optimal Resolution

Windows 10

Windows 8

Windows 7

Hotkeys

Quick Switch

OSD Setting

Luminance

Image Setup

Color Setup

Picture Boost

OSD Setup

Game Setting

Extra

Exit

LED Indicator

Driver

Monitor Driver

Windows 10

Windows 8

Windows 7

i-Menu

e-Saver

Screen+

Troubleshoot

Specification

General Specification

Preset Display Modes

Pin Assignments

Plug and Play

Regulation

FCC Notice

WEEE Declaration

E-Waste Declaration for India

Service

Warranty Statement for Europe

Warranty Statement for Middle East and Africa (MEA)

AOC PIXEL POLICY

ISO 9241-307 CLASS 1

Warranty Statement for North & South America (excluding Brazil)

EASE PROGRAME
