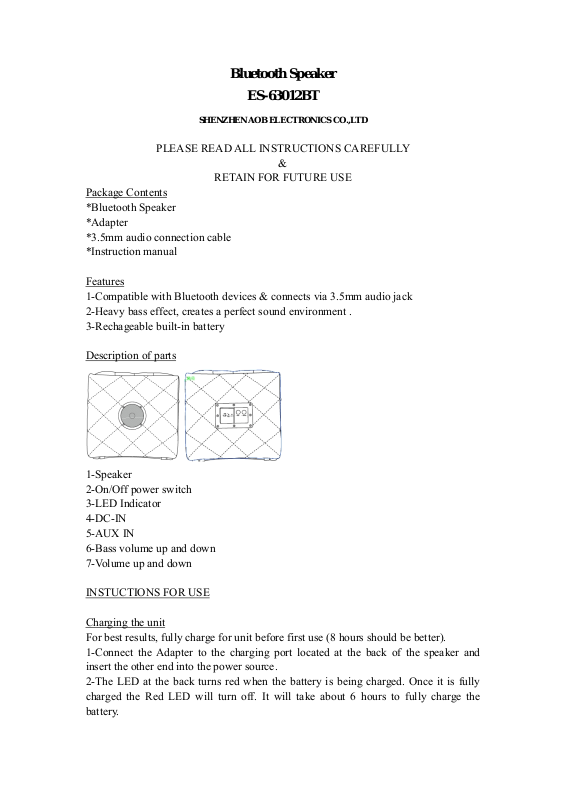

AOB ELECTRONICS ES 63012BT User Manual

Bluetooth Speaker

ES-63012BT

SHENZHEN AOB ELECTRONICS CO.,LTD

PLEASE READ ALL INSTRUCTIONS CAREFULLY

&

RETAIN FOR FUTURE USE
Package Contents
*Bluetooth Speaker
*Adapter
*3.5mm audio connection cable
*Instruction manual

Features
1-Compatible with Bluetooth devices & connects via 3.5mm audio jack
2-Heavy bass effect, creates a perfect sound environment .
3-Rechageable built-in battery

Description of parts

1-Speaker
2-On/Off power switch
3-LED Indicator
4-DC-IN
5-AUX IN
6-Bass volume up and down
7-Volume up and down

INSTUCTIONS FOR USE

Charging the unit
For best results, fully charge for unit before first use (8 hours should be better).
1-Connect the Adapter to the charging port located at the back of the speaker and
insert the other end into the power source.
2-The LED at the back turns red when the battery is being charged. Once it is fully
charged the Red LED will turn off. It will take about 6 hours to fully charge the
battery.

*Turn On/Off the Bluetooth Speaker
*Slide the On/off button at the back of speaker.

Turn the speaker to Bluetooth pairing mode.
1-Slide the On /Off button at the back of speaker
2-The Blue LED blinks. This indicates that it is in pairing mode.
(Noted: If you have paired to the speaker before, then the speaker will pair
automatically with the last device it connected)

Pairing your device with Bluetooth Speaker
Your Sofa speaker can wirelessly stream audio from any Bluetooth enabled device
within 8~10 meter. Simply follow the below steps.

1. Turn on the speaker and the Blue LED light will blink.

2. Turn on the Bluetooth on your Mobile phone or Tablet or Computer

3. It will search for Bluetooth devices

4. The pairing name of our Bluetooth speaker is “SL BT OTTOMAN”,Pair it with this

device.

5. If required, enter the password “0000” to confirm to finalize pairing.

6. Once paired successfully, the blue LED will flash slowly.

7. If you fail to pair it within the time frame or you want to pair it with a new device.

Please follow the steps outlined above.

8. Select your favorite song at the Bluetooth device and play it through your sofa

speaker.

Aux function of the Bluetooth Speaker

1. Turn on speaker by sliding the On/Off button at the back of the speaker.

2. Put the 3.5mm Aux in cable (provided) to the Aux port of the speaker, and,the

other end of the cable connects in the audio device (such as
computer/tablet/….etc.).

3. The blue LED will light up.

4. Select your favorite song at the Bluetooth device and play it through your sofa

speaker.
(Note: When you put 3.5mm Aux in cable into the Aux port of the speaker, the
Bluetooth connectivity of the speaker will be lost when Aux is in use.)
