AOB ELECTRONICS ES 53016BT Users manual

Color-changing Bluetooth® Speaker

Operation Manual HY-LTBX-BLK

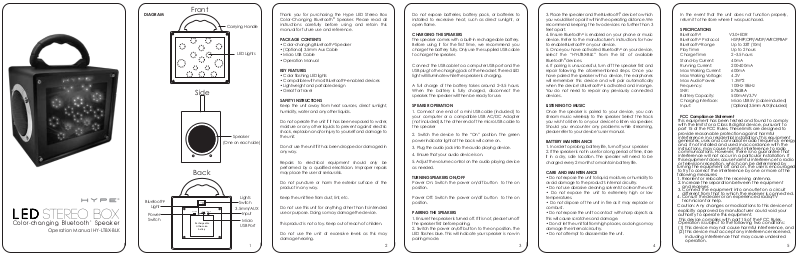

DIAGRAM

Bluetooth

Light

Power
Switch

Front

Carrying Handle

LED Lights

Side

Speaker

(One on each side)

Back

®

OFF/ON

Rechargeable

Lithium-ion

battery

I

O

LINE INUSB

Lights

Switch

3.5mm/AUX
Input

Micro

USB Port

Thank you for purchasing the Hype LED Stereo Box
Color-Changing Bluetooth® Speaker. Please read all
instructions carefully before using and retain this
manual for future use and reference.

PACKAGE CONTENTS

• Color-changing Bluetooth

• (Optional) 3.5mm Aux Cable

• Micro USB Cable

• Operation Manual

KEY FEATURES

• Color flashing LED lights

• Compatible with most Bluetooth

• Lightweight and portable design

• Great for travel

SAFETY INSTRUCTIONS

Keep the unit away from heat sources, direct sunlight,
humidity, water and any other liquids.

Do not operate the unit if it has been exposed to water,
moisture or any other liquids to prevent against electric
shock, explosion and/or injury to yourself and damage to
the unit.

Do not use the unit if it has been dropped or damaged in
any way.

Repairs to electrical equipment should only be
performed by a qualified electrician. Improper repairs
may place the user at serious risk.

Do not puncture or harm the exterior surface of the
product in any way.

®

Speaker

®

-enabled devices

Keep the unit free from dust, lint, etc.

Do not use this unit for anything other than its intended
use or purpose. Doing so may damage the device.

This product is not a toy. Keep out of reach of children.

Do not use the unit at excessive levels as this may
damage hearing.

Do not expose batteries, battery pack, or batteries to
installed to excessive heat, such as direct sunlight, or
open flame.

CHARGING THE SPEAKERS

The speaker comes with a built-in rechargeable battery.
Before using it for the first time, we recommend you
charge the battery fully. Only use the supplied USB cable
to charge the speaker.

Connect the USB cable to a computer USB port and the
USB plug to the charging jack of the headset. The red LED
light will illuminate while the speaker is charging.

A full charge of the battery takes around 2~3.5 hours.
When the battery is fully charged, disconnect the
speaker. The speaker will then be ready for use.

SPEAKER OPERATION

1. Connect one end of a mini USB cable (included) to
your computer or a compatible USB AC/DC Adapter
(not included) & the other end of the micro USB cable to
the speaker

2. Switch the device to the “On” position. The green
power indicator light at the back will come on.

3. Plug the audio jack into the audio playing device.

4. Ensure that your audio device is on.

5. Adjust the volume control on the audio playing device
as needed.

TURNING SPEAKERS ON/OFF

Power On: Switch the power on/off button to the on
position.

Power Off: Switch the power on/off button to the on
position.

PAIRING THE SPEAKERS

1. Ensure the speaker is turned off. If it is not, please turn off
the speaker first before pairing.

2. Switch the power on/off button to the on position. The
LED flashes blue. This will indicate your speaker is now in
pairing mode.

3. Place the speaker and the Bluetooth
you would like to pair it within the operating distance. We
recommend keeping the two devices no further than 3
feet apart.

4. Ensure Bluetooth
device. Refer to the manufacturer’s instructions for how
to enable Bluetooth

5. Once you have activated Bluetooth® on your device,
select the “HY-LTBX-BLK” from the list of available
Bluetooth

6. If pairing is unsuccessful, turn off the speaker first and
repair following the aforementioned steps. Once you
have paired the speaker with a device, the earphones
will remember this device and will pair automatically
when the device’s Bluetooth® is activated and in range.
You do not need to re-pair any previously connected
devices.

LISTENING TO MUSIC

Once the speaker is paired to your device, you can
stream music wirelessly to the speaker. Select the track
you wish to listen to on your device to listen via speaker.
Should you encounter any problems while streaming,
please refer to your device’s user manual.

BATTERY MAINTENANCE

1. In order to prolong battery life, turn off your speaker.

2. If the speaker is not in use for a long period of time, store
it in a dry, safe location. The speaker will need to be
charged every 2 months to maintain battery life.

CARE AND MAINTENANCE

• Do not expose the unit to liquid, moisture, or humidity to
avoid damage to the product's internal circuitry.

• Do not use abrasive cleaning solvents to clean the unit.

• Do not expose the unit to extremely high or low
temperatures.

• Do not dispose of the unit in fire as it may explode or
combust.

• Do not expose the unit to contact with sharp objects as
this will cause scratches and damage.

• Do not let the unit fall from high places, as doing so may
damage the internal circuitry.

• Do not attempt to disassemble the unit.

®

is enabled on your phone or music

®

on your device.

®

devices.

21 3 4 5

®

device to which

In the event that the unit does not function properly,
return it to the store where it was purchased.

SPECIFICATIONS

®

: V3.0+EDR

Bluetooth

®

Bluetooth

Protocol: HSP/HFP,OPP,/AVDP/AVRCP,PBAP
Bluetooth® Range Up to 33ft (10m)
Play Time: Up to 2 hours
Charge Time: 2~3.5 hours
Stand-by Current: 40mA
Running Current: 200-400mA
Max Working Current: 600mA
Max Working Voltage: 4.2V
Max Audio Power: 1.3W*2
Frequency: 100Hz-18kHz
SNR: ≥75dBA

Battery Capacity: 500mAh/3.7V

Charging Interface: Micro USB 5V (cable included)
Input: (Optional) 3.5mm AUX (included)

FCC Compliance Statement

This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful

interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by

turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the
following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment

and receiver.

3. Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV

technician for help.

Caution: Any changes or modi?cations to this device not
explicitly approved by manufacturer could void your
authority to operate this equipment.

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received,

including interference that may cause undesired

operation.
