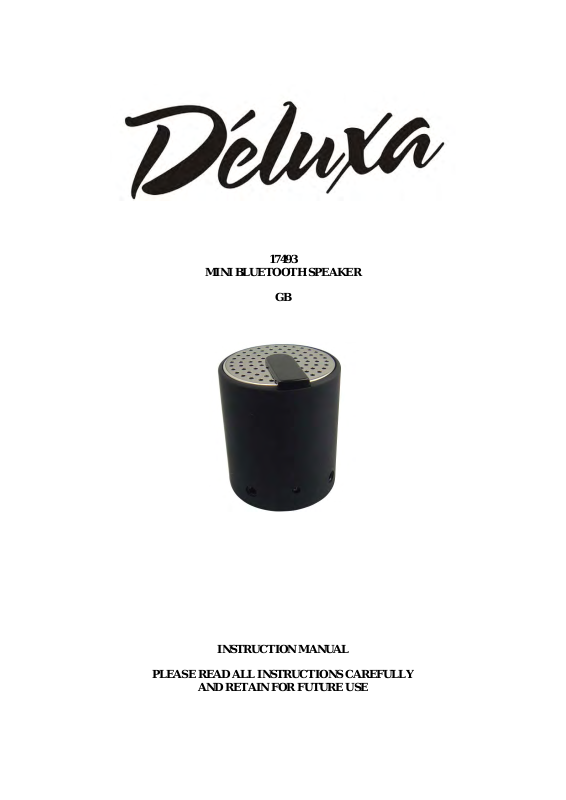

AOB ELECTRONICS ES52040BT User Manual

17493

MINI BLUETOOTH SPEAKER

GB

INSTRUCTION MANUAL

PLEASE READ ALL INSTRUCTIONS CAREFULLY

AND RETAIN FOR FUTURE USE

APPEARANCE AND CONTROLS
Key operation
Key function definition

PACKAGE CONTENTS

 Mini Bluetooth speaker
 Auxiliary cable
 USB cable
 Instruction Manual

INSTRUCTIONS

1. Turn on the speaker by sliding the ON/OFF switch (located on the bottom of the speaker) to the "On"

position. The red LED indicator should be lit.

2. Connect to the "Audio-out port" on your computer, mobile phone or the earphone jack of other musical

devices like disc man etc, using the provided auxiliary cable.

3. Using Bluetooth
a) Turn on the speaker by sliding the ON/OFF switch to the “

”, the LED of the speaker will flash blue,

which indicates a searching status.

b) Turn “ON” the Bluetooth option on your source device (mobile phones, laptop, tablet etc) to pair with

the Bluetooth speaker. Input the password “0000” if necessary during pairing.

c) Once the device is paired with the speaker, desired music can be played using the external (paired)

device via Bluetooth through the speaker.

d) If it still doesn’t work, please re-start the unit or turn off the Bluetooth, and follow the above steps again.

4. Volume can be controlled by adjusting the volume of your source device or computer.

5. Charge the speaker by connecting the provided USB cable to powered USB port on your computer.

6. The speaker takes 2-3 hours to get fully charged. Depending on the volume and the type of music played,

each charge can last between 30-50 minutes.

Note: Battery life may vary depending on volume, handling, control range etc.

PRODUCT SPECIFICATIONS:

Power output : 2.0W
SNR : >

85+2dB
Speakers : (Dia.) 36mm (20Hz – 20KHz)
Lithium battery input : 180mAH (DC5V)
Dimension : (Dia.) 43mm (H) 50mm
Material : ABS Case + Metal Net-cover
Charging time : 2~3 hours
Play time : 30-50 minutes
